Phase Transformation of Zr-Modified LaNiO₃ Perovskite Materials: Effect of CO₂ Reforming of Methane to Syngas

Abstract

Zr-modified LaNiO₃ catalysts (LaNi_xZr_1−xO₃; 0 ≤ x ≤ 1) are synthesized by the sol–gel method. The physio-chemical properties of materials are investigated using different characterization techniques and evaluated for the CO₂ reforming of methane to syngas. Interestingly, the characterization studies revealed the phase transformation from La-Zr pyrochlore to La-Ni perovskite depending on the Ni:Zr ratio in the material. The formation of the pyrochlore phase is observed for high-Zr-containing catalysts, thus leading to the production of bulk NiO. The formation of La-Ni perovskite is observed for high-Ni-containing catalysts and the ZrO₂ acted as a support. The formation of La-Ni perovskite supported on ZrO₂ enhanced the Ni dispersion of the catalysts. The high dispersion of Ni enhanced the catalytic activity, and LaNi_0.8Zr_0.2O₃ showed the best performance among all of the studied catalysts in terms of conversions and the H₂/CO ratio.

1. Introduction

The dry reforming of methane (DRM) is a process that converts potent greenhouse gases (CH₄ and CO₂) into useful syngas (H₂/CO ratio = 1) [1,2]. The syngas has many advantages; one of the main advantages is that it can be used as a feedstock for Fischer–Tropsch synthesis to produce a higher number of hydrocarbons and produce oxygenated derivatives. As the DRM reaction operates at 600–800 °C, the catalyst suffers from sintering and coking. So, designing a catalyst for the high-temperature reaction is a difficult task [3].

The applications of Ni-based structured oxides as catalysts for the reaction are many, and the active metal can be isomorphically substituted into various structures to enhance the catalytic activity [1]. The active metal in these materials is bound within the structure, thereby increasing the thermal stability towards the sintering of active particles. The oxygen mobility in the catalyst can be enhanced by the substitution of active metals into the lattice, which helps to enhance the resistance towards carbon deposition [4,5,6]. The structural materials tested to date include perovskite, pyrochlore, fluorite, and hexaaluminate [6,7,8,9,10]. Pyrochlores are highly crystalline mixed metal oxides, having the general formula A₂B₂O₇. The A-site of these materials is usually occupied by the large rare-earth trivalent metal such as La, and the B-site is occupied by a smaller tetravalent transition metal such as Zr. Several La- and Zr-based catalysts were studied [11,12,13,14,15]. However, the Eu₂Ir₂O₇ pyrochlore materials were first used to study the DRM reaction by Ashcroft et al. [16,17,18].

In this article, studies on Zr-modified LaNiO₃ catalysts (LaNi_xZr_1−xO₃) with varying x values synthesized by the sol–gel method are presented. The structural properties of the catalysts are analyzed with nitrogen sorption (BET method), powder X-ray diffraction (XRD), temperature-programmed reduction (TPR), Fourier transform infrared spectroscopy (FT–IR), X-ray photoelectron spectroscopy (XPS), and CHNS (carbon analysis in used catalysts) techniques. The synthesized catalysts are evaluated for the DRM reaction. The transformation from a perovskite structure to pyrochlore structure with the addition of Zr into the LaNiO₃ oxide framework and its influence on the catalytic performance of the material towards syngas production by the DRM reaction are presented.

2. Results and Discussion

2.1. X-ray Diffraction Studies

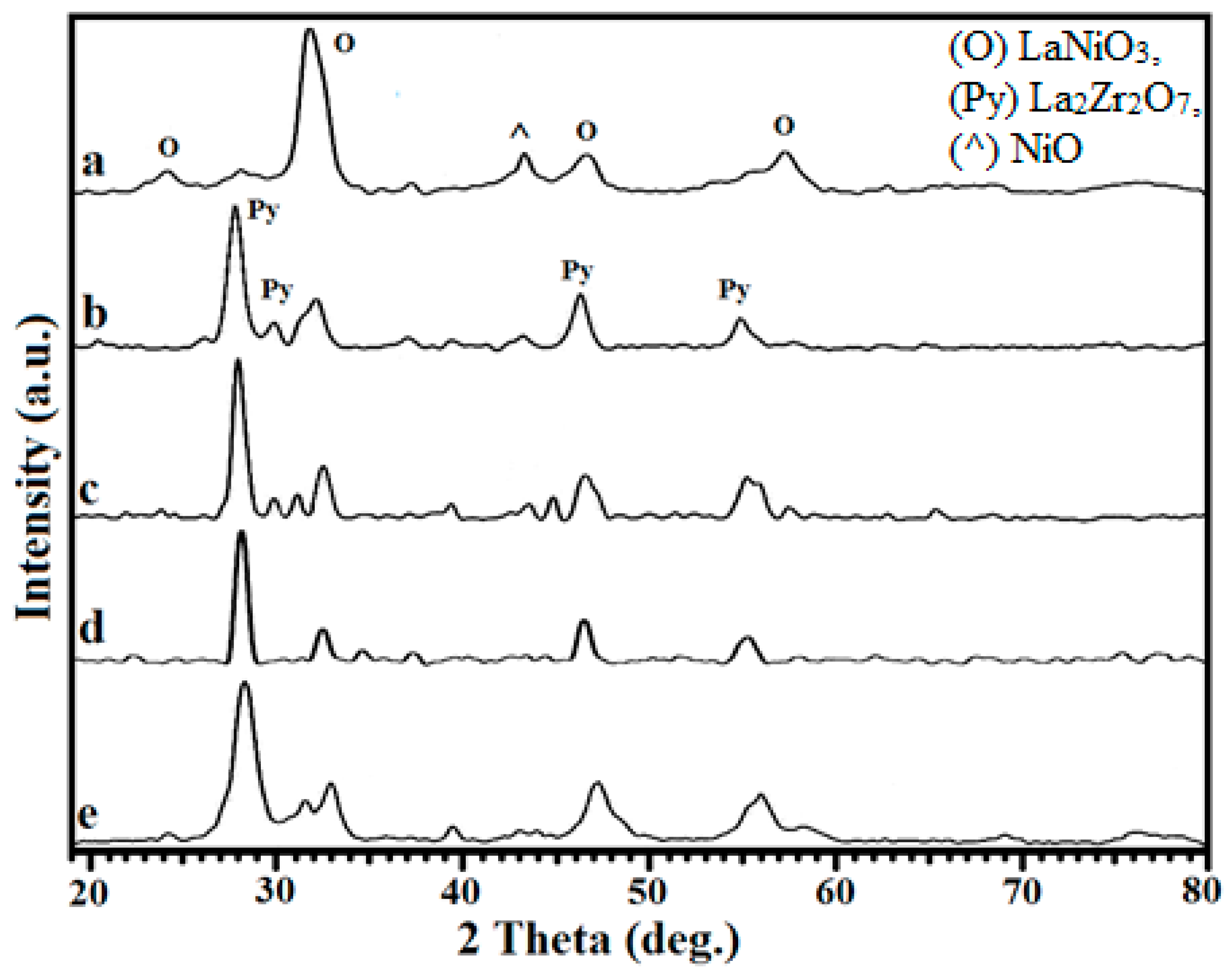

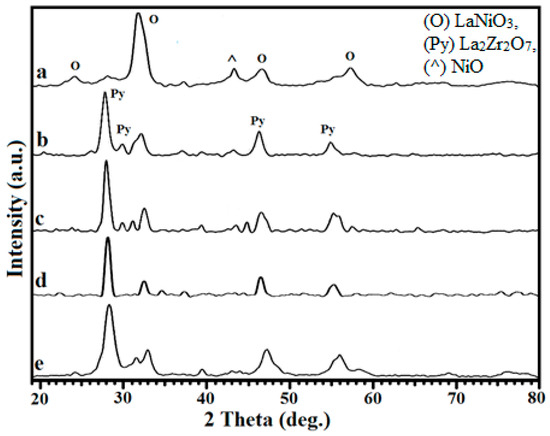

XRD patterns of LaNi_xZr_1−xO₃ catalysts synthesized by the sol–gel method are reported in Figure 1. With the change in Ni content, a variety of solid phases appeared in the catalysts. Low-Ni–containing catalysts exhibited high intense diffraction peaks at 2θ = 28, 31, 47, and 55°. These peaks correspond to the compound of the general formula La₂Zr₂O₇, having a crystalline cubic structure of a typical pyrochlore compound (JCPDS 01-073-0444). Along with this, a low-intensity LaNiO₃ perovskite phase (JCPDS 34–1181) formation was also observed. On the other hand, the catalyst with high Ni loading (x = 0.8) showed a completely different trend by the formation of the LaNiO₃ bimetallic rhombohedral perovskite phase (JCPDS 34–1181). A low-intensity peak was observed at 2θ = 43° in all the catalysts synthesized, which is ascribed to NiO (JCPDS 78–0643). With the increase in Ni content, the intensity of the perovskite peak increased, indicating the formation of a highly crystalline phase.

A study conducted by Bespalko et al. [19] on Ni–La–Zr oxide catalysts prepared by the sol–gel method indicated the formation of La₂Zr₂O₇ along with NiO in a mono oxide phase. From their crystallographic studies, they concluded that the formation of the bimetallic pyrochlore phase proceeded due to the formation of the biphasic system (MeLaZr → MeOx + La₂Zr₂O₇) [19]. The same group (Bussi et al. [20]) opined that the amorphous oxide formed might be converted into a biphasic system (NiLaZr mixed oxides)_amorphous → NiO + La₂Zr₂O₇) [20]. Studies carried out by Gaur et al. [21] on doping Rh, Ni, and Ca into La–Zr pyrochlore showed the formation of a discrete Ni oxide peak other than the pyrochlore structure in the case of Ca due to the incorporation of a Ca²⁺ cation in place of a La³⁺ cation. The oxygen vacancies led to structural defects and eventually to the formation of the CaZrO₃ perovskite phase. They also concluded that the low levels of substitution at the B–site did not have much of an effect on the pyrochlore structure [21].

According to the above studies, the formation of pyrochlore with La–Zr catalysts are more favorable in the low B–site modification. These findings are very much in agreement with the observations made in the present study, where the pyrochlore phase dominated in low-Ni-containing samples. On the other hand, with the increase in Ni loading, the formation of LaNiO₃ perovskite became more favorable than La–Zr pyrochlore. These typical phase changes were observed with changes in Ni content and these findings are in good agreement with the previous research.

2.2. Specific Surface Area Measurements

The specific surface areas of LaNi_xZr_1−xO₃ catalysts prepared by the sol–gel method were determined by the BET method and are reported in

Table 1. Specific surface areas of LaNi_xZr_1−xO₃ catalysts synthesized by sol–gel method.

S. No.	Catalysts	Specific Surface Area (m2/g)
1	LaNi0.2Zr0.8O3	14
2	LaNi0.3Zr0.7O3	12
3	LaNi0.4Zr0.6O3	7
4	LaNi0.6Zr0.4O3	3
5	LaNi0.8Zr0.2O3	5

. Surface areas of LaNi_xZr_1−xO₃ catalysts decreased with an increase in the Ni content. This may be due to the pore blockage of the LaZr-pyrochlore with NiO. As described in our previous articles, the surface areas of the catalysts are dependent on the calcination temperature [22,23]. With the increase in Ni content, the surface area dropped to 3.39 m²/g when x = 0.6 was reached. The small increase in surface area at x = 0.8 is seen due to the formation of LaNiO₃ perovskite on the ZrO₂ surface, as we observed in the XRD study.

2.3. Fourier Transform Infrared Spectroscopy Studies

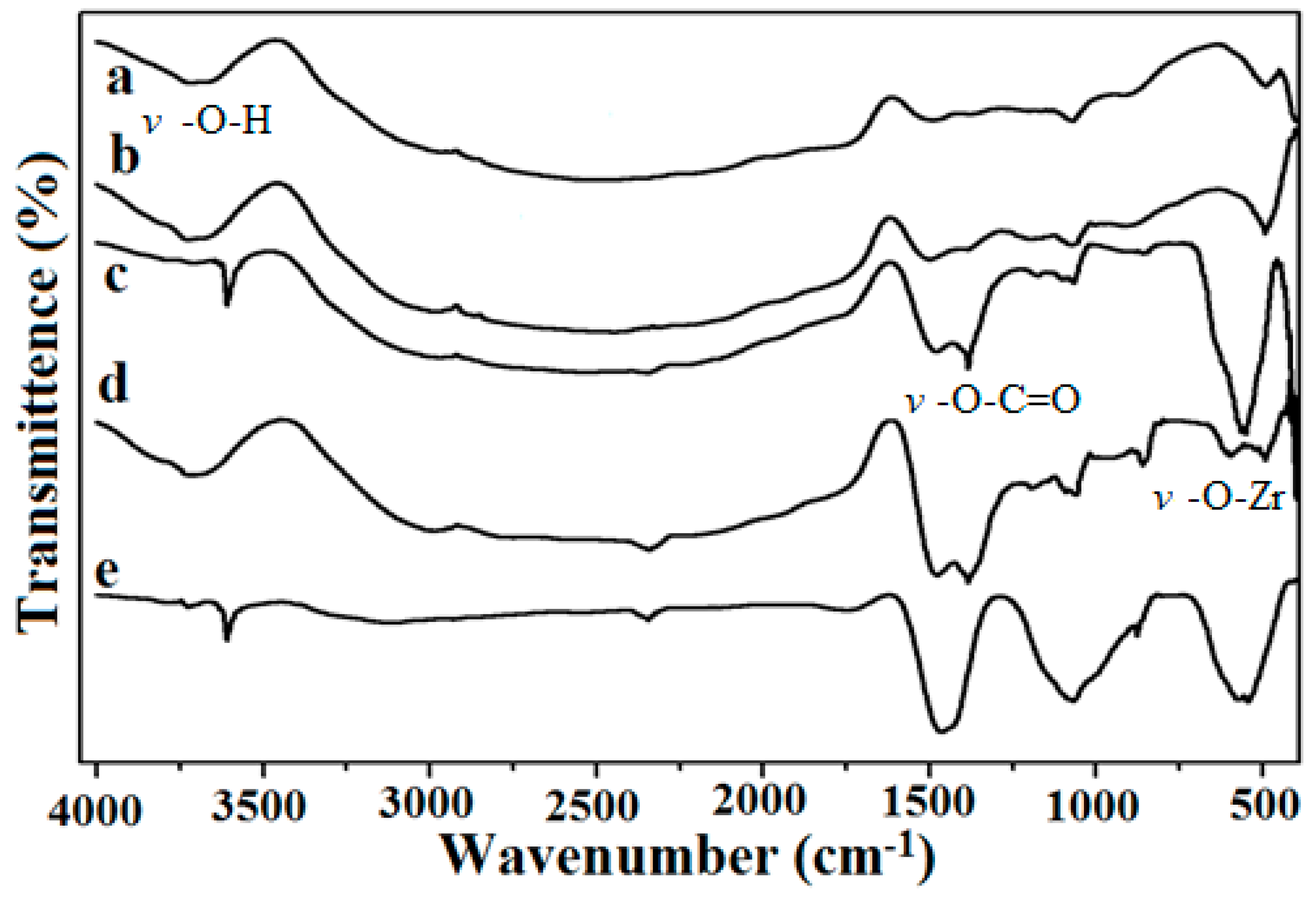

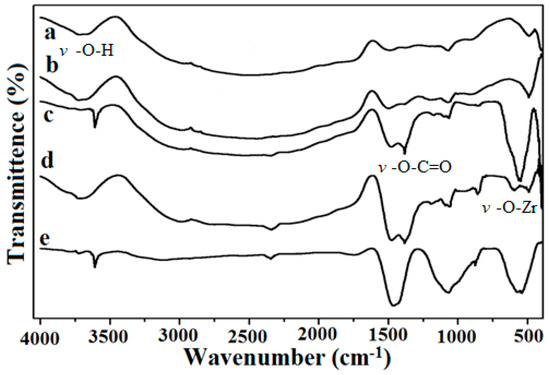

FTIR spectra of LaNi_xZr_1−xO₃ oxide catalysts synthesized by the sol–gel method are presented in Figure 2. In catalysts with a low Ni content, the –O–H stretching band of the physisorbed inner-layer water species appeared at 3200–3500 cm⁻¹. The bands at 1072–1180 and 1472–1424 cm⁻¹ correspond to Zr–O and O–C=O of the carboxylate spices in the metal propionates, respectively, which suggest that traces of propionates are still present after calcination. Studies on La–Zr-oxide thin films by Chen et al. [24] revealed that the FT–IR transmittance bands at 3200–3500, 1039–1125, and 1403–1541 cm⁻¹ related to –O–H, Zr–O–C, and O–C=O species, respectively. In another study conducted by Koteswara Rao et al. [25], high-intensity bands of the La₂Zr₂O₇ pyrochlore phase were seen in the absorption region of 1120–1110 cm⁻¹ due to the Zr–O vibrations.

According to Tong et al. [26], in La–Zr pyrochlore, the ZrO₆ vibrational mode is observed at 539 cm⁻¹. As Ni content increased, the intensities of the bands corresponding to Zr–O and ZrO₆ decreased and almost disappeared in higher-Ni-containing catalysts. When x = 0.8, all the other bands were minimized, and the peaks noticed were due to the metal–oxygen stretching frequencies. The FT–IR spectra recorded in the present study are in good agreement with the previous observations [24,25,26]. The finding from the FT–IR analysis is well corroborated with the results of X-ray diffraction studies.

2.4. Temperature-Programmed Reduction Studies

Reduction studies on LaNi_xZr_1−xO₃ catalysts have been carried out by varying the Ni content in the range of x = 0.2 to 0.8, and the results are depicted in Figure S1. The reduction peaks appeared in two zones, with the first falling in the temperature zone of 400–600 °C and the second falling in the temperature zone of > 600 °C. Bussi et al. [27], in their studies on Ni/LaZr pyrochlore catalysts, demonstrated the difference in the properties of Ni catalysts prepared by the co-precipitation and impregnation methods, particularly in the reduction behavior. The catalysts prepared by the co–precipitation method showed their reduction peaks at temperatures higher than 550 °C, implying a strong interaction of Ni with La–Zr pyrochlore. In contrast, in the catalysts prepared by the impregnation method, the major reduction peak appeared at T < 500 °C due to the NiO available on the surface of the La–Zr mixed oxide [27]. In the present investigation, the reduction patterns of LaNi_xZr_1−xO₃ catalysts prepared by the sol–gel method followed a similar trend. At low concentrations of Ni, it has a high interaction with supporting, La–Zr pyrochlore leading to the domination of a high-temperature peak. As the Ni content increases, the NiO exists in a highly dispersed state on La–Zr pyrochlore. Consequently, the reduction temperature decreased. The dispersed NiO is easily reduced, yielding Ni⁰ species at lower temperatures.

2.5. X-ray Photoelectric Spectroscopy Studies

La 3d core-level XP spectra of LaNi_xZr_1−xO₃ catalysts synthesized by the sol–gel method are shown in Figure S2. The spectra showed two peaks corresponding to La 3d_5/2 with binding energies at 834 and 838 eV, as observed in the studies presented in our previous articles. The splitting of the ~4 eV peak is due to the charge transfer from ligand (O 2p) to metal (La 4f). A similar observation was also made by Lima et al. [28] in their study on La_xCe_1−xNiO₃. In another study, Xu et al. [29] noticed the doublet peak for La 3d_5/2 appearing at 834.3 and 838.2 eV. They concluded that these binding energy values are higher than the simple La₂O₃. Hence, they predicted the possibility of a La–Zr solid solution/pyrochlore formation [29]. In the present study, the binding energy peaks in the ranges of 834.3–838.5 and 851–852 eV correspond to 3d_5/2 and 3d_3/2, respectively [28]. These peaks confirm the presence of La³⁺ on the surface of the catalysts. The other peak at 851–852 eV is due to La 3d_3/2. However, due to the overlapping of binding energies of La 3d_3/2 and Ni 2p_3/2, it is very difficult to interpret their peaks.

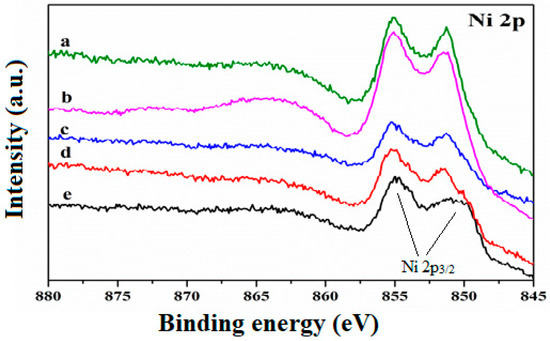

XP spectra of Ni 2p are presented in Figure 3. The nanoparticle NiO binding energy peaks are observed at 853–854 eV [21,30]. In the present study, the peaks with binding energies at 851 and 855 eV correspond to Ni 2p_3/2. These binding energies of Ni are higher than the simple NiO, signifying that Ni is stabilized in a higher oxidation state, thus confirming the possible formation of perovskite in the catalyst samples with a high Ni content. The same observation was also made by Gaur et al. [21] in their studies on Rh, Ni, and Ca-substituted La₂Zr₂O₇ pyrochlore catalysts. They observed higher binding energies for Ni 2p_3/2 than the regular NiO (Ni²⁺). They attributed this high-binding energy shift to the existence of Ni in Ni₂O₃ (Ni³⁺). Other studies conducted on perovskite-type oxide catalysts also showed higher binding energy peaks than regular NiO, indicating the presence of Ni³⁺ [28]. This is due to the high oxygen environment around Ni. With the increase in Ni content in the catalysts, the peak is shifted towards a higher binding energy value. This is also well corroborated with the results obtained from XRD studies which revealed that the formation of the perovskite phase is dominant in higher-Ni-containing samples.

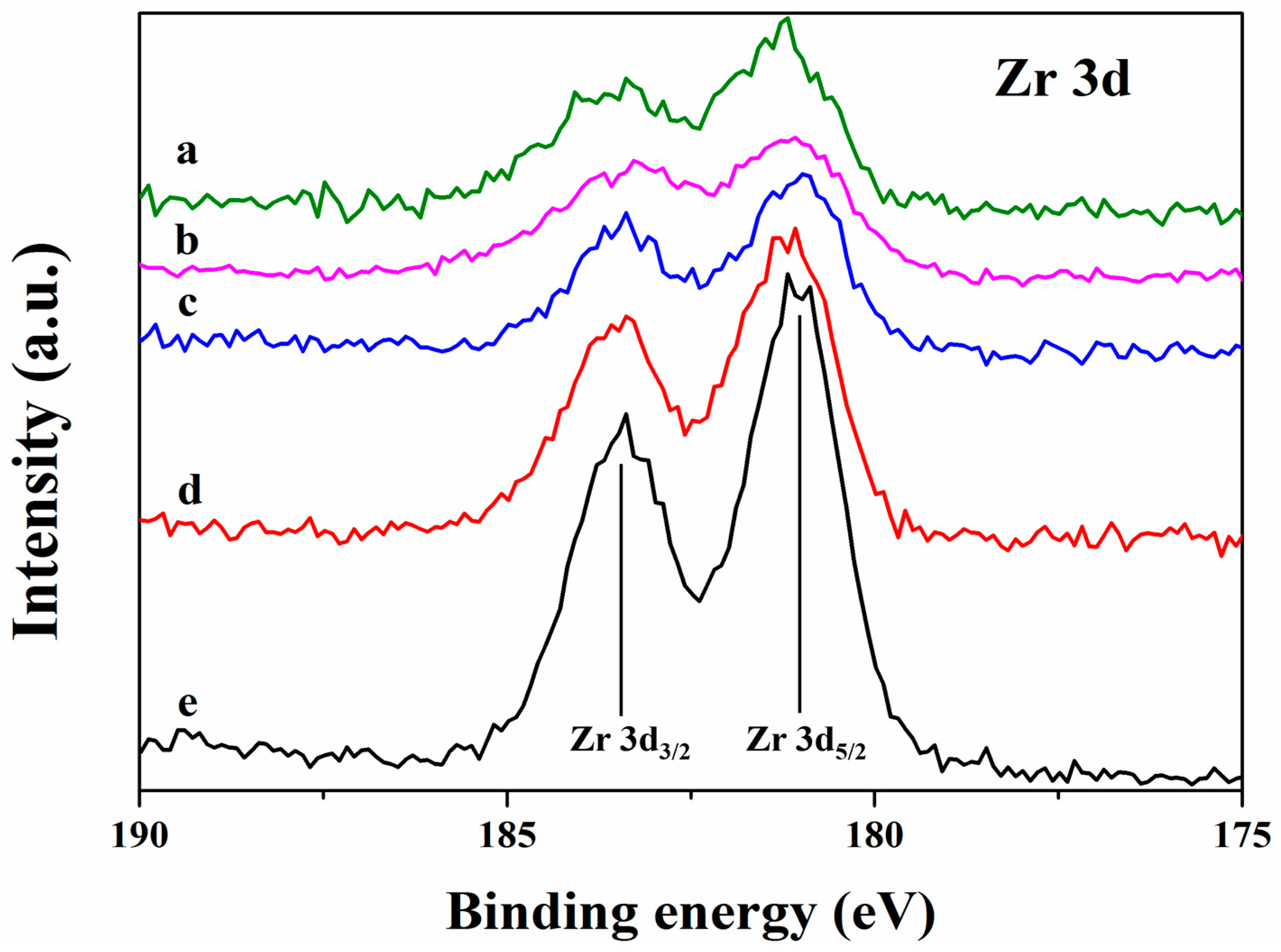

Figure 4 shows the Zr 3d XP spectra of the LaNi_xZr_1−xO₃ catalysts synthesized by the sol–gel method. In the present study, the bands corresponding to Zr⁴⁺ in zirconium oxide appearing at 181.3 and 183.7 eV are attributed to Zr 3d_5/2 and Zr 3d_3/2, respectively [31,32]. However, in low-Ni-containing catalysts, the binding energy values recorded are a little lower, indicating that the Zr is in a lower oxidation state due to the structural defects arising from the strong interaction with other metals. With the increase in Ni content in the catalysts, the binding energy bands shifted to a higher value, indicating that the Zr is stabilized in ZrO₂. In the Zr 3d XP spectra reported by Xu et al. [29], the peaks corresponding to binding energies of 181.3 and 183.7 eV were of Zr 3d_5/2 and Zr 3d_3/2, respectively, with the splitting of binding energies being 2.4 eV. This photoemission feature is well corroborated with the previous literature [29].

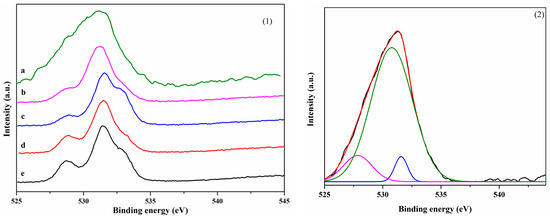

The XPS O 1 s of all catalysts are provided in Figure 5(1). The broad peak of O 1 s is deconvoluted into triplet peaks at 528, 530, and 531 eV, as shown in Figure 5(2). These triplet peaks are ascribed to the M-O of the lattice oxygen (530 eV), M-O of the lattice vacancies (528 eV), and Zr-OH of the hydroxyl group (531 eV) on the surface [33,34].

2.6. Catalytic Activity

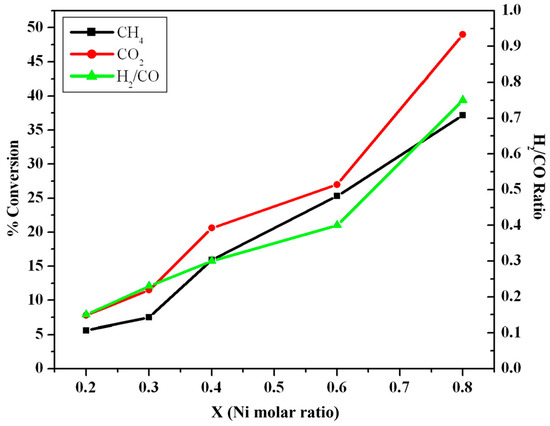

The DRM reaction was conducted over the synthesized LaNi_xZr_1−xO₃ catalysts using the feed in the ratio of CH₄:CO₂:N₂ = 80:80:80 and a total gas flow rate of 240 mL/min in a fixed-bed reactor. Figure 6 shows the activity profiles of LaNi_xZr_1−xO₃ oxide catalysts observed at 800 °C. The conversion of both methane and carbon dioxide progressively increased with an increase in the Ni content in the catalysts and attained their maximum values with catalysts having an x value of 0.8. The reducibility of the catalysts increased with the increase in Ni content. The catalytic activity also followed the same trend. As the Ni ratio increased, the formation of dispersed Ni with La–Zr support increased, leading to enhanced activity. On the other hand, catalysts with a lower Ni ratio (x = 0.2–0.4) showed a greater interaction with the support, lowering the reducibility. Among the series, x = 0.8 catalysts showed the highest activity with a 50% CO₂ conversion and 37% CH₄ conversion along with a syngas ratio of 0.76. This trend of a higher conversion of CO₂ over methane was also identified by other researchers [28,35]. Bachiller-Baeza et al. [35] observed that the DRM reaction is always accompanied by side reactions like the reverse water–gas shift reaction (RWGS). This reaction consumes H₂ produced in the DRM reaction to form CO, thereby decreasing the syngas ratio.

In the XRD studies, the peaks due to free NiO were not observed clearly in low-Ni-containing catalysts, probably due to its amorphous nature. The increase in Ni content in the catalysts changed the nature of the phase from La–Zr pyrochlore to La–Ni perovskite. This phase transformation was also confirmed in the XPS studies. Catalysts with a higher Ni content after reduction could lead to the formation of Ni metal with its high dispersion on La₂O₃ and also free Ni in the bulk form. This may be the reason for the higher activity of the catalysts with a high Ni content.

Figure S3 shows the time-on-stream study of the LaNi_0.8Zr_0.2O₃ catalyst at 800 °C for 10 h for the DRM reaction. The catalyst showed reasonable stability for 10 h. There was no decrease in the percentage CH₄ conversion over the period of study (10 h), but after 4 h of reaction, the percentage CO₂ conversion started to decline and concurrently, the syngas ratio also decreased. The high initial conversion of CO₂ could be due to the RWGS reaction. It is known that RWGS reaction is favorable when carried out on La–Zr pyrochlore catalysts [35].

2.7. Carbon Analysis of the Used Catalysts

The amount of carbon formed on the LaNi_xZr_1−xO₃ catalysts was estimated after the DRM reaction and the data obtained are reported in Table S1. The catalysts with low Ni loading showed a high amount of carbon formation. Catalysts with high Ni content of ≥0.6, originally existing in the LaNiO₃ perovskite phase, tended to produce highly dispersed Ni on La₂O₃–ZrO₂ during the reduction and enhanced the coke resistance.

3. Experimental

3.1. Synthesis of Catalysts by Sol–Gel Method

LaNi_xZr_1−xO₃ are synthesized by sol–gel method with x values varying from 0 to 1 with a 0.2 step-wise increment. The calculated amounts of the respective nitrate salts (Lanthanum(III) nitrate, Nickel(II) nitrate, and Zirconyl(II) nitrate) necessary for each x value (0 ≤ x ≤ 1) were dissolved separately in hot propionic acid. The resulting propionate solutions were mixed and subjected to 30 min of vigorous stirring. The resulting solutions were treated for reflux for 24 h and then the obtained paste was dried under reduced pressure until the formation of the resin. The resulting solids were oven-dried and calcined at 800 °C, with a temperature ramp of 2 °C/min, and maintained at the same temperature for 4 h.

3.2. Characterization Studies

The crystal phases of the catalysts were obtained on an XRD instrument (Ultima-IV diffractometer, Rigaku Corporation, Tokyo, Japan) using Cu Kα radiation (λ = 1.54 Å). The measurements were recorded in the range of 10 to 80° with a step of 0.045°. The specific surface areas of the catalysts were determined by a SMART SORB 92/93 instrument. Before BET measurement, the samples were dried at 150 °C for 2 h. TPR studies were performed using a homemade apparatus with 50 mg of the catalyst loaded in a quartz reactor, and catalyst reduction was conducted with a 10% H₂-balanced Ar gas mixture flowing at a rate of 30 mL/min and with a heating rate of 5 °C/min up to 900 °C. The hydrogen consumption was monitored using a gas chromatograph (Varian, 8301). FT–IR spectra were obtained on a Perkin Elmer (Spectrum GX, MS, Waltham, MA, USA) instrument using the KBr pellet method. XPS measurements were made on a KRATOS AXIS 165 instrument. The coke content of the used catalysts was determined using a CHNS analyzer (ElementaV, Bad Friedrichshall, Germany).

3.3. Catalytic Activity

The evaluation of catalysts was performed in a fixed-bed Inconel reactor under atmospheric pressure by passing a mixture of CO₂, CH₄, and N₂ at a ratio of 80/80/80 (total flow rate = 240 mL/min and GHSV of 28,800 h⁻¹). Prior to the activity measurements, the samples were reduced in-situ under a 60% H₂-balanced N₂ gas mixture at 600 °C for 6 h. After attaining the required temperature, the reaction was allowed to attain a steady state for a period of 1 h. For each analysis, the gas products were analyzed two times with an interval of 30 min. The activity results provided in this study are the average values of two consecutive analyses. The product analysis was carried out online on a Nucon 5765 gas chromatograph equipped with a Carbosphere column using argon gas as a carrier with a TCD detector. The accuracy of the catalytic activity results is within the error margin of ±3%.

4. Conclusions

The results presented here deal with characterization and activity studies on LaNi_xZr_1−xO₃ catalysts synthesized by the sol–gel method. The effect of the Ni content on the performance of LaNi_xZr_1−xO₃ oxide catalysts (0 < x <1) was studied for the dry reforming of methane reaction. At x = 0.2, the formation of the La₂Zr₂O₇ pyrochlore phase was observed. With the increase in Ni content, the pyrochlore phase disappeared at x = 0.8 and the LaNiO₃ perovskite oxide phase was formed. The catalyst with a high x value (x = 0.8) produced well-dispersed Ni metal species supported on La₂O₃ upon reduction. Among the series of LaNi_xZr_1−xO₃ catalysts studied, the catalyst with x = 0.8 showed the highest efficiency in terms of CH₄ and CO₂ conversions. It was observed that the formation of the perovskite phase plays a key role in the stability of the catalyst by controlling coke formation during the DRM reaction.
