Density Functional Theory Study of CuAg Bimetal Electrocatalyst for CO2RR to Produce CH3OH

by
Sensen Xue
1,
Xingyou Liang
1,
Qing Zhang
1,
Xuefeng Ren
2,
Liguo Gao
1,
Tingli Ma
3,4 and
Anmin Liu
1,*
1
State Key Laboratory of Fine Chemicals, School of Chemical Engineering, Dalian University of Technology, Dalian 116081, China
2
School of Ocean Science and Technology, Dalian University of Technology, Panjin 124221, China
3
Department of Materials Science and Engineering, China Jiliang University, Hangzhou 310018, China
4
Graduate School of Life Science and Systems Engineering, Kyushu Institute of Technology, 2-4 Hibikino, Wakamatsu, Kitakyushu 808-0196, Fukuoka, Japan
*
Author to whom correspondence should be addressed.
Catalysts 2024, 14(1), 7; https://doi.org/10.3390/catal14010007
Submission received: 11 November 2023 / Revised: 11 December 2023 / Accepted: 18 December 2023 / Published: 20 December 2023
(This article belongs to the Special Issue Theoretical and Computational Studies of Catalytic Reactions)
Browse Figures
Review Reports Versions Notes

Abstract

:
Converting superfluous CO2 into value-added chemicals is regarded as a practical approach for alleviating the global warming problem. Powered by renewable electricity, CO2 reduction reactions (CO2RR) have attracted intense interest owing to their favorable efficiency. Metal catalysts exhibit high catalytic efficiency for CO2 reduction. However, the reaction mechanisms have yet to be investigated. In this study, CO2RR to CH3OH catalyzed by CuAg bimetal is theoretically investigated. The configurations and stability of the catalysts and the reaction pathway are studied. The results unveil the mechanisms of the catalysis process and prove the feasibility of CuAg clusters as efficient CO2RR catalysts, serving as guidance for further experimental exploration. This study provides guidance and a reference for future work in the design of mixed-metal catalysts with high CO2RR performance.

Graphical Abstract

1. Introduction

The increasing emissions of greenhouse gases such as CO2 and CH4 into the air fuels the greenhouse effect and the concomitant global warming. The increase of the concentration of CO2 has the greatest impact on rising global temperatures. Owing to its important environmental and economic repercussions, reducing carbon emissions without affecting social and economic development has become one of the most urgent problems in China.
Before now, numerous strategies have been developed to reduce the concentration of CO2 in the atmosphere, such as CO2 capture and storage [1], absorption [2], and chemical conversion [3,4,5,6]. In recent years, the conversion of CO2 into a variety of economically valuable chemicals has emerged as a promising technology [7,8]. In this regard, electrochemical CO2 reduction (CO2RR) stands out because of its high value-added products (including ethanol and methanol) and its favorable conversion efficiency [9,10,11,12,13]. Among the various catalysts for CO2RR, copper (Cu) is widely used because of its abundance and ambient-environment working conditions; however, its limited activity and selectivity has hindered further development [14,15,16,17,18]. Consequently, recent research efforts have been devoted to enhancing its catalytic performance by adjusting catalyst properties such as particle size [19], shape [20,21,22], and grain boundary [23].
As a result, more attractive Cu-based bimetallic CO2RR catalysts with enhanced activity and selectivity have been discovered [24,25,26,27,28]. Thus, Kim et al. [29] reported a CuAu catalyst demonstrating high CO selectivity (~80%) in an overpotential of ~200 mV. Zhang et al. [30] fabricated a CuPd nanoalloy with a twofold enhancement in Faradaic efficiency for CO2RR to methane compared with Cu alone. Sarfraz et al. [31] reported a stable CuSn catalyst exhibiting a Faradaic efficiency for CO2RR to CO greater than 90% and a current density of −1.0 mA cm−2 at −0.6 V vs. a reversible hydrogen electrode (RHE). Chungseok et al. [32] reported on the performance of a CuAg nanowire. The Cu-Ag interface of the CuAg nanowire significantly improved the selectivity of CO2 reduction to CH4, with a maximum Faraday efficiency (FE) of 72% production at −1.17 V (relative to an RHE). Nevertheless, studies on Cu bimetallic catalysts inducing CO2RR to alcohol are scarce, and a more fundamental understanding is required for the rational design of Cu-based catalysts in this field.
After much research, significant progress has been made in CO2RR, especially in experimental studies. However, traditional experimental methods have inherent limitations, including blindness, workload, time, and resource waste. Nowadays, quantum chemistry and molecular dynamic simulations are widely used for calculating and simulating chemical systems as a technique to understand and predict behaviors at the molecular level [33,34,35,36,37]. Combining computational chemistry predictions with experimental investigation is a highly efficient methodology for accelerating the investigation of CO2RR. In electrocatalysis research, the density functional theory (DFT) is widely used to analyze possible reaction path energy changes, reaction mechanisms, and catalyst materials for special reactions, such as CO2RR, NRR, ORR, and so on [38]. CH3OH is one of the most important chemicals used as a green fuel or the intermediate of reactions. It can be directly used in energy conversion systems such as methanol fuel cells or internal combustion engines, due to its relatively high energy density.
In this study, we theoretically designed a series of CuAg bimetallic clusters and investigated their feasibility as catalysts for CO2RR to methanol according to the DFT. Considering that Ag nanoparticles have been previously shown to act as nucleation seeds for CuAg particles [39], we selected the most stable Ag cluster as a basis for the design of CuAg clusters with different configurations. Then, the CO2 adsorption behavior on different sites was evaluated. Finally, the reaction pathway was fully studied to determine the optimal CuAg cluster configuration. This work sought to experimentally study a series of CuAg bimetallic cluster catalysts and establish a screening mechanism to calculate the catalytic activity of reducing CO2RR to CH3OH. This work can serve as guidance for further experimental exploration.

2. Results and Discussion

2.1. Study on the Stability of the Ag Clusters

In contrast with Ag1 and Ag2 clusters, which exhibit only one structure, different isomers appear when the number of Ag atoms (n) is n ≥ 3. In this case, the most stable configuration among these isomers must be screened. For n = 3, there are two isomers, i.e., linear and triangular, with similar bond lengths according to the calculation. By comparing their total energy and binding energy (Table S1), it was found that the binding energy of the triangular isomer is lower than that of its linear counterpart. Therefore, the most stable structure of the Ag3 cluster is a flat regular triangle; its optimized structure is shown in Figure S1.
When n = 4, Ag4 exhibits five isomeric structures (Figure S2), among which the most stable is a flat rhombus. For n = 5, the most stable configuration is a plane isosceles trapezoid composed of three triangles. Moreover, when n = 6, a two-dimensional close-packed shape composed of four triangles has the lowest binding energy and is therefore the most stable. Surprisingly, these selected structures are all planar (the corresponding calculation results can be found in Supplementary Information).
Figure 1 depicts the most stable Agn cluster structures for n = 1–6. The relationship between the stability of the six clusters and the number of Ag atoms is analyzed in Figure 2. As can be seen, the binding energy (EB) has a downward trend, indicating that the total energy required for cluster binding decreases as the number of atoms increases. However, since the number of Ag atoms differs between clusters, the overall EB cannot be used to compare their stability, and the average binding energy (Eb) needs to be introduced. The calculated values of Eb are shown in Table S5. It was found that Eb decreases with the increase of n, reaching the smallest value (indicative of the highest cluster stability) for n = 6. Therefore, the Ag6 clusters were selected for the following experiments.

2.2. Study on the Stability of the CuAg Clusters

The selected Ag6 clusters were doped with Cu atoms, and the changes in parameters such as bond length, bond angle, and stability after doping were examined. When doped with a Cu atom, the resulting Cu1Ag5 cluster has two kinds of isomers. The specific structures are shown in Figure 3. Although the two structures have symmetry, the addition of Cu changes the structure of the Ag cluster, which loses its regular triangle structure. Calculation of the total energy and average binding energy of the two structures (Table S6) revealed that structure a is relatively stable in comparison to structure b. According to the method mentioned above, the most stable configurations of the Cu6-nAgn (n = 1–5) clusters shown in Figure 4 were obtained.
The HOMO and LUMO values of the six structures in Figure 4 were simulated and calculated. Figure 5 shows that the ELUMO decreases after doping with Cu, indicating that the presence of the Cu atoms enhances the electron-accepting ability of the Ag clusters. Moreover, the EHOMO of the bimetallic clusters decreases after Cu doping, indicating that the addition of Cu atoms reduces the electron-donating ability. The ΔE value is not significantly changed by Cu doping, and the ΔE of Cu5Ag1 is the smallest, which suggests that the electron transfer is the fastest in this cluster.

2.3. Study on the CO2 Adsorption Stability of the CuAg Clusters

Table 1 lists the values of the first four atoms with the largest absolute Fukui index of the six cluster structures. Because some clusters have symmetry, the Fukui indices of atoms that are structurally axisymmetric are equal. CO2 is easily adsorbed on atoms with small Fukui (-) values because the structure is stable after adsorption; therefore, cluster catalysts with small Fukui indices would exhibit enhanced CO2 activation.
CO2 adsorption proceeds mainly by two processes, i.e., single-site adsorption and dual-site adsorption. For the Cu5Ag1 cluster, the absolute Fukui value (−) of the silver atom at position 1 is the largest, and CO2 adsorption is therefore preferred at this site. The specific stable structure after adsorption is shown in Figure 6, and the bond lengths, bond angles, and energies of the Cu5Ag1–CO2 structure are summarized in Table 2. In double-site adsorption, comparison of the C–O bond length before and after adsorption reveals that two C–O bonds of CO2 elongate and the third shortens in structures a and c. In contrast, the two bond lengths of CO2 in structure b remain virtually unaltered after adsorption. These results suggest that structures a and c are more conducive to inducing CO2 reduction to alcohols. Then, by comparing the adsorption energy of structures a and c, it can be concluded that structure a is the best for double-site adsorption of CO2.
For single-site adsorption, the CO2 bond length in structure d does not change significantly, whereas the change in structure e is more obvious, indicating a higher probability of CO2 activation when C atoms are adsorbed on Cu5Ag1.
Similarly, the best adsorption configurations for double-site adsorption and single-site adsorption were obtained for the other clusters, as shown in Figure 7 and Figure 8. The calculation results show that the adsorption method, the CO2 activation degree, and the overall stability after adsorption are different between clusters.

2.4. Pathway Study on CO2RR to CH3OH

The mechanism of the CO2 reduction reaction is still unclear, and further experimental and theoretical research is needed. Recently, the reaction pathway of CO2 hydrogenation reduction to CH3OH has been studied [40,41]. Figure 9 depicts the preferred reaction mechanism of CO2 hydrogenation to obtain CH3OH; thus, this route was selected to study the catalytic effect of the CuAg clusters. The specific reaction intermediates are CO2*, HCOO*, HCOOH*, H2COOH*, TS4, CH2O*, TS5, CH3O*, and CH3OH.
The Gibbs free energy (ΔG) of the reactions involving intermediates, reactants, and products was calculated at 298.15 K, using the CO2 reactant as a benchmark. The results are shown in Table S16. Similarly, the adsorption structures of all products, intermediates, reactants, and catalysts were simulated according to the previous calculation structure. Structure optimization and ΔG calculation were performed using the same method.
The calculated energy values of the Cu5Ag1 cluster are listed in Table S17, and the corresponding ladder diagram is shown in Figure 10. It can be seen that in the absence of a catalyst, the ΔG of the intermediates gradually rises, and the energy difference between CO2 and CH3OH is 389.422 eV, which indicates that the reaction is not spontaneous under normal conditions.
When the Cu5Ag1 catalyst is added, the ΔG of the intermediate decreases compared with that obtained without the catalyst, indicating that the cluster has a certain degree of catalytic activity for the CO2 reduction reaction. After adding the Cu5Ag1 cluster, the difference between the energy of the CH3OH product and that of CO2 is only 84.709 eV. Compared with the results without a catalyst, although ΔG is reduced by about four times, it is still positive, indicating that the reaction cannot proceed spontaneously in the presence of Cu5Ag1. Therefore, it can be concluded that the Cu5Ag1 cluster has a catalytic effect on the reaction, albeit a small one.
The energy ladder diagram of the Cu4Ag2 cluster reduction is shown in Figure 11. Certain catalytic activity on CO2RR was detected for the Cu4Ag2 cluster by comparing the ΔG of each intermediate and the blank control data. Specifically, the catalyst decreases the ΔG of each intermediate, this decrease being the largest in HCOO* and TS4. In the absence of a catalyst, CO2 has the lowest ΔG in all the pathways, but this trend changes after adding Cu4Ag2. For the CH3OH product, after adding the Cu4Ag2 catalyst, ΔG decreases by 259.869 eV. Therefore, the Cu4Ag2 catalyst can induce the formation of CH3OH to some extent, reducing the reaction energy barrier and softening the reaction conditions. However, the ΔG of CH3OH is still positive, indicating that the catalytic effect of the cluster is not ideal.
The calculation results of the Cu3Ag3 cluster are shown in Figure 12. It was found that after the addition of the Cu3Ag3 cluster catalyst, the ΔG of the CO2 hydrogenation route undergoes a major change. In the absence of a catalyst, the energy of the intermediates gradually rises, whereas this trend is reversed after adding the Cu3Ag3 catalyst. The catalyst reduces the ΔG of most of the intermediates in the entire path, among which HCOO*, H2COOH*, and CH3O* exhibit the largest decrease, indicating that the catalyst can promote the formation of the three intermediates. However, the ΔG of the transition state TS4 is higher by about 23 eV than that obtained without catalysis, which suggests that the bimetallic Cu3Ag3 cluster could not promote the formation of TS4. For the CH3OH product, after adding the Cu3Ag3 cluster catalyst, the ΔG of CH3OH decreases by 152.792 eV, indicating that the catalyst can effectively reduce the energy barrier of the reaction path. However, since the ΔG of the intermediate product increases, the catalytic effect of the Cu3Ag3 cluster on CO2RR is not significant either.
Figure 13 shows the energy ladder diagram of CO2RR to CH3OH after adding the bimetallic Cu2Ag4 cluster catalyst. The ΔG of all intermediates and products decreases significantly. Compared with the results of the reaction without a catalyst, the ΔG values of all intermediates and reactants decrease directly from positive to negative, indicating that the hydrogenation of CO2 to CH3OH can occur spontaneously in the presence of the Cu2Ag4 catalyst. Therefore, the Cu2Ag4 cluster displays sufficient catalytic activity on the CO2RR to CH3OH.
The catalytic effect of the cluster doped with one Cu atom is shown in Figure 14. From the overall diagram, it can be deduced that the cluster has a good catalytic effect, because the ΔG of the six intermediates is lower than that of CO2. However, the ΔG of the TS5 intermediate is higher than that of CO2, and the ΔG of TS5 is positive. Focusing on the CH3OH product, it can be seen that the ΔG of CH3OH after the addition of the catalyst does not differ much from that of CO2; the difference is only 23.456 eV. This indicates that the reaction is more favorable after adding Cu1Ag5. Therefore, the Cu1Ag5 cluster can promote the reaction of CO2 to CH3OH, but the overall catalytic effect is not as significant as that of Cu2Ag4.
Next, we analyzed the catalytic effect of a pure silver cluster Ag6. The specific calculation results are shown in Figure 15. The reaction pathway with the Ag6 cluster is completely different from those of the bimetallic catalysts, and no catalytic effect on CO2RR is observed. The energy barrier that needs to be overcome after adding the catalyst Ag6 cluster is higher than the energy barrier present when no catalyst has been added, indicating that the pure metal Ag6 cluster catalyst would require more severe reaction conditions and would destabilize the intermediates. The Ag6 cluster cannot promote the formation of the intermediates in the CO2RR to CH3OH.
The energy ladder diagrams of the bimetallic CuAg clusters and the pure metal Ag6 cluster can be directly compared in Figure 16. It can be seen that the ΔG value of the path is higher for Ag6 than for the CuAg clusters, indicating that the energy barrier that needs to be overcome for the reaction to proceed is the highest, and the catalytic effect of Ag6 is the worst. This result demonstrates that Cu doping can indeed increase the catalytic activity of the clusters, which is further confirmed by the experimental results of single-site adsorption of CO2 (the corresponding data can be found in the supporting information).
By comparing the catalytic activity of the doped bimetallic clusters, it was found that the ΔG of intermediates and the product obtained with Cu2Ag4 exhibits the largest decrease among the clusters, and the ΔG of all the intermediates decreases to negative values. This shows that the Cu2Ag4 catalyst can significantly improve the stability of the reaction intermediates, thereby facilitating their generation and promoting the spontaneous progress of the reaction. Therefore, among all the catalysts, Cu2Ag4 exhibits the best catalytic activity.

3. Models and Methods

This study primarily used the DMol3 module in the Materials Studio software (version 2017), employing spin-polarized DFT to draw the structure, optimize the cluster structure, and calculate the energy. The parameters were set as follows: Functional function selects generalized gradient approximation and Perdew–Burke–Ernzerhof (PBE), the maximum iteration in energy calculation was 1000 times, and “Use symmetry” was selected. In the electronic module, the integration accuracy and self-consistent field (SCF) tolerances were both set to medium. In the basis set, double numerical plus polarization (DNP) was selected, and the basis file was set to 4.4. In the SCF module, the maximum SCF expansion was set to 1000 times, with “Use smearing to tail” checked. In the solvent module, the “Use COSMO solution environment” was set to “water”.
Before designing the CuAg bimetallic cluster catalyst, the method by which it will be determined whether the catalyst itself is stable should be clarified. The binding energy E is calculated by quantification, and the formula is as follows (1)–(3).

3.1. The Cluster Stability and CO2 Adsorption Structure Data Analysis

To calculate the binding energy EB, find the total energy after the final step of convergence is successful in the calculation result file, and bring the total energy into Formula (1). For Ag clusters, the smaller the binding energy is, the more stable the structure is.
EB = EAgn − n × EAg
The smaller the average binding energy (Eb) of each atom, the lower the stored energy and the more stable the structure of the whole cluster. The average binding energy of the Ag cluster is found using Formula (2), and that of the CuAg metal cluster is found using Formula (3).
Eb = EAgn/n − EAg
Eb = [ECuAg − n × EAg − (6 − n) × ECu]/6
The adsorption energy ECuAg−CO2 is obtained from Formula (4). The smaller the adsorption energy, the more stable the overall structure after adsorption and the greater the change in the C–O bond length, indicating that the catalyst has a better degree of CO2 activation.
Eads = ECuAg-CO2 − ECuAg − ECO2

3.2. Data Analysis of CO2 Hydrogenation Reduction Path

At 298.15 K, the Gibbs free energy of reacting all monomers is based on CO2, and the respective ΔG is obtained. The two sets of ΔG data calculated with and without the catalyst were made into an energy ladder diagram to analyze the catalytic effect of CuAg clusters.

3.3. The HOMO, LUMO and ΔE of the Cluster

The highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbitals (LUMO) eigenvalues, the HOMO-LUMO gap, and the Fukui function are the most commonly used parameters to estimate the performance of a designed catalyst. The HOMO represents the highest occupied molecular orbital. The higher the EHOMO, the easier it is for CuAg clusters to give electrons. The LUMO represents the lowest unoccupied molecular orbital. The lower the ELUMO, the easier it is for CuAg clusters to obtain electrons. The magnitude of the energy band gap value (ΔE = ELUMO − EHOMO) governs the electron transfer rate in the CuAg cluster. The smaller the ΔE, the faster the electron transfer rate between the HOMO and LUMO orbitals.

3.4. Calculation of the Fukui Index of Atoms in the Cluster

The smaller the Fukui (−) value of an atom, the more easily the atom is attacked by a Lewis base; the larger the Fukui (+) of the atom, the more easily the atom is attacked by a Lewis acid. Because CO2 is a Lewis base, the smaller the Fukui (−) value, the more stable the structure will be after CO2 adsorption. The better the degree of activation of the cluster catalyst to CO2, the more easily the atom becomes the best adsorption site for CO2.

4. Conclusions

On the basis of quantum chemistry theory, the stability of pure Ag metal clusters and bimetallic CuAg clusters and the CO2 adsorption activity and catalytic effect of the CuAg clusters on the CO2 hydrogenation to CH3OH were analyzed by energy calculation and optimization of the constructed structures. The following conclusions were obtained: The most stable configurations of Agn (n = 1–6) metal clusters are planar. The stability of the configurations increases with the symmetry. When the adsorption site and adsorption mode of CO2 on the cluster catalyst are different, the degree of activation of the catalyst and the stability after the adsorption of CO2 are also different. Doping Cu atoms in the Ag cluster can improve the catalytic activity toward CO2 hydrogenation to CH3OH, with the Cu2Ag4 cluster affording the best results. This theoretical study provides guidance and a reference for future work in the design of mixed-metal catalysts with high CO2RR performance.
Based on theoretical calculations, the relationship between a catalyst’s structure, composition, and catalytic CO2RR activity is constructed, which can be used to guide the preparation of the catalyst and better study the reaction path and mechanism of CO2RR synthesis of CH3OH. This has important theoretical and practical significance for promoting research and development of catalytic CO2RR synthesis of CH3OH. This article establishes a database for future research and further guides the experimental study of catalysts for reducing CO2 to CH3OH. In future studies, theoretical research will be used in the catalytic CO2RR to produce alcohols, methane, formic acid, and formaldehyde.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/catal14010007/s1.

Author Contributions

Investigation, S.X., X.L. and Q.Z.; writing—original draft preparation, S.X., X.L., Q.Z. and A.L.; writing—review and editing, X.R., L.G. and T.M. All authors have read and agreed to the published version of the manuscript.

Funding

The support of the Fundamental Research Funds for the Central Universities (DUT22LK09), the Open Foundation of Key Laboratory of Industrial Ecology and Environmental Engineering, MOE (KLIEEE-20-01, KLIEEE-21-02), the Foundation of State Key Laboratory of High-efficiency Utilization of Coal and Green Chemical Engineering (2022-K70), and the Hefei Advanced Computing Center for this work are gratefully acknowledged.

Data Availability Statement

Data generated or analyzed during this study are provided in full within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ooi, R.E.; Foo, D.C.; Ng, D.K.; Tan, R.R. Planning of carbon capture and storage with pinch analysis techniques. Chem. Eng. Res. Des. 2013, 91, 2721–2731. [Google Scholar] [CrossRef]
  2. Hospital-Benito, D.; Lemus, J.; Moya, C.; Santiago, R.; Palomar, J. Process analysis overview of ionic liquids on CO2 chemical capture. Chem. Eng. J. 2020, 390, 124509. [Google Scholar] [CrossRef]
  3. Shi, Y.; Hou, S.; Qiu, X.; Zhao, B. MOFs-Based Catalysts Supported Chemical Conversion of CO2. Top. Curr. Chem. 2020, 378, 11. [Google Scholar] [CrossRef] [PubMed]
  4. Lan, J.; Qu, Y.; Zhang, X.; Ma, H.; Xu, P.; Sun, J. A novel water-stable MOF Zn(Py)(Atz) as heterogeneous catalyst for chemical conversion of CO2 with various epoxides under mild conditions. J. CO2 Util. 2020, 35, 216–224. [Google Scholar] [CrossRef]
  5. Singh, A.K.; Singh, S.; Kumar, A. Hydrogen energy future with formic acid: A renewable chemical hydrogen storage system. Catal. Sci. Technol. 2016, 6, 12–40. [Google Scholar] [CrossRef]
  6. Aresta, M.; Dibenedetto, A.; Angelini, A. Catalysis for the Valorization of Exhaust Carbon: From CO2 to Chemicals, Materials, and Fuels. Technological Use of CO2. Chem. Rev. 2014, 114, 1709–1742. [Google Scholar] [CrossRef] [PubMed]
  7. Leitner, W. Carbon-Dioxide as a Raw-Material—The Synthesis of Formic-Acid and Its Derivatives from CO2. Angew. Chem. -Int. Ed. 1995, 34, 2207–2221. [Google Scholar] [CrossRef]
  8. Kortlever, R.; Shen, J.; Schouten, K.J.P.; Calle-Vallejo, F.; Koper, M.T.M. Catalysts and Reaction Pathways for the Electrochemical Reduction of Carbon Dioxide. J. Phys. Chem. Lett. 2015, 6, 4073–4082. [Google Scholar] [CrossRef]
  9. Hori, Y.; Wakebe, H.; Tsukamoto, T.; Koga, O. Electrocatalytic Process of Co Selectivity in Electrochemical Reduction of CO2 at Metal-Electrodes in Aqueous-Media. Electrochim. Acta 1994, 39, 1833–1839. [Google Scholar] [CrossRef]
  10. Whipple, D.T.; Kenis, P.J.A. Prospects of CO2 Utilization via Direct Heterogeneous Electrochemical Reduction. J. Phys. Chem. Lett. 2010, 1, 3451–3458. [Google Scholar] [CrossRef]
  11. Gao, D.; Zhou, H.; Cai, F.; Wang, J.-G.; Wang, G.; Bao, X. Pd-Containing Nanostructures for Electrochemical CO2 Reduction Reaction. Acs Catal. 2018, 8, 1510–1519. [Google Scholar] [CrossRef]
  12. Yoo, J.S.; Christensen, R.; Vegge, T.; Nørskov, J.K.; Studt, F. Theoretical Insight into the Trends that Guide the Electrochemical Reduction of Carbon Dioxide to Formic Acid. Chemsuschem 2016, 9, 358–363. [Google Scholar] [CrossRef] [PubMed]
  13. Back, S.; Kim, H.; Jung, Y. Selective Heterogeneous CO2 Electroreduction to Methanol. Acs Catal. 2015, 5, 965–971. [Google Scholar] [CrossRef]
  14. Peterson, A.A.; Abild-Pedersen, F.; Studt, F.; Rossmeisl, J.; Nørskov, J.K. How copper catalyzes the electroreduction of carbon dioxide into hydrocarbon fuels. Energy Environ. Sci. 2010, 3, 1311–1315. [Google Scholar] [CrossRef]
  15. Dinh, C.-T.; Burdyny, T.; Kibria, M.G.; Seifitokaldani, A.; Gabardo, C.M.; de Arquer, F.P.G.; Kiani, A.; Edwards, J.P.; De Luna, P.; Bushuyev, O.S.; et al. CO2 electroreduction to ethylene via hydroxide-mediated copper catalysis at an abrupt interface. Science 2018, 360, 783–787. [Google Scholar] [CrossRef]
  16. Gattrell, M.; Gupta, N.; Co, A. A review of the aqueous electrochemical reduction of CO2 to hydrocarbons at copper. J. Electroanal. Chem. 2006, 594, 1–19. [Google Scholar] [CrossRef]
  17. Nie, X.; Luo, W.; Janik, M.J.; Asthagiri, A. Reaction mechanisms of CO2 electrochemical reduction on Cu(111) determined with density functional theory. J. Catal. 2014, 312, 108–122. [Google Scholar] [CrossRef]
  18. Ren, D.; Fong, J.; Yeo, B.S. The effects of currents and potentials on the selectivities of copper toward carbon dioxide electroreduction. Nat. Commun. 2018, 9, 925. [Google Scholar] [CrossRef]
  19. Reske, R.; Mistry, H.; Behafarid, F.; Cuenya, B.R.; Strasser, P. Particle Size Effects in the Catalytic Electroreduction of CO2 on Cu Nanoparticles. J. Am. Chem. Soc. 2014, 136, 6978–6986. [Google Scholar] [CrossRef]
  20. Choi, C.; Cheng, T.; Espinosa, M.F.; Fei, H.; Duan, X.; Goddard, W.A.; Huang, Y. A Highly Active Star Decahedron Cu Nanocatalyst for Hydrocarbon Production at Low Overpotentials. Adv. Mater. 2019, 31, e1805405. [Google Scholar] [CrossRef]
  21. Ma, M.; Djanashvili, K.; Smith, W.A. Controllable Hydrocarbon Formation from the Electrochemical Reduction of CO2 over Cu Nanowire Arrays. Angew. Chem. Int. Ed. 2016, 55, 6680–6684. [Google Scholar] [CrossRef] [PubMed]
  22. Li, Y.; Cui, F.; Ross, M.B.; Kim, D.; Sun, Y.; Yang, P. Structure-Sensitive CO2 Electroreduction to Hydrocarbons on Ultrathin 5-fold Twinned Copper Nanowires. Nano Lett. 2017, 17, 1312–1317. [Google Scholar] [CrossRef] [PubMed]
  23. Feng, X.; Jiang, K.; Fan, S.; Kanan, M.W. A Direct Grain-Boundary-Activity Correlation for CO Electroreduction on Cu Nanoparticles. ACS Cent. Sci. 2016, 2, 169–174. [Google Scholar] [CrossRef] [PubMed]
  24. Hirunsit, P.; Soodsawang, W.; Limtrakul, J. CO2 Electrochemical Reduction to Methane and Methanol on Copper-Based Alloys: Theoretical Insight. J. Phys. Chem. C 2015, 119, 8238–8249. [Google Scholar] [CrossRef]
  25. Zheng, X.; Ji, Y.; Tang, J.; Wang, J.; Liu, B.; Steinrück, H.-G.; Lim, K.; Li, Y.; Toney, M.F.; Chan, K.; et al. Theory-guided Sn/Cu alloying for efficient CO2 electroreduction at low overpotentials. Nat. Catal. 2019, 2, 55–61. [Google Scholar] [CrossRef]
  26. Kim, D.; Resasco, J.; Yu, Y.; Asiri, A.M.; Yang, P. Synergistic geometric and electronic effects for electrochemical reduction of carbon dioxide using gold-copper bimetallic nanoparticles. Nat. Commun. 2014, 5, 4948. [Google Scholar] [CrossRef] [PubMed]
  27. Huang, J.; Mensi, M.; Oveisi, E.; Mantella, V.; Buonsanti, R. Structural Sensitivities in Bimetallic Catalysts for Electrochemical CO2 Reduction Revealed by Ag-Cu Nanodimers. J. Am. Chem. Soc. 2019, 141, 2490–2499. [Google Scholar] [CrossRef]
  28. Zhu, W.; Tackett, B.M.; Chen, J.G.; Jiao, F. Bimetallic Electrocatalysts for CO2 Reduction. Top. Curr. Chem. 2018, 376, 41. [Google Scholar] [CrossRef]
  29. Kim, D.; Xie, C.; Becknell, N.; Yu, Y.; Karamad, M.; Chan, K.; Crumlin, E.J.; Nørskov, J.K.; Yang, P. Electrochemical Activation of CO2 through Atomic Ordering Transformations of AuCu Nanoparticles. J. Am. Chem. Soc. 2017, 139, 8329–8336. [Google Scholar] [CrossRef]
  30. Zhang, S.; Kang, P.; Bakir, M.; Lapides, A.M.; Dares, C.J.; Meyer, T.J. Polymer-supported CuPd nanoalloy as a synergistic catalyst for electrocatalytic reduction of carbon dioxide to methane. Proc. Natl. Acad. Sci. USA 2015, 112, 15809–15814. [Google Scholar] [CrossRef]
  31. Sarfraz, S.; Garcia-Esparza, A.T.; Jedidi, A.; Cavallo, L.; Takanabe, K. Cu-Sn Bimetallic Catalyst for Selective Aqueous Electroreduction of CO2 to CO. ACS Catal. 2016, 6, 2842–2851. [Google Scholar] [CrossRef]
  32. Choi, C.; Cai, J.; Lee, C.; Lee, H.M.; Xu, M.; Huang, Y. Intimate atomic Cu-Ag interfaces for high CO2RR selectivity towards CH4 at low over potential. Nano Res. 2021, 14, 3497–3501. [Google Scholar] [CrossRef]
  33. Guan, W.; Zhu, H.; Zhang, Y.; Ren, X.; Ma, T.; Liu, A. Molecular structure design and interface behavior of ionic liquids on metal surfaces: A theoretical study. Surf. Interfaces 2022, 34, 102314. [Google Scholar] [CrossRef]
  34. Liu, A.; Yang, Y.; Kong, D.; Ren, X.; Gao, M.; Liang, X.; Yang, Q.; Zhang, J.; Gao, L.; Ma, T. DFT study of the defective carbon materials with vacancy and heteroatom as catalyst for NRR. Appl. Surf. Sci. 2021, 536, 147851. [Google Scholar] [CrossRef]
  35. Liu, A.; Guan, W.; Zhao, X.; Ren, X.; Liang, X.; Gao, L.; Li, Y.; Ma, T. Investigation on the interfacial behavior of polyorganic inhibitors on a metal surface by DFT study and MD simulation. Appl. Surf. Sci. 2021, 541, 148570. [Google Scholar] [CrossRef]
  36. Liu, A.; Guan, W.; Wu, K.; Ren, X.; Gao, L.; Ma, T. Density functional theory study of nitrogen-doped graphene as a high-performance electrocatalyst for CO2RR. Appl. Surf. Sci. 2021, 540, 148319. [Google Scholar] [CrossRef]
  37. Liang, X.; Ren, X.; Guo, M.; Li, Y.; Xiong, W.; Guan, W.; Gao, L.; Liu, A. CO2 electroreduction by AuCu bimetallic clusters: A first principles study. Int. J. Energy Res. 2021, 45, 18684–18694. [Google Scholar] [CrossRef]
  38. Zhu, H.; Liang, Z.; Xue, S.; Ren, X.; Liang, X.; Xiong, W.; Gao, L.; Liu, A. DFT practice in MXene-based materials for electrocatalysis and energy storage: From basics to applications. Ceram. Int. 2022, 48, 27217–27239. [Google Scholar] [CrossRef]
  39. Huang, X.; Tang, J.; Luo, B.; Knibbe, R.; Lin, T.; Hu, H.; Wang, L. Sandwich-Like Ultrathin TiS2 Nanosheets Confined within N, S Codoped Porous Carbon as an Effective Polysulfide Promoter in Lithium-Sulfur Batteries. Adv. Energy Mater. 2019, 9, 1901872. [Google Scholar] [CrossRef]
  40. Tang, Q.; Lee, Y.; Li, D.-Y.; Choi, W.; Liu, C.W.; Lee, D.; Jiang, D.-E. Lattice-Hydride Mechanism in Electrocatalytic CO2 Reduction by Structurally Precise Copper-Hydride Nanoclusters. J. Am. Chem. Soc. 2017, 139, 9728–9736. [Google Scholar] [CrossRef]
  41. Nie, X.; Jiang, X.; Wang, H.; Luo, W.; Janik, M.J.; Chen, Y.; Guo, X.; Song, C. Mechanistic Understanding of Alloy Effect and Water Promotion for Pd-Cu Bimetallic Catalysts in CO2 Hydrogenation to Methanol. ACS Catal. 2018, 8, 4873–4892. [Google Scholar] [CrossRef]
Catalysts 14 00007 g001

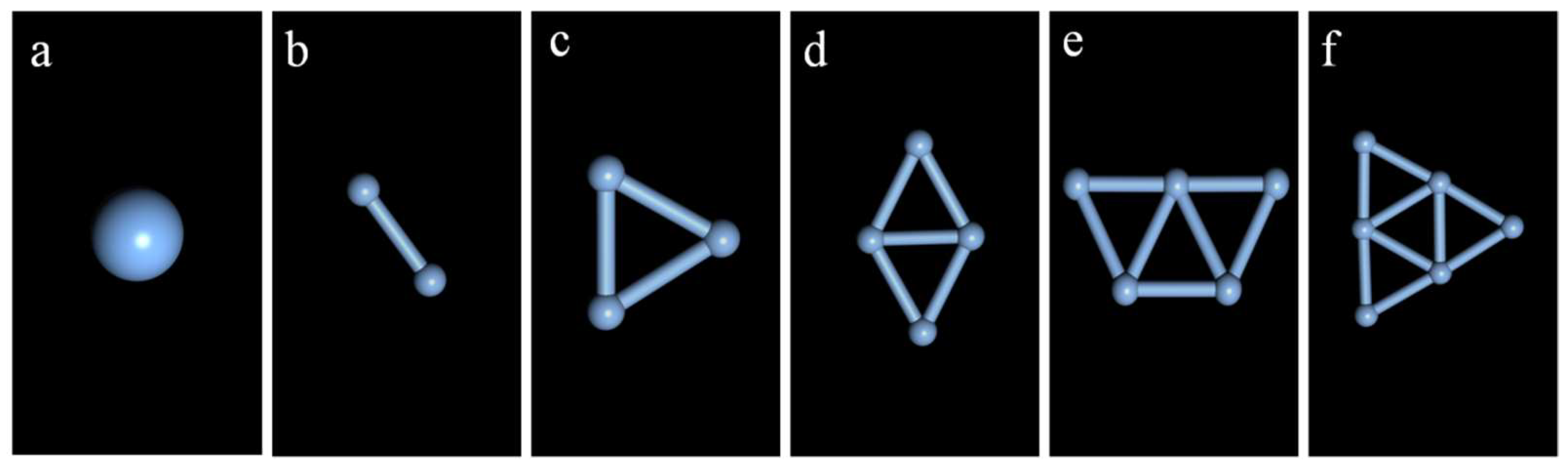

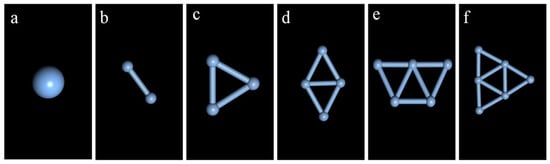

Figure 1. Most stable configurations of Agn (n = 1–6) clusters: (a) Ag1; (b) Ag2; (c) Ag3; (d) Ag4; (e) Ag5; (f) Ag6.
Figure 1. Most stable configurations of Agn (n = 1–6) clusters: (a) Ag1; (b) Ag2; (c) Ag3; (d) Ag4; (e) Ag5; (f) Ag6.
Catalysts 14 00007 g001
Catalysts 14 00007 g002

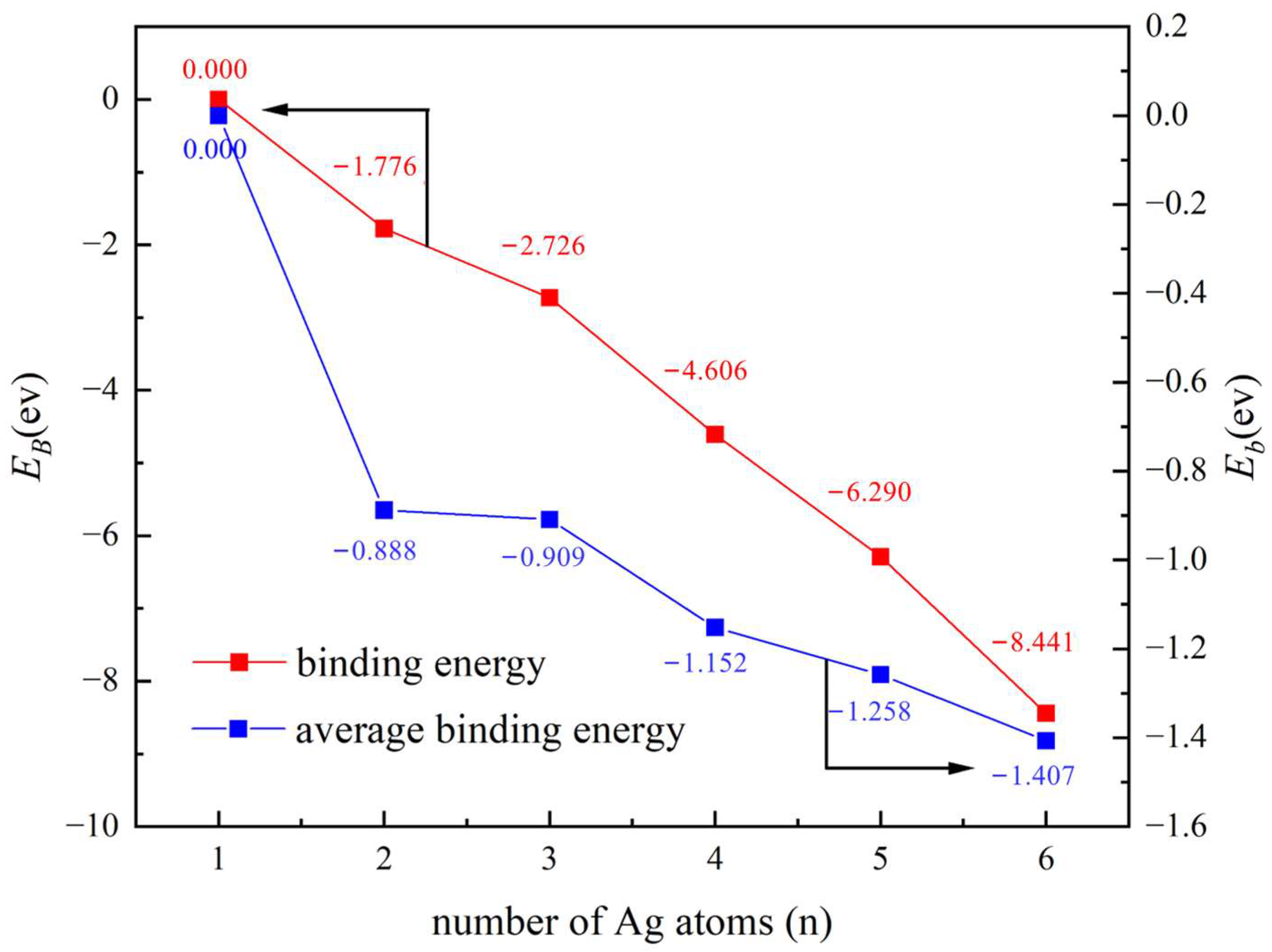

Figure 2. Variation of binding energy and average binding energy with the number of Ag atoms.
Figure 2. Variation of binding energy and average binding energy with the number of Ag atoms.
Catalysts 14 00007 g002
Catalysts 14 00007 g003

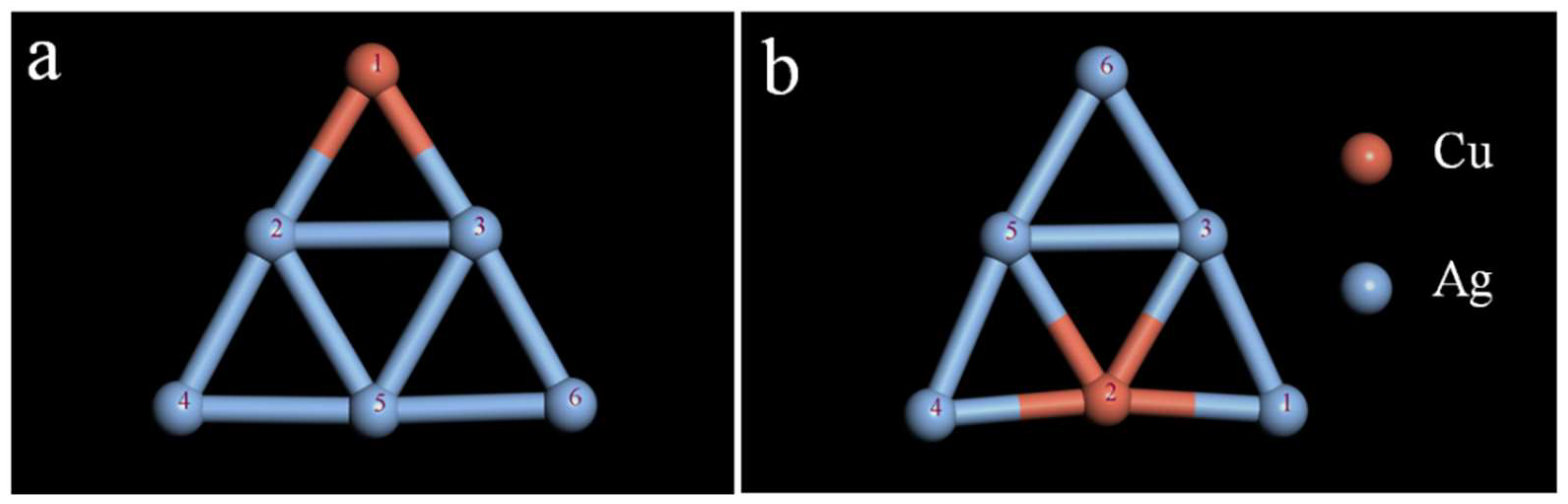

Figure 3. Isomeric structure of Cu1Ag5 clusters: (a) Cu is the tip position; (b) Cu is the middle position.
Figure 3. Isomeric structure of Cu1Ag5 clusters: (a) Cu is the tip position; (b) Cu is the middle position.
Catalysts 14 00007 g003
Catalysts 14 00007 g004

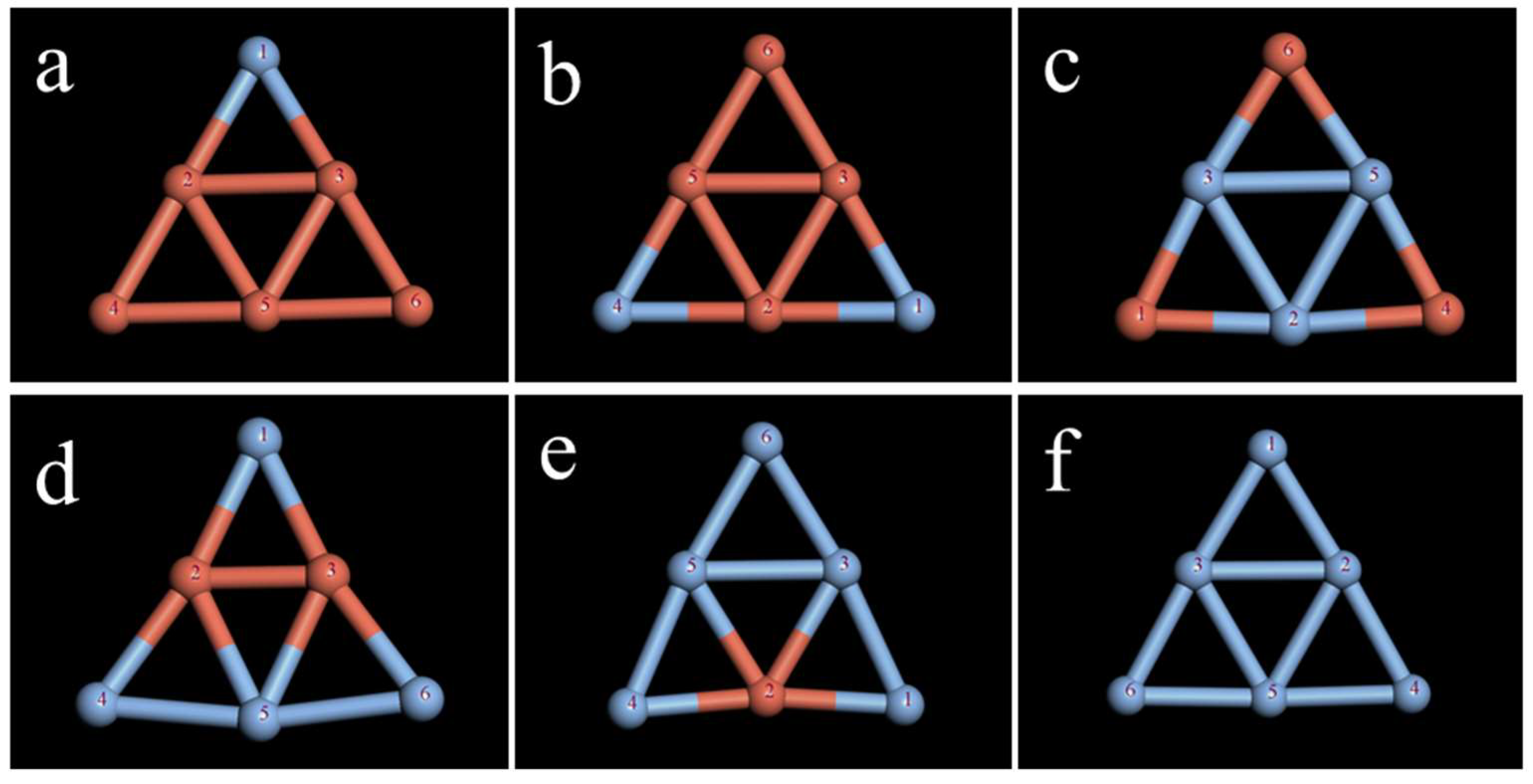

Figure 4. Most stable configuration of Cu6-nAgn (n = 1–6) clusters: (a) Cu5Ag1; (b) Cu4Ag2; (c) Cu3Ag3; (d) Cu2Ag4; (e) Cu1Ag5; (f) Ag6.
Figure 4. Most stable configuration of Cu6-nAgn (n = 1–6) clusters: (a) Cu5Ag1; (b) Cu4Ag2; (c) Cu3Ag3; (d) Cu2Ag4; (e) Cu1Ag5; (f) Ag6.
Catalysts 14 00007 g004
Catalysts 14 00007 g005

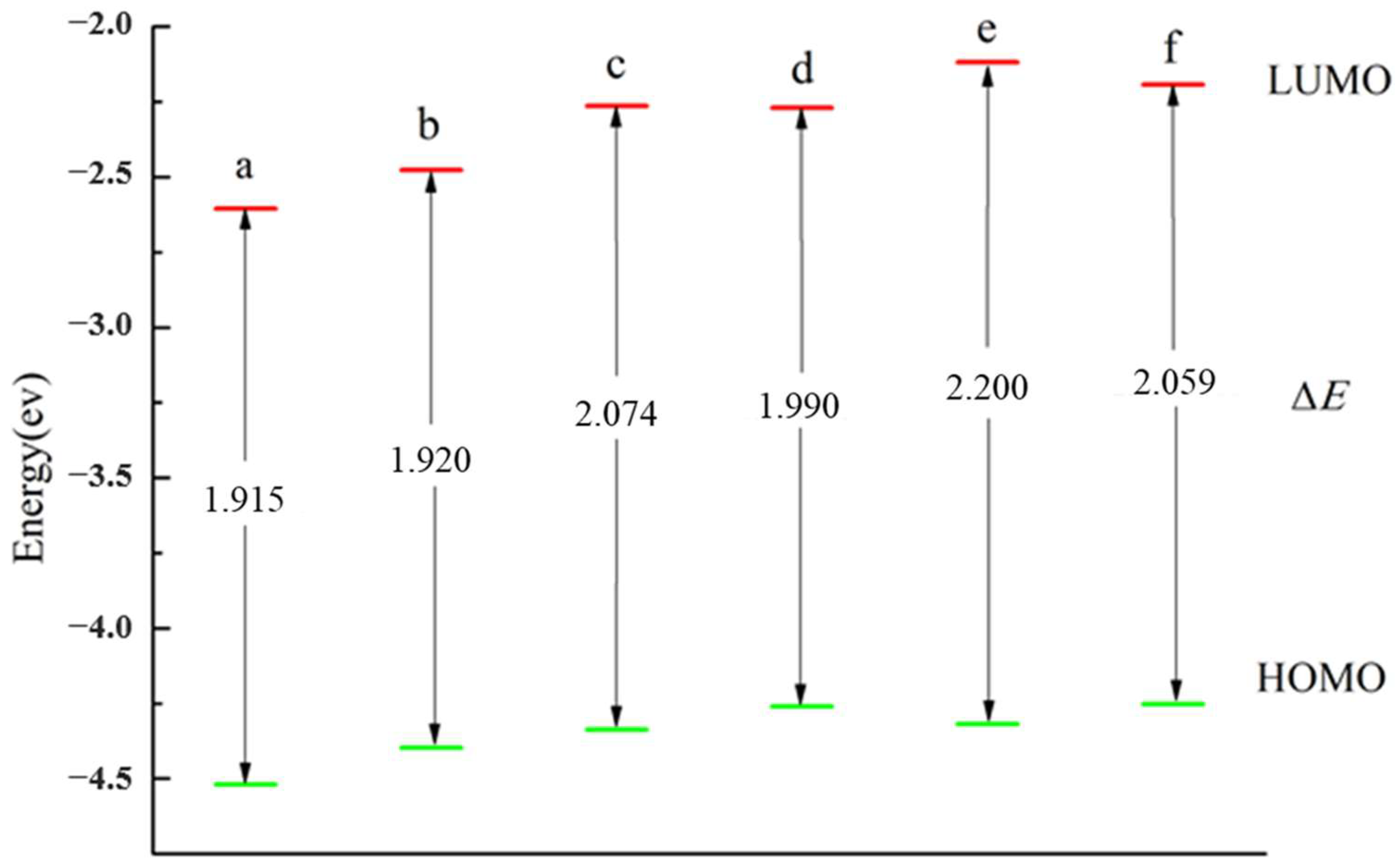

Figure 5. Frontier molecular orbital energy level and ΔE of the Cu6-nAgn cluster: (a) Cu5Ag1, (b) Cu4Ag2, (c) Cu3Ag3, (d) Cu2Ag4, (e) Cu1Ag5, and (f) Ag6.
Figure 5. Frontier molecular orbital energy level and ΔE of the Cu6-nAgn cluster: (a) Cu5Ag1, (b) Cu4Ag2, (c) Cu3Ag3, (d) Cu2Ag4, (e) Cu1Ag5, and (f) Ag6.
Catalysts 14 00007 g005
Catalysts 14 00007 g006

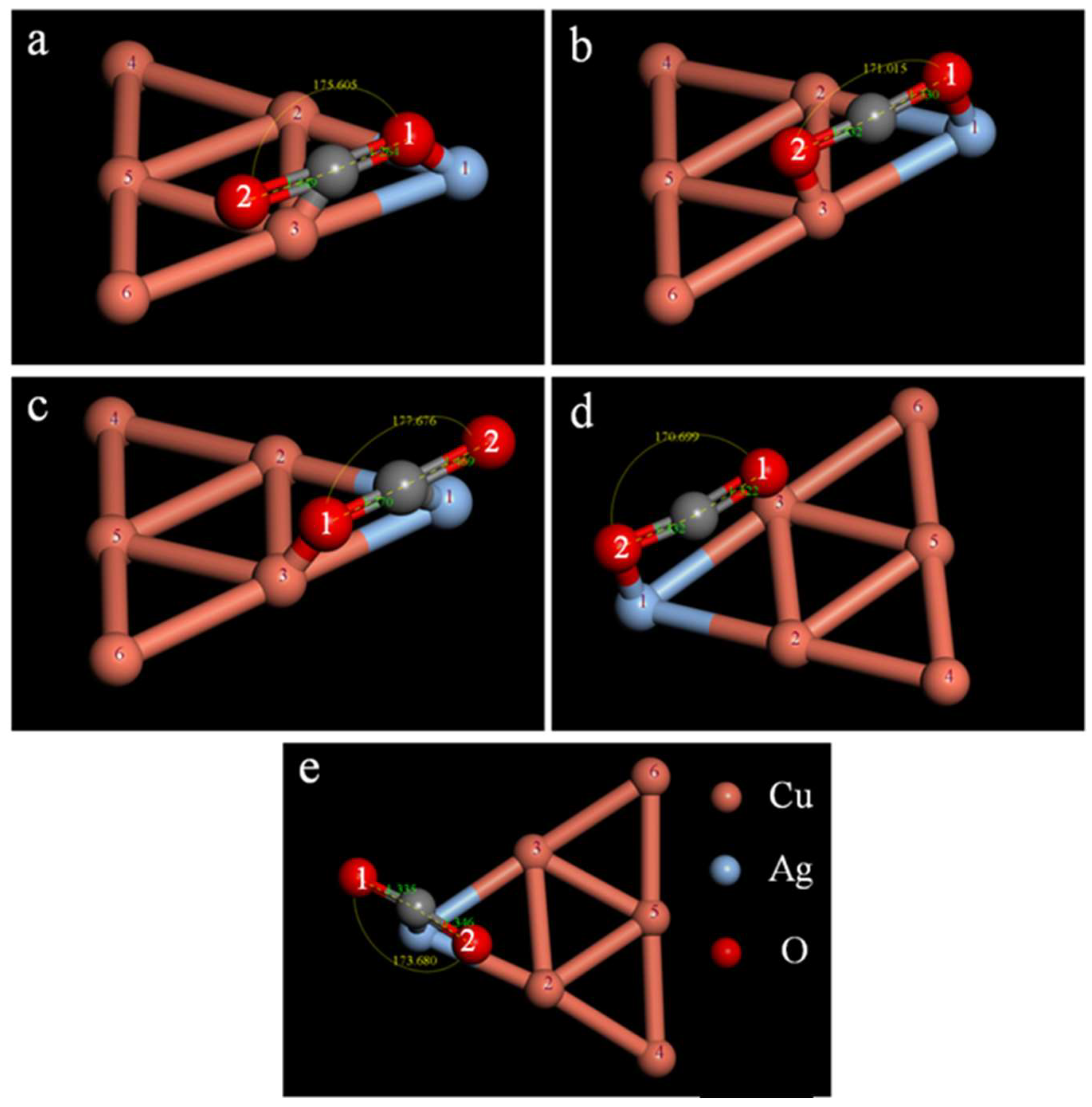

Figure 6. Isomers of the Cu5Ag1–CO2 adsorption structure (a–c) are dual-site adsorption, while (d,e) are single-site adsorption.
Figure 6. Isomers of the Cu5Ag1–CO2 adsorption structure (a–c) are dual-site adsorption, while (d,e) are single-site adsorption.
Catalysts 14 00007 g006
Catalysts 14 00007 g007

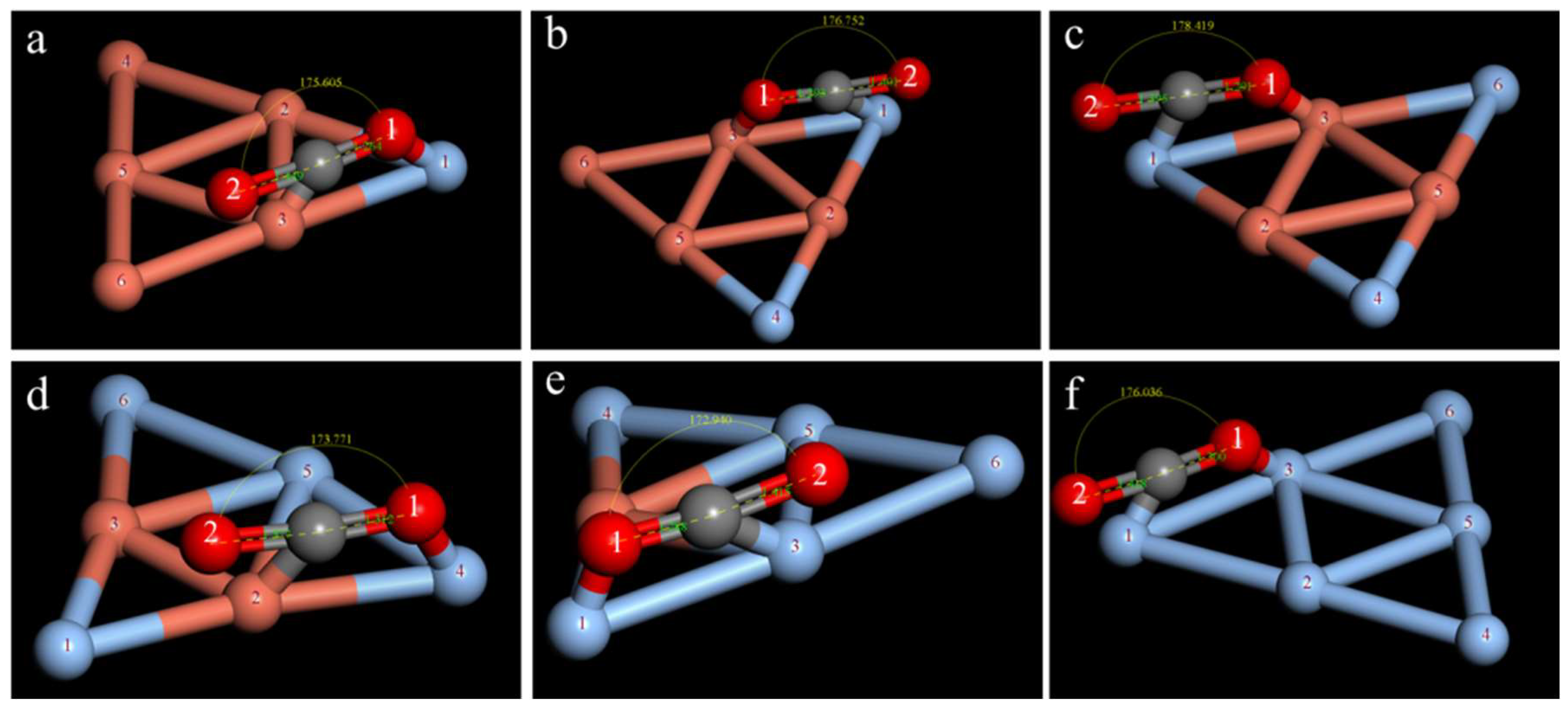

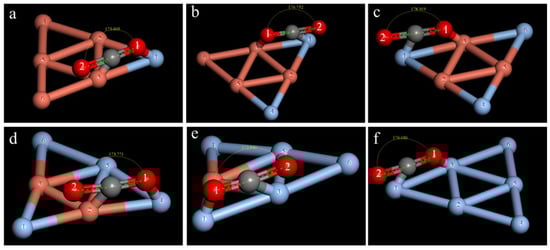

Figure 7. Optimal CO2 adsorption structure in the CunAg6-n cluster (n = 1–6) for dual-site adsorption: (a) Cu5Ag1; (b) Cu4Ag2; (c) Cu3Ag3; (d) Cu2Ag4; (e) Cu1Ag5; (f) Ag6.
Figure 7. Optimal CO2 adsorption structure in the CunAg6-n cluster (n = 1–6) for dual-site adsorption: (a) Cu5Ag1; (b) Cu4Ag2; (c) Cu3Ag3; (d) Cu2Ag4; (e) Cu1Ag5; (f) Ag6.
Catalysts 14 00007 g007
Catalysts 14 00007 g008

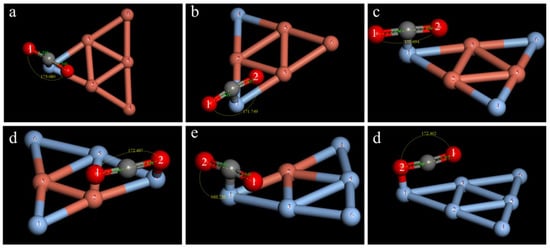

Figure 8. Optimal CO2 adsorption structure in the CunAg6-n cluster (n = 1–6) for single-site adsorption: (a) Cu5Ag1; (b) Cu4Ag2; (c) Cu3Ag3; (d) Cu2Ag4; (e) Cu1Ag5; (f) Ag6.
Figure 8. Optimal CO2 adsorption structure in the CunAg6-n cluster (n = 1–6) for single-site adsorption: (a) Cu5Ag1; (b) Cu4Ag2; (c) Cu3Ag3; (d) Cu2Ag4; (e) Cu1Ag5; (f) Ag6.
Catalysts 14 00007 g008
Catalysts 14 00007 g009

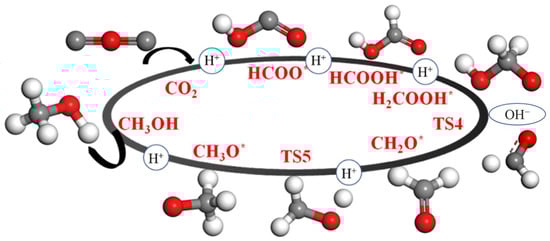

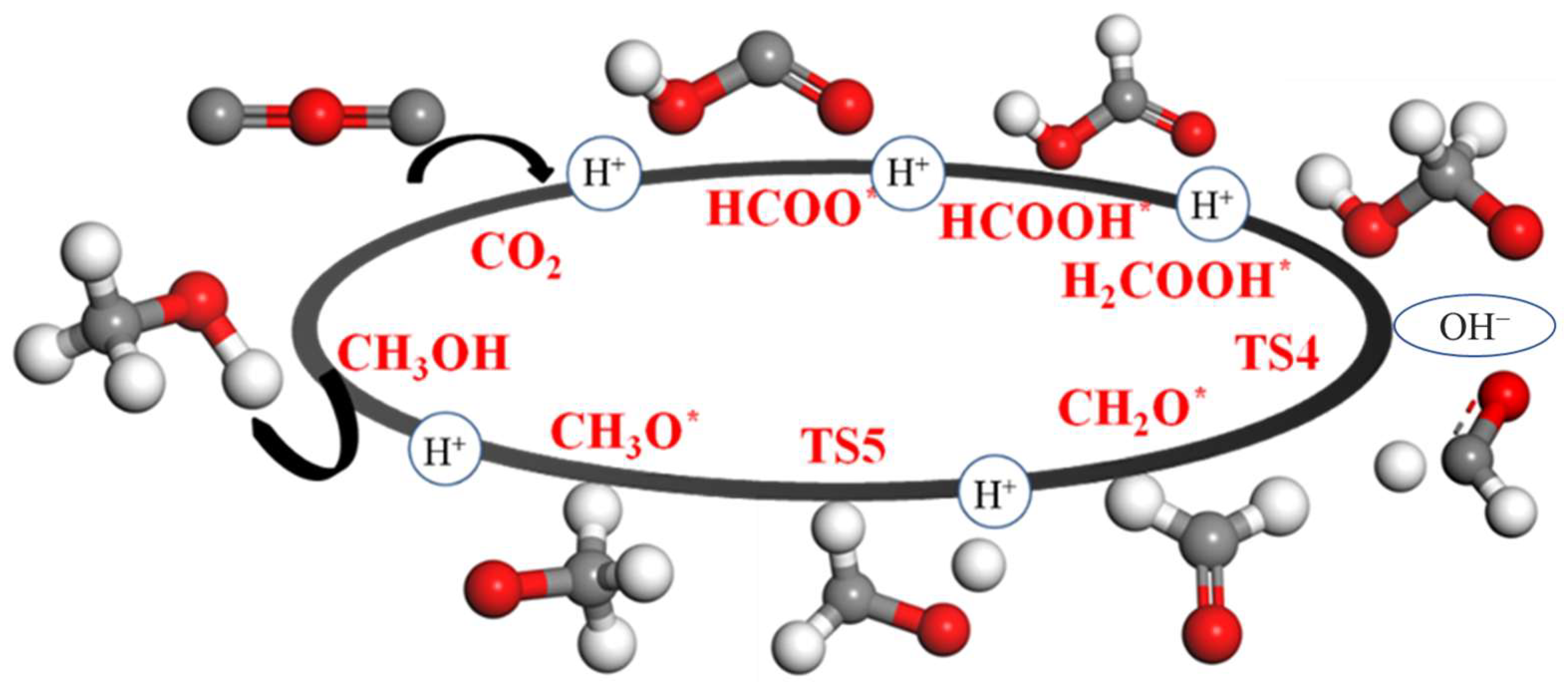

Figure 9. Reaction pathway of CO2 hydrogenation to CH3OH.
Figure 9. Reaction pathway of CO2 hydrogenation to CH3OH.
Catalysts 14 00007 g009
Catalysts 14 00007 g010

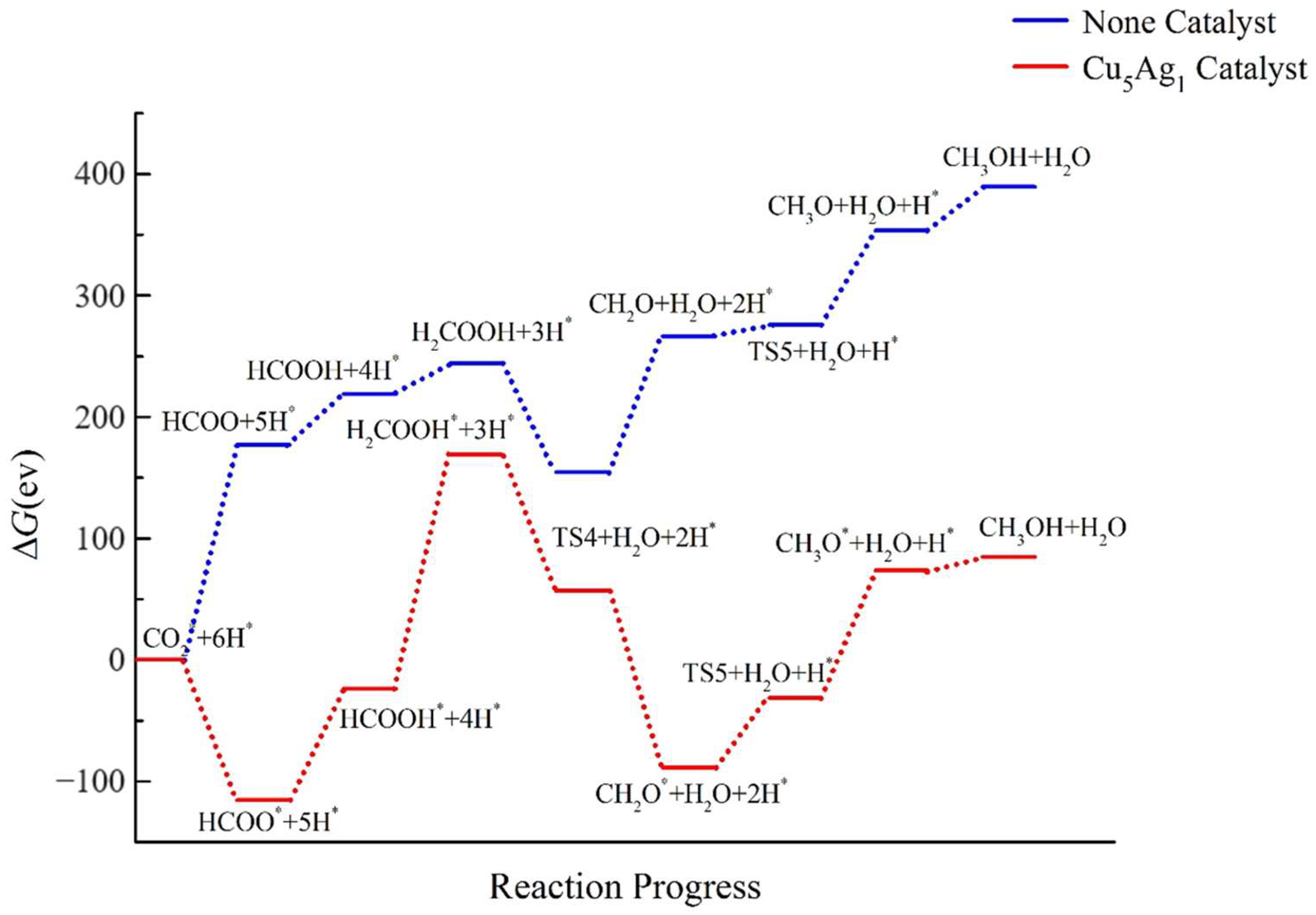

Figure 10. Energy diagram of CO2 hydrogenation to CH3OH catalyzed by the Cu5Ag1 cluster.
Figure 10. Energy diagram of CO2 hydrogenation to CH3OH catalyzed by the Cu5Ag1 cluster.
Catalysts 14 00007 g010
Catalysts 14 00007 g011

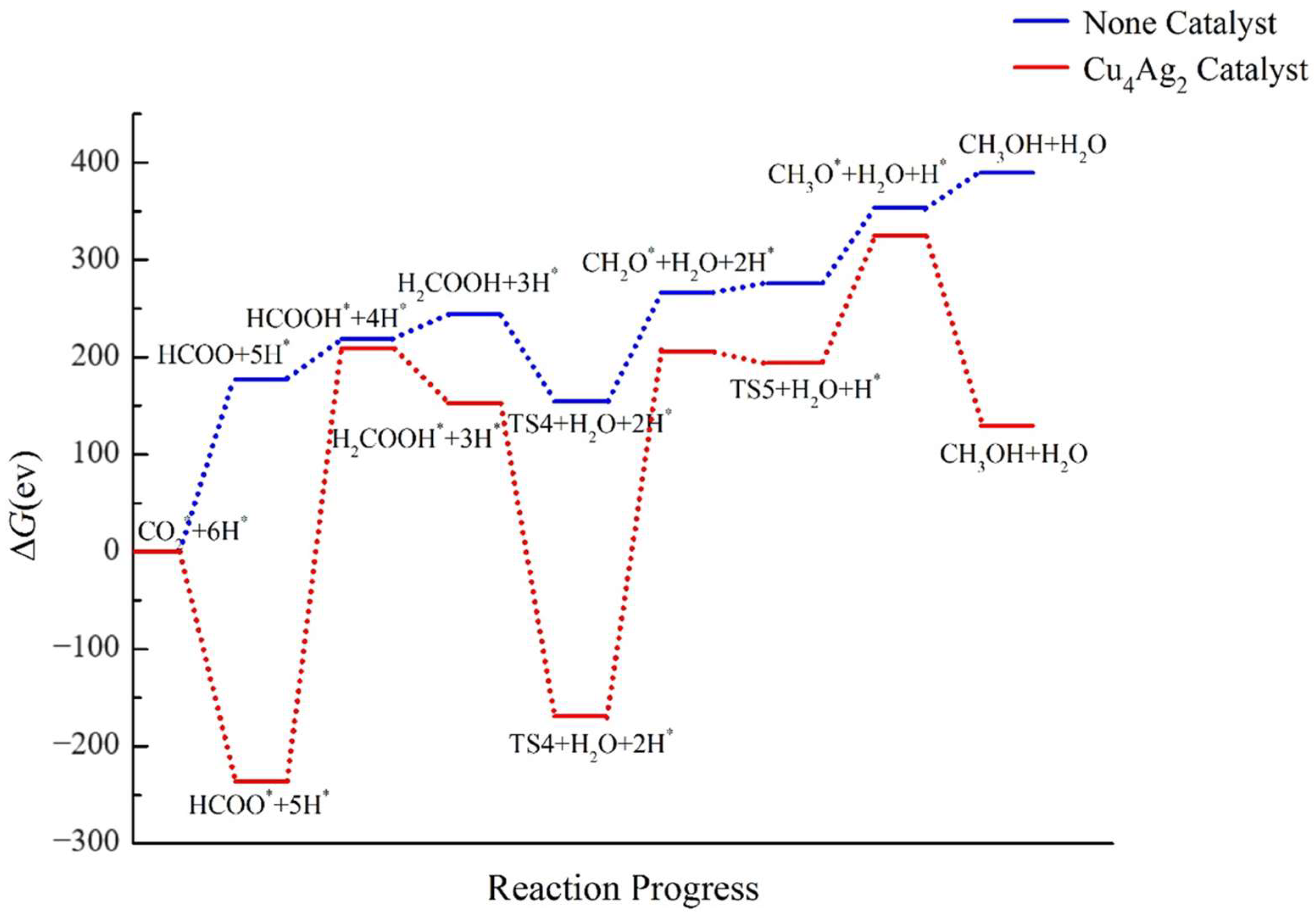

Figure 11. Energy diagram of CO2 hydrogenation to CH3OH catalyzed by the Cu4Ag2 cluster.
Figure 11. Energy diagram of CO2 hydrogenation to CH3OH catalyzed by the Cu4Ag2 cluster.
Catalysts 14 00007 g011
Catalysts 14 00007 g012

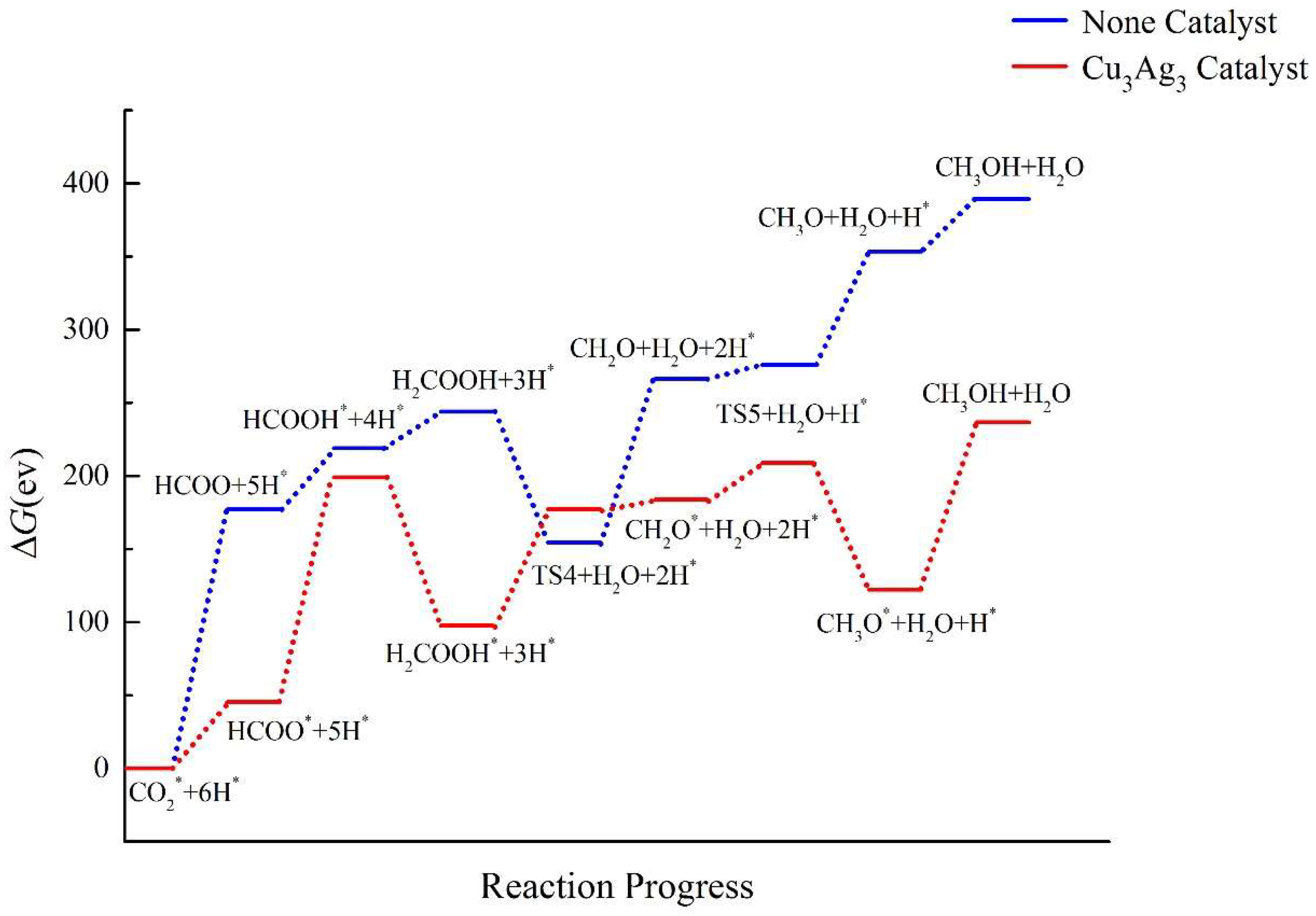

Figure 12. Energy diagram of CO2 hydrogenation to CH3OH catalyzed by the Cu3Ag3 cluster.
Figure 12. Energy diagram of CO2 hydrogenation to CH3OH catalyzed by the Cu3Ag3 cluster.
Catalysts 14 00007 g012
Catalysts 14 00007 g013

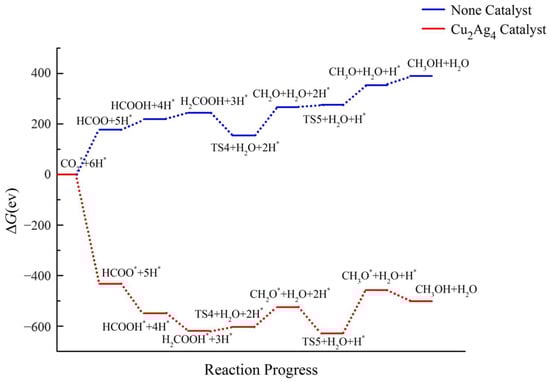

Figure 13. Energy diagram of CO2 hydrogenation to CH3OH catalyzed by the Cu2Ag4 cluster.
Figure 13. Energy diagram of CO2 hydrogenation to CH3OH catalyzed by the Cu2Ag4 cluster.
Catalysts 14 00007 g013
Catalysts 14 00007 g014

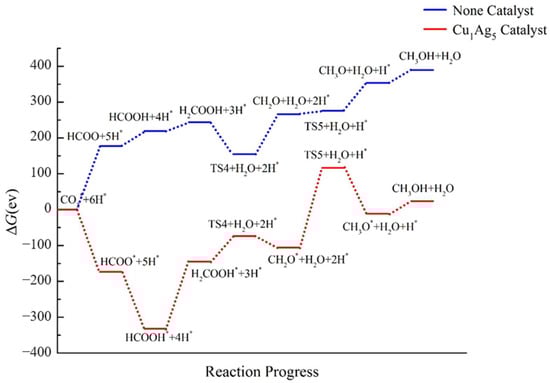

Figure 14. Energy diagram of CO2 hydrogenation to CH3OH catalyzed by the Cu1Ag5 cluster.
Figure 14. Energy diagram of CO2 hydrogenation to CH3OH catalyzed by the Cu1Ag5 cluster.
Catalysts 14 00007 g014
Catalysts 14 00007 g015

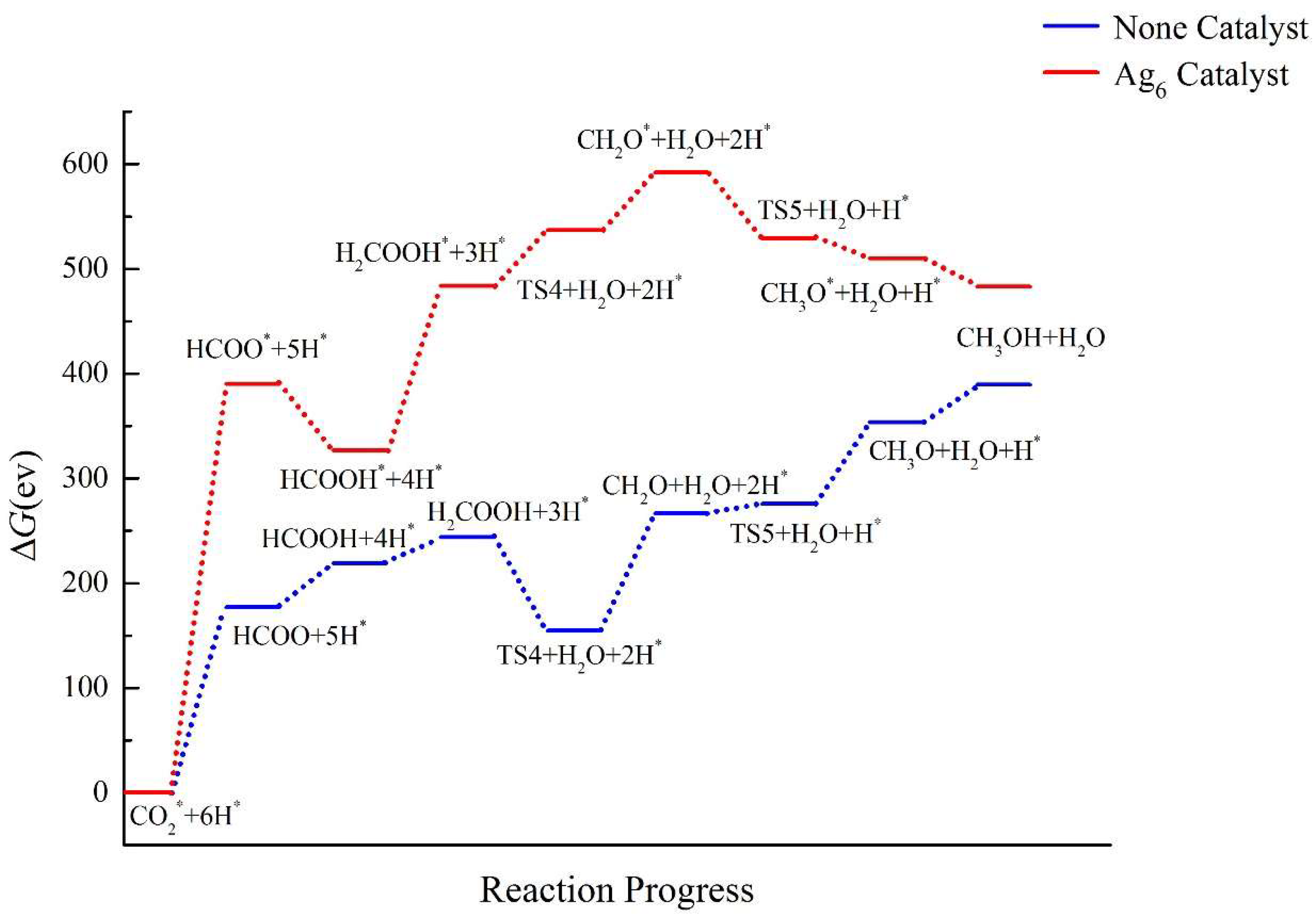

Figure 15. Energy diagram of CO2 hydrogenation to CH3OH catalyzed by the Ag6 cluster.
Figure 15. Energy diagram of CO2 hydrogenation to CH3OH catalyzed by the Ag6 cluster.
Catalysts 14 00007 g015
Catalysts 14 00007 g016

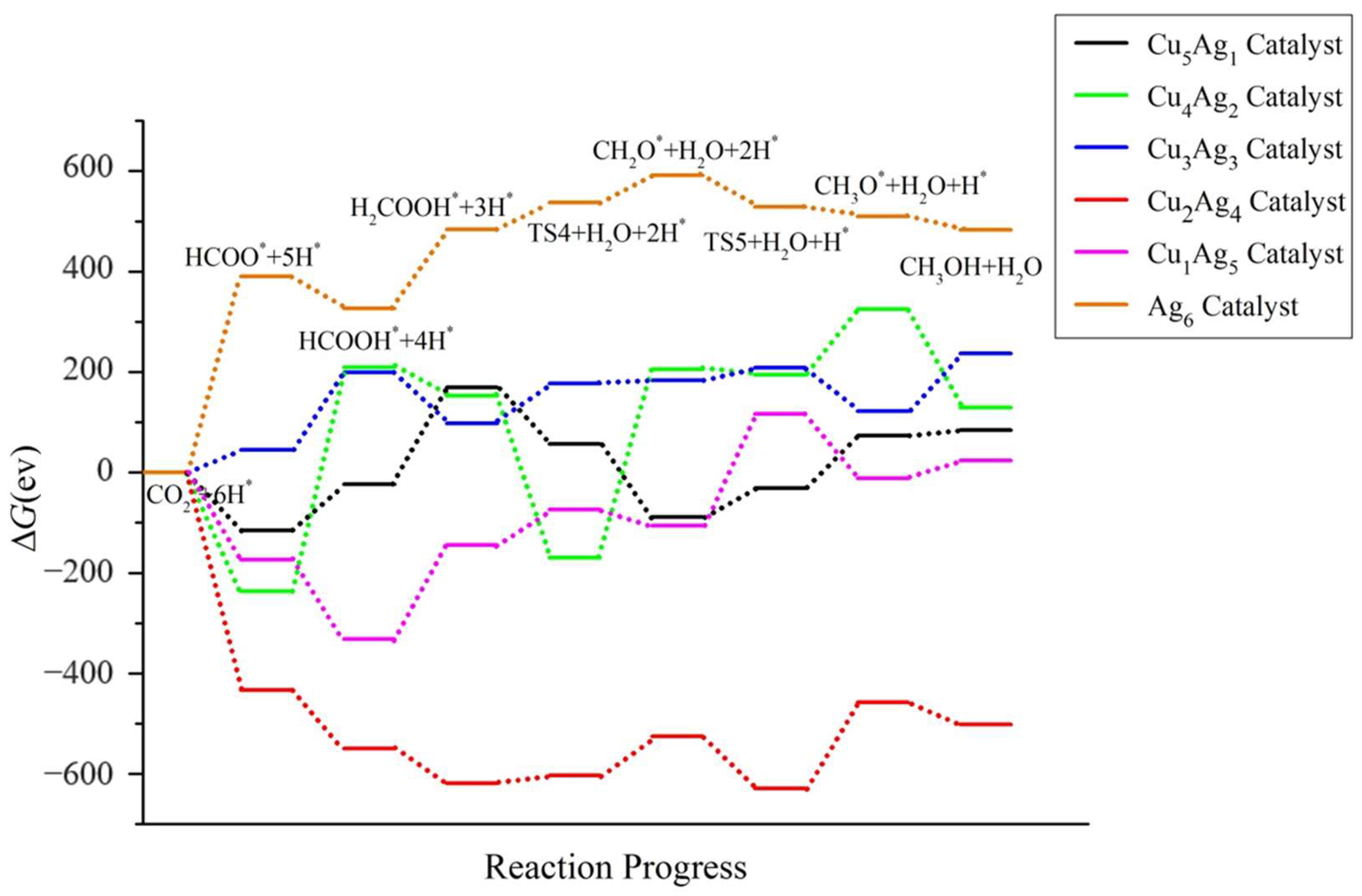

Figure 16. Energy diagram of CO2 hydrogenation to CH3OH catalyzed by the CuAg clusters.
Figure 16. Energy diagram of CO2 hydrogenation to CH3OH catalyzed by the CuAg clusters.
Catalysts 14 00007 g016
Table 1. Fukui indices of CuAg clusters.
Table 1. Fukui indices of CuAg clusters.
ConfigurationSiteValueSiteValueSiteValueSiteValue
aCu (4/6)+0.237Ag (1)−0.228Cu (4/6)−0.204Ag (1)+0.175
bCu (6)+0.276Ag (1/4)−0.229Cu (6)−0.185Ag (1/4)+0.183
cAg (1)+0.233Ag (4/6)+0.221Ag (1)−0.219Ag (4/6)−0.217
dAg (1)+0.238Ag (4/6)−0.252Ag (4/6)+0.211Ag (1)−0.182
eAg (1/4)−0.252Ag (6)+0.241Ag (1/4)+0.210Ag (6)−0.206
fAg (1/4/6)−0.234Ag (1/4/6)−0.231Ag (2/3/5)+0.103Ag (2/3/5)−0.102
Table 2. Bond lengths, bond angles, and energies of the Cu5Ag1–CO2 structures.
Table 2. Bond lengths, bond angles, and energies of the Cu5Ag1–CO2 structures.
Isomers∠O1CO2/°dC−O1/ÅdC−O2/ÅECuAg−CO2/HaEobs/eV
a175.6051.2641.449−13,589.920−0.555
b171.0151.3301.332−13,589.911−0.299
c177.6761.2701.469−13,589.905−0.1439
d170.6991.3221.332−13,589.911−0.301
e173.6801.3351.346−13,589.906−0.163
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Xue, S.; Liang, X.; Zhang, Q.; Ren, X.; Gao, L.; Ma, T.; Liu, A. Density Functional Theory Study of CuAg Bimetal Electrocatalyst for CO2RR to Produce CH3OH. Catalysts 2024, 14, 7. https://doi.org/10.3390/catal14010007

AMA Style

Xue S, Liang X, Zhang Q, Ren X, Gao L, Ma T, Liu A. Density Functional Theory Study of CuAg Bimetal Electrocatalyst for CO2RR to Produce CH3OH. Catalysts. 2024; 14(1):7. https://doi.org/10.3390/catal14010007

Chicago/Turabian Style

Xue, Sensen, Xingyou Liang, Qing Zhang, Xuefeng Ren, Liguo Gao, Tingli Ma, and Anmin Liu. 2024. "Density Functional Theory Study of CuAg Bimetal Electrocatalyst for CO2RR to Produce CH3OH" Catalysts 14, no. 1: 7. https://doi.org/10.3390/catal14010007

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
