Article

An Efficient Asymmetric Cross-Coupling Reaction in Aqueous Media Mediated by Chiral Chelating Mono Phosphane Atropisomeric Biaryl Ligand

1
Institute of Chemical Sciences, Faculty of Chemistry, Maria Curie-Skłodowska University, Gliniana 33 St., 20-614 Lublin, Poland
2
Faculty of Mathematical and Natural Sciences, Cardinal Stefan Wyszynski University in Warsaw, 01-938 Warszawa, Poland
3
Faculty of Medicine, The John Paul II Catholic University of Lublin, 1h-Konstantynów St., 20-708 Lublin, Poland
*
Author to whom correspondence should be addressed.
Catalysts 2023, 13(2), 353; https://doi.org/10.3390/catal13020353
Submission received: 23 December 2022 / Revised: 24 January 2023 / Accepted: 31 January 2023 / Published: 4 February 2023
(This article belongs to the Special Issue Feature Papers in Catalysis in Organic and Polymer Chemistry)

Abstract

:
The enantiomerically pure ligand BisNap-Phos was obtained in a straightforward sequence of reactions beginning with inexpensive starting materials under the readily affordable conditions in high overall yield. An asymmetric BisNap-Phos-palladium complex-catalyzed Suzuki–Miyaura coupling leading to axially chiral biaryl compounds was described. The reactions were carried out under mild conditions in aqueous and organic media. A series of atropisomeric biaryls were synthesized with excellent yields and high enantioselectivities (up to 86% ee). The methodology provides an efficient and practical strategy for the synthesis of novel multifunctionalized axially chiral biaryl compounds under mild environmentally friendly and easily affordable conditions.

Graphical Abstract

1. Introduction

The stereoselective formation of C-C bonds using chiral catalysts is one of the most common methods for the synthesis of optically pure compounds [1]. Among them, the sterically demanding Suzuki–Miyaura coupling reaction has been identified as one of the most powerful transformations in synthetic organic chemistry, especially in the synthesis of chiral, atropisomeric biaryls [2,3,4,5,6]. Some of the ortho-substituted biaryl compounds are biologically active [7,8,9], and many of them are efficient chiral ligand in homogenous catalysis [1,10,11,12,13]. Phosphine-based complexes with transition metals are the most common catalysts for the cross-coupling reactions [14,15,16,17]. The catalytic effectiveness of these ligands depends on the basicity of the phosphorus atom and the steric hindrance created by its substituent [18]. Over the past few years, many research groups have designed a series of new chiral ligands with C-P type complexation, e.g., S-Phos [16], which were extremely efficient even in demanding cases of cross-couplings in which sterically hindered substrates and inactivated aryl chlorides were coupled at an ambient temperature. Among the best ligands based on axially chiral biaryls motif are such monophosphines as MOP and MAP [17,18,19,20,21,22,23], which show great potential in asymmetric couplings. We have already reported a new straightforward approach to the synthesis of the new P,C-ligands Nap-Phos and Sym-Phos [17,23]. Their palladium complexes were highly active in such cross-couplings as Heck and Suzuki–Miyaura reactions. Cross-coupling reactions with Sym-Phos occur in mild conditions and run under aqueous or organic media [23].

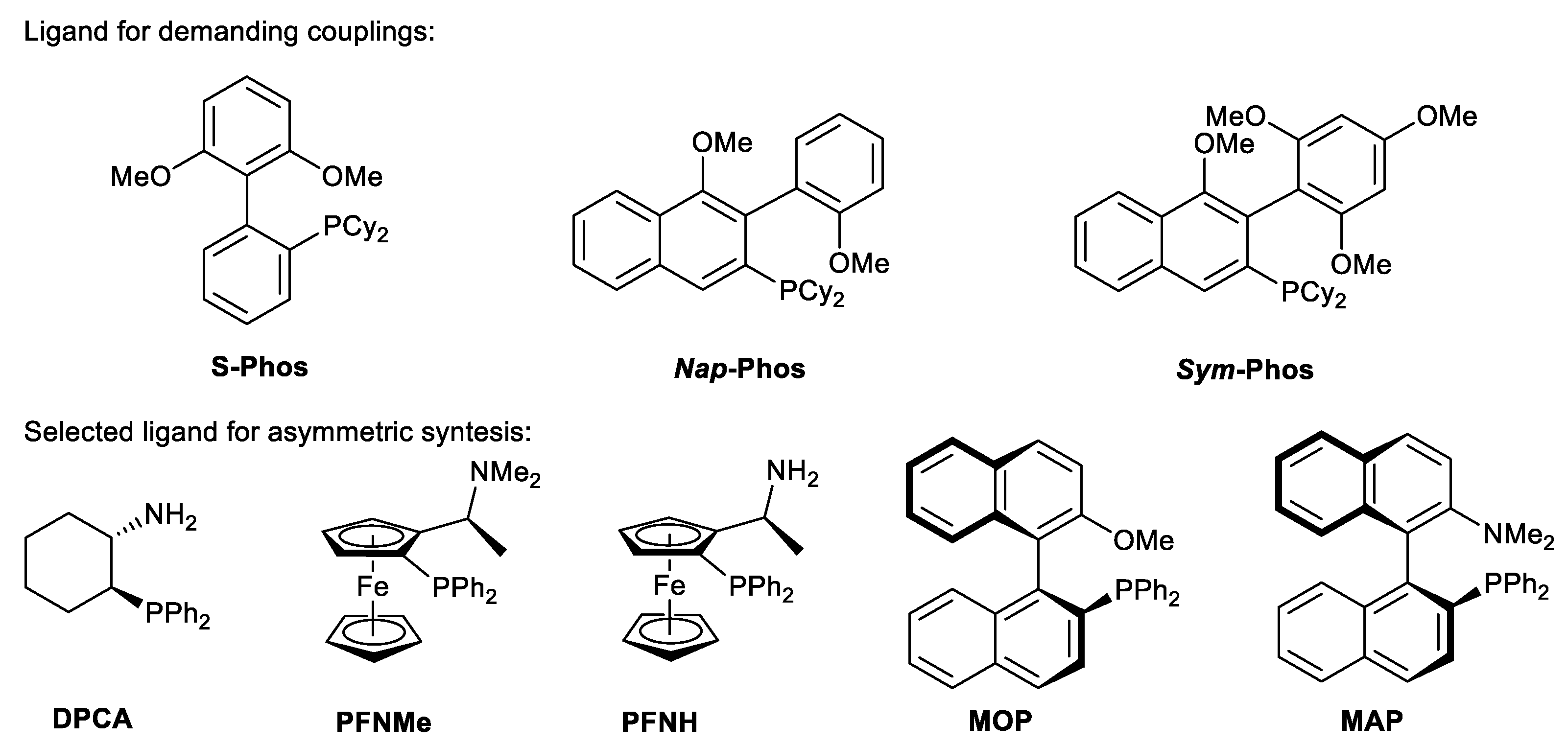

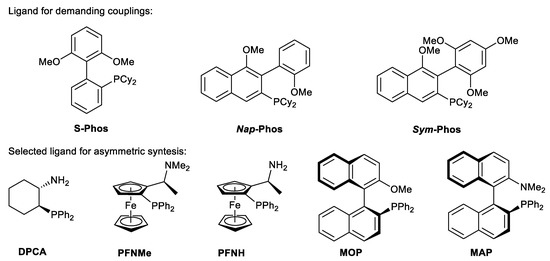

Ligands for demanding couplings are shown in Figure 1.
Based on our experience in the field, we have synthesized sterically hindered and enantiomerically pure phosphine ligand BisNap-Phos (10) as an analogue of Sym-Phos [24]. Herein, we would like to present the use of chiral palladium complexes of BisNap-Phos as a catalyst in asymmetric Suzuki–Miyaura cross-coupling reactions run in environmentally friendly conditions.

2. Results and Discussion

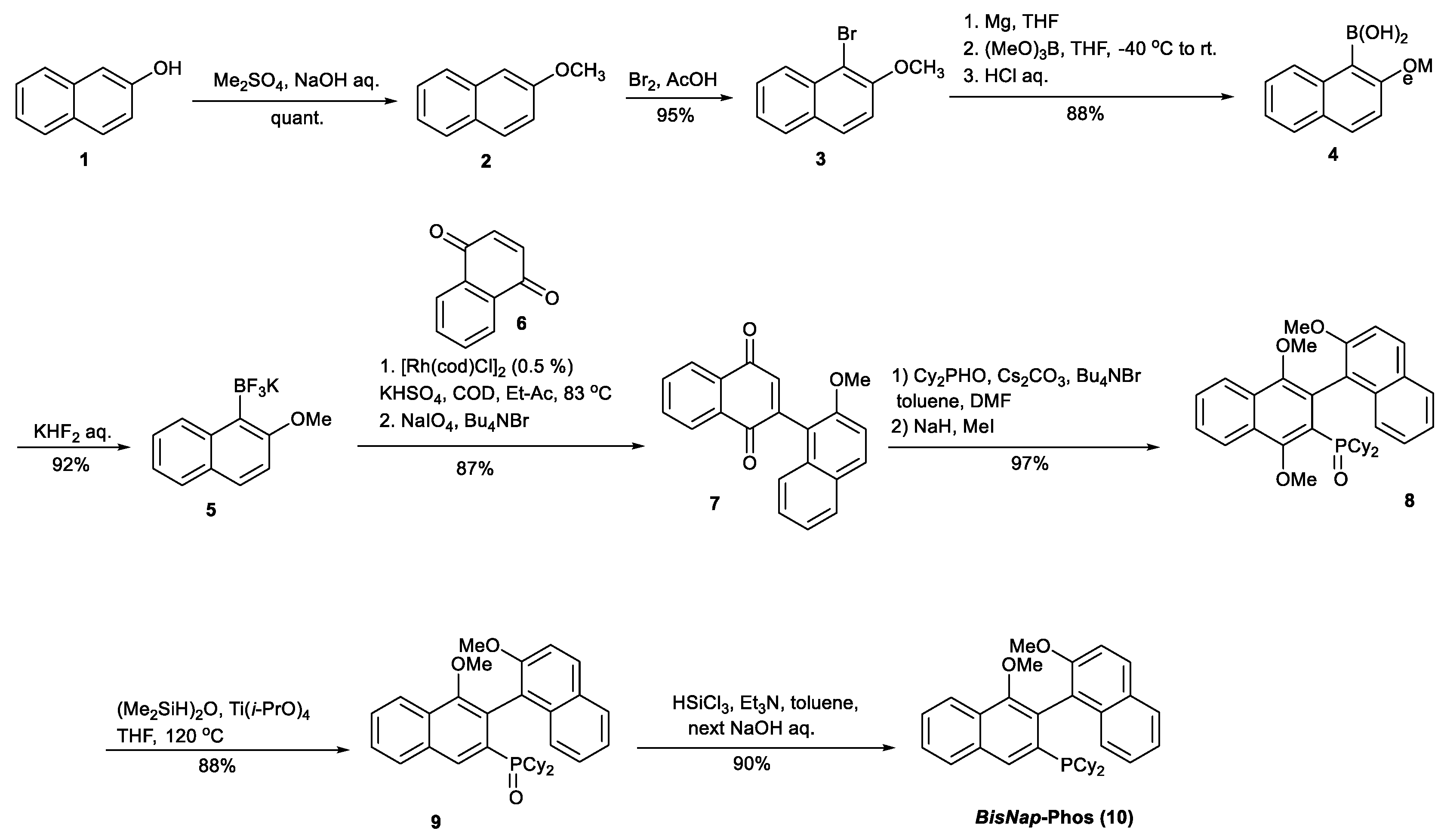

Racemic BisNap-Phos (10) was prepared in good overall yield by a multi-step procedure starting from 2-naphtol (Scheme 1).
The synthesis of BisNap-Phos was designed similarly to the synthesis of Sym-Phos [23], starting from the readily available substrates naphthalen-2-ol, naphthoquinone, and dicyclohexylphosphine oxide. Enantiopure BisNap-Phos ((Sa)-10 and (Ra)-10) were prepared after fractional crystallization of 1:1 complex of rac-BisNap-Phos oxide with TADDOL from the mixture ethanol/chloroform, followed by the reduction of corresponding enantiomer in mild conditions and without racemization by treatment with a mixture of HSiCl3/Et3N in toluene. The absolute configuration of BisNap-Phos (10) was assigned by an X-ray analysis (Figure 2a, CCDC 2222975) of its palladium complex 12 with the second chiral nonracemic ligand (S)-N,N-dimethylnaphthylethylamine (11).

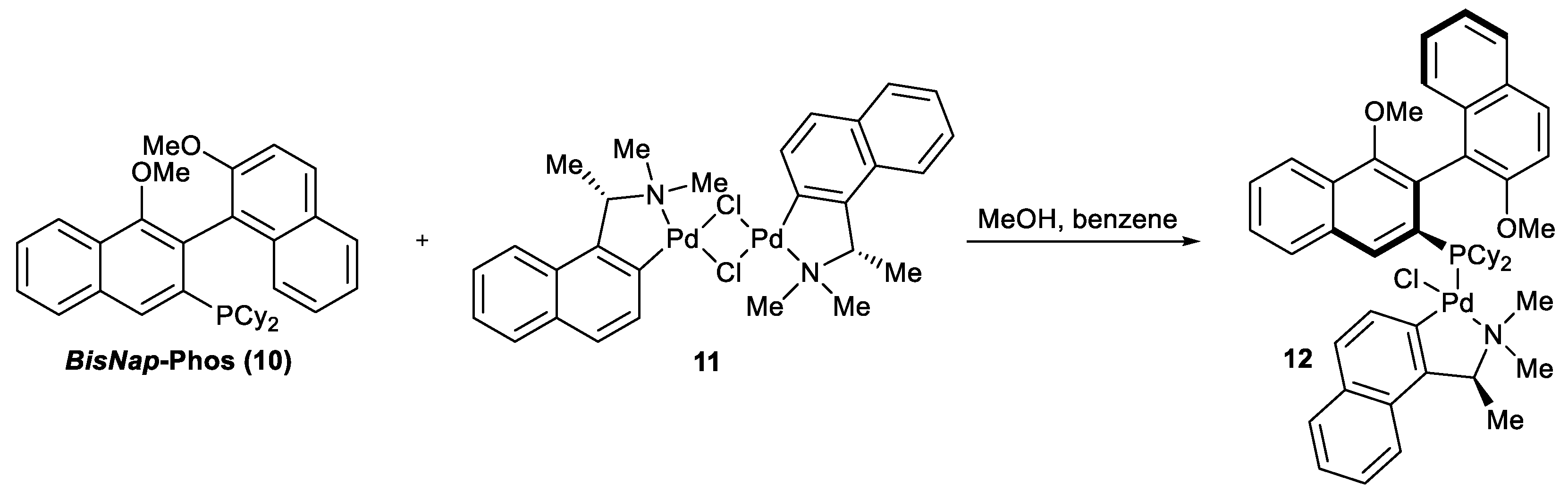

The compound 12 was obtained as presented in Scheme 2.
The coordination units of the studied Pd complex are hydrophobic outside, with the exception of the Cl atom. The strongest interactions between them are weak C–H…π contacts between phenyl rings. Such packing most probably facilitates the homochiral crystal formation due to the proper steric orientation of aromatic rings in the (S,Sa)- isomer. Because in the crystal net, there are still significantly large empty voids, which are stabilized by filling with hydrogen-bonded methanol and water molecules. The solvent molecules are located in special cages between the host molecules. The only contact with the coordination unit is with the hydrophilic Cl atom acting as a hydrogen bond acceptor from methanol molecule.

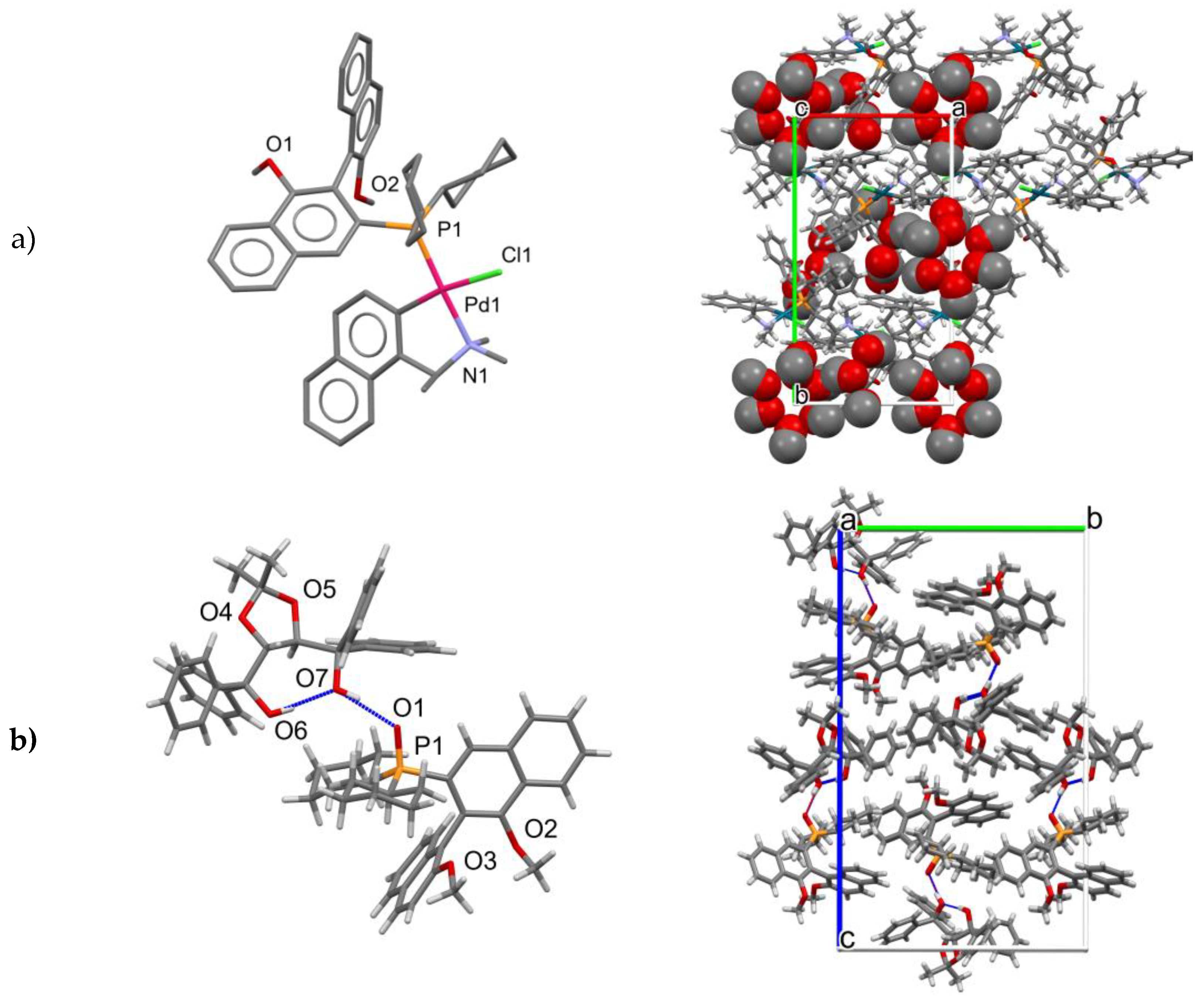

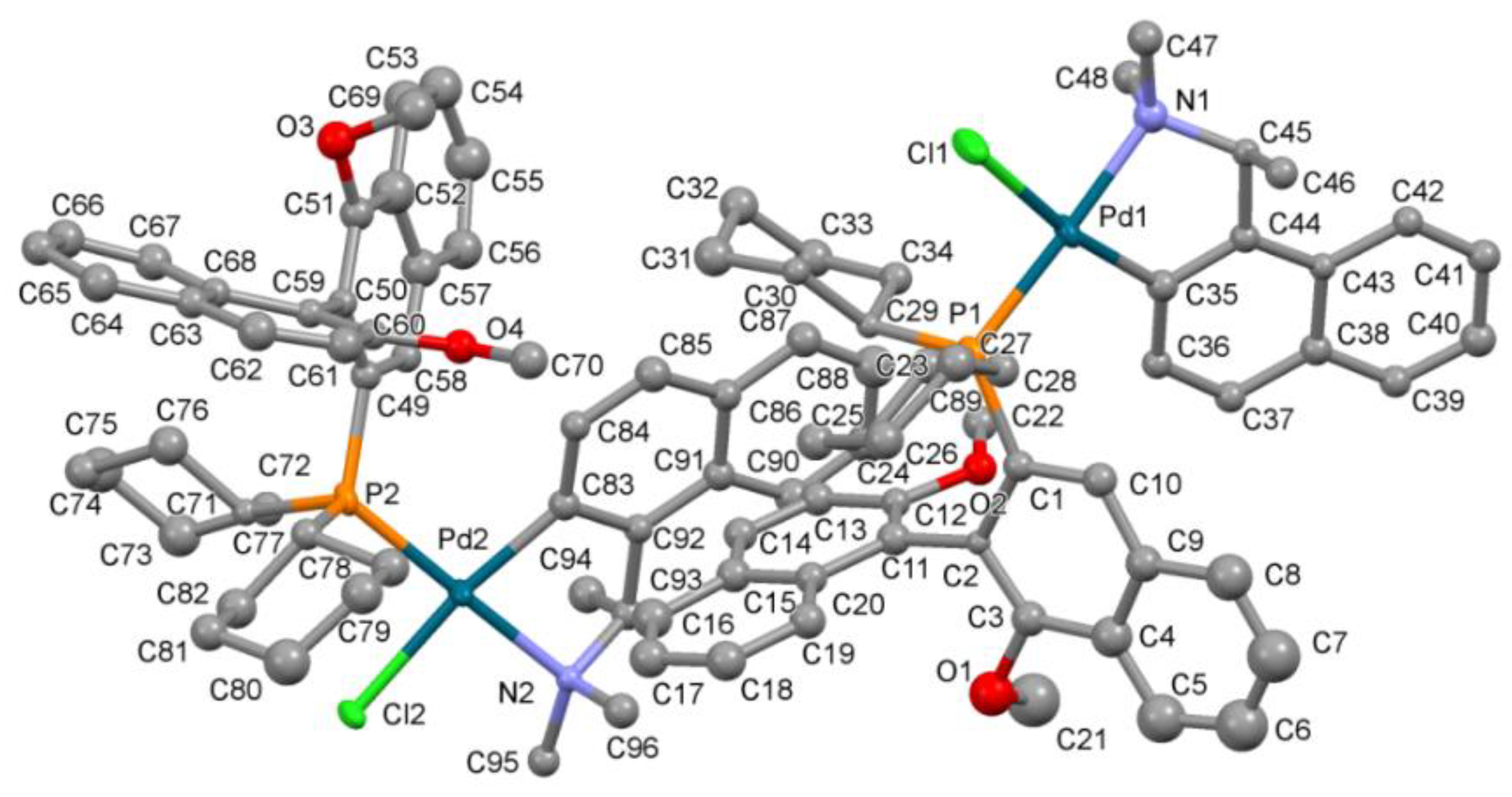

The diffraction experiment also confirmed the molecular structure of compound (Ra)-9 (Figure 2b, CCDC No 2232483). Its stereochemistry was established owing to the presence of a TADDOL molecule with a known absolute configuration in this crystal. Both coformers contact via O–H…O interaction, whereas the second TADDOL’s OH group forms an intramolecular hydrogen bond.

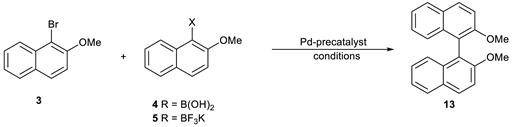

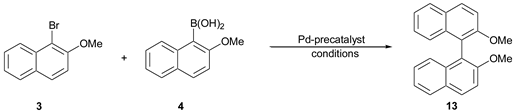

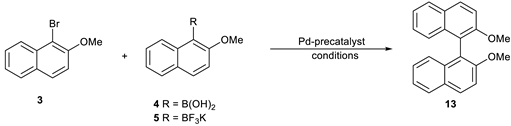

Having the enantiopure ligand, we decided to investigate the catalytic activity of the palladium complex of BisNap-Phos and compare it with other ligands’ complexes in the benchmark Suzuki–Miyaura coupling of 1-bromo-2-methoxy naphthalene 3 with 2-methoxynaphthalene-1-boronic acid 4. We have reported previously [23] that the cross-coupling reactions could be successfully accomplished in water with the addition of small amounts of readily available surfactants, e.g., SDS and Brij, at low reaction temperature. Such environmentally friendly conditions were also applied in reactions mediated by BisNap-Phos-based catalysts. In the preliminary studies, we used the racemic and achiral ligands, since the chemical yields of the benchmark reactions, catalyzed by complexes of racemic and enantiomerically pure ligands, are known to be the same. As presented in Table 1, the best results (76% yield) were obtained when BisNap-Phos and Sym-Phos were used in the amount 4 mol% in a reaction run in an aqueous medium with the palladium precatalyst loading 2 mol% at 60 °C. In those benchmark experiments, the utilization of our ligands BisNap-Phos and Sym-Phos was even more efficient than the utilization of another ligand famous for its efficiency: S-Phos [16].
In the next step, the use of different palladium precatalysts was studied in the reaction of arylboronic acid 4 or potassium trifluorobarate 5 (Table 2). Higher yields (up to 97%) were obtained when boronic acid was used. As can be seen, the Sym-Phos ligand was more reactive in the reaction with potassium trifluorobarate 5 (Table 2, entry 6). After careful optimization of the palladium catalyst, BisNap-Phos/PdCl2(C6H5CN)2 was identified as the best complex (Table 2, entry 1).
In addition, the influence of the microwave (MW) radiation on the tested Suzuki–Miyaura reaction was examined. Benchmark reactions were conducted in toluene as a solvent at 160 °C with a short reaction time of up to 30 min. 2,2′-dimethoxy-1,1′-binaphthyl (13) was obtained in excellent yields (Table 3). Again, the use of BisNap-Phos/PdCl2(C6H5CN)2 as a catalyst led to the best yield of the product even without an argon atmosphere. The use of an increased amount of boronic acid (1.5 eq.) raised the overall yield up to 97% (Table 3, entry 5). All MW reactions were conducted in high-pressure-sealed vessels.
The advantages of BisNap-Phos were next demonstrated in the MW-promoted Suzuki–Miyaura coupling of boronic acid 4 and 1-bromo-2-methyl naphthalene (14). For this purpose, we used the Pd(OAc)2—the metal source giving access to a precatalyst which is activated at lower temperature. The reaction with the BisNap-Phos/Pd(OAc)2 catalyst at 150 °C after 15–20 min. led to 2-methoxy-2′-methyl-1,1′-binaphthyl (15) in good yields (Table 4). In the case of the same reaction conducted in an oil bath without MW, we obtained product 15 with higher yield (76%) when prolonged to a 24 h reaction duration (Table 4, entry 4). Unfortunately, further extension of the reaction duration was not beneficial, because of the decomposition of a catalyst formed with BisNap-Phos and Pd(OAc)2 to create palladium black.
Next, the optimization of the solvent for the synthesis of biaryl 15 in MW conditions was performed. As can be seen in Table 5, among tested aprotic solvents, the toluene was the best for this reaction and allowed it to achieve a 77% yield of the target product. In the reactions run in other tested solvents, a formation of palladium black was observed, which could be rationalized by the competitive reduction of the catalyst by the solvent used.
The usage of protic ethanol allowed a considerable decrease in the temperature of the MW-assisted couplings to 100 °C, with only slight yield deterioration, resulting in 54% (Table 6, entry 2).
Applying the optimized aqueous medium-mediated coupling reaction, as presented above, the synthesis of ortho-tetra and ortho-trisubstitued biaryls was carried out. The reactions of boronic acid 16 with different aryl halogens (17-20) led to obtaining the expected hindered biaryls with good yields of up to 87%, as presented in Table 7. The application of different halogens also influenced the reaction yields. As expected, the bromine derivatives were more reactive then their chloranalogues.
Having achieved an excellent procedure for the synthesis of racemic biaryls, we aimed to apply it to asymmetric Suzuki–Miyaura coupling leading to compound 15. The efficiency of BisNap-Phos was compared with other commercially available chiral ligands. In the optimized conditions, (S)-BisNap-Phos was identified as the best ligand both in aqueous and non-aqueous media (Table 8). Its application allowed us to achieve an excellent yield and enantiomeric excess of binaphthyl 15 (up to 98% yield and 71% ee). The enantiomeric excess in all cases was determined by chiral HPLC. Notably, product 15 was obtained in two ways: by the reaction of bromide 14 with boronic acid 4, and by the coupling of bromine 3 with boronic acid 24 with the same yield (98 %) and enantiomeric excess. We found that the application of the protective argon atmosphere and anhydrous conditions produce no benefits in comparison to the synthesis carried out without the protection in water. The proper selection of base used was also considered during the experiment design. There is not clear rule allowing us to predict the best base and best solvent for a given reaction. Generally, some bases are associated with unipolar anhydrous solvents such as toluene (K3PO4), some with reactions conducted in an aqueous medium (Na2CO3, K2CO3), and some with polar aprotic solvents such as DMF and DME (Cs2CO3, CsF). Those empiric rules were used for the preliminary selection of the base. Nevertheless, our attempts to find confirmation of those assumptions did not bring unambiguous results.

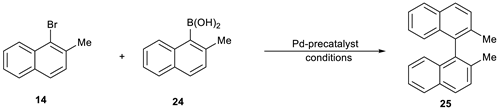

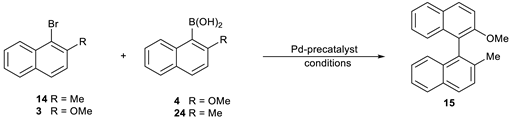

The coupling of bromine 14 and boronic acid 24 was studied next, which resulted in 2,2′-dimethyl-1,1′-binaphthyl 25. The best yield (94%) of 25 was obtained using [Pd((Ra)-mop)2]Cl2 ligand, but the reaction with enantiopure (Sa or Ra)-BisNap-Phos ligand successfully led to product 25 with only slightly lower yields (up to 86%) and with the best enantioselecticity, up to 77% ee (Table 9). Again, the reactions run in aqueous media resulted in similar yields and stereoselectivities, as the reactions run under anhydrous and oxygen-free conditions.

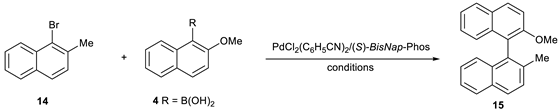

(Sa)-BisNap-Phos was again determined to be the best ligand for the asymmetric synthesis of binaphthyl 13 in both aqueous and organic media (Table 10). Excellent yields were achieved in the reactions run both in anhydrous and in aqueous media, and higher enantiomeric excesses were achieved in reactions carried out in water. The utilization of potassium salt 5, which is the obvious substitute for boronic acid 4, was beneficial in the reactions run in aqueous media.
The use of large amounts of expensive palladium catalysts is not acceptable in the case of practical synthesis. Thus, the optimization of the catalyst loading was performed to demonstrate the applicability of the approach. The reactions were caried out in grams scale. The reaction from 2.4 g of boronic acid 4 allowed to us reduce the quantity of palladium catalyst to 0.31 mol%, while the yields of the product and the stereoselectivity achieved were better than in small-scale syntheses (Table 11). A further decrease in the amount of palladium catalyst did not lead to an improved yield in the reaction. In all cases, enantiomeric excess reached 70% ee.
Next, the synthesis of chiral monosubstituted 1,1-binaphthyl was performed. 2-methyl-1,1′-binaphthyl (27) was obtained with an excellent yield, up to 100%, but with low enantioselectivity. Again, (Sa)-BisNap-Phos was the most efficient (37% ee, Table 12) ligand among other tested ligands. In this case, the reaction run in anhydrous conditions resulted in a higher yield of the product. This phenomenon could be rationalized by the fact that the reactions leading to tris ortho-substituted biaryls are much less demanding, and the less active (i.e., more stable) bis-phosphine ligand complexes are already efficient enough to promote the reaction.

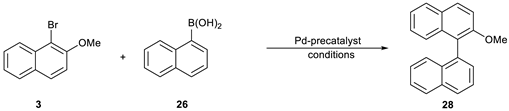

In the synthesis of methoxy substituted 1,1′-binaphthyl, the utilization of the [Pd(R)-binap]Cl2 complex allowed it to achieve a higher yield, as well as stereoselectivity in the reaction run under anhydrous conditions (Table 13). Again, in the case of a less demanding synthesis such as this, the more stable bisphosphine-based catalyst allowed us to achieve an excellent yield of the reaction. At the same time, BINAP, as it is known, assures a great level of stereodifferentiation, which impacts the stereoselectivity of the reaction.

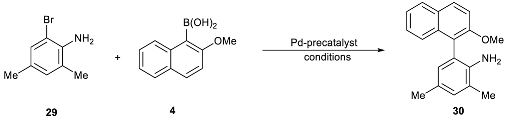

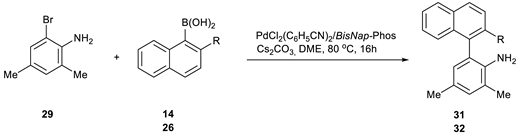

In the case of the highly coordinating substrate 29, possessing an unprotected amino group, poor enantioselectivity was observed in the asymmetric synthesis leading to product 30, both in aqueous and anhydrous media. It was confirmed in the cases of utilization of all tested ligands (Table 14).
Some better selectivity was achieved when (Sa)-BisNap-Phos was used in the reaction between 29 and 31 carried out in anhydrous conditions, what one more time proved the high level of the ligand potency. Biaryl 31 was obtained with 19% ee (Table 15). The low enantioselectivity, observed in the cases of tris ortho-substituted synthetized biaryl, is probably caused by the low barrier of rotation [25].

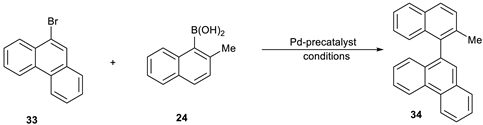

We also found out that the coupling of phenanthrene bromide 33 with boronic acid 24 lead to the expected product 34 in excellent yields, both in anhydrous and aqueous conditions. Since the steric hindrance created by the phenanthrene motif is not essential, the BINAP could be used in this reaction, resulting in a comparable yield of the product 34, as it was obtained in a reaction catalyzed by a complex of BisNap-Phos (Table 16), at a higher temperature. The stereoselectivity of the reactions was not high and the best results (35% ee) were achieved in the case of the BisNap-Phos catalyst-mediated reaction in anhydrous DME.
The substrates possessing mild coordinating functional groups were also used in coupling mediated by the BisNap-Phos complex caried out in aqueous media (Table 17).
In all studied cases, good to excellent yields of the coupling products were achieved, while the stereoselectivity of the reactions was dependent on the structure of the substrates, in which some steric hindrance created by the ortho-to-coupling position substituents and moderate coordinating ability of those substituents is required. Additionally, it seems that the products of low racemization energy [25] always formed in an almost racemic form. This observation can be explained considering the mechanistic studies of the reaction [26]. The studies indicated that the steric hindrance created by ortho substitutes is crucial at the reaction steps which define an absolute configuration of the coupling products.
Interestingly, carrying out the reactions in anhydrous media and protected with argon atmosphere had no benefits compared to the reactions in water without argon protection, if relatively air exposition-stable ligand BisNap-Phos was used.

3. Materials and Methods

3.1. General Information

The reagents were purchased from commercial suppliers and used without further purification. Solvents were dried and distilled under argon before use. All of the reactions involving the formation and further conversions of phosphines were carried out under argon atmosphere with attempted complete exclusion of air from the reaction vessels and solvents, including those used in the work-up. Nuclear magnetic resonance (NMR) spectra were recorded on Bruker AV300 (1H 300 MHz, 31P 121.5 MHz, 13C NMR 75 MHz) and Bruker AV500 (1H 500 MHz, 31P 202 MHz, 13C NMR 126 MHz) spectrometers (Bruker; Billerica, Ma., USA). All spectra were obtained in CDCl3 solutions, unless mentioned otherwise, and the chemical shifts (δ) are expressed in ppm using internal reference to TMS and external reference to 85% H3PO4 in D2O for 31P. Coupling constants (J) are expressed in Hz. The abbreviations of signal patterns are as follows: s—singlet, d—doublet, t—triplet, q—quartet, m—multiplet, b—broad, and i—intensive. Elemental analyses were measured on the PerkinElmer CHN 2400. Optical rotations were measured in a 1 dm cell on a PerkinElmer 341LC digital polarimeter at ambient temperature. Thin-layer chromatography (TLC) was carried out on silica gel (Kieselgel 60, F254 on aluminum sheet, Merck KGaA, Darmstadt, Germany). All separations and purifications by column chromatography were conducted by using Merck silica gel 60 (230–400 mesh), unless noted otherwise.

3.2. Synthesis and Spectral Data

Synthesis of rac-dicyclohexyl(1′,2,4′-trimethoxy-5′,8′-dihydro-1,2′-binaphthalen-3′-yl)phosphane oxide (8).
A reactor equipped with a magnetic stirrer was charged with compound 7 (3 g, 9.6 mmol), obtained as presented [27], CsCO3 (3.1 g, 9.6 mmol), Cy2PHO (3 g, 14 mmol), Bu4NHSO4 (0.1g, 0.3 mmol), toluene (15 mL), and DMF (10 mL) Next, the reaction mixture was protected by an argon atmosphere, sealed with a glass stopper, and stirred at 35 °C for 96 h. After that time, the reaction mixture was cooled down to 0 °C, and CH3I (2.3 mL, 5.2 g, 37 mmol) and K2CO3 (5.2 g, 37 mmol) were added. Protected by the argon atmosphere, the mixture was stirred in a closed reactor at 35 °C for 96 h. The obtained mixture was poured on 100 g of ice, and carefully acidified with 1M HCl to an acidic pH. The crude product was extracted with DCM, dried with MgSO4, and purified on a SiO2 column eluted by a hexane: acetone (3: 1) mixture to afford 5.2g (97%) of pure compound 8.
Alternatively, 8 could be obtained in a reaction catalyzed by Bi(OTf)3 according to the following procedure. A reactor equipped with a magnetic stirrer was charged with compound 7 (0.5 g), Cy2PHO (0.5 g), Bi(OTf)3 (40 mg), and 10 mL of DMF. Next, the reaction mixture was protected by an argon atmosphere, sealed with a glass stopper, and stirred at 70 °C for 48 h. After that time, the reaction mixture was cooled down to 20 °C, and 10 mL of DMD, 50 mg of Bu4NHSO4, and CsCO3 (0.3 g) were added, followed by the addition of 40% NaH (0.37g) realized in a small portion with respect to foaming H2 gas. Once a liberation of H2 was completed, 0.5 mL of CH3I was added, the reactor sealed with a glass stopper, and the reaction mixture was stirred at 35 °C for 48 h. The obtained mixture was poured on 100 g of ice, and carefully acidified with 1M HCl to an acidic pH. The crude product was extracted with DCM, dried with MgSO4, and purified on a SiO2 column eluted by a hexane: acetone = 3: 1 mixture to afford 0.82 g (91%) of pure compound 8.
1H NMR (400 MHz, CDCl3): δ 0.96–2.16 (m, 22H), 3.45 (s, 3H), 3.86 (s, 3H), 4.14 (s, 3H), 7.17–7.28 (m, 3H), 7.34 (d, J = 9.2 Hz, 1H), 7.60–7.64 (m, 2H), 7.78–7.82 (m, 1H), 7.90 (d, J = 9.0 Hz, 1H), 8.16–8.21 (m, 2H).
13C NMR (100 MHz, CDCl3): δ 25.7, 26.1, 26.2, 26.3, 26.5, 26.6, 26.7, 26.8, 26.8, 26.9, 27.0, 27.1, 39.4 (d, J = 18.0 Hz), 40.1 (d, J = 18.0 Hz), 55.3, 61.4, 62.4, 111.8, 119,8, 121.5, 122.3, 122.4, 123.7, 125.0, 125.3, 126.0, 126.9, 127.4, 128.0, 128.6, 129.1, 130.7, 131.2, 151.2, 154.2, 154.6.
31P NMR (161 MHz, CDCl3): δ 50.17 ppm.
HRMS (ESI): m/z = 557.3340 [C35H41O4P+H]+, m/z (teor.) = 557.3175
Synthesis of dicyclohexyl(1′,2-dimethoxy-5′,8′-dihydro-1,2′-binaphthalen-3′-yl)phosphane oxide (9).
A reactor equipped with a magnetic stirrer and reflux condenser connected to the argon line was charged with compound 8 (1.7 g, 3 mmol), 20 mL of THF, TMDS (1.7 mL, 1.3 g, 9.7 mmol), and Ti(OiPr)4 (1 mL. 1 g, 3.5 mmol). The reaction was heated to afford a gentle reflux condition for 24 h and cooled down to ambient temperature. The solvents were evaporated off under the reduced pressure and the product 9 isolated on a SiO2 column applied the gradient of eluents hexane:acetone = 6-3: 1 to afford 1.4g (88%) of pure compound 9. Chiral chromatographic analysis of 9 was performed on HPLC-MS Column CHIRALPAK® AS-H, 250 × 4, 6 mm, 5 µm eluting with CH3CN: H2O = 50: 50 at flow 0.45 mL/min. which showed two signals at 8.07 min and 9.2 min with the same pseudomolecular ion mass 527 Da, which corresponds to the stereoisomers R- and S- of compound 9.
1H NMR (500 MHz, CDCl3): δ 1.13–1.68 (m, 22H), 3.56 (s, 3H), 3.90 (s, 3H), 7.14 (d, J = 8.4 Hz, 1H), 7.23–7.36 (m, 1H), 7.31–7.36 (m, 1H), 7.42 (d, J = 9.1 Hz, 1H), 7.62–7.66 (m, 2H), 7.86 (d, J = 8.0 Hz, 1H), 8.02 (d, J = 9.0 Hz, 1H), 8.07–8.11 (m, 1H), 8.14–8.18 (m, 1H), 8.58 (d, J = 12.1 Hz, 1H),
13C NMR (126 MHz, CDCl3): δ 25.4, 25.5, 25.6, 25.8, 26.1, 26.2, 26.3, 26.5, 26.6, 26.7, 26.8, 36.7 (d, J = 3.7 Hz), 37.7 (d, J = 3.7 Hz), 55.8, 61.5, 112.3, 119.8, 122.6, 123.7, 126.0, 126.2, 126.7, 126.8, 128.8, 129.2, 130.2, 131.1, 132.2, 132.3, 133.4, 133.8, 134.2, 154.4, 154.6, 154.8.
31P NMR (202 MHz, CDCl3): δ 47.54 ppm.
Synthesis of rac-dicyclohexyl(1′,2-dimethoxy-5′,8′-dihydro-1,2′-binaphthalen-3′-yl)phosphane (rac-10).
A reactor equipped with a magnetic stirrer and filled with argon was charged with compound 9 (0.5 g, 0.95 mmol), 20 mL of toluene, 10 mL of Et3N, and 1 mL of SiHCl3. The reactor was sealed with a glass stoper and the reaction mixture was stirred at 120 °C for 24 h. After that time, the reactor was cooled down to 0 °C, and 20 mL of toluene and 10 mL of 15% NaOH were added, maintaining the intense stirring. The formed organic phase was separated, washed with water, and dried by MgSO4. The MgSO4 was filtered off, and the solvent was completely evaporated off under reduced pressure. To the crude product, 15 mL of methanol was added, the air in the flask was replaced with argon, and the flask was sealed with the glass stoper and heated at 90 °C to dissolve the crude product. The pure compound 10 (435 mg, 90%) was crystallized from the solution after 24 h, storing at 0 °C.
Starting from the enantiomerically pure (S)-9, the enantiomerically pure (S)-10 was obtained [α]20D = +57.7 (c = 0.5, Et2O). The spectral data of (Sa)-10 were identical to those recorded for the racemic compound.
1H NMR (500 MHz, CDCl3): 1.02–1.90 (m, 22H), 3.49 (s, 3H), 3.88 (s, 3H), 7.22 (d, J = 8.5 Hz, 1H), 7.28–7.31 (m, 2H), 7,41 (d, J = 8.8 Hz, 1H), 7.57–7.61 (m, 2H), 7.86 (d, J = 8.0 Hz, 1H), 7.96–8.02 (m, 3H), 8.19–8.23 (m, 1H).
13C NMR (126 MHz, benzene d-6): 26.7, 27.1, 27.5, 27.6, 27.7, 27.8, 27.8, 27.8, 27.9, 29.9, 30.1, 30.2, 30.4, 30.5, 30.6, 30.7, 30.8, 34.9 (d, J = 17.8 Hz), 55.3, 61.0, 112.8, 121.8 (d, J = 6.9 Hz), 123.1, 123.5, 126.2, 126.5, 126.7, 127.8, 127.9, 128.1, 128.3, 128.6 (d, J = 3.4 Hz), 129.4, 129.8, 132.2, 132.6, 134.7, 134.8, 137.6, 137.8, 154.9, 155.0, 155.1.
31P NMR (126 MHz, CDCl3): δ −9.50 ppm.

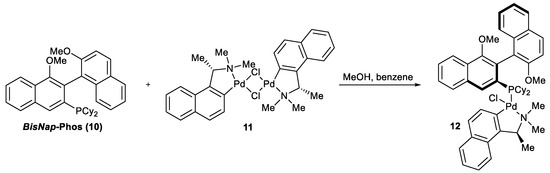

Synthesis of palladium complex 12.
A glass flask equipped with a magnetic stirrer was charged with 266 mg of palladium complex (S)-11 dissolved in 6 mL of methanol and added to a stirring solution of 346 mg of rac-10 in 12 mL of a benzene: methanol (1: 1) mixture. The air in the flask was replaced with argon, the flask was closed with a glass stopper, and the reaction mixture was stirred for 16 h at 50 °C. After the reaction completion, methanol was evaporated under reduced pressure and the product was purified by column chromatography eluted with a hexane: Et2O: MeOH = 2: 1: 0.1 mixture to yield 55 mg of complex 12 as a mixture of diastereomers enriched with the less polar one. Next, the obtained product was crystallized twice with the same solvent mixture to yield 150 mg of a single diastereomer S,Sa-12. The relative configuration of the complex was determined by X-ray diffraction (Figure 2a, CCDC 2222975). Due to the restricted rotation of substituents in the complex, the 1H and 13NMR spectra of 12 contained unspecific very wide and not resolved signals:
31P NMR (126 MHz, CDCl3): δ = 73.89 ppm (wide).
MS (ESI): m/z = 850.27 [C48H56ClNO2PPd + H]+, m/z (teor.) = 850.28; and 814.29 [C48H55NO2PPd]+, m/z (teor.) = 814, 30. The isotopic profile of the signals corresponds to that theoretically calculated.
Synthesis of (Sa)-dicyclohexyl(1′,2-dimethoxy-5′,8′-dihydro-1,2′-binaphthalen-3′-yl)phosphane oxide ((Sa)-9).
An amount of 150 mg of (S,Sa)-12 and 150 mg of dppe were dissolved in 30 mL of DCM. The reaction mixture was sealed and stirred at RT for 48 h, then heated at 100 °C for 20 min. 10 mL of 15% H2O2 was added and stirring continued for the next 4 h. The organic phase was separated and dried with MgSO4 and the product was isolated by SiO2 column chromatography eluting with a hexane: acetone (3: 1) mixture to afford 80 mg of (Sa)-9. The chiral HPLC-MS chromatogram recorder, with the application of CHIRALPAK® AS-H, 250 × 4, 6 mm, 5 µm column eluted with CH3CN: water=50: 50 at flow 0.45 mL/min signal of enantiomer (S)- at 9.2 min, while the signal of enantiomer (R)-9- showed up at 8.0 min, was not presented. [α]20D = +67.7 (C = 1, DCM).
Separation of enantiomers of 9 by co-crystallization with TADDOL.
An amount of 4 g of racemic 9 and 3.5 g of (-)-TADDOL were dissolved in 60 mL of EtOH and 9 mL of CHCl3, in a sealed glass pressure vial at 100 °C. The vial was allowed to cool down to ambient temperature. The crystalline complex was precipitated within 24 h with a yield of 1.6 g and [α]20D = +13.3 (c = 1, methanol). The diastereomeric excess of the obtained complex was measured by the NMR technique as reported [28]: 6 mg of complex and 35 mg of (S)-naproxen were dissolved in 1 mL of CDCl3, and 31P, 1H spectra were recorded. The spectrum of racemic complex contains the signals at 52.0 and 51.9 ppm, with the single diastereomer (S)- at 51.9 ppm. Note that the chemical shifts of the signals corresponding to the enantiomer 9 are dependent on the concentration and the ratio of 9 to naproxen, so the assignment of the absolute configuration only through the NMR technique could not be precise if only a single enantiomer were present in the mixture. Pure (S)-9 was obtained after a flash column separation of its complex with TADDOL eluting with a hexane: acetone = 3: 1 mixture in a quantitative yield with [α]20D = + 67.7 (c = 1, DCM). Chromatographic analysis of 9 was performed on HPLC Column CHIRALPAK® AS-H, 250 × 4, 6 mm, 5 µm eluting with CH3CN: water = 50: 50 at flow 0.45 mL/min; the enantiomer (R)- shows up at 8.07 min, and enantiomer (S)- at 9.2 min. The spectral data of (Sa)-9 were identical to those recorded for the racemic compound. The enantiomer (Ra)-9 could be obtained after the crystallization of the filtrate: the solution was evaporated under the reduced pressure and dissolved in acetone in a pressure vial to afford a 10% solution. The crystals of (Ra)-9 were formed upon cooling down to ambient temperature. In some experiments, complete enantiomer separation requires the recrystallization of the obtained crystals from the same solvent system.
General procedures for asymmetric synthesis of tetra-ortho-substituted biaryl compounds:
General procedure A: A 10 mL round-bottom flask equipped with a stirring bar was charged with 0.3% aqueous solution of SDS and base Na2CO3 (3 mmol). Next, ortho-substituted aryl bromide (1 mmol), ortho-substituted aryl boronic acid or its derivative (1.2 mmol), ligand BisNap-Phos (4 mol%), and the pre-catalyst PdCl2(C6H5CN)2 (2 mol%) were dissolved in a minimum amount of THF and added to the mixture. The reaction was stirred at 60 °C for 18 h, then extracted with DCM (3 × 10 mL), and the combined organic layer was dried over MgSO4 and filtered. The solvent was removed under reduced pressure and the crude product was isolated by column chromatography.
General procedure B: A 10 mL round-bottom flask equipped with a stirring bar was charged with 0.3% aqueous solution of brij 97 and base Na2CO3 (3 mmol). Next, ortho-substituted aryl bromide (1 mmol), ortho-substituted aryl boronic acid or its derivative (1.2 mmol), ligand BisNap-Phos (4 mol%), and the pre-catalyst PdCl2(C6H5CN)2 (2 mol%) were dissolved in a minimum amount of THF and added to the mixture. The reaction was stirred at 60 °C for 18 h, then extracted with DCM (3 × 10 mL), and the combined organic layer was dried over MgSO4 and filtered. The solvent was removed under reduced pressure and the crude product was isolated by column chromatography.
General procedure C: A 10 mL round-bottom flask equipped with a stirring bar was charged with anhydrous DME as a solvent and anhydrous Cs2CO3 (3 mmol). Next, ortho-substituted aryl bromide (1 mmol), ortho-substituted aryl boronic acid or it derivative (1.2 mmol), BisNap-Phos (4 mol%), and pre-catalyst PdCl2(C6H5CN)2 (2 mol%) were dissolved in a minimum amount of THF and added to the reaction mixture. The reaction was stirred at 80 °C for 18 h, then extracted with DCM (3 × 10 mL), and the combined organic layer was dried over MgSO4 and filtered. The solvent was removed under reduced pressure and the crude product was isolated by column chromatography.
2,2′-dimethoxy-1,1′-binaphthyl (13).
The compound was synthesized according to General Procedure A and then purified by column chromatography on silica gel using hexane:acetone (6:1) as an eluent. The compound was obtained as colorless crystals. mp = 218.4–220.4 °C (lit. [29] mp = 223–227 °C). The enantiomeric excess was determined by LCMS using a reversed phase chiral column: AS-RH; Mobile phase: H2O: CH3CN (50: 50); Flow: 0.45; t(R) = 7.847 min. (73.5%); t(S) = 8.529 min., λ = 254 nm; and HPLC using a chiral column: OD-H; Mobile phase: hexane: ethanol (99.5: 0.5); Flow: 0.5 mL/min; t(R) = 18.609; t(S) = 20.334; λ = 254 nm. The specific rotation of the compound with an 47% ee (R) was [α]D = +23.3 ( c 1.0, CHCl3) (lit. [29] [α]D = + 57.54; c 1.0, CHCl3). Yield: 96%. Elemental Analysis: found C, 84.05; H, 5.66; theoretical: C, 84.05; H, 5.77.
1H NMR (500 Hz, CDCl3): δ 3.78 (s, 6H, OCH3), 7.10–7.12 (m, 2H), 7.21–7.23 (m, 2H), 7.31–7.34 (m, 2H), 7.47 (d, J = 9.1 Hz, 2HH), 7.87–7.89 (m, 2H), 7.99 (d, J = 8.8 Hz, 2H).
13C NMR (126 Hz, CDCl3): δ 56.9 (CH3), 114.2, 119.6, 123.5, 125.2, 126.3, 127.9, 129.2, 129.4, 134.0, 155.0.
13C NMR (DEPT 135, CDCl3): δ 56.9 (CH3), 114.2, 123.5, 125.2, 126.3, 127.9, 129.4.
2-methoxy-2′-methyl-1,1′-binaphthalene (15).
The compound was synthesized according to General Procedure A and then purified by column chromatography on silica gel using hexane:acetone = 9:1 as an eluent. The compound was obtained as a yellowish solid. mp = 116–118 °C (lit.[30] mp = 119–120 °C). The enantiomeric excess was determined by LCMS using a reversed phase chiral column: AS-RH; Mobile phase: H2O: CH3CN (50: 50); Flow: 0.45; t(S) = 13.156 min.; t(R) = 14,070 min. (85%); λ = 254 nm. The specific rotation of the compound with an 70% ee (R) was [α]D = +10.3 (c = 1.03, CHCl3) (lit. [30] [α]D = + 22.3; (c 1.3, CHCl3, 92% ee). Yield: 98%. Elemental Analysis: found C, 88.25; H, 5.97; theoretical: C, 88.56; H, 6.08.
1H NMR (500 MHz, CDCl3): δ 2.11 (s, 3H, CH3), 3.77 (s, 3H, OCH3), 7.00–7.02 (m, 1H), 7.13–7.15 (m, 1H), 7.20–7.23 (m, 2H), 7.34 (ddd, J = 8.2, 6.6 and 1.3 Hz, 1H), 7.39 (ddd, J = 8.1, 6.7 and 1.3 Hz, 1H), 7.47 (d, J = 9.1 Hz, 1H), 7.53 (d, J = 8.2 Hz, 1H), 7.89 (dd, J = 8.4 and 3.9 Hz, 2H), 8.00 (d, J = 8.8 Hz, 1H).
13C NMR (126 MHz, CDCl3): δ 20.3 (CH3), 56.6 (OCH3), 113.8, 122.0, 123.6, 124.7, 125.1, 125.8, 126.5, 127.48, 127.9, 127.9, 128.7, 129.2, 129.4, 132.1, 132.3, 133.2, 133.6, 135.0.
13C NMR (DEPT 135, CDCl3): δ 20.3 (CH3), 56.6 (OCH3), 113.8, 123.6, 124.7, 125.1, 125.8, 125.8, 126.5, 127.5, 127.9, 127.9, 128.67, 129.4.
2,6-Dimethoxy-2′,6′-dimethyl-1,1′-biphenyl (21).
The compound was synthesized according to General Procedure A from chloride 17 or bromide 18 and then purified by column chromatography on silica gel using hexane: acetone (99.7: 0.3) as an eluent. The pure compound was isolated as colorless crystals. Mp = 108–110 °C (lit. [31] m.p. = 110–112 °C, crystallized from MeOH). Yield: 40–61%.
1H NMR (500 MHz, CDCl3): δ 2.01 (s, 6H, CH3), 3.72 (s, 6H, OCH3), 6.67 (d, J = 8.4 Hz, 2H), 7.15 (t, J = 8.42 Hz, 1H), 7.16 (d, J = 8.2 Hz, 2H), 7.35 (t, J = 8.2 Hz, 1H).
13C NMR (126 MHz, DEPT 135, CDCl3): δ 20.1 (CH3), 55.8 (OCH3), 103.9, 126.8, 127.0, 128.6.
5-Cyano-2,3,2′,6′-tetrametoxy-1,1′-biphenyl (22).
The compound was synthesized according to General Procedure A from chloride 19 and then purified by column chromatography on silica gel using hexane: acetone (6: 1) as an eluent. The pure compound was isolated as colorless crystals. Mp = 119–120 °C. Yield: 56%.
1H NMR (1H NMR (300.33 MHz, CDCl3): δ 3.68 (s, 3H, OCH3), 3.74 (s, 6H, OCH3), 3.92 (s, 3H, OCH3), 6.65 (d, J = 8.4 Hz, 2H), 7.13 (s, 2H), 7.31–7.36 (t, J = 8.2 Hz, 1H).
13C NMR (75.52 MHz, CDCl3): δ 55.8, 55.9, 60.5, 103.8, 104.1, 106.4, 113.9, 114.3, 119.2, 129.2, 129.6, 129.8, 151.7, 152.8, 157.7.
HRMS (ESI): m/z = 300.1227 [C17H17NO4+H]+, m/z (teor.) = 300.1230, diff. = −1.00 ppm.
2-Acetyl-2′,6′-dimethoxy-1,1′-biphenyl (23).
The compound was synthesized according to General Procedure A from chloride 20 and then purified by column chromatography on silica gel using hexane:ethyl acetate (9:1) as an eluent. The pure compound was isolated as colorless crystals. Mp = 51–52 °C (lit. [32] m.p. = 51–52 °C). Yield: 87%.
1H NMR (500 MHz, CDCl3): δ 3.64 (s, 3H, C(O)OCH3), 3.71 (s, 6 H, OCH3), 6.65 (d, J = 8.4 Hz, 2H, CH), 7.29 (t, J = 8.4 Hz, 1H), 7.34 (dd, J = 7.7, and 1.1 Hz, 1H), 7.40 (td, J = 7.7 and 1.5 Hz, 1H), 7.54 (td, J = 7.5 and 1.5 Hz, 1H), 7.96 (dd, J = 7.7 and 1.3 Hz, 1H).
13C NMR (DEPT 135, CDCl3): δ = 51.6 (C(O)OCH3), 55.8 (OCH3), 103.9, 126.9, 128.7, 129.6, 131.2, 132.4.
2,2′-dimethyl-1,1′-binaphthalene (25).
The compound was synthesized according to General Procedure A and then purified by column chromatography on silica gel using hexane as an eluent. The pure compound was a colorless oily liquid. The enantiomeric excess was determined by the specific rotation and then compared with the literature data. The specific rotation of the compound with an 77% ee (S) was [α]D = +27.5 (c 1.025, CHCl3), (lit. [30] [α]D = +32.5 c = 0.8, CHCl3, 90% ee (S)). The specific rotation of the compound with an 71% ee (R) was [α]D = −24.4 (c 1.01, CHCl3) (lit. [33] [α]D = −40.0; c = 1.12; CHCl3). Yield: 85%. Elemental Analysis: found C, 93.66; H, 5.79; theoretical: C, 93.99; H, 6.01.
1H NMR (500 MHz, CDCl3): δ 2.05 (s, 6H, CH3), 7.05–7.07 (m, 2H), 7.22 (ddd, J = 8.4, 6.8 and 1.3 Hz, 2H), 7.41 (ddd, J = 8.1, 6.9 and 1.1 Hz, 2H), 7.52 (d, J = 8.5 Hz, 2H), 7.88–7.92 (m, 4H).
13C NMR (126 MHz, CDCl3): δ = 20.0 (CH3), 124.9, 125.6, 126.1, 127.4, 127.9, 128.7, 132.2, 132.7, 134.2,135.1.
13C NMR (DEPT 135, CDCl3): δ = 20.0 (CH3), 124.9, 125.6, 127.4, 127.9, 128.7.
2-methyl-1,1′-binaphthalene (27).
The compound was synthesized according to General Procedure C and then purified by column chromatography on silica gel using hexane as an eluent. The pure compound was isolated as colorless crystals. mp = 95.1 °C (lit. [34] mp = 82.8–87.1 °C). The enantiomeric excess was determined by HPLC using a chiral column: OJ-H, Mobile phase: hexane: isopropanol (80: 20); Flow: 1 mL/min; t(R) = 9.146 min. (68, 5%); t(S) = 12.253 min.; λ = 254 nm. The specific rotation of the compound with an 37% ee (R) was [α]D = −17.8 (c 1.0, CHCl3), (lit. [35] [α]D = −15.0; c = 1.0, CHCl3, λ = 589 nm, 49% ee). Yield: 80%. Elemental Analysis: found C, 93.66; H, 5.79; theoretical: C, 93.99; H, 6.01.
1H NMR (500 MHz, CDCl3): δ 2.12 (s, 3H, CH3), 7.15–7.17 (m, 1H), 7.22–7.24 (m, 2H), 7.27–7.30 (m, 1H), 7.39 (dd, J = 6.9, and 1.3 Hz, 1H), 7.41 (ddd, J = 8.2, 6.6 and 1.3 Hz, 1H), 7.48 (ddd, J = 8.2, 6.6 and 1.6 Hz, 1H), 7.51 (d, J = 8.8 Hz, 1H), 7.63 (dd, J = 8.2 and 6.9 Hz, 1H), 7.89 (dd, J = 8.4 and 3.3 Hz, 2H), 7.97 (d, J = 8.2 Hz, 2H).
13C NMR (126 MHz, CDCl3): δ 20.5 (CH3), 124.8, 125.6, 125.9, 125.9, 126.0, 126.1, 126.3, 127.5, 127.6, 127.7, 127.8, 128.3, 128.6, 131.9, 132.6, 133.5, 133.7, 134.4, 136.0, 137.5.
13C NMR (DEPT 135, CDCl3): δ 20.5 (CH3), 124.8, 125.6, 125.9, 125.9, 126.0, 126.1, 126.3, 127.5, 127.6, 127.7, 127.7, 128.2, 128.6.
2-methoxy-1,1′-binaphthalene (28).
The compound was synthesized according to General Procedure B and then purified by column chromatography on silica gel using hexane as an eluent. The pure compound was isolated as colorless crystals. Mp = 105.9 °C (lit. [36] mp = 109–110 °C - crystallized from MeOH). The enantiomeric excess was determined by HPLC using a chiral column: OJ-H, Mobile phase: hexane: isopropanol (95: 5); Flow: 1 mL/min; t(S) =16.607 min.; t(R) = 28.830 min. (67%); λ = 254 nm. The specific rotation of the compound with an 34% ee (R) was [α]D = −16.5 (c = 1.02, CHCl3, λ = 589 nm), (lit. [35] (S) [α]D = +8.0; c = 1.0, CHCl3, λ = 589 nm, 80% ee). Yield: 95%. HRMS (ESI): m/z = 285.1275 [C21H16O+H]+, m/z (teor.) = 285.1274, diff. = 0.35 ppm.
1H NMR (500 MHz, CDCl3): δ 3.78 (s, 3H, OCH3), 7.16 (dd., J = 5.7 and 1.3 Hz, 2H), 7.23 (ddd, J = 8.2, 6.6 and 1.3 Hz, 1H), 7.29 (ddd, J = 8.1, 5.2 and 2.2 Hz, 1H), 7.34 (d, J = 8.8 Hz, 1H), 7.46 (d, J = 8.8 Hz, 1H), 7.46 (dd, J = 6.9 and 1.3 Hz, 2H), 7.63 (dd, J = 8.2 and 6.9 Hz, 1H), 7.89 (d, J = 8.2 Hz, 1H), 7.94–8.01 (m, 3H).
13C NMR (126 MHz, CDCl3): δ 56.8 (OCH3), 113.8, 123.2, 123.5, 125.51, 125.58, 125.7, 125.9, 126.2, 126.3, 127.7, 127.8, 128.2, 128.4, 129.1, 129.5, 132.9, 133.7, 134.2, 134.5, 154.6.
13C NMR (DEPT 135, CDCl3): δ 56.8 (OCH3), 113.8, 123.67, 125.5, 125.6, 125.7, 125.9, 126.2, 126.4, 127.7, 127.8, 128.2, 128.4, 129.5.
2-(2-methoxynaphthalen-1-yl)—4,6-dimethylaniline (30).
The compound was synthesized according to General Procedure C and then purified by column chromatography on silica gel using hexane as an eluent; when 2-methoxynaphthalene was removed from the column, the system was changed to hexane: acetone (98: 2). The pure compound was isolated as colorless crystals. Mp = 165.1 °C (DME). The enantiomeric excess was determined by HPLC using a chiral column: AS-H, Mobile phase: hexane: isopropanol (95: 5); Flow: 0.3 mL/min; t1 = 24.778 min. (54.5%); t2 = 26.990 min.; λ = 254 nm. Due to the low enantiomeric excess of the compound of 9%, specific rotation was not determined. Yield: 86%. Anal. calcd for C19H19NO: C 82.28; H, 6.90; N, 5.05. Found: C, 81.52; H, 6.80; N, 4.95.
1H NMR (500 MHz, CDCl3): δ 2.27 (s, 3H, CH3), 2.31 (s, 3H, CH3), 3.31 (s, 2 H, NH2), 3.90 (s,3H, OCH3), 6.82 (s, 1H), 7.02 (s, 1H), 7.35–7.39 (m, 2H), 7.42 (d, J = 8.8 Hz, 1H), 7.44–7.46 (m, 1H), 7.84–7.86 (m, 1H), 7.93 (d, J = 8.8 Hz, 1H).
13C NMR (126 MHz, CDCl3): δ 17.9 (CH3), 20.5 (CH3), 56.8 (OCH3), 113.9, 121.6, 121.8, 122.5, 123.7, 125.2, 126.6, 127.0, 127.8, 129.27, 129.4, 129.78, 130.6, 133.5, 140.3, 154.4.
13C NMR (DEPT 135, CDCl3): δ = 17.9 (CH3), 20.5 (CH3), 56.8 (OCH3), 113.8, 123.7, 125.2, 126.6, 127.8, 129.4, 129.7, 130.6.
2,4-dimethyl-6-(2-methylnaphthalen-1-yl)aniline (31).
The compound was synthesized according to General Procedure C and then purified by column chromatography on silica gel using hexane as an eluent; when methylnaphthalene was removed from the column, the system was changed to hexane: acetone (99: 1). The pure compound was isolated as grayish crystals. Mp = 106.5 °C (DME). The enantiomeric excess was determined by HPLC using a chiral column: OD-H, Mobile phase: hexane: isopropanol (95: 5); Flow: 1 mL/min; t1 = 8.259 min.; t2 = 8.788 min. (59.5%); λ = 254 nm. The specific rotation of the compound with an 19% ee was [α]D = −1.2 (c = 1.0, CHCl3, λ = 594 nm, 20 °C). Yield: 92%. Elemental Analysis: found C, 86.72; H, 7.30; N, 5.25; theoretical: C, 87.31; H 7.33; N, 5.36.
1H NMR (500 MHz, CDCl3): δ 2.26 (s, 3H, CH3), 2.28 (s, 3H, CH3), 2.30 (s, 3H, CH3), 3.20 (s, 2H, NH2), 6.74 (s, 1H), 7.00 (s, 1H), 7.36 (ddd, J = 8.2, 6.6 and 1.3 Hz, 1H), 7.43–7.47 (m, 3H), 7.81 (d, J = 8.5 Hz, 1H), 7.85–7.86 (m, 1H).
13C NMR (126 MHz, CDCl3): δ 17.9 (CH3), 20.4 (CH3), 20.5 (CH3), 122.8, 124.8, 125.0, 125.7, 126.1, 127.5, 127.8, 128.8, 128.9, 130.4, 132.3, 132.6, 134.7, 139.3.
13C NMR (DEPT 135, CDCl3): δ 17.9 (CH3), 20.4 (CH3), 20.5 (CH3), 125.0, 125.7, 126.1, 127.5, 127.8, 128.8, 128.9, 130.4.
2,4-dimethyl-6-(naphthalen-1-yl)aniline (32).
The compound was synthesized according to General Procedure C and then purified by column chromatography on silica gel using hexane as an eluent; when naphthalene was removed from the column, the system was changed to hexane: acetone (99: 1). The pure compound was isolated as pinkish crystals. Mp = 127.8 °C (DME). The enantiomeric excess was determined by HPLC using a chiral column: OJ-H, Mobile phase: hexane:isopropanol (80: 20); Flow: 1 mL/min; t1 = 10.971 min (52%).; t2 = 13.418 min.; λ = 254 nm. Due to the low enantiomeric excess of the compound of 4%, specific rotation was not determined. Yield: 93%. Elemental Analysis: found C, 87.01 H, 6.85; N, 5.54; theoretical: C, 87.41; H, 6.93; N, 5.66.
1H NMR (500 MHz, CDCl3): δ 2.26 (s, 3H, CH3), 2.30 (s, 3H, CH3), 3.33 (s, 2H, NH2), 6.88 (m, 1H), 7.01 (m, 1H), 7.43 (ddd, J = 8.2, 6.6 and 1.3 Hz, 1H), 7.46 (dd, J = 6.9 and 1.3 Hz, 1H), 7.51 (ddd, J = 8.2, 6.6 and 1.3 Hz, 1H), 7.56 (dd, J = 8.2 and 6.9 Hz, 1H), 7.66 (d, J = 8.2 Hz, 1H), 7.91 (dd, J = 15.1 and 8.2 Hz, 2H).
13C NMR (126 MHz, CDCl3): δ 17.8 (CH3), 20.4 (CH3), 122.5, 125.8, 125.8, 125.9, 126.2, 126.2, 127.1, 127.6, 127.8, 128.2, 129.4, 130.6, 131.8, 133.8, 137.4, 139.8.
13C NMR (DEPT 135, CDCl3): δ 17.8 (CH3), 20.4 (CH3), 125.8, 125.9, 126.2, 126.2, 127.6, 127.8, 128.2, 129.4, 130.6.
9-(2-methylnaphthalen-1-yl)phenanthrene (34).
The compound was synthesized according to General Procedure C and then purified by column chromatography on silica gel using hexane as an eluent. The pure compound was isolated as colorless crystals. mp = 145.7 °C (lit. [37] mp = 143–144 °C crystallized from EtOH-acetone). The enantiomeric excess was determined by HPLC using a chiral column: OJ-H, Mobile phase: hexane: isopropanol (95: 5); Flow: 1 mL/min; t1 = 11.078 min.; t2 = 16.962 min. (67%); λ = 254 nm. The specific rotation of the compound with an 35% ee was [α]D = +55.4 (c = 1.01, CHCl3, λ = 589 nm, 20 °C). Yield: 80%. Elemental Analysis: found C, 92.80; H, 5.81; theoretical: C, 94.30; H, 5.70.
1H NMR (500 MHz, CDCl3): δ 2.20 (s, 3H, CH3), 7.23 (ddd, J = 7.9, 6.6 and 1.3 Hz, 1H), 7.29–7.32 (m, 2H), 7.39–7.43 (m, 2H), 7.55 (d, J = 8.2 Hz, 1H), 7.66–7.70 (m, 3H), 7.75 (ddd, J = 8.4, 6.9 and 1.4 Hz, 1H), 7.91–7.94 (m, 3H), 8.83–8.86 (m, 2H).
13C NMR (126 MHz, CDCl3): δ 20.5 (CH3), 122.6, 122.9, 124.8, 125.9, 126.2, 126.6, 126.6, 126.7, 126.8, 127.6, 127.8, 128.4, 128.6, 130.1, 131.7, 131.8, 132.0, 134.5, 135.9, 136.0.
13C NMR (DEPT 135, CDCl3): δ 20.5 (CH3), 122.67, 122.9, 124.8, 125.9, 126.2, 126.5, 126.6, 126.7, 126.8, 127.6, 127.8, 128.4, 128.6.
2′-methoxy-[1,1′-binaphthalen]-2-yl diethylcarbamate (36).
The compound was synthesized according to General Procedure B and then purified by column chromatography on silica gel using hexane:acetone (9:1) as an eluent; when 2-methoxy naphthalene was removed from the column, the system was changed to hexane: acetone (6: 1). The pure compound was isolated as yellowish crystals. Mp = 110.7 °C. The enantiomeric excess was determined by HPLC using a chiral column: OJ-H, Mobile phase: hexane:ethanol (98: 2); Flow: 1 mL/min; t1 = 23.080 min.; t2 = 25.855 min. (79.5%); λ = 254 nm. The specific rotation of the compound with an 59% ee was [α]D = +30.8 (c = 1.02, CHCl3, λ = 589 nm). Yield: 72%. HRMS (ESI): m/z = 400.1925 [C26H25NO3+H]+, m/z (theor.) = 400.1907, diff. = 5.00 ppm. Mobile phase: CH3CN: H2O (65: 35), Flow: 0.3 mL/min. Elemental Analysis: found C, 77.82; H, 6.22; N, 3.41 theoretical: C, 78.17; H, 6.31; N, 3.51.
1H NMR (500 MHz, CDCl3): δ 0.43–0.46 (m, 3H, CH3), 0.82–0.85 (m, 3H, CH3), 2.68–2.69 (m, 2H, CH2), 3.03–3.11 (m, 2H, CH2), 3.76 (s, 3H, OCH3), 7.19–7.21 (m, 1H), 7.24 (ddd, J = 8.51, 6.31 and 1.26 Hz, 1H, CH), 7.28 (dd, J = 4.4 and 0.9 Hz, 2H, CH2), 7.31 (ddd, J = 8.1, 6.5 and 1.4 Hz, 1H), 7.42 (d, J = 9.1 Hz, 1H), 7.44 (dd, J = 7.9 and 4.1 Hz, 1H), 7.62 (d, J = 8.8 Hz, 1H), 7.84 (d, J = 8.2 Hz, 1H), 7.93 (d, J = 8.2 Hz, 1H), 7.97 (d, J = 8.8 Hz, 1H), 7.98 (d, J = 8.8 Hz, 1H).
13C NMR (126 MHz, CDCl3): δ 13.0 (CH3), 13.1 (CH3), 41.2 (CH2), 41.7 (CH2), 56.8 (OCH3), 113.8, 118.5, 122.6, 123.6, 124.6, 125.0, 125.6, 126.0, 126.2, 126.5, 127.6, 1281, 128.7, 129.0, 129. 7, 131.4, 133.6, 133.9, 147.4, 153.5, 1554.0.
13C NMR (DEPT 135, CDCl3): δ 13.0 (CH3), 13.1 (CH3), 41.2 (CH2), 41.7 (CH2), 56.8 (OCH3), 113.8, 122.6, 123.6, 125.0, 125.6, 126.0, 126.2, 126.5, 127.6, 128.1, 128.7, 129.7.
2′-methyl-[1,1′-binaphthalen]-2-yl diethylcarbamate (37).
The compound was synthesized according to General Procedure A and then purified by column chromatography on silica gel using hexane: acetone (9: 1) as an eluent. The pure compound was isolated as yellowish crystals. Mp = 100.5 °C. The enantiomeric excess was determined by HPLC using a chiral column: OJ-H, Mobile phase: hexane: isopropanol (95: 5); Flow: 1 mL/min; t1 = 8.204 min.; t2 = 10.755 min. (83.5%); λ = 254 nm. The specific rotation of the compound with an 67% ee was [α]D = +65,4 (c = 1.105, CHCl3, λ = 589 nm). Yield: 82%. HRMS (ESI): m/z = 370.1782 [C26H25NO2+H]+, m/z (theor.) = 370.1802, diff. = −5.40 ppm.
1H NMR (500 MHz, CDCl3): δ 0.35–0.38 (m, 3H, N(CH2CH3)2), 0.81–0.83 (m, 3H, N(CH2CH3)2), 2.11 (s, 3H, CH3), 2.55–2.64 (m, 2H, CH2), 3.01–3.07 (m, 2H, CH2), 7.18–7.25 (m, 3H), 7.27–7.30 (m, 1H), 7.36–7.39 (m, 1H), 7.43–7.48 (m, 1H), 7.47 (d, J =8.4 Hz, 1H), 7.58 (d, J = 8.8 Hz, 1H), 7.85 (d, J = 8.4 Hz, 2H), 7.95 (d, J = 8.2 Hz, 1H), 7.99 (d, J = 8.8 Hz, 1H).
13C NMR (126 MHz, CDCl3): δ 12.9 (N(CH2CH3)2), 12.9 N(CH2CH3)2), 20.3 (CH3), 41.2 (N(CH2CH3)2), 41.7 (N(CH2CH3)2), 122.7, 124.8, 125.2, 125.6, 125.9, 126.0, 126.5, 127.5, 127.5, 127.7, 128.1, 128.5, 128.7, 131.2, 131.5, 132.0, 133.1, 133.1, 135.3, 147.1, 153.4.
13C NMR (DEPT 135, CDCl3): δ 12.9 (N(CH2CH3)2), 12.9 (N(CH2CH3)2), 20.3 (CH3), 41.2 (N(CH2CH3)2), 41.7 (N(CH2CH3)2), 122.7, 124.8, 125.2, 125.6, 125.9, 126.0, 126.5, 127.5, 127.7, 128.1, 128.5, 128.7.
2,2′-bis-[1,1′-binaphthalen]-2-yl N,N-diethylcarbamate (39).
The compound was synthesized according to General Procedure B and then purified by column chromatography on silica gel using hexane: acetone (9: 1) as an eluent. The pure compound was isolated as a yellowish solid. Mp = 66–68 °C (lit. [38] mp = 67–68 °C). The enantiomeric excess was determined by HPLC using a chiral column: OD-H, Mobile phase: hexane: ethanol (99.5: 0.5); Flow: 0.5 mL/min; t1 = 21.610 min.; t2 = 24.678 min. (75%); λ = 254 nm. The specific rotation of the compound with an 50% ee (R) was [α]D = +62.0 (c = 0.995, CHCl3, λ = 589 nm), (lit. [38] [α]D = +117.0; c = 2.0, CHCl3, λ = 589 nm). Yield: 80%. Elemental Analysis: found C, 73.83; H, 6.53; N, 5.61; theoretical: C, 74.36; H, 6.66; N, 5.78.
1H NMR (500 MHz, CDCl3): δ 0.37–0.40 (m, 6H, CH3), 0.84–0.87 (m, 6H, CH3), 2.63–2.71 (m, 4H, CH2), 2.99–3.13 (m, 4H, CH2), 7.29 (ddd, J = 7.9, 6.6 and 1.3 Hz, 1H), 7.33–7.35 (m, 1H), 7.43 (ddd, J = 8.1, 6.7 and 1.3 Hz, 1H), 7.60 (d, J = 8.8 Hz, 2H), 7.90 (d, J = 8.2 Hz, 2H), 7.96 (d, J = 8.8 Hz, 2H).
13C NMR (126 MHz, CDCl3): δ 12.9 (CH3), 13.00 (CH3), 41.3 (CH2), 41.8 (CH2), 122.5, 123.7, 125.2, 126.1, 126.4, 127.7, 128.8, 131.2, 133.4, 147.5, 153.3.
13C NMR (DEPT 135, CDCl3): δ 12.9 (CH3), 13.00 (CH3), 41.3 (CH2), 41.8 (CH2), 122.5, 125.2, 126.1, 126.4, 127.7, 128.8.
2-methoxy-2′-(2-pivaloyloxyethoxy)-1,1′-binaphthyl (41).
The compound was synthesized according to General Procedure B and then purified by column chromatography on silica gel using hexane: acetone (99: 1) as an eluent. The pure compound was isolated as an oily liquid. The enantiomeric excess was determined by HPLC using a chiral column: OD-H, Mobile phase: hexane: ethanol (99.5: 0.5); Flow: 0.5 mL/min; t1 = 20.882 min. (68%); t2 = 22.780 min.; λ = 254 nm. The specific rotation of the compound with an 36% ee was [α]D = +13.7 (c = 1.015, CHCl3, λ = 589 nm). Yield: 72%. HRMS (ESI): m/z = 451.1883 [C28H28O4+Na]+, m/z (teor.) = 451.1880, diff. = 0.66 ppm
1H NMR (500 MHz, CDCl3): δ 0.99 (s, 9H, CH3), 3.78 (s, 3H, OCH3), 4.05–4.07 (m, 2H, CH2), 4.10–4.19 (m, 2 H, CH2), 7.11 (d, J = 16.4 Hz, 1H), 7.13 (d, J = 16.7 Hz, 1H), 7.19–7.25 (m, 2H), 7.30–7.33 (m, 1H), 7.33–7.37 (m, 1H), 7.46 (dd, J = 9.0 and 2.7 Hz, 2H), 7.87 (dd, J = 18.9 and 9.1 Hz, 2H), 7.97 (dd, J = 9.0 and 3.0 Hz, 2H).
13C NMR (126 MHz, CDCl3): δ 26.9 (CH3), 38.5 (C(CH3)3), 56.7 (OCH3), 63.0 (CH2), 67.7 (CH2), 113.9, 116.3, 119.2, 121.0, 123.4, 123.8, 125.1, 125.4, 126.3, 126.3, 127.8, 127.9, 129.1, 129.3, 129.4, 129.6, 133.9, 134,0, 153.9, 154.8, 178.3.
13C NMR (DEPT 135, CDCl3): δ 26.9 (CH3), 56.7 (OCH3), 63.0 (CH2), 67.7 (CH2), 113.9, 116.3, 123.4, 123.9, 125.1, 125.4, 126.3, 126.3, 127.8, 127.9, 129.4, 129.4.
2-((2′-((diethylcarbamoyl)oxy)-[1,1′-binaphthalen]-2-yl)oxy)ethyl pivalate (42).
The compound was synthesized according to General Procedure B and then purified by column chromatography on silica gel using hexane: acetone (95: 5) as an eluent. The pure compound was isolated as a yellowish solid. Mp = 91.8 °C. The enantiomeric excess was determined by HPLC using a chiral column: OJ-H, Mobile phase: hexane: ethanol (98: 2); Flow: 1 mL/min; t1 = 12.668 min.; t2 = 17.935 min. (68%); λ = 254 nm. The specific rotation of the compound with an 36% ee was [α] = + 19.9 (c = 1.005, CHCl3, λ = 589 nm, 20 °C). Yield: 87%. Elemental Analysis: found C, 74.34; H, 6.74; N, 2.73; theoretical: C, 74.83; H, 6.87; N, 2.73.
1H NMR (500 MHz, CDCl3): δ 0.42–0.45 (m, 3H, N(CH2CH3)2), 0.80–0.82 (m, 3H, N(CH2CH3)2), 1.01 (s, 9H, (CH3)3), 2.68–2.69 (m, 2H, N(CH2CH3)2), 2.97–3.09 (m, 2H, N(CH2CH3)2), 4.04–4.12 (m, 4H, OCH2CH2O), 7.23–7.26 (m, 2H), 7.28–7.29 (m, 2H), 7.35 (ddd, J = 7.9, 6.4 and 2.2 Hz, 1H), 7.42 (d, J = 9.0 Hz, 1H), 7.42–7.45 (m, 1H), 7.61 (d, J = 9.1 Hz, 1H), 7.85 (d, J = 8.2 Hz, 1H), 7.93 (d, J = 8.2 Hz, 1H), 7.97 (t, J = 8.8 Hz, 2H).
13C NMR (126 MHz, CDCl3): δ 12.9 N(CH2CH3)2), 13.1 N(CH2CH3)2), 26.9((CH3)3), 38.5 (C(CH3)3), 41.2 N(CH2CH3)2), 41.7 N(CH2CH3)2), 62.9 (OCH2CH2), 67.6 (OCH2CH2), 115.7, 119.9, 122.5, 124.0, 124.4, 125.0, 125.7, 125.9, 126.1, 126.5, 127.5, 128.0, 128.7, 129.4, 129.6, 131.3, 133.5, 133.9, 147.4, 153.4, 153.9, 178.3.
13C NMR (DEPT 135, CDCl3): δ 12.9 N(CH2CH3)2), 13.1 N(CH2CH3)2), 26.9 ((CH3)3), 41.2 N(CH2CH3)2), 41.7 N(CH2CH3)2), 62.9 (OCH2CH2), 67.6 (OCH2CH2), 115.7, 122.5, 124.0, 125.0, 125.7, 125.9, 126.1, 126.5, 127.5, 128.0, 128.7, 129.6.
(2-methoxy-1,1′-binaphthalen-2-yl)methyl 2,2′-dimethylpropanoate (44).
The compound was synthesized according to General Procedure B and then purified by column chromatography on silica gel using hexane: acetone (98: 2) as an eluent. The pure compound was isolated as an oily liquid. The enantiomeric excess was determined by HPLC using a chiral column: OD-H, Mobile phase: hexane: ethanol (98: 2); Flow: 0.5 mL/min; t1 = 7.395 min.; t2 = 7.865 min (93%); λ = 254 nm. The specific rotation of the compound with an 86% ee was [α]D = −10.7 (c = 1.025, CHCl3, λ = 589 nm). Yield: 66%. HRMS (ESI): m/z = 421.1827 [C27H26O3+H]+, m/z (teor.) = 421.1774, diff. = 12.58 ppm.
1H NMR (500 MHz, CDCl3): δ 1.07 (s, 9H, (CH3)3), 3.78 (s, 3H, OCH3), 4.79 (d, J = 12.9 Hz, 1H, CH2), 4.97 (d, J = 12.9 Hz, 1H, CH2), 6.98–7.00 (m, 1H), 7.16–7.18 (m, 1H), 7.20 (ddd, J = 8.5, 6.9 and 1.3 Hz, 1H), 7.25 (ddd, J = 8.4, 6.8 and 1.3Hz, 1H), 7.32 (ddd, J = 8.1, 6.9 and 1.3 Hz, 1H), 7.44–7.48 (m, 2H, CH), 7.69 (d, J = 8.5 Hz, 1H), 7.84–7.88 (m, 1H), 7.93 (d, J = 8.3Hz, 1H), 7.98–8.02 (m, 2H).
13C NMR (126 MHz, CDCl3): δ 27.0 (CH3), 38.7 (C(CH3)3) 56.4 (OCH3), 64.8 (CH2), 113.3, 119.7, 123.6, 125.1, 125.7, 125.9, 126.1, 126.2, 126.3, 126.7, 126.8, 127.2, 127.6, 127.8, 127.9, 128.0, 128.0, 128.1, 129.0, 129.4, 130.0 132.9, 133,0, 133.2, 133.2, 133.9, 154.4, 178.3.
13C NMR (DEPT 135, CDCl3): δ 27.0 (CH3), 56.4 (OCH3), 64.8 (CH2), 113.3, 123.6, 125.1, 125.7, 125.9, 126.2, 126.3, 126.7, 127.9, 128.0, 128.0, 130.0.
2-(2′-((diethylcarbamoyl)oxy)-[1.1′-binaphthalen]-2-yl)methyl pivalate (45).
The compound was synthesized according to General Procedure B and purified by column chromatography on silica gel using hexane: acetone (99: 1) as an eluent. The pure compound was isolated as colorless crystals. Mp = 69–72 °C. The enantiomeric excess was determined by HPLC using a chiral column: OD-H, Mobile phase: hexane: ethanol (98: 2); Flow: 1 mL/min; t1 = 7.861 min.; t2 = 8,513 min. (88%); λ = 254 nm. The specific rotation of the compound with a 76% ee was [α]D = +31.5 (c = 1.0, CHCl3, λ = 589 nm). Yield: 47%. Elemental Analysis: found C, 75.87; H, 6.80; N, 2.73; theoretical: C, 76.99; H, 6.88; N, 2.90.
1H NMR (500 MHz, CDCl3): δ 0.37–0.40 (m, 3H, N(CH2CH3)2), 0.78–0.81 (m, 3 H, N(CH2CH3)2), 1.11 (s, 9H, (CH3)3), 2.65 (q, J = 6.9 Hz, 2H, N(CH2CH3)2), 2.98–3.09 (m, 2H, N(CH2CH3)2), 4.83 (d, J = 12.9 Hz, 1H, CH2), 5.00 (d, J = 12.9 Hz, 1H, CH2), 7.21–7.23 (m, 1H), 7.28–7.32 (m, 3H), 7.45–7.48 (m, 2H), 7.60 (d, J = 8.8 Hz, 1H), 7.64 (d, J = 8.5 Hz, 1H), 7.91 (d, J = 8.2 Hz, 1H), 7.97 (t, J = 7.9 Hz, 2H), 8.02 (d, J = 8.5 Hz, 1H).
13C NMR (126 MHz, CDCl3): δ 12.9 N(CH2CH3)2), 13.0 N(CH2CH3)2), 27.1 (CH3), 41. N(CH2CH3)2), 41.8 N(CH2CH3)2), 64.4 (CH2), 122.5, 125.4, 125.5, 125.7, 125.8, 126.0, 126.4, 126.6, 126.6, 127.6, 128.1, 128.3, 129.3, 131.4, 132.1, 132.7, 133.1, 133.3, 147.3, 178.1.
13C NMR (DEPT 135, CDCl3): δ 12.9 N(CH2CH3)2), 13.0 N(CH2CH3)2), 27.1 (CH3), 41.2 N(CH2CH3)2), 41.8 N(CH2CH3)2), 64.4 (CH2), 122.5, 125.4, 125.5, 125.8, 126.1, 126.4, 126.6, 126.6, 127.6, 128.1, 128.4, 129.3.
9-(2-methoxynaphthalen-1-yl)phenanthrene (46).
The compound was synthesized according to General Procedure C and then purified by column chromatography on silica gel using hexane as an eluent. The pure compound was isolated as colorless crystals. Mp = 184.9–187.7 °C. The enantiomeric excess was determined by HPLC using a chiral column: OJ-H, Mobile phase: hexane: ethanol (98: 2); Flow: 1 mL/min; t1 = 17.219 min. (52.5%); t2 = 26.766 min.; λ = 254 nm. Due to the low enantiomeric excess of the compound of 5%, specific rotation was not determined. Yield: 91%. HRMS (ESI): m/z = 335.1454 [C25H18O+H]+, m/z (teor.) = 335.1430, diff. = 7.16 ppm.
1H NMR (500 MHz, CDCl3): δ 3.79 (s, 3H, CH3), 7.21–7.24 (m, 1H), 7.28–7.30 (m, 1H), 7.34 (ddd, J = 8.2, 6.6 and 1.3 Hz, 1H), 7.39–7.40 (m, 2H), 7.49 (d, J = 9.1 Hz, 1H), 7.62–7.67 (m, 2H), 7.72 (ddd, J = 8.2, 6.9 and 1.3 Hz, 1H), 7.73 (s, 1H), 7.89–7.91 (m, 2H), 8.02 (d, J = 8.8 Hz, 1H), 8.80–8.83 (m, 2H).
13C NMR (126 MHz, CDCl3): δ 56.8 (OCH3), 113.8, 122.6, 122.8, 123.6, 125.5, 126.4, 126.5, 126.5, 126.6, 126.6, 126.8, 127.8, 128.7, 129.1, 129.6, 130.3, 131.9, 132.1, 134.3, 154.8.
13C NMR (DEPT 135, CDCl3): δ 56.8 (OCH3), 113.8, 122.6, 122.8, 123.6, 125.5, 126.4, 126.5, 126.5, 126.6, 126.6, 126.8, 127.8, 128.7, 129.1, 129.6.
2-(2-methoxynaphthalen-1-yl)phenyl 2,2-dimethylpropanoate (48).
The compound was synthesized according to General Procedure A and then purified by column chromatography on silica gel using hexane:acetone (9:1) as an eluent. The pure compound was isolated as an oily liquid. The enantiomeric excess was determined using the europium tris [3-(heptafluoropropylhydroxymethylene)-(+)-camphorate] as an optically active NMR shift reagent. Signals from which it was found that the compound exhibited an enantiomeric excess of 3% were 0.84 ppm and 0.86 ppm derived from hydrogen in the pivaloyl group. These signals were derived from split and shifted towards higher chemical shifts signal at 0.72 ppm. Yield: 35%. HRMS (ESI): m/z = 357.1439 [C22 H22O3+Na]+, m/z (teor.) = 357.1461, diff. = −6.16 ppm.
1H NMR (500 MHz, CDCl3): δ = 0.73 (s, 9H, (CH3)3), 3.84 (s, 3H, OCH3), 7.25–7.27 (m, 1H, CH), 7.32–7.36 (m, 3H), 7.37–7.38 (m, 3H), 7.47–7.49 (m, 1H), 7.79–7.81 (m, 1H), 7.88 (d, J = 8.8 Hz, 1H).
13C NMR (126 MHz, CDCl3): δ = 26.5 (CH3), 38.6, (C(CH3)3), 56.7 (OCH3), 113.4, 120.4, 122.7, 123.5, 125.2, 125.6, 126.4, 127.6, 128.6, 128.8, 129.4, 129.5, 132.5, 133.5, 149.5, 154.2, 176.1.
13C NMR (DEPT 135, CDCl3): δ = 26.5 (CH3), 56.7 (OCH3), 113.4, 122.7, 123.5, 125.2, 125.6, 126.4, 127.6, 128.6, 129.4, 132.5.
2-(2-methoxynaphthalen-1-yl)phenyl diethylcarbamate (50).
The compound was synthesized according to General Procedure A and then purified by column chromatography on silica gel using hexane: acetone (9: 1) as an eluent. The pure compound was isolated as a colorless oily liquid. Using the HPLC method or chemical shift reagent europium tris[3-(heptafluoropropylhydroxymethylene)-(+)-camphorate], the enantiomers were not distinguished. Yield: 85%. HRMS (ESI): m/z = 350.1750 [C22 H23NO3+H]+, m/z (teor.) = 350.1751, diff. = −0.29 ppm
1H NMR (500 MHz, CDCl3): δ 0.46–0.49 (m, 3H, N(CH2CH3)2), 0.80–0.84 (m, 3H, N(CH2CH3)2), 2.67–2.71 (m, 2H, N(CH2CH3)2), 3.00–3.12 (m, 2H, N(CH2CH3)2), 3.83 (s, 3H, OCH3), 7.30–7.36 (m, 5H), 7.42–7.49 (m, 3H, CH), 7.78–7.80 (m, 1H), 7.88 (d, J = 8.9 Hz, 1H).
13C NMR (126 MHz, CDCl3): δ 12.9 N(CH2CH3)2), 13.2 N(CH2CH3)2), 41.1 N(CH2CH3)2), 41.7 N(CH2CH3)2), 56.7 (OCH3), 113.5, 120.9, 122.5, 123.0, 123.4, 124.8, 125.4, 126.3, 127.5, 128.4, 128.8, 128.9, 129.3, 131.03, 132.2, 133.5, 149.9, 153.3, 154.2.
13C NMR (DEPT 135, 125.77 MHz, CDCl3): δ 12.9 N(CH2CH3)2), 13.2 N(CH2CH3)2), 41.1 N(CH2CH3)2), 41.6 N(CH2CH3)2), 56.7 (OCH3), 113.5, 123.0, 123.4, 124.8, 125.4, 126.3, 127.5, 128.4, 129.3, 132.2.
9-(naphthalen-1-yl)phenanthrene (51).
The compound was synthesized according to General Procedure C and then purified by column chromatography on silica gel using hexane as an eluent. The pure compound was isolated as colorless crystals. Mp = 115.9–117.2 °C (DME) (lit. [39] mp = 126–127 °C). The enantiomeric excess was determined by HPLC using a chiral column: AS-H, Mobile phase: hexane: isopropanol (90: 10); Flow: 0.2 mL/min; t1 = 26.394 min. (51%); t2 = 28.445 min.; λ = 254 nm. Due to the low enantiomeric excess of the compound of 3%, specific rotation was not determined. Yield: 98%. Elemental Analysis: found C, 93.74; H, 5.12 theoretical: C, 94.70; H, 5.30.
1H NMR (500 MHz, CDCl3): δ 7.28–7.31 (m, 1H, CH), 7.39–7.44 (m, 2H), 7.45–7.51 (m, 2H), 7.57–7.59 (m, 1H), 7.62–7.68 (m, 3H), 7.72–7.75 (m, 1H), 7.80 (s, 1H), 7.91–7.93 (m, 1H), 7.97–8.00 (m, 2H, CH), 8.82 (t, J = 8.8Hz, 2H).
13C NMR (126 MHz, CDCl3): δ 122.6, 122.7, 125.4, 125.8, 126.0, 126.5, 126.5, 126.6, 126.7, 126.8, 127.4, 127.8, 128.0, 128.19, 128.4, 128.7 130.2, 130.3, 131.6, 132.1, 132.9, 133.5, 137.5, 137.1, 138.4.
13C NMR (DEPT 135, CDCl3): δ 122.6, 122.7, 125.4, 125.8, 126.0, 126.5, 126.5, 126.6, 126.7, 126.9, 127.4, 127.8, 128.0, 128.1, 128.4, 128.7.
X-ray crystal structure determination of Pd complex (S,Sa)-12 and cocrystal of compound 9 with TADDOL.
The labeling scheme of atoms in coordination units of (S,Sa)-12 is shown in Figure 3.
Crystal data for the Pd complex (S,Sa)-12 and a cocrystal of compound 9 with TADDOL are provided in Table 18, Table 19 and Table 20.
Diffraction reflections were collected on Bruker Nonius Kappa CCD and on Xcalibur Sapphire2 diffractometers with Mo Kα radiation (0.71073 Å). The absorption corrections were applied by the multi-scan method from Blessing [40]. Crystal structure for compound 9 was refined with anisotropic non-hydrogen atoms. The proper configuration was established on the base of the synthesis route and the presence of the TADDOL molecule in the cocrystal structure.
The compound 12 has the formula 2(C48H55ClNO2PPd) 9(CH3OH) 2(H2O) and crystalizes in the monoclinic P21 space group as a solvate of a pure (S,Sa)-diastereoisomer with two neutral coordination units, nine methanol molecules, and two water molecules in the asymmetric part. Due to the very poor crystals of the Pd complex, only the Pd, P, and Cl atoms were refined anisotropically. Further calculations with all non-hydrogen atoms refined anisotropically presented no better solution. The hydrogen atoms in the coordination units were introduced at calculated positions and refined riding on their carrier atoms. The hydrogen atoms from solvent molecules were omitted due to the low quality of the experimental data. The absolute configuration of the chiral complex was confirmed by using the Flack parameter [41]. The supplementary crystallographic data for Pd complex (S,Sa)-12 CCDC No. 2222975 and for the cocrystal of compound (Ra)-9 with TADDOL CCDC No. 2232483 can be obtained free of charge from the Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cif, accessed on 1 December 2022.
Crystal data for Pd complex (S,Sa)-12 C105H130Cl2N2O15P2Pd2 (M = 2005.75 g/mol): monoclinic, space group P21, a = 14.0761(1) Å, b = 25.813(1) Å, c = 14.586(1) Å, β = 90.26(1)°, V = 5299.7(4) Å3, Z = 2, T = 100(2) K, μ(MoKα) = 0.480 mm−1, Dcalc = 1.257 g/cm3, 15122 reflections measured (2.8° ≤ 2Θ ≤ 51.92°), 10364 unique (Rint = 0.0458, Rsigma = 0.0526) which were used in all calculations. The final R1 was 0.0585 (>2σ(I)) and wR2 was 0.1553 (all data).
Crystal data for the cocrystal of compound (Ra)-9 with TADDOL C65H69O7P (M =993.17 g/mol): orthorhombic, space group P212121 (no. 19), a = 9.8002(6) Å, b = 18.1101(10) Å, c = 30.8874(18) Å, V = 5482.0(6) Å3, Z = 4, T = 293(2) K, μ(MoKα) = 0.104 mm−1, Dcalc = 1.203 g/cm3, 46268 reflections measured (4.688° ≤ 2Θ ≤ 50.482°), 9878 unique (Rint = 0.0849, Rsigma = 0.0747), which were used in all calculations. The final R1 was 0.0608 (I > 2σ(I)) and wR2 was 0.1529 (all data).

4. Conclusions

In conclusion, new chiral non-racemic (Sa)- and (Ra)-BisNap-Phos ligands are easily available from inexpensive starting materials in straightforward synthesis performed under readily affordable conditions. The utilization of BisNap-Phos in Suzuki-Miyaura coupling was studied in detail, including the asymmetric version of this reaction. The effects of the catalyst, base, solvent, surfactant, and other reaction conditions were carefully evaluated. The palladium complexes of BisNap-Phos were highly catalytically active in aqueous and anhydrous mediums. A wide range of coupling products were obtained in excellent yields with good stereoselectivities (up to 86% ee). The (Sa)- and (Ra)-BisNap-Phos-based palladium catalysts appear to be more efficient than the catalysts based on commercially available ligands in the benchmark of asymmetric Suzuki–Miyaura couplings. Further applications of the BisNap-Phos in asymmetric catalysis are currently ongoing in our laboratory.

Author Contributions

Conceptualization, O.M.D.; methodology, K.K. and O.M.D.; investigation, K.K., B.M., J.L. and O.M.D.; writing—original draft preparation, S.F., O.M.D., B.M.; writing—review and editing, S.F., O.M.D., B.M.; visualization, B.M.; supervision, O.M.D.; project administration, O.M.D. All authors have read and agreed to the published version of the manuscript.

Funding

The studies were partially supported by the Polish National Science Centre, grant number 2019/33/B/NZ7/01608.

Data Availability Statement

The data supporting reported results can be received from the Authors.

Acknowledgments

Authors are thankful to dr hab. inż. K. Michał Pietrusiewicz for valuable discussions and suggestions which helped to improve the quality of the study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhou, Q.-L. Privileged Chiral Ligands and Catalysis; Wiley-VCH: Weinheim, Germany, 2011. [Google Scholar]
  2. Miyaura, N.; Suzuki, A. Palladium-Catalyzed Cross-Coupling Reactions of Organoboron Compounds. Chem. Rev. 1995, 95, 2457–2483. [Google Scholar] [CrossRef]
  3. de Meijere, A.; Brase, S.; Oestreich, M. Metal Catalyzed Cross-Coupling Reactions and More; Wiley-VCH: Weinheim, Germany, 2013; Volume 3. [Google Scholar]
  4. Johansson Seechurn, C.C.C.; Kitching, M.O.; Colacot, T.J.; Snieckus, V. Palladium-Catalyzed Cross-Coupling: A Historical Contextual Perspective to the 2010 Nobel Prize. Angew. Chem. 2012, 51, 5063–5085. [Google Scholar] [CrossRef] [PubMed]
  5. Gan, K.B.; Zhong, R.-L.; Zhang, Z.-W.; Kwong, F.Y. Atropisomeric Phosphine Ligands Bearing C−N Axial Chirality: Applications in Enantioselective Suzuki−Miyaura Cross-Coupling Towards the Assembly of Tetra-ortho-Substituted Biaryls. J. Am. Chem. Soc. 2022, 144, 14864–14873. [Google Scholar] [CrossRef] [PubMed]
  6. Hedouin, G.; Hazra, S.; Gallou, F.; Hauda, S. The Catalytic Formation of Atropisomers and Stereocenters via Asymmetric Suzuki−Miyaura Couplings. ACS Catal. 2022, 12, 4918–4937. [Google Scholar] [CrossRef]
  7. Bringmann, G.; Gulder, T.; Gulder, T.A.M.; Breuning, M. Atroposelective Total Synthesis of Axially Chiral Biaryl Natural Products. Chem. Rev. 2011, 111, 563–639. [Google Scholar] [CrossRef]
  8. Boldi, A.M. Libraries from natural product-like scaffolds. Curr. Opin. Chem. Biol. 2004, 8, 281–286. [Google Scholar] [CrossRef]
  9. Chang, J.; Reiner, J.; Xie, J. Progress on the Chemistry of Dibenzocyclooctadiene Lignans. Chem. Rev. 2005, 105, 4581–4609. [Google Scholar] [CrossRef]
  10. Wencel-Delord, J.; Panossian, A.; Leroux, F.R.; Colobert, F. Recent Advances and New Concept for the Synthesis of Axially Stereoenriched Biaryls. Chem. Soc. Rev. 2015, 44, 3418–3430. [Google Scholar] [CrossRef]
  11. Demchuk, O.M.; Kapłon, K.; Kącka, A.; Pietrusiewicz, K.M. The utilization of chiral phosphorus ligands in atroposelective cross-coupling reactions. Phosphorus Sulfur Silicon Relat. Elem. 2016, 191, 180–200. [Google Scholar] [CrossRef]
  12. Berthod, M.; Mignani, G.; Woodward, G.; Lemaire, M. Modified BINAP:  The How and the Why. Chem. Rev. 2005, 105, 1801–1836. [Google Scholar] [CrossRef]
  13. Kocovsky, P.; Vyskcil, S.; Smrcina, M. Non-Symmetrically Substituted 1,1’-Binaphthyls in Enantioselective Catalysis. Chem. Rev. 2003, 103, 3213–3245. [Google Scholar] [CrossRef]
  14. Kamer, P.C.J.; van Leeuwen, P.W.N.M. Phosphorus (III) Ligands in Homogeneous Catalysis; Willey: Chichister, UK, 2012. [Google Scholar]
  15. Molander, G.A. Handbook of Reagents for Organic Synthesis, Catalyst Components for Coupling Reactions, 1st ed.; Wiley-VCH: Weinheim, Germany, 2013. [Google Scholar]
  16. Walker, S.D.; Barder, T.E.; Martinelli, J.R.; Buchwald, S.L. A Rationally Designed Universal Catalyst for Suzuki–Miyaura Coupling Processes. Angew. Chem. Int. Ed. 2004, 43, 1907–1912. [Google Scholar] [CrossRef]
  17. Demchuk, O.M.; Bilge, Y.; Blackburn, T.; Snieckus, V. Mixed Naphthyl-Phenyl Phosphine Ligand Motif for Heck Reactions. Synlett 2006, 18, 2908–2913. [Google Scholar] [CrossRef]
  18. Demchuk, O.M.; Arlt, D.; Jasiński, R.; Pietrusiewicz, K.M. Relationship between structure and efficiency of atropisomeric phosphine ligands in homogeneous catalytic asymmetric hydrogenation. J. Phys. Org. Chem. 2012, 25, 1006–1011. [Google Scholar] [CrossRef]
  19. Dotta, P.; Kumar, P.G.A.; Pregosin, P.S. Pd-(MOP) Chemistry:  Novel Bonding Modes and Interesting Charge Distribution. Organometallics 2003, 22, 5345–5349. [Google Scholar] [CrossRef]
  20. Yin, J.; Buchwald, S.L. A Catalytic Asymmetric Suzuki Coupling for the Synthesis of Axially Chiral Biaryl Compounds. J. Am. Chem. Soc. 2000, 122, 12051–12052. [Google Scholar] [CrossRef]
  21. Hayashi, T. Chiral Monodentate Phosphine Ligand MOP for Transition-Metal-Catalyzed Asymmetric Reactions. Acc. Chem. Res. 2000, 33, 354–362. [Google Scholar] [CrossRef]
  22. Vyskocil, S.; Smrcina, M.; Hanus, V.; Polasek, M.; Kocovsky, P. Derivatives of 2-amino-2′-diphenylphosphino-1,1′-binaphthyl (MAP) and their application in asymmetric palladium(O)-catalyzed allylic substitution. J. Org. Chem. 1998, 63, 7738–7748. [Google Scholar] [CrossRef]
  23. Demchuk, O.M.; Kapłon, K.; Mazur, L.; Strzelecka, D.; Pietrusiewicz, K.M. Readily available catalysts for demanding Suzuki-Miyaura couplings under mild conditions. Tetrahedron 2016, 72, 6668–6677. [Google Scholar] [CrossRef]
  24. Demchuk, O.M.; Kielar, K.; Pietrusiewicz, K.M. Rational design of novel ligands for environmentally benign cross-coupling reactions. Pure. Appl. Chem. 2011, 83, 633–644. [Google Scholar] [CrossRef]
  25. Kapłon, K.; Demchuk, O.M.; Pietrusiewicz, K.M. The DFT study on racemisation of atropisomeric biaryls. Curr. Chem. Lett. 2015, 4, 145–152. [Google Scholar] [CrossRef]
  26. Jasiński, R.; Demchuk, O.M.; Babyuk, D. A Quantum-Chemical DFT Approach to Elucidation of the Chirality Transfer Mechanism of the Enantioselective Suzuki–Miyaura Cross-Coupling Reaction. Hindawi. J. Chem. 2017, 2017, 3617527. [Google Scholar] [CrossRef]
  27. Demchuk, O.M.; Pietrusiewicz, K.M. New and Efficient Protocol for Arylation of Quinones Arylation of Quinones. SYNLETT 2009, 7, 1149–1153. [Google Scholar] [CrossRef]
  28. Demchuk, O.M.; Świerczyńska, W.; Pietrusiewicz, K.M.; Woźnica, M.; Wójcik, D.; Frelek, J. A convenient application of the NMR and CD methodologies for the determination of enantiomeric ratio and absolute configuration of chiral atropoisomeric phosphine oxides. Tetrahedron Asymmetry 2008, 19, 2339–2345. [Google Scholar] [CrossRef]
  29. Gobbi, L.; Seiler, A.P.; Diederich, F.; Gramlich, V. Molecular Switching: A Fully Reversible, Optically Active Photochemical Switch Based on a Tetraethynylethene-1,1′-Binaphthalene Hybrid System. Helv. Chim. Acta 2000, 83, 1711–1723. [Google Scholar] [CrossRef]
  30. Uozumi, Y.; Matsuura, Y.; Arakawa, T.; Yamada, Y.M.A. Aquacatalytic Asymmetric Suzuki-Miyaura Coupling with an Amphiphilic Resin-Supported Chiral Palladium Complex. Angew. Chem. Int. Edit. 2009, 48, 2708–2710. [Google Scholar] [CrossRef]
  31. Ackermann, L.; Potukuchi, H.K.; Althammer, A.; Born, R.; Mayer, P. Tetra-ortho-Substituted Biaryls through Palladium-Catalyzed Suzuki−Miyaura Couplings with a Diaminochlorophosphine Ligand. Org. Lett. 2010, 12, 1004–1007. [Google Scholar] [CrossRef] [PubMed]
  32. Rapp, U.; Sachs, A.; Wunsche, C.; Mayer, W. Skelettumlagerungen unter Elektronenbeschuß, VI. Untersuchungen über die Alkyl-und Wasserstoffwanderung bei Diphensäurederivaten, III. Chem. Ber.-Recl. 1972, 1, 217–233. [Google Scholar] [CrossRef]
  33. Page, P.C.B.; Buckley, B.R.; Farah, M.M.; Blacker, A.J. Binaphthalene-Derived Iminium Salt Catalysts for Highly Enantioselective Asymmetric Epoxidation. Eur. J. Org. Chem. 2009, 2009, 3413–3426. [Google Scholar] [CrossRef]
  34. Cammidge, A.N.; Crepy, K.V.L. Synthesis of chiral binaphthalenes using the asymmetric Suzuki reaction. Tetrahedron 2004, 60, 4377–4386. [Google Scholar] [CrossRef]
  35. Bermejo, A.; Ros, A.; Estepa, B.; Alvarez, E.; Fernandez, R.; Lassaletta, J.M. Phosphino Hydrazones as Suitable Ligands in the Asymmetric Suzuki–Miyaura Cross-Coupling. J. Org. Chem. 2012, 77, 4740–4750. [Google Scholar] [CrossRef]
  36. Mosquera, A.; Pena, M.A.; Sestelo, J.P.; Sarandeses, L.A. Synthesis of Axially Chiral 1,1′-Binaphthalenes by Palladium-Catalysed Cross-Coupling Reactions of Triorganoindium Reagents. Eur. J. Org. Chem. 2013, 2013, 2555–2562. [Google Scholar] [CrossRef]
  37. Schaarschmidt, D.; Grumbt, M.; Hildebrandt, A.; Lang, H. A Planar-Chiral Phosphino(alkenyl)ferrocene for Suzuki–Miyaura C–C Coupling Reactions. Eur. J. Org. Chem. 2014, 2014, 6676–6685. [Google Scholar] [CrossRef]
  38. Dennis, M.R.; Woodward, S.J. Enantiopure 3-amido or 3,3′-bisamido substituted 1,1′-bi-2-naphthols by anionic Fries rearrangements. J. Chem. Soc. Perk. T. 1 1998, 6, 1081–1085. [Google Scholar] [CrossRef]
  39. Lipshutz, B.H.; Petersen, T.B.; Abela, A.R. Room-Temperature Suzuki−Miyaura Couplings in Water Facilitated by Nonionic Amphiphiles. Org. Lett. 2008, 10, 1333–1336. [Google Scholar] [CrossRef] [PubMed]
  40. Blessing, R.H. An empirical correction for absorption anisotropy. Acta Cryst. 1995, 51, 33–38. [Google Scholar] [CrossRef]
  41. Parsons, S.; Flack, H.D.; Wagner, T. Use of intensity quotients and differences in absolute structure refinement. Acta Cryst. 2013, 69, 249–259. [Google Scholar] [CrossRef] [Green Version]
Figure 1. Highly efficient C,P-ligands and selected chiral ligands.
Figure 1. Highly efficient C,P-ligands and selected chiral ligands.
Catalysts 13 00353 g001
Scheme 1. Synthesis of BisNap-Phos (10).
Scheme 1. Synthesis of BisNap-Phos (10).
Catalysts 13 00353 sch001
Figure 2. Molecular structure and crystal packing (a) of chiral palladium complex of BisNap-Phos and (b) of a cocrystal formed by compound 9 with TADDOL.
Figure 2. Molecular structure and crystal packing (a) of chiral palladium complex of BisNap-Phos and (b) of a cocrystal formed by compound 9 with TADDOL.
Catalysts 13 00353 g002
Scheme 2. Synthesis of chiral palladium complex of (Sa)-BisNap-Phos.
Scheme 2. Synthesis of chiral palladium complex of (Sa)-BisNap-Phos.
Catalysts 13 00353 sch002
Figure 3. Labeling scheme of atoms in coordination units of Pd complex 12. Hydrogen atoms and solvent molecules were omitted for clarity.
Figure 3. Labeling scheme of atoms in coordination units of Pd complex 12. Hydrogen atoms and solvent molecules were omitted for clarity.
Catalysts 13 00353 g003
Table 1. Synthesis of 2,2-dimethoxy-1,1′-binaphthyl (13) mediated by different ligand complexes a.
Table 1. Synthesis of 2,2-dimethoxy-1,1′-binaphthyl (13) mediated by different ligand complexes a.
Catalysts 13 00353 i001
EntryLigand (4 mol%)T, [°C]t, [h]Yield b, [%]
1S-Phos30523
2S-Phos60563
3S-Phos90537
4S-Phos901228
5PhPCy2305-
6PhPCy29055
7PhPCy26019-
8rac-BisNap-Phos601976 (70)
9Sym-Phos601976
a Reaction conditions: 2 (0.5 mmol), 3 (0.7 mmol), K2CO3 (1.5 mmol), 0.3% SDS in H2O (7.5 mL), Pd(OAc)2 (2 %mol), L/Pd = 2, b yield by GC-MS, yield of isolated products presented in brackets.
Table 2. Effect of the precatalyst used in the synthesis of 13 a.
Table 2. Effect of the precatalyst used in the synthesis of 13 a.
Catalysts 13 00353 i002
EntrySubstrateCatalyst (2 mol%)Ligand (4 mol%)t, [h]Yield b, [%]
14Pd(C6H5CN)2Cl2rac-BisNap-Phos1897 (86) c
25Pd(C6H5CN)2Cl2rac-BisNap-Phos18(56)
34Pd(OAc)2rac-BisNap-Phos1976 (70)
45PdCl2rac-BisNap-Phos1556 (50)
5
6
5Pd(CH3CN)2ClBF4Sym-Phos1629 (28) c
65Pd(OAc)2Sym-Phos1693 (88) c
a Reaction conditions: 3 (1 equiv.), 4 or 5 (1.2 equiv.), T = 60 °C, K2CO3 (3 equiv.), 0.3% SDS in H2O, b yield determined by GC-MS analysis, yield of isolated products are presented in brackets, c Na2CO3 used as a base (3 equiv.).

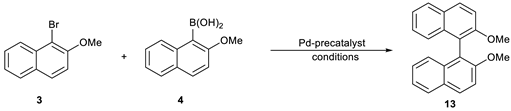

Table 3. Synthesis of 13 under microwave conditions a.
Table 3. Synthesis of 13 under microwave conditions a.
Catalysts 13 00353 i003
EntryCatalyst
(2 mol%)
Ligand
(4 mol%)
t, [min]T, [°C]Yield b, [%]
1Pd(OAc)2S-Phos15160Trace
2Pd2(dba)3rac-BisNap-Phos3016061
3Pd(C6H5CN)2Cl2rac-BisNap-Phos3016079
4Pd(C6H5CN)2Cl2rac-BisNap-Phos1516086 c
5Pd(C6H5CN)2Cl2rac-BisNap-Phos3016097 c,d
6Pd(C6H5CH2CN)2Cl2rac-BisNap-Phos3016076 c,d
a Reaction conditions: the reaction was carried out under an inert atmosphere, 3 (1 equiv.), 4 (1.2 equiv.), toluene, K3PO4 (3 equiv.), b yield of isolated product, c 2-methoxynapthylboronic acid (1.5 equiv.), d no protection by Ar atmosphere was applied.

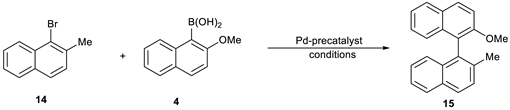

Table 4. Synthesis of 2-methoxy-2′-methyl-1,1′-binaphthyl (15) under microwave conditions a.
Table 4. Synthesis of 2-methoxy-2′-methyl-1,1′-binaphthyl (15) under microwave conditions a.
Catalysts 13 00353 i004
EntryCatalyst
(2 mol%)
Ligand
(4 mol%)
t, [min.]Yield b, [%]
1Pd(OAc)2S-Phos1552
2Pd(OAc)2rac-BisNap-SPhos1561
3Pd(OAc)2rac-BisNap-SPhos2069
4Pd(OAc)2rac-BisNap-SPhos144076 c
a Reaction conditions: 14 (1 equiv.), 4 (1.2 equiv.), toluene, K3PO4 (3 equiv.), T = 150 °C. b yield of isolated product, c the reaction was carried out in an oil bath for 24 h.
Table 5. Effect of various solvents on the synthesis of 15 under microwave conditions a.
Table 5. Effect of various solvents on the synthesis of 15 under microwave conditions a.
Entry Solventt, [min] T, [°C]Yield b, [%]
1dioxane15160Trace
2dioxane2516060
3toluene1515061
4toluene2015077 (69) c
5THF1510027
6acetone15150Trace
a Reaction conditions: 14 (1 equiv.), 4 (1.2 equiv.), K3PO4 (3 equiv.), Pd(OAc)2 (2 mol%), rac-BisNap-SPhos (4 mol%), b yield by GC-MS, c yield of isolated products presented in brackets.
Table 6. Synthesis of 15 in protic solvent under microwave conditions a.
Table 6. Synthesis of 15 in protic solvent under microwave conditions a.
EntryBase
(3 equiv.)
Catalyst
(2 %mol)
Ligand
(4 %mol)
T, [°C]Yield b, [%]
1K2CO3Pd(OAc)2rac-BisNap-SPhos 10052
2K2CO3Pd(PhCH2CN)2Cl2rac-BisNap-SPhos 10054
3Na2CO3Pd(OAc)2rac-BisNap-SPhos 11025
4K3PO4Pd(OAc)2rac-BisNap-SPhos 11025
a Reaction conditions: 14 (1 equiv.), 4 (1.2 equiv.), ethanol, t = 20 min., b yield of isolated products.
Table 7. Synthesis of hindered ortho-substituted biaryls 2123 in aqueous medium a.
Table 7. Synthesis of hindered ortho-substituted biaryls 2123 in aqueous medium a.
EntryAr-X
(1 equiv.)
Ar-B(OH)2
(1.5 equiv.)
ProductYield b, [%]
1Catalysts 13 00353 i005Catalysts 13 00353 i006Catalysts 13 00353 i00740
2Catalysts 13 00353 i008Catalysts 13 00353 i009Catalysts 13 00353 i01061
3Catalysts 13 00353 i011Catalysts 13 00353 i012Catalysts 13 00353 i01356
4Catalysts 13 00353 i014Catalysts 13 00353 i015Catalysts 13 00353 i01687 c
a Reaction conditions: 0.5 mol% PdCl2(C6H5CN)2, 1 mol% rac-BisNap-Phos, 3 equiv. Na2CO3, 0.3% SDS in H2O, t = 30 h, T = 60 °C; b isolated products yield, c 0.8 mol% PdCl2(C6H5CN)2, 1.9 mol% rac-BisNap-Phos, 3 equiv. Na2CO3, 0.3% SDS in H2O, t = 30 h, T = 60 °C.
Table 8. Ligand activity in asymmetric synthesis of 15 a.
Table 8. Ligand activity in asymmetric synthesis of 15 a.
Catalysts 13 00353 i017
EntryPrecatalystSolventBaseT [°C]Yield b, (ee), [%]
1(S)-BisNap-Phos /PdCl2(C6H5CN)2DMECs2CO38073, (71 S)
2[Pd(R)-binap]Cl2DMECs2CO380Trace
3[Pd(+)-diop]Cl2DMECs2CO380Trace
4[Pd((R)-mop)2]Cl2DMECs2CO38057 (56 S)
5[Pd((R,S)-pfnme)2]Cl2DMECs2CO38014, (n/d)
6[Pd((R,S)-pfnh)2]Cl2DMECs2CO380Trace
7[Pd((S,S)-dpca)2]Cl2DMECs2CO380Trace
8(S)-BisNap-Phos /PdCl2(C6H5CN)2DMECsF8088 (55 S)
9(S)-BisNap-Phos /PdCl2(C6H5CN)20.3% SDS in H2ONa2CO36098, (70 S)
10(S)-BisNap-Phos /PdCl2(C6H5CN)20.3% SDS in H2ONa2CO36098 (70 S) c
11[Pd (R)-binap]Cl2DMECsF80Trace
12[Pd (R)-binap]Cl2TolueneK3PO4100-
13(S)-BisNap-Phos)2 /PdCl2(C6H5CN)2TolueneK3PO415098 (58 S)
14[Pd(+)-diop]Cl2DMECsF80Trace
15(R)-PROPHOS /PdCl2(C6H5CN)2DMECsF80Trace
16(+)-CHIRAPHOS /PdCl2(C6H5CN)2DMECsF80Trace
a Reaction conditions: 4 (1.2 equiv.), 14 (1 equiv.), PdCl2(C6H5CN)2 (2 mol%), Pd: P = 1: 2, base (3 equiv.), 16 h, b yield of isolated product, c 24 (1.2 equiv.), 3 (1 equiv.).
Table 9. Ligand activity in asymmetric synthesis of 2,2′-dimethyl-1,1′-binaphthyl (25) a.
Table 9. Ligand activity in asymmetric synthesis of 2,2′-dimethyl-1,1′-binaphthyl (25) a.
Catalysts 13 00353 i018
EntryPrecatalystSolventBaseT, [°C]t, [h]Yield b, (ee), [%]
1(R)-BisNap-Phos /PdCl2(C6H5CN)20.3% SDS in H2ONa2CO3601685 (77 S)
2(S)-BisNap-Phos /PdCl2(C6H5CN)20.4% brij97 in H2ONa2CO3601684 (71 R)
3[Pd(R)-binap]Cl20.4% brij97 in H2ONa2CO36016Trace
4[Pd((R,S)-pfnme)2]Cl20.4% brij97 in H2ONa2CO36016Trace
5(S)-BisNap-Phos
/PdCl2(C6H5CN)2
DMECsF6514486 (76 R)
6[Pd(R)-binap]Cl2DMECsF6514415 (31 S)
7[Pd(R)-binap]Cl2DMEK3PO410016Trace
8[Pd((R,S)-pfnme)2]Cl2DMECsF65144Trace c
9(S)-BisNap-Phos /PdCl2(C6H5CN)2DMECsF801634 (n/d)
10[Pd((R,S)-pfnh)2]Cl2DMECsF8016-
11[Pd((R)-mop)2]Cl2DMECsF801694 (60 S)
12[Pd((S,S)-dpca)2]Cl2DMECsF8016-
a Reaction conditions: 14 (1 equiv.), 24 (1.2 equiv.), PdCl2(C6H5CN)2 (2 mol%), ligand (4 mol% monophosphine or 2 mol% diphosphine), base (3 equiv.), catalysts were prepared in 0.25 mL THF; b isolated products yield, c PdCl2(C6H5CN)2 (3 mol%), ligand (6 mol%).
Table 10. Ligand activity in asymmetric synthesis of 13 a.
Table 10. Ligand activity in asymmetric synthesis of 13 a.
Catalysts 13 00353 i019
EntryPrecatalystSolventBaseT, [°C]Yield b, (ee), [%]
1(S)-BisNap-Phos
/PdCl2(C6H5CN)2
DMECs2CO38067 (44 R)
2(S)-BisNap-Phos
/PdCl2(C6H5CN)2
0.4% brij 97 in H2ONa2CO36062 (41 R) c
3(S)-BisNap-Phos
/PdCl2(C6H5CN)2
0.3% SDS in H2ONa2CO36096 (47 R) c
4(S)-BisNap-Phos
/PdCl2(C6H5CN)2
0.3% SDS in H2OK2CO36057 (36 R) c
5[Pd(R)-binap]Cl20.3% SDS in H2ONa2CO36017 (24 S) d
6[Pd(R)-binap]Cl20.4% brij 97 in H2ONa2CO36011 (22 S) d
7[Pd(+)-diop]Cl2DMECs2CO380-
8(S)-BisNap-Phos
/PdCl2(C6H5CN)2
TolueneK3PO410097 (36 R)
9[Pd(R)-binap]Cl2TolueneK3PO4100Trace
a Reaction conditions: 3 (1 equiv.), 4,5 (1.2 equiv.), PdCl2(C6H5CN)2 (2 mol%), Pd: P = 1: 2, base (3 equiv.), 24 h, b yield of isolated product, c 5 (1.2 equiv.) d 16 h.
Table 11. Effect of catalyst amount in asymmetric synthesis of 15 a.
Table 11. Effect of catalyst amount in asymmetric synthesis of 15 a.
Catalysts 13 00353 i020
Entry144Pd, [mol%]T, [h]Yield b, (ee), [%]
1110 mg152 mg2.51698 (70 R)
2442 g606 mg1.252488 (70 R)
3884 g1.2 g0.622493 (70 R)
41.8 g2.4 g0.313298 (70 R)
53.5 g4.8 g0.152484 (70 R)
a Reaction conditions: 14 (1 equiv.), 4 (1.2 equiv.), Na2CO3 (3 equiv.); PdCl2(C6H5CN)2: (Sa)-BisNap-Phos = 1:2; 60 °C; 0.3% SDS in H2O, b yield of isolated product.

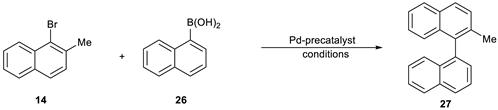

Table 12. Ligand activity in asymmetric synthesis of 2-methyl-1,1′-binaphthyl (27) a.
Table 12. Ligand activity in asymmetric synthesis of 2-methyl-1,1′-binaphthyl (27) a.
Catalysts 13 00353 i021
EntryPrecatalystSolventBaseT, [°C]Yield b, (ee), [%]
1(S)-BisNap-Phos
/PdCl2(C6H5CN)2
DMECs2CO38080 (37 R) b
2[Pd(R)-binap]Cl2DMECs2CO380100 c (11 S) b
3[Pd(+)-diop]Cl2DMECs2CO380-
4(S)-BisNap-Phos
/PdCl2(C6H5CN)2
0.4% brij97 in H2ONa2CO36092 (n/d)
5[Pd(R)-binap]Cl20.4% brij97 in H2ONa2CO36060 (n/d)
a Reaction conditions: 14 (1 equiv.), 26 (1.2 equiv.), PdCl2(C6H5CN)2 (2 mol%), ligand (4 mol% of BisNap-Phos or 2 mol% of diphosphines), base (3 equiv.), 16 h, b yield of isolated product, c conversion of 14.
Table 13. Ligand activity in asymmetric synthesis of 2-methoxy-1,1′-binaphthyl (28) a.
Table 13. Ligand activity in asymmetric synthesis of 2-methoxy-1,1′-binaphthyl (28) a.
Catalysts 13 00353 i022
EntryPrecatalystSolventBaseT, [°C]Yield b, (ee), [%]
1(S)-BisNap-Phos
/PdCl2(C6H5CN)2
0.4% brij97 in H2ONa2CO36092 (5 S) c
2[Pd(R)-binap]Cl20.4% brij97 in H2ONa2CO36071 (7 R) c
3(S)-BisNap-Phos /PdCl2(C6H5CN)2DMECs2CO38096 (6 S)
4[Pd(R)-binap]Cl2DMECs2CO38099 (43 R)
5[Pd(+)-diop]Cl2DMECs2CO380trace
6[Pd(R)-binap]Cl2DMECs2CO3,
AgBF4 (6 mol%)
80>99 (40 R)
7[Pd(R)-binap]Cl2DMECs2CO3,
Ag3PO4 (4 mol%)
8099 (34 R)
8[Pd(R)-binap]Cl2DMECs2CO3,
Ag3PO4 (100 mol%)
8048 (29 R)
a Reaction conditions: 2 (1 equiv.), 18 (1.2 equiv.), PdCl2(C6H5CN)2 (2 mol%), ligand (4 mol% of BisNap-Phos or 2 mol% of diphosphines), base (3 equiv.), 4 h, b yield of isolated product, c 16 h.
Table 14. Ligand activity in asymmetric synthesis of 1-(2-amino-3,5-dimethylphenyl)-2-methoxynaphthalene (30) a.
Table 14. Ligand activity in asymmetric synthesis of 1-(2-amino-3,5-dimethylphenyl)-2-methoxynaphthalene (30) a.
Catalysts 13 00353 i023
EntryPdCl2(C6H5CN)2, Ligand/ CatalystSolventBaseT, [°C]Yield b, (ee), [%]
1(S)-BisNap-Phos /PdCl2(C6H5CN)2DMECs2CO38086 (9)
2[Pd(R)-binap]Cl2DMECs2CO38048, (5)
3[Pd(R)-binap]Cl2DMFK3PO4H2O120trace
4[Pd(R)-binap]Cl2DMFCs2CO3120trace
5[Pd(R)-binap]Cl2TolueneK3PO4100trace
6(S)-BisNap-Phos /PdCl2(C6H5CN)2Toluene/H2O = 3/2Na2CO36067, (1)
7[Pd(R)-binap]Cl2Toluene/ H2O = 3/2Na2CO36018 (7 by NMR)
8[Pd(+)-diop]Cl2Toluene/ H2O = 3/2Na2CO360trace
9(R)-PROPHOS /PdCl2(C6H5CN)2Toluene/ H2O = 3/2Na2CO360-
10(S)-BisNap-Phos
/PdCl2(C6H5CN)2
0.4% Brij97 in H2OBa(OH)2H2O6066, (1)
11[Pd(R)-binap]Cl20.4% Brij97 in H2OBa(OH)2H2O607 (9 by NMR)
12(R)-Tol-BINAP /PdCl2(C6H5CN)20.4% Brij97 in H2OBa(OH)2H2O60trace
13[Pd(+)-diop]Cl20.4% Brij97 in H2OBa(OH)2H2O60trace
14(R)-PROPHOS /PdCl2(C6H5CN)20.4% Brij97 in H2OBa(OH)2H2O6021 (5 by NMR)
a Reaction conditions: 29 (1 equiv.), 4 (1.2 equiv.), PdCl2(C6H5CN)2 (2 mol%), ligand (4 mol% of BisNap-Phos or 2 mol% of diphosphines), base (3 equiv.), 16 h, b yield of isolated product.
Table 15. Asymmetric synthesis of biaryls 31 and 32 bearing unprotected amino groups a.
Table 15. Asymmetric synthesis of biaryls 31 and 32 bearing unprotected amino groups a.
Catalysts 13 00353 i024
EntryAr-B(OH)2ProductYield b, (ee), [%]
1Catalysts 13 00353 i025Catalysts 13 00353 i02692 (19)
2Catalysts 13 00353 i027Catalysts 13 00353 i02893 (4)
a Reaction conditions: PdCl2(C6H5CN)2 (2 mol%), BisNap-Phos (4 mol%), Cs2CO3, DME, 80 °C, 18 h. b yield of isolated product.
Table 16. Ligand activity in asymmetric synthesis of 34 a.
Table 16. Ligand activity in asymmetric synthesis of 34 a.
Catalysts 13 00353 i029
EntryPdCl2(C6H5CN)2, Ligand/CatalystSolventBaseT, [°C]Yield b, (ee), [%]
1(S)-BisNap-Phos /PdCl2(C6H5CN)2DMECs2CO38095, (35)
2[Pd(R-)binap]Cl2DMECs2CO38096, (10)
3[Pd(R-)binap]Cl2TolueneK3PO410058 (10)
4(S)-BisNap-Phos /PdCl2(C6H5CN)20.4% r-r Brij97 w H2ONa2CO36092, (17)
5[Pd(R-)binap]Cl20.4% r-r Brij97 w H2ONa2CO360> 99, (10)
a Reaction conditions: 33 (1 equiv.), 24 (1.2 equiv.), PdCl2(C6H5CN)2 (2 mol%), ligand (4 mol% of BisNap-Phos or 2 mol% of BINAP), base (3 equiv.), 16 h, b yield of isolated product.
Table 17. Synthesis of biaryls bearing mild-coordinating functional groups a.
Table 17. Synthesis of biaryls bearing mild-coordinating functional groups a.
EntryAr-XAr-B(OH)2ProductYield b, (ee), [%]
1Catalysts 13 00353 i030Catalysts 13 00353 i031Catalysts 13 00353 i03272 (59) c
2Catalysts 13 00353 i033Catalysts 13 00353 i034Catalysts 13 00353 i03582 (67) c
3Catalysts 13 00353 i036Catalysts 13 00353 i037Catalysts 13 00353 i03880 (50) c
4Catalysts 13 00353 i039Catalysts 13 00353 i040Catalysts 13 00353 i04172 (36) c
5Catalysts 13 00353 i042Catalysts 13 00353 i043Catalysts 13 00353 i04487 (36) c
6Catalysts 13 00353 i045Catalysts 13 00353 i046Catalysts 13 00353 i04766 (86) c
7Catalysts 13 00353 i048Catalysts 13 00353 i049Catalysts 13 00353 i05047 (76) c
11Catalysts 13 00353 i051Catalysts 13 00353 i052Catalysts 13 00353 i05391 (5) d
12Catalysts 13 00353 i054Catalysts 13 00353 i055Catalysts 13 00353 i05635 (3) d
13Catalysts 13 00353 i057Catalysts 13 00353 i058Catalysts 13 00353 i05985 (0) d
14Catalysts 13 00353 i060Catalysts 13 00353 i061Catalysts 13 00353 i06298 (3) d
a Reaction conditions: PdCl2(C6H5CN)2 (2 mol%), BisNap-Phos (4 mol%), 18h; b isolated yield; c Na2CO3, H2O, brij 97, 60 °C; d Na2CO3, H2O, SDS, 60 °C.
Table 18. Crystal data and structure refinement for Pd complex and cocrystal of 9 with TADDOL.
Table 18. Crystal data and structure refinement for Pd complex and cocrystal of 9 with TADDOL.
Formula2(C48H55ClNO2PPd), 9(CH3OH), 2(H2O)C34H39O3P, C31H30O4
Formula weight2005.75993.17
Wavelength, temperature0.71073 A, 100(2) K0.71073 A, 293 (2) K
Crystal system, space groupMonoclinic, P21Orthorhombic, P212121
Unit cell dimensionsa = 14.0761(1) Å
b = 25.813(1) Å
c = 14.586(1) Å
beta = 90.26(1)°
a = 9.8002(6) Å
b = 18.1101(10) Å
c = 30.8874(18) Å
Volume5299.7(4) Å35482.0(6) Å3
Z, Calculated density2, 1.257 Mg/m34, 1.203 Mg/m3
Absorption coefficient0.480 mm−10.104 mm−1
F(000)21002120
Crystal size0.28 × 0.10 × 0.05 mm0.4 × 0.2 × 0.2 mm
Reflections collected / unique 15122 / 10364 [Rint = 0.0458]46268 / 9878 [Rint = 0.0849]
Completeness to theta = 25.9698.0 %99.0%
Max. and min. transmission0.986 and 0.8910.975 and 0.979
Data / restraints / parameters10364 / 10 / 5459878 / 0 / 664
Goodness-of-fit on F21.0740.986
Final R indices [I>2sigma(I)]R1 = 0.0585, wR2 = 0.1518R1 = 0.0608, wR2 = 0.1326
R indices (all data)R1 = 0.0605, wR2 = 0.1553R1 = 0.1003, wR2 = 0.1529
Absolute structure parameter (Flack parameter) 0.03(5)0.01(8)
Largest diff. peak and hole 0.833 and −0.791 e.Å−30.51 and −0.31 e.Å−3
CCDC No.22229752232483
Table 19. Bond lengths (Å) and angles (°) for Pd complex and cocrystal of 9 with TADDOL.
Table 19. Bond lengths (Å) and angles (°) for Pd complex and cocrystal of 9 with TADDOL.
Bond Bond Angle Angle
Pd complex
C1-P11.83(2)C49-P21.84(2)C35-Pd1-N179.7(5)C83-Pd2-N280.5(5)
C23-P11.87(2)C71-P21.85(1)C35-Pd1-P199.9(4)C83-Pd2-P298.8(4)
C29-P11.88(1)C77-P21.86(2)N1-Pd1-P1175.4(4)N2-Pd2-P2179.2(3)
P1-Pd12.275(4)P2-Pd22.290(4)C35-Pd1-Cl1171.0(4)C83-Pd2-Cl2172.1(4)
Cl1-Pd12.391(4)Cl2-Pd22.404(3)N1-Pd1-Cl191.6(3)N2-Pd2-Cl291.7(3)
N1-Pd12.12(1)N2-Pd22.14(1)P1-Pd1-Cl189.0(1)P2-Pd2-Cl289.1(1)
C35-Pd12.00(1)C83-Pd22.00(1)
cocrystal with TADDOL
P1-O11.501(3)P1-C11.832(4)P1-C291.820(5)P1-C231.809(4)
Table 20. Intra- and intermolecular contacts in Pd complex and cocrystal of 9 with TADDOL.
Table 20. Intra- and intermolecular contacts in Pd complex and cocrystal of 9 with TADDOL.
D–H…AD–HD…AH…AAngle D–H…A
Pd complex
C34-H34B...Pd10.993.33(1)2.77116.4
C46-H46C...Pd10.983.42(1)2.92112.0
C78-H78A...Pd20.993.41(1)2.88114.4
C94-H94A...Pd20.983.44(1)2.94112.1
C54–H54…C38 i0.953.69(2)2.85148
C54–H54…C43 i0.953.57(3)2.68156
C8–H8…C55 ii0.953.58(2)2.78142
C65–H65…C5 iii0.953.74(2)2.85157
C13–H13…C860.953.62(2)2.78148
O12… Cl1 iv 3.23(1)
O11…Cl2 v 3.16(1)
O5…O11 2.74(3)
O6…O5 2.84(4)
O7…O6 i 2.93(6)
O8…O7 v 2.52(5)
O9…O8 2.70(4)
O10…O9 ii 2.96(4)
O13…O12 2.74(2)
O14…O13 vi 2.83(4)
cocrystal with TADDOL
O6–H6A…O70.822.600(5)1.785172
O7–H7A…O10.822.602(4)1.800165
Symmetry codes: i 1 − x, −1/2 + y, 1 − z; ii 1 − x, 1/2 + y, 1 − z; iii −x, −1/2 + y, 1 − z; iv x, y, 1 + z; v 1 + x, y, z; vi 1 − x, −1/2 + y, 2 − z.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kapłon, K.; Frynas, S.; Mirosław, B.; Lipkowski, J.; Demchuk, O.M. An Efficient Asymmetric Cross-Coupling Reaction in Aqueous Media Mediated by Chiral Chelating Mono Phosphane Atropisomeric Biaryl Ligand. Catalysts 2023, 13, 353. https://doi.org/10.3390/catal13020353

AMA Style

Kapłon K, Frynas S, Mirosław B, Lipkowski J, Demchuk OM. An Efficient Asymmetric Cross-Coupling Reaction in Aqueous Media Mediated by Chiral Chelating Mono Phosphane Atropisomeric Biaryl Ligand. Catalysts. 2023; 13(2):353. https://doi.org/10.3390/catal13020353

Chicago/Turabian Style

Kapłon, Katarzyna, Sławomir Frynas, Barbara Mirosław, Janusz Lipkowski, and Oleg M. Demchuk. 2023. "An Efficient Asymmetric Cross-Coupling Reaction in Aqueous Media Mediated by Chiral Chelating Mono Phosphane Atropisomeric Biaryl Ligand" Catalysts 13, no. 2: 353. https://doi.org/10.3390/catal13020353

APA Style

Kapłon, K., Frynas, S., Mirosław, B., Lipkowski, J., & Demchuk, O. M. (2023). An Efficient Asymmetric Cross-Coupling Reaction in Aqueous Media Mediated by Chiral Chelating Mono Phosphane Atropisomeric Biaryl Ligand. Catalysts, 13(2), 353. https://doi.org/10.3390/catal13020353

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
