Review

Masuda Borylation–Suzuki Coupling (MBSC) Sequence: A One-Pot Process to Access Complex (hetero)Biaryls

Institut für Organische Chemie und Makromolekulare Chemie, Heinrich-Heine-Universität Düsseldorf, Universitätsstrasse 1, D-40225 Düsseldorf, Germany
*
Author to whom correspondence should be addressed.
Catalysts 2023, 13(2), 350; https://doi.org/10.3390/catal13020350
Submission received: 15 January 2023 / Revised: 31 January 2023 / Accepted: 1 February 2023 / Published: 4 February 2023
(This article belongs to the Special Issue Catalysis in Heterocyclic and Organometallic Synthesis II)

Abstract

:
The direct formation of (hetero)biaryls from readily available (hetero)aryl halides under mild reaction conditions can be efficiently achieved through the Masuda borylation–Suzuki coupling (MBSC) sequence. The MBSC sequence catenates Pd-catalyzed Masuda borylation and Suzuki coupling into a one-pot process, giving access to diverse symmetrically and unsymmetrically substituted scaffolds. (Hetero)biaryls are ubiquitous structural motifs that appear in natural products, pharmaceutically relevant scaffolds, functional dyes, and several other structures. This review summarizes the development of the MBSC sequence and its improvements over the past two decades.

Graphical Abstract

1. Introduction

The formation of carbon–carbon bonds via metal-catalyzed cross-coupling reactions is of extraordinary interest and plays a key role in the construction of complex and functional (hetero)cyclic scaffolds, in industry as well as on a scientific laboratory scale [1]. In particular, the synthesis of (hetero)biaryls are the focus of current research, as the biaryl motif is ubiquitous in active ingredients, functional materials, and fine chemicals [2,3]. Thereby, to access biaryls, challenges in regio- and stereoselectivity [4] and increasing demands regarding resource-benign innovative, green syntheses [5,6,7] and complex substitution patterns [8,9] are recently described issues.
The development of novel cross-coupling methodologies has considerably affected current syntheses of pharmaceutically relevant natural products and analogues [10], agrochemicals [11], or functional dyes [12], as required for finding, investigation, and modulation of new or improved properties. Among transition metal-catalyzed cross-coupling reactions, the venerable Suzuki coupling is probably the most prominent and versatile method. The palladium-catalyzed Suzuki coupling is the reaction of an organoboron compound with a (hetero)aryl halide to form bi(hetero)aryls (Figure 1). The catalytic cycle starts with the oxidative addition of the (hetero)aryl halide to the palladium(0) complex (I), which is often the rate-determining step. After a cis–trans isomerization (II), a metathetic exchange takes place with suitable bases (III). This leads to a more electrophilic Pd-species. The organoboron compound forms an ate-complex with the base, enabling the now nucleophilic boron compound to transfer the organic moiety to the palladium complex in a transmetalation step (IV). Thereafter, a trans–cis isomerization (V) takes place and the cross-coupled compound is reductively eliminated (VI), and the palladium catalyst can react in a following catalytic cycle [13,14]. Due to its great impact in chemistry and neighboring natural sciences, Prof. Akira Suzuki, together with professors Richard F. Heck and Ei-ichi Negishi, was awarded the Nobel Prize in Chemistry in 2010 [1,15,16,17].
The desired organoboron compounds can be accessed in several ways, e.g., halogen–metal exchange of aryl bromides or iodides with organolithium or -magnesium species [18,19,20], C-H activation with rhenium, rhodium, ruthenium or iridium catalysts [21], or the transition metal-catalyzed borylation of aryl halides [22]. In 1995, Miyaura published the first palladium-catalyzed borylation of aryl halides using bis(pinacolato)diboron [23]. The Miyaura borylation was consequently developed by Masuda via the exchange of bis(pinacolato)diboron with the more reactive and atom-economically more benign pinacolyl borane (Figure 2) [24]. To date, there are several tentative mechanistic rationales, although the mechanism of the Masuda borylation remains to be elucidated [25,26,27]. Masuda proposed that pinacoly borane oxidatively adds to the palladium complex (A I) before a transmetalation involving a σ-bond metathesis via a four-center transition state between the aryl halide and the palladium-boron species occurs (A II). In the course of this metathesis, the aryl boronic acid (ester) is formed. The palladium-catalyst is reduced in a base-mediated reductive elimination (A III) [25]. Lin published a rationale based on DFT calculations. After an oxidative addition of the aryl halide to the palladium complex (B I), an amine-assisted ionization leads to an electron-deficient Pd-species (B II). The aryl boron compound is formed in a σ-bond metathesis (B III) and the catalyst is recovered in a base-mediated reductive elimination (B IV) [26].
Organic synthesis is steadily challenged with respect to efficiency and selectivity, both for ecological and economic reasons. One approach to address the theoretical concept of an “ideal synthesis” is the development of one-pot processes where several reaction steps are conducted in the same vessel without the isolation of intermediates, therefore reducing solvents and waste, also due to less purification operation and, thus, saving time and resources [28,29]. Due to the similarities between Suzuki coupling and Masuda borylation with respect to reaction conditions, such as palladium catalyst systems and employed solvents and bases, linking both reactions into a one-pot sequence was obvious (Figure 3). As a consequence, the Masuda borylation–Suzuki coupling (MBSC) sequence formally represents a catalytic cross-coupling of two (hetero)aryl halides employing pinacolyl borane as the formal reductant.
This review surveys the development of the Masuda borylation–Suzuki coupling (MBSC) sequence in the past twenty years, from its first development by Baudoin in the early 2000s [30] and constant improvements in different labs until our group exploited its full potential and turned the MBSC sequence into a versatile and reliable synthetic tool for the construction of complex bi(hetero)aromatic scaffolds [31]. For the literature research, Google Scholar, Reaxys, Scifinder, and Web of Science have been used.

2. Synthesis

For the concatenation of Masuda borylation and Suzuki coupling into a MBSC sequence as an efficient and fast way to synthesize biaryl systems, a prerequisite is to identify suitable conditions ranging from the common catalyst system over solvent systems and employed bases to reaction conditions. Therefore, in the course of its development and continuous improvement, the MBSC protocol has been modified with respect to reaction conditions, ligands, and tolerated substrates or functional groups. The regioselectivity and influence of directing substituent effects have also been considered. As stated in the introduction, the overall value of the MBSC sequence is the opportunity to hold a powerful late-stage tool with broad functional group tolerance for the synthesis of functional bi(hetero)aryls in hand.

2.1. Baudoin’s First One-Pot MBSC Synthesis of ortho,ortho’-Biaryls

Baudoin and coworkers were particularly interested in pharmaceutically active ortho-disubstituted biaryls. Their concept of the synthesis of the antimitotic natural product (-)-rhazinilam (1), isolated from various apocynaceae (Figure 4) and biphenyl analogues, consists of a Suzuki key step to form the ortho-disubstituted biaryl core.
They envisioned a reaction sequence involving a borylation reaction and a subsequent C-C-bond-forming step that allows the rapid construction of a library of analogues for biological screenings. The Masuda borylation of sterically hindered ortho-substituted phenyl bromides under standard conditions initially led to low yields, but after a catalyst screening and optimization studies on the addition of sterically hindered phosphane ligands, satisfactory yields could be achieved [32,33]. This encouraged Baudoin et al. to couple both Masuda borylation and Suzuki coupling into a one-pot process. 2-Bromoaniline (2a) was transformed into the corresponding pinacolyl boronic acid ester with pinacolyl borane (HBpin) (3) in the presence of palladium (II) acetate and the sterically hindered ligand 2-(dicyclohexylphosphino)biphenyl (JohnPhos) (Figure 5) in a ratio of 4:1. Triethylamine as the base gave the best results. After 1 h at 80 °C, without the addition of fresh catalyst, water was added to scavenge the excess of the remaining 3. The addition of 2-iodophenylacetonitriles 4 and the stronger base barium hydroxide led to the formation of biaryls 5a (73%) and 5b (66%) (Figure 5) [30].
With these results in hand, several differently substituted derivatives 5 have been synthesized in yields ranging from 20 to 78% (Figure 6). After the deprotection of the methoxymethyl (MOM) protecting group, oxidation and lactamization was performed on Baudoin’s route to rhazinilam analogues 5 [34].
In the study of synthetic routes to seven- or eight-membered biphenyl and 2-phenylindole lactams as potential kinase inhibitors, Baudoin et al. were able to employ heterocyclic halide substrates in the MBSC sequence for the first time using their standard protocol (Figure 7) [35].
Additionally, Baudoin could establish a general consideration for the order of the borylation and the cross-coupling compound. It was found that the Masuda borylation step gives higher conversions with electron-rich substrates bearing electron-donating groups (EDG). It is expected that electron-rich aryl halides and electron-deficient organoboron compounds favor the σ-bond metathesis [26]. The resulting electron-rich boronate intermediates are more reactive in the transmetalation step of the Suzuki coupling. Fortunately, Suzuki coupling works best with electron-poor aryl halides with electron-withdrawing groups (EWG) (Figure 8).

2.2. Queiroz’s One-Pot MBSC Sequence with Benzothiophene Substrates

Shortly after Baudoins’ studies, Queiroz and coworkers became interested in the synthesis of thienocarbazoles as biologically active compounds or as biomarkers due to their fluorescence properties and their possible ability to intercalate into the DNA. The group used Baudoin’s reaction conditions and extended the MBSC sequence to the synthesis of 2-methyl-2′-nitro biaryls 11. Bromo-substituted benzothiophenes 9 were reacted in a Masuda borylation and subsequently in a Suzuki coupling with differently substituted ortho-nitrophenyl derivatives 10, which gave the biaryls 11 in yields ranging from 50 to 80% (Figure 9). Queiroz’s observations concerning the influence of electron-donating and electron-withdrawing substituents matched with Baudoins’ results. Finally, the biaryls were reductively cyclized in a Cadogan cyclization with triethyl phosphite into the desired thienocarbazoles [36].
Later, the synthesis of benzo[b]thienyldehydroamino acid esters 14 was approached. Starting from ortho-methyl- or ortho-methoxy-substituted bromobenzo[b]thiophenes 12, after borylation, the subsequent Suzuki step was performed using β-bromo dehydroamino acid esters 13. Thereby, Queiroz succeeded in extending the MBSC sequence to non-aromatic substrates. The regiochemistry of the starting material was strictly maintained. The group synthesized nine E- and Z-configurated benzo[b]thienyldehydroamino acids with yields ranging from 30 to 61% (Figure 10). The compounds were tested for their antimicrobial and fluorescence properties and showed activity against Gram-positive bacteria B. cereus and B subtilis. The luminescent derivatives might also be used as fluorescent probes [36,37].
Queiroz and coworkers could also establish a novel MBSC sequence with a concluding lactamization of the non-isolable Suzuki product of ortho-anilines 2 with bromothiophenes 12, which gave the benzothieno [2,3-c]quinolin-6(5H)-ones 15. The yields of these tetracyclic compounds range between 40 and 50% (Figure 11). The products have been investigated in DNA and polynucleotide binding studies [39].

2.3. Levacher’s One-Pot MBSC Sequence with Naphthyl Substrates

In their studies on the development of novel axially chiral ligands, Levacher et al. were likewise interested in the lactamization of (hetero)biaryls and contributed to the advancement of the MBSC sequence. The group was able to drastically simplify the borylation step in the sequence. After an optimization study, it was found that tetrakis(triphenylphosphine)palladium(0) led to significantly higher yields. Advantageously, no addition of bulky ligands was necessary. Additionally, the amount of HBpin (3) could be lowered to two equivalents. Levacher and coworkers reported that the process is highly sensitive to the substrate concentration, and only leads to reproducible yields with concentrations lower than 0.3 to 0.4 mol·L−1. With the optimized reaction conditions, the 2-naphthylpyridine 18 was synthesized from naphthyl triflate 16 and 2-chloropyrimidine 17 in 84% yield (Figure 12) [40].

2.4. Colobert’s One-Pot MBSC Biaryl Synthesis

Colobert et al. studied the formation of biaryls as precursors for possibly bioactive molecules. The group intensively studied the influence of electron-donating and electron-withdrawing substituents in the ortho-, meta- and para-position of phenyl bromides in the Masuda borylation. They found that electron-releasing-substituted phenyl bromides gave much higher yields than those with electron-withdrawing substituents. These findings match with the data published by the Baudoin group. Colobert used the ligand (oxydi-2,1-phenylene)bis(diphenylphosphane) (DPEphos). With this modified Masuda protocol, the synthesis of unsymmetrically substituted biaryls was approached in a one-pot MBSC sequence. The ligand–catalyst ratio was 2:1. Deviating from the in sensu stricto claim that the initial catalyst source satisfies the complete sequence, for the Suzuki coupling step, a second catalyst loading was necessary. Seven examples with yields ranging from 51 to 90% have been synthesized (Figure 13) [41].

2.5. Chai’s and Huleatt’s One-Pot MBSC Biindole Synthesis

Chai and Huleatt focused on the homo- and hetero-dimerization of sterically congested indoles. To avoid the need to isolate the boronic acid ester intermediates, Chai et al. attempted to perform the dimerization in a one-pot process. For the Masuda borylation step, the group was successful with small loadings of tris(dibenzylideneacetone)dipalladium(0), although the addition of sterically hindered phosphane ligand dicyclohexyl[2′,4′,6′-tris(propan-2-yl)[1,1′-biphenyl]-2-yl]phosphane (XPhos) was required. Additionally, for the Suzuki coupling step, a new catalyst loading was needed. With their MBSC protocol, five examples have been synthesized in yields ranging from 37 to 75% (Figure 14). In the case of compound 23c, an in situ lactamization occurred to give the pentacyclic compound.

2.6. Müller’s Generalized One-Pot MBSC Synthesis of bi(hetero)Aryls

Encouraged by successful Masuda borylations of electron-rich bromo phenothiazines in 2002 [43], the Müller group later set out to develop a general MBSC protocol. In 2011, Merkul et al. could improve the MBSC methodology to the efficient coupling of readily available heterocyclic halides with simple catalyst systems and no need for exotic ligands, as previously observed by Levacher [40]. Furthermore, the reaction sequence is performed in the sense of a sequential Pd-catalyzed one-pot process, hence no addition of further catalyst loading is required for the concluding Suzuki coupling step. They envisioned a simple one-pot process to address pharmaceutically promising scaffolds, among them meriolins, which are potent kinase inhibitors [44,45,46,47]. Merkul et al. exemplified the tolerance of several functional groups and different six-membered aryl substituents and both hetero iodides and bromides, as well as chlorides, as substrates for the Suzuki step. As the electron-rich component for the Masuda borylation step, N-Boc-protected (7-aza)indoles, pyrroles, and other five-membered ring iodides 24 have been employed. The Boc protection group is cleaved under the Suzuki conditions; therefore, no additional deprotection step is required. Starting from iodides 24, the Masuda borylation step is performed with low catalyst loading. Then, the heteroaryl halide 25 for the Suzuki coupling step is added in a strictly equimolar loading. In this first publication, 21 examples with yields ranging from 35 to 92% have been synthesized (Figure 15). The general protocol was employed in the concise synthesis of natural product meridianin G (26i) and natural product precursor O-methyl meridianin A (26j). Meridianin A was readily obtained through demethylation [31].
The scope of indole alkaloids 26 synthesized from N-Boc-protected indoles was further expanded by Tasch and Sommer (Figure 16) [48,49].
Tasch et al. successfully adapted the general MBSC protocol to approach (di)azine-bridged bisindoles 28 in a pseudo-three-component synthesis. Starting from 3-iodo-substituted indoles 24, after the Masuda borylation, 0.5 equivalents of the dihalo-substituted heteroaryl 27 are added for the subsequent Suzuki coupling, which furnished the desired bisindoles 28 in yields ranging from 24 to 77% (Figure 17). It was also possible to bridge a 7-azaindole (28b) as well as a furane (28m) and a pyrrole (28n) derivative. Bisindole 28f is the natural product precursor of O,O′-methyl hyrtinadine A. The naturally occurring hyrtinadine A was obtained through a subsequent demethylation [48].
Tasch et al. continued to extend the product scope of the MBSC sequence. The reaction of 5-membered heterocycles as the coupling partner in the Suzuki step appeared to be challenging; the yields were either low or the coupling did not proceed at all under standard conditions. Exchanging cesium carbonate with sodium carbonate, as well as the addition of catalytic amounts of triphenylphosphane to prevent the Pd species from precipitation in the Suzuki coupling, led to higher yields. Additionally, instead of methanol, water was employed as a solvent to improve the solubility of the base. With these optimized conditions, indoles 24 have been reacted with equimolar amounts of bromo thiazoles 29, which furnished camalexin derivatives 30 in yields ranging from 31 to 75% (Figure 18). In the case of 30i, the corresponding dibromo thiazole was employed to give the thiazole-bridged bisindole 30i, an analogue of the biologically active alkaloid nortopsentin. Its isomer could not be isolated; instead, bromo-substituted camalexin derivative 30h was isolated [50].
Tasch et al. discovered that, in some cases, the concomitant Boc-cleavage significantly affects the Suzuki coupling, especially if the reaction rate is lower than the base-mediated deprotection. This led to the consideration that the Boc-protecting group should be replaced with the more robust tosyl protection group. A short catalyst screening showed that the standard protocol without the addition of ligands gave the best results. The tosyl-deprotection step could easily be implemented as a third step in the one-pot process. These reaction conditions were employed to synthesize the symmetrically and unsymmetrically substituted 3,3′-biindoles 32 in yields ranging from 33 to 83% (Figure 19).
The advantages of the more stable tosyl group could be successfully implemented in the standard MBSC protocol. The protection group is stable under Suzuki conditions and can be precisely cleaved in a subsequent deprotection step with a hydroxide base. These adjusted conditions were employed in the synthesis of novel meriolin 26 and bisindole 28 derivatives. The amount of triethylamine was raised to 10 equivalents, which gave favorable results regarding the conversion in the borylation step. The changed protocol still considers that the Suzuki coupling partner is added in a strictly equimolar manner. Drießen et al. accomplished the synthesis of fifteen meriolin derivatives 26 in yields ranging from 40 to 96% using this novel MBSC protocol (Figure 20). Some derivatives have been identified as promising apoptosis inducers and sphingosine kinase 2 inhibitors [51].
The usage of N-tosyl-protected indoles 31 and azaindoles 33 became the standard procedure, as it allows better control of the reaction sequence. Natural products meridianins C (26ao), F (26ap), and G (26aq) have been synthesized using the latter protocol in subsequent publications by Kruppa et al. (Figure 21) [49].
The protocol of the pseudo-three-component synthesis of bisindoles 28 has been adapted to N-tosyl-protected indoles 31 as well. While the Masuda borylation proceeds similarly to meriolin 26 syntheses, a short optimization study for the Suzuki coupling gave optimal conditions for the synthesis of (di)azine-bridged bisindoles 28. As a cosolvent, methanol is suitable to give bisindoles in good yields, but the choice of water as a cosolvent not only led to higher yields but also furnished the desired products with higher purity due to less formation of unwanted side products. Additionally, the protocol is suitable for the coupling of dibromo and dichloro (di)azines, which are more readily available than the corresponding diiodides. With the optimized conditions in hand, Sommer, Drießen, and Kruppa synthesized fifteen examples with yields ranging from 39 to 93% (Figure 22). The (di)azine-bridged bisindoles, as well as the derivatives produced by Tasch et al., have been investigated for their antibacterial properties. It was shown that bisindoles 28 with 5,5′-dichloro-substituents display potent antibacterial in vitro and in vivo efficacy against methicillin-resistant staphylococcus aureus (MRSA) [52].
This protocol could later be adapted by Kruppa et al. in the synthesis of naturally occurring pyridine-bridged bisindole scalaridine A via the O,O′-dimethyl precursor 28ad in 64% yield (Figure 23) [49].

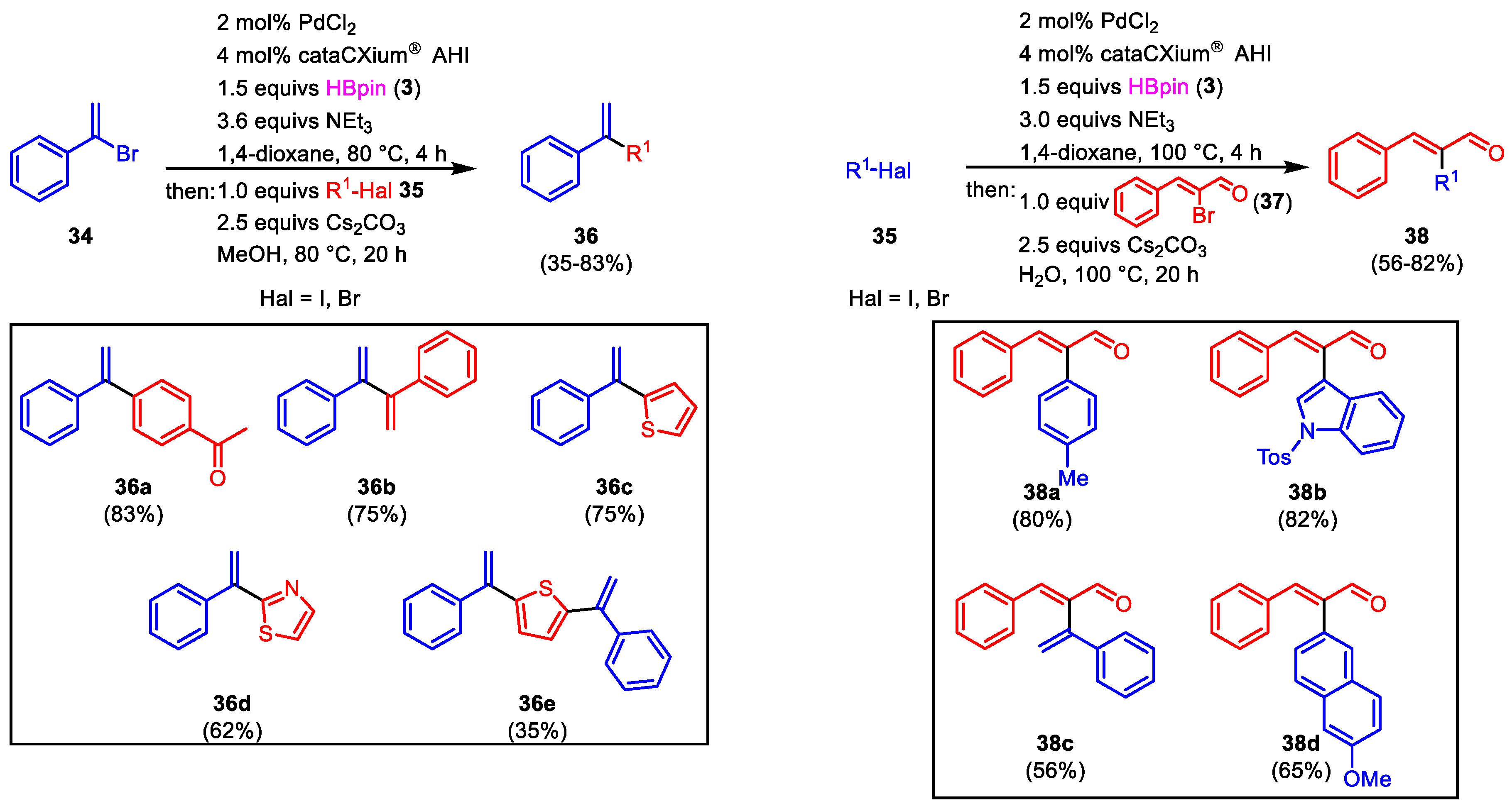

Tasch et al. continued their work to extend the scope of suitable substrates for the MBSC sequence to vinyl halides. After an intense catalyst/ligand screening, the optimized reaction conditions included palladium dichloride as the palladium source, as well as the bisadamantyl-type phosphane ligand cataCXium® AHI by Beller [53]. In this study, the increase in amounts of triethylamine led to lower yields, highlighting the fact that the Masuda borylation is sensitive to the base concentration, which varies with different compound classes. With the new MBSC protocol, starting from α-bromostyrene (34), five examples of α-substituted styrenes 36 have been synthesized in yields ranging from 35 to 83% (Figure 24) [54]. The isolation of other products starting from commercially available vinyl halides was challenging. Consequently, the order of the borylation compound and the coupling compound have been reversed. Starting from aryl halides 35, after the Masuda borylation, α-bromocinnamaldehyde (37) was added for the Suzuki coupling, leading to four examples of α-substituted cinnamaldehydes 38 in yields ranging from 56 to 82% (Figure 24) [54].

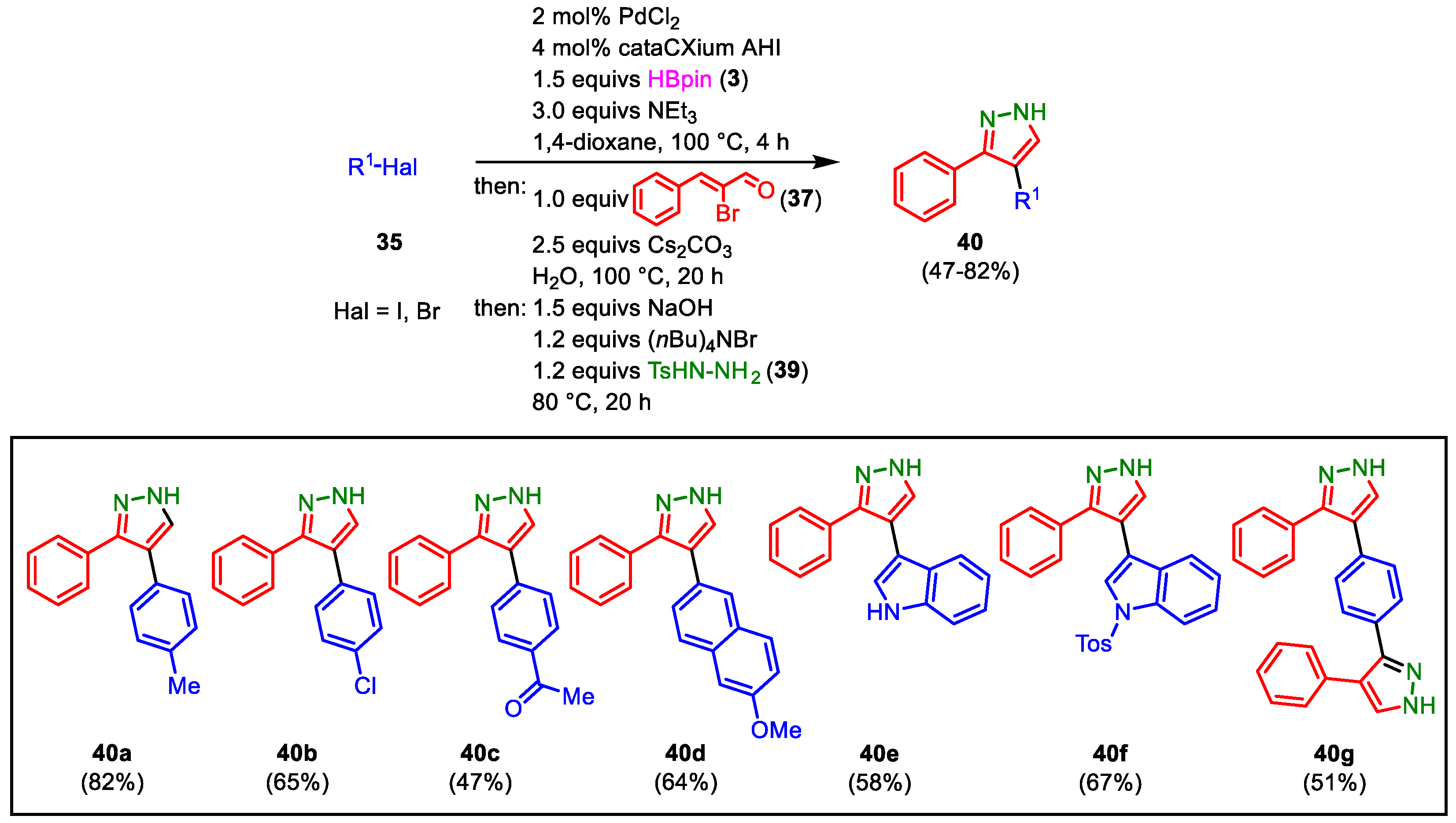

During the synthesis of cinnamaldehydes 38, the reactivity of their Michael system is maintained, leading to complex building blocks for further functionalization. Therefore, Tasch et al. envisioned that the sequentially palladium-catalyzed MBSC sequence can be expanded for a concluding cyclocondensation with tosylhydrazine (39) leading to a consecutive three-component synthesis of pyrazoles 40. With this extended sequence, seven 3,4-diaryl 1H-pyrazoles 40 have been synthesized in yields ranging from 47 to 82% (Figure 25) [54].
Another possible extension of the MBSC sequence was shown by Drießen et al. The initial MBSC protocol for meriolin derivatives 26 starting from N-tosyl-7-azaindoles 33 could successfully be expanded through a Sonogashira reaction, therefore concatenating three sequentially palladium-catalyzed processes—a borylation, a heteroarylation, and an alkynylation. It is noteworthy that only catalytic amounts of copper iodides needed to be added for the concluding Sonogashira coupling, whereas no additional amounts of palladium catalyst or triethylamine were required. To diminish nucleophilic side reactions between the solvent and 2,4-dichloropyrimidine, the solvent was changed from the initial alcoholic carbonate solution (methanol/cesium carbonate) to a mixture of 1,2-dimethoxyethane and water. Aromatic and aliphatic alkynes 42 were employed as Sonogashira coupling partners. This led to fourteen examples of alkynylated meriolin derivatives 43 with yields ranging from 24 to 83% (Figure 26). Selected derivatives have been experimentally and computationally investigated for their photophysical properties [55].

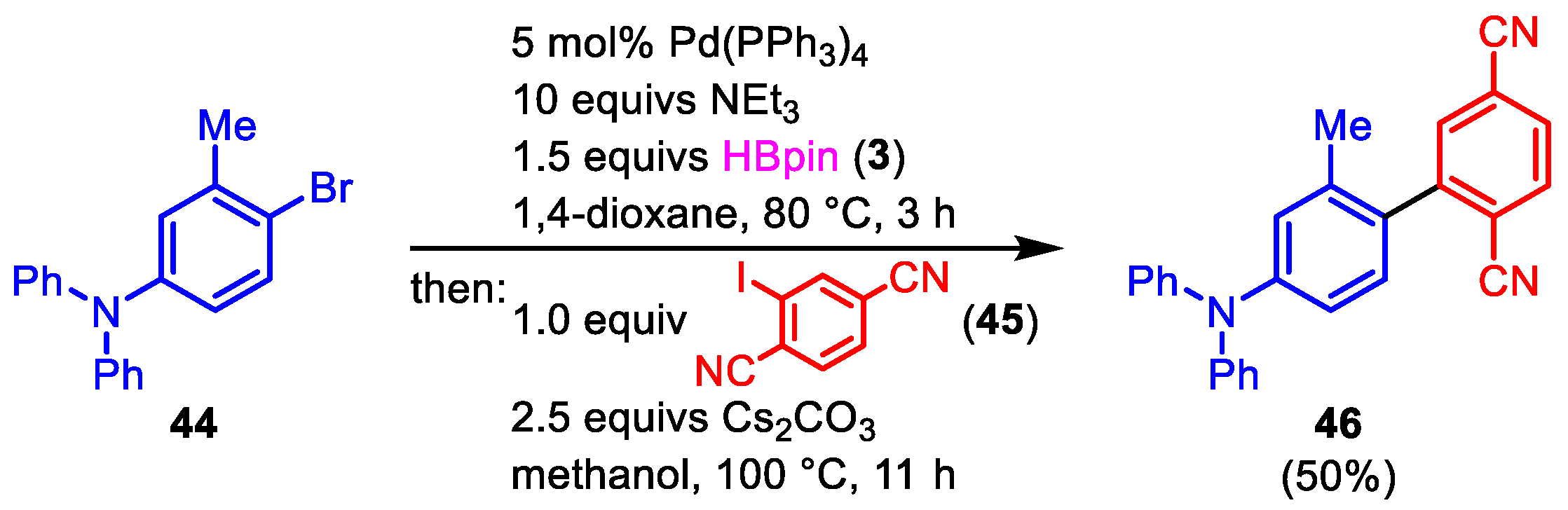

Aside from the synthesis of alkaloids and pharmaceutically relevant scaffolds, the MBSC sequence can be employed in the synthesis of functional dyes. The structure of fluorescent dye 46 was predicted using time-dependent density functional theory (TD-DFT). The ortho-methyl group was deduced to create a twisting angle to obtain a small energy gap of the charge transfer states of singlet and triplet characters. The resulting low ΔE(S1-T1) should allow for efficient thermally activated delayed fluorescence (TADF). The MBSC sequence gives fast access to the predicted structure, highlighting the building block approach of this one-pot process. The borylation of bromotriarylamine 44 and subsequent Suzuki arylation with 2-iodo terephthalic dinitrile (45) furnished the bright blue–green-emitting TADF dye 46 in 50% yield (Figure 27). The different emission mechanisms and corresponding decay times have been extensively studied [56].

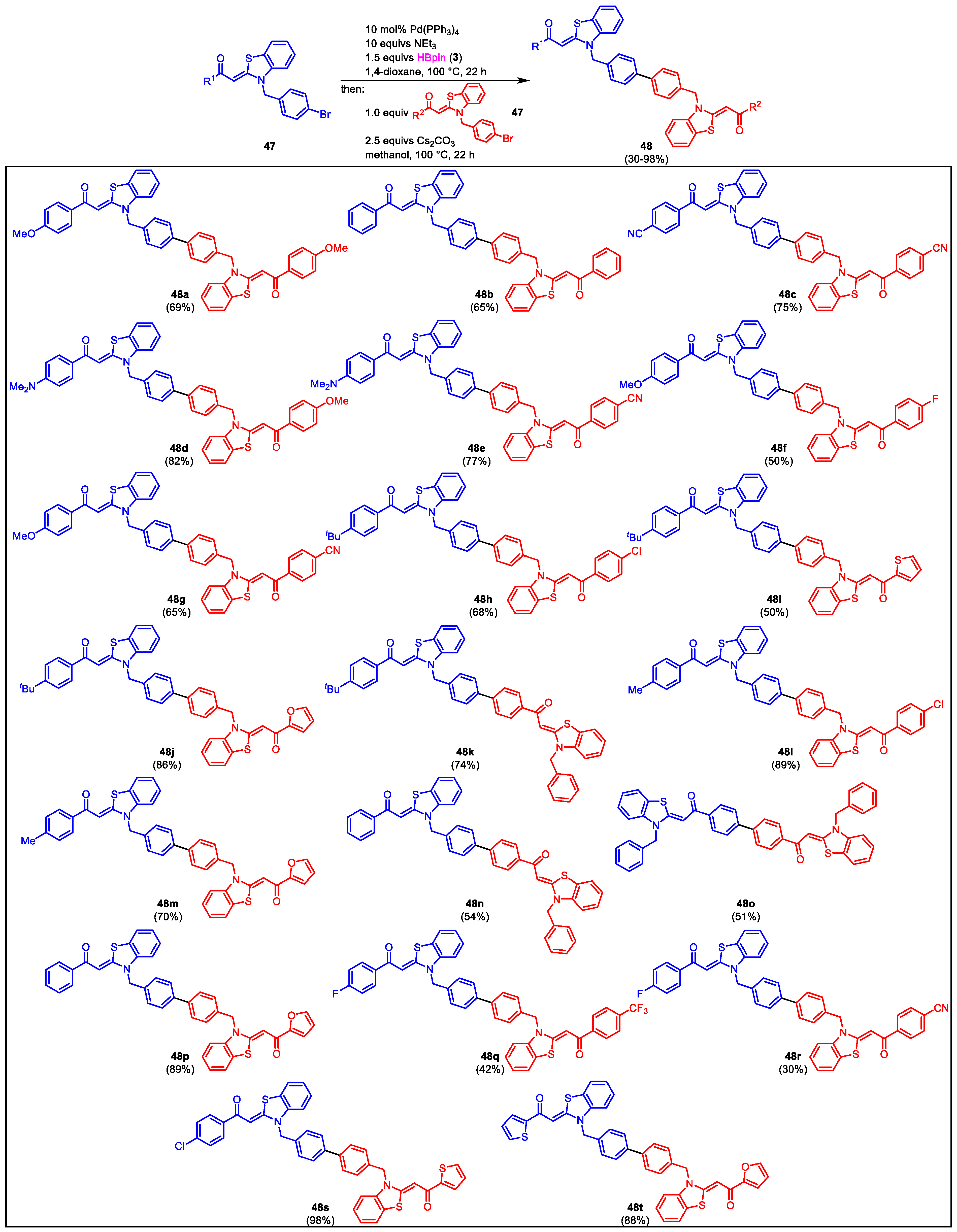

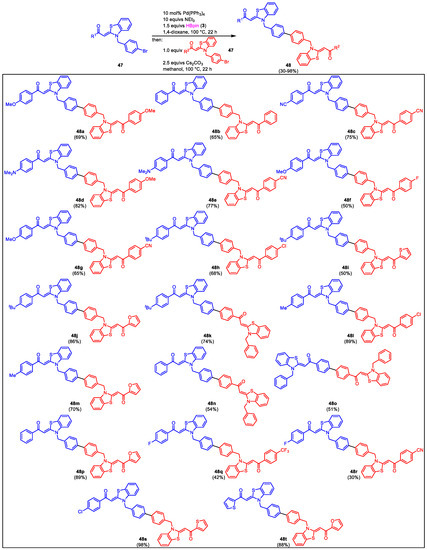

In the course of their studies on aroyl-S,N-ketene acetals (ASNK) with tunable solid-state emission and aggregation-induced aggregation (AIE), Biesen et al. were able to extend their parental system of AIEgens to biphenylene-bridged bisaroyl-S,N-ketene acetals 48. For the reaction, the standard MBSC protocol was suitable, though with a slightly higher palladium catalyst loading of 10 mol%. Starting with the bromo ASNK with electron-donating substituents, a Masuda borylation step is performed before the second bromo ASNK is equimolarly added for the concluding Suzuki coupling step, which furnished twenty examples of bisaroyl-S,N-ketene acetals 48 in yields ranging from 30 to 98% (Figure 28).
The sequence tolerates several functional groups. Their solid-state emission colors range from green to red. In contrast to the singular ASNKs, the compounds 48 emitted in ethanolic solutions, therefore posing as aggregation-induced enhanced emission (AIEE) chromophores. A possible application might be as chemical sensors in the determination of water fractions of various alcoholic beverages based on the emission color of the dissolved bisaroyl-S,N.ketene acetal 48 [57].

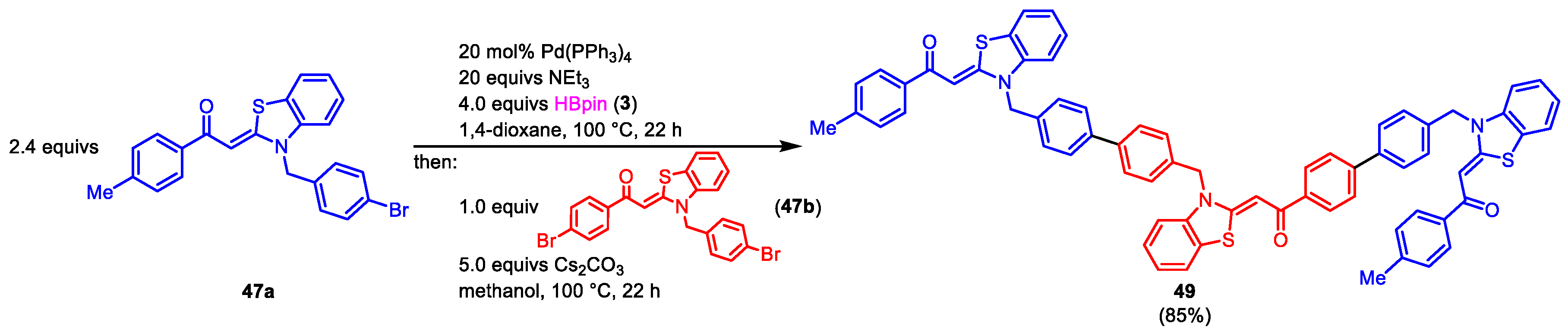

To exploit the potential and simplicity of the sequence, Biesen et al. approached the formation of trisaroyl-S,N-ketene acetal 49. Starting from toloyl-substituted bromo ASNK 47a, the MBSC sequence with dibromo ASNK 47b furnished the desired trimer 49 with a yield of 85% (Figure 29). To ensure full conversion, the amount of catalyst has been adjusted to 20 mol% [57].

3. Conclusions

The Masuda borylation–Suzuki coupling sequence is a highly efficient tool for the construction of (hetero)biaryl compounds. The conversion of halogenated (hetero)cycles and vinyl compounds to the corresponding pinacolyl boronic acid esters allows subsequent Suzuki coupling with a second halogenated compound. Therefore, essentially, two halides can directly be connected in a single one-pot process under quite mild conditions (below 100 °C with mild bases). Over the last two decades, the sequence has been intensively studied and continuously improved. From simple biphenyl systems, the need for complex sterically hindered phosphane ligands, or the superstoichiometric use of coupling partners, the one-pot process has been adapted to several compound classes with a general protocol in the sense of a sequentially palladium-catalyzed methodology and the equimolar employment of coupling partners. The influence of substituents, as well as the electronic nature of the substrate, on the reactivity has been determined and confirmed by several groups. The MBSC sequence has been employed for the synthesis of highly active pharmaceutically relevant scaffolds, natural products, and natural product precursors, as well as functional dyes with possible application in modern OLEDs or as chemical sensors. The full potential of the MBSC sequence has yet to be exploited, as it gives fast and elegant access to different compound classes; hence, novel MBSC protocols addressing drugs, dyes, or (hetero)cyclic building blocks can be expected in the future.

Author Contributions

Conceptualization, M.K. and T.J.J.M.; writing—original draft preparation, M.K.; writing—review and editing, T.J.J.M.; supervision, T.J.J.M.; project administration, T.J.J.M.; funding acquisition, T.J.J.M. All authors have read and agreed to the published version of the manuscript.

Funding

The authors cordially thank the Deutsche Forschungsgemeinschaft (270650915/RTG 2158-1,2) and the Fonds der Chemischen Industrie for financial support.

Acknowledgments

The work reported in this review in part originates from our research group. Therefore, we are particularly grateful for the dedication and the intellectual input by the individuals, who are mentioned as the first authors of the corresponding publications. In addition, we also thank all coauthors of these publications. Finally, dedicated to Christian Ganter on the occasion of 60th birthday.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Biffis, A.; Centomo, P.; Del Zotto, A.; Zecca, M. Pd Metal Catalysts for Cross-Couplings and Related Reactions in the 21st Century: A Critical Review. Chem. Rev. 2018, 118, 2249–2295. [Google Scholar] [CrossRef] [PubMed]
  2. Biteau, N.G.; Roy, V.; Nicolas, C.; Becker, H.F.; Lambry, J.-C.; Myllykallio, H.; Agrofoglio, L.A. Synthesis and Structure–Activity Relationship Studies of Pyrido [1,2-e]Purine-2,4(1H,3H)-Dione Derivatives Targeting Flavin-Dependent Thymidylate Synthase in Mycobacterium tuberculosis. Molecules 2022, 27, 6216. [Google Scholar] [CrossRef] [PubMed]
  3. Iwan, D.; Kamińska, K.; Wojaczyńska, E.; Psurski, M.; Wietrzyk, J.; Daszkiewicz, M. Biaryl Sulfonamides Based on the 2-Azabicycloalkane Skeleton—Synthesis and Antiproliferative Activity. Materials 2020, 13, 5010. [Google Scholar] [CrossRef]
  4. Tajuddeen, N.; Feineis, D.; Ihmels, H.; Bringmann, G. The Stereoselective Total Synthesis of Axially Chiral Naphthylisoquinoline Alkaloids. Acc. Chem. Res. 2022, 55, 2370–2383. [Google Scholar] [CrossRef] [PubMed]
  5. Medici, F.; Resta, S.; Puglisi, A.; Rossi, S.; Raimondi, L.; Benaglia, M. Electrochemical Organic Synthesis of Electron-Rich Biaryl Scaffolds: An Update. Molecules 2021, 26, 6968. [Google Scholar] [CrossRef] [PubMed]
  6. Polshettiwar, V.; Decottignies, A.; Len, C.; Fihri, A. Suzuki–Miyaura Cross-Coupling Reactions in Aqueous Media: Green and Sustainable Syntheses of Biaryls. ChemSusChem 2010, 3, 502–522. [Google Scholar] [CrossRef]
  7. Ren, C.; Zhang, H.; Chen, Z.; Gao, J.; Yang, M.; Yuan, Z.; Li, X. A Novel Utilization of Water Extract of Suaeda Salsa in the Pd/C Catalyzed Suzuki–Miyaura Coupling Reaction. Molecules 2022, 27, 6623. [Google Scholar] [CrossRef]
  8. Choy, P.Y.; Wong, S.M.; Kapdi, A.; Kwong, F.Y. Recent developments in palladium-catalysed non-directed coupling of (hetero)arene C–H bonds with C–Z (Z = B, Si, Sn, S, N, C, H) bonds in bi(hetero)aryl synthesis. Organic Chemistry Frontiers 2018, 5, 288–321. [Google Scholar] [CrossRef]
  9. Cook, X.A.F.; de Gombert, A.; McKnight, J.; Pantaine, L.R.E.; Willis, M.C. The 2-Pyridyl Problem: Challenging Nucleophiles in Cross-Coupling Arylations. Angew. Chem. Int. Ed. 2021, 60, 11068–11091. [Google Scholar] [CrossRef]
  10. Buskes, M.J.; Blanco, M.-J. Impact of Cross-Coupling Reactions in Drug Discovery and Development. Molecules 2020, 25, 3493. [Google Scholar] [CrossRef]
  11. Zhu, Y.; Dong, W.; Tang, W. Palladium-catalyzed cross-couplings in the synthesis of agrochemicals. Advanced Agrochem 2022, 1, 125–138. [Google Scholar] [CrossRef]
  12. May, L.; Daniel, S.; Müller, T.J.J. Diversity-oriented approach to functional thiophene dyes by Suzuki coupling-lithiation one-pot sequences. Org. Chem. Front. 2020, 7, 329–339. [Google Scholar] [CrossRef]
  13. Miyaura, N.; Yanagi, T.; Suzuki, A. The Palladium-Catalyzed Cross-Coupling Reaction of Phenylboronic Acid with Haloarenes in the Presence of Bases. Synth. Commun. 1981, 11, 513–519. [Google Scholar] [CrossRef]
  14. Miyaura, N.; Suzuki, A. Palladium-Catalyzed Cross-Coupling Reactions of Organoboron Compounds. Chem. Rev. 1995, 95, 2457–2483. [Google Scholar] [CrossRef]
  15. Roy, D.; Uozumi, Y. Recent Advances in Palladium-Catalyzed Cross-Coupling Reactions at ppm to ppb Molar Catalyst Loadings. Adv. Synth. Catal. 2018, 360, 602–625. [Google Scholar] [CrossRef]
  16. Mpungose, P.P.; Vundla, Z.P.; Maguire, G.E.M.; Friedrich, H.B. The Current Status of Heterogeneous Palladium Catalysed Heck and Suzuki Cross-Coupling Reactions. Molecules 2018, 23, 1676. [Google Scholar] [CrossRef]
  17. Suzuki, A. Cross-Coupling Reactions Of Organoboranes: An Easy Way To Construct C-C Bonds (Nobel Lecture). Angew. Chem. Int. Ed. 2011, 50, 6722–6737. [Google Scholar] [CrossRef]
  18. Franz, A.W.; Müller, T.J.J. Facile Synthesis of Functionalized Oligophenothiazines via One-Pot Bromine-Lithium Exchange-Borylation-Suzuki Coupling (BLEBS). Synthesis 2008, 2008, 1121–1125. [Google Scholar] [CrossRef]
  19. Wiefermann, J.; Schmeinck, P.; Ganter, C.; Müller, T.J.J. Highly Deep-Blue Luminescent Twisted Diphenylamino Terphenyl Emitters by Bromine-Lithium Exchange Borylation-Suzuki Sequence. Chem. Eur. J. 2022, 28, e202200576. [Google Scholar] [CrossRef]
  20. Xu, L. Decarboxylative Borylation: New Avenues for the Preparation of Organoboron Compounds. Eur. J. Org. Chem. 2018, 2018, 3884–3890. [Google Scholar] [CrossRef]
  21. Mkhalid, I.A.I.; Barnard, J.H.; Marder, T.B.; Murphy, J.M.; Hartwig, J.F. C−H Activation for the Construction of C−B Bonds. Chem. Rev. 2010, 110, 890–931. [Google Scholar] [CrossRef]
  22. Chow, W.K.; Yuen, O.Y.; Choy, P.Y.; So, C.M.; Lau, C.P.; Wong, W.T.; Kwong, F.Y. A decade advancement of transition metal-catalyzed borylation of aryl halides and sulfonates. RSC Adv. 2013, 3, 12518–12539. [Google Scholar] [CrossRef]
  23. Ishiyama, T.; Murata, M.; Miyaura, N. Palladium(0)-Catalyzed Cross-Coupling Reaction of Alkoxydiboron with Haloarenes: A Direct Procedure for Arylboronic Esters. J. Org. Chem. 1995, 60, 7508–7510. [Google Scholar] [CrossRef]
  24. Murata, M.; Watanabe, S.; Masuda, Y. Novel Palladium(0)-Catalyzed Coupling Reaction of Dialkoxyborane with Aryl Halides:  Convenient Synthetic Route to Arylboronates. J. Org. Chem. 1997, 62, 6458–6459. [Google Scholar] [CrossRef]
  25. Murata, M.; Oyama, T.; Watanabe, S.; Masuda, Y. Palladium-Catalyzed Borylation of Aryl Halides or Triflates with Dialkoxyborane:  A Novel and Facile Synthetic Route to Arylboronates. J. Org. Chem. 2000, 65, 164–168. [Google Scholar] [CrossRef]
  26. Lam, K.C.; Marder, T.B.; Lin, Z. Mechanism of the Palladium-Catalyzed Borylation of Aryl Halides with Pinacolborane. Organometallics 2010, 29, 1849–1857. [Google Scholar] [CrossRef]
  27. Iimura, S.; Wu, W. Palladium-catalyzed borylation of l-tyrosine triflate derivative with pinacolborane: Practical route to 4-borono-l-phenylalanine (l-BPA) derivatives. Tetrahedron Lett. 2010, 51, 1353–1355. [Google Scholar] [CrossRef]
  28. Gaich, T.; Baran, P.S. Aiming for the Ideal Synthesis. J. Org. Chem. 2010, 75, 4657–4673. [Google Scholar] [CrossRef]
  29. Lessing, T.; Müller, T.J.J. Sequentially Palladium-Catalyzed Processes in One-Pot Syntheses of Heterocycles. Appl. Sci. 2015, 5, 1803. [Google Scholar] [CrossRef]
  30. Baudoin, O.; Guénard, D.; Guéritte, F. Palladium-Catalyzed Borylation of Ortho-Substituted Phenyl Halides and Application to the One-Pot Synthesis of 2,2′-Disubstituted Biphenyls. J. Org. Chem. 2000, 65, 9268–9271. [Google Scholar] [CrossRef]
  31. Merkul, E.; Schäfer, E.; Müller, T.J.J. Rapid synthesis of bis(hetero)aryls by one-pot Masuda borylation-Suzuki coupling sequence and its application to concise total syntheses of meridianins A and G. Org. Biomol. Chem. 2011, 9, 3139–3141. [Google Scholar] [CrossRef]
  32. Wolfe, J.P.; Buchwald, S.L. A Highly Active Catalyst for the Room-Temperature Amination and Suzuki Coupling of Aryl Chlorides. Angew. Chem. Int. Ed. 1999, 38, 2413–2416. [Google Scholar] [CrossRef]
  33. Wolfe, J.P.; Singer, R.A.; Yang, B.H.; Buchwald, S.L. Highly Active Palladium Catalysts for Suzuki Coupling Reactions. J. Am. Chem. Soc. 1999, 121, 9550–9561. [Google Scholar] [CrossRef]
  34. Baudoin, O.; Claveau, F.; Thoret, S.; Herrbach, A.; Guénard, D.; Guéritte, F. Synthesis and biological evaluation of a-Ring biaryl-carbamate analogues of rhazinilam. Biorg. Med. Chem. 2002, 10, 3395–3400. [Google Scholar] [CrossRef]
  35. Baudoin, O.; Cesario, M.; Guénard, D.; Guéritte, F. Application of the Palladium-Catalyzed Borylation/Suzuki Coupling (BSC) Reaction to the Synthesis of Biologically Active Biaryl Lactams. J. Org. Chem. 2002, 67, 1199–1207. [Google Scholar] [CrossRef]
  36. Ferreira, I.C.F.R.; Queiroz, M.-J.R.P.; Kirsch, G. Tandem palladium-catalyzed borylation and Suzuki coupling (BSC) to thienocarbazole precursors. Tetrahedron Lett. 2003, 44, 4327–4329. [Google Scholar] [CrossRef]
  37. Abreu, A.S.; Ferreira, P.M.T.; Queiroz, M.-J.R.P.; Ferreira, I.C.F.R.; Calhelha, R.C.; Estevinho, L.M. Synthesis of β-Benzo[b]thienyldehydrophenylalanine Derivatives by One-Pot Palladium-Catalyzed Borylation and Suzuki Coupling (BSC) and Metal-Assisted Intramolecular Cyclization-Studies of Fluorescence and Antimicrobial Activity. Eur. J. Org. Chem. 2005, 2005, 2951–2957. [Google Scholar] [CrossRef]
  38. Abreu, A.S.; Silva, N.O.; Ferreira, P.M.T.; Queiroz, M.-J.R.P. Palladium-catalyzed borylation and Suzuki coupling (BSC) to obtain β-substituted dehydroamino acid derivatives. Tetrahedron Lett. 2003, 44, 6007–6009. [Google Scholar] [CrossRef]
  39. Queiroz, M.-J.R.P.; Castanheira, E.M.S.; Lopes, T.C.T.; Cruz, Y.K.; Kirsch, G. Synthesis of fluorescent tetracyclic lactams by a “one pot” three steps palladium-catalyzed borylation, Suzuki coupling (BSC) and lactamization: DNA and polynucleotides binding studies. J. Photochem. Photobiol. A 2007, 190, 45–52. [Google Scholar] [CrossRef]
  40. Penhoat, M.; Levacher, V.; Dupas, G. Novel Extension of Meyers’ Methodology:  Stereoselective Construction of Axially Chiral 7,5-Fused Bicyclic Lactams. J. Org. Chem. 2003, 68, 9517–9520. [Google Scholar] [CrossRef]
  41. Broutin, P.-E.; Čerňa, I.; Campaniello, M.; Leroux, F.; Colobert, F. Palladium-Catalyzed Borylation of Phenyl Bromides and Application in One-Pot Suzuki−Miyaura Biphenyl Synthesis. Org. Lett. 2004, 6, 4419–4422. [Google Scholar] [CrossRef]
  42. Duong, H.A.; Chua, S.; Huleatt, P.B.; Chai, C.L. Synthesis of biindolyls via palladium-catalyzed reactions. J. Org. Chem. 2008, 73, 9177–9180. [Google Scholar] [CrossRef]
  43. Krämer, C.S.; Zimmermann, T.J.; Sailer, M.; Müller, T.J.J. Syntheses of Phenothiazinylboronic Acid Derivatives—Suitable Starting Points for the Construction of Redox Active Materials. Synthesis 2002, 2002, 1163–1170. [Google Scholar] [CrossRef]
  44. Dorsch, D.; Sirrenberg, C.; Müller, T.J.J. Preparation of 4-(pyrrolopyridinyl)pyrimidinyl-2-amines as antitumor agents. PCT International Application WO2007107221A1, 27 September 2007. [Google Scholar]
  45. Dorsch, D.; Wuchrer, M.; Burgdorf, L.T.; Sirrenberg, C.; Esdar, C.; Mueller, T.J.J.; Merkul, E. 6-(Pyrrolopyridinyl)-pyrimidine-2-yl-amine derivatives and their use for the treatment of cancers and aids. PCT International Application WO2008155000A1, 24 December 2008. [Google Scholar]
  46. Dorsch, D.; Sirrenberg, C.; Müller, T.J.J.; Merkul, E. Preparation of 3-(4-pyridinyl)-1H-pyrrolo[2,3-b]pyridines as anti-tumor agents. Ger. Offen. DE102008025751A1, 3 December 2009. [Google Scholar]
  47. Dorsch, D.; Sirrenberg, C.; Müller, T.J.J.; Merkul, E.; Karapetyan, G. 7-Azaindole derivatives as kinase inhibitors and their preparation and use in the treatment of tumors. PCT International Application WO2012104007A2, 9 August 2012. [Google Scholar]
  48. Tasch, B.O.A.; Merkul, E.; Müller, T.J.J. One-Pot Synthesis of Diazine-Bridged Bisindoles and Concise Synthesis of the Marine Alkaloid Hyrtinadine A. Eur. J. Org. Chem. 2011, 2011, 4532–4535. [Google Scholar] [CrossRef]
  49. Kruppa, M.; Sommer, G.A.; Müller, T.J.J. Concise Syntheses of Marine (Bis)indole Alkaloids Meridianin C, D, F, and G and Scalaridine A via One-Pot Masuda Borylation-Suzuki Coupling Sequence. Molecules 2022, 27, 2233. [Google Scholar] [CrossRef] [PubMed]
  50. Tasch, B.O.A.; Antovic, D.; Merkul, E.; Müller, T.J.J. One-Pot Synthesis of Camalexins and 3,3′-Biindoles by the Masuda Borylation–Suzuki Arylation (MBSA) Sequence. Eur. J. Org. Chem. 2013, 2013, 4564–4569. [Google Scholar] [CrossRef]
  51. Drießen, D.; Stuhldreier, F.; Frank, A.; Stark, H.; Wesselborg, S.; Stork, B.; Müller, T.J.J. Novel meriolin derivatives as rapid apoptosis inducers. Bioorg. Med. Chem. 2019, 27, 3463–3468. [Google Scholar] [CrossRef]
  52. Rehberg, N.; Sommer, G.A.; Drießen, D.; Kruppa, M.; Adeniyi, E.T.; Chen, S.; Wang, L.; Wolf, K.; Tasch, B.O.A.; Ioerger, T.R.; et al. Nature-Inspired (di)Azine-Bridged Bisindole Alkaloids with Potent Antibacterial In Vitro and In Vivo Efficacy against Methicillin-Resistant Staphylococcus aureus. J. Med. Chem. 2020, 63, 12623–12641. [Google Scholar] [CrossRef]
  53. Zapf, A.; Ehrentraut, A.; Beller, M. A New Highly Efficient Catalyst System for the Coupling of Nonactivated and Deactivated Aryl Chlorides with Arylboronic Acids. Angew. Chem. Int. Ed. 2000, 39, 4153–4155. [Google Scholar] [CrossRef]
  54. Tasch, B.O.A.; Bensch, L.; Antovic, D.; Müller, T.J.J. Masuda borylation–Suzuki coupling (MBSC) sequence of vinylhalides and its application in a one-pot synthesis of 3,4-biarylpyrazoles. Org. Biomol. Chem. 2013, 11, 6113–6118. [Google Scholar] [CrossRef] [Green Version]
  55. Drießen, D.; Biesen, L.; Müller, T.J.J. Sequentially Catalyzed Three-Component Masuda–Suzuki–Sonogashira Synthesis of Fluorescent 2-Alkynyl-4-(7-azaindol-3-yl)pyrimidines: Three Palladium-Catalyzed Processes in a One-Pot Fashion. Synlett 2021, 32, 491–496. [Google Scholar] [CrossRef]
  56. Sommer, G.A.; Mataranga-Popa, L.N.; Czerwieniec, R.; Hofbeck, T.; Homeier, H.H.H.; Müller, T.J.J.; Yersin, H. Design of Conformationally Distorted Donor–Acceptor Dyads Showing Efficient Thermally Activated Delayed Fluorescence. J. Phys. Chem. Lett. 2018, 9, 3692–3697. [Google Scholar] [CrossRef] [PubMed]
  57. Biesen, L.; Müller, T.J.J. Solid-state emissive biphenylene bridged bisaroyl-S,N-ketene acetals as distinct aggregation-induced enhanced emitters and fluorometric probes. Aggregate 2021, 2, e105. [Google Scholar] [CrossRef]

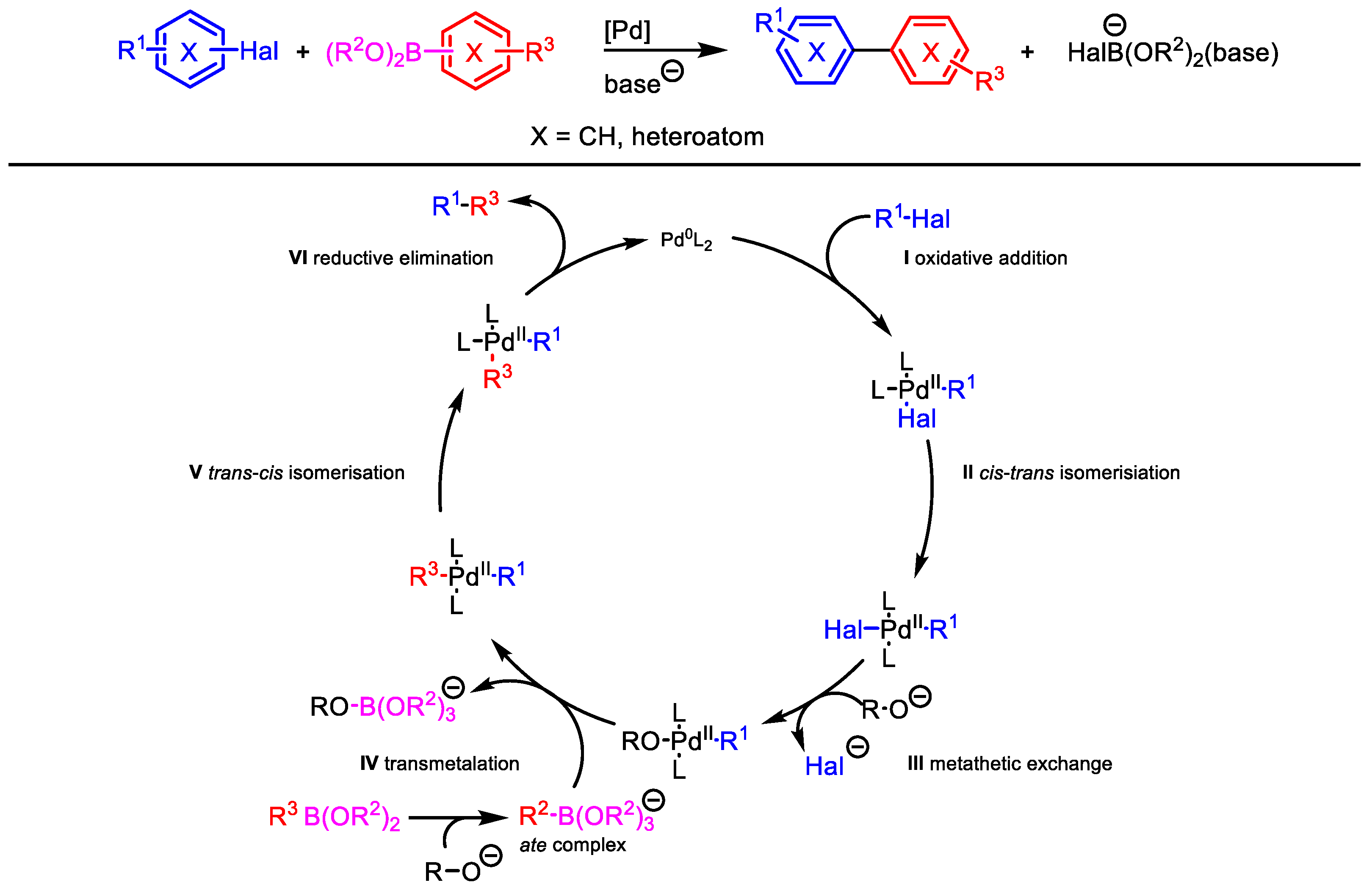

Figure 1. General scheme and mechanism of a Suzuki coupling.
Figure 1. General scheme and mechanism of a Suzuki coupling.
Catalysts 13 00350 g001

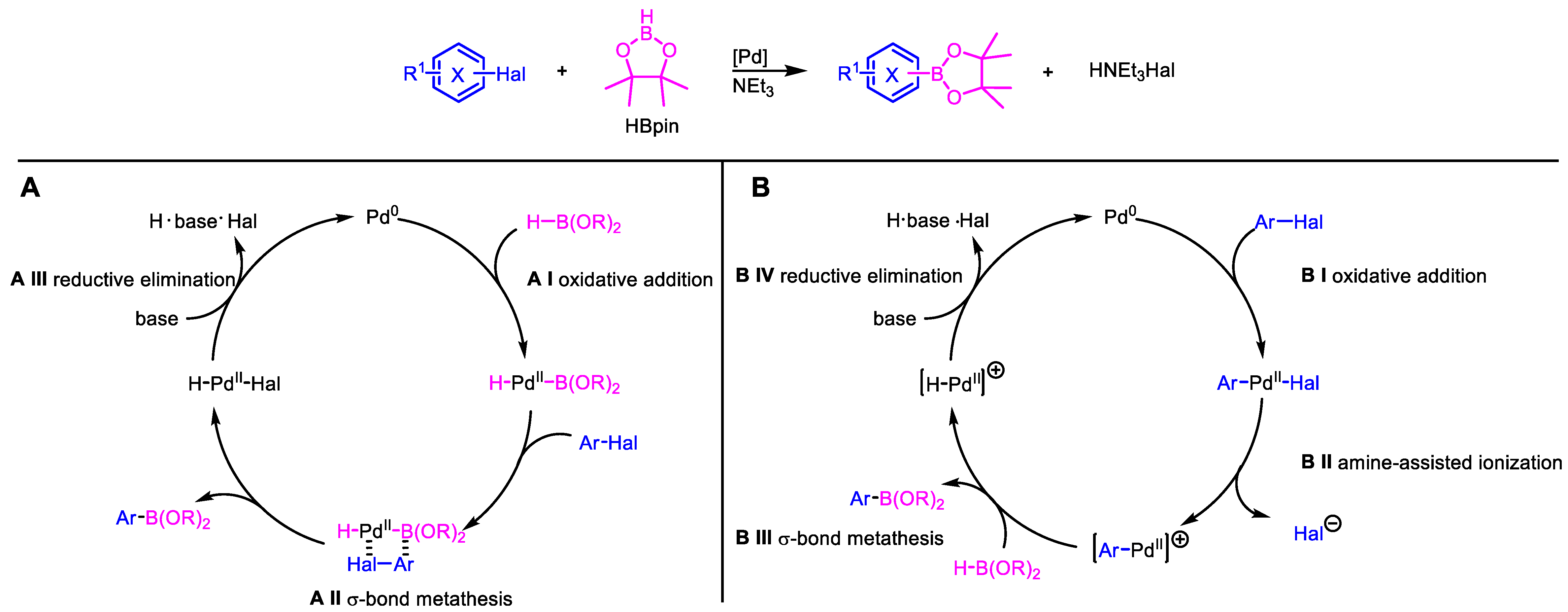

Figure 2. General scheme and proposed mechanisms by Masuda (A) and Lin (B) of a Masuda borylation.
Figure 2. General scheme and proposed mechanisms by Masuda (A) and Lin (B) of a Masuda borylation.
Catalysts 13 00350 g002

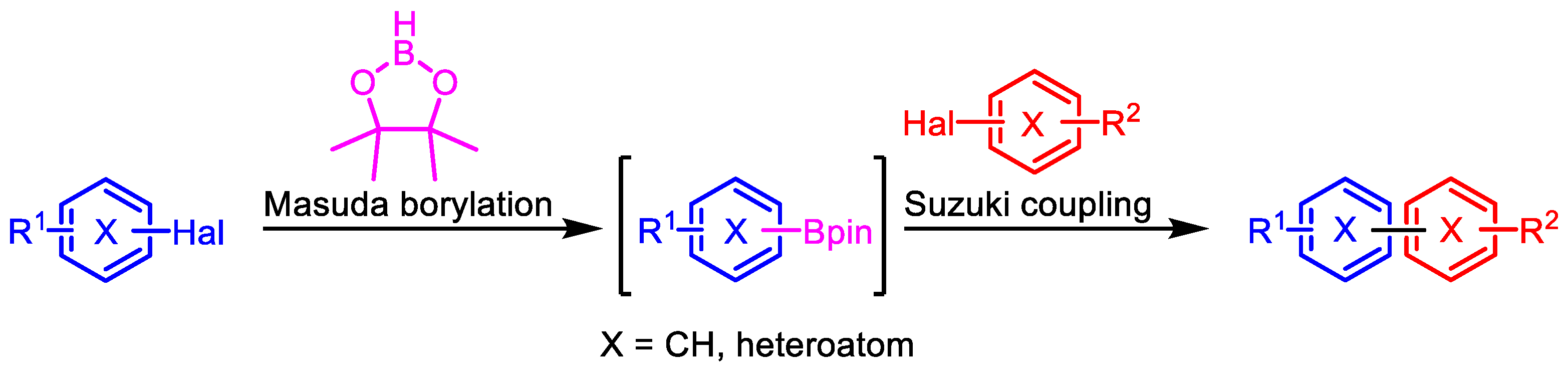

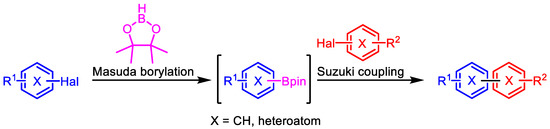

Figure 3. Linkage of Masuda borylation and Suzuki coupling into a one-pot MBSC sequence.
Figure 3. Linkage of Masuda borylation and Suzuki coupling into a one-pot MBSC sequence.
Catalysts 13 00350 g003

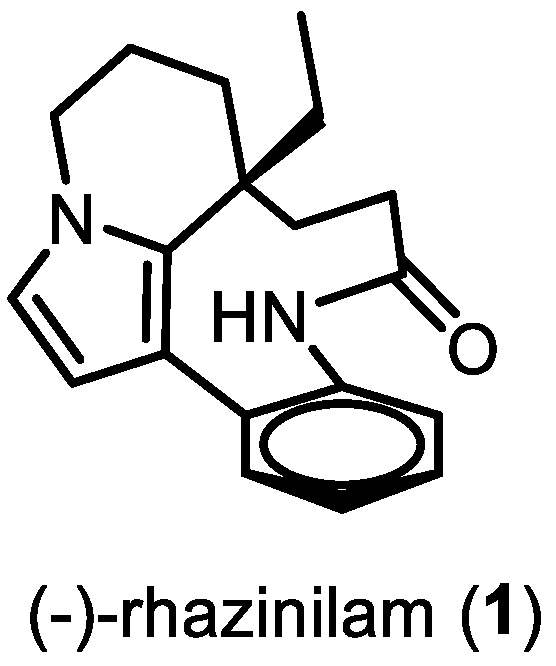

Figure 4. Antimitotic alkaloid (-)-rhazinilam (1).
Figure 4. Antimitotic alkaloid (-)-rhazinilam (1).
Catalysts 13 00350 g004

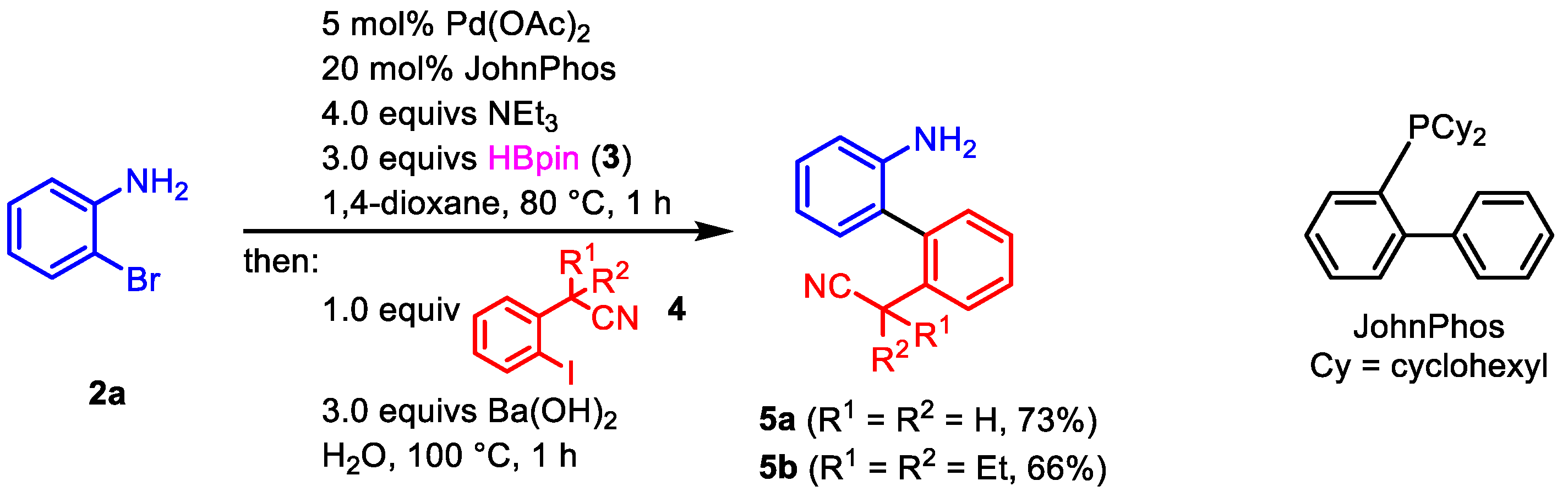

Figure 5. First concatenation of Masuda borylation and Suzuki coupling into a one-pot MBSC sequence by Baudoin et al. [30].
Figure 5. First concatenation of Masuda borylation and Suzuki coupling into a one-pot MBSC sequence by Baudoin et al. [30].
Catalysts 13 00350 g005

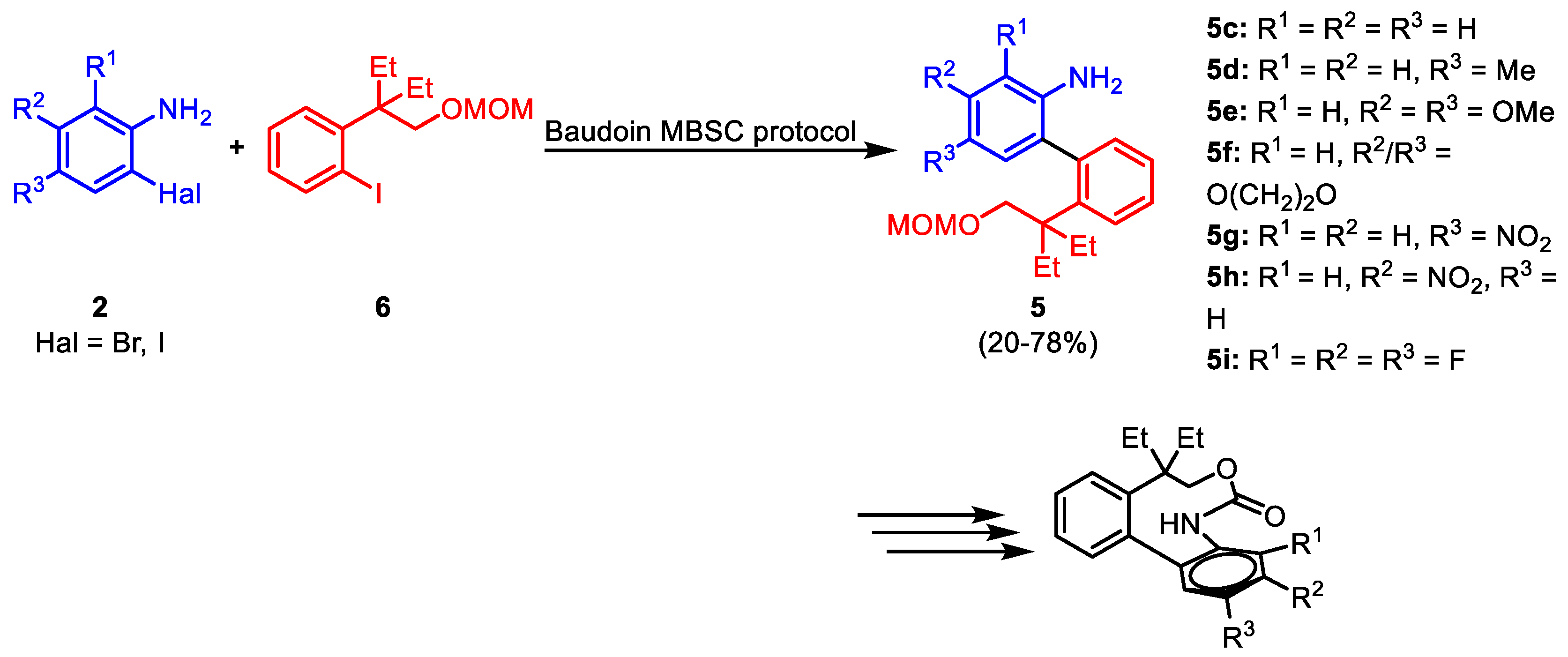

Figure 6. Synthesis of analogues of rhazinilam 5 via Baudoin’s one-pot MBSC protocol [34].
Figure 6. Synthesis of analogues of rhazinilam 5 via Baudoin’s one-pot MBSC protocol [34].
Catalysts 13 00350 g006

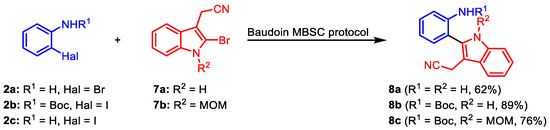

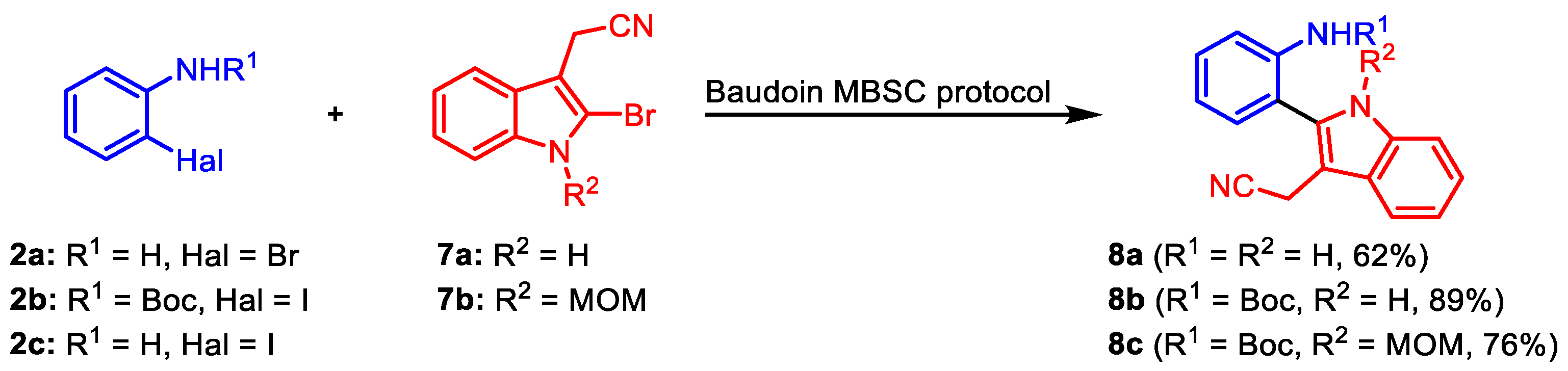

Figure 7. First employment of heterocycles in the one-pot MBSC sequence [35].
Figure 7. First employment of heterocycles in the one-pot MBSC sequence [35].
Catalysts 13 00350 g007

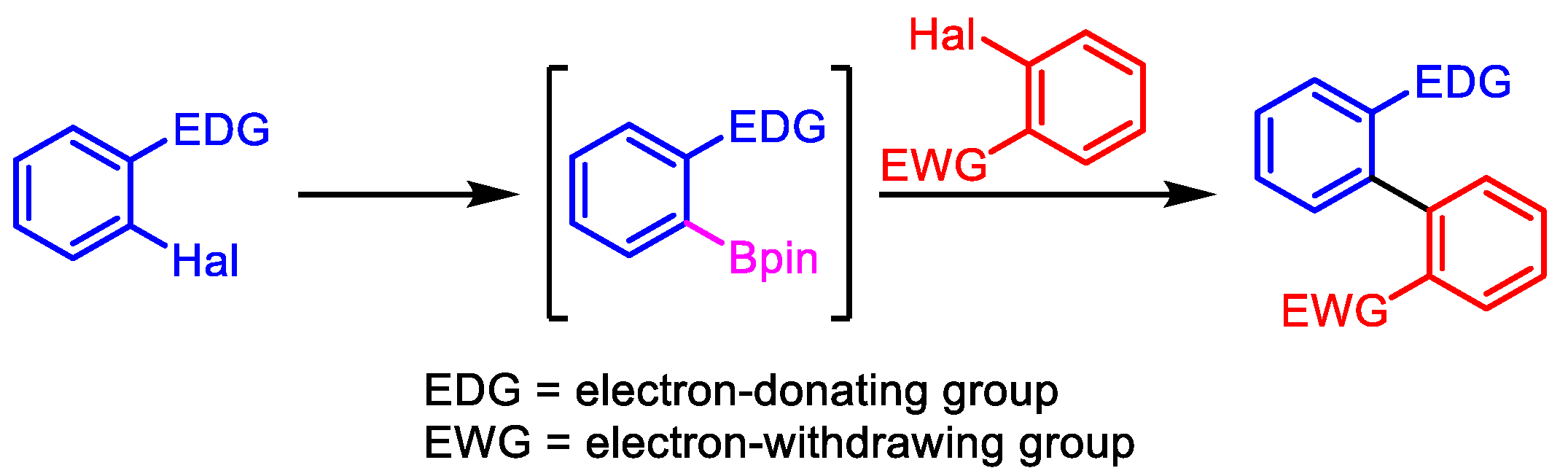

Figure 8. Order of the electronics of borylation and cross-coupling components in Baudoin’s one-pot MBSC sequence [35].
Figure 8. Order of the electronics of borylation and cross-coupling components in Baudoin’s one-pot MBSC sequence [35].
Catalysts 13 00350 g008

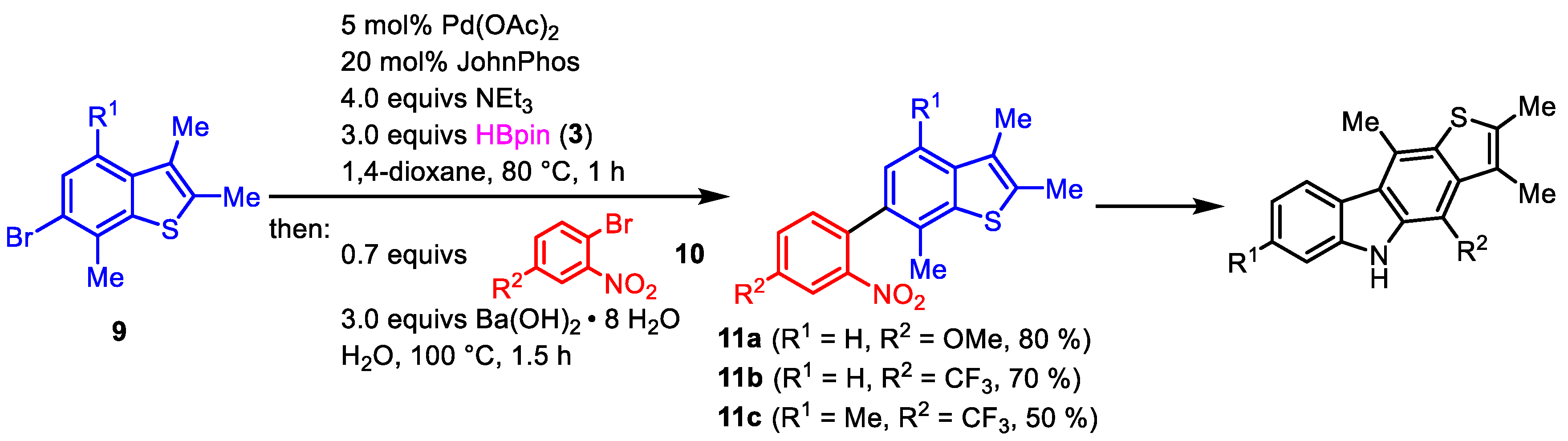

Figure 9. Queiroz’ one-pot MBSC synthesis of 2-methyl-2′-nitro biaryls 11 [36].
Figure 9. Queiroz’ one-pot MBSC synthesis of 2-methyl-2′-nitro biaryls 11 [36].
Catalysts 13 00350 g009

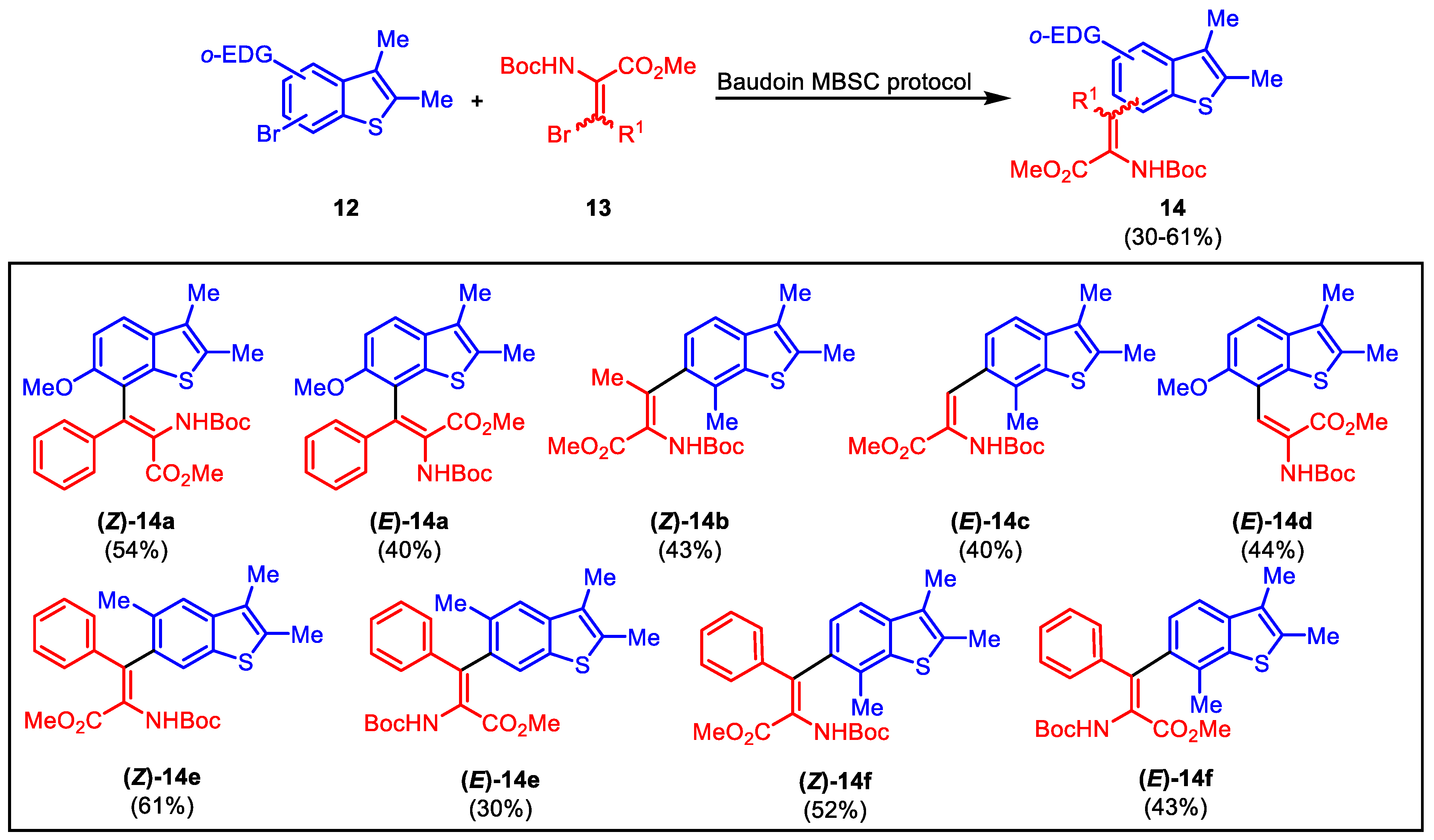

Figure 10. Queiroz’ one-pot MBSC synthesis of benzo[b]thienyldehydroamino acid esters 14 [37,38].
Figure 10. Queiroz’ one-pot MBSC synthesis of benzo[b]thienyldehydroamino acid esters 14 [37,38].
Catalysts 13 00350 g010

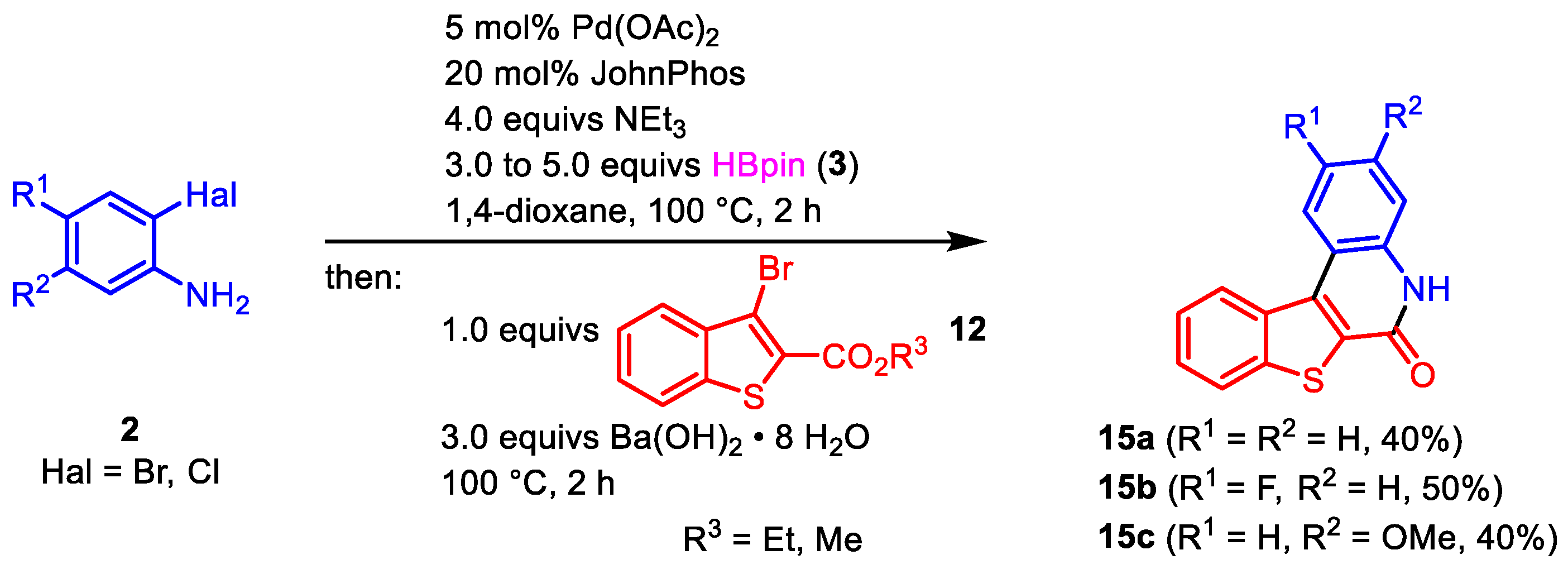

Figure 11. Queiroz’ one-pot MBSC synthesis of benzothieno[2,3-c]quinolin-6(5H)-ones 15 [39].
Figure 11. Queiroz’ one-pot MBSC synthesis of benzothieno[2,3-c]quinolin-6(5H)-ones 15 [39].
Catalysts 13 00350 g011

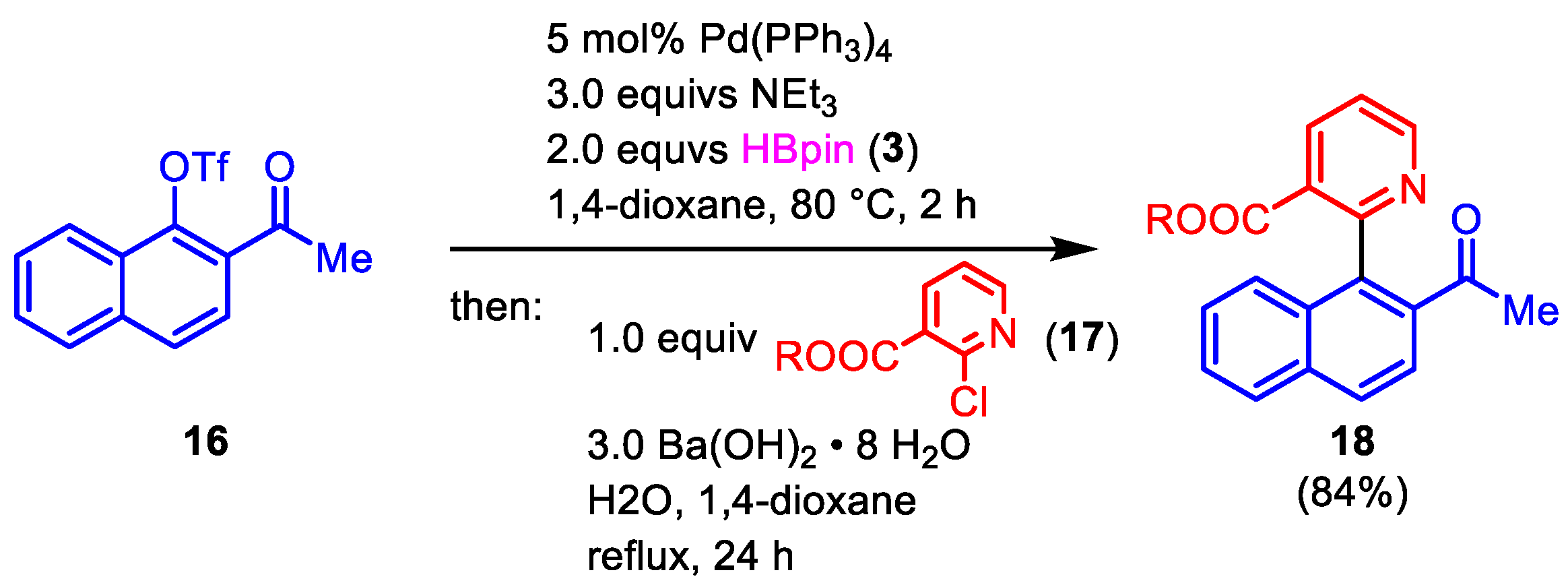

Figure 12. Levacher’s one-pot MBSC synthesis of 2-naphthylpyridine 18 [40].
Figure 12. Levacher’s one-pot MBSC synthesis of 2-naphthylpyridine 18 [40].
Catalysts 13 00350 g012

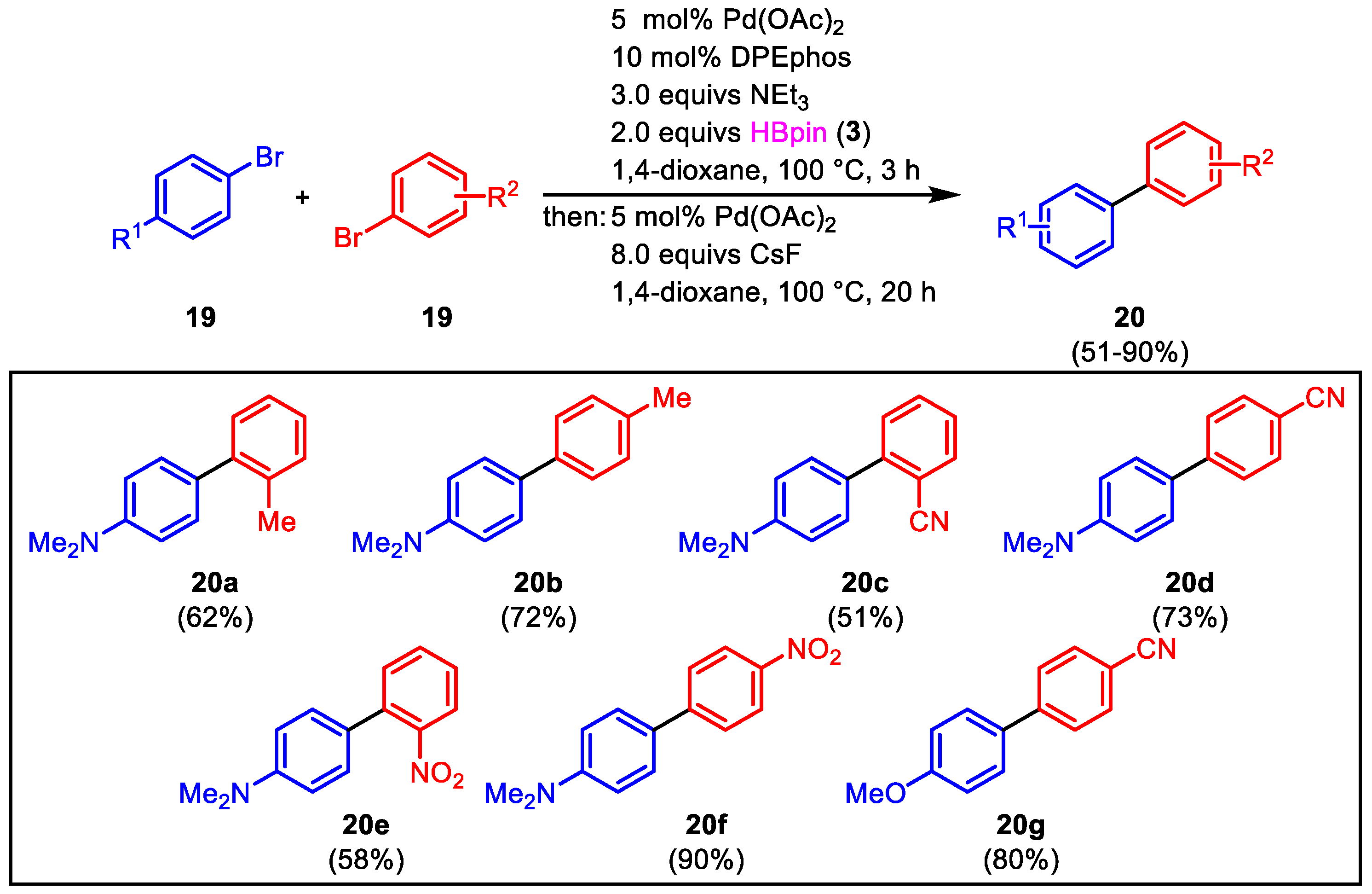

Figure 13. Synthesis of unsymmetrically substituted biaryls 20 via one-pot MBSC sequence by Colobert [41].
Figure 13. Synthesis of unsymmetrically substituted biaryls 20 via one-pot MBSC sequence by Colobert [41].
Catalysts 13 00350 g013

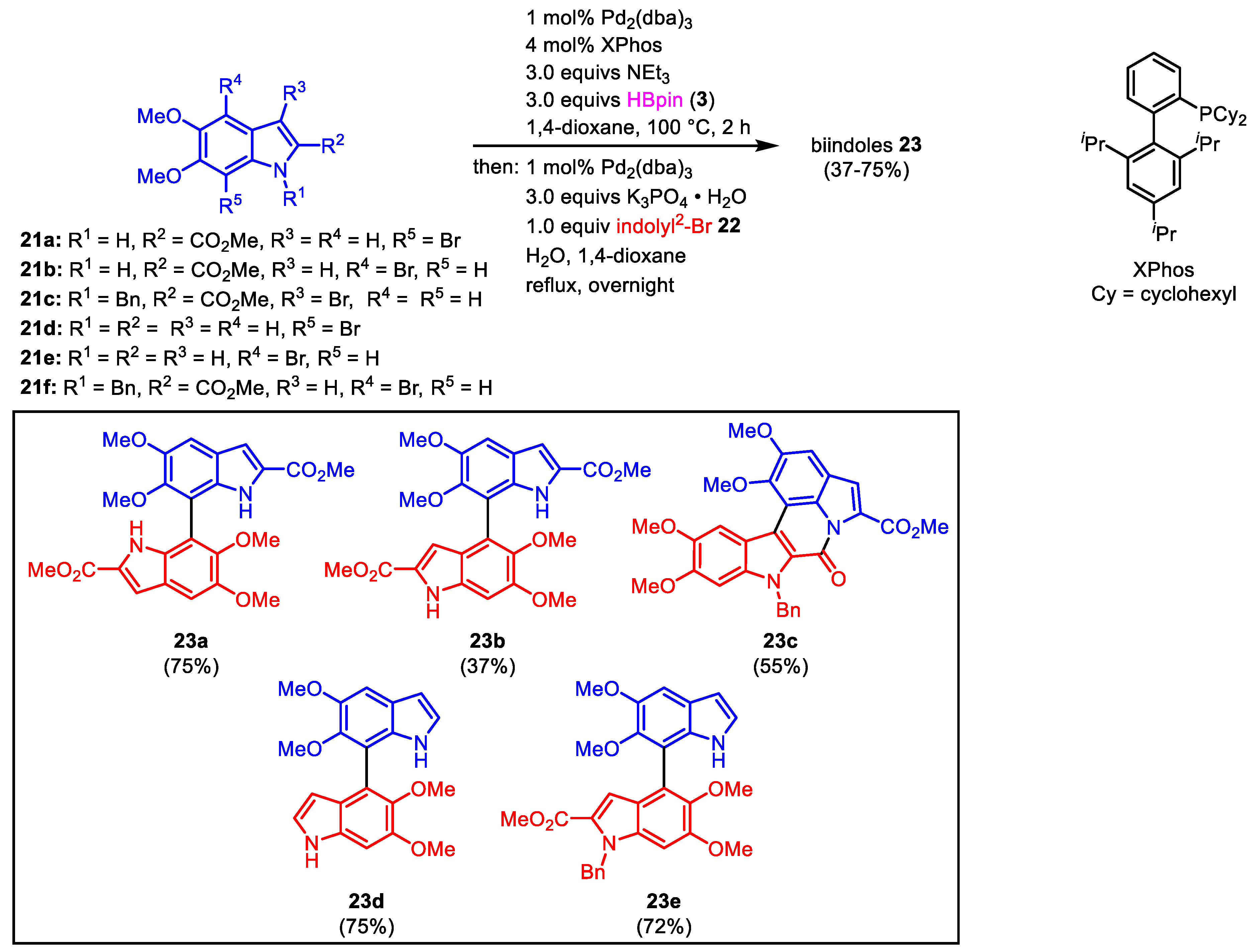

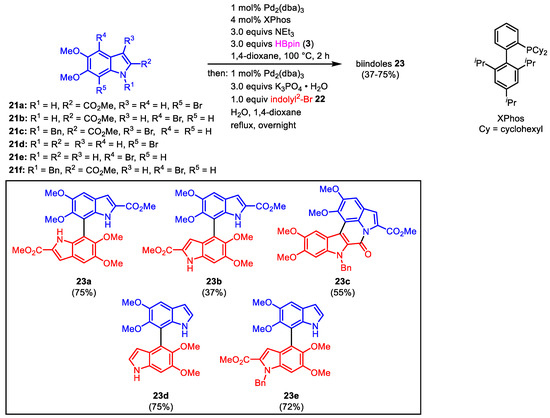

Figure 14. Chai’s and Huleatt’s one-pot MBSC synthesis of biindoles 23 [42].
Figure 14. Chai’s and Huleatt’s one-pot MBSC synthesis of biindoles 23 [42].
Catalysts 13 00350 g014
Figure 15. General one-pot MBSC protocol for the coupling of (7-aza)indoles and 5-membered aryl iodides 24 by Merkul et al. [31].
Figure 15. General one-pot MBSC protocol for the coupling of (7-aza)indoles and 5-membered aryl iodides 24 by Merkul et al. [31].
Catalysts 13 00350 g015

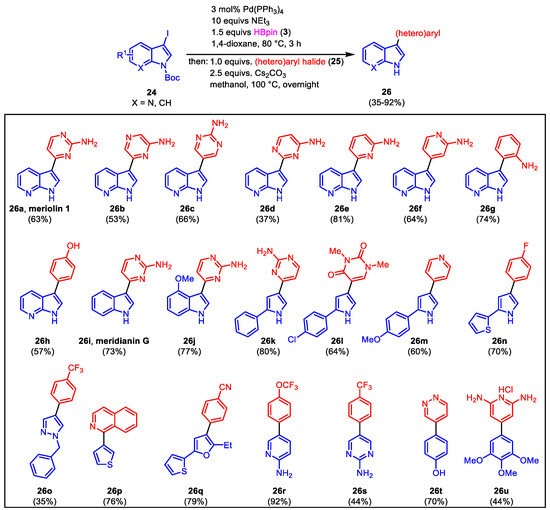

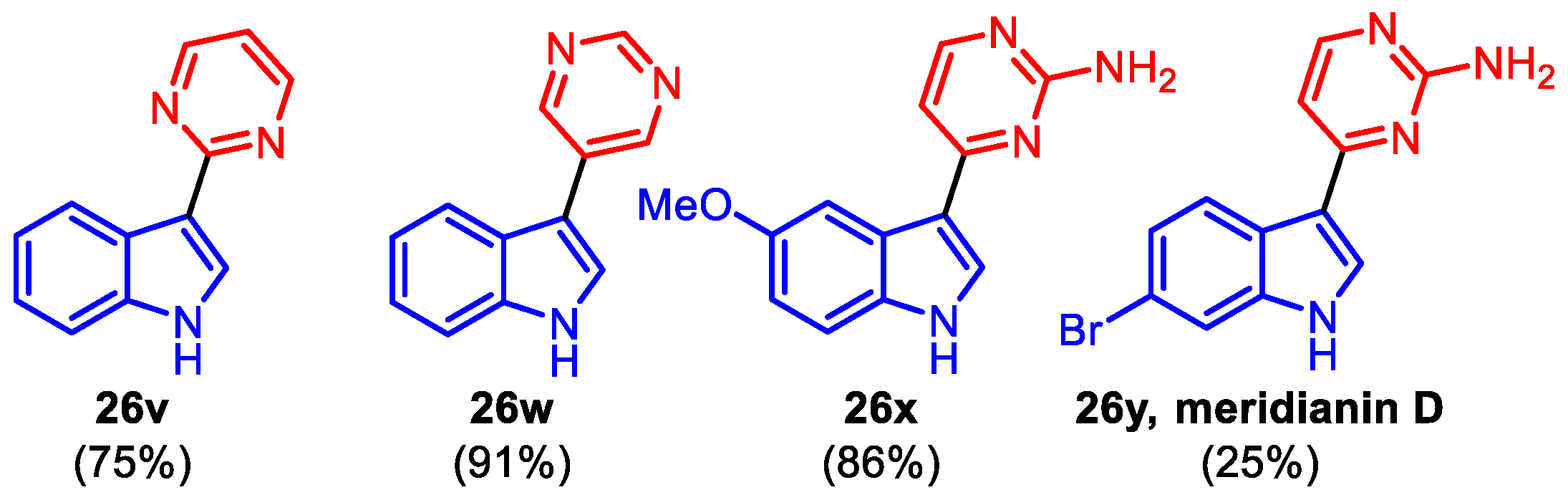

Figure 16. Indole alkaloids 26 synthesized through one-pot MBSC protocol of the Müller group [48,49].
Figure 16. Indole alkaloids 26 synthesized through one-pot MBSC protocol of the Müller group [48,49].
Catalysts 13 00350 g016

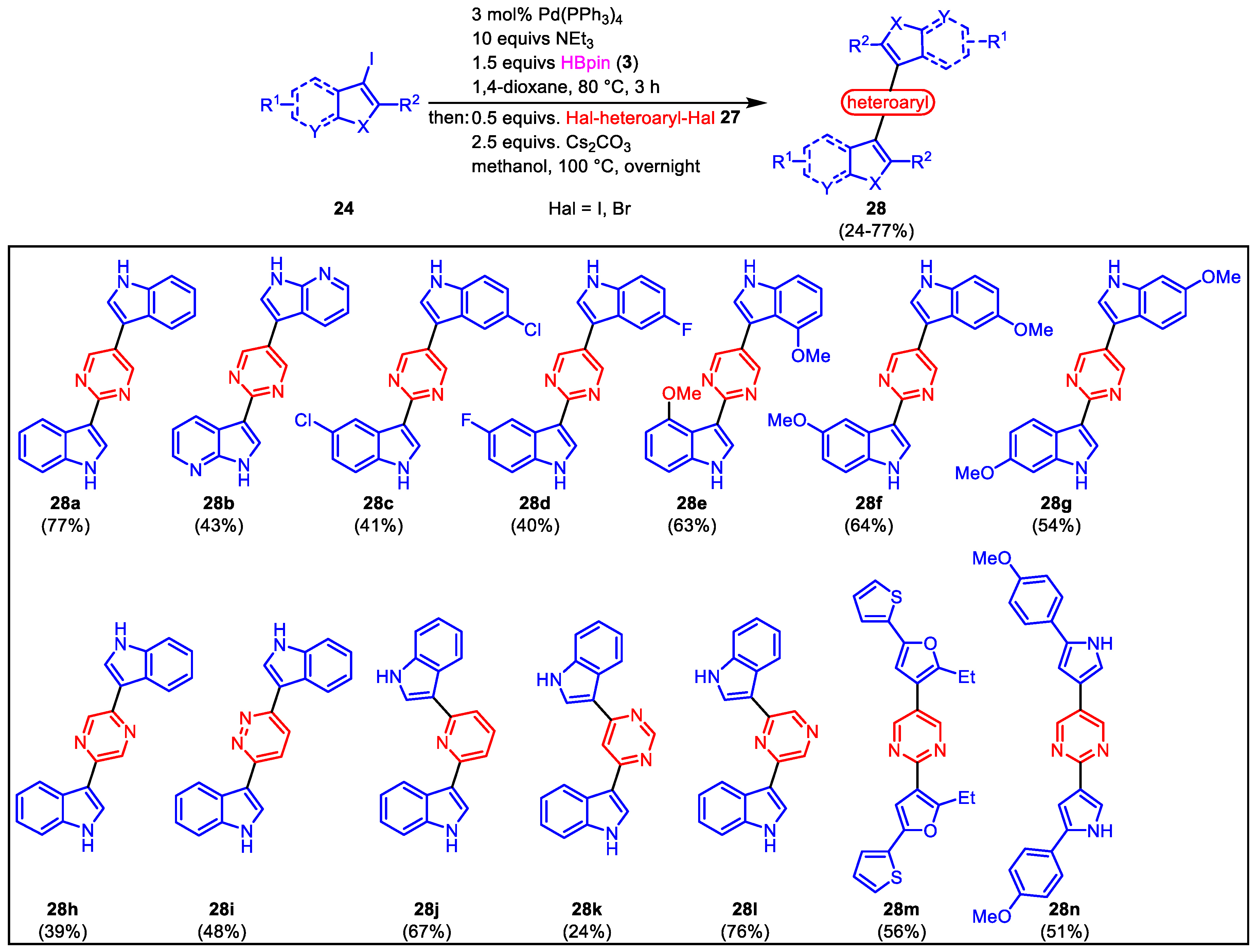

Figure 17. One-pot MBSC synthesis of (di)azine-bridged bisindoles 28 by Tasch et al. [48].
Figure 17. One-pot MBSC synthesis of (di)azine-bridged bisindoles 28 by Tasch et al. [48].
Catalysts 13 00350 g017

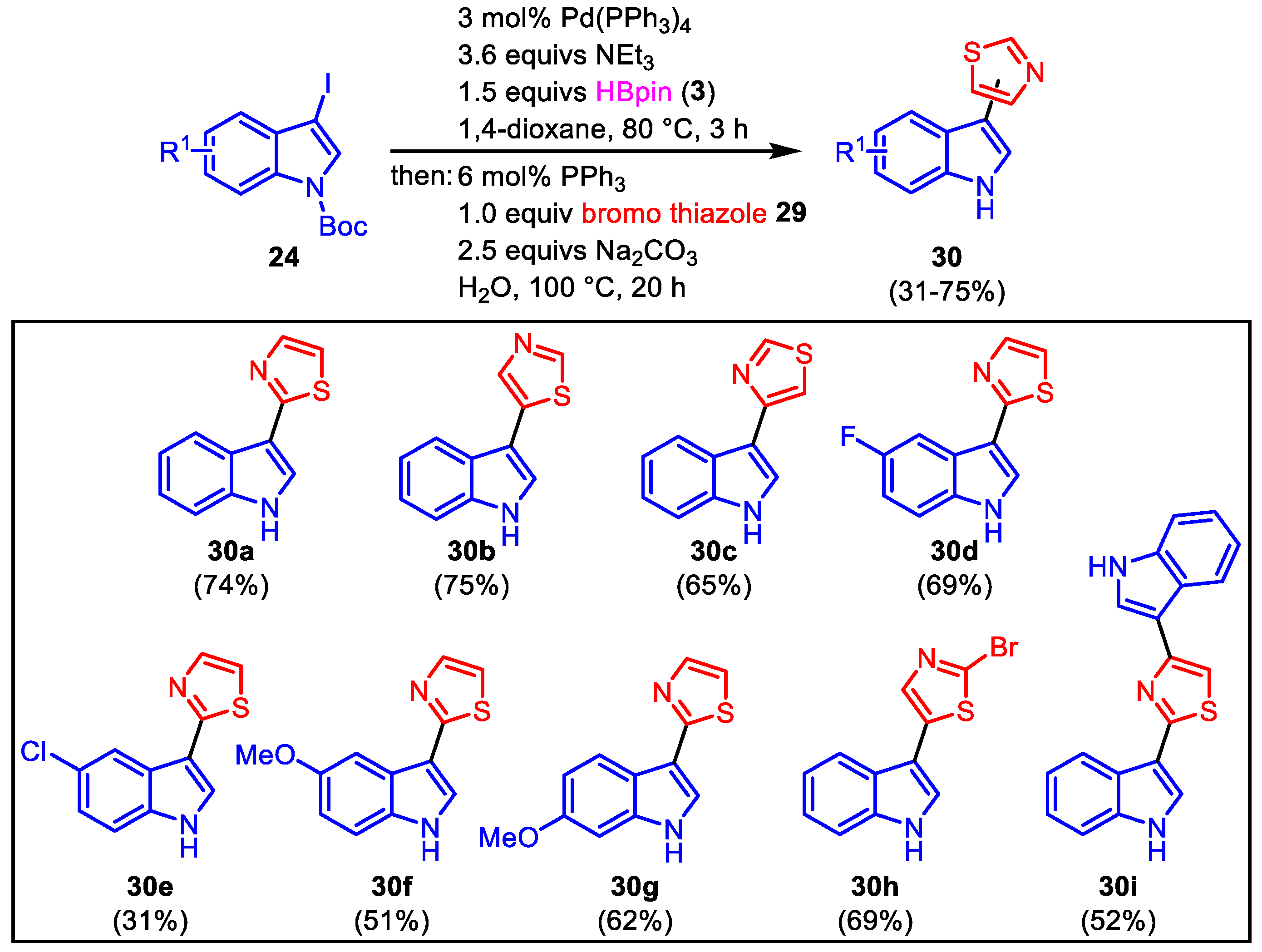

Figure 18. One-pot MBSC synthesis of camalexin derivatives 30 by Tasch et al. [50].
Figure 18. One-pot MBSC synthesis of camalexin derivatives 30 by Tasch et al. [50].
Catalysts 13 00350 g018

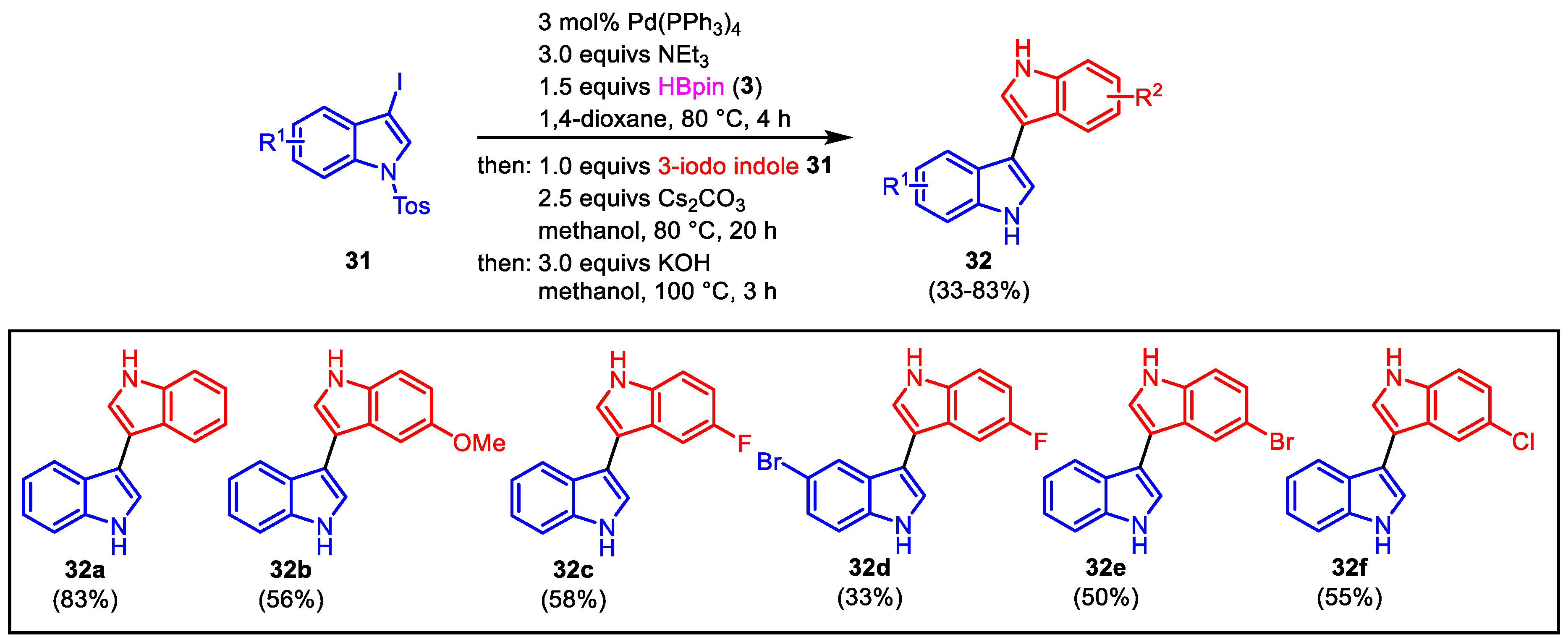

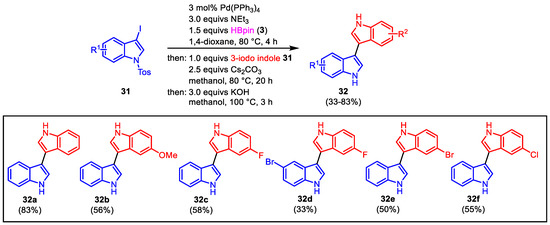

Figure 19. One-pot MBSC synthesis of 3,3′-biindoles 32 by Tasch et al. [50].
Figure 19. One-pot MBSC synthesis of 3,3′-biindoles 32 by Tasch et al. [50].
Catalysts 13 00350 g019
Figure 20. One-pot MBSC synthesis of meriolins 26 by Drießen et al. (a Synthesis without deprotection step) [51].
Figure 20. One-pot MBSC synthesis of meriolins 26 by Drießen et al. (a Synthesis without deprotection step) [51].
Catalysts 13 00350 g020

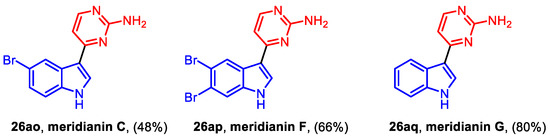

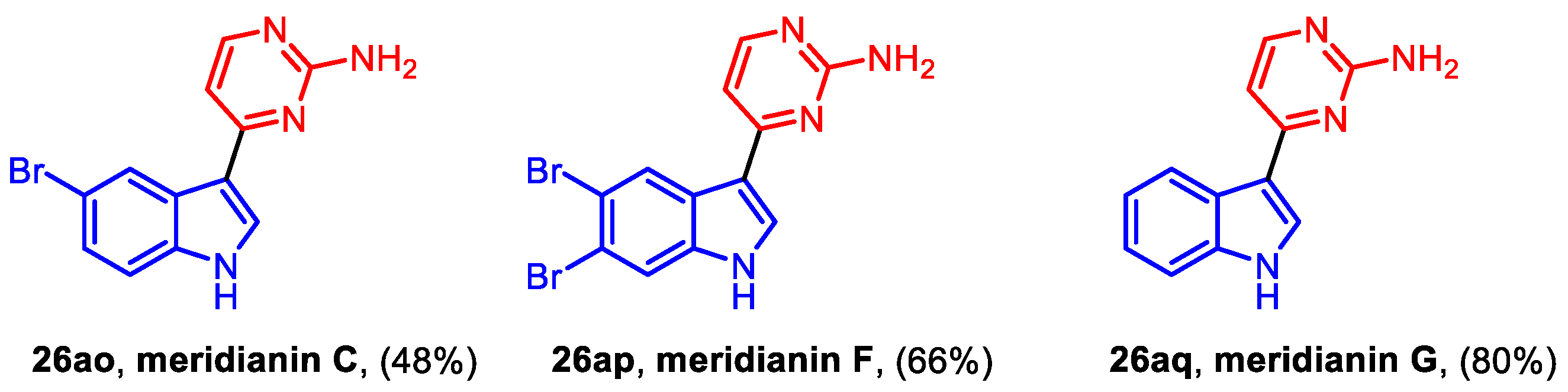

Figure 21. Meridianins 26ao-aq synthesized through MBSC sequence by Kruppa et al. [49].
Figure 21. Meridianins 26ao-aq synthesized through MBSC sequence by Kruppa et al. [49].
Catalysts 13 00350 g021

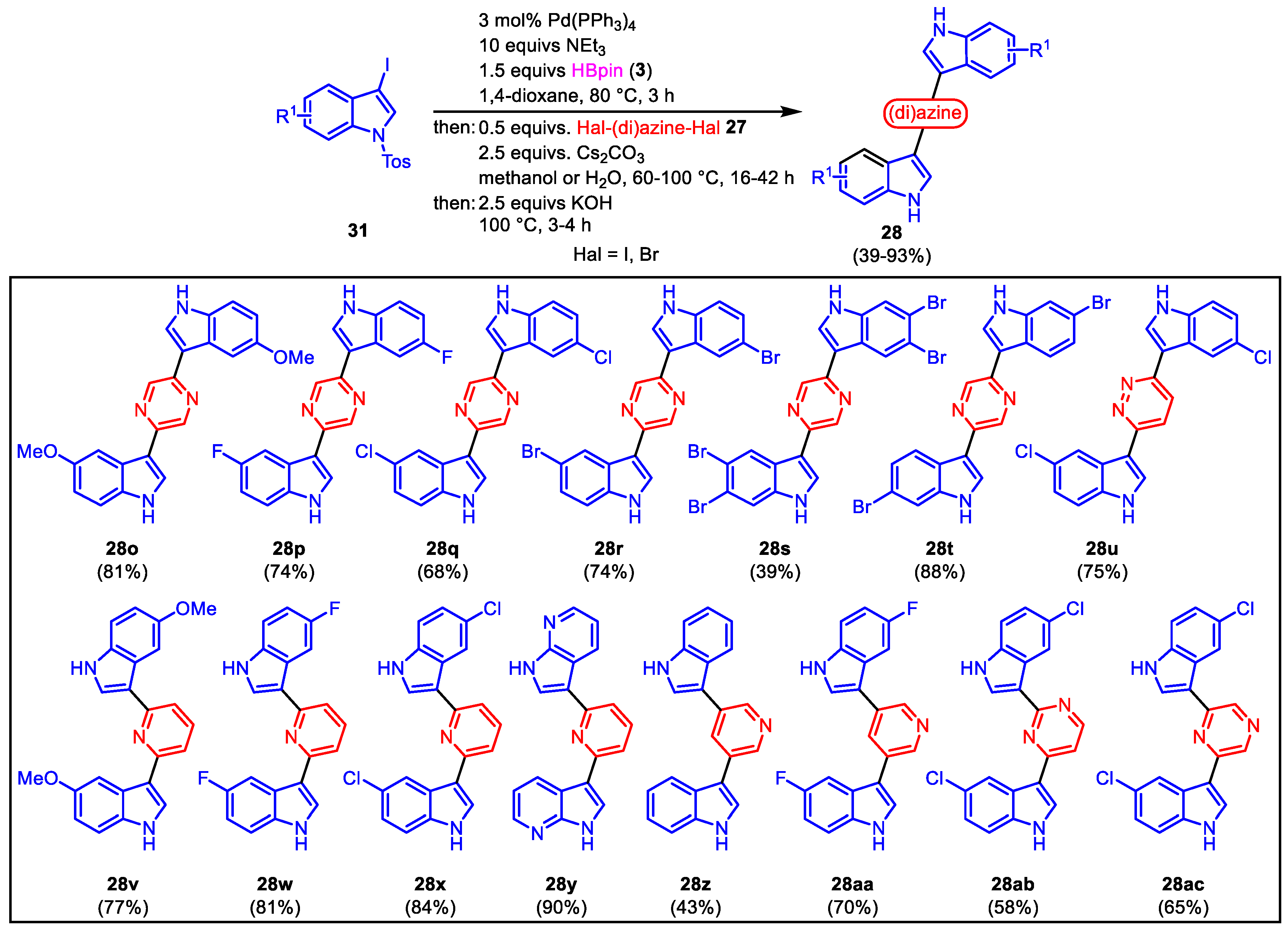

Figure 22. Product scope of the one-pot MBSC synthesis of (di)azine-bridged bisindoles 28 with potent antimicrobial activity against MRSA [52].
Figure 22. Product scope of the one-pot MBSC synthesis of (di)azine-bridged bisindoles 28 with potent antimicrobial activity against MRSA [52].
Catalysts 13 00350 g022

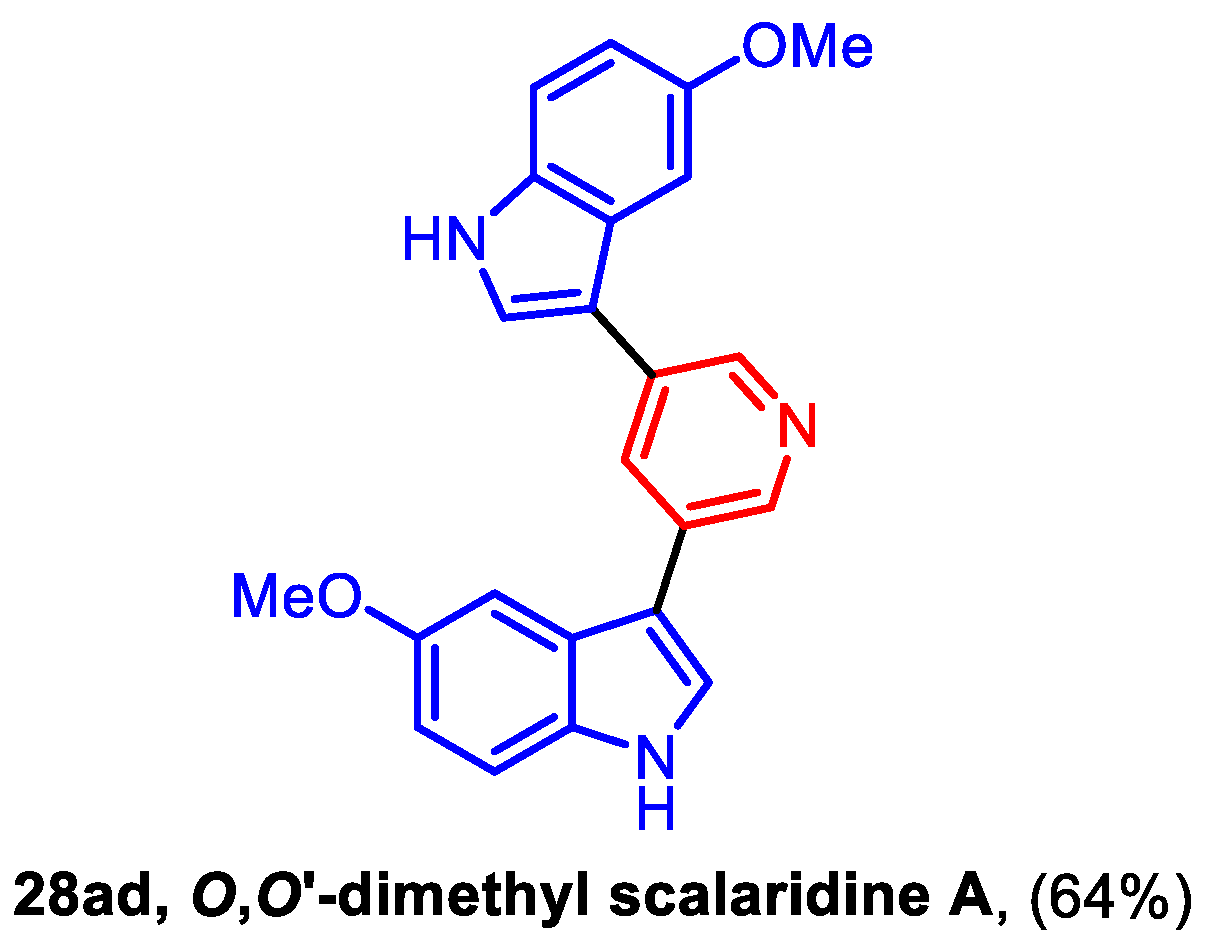

Figure 23. O,O′-dimethyl scalaridine A (28ad) [49].
Figure 23. O,O′-dimethyl scalaridine A (28ad) [49].
Catalysts 13 00350 g023
Figure 24. One-pot MBSC synthesis of α-substituted styrenes 36 and α-substituted cinnamaldehydes 38 by Tasch et al. [54].
Figure 24. One-pot MBSC synthesis of α-substituted styrenes 36 and α-substituted cinnamaldehydes 38 by Tasch et al. [54].
Catalysts 13 00350 g024
Figure 25. One-pot MBSC sequence as an entry to the consecutive three-component MBSC-cyclocondensation synthesis of 3,4-diaryl 1H-pyrazoles 40 [54].
Figure 25. One-pot MBSC sequence as an entry to the consecutive three-component MBSC-cyclocondensation synthesis of 3,4-diaryl 1H-pyrazoles 40 [54].
Catalysts 13 00350 g025

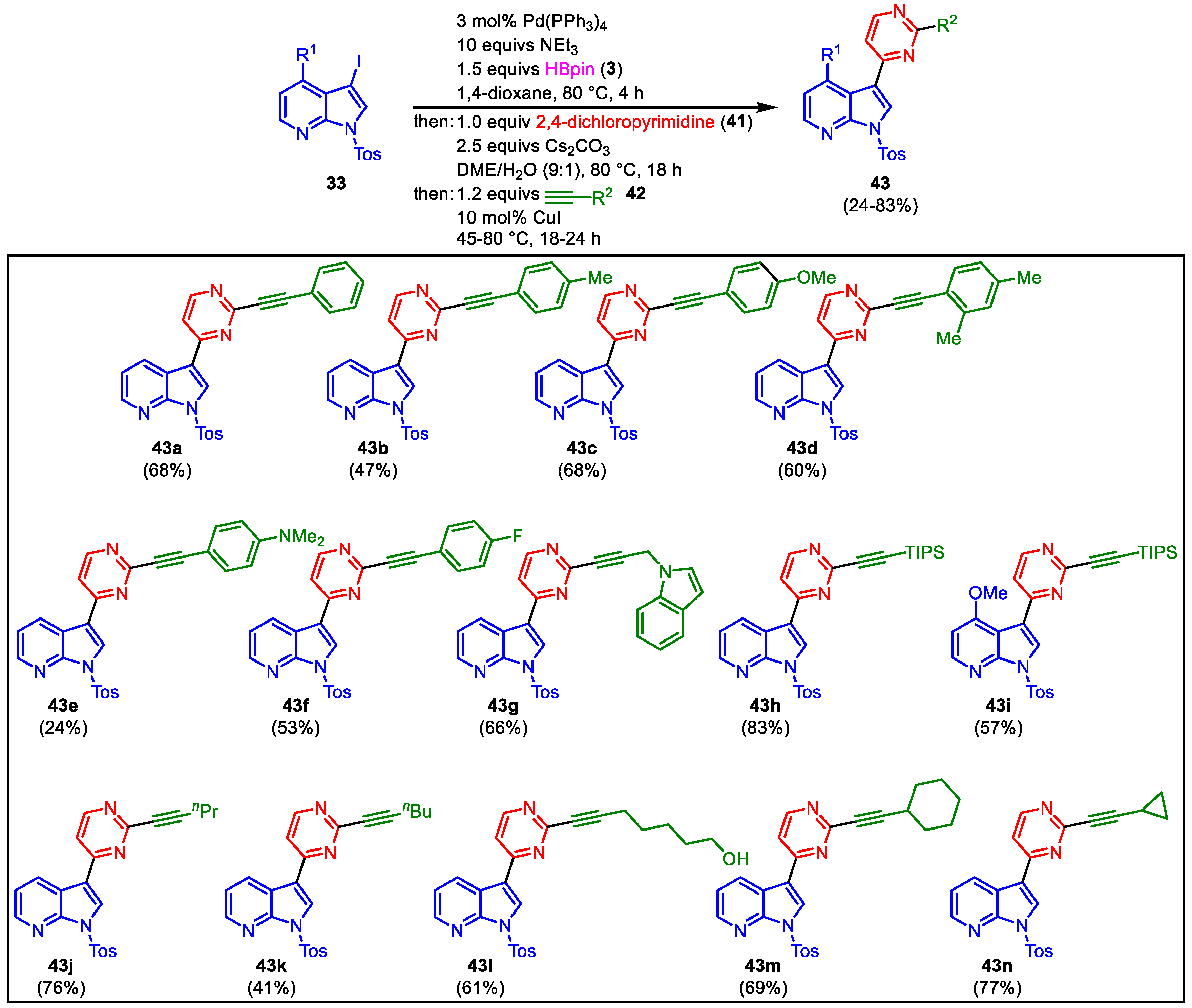

Figure 26. One-pot MBSC initiated three-component MBSC-Sonogashira synthesis of meriolin derivatives 43 by Drießen et al. [55].
Figure 26. One-pot MBSC initiated three-component MBSC-Sonogashira synthesis of meriolin derivatives 43 by Drießen et al. [55].
Catalysts 13 00350 g026
Figure 27. One-pot MBSC synthesis of TADF dye 46 by Sommer et al. [56].
Figure 27. One-pot MBSC synthesis of TADF dye 46 by Sommer et al. [56].
Catalysts 13 00350 g027
Figure 28. One-pot MBSC synthesis of bisaroyl-S,N-ketene acetals 48 by Biesen et al. [57].
Figure 28. One-pot MBSC synthesis of bisaroyl-S,N-ketene acetals 48 by Biesen et al. [57].
Catalysts 13 00350 g028
Figure 29. One-pot MBSC synthesis of ASNK trimer 49 via MBSC sequence by Biesen et al. [57].
Figure 29. One-pot MBSC synthesis of ASNK trimer 49 via MBSC sequence by Biesen et al. [57].
Catalysts 13 00350 g029
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kruppa, M.; Müller, T.J.J. Masuda Borylation–Suzuki Coupling (MBSC) Sequence: A One-Pot Process to Access Complex (hetero)Biaryls. Catalysts 2023, 13, 350. https://doi.org/10.3390/catal13020350

AMA Style

Kruppa M, Müller TJJ. Masuda Borylation–Suzuki Coupling (MBSC) Sequence: A One-Pot Process to Access Complex (hetero)Biaryls. Catalysts. 2023; 13(2):350. https://doi.org/10.3390/catal13020350

Chicago/Turabian Style

Kruppa, Marco, and Thomas J. J. Müller. 2023. "Masuda Borylation–Suzuki Coupling (MBSC) Sequence: A One-Pot Process to Access Complex (hetero)Biaryls" Catalysts 13, no. 2: 350. https://doi.org/10.3390/catal13020350

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
