Article

Photocatalytic Remediation of Harmful Alexandrium minutum Bloom Using Hybrid Chitosan-Modified TiO2 Films in Seawater: A Lab-Based Study

1
School of Chemical Sciences, Universiti Sains Malaysia, Minden, Gelugor 11800, Penang, Malaysia
2
Department of Marine Science, Kulliyyah of Science, International Islamic University Malaysia, Jalan Sultan Ahmad Shah, Bandar Indera Mahkota, Kuantan 25200, Pahang, Malaysia
3
Fisheries Research Institute, Batu Maung 11960, Penang, Malaysia
4
School of Material and Mineral Resources Engineering, Universiti Sains Malaysia, Nibong Tebal 14300, Penang, Malaysia
5
Research Center for Applied Microbiology, National Research and Innovation Agency (BRIN), Cibinong, Bogor 16911, Indonesia
6
Research Collaboration Center for Marine Biomaterials, Jatinangor 45360, Indonesia
7
Centre for Advanced Material and Energy Sciences, Universiti Brunei Darussalam, Jalan Tungku Link, Gadong, Bandar Seri Begawan BE1410, Brunei
8
Department of Chemistry, University of Saskatchewan, 110 Science Place, Room 165 Thorvaldson Building, Saskatoon, SK S7N 5C9, Canada
*
Authors to whom correspondence should be addressed.
Catalysts 2022, 12(7), 707; https://doi.org/10.3390/catal12070707
Received: 30 May 2022 / Revised: 18 June 2022 / Accepted: 22 June 2022 / Published: 27 June 2022
(This article belongs to the Special Issue 10th Anniversary of Catalysts—Feature Papers in Photocatalysis)

Abstract

:
The uncontrolled growth of harmful algal blooms (HABs) can negatively impact the environment and pose threats to human health and aquatic ecosystems. Titanium dioxide (TiO2) is known to be effective in killing harmful algae through flocculation and sedimentation. However, TiO2 in a dispersed form can harm other non-target marine organisms, which has raised concerns by environmentalists and scientists. This research seeks to explore the utility of immobilized titanium oxide as a photocatalyst for mitigation of HABs, where the Alexandrium minutum bloom was used as a model system herein. Chitosan was modified with 0.2 wt.% TiO2 (Chi/TiO2 (x mL; x = 1, 3 and 5 mL) and the corresponding films were prepared via solvent casting method. Scanning electron microscope (SEM) images of the films reveal a highly uneven surface. X-ray diffraction (XRD) analysis indicates the reduction in chitosan crystallinity, where the presence of TiO2 was negligible, in accordance with its dispersion within the chitosan matrix. The photocatalytic mitigation of A.minutum was carried out via a physical approach in a laboratory-scale setting. The negative surface charge of the films was observed to repel the negatively charged A.minutum causing fluctuation in the removal efficiency (RE). The highest RE (76.1 ± 13.8%) was obtained when Chi/TiO2 (1 mL) was used at 72 h, where the hydroxyl radicals generated were inferred to contribute to the deactivation of the algae cells by causing oxidative stress. An outcome of this study indicates that such hybrid films have the potential to replace the non-immobilized (dispersed) TiO2 for HAB mitigation. However, further investigation is required to deploy these films for field applications at a larger scale.

1. Introduction

Harmful algal blooms (HABs) are a phenomenon caused by the uncontrolled and rapid growth of toxic and harmful algae. HABs can be generated from a wide range of organisms such as toxic cyanobacteria, phytoplankton, microalgae and benthic algae [1]. The frequent occurrence of HABs is attributed to global warming and the high input of nutrient species that contain nitrogen and phosphorus from industrial sewage, agricultural and aquaculture runoff and discharge into water bodies [2,3]. In addition, natural environmental factors such as temperature, pH, light irradiance and water currents also contribute to the occurrence of HABs [3]. These harmful algal blooms (HABs) generally form in warm and still water, where HABs appear foamy or scummy on the surface of water bodies, which may occur in both fresh and marine water bodies [4]. A single outbreak of HABs can cause millions of dollars in losses to the fisheries industry, mostly fish farms and the tourism industry. Ingestion of contaminated seafood products by humans through skin contact with toxin-contaminated water, or the inhalation of aerosolized toxins, or noxious compounds can be lethal [5].
Mitigation of HABs is the term used to describe the actions taken to deal with an existing or ongoing bloom by taking necessary precautions to reduce its negative impact [6]. Various biological, chemical and physical approaches have been reported to be successful in HAB mitigation. Although effective, most techniques to control HABs have several limitations such as high maintenance cost, short-term effectiveness and the need for repeated treatments [7]. Control technologies for the mitigation of HABs should be more sustainable at a low maintenance cost with long-term effects that should not cause any direct or indirect impact on human life and aquatic ecosystems.
In wastewater remediation, photocatalysis is one of the widely used advanced oxidation processes (AOPs) that utilize photogenerated electron/hole pairs generated by semiconductors when irradiated with light. In turn, the photogenerated electron/hole pairs can react with moisture and dissolved oxygen to generate reactive oxygen species (ROS), which can cause damage to the structure of the algae and degrade its toxins [8]. Various semiconductors such as TiO2, ZnO, SnO2, CuO, CdS and Fe2O3 have been used as photocatalyst materials to alter the structure and function of algae cells. Baniamerian et al. reported that Fe2O3–TiO2 nanoparticles show a high removal rate of Chlorella vulgaris (99.8%) within 24 h under visible light irradiation [9]. The g-C3N4/Bi-TiO2 floating photocatalyst reported by Song et al., 2021 led to the removal of Microcystis aeruginosa (99.2%) within a 3 h exposure [10]. On the other hand, Fan et al., 2022 have reported that the ZnFe2O4/Ag3PO4/g-C3N4 (ZFO/AP/CN) photocatalyst had a removal efficacy for M. aeruginosa (94.31%) and MC-LR (76.92%) under visible light conditions [11].
Chitosan is a biopolymer with antimicrobial activity that contains glucosamine units with a variable level of N-acetylation at C2, where primary and secondary hydroxyl groups at C6 and C3 that can be used for synthetic modification [12,13]. The chitosan/TiO2-based nanocomposite films have been extensively studied for wastewater treatment. Such types of chitosan (CS) films reveal remarkable adsorption and photocatalysis of organic and inorganic pollutants. Razzaz et al. found that chitosan functionalized with TiO2 nanoparticles prepared by the entrapment method exhibited better adsorption of Cu(II) and Pb(II), as compared with nanocomposite particles prepared by the coating method [14]. In 2018, Saravanan et al. reported that chitosan-TiO2 composites showed great degradation efficiency toward methyl orange dye [15]. Zhao et al. reported that Ag2O/TiO2-modified CS-based film was able to completely degrade ampicillin and methyl orange within 180 min and 30 min, respectively [16] Abdullah Al Balushi et al. reported that a chitosan-TiO2 film with 12 layers of coating was able to completely degrade 0.60 ppm of methylene blue (MB) within 120 min of contact [17].
To the best of our knowledge, no reports can be found on the application of chitosan-TiO2 film as a strategy for the mitigation of HAB. In this study, chitosan-TiO2 films were developed via a solvent casting method for the mitigation of Alexandrium minutum (A. minutum), which is a common algae species frequently found in the northeastern coast of peninsular Malaysia [18]. The lab-scale mitigation study reported herein represents a first example that combines a physical and chemical approach involving adsorption and photocatalysis. This study will demonstrate the effectiveness of this photocatalytic approach of HAB mitigation with its feasibility for scalability and sustainability.

2. Results

As outlined in the introduction, a series of chitosan films were prepared that contain an incremental volumetric dosage of 0.2% w/v of anatase (TiO2) during the film preparation. In the sections below, the structure of the films were characterized by various spectral (IR, XRD, SEM-EDX and digital microscopy) and physicochemical characterization (TGA, pH dependence of the surface charge, solvent swelling, and water contact angle) methods. In turn, the composite films were evaluated for their photocatalytic efficacy of the neutralization of algal cells (A. minutum) in seawater to evaluate the potential of such materials for remediation of harmful algal blooms (HABs) in marine environments, as part of future studies in photocatalytic remediation to control HABs.

2.1. Characterization of the Fresh Hybrid Chitosan-Modified TiO2 Films

2.1.1. Attenuated Total Reflectance Fourier Transformed Infrared Spectroscopy (ATR-FTIR) Analysis

The ATR-FTIR spectra of the films are shown in Figure 1a. Based on the FTIR spectrum of the chitosan film (Chi), the band at 1024 cm−1 corresponds to the symmetric stretching of the C–O–C bond. The band at 1072 cm−1 relates to the skeletal vibration of C–O and is usually assigned as the fingerprint band for the structure of chitosan [19]. The deformation vibration of –NH2 is indicated by the appearance of an IR signature at 1554 cm−1. The bands at 1384 cm−1 and 1317 cm−1 correspond to the asymmetric C–O–C stretching vibrations and C–O stretching vibration of CH–OH [20]. The band at 1645 cm−1 represents the C=O stretching of the amide group [21,22]. The small shoulder at 1151 cm−1 is due to the C–H vibration from C–O–C of chitosan.
The higher intensity of the IR band in the region of 3200–3500 cm−1 of chitosan/TiO2 (Chi/TiO2) films compared to Chi is due to the interaction between Ti with –OH and –NH functional groups of chitosan via hydrogen bonding [23]. The band formation at 2870 cm−1 was attributed to C–H asymmetric and symmetric vibrations of the Ti–OH functional group [23]. The chemical reaction between the chitosan and TiO2 is confirmed by the presence of an IR band at 1019 cm−1, where this signature corresponds to the Ti–O–C bond [24,25]. The IR band associated with Ti–OH and Ti–O bonds can be seen at 1387 cm−1 [26], whereas the IR band related to the angular deformation of N–H bond of chitosan was observed at 1590 cm−1 [27]. The absorption at the lower frequency (650 cm−1) is due to the symmetric stretching vibration of Ti–O–Ti and O–Ti–O flexion vibration of the anatase phase [28]. These bands support the presence of TiO2 in the chitosan matrix.
In acidic media, the concentration of surface hydroxyl groups on the TiO2 surface will be higher. These hydroxyl groups can react with those of chitosan via a condensation reaction to form Ti–O–C bonds. The cross-linking between the TiO2 and the chitosan backbone is expected to reinforce the biopolymer and form a net-like structure that can capture and immobilize the algal cells. The presence of cross-linking is supported by the presence of an IR band at 1019 cm−1 for the Chi/TiO2 films. The reaction scheme indicates an illustration of the cross-linking between the two groups, as shown in Scheme 1.

2.1.2. X-ray Diffraction (XRD) Analysis

The XRD profiles of Chi and the Chi/TiO2 films are shown in Figure 1b. From the XRD diffractogram of Chi, three diffraction peaks can be observed at 2θ = 10.1°, 19.8° and 22° that correspond to the respective crystallographic planes of chitosan: (002), (101) and (220) [28,29].
The XRD peaks of chitosan became attenuated and broadened upon the incorporation of the TiO2, which indicates a reduction in the crystallinity of chitosan and a decrease in the intermolecular hydrogen bonding of the chitosan matrix [28]. The characteristic peaks of anatase TiO2 which occur at 2θ (°) values also correspond to the crystallographic planes denoted in parentheses: 25.42° (101), 38.08° (004), 38.93° (112), 48.35° (200), 63.02° (204), 69.17° (116), 70.62° (220), 75.43° (215) and 83.14° (224). The XRD lines of TiO2 were not detected due to the low concentration of TiO2 or uneven dispersion in the film matrix [30,31].

2.1.3. Scanning Electron Microscopy (SEM) Analysis

Figure 2 shows the SEM images for the surface morphology of the films (left side) and cross-sectioned images (right side). The formation of crater-like structures occurs due to the evaporation of water vapor and organic solvent during the film drying process. Meanwhile, the cross-section of Chi is observed to be dense and coarse but with no visible boundaries between chitosan and TiO2 (Figure 2A,a). The surface of the Chi/TiO2 films was observed to be different from Chi (Figure 2B–D). The surface of Chi/TiO2 films was uneven and possibly due to the protrusion of irregularly shaped TiO2 nanoparticles or due to the agglomeration of TiO2 particles during the drying process. The cross-section images of the Chi/TiO2 films (Figure 2b–d) appear to be less coarse compared to Chi. The increase in the dosage of TiO2 reduces the compact appearance of the films. Calero et al. have reported that a more compact structure is essential to enhance the film’s capabilities for various applications [32].

2.1.4. Point of Zero Charge (pHpzc)

The point of zero charge (pHpzc) is the pH value at which the surface of the solid is considered to have no net electrical charge [33]. The ability of any surface to adsorb ionic species of target pollutants is determined by the pHpzc. The net surface charge on the particle is affected by the pH of the liquid media in which the solid is dispersed. The pHpzc determination of Chi and Chi/TiO2 films is shown in Figure 3. The pHpzc of Chi/TiO2 was lower compared to the pHpzc of a Chi film. The decrease indicates that TiO2 altered the electronic structure and energy states of chitosan [34,35]. At a solution pH above the pHpzc, the surface of the films is negatively charged, whereas the surface becomes more positively charged at pH values below pHpzc.

2.1.5. Wettability and Swelling Index Analysis

The hydrophilic or hydrophobic surface characteristics of the prepared films were established through a study of the variation in the water contact angle (θ) variation for films of variable composition. The θ-values for each film are presented in Table 1, where the highest θ-value is noted for the Chi film (θ = 98.2°) due to the hydrophobic domains of the biopolymer [36]. The contact angle for the Chi film was observed to be similar to the reported values of chitosan films in the literature [37,38]. The θ-values of Chi/TiO2 (1 mL and 5 mL) are slightly lower than Chi, whereas the Chi/TiO2 (3 mL) shows the lowest contact angle (75.6°), which indicates a notable increase in the film hydrophilicity. The apparent increase for θ is due to the higher concentration of hydroxyl groups available to interact with water in the Chi/TiO2 films, compared to a Chi film without TiO2. The FTIR analysis indicates a greater level of hydroxyl groups in the Chi/TiO2 films and none in the Chi film (Section 2.1.1). The lowest contact angle of Chi/TiO2 (3 mL) may relate to the greater uniform distribution of TiO2 nanoparticles compared to the other Chi/TiO2 films. The even distribution of the TiO2 increases the amount of hydrogen bond sites that may interact with water. The role of cross-linking may cause the microstructural surface heterogeneity or roughness of the film, which contribute to variable contact angle effects. From the SEM images (Section 2.1.3), it can be observed that Chi/TiO2 (1 mL and 5 mL) appear uneven when compared to Chi/TiO2 (3 mL). Greater surface heterogeneity or roughness can contribute to hydrophobic effects, which may inhibit the diffusion transport of water molecules through the film [39]. Hence, the contact angle of Chi/TiO2 (3 mL) film is lower than Chi/TiO2 (1 mL and 5 mL) systems.
The swelling index of the Chi/TiO2 films was greater when compared to Chi films (without TiO2), which is expected since both TiO2 and Chi have hydrophilic properties. The TiO2 is more likely to interact with the functional groups of chitosan such as –OH and –NH2 which can likewise form hydrogen bonds with water molecules [40]. The functional groups increase the swelling of the film and also influence the hydrophilic character of the film [41,42]. The highest swelling index (%) of Chi/TiO2 (3 mL) is due to its greater hydrophilic nature.

2.2. Photocatalytic Mitigation Studies

The removal efficiency (RE; %) values of the A. minutum sp. for Chi and Chi/TiO2 films are shown in Figure 4. Based on the pHpzc of the films, the films will be negatively charged in seawater (pH = 6.8). Hence, the negatively charged algal cells will be repelled from the film surface. The slow swelling process of the film may also facilitate the trapping of algae cells in the net-like structure of the composite film to enable release and exchange with the external aqueous media. This is evident from the fluctuating RE values (%). The Chi, Chi/TiO2 (3 mL) and Chi/TiO2 (5 mL) films achieve ca. 20% removal of A. minutum at 72 h. Even though the swelling indices of the Chi/TiO2 films were similar, Chi/TiO2 (1 mL) has the lowest fluctuation and the highest RE (76.1 ± 13.8%). The lower RE value for Chi/TiO2 (3 mL) may relate to its excessive swelling, which facilitates the release of the trapped algae to the aqueous media. The Chi/TiO2 (3 mL) had the highest swelling index value. Whereas the lower RE value for Chi/TiO2 (5 mL) was related to the agglomeration of TiO2 nanoparticles, especially as the TiO2 concentration was increased up to the highest level of film incorporation. Agglomeration and aggregation of the metal oxides such as TiO2 were reported to affect the absorption of photons. In turn, a decrease in the ability to generate reactive oxygen species (ROS) such as the hydroxyl radical (OH), which is responsible for the photodegradation of organic pollutants [43,44]. Since the agglomeration of TiO2 in CH/TiO2 (1 mL) is lower, more ROS can be generated to induce oxidative stress toward the algal cells. In turn, a greater production of ROS can cause organelle dysfunction, cell structure alteration and mutagenesis [45].
The mitigating ability of Chi/TiO2 (1 mL) towards algal removal was compared to other semiconductor-based mitigating agents reported in the literature. Based on the results in Table 2, the RE value of Chi/TiO2 (1 mL) is lower and relates to the high swelling rate of the film in seawater. In turn, the greater swelling contributes to the release of entrapped algae cells back to the surrounding aqueous environment. The intensity of the light source plays an important role in the generation of photogenerated electron/hole pairs. The intensity of the light used in this research was far lower (70 μmol photons m2s−1), based on the 16:8 h light: dark cycle, compared with the cited studies. The light intensity in this research might not be enough to generate higher levels of photogenerated electron/hole pairs. Hence, this effect may account for the lower overall RE values reported herein. Regardless, the current study showed that Chi/TiO2 (1 mL) displayed better RE values under solar light irradiation. Future studies are planned where higher levels of solar radiation will be used to study algal removal to better establish the deployment of this method for field-based applications.

2.3. Proposed Reaction Mechanism

One of the drawbacks of utilizing chitosan in seawater is the weakening of the netting and the bridging properties of the chitosan film, according to the high alkalinity and ionic strength of seawater [51,52]. Cross-linking of chitosan with TiO2 will serve to strengthen its net-like structure for better adsorption of the algae cells. However, the adsorption of algae cells onto the films was limited due to repulsion forces between the negatively charged algae and the negatively charged film surface. Hence, it can be inferred that the mitigation process took place via a photocatalytic mechanism. The relationship between the conduction band (CB) and valence band (VB) potential of the TiO2 was determined using Equation (1) to identify the ROS responsible for photocatalytic process.
E CB   =   X     E e 0.5   E g
ECB is the CB energy, X is the geometric mean of the electronegativity of the constituent atoms (5.82), Ee is the energy of a free electron on the hydrogen scale (approximately 4.5 eV) and Eg is the bandgap energy of the semiconductor (TiO2 = 3.03 eV). The VB potential was determined through the following Equation (2).
E VB =   E CB +   E g
The CB potential of the TiO2 (−0.2 V) was determined to be less negative than E° (O2/O2) = −0.33 V vs. NHE, indicating that the electrons produced in the reaction will not react with the adsorbed O2 to produce O2•−, which became channeled towards chitosan. The transfer of the photogenerated electrons to chitosan will prevent the electrons from combining with the holes. The VB potential of TiO2 (2.38 V) was calculated to be higher than E° (OH/OH) = +1.99 V vs. NHE indicating that the photogenerated h+ can oxidize OH into OH. The generation of OH is simplified by the illustration in Figure 5.

2.4. SEM and Digital Microscopy Analyses of the Films after Mitigation

The films after mitigation were subjected to SEM analysis to observe any structural changes of the films and the algae. As depicted in Figure 6a, the surface of the used Chi film became uneven with the appearance of distinctive hook-shaped particles which represent the apical pore complex of A. minutum. The surface of the Chi/TiO2 films was constructed with irregularly shaped particles after the mitigation process, which may relate to the attachment of the algae cells (Figure 6b–d). This trend is in agreement with the SEM images before (Figure 2) and after (Figure 6) the photochemical treatment of the algae.
The used films were further analyzed using a digital microscope, where the corresponding images revealed that the algae cells attached to the Chi film were ruptured (shown in red arrow) (Figure 6e). The presence of positively charged amine groups of chitosan promote electrostatic interaction with the negatively charged algal cells, which contribute to cell rupture [53,54]. The algae cells in Figure 6f–h show that the cells were preserved after the mitigation process. The seawater systems have elevated ionic strength that hinders the unique surface characteristics of amorphous TiO2, which prevents rupture of the algae cells [55]. The absence of rupturing relates to charge screening effects due to the presence of sufficient ionic strength in the aqueous media.

2.5. Physical Appearance of Used Film Studies and Weight Change after Mitigation

The films were observed to undergo rupture and have a gel-like texture from absorbing the seawater during the mitigation studies. The weight of the dried use films decreased after mitigation suggesting that some of the films may have disintegrated during the process. The physical appearance of fresh and used films and their weight change after mitigation are given in Figure S1 and Table S1 (cf. Supplementary Materials).

3. Materials and Methods

3.1. Materials

Sodium hydroxide (NaOH) pellets (Qrec, 99%, Rawang, Malaysia), glacial acetic acid (Qrec, 100%, Rawang, Malaysia) and chitosan powder (Sigma-Aldrich, medium molecular weight, product id: 448877, St. Louis, MO, USA) were used without further purification. The anatase TiO2 nanoparticle solution (0.2% w/v) was obtained from Prof. Ir. Dr. Srimala Sreekantan from the School of Materials & Mineral Resources, Engineering Campus, Universiti Sains Malaysia, Penang. The TiO2 nanoparticles were prepared according to the method reported by N.H. Ahmad Barudin et al. [53], along with characterization of the physicochemical properties of the anatase TiO2. The filtered seawater was supplied by Fisheries Research Institute (FRI), Batu Maung, Penang, Malaysia. The seawater pH before and after film immersion was recorded using a pH meter (Model Hanna edgepH), where the seawater remained constant at pH~6.8.

3.2. Preparation of Hybrid Chitosan-Modified TiO2 Film

A chitosan solution (2% w/v) was prepared by dissolving chitosan powder (2 g) in 100 mL of acetic acid solution (1% v/v). The solution was stirred for 4 h at 50 °C followed by centrifugation at 4000 rpm for 15 min. The solution was then filtered to remove any undissolved chitosan powder. Different dosages (1 mL, 3 mL and 5 mL) of 0.2% w/v of anatase TiO2 were added into the chitosan solution and stirred for another 2 h to minimize the formation of bubbles and to form a homogeneous solution. The film-forming solution was then poured into a square-shaped Teflon mold, followed by oven-drying for 21 h at 50 °C. A NaOH solution (2% w/v) was prepared by dissolving 10.0 g of NaOH pellets in 500 mL distilled water. The dried film was soaked in 2% w/v NaOH aqueous solution for a minute and then rinsed with distilled water to neutralize it. The film was then dried at room temperature for 24 h and kept in a desiccator for further use. The films were labelled as Chi (chitosan film) and Chi/TiO2 (x mL; x = 1, 3 and 5 mL)

3.3. Characterization

3.3.1. Attenuated Total Reflectance Fourier Transform Infrared (ATR-FTIR) Spectroscopy

The ATR-FTIR spectrophotometer (Perkin Elmer FT-NIR spectrometer with Universal ATR sampling accessory, Waltham, MA, USA) was used to identify the film’s functional groups. The spectra of the films were analyzed over the spectral range of 4000 to 600 cm−1 with 64 scans.

3.3.2. Scanning Electron Microscopy with Energy Dispersive X-ray (SEM-EDX)

The surface topology, cross-section and elemental composition of the films were analyzed using SEM-EDX analysis (SEM Leica Cambridge S360-EDX Falcon System, Cambridge, UK). The films were cut into 1 cm × 1 cm prior to being fixed onto a stub containing carbon adhesive and sputtered with gold for 10–15 min in an airtight sputter coater (Armetech, Ozolnieki, Latvia) to sharpen the SEM images.

3.3.3. Thermogravimetric Analysis (TGA)

The changes in the mass of the films in relation to the changes in temperature were determined using a TGA analyzer (Perkin Elmer). Approximately 6 mg of the films was heated from 30 to 600 °C at 10 °C min−1 under a nitrogen flow (50 cm3/min).

3.3.4. X-ray Diffraction (XRD)

A Bruker-D8 Advance Powder X-ray diffraction (XRD) (Billerica, MA, USA) was used to determine the crystalline phases and the degree of crystallinity of the films. The diffractogram was obtained for each film at 2θ angle of 5° to 50°. The diffractometer was equipped with CuKα radiation, λ = 0.1541 nm, voltage = 40 kV and current = 30 mA.

3.3.5. Swelling Index (SI)

The swelling index (SI) of the films was estimated by submerging the pre-weighed dry films into 100 mL of seawater for 24 h at room temperature. After 24 h, the swollen films were removed, wiped with filter paper to remove residual excess water and then weighed. The SI was calculated using Equation (3) as reported by Sabzevari et al. [54]. Three films were tested at each film composition to obtain the average swelling index.
SI   % = W f   W i W i × 100
Wf is the weight of the swollen film after 24 h and Wi is the weight of dry film before being submerged in the aqueous media.

3.3.6. Wettability Test (WS)

The film’s wettability or water contact angle (CA) was tested via the static CA using a goniometer (Ramé-Hart Instrument Co., Succasunna, NJ, USA) based on the Sessile drop method. Deionized water (4 µL) was dropped using a microsyringe onto the smooth surface of the film at room temperature. Then, a microscope was used to capture the micrograph images. This step was repeated for five different spots of the membrane sample to calculate the average CA.

3.3.7. Point of Zero Charge (pzc)

The surface charge of the films was performed using the reported method by Shah et al. with some modification [33].Firstly, 100 mL of distilled water was poured into six 200 mL beakers. The initial pH of the distilled water (pHi) was adjusted from pH 2 to 12 using 0.1 M HCl and/or 0.1 M NaOH solution. Then, the film was submerged into each beaker and shaken for 24 h at a shaking rate of 250 rpm. The final pH of the distilled water (pHf) was recorded. The difference in pH values (∆ pH) was calculated using Equation (4):
Δ   pH   =   pH f   pH i
Finally, the ∆ pH value was plotted against the pHi to determine the intersection point at ∆ pH zero to estimate the pzc. This pH indicates the surface charge density of the film.

3.3.8. Mitigation of Alexandrium Minutum

A. minutum cells were grown in ES-Dk medium at 25 °C under a light intensity of 70 μmol photons m2s−1 using a 16:8 h (light:dark) photocycle [55]. Filtered natural seawater diluted to 15 ppt was used as solution medium for A. minutum culture. The cell removal experiments were performed when the culture reached the exponential growth phase. Cultures of A. minutum with a cell concentration of 2 × 104 cell/mL were used for the experiments.
The mitigation of A.minutum was carried out via physical method in a 250 mL beaker that contained 100 mL of the cell culture that was placed on a table in a static condition. The film was hung so that ¾ of its dimension was submerged into the reaction medium. Approximately 1 mL of the sample from 2 cm below the solution surface was collected and preserved with one drop of Lugol’s solution at each specific time interval. The preserved cells were counted using the Sedgewick-rafter counter under a light microscope (Leica CME, Wetzlar, Germany) at 10× magnification. The change in the structure of the cells on the surface of the films was observed under the digital microscope (Keyence VHX E-100, Osaka, Japan). The removal efficiency (RE) was calculated using Equation (5) [56]. All the RE data were expressed as the mean ± standard deviation (S.D.).
RE   % = 1 Final   cell   concentration   in   sample Final   cell   concentration   in   control × 100
Upon completion of the mitigation process, the films were separated for further characterization using SEM and a digital microscope.

3.3.9. Statistical Analysis

The statistical analysis was performed using GraphPad Prism 5 version 5.01. The obtained data were expressed as the mean ± standard deviation of the triplicate measurements. The distinction between the experimental groups was evaluated using a one-way variance (ANOVA) analysis. A p-value less or equal to 0.05 was estimated to be statistically significant.

4. Conclusions

Hybrid chitosan-modified TiO2 thin films (CH/TiO2 (x mL; x = 1, 3 and 5 mL)) were successfully synthesized via solvent casting method for the mitigation of A.minutum in a lab-scale experimental setup. The negatively charged surface of the films repelled the negatively charged algae cells and caused the RE values (%) to fluctuate. The CH/TiO2 (1 mL) was able to remove 76.1 ± 13.8% of algae cells within 72 h due to its ability to generate hydroxyl radicals which can cause oxidative stress to the adsorbed and free algae. The results obtained from this study showed that the hybrid chitosan-modified TiO2 film can be used to mitigate harmful algal blooms. In particular, future studies are planned to study the effect of higher levels of solar radiation on the efficacy of algal removal in order to establish this method for field-based applications. Further studies are also required to determine the suitability of this mitigation method in marine-based environments to determine the effect of such materials towards other marine biota.

Supplementary Materials

The following supplementary materials can be downloaded at: https://www.mdpi.com/article/10.3390/catal12070707/s1. Figure S1: The physical appearance of the films (a) before and (b) after the mitigation process; Table S1: The weight differences of the films before and after the mitigation process.

Author Contributions

Conceptualization, A.I., N.M.-N., R.M.R. and S.S.; methodology, A.I., N.M.-N., R.M.R. and S.S.; validation, A.I., N.M.-N., R.M.R., S.S., D.H.Y.Y., A.H.M. and L.D.W.; formal analysis, N.H.I., A.I., N.M.-N., R.M.R., S.S., D.H.Y.Y., A.H.M. and L.D.W.; investigation, A.I., N.M.-N., R.M.R., S.S., D.H.Y.Y., A.H.M. and L.D.W.; resources, A.I., N.M.-N., R.M.R., S.S., D.H.Y.Y., A.H.M. and L.D.W.; data curation, N.H.I., A.I., N.M.-N., R.M.R., S.S., D.H.Y.Y., A.H.M. and L.D.W.; writing—original draft preparation, N.H.I., A.I., N.M.-N., R.M.R., S.S., D.H.Y.Y., A.H.M. and L.D.W.; writing—review and editing, N.H.I., A.I., N.M.-N., R.M.R., S.S., D.H.Y.Y., A.H.M. and L.D.W.; visualization, N.H.I., A.I., N.M.-N., R.M.R., S.S., D.H.Y.Y., A.H.M. and L.D.W.; supervision, A.I., N.M.-N., R.M.R. and S.S.; project administration, A.I., N.M.-N., R.M.R. and S.S.; funding acquisition, A.I. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Universiti Sains Malaysia through the Research University Grant (RU), grant number 1001/PKIMIA/8011083.

Data Availability Statement

Not applicable.

Acknowledgments

The authors would like to thank the Fisheries Research Institute (FRI), Batu Maung, Malaysia, for providing the materials and facilities to conduct the mitigation studies.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Anderson, D.M. Approaches to Monitoring, Control and Management of Harmful Algal Blooms (HABs). Ocean. Coast. Manag. 2009, 52, 342–347. [Google Scholar] [CrossRef] [PubMed][Green Version]
  2. Havens, K.E.; Paerl, H.W. Climate Change at a Crossroad for Control of Harmful Algal Blooms. Environ. Sci. Technol. 2015, 49, 12605–12606. [Google Scholar] [CrossRef] [PubMed]
  3. Shriwastav, A.; Thomas, J.; Bose, P. A Comprehensive Mechanistic Model for Simulating Algal Growth Dynamics in Photobioreactors. Bioresour. Technol. 2017, 233, 7–14. [Google Scholar] [CrossRef] [PubMed]
  4. Madany, P.; Xia, C.; Bhattacharjee, L.; Khan, N.; Li, R.; Liu, J. Antibacterial Activity of Fe2O3 /TiO2 Nanoparticles on Toxic Cyanobacteria from a Lake in Southern Illinois. Water Environ. Res. 2021, 93, 2807–2818. [Google Scholar] [CrossRef]
  5. Berdalet, E.; Fleming, L.E.; Gowen, R.; Davidson, K.; Hess, P.; Backer, L.C.; Moore, S.K.; Hoagland, P.; Enevoldsen, H. Marine Harmful Algal Blooms, Human Health and Wellbeing: Challenges and Opportunities in the 21st Century. J. Mar. Biol. Ass. 2016, 96, 61–91. [Google Scholar] [CrossRef][Green Version]
  6. Iqbal, A.; Ahmad, N.; Mohammad Noor, N.; Wilson, L.D.; Ibrahim, N.H. Mitigation of Toxic Alexandrium Tamiyavanichii Using Chitosan-Silica Composite. Malays. J. Anal. Sci. 2019, 23, 31–39. [Google Scholar] [CrossRef]
  7. Hasija, V.; Raizada, P.; Sudhaik, A.; Sharma, K.; Kumar, A.; Singh, P.; Jonnalagadda, S.B.; Thakur, V.K. Recent Advances in Noble Metal Free Doped Graphitic Carbon Nitride Based Nanohybrids for Photocatalysis of Organic Contaminants in Water: A Review. Appl. Mater. Today 2019, 15, 494–524. [Google Scholar] [CrossRef]
  8. Rezayian, M.; Niknam, V.; Ebrahimzadeh, H. Oxidative Damage and Antioxidative System in Algae. Toxicol. Rep. 2019, 6, 1309–1313. [Google Scholar] [CrossRef]
  9. Baniamerian, H.; Tsapekos, P.; Alvarado-Morales, M.; Shokrollahzadeh, S.; Safavi, M.; Angelidaki, I. Anti-Algal Activity of Fe2O3–TiO2 Photocatalyst on Chlorella Vulgaris Species under Visible Light Irradiation. Chemosphere 2020, 242, 125119. [Google Scholar] [CrossRef]
  10. Song, J.; Li, C.; Wang, X.; Zhi, S.; Wang, X.; Sun, J. Visible-Light-Driven Heterostructured g-C3N4/Bi-TiO2 Floating Photocatalyst with Enhanced Charge Carrier Separation for Photocatalytic Inactivation of Microcystis aeruginosa. Front. Environ. Sci. Eng. 2021, 15, 129. [Google Scholar] [CrossRef]
  11. Fan, G.; Lin, X.; You, Y.; Du, B.; Li, X.; Luo, J. Magnetically Separable ZnFe2O4/Ag3PO4/g-C3N4 Photocatalyst for Inactivation of Microcystis aeruginosa: Characterization, Performance and Mechanism. J. Hazard. Mater. 2022, 421, 126703. [Google Scholar] [CrossRef]
  12. Aranaz, I.; Alcántara, A.R.; Civera, M.C.; Arias, C.; Elorza, B.; Heras Caballero, A.; Acosta, N. Chitosan: An Overview of Its Properties and Applications. Polymers 2021, 13, 3256. [Google Scholar] [CrossRef]
  13. Kazachenko, A.S.; Akman, F.; Malyar, Y.N.; Issaoui, N.; Vasilieva, N.Y.; Karacharov, A.A. Synthesis Optimization, DFT and Physicochemical Study of Chitosan Sulfates. J. Mol. Struct. 2021, 1245, 131083. [Google Scholar] [CrossRef]
  14. Razzaz, A.; Ghorban, S.; Hosayni, L.; Irani, M.; Aliabadi, M. Chitosan Nanofibers Functionalized by TiO2 Nanoparticles for the Removal of Heavy Metal Ions. J. Taiwan Inst. Chem. Eng. 2016, 58, 333–343. [Google Scholar] [CrossRef]
  15. Saravanan, R.; Aviles, J.; Gracia, F.; Mosquera, E.; Gupta, V.K. Crystallinity and Lowering Band Gap Induced Visible Light Photocatalytic Activity of TiO2/CS (Chitosan) Nanocomposites. Int. J. Biol. Macromol. 2018, 109, 1239–1245. [Google Scholar] [CrossRef]
  16. Zhao, Y.; Tao, C.; Xiao, G.; Su, H. Controlled Synthesis and Wastewater Treatment of Ag2O/TiO2 Modified Chitosan-Based Photocatalytic Film. RSC Adv. 2017, 7, 11211–11221. [Google Scholar] [CrossRef][Green Version]
  17. Abdullah Al Balushi, K.S.; Devi, G.; Saif Al Hudaifi, A.; Khamis Al Garibi, A.S.R. Development of Chitosan-TiO2 Thin Film and Its Application for Methylene Blue Dye Degradation. Int. J. Environ. Anal. Chem. 2021, 1–14. [Google Scholar] [CrossRef]
  18. Usup, G.; Pin, L.C.; Ahmad, A.; Teen, L.P. Alexandrium (Dinophyceae) Species in Malaysian Waters. Harmful Algae 2002, 1, 265–275. [Google Scholar] [CrossRef]
  19. Mahatmanti, F.W.; Nuryono, N.; Narsito, N. Physical Characteristics of Chitosan Based Film Modified with Silica and Polyethylene Glycol. Indones. J. Chem. 2014, 14, 131–137. [Google Scholar] [CrossRef][Green Version]
  20. Budnyak, T.M.; Pylypchuk, I.V.; Tertykh, V.A.; Yanovska, E.S.; Kolodynska, D. Synthesis and Adsorption Properties of Chitosan-Silica Nanocomposite Prepared by Sol-Gel Method. Nanoscale Res. Lett. 2015, 10, 87. [Google Scholar] [CrossRef][Green Version]
  21. Wan, Y.; Wu, H.; Yu, A.; Wen, D. Biodegradable Polylactide/Chitosan Blend Membranes. Biomacromolecules 2006, 7, 1362–1372. [Google Scholar] [CrossRef]
  22. Duan, B.; Dong, C.; Yuan, X.; Yao, K. Electrospinning of Chitosan Solutions in Acetic Acid with Poly(Ethylene Oxide). J. Biomater. Sci. Polym. Ed 2004, 15, 797–811. [Google Scholar] [CrossRef] [PubMed]
  23. Lin, B.; Luo, Y.; Teng, Z.; Zhang, B.; Zhou, B.; Wang, Q. Development of Silver/Titanium Dioxide/Chitosan Adipate Nanocomposite as an Antibacterial Coating for Fruit Storage. LWT Food Sci. Technol. 2015, 63, 1206–1213. [Google Scholar] [CrossRef]
  24. Zhu, X.; Chang, Y.; Chen, Y. Toxicity and Bioaccumulation of TiO2 Nanoparticle Aggregates in Daphnia magna. Chemosphere 2010, 78, 209–215. [Google Scholar] [CrossRef]
  25. Farzana, M.H.; Meenakshi, S. Photo-Decolorization and Detoxification of Toxic Dyes Using Titanium Dioxide Impregnated Chitosan Beads. Int. J. Biol. Macromol. 2014, 70, 420–426. [Google Scholar] [CrossRef]
  26. Díaz-Visurraga, J.; Gutiérrez, C.; von Plessing, C.; García, A. Metal Nanostructures as Antibacterial Agents. In Science And Technology Against Microbial Pathogens: Research, Development and Evaluation; Méndez-Vilas, A., Ed.; Formatex: Badajoz, Spain, 2011. [Google Scholar]
  27. Wiącek, A.E.; Gozdecka, A.; Jurak, M. Physicochemical Characteristics of Chitosan–TiO2 Biomaterial. 1. Stability and Swelling Properties. Ind. Eng. Chem. Res. 2018, 57, 1859–1870. [Google Scholar] [CrossRef]
  28. Al-Taweel, S.S.; Saud, R.H. New Route for Synthesis of Pure Anatase TiO2 Nanoparticles via Utrasound-assisted Sol-Gel Method. J. Chem. Pharm. Res. 2016, 8, 620–626. [Google Scholar]
  29. Khan, A.; Khan, R.A.; Salmieri, S.; Le Tien, C.; Riedl, B.; Bouchard, J.; Chauve, G.; Tan, V.; Kamal, M.R.; Lacroix, M. Mechanical and Barrier Properties of Nanocrystalline Cellulose Reinforced Chitosan Based Nanocomposite Films. Carbohydr. Polym. 2012, 90, 1601–1608. [Google Scholar] [CrossRef]
  30. Theivasanthi, T.; Alagar, M. Titanium Dioxide (TiO2) Nanoparticles XRD Analyses: An Insight. arXiv 2013, arXiv:1307.1091. [Google Scholar] [CrossRef]
  31. Xing, Y.; Li, X.; Guo, X.; Li, W.; Chen, J.; Liu, Q.; Xu, Q.; Wang, Q.; Yang, H.; Shui, Y.; et al. Effects of Different TiO2 Nanoparticles Concentrations on the Physical and Antibacterial Activities of Chitosan-Based Coating Film. Nanomaterials 2020, 10, 1365. [Google Scholar] [CrossRef]
  32. López Calero, J.; Oquendo Berríos, Z.; Suarez, O.M. Biodegradable Chitosan Matrix Composite Reinforced with Titanium Dioxide for Biocidal Applications. In Renewable and Sustainable Composites; Pereira, A.B., Fernandes, F.A.O., Eds.; IntechOpen: London, UK, 2019. [Google Scholar] [CrossRef][Green Version]
  33. Shah, I.; Adnan, R.; Wan Ngah, W.S.; Mohamed, N. Iron Impregnated Activated Carbon as an Efficient Adsorbent for the Removal of Methylene Blue: Regeneration and Kinetics Studies. PLoS ONE 2015, 10, e0122603. [Google Scholar] [CrossRef] [PubMed][Green Version]
  34. Abdullah, O.G.; Aziz, S.B.; Omer, K.M.; Salih, Y.M. Reducing the Optical Band Gap of Polyvinyl Alcohol (PVA) Based Nanocomposite. J. Mater. Sci. Mater. Electron. 2015, 26, 5303–5309. [Google Scholar] [CrossRef]
  35. Taspika, M.; Desiati, R.D.; Mahardika, M.; Sugiarti, E.; Abral, H. Influence of TiO2/Ag Particles on the Properties of Chitosan Film. Adv. Nat. Sci. Nanosci. Nanotechnol. 2020, 11, 015017. [Google Scholar] [CrossRef]
  36. Almeida, E.V.R.; Frollini, E.; Castellan, A.; Coma, V. Chitosan, Sisal Cellulose, and Biocomposite Chitosan/Sisal Cellulose Films Prepared from Thiourea/NaOH Aqueous Solution. Carbohydr. Polym. 2010, 80, 655–664. [Google Scholar] [CrossRef]
  37. Zhang, X.; Xiao, G.; Wang, Y.; Zhao, Y.; Su, H.; Tan, T. Preparation of Chitosan-TiO2 Composite Film with Efficient Antimicrobial Activities under Visible Light for Food Packaging Applications. Carbohydr. Polym. 2017, 169, 101–107. [Google Scholar] [CrossRef]
  38. Luo, Y.; Pan, X.; Ling, Y.; Wang, X.; Sun, R. Facile Fabrication of Chitosan Active Film with Xylan via Direct Immersion. Cellulose 2014, 21, 1873–1883. [Google Scholar] [CrossRef]
  39. Liu, H.; Adhikari, R.; Guo, Q.; Adhikari, B. Preparation and Characterization of Glycerol Plasticized (High-Amylose) Starch–Chitosan Films. J. Food Eng. 2013, 116, 588–597. [Google Scholar] [CrossRef]
  40. Clasen, C.; Wilhelms, T.; Kulicke, W.-M. Formation and Characterization of Chitosan Membranes. Biomacromolecules 2006, 7, 3210–3222. [Google Scholar] [CrossRef]
  41. Huang, L.; Dai, T.; Xuan, Y.; Tegos, G.P.; Hamblin, M.R. Synergistic Combination of Chitosan Acetate with Nanoparticle Silver as a Topical Antimicrobial: Efficacy against Bacterial Burn Infections. Antimicrob. Agents Chemother. 2011, 55, 3432–3438. [Google Scholar] [CrossRef][Green Version]
  42. Palla-Rubio, B.; Araújo-Gomes, N.; Fernández-Gutiérrez, M.; Rojo, L.; Suay, J.; Gurruchaga, M.; Goñi, I. Synthesis and Characterization of Silica-Chitosan Hybrid Materials as Antibacterial Coatings for Titanium Implants. Carbohydr. Polym. 2019, 203, 331–341. [Google Scholar] [CrossRef]
  43. Jassby, D.; Farner Budarz, J.; Wiesner, M. Impact of Aggregate Size and Structure on the Photocatalytic Properties of TiO 2 and ZnO Nanoparticles. Environ. Sci. Technol. 2012, 46, 6934–6941. [Google Scholar] [CrossRef]
  44. Pellegrino, F.; Pellutiè, L.; Sordello, F.; Minero, C.; Ortel, E.; Hodoroaba, V.-D.; Maurino, V. Influence of Agglomeration and Aggregation on the Photocatalytic Activity of TiO2 Nanoparticles. Appl. Catal. B 2017, 216, 80–87. [Google Scholar] [CrossRef]
  45. Juan, C.A.; Pérez de la Lastra, J.M.; Plou, F.J.; Pérez-Lebeña, E. The Chemistry of Reactive Oxygen Species (ROS) Revisited: Outlining Their Role in Biological Macromolecules (DNA, Lipids and Proteins) and Induced Pathologies. Int. J. Mol. Sci. 2021, 22, 4642. [Google Scholar] [CrossRef]
  46. Fan, G.; Chen, Z.; Wang, B.; Wu, S.; Luo, J.; Zheng, X.; Zhan, J.; You, Y.; Zhang, Z. Photocatalytic Removal of Harmful Algae in Natural Waters by Ag/[email protected] Coating under Sunlight. Catalysts 2019, 9, 698. [Google Scholar] [CrossRef][Green Version]
  47. Wang, D.; Ao, Y.; Wang, P. Effective Inactivation of Microcystis aeruginosa by a Novel Z-Scheme Composite Photocatalyst under Visible Light Irradiation. Sci. Total Environ. 2020, 746, 141149. [Google Scholar] [CrossRef]
  48. Fan, G.; Chen, Z.; Yan, Z.; Du, B.; Pang, H.; Tang, D.; Luo, J.; Lin, J. Efficient Integration of Plasmonic Ag/AgCl with Perovskite-Type LaFeO3: Enhanced Visible-Light Photocatalytic Activity for Removal of Harmful Algae. J. Hazard. Mater. 2021, 409, 125018. [Google Scholar] [CrossRef]
  49. Hu, L.; Wang, R.; Wang, M.; Wang, C.; Xu, Y.; Wang, Y.; Gao, P.; Liu, C.; Song, Y.; Ding, N.; et al. The Inactivation Effects and Mechanisms of Karenia Mikimotoi by Non-Metallic Elements Modified TiO2 (SNP-TiO2) under Visible Light. Sci. Total Environ. 2022, 820, 153346. [Google Scholar] [CrossRef]
  50. Liu, H.; Yang, L.; Chen, H.; Chen, M.; Zhang, P.; Ding, N. Preparation of Floating BiOCl0.6I0.4/ZnO Photocatalyst and Its Inactivation of Microcystis aeruginosa under Visible Light. J. Environ. Sci. 2023, 125, 362–375. [Google Scholar] [CrossRef]
  51. Qun, G.; Ajun, W. Effects of Molecular Weight, Degree of Acetylation and Ionic Strength on Surface Tension of Chitosan in Dilute Solution. Carbohydr. Polym. 2006, 64, 29–36. [Google Scholar] [CrossRef]
  52. Bhalkaran, S.; Wilson, L. Investigation of Self-Assembly Processes for Chitosan-Based Coagulant-Flocculant Systems: A Mini-Review. IJMS 2016, 17, 1662. [Google Scholar] [CrossRef][Green Version]
  53. Ahmad Barudin, N.H.; Sreekantan, S.; Ong, M.T.; Lai, C.W. Synthesis, Characterization and Comparative Study of Nano-Ag–TiO2 against Gram-Positive and Gram-Negative Bacteria under Fluorescent Light. Food Control 2014, 46, 480–487. [Google Scholar] [CrossRef]
  54. Sabzevari, M.; Cree, D.E.; Wilson, L.D. Mechanical Properties of Graphene Oxide-Based Composite Layered-Materials. Mater. Chem. Phys. 2019, 234, 81–89. [Google Scholar] [CrossRef]
  55. Kokinos, J.P.; Anderson, D.M. Morphological Development of Resting Cysts in Cultures of the Marine Dinoflagellate Lingulodinium polyedrum (= L. machaerophorum). Palynology 1995, 19, 143–166. [Google Scholar] [CrossRef]
  56. Kim, Z.-H.; Thanh, N.N.; Yang, J.-H.; Park, H.; Yoon, M.-Y.; Park, J.-K.; Lee, C.-G. Improving Microalgae Removal Efficiency Using Chemically-Processed Clays. Biotechnol. Bioproc. E 2016, 21, 787–793. [Google Scholar] [CrossRef]

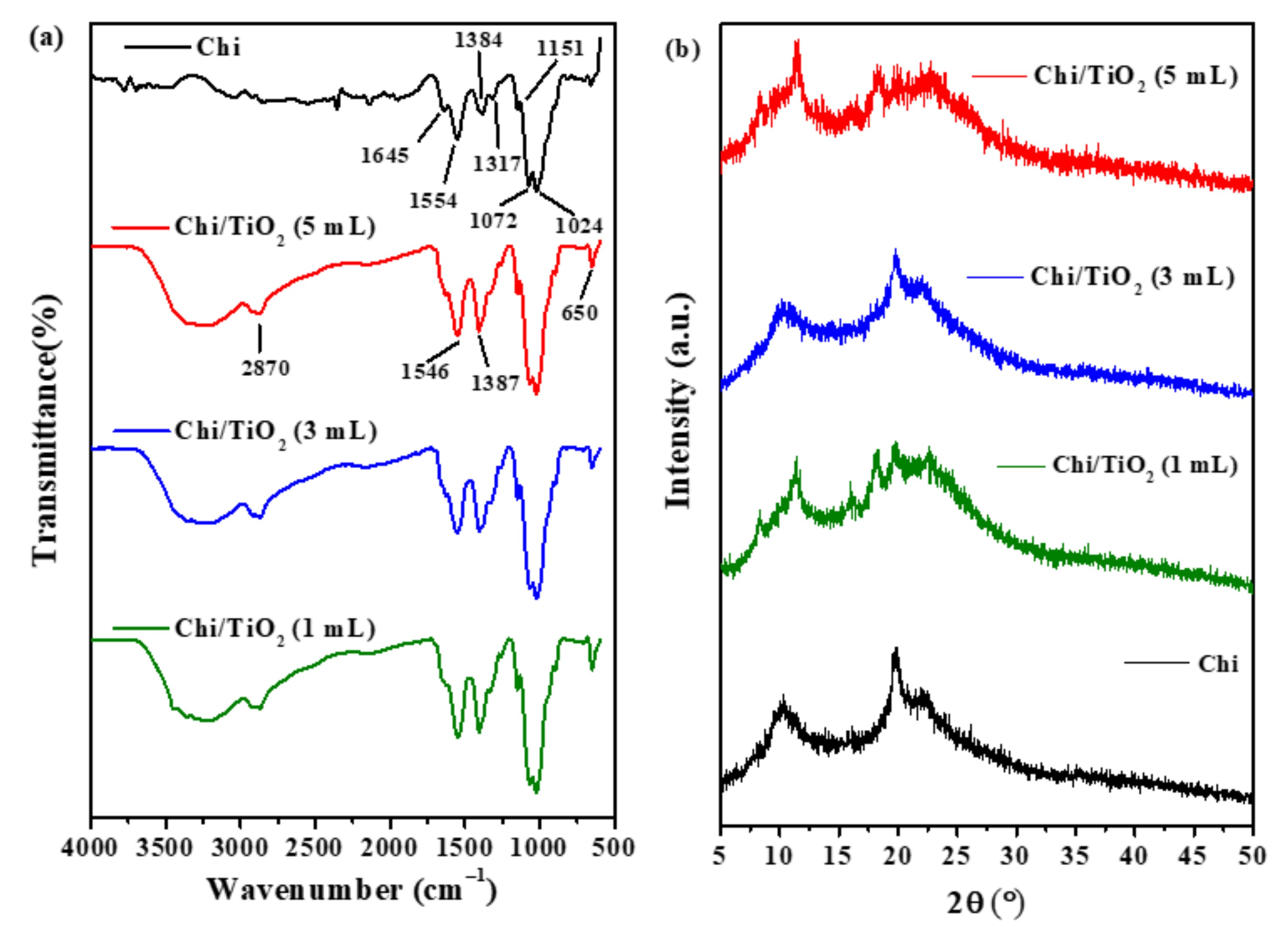

Figure 1. The (a) ATR-FTIR spectra and (b) XRD diffractograms of Chi and Chi/TiO2 films.
Figure 1. The (a) ATR-FTIR spectra and (b) XRD diffractograms of Chi and Chi/TiO2 films.
Catalysts 12 00707 g001
Scheme 1. The schematic representation showing the cross-linking between chitosan and TiO2.
Scheme 1. The schematic representation showing the cross-linking between chitosan and TiO2.
Catalysts 12 00707 sch001
Figure 2. SEM images of surface and cross-sectional view of CH film (A,a); Chi/TiO2 (1 mL) film (B,b); Chi/TiO2 (3 mL) film (C,c); and Chi/TiO2 (5 mL) (D,d) at 50 × magnification.
Figure 2. SEM images of surface and cross-sectional view of CH film (A,a); Chi/TiO2 (1 mL) film (B,b); Chi/TiO2 (3 mL) film (C,c); and Chi/TiO2 (5 mL) (D,d) at 50 × magnification.
Catalysts 12 00707 g002
Figure 3. Graphs of ∆ pH value were plotted against the pHi to determine the intersection point at ∆ pH zero of the films.
Figure 3. Graphs of ∆ pH value were plotted against the pHi to determine the intersection point at ∆ pH zero of the films.
Catalysts 12 00707 g003

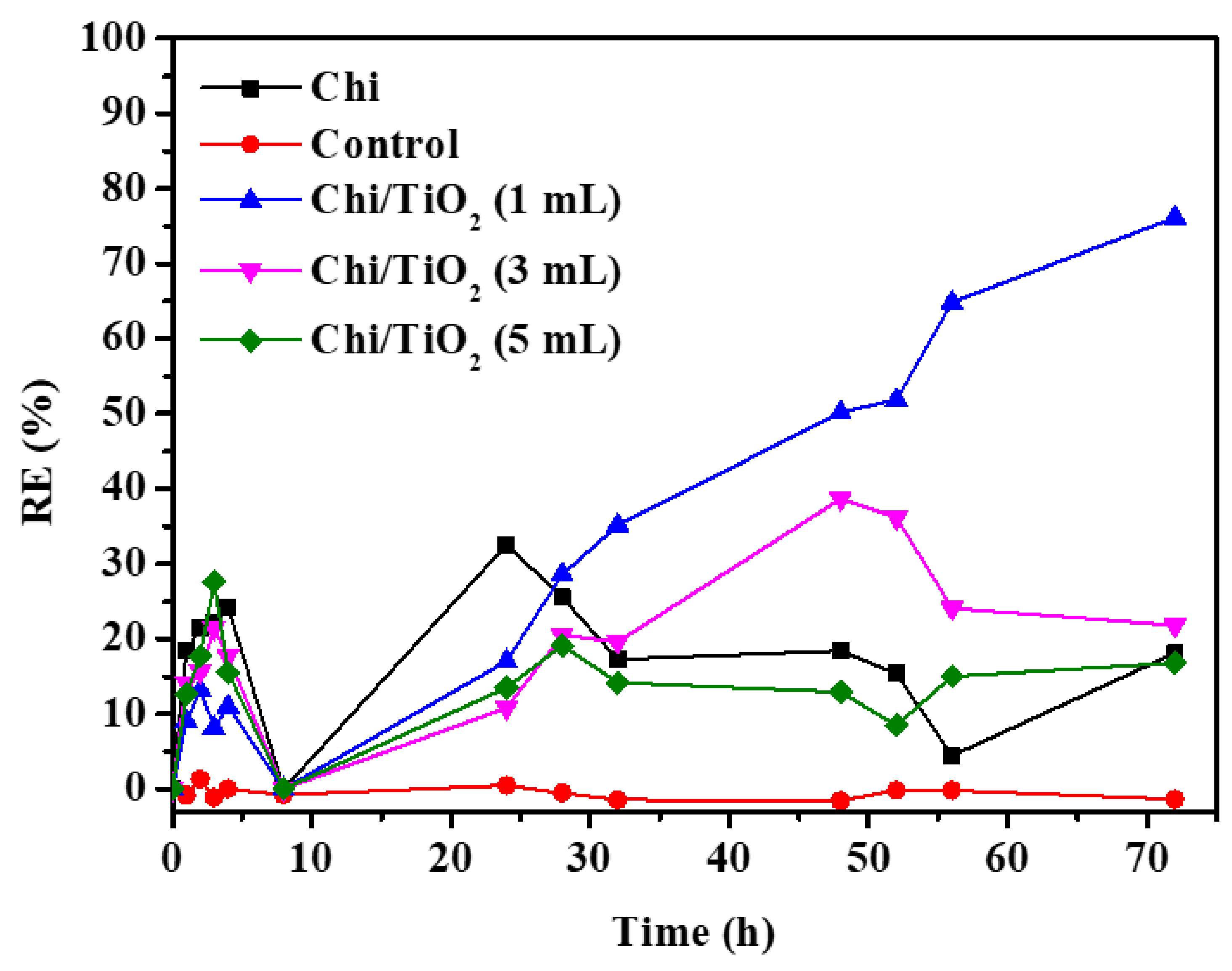

Figure 4. The RE values for various films: Chi film (control), Chi/TiO2 (1 mL), Chi/TiO2 (3 mL) and Chi/TiO2 (5 mL) for 72 h.
Figure 4. The RE values for various films: Chi film (control), Chi/TiO2 (1 mL), Chi/TiO2 (3 mL) and Chi/TiO2 (5 mL) for 72 h.
Catalysts 12 00707 g004

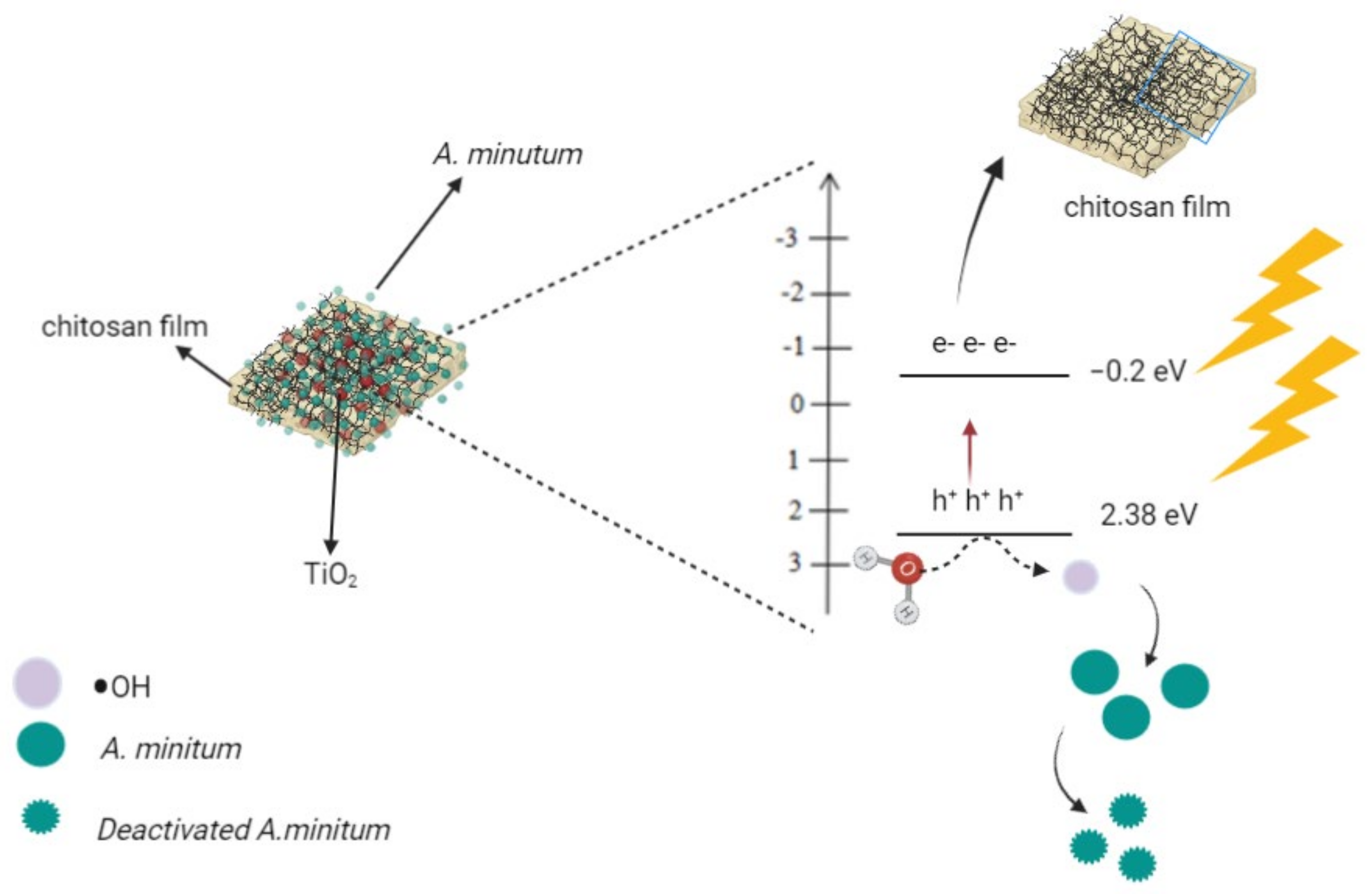

Figure 5. A proposed mechanism of OH generation by Chi/TiO2 (1 mL) for the mitigation of A. minutum.
Figure 5. A proposed mechanism of OH generation by Chi/TiO2 (1 mL) for the mitigation of A. minutum.
Catalysts 12 00707 g005
Figure 6. The SEM images (a) Chi, (b) Chi/TiO2 (1 mL), (c) Chi/TiO2 (3 mL) and (d) Chi/TiO2 (5 mL); and digital microscopic images (e) Chi, (f) Chi/TiO2 (1 mL), (g) Chi/TiO2 (3 mL) and (h) Chi/TiO2 (5 mL) after mitigation. The red arrows indicate the algal cell.
Figure 6. The SEM images (a) Chi, (b) Chi/TiO2 (1 mL), (c) Chi/TiO2 (3 mL) and (d) Chi/TiO2 (5 mL); and digital microscopic images (e) Chi, (f) Chi/TiO2 (1 mL), (g) Chi/TiO2 (3 mL) and (h) Chi/TiO2 (5 mL) after mitigation. The red arrows indicate the algal cell.
Catalysts 12 00707 g006
Table 1. The measured contact angle (θ) and swelling index of chitosan films.
Table 1. The measured contact angle (θ) and swelling index of chitosan films.
Film Sample 1Swelling
Index (%)
Contact Angle
(θ; °)
Chi63.7 ± 1.0598.2 ± 0.84
Chi/TiO2 (1 mL)143.8 ± 2.6793.0 ± 0.54
Chi/TiO2 (3 mL)150.7 ± 1.1575.6 ± 0.03
Chi/TiO2 (5 mL)144.2 ± 1.0992.8 ± 0.05
The values were expressed in mean ± standard deviation with a significant difference (p < 0.05); 1 The volume quantities in parentheses refer to the dosage of 0.2% w/v TiO2.
Table 2. Removal efficiency of various HAB species using semiconductor-based mitigation agents, compared with Chi/TiO2 (1 mL).
Table 2. Removal efficiency of various HAB species using semiconductor-based mitigation agents, compared with Chi/TiO2 (1 mL).
Mitigation AgentHAB SpeciesMitigation ApproachRemoval Efficiency (%)Lamp IntensityRef.
Fe2O3–TiO2 NPsChlorella
vulgaris
ChemicalHigh removal rate of algal cells (99.8%) within 24 h was achieved
under visible light irradiation.
55 W/m2[9]
Ag/[email protected]
floating
Chlorophyll a
M. aeruginosa
Other algae
PhysicalAfter 6 h of exposure to sunlight, the chlorophyll a degraded by 99.9%, Microcystis aeruginosa (92.6%) and biomass of the other algae decreased by about 80%.Sunlight[46]
Z-scheme g-C3N4-MoO3 (Mo-CN) composite photocatalystsM. aeruginosaChemical15Mo-CN achieved a removal efficiency of 97% for the algal cells after 3 h of visible light irradiation.48.1 W/m2[47]
γFe2O3/TiO2 nanoparticleM. aeruginosa
A. circinalis
PhysicalWithin 1 h, M. aerugonisa (99.99%) and A.cricinalis (95.49) was
removed.
32 W/m2[4]
Ag/[email protected]3 (ALFO)
photocatalyst
PhytoplanktonChemicalALFO-20% had a higher photocatalytic activity with a near 100% removal rate of chlorophyll a within 150 min.10,000 W/m2[48]
g-C3N4/Bi-TiO2 floating
photocatalyst
M. aeruginosaPhysicalWithin 6 h of visible light illumination, 75.9% of M. aeruginosa was
removed.
NA[10]
Z-scheme Ag3PO4@PANI core–shell photocatalystMicrocystis
aeruginosa
Chemical99.2% was Microcystis aeruginosa was removed within 3 h.NA[11]
SNP-TiO2Karenia mikimotoiChemicalUnder visible light irradiation, 81.8% was removed within 96 h.NA[49]
ZnFe2O4/Ag3PO4/g-C3N4 (ZFO/AP/CN) photocatalystM. aeruginosa
Microcystin-LR (MC-LR)
PhysicalThe photocatalytic removal of M. aeruginosa and MC-LR was 94.3% and 76.9%, respectively, under visible light.NA[11]
Floating BiOCl0.6I0.4/ZnO
photocatalyst
Microcystis
aeruginosa
PhysicalThe removal rate of chlorophyll a was 89.3% after 6 h of
photocatalytic reaction under visible light.
42 W/m2[50]
Chi/TiO2 (1 mL)Alexandrium
minutum
PhysicalThe removal of Alexandrium minutum was 76.1 ± 13.8% within 72 h.70 μmol photons m2s−1This study
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ibrahim, N.H.; Iqbal, A.; Mohammad-Noor, N.; Razali, R.M.; Sreekantan, S.; Yanto, D.H.Y.; Mahadi, A.H.; Wilson, L.D. Photocatalytic Remediation of Harmful Alexandrium minutum Bloom Using Hybrid Chitosan-Modified TiO2 Films in Seawater: A Lab-Based Study. Catalysts 2022, 12, 707. https://doi.org/10.3390/catal12070707

AMA Style

Ibrahim NH, Iqbal A, Mohammad-Noor N, Razali RM, Sreekantan S, Yanto DHY, Mahadi AH, Wilson LD. Photocatalytic Remediation of Harmful Alexandrium minutum Bloom Using Hybrid Chitosan-Modified TiO2 Films in Seawater: A Lab-Based Study. Catalysts. 2022; 12(7):707. https://doi.org/10.3390/catal12070707

Chicago/Turabian Style

Ibrahim, Nur Hanisah, Anwar Iqbal, Normawaty Mohammad-Noor, Roziawati Mohd Razali, Srimala Sreekantan, Dede Heri Yuli Yanto, Abdul Hanif Mahadi, and Lee D. Wilson. 2022. "Photocatalytic Remediation of Harmful Alexandrium minutum Bloom Using Hybrid Chitosan-Modified TiO2 Films in Seawater: A Lab-Based Study" Catalysts 12, no. 7: 707. https://doi.org/10.3390/catal12070707

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
