Synthesis, Crystal Structure, and Electrochemical Properties of an Isopolyoxovanadate Compound Modified Transition-Metal Complex Based on [V₄O₁₂]⁴⁻

Abstract

A new isopolyoxovanadate compound [Zn(phen)₃]₂·(V₄O₁₂)·phen·20H₂O (phen = 1,10-phenathroline) (1) has been synthesized in aqueous solution and characterized using IR and UV/Vis spectroscopy, elemental analysis, thermal gravimetric analysis, powder, single-crystal X-ray diffractions, and field emission scanning electron microscopy. The molecular structure of 1 exists as two kinds of [V₄O₁₂]⁴⁻ polyoxoanions: distorted chair-like and coplanar conformations, two independent [Zn(phen)₃]²⁺ units and free phen. In the solid state, compound 1 forms a stable three-dimensional supramolecular structure through electrostatic interactions, π–π stacking interactions and multiform hydrogen bonds. The electrocatalytic activity and determination of DA of compound 1 have been studied by cyclic voltammetry and differential pulse voltammetry, respectively.

1. Introduction

Polyoxometalates (POMs) are early transition metal–oxygen clusters composed of group VI and group V elements including molybdenum, tungsten, vanadium, niobium and tantalum [1,2,3,4]. POMs possess large number of negative with unique chemical composition and structural diversity, which can be considered to be one of the ideal candidates for electrocatalyst [5]. Among POMs, isopolyoxovanadates are regarded as very important because of their outstanding magnetic and electronic properties and the profound impact of their long-term promise as oxidation catalysts [6]. In comparison with other POMs, the vanadium oxygen clusters exhibit unique structure and excellent performance due to the variable valence (from +3 to +5) and abundant coordination configurations (VO₄ tetrahedra, VO₅ square pyramid and trigonal bipyramid, VO₆ octahedra) of vanadium atom [7,8,9,10,11,12]. Various isopolyoxovanadates including [V₂O₇]⁴⁻, [V₃O₉]³⁻, [V₄O₁₂]⁴⁻, [V₆O₁₇]⁴⁻, [V₈O₂₃]⁶⁻, [V₁₀O₂₈]⁶⁻, [V₁₂O₃₃]⁶⁻ [V₁₄O₃₆]⁴⁻, [V₁₅O₃₆]⁵⁻, [V₁₆O₃₈]⁴⁻, [V₁₈O₄₂]¹²⁻ and so on, have been reported in the previous papers [13,14,15,16,17,18,19,20,21,22,23,24,25].

In recent years, the studies of [V₄O₁₂]⁴⁻-based compounds modified by transition-metal complexes have been made abundant fruit, including [Cu(phen)₃]₂V₄O₁₂·phen·22H₂O, [M^II(phen)₃]₂V₄O₁₂·phen·22H₂O (M^II = Co, Ni) and [Fe(phen)₃]₂[phen][V₄O₁₂]·19H₂O, in which the [V₄O₁₂]⁴⁻ with coplanar, boat and chair conformations is considered to be a remarkable class of anions [26,27,28]. Among them, [V₄O₁₂]⁴⁻ anion in only a few compounds, {[Ru(phen)₃]₂[V₄O₁₂]}·13H₂O, V^IV₂V^V₄O₁₄(mIM)₈ and [(CH₃)₃CNH₃]₄[V₄O₁₂], adopted coplanar configuration [6,16,17]. However, of even greater concern is two different conformations occur in a structure. To our knowledge, there is an example of [{Mn(2,2’-bidy)₂}₂V₄O₁₂] with boat and chair conformations [29]. Based on our current research on POM-based compounds [30,31,32,33,34,35], we report the synthesis and structural characterization of a new isopolyoxovanadate-based hybrid [Zn(phen)₃]₂·(V₄O₁₂)·phen·20H₂O (phen = 1,10-phenathroline) (1), in which [V₄O₁₂]⁴⁻ anions present two types of conformations: chair form and coplanar form. The electrochemical experiments show that compound 1 displays the obvious electrocatalytic performance for the oxidation of dopamine (DA) and ascorbic acid (AA). Furthermore, detection of DA was determined for 1-modified GCE.

2. Results and Discussion

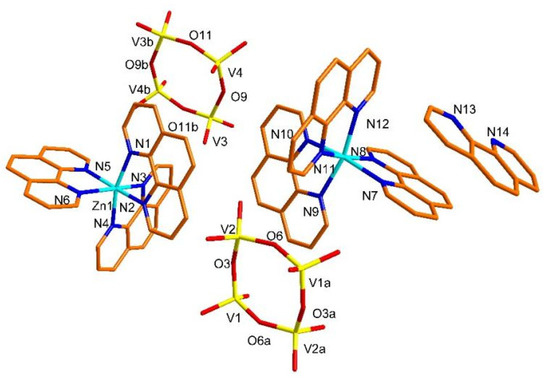

Characterization of compound 1 Single-crystal X-ray diffraction analysis indicates that compound 1 belongs to triclinic crystal system with space group P¯1. Compound 1 contains two [V₄O₁₂]⁴⁻ anions, two [Zn(phen)₃]²⁺ cations and a phen, along with 20 free water molecules (Figure 1). Each [V₄O₁₂]⁴⁻ anion is comprised of four corner-sharing distorted {VO₄} tetrahedra. Interestingly, the two [V₄O₁₂]⁴⁻ anions within compound 1 show different conformations (Figure S1). The {V₄O₄} ring (V1, V2, V1a and V2a) is chair-like similar to those of compounds with the V–O distances of 1.611(3)–1.786(3) Å [14]. The V–O_t distances (1.611(3)–1.639(3) Å) are shorter than the V–O_b distances (1.764(3)–1.786(3) Å). The O–V–O bond angles vary from 107.49(16) to 112.06(19)°, close to 109.28° of regular tetrahedral angle. However, the four μ₂-O atoms lie in the same plane as four vanadium atoms nearly coplanar in {V₄O₄} (V3, V4, V3b and V4b) ring. The average V–O distance is 1.63 Å for V–O_t and 1.78 Å for V–O_b, respectively. All the O–V–O bond angles varied from 107.29(16) to 112.23(14)°. These results indicate that the {V₄O₄} ring (V3, V4, V3b and V4b) is nearly coplanar which are highly consistent with compounds in the references [16,17].

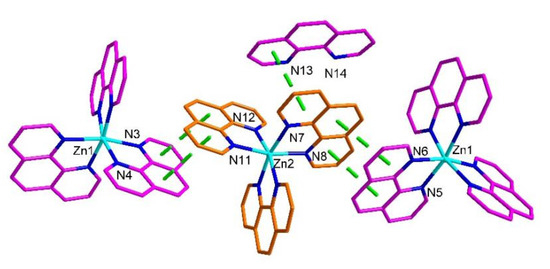

Compound 1 contains two crystallographically independent zinc (Ⅱ) centers with similar six-coordinated N₆ environment. Zn(1) and Zn(2) are bonded to six nitrogen atoms from three phen molecules, forming octahedral {ZnN₆} coordination configuration with the average Zn–N distance of 2.16 Å. It is noteworthy that there are five kinds of face-to-face π···π stacking interactions among adjacent phen units from two [Zn(phen)₃]²⁺ cations and free phen, forming a one-dimensional structure (Figure 2). A detailed structural analysis revealed that four π-π stacking interactions are found between two phen (N7, N8 and N11, N12) from Zn(2)-phen unit and two phen (N3, N4 and N5, N6) from two adjacent Zn(1)-phen units, respectively. Moreover, between the phen (N7, N8) from Zn(2)-phen unit and free phen (N13, N14) are also exit π-π stacking interaction, which makes the one-dimensional structure more stable. The inter-planar shortest separations of atom⋯atom and the centroid⋯centroid are 3.59 Å and 3.87 Å, 3.81 Å and 3.92 Å, 3.55 Å and 3.68 Å, 3.68 Å and 3.80 Å, 3.73 Å and 3.88 Å respectively, along with the dihedral angles are 15.9°, 5.6°, 5.4°, 6.3° and 7.2°. In addition, there are multiple forms of C–H⋯O hydrogen bonds in the crystal structure (

Table 1. Hydrogen bonding interactions (Å and deg) for 1.

D–H⋯A	d(D–H)	d(H⋯A)	d(D⋯A)	∠(DHA)	Symmetry Codes of Atom A
C3–H3A⋯O10	0.93	2.57	3.3082	137
C6–H6A⋯O5	0.93	2.57	3.4115	151
C8–H8A⋯O3	0.93	2.59	3.4398	152
C18–H18A⋯O5f	0.93	2.30	3.1732	157	1 + x, y, z
C51–H51A⋯O2	0.930	2.48	3.3133	149
C56–H56A⋯O9	0.93	2.56	3.4092	152
C61–H61A⋯O6a	0.93	2.44	3.2299	143	1 − x, 1 − y
C66–H66A⋯O7i	0.93	2.35	3.2063	154	−1 + x, y, z
C68–H68A⋯O8i	0.93	2.58	3.4166	150	−1 + x, y, z

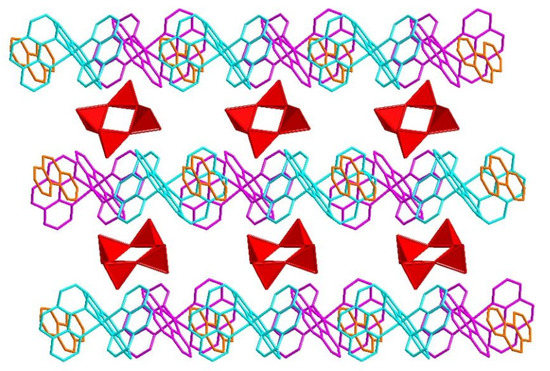

), which are beneficial to the stability of three-dimensional supramolecular structure (Figure 3 and Figure S2).

To certify the purity and crystallinity of the obtained sample, compound 1 was further authenticated by X-ray powder diffraction. The characteristic peak positions between experimental patterns and the simulated are consistent, indicating that compound 1 is purity (Figure S3). The differences in reflection intensity are probably due to the preferred orientation or the efflorescence of the crystals. Moreover, compared with the XRD pattern (2θ from 5° to 45°) of compound 1 (Figure S3 middle) and phen (Figure S3 bottom), some diffractive peaks obtained at near 5.7°, 7.2°, 7.9° and 8.9° were assigned to [V₄O₁₂]⁴⁻ anions, whereas the diffractive peaks at 10.1°, 14.5°, 15.3°,17.4° and 20.1° were ascribed to phen.

The IR spectrum of compound 1 shows a broad absorption peak at 3400 cm⁻¹, which is attributed to the ν(OH) stretching frequency, indicating the presence of water molecule. The characteristic absorption peaks at 1625, 1585, 1518, 1426, 1340, 1146, 1104 cm⁻¹ should be ascribed to vibrations of C–C and N–C bonds from phen ring in compound 1 (Figure S4). The result presents appropriate shift compared to phen, showed at 1641, 1585, 1502, 1421, 1344, 1136, 1091 cm⁻¹, which indicates that the two N atoms of phen have coordinated with the zinc ions [36,37]. The intensity peaks at 940, 910 and 867 cm⁻¹ are ascribed to the ν(V–O_t), while the peaks appeared at 846, 805 and 724 cm⁻¹ show the vibrations of ν(O–V–O), which is consistent with relevant references [9,16].

The UV-vis absorption spectrum of compound 1 has been researched at the range of 200−800 nm in the solid state. There is obvious absorption throughout the test range. The maximum values of the two strong absorption peaks are located at 340 nm and 518 nm. The higher energy absorption peak at 340 nm is caused by the n→π* transitions of [Zn(phen)₃]²⁺ cations. The coordination of phenanthroline with zinc can enhance the conjugation degree of the whole system, so that the energy absorption peak appears red shift (Figure S5). The lower energy peak corresponds to the O→V charge transfer in the polyoxoanion structure [38]. The characteristic peak in the UV (340 nm) region is stronger than in the visible (518 nm) region, which is highly consistent with those relevant compounds.

To further identify the morphology of compound 1, scanning electron microscopy (SEM) was investigated by daubing the sample suspension onto the Si foil. As shown in Figure S6, it can be observed from the magnified SEM that compound 1 exhibited a smooth rhomboid crystal.

The thermogravimetric curve of compound 1 was obtained at a heating rate of 10 °C min⁻¹ from 25 to 1000 °C under N₂ atmosphere. As shown in Figure S7, the first step, at the range of 25–210 °C, is attributed to the loss of water from the crystal. The observed weight loss (15.75%) is consistent with the calculated value (16.76%). The weight loss of 58.25% (calcd. 58.72%) at the range from 210 °C to 980 °C is ascribed to the eliminate of organic ligands phen. With the increasing of compound 1 weight loss and lasting for the temperature limit after 980 °C, the inorganic cluster collapse gradually, which is consistent with the molecular composition of compound 1.

• First step: [Zn(phen)₃]₂·(V₄O₁₂)·phen·20H₂O $\stackrel{-H_{2}O}{\to }$ [Zn(phen)₃]₂·(V₄O₁₂)·phen
• Second step: [Zn(phen)₃]₂·(V₄O₁₂)·phen $\stackrel{-phen}{\to }$ 2Zn²⁺ + [V₄O₁₂]⁴⁻
• Last step: 2Zn²⁺ + [V₄O₁₂]⁴⁻ → 4VO₂ + 2ZnO

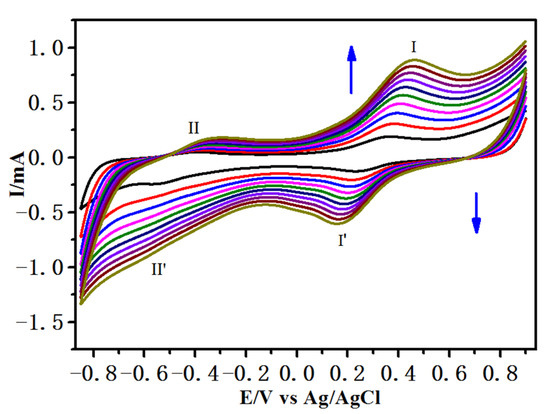

Electrochemical Properties The electrochemical properties of POVs have aroused eager attention, owing to its feasible application in the electrocatalysis [39]. The electrochemical behaviors of compound 1 modified carbon paste electrode (CPE-1) were carried out in H₂SO₄ aqueous solution (0.1 mol⋅L⁻¹) at the range of −0.90 V~0.90 V. Compound 1 exhibits two pairs of reversible redox peaks (I–I’ and II–II’) with E_1/2 values of + 0.291 V and −0.483 V, which are attributable to a one-electron V^V→V^IV and a two-electron (V^V→V^III), respectively [40] (Figure 4). Moreover, as the scan rate increased, the potential of cathodic peaks shifted to more negative direction and the corresponding potential of anodic peaks toward the positive direction, respectively, suggesting that redox processes irreversible is increasing.

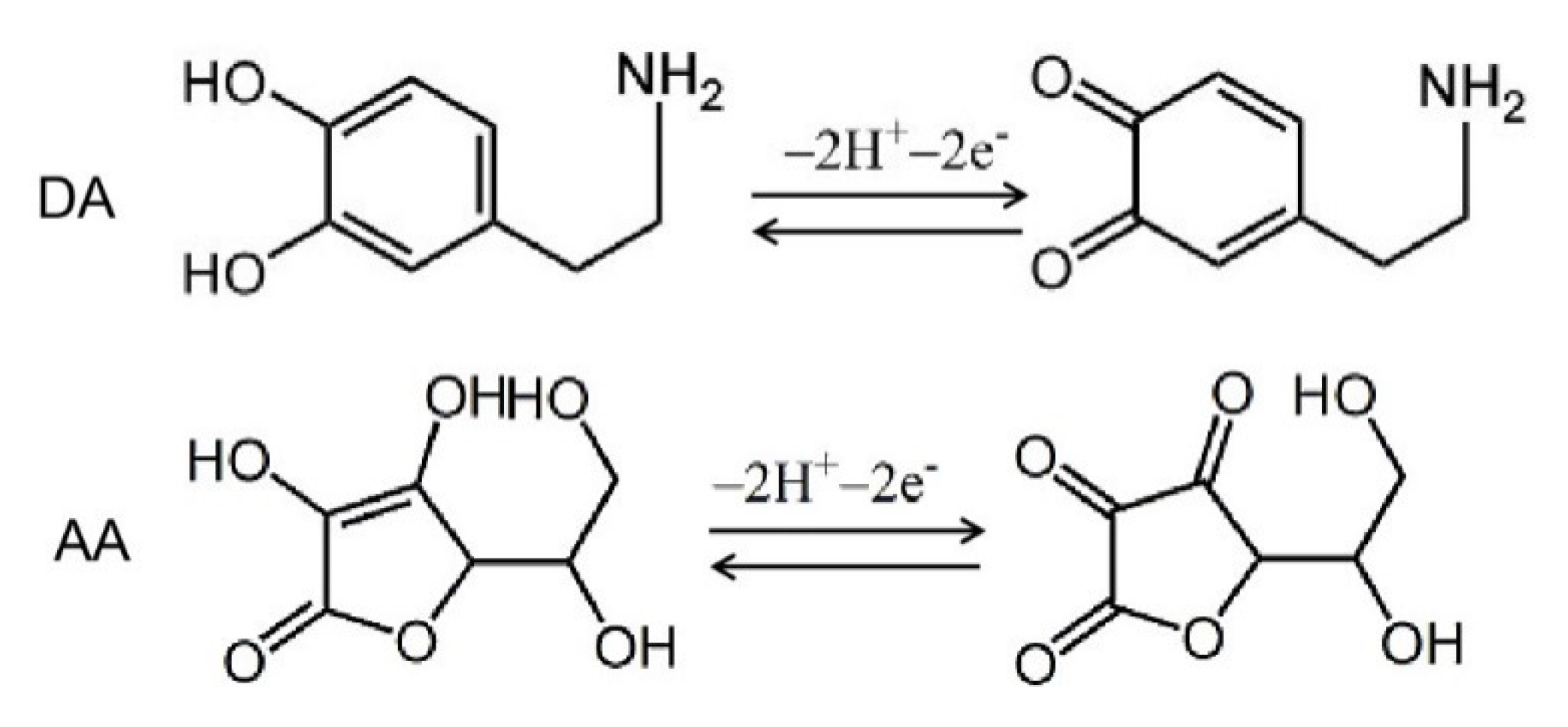

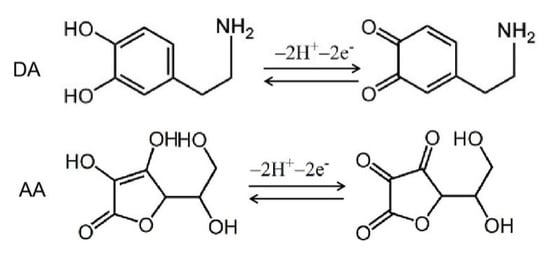

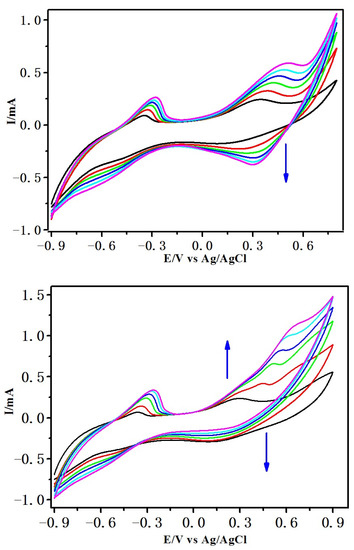

As is well-known, dopamine (DA) and ascorbic acid (AA) are vital components in the human diet and participate in numerous vital responses. Therefore, their detection is of great significance in food industry, medicine and clinical research. Among various techniques of detection, electrochemical is one of the most popular methods because of its quick and sensitive response. The electrocatalytic oxidation of DA and AA is a two-electron transfer process and they have similar electrocatalytic process, which is the conversion of two hydroxyl groups to two carbonyl groups (Scheme 1) [41]. Recent years, a great deal of POM-based inorganic–organic compounds have been studied on electrocatalytic of DA and AA [42,43]. To the best of our knowledge, this is the first [V₄O₁₂]⁴⁻-based compound reported for the study of electrocatalytic properties. Based on it, the electrocatalytic conductivity of DA and AA in H₂SO₄ (0.1 mol⋅L⁻¹) aqueous solution was investigated using CPE-1 as the working electrode (Figure 5). With the increase of DA and AA concentration, the oxidation peak currents increased, and the corresponding reductive peak currents decreased. It is worth noting that the changes of redox peaks for DA is more obvious than that for AA. The results indicated that compound 1 has better electrocatalytic activity for DA than AA. That may be because the ester group in the structure of ascorbic acid has an attractive effect on electrons, resulting in the hindrance of electron transfer during the reaction process. Furthermore, the stability of compound 1 was investigated by cyclic voltammetry in H₂SO₄ aqueous solution containing 20 mM AA (Figure S8). The result showed that the decay rate of current reaches 0.5% after 100 consecutive cycles, which manifest that compound 1 is a stable electrocatalyst.

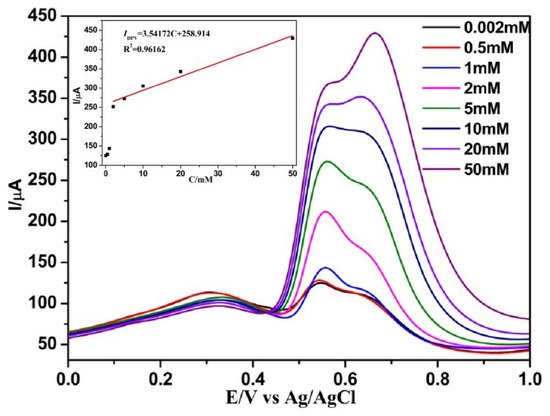

Compared with cyclic voltammetry method, the differential pulse voltammetry (DPV) method can obtain stronger signal by eliminating the non-Faradaic currents that occur with CV, which has better sensitivity for the detection of small biomolecules. Therefore, the DPV responsive curves for 1-modified GCE toward DA were carried out in H₂SO₄ aqueous solution (0.1 mol⋅L⁻¹) by varying the concentration of DA. Apparently, an oxidation peak assigned to DA appears at + 0.54 V and the responsive peak currents gradually rise with increasing concentration of DA. As shown in Figure 6, the response peak current of DPV is linear with the concentration of DA, which is consistent with the linear equation of I (μA) = 3.54172C (mM) + 258.914 (R² = 0.961) within the concentration range of 0.002~50 mM. The limit of detection (LOD) for 1-modified GCE toward DA is calculated as 8.7 μM, which demonstrates that 1-modified GCE displayed good sensitivity towards the determination of DA.

3. Materials and Methods

Experiments. All chemical reagents were purchased analytical purity grade and without further purification before use. IR spectrum was obtained from KBr pellet with a Nicolet 170 SXFT-IR spectrophotometer from Bruker of Germany in the range of 4000~500 cm⁻¹ region. Analysis of C, H and N elements were performed on a Perkin-Elmer 240C instrument from Waltham, MA, America. The powder X-ray diffraction (PXRD) pattern was measured using Bruker D8 Advance produced Bruker of Germany. The UV-vis spectrum was carried out on a PE LAMBDA 950 UV/Vis/NIR spectrophotometer from Perkin-Elmer of America in the range of 800~200 nm in the solid state. The thermostability was tested by Bruker Tensor-II produced in Bruker, Germany. The electrochemical behavior was investigated on a CHI660E electrochemical workstation from Chenhua in Shanghai, China in 0.1 mol⋅L⁻¹ H₂SO₄ aqueous solution, using a carbon paste electrode (CPE) modified by compound 1 as working electrode, Ag/AgCl electrode as a reference electrode and Pt electrode as the counter electrode.

Synthesis. Compound 1 was synthesized in aqueous solution. NH₄VO₃ (58.7 mg, 0.5 mmol), NaOH (32 mg, 0.8 mmol), phen (19.9 mg, 0.1 mmol) and Zn(CH₃COO)₂ (43.8 mg, 0.2 mmol) were successively dissolved in 19 mL distilled water. Then 1 mL CH₃CH₂OH was added to the mixed solution, generating white precipitate. The pH value of the resulting solution was adjusted to 10.5 using approximately 0.35 mL of triethylenetetramine and then added 0.3 mL acetic acid to adjust pH to be 7.0. After stirring for 30 min at ambient temperature, the solution was heated at 90 °C for 60 min and then filtered when it was cooled to room temperature. The filtrate was left to slowly evaporate at room temperature and pink crystals of 1 were obtained for two weeks in 72% yield. Elemental analysis calcd (%) for C₈₄N₁₄H₉₆Zn₂V₄O₃₂ (M = 2148.24): C 46.92, H 4.46, N 9.12; found: C 47.02, H 4.35, N 9.05.

IR (KBr; ν cm⁻¹): 3400 vs, 3057 m, 1625 m, 1585 w, 1518 s, 1426 vs, 1340 w, 1307 w, 1225 w, 1146 w, 1104 m, 940 m, 910 s, 867 s, 846 vs, 805 vs, 724 vs, 643 m, 509 w.

X-ray crystallography. A crystal with a size of 0.46 × 0.40 × 0.36 mm³ was placed on a Bruker Smart APEX II CCD diffractometer from Bruker of Germany with ω and φ scan mode in the range of 2.33° < θ < 27.12°. The diffraction intensity of compound 1 were carried out at room temperature using graphite-monochromatized MoKα radiation (λ = 0.71073 Å). The analysis of crystal structure was carried out by Direct Methods and refined on F² by full-matrix least-squares with the SHELXL-97 program [44]. All non-hydrogen atoms were refined anisotropically by full-matrix least-squares techniques, while all hydrogen atoms were fixed to calculated positions but there is no refinement in the calculation of the structure factors. Space group, lattice parameters and other relevant information are listed in

Table 2. Summary of crystal data and refinement results of 1.

Chemical Formula	C84N14H96Zn2V4O32
Formula weight	2148.24
Crystal system	Triclinic
Space group	P¯1P¯1
a, Å	12.9427(8)
b, Å	17.6899(11)
c, Å	23.5108(14)
α/°	106.4910(10)
β/°	91.0390(10)
γ/°	106.8800(10)
V, Å3	4909.4(5)
Z	2
T, K	296(2)
Dcalc’g cm−3	1.453
F(000)	2212
θ range for data collection/°	1.262−25.499
Refinement method	Full-matrix least-squares on F2
Goodness of fit on F2	1.019
Final R indices [I > 2s(I)]	R1 = 0.0530, wR2 = 0.1058

. The relevant bond lengths and bond angles are listed in Table S1.

CCDC 1956066 contains the supplementary crystallographic data. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cif on 12 January 2022.

4. Conclusions

In conclusion, a new organic–inorganic hybrid [Zn(phen)₃]₂·(V₄O₁₂)·phen·20H₂O (phen = 1,10-phenathroline) (1), were assembled by conventional aqueous solution. It was found that the structure of compound 1 contains two [V₄O₁₂]⁴⁻ types of chair-like and coplanar conformations, which is rare in crystal engineering. Moreover, the electrocatalytic activity toward DA and AA were for the first time investigated and display good performance on the oxidation of DA and AA. More importantly, 1-modified GCE has better sensitivity for the determination of DA and the limit is calculated as 8.7 μM, which demonstrate that compound 1 is not only a stable electrocatalyst, but also has potential applications in the detection of DA.
