Ionic Liquid-Assisted Synthesis of Ag3PO4 Spheres for Boosting Photodegradation Activity under Visible Light

School of Chemistry & Chemical Engineering, Yancheng Institute of Technology, Yancheng 224051, China
School of Chemistry and Chemical Engineering, Institution for Energy Research, Jiangsu University, Zhenjiang 212013, China
School of Materials Science and Engineering, Yancheng Institute of Technology, Yancheng 224051, China
Author to whom correspondence should be addressed.
Catalysts 2021, 11(7), 788;
Submission received: 2 June 2021 / Revised: 22 June 2021 / Accepted: 27 June 2021 / Published: 28 June 2021


In this work, a simple chemical precipitation method was employed to prepare spherical-like Ag3PO4 material (IL-Ag3PO4) with exposed {111} facet in the presence of reactive ionic liquid 1-butyl-3-methylimidazole dihydrogen phosphate ([Omim]H2PO4). The crystal structure, microstructure, optical properties, and visible-light photocatalytic performance of as-prepared materials were studied in detail. The addition of ionic liquids played a crucial role in forming spherical-like morphology of IL-Ag3PO4 sample. Compared with traditional Ag3PO4 material, the intensity ratio of {222}/{200} facets in XRD pattern of IL-Ag3PO4 was significantly enhanced, indicating the main {111} facets exposed on the surface of IL-Ag3PO4 sample. The presence of exposed {111} facet was advantageous for facilitating the charge carrier transfer and separation. The light-harvesting capacity of IL-Ag3PO4 was larger than that of Ag3PO4. The photocatalytic activity of samples was evaluated by degrading rhodamine B (RhB) and p-chlorophenol (4-CP) under visible light. The photodegradation efficiencies of IL-Ag3PO4 were 1.94 and 2.45 times higher than that of Ag3PO4 for RhB and 4-CP removal, respectively, attributing to a synergy from the exposed {111} facet and enhanced photoabsorption. Based on active species capturing experiments, holes (h+), and superoxide radical (•O2) were the main active species for visible-light-driven RhB photodegradation. This study will provide a promising prospect for designing and synthesizing ionic liquid-assisted photocatalysts with a high efficiency.

Graphical Abstract

1. Introduction

Environmental photocatalysis is a low-energy, green, and sustainable advanced oxidation technology. Under light irradiation, semiconductor materials can be excited to generate electron-hole pairs and then produce oxygen-containing free radical species with a strong oxidizing ability for completely mineralizing organic pollutants [1,2,3]. As a representatively traditional photocatalyst, titanium dioxide (TiO2) shows the intrinsic characteristics of narrow light response range, high charge carrier recombination rate, and low quantum efficiency, which greatly limits its development and practical application in photocatalytic field [4]. Therefore, it is necessary to develop visible-light responsive semiconductor materials with a high efficiency for photocatalytic pollutant degradation, such as silver phosphate (Ag3PO4) [5], graphite carbon nitride (g-C3N4) [6], bismuth tungstate (Bi2WO6) [7], bismuth vanadate (BiVO4) [8], and so on.
Among these reported visible-light photocatalysts, Ag3PO4 material, first prepared by Ye’s group in 2010 [9], has been widely studied due to its strong photoabsorption ability in visible light region (<530 nm), narrow band gap (~2.4 eV) and extremely high photooxidation ability for decomposing water and organic dyes [10,11]. Nevertheless, the Ag+ in Ag3PO4 is slightly soluble in solution and can be easily reduced to generate Ag (0) particles under light irradiation, resulting in the decreased photocatalytic activity. Recently, many efforts have been made to improve the photocatalytic activity of Ag3PO4, including crystal surface regulation [12], morphology design [13], heterojunction construction [14], etc. For crystal surface regulation of Ag3PO4, the surface energy of the exposed {111} facet was obviously higher than that of {110} or {100} facets [15]. The presence of {111} facets in Ag3PO4 crystal has a higher barrier, which could hinder the electron transfer and the charge carrier recombination, resulting in the efficient mobility/separation of charge carrier on the facets and thus the highly photocatalytic performance [16,17,18]. For example, the tetrahedral Ag3PO4 crystals composed of {111} facets exhibited extremely high water photooxidation activity, corresponding to the enhanced carrier mobility and increased active reactive sites resulted from exposed {111} facets. Thus, constructing Ag3PO4-based catalyst with exposed {111} facets have been proven to be an effective way to improve the photocatalyst activity.
The choice of phosphate groups is a critical role in controllably preparing Ag3PO4 with different morphologies and photocatalytic performances. Generally, the most studied phosphates mainly included Na3PO4, Na2HPO4 and NaH2PO4 [19,20]. As a new type of green medium, ionic liquids show some characteristics of high thermal stability, wide temperature range, low interfacial tension, and high ionic conductivity [21]. Ionic liquid-assisted synthesis of inorganic materials has been widely used and applied in photocatalytic fields, such as BiOI hollow microspheres for RhB photodegradation [22], porous perovskite-like PbBiO2Br for organic pollutants photodegradation [23], and porous sphere-like BiOBr hollow for RhB photodegradation [24]. Therefore, ionic liquids have certain significance in the controllable synthesis of Ag3PO4 materials. To the best of our knowledge, ionic liquid-assisted synthesis of Ag3PO4 material for photodegradation has not yet been reported.
In this work, IL-Ag3PO4 sample with exposed {111} facets have been synthesized via a chemical precipitation method using silver nitrate (AgNO3) and [Omim]H2PO4 as the starting materials. The resulted samples were fully characterized. It was found that the presence of ionic liquid determined the microstructure and crystal surface of IL-Ag3PO4. The photocatalytic performances were evaluated by degrading 4-CP and RhB molecules under visible light irradiation, respectively. The trapping experiment was performed to confirm the main active species during RhB photodegradation. Based on the experimental results, a possible mechanism for improving photodegradation efficiency was proposed.

2. Results and Discussion

2.1. XRD Analysis

To confirm the crystal structure, the typical XRD patterns of as-prepared Ag3PO4 and IL-Ag3PO4 samples were shown in Figure 1. The characteristic diffraction peaks of (110), (200), (210), (211), (220), (310), (222), (320), (321) and (400) can be clearly visible for both Ag3PO4 and IL-Ag3PO4 samples, which perfectly index as the cubic phase of Ag3PO4 (JCPDS Card: No. 06-0505) [25]. No additional characteristic diffraction peaks, such as Ag or Ag2O, are observed in Ag3PO4 and IL-Ag3PO4 samples, confirming the high purity of these two Ag3PO4 samples. However, the intensity ratios among the diffraction peaks in IL-Ag3PO4 are significantly changed related to Ag3PO4, which is ascribed to the corresponding ratio changes of exposed crystal facet [11]. Previous literature reported that Ag3PO4 crystal dominated by exposed {111} facets generally exhibited the best photocatalytic activity, because the higher surface energy generated by {111} facets was advantageous for facilitating the mobility and separation of charge carrier on the facets, thereby obtaining the highly photocatalytic performance [16,17]. Additionally, the presence of {111} facets, with a higher barrier, in Ag3PO4 crystal could also hinder the electron transfer and thus accelerate the recombination of charge carriers [18]. In this work, an intensity ratio of {222}/{200} facets of IL-Ag3PO4 (1.06) are significantly higher than that of Ag3PO4 crystal (0.83), which showed that the surface of IL-Ag3PO4 crystal is mainly {111} facets. The formation mechanism of exposed {111} facets is due to the fact that the addition of ionic liquid can lead to the aggregation behavior. Then the ionic liquid effectively interacted with the crystal nuclear surfaces, which energetically distinguished different facets and promoted the growth of certain {111} facets [26]. It should be mentioned that the direct evidence of HRTEM images of IL-Ag3PO4 sample for observing exposed {111} facets cannot be provided due to the fact that the extremely large particle size of IL-Ag3PO4 sample cannot be measured under the current condition.

2.2. SEM Analysis

The SEM images were shown in Figure 2 to achieve the morphology information of Ag3PO4 and IL-Ag3PO4 samples. From SEM images in Figure 2a,b, the sizes of traditional Ag3PO4 particles, with an irregular shape, vary from tens of nanometers to a few micrometers. After selecting ionic liquid [Omim]H2PO4 as the source of phosphate group, the SEM images of the resulted IL-Ag3PO4 in Figure 2c,d show a sphere-like morphology and the profoundly increased sizes of approximately 1~2.5 µm in comparison with Ag3PO4. Due to the presence of ionic liquids, the prepared materials may tend to form spherical particles with a small aggregation [27]. Obviously, the roles of ionic liquid ([Omim]H2PO4) can be used not only as the source of phosphate group but also a good dispersant/template agent to drive the formation of sphere-like morphology of Ag3PO4. Thus, the choice of ionic liquid with the cationic carbon chains is beneficial for forming uniform size nanomaterials and performing their surface regulation [28,29].

2.3. DRS Analysis

The optical properties of Ag3PO4 and IL-Ag3PO4 samples were evaluated by UV-vis DRS. As displayed in Figure 3a, the sample of Ag3PO4 exhibits an absorption edge at ~515 nm. When ionic liquid [Omim]H2PO4 was selected as the source of phosphate group, the absorption edge of IL-Ag3PO4 sample shows a slight red shift to around 530 nm. Based on these absorption edges, the bandgap values are estimated to be approximately 2.41 eV for Ag3PO4 and 2.34 eV for IL-Ag3PO4 [30]. Furthermore, the bandgap values of Ag3PO4 and IL-Ag3PO4 samples can be also calculated via a plot of (αhv)1/2 versus hv. The bandgap energies of Ag3PO4 and IL-Ag3PO4 in Figure 3b are estimated to be 2.46 and 2.40 eV, respectively, which are almost consistent with the bandgap values calculated by absorption edges. It indicates that the light-harvesting capacity of IL-Ag3PO4 is enhanced compared with Ag3PO4.

2.4. XPS Analysis

The chemical composition and atomic state of Ag3PO4 and IL-Ag3PO4 samples were carried out using XPS measurement. As shown in Figure 4a, all peak positions can be ascribed to Ag, P, O and C elements without any other impurities. The appeared C 1s peak is mainly attributed to the adventitious hydrocarbon from the XPS instrument itself. The high-resolution XPS spectra of Ag 3d in Figure 4b exhibits two peaks around 368.0 and 374.0 eV, which are ascribed to the binding energies of Ag 3d5/2 and Ag 3d3/2 of Ag+ over Ag3PO4 and IL-Ag3PO4 samples [31]. The binding energy position of IL-Ag3PO4 is almost unchanged in comparison to Ag3PO4, indicating the similar chemical states of Ag+.
The binding energy of P 2p at 132.75 eV in IL-Ag3PO4 sample (Figure 4c), attributed to the crystal lattice of P5+ [32], is slightly shifted compared with Ag3PO4. As shown in Figure 4d, two peaks of O 1s around 532.15 and 530.65 eV are derived from hydroxyl groups on the surface and crystal oxygen in Ag3PO4, respectively [33]. It should be noted that the divided area in IL-Ag3PO4 centered at 532.15 resulted from surfaced hydroxyl groups is larger than that in Ag3PO4. This result illustrates that the sources of phosphate groups for preparing Ag3PO4 samples have some certain effects on the surface chemical environment.

2.5. Photocatalytic Activity

The photocatalytic activities of Ag3PO4 and IL-Ag3PO4 samples were evaluated by photodegradation using 4-CP and RhB as model pollutants under visible light [34]. As can be seen from Figure 5a,c, no obvious changes can be visible for pure 4-CP and RhB molecules in the absence of catalyst, indicating the relatively high structural stability. The adsorption of RhB and 4-CP molecules can reach equilibrium within 30 min. The photodegradation rate of 4-CP in IL-Ag3PO4 reach up to ~98.4% within 180 min, which is 2.45 times higher than that of Ag3PO4 (40.5%). The visible-light-driven photodegradation process curves of 4-CP over IL-Ag3PO4 were also investigated by HPLC as shown in Figure 5b. With the increase of irradiation time, the characteristic peaks of 4-CP with a retention time at 4.05 min are gradually decreased and almost disappeared within 180 min, indicating the high mineralization rate. However, HPLC chromatogram shows two new peaks at the retention time of 1.62 and 2.67 min. As the process proceeds, the intensities of these two peaks have a gradual upward trend. It reveals that 4-CP molecules can be effectively degraded while a small number of intermediates are difficult to be fully removed by the photodegradation reaction.
To further confirm the excellent activity of IL-Ag3PO4, the photocatalytic performance was also measured by the degradation of RhB molecules under visible light (Figure 5c). The RhB photodegradation rate of IL-Ag3PO4 is 68.23%, while only 35.13% for Ag3PO4 sample within 180 min. The photocatalytic efficiency of IL-Ag3PO4 is almost two-fold higher than that of Ag3PO4. Based on the above results, the high photodegradation efficiencies over IL-Ag3PO4 sample are assigned to the synergistic effects of the exposed {111} facets and enhanced photoabsorption. Furthermore, the TOC removal efficiency over IL-Ag3PO4 can reach approximately 88.2% within 180 min under visible light, demonstrating a high mineralization degree for 4-CP photodegradation.

2.6. Photocatalytic Mechanism Study

In order to clarify the photodegradation mechanism in IL-Ag3PO4 photocatalyst, it is necessary to determine the main active species [35]. Therefore, the IL-Ag3PO4 sample was carried out to capture the active radical species and the results was shown in Figure 6a. The added compounds of EDTA-2NA, p-benzoquinone and tert-butanol (t-BuOH) were served as scavengers of h+, superoxide (•O2) and hydroxyl (•OH) radicals, respectively. The RhB photodegradation efficiency is significantly reduced by the addition of p-benzoquinone and EDTA-2NA while no changes for the addition of t-BuOH, indicating that the active species of photogenerated h+ and •O2 play a vital role in removing RhB molecule under visible light over IL-Ag3PO4 photocatalyst. This conclusion is consistent with the previous literature [36].
The PL spectra of Ag3PO4 and IL-Ag3PO4 samples in Figure 6b were measured to evaluate the charge carriers trapping and recombination processes [37,38]. The higher PL intensity means the higher recombination rate of photoinduced charges. For Ag3PO4 sample, a strong emission peak at approximately ~540 nm can be clearly observed under the excitation of 381 nm. For comparison, the emission peak intensity of IL-Ag3PO4 material is lower than that of Ag3PO4 under the same measurement condition, demonstrating that the recombination probability of photogenerated charge carriers is restrained in IL-Ag3PO4 sample.
The electrochemical impedance spectra (EIS) and photocurrent response measurements were used to investigate the separation and transfer of photoinduced electrons and holes in both Ag3PO4 and IL-Ag3PO4 samples [39,40]. Figure 7a shows the EIS diagram of Ag3PO4 and IL-Ag3PO4 samples. The IL-Ag3PO4 sample exhibits the smaller arc radius than Ag3PO4, indicating the efficient charge transfer and separation. Furthermore, the photocurrent response of IL-Ag3PO4 (1.86 mA/cm2) is 4.89 times higher than that of Ag3PO4 (0.38 mA/cm2) in Figure 7b, indicating the effective separation of photogenerated charge carriers over IL-Ag3PO4 sample. The above results confirm that the presence of exposed {111} facets in IL-Ag3PO4 sample is advantageous for reducing recombination rate, and facilitating the transfer and separation of charge carrier, resulting in the highly photocatalytic efficiency.
Based on XPS valence band (VB) spectra in Figure 8a, the VB potential (EVB) of IL-Ag3PO4 and Ag3PO4 can be estimated to be 2.58 and 2.62 eV. The above UV-vis DRS results demonstrate that the Eg values of IL-Ag3PO4 and Ag3PO4 samples are 2.40 and 2.46 eV. According to formula of Eg =EVB – ECB, the minimum conduction band potential (ECB) of IL-Ag3PO4 and Ag3PO4 are calculated to be 0.18 and 0.16 eV, respectively.
A possible visible-light photodegradation mechanism over IL-Ag3PO4 and Ag3PO4 was shown in Figure 8b. Compared with traditional Ag3PO4, the IL-Ag3PO4 sample exhibited the upward shift of VB position and the downward shift of CB position. It indicates the reduced bandgap value over IL-Ag3PO4 sample, leading to the enhanced light-harvesting capacity and thus the improved photodegradation activity [41]. Under visible light irradiation, the IL-Ag3PO4 semiconductor was excited to generate electrons and holes. Due to the dominant surface of {111}, the formed holes with strong oxidation ability rapidly transfer to the surface of the IL-Ag3PO4 photocatalyst, which have oxidation or reduction reactions with RhB on the catalyst surface to finally achieve degrading of pollutants [16]. The resulting electrons can flow into the conduction band and react with the O2 to produce •O2−, which is responsive for RhB photodegradation. Therefore, the active species of holes and •O2− play a vital role in removing RhB molecules under visible light over IL-Ag3PO4 photocatalyst.

3. Experimental Section

3.1. Materials

The silver nitrate (AgNO3), sodium phosphate tribasic dodecahydrate (Na3PO4·12H2O), rhodamine B (RhB) and p-chlorophenol (4-CP) were purchased from the Sinopharm Group Chemical Co., Ltd. (Shanghai, China). The ionic liquid 1-butyl-3-methylimidazole dihydrogen phosphate ([Omim]H2PO4) was purchased from Shanghai Chengjie Chemical Co., Ltd. (Shanghai, China). All chemicals used in this study were of analytical grade without further purification.

3.2. Ionic Liquid-Assisted Synthesis of Ag3PO4 Spheres

The 0.340 g AgNO3 was well dissolved in 20 mL deionized water and then 20 mL ionic liquid of [Omim]H2PO4 (0.1576 g) solution was added dropwise under a magnetic stirring. After heating at 60 °C for 1 h under dark condition, the solid product was collected by centrifugation, washed with distilled water and absolute ethanol several times, and then dried at 55 °C in a vacuum oven overnight. The resulted ionic liquid-induced Ag3PO4 was denoted as IL-Ag3PO4.
In order to investigate the role of the ionic liquid, the inorganic salt of Na3PO4·12H2O was also selected as the source of phosphate group. The traditional Ag3PO4 was prepared using the same synthetic process as IL-Ag3PO4 except for the substitution of Na3PO4·12H2O for ionic liquid [Omim]H2PO4.

3.3. Characterization of Photocatalysts

X-ray diffraction (XRD) patterns were obtained on a Bruker D8 diffractometer with Cu Kα radiation (λ = 1.5418 Å) and 2θ range from 10° to 70°. X-ray photoelectron spectroscopy (XPS) analysis was performed by using an ESCALAB 250Xi X-ray photoelectron spectrometer with the Mg Kα radiation. The morphology information of photocatalysts was recorded on scanning electron microscope (SEM) using a Nova NanoSEM 450. Ultraviolet-visible diffuse reflectance spectra (UV-vis DRS) of as-prepared samples were recorded on a UV-vis spectrophotometer (Shimadzu UV-3600PLUS) with a range from 200 to 800 nm using BaSO4 as a reflectance standard material. The photoluminescence spectra (PL) of the photocatalyst were measured with a Varian Cary Eclipse spectrometer.
The electrochemical analyzer (CHI660B) was used to measure the photoelectrochemical performance of the photocatalysts. This equipment contained a three-electrode system of platinum wire, saturated Ag/AgCl electrode and 1 × 1 cm2 Ag3PO4/ITO glass as the working electrode. Photocurrent measurement was carried out in 0.1 M phosphate-buffered saline under visible light (pH = 7.0), while the electrochemical impedance spectroscopy (EIS) was performed in a 0.1 M KCl solution containing 5mM Fe (CN)63−/Fe (CN)64−.

3.4. Photocatalytic Activity

In order to determine the photocatalytic activity of Ag3PO4 photocatalysts, the photodegradation of RhB and 4-CP molecules were carried out under visible light irradiation (250 W Xe lamp with a 400 nm cut-off filter). The 20.0 mg photocatalyst was dispersed into 100 mL aqueous solution of RhB and 4-CP (10 mg/L) in a Pyrex photocatalytic reactor, respectively. The mixed solution was stirred for 30 min under dark conditions to reach the adsorption-desorption equilibrium. After irradiation, 4 mL suspension was sampled within a certain irradiation time interval and then centrifuged to remove the photocatalyst particle. For RhB photodegradation, the light absorbance of the resulted solution was determined by UV-Vis spectrophotometer (TU-1810PC). The concentration of 4-CP solution was detected on an Agilent high performance liquid chromatography (HPLC, Agilent LC1200) with C18 column. Mobile phase was the miscible liquids of 70% methyl alcohol and 30% pure water (V/V), and the flow rate was confined as 1.0 mL/min with a detection wavelength of 225 nm.
A free radical trapping experiment was carried out to study the photodegradation mechanism. All trapping experimental processes were the same as that RhB photodegradation except for the addition of different scavengers of ethylenediaminetetraacetic acid disodium salt (EDTA-2Na, 5 mM), p-benzoquinone (2 mM), and tert-butanol (t-BuOH, 5 mM).

4. Conclusions

In summary, the spherical-like IL-Ag3PO4 photocatalyst with exposed {111} facets has been successfully synthesized via the chemical precipitation method in the presence of reactive ionic liquid [Omim]H2PO4. The presence of exposed {111} facet was advantageous for facilitating the charge carrier transfer and separation. The resulted IL-Ag3PO4 sample exhibited highly photocatalytic activity for the degradation of RhB and 4-CP molecules under visible light irradiation. The photodegradation rates for the removal of RhB and 4-CP molecules were 98.4% and 68.23% within 180 min over IL-Ag3PO4 sample. The efficiencies of IL-Ag3PO4 material for RhB and 4-CP photodegradation were 1.94 and 2.45 times higher than that of Ag3PO4, respectively. The enhanced photocatalytic activity was mainly attributed to the synergistic effects of the exposed {111} facets and enhanced photoabsorption. The result of radical trapping experiment demonstrated that the active species of holes and •O2 played a vital role in RhB photodegradation under visible light over IL-Ag3PO4 photocatalyst. This study will provide a promising prospect for ionic liquid-assisted synthesis of photocatalysts with a high efficiency.

Author Contributions

Writing—original draft, Methodology, Investigation, B.Z.; Software, visualization, L.Z.; Data curation, formal analysis, Y.Z.; Funding acquisition, Writing—review & editing, project administration, C.L.; Conceptualization, resources, J.X.; Supervision, validation, H.L. All authors have read and agreed to the published version of the manuscript.


This research was funded by the National Natural Science Foundation of China (No. 51902282), and Qinglan Project of Jiangsu Province of China.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Wu, K.; Li, F.R.; Guo, J.; Zou, J.; Li, H.; Li, J.D.; Wu, H.D.; Zhang, L.F. Synthesis of Heterostructure g-C3N4/h-MoO3 with Enhanced Photoactivity: Influencing Factors and Mechanism Insight. Nano 2021, 16, 2150024. [Google Scholar] [CrossRef]
  2. Liu, C.; Zhang, Q.F.; Hou, W.H.; Zou, Z.G. 2D Titanium/Niobium Metal Oxide-Based Materials for Photocatalytic Application. Sol. RRL 2020, 4, 2000070. [Google Scholar] [CrossRef]
  3. Bianca, R.; Salvador, E.; de Hugo, L. Hydrogen Production via Pd-TiO2 Photocatalytic Water Splitting under Near-UV and Visible Light: Analysis of the Reaction Mechanism. Catalysts 2021, 11, 405. [Google Scholar] [CrossRef]
  4. Wang, W.; Fang, J.J.; Shao, S.F.; Lai, M.; Lu, C.H. Compact and uniform TiO2@g-C3N4 core-shell quantum heterojunction for photocatalytic degradation of tetracycline antibiotics. Appl. Catal. B Environ. 2017, 217, 57–64. [Google Scholar] [CrossRef]
  5. Luo, L.; Li, Y.Z.; Hou, J.T.; Yang, Y. Visible photocatalysis and photostability of Ag3PO4 photocatalyst. Appl. Surf. Sci. 2014, 319, 332–338. [Google Scholar] [CrossRef]
  6. Mo, Z.; Xu, H.; Chen, Z.G.; She, X.J.; Song, Y.H.; Wu, J.J.; Yan, P.C.; Xu, L.; Lei, Y.C.; Yuan, S.Q.; et al. Self-assembled synthesis of defect-engineered graphitic carbon nitride nanotubes for efficient conversion of solar energy. Appl. Catal. B Environ. 2018, 225, 154–161. [Google Scholar] [CrossRef]
  7. Lai, M.T.L.; Lai, C.W.; Lee, K.M.; Chook, S.W.; Yang, T.C.K.; Chong, S.H.; Juan, J.C. Facile one-pot solvothermal method to synthesize solar active Bi2WO6 for photocatalytic degradation of organic dye. J. Alloys Compd. 2019, 801, 502–510. [Google Scholar] [CrossRef]
  8. Sarkar, S.; Chattopadhyay, K.K. Visible light photocatalysis and electron emission from porous hollow spherical BiVO4 nanostructures synthesized by a novel route. Phys. E. 2014, 58, 52–58. [Google Scholar] [CrossRef]
  9. Yi, Z.G.; Ye, J.H.; Kikugawa, N.; Kako, T.; Ouyang, S.X.; Stuart-Williams, H.; Yang, H.; Cao, J.Y.; Luo, W.J.; Li, Z.S.; et al. An orthophosphate semiconductor with photooxidation properties under visible-light irradiation. Nat. Mater. 2010, 9, 559–564. [Google Scholar] [CrossRef]
  10. Ge, M.; Li, Z.L. Recent progress in Ag3PO4-based all-solid-state Z-scheme photocatalytic systems. Chin. J. Catal. 2017, 38, 1794–1803. [Google Scholar] [CrossRef]
  11. Li, X.P.; Xu, P.; Chen, M.; Zeng, G.M.; Wang, D.B.; Chen, F.; Tang, W.W.; Chen, C.Y.; Zhang, C.; Tan, X.F. Application of silver phosphate-based photocatalysts: Barriers and solutions. Chem. Eng. J. 2019, 366, 339–357. [Google Scholar] [CrossRef]
  12. Xie, Y.; Huang, Z.H.; Zhang, Z.J.; Zhang, X.G.; Wen, R.L.; Liu, Y.G.; Fang, M.H.; Wu, X.W. Controlled synthesis and photocatalytic properties of rhombic dodecahedral Ag3PO4 with high surface energy. Appl. Surf. Sci. 2016, 389, 56–66. [Google Scholar] [CrossRef]
  13. Dong, P.Y.; Yin, Y.; Xu, N.; Guan, R.F.; Hou, G.H.; Wang, Y.H. Facile synthesis of tetrahedral Ag3PO4 mesocrystals and its enhanced photocatalytic activity. Mater. Res. Bull. 2014, 60, 682–689. [Google Scholar] [CrossRef]
  14. Zhang, Y.; Duoerkun, G.; Shi, Z.; Cao, W.; Liu, T.; Liu, J.S.; Zhang, L.S.; Li, M.Q.; Chen, Z.G. Construction of TiO2/Ag3PO4 nanojunctions on carbon fiber cloth for photocatalytically removing various organic pollutants in static or flowing wastewater. J. Colloid Interface Sci. 2020, 571, 213–221. [Google Scholar] [CrossRef]
  15. Martin, D.J.; Umezawa, N.; Chen, X.W.; Ye, J.H.; Tang, J.W. Facet engineered Ag3PO4 for efficient water photooxidation†. Energy Environ. Sci. 2013, 6, 3380–3386. [Google Scholar] [CrossRef]
  16. He, S.X.; Zhai, C.Y.; Fujitsuka, M.; Kim, S.; Zhu, M.S.; Yin, R.L.; Zeng, L.X.; Majima, T. Femtosecond time-resolved diffuse reflectance study on facet engineered charge-carrier dynamics in Ag3PO4 for antibiotics photodegradation. Appl. Catal. B Environ. 2021, 281, 119479–119488. [Google Scholar] [CrossRef]
  17. Bhatt, D.K.; Patel, U.D. Photocatalytic degradation of Reactive Black 5 using Ag3PO4 under visible light. J. Phys. Chem. Solids 2021, 149, 109768–109778. [Google Scholar] [CrossRef]
  18. Hsieh, M.S.; Su, H.J.; Hsieh, P.L.; Chiang, Y.W.; Huang, M.H. Synthesis of Ag3PO4 Crystals with Tunable Shapes for Facet-Dependent Optical Property, Photocatalytic Activity, and Electrical Conductivity Examinations. ACS. Appl. Mater. Interfaces 2017, 9, 39086–39093. [Google Scholar] [CrossRef]
  19. Bi, Y.P.; Hu, H.Y.; Jiao, Z.B.; Yu, H.C.; Lu, G.X.; Ye, J.H. Two-dimensional dendritic Ag3PO4 nanostructures and their photocatalytic properties. Phys. Chem. Chem. Phys. 2012, 14, 14486–14488. [Google Scholar] [CrossRef]
  20. Pongsaton, A.; Khanitta, I.; Sumetha, S.; Jonas, B. Effect of Phosphate Salts (Na3PO4, Na2HPO4, and NaH2PO4) on Ag3PO4 Morphology for Photocatalytic Dye Degradation under Visible Light and Toxicity of the Degraded Dye Products. Ind. Eng. Chem. Res. 2013, 52, 17369–17375. [Google Scholar] [CrossRef]
  21. Chen, F.; Huang, S.Q.; Xu, Y.G.; Huang, L.Y.; Wei, W.; Xu, H.; Li, H.M. Novel ionic liquid modified carbon nitride fabricated by in situ pyrolysis of 1-butyl-3-methylimidazolium cyanamide to improve electronic structure for efficiently degradation of bisphenol A. Colloids. Surf. A 2021, 610, 125648. [Google Scholar] [CrossRef]
  22. Di, J.; Xia, J.X.; Ge, Y.P.; Xu, L.; Xu, H.; He, M.Q.; Zhang, Q.; Li, H.M. Reactable ionic liquid-assisted rapid synthesis of BiOI hollow microspheres at room temperature with enhanced photocatalytic activity. J. Mater. Chem. A 2014, 2, 15864–15874. [Google Scholar] [CrossRef]
  23. Wang, B.; Di, J.; Zhang, P.F.; Xia, J.X.; Dai, S.; Li, H.M. Ionic liquid-induced strategy for porous perovskite-like PbBiO2Br photocatalysts with enhanced photocatalytic activity and mechanism insight. Appl. Catal. B Environ. 2017, 206, 127–135. [Google Scholar] [CrossRef] [Green Version]
  24. Chen, Z.G.; Zeng, J.; Di, J.; Zhao, D.X.; Ji, M.X.; Xia, J.X.; Li, H.M. Facile microwave-assisted ionic liquid synthesis of sphere-like BiOBr hollow and porous nanostructures with enhanced photocatalytic performance. Green Energy Environ. 2017, 2, 124–133. [Google Scholar] [CrossRef]
  25. Li, F.F.; Li, Z.H.; Zhang, M.X.; Shen, Y.; Cai, Y.F.; Li, Y.R.; He, X.Y.; Chen, C. Ag3PO4@holmium phosphate core@shell composites with enhanced photocatalytic activity. RSC Adv. 2017, 7, 34705–34713. [Google Scholar] [CrossRef] [Green Version]
  26. Alammar, T.; Smetana, V.; Pei, H.; Hamm, I.; Wark, M.; Mudring, A.V. The Power of Ionic Liquids: Crystal Facet Engineering of SrTiO3 Nanoparticles for Tailored Photocatalytic Applications. Adv. Sustain. Syst. 2020, 5, 2000180–2000189. [Google Scholar] [CrossRef]
  27. Amir Mohammad Sheikh, A.; Mohammad, M.; Elaheh, K.; Hossein, A. Ionic liquid-assisted sol-gel synthesis of Fe2O3-TiO2 for enhanced photocatalytic degradation of bisphenol a under UV illumination: Modeling and optimization using response surface methodology. Optik 2020, 204, 164229–164240. [Google Scholar] [CrossRef]
  28. Chen, J.; Xia, J.X.; Di, J.; Ji, M.X.; Li, H.P.; Xu, H.; Zhang, Q.; Lu, J. Reactable ionic liquid assisted synthesis of BiPO4 and the influences of solvent on structure, morphology and photocatalytic performance. Colloids Surf. A 2016, 488, 110–117. [Google Scholar] [CrossRef]
  29. Xia, J.X.; Ji, M.X.; Di, J.; Wang, B.; Yin, S.; Zhang, Q.; He, M.Q.; Li, H.M. Construction of ultrathin C3N4/Bi4O5I2 layered nanojunctions via ionic liquid with enhanced photocatalytic performance and mechanism insight. Appl. Catal. B Environ. 2016, 191, 235–245. [Google Scholar] [CrossRef]
  30. Liu, C.; Sun, T.; Wu, L.; Liang, J.Y.; Huang, Q.J.; Chen, J.; Hou, W.H. N-doped Na2Ti6O13@TiO2 core–shell nanobelts with exposed {1 0 1} anatase facets and enhanced visible light photocatalytic performance. Appl. Catal. B Environ. 2015, 170, 17–24. [Google Scholar] [CrossRef]
  31. Li, J.Q.; Yuan, H.; Zhu, Z.F. In situ growth of Ag3PO4 on N-BiPO4 nanorod: A core-shell heterostructure for high performance photocatalyst. J. Colloid Interface Sci. 2016, 462, 382–388. [Google Scholar] [CrossRef]
  32. Zhang, H.; Tang, G.G.; Wan, X.; Xu, J.; Tang, H. High-efficiency all-solid-state Z-scheme Ag3PO4/g-C3N4/ MoSe2 photocatalyst with boosted visible-light photocatalytic performance for antibiotic elimination. Appl. Surf. Sci. 2020, 530, 147234–147243. [Google Scholar] [CrossRef]
  33. Sun, M.; Zeng, Q.; Zhao, X.; Shao, Y.; Ji, P.G.; Wang, C.Q.; Yan, T.; Du, B. Fabrication of novel g-C3N4 nanocrystals decorated Ag3PO4 hybrids: Enhanced charge separation and excellent visible-light driven photocatalytic activity. J. Hazard. Mater. 2017, 339, 9–21. [Google Scholar] [CrossRef] [PubMed]
  34. Yu, G.Y.; Hu, F.X.; Chen, W.W.; Han, Z.T.; Liu, C.; Dai, Y. ZnCuAl-LDH/Bi2MoO6 Nanocomposites with Improved Visible Light-Driven Photocatalytic Degradation. Acta. Phys. Chim. Sin. 2020, 36, 1911016. [Google Scholar] [CrossRef]
  35. Liu, C.; Zhu, H.J.; Zhu, Y.S.; Dong, P.Y.; Hou, H.J.; Xu, Q.X.; Chen, X.W.; Xi, X.G.; Hou, W.H. Ordered layered N-doped KTiNbO5/g-C3N4 heterojunction with enhanced visible light photocatalytic activity. Appl. Catal. B Environ. 2018, 228, 54–63. [Google Scholar] [CrossRef]
  36. Xu, Y.; Zhang, X.W.; Zhang, Y.; Zhu, J.Y.; Zhu, R.L. Nano flake Ag3PO4 enhanced photocatalytic activity of bisphenol A under visible light irradiation. Colloid Interface Sci. Commun. 2020, 37, 100277–100284. [Google Scholar] [CrossRef]
  37. Liu, C.; Xu, Q.X.; Zhang, Q.F.; Zhu, Y.S.; Ji, M.W.; Tong, Z.W.; Hou, W.H.; Zhang, Y.; Xu, J.G. Layered BiOBr/Ti3C2 MXene composite with improved visible-light photocatalytic activity. J. Mater. Sci. 2018, 54, 2458–2471. [Google Scholar] [CrossRef]
  38. Liu, C.; Feng, Y.; Han, Z.T.; Sun, Y.; Wang, X.Q.; Zhang, Q.F.; Zou, Z.G. Z-scheme N-doped K4Nb6O17/g-C3N4 heterojunction with superior visible-light-driven photocatalytic activity for organic pollutant removal and hydrogen production. Chin. J. Catal. 2020, 42, 164–174. [Google Scholar] [CrossRef]
  39. Liu, C.; Han, Z.T.; Feng, Y.; Dai, H.L.; Zhao, Y.F.; Han, N.; Zhang, Q.F.; Zou, Z.G. Ultrathin Z-scheme 2D/2D N-doped HTiNbO5 nanosheets/g-C3N4 porous composites for efficient photocatalytic degradation and H2 generation under visible light. J. Colloid Interface Sci. 2020, 583, 58–70. [Google Scholar] [CrossRef]
  40. Liu, C.; Wu, Q.S.; Ji, M.W.; Zhu, H.J.; Hou, H.J.; Yang, Q.H.; Jiang, C.F.; Wang, J.J.; Tian, L.; Chen, J.; et al. Constructing Z-scheme charge separation in 2D layered porous BiOBr/graphitic C3N4 nanosheets nanojunction with enhanced photocatalytic activity. J. Alloys Compd. 2017, 723, 1121–1131. [Google Scholar] [CrossRef]
  41. Ji, M.X.; Di, J.; Liu, Y.L.; Chen, R.; Li, K.; Chen, Z.G.; Xia, J.X.; Li, H.M. Confined active species and effective charge separation in Bi4O5I2 ultrathin hollow nanotube with increased photocatalytic activity. Appl. Catal. B Environ. 2020, 268, 118403–118413. [Google Scholar] [CrossRef]

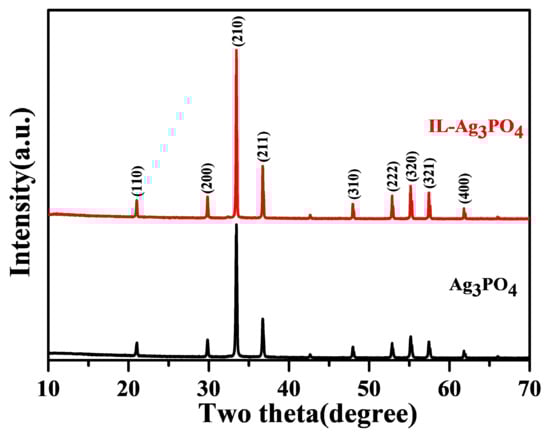

Figure 1. XRD patterns of Ag3PO4 and IL-Ag3PO4 photocatalysts.
Figure 1. XRD patterns of Ag3PO4 and IL-Ag3PO4 photocatalysts.
Catalysts 11 00788 g001
Figure 2. SEM images of (a,b) Ag3PO4 and (c,d) IL-Ag3PO4.
Figure 2. SEM images of (a,b) Ag3PO4 and (c,d) IL-Ag3PO4.
Catalysts 11 00788 g002

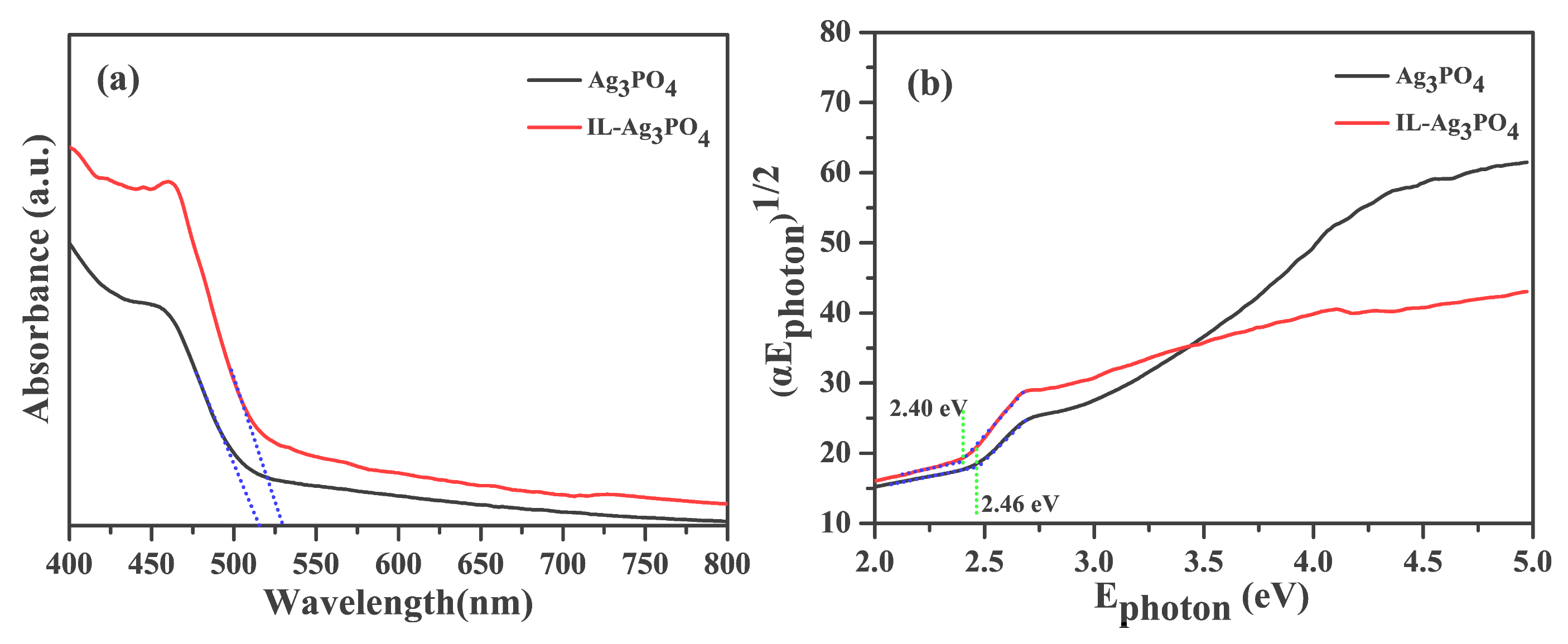

Figure 3. (a) UV-visible diffuse reflectance spectra (UV-vis DRS), and (b) the corresponding (ahv)1/2 vs. hv plots of Ag3PO4 and IL-Ag3PO4.
Figure 3. (a) UV-visible diffuse reflectance spectra (UV-vis DRS), and (b) the corresponding (ahv)1/2 vs. hv plots of Ag3PO4 and IL-Ag3PO4.
Catalysts 11 00788 g003

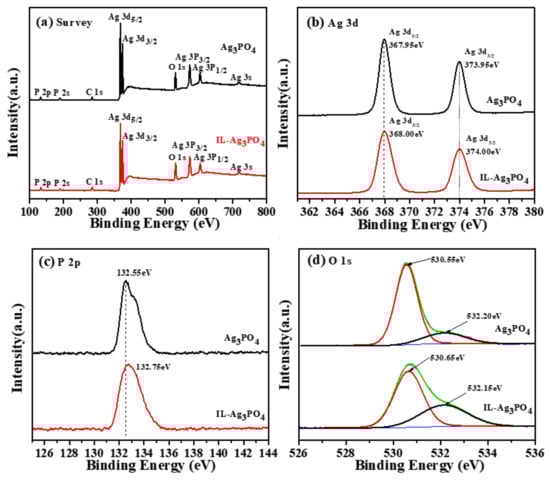

Figure 4. High resolution XPS spectra of (a) survey, (b) Ag 3d, (c) P 2p, and (d) O 1s.
Figure 4. High resolution XPS spectra of (a) survey, (b) Ag 3d, (c) P 2p, and (d) O 1s.
Catalysts 11 00788 g004

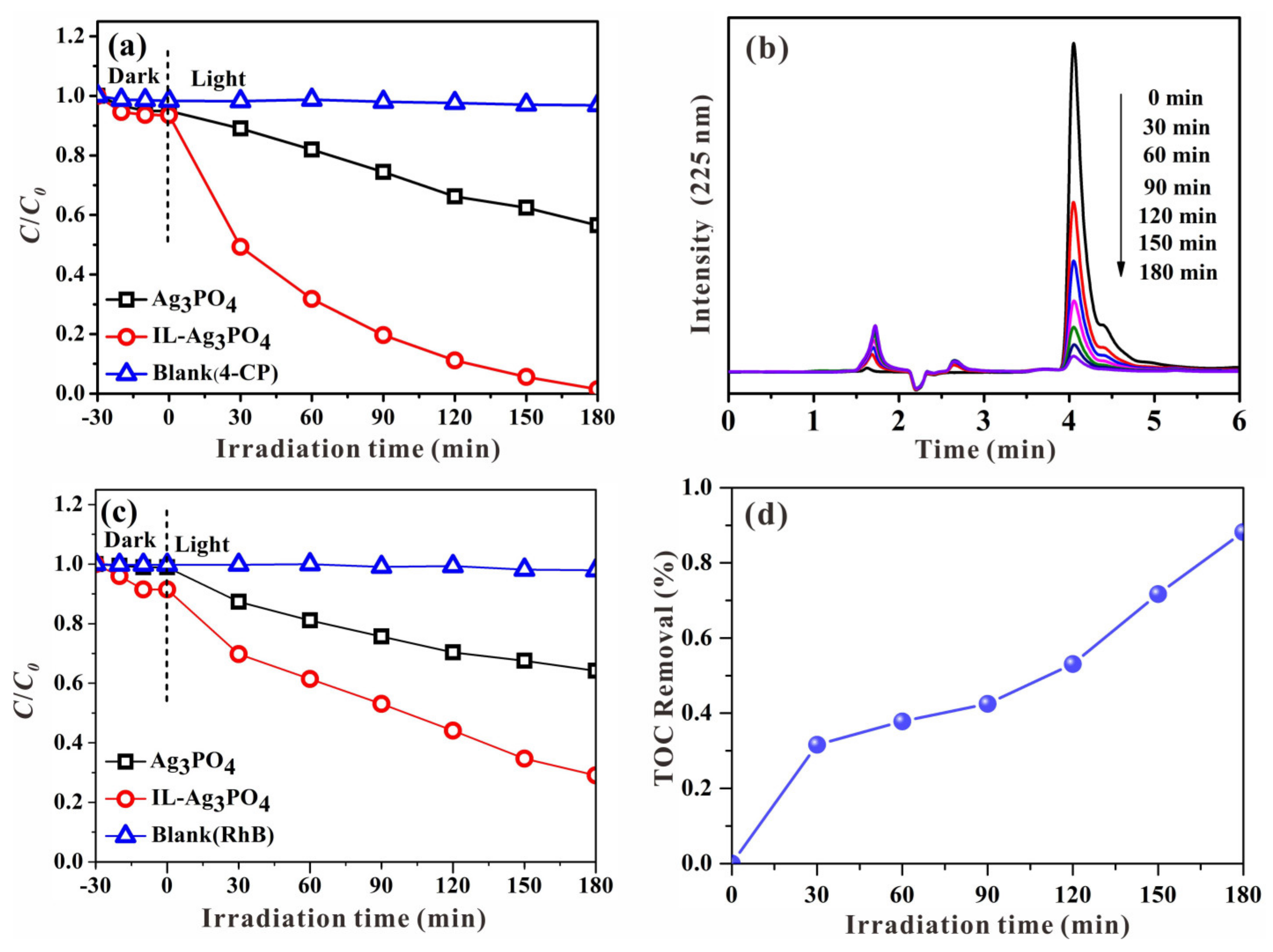

Figure 5. Photocatalytic degradation rate of (a) 4-CP and (c) rhodamine B (RhB) over different samples under visible light irradiation; (b) HPLC spectra and (d) TOC removal (relative to C0) for photodegradation of 4-CP over IL-Ag3PO4 under visible light.
Figure 5. Photocatalytic degradation rate of (a) 4-CP and (c) rhodamine B (RhB) over different samples under visible light irradiation; (b) HPLC spectra and (d) TOC removal (relative to C0) for photodegradation of 4-CP over IL-Ag3PO4 under visible light.
Catalysts 11 00788 g005

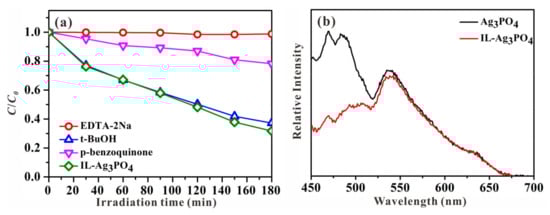

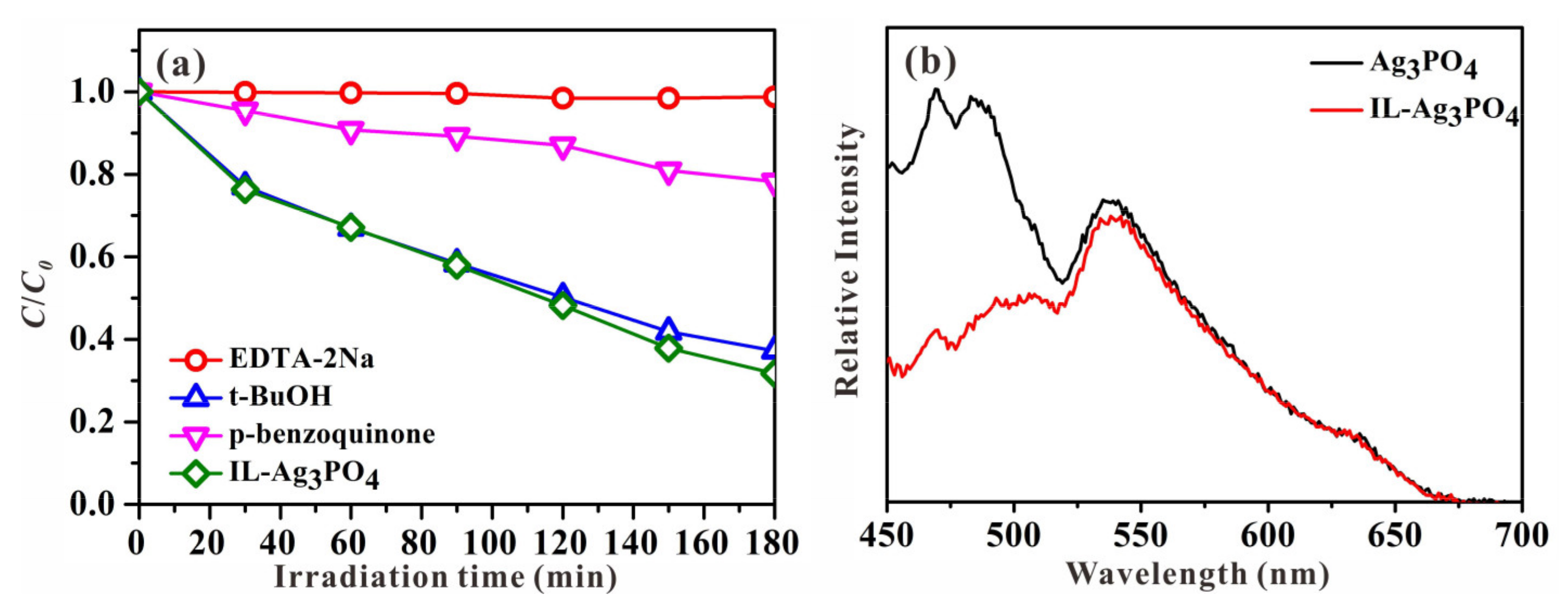

Figure 6. (a) Photocatalytic activities of the IL-Ag3PO4 for the degradation of RhB in the presence of different scavengers; (b) photoluminescence (PL) spectra of Ag3PO4 and IL-Ag3PO4.
Figure 6. (a) Photocatalytic activities of the IL-Ag3PO4 for the degradation of RhB in the presence of different scavengers; (b) photoluminescence (PL) spectra of Ag3PO4 and IL-Ag3PO4.
Catalysts 11 00788 g006

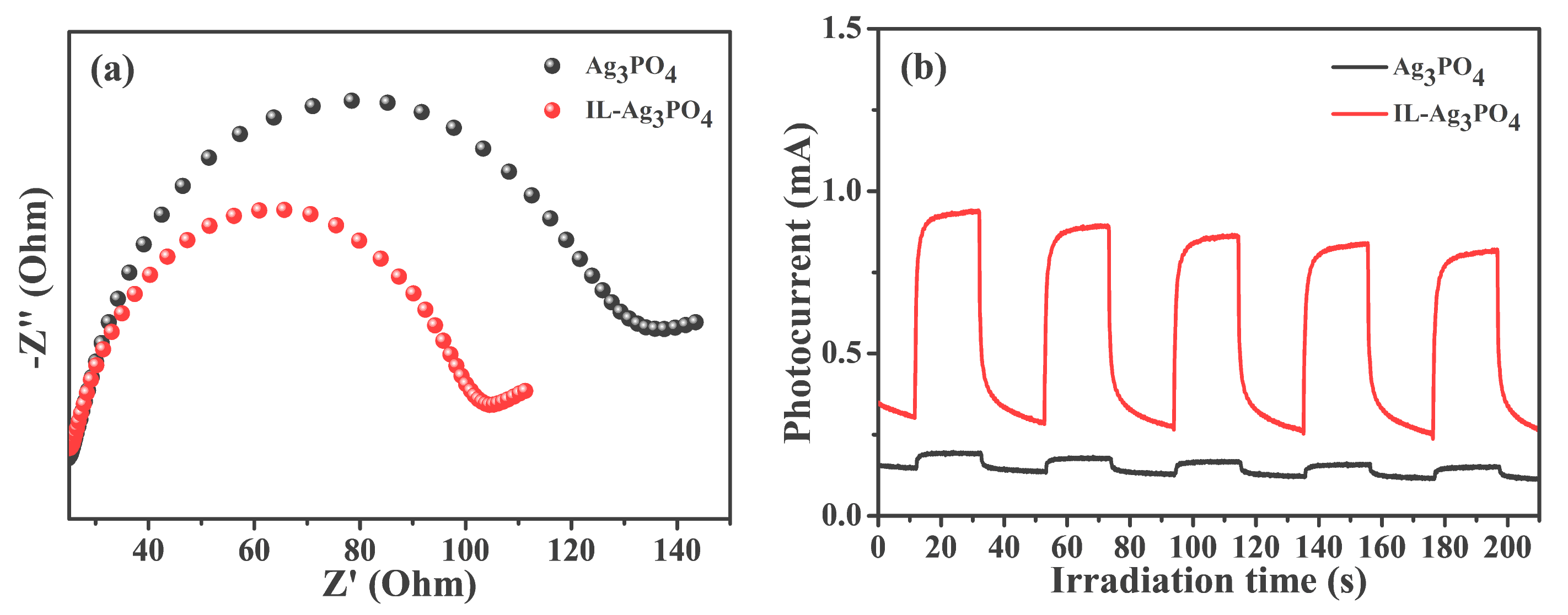

Figure 7. (a) Electrochemical impedance spectra and (b) transient photocurrent response of Ag3PO4 and IL-Ag3PO4.
Figure 7. (a) Electrochemical impedance spectra and (b) transient photocurrent response of Ag3PO4 and IL-Ag3PO4.
Catalysts 11 00788 g007

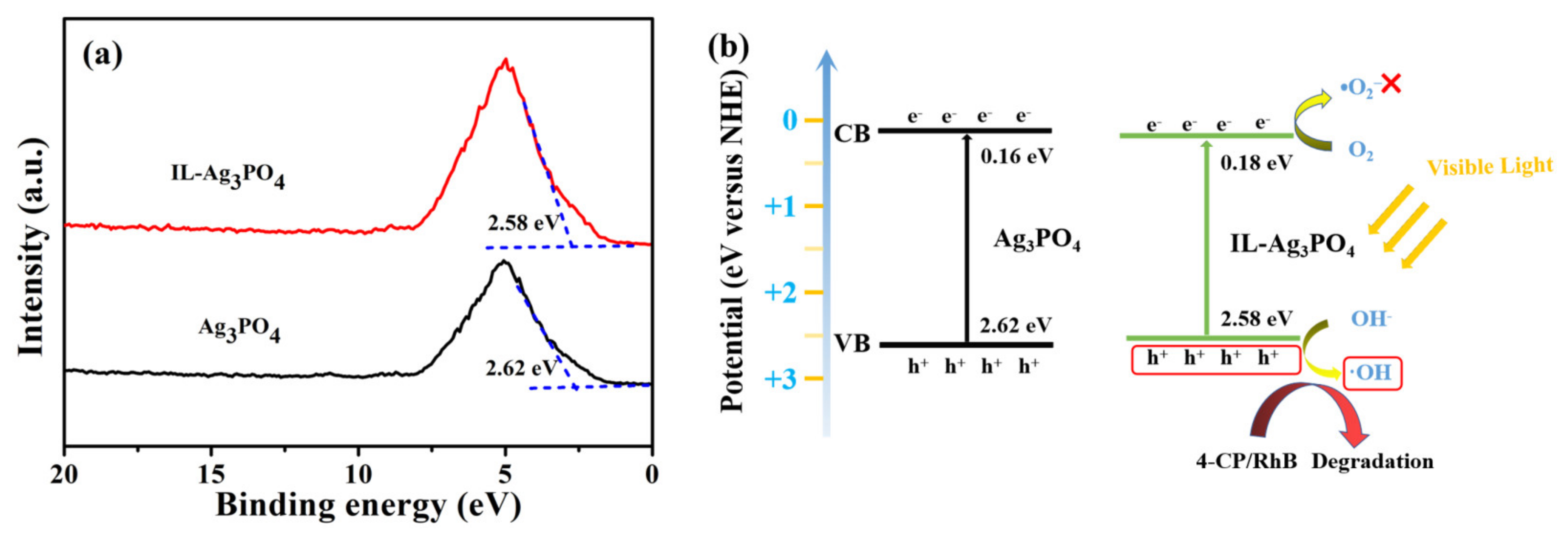

Figure 8. (a) XPS-valence spectra of Ag3PO4 and IL-Ag3PO4; (b) Schematic illustration of possible photocatalytic mechanism over IL-Ag3PO4 under visible light.
Figure 8. (a) XPS-valence spectra of Ag3PO4 and IL-Ag3PO4; (b) Schematic illustration of possible photocatalytic mechanism over IL-Ag3PO4 under visible light.
Catalysts 11 00788 g008
