Review

Towards Dual-Metal Catalyzed Hydroalkoxylation of Alkynes

by
Oscar F. González-Belman
1,2,
Artur Brotons-Rufes
1,
Michele Tomasini
1,3,
Laura Falivene
3,
Lucia Caporaso
3,
Jose Oscar C. Jiménez-Halla
2 and
Albert Poater
1,*
1
Institut de Química Computacional i Catàlisi, Departament de Química, Universitat de Girona, c/Ma Aurèlia Capmany 69, 17003 Girona, Catalonia, Spain
2
Departamento de Química, Universidad de Guanajuato, Noria Alta S/N, Guanajuato 36050, Mexico
3
Department of Chemistry, University of Salerno, Via Ponte Don Melillo, 84084 Fisciano, Italy
*
Author to whom correspondence should be addressed.
Catalysts 2021, 11(6), 704; https://doi.org/10.3390/catal11060704
Submission received: 11 May 2021 / Revised: 28 May 2021 / Accepted: 29 May 2021 / Published: 2 June 2021
Browse Figures
Versions Notes

Abstract

:
Poly (vinyl ethers) are compounds with great value in the coating industry due to exhibiting properties such as high viscosity, soft adhesiveness, resistance to saponification and solubility in water and organic solvents. However, the main challenge in this field is the synthesis of vinyl ether monomers that can be synthetized by methodologies such as vinyl transfer, reduction of vinyl phosphate ether, isomerization, hydrogenation of acetylenic ethers, elimination, addition of alcohols to alkyne species etc. Nevertheless, the most successful strategy to access to vinyl ether derivatives is the addition of alcohols to alkynes catalyzed by transition metals such as molybdenum, tungsten, ruthenium, palladium, platinum, gold, silver, iridium and rhodium, where gold-NHC catalysts have shown the best results in vinyl ether synthesis. Recently, the hydrophenoxylation reaction was found to proceed through a digold-assisted process where the species that determine the rate of the reaction are PhO-[Au(IPr)] and alkyne-[Au(IPr)]. Later, the improvement of the hydrophenoxylation reaction by using a mixed combination of Cu-NHC and Au-NHC catalysts was also reported. DFT studies confirmed a cost-effective method for the hydrophenoxylation reaction and located the rate-determining step, which turned out to be quite sensitive to the sterical hindrance due to the NHC ligands.

Graphical Abstract

1. Introduction

Over time, alchemists and chemists have directed their efforts to control chemical processes through “species capable of accelerating the rate of reaction.” However, since the 18th century, they have made significant advances in the catalysis field. Some contributions, such as sulfuric acid production, the conversion of starch to sugar proposed by Kirchoff, the first safety lamp for coal miners and the catalyst definition by Berzelius, marked the beginning of this field [1]. Sometime after, in the early 19th century, Paul Sabatier reported the hydrogenation of unsaturated organic compounds catalyzed by nickel [2], which marked the birth of modern catalysis. At the same time, the oil industry began to exploit the goodness of catalysis in processes such as the catalytic cracking by the pioneer Eugene Houndry in 1922 [3] and hydrocracking [4]. The evolution of the petrochemical industry during the first half of the 19th century led to the birth of the polymer field.
The new business of the chemical industry had been born with the catalytic synthesis of building blocks of polymers such as acrylonitrile [5] and vinyl chloride monomer [6]. Moreover, since the 1920s, the Du Pont company has positioned itself at the top of the polymer market with its polymeric films and synthetic fibers such as cellophane, rayon, nylon and polyester [7]. Due to properties such as high viscosity, soft adhesiveness, resistance to saponification and solubility in water and organic solvents, poly(vinyl ethers) have been the focus of the polymer industry [8].

2. Synthesis of Vinyl Ethers

2.1. Alcohols to Get Vinyl Ethers

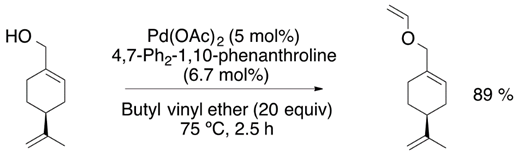

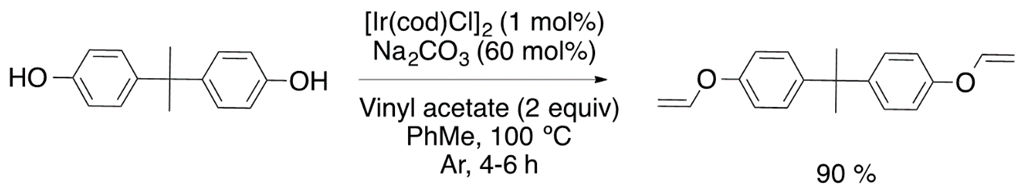

Chemists around the world have focused their efforts to improve the synthetic strategies for obtaining vinyl ether monomers. Nevertheless, vinyl ethers can be synthesized by vinyl trans-etherification catalyzed by compounds such as [Ir(cod)Cl]2 (Equation (1)) [9], Pd(OAc)2 (Equation (2)) [10] and AuClPPh3 (Equation (3)) [11], where gold catalysis has shown the best effectivity for the vinylation of carboxylic acids.
Catalysts 11 00704 i001
Catalysts 11 00704 i002

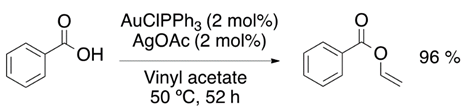

Catalysts 11 00704 i003

2.2. Reduction of Vinyl Phosphate Ether

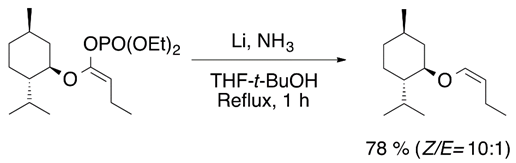

Other precursors of vinyl ethers are vinyl phosphate ethers. However, to obtain the desired vinyl compound, the phosphate group can be removed by dissolving it with a metal solution. A clear example for the reductive cleavage of the C-P bond is the Birch methodology for the synthesis of chiral vinyl ethers (Equation (4)) [12].
Catalysts 11 00704 i004

2.3. Isomerization of Allyl Ethers to Vinyl Ethers

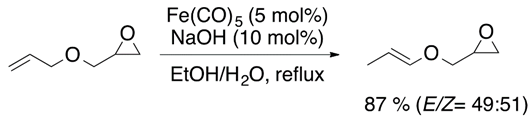

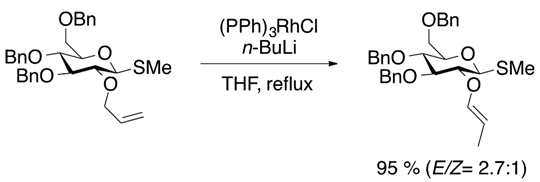

Allyl ethers tend to isomerize to vinyl ethers in the presence of a strong base, such as potassium tert-butoxide [13]. However, transition metal species can achieve the isomerization of allyl ether substrates. Catalysts such as (PPh)3RhCl (Equation (5)) [14] and Fe(CO)5 (Equation (6)) have shown good catalytic activity [15].
Catalysts 11 00704 i005
Catalysts 11 00704 i006

2.4. Hydrogenation of Acetylenic Ethers

Hydrogen addition to π-bonds in acetylenic ethers is another synthetic strategy to obtain vinyl ethers. Some transition metals, such as palladium, can achieve the hydrogenation of the unsaturated carbons (Equation (7)) [16].

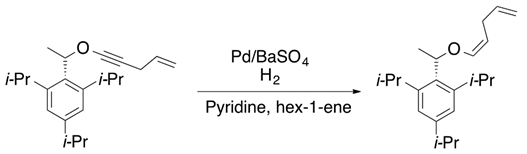

Catalysts 11 00704 i007

2.5. Elimination

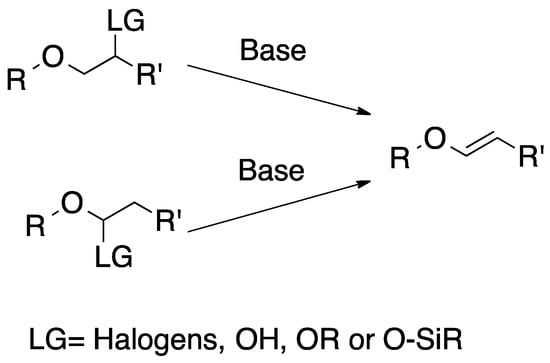

Ethers containing α or β leaving groups, such as halogens [17], hydroxyl [18], alkoxide [19] and silyl oxide [20], can undergo the elimination reaction in the presence of a strong base (Scheme 1).

2.6. Olefination of Carbonyl Compounds

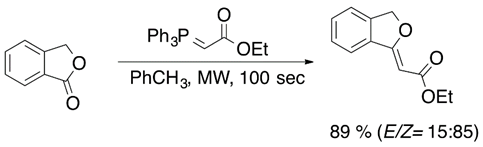

Another way to access vinyl ether is through carbonyl compounds. In these compounds, the carbon-oxygen double bond, i.e., a carbonyl group, can be shifted into a carbon-carbon double bond by the Wittig reaction [21] or Julia olefination [22]. Carbonyl compounds, such as lactones (Equation (8)) [23] and ketones (Equation (9)) [24], can be converted into vinyl ethers in the presence of phosphoranes.
Catalysts 11 00704 i008

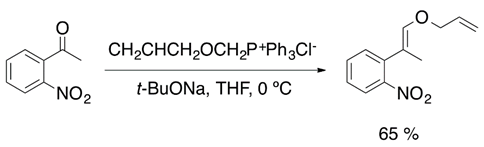

Catalysts 11 00704 i009

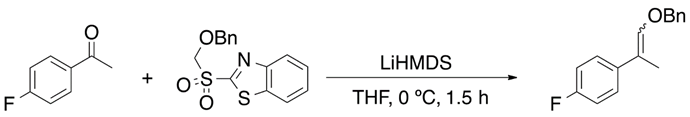

Julia olefination and its variants have become a versatile synthetic tool for the synthesis of vinyl ethers. However, Berthelette has reported an efficient olefination process for aldehydes and ketones by using alkoxysulfone anions (Equation (10)) [25].
Catalysts 11 00704 i010

2.7. Addition of Alcohols

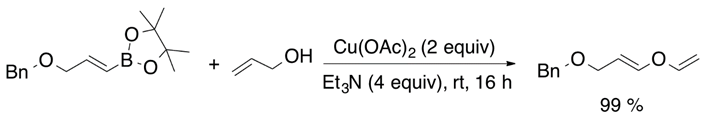

The synthesis of vinyl ethers can be achieved by a metal-mediated addition of alcohols to alkyne species [26]. McDonald et al. reported the most efficient tungsten-assisted cyclization of alkynols to obtain cyclic vinyl ethers [27]. Nevertheless, 1,3-dicarbonyl compounds tend to suffer keto-enol tautomerization process, and enol species can be O-alkylated under acidic conditions to generate the desired vinyl ether product [28]. On the other hand, a metal-catalyzed carbon-oxygen coupling is an alternative way to synthesize alkoxylated alkene species. The most significant results were obtained with copper(I) (Equation (11)) and copper (II) catalysts (Equation (12)) [29,30].

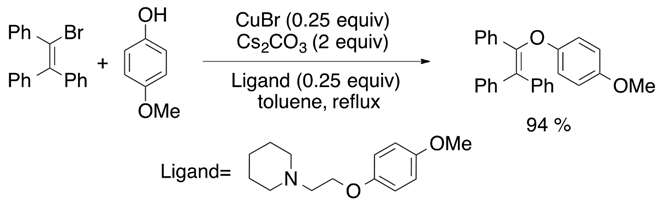

Catalysts 11 00704 i011
Catalysts 11 00704 i012

2.8. Hydroalkoxylation

Hydroalkoxylation of alkynes is a synthetic tool by which vinyl ethers can be synthesized (Equation (13)). These are of great importance in the chemical industry due to their applications as building blocks of polymers that are used in the production of adhesives, paints, plasticizers, thickeners and inks [8]. Normally, this reaction should be catalyzed using molybdenum, tungsten, ruthenium or palladium. On the other hand, platinum, gold, silver, iridium and rhodium-based catalysts have also been able to catalyze the alkoxylation reaction [31].
Catalysts 11 00704 i013
Gold catalysts bearing N-heterocyclic carbene (NHC) ligands are currently being studied due to their high catalytic activity in the alkyne hydroalkoxylation field [32]. However, gold catalysts containing NHC ligands in the presence of alkyne compounds can form π-complexes with an electrophilic character [33] and are capable to carry out a nucleophilic attack by nucleophiles such as alcohols or amines to obtain vinyl amines or ethers [34]. In addition, current reports have revealed that the steric demand from NHC ligands and the solvent effect play a significant role in gold-mediated catalysis. Nolan et al. have reported the lower efficiency of large NHC-gold complexes in the intramolecular hydroalkoxylation of propargylic alcohols [35]. On the other hand, the counterion has been described as an important species in catalysis. In fact, the counterion may help to achieve the nucleophilic attack (Figure 1) due to its coordinating ability, basicity and its morphology [36]. Species with lower basicity, greater coordinating capacity and spherical form tend to decrease the catalytic activity [37,38]. The most successful counterions that can efficiently achieve nucleophilic activation are NTf2−, OTf−, OTs− and OMs− [39].
With the help of known information on the hydroalkoxylation reaction, numerous research groups have focused their efforts on the intermolecular hydrophenoxylation of internal alkynes as this transformation turns out to be entropically unfavorable. Efforts to make it work have led to great advances in this field. Kuram et al. have reported the hydrophenoxylation of symmetrical and unsymmetrical alkynes assisted by a gold catalyst in the presence of a mild or strong base (Table 1) [40].
The use of gold catalysts containing sterically rich ligands has become a good methodology to achieve the addition of alcohols to unsaturated bonds. However, the steric hindrance of these ligands can affect the rate determining step (rds) [35]. Nonetheless, the rate of the reaction can be improved by the counterion [36] or polar and protic species [41]. In 2010, Ujaque and coworkers reported the mechanism for the addition of phenols to alkene compounds catalyzed by phosphine-gold catalysts [41]. In their computational mechanistic studies, they proposed a process assisted by phenol and water.

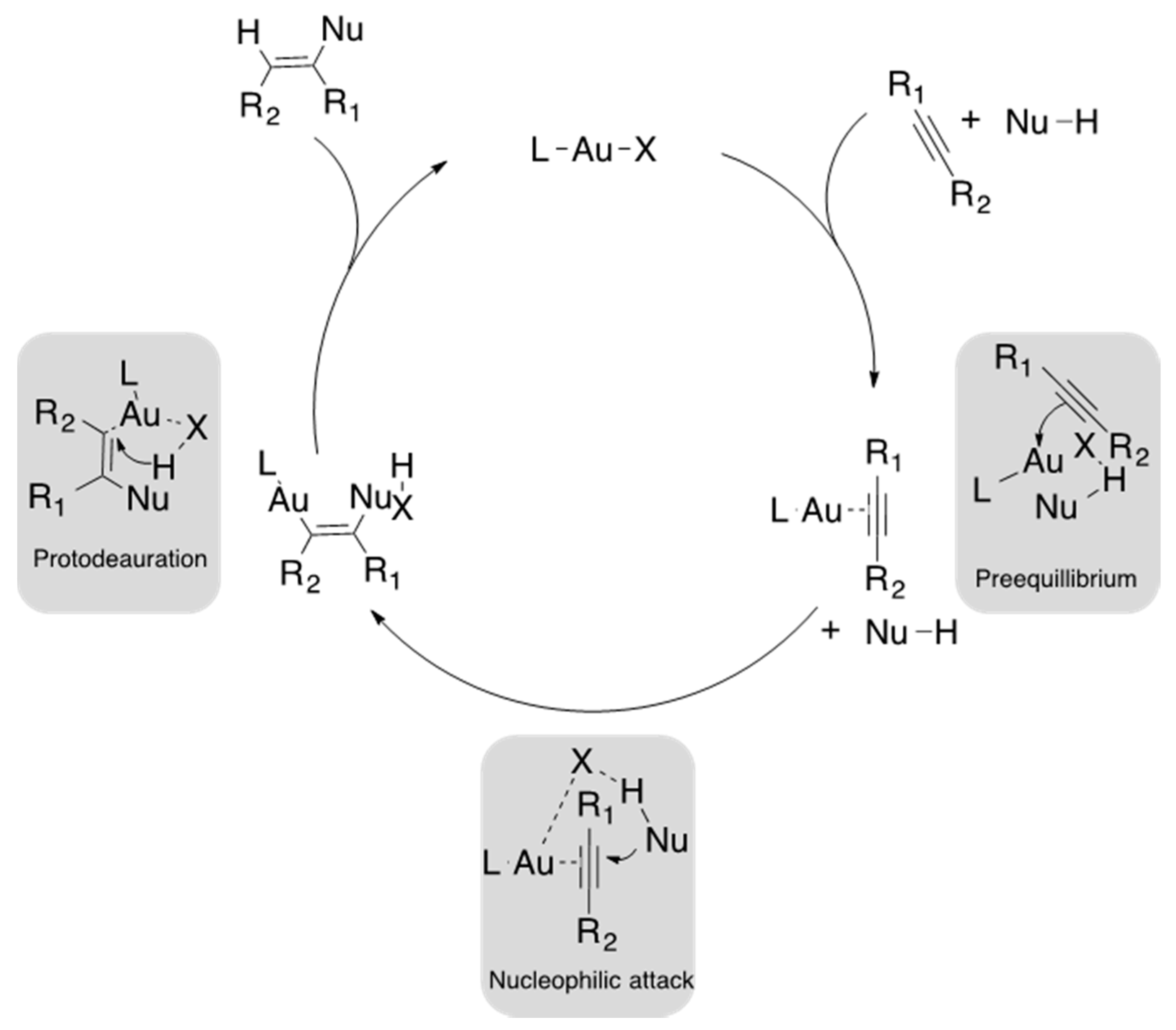

Mechanistically, they proposed the formation of the π-complex followed by the concerted addition and proton transfer. However, they investigated four possible cases for the rds; (1) direct proton transfer, (2) proton transfer assisted by the counterion (less coordinating ones improve the catalytic performance), (3) proton transfer assisted by phenol and (4) proton transfer assisted by water. They found that the pathway promoted by phenol and water goes through a concerted process. On the other hand, unassisted and anion-assisted processes are unfeasible due to their higher energy barriers (61.1 and 49.6 kcal/mol, respectively) [41].

2.8.1. Dual Catalysis: An Efficient and Versatile Synthetic Tool

Dual catalysis has been expanding the catalysis field since the last century. Due to this catalytic strategy, it has been used in processes such as hydroaminomethylation of olefins to obtain amines. However, this reaction was achieved with synthesis gas and ammonia in presence of Rh/Ir catalyst under formylation conditions in organic/aqueous phases. In addition, exploring the solvent effect, MTBE was found to be the best organic solvent to obtain selectively primary amines (Scheme 2) [42]. Another catalytic strategy that involves syngas usage is the generation of green fuels such as methanol through the assistance of Cu/ZnO and 2-propanol under low temperature conditions [43].
In the synergistic dual transition metal catalysis [44,45], water oxidation catalysis (WOC) was one of the first cases where two metal-oxo units were required to form the O-O bond at the rate determining step (rds) of the I2M mechanism [46,47,48]. However, competition with water nucleophilic attack (WNA) with the interaction of a metal-oxo unit with an H2O molecule to form the O-O bond has never ceased [49], with the potential role of the non-innocent role of the cerium ammonium nitrate (CAN) [50]. Currently, there is controversy not only related to the kinetic requirements, but to the difficulty of colliding two metal units in low catalyst loading conditions. The latter is a problem in the formation of alkanes [51], where two palladium atoms are needed in phosphinesulfonato polymerization catalysis.

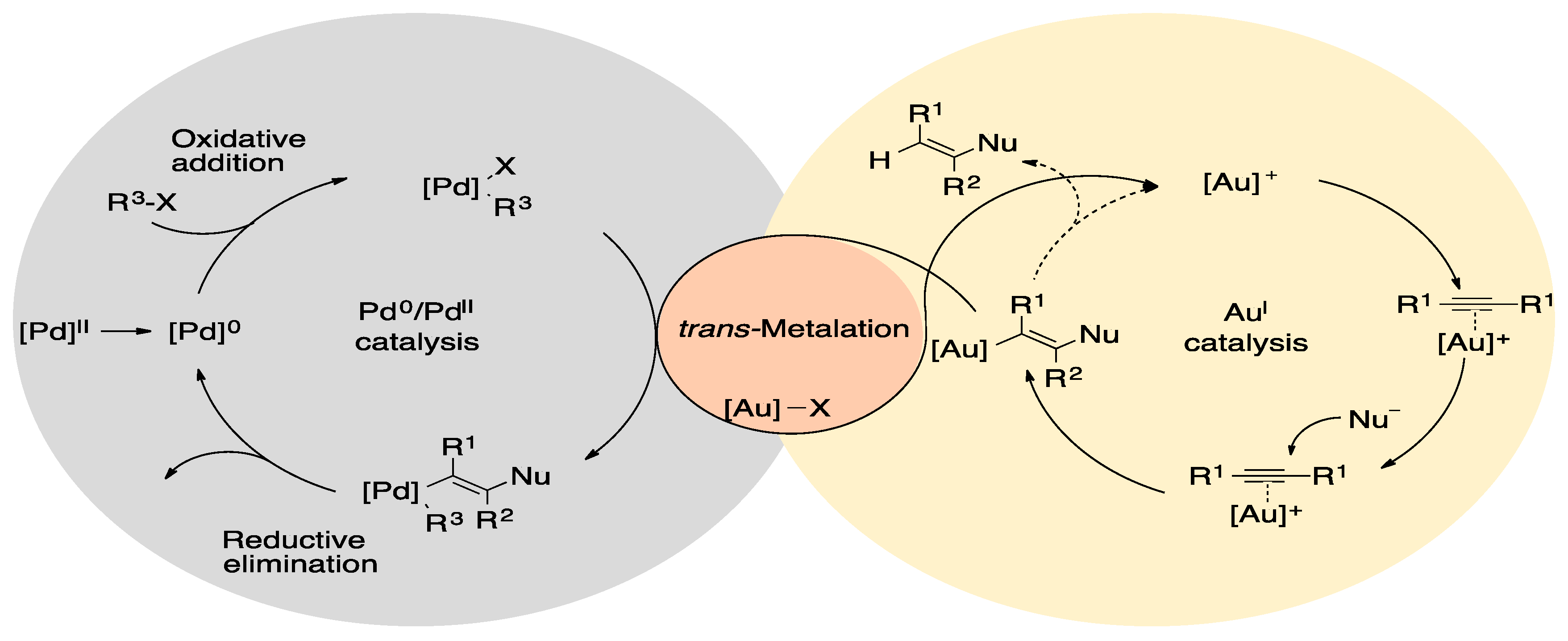

Another process influenced by dual catalysis has been C-C cross-coupling. In 2010, Bera et al. published the Suzuki and Heck cross-coupling catalyzed by a dipalladium(I) catalyst [52]. Two years later, Schoenebeck and coworkers reported the catalytic activity of dipalladium(I) complexes bridged by halide ligands. Nevertheless, in their report, the C-C cross-coupling catalyzed by palladium(I) dimer was described as a homodual-assisted process [53,54]. However, C-C cross-coupling can even be achieved by using heterodual metal catalysis. A clear example of this process is the cross-coupling assisted by [Pd(dmpe) or (PMe3)2] and vinyl-gold species (Figure 2) [55].

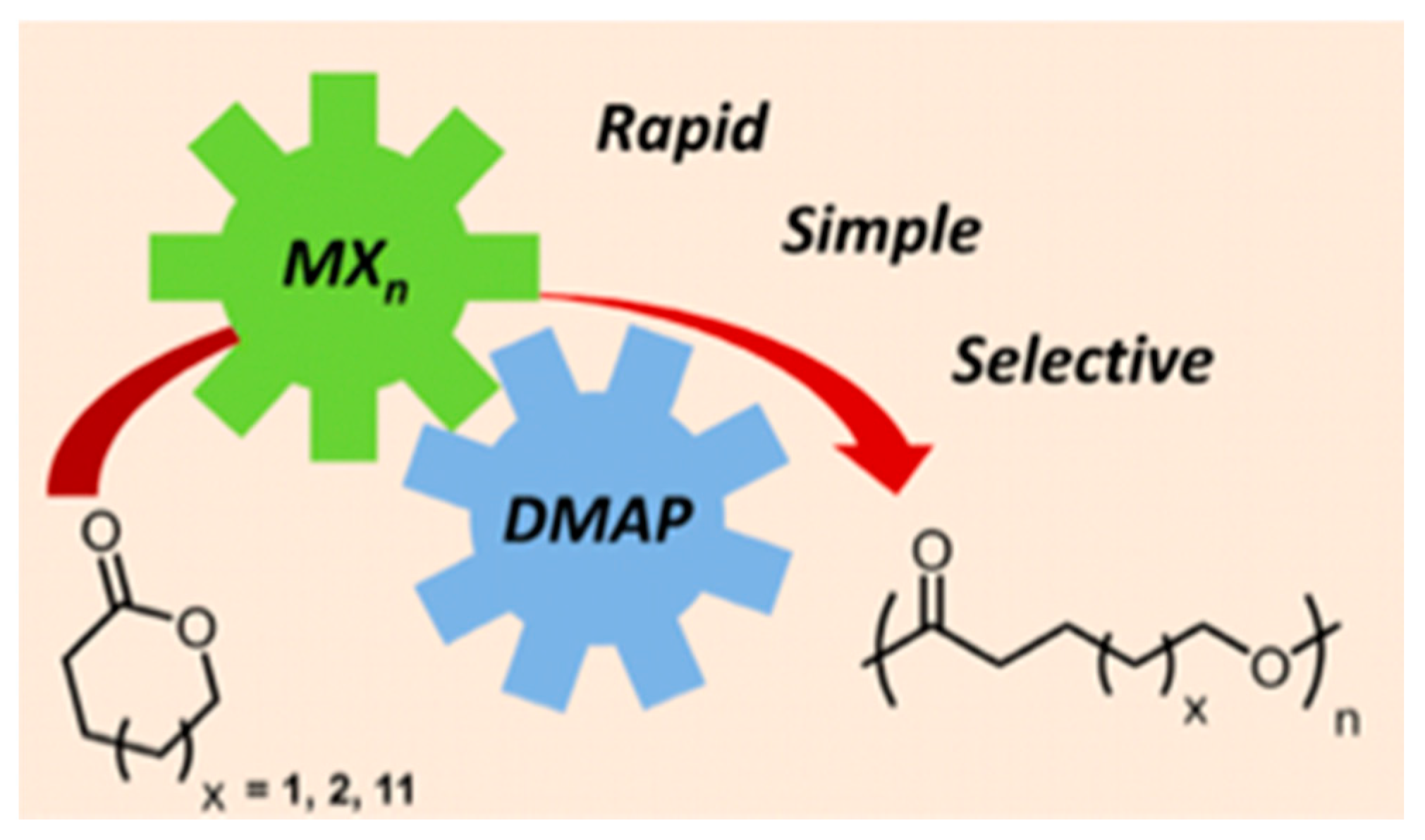

Regarding polymers, dual catalytic systems have provided interesting results. One of the published reports that has been highlighted is the ring-opening polymerization of ω-pentadecatlone catalyzed by DMAP Brønsted base and magnesium halides (Figure 3) [56]. Another achievement in the field has been the polymerization of methacrylate catalyzed by [Et3SiH]/[Et3Si(L)]+[B(C6F5)4]− couple, which was described as a good methodology to produce linear polymethacrylates [57].

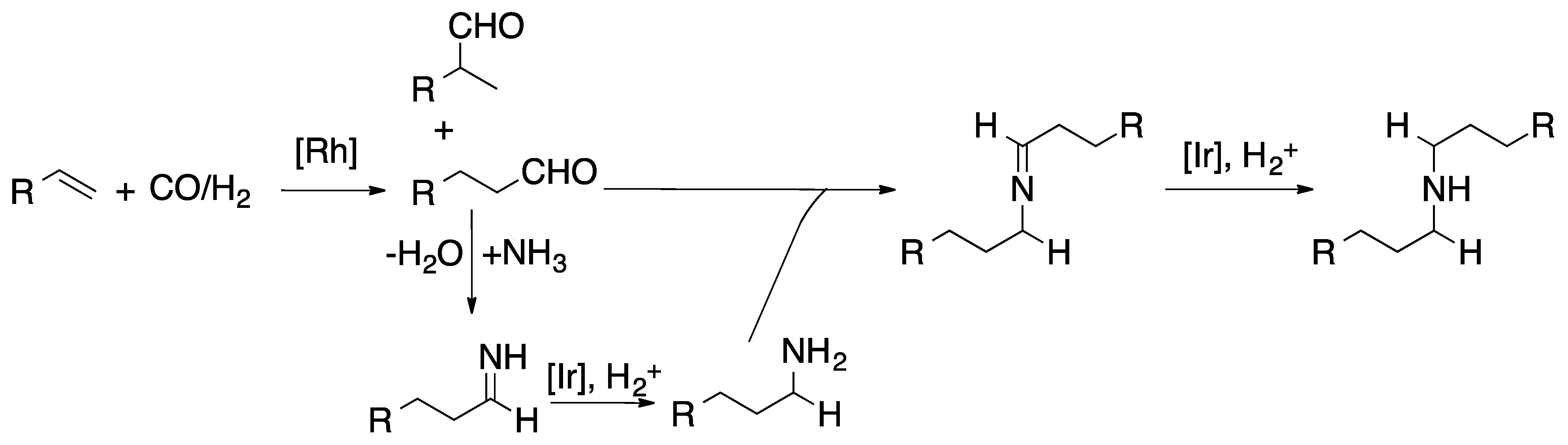

Some fields in chemistry have been positively impacted by the dual-assisted processes, such as asymmetric synthesis. In 2004, Jacobsen et al. achieved the addition of hydrogen cyanide to unsaturated imides assisted by aluminum and lanthanide chiral complexes. In this study, the enantioselectivity was improved by the lanthanide species [58]. Three years after, the field of dual-assisted catalysis was amplified with the enantioselective alkynylation of α-amino esters catalyzed by a chiral Brønsted acid and a silver acetate [59]. More interesting studies were then added to this field, such as the enantioselective [2+2] photocycloaddition between two unsaturated ketones. The cycloaddition reaction was promoted with visible light in the presence of ruthenium catalyst and a chiral Lewis acid (Figure 4) [60].
As we have seen, Brønsted acids, together with Lewis acids, are able to catalyze enantioselective reactions, but Lewis acids in combination with a Schiff base have carried out a wide variety of homodual- and heterodual-assisted processes, providing a wide range of asymmetric transformations. For instance, asymmetric reactions, such as an amination, Mannich and aziridine opening, were achieved using bimetallic complexes bearing Schiff bases obtaining products with a higher percentage of enantiomeric excess (Figure 5) [61].

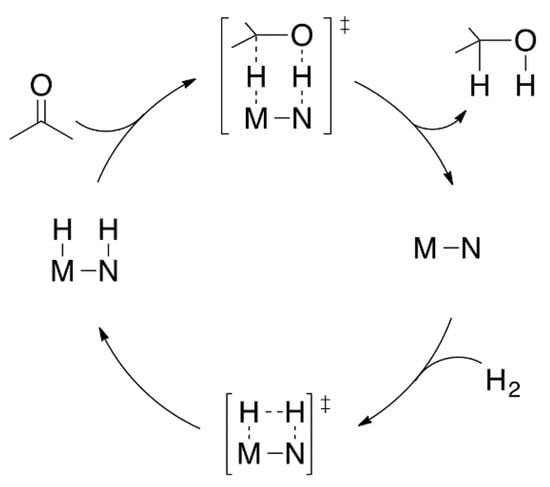

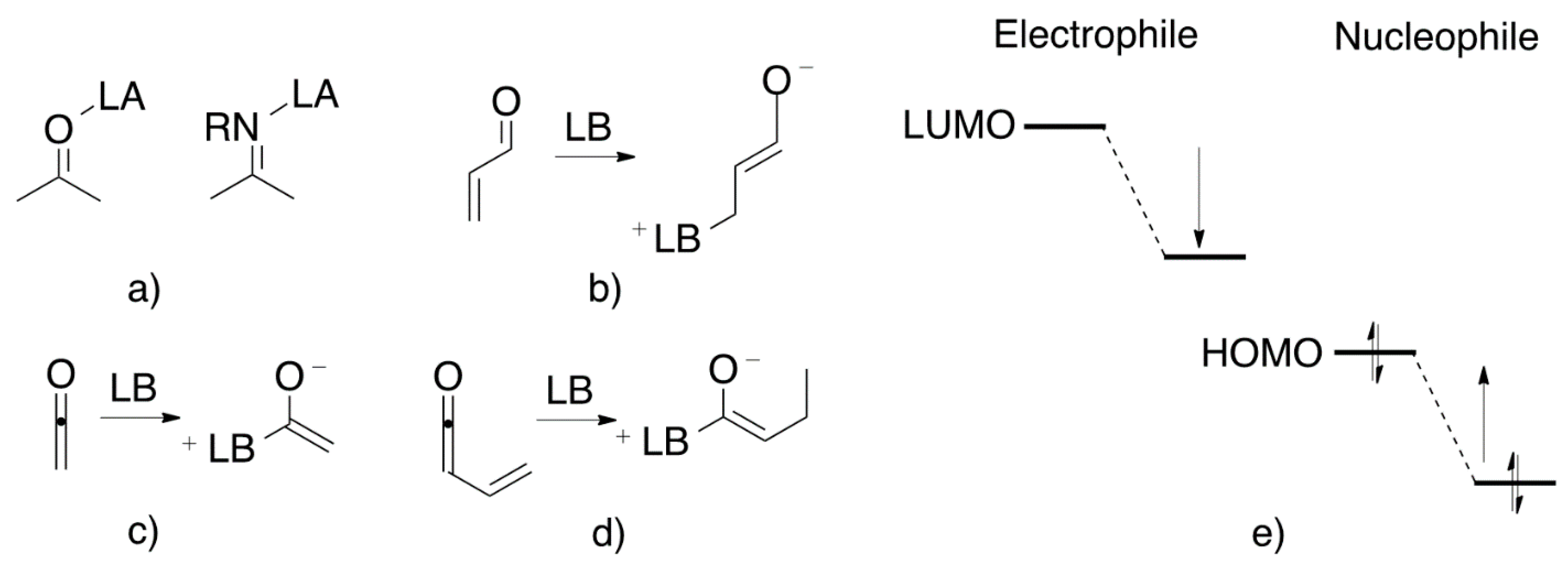

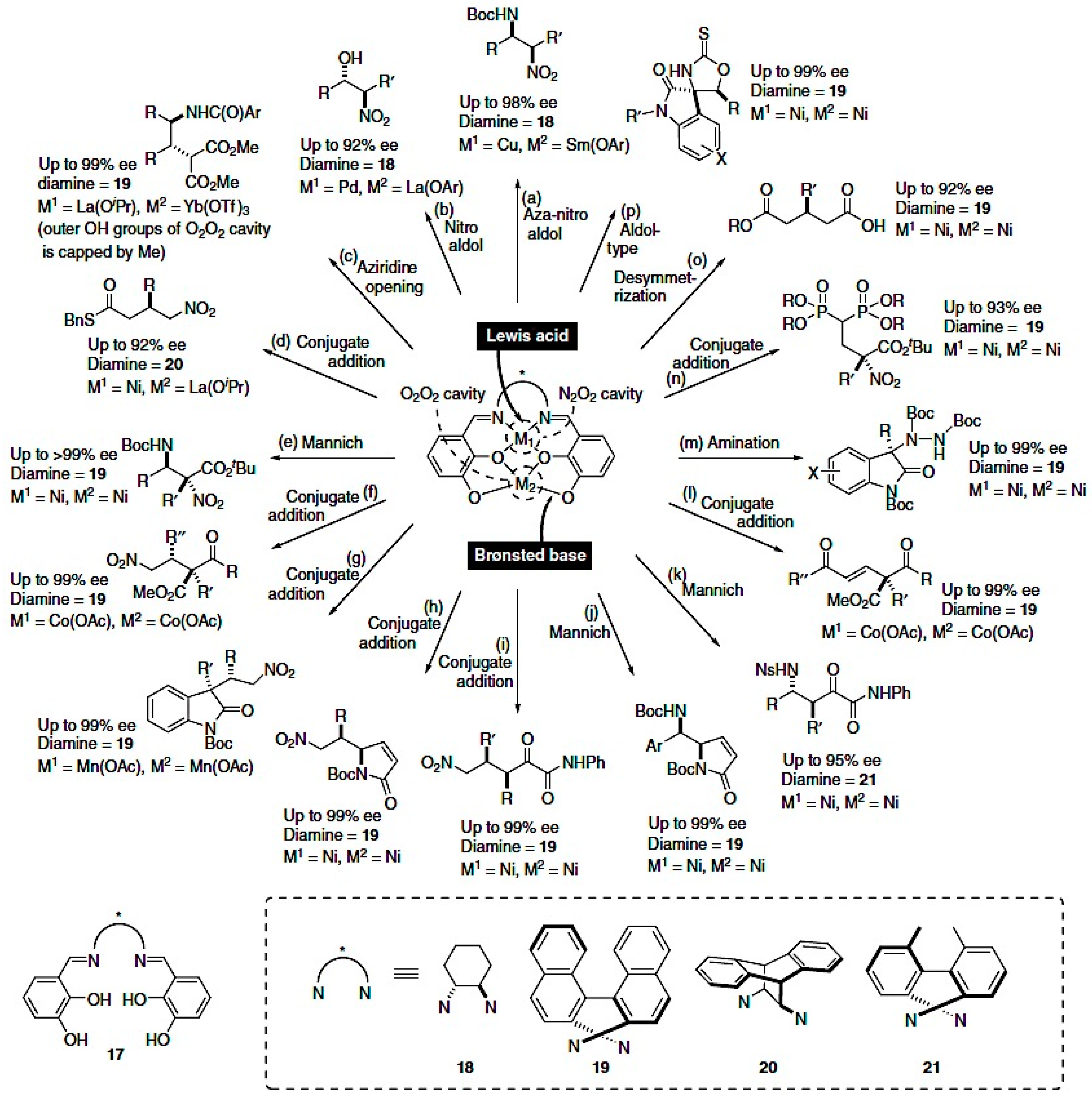

Catalysis involving a Lewis acid-Lewis base couple has promoted a wide variety of processes due to its characteristic interaction with the substrate by which it is activated (Figure 6). Some examples are the enantioselective reduction of ketones catalyzed by borane/oxazaborolidines [62], alkylation of aldehydes [63] and ketones [64] assisted by a Zn-salen catalyst, enantioselective allylation of aldehydes directed by a silver-(R)-BINAP complex [65] and even the diastereoselective condensation reaction, such as aldol [66] and Mannich [67].
Cooperative catalysis has been applied to carry out processes such as asymmetric hydrogenation of ketones, where the ligand and the metal assist the reaction synergistically. The most known reported catalysts are Ru-(phosphine)2-amine [68] and Fe-amine(imine)diphosphine [69,70]. This type of catalyst can achieve the hydrogen transfer through a dual-assisted metal-nitrogen process (Figure 7).
On the other hand, dual cooperative catalysis has been exploited in the field of biomimetic chemistry. In this field, an enzyme together with a metal carry out a wide variety synergistic processes, such as regeneration of nicotinamide [71], biotransformations; enantioselective hydrolysis of esters [72], acylation [73], asymmetric polymerization [74], epoxidation of fatty acids [75] and conversion of N-acetyl amino acrylates to amino acids [76]. Already related to the catalysis of Au(I), the central subject of this article, the dual metal solution to mechanisms previously thought with a single metallic unit allowed, for example, to understand the Au(I) catalyzed hydroarylation of alkenes with N, N-dialkylanilines (see the article by Abdellah et al. [77]).

2.8.2. Dual-Assisted Hydroalkoxylation Process

In recent years, dual or cooperative catalysis has been described as a powerful tool that improves the selectivity and reactivity in organic reactions [78,79,80]. In 2008, Toste et al. published the dual-gold-catalyzed cycloisomerization of 1,5-allenynes [81]. In 2010, these results caught the attention of Nolan and coworkers and inspired them to achieve the synthesis of gem-digold [{Au(PPh3)}2(μ-OH)] [BF4] that provided a new overview of gold catalysis (eq 14) [82]. Later, Widenhoefer et al. reported on the σ,π-alkyne activation (Equation (15)) [83]. Di-gold σ,π-acetylide complexes in absence of base were synthesized. Due to their easy access and properties, they are considered as intermediates in digold catalysis involving terminal alkynes.

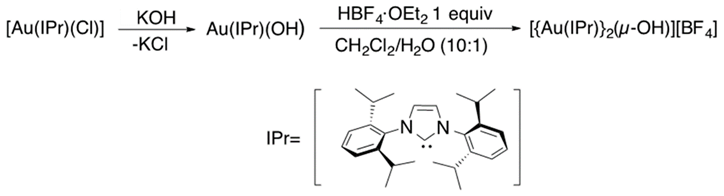

Catalysts 11 00704 i014

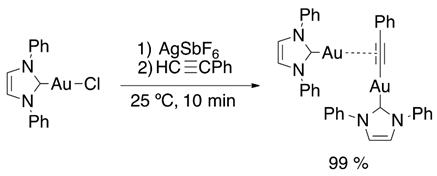

Catalysts 11 00704 i015
Promising progress in dual-gold-assisted catalysis attracted the attention of Roithová and coworkers, who focused their efforts on exploring the hydroalkoxylation mechanism using ESI-MS and DFT calculations. They observed a competitive mono- and di-gold mechanism for hydromethoxylation of 1-phenyl-propyne, due to the success of the methodology. In 2015, they reported on a new computational-experimental strategy to analyze the intermediates in gold catalysis (Figure 8) [84,85,86,87].

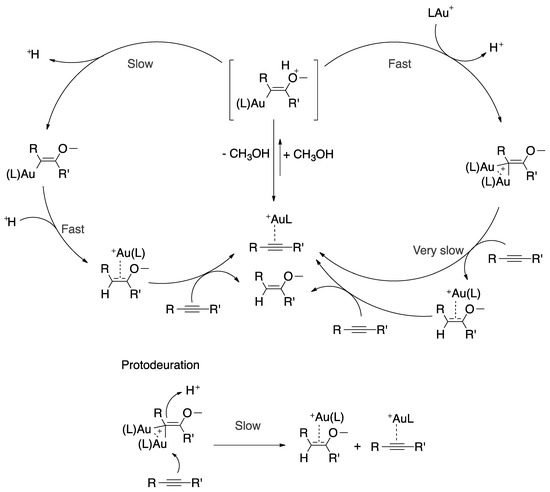

Another interesting computational mechanistic study on dual-gold catalysis was published by Hashmi et al. in 2015 [88]. It discussed the improvement of the rate determining step via mono- or di-gold catalyst transfer from C-[M]2 compounds to nonactivated terminal alkyne species. Focusing on the proton transfer, they found a higher energy barrier for single gold catalyst transfer pathway (46.9 kcal/mol), being favored the dual-assisted process (29.5 kcal/mol).
In 2013, the synthesis of a gem-digold compound by Nolan et al. allowed alkyne hydrophenoxylation (Equation (16)), catalyzed by this di-gold hydroxide species, under relatively mild conditions [89]. The passion for vinyl ethers synthesis inspired Nolan’s group to achieve intermolecular hydroalkoxylation (Equation (17)), with a selectivity of 90%, and hydrocarboxylation (Equation (18)) of internal alkynes [90,91].

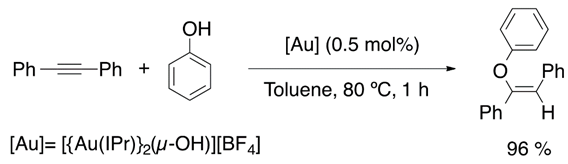

Catalysts 11 00704 i016

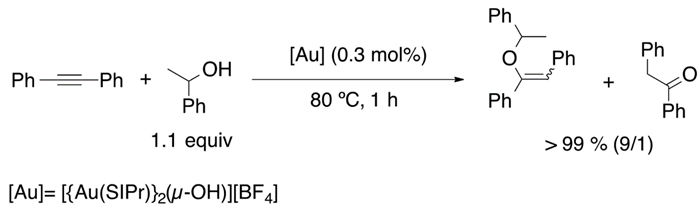

Catalysts 11 00704 i017

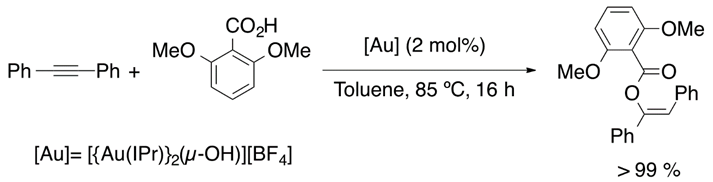

Catalysts 11 00704 i018
Taking as a starting point the equilibrium between the gem-digold compound and the alkyne-gold complex, Poater et al. proposed a mechanism that involves the active species included in Figure 9. On the reaction pathway, the reactive species alkyne-[Au] and PhO-[Au] are formed in the initiation part and regenerated during the catalytic cycle. Overall, the process is described as a nucleophilic attack followed by displacement and protonation reactions. Moreover, the nucleophilic attack that involves the C-O bond formation was found to be the rate determining step [91]. On the other hand, Reek et al. confirmed that the hydrophenoxylation of alkynes enhanced when encapsulating the gold catalyst in encapsulated in self-assembled resorcinarene cage [92,93]. Thus, this is a clear confirmation that the dual gold catalysis takes place for the hydrophenoxylation of alkynes. Moreover, predictive catalytic results by DFT calculations proposed a new generation of digold complexes [94], where both metal moieties are linked by an alkylic bridge.

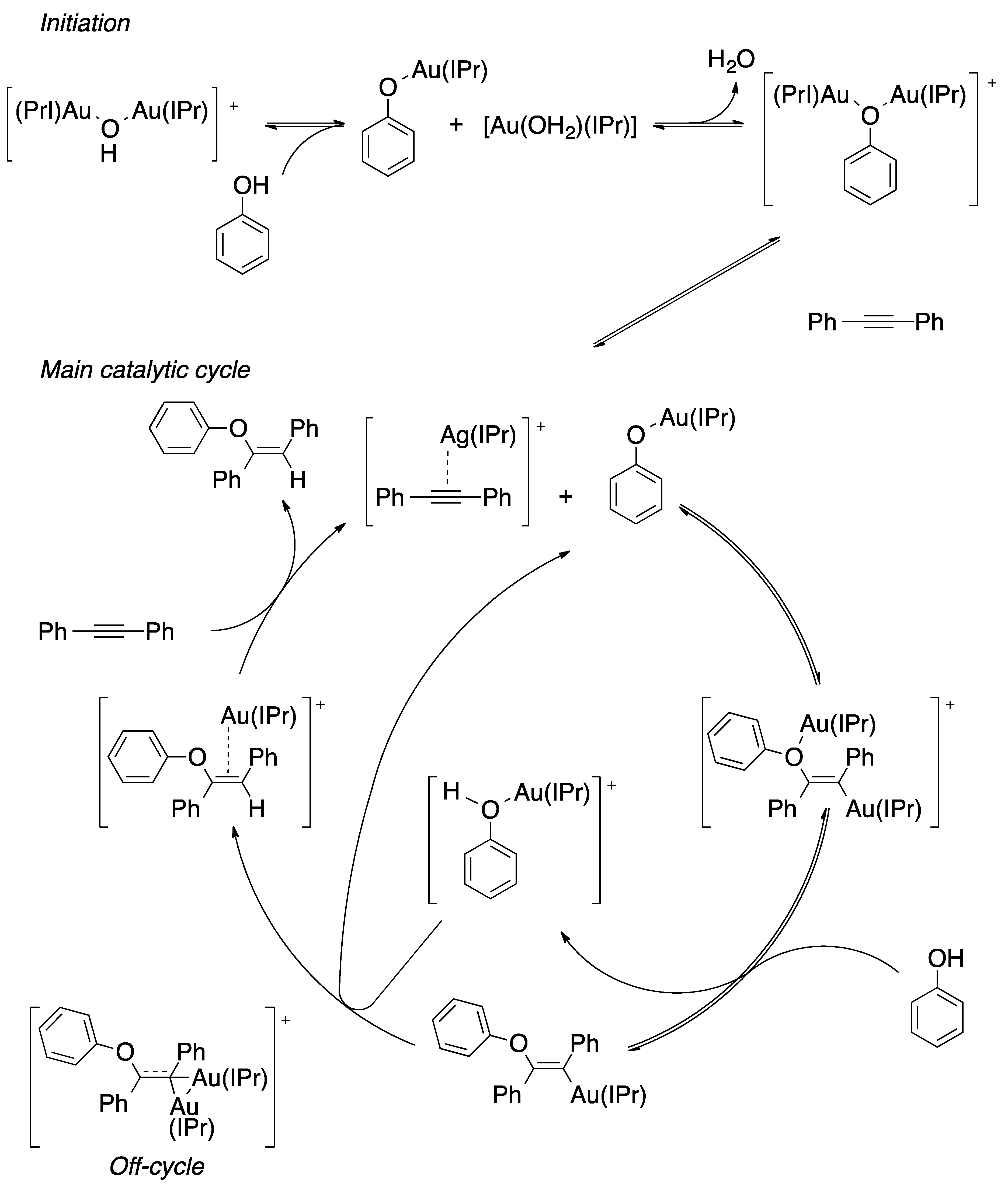

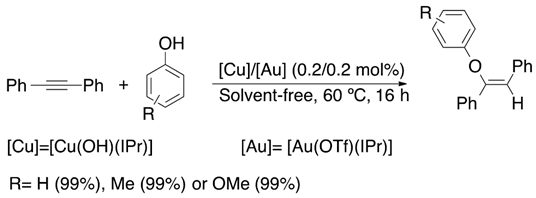

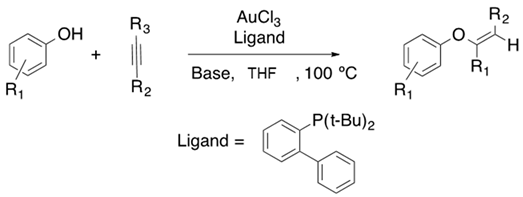

Recently, Cazin et al. have reported the hydrophenoxylation of diphenylacetylene catalyzed by a combined Cu(NHC)/Au(NHC) catalytic system [95]. Nevertheless, they performed experimental studies to determine the solvent and temperature effect in the hydrophenoxylation reaction and they found a higher conversion to the desired product under solvent-free conditions. Once the optimal conditions were found, they tested the addition of substituted phenols to diphenylacetylene observing conversions of up to 90% of the desired vinyl ether (Equation (19)).
Catalysts 11 00704 i019

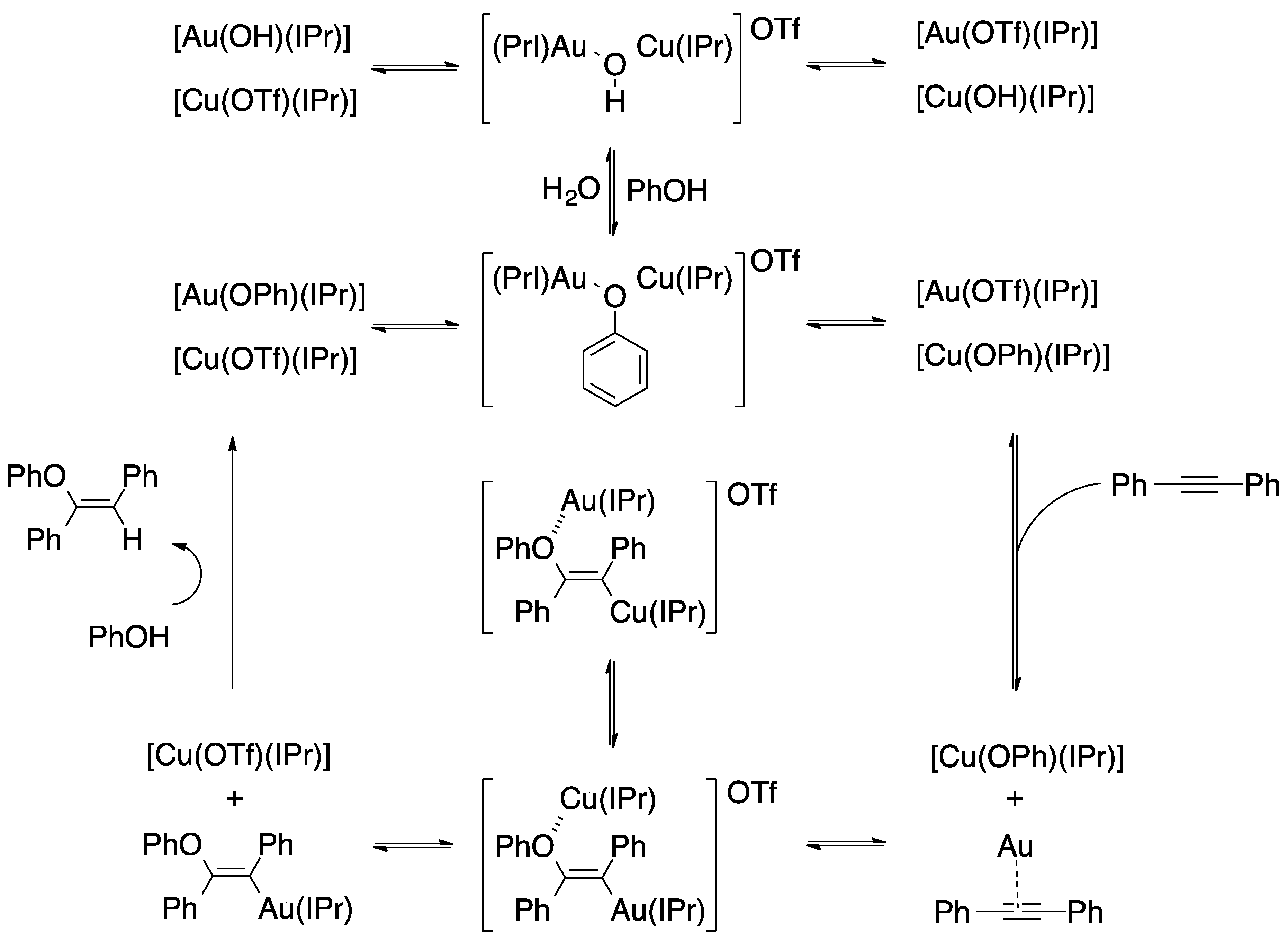

On the other hand, Cazin and coworkers performed some mechanistic studies to elucidate the mechanism by which the reaction proceeds (Figure 10). All in all, the performed stoichiometric reactions reveal the generation of the activated species [Cu(OPh)(IPr)] and [Au(PhCCPh)(IPr)] and their importance in the catalytic process [95]. Subsequent DFT calculations confirmed that the mixed dual metal system was better than the di-gold one [96]. Specifically, gold is associated with the alkyne, while phenoxide with copper, although with silver, the mixed system would be even more favorable [97].
Nevertheless, for alkyl alcohols, the dual mechanism has not been tested so far, and at a computational DFT level, it is understood that it is the anion interaction that facilitates the hydroalkoxylation promoted by gold (I) catalysts with such substrates [37]. The boundary between mono and dual metal catalysis is very fine [98,99], and thus, simple modifications of the nature of the substrates and simple modifications in the metal ligands can completely exclude dual catalysis [100,101].

3. Conclusions

The functionalization of alkynes assisted by the catalytic role of Au(NHC) complexes includes, among others, the hydrophenoxylation reaction. This reaction is paradigmatic since its mono/dual gold character has not been confirmed yet because of somewhat unclear experimental kinetics. However, Reek and Nolan confirmed the dual catalysis character for such a reaction with the encapsulation of the catalyst, apart from DFT calculations by Houk and Poater. Although it may seem like a confusing reaction, the synergy of metal centers does not only assist the hydrophenoxylation of alkynes—it also paves the way for possible solutions in other reactions.

Author Contributions

All authors have contributed equally to write the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministerio de Economía y Competitividad (MINECO) of Spain for project PGC2018-097722-B-I00, the Generalitat de Catalunya for project 2017SGR39 and Xarxa de Referència en Química Teórica i Computacional. O.F.G.-B. thanks the Universidad de Guanajuato for funding his Master Thesis.

Data Availability Statement

Data sharing not applicable since no datasets were generated or analyzed during the current study.

Acknowledgments

A.P. is a Serra Húnter Fellow and thanks the ICREA Academia prize 2019.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kenly, S.J. Encyclopedia of Catalysis; John Wiley and Sons, Inc.: Hoboken, NJ, USA, 2010; pp. 1–30. [Google Scholar]
  2. Sabatier, P. How I Have Been Led to the Direct Hydrogenation Method by Metallic Catalysts. Ind. Eng. Chem. 1926, 18, 1005–1008. [Google Scholar] [CrossRef]
  3. American Chemical Society National Historic Chemical Landmarks. The Houdry Process for Catalytic Cracking. Available online: http://www.acs.org/content/acs/en/education/whatischemistry/landmaks/houdry.html (accessed on 23 May 2017).
  4. Smith, J.K.; Spitz, P.H. Petrochemicals: The Rise of an Industry. Technol. Cult. 1989, 30, 710. [Google Scholar] [CrossRef]
  5. Worthy, W. Canadian chemical firms: Another good year. Chem. Eng. News 1979, 57, 17. [Google Scholar] [CrossRef]
  6. Weirsselmel, K.; Arpe, H.J. Industrial Organic Chemistry, 3rd ed.; VCH Publishers, Inc.: New York, NY, USA, 1997; p. 218. [Google Scholar]
  7. Available online: http://www.dupont.com/corporate-functions/our-company/dupont-history.html (accessed on 15 November 2020).
  8. Schröder, G. Ullmann´s Encyclopedia of Industrial Chemistry; John Wiley and Sons, Inc.: Hoboken, NJ, USA, 2012; Volume 28, pp. 481–485. [Google Scholar]
  9. Okimoto, Y.; Sakaguchi, S.; Ishii, Y. Development of a Highly Efficient Catalytic Method for Synthesis of Vinyl Ethers. J. Am. Chem. Soc. 2002, 124, 1590–1591. [Google Scholar] [CrossRef] [PubMed]
  10. Bosch, M.; Schlaf, M. Synthesis of Allyl and Alkyl Vinyl Ethers Using an in Situ Prepared Air-Stable Palladium Catalyst. Efficient Transfer Vinylation of Primary, Secondary, and Tertiary Alcohols. J. Org. Chem. 2003, 68, 5225–5227. [Google Scholar] [CrossRef]
  11. Nakamura, A.; Tokunaga, M. Au(I) complexes-catalyzed transfer vinylation of alcohols and carboxylic acids. Tetrahedron Lett. 2008, 49, 3729–3732. [Google Scholar] [CrossRef]
  12. Charbonnier, F.; Moyano, A.; Greene, A.E. Facile synthesis of chiral Oalkyl enol ethers. J. Org. Chem. 1987, 52, 2303–2306. [Google Scholar] [CrossRef]
  13. Sageot, O.; Monteux, D.; Langlois, Y.; Riche, C.; Chiaroni, A. Preparation and use of chiral (Z)-enol ethers in asymmetric bradsher cycloaddition. Tetrahedron Lett. 1996, 37, 7019–7022. [Google Scholar] [CrossRef]
  14. Aloui, M.; Chambers, D.J.; Cumpstey, I.; Fairbanks, A.J.; Redgrave, A.J.; Seward, C.M.P. Stereoselective 1,2-cis Glycosylation of 2-O-Allyl Protected Thioglycosides. Chem. Eur. J. 2002, 8, 2608–2621. [Google Scholar] [CrossRef]
  15. Crivello, J.V.; Kong, S. Efficient Isomerization of Allyl Ethers and Related Compounds Using Pentacarbonyliron. J. Org. Chem. 1998, 63, 6745–6748. [Google Scholar] [CrossRef]
  16. Roche, C.; Delair, P.; Greene, A.E. Dichloroketene−Chiral Olefin-Based Approach to Pyrrolizidines: Highly Stereocontrolled Synthesis of (+)-Amphorogynine A. Org. Lett. 2003, 5, 1741–1744. [Google Scholar] [CrossRef]
  17. Mizuno, K.; Kimura, Y.; Otsuji, Y. A Convenient Synthesis of Aryl Vinyl Ethers by Use of Tetra-n-butylammonium Hydrogen Sulfate. Synthesis 1979, 1979, 688. [Google Scholar] [CrossRef]
  18. Hiersemann, M. Synthesis of α-Allyloxy-Substituted α,β-Unsaturated Esters via Aldol Condensation. Convenient Access of Highly Substituted Allyl Vinyl Ethers. Synthesis 2000, 2000, 1279–1290. [Google Scholar] [CrossRef]
  19. Park, H.G.; Kim, D.H.; Yoo, M.S.; Park, M.K.; Jew, S.S. Practical regioselective synthetic method for (E)-enol ether. Tetrahedron Lett. 2000, 41, 4579–4582. [Google Scholar] [CrossRef]
  20. Maeda, K.; Shinokubo, H.; Oshima, K.; Utimoto, K. Stereoselective Synthesis of Allyl Vinyl Ethers from Silyl Enol Ethers. J. Org. Chem. 1996, 61, 2262–2263. [Google Scholar] [CrossRef]
  21. Hoffmann, R.W. Wittig and His Accomplishments: Still Relevant Beyond His 100th Birthday. Angew. Chem. Int. Ed. 2001, 40, 1411–1416. [Google Scholar] [CrossRef]
  22. Julia, M.; Paris, J.-M. Syntheses a l’aide de sulfones v(+)-methode de synthese generale de doubles liaisons. Tetrahedron Lett. 1973, 14, 4833–4836. [Google Scholar] [CrossRef]
  23. Sabitha, G.; Reddy, M.M.; Srinivas, D.; Yadov, J. Microwave irradiation: Wittig olefination of lactones and amides. Tetrahedron Lett. 1999, 40, 165–166. [Google Scholar] [CrossRef]
  24. Kulkarni, M.; Dhondge, A.; Borhade, A.; Gaikwad, D.; Chavhan, S.; Shaikh, Y.; Nigdale, V.; Desai, M.; Birhade, D.; Shinde, M. Total Synthesis of (±)-Physovenine. Eur. J. Org. Chem. 2009, 23, 3875–3877. [Google Scholar] [CrossRef]
  25. Surprenant, S.; Chan, W.Y.; Berthelette, C. Efficient Synthesis of Substituted Vinyl Ethers Using the Julia Olefination. Org. Lett. 2003, 5, 4851–4854. [Google Scholar] [CrossRef]
  26. Alonso, F.; Beletskaya, I.P.; Yus, M. Transition-Metal-Catalyzed Addition of Heteroatom−Hydrogen Bonds to Alkynes. Chem. Rev. 2004, 104, 3079–3160. [Google Scholar] [CrossRef]
  27. Alcazar, E.; Pletcher, J.M.; McDonald, F.E. Synthesis of Seven-Membered Ring Glycals via endo-Selective Alkynol Cycloisomerization. Org. Lett. 2004, 6, 3877–3880. [Google Scholar] [CrossRef]
  28. Danishefsky, S.J.; DeNinno, M.P.; Chen, S.H. Stereoselective total syntheses of the naturally occurring enantiomers of N-acetylneuraminic acid and 3-deoxy-D-manno-2-octulosonic acid. A new and stereospecific approach to sialo and 3-deoxy-D-manno-2-octulosonic acid conjugates. J. Am. Chem. Soc. 1988, 110, 3929–3940. [Google Scholar] [CrossRef]
  29. Wan, Z.; Jones, C.D.; Koenig, T.M.; Pu, Y.J.; Mitchell, D. Vinyl aryl ethers from copper-catalyzed coupling of vinyl halides and phenols. Tetrahedron Lett. 2003, 44, 8257–8259. [Google Scholar] [CrossRef]
  30. Shade, R.E.; Hyde, A.M.; Olsen, J.-C.; Merlic, C.A. Copper-Promoted Coupling of Vinyl Boronates and Alcohols: A Mild Synthesis of Allyl Vinyl Ethers. J. Am. Chem. Soc. 2010, 132, 1202–1203. [Google Scholar] [CrossRef]
  31. Messerle, B.A.; Vuong, K.Q. Rhodium- and Iridium-Catalyzed Double Hydroalkoxylation of Alkynes, an Efficient Method for the Synthesis of O,O-Acetals: Catalytic and Mechanistic Studies. Organometallics 2007, 26, 3031–3040. [Google Scholar] [CrossRef]
  32. Hopkinson, M.N.; Richter, C.; Schedler, M.; Glorius, F. An overview of N-heterocyclic carbenes. Nat. Cell Biol. 2014, 510, 485–496. [Google Scholar] [CrossRef]
  33. Leung, C.H.; Baron, M.; Biffis, A. Gold-Catalyzed Intermolecular Alkyne Hydrofunctionalizations—Mechanistic Insights. Catalysts 2020, 10, 1210. [Google Scholar] [CrossRef]
  34. Brooner, R.E.M.; Widenhoefer, R.A. Cationic, Two-Coordinate Gold π Complexes. Angew. Chem. Int. Ed. 2013, 52, 11714–11724. [Google Scholar] [CrossRef]
  35. Gomez, S.A.; Ramon, S.R.; Songis, O.; Slawin, A.M.Z.; Cazin, C.S.J.; Nolan, S.P. Influence of a Very Bulky N-Heterocyclic Carbene in Gold-Mediated Catalysis. Organometallics 2011, 30, 5463–5470. [Google Scholar] [CrossRef]
  36. Biasiolo, L.; Del Zotto, A.; Zuccaccia, D. Toward Optimizing the Performance of Homogeneous L-Au-X Catalysts through Appropriate Matching of the Ligand (L) and Counterion (X–). Organometallics 2015, 34, 1759–1765. [Google Scholar] [CrossRef]
  37. D’Amore, L.; Ciancaleoni, G.; Belpassi, L.; Tarantelli, F.; Zuccaccia, D.; Belanzoni, P. Unraveling the Anion/Ligand Interplay in the Reaction Mechanism of Gold(I)-Catalyzed Alkoxylation of Alkynes. Organometallics 2017, 36, 2364–2376. [Google Scholar] [CrossRef]
  38. Ciancaleoni, G.; Belpassi, L.; Zuccaccia, D.; Tarantelli, F.; Belanzoni, P. Counterion Effect in the Reaction Mechanism of NHC Gold(I)-Catalyzed Alkoxylation of Alkynes: Computational Insight into Experiment. ACS Catal. 2015, 5, 803–814. [Google Scholar] [CrossRef]
  39. Trinchillo, M.; Belanzoni, P.; Belpassi, L.; Biasiolo, L.; Busico, V.; D’Amora, A.; D’Amore, L.; Del Zotto, A.; Tarantelli, F.; Tuzi, A.; et al. Extensive Experimental and Computational Study of Counterion Effect in the Reaction Mechanism of NHC-Gold(I)-Catalyzed Alkoxylation of Alkynes. Organometallics 2016, 35, 641–654. [Google Scholar] [CrossRef]
  40. Kuram, M.R.; Bhanuchandra, M.; Sahoo, A.K. Gold-Catalyzed Intermolecular Hydrophenoxylation of Unactivated Internal Alkynes. J. Org. Chem. 2010, 75, 2247–2258. [Google Scholar] [CrossRef]
  41. Kovács, G.; Lledós, A.; Ujaque, G. Reaction Mechanism of the Gold(I)-Catalyzed Addition of Phenols to Olefins: A Concerted Process Accelerated by Phenol and Water. Organometallics 2010, 29, 3252–3260. [Google Scholar] [CrossRef]
  42. Zimmermann, B.; Herwing, J.; Beller, M. The First Efficient Hydroaminomethylation with Ammonia: With Dual Metal Catalysts and Two-Phase Catalysis to Primary Amines. Angew. Chem. Int. Ed. 1999, 38, 2372–3275. [Google Scholar] [CrossRef]
  43. Yang, R.; Zhang, Y.; Tsubaki, N. Dual catalysis mechanism of alcohol solvent and Cu catalyst for a new methanol synthesis method. Catal. Commun. 2005, 6, 275–279. [Google Scholar] [CrossRef]
  44. Bin Kim, U.; Jung, D.J.; Jeon, H.J.; Rathwell, K.; Lee, S.-G. Synergistic Dual Transition Metal Catalysis. Chem. Rev. 2020, 120, 13382–13433. [Google Scholar] [CrossRef]
  45. Chen, Z.-S.; Huang, L.-Z.; Jeon, H.J.; Xuan, Z.; Lee, S.-G. Cooperative Pd(0)/Rh(II) Dual Catalysis: Interceptive Capturing of π-Allyl Pd(II) Complexes with α-Imino Rh(II) Carbenoids. ACS Catal. 2016, 6, 4914–4919. [Google Scholar] [CrossRef]
  46. Bozoglian, F.; Romain, S.; Ertem, M.Z.; Todorova, T.K.; Sens, C.; Mola, J.; Rodriguez, M.; Romero, I.; Benet-Buchholz, J.; Fontrodona, X.; et al. The Ru-Hbpp water oxidation catalyst. J. Am. Chem. Soc. 2009, 131, 15176–15187. [Google Scholar] [CrossRef]
  47. Richmond, C.J.; Matheu, R.; Poater, A.; Falivene, L.; Benet-Buchholz, J.; Sala, X.; Cavallo, L.; Llobet, A. Supramolecular Water Oxidation with Ru-bda-Based Catalysts. Chem. Eur. J. 2014, 20, 17282–17286. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Richmond, C.J.; Escayola, S.; Poater, A. Axial Ligand Effects of Ru-BDA Complexes in the O-O Bond Formation via the I2M Bimolecular Mechanism in Water Oxidation Catalysis. Eur. J. Inorg. Chem. 2019, 2019, 2101–2108. [Google Scholar] [CrossRef]
  49. Luque-Urrutia, J.A.; Kamdar, J.M.; Grotjahn, D.B.; Solà, M.; Poater, A. Understanding the Performance of a Bisphosphonate Ru Water Oxidation Catalyst. Dalton Trans. 2020, 49, 14052–14060. [Google Scholar] [CrossRef]
  50. Bucci, A.; Rodriguez, G.M.; Bellachioma, G.; Zuccaccia, C.; Poater, A.; Cavallo, L.; Macchioni, A. An Alternative Reaction Pathway for Iridium-Catalyzed Water Oxidation Driven by Cerium Ammonium Nitrate (CAN). ACS Catal. 2016, 6, 4559–4563. [Google Scholar] [CrossRef] [Green Version]
  51. Rünzi, T.; Tritschler, U.; Roesle, P.; Göttker-Schnetmann, I.; Möller, H.M.; Caporaso, L.; Poater, A.; Cavallo, L.; Mecking, S. Activation and Deactivation of Neutral Palladium(II) Phosphinesulfonato Polymerization Catalysts. Organometallics 2012, 31, 8388–8406. [Google Scholar] [CrossRef] [Green Version]
  52. Das, R.K.; Saha, B.; Rahaman, S.M.W.; Bera, J.K. Bimetallic Catalysis Involving Dipalladium(I) and Diruthenium(I) Complexes. Chem. Eur. J. 2010, 16, 14459–14468. [Google Scholar] [CrossRef]
  53. Aufiero, M.; Proutiere, F.; Schoenebeck, F. Redox Reactions in Palladium Catalysis: On the Accelerating and/or Inhibiting Effects of Copper and Silver Salt Additives in Cross-Coupling Chemistry Involving Electron-rich Phosphine Ligands. Angew. Chem. Int. Ed. 2012, 51, 7226–7230. [Google Scholar] [CrossRef]
  54. Proutiere, F.; Aufiero, M.; Schoenebeck, F. Reactivity and Stability of Dinuclear Pd(I) Complexes: Studies on the Active Catalytic Species, Insights into Precatalyst Activation and Deactivation, and Application in Highly Selective Cross-Coupling Reactions. J. Am. Chem. Soc. 2011, 134, 606–612. [Google Scholar] [CrossRef]
  55. Hansmann, M.M.; Pernpointner, M.; Döpp, R.; Hashmi, A.S.K. A Theoretical DFT-Based and Experimental Study of the Transmetalation Step in Au/Pd-Mediated Cross-Coupling Reactions. Chem. Eur. J. 2013, 19, 15290–15303. [Google Scholar] [CrossRef]
  56. Naumann, S.; Scholten, P.B.V.; Wilson, J.A.; Dove, A.P. Dual Catalysis for Selective Ring-Opening Polymerization of Lactones: Evolution toward Simplicity. J. Am. Chem. Soc. 2015, 137, 14439–14445. [Google Scholar] [CrossRef] [PubMed]
  57. Xu, T.; Chen, E.Y.-X. Silylium dual catalysis in living polymerization of methacrylates via In situ hydrosilylation of monomer. J. Polym. Sci. Part A Polym. Chem. 2015, 53, 1895–1903. [Google Scholar] [CrossRef]
  58. Sammis, M.G.; Danjo, H.; Jacobsen, N.E. Cooperative Dual Catalysis: Application to the Highly Enantioselective Conjugate Cyanation of Unsaturated Imides. J. Am. Chem. Soc. 2004, 126, 9928–9929. [Google Scholar] [CrossRef]
  59. Rueping, M.; Antonchick, A.P.; Brinkmann, C. Dual catalysis: A combined enantioselective brønsted acid and metal-catalyzed reaction-Metal catalysis with chiral counterions. Angew. Chem. Int. Ed. 2007, 46, 6903–6906. [Google Scholar] [CrossRef]
  60. Du, J.; Skubi, K.L.; Schultz, D.M.; Yoon, T.P. A Dual-Catalysis Approach to Enantioselective [2+2] Photocycloadditions Using Visible Light. Science 2014, 334, 392–396. [Google Scholar] [CrossRef] [Green Version]
  61. Peters, R. Cooperative Catalysis: Designing Efficient Catalysis for Synthesis; John Wiley and Sons: Hoboken, NJ, USA, 2015; p. 16. [Google Scholar]
  62. Corey, E.J.; Bakshi, R.K.; Shibata, S. Highly enantioselective borane reduction of ketones catalyzed by chiral oxazaborolidines. Mechanism and synthetic implications. J. Am. Chem. Soc. 1987, 109, 5551–5553. [Google Scholar] [CrossRef]
  63. DiMauro, E.F.; Kozlowski, M.C. Salen-Derived Catalysts Containing Secondary Basic Groups in the Addition of Diethylzinc to Aldehydes. Org. Lett. 2001, 3, 3053–3056. [Google Scholar] [CrossRef]
  64. DiMauro, E.F.; Kozlowski, M.S. The First Catalytic Asymmetric Addition of Dialkylzincs to α-Ketoesters. Org. Lett. 2002, 4, 3781–3784. [Google Scholar] [CrossRef]
  65. Wadamoto, M.; Ozasa, N.; Yanagisawa, A.; Yamamoto, H. BIN-AP/AgOTf/KF/18-Crown-6 as New Bifunctional Catalysts for Asymmetric Sakurai−Hosomi Allylation and Mukaiyama Aldol Reaction. J. Org. Chem. 2003, 68, 5593–5601. [Google Scholar] [CrossRef] [PubMed]
  66. Denmark, S.E.; Chung, W.-J. Lewis Base Activation of Lewis Acids: Catalytic, Enantioselective Addition of Glycolate-Derived Silyl Ketene Acetals to Aldehydes. J. Org. Chem. 2008, 73, 4582–4595. [Google Scholar] [CrossRef]
  67. Kobayashi, S.; Hamada, T.; Manabe, K. The Catalytic Asymmetric Mannich-Type Reactions in Aqueous Media. J. Am. Chem. Soc. 2002, 124, 5640–5641. [Google Scholar] [CrossRef]
  68. Ohkuma, T.; Ooka, H.; Hashiguchi, S.; Ikariya, T.; Noyori, R. Practical Enantioselective Hydrogenation of Aromatic Ketones. J. Am. Chem. Soc. 1995, 117, 2675–2676. [Google Scholar] [CrossRef]
  69. Mikhailine, A.A.; Maishan, M.I.; Lough, A.J.; Morris, R.H. The Mechanism of Efficient Asymmetric Transfer Hydrogenation of Acetophenone Using an Iron(II) Complex Containing an (S,S)-Ph2PCH2CH═NCHPhCHPhN═CHCH2PPh2 Ligand: Partial Ligand Reduction Is the Key. J. Am. Chem. Soc. 2012, 134, 12266–12280. [Google Scholar] [CrossRef]
  70. Zuo, W.; Lough, A.J.; Li, Y.F.; Morris, R.H. Amine(imine)diphosphine Iron Catalysts for Asymmetric Transfer Hydrogenation of Ketones and Imines. Science 2013, 342, 1080–1083. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  71. Westerhausen, D.; Herrmann, S.; Hummel, W.; Steckhan, E. Formate-Driven, Non-Enzymatic NAD(P)H Regeneration for the Alcohol Dehydrogenase Catalyzed Stereoselective Reduction of 4-Phenyl-2-butanone. Angew. Chem. Int. Ed. 1992, 31, 1529–1531. [Google Scholar] [CrossRef]
  72. Allen, J.V.; Williams, J.M.J. Dynamic kinetic resolution with enzyme and palladium combinations. Tetrahedron Lett. 1996, 37, 1859–1862. [Google Scholar] [CrossRef]
  73. Dinh, P.M.; Howarth, J.A.; Hudnott, A.R.; Williams, J.M.J.; Harris, W. Catalytic racemisation of alcohols: Applications to enzymatic resolution reactions. Tetrahedron Lett. 1996, 37, 7623–7626. [Google Scholar] [CrossRef]
  74. Pàmies, O.; Bäckvall, J.-E. Combination of Enzymes and Metal Catalysts. A Powerful Approach in Asymmetric Catalysis. Chem. Rev. 2003, 103, 3247–3261. [Google Scholar] [CrossRef]
  75. Denard, C.A.; Huang, H.; Bartlett, M.J.; Lu, L.; Tan, Y.; Zhao, H.; Hartwig, J.F. Cooperative Tandem Catalysis by an Organometallic Complex and a Metalloenzyme. Angew. Chem. Int. Ed. 2013, 126, 465–469. [Google Scholar] [CrossRef]
  76. Simons, C.; Hanefeld, U.; Arends, I.W.C.E.; Maschmeyer, T.; Sheldon, R.A. Towards catalytic cascade reactions: Asymmetric synthesis using combined chemo-enzymatic catalysts. Top. Catal. 2006, 40, 35–44. [Google Scholar] [CrossRef]
  77. Abdellah, I.; Poater, A.; Lohier, J.-F.; Gaumont, A.-C. Au(I)-Catalyzed Hydroarylation of Alkenes with N,N-dialkylanilines: A Dual Gold Catalysis Concept. Catal. Sci. Technol. 2018, 8, 6486–6492. [Google Scholar] [CrossRef]
  78. Burns, N.Z.; Witten, M.R.; Jacobsen, E.N. Dual Catalysis in Enantioselective Ox-idopyrylium-Based [5 + 2] Cycloadditions. J. Am. Chem. Soc. 2011, 133, 14578–14581. [Google Scholar] [CrossRef] [Green Version]
  79. Oliveira, M.T.; Luparia, M.; Audisio, D.; Maulide, N. Dual Catalysis Becomes Diastereodivergent. Angew. Chem. Int. Ed. 2013, 52, 13149–13152. [Google Scholar] [CrossRef] [PubMed]
  80. Hanna, L.E.; Jarvo, E.R. Selective Cross-Electrophile Coupling by Dual Catalysis. Angew. Chem. Int. Ed. 2015, 54, 15618–15620. [Google Scholar] [CrossRef]
  81. Cheong, P.H.Y.; Morganelli, P.; Luzung, M.R.; Houk, K.N.; Toste, F.D. Gold-Catalyzed Cycloisomerization of 1,5-Allenynes via Dual Activation of an Ene Reaction. J. Am. Chem. Soc. 2008, 130, 4517–4526. [Google Scholar] [CrossRef] [Green Version]
  82. Gaillard, S.; Bosson, J.; Ramon, R.S.; Nun, P.; Slawin, A.M.Z.; Nolan, S.P. Development of Versatile and Silver-Free Protocols for Gold(I) Catalysis. Chem. Eur. J. 2010, 16, 13729–13740. [Google Scholar] [CrossRef]
  83. Brown, T.J.; Widenhoefer, R.A. Cationic Gold(I) π-Complexes of Terminal Alkynes and Their Conversion to Dinuclear σ,π-Acetylide Complexes. Organometallics 2011, 30, 6003–6009. [Google Scholar] [CrossRef]
  84. Roithová, J.; Janková, Š.; Jašíková, L.; Váňa, J.; Hybelbauerová, S. Gold–Gold Cooperation in the Addition of Methanol to Alkynes. Angew. Chem. Int. Ed. 2012, 51, 8378–8382. [Google Scholar] [CrossRef]
  85. Jašíková, L.; Anania, M.; Hybelbauerová, S.; Roithová, J. Reaction Intermediates Kinetics in Solution Investigated by Electrospray Ionization Mass Spectrometry: Diaurated Complexes. J. Am. Chem. Soc. 2015, 137, 13647–13657. [Google Scholar] [CrossRef]
  86. Anania, M.; Jašíková, L.; Jašík, J.; Roithová, J. Why can a gold salt react as a base? Org. Biomol. Chem. 2017, 15, 7841–7852. [Google Scholar] [CrossRef] [Green Version]
  87. Anania, M.; Jašíková, L.; Zelenka, J.; Shcherbachenko, E.; Jašík, J.; Roithová, J. Monoaurated vs. diaurated intermediates: Causality or independence? Chem. Sci. 2020, 11, 980–988. [Google Scholar] [CrossRef] [Green Version]
  88. Larsen, M.H.; Houk, K.N.; Hashmi, A.S.K. Dual Gold Catalysis: Stepwise Catalyst Transfer via Dinuclear Clusters. J. Am. Chem. Soc. 2015, 137, 10668–10676. [Google Scholar] [CrossRef] [PubMed]
  89. Oonishi, Y.; Gómez-Suárez, A.; Martin, A.R.; Nolan, S. Hydrophenoxylation of Alkynes by Cooperative Gold Catalysis. Angew. Chem. Int. Ed. 2013, 52, 9767–9771. [Google Scholar] [CrossRef] [PubMed]
  90. Dupuy, S.; Gasperini, D.; Nolan, S.P. Highly Efficient Gold(I)-Catalyzed Regio- and Stereoselective Hydrocarboxylation of Internal Alkynes. ACS Catal. 2015, 5, 6918–6921. [Google Scholar] [CrossRef] [Green Version]
  91. Gómez-Suárez, A.; Oonishi, Y.; Martin, A.R.; Vummaleti, S.V.C.; Nelson, D.; Cordes, D.; Slawin, A.M.Z.; Cavallo, L.; Nolan, S.P.; Poater, A. On the Mechanism of the Digold(I)-Hydroxide-Catalysed Hydrophenoxylation of Alkynes. Chem. Eur. J. 2016, 22, 1125–1132. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  92. Cavarzan, A.; Scarso, A.; Sgarbossa, P.; Strukul, G.; Reek, J.N.H. Supramolecular Control on Chemo- and Regioselectivity via Encapsulation of (NHC)-Au Catalyst within a Hexameric Self-Assembled Host. J. Am. Chem. Soc. 2011, 133, 2848–2851. [Google Scholar] [CrossRef]
  93. Jans, A.C.H.; Gómez-Suárez, A.; Nolan, S.P.; Reek, J.N.H. A Switchable Gold Catalyst by Encapsulation in a Self-Assembled Cage. Chem. Eur. J. 2016, 22, 14836–14839. [Google Scholar] [CrossRef] [Green Version]
  94. Escayola, S.; Poater, J.; Ramos, M.; Luque-Urrutia, J.A.; Duran, J.; Simon, S.; Solà, M.; Cavallo, L.; Nolan, S.P.; Poater, A. Chelation enforcing a dual gold configuration in the catalytic hydroxyphenoxylation of alkynes. Appl. Organomet. Chem. 2021. unpublish. [Google Scholar]
  95. Lazreg, F.; Guidone, S.; Gómez-Herrera, A.; Nahra, F.; Cazin, C.S.J. Hydrophenoxylation of internal alkynes catalysed with a heterobimetallic Cu-NHC/Au-NHC system. Dalton Trans. 2017, 46, 2439–2444. [Google Scholar] [CrossRef]
  96. Gonzalez-Belman, O.F.; Jiménez-Halla, J.O.C.; Nahra, F.; Cazin, C.S.J.; Poater, A. The role of the metal in the dual-metal catalysed hydrophenoxylation of diphenylacetylene. Catal. Sci. Technol. 2018, 8, 3638–3648. [Google Scholar] [CrossRef]
  97. Ramos, M.; Poater, J.; Villegas-Escobar, N.; Gimferrer, M.; Toro-Labbé, A.; Cavallo, L.; Poater, A. Phenoxylation of Alkynes through Mono- and Dual Activation Using Group 11 (Cu, Ag, Au) Catalysts. Eur. J. Inorg. Chem. 2020, 2020, 1123–1134. [Google Scholar] [CrossRef]
  98. D’Elia, V.; Ghani, A.A.; Monassier, A.; Sofack-Kreutzer, J.; Pelletier, J.D.A.; Drees, M.; Vummaleti, S.V.C.; Poater, A.; Cavallo, L.; Cokoja, M.; et al. Dynamics of the NbCl5-catalyzed cycloaddition of propylene oxide and CO2: Assessing the dual role of the nucleophilic Co-catalysts. Chem. Eur. J. 2014, 20, 11870–11882. [Google Scholar] [CrossRef]
  99. D’Elia, V.; Dong, H.; Rossini, A.; Widdifield, C.; Vummaleti, S.V.C.; Minenkov, Y.; Poater, A.; Abou-Hamad, E.; Pelletier, J.D.A.; Cavallo, L.; et al. Cooperative effect by monopodal surface niobium complexes enhancing cyclic carbonate production. J. Am. Chem. Soc. 2015, 137, 7728–7739. [Google Scholar] [CrossRef] [Green Version]
  100. Arayachukiat, S.; Yingcharoen, P.; Vummaleti, S.V.; Cavallo, L.; Poater, A.; D’Elia, V. Cycloaddition of CO2 to challenging N-tosyl aziridines using a halogen-free niobium complex: Catalytic activity and mechanistic insights. Mol. Catal. 2017, 443, 280–285. [Google Scholar] [CrossRef]
  101. Gimferrer, M.; D’Alterio, M.C.; Talarico, G.; Minami, Y.; Hiyama, T.; Poater, A. Allyl Monitorization of the Regioselective Pd-Catalyzed Annulation of Alkylnyl Aryl Ethers Leading to Bismethylenechromanes. J. Org. Chem. 2020, 85, 12262–12269. [Google Scholar] [CrossRef]
Catalysts 11 00704 sch001 550
Scheme 1. Synthesis of vinyl ethers via elimination.
Scheme 1. Synthesis of vinyl ethers via elimination.
Catalysts 11 00704 sch001
Catalysts 11 00704 g001 550
Figure 1. Proposed catalytic cycle of a nucleophilic attack for alkynes by a gold catalyst.
Figure 1. Proposed catalytic cycle of a nucleophilic attack for alkynes by a gold catalyst.
Catalysts 11 00704 g001
Catalysts 11 00704 sch002 550
Scheme 2. Generation of the primary and secondary amines in the hydroaminomethylation of olefins assisted by rhodium and iridium catalysts [42].
Scheme 2. Generation of the primary and secondary amines in the hydroaminomethylation of olefins assisted by rhodium and iridium catalysts [42].
Catalysts 11 00704 sch002
Catalysts 11 00704 g002 550
Figure 2. C-C cross-coupling assisted by palladium and gold catalysts [55].
Figure 2. C-C cross-coupling assisted by palladium and gold catalysts [55].
Catalysts 11 00704 g002
Catalysts 11 00704 g003 550
Figure 3. Ring-opening polymerization of lactones [56].
Figure 3. Ring-opening polymerization of lactones [56].
Catalysts 11 00704 g003
Catalysts 11 00704 g004 550
Figure 4. Enantioselective [2+2] cycloaddition [60].
Figure 4. Enantioselective [2+2] cycloaddition [60].
Catalysts 11 00704 g004
Catalysts 11 00704 g005 550
Figure 5. Asymmetric transformations catalyzed by a Lewis acid/Brønsted base [61].
Figure 5. Asymmetric transformations catalyzed by a Lewis acid/Brønsted base [61].
Catalysts 11 00704 g005
Catalysts 11 00704 g006 550
Figure 6. (a) Activation of the electrophile by a Lewis acid. (b–d) Activation of the nucleophile by a Lewis base. (e) Frontier orbitals of the activated nucleophile and electrophile.
Figure 6. (a) Activation of the electrophile by a Lewis acid. (b–d) Activation of the nucleophile by a Lewis base. (e) Frontier orbitals of the activated nucleophile and electrophile.
Catalysts 11 00704 g006
Catalysts 11 00704 g007 550

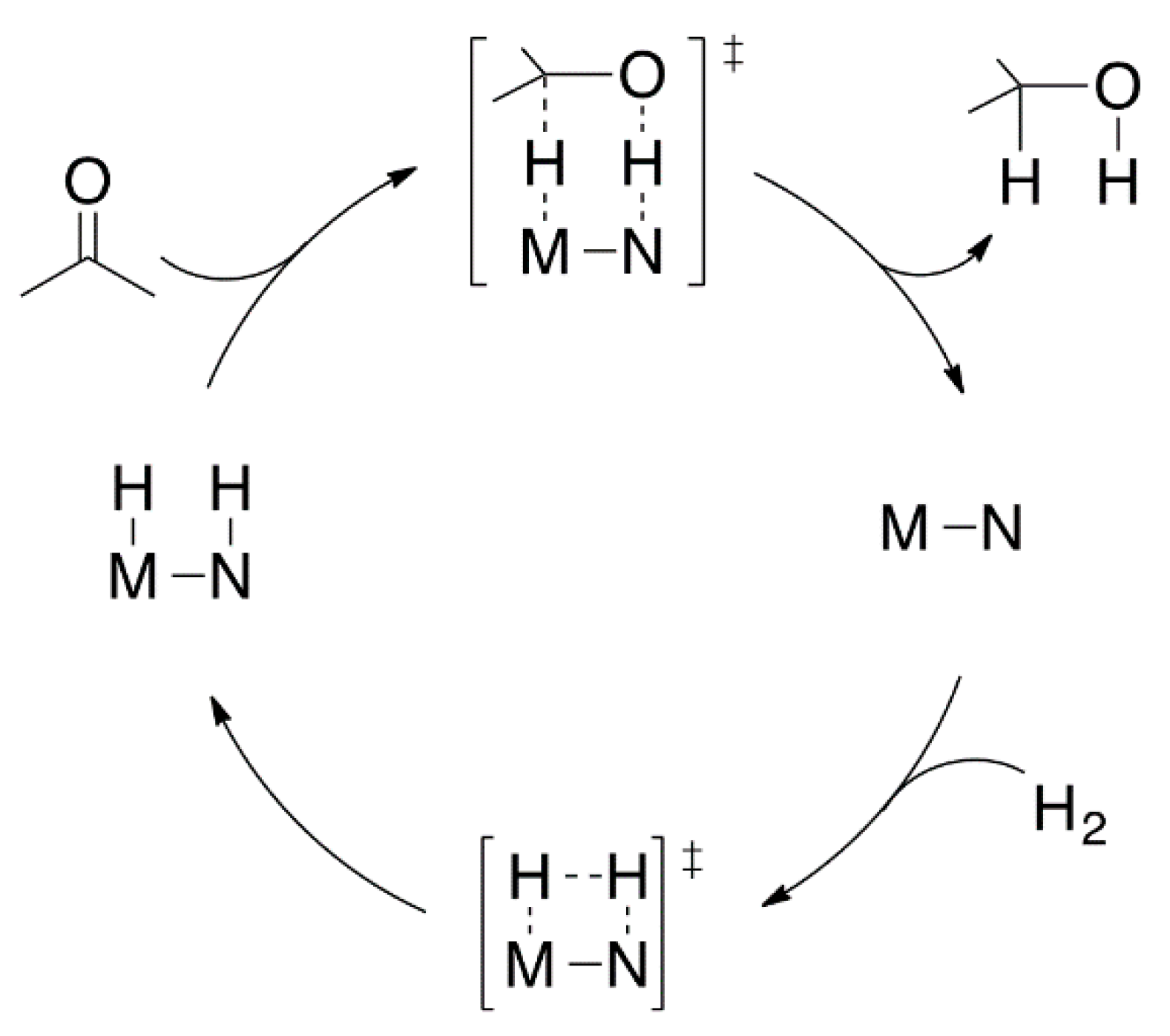

Figure 7. Metal-nitrogen activation in asymmetric hydrogenation of non-symmetric ketones.
Figure 7. Metal-nitrogen activation in asymmetric hydrogenation of non-symmetric ketones.
Catalysts 11 00704 g007
Catalysts 11 00704 g008 550

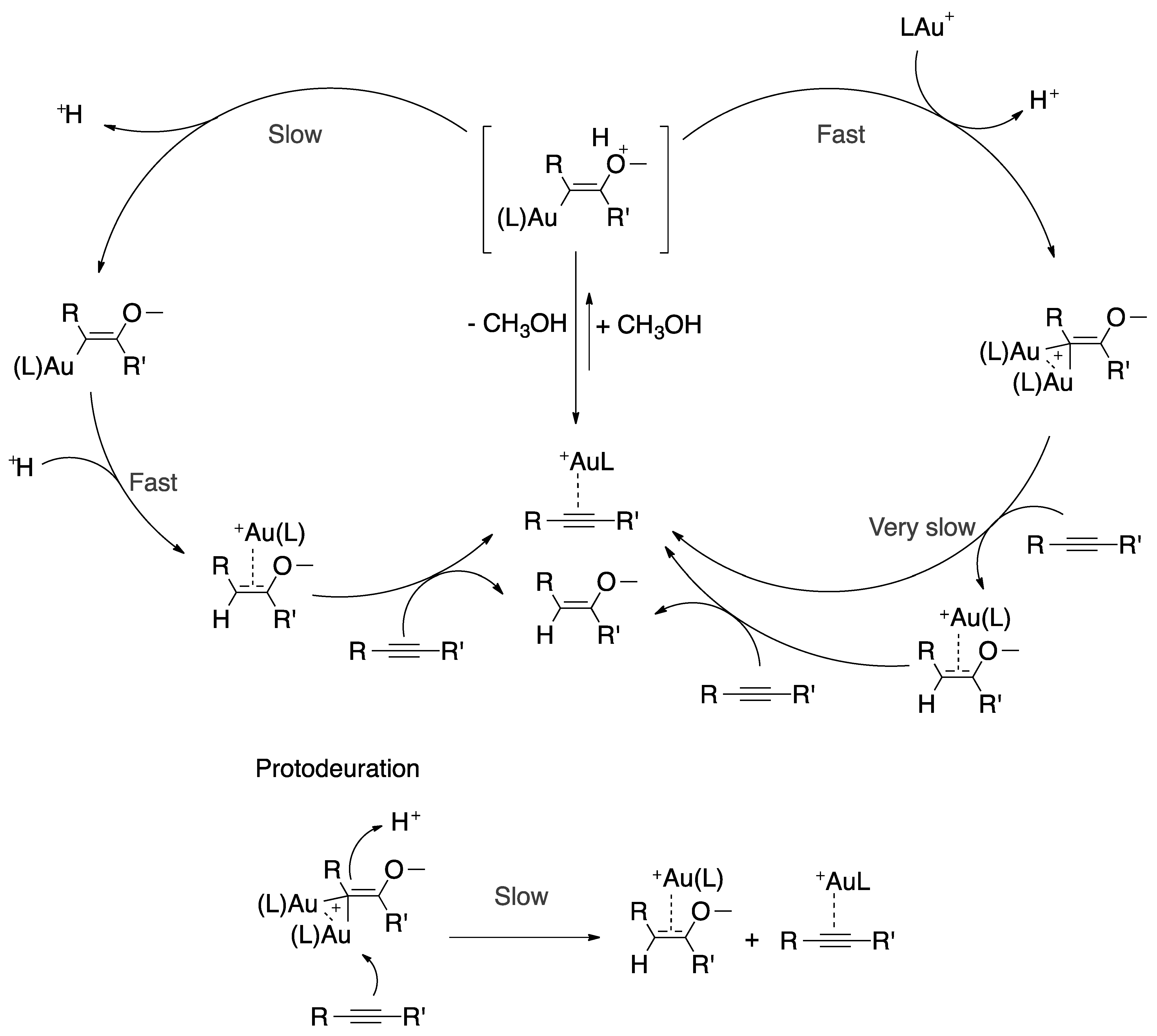

Figure 8. Reaction mechanism of alkyne hydromethoxylation assisted by mono- or diaurated species containing hindered ligands.
Figure 8. Reaction mechanism of alkyne hydromethoxylation assisted by mono- or diaurated species containing hindered ligands.
Catalysts 11 00704 g008
Catalysts 11 00704 g009 550
Figure 9. Reaction mechanism for di-gold-assisted hydrophenoxylation of diphenylacetylene.
Figure 9. Reaction mechanism for di-gold-assisted hydrophenoxylation of diphenylacetylene.
Catalysts 11 00704 g009
Catalysts 11 00704 g010 550
Figure 10. Mechanism for the hydrophenoxylation of internal alkynes assisted by a gold/copper catalyst.
Figure 10. Mechanism for the hydrophenoxylation of internal alkynes assisted by a gold/copper catalyst.
Catalysts 11 00704 g010
Table
Table 1. Hydrophenoxylation of symmetrical alkenes catalyzed by AuCl3.
Table 1. Hydrophenoxylation of symmetrical alkenes catalyzed by AuCl3.
Catalysts 11 00704 i020
R1R2R3BaseTime (h)Yield (%)
4-OMePh-Ph-Ag2CO3/K2CO39683
4-ClPh-Ph-Ag2CO3/K2CO44688
2-FPh-Ph-Ag2CO3/K2CO512090
4-OMeEt-Et-Ag2CO3/K2CO64894
3-OMeBu-Bu-Ag2CO3/K2CO75093
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

González-Belman, O.F.; Brotons-Rufes, A.; Tomasini, M.; Falivene, L.; Caporaso, L.; Jiménez-Halla, J.O.C.; Poater, A. Towards Dual-Metal Catalyzed Hydroalkoxylation of Alkynes. Catalysts 2021, 11, 704. https://doi.org/10.3390/catal11060704

AMA Style

González-Belman OF, Brotons-Rufes A, Tomasini M, Falivene L, Caporaso L, Jiménez-Halla JOC, Poater A. Towards Dual-Metal Catalyzed Hydroalkoxylation of Alkynes. Catalysts. 2021; 11(6):704. https://doi.org/10.3390/catal11060704

Chicago/Turabian Style

González-Belman, Oscar F., Artur Brotons-Rufes, Michele Tomasini, Laura Falivene, Lucia Caporaso, Jose Oscar C. Jiménez-Halla, and Albert Poater. 2021. "Towards Dual-Metal Catalyzed Hydroalkoxylation of Alkynes" Catalysts 11, no. 6: 704. https://doi.org/10.3390/catal11060704

APA Style

González-Belman, O. F., Brotons-Rufes, A., Tomasini, M., Falivene, L., Caporaso, L., Jiménez-Halla, J. O. C., & Poater, A. (2021). Towards Dual-Metal Catalyzed Hydroalkoxylation of Alkynes. Catalysts, 11(6), 704. https://doi.org/10.3390/catal11060704

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
