Heterogeneous Photo-Fenton Reaction for Olive Mill Wastewater Treatment—Case of Reusable Catalyst

Abstract

Heterogeneous catalysts can be an efficient and economical option for olive mill wastewater (OMW) treatment by an advanced oxidation process if they could be reused. In this work, OMW was treated using a heterogeneous photo-Fenton reaction (artificial ultraviolet light/H₂O₂/HFeO₂). For this purpose, different concentrations of HFeO₂ were tested: 0.04; 0.3; 0.8; 5.0; 10.0; 20.0; 30.0, and 50.0 g/L. The following operational conditions were chosen: pH = 3.0, temperature = 20 °C, agitation rate = 700 rpm. The experimental results showed high removal percentages of the main OMW characterization parameters at 50 g/L of HFeO₂: %COD_removal = 62.8%; %total phenolic compounds (TPCs) = 88.9%. These results were also compared with those of other control oxidation systems, i.e., UV, H₂O₂, and UV/H₂O₂, which provided 35.5 and 56.1%; 46.2 and 74.0%; 48.0 and 76.8% removal, respectively. In addition, the catalyst was reused three times, recovering more than 90.5% of it.

1. Introduction

Olive oil is produced in olive mills either by the discontinuous method (press) or by the continuous centrifugation method. The continuous centrifugation methods may involve a decanter with three exits (olive oil, pomace, and wastewater) or a decanter with two exits (olive oil and pomace). There are about 25,000 olive mills worldwide. Wastewater arising from olive processing is one of the strongest industrial effluents. In this sense, for press and three-exit continuous centrifugation processes, the COD and BOD₅ values of wastewater are equal to 40–220 g O₂/L and 35–110 g O₂/L, respectively [1,2,3,4]. However, for the two-exit continuous centrifugation process, the COD and BOD₅ values of wastewater are equal to 0.5–65 g O₂/L and 8.5–19 g O₂/L, respectively [5,6,7]. These values for the COD and BOD₅ parameters are higher than that those registered for wastewaters generated by other food industries, such as potato chips (5940–7058 mg O₂/L and 2729–3415 mg O₂/L) and potato starch plants (900–1400 mg O₂/L and 1100–1500 mg O₂/L) [8].

The management of OMW consists of its controlled or uncontrolled spreading in soils. This practice has led to severe environmental problems. In fact, the Spanish Government forbid the direct discharge to soils in 1981 and obligate to collect OMW in evaporation reservoirs [1]. This wastewater management method has a few maintenance requirements and is enhanced under Mediterranean conditions. However, this method has some drawbacks such as the need of large areas to collect the large amounts of OMW generated, bad odors due to the evaporation of volatile organic acids such as butyric, acetic, or propionic acids and insect plagues, fermentation processes with the subsequent emission of greenhouse gasses such as CH₄ or H₂S. Besides, OMW (acidic pH and organic content) persists and, by floods and infiltrations, may lead to higher problems such as contamination of aquifers, soils, and the air [2,9].

To perceive the magnitude of the OMW problem, a medium-sized olive mill (the most widespread type of mills) generates between 10 and 15 m³ of OMW per day and, during the olive harvesting period (November–February), the OMW volume production is higher. As a consequence of this environmental situation, new research is focusing on different low-cost OMW treatments with the aim to regenerate OMW and recycle them in the proper process of olive oil production or for irrigation purposes [6]. In this sense, different conventional (such as aerobic/anaerobic digestion treatments, composting, or co-digestion) and non-conventional (such as filtration, flocculation, advanced process technologies, or membrane technologies) technologies have been proposed alone or in combination to regenerate OMW [10].

Aerobic treatments are commonly used when the organic load is not very high such as in the case of olive washing wastewater [11]. On the other hand, in the case of anaerobic digestion, in spite of producing a high-value product (biogas), the high organic load is not completely eliminated [12], and a dilution step is desirable for reducing the toxicity of some compounds (i.e., phenolic compounds) on microorganisms’ growth. The composting technic has been also checked for OMW treatment [13] in order to generate another high-values products (fertilizers). However, this operation requires a long period of time (several weeks) for a complete composting and the subsequent evaluation of the resulting products, especially from the point of view of their phytotoxicity.

Physical simple treatments such as dilution, evaporation, centrifugation, or sedimentation have a great potential for the decontamination of OMW but are usually integrated in a complete process. As an example, assisted sedimentation (by flocculation) has been studied using common chemical agents such as ferric chloride, aluminum chloride, ferrous sulphate, among others [1]. On the other hand, the membrane technology has been deeply investigated in OMW treatment. However, the high organic load in OMW prevents this technology from working efficiently; moreover, it presents several disadvantages such as (i) the fractionation of OMW, generating solid waste that requires further treatment, (ii) separation phases in concentrate and permeate but not organic matter degradation, (iii) continuous membrane fouling, (iv) short life shift of the membrane, and (v) high costs [14].

In the last years, advanced oxidation processes (AOPs) have emerged as a promising technology due to the simplicity of the techniques and the high organic removal efficiencies obtained. Especially, different authors have highlighted the benefits of using this technology for OMW [15,16,17] instead of the conventional biological treatment. Different AOPs have been used for OMW treatment during the last years including photolysis, photo-oxidation, Fenton’s, and photo-Fenton reaction. Photo-Fenton-like oxidation and ozonation are used alone or in combination with UV-light. In this sense, Hodaifa et al. [17,18] obtained 25–35% conversion of TOC for photolysis and 38–43% for a UV/H₂O₂ system during the first 30 min. In addition, 57.9% of TOC conversion was obtained in a photo-Fenton test by using FeCl₃ as a catalyst [17] and 47.6% of TOC conversion during a photo-Fenton-like oxidation using TiO₂ as a catalyst [18], with a catalyst concentration of 3 g/L and an operation time of 5 min, respectively. Ozonation has been applied to OMW alone and in combination with UV light [19] and in the presence of different catalysts such as BiFeO₃ [20], obtaining a maximum COD conversion of 98% for O₃/BiFeO₃/S₂O₈₂ during 40 min.

These methods are based on the use of strong oxidant agents such as ozone, hydrogen peroxide, sodium hypochlorite, potassium permanganate [2], which oxide a wide range of compounds, irrespective of their chemical structures, including recalcitrant compounds, without the generation of secondary pollutants. These oxidants generate hydroxyl radicals (OH^•), which are highly reactive and unstable species that transform complex organic structures into final simple inorganic compounds such as CO₂ and H₂O [21,22]. The oxidants can be used in combination with other enhancers of the reaction such as a source of energy (UV lamps, solar light) or catalysts [23]. Having high efficiency for organic matter elimination, AOPs also involve simple processes and mild operational conditions [22].

However, the main challenges are the costs of the process (especially, the chemicals costs) and the recovery of the catalyst during and after treatment. Hence, it is suggested to use this technology as the main process, integrating it with other physicochemical pre-treatments in order to reduce the initial organic load before proceeding with the AOP step (for catalyst cost reduction). In addition to include a post-physical treatment method in order to eliminate the residual catalyst [24,25]. In this sense, Benitez et al. [19] studied the combination of ozonation and aerobic treatment for OMW treatment obtaining a total conversion of TOC of 84.6%. On the other hand, in previous studies by our group, OMW was treated by a combination of photo-Fenton and sedimentation operations, obtaining a total conversion of TOC of 96.1% [23]. Another option to reduce costs would be using a catalyst that can be reused to avoid the continuous removal of the catalyst. In this sense, solid catalysts have emerged as promising reusable catalysts due to their easy separation from wastewater, avoiding secondary pollution with metallic ions, as it happens in liquid catalysts [26].

In a heterogeneous photo-Fenton-like reaction, UV activates the catalyst to react with H₂O₂, generating hydroxyl radicals (OH^•). The heterogeneous catalyst is usually based on micro- or nanoparticles and/or other organic frameworks to have a large specific surface area enhancing the adsorption of reactants and improving the degradation efficiency of organic pollutants [27]. They are based on different components such as iron metals [28], titanium [27], cesium [29], or non-metal catalysts such as sulphate or N-and S-co-doped biomass carbon, activated carbon, graphene oxide, or sulphate [30]. Among the different heterogeneous catalysts, metal catalysts exhibit high activity in AOPs, owing to their excellent electron transfer capability. Specifically, iron-based materials have been successfully used for the photo-Fenton treatment of different compounds. Luo et al. [31] reviewed the different iron-based heterogeneous catalysts. HFeO₂ has not been previously evaluated as a catalyst for organic load degradation in wastewater. In this work, HFeO₂ was proposed and tested as an efficient catalyst in OMW treatment by a photo-Fenton like reaction. In addition, the catalyst was recovered several times, and its efficiency after reuse was checked and determined.

2. Results and Discussions

2.1. OMW Characterization

The raw wastewaters used in this work were directly collected from olive mills in Seville province (Spain), which operated with a continuous two-outlet decanter process.

Table 1. Characterization of a mixture of OMW used as the initial sample and the Spanish maximum values allowed for discharge into the public domain (Royal Decree 849/1986).

Parameters	Values	Spanish Maximum Values Allowed for Discharge into the Public Domain
pH	4.37	5.5–9.5
Electric conductivity (mS/cm)	3.47	-
Turbidity (FTU)	3453	-
Total solids (%)	0.775	-
Total suspended solids (%)	0.699	30
Organic matter (%)	0.571	-
Ashes (%)	0.204	-
Total phenolic compounds (mg/L)	288	1
Fat content (%)	0.00360	40
Dissolved O2 (mg/L)	0.79	-
BOD5 (mg O2/L)	2030	300
COD (mg O2/L)	16586	500
Total carbon (mg/L)	4431.2	-
Total organic carbon (mg/L)	4252	-
Inorganic carbon (mg/L)	179	-
Total nitrogen (mg/L)	72.8	-
Iron (mg/L)	28.1	10
Chlorides (mg/L)	1132	-
Sulphates (mg/L)	29	-
Na+ (mg/L)	2.73	-
NH4+ (mg/L)	2.02	-
K+ (mg/L)	195	-
Ca2+ (mg/L)	8.00	-

shows the characterization of the crude mixture (1:1 v/v) of olive mill wastewaters from olive washing and olive oil washing.

From Table 1, it is clear the high organic load of this kind of wastewater (COD up to 16586 mg O2/L and total carbon up to 4431.2 mg/L) and the non-biodegradable organic matter contained in this OMW (COD/BOD₅ ratio = 8.2) in comparison to the registered parameters for urban wastewater (COD/BOD₅ ratio = 2), [6].

2.2. pH and Conductivity Variations

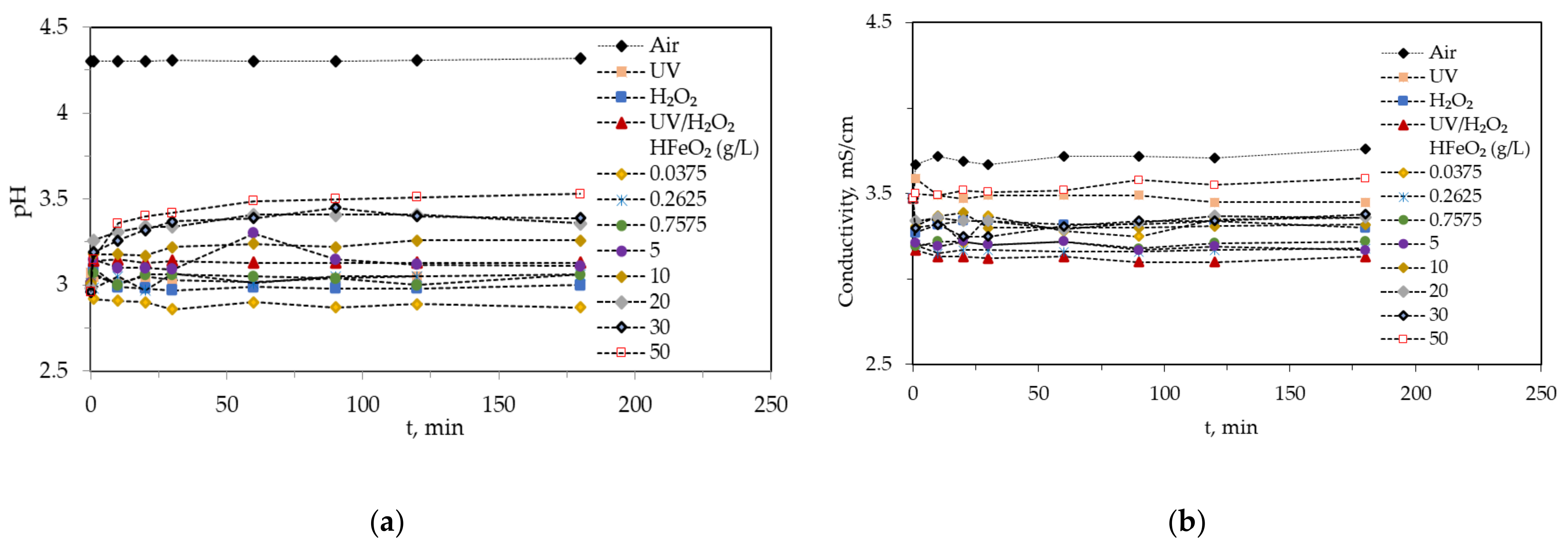

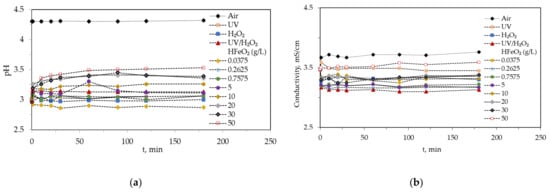

Figure 1a,b shows the behavior of pH and electric conductivity for control systems (air, UV, H₂O₂, and UV/H₂O₂) and photo-Fenton like reactions at different catalyst concentrations. In general, there was no variation in pH and electrical conductivity values throughout time. Only a slight increase in pH (<0.5) appeared in experiments with higher amounts of catalyst, specifically, in those where the concentration of HFeO₂ was above 10 g/L. Because not all reactions taking place during the oxidation time are known exactly, it is possible that some compounds of basic character are produced in the medium due to incomplete degradation of the organic matter (Equation (1)).

Organic matter + oxidant → simple products + CO₂ + H₂O

(1)

Simple products → CO₂ + H₂O

(2)

These behaviors are important to detect two phenomena: (i) the possible transfer of ions from the surface of the catalyst to the medium and (ii) intermediary compounds with basic characteristics during organic matter degradation that could modify the conditions of the reaction.

As for the conductivity recorded (Figure 1b), it can be observed that it remain virtually constant throughout the 3 h of experimentation and only in the oxidation experiment using 50 g/L of HFeO₂, we recorded conductivity values higher than those of the experiments with lower catalyst concentrations, which could be due to the catalyst itself or to the partial solubilization of the catalyst surface and the release of iron ions into the medium. However, these conductivity values did not exceed the initial values. The experiment evaluating oxidation by air showed higher conductivity levels than the other experiments, due to the lack of pH modification of the wastewater at the beginning of the experiments as in the other experiments.

2.3. Organic Matter Degradation

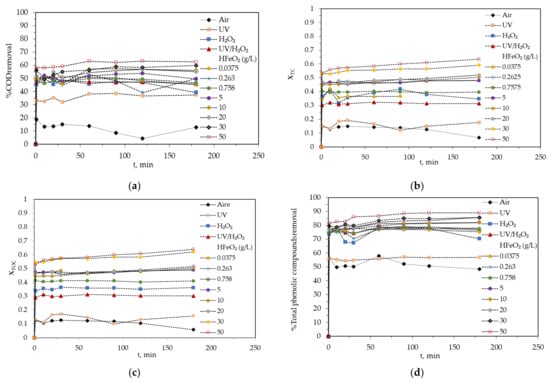

Figure 2a presents all the chemical oxidation systems referred to the removal percentage of COD during the experiments. The treatments with the lowest efficiencies are clearly air (average %COD removal = 11.6 ± 3.54%) and UV/light with 35.5 ± 2.48%. These results are similar to those obtained previously by our research group [23]. In fact, these results highlight the potential of hydrogen peroxide as an oxidant. For this reason, the oxidation systems based on H₂O₂ and UV/H₂O₂ showed higher values, i.e., 46.1 ± 3.03% and 48.3 ± 1.53% of COD removal. On the other hand, when the catalyst was introduced into the oxidation system, the %COD removal also increased with the augmentation of the catalyst concentration, being optimal (62.8 ± 0.454%) when 50 g/L of catalyst was used. The difference in the percentage of elimination with respect to the H₂O₂/UV system was around 10%; however, it is necessary to consider that the use of a catalyst adds more turbidity to the system, which can interfere with the projection of light from the lamp. In this sense, at a concentration below 1 g/L of catalyst, the system showed COD removal around 48.6 ± 0.859%. Only when the catalyst concentration was ≥5 g/L, the %COD_removal was >50% (corresponding X_TC and X_TOC ≈ 0.47, Figure 2b,c).

The OMW photodegradation profiles by heterogeneous photo-Fenton reaction using HFeO₂ as a catalyst are similar to those obtained by Agabo and Hodaifa [23], Hodaifa et al. [17], and Martínez-Nieto [22,32] for homogenous photo-Fenton reaction. In fact, Figure 3 shows the degradation capacity of the system UV/HFeO₂/H₂O₂, in which the degradation is increased with the reaction time.

Figure 2d shows that it is possible to degrade the included phenolic compounds, %TOCs removal, of OMW with all oxidation systems evaluated; air and UV appeared to be the least powerful oxidation treatments. In contrast, the photo-Fenton system with 50 g/L catalyst degraded about 90% of the total phenolic content in the samples. In general, when the HFeO₂ concentration was increased, the %TPCs removal was also slightly increased. However, it can be seen that even for air and UV systems, TPCs removal was equal to 52.3 ± 3.53% and 56.7 ± 0.542%, respectively. The H₂O₂ system registered %TPCs_removal = 75.0 ± 3.05%, and the UV/H₂O₂ system provided a slightly higher value equal to 76.8 ± 1.73%. This fact indicates the susceptibility of phenolic compounds to be oxidized, which gives them a perfect buffering capacity of oxidation of other important compounds such as lipids, proteins, vitamins, dyes, carbohydrates, and pigments of the food industry [33]. The majority of phenolic compounds (5% of organic matter) are transferred to wastewater in olive oil production [34] and eliminated (75–80%) in a short period of time (few minutes, Figure 2d). Evidently, this treatment is more efficient for the degradation of phenolic compounds than for COD, despite the fact that both reflect the organic matter content. This advantage in the degradation of phenolic compounds could be due to the fact that these molecules are found in simpler forms and are therefore easier to attack, while COD may involve molecules with high molecular weight such as lignin and cellulose, among others [35].

2.4. Catalyst and Oxidant Agent Residue

In all chemical oxidation processes, the elimination of chemical agents after treatment must be a priority in order to avoid a new problem in the wastewater target. In this sense, the residual content of both agents (H₂O₂ and iron) was measured, as well as turbidity values. The initial iron value was 28.1 mg/L, and the final residual iron value was between 2.05 and 3.40 mg/L for photo-Fenton like reactions at any concentration and UV/Fe–catalyst/H₂O₂ systems, removing between 87.9 and 92.7% of iron. These results are similar to those determined for other homogenous photocatalysis reactions (using catalysts such as FeCl₃, Fe₂(SO₄)₃·H₂O, and FeSO₄·7H₂O) after performing a catalyst separation step, normally by natural sedimentation or sedimentation–flocculation [17].

Meantime, the initial iron on OMW was 0.516 mg/L, and the residual total iron determined for air, H₂O₂, photolysis, and UV/H₂O₂ systems were lower than that value. This was due to the possible complex formation of iron ions with the organic matter present in OMW. For the heterogeneous photocatalysis, the concentration of iron in the final treated water was detected in the range of 2.05 to 3.20 mg/L (average value and standard deviation = 2.63 ± 0.389 mg/L), (

Table 2. Final values of parameter (turbidity, residual oxidant agent, and total iron) determined for treated water at the end of the experiments and after sample centrifugation.

Oxidation System	HFeO2 (g/L)	Turbidity (FTU)	Residual H2O2 (g/L)	Residual Total-Fe (on OMW) (mg/L)
Air	-	1469.5	-	0.431
H2O2	-	930	4.58	0.199
UV	-	1111	1.06	0.368
UV/H2O2	-	556	3.80	0.0650
UV/H2O2/HFeO2	0.04	562	5.00	2.93
	0.25	544	5.02	2.32
	0.75	569	4.99	2.66
	5.00	437	4.97	2.05
	10.0	469	4.78	2.32
	20.0	385	5.09	2.47
	30.0	447	4.94	3.12
	50.0	376	5.14	3.20

). In general, the heterogeneous catalysts should avoid residual iron generation, but during the photooxidation some iron species are generated as residual iron, which can be removed by centrifugation or sedimentation because it generates flocculent aggregates that tend to sediment. This effect can be also appreciated in the turbidity values. The initial turbidity values (3453 FTU) were reduced to 67.8% and 73.0% for UV and H₂O₂, respectively. However, for photolysis and photo-Fenton like reactions, the turbidity removal percentages were increased to 83.7–89.1%.

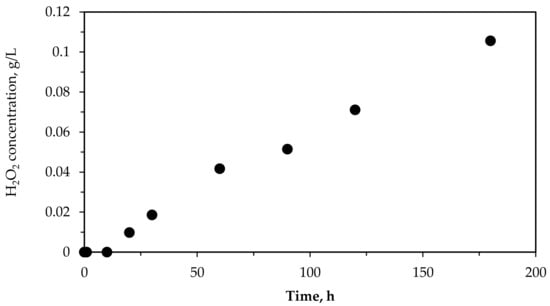

Regarding the residual H₂O₂ concentrations after the use of each oxidation system, it can be observed that no residual H₂O₂ was found after air oxidation, which is normal since no oxygen peroxide was added to the wastewater. After wastewater photolysis with artificial UV light, a concentration of 1.06 g/L of H₂O₂ was detected (Table 2). This was due to the production of hydrogen peroxide via UV-photolysis in the presence of some catalyst such as that contained in the OMW used (Table 1). In this sense, the UV light lamp used had a nominal level of emission intensity in the range of 200–280 nm and a power equal to 150 W. To confirm the hydrogen peroxide production, a control experiment was performed using tap water, HFeO₂ as catalyst, and under UV lamp exposure. The results showed the generation of 0.106 g/L of H₂O₂ after 160 min (Figure 4). Similar results were reported by other authors as Campos-Martin et al. [36] and Hayes et al. [37].

2.5. Catalyst Reuse

In this work, the catalyst was recovered and reused in photocatalysis up to three consecutive times to compare the efficient loss after each reuse. After each round of recovery (catalyst separation from OMW, treated, and then dried in an oven at 105 °C), the catalyst quantity recovered was around 90% (w/w). The separation of the catalyst was instantaneous by natural sedimentation due to its high density.

Table 3. Recovery percentage of the catalyst after use in the photo-Fenton oxidation for OMW treatment.

Reutilization Number	% Amount Recovered After Each Use of HFeO2
First	87.6
Second	92.9
Third	91.0

shows the catalyst (HFeO₂) quantities recuperated after each reutilization. As can be seen in Table 3, it was possible to recover a high percentage of the catalyst used, which represents an advantage compared to homogeneous catalysis, in which the catalyst can be used only once. Recovery was possible because this catalyst can precipitate instantaneously, thus facilitating its separation from the other components in the water. In addition, it is important to indicate the lower percentage in the first recovery (87.6%) of the commercial catalyst used, which was associated with a small percentage of fine particles that were difficult to separate from the water by gravity.

In the reuse experiments, a final pH adjustment to around the value of 7 of the treated water was carried out, which is between the levels stipulated by the legislation (Spanish Royal Decree 849/1986, pH between 5.5 and 9), and this adjustment also favored the precipitation of colloidal organic matter and iron in the form of iron hydroxide that remained in suspension after oxidation.

Table 4. Final values of main characterization parameters after natural OMW sedimentation (sedimented OMW) and photo-Fenton-like treatment in different rounds, reusing the heterogeneous HFeO₂ catalyst.

Parameter	Crude OMW	Sedimented OMW	Catalyst Reuse Number			%Average Final Removal
			1	2	3
COD (mg O2/L)	16,586	14,098	4913	4965	4666	65.6
Total carbon (mg/L)	4431.2	3776.5	1578	1333	1305	62.7
TPCs (mg/L)	288.0	279.4	30.4	16.4	20.1	92.0
Turbidity (FTU)	3453	3108	27.9	4.7	67.5	98.9
Total iron (mg/L)	28.1	26.9	1.9	2.0	1.6	93.2

shows how the levels of all parameters were considerably reduced (after natural OMW sedimentation for 24h and photooxidation), even after the third reuse of HFeO₂.

In general, no variation of the values of the removal percentage of the parameters COD (70.8 ± 0.786 mg O₂/L, TC (68.3 ± 0.738 mg/L), total phenolic compounds (92.3 ± 0.0357 mg/L), turbidity (99.0 ± 0.156 FTU), and total iron (93.5 ± 0.00102 mg/L) were determined after the three reutilizations. However, the value of two parameters, COD and total phenolic compounds, did not comply with the national recommendation for wastewater discharge into sewage systems (COD = 500 mg/L and 1 mg/L) according to the Spanish Royal Decree 849/1986 for “olive oil production industry”. However, the limit for iron values (10 mg/L) was reached after the third round of recovery. As the competency of regulation discharge belongs to Local Authorities in Spain, the government of Seville established other limits, i.e., total phenolic compounds, 3 mg/L, and iron, 10 mg/L, in its Regulating Ordinance published on the official Gazette No. 117. Therefore, the reuse of this catalyst can make this process more economical and efficient. In this sense, it is interesting to indicate that for a real process for OMW treatment, the process does not contain only the photooxidation step, which means that the addition to other separation units before and after photooxidation makes it possible to achieve the legislation limits established by the authorities.

3. Materials and Methods

3.1. Chemicals

For the photo-Fenton oxidation, the catalyst used in this study was HFeO₂ from Sigma-Aldrich (Madrid, Spain).

Hydrogen peroxide solution (30% w/v) in stable form, Manganese IV oxide, and potassium dichromate, 99.5%, were purchased from Fisher Scientific (Barcelona, Spain). Hydrochloric acid 37% was purchased from Acro organics (Spain). Titanium (IV) oxysulphate–sulphuric acid solution 27–31% H₂SO₄ was supplied by Fluka Analytical (Barcelona, Spain).

3.2. Methodology

The oxidation reaction was performed in a photo-reactor with 1 L total capacity. In all experiments, 500 mL of wastewater was used, and HFeO₂ in solid state with a size particle of 30–50 mesh was used as a catalyst. Two sets of experiments were developed: the first with different catalyst concentrations (0.04; 0.25; 0.75; 5.00; 10.0; 20.0; 30.0; 50.0 g/L), and the second with reusable catalysts at 50 g/L of concentration. For the reusing experiments, after any round of treatment, natural sedimentation was developed, separating the liquid phase from the catalyst. After that, the catalyst was washed with distilled water and dried in an oven at 105 °C.

Four control experiments were also carried out as follows:

• Oxidation with only air.
• Oxidation with UV alone (photolysis).
• Oxidation with only H₂O₂.
• Oxidation with the system UV/H₂O₂.

In all experiments, the pH value was adjusted to 3.0 by 1 M HCl. Subsequently, in the experiments including H₂O₂, a solution of H₂O₂ was diluted to reach 7.5% (w/v) of concentration as the optimal concentration. The initial hydrogen peroxide amount necessary for the complete degradation of the organic matter (COD) of OMW was calculated according to the reaction stoichiometry [17]. Finally, an immersion ultraviolet lamp was switched on. The UV lamp in the photo-reactor was covered by a quartz immersion tube and a quartz cooling jacket where the cooled water was pumped by a portable chiller (Mod. PolyScience, Niles, IL, USA).

A magnetic stirrer inside the photo-reactor to increase the degree of mixing of catalyst and OMW was used, allowing greater access to the UV light. The UV lamp used was an immersion lamp, model TQ 150 (standard), N^o 5600 1725, brand HNG Germany G4. The dimensions of the UV lamp were total immersion 384 mm, luminous part 303 mm, emission center at 44 mm, and power of 150 W. The power of the UV lamp per surface unit was 10,000 W/m², higher than the maximum power of the sun for an average day (146 W/m²), [38]. Inner photo-reactor temperature was controlled through a quartz-cooling jacket located around the UV lamp.

The common operating conditions were pH = 3, temperature = 20 °C, and stirring rate = 700 rpm. The temperature and pH conditions were selected according to our previous work [17]. The stirring rate used was the minimum rate, which kept all the catalyst in suspension, so that it would be available at any point in the photoreactor to approximate to the degree of perfect mixing in the reactor. We started from 60 rpm up to the best stirring rate for this heterogeneous catalyst. These experiments were realized with catalyst and tap water. For the photoreaction monitoring, 40 mL of effluent were sampled at 3, 10, 20, 30, 60, 120, and 180 min. In this sense, after each sample was taken, the catalyst was separated by natural sedimentation, as the separation was instantaneous.

3.3. Analytical Methods

Real OMWs were characterized by measuring the following parameters: pH value, electric conductivity, turbidity, moisture and volatile materials, total solids, organic matter, ashes, chemical oxygen demand (COD), total carbon (TC), total organic carbon (TOC), inorganic carbon (IC), total nitrogen (TN), total phenolic compounds (TPCs), total iron, chloride, sulphates, sodium, ammonium, potassium, calcium, zinc, magnesium, manganese, and iron.

The value of pH was measured using a CRISON pH meter, mod. LPG 22 (Barcelona, Spain).

Electric conductivity was determined directly by a CRISON conductivity meter, GLP31 model.

Turbidity was measured by a Turbidimeter Hanna, mod. HI93703 (Barcelona, Spain).

The total solids and moisture and volatile materials were determined according to the weight loss of the sample after being placed in an oven, type Memmert mod. UF110 Memmert GmbH+Co KG (Schwabach, Germany) at 105 ± 1 °C.

Ashes were determined by using an oven, type CARBOLITE mod. ELF14 of Gero Ovens (Chelmsford, United Kingdom) at 575 ± 5 °C.

The percentage of organic matter was calculated as the percentage of total solid minus the percentage of ashes.

Chemical oxygen demand (COD) was measured by photo-metric determination, by using a UV–Visible Spectrophotometer, type Evolution 201 (Thermo Scientific) at 620 nm, of the concentration of chromium (III) after 2 h of oxidation with potassium dichromate/sulphuric acid/silver sulphate at 148 °C [39].

Total carbon (TC) represents all the carbon contained in a sample, which includes organic and inorganic carbon (TC = TOC + IC); total organic carbon (TOC) is the organic carbon that is converted into carbon dioxide after oxidation (TOC = TC − IC), inorganic carbon (IC) is the inorganic carbon in a sample that, after acidification, turns into carbon dioxide. IC includes all carbonates, bicarbonate, and dissolved carbon dioxide (IC = TC − TOC), and total nitrogen (TN) is all nitrogen in the sample, which includes organic and inorganic nitrogen. Total Carbon and Nitrogen were determined using an analyzer provided by Skalar Analytical B.V Company, mod. Formacs^HT and Formacs^TN (Breda, The Netherlands).

Total phenolic compounds (TPCs) were determined by making them react with a derivative thiazole, producing a purple azo dye, which was measured photometrically at 475 nm by using a UV–Visible spectrophotometer, type Evolution 201 of Thermo Scientific (Barcelona, Spain) [40,41].

Total iron ions were determined by reduction of all iron ions to iron ion (II) in a thioglycolate medium with a derivative of triazine. This reaction results in a reddish-purple complex that was determined photometrically by the using UV–Visible spectrophotometer, type Evolution 201 (Thermo Scientific) at 565 nm [40,41].

Sulfates and chloride were determined photometrically at 420 nm and 450 nm by using the UV–Visible spectrophotometer, type Evolution 201 (Thermo Scientific), respectively [40,41].

The ions of Na, NH₄, K, Ca, Cu, Zn, Mg, Mn were determined by using selective electrodes supplied by Crison, mod. GLP22 (Barcelona, Spain) and Hatch mod. HQ40d (Madrid, Spain).

3.4. Calculations and Kinetics

Removal percentages for each parameter were calculated as follows:

$$\%\mathrm{Removal}\mathrm{of}\mathrm{the}\mathrm{parameter}=\frac{\left({\mathrm{Parameter}}_{\mathrm{o}}-{\mathrm{Parameter}}_{\mathrm{i}}\right)}{{\mathrm{Parameter}}_{\mathrm{o}}}$$

(3)

where ‘Parameter_o’ is the value of the parameter at the time equal to 0 (at the beginning of the experiment), and ‘Parameter_i’ corresponds to the value of the parameter at any time during the experiment.

For the kinetic study of organic matter degradation by photo-Fenton reaction, the TOC parameter was selected due to its high selectivity and sensibility to any change in organic matter [42]. In this sense, taking into account that the reaction was developed in a batch stirred tank reactor and considering a constant density of the mixture, TOC conversion could be calculated as follows:

$${\mathrm{X}}_{\mathrm{TOC}}=\frac{\left({\mathrm{TOC}}_{\mathrm{o}}-{\mathrm{TOC}}_{\mathrm{i}}\right)}{{\mathrm{TOC}}_{\mathrm{o}}}$$

(4)

where ‘TOC₀’ is the TOC value at t = 0 h (at the beginning of the experiment), ‘TOC_i’ is the TOC value at any time during the photoreaction, and ‘X_TOC’ is the degree of conversion of the organic matter represented on TOC base.

The mathematical calculation and graphics were made by using the Excel program.

4. Conclusions

For the degradation of OMW, different oxidation systems (air injection, artificial UV light, hydrogen peroxide addition, UV/H₂O₂, and HFeO₂/UV/H₂O₂) were used. In the case of air injection, the following removal percentages were achieved: %COD = 35.5%; %TOC = 15.0%; %TPCs = 57.0 %, and %turbidity = 72.5%. Artificial UV light degraded OMW but to a lesser extent than hydrogen peroxide. All oxidation systems used in this work recorded removal percentages above 50% for total phenolic compounds, except for the air injection system, and the highest percentage (88.8%) was recorded for the UV/H₂O₂/HFeO₂ system when 50 g/L of HFeO₂ was used as catalyst. This fact makes it possible to extrapolate this treatment system to other industrial wastewaters. The use of heterogeneous oxidation systems allows treatment without catalyst contamination and reduces overall treatment costs. Finally, it can be indicated that the oxidation system by heterogeneous catalysis, studied in this work, could be complemented with other upstream or downstream separation units to achieve a higher percentage of degradation in order to comply with the legal standards established for the quality of treated water for use in irrigation or in the process itself.

5. Patents

Hodaifa, G.; Agabo-García, C. Method for wastewater treatment based on photo-oxidation by ultraviolet light. Patent ES-2673673-B1, 2019.
