Promotional Effect of Pd Addition on the Catalytic Activity of Composite Pt-Pd/AlSBA-15–β Catalyst for Enhanced n-Heptane Hydroisomerization

Abstract

Hierarchical AlSBA-15–zeolite materials were utilized as a supports for preparing hydroisomerization catalysts. Detailed consideration was given to: (i) the effect of the zeolite type introduced into AlSBA-15–zeolite composites (where zeolite is β, mordenite or ZSM-5) as well as (ii) the promotion effect of Pd addition. The composites showed higher activity in isomerization as compared to Pt/AlSBA-15. The enhanced isomerization efficiency were explained by the appropriate metallic and acidic function as well as suitable transport properties. The modification of the hydrogenating function by Pd incorporation increases the hydroisomerization efficiency of Pt-Pd/AlSBA-15–β catalyst. Over bimetallic Pt-Pd/AlSBA-15–β, the high yields of isomers (68 wt%) with respect to 50 wt% for a control catalyst. The most promising Pt-Pd/AlSBA-15–β catalyst allows to improve research octane number from 0 to the 74 value.

1. Introduction

Global environmental concerns and more drastic requirements for advanced vehicle fuels with maximum combustion efficiency and minimum emissions are leading drivers to improve existing processes or to create innovative technologies for their production. In the case of gasoline, the requirements for high-quality fractions include, inter alia low aromatics content together with maintaining a sufficiently high octane number (ON). The US EPA specifications for gasoline require that the aromatics content be as low as 25 vol% and ON is set to a minimum value of 95 [1], while the current quality demands in the European Union limit the aromatics content up to 35 vol% and require ON to be also at least 95 units [2]. Therefore, in modern refineries, the branched fractions of C₄–C₆ alkanes are used to obtain high ON components what makes it possible to reduce the use of harmful aromatics. The well-known technologies for hydroisomerization of C₄–C₆ fractions are: UOP/Honeywell PENEX™ [3], Texaco ISO-TEX™ [4], UOP/Honeywell TIP-SafeCat™ [5], Shell HYSOMER™ [6], Mobil/BP ISOFIN™ [7], UOP/Honeywell PAR-ISOM™ [6], Axenes IPSORB™ [8], HEXORB™ [9].

Fractions containing n-alkanes with carbon numbers more than 6, such as C₇–C₉, are usually present in the feed stream for catalytic reforming and under the reforming conditions they undergo isomerization but also dehydrocyclisation to aromatic compounds. Since the regulations aim to decrease aromatic hydrocarbons, it seems that, as in the case of C₄–C₆ alkanes, an alternative is their hydroisomerization to environmentally friendly gasoline high ON components. There is still no suitable technology for the conversion of C₇–C₉ cuts into branched fractions because of several problems with their effective hydroisomerization. Due to the high reactivity of the C₇–C₉ hydrocarbons, they are prone to cracking over the commercial catalysts used in C₄–C₆ hydroisomerization. Furthermore, it is required to decrease the process temperature as the equilibria of the isomerization becomes more favourable at low temperature [10]. At high temperature, the tendency to undesirable cracking, at the expense of the isomerization selectivity, is significantly increased [11]. Besides, high reaction temperature favours the formation of carbonaceous deposits which can deactivate the catalyst [12].

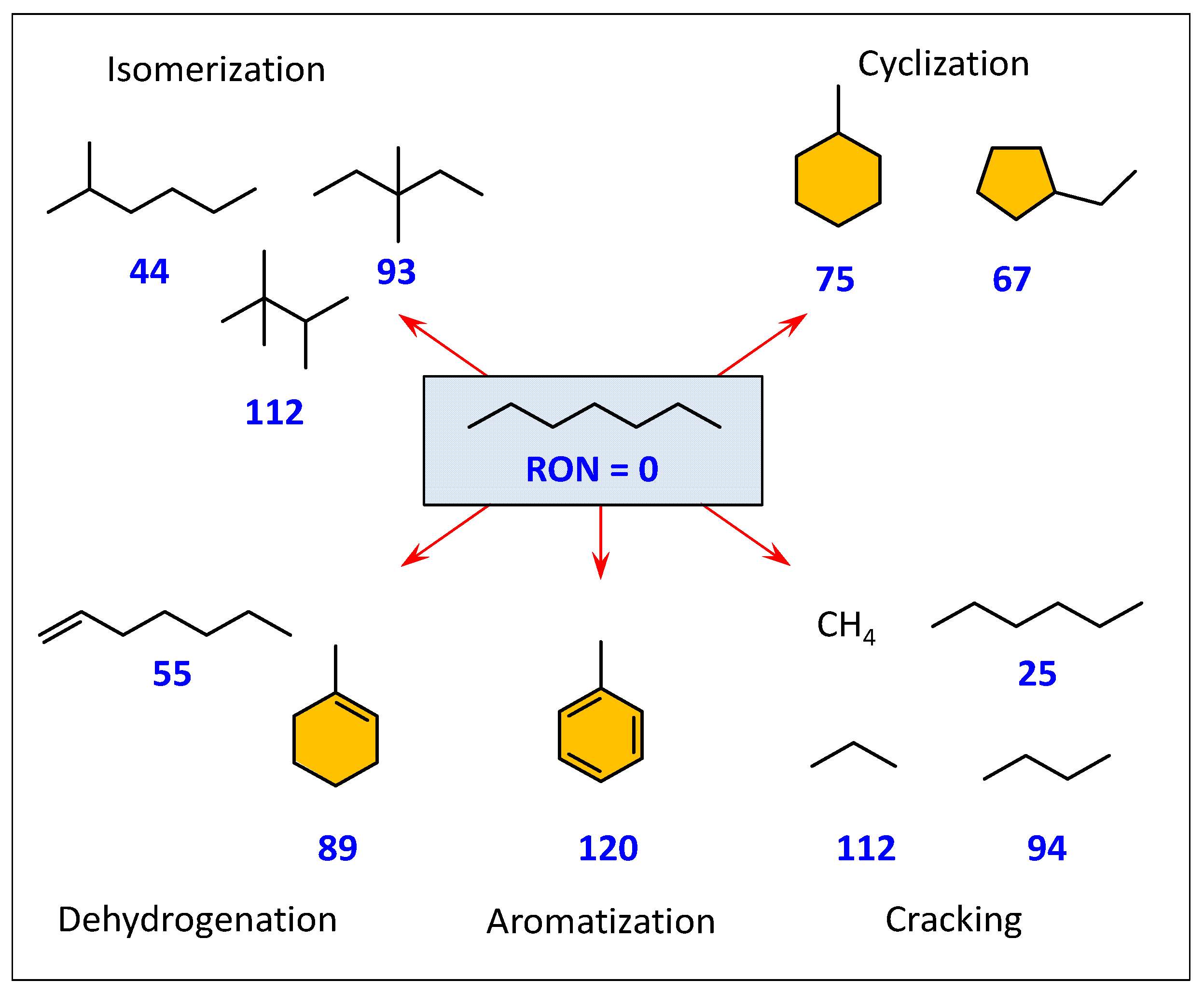

Among linear C₇–C₉ alkanes, n-heptane is a molecule with great interest because its skeletal isomerization can improve ON from 0 to 44–112 (Figure 1) [13,14]. The ON values of iso-alkanes are higher than that of their linear counterparts and it rises with the degree of branching. Thus, for gasoline, multi-branched alkanes are much more favourable. The hydrocarbons formed in side reactions like: cracking, aromatisation, cyclisation and dehydrogenation are undesirable products. Cracking negatively influences the carbon atoms economy and the obtained products, even though they are displaying in some cases high ON, are too light to be a valuable gasoline components. Whereas aromatisation provides harmful products affecting not only the gasoline “purity” but also the catalyst deactivation because they are precursors of carbonaceous deposits. The unsaturated compounds formed as a result of dehydrogenation are hydrocarbons with low chemical stability and with poor anti-knocking features. Furthermore, cycloalkanes with seven carbons are not the appropriate compounds for composing of high-grade gasoline due to too their low ON. Hence, the investigation challenge in that area is to develop a suitable technology including an effective catalyst for the isomerization of C₇–C₉ into valuable high ON multibranched isomers running without side reactions. Selective conversion of C₇–C₉ linear hydrocarbons into high-quality products along with eliminating by-products and maintaining carbon atom economy would enable the realisation of the hydroisomerization process in line with the idea of green chemistry [15]. Another important aspect that should be taken into account is ensuring a sufficiently high volume of fuels received from renewable sources on the energy market. Thus, if we consider the perspective of obtaining bio-n-alkanes with the boiling range of gasoline from natural raw materials [16,17] finding an effective catalyst for isomerization will be an important progress in the production of high-quality biogasoline.

It is generally accepted that isomerization of n-alkanes takes place on a bifunctional catalyst through a monomolecular mechanism (Figure 2) [18,19]. The metal sites generate intermediate olefins via dehydrogenation of the n-alkanes. Then, the protonation of the resulting n-alkenes on the Brønsted acid sites generates n-carbenium ions. The formed n-carbenium ions can undergo C—C bond rearrangement into iso-carbocations. The iso-carbocations can either desorb from the catalyst surface as iso-alkanes via deprotonation on the Brønsted sites followed by hydrogenation on the metal or fall to cracking (β-scission). It is worth noting that the iso-alkene intermediates are prone to C—C bond cracking, which would severely reduce the yield of desirable iso-alkane products. Therefore, the inhibition of the cracking of iso-alkene intermediates is the most essential principle for the improvement of the hydroisomerization performance.

It clearly appears that the catalytic performance of the bifunctional catalyst depends strongly on two parameters, i.e., the balance between the metal and Brønsted acid sites (i.e., the ratio of metal to acidic sites and the proximity of both site types) and the diffusion of alkene intermediates in the channels of acidic supports. Therefore, two main approaches are made to enhance the isomerization catalyst efficiency: (i) the selection of active phase composition [20,21,22] and (ii) the selection of support with appropriate acidity and porous structure [23,24,25].

In this work, we have investigated the catalytic activities of noble catalysts supported on AlSBA-15–zeolite composites for isomerization. It was expected that the unique porous structure of the bimodal AlSBA-15–zeolite composites would provide moderate acidity, improve the accessibility of the active sites, and facilitate overall transport conditions. Whereas, an appropriately selected composition of the metallic phase with high dispersion would provide a sufficient quantity of active sites for alkene generation and for isomerized alkylcarbenium ions hydrogenation [26,27]. As mentioned above, the catalyst for hydroisomerization of n-paraffins containing more than 6 carbons should contain the support which is characterised by lower acidity than the catalyst used for the conversion of short-chain n-paraffins as the isomerization selectivity decreases with increasing chain length. Zeolites are the most commonly used acidic supports for bifunctional isomerization catalysts, however, there are some problems associated with their application. Because of the small pore diameter of zeolites the restricted access of the large molecules to the active sites exists. The strong acidity of zeolites favours consecutive cracking reactions producing high quantities of low-value gaseous products. Moreover, owing to their high acidity the coke deposition on active sites is a significant phenomenon and in consequence the catalyst needs frequent regeneration. It seems that mesoporous materials/zeolite composites could be an appropriate support for a selective catalyst for hydroisomerization of n-alkanes. The micro-mesoporous composites take the advantages of zeolites, which bear moderate acidity, and the advantage of mesoporous materials with improved diffusivity of bulky molecules. The micro-mesoporous catalysts are expected to show improvement in hydroisomerization because of the shortened residence time of the products within the mesopores and as a consequence the reduced secondary reactions (cracking included). The new catalysts will also diminish the use of reforming catalysts, i.e., chlorinated platinum/alumina ones. These catalysts are very sensitive to poisons and moreover they cause the environmental pollutions and technical problems with corrosion as they need to be continuously chlorinated to keep an activity. Therefore, the bifunctional Pt catalyst supported on micro-mesoporous materials which does not require continuous chlorination might be an alternative.

The progress that has been made in the past few years in the synthesis of micro-mesoporous materials is enamours. Nevertheless, the presented results often describe complicated and thus expensive synthesis methods of bimodal zeolite/mesoporous material composites. In our paper, the biporous AlSBA-15–zeolite composite material has been obtained by means of a simple method, i.e., via adding zeolite directly into the colloidal precursor of AlSBA-15 phase. It should be noted that there are studies reporting the hydroisomerization of C₇–C₉ fractions over the catalysts supported on biporous composites, e.g., the last works of Gao and coworkers [28,29]. However, to the best of our knowledge, so far no studies have reported the use of AlSBA-15–zeolite composites prepared through the procedure proposed by us for isomerization of n-alkanes. In addition, most of the works regarding the catalytic activity of micro-mesoporous catalysts are related to the materials in powder form. Our investigation concerns the catalytic performance of catalysts supported on multicomponent mixtures, i.e., AlSBA-15–zeolite materials extruded with binder (here γ-Al₂O₃). It allows to follow not only the properties of micro-mesoporous catalysts in n-alkanes branching but also to test the catalysts which are similar to the commercial ones, i.e., shaped with binder [30]. Studies on the micro-mesoporous materials rather do not take into account that aspect.

The aim of this paper is to evaluate the catalytic activities of noble catalysts supported over shaped with binder AlSBA-15–zeolite composites for n-heptane isomerization. Particular consideration was given to (i) the influence of zeolite type (i.e., β, mordenite or ZSM-5) introduced into AlSBA-15–zeolite composite supports as well as (ii) the influence of metallic phase composition (i.e., Pt, Pd or Pt-Pd).

2. Results and Discussion

2.1. Catalysts Characterisation

The evidences for a highly ordered hexagonal structure of AlSBA-15 in supports and catalysts are provided by the low temperature N₂ adsorption—desorption, TEM micrographs and XRD diffractograms (Figures S1–S3 and Table S1). It is also crucial to confirm the structure of zeolite in AlSBA-15–zeolite supported catalysts since the synthesis of biporous support relies on AlSBA-15 phase crystallisation in the presence of zeolite particles and in consequence the contact of zeolite particles with the acidic environment takes place. The wide-range XRD diffractograms of Pt-, Pd- and Pt-Pd/SBA–BEA samples confirming the presence of the zeolite structure are shown in Figure S4.

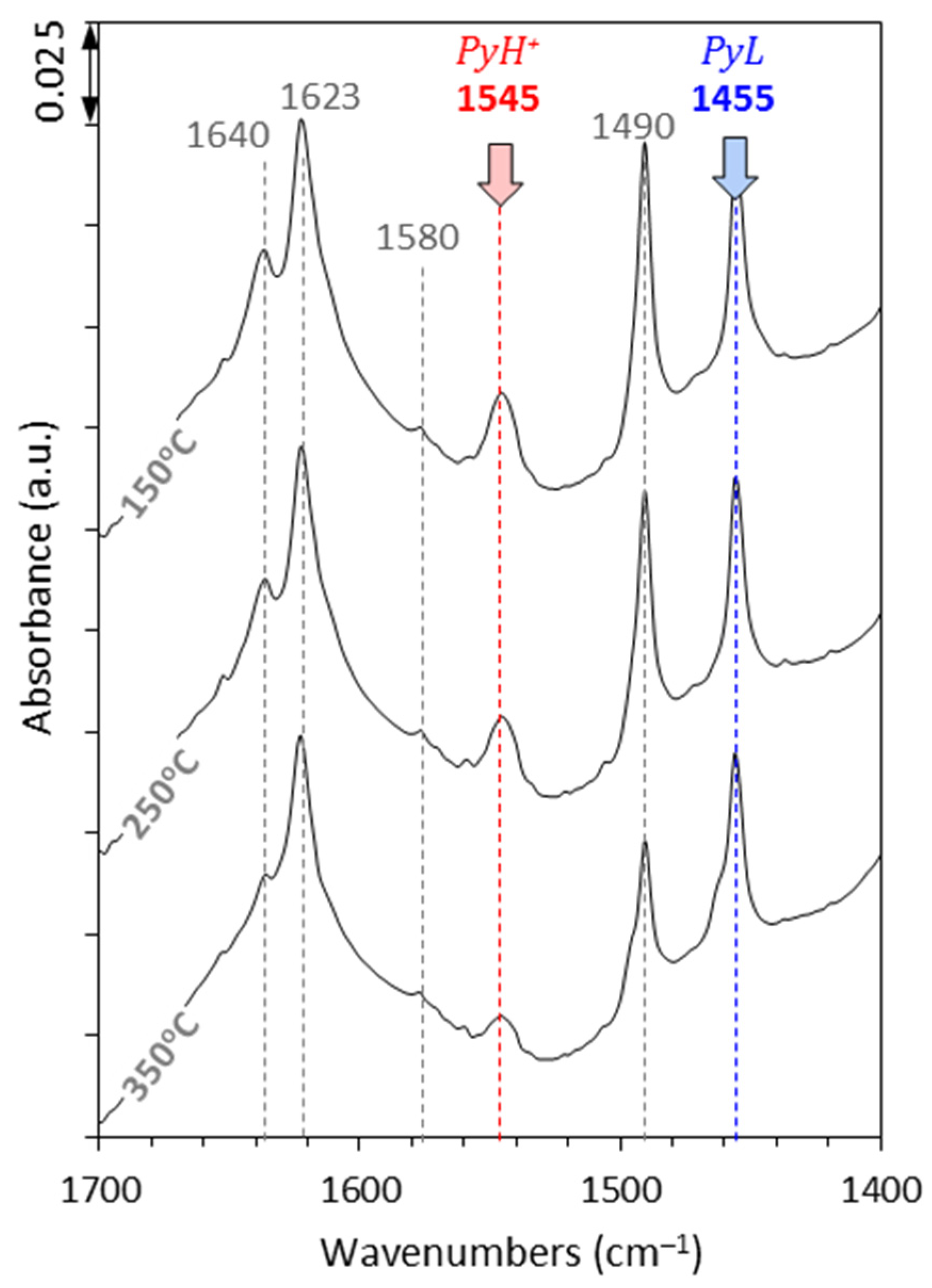

Py—IR spectra after desorption of pyridine were collected from the catalysts in order to study the acidity (Figure 3 presents the spectra for Pt/SBA–MFI as an example). The concentration and strength of acid sites on all samples are compiled in

Table 1. Acidity of the catalysts by Py—IR.

Catalyst	${\mathit{n}}_{\mathit{P}\mathit{y}{\mathit{H}}^{+}}$${}^{\mathbf{a}}(\times {\mathbf{10}}^{-\mathbf{19}}{g}_{\mathrm{cat}}^{-\mathbf{1}})$					${\mathit{n}}_{\mathit{P}\mathit{y}\mathit{L}}$${}^{\mathbf{b}}(\times {\mathbf{10}}^{-\mathbf{19}}{g}_{\mathrm{cat}}^{-\mathbf{1}})$					$\sum {\mathit{n}}_{\mathit{P}\mathit{y}-\mathrm{IR}}{}^{\mathbf{c}}$ $(\times {\mathbf{10}}^{-\mathbf{19}}{g}_{\mathrm{cat}}^{-\mathbf{1}})$
	Total	Weak	Medium	Strong	A350/A150 d	Total	Weak	Medium	Strong	A350/A150 d
Pt/AlSBA-15	3.43	0.42	1.32	1.68	0.12	5.36	0.66	0.66	4.03	0.75	8.79
Pt/BEA	15.1	-	3.43	11.6	0.77	8.13	-	-	8.13	1.00	23.2
Pt/SBA—BEA	5.18	1.32	1.75	2.1	0.16	3.55	0.36	0.18	3.01	0.81	8.73
Pt/SBA—MOR	3.85	-	0.84	3.01	0.45	4.03	0.12	0.48	3.43	0.79	7.89
Pt/SBA—MFI	6.02	0.84	1.69	3.49	0.36	5.06	0.48	0.54	4.03	0.75	11.1
Pd/SBA—BEA	3.85	0.42	1.26	2.16	0.23	2.65	0.36	0.12	2.17	0.82	6.50
Pt-Pd/SBA—BEA	8.61	0.90	3.85	3.86	0.20	6.62	0.42	1.57	4.63	0.59	15.2

^a Brønsted acid sites; ^b Lewis acid sites; ^c Total acidity; ^d The A₃₅₀/A₁₅₀ ratio, where A₁₅₀ is the intensity of the Py ion band upon evacuation at 150 °C and A₃₅₀ is the intensity of the same band upon desorption at 350 °C, was taken as a measure of the acid strength.

. Acid sites were classified as weak (desorption at 200 °C), medium (at 250 °C), and strong (at 300 and 350 °C). The absorption bands at 1455 and 1623 cm⁻¹ are assigned to pyridine interacting with Lewis acid sites ($PyL$) [31,32,33]. The absorption bands at 1545 and 1640 cm⁻¹ correspond to pyridine coordinated to Brønsted acid sites ($Py{H}^{+}$) [34,35]. The peak at the 1490 cm⁻¹ is assigned to the pyridine adsorbed on both ($Py{H}^{+}$) and ($PyL$) acid sites [36]. The absorption band at approximately 1580 cm⁻¹ is ascribed to physisorbed pyridine [37]. In the investigated catalysts the Lewis acid sites may constitute partially coordinated Al atoms in the extraframework aluminium species and silanol groups from AlSBA-15, zeolite, and γ-Al₂O₃ (a binder), as well as metallic electron acceptor species. Meanwhile, the proton donor sites are generated by framework Al species in AlSBA-15 and zeolite.

Due to the fact that the n-alkane hydroisomerization involves the Brønsted acid sites, the detailed discussion of acidity of the catalysts is devoted to the sites being proton donors. As it was predictable, the presence of zeolite in the Pt/AlSBA-15–zeolite catalysts results in higher concentration of the Brønsted acidic sites when compared to the Pt/AlSBA-15.

And more precisely, the incorporation of MOR, BEA or MFI in 20 wt% zeolite may bring an approximately 1.1, 1.5, and 1.8-fold increase in Brønsted acid site concentrations, respectively. In the case of isomerization, the excess of number of strong acid sites can enhance n-C₇ cracking and simultaneously reduce the yield of desired products, whereas the presence of not enough number of strong acid sites will decrease the conversion and finally affect the yield of branched products. As a consequence, the ratio of weak acid to strong acid number for all the catalysts was calculated (A₃₅₀/A₁₅₀). Besides, we also consider a number of moderate acid sites as the key factor influencing the catalyst activity.

The Brønsted acid sites are present in all samples and their concentration increases in the following order: Pt/SBA–MOR < Pt/SBA–BEA < Pt/SBA–MFI; i.e., it increases with a decrease in Si/Al ratio in zeolite added to AlSBA-15. There is also a rise in the strength (A₃₅₀/A₁₅₀) of the acid Brønsted sites—in the case of SBA–BEA supported catalyst by about 25% whereas in the case of SBA–MOR and SBA–MFI containing catalysts by about 70% compared to Pt/AlSBA-15. Acidity determinations also show that the medium-strength acid sites are predominant in Pt/SBA—BEA catalyst. While the Pt/SBA—MOR and Pt/SBA–MFI catalysts display the highest proportion of acid sites defined as strong.

The acidity measurements have also revealed that the active phase composition in the SBA–BEA supported catalysts has a substantial influence on their final acidity. Considering the increasing acidity of the catalysts supported on SBA–BEA can be arranged in order: Pd < Pt < Pt-Pd. The Pd/SBA–BEA catalyst displays lower acidity than its Pt counterpart and that acidity detraction is observed in respect to the both types of acid sites as well as to their strength. Pt-Pd/SBA–BEA samples exhibit the highest quantity of acidic sites but these sites display a comparable strength of acid sites relative to Pt/SBA–BEA. The incorporation of bimetallic Pt-Pd phase onto the SBA–BEA surface may bring slightly above or slightly below two-fold growth in acidity compared to Pd/SBA–BEA and Pt/SBA–BEA, respectively.

To explain the differences in the catalyst acidity, one may consider many factors influencing their final surface properties [38]. In general, the deposition of metal clusters into the acidic supports induces two opposite effects. Firstly, the introduced metal species could overlay some of the acidic sites originated from the support, bringing about the decrease of both types of acid sites [39]. Secondly, the new Lewis and Brønsted acid sites may also be formed as a result of interactions between the metal precursor and the support during the impregnation procedure. It has been observed by several authors that after Pt incorporation from H₂PtCl₆ onto the acidic materials (zeolites and SiO₂Al₂O₃), Lewis and Brønsted acidity was induced [40,41,42]. The metal–support interactions were claimed to originate from: (i) the charge transfer between the metal atoms and zeolite oxygen atoms [43] and also the charge transfer between active phase components in bimetallic catalysts [44], (ii) the formation of metal−proton adducts [45,46] as well as from (iii) the effect of “extraneous” ions which were introduced during the synthesis of supports and catalysts [47]:

(i) The redistribution of charge at the metal–support interfacial region is an omnipresent phenomenon in zeolite supported catalysts. The porous materials offer not only a surface to hold and stabilize dispersed metallic phases but may also affect their oxidation state [42]. The charge can be transferred from the metal surface to the oxide support, and conversely, causing the electron-deficient or electron-rich configuration of active sites [48]. On acidic supports (e.g., zeolites or AlSBA-15 materials), the positive charge of noble metals can be attributed to a strong interaction between the metal cluster and the acidic hydroxyl groups of the support [49]. The metal species are electron deficient and their electron deficiency increases with the increase in the support acidity. The electron deficient metal crystallites are electron pairs acceptors and they may serve as a kind of new created Lewis acid sites, which recompense the primary Lewis acid sites coming from the support and being covered during impregnation. The almost 2.5-fold higher dispersion of Pt than Pd in our catalysts indicates the stronger metal–support interactions in Pt/SBA–BEA catalyst than in Pd counterpart. Therefore, one can expect that over Pt catalyst with the same amount as for Pd one, the number of Lewis sites will be notably greater.

(ii) The formation of positively charged [Pt_n–H]⁺ and [Pd_n–H]⁺ adducts in the catalysts supported over protonic forms of zeolites was proposed to explain the presence of electron deficient particles [45,50]. In these complexes the noble metal atoms carry a positive charge, and zeolite protons modify the electronic structure of metal. The adducts are formed between small zeolite-encaged metal particles and zeolite protons. The intimacy between the metal particles and acidic sites promotes electron transfer from metal to acid sites and as a consequence it promotes creation electron-deficient metal clusters [51]. The generation of these metal—proton species is an essential phenomenon since such adducts have been shown to be active sites in isomerization [50]. The adducts are capable of acting as kind of “hybrid sites” (or “collapsed bifunctional sites”) combining typical properties of metal surfaces with those of Brønsted acids [45,52]. It seems that in our work [Pt_n–H]⁺ complexes are more favoured over SBA–BEA support than [Pd_n–H]⁺ ones.

(iii) Consideration should also be given to the influence of residual ions from the metal precursor and other ingredients used during the synthesis of catalysts on their final acidity. It seems that chloride ions may play a significant role here. The time-of-flight secondary ion mass spectrometry presented in our earlier study [53] has revealed that the surface of Pt/AlSBA-15 catalysts is covered by chlorine species resulted from incomplete decomposition of H₂PtCl₆ or HCl (HCl was incorporated during AlSBA-15 synthesis). The presence of chlorine ions over the surface of Pt catalysts as a result of impregnation with of H₂PtCl₆ has been confirmed by other authors [54,55]. In line with the literature data, the incorporation of Cl⁻ ions onto the various supports, either as part of the Pt precursor (incomplete decomposition of H₂PtCl₆) or after chlorination may bring the Brønsted sites to appear [56,57,58]. Jongpatiwut et al. [59] have observed that halogenation (in his work fluorination) of Pt-Pd/Al₂O₃ strongly increases the acidity of the catalysts. D’Ippolito et al. [60] have also observed an acidity enhancement in the case of Pd catalysts as an effect of Cl⁻ ions added, either by the Pd chlorinated precursors and/or by the added HCl during metal impregnation. Hence, the presence of residual chloride ions explains the high acidity of Pt/SBA–BEA catalyst. Whereas as in our work, the Pd/SBA–BEA catalyst is prepared without using of chloride ions containing precursor (i.e., Pd (NO₃)₂ × 2H₂O) its lower acidity is not unexpected. Moreover, the influence of residual chlorine ions on the Pt and Pd catalyst acidity can be explained as being due to the variations in their ionic potential. As the ionic potential of Pt (9.0 eV) is higher than that of Pd (8.34 eV), it seems that ions of opposite charge, like Cl⁻, are stronger attracted to Pt species than to Pd ones.

The discussion above clarifies the greater acidity of Pt/SBA–BEA compared to Pd/SBA–BEA catalyst. However, the results of acidity measurements also demonstrate the presence of an additional effect from the bimetallic combination of Pt-Pd upon the simultaneous impregnation with both metallic precursors. Therefore what is the reason of the highest acidity of Pt-Pd/SBA–BEA? We believe that the answer can be found in the interaction not only between Pt–support and Pd–support but also within active phase components, i.e., between Pt and Pd clusters. The electronic effects were claimed to originate from the formation of electron-deficient Pt species in the bimetallic Pt-Pd particles [61]. However, the precise explanation for the changes in the acidity of Pt-Pd modified catalysts is probably more complicated. We are aware that the discussion needs to be supported by advanced measurements to provide more convincing evidences for the interactions of the active phase with AlSBA-15–zeolite support and vice versa and these between the active phase components in the case of bimetallic catalyst (Pt-Pd). The effect attributed to interactions within Pt-Pd/AlSBA-15–zeolite catalysts is interesting and we think that it is worth to present in separate paper in the future. Nevertheless, the modification of the composition of active phase reflected in the modified acidic and metallic functions is responsible for variations in the catalytic activity of the SBA–BEA supported catalysts as discussed below (Section 2.2.).

Table 2. Characterization of metal function of the catalysts.

Catalyst	$\mathit{D}$a $\left(\mathit{\%}\right)$	${\mathit{S}}_{\mathit{M}}$b $\left(m^{\mathbf{2}}{g}_M^{-\mathbf{1}}\right)$	${\mathit{d}}_{\mathit{M}}$c $\left(\mathrm{nm}\right)$	${\mathit{n}}_{\mathit{M}}$d $\left({\mathbf{10}}^{-\mathbf{19}}{g}^{-\mathbf{1}}\right)$	${\mathit{n}}_{\mathit{M}\_\mathit{A}}$e $\left({\mathbf{10}}^{-\mathbf{19}}{g}^{-\mathbf{1}}\right)$
Pt/AlSBA-15	57	142	2.0	1.54	0.88
Pt/BEA	75	205	1.4	1.54	1.16
Pt/SBA—BEA	58	144	2.0	1.54	0.90
Pt/SBA—MOR	48	120	2.3	1.54	0.74
Pt/SBA—MFI	34	93	3.0	1.54	0.53
Pd/SBA—BEA	25	63	3.7	1.54	0.39
Pt-Pd/SBA—BEA	36	95	2.7	1.54	0.56

Note: ^a $D$, dispersion; ^b $S_M$, metal surface; ^c $d_M,$ metal particle size; ^d $n_M$, number of metal atoms; ^e $n_{M\_A}$ number of accessible metal atoms.

summarizes the results of CO chemisorption. In the case of AlSBA-15–zeolite supported catalysts, the dispersion of Pt, was found to increase from 34 on a SBA—MFI support, to 48 and 58% on SBA–MOR and SBA–BEA, respectively. This trend follows the same one as the S_BET variation among samples. It could suggest that the high S_BET tends to promote Pt dispersion. Nevertheless, the measurements show that the Pt dispersion on Pt/AlSBA-15, despite its larger surface, is quite lower compared to the Pt/BEA sample. Also, the Pt dispersion on the biporous samples is lower than the dispersion on the BEA supported sample. The interaction between metal and the support components should be also taken into account in the clarification of variations between Pt dispersion in AlSBA-15, AlSBA-15–zeolite, and BEA zeolite alone supported catalysts. It has been found [49] that in the case of Pt/ZSM-5 catalyst a Pt atoms interact with a Brønsted proton and with a nearby bridging framework oxygen. The authors claimed that without the Brønsted acid sites the Pt atoms are not stable in zeolite and so agglomeration of Pt atoms to form a larger particle is expected. Therefore, the highest of number of Brønsted acid sites in Pt/BEA catalyst is responsible for the high dispersion of Pt over the zeolite. The AlSBA-15 material, due its high surface area, was expected to provide good spreading of active phase. Nevertheless, the poorer Brønsted acidity in Pt/AlSBA-15 catalyst contributes to lowering the Pt dispersion.

There are also significant differences in active phase dispersion in Pt, Pd, and Pt-Pd/SBA–BEA catalysts. And as can be seen (Table 2), the metallic phase dispersion in Pd/SBA–BEA and Pt-Pd/SBA–BEA catalysts is lower than that of Pt/SBA–BEA catalyst, even though the same support was used. The lowering of active phase dispersion upon Pd incorporation into Pt-Pd/β catalysts has been observed by Lee et al. [62]. The reasons should be sought in the interaction between the active phase precursor and the support surface. It is well-known that the active phase dispersion is strongly dependent on the point of zero charge (pH_PZC) of the support, i.e., pH at which its surface remains neutral. And, considering the purely electrostatic nature of adsorption, the impregnation with a solution with pH above the pHpzc value of the support, its surface is negatively-polarised and adsorbs cations [63]. If the solution pH is below the pH_PZC, the opposite phenomenon takes place; the surface is positively charged and anionic species are adsorbed on it. For AlSBA-15 and BEA, pH_PZC is reported to be about 5 [64] and 6, respectively [65]. Thus, due to the protonation of AlSBA-15 and BEA surface at the conditions of using impregnating solution of H₂PtCl₆ with pH amounting 2, the [PtCl₆]²⁻ anions are attracted to the surface of both supports. However it seems that the Pt anions are preferably adsorbed on the BEA surface, due to the slightly higher pH_PZC value. Stronger interactions of the Pt species with BEA can, thus, cause a higher Pt dispersion on its surface. In the case of Pd containing samples, this effect could be interpreted in terms of electrostatic attraction or repulsion between [PtCl₆]²⁻ or Pd²⁺ ions and the surface of supports components, respectively. In the present study, the investigated catalysts are supported over multicomponent bodies, i.e., consisting of AlSBA-15 (pH_PZC ≅ 5), BEA zeolite (pH_PZC ≅ 6) and Al₂O₃ (pH_PZC ≅ 8). Thus, at the pH of impregnating solution of Pd(NO₃)₂, amounting 3.3 and being below that of support pH_PZC, the surface is charged positively and Pd²⁺ ions are repulsed from the surface of the support components. This results in no uniform Pd species repartition and its low dispersion. Whereas, a positively charged surface of the support during impregnation with H₂PtCl₆ solution (with a pH of 2 being also below the pH_PZC of the support components) causes [PtCl₆]²⁻ anions to be attracted to the support surface. In consequence, it can be expected that the dispersion of Pt species on AlSBA-15–zeolite will be higher than Pd ones.

2.2. Effect of the Type of Zeolite Incorporated to Pt/AlSBA-15—Zeolite

The catalytic activities of the investigated Pt/AlSBA-15–zeolite catalysts in n-heptane conversion are summarized in

Table 3. Performance of composite Pt(Pd)/AlSBA-15 + zeolite (BEA, MOR or MFI) catalysts in the hydroconversion of n-C₇.

Catalyst	TR (°C)	Conv. (%)	Hydroisomerization (wt%)				Hydrocracking (wt%)	Dehydrocyclization (wt%)
			Total iso-C7	MoBC7 a	MuBC7 b	2-MeC6/3-MeC6	C3 + C4	Aro & Cyc
Pt/AlSBA-15	350	64.5	50.2	44.0	6.1	0.92	6.7	7.7
Pt/BEA	270 c	72.0	63.9	49.2	14.7	0.86	8.1	-
Pt/MOR	250	90.6	56.4	30.1	26.4	0.83	34.2	-
Pt/MFI	250	99.5	52.1	27.6	24.5	0.94	47.4	-
Pt/SBA–BEA c	290	82.3	59.7	42.7	16.9	0.83	21.1	1.5
Pt/SBA–MOR	290	90.1	48.2	30.1	18.1	0.76	41.9	-
Pt/SBA–MFI	290	96.7	25.0	15.5	9.5	0.83	67.5	1.5
Pd/SBA–BEA	290	48.3	38.8	30.6	8.2	0.82	9.5	0.2
PtPd/SBA–BEA	290	78.1	68.2	47.5	20.7	0.80	9.9	1.5

^a MoBC₇, monobranched heptane isomers: 2-methylhexane, 3-methylhexane and 3-ethylpentane. ^b MuBC₇, multibranched heptane isomers: 2,2-dimethylpentane, 2,3-dimethylpentane, 2,4-dimethylpentane, 3,3-dimethylpentane and 2,2,3-trimethylbutane. ^c In the case of Pt/BEA catalyst, the 270 °C temperature was presented instead of 250 °C due to the fact that that catalyst achieved comparable conversion as Pt/MOR and Pt/MFI at higher by 20 °C, i.e., at 270 °C.

and plotted in Figure 4. For comparison purposes, the results for Pt/AlSBA-15 and Pt/zeolite are also presented in Table 3 and Figure S5, respectively. The results clearly illustrate that the modification of AlSBA-15 with zeolite exerts a noticeable influence on the catalytic properties of corresponding materials. As expected, the catalysts supported on AlSBA-15–zeolite exhibit a higher catalytic activity than those based on AlSBA-15, i.e., to obtain the 50% conversion of n-C₇ over Pt/AlSBA-15 a temperature of 330 °C is needed while over Pt/AlSBA-15–zeolite this conversion is achieved at 270 °C over SBA–BEA and SBA–MOR supported catalysts and at 250 °C over SBA–MFI based one (Figure 4).

This finding is substantiated by the catalyst acidity measurements (Table 1), which proved the higher concentration of Brønsted acid sites over Pt/AlSBA-15–zeolite samples than over the Pt/AlSBA-15 one. In addition, the zeolite type in AlSBA-15–zeolite support substantially influences the n-C₇ conversion and the highest conversion (at comparable T_R) is achieved over the Pt/SBA–MFI catalyst (Figure 4A). These results are supported by the apparent activation energies ($E_a^{app}$) calculated for n-heptane hydroconversion (Figure S6). The value of $E_a^{app}$ is equal to 155.2 kJ mol⁻¹ for the Pt/AlSBA-15 catalyst and it is in agreement with the work of Harmel et al. [66]. The $E_a^{app}$ of n-C₇ hydroconversion for Pt/SBA–BEA catalyst is found to be approx. equal to the value calculated for Pt/AlSBA-15 one ($E_a^{app}$= 149 kJ mol⁻¹). Modification of the AlSBA-15 support with the MOR and MFI zeolites brings the increase in the apparent activation energy up to 186 and 209 kJ mol⁻¹, respectively.

It is obvious that Pt catalysts supported only on zeolites (Figure S5) exhibit higher catalytic activity than these based on AlSBA-15–zeolite. The conversion over Pt/zeolite catalysts (at the same T_R) is higher by approximately 50% as compared to the Pt/AlSBA-15–zeolite counterparts. However, the product distribution has revealed that over all Pt/zeolite catalysts the improved conversion is concomitant with the growth in cracking products. Pt/MFI and Pt/MOR catalysts provide higher yield of C₃ + C₄ fraction (amounting to 47 and 34 wt%, respectively) than Pt/BEA one (the yield of cracking products amounts to 8.1 wt%). The activity enhancement and high activity in the cracking of Pt/zeolite catalysts relative to AlSBA-15 and AlSBA-15–zeolite supported ones is due to their extensive Brønsted acidity, but mainly to the diffusion limitation within the channels of MOR and MFI structures [67]. Therefore, the Pt/zeolite catalysts display high activity but mainly as a result of high activity in the cracking reaction. It was reported that [68,69,70,71] that the channels of MOR and especially MFI framework are insufficiently large to enable the production of isomers. The paraffinic intermediates may have longer life time on acid sites and they undergo successive rearrangement and cracking to a large extent because it is difficult for them to leave the pores of the zeolite channels.

Let us to consider the detailed differences in the hydroisomerization performance between the Pt/AlSBA-15–zeolite composites and Pt/AlSBA-15 one (Table 3). With Pt/AlSBA-15 catalyst, the conversion of n-C₇ up to 350 °C primarily leads to the formation of hydroisomerization products; at 350 °C the iso-C₇ yield is the highest and it equals to approx. 52 wt%. It can be observed that the highest yield of iso-C₇ on the composite catalysts (regardless of the type of zeolite that was introduced) is achieved at lower T_R than on Pt/AlSBA-15 catalyst (Figure 4B). In the case of Pt/SBA–MOR and Pt/SBA–MFI catalysts, the maximal yield of iso-C₇ isomers (ca. 50 wt%) is registered at 270 °C while for Pt/SBA–BEA one it is reached at 290 °C (59.7 wt%) (Figure 4B). One of the criteria in the evaluation of the catalyst performance in n-C₇ hydroisomerization is their efficiency in the production of mono-branched iso-C₇ isomers (MoBC₇) and the most desirable high octane multi-branched iso-C₇ ones (MuBC₇). As it can be inferred from Table 3, almost in all cases the yield of MoBC₇ is higher than MuBC₇. The MoBC₇ fraction includes 2-methylhexane (2-MeC₆), 3-methylhexane (3-MeC₆), and 3-ethylpentane (3-EtC₅). 3-MeC₆ is slightly favoured against 2-MeC₆ (see 2-MeC₆/3-MeC₆ ratio), especially with the composite catalysts, which can be recognized as the weaker diffusion restriction [72,73].

The results (Table 3) have revealed that among the Pt composite catalysts, the Pt/SBA–BEA shows the highest efficiency in iso-C₇ products with relatively high contribution of MuBC₇. The Pt/SBA–BEA catalyst provides almost the same iso-C₇ yield as Pt/BEA, and in addition over the previous one the contribution of MuBC₇ derivatives is even slightly higher. The Pt/SBA–BEA catalyst gives the highest yield of iso-C₇ with the highest contribution of MuBC₇ alkanes and small loss of carbon in cracking products (yield of C₃ + C₄ equals 21 wt%). In the case of the two other composite catalysts (i.e., Pt/SBA–MOR and Pt/SBA–MFI), the catalytic performance depends on the zeolite type that was introduced. Although the modification of AlSBA-15 with MOR brings a small increase in the MuBC₇, there is a notable rise in cracking products (up to 42 wt%). While on the Pt/SBA–MFI catalyst, the cracking products are predominant (67.5 wt%). It seems that the differences in hydroisomerization performance of AlSBA15–zeolite catalysts are affected by factors previously described for catalysts supported on zeolites alone. In the case of the introduction of BEA, the obtained Pt/SBA–BEA catalyst does not exhibit diffusion restrictions. The increased residence time of the products in the pores of MOR and MFI components of AlSBA-15–zeolite composites maximizes secondary reactions, such as cracking, reducing the selectivity to isomers. The enhancement of hydroisomerization efficiency of Pt/SBA–BEA catalyst can be attributed not only to its porous structure but also to its moderate acidity (Table 1).

Over all catalysts tested, the only hydrocracking products are propane and iso-butane what proves that the conversion of n-C₇ runs in accordance to the classical bifunctional monomolecular mechanism, i.e., mainly through β-scission of 2,2-DMeC₅ and 2,4-DMeC₅ and not through direct cracking of n-C₇. In the reaction products, no methane or ethane are detected. Methane and ethane are very likely produced through hydrogenolysis, i.e., by cracking on metal sites (either over monofunctional metal catalysts or over metal sites non-well balanced by acid function in bifunctional catalysts). With the bifunctional metal/acid catalysts, the production of C₁‒C₂ hydrocarbons would involve the formation of non-stable primary carbenium ions, therefore the classical monomolecular mechanism does not account for the light hydrocarbons production. Nevertheless, over the monofunctional acid catalyst or bifunctional catalyst with a poor hydrogenating function, C₁–C₂ together with H₂ may be formed when the conversion of the alkanes occurs via a non-classical, penta-coordinated carbonium ion (i.e., via the monomolecular reaction mechanism which is preferred under low conversion and at high T_R). Therefore, we conclude that in our work, the absence of light hydrocarbons indicates that the metal/acid function in the examined catalysts is well balanced. It is also worth noticing that the lack of high molecular compounds in the product clearly indicates that the reaction does not run via the dimerisation-cracking mechanism.

The comparison of catalytic performance of Pt/SBA–BEA and Pt/AlSBA-15 in n-C₇ hydroisomerization indicates that the promoting effect of BEA component in Pt/SBA–BEA is evident. The application of a relatively small portion of BEA (i.e., 20 wt%) in Pt/SBA–BEA yields the catalyst displaying an improved performance in isomerization as compared to Pt/AlSBA-15 catalyst. The Pt/SBA–BEA composite catalyst gives a higher amount of isomerization product together with the higher contribution of the most desired MuBC₇.

The catalytic properties of Pt/SBA–BEA are explained by not only its moderate acidity and satisfactory Pt dispersion ensuring the appropriate metal/acidity balance but also by the structure of the composite support. The bifunctional catalyst performance in alkanes isomerization depends on the character of its metallic and acidic functions, as well as on their balance, only if there are no diffusive restrictions. When the catalyst contains zeolites, the catalytic performance is also influenced by the geometry and dimensionality of the zeolite channels, i.e., shape-selectivity phenomenon. In the work of Kinger et al. [74], it has been proved that the fast diffusion of the isomers out of the zeolite pores in composites of Pt/MCM-22 + MCM-41 is the most significant factor governing the catalyst selectivity in conversion of n-C₇. The suitable transport properties (i.e., fast adsorption and desorption) accounts for the high selectivity of the composites towards branched compounds. While, too small diffusion coefficients in zeolite result in longer residence time of reaction intermediates and thus it enhances the probability for subsequent reactions to run. Hence, the preparing of AlSBA-15–BEA support gives the catalyst with the sufficiently diffusion coefficients, where the residence time of carbenium ions is short, what limits the cracking reaction. We believe that the catalytic performance of Pt/SBA–BEA catalytic system results from the occurrence of synergistic effect between the two phases of the composite, i.e., between AlSBA-15 and BEA. The iso-alkanes are formed on acid sites located on BEA zeolite, whereas the AlSBA-15 mesopores allow optimal sorption energetics of the primarily formed isomerization products, preventing their readsorption and further reaction. Another issue that should be taken into account is the presence of secondary mesopores within the zeolite phase in AlSBA-15–zeolite composite. As was presented earlier in our work [75] the method of preparation of AlSBA–zeolite supports developed by us has the advantage of creating mesopores not only in the AlSBA-15 phase but also in the zeolite phase. It appears that the formation of some kind micropore–mesopore continuity in Pt/SBA–BEA composite may explain their high hydroisomerization efficiency. The secondary mesopores facilitate the accessibility of reactants to the active sites in zeolite, leading to improved catalytic activity in the hydroisomerization. Simultaneously, the shortened residence time of the intermediates in the mesopores diminishes consecutive reactions, such as cracking, enhancing selectivity to isomers. The works of [76,77,78] have shown that the creation of mesopores in Pt/ZSM-5, Pt/mordenite, and Pt/β catalysts improved their activity in n-alkane hydroisomerization due to the lifted intracrystalline diffusion limitations in the zeolite pore system.

Summarizing, the Pt/SBA–BEA catalyst displays of: (i) the moderate acidity function as a result of combining low acidic AlSBA-15 and strong acidic BEA zeolite, what enhances isomerization and decreases the cracking reactions, (ii) the sufficient metallic function, what facilities the hydrogenation of olefinic intermediates, (iii) micropore–mesopore continuity (the presence of mesopores within AlSBA-15 and BEA zeolite) which is responsible for the suitable transport properties and supplies the optimal sorption energies of the reactants. Therefore it may be concluded that the enhanced activity of Pt/SBA–BEA catalytic system is not affecting the hydroisomerization selectivity if the required metal/acidity balance is retained and the diffusion limitations are eliminated.

It should be also noted the differences in activity of the catalysts examined in respect to the n-C₇ dehydrocyclization. We are aware that aromatization of n-C₇ is not an objective of the present work, nevertheless we think that these results are noteworthy and apart from discussing hydroisomerization, they deserve a detailed discussion. Therefore, we took also attempts to rationalize the differences in the dehydrocyclization reaction (please see Section 1.5 and Figure S7 in Supplementary Materials).

2.3. Effect of Active Phase Composition in Pt, Pd, and Pt-Pd Catalysts Supported on AlSBA-15–BEA

Roldán et al. [79] have studied a series of mono- and bimetallic (Pt and/or Pd) catalysts supported on β zeolite for hydroisomerization of light n-alkanes and they have found that the bimetallic catalyst is significantly more active than the monometallic ones. Also, the work of Bauer et al. [80] has shown that the bimetallic Pt-Pd/β catalysts with overall metal content of 0.8 wt% displayed high efficiency for n-hexadecane hydroisomerization. Bimetallic Pt-Pd catalysts are described to exhibit a higher metal dispersion, thus achieving a high catalytic activity at a lower amount of noble metals than commonly required. In addition, it has been reported that the addition of a second noble metal, especially Pd, in close interaction with Pt significantly improves resistance to poisoning by sulphur and nitrogen compounds present in the processed cuts [81,82]. On the basis of these results, we have studied the effect of hydrogenation components (Pt, Pd, or mixtures thereof) supported over the most promising AlSBA-15–BEA support on the hydroisomerization of n-heptane. We have expected that Pt and Pd particles can work cooperatively in AlSBA-15–BEA supported catalysts, leading to synergistic enhancement in reactivity and selectivity.

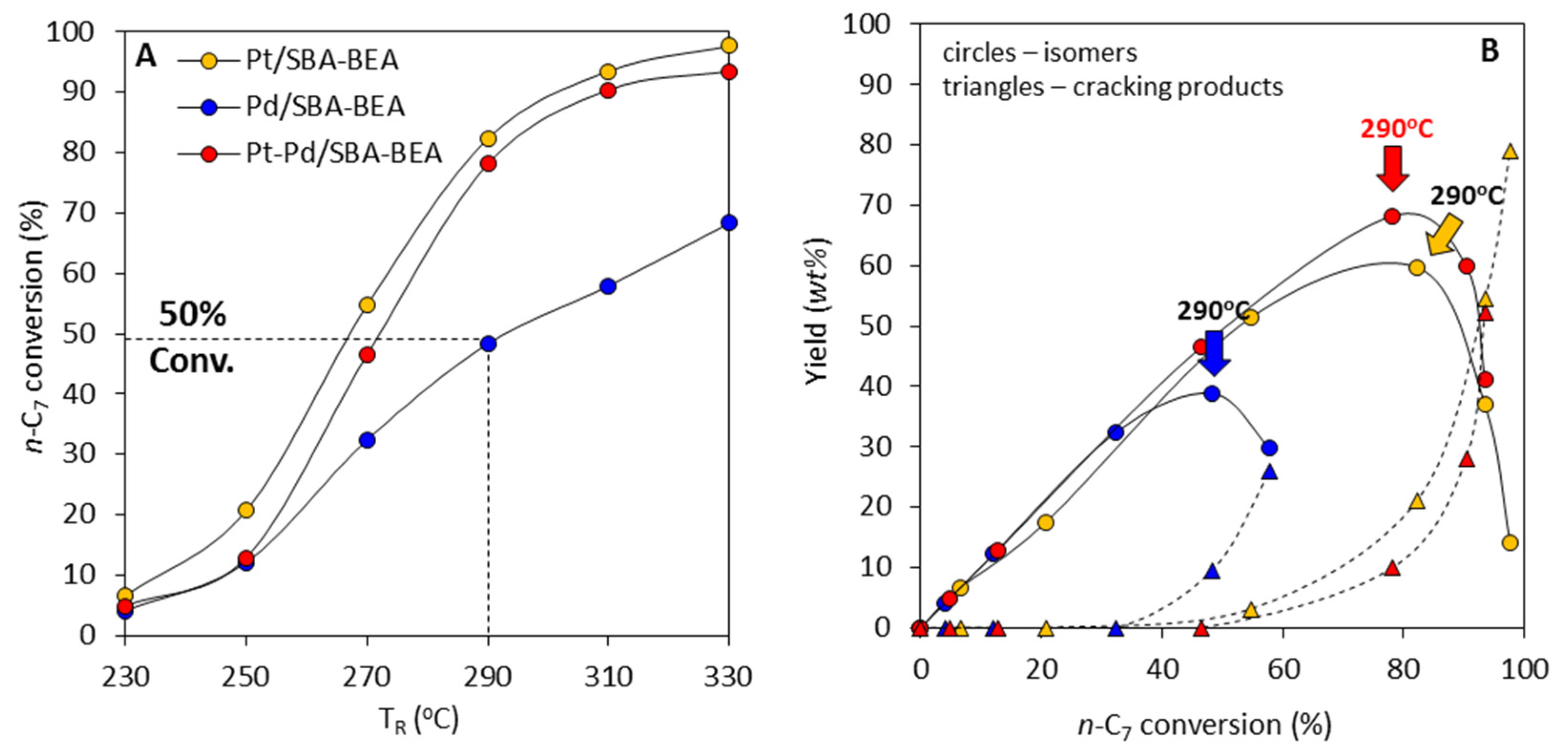

From Figure 5 and Table 3, it is seen that the Pd catalyst is the least active catalyst, with an overall conversion of about 30% lower than that of the catalyst containing Pt or Pt-Pd as the hydrogenation components. The Pd/SBA–BEA catalyst is also significantly less effective for isomerization than the Pt having counterpart. This finding is substantiated by the catalyst acidity measurements (Table 1) and CO chemisorption results (Table 2) which have proved the higher concentration of acid sites and higher metal dispersion over the Pt/SBA–BEA than over the Pd/SBA–BEA sample. The noticeable difference in the conversion and isomerization efficiency of Pd catalyst is also attributed to the lower hydro-/dehydrogenation function of Pd in comparison with Pt [83,84]. As a consequence, a smaller amount of intermediate alkenes is formed and consequently lower conversion of n-C₇ is achieved.

Activity results (Figure 5) have as well demonstrated that the conversion of n-C₇ over the Pt/SBA–BEA and Pt-Pd/ SBA–BEA catalysts is comparable at low T_R (at 230 °C). At higher temperatures (250–330 °C) the activity of Pt-Pd/SBA–BEA is found even by 5% lower than Pt/SBA–BEA. In spite of the fact that the doping of Pt-Pd/SBA–BEA catalyst with Pd does not bring an increase in n-C₇ conversion, the distribution of products varies substantially with the Pt-Pd catalyst. As can be inferred from Table 3, the promoting effect of Pd in Pt-Pd/SBA–BEA catalyst is evident, and it brings a growth in hydroisomerization efficiency (by about 10%) compared to Pt/SBA–BEA one. The Pt-Pd/SBA–BEA catalyst provides the yield 68 wt% of iso-C₇ derivatives at a conversion of about 78%. Besides, the Pt-Pd/SBA–BEA catalyst provides the highest yield of iso-C₇ with the highest contribution of MuBC₇ alkanes. At the same time the Pt-Pd/SBA–BEA gives lower by approx. 10% yield of C₃ + C₄ fraction; the cracking products yield over Pt/SBA–BEA catalyst approaches 21 wt% whereas that over Pt-Pd/SBA—BEA catalyst only 9.9 wt%. Summarizing, the modification of the hydrogenating function by deposition of Pt-Pd active phase on SBA–BEA increases the hydroisomerization efficiency and brings a small loss of carbon in the cracking products.

In general terms, the increase in the hydroisomerization activity of bimetallic Pt-Pd catalysts is explained by a higher noble metal dispersion caused by a promoting effect of more easily reducible palladium oxides [80,85]. The improved Pt-Pd dispersion provides a better proximity and balance of the acidic and metallic species. Interestingly, our findings differ from the results reported by Bauer [80] or Blomsma [85]. In spite of the fact that the Pt-Pd/SBA–BEA catalyst displays worse metal dispersion, one can notice that at the same time it provides a higher hydroisomerization efficiency compared to Pt/SBA–BEA. These results are consistent with those presented by Lee et al. [62] who have also observed the enhanced n-C₇ hydroisomerization activity of Pt-Pd/β catalyst even it has displayed deteriorated dispersion. The authors have claimed that the metal–metal interaction in Pt-Pd/β catalyst accounts for its catalytic performance. Navarro et al. [86] have reported a strong Pt-Pd interaction in Pt-Pd/SiO₂Al₂O₃ catalyst prepared by using the same precursors as our work (H₂PtCl₆ and Pd(NO₃)₂). Roldán et al. [87], who prepared the catalysts in the same way as in our investigation (i.e., by coimpregnation), observed the formation of bimetallic Pt-Pd species in Pt-Pd/β catalysts. According to his conclusion the number of hetero-metallic (Pt-Pd) bonds in the coimpregnated catalysts is high enough to provide the enhancement of catalytic properties in relation to the mono-metallic samples. It seems that, the phenomenon of cooperation between Pt and Pd accounts for the improved catalytic performance of the composite catalyst compared to the performance of the Pt and Pd catalysts tested separately. However, this idea does not rule out additional possible effects coming from the SBA–BEA support acidity and porous structure. The presence of micro-mesoporous SBA–BEA material as a support is beneficial to Pt-Pd species since its supplies required acidity and the appropriate transport properties.

2.4. Research Octane Number

In order to estimate the antiknocking properties of the liquid isomerizate the Research Octane Number (RON) was calculated using a simple non-linear method described elsewhere [10,88,89]:

$$RON={\displaystyle \sum }_{i=1}^k{y}_{i}RO{N}_i$$

(1)

where the $RO{N}_i$ index stands for the pure-component octane number for each molecule (that is labelled as i, see Section 1.8 and Table S4 in Supplementary Materials) and $y_i$ stands for the volume fraction of molecule.

In this equation, RON is the measured octane number only for branched C₇ products and does not include lighter than C₇ products or other side products such as aromatics. We decided to not take into account the RON of light products and aromatics in calculating the final RON for two reasons. To keep sustaining the economy, the refining unit producing liquid fuels requires a minimal production of gases and a maximal yield of liquid products. In our work propane and butanes are the only products lighter than the feed. In spite of being valuable compounds in a view of the RON improvement (they display RON above 100), the growth of their yield is not an issue in this calculating RON because it would reduce the liquid C₅₊ yield. Besides, the light hydrocarbons that would be dissolved in gasoline will increase its volatility and as a consequence the Reid vapour pressure limit would be exceed. Also, the aromatic compounds positively influence the RON of gasoline. However, in our work only the Pt/AlSBA-15 gives the significant quantity of aromatics. Besides, since the regulations aim to limit aromatic components in gasoline, the isomers are more desirable components.

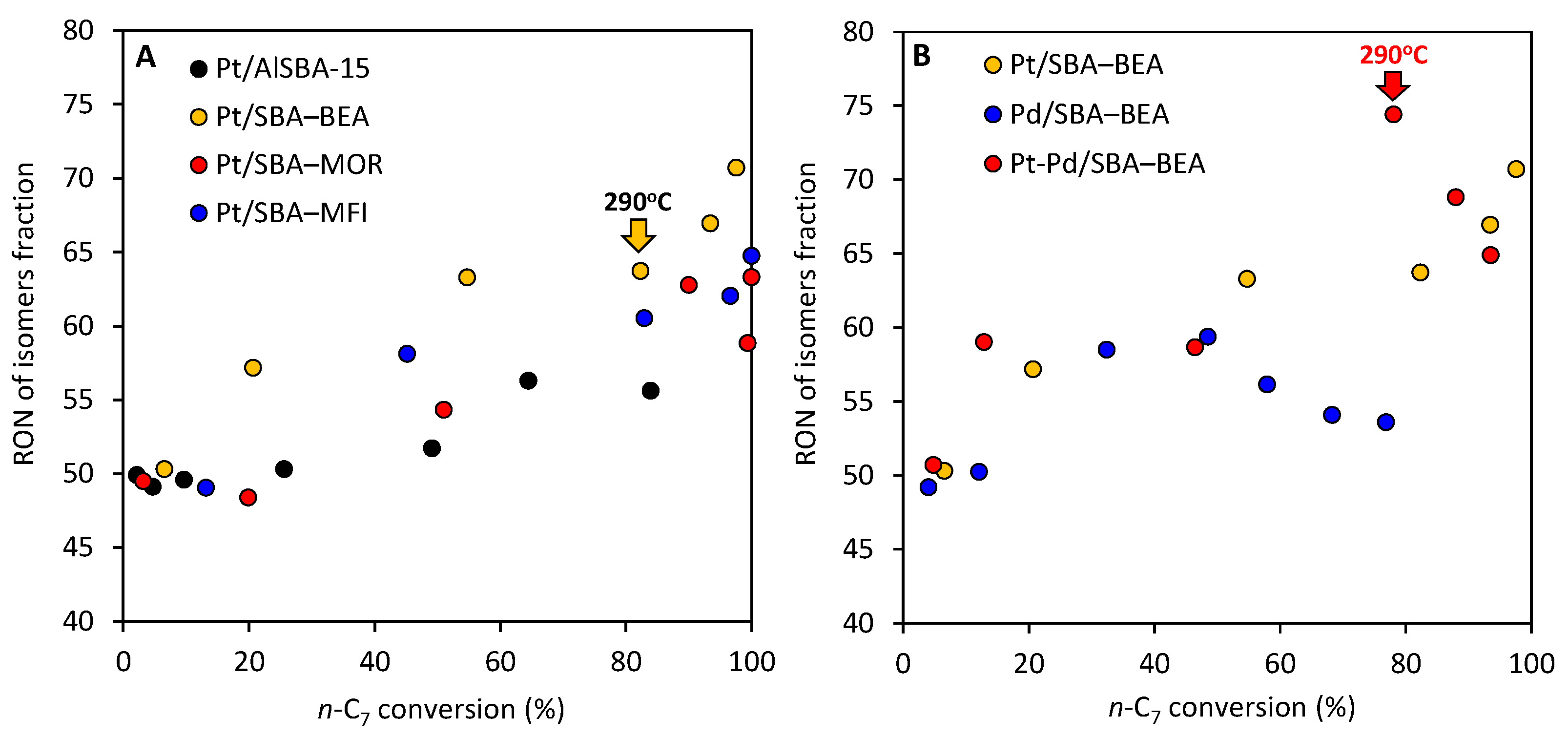

The RON of the branched products obtained over all hierarchical catalysts as a function of n-C₇ conversion is presented in Figure 6. It is clear that the Pt/AlSBA-15–zeolite catalysts ensure higher values of RON than Pt/AlSBA-15 one (Figure 6A). Among the composite Pt catalysts, the Pt/SBA–BEA yields the greatest RON gain of 64 points and 71 at the maximal isomers yield (at 290 °C) and the highest n-C₇ conversion (at 330 °C), respectively. In general, the values of RON increases with the increase of conversion due to the higher contribution of MuBC₇ within the reaction products. However, it should be remembered that at high conversions the large quantity of products constitutes propane and butanes.

In the case of the catalysts with modified metallic phase the Pt-Pd/SBA–BEA compared to Pt and Pd provides the highest RON amounting to 74 (Figure 6B). This result confirms the described above consideration demonstrating the great hydroisomerization efficiency of bimetallic catalyst supported over SBA–BEA.

3. Materials and Methods

3.1. Materials

Materials used for the preparation of the supports and catalysts: tetraethylorthosilicate (TEOS, Si(OC₂H₅)₄, 99%, Sigma-Aldrich, St. Louis, MO, USA), aluminium isopropoxide ([(CH₃)₂CHO]₃Al, Aldrich), Pluronic^® P-123 (Sigma-Aldrich, average M_n ~5800), hydrochloric acid (HCl, Avantor, Radnor, PA, USA), 3% nitric acid(V) (HNO₃, Avantor S.A.), aluminium oxyhydroxide (AlO(OH), Pural 400, Sasol GmbH), hexachloroplatinic(IV) acid (H₂PtCl₆, Avantor S.A.), palladium(II) nitrate (Pd(NO₃)2 × 2H₂O, Sigma-Aldrich), n-heptane (Avantor S.A.). A commercial zeolites of β (CP811E, Si/Al = 75), mordenite (CBV90A, Si/Al = 45) and ZSM-5 (CBV 8014, Si/Al = 80) were provided by Zeolyst (Kansas City, KS, USA). Silicon carbide (SiC, Honeywell-Fluka, Charlotte, NC, USA) was used as an inert material for the catalyst dilution. All other chemicals were of analytical grade and used without any further purification. All aqueous solutions were freshly prepared in deionized water.

3.2. Supports and Catalysts Preparation

AlSBA-15 material with Si/Al ratio of 7 was synthesized following the procedure described in by Vinu et al. [90]. Pluronic P123 (4.0 g) was dissolved in 30 mL of distilled water and stirred for 2 h. Subsequently, 70 mL of 0.28 M hydrochloric acid was added and mixed until the solution became homogenous (about 2 h). Then, 8.5 g TEOS was added along with 1.2 g of aluminum isopropoxide and the obtained mixture was then stirred for 24 h at 40 °C. Next, the synthesis gel (with molar composition of 1TEOS:0.12Al₂O₃:0.016P123:0.50HCl:136H₂O) was transferred to PTFE bottle and heated at 120 °C for 24 h under static conditions. The resulting solid material was filtered and washed with distilled water a few times and then dried for 12 h at 100 °C. The as-synthesized AlSBA-15 sample was calcined at 550 °C for 6–8 h to remove the structure directing agent.

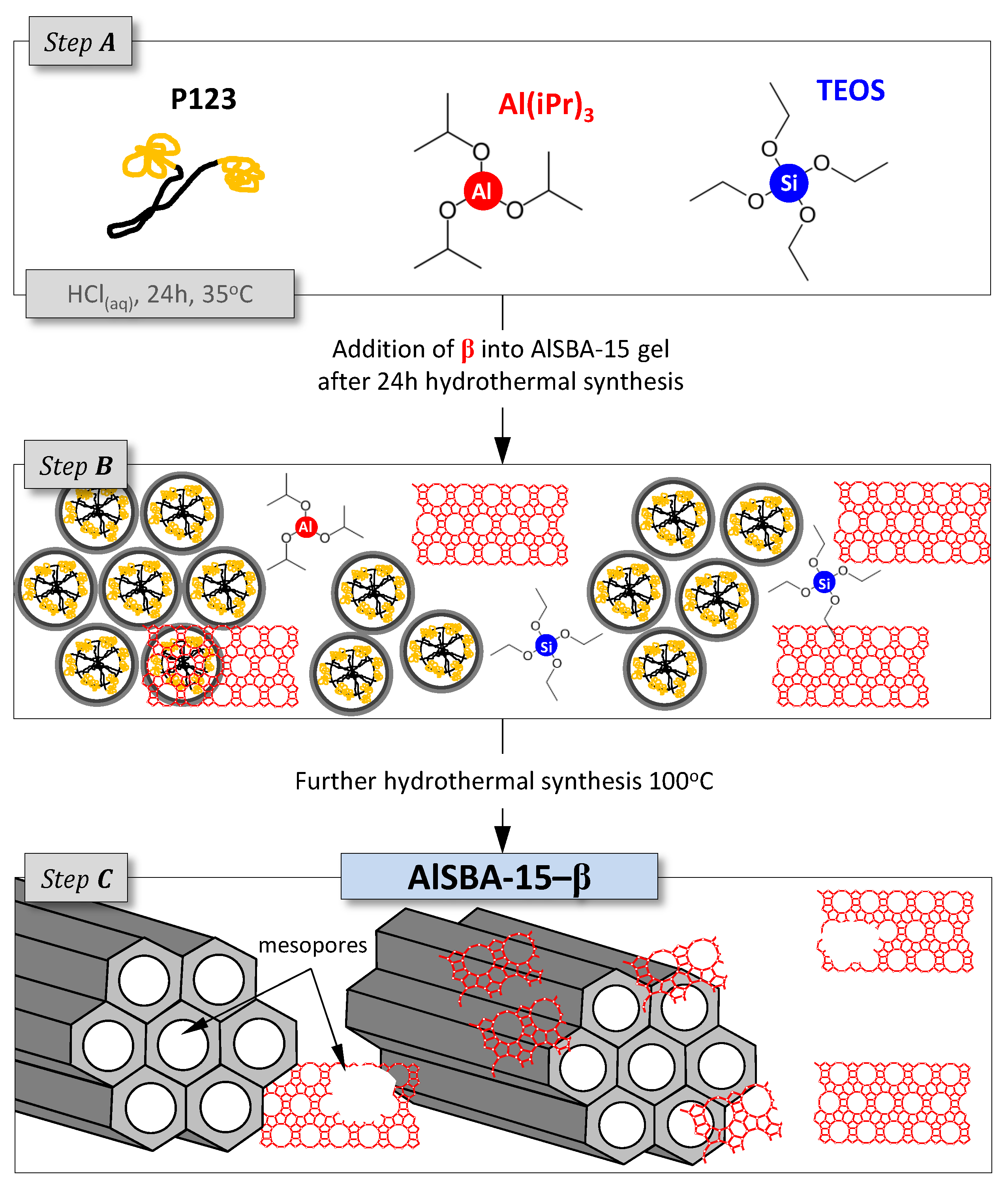

AlSBA-15–zeolite composites were synthesized by following the facile procedure illustrated in Figure 7. First, the initial stage of AlSBA-15 phase synthesis was realized and after 24 h gel stirring at 40 °C the synthesis was stopped (Step A). Then, 20 wt% zeolite (β, ZSM-5 or mordenite) was added and the resulting suspension was stirred for a few minutes (Step B). Finally, the mixture was aged hydrothermally at 120 °C for 24 h in PTFE bottle (Step C). Solid products were filtered and washed using deionized water until neutral pH. The as-synthesized micro-mesoporous materials were dried at 110 °C and then calcined at 550 °C for 6–8 h. The obtained AlSBA-15–zeolite composites (where zeolite is: β, ZSM-5 or mordenite) were denoted as SBA–BEA, SBA–MFI and SBA–MOR, respectively.

Pt, Pd, and Pt-Pd catalysts were prepared via incipient wetness impregnation. The powders of zeolites, AlSBA-15 material or AlSBA-15–zeolite were mixed with 20 wt% of aluminium oxyhydroxide (after calcination γ-Al₂O₃) which was used as a binder. The resulting mixtures were peptised with 3% HNO₃ and then shaped into cylindrical pieces. The resulting pellets were subjected to drying for 12 h at 110 °C and then calcination at 450 °C for 24 h. Pt and Pd catalysts with the nominal concentration of 0.5 wt% were prepared via impregnation of already formed and calcined pieces (0.40–0.63 mm) using H₂PtCl₆ or Pd(NO₃)2 × 2H₂O, respectively. After impregnation, the samples were dried at RT (24 h), 100 °C (12 h), and then calcined at 450 °C (3 h). Pt-Pd/SBA–BEA catalyst was prepared by one-step impregnation with a solution of H₂PtCl₆ and Pd(NO₃)₂ × 2H₂O. The Pt-Pd catalyst was loaded with 0.25 wt% of Pt and 0.25 wt% Pd to maintaining an overall metal content of 0.5 wt%. The incipient wetness impregnation of pelleted supports was chosen as the most common metal incorporation procedure in industrial catalyst preparation and with the awareness that the part of the metal will be deposited on the binder. The thermal treatment of the bimetallic catalyst was carried out at the same conditions as for the monometallic one.

3.3. Catalyst Characterisation

The textural properties of the materials were measured by the nitrogen adsorption at −196 °C, using an Autosorb-1C Quantachrome analyser (Quantachrome Instruments, Boynton Beach, FL, USA). Prior to the adsorption measurements, the samples were degassed in vacuum at 150 °C for 24 h (analysis time 13 h). Total surface area of the samples was determined using BET model. Distribution of pore sizes was calculated according to Barrett-Joyner-Halenda method (BJH).

Powder XRD data of the samples were recorded in X’Pert Pro equipment (PANalytical, Almelo, Netherlands) with CuKα radiation (0.154 nm, A, 40 kV, 40 mA). Scanning was carried out with 0.026° step and in range from 0.5° to 5° and from 10° to 80° (2θ) for mesoporous AlSBA-15 and zeolites, respectively.

Acidity of the samples was determined using pyridine adsorption (Py-IR). IR spectra were registered using a Vector 22 spectrophotometer (Bruker, Billerica, MA, USA). Tablets made out of catalyst samples were put inside FTIR quartz chamber and degassed using vacuum at 400 °C for 1 h. After that, the samples were saturated with pyridine at 150 °C and desorbed at 150, 200, 250, 300 and 350 °C in vacuum for 30 min. IR spectra were registered in 1400–1700 cm⁻¹ range. Concentration of Brønsted and Lewis acidic sites was calculated based on 1545 and 1455 cm^–1 frequencies. The strength of the acidic sites was calculated as A₃₅₀/A₁₅₀, where A₁₅₀ denotes the absorbance after chemisorption of Py at 150 °C, and A₃₅₀ is the absorbance after desorption of Py at 350 °C.

CO pulse chemisorption has been used to estimate the metal phase dispersion. The experiments were performed in U-shaped quartz fixed-bed flow reactor coupled with a mass spectrometer (QMG 220 PRISMA PLUS, PFEIFFER, Aßlar, Germany). The sample (25 mg) was first reduced in 5 vol% H₂/Ar flow (30 mL/min) at 450 °C for 1 h. After cooling down to room temperature (RT) under He flow the system was equilibrated. Then the pulses of 2 vol% CO/Ar mixture (loop volume was 250 µL) was periodically injected until saturation. The average metal particle size, metal dispersion, and metal surface area were calculated based on the procedure described by Fagherazzi et al. [91].

The structure of the samples was investigated with a CM-20 microscope (Philips, Amsterdam, Netherlands) operating at 100 kV. Prior to observation, the samples were ultrasonically dispersed in ethanol and transferred to a holey carbon coated copper grid (300 mesh).

3.4. Catalytic Activity Measurements

The transformation of n-heptane (n-C₇) was carried out in a high-pressure stainless steel tubular flow reactor (i.d. of 8 mm and catalyst bed approximately 80 mm long) under 1 atm. The catalyst bed was composed of 3 cm³ of the catalyst grains with 0.4–0.63 mm particle size, diluted with 1 cm³ of SiC (0.25 mm particle size). Experiments were conducted at H₂:CH = 10:1 mol/mol, WHSV = 1 h⁻¹, and the temperature 250–350 °C. Before the test, the catalyst was reduced under a hydrogen flow at 450 °C for 3 h. Reaction products were analysed by the GC method (FID detector), using the Elite Petro capillary column (100 m × 0.25 mm × 0.5 μm). The reaction products have been grouped as follows:

(1)

iso-C₇ (total hydroisomerization products), including MoBC₇ (monobranched isomers) and MuBC₇ (multibranched isomers),

(2)

C₃ + C₄ (hydrocracking products),

(3)

Aro & Cyc, i.e., aromatics (mostly toluene) and cycloalkanes (mostly methylcyclohexane).

All the tested catalysts exhibited no hydrogenolysis activity, i.e., none yield of methane and ethane was observed. Additionally high molecular compounds were not detected. Results from a reproduced experiment showed that the conversion and product efficiency had an error of ±2.5%.

4. Conclusions

In this work we reported the hydroisomerization of n-heptane (n-C₇) towards the high octane isomers with by using bifunctional Pt(Pd) catalysts supported over AlSBA-15–zeolite hierarchical composites (where zeolite is β, mordenite or ZSM-5, denoted as BEA, MOR and MFI, respectively). The AlSBA-15–zeolite materials were effectively prepared through novel one-step strategy. Research was undertaken to examine: (i) the influence of zeolite incorporated into AlSBA-15–zeolite biporous supports on the activity of Pt (0.5 wt%) catalysts and (ii) the influence of the metallic phase composition (i.e., Pt, Pd or Pt-Pd, with overall metal content of 0.5 wt%) on the catalytic performance of the catalysts supported over the most favourable AlSBA-15–BEA support. All the catalysts were prepared by extrusion of the mixture of powdered AlSBA-15—zeolite material with a binder (i.e., 20 wt% of boehmite) followed by impregnation. The results in this investigation can be summarized in the following conclusions:

(1)

The results clearly show that type of the zeolite (BEA, MOR and MFI) that was introduced into AlSBA-15–zeolite hierarchical supports significantly affects the activity of Pt catalysts in n-C₇ hydroisomerization. The Pt/AlSBA-15–BEA catalyst displays the most promising catalytic properties for the isomerization of n-C₇, relative to Pt/AlSBA-15 and Pt/zeolite and to the two other catalysts (Pt/AlSBA-15–MOR and Pt/AlSBA-15–MFI). The maximal yield of heptane isomers over Pt/AlSBA-15–BEA amounting to ca. 60% is reached at 82% of the total n-C₇ conversion (at 290 °C). This catalyst allows to improve research octane number from 0 to 64. The enhanced performance over Pt/AlSBA-15–BEA catalyst is attributed to not only the well Pt dispersion and moderate acidity but also to the improved textural properties. The method of preparation of biporous supports developed by us provides the formation of some kind micropore—mesopore continuity in AlSBA-15–zeolite which facilitates the suitable transport properties (i.e., fast adsorption and desorption). The presence of mesopores decreases or eliminates diffusion restrictions. It shortens the residence time of the intermediates in catalyst pores and results in diminution of consecutive reactions, such as cracking, and consequently in enhancing isomerization efficiency.

(2)

The research onto the modification of the hydrogenating function (Pt, Pd, Pt-Pd) has shown that the most remarkable case is that of the Pt-Pd synergy. Combining Pt and Pd led to a notable synergetic effect, which exceed those of the additive contribution of Pt and Pd in the metallic phase. The hydroisomerization of n-C₇ over Pt-Pd/AlSBA-15–BEA catalyst provides the yield of isomers amounting to 68 wt% without extensive cracking at conversion of up to 78% (at 290 °C). The Pt-Pd/AlSBA-15–BEA catalyst allows to improve research octane number from 0 to 74. The high isomerization activity of Pt-Pd/AlSBA-15–BEA catalyst can be considered to come from the micro-mesoporous AlSBA-15–BEA support which supplies a required acidity characterisation and the appropriate transport properties. But first of all the observed synergy in Pt-Pd/ AlSBA-15–BEA catalyst could most likely be attributed to the interaction between Pt and Pd particles.
