MOF Embedded and Cu Doped CeO2 Nanostructures as Efficient Catalyst for Adipic Acid Production: Green Catalysis

by
Shabahat Bibi
1,
Erum Pervaiz
1,*,
Minghui Yang
2 and
Osama Rabi
1
1
Heterogeneous Catalysis Lab, Department of Chemical Engineering, School of Chemical & Materials Engineering (SCME), National University of Sciences & Technology (NUST), Sector H-12, Islamabad 44000, Pakistan
2
Solid State functional Materials Research Lab, Ningbo Institute of Materials Technology and Engineering (NIMTE), Chinese Academy of Sciences (CAS), Ningbo 315201, China
*
Author to whom correspondence should be addressed.
Catalysts 2021, 11(3), 304; https://doi.org/10.3390/catal11030304
Submission received: 7 September 2020 / Revised: 11 January 2021 / Accepted: 12 January 2021 / Published: 26 February 2021
(This article belongs to the Special Issue Nano-Structured Heterogenous Catalysts for Sustainable Energy and Environment)
Browse Figures
Versions Notes

Abstract

:
Greatly efficient chemical processes are customarily based upon a catalyst activating the process pathway to achieve higher yields of a product with desired specifications. Catalysts capable of achieving good performance without compromising green credentials are a pre-requisite for the development of a sustainable process. In this study, CeO2 nanoparticles were tested for their catalytic activity with two different configurations, one as a hybrid of CeO2 nanoparticles with Zeolitic Immidazole Framework (ZIF-67) and second being doped Cu cations into CeO2 nanoparticles. Physicochemical and catalytic activity was investigated and compared for both systems. Each hybrid was synthesized by embedding the CeO2 nanoparticles into the microporous structure of ZIF-67, and Cu doped CeO2 nanoparticles were prepared by a facile hydrothermal route. As a catalytic test, it was employed for the oxidation of cyclohexene to adipic acid (AA) as an alternative to expensive noble metal-based catalysts. Heterogeneous ZIF-67/CeO2 found catalytical activity towards the oxidation of cyclohexene with nearly complete conversion of cyclohexene into AA under moderate and co-catalyst free reaction conditions, whereas Cu doped CeO2 nanoparticles have shown no catalytic activity towards cyclohexene conversion, depicting the advantages of the porous ZIF-67 structure and its synergistic effect with CeO2 nanoparticles. The large surface area catalyst could be a viable option for the green synthesis of many other chemicals.

Graphical Abstract

1. Introduction

Catalysis, which is defined as speeding up of a chemical reaction through a substance that is not consumed itself, is critically important for all areas of modern-day life. Catalysis is eventually involved in the preparation of over 80% of all synthetic products. It is significant not only because it aids the world’s economic development, but also because it allows the manufacturing of those materials that sustain the society and human environment. A heterogeneous catalyst is usually preferred in industry as it can be easily separated from the products and permits any side reactions to take place. Recently, CeO2 has gained huge interest in the field of catalysis due to its high thermal and chemical stability, oxygen vacancies and exceptional functionalities. CeO2 nanocrystalline particles are interesting because of their diverse area of applications in the fields of catalysis, fuel cells, UV absorbance, electronics, and biomedicine [1,2,3,4,5,6]. This is because CeO2 has excellent properties of shuffling between the valence states of 4+ and 3+, generating oxygen vacant defects, and high oxygen storage capability [7,8,9] In general, the catalytical activity and reducibility of CeO2 depends on its surface oxygen content, therefore increasing the concentration of accumulated active oxygen on the surface of CeO2 would result in its higher catalytic activity. This positioning of oxygen atoms on the surface of CeO2 is influenced by different components, such as the reaction sites available on the surface of CeO2 along with its elemental combination, as well as its oxygen vacancy defects [10,11,12,13]. Overall, the morphology-dependent growth of CeO2 nano frameworks has been reported by many researchers to support their catalytically advanced behavior. Rhombic dodecahedral CeO2 hollow structures were fabricated by a single-step metal organic framework (MOF)-templated route and a hydrothermal method to demonstrate its improved performance in combustion reactions. This, in fact, increased the specific surface area of CeO2 and hence resulted in better redox characteristics [14,15]. Additionally, nano CeO2 with rod-like morphology, predominated by a (110) lattice plane, through a simple hydrothermal approach, has been shown to exhibit superior catalytic performance for CO oxidation, in comparison to CeO2 nanocubes encased by six lattice planes of (200) [16]. The ratio of the Ce (cerium) precursor and the ionic liquid used for its synthesis is one of the key factors used in controlling the growth of CeO2 nanoparticles [17]. Nevertheless, morphology-dependent growth of CeO2 is limited to either the template used or inner structure of the nanocrystal. CeO2 films of various thicknesses have also been synthesized for the adsorption of hydrocarbons and their hydrophobic nature [18,19]. Here, the thickness played the key role in determining the surface morphology, microstructure, and properties of the films. Thicker films exhibited more adsorption of C-C/C-H on the surface of CeO2 because of the presence of more oxygen vacancies on thicker films [14]. Embedding metal or metal oxide nanoparticles into metal organic frameworks (MOFs) is a new approach to studying the unique physical and chemical behaviors possessed by metal nanoparticles and their oxides [20,21]. These can be formed by either inserting a pre-synthesized metal nanoparticle into an already prepared MOF or employing that MOF as a template [22,23]. In this context, ZIF-67 has been reported to act as a template capable of thermal decomposition and encasing ceria nanowires, hence shown to have enhanced catalytic ability for heterogenous catalysis [24]. Moreover, Pd, Ru, and Zn cations have also been uniformly embedded into MOFs through facile strategies [25,26,27]. This further encourages the generation of active metal@ MOFs catalysts with excellent stability and catalytic behavior. The idea of embedding CeO2 nanoparticles into ZIF-67 would be a promising catalyst, as it reduces the agglomeration of CeO2 nanoparticles when enclosed by the porous structure of ZIF-67, and hence can result in a synergistic impact of metal oxide embodied by a MOF. Keeping that in mind, we have embedded nanoparticles into the mesoporous structure of ZIF-67 through a facile technique, and employed it as a catalyst for the production of adipic acid through oxidation of cyclohexene, as an alternative to expensive noble metal-based catalysts.
Adipic acid (AA) is an important commercial organic compound, used primarily for the production of nylon 6,6. In addition, AA is extensively utilized in fertilizers, lubricants, paper, waxes, and the biomedical and food industries [28,29,30,31]. Globally, the production of adipic acid exceeds 3.5 million metric tons with a fast growing requirement of 4% annually [32]. Conventionally, AA is produced by the oxidation of cyclohexanol and cyclohexanone (so-called ketone-alcohol oil) with nitric acid (HNO3), in majority industrial processes, in the presence of copper (II) or vanadium as catalysts [33]. Although this process is economically viable, the reduction of HNO3 produces NOX, as by-products. Amongst them, NO and NO2 are recycled but N2O5 and N2O are released in the atmosphere, thus adding to global warming and ozone depletion [33,34]. Taking that into account, researchers have devoted their efforts to developing effective and environmentally friendly methods for the industrial production of adipic acid that do not employ HNO3 as oxidant. For that purpose, utilizing H2O2 and molecular oxygen as oxidants has been widely employed [35,36,37]. H2O2 decomposes to water as a by-product and thus its application in producing adipic acid relates to establishing sustainable processes. However, its usage in concentrations more than 60%, is intricate for safety reasons [38,39]. On the other hand, scientists have also worked on the usage of renewable feedstock for the production of AA, such as glucose, which is biologically converted into AA by the use of microorganisms [40]. Even though these processes are eco-friendly, their prolonged reaction times and comparatively lower yields of adipic acid make them commercially not viable. Noble metal-based catalysts have been reported to effectively catalyze the cyclohexene oxidation to adipic acids such as Pd, Rh and Au [41,42,43]. The very first process that utilized H2O2 as an oxidant for the production of adipic acid was reported by Sato et al. [38]. Cheng et al. presented their work on the modification of an SBA-15 mesoporous catalyst with tungsten oxide to catalyze the production of adipic acid through oxidation of cyclohexene [44]. In that process, the yield of the product achieved was 30% at 85 °C after 13 h. Saedi et al. studied the oxidation of cyclohexene by using MIL-101 metal organic framework as a heterogenous catalyst [45]. This produced high to excellent yields of adipic acid, while MIL-101 was also proved to be a reusable catalyst. The titanium- and cerium-containing mesoporous silicate materials Ti-MMM-2 and Ce-SBA-15 have also been employed as catalysts for cyclohexene oxidation to adipic acid with aqueous H2O2 under solvent-free conditions [46]. In comparison to conventional MOFs, reports on catalytic studies of ZIF-67 for organic transformations are limited in the literature. To our knowledge, this is the first time that ZIF-67/CeO2 has been employed for the oxidation of cyclohexene into adipic acid, using H2O2 as an oxidant. Doping CeO2, with metal cations is another approach to developing hybrid nanostructures with modified surface elemental combinations. It results in the enhanced chemical behavior of ceria nano frameworks because of the increased oxygen deformities on its surface [47]. For instance, CeO2 doped with a minor concentration of Y3+ has been reported to result in an extremely distributive pattern of dopant cations that bonded with the surface oxygen vacancies uniformly, and thus increased the reducibility and catalytic capability of the material [48]. Similarly, many reports have been presented on CeO2 doped with copper or CuO-CeO2 nanocomplexes. The collaboration of CeO2 with CuO is a solid role of CeO2 crystalline size. By incorporating a transition metal, a narrow crystalline size of CeO2 favors the generation of exceedingly reducible oxygen species [49,50].
In our study, a performance comparison of MOF embedded CeO2 nanoparticles with its metal doped structure are presented, with an adequate understanding of the enhanced catalytic and reducible properties of CeO2. For the MOF, we have chosen ZIF-67, due to its better thermal and chemical stability and dodecahedral morphology. On the other hand, Cu doped CeO2 nanospheres have been prepared by a simplistic hydrothermal route. For analyzing its catalytic capability, ZIF-67/CeO2 is used as a catalyst to produce adipic acid through the oxidation of cyclohexene.

2. Results and Discussion

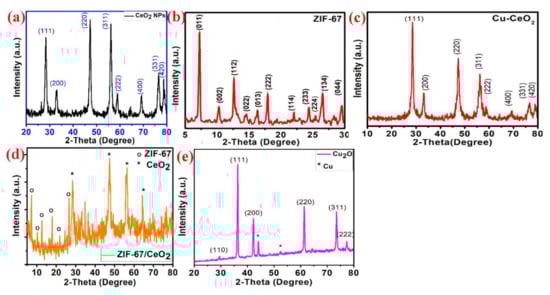

The indexed XRD (X-ray Diffraction) pattern of CeO2 nanoparticles prepared through a hydrothermal method, with the Ce3+/OH− ratio of 1:1, is shown in Figure 1a.
The obtained diffraction peaks can be ascribed to the face centered cubic (FCC) fluorite structure of CeO2 (a = 0.5411 nm) [51]. The higher intensity peaks were obtained at 28.53°, 47.5° and 56.26°, corresponding to the crystal planes of (111), (220) and (311), respectively. It is previously reported that Ce3+/OH− ratio has large effect on size and crystallinity of ceria nanoparticles [51]. Herein, we have used 1:1 ratio of Ce3+/OH− to obtain well-dispersed crystalline ceria nanoparticles. The crystallite size of CeO2 calculated from the Scherrer formula is 8 nm. Figure 1b shows the XRD pattern of as-prepared ZIF-67 polyhedrons, which counterparts well with the already reported data, illustrating that the as-prepared ZIF-67 polyhedrons are crystalline with pure phase [52]. The sharp and narrow peaks in the XRD pattern demonstrate the high crystallinity of ZIF-67 polyhedral structures [52]. Figure 1c displays the XRD pattern of Cu doped CeO2 with 10% molar ratio of Cu2+. All the diffraction peaks shown in the pattern correspond to the FCC fluorite structure of ceria, with no sign of CuO, Cu2O, or CeOHCO3, which demonstrates the uniformity of the doping in the parent lattice of CeO2 [53]. The narrow and strong peaks confirm the formation of a well crystalline Cu doped CeO2 with an average crystallite size of 40 nm. Figure 1d presents the XRD pattern of ZIF-67/CeO2 hybrid nanostructures. It can be seen from the XRD pattern that diffraction peaks for ZIF-67 and CeO2 are both present at specific 2-theta positions. The diffraction peaks of CeO2 that is encapsulated/dispersed into polyhedral ZIF-67 are equally visible because of its well crystalline nature. The peaks from 5 to 28° are ascribed to the presence of ZIF-67, while further peaks from 30 to 80° confirm the presence of CeO2 nanoparticles in the prepared hybrid. Figure 1e represents the XRD pattern of 90 mol% Cu2+ in CeO2 prepared by the same route. It can be seen that the XRD pattern matches well with the pure Cu2O crystalline phase with no impurity peak for Ce or CeO2. This shows that increasing the amount of Cu cations during doping has resulted the deformation of the crystalline phase and instead of the CeO2 phase, a pure Cu2O phase is observed. This is why dopant concentration was limited till 10 mol% Cu2+. To investigate the morphology of the prepared samples, SEM (scanning electron microscopy) images were obtained, which are shown in Figure 2.

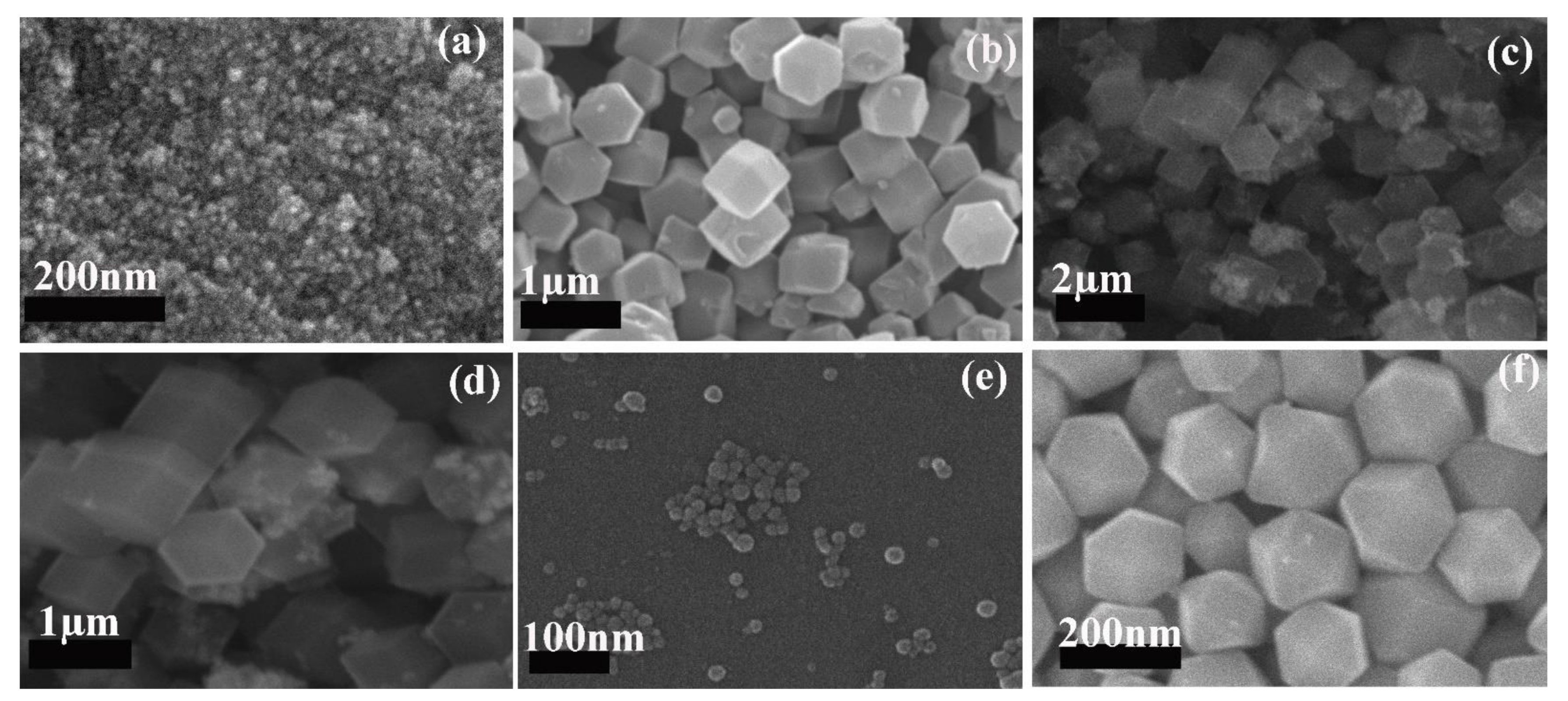

The spherical morphology of CeO2 nanoparticles is shown in Figure 2a, where dispersed spheres of small size can be perceived. The average diameter is speculated to be in the range of 24–33 nm (the corresponding SEM image, displaying the diameter of CeO2 nanoparticles, is shown in Figure S1). The shape and size of ceria nanoparticle is reported to increase with increasing molar ratio of the alkali used [51]. The dodecahedral morphology of pure phase ZIF-67 (Figure 2b) is clearly visible, with the particle size ranging from 400–500 nm. According to the literature, methyl-imidazole should always be used in excess to cobalt nitrate. This is because it acts not only as an organic linker during the synthesis, but also as a stabilizing agent in its neutral form, which is advantageous for fabricating uniform dodecahedral particles of ZIF-67 [54]. After synthesizing the pure phase ZIF-67 crystals and CeO2 nanoparticles, the same CeO2 nanoparticles were dispersed in methanol through an ultrasound treatment followed by the addition of methylimidazole and cobalt nitrate, as explained in the experimental section, to form the inserted hybrid nanostructures. Figure 2c,d shows the SEM images of the ZIF-6/CeO2 hybrid. Small ceria nanoparticles are seen to be mounted on the surface of the ZIF-67 polyhedrons. The polyhedrons range in the size of 450 nm and are uniformly distributed. Figure 2e presents the morphology analysis of Cu doped CeO2 nanoparticles. The average particle size from the SEM image is found to be 30–40 nm. From the literature, the addition of Cu content into ceria tends to influence its crystallization process with the increase in the surface area of the resulting product and a smaller crystallite size than pure ceria [52]. It demonstrates the function of Cu in the growth process of ceria nanospheres. Figure 2f shows the morphology of 90 mol% Cu2+ doped in CeO2 nanoparticles. Polyhedral particles of Cu2O in the size range of 150–170 nm can be observed.
Transmission Electron Microscopy (TEM) was used to investigate the microstructure analysis of the prepared hybrids. Figure 3 presents the TEM imaging for ZIF-67/CeO2 hybrids.

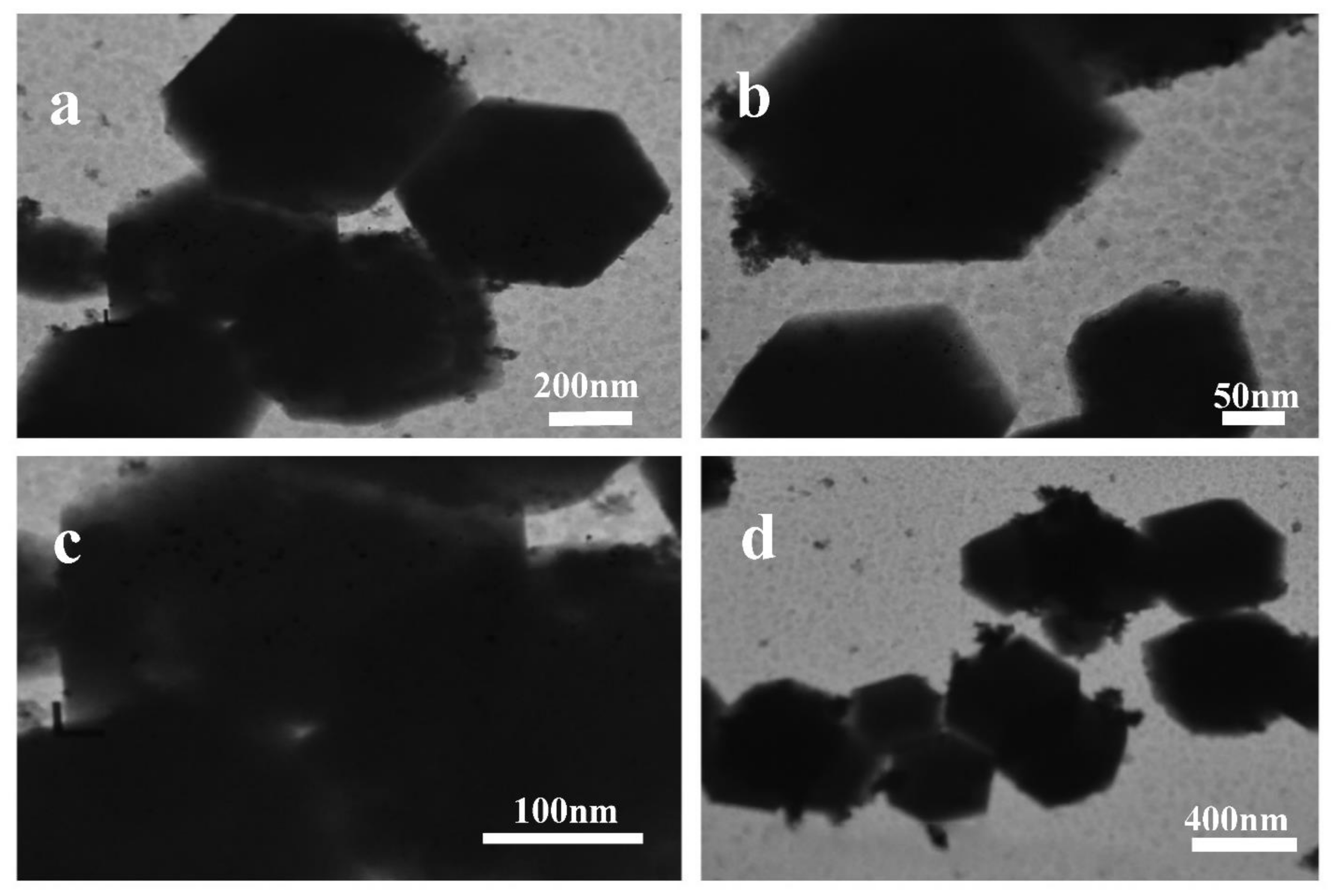

The TEM images clearly display the dodecahedral morphology of ZIF-67 particles. Interestingly, the enlarged TEM image (Figure 3c) validates the partial incorporation of CeO2 nanoparticles inside ZIF-67, and these can also be seen to be attached/mounted onto the surface of larger particles of ZIF-67. The CeO2 nanoparticles were measured as 30–40 nm in size (Figure S2). The fabrication process for such unique hybrids is presumed to occur by the pre-mixing of CeO2 nanoparticles and methyl-imidazole molecules that makes the methyl-imidazole molecules to correlate with Ce ions on the surface of CeO2 nanoparticles. Further, the surface nucleation of ZIF-67 crystals occurs by adding Co2+ into the reaction mixture. However, some of the CeO2 nanoparticles become mounted on the surface of ZIF-67 crystals while some of them become embedded inside the polyhedral structure of ZIF-67. Additionally, the fast growth rate of ZIF-67 resulted in the successful incorporation of the as-synthesized CeO2 nanoparticles into ZIF-67 crystals [24]. From these results, we can say that the on-site self-embedded growth behavior and surface nucleation makes these ingredients become firmly coupled together, and this is also a facile technique that does not make use of any additional agent. Figure S3a,b presents the TEM images of pure ZIF-67 and CeO2 nanoparticles, respectively, while Figure S3c gives the HRTEM (SAED (selected area electron diffraction)) pattern of the hybrid nanostructure. It can be seen clearly that polycrystalline CeO2 is partially embedded in ZIF-67, as there are diffused rings in the SAED pattern, whereas CeO2 particles are also dispersed on the surface of ZIF-67 (Figure S3d).
Figure S4 shows the EDS (energy dispersive spectroscopy) spectrums obtained for ZIF-67/CeO2 hybrid and Cu doped CeO2. For ZIF-67/CeO2 in Figure S4a, it is demonstrated that the particles in the sample consisted of the elements Co, Ce, O, N, and C, supporting the presence of Ce along with Co, O, and N. Similarly, for the Cu doped structure no other impurity was detected, and the presence of Cu along with Ce and O confirmed the formation of a doped sample. FTIR (Fourier transform infrared spectroscopy) analysis of the as-synthesized samples was performed. Figure S5a,b shows the FTIR spectrum of pure CeO2 and ZIF-67, whereas ZIF-67/CeO2 is shown in Figure S5d. For pure ZIF-67, the strong peaks are obtained at 2925 cm−1, 1574 cm−1, 756 cm−1, and 424 cm−1. The peaks observed at 2925 and 2960 cm−1 represent the C-H stretching vibrations of the -CH3 group, while the one at 422 cm−1 represents the Co-N stretching vibration. The peaks at 1574 cm−1 and 756 cm−1 correspond to the stretching as well as bending-mode vibrations of C=N, which is present in 2-methyl imidazole. The strong peaks around 1000 to 1500 cm−1 represent the skeletal vibrations of the imidazole ring present in ZIF-67 [55]. This shows the phase purity of ZIF-67. For ZIF-67 embedded CeO2, there are no visible peaks present for Ce-O bond and all the peaks present display the formation of perfect ZIF-67 crystals. FTIR analysis of the synthesized samples of Cu doped CeO2 is shown in the Figure S5c. Pure CeO2 contains strong bands at 3399 cm−1, 1620 cm−1, and 540 cm−1. The broad bands at 3390 cm−1 and 1620 cm−1 correspond to the symmetric stretching and bending vibrations of physiosorbed water molecules. Furthermore, the band at 540 cm−1 shows the stretching-mode of the Ce-O bond [56]. For the Cu doped sample, stronger bands are obtained around 1600 to 1300 cm−1, which corresponds to the O-C-O stretching band. The peaks present around 700 cm−1 display the Ce-O-C bending-mode vibrations: this is visible in both spectrums. The peak present at 500 cm−1 in the doped sample shows the stretching vibration of the Ce-O bond and verifies the formation of cerium oxide without any impurities [57].

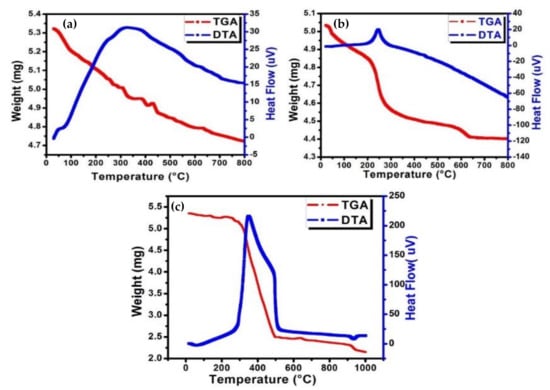

Figure 4a,b shows the TG/DTA (Thermogravimetric/Differential thermal analyzer) curves of pure CeO2 and Cu doped CeO2, respectively. For pure CeO2, continuous weight loss is observed when it is heated from room temperature to 800 °C, which at first is due to the absorbed water molecules present in the sample. Further weight loss can be attributed to the decomposition of Ce (OH)3 or Ce (OH)4/CeO2·2H2O, suggesting either a partially hydration (CeO2·nH2O) or a mixture (CeO2 + CeO2·2H2O) of ceria phases. The DTA curve shows an exothermic peak at around 350 °C, corresponding to a weight loss, which must be considered a result of the crystallization of the residual amorphous phase. The total weight loss observed for the CeO2 sample is almost 20%. For the Cu doped sample, the TGA curve shows continuous decomposition when it is being heated at room temperature until it becomes stable at 650 °C. The exothermic peak at around 250 °C, shown by the DTA curve, is an indication of the loss of the absorbed water molecules present in the sample. Although both the curves for pure CeO2 and the doped sample (10% Cu) exhibit similar behavior altogether, there is a slight difference in the amount of weight loss at different temperatures, which can be clearly seen form the TGA graphs. The doping of CeO2 with Cu causes it to be a better thermal conductor, and thus it loses more weight at extreme temperatures in comparison to pure CeO2.
Figure 4c shows the TG/DTA curve for the as-synthesized ZIF-67/CeO2 hybrid in air atmosphere. It is demonstrated through the curve that ZIF-67/CeO2 shows very little decomposition in the temperature range of 0 to 300 °C, which can be ascribed to the removal of absorbed water molecules or any unreacted 2-methylimidazole and solvents present in the sample. From the literature, it has been studied that ZIF-67 displays a higher thermal stability in vacuum than in air, illustrating its quite sensitive nature towards oxygen at extreme temperatures, although its stability still exceeds many other MOFs and metal oxides [42]. The sudden mass decomposition in the temperature range of 350–500 °C indicates that the Co/Ni metal–organic framework was converted to metal oxides with a corresponding exothermic peak, shown by the DTA curve, at approximately 400 °C. The mass remains almost unchanged at temperatures higher than 500 °C, suggesting that the organic components were completely removed and Co3O4/NiCo2O4 composites were formed [58]. The presence of CeO2 particles inside ZIF-67 do not seem to have any significant effect on the thermal stability of ZIF-67. At a temperature of 950 °C, the weight remains almost 10% of the original mass. The TGA curve matches well with the published data for pure ZIF-67. Furthermore, XPS (X-ray photoelectron spectroscopy) was performed for the surface compositional analysis and investigation of the chemical states of ZIF-67/CeO2 sample.

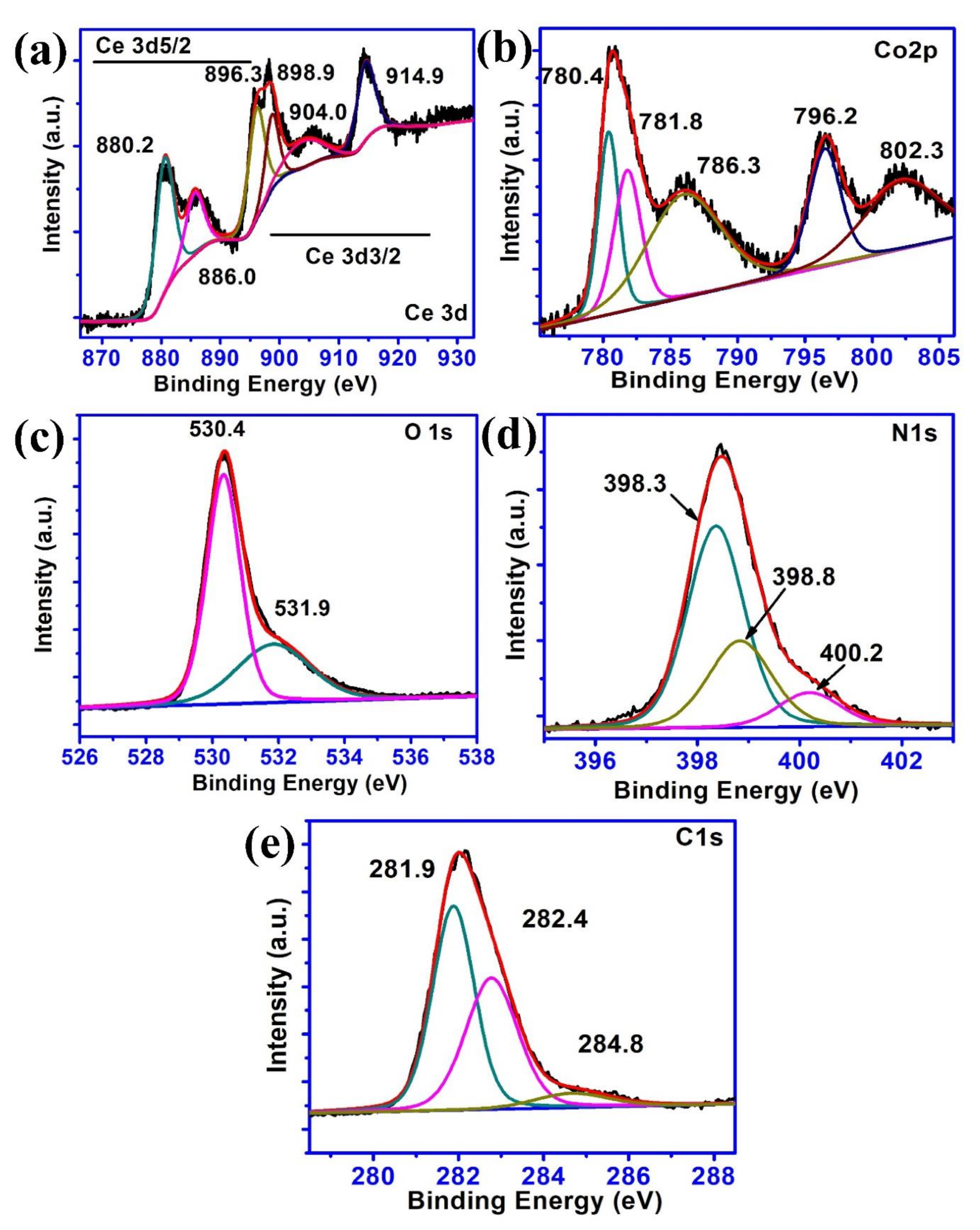

Figure 5 shows the XPS spectrums that were obtained for ZIF-67/CeO2. After curve fitting, the binding energies on Ce 3d spectra conform to the Ce 3d3/2 and Ce 3d5/2 spin-orbit states as shown in Figure 5a. The peak at binding energy of 914.9 eV is a character of Ce (IV). In detail, the results obtained from the curve fitting show that the peaks at 880.2 eV, around 884 eV, 900 eV, and 904.0 eV are because of the emissions from Ce3+, while all the other peaks i.e., 886.0, 890, 896.3, 898.9 eV, are a result of emissions from Ce4+. The ratio of Ce3+/Ce4+ can be semi-quantified based on the peak area. The presence of Ce3+ may induce more oxygen vacancies and defects [14,59]. The binding energies 781.8 eV and 796.2 eV are attributed to Co 2p3/2 and Co 2p1/2, respectively [60]. The satellite peak at around 786.3 eV is an aspect of Co (II), showing the presence of Co (II) in the product [61]. The O 1s peak is deconvoluted into three peaks. The binding energy at 529.5 eV is ascribed to the lattice oxygen of CeO2, and the one at 531.6 eV can be ascribed to hydroxyl species, defective oxygen and absorbed oxygen [62,63]. The peak at 533 eV is attributed to absorbed water molecules [64]. XPS signals take into account the chemical state of the surface atoms, and the strong peak at 531.6 eV suggests that there are a lot of surface hydroxyls in the product and the presence of Ce3+ would aid the raise of absorbed oxygen [65]. More precisely, the N1s speak (Figure 5d) is deconvoluted into three different N species: pyridinic N at 398.3 eV, graphitic N at 398.8 eV. Among them, major species is the pyridinic N that is known to be more active than other N species [66].The high- resolution spectrum of C 1s (Figure 5e) is fitted by three peaks at 281.9, 282.4 and 284.8 eV corresponding to C-C, C=C, and C=N/C-O. These functional groups arise from the decomposition of organic frameworks and notably affect the electronic structure/binding affinity of carbon materials [67].
The porosity and specific surface area of the samples which can affect catalytic performance were carefully examined by nitrogen adsorption–desorption isotherm measurements for ZIF-67 and CeO2 as shown in Figure 6.

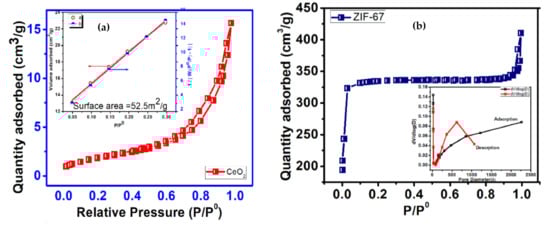

The N2 adsorption–desorption isotherms for CeO2 nanoparticles exhibits a type-II adsorption curve reflecting a non-porous character [14]. It is in accordance with the previously published reports. The calculated BET (Brunauer-Emmett-Teller) surface area of CeO2 nanoparticles is 52.5 m2/g. For ZIF-67 polyhedrons, a type-I N2 adsorption–desorption without hysteresis was obtained, which reflects its microporous nature [53]. Its surface area was measured to be 1085 m2/g. The pore size distribution of ZIF-67 is also shown where it can be seen that pores with smaller diameter have a larger density in comparison to the pores with larger diameter.

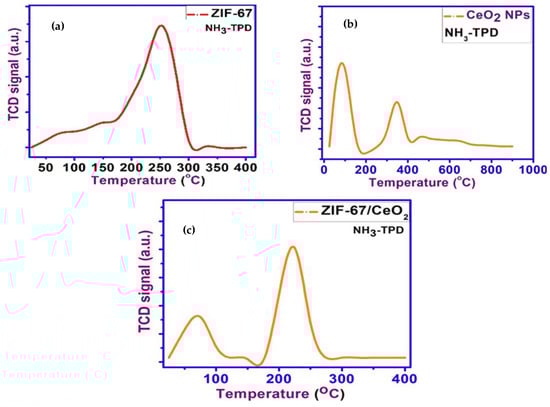

Figure 7 shows the NH3-TPD (Temperature-programmed Desorption) results obtained for pure ZIF-67, CeO2 and hybrid ZIF-67/CeO2 nanostructures.
TPD was performed to find out the acidic and basic sites present in the catalyst. For ZIF-67, according to the literature it is known that the acidity of ZIF-67 originates from Co (II) and Co (III) species and the basic sites result from N atoms of imidazole ligand present on its surface [68]. The NH3-TPD curve for ZIF-67 (Figure 7a) shows a desorption peak obtained at around 250 °C. This shows the moderate acidic strength of ZIF-67 to be used as an active catalyst. For CeO2, two desorption peaks are obtained (Figure 7b); one at the lower temperature of 100 °C, which is attributed to the weak acidic sites with a greater peak area [69]. The peak at the higher temperature of 300 °C shows the presence of moderately strong acidic sites on CeO2 surface. Figure 7c shows the desorption peaks for the composite sample ZIF-67/CeO2, where less density of weak acidic sites and larger concentration of moderately strong acid sites can be observed owing to formation of q hybrid structure having the synergistic impact of ZIF-67 and CeO2, which results in the creation of greater acidic sites on the catalyst surface. H2-TPR (Temperature-Programmed Reduction) analysis was performed to analyze the reductive behavior of the prepared samples. Figure 8 shows the TPR result of ZIF-67/CeO2 and the inset compares H2-TPR to pure CeO2.

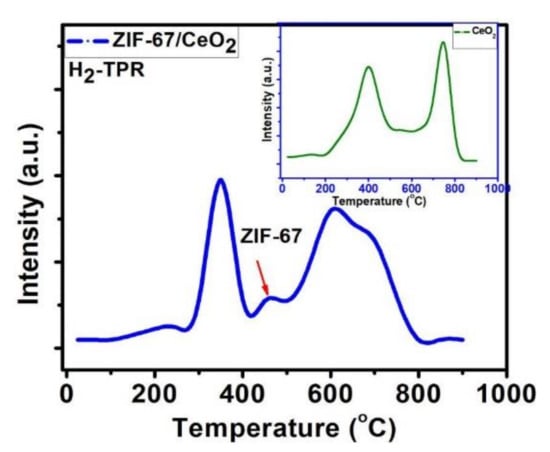

It can be observed that the pure CeO2 TPR profile consists of two peaks, one at the lower temperature of 400 °C and the second peak at around 800 °C. The lower temperature peak can be ascribed to the capping oxygen present at the surface of ceria, whereas the high temperature peak is due to the bulk oxygen present in the sample. These oxygen species are responsible for hydrogen uptake in the H2-TPR analysis [14,70]. For the hybrid ZIF-67/CeO2 sample, three peaks were obtained. The peak around 350 °C is the characteristic peak of ceria which is now shifted to lower temperature as compared to pure ceria. The peak around 500 °C is characteristic of ZIF-67, which is ascribed to the presence of N-species present on its surface and are responsible of hydrogen uptake [68]. The second characteristic peak of ceria is also shifted to a lower temperature; it is now at 600 °C with a larger peak area, as compared to pure ceria where it was at 800 °C. This can be explained by the synergistic properties obtained by the formation of a hybrid structure which increases the reducibility and hence the catalytic activity of the catalyst.

Catalytic Activity

To investigate the catalytic activity of ZIF-67/CeO2, and Cu doped CeO2 nanostructures, solvent-free oxidation of cyclohexene was carried out with H2O2 to produce adipic acid. H2O2 is a green oxidant as it produces water as the only by-product and is a preferable choice for a sustainable and environmental friendly process [71]. The amount of the catalyst ZIF-67/CeO2 taken was varied from 0.5 g to 1.5 g. The optimum amount of ZIF-67/CeO2 hybrid obtained was 1.2 g, with a maximum yield (72%) of adipic acid as per the weight of the white crystalline solid obtained after cooling it down in an ice bath. To confirm the formation of pure phase adipic acid, FTIR analysis was performed. Figure 9 shows the FTIR spectrum of obtained adipic acid. It displays the strong characteristic peak at 1685 cm−1, which is ascribed to the stretching vibrations of carboxylic groups present in AA [72]. The peak at 2981 cm−1 displays the C-H stretching present in its structure. Other than that, a few peaks after 1000 (at approximately 1150 and 1300 cm−1) correspond to C-O stretching vibrations.
These results match well with the previously reported work and demonstrate the formation of pure phase adipic acid. The catalytic activity of Cu-doped CeO2 and pure CeO2 nanospheres were also tested under the same reaction conditions, but no conversion of cyclohexene was observed for a variable range of catalyst amounts. This confirms that metal doped ceria particles have shown no catalytic activity in the production of adipic acid and the role of ZIF-67 is critical in the catalytic activity of hybrid nanostructures.

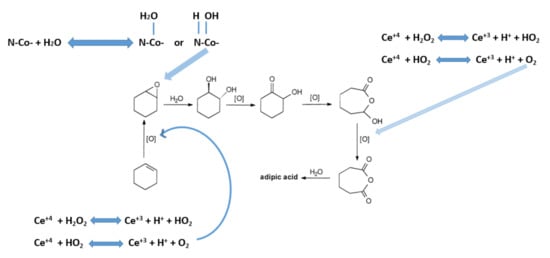

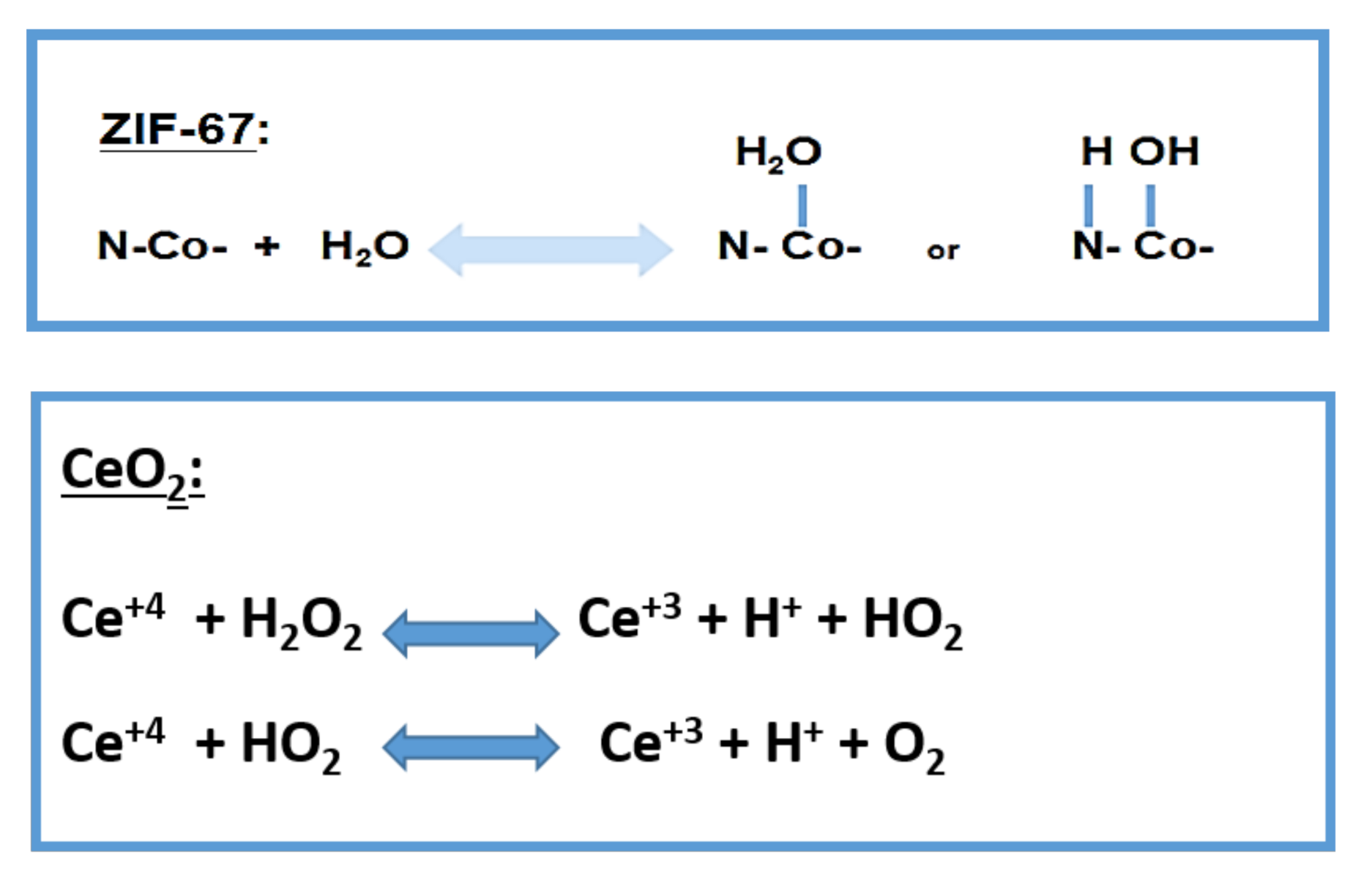

The reaction mechanism for the oxidative cleavage of cyclohexene passes through several oxidation and hydrolysis steps. The oxidation of cyclohexene by H2O2 generally includes epoxidation of the double bond present in cyclohexene, followed by a fast hydrolytic ring opening of the bicyclic epoxide and conversion to a diol, dehydrogenation of the secondary alcohol, the formation of hemi-acylal, then a Baeyer–Villiger oxidation and multiple hydrolysis steps resulting in adipic acid [71,73,74,75]. ZIF-67 has been previously used for several organic transformations but not for this particular reaction where the oxidation of cyclohexene takes place in the presence of H2O2. It was suggested that as ZIFs are saturated metal organic frameworks and are theoretically free of low coordinated metal atoms and functionalized linkers other than metal centers, so they should not be capable of displaying any catalytic activity [20]. On the other hand, Chizallet et al. reported a thorough study using the DFT (Density functional theory) theory to calculate the strength of Lewis acid-base sites, the structural defects and low coordinated acid-base species that coexist on the surface of the framework and are accountable for the catalytic ability [76]. The presence of acido-basic sites on the external surface of ZIF-67 are mainly responsible for its catalytic activity and their presence is analyzed by the NH3-TPD results previously discussed. These species may include OH and NH groups, hydrogen carbonates, low-coordinated Co atoms, and free N- moieties belonging to the linkers [68,77]. The proportion of low coordinated Co atoms such as Co III nodes and Co II nodes depends on the number of linkers lost around the exposed Co center [68]. The presence of small amounts of atmospheric moisture may lead to the formation of NH, -OH and hydrogen carbonate species on the ZIF surface, which accelerates the epoxides system (Figure 10). On the other hand, the presence of CeO2 has its own role in the catalytic activity of this reaction. Ceria has the ability of transfer between two oxidation states i.e., Ce3+ and Ce4+ and its catalytic activity is known to depend on this redox cycle of Ce4+/Ce3+ [78]. Furthermore, ceria has been reported to decompose H2O2 to produce molecular oxygen and the hydrogen radical along with the Ce4+/Ce3+ cycle. However, the amount of H2O2 plays a key role in maintaining the redox cycle of Ce in CeO2. The redox cycle of Ce in CeO2 i.e., the catalytic activity of CeO2, is reported to be inhibited by incorporating a higher amount (exceeding 0.2 M) of H2O2. Herein, 0.1 M of H2O2 is employed to ensure maximum catalytic activity of the catalyst. Furthermore, in previous reports the adsorption of organic compounds on CeO2 particles is suggested to be a completely surface-localized reaction, with Ce3+ and molecular oxygen being the active sites on its surface [79,80]. The incorporation of CeO2 nanoparticles into polyhedral ZIF-67 reduces the agglomeration of CeO2 nanoparticles as shown by the TEM images in Figure 3, consequently increasing the catalytic activity of CeO2. Based on the above information, a proposed mechanism is presented in Figure 11, which is based on the presence of active sites on the catalyst surface.
The first stage in the formation of adipic acid is the epoxidation of cyclohexene, which afterwards goes through hydrolysis to form cyclohexane diol. The diol can then be transformed into adipic acid because of the oxidative cleavage of the C-C bond. Epoxidation of cyclohexene has been reported as the rate determining step (RDS) in the formation of adipic acid, while all other steps take place very fast [45]. The epoxide formation of cyclohexene is accelerated by the rapid decomposition of H2O2 by Ce ions present on the ceria surface, which produces more O atoms for the epoxide reaction to take place fast, and is presumed from the work of Wandong et al. [80]. The Raman results in their previous work also suggested the appearance of molecular oxygen and peroxide-like species (O2 2−) on the surface of CeO2 after reaction with H2O2, which supports our proposed mechanism. Secondly, the ring opening of epoxide is proposed to be accelerated by the presence of Co centers on ZIF surface [81]. Park et al. suggested the idea that the crystal plane of Co-Im-Zn is the active surface for the epoxide activation, rather than single uncoordinated metal atoms [82]. Regardless, it is generally accepted that the metal center present in ZIFs coordinates the oxygen of the epoxide to achieve ring opening by weakening the β C-O bond [68,83]. Therefore, it was presumed that it bonds with oxygen to form CoO or Co2O3 compounds and causes the ring opening of epoxide to form a diol. Further dehydrogenation and hydrolysis steps, involved in the production of adipic, are proposed to be taken rapidly through the presence of active sites on the catalyst’s surface. The synergistic effect of the synthesized catalyst ZIF-67/CeO2 can be explained through the reported work of Fang et al. [84]. A higher surface charge ratio was observed in the case of CeO2@Co3O4 (Co3+/Co2+ and Ce3+/Ce4+) through XPS measurements, which led to a larger amount of oxygen vacancies and hence better catalytic activity. The surface chemical states of the synthesized CeO2 and Co based catalyst were also studied, where the values of Ce3+/Ce4+ and Co3+/Co2+ showed a slight decline after the reaction, which suggested the existence of a synergistic effect between Co and Ce ions through the following redox equilibrium of Co2+ + Ce4+ ↔ Co3+ + Ce3+ during the oxidation reaction [85]. In addition to that, TPR results presented by Fang et al. suggested an increased reducibility for their combined Ce and Co catalyst, indicating a strong synergistic effect between the cobalt and cerium ions present in our catalyst [84]. Apart from that, a high BET surface area of ZIF-67/CeO2 is supposed to play a significant role in the oxidation of cyclohexene, because a high surface area catalyst is reported to provide a greater number of active surface sites to promote the oxidation of cyclohexene molecules, resulting in high conversion of cyclohexene molecules [86]. Furthermore, the porous nature of ZIF-67 is expected to provide enhanced mass transport into the interior of the catalyst [87].
For the ZIF-67/CeO2 sample, the formation of adipic acid takes place in less reaction time and at a lower temperature. Furthermore, the yield of adipic acid obtained after the oxidation of cyclohexene is said to be dependent on various factors, like the amount of reactants used, reaction time, and temperature etc. [45,74]. Keeping that in mind, an optimum set of conditions are applied in our study to ensure satisfactory results. Ordinarily, 4 moles of H2O2 are theoretically needed for the conversion of cyclohexene to adipic acid. However, 4.4 moles of H2O2 were used in this research to assure the complete conversion of cyclohexene. Furthermore, a stepwise addition of H2O2 is applied in this reaction which has already been investigated to increase the yield of adipic acid [45]. Altogether, a rather mild set of conditions are applied (90 °C, 12 h) for the conversion of cyclohexene into adipic acid in solvent-free conditions and an adequate yield of adipic acid is obtained. The catalytic activity of ZIF-67/CeO2, in the production of adipic acid, can also be compared to some of the previously employed catalysts as shown in Table 1. ZIF-67/CeO2 is able to produce a comparable high yield of adipic acid (72%) with an adequate amount of catalyst used, and without the use of any solvent reagent to activate the oxidant. Additionally, it can be synthesized through a facile one-step procedure at ambient conditions.
In summary, this mechanism has high oxygen storage capacity and redox properties of CeO2 (couples of Ce4+/Ce3+), which produces lots of active oxygen available for the oxidation process [91]. This coupled with the microporous nature of ZIF-67 provided the basis of an effective catalyst to produce adipic acid. Such a facile and cost-effective strategy can result in self-inserted hybrid structures with high specific surface areas that are firmly coupled together.

3. Methods and Materials

3.1. Synthesis of CeO2 Nanoparticles

The synthetic process of ceria nanoparticles is in accordance with the report published by Lin’s group [51]. Typically, 0.9 g of PVP (polyvinyl pyrrolidone) and 0.434 g of cerium nitrate hexahydrate (Ce (NO3)3·6H2O) were both dissolved in 30 mL of DI (deionized water) water. After some time, 0.04 g of NaOH was added into the solution and stirred for 30 min at room temperature. After that, the prepared solution was transferred into a Teflon-lined 75 mL autoclave. The autoclave was put in the oven at a temperature of 180 °C for 24 h. The resulted precipitates were collected by centrifugation and washed thrice with ethanol and DI water. It was finally dried in an oven at 80 °C for 2 h.

3.2. Synthesis of ZIF-67 and ZIF-67/CeO2

Typically, 20 mg of the as-prepared CeO2 nanoparticles were dispersed under ultrasonication in 20 mL absolute methanol. Under vigorous stirring, 328 mg of 2-methyl imidazole powder is added in that solution. After half an hour, 5 mL of cobalt nitrate Co (NO3)2 methanol solution (291 mg in 5 mL of methanol) was poured into the mixture. This mixture was aged for 3 days under ambient conditions. Finally, the precipitates were collected by centrifugation and washed with methanol and dried for its application. Pure ZIF-67 was also prepared by the same method without the addition of CeO2 nanoparticles.

3.3. Synthesis of Cu Doped CeO2 Nanospheres (10% vs. 90%)

This synthesis is in accordance with the report published by Yang. For 10% Cu, 117.0 mg (0.27 mmol) of (Ce (NO3)3·6H2O) and 200 mg of PVP were dissolved in 19 mL of DI water. This was followed by the addition of 0.9 mL of Cu (NO3)2·3H2O (5 g L−1) and 0.1 mL of H2O2 under vigorous stirring for 30 min. The as-prepared transparent solution was transferred into a 50 mL Teflon-lined autoclave and heated for 5 h at 180 °C. The resulting precipitates were collected by centrifugation, followed by washing three times with ethanol. Finally, the dried product was obtained by heating in an oven for 6 h at 70 °C [52]. The same method was repeated for 90% Cu by varying the molar ratio of cerium and copper precursor.

3.4. Oxidation of Cyclohexene with H2O2

For this part of the experiment, we used cyclohexene (25 g), H2O2 (150 mL) and a catalyst 1.2 g. A 250 mL flask equipped with a reflux condenser and a temperature sensor was taken. For this purpose, 1.2 g of the ZIF-67/CeO2 catalyst was taken in the flask along with cyclohexene and heated up to 40 °C with a stepwise addition of H2O2 and stirred at this temperature for 30 min. Further heating was done to 90 °C for 12 h. At the end of reaction, the slurry was cooled to room temperature and then placed at 4 °C overnight. The resulting solid was collected via vacuum filtration and washed with a small portion of cold water and dried to afford pure adipic acid in 72% yield.

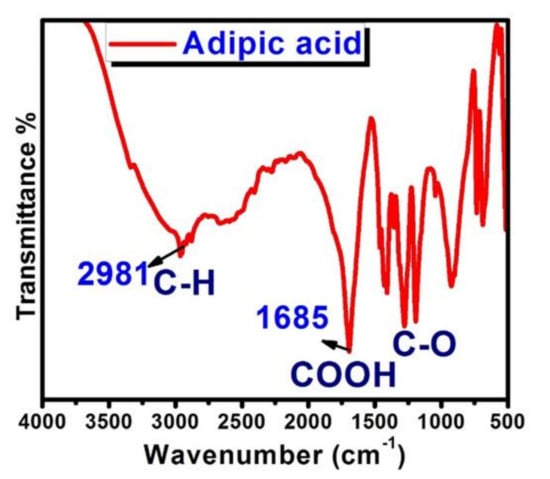

The conversion of cyclohexene, selectivity and yield to adipic acid were calculated according to the following expressions:
Conversion = (mols of cyclohexene reacted/mols of cyclohexene initial) × 100
Selectivity = (mols of desired product/sum of mols of all products) × 100
Yield = (actual yield of adipic acid/theoretical yield of adipic acid) × 100

3.5. Characterization Techniques

The structural analysis of materials was performed using powder X-ray Diffraction on a STOE Theta/theta X-ray Diffractometer System (STOE, Darmstadt, Germany) with an operating voltage and current of 40 kV and 40 mA, respectively, using monochromatic Cu Kα radiation (λ = 0.15418 nm). The particles’ morphology was investigated by a Field Emission Scanning Electron Microscopy (FESEM) instrument (VEGA3 TESCAN, Brno, Czech Republic). JEM-2100 model Transmission Electron Microscopy (TEM) (Hitachi, Tokyo, Japan) was used to investigate the microstructure and hybrid formation. Binding energy analysis of prepared hybrids was done using ESCALAB250Xi (XPS) (ThermoFisher Scientific, Waltham, MA, USA) with Al Kα (1486.6 eV) X-rays as the excitation basis and C1s (284.5 eV) was selected as the reference. Pore size (BJH) information and available specific surface area (multipoint (Brunauer–Emmet–Teller (BET)) of prepared hybrids was calculated using N2 adsorption desorption on Porosimetry System (ASAP 2420; Micromeritics Instrument Corporation, Norcross, GA, USA ) at a standard temperature of 77 K. Before the actual gas analysis, samples were outgassed under vacuum at 150 °C for 10 h. Adsorption data in the partial pressure (P/P0) range of 0.05–0.3 were used for the calculation. A Model (2910) Micromeritics Autochem with a thermal conductivity detector (TCD) was employed for H2 Temperature-programmed reduction (TPR) study. After pretreatment of the catalyst with 5 vol% O2 in He at 500 °C for 1 h, 5% v/v of H2 in Ar was flowed over the catalyst (200 mg) with a flow rate of 50 mL/min and a heating rate of 5 °C/min till 1000 °C. The same model was used to study Temperature-programmed desorption (TPD) behavior using ammonia (NH3), where desorbed NH3 was monitored using the TCD signal and a mass spectrometer. The catalyst (200 mg) was taken and pre-treated with He at 200 °C for 30 min followed by ammonia adsorption for 1 h using 5 vol% NH3 in He (50 mL/min). The physically adsorbed ammonia was purged using a flow of He (50 mL/min) for 30 min at 100 °C and cooled down to room temperature, followed by heating up till 500 °C (5 °C/min) under He flow for 60 min. NH3-TPD for pure CeO2 particles was carried out till 900 °C (5 °C/min).

4. Conclusions

In conclusion, the catalytic activity of CeO2 nanoparticles has been evaluated with two different formulations: one was embedded into MOF (ZIF-67) and the second with Cu doped CeO2 nanoparticles. This very facile and cost-effective approach was adopted to synthesize a hybrid structure of pure phase CeO2 nanoparticles encapsulated inside ZIF-67 polyhedrons. The SEM and TEM results displayed CeO2 nanoparticles mounted on the surface as well as embedded inside the ZIF-67 mesoporous structure. Both prepared nanostructures were used as catalysts for the rapid synthesis of adipic acid from oxidation of cyclohexene, and 72% yield was obtained in 12 h by ZIF-67/CeO2 hybrids. Cu doped CeO2 did not show any considerable activity for the production of adipic acid through the oxidation of cyclohexene. The as-prepared CeO2/ZIF-67 hybrid have the advantage of the microporous and molecular sieving manner depicted by the MOF matrix combined with the effective functional characteristics of cerium oxide nanoparticles. The fabrication procedure is suitable for an extensive range of metal/metal oxide nanoparticles, as it enables the encapsulation of multiple nanoparticles in an un-agglomerated fashion and can control the dimensional arrangement of nanoparticles inside the MOF array. Furthermore, ZIF-67, being highly porous, offers less diffusional resistance and thus increases catalytic activity. Therefore, large surface area ZIF-67/CeO2 hybrids as heterogeneous catalysts were found to be a reasonable substitute to the supported or unsupported noble metal catalysts used to produce adipic acid through the oxidation of cyclohexene.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/11/3/304/s1, Figure S1: SEM image of CeO2 nanoparticles with diameters, Figure S2: SEM image of ZIF-67/CeO2 with particle size, Figure S3: TEM images of (a) Pure ZIF-67 (b) Pure CeO2 Nanoparticles (c) HRTEM (SAED) Pattern of ZIF-67/CeO2 Nanohybrids (d) Low Resolution TEM of ZIF-67/CeO2 Nanohybrids, Figure S4: EDS spectrums (a) ZIF-67/CeO2 (b) Cu doped CeO2, Figure S5: FTIR spectrum of (a) Pure CeO2 (b) Pure ZIF-67 (c) 10% Cu doped CeO2 (d) ZIF-67/CeO2 Nanohybrids.

Author Contributions

E.P. has helped conceiving and presenting the idea. S.B. has carried out the experiments and wrote the manuscript with support from O.R. and under the supervision of E.P. M.Y. has encouraged and helped some analytical aspects of this work. All authors discussed the results and contributed to the final manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Higher Education Commision, Pakistan: 2017/HEC/NRPU/10482.

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Acknowledgments

This work is supported by National University of Sciences and Technology (NUST) Pakistan and Higher Education Commission (HEC) Pakistan (2017/HEC/NRPU/10482). Author Minghui Yang would like to acknowledge Key Program of the Chinese Academy of Sciences (Grant No. KFZD-SW-320) and Natural Science Foundation of China (Grant No. 21471147). M.Y. would like to thank for the Ningbo 3315 program.

Conflicts of Interest

The authors declare no conflict of interest.
