Abstract

:
The exploration of efficient nanocatalysts with high activity and stability towards water electrolysis and fuel cell applications is extremely important for the advancement of electrochemical reactions. However, it remains challenging. Controlling the morphology of bimetallic Pd–Pt nanostructures can be a great way to improve their electrocatalytic properties compared with previously developed catalysts. Herein, we synthesize bimetallic Pd–Pt nanodendrites, which consist of a dense matrix of unsaturated coordination atoms and high porosity. The concentration of cetyltrimethylammonium chloride was significant for the morphology and size of the Pd–Pt nanodendrites. Pd–Pt nanodendrites prepared by cetyltrimethylammonium chloride (200 mM) showed higher activities towards both the hydrogen evolution reaction and methanol oxidation reaction compared to their different Pd–Pt nanodendrite counterparts, commercial Pd, and Pt catalysts, which was attributed to numerous unsaturated surface atoms in well-developed single branches.

1. Introduction

The preparation of metal nanocrystals (NCs) is significant for the development of efficient catalysts for various promising electrochemical reactions [1,2]. In particular, controlling the shape, size, and composition of metal NCs can allow the interaction of target molecules with the surface of NCs to be optimized, resulting in the enhancement of catalytic performances [3,4,5]. Recently, porous NCs have attracted an enormous amount of interest due to their enhanced catalytic performances, attributable to their large surface areas [6,7]. Among various porous metal NCs, dendritic NCs with many highly porous branches have attracted much attention for their morphological benefits, such as high volume-to-surface area, efficient mass transport, and many unsaturated surface atoms in their branches, which can promote the conversion of molecules for various electrochemical reactions [8,9,10,11].
Along with the shape of noble metal NCs, controlling the composition of the NCs is effective in enhancing their catalytic performance. The incorporation of secondary metals into monometallic NCs can influence the adsorption strength of reagents and form an intermediate by changing the electronic structures of active surface metal atoms [12,13,14,15,16]. In addition, some bimetallic NCs can remove poisoning intermediates bound on active surface atoms, and bimetallic NCs with controlled compositions have shown enhanced electrocatalytic performance compared with monometallic NCs [17,18,19]. In particular, Pd–Pt bimetallic NCs constructed by precise shape and composition engineering have exhibited remarkable electrocatalytic activities towards various electrochemical reactions, including the methanol oxidation reaction (MOR) and hydrogen evolution reaction (HER) [20,21,22,23,24]. Based on these previous findings, it can be anticipated that using Pd–Pt bimetallic nanodendrites (NDs) with a small size is a desirable approach for the development of efficient electrocatalysts for various electrochemical reactions.
In this work, we report wet chemical synthesis for the preparation of Pd–Pt bimetallic NDs with controllable sizes. Pd–Pt alloy NDs were produced by the co-reduction of Na2PdCl4 and K2PtCl4 in the presence of cetyltrimethylammonium chloride (CTAC) and ascorbic acid (AA), used as stabilizers and reducing agents, respectively. CTAC and AA are critical in creating the well-defined dendritic shape and compositional structure of the bimetallic Pd–Pt composition. Notably, adjusting the amounts of CTAC in the synthesis allowed precise manipulation of the size of the Pd–Pt NDs, resulting in various Pd–Pt NDs with different sizes. The Pd–Pt NDs with different sizes exhibited distinctive electrocatalytic performances against both MOR and HER. For MOR and HER, the Pd–Pt NDs with an average diameter size of 29.2 ± 4.9 nm, prepared using 200 mM of CTAC, exhibit higher catalytic activity compared to their Pd–Pt NDs counterparts with different sizes, commercial Pd/C, and Pt/C catalysts, due to their highly porous morphology, favorable exposed facet, and Pd–Pt bimetallic properties.

2. Results and Discussion

Figure 1a,b shows the representative TEM images of the product prepared by the co-reduction of Na2PdCl4 and K2PtCl4 by AA in the presence of CTAC (200 mM), demonstrating that the majority of the nanostructures consisted of NDs with highly porous branches. The NDs possess an average diameter size of 29.2 ± 4.9 nm and branch thickness size of 8.7 ± 0.9 nm. The high-resolution TEM (HR-TEM) image of an ND displays d-spacing of 2.24 Å between the adjacent lattices. This highly corresponds to that of the (111) planes of face-centered cubic (fcc) bimetallic Pd–Pt (inset in Figure 1b) [25]. The fast Fourier transform (FFT) pattern obtained from an ND reveals the highly crystalline feature of the prepared NCs (inset of Figure 1b). Notably, as shown in the inset in Figure 1b, many unsaturated surface atoms at the tips of the ND were explicitly observed in the HR-TEM image. To further investigate the structural characteristics of the NDs, high-angle annular dark-field scanning TEM (HAADF-STEM) images of NDs were obtained (Figure 1c).
The high porosity of the NDs was observed by a strong contrast in the NDs. The formation of a bimetallic Pd–Pt core–shell structure was corroborated by elemental mapping and overlap profile analysis with HAADF-STEM energy-dispersive X-ray spectroscopy (HAADF-STEM-EDS) (Figure 1c,d). The Pd/Pt atomic ratio of the NDs, measured by EDS analysis and ICP-OES, were 51:49 and 53:47, respectively. In addition, the diffraction peaks in the XRD pattern of the NDs further show their Pd–Pt bimetallic feature (Figure 1e) [21,26,27].
The NDs with different diameter sizes and porosity were realized by changing the amount of CTAC added into the reaction mixture. The representative SEM and TEM images of the products show that the average diameter sizes of the NDs increased as the amount of CTAC increased (Figure 2). The CTAC solution (200 mM) resulted in the formation of Pd–Pt–200CTAC NDs with an average diameter size of 29.2 ± 4.9 nm (standard synthesis). Pd–Pt NDs with average sizes of 46.3 ± 7.7, 38.6 ± 8.9, and 36.5 ± 5.6 nm (Pd–Pt–10CTAC, Pd–Pt–50CTAC, and Pd–Pt–100CTAC NDs, respectively) were formed when different concentrations of CTAC solutions (10, 50, and 100 mM) were added for the synthesis of Pd–Pt nanostructures (Figure 2a–c). Along with the change in size, NDs obtained by a higher concentration of CTAC show a high degree of porosity due to their more developed branches, indicating higher porosity of Pd–Pt–200CTAC NDs than the other NDs (inset of Figure 2e–h).
The XRD patterns of the samples also show the bimetallic Pd–Pt nature, which is analogous with that of Pd–Pt–200CTAC NDs (Figure 3). In addition, similar peak positions in the XRD patterns for various Pd–Pt NDs were observed, which reveals the analogous composition structures.
The different sizes of NDs prepared by different amounts of CTAC indicate that CTAC and metal precursors closely interplay, resulting in different sizes and porosity.
To further investigate the influence of CTAC concentration on the formation of NDs, nanostructures were produced in reaction mixtures with various concentrations of CTAC, while other synthesis conditions were unchanged. In a higher concentration of CTAC (500 mM), products with a similar shape to the Pd–Pt–200CTAC NDs were synthesized (Figure 4a), although their size is somewhat larger (48.3 ± 3.4 nm). In contrast, a lower concentration than 10 mM of CTAC, such as 2.5, 5.0, and 7.5 mM, yielded some irregular shaped nanostructures (Figure 4b–d). In a low concentration of CTAC, although large amounts of seed NCs can be initially produced, insufficient surfactants adsorbed on the surface of seed NCs can lead to fast aggregation of pre-formed seed NCs, resulting in the formation of NDs with uncontrolled shapes and large diameter sizes, which further demonstrates the importance of an optimal CTAC concentration for the formation of dendritic shapes [10,23,28]. Given that NDs with well-developed branches and smaller sizes possess a larger volume-to-surface area than NDs with unmatured branches and larger sizes, we expect that the Pd–Pt–200CTAC NDs can exhibit improved electrocatalytic performances.
To investigate the effect of dendritic structure and size on the bimetallic Pd–Pt NDs, the electrocatalytic activities of the various Pd–Pt NDs (Pd–Pt–200CTAC, Pd–Pt–100CTAC, Pd–Pt–50CTAC, and Pd–Pt–10CTAC NDs) were estimated for HER, and their electrocatalytic activities were compared to those of both commercial Pd/C and Pt/C catalysts (Figure 5). The CVs of various catalysts were measured in N2-saturated 0.5 M H2SO4 at a sweeping rate of 50 mV s−1 (Figure 5a) to remove residual surfactants and organic molecules adsorbed onto the surface of the catalysts [29]. The HER performances were examined by LSV polarization curves at a sweeping rate of 10 mV s−1 within the applied potential window of 0.05 to −0.25 V vs. RHE at room temperature (Figure 5b,c). According to the LSV curves, the overpotentials of the Pd–Pt–200CTAC NDs, Pd–Pt–100CTAC NDs, Pd–Pt–50CTAC NDs, Pd–Pt–10CTAC NDs, and Pd/C and Pt/C catalysts at the current density (10 mA cm−2) reach 32.3, 32.4, 33.1, 34.7, 122.3, and 35.4 mV, respectively. To further evaluate the catalytic activities of the catalysts, the linier sections of the Tafel plots shown in Figure 5b,c were fitted to the Tafel equation, and the slope values were obtained (Figure 5d) [30]. The Tafel slope values of the Pd–Pt–200CTAC, Pd–Pt–100CTAC, Pd–Pt–50CTAC, and Pd–Pt–10CTAC NDs were 23.8, 24.4, 24.7, and 25.1 mV dec−1, respectively, which are lower than those of both commercial Pd/C (76.5 mV dec−1) and Pt/C (30.5 mV dec−1) catalysts (Table 1). The findings signify the superior HER activities of all bimetallic Pd–Pt NDs compared to commercial Pd/C and Pt/C catalysts. Noticeably, the Pd–Pt–200CTAC NDs exhibited higher electrochemical HER activity than different Pd–Pt NDs, which implies the importance of dendritic shapes with well-developed branches.
To further investigate the electrocatalytic properties of bimetallic Pd–Pt–200CTAC NDs, an electrochemical MOR was performed with various catalysts, including different NDs, commercial Pd/C, and Pt/C. The CVs of various catalysts were obtained in N2-saturated 1.0 M KOH (Figure 6a).
Electrochemically active surface areas (ECSAs) of the catalysts were measured using the reduction charge of oxygen species in the CVs of the catalysts. The ECSAs for the Pd–Pt–200CTAC NDs, Pd–Pt–100 CTAC NDs, Pd–Pt–50CTAC NDs, Pd–Pt–10CTAC NDs, and Pd/C and Pt/C catalysts were 55.4, 46.4, 43.9, 29.8, 63.1, and 69.2 m2 g−1, respectively (Figure 6b), which shows that the higher ECSA value of Pd–Pt–200CTAC NDs than the other Pd–Pt NDs can be attributed to their smaller size and well-developed branches, leading to high porosity. To check the morphological benefits of the Pd–Pt–200CTAC NDs for electrocatalytic reactions, the CVs of the catalysts in 1.0 M KOH containing 1.0 M methanol were measured, and their mass activities were obtained by normalizing the current densities with the total mass (Pd + Pt) of the catalysts loaded onto the glassy carbon electrode (GCE) used as a working electrode (Figure 6c). The mass activities of the Pd–Pt–200CTAC, Pd–Pt–100CTAC, Pd–Pt–50CTAC, and Pd–Pt–10CTAC NDs for MOR were 6.40, 5.87, 5.37, and 4.67 A mgPt−1, respectively. Notably, all the bimetallic Pd–Pt NDs showed better MOR activities than both commercial Pd/C (0.90 A mgPd−1) and Pt/C (2.06 A mgPt−1) catalysts (Figure 6c,e), which can be attributed to the undercoordinated surface atoms formed by their unique dendritic shapes and bimetallic Pd–Pt surface. In previous reports, undercoordinated surface atoms were shown to promote the conversion of reagents to products by optimizing the binding strength between the surface of nanostructures and intermediates, which could endow them with greatly enhanced electrocatalytic activity [8]. In addition, compared with pure Pd and Pt catalysts, Pd–Pt bimetallic catalysts could reduce the adsorption of surface poisoning intermediates due to changes in the electronic structures of their surface atoms, boosting the electrochemical reactions. On the other hand, among the different bimetallic Pd–Pt NDs, the Pd–Pt–200CTAC NDs exhibited the largest mass activity among the different NDs for MOR; the Pd–Pt–200CTAC NDs showed 1.09-, 1.19-, and 1.37-times higher mass activity than Pd–Pt–100CTAC, Pd–Pt–50CTAC, and Pd–Pt–10CTAC NDs, respectively.
Furthermore, the corresponding current density of the Pd–Pt–200CTAC NDs, which is calculated by normalizing the current density with the ECSAs of the catalysts, is 25.12 mA cm−2, which is 1.06-, 1.11-, 1.20-, 17.56-, and 8.43-fold larger than those of the Pd–Pt–100CTAC NDs (23.49mA cm−2), Pd–Pt–50CTAC NDs (22.64 mA cm−2), Pd–Pt–10CTAC NDs (20.89 mA cm−2), and Pd/C (1.43 mA cm−2) and Pt/C (2.98 mA cm−2) catalysts, respectively (Figure 6d,e). The mass and specific activities for the MOR of various bimetallic Pd–Pt NDs show a similar trend across the different sizes of Pd–Pt NDs against the counterparts of commercial Pd/C and Pt/C. Taken together, these electrochemical experiments demonstrate the synergistic influence of the dendritic shape and Pd–Pt bimetallic feature on increasing electrocatalytic performances [31,32,33]. The MOR activity of the Pd–Pt–200CTAC NDs was compared with those of previously reported Pd–Pt-based catalysts (Table 2). The Pd–Pt–200CTAC NDs showed superior activities compared to the previously reported catalysts, which could be due to the dendritic shape and bimetallic Pd–Pt composition structure [27,34,35,36,37,38,39,40,41,42].
To investigate the stability of the prepared catalysts, chronoamperometric (CA) curves of the various Pd–Pt NDs, and Pd/C and Pt/C catalysts were obtained at −0.15 V vs. Hg/HgO in a solution containing 1.0 M KOH + 1.0 M methanol for 30 min (Figure 6f). During the stability test, both commercial Pd/C and Pt/C catalysts revealed a fast decay in the current density. In contrast, the current density of Pd–Pt NDs in MOR was well maintained compared to those of commercial Pd/C and Pt/C catalysts after 30 min. In particular, the Pd–Pt–200CTAC NDs showed the best stability among the various Pd–Pt NDs. Furthermore, the CVs of the Pd–Pt–200CTAC NDs, and Pd/C and Pt/C catalysts were obtained after CA measurement (30 min) to check the superior stability of the Pd–Pt–200CTAC NDs (Figure 7). After the operation of CA for 30 min, the mass activity of the Pd–Pt–200CTAC NDs was determined as 6.1 A mgPd+Pt−1, which is a 4.7% decrease compared with the initial mass activity of the Pd–Pt–200CTAC NDs, whereas the Pd/C (0.7 A mgPd−1) and Pt/C (1.7 A mgPt−1) catalysts exhibited 22.2% and 14.3% decreases compared to those obtained before the operation of CA for 30 min, respectively.

3. Conclusions

We developed a facile synthesis for the preparation of bimetallic Pd–Pt NDs with well-developed branches. The morphology and size of the Pd–Pt NDs were highly sensitive to the concentration of CTAC, which was used as a surfactant. The Pd–Pt NDs exhibited excellent electrocatalytic performances for both HER and MOR compared with both commercial Pd/C and Pt/C catalysts. The investigations, through electrochemical reactions, have established that the Pd–Pt NDs have superb activity and stability for both HER and MOR compared with both commercial Pd/C and Pt/C catalysts. This demonstrates that the co-influence of dendritic shape and bimetallic Pd–Pt nature is the pivotal factor for their enhancement in electrocatalytic performance. In particular, the Pd–Pt–200CTAC NDs showed superior electrocatalytic performances compared to their Pd–Pt ND counterparts, which could be due to the numerous unsaturated surface atoms in unique well-developed branches.

4. Materials and Methods

4.1. Materials

CTAC (Aldrich, 25 wt. %, St. Louis, MO, USA), K2PtCl4 (Aldrich, 98%), Na2PdCl4 (Aldrich, 98%), AA (Dae Jung Chemicals & Metals Co., 99.5%, Siheung, Korea), Pd/C (Alfa Aesar, 20 wt. %, Ward Hill, MA, USA), Pt/C (Alfa Aesar, 20 wt. %), potassium hydroxide (Dae Jung Chemicals & Metals Co., 93%), and methanol (Junsei, 99.8%, Tokyo, Japan) were used as received. Deionized (DI) water was used in the preparation of chemical solutions.

4.2. Synthesis of Pd–Pt NDs

For synthesis of Pd–Pt–200CTAC, Pd–Pt–100CTAC, Pd–Pt–50CTAC, and Pd–Pt–10CTAC NDs, aqueous solutions of CTAC (1 mL, X mM; X = 10, 50, 100, and 200 mM) were added into reaction mixtures containing Na2PdCl4 (0.5 mL, 5 mM), K2PtCl4 (0.5 mL, 5 mM), AA (0.5 mL, 100 mM), and DI water (46 mL) with vigorous stirring for 5 min, respectively. Subsequently, the reaction mixture was heated at 90 °C for 10 min. The resultant reaction mixture was subjected to centrifugation and washed with ethanol/DI water (8000 rpm for 5 min, 3 times) to remove excess chemicals.

4.3. Characterization

Transmission electron microscopy (TEM, Tokyo, Japan) and scanning electron microscopy (SEM, Tokyo, Japan) images of the prepared Pd–Pt NDs were obtained on Jeol JEM-2100F and Jeol JEM-7210F, respectively. Inductively coupled plasma optical emission spectrometry (ICP-OES, Illinois, USA) measurement was carried out using a Spectroblue-ICP-OES (Ametek). X-ray diffraction (XRD) measurements (Tokyo, Japan) were conducted on a Rigaku D/MAX2500V/PC for 2θ at 20 to 90 degrees. For preparation of TEM sample, first, residual chemicals in the Pd–Pt ND solution were removed by centrifugation. The precipitated Pd–Pt NDs were re-dispersed into purified water and then an aqueous solution including nanoparticles was dropped on TEM grid (Formvar/Carbon 300 Mesh, Copper, MA, USA). Subsequently, the TEM grid was dried at room temperature. Before taking TEM image, the TEM grid was cleaned with ethanol.

4.4. Electrochemical Performance

Electrochemical experiments were conducted in a three-electrode cell using EC-Lab Biologic Model SP–300 potentiostat. Pt wire was use as counter electrode. Ag/AgCl (3.0 M KCl) electrode for HER and Hg/HgO (in 3.0 M NaOH) electrode for MOR were used as the reference electrodes, respectively. For the MOR electrocatalytic measurement, N2-purged electrolytes (1.0 M KOH) were used for MOR. Before electrochemical experiments, catalyst ink (5 μL) was loaded onto the GCE (0.196 cm−2).
HER electrocatalytic measurements were performed at room temperature. The N2-purged electrolyte (0.5 M H2SO4) was used for HER. Before electrochemical experiments, catalyst ink (5 μL) was loaded onto the L-type GCE (0.196 cm−2). The potential applied for linear sweep voltammogram (LSV) was between 0.05 V and −0.25 V vs. RHE with sweep rate of 10 mV s−1.

Author Contributions

Conceptualization, R.K.P. and J.W.H., formal analysis. Y.W.L.; data curation J.-H.S.; writing—original draft preparation R.K.P.; writing—review and editing J.W.H. and Y.W.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

This work was supported by the 2021 Research Fund of University of Ulsan.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hong, J.W.; Kang, S.W.; Choi, B.S.; Kim, D.; Lee, S.B.; Han, S.W. Controlled synthesis of Pd–Pt alloy hollow nanostructures with enhanced catalytic activities for oxygen reduction. ACS Nano 2012, 6, 2410–2419. [Google Scholar] [CrossRef] [PubMed]
  2. Wu, J.; Qi, L.; You, H.; Gross, A.; Li, J.; Yang, H. Icosahedral platinum alloy nanocrystals with enhanced electrocatalytic activities. J. Am. Chem. Soc. 2012, 134, 11880–11883. [Google Scholar] [CrossRef]
  3. Lv, H.; Chen, X.; Xu, D.; Hu, Y.; Zheng, H.; Suib, S.L.; Liu, B. Ultrathin PdPt bimetallic nanowires with enhanced electrocatalytic performance for hydrogen evolution reaction. Appl. Catal. B Environ. 2018, 238, 525–532. [Google Scholar] [CrossRef]
  4. Wang, S.; Yang, G.; Yang, S. Pt-Frame@ Ni quasi core–shell concave octahedral PtNi3 bimetallic nanocrystals for electrocatalytic methanol oxidation and hydrogen evolution. J. Phys. Chem. C 2015, 119, 27938–27945. [Google Scholar] [CrossRef]
  5. Wu, Y.; Wang, D.; Niu, Z.; Chen, P.; Zhou, G.; Li, Y. Heterogeneous catalysis for green chemistry based on nanocrystals. Angew. Chem. Int. Ed. Engl. 2012, 51, 12524–12528. [Google Scholar] [CrossRef]
  6. Guo, T.; Xiang, H.; Li, W.; Li, H.; Chen, H.; Liu, S.; Yu, G. Synthesis of Ultrathin and Composition-Tunable PdPt Porous Nanowires with Enhanced Electrocatalytic Performance. ACS Sustain. Chem. Eng. 2020, 8, 2901–2909. [Google Scholar] [CrossRef]
  7. Yamauchi, Y.; Wang, L. Autoprogrammed synthesis of triple-layered Au@ Pd@ Pt core− shell nanoparticles consisting of a Au@ Pd bimetallic core and nanoporous Pt shell. J. Am. Chem. Soc. 2010, 132, 13636–13638. [Google Scholar]
  8. Lee, Y.W.; Im, M.; Hong, J.W.; Han, S.W. Dendritic ternary alloy nanocrystals for enhanced electrocatalytic oxidation reactions. ACS Appl. Mater. Interfaces 2017, 9, 44018–44026. [Google Scholar] [CrossRef]
  9. Shi, Q.; Zhu, C.; Li, Y.; Xia, H.; Engelhard, M.H.; Fu, S.; Du, D.; Lin, Y. A facile method for synthesizing dendritic core–shell structured ternary metallic aerogels and their enhanced electrochemical performances. Chem. Mater. 2016, 28, 7928–7934. [Google Scholar] [CrossRef]
  10. Ye, Y.; Joo, J.; Lee, S.; Lee, J. A direct one-step synthetic route to Pd–Pt nanostructures with controllable shape, size, and composition for electrocatalytic applications. J. Mater. Chem. A 2014, 2, 19239–19246. [Google Scholar] [CrossRef] [Green Version]
  11. Lim, B.; Jiang, M.; Pedro, H.C.; Cho, C.; Xia, Y. Pd-Pt bimetallic nanodendrites with high activity for oxygen reduction. Science 2009, 324, 1302–1305. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Li, X.; Li, X.; Liu, C.; Huang, H.; Gao, P.; Ahmad, F.; Luo, L.; Ye, Y.; Geng, Z.; Wang, G.; et al. Atomic-level construction of tensile-strained PdFe alloy surface toward highly efficient oxygen reduction electrocatalysis. Nano Lett. 2020, 20, 1403–1409. [Google Scholar] [CrossRef] [PubMed]
  13. Wang, W.; He, T.; Yang, X.; Liu, Y.; Wang, C.; Li, J.; Xiao, A.; Zhang, K.; Shi, X.; Jin, M. General Synthesis of Amorphous PdM (M = Cu, Fe, Co, Ni) Alloy Nanowires for Boosting HCOOH Dehydrogenation. Nano Lett. 2021, 21, 3458–3464. [Google Scholar] [CrossRef] [PubMed]
  14. Wu, Q.; Luo, M.; Han, J.; Peng, W.; Zhao, Y.; Chen, D.; Peng, M.; Liu, J.; de Groot, F.M.F.; Tan, Y. Identifying electrocatalytic sites of the nanoporous copper–ruthenium alloy for hydrogen evolution reaction in alkaline electrolyte. ACS Energy Lett. 2019, 5, 192–199. [Google Scholar] [CrossRef]
  15. Xia, B.Y.; Wu, H.B.; Wang, X.; Lou, X.W. One-pot synthesis of cubic PtCu3 nanocages with enhanced electrocatalytic activity for the methanol oxidation reaction. J. Am. Chem. Soc. 2012, 134, 13934–13937. [Google Scholar] [CrossRef]
  16. Zhang, N.; Guo, S.; Zhu, X.; Guo, J.; Huang, X. Hierarchical Pt/Pt x Pb core/shell nanowires as efficient catalysts for electrooxidation of liquid fuels. Chem. Mater. 2016, 28, 4447–4452. [Google Scholar] [CrossRef]
  17. Chen, L.; Lu, L.; Zhu, H.; Chen, Y.; Huang, Y.; Li, Y.; Wang, L. Improved ethanol electrooxidation performance by shortening Pd–Ni active site distance in Pd–Ni–P nanocatalysts. Nat. Commun. 2017, 8, 14136. [Google Scholar] [CrossRef] [Green Version]
  18. Fan, J.; Qi, K.; Zhang, L.; Zhang, H.; Yu, S.; Cui, X. Engineering Pt/Pd interfacial electronic structures for highly efficient hydrogen evolution and alcohol oxidation. ACS Appl. Mater. Interfaces 2017, 9, 18008–18014. [Google Scholar] [CrossRef]
  19. Wu, J.; Cui, X.; Fan, J.; Zhao, J.; Zhang, Q.; Jia, G.; Wu, Q.; Zhang, D.; Hou, C.; Xu, S.; et al. Stable Bimetallene Hydride Boosts Anodic CO Tolerance of Fuel Cells. ACS Energy Lett. 2021, 6, 1912–1919. [Google Scholar] [CrossRef]
  20. Li, S.S.; Lv, J.J.; Teng, L.N.; Wang, A.J.; Chen, J.R.; Feng, J.J. Facile synthesis of PdPt@ Pt nanorings supported on reduced graphene oxide with enhanced electrocatalytic properties. ACS Appl. Mater. Interfaces 2014, 6, 10549–10555. [Google Scholar] [CrossRef]
  21. Liu, Y.; Liu, S.; Che, Z.; Zhao, S.; Sheng, X.; Han, M.; Bao, J. Concave octahedral Pd@ PdPt electrocatalysts integrating core–shell, alloy and concave structures for high-efficiency oxygen reduction and hydrogen evolution reactions. J. Mater. Chem. A 2016, 4, 16690–16697. [Google Scholar] [CrossRef]
  22. Wu, L.; Liu, Z.; Xu, M.; Zhang, J.; Yang, X.; Huang, Y.; Lin, J.; Sun, D.; Xu, L.; Tang, Y. Facile synthesis of ultrathin Pd–Pt alloy nanowires as highly active and durable catalysts for oxygen reduction reaction. Int. J. Hydrogen Energy 2016, 41, 6805–6813. [Google Scholar] [CrossRef]
  23. Zhang, J.; Wan, L.; Liu, L.; Deng, Y.; Zhong, C.; Hu, W. PdPt bimetallic nanoparticles enabled by shape control with halide ions and their enhanced catalytic activities. Nanoscale 2016, 8, 3962–3972. [Google Scholar] [CrossRef]
  24. Huang, X.; Li, Y.; Li, Y.; Zhou, H.; Duan, X.; Huang, Y. Synthesis of PtPd bimetal nanocrystals with controllable shape, composition, and their tunable catalytic properties. Nano Lett. 2012, 12, 4265–4270. [Google Scholar] [CrossRef] [PubMed]
  25. Li, F.-M.; Gao, X.-Q.; Li, S.-N.; Chen, Y.; Lee, J.-M. Thermal decomposition synthesis of functionalized PdPt alloy nanodendrites with high selectivity for oxygen reduction reaction. NPG Asia Mater. 2015, 7, e219. [Google Scholar] [CrossRef] [Green Version]
  26. Kang, S.W.; Lee, Y.W.; Park, Y.; Choi, B.S.; Hong, J.W.; Han, S.W. One-pot synthesis of trimetallic Au@PdPt core–shell nanoparticles with high catalytic performance. ACS Nano 2013, 7, 7945–7955. [Google Scholar] [CrossRef] [PubMed]
  27. Liu, G.; Zhou, W.; Ji, Y.; Chen, B.; Fu, G.; Yun, Q.; Chen, S.; Lin, Y.; Yin, P.F.; Cui, X.; et al. Hydrogen-Intercalation-Induced Lattice Expansion of Pd@ Pt Core–Shell Nanoparticles for Highly Efficient Electrocatalytic Alcohol Oxidation. J. Am. Chem. Soc. 2021, 143, 11262–11270. [Google Scholar] [CrossRef]
  28. Zhang, H.; Jin, M.; Xia, Y. Enhancing the catalytic and electrocatalytic properties of Pt-based catalysts by forming bimetallic nanocrystals with Pd. Chem. Soc. Rev. 2012, 41, 8035–8049. [Google Scholar] [CrossRef]
  29. Yu, Y.; Jiang, K.; Luo, M.; Zhao, Y.; Lan, J.; Peng, M.; de Groot, F.M.F.; Tan, Y. Self-Activated Catalytic Sites on Nanoporous Dilute Alloy for High-Efficiency Electrochemical Hydrogen Evolution. ACS Nano 2021, 15, 5333–5340. [Google Scholar] [CrossRef]
  30. Yao, R.-Q.; Zhou, Y.-T.; Shi, H.; Zhang, Q.-H.; Gu, L.; Wen, Z.; Lang, X.-Y.; Jiang, Q. Nanoporous palladium–silver surface alloys as efficient and pH-universal catalysts for the hydrogen evolution reaction. ACS Energy Lett. 2019, 4, 1379–1386. [Google Scholar] [CrossRef]
  31. Chang, F.; Bai, Z.; Li, M.; Ren, M.; Liu, T.; Yang, L.; Zhong, C.J.; Lu, J. Strain-modulated platinum–palladium nanowires for oxygen reduction reaction. Nano Lett. 2020, 20, 2416–2422. [Google Scholar] [CrossRef]
  32. Sarkar, S.; Peter, S.C. An overview on Pd-based electrocatalysts for the hydrogen evolution reaction. Inorg. Chem. Front. 2018, 5, 2060–2080. [Google Scholar] [CrossRef]
  33. Wu, J.; Shan, S.; Cronk, H.; Chang, F.; Kareem, H.; Zhao, Y.; Luo, J.; Petkov, V.; Zhong, C.-J. Understanding composition-dependent synergy of PtPd alloy nanoparticles in electrocatalytic oxygen reduction reaction. J. Phys. Chem. C 2017, 121, 14128–14136. [Google Scholar] [CrossRef]
  34. Zhu, C.; Guo, S.; Dong, S. PdM (M = Pt, Au) bimetallic alloy nanowires with enhanced electrocatalytic activity for electro-oxidation of small molecules. Adv. Mater. 2012, 24, 2326–2331. [Google Scholar] [CrossRef]
  35. Zhang, H.; Xu, L.; Tian, Y.; Jiao, A.; Li, S.; Liu, X.; Chen, F. Convenient synthesis of 3D fluffy PtPd nanocorals loaded on 2D h-BN supports as highly efficient and stable electrocatalysts for alcohol oxidation reaction. ACS Omega 2019, 4, 11163–11172. [Google Scholar] [CrossRef]
  36. Li, S.S.; Zheng, J.N.; Ma, X.; Hu, Y.Y.; Wang, A.J.; Chen, J.R.; Feng, J.J. Facile synthesis of hierarchical dendritic PtPd nanogarlands supported on reduced graphene oxide with enhanced electrocatalytic properties. Nanoscale 2014, 6, 5708–5713. [Google Scholar] [CrossRef] [PubMed]
  37. Zhou, L.N.; Zhang, X.T.; Wang, Z.H.; Guo, S.; Li, Y.J. Cubic superstructures composed of PtPd alloy nanocubes and their enhanced electrocatalysis for methanol oxidation. Chem. Commun. 2016, 52, 12737–12740. [Google Scholar] [CrossRef] [PubMed]
  38. Yang, G.; Zhou, Y.; Pan, H.B.; Zhu, C.; Fu, S.; Wai, C.M.; Lin, Y. Ultrasonic-assisted synthesis of Pd–Pt/carbon nanotubes nanocomposites for enhanced electro-oxidation of ethanol and methanol in alkaline medium. Ultrason. Sonochem. 2016, 28, 192–198. [Google Scholar] [CrossRef] [Green Version]
  39. De la Cruz-Cruz, J.J.; Domínguez-Crespo, M.A.; Ramírez-Meneses, E.; Torres-Huerta, A.M.; Brachetti-Sibaja, S.B.; Cayetano-Castro, N.; Dorantes-Rosales, H.J. Efficient stabilization of in situ fabrication of PtxPd1-x nanostructures for electro-oxidation of methanol in alkaline medium. Int. J. Hydrogen Energy 2020, 45, 4570–4586. [Google Scholar] [CrossRef]
  40. Zhai, Y.; Zhu, Z.; Lu, X.; Zhou, Z.; Shao, J.; Zhou, H.S. Facile synthesis of three-dimensional PtPdNi fused nanoarchitecture as highly active and durable electrocatalyst for methanol oxidation. ACS Appl. Energy Mater. 2017, 1, 32–37. [Google Scholar] [CrossRef]
  41. Zhu, C.; Guo, S.; Dong, S. Rapid, general synthesis of PdPt bimetallic alloy nanosponges and their enhanced catalytic performance for ethanol/methanol electrooxidation in an alkaline medium. Chem.–A Eur. J. 2013, 19, 1104–1111. [Google Scholar] [CrossRef] [PubMed]
  42. Feng, J.X.; Zhang, Q.L.; Wang, A.J.; Wei, J.; Chen, J.R.; Feng, J.J. Caffeine-assisted facile synthesis of platinum@ palladium core-shell nanoparticles supported on reduced graphene oxide with enhanced electrocatalytic activity for methanol oxidation. Electrochim. Acta 2014, 142, 343–350. [Google Scholar] [CrossRef]
Catalysts 11 01337 g001 550

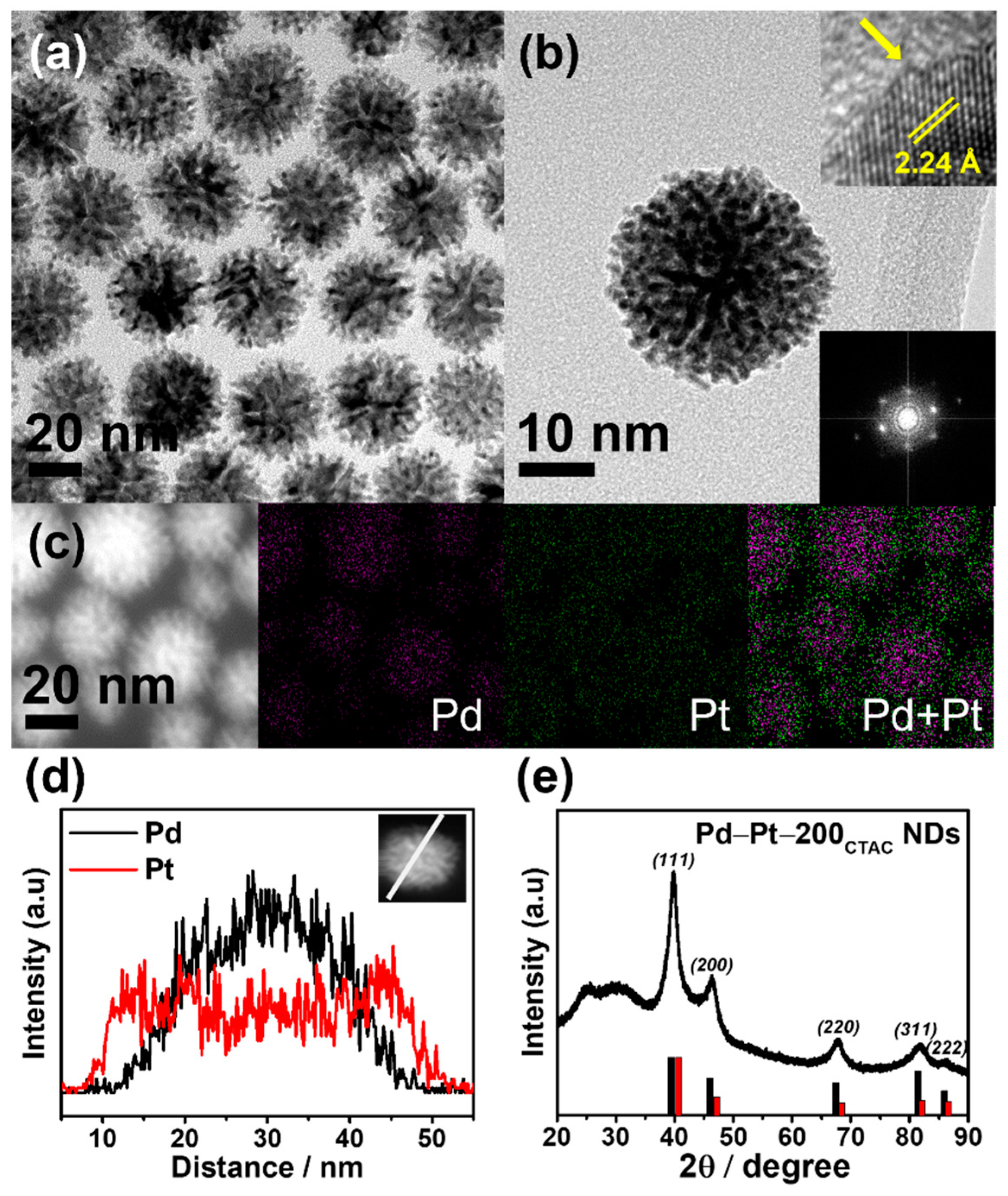

Figure 1. (a,b) HR–TEM image including the correspond FFT images. HAADF-STEM image with (c) corresponding EDS elemental mapping images, and (d) line-scan profile analysis of Pd (black) and Pt (red) for the Pd–Pt NDs. (e) XRD pattern confirm of corroborating the Pd–Pt bimetallic feature.
Figure 1. (a,b) HR–TEM image including the correspond FFT images. HAADF-STEM image with (c) corresponding EDS elemental mapping images, and (d) line-scan profile analysis of Pd (black) and Pt (red) for the Pd–Pt NDs. (e) XRD pattern confirm of corroborating the Pd–Pt bimetallic feature.
Catalysts 11 01337 g001
Catalysts 11 01337 g002 550

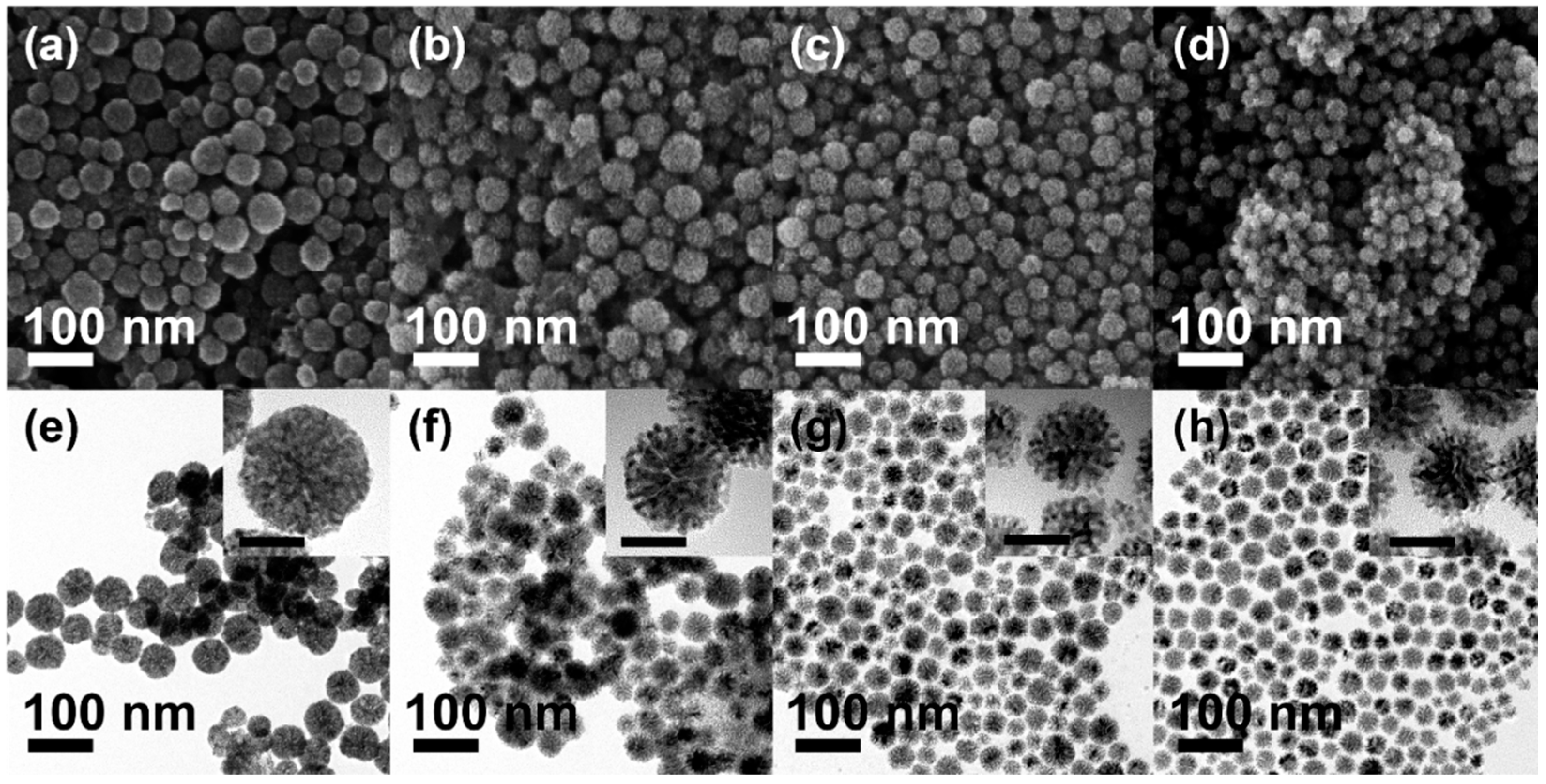

Figure 2. SEM and TEM images of Pd–Pt NDs with controlled CTAC concentration representative to (a); (e) Pd–Pt–10CTAC NDs, (b); (f) Pd–Pt–50CTAC NDs, (c); (g) Pd–Pt–100CTAC NDs, and (d); (h) Pd–Pt–200CTAC NDs. Scale bar in the inset figures of parts e–h is 30 nm.
Figure 2. SEM and TEM images of Pd–Pt NDs with controlled CTAC concentration representative to (a); (e) Pd–Pt–10CTAC NDs, (b); (f) Pd–Pt–50CTAC NDs, (c); (g) Pd–Pt–100CTAC NDs, and (d); (h) Pd–Pt–200CTAC NDs. Scale bar in the inset figures of parts e–h is 30 nm.
Catalysts 11 01337 g002
Catalysts 11 01337 g003 550

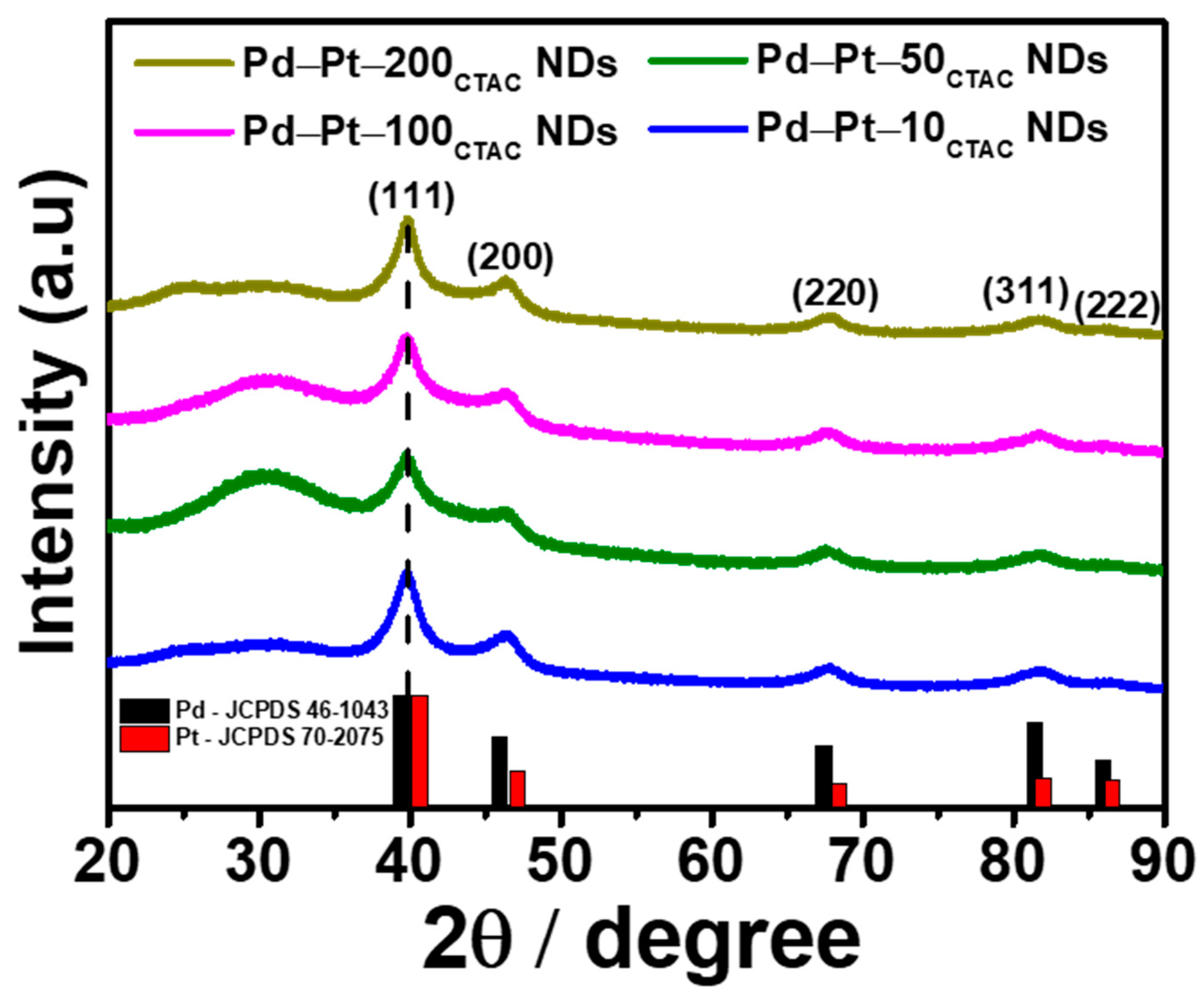

Figure 3. XRD pattern of Pd–Pt NDs with controlled CTAC concentrations. The line pattern shows reference cards 46-1043 and 70-2075 for Pd and Pt according to JCPDS.
Figure 3. XRD pattern of Pd–Pt NDs with controlled CTAC concentrations. The line pattern shows reference cards 46-1043 and 70-2075 for Pd and Pt according to JCPDS.
Catalysts 11 01337 g003
Catalysts 11 01337 g004 550

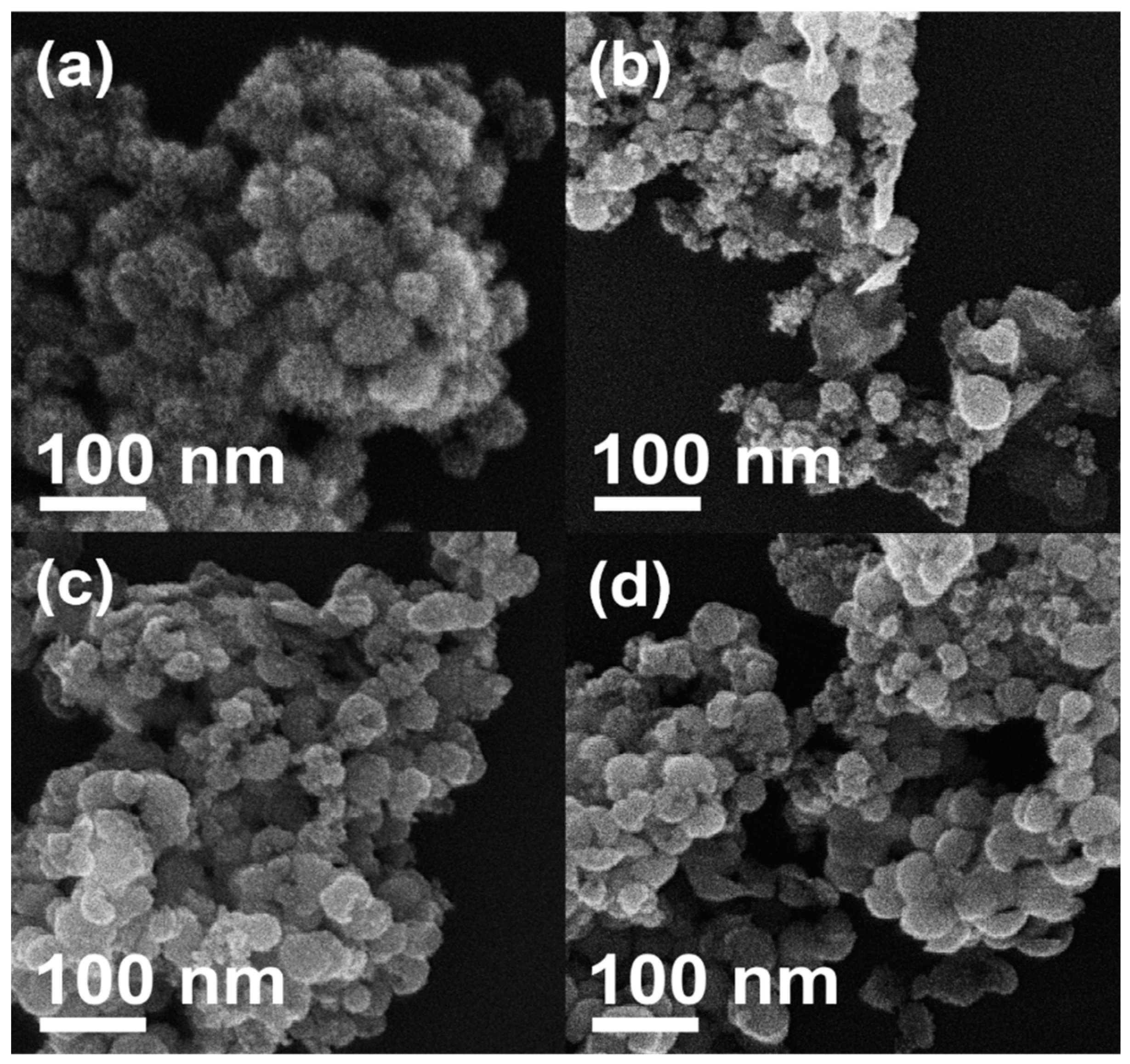

Figure 4. SEM images of Pd–Pt NDs prepared with controlled concentrations of CTAC with higher concentration of (a) 500 mM. Pd–Pt NDs prepared with lower concentration of CTAC than 10 mM with (b) 2.5 mM, (c) 5.0 mM and (d) 7.5 mM.
Figure 4. SEM images of Pd–Pt NDs prepared with controlled concentrations of CTAC with higher concentration of (a) 500 mM. Pd–Pt NDs prepared with lower concentration of CTAC than 10 mM with (b) 2.5 mM, (c) 5.0 mM and (d) 7.5 mM.
Catalysts 11 01337 g004
Catalysts 11 01337 g005 550

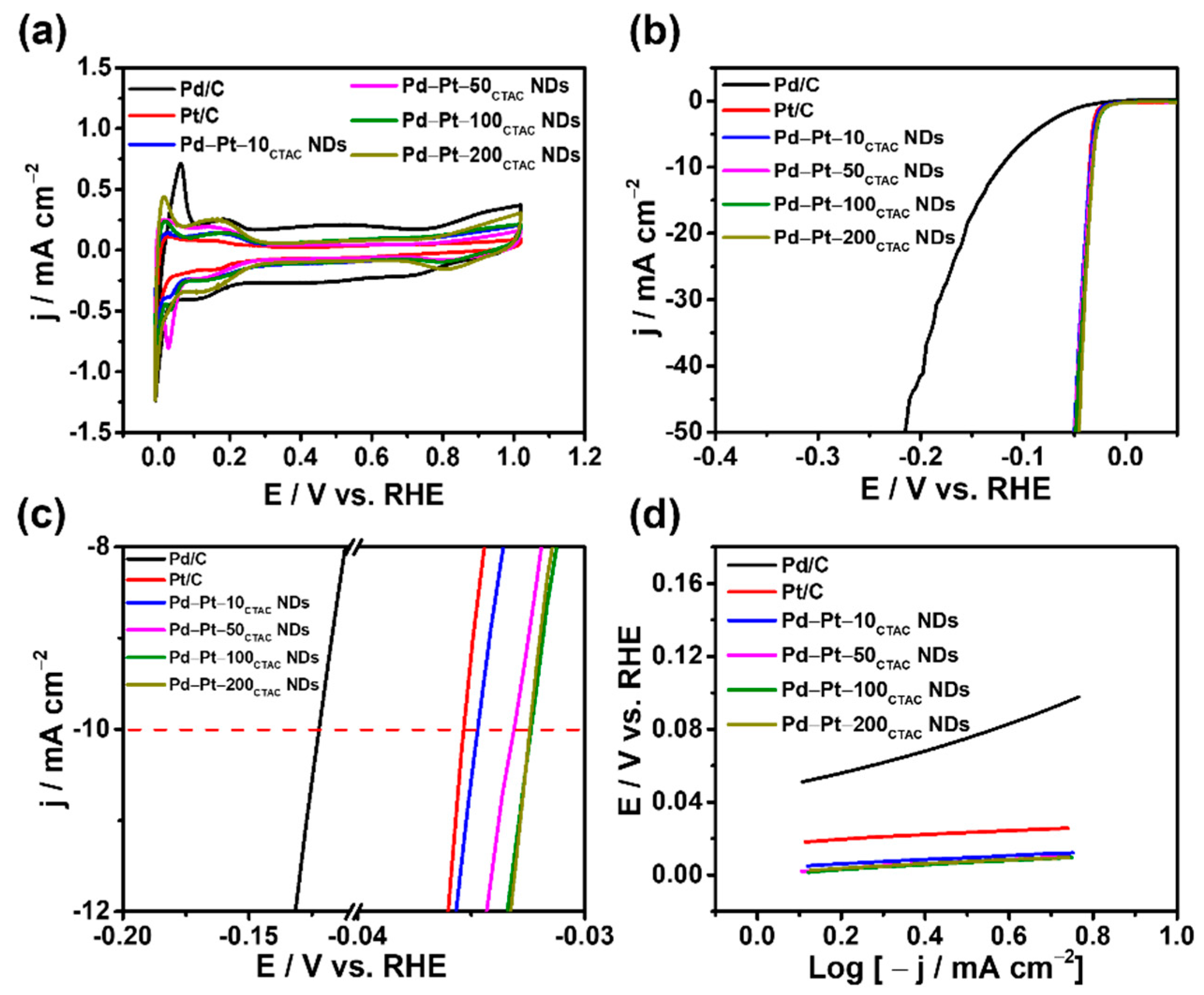

Figure 5. Electrocatalytic HER performance of different Pd–Pt NDs, and commercial Pd/C and Pt/C electrocatalysts measured in 0.5 M H2SO4 saturated with N2; sweep rate at 50 mV s−1 (CVs) and 10 mV s−1 (LSV). (a) CVs of all Pd–Pt electrocatalysts. (b) LSV polarization curves and (c) derived from (b) to see details of H2 evolution in overpotential at 10 mA cm−2 of all electrocatalysts including commercials. (d) Corresponding Tafel plots recorded on the electrode by polarization curves at potential 10 mV s−1.
Figure 5. Electrocatalytic HER performance of different Pd–Pt NDs, and commercial Pd/C and Pt/C electrocatalysts measured in 0.5 M H2SO4 saturated with N2; sweep rate at 50 mV s−1 (CVs) and 10 mV s−1 (LSV). (a) CVs of all Pd–Pt electrocatalysts. (b) LSV polarization curves and (c) derived from (b) to see details of H2 evolution in overpotential at 10 mA cm−2 of all electrocatalysts including commercials. (d) Corresponding Tafel plots recorded on the electrode by polarization curves at potential 10 mV s−1.
Catalysts 11 01337 g005
Catalysts 11 01337 g006 550

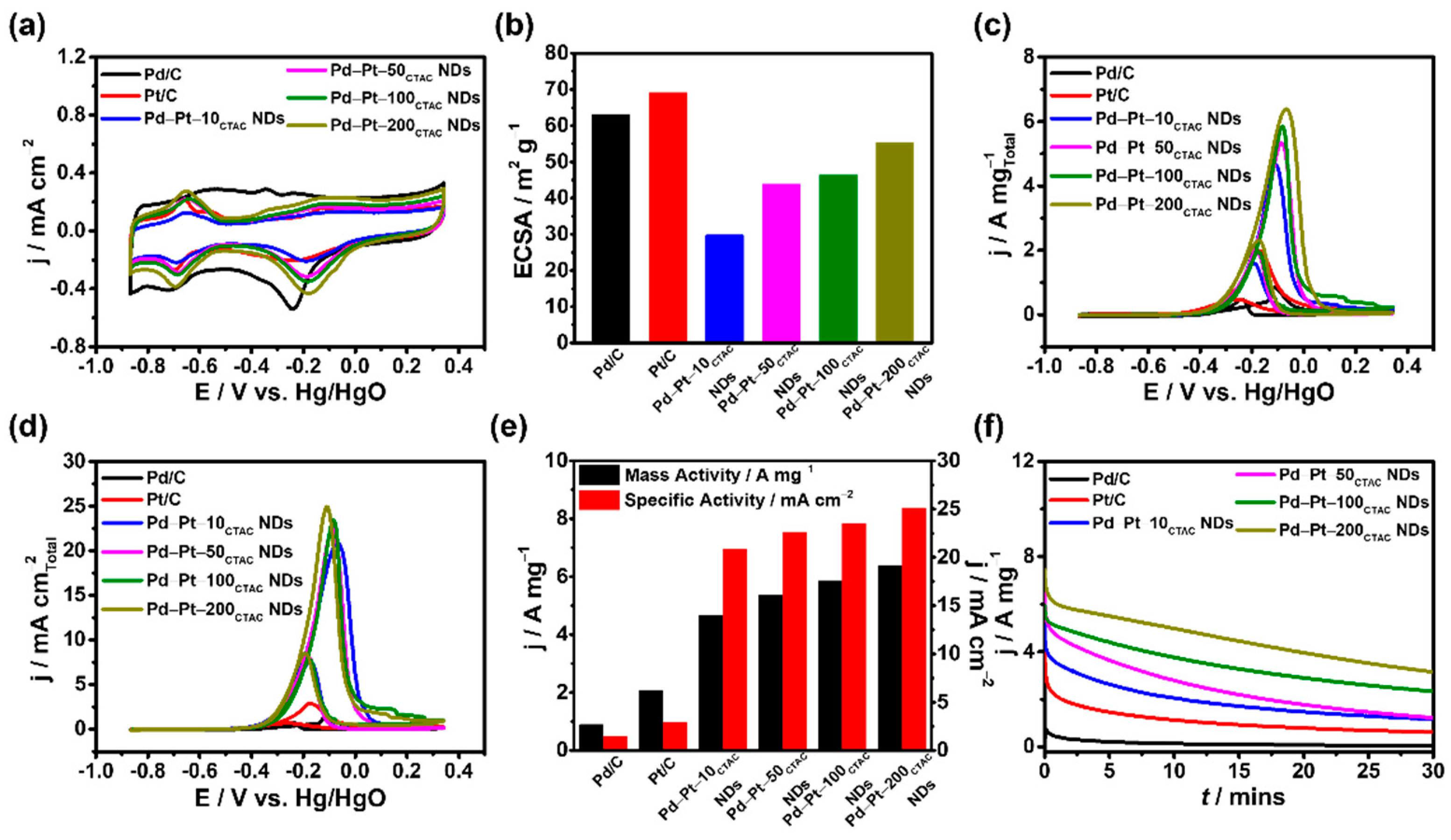

Figure 6. MOR performance of different Pd–Ptx NDs and commercial Pd/C and Pt/C electrocatalysts measured in 1.0 M KOH containing 1.0 M methanol saturated with N2; sweep rate at 50 mV s−1. (a) CVs of all catalysts and (b) ECSA of all values of different electrocatalysts include commercials. MOR of all metals (Pd + Pt) (c) mass-normalized CV curves, (d) specific activity-normalized CV curves, and (e) mass and specific activity data based on all different electrocatalysts. (f) Durability evaluation by chronoamperometry tests at −0.15 V vs. Hg/HgO for 30 min of all electrocatalysts.
Figure 6. MOR performance of different Pd–Ptx NDs and commercial Pd/C and Pt/C electrocatalysts measured in 1.0 M KOH containing 1.0 M methanol saturated with N2; sweep rate at 50 mV s−1. (a) CVs of all catalysts and (b) ECSA of all values of different electrocatalysts include commercials. MOR of all metals (Pd + Pt) (c) mass-normalized CV curves, (d) specific activity-normalized CV curves, and (e) mass and specific activity data based on all different electrocatalysts. (f) Durability evaluation by chronoamperometry tests at −0.15 V vs. Hg/HgO for 30 min of all electrocatalysts.
Catalysts 11 01337 g006
Catalysts 11 01337 g007 550

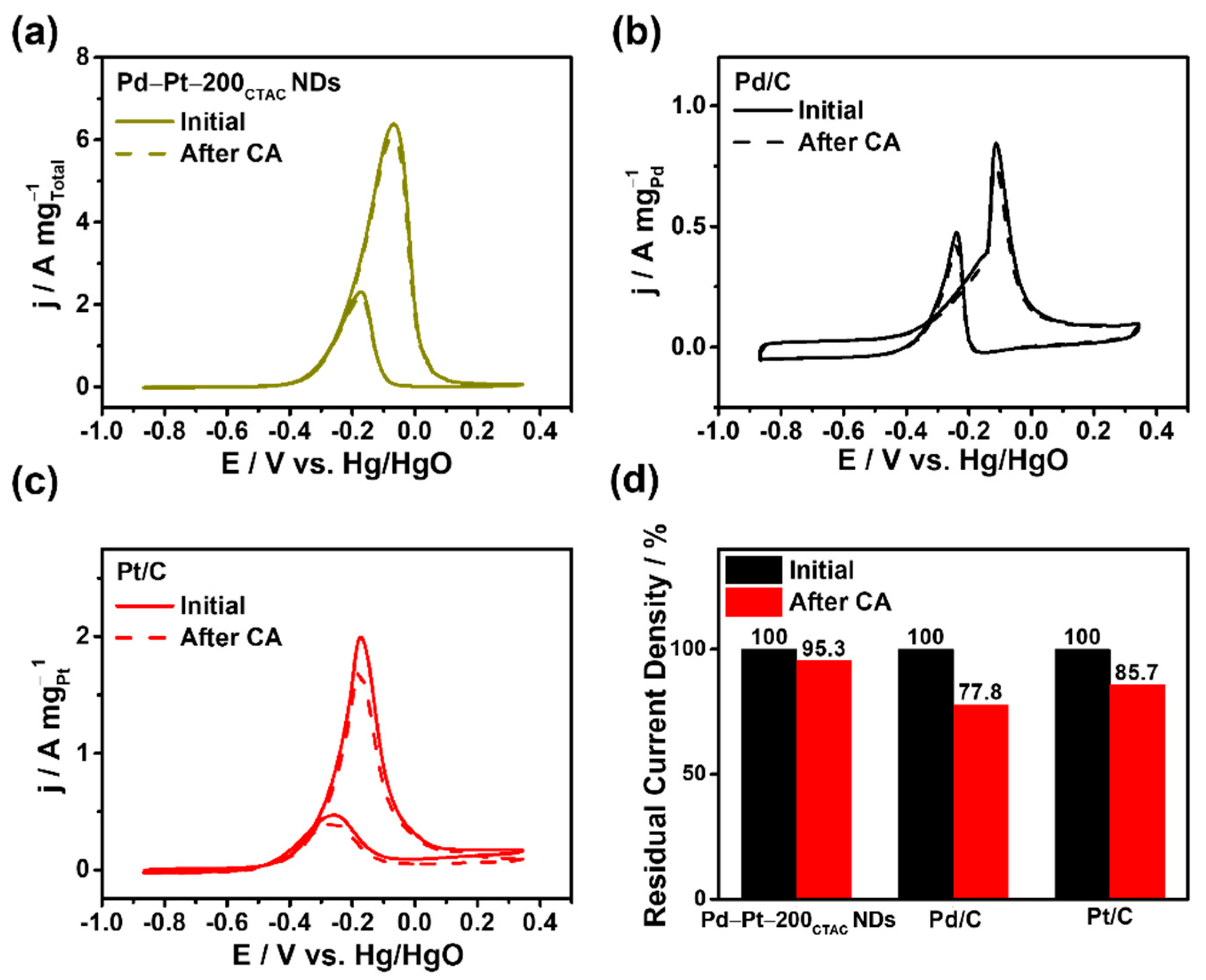

Figure 7. MOR residual current density activities of (a) Pd–Pt–200CTAC NDs, (b) Pd/C and (c) Pt/C after chronoamperometry experiment for 30 min. (d) The percentage residual current density before and after chronoamperometry measurement.
Figure 7. MOR residual current density activities of (a) Pd–Pt–200CTAC NDs, (b) Pd/C and (c) Pt/C after chronoamperometry experiment for 30 min. (d) The percentage residual current density before and after chronoamperometry measurement.
Catalysts 11 01337 g007
Table
Table 1. Activity values for all electrocatalysts including commercial Pd/C and Pt/C in HER activity. The values including overpotential at 10 mA cm−2 and Tafel plots compared in 0.5 M H2SO4.
Table 1. Activity values for all electrocatalysts including commercial Pd/C and Pt/C in HER activity. The values including overpotential at 10 mA cm−2 and Tafel plots compared in 0.5 M H2SO4.
CatalystOverpotential/(mV)
~10 mA cm−2		Tafel Plots/(mV dec−1)
Pd/C122.3 mV76.8 mV dec−1
Pt/C35.3 mV30.5 mV dec−1
Pd–Pt–10CTAC NDs34.7 mV25.1 mV dec−1
Pd–Pt–50CTAC NDs33.1 mV24.7 mV dec−1
Pd–Pt–100CTAC NDs32.4 mV24.4 mV dec−1
Pd–Pt–200CTAC NDs32.3 mV23.8 mV dec−1
Table
Table 2. Comparative results for electrochemical MOR activity based on previous reports using Pd–Pt-based catalysts in the literature.
Table 2. Comparative results for electrochemical MOR activity based on previous reports using Pd–Pt-based catalysts in the literature.
CatalystElectrochemical ConditionMass Activity (A mg−1total)Ref.
Pd–Pt–200CTAC Nanodendrites1 M KOH + 1 M Methanol6.40In this work
Pd45Pt55 Nanowires1 M KOH + 1 M Methanol~1.90[34]
h-BN/PdPt Nanocorals1 M KOH + 0.5 M Methanol0.96[35]
PtPd/RGO nanogarlands1 M KOH + 1 M Methanol0.33[36]
Pt50Pd50 Nanocubes1 M KOH + 1 M Methanol0.34[37]
PdPt/CNTs0.5 M KOH + 0.5 M Methanol1.07[38]
Pt30Pd70/C1 M KOH + 1 M Methanol0.72[39]
o-PdH0.43@Pt Nanooctahedra1 M KOH + 1 M Methanol3.68[27]
c-PdH0.43@Pt Nanocubes1 M KOH + 1 M Methanol2.14[27]
PtPd Nanowires1 M KOH + 1M Methanol4.29[40]
PdPt Bimetallic Nanosponges1 M KOH + 1 M Methanol~2.20[41]
Pt@Pd/RGO1 M KOH + 1 M Methanol~0.65[42]
