Article

Preparation of Reduced-Graphene-Oxide-Supported CoPt and Ag Nanoparticles for the Catalytic Reduction of 4-Nitrophenol

by
Xiaolong Zhang
1,2,
Lei Chen
2,
Yang Liu
2 and
Qian Duan
1,*
1
School of Materials Science and Engineering, Changchun University of Science and Technology, Changchun 130022, China
2
Key Laboratory of Functional Materials Physics and Chemistry of the Ministry of Education, Jilin Normal University, Changchun 130103, China
*
Author to whom correspondence should be addressed.
Catalysts 2021, 11(11), 1336; https://doi.org/10.3390/catal11111336
Submission received: 11 October 2021 / Revised: 30 October 2021 / Accepted: 2 November 2021 / Published: 5 November 2021
(This article belongs to the Section Catalytic Materials)
Browse Figures
Versions Notes

Abstract

:
Composite nanostructure materials are widely used in catalysis. They exhibit several characteristics, such as the unique structural advantage and the synergism among their components, which significantly enhances their catalytic performance. In this work, CoPt nanoparticles and reduced-graphene-oxide-based nanocomposite catalysts (rGO/CoPt, rGO/CoPt/Ag) were prepared by using a facile co-reduction strategy. The crystalline structure, morphology, composition, and optical characteristics of the CoPt nanoparticles, rGO/CoPt nanocomposite, and rGO/CoPt/Ag nanocomposite catalysts were investigated by a set of techniques. The ID/IG value of the rGO/CoPt/Ag nanocomposite is 1.158, higher than that of rGO/CoPt (1.042). The kinetic apparent rate constant, k, of the rGO/CoPt/Ag nanocomposite against 4-nitrophenol (4-NP) reduction is 5.306 min−1, which is higher than that of CoPt (0.495 min−1) and rGO/CoPt (1.283 min−1). The normalized rate constant, knor, of the rGO/CoPt/Ag nanocomposite is 56.76 min−1mg−1, which is higher than some other catalytic materials. The rGO/CoPt/Ag nanocomposite shows a significantly enhanced catalytic performance when compared to CoPt nanoparticles and the rGO/CoPt nanocomposite, which may confirm that the novel rGO/CoPt/Ag nanocomposite is a promising catalyst for the application of catalytic fields.

1. Introduction

The problem of environmental pollution caused by the fast evolution of technologies in the chemical industry has triggered significant attention [1,2,3,4,5]. 4-nitrophenol (4-NP) is a nitroaromatic compound widely present in the environment and can negatively affect the health of both animals and humans. Several methods, including photo-degradation, chemical oxidation, and biodegradation, are used to remove or reduce the presence of 4-NP in the environment [6,7,8,9]. However, these techniques are expensive and have been proven to be only partially effective. Contrary to these methods, the reaction by NaBH4 is a low-cost technique used in a large variety of cleaning processes. 4-aminophenol (4-AP), instead, has been extensively used in many fields [10,11,12].
Currently, noble metal catalysts based on Pt, Pd, Ag, and Au have been widely employed in the catalytic process of organic pollutants [12,13,14,15,16,17]. However, their increasing price and limited availability restrict their application. Besides, their catalytic efficiency does not satisfy the application requirements. For these reasons, abundant and low-cost catalysts with both high catalytic efficiency and recyclability have recently attracted the attention of several researchers. Therefore, many studies have investigated the characteristics of noble metal alloys with magnetic transition metals, due to their unique natural properties and excellent catalytic activity [18,19,20]. CoxPt100−x alloy catalysts are particularly promising since Co is a low-cost magnetic transition metal, and the addition of an appropriate amount of Pt significantly increases the catalytic performance. In addition, various CoxPt100−x alloy morphologies, such as nanoparticles [21], nanoflowers [22], and nanotubes [23], can improve the properties of the catalyst with other metal elements. In this case, however, the catalytic performance still needs to be improved due to the low electron transfer rate and the small active surface area of the catalyst. Although these open points can be addressed by reducing the CoxPt100−x alloy size to increase its surface area, the aggregation process may affect the activity of the alloy. A highly efficient catalyst may depend on three factors: (1) efficient adsorption properties for both pollutants and reducing agents, (2) a superior electron-transportation ability, and (3) an ultra-large surface area. To fulfil these requirements, the catalyst can be immobilized onto a support. Graphene has been applied as a support for catalysts because of its high electrical conductivity and large surface area [24]. Despite graphene being one of the most popular carbon-based support materials, its hydrophobic surface limits its application range. One of the derivatives of graphene is reduced graphene oxide (rGO). This material consists of a hydrophilic surface and has triggered the attention of several scientists since it can be employed as a catalytic support due to its excellent adsorption properties, its good chemical stability, etc. [25,26,27].
In this work, the CoPt, rGO/CoPt, and rGO/CoPt/Ag catalysts were synthesized by employing a simple, effective co-reduction process. The effects of the composition-dependent catalytic performance were thoroughly investigated. Their excellent magnetic response enables their magnetic separation from a mixture for recycling purposes. Due to the unique structural advantage, rGO/CoPt/Ag has excellent catalytic performance in 4-NP reduction. The results of this work demonstrate that this nanocomposite is a promising catalyst, exhibiting an enhanced catalytic performance, which can be used to improve the durability of several catalytic processes.

2. Results and Discussion

2.1. Characterization and Properties of CoPt, GO, rGO, rGO/CoPt, and rGO/CoPt/Ag

The crystallite structures of the samples were acquired via XRD. Figure 1a displays XRD patterns of GO and rGO. The peak located at 2θ = 10.6° can be attributed to the existence of the (002) plane of GO in Figure 1a [28]. Moreover, the GO diffraction peak disappears, and peak (002) appears at 2θ = 23.1°, confirming that GO was reduced to rGO (Figure 1a) [29]. This result confirms that the hydrazine hydrate can efficiently reduce GO into rGO. Figure 1b displays XRD patterns of CoPt nanoparticles (NPs), rGO/CoPt, and rGO/CoPt/Ag nanocomposites. The broad peak at 2θ = 41.85° corresponds to the plane of the face-centered tetragonal (FCT) CoPt (111) [30]. Figure 1b displays that the rGO/CoPt peak at 2θ = 41.86° indicates the presence of CoPt NPs, confirming the formation of the rGO/CoPt nanocomposite. For rGO/CoPt/Ag, the peaks located at 2θ = 38.15°, 44.31°, 64.43°, and 77.42° demonstrate that Ag ions can be effectively reduced into Ag NPs [31]. Moreover, the absence of the characteristic peak at 2θ = 10.6° of the (002) plane of GO is due to the GO reduction during the formation of rGO/CoPt and rGO/CoPt/Ag nanocomposites [32]. Furthermore, the characteristic diffraction peaks of rGO are not obvious in both rGO/CoPt and rGO/CoPt/Ag. This phenomenon may be due to the lower content of rGO and weaker diffraction peak intensity of rGO compared to CoPt and Ag [33].
Raman spectra were applied to analyze the structural properties of samples. Figure 2 displays Raman spectra of CoPt, GO, rGO, rGO/CoPt, and rGO/CoPt/Ag. Figure 2 shows that two prominent peaks appear in the 1200–1600 cm−1 range, corresponding to the characteristic peaks (D and G bands) of graphene-based materials. The two peaks may indicate that rGO is included in the rGO/CoPt and rGO/CoPt/Ag since the two peaks (D and G bands) usually represent the nature of carbon materials [34]. The D peak is assigned to the disorder and defects, and the G peak represents the ordered vibrational sp2-bonded carbon atoms [35,36]. The peak intensity ratio (ID/IG) can provide an estimate of the defect intensity in graphene-based materials [37]. The values of ID/IG for GO, rGO, rGO/CoPt, and rGO/CoPt/Ag are about 0.843, 1.018, 1.042, and 1.158, which indicate that the highest concentration of defects is present in rGO/CoPt/Ag [38]. Such a high ID/IG value of rGO/CoPt/Ag is due to the significantly high number of defects and the disorder of the rGO sheets during the formation of the nanocomposite [39]. Furthermore, the catalytic activity of rGO/CoPt/Ag can be enhanced by these defects, which can maybe serve as active sites [40].
To verify the effective reduction of GO, and the formation of rGO/CoPt and rGO/CoPt/Ag nanocomposites, the FT-IR spectroscopy of all the samples was studied. Figure 3 displays absorption peaks of CoPt at about 879, 1049, 1087, 2923, and 2971 cm−1 assigned to the C-H, C-O, C-N, and C-H groups, which may be a residue produced during the CoPt NPs’ formation process. The GO peaks are located at about 3422, 1732, 1625, 1397, and 1051 cm−1, corresponding to O-H, C=O, and skeletal vibrations of the graphitic domains, C-OH and C-O, respectively [41,42]. It is well-known that the peaks of oxygen-containing groups would become weak or disappear when the GO is reduced into rGO [33,43]. However, compared to GO, the relative peak intensities of those oxygen-containing groups (3422, 1397, and 1051 cm−1) increase in rGO/CoPt and rGO/CoPt/Ag, which may be due to the presence of CoPt NPs, and this result may confirm the formation of the composites.
XPS in the 30–900 eV range was measured to prove the composition of rGO/CoPt/Ag. XPS survey spectra of GO and rGO/CoPt/Ag are shown in Figure 4a. Figure 4a confirms that Pt, C, Ag, O, and Co elements are present in rGO/CoPt/Ag. To further study the chemical valence of all samples, the high-resolution XPS spectra of C1s, Pt4f, Ag3d, and Co2p were collected. The results are shown in Figure 4b–f. As shown in Figure 4b, the peaks of C1s of GO located at 284.8, 287.1, and 288.5 eV confirm the existence of C-C, C-O, and C=O. However, only two peaks can be observed in Figure 4c, and they accord with C-C and C-O of C1s. The C=O peak disappears, and the intensity of the C-O peak significantly decreases due to the formation of rGO. These results are in agreement with the results of FT-IR and Raman spectroscopy. Figure 4d shows the Co2p spectrum of rGO/CoPt/Ag, and there are four peaks. The peaks in the 778–783 and 792–800 eV range accord with Co0 and Co2+, which confirms the oxidation of the surface of the alloy NPs [44,45]. Figure 4e shows the spectra of Pt4f, and the two peaks at 71.6 and 74.8 eV correspond to Pt4f7/2 and Pt4f5/2, respectively. Figure 4f shows that the peaks at 367.8 and 373.8 eV in the Ag3d spectrum accord with Ag3d5/2 and Ag3d3/2, respectively [46].
High-angle annular dark-field scanning TEM (HAADF-STEM) and EDS mapping were applied to study the elemental distribution of rGO/CoPt/Ag. The results are shown in Figure 5a–e: C, Ag, Co, and Pt elements are evenly distributed in the sample, proving the formation of rGO/CoPt/Ag. The elemental composition of rGO/CoPt/Ag was analyzed via EDX. Figure 5f shows that rGO/CoPt/Ag comprises C, Ag, Co, and Pt elements. Supplementary Figure S1 shows the high-resolution TEM image of rGO/CoPt/Ag, and it confirms the presence of CoPt NPs and Ag NPs in rGO/CoPt/Ag. These results are in accordance with the results of XRD, FT-IR, and XPS.
The magnetic property of rGO/CoPt/Ag was investigated via SQUID. Figure 6 shows that the Ms is about 29.97 emu/g, and the rGO/CoPt/Ag nanocomposite exhibits a strong magnetic response (inset of Figure 6). The magnetic response property of the nanocomposite makes it easily separable from its mixture by applying an external magnetic field for recycling purposes.

2.2. Catalytic Applications of CoPt, rGO/CoPt, and rGO/CoPt/Ag Catalysts

The CoPt, rGO/CoPt, and rGO/CoPt/Ag were applied to the 4-NP reduction with NaBH4 at normal temperature. The catalytic performances of CoPt, rGO/CoPt, and rGO/CoPt/Ag were monitored via UV-Vis in the 250–500 nm range. Although the 4-NP reduction reaction with NaBH4 is thermodynamically advantageous based on the standard electrode potential, its kinetics almost limit the reaction in the absence of a catalyst [47]. Moreover, after adding the NaBH4 aqueous solution, the peak shifts to 400 nm, confirming that 4-NP anions were formed [48]. The peak intensity remains constant with time, and the catalytic reduction reaction does not proceed further without a catalyst. As soon as there is an addition of catalysts, the intensity of the absorption peak decreases. Furthermore, the peak of 4-AP appears at 300 nm. Figure 7a–c displays the time-dependent UV-Vis spectra of the reduction reaction with NaBH4 by CoPt, rGO/CoPt, and rGO/CoPt/Ag catalysts. Figure 7a–c displays that rGO/CoPt/Ag exhibits the highest catalytic performance among the investigated catalysts, completing the reduction reaction in 1 min under the same experimental conditions. This is followed by rGO/CoPt (4 min) and CoPt (8 min). Combining these results makes it possible to confirm that the better catalytic performance of rGO/CoPt/Ag compared to other catalysts may originate from the synergy among its components.
To investigate the reduction kinetics of 4-NP, the concentration of NaBH4 was higher than that of 4-NP during the catalytic reaction. Therefore, the catalytic system accords with the pseudo-first-order reaction kinetics, which can be described as follows [49,50]:
ln(Ct/C0) = ln(At/A0) = −kt
where A0 and At are the ratio of absorbance at an initial and certain time, respectively. The parameter k is an apparent rate constant, whereas t is the reaction time. In Equation (1), the value of k can be obtained by assuming a linear correlation between the time t and ln(At/A0). The rate of the catalytic reduction exhibits a positive correlation with the value of k. Figure 8a–c displays that k of rGO/CoPt/Ag is 5.306 min−1, which is higher than that of rGO/CoPt (1.283 min−1) and CoPt (0.495 min−1), indicating that rGO/CoPt/Ag possesses an excellent catalytic performance.
Furthermore, the normalized rate constant (knor = k/m) was studied to display the catalytic reduction performance of the rGO/CoPt/Ag catalyst. Herein, thermogravimetric analysis (TGA) was performed (Figure 9). TGA shows that the CoPt and Ag loading was about 77.9 wt.% in the rGO/CoPt/Ag catalyst, and the weight loss may be due to the existence of moisture, rGO, etc. [51]. Table 1 shows the values of knor and other parameters. As shown in Table 1, the catalytic activity of rGO/CoPt/Ag is comparable to or better than that of other catalytic materials [52,53,54,55]. In order to investigate the reusability of the rGO/CoPt/Ag nanocomposite, the catalyst was separated from the reaction mixture after each run by using an external magnet, and then the sample was washed with deionized water for the next cycle under the same conditions. Figure 10 shows the reusability of rGO/CoPt/Ag for 4-NP reduction. The catalyst can be recycled four times, confirming the stability of rGO/CoPt/Ag during the catalytic reaction.

2.3. Possible Catalytic Mechanism

The enhanced catalytic activity of the rGO/CoPt/Ag catalyst, when compared to the other catalysts, is perhaps due to the following factors: (1) an unusual morphology of the rGO/CoPt/Ag nanocomposite catalyst provides the high adsorption capacity, which decreases the induction time [56,57], and (2) the synergistic effects among its components strongly enhance its catalytic activity [58]. Figure 11 displays the probable mechanism for 4-NP reduction with the rGO/CoPt/Ag nanocomposite by NaBH4: BH4− ions act as both the hydrogen source and the electron donor, and it is provided by the ionization of NaBH4 in water. However, without rGO/CoPt/Ag, the catalytic reduction reaction cannot proceed. As the catalyst is added into the system, the BH4− ions and 4-NP are adsorbed by rGO/CoPt/Ag, due to its layered wrinkle structure, which provides a very strong adsorption capacity. The electrons transfer to rGO/CoPt/Ag from BH4− ions, the active hydrogen species are formed, and then the active hydrogen species reduce 4-NP into 4-AP [51,59]. Lastly, 4-AP is desorbed from rGO/CoPt/Ag.

3. Materials and Methods

3.1. Materials

Cobalt acetylacetonate {Co(acac)2}, platinum acetylacetonate {Pt(acac)2}, oleic acid (OA), oleyl amine (OAm), and dibenzyl ether (C14H14O) were obtained from Aladdin Biochemical Technology Co., Ltd. Silver nitrate (AgNO3), 4-nitrophenol (4-NP), sodium borohydride (NaBH4), hydrazine hydrate (H6N2O), graphite powder, sulfuric acid (H2SO4), potassium persulfate (K2S2O8), phosphorus pentoxide (P2O5), phosphoric acid (H3PO4), potassium permanganate (KMnO4), hydrogen peroxide (H2O2), and hydrochloric acid (HCL) were obtained from Sinopharm Chemical Reagent Co., Ltd. GO was prepared by a modified Hummers’ method from graphite powder [60,61]. All the chemicals were used without further treatment.

3.2. Preparation of the CoPt Nanoparticles

A total of 0.5 mmol of Co(acac)2 and 0.5 mmol of Pt(acac)2 were mixed with oleic acid, oleyl amine, and dibenzyl ether. The mixture was sonicated for 15 min and then heated up to 100 °C for 60 min. The temperature was then raised to 320 °C for 60 min. Finally, the nanoparticles were washed and obtained.

3.3. Preparation of the rGO/CoPt and rGO/CoPt/Ag Nanocomposites

The preparation process of the rGO/CoPt/Ag catalyst is shown in Scheme 1. A total of 50 mg of GO was dispersed in deionized water and sonicated for 60 min. AgNO3 (0.3 mmol) and CoPt (50 mg) were dispersed in deionized water (10 mL) and sonicated for 10 min. The two solutions were then mixed and mechanically stirred for 10 min and heated up to 90 °C. Then, 4 mL of a hydrazine hydrate was injected. The temperature was kept at 90 °C for 60 min, washed, and vacuum-dried at 60 °C overnight. After complete drying, the rGO/CoPt/Ag nanocomposite catalyst was obtained. The rGO/CoPt catalyst was prepared by employing a similar strategy without adding AgNO3 in the aqueous solution.

3.4. Catalytic Reduction of 4-Nitrophenol

The catalytic performances of the CoPt, rGO/CoPt, and rGO/CoPt/Ag catalysts were investigated by reducing 4-NP by NaBH4. Such a catalytic reduction process has been widely used to estimate the catalytic properties of many nanomaterials. In this work, all the reactions were monitored via UV-Vis spectroscopy: 4-NP (0.1 mL, 0.005 mol/L light yellow) and deionized water (2 mL) were added to the quartz cuvette. Upon adding 1 mL of NaBH4 (0.2 mol/L), the peak of the solution shifted to 400 nm, and the color changed to bright yellow. The reaction started after adding 60 μL of catalyst aqueous dispersion (2 mg/mL). The color changed to colorless, and the intensity of the peak located at 400 nm decreased. The characteristic peak appeared at 300 nm, confirming that 4-NP was reduced into 4-AP by the action of the catalysts. The catalytic activity of the CoPt, rGO/CoPt, and rGO/CoPt/Ag catalysts was investigated and compared.
More detailed information of the materials and methods of all the characterization techniques are offered in the Supplementary Materials.

4. Conclusions

In summary, the rGO-supported nanocomposite catalyst (rGO/CoPt and rGO/CoPt/Ag) was synthesized by a facile and robust chemical reduction method. The great values of k and knor for rGO/CoPt/Ag were 5.306 min−1 and 56.76 min−1mg−1, indicating the superb catalytic activity for 4-NP at room temperature, which may be due to the unique structural advantage and the synergy of the rGO/CoPt/Ag nanocomposite catalyst. This work may not only present a new kind of nanocomposite catalyst for the catalytic field, but may also provide a facile route to construct desired graphene-based nanocomposite catalysts for catalytic research.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/catal11111336/s1, Figure S1: High-resolution TEM image of rGO/CoPt/Ag.

Author Contributions

Conceptualization, X.Z., L.C., Y.L. and Q.D.; methodology, X.Z., L.C., Y.L. and Q.D.; software, X.Z., L.C. and Y.L.; investigation, X.Z., L.C. and Y.L.; writing—original draft preparation, X.Z.; writing—review and editing, X.Z., L.C., Y.L. and Q.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (grant numbers 21676115 and 61675090), the Program for the Development of Science and Technology of Jilin Province (grant numbers 20190303069SF, 20200301043RQ, and 20190103002JH), and the Program for Science and Technology of the Education Department of Jilin Province (grant numbers JJKH20200418KJ and JJKH20191018KJ).

Data Availability Statement

The data presented in this study are available upon request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hu, C.L.; Zhang, L.; Gong, J.L. Recent progress made in the mechanism comprehension and design of electrocatalysts for alkaline water splitting. Energ. Environ. Sci. 2019, 12, 2620–2645. [Google Scholar] [CrossRef]
  2. Wu, T.; Zheng, H.; Kou, Y.C.; Su, X.Y.; Kadasala, N.R.; Gao, M.; Chen, L.; Han, D.L.; Liu, Y.; Yang, J.H. Self-sustainable and recyclable ternary Au@Cu2O-Ag nanocomposites: Application in ultra-sensitive SERS detection and highly efficient photocatalysis of organic dyes under visible light. Microsyst. Nanoeng. 2021, 7, 10. [Google Scholar] [CrossRef] [PubMed]
  3. Xu, H.Z.; Wang, S.F.; Wang, M.; Ge, B.; Ren, G.N.; Li, W.Z.; Zhao, L.M. Application of superhydrophobic ZnO rod composites with environmentally-friendly and photodegradation properties in water environment treatment. Colloids Surf. A 2021, 618, 126437. [Google Scholar] [CrossRef]
  4. Mir, S.H.; Hasan, P.M.Z.; Danish, E.Y.; Aslam, M. Pd-induced phase separation in poly (methyl methacrylate) telopolymer: Synthesis of nanostructured catalytic Pd nanorods. Colloid Polym. Sci. 2020, 298, 441–448. [Google Scholar] [CrossRef]
  5. Liu, T.; Sun, Y.H.; Jiang, B.; Guo, W.; Qin, W.; Xie, Y.M.; Zhao, B.; Zhao, L.; Liang, Z.Q.; Jiang, L. Pd nanoparticles decorated 3D printed hierarchically porous TiO2 scaffolds for efficient reduction of highly concentrated 4-nitrophenol solution. ACS Appl. Mater. Inter. 2020, 12, 28100–28109. [Google Scholar] [CrossRef]
  6. Huo, H.; Jiang, Y.Q.; Wang, Z.; Hu, Y.J.; Zhao, T.T.; Liu, X.; Xu, X.Z.; Lin, K.F. Carbonyl oxygen-coordinated metallic cobalt nanoparticles anchored on hybrid mesoporous silica matrix to enhance 4-nitrophenol hydrogenation. J. Mater. Sci. 2021, 56, 364–379. [Google Scholar] [CrossRef]
  7. Neal, R.D.; Hughes, R.A.; Sapkota, P.; Ptasinska, S.; Neretina, S. Effect of nanoparticle ligands on 4-nitrophenol reduction: Reaction rate, induction time, and ligand desorption. ACS Catal. 2020, 10, 10040–10050. [Google Scholar] [CrossRef]
  8. Zheng, H.; Huang, J.; Zhou, T.X.; Jiang, Y.M.; Jiang, Y.H.; Gao, M.; Yang, L. Recyclable Magnetic Cu/CuFe2O4 Nanocomposites for the Rapid Degradation of 4-NP. Catalysts 2020, 10, 1437. [Google Scholar] [CrossRef]
  9. Strachan, J.; Barnett, C.; Masters, A.F.; Maschmeyer, T. 4-Nitrophenol Reduction: Probing the Putative Mechanism of the Model Reaction. ACS Catal. 2020, 10, 5516–5521. [Google Scholar] [CrossRef]
  10. Kang, X.Y.; Teng, D.Y.; Wu, S.L.; Tian, Z.F.; Liu, J.; Li, P.F.; Ma, Y.; Liang, C.H. Ultrafine copper nanoparticles anchored on reduced graphene oxide present excellent catalytic performance toward 4-nitrophenol reduction. J. Colloid Interf. Sci. 2020, 566, 265–270. [Google Scholar] [CrossRef] [PubMed]
  11. Zhao, X.H.; Liu, X.; Yi, C.G.; Li, J.R.; Su, Y.H.; Guo, M. Palladium. nanoparticles embedded in yolk–shell N-doped carbon Nanosphere@Void@SnO2 composite nanoparticles for the photocatalytic reduction of 4-nitrophenol. ACS Appl. Nano Mater. 2020, 3, 6574–6583. [Google Scholar] [CrossRef]
  12. Chen, S.S.; Huang, R.M.; Zou, J.; Liao, D.; Yu, J.G.; Jiang, X.Y. A sensitive sensor based on MOFs derived nanoporous carbons for electrochemical detection of 4-aminophenol. Ecotox. Environ. Safe 2020, 191, 110194. [Google Scholar] [CrossRef] [PubMed]
  13. Bashir, S.; Moosvi, S.K.; Jan, T.; Rydzek, G.; Mir, S.H.; Rizvi, M.A. Development of Polythiophene/Prussian Red Nanocomposite with Dielectric, Photocatalytic and Metal Scavenging Properties. J. Electron. Mater. 2020, 49, 4018–4027. [Google Scholar] [CrossRef]
  14. Hasan, K.; Shehadi, I.A.; Al-Bab, N.D.; Elgamouz, A. Magnetic Chitosan-Supported Silver Nanoparticles: A Heterogeneous Catalyst for the Reduction of 4-Nitrophenol. Catalysts 2019, 9, 839. [Google Scholar] [CrossRef] [Green Version]
  15. Cui, Y.; Chen, K.B.; Ma, Z.; Yang, J.L.; Geng, Z.G.; Zeng, J. Atomic-level insights into strain effect on p-nitrophenol reduction via Au@Pd core–shell nanocubes as an ideal platform. J. Catal. 2020, 381, 427–433. [Google Scholar] [CrossRef]
  16. Han, X.W.; Bi, S.D.; Zhang, W.Q.; Yang, Z.W. One-step fabrication of highly dispersed Ag nanoparticles decorated N-doped reduced grapheme oxide heterogeneous nanostructure for the catalytic reduction of 4-nitrophenol. Colloids Surf. A 2019, 574, 69–77. [Google Scholar] [CrossRef]
  17. Mir, S.H.; Ochiai, B. Development of Hierarchical Polymer@Pd Nanowire-Network: Synthesis and Application as Highly Active Recyclable Catalyst and Printable Conductive lnk. Chemistryopen 2016, 5, 213–218. [Google Scholar] [CrossRef] [Green Version]
  18. Luneau, M.; Lim, J.S.; Patel, D.A.; Sykes, E.C.H.; Friend, C.M.; Sautet, P. Guidelines to Achieving High Selectivity for the Hydrogenation of α, β-Unsaturated Aldehydes with Bimetallic and Dilute Alloy Catalysts: A Review. Chem. Rev. 2020, 120, 12834–12872. [Google Scholar] [CrossRef]
  19. Parizad, M.; Wong, A.P.; Reber, A.C.; Tengco, J.M.M.; Karakalos, S.G.; Khanna, S.N.; Regalbuto, J.R.; Monnier, J.R. Stabilization of Catalytic Surfaces through Core–Shell Structures: Ag–Ir/Al2O3 Case Study. ACS Catal. 2020, 10, 13352–13363. [Google Scholar] [CrossRef]
  20. Zeng, Y.Q.; Ji, B.R.; Lv, Z.; Zheng, X.J.; Yang, X.M.; Cui, P.; Dong, Y.; Zhang, X.H.; Jiang, J.Q. Rapid synthesis of porous Pt-Ni-Cu coatings with a wide composition range, tunable structures and enhanced electrocatalytic properties. J. Alloy. Compd. 2020, 835, 155402. [Google Scholar] [CrossRef]
  21. Inaba, H.; Yamada, M.; Rashid, M.R.; Kabir, A.M.R.; Kakugo, A.; Sada, K.; Matsuura, K. Magnetic force-induced alignment of microtubules by encapsulation of copt nanoparticles using a tau-derived peptide. Nano Lett. 2020, 20, 5251–5258. [Google Scholar] [CrossRef] [PubMed]
  22. Zhang, L.; Zhang, X.F.; Chen, X.L.; Wang, A.J.; Han, D.M.; Wang, Z.G.; Feng, J.J. Facile solvothermal synthesis of Pt71Co29 lamellar nanoflowers as an efficient catalyst for oxygen reduction and methanol oxidation reactions. J. Colloid Interf. Sci. 2019, 536, 556–562. [Google Scholar] [CrossRef]
  23. He, C.Y.; Zhang, S.K.; Tao, J.Z.; Shen, P.K. One-step solid state synthesis of PtCo nanocubes/graphene nanocomposites as advanced oxygen reduction reaction electrocatalysts. J. Catal. 2018, 362, 85–93. [Google Scholar] [CrossRef]
  24. Xu, X.; Guan, C.; Xu, L. Three dimensionally free-formable gaphene foam with designed structures for energy and environmental applications. ACS Nano 2020, 14, 937–947. [Google Scholar] [CrossRef]
  25. Hemmati, S.; Heravia, M.M.; Karmakar, B.; Veisic, H. Green fabrication of reduced graphene oxide decorated with Ag nanoparticles (rGO/Ag NPs) nanocomposite: A reusable catalyst for the degradation of environmental pollutants in aqueous medium. J. Mol. Liq. 2020, 319, 114302. [Google Scholar] [CrossRef]
  26. Ren, F.F.; Chen, X.R.; Xing, R.; Du, Y.K. Rod-like MnO2 boost Pd/reduced graphene oxide nanocatalyst for ethylene glycol electrooxidation. J. Colloid Interf. Sci. 2021, 582, 561–568. [Google Scholar] [CrossRef] [PubMed]
  27. Xie, S.H.; Liu, Y.X.; Deng, J.G. Carbon Monoxide Oxidation over rGO-Mediated Gold/Cobalt Oxide Catalysts with Strong Metal-Support Interaction. ACS Appl. Mater. Inter. 2020, 12, 31467–31476. [Google Scholar] [CrossRef]
  28. Cao, M.W.; Feng, L.; Yang, P.P.; Wang, H.X.; Liang, X.; Chen, X.W. Fabrication of reduced graphene oxide decorated with gold and nickel for the catalytic reduction of 4-nitrophenol. J. Mater. Sci. 2018, 53, 4874–4883. [Google Scholar] [CrossRef]
  29. Lin, J.H.; Pan, K.Y.; Wei, D.H.; Chung, R.J. FePt nanoparticles embedded-rGO nanocmoposites for magnetic fluid hyperthermia. Surf. Coat. Technol. 2018, 350, 868–873. [Google Scholar] [CrossRef]
  30. Varvaro, G.; Imperatori, P.; Laureti, S.; Cannas, C.; Ardu, A.; Plescia, P.; Capobianchi, A. Synthesis of L10 alloy nanoparticles. Potential and versatility pre-ordered Precursor Reduction strategy. J. Alloy. Compd. 2020, 846, 156156. [Google Scholar] [CrossRef]
  31. Song, Y.S.; Peng, Y.S.; Long, N.V.; Huang, Z.R.; Yang, Y. Multifunctional self-assembly 3D Ag/g-C3N4/RGO aerogel as highly efficient adsorbent and photocatalyst for R6G removal from wastewater. Appl. Surf. Sci. 2021, 542, 148584. [Google Scholar] [CrossRef]
  32. Song, Z.L.; Sun, J.Y.; Wang, W.H.; Wang, Z.B.; Zhang, Y.T.; Xu, B.B.; Qi, F. Stable synergistic decontamination and self-cleaning performance of powerful N-rGO catalytic ozonation membrane: Clustering effect of free electrons and role of interface properties. Appl. Catal. B Environ. 2021, 283, 119662. [Google Scholar] [CrossRef]
  33. Wei, Q.; Wang, Y.; Qing, H.Y. Construction of rGO wrapping octahedral Ag-Cu2O heterostructure for enhanced visible light photocatalytic activity. Appl. Catal. B Environ. 2018, 227, 132–144. [Google Scholar] [CrossRef]
  34. Xie, Y.H.; Liu, B.L.; Li, Y.Z.; Chen, Z.X.; Cao, Y.L.; Jia, D.Z. Cu/Cu2O/rGO nanocomposites: Solid-state self-reduction synthesis and catalytic activity for p-nitrophenol reduction. New J. Chem. 2019, 43, 12118–12125. [Google Scholar] [CrossRef]
  35. Hasan, Z.; Ok, Y.S.; Rinklebe, J.; Tsang, Y.F.; Cho, D.W.; Song, H. N doped cobalt-carbon composite for reduction of p-nitrophenol and pendimethaline. J. Alloy. Compd. 2017, 703, 118–124. [Google Scholar] [CrossRef]
  36. Fan, Y.; Ma, W.; Han, D.; Gan, S.; Dong, X.; Niu, L. Convenient recycling of 3D AgX/graphene aerogels (X = Br, Cl) for efficient photocatalytic degradation of water pollutants. Adv. Mater. 2015, 27, 3767–3773. [Google Scholar] [CrossRef] [PubMed]
  37. Maarisetty, D.; Mahanta, S.; Sahoo, A.K.; Mohapatra, P.; Baral, S.S. Steering the Charge Kinetics in Dual-Functional Photocatalysis by Surface Dipole Moments and Band Edge Modulation: A Defect Study in TiO2-ZnS-rGO Composites. ACS Appl. Mater. Inter. 2020, 12, 11679–11692. [Google Scholar] [CrossRef]
  38. Song, H.J.; Wang, Z.Q.; Yang, J.; Jia, X.H.; Zhang, Z.Z. Facile synthesis of copper/polydopamine functionalized graphene oxide nanocomposites with enhanced tribological performance. Chem. Eng. J. 2017, 324, 51–62. [Google Scholar] [CrossRef]
  39. Wu, X.L.; Zhang, X.Y.; Han, G.S.; Liu, Y.Y.; Liu, B.Z.; Gao, J.; Fan, Y.P.; Li, B.J. Reaction of Co3O4 Nanocrystals on Graphene Sheets to Fabricate Excellent Catalysts for Hydrogen Generation. ACS Sustain. Chem. Eng. 2018, 6, 8427–8436. [Google Scholar] [CrossRef]
  40. Yan, D.F.; Li, Y.X.; Huo, J.; Chen, R.; Dai, L.M.; Wang, S.Y. Defect Chemistry of Nonprecious-Metal Electrocatalysts for Oxygen Reactions. Adv. Mater. 2017, 29, 1606459. [Google Scholar] [CrossRef]
  41. Zhao, Z.Y.; Liu, Z.H.; Zhong, Q.S.; Qin, Y.J.; Xu, A.Z.; Li, W.; Shi, J.H. In situ synthesis of trifluoroacetic acid-doped polyaniline/reduced graphene oxide composites for high-performance all-solid-state supercapacitors. ACS Appl. Energ. Mater. 2020, 3, 8774–8785. [Google Scholar] [CrossRef]
  42. Sheng, Y.Q.; Miao, H.; Jiang, J.F.; Yao, W.Q.; Zhu, Y.F. Perylene diimide anchored graphene 3D structure via π-π interaction for enhanced photoelectrochemical degradation performances. Appl. Catal. B Environ. 2020, 272, 118897. [Google Scholar] [CrossRef]
  43. Gao, X.; Zhao, H.; Liu, Y.G.; Ren, Z.P.; Lin, C.P.; Tao, J.L.; Zhai, Y.P. Facile synthesis of PdNiP/Reduced graphene oxide nanocomposites for catalytic reduction of 4-nitrophenol. Mater. Chem. Phys. 2019, 222, 391–397. [Google Scholar] [CrossRef]
  44. Chen, R.Z.; Tan, Y.Y.; Zhang, Z.Y.; Lei, Z.; Wu, W.; Cheng, N.C.; Mu, S.C. Hydrazine Hydrate Induced Two-Dimensional Porous Co3+ Enriched Co3O4 Nanosheets for Enhanced Water Oxidation Catalysis. ACS Sustain. Chem. Eng. 2020, 8, 9813–9821. [Google Scholar] [CrossRef]
  45. Zhang, K.Y.; Mao, H.Z.; Gu, X.; Song, C.H.; Yang, J.; Qian, Y.T. ZIF-derived cobalt-containing N doped carbon-coated siox nanoparticles for superior lithium storage. ACS Appl. Mater. Inter. 2020, 12, 7206–7211. [Google Scholar] [CrossRef]
  46. Lima, C.C.; Rodrigues, M.V.F.; Neto, A.F.M.; Zanata, C.R.; Fernández, P.S. Highly active Ag/C nanoparticles containing ultra-low quantities of subsurface Pt for the electrooxidation of glycerol in alkaline media. Appl. Catal. B Environ. 2020, 279, 119369. [Google Scholar] [CrossRef]
  47. Baruah, B.; Gabriel, G.J.; Akbashev, M.J.; Booher, M.E. Facile synthesis of silver nanoparticles stabilized by cationic polynorbornenes and their catalytic activity in 4-nitrophenol reduction. Langmuir 2013, 29, 4225–4234. [Google Scholar] [CrossRef] [Green Version]
  48. Naz, M.; Rafiq, A.; Ikram, M.; Haider, A.; Ahmad, S.O.A.; Haider, J.; Naz, S. Elimination of dyes by catalytic reduction in the absence of light: A review. J. Mater. Sci. 2021, 56, 15572–15608. [Google Scholar] [CrossRef]
  49. Chen, Y.; Wu, T. Fundamental formation of three-dimensional Fe3O4 microcrystals and practical application in anchoring Au as recoverable catalyst for effective reduction of 4-nitrophenol. Ind. Eng. Chem. Res. 2019, 58, 15151–15161. [Google Scholar] [CrossRef]
  50. Liew, K.H.; Lee, T.K.; Yarmo, M.A.; Loh, K.S.; Peixoto, A.F.; Freire, C.; Yusop, R.M. Ruthenium Supported on Ionically Cross-linked Chitosan-Carrageenan Hybrid MnFe2O4 Catalysts for 4-Nitrophenol Reduction. Catalysts 2019, 9, 254. [Google Scholar] [CrossRef] [Green Version]
  51. Lv, J.J.; Wang, A.J.; Ma, X.H.; Xiang, R.Y.; Chen, R.J.; Feng, J.J. One-pot synthesis of porous Pt-Au nanodendrites supported on reduced graphene oxide nanosheets toward catalytic reduction of 4-nitrophenol. J. Mater. Chem. A 2015, 3, 290. [Google Scholar] [CrossRef]
  52. Gupta, R.K.; Dubey, M.; Li, P.Z.; Xu, Q.; Pandey, D.S. Size-controlled synthesis of Ag nanoparticles functionalized by heteroleptic dipyrrinato complexes having meso-pyridyl substituents and their catalytic applications. Inorg. Chem. 2015, 54, 2500–2511. [Google Scholar] [CrossRef]
  53. Zhang, K.; Wang, C.; Rong, Z.; Xiao, R.; Zhou, Z.; Wang, S. Silver coated magnetic microflowers as efficient and recyclable catalysts for catalytic reduction. New J. Chem. 2017, 41, 14199–14208. [Google Scholar] [CrossRef]
  54. Huo, H.; Jiang, Y.Q.; Zhao, T.T.; Wang, Z.; Hu, Y.J.; Xu, X.Z.; Lin, K.F. Quantitatively loaded ultra-small Ag nanoparticles on molecularly imprinted mesoporous silica for highly efficient catalytic reduction process. J. Mater. Sci. 2020, 55, 1475–1488. [Google Scholar] [CrossRef]
  55. Yao, W.; Li, F.L.; Li, X.H.; Lang, J.P. Fabrication of hollow Cu2O@CuO-supported Au-Pd alloy nanoparticles with high catalytic activity through the galvanic replacement reaction. J. Mater. Chem. A 2015, 3, 4578–4585. [Google Scholar] [CrossRef]
  56. Shi, G.M.; Li, S.T.; Shi, F.N.; Shi, X.F.; Lv, S.H.; Cheng, X.B. A facile strategy for synthesis of Ni@C(N) nanocapsules with enhanced catalytic activity for 4-nitrophenol reduction. Colloids Surf. A 2018, 555, 170–179. [Google Scholar] [CrossRef]
  57. Yao, D.W.; Wang, Y.; Hassan-Legault, K.; Li, A.T.; Zhao, Y.J.; Lv, J.; Huang, S.Y.; Ma, X.B. Balancing effect between adsorption and diffusion on catalytic performance inside hollow nanostructured catalyst. ACS Catal. 2019, 9, 2969–2976. [Google Scholar] [CrossRef]
  58. Arora, N.; Mehta, A.; Mishra, A.; Basu, S. 4-Nitrophenol reduction catalyzed by Au-Ag bimetallic nanoparticles supported on LDH: Homogeneous vs. heterogeneous catalysis. Appl. Clay. Sci. 2018, 151, 1–9. [Google Scholar] [CrossRef]
  59. Tran, X.T.; Hussain, M.; Kim, H.T. Facile and fast synthesis of a reduced graphene oxide/carbon nanotube/iron/silver hybrid and its enhanced performance in catalytic reduction of 4-nitrophenol. Solid State Sci. 2020, 100, 106107. [Google Scholar] [CrossRef]
  60. Hummers, W.S.; Offeman, R.E. Preparation of Graphitic Oxide. J. Am. Chem. Soc. 1958, 80, 1339. [Google Scholar] [CrossRef]
  61. Marcano, D.C.; Kosynkin, D.V.; Berlin, J.M.; Sinitskii, A.; Sun, Z.Z.; Slesarev, A.; Alemany, L.B.; Lu, W.; Tour, J.M. Improved Synthesis of Graphene Oxide. ACS Nano 2010, 8, 4806–4814. [Google Scholar] [CrossRef] [PubMed]
Catalysts 11 01336 g001 550

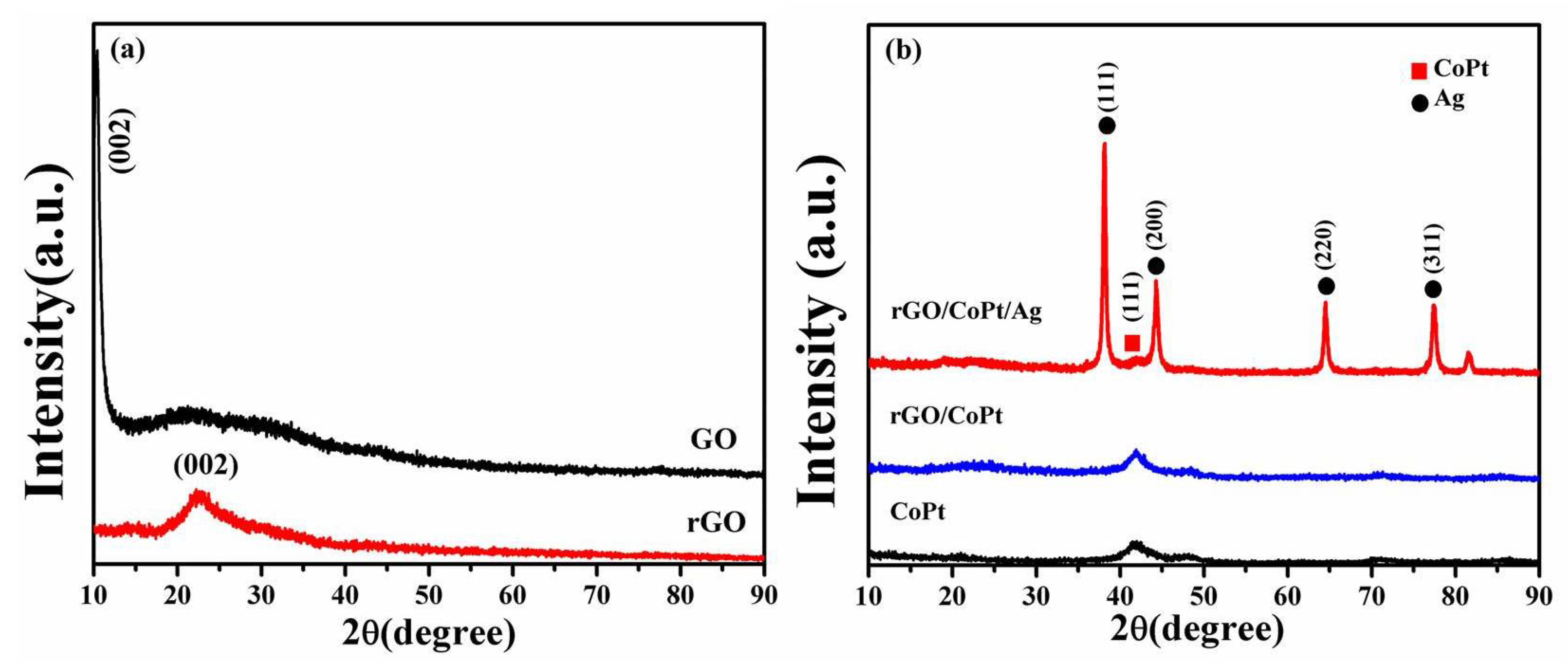

Figure 1. XRD patterns of (a) GO and rGO, (b) CoPt, rGO/CoPt, and rGO/CoPt/Ag.
Figure 1. XRD patterns of (a) GO and rGO, (b) CoPt, rGO/CoPt, and rGO/CoPt/Ag.
Catalysts 11 01336 g001
Catalysts 11 01336 g002 550

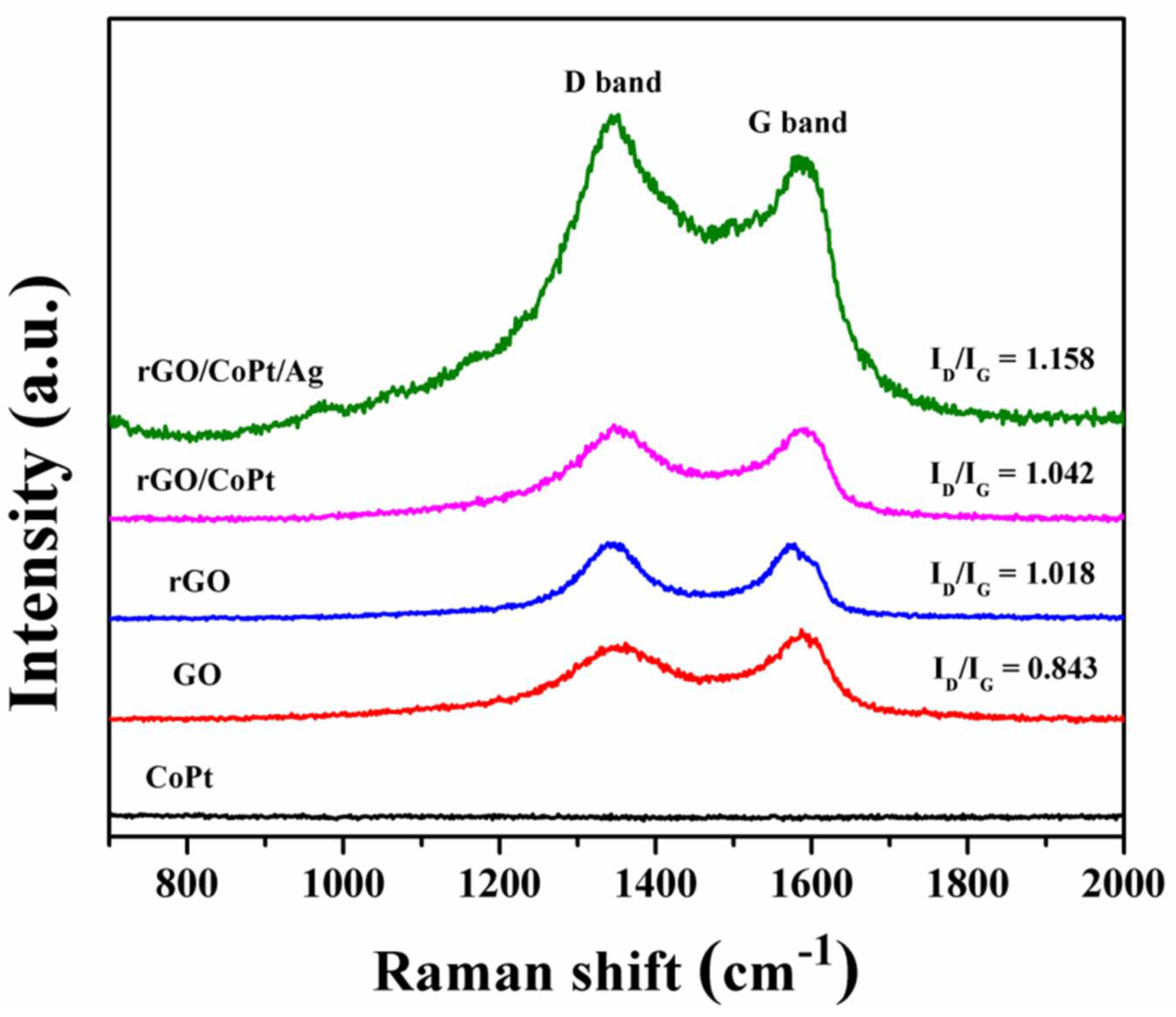

Figure 2. Raman spectra of CoPt, GO, rGO, rGO/CoPt, and rGO/CoPt/Ag.
Figure 2. Raman spectra of CoPt, GO, rGO, rGO/CoPt, and rGO/CoPt/Ag.
Catalysts 11 01336 g002
Catalysts 11 01336 g003 550

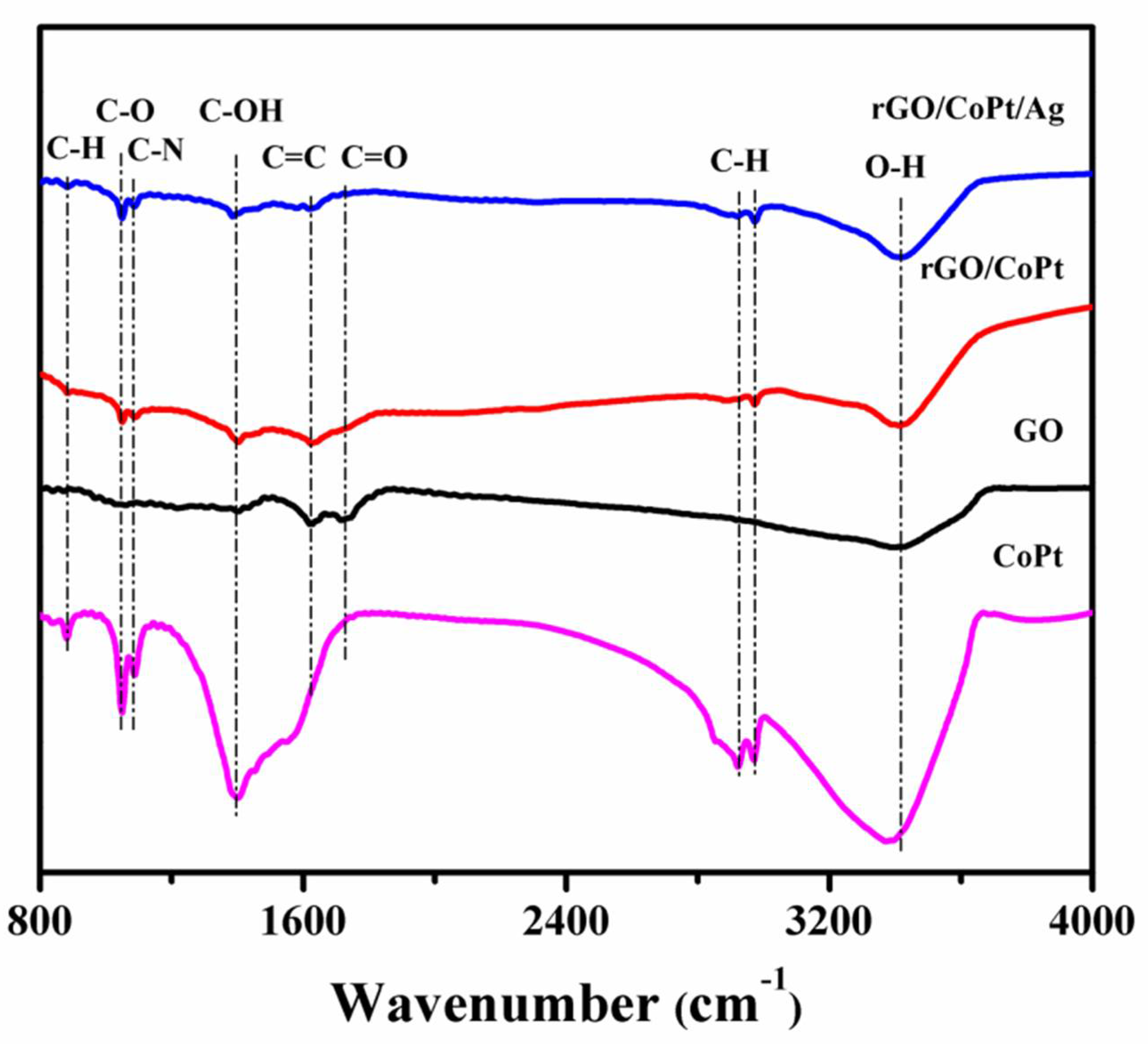

Figure 3. FT-IR spectra of CoPt, GO, rGO/CoPt, and rGO/CoPt/Ag.
Figure 3. FT-IR spectra of CoPt, GO, rGO/CoPt, and rGO/CoPt/Ag.
Catalysts 11 01336 g003
Catalysts 11 01336 g004 550

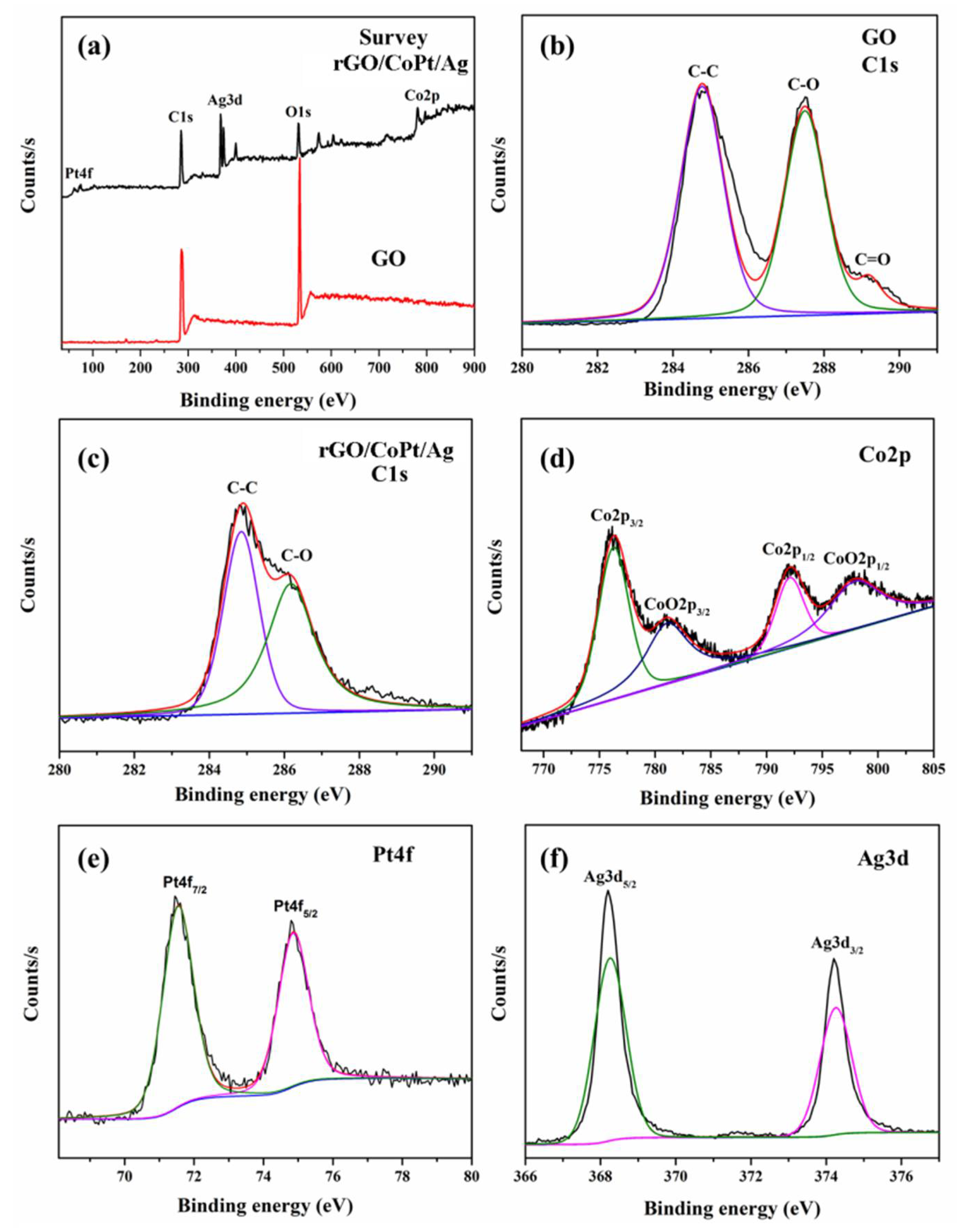

Figure 4. (a) Survey XPS spectra of GO and rGO/CoPt/Ag, (b) XPS spectra of C1s of GO, (c) C1s, (d) Co2p, (e) Pt4f, and (f) Ag3d of rGO/CoPt/Ag.
Figure 4. (a) Survey XPS spectra of GO and rGO/CoPt/Ag, (b) XPS spectra of C1s of GO, (c) C1s, (d) Co2p, (e) Pt4f, and (f) Ag3d of rGO/CoPt/Ag.
Catalysts 11 01336 g004
Catalysts 11 01336 g005 550
Figure 5. (a) HAADF-STEM image, (b–e) EDS mapping, and (f) EDX spectrum of rGO/CoPt/Ag.
Figure 5. (a) HAADF-STEM image, (b–e) EDS mapping, and (f) EDX spectrum of rGO/CoPt/Ag.
Catalysts 11 01336 g005
Catalysts 11 01336 g006 550

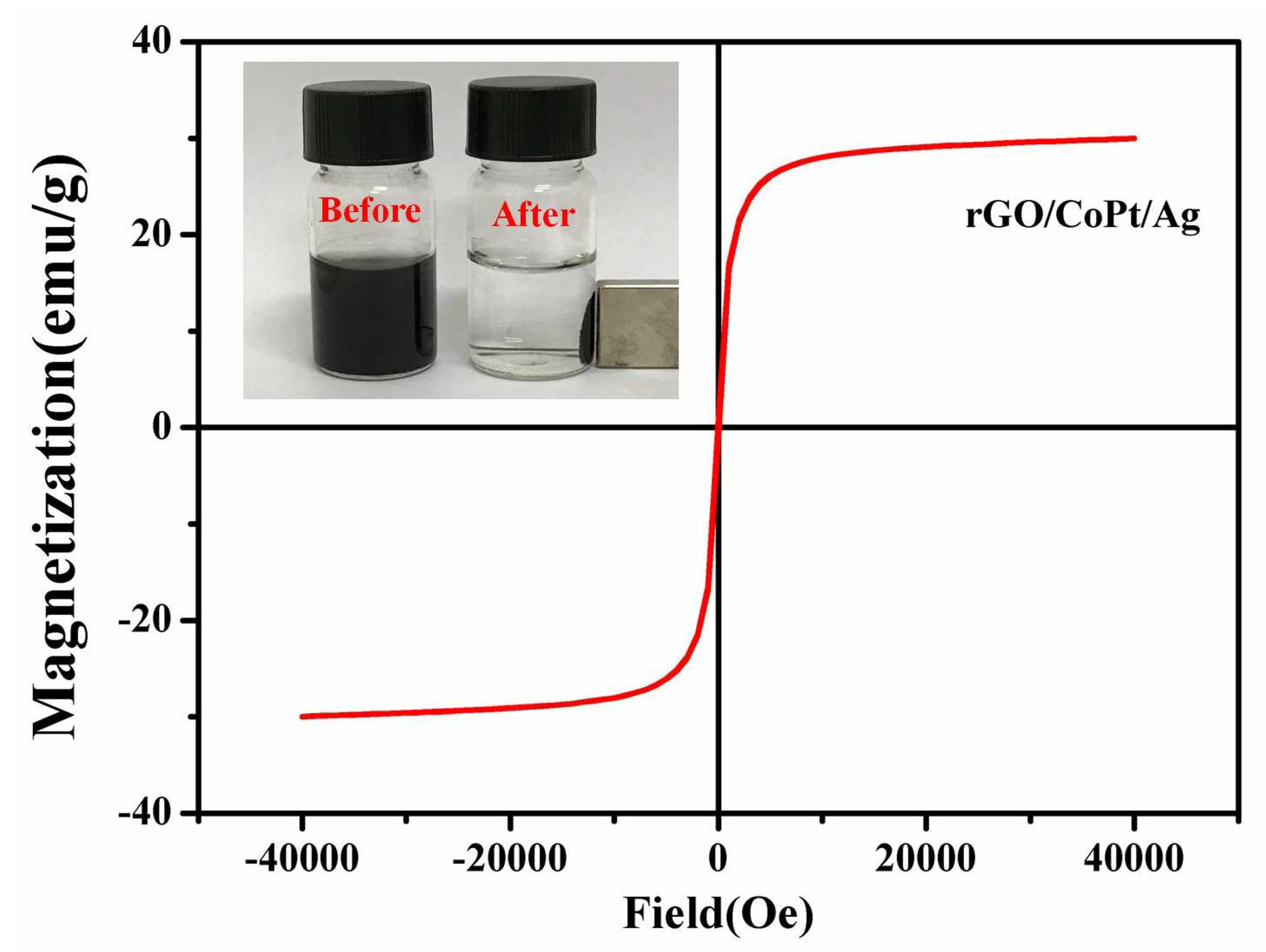

Figure 6. Hysteresis loop of rGO/CoPt/Ag at room temperature.
Figure 6. Hysteresis loop of rGO/CoPt/Ag at room temperature.
Catalysts 11 01336 g006
Catalysts 11 01336 g007 550

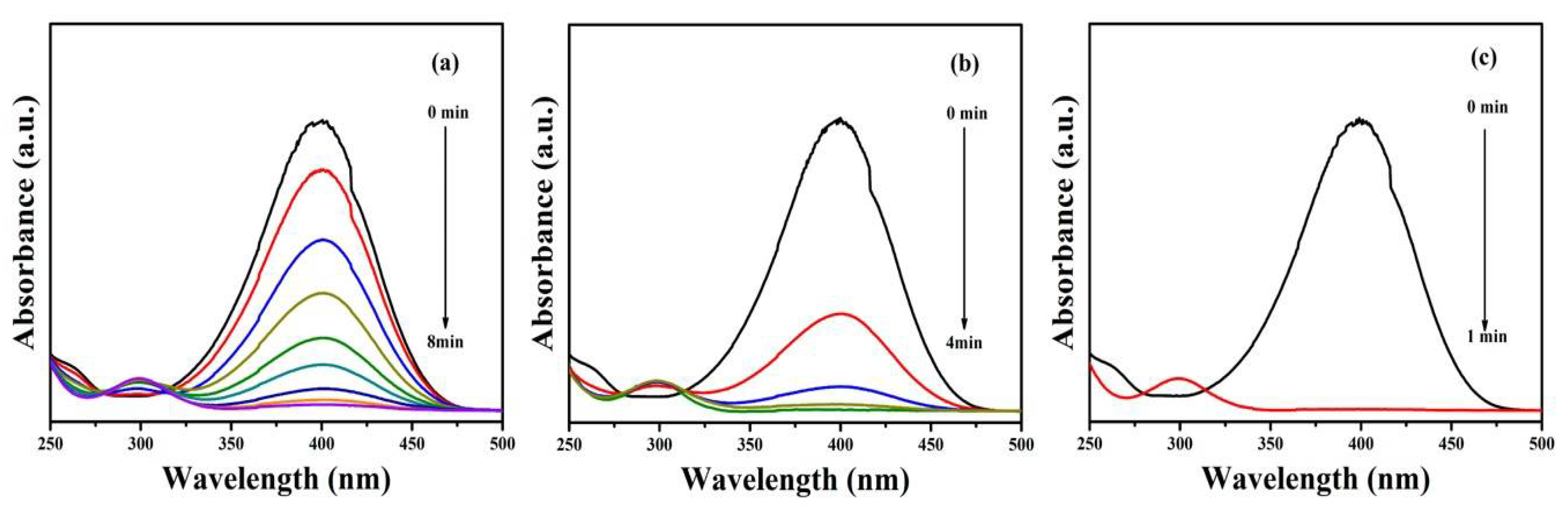

Figure 7. UV-Vis spectra of 4-NP reduction reaction via (a) CoPt, (b) rGO/CoPt, and (c) rGO/CoPt/Ag catalysts.
Figure 7. UV-Vis spectra of 4-NP reduction reaction via (a) CoPt, (b) rGO/CoPt, and (c) rGO/CoPt/Ag catalysts.
Catalysts 11 01336 g007
Catalysts 11 01336 g008 550
Figure 8. Plots of ln(At/A0) as a function of the reaction time for 4-NP reduction via (a) CoPt, (b) rGO/CoPt, and (c) rGO/CoPt/Ag.
Figure 8. Plots of ln(At/A0) as a function of the reaction time for 4-NP reduction via (a) CoPt, (b) rGO/CoPt, and (c) rGO/CoPt/Ag.
Catalysts 11 01336 g008
Catalysts 11 01336 g009 550

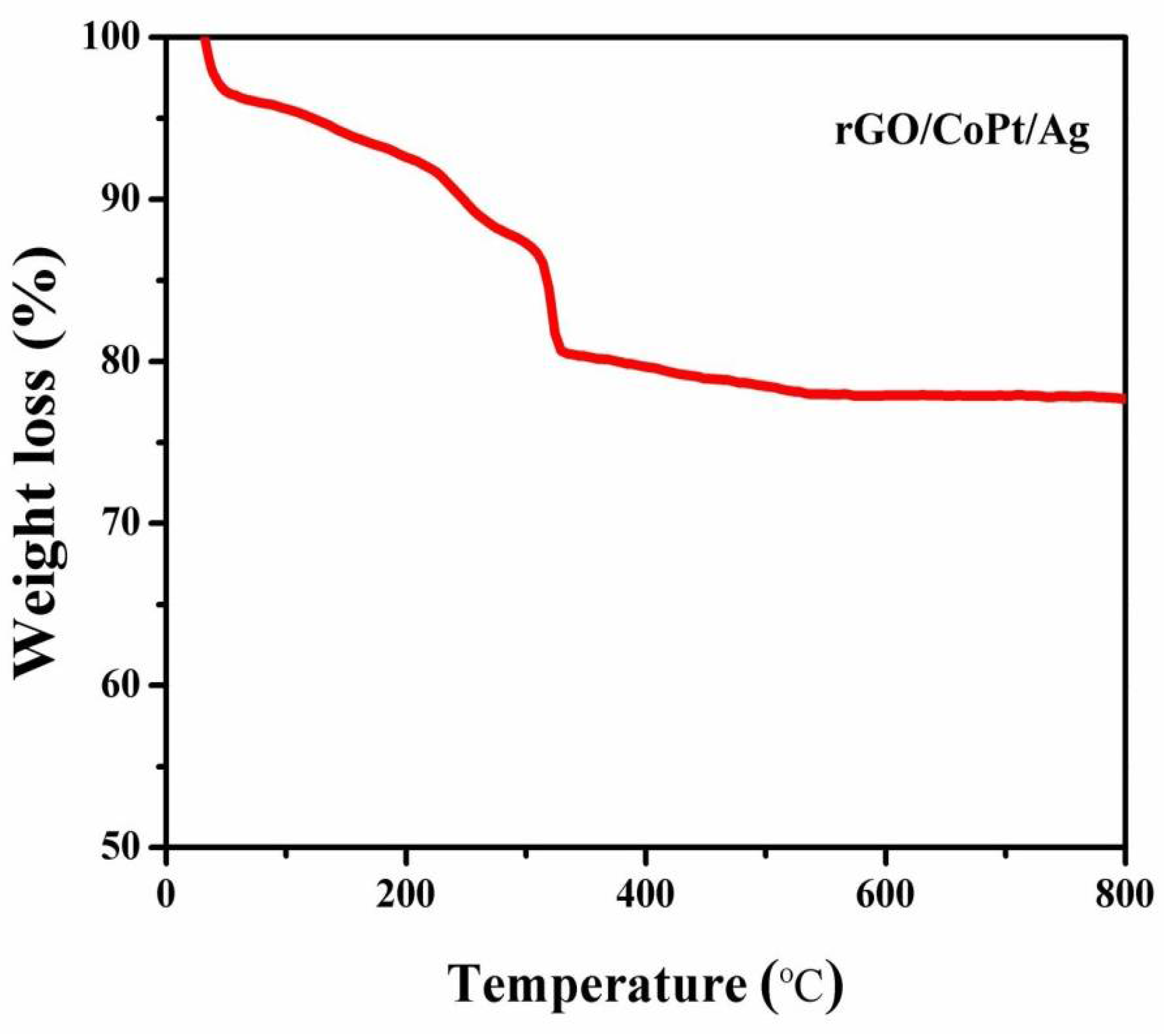

Figure 9. TGA thermogram of the rGO/CoPt/Ag catalyst.
Figure 9. TGA thermogram of the rGO/CoPt/Ag catalyst.
Catalysts 11 01336 g009
Catalysts 11 01336 g010 550

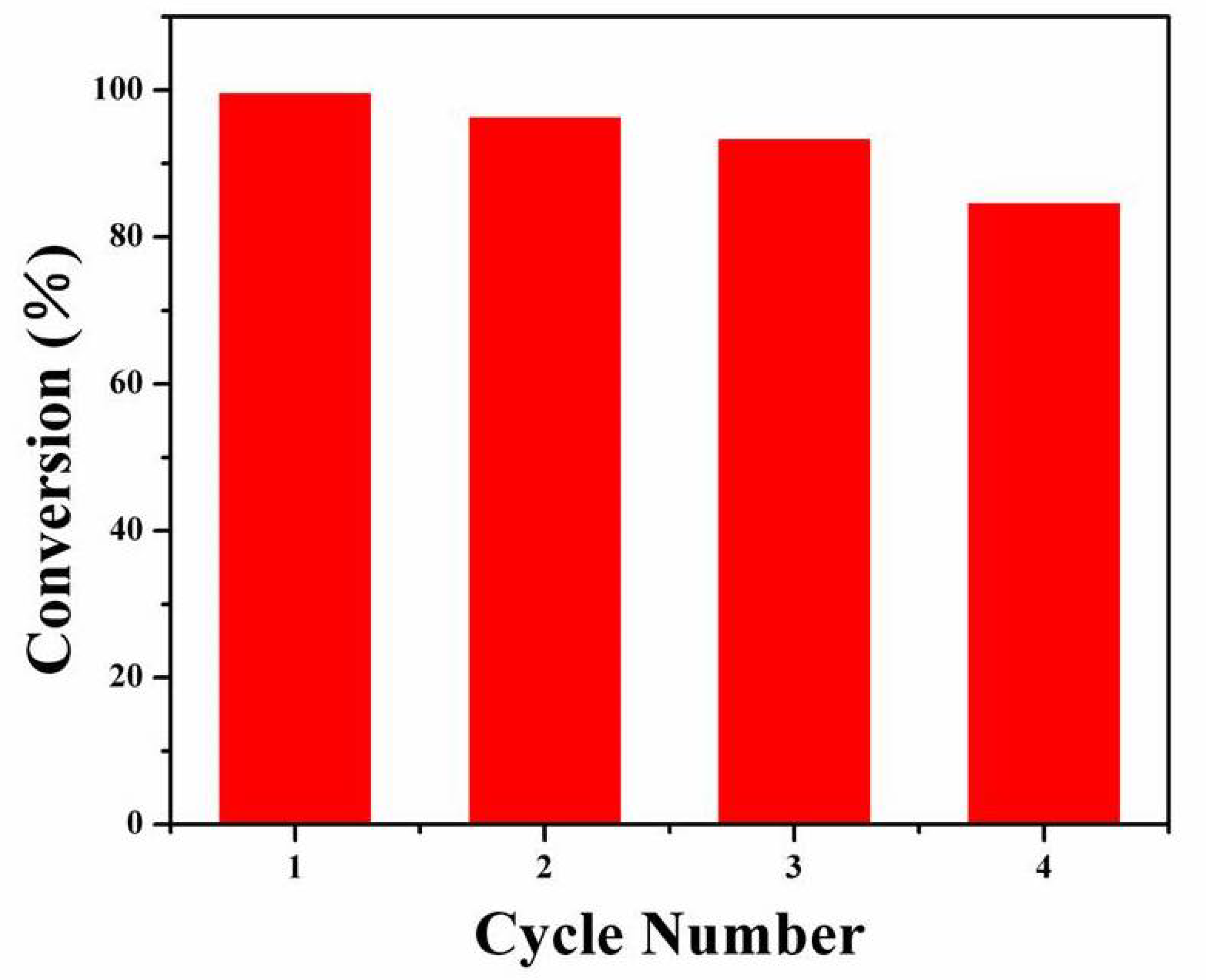

Figure 10. Reusability of the rGO/CoPt/Ag nanocomposite catalyst for the 4-NP reduction.
Figure 10. Reusability of the rGO/CoPt/Ag nanocomposite catalyst for the 4-NP reduction.
Catalysts 11 01336 g010
Catalysts 11 01336 g011 550

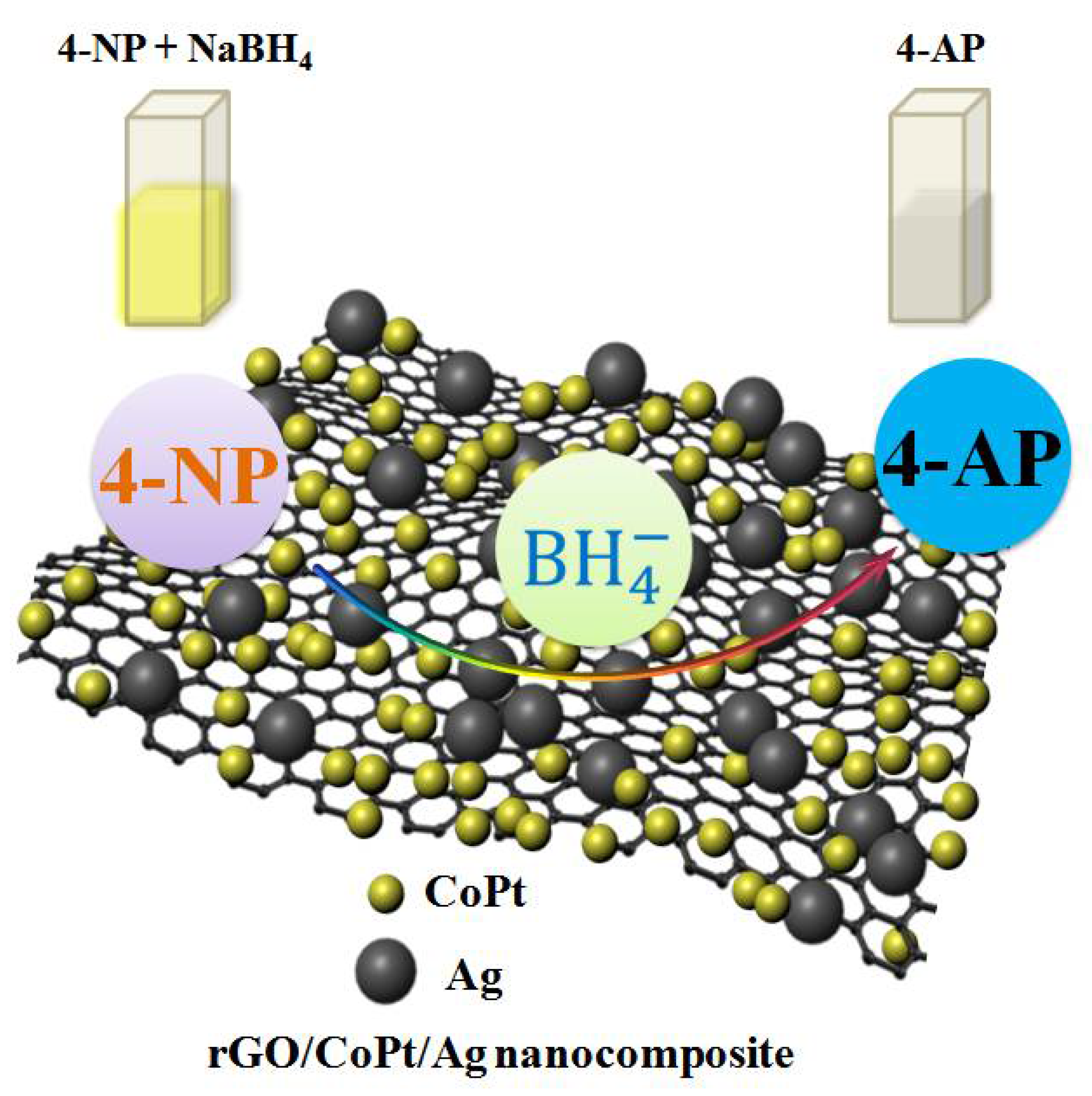

Figure 11. Possible catalytic mechanism for conversion of 4-NP into 4-AP upon the addition of the rGO/CoPt/Ag nanocomposite catalyst with NaBH4.
Figure 11. Possible catalytic mechanism for conversion of 4-NP into 4-AP upon the addition of the rGO/CoPt/Ag nanocomposite catalyst with NaBH4.
Catalysts 11 01336 g011
Catalysts 11 01336 sch001 550

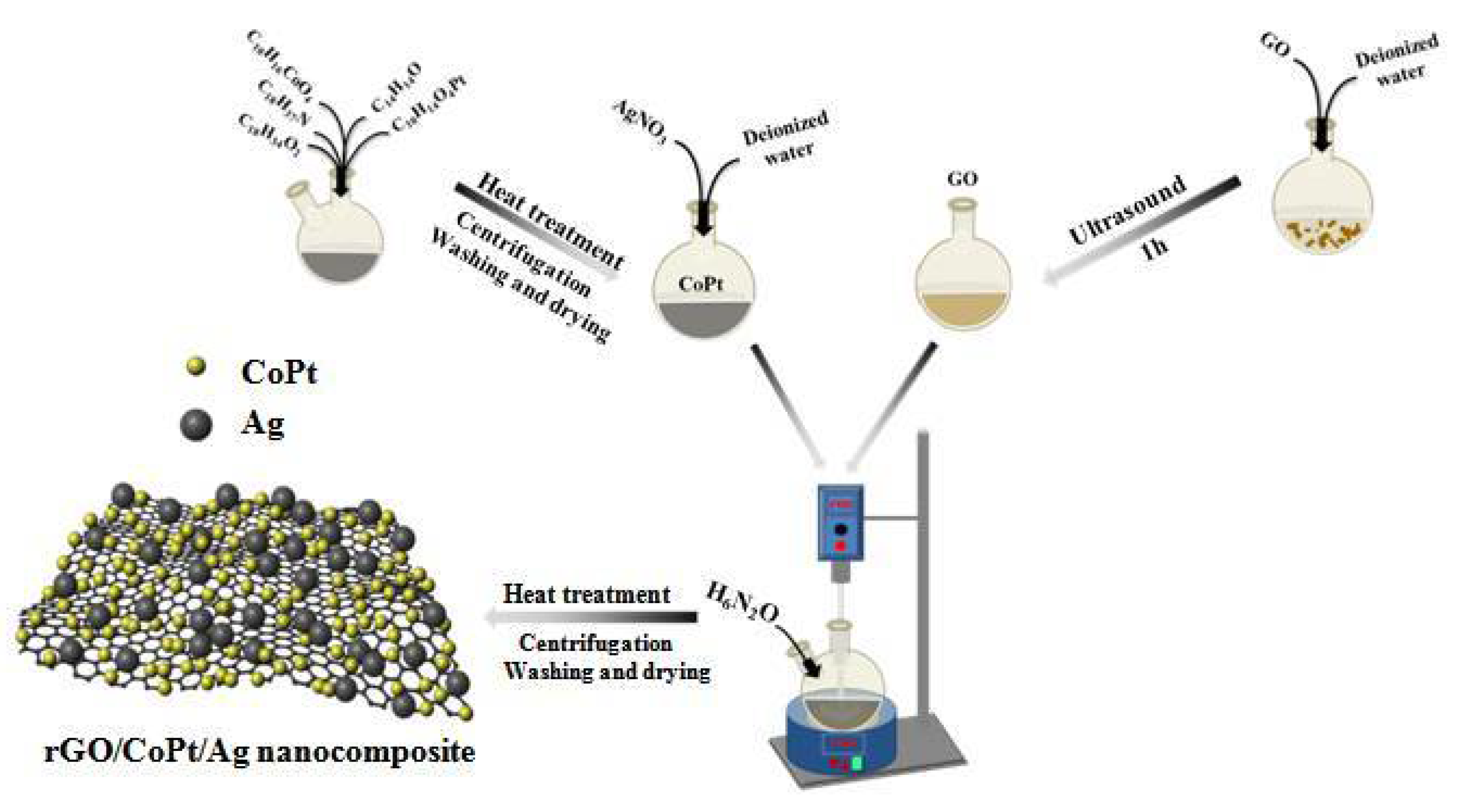

Scheme 1. Schematic illustration for the synthetic process of the rGO/CoPt/Ag nanocomposite.
Scheme 1. Schematic illustration for the synthetic process of the rGO/CoPt/Ag nanocomposite.
Catalysts 11 01336 sch001
Table
Table 1. Comparison of catalytic activity for the 4-nitrophenol reduction by different catalysts.
Table 1. Comparison of catalytic activity for the 4-nitrophenol reduction by different catalysts.
CatalystsMassk (min−1)knor (min −1mg −1) *Reference
Ag NPs32 µg0.3611.25[52]
Fe3O4@SiO2@Ag2 µg0.1470[53]
MSAg-5050 µg1.1823.6[54]
Cu2O@CuO(Au-Pd)84.5 µg1.15813.7[55]
rGO/CoPt/Ag93.48 µg5.30656.76This work
* knor = k/m (k: apparent rate constant, m: the quantity of catalysts).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhang, X.; Chen, L.; Liu, Y.; Duan, Q. Preparation of Reduced-Graphene-Oxide-Supported CoPt and Ag Nanoparticles for the Catalytic Reduction of 4-Nitrophenol. Catalysts 2021, 11, 1336. https://doi.org/10.3390/catal11111336

AMA Style

Zhang X, Chen L, Liu Y, Duan Q. Preparation of Reduced-Graphene-Oxide-Supported CoPt and Ag Nanoparticles for the Catalytic Reduction of 4-Nitrophenol. Catalysts. 2021; 11(11):1336. https://doi.org/10.3390/catal11111336

Chicago/Turabian Style

Zhang, Xiaolong, Lei Chen, Yang Liu, and Qian Duan. 2021. "Preparation of Reduced-Graphene-Oxide-Supported CoPt and Ag Nanoparticles for the Catalytic Reduction of 4-Nitrophenol" Catalysts 11, no. 11: 1336. https://doi.org/10.3390/catal11111336

APA Style

Zhang, X., Chen, L., Liu, Y., & Duan, Q. (2021). Preparation of Reduced-Graphene-Oxide-Supported CoPt and Ag Nanoparticles for the Catalytic Reduction of 4-Nitrophenol. Catalysts, 11(11), 1336. https://doi.org/10.3390/catal11111336

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
