Nano-PAA-CuCl₂ Composite as Fenton-Like Reusable Catalyst to Enhanced Degrade Organic Pollutant MB/MO

Abstract

The treatment of organic dye contaminants in wastewaters has now becoming more imperative. Fenton-like degradation of methylene blue (MB) and methyl orange (MO) in aqueous solution was investigated by using a nanostructure that a layer of CuCl₂ nanoflake film grown on the top surface of nanoporus anodic alumina substrate (nano-PAA-CuCl₂) as catalyst. The new nano-PAA-CuCl₂ composite was fabricated with self-assembly approach, that is, a network porous structure film composed of CuCl₂ nanoflake grown on the upper surface of nanoporous anodic alumina substrate, and the physical and chemical properties are characterized systematically with the X-ray diffraction (XRD), field emission scanning electron microscope (FE-SEM), and high-resolution transmission electron microscopy (HRTEM), Energy Dispersive Spectrometer (EDS), X-ray photoelectron spectroscopy (XPS). The experimental results showed that the nano-PAA-CuCl₂ catalyst presented excellent properties for the degradation of two typical organic pollutants such as MB and MO, which were almost completely degraded with 8 × 10⁻⁴mol/L nano-PAA-CuCl₂ catalyst after 46 min and 60 min at reaction conditions of H₂O₂ 18 mM and 23 mM, respectively. The effects of different reaction parameters such as initial pH, H₂O₂ concentration, catalyst morphology and temperature were attentively studied. And more, the stability and reusability of nano-PAA-CuCl₂ were examined. Finally, the mechanism of MB and MO degradation by the nano-PAA-CuCl₂/H₂O₂ system was proposed, based on the experimental data of the BCA and the temperature-programmed reduction (H₂-TPR) and theoretical analysis, the reaction kinetics belonged to the pseudo-first-order equation. This new nanoporous composite material and preparation technology, as well as its application in Fenton-like reaction, provide an effective alternative method with practical application significance for wastewater treatment.

1. Introduction

The efficient treatment of colored sewage is still one of the main problems of textile wastewater. There are various organic pollutants contained in the textile printing and dyeing industry [1]. They are seriously harmful to the living conditions and environment since their long-lasting color, high chemical oxygen demand and non-biodegradable [2,3]. Traditional treatment methods generally cannot degrade the textile dye wastewater quickly and efficaciously. Therefore, Governments and relevant companies are passively and/or actively attracted to develop efficient and low-cost dye wastewater treatment methods [4].

Currently, more impactful decolorization technologies are anxious necessity. Various methods, e.g., physical, chemical and biological methods, have been devised for the decolorization of dye wastewater [5,6]. Among the most technologies, advanced oxidation processes (AOPs) are regarded as effective methods for the treatment of textile pollutants [7,8]. AOPs are oxidation processes that produce hydroxyl radicals (HO•) that are effective in degrading organic contaminants due to their strong oxidizing power [9,10]. Compared with other treatment methods, AOPs have exhibited relatively high organic dye elimination efficiency and lower energy consumption under working conditions such as moderate temperature and pressure.

The Fenton oxidation process is one of the most powerful and attractive processes of AOPs [11]. Traditional Fenton reaction consisting of hydrogen peroxide (H₂O₂) and ferrous ion (Fe²⁺, Fe(II)) has been shown to be a rapid and non-selective degradation for contaminants. In a typical homogeneous Fenton oxidation process, H₂O₂ and Fe²⁺ ions are respectively used as oxidants and catalysts, and homogeneous Fe²⁺ catalyzes H₂O₂ to produce hydroxyl radicals (HO•) for oxidizing contaminants. Fenton’s equipment is simple, and the optimum conditions are verified in the pH range about 2 ~ 4. However, the Fenton reaction process has disadvantages such as high operating costs, large amounts of iron sludge, low utilization rate of H₂O₂, relatively narrow pH range of reaction, and difficulty in recovering Fe²⁺ [12,13].

Compared to Fenton reaction technology, the Fenton-like reaction process is a perfectly acceptable alternative with higher and practical activity to solve these problems by using heterogeneous catalysts [14,15]. By replacing the homogeneous Fe (II) in the Fenton process with a Fenton-like catalyst such as Cu²⁺ (Cu(II)), the defects of the Fenton reaction process can be overcome. The Fenton-like catalysts are multivalent metals such as titanium, copper, manganese, etc. These catalysts are used to activate H₂O₂ into active oxygen free radicals to degrade organic pollutants in wastewater in a Fenton-like reaction process [16,17]. About the catalysts in the Fenton-like reactions, copper-containing catalysts have significant advantages, such as low cost, rich content, and easy preparation [18,19]. Cu (II) can replace Fe (II) as a more excellent Fenton catalyst because it is suitable for a wider range of pH (3–9) and is not easy to produce impurities [20], and the reduced Cu (II)/H₂O₂ system is easier to form HO• than that of the Fe (II)/H₂O₂ system [21,22].

It has been demonstrated that the performance of Fenton-like catalysts depends partly on the surface structure and properties [23,24]. The catalytic activity will be effectively improved by increasing the specific surface area and the active sites. One of the most available ways is to make the catalysts into nanostructure materials [25]. The Fenton-like catalytic activity will be greatly enhanced by changing the copper-based catalyst into a nanoporous structure [26]. We have reported a composite that a layer of CuCl₂ nanoflake film grown on the top surface of nanoporus anodic alumina substrate (nano-PAA-CuCl₂) which was employed as catalyst of Fenton-like reaction to degrade RhB over a relatively wide pH range [27].

In this paper, the kind of composite nanostructure catalyst, that is, a network porous structure film nano-PAA-CuCl₂, is prepared and its physical and chemical properties are characterized systematically. The methylene blue (MB) and methyl orange (MO) are chosen as two model organic pollutants to evaluate the catalytic activity of nano-PAA-CuCl₂ in the Fenton-like reaction process. MB and MO are widely used and stable non-volatile industrial dyes; they belong to the most common organic pollutions. Some main reaction parameters affecting the Fenton-like reaction, e.g., the morphology of the catalyst, the initial concentration of H₂O₂, the initial pH of the reaction solution, and the reaction temperature, are systematically investigated. In addition, the stability and re-usability of the nano-PAA-CuCl₂ composite are examined.

2. Results and Discussion

2.1. Characteristics of Nano-PAA-CuCl₂ Composite

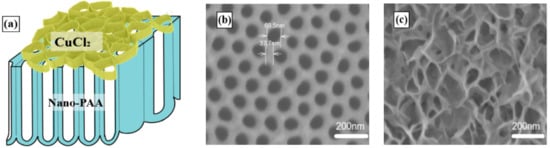

Figure 1 showed the image of nano-PAA-CuCl₂ composite. Figure 1a is a schematic diagram displaying the network of CuCl₂ nanoflakes grown on the top surface of the nano-PAA substrate. It can be seen that the nano-PAA template (as shown in Figure 1b) prepared by the standard two-step anodization method had uniformly distributed nanopores (~70 nm diameter) and pore interval space (~38 nm), and many discrete smaller individual nanoflakes on the surface of the nano-PAA substrate (Figure 1c), these nanoflakes are the similar size and interconnected each other.

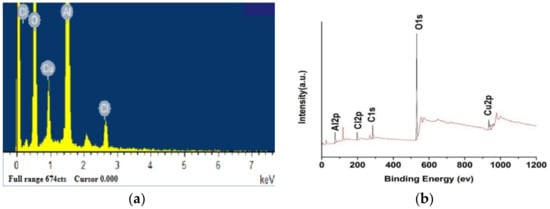

To verify the elemental composition of the nano-PAA-CuCl₂, catalyst samples were studied by EDS and XPS as shown in Figure 2 [27].

As seen from Figure 2a, the catalyst contained four main elements, namely O, Al, Cu and Cl. During the measurement, the X-ray beam could directly bombard the substrate nano-PAA due to the high voltage, and therefore, the basic elements of nano-PAA, namely Al and O, were also showed. In Figure 2b, it could be seen from the peak of the XPS lines that the nano-PAA-CuCl₂ catalyst contained five kinds of C, O, Al, Cl and Cu elements. The C element was caused by spraying carbon on the sample surface in order to increase the conductivity. The Cu 2p XP spectrum showed a spin-orbit split bimodal, and the binding energies of Cu 2p3/2 and Cu 2p1/2 were 934.8 eV and 954.8 eV, respectively, and the difference between them was 20 eV. The characteristics of Cu XPS were exactly the same as those of Cu (II), indicating that copper existed in the form of CuCl₂. O 1s XPS and Al 2p XPS revealed that O 1s and Al 2p were 531.6 eV and 74.4 eV, respectively, indicating that they formed Al₂O₃ by Al-O bond.

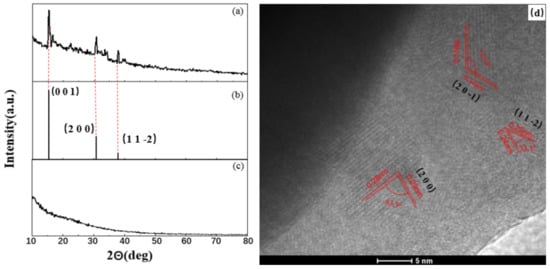

In order to determine the spatial structure of composite nano-PAA-CuCl₂, the technologies of XRD and TEM were employed, and results were shown in Figure 3. The nano-PAA-CuCl₂ material prepared by the initial concentration of 8 × 10⁻⁴ mol/L CuCl₂ solution.

It could be seen from Figure 3a, three peaks were detected at 2θ = 15.36, 30.64, 37.88. These spectra are the peaks of CuCl₂ as shown in Figure 3b, comparing with the JCPDS file data (CuCl₂, JCPDS no. 35-0690). In the spectrum as shown in Figure 3a, there was not found the peak of Al₂O₃, as a comparison, Figure 3c displayed the XRD characterization of the subtract nano-PAA film. Figure 3d was HRTEM micrograph of the nano-PAA-CuCl₂ catalyst. It could be observed that the lattice edges of the material are transparent, which indicates that the top layer CuCl₂ had a crystal structure. As shown by those red lines in Figure 3d, there were several different interplanar spacings and angles, which indicated that the top lay of nano-PAA-CuCl₂ film had different crystal grains and different crystal phases, that is, it was a polycrystalline structure. Comparing with Figure 3a, the spacing of each lattice fringe corresponded to the certain XRD result, that is, the 0.34 nm spacing corresponded to the (2 0 −1) crystal orientation, the 0.24 nm spacing corresponded to the (1 1 −2) crystal orientation, and the 0.28 nm spacing corresponded to the (2 0 0) crystal orientation. The competition between different phases and different growth directions led to the formation of CuCl₂ nanoflakes, and the nanoflakes grew in different directions to form an overall nanoporous structure.

2.2. Degradation of MB and MO Solution

2.2.1. Degradation Processes

Different treatments on the catalytic degradation of MB and MO were studied with the following comparison experiments: nano-PAA-CuCl₂, H₂O₂, or solid-state catalyst/H₂O₂ system. As a contrast, solid-state catalysts included two types, CuCl₂ particles and nano-PAA-CuCl₂ composite. All experiments were performed at room temperature and the initial solution pH = 3. Figure 4 displayed the degradation effects of different treatment processes.

For comparative studies and analysis, a set of blank experiments were performed to evaluate the degradation ability of the H₂O₂ or nano-PAA-CuCl₂ alone on the MB or MO in aqueous solution.

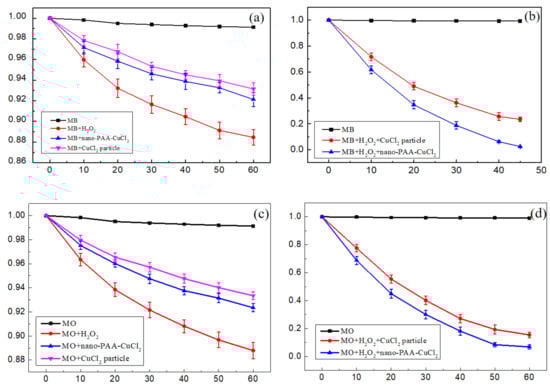

From Figure 4a,c, it can be clearly found without a solid-state catalyst, H₂O₂ only cause slight degradation of MB or MO, which might be attributed to its weaker ability to decompose HO•, and therefore cannot effectively degrade MB or MO [28,29]. Similarly, in the absence of H₂O₂, there was alone nano-PAA-CuCl₂ composite or CuCl₂ particles in the dye solution, the MB or MO solution also had no obvious degradation, which was attributed to the weak adsorption capacity of the catalyst itself. It is obvious that the degradation of MB or MO solutions was almost negligible without the solid-state catalyst/H₂O₂ system.

Figure 4b,d showed the catalytic activities of nano-PAA-CuCl₂ composite and CuCl₂ particles in the presence of H₂O₂, respectively. It could be found that the degradation of the MB or MO solutions had been significantly promoted by the nano-PAA-CuCl₂/H₂O₂ system or the CuCl₂ particles/H₂O₂ system. However, it should be noted that the degradation levels of MB or MO solutions with the CuCl₂ particle catalysts were lower than that of using the nanoPAA-CuCl₂ composite catalysts. These results indicated that the catalytic activities of the nano-PAA-CuCl₂ composites were better than that of the CuCl₂ particles.

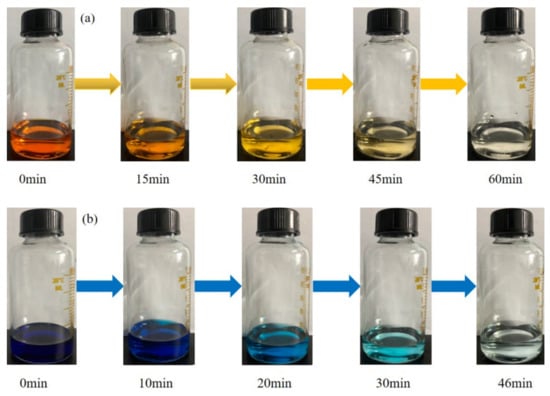

Figure 5 displayed a series of photographs of MO and MB solutions that were catalytically degraded in real-time by the nano-PAA-CuCl₂ composite/H₂O₂ system. It can be clearly seen that the color of the analyzed solutions changed from turbidity to discoloration, and became transparent within 60 min.

2.2.2. Influencing Factors about Degradation

The main factors affecting the degradation of organic pollutants MB and MO by the catalyst nano-PAA-CuCl₂ composite in the Fenton-like reaction process have been systematically studied and analyzed.

Effect of Spatial Structure of Nano-PAA-CuCl₂ Composite

The catalytic performance of the Fenton-like reaction is affected greatly by the catalyst spatial structure and surface morphology, and the adsorption and decolorization rate of dye wastewater depend partly on the catalyst structure properties [27].

In order to systematically study the effect of catalyst structure and morphology on the degradation of MB or MO solution, a series of nano-PAA-CuCl₂ catalysts with different morphologies and spatial structures were prepared according to the different initial concentration of CuCl₂ solutions, as shown in Figure 6. Decolorization reactions were carried out with these different composite nano-PAA-CuCl₂ catalysts, and Figure 7 displayed the corresponding degradation properties.

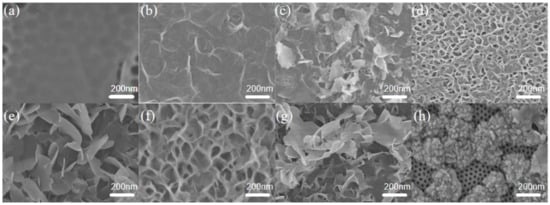

As shown in Figure 6a, when the initial concentration of the CuCl₂ solution was 1 × 10⁻⁴ mol/L, a large-area nanopore could be clearly seen on the top nano-PAA film, and only a little amount of sparse CuCl₂ material was covered on the surface. In Figure 6b, the catalyst was prepared by using initial concentration of 2 × 10⁻⁴ mol/L CuCl₂ solution. It was observed that large-area flocculation structures were formed and covered on the top surface of the nano-PAA film, but they were not interconnected to form independent nanoflakes. Figure 6c showed that when the concentration continued to increase to 3.5 × 10⁻⁴ mol/L, a layer of CuCl₂ film composed of independent nanoflakes had been formed, and the nanoflakes were independent of each other. As shown in Figure 6d, when the initial concentration of CuCl₂ solution was 5 × 10⁻⁴ mol/L, the nano-CuCl₂ film was uniform and covered the top surface of nano-PAA substrate, and the nanoflakes had gradually connected each other, a porous-like film had clearly formed. In Figure 6e, it could be found that there were many independent nanoflakes, although the shape and the size of these nanoflakes were different and the spatial structure was not uniform, when using an initial 6 × 10⁻⁴ mol/L CuCl₂ solution. Figure 6f showed that the composite nano-PAA-CuCl₂ when the initial CuCl₂ solution concentration was increased to 8 × 10⁻⁴ mol/L. It could be seen there were a great deal of nanoflakes with uniform structural size on the top surface of the nano-PAA substrate, these nanoflakes were combined to form a porous structure, and completely covered the upper surface nano-PAA film. However, when the initial concentration of the CuCl₂ solution was increased to 9 × 10⁻⁴ mol/L, the structure of the nano-film gradually became messy again, as shown in Figure 6g, and the shape and size of nanoflakes were different and not connected to each other. When the initial CuCl₂ solution was 1.5 × 10⁻³ mol/L, the structure and morphology of the nano-PAA-CuCl₂ composite was shown in Figure 6h, it could be found that the nano-particle structures were stacked on the upper surface of the nano-PAA substrate.

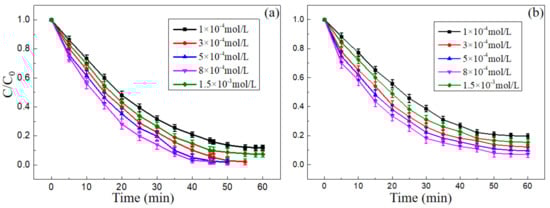

The decolorization performance of MB and MO reduced by the composite nano-PAA-CuCl₂ catalyst with different morphologies was investigated systematically. Figure 7 displayed the effect of catalytic spatial structure and morphology on degradation. As shown in Figure 7, the optimal degradation rates were achieved when the composite nano-PAA-CuCl₂ catalysts were used as shown in Figure 6d,f. The main reasons probably due to their large number of nanoflakes with uniform structures and sizes, and the large contact area with the solution by combined these nanoflakes to form a porous structure. These porous structures increased the contact surface area, thus increasing the adsorption of the reactants and providing more active sites for H₂O₂ activation. In the following experiments, the composite nano-PAA-CuCl₂ catalysts as shown in Figure 6f were chosen.

Effect of pH

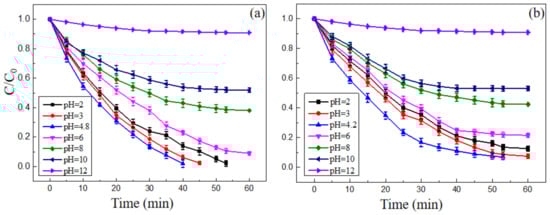

The Fenton reaction could usually achieve a better result under acidic conditions. The effect of initial pH of solution on the degradation of MB and MO was studied in a wide pH range (2–12) as shown in Figure 8. The experimental conditions were as follows: nano-PAA-CuCl2 composite catalyst was synthesized with 8 × 10⁻⁴ mol/L CuCl₂ solution at 30 °C; the initial H₂O₂ concentrations for MB and MO were 18 mM and 23 mM, respectively. It can be found from Figure 8, the pH value had a decisive influence on the Fenton-like reaction to degrade MB and MO.

As shown in Figure 8a, when the pH was 4.8, MB could be almost completely degraded in a relatively short period of time. Meanwhile, when pH was 2~4.8, MB could also be almost completely degraded rapidly. However, as the pH gradually increased to 12, the degradation rates of MB gradually decreased. Similarly, Figure 8b showed that the pH = 4.2 was the optimum value for degrading the MO pollutant solution. When the pH was 2~4.2, the MO solution could still be degraded efficiently. When the pH was gradually increased, the degradation rate of MO decreased, particularly, when the pH reached 12, the degradation of MO became negligible. These results could be attributed to the fact that the H₂O₂ was unstable in alkaline solutions and easily decomposed into oxygen and water, as expressed in Equation (1):

$${\mathrm{H}}_2{\mathrm{O}}_2\stackrel{\mathrm{pH}=12}{\to }{\mathrm{H}}_2\mathrm{O}+{\mathrm{O}}_2$$

(1)

From Figure 8, it can be observed that a suitable initial pH range for the solution was 2~8 to degrade the MB and MO, and when the pH was 4.8 or 4.2, the MB or MO solution had the best degradation effect, respectively. That is to say, the composite nano-PAA-CuCl₂ catalyst could perform an effective redox reaction over a wider pH range.

Effect of H₂O₂ Concentration

The concentration of H₂O₂ had a great influence on the results of the Fenton-like reaction. The oxidations of MB and MO with 8 × 10⁻⁴ mol/L nano-PAA-CuCl₂ composite and different H₂O₂ concentration at pH 3.0 were investigated as shown in Figure 9.

In the Fenton-like reaction process, the degradation of MB or MO solution was dominantly caused by the hydroxyl (HO•) generated by the decomposition of H₂O₂, which could be expressed as Equations (2) and (3) [30].

$$\mathrm{Cu}\left(\mathrm{II}\right)+{\mathrm{H}}_2{\mathrm{O}}_2\to \mathrm{Cu}\left(\mathrm{I}\right)+{\mathrm{HO}}_2+{\mathrm{H}}^{+}$$

(2)

$$\mathrm{Cu}\left(\mathrm{I}\right)+{\mathrm{H}}_2{\mathrm{O}}_2\to \mathrm{Cu}\left(\mathrm{II}\right)+{\mathrm{OH}}^{-}+\mathrm{HO}•$$

(3)

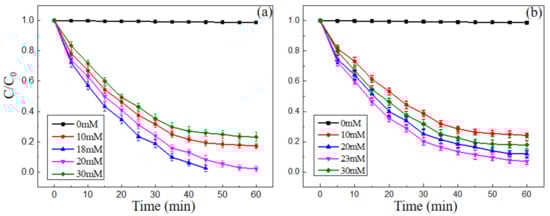

Figure 9 displayed the degradation rates of MB and MO when the initial concentration of H₂O₂ was varied from 0 to 30 mM. The experimental conditions were initial pH of 3, nano-PAA-CuCl₂ catalyst concentration of 8 × 10⁻⁴ mol/L and 30 °C. It could be seen that when the initial concentration of H₂O₂ was increased from 10 mM to 18 mM, the MB degradation rate increased from 80.9% to 97.1% at 46 min (Figure 9a), and the MO degradation rate increased from 75.8% to 92.7% at 60 min when the initial concentration of H₂O₂ was increased from 10 mM to 23 mM (Figure 9b). However, it should be noted that when the H₂O₂ concentration was further increased to 30 mM (data not shown), both the degradation rates of MB and MO did not increase but decreased. Therefore, in the following experiments, the 18 mM or the 23 mM was selected as the H₂O₂ concentration to effectively degrade MB or MO.

Effect of Temperature

In general, the kinetic constant has an exponential relationship with temperature [28], so the chemical reaction accelerates as the temperature increases. In the Fenton-like system, the reaction processes are always more complicated, there are forward reactions, but also reverse reactions. The increase of temperature can not only accelerate the progress of a forward reaction, but also enhance a reverse reaction. In addition, high temperature has severe limitations in practical applications. Thus, the effect of temperature on Fenton-like reaction treatment of wastewater is more complicated and need to be further investigated seriously.

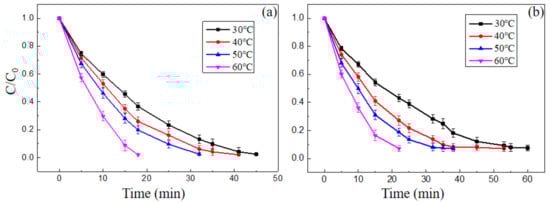

Figure 10 showed the degradation rate of MB and MO at different temperatures, H₂O₂ concentration was 18 mM or 23 mM, composite nano-PAA-CuCl₂ synthesized with 8 × 10⁻⁴ mol/L CuCl₂ solution and initial pH was 3.

As shown in Figure 10, the decolorization reaction were proceeded at different temperatures ranged from 30 °C to 60 °C. During the reaction process, no higher temperatures were used because excessively high temperatures were more limited in practical applications and might cause the decomposition of H₂O₂ into O₂ and HO₂, which would weaken the efficiency of the oxidation reaction [31].

In Figure 10a, it can be found that the MB solution was completely degraded after 46 min, 41 min, 32 min and 18 min at temperatures of 30 °C, 40 °C, 50 °C and 60 °C, respectively. That is, the degradation rate was increased as the working temperature increased. Similarly, as the temperature increased, the degradation rate of the MO solution also increased as shown in Figure 10b. A more reasonable explanation for the above results is that as the working temperature increased, both the amount and generation rate of HO• produced by the nano-PAA-CuCl₂/H₂O₂ system increased, so the decolorization process was completed quickly. The degradation rate of MB or MO solution quantitatively increased with the increase of the kinetic rate, complying with the Arrhenius equation, i.e., an exponential law of reaction rate. Therefore, the working temperature was appropriately raised, the catalytic activity of nano-PAA-CuCl₂/H₂O₂ system would be greatly improved, as a result, the degradation time was greatly reduced.

2.3. Reusability of Nano-PAA-CuCl₂ Catalyst

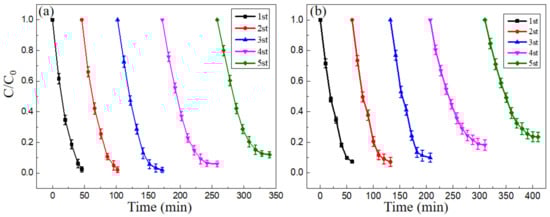

Reusability is one of the most important factors for evaluating the performance of catalyst in practical applications of Fenton-like reactions. A series of experiments should be performed in order to evaluate the reusing possibility of the prepared catalyst. The reusability of the nano-PAA-CuCl₂ composite was examined by repeating the catalytic reaction several times under the same working conditions. Figure 11 showed the degradation rates of the nano-PAA-CuCl₂ catalyst for MB solution (Figure 11a) and MO solution (Figure 11b) during cyclic experiments. In the experiments, the nano-PAA-CuCl₂ composite catalyst was firstly taken out from the solution by filtration after each degradation process completed, and then washed and dried before used in the next cycle experiment. Experimental data as shown in Figure 11 clearly indicated the nano-PAA-CuCl₂ composite catalyst had excellent reusability.

From Figure 11, it can be found that the new catalyst could be recycled in the Fenton-like reaction processes to degrade the organic pollutants of MB and MO. Specifically, the MB solutions could be completely degraded (100%) for three times, and the MO solutions could be almost completely done for two times (~95%). Moreover, when the composite nano-PAA-CuCl₂ catalyst was repeatedly used, even for the fifth time in a row, it still maintained a high degradation rate (about 90% for MB and ~80% for MO), although the degradation time increased.

2.4. Degradation Mechanism of Nano-PAA-CuCl₂/H₂O₂ System

2.4.1. Detecting Cu⁺ Ions (Cu (I))

In the Fenton-like reaction, the metal ion-containing catalyst generally has two valence states that inter converted into each other and can react with H₂O₂ to promote a strong oxidative radical which will degrade organic pollutants.

In order to accurately judge and understand the chemical reaction that occurred during the degradation of pollutants (MB or MO) caused by the nano-PAA-CuCl₂ composite, the bicinchoninic acid (BCA) method was used to monitor the change of Cu(I) during the reaction process, the absorption spectra were shown in Figure 12.

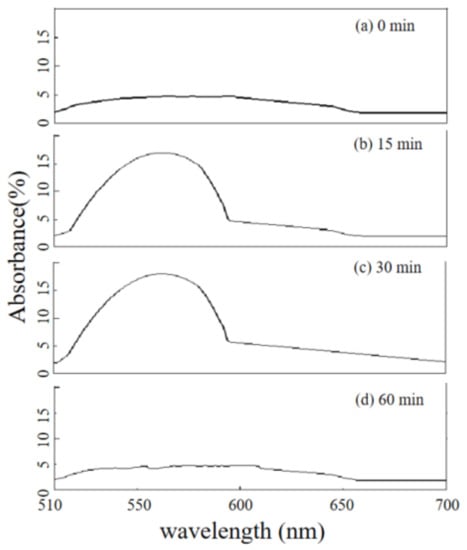

It is well known that BCA can form a complex with Cu(I), and a trace amount of Cu(I) ions can be determined by measuring complex absorbance at 562 nm [32]. During experiments, about 10 mL H₂O₂ (18 mM) solution and MO solution was added to a dedicated beaker, and the nano-PAA-CuCl₂ composite was added to start up the redox reaction. This solution was used as the blank reagent. Then an appropriate amount of BCA reagent was added into the beaker. The color and absorption spectra of the solution were monitored with the spectrophotometer, and the UV-vis absorption spectra were recorded every 15 min to determine whether Cu (I) ions being contained. Form Figure 13, it can be observed clearly that at the beginning of the experiment (Figure 12a), there was no significant enhance in absorbance around 562 nm, indicating that the solution did not contain Cu (I) ions, thus the Fenton-like reaction did not occur. When the reaction continued to 15 min (Figure 12b), a significant increase in absorbance near 562 nm was detected, indicating that Cu (I) ions were present in the solution and a Fenton-like reaction had been occurred. Keeping the same conditions until 30 min (Figure 12c), Cu (I) ions could still be detected, revealing the Fenton-like reaction was still proceeding. When the reaction was lasted for 60 min (Figure 12d), Cu (I) ion was almost no longer detected in the solution, indicated that the Fenton-like reaction had been completed.

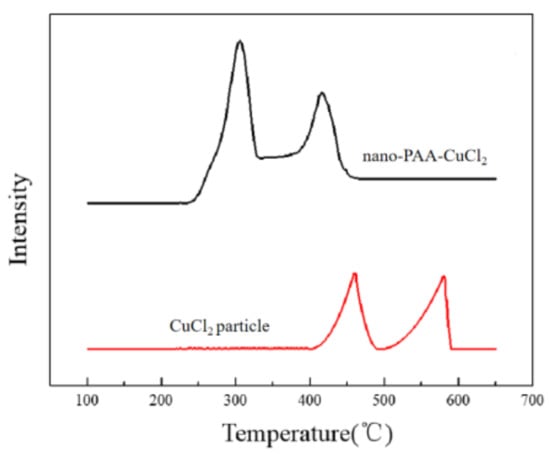

The redox activity can be analyzed with the H₂-TPR method. Figure 13 displayed the H₂-TPR profiles of nano-PAA-CuCl₂ composite. For comparison, the H₂-TPR curve of CuCl₂ particle was also measured. In general, in a Fenton-like reaction system, metal ions were converted between different chemical valence states, such as the mutual transformation between Cu(II) and Cu(I) [33].

As shown in Figure 13, there were two peaks at 310 °C and 415 °C, which indicated a two-step reduction of the nano-PAA-CuCl₂ composite catalyst. The reduction peak at 310 °C corresponded to the reduction of the Cu (II) to the Cu (I), and the reduction peak at 415 °C corresponded to the Cu (I) reduced to the Cu (0). It could be seen in Figure 13 that the reduction peaks of CuCl₂ particles were also two peaks, i.e., 460 °C and 580 °C, Rouco has reported the similar result [34]. Compared with the nano-PAA-CuCl₂ composite, the position and shape of reduction peaks in the H₂-TPR curve of CuCl₂ particles were different. These H₂-TPR curves indicated that the nano-PAA-CuCl₂ catalyst had higher redox activity.

2.4.2. Catalytic Mechanism

About the Fenton catalytic degradation of MB or MO with nano-PAA-CuCl₂/H₂O₂ system, copper ions reacted with H₂O₂ to catalyze the production of (HO•) [35]. During the heterogeneous Fenton-like catalytic degradation, the interaction process among the nano-PAA-CuCl₂, H₂O₂ and MB or MO was schematically illustrated in Figure 12. During the Fenton-like reaction, the HO• produced by the interaction between H₂O₂ and catalyst degraded the organic dye contaminants into CO₂ and H₂O.

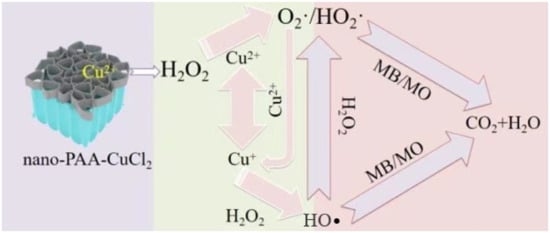

As shown in Figure 14, the decolorization reaction had two main effective processes, namely the ability to effectively degrade and recycle. The reaction process could be described as the following equations:

$$\mathrm{Cu}\left(\mathrm{II}\right)+{\mathrm{H}}_2{\mathrm{O}}_2\to {\mathrm{CuOOH}}^{+}+{\mathrm{H}}^{+}$$

(4)

$${\mathrm{CuOOH}}^{+}\to \mathrm{Cu}\left(\mathrm{I}\right)+{\mathrm{O}}_2·+{\mathrm{H}}^{+}$$

(5)

$$\mathrm{Cu}\left(\mathrm{II}\right)+{\mathrm{HO}}_2·\to \mathrm{Cu}\left(\mathrm{I}\right)+{\mathrm{O}}_2+{\mathrm{H}}^{+}$$

(6)

$$\mathrm{Cu}\left(\mathrm{II}\right)+{\mathrm{O}}_2·\to \mathrm{Cu}\left(\mathrm{I}\right)+{\mathrm{O}}_2$$

(7)

During the degradation process, Cu (I) reacted with H₂O₂ to form HO• (Equation (3)). After the nano-PAA-CuCl₂ catalyst was mixed with H₂O₂ in the dye solution, a hydroperoxide was first formed by a reduction reaction of Cu (II) (Equation (4)). Subsequently, CuOOH⁺ was decomposed into Cu (I) and superoxide anion (O₂•), such as Equation (5) [30]. At the same time, Cu (II) reacted with the hydroperoxide radicals. (HO₂•) and superoxide radical anion (O₂•) produced in Equations (4) and (5) to form Cu (I) (Equations (6) and (7)). In this type of Fenton reaction, HO₂• and O₂• were important intermediates for the conversion of Cu (II) to Cu (I) [36]. HO₂• and O₂• could also played a weak role in the degradation of MB/MO solution, but the reactivity of HO₂• and O₂• was much lower than that of HO•. Finally, Cu (II) could also be produced during the reaction of Cu (I) with H₂O₂ to form HO•, and a cyclic reaction was formed. Therefore, the Cu (II)/H₂O₂ system and the Cu (I)/H₂O₂ system construct a catalytic cycle [27].

It is evident from all the above that the nano-PAA-CuCl₂/H₂O₂ system exhibited high activity and stability during the degradation of MB or MO, mainly due to its large specific surface area and the coexistence of Cu (II)/Cu (I) during the reaction. The interaction of H₂O₂ with the surface of the copper dichloride caused the formed beta-HO• radicals to attack the adsorbent or contaminants in the aqueous phase. That was to say, the high efficiency of the Fenton catalytic reaction of the nano-PAA-CuCl₂/H₂O₂ system might be the result of a combination of physical adsorption and chemical reaction. The nano-PAA-CuCl₂ composite catalyst had many micropores/nanopores, this distinctive spatial structure ensured that it could physically adsorb a large amount of organic dye contaminants.

The Fenton-like reaction kinetics could be described as: C/C₀ = exp(−kt) with the advancement of the catalytic degradation of MB of MO by the nano-PAA-CuCl₂/H₂O₂ system. Where k was the observed first-order reaction rate constant (min⁻¹), t was the reaction time (min), C₀ was the initial concentration of MB or MO (mg/L), and C was the concentration (mg/L) of MB or MO. Figure 14 showed the relationship between −ln(C/C₀) versus time t.

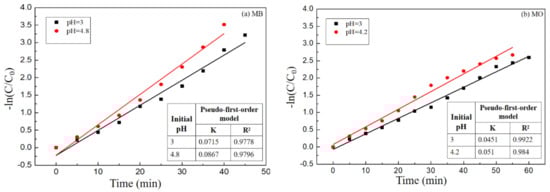

The order of reaction with respect to MB (Figure 15a) or MO (Figure 15b) could be determined with the regression analysis. It could be seen from Figure 15 that the −ln(C/C₀) − t was highly consistent with y = kx + b, so these Fenton-like reactions conformed to the pseudo-first-order kinetic equation, the correlation coefficient R² was close to 0.98. In fact, all the catalytic degradation of MB or MO with nano-PAA-CuCl₂/H₂O₂ system, the reaction kinetics can be described as the Equation: C/C₀ = exp(−kt), the curves of C/C₀ with time as shown in Figure 7 to Figure 11 are all well consistent with the equation, i.e., the kinetics of oxidation degradation of MB or MO followed the pseudo-first-order equation.

3. Materials and Methods

3.1. Materials

Copper dichloride (CuCl₂, Shengao Chemical Reagent Co., Ltd., Xi’an, China), Hydrogen peroxide (H₂O₂, 30%, v/v, Damao Chemical Reagent Factory, China), Oxalic acid (C₂H₂O₄, Tianli Chemical Reagent Co., Ltd., Tianjin, China), Methylene blue and methyl orange (MB and MO, Sigma-Aldrich Shanghai Trading Co., Ltd., Shanghai, China), Bicinchoninic acid (BCA, Aladdin Industrial Corporation, Shanghai, China), are all chemically pure. The metal aluminum films (99.999%, Beijing Non-ferrous Metal Co., Ltd., Beijing, China) are super-purity. All experimental solutions are prepared with deionized (DI) water.

3.2. Preparation of Nano-PAA-CuCl₂ Composites

The preparation of the composite nano-PAA-CuCl₂ can be described simply as the following two steps [37]. Firstly, the substrate nanoporous anodic alumina (nano-PAA) was synthesized with the standard two-step anodization method [38]. In this process, 0.3 mol/L oxalic acid was used as the oxidizing electrolyte, oxidation voltage was 40 V, the time of the first and second oxidation was 1 h and 2 h respectively, the time of removing primary membrane was 1 h, the time of widening pore was 1.5 h, and the back aluminum layer was removed by the CuCl₂ solution. Secondly, a CuCl₂ nanoflake film was grown on the upper surface of the nano-PAA substrate by the self-assembled method [39], i.e., a certain concentration of CuCl₂ solution (ranging from 1 × 10⁻⁴ mol/L to 1.5 × 10⁻³ mol/L) was dropped onto the surface of the nano-PAA substrate until the inside pores of nano-PAA film were filled, then the CuCl₂ nanoflake film grew up with the self-assembled method at room temperature for more than 7 days in a closed clean environment.

3.3. Sample Characterizing

The morphologies of nano-PAA and nano-PAA-CuCl₂ were all characterized by a field emission scanning electron microscope (FE-SEM, Hitachi-SU8010, Hitachi Works, Ltd., Tokyo, Japan) and the spatial structure with a high-resolution transmission electron microscopy (HRTEM Tecnai G2 F20, FEI, Hillsboro, OR, USA). Energy-dispersive spectrometer (EDS, JEM-2100, Japan Electronics Corporation, Tokyo, Japan) was employed to detect the elements contained in the composite catalysts. Temperature-programmed reduction (TPR, Quantachrome-Autosorb-iQC-TPX, Florida, FL, USA) was used to detect the redox capacity of the catalysts. the structure of samples was characterized with a X-ray diffraction (XRD, 6100, Shimadzu Corporation, Tokyo, Japan), the scanning range is 20–80°, scanning rate is 6°/min. The degradation of MB and MO was monitored by measuring the absorbance in real time with a UV-vis spectrophotometer (UV-vis, DS-11, DeNovix Inc, Wilmington, DE, USA). The concentrations of MB and MO were determined based on the constructed calibration curves at maximum absorption wavelength (λ_max = 665 nm and λ_max = 465 nm, respectively). A pH meter (PB-10, Sartorius Instrument System Co., Ltd., Göttingen, Germany) was employed to check the pH values of solutions.

3.4. Decolorization

In order to eliminate the influence of external factors on the experiment, all the decolorizations were carried out in a darkness clean laboratory at ambient temperature, and each experiment was completed three times at least. The UV-vis absorbance readings were taken using the spectrophotometer at λ_max = 665 nm for MB and λ_max = 465 nm for MO. In the decolorization experiments, a quantitative composite nano-PAA-CuCl₂ catalyst was added to a 10 mL dye solution with 50 mg/L concentration. After reaching the equilibrium, about 5 mL H₂O₂ was added to drive the decolorization progress. During the degradation, a little intermixture was taken every 2 min and immediately centrifuged, and then measured and analyzed with the UV-vis spectrophotometer. To test the stability and recyclability of nano-PAA-CuCl₂ catalyst, after the applied catalyst being filtered, washed and dried, the next identical decolorization cycle was repeated. The degradation degrees of MB and MO were characterized by the parameter (C/C₀), which defined as the ratio of the post-degradation concentration (C) to the pre-degradation concentration (C₀).

4. Conclusions

A new composite of nano-PAA-CuCl₂ nanostructure film, a network porous CuCl₂ nanoflake film grown on the upper surface of nano-PAA substrate, was fabricated by self-assembly approach and used as a catalyst for degradation of organic pollutants such as MB and MO solutions in the Fenton-like reaction. The characteristics of composition, surface morphology and space structure of nano-PAA-CuCl₂ were systematically determined with various methods, e.g., EDS, XPS, HR-TEM, XRD and FE-SEM. The new composite nano-PAA-CuCl₂ had controllable three-dimensional network porous nanostructures, and stable physical and chemical properties.

The degradation of the MB and MO solution with the nano-PAA-CuCl₂ composite in the Fenton-like reaction was monitored in real time, and various factors affecting the catalytic reaction, for example, the initial pH, H₂O₂ concentration, catalyst morphology and working temperature, were investigated in detail. Under the optimum conditions, i.e., with 8 × 10⁻⁴mol/L nano-PAA-CuCl₂ catalyst, at 30 °C and appropriate H₂O₂ 18 mM reagent, MB solution and MO solution could be completely degradation. And composite nano-PAA-CuCl₂ had good recyclability and stability. In particular, the MB solutions could be degraded completely (~100%) for three times, and the MO solution had been almost completely done for two times (~95%). Moreover, when the composite nano-PAA-CuCl₂ catalyst was continuously used repeatedly, even in the fifth time, it still maintained a high degradation rate (about 90% for MB and ~80% for MO). The main reasons can be attributed to the new nanoporous materials have a larger specific surface area and more active sites, which can greatly improve the removal efficiency of pollutants and realize deep removal of organic pollutants in wastewater. Besides improving the catalytic activity, the nano-PAA-CuCl₂ catalyst broadened the effective pH range of the reaction solution; the Fenton-like reaction was carried out without an acidification process which is another important advantage. In addition, the catalytic degradation mechanism of MB and MO by the nano-PAA-CuCl₂/H₂O₂ system conformed to the pseudo-first-order equation, based on the experimental data of the BCA and the H₂-TPR and theoretical analysis.

The network nano-PAA-CuCl₂ composite and preparation technology as well as its application in the Fenton-like reaction have excellent advantages, such as easy separation and recovery, higher degradation rate, lower H₂O₂ dosage, wider working pH range and multiple reusability, which will provide an effective alternative way with practical application significance for wastewater treatment.
