Ionic Liquid Catalyzed Per-O-Acetylation and Benzylidene Ring-Opening Reaction

by
Mayur Thul
1,
Yao-Peng Wu
1,
Yi-Jyun Lin
1,
Shu-Lin Du
2,
Hsin-Ru Wu
3,
Wen-Yueh Ho
4,* and
Shun-Yuan Luo
1,*
1
Department of Chemistry, National Chung Hsing University, Taichung 402, Taiwan
2
Department of Chemistry, Shu Guang Girl’s Senior High School, Hsinchu 300, Taiwan
3
Instrumentation Center, MOST, National Tsing Hua University, Hsinchu 30013, Taiwan
4
Department of Cosmetic Science and Institute of Cosmetic Science, Chia Nan University of Pharmacy and Science, Tainan 717, Taiwan
*
Authors to whom correspondence should be addressed.
Catalysts 2020, 10(6), 642; https://doi.org/10.3390/catal10060642
Submission received: 30 April 2020 / Revised: 30 May 2020 / Accepted: 1 June 2020 / Published: 8 June 2020
(This article belongs to the Section Environmental Catalysis)
Browse Figures
Review Reports Versions Notes

Abstract

:
Tunable aryl imidazolium ionic liquids acting as Brønsted acid ionic liquids were found to be efficient catalysts for per-O-acetylation and reductive ring opening of benzylidene acetals. This method requires a truly catalytic amount of the least expensive available ionic liquids that are water-stable and reusable and also stable at room temperature. The reactions were obtained in one hour with good to excellent yields. These reactions can form C−O and C−H bonds with a high atom economy. Furthermore, the ionic liquid is an anomeric selective catalyst in per-O-acetylation and reductive ring opening of benzylidene acetals of sugar moieties.

Graphical Abstract

1. Introduction

Regioselectively functionalized carbohydrates have recently become an important development in glycochemistry and glycobiology. Sugar molecules consist of several hydroxyl groups that are difficult to employ selectively as they have similar reactivity profiles. Therefore, methodologies that accomplish potent protection and selective alteration of monosaccharides are fundamental synthetic appliances in organic chemistry [1]. The use of distinctive hydroxyl groups in selective protection of carbohydrate molecules is a key step in the chemical synthesis of complex carbohydrates. Per-O-acetylation of sugars is an essential intermediate in carbohydrate transformation and synthesis [2]. In this respect, the ring-opening of cyclic benzylidene acetals comparable to O-benzyl ethers, in a regioselective aspect, is a favorable path owing to the ease of formation of the acetal, as well as the well-established quality of the benzyl ether protection [3]. One major and important transformation in carbohydrate chemistry is the acetylation of monosaccharides. In particular, per-acetylated carbohydrates are imperative and convenient intermediates in the chemical synthesis of complex carbohydrates, particularly for chemical glycosylation. Per-O-acetylated sugars can be employed directly as glycosylation donors [4,5]. Per-O-acetylation is one of the most commonly utilized reactions in carbohydrates, mainly for primary protection of sugars. The acetylation reaction is commonly performed using acetic anhydride as the reagent and an array of catalysts. However, the surplus of acetic anhydride as a solvent causes tedious work in the neutralization process. A ring conformation that can fix benzylidene acetals either oxidatively or reductively is a favorable protective group in carbohydrate [6,7]. The reductive ring opening of benzylidene acetals is an essential reaction in this context and has been very useful in the selective manipulation of neighboring hydroxyls in polyols. The first reagent utilized for affecting this conversion was LiAlH4–AlCl3 [8,9,10,11,12,13,14]. The benzylidene sugar can form two regiospecific benzyl ethers by the reductive ring-opening reactions [15,16,17,18]. Various Lewis acid catalysts, such as InCl3 [19], In(OTf)3 [20], ZnCl2 [21], Sc(OTf)3 [22], TMSOTf [23], Cu(OTf)2 [24], and triphenyl carbenium tetrafluoroborate [25], have been introduced for the acid-catalyzed per-O-acetylation and reductive ring opening of benzylidene acetals of sugars. However, these catalysts also undergo significant shortcomings, such as an expensive reagent, long reaction time, and harsh reaction conditions. Solid acid catalysts can relieve these problems, as they are cheap and allow the straightforward deportation of the catalysts from the reaction system [26,27,28,29,30]. The function of ionic liquids (Ils) as environmentally favorable reaction solvents for synthesis and catalysis has received broad recent consideration [31,32,33,34]. Per-O-acetylation of sugars catalyzed by ionic liquids such as dicyanamide based ionic liquid, zinc-based ionic liquid, and dialkyl imidazolium benzoates ionic liquid were studied [35,36]. This work reports a systematic screen of selected ionic liquids (Ia–If, Scheme 1) The Brønsted–Lowry acid as catalysts for a per-O-acetylation of d-glucose and regioselective ring opening of benzylidene acetals at the O-4 position of glucopyranoside. These ionic liquid catalysts have, to the best of our knowledge, not been previously utilized in this transformation. The imidazolium-based ionic liquids are synthesized as a novel type of ionic liquid, which acts as a Brønsted acid catalyst for both per-O-acetylation and benzylidene ring-opening reactions, is moisture-insensitive, stable at room temperature and reusable.

2. Results and Discussion

Selective per-O-acetylation of d-glucose (1a) was explored as a model compound. Treatment of compound 1a with acetic anhydride (10 equiv.) in the presence of ionic liquid Ia (0.1 equiv.) at room temperature proceeded to completion of the reaction in one hour (Table 1, entry 1). Under these conditions, the product 1,2,3,4,6-penta-O-acetyl-d-glucopyranoside (2a) was obtained in 99% yield respectively. Subsequently, ionic liquids Ib, Id, Ie, and If (Scheme 1) were investigated in this transformation. Under the same conditions as described above, these catalysts provided per-O-acetylation 2a in good to excellent yields (Table 1, entry 2, 4, 5, and 6). However, Ic did not proceed with the reaction smoothly, and achieved a 29% yield of 2a (Table 1, entry 3), because of the weak acidity of the Ic.

2.1. Per-O-Acetylation

The study of the ionic liquid suggested that Ia was the best catalyst for the per-O-acetylation reaction, providing 2a in excellent yield. The reaction was routinely monitored using TLC and produced 2a after applying purification compounds. Based on these preliminary results, the acetic anhydride loading was explored. To determine the minimum amount of acetyl reagent required, we used 7.5 equivalents and 6.0 equivalents of acetic anhydride with ionic liquid for 24 h (Table 1, entry 10). Increasing the temperature to 80 °C resulted in the formation of selective 2a in an isolated yield of 92% in very short reaction time (Table 1, entry 11).
The scope, limitations, and generality of the method were explored. Table 1 shows the per-O-acetylation of other important d-hexoses 1b–1d, d-pentose 1e, and disaccharide 1f under this set of optimized conditions. d-galactose 1b readily provided the corresponding penta-acetate 2b quantitatively (Table 2, entry 1), whereas d-mannose 1c afforded product 2c in excellent yield 93% (Table 2, entry 2). Reducing the equivalent of acetic anhydride to 4.8 equivalents led to a similar result in the case of methyl glucopyranoside 1d, and the expected compound 2d was isolated in 99% yield (Table 2, entry 3). Equally, d-xylose 1e led to exclusive formation of the corresponding product 2e in 97% yield (Table 2, entry 4) and increasing the equivalent of acetic anhydride, the substrate 2f produced compound 1f in 96% yield (Table 2, entry 5), respectively.

2.2. Reusability of TAIIL for Per-O-Acetylation of d-Glucose

The anticipation of ionic liquid as a solvent replacement, especially on broad proportion application, counts on the usage of potent recycling to help blunt costs and curtail their environmental impact. In the reaction of 1a with acetic anhydride in the presence of Ia to form 2a. After the filtration of the reaction mixture and the extraction of the product with ethyl acetate for ionic liquid, the ILs were concentrated, dried under a high vacuum, and reused. Figure 1 shows five cycles of the acetylation in ILs that are recovered and reused for further per-O-acetylation reactions. No significant loss of activity of these products was observed (91–99%). After reuse of ionic liquid Ia, 19F NMR confirmed that ionic liquid remains in the aqueous phase.
The plausible mechanism (Scheme 2) of the reaction appears to be through the acylium intermediate formed by the reaction of Ionic liquid and Ac2O. The acylium intermediate would be able to acetylate the free alcohol moieties very efficiently. After starting material 1 reacted with the acylium intermediate to form 1’ the Ia’ abstracts the proton from 1’ to form acetylated compound 2.

2.3. Reductive Ring Opening of Benzylidene Acetals

This investigation reports a systematic screen of selected ionic liquids (Ia–If, Scheme 1) as catalysts for a regioselective ring opening of benzylidene acetals at the O-4 position of hexopyranosides. Those ionic liquid catalysts have, to our knowledge, not previously been utilized in this transformation. The reaction conditions using the best ionic liquid catalysts were optimized to provide a robust and reliable procedure. The O-4 selective ring-opening reaction was selected for optimization. Initially, sugar 3a was accepted as an excellent substrate. Firstly, 3a with ionic liquid, Ia (1.0 equiv.), and triethylsilane (10.0 equiv.) were used in dichloromethane (DCM) at room temperature. The expected product 4a was assembled, then the reaction mixture was treated with tetra-n-butyl ammonium fluoride (TBAF, 11.0 equiv.) and acetic acid (AcOH, 11.0 equiv.) at room temperature for one hour, providing 4a in 78% yield (Table 3, entry 1). Screening results of ionic liquids (Table 3, entry 2−6) indicated that Ia was superior to Ib–If, probably due to weak acidity of ionic liquid Ib–If.
Performing the reaction with ACN as the solvent yielded 88% of the product 4a (Table 3, entry 7). Decreasing the ionic liquid catalyst to 0.5 and 0.25 equivalents yielded product 4a in 90% and 77% yield respectively (Table 3, entry 8–9).
The optimized conditions were examined. Thus, compounds commonly used in carbohydrate chemistry with different protection groups were tested in this transformation. As indicated in (Table 4, entry 1), the corresponding product 4b was obtained in excellent yield after increasing reaction time. Under the same optimized condition, 3c was transformed into 4c as the only product (Table 4, entry 2). In the subsequent reaction, with a longer reaction time of 8h, 3d was converted into 4d with a 72% yield (Table 4, entry 3). However, the reaction of 3e afforded 4e as the final compound in good yield (Table 4, entry 4).
The plausible mechanism (Scheme 3) shows that acetals oxygen (O-4) 3 abstract a proton from ionic liquid Ia to form the intermediate 3’, which should then have converted to intermediate a. Then, the addition of Et3SiH to form the 3a. Finally, the treatment of tetra-n-butylammonium fluoride (TBAF) and acetic acid with a’ to obtain the desired product 4, with the removal of triethylsilyl fluoride (TESF).

3. Materials and Methods

3.1. Synthesis of Ionic Liquid

The preparation of ionic liquids Ia–If (Scheme 4) is described below. Ionic liquids Ia–If were synthesized in two steps. The first step is the Ullmann-type coupling reaction: a combination of imidazole A and 1-iodo-4-nitrobenzene B in the presence of 10 mol % copper(II) acetate and cesium carbonate gave aryl imidazole C1, C2, C3, C4 in 74%, 80%, 76%, and 88% yields respectively. In the second step, the aryl imidazole C1, C2, C3, C4 was dissolved in ethanol and treated with triflic acid, methane sulfonic acid, or trifluoroacetic acid in an ice bath to yield acidic ionic liquids Ia–If. For the characterization of ionic liquids, we check the Hammett acidity function using crystal violet dye as a reacting dye to check the acidity of ionic liquid Ia–If (See Supplementary Materials).

3.2. General Procedure

To a solution of C1, C2, C3, C4 (1 equiv.) and triflic acid, trifluoro methanesulfonic acid, and trifluoroacetic acid (2 equiv.) in ethanol (0.5 mL/mmol). The reaction mixture was stirred for two hours in an ice bath. The solvent was dried and the reaction mixture was washed with ether several times. The solvent was dried to give Ia–Ic as a yellow solid and Id–If as a white solid.
1-(4-Nitrophenyl)-1H-imidazole-3-ium trifluoromethanesulfonate (Ia). 1H NMR (400 MHz, CD3OD) δ 9.30 (m, 1H), 8.18 (m, 2H), 7.91 (dd, J = 10.0, 8.4, Hz, 1H), 7.76 (m, 2H), 7.54 (d, J = 3.6 Hz, 1H); HRMS (ESI, M + Na+) calcd for C16H22O11Na 190.0618, found 190.0616.
1-(4-Nitrophenyl)-1H-imidazole-3-ium methanesulfonate (Ib). 1H NMR (400 MHz, Methanol-d4) δ 9.53 (m, 1H), 8.38 (m, 2H), 8.11 (m, 1H), 7.93 (m, 2H), 7.72 (m, 1H).
1-(4-Nitrophenyl)-1H-imidazole-3-ium trifluoromethaneacetate (Ic). 1H NMR (400 MHz, CD3OD) δ 9.35 (s, 1H), 8.16 (m, 2H), 7.94 (s, 1H), 7.74 (m, 2H), 7.54 (s, 1H).
Phenyl-1H-imidazole-3-ium trifluoromethanesulfonate (Id). 1H NMR (400 MHz, CD3OD) δ 9.42 (s, 1H), 8.06 (s, 1H), 7.75 (m, 3H), 7.64 (m, 3H); HRMS (ESI, M + Na+) calcd for C16H22O11Na 145.07653, found 145.07657.
1-(p-Tolyl)-1H-imidazole-3-ium trifluoromethanesulfonate (Ie). 1H NMR (400 MHz, CD3OD) δ 9.37 (d, J = 1.2 Hz, 1H), 8.01 (d, J = 1.2 Hz, 1H), 7.74 (s, 1H), 7.59 (d, J = 7.6 Hz, 2H), 7.44 (d, J = 8.0 Hz, 2H), 2.44 (s, 3H); HRMS (ESI, M + Na+) calcd for C16H22O11Na 159.09247, found 159.09222.
1-(4-Methoxyphenyl)-1H-imidazole-3-ium trifluoromethanesulfonate (If). 1H NMR (400 MHz, CD3OD) δ 9.30 (s, 1H), 7.96 (m, 1H), 7.73 (d, J = 1.6 Hz, 1H), 7.64 (dd, J = 6.8, 2.0 Hz, 2H), 7.14 (m, 2H), 3.87 (s, 3H); HRMS (ESI, M + Na+) calcd for C16H22O11Na 175.08719, found 175.08714.

3.3. General Information

The reactions were conducted in flame-dried glassware, beneath the N2 atmosphere. Acetonitrile and dichloromethane were refined and dried from a secure purification system containing activated Al2O3. All reagents were obtained from good-value sources and were nor purified unless otherwise mentioned. Flash column chromatography was enforced to Silica Gel 60. Thin-layer chromatography (TLC) was performed on precoated glass plates of Silica Gel 60 F254 disclosure was accomplished by spraying with a solution of Ce(NH4)2(NO3)6 (0.5 g), (NH4)6Mo7O24 (24.0 g) and H2SO4 (28.0 mL) in water (500.0 mL) and heating on a hot plate. Optical rotations were measured at 589 nm (Na), 1H and 13C NMR were recorded with 400 MHz instruments. Chemical shifts are in ppm from Me4Si generated from the CDCl3 lock signal at δ 7.26. Infrared spectra were taken with a Fourier transform infrared (FT-IR) spectrometer using NaCl plates. Mass spectra were analyzed on an instrument with an ESI source.
1,2,3,4,6-Penta-O-acetyl-d-glucopyranose (2a). In a solution of 1a (200 mg, 1.11 mmol), ionic liquid Ia (37 mg, 0.11 mmol) and anhydride (633 μL, 6.7 mmol) was stirred at 25 °C for one hour within the sealed tube. The mixture was quenched with water (30 mL) and extracted with ethyl acetate (3 × 30 mL). The combined organic layers were dried over anhydrous MgSO4, filtered, and concentrated. It had been refined by chromatography on silica gel to give the required product 2a (433 mg, 99%, α/β = 1/0.3) as a white solid. Rf 0.53 (EtOAc/Hex = 1/1); mp 109–113 °C; [α]29D +62.5 (c 1.0, DCM); IR (NaCl) ν 1752, 1647, 1371, 1221, 1147 cm−1; 1H NMR (400 MHz, CDCl3) δ 6.31 (d, J = 3.6 Hz, 1H), 5.69 (d, J = 8.4 Hz, 0.3H), 5.45 (t, J = 9.8 Hz, 1H), 5.23 (t, J = 9.8 Hz, 0.3H), 5.15–5.12 (m, 1H), 5.09 (d, J = 3.6 Hz, 1H), 5.06 (d, J = 3.6 Hz, 0.5H), 4.28-4.22 (m, 1H), 4.12-4.08 (m, 2H), 4.05(d, J = 3.6 Hz, 0.5H), 3.81 (ddd, J = 10.0, 4.4, 2.0 Hz, 0.3H), 2.16 (s, 3H), 2.09 (s, 1H), 2.07 (d, J = 2.8 Hz, 3H), 2.06 (s, 1H), 2.02 (s, 3H), 2.00 (s, 1H), 2.01 (d, J = 1.8 Hz, 3H), 1.99 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 170.6, 170.2, 169.6, 169.4, 168.7, 89.0, 69.8, 69.2, 67.9, 61.4, 20.9, 20.7, 20.6, 20.5, 20.4; HRMS (ESI, M + Na+) calcd for C16H22O11Na 413.1060, found 413.1050.
1,2,3,4,6-Penta-O-acetyl-d-galactopyranose (2b). In a solution of 1a (200 mg, 1.11 mmol), ionic liquid Ia (37 mg, 0.11 mmol) and anhydride (633 μL, 6.7 mmol) was stirred at 25 °C for one hour within the sealed tube. The mixture was quenched with water (30 mL) and extracted with ethyl acetate (3 × 30 mL). The combined organic layers were dried over anhydrous MgSO4, filtered, and concentrated. It had been refined by chromatography on silica gel to give the required product 2b (425 mg, 98%) as a white solid. Rf 0.50 (EtOAc/Hex = 1/2); mp 70–80 °C; [α]29D +80.8 (c 1.0, DCM); IR (NaCl) ν 1751, 1648, 1373 cm-1; 1H NMR (400 MHz, CDCl3) δ 6.35 (d, J = 1.6 Hz, 1H), 5.47 (d, J = 2.4 Hz, 1H), 5.31 (dd, J = 2.0, 1.2 Hz, 2H), 4.34–4.29 (m, 1H), 4.08 (d, J = 4.0 Hz, 1H), 4.06 (d, J = 4.0 Hz, 1H), 2.13 (s, 3H), 2.13 (s, 3H), 2.02 (s, 3H), 1.99 (s, 3H), 1.98 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 170.0, 169.9, 169.8, 169.6, 168.6, 89.4, 68.5, 67.2, 67.1, 66.2, 61.0, 20.6, 20.5, 20.4, 20.3; HRMS (ESI, M + Na+) calcd for C16H22O11Na 413.1060, found 413.1056.
1,2,3,4,6-Penta-O-acetyl-α-d-mannopyranose (2c). In a solution of 1c (200 mg, 1.11 mmol), ionic liquid Ia (37 mg, 0.11 mmol) and Ac2O (633 μL, 6.7 mmol) was stirred at 25 °C for three hours within the sealed tube. The mixture was quenched with water (30 mL) and extracted with ethyl acetate (3 × 30 mL). The combined organic layers were dried over anhydrous MgSO4, filtered, and concentrated. It was absolutely purified by chromatography on silica gel to give the desired product 2c (401 mg, 93%) as colorless oil. Rf 0.50 (EtOAc /Hex = 1/2); mp 70−80 °C; [α]29D +80.8 (c 1.0, DCM); IR (NaCl) ν 1751, 1648, 1373 cm−1; 1H NMR (400 MHz, CDCl3) δ 6.06 (d, J = 1.6 Hz, 1H), 5.32 (d, J = 2.4 Hz, 1H), 5.24 (t, J = 2.2 Hz, 1H), 4.29–4.22 (m, 1H), 4.14–4.00 (m, 3H), 2.16 (s, 3H), 2.15 (s, 3H), 2.07 (s, 3H), 2.03 (s, 3H), 1.98 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 170.3, 169.7, 169.4, 169.3, 167.8, 90.2, 70.2, 68.4, 68.0, 65.2, 61.8, 20.5, 20.4, 20.3, 20.29, 20.26; HRMS (ESI, M + Na+) calcd for C16H22O11Na 413.1060, found 413.1056.
Methyl-2,3,4,6-tetra-O-acetyl-α-d-glucopyranoside (2d). In a solution of 1d (200 mg, 1.11 mmol), ionic liquid Ia (34 mg, 0.1 mmol) and anhydride (463 μL, 4.9 mmol) was stirred at 25 °C for one hour within the sealed tube. The mixture was quenched with water (30 mL) and extracted with ethyl acetate (3 × 30 mL). The combined organic layers were dried over anhydrous MgSO4, filtered, and concentrated. It was absolutely purified by chromatography on silica gel to give the desired product 2d (370 mg, 99%) as a white solid. Rf 0.60 (EtOAc/Hex = 1/2); mp 51–53 °C; [α]29D +46.7 (c 1.0, DCM); IR (NaCl) ν 2960, 1750, 1648, 1371, 1225 cm−1; 1H NMR (400 MHz, CDCl3) δ 5.45 (dd, J = 10.0, 9.6 Hz, 1H), 5.04 (dd, J = 10.2, 9.4 Hz, 1H), 4.93 (d, J = 3.6 Hz, 1H), 4.87 (dd, J = 10.2, 3.8 Hz, 1H), 4.24 (dd, J = 12.4, 4.4 Hz, 1H), 4.08 (dd, J = 12.4, 2.4 Hz, 1H), 3.96 (ddd, J = 10.0, 4.4, 2.2 Hz, 1H), 3.39 (s, 3H), 2.08 (s, 3H), 2.05 (s, 3H), 2.00 (s, 3H), 1.98 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 170.4, 169.9, 169.8, 169.4, 96.6, 70.6, 69.9, 68.3, 67.0, 61.7, 55.3, 20.5, 20.46, 20.4; HRMS (ESI, M + Na+) calcd for C15H22O10Na 385.1111, found 385.1111.
1,2,3,5-Tetra-O-acetate-d-xylopyranose (2e). In a solution of 1e (200 mg, 1.11 mmol), ionic liquid Ia (44 mg, 0.13 mmol) and anhydride (603 μL, 6.38 mmol) was stirred at 25 °C for one hour within the sealed tube. The mixture was quenched with water (30 mL) and extracted with ethyl acetate (3 × 30 mL). The combined organic layers were dried over anhydrous MgSO4, filtered, and concentrated. It was absolutely purified by chromatography on silica gel to give the desired product 2e (419 mg, 97%, α/β = 5/1) as colorless oil. Rf 0.55 (EtOAc/Hex = 1/1); [α]29D +51.8 (c 1.0, DCM); IR (NaCl) ν 2924, 1743, 1649, 1370, 1211 cm−1; 1H NMR (400 MHz, CDCl3) δ 6.25 (d, J = 3.6 Hz, 1H), 5.70 (d, J = 6.8 Hz, 0.18H), 5.46 (t, J = 9.9 Hz, 1H), 5.36 (t, J = 5.0 Hz, 0.32H), 5.30-5.23 (m, 0.28H), 5.19 (t, J = 8.4 Hz, 0.26H), 5.06–5.00 (m, 2H), 4.35 (dd, J = 12.0, 4.0 Hz, 0.21H), 4.24 (d, J = 6.0 Hz, 0.14H), 4.14 (dd, J = 12.4, 4.8 Hz, 0.23H), 3.99 (dd, J = 12.0, 6.0 Hz, 0.22H), 3.93 (dd, J = 11.2, 5.9 Hz, 1H), 3.70 (t, J = 11.0 Hz, 1H), 3.52 (dd, J = 12.0, 8.4 Hz, 0.2H). 2.17 (s, 3H), 2.13-2.05 (m, 9H), 2.05 (s, 3H), 2.04 (s, 3H), 2.02 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 170.0, 169.7, 169.6, 168.9, 89.1, 69.2, 69.16, 68.5, 60.5, 20.8, 20.6, 20.6, 20.4; HRMS (ESI, M + Na+) calcd for C13H18O9Na 341.0849, found 341.0842.
1,2,3,6-Tetra-O-acetate-4-O-(2,3,4,6-tetra-O-acetyl-β-d-galactopyra-nosyl)-d-glu-copyranose (2f). In a solution of 1f (500 mg, 1.47 mmol), ionic liquid Ia (51 mg, 0.15 mmol) and anhydride (1.33 mL, 14. mmol) was added in the dealed tube and stirred at 25 °C for one hour. The mixture was quenched with water (30 mL) and extracted with ester (3 × 30 mL). The combined organic layers were dried over anhydrous MgSO4, filtered, and concentrated. It was absolutely purified by chromatography on silica gel to give the desired product 2f (955 mg, 96%, α/β = 1/0.22) as white solid. Rf 0.44 (EtOAc/Hex = 3/2); mp 85–87 °C; [α]22D +55.8 (c 1.0, DCM); IR (NaCl) ν 2981, 2943, 1753, 1649, 1434, 1371 cm−1; 1H NMR (400 MHz, CDCl3) δ 6.25 (d, J = 3.6 Hz, 1H), 5.66 (d, J = 8.3 Hz, 0.2H), 5.46 (t, J = 9.8 Hz 1H), 5.35 (d, J = 3.6 Hz, 1.2H), 5.24 (t, J = 9.0 Hz, 0.2H), 5.12 (dd, J = 10.4, 8.0 Hz, 1H), 5.08–5.04 (m, 0.2H), 5.00 (dd, J = 10.4, 3.6 Hz, 1H), 4.95 (dd, J = 10.4, 3.2 Hz, 1H), 4.49–4.42 (m, 3H), 4.18–4.05 (m, 4H), 4.00 (ddd, J = 10.2, 3.8, 2.0 Hz, 1H), 3.88 (t, J = 6.8 Hz, 1H), 3.81 (t, J = 9.6 Hz, 1H), 2.18 (s, 3H), 2.17 (s, 1H), 2.16 (s, 3H), 2.15 (s, 1H), 2.13 (s, 3H), 2.12 (s, 1H), 2.10 (s, 1H), 2.06 (s, 3H), 2.06 (s, 3H), 2.05 (s, 3H), 2.04 (s, 1H), 2.03 (s, 1H), 2.01 (s, 3H), 2.00 (S, 1H), 1.97 (d, J = 1.7 Hz, 3H), 1.96 (s, 1H); 13C NMR (100 MHz, cdcl3) δ 170.3, 170.2, 170.1, 170.0, 169.9, 169.6, 169.1, 168.9, 101.1, 88.9, 75.7, 70.9, 70.6, 69.5, 69.3, 69.0, 66.5, 61.4, 60.7, 20.9, 20.8, 20.6, 20.5; HRMS (ESI, M + Na+) calcd for C28H38O19Na 701.1905, found 701.1902.
4-Methylphenyl 2,3-di-O-acetyl-6-O-benzyl-1-thio-β-d-glucopyranoside (4a). To a solution of compound 3a (100 mg, 0.22 mmol) and acetonitrile (1 mL), were added triethylsilane (352 μL, 2.2 mmol) and ionic liquid Ia (37 mg, 0.11 mmol) in the sealed tube. After stirring for one hour at 25 °C, the reaction mixture was added 1 M tetra-n-butylammonium fluoride (TBAF, 2.4 mL, 2.4 mmol) and acetic acid (137 μL, 2.4 mmol) and stirred for one hour. The mixture was diluted with water (30 mL) and extracted with ethyl acetate (3 × 30 mL). The combined organic layers were dried over anhydrous MgSO4, filtered, and concentrated. The residue was purified by chromatography to afford desired product 4a (91 mg, 90%) as yellow oil. Rf 0.25 (EtOAc/Hex = 1/2); [α]26D −37.4 (c 0.8, DCM); IR (NaCl) ν 3478, 3030, 2920, 1752, 1494, 1373 cm−1; 1H NMR (400 MHz, CDCl3) δ 7.73−7.28 (m, 6H), 7.06 (d, J = 8.4 Hz, 2H), 5.04 (t, J = 9.2 Hz, 1H), 4.88 (t, J = 9.6 Hz, 1H), 4.61 (d, J = 10.0 Hz, 1H), 4.59–4.50 (m, 2H), 3.83−3.74 (m, 2H), 3.70 (td, J = 9.6, 2.4 Hz, 1H), 3.55–3.51 (m, 1H), 2.92 (s, 1H), 2.30 (s, 3H), 2.07 (s, 3H), 2.05 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 171.2, 169.5, 138.4, 137.6, 133.4, 129.6, 128.4, 128.0, 127.8, 127.6, 85.8, 78.4, 76.7, 73.7, 70.0, 69.9, 69.87, 21.1, 20.8; HRMS (ESI, M + Na+) calcd for C24H28O7SNa 483.1453, found 483.1446.
4-Methylphenyl 2,3,6-tri-0-benzyl-1-thio-β-d-glucopy-ranoside (4b). To a solution of compound 3b (100 mg, 0.18 mmol) and acetonitrile (1 mL), were added triethylsilane (287 μL, 1.8 mmol) and ionic liquid Ia (31 mg, 0.09 mmol) in the sealed tube. After stirring for 24 hours at 25 °C, the reaction mixture was added 1 M tetra-n-butylammonium fluoride (TBAF, 2 mL, 2 mmol) for one hour. The mixture was diluted with water (30 mL) and extracted with ethyl acetate (3 × 30 mL). The combined organic layers were dried over anhydrous MgSO4, filtered, and concentrated. The residue was purified by chromatography to afford desired product 4b (85 mg, 85%) as yellow oil. Rf 0.25 (EtOAc /Hex = 1/2); mp 62–64 °C; [α]26D −7.4 (c 0.8, DCM); IR (NaCl) ν 3478, 3030, 2920, 1752, 1494, 1373 cm−1; 1H NMR (400 MHz, CDCl3) δ 7.48 (d, J = 8.0 Hz, 2H), 7.43 (d, J = 7.6 Hz, 2H), 7.39–7.28 (m, 13H), 7.06 (d, J = 8.0 Hz, 2H), 4.93 (dd, J = 10.8, 6.0 Hz, 2H), 4.77 (dd, J = 17.0, 10.6 Hz, 2H), 4.64 (d, J = 9.2 Hz, 1H), 4.62–4.52 (m, 2H), 3.83–3.73 (m, 2H), 3.65 (t, J = 9.2 Hz, 1H), 3.54 (t, J = 8.8 Hz, 1H), 3.50-3.43 (m, 2H), 2.62 (s, 1H), 2.32 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 138.4, 138.2, 138.1, 138.0, 137.9, 137.7, 132.6, 129.7, 129.6, 128.6, 128.4, 128.37, 128.2, 127.9, 127.7, 87.9, 86.1, 80.4, 78.0, 75.5, 75.3, 73.6, 71.6, 70.3, 21.1; HRMS (ESI, M + Na+) calcd for C34H36O5SNa 579.2181, found 579.2184.
Methyl 2,3-di-O-acetyl-6-O-benzyl-α-d-glucopyranoside (4c). To a solution of compound 3c (100 mg, 0.27 mmol) and acetonitrile (1 mL), were added triethylsilane (431 μL, 2.7 mmol) and ionic liquid Ia (47 mg, 0.14 mmol) in the sealed tube. After stirring for one hour at 25 °C, the reaction mixture was added 1 M tetra-n-butylammonium fluoride (TBAF, 3 mL, 3 mmol) and acetic acid (171 μL, 3 mmol) for one hour. The mixture was diluted with water (30 mL) and extracted with ethyl acetate (3 × 30 mL). The combined organic layers were dried over anhydrous MgSO4, filtered, and concentrated. The residue was purified by chromatography to afford desired product 4c (88 mg, 88%) as yellow liquid. Rf 0.35 (EtOAc/Hex = 1/1); [α]26D +109.5 (c 1.0, DCM); IR (NaCl) ν 3474, 2919, 2871, 1747, 1452, 1371 cm−1; 1H NMR (400 MHz, CDCl3) δ 7.35–7.25 (m, 5H), 5.28 (t, J = 9.4 Hz, 1H), 4.88 (d, J = 3.6 Hz, 1H), 4.83 (dd, J = 10.6, 3.6 Hz, 1H), 4.57 (q, J = 12.0 Hz, 2H), 3.81–3.67 (m, 4H), 3.37 (s, 3H), 2.06 (s, 3H), 2.05 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 176.8, 171.3, 170.2, 137.7, 128.3, 127.6, 127.5, 96.6, 73.5, 72.9, 70.7, 70.1, 70.0, 69.2, 55.1, 20.8, 20.6; HRMS (ESI, M + Na+) calcd for C18H24O8Na 391.1369, found 391.1362.
4-Methylphenyl 2,3-di-O-acetyl-6-O-benzyl-1-thio-β-d-galacopyrano-side (4d). To a solution of compound 3d (100 mg, 0.22 mmol) and acetonitrile (1 mL), were added triethylsilane (352 μL, 2.2 mmol) and ionic liquid Ia (37 mg, 0.11 mmol) in the sealed tube. After stirring for eight hours at 25 °C, the reaction mixture was added 1 M tetra-n-butylammonium fluoride (TBAF, 2.4 mL, 2.4 mmol) and acetic acid (137 μL, 2.4 mmol) for one hour. The mixture was diluted with water (30 mL) and extracted with ethyl acetate (3 × 30 mL). The combined organic layers were dried over anhydrous MgSO4, filtered, and concentrated. The residue was purified by chromatography to afford desired product 4d (73 mg, 72%) as white solid. Rf 0.50 (EtOAc/Hex = 1/1); mp 114–115 °C; [α]26D +1.8 (c 0.8, DCM); IR (NaCl) ν 3478, 3030, 2922, 1750, 1494, 1369 cm-1; 1H NMR (400 MHz, CDCl3) δ 7.40 (d, J = 8.0 Hz, 2H), 7.37–7.26 (m, 5H), 7.05 (d, J = 8.0 Hz, 2H), 5.26 (t, J = 10.0 Hz, 1H), 4.94 (dd, J = 9.8, 3.0 Hz, 1H), 4.62 (d, J = 10.0 Hz, 1H), 4.59–4.48 (m, 2H), 4.15 (d, J = 2.4 Hz, 1H), 3.81–3.74 (m, 2H), 3.73–3.67 (m, 1H), 2.77 (s, 1H), 2.29 (s, 3H), 2.07 (s, 3H), 2.05 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 170.2, 169.5, 164.8, 155.2, 138.3, 137.5, 133.3, 129.6, 128.5, 128.3, 127.9, 127.8, 86.5, 76.7, 74.5, 73.8, 69.5, 68.3, 67.6, 29.7, 21.2, 20.9; HRMS (ESI, M + Na+) calcd for C24H28O7SNa 483.1453, found 483.1458.
4-Methylphenyl 3-O-Acetyl-6-O-benzyl-2-deoxyl-2-pht-halimido-1-thio-β-d-gluco-pyranoside (4e). To a solution of compound 3e (100 mg, 0.18 mmol) and acetonitrile (1 mL), were added triethylsilane (287 μL, 1.8 mmol) and ionic liquid Ia (31 mg, 0.09 mmol) within the sealed tube. Once stirred for one hour at 25 °C, the reaction mixture was added to 1 M tetra-n-butylammonium fluoride (TBAF, 2 mL, 2 mmol) and acetic acid (114 μL, 2 mmol) for one hour. The mixture was diluted with water (30 mL) and extracted with ethyl acetate (3 × 30 mL). The combined organic layers were dried over anhydrous MgSO4, filtered, and concentrated. The residue was refined by chromatography to afford desired product 4e (81 mg, 82%) as white solid. Rf 0.38 (EtOAc /Hex = 1/1); mp 54–56 °C; [α]23D +17.0 (c 1.0, DCM); IR (NaCl) ν 3478, 3030, 2922, 2855, 1750, 1494, 1430, 1369 cm−1; 1H NMR (400 MHz, CDCl3) δ 7.83 (t, J = 7.6 Hz, 2H), 7.72–7.66 (m, 2H), 7.41–7.27 (m, 7H), 7.00 (d, J = 8.0 Hz, 2H), 5.72–5.64 (m, 2H), 4.65–4.52 (m, 2H), 4.26 (t, J = 10.4 Hz, 1H), 3.83–3.76 (m, 4H), 3.05 (s, 1H), 2.26 (s, 3H), 1.88 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 171.1, 167.8, 167.3, 138.4, 137.7, 134.3, 134.1, 133.5, 131.6, 131.2, 129.6, 128.4, 127.8, 127.7, 127.5, 123.6, 123.5, 83.2, 78.3, 74.3, 73.7, 71.0, 70.2, 53.6, 52.6, 21.1, 20.7, 20.5, 13.9; HRMS (ESI, M + Na+) calcd for C30H29NO7SNa 570.1562, found 570.1561.

4. Conclusions

In summary, the Brønsted–Lowry acidic ionic liquid is a particularly economical catalyst for per-O-acetylation and ring-opening reactions of sugars. This approached lacks the completely catalytic amount of the least costly accessible ionic liquid that is water-stable. However, the per-O-acetylation reactions were conducted under solvent-free conditions, employing a ratio load of acetic anhydride that grants an efficient per-O-acetylation reaction of hexoses, and also allows reductive ring opening of benzylidene acetals reactions to take place very evenly. We are still working on the reusability of the reductive ring opening of benzylidene acetals. The reaction conditions are mild, convenient, and nonhazardous for the above reactions.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/10/6/642/s1, Figure S1. Acidity of different ionic liquids; Table S1. For Calculation and comparison of different ionic liquids Ia–If.

Author Contributions

Conceptualization, S.-Y.L. and W.-Y.H.; analyzed the data, H.-R.W.; methodology, M.T. and Y.-P.W.; software, M.T. and Y.-P.W.; validation, M.T., Y.-P.W., Y.-J.L. and S.-L.D.; writing—original draft preparation, M.T.; writing—review and editing, S.-Y.L.; supervision, S.-Y.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Chung Hsing University, and Chia Nan University of Pharmacy and Science.

Acknowledgments

The authors thank the Ministry of Science and Technology in Taiwan (MOST 106-2113-M-005-007 and 107-2113-M-005-021 for S.-Y. Luo and MOST 106-2221-E-041-004 for W.-Y. Ho), National Chung Hsing University, and Chia Nan University of Pharmacy and Science for financial support.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Witschi, M.A.; Gervay-Hague, J. Selective acetylation of per-O-TMS-Protected monosaccharides. Org. Lett. 2010, 12, 4312–4315. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Collins, P.M.; Ferrier, R.J. Monosaccharides, Their Chemistry and Their Roles in Natural Products; John Wiley & Sons: New York, NY, USA, 1995; pp. 360–369. [Google Scholar]
  3. Jiang, L.; Chan, T.-H. Borane/Bu2BOTf: A mild reagent for the regioselective reductive ring opening of benzylidene acetals in carbohydrates. Tetrahedron Lett. 1998, 37, 355–358. [Google Scholar] [CrossRef]
  4. Chen, W.; Gu, L.; Zhang, W.; Motari, E.; Cai, L.; Styslinger, T.J.; Wang, P.G. L-rhamnose antigen: A promising alternative to α-Gal for cancer immunotherapies. ACS Chem. Biol. 2011, 6, 185–191. [Google Scholar] [CrossRef] [PubMed]
  5. Twibanire, J.-A.K.; Omran, R.P.; Grindley, T.B. Facile synthesis of a library of Lyme disease glycolipid antigens. Org. Lett. 2012, 14, 3909–3911. [Google Scholar] [CrossRef] [PubMed]
  6. Hanessian, S. Total Synthesis of Natural Products: The ‘Chiron’ Approach; Pergamon Press: Oxford, UK, 1983. [Google Scholar]
  7. Inch, T.D. Formation of convenient chiral intermediates from carbohydrates and their use in synthesis. Tetrahedron 1984, 40, 3161–3213. [Google Scholar] [CrossRef]
  8. Hernandez-Torres, J.M.; Achkar, J.; Wei, A. Temperature-controlled regioselectivity in the reductive cleavage of p-Methoxybenzylidene acetals. J. Org. Chem. 2004, 69, 7206–7211. [Google Scholar] [CrossRef]
  9. Wang, C.-C.; Luo, S.-Y.; Shie, C.-R.; Hung, S.-C. Metal trifluoromethanesulfonate-catalyzed regioselective borane-reductive ring opening of benzylidene acetals. Org. Lett. 2002, 4, 847–849. [Google Scholar] [CrossRef] [PubMed]
  10. Soderquist, J.A.; Kock, I.; Estrella, M.E. Reductive cleavage of acetals and ketals with 9-Borabicyclo [3.3.1] nonane. Org. Process. Res. Dev. 2006, 10, 1076–1079. [Google Scholar] [CrossRef]
  11. Johnsson, R.; Olsson, D.; Ellervik, U. Reductive openings of acetals: Explanation of regioselectivity in borane reductions by mechanistic studies. J. Org. Chem. 2008, 73, 5226–5232. [Google Scholar] [CrossRef]
  12. Sakagami, M.; Hamana, H. A selective ring-opening reaction of 4,6-O-benzylidene acetals in carbohydrates using trialkyl silane derivatives. Tetrahedron Lett. 2000, 41, 5547–5551. [Google Scholar] [CrossRef]
  13. Bhattacharjee, S.S.; Gorin, P.A.J. Hydrogenolysis of carbohydrate acetals, ketals, and cyclic orthoesters with lithium aluminium hydride – aluminium trichloride. Can. J. Chem. 1969, 47, 1195–1206. [Google Scholar] [CrossRef]
  14. Galas, J. The reactivity of cyclic acetals of aldoses and aldosides. Adv. Carbohydr. Chem. Biochem. 1981, 39, 71–156. [Google Scholar]
  15. Garreg, P.J. Some aspects of regio-, stereo-, and chemoselective reactions in carbohydrate chemistry. Pure Appl. Chem. 1984, 56, 845–858. [Google Scholar] [CrossRef]
  16. Johansson, R.; Samuelsson, B. Regioselective reductive ring-opening of 4-methoxybenzylidene acetals of hexopyranosides. Access to a novel protecting-group strategy. Part 1. J. Chem. Soc. Perkin Trans. I 1984, 2371–2374. [Google Scholar] [CrossRef]
  17. Ek, M.; Garegg, P.J.; Hultberg, H.; Oscarson, S. Reductive ring openings of carbohydrate benzylidene acetals using borane-trimethylamine and aluminium chloride. Regioselectivity and solvent dependence. J. Carbohyd. Chem. 1983, 2, 305–311. [Google Scholar] [CrossRef]
  18. Das, S.K.; Reddy, K.A.; Krovvidi, V.L.N.R.; Mukkanti, K. InCl3 as a powerful catalyst for the acetylation of carbohydrate alcohols under microwave irradiation. Carbohydr. Res. 2005, 340, 1387–1392. [Google Scholar] [CrossRef] [PubMed]
  19. Bizier, N.P.; Atkins, S.R.; Helland, L.C.; Colvin, S.F.; Twitchell, J.R.; Clon-inger, M.J. Indium triflate catalyzed peracetylation of carbohydrates. Carbohydr. Res. 2008, 343, 1814. [Google Scholar] [CrossRef] [Green Version]
  20. Limousin, C.; Cleophax, J.; Petit, A.; Loupy, A.; Lukacs, G. Solvent-free synthesis of decyl d-Glycopyranosides under focused microwave irradiation. J. Carbohydr. Chem. 1997, 16, 327. [Google Scholar] [CrossRef]
  21. Lee, J.C.; Tai, C.A.; Hung, S.C. Sc(OTf)3-catalyzed acetolysis of 1,6-anhydro-β-hexopyranoses and solvent-free per-acetylation of hexoses. Tetrahedron Lett. 2002, 43, 851–855. [Google Scholar] [CrossRef]
  22. Procopiou, P.A.; Baugh, S.P.D.; Flack, S.S.; Inglis, G.G.A. An extremely powerful acylation reaction of alcohols with acid anhydrides catalyzed by trimethylsilyl trifluoromethanesulfonate. J. Org. Chem. 1998, 63, 2342–2347. [Google Scholar] [CrossRef]
  23. Shie, C.-R.; Tzeng, Z.-H.; Kulkarni, S.S.; Uang, B.-J.; Hsu, C.-Y.; Hung, S.-C. Cu(OTf)2 as an efficient and dual-purpose catalyst in the regioselective reductive ring opening of benzylidene acetals. Angew. Chem. 2005, 117, 1693–1696. [Google Scholar] [CrossRef]
  24. Thota, N.; Björkling, F.; Kankala, S. Triphenylcarbenium tetrafluoroborate as an efficient catalyst in the regioselective reductive ring opening of benzylidene acetals of carbohydrates. Chem. Select 2019, 4, 7976–7980. [Google Scholar] [CrossRef]
  25. Wu, H.; Shen, Y.; Fan, L.Y.; Wan, Y.; Shi, D.Q. Solid silica sulfuric acid (SSA) as a novel and efficient catalyst for acetylation of aldehydes and sugars. Tetrahedron 2006, 62, 7995. [Google Scholar] [CrossRef]
  26. Mukhopadhyay, B.; Russell, D.A.; Field, R.A. One-pot acetalation–acetylation of sugar derivatives employing perchloric acid immobilized on silica. Carbohydr. Res. 2005, 340, 1075–1080. [Google Scholar] [CrossRef] [PubMed]
  27. Misra, A.K.; Tiwari, P.; Madhusudan, S.K. HClO4–SiO2 catalyzed per-O-acetylation of carbohydrates. Carbohydr. Res. 2005, 340, 325–329. [Google Scholar] [CrossRef]
  28. Wu, L.Q.; Yin, Z.K. Sulfonic acid-functionalized nano γ-Al2O3 catalyzed per-O-acetylated of carbohydrates. Carbohydr. Res. 2013, 365, 14–19. [Google Scholar] [CrossRef] [PubMed]
  29. Zhang, J.B.; Zhang, B.; Zhou, J.F.; Li, J.; Shi, C.J.; Huang, T.; Wang, Z.F.; Tang, J. H2SO4-SiO2: The highly efficient and reusable catalyst for per-O-Acetylation of carbohydrates under solvent-free conditions. J. Carbohydr. Chem. 2011, 30, 165–177. [Google Scholar] [CrossRef]
  30. Wasserscheid, P.; Welton, T. Ionic Liquids in Synthesis; Wiley-VCH Verlag: Weinheim, Germany, 2003. [Google Scholar]
  31. Welton, T. Ionic liquids in catalysis. Coord. Chem. Rev. 2004, 248, 2459–2477. [Google Scholar] [CrossRef]
  32. Welton, T. Room-temperature ionic liquids. Solvents for synthesis and catalysis. Chem. Rev. 1999, 99, 2071–2083. [Google Scholar] [CrossRef]
  33. Wasserscheid, P.; Keim, W. Ionic liquids—New “solutions” for transition metal catalysis. Angew. Chem. Int. Ed. 2000, 39, 3772–3789. [Google Scholar] [CrossRef]
  34. Forsyth, S.A.; MacFarlane, D.R.; Thomson, R.J.; Itzstein, M.V. Rapid, clean, and mild O-acetylation of alcohols and carbohydrates in an ionic liquid. Chem. Commun. 2002, 714–715. [Google Scholar] [CrossRef] [PubMed]
  35. Abbott, A.P.; Bell, T.J.; Handa, S.; Stoddar, B. O-Acetylation of cellulose and monosaccharides using a zinc-based ionic liquid. Green Chem. 2005, 7, 705–707. [Google Scholar] [CrossRef] [Green Version]
  36. Murugesan, S.; Karst, N.; Islam, T.; Wiencek, J.M.; Linhardt, R.J. Dialkyl imidazolium benzoates-room temperature ionic liquids useful in the peracetylation and perbenzoylation of simple and sulfated saccharides. Synlett 2003, 9, 1283–1286. [Google Scholar]
Catalysts 10 00642 sch001 550

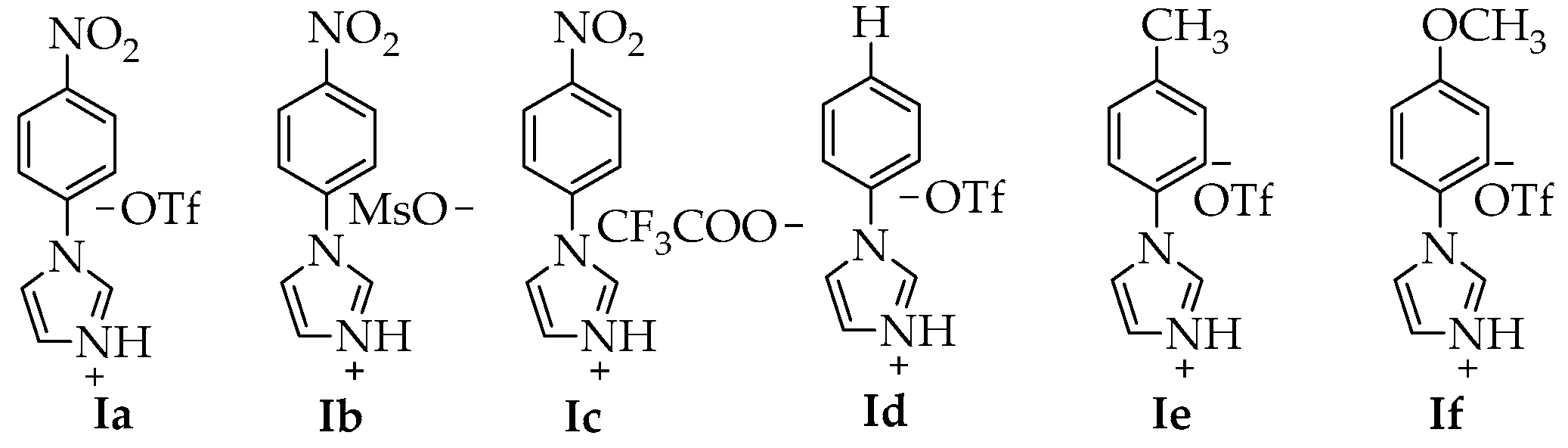

Scheme 1. Tunable aryl imidazolium ionic liquid Ia–If.
Scheme 1. Tunable aryl imidazolium ionic liquid Ia–If.
Catalysts 10 00642 sch001
Catalysts 10 00642 g001 550

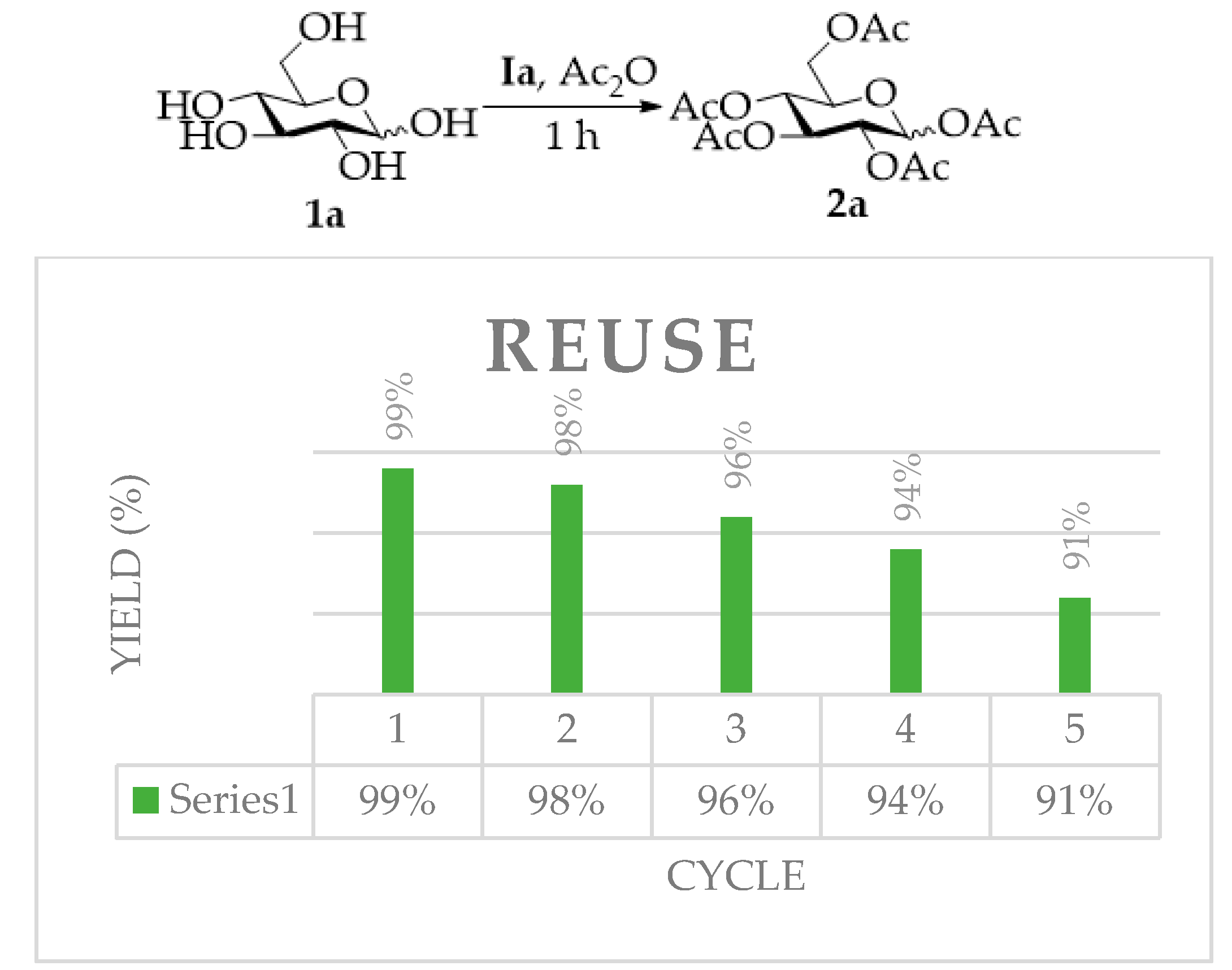

Figure 1. Recycling of Ia in the synthesis of penta-acetate d-glucose 2a.
Figure 1. Recycling of Ia in the synthesis of penta-acetate d-glucose 2a.
Catalysts 10 00642 g001
Catalysts 10 00642 sch002 550

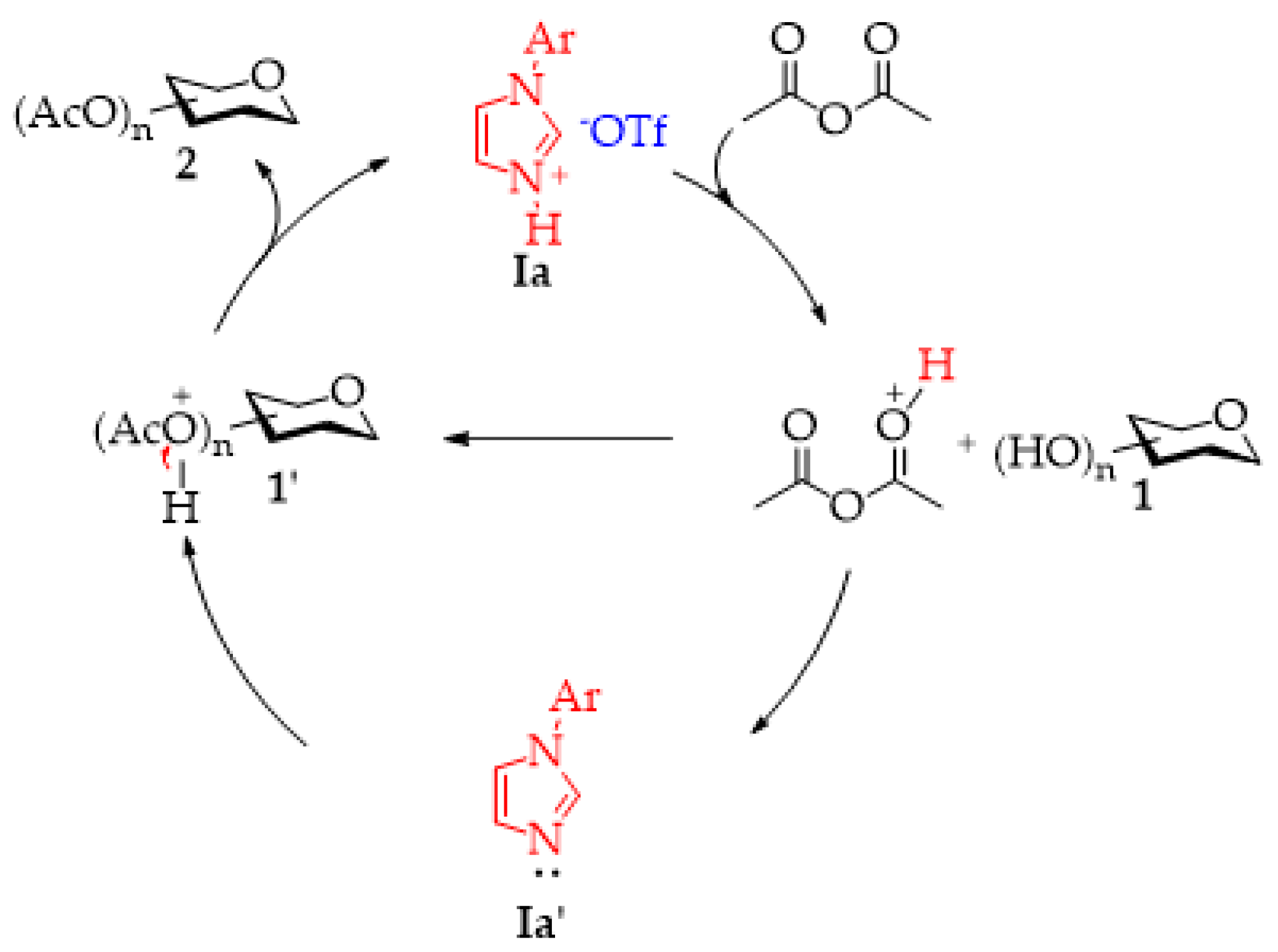

Scheme 2. A plausible mechanism of the per-O-acetylation reaction.
Scheme 2. A plausible mechanism of the per-O-acetylation reaction.
Catalysts 10 00642 sch002
Catalysts 10 00642 sch003 550

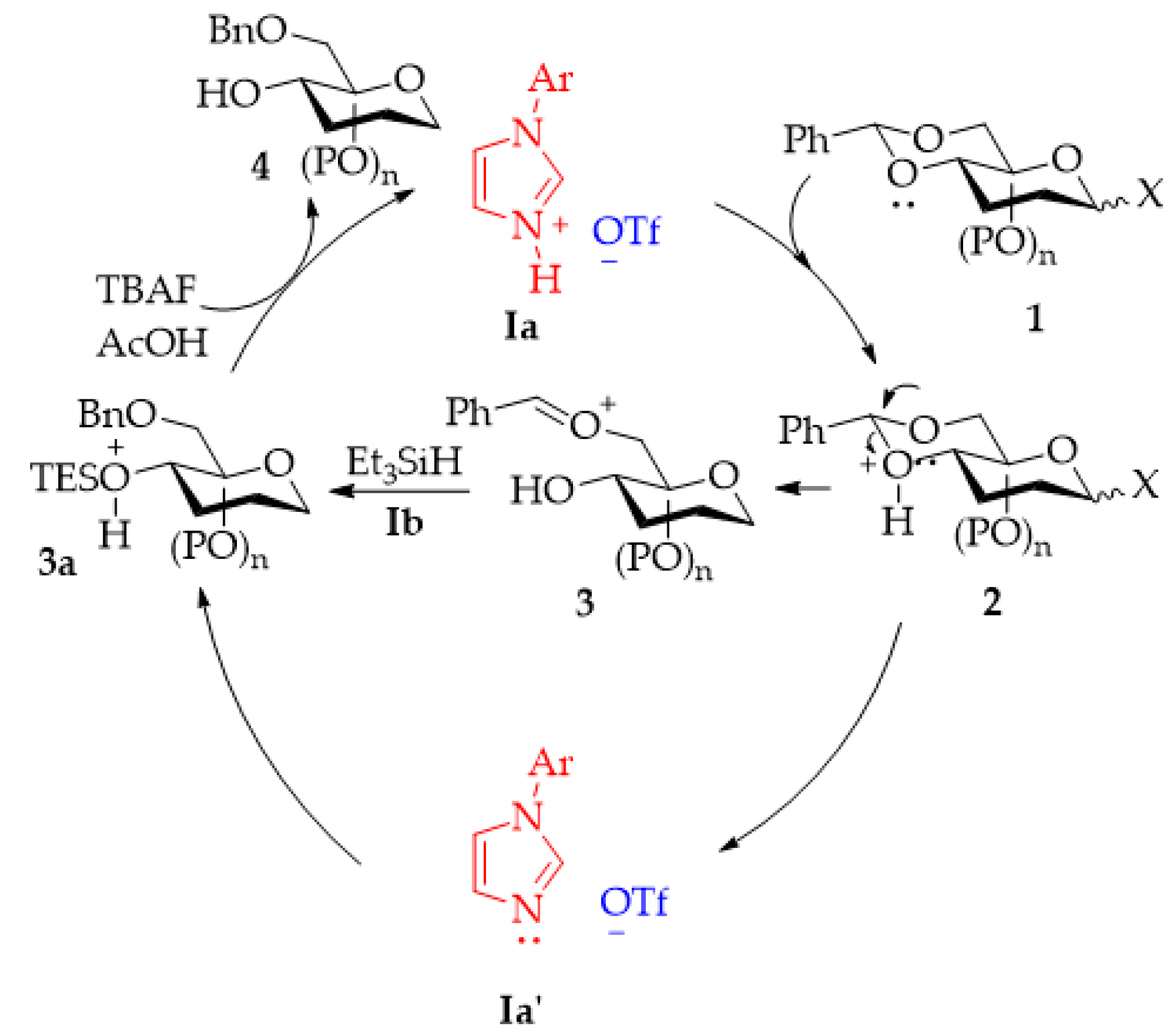

Scheme 3. A plausible mechanism of the benzylidene ring-opening reaction.
Scheme 3. A plausible mechanism of the benzylidene ring-opening reaction.
Catalysts 10 00642 sch003
Catalysts 10 00642 sch004 550
Scheme 4. Synthesis of ionic liquids.
Scheme 4. Synthesis of ionic liquids.
Catalysts 10 00642 sch004
Table
Table 1. Optimized condition of per-O-acetylation without solvent.
Table 1. Optimized condition of per-O-acetylation without solvent.
Catalysts 10 00642 i001
EntryILT (°C)t (h)Ac2O (eq)P (Yield) a
1Ia251 h102a (99%)
2Ib251 h102a (98%)
3Ic251 h102a (29%)
4Id251 h102a (70%)
5Ie251 h102a (96%)
6If251 h102a (86%)
7Ia251 h7.52a (99%)
8Ia251 h6.02a (99%)
9Ia251 h5.252a (95%)
10Ia2524 h6.02a (94%)
11Ia801 h6.02a (92%)
a The yields are isolated yields.
Table
Table 2. Ionic liquid (Ia) catalyzed the solvent-free per-O-acetylation of hexoses.
Table 2. Ionic liquid (Ia) catalyzed the solvent-free per-O-acetylation of hexoses.
Catalysts 10 00642 i002
EntrySMt (h)Ac2O (eq)P (Yield)
11b1 h62b (98%)
21c3 h62c (93%)
31d1 h4.82d (99%)
41e1 h4.82e (97%)
51f1 h9.62f (96%)
Table
Table 3. Optimized conditions of regioselective O-4 ring-opening reactions.
Table 3. Optimized conditions of regioselective O-4 ring-opening reactions.
Catalysts 10 00642 i003
EntrySolventIL (eq)t (h)P (Yield) a
1DCMIa (1.0)6 h4a (78%)
2DCMIb (1.0)6 h4a (4%)
3DCMIc (1.0)6 h4a (6%)
4DCMId (1.0)6 h4a (8%)
5DCMIe (1.0)6 h4a (58%)
6DCMIf (1.0)6 h4a (4%)
7ACNIa (1.0)1 h4a (88%)
8ACNIa (0.5)1 h4a (90%)
9ACNIa (0.25)2 h4a (77%)
a The yields are isolated yields.
Table

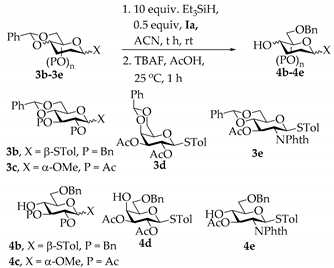

Table 4. Reductive ring-opening of various 4,6-O-benzylidene-d-hexopyranosides at room temperature in the presence of Ia as a catalyst.
Table 4. Reductive ring-opening of various 4,6-O-benzylidene-d-hexopyranosides at room temperature in the presence of Ia as a catalyst.
Catalysts 10 00642 i004
EntrySMt (h)P (Yield)
13b24 h4b (85%)
23c1 h4c (88%)
33d8 h4d (72%)
43e1 h4e (82%)
