Open AccessArticle

Identification of Main Active Sites and the Role of NO2 on NOx Reduction with CH4 over In/BEA Catalyst: A Computational Study

by Erhao Gao 1,2, Hua Pan 1,*, Li Wang 1, Yao Shi 2,* and Jun Chen 1
1
College of Biology and Environment Engineering, Zhejiang Shuren University, Hangzhou 310015, China
2
College of Chemical and Biological Engineering, Zhejiang University, Hangzhou 310027, China
*
Authors to whom correspondence should be addressed.
Catalysts 2020, 10(5), 572; https://doi.org/10.3390/catal10050572
Received: 29 April 2020 / Revised: 15 May 2020 / Accepted: 16 May 2020 / Published: 19 May 2020

Abstract

The main active sites and the catalytic process in selective catalytic reduction of NOx by CH4 (CH4-SCR) on In/BEA catalyst were investigated by density functional theory (DFT) using a periodic model. The [InO]+ and [InOH]2+ moieties were constructed in the channel of periodic BEA zeolite representing the Lewis and Brønsted acid sites. The electronic structures [InO]+ and [InOH]2+ were analyzed, and it was found that the [InO]+ group were the main active sites for CH4 activation and NO/NO2 adsorption in the CH4-SCR process. CH4 molecules could be activated on the O site of the [InO]+ group in In/BEA, which was resulted from the strong interactions between the C-p orbital of the CH4 molecule and the O-p orbital of the [InO]+ group. CH4 activation was the initial step in CH4-SCR on In/BEA catalyst. NO2 molecules were essential in the SCR process, and they could be produced by NO reacting with gaseous O2 or the O atom of the [InO]+ group. The presence of NO2 could facilitate the key intermediate nitromethane (CH3NO2) formation and lower the reaction barrier in the SCR process.
Keywords: In/BEA; active sites; CH4 activation; SCR In/BEA; active sites; CH4 activation; SCR

1. Introduction

The selective catalytic reduction (SCR) of NOx by hydrocarbons has attracted much interest in the past years [1,2]. The readily available CH4 serving as the reducing agent is of great significance from an environmental point of view, because boilers and automobiles fueled by natural gas are important NOx emission sources [3,4,5]. A number of zeolite-supported metal oxides (Pt [6], Co [7], Fe [8], Mo [9], In [10,11,12,13,14,15], etc.) catalysts have been explored, among which the indium-containing zeolites were the prominent one with excellent CH4-SCR activities. Nevertheless, the main active sites that are responsible for the CH4-SCR over In-containing zeolites are still up for debate. Maunula et al. [16] proposed that intrazeolitic [InO]+ was the active site on In/ZSM-5 catalyst during the process of SCR. However, Lónyiet et al. [12,17] found that [InOH]2+ species originated from H2O dissociation were responsible for initiating the steps of the SCR process. In our previous work, CH4-SCR activities over In/BEA were measured [18]. The [InO]+ group was found to play an important role, but the roles of [InOH]2+ have not been identified, because the experimental characterizations usually only provided us with limited information. In comparison, quantum chemistry calculation based on density functional theory (DFT) has been a powerful tool to elucidate details regarding the geometry and electronic structures of the active sites, which are essential to get a deeper understanding of the active sites and the catalytic process.
In this work, the [InO]+ and [InOH]2+ moieties were constructed to anchor in the channel of the periodic BEA model to represent the Lewis and Brønsted acid sites of In/BEA catalyst, respectively. Moreover, the geometry structures and the electronic structures properties of the two acid sites were extensively investigated, and the main active sites for CH4-SCR over In/BEA catalyst were clarified. In addition, the adsorption behaviors of CH4, NO, NO2, O2, and H2O molecules on the acid sites were carefully studied, because the detailed adsorption characteristics of these reactants and products help to gain insights of the reaction process. The reaction process and the intermediates formed during the process of CH4-SCR were fairly complicated. A variety of key surface intermediates such as CH3, CH3NO, CH3NO2 species, et al., were reported to be observed on In-containing zeolites [10,14,18]. The formation of these intermediates were all associated with the CH4 activation process, and it was regarded as the initial step in CH4-SCR in spite of the restrictions of C–H bond cleavage [7,10]. Some researchers suggested that the presence of NO and NO2 was necessary for the CH4 dissociation process [19,20]. However, this key process has not been fully elucidated for In/BEA catalyst. The key intermediates, CH3NO and CH3NO2 species, which were highly reactive and could quickly convert into N2, CO2, and H2O, were considered to originate from the reactions between the activated CH3 group and NO+/NO2 [21,22,23], but formation processes have not been identified on In/BEA to date. In the present work, the unsolved fundamental questions were carefully explored and the reaction enthalpy was also studied to further illuminate the CH4-SCR process over In/BEA catalyst.

2. Results and Discussion

2.1. The Optimized Structures of BEA Zeolite and In/BEA Model

The chemical formula of the BEA unit cell used in this work was Si64O128 and the calculated dimensions of the unit cell was a = 12.669 Å, b = 12.675 Å, and c = 26.781 Å, which were very close to the experimental values of a = 12.632 Å, b = 12.632 Å, and c = 26.186 Å [24]. The calculated bond length of CH4 and NO were 1.097 and 1.164Å, respectively. The experiment values were reported to be 1.086 Å of gaseous CH4 molecule [24] and 1.151 Å of NO molecule [25]. The GGA slightly overestimated the bond lengths as expected, but the errors produced are within the acceptable range. Therefore, we assume that the calculation parameters set above were reasonable for further calculations.
The optimized structures of the In/BEA unit cell are shown in Figure 1, and the corresponding bond length and Mulliken charge population are present in Table 1. The bond length of [InO]+ (dIn–O) were slightly elongated after a hydroxyl group was modeled, the value of which increased to 1.954 Å for the B-model, quite longer than that of the L-model (1.872 Å). By contrast, the bond length of In and oxygen atoms coordinated with Al atoms (dIn–O1 = 2.072 Å; dIn–O2 = 2.106 Å) of the B-model were shortened compared with that of the L-model (dIn–O1 = 2.249 Å; dIn–O2 = 2.229 Å). It can be seen from the results of Mulliken charge populations that the charge of Al, O1, and O2 are almost the same between the two models, while the charge between In and O were remarkably different. The qIn and qO were 0.978 and –0.608 e for the L-model, and 1.273 and −0.553 e for the B-model, respectively. The total charge of the acid sites of the L-model and B-model were 0.300 and 1.049 e, respectively. This result suggests a quantity of electrons were transferred to the BEA substrate from the [InO]+ or [InOH]2+ group, and the electrons redistribution would further influence the interactions between the gas molecules and the acid sites.

2.2. The Electronic Structure Analysis for In/BEA Model

As shown in Figure 2, the energy gap between the Lowest Unoccupied Molecular Orbital (LUMO) and the Highest Occupied Molecular Orbital (HOMO) was the largest for the CH4 molecule, indicating its stronger chemical inertness. Furthermore, based on the frontier molecular orbital theory, it was concluded that the electrons density would be transferred from the HOMO of the CH4 or NO molecule to the LUMO of the [InO]+ or [InOH]2+ group due to their lower energy gaps. The energy levels of both the HOMO and LUMO of the L-model were higher than that of the B-model, which suggests that the [InO]+ group might be more reactive than the [InOH]2+ group for the In/BEA catalyst.
The condensed Fukui function was an effective method to elucidate the ability of a specific atom to gain or lose electrons, and it was defined as [26,27]:
f A + = q A n + 1 q A n
f A = q A n q A n 1
The atom with the higher f A + value was prone to accept electrons; otherwise, it was prone to donate electrons. As shown in Table 2, the f A + and f A values of the In atom in the L-model were very close, which indicates that both the electrophilic and nucleophilic adsorptions could possibly occur on the In atom. In the case of O atoms, a much higher value of f A than f A + suggests that it was easier for the O atom of [InO]+ to donate electrons. As for the B-model, the f A values of both the In and O atoms are negligible when compared with f A + , but f A +   values were smaller than that of the L-model. It indicates that the [InOH]2+ group prefers to accept electrons, and its lower f A + and f A values would lead to lower reactivity compared with the [InO]+ group. In addition, both the f A + and f A values for H atom were much smaller than that of the In and the O atom, which suggests that it would not be easy for a CH4 or NO molecule to react with an H atom. Therefore, the further adsorption characteristics of the small gases were only considered on In and O atoms.
The partial (PDOS) of the In and O atom of the L-model and B-model were calculated to elucidate electronic structure and bonding mechanism. The results are presented in Figure 3. The orbital energy levels were quite different between the [InO]+ and [InOH]2+ group, but the density of states (DOS) of both In and O atom were mainly donated by the p-orbital. The hybridizations between O-p and In-s, p at around −2.5, 0, and 2.0 eV for the L-model were clearly observed, so were the O-p and In-s at around −7.5 and 3.0 eV for the B-model. This suggests that there were strong covalent interactions between the In and O atom for both the [InO]+ and [InOH]2+ groups, in other words, the active site models used in our work were stable and could reasonably represent the active sites. The Fermi level was set to zero and is represented with a dotted line in this work. It can be clearly seen that the PDOS intensities at the Fermi level of [InO]+ was greatly stronger than that of [InOH]2+, which indicates that the In and O atoms are more active in the L-model compared with that in the B-model. This result corresponds well to the Fukui function calculations that the [InO]+ group exhibited greater electrophilic and nucleophilic abilities than [InOH]2+ group.

2.3. CH4 Adsorption Characteristics

The adsorption characteristics of CH4 on the In and O site of the L-model and B-model were carefully explored in this section, and the most favorable adsorption configurations are shown in Figure 4. All the four adsorption processes were found to be exothermic, but CH4 adsorption characteristics varied greatly at different sites. It is interesting to note that the C–H bond was easily cleaved without an energy barrier when it was initially absorbed on the O site of the L-model (Figure 4A2). One of the H atoms of CH4 moved to the O site, and a C–O bond formed simultaneously. This result was similar to the findings of Sinev et al. [28] that an H atom abstraction was energetically favorable with an O atom. It means that the CH4 activation could occur on the O site of [InO]+ group in In/BEA catalyst without the assistance of an NO or NO2 molecule. By contrast, the [InOH]2+ group had very weak affinity with the CH4 molecule, whether on the In site or the O site. CH4 would move away from the active site after geometry optimization with the dIn-C and dC–O equaling 2.469 and 4.358 Å, respectively (Figure 4B1,B2). In addition, the interactions between CH4 and the In site of the [InO]+ group was also very weak, and the corresponding In-C bond length was 3.360 Å (Figure 4A1). The binding energies were –0.15, –2.98, –0.48, and –0.10 eV for configuration in Figure 4A1, the configuration in Figure 4A2, the configuration in Figure 4B1, and the configuration in Figure 4B2, respectively. The interactions between the CH4 molecule and substrates were much weaker when it was adsorbed on the In site of the L-model and the O site of the B-model, and it would move away after geometry optimization (Figure 4A1,B2).
The bond length changes of the active sites are compiled in Table 3. The bond length of In–O (1.872; 1.873 Å), In–O1 (2.249; 2.247 Å), In–O2 (2.229; 2.241 Å), and Al–O1 (1.822; 1.824 Å), and Al–O2 (1.827; 1.824 Å) almost remained unchanged when the CH4 was adsorbed on the In site of the L-model, indicating weak interactions between the CH4 molecule and In atom. In the case of CH4 bonding with the O site of the L-model, the bond length of In–O (1.872; 2.493 Å), In–O1 (2.249; 2.596 Å), and In–O2 (2.229; 3.246 Å) greatly increased, by contrast, the bond length of Al–O1 (1.822; 1.794 Å) and Al–O2 (1.827; 1.786 Å) slightly decreased. Additionally, it is noted that the net charge of CH4 was positive except for the O site of the B-model, which indicates the electrons were transferred from the CH4 molecule to the catalyst as CH4 was adsorbed, and the values are 0.034, 0.305, 0.052, and −0.002 e for the configuration in Figure 4A1, the configuration in Figure 4A2, the configuration in Figure 4A3, and the configuration in Figure 4A4, respectively. The net charge value was the highest when CH4 was adsorbed on the O site of the L-model, in accordance with its lowest adsorption energy.
Furthermore, the projected density of states (PDOS) of C-p and In-s, p was calculated to clarify the bonding mechanism of CH4 adsorption and dissociation, the results of which are shown in Figure 5. The PDOS of C-p scarcely overlaps with the orbitals of the In atom (In-s, p), thus a new chemical bond would not be easily formed. However, the PDOS of C-p and O-p are strongly overlapped at around Fermi level, which indicates that the new formed C–O bond was contributed by the interactions between the C-p orbitals of CH4 and the O-p orbitals of the [InO]+ group in this configuration. Moreover, a mass of electron densities was transferred from C-p orbitals of CH4 to O-p after adsorption, and the C-p moved to lower energy levels accompanied with its PDOS split. Therefore, CH4 activation resulted from the strong interactions between C-p and O-p orbitals when it was adsorbed on the O site of the L-model. In the case of CH4 interacting with the B-model, the electron densities of C-p of CH4 were redistributed owing to the weak interactions between C-p and In-s, and the energy level of C-p also become lower after adsorption. There were only tiny overlapped DOS bands when CH4 molecule was adsorbed on the B-model, which indicates that CH4 could not be easily activated on Brønsted acid sites due to their relatively weaker interactions.

2.4. NO and NO2 Adsorption Characteristics

It was reported that NO2 was more important than NO in the CH4-SCR process, because NO3 species would be easily produced when an NO2 molecule was coordinated with the [InO]+ group. Some researchers proposed that NO3 could facilitate CH4 activation and active intermediates formation [12,29]. However, it was found that CH4 molecules can be easily activated on the O site of the InO+ group of the In/BEA catalyst in Section 2.2. As key reactants, the adsorption characteristics of NO and NO2 on the L-model and B-model of In/BEA required further explorations and comparisons.
The adsorption configurations of NO and NO2 coordinated with the In or O sites of the L-model and B-model are displayed in Figure 6. Interestingly, NO was inclined to coordinate with the O atom rather than the In atom of [InO]+. However, NO2 was inclined to coordinate with the In atom of [InOH]2+. Generally, the NO molecule has stronger affinities with the L-model than the B-model, the binding energy of which was −1.84 and −1.07 eV, respectively. This result is in agreement with the Fukui function results that the activity of the [InO]+ group is higher than the [InOH]2+ group. The adsorbed NO2* species was produced simultaneously when NO interacts with the L-model regardless of the adsorption sites (Figure 6A1,B1), and a similar phenomenon was observed by Huang et al. [30]. In the case of NO2 adsorption, NO2 molecule also had stronger interactions with the L-model than the B-model (−1.93 eV vs. −0.56 and −0.42 eV). In addition, NO3-* species could be produced as the NO2 molecule interacts with the L-model, and the adsorption energy was similar to that of the NO adsorbed on the L-model. Therefore, it is concluded that [InO]+ groups serve as major active sites for CH4 activation, NO and NO2 adsorption in the CH4-SCR process.
The bond length and Mulliken charge population of NO and NO2 adsorption are compiled in Table 4. Compared with other adsorption configurations, the In–O bond was greatly elongated as NO was adsorbed on the L-model (1.872; 2.169 Å) and NO2 was adsorbed on the O site of the B-model (1.872; 2.183 Å) due to the much stronger interactions. Meanwhile, the bond length of the NO molecule also became larger (1.164; 1.197 and 1.171 Å), indicating an active status for the adsorbed NO. The negative net charge of NO and NO2 adsorbed on the L-model suggests that NO and NO2 molecules have accepted electrons from the catalyst, and the values were –0.267 and –0.248 e, respectively (Figure 6A1,C1). As for NO and NO2 adsorbed on the B-model, the positive net charge suggests that the electrons were transferred from NO and NO2 to the catalyst. The net charge values were 0.120, 0.122, and 0.037 e for the configurations in Figure 6B1,D1,D2, respectively. The higher electrons transfer amounts for NO and NO2 on the L-model corresponded to their lower binding energies.

2.5. O2, H2O and CO2 Adsorption Characteristics

The detailed adsorption characteristics of O2, H2O, and CO2 were also investigated, because O2 was the reactant and H2O and CO2 were products in the flue gas. Based on the above results, it was concluded that the [InO]+ group rather than the [InOH]2+ group plays the dominant role in CH4 activation and the NO/NO2 adsorption process. Therefore, only the adsorption characteristics on the L-model were calculated and discussed. The optimized structures and their corresponding adsorption energies are displayed in Figure 7, and the bond lengths and Mulliken charge population are shown in Table 5. O2 and CO2 molecules were more likely to coordinate with the O site, while H2O molecule prefers the In site (Figure 7A2,B2,C1), the corresponding energy was −0.49, −0.86, and −0.29 eV, respectively. Therefore, the O2 adsorption process would be less favorable on the active sites. Therefore, it is deduced that activation of CH4 on the O site of [InO]+ would be the initial steps on the In/BEA catalyst. Interestingly, the CO2 molecule has a strong affinity with the O site of the [InO]+ group, with a carbonate formed, yielding the adsorption energy of –0.86 eV (Figure 7B2). Meanwhile, there is a mass of electrons transferred from the CO2 molecule to the catalyst, the quantity of which is equal to 0.215 e. The adsorption configurations of H2O are shown in Figure 7C1,C2. It is noted that the H2O molecule interacted weakly with the [InO]+ group and the adsorption energy on the In site and O site were –0.29 and –0.05 eV, respectively. The dIn–O bond length for H2O interacting with the In and O site were 2.430 and 3.430 Å, respectively, and there was only a small quantity of electrons transferred between the H2O molecule and the catalyst. This result suggests that the In/BEA catalyst has excellent water vapor durability in the process of CH4-SCR.
The PDOS of O2, CO2, and H2O before and after adsorption were also compared to obtain insights into the bonding mechanism (Figure 8). The distinct bands at the Fermi level could be observed for the free O2, CO2 and H2O molecules, and they overlapped with the In-p and O-p orbitals of the [InO]+ group. It is noted that the shape and intensity of free O2 were greatly changed within the range of –8 to 2 eV after adsorption. The electron density depletion indicates that the O2 molecule donated electrons to the catalyst. As for the CO2 adsorption on the In site, the PDOS bands shifted to a lower energy level, but the intensity did not change distinctly. This indicates that the adsorption caused CO2 electron redistribution while only a few electrons were transferred to the catalyst. By contrast, the electron density depletion was obvious as CO2 was adsorbed on the O site but there were almost no PDOS band shifts. The situation was similar for H2O adsorption on the In and O sites.

2.6. Nitromethanes’ Formation and Reaction Enthalpy

It was reported by many researchers that nitromethanes (CH3NO and CH3NO2) are the key intermediates involved in N2 formation [22,31,32,33]. As shown in Section 2.3, CH3 formation on the O site of the [InO]+ species was the initial step. Therefore, the formation process of nitromethanes was considered as the CH3 group further reacting with gaseous NO or NO2 molecules. It is interesting to find that the adsorption behaviors of NO and NO2 on the CH3 group were entirely different. Figure 9 shows that the NO molecule would move away from the CH3 group whether the NO molecule was placed on the C site or the O site at the beginning, with the N–C bond length equaling 3.707 Å. This indicates that there was a strong repulsion between the NO molecule and the CH3 group, and CH3NO intermediates were not easily produced on the In/BEA catalyst. In comparison, when the NO2 molecule was placed near the CH3 group, the C–O bond broke immediately and CH3NO2 was formed simultaneously. Subsequently, CH3NO2 rotated to a tilted position with the N–C bond and C–O length equaling to 3.707 and 1.498 Å, respectively. As a result, it was concluded that CH3NO2 rather than CH3NO species could be formed on the catalyst, and this key intermediate would facilitate the following catalytic process. This result also indicates that NO2 plays a key role in the CH4-SCR process for the In/BEA catalyst, in accordance with previous research [13,34].
There are mainly two reaction pathways in the CH4-SCR process: (1) CH4+O2+2NO→CO2+2H2O+N2; (2) CH4+2NO2→CO2+2H2O+N2 [34,35]. In this regard, co-adsorption characteristics of multiple species of the reactants (IS1-NO, CH4, O2; IS2-2NO2, CH4) and products (CO2, N2, H2O) were studied. As shown in Figure 10, it is noted that a NO molecule was inclined to coordinate with an O2 molecule in IS1, and an NO2* was formed. The formed NO2* was necessary for the CH3NO2 formation. This result is in line with the findings in Section 2.4 and it also suggests that IS2 might be the subsequent status of IS1 in the SCR process, because CH3NO could not be easily produced. Additionally, the two reaction routes occurred using the same catalyst. Thus, it is assumed that the status of transition state was the same for the two reaction pathways. It can be seen that both reaction pathway 1 and 2 were exothermic but the energy of IS1 was 3.03 eV lower than that of IS2, suggesting that the total energy barrier Ea2 of reaction 2 should be smaller than Ea1.Therefore, it is concluded that NO2 molecules were essential in the SCR process, and they could be produced by NO reacting with gaseous O2 or the O atom of the [InO]+ group. In this case, on one hand, the formation of key intermediate CH3NO2 could be facilitated, on the other hand, the reaction rates would be much higher due to the lower reaction barrier in the presence of NO2.

3. Computational Methods

There were several DFT calculations concerning zeolites conducted based on a simplified cluster model in order to save calculation time [8,9,36]; the accuracy of the computational results was therefore usually less accurate. In this regard, all DFT calculations were performed on a periodic boundary BEA zeolite model for the first time to achieve results with higher reliabilities (Figure 11).
All calculations were performed based on DMol3 implemented in Materials Studio 2017R2 [37], in which the Perdew–Burke–Ernzerhoff (PBE) [38] functional in the generalized gradient approximation (GGA) [39] was used to calculate the x change-correlation potential. The following three convergence criteria were used for the geometry optimization and energy calculation: SCF tolerance (1.0 × 10−6), the atomic forces (2.0 × 10−3 Hartree/Å), maximum displacement (5.0 × 10−3 Å), and total energy variation (1.0 × 10−5 Hartree). The molecular orbitals were expanded using a double numerical basis set with polarization functions (DNP), which is equivalent to 6-31 G**. The range of integration for charge density and functional was confined within a global orbital cutoff value of 3.5 Å. The core electrons were treated using the DFT semicore pseudo pots (DSPP) method. A (3 × 3 × 3) Monkhorst–Pack k-point grid was used for In/BEA unit cell optimization. All the atoms in the model were allowed to be relaxed during the calculation.
The [InO]+ and [InOH]2+ moiety introduced one and two positive charges, respectively, which were compensated by substituting one Si4+ with Al3+ to keep the charge balance. In the unit cell of BEA, there are nine distinct Si sites denoted as T sites for Al cation substitution, among which T1 and T9 sites substitution were suggested to be relatively stable [36]. Based on the parameters set in our calculations, we found that the structure of Al3+ substituting on the T9 site is more energetically favorable, and the energy is 0.08 eV lower than that on T1 site. Similar substitution methods were suggested by Yan [9] and Zhou [19]. For the sake of simplicity, the formed [InO]+/BEA model was denoted as the L-model, and the [InOH]2+/BEA model was denoted as the B-model. The [InO]+ species was placed in the five-member ring, six-member ring and 12-member ring and optimized at the beginning, among which InO+ in the 12-member ring has the lowest energy after geometry optimizations. Therefore, further calculations were performed based on this model.
Adsorption energy (Ead) denotes the interaction between the surface and the adsorbate, which is defined as:
E ad = E sub + E x E total
where Etotal is the total energy of the catalyst model and gas molecule; Esub and Ex are the energy of catalyst model and gas molecule, respectively. A smaller value indicates a stronger adsorption.

4. Conclusions

The geometry and electronic structure of the [InO]+ and [InOH]2+ groups were quite different, and the [InO]+ group was more reactive and served as the main active site in the In/BEA catalyst. Furthermore, CH4 could be easily activated on the L-model to form a CH3 group in the absence of NO or NO2, while the B-model was inactive in this process. NO2 plays a more important role than NO in the SCR process, because it could react with the activated CH3 to form the key intermediate CH3NO2 and lower the total reaction barrier.

Author Contributions

Conceptualization, E.G. and H.P.; investigation, L.W. and J.C.; supervision, Y.S. and H.P.; writing—original draft, E.G. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the National Key Research and Development Program of China (2018YFE0120300), the National Natural Science Foundation of China (21676245) and Natural Science Foundation of Zhejiang Province of China (LY19E080023). We also acknowledge the support of Zhejiang Shuren University Basic Scientific Research Special Funds (2020XZ012) and Key Laboratory of Microbial Technology for Industrial Pollution Control of Zhejiang Province.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, G.; Wang, X.; Jia, C.; Liu, Z. An in situ Fourier transform infrared study on the mechanism of NO reduction by acetylene over mordenite-based catalysts. J. Catal. 2008, 257, 291–296. [Google Scholar] [CrossRef]
  2. Liu, J.; Li, X.; Zhao, Q.; Hao, C.; Zhang, D. Insight into the mechanism of selective catalytic reduction of NOx by propene over the Cu/Ti0.7Zr0.3O2 catalyst by fourier transform infrared spectroscopy and density functional theory calculations. Environ. Sci. Technol. 2013, 47, 4528–4535. [Google Scholar] [CrossRef]
  3. Li, Y.; Armor, J.N. Catalytic reduction of nitrogen oxides with methane in the presence of excess oxygen. Appl. Catal. B-Environ. 1992, 1, L31–L40. [Google Scholar] [CrossRef]
  4. Kikuchi, E.; Yogo, K. Selective catalytic reduction of nitrogen monoxide by methane on zeolite catalysts in an oxygen-rich atmosphere. Catal. Today 1994, 22, 73–86. [Google Scholar] [CrossRef]
  5. Gao, E.; Sun, G.; Zhang, W.; Bernards, M.T.; He, Y.; Pan, H.; Shi, Y. Surface lattice oxygen activation via Zr4+ cations substituting on A2+ sites of MnCr2O4 forming ZrxMn1-xCr2O4 catalysts for enhanced NH3-SCR performance. Chem. Eng. J. 2020, 380, 122397. [Google Scholar] [CrossRef]
  6. Lónyi, F.; Valyon, J.; Gutierrez, L.; Ulla, M.A.; Lombardo, E.A. The SCR of NO with CH4 over Co-, Co,Pt-, and H-mordenite catalysts. Appl. Catal. B-Environ. 2007, 73, 1–10. [Google Scholar] [CrossRef]
  7. Lukyanov, D.B.; Lombardo, E.A.; Sill, G.A.; D’Itri, J.L.; Hall, W.K. Selective Catalytic Reduction (SCR) of NO with Methane over CoZSM-5 and HZSM-5 Zeolites: On the Role of Free Radicals and Competitive Oxidation Reactions. J. Catal. 1996, 163, 447–456. [Google Scholar] [CrossRef]
  8. Wang, Y.; Lei, Z.; Chen, B.; Guo, Q.; Liu, N. Adsorption of NO and N2O on Fe-BEA and H-BEA zeolites. Appl. Surf. Sci. 2010, 256, 4042–4047. [Google Scholar] [CrossRef]
  9. Yan, Z.; Zuo, Z.; Li, Z.; Zhang, J. A cluster DFT study of NH3 and NO adsorption on the (MoO2)2+/HZSM-5 surface: Lewis versus Brønsted acid sites. Appl. Surf. Sci. 2014, 321, 339–347. [Google Scholar] [CrossRef]
  10. Lónyi, F.; Solt, H.E.; Valyon, J.; Boix, A.; Gutierrez, L.B. The SCR of NO with methane over In H- and Co,In,H-ZSM-5 catalysts: The promotional effect of cobalt. Appl. Catal. B-Environ. 2012, 117, 212–223. [Google Scholar] [CrossRef]
  11. Meng, D.; Zhan, W.; Guo, Y.; Guo, Y.; Wang, L.; Lu, G. A highly effective catalyst of Sm-MnOx for the NH3-SCR of NOx at low temperature: Promotional role of Sm and its catalytic performance. ACS Catal. 2015, 5, 5973–5983. [Google Scholar] [CrossRef]
  12. Lónyi, F.; Solt, H.E.; Valyon, J.; Boix, A.; Gutierrez, L.B. The activation of NO and CH4 for NO-SCR reaction over In- and Co-containing H-ZSM-5 catalysts. J. Mol. Catal. A-Chem. 2011, 345, 75–80. [Google Scholar] [CrossRef]
  13. Kikuchi, E.; Ogura, M.; Terasaki, I.; Goto, Y. Selective reduction of nitric oxide with methane on gallium and indium containing H-ZSM-5 catalysts: Formation of active sites by solid-state ion exchange. J. Catal. 1996, 161, 465–470. [Google Scholar] [CrossRef]
  14. Kubacka, A.; Janas, J.; Sulikowski, B. In/Co-ferrierite: A highly active catalyst for the CH4-SCR NO process under presence of steam. Appl. Catal. B-Environ. 2006, 69, 43–48. [Google Scholar] [CrossRef]
  15. Marnellos, G.E.; Efthimiadis, E.A.; Vasalos, I.A. Mechanistic and kinetic analysis of the NOx selective catalytic reduction by hydrocarbons in excess O2 over In/Al2O3 in the presence of SO2 and H2O. Appl. Catal. B-Environ. 2004, 48, 1–15. [Google Scholar] [CrossRef]
  16. Maunula, T.; Ahola, J.; Hamada, H. Reaction mechanism and kinetics of NOx reduction by methane on In/ZSM-5 under lean conditions. Appl. Catal. B-Environ. 2006, 64, 13–24. [Google Scholar] [CrossRef]
  17. Lónyi, F.; Solt, H.E.; Valyon, J.; Decolatti, H.; Gutierrez, L.B.; Miró, E. An operando DRIFTS study of the active sites and the active intermediates of the NO-SCR reaction by methane over In,H- and In,Pd,H-zeolite catalysts. Appl. Catal. B-Environ. 2010, 100, 133–142. [Google Scholar] [CrossRef]
  18. Pan, H.; Jian, Y.; Yu, Y.; Chen, N.; He, C.; He, C. Promotional mechanism of propane on selective catalytic reduction of NOx by methane over In/H-BEA at low temperature. Appl. Surf. Sci. 2016, 390, 608–616. [Google Scholar] [CrossRef]
  19. Zhou, D.; Zhang, Y.; Zhu, H.; Ma, D.; Bao, X. The structure, stability, and reactivity of Mo-oxo species in H-ZSM5 zeolites: Density functional theory study. J. Phys. Chem. C 2007, 111, 2081–2091. [Google Scholar] [CrossRef]
  20. Pietrzyk, P.; Podolska, K.; Sojka, Z. Role of NOδ+ intermediates in NO reduction with propene over NiZSM-5 zeolite revealed by EPR and IR spectroscopic investigations and DFT modeling. J. Phys. Chem. C 2011, 115, 13008–13015. [Google Scholar] [CrossRef]
  21. Cowan, A.D.; Dumpelmann, R.; Cant, N.W. The rate-determining step in the selective reduction of nitric-oxide by methane over a Co-ZSM5 catalyst in the presence of oxygen. J. Catal. 1995, 151, 356–363. [Google Scholar] [CrossRef]
  22. Cant, N.W.; Liu, I.O.Y. The mechanism of the selective reduction of nitrogen oxides by hydrocarbons on zeolite catalysts. Catal. Today 2000, 63, 133–146. [Google Scholar] [CrossRef]
  23. Kikuyama, S.; Matsukuma, I.; Kikuchi, R.; Sasaki, K.; Eguchi, K. A role of components in Pt-ZrO2/Al2O3 as a sorbent for removal of NO and NO2. Appl. Catal. A-Gen. 2002, 226, 23–30. [Google Scholar] [CrossRef]
  24. Newsam, J.M.; Treacy, M.M.J.; Koetsier, W.T.; Gruyter, C.B.D.; Thomas, J.M. Structural characterization of zeolite beta. Proc. R. Soc. Lond. A Math. Phys. Sci. 1988, 420, 375–405. [Google Scholar]
  25. Lide, D.R. CRC Handbook of Chemistry and Physics; CRC Press: Boca Raton, FL, USA, 2004. [Google Scholar]
  26. Yang, W.; Parr, R.G. Hardness, softness, and the fukui function in the electronic theory of metals and catalysis. Proc. Natl. Acad. Sci. USA 1985, 82, 6723. [Google Scholar] [CrossRef] [PubMed]
  27. Qi, D.; Zhang, L.; Wan, L.; Zhang, Y.; Bian, Y.; Jiang, J. Conformational effects, molecular orbitals, and reaction activities of bis(phthalocyaninato) lanthanum double-deckers: Density functional theory calculations. Phys. Chem. Chem. Phys. 2011, 13, 13277. [Google Scholar] [CrossRef]
  28. Sinev, M.Y.; Margolis, L.Y.; Korchak, V.N. Heterogeneous free-radical reactions in oxidation processes. Russ. Chem. Rev. 1995, 64, 349–364. [Google Scholar] [CrossRef]
  29. Córdoba, L.F.; Sachtler, W.M.H.; Montes De Correa, C. NO reduction by CH4 over Pd/Co-sulfated zirconia catalysts. Appl. Catal. B-Environ. 2005, 56, 269–277. [Google Scholar] [CrossRef]
  30. Lei Huang, K.Z.S.N. Promotional effect of the TiO2 (001) facet in the selective catalytic reduction of NO with NH3: In situ DRIFTS and DFT studies. Catal. Sci. Technol. 2016, 6, 8516–8524. [Google Scholar] [CrossRef]
  31. Li, Y.J.; Armor, J.N. Selective reduction of NOx by methane on Co-Ferrierites: I. reaction and kinetic studies. J. Catal. 1994, 150, 376–387. [Google Scholar] [CrossRef]
  32. Li, Y.J.; Slager, T.L.; Armor, J.N. Selective reduction of NOx by methane on Co-Ferrierites: II. catalyst characterization. J. Catal. 1994, 150, 388–399. [Google Scholar] [CrossRef]
  33. Yokoyama, C.; Misono, M. Catalytic reduction of nitrogen oxides by propene in the presence of oxygen over cerium ion-exchanged zeolites: III. effects of carriers. J. Catal. 1996, 160, 95–105. [Google Scholar] [CrossRef]
  34. Ren, L.; Zhang, T.; Liang, D.; Xu, C.; Tang, J.; Lin, L. Effect of addition of Zn on the catalytic activity of a Co/HZSM-5 catalyst for the SCR of NOx with CH4. Appl. Catal. B-Environ. 2002, 35, 317–321. [Google Scholar] [CrossRef]
  35. Pietrogiacomi, D.; Campa, M.C.; Ardemani, L.; Occhiuzzi, M. Operando FTIR study of Fe-MOR, Co-MOR, and Ni-MOR as catalysts for simultaneous abatement of NOx and N2O with CH4 in the presence of O2. An insight on reaction pathway. Catal. Today 2019, 336, 131–138. [Google Scholar] [CrossRef]
  36. Fujita, H.; Kanougi, T.; Atoguchi, T. Distribution of Brønsted acid sites on beta zeolite H-BEA: A periodic density functional theory calculation. Appl. Catal. A-Gen. 2006, 313, 160–166. [Google Scholar] [CrossRef]
  37. Delley, B. From molecules to solids with the DMol3 approach. J. Chem. Phys. 2000, 113, 7756–7764. [Google Scholar] [CrossRef]
  38. Hammer, B. Improved adsorption energetics within density-functional theory using revised Perdew-Burke-Ernzerhof functionals. Phys. Rev. B 1999, 59, 7413–7421. [Google Scholar] [CrossRef]
  39. Perdew, J.P.; Burke, K.; Wang, Y. Generalized gradient approximation for the exchange-correlation hole of a many-electron system. Phys. Rev. B 1996, 54, 16533–16539. [Google Scholar] [CrossRef]

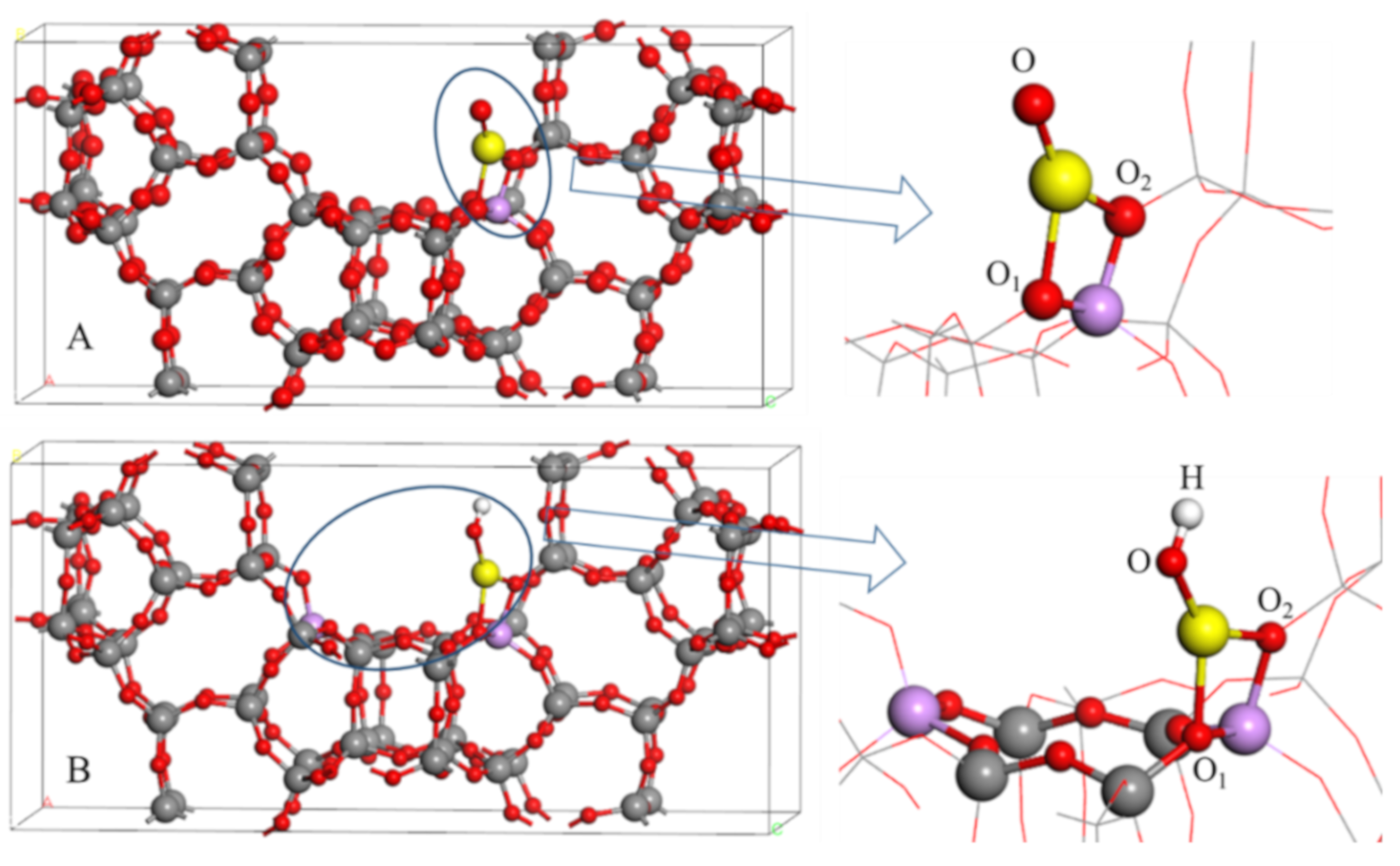

Figure 1. Optimized periodic structure illustrations of In/BEA unit cell. (A) L-model of In/BEA; (B) B-model of In/BEA. Grey, red, purple and yellow balls represent Si, O, Al, and In atoms, respectively, and this color scheme will be used throughout.
Figure 1. Optimized periodic structure illustrations of In/BEA unit cell. (A) L-model of In/BEA; (B) B-model of In/BEA. Grey, red, purple and yellow balls represent Si, O, Al, and In atoms, respectively, and this color scheme will be used throughout.
Catalysts 10 00572 g001

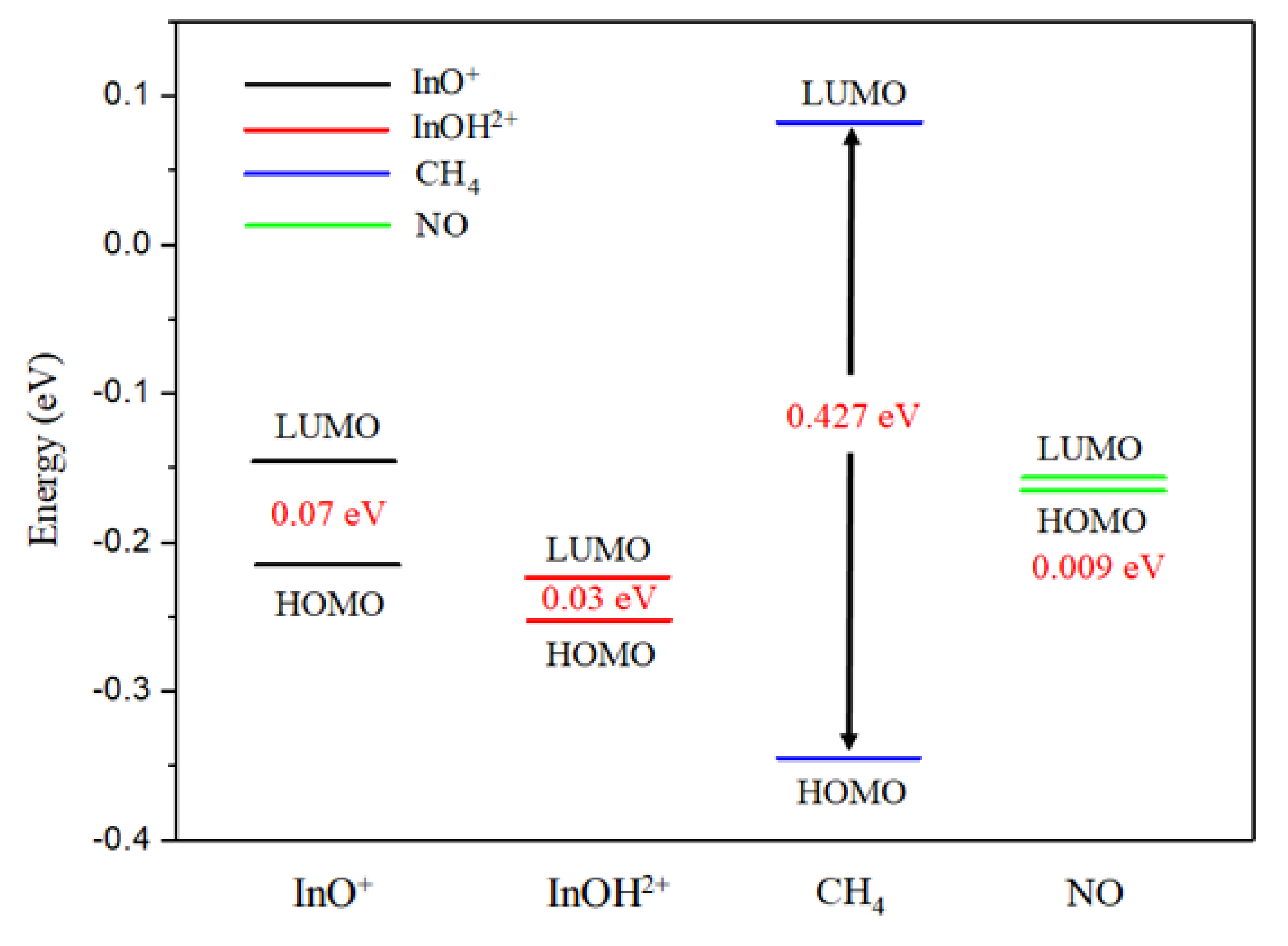

Figure 2. The energy levels of frontier molecular orbitals [InO]+, [InOH]2+, CH4, and NO molecule.
Figure 2. The energy levels of frontier molecular orbitals [InO]+, [InOH]2+, CH4, and NO molecule.
Catalysts 10 00572 g002

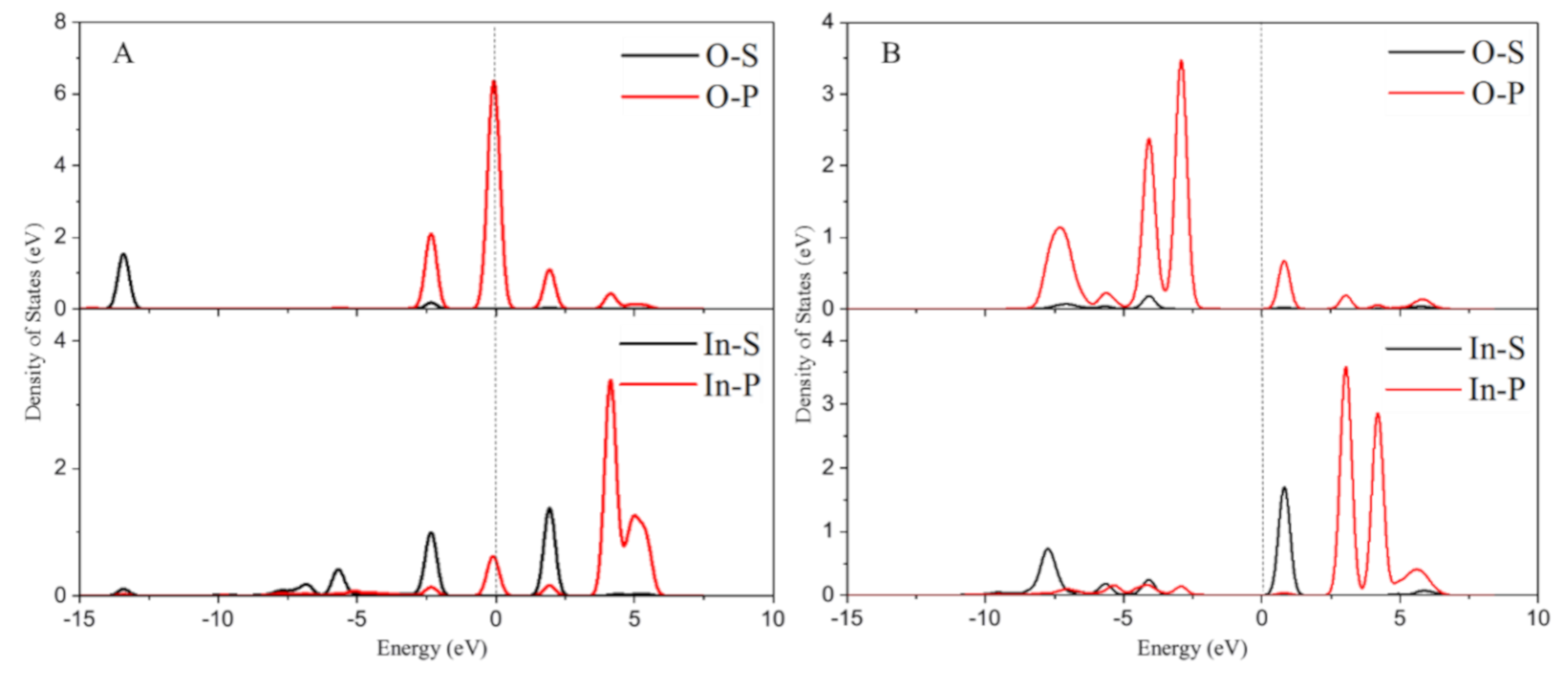

Figure 3. The partial density of states (PDOS) of the In and O atom of (A) [InO]+ and (B) [InOH]2+ group.
Figure 3. The partial density of states (PDOS) of the In and O atom of (A) [InO]+ and (B) [InOH]2+ group.
Catalysts 10 00572 g003
Figure 4. Optimized structures of CH4 adsorption on (A1) In site of L-model; (A2) O site of L-model; (B1) In site of B-model; (B2) O site of B-model.
Figure 4. Optimized structures of CH4 adsorption on (A1) In site of L-model; (A2) O site of L-model; (B1) In site of B-model; (B2) O site of B-model.
Catalysts 10 00572 g004

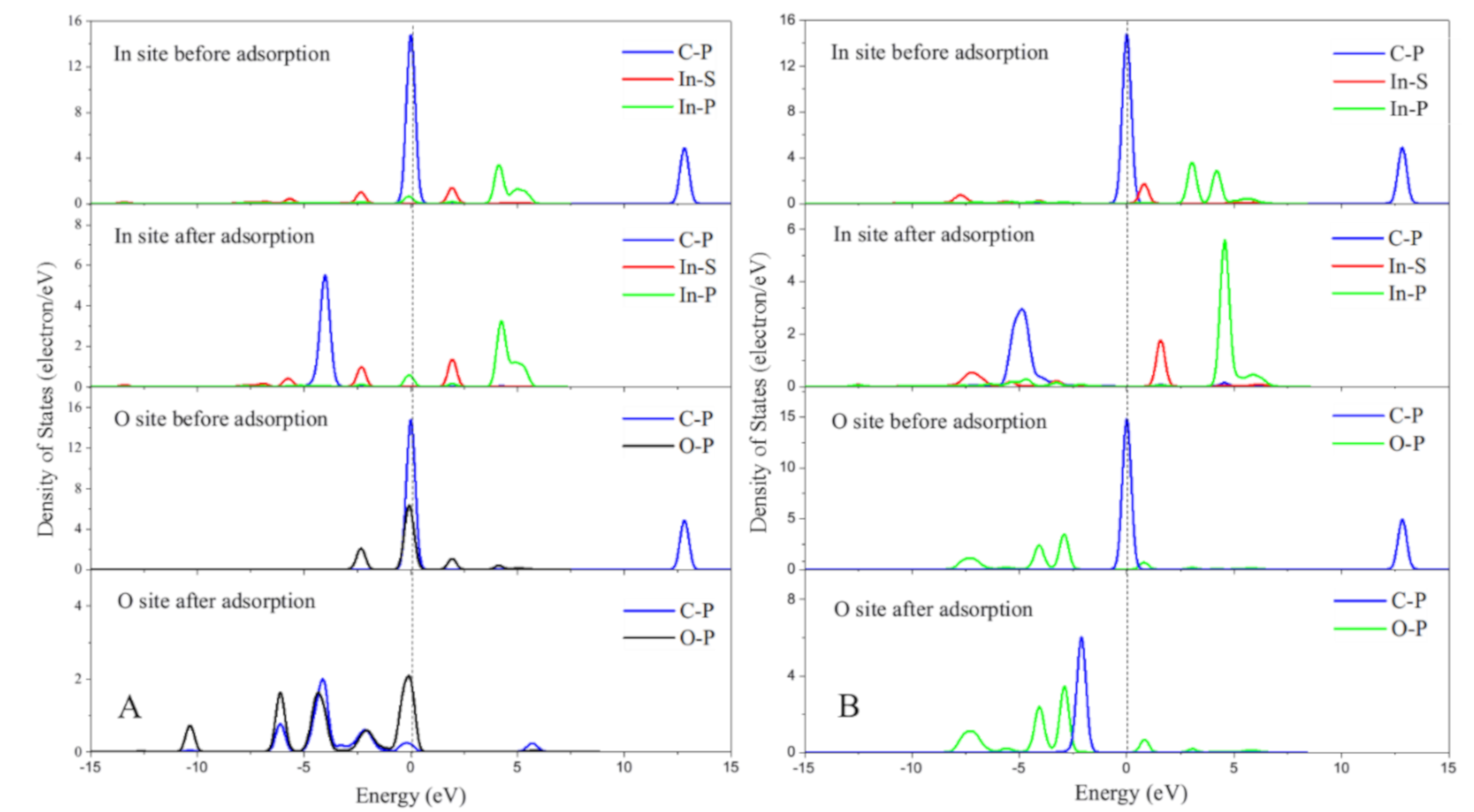

Figure 5. The PDOS of CH4 before and after adsorption on In and O site of L-model (A) and B-model (B).
Figure 5. The PDOS of CH4 before and after adsorption on In and O site of L-model (A) and B-model (B).
Catalysts 10 00572 g005
Figure 6. Structures of NO adsorption on Lewis and Brønsted acid sites of In/BEA: NO on In and O site of L-model (A1); NO on In and O site of B-model (B1); NO2 on In and O site of L-model (C1); NO2 on In site of B-model (D1); NO2 on O site of B-model (D2).
Figure 6. Structures of NO adsorption on Lewis and Brønsted acid sites of In/BEA: NO on In and O site of L-model (A1); NO on In and O site of B-model (B1); NO2 on In and O site of L-model (C1); NO2 on In site of B-model (D1); NO2 on O site of B-model (D2).
Catalysts 10 00572 g006

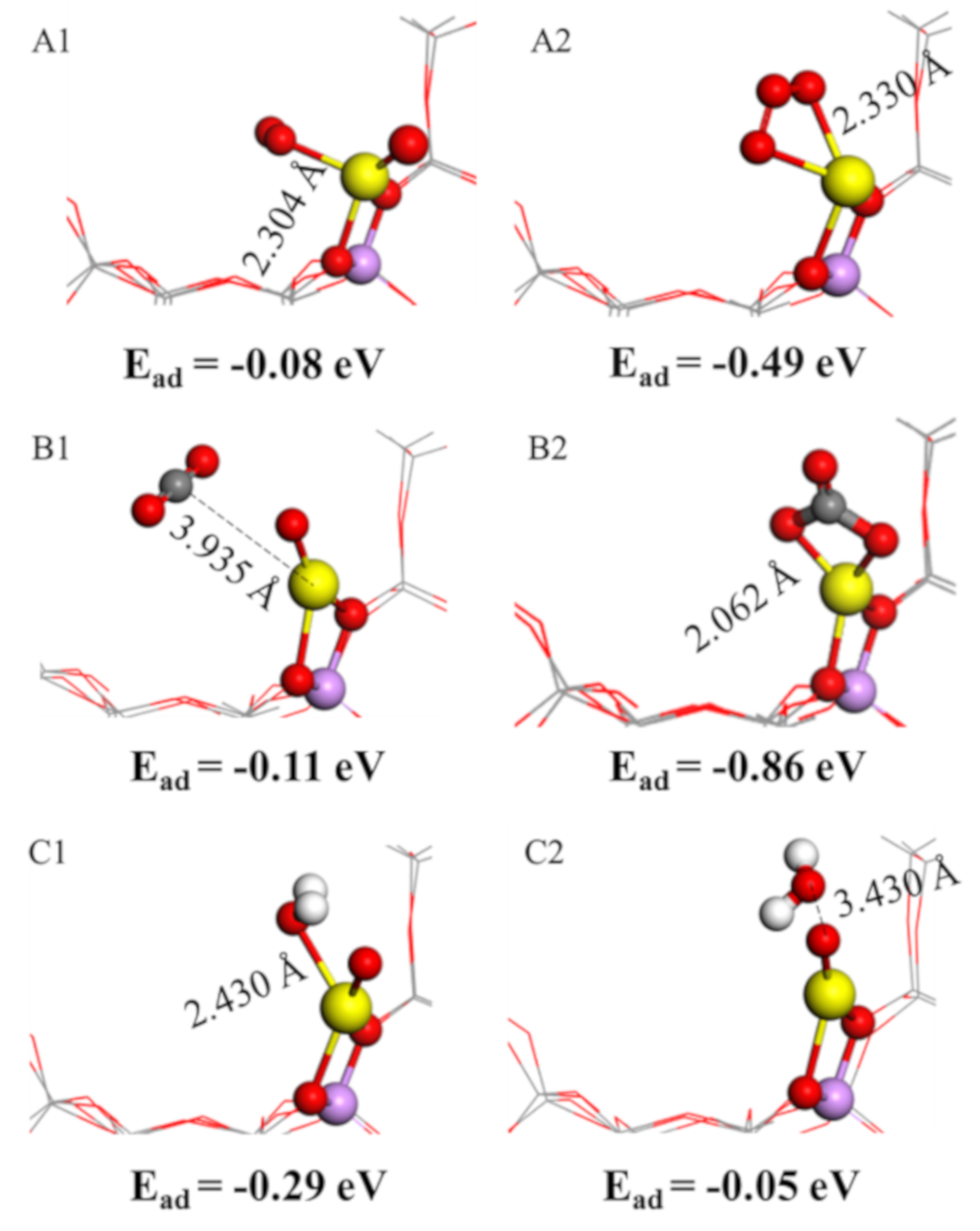

Figure 7. Optimized structures of O2, CO2, and H2O molecules adsorbed on L-model of In/BEA: O2 molecule on In site (A1); O2 molecule on O site (A2); CO2 molecule on In site (B1); CO2 molecule on O site (B2); H2O on In site (C1); H2O on In site (C2).
Figure 7. Optimized structures of O2, CO2, and H2O molecules adsorbed on L-model of In/BEA: O2 molecule on In site (A1); O2 molecule on O site (A2); CO2 molecule on In site (B1); CO2 molecule on O site (B2); H2O on In site (C1); H2O on In site (C2).
Catalysts 10 00572 g007

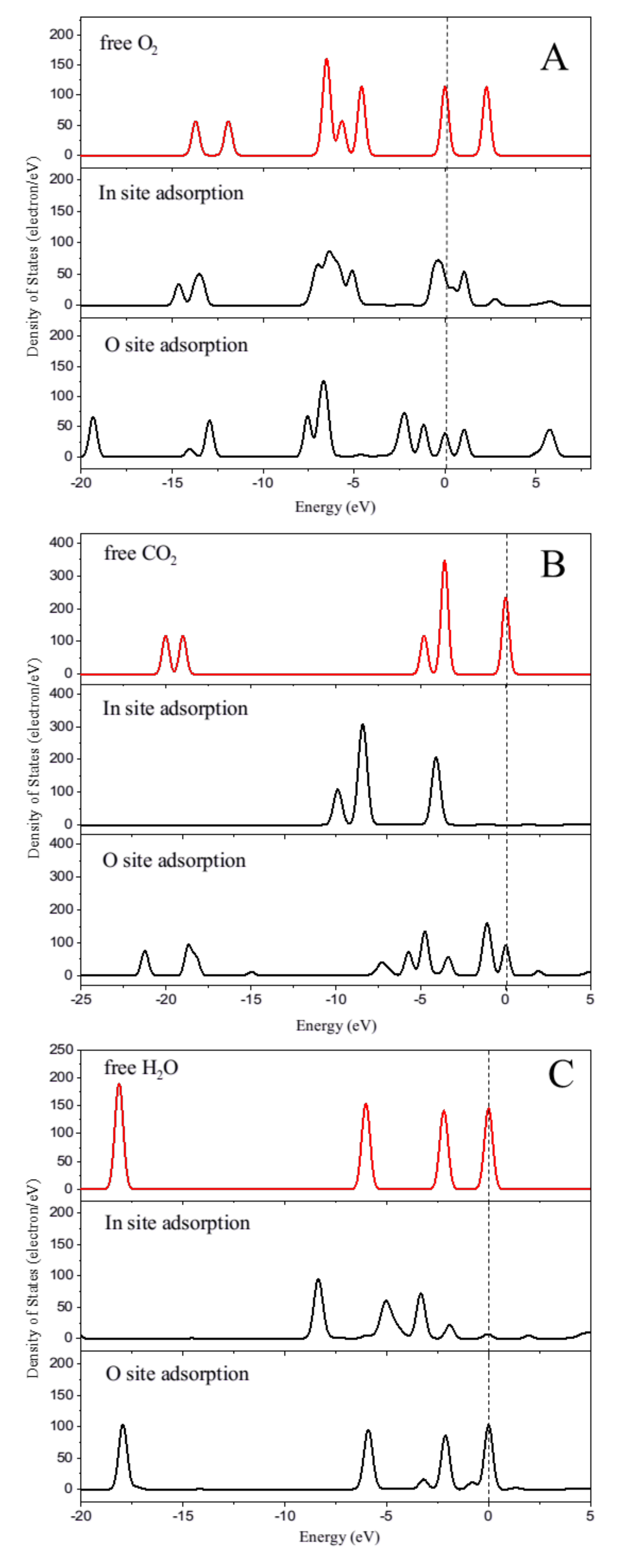

Figure 8. The PDOS before and after O2 (A), CO2 (B), and H2O (C) adsorption on In and O site of L-model.
