Catalytic Performance of Bulk and Al2O3-Supported Molybdenum Oxide for the Production of Biodiesel from Oil with High Free Fatty Acids Content

Departamento de Ciencias, Edificio de los Acebos, Universidad Pública de Navarra, Campus de Arrosadía s/n, 31006 Pamplona, Spain
Institute for Advanced Materials (InaMat), Universidad Pública de Navarra, Campus de Arrosadía, Pamplona, Spain
Departamento de Química Inorgánica e Instituto de Ciencia de Materiales de Sevilla, Centro mixto Universidad de Sevilla-CSIC, Av. Américo Vespucio 49, 41092 Seville, Spain
Institute of Energy Technologies, Department of Chemical Engineering and Barcelona Research Center in Multiscale Science and Engineering. Universitat Politècnica de Catalunya, EEBE, Eduard Maristany 16, 08019 Barcelona, Spain
Author to whom correspondence should be addressed.
Catalysts 2020, 10(2), 158;
Received: 16 January 2020 / Revised: 25 January 2020 / Accepted: 29 January 2020 / Published: 1 February 2020
(This article belongs to the Special Issue Biomass Derived Heterogeneous and Homogeneous Catalysts)


Non-edible vegetable oils are characterized by high contents of free fatty acids (FFAs) that prevent from using the conventional basic catalysts for the production of biodiesel. In this work, solid acid catalysts are used for the simultaneous esterification and transesterification with methanol of the FFAs and triglycerides contained in sunflower oil acidified with oleic acid. Molybdenum oxide (MoO3), which has been seldom considered as a catalyst for the production of biodiesel, was used in bulk and alumina-supported forms. Results showed that bulk MoO3 is very active for both transesterification and esterification reactions, but it suffered from severe molybdenum leaching in the reaction medium. When supported on Al2O3, the MoO3 performance improved in terms of active phase utilization and stability though molybdenum leaching remained significant. The improvement of catalytic performance was ascribed to the establishment of MoO3-Al2O3 interactions that favored the anchorage of molybdenum to the support and the formation of new strong acidic centers, although this effect was offset by a decrease of specific surface area. It is concluded that the development of stable catalysts based on MoO3 offers an attractive route for the valorization of oils with high FFAs content.

1. Introduction

Biodiesel (a mixture of fatty acid methyl esters, FAMEs) has been the most important alternative fuel for diesel engines for over 25 years [1]. It is typically produced by the catalytic transesterification of refined vegetable oils such as soybean, palm and rapeseed in liquid phase (homogeneous catalysis). To make biodiesel more cost-competitive with petroleum diesel, the use of refined oils, whose cost has been estimated to account for 70–95% of the total costs, should be avoided by replacing them with low-cost feedstocks, such as waste greases, brown grease, non-edible vegetable oils, dark oil generated by the vegetable oil refining industry, or used cooking oils [1,2,3]. An obvious and important additional benefit of this strategy is obtaining a more sustainable alternative fuel that contributes to reducing the CO2 emissions to the atmosphere and the dependency of the energy system on petroleum. On the other hand, the basic catalysts usually used in the biodiesel industry (KOH, NaOH, and potassium and sodium methoxides) have important drawbacks [4]. Although they could be replaced by heterogeneous solid catalysts to make their re-utilization possible, some issues concerning those materials such as the lack of the required chemical stability are still not well solved [5,6,7]. Moreover, basic catalysts are not capable of suitably processing virgin, non-edible or waste feedstocks, which are characterized by being relatively rich in free fatty acids (FFAs), because they result deactivated and/or consumed, e.g., by the formation of soaps that also complicate the separation of the products due to their emulsifying properties. In these cases, acid catalysts can be used to perform a pre-esterification of the FFAs followed by base-catalyzed transesterification giving rise to the so-called integrated process for biodiesel production from high FFAs-containing triglyceride feedstocks [1,8]. Nevertheless, this is a multistep process that introduces complexity, thus reducing the competitive advantage of using low-cost feedstocks. It would be more convenient to perform the simultaneous transformation of the triglycerides and FFAs into FAMEs, which can be in fact accomplished using heterogeneous acid catalysts [9,10,11].
Heterogeneous acid catalysts considered for biodiesel production comprise a large variety of materials [8,9,10,11,12,13,14,15,16,17,18]. The most representative ones consist on sulfated and tungstated zirconia, niobia, silica and alumina, bulk and supported polyoxometalates and heteropoly acids (HPAs) of e.g., Si4+ or P5+ with W6+ or Mo6+, mixed metal oxides such as titania-zirconia and silica-zirconia, immobilized acidic ionic liquids, sulfonic ion-exchange resins, zeolites, mesoporous silicas (SBA, MCM and KIT series), and carbonaceous materials functionalized with sulfonic acid groups. Each of these families of compounds presents advantages and drawbacks whereas their catalytic performance is intimately related to their textural and acidic properties that depend on the exact composition, synthesis method, activation conditions, etc. In this regard, the low activity reported for zeolites has been related to the strong diffusional limitations suffered by the bulky triglyceride and FFA molecules. As for the acidic properties, Brönsted sites are considered significantly more active than the Lewis ones [10], though the necessity of having both strong Brönsted and Lewis sites has also been claimed [1]. Another typical feature of the production of biodiesel through acid catalysis is that temperatures up to around 190 °C are required to obtain reasonable product yields which is in contrast with the temperatures close to the normal boiling point of methanol (65 °C) that are employed with the basic catalysts, even the heterogeneous ones. This is obviously related to the well-known lower activity for this process of the acid catalysts compared to the basic ones.
Among the several materials proposed, sulfated zirconia (SO42−/ZrO2) is considered a super-acid solid exhibiting the strongest Brönsted acidity; therefore, it has been widely investigated as a catalyst for the production of biodiesel. A significant lack of stability has been reported for SO42−/ZrO2 due to sulfate leaching, as well as deactivation by fouling associated with surface deposition of reaction products and reactants causing the blockage of the active sites [1]. On the other hand, some compounds of tungsten and molybdenum, both metals belonging to group 6 of the Periodic Table, have been also identified as potential catalysts for the synthesis of biodiesel. Several works can be found in the literature showing the good catalytic performance of supported WO3 for the conversion of oils with high contents of FFA [19,20]. As for molybdenum, their compounds have received little attention in this field up to date. Molybdenum compounds are characterized by a remarkable versatility as catalysts, a fact that is related to the ability of this metal to be present on the solid surface in different oxidation states, ranging from Mo6+ to metallic Mo (Mo0) [21]. Anhydrous sodium molybdate [22], bulk MoO3 [23], and molybdenum supported on alumina [24], silica, silica-alumina, and titania [25,26], as well as carbon [27] have been used as esterification and transesterification catalysts for biodiesel production from several oils, including waste oil.
In this work, both bulk (unsupported) and alumina-supported MoO3 have been used as catalysts to convert sunflower oil with added FFAs into biodiesel. The main objective is to contribute to a better understanding of the parameters controlling the catalytic performance of these materials in pursuit of the future development of an active, selective, and stable catalyst suitable for the production of biodiesel from non-edible and waste feedstocks.

2. Results and Discussion

2.1. Catalysts Characterization

Three bulk molybdenum oxide catalysts (Mo (300), Mo (500) and Mo (700)) were prepared through the calcination of ammonium heptamolybdate tetrahydrate (AHM) at 300, 500, and 700 °C. In addition, a series of alumina-supported molybdenum oxide catalysts (s-Mo (x), where x is the MoO3 content (wt.%)) were obtained from the incipient wetness impregnation of alumina with aqueous AHM solutions and calcination at 800 °C.
The X-ray diffraction (XRD) patterns of the bulk and a selection of the alumina-supported molybdenum catalysts are shown in Figure 1. The thermal decomposition AHM is a complex process in which several molybdenum compounds are involved. Chithambararaj et al. [28] found that ammonium was still present in the crystalline structures at calcination temperatures up to about 300 °C. According to these authors, at relatively low temperatures AHM evolves from [NH4]4(Mo8O24.8 (O2)1.2(H2O)2)(H2O)4 at 50–75 °C to [NH4]8Mo10O34 between 100 °C and 200 °C; finally, [NH4]4Mo8O26 is formed near 300 °C. Then, MoO2.5(OH)0.5 is present between 325 and 475 °C that evolves to MoO2.69(OH)0.3 at ca. 575 °C, finally resulting MoO3−x at about 700 °C. It should be noted that molybdenum trioxide can exist both as layered orthorhombic α-MoO3 and monoclinic β-MoO3 which has monoclinic rutile type structure formed by edge-sharing MoO6 octahedra [29]. The XRD patterns of Mo (300), Mo (500) and Mo (700) show also an evolution as the calcination temperature increases. In the case of Mo (700), a mixture of crystalline phases is present that apparently contains MoO3 and MoO2.69(OH)0.3. On the other hand, Mo (500) seems to contain both MoO2.5(OH)0.5 and MoO2.69(OH)0.3. As for the Mo (300) sample, in addition to MoO2.5(OH)0.5 and MoO2.69(OH)0.3, the presence of compounds containing ammonium cannot be ruled out.
In the case of the supported catalysts (calcined at 800 °C), no crystalline molybdenum compound could be identified in the XRD patterns of the samples containing less than 16 wt.% MoO3 which suggests that the supported species are very well dispersed over the alumina support. However, new diffraction peaks appeared between 20 and 26° (2θ) in the XRD pattern of the s-Mo (16) sample that could correspond to aluminum molybdate (Al2(MoO4)3) and to a series of polyoxo Mo species, as reported in the literature for 16 wt.% MoO3 supported on alumina and calcined at different temperatures between 527 and 827 °C [26]. Kitano et al. [30] investigated a series of alumina-supported molybdenum catalysts calcined at 800 °C containing between 5 and 30 wt.% MoO3. No XRD peaks corresponding to Mo compounds were found in the diffraction patterns of the catalysts with MoO3 loadings below 11 wt.% whereas for contents above 13 wt.% Al2(MoO4)3 could be detected. The authors estimated at 10 wt.% the MoO3 loading required to form a surface monolayer. It was proposed that two-dimensional molybdenum oxide domains and some three-dimensional MoO3 clusters were formed on 11 wt.% MoO3/Al2O3 whereas the MoO3 clusters were transformed into aluminum molybdate at higher metallic contents. As can be seen, the XRD results reveal a complex nature of the Mo catalysts that is due to the rich chemistry of this metal.
As expected for the bulk catalysts, these solids showed low specific surface areas that decreased from 17.0 m2/g for Mo (300) to 4.9 m2/g for Mo (500) and finally 1.6 m2/g for Mo (700) as the AHM calcination temperature increased. As for the supported catalysts, their specific surface areas (SBET) are compiled in Table 1; all the samples, included the support, were calcined at 800 °C.
It can be seen that a gradual decrease of the SBET takes place as the MoO3 loading increases up to 13 wt.%. However, the additional decrease of specific surface area taking place upon an additional MoO3 loading increase up to 16 wt.% is low resulting in a SBET of 44 m2/g for s-Mo (16), which represents a decrease of 60% with respect to the alumina support. This indicates a considerable blockage of the porous network, which is not accompanied by the formation of detectable Mo crystalline phases until a 16 wt.% MoO3 loading is reached, as evidenced by the XRD results. Following the calculations performed by Kitano et al. [30], who assigned a cross-sectional area of 0.22 nm2 to the octahedral MoO6 unit, the molybdenum oxide required to form a monolayer over the alumina support used in this work can be estimated at about 11 wt.%. Taking into account these results it could be suggested that in the s-Mo (6) to s-Mo (13) series of samples, Mo oxide seems to be present mainly in the form of a two-dimensional structure well dispersed over the support surface.
The X-ray photoelectron spectroscopy (XPS) results of the bulk molybdenum catalysts are shown in Figure 2.
In all cases, the XP spectra are characterized by two well-resolved contributions at binding energies of 233.0–233.1 and 236.2–236.3 eV that can be assigned to the Mo 3d5/2 and Mo 3d3/2 spin-orbit components of Mo (VI), respectively. The splitting energy of this doublet (3.2 eV) agrees well with the values reported in the literature for Mo (VI) [31]. The presence of molybdenum in oxidation states other than Mo (VI) seems to be not significant though corresponding 3d5/2 spectral lines have been reported at significantly lower binding energy values (231.6 eV for Mo (V)) [32]. Choi and Thompson indicated values for the Mo 3d5/2 line of polycrystalline MoO3 between 231.6 and 232.7 eV [31]. Baltrusaitis et al. [29] compiled a series of values for Mo (VI) taken from the literature and the binding energies reported were 233.0–233.2 eV (Mo 3d5/2) and 236.1–236.3 eV (Mo 3d3/2), which coincide with the values found in this work. These values were measured for a layer of oxide thermally developed on molybdenum metal under controlled O2 pressure [33] as well as for alumina-supported cobalt-molybdena catalysts [34].
Regarding acidity, it was first measured through temperature-programmed desorption of NH3 (NH3-TPD), a technique that is not capable of distinguishing between Brönsted and Lewis sites due to the strong basicity of ammonia. As a matter of fact, NH3 can adsorb on both Lewis and Brönsted sites of MoO3 as molecular NH3 and ammonium ion, respectively, though adsorption on Lewis sites is more favorable energetically [35]. The NH3-TPD patterns corresponding to the alumina support and a selection of the alumina-supported catalysts are included in Figure 3.
A main peak showing a maximum within the 147–150 °C temperature range characterizes the patterns. The peaks are broad and show a long tail that extends up to 300–600 °C, depending on the case. Very small peaks centered at about 240 °C and 375 °C can be observed in the alumina NH3-TPD pattern. It is also apparent that baseline drifting complicated the integration of the peaks, which resulted in the specific acidity values compiled in Table 1. It can be seen that the specific acidity tends to decrease as the molybdenum oxide content increases. This result suggests that the acidity of the solids decreases as the alumina surface becomes covered by molybdenum oxide species. Sankaranarayanan et al. [24] found similar NH3-TPD results for a series of alumina-supported molybdenum oxide catalysts calcined at 527 °C, 677 °C and 827 °C and containing 8wt.%, 12wt.% and 16 wt.% MoO3. The acidity of the samples calcined at 827 °C decreased from 3.8 μmol/m2 for the sample loaded with 8 wt.% MoO3 to 2.8 μmol/m2 for the catalyst containing 16 wt.% MoO3. This last result can be compared with the value of 2.0 μmol/m2 obtained in this work for a sample containing 16 wt.% MoO3 and calcined at 800 °C (see Table 1). Accurate assessment of the acidity of the unsupported solids through NH3-TPD was difficult due to the low specific surface area of these materials and the technical limitations of the equipment used (see Section 3) to load high amounts of sample. Their specific acidity was somewhat lower than that of the supported solids, ranging between 0.6 μmol/m2 for Mo (300) and 2.0 μmol/m2 for Mo (500) and Mo (700).
Representative FTIR spectra of adsorbed pyridine corresponding to bulk (Mo (500)) and Al2O3-supported catalysts (s-Mo (8)) are shown in Figure 4. Pyridinium ions adsorbed over Brönsted sites exhibit characteristic bands at wavenumbers of 1546–1548 cm−119b), and 1638–1640 cm−18a) [36,37]. The spectra of Mo (500) and s-Mo (8) show weak and broad bands at 1634 and 1638 cm−1 as well as at 1532 and 1542 cm−1, respectively. These bands are ascribed to Brönsted sites that due to their different nature appear at different wavenumbers. As for the Lewis sites on molybdenum oxide, bands of adsorbed pyridine at 1451 (ν19b) and 1611 cm−18a) have been reported [37]. These values are similar to the ones reported for adsorbed pyridine on Al3+ in alumina surface: 1450 and 1615 cm−1 [36]. The spectrum of the alumina-supported catalyst shows a weak band at 1616 cm−1 and another very intense absorption signal at 1442 cm−1 that seems compatible with pyridine adsorption on acidic Lewis sites. In the case of the bulk molybdenum oxide catalyst, the band at 1443 cm−1 is much weaker and the broad band observed at a wavelength of 1606 cm−1 could correspond to the one reported at 1611 cm−1 [37]. This difference in intensity indicates a lower number of Lewis sites on the surface of Mo(500) catalyst. Moreover, the position of the band corresponding to the (ν8a) vibration mode of pyridine adsorbed on Lewis sites is used as an indicator of the Lewis strength. Comparing spectra in Figure 4, we can conclude that acidic Lewis sites are stronger in the supported catalyst (1616 cm−1 compared to 1606 cm−1 in the Mo(500)) [38]. It is interesting to stress that an intense band at 1594 cm−1, absent in the Mo(500) spectrum, is detected in the supported catalyst after pyridine adsorption. This band may be ascribed to species formed by interaction of the probe molecule via N-atom with a weakly acidic H from the surface (denoted as HPy) [39]. Therefore, the new Brönsted sites (unable to protonate pyridine) appear on the supported catalyst, probably due to the interaction of MoO3 with the alumina. It is concluded that both, bulk and supported molybdenum oxide catalysts, have Brönsted and Lewis acid sites, though they are much more abundant and stronger in the case of the supported solids, which is logical due to the presence of the alumina support. Moreover, new Brönsted sites are detected in the supported solid that are not present in the unsupported one.

2.2. Catalytic Performance

Figure 5 shows the evolution of the conversion of triglycerides (XTG) and FFAs (XFFA) with reaction time for the unsupported Mo (300), Mo (500), and Mo (700) catalysts.
It can be seen that both triglycerides and FFAs reach high degrees of conversion (between about 60 and 80%) after 240 min of reaction under the conditions indicated (see Figure 5 caption). The conversion over Mo (300) and Mo (500) are similar, about 80–85% and 78–82% for the triglycerides and FFAs, respectively, after 240 min of reaction. The conversion over Mo (700) is lower, about 60% (triglycerides) and 70% (FFAs) compared to its counterparts calcined at lower temperatures. As the catalyst concentration is fixed on a mass basis (2 wt.%) it is likely that the main cause of these results is the large decrease of the specific surface area experienced by Mo (700) upon calcination. It is also noteworthy that, irrespective of the catalyst used, XTG gradually increases with reaction time, whereas FFAs conversion shows a faster initial increase until about 120 min of reaction, with a much slower increase taking place afterward.
Regarding the yields of the several reaction products, Figure 6a shows the evolution with XTG of the diglycerides (YDG), monoglycerides (YMG), and methyl esters produced by transesterification (YME,trans.) (see Equations (3)–(5) in Section 3).
The evolution of the products yields is in accordance with the scheme of the triglycerides (TG) methanolysis reaction consisting of three consecutive steps [4]. In the first step, a molecule of TG is converted into a diglyceride (DG), which then evolves to a monoglyceride (MG) that finally gives glycerol. In each step, a molecule of methanol is consumed and a methyl ester (biodiesel) molecule is formed. This explains why initially, at low XTG, DG were clearly the most abundant products. As the conversion increases, YDG also increases reaching maximum values of about 35% for XTG within the 60–70% range; then, DG started to decline. The yield of both monoglycerides, and especially methyl esters, increase with the conversion of triglycerides. Maximum biodiesel yields achieved are about 30% and correspond to the highest conversions reached at the end of the catalytic runs (80–85%). It is noteworthy that there are no significant differences among the yields provided by the three unsupported catalysts at similar XTG, meaning that the selectivity is not affected by the calcination temperature of the unsupported catalysts.
Ferreira Pinto et al. [23] reported a maximum FAME yield of 64.2% for an unsupported MoO3 catalyst calcined at 600 °C after 4 h of reaction during the methanolysis of soybean oil acidified with 10 wt.% of oleic acid. Yields were slightly lower (50–56%) for solids calcined at lower temperatures (300–500 °C), and dropped to 43% for MoO3 calcined at 700 °C. This trend is similar to the one observed in our work. Ferreira Pinto et al. [23] performed the catalytic tests at considerably higher temperature (150 °C) and methanol to feedstock molar ratio (30:1) than in this work, being the catalyst concentration also higher (5 wt.%), though the vegetable oil contained double FFAs concentration (10 wt.%). These authors found a correlation between the catalytic activity and the acidity of the solids as determined through a titration technique in which aqueous NaOH previously contacted with the catalyst was neutralized with HCl. It was suggested that the changes provoked by the thermal treatment affected the acid properties of the catalysts. The lower biodiesel yields found in this work can be mainly attributed to the milder reaction conditions and lower catalyst concentration employed. On the other hand, the slightly higher specific acidity, developed as the calcination temperature increases, is virtually offset by the accompanying specific surface area decrease.
As for the supported solids, Figure 7 shows the conversions of triglycerides and FFAs reached by the alumina-supported catalysts loaded with 6 to 16 wt.% MoO3. It should be noted that experiments carried out with the alumina support under the same reaction conditions provided negligible transesterification and esterification conversions. It merits to be highlighted that the feedstock conversions provided by the bulk catalysts are much higher than those of the supported ones. In this regard, after 240 min of reaction, XTG and XFFA reach values between 40–60% and 65–75%, respectively, which are significantly lower than the conversions provided by the unsupported catalysts under similar reaction time (see Figure 5). Final conversions after 480 min range between 55% and 75% for XTG and 70–80% for XFFA. Concerning the effect of the MoO3 oxide content, it seems that the activity goes through a maximum as the molybdenum oxide content increases. Indeed, both transesterification and esterification conversions increase when passing from s-Mo (6) to s-Mo (8) which is the catalyst providing the highest conversions. Then, the conversions decrease for s-Mo (10), s-Mo (13), and s-Mo (16), which reach relatively similar values.
The findings that the alumina support is not active and that the unsupported catalysts are significantly more active than the alumina-supported ones indicate that the catalytic activity is mainly associated with molybdenum oxide species. Nevertheless, a positive effect of the support in dispersing the active phase is also apparent because the MoO3 contents were as low as 0.12–0.32 wt.% in the case of the supported catalysts compared with 2 wt.% for the unsupported ones. On the other hand, the acidity of the catalyst as determined by NH3-TPD does not constitute in this case a suitable measure to predict the activity in the simultaneous transesterification and esterification reactions. This is because alumina showed specific acidities comparable and even higher than those of the supported catalysts (see Table 1). Notwithstanding, additional effects of the MoO3-Al2O3 interactions on the catalytic activity cannot be ruled out; for instance, the presence of Brönsted acid sites of the [=Mo-O(H)-Al=] bridging type, similar to the ones proposed for MoO3-Al2O3 catalytic systems in other works [30,34,37]. These sites could correspond to the adsorbed pyridinium and HPy species detected by FTIR spectroscopy upon pyridine adsorption over the supported catalysts (see previous section). As the specific surface area decreases with the increase of the MoO3 content (see Table 1), the opposite effects of molybdenum oxide on the textural and certain acidic properties could explain that the catalytic activity within the s-Mo (6) to s-Mo (16) series of catalysts reaches a maximum value for an intermediate MoO3 content, in this case, 8 wt.%.
Sankaranarayanan et al. [24] found a triglycerides conversion of about 58% (FAME yield of 47%) after 8 h of reaction at 100 °C with methanol to oil molar ratio of 9 using a 16 wt.% MoO3/Al2O3 catalyst calcined at 677 °C at a concentration of 5 wt.%. The feedstock used consisted of refined sunflower oil (non-acidified). This result can be compared with about 64% triglycerides conversion in this work after 8 h of reaction at the same temperature, slightly higher methanol to oil molar ratio (12), but significantly lower concentration (2 wt.%) of the s-Mo (16) catalyst during the methanolysis of sunflower oil acidified with 5 wt.% of FFAs (see Figure 7). As in our case, Sankaranarayanan et al. [24] also found that the alumina support was not active for the transesterification reaction within the 60–110 °C range of temperature. As for the effect of the MoO3 content of the catalysts, these authors found that it depended on the calcination temperature. In this regard, a large increase of activity was found when passing from 12 to 16 wt.% for catalysts calcined at 527 °C that greatly decreased when the calcination temperature increased to 827 °C; moreover, the catalysts calcined at 677 °C were more active than the ones calcined at 827 °C regardless the MoO3 content [24]. These results were explained in terms of a higher specific activity of the well-dispersed molybdenum oxide species resulting at relatively low calcination temperatures and the presence of poorly active aluminum molybdate formed at high Mo loadings and calcination temperatures.
The yields of the several products given by the supported catalysts are presented in Figure 6b. It can be seen that there are no significant differences among the solids, meaning that the MoO3 content does not affect the catalyst selectivity in the transesterification reaction. The yields of methyl esters were significantly lower than the ones reported by Sankaranarayanan et al. [24], though it should be remembered that these authors used non-acidified refined sunflower oil. The yields of methyl esters and monoglycerides were also lower than the ones obtained with the unsupported catalysts when the results are compared at the same triglycerides conversion, indicating a different performance, which is ascribed to the different nature of the active sites in both types of solids.

2.3. Catalysts Stability

As it is well-known, a key issue in the field of biodiesel production with heterogeneous catalysts is the chemical stability of the solids in the reaction medium, which is directly connected with both the possibility of reutilizing the catalyst and the quality of the produced biodiesel and glycerol, in particular, the fulfillment of the corresponding standards for their typical uses.
In this work, Mo (500) and s-Mo (8) catalysts were recovered after reaction, thoroughly washed with tetrahydrofuran (THF), which is an excellent solvent for the reaction mixture medium [40], calcined at their respective original temperatures (500 °C and 800 °C, respectively), and used again. Mo (500) yielded almost the same catalytic activity results than during its first use. XRD and N2-adsorption data evidenced that no substantial changes took place during reaction. To check the possible occurrence of molybdenum leaching into the reaction mixture, the Mo (500) catalyst was removed after reaction by centrifugation. The upper fraction was transferred to a rotary evaporator to remove the unreacted methanol, resulting in a liquid that acquired an intense blue color that evidenced the presence of molybdenum. The molybdenum concentration was measured by ICP atomic emission spectroscopy resulting in ca. 1000 ppm of Mo. Additionally, Mo (500) was mixed with methanol for 4 h under the typical conditions used in this work. The solid was removed afterwards by centrifugation and the methanol was used in a reaction run. An XTG value of 75% was obtained after 4 h of reaction, which is only slightly lower than the value of 82% achieved in the presence of the solid catalyst (see Figure 5). Clearly, leached molybdenum species were capable of homogeneously catalyzing the transesterification and esterification reactions. The fact that the recovered solid gives the same feedstock conversion than the fresh catalyst is not strange provided that the solid represents a sufficiently excess amount with respect to its solubility in the reaction medium, thus guaranteeing the activity during several re-utilization cycles. As a matter of fact, it is likely that the concentration of ca. 1000 ppm of Mo measured is close to the solubility limit of the molybdenum species in the polar phase. Ferreira Pinto et al. [23] reutilized unsupported MoO3 in eight consecutive cycles of acidified soybean oil methanolysis. The catalyst was filtered from run to run and was used without washing. A very low loss of activity was observed only during the two last cycles; however, information about Mo leaching was not provided.
Regarding s-Mo (8), catalyst recovery, washing with THF, calcination, and reuse was repeated four times. The XTG values recorded after 8 h of reaction are shown in Figure 8. A gradual decrease of the triglycerides conversion takes place during the first three reaction cycles. The conversion stabilizes at values about 40% after a fourth reaction cycle; a conversion 47% lower than the original value.
As described before for Mo (500), s-Mo (8) was mixed also with methanol for 4 h under the typical conditions used in this work. When used in a reaction run, the recovered methanol yielded XTG and XFFA values of 41% and 46%, respectively, after 4 h of reaction. These conversions were substantially lower than the 60% and 73% values obtained in the presence of fresh s-Mo (8). Mo leaching after the first reaction cycle was investigated following the procedure described above for the unsupported catalyst. Although the Mo concentration could not be measured, the color of the liquid phase resulting after methanol removal evidenced the presence of dissolved Mo. On the whole, the results point to a somewhat improved stability of the supported catalysts compared to the unsupported ones that could be attributed to the interaction established between MoO3 and Al2O3. This interaction has been evidenced by the XRD results that showed the formation of aluminum molybdate, which seems to contribute to an improved dispersion and anchorage of the molybdenum species. This leads to a comparatively high activity for low MoO3 loadings and reduced leaching in comparison with the unsupported catalysts.

3. Materials and Methods

MoO3 was synthesized by thermal decomposition of ammonium heptamolybdate tetrahydrate (AHM, from Merck, Darmstadt, Germany) in air (6 h) using a muffle furnace at different temperatures (300, 500 and 700 °C). The resulting solids were labeled as Mo (300), Mo (500) and Mo (700), respectively. Supported molybdenum catalysts were prepared by incipient wetness impregnation of γ–Al2O3 (Spheralite 505, Procatalyse) in powder form (particle size between 100 and 200 μm) previously calcined at 800 °C (6 h) in order to remove adsorbed impurities. Different impregnating AHM aqueous solutions were prepared to adjust the Mo salt concentration in order to obtain several MoO3 contents in the final catalyst, namely 6, 8, 10, 13 and 16 wt.%. After impregnation, the solids were dried for 8 h at 80 °C and calcined for 6 h at 800 °C in a muffle furnace. The calcination temperature was selected in order to promote the interaction of molybdenum species with the alumina support with the aim of improving their resistance to leaching during the reaction. The supported catalysts were referred to as s-Mo followed by the corresponding nominal MoO3 content between parentheses.
As for the catalysts characterization, XRD analyses were carried out in a D-Max Rigaku diffractometer (Akishima-shi, Tokyo, Japan). Specific surface areas were measured through N2 adsorption at −196 °C using a Micromeritics Gemini V 2380 apparatus (Norcross (Atlanta), GA, USA). Acidity was characterized by NH3-TPD in a Micromeritics Autochem 2920 equipment (Norcross (Atlanta), GA, USA). Pyridine adsorption was carried out using a purpose-made quartz IR cell connected to a vacuum adsorption device with a residual pressure lower than 10−4 Pa. The samples, in the form of wafers, were activated and pyridine introduced into the cell at room temperature. Spectra were recorded in a Thermo Nicolet 380 spectrophotometer (Waltham, MA, USA) with a DTGS/KBr detector (Waltham, MA, USA) and accumulating 128 scans at a spectral resolution of 4 cm−1. X-ray photoelectron spectroscopy (XPS) analyses were carried out on a SPECS system equipped with an Al anode XR50 source operating at 150 W and a Phoibos 150 MCD-9 detector (Berlin, Germany). The pass energy of the hemispherical analyzer was set at 25 eV and the energy step was set at 0.1 eV. Charge stabilization was achieved by using a SPECS Flood Gun FG 15/40. The sample powders were pressed to self-consistent disks. Data processing was performed with the CasaXPS program (Casa Software Ltd., Teignmouth, UK).
Catalytic tests were carried out in batch mode in a Parr 4843 stainless steel autoclave reactor with mechanical stirring under controlled temperature and pressure. The feedstock consisted of refined sunflower oil (Urzante, Navarra, Spain; Acid Value of 0.07 mg KOH/g) to which pure oleic acid (Sigma Aldrich, San Luis, MO, USA) was added until it reached an FFAs content of 5 wt.% (Acid Value of 10.0 mg KOH/g). Catalyst concentration was set at a relatively low value of 2 wt.% referred to the feedstock (oil and FFAs mixture) mass. Simultaneous esterification of FFAs and transesterification of the triglycerides (TG) with methanol (Scharlau, HPLC grade, Barcelona, Spain) was carried out at 100 °C and methanol/feedstock molar ratio of 12:1. The amounts of the several substances used were: sunflower oil 60 g, FFAs 3 g, catalyst 1.26 g, and methanol 27.5 g. After reaching the reaction temperature, the reactor was pressurized with nitrogen until reaching an absolute pressure of 30 atm. Samples withdrawn from the reactor were analyzed by size exclusion chromatography as described elsewhere [40]. Conversion of triglycerides (XTG) and free fatty acids (XFFA), and yields of diglycerides (YDG), monoglycerides (YMG), and methyl esters (FAMEs) produced by transesterification (YME,trans.) were calculated through Equations (1)–(5), respectively:
X T G   =   N T G , 0 N T G N T G , 0
X F F A   =   N F F A , 0 N F F A N F F A , 0
Y D G   =   N D G N T G , 0
Y M G   =   N M G N T G , 0
Y M E , t r a n s .   =   N M E ( N F F A , 0 · X F F A ) N T G , 0 ,
where N T G , 0 and N F F A , 0 stand for the initial number of moles of triglycerides and FFAs, respectively, and N T G , N D G , N M G , N M E , and N F F A stand for the number of moles of triglycerides, diglycerides, monoglycerides, FAMEs and FFAs, respectively, present in a sample taken at a given reaction time. Note that in Equation (5), in order to calculate the yield of methyl esters produced by transesterification, the number of moles of methyl esters produced by the esterification of FFAs ( N F F A , 0 · X F F A ) is subtracted from the total number of methyl esters present in the sample.

4. Conclusions

The MoO3-Al2O3 catalytic system has provided positive results consisting of high triglycerides conversions into biodiesel under conditions of high FFAs content that would have made the conventional transesterification reaction impossible in a single step with basic catalysts. Moreover, the FFAs are efficiently converted into biodiesel as well. Compared to bulk MoO3, alumina-supported MoO3 leads to a more efficient utilization of the active phase and enhanced stability towards molybdenum leaching by the reaction medium. These effects likely arise from the interaction established between MoO3 and alumina that affect the textural and acidic properties of the catalysts. However, much effort is still required to develop a sufficiently stable catalyst based on molybdenum oxide for transforming triglycerides with high FFAs content into biodiesel.

Author Contributions

All the authors participated actively in the writing and editing of the manuscript. Furthermore: conceptualization, A.N. and L.M.G.; methodology, A.N.; catalysts preparation, textural and structural characterization, and catalytic testing, A.N. and I.R.; acid properties characterization, E.J.-B. and F.R.-S.; XPS characterization J.L.; results interpretation and discussion, and literature review, all the authors; project administration and funding acquisition, L.M.G. All authors have read and agreed to the published version of the manuscript.


Financial support from Spanish Ministerio de Ciencia, Innovación y Universidades, and the European Regional Development Fund (ERDF/FEDER) (grant RTI2018-096294-B-C31) is gratefully acknowledged. L.M.G. thanks Banco de Santander and Universidad Pública de Navarra for their financial support under “Programa de Intensificación de la Investigación 2018” initiative. JL is a Serra Húnter Fellow and is grateful to ICREA Academia program and 2017 SGR 128.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.


  1. Mittelbach, M. Fuels from oils and Fats: Recent developments and perspectives. Eur. J. Lipid Sci. Technol. 2015, 117, 1832–1846. [Google Scholar] [CrossRef]
  2. Chhetri, A.B.; Watts, K.C.; Islam, M.R. Waste Cooking Oil as an Alternate Feedstock for Biodiesel Production. Energies 2008, 1, 3–18. [Google Scholar] [CrossRef][Green Version]
  3. Navajas, A.; Issariyakul, T.; Arzamendi, G.; Gandía, L.M.; Dalai, A.K. Development of eggshell derived catalyst for transesterification of used cooking oil for biodiesel production. Asia-Pac. J. Chem. Eng. 2013, 8, 742–748. [Google Scholar] [CrossRef]
  4. Arzamendi, G.; Campo, I.; Arguiñarena, E.; Sánchez, M.; Montes, M.; Gandía, L.M. Synthesis of biodiesel with heterogeneous NaOH/alumina catalysts: Comparison with homogeneous NaOH. Chem. Eng. J. 2007, 134, 123–130. [Google Scholar] [CrossRef]
  5. Navajas, A.; Campo, I.; Arzamendi, G.; Hernández, W.Y.; Bobadilla, L.F.; Centeno, M.A.; Odriozola, J.A.; Gandía, L.M. Synthesis of biodiesel from the methanolysis of sunflower oil using PURAL® Mg–Al hydrotalcites as catalyst precursors. Appl. Catal. B Environ. 2010, 100, 299–309. [Google Scholar] [CrossRef]
  6. Reyero, I.; Bimbela, F.; Navajas, A.; Arzamendi, G.; Gandía, L.M. Issues concerning the use of renewable Ca-based solids as transesterification catalysts. Fuel 2015, 158, 558–564. [Google Scholar] [CrossRef]
  7. Reyero, I.; Moral, A.; Bimbela, F.; Radosevic, J.; Sanz, O.; Montes, M.; Gandía, L.M. Metallic monolithic catalysts based on calcium and cerium for the production of biodiesel. Fuel 2016, 182, 668–676. [Google Scholar] [CrossRef]
  8. Lotero, E.; Liu, Y.; Lopez, D.E.; Suwannakarn, K.; Bruce, D.A.; Goodwin, J.G., Jr. Synthesis of Biodiesel via Acid Catalysis. Ind. Eng. Chem. Res. 2005, 44, 5353–5363. [Google Scholar] [CrossRef]
  9. Tesser, R.; Di Serio, M.; Guida, M.; Nastasi, M.; Santacesaria, E. Kinetics of oleic acid esterification with methanol in the presence of triglycerides. Ind. Eng. Chem. Res. 2005, 44, 7978–7982. [Google Scholar] [CrossRef]
  10. Di Serio, M.; Tesser, R.; Pengmei, L.; Santacesaria, E. Heterogeneous Catalysts for Biodiesel Production. Energy Fuels 2008, 22, 207–217. [Google Scholar] [CrossRef]
  11. Melero, J.A.; Iglesias, J.; Morales, G. Heterogeneous acid catalysts for biodiesel production: Current status and future challenges. Green Chem. 2009, 11, 1285–1308. [Google Scholar] [CrossRef]
  12. Sreeprasanth, P.S.; Srivastava, R.; Srinivas, D.; Ratnasamy, P. Hydrophobic, solid acid catalysts for production of biofuels and lubricants. Appl. Catal. A: Gen. 2006, 314, 148–159. [Google Scholar] [CrossRef]
  13. Thanh, L.T.; Okitsu, K.; Boi, L.V.; Maeda, Y. Catalytic Technologies for Biodiesel Fuel Production and Utilization of Glycerol: A Review. Catalysts 2012, 2, 191–222. [Google Scholar] [CrossRef][Green Version]
  14. Su, F.; Guo, Y. Advancements in solid acid catalysts for biodiesel production. Green Chem. 2014, 16, 2934–2957. [Google Scholar] [CrossRef]
  15. Sani, Y.M.; Daud, W.M.A.W.; Aziz, A.R.A. Activity of solid acid catalysts for biodiesel production: A critical review. Appl. Catal. A: Gen. 2014, 470, 140–161. [Google Scholar] [CrossRef]
  16. Gupta, P.; Paul, S. Solid acids: Green alternatives for acid catalysis. Catal. Today 2014, 236, 153–170. [Google Scholar] [CrossRef]
  17. Mansir, N.; Taufiq-Yap, Y.H.; Rashid, U.; Lokman, I.M. Investigation of heterogeneous solid acid catalyst performance on low grade feedstocks for biodiesel production: A review. Energ. Convers. Manag. 2017, 141, 171–182. [Google Scholar] [CrossRef]
  18. Hanif, M.A.; Nisar, S.; Rashid, U. Supported solid and heteropoly acid catalyst for production of biodiesel. Catal. Rev. 2017, 59, 165–188. [Google Scholar] [CrossRef]
  19. Park, Y.-M.; Chung, S.-H.; Eom, H.J.; Lee, J.-S.; Lee, K.Y. Tungsten oxide zirconia as solid superacid catalyst for esterification of waste acid oil (dark oil). Bioresour. Technol. 2010, 101, 6589–6593. [Google Scholar] [CrossRef]
  20. Kaur, M.; Malhotra, R.; Ali, A. Tungsten supported Ti/SiO2 nanoflowers as reusable heterogeneous catalyst for biodiesel production. Renew. Energ. 2018, 116, 109–119. [Google Scholar] [CrossRef]
  21. Haber, J. Molybdenum Compounds in Heterogeneous Catalysis. In Molybdenum: An Outline of its Chemistry and Uses; Braithwaite, E.R., Haber, J., Eds.; Elsevier: Amsterdam, The Netherlands, 1994; Chapter 10; pp. 477–617. [Google Scholar]
  22. Nakagaki, S.; Bail, A.; dos Santos, V.C.; Rodrigues de Souza, V.H.; Vrubel, H.; Souza Nunes, F.; Pereira Ramos, L. Use of anhydrous sodium molybdate as an efficient heterogeneous catalyst for soybean oil methanolysis. Appl. Catal. A: Gen. 2008, 351, 267–274. [Google Scholar] [CrossRef]
  23. Ferreira Pinto, B.; Suller Garcia, M.S.; Santos Costa, J.C.; Rodarte de Moura, C.V.; Chaves de Abreu, W.; Miranda de Moura, E. Effect of calcination temperature on the application of molybdenum trioxide acid catalyst: Screening of substrates for biodiesel production. Fuel 2019, 239, 290–296. [Google Scholar] [CrossRef]
  24. Sankaranarayanan, T.M.; Pandurangan, A.; Banu, M.; Sivansanker, S. Transesterification of sunflower oil over MoO3 supported on alumina. Appl. Catal. A: Gen. 2011, 409–410, 239–247. [Google Scholar] [CrossRef]
  25. Bail, A.; dos Santos, V.C.; Roque de Freitas, M.; Pereira Ramos, L.; Schreiner, W.H.; Ricci, G.P.; Ciuffi, K.J.; Nakagaki, S. Investigation of a molybdenum-containing silica catalyst synthesized by the sol-gel process in heterogeneous catalytic esterification reactions using methanol and ethanol. Appl. Catal. B: Environ. 2013, 130–131, 314–324. [Google Scholar] [CrossRef]
  26. Sankaranarayanan, T.M.; Thirunavukkarasu, K.; Banu, M.; Pandurangan, K.; Sivansanker, S. Activity of supported MoO3 catalysts for the transesterification of sunflower oil. Int. J. Adv. Eng. Sci. Appl. Math. 2013, 5, 197–209. [Google Scholar] [CrossRef]
  27. Mouat, A.R.; Lohr, T.L.; Wegener, E.C.; Miller, J.T.; Delferro, M.; Stair, P.C.; Marks, T.J. Reactivity of a carbon-supported single-site molybdenum dioxo catalyst for biodiesel synthesis. ACS Catal. 2016, 6, 6762–6769. [Google Scholar] [CrossRef]
  28. Chithambararaj, A.; Bhagya Mathi, D.; Rajeswari Yogamalar, N.; Chandra Bose, A. Structural evolution and phase transition of [NH4]6Mo7O24.4H2O to 2D layered MoO3−x. Mater. Res. Express 2015, 2, 055004. [Google Scholar] [CrossRef]
  29. Baltrusaitis, J.; Mendoza-Sanchez, B.; Fernandez, V.; Veenstra, R.; Dukstiene, N.; Roberts, A.; Fairley, N. Generalized molybdenum oxide surface chemical state XPS determination via informed amorphous sample model. Appl. Surf. Sci. 2015, 326, 151–161. [Google Scholar] [CrossRef]
  30. Kitano, T.; Okazaki, S.; Shishido, T.; Teramura, K.; Tanaka, T. Brønsted acid generation of alumina-supported molybdenum oxide calcined at high temperatures: Characterization by acid-catalyzed reactions and spectroscopic methods. J. Mol. Catal. A: Chem. 2013, 371, 21–28. [Google Scholar] [CrossRef]
  31. Choi, J.-G.; Thompson, L.T. XPS study of as-prepared and reduced molybdenum oxides. Appl. Surf. Sci. 1996, 93, 143–149. [Google Scholar] [CrossRef]
  32. Deng, X.; Ying Quek, S.; Biener, M.M.; Biener, J.; Hyuk Kang, D.; Schalek, R.; Kaxiras, E.; Friend, C.M. Selective thermal reduction of single-layer MoO3 nanostructures on Au(111). Surf. Sci. 2008, 602, 1166–1174. [Google Scholar] [CrossRef]
  33. Światowska-Mrowiecka, J.; de Diesbach, S.; Maurice, V.; Zanna, S.; Klein, L.; Briand, E.; Vickridge, I.; Marcus, P. Li-Ion Intercalation in Thermal Oxide Thin Films of MoO3 as Studied by XPS, RBS, and NRA. J. Phys. Chem. C 2008, 112, 11050–11058. [Google Scholar] [CrossRef]
  34. Patterson, T.A.; Carver, J.C.; Leyden, D.E.; Hercules, D.M. A surface study of cobalt-molybdena-alumina catalyst using X-Ray Photoelectron Spectroscopy. J. Phys. Chem. 1976, 80, 1700–1708. [Google Scholar] [CrossRef]
  35. Yan, Z.; Fan, J.; Zuo, Z.; Li, Z.; Zhang, J. NH3 adsorption on the Lewis and Bronsted acid sites of MoO3 (010) surface: A cluster DFT study. Appl. Surf. Sci. 2014, 288, 690–694. [Google Scholar] [CrossRef]
  36. Morterra, C.; Magnacca, G. A case study: Surface chemistry and surface structure of catalytic aluminas, as studied by vibrational spectroscopy of adsorbed species. Catal. Today 1996, 27, 497–532. [Google Scholar] [CrossRef]
  37. Skara, G.; Baran, R.; Onfroy, T.; De Proft, F.; Dzwigaj, S.; Tielens, F. Characterization of zeolitic intraframework molybdenum sites. Micropor. Mesopor. Mater. 2016, 225, 355–364. [Google Scholar] [CrossRef][Green Version]
  38. Bagshaw, S.A.; Cooney, R.P. FTIR Surface Site Analysis of Pillared Clays Using Pyridine Probe Species. Chem. Mater. 1993, 5, 1101–1109. [Google Scholar] [CrossRef]
  39. Penkova, A.; Bobadilla, L.F.; Romero-Sarria, F.; Centeno, M.A.; Odriozola, J.A. Pyridine adsorption on NiSn/MgO–Al2O3: An FTIR spectroscopic study of surface acidity. Appl. Surf. Sci. 2014, 317, 241–251. [Google Scholar] [CrossRef]
  40. Arzamendi, G.; Arguiñarena, E.; Campo, I.; Gandía, L.M. Monitoring of biodiesel production: Simultaneous analysis of the transesterification products using size-exclusion chromatography. Chem. Eng. J. 2006, 122, 31–40. [Google Scholar] [CrossRef]

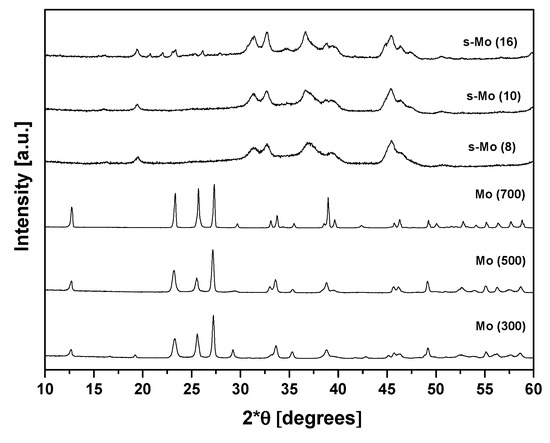

Figure 1. X-ray diffraction (XRD) patterns of the bulk molybdenum catalysts (Mo) calcined at 300, 500, and 700 °C, and of the alumina-supported ones (s-Mo) containing 8, 10 and 16 wt.% MoO3 and calcined at 800 °C.
Figure 1. X-ray diffraction (XRD) patterns of the bulk molybdenum catalysts (Mo) calcined at 300, 500, and 700 °C, and of the alumina-supported ones (s-Mo) containing 8, 10 and 16 wt.% MoO3 and calcined at 800 °C.
Catalysts 10 00158 g001

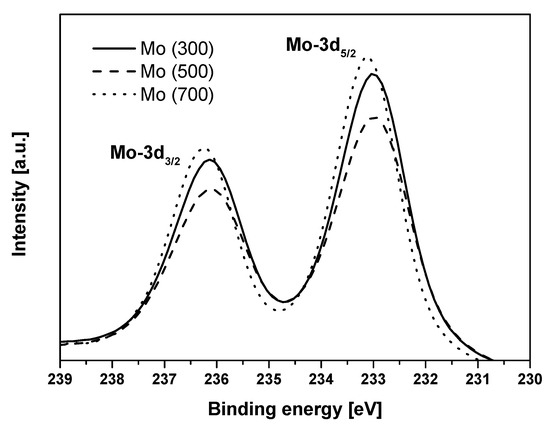

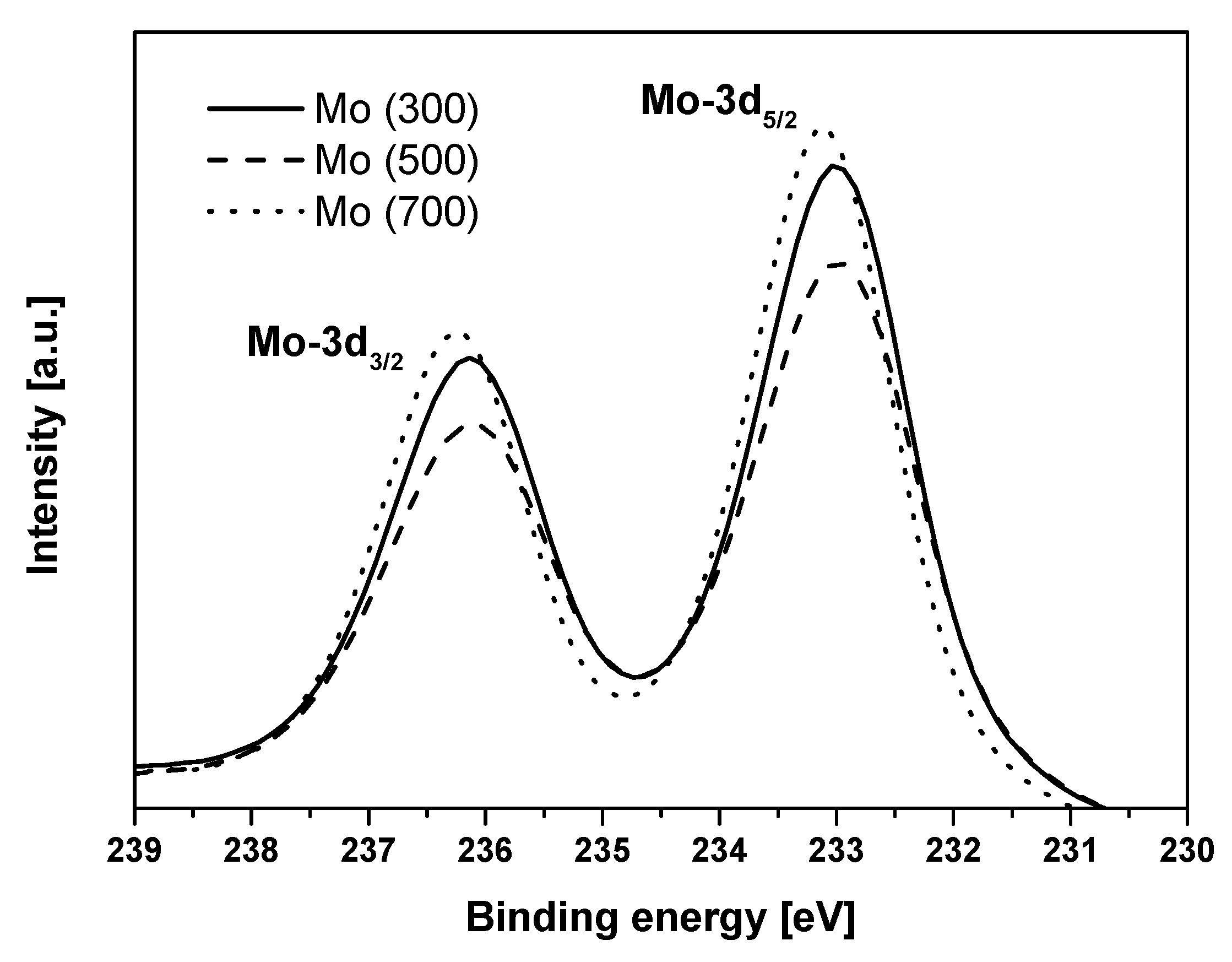

Figure 2. X-ray photoelectron spectra of the Mo 3d doublet corresponding to the bulk MoO3 catalysts.
Figure 2. X-ray photoelectron spectra of the Mo 3d doublet corresponding to the bulk MoO3 catalysts.
Catalysts 10 00158 g002

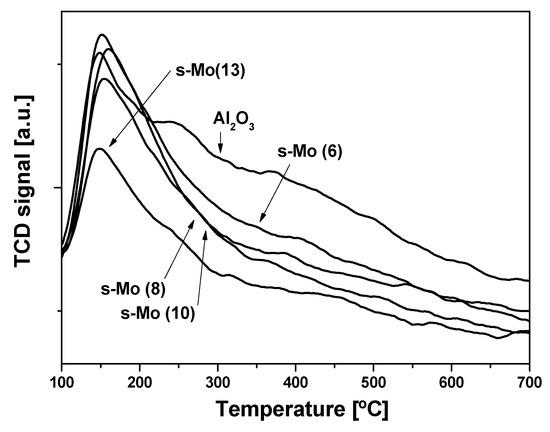

Figure 3. Temperature-programmed desorption of NH3 (NH3-TPD) patterns of the samples indicated.
Figure 3. Temperature-programmed desorption of NH3 (NH3-TPD) patterns of the samples indicated.
Catalysts 10 00158 g003

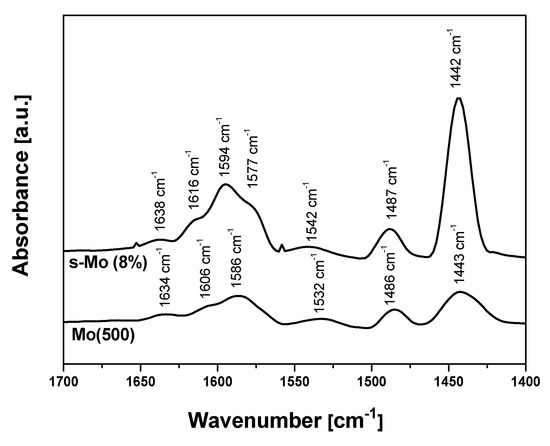

Figure 4. FTIR spectra of adsorbed pyridine on Mo (500) and s-Mo (8) catalysts.
Figure 4. FTIR spectra of adsorbed pyridine on Mo (500) and s-Mo (8) catalysts.
Catalysts 10 00158 g004

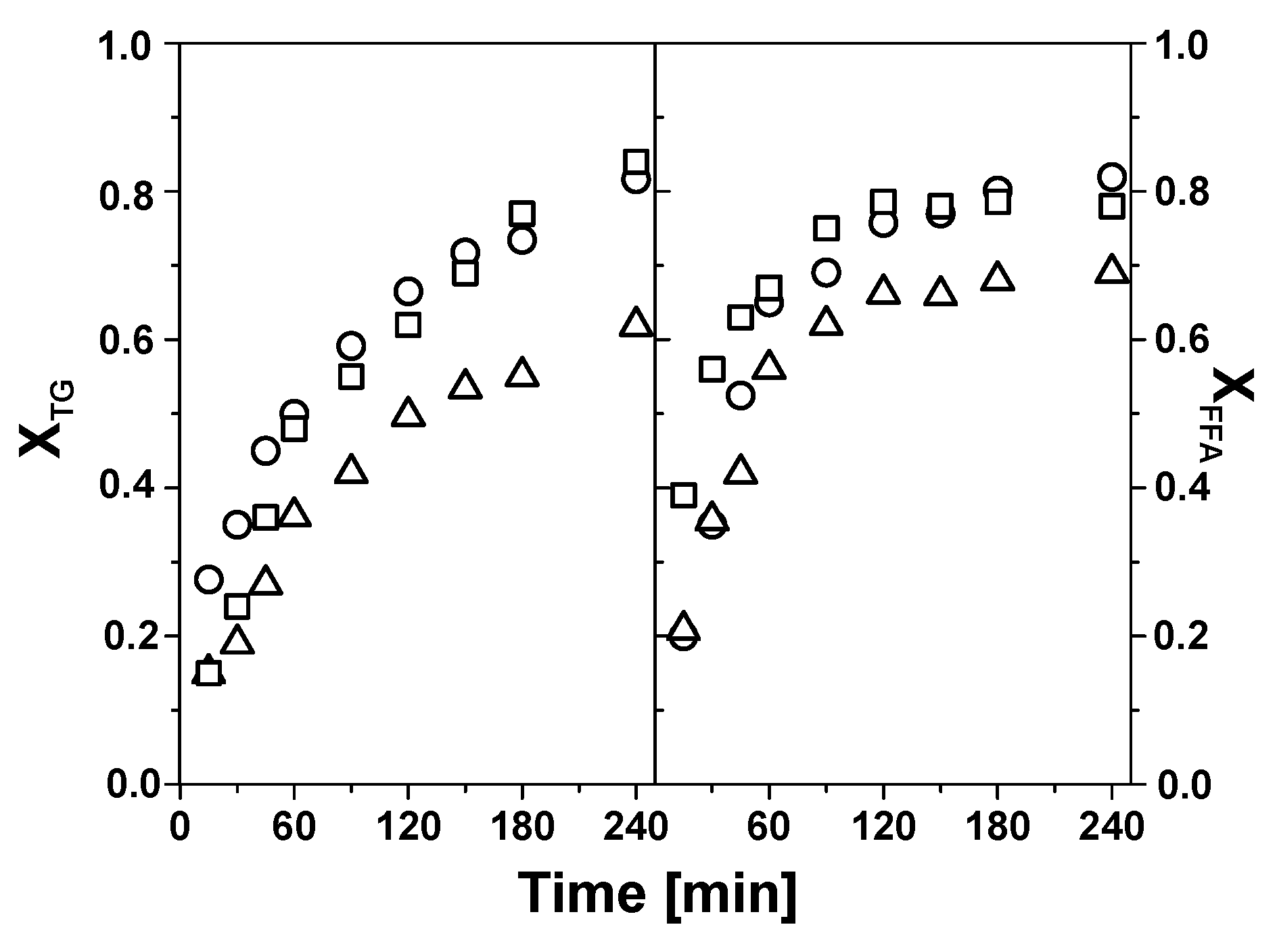

Figure 5. Conversion of the triglycerides (XTG) and FFAs (XFFA) with reaction time for the unsupported Mo (300) (squares), Mo (500) (circles), and Mo (700) (triangles) catalysts. Reaction conditions: 100 °C, 30 atm, methanol/feedstock molar ratio of 12:1, 2 wt.% catalyst referred to the feedstock mass. Feedstock: refined sunflower oil containing 5 wt.% free oleic acid.
Figure 5. Conversion of the triglycerides (XTG) and FFAs (XFFA) with reaction time for the unsupported Mo (300) (squares), Mo (500) (circles), and Mo (700) (triangles) catalysts. Reaction conditions: 100 °C, 30 atm, methanol/feedstock molar ratio of 12:1, 2 wt.% catalyst referred to the feedstock mass. Feedstock: refined sunflower oil containing 5 wt.% free oleic acid.
Catalysts 10 00158 g005

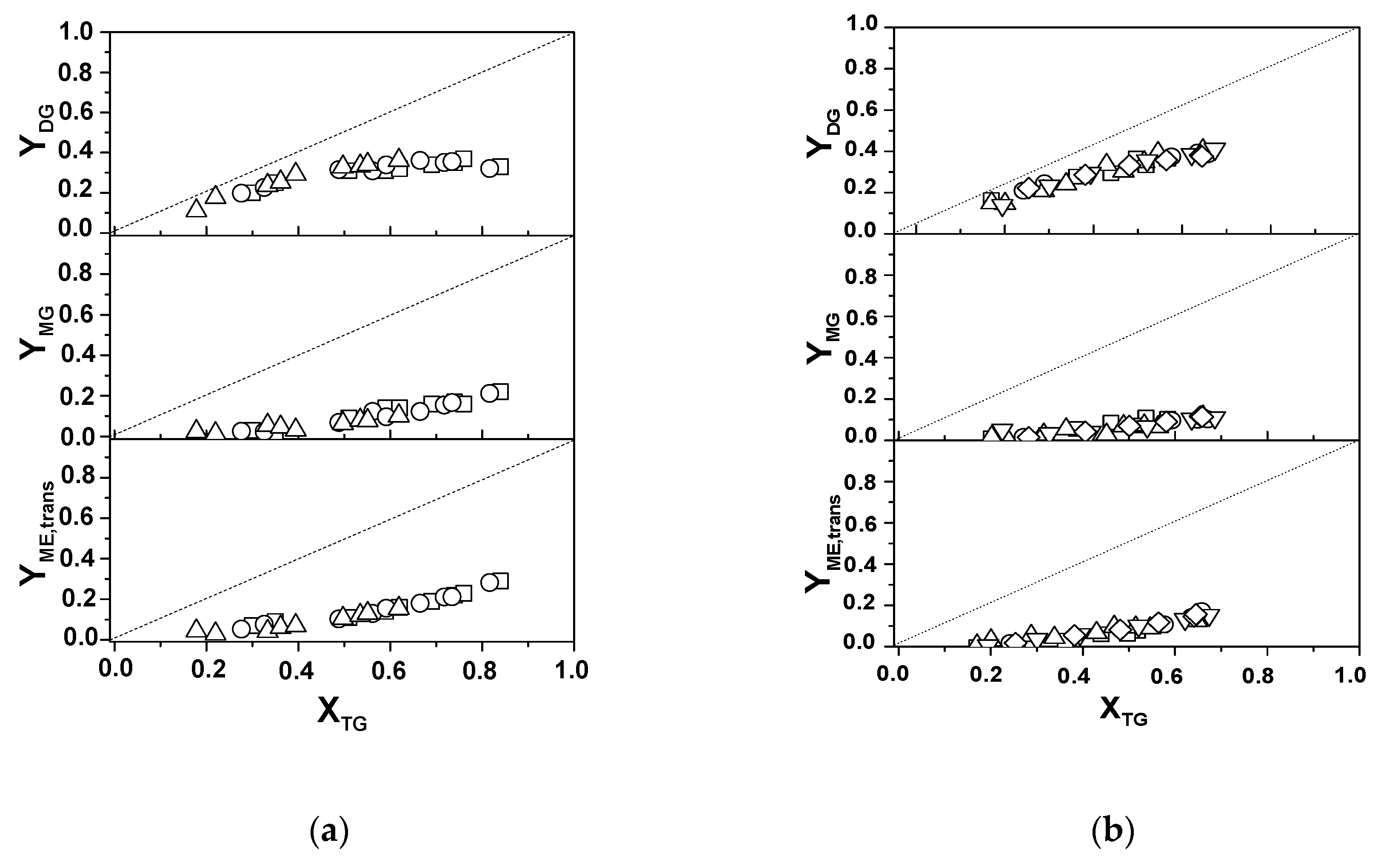

Figure 6. Evolution with the triglycerides conversion of the yields of diglycerides (YDG), monoglycerides (YMG), and methyl esters produced by transesterification (YME,trans.) for: (a) unsupported Mo (300) (squares), Mo (500) (circles), and Mo (700) (triangles) catalysts; (b) supported s-Mo (6) (squares); s-Mo (8) (circles); s-Mo (10) (triangles); s-Mo (13) (inverted triangles); s-Mo (16) (rhombus) catalysts. Reaction conditions: 100 °C, 30 atm, methanol:feedstock molar ratio of 12:1, 2 wt.% catalyst referred to the feedstock mass. Feedstock: refined sunflower oil containing 5 wt.% free oleic acid.
Figure 6. Evolution with the triglycerides conversion of the yields of diglycerides (YDG), monoglycerides (YMG), and methyl esters produced by transesterification (YME,trans.) for: (a) unsupported Mo (300) (squares), Mo (500) (circles), and Mo (700) (triangles) catalysts; (b) supported s-Mo (6) (squares); s-Mo (8) (circles); s-Mo (10) (triangles); s-Mo (13) (inverted triangles); s-Mo (16) (rhombus) catalysts. Reaction conditions: 100 °C, 30 atm, methanol:feedstock molar ratio of 12:1, 2 wt.% catalyst referred to the feedstock mass. Feedstock: refined sunflower oil containing 5 wt.% free oleic acid.
Catalysts 10 00158 g006

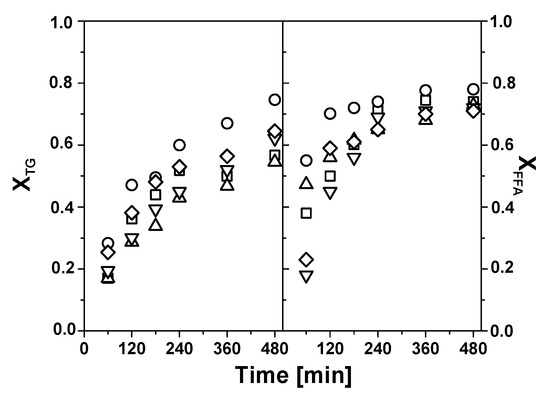

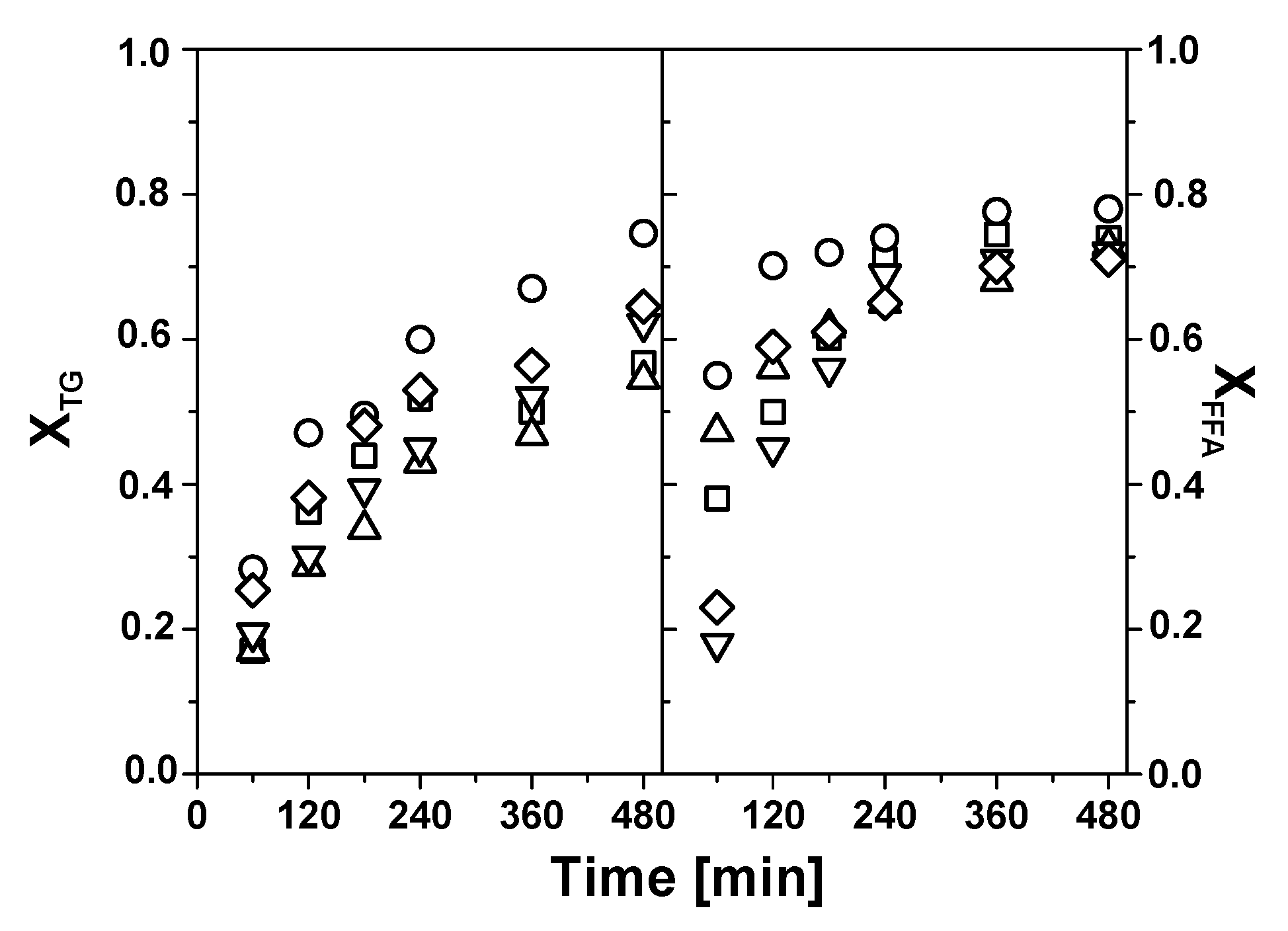

Figure 7. Evolution with reaction time of the conversion of triglycerides (XTG) and FFAs (XFFA) for supported s-Mo (6) (squares); s-Mo (8) (circles); s-Mo (10) (triangles); s-Mo (13) (inverted triangles); s-Mo (16) (rhombus) catalysts. Reaction conditions: 100 °C, 30 atm, methanol/feedstock molar ratio of 12:1, 2 wt.% catalyst referred to the feedstock mass. Feedstock: refined sunflower oil containing 5 wt.% free oleic acid.
Figure 7. Evolution with reaction time of the conversion of triglycerides (XTG) and FFAs (XFFA) for supported s-Mo (6) (squares); s-Mo (8) (circles); s-Mo (10) (triangles); s-Mo (13) (inverted triangles); s-Mo (16) (rhombus) catalysts. Reaction conditions: 100 °C, 30 atm, methanol/feedstock molar ratio of 12:1, 2 wt.% catalyst referred to the feedstock mass. Feedstock: refined sunflower oil containing 5 wt.% free oleic acid.
Catalysts 10 00158 g007

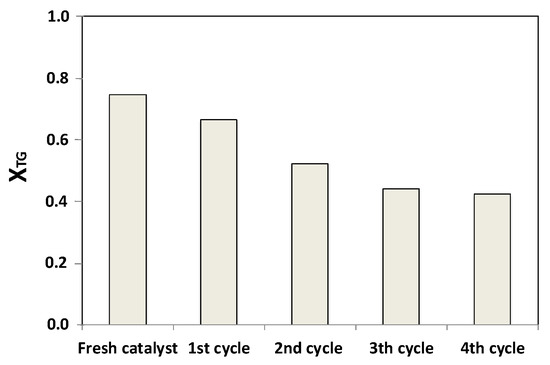

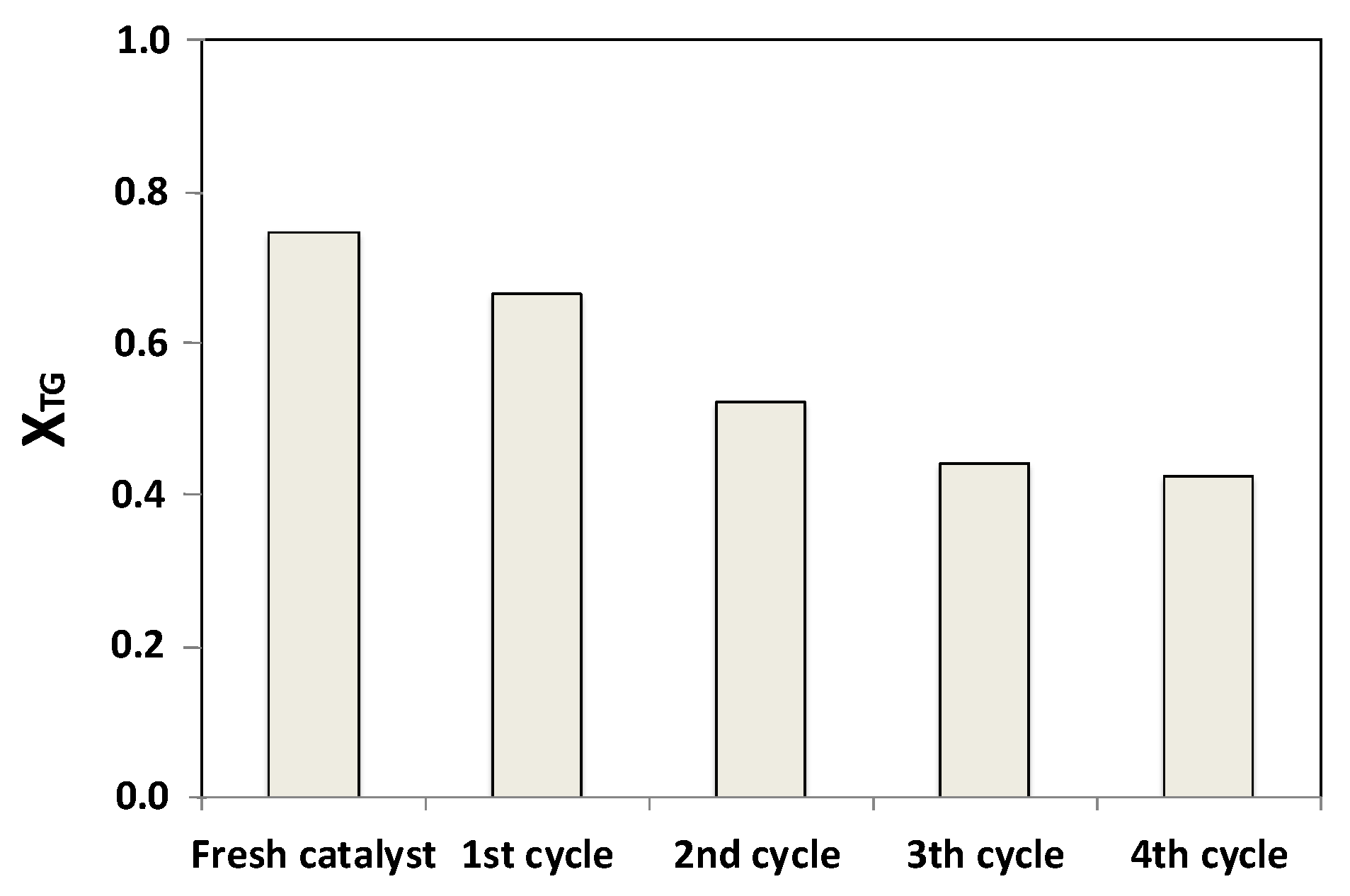

Figure 8. Triglycerides conversion (XTG) obtained after 8 h of reaction during the number of reuse cycles indicated for the catalyst s-Mo (8). Reaction conditions: 100 °C, 30 atm, methanol/feedstock molar ratio of 12:1, 2 wt.% catalyst referred to the feedstock mass. Feedstock: refined sunflower oil containing 5 wt.% free oleic acid.
Figure 8. Triglycerides conversion (XTG) obtained after 8 h of reaction during the number of reuse cycles indicated for the catalyst s-Mo (8). Reaction conditions: 100 °C, 30 atm, methanol/feedstock molar ratio of 12:1, 2 wt.% catalyst referred to the feedstock mass. Feedstock: refined sunflower oil containing 5 wt.% free oleic acid.
Catalysts 10 00158 g008
Table 1. Physicochemical characterization data of the supported MoO3 catalysts.
Table 1. Physicochemical characterization data of the supported MoO3 catalysts.
SampleSBET (m2/g)[NH3]des. (μmol/m2) 1
Al2O3 support1122.7
s-Mo (6)992.8
s-Mo (8)722.4
s-Mo (10)632.4
s-Mo (13)471.9
s-Mo (16)442.0
1 Data obtained from the desorption peak centered at 147–150 °C in all cases.
