Communication

Rapid Ammonia Carriers for SCR Systems Using MOFs [M2(adc)2(dabco)] (M = Co, Ni, Cu, Zn)

by
Zhejian Cao
,
Kritika Narang Landström
and
Farid Akhtar
*
Division of Materials Science, Luleå University of Technology, 97187 Luleå, Sweden
*
Author to whom correspondence should be addressed.
Catalysts 2020, 10(12), 1444; https://doi.org/10.3390/catal10121444
Submission received: 1 November 2020 / Revised: 4 December 2020 / Accepted: 5 December 2020 / Published: 10 December 2020
Browse Figures
Versions Notes

Abstract

:
Ammonia is one of the most common reductants for the automotive selective catalytic reduction (SCR) system owing to its high NO2 reduction (deNOx) efficiency. However, ammonia carriers for the SCR system have sluggishly evolved to achieve rapid ammonia dosing. In this study, the MOFs [M2(adc)2(dabco)] (M = Co, Ni, Cu, Zn) were synthesized and characterized as ammonia carriers. Among the four obtained MOFs, Ni2(adc)2(dabco) possessed the highest surface area, 772 m2/g, highest ammonia uptake capacity, 12.1 mmol/g, and stable cyclic adsorption-desorption performance. All the obtained MOFs demonstrated physisorption of ammonia and rapid kinetics of ammonia adsorption and desorption. Compared with halide ammonia carrier MgCl2, the obtained MOFs showed four times faster adsorption kinetics to reach 90% of the ammonia uptake capacity. For the ammonia desorption, the Ni2(adc)2(dabco) provided 6 mmol/g ammonia dosing when temperature reached 125 °C in the first 10 min, which was six times of the ammonia dosing from Mg(NH3)6Cl2. The results offer a solution to shorten the buffering time for ammonia dosing in the SCR system.
Keywords:
SCR; ammonia; MOFs; kinetics; deNOx

1. Introduction

Nitrogen oxides (NOx) are regarded as one of the most harmful air pollutants, resulting in a series of environmental problems such as acid rain, smog, and global warming, and severe health impact to human beings [1,2]. Millions of premature deaths are related to NOx pollution worldwide [3,4]. Therefore, NOx reduction (deNOx) has drawn extensive attention. For example, the NOx emission standards have become increasingly stringent as vehicle exhaust is one of the main sources of NOx emission [5]. The selective catalytic reduction (SCR) system, one of the most common approaches to eliminate NOx from vehicle exhaust onboard, typically uses ammonia (NH3) as the reductant to react with NOx and produce harmless H2O and N2 [6,7]. To meet the elevated requirements of the emission standards, the NOx conversion efficiency of the SCR system was enhanced in many aspects, including the reductant system, the catalyst, the dosing control system, etc., among which the reductant system is essential, yet sluggishly evolved [1,8,9,10].
Ammonia is the most common reductant due to its high NOx conversion efficiency and fewer side reactions compared with hydro-carbon reductants [11,12]. However, the toxic and corrosive nature of ammonia imposes challenges in achieving safe and stable ammonia storage onboard for SCR systems [13]. Instead, urea solution (Adblue®, or diesel exhaust fluid (DEF)), an indirect ammonia carrier, has been widely used in SCR systems for over 30 years [7,14,15]. With the heat from the exhaust, urea hydrolyzes and releases ammonia and carbon dioxide (CO2). However, as the temperature of the exhaust goes lower, the inadequacy of urea hydrolysis could result in insufficient ammonia dosing and catalyst damage by urea residuals [16]. Moreover, at a low temperature (below −11 °C), there is the risk to freeze the urea solution and impede the urea-injection to the SCR system [17]. Therefore, the solid SCR system, using alkaline earth metal halides (AEMH, such as SrCl2, MgCl2) as ammonia carriers, emerges as a new trend for automotive NOx abatement [18,19,20]. The ammonia is stored in AEMH in the form of metal ammine complexes [21,22]. By heating the AEMH-NH3 complex, direct ammonia dosing can be achieved, which has high NOx conversion efficiency and no residual risk [23,24]. One big challenge for AEMH as ammonia carriers in the SCR system is the ammonia dosing kinetics. The AEMH-NH3 complex is required to reach the decomposition temperature to release ammonia. In practical cases, with cold engine start and urban driving, there could be NOx escaping before the sufficient ammonia dosing. In the industry, an extra start-up unit is added to shorten the ammonia buffer time, which would still take 5 to 10 min in low-temperature regions [24,25,26]. Therefore, an ammonia carrier with rapid ammonia dosing is needed to elevate the NOx abatement performance for the solid SCR system.
Metal-organic frameworks (MOFs) are a new emerging class of porous materials consisting of metal ions and organic linkers. MOFs demonstrate remarkable characteristics such as ultrahigh surface area, tunable pore size, and functionalities, which imply their wide applications in gas storage, gas separation, and catalysis [27]. Unlike the chemisorption mechanism in AEMH, MOFs give direct gaseous ammonia dosing with a physisorption mechanism, which has rapid adsorption-desorption kinetics [28]. Moreover, the structural change during ammonia adsorption and desorption is negligible in MOFs, compared with approximately four times molar volume swing in AEMH [29,30]. Therefore, MOFs as ammonia carriers have a higher structural stability than the AEMH system. Previous studies on MOFs as ammonia adsorbents mostly focused on the ammonia capacity, instead of ammonia adsorption-desorption kinetics [31,32,33,34,35,36,37]. The highest reported ammonia uptake capacity by MOF yielded at 19.79 mmol/g by Cu2Cl2BBTA. However, the crystallinity and porosity was found degraded for Cu2Cl2BBTA after the first ammonia adsorption cycle [38]. Other reported MOFs with reversible ammonia sorption performance demonstrated ammonia uptake capacity—5 to 15 mmol/g [33,35,36,39,40,41]. The mechanism of ammonia adsorption in MOFs has been elucidated in two aspects. One is the binding with the organic links, such as the -OH groups [37], Lewis acid sites [42]. Another possible binding of ammonia is with the metal ions [43,44]. Combining these binding mechanisms with the physical high surface area and tunable chemical composition, it is promising to achieve high performance ammonia carriers with MOFs. In this work, MOFs [M2(adc)2(dabco)] (M = Co, Ni, Cu, Zn; adc = anthracene-9,10-dicarboxylate, dabco = 1,4-diazabicyclo[2.2.2]-octane) were synthesized and investigated for their ammonia adsorption-desorption performance. Ni2(adc)2(dabco) possessed the highest ammonia uptake capacity and excellent cyclic performance compared with Co, Cu, and Zn analogues. A comparison of adsorption kinetics with chemi-sorbent MgCl2 has been made with physi-sorbent MOFs to evaluate the potential to shorten the ammonia dosing buffer time for the SCR system.

2. Results and Discussion

2.1. Structure Characterization of the MOFs

Figure 1a–d show the microstructure of the obtained MOFs, [M2(adc)2(dabco)] (M = Co, Ni, Cu, Zn). These four MOFs demonstrated different morphology, including brick-like crystals for Co2(adc)2(dabco) in Figure 1a, cuboid-like crystals for Ni2(adc)2(dabco) Figure 1b, plate-like crystals for Cu2(adc)2(dabco), and Zn2(adc)2(dabco) in Figure 1c,d. The morphology variation could be attributed to the different ions’ interaction with the other reagents, since all the MOFs were synthesized with identical cation-to-dabco ratio, temperature, and reaction time, in this work. Future study on the optimized synthesis condition for each cation to achieve specific MOFs morphology would be of interest. The cation-to-dabco ratio has been reported as a key factor for the MOFs’ crystal geometry [45]. The [M2(adc)2(dabco)] (M = Co, Ni, Cu, Zn) nanocrystals were obtained due to competition between two organic linkers for one metal center. This excessive number of organic linkers in reaction deplete the metal ion concentration and suppress the growth rate of the crystals, leading to nanocrystal formation. According to the powder X-ray diffraction (PXRD) patterns in Figure 1e, all of the MOFs had an identical crystal structure with two strongest peaks at 2θ = 7.8–8.3° and 2θ = 8.9–9.4°, which matches the simulated XRD pattern of the reported Zn2(adc)2(dabco) from the CCDC database (CCDC: 814078) (Supplementary information S1) [46]. The width of the strongest peak in Ni2(adc)2(dabco) was wider than the other MOFs, which could be attributed to the small crystal size ~100 nm, compared to 300–1200 nm (detailed particle size distribution in Supplementary information S2) in other obtained MOFs, as shown in Figure 1a–d.
The N2 adsorption isotherms of the obtained MOFs [M2(adc)2(dabco)] (M = Co, Ni, Cu, Zn) in Figure 2 demonstrate high uptake at low-pressure regime (Type I isotherm), indicating that all the obtained MOFs were microporous materials according to the IUPAC classification [47,48]. Ni2(adc)2(dabco) exhibited highest N2 uptake capacity as compared to other analogues and subsequently highest Brunauer-Emmett-Teller (BET) surface area of 772 m2/g, followed by 670 m2/g, 640 m2/g, 550 m2/g, in Co, Zn, and Cu analogues, respectively as summarized in Table 1. However, with almost identical crystal structure, all four MOFs yielded similar micropore area of 473 (±31) m2/g and similar micropore volume of 0.25 (±0.02) cm3/g. Ni2(adc)2(dabco) possessed highest external surface area, which would be attributed to the small crystal size and voids between the nanocrystals. The variation of the crystal shape and size resulted in different external surface area, as shown in Figure 1a–d and Table 1. All obtained MOFs demonstrated superior specific surface area 500–800 m2/g compared to the MgCl2 at 3 m2/g.

2.2. Ammonia Uptake Capacity

The ammonia uptake capacity of the obtained MOFs [M2(adc)2(dabco)] (M = Co, Ni, Cu, Zn) was measured with ammonia isotherms from high vacuum to 1 bar at 22 °C for 3 cycles. The average ammonia uptake capacity for three cycles of each MOF and their corresponding BET surface area were plotted in Figure 3a. Ni2(adc)2(dabco) demonstrated the highest average ammonia uptake capacity for 3 cycles of 12.1 mmol/g, compared with 11.2 mmol/g, 8.3 mmol/g, and 6.5 mmol/g in Co, Zn, and Cu analogues, respectively. The differential enthalpy of ammonia adsorption in Ni2(adc)2(dabco) was around 18 kJ/mol (Supplementary information S3). The ammonia uptake capacity of each of the MOFs corresponds to its BET surface area, which revealed that higher surface area could offer higher ammonia adsorption sites for the physisorption. However, ammonia uptake capacity cannot be predicted only based on the surface area, since there could be other interactions involved in ammonia sorption, such as metal binding sites and Lewis acid–base interactions [33,38,40]. The cyclic performance of ammonia adsorption and desorption were excellent with almost no drop of the ammonia uptake capacity in Ni2(adc)2(dabco) for three cycles. The Cu2(adc)2(dabco), however, decreased 44% ammonia uptake capacity from 8.3 mmol/g in the first cycle to 4.6 mmol/g in the third cycle (Supplementary information S4). According to the ammonia isotherms of the MOFs for the third cycle, Cu2(adc)2(dabco) did not present a steep ammonia uptake before 0.1 bar, indicating the collapse of the microporous structure. Other MOFs with Cu2+ as cations have been reported with poor cyclic ammonia adsorption performance with structural collapse. For instance, Cu-MOF-74 [44], Cu3(BTC)2 [49], Cu2Cl2BBTA, and Cu2Cl2BTDD [38] were reported to lose their crystallinity after ammonia adsorption. One explanation could be the Cu2+ is less kinetically inert than the Co2+, Ni2+, and Zn2+ [38,50]. During ammonia adsorption, the Cu-carboxylate bonds tend to break to have more ammonia coordinated to Cu2+, resulting in the structural collapse in the MOFs [44,49]. According to the thermal analysis for the obtained MOFs before and after the ammonia adsorption-desorption cycles (Supplementary information S5), all the synthesized MOFs presented a stable structure with a degradation temperature at 300 to 400 °C. The Co2(adc)2(dabco), Ni2(adc)2(dabco), and Zn2(adc)2(dabco) demonstrated identical weight retention (~30%) before and after the ammonia adsorption-desorption cycles and similar degradation temperature, implying that these MOFs have a stable structure before and after the ammonia adsorption-desorption cycles. However, for Cu2(adc)2(dabco), the weight retention was much higher (~50%) after three cycles of ammonia adsorption-desorption, compared to the original Cu2(adc)2(dabco) (~30%), which is attributed to the degradation of the Cu2(adc)2(dabco) during the ammonia adsorption-desorption cycles. The PXRD patterns of the Ni2(adc)2(dabco) before and after the ammonia adsorption-desorption cycles remained identical, indicating the Ni2(adc)2(dabco) possessed structural stability as ammonia carriers (Supplementary information S6).

2.3. Kinetics of the Ammonia Adsorption and Desorption

The ammonia adsorption-desorption kinetics of the ammonia carriers were evaluated using a simultaneous thermal analyzer. In this regard, instant ammonia dosing was switched on after 2 min stabilization for ammonia adsorption. The ammonia adsorption/desorption percentage in Figure 4a,b was normalized to the corresponding saturated ammonia uptake capacity of each absorbents (Supplementary information S7). As shown in Figure 4a, all the tested MOFs demonstrated rapid ammonia adsorption with ~90% of ammonia uptake in 2 min, which was four times faster than MgCl2 (11 min) according to our previous study [51]. After the adsorption step, the saturated MOFs desorbed ammonia with a heat treatment under the ammonia atmosphere. As the temperature reached 125 °C in 10 min, Co2(adc)2(dabco) and Ni2(adc)2(dabco) offered ~6 mmol/g ammonia dosing, which is 6 times than ~1 mmol/g in the saturated MgCl2, as shown in Figure 4b and Table 2. This is attributed to different ammonia sorption mechanisms in MOFs and AEMH. For MOFs, due to the physisorption mechanism, ammonia can start dosing instantly with temperature or pressure swing due to lower binding energy. However, for the AEMH, ammonia is stored in the form of ammine complexes, which requires a certain temperature or pressure to initiate the desorption. For example, it requires 139 °C for Mg(NH3)6Cl2 to start sufficient ammonia desorption at 1 bar, as shown in Figure 4d. The cyclic kinetics performance of Ni2(adc)2(dabco) for ammonia adsorption and desorption was verified steady for three cycles (Supplementary information S8). This rapid desorption property of MOFs can be beneficial to the solid SCR systems by replacing the AEMH with Ni2(adc)2(dabco) in the start-up unit to provide a rapid ammonia dosing before the AEMH reaches the desorption temperature. Consequently this can be coupled with the AEMH to provide sufficient ammonia dosing with its extraordinary ammonia capacity [26]. Combining the ammonia uptake capacity, rapid kinetics for ammonia adsorption and desorption, and cyclic performance, Ni2(adc)2(dabco) demonstrated promising potential as an ammonia carrier for the SCR system for rapid ammonia dosing to elevate deNOx efficiency.

3. Materials and Methods

3.1. MOFs Synthesis

M2(adc)2(dabco) (M = Cu, Co, Ni, Zn) MOFs were synthesized based on literature procedure [45,48]. Copper (II) nitrate hemi(pentahydrate) [Cu(NO3)2·2.5H2O] (≥99.99%), Cobalt(II) nitrate hexahydrate [Co(NO3)2·6H2O] (≥99.99%), Nickel(II) acetate tetrahydrate [Ni(OCOCH3)2·4H2O] (≥99.99%), zinc nitrate hexahydrate [Zn(NO3)2·6H2O] (≥99.99%), and N,N-dimethylformamide (anhydrous DMF), 1,4-diazabicylco[2.2.2] octane [DABCO] (≥99%), 9,10-anthracenedicarboxylic acid [H2adc] (95%) were purchased from Sigma Aldrich Chemie GmBH, Germany. All of the above-mentioned chemicals were used as received.
The metal salt (1 mmol) was dissolved in 9 mL DMF using a magnetic stirrer. After complete dissolution, the metal salt solution was added to organic linker solution, prepared from mixing DABCO (0.83 mmol) and H2adc (1 mmol) in DMF (18 mL). The mixture was stirred for 20 min and heated in 30 mL Teflon lined autoclave at 120 °C for 48 h. The precipitated crystalline material was collected and washed with DMF to remove the excess unreacted precursors. Further, the crystals were immersed in ethanol for three days during which ethanol was replenished three times per day for the solvent exchange.

3.2. Structure Characterization

The microstructure of the obtained MOFs was characterized with scanning electron microscopy (SEM, Magellan 400 XHR-SEM, FEI Company, Eindhoven, Netherlands), with a 15-nm platinum coating to avoid the charging by Leica EMACE 200 coating system. The crystal structure of the MOFs was characterized by a Cu Kα radiation X-ray diffractometer (Empyrean, Malvern Panalytical, Malvern, UK). The BET surface area of the MOFs was obtained by N2 adsorption at −196 °C using a surface area analyzer (Gemini VII 2390, Micromeritics, Norcross, GA, USA). All MOFs were degassed at 200 °C under high vacuum overnight prior to the N2 adsorption measurements. The thermal stability of each of the obtained MOFs was characterized using a simultaneous thermogravimetric analysis and differential scanning calorimetry (TGA/DSC) thermal analyzer (SDT 650, TA instruments, New Castle, DE, USA). The MOFs were heated from 25 °C to 500 °C with a ramp of 10 °C/min in an argon atmosphere, before and after the 3-cycle ammonia adsorption-desorption tests. The particle size distribution was measured with dynamic light scattering (Zetasizer Nano Z, Malvern Panalytical, Malvern, UK).

3.3. Ammonia Adsorption and Desorption Measurement

The ammonia isotherms were obtained with the IsoSORP® sorption analyzer (TA Instruments, New Castle, DE, USA), which includes a magnetic suspension balance, an electrical heater, a thermostatic oil bath, and a chemistry diaphragm vacuum pump. All MOFs were degassed at 200 °C under high vacuum for 3 h, following a buoyancy test with helium at 22 °C to determine the mass and volume of each sample. Then, the ammonia adsorption isotherms were measured with ammonia dosing from vacuum to 1 bar until the deviation of mass was less than 0.1 mg per 10 min. Three cycles were repeated for each MOF. The kinetics of ammonia adsorption-desorption in the MOFs was studied with aforementioned thermal analyzer, SDT 650. The MOFs were first degassed at 200 °C with argon flow (50 mL/min) for 12 h; once the sample cooled down to 25 °C, the protective argon gas was cut off following a 100 mL/min NH3 flow for the adsorption measurement until saturation for the adsorption kinetics. Ammonia desorption kinetics was characterized under ammonia atmosphere with a heating rate of 10 °C/min from 25 °C to 200 °C then held isothermally.

4. Conclusions

MOFs [M2(adc)2(dabco)] (M = Co, Ni, Cu, Zn) were synthesized and characterized for ammonia storage with the equilibrium ammonia uptake capacity and the kinetics of ammonia adsorption and desorption. The obtained MOFs illustrated identical crystal structure, but the geometry and size of the crystal varied from each different metal cations. Ni2(adc)2(dabco) presented the highest surface area at 772 m2/g. For the ammonia uptake capacity, Ni2(adc)2(dabco) yielded the highest average capacity at 12.1 mmol/g with a stable cyclic performance for three cycles. While the porous structure of Cu2(adc)2(dabco) collapsed after the ammonia cycles, resulting in a 44% ammonia capacity drop after three cycles. All four obtained MOFs demonstrated excellent kinetics of ammonia adsorption and desorption compared to the MgCl2 by the physisorption mechanism. Particularly for the ammonia dosing, Ni2(adc)2(dabco) offered six times ammonia in the first 10 min compared to Mg(NH3)6Cl2. With the obtained results, Ni2(adc)2(dabco) demonstrated promising ammonia carrier characteristics to elevate the ammonia dosing kinetics and corresponding deNOx efficiency for the SCR system.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/10/12/1444/s1.

Author Contributions

Conceptualization and methodology, Z.C. and K.N.L.; writing—original draft preparation, Z.C.; writing—review and editing, Z.C., K.N.L., and F.A.; supervision, F.A.; All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by Formas (No. 2016-01099) and Innovation Fund Denmark (No. 5157-00008A).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Damma, D.; Ettireddy, P.R.; Reddy, B.M.; Smirniotis, P.G. A Review of Low Temperature NH3-SCR for Removal of NOx. Catalysts 2019, 9, 349. [Google Scholar] [CrossRef] [Green Version]
  2. Kampa, M.; Castanas, E. Human health effects of air pollution. Environ. Pollut. 2008, 151, 362–367. [Google Scholar] [CrossRef] [PubMed]
  3. Anenberg, S.C.; Miller, J.; Minjares, R.; Du, L.; Henze, D.K.; Lacey, F.; Malley, C.S.; Emberson, L.; Franco, V.; Klimont, Z.; et al. Impacts and mitigation of excess diesel-related NOx emissions in 11 major vehicle markets. Nature 2017, 545, 467–471. [Google Scholar] [CrossRef]
  4. Jonson, J.E.; Borken-Kleefeld, J.; Simpson, D.; Nyíri, A.; Posch, M.; Heyes, C. Impact of excess NOx emissions from diesel cars on air quality, public health and eutrophication in Europe. Environ. Res. Lett. 2017, 12, 094017. [Google Scholar] [CrossRef] [Green Version]
  5. Ko, S.; Park, J.; Kim, H.; Kang, G.; Lee, J.; Kim, J.; Lee, J. NOx Emissions from Euro 5 and Euro 6 Heavy-Duty Diesel Vehicles under Real Driving Conditions. Energies 2020, 13, 218. [Google Scholar] [CrossRef] [Green Version]
  6. Vignesh, R.; Ashok, B. Critical interpretative review on current outlook and prospects of selective catalytic reduction system for De-NOx strategy in compression ignition engine. Fuel 2020, 276, 117996. [Google Scholar] [CrossRef]
  7. Koebel, M.; Elsener, M.; Marti, T. NOx-Reduction in Diesel Exhaust Gas with Urea and Selective Catalytic Reduction. Combust. Sci. Technol. 1996, 121, 85–102. [Google Scholar] [CrossRef]
  8. Mohan, S.; Dinesha, P.; Kumar, S. NOx reduction behaviour in copper zeolite catalysts for ammonia SCR systems: A review. Chem. Eng. J. 2020, 384, 123253. [Google Scholar] [CrossRef]
  9. Chi, J.N. Control Challenges for Optimal NOx Conversion Efficiency from SCR Aftertreatment Systems; SAE Technical Paper 2009-01-0905; SAE International: Warrendale, PA, USA, 2009. [Google Scholar]
  10. Szymaszek, A.; Samojeden, B.; Motak, M. The Deactivation of Industrial SCR Catalysts—A Short Review. Energies 2020, 13, 3870. [Google Scholar] [CrossRef]
  11. Fu, M.; Li, C.; Lu, P.; Qu, L.; Zhang, M.; Zhou, Y.; Yu, M.; Fang, Y. A review on selective catalytic reduction of NOx by supported catalysts at 100–300 °C—Catalysts, mechanism, kinetics. Catal. Sci. Technol. 2013, 4, 14–25. [Google Scholar] [CrossRef]
  12. Shimizu, K.-I.; Tsuzuki, M.; Satsuma, A. Effects of hydrogen and oxygenated hydrocarbons on the activity and SO2-tolerance of Ag/Al2O3 for selective reduction of NO. Appl. Catal. B Environ. 2007, 71, 80–84. [Google Scholar] [CrossRef]
  13. Renard, J.J.; Calidonna, S.E.; Henley, M.V. Fate of ammonia in the atmosphere—A review for applicability to hazardous releases. J. Hazard. Mater. 2004, 108, 29–60. [Google Scholar] [CrossRef] [PubMed]
  14. Gabrielsson, P.L.T. Urea-SCR in Automotive Applications. Top. Catal. 2004, 28, 177–184. [Google Scholar] [CrossRef]
  15. Koebel, M.; Elsener, M.; Kleemann, M. Urea-SCR: A promising technique to reduce NOx emissions from automotive diesel engines. Catal. Today 2000, 59, 335–345. [Google Scholar] [CrossRef]
  16. Johannessen, T.; Schmidt, H.; Svagin, J.; Johansen, J.; Oechsle, J.; Bradley, R. Ammonia Storage and Delivery Systems for Automotive NOx Aftertreatment; SAE Technical Paper 2008-01-1027; SAE International: Warrendale, PA, USA, 2008. [Google Scholar]
  17. Choi, B.-C.; Kim, Y.K.; Jhung, W.-N.; Lee, C.-H.; Hwang, C.-Y. Experimental investigation on melting characteristics of frozen urea–water-solutions for a diesel SCR de-NOx-system. Appl. Therm. Eng. 2013, 50, 1235–1245. [Google Scholar] [CrossRef]
  18. Liu, C.Y.; Aika, K. Ammonia Absorption into Alkaline Earth Metal Halide Mixtures as an Ammonia Storage Material. Ind. Eng. Chem. Res. 2004, 43, 7484–7491. [Google Scholar] [CrossRef]
  19. Wang, Z.X.; Wang, L.W.; Gao, P.; Yu, Y.; Wang, R.Z. Analysis of composite sorbents for ammonia storage to eliminate NOx emission at low temperatures. Appl. Therm. Eng. 2018, 128, 1382–1390. [Google Scholar] [CrossRef]
  20. Zhu, H.; Gu, X.; Yao, K.; Gao, L.; Chen, J. Large-Scale Synthesis of MgCl2·6NH3 as an Ammonia Storage Material. Ind. Eng. Chem. Res. 2009, 48, 5317–5320. [Google Scholar] [CrossRef]
  21. Tekin, A.; Hummelshøj, J.S.; Jacobsen, H.S.; Sveinbjörnsson, D.; Blanchard, D.; Nørskov, J.K.; Vegge, T. Ammonia dynamics in magnesium ammine from DFT and neutron scattering. Energy Environ. Sci. 2010, 3, 448–456. [Google Scholar] [CrossRef]
  22. Reardon, H.; Hanlon, J.M.; Grant, M.; Fullbrook, I.; Gregory, D.H. Ammonia Uptake and Release in the MnX2–NH3 (X = Cl, Br) Systems and Structure of the Mn(NH3)nX2 (n = 6, 2) Ammines. Crystals 2012, 2, 193–212. [Google Scholar] [CrossRef] [Green Version]
  23. Yim, S.D.; Kim, S.J.; Baik, J.H.; Nam, I.; Mok, Y.S.; Lee, J.-H.; Cho, B.K.; Oh, S.H. Decomposition of Urea into NH3 for the SCR Process. Ind. Eng. Chem. Res. 2004, 43, 4856–4863. [Google Scholar] [CrossRef]
  24. Johannessen, T.; Schmidt, H.; Frey, A.M.; Christensen, C.H. Improved Automotive NOx Aftertreatment System: Metal Ammine Complexes as NH3 Source for SCR Using Fe-Containing Zeolite Catalysts. Catal. Lett. 2009, 128, 94–100. [Google Scholar] [CrossRef]
  25. Johannessen, T. 3rd Generation SCR System Using Solid Ammonia Storage and Direct Gas Dosing: Expanding the SCR window for RDE. In Proceedings of the Directions in Engine-Efficiency and Emissions Research (DEER) Conference, Dearborn, MI, USA, 16–19 October 2012. [Google Scholar]
  26. Christensen, C.H.; Sørensen, R.Z.; Johannessen, T.; Quaade, U.J.; Honkala, K.; Elmøe, T.D.; Køhlera, R.; Nørskov, J.K. Metal ammine complexes for hydrogen storage. J. Mater. Chem. 2005, 15, 4106–4108. [Google Scholar] [CrossRef]
  27. Stock, N.; Biswas, S. Synthesis of Metal-Organic Frameworks (MOFs): Routes to Various MOF Topologies, Morphologies, and Composites. Chem. Rev. 2012, 112, 933–969. [Google Scholar] [CrossRef]
  28. Sabo, M.; Henschel, A.; Fröde, H.; Klemm, E.; Kaskel, S. Solution infiltration of palladium into MOF-5: Synthesis, physisorption and catalytic properties. J. Mater. Chem. 2007, 17, 3827–3832. [Google Scholar] [CrossRef]
  29. Johnsen, R.E.; Jensen, P.B.; Norby, P.; Vegge, T. Temperature- and Pressure-Induced Changes in the Crystal Structure of Sr(NH3)8Cl2. J. Phys. Chem. C 2014, 118, 24349–24356. [Google Scholar] [CrossRef]
  30. Jacobsen, H.S.; Hansen, H.A.; Andreasen, J.W.; Shi, Q.; Andreasen, A.; Feidenhans’l, R.; Nielsen, M.M.; Ståhl, K.; Vegge, T. Nanoscale structural characterization of Mg(NH3)6Cl2 during NH3 desorption: An in situ small angle X-ray scattering study. Chem. Phys. Lett. 2007, 441, 255–260. [Google Scholar] [CrossRef]
  31. Helminen, J.; Helenius, J.; Paatero, E.; Turunen, I. Adsorption Equilibria of Ammonia Gas on Inorganic and Organic Sorbents at 298.15 K. J. Chem. Eng. Data 2001, 46, 391–399. [Google Scholar] [CrossRef]
  32. Petit, C.; Bandosz, T.J. MOF–graphite oxide nanocomposites: Surface characterization and evaluation as adsorbents of ammonia. J. Mater. Chem. 2009, 19, 6521–6528. [Google Scholar] [CrossRef]
  33. Doonan, C.J.; Tranchemontagne, D.J.; Glover, T.G.; Hunt, J.R.; Yaghi, O.M. Exceptional ammonia uptake by a covalent organic framework. Nat. Chem. 2010, 2, 235–238. [Google Scholar] [CrossRef] [PubMed]
  34. Petit, C.; Mendoza, B.; Bandosz, T.J. Reactive Adsorption of Ammonia on Cu-Based MOF/Graphene Composites. Langmuir 2010, 26, 15302–15309. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Saha, D.; Deng, S. Ammonia adsorption and its effects on framework stability of MOF-5 and MOF-177. J. Colloid Interface Sci. 2010, 348, 615–620. [Google Scholar] [CrossRef] [PubMed]
  36. Morris, W.; Doonan, C.J.; Yaghi, O.M. Postsynthetic Modification of a Metal–Organic Framework for Stabilization of a Hemiaminal and Ammonia Uptake. Inorg. Chem. 2011, 50, 6853–6855. [Google Scholar] [CrossRef] [PubMed]
  37. Godfrey, H.G.W.; da Silva, I.; Briggs, L.; Carter, J.H.; Morris, C.G.; Savage, M.; Easun, T.L.; Manuel, P.; Murray, C.A.; Tang, C.C.; et al. Ammonia Storage by Reversible Host–Guest Site Exchange in a Robust Metal–Organic Framework. Angew. Chem. Int. Ed. 2018, 57, 14778–14781. [Google Scholar] [CrossRef] [Green Version]
  38. Rieth, A.J.; Dincă, M. Controlled Gas Uptake in Metal–Organic Frameworks with Record Ammonia Sorption. J. Am. Chem. Soc. 2018, 140, 3461–3466. [Google Scholar] [CrossRef]
  39. Rieth, A.J.; Tulchinsky, Y.; Dincă, M. High and Reversible Ammonia Uptake in Mesoporous Azolate Metal–Organic Frameworks with Open Mn, Co, and Ni Sites. J. Am. Chem. Soc. 2016, 138, 9401–9404. [Google Scholar] [CrossRef]
  40. Van Humbeck, J.F.; McDonald, T.M.; Jing, X.; Wiers, B.M.; Zhu, G.; Long, J.R. Ammonia Capture in Porous Organic Polymers Densely Functionalized with Brønsted Acid Groups. J. Am. Chem. Soc. 2014, 136, 2432–2440. [Google Scholar] [CrossRef]
  41. Chen, Y.; Wang, Y.; Yang, C.; Wang, S.; Yang, J.; Li, J. Antenna-Protected Metal–Organic Squares for Water/Ammonia Uptake with Excellent Stability and Regenerability. ACS Sustain. Chem. Eng. 2017, 5, 5082–5089. [Google Scholar] [CrossRef]
  42. Jiang, H.; Wang, Q.; Wang, H.; Chen, Y.; Zhang, M. MOF-74 as an Efficient Catalyst for the Low-Temperature Selective Catalytic Reduction of NOx with NH3. ACS Appl. Mater. Interfaces 2016, 8, 26817–26826. [Google Scholar] [CrossRef]
  43. Lu, Y.; Zhang, Z.; Lin, F.; Wang, H.; Wang, Y. Single-atom Automobile Exhaust Catalysts. ChemNanoMat 2020. [Google Scholar] [CrossRef]
  44. Katz, M.J.; Howarth, A.J.; Moghadam, P.Z.; DeCoste, J.B.; Snurr, R.Q.; Hupp, J.T.; Farha, O.K. High volumetric uptake of ammonia using Cu-MOF-74/Cu-CPO-27. Dalton Trans. 2016, 45, 4150–4153. [Google Scholar] [CrossRef] [PubMed]
  45. Zhuang, J.; Friedel, J.; Terfort, A. The oriented and patterned growth of fluorescent metal–organic frameworks onto functionalized surfaces. Beilstein J. Nanotechnol. 2012, 3, 570–578. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Hirai, K.; Furukawa, S.; Kondo, M.; Uehara, H.; Sakata, O.; Kitagawa, S. Sequential Functionalization of Porous Coordination Polymer Crystals. Angew. Chem. Int. Ed. 2011, 50, 8057–8061. [Google Scholar] [CrossRef]
  47. Thommes, M.; Kaneko, K.; Neimark, A.V.; Olivier, J.P.; Rodriguez-Reinoso, F.; Rouquerol, J.; Sing, K.S.W. Physisorption of gases, with special reference to the evaluation of surface area and pore size distribution (IUPAC Technical Report). Pure Appl. Chem. 2015, 87, 1051–1069. [Google Scholar] [CrossRef] [Green Version]
  48. Chaemchuen, S.; Zhou, K.; Kabir, N.A.; Chen, Y.; Ke, X.; Van Tendeloo, G.; Verpoort, F. Tuning metal sites of DABCO MOF for gas purification at ambient conditions. Microporous Mesoporous Mater. 2015, 201, 277–285. [Google Scholar] [CrossRef]
  49. Peterson, G.W.; Wagner, G.W.; Balboa, A.; Mahle, J.; Sewell, T.; Karwacki, C.J. Ammonia Vapor Removal by Cu3(BTC)2 and Its Characterization by MAS NMR. J. Phys. Chem. C 2009, 113, 13906–13917. [Google Scholar] [CrossRef] [Green Version]
  50. Eigen, M. Fast elementary steps in chemical reaction mechanisms. Pure Appl. Chem. 1963, 6, 97–116. [Google Scholar] [CrossRef]
  51. Cao, Z.; Grimaldos Osorio, N.; Cai, X.; Feng, P.; Akhtar, F. Carbon-reinforced MgCl2 composites with high structural stability as robust ammonia carriers for selective catalytic reduction system. J. Environ. Chem. Eng. 2020, 8, 103584. [Google Scholar] [CrossRef]
Catalysts 10 01444 g001 550

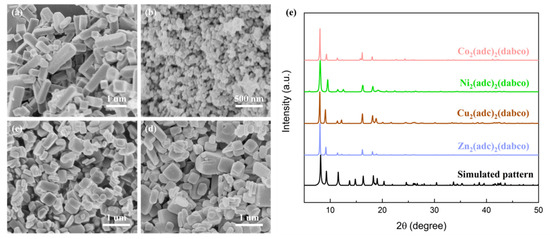

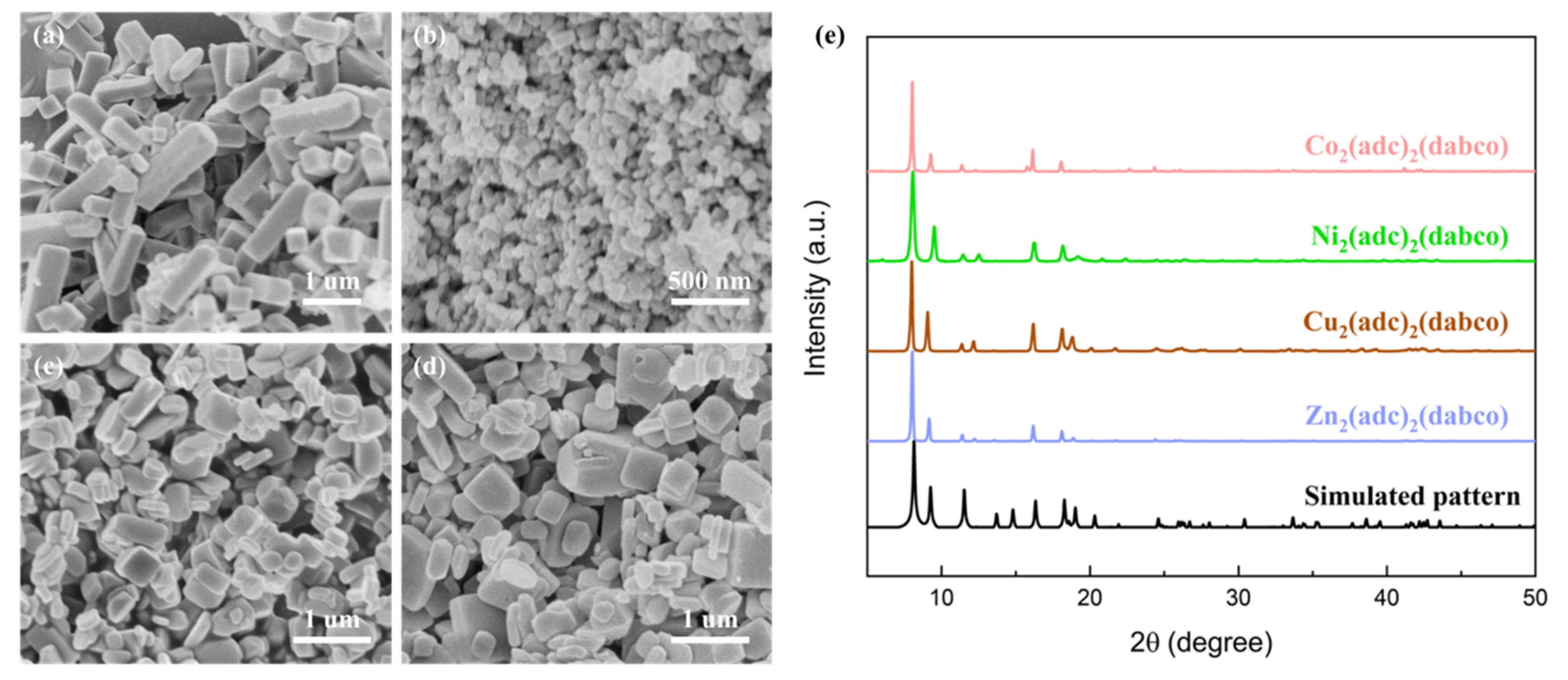

Figure 1. The scanning electron microscopy (SEM) images for the obtained MOFs. (a) Co2(adc)2(dabco); (b) Ni2(adc)2(dabco); (c) Cu2(adc)2(dabco); (d) Zn2(adc)2(dabco). (e) The powder X-ray diffraction (PXRD) patterns of the MOFs [M2(adc)2(dabco)] (M = Co, Ni, Cu, Zn) and the simulated pattern for the reported Zn2(adc)2(dabco) (CCDC: 814078) [46].
Figure 1. The scanning electron microscopy (SEM) images for the obtained MOFs. (a) Co2(adc)2(dabco); (b) Ni2(adc)2(dabco); (c) Cu2(adc)2(dabco); (d) Zn2(adc)2(dabco). (e) The powder X-ray diffraction (PXRD) patterns of the MOFs [M2(adc)2(dabco)] (M = Co, Ni, Cu, Zn) and the simulated pattern for the reported Zn2(adc)2(dabco) (CCDC: 814078) [46].
Catalysts 10 01444 g001
Catalysts 10 01444 g002 550

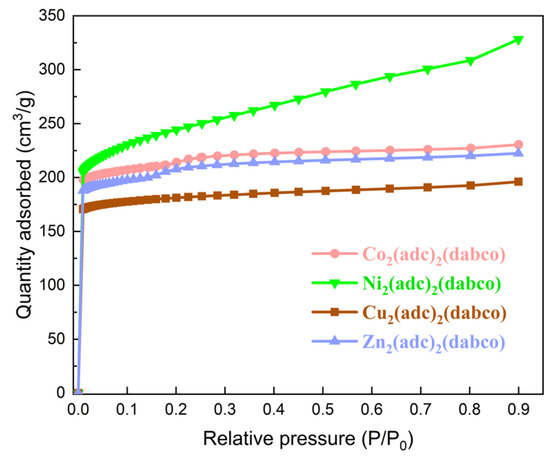

Figure 2. The isotherms of nitrogen adsorption in MOFs[M2(adc)2(dabco)] (M = Co, Ni, Cu, Zn) at −196 °C.
Figure 2. The isotherms of nitrogen adsorption in MOFs[M2(adc)2(dabco)] (M = Co, Ni, Cu, Zn) at −196 °C.
Catalysts 10 01444 g002
Catalysts 10 01444 g003 550

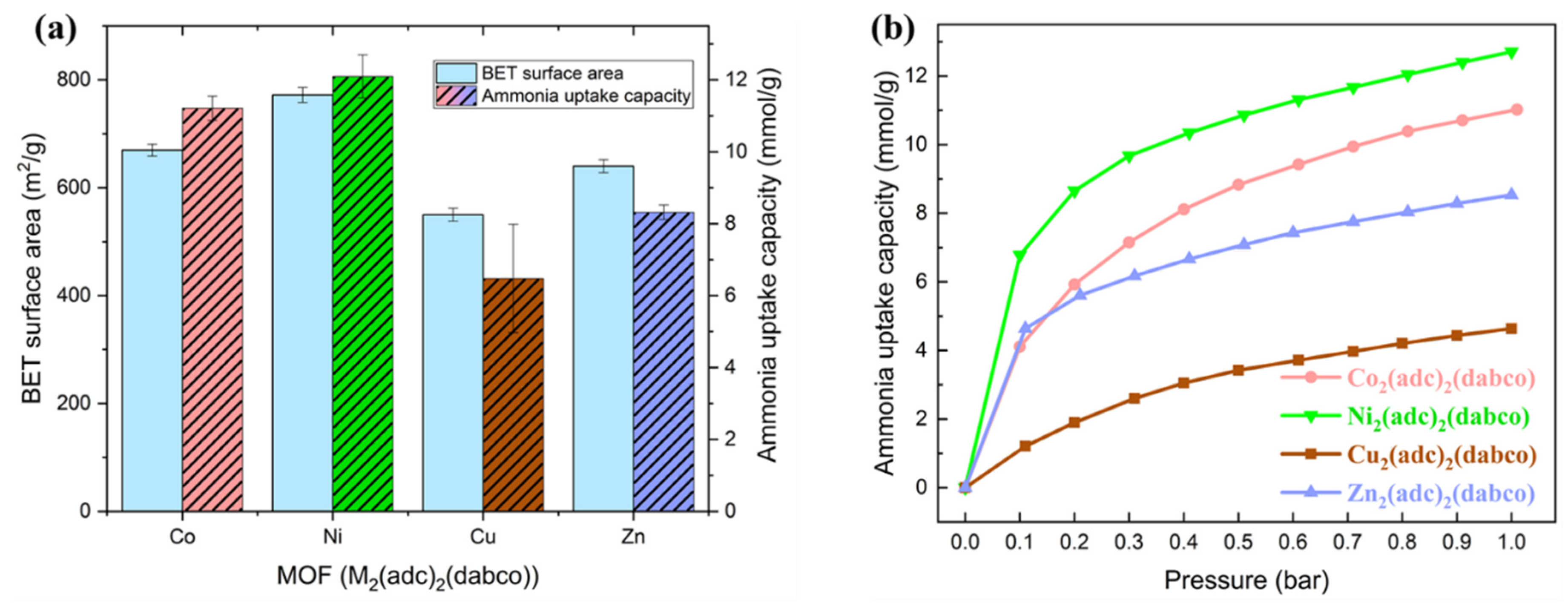

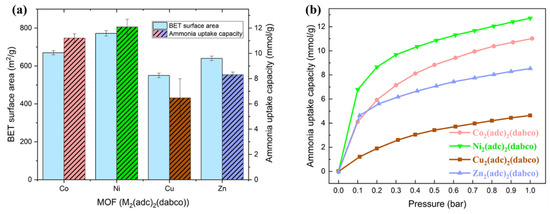

Figure 3. (a) The bar chart of the BET surface area and the average ammonia uptake capacity for three cycles of the MOFs [M2(adc)2(dabco)] (M = Co, Ni, Cu, Zn). (b) The isotherms of ammonia adsorption in the MOFs [M2(adc)2(dabco)] (M = Co, Ni, Cu, Zn) at 22 °C from high vacuum to 1 bar.
Figure 3. (a) The bar chart of the BET surface area and the average ammonia uptake capacity for three cycles of the MOFs [M2(adc)2(dabco)] (M = Co, Ni, Cu, Zn). (b) The isotherms of ammonia adsorption in the MOFs [M2(adc)2(dabco)] (M = Co, Ni, Cu, Zn) at 22 °C from high vacuum to 1 bar.
Catalysts 10 01444 g003
Catalysts 10 01444 g004 550

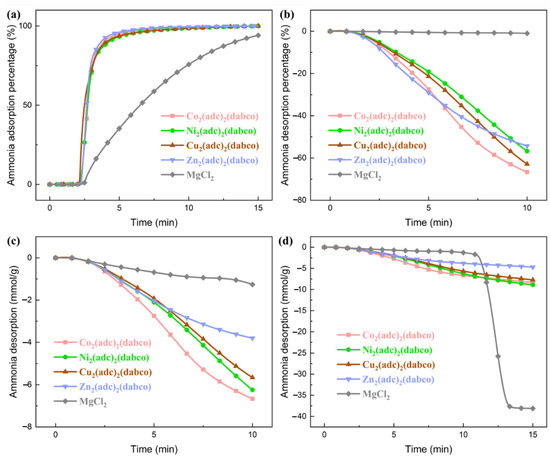

Figure 4. (a) Ammonia adsorption percentage in the MOFs [M2(adc)2(dabco)] (M = Co, Ni, Cu, Zn) and MgCl2 at 25 °C, 1 bar with 100 mL/min ammonia flow after 2-min stabilization. Ammonia desorption in ammonia-saturated MOFs [M2(adc)2(dabco)] (M = Co, Ni, Cu, Zn) and MgCl2 with 10 °C/min heat at 1 bar under 100 mL/min ammonia flow, (b) ammonia desorption percentage in the first 10 min from 25 °C to 125 °C; (c) ammonia desorption capacity in the first 10 min from 25 °C to 125 °C; (d) ammonia desorption capacity from 25 °C to 200 °C.
Figure 4. (a) Ammonia adsorption percentage in the MOFs [M2(adc)2(dabco)] (M = Co, Ni, Cu, Zn) and MgCl2 at 25 °C, 1 bar with 100 mL/min ammonia flow after 2-min stabilization. Ammonia desorption in ammonia-saturated MOFs [M2(adc)2(dabco)] (M = Co, Ni, Cu, Zn) and MgCl2 with 10 °C/min heat at 1 bar under 100 mL/min ammonia flow, (b) ammonia desorption percentage in the first 10 min from 25 °C to 125 °C; (c) ammonia desorption capacity in the first 10 min from 25 °C to 125 °C; (d) ammonia desorption capacity from 25 °C to 200 °C.
Catalysts 10 01444 g004
Table
Table 1. A summary of textural properties of MOFs [M2(adc)2(dabco)] (M = Co, Ni, Cu, Zn).
Table 1. A summary of textural properties of MOFs [M2(adc)2(dabco)] (M = Co, Ni, Cu, Zn).
BET Surface Area (m2/g)Micropore Area (m2/g)External Surface Area (m2/g)Micropore Volume (cm3/g)
Co2(adc)2(dabco)6705011690.26
Ni2(adc)2(dabco)7724722990.25
Cu2(adc)2(dabco)550475740.25
Zn2(adc)2(dabco)6404441950.23
MgCl23120.00
Table
Table 2. Kinetics of ammonia adsorption and desorption of the obtained MOFs and MgCl2.
Table 2. Kinetics of ammonia adsorption and desorption of the obtained MOFs and MgCl2.
Net Adsorption Time to Reach 90% Ammonia Uptake (min)Ammonia Desorption Percentage within 10 min
[1 bar, 125 °C]		Ammonia Desorption within 10 min
[1 bar, 125 °C] (mmol/g)
Co2(adc)2(dabco)267%7
Ni2(adc)2(dabco)257%6
Cu2(adc)2(dabco)263%6
Zn2(adc)2(dabco)254%4
MgCl2111%1
