Preparation and Characterization of Ni/ZrTiAlOx Catalyst via Sol-Gel and Impregnation Methods for Low Temperature Dry Reforming of Methane

Abstract

Recently, the dry reforming of methane (DRM) has received much attention as a conversion technology of greenhouse gases. Ni-based catalysts supported on ternary metal oxide composite (ZrTiAlO_x) were prepared to improve the coke resistance properties in the DRM (CH₄:CO₂ = 1) at low temperature. The ZrTiAlO_x supports with different ratios of Zr/Ti were prepared through the modified Pechini sol-gel method, and then the Ni was impregnated on the synthesized support via the incipient wetness impregnation method. Considering the Zr/Ti ratios, different catalytic activity and durability in the DRM were identified. The Ni/ZrTiAlO_x catalyst with Zr/Ti of 2 exhibited enhanced coke inhibition property compared to the others at low temperature DRM for 50 h. The catalysts with a high Zr/Ti ratio under the same condition were rapidly deactivated, while the catalyst with a low Zr/Ti ratio showed deficient activity. It was found from temperature-programmed surface reactions (TPSR) and DRIFTS (Diffuse Reflectance Infrared Fourier Transform Spectroscopy) analysis that the addition of Ti has led in to higher catalytic stability at Zr/Ti = 2, which could be as a result of oxygen vacancies generated by the ternary metal oxides. Ni/ZrTiAlO_x catalyst with ratio of Zr/Ti = 2 showed high stability and good catalytic activity towards DRM for the production of syngas.

1. Introduction

Climate change, air pollution, and global warming have become severe issues; thus, many efforts have been made to reduce greenhouse gases with main focus on CO₂ and CH₄. Among use and storage technologies, dry reforming of methane (DRM) has been considered a desirable technology for producing syngas and using greenhouse gases in recent decades [1,2,3]. Moreover, through the DRM, the synthesis gas ratio can be tuned for the Fischer–Tropsch processes to produce value-added chemicals such as dimethyl ether (DME) and methanol [4,5,6,7]. Ni-based catalysts have generally been reported to produce the syngas through various hydrocarbon-based feedstock [8,9]. Furthermore, Ni-based catalysts are considered to be a suitable catalyst for the reforming reaction due to the availability and abundance of Ni compared to Nobel metals. It was reported that nickel could be activated through the cleavage of C-H, O-H, and C-C bonds in the water–gas shift (WGS) reaction [10]. Even though the Ni-based catalyst showed promising active phases, it is prone to be deactivated by coke deposition during the reaction. In particular, the DRM has difficulty in commercialization due to its tendency to form carbon. It was reported that catalysts are deactivated quickly in the DRM because of the coke formation on the active sites [11]. Therefore, the design and development of an efficient and durable catalyst are necessary. Improvement of the catalyst basicity through the addition of alkaline earth metals to prevent the coke deposition in DRM [12,13] is recommended. Furthermore, the preparation of nano-sized nickel particles has been also reported [14]. Many studies have studied the modification of catalyst support, which strongly influences the catalytic behavior and carbon deposition during the DRM [13,15]. Various supports such as Al₂O₃, SiO₂, ZrO₂, and TiO₂ were investigated to improve catalytic activity and the coke resistance feature [16,17,18,19,20].

It was reported that the TiO₂ as support in Ni/TiO₂ catalyst could influence to the deactivation of catalytic activity because of migrating TiOx over the nickel surface [21]. It has been indicated that TiOx species inhibit the coke deposition on the surface of Ni/TiO₂ catalyst, whereas large ensembles of metal atoms were geometrically abolished [22]. Also, based on density function theory (DFT) analysis, it is expected that the substituted the surface of Ti-substituted zirconia (111) could provide the oxygen vacancies near a solely isolated Ti dopant. The presence of Ti could significantly alter the chemical behavior in the catalyst surface. In other words, catalytic reducibility is improved by means of oxidation states related to the Ti centers [23]. TiO₂-ZrO₂, as mixed oxide composite support, exhibited good thermal stability and high mechanical strength with enhanced surface acidity. Moreover, Ti doped on the ZrO₂ mainly amends the electronic structure by decreasing its optical absorption bandage. This occurs when the Ti 3d band is formed in the ZrO₂ bandgap.

Ti³⁺ centers are formed through transferring the internal electron from intrinsic defects (e.g., oxygen vacancies) [24]. Among various metal oxide supports, it was reported that the TiO₂-ZrO₂ composite metal oxide had shown identical features as catalyst supports. The addition of ZrO₂ does not affect the main structural characteristics; however, it boosts the catalyst [25].

In our previous research, a series of Ni/ZrO₂-Al₂O₃ catalysts were synthesized successfully for use in the DRM [26]. To our knowledge, there are few studies on mixed metal oxide support TiO₂-ZrO₂, and there has been no report about ternary support composition (Zr, Ti, Al) in the DRM. In this work, the Ni-based catalyst supported on ZrO₂-Al₂O₃-TiO₂ was investigated to develop a high-performance catalyst with sufficient coke resistance for the DRM process at low temperatures. The optimization of proper composition for the support material in Ni-based catalyst is significant to application in the DRM.

2. Results and Discussion

2.1. Physico-Chemical Analysis

Table 1. Physicochemical properties of prepared catalysts (Ni/ZrTiAlO_x).

Catalysts Code	Support Component Molar Ratio			Zr/Ti Molar Ratio	Surface Area (m2/g)	Pore Volume 1 (cm3/g)	Average Pore Diameter (nm)	NiO Size (nm)
	Ti	Zr	Al
NTA	1	-	3	-	4.9	0.028	23.5	8.9
NZTA (1)	0.5	0.5	3	1	20.6	0.065	12.7	10.7
NZTA (2)	0.3	0.7	3	2	7.5	0.022	12.3	10.0
NZTA (4)	0.2	0.8	3	4	6.9	0.060	7.9	7.4
NZA	-	1	3	-	17.3	0.037	8.5	15.2

¹ at P/P₀ $\approx$ 1.

lists the physical properties of Ni/ZrTiAlO_x catalysts and the particle sizes calculated from XRD patterns. Greater pore diameter was attributed to the lower Zr/Ti ratio. The addition of TiO₂ in the support led to the expansion of the pore size range [27]. Moreover, the lower Zr/Ti ratio displays higher surface area.

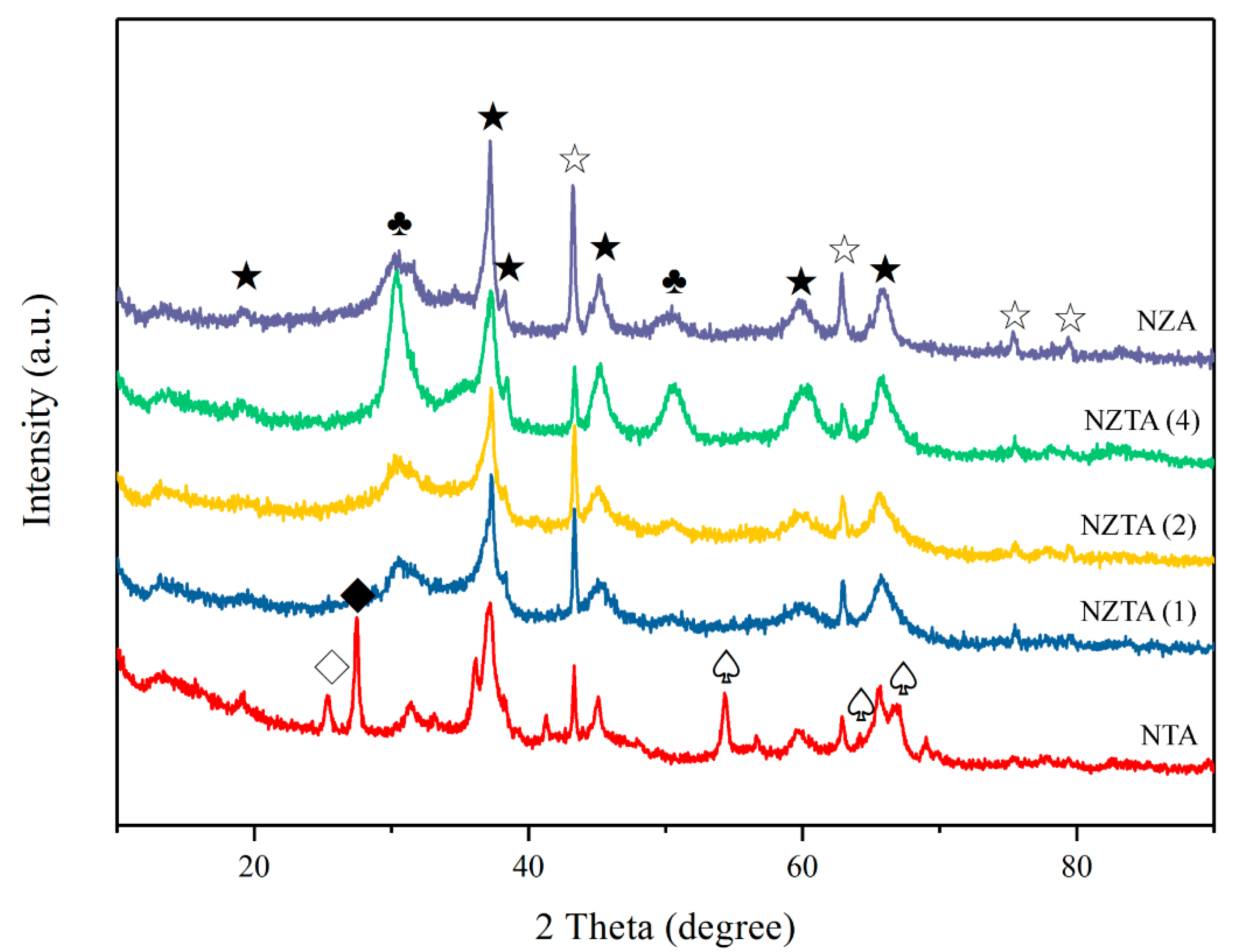

Figure 1 exhibits the X-ray patterns of Ni/ZrTiAlO_x catalyst with varied molar ratios of Zr to Ti. The synthesized catalysts were calcined at 800 °C and the broad XRD peaks indicated a fine crystalline size. NiAl₂O₄ spinel structure (JCPDS No. 10-0339) and NiO (JCPDS No. 47-1049) were detected in all the synthesized catalysts. With increasing ZrO₂ in the ternary support mixture (ZrTiAlO_x), the crystalline size of the nickel oxide showed a decline trend. Additionally, by increasing the Zr contents in Zr/Ti molar ratio, it was found that the peak of tetragonal ZrO₂ (t-ZrO₂) (JCPDS No. 80-0965) showed higher intensity than low Zr/Ti molar ratios. It meant that the crystalline size of t-ZrO₂ becomes larger with higher Zr/Ti molar ratio of the catalysts. In case of the NTA catalyst, the main peaks of TiO₂ were detected as anatase (JCPDS No. 21-1272) and rutile (JCPDS No. 21-1276). The peak of NiTiO₃ was also confirmed in the NTA catalyst (JCPDS No. 033-0960). It was found that the prepared catalysts have similar structures to each other from the XRD patterns, which means that the supports were formed as physical mixed structure.

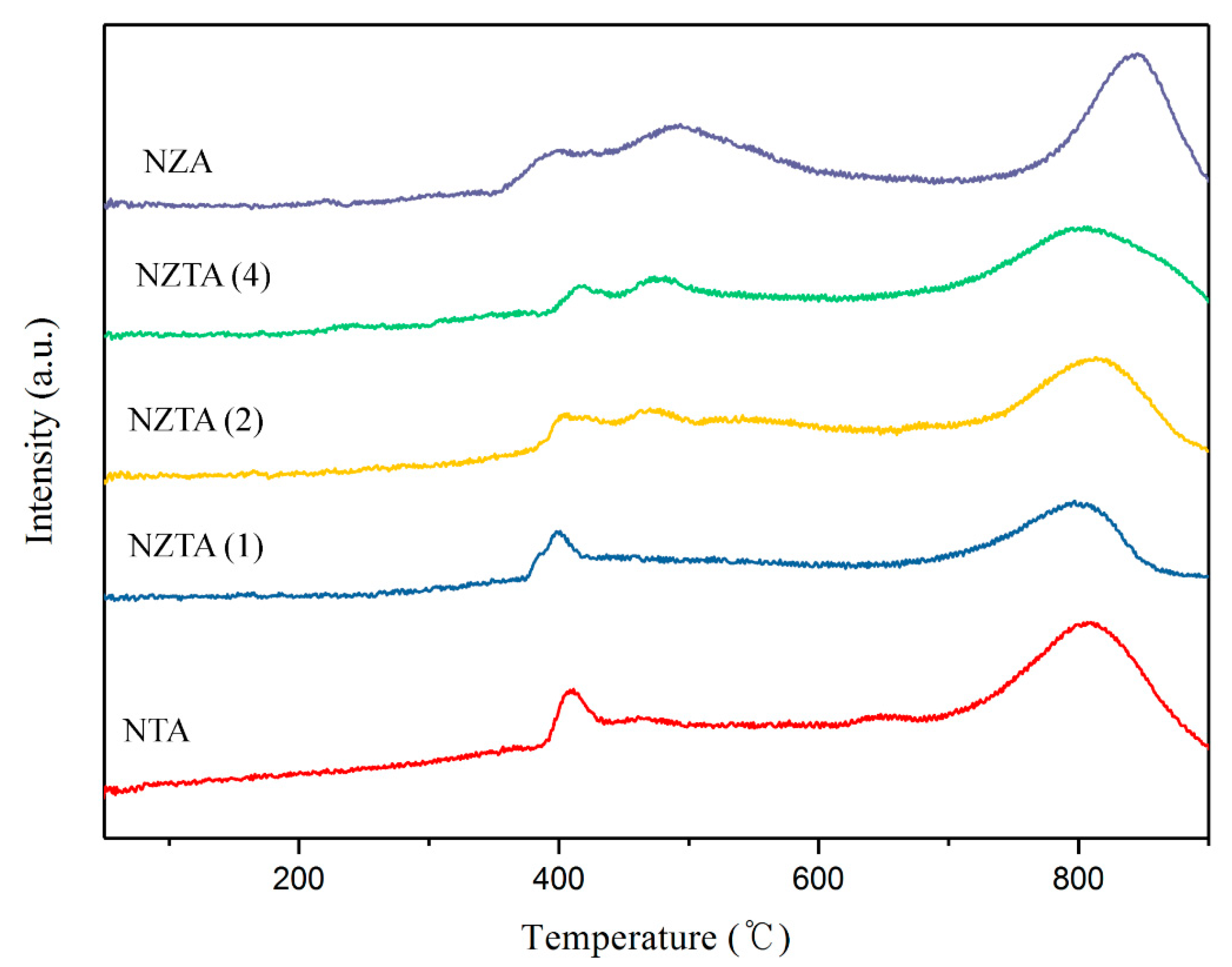

The reducibility of Ni/ZrTiAlO_x catalysts was investigated to understand the redox properties and the hydrogen-temperature-programmed reduction (H₂-TPR) profiles are summarized in Figure 2. The TPR profiles of the catalyst which include ZrO₂ consist of three peaks. It was expected that the peak at T = 400 °C is related to the reduction of NiO. The peaks at T = 470 and 800 °C are credited to the reduction of bulk NiO particles involved with support and the NiAl₂O₄ spinel structure, accordingly. Meanwhile, the TPR profile for the NTA catalyst indicated peak at 650 °C, which is related to the reduction of NiTiO₃ [28]. Peaks in the NZTA (2) catalyst were shifted to a higher temperature compared to the other synthesized catalysts. This phenomenon could resemble the strong metal–support interaction (SMSI) effect with Ni and the support. Furthermore, the peak for the NiAl₂O₄ with existing TiO₂ on support shifted lower temperature compared to NZA catalyst. It could be interpreted that the incorporation of TiO₂ with ZrO₂-Al₂O₃ weakens the interaction between NiO and Al₂O₃. It was previously confirmed that increasing TiO₂ could cause a decrease in the quantity of spinel structures [18,29].

2.1.1. Temperature-Programmed Surface Reaction (TPSR)

Figure 3 depicts the TPSR profiles for the synthesized catalysts with various Zr/Ti ratio. The composition of product was continuously analyzed by mass spectrometry. It was found that as the Ti content in the catalyst increases, the surface reaction initiated at a high temperature. It was found that the initiation temperature of TPSR over the synthesized catalyst increased from 400 to 480 °C under the tested conditions and the order of the initiation temperature for the reaction on the surface of catalyst are as follow: NTA > NZTA (1) > NZTA (2) > NZTA (4) > NZA. It was reported that the rate determining step which is the breaking of the C-H bond from CH₄ to CH_x surface species occurs over nickel active sites [10]. XRD and TPR results confirmed that in the lower ratios of Zr/Ti = 0, 1, and 2, strong interaction between metal and support was observed. Therefore, decomposition rate of CH₄ is slowed down and consequently the starting temperature for catalysts with low Zr/Ti ratio is higher.

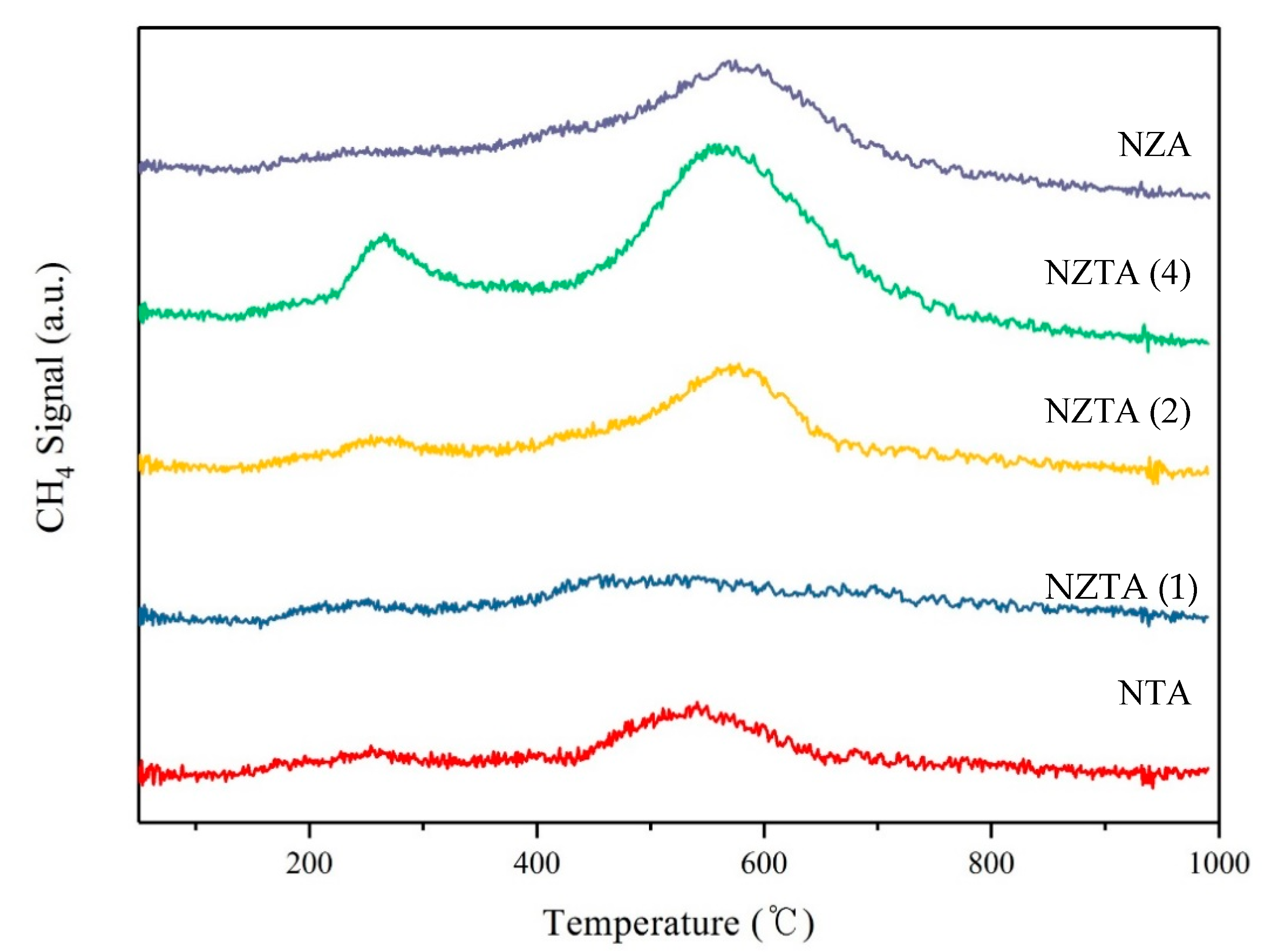

The dehydrogenation of methane ensues on Ni, and CO₂ adsorbs as carbonate on the support [30]. To better understand the cracking of CH₄, the temperature-programmed dehydrogenation of methane was performed over NZA, NZTA (2) and NTA reduced catalysts (Figure 4). It was found that as an addition of Ti into ZrO₂-Al₂O₃ support system, the reaction temperature is observed at a higher temperature than NZA. This result can translate that the addition of Ti as NTA and NZTA (2) could interrupt the formation of the coke deposition, which cause the deactivation of the catalyst, and the coke resistance increases as follows: NZTA (2) (612 °C) > NTA (602 °C) > NZA (526 °C).

2.1.2. In Situ DRIFT Study on Dry Reforming of Methane

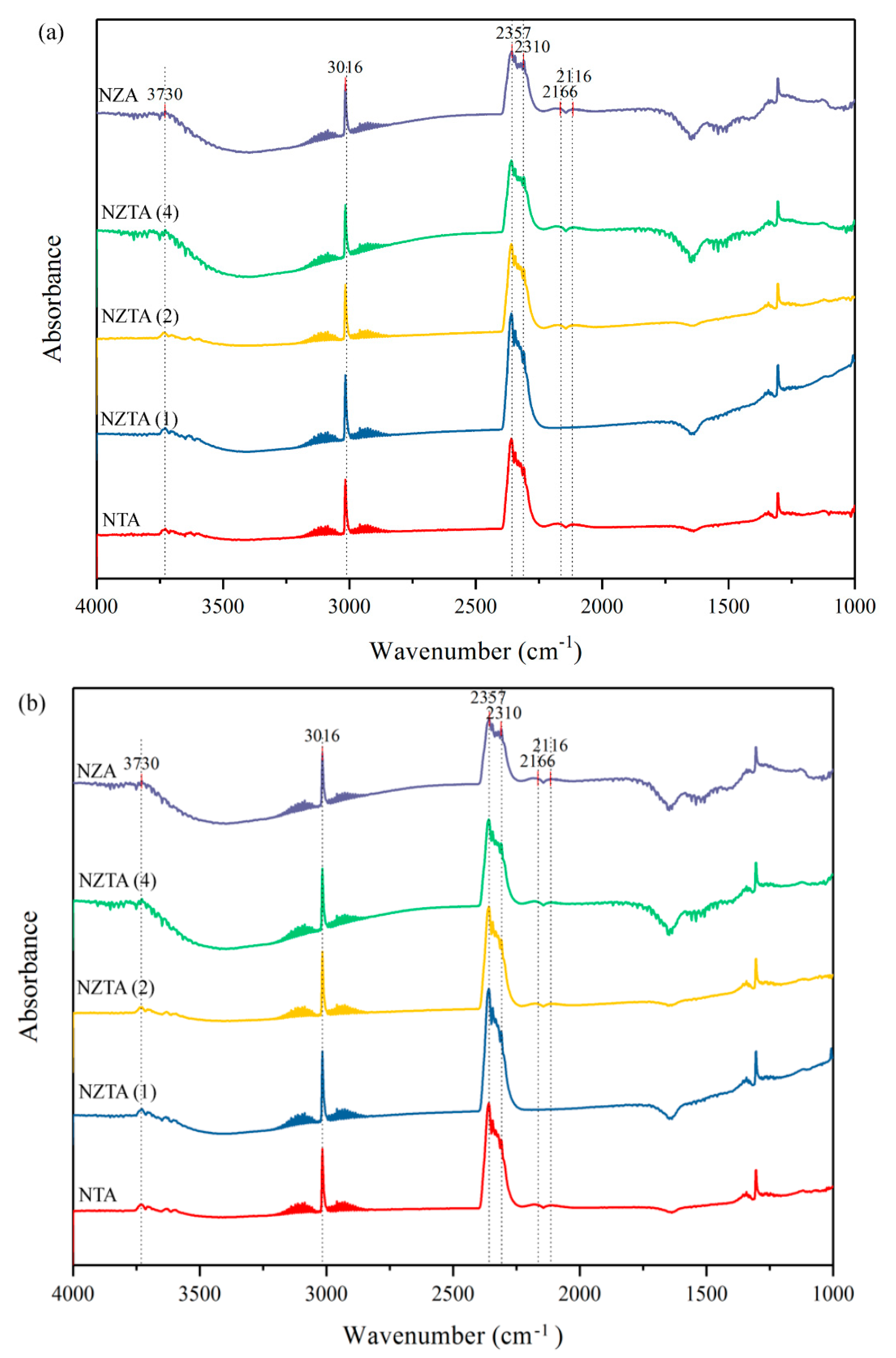

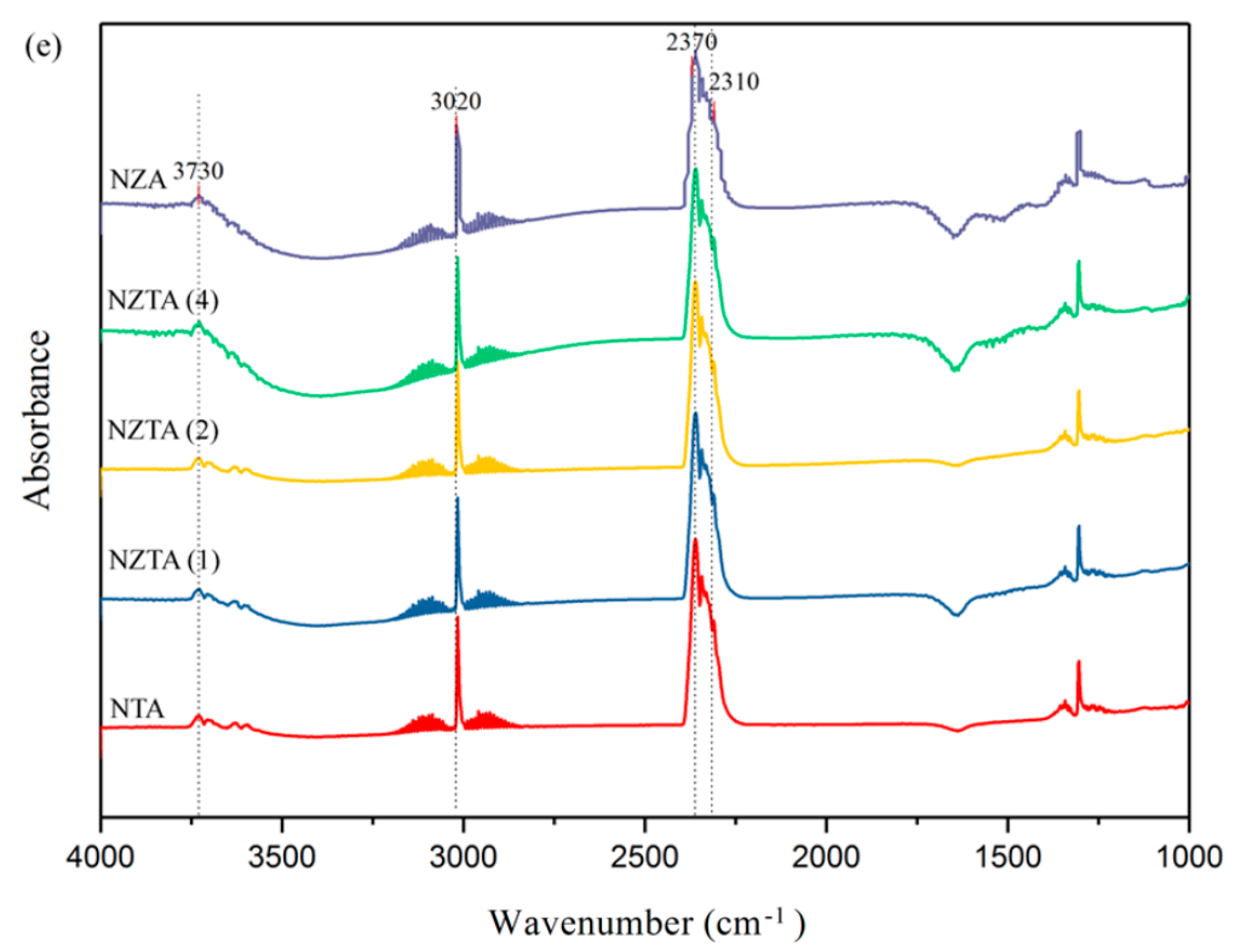

Figure 5 shows the DRIFT spectra which was collected at the steady-state condition using reduced catalysts. The DRIFTS spectrum of the synthesized indicates a broad peak between 1468–1588 cm⁻¹ which is attributed to the carbonate components on the support. The peak around 3500–3750 cm⁻¹ is related to the O–H stretching mode of hydroxyls in the support. Moreover, in this analysis only the gaseous phase contribution such as CO₂ (2357–2310 cm⁻¹), CH₄ (3016 cm⁻¹), and CO bands (2166 and 2116 cm⁻¹) were observed. The lack of linearly adsorbed carbon monoxide on the Ni active sites reveals it can be desorbed prior to more decomposition. Hence, this observation confirms that the coke deposition from Boudouard mechanism could be decreased through lowering the CO adsorption on Ni active sites. The peaks attributed to carbonate in NZTA (2), NZTA (1), NTA catalysts were much broad and weaker compared to the NZA, and NZTA (4). This phenomenon offers that there are more oxygen vacancies in catalysts with lower Zr/Ti ratio, which also influences the absorption of carbon dioxide [31].

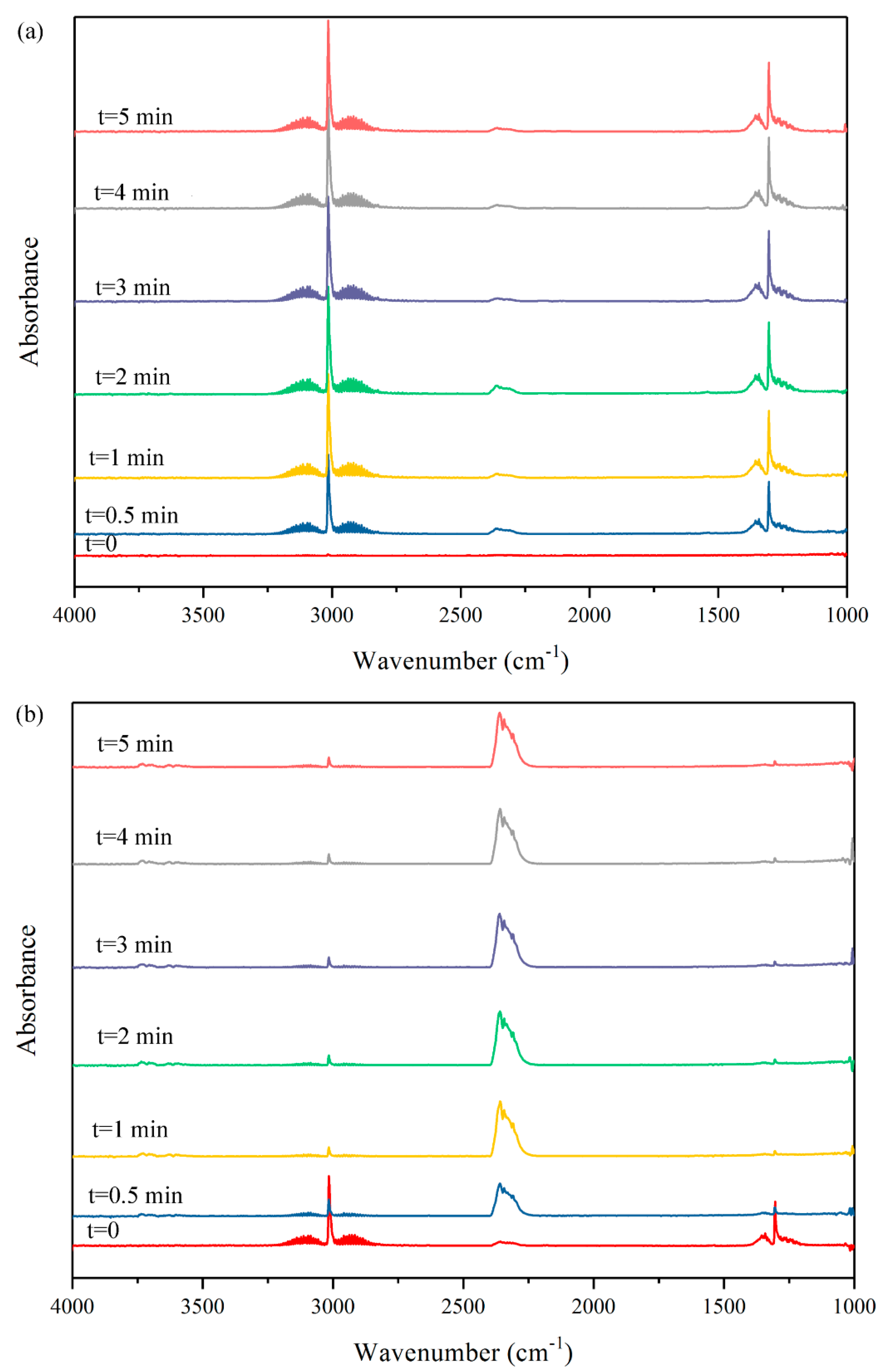

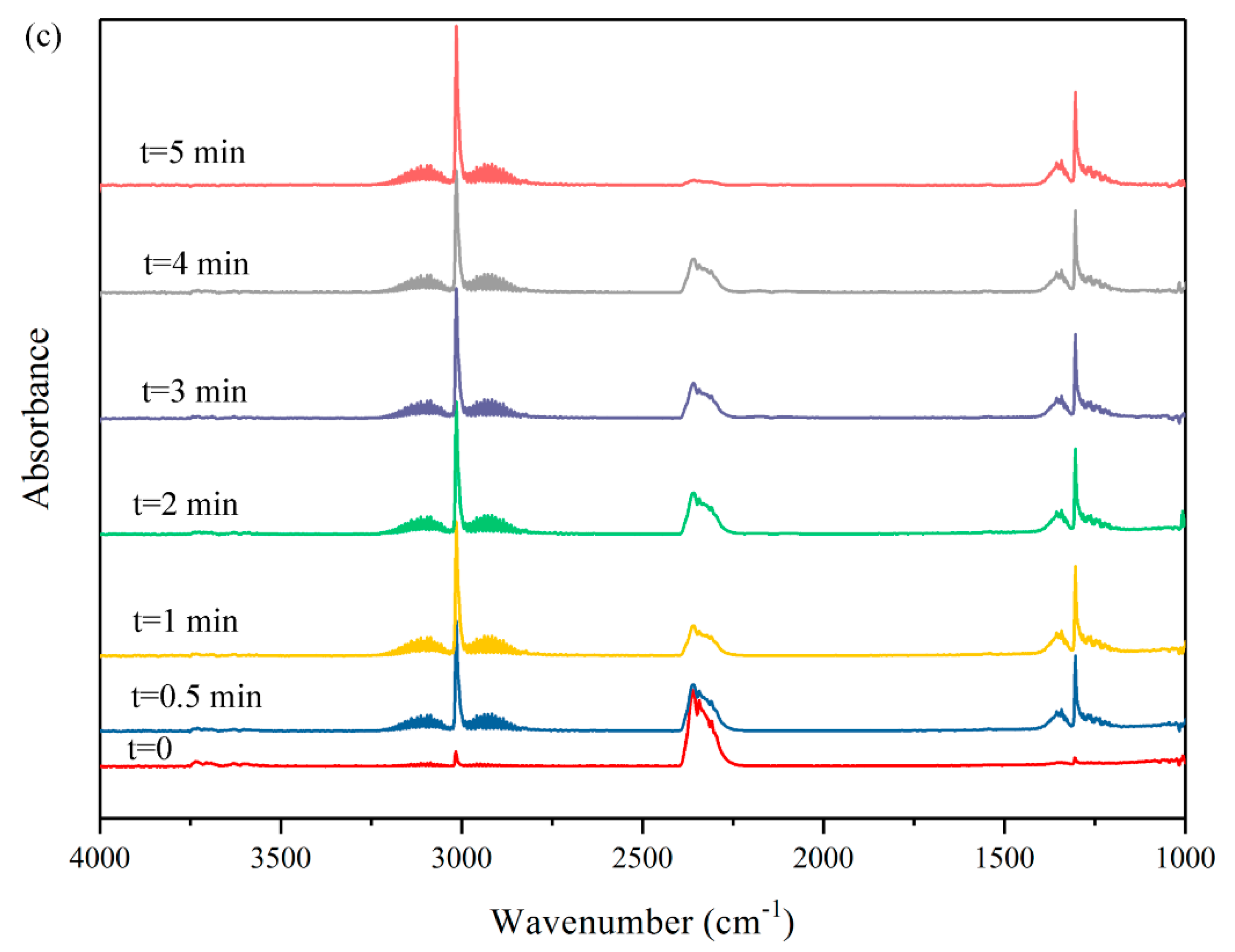

The oxygenated components from the support could play a key role in the reaction mechanism for gasification of the deposited carbons [31]. The sequential CH₄/CO₂/CH₄ DRIFTS analysis were carried out at 500 °C to investigate the effect of support on the formation intermediate species. Figure 6 illustrates the results of in situ DRIFT using CH₄/CO₂/CH₄. It has to be noticed that in addition to methane, peaks related to the carbon dioxide were detected at 2360 cm⁻¹ which indicates that the lattice oxygen from the support is prone to oxidize the coke species deposited on the catalyst. This capability of ZTA catalyst to oxidize CH₄ in the absence of CO₂ is important as a feature for catalysts with high resistance of coke formation. The coke resistance of NZTA (2) catalyst depicted in Figure 4 could be due to the lattice oxygen which was also confirmed by DRIFTS in Figure 6. Due to the lack of linearly adsorbed peaks related to the carbon monoxide on the NZTA (2) catalyst and the oxidation capability of the deposited cokes, it could be assumed that the DRM over NZTA (2) catalyst follows a bi-functional redox mechanism. Herein, the lattice oxygen acts actively in the coke gasification. Somehow, CH₄ would follow dissociative adsorption on nickel to initially generate C-Ni. Then by the aid of oxygen sites O_x, the coke will be decomposed and consequently CO and an oxygen vacancy O_x−1 will be released. It is expected that the oxygen vacancies could act as the active sites with capability of adsorption for carbon dioxide. With bearing this assumption in mind, the dissociation of the CO₂ could occur on the supports and not the Ni sites for NZTA (2) catalyst. Therefore, an Ni-CO component would not be formed through the dissociation of carbon dioxide in case of NZTA (2) catalyst.

2.2. Catalyst Evaluation in the Dry Reforming of Methane

2.2.1. Dry Reforming over the Prepared Catalyst

Based on the results for the catalytic performance tests, it was observed that according to different Zr/Ti contents in support the catalytic performance and H₂/CO ratio each on the time on stream (TOS) are shown in Figure 7. It was confirmed that the higher the Zr/Ti ratio of the catalysts would also led into the higher the activity, but at the moment catalytic stability could be also low and catalyst deactivation occurs through the coke deposition very quickly.

To study the effect of various ratios of Zr/Ti towards the coke deposition, TGA, and TPH analysis were performed. Figure 8 shows the TPH profiles for the used the spent catalysts which reacted for 5 h in the DRM. The results confirmed the presence of two main types of carbonaceous components on the catalysts. The peak located around T = 200–300 °C is related to C_α which could be due to the hydrogenation of adsorbed carbon dioxide on the support [32]. The other peak which was detected around T = 600 °C could be related to C_β which is for hydrogenation of cokes as whisker-type filamentous carbon [33]. It was concluded that as the Zr contents in the support increased, the C_β intensity became greater.

Figure 9 shows the TGA profiles of the spent catalysts reacted for 5 h in the DMR. The trend for the amount of deposited coke detected by TGA was following similar order in TPH analysis. The weight change was primary was indicated at T = 400–500 °C, which could be related to the oxidation of nickel to nickel oxide. Additionally, NZA and NZTA (4) in Figure 9 is also related to the presence of C_α which would be a stronger weight loss at lower temperature. The coke oxidation occurred at T > 500 °C. This result confirms that increasing Ti content in the support could lower the rate of CH₄ dehydrogenation. This could be explained by the SMSI effect between Ni and the ternary support. Therefore, it was observed that synthesized catalysts with lower Zr/Ti ratio showed lower coke deposition during the DRM. Furthermore, based on the DRIFT and TPSR results (shown in Figure 3 and Figure 5) it was concluded that oxygen vacancies were presented more in the catalysts with higher Ti content. It is important to notice that the oxygen lattice could drastically enhance the coke gasification during the reaction.

2.2.2. Long-Term Stability of Catalyst

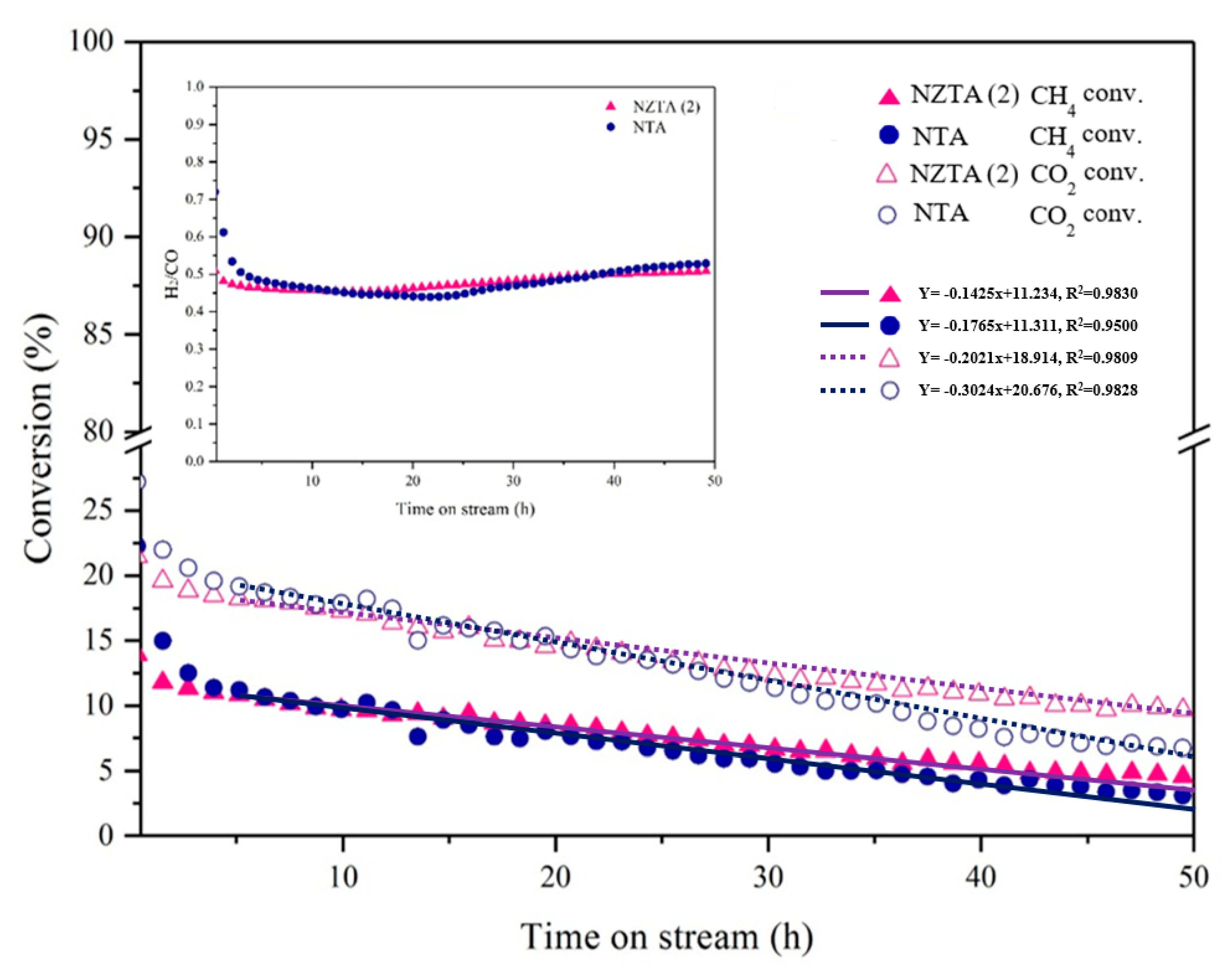

Catalytic stability tests were performed for two catalysts: NZTA (2) and NTA. The DRM reaction was carried out for 50 h. The result is shown in Figure 10. Each conversion curve was compared by linear fitting analysis. Compared with the methane conversion of NTA and NZTA (2), the time of achieved zero conversion of NTZA (2) is 79 h and NTA is 64 h.

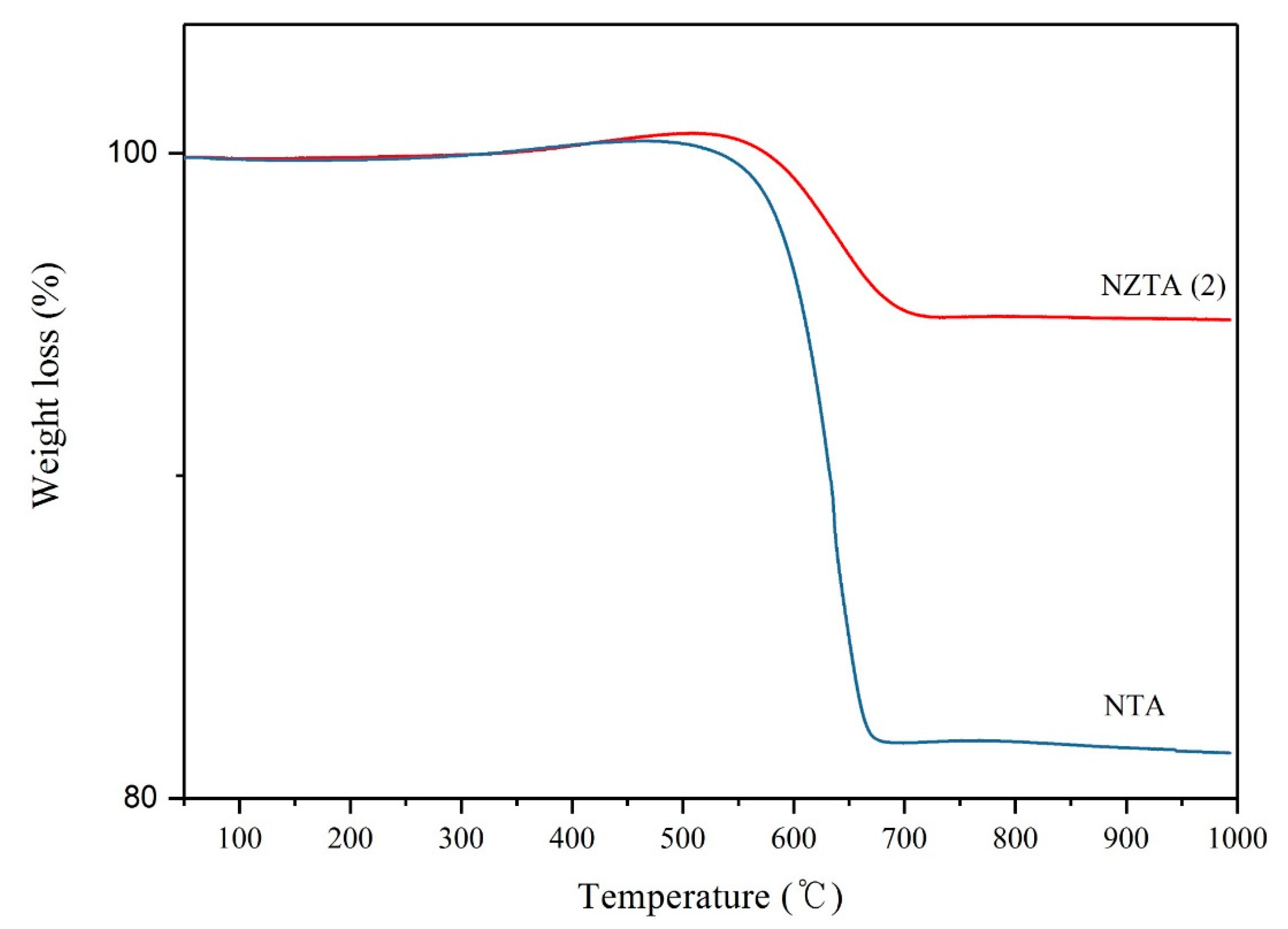

It is considered that NTZA (2) has better stability than NTA by about 19%. Additionally, NZTA (2) catalyst explicitly exhibited higher coke resistance based on the TGA results shown in Figure 11.

It is reported that beside catalytic deactivation by the coke formation there is another pathway when using Ni/TiO₂ in DRM. In fact, the catalyst deactivation could also occur as a result of migration of the TiO_x to the surface of nickel sites. This site blockage could drastically cause catalyst deactivation [21,34]. In this research it was found that the Ni/ZrTiAlO_x catalyst with low Zr/Ti ratio elucidated the enhanced catalytic performance with the sufficient durability in DRM.

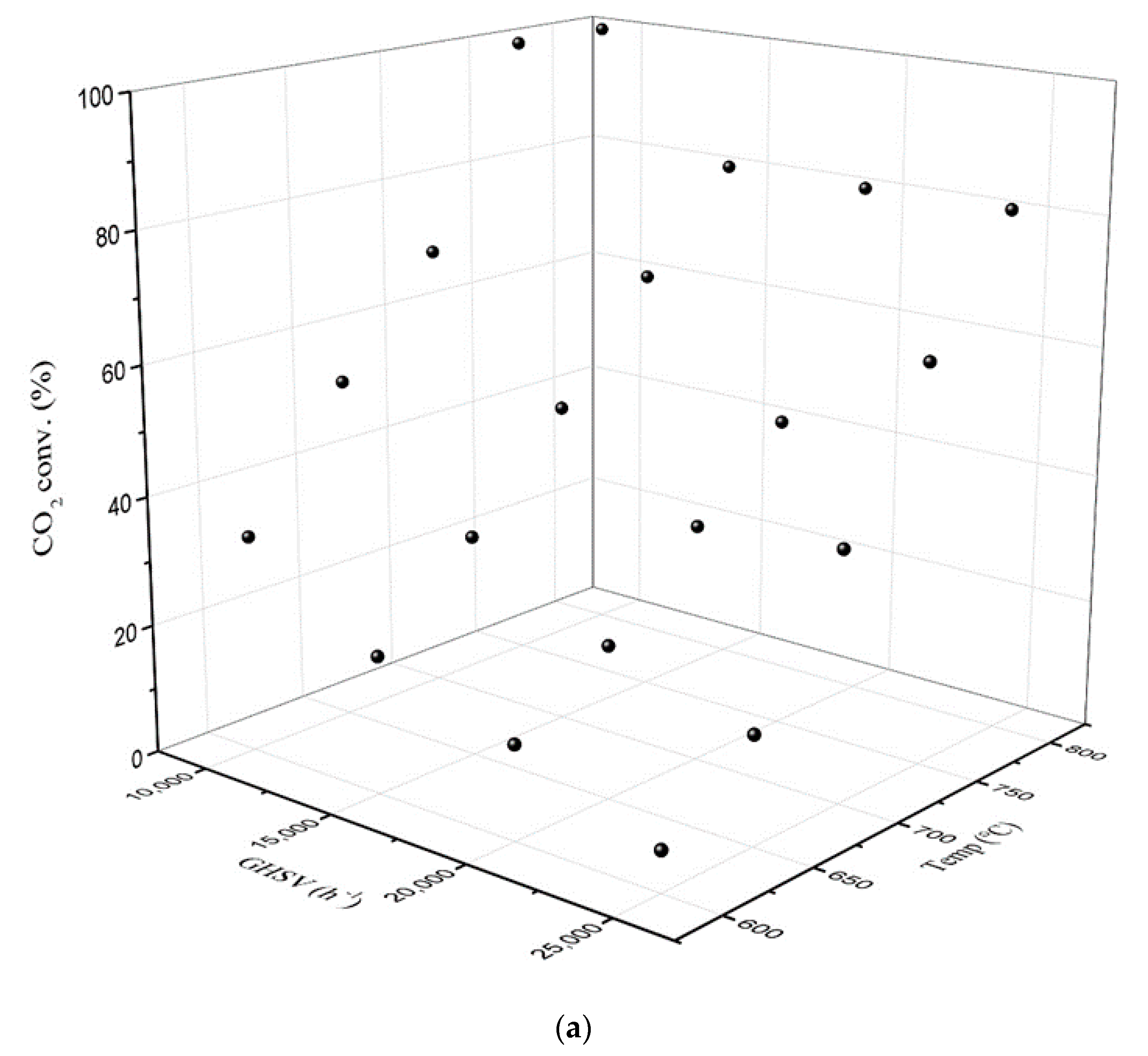

Figure 12 illustrates the influence of temperature and GHSV on CH₄ conversion and syngas ratio in atmospheric pressure with the feed molar ratio of CH₄:CO₂ = 1 over NZTA (2) catalyst. This result confirms that the reaction conditions are important parameters to adjust the syngas ratios in the DRM. It is understood that the H₂/CO ratio could be adjusted via the reaction conditions in the DRM over NZTA (2) catalyst and eventually it can be applied for the production of the synthetic fuels such as dimethyl ether (DME), methanol, gas-to-liquid (GTL) and other value-added chemicals.

2.3. The Role of ZrO₂ and TiO₂ over Ni/ZrO₂-Al₂O₃-TiO₂ Catalyst in the Dry Reforming of Methane

To obtain a commercial catalyst, various criteria are essential as owning high catalytic performance with durable stability, the low-pressure drop in the process, excellent heat transfer, high mechanical strength, robust formulation, and specifically high resistance to coke deposition. Schematic view for the reaction mechanism for the DRM has been illustrated in Figure 13. General reaction mechanism of catalytic DRM is described as follows:

CH₄ → CH₃ + H

(1)

CO₂ + H → CO + OH

(2)

CH₄ + O → CH₃ + OH

(3)

CH₃ → CH₂ + H

(4)

CH₂ → CH + H

(5)

CHx → C + xH

(6)

CHx + O → CO + xH

(7)

CHx + CO₂ → 2CO + xH

(8)

2H → H₂

(9)

2OH → H₂O

(10)

The DRM follows dehydrogenation of CH₄ after adsorption on the Ni particles to initiate the carbon and hydrogen needed. As a next step the dissociative adsorption of CO₂ and H₂ continues by the CO₂ reduction into CO. It must be noticed that CO₂ is also prone to be converted to CO through the reverse water–gas shift reaction (RWGS). Moreover, the small portions of syngas can also be produced via the reaction of CH_x with internal generated steam.

In this research the addition of zirconia to the support inhibited the coke formation. A bi-functional mechanism is suggested as ZrO₂ in the support can significantly enhance the dissociation of CO₂ through the generation of the oxygen intermediates in the catalyst surface. The coke can be gasified by the immense effect of ZrO₂. Furthermore, the methane activation can take place by the surface reaction with adsorbed oxygen atoms.

It was recognized that TiO₂ would have reduced the carbon nucleation on the Ni active sites, which consequently decreased the binding energies between carbon atoms and Ni particles on the catalyst surface. Based on our results the resistance for the coke formation in the Ni/ZrO₂-Al₂O₃-TiO₂ catalyst has been improved, which can confirm this assumption. It is imperative that the catalyst can oxidize the surface carbon efficiently without C–C bond formation.

3. Experiment

3.1. Preparation of Supports

The ZrTiAlO_x supports were synthesized via the modified Pechini sol-gel method. Al(NO₃)₃·9H₂O (98%, Samchun Chem., Gangnam-gu, Republic of Korea), titanium tetraisopropoxide (97%, Alfa Aesar, Ward Hill, MA, USA), and Zr(NO₃)₄ (35 wt.% diluted in the HNO₃, Sigma-Aldrich, St. Louis, MI, USA) were purchased to be used as metal precursors for the synthesis of support. Metal nitrates and citric acid (CA) were mixed. Then, ethylene glycol (EG) was added gradually to this solution (CA/EG = 2.4). The pH of solution was set to 7 using NH₄OH. Next, this mixture was dried in a vacuum rotary evaporator until a viscous yellow residual was obtained. It was eventually dried at 110 °C overnight and calcined at 800 °C under airflow for 6 h. The molar ratio of Al/(Zr + Ti) was adjusted to 3:1. Nickel (15 wt.%) was doped to the calcined ZrTiAlO_x supports by an impregnation method. The molar ratio of Zr/Ti in the support was selected 1, 2, and 4 and known as NZTA (1), NZTA (2), NZTA (4) respectively. For the comparative study, two different supports, ZrO₂-Al₂O₃, and TiO₂-Al₂O₃ were synthesized. Simultaneously Ni/ZrO₂-Al₂O₃, and Ni/TiO₂-Al₂O₃ were known as NZA, and NTA, respectively.

3.2. Characterization of Catalysts

The synthesized catalysts (fresh and used) were characterized by various analysis such as XRD, N₂ physisorption, temperature-programmed techniques (H₂-TPR, TPSR, and CH₄-TPD), in situ DRIFT, and thermos-gravimetric analysis (TGA).

Crystal structure was studied using an XRD-6000 diffractometer (Shimadzu Co., Kyoto, Japan) operated with a Cu-Kα radiation of 1.5406 nm at 40 kV and 30 mA. The scanning range was 10 to 100° with the step size of 0.04°/s. The average crystallite sizes of nickel oxide were estimated with the Scherrer equation [35].

N₂-physisoption was carried out to measure specific surface area, pore diameter, and volume. For this purpose, a N₂-physisorption analyzer (Moonsorp-I, KIST, Seoul, Republic of Korea) was used with nitrogen adsorption at −196 °C. Before starting the analysis, the degassing of catalysts was performed at 200 °C under vacuum condition (0.01 bar) for 3 h to remove physically adsorbed impurities and moisture [36].

Autochem 2910 (Micromeritics Co., Dr. Norcross, GA 30093-2901, USA) was used to carry out the temperature-programmed techniques. It was equipped with a Thermal Conductivity Detector (TCD). The reducibility of all synthesized catalysts was investigated using temperature-programmed reduction (TPR) of hydrogen. Synthe sized catalysts were loaded in a U-shape quartz tube with gas stream of 5% H₂/Ar flow (50 mL/min) heated from room temperature up to 1000 °C (10 °C/min) [37].

As an in situ reaction analysis and in order to study the carbon intermediate components with their influences in the DRM, temperature-programmed surface reactions (TPSR) were performed on the synthesized catalysts. It was coupled with a Mass Spectrometer (MS) and Quadstar 320 (ThermoStar GSD 220, Pfeiffer Vacuum, Asslar, Germany). Initially all the catalysts were reduced with 5% H₂/Ar stream at 800 °C for 2 h. The reduced catalysts were tested using mixed gas (CO₂, CH₄, and He) with flow rate of 50 mL/min and CH₄ (30 mL/min). The samples were heated up to 1,000 °C with heating rate of 10 °C/min. The desorbing components were constantly screened by their characteristic mass fragments (m/e): 2(H₂), 18(H₂O), 4(He), 28(¹²CO), 29(¹³CO), 44(¹²CO₂), 45(¹³CO₂), 15(¹²CH₄), and 17(¹³CH₄) [38].

Used catalysts were initially treated at 400 °C for 1 h with He stream, then, temperature-programmed hydrogenation (TPH) was performed using 5% H₂/Ar (flow rate of 50 mL/min) and heating up to 1000 °C with a ramping rate of 10 °C/min [37].

Thermogravimetric analysis (TGA) was used for measuring the coke formation in the used catalysts after the DRM with SDT Q 600 (TA instruments, New Castle, DE, USA). The TGA analysis was carried out from T = 25–1000 °C under air atmosphere and a ramping temperature of 10 °C/min [39].

A FT-IR Spectrometer (Nicolet iS50, Thermo Fisher Scientific Inc., Waltham, MA, USA) with a diffuse reflectance cell was used for the in situ DRIFTS (Diffuse Reflectance Infrared Fourier Transform Spectroscopy) analysis. All synthesized catalysts prior to the analysis were reduced with 5% H₂/Ar stream at 800 °C for 2 h. Then, the setup was purged by He to sweep out any impurities. Initially the background spectra for the loaded catalyst was taken at certain temperature, then mixed gas including CO₂, CH₄, and He with flow rate of 40 mL/min was inserted to the system for 0.5 h [31]. The spectra were recorded with 5 min intervals, and subsequently the background was subtracted. In this research we used OMNIC-FTIR software.

3.3. Catalytic Performance Test under the Dry Reforming of Methane

The DRM was performed in a fixed-bed down-flow tubular reactor (O.D. = 12.7 mm). To activate the catalyst, 250 mg of the synthesized catalyst was in situ reduced with 5% H₂/Ar stream at 800 °C for 2 h. The feed molar ratio was CH₄/CO₂ = 1 and the DRM reaction was carried out at 600 °C, 1 bar, with the GHSV of 45,000 h⁻¹. N₂ was used as the internal standard gas. The products were analyzed using online gas chromatography (HP Aglient GC 7890A, Agilent Technologies, Santa Clara, CA, USA). The GC was equipped with a carbosphere 60/80 packed column.

Table 2. Analytical conditions by online G.

Parameters	Conditions
Packing type	Carbosphere packed column 60/80 meshes 2.5 m × 2.16 mm I.D.
Injector temp.	200 °C
Oven temp.	120 °C
TCD temp.	250 °C
Ar flow rate (carrier gas)	20 mL/min
recording intervals	~20 min

lists further details on the analytical conditions.

The feed conversions for carbon dioxide, and methane were calculated by the following Equations (11) and (12).

$${\mathrm{CO}}_2\mathrm{conv}.(\%)=\frac{C{O}_{2,IN}-C{O}_{2,OUT}}{C{O}_{2,IN}}\times 100$$

(11)

$${\mathrm{CH}}_4\mathrm{conv}.(\%)=\frac{C{H}_{4,IN}-C{H}_{4,OUT}}{C{H}_{4,IN}}\times 100$$

(12)

4. Conclusions

The Ni-based catalysts (15% Ni/ZrTiAlO_x) with different Zr/Ti ratios were successfully synthesized by the modified Pechini sol-gel and an impregnation method. The synthesized catalysts were characterized and the catalytic performance tests for DRM were carried out at low temperature. All synthesized Ni/ZrTiAlO_x catalysts showed similar patters based on the XRD results. It is found that the addition of TiO₂ could boost the coke resistance in DRM; however, there is a drawback that migration of TiO₂ to the Ni sites would deactivate the catalysts as well. Therefore, to overcome this issue, in this research the addition of ZrO₂ in the support was studied. Ni/ZrTiAlO_x catalysts with various Zr/Ti ratios were synthesized. The catalytic performance and durability mainly relies on the Zr/Ti ratios in the catalysts. It was concluded that ratio of Zr/Ti = 2 exhibited better coke inhibition features in DRM compared to the other synthesized catalysts under low temperature for 50 h. Higher ratios of Zr/Ti would lead to higher catalyst activity but at the moment the catalysts were also rapidly deactivated. Based on the results of in situ DRIFTS and TPSR analysis, it was found that Ni/ZrTiAlO_x catalyst 15% Ni contents and Zr/Ti = 2 showed higher catalytic stability and sufficient activity. In fact, the introduction of Ti to the ZrO₂-Al₂O₃ provides the oxygen vacancies in the ternary metal oxide composite. It was suggested that the Ni/ZrTiAlO_x catalyst with Zr/Ti = 2 showed high catalytic performance with the significant catalyst stability towards coke deposition.
