Development of Facile and Simple Processes for the Heterogeneous Pd-Catalyzed Ligand-Free Continuous-Flow Suzuki–Miyaura Coupling

by
Tsuyoshi Yamada
,
Jing Jiang
,
Naoya Ito
,
Kwihwan Park
,
Hayato Masuda
,
Chikara Furugen
,
Moeka Ishida
,
Seiya Ōtori
and
Hironao Sajiki
*
Laboratory of Organic Chemistry, Gifu Pharmaceutical University, 1-25-4 Daigaku-nishi, Gifu 501–1196, Japan
*
Author to whom correspondence should be addressed.
Catalysts 2020, 10(10), 1209; https://doi.org/10.3390/catal10101209
Submission received: 10 September 2020 / Revised: 3 October 2020 / Accepted: 15 October 2020 / Published: 19 October 2020
(This article belongs to the Special Issue Advances in Catalytic Coupling Reactions)
Browse Figures
Versions Notes

Abstract

:
The Suzuki–Miyaura coupling reaction is one of the most widely utilized C–C bond forming methods to create (hetero)biaryl scaffolds. The continuous-flow reaction using heterogeneous catalyst-packed cartridges is a practical and efficient synthetic method to replace batch-type reactions. A continuous-flow ligand-free Suzuki–Miyaura coupling reaction of (hetero)aryl iodides, bromides, and chlorides with (hetero)aryl boronic acids was developed using cartridges packed with spherical resin (tertiary amine-based chelate resin: WA30)-supported palladium catalysts (7% Pd/WA30). The void space in the cartridge caused by the spherical catalyst structures enables the smooth flow of a homogeneously dissolved reaction solution that consists of a mixture of organic and aqueous solvents and is delivered by the use of a single syringe pump. Clogging or serious backpressure was not observed.

Graphical Abstract

1. Introduction

The Suzuki–Miyaura reaction [1,2,3,4,5,6,7] is robust and is one of the most reliable C–C bond-forming methods. It is utilized for the production of (hetero)biaryl structures, which are fundamental components of active pharmaceutical ingredients (APIs) [4,8,9,10,11,12,13,14], functional materials [15], and natural products [16,17] in a variety of synthetic chemistry fields. The development of a highly active and durable heterogeneous Pd catalyst is important for minimizing toxic metal contamination in the products and reducing environmental pollution caused by metal leaching during the catalytic cycle in transition-metal-catalyzed coupling reactions and treatment after the reactions [18,19,20,21,22].
Continuous-flow reactions using a packed-bed cartridge filled with heterogeneous catalysts attracted considerable research interest as robust and reproducible reaction methods [23,24,25,26,27,28]. Because small amounts of substrate and reactants in the reaction solution were continuously introduced into the catalyst cartridge via a narrow tube and immediately contacted a large amount of catalyst, a higher reaction efficiency was achieved compared with the corresponding batch reactions using flasks and reaction vessels. Supported Pd catalysts packed in a cartridge can be safely utilized without deactivation or ignition because the catalyst is not exposed to air (especially atmospheric oxygen). Furthermore, the resulting reaction mixture is continuously collected at the outlet of the cartridge without the need of catalyst separation.
The use of commercially abundant and inexpensive aryl boronic acids with inorganic bases is ideal to develop practical Suzuki–Miyaura coupling reactions under both batch and continuous-flow conditions [23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42]. Various heterogeneous Pd-catalyzed continuous-flow Suzuki–Miyaura reactions of aryl halides with aryl boronic acids in the presence of inorganic bases were established [29,30,31,32,33,34,35,36,37,38,39,40,41,42]. The organic and aqueous solvents were mixed in many cases with a pump to dissolve the substrate and reagent without clogging the flow reactors [29,30,31,32,33]. Because a complex optimization process to select reaction conditions such as solvent combination, flow rate, and substrate concentration is required, the use of a single reaction solution in which all reagents are homogeneously dissolved is advantageous. Some research groups developed continuous-flow Suzuki–Miyaura reactions using homogeneously dissolved solvents of H2O with highly polar organic solvents, such as alcohols [37,39,40,41], N,N-dimethylformamide (DMF) [34,35,36], MeCN [38], and tetrahydrofuran (THF) [40], to improve the solubility of aryl halides, aryl boronic acids, and inorganic bases. A continuous-flow ligand-free Suzuki–Miyaura reaction of aryl iodides and bromides with aryl boronic acid in an EtOH/H2O mixed single solution using a 10% Pd/C-packed catalyst cartridge was also developed [42]. However, high reaction temperatures and/or backpressures are often achieved using specific and expensive flow devices that are generally difficult to apply scale-up in productive use [34,35,39,40,41,42]. There is also a risk of clogging the cartridge and/or outlet of the flow tube by precipitation of reactants and/or products that are generated under harsh reaction conditions [37]. The use of highly dispersed heterogeneous powdered Pd catalysts diluted by silica or celite is an efficient technique to create void spaces and prevent pressure rise and clogging in the catalyst cartridge [29]. Based on these issues, the development of an efficient continuous-flow Suzuki–Miyaura reaction by introducing a homogeneously dissolved reaction solution into a spherical bead-supported Pd catalyst-packed cartridge with an appropriate void space is a suitable methodology to achieve an unrestricted and smooth flow.
Various spherical or monolithic polystyrene/divinylbenzene copolymer-supported (HP20 (Mitsubishi Chemical Corporation) [43], CM (Organo Corporation) [44], and AM (Organo Corporation) [44]) Pd catalysts (Pd/HP20 [20], Pd/CM [21], and Pd/AM [21]) were previously developed and successfully applied to ligand-free Suzuki–Miyaura, Mizoroki–Heck, and Sonogashira-type coupling reactions. Furthermore, a tertiary amine-functionalized polystyrene-divinylbenzene-based basic anion exchange (chelate) resin WA30 (Mitsubishi Chemical Corporation) [45,46,47]-supported Pd catalyst (7% Pd/WA30) was also developed for the efficient and ligand-free Suzuki–Miyaura reactions of (hetero)aryl iodides, bromides, and chlorides under batch conditions [48,49] and microwave-assisted Mizoroki–Heck reaction under continuous-flow conditions [50]. Herein, new practical, ligand-, and backpressure-free continuous-flow Suzuki–Miyaura reactions of (hetero)aryl iodides, bromides, and chlorides with (hetero)aryl boronic acids using a 7% Pd/WA30-packed catalyst cartridge were established. The spherical structure of 7% Pd/WA30 created an appropriate void space in the cartridge that enabled the smooth flow of the reaction solution. The present continuous-flow Suzuki–Miyaura coupling using 7% Pd/WA30 proceeded efficiently by transferring a solution of aryl halides, aryl boronic acids, and bases by a syringe pump into the catalyst cartridge without any complex reaction system, equipment, and operations (Figure 1).

2. Results and Discussions

2.1. Continuous-Flow Suzuki–Miyaura Coupling of Aryl Iodides and Bromides with Aryl Boronic Acids

The solubility of a mixture of 4’-iodoacetophenone (1a, 0.5 mmol) and phenylboronic acid (3a, 1.2 eq., 0.6 mmol) with K3PO4, NaOH, or KOH (2.0 eq., 1.0 mmol) in a mixed solvent of H2O and various organic solvents was initially investigated (see Supplementary Materials). As a result, it was observed that the combined use of NaOH or KOH with H2O (0.5 mL) and 1,4-dioxane (1.5 mL) formed a homogeneously dissolved solution. In contrast, other combinations of bases with solvents resulted in an inhomogeneous mixture.
Next, continuous-flow Suzuki–Miyaura reaction efficiencies were investigated by transferring a solution of 1a (0.5 mmol), 3a (1.2 eq., 0.6 mmol), and NaOH or KOH (2.0 eq.) in H2O/1,4-dioxane (0.5 mL/1.5 mL) into the 7% Pd/WA30 (100 mg)-packed catalyst cartridge using a syringe pump at a flow rate of 0.05 mL/min (Table 1). The coupling reaction proceeded smoothly at 25 °C to obtain the corresponding 4-acetylbiphenyl (4aa), and the use of KOH indicated a slightly higher reaction efficiency (95% yield) compared with NaOH (77% yield). However, both reactions were incomplete and a small amount of 1a (entry 1 vs. 2) remained unchanged. Compound 1a was completely coupled with 3a in the presence of KOH and increasing the amount of 7% Pd/WA30 from 100 mg to 200 mg generated 4aa in quantitative yield, accompanied by turnover number (TON) and turnover frequency (TOF) of 3.8 and 0.1 min−1, respectively (entry 3). Furthermore, leached Pd species were never detected in the reaction mixture collected at the outlet of the cartridge using atomic absorption spectrophotometry (AAS, Pd detection limit: 1 ppm, see Supplementary Materials).
Using 4’-bromoacetophenone (2a) as a substrate, a higher reaction efficiency was achieved with NaOH compared with KOH to obtain 4aa in 68% yield (entry 4 vs. 5). The increase in the catalyst cartridge temperature effectively activates the C–Br bond 2a to produce 4aa in 74% yield at 60 °C (entry 6). Adding more 7% Pd/WA30 catalyst led to an increase in coupling selectivity and efficiency, resulting in a 95% yield with a TON and TOF of 3.6 and 0.1 min−1, respectively (entry 7).
Substrate applicability toward aryl iodides and bromides possessing a variety of functional groups at the 2-, 3-, or 4-positions of the benzene ring with aryl boronic acids was investigated under optimized reaction conditions (aryl iodides for Table 1, entry 3 and bromides for Table 1, entry 7). As the reactivity of 3’-iodoacetophenone (1b) and 2’-iodoacetophenone (1c) was significantly decreased, probably because of the steric hindrance of the acetyl group, the coupling of 3’-iodo- (1b) or 2’-iodoacetophenone (2b) with phenylboronic acid (3a) required 1.5 equivalents of 3a and heating to 80 °C to obtain the corresponding 4aa in 99% and 83% isolated yield, respectively (Table 2, entries 1 and 3). The detailed reaction optimizations for coupling 1b and 1c are shown in the Supplementary Materials. The subsequent Suzuki–Miyaura coupling reactions of iodo- (1) and bromoarenes (2) and 1.5 equivalents of aryl boronic acids were conducted using a catalyst cartridge packed with 200 mg of 7% Pd/WA30 based on the experimental results provided in the Supplementary Materials. Phenylation of iodoarenes bearing EtO2C (1d), Me (1e), or MeO (1f) at the para position of the benzene ring of 3a smoothly occurred to afford the corresponding biaryls (4da, 4ea, and 4fa) in high yields (89, 84, and 88%, respectively), regardless of the electronic density of the benzene ring (entries 3–5). Iodobenzene (1g) efficiently reacted with 4-MeO- (3b) and 4-acetyl-phenylboronic acids (1f) to generate the corresponding 4fa and 4aa in 72% and 96% yields, respectively (entries 6 and 7). Various bromobenzene derivatives bearing 3-Ac (2b), 2-Ac (2c), 4-EtO2C (2d), 4-Me (2e), and 4-MeO (2f) on the aromatic ring were also coupled with 3a to produce the desired biaryls (4ba, 4ca, 4da, 4ea, and 4fa) in 43–81% isolated yields (entries 8–12). The arylation of unsubstituted bromobenzene 2g with 3b, bearing an electron-donating methoxy group at the para position of the aromatic ring, was smoothly carried out to obtain the corresponding 4fa in 75% yield (entry 13).
Next, the continuous-flow Suzuki–Miyaura reaction using the 7% Pd/WA30-packed catalyst cartridge was applied to heteroaryl iodides and bromides with (hetero)aryl boronic acids (Figure 2). The coupling of 4-iodo pyridine (1h) with 3a efficiently generated the corresponding 4-phenylpyridine (4ha) in quantitative yield. However, the coupling of 3- and 2-iodopyridine (1i and 1j) and 4-, 3-, and 2-bromopyridine (2h, 2i, and 2j) was not successful. Corresponding phenylpyridines (4ha, 4ia, and 4ja) were obtained in relatively low yields (39%–55%) because of the poorer reactivity, probably based on the electronically biased character of the pyridine nuclei. The use of 2-iodothiophene (2k) as substrate led to the corresponding 4ka in 83% yield. Meanwhile, 5-formyl-2-phenyl-thiophene (4la) and 5-formyl-2-phenyl-furan (4ma) were obtained from 1l and 1m, respectively, under the same flow reaction conditions in moderate yields (both 53%). The heteroaryl–heteroaryl coupling of 1i with 2-benzofuranboronic acid (3d) and 4-dibenzofuranboronic acid (3e) effectively provided heterobiaryls (4id and 4ie) in 85% and quantitative yield, respectively.

2.2. Continuous-Flow Suzuki–Miyaura Coupling of Aryl Chlorides with Aryl Boronic Acids

Next, the ligand- and backpressure-free continuous-flow Suzuki–Miyaura coupling reaction was conducted to link aryl chlorides with aryl boronic acids. A solution of 4’-chloroacetophenone (5a, 0.5 mmol); 3a (1.5 eq., 0.75 mmol); and NaOH, KOH, or NaOtBu (2.0 eq., 1.0 mmol) in H2O/1,4-dioxane (0.5 mL/1.5 mL) was transferred using a syringe pump at 0.05 mL/min flow rate into the 7% Pd/WA30 (100 mg)-packed catalyst cartridge, which was pre-heated at 80 °C in an oil bath (Table 3, entries 1–3). The use of NaOH resulted in a higher yield (23%) of 4aa compared with that using KOH (19% yield) and NaOtBu (17% yield). An increase of 7% Pd/WA30 from 100 mg to 500 mg increased the conversion of 1a. However, the yield of the targeted 4aa was moderate at 45% (entry 4). Furthermore, a decrease in the flow rate from 0.05 mL/min to 0.02 mL/min was ineffective and generated the corresponding 4aa in 30% yield (entry 5).
The combination of base and solvent was crucial for developing the continuous-flow Suzuki–Miyaura coupling reaction using 7% Pd/WA30-packed catalyst cartridges, not only to form a homogeneously dissolved reaction solution, but also to achieve a high reaction efficiency. Tetrabutylammonium fluoride (TBAF), which can act as a phase transfer catalyst and/or base, is used for the Pd-catalyzed Suzuki–Miyaura coupling reaction of aryl halides with aryl boronic acids and its esters to activate the Pd catalyst under batch conditions [51,52,53,54]. Based on these references, a variety of advantages of TBAF as a base, solubilizing agent, and activator of the 7% Pd/WA30 catalyst were utilized under continuous-flow conditions. After optimizing the reaction solvent (see the Supplementary Materials), it was observed that the addition of 2 equivalents of TBAF efficiently promoted the dissolution of 5a (0.25 mmol) and 3a (2.0 eq., 0.50 mmol) in THF (2 mL). Furthermore, the reaction efficiency was considerably increased to achieve a 68% isolated yield by merely transferring a THF solution of 5a, 3a, and TBAF over the 7% Pd/WA30 (100 mg)-packed catalyst cartridge (entry 6). Because the increase of 7% Pd/WA30 from 100 mg to 300 mg did not improve the reaction efficiency (entry 6 vs. 7), the combined use of TBAF with THF and 100 mg of 7% Pd/WA30 was adopted as optimized conditions and used in the substrate applicability study. In the crude mixture of the reaction indicated in entry 6, leached Pd species were never detected with atomic absorption spectrophotometry (AAS, Pd detection limit: 1 ppm, see the Supplementary Materials).
While 3’-chloroacetophenone (5b) was coupled with 3a to obtain 4ba in 68% yield, the phenylation of 2’-chloroacetophenone (5c) with 3a afforded 4ca in only 13% yield because of the steric hindrance of the acetyl group (Figure 3). The coupling of ethyl 4-chlorobenzoate (5d) with 3a resulted in a 74% isolated yield of 4da. Chlorobenzenes bearing 4-EtO2C (5e) and 4-Me (5f) groups reacted with 4-methoxy phenylboronic acid (3b), regardless of the electronic properties of the benzene ring, to generate the corresponding biaryls (4db and 4eb) in 42% and 57% yields, respectively. The continuous-flow Suzuki–Miyaura reaction was also applied to the coupling of heteroaryl chlorides. 4-Chloropyridine hydrochloride (5g) was phenylated, increasing the amount of TBAF (3.0 eq.) to obtain 4ha in 57% yield. An isolated yield of 80% of 4ae was obtained when using a reactive heteroaryl boronic acid (3e) as a coupling partner of 5a with a TON and TOF of 3.0 and 0.8 min−1, respectively. Based on these results, the present continuous-flow Suzuki–Miyaura reaction using the 7% Pd/WA30-packed catalyst cartridge was applied to the coupling of various (hetero)aryl chlorides with (hetero)aryl boronic acids in the presence of TBAF instead of NaOH as an additive. However, the reaction efficiency was affected by the electronic properties of the aromatics and the steric hindrance.

2.3. Application of the Continuous-Flow Suzuki–Miyaura Coupling to Gram-Scale Synthesis

A prolonged backpressure- and ligand-free continuous-flow Suzuki–Miyaura reaction was developed using a 7% Pd/WA30-packed catalyst cartridge. 4’-Iodoacetophenone (1a, 10.0 mmol), phenylboronic acid (2a, 15.0 mmol), and KOH (20.0 mmol) were dissolved in a mixed solvent of H2O (10 mL) and 1,4-dioxane (30 mL). The homogeneously dissolved reaction solution was pumped through the cartridge packed with 200 mg of 7% Pd/WA30 at a flow rate of 0.05 mL/min (Scheme 1). The coupling efficiently and continuously proceeded for 14 h to obtain the corresponding 4aa in quantitative yield (2.0 g) with a TON and TOF of 76.1 and 5.4 h−1 and without catalyst deactivation during the entire reaction period. Therefore, the continuous-flow Suzuki–Miyaura coupling reaction can be easily applied for prolonged gram-scale biaryl syntheses.

3. Materials and Methods

3.1. General Information

All reagents and solvents were obtained from commercial sources (Tokyo Chemical Industry Co., Ltd, Chuo, Tokyo, Japan; FUJIFILM Wako Pure Chemical Industries, Ltd., Osaka, Japan; Sigma-Aldrich Japan Co., Meguro, Tokyo, Japan) and used without further purification. The dimethylamine-immobilized polymer WA30 was obtained from Mitsubishi Chemical Corporation (Chiyoda, Tokyo, Japan). Pd(OAc)2 was obtained from N.E. Chemcat Corporation (Minato, Tokyo, Japan). Flash column chromatography was performed using Silica Gel 60 N (Kanto Chemical Co. Inc., Chuo, Tokyo, Japan, 63–210 μm spherical, neutral). The 1H and 13C NMR spectra were recorded on a JEOL ECA-500 (500 MHz for 1H NMR and 125 MHz for 13C NMR) and ECZ-400 (400 MHz for 1H NMR and 100 MHz for 13C NMR) spectrometers. CDCl3 was used as solvent for the NMR measurements (LEOL Ltd., Akishima, Tokyo, Japan). The chemical shifts (d) are expressed in parts per million and internally referenced (0.00 ppm for tetramethylsilane). All 1H NMR spectra of known products were identical to those reported in the literature.

3.2. Preparation of 7% Pd/WA30

A suspension of dry WA30 (3.00 g, colorless particles) in an ethyl acetate solution (30 mL) of Pd(OAc)2 (2.12 mmol (226 mg; palladium)) was stirred under argon atmosphere at 25 °C for 4 d. The resulting yellow solid was collected by filtration (1 mm filter paper), washed with H2O (10 mL × 3), ethyl acetate (10 mL × 3), and MeOH (10 mL × 3), and dried in vacuo for 24 h. The filtrate was transferred to a 100 mL volumetric flask and diluted to 100 mL with MeOH. Leached Pd species were not detected (detection limit: <1 ppm) in the diluted filtrate using atomic absorption spectrometry (SHIMADZU AA-7000). The collected solid was then stirred with hydrazine monohydrate (NH2NH2·H2O) (310.0 μL, 6.37 μmol) in H2O (30 mL) for 24 h at 25 °C under argon atmosphere. A pale gray solid was collected by filtration (1 mm filter paper), washed with H2O (10 mL × 3) and MeOH (10 mL × 3), and dried in vacuo for 24 h to generate Pd/WA30 (3.23 g). The filtrate was transferred to a 100 mL volumetric flask and diluted to 100 mL with MeOH. Palladium species were not observed in the diluted filtrate (detection limit: <1 ppm). Palladium species absorbed on WA30 were not detected. Thus, the palladium content of Pd/WA30 (ethyl acetate) was estimated to be approximately 7% [(2260)/3230 × 100].

3.3. Experimental Procedures

3.3.1. Procedure for the Continuous-Flow Suzuki–Miyaura Coupling of Aryl Iodides and Bromides with Aryl Boronic Acids

A solution of aryl iodide or bromide (1 or 2, 0.50 mmol), aryl boronic acid (3, 0.75 mmol), and NaOH or KOH (1.0 mmol) in a mixed solvent of H2O (0.5 mL) and 1,4-dioxane (1.5 mL) was moved through the 7% Pd/WA30-packed cartridge (Ø 4.6 × 50 mm, SUS-316) by a syringe pump (YMC, YSP-101) at a flow rate of 0.05 mL/min. After transferring the entire reaction solution, the catalyst cartridge was washed with an additional mixed solvent of H2O (5 mL) and 1,4-dioxane (15 mL). The combined reaction mixture and washing solution were extracted with ethyl acetate (40 mL × 2). The combined organic layers were dried over Na2SO4 and concentrated in vacuo. The residue was purified by silica gel column chromatography (hexane/ethyl acetate) to produce the corresponding coupling product 4 (Table 1 and Table 2 and Figure 2).

3.3.2. Procedure for the Continuous-Flow Suzuki–Miyaura Coupling of Aryl Chlorides with Aryl Boronic Acids

A solution of aryl chloride (5, 0.25 mmol), aryl boronic acid (3, 0.50 mmol), and tetrabutylammonium fluoride (0.50 mmol; 1 mol/L in THF solution) was moved through the 7% Pd/WA30-packed cartridge (Ø 4.6 × 50 mm, SUS-316) by a syringe pump (YMC, YSP-101) at a flow rate of 0.05 mL/min. After transferring the entire reaction solution, the catalyst cartridge was washed with additional THF (5 mL) and then ethyl acetate (15 mL). The combined reaction mixture and washing solution were concentrated in vacuo. The residue was purified by silica gel column chromatography (hexane/ethyl acetate) to provide the corresponding coupling product 4 (Table 3, entry 6 and Figure 3).

3.3.3. Procedure for the Continuous-Flow Suzuki–Miyaura Coupling Reaction over an Extended Time

A solution of 4’-iodoacetophenone (1a, 2.5 g, 10.0 mmol), phenylboronic acid (3a, 1.5 g, 12.0 mmol), and KOH (1.1 g, 20 mmol) in a mixed solvent of H2O (10 mL) and 1,4-dioxane (30 mL) was moved through a cartridge packed with 200 mg of 7% Pd/WA30 (Ø 4.6 × 150 mm, SUS-316) by a syringe pump (YMC, YSP-101) at a flow rate of 0.05 mL/min at 25 °C. The reaction solution was collected every 1 h, changing the receiving vessel (1st; 0–1 h, 2nd; 1–2 h, 3rd; 2–3 h, 4th; 3–4 h, 5th; 4–5 h, 6th; 5–6 h, 7th; 6–7 h, 8th; 7–8 h, 9th; 8–9 h, 10th; 9–10 h, 11th; 10–11 h, 12th; 11–12 h, 13th; 12–13 h, 14th; 13–14 h). Each reaction solution was extracted separately with ethyl acetate (10 mL × 2), dried over Na2SO4, and concentrated in vacuo. Subsequently, each residue was analyzed by 1H NMR. The combined residues were purified by silica-gel column chromatography (hexane/ethyl acetate = 15/1) to obtain 4-acethylbiphenyl (4aa, 2.0 g, 10 mmol) in quantitative yield (Scheme 1).

4. Conclusions

The continuous-flow Suzuki–Miyaura coupling reaction of (hetero)aromatic iodides, bromides, and chlorides with (hetero)aryl boronic acids was developed using 7% Pd/WA30-packed catalyst cartridges, where Pd was immobilized on the spherical chelate resin WA30. The present continuous-flow Suzuki–Miyaura reaction proceeded under ligand- and backpressure-free conditions. Coupling of aromatic iodides and bromides with aryl boronic acids was efficiently conducted by transferring a single reaction solution of aryl halides, aryl boronic acids, and inorganic bases dissolved in H2O/1,4-dioxane into a 7% Pd/WA30-packed catalyst cartridge using a syringe pump. Using aryl chlorides as substrates, the addition of TBAF in THF instead of the inorganic base significantly improved the reaction efficiency. The ligand- and backpressure-free continuous-flow Suzuki–Miyaura reaction was also applied to the coupling of heteroaryl halides with heteroaryl boronic acids. The combination of base and solvent is quite crucial for preparing a homogeneously dissolved reaction solution consisting of an aromatic halide, aryl boronic acid, and organic or inorganic base. Furthermore, the provided void space in the cartridge derived from the spherical structures of the 7% Pd/WA30 catalyst enables a smooth flow of the reaction solution using a single syringe pump. Clogging or serious backpressure was not observed. Therefore, the present ligand- and backpressure-free continuous-flow Suzuki–Miyaura coupling reaction is a facile and straightforward continuous-flow method for practical use in a variety of chemistry fields.

Supplementary Materials

The following is available online at https://www.mdpi.com/2073-4344/10/10/1209/s1, Content 1: General; Content 2: Preparation of 7% Pd/WA30; Content 3: Preparation of catalyst cartridge; Content 4: Experimental procedures; Content 5: Preliminary experiments for the solubility of the reaction solutions; Content 6: Optimization of the continuous-flow Suzuki–Miyaura coupling of 3′-iodoacetophenone and 2′-iodoacetophenone; Content 7: Optimization of a reaction solvent for the continuous-flow Suzuki–Miyaura coupling of 3’-chloroacetophenone under batch conditions; Content 8: Spectroscopic data of products; Content 9: Procedure for the continuous-flow Suzuki–Miyaura coupling reaction over an extended period of time; Content 10: Leaching test for the continuous-flow Suzuki–Miyaura coupling of 4′-iodoacetophenone and 4′-chloroacetophenone; Content 11: References; Content 12: 1H and 13C spectra of products.

Author Contributions

Writing—original draft and Supplementary Materials preparation, T.Y., N.I. and K.P.; designing the research, T.Y., K.P., N.I. and H.S.; investigation, experimental, and analysis, J.J., H.M., N.I., K.P., C.F., M.I. and S.Ō.; project administration, supervision, writing—review and editing, H.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work is partially based on results obtained from a project commissioned by the New Energy and Industrial Technology Development Organization (NEDO, Project code: P19004).

Acknowledgments

We sincerely appreciate the N.E. Chemcat Co. for the kind gift of the 5% Pd/CB and the Mitsubishi Chemical Co. for the kind gift of the HP20 and WA30.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Miyaura, N.; Suzuki, A. Palladium-Catalyzed Cross-Coupling Reactions of Organoboron Compounds. Chem. Rev. 1995, 95, 2457–2483. [Google Scholar] [CrossRef] [Green Version]
  2. Hassan, J.; Sèvignon, M.; Gozzi, C.; Schulz, E.; Lemaire, M. Aryl-Aryl Bond Formation One Century after the Discovery of the Ullmann Reaction. Chem. Rev. 2002, 102, 1359–1470. [Google Scholar] [CrossRef]
  3. Biffis, A.; Centomo, P.; Del Zotto, A.; Zecca, M. Pd Metal Catalysts for Cross-Couplings and Related Reactions in the 21st Century: A Critical Review. Chem. Rev. 2018, 118, 2249–2295. [Google Scholar] [CrossRef]
  4. Bringmann, G.; Gulder, T.; Gulder, T.A.M.; Breuning, M. Atroposelective Total Synthesis of Axially Chiral Biaryl Natural Products. Chem. Rev. 2011, 111, 563–639. [Google Scholar] [CrossRef]
  5. Wu, J.-S.; Cheng, S.-W.; Cheng, Y.-J.; Hsu, C.-S. Donor–acceptor conjugated polymers based on multifused ladder-type arenes for organic solar cells. Chem. Soc. Rev. 2015, 44, 1113–1154. [Google Scholar] [CrossRef]
  6. Yin, L.; Liebscher, J. Carbon-Carbon Coupling Reactions Catalyzed by Heterogeneous Palladium Catalysts. Chem. Rev. 2007, 107, 133–173. [Google Scholar] [CrossRef]
  7. Fihri, A.; Bouhrara, M.; Nekoueishahraki, B.; Basset, J.-M.; Polshettiwar, V. Nanocatalysts for Suzuki cross-coupling reactions. Chem. Soc. Rev. 2011, 40, 5181–5203. [Google Scholar] [CrossRef]
  8. A Smith, D.; Krishnananthan, S.; Meanwell, N.A.; Mathur, A.; Li, J. Multigram Synthesis of BMS-929075, an Allosteric, Palm Site Inhibitor of HCV NS5B Replicase, Involving the Synthesis of a Highly Functionalized Benzofuran through a Telescoped Process. Org. Process Res. Dev. 2020, 24, 1157–1163. [Google Scholar] [CrossRef]
  9. Konda, V.; Rydfjord, J.; Sämarker, J.; Larhed, M. Safe Palladium-Catalyzed Cross-Couplings with Microwave Heating. Using Continuous-Flow Silicon Carbide Reactors. Org. Process Res. Dev. 2014, 18, 1413–1418. [Google Scholar] [CrossRef]
  10. Filipponi, P.; Ostacolo, C.; Novellino, E.; Pellicciari, R.; Gioiello, A. Continuous Flow Synthesis of Thieno[2,3-c]isoquinolin-5(4H)-one Scaffold: A Valuable Source of PARP-1 Inhibitors. Org. Process Res. Dev. 2014, 18, 1345–1353. [Google Scholar] [CrossRef]
  11. Cole, K.P.; Reizman, B.J.; Hess, M.; Groh, J.M.; Laurila, M.E.; Cope, R.F.; Campbell, B.M.; Forst, M.B.; Burt, J.L.; Maloney, T.D.; et al. Small-Volume Continuous Manufacturing of Merestinib. Part 1. Process Development and Demonstration. Org. Process Res. Dev. 2019, 23, 858–869. [Google Scholar] [CrossRef]
  12. Cole, K.P.; Campbell, B.M.; Forst, M.B.; Groh, J.M.; Hess, M.; Johnson, M.D.; Miller, R.D.; Mitchell, D.; Polster, C.S.; Reizman, B.J.; et al. An Automated Intermittent Flow Approach to Continuous Suzuki Coupling. Org. Process Res. Dev. 2016, 20, 820–830. [Google Scholar] [CrossRef]
  13. Flick, A.C.; Ding, H.X.; Leverett, C.A.; Fink, S.J.; O’Donnell, C.J. Synthetic Approaches to New Drugs Approved During 2016. J. Med. Chem. 2018, 61, 7004–7031. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Kuroda, K.; Tsuyumine, S.; Kodama, T. Direct Synthesis of a PDE4 Inhibitor by Using Pd–Cu-Catalyzed C–H/C–Br Coupling of Benzoxazole with a Heteroaryl Bromide. Org. Process Res. Dev. 2016, 20, 1053–1058. [Google Scholar] [CrossRef]
  15. Young, I.S.; Simmons, E.M.; Fenster, M.D.B.; Zhu, J.J.; Katipally, K.R. Palladium-Catalyzed C–O Coupling of a Sterically Hindered Secondary Alcohol with an Aryl Bromide and Significant Purity Upgrade in the API Step. Org. Process Res. Dev. 2018, 22, 585–594. [Google Scholar] [CrossRef]
  16. Nicolaou, K.C.; Bulger, P.G.; Sarlah, D. Palladium-Catalyzed Cross-Coupling Reactions in Total Synthesis. Angew. Chem. Int. Ed. 2005, 44, 4442–4489. [Google Scholar] [CrossRef] [PubMed]
  17. Bai, Y.; Davis, D.C.; Dai, M. Natural Product Synthesis via Palladium-Catalyzed Carbonylation. J. Org. Chem. 2017, 82, 2319–2328. [Google Scholar] [CrossRef]
  18. Yamada, T.; Matsuo, T.; Ogawa, Y.; Ichikawa, T.; Kobayashi, Y.; Masuda, H.; Miyamoto, R.; Bai, H.; Meguro, K.; Sawama, Y.; et al. Application of Thiol-Modified Dual-Pore Silica Beads as Practical Scavenger of Leached Palladium Catalyst in C-C Coupling Reaction. Org. Process Res. Dev. 2019, 23, 462–469. [Google Scholar] [CrossRef]
  19. Yamada, T.; Masuda, H.; Park, K.; Tachikawa, T.; Ito, N.; Ichikawa, T.; Yoshimura, M.; Takagi, Y.; Sawama, Y.; Ohya, Y.; et al. Development of Titanium Dioxide-Supported Pd Catalysts for Ligand-Free Suzuki-Miyaura Coupling of Aryl Chlorides. Catalysts 2019, 9, 461. [Google Scholar] [CrossRef] [Green Version]
  20. Monguchi, Y.; Sakai, K.; Endo, K.; Fujita, Y.; Niimura, M.; Yoshimura, M.; Mizusaki, T.; Sawama, Y.; Sajiki, H. Carbon–Carbon Bond Formation by Ligand-free Cross-Coupling Reaction Using Palladium Catalyst Supported on Synthetic Adsorbent. ChemCatChem 2012, 4, 546–558. [Google Scholar] [CrossRef]
  21. Monguchi, Y.; Wakayama, F.; Ueda, S.; Ito, R.; Takada, H.; Inoue, H.; Nakamura, A.; Sawama, Y.; Sajiki, H. Amphipathic monolith-supported palladium catalysts for chemoselective hydrogenation and cross-coupling reactions. RSC Adv. 2017, 7, 1833–1840. [Google Scholar] [CrossRef] [Green Version]
  22. Maegawa, T.; Kitamura, Y.; Sako, S.; Udzu, T.; Sakurai, A.; Tanaka, A.; Kobayashi, Y.; Endo, K.; Bora, U.; Kurita, T.; et al. Heterogeneous Pd/C-Catalyzed Ligand-Free, Room-Temperature Suzuki–Miyaura Coupling Reactions in Aqueous Media. Chem. Eur. J. 2007, 13, 5937–5943. [Google Scholar] [CrossRef]
  23. Monguchi, Y.; Ichikawa, T.; Yamada, T.; Sawama, Y.; Sajiki, H. Continuous-flow Suzuki–Miyaura and Mizoroki–Heck Reactions under Microwave Heating Conditions. Chem. Rec. 2019, 19, 3–14. [Google Scholar] [CrossRef] [Green Version]
  24. Kobayashi, S. Flow “Fine” Synthesis: High Yielding and Selective Organic Synthesis by Flow Methods. Chem. Asian J. 2016, 11, 425–436. [Google Scholar] [CrossRef]
  25. Masuda, K.; Ichitsuka, T.; Koumura, N.; Sato, K.; Kobayashi, S. Flow fine synthesis with heterogeneous catalysts. Tetrahedron 2018, 74, 1705–1730. [Google Scholar] [CrossRef]
  26. Cantillo, D.; Kappe, C.O. Immobilized Transition Metals as Catalysts for Cross-Couplings in Continuous Flow—A Critical Assessment of the Reaction Mechanism and Metal Leaching. ChemCatChem 2014, 6, 3286–3305. [Google Scholar] [CrossRef]
  27. Munirathinam, R.; Huskens, J.; Verboom, W. Supported Catalysis in Continuous-Flow Microreactors. Adv. Synth. Catal. 2015, 357, 1093–1123. [Google Scholar] [CrossRef]
  28. Len, S.; Bruniaux, S.; Delbecq, F.; Parmar, V.S. Palladium-Catalyzed Suzuki–Miyaura Cross-Coupling in Continuous Flow. Catalysts 2017, 7, 146. [Google Scholar] [CrossRef]
  29. Ichitsuka, T.; Suzuki, N.; Sairenji, M.; Koumura, N.; Onozawa, S.; Sato, K.; Kobayashi, S. Readily Available Immobilized Pd Catalysts for Suzuki-Miyaura Coupling under Continuous-flow Conditions. ChemCatChem 2019, 11, 2427–2431. [Google Scholar] [CrossRef]
  30. De Muñouz, J.M.; Alcázar, J.; de la Hoz, A.; Díaz-Ortiz, A. Cross-Coupling in Flow Using Supported Catalysts: Mild, Clean, Efficient and Sustainable Suzuki-Miyaura Coupling in a Single Pass. Adv. Synth. Catal. 2012, 354, 3456–3460. [Google Scholar] [CrossRef]
  31. Martin, A.D.; Siamaki, A.R.; Belecki, K.; Gupton, B.F. A Flow-Based Synthesis of Telmisartan. J. Flow Chem. 2015, 5, 145–147. [Google Scholar] [CrossRef]
  32. Greenway, G.M.; Haswell, S.J.; Morgan, D.O.; Skelton, V.; Styring, P. The use of a novel microreactor for high throughput continuous flow organic synthesis. Sens. Actuators B Chem. 2000, 63, 153–158. [Google Scholar] [CrossRef]
  33. Pandarus, V.; Gingras, G.; Béland, F.; Ciriminna, R.; Pagliaro, M. Process Intensification of the Suzuki−Miyaura Reaction over Sol−Gel Entrapped Catalyst SiliaCat DPP-Pd Under Conditions of Continuous Flow. Org. Process Res. Dev. 2014, 18, 1550–1555. [Google Scholar] [CrossRef]
  34. He, P.; Haswell, S.J.; Fletcher, P.D.I. Microwave-assisted Suzuki reactions in a continuous flow capillary reactor. Appl. Catal. A Gen. 2004, 274, 111–114. [Google Scholar] [CrossRef]
  35. He, P.; Haswell, S.J.; Fletcher, P.D.I.; Kelly, S.M.; Mansfield, A. Scaling up of continuous-flow, microwave-assisted, organic reactions by varying the size of Pd-functionalized catalytic monoliths. Beilstein J. Org. Chem. 2011, 7, 1150–1157. [Google Scholar] [CrossRef] [Green Version]
  36. Mennecke, K.; Kirschning, A. Polyionic Polymers-Heterogeneous Media for Metal Nanoparticles as Catalyst in Suzuki-Miyaura and Heck-Mizoroki Reactions under Flow Conditions. Beilstein J. Org. Chem. 2009, 5. [Google Scholar] [CrossRef]
  37. Pascanu, V.; Hansen, P.R.; Bermejo-Gomez, A.; Ayats, C.; Platero-Prats, A.E.; Johansson, M.J.; Pericas, M.A.; Martin-Matute, B. Highly functionalized biaryls via Suzuki-Miyaura cross coupling catalyzed by Pd@MOF under batch and continuous flow regimes. ChemSusChem 2015, 8, 123–130. [Google Scholar] [CrossRef]
  38. Greco, R.; Goessler, W.; Cantillo, D.; Kappe, C.O. Benchmarking immobilized Di- and Triaryphosphine palladium catalysts for continuous-flow cross-coupling reactions: Efficiency, durability, and metal leaching studies. ACS Catal. 2015, 5, 1303–1312. [Google Scholar] [CrossRef]
  39. Mateos, C.; Rincón, J.A.; Martín-Hidalgo, B.; Villanueva, J. Green and scalable procedure for extremely fast ligandless Suzuki–Miyaura cross-coupling reactions in aqueous IPA using solid-supported Pd in continuous flow. Tetrahedron Lett. 2014, 55, 3701–3705. [Google Scholar] [CrossRef]
  40. Brinkley, K.W.; Burkholder, M.; Siamaki, A.R.; Belecki, K.; Gupton, B.F. The continuous synthesis and application of graphene supported palladium nanoparticles: A highly effective catalyst for Suzuki-Miyaura cross-coupling reactions. Green Process Synth. 2015, 4, 241–246. [Google Scholar] [CrossRef]
  41. Trinh, T.N.; Hizartzidis, L.; Lin, A.J.S.; Harman, D.G.; McCluskey, A.; Gordon, C.P. An efficient continuous flow approach to furnish furan-based biaryls. Org. Biomol. Chem. 2014, 12, 9562–9571. [Google Scholar] [CrossRef]
  42. Hattori, T.; Tsubone, A.; Sawama, Y.; Monguchi, Y.; Sajiki, H. Palladium on carbon-catalyzed Suzuki-Miyaura coupling reaction using an efficient and continuous flow system. Catalysts 2015, 5, 18–25. [Google Scholar] [CrossRef] [Green Version]
  43. Synthetic Adsorbent Based on a Polystyrene/Divinylbenzene Copolymer HP20 Is Commercially Available. Available online: https://www.diaion.com/en/products/synthetic_adsorbents/ (accessed on 10 September 2020).
  44. Amphipathic and Monolithic Polystyrene/Divinylbenzene Copolymer Bearing Sulfonic Acid Moieties CM and Bearing Quaternary Ammonium Moieties AM Are Commercially Available. Available online: https://www.organo.co.jp/english/ (accessed on 10 September 2020).
  45. Tertiary Amine-Functionalized Weakly Basic Anion Exchange Resin WA30 Is Commercially. Available online: https://www.diaion.com/en/products/ion_exchange_resins/weakly_basic_anion/index.html (accessed on 10 September 2020).
  46. Yamada, T.; Kuwata, M.; Takakura, R.; Monguchi, Y.; Sajiki, H.; Sawama, Y. Organocatalytic Nitroaldol Reaction Associated with Deuterium-Labeling. Adv. Synth. Catal. 2018, 360, 637–641. [Google Scholar] [CrossRef]
  47. Yamada, T.; Park, K.; Ito, N.; Masuda, H.; Teranishi, W.; Cui, S.; Sajiki, H. Robust Continuous-Flow Synthesis of Deuterium-Labeled β-Nitroalcohols Catalyzed by Basic Anion Exchange Resin. Bull. Chem. Soc. Jpn. 2020, 93, 1000–1006. [Google Scholar] [CrossRef]
  48. Monguchi, Y.; Ichikawa, T.; Netsu, M.; Hattori, T.; Mizusaki, T.; Sawama, Y.; Sajiki, H. Tertiary-Amino-Functionalized Resin-Supported Palladium Catalyst for the Heterogeneous Suzuki-Miyaura Reaction of Aryl Chlorides. Synlett 2015, 26, 2014–2018. [Google Scholar] [CrossRef] [Green Version]
  49. Ichikawa, T.; Netsu, M.; Mizuno, M.; Mizusaki, T.; Takagi, Y.; Sawama, Y.; Monguchi, Y.; Sajiki, H. Development of a unique heterogeneous palladium catalyst for Suzuki-Miyaura reaction using (hetero)aryl chlorides and chemoselective hydrogenation. Adv. Synth. Catal. 2017, 359, 2269–2279. [Google Scholar] [CrossRef]
  50. Ichikawa, T.; Mizuno, M.; Ueda, S.; Ohneda, N.; Odajima, H.; Sawama, Y.; Monguchi, Y.; Sajiki, H. A practical method for heterogeneously-catalyzed Mizoroki–Heck reaction: Flow system with adjustment of microwave resonance as an energy source. Tetrahedron 2018, 74, 1810–1816. [Google Scholar] [CrossRef]
  51. Wu, X.-M.; Gu, Y.-B. TBAF-Assisted Palladium-Catalyzed Suzuki Reaction in Water Under the Ligand and Base-Free Conditions. Lett. Org. Chem. 2012, 9, 396–400. [Google Scholar] [CrossRef]
  52. Miyashita, K.; Sakai, T.; Imanishi, T. Total Synthesis of (±)-Spiroxin C. Org. Lett. 2003, 5, 2683–2686. [Google Scholar] [CrossRef] [PubMed]
  53. Negishi, E.; Tobrman, T.; Rao, H.; Xu, S.; Lee, C.-T. Highly (≥98%) Selective Trisubstituted Alkene Synthesis of Wide Applicability via Fluoride-Promoted Pd-Catalyzed Cross-Coupling of Alkenylboranes. Isr. J. Chem. 2010, 50, 696–701. [Google Scholar] [CrossRef] [Green Version]
  54. Schmidt, B.; Riemer, M.; Karras, M. 2,2-Biphenols via Protecting Group-Free Thermal or Microwave-Accelerated Suzuki−Miyaura Coupling in Water. J. Org. Chem. 2013, 78, 8680–8688. [Google Scholar] [CrossRef] [PubMed]
Catalysts 10 01209 g001 550

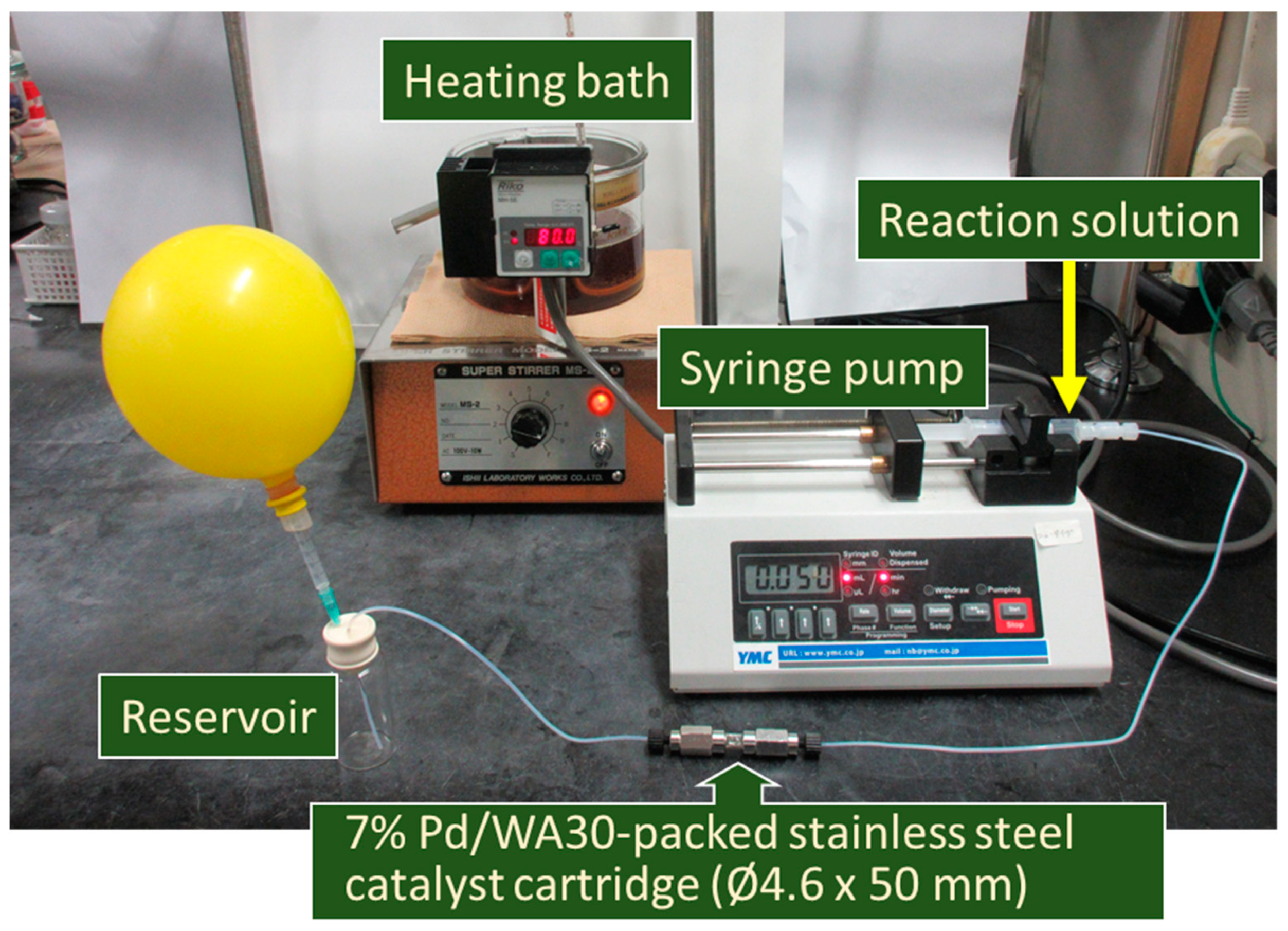

Figure 1. Continuous-flow apparatus for the Suzuki–Miyaura coupling reaction using a 7% Pd/WA30- packed catalyst cartridge.
Figure 1. Continuous-flow apparatus for the Suzuki–Miyaura coupling reaction using a 7% Pd/WA30- packed catalyst cartridge.
Catalysts 10 01209 g001
Catalysts 10 01209 g002 550

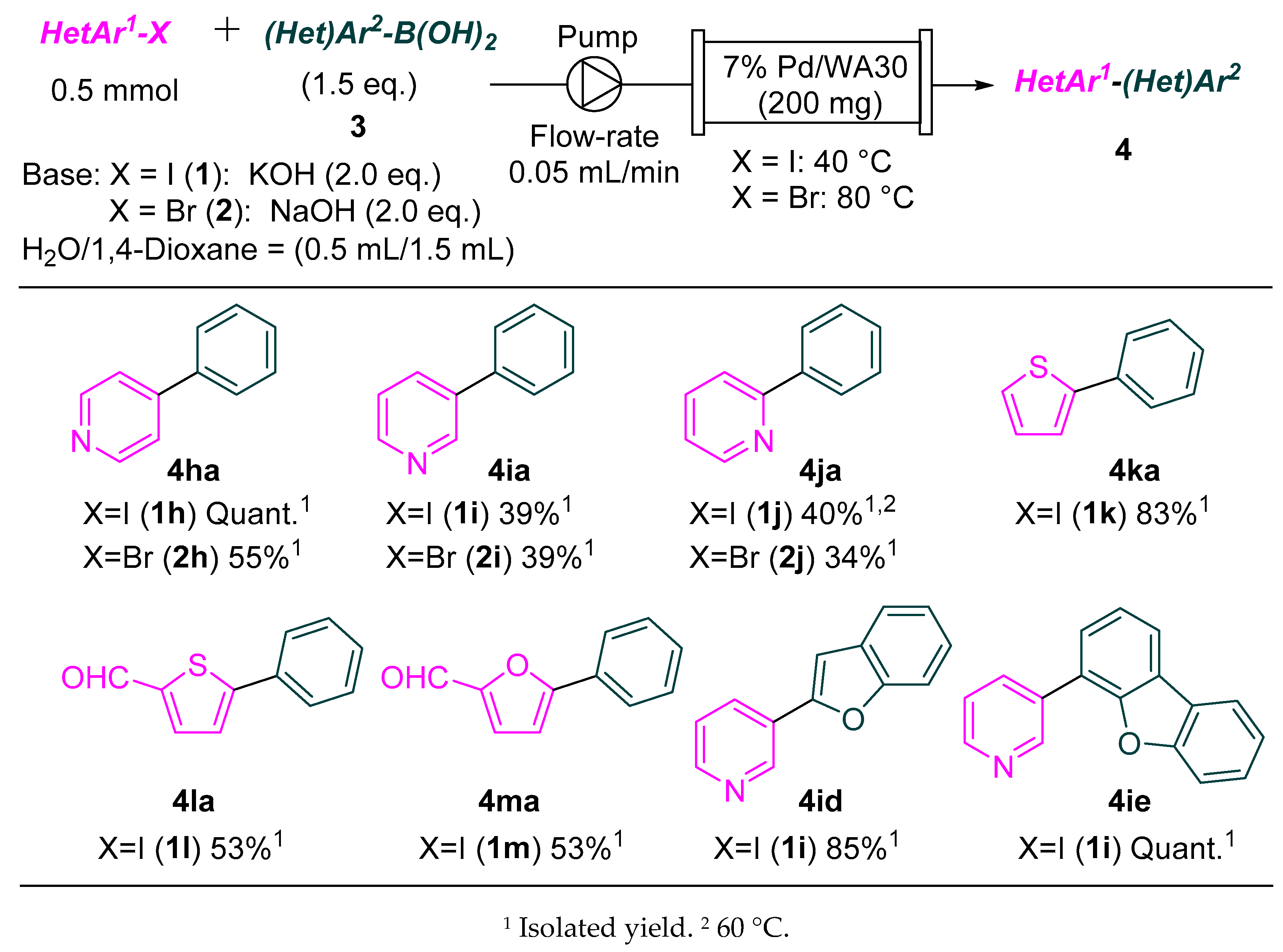

Figure 2. Scope of substrates of the 7% Pd/WA30-catalyzed continuous-flow Suzuki–Miyaura coupling reaction of (hetero)aryl iodides and bromides with (hetero)aryl boronic acids.
Figure 2. Scope of substrates of the 7% Pd/WA30-catalyzed continuous-flow Suzuki–Miyaura coupling reaction of (hetero)aryl iodides and bromides with (hetero)aryl boronic acids.
Catalysts 10 01209 g002
Catalysts 10 01209 g003 550

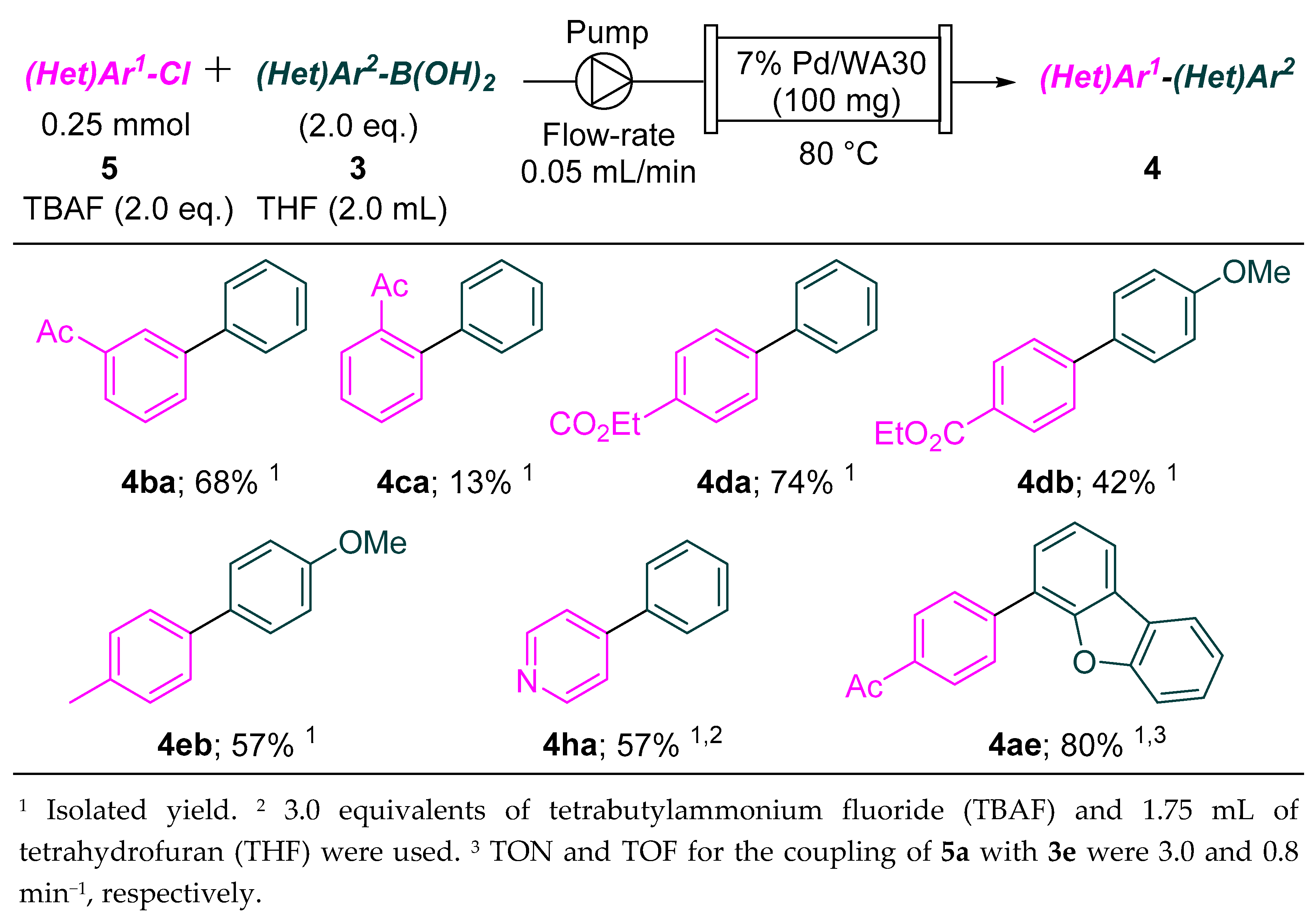

Figure 3. Scope of substrates of the 7% Pd/WA30-catalyzed continuous-flow Suzuki–Miyaura coupling reaction of (hetero)aryl chlorides with (hetero)aryl boronic acids.
Figure 3. Scope of substrates of the 7% Pd/WA30-catalyzed continuous-flow Suzuki–Miyaura coupling reaction of (hetero)aryl chlorides with (hetero)aryl boronic acids.
Catalysts 10 01209 g003
Catalysts 10 01209 sch001 550

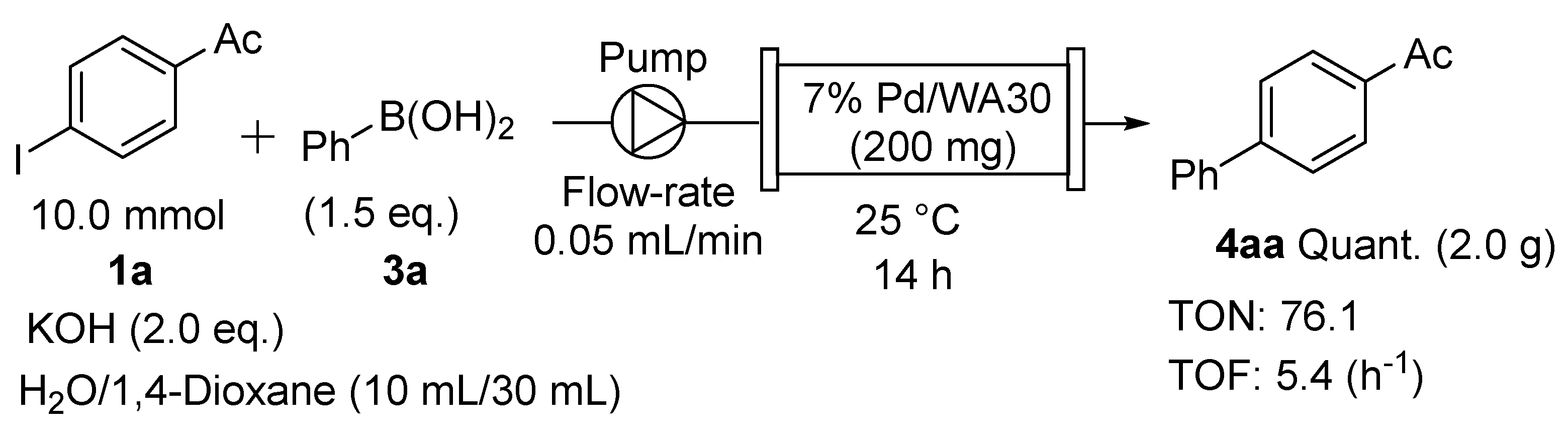

Scheme 1. Procedure for the Continuous-Flow Suzuki–Miyaura Coupling Reaction over an Extended Time.
Scheme 1. Procedure for the Continuous-Flow Suzuki–Miyaura Coupling Reaction over an Extended Time.
Catalysts 10 01209 sch001
Table

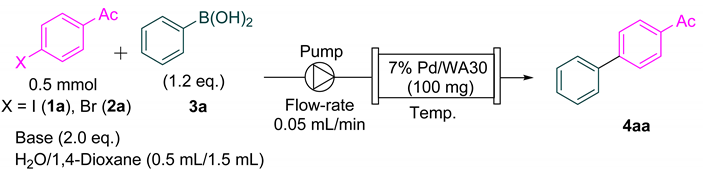

Table 1. Optimization of the 7% Pd/WA30-catalyzed continuous-flow Suzuki–Miyaura coupling reaction of 4′-iodo and 4′-bromo acetophenone (1a and 2a) with phenylboronic acid (3a).
Table 1. Optimization of the 7% Pd/WA30-catalyzed continuous-flow Suzuki–Miyaura coupling reaction of 4′-iodo and 4′-bromo acetophenone (1a and 2a) with phenylboronic acid (3a).
Catalysts 10 01209 i001
EntryXBaseTemp.1H NMR Ratio (1a/2a:4aa)Yield 1
1INaOH25 °C23:7777%
2IKOH25 °C5:9595%
3 2IKOH25 °C0:100Quant. 3,4
4BrNaOH25 °C35:6568%
5BrKOH25 °C57:4343%
6BrNaOH60 °C26:7674%
7 2BrNaOH60 °C0:10095% 3,5
1 Yield was determined by 1H NMR using 1,1,2,2-tetrachloroethane as an internal standard. 2 An amount of 200 mg 7% Pd/WA30 was used. 3 Isolated yield. 4 turnover number (TON) and turnover frequency (TOF) for the coupling of 1a with 3a were 3.8 and 0.1 (min−1), respectively. 5 TON and TOF for the coupling of 2a with 3a were 3.6 and 0.1 min−1, respectively.
Table

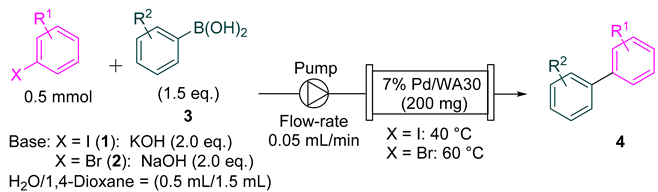

Table 2. Scope of substrate for the 7% Pd/WA30-catalyzed continuous-flow Suzuki–Miyaura coupling reaction of 4’-iodo and 4’-bromobenzene derivatives (1 or 2) with aryl boronic acid (3).a.
Table 2. Scope of substrate for the 7% Pd/WA30-catalyzed continuous-flow Suzuki–Miyaura coupling reaction of 4’-iodo and 4’-bromobenzene derivatives (1 or 2) with aryl boronic acid (3).a.
Catalysts 10 01209 i002
EntryXR1R2ProductYield 1
1 2I3-Ac (1b)H (3a)4baQuant. (99)
2 22-Ac (1c)H (3a)4ca83% (83)
34-EtO2C (1d)H (3a)4da89% (89)
44-Me (1e)H (3a)4ea85% (84)
54-MeO (1f)H (3a)4fa88% (88)
6H (1g)4-MeO (3b)4fa72% (72)
7 3H (1g)4-Ac (3c)4aaQuant. (96)
8Br3-Ac (2b)H (3a)4ba84% (81)
92-Ac (2c)H (3a)4ca57% (57)
104-EtO2C (2d)H (3a)4da50% (50)
114-Me (2e)H (3a)4ea70% (80)
124-MeO (2f)H (3a)4fa48% (43)
13 4H (2g)4-MeO (3b)4fa88% (75)
1 Yield was determined by 1H NMR using 1,1,2,2-tetrachloroethane as an internal standard. Isolated yield is shown in parentheses. 2 1.5 equivalents of 3a were used at 80 °C. 3 H2O/1,4-dioxane (1.0 mL/3.0 mL) was used. 4 H2O/1,4-dioxane (0.8 mL/1.5 mL) was applied.
Table

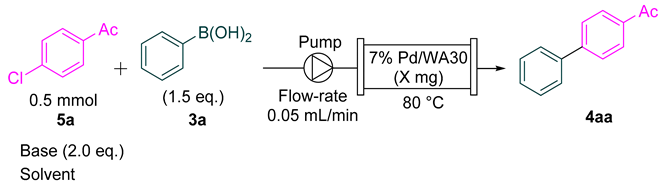

Table 3. Optimization of 7% Pd/WA30-catalyzed continuous-flow Suzuki–Miyaura coupling reaction of 4’-chloroacetophenone (5a) with phenylboronic acid (2a).
Table 3. Optimization of 7% Pd/WA30-catalyzed continuous-flow Suzuki–Miyaura coupling reaction of 4’-chloroacetophenone (5a) with phenylboronic acid (2a).
Catalysts 10 01209 i003
Entry.BaseY (mg)Solvent1H NMR Ratio
(5a:4aa)		Yield 1
1NaOH100H2O/1,4-dioxane (0.5/1.5 mL)74:2623%
2KOH100H2O/1,4-dioxane (0.5/1.5 mL)81:1919%
3NatOBu100H2O/1,4-dioxane (0.5/1.5 mL)82:1817%
4NaOH500H2O/1,4-dioxane (0.5/1.5 mL)13:8745%
5 2NaOH500H2O/1,4-dioxane (0.5/1.5 mL)57:4330%
6 3TBAF100THF (2.0 mL)0:10068%
7 3TBAF300THF (2.0 mL)0:10068%
1 Isolated yield. 2 Flow rate of 0.02 mL/min. 3 0.25 mmol of 5a and 2.0 equivalents of 2a were used.
