Article

A 3D Hierarchical Pancake-Like Porous Carbon Nitride for Highly Enhanced Visible-Light Photocatalytic H2 Evolution

by
Xiaobin Qiu
,
Lingfang Qiu
*,
Mengfan Ma
,
Yingying Hou
and
Shuwang Duo
*
Jiangxi Key Laboratory of Surface Engineering, Jiangxi Science and Technology Normal University, Nanchang 330013, China
*
Authors to whom correspondence should be addressed.
Catalysts 2020, 10(1), 77; https://doi.org/10.3390/catal10010077
Submission received: 26 November 2019 / Revised: 30 December 2019 / Accepted: 2 January 2020 / Published: 4 January 2020
(This article belongs to the Special Issue Towards Green, Enhanced Photocatalysts for Hydrogen Evolution)
Browse Figures
Versions Notes

Abstract

:
Polymeric carbon nitride is a fascinating visible-light-response metal-free semiconductor photocatalyst in recent decades. Nevertheless, the photocatalytic H2 efficiency is unsatisfactory due to the insufficient visible-light harvesting capacity and low quantum yields caused by the bulky structure seriously limited its applications. To overcome these defects, in this research, a 3D hierarchical pancake-like porous carbon nitride (PPCN) was successfully fabricated by a facile bottom-up method. The as-prepared photocatalyst exhibit enlarged surface area, enriched reactive sites, improved charge carrier transformation and separation efficiency, and expanded bandgap with a more negative conduction band towardan enhanced reduction ability. All these features synergistically enhanced the photocatalytic H2 evolution efficiency of 3% Pt@PPCN (430 µmol g−1 h−1) under the visible light illumination (λ ≥ 420 nm), which was nine-fold higher than that of 3% Pt@bulk C3N4 (BCN) (45 µmol g−1 h−1). The improved structure and enhanced photoelectric properties were systematically investigated by different characterization techniques. This research may provide an insightful synthesis strategy for polymeric carbon nitride with excellent light-harvesting capacity and enhanced separation of charges toward remarkable photocatalytic H2 for water splitting.

Graphical Abstract

1. Introduction

With fossil fuel reserves dwindling every day, energy shortage and environmental pollution issues have become increasingly prominent. Developing clean and renewable energy sources is urgent to meet the sustained growth in energy demand [1,2,3,4,5,6]. Since the discovery of the Honda–Fujishima effect in 1972 [7], photocatalytic hydrogen evolution reaction (HER) through water splitting has gained considerable attention due to its enormous potential to convert renewable solar energy to clean sustainable energy [8,9,10,11,12]. Researchers have devoted a significant amount of effort to investigate more effective photocatalytic systems for hydrogen evolution via photocatalytic water splitting [13,14,15,16]. Among multitudinous proposed semiconductor photocatalysts, polymeric carbon nitride (CN) has been considered promising for visible-light driven hydrogen evolution due to its tunable bandgap, low cost, earth-abundant nature, nontoxicity, facile preparation, being environmentally benign, and its remarkable physical and chemical stability [17,18,19,20,21,22]. Unfortunately, the photocatalytic performance of bulky CN was severely limited, resulting from the small specific surface area, large recombination rates of photo-excited electron-hole pairs, weak light-harvesting capacity, and inadequate catalytic active sites [23,24,25,26,27,28]. To address these shortcomings, many strategies have been developed, such as heteroatom doping [29,30], electronic structure modulation [31,32], nano-structuring [33,34], dye sensitization [35,36,37], and heterojunction construction [38,39,40,41]. Among them, nano-structuring is considered one of the most efficient and accessible strategies, as the enlarged specific surface area simultaneously abundant and quality active sites are not only favorable to the transfer of photo-excited charge carriers but also shortened the diffusion length for both ions and electrons [42,43]. On the other hand, the nano-structuring designed materials commonly exhibit the quantum confinement effect [24] with an enlarged electronic bandgap would be favorable to an enhanced redox ability toward photocatalytic reaction, promoting the quality and quantity of photo-induced charge carriers to some extent.
The nanostructural CN can be achieved by many methods. template-assistance strategies, top-down methods, and hydrothermal approaches have been regarded as representative and impelling strategies to fabricate multidimensional CN [44,45]. Nevertheless, these methods have many unsatisfactory deficiencies, such as a shortage of template species, large time consumption, and being environmentally unfriendly, resulting from the introduction of hazardous reagents, challenging the removal of the byproducts [46,47]. In contrast, the highly efficient photocatalysis materials benefited from the improved structure and accelerated the separation efficiency of photo-induced charge carriers, which is relatively convenient to obtain by a facile bottom-up method [48,49].
Porous carbon nitride as a photocatalyst was introduced by Kang et al. Nevertheless, the material showed undesirable photocatalytic performance with a poor quantum efficiency of ~0.5%. Rahman et al. improved it to some extent, which reached a benchmark quantum efficiency of ~6% [50,51]. The synthesized photocatalyst exhibited similar structure compared to that synthesized by Rahmanetal. While the PPCN presented a higher quantum efficiency of ~19%.In this work, we report a low-cost and straightforward bottom-up method for the production of hierarchical pancake-like porous carbon nitride, the typical synthesis procedure is presented in Scheme 1. Typically, the cyanuric acid–melamine complex, which is suitable for controlling molecular self-assembly [52], was firstly synthesized. Then, ethanol and glycerol intercalated into the framework of the precursor. Next, a thermal-induced exfoliation and polycondensation process was performed to obtain the resultant products. The as-synthesized PPCN exhibited unique hierarchical pancake-like porous morphology structure and remarkable photoelectric properties. As expected, by virtue of an enlarged specific surface area up to 79.663 m2g−1, enhancing the light-harvesting capacity, and enriching the reactive sites, the hierarchical porous architecture revealed a highly efficient photocatalytic H2 evolution efficiency for water splitting under visible light irradiation (λ ≥ 420 nm), which is about nine-fold higher than that of the bulk carbon nitride (BCN). Various characterization approaches were performed to investigate the typical structure formation mechanism and the photoelectric properties of PPCN for the remarkably enhanced hydrogen evolution efficiency.

2. Results and Discussion

2.1. Morphology and Structure Characterization

The morphologies of BCN and PPCN were investigated via SEM and TEM. It can be seen that BCN appears as a large solid block material (Figure 1a) with seriously agglomerated structure. The light absorption, charge transport, and mass immigration were severely restrained owing to this bulky structure. In contrast, a 3D hierarchical pancake-like porous carbon nitride (Figure 1b–d) exhibited the opposite morphology with an enlarged dimension and abundant pores, which is greatly favorable for the dispersion and diffraction of the light toward the enhanced light absorption capacity. Meanwhile, TEM images (Figure 1e–g) displayed the mesoporous and lattice distance (Figure 1h) of 0.348 nm.
The structure can be exfoliated into hierarchical porous architecture and generated abundant pores using a suitable hybrid of alcohol and glycerol as the imbedding reagents which supporting abundant gas at the polycondensation process, leading to a hierarchical pancake-like porous architectural carbon nitride formation. N2 adsorption/desorption isotherms (Figure 2a) was performed to prove this unique structure. The calculated BET specific surface area of PPCN is 79.663 m2g−1, which is seven-fold higher than that BCN (10.643 m2g−1). Meanwhile, the peak intensity centered at 37.2 nm in BJH pore distribution curves of PPCN sample (Figure 2b) also exhibited a larger value than BCN implying an abundant nanoporosity.
The XRD patterns of PPCN is shown in Figure 3a. Compared to the BCN, PPCN presented a broader and weaker diffraction peak located at 27.2° (002), which is originated from the stacking reflection of interlayer toward a reduced dimension structure [53]. Meanwhile, the peak at 12.9°, ascribed to the repeats in the plane of tri-s-triazine unit could hardly been observed owing to the abundant pores in the interface. Fouriertransform infrared (FT-IR) spectroscopy (Figure 3b) demonstrates that the PPCN possessing a similar chemical structure with BCN. The 810 cm−1 peaks are characteristic signal of triazine unit, and the peaks ranges from 1200 to 1600 cm−1 is corresponding to the C-N heterocycles. In addition, the broad band peaks located at 3000–3600 cm−1 were contributed to-NH stretching vibrations [54]. It is notably that the terminal-NH absorption peak at 3000–3600 cm−1 of PPCN vibrate more strongly compared to that of BCN, which can be attributed to the difference in the crystal structural between BCN and PPCN.
X-ray photoelectron spectroscopy (XPS) was further performed to investigate the composition and chemical states of BCN and PPCN. As can be seen in Figure 3c, the presence peaks of C, N, and O are found both in the PPCN and BCN. It should be noted that the higher intensity of O 1s signal of PPCN is easy for the absorption of water and CO2 due to the hierarchical porous architecture structure. The corresponding high-resolution spectra of C 1s, N 1s, O1s are shown in Figure 3d–f, respectively. The C 1s XPS spectrum revealed three peaks, which can be ascribed to the adventitious carbon species (284.4 eV) [55], C–NHX species on the edges of aromatic rings (286.03 eV) [56], and the sp2-hybridized C atom in N==C(–N)2 (288.0 eV) [57], which is consistent with that of BCN. The intensity of the sp2-bonded carbon of PPCN was increased compared to the BCN may be attributed to the loss of lattice nitrogen. The N 1s XPS signals can be deconvolved into three peaks at398.46, 399.75, and 400.93 eV, which originated from the sp2-hybridized N attached to C–N=C groups, bridging N in N–(C)3 groups, and the amine functional groups (C–N–H), respectively [58,59]. Additionally, the O 1s spectra can be divided into two peaks located at 532.68 and 530.71 eV, which belongs to the adsorbed water and CO2 [60].

2.2. Photoelectric Property

UV–VIS diffuse reflectance (DRS) was used to assess the optical absorption properties of BCN and PPCN. Figure 4a indicates that BCN has an absorption edge at 460 nm. Compared with BCN, the PPCN edge shows apparent blue shift, indicating the increase in band gap of semiconductors caused by the quantum confinement effect. The bandgaps for PPCN and BCN were 2.97 and 2.80 eV according to the Kubelka–Munk function [61] (Figure 4b). Consequently, the enlarged bandgap of PPCN would endow the photo-induced electrons and holes with relatively stronger redox abilities toward photocatalytic reactions. The energy band structure of materials can be determined by the conduction band or valence band together with the band gap. In this article, we use the valence band to estimate the conduction band position [62]. The valence band (VB) in Figure 4c of BCN and PPCN was obtained by the XPS valence band spectra. From the band gap date in Figure 4b, the valence band potentials of PPCN and BCN were 1.98 and 2.30 eV vs. NHE, respectively. Finally, the energy band structure was depicted in Figure 4d. Obviously, the more negative conduction band levels of PPCN would contribute to a more powerful e– reduction ability owing to the more negative CB.
The photoluminescence tests were further performed with a 325 nm excitation wavelength to assess the separation efficiency of photo-induced electron-hole pairs. As shown in Figure 5a, PPCN presented a lower emission intensity compared with BCN, which indicated of reduced recombination of photo-induced electron-hole pairs in PPCN. It is apparent from this image that the absorption peak of PPCN shifted to a lower value resulted from the quantum size confinement, which is consistent with the DRS.
The time-resolved PL decay spectra were also performed to evaluate the photo-physical characteristics of photogenerated charge carriers of BCN and PPCN. As shown in Figure 5b, the PPCN exhibited a slower exponential decay and fluorescence than that of BCN. τ1 is originated from the free excitons recombination in semiconductor and τ2 is ascribed to the non-illuminated recombination of charge carriers in the surface defect states [63]. The short-lived and long-lived lifetime of charge carriers in PPCN (1.743 and 7.595 ns) are both higher than that BCN (1.211 and 5.733 ns). Mostly, the calculated average lifetime in PPCN was 5.089 ns which substantially exceeds 3.696 ns in BCN. The prolonged carriers lifetime and larger percentage of long lifetime charge carriers in PPCN are undoubtedly favorable for promoting the probability of charge carries to involve in photocatalytic reactions. The photocurrent response can also prove this similar conclusion [64]. As depicted in Figure 5c, the PPCN exhibited increased photocurrent intensity than BCN during six light on–off recycles, demonstrating a more efficient separation and transfer of photo-induced electrons. Furthermore, PPCN exhibited a smaller charge transfer resistance (Figure 5d) than that of BCN. Therefore, the hierarchical pancake-like porous architectural structure of PPCN is benefit to the highly efficient separation and migration of photo-induced electron-hole pairs.

2.3. Photocatalytic Performance

Though photocatalyst based on carbon nitride without precious Pt is a trend in recent years [65,66,67], platinum plays a remarkable role in photocatalytic hydrogen production due to the low overpotential and the optimal Gibbs free energy for proton [68,69]. Figure 6a presented the HER of PPCN with 3%Pt loading under visible light (λ ≥420 nm) using 15 vol% TEOA as electron donor. As shown in Figure 6a, 3%Pt@PPCN had an HER of 430 µmol g−1 h−1, which was nine-fold higher than that of 3%Pt@BCN (45 µmol g−1 h−1). The apparent quantum yield (AQE) for the Pt@PPCN reached as high as 19%at 420 nm (see the calculation in Supplementary Materials). Recycling production H2 evolution test of 3%Pt@PPCN was further performed to assess the reusability of photocatalyst. As can be seen in Figure 6b, the PPCN maintained an excellent HER stability under visible light irradiation, demonstrating the excellent structure stability of PPCN.
Overall, a rational photocatalytic HER mechanism is illustrated in Scheme 2 based on the above results and discussions. Under visible light illumination, the electrons in the valence band (VB) of PPCN are activated to the conduction band (CB) and then are trapped by the Pt for proton reduction. The holes in the VB (+1.98 eV) of PPCN oxidized the sacrificial regent TEOA and converted H2O into oxidation products (such as H2O2). The CB level of PPCN (−0.99 eV) is more negative than that of BCN (0.50 eV), which greatly boosted the reduction capacity of the PPCN. As a consequence, benefited from the 3D hierarchical pancake-like porous architecture, the utilization capacity of light absorption of PPCB would be forcefully enhanced by the scattering and diffraction in the pores and vertical plane, which significantly effective to boost the light-harvesting. More than that, the enlarged specific surface area offered more reactive sites and reduced the recombination rate of photogenerated h+–e–pairs, boosting a highly efficient photocatalytic H2 evolution reaction.

3. Experimental

3.1. Reagents

Melamine was purchased from Tianjin Damao Chemical Regent Co., Ltd. (Tianjin, China). Phosphorous acid, glycerol, and ethanol were all supplied by Xilong Scientific Co., Ltd (Jiangsu, China). All reagents used in this study were at least of analytic grade without further purification. DI water was used in the whole experiment.

3.2. Synthesis of Bulk C3N4

In the typical procedure, 10.0 g melamine powders were placed into a crucible sealed with a cover followed by calcinating at 550 °C for 4 h in a silica oxide tube furnace with a ramping rate of 2.5 °C/min under N2 flow (99.999%, 50 mL/min). The as-obtained solid blocks were named bulk C3N4.

3.3. Synthesis of Precursor

A total of 1.0 g melamine and 1.2 g phosphorous acid were added to 100 mL deionized water in a magnetic stirrer kept vigorous stirring for 1h at 80 °C. Next, the solution was transferred into Teflon-lined stainless-steel autoclave at 180 °C for 10 h. The mixture was centrifuged, washed with deionized water for several times to obliterate the phosphorus species. Finally, the precursors were obtained after drying at 60 °C.

3.4. Preparation of Hierarchical Pancake-Like Porous Carbon Nitride

Typically, 0.6 g precursor was refluxed with a mixed aqueous solution of 5 mLglycerol and 15 mL ethanol for 3 h in the temperature 90 °C. Then, the powders were washed by ethanol three times and dried at 60 °C. After that, the powders were transferred into a crucible tightly coated with a single layer aluminum foil paper. Finally, the crucible was placed into a muffler and heated to 500 °C for 6 h with a ramping rate of 2 °C/min to obtain the PPCN.

3.5. Characterization

X-ray diffraction (XRD, Shimadzu XRD-6100, Kyoto, Japan) was performed to identify the crystal phase and structural variation of the samples with a Cu–Ka radiation at 40 kV and 30 mA. Scanning electron macroscopy (SEM, Zeiss Sigma, Jena, Germany) and transmission electron microscope (TEM, JEM-2010, JEOL, Tokyo, Janpan) images was recorded to study the morphologies of the samples. Fourier transform infrared (FT-IR) spectra (PerkinElmer Spectrum, Waltham, USA) were recorded to examine the surface functional groups of samples. X-ray photoelectron spectroscopy (XPS) was conducted on thermo ESCALAB 250XI (Axis Ultra DLD Kratos AXIS SUPRA; phi-5000 versaprobe). Nitrogen-adsorption-desorption isotherms (Quantachrome autosorb-IQ2, Quantachrome Instruments, Florida, USA) were performed to measure the specific surface area and pore volume of the samples in a Brunauer-Emmett-Teller (BET) method. UV–VIS diffusion reflectance spectra (DRS) of the samples were recorded on a PerkinElmer Lambda with BaSO4 as a reference. Photoluminescence (PL) spectra were recorded with an excitation wavelength of 325 nm. The time-resolved fluorescence decay spectra were acquired on a Hamamatsu compact fluorescence lifetime spectrometer (C11367, Quantaurus-Tau, Hamamatsu, Japan) with 365 nm excitation wavelength and 470 nm emission wavelength.

3.6. Electrochemical Analysis

The photocurrent and electrochemical impedance spectroscopy (EIS) were investigated with a CHI660C electrochemical workstation equipped with standard three-electrodes in 0.5 M Na2SO4 aqueous solution. Among the electrodes, Photocatalyst was deposited on the Fluorine doped Tin Oxide (FTO) electrode and served as the photoanode. Pt wire as the counter electrode and saturated calomel electrode (SCE) as the reference electrode. The preparation approach of photoanode was presented as follows: 50 mg catalyst was dispersed in 100 µL ethanol to obtain a slurry. Next, the slurry was carefully coated onto a 7 mm × 14 mm FTO conductive glass and dried in room temperature. A 500 W Xe lamp quipped with a 420 nm cut-off filter was used as the light irradiation source. The EIS spectrum was recorded using the PPCN as the working electrode at a potential of 0.24 V versus SCE with the frequency ranging from 1 MHz to 0.01 Hz.

3.7. Photocatalytic Hydrogen Evolution

Photocatalytic hydrogen production performance was performed via a sealed reactor and a recirculated cooling water system. Typically, 25 mg of photocatalyst powder was dissolved in 80 mL aqueous solution (68 mL 3 wt % H2PtCl6 solution and 12 mL triethanolamine). After that, the reactor was degassed and illuminated 2 h under a full arc light 120 mW·cm−2 (λ > 300 nm) with a 420 nm wavelength cut off. Finally, the generated hydrogen was monitored by GC.

4. Conclusions

In summary, a 3D hierarchical pancake-like porous carbon nitride with remarkable photocatalytic H2 production efficiency was synthesized by a facile bottom-up strategy. 3 wt % @Pt/PPCN showed 430 µmol g−1 h−1for photocatalytic H2 production under visible light (λ ≥ 420 nm), which was nine times higher than that of 3 wt % @Pt/BCN (45 µmol g−1 h−1). The enlarged specific surface area, prolonged charge carriers lifetime, boosted light-harvesting and utilization capacity, and improved charge separation and transfer efficiency are all contributed to the optimized photocatalytic capacity. In addition, this research provides a simple and environmental-friendly approach to design highly-efficient polymeric carbon nitride catalysts for potential applications in solar energy-driven photocatalytic water splitting.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/10/1/77/s1.

Author Contributions

Conceptualization, X.Q., L.Q. and S.D.; validation, X.Q., L.Q. and S.D.; formal analysis, X.Q.; investigation, X.Q.; resources, X.Q.; data curation, X.Q., M.M. and Y.H.; writing—original draft preparation, X.Q.; writing—review and editing, X.Q.; visualization, X.Q.; supervision, L.Q. and S.D.; project administration, L.Q. and S.D.; funding acquisition, L.Q. and S.D. All authors have read and agreed to the published version of the manuscript.

Funding

The authors gratefully acknowledge the support from the financial support of National Natural Science Foundation of China (no.41763020), the Natural Science Foundation of Jiangxi Province (No.20171BAB206008), the Foundation of Jiangxi Educational Commission (no. GJJ180596, GJJ180603), and the Doctoral Scientific Research Starting Foundation of Jiangxi Science and Technology Normal University (no. 2017BSQD003).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Asif, M.; Muneer, T. Energy supply, its demand and security issues for developed and emerging economies. Renew. Sustain. Energy Rev. 2007, 11, 1388–1413. [Google Scholar] [CrossRef]
  2. Wang, X.; Blechert, S.; Antonietti, M. Polymeric Graphitic Carbon Nitride for Heterogeneous Photocatalysis. ACS Catal. 2012, 2, 1596–1606. [Google Scholar] [CrossRef]
  3. Zhang, C.; Zeng, G.; Huang, D.; Lai, C.; Chen, M.; Cheng, M.; Tang, W.; Tang, L.; Dong, H.; Huang, B.; et al. Biochar for environmental management: Mitigating greenhouse gas emissions, contaminant treatment, and potential negative impacts. Chem. Eng. J. 2019, 373, 902–922. [Google Scholar] [CrossRef]
  4. Mahmood, J.; Li, F.; Jung, S.M.; Okyay, M.S.; Ahmad, I.; Kim, S.J.; Park, N.; Jeong, H.Y.; Baek, J.B. An efficient and pH-universal ruthenium-based catalyst for the hydrogen evolution reaction. Nat. Nanotechnol. 2017, 12, 441–446. [Google Scholar] [CrossRef]
  5. Liu, J.; Liu, Y.; Liu, N.; Han, Y.; Zhang, X.; Huang, H.; Lifshitz, Y.; Lee, S.-T.; Zhong, J.; Kang, Z. Metal-free efficient photocatalyst for stable visible water splitting via a two-electron pathway. Science 2015, 347, 970–974. [Google Scholar] [CrossRef] [PubMed]
  6. Zhang, C.; Lai, C.; Zeng, G.; Huang, D.; Yang, C.; Wang, Y.; Zhou, Y.; Cheng, M. Efficacy of carbonaceous nanocomposites for sorbing ionizable antibiotic sulfamethazine from aqueous solution. Water Res. 2016, 95, 103–112. [Google Scholar] [CrossRef]
  7. Fujishima, A.; Honda, K. Electrochemical Photolysis of Water at a Semiconductor Electrode. Nature 1972, 238, 37–38. [Google Scholar] [CrossRef]
  8. Xiong, B.; Chen, L.; Shi, J. Anion-Containing Noble-Metal-Free Bifunctional Electrocatalysts for Overall Water Splitting. ACS Catal. 2018, 8, 3688–3707. [Google Scholar] [CrossRef]
  9. Wu, J.; Li, N.; Fang, H.-B.; Li, X.; Zheng, Y.-Z.; Tao, X. Nitrogen vacancies modified graphitic carbon nitride: Scalable and one-step fabrication with efficient visible-light-driven hydrogen evolution. Chem. Eng. J. 2019, 358, 20–29. [Google Scholar] [CrossRef]
  10. Rahman, M.Z.; Davey, K.; Qiao, S.Z. Carbon, nitrogen and phosphorus containing metal-free photocatalysts for hydrogen production: Progress and challenges. J. Mater. Chem. A 2018, 6, 1305–1322. [Google Scholar] [CrossRef]
  11. Rahman, M.Z.; Davey, K.; Mullins, C.B. Tuning the intrinsic properties of carbon nitride for high Quantum yield photocatalytic hydrogen production. Adv. Sci. 2018, 5, 1800820. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Rahman, M.Z.; Mullins, C.B. Understanding charge transport in carbon nitride for enhanced photocatalytic solar fuel production. Acc. Chem. Res. 2019, 52, 248–257. [Google Scholar] [CrossRef] [PubMed]
  13. Yang, J.; Wang, D.; Han, H.; Li, C. Roles of cocatalysts in photocatalysis and photoelectrocatalysis. Acc. Chem. Res. 2013, 46, 1900–1909. [Google Scholar] [CrossRef] [PubMed]
  14. Walter, M.G.; Warren, E.L.; McKone, J.R.; Boettcher, S.W.; Mi, Q.; Santori, E.A.; Lewis, N.S. Solar water splitting cells. Chem. Rev. 2010, 110, 6446–6473. [Google Scholar] [CrossRef] [PubMed]
  15. Tu, W.; Zhou, Y.; Zou, Z. Versatile graphene-promoting photocatalytic performance of semiconductors: Basic principles, synthesis, solar energy conversion, and environmental applications. Adv. Funct. Mater. 2013, 23, 4996–5008. [Google Scholar] [CrossRef]
  16. Kapilashrami, M.; Zhang, Y.; Liu, Y.S.; Hagfeldt, A.; Guo, J. Probing the optical property and electronic structure of TiO2 nanomaterials for renewable energy applications. Chem. Rev. 2014, 114, 9662–9707. [Google Scholar] [CrossRef]
  17. Li, X.; Wang, T.; Duan, P.; Baldini, M.; Huang, H.T.; Chen, B.; Juhl, S.J.; Koeplinger, D.; Crespi, V.H.; Schmidt-Rohr, K.; et al. Carbon nitride nanothread crystals derived from pyridine. J. Am. Chem. Soc. 2018, 140, 4969–4972. [Google Scholar] [CrossRef]
  18. Li, J.; Zhang, Z.; Cui, W.; Wang, H.; Cen, W.; Johnson, G.; Jiang, G.; Zhang, S.; Dong, F. The spatially oriented charge flow and photocatalysis mechanism on internal van der waals heterostructures enhanced g-C3N4. ACS Catal. 2018, 8, 8376–8385. [Google Scholar] [CrossRef]
  19. Huang, D.; Luo, H.; Zhang, C.; Zeng, G.; Lai, C.; Cheng, M.; Wang, R.; Deng, R.; Xue, W.; Gong, X.; et al. Nonnegligible role of biomass types and its compositions on the formation of persistent free radicals in biochar: Insight into the influences on Fenton-like process. Chem. Eng. J. 2019, 361, 353–363. [Google Scholar] [CrossRef]
  20. Han, C.; Meng, P.; Waclawik, E.R.; Zhang, C.; Li, X.H.; Yang, H.; Antonietti, M.; Xu, J. Palladium/graphitic carbon nitride (g-C3N4) stabilized emulsion microreactor as a store for hydrogen from ammonia borane for use in alkene hydrogenation. Angew. Chem. Int. Ed. 2018, 57, 14857–14861. [Google Scholar] [CrossRef]
  21. Cao, S.; Yu, J. g-C3N4-Based Photocatalysts for hydrogen generation. J. Phys. Chem. Lett. 2014, 5, 2101–2107. [Google Scholar] [CrossRef] [PubMed]
  22. Cao, S.; Li, H.; Tong, T.; Chen, H.-C.; Yu, A.; Yu, J.; Chen, H.M. Single-atom engineering of directional charge transfer channels and active sites for photocatalytic hydrogen evolution. Adv. Funct. Mater. 2018, 28. [Google Scholar] [CrossRef]
  23. Zhang, J.; Chen, X.; Takanabe, K.; Maeda, K.; Domen, K.; Epping, J.D.; Fu, X.; Antonietti, M.; Wang, X. Synthesis of a carbon nitride structure for visible-light catalysis by copolymerization. Angew. Chem. Int. Ed. 2010, 49, 441–444. [Google Scholar] [CrossRef] [PubMed]
  24. Xiao, Y.; Tian, G.; Li, W.; Xie, Y.; Jiang, B.; Tian, C.; Zhao, D.; Fu, H. Molecule self-assembly synthesis of porous few-layer carbon nitride for highly efficient photoredox catalysis. J. Am. Chem. Soc. 2019, 141, 2508–2515. [Google Scholar] [CrossRef] [PubMed]
  25. Wen, X.; Sun, N.; Tan, Y.; Wang, W.; Yan, C.; Wang, H. One-step synthesis of petals-like graphitic carbon nitride nanosheets with triazole defects for highly improved photocatalytic hydrogen production. Int. J. Hydrogen Energy 2019, 44, 2675–2684. [Google Scholar] [CrossRef]
  26. Shu, Z.; Wang, Y.; Wang, W.; Zhou, J.; Li, T.; Liu, X.; Tan, Y.; Zhao, Z. A green one-pot approach for mesoporous g-C3N4 nanosheets with in situ sodium doping for enhanced photocatalytic hydrogen evolution. Int. J. Hydrogen Energy 2019, 44, 748–756. [Google Scholar] [CrossRef]
  27. Liu, Q.; Shen, J.; Yu, X.; Yang, X.; Liu, W.; Yang, J.; Tang, H.; Xu, H.; Li, H.; Li, Y.; et al. Unveiling the origin of boosted photocatalytic hydrogen evolution in simultaneously (S, P, O)-codoped and exfoliated ultrathin g-C3N4 nanosheets. Appl. Catal. B Environ. 2019, 248, 84–94. [Google Scholar] [CrossRef]
  28. Kessler, F.K.; Zheng, Y.; Schwarz, D.; Merschjann, C.; Schnick, W.; Wang, X.; Bojdys, M.J. Functional carbon nitride materials-design strategies for electrochemical devices. Nat. Rev. Mater. 2017, 2, 17030. [Google Scholar] [CrossRef]
  29. Wang, Y.; Zhang, J.; Wang, X.; Antonietti, M.; Li, H. Boron- and fluorine-containing mesoporous carbon nitride polymers: Metal-free catalysts for cyclohexane oxidation. Angew. Chem. Int. Ed. 2010, 49, 3356–3359. [Google Scholar] [CrossRef]
  30. Cao, S.; Fan, B.; Feng, Y.; Chen, H.; Jiang, F.; Wang, X. Sulfur-doped g-C3N4 nanosheets with carbon vacancies: General synthesis and improved activity for simulated solar-light photocatalytic nitrogen fixation. Chem. Eng. J. 2018, 353, 147–156. [Google Scholar] [CrossRef]
  31. Yang, C.; Wang, Z.; Lin, T.; Yin, H.; Lu, X.; Wan, D.; Xu, T.; Zheng, C.; Lin, J.; Huang, F.; et al. Core-shell nanostructured black rutile titania as excellent catalyst for hydrogen production enhanced by sulfur doping. J. Am. Chem. Soc. 2013, 135, 17831–17838. [Google Scholar] [CrossRef] [PubMed]
  32. Asahi, R.; Morikawa, T.; Ohwaki, T.; Aoki, K.; Taga, Y. Visible-light photocatalysis in nitrogen-doped titanium oxides. Science 2001, 293, 269–271. [Google Scholar] [CrossRef] [PubMed]
  33. Zhou, G.; Shan, Y.; Hu, Y.; Xu, X.; Long, L.; Zhang, J.; Dai, J.; Guo, J.; Shen, J.; Li, S.; et al. Half-metallic carbon nitride nanosheets with micro grid mode resonance structure for efficient photocatalytic hydrogen evolution. Nat. Commun. 2018, 9, 3366. [Google Scholar] [CrossRef] [PubMed]
  34. Tong, Z.; Yang, D.; Li, Z.; Nan, Y.; Ding, F.; Shen, Y.; Jiang, Z. Thylakoid-inspired multishell g-C3N4 nanocapsules with enhanced visible-Light harvesting and electron transfer properties for high-Efficiency photocatalysis. ACS Nano 2017, 11, 1103–1112. [Google Scholar] [CrossRef] [PubMed]
  35. Youngblood, W.J.; Lee, S.-H.A.; Kobayashi, Y.; Hernandez-Pagan, E.A.; Hoertz, P.G.; Moore, T.A.; Moore, A.L.; Gust, D.; Mallouk, T.E. Photoassisted overall water splitting in a visible light-absorbing dye-sensitized photoelectrochemical Cell. J. Am. Chem. Soc. 2009, 131, 926–927. [Google Scholar] [CrossRef]
  36. Xue, Y.; Lei, Y.; Liu, X.; Li, Y.; Deng, W.; Wang, F.; Min, S. Highly active dye-sensitized photocatalytic H2 evolution catalyzed by a single-atom Pt cocatalyst anchored onto g-C3N4 nanosheets under long-wavelength visible light irradiation. New J. Chem. 2018, 42, 14083–14086. [Google Scholar] [CrossRef]
  37. Wang, P.; Guan, Z.; Li, Q.; Yang, J. Efficient visible-light-driven photocatalytic hydrogen production from water by using Eosin Y-sensitized novel g-C3N4/Pt/GO composites. J. Mater. Sci. 2017, 53, 774–786. [Google Scholar] [CrossRef]
  38. Zhu, M.; Kim, S.; Mao, L.; Fujitsuka, M.; Zhang, J.; Wang, X.; Majima, T. Metal-Free Photocatalyst for H2 evolution in visible to near-infrared region: Black phosphorus/graphitic carbon nitride. J. Am. Chem. Soc. 2017, 139, 13234–13242. [Google Scholar] [CrossRef]
  39. Sun, J.; Guo, Y.; Wang, Y.; Cao, D.; Tian, S.; Xiao, K.; Mao, R.; Zhao, X. H2O2 assisted photoelectrocatalytic degradation of diclofenac sodium at g-C3N4/BiVO4 photoanode under visible light irradiation. Chem. Eng. J. 2018, 332, 312–320. [Google Scholar] [CrossRef]
  40. Liu, Y.; Yang, S.; Yin, S.-N.; Feng, L.; Zang, Y.; Xue, H. In situ construction of fibrous AgNPs/g-C3N4 aerogel toward light-driven COx-free methanol dehydrogenation at room temperature. Chem. Eng. J. 2018, 334, 2401–2407. [Google Scholar] [CrossRef]
  41. Bafaqeer, A.; Tahir, M.; Amin, N.A.S. Well-designed ZnV2O6/g-C3N4 2D/2D nanosheets heterojunction with faster charges separation via pCN as mediator towards enhanced photocatalytic reduction of CO2 to fuels. Appl. Catal. B Environ. 2019, 242, 312–326. [Google Scholar] [CrossRef]
  42. Tan, C.; Cao, X.; Wu, X.J.; He, Q.; Yang, J.; Zhang, X.; Chen, J.; Zhao, W.; Han, S.; Nam, G.H.; et al. Recent Advances in Ultrathin Two-Dimensional Nanomaterials. Chem. Rev. 2017, 117, 6225–6331. [Google Scholar] [CrossRef]
  43. Rahman, M.Z.; Kwong, C.W.; Davey, K.; Qiao, S.Z. 2D phosphorene as a water splitting photocatalyst: Fundamentals to applications. Energy Environ. Sci. 2016, 9, 709–728. [Google Scholar] [CrossRef]
  44. Wang, J.; Liu, J.; Yang, H.; Chen, Z.; Lin, J.; Shen, Z.X. Active sites-enriched hierarchical MoS2 nanotubes: Highly active and stable architecture for boosting hydrogen evolution and lithium storage. J. Mater. Chem. A 2016, 4, 7565–7572. [Google Scholar] [CrossRef] [Green Version]
  45. Tian, N.; Zhang, Y.; Li, X.; Xiao, K.; Du, X.; Dong, F.; Waterhouse, G.I.N.; Zhang, T.; Huang, H. Precursor-reforming protocol to 3D mesoporous g-C3N4 established by ultrathin self-doped nanosheets for superior hydrogen evolution. Nano Energy 2017, 38, 72–81. [Google Scholar] [CrossRef]
  46. Han, Q.; Wang, B.; Gao, J.; Cheng, Z.; Zhao, Y.; Zhang, Z.; Qu, L. Atomically thin mesoporous nanomesh of graphitic C3N4 for high-efficiency photocatalytic hydrogen evolution. ACS Nano 2016, 10, 2745–2751. [Google Scholar] [CrossRef]
  47. Jiang, Y.; Sun, Z.; Tang, C.; Zhou, Y.; Zeng, L.; Huang, L. Enhancement of photocatalytic hydrogen evolution activity of porous oxygen doped g-C3N4 with nitrogen defects induced by changing electron transition. Appl. Catal. B Environ. 2019, 240, 30–38. [Google Scholar] [CrossRef]
  48. Shalom, M.; Inal, S.; Fettkenhauer, C.; Neher, D.; Antonietti, M. Improving carbon nitride photocatalysis by supramolecular preorganization of monomers. J. Am. Chem. Soc. 2013, 135, 7118–7121. [Google Scholar] [CrossRef]
  49. Gu, Q.; Gao, Z.; Xue, C. Self-sensitized carbon nitride microspheres for long-lasting visible-light-driven hydrogen generation. Small 2016, 12, 3543–3549. [Google Scholar] [CrossRef]
  50. Kang, Y.; Yang, Y.; Yin, L.C.; Kang, X.; Liu, G.; Cheng, H.M. An amorphous carbon nitride photocatalyst with greatly extended visible-light-responsive range for photocatalytic hydrogen generation. Adv. Mater. 2015, 27, 4572–4577. [Google Scholar] [CrossRef]
  51. Rahman, M.Z.; Tapping, P.C.; Kee, T.W.; Smernik, R.; Spooner, N.; Moffatt, J.; Tang, Y.; Davey, K.; Qiao, S.-Z. A benchmark quantum yield for water photoreduction on amorphous carbon nitride. Adv. Funct. Mater. 2017, 27, 1702384. [Google Scholar] [CrossRef] [Green Version]
  52. Guo, S.; Deng, Z.; Li, M.; Jiang, B.; Tian, C.; Pan, Q.; Fu, H. Phosphorus-doped carbon nitride tubes with a layered micro-nanostructure for enhanced visible-light photocatalytic hydrogen evolution. Angew. Chem. Int. Ed. 2016, 55, 1830–1834. [Google Scholar] [CrossRef]
  53. Wang, X.; Maeda, K.; Thomas, A.; Takanabe, K.; Xin, G.; Carlsson, J.M.; Domen, K.; Antonietti, M. A metal-free polymeric photocatalyst for hydrogen production from water under visible light. Nat. Mater. 2009, 8, 76–80. [Google Scholar] [CrossRef]
  54. Niu, P.; Zhang, L.; Liu, G.; Cheng, H.-M. Graphene-like carbon nitride nanosheets for improved photocatalytic activities. Adv. Funct. Mater. 2012, 22, 4763–4770. [Google Scholar] [CrossRef]
  55. Shinde, S.S.; Lee, C.H.; Yu, J.Y.; Kim, D.H.; Lee, S.U.; Lee, J.H. Hierarchically designed 3D holey C2N aerogels as bifunctional oxygen electrodes for flexible and rechargeable Zn-Air batteries. ACS Nano 2018, 12, 596–608. [Google Scholar] [CrossRef] [Green Version]
  56. Wulan, B.-R.; Yi, S.-S.; Li, S.-J.; Duan, Y.-X.; Yan, J.-M.; Jiang, Q. Amorphous nickel pyrophosphate modified graphitic carbon nitride: An efficient photocatalyst for hydrogen generation from water splitting. Appl. Catal. B Environ. 2018, 231, 43–50. [Google Scholar] [CrossRef]
  57. Shinde, S.S.; Sami, A.; Lee, J.-H. Sulfur mediated graphitic carbon nitride/S-Se-graphene as a metal-free hybrid photocatalyst for pollutant degradation and water splitting. Carbon 2016, 96, 929–936. [Google Scholar] [CrossRef]
  58. Shen, R.; Xie, J.; Zhang, H.; Zhang, A.; Chen, X.; Li, X. Enhanced solar fuel H2 generation over g-C3N4 nanosheet photocatalysts by the synergetic effect of noble metal-free Co2P cocatalyst and the environmental phosphorylation strategy. ACS Sustain. Chem. Eng. 2017, 6, 816–826. [Google Scholar] [CrossRef]
  59. Shinde, S.S.; Sami, A.; Lee, J.-H. Nitrogen- and phosphorus-doped nanoporous graphene/graphitic carbon nitride hybrids as efficient electrocatalysts for hydrogen evolution. ChemCatChem 2015, 7, 3873–3880. [Google Scholar] [CrossRef]
  60. Tang, H.; Wang, R.; Zhao, C.; Chen, Z.; Yang, X.; Bukhvalov, D.; Lin, Z.; Liu, Q. Oxamide-modified g-C3N4 nanostructures: Tailoring surface topography for high-performance visible light photocatalysis. Chem. Eng. J. 2019, 374, 1064–1075. [Google Scholar] [CrossRef]
  61. Marci, G.; Garcia-Lopez, E.I.; Pomilla, F.R.; Palmisano, L.; Zaffora, A.; Santamaria, M.; Krivtsov, I.; Ilkaeva, M.; Barbierikova, Z.; Brezova, V. Photoelectrochemical and EPR features of polymeric C3N4 and O-modified C3N4 employed for selective photocatalytic oxidation of alcohols to aldehydes. Catal. Today 2019, 328, 21–28. [Google Scholar] [CrossRef]
  62. Rahman, M.; Davey, K.; Qiao, S.Z. Counteracting blueshift optical absorption and maximizing photon harvest in carbon nitride nanosheet photocatalyst. Small 2017, 13, 1700376. [Google Scholar] [CrossRef]
  63. Zeng, Y.; Liu, X.; Liu, C.; Wang, L.; Xia, Y.; Zhang, S.; Luo, S.; Pei, Y. Scalable one-step production of porous oxygen-doped g-C3N4 nanorods with effective electron separation for excellent visible-light photocatalytic activity. Appl. Catal. B Environ. 2018, 224, 1–9. [Google Scholar] [CrossRef]
  64. Yang, L.; Huang, J.; Shi, L.; Cao, L.; Yu, Q.; Jie, Y.; Fei, J.; Ouyang, H.; Ye, J. A surface modification resultant thermally oxidized porous g-C3N4 with enhanced photocatalytic hydrogen production. Appl. Catal. B Environ. 2017, 204, 335–345. [Google Scholar] [CrossRef]
  65. Rahman, M.; Davey, K. Enabling Pt-free photocatalytic hydrogen evolution on polymeric melon: Role of amorphization for overcoming the limiting factors. Phys. Rev. Mater. 2018, 2, 125402. [Google Scholar] [CrossRef]
  66. Rahman, M.Z.; Tang, Y.; Kwong, P. Reduced recombination and low-resistive transport of electrons for photo-redox reactions in metal-free hybrid photocatalyst. Appl. Phys. Lett. 2018, 112, 253902. [Google Scholar] [CrossRef]
  67. Rahman, M.Z.; Moffatt, J.; Spooner, N. Topological carbon nitride: Localized photon absorption and delocalized charge carrier separation at intertwined photocatalyst interfaces. Mater. Horiz. 2018, 5, 553–559. [Google Scholar] [CrossRef]
  68. Zhu, M.; Osakada, Y.; Kim, S.; Fujitsuka, M.; Majima, T. Black phosphorus: A promising two dimensional visible and near-infrared-activated photocatalyst for hydrogen evolution. Appl. Catal. B Environ. 2017, 217, 285–292. [Google Scholar] [CrossRef]
  69. Jiang, B.; Sun, Y.; Liao, F.; Shen, W.; Lin, H.; Wang, H.; Shao, M. Rh-Ag-Si ternary composites: Highly active hydrogen evolution electrocatalysts over Pt–Ag–Si. J. Mater. Chem. A 2017, 5, 1623–1628. [Google Scholar] [CrossRef]
Catalysts 10 00077 sch001 550

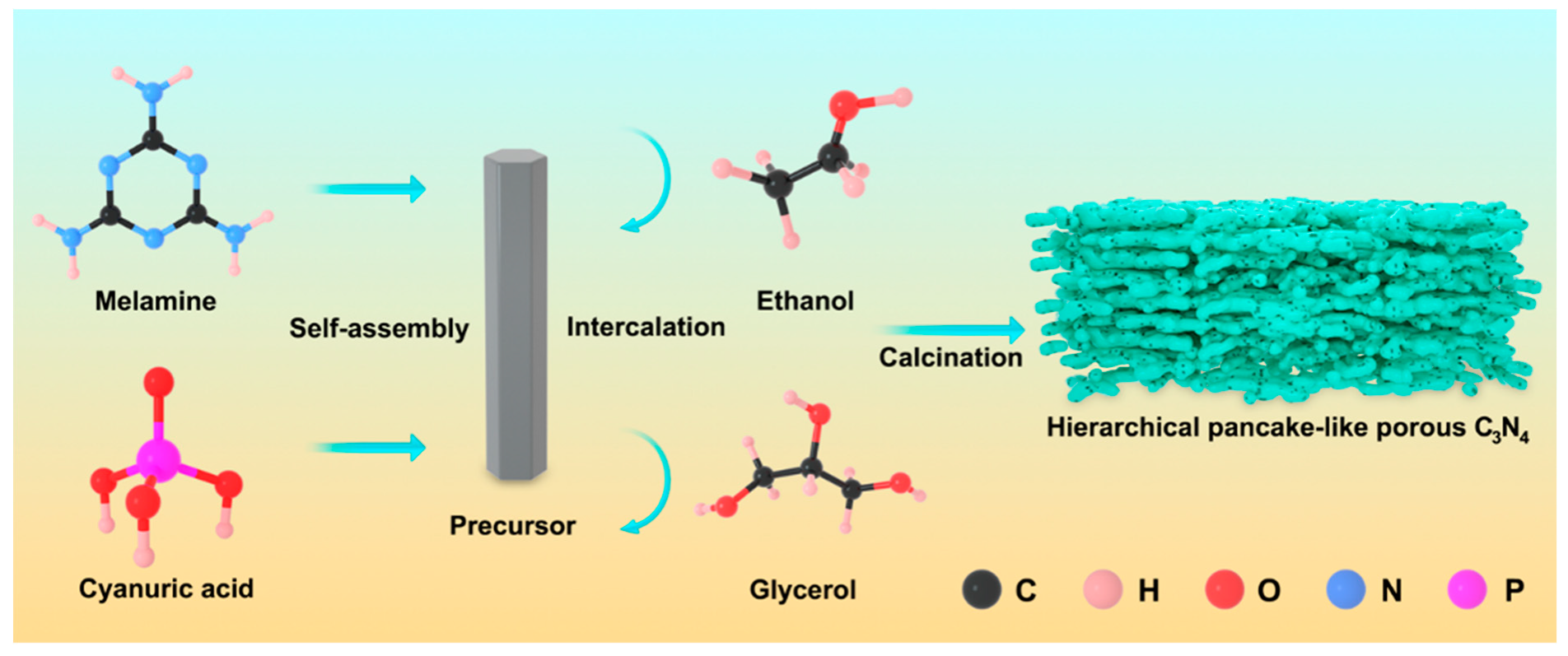

Scheme 1. Schematic illustration of hierarchical pancake-like porous C3N4 formation.
Scheme 1. Schematic illustration of hierarchical pancake-like porous C3N4 formation.
Catalysts 10 00077 sch001
Catalysts 10 00077 g001 550

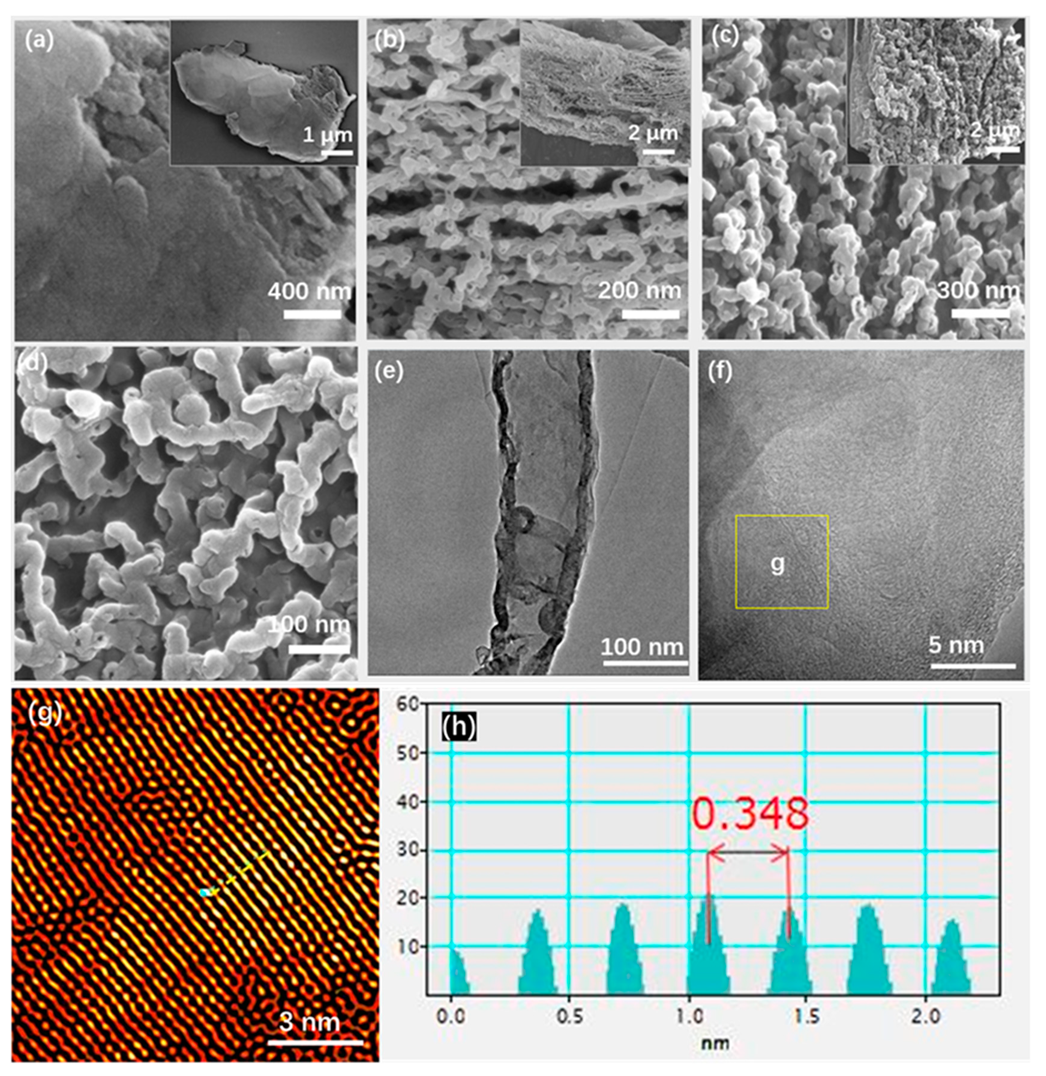

Figure 1. (a) SEM image of BCN, (b–d) SEM images of PPCN, (e–g) TEM images, and (h) lattice distance pattern of PPCN.
Figure 1. (a) SEM image of BCN, (b–d) SEM images of PPCN, (e–g) TEM images, and (h) lattice distance pattern of PPCN.
Catalysts 10 00077 g001
Catalysts 10 00077 g002 550

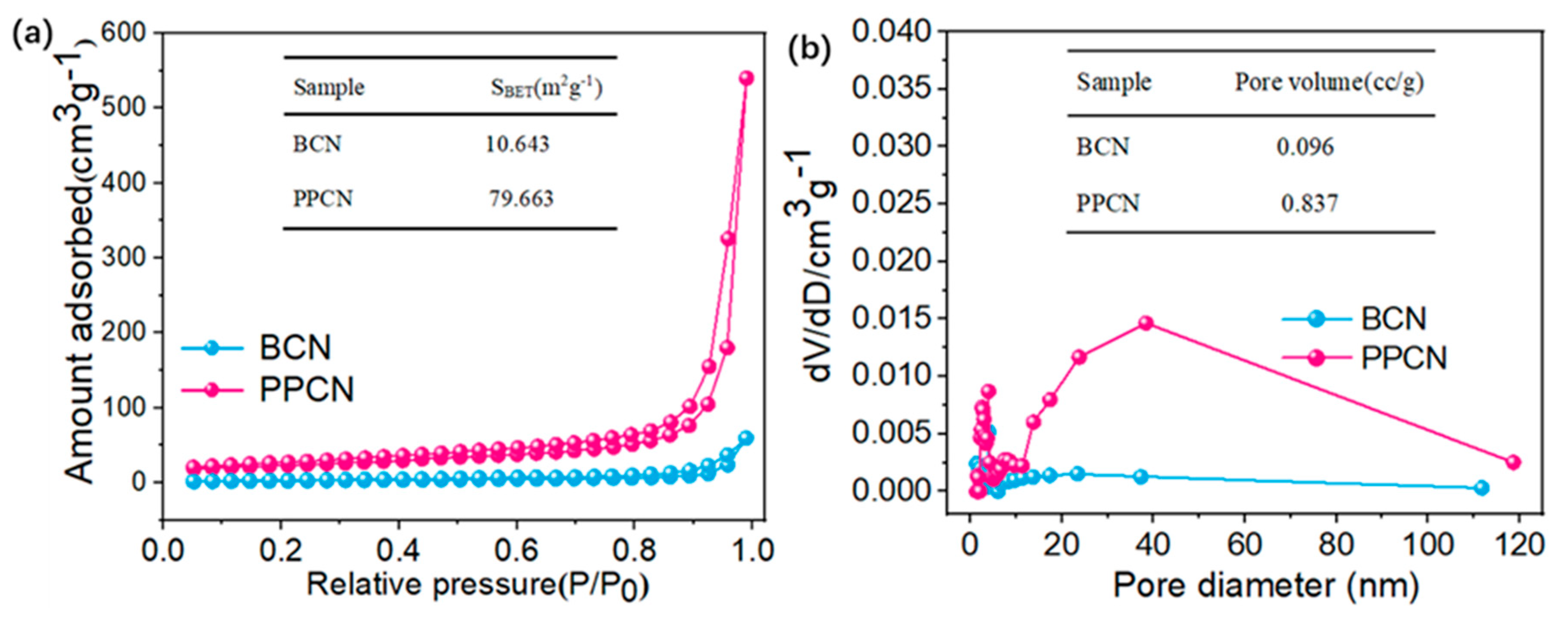

Figure 2. (a) N2 adsorption-desorption isotherm curves and (b) BJH pore size distribution curves of BCN and PPCN.
Figure 2. (a) N2 adsorption-desorption isotherm curves and (b) BJH pore size distribution curves of BCN and PPCN.
Catalysts 10 00077 g002
Catalysts 10 00077 g003 550

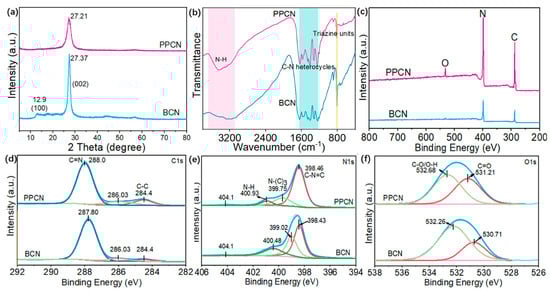

Figure 3. (a) XRD and (b) FT-IR spectra of BCN and PPCN, Survey and high-resolution XPS spectra of BCN and PPCN, (c) survey, (d) C 1s, (e) N 1s, and (f) O 1s of BCN and PPCN.
Figure 3. (a) XRD and (b) FT-IR spectra of BCN and PPCN, Survey and high-resolution XPS spectra of BCN and PPCN, (c) survey, (d) C 1s, (e) N 1s, and (f) O 1s of BCN and PPCN.
Catalysts 10 00077 g003
Catalysts 10 00077 g004 550

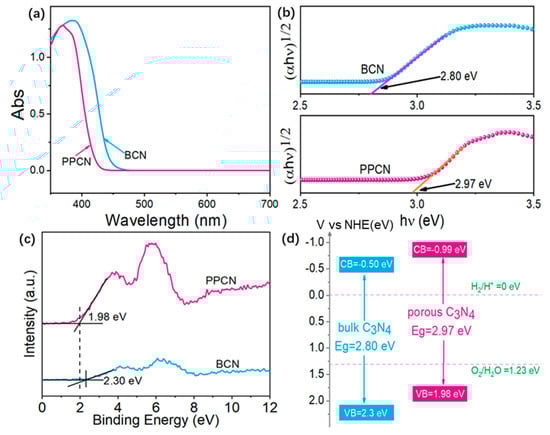

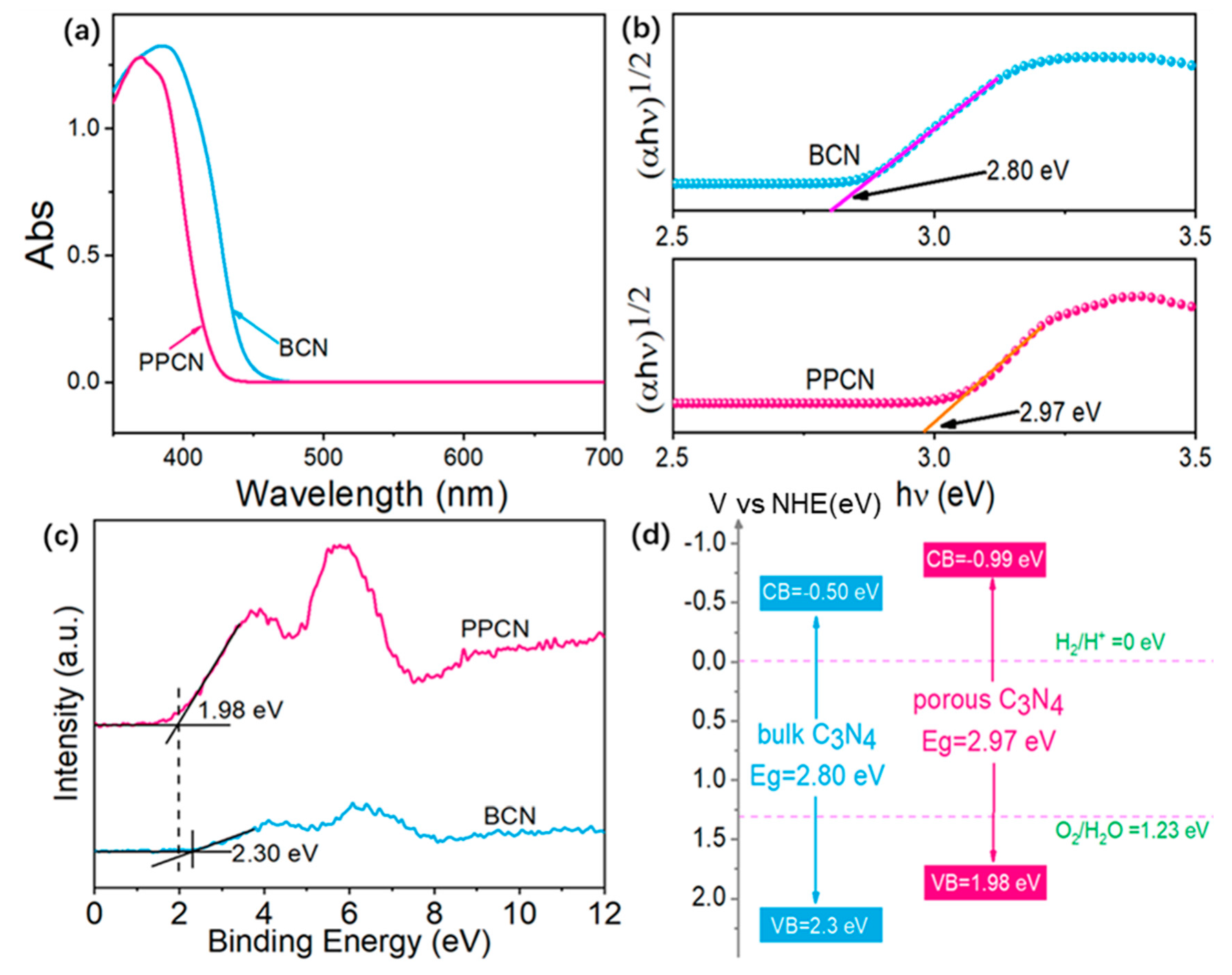

Figure 4. (a) UV–VIS DRS spectra and (b) Kubelka-Munk transformed function of BCN and PPCN, (c) valence band XPS spectra, (d) energy band structure of BCN and PPCN.
Figure 4. (a) UV–VIS DRS spectra and (b) Kubelka-Munk transformed function of BCN and PPCN, (c) valence band XPS spectra, (d) energy band structure of BCN and PPCN.
Catalysts 10 00077 g004
Catalysts 10 00077 g005 550

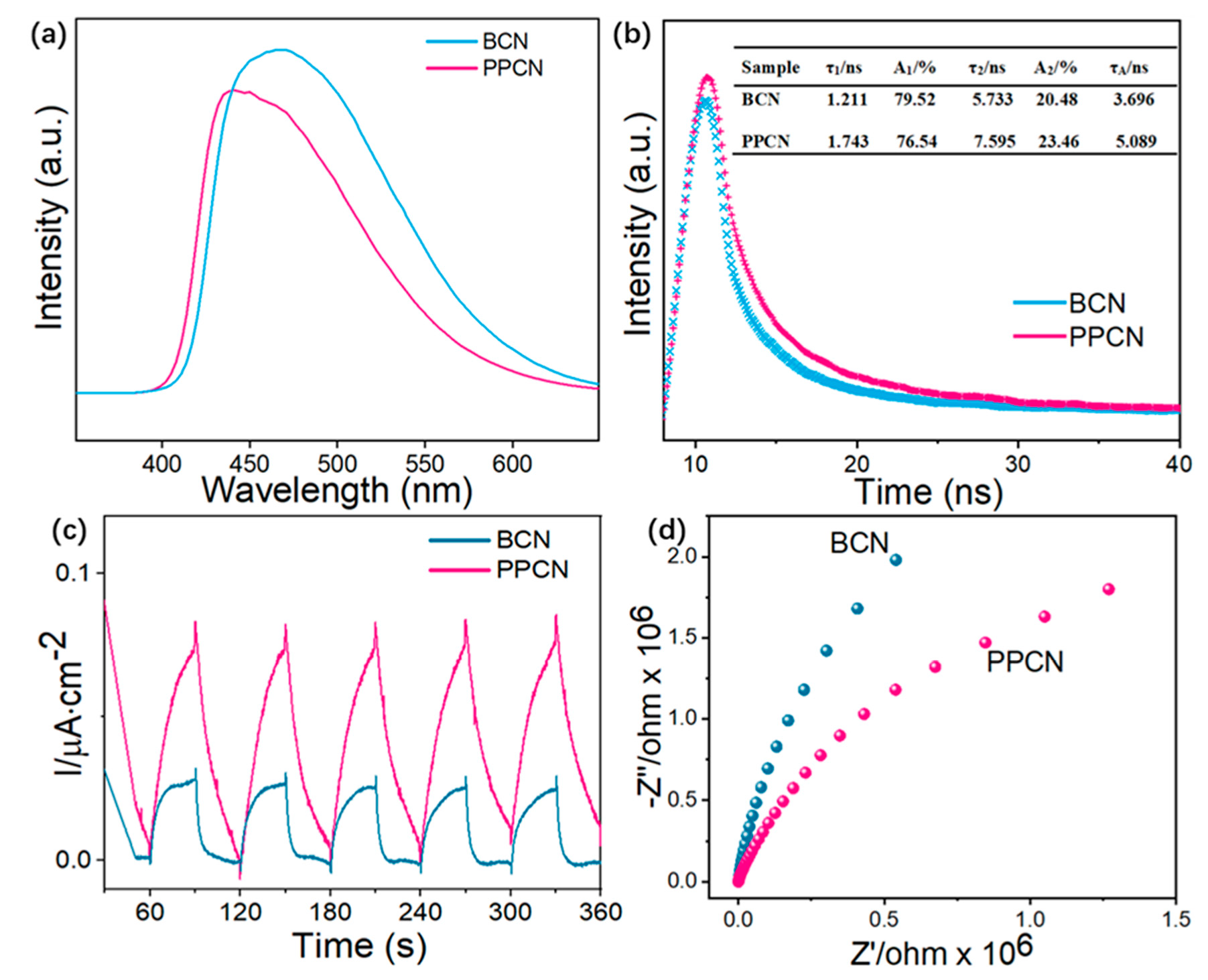

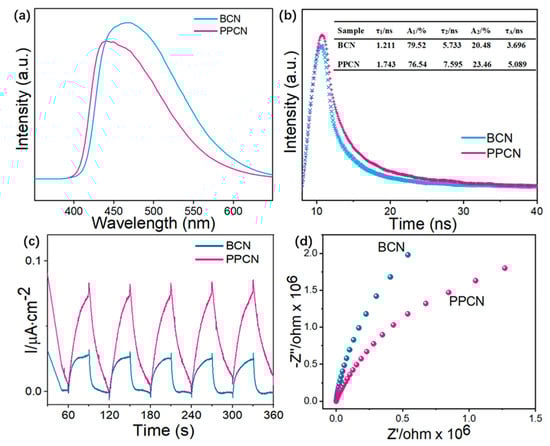

Figure 5. (a) Fluorescence emission spectra and (b) time-resolved fluorescence excited by incident light of 365 nm of BCN and PPCN, (c) photocurrent, and (d) EIS spectra of BCN and PPCN.
Figure 5. (a) Fluorescence emission spectra and (b) time-resolved fluorescence excited by incident light of 365 nm of BCN and PPCN, (c) photocurrent, and (d) EIS spectra of BCN and PPCN.
Catalysts 10 00077 g005
Catalysts 10 00077 g006 550

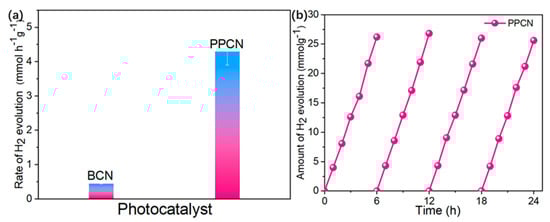

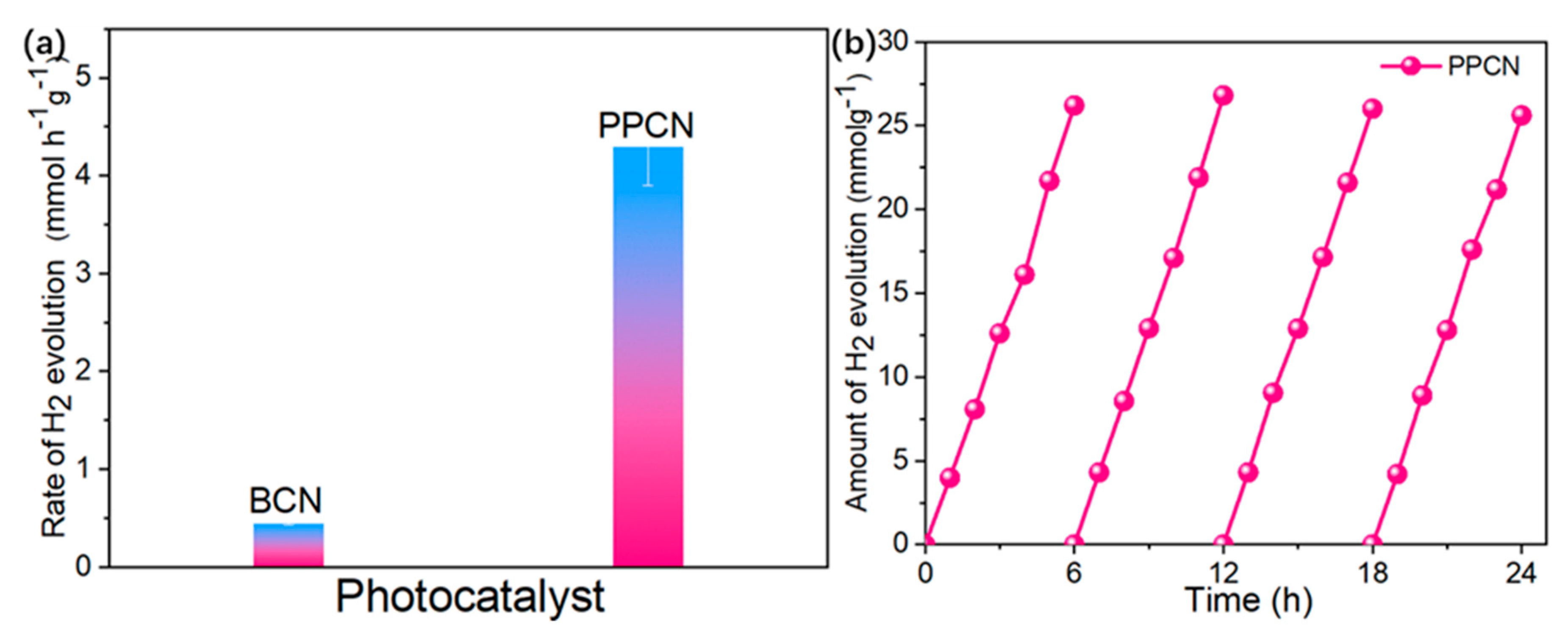

Figure 6. (a) H2 production of the BCN and PPCN with 3%Pt loading, (b) cycling H2 production of 3 wt % Pt@PPCN, Reaction conditions: (a,b) purified water photocatalytic H2 production with TEOA as sacrificial under visible light (λ ≥ 420 nm), every 6 h as a period by recovering the catalyst and started with fresh purified water.
Figure 6. (a) H2 production of the BCN and PPCN with 3%Pt loading, (b) cycling H2 production of 3 wt % Pt@PPCN, Reaction conditions: (a,b) purified water photocatalytic H2 production with TEOA as sacrificial under visible light (λ ≥ 420 nm), every 6 h as a period by recovering the catalyst and started with fresh purified water.
Catalysts 10 00077 g006
Catalysts 10 00077 sch002 550

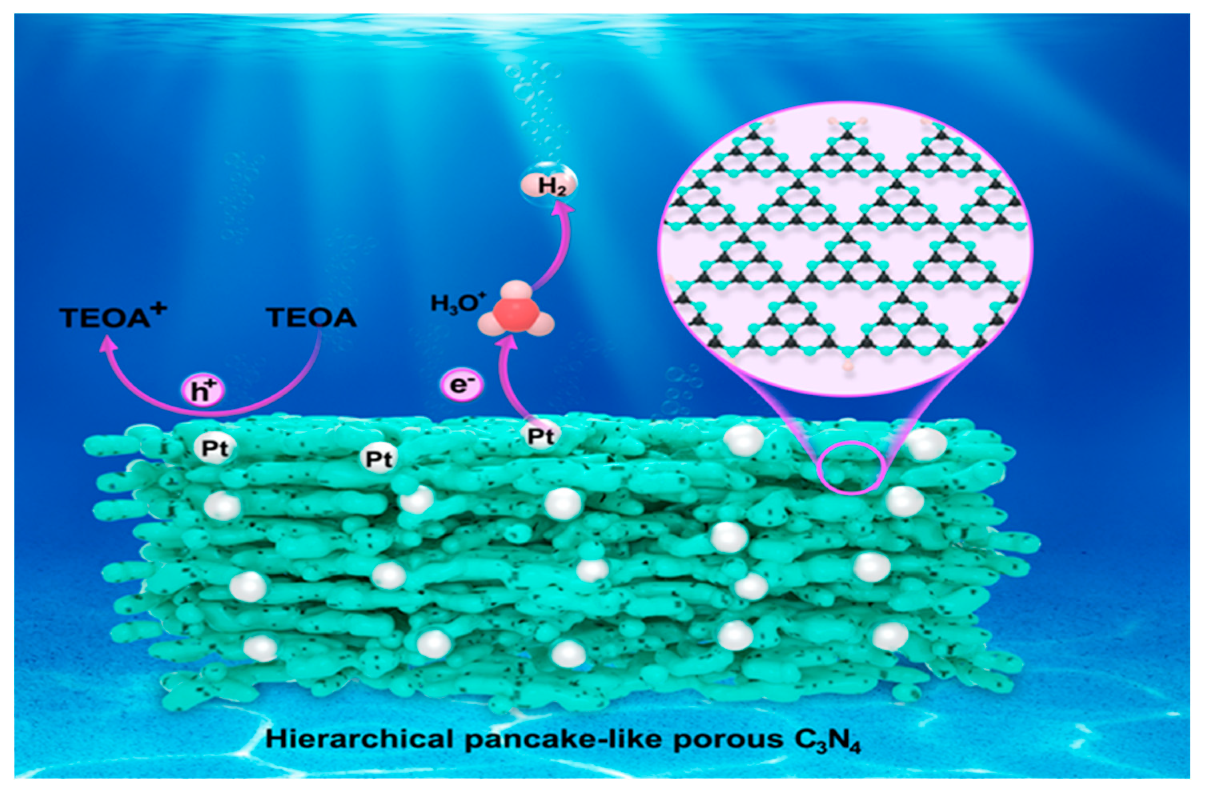

Scheme 2. Proposed photocatalysis charge transfer mechanism of Hierarchical pancake-like porous C3N4 in TEOA solution.
