Article

Selective Hydration of Nitriles to Corresponding Amides in Air with Rh(I)-N-Heterocyclic Complex Catalysts

by
Csilla Enikő Czégéni
1,*,
Sourav De
2,3,
Antal Udvardy
3,
Nóra Judit Derzsi
3,
Gergely Papp
3,
Gábor Papp
3 and
Ferenc Joó
1,3,*
1
MTA-DE Redox and Homogeneous Catalytic Reaction Mechanisms Research Group, P.O. Box 400, H-4002 Debrecen, Hungary
2
Doctoral School of Chemistry, University of Debrecen, H-4002 Debrecen, Hungary
3
Department of Physical Chemistry, University of Debrecen, P.O. Box 400, H-4002 Debrecen, Hungary
*
Authors to whom correspondence should be addressed.
Catalysts 2020, 10(1), 125; https://doi.org/10.3390/catal10010125
Received: 23 December 2019 / Revised: 13 January 2020 / Accepted: 13 January 2020 / Published: 16 January 2020
(This article belongs to the Special Issue Catalysis in Heterocyclic and Organometallic Synthesis)
Browse Figures
Versions Notes

Abstract

:
A new synthetic method for obtaining [RhCl(cod)(NHC)] complexes (1–4) (cod = η4-1,5-cyclooctadiene, NHC = N-heterocyclic carbene: IMes, SIMes, IPr, and SIPr, respectively) is reported together with the catalytic properties of 1–4 in nitrile hydration. In addition to the characterization of 1–4 in solution by 13C NMR spectroscopy, the structures of complexes 3, and 4 have been established also in the solid state with single-crystal X-ray diffraction analysis. The Rh(I)-NHC complexes displayed excellent catalytic activity in hydration of aromatic nitriles (up to TOF = 276 h−1) in water/2-propanol (1/1 v/v) mixtures in air.

1. Introduction

From the viewpoint of the industrial and pharmacological applications, amides are important compounds in many fields and several ways are reported to obtain amides from nitriles [1,2]. Hydration of nitriles to amides is a 100% atom economic reaction, however the procedure is biased by selectivity issues. Traditionally, hydration of nitriles has been performed in the presence of strong inorganic acids (H2SO4) or bases (NaOH) under harsh conditions, that often results in over-hydrolysis and produces undesired carboxylic acids. To avoid this problem, in the last decades several remarkable catalytic systems have been developed to stop hydration at the amide stage, e.g., using enzymes as biocatalysts (nitrile hydratase, NHase) [3], nanocatalysts such as a Fe3O4 magnetic nanoparticles-supported Cu-NHC complex [4], or ruthenium hydroxide nanoparticles on magnetic silica [5], silver nanoparticles [6], and other heterogeneous [7,8,9,10] or homogenous catalysts. A broad spectrum of transition metal complexes based on rhodium [11,12], ruthenium [12,13,14,15], nickel [16], osmium [17], and gold [18] were employed as catalysts, and the field has been reviewed from various aspects [19,20,21,22,23,24,25,26,27,28,29].
Transition metal-free processes have been described, too, such as the CsOH/DMSO superbase system [30], NaOH as catalyst [31], or tBuOK under anhydrous conditions [32]. Nitrile hydratases catalyze the hydration of nitriles to the corresponding amides under softer conditions and have been successfully used, for example, for production of levetiracetam (Keppra®) for the treatment of epilepsy [3]. However, the application of most NHases is limited because of their substrate specificity, and the rapid decay of the catalytic activity at temperatures higher than 10–30 °C, not mentioning their high cost. Despite all the mentioned results, the development of efficient new catalysts is still required. Although the homogenous organometallic catalysts give the target amides with high selectivity and in high yield, many of the reported reactions were carried out at high temperature (> 150 °C) [33], or in several cases required specific reaction conditions such as microwave irradiation, inert atmosphere or long reaction times. For example, Oshiki et al. described a very efficient catalyst [33], cis-[Ru(acac)2(PPh2py)2] (acac = acetylacetonate, PPh2py = diphenyl-2-pyridylphosphine) for hydration of benzonitrile at 180 °C in 1,2-dimethoxyethane under argon with the highest turnover frequency reported to date for this reaction, i.e., TOF = 20,900 h−1 (TOF = mol amide × (mol catalyst × h)−1). However, this excellent activity was observed only at high temperature; the TOF value dropped to 222 h−1 upon reducing the temperature to 150 °C, and no product was observed at 80 °C.
The field of transition metal complex-catalyzed nitrile hydration is dominated by ruthenium-based catalysts [7,10,12,13,14,33,34] and only a few rhodium catalysts can be found in the literature for this transformation. Ajjou et al. reported that the water-soluble rhodium complex generated in situ from [RhCl(cod)]2 (cod = η4-1,5-cyclooctadiene) and P(m-C6H4SO3Na)3 (mtppts) very effectively catalyzed the hydration of nitriles under basic conditions. As an example, benzonitrile yielded the corresponding amide quantitatively in 24 h at 90 °C and at pH of ~11.7 [35]. Saito et al. described a Rh(I)-complex prepared in situ from [Rh(cod)(OMe)]2 and PCy3 (Cy = cyclohexyl), as a remarkable hydration catalyst for nitriles in 2-PrOH at 25 °C. The nitrile substrates included aromatic, aliphatic, and olefinic substituents, however, at this low temperature, 24–72 h reaction time was required to achieve quantitative yields [36]. Bera et al. have found that in the presence of a base, [Rh(cod)(κC2-PIN)Br] (PIN = 1-isopropyl-3-(5,7-dimethyl-1,8-naphthyrid-2-yl)imidazol-2-ylidene) showed outstanding catalytic activity for hydration of organonitriles in 2-PrOH. A turnover frequency of 20,000 h−1 was possible to achieve for acrylonitrile and it was demonstrated that the naphthyridine group enhanced the hydration activity of the metal centre [37]. Recently, Cadierno et al. disclosed that [RhCl(cod){P(NMe2)3}] promoted very efficiently the selective hydration of an array of nitriles in water without the addition of a base or other additive [11].
In the last three decades, N-heterocyclic carbene (NHC) ligands and the transition metal complexes of them have attracted enormous interest in organometallic chemistry, as well as catalysis [38,39,40,41]. It is therefore surprising that Rh(I)-NHC complexes have not been employed for catalysis of nitrile hydration reactions in aqueous or partly aqueous systems. One reason for this relative lack of prominence may be in that generally, the Rh(I)-complexes—with a few exceptions—were found less reactive than the Ru(II)-based complex catalysts, and in the hydration of benzonitrile they were characterized with turnover frequencies TOF < 100 h−1. [RhCl(NHC)(cod)] complexes were first reported in 1974 by Lappert et al. [42], followed by pioneering contributions of Herrmann et al. [43]. Generally, [RhCl(cod)(NHC)] complexes are possible to be prepared by deprotonation of the imidazolium salts in the presence of [RhCl(cod)]2, and the reported procedures differ only in the nature of the deprotonation agent. The synthesis may involve the direct reaction of the free carbene (isolated or in situ generated) with [RhCl(cod)]2 [44]; reaction of an imidazolium halide salt with a [Rh(μ-OR)(cod)]2 alkoxide complex [45]; and transmetallation of [RhCl(cod)]2 with silver-NHC complexes [46]. In 2009, it was discovered that imidazolium-2-cyanides can transfer NHC ligands to rhodium complexes and this finding opened a new pathway of synthesis of [RhCl(NHC)(cod)] complexes, too [47]. Plenio et al. also reported the one-step synthesis of [RhCl(NHC)(cod)] complexes using K2CO3 as base in acetone at 60 °C [48]. tBuOK in THF could also be used at room temperature [49].
The first selective catalytic hydration of nitriles under anhydrous conditions in the presence of [RhCl(cod)(IMes)] as the catalyst was reported in 2009 by Lee et al. [50]. Hydration of nitriles was achieved with propionaldoxime as a water source; with 1 mol% catalyst, hydration of 4-methoxybenzonitrile yielded the respective amide with 87% conversion at 110 °C in 6 h. Later this group reported the selective hydration of nitriles into the respective amides on the catalytic action of Wilkinson’s catalyst with acetaldoxime as the water source; various functional groups were compatible with the reaction conditions [51].
To the best of our knowledge, there are no [RhCl(cod)(NHC)] type Rh(I)-catalysts reported until now for the selective hydration reaction of nitriles with water in aqueous or partly aqueous solvents. Therefore, we initiated a study of catalytic nitrile hydration with the use of the known [RhCl(cod)(NHC)] (1–4) complexes with the NHC ligands IMes, SIMes, IPr, and SIPr, respectively (Figure 1) [44,46,48,49,52,53,54,55,56]. In this article, we report on a simple, one-step synthetic procedure for obtaining these complexes using [RhX(cod)]2 (X = Cl–, OH–) as a metal precursor, the respective imidazolium/imidazolinium chlorides, and K2CO3 as the deprotonating agent, in toluene at 70 °C. Successful application of complexes 1–4 for the selective hydration of several aromatic and heteroaromatic nitriles to the corresponding amides is also described in detail below.

2. Results and Discussion

2.1. Synthesis and Characterization of the [RhCl(cod)(NHC)] Complexes 1–4

In this work, we explored the applicability of Rh(I)-N-heterocyclic complexes 1–4 (Figure 1) for catalysis of hydration of aromatic nitriles. We developed a synthetic method for obtaining these known compounds [44,46,48,49,52,53,54,55,56], which does not require the use of the isolated free carbenes or the use of the corresponding Ag(I)-NHC transmetallating agents.
In general, the synthesis of 1–4 (Scheme 1) involved stirring of the respective 1,3-diarylimidazolium or 1,3-diarylimidazolinium salt in toluene at 70 °C together with [RhCl(cod)]2 and K2CO3 as an efficient and mild base (A) [47] or with [Rh(OH)(cod)]2 (no base added; B). After removal of the toluene solvent the products were dissolved in CH2Cl2-ethyl acetate and purified by passing through a short silica column; complexes 1–4 were isolated in 58–88% yield.
The purity of the complexes was checked by 1H and 13C{1H} NMR spectroscopy. The 13C{1H} NMR spectra of all complexes displayed the diagnostic Rh(I)-C(carbene) doublet resonances at 183.2 and 185.5 ppm (1 and 3), and 212.4 and 214.9 ppm (2 and 4), respectively (further spectral details in the Materials and Methods Section).
Single-crystals of 4 could be obtained by crystallization from chloroform at room temperature. In addition, both 3 and 4 yielded single-crystals from benzene, however, these crystals contained solvating benzene molecules, too. (Further experimental details of the X-ray structure analysis can be found in Supplementary Materials). The crystals were subjected to X-ray diffraction measurements. The respective capped sticks representations are shown on Figure 2, Figure 3 and Figure 4, while the most important bond distances and bond angles are found in Table 1, Table 2 and Table 3.
The solid-state crystal structure of 3 has already been determined by single crystal X-ray diffraction and was resolved without solvent [54]. This gives a possibility to compare the structures of 3 and 4 (Table 1). The unit cell of [RhCl(cod)(SIPr)] (4), obtained from chloroform, does not contain solvent molecules, and, in contrast to [RhCl(cod)(IPr)] (3) [54] (P21/c), it crystallizes in the monoclinic P21/nspace group. There are two neutral Rh-complex molecules in the unit cells of both compounds. The lengths of the unit cell edges, and the unit cell angles show only slight differences. This is not surprising, since the sp2 or sp3 C-atoms in the IPr, and SIPr ligands, respectively, do not influence significantly the measures of the unit cell (the same is true for the two extra hydrogen atoms in SIPr). There are no significant differences in the Rh–Ccarbene and in the Rh–Cl bond lengths, either, however, the C2–C3 bond lengths in the [RhCl(cod)(SIPr)] (4) molecules are 1.501(7) Å, and 1.487(7) Å, respectively, which unambiguously refers to sp3 carbon atoms. Saturation of the heterocyclic ring does not alter significantly the Ccarbene–Rh–Cl angles, either. Interestingly, the data of the unit cells of 3 and 4 are almost identical to those of [IrCl(cod)(IPr)] [57]; the data are compared in Tables S2 and S3.
Crystallization of [RhCl(cod)(IPr)] and [RhCl(cod)(SIPr)] from benzene leads to incorporation of solvent molecules into the lattice, yielding crystals of [RhCl(cod)(IPr)]_benzene_3 and [RhCl(cod)(SIPr)]_benzene_4. Unfortunately, the benzene molecules are disordered. Both [RhCl(cod)(IPr)]_benzene_3 and [RhCl(cod)(SIPr)]_benzene_4 crystallize in the monoclinic CC (no. 9) space group, and the unit cells contain four different neutral Rh(I)-complexes together with eight benzene molecules. In the four molecules of [RhCl(cod)(IPr)]_benzene_3 in the unit cell, there are no significant differences in the Rh–Cl bond lengths, however, the Rh–Ccarbene distances are slightly lower (2.031–2.051 Å) than the average Rh–Ccarbene distances in similar complexes, 2.049 Å (CSD Version 5.40, 2019). The crystal structure of [RhCl(cod)(SIPr)]_benzene_4 is very similar to that of [RhCl(cod)(IPr)]_benzene_3. In this case, too, the average Rh–Ccarbene distances (2.028–2.046 Å) are somewhat shorter than those in the benzene-free crystals of [RhCl(cod)(SIPr)] (3). The C2–C3 distance in [RhCl(cod)(IPr)]_benzene_3 is 1.330–1.339 Å which refers to carbon atoms with sp2 hybridization, while the corresponding C2–C3 bond length in [RhCl(cod)(SIPr)]_benzene_4, i.e., 1.524–1.497 Å, agrees well with the presence of sp3-hybridized carbon atoms.

2.2. Hydration of Aromatic Nitriles Catalyzed by the [RhCl(cod)(NHC)] Complexes 1–4

Due to the importance of amides in the synthesis of important pharmaceuticals, there is a strong incentive to develop new transition metal catalysts which are able to facilitate the selective hydration reaction of aliphatic, as well as aromatic nitriles to corresponding amides (Scheme 2) with high activity under mild conditions (i.e., at temperatures below 100 °C, and preferably close to room temperature).
It was found that complexes 1–4 efficiently catalyzed the hydration of benzonitrile to benzamide in a water/2-propanol = 1/1 mixture in air and under mild conditions (≤80 °C). The choice of 2-propanol as the organic component of the solvent was based on its unique favourable effects on certain reactions, e.g., hydrogenation and transfer hydrogenation of ketones [58]. The reactions did not display an induction period (Figure S1) and they proved completely selective; no products other than benzamide were detected by GC-MS or 1H NMR spectroscopy. With these catalysts, fast hydration of benzonitrile was observed only in the presence of bases. The data in Table 4 show that in the lack of a base no reaction of benzonitrile was observed in 1.5 h, and even after 2 h the conversion reached only 3%. Conversely, with bases such as tBuOK, KOH, Na2CO3, and NaOH at a [base]/[Rh] = 1/1 ratio, the conversions in 1.5 h were in the 50–60% range and were not strongly dependent on the choice of the particular base. The use of NaOH resulted in the highest conversion, and therefore it was chosen for further studies. The possible catalytic effect of the bases in Table 4 were also checked in the hydration of benzonitrile in the absence of catalysts 1–4. Under the conditions used, conversion of benzonitrile to benzamide was < 1% with all four bases (only a trace of product could be detected by gas chromatography). These results show that the contribution of base-catalyzed hydration is negligible compared to the metal-complex catalyzed transformation.
The effects of various reaction parameters for the hydration of benzonitrile were studied in detail using complex 1 as the catalyst. The progress of the reactions could be conveniently monitored by gas chromatography. Representative results are summarized in Table 5.
The data in Table 5 show that [RhCl(cod)(IMes)] (1) is an active catalyst for benzonitrile hydration. The TOF values (up to 276 h−1) compare well with those of most transition metal catalysts although fall behind the highest activities [33]. With increasing temperatures, the yield of benzamide increased and reached a maximum (98%) at 80 °C. It is also evident from Table 5, that under the applied reaction conditions, 2 h is the optimum reaction time for the catalytic hydration of benzonitrile to benzamide. For the entries 1–10 of Table 5, the effect of the base (NaOH) alone (i.e., in the absence of the Rh(I)-complex catalyst) has been checked and the results are shown in parentheses in the Conversion (%) column of the Table, next to the values obtained with catalyst 1 + NaOH. Here, again, it can be concluded, that the base-catalyzed hydration increases the total benzamide yield only to a minor extent even at higher reaction temperatures and longer reaction times (entries 5 and 10). In order to determine the efficiency of the catalyst in the absence of NaOH, we had to increase the catalyst concentration to 5 mol% (entries 11–13). Even then, no reaction was observed at reflux conditions (approximately 81 °C, see Experimental) in 60 min, and only 26% conversion of benzonitrile was obtained after 180 min reaction time. In contrast, the reaction with 1 + NaOH led to 86% conversion already after 10 min (entry 14).
Table 5 also shows the effect of the water-soluble tertiary phosphines PTA (1,3,5-triaza-7-phosphaadamantane) and mtppms-Na (sodium diphenylphosphinobenzene-3-sulfonate or monosulfonated triphenylphosphine Na-salt). Compared to catalyst 1 (entry 11, 0% conversion in 60 min), both PTA and mtppms increased the reaction rate and at a [phosphine]/[Rh] ratio their effect is about the same (entries 18 and 21). In general, however, mtppms proved to be more effective. Nevertheless, with regard to the rate increase, both phosphines were much inferior to NaOH (entry 14).
The precedents in the literature show that with bmim (1-butyl-3-methyl-imidazole-2-ylidene) as the NHC ligand, PTA and mtppms form [Rh(cod)(bmim)(PTA)]Cl, and [Rh(cod)(bmim)(mtppms)] (a neutral zwitterionic complex), respectively [59]. In accordance with these earlier results, we expect that tertiary phosphines coordinate to the central Rh(I) ion in [RhCl(cod)(NHC)] complexes. However, the resulting complex species are coordinatively saturated and coordination of the nitrile substrate and/or H2O or OH– to the metal ion in a Rh(I)-complex seems unlikely. In the case of [RuCl2(PTA)4]-catalyzed nitrile hydration, Frost suggested that the increased catalytic activity in the presence of a large excess of PTA was due to the pH shift into the alkaline region in concentrated PTA solutions caused by the protonation of PTA [34]. This may happen in our reactions with added PTA, too, however, it is certainly not the case with mtppms which is protonated only in concentrated aqueous acid solutions. Nevertheless, since the roles of PTA and mtppms were not clarified in detail, our observations on the effect of PTA and mtppms on the Rh(I)-complex catalyzed hydration of benzonitrile can be regarded only as an information of practical importance. Details of these phosphine effects were not scrutinized.
Table 6 presents the results of benzonitrile hydration with [RhCl(cod)(NHC)] complexes 1–4. It can be seen that in the presence of NaOH, high conversions (93 – >99%) could be obtained in reasonable reaction times (1–3 h) with all four catalysts (entries 2, 5, 8, 11). Conversely, in the absence of NaOH, each catalyst showed only low activity, and the highest conversion under such conditions was only 26% in 3 h (entry 1). It seems from the conversion data for the first hour of the reactions, that the evolution of the real catalytic species in the water/2-propanol mixed solvent from the precursor complexes 1–4 and NaOH needs noticeable time. It is fast with 1 and 2 (entries 2, 5), somewhat slower with 4 (entry 11) and significantly slower in the case of 3 (entry 8). Note, that even with catalyst 3, the conversion of benzonitrile to benzamide reached 93% in 3 h. Compared to NaOH, lower rates were achieved with PTA in the case of all four catalysts, similar to the observations discussed above in conjunction with Table 5.
[RhCl(cod)(IMes)] (1) proved suitable for hydration of benzonitriles with both electron donating and electron withdrawing substituents (Table 7). High conversions were achieved with as low as 1 mol% of catalyst. Para-chlorobenzonitrile showed more efficient conversion to p-chlorobenzamide than p-methylbenzonitrile which has an electron donating group in 4-position. Electron-withdrawing groups make the nitrile carbon more susceptible to nucleophilic attack by the activated water molecule or OH−. These findings are in agreement with the previously reported observations [6,10].
The conversions of various pyridine-carbonitriles to the corresponding amides (picolinamide, nicotinamide, isonicotinamide) were explored with 5 mol% catalyst 1 and the results are summarized in Table 8. Remarkably, the reactions of 3- and 4-pyridinecarbonitrile proceeded efficiently even in the absence of NaOH; apparently the pyridine moiety provided the sufficient basicity. The coordinating ability of the pyridyl functionality of 2-pyridinecarbonitrile reduced the activity as a catalyst of the complex and the reaction resulted only in 9% picolinamide. However, heteroaromatic nitriles with the N heteroatom adjacent to the β or γ position of the CN group (3-pyridinecarbonitrile and 4-pyridinecarbonitrile) showed high reactivity. Addition of three equivalents of PTA increased the catalytic activity in all cases, and 3-pyridinecarbonitrile, too, was hydrated with > 99% conversion in only 1 h.
Finally, we studied the hydration of benzonitrile at 25 °C. It was found, that the use of 1 mol% catalyst 1 was sufficient to give a reasonable yield in 40 h (Table 9, entry 3). However, with a higher catalyst loading (2.5 mol%) 99% conversion was reached in 24 h (Table 9, entry 8). Lowering the concentration of 2-PrOH in the aqueous solvent mixture from 50% to 20% v/v, lead to a decrease in the conversion (entries 9, 10 vs. 1–3). The origin of this latter effect is presently unclear, since even at the lower 2-propanol concentration the reaction mixtures were homogeneous, and—formally—2-propanol is not involved in the hydration of benzonitrile.

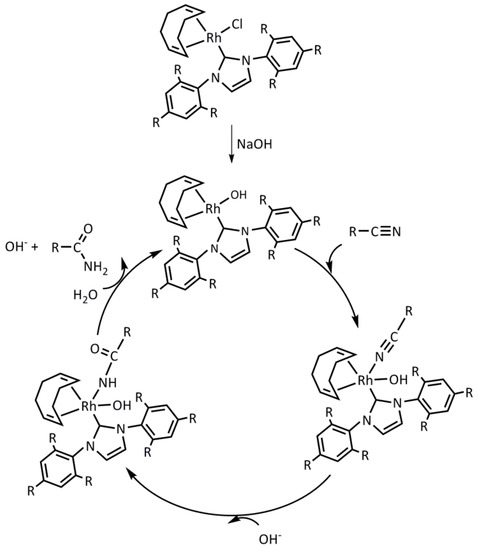

The above results did not allow the suggestion of a detailed reaction mechanism. Nevertheless, the findings are in accord with the nucleophilic attack of a Rh(I)-coordinated hydroxide onto the nitrile carbon atom (Scheme 3), similar to the mechanism suggested in [17]. It is an important observation, that the hydration reactions proceed with high rate already with 1 equivalent of base per Rh(I). Since there is hardly any conversion of benzonitrile in the absence of a base, this points to an intermediate formation of a Rh(I)-OH hydroxo-complex. On the other hand, the complete selectivity of the reaction to benzamide shows that most probably the nitrile also coordinates to the Rh-based catalyst, thereby activating the nitrile carbon against a nucleophilic attack. It should also be mentioned, that at the moment the role of the cod ligand is unclear. It may stay coordinated to the rhodium throughout the catalytic cycle, but in the reductive milieu of basic 2-propanol it may also be hydrogenated and replaced by other ligands present in the solution.

3. Materials and Methods

3.1. Materials

All chemicals and reagents used in this work were purchased from Sigma-Aldrich, St. Louis, Missouri, USA; Molar Chemicals Kft., Halásztelek, Hungary and VWR International, West Chester, Pennsylvania, USA and were used as received without further purification. Analytical thin-layer chromatography (TLC) was performed on Merck Kieselgel 60 F254 plates (Merck, Darmstadt, Germany), TLC plates were visualised by UV fluorescence at 254 nm. Column chromatography was performed on silica gel (70–230 mesh, 63–200 µm, Sigma-Aldrich). The metal precursors [RhCl(cod)]2 [60], [Rh(OH)(cod)]2 [61], the ligands PTA [62], and mtppms-Na [63] were prepared by the methods described in the literature.

3.2. General Procedure for the Synthesis of [RhCl(cod)(NHC)] Complexes

Starting from [Rh(cod)X]2 (X = Cl–, OH–) and the appropriate 1,3-diaryl-imidazoli-um/imidazolinium salts the corresponding rhodium complexes 1–4, were prepared in 58–88% yield (Scheme 1).
Method A: To a solution of 0.88 mmol of the imidazolium/imidazolinium salt in 30 mL of toluene were added 0.44 mmol of [RhCl(cod)]2 and 8.88 mmol of K2CO3 in one portion. The mixture was stirred at 70 °C for 3–24 h (followed by TLC). After removal of the solvent the product was purified by passing through a short silica column in dichloromethane:ethyl acetate = 1:1 as solvent. The coloured fraction of the complex was collected, evaporated to dryness, and the yellow solid was vacuum-dried, characterized by 1H, 13C NMR, and HR ESI-MS.
Method B: To a solution of 0.88 mmol of the imidazolium/imidazolinium salt in 30 mL of toluene was added 0.44 of 0.44 mmol of [Rh(OH)(cod)]2 and the mixture was stirred at 70 °C for the required time (followed by TLC). After removal of the solvent the product was purified by passing through a short silica column in dichloromethane:ethyl acetate = 1:1 as solvent, and the complex was isolated and characterized as in Method A.
Chloro(η4-1,5-cyclooctadiene)(1,3-dimesitylimidazole-2-ylidene)rhodium(I), [RhCl(cod)(IMes)] (1). 302 mg (0.888 mmol) IMes HCl, 220 mg (0.444 mmol) [RhCl(cod)]2, 1228 mg (8.88 mmol) K2CO3, 3 h, yield of 1: A) 345 mg (0.627 mmol) 71%; B) 399 mg (0.725 mmol), 83%. 1H NMR (360 MHz, CD2Cl2) δ/ppm: 7.12–7.11 (m, 4H, HAr), 7.04 (s, 2H, NCH), 4.48 (br, 2H, Hcod), 3.38 (br, 2H, Hcod), 2.46–2.42 (m, 12H, Me), 2.18 (s, 6H, Me), 1.92–1.89 (m, 4H, Hcod), 1.63–1.59 (m, 4H, Hcod); 13C{1H} NMR (CD2Cl2), δ/ppm: 183.2 (d, 1JRh–C = 52.3 Hz); 138.6; 137.4; 136.5; 134.5; 129.3; 128.3; 123.7; 95.7 (d, 1JRh–C = 7.2 Hz); 68.1 (d, 1JRh-C = 14.3 Hz); 32.6; 28.3; 20.8; 19.5; 17.9. MS(ESI), positive mode, in MeOH, m/z for 1, [M]+ (C29H36N2Rh), calculated: 515.1928, found: 515.1928.
Chloro(ƞ4-1,5-cyclooctadiene)(1,3-dimesitylimidazolidin-2-ylidene)rhodium(I), [RhCl(cod)(SIMes)] (2). 304 mg (0.888 mmol) SIMes HCl, 220 mg (0.444 mmol) [RhCl(cod)]2, 1228 mg (8.88 mmol) K2CO3, 22 h, yield of 2: A) 350 mg (0.632 mmol), 71%, B) 428 mg (0.773 mmol), 88%. 1H NMR (360 MHz, CD2Cl2) δ/ppm: 7.09–7.06 (m, 4H, HAr), 4.43 (br, 2H, Hcod), 3.89 (br, 4H, NCH2), 3.46 (br, 2H, Hcod), 2.62 (s, 6H, Me), 2.41–2.38 (m, 12H, Me), 1.85–1.80 (m, 4H, Hcod), 1.64–1.55 (m, 4H, Hcod);13C{1H} NMR (90 MHz, CD2Cl2), δ/ppm: 212.4 (d, 1JRh–C = 48.4 Hz); 138.2; 137.7; 136.6; 135.4; 129.6; 128.5; 96.8 (d,1JRh–C= 6.4 Hz); 67.8 (d, 1JRh–C = 14.3 Hz); 51.47; 32.6; 28.1; 20.8; 19.7; 18.2. MS(ESI), positive mode, in MeOH, m/z for 2, [M]+ (C29H38N2Rh), calculated: 517.2085, found: 517.2085.
Chloro(ƞ4-1,5-cyclooctadiene)(1,3-bis(2,6-diisopropylphenylimidazol)-2-ylidene)rhodium(I), [Rh(Cl)(cod)(IPr)] (3). 378 mg (0.888 mmol) IPr HCl, 220 mg (0.444 mmol) [RhCl(cod)]2, 1228 mg (8.88 mmol) K2CO3, 21 h, yield of 3: A) 494 mg (0.777 mmol), 88%; B) 389 mg (0.612 mmol), 69%. 1H NMR (360 MHz, dmso-d6) δ/ppm: 7.62 (s, 2H, NCH), 7.54 (t, J = 7.7 Hz, 2H, HAr), 7.39 (br, 4H, HAr), 4.33 (br, 2H, Hcod), 3.51 (br, 2H, CH(CH3)2), 3.23 (s, 2H, Hcod), 2.35–2.31 (br, 2H, CH(CH3)2), 1.71–1.27 (m, 8H, Hcod +12H, CH(CH3)2), 1.06 (d, J = 6.8 Hz, 12H, CH(CH3)2);13C{1H} NMR (90 MHz, CDCl3), δ/ppm: 186.1 (d, 1JRh–C = 52.2 Hz); 147.9; 145.3; 136.4; 129.8; 124.6; 122.9; 96.4 (d, 1JRh–C = 7.2 Hz); 67.8 (d, 1JRh–C = 14.4 Hz); 32.7; 28.8; 28.3; 26.6; 22.8. MS(ESI), positive mode, in MeOH, m/z for 3, [M]+ (C35H48N2Rh), calculated: 599.2867, found: 599.2867.
Chloro(ƞ4-1,5-cyclooctadiene)(1,3-bis(2,6-diisopropylphenylimidazolidin)-2-ylidene)rhodium(I), [RhCl(cod)(SIPr)] (4). 380 mg (0.888 mmol) SIPr HCl, 220 mg (0.444 mmol) [RhCl(cod)]2, 1228 mg (8.88 mmol) K2CO3, 24 h, yield of 4: A) 400 mg (0.627 mmol) 70%, B) 386 mg (0.605 mmol) 68%.1H NMR (360 MHz, C6D6) δ/ppm: 7.31–7.24 (m, 4H, HAr), 7.15 (d, J = 6.8 Hz, 2H, HAr), 4.99 (br, 2H, Hcod), 4.43–3.36 (m, 4H, NCH2), 3.73–3.68 (m, 2H, Hcod), 3.43–3.39 (m, 2H, CH(CH3)2), 3.10–3.03 (m, 2H, CH(CH3)2), 1.82–1.70 (m, 10H, Hcod), 1.45–1.18 (m, 18H, CH(CH3)2), 1.05 (d, J = 6.8 Hz, 6H, CH(CH3)2); 13C{1H} NMR (90 MHz, CDCl2), δ/ppm: 214.9 (d, 1JRh–C = 47.7 Hz); 149.3; 146.4; 136.9; 128.8; 124.8; 123.3; 96.4 (d, 1JRh–C = 7.1 Hz); 67.8 (d, 1JRh–C = 13.9 Hz); 53.4; 32.4; 28.9; 28.6; 27.9; 26.6; 24.0; 22.7. MS(ESI), positive mode, in MeOH, m/z for 4, [M]+ (C35H50N2Rh), calculated: 601.3024, found: 601.3025.

3.3. General Methods

1H and 13C{1H} NMR spectra were recorded on a Bruker Avance 360 MHz spectrometer (Bruker, Billerica, MA, USA) and were referenced to residual solvent peaks. Single crystal X-ray diffraction (SCXRD) measurements were performed using a Bruker D8 Venture diffractometer and the methods and software were described in [64,65,66,67,68,69,70]. Gas chromatographic measurements were done with the use of an Agilent Technologies 7890 A instrument (HP-5, 0.25 µm × 30 m × 0.32 mm, FID 300 °C (Agilent Technologies, Santa Clara, CA, USA); carrier gas: Nitrogen 1.9 mL/min). ESI-TOF-MS measurements were carried out on a Bruker maXis II MicroTOF-Q type Qq-TOF-MS instrument (Bruker Daltonik, Bremen, Germany) in positive ion mode. The mass spectra were calibrated internally using the exact masses of sodium formate clusters. The spectra were evaluated using the Compass Data Analysis 4.4 software from Bruker.
All catalytic reactions were carried out under air. The reaction temperatures were kept constant either by using a thermostated circulator (set e.g., to 80.0 ± 0.1 °C), or by running the reactions under reflux (lit. b.p. of 50% aqueous 2-propanol: 81.1 °C [71]). The products were identified by comparison of their retention time with known standard compounds.
a) Hydration of Benzonitrile without Product Isolation
100 µL (1.0 mmol) benzonitrile, 5.5 mg (0.01 mmol) [RhCl(cod)(IMes)] (1), 0.4 mg (0.01 mmol) NaOH, and 12.8 mg (0.1 mmol, 10 mol% of the substrate) naphthalene (internal standard) were dissolved in a mixture of 1.5 mL 2-propanol and 1.5 mL deionized water. This reaction mixture was placed into a temperature-controlled bath and stirred at 80 °C for 2 h. A 0.10 mL part of the resulting hot solution was extracted with 2 mL CH2Cl2, passed through a short MgSO4 column and subjected to gas chromatography. Conversion of benzonitrile: 98%.
b) Hydration of Benzonitrile with Product Isolation
200 µL (2.0 mmol) benzonitrile, 11 mg (0.02 mmol) [RhCl(cod)(IMes)] (1), and 0.8 mg (0.02 mmol) NaOH were stirred in a mixture of 1.5 mL 2-PrOH and 1.5 mL deionized water, at 80 °C. After 3 h reaction time, the resulting solution was evaporated to dryness on a rotary evaporator and the residue was chromatographed on a short silica gel column using ethyl acetate as the eluent. Yield of benzamide: 217.3 mg (89%).

4. Conclusions

We have realized one-step syntheses of the [RhCl(cod)(NHC)] complexes 1–4 without generation of the free carbene ligands or the silver-NHC complexes. The metal precursor [RhCl(cod)]2 and the respective imidazolium/imidazolinium salt was stirred overnight in toluene at 70 °C, and the desired complexes were produced in good to excellent yields. An efficient catalytic system for the selective hydration of nitriles to the corresponding amides in a water/2-propanol solvent, with tolerance of air and several functional groups, is also described. The suggested reaction mechanism considers the nucleophilic attack of a Rh(I)-coordinated OH– onto the nitrile carbon atom activated by the N-coordination of nitrile group to the metal ion.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/10/1/125/s1. Table S1. Retention times of nitriles and amides used in this study; Table S2. Experimental conditions of X-ray diffraction measurements of Rh(I)-complexes; Table S3. Unit cell data of [RhCl(cod)(IPr)] [54] and [IrCl(cod)(IPr)] [57]; Figure S1. Time course of the conversion of benzonitrile with 1 mol% of catalyst 1; Figure S2 and S3. GC separation of benzonitrile/benzamide and 2-pyridinecarbonitrile/2-pyridin-carboxamide; Figures S4–S11. 1H and 13C{1H} NMR spectra of [RhCl(cod)(IMes)] (1), [RhCl(cod)(SIMes)] (2), [RhCl(cod)(IPr)] (3), [RhCl(cod)(SIPr)] (4); Figure S12 and S13. 1H and 13C{1H} NMR spectra of benzamide obtained by hydration of benzonitrile with catalyst 1; Figures S14 and S15. 1H and 13C{1H} NMR spectra of isonicotinamide obtained by hydration of 4-pyridinecarbonitrile with catalyst 1; Figures S16 and S17. HR ESI-MS spectra of benzamide and isonicotinamide; Figures S18–S21. HR ESI-MS spectra of catalysts 1–4; Figure S22. ORTEP view of [RhCl(cod)(SIPr)] (4) (50% ellipsoid level); Figure S23. ORTEP view of [RhCl(cod)(IPr)]_benzene_3 (50% ellipsoid level); Figure S24. ORTEP view of [RhCl(cod)(SIPr)]_benzene_4 (50% ellipsoid level).

Author Contributions

Conceptualization, C.E.C. and F.J.; Methodology, G.P. (Gábor Papp) and A.U.; Synthesis and characterization of catalysts, C.E.C., N.J.D., G.P. (Gergely Papp), and S.D.; Catalysis experiments, C.E.C., N.J.D., G.P. (Gergely Papp), and S.D.; Discussion of experimental results, all authors; Writing—Original Draft Preparation, all authors; Writing—Review and Editing, C.E.C., F.J., S.D., and A.U. All authors have read and agreed to the published version of the manuscript

Funding

The research was supported by the EU and co-financed by the European Regional Development Fund (under the projects GINOP-2.3.2-15-2016-00008 and GINOP-2.3.3-15-2016-00004), and by the Thematic Excellence Programme of the Ministry for Innovation and Technology of Hungary (ED_18-1-2019-0028), within the framework of the Vehicle Industry thematic programme of the University of Debrecen. The financial support of the Hungarian National Research, Development and Innovation Office (FK-128333) is greatly acknowledged. S.D. is thankful to the Stipendium Hungaricum scholarship programme and Government of India for supporting his PhD study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ahmed, T.J.; Knapp, S.M.M.; Tyler, D.R. Frontiers in catalytic nitrile hydration: Nitrile and cyanohydrin hydration catalyzed by homogeneous organometallic complexes. Coord. Chem. Rev. 2011, 255, 949–974. [Google Scholar] [CrossRef]
  2. Allen, C.L.; Williams, J.M.J. Metal-catalysed approaches to amide bond formation. Chem. Soc. Rev. 2011, 40, 3405–3415. [Google Scholar] [CrossRef]
  3. Tao, J.; Xu, J.H. Biocatalysis in development of green pharmaceutical processes. Curr. Opin. Chem. Biol. 2009, 13, 43–50. [Google Scholar] [CrossRef] [PubMed]
  4. Kazemi Miraki, M.; Arefi, M.; Salamatmanesh, A.; Yazdani, E.; Heydari, A. Magnetic Nanoparticle-Supported Cu–NHC Complex as an Efficient and Recoverable Catalyst for Nitrile Hydration. Catal. Lett. 2018, 148, 3378–3388. [Google Scholar] [CrossRef]
  5. Baig, R.B.N.; Varma, R.S. A facile one-pot synthesis of ruthenium hydroxide nanoparticles on magnetic silica: Aqueous hydration of nitriles to amides. Chem. Commun. 2012, 48, 6220–6222. [Google Scholar] [CrossRef] [PubMed]
  6. Kim, A.Y.; Bae, H.S.; Park, S.; Park, S.; Park, K.H. Silver Nanoparticle Catalyzed Selective Hydration of Nitriles to Amides in Water Under Neutral Conditions. Catal. Lett. 2011, 141, 685–690. [Google Scholar] [CrossRef]
  7. Yamaguchi, K.; Matsushita, M.; Mizuno, N. Efficient Hydration of Nitriles to Amides in Water, Catalyzed by Ruthenium Hydroxide Supported on Alumina. Angew. Chem. Int. Ed. 2004, 43, 1576–1580. [Google Scholar] [CrossRef]
  8. Lakouraj, M.M.; Baharami, K. Selective conversion of nitriles to amides by Amberlyst A-26 supported hydroperoxide. Indian J. Chem. 1999, 38B, 974–975. [Google Scholar]
  9. Hussian, M.A.; Kim, J.W. Environmentally Friendly Synthesis of Amide by Metal-catalyzed Nitrile Hydration in Aqueous Medium. Appl. Chem. Eng. 2015, 26, 128–131. [Google Scholar] [CrossRef][Green Version]
  10. Matsuoka, A.; Isogawa, T.; Morioka, Y.; Knappett, B.R.; Wheatley, A.E.H.; Saito, S.; Naka, H. Hydration of nitriles to amides by a chitin-supported ruthenium catalyst. RSC Adv. 2015, 5, 12152–12160. [Google Scholar] [CrossRef][Green Version]
  11. Tomás-Mendivil, E.; García-Álvarez, R.; Vidal, C.; Crochet, P.; Cadierno, V. Exploring Rhodium(I) Complexes [RhCl(COD)(PR3)] (COD = 1,5-Cyclooctadiene) as Catalysts for Nitrile Hydration Reactions in Water: The Aminophosphines Make the Difference. ACS Catal. 2014, 4, 1901–1910. [Google Scholar] [CrossRef][Green Version]
  12. Rong, M.K.; van Duin, K.; van Dijk, T.; de Pater, J.J.M.; Deelman, B.J.; Nieger, M.; Ehlers, A.W.; Slootweg, J.C.; Lammertsma, K. Iminophosphanes: Synthesis, Rhodium Complexes, and Ruthenium(II)-Catalyzed Hydration of Nitriles. Organometallics 2017, 36, 1079–1090. [Google Scholar] [CrossRef]
  13. Lee, W.C.; Frost, B.J. Aqueous and biphasic nitrile hydration catalyzed by a recyclable Ru(II) complex under atmospheric conditions. Green Chem. 2012, 14, 62–66. [Google Scholar] [CrossRef]
  14. Bolyog-Nagy, E.; Udvardy, A.; Joó, F.; Kathó, Á. Efficient and selective hydration of nitriles to amides in aqueous systems with Ru(II)-phosphaurotropine catalysts. Tetrahedron Lett. 2014, 55, 3615–3617. [Google Scholar] [CrossRef][Green Version]
  15. Martín, M.; Horváth, H.; Sola, E.; Kathó, Á.; Joó, F. Water-Soluble Triisopropylphosphine Complexes of Ruthenium(II): Synthesis, Equilibria, and Acetonitrile Hydration. Organometallics 2009, 28, 561–566. [Google Scholar] [CrossRef]
  16. Singh, K.; Sarbajna, A.; Dutta, I.; Pandey, P.; Bera, J.K. Hemilability-Driven Water Activation: A Ni(II) Catalyst for Base-Free Hydration of Nitriles to Amides. Chem. Eur. J. 2017, 23, 7761–7771. [Google Scholar] [CrossRef]
  17. Buil, M.L.; Cadierno, V.; Esteruelas, M.A.; Gimeno, J.; Herrero, J.; Izquierdo, S.; Oñate, E. Selective Hydration of Nitriles to Amides Promoted by an Os–NHC Catalyst: Formation and X-ray Characterization of κ2-Amidate Intermediates. Organometallics 2012, 31, 6861–6867. [Google Scholar] [CrossRef]
  18. Gómez-Suárez, A.; Oonishi, Y.; Meiries, S.; Nolan, S.P. [{Au(NHC)}2(μ-OH)][BF4]: Silver-Free and Acid-Free Catalysts for Water-Inclusive Gold-Mediated Organic Transformations. Organometallics 2013, 32, 1106–1111. [Google Scholar] [CrossRef]
  19. Schaper, L.A.; Hock, S.J.; Herrmann, W.A.; Kühn, F.E. Synthesis and Application of Water-Soluble NHC Transition-Metal Complexes. Angew. Chem. Int. Ed. 2013, 52, 270–289. [Google Scholar] [CrossRef]
  20. Riener, K.; Haslinger, S.; Raba, A.; Högerl, M.P.; Cokoja, M.; Herrmann, W.A.; Kühn, F.E. Chemistry of Iron N-Heterocyclic Carbene Complexes: Syntheses, Structures, Reactivities, and Catalytic Applications. Chem. Rev. 2014, 114, 5215–5272. [Google Scholar] [CrossRef]
  21. Levin, E.; Ivry, E.; Diesendruck, C.E.; Lemcoff, N.G. Water in N-Heterocyclic Carbene-Assisted Catalysis. Chem. Rev. 2015, 115, 4607–4692. [Google Scholar] [CrossRef] [PubMed]
  22. De, S.; Udvardy, A.; Czégéni, C.E.; Joó, F. Poly-N-heterocyclic carbene complexes with applications in aqueous media. Coord. Chem. Rev. 2019, 400, 213038. [Google Scholar] [CrossRef]
  23. Hock, S.J.; Schaper, L.A.; Herrmann, W.A.; Kühn, F.E. Group 7 transition metal complexes with N-heterocyclic carbenes. Chem. Soc. Rev. 2013, 42, 5073–5089. [Google Scholar] [CrossRef] [PubMed]
  24. Kukushkin, V.Y.; Pombeiro, A.J.L. Additions to Metal-Activated Organonitriles. Chem. Rev. 2002, 102, 1771–1802. [Google Scholar] [CrossRef] [PubMed]
  25. Kukushkin, V.Y.; Pombeiro, A.J.L. Metal-mediated and metal-catalyzed hydrolysis of nitriles. Inorg. Chim. Acta 2005, 358, 1–21. [Google Scholar] [CrossRef]
  26. Ramón, R.S.; Marion, N.; Nolan, S.P. Gold Activation of Nitriles: Catalytic Hydration to Amides. Chem. Eur. J. 2009, 15, 8695–8697. [Google Scholar] [CrossRef]
  27. Francos, J.; Elorriaga, D.; Crochet, P.; Cadierno, V. The chemistry of Group 8 metal complexes with phosphinous acids and related POH ligands. Coord. Chem. Rev. 2019, 387, 199–234. [Google Scholar] [CrossRef]
  28. Cadierno, V. Synthetic Applications of the Parkins Nitrile Hydration Catalyst [PtH(PMe2O)2H(PMe2OH)]: A Review. Appl. Sci. 2015, 5, 380–401. [Google Scholar] [CrossRef][Green Version]
  29. García-Álvarez, R.; Crochet, P.; Cadierno, V. Metal-catalyzed amide bond forming reactions in an environmentally friendly aqueous medium: Nitrile hydrations and beyond. Green Chem. 2013, 15, 46–66. [Google Scholar] [CrossRef]
  30. Chen, H.; Dai, W.; Chen, Y.; Xu, Q.; Chen, J.; Yu, L.; Zhao, Y.; Ye, M.; Pan, Y. Efficient and selective nitrile hydration reactions in water catalyzed by an unexpected dimethylsulfinyl anion generated in situ from CsOH and DMSO. Green Chem. 2014, 16, 2136–2141. [Google Scholar] [CrossRef]
  31. Schmid, T.E.; Gómez-Herrera, A.; Songis, O.; Sneddon, D.; Révolte, A.; Nahra, F.; Cazin, C.S.J. Selective NaOH-catalysed hydration of aromatic nitriles to amides. Catal. Sci. Technol. 2015, 5, 2865–2868. [Google Scholar] [CrossRef][Green Version]
  32. Midya, G.C.; Kapat, A.; Maiti, S.; Dash, J. Transition-Metal-Free Hydration of Nitriles Using Potassium tert-Butoxide under Anhydrous Conditions. J. Org. Chem. 2015, 80, 4148–4151. [Google Scholar] [CrossRef] [PubMed]
  33. Oshiki, T.; Yamashita, H.; Sawada, K.; Utsunomiya, M.; Takahashi, K.; Takai, K. Dramatic Rate Acceleration by a Diphenyl-2-pyridylphosphine Ligand in the Hydration of Nitriles Catalyzed by Ru(acac)2 Complexes. Organometallics 2005, 24, 6287–6290. [Google Scholar] [CrossRef]
  34. Ounkham, W.L.; Weeden, J.A.; Frost, B.J. Aqueous-Phase Nitrile Hydration Catalyzed by an In Situ Generated Air-Stable Ruthenium Catalyst. Chem. Eur. J. 2019, 25, 10013–10020. [Google Scholar] [CrossRef] [PubMed]
  35. Djoman, M.C.K.B.; Ajjou, A.N. The hydration of nitriles catalyzed by water-soluble rhodium complexes. Tetrahedron Lett. 2000, 41, 4845–4849. [Google Scholar] [CrossRef]
  36. Goto, A.; Endo, K.; Saito, S. RhI-Catalyzed Hydration of Organonitriles under Ambient Conditions. Angew. Chem. Int. Ed. 2008, 47, 3607–3609. [Google Scholar] [CrossRef]
  37. Daw, P.; Sinha, A.; Rahaman, S.M.W.; Dinda, S.; Bera, J.K. Bifunctional Water Activation for Catalytic Hydration of Organonitriles. Organometallics 2012, 31, 3790–3797. [Google Scholar] [CrossRef]
  38. Diez-Gonzalez, S. (Ed.) N-Heterocyclic Carbenes: From Laboratory Curiosities to Efficient Synthetic Tools; Catalysis Series; The Royal Society of Chemistry: Cambridge, UK, 2011. [Google Scholar]
  39. Cazin, C.S.J. (Ed.) N-Heterocyclic Carbenes in Transition Metal Catalysis and Organocatalysis; Catalysis by Metal Complexes; Springer: Dordrecht, The Netherlands, 2011; Volume 32. [Google Scholar]
  40. Nolan, S.P. (Ed.) N-Heterocyclic Carbenes. Effective Tools for Organometallic Synthesis; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2014. [Google Scholar]
  41. Huynh, H.V. The Organometallic Chemistry of N-heterocyclic Carbenes; John Wiley & Sons Ltd.: Hoboken, NJ, USA, 2017. [Google Scholar]
  42. Doyle, M.J.; Lappert, M.F.; Pye, P.L.; Terreros, P. Carbene complexes. Part 18. Synthetic routes to electron-rich olefin-derived monocarbenerhodium(I) neutral and cationic complexes and their chemical and physical properties. J. Chem. Soc. Dalton Trans. 1984, 2355–2364. [Google Scholar] [CrossRef]
  43. Herrmann, W.A.; Köcher, C.; Gooßen, L.J.; Artus, G.R.J. Heterocyclic Carbenes: A High-Yielding Synthesis of Novel, Functionalized N-Heterocyclic Carbenes in Liquid Ammonia. Chem. Eur. J. 1996, 2, 1627–1636. [Google Scholar] [CrossRef]
  44. Truscott, B.J.; Slawin, A.M.Z.; Nolan, S.P. Well-defined NHC-rhodium hydroxide complexes as alkene hydrosilylation and dehydrogenative silylation catalysts. Dalton Trans. 2013, 42, 270–276. [Google Scholar] [CrossRef]
  45. Türkmen, H.; Çetinkaya, B. N-heterocyclic carbene complexes of Rh(I) and electronic effects on catalysts for 1,2-addition of phenylboronic acid to aldehydes. Appl. Organomet. Chem. 2011, 25, 226–232. [Google Scholar] [CrossRef]
  46. Yu, X.Y.; Patrick, B.O.; James, B.R. New Rhodium(I) Carbene Complexes from Carbene Transfer Reactions. Organometallics 2006, 25, 2359–2363. [Google Scholar] [CrossRef]
  47. Bittermann, A.; Baskakov, D.; Herrmann, W.A. Carbene Complexes Made Easily: Decomposition of Reissert Compounds and Further Synthetic Approaches. Organometallics 2009, 28, 5107–5111. [Google Scholar] [CrossRef]
  48. Savka, R.; Plenio, H. Facile synthesis of [(NHC)MX(cod)] and [(NHC)MCl(CO)2] (M = Rh, Ir; X = Cl, I) complexes. Dalton Trans. 2015, 44, 891–893. [Google Scholar] [CrossRef] [PubMed][Green Version]
  49. Zhou, H.; Wu, B.; Ma, J.A.; Dang, Y. Mechanistic understanding of [Rh(NHC)]-catalyzed intramolecular [5 + 2] cycloadditions of vinyloxiranes and vinylcyclopropanes with alkynes. Org. Biomol. Chem. 2018, 16, 4295–4303. [Google Scholar] [CrossRef] [PubMed]
  50. Lee, J.; Kim, M.; Chang, S.; Lee, H.Y. Anhydrous Hydration of Nitriles to Amides using Aldoximes as the Water Source. Org. Lett. 2009, 11, 5598–5601. [Google Scholar] [CrossRef]
  51. Kang, D.; Lee, J.; Lee, H.Y. Anhydrous Hydration of Nitriles to Amides: P-Carbomethoxybenzamide. Org. Synth. 2014, 89, 66–72. [Google Scholar]
  52. Denk, K.; Sirsch, P.; Herrmann, W.A. The first metal complexes of bis(diisopropylamino)carbene: Synthesis, structure and ligand properties. J. Organomet. Chem. 2002, 649, 219–224. [Google Scholar] [CrossRef]
  53. Wolf, S.; Plenio, H. Synthesis of (NHC)Rh(cod)Cl and (NHC)RhCl(CO)2 complexes—Translation of the Rh- into the Ir-scale for the electronic properties of NHC ligands. J. Organomet. Chem. 2009, 694, 1487–1492. [Google Scholar] [CrossRef]
  54. Lee, S.I.; Park, S.Y.; Park, J.H.; Jung, I.G.; Choi, S.Y.; Chung, Y.K.; Lee, B.Y. Rhodium N-Heterocyclic Carbene-Catalyzed [4 + 2] and [5 + 2] Cycloaddition Reactions. J. Org. Chem. 2006, 71, 91–96. [Google Scholar] [CrossRef]
  55. Blum, A.P.; Ritter, T.; Grubbs, R.H. Synthesis of N-Heterocylic Carbene-Containing Metal Complexes from 2-(Pentafluorophenyl)imidazolidines. Organometallics 2007, 26, 2122–2124. [Google Scholar] [CrossRef][Green Version]
  56. Gülcemal, S. Symmetric and dissymmetric N-heterocyclic carbene rhodium(I) complexes: A comparative study of their catalytic activities in transfer hydrogenation reaction. Appl. Organomet. Chem. 2012, 26, 246–251. [Google Scholar] [CrossRef]
  57. Kelly III, R.A.; Clavier, H.; Giudice, S.; Scott, N.M.; Stevens, E.D.; Bordner, J.; Samardjiev, I.; Hoff, C.D.; Cavallo, L.; Nolan, S.P. Determination of N-Heterocyclic Carbene (NHC) Steric and Electronic Parameters using the [(NHC)Ir(CO)2Cl] System. Organometallics 2008, 27, 202–210. [Google Scholar] [CrossRef]
  58. Orosz, K.; Papp, G.; Kathó, Á.; Joó, F.; Horváth, H. Strong Solvent Effects on Catalytic Transfer Hydrogenation of Ketones with [Ir(cod)(NHC)(PR3)] Catalysts in 2-Propanol-Water Mixtures. Catalysts 2019, 10, 17. [Google Scholar] [CrossRef][Green Version]
  59. Fekete, M. Catalytic Properties of N-heterocyclic Transition Metal Carbene Complexes. Ph.D. Thesis, University of Debrecen, Debrecen, Hungary, 2008. [Google Scholar]
  60. Giordano, G.; Crabtree, R.H.; Heintz, R.M.; Forster, D.; Morris, D.E. Di-μ-Chloro-Bis(η4-1,5-Cyclooctadiene)-Dirhodium(I). In Inorganic Syntheses; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2007; Volume 28, pp. 88–90. [Google Scholar]
  61. Fandos, R.; Hernández, C.; Otero, A.; Rodríguez, A.; Ruiz, M.J.; García Fierro, J.L.; Terreros, P. Rhodium and Iridium Hydroxide Complexes [M(μ-OH)(COD)]2 (M = Rh, Ir) as Versatile Precursors of Homo and Early−Late Heterobimetallic Compounds. X-ray Crystal Structures of Cp*Ta(μ3-O)4[Rh(COD)]4 (Cp* = η5-C5Me5) and [Ir(2-O-3-CN-4,6-Me2-C5HN)(COD)]2. Organometallics 1999, 18, 2718–2723. [Google Scholar] [CrossRef]
  62. Daigle, D.J.; Decuir, T.J.; Robertson, J.B.; Darensbourg, D.J. 1,3,5-Triaz-7-Phosphatricyclo[3.3.1.13,7]Decane and Derivatives. Inorg. Synth. 1998, 32, 40–45. [Google Scholar]
  63. Joó, F.; Kovács, J.; Kathó, Á.; Bényei, A.C.; Decuir, T.; Darensbourg, D.J.; Miedaner, A.; Dubois, D.L. (Meta-Sulfonatophenyl) Diphenylphosphine, Sodium Salt and its Complexes with Rhodium(I), Ruthenium(II), Iridium(I). In Inorganic Syntheses; John Wiley & Sons, Ltd.: New York, NY, USA, 1998; pp. 1–8. [Google Scholar]
  64. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  65. Burla, M.C.; Caliandro, R.; Camalli, M.; Carrozzini, B.; Cascarano, G.L.; De Caro, L.; Giacovazzo, C.; Polidori, G.; Siliqi, D.; Spagna, R. IL MILIONE: A suite of computer programs for crystal structure solution of proteins. J. Appl. Crystallogr. 2007, 40, 609–613. [Google Scholar] [CrossRef]
  66. Sheldrick, G.M. SHELXT—Integrated space-group and crystal-structure determination. Acta Crystallogr. Sect. Found. Adv. 2015, 71, 3–8. [Google Scholar] [CrossRef][Green Version]
  67. Sheldrick, G.M. A short history of SHELX. Acta Crystallogr. A 2008, 64, 112–122. [Google Scholar] [CrossRef][Green Version]
  68. Westrip, S.P. publCIF: Software for editing, validating and formatting crystallographic information files. J. Appl. Crystallogr. 2010, 43, 920–925. [Google Scholar] [CrossRef][Green Version]
  69. Macrae, C.F.; Bruno, I.J.; Chisholm, J.A.; Edgington, P.R.; McCabe, P.; Pidcock, E.; Rodriguez-Monge, L.; Taylor, R.; Streek, J.V.D.; Wood, P.A. Mercury CSD 2.0—New features for the visualization and investigation of crystal structures. J. Appl. Crystallogr. 2008, 41, 466–470. [Google Scholar] [CrossRef]
  70. APEX3 v2017.3-0; Bruker AXS Inc.: Billerica, MA, USA, 2017.
  71. Brunjes, A.S.; Bogart, M.J.P. Vapor-Liquid Equilibria for Commercially Important Systems of Organic Solvents: The Binary Systems Ethanol-n-Butanol, Acetone-Water and Isopropanol-Water. Ind. Eng. Chem. 1943, 35, 255–260. [Google Scholar] [CrossRef]
Catalysts 10 00125 g001 550
Figure 1. The Rh(I)-NHC complexes 1–4 used in our study as catalysts for selective nitrile hydration.
Figure 1. The Rh(I)-NHC complexes 1–4 used in our study as catalysts for selective nitrile hydration.
Catalysts 10 00125 g001
Catalysts 10 00125 sch001 550
Scheme 1. Synthesis of 1 from [RhCl(cod)]2 and [IMesH]Cl with K2CO3 as deprotonating agent.
Scheme 1. Synthesis of 1 from [RhCl(cod)]2 and [IMesH]Cl with K2CO3 as deprotonating agent.
Catalysts 10 00125 sch001
Catalysts 10 00125 g002 550

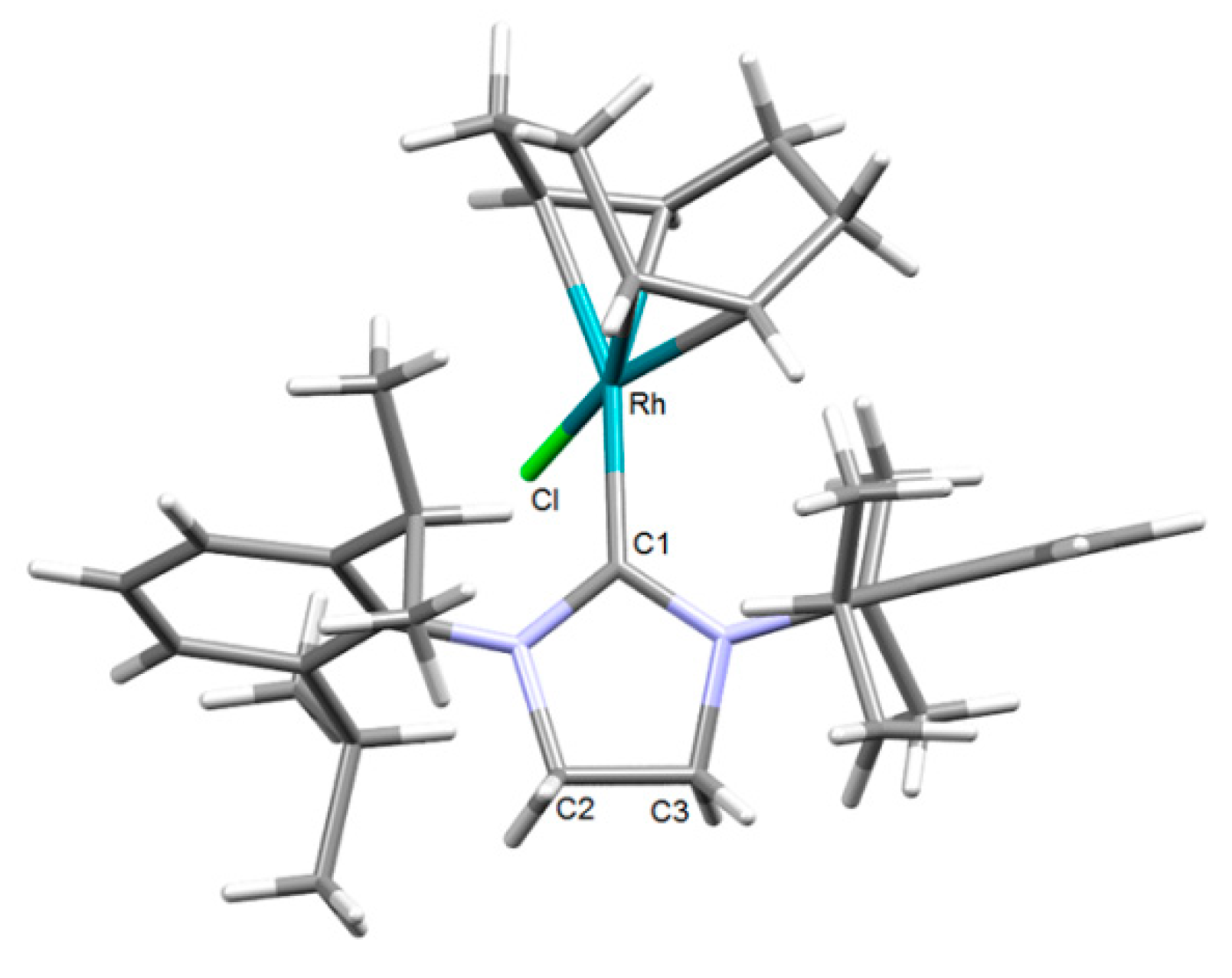

Figure 2. Capped sticks representation of the solid-state structure of [RhCl(cod)(SIPr)] (4) crystallized from CHCl3.
Figure 2. Capped sticks representation of the solid-state structure of [RhCl(cod)(SIPr)] (4) crystallized from CHCl3.
Catalysts 10 00125 g002
Catalysts 10 00125 g003 550

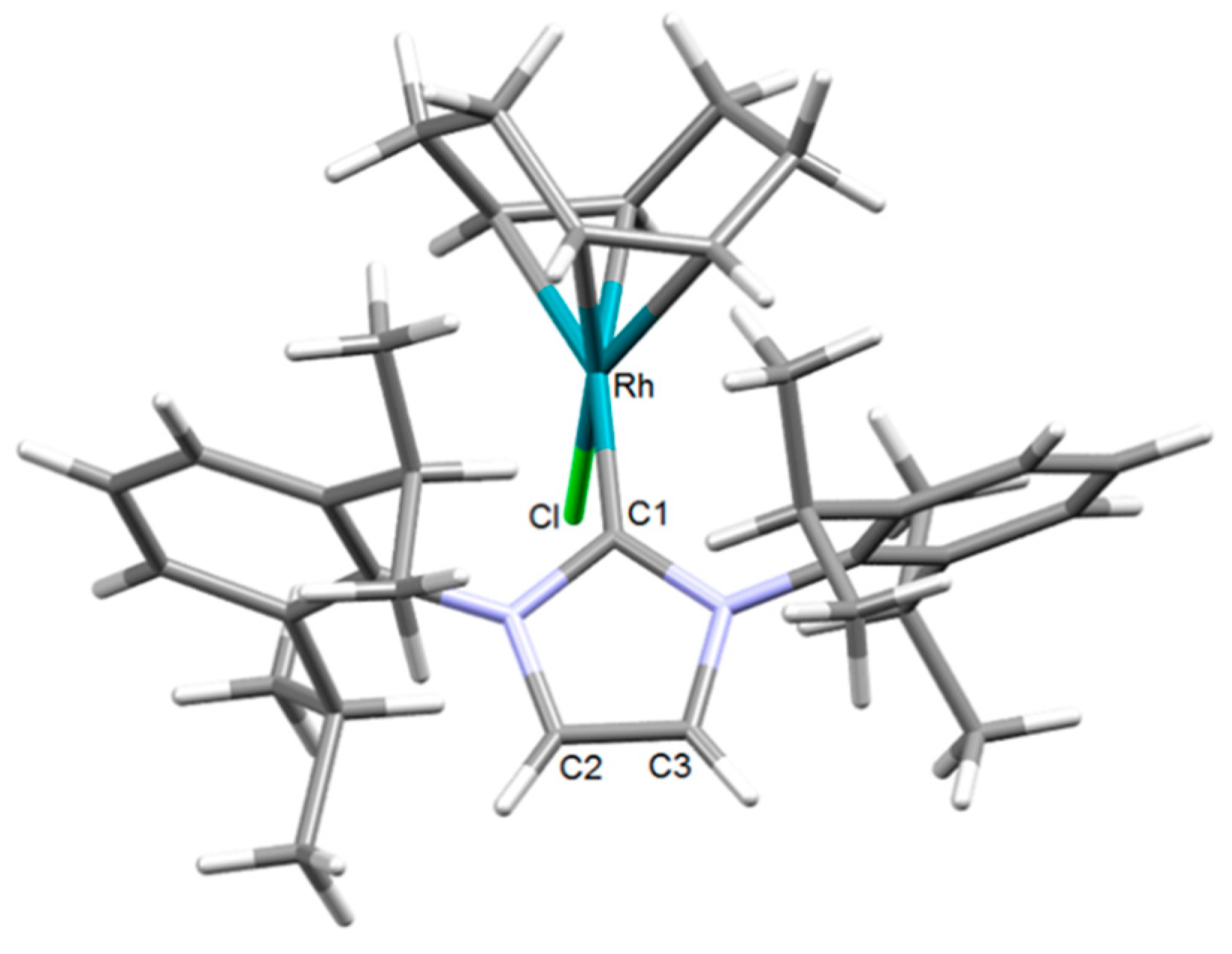

Figure 3. Capped sticks representation of the solid-state structure of [RhCl(cod)(IPr)](3) crystallized from benzene ([RhCl(cod)(IPr)]_benzene_3; benzene molecules are omitted for clarity.
Figure 3. Capped sticks representation of the solid-state structure of [RhCl(cod)(IPr)](3) crystallized from benzene ([RhCl(cod)(IPr)]_benzene_3; benzene molecules are omitted for clarity.
Catalysts 10 00125 g003
Catalysts 10 00125 g004 550

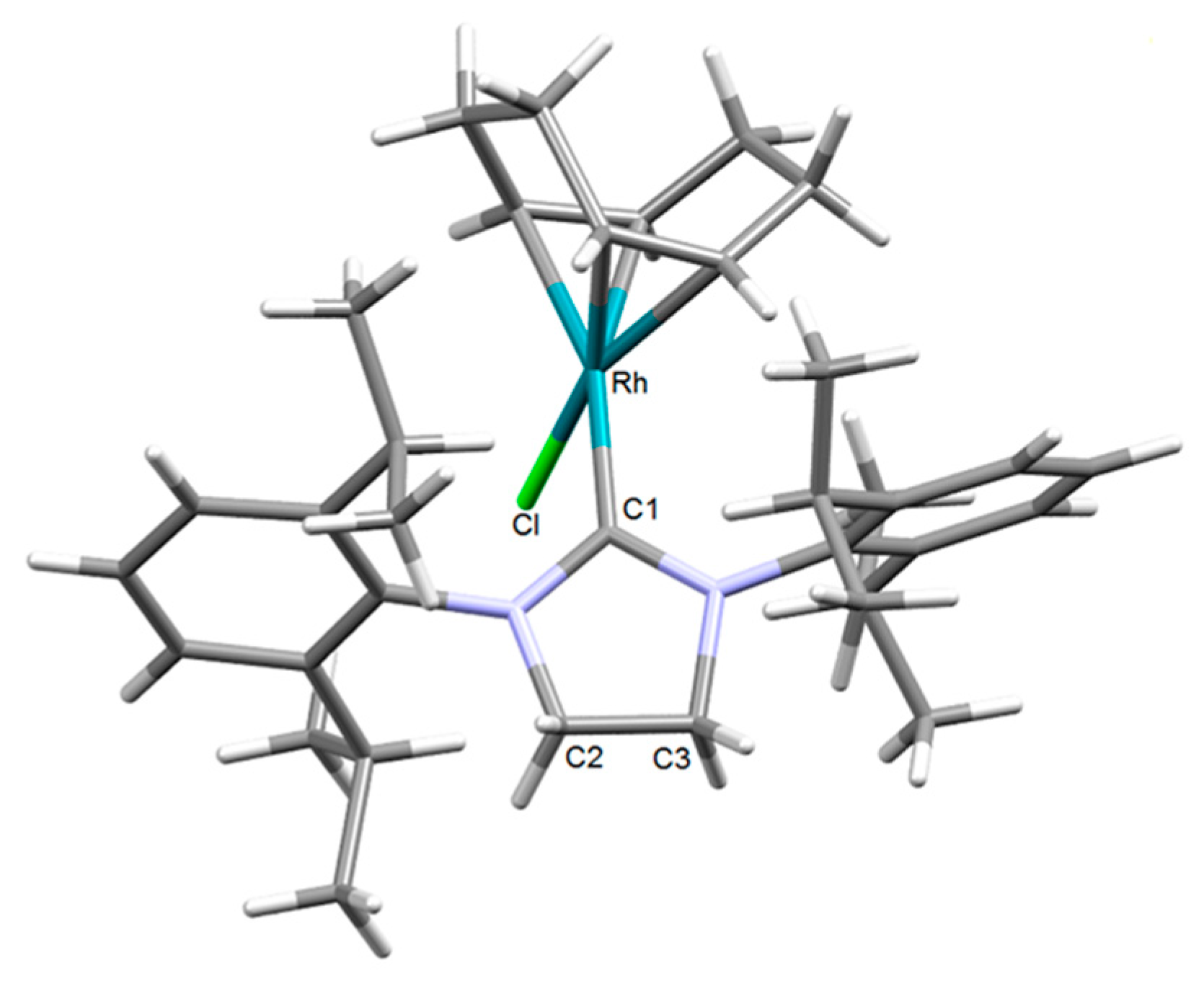

Figure 4. Capped sticks representation of the solid-state structure of [RhCl(cod)(SIPr)]_benzene_4 (benzene molecules are omitted for clarity).
Figure 4. Capped sticks representation of the solid-state structure of [RhCl(cod)(SIPr)]_benzene_4 (benzene molecules are omitted for clarity).
Catalysts 10 00125 g004
Catalysts 10 00125 sch002 550

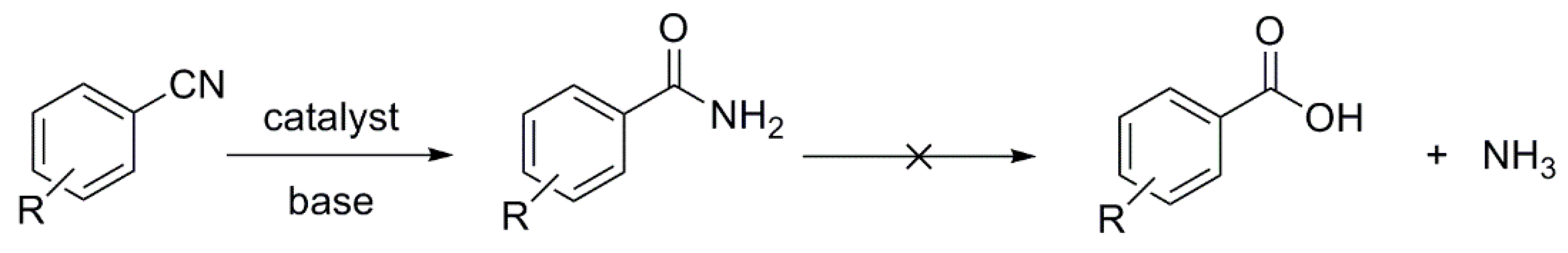

Scheme 2. General scheme of the selective hydration of benzonitriles to benzamides.
Scheme 2. General scheme of the selective hydration of benzonitriles to benzamides.
Catalysts 10 00125 sch002
Catalysts 10 00125 sch003 550
Scheme 3. Suggested mechanism of nitrile hydration catalyzed by [RhCl(cod)(NHC)] complexes.
Scheme 3. Suggested mechanism of nitrile hydration catalyzed by [RhCl(cod)(NHC)] complexes.
Catalysts 10 00125 sch003
Table
Table 1. Comparison of the most important bond lengths (Å) angles (°) of [RhCl(cod)(IPr)] (3) [54] and [RhCl(cod)(SIPr)] (4) crystallized from CHCl3 (this work).
Table 1. Comparison of the most important bond lengths (Å) angles (°) of [RhCl(cod)(IPr)] (3) [54] and [RhCl(cod)(SIPr)] (4) crystallized from CHCl3 (this work).
[RhCl(cod)(IPr)] (3) [54][RhCl(cod)(SIPr)] (4)
Rh–Ccarbene2.056(4)2.052(1)2.043(3)2.053(1)
Rh–Cl2.3467(12)2.3713(12)2.3721(11)2.3466(10)
C2–C3--1.501(7)1.487(7)
C2=C31.328(6)1.324(5)--
Ccarbene–Rh–Cl85.61(11)88.26(11)86.92(9)84.32(10)
Table
Table 2. The most important bond lengths (Å) angles (°) of the four individual molecules in the unit cells of the benzene solvate of 3, i.e., [RhCl(cod)(IPr)]_benzene_3.
Table 2. The most important bond lengths (Å) angles (°) of the four individual molecules in the unit cells of the benzene solvate of 3, i.e., [RhCl(cod)(IPr)]_benzene_3.
[RhCl(cod)(IPr)]_benzene_3
Rh–Ccarbene2.050(4)2.031(4)2.032(4)2.051(4)
Rh–Cl2.3752(11)2.3726(10)2.3706(10)2.3775(10)
C2=C31.330(6)1.338(6)1.339(6)1.333(6)
Ccarbene–Rh–Cl89.01(11)88.33(11)87.76(11)89.43(10)
Table
Table 3. The most important bond lengths (Å) angles (°) of the four individual molecules in the unit cells of the benzene solvate of 4, i.e., [RhCl(cod)(SIPr)]_benzene_4.
Table 3. The most important bond lengths (Å) angles (°) of the four individual molecules in the unit cells of the benzene solvate of 4, i.e., [RhCl(cod)(SIPr)]_benzene_4.
[RhCl(cod)(SIPr)]_benzene_4
Rh–Ccarbene2.028(7)2.034(7)2.046(7)2.044(7)
Rh–Cl2.3800(17)2.3746(17)2.3797(18)2.3781(4)
C2–C31.515(11)1.505(11)1.497(11)1.524(10)
Ccarbene–Rh–Cl87.40(19)86.03(19)88.80(18)88.08(19)
Table
Table 4. Effect of various bases on the hydration of benzonitrile catalyzed by [RhCl(cod)(IMes)] (1).
Table 4. Effect of various bases on the hydration of benzonitrile catalyzed by [RhCl(cod)(IMes)] (1).
EntryBaseConversion (%)TOF a (h−1)
1-0(3 b)0(4 b)
2tBuOK5269
3KOH5269
4K2CO35675
5NaOH5979
Conditions: 1 mmol benzonitrile, 0.5 mol% [RhCl(cod)(IMes)] (1), 0.005 mmol base, 1.5 mL 2-PrOH, 1.5 mL H2O, 80 °C, 1.5 h. a Turnover frequencies were calculated from the conversions at the indicated reaction times. b 2 h.
Table
Table 5. The effect of various reaction parameters on the hydration of benzonitrile catalyzed by [RhCl(cod)(IMes)] (1).
Table 5. The effect of various reaction parameters on the hydration of benzonitrile catalyzed by [RhCl(cod)(IMes)] (1).
EntryCatalyst (mol%)Base aPhosphineT °Ct (min)Conversion (%) bTOF c (h−1)
11NaOH-4012048 (0)24
21NaOH-5012072 (1)36
31NaOH-6012082 (1)41
41NaOH-7012091 (3)45
51NaOH-8012098 (6)49
61NaOH-801046 (1)276
71NaOH-802063 (1)189
81NaOH-803074 (2)148
91NaOH-806086 (3)86
101NaOH-809094 (5)63
115--reflux6000
125--reflux120182
135--reflux180262
145NaOH-reflux1096115
155NaOH-reflux209758
165NaOH-reflux60>9920
175-0.05 mmol PTAreflux60173
185-0.15 mmol PTAreflux607014
195-0.25 mmol PTAreflux607816
205-0.05 mmol mtppmsreflux607515
215-0.15 mmol mtppmsreflux607615
225-0.25 mmol mtppmsreflux609419
Conditions: 1 mmol benzonitrile, 2-PrOH/H2O = 1:1 V = 3 mL. a [NaOH]/[Rh] = 1; b Conversions of base-catalyzed hydrations in parentheses (NaOH only). c Turnover frequencies were calculated from the conversions at the indicated reaction times.
Table
Table 6. Hydration of benzonitrile with [RhCl(cod)(NHC)] catalyst 1–4.
Table 6. Hydration of benzonitrile with [RhCl(cod)(NHC)] catalyst 1–4.
EntryCatalyst Conversion (%)
1 h2 h3 h
1101826
21 + NaOH>99--
31 + PTA707177
420010
52 + NaOH99>99-
62 + PTA697888
73012
83 + NaOH668693
93 + PTA546164
1040012
114 + NaOH9498-
124 + PTA14753
Conditions: 1 mmol benzonitrile, 5 mol% [RhCl(cod)(NHC)], 1.5 mL 2-PrOH, 1.5 mL H2O, 0.05 mmol NaOH or 0.15 mmol PTA, reflux temperature.
Table
Table 7. Hydration of various nitriles into amides with catalyst 1 with NaOH and catalysis of the same reaction with NaOH only.
Table 7. Hydration of various nitriles into amides with catalyst 1 with NaOH and catalysis of the same reaction with NaOH only.
EntryNitrilet(h)1 + NaOHNaOH
Conversion (%)TOF b(h−1)Conversion c (%)
1benzonitrile193933
2298496
34-chlorobenzonitrile188884
4294476
54-methylbenzonitrile170701
6284422
74-chlorophenyl-acetonitrile158580
8262312
Conditions:a 1 mol% [RhCl(cod)(IMes)] (1), 1 mmol nitrile, 0.01 mmol NaOH, 1 mL 2-PrOH, 1 mL H2O, 80 °C. c Same as in a, but without [RhCl(cod)(IMes)] (1). b Turnover frequencies were calculated from the conversions at the indicated reaction times.
Table
Table 8. Hydration of substituted pyridinecarbonitriles with catalyst 1 in the absence of added base.
Table 8. Hydration of substituted pyridinecarbonitriles with catalyst 1 in the absence of added base.
EntrySubstrate PhosphineConversion (%)
1 h2 h3 h
12-pyridinecarbonitrile-689
22-pyridinecarbonitrile PTA81011
33-pyridinecarbonitrile-889696
43-pyridinecarbonitrile PTA> 99--
54-pyridinecarbonitrile-> 99--
64-pyridinecarbonitrile PTA> 99--
7 a4-pyridinecarbonitrile -90> 99-
Conditions: 1 mmol nitrile, 5 mol% [RhCl(cod)(IMes)] (1), 1.5 mL 2-PrOH, 1.5 mL H2O, 0.15 mmol PTA, reflux temperature. a 1 mol% [RhCl(cod)(IMes)] (1).
Table
Table 9. Hydration of benzonitrile at 25 °C catalyzed by [RhCl(cod)(IMes)] (1) with equimolar amounts of NaOH a.
Table 9. Hydration of benzonitrile at 25 °C catalyzed by [RhCl(cod)(IMes)] (1) with equimolar amounts of NaOH a.
Entry1 (mol%) bt (h)Conversion (%)TOF (h−1)
1117734.3
2122793.6
3140942.4
4217842.5
5222851.9
62.517942.2
72.519962.0
82.524991.7
9 c117342.0
10 c134601.8
Conditions: 1 mmol benzonitrile, 1 mL 2-PrOH, 1 mL H2O, 25 °C; a [NaOH]/[Rh] = 1; b Relative to benzonitrile; c 20% v/v 2-PrOH.

Share and Cite

MDPI and ACS Style

Czégéni, C.E.; De, S.; Udvardy, A.; Derzsi, N.J.; Papp, G.; Papp, G.; Joó, F. Selective Hydration of Nitriles to Corresponding Amides in Air with Rh(I)-N-Heterocyclic Complex Catalysts. Catalysts 2020, 10, 125. https://doi.org/10.3390/catal10010125

AMA Style

Czégéni CE, De S, Udvardy A, Derzsi NJ, Papp G, Papp G, Joó F. Selective Hydration of Nitriles to Corresponding Amides in Air with Rh(I)-N-Heterocyclic Complex Catalysts. Catalysts. 2020; 10(1):125. https://doi.org/10.3390/catal10010125

Chicago/Turabian Style

Czégéni, Csilla Enikő, Sourav De, Antal Udvardy, Nóra Judit Derzsi, Gergely Papp, Gábor Papp, and Ferenc Joó. 2020. "Selective Hydration of Nitriles to Corresponding Amides in Air with Rh(I)-N-Heterocyclic Complex Catalysts" Catalysts 10, no. 1: 125. https://doi.org/10.3390/catal10010125

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
