The Catalytic Performance of Ni-Co/Beta Zeolite Catalysts in Fischer-Tropsch Synthesis
1
Institute of General and Ecological Chemistry, Lodz University of Technology, Zeromskiego 116, 90-924 Lodz, Poland
2
Laboratoire de Réactivité de Surface, Sorbonne Université-CNRS, UMR 7197, 4 Place Jussieu, Case 178, F-75252 Paris, France
3
Jerzy Haber Institute of Catalysis and Surface Chemistry, Polish Academy of Sciences, Niezapominajek 8, PL-30239 Krakow, Poland
4
Łukasiewicz Research Network—Institute of Leather Industry, Products, Processes and Environment Laboratory, Laboratory of Environment, Zgierska 73, 91-462 Łódź, Poland
*
Authors to whom correspondence should be addressed.
Received: 6 December 2019 / Accepted: 8 January 2020 / Published: 13 January 2020

Abstract

:
The influence of nickel introduction on the catalytic performance of cobalt micro- and mesoporous Beta zeolite catalysts in Fischer–Tropsch Synthesis was studied. Catalysts containing 3 wt% of nickel and 10 wt% of cobalt were prepared by co-impregnation and sequential impregnation and comprehensively characterized by XRD, XPS, NH3-TPD, TPR-H2 and TEM EDX techniques. Neither the dealumination of Beta zeolite nor the incorporation of Co and Ni affected its structure, as shown by XRD and BET investigations. The presence of nickel results in the decrease in the temperature of the cobalt oxide reduction, evidenced by TPR-H2 and the increase of CO conversion. Among all the tested catalysts, the best catalytic properties in FTS showed that based on microporous dealuminated zeolites with a very high CO conversion, near 100%, and selectivity to liquid products of about 75%. In case of dealuminated samples, the presence of Ni decreased the selectivity to liquid products. All catalysts under study showed high resistance to deactivation during the whole time of synthesis (24 h). The very high stability of nickel-cobalt based Beta catalysts was probably due to the hydrogen spillover from metallic nickel particles to cobalt oxides, which decreased re-oxidation of the active phase, sintering and the creation of the carbon on the catalyst surface. Moreover, the presence of Ni on the surface of cobalt-based Beta catalysts could obstruct the formation of graphitic carbon and, in consequence, delay the deactivation of the catalyst.
Keywords:
nickel; cobalt; Beta zeolites; Fischer–Tropsch synthesis

1. Introduction

As a result of oil resources reduction, the development and optimization of the alternative fuels production is becoming a very important challenge. One of such processes is the well known Fischer–Tropsch Synthesis (FTS). In this reaction, long-chain hydrocarbons from syngas are formed. The most commonly used catalysts in FTS are iron and cobalt based systems, but the latter exhibits low selectivity to CO2, enhanced formation of unsaturated hydrocarbons and moderate activity in water–gas shift reaction (WGS) [1,2,3,4,5,6,7]. Although oxides such as SiO2 and Al2O3 are usually applied as a support in this process, zeolites are a very interesting choice due to the presence of acidic sites and high surface area [6,7,8,9].
The application of proper support can be the key factor in the activity of discussed catalysts in the described process. It is known that the high activity and selectivity of cobalt catalytic system used in FTS depends on active centers present on the surface of the reduced catalyst. It is conditioned by two main parameters: metal dispersion and the reduction’s degree of Co3O4 [2,4]. Usually used in FTS, iron- or cobalt-supported catalysts (Fe or Co/SiO2, Fe or Co/Al2O3) lead to the formation of linear hydrocarbons and n-paraffins (waxes), which possess a high cetane number, but a very low octane number. From this reason, the application of zeolite materials as catalysts support in FTS process seems to be justified. These materials possess many specific properties like highly developed specific surface area, the presence of micro- and mesopores, which may improve the metal dispersion inside of micro- and mesoporous channels and allow for obtaining of smaller cobalt crystallites. The well known properties of zeolites in the cracking process may cause the decrease of selectivity towards very long-chain paraffins, which may lead to an increase of the octane number [5,10,11,12,13].
Depending on the catalysts used in FTS, a different spectrum of products can be obtained, and this process can be either a low-temperature (Co catalysts) or a high-temperature (Fe catalysts) process. The main advantages of cobalt catalysts are lower carbon deposition and smaller selectivity towards CO2 than in case of iron catalysts. However, iron catalysts show smaller selectivity towards methane. They also possess an additional self-point which results in lower costs. It should be stressed that both types of FTS catalysts are deactivated by crystallites sintering and carbon deposition formation.
In our previous studies where the Beta zeolite with a high specific surface area was applied as support, the very good dispersion of cobalt and iron metals was observed with the formation of a smaller crystallites size of cobalt (10–16 nm) than iron (ca. 20 nm). This leads to limitation of the sintering process during the activation of the catalyst and carrying out of the reaction. Moreover, the application of the two-step postsynthesis method for the preparation of catalysts allows for a decrease of catalysts acidity and results in the formation of a smaller amount of carbon deposition in comparison to classical oxide-supported catalysts. This promising result encourages the continuation of this investigation and of making attempts to improve the activity and selectivity towards gasoline on CoBeta zeolite catalysts [14,15].
In order to increase the efficiency of FTS catalysts, some promoters are added. It was noticed that the presence of a second metal, e.g., transition or noble metal, could lead to the enhancement of the catalytic activity [1,2]. Many studies have focused a correlation between the active phase of the catalysts and the promoter, and its impact on the course of the Fischer–Tropsch synthesis. The advantages resulting from the promoter addition include the improvement of metal nanoparticles reducibility and dispersion, and consequently, increase the activity and stability of the catalyst in FTS [2,16]. Xiong et al. [17] have reported the effect of zirconium addition (0.5, 1, 5, 9, 15 wt%) to 15 wt% Co/Al2O3 catalyst. The authors have claimed that the increase of the Zr loading (>5 wt%) led to the improvement of CO hydrogenation and selectivity to heavy hydrocarbons, which could be linked with the formation of larger cobalt clusters, resulting in more metallic Co active centers. For a low zirconium content (0.5–1.0 wt%), no substantial changes in the creation of C5+ hydrocarbons were observed. Moreover, it was shown that increasing the Zr content also led to a rise of the olefin/paraffin ratio as well as a decrease of selectivity towards CH4.
The positive effect of Zr on the activity of catalyst and selectivity to heavier hydrocarbons was also observed by Ali et al. for Zr/Co/SiO2 [18]. A number of studies have been done to examine the influence of noble metal promoter in cobalt-based catalysts on activity in FTS [19,20,21]. According to Xu et al. [19], the promotion of 12 wt% Co/Al2O3 by metals such as Pt, Pd and Ru leads to the a significant fall in the reduction temperature of oxidic cobalt species. Vada et al. [20] pointed out that the improvement of the reducibility of oxidic Co particles caused by the addition of Re or Pt to 8.7 wt%Co/Al2O3 led to an increase in the CO hydrogenation rate. Jacobs et al. [22] investigated the reducibility of 15 wt% Co/Al2O3 with the addition of rhenium (0.02–2.5 wt%). Rhenium was found to promote the second stage of Co3O4 reduction, CoO to metallic Co, however, increasing the Re loading above 1 wt% did not cause an additional decrease in the reduction temperature. Xiong et al. [23] have drawn our attention to the impact of ruthenium on activity of Co/SBA-15 with 30 wt% of Co on FTS. The observed phenomenon was related to the fact that the use of an Ru-promoted system resulted in receiving a smaller amount of unreduced cobalt oxides, which are capable of catalyzing the WGS reaction, and hence, an increase of the hydrogen to carbon oxide ratio. According to Wang et al. [2], the addition of Ni or Ru promoter to 20 wt% Co/HZSM-5 catalyst increases both its activity and selectivity towards gasoline-range hydrocarbons. The improvement of the CO conversion is associated with a better dispersion of cobalt and a decrease in the size of cobalt nanoparticles. Ru-promoted 20 wt% Co/HZSM-5 catalyst appeared to be more stable than that promoted with Ni. On the other hand, Rytter et al. [24] observed that nickel addition to alumina-supported Co plays an important role in the stabilization of obtained catalysts.
The study presented in this paper was focused on the analysis of the influence of nickel addition on the activity and selectivity of CoBeta zeolite systems in FTS. This work is a continuation of our previous studies based on cobalt Beta catalysts and focused on the role of the cobalt and type of porosity (micro- and mesoporous) of Beta zeolites on their activity and selectivity in Fischer–Tropsch synthesis [25]. Two types of Beta zeolite, namely micro and mesoporous, were selected as supports for these catalysts. The NiCoBeta and co-NiCoBeta catalysts obtained by sequential and co-impregnation methods, respectively, with different catalytic activities were characterized by X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS), temperature- programmed desorption of NH3 (NH3-TPD), temperature-programmed reduction of H2 (TPR-H2) and Transmission Electron Microscopy with X-Ray Energy Dispersive Spectroscopy (TEM EDX) techniques.

2. Results and Discussion

2.1. Preparation of Different Kind of Catalysts

Different types of Mi-Ni3.0Co10AlBeta and Me-Ni3.0Co10SiBeta zeolite catalysts were prepared by conventional wet impregnation and the two-step post-synthesis method, respectively (as shown in Scheme 1), where “Mi” stands for microporous, “Me” for mesoporous, “Ni3.0” for 3.0 wt% of nickel, “Co10” for 10 wt% of cobalt, “AlBeta” for aluminated Beta zeolite and “SiBeta” for dealuminated Beta zeolite. In order to obtain these zeolite catalysts, Mi- and Me-tetraethylammonium Beta (Mi-TEABeta and Me-TEABeta) zeolites produced by RIPP (China) were divided into two fractions.
The first fraction was calcined in air for 15 h at 550 °C to obtain HAlBeta supports, mesoporous with Si/Al ratio of 18 (Me-HAlBeta) and microporous with Si/Al ratio of 18 (Mi-SiBeta). The Me-Ni3.0Co10AlBeta and Mi-Ni3.0Co10AlBeta zeolites were prepared by sequential impregnation of 2 g of mesoporous and microporous HAlBeta with an aqueous solution of Co(NO3)2·6 H2O at pH of 2.6–3.0 and a concentration of 10−2 mol L−1 and then with an aqueous solution of Ni(NO3)2·6 H2O at pH of 2.70–3.0 and a concentration of 10−3 mol L−1 under aerobic conditions. During sequential impregnation, the suspensions were stirred during 24 h at room temperature and the separation of the solids from the fraction of suspension was performed in an evaporator under the vacuum of a membrane pump for 2 h in air at 60 °C. After calcination at 500 °C for 3 h in air, the obtained zeolite catalysts containing 10 wt% of cobalt and 3.0 wt% of nickel were marked as Me-Ni3.0Co10AlBeta and Mi-Ni3.0Co10AlBeta, respectively. The Me-co-Ni3.0Co10AlBeta and Mi-co-Ni3.0Co10AlBeta zeolites were prepared by co-impregnation of 2 g of Me- and Mi-HAlBeta with an aqueous solutions containing both Co(NO3)2·6 H2O and Ni(NO3)2·6 H2O at pH of 2.70–3.0 under aerobic conditions in conditions similar to those described for the sequential one. After calcination at 500 °C for 3 h in air, the obtained zeolite catalysts containing 10 wt% of cobalt and 3.0 wt% of nickel were labelled as Me-co-Ni3.0Co10AlBeta and Mi-co-Ni3.0Co10AlBeta, respectively, where “co” stands for co-impregnation.
The second fraction of mesoporous and microporous TEABeta was treated with a 13 mol L−1 HNO3 aqueous solution during 4 h at 80 °C to obtain dealuminated SiBeta with Si/Al of 490 for mesoporous and Si/Al of 1516 for microporous supports, respectively. The Me-Ni3.0Co10SiBeta and Mi-Ni3.0Co10SiBeta zeolites were prepared by sequential impregnation of 2 g of mesoporous and microporous SiBeta with an aqueous solution of Co(NO3)2·6 H2O at pH of 2.5–3.0 and a concentration of 10−2 mol L−1 and then with an aqueous solution of Ni(NO3)2·6 H2O at pH = 2.6–3.0 and a concentration of 10−3 mol L−1 under aerobic conditions. After impregnation of Beta zeolite with Co(NO3)2·6 H2O salt, the suspensions were stirred for 24 h at room temperature and then, the separation of the solids from the fraction of suspension was performed in an evaporator under the vacuum of a membrane pump for 2 h in air at 60 °C. Such prepared materials were impregnated by an aqueous solution of Ni(NO3)2·6 H2O and the suspensions were stirred and evaporated in the same conditions once again. After calcination at 500 °C for 3 h in air, the obtained zeolite catalysts containing 10 wt% of cobalt and 3.0 wt% of nickel were labelled as Me-Ni3.0Co10SiBeta and Mi-Ni3.0Co10SiBeta, respectively. The Me-co-Ni3.0Co10SiBeta and Mi-co-Ni3.0Co10SiBeta zeolites were prepared by co-impregnation of 2 g of mesoporous and microporous SiBeta with an aqueous solutions of both Co(NO3)2·6 H2O and Ni(NO3)2·6 H2O at pH of 2.6–3.0 under aerobic conditions, in the conditions similar to that described for sequential one preparation. After calcination at 500 °C for 3 h in air the obtained zeolite catalysts containing 10 wt% of cobalt and 3.0 wt% of nickel were marked as Me-co-Ni3.0Co10SiBeta and Mi-co-Ni3.0Co10SiBeta, respectively.
Part of each obtained zeolite was reduced under atmospheric pressure in a flow of 5% H2–95% Ar at 400 °C for 1 h to obtain zeolite catalysts, which were referred to as Red-Me-Ni3.0Co10AlBeta, Red-Mi-Ni3.0Co10AlBeta, Red-Me-co-Ni3.0Co10AlBeta, Red-Mi-co-Ni3.0Co10AlBeta, Red-Me-Ni3.0Co10SiBeta, Red-Mi-Ni3.0Co10SiBeta, Red-Me-co-Ni3.0Co10SiBeta, Red-Mi-co-Ni3.0Co10SiBeta, where “Red” stands for reduced.

2.2. Characterization with Different Kinds of Techniques

2.2.1. XRD

The XRD patterns of nickel/cobalt-modified zeolite systems are shown in Figure 1. For all the samples, reflections at around 7.6° and 22.4° appear, which are characteristic of Beta zeolite and indicate the presence of two isomorphic forms of this material [8,26,27,28]. These studies show that the crystalline structure of Beta zeolite is preserved, even after the dealumination process and the incorporation of metals (Ni and Co) ions [29]. In case of all calcined NiCoBeta systems, the reflections characteristic of NiCo2O4 and/or Co3O4 are seen (2θ = 36.69°, 44.56°, 64.94°). The appearance of reflections at ca. 43.39° and 59.16° is associated with the presence of the NiO and Co3O4, respectively. Moreover, only for Me-Ni3.0Co10AlBeta and Mi-Ni3.0Co10SiBeta systems, the reflections related to NiO, Co3O4 and/or NiCo2O4 are observed [30,31,32,33].
After the hydrogen treatment of Mi-Ni3.0Co10Beta and Me-Ni3.0Co10Beta systems, the reflection related to the presence of Ni0, Co0 or/and Ni-Co alloy is seen (2θ = 44.41°) (Figure 2) [31,34]. In case of Red-co-Ni3.0Co10Beta, one can observed reflections associated with the occurrence of Ni-Co alloy and/or metallic nickel and/or cobalt (2θ = 44.54°). However, it can be noticed that the cobalt and nickel oxide phases are still visible (2θ = 36.54°, 59.08° and 43.44°, respectively). Furthermore, for all co-impregnated systems, the reflection at ca. 65.06° is also shown, which may be related to the presence of Co3O4 or/and NiCo2O4 [30,31,32,33,34].

2.2.2. XPS

The XPS analyzes of Ni3.0Co10Beta samples were performed for Si 2p, Al 2p, O 1s, C 1s, Ni 2p and Co 2p core lines.
Three doublets with the spin-orbit splitting of 0.61 eV were used to properly fit the Si 2p spectra. The porosity of zeolite matrix did not influence the relative intensities of these components. The most intense doublets (>93%) with Si 2p3/2 BE values of 103.6–104.0 eV are associated with the presence of tetrahedral Si(IV) [35,36,37]. One can find that these values are somewhat larger than those reported for BEA, MFI and MOR zeolites earlier [38,39,40,41,42]. The much smaller low-BE component (Si 2p3/2 BE of 101–102 eV) found in all the samples is distinctive for Si in lower than 4+ oxidation state. Such component can be related to the limited reduction of silicon under high-vacuum conditions or to the differential charging caused by some structural damages in the zeolite matrix.
The O 1s spectra are well decomposed into four components: (i) the most intense peak located at 533.0–533.7 eV referred to the lattice oxygen [43,44,45]; (ii) two peaks at 529.8–531.4 eV due to oxygen–metal bonds; (iii) a peak at BE higher than 534 eV assigned to OH groups, adsorbed water, and oxygen of organic contaminants. Careful analysis allows us to identify Co-O species with BE ~ 529.9 eV and Ni-O species with BE ~ 531.2 eV (not shown here). This is in line with recent references found for NiCo2O4 (531.2 eV) [46], Ni(OH)2 (531.1 eV) [47] and rock-salt type of structure of Co and Ni oxides (529.6 eV) [46].
Three peaks at 285.0 eV (organic contaminants), 286.0–286.2 eV (C-O groups) and > 289 eV (C=O groups) can be distinguished in the C 1s spectra. The binding energy of Al 2p3/2 core line is close to 75.0 eV, suggesting Al3+ (Al2O3 BE = 74.9 eV [48]).
Two nickel species with a relative intensities ratio close to 35:65 were identified in Ni 2p XPS spectra of all the zeolites under study. The minor components with lower BE of 2p3/2 region (854.4–854.8 eV) origin from the octahedral Ni2+ species were found in NiCo2O4 and Ni(OH)2. The higher BE species (856.2–856.9 eV) are related to Ni3+ oxyhydroxides.
The Co 2p XPS results of microporous and mesoporous zeolites are presented in Figure 3A,B, respectively. The parameters obtained in the course of the numerical analysis are listed in Table 1. Well separated doublets (Co 2p3/2 and 2p1/2) are the result of strong spin-orbit coupling. The main peaks come from the charge-transfer (CT) states 2p53d8L−1 (L—ligand), whereas respective shake-up satellites, which overlap the main lines, reflect non-CT 2p53d7 states. The absolute BE values of the 2p peaks are not always sufficient in identifying the chemical environment of cobalt, since relatively small shifts are reported to. Some additional information helpful in such characterization can be achieved from the distance between two peaks in the doublet (spin-orbit splitting ΔSO) and the satellite structure. The Co 2p doublets with ΔSO of 15.1–15.9 eV and the occurrence of well-visible satellites uniquely identify the high-spin cobalt(II). One can find that except Me-Ni3.0Co10SiBeta, all spectra should be fitted with two main lines and associated satellites.
The dominant component with Co 2p3/2 BE in the range of 781.0–781.6 eV is assigned to the tetrahedral Co(II) species embedded into the zeolite matrix. Minor components found in both microporous samples and Me-Ni3.0Co10AlBeta have Co 2p3/2 BE values in the range of 779.7–780.2 eV, which suggests Co(II) species in octahedral surroundings. Taking into account that the following values were reported: 780.0–780.3 eV for Co(OH)O, 780.0–780.9 eV for CoO, and 779.4–780.1 eV for Co3O4 [48,49,50], one can identify these components as the extra-framework oxides. It is worth mentioning that Me-Ni3.0Co10SiBeta zeolite shows only one broad component with very high Co 2p3/2 BE of 782.6 eV, which suggests octahedral Co(III) species in the low-spin configuration [51]. However, the most intense satellite structure was also found in this sample, which is in contrast to the expected weakening of the satellite structure in low-spin cobalt(III) component [52]. On the other hand, similar high BE values of Co species were observed for several zeolites, recently [53,54,55,56]. Many metal cations (e.g., Fe, Cr, Cu) embedded in zeolites often show higher BE comparing to their BE in oxides [36,57,58]. This may be due to the degree of cations dispersion as well as the nature of their interactions with the zeolite matrix. Thus, the higher BE of Co(II) might be the manifestation of highly isolated species in our sample. All these findings make Me-Ni3.0Co10SiBeta unique among all the measured samples.

2.2.3. NH3-TPD

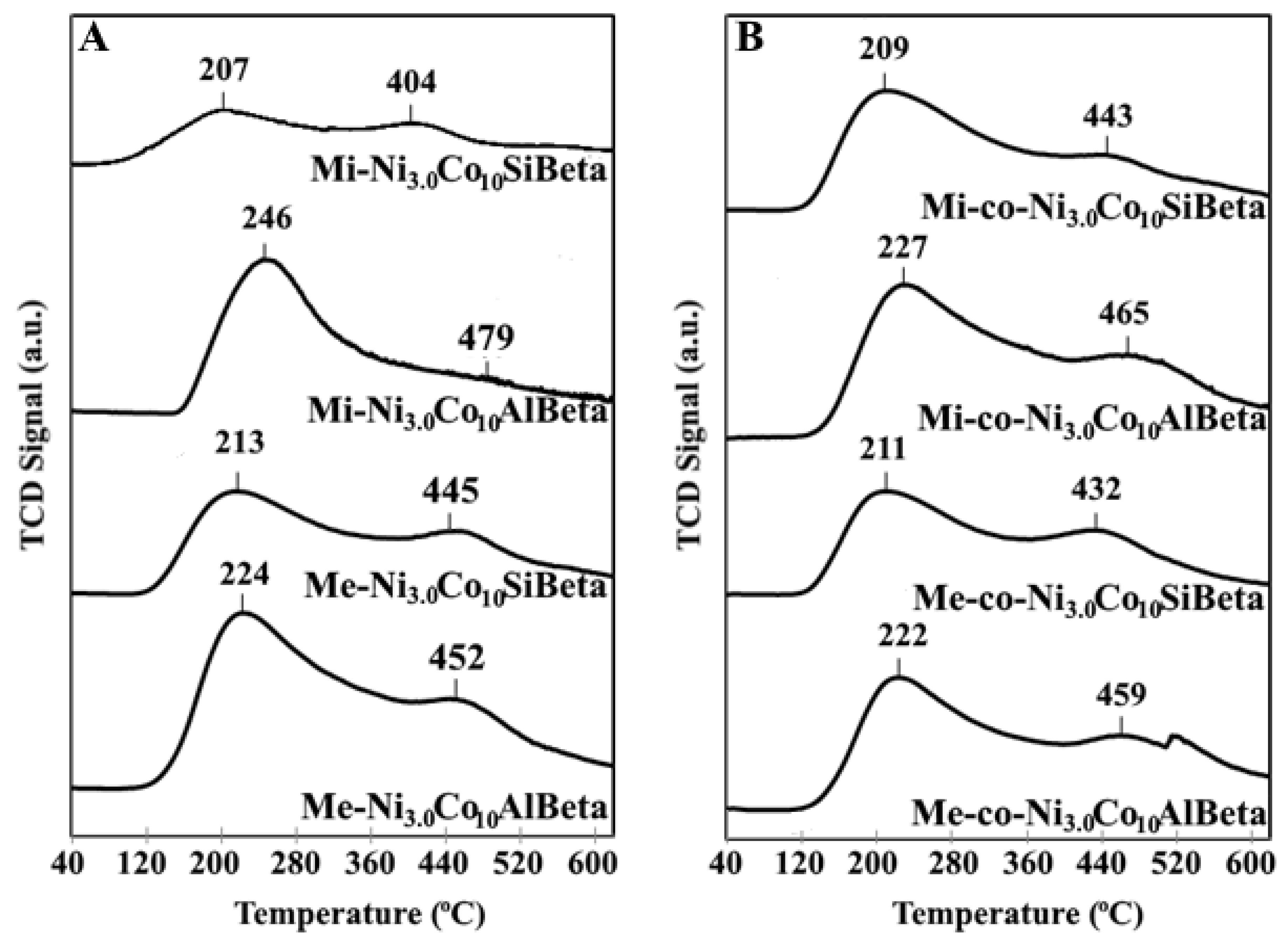

The NH3-TPD of metals-modified samples are presented in Figure 4. The position of two unresolved peaks with maxima at ca. 220 and 450 °C are described to Lewis and Brønsted acidic sites, respectively, in agreement with earlier report [59]. For co-Ni3.0Co10SiBeta and Ni3.0Co10SiBeta, one can see the shift of both maxima to lower temperatures. This could be assigned to the presence of lower strength Lewis acidic sites and the removal of the strong Brønsted acidic sites during the dealumination process, respectively [14]. The removal of the aluminum leads also to the decrease of the intensity of above-mentioned peaks, which is quite well seen in the case of the Ni3.0Co10SiBeta samples. Furthermore, for dealuminated systems, the position of peak at ca. 224 °C (for Me-Ni3.0Co10AlBeta), 246 °C (for Mi-Ni3.0Co10AlBeta), 222 °C (for Me-co-Ni3.0Co10AlBeta) and 227 °C (for Mi-co-Ni3.0Co10AlBeta) shifted to 213 °C (for Me-Ni3.0Co10SiBeta), 207 °C (for Mi-Ni3.0Co10SiBeta), 211 °C (for Me-Ni3.0Co10SiBeta) and 209 °C (for Mi-co-Ni3.0Co10SiBeta), respectively. This phenomenon suggests that the latter samples contain, in their structure, Lewis acidic sites with lower strength, as compared to corresponding non-dealuminated systems. Moreover, the presence of nickel causes the shift to higher temperatures of low-temperature peak, as compared to Co-based catalysts [25].

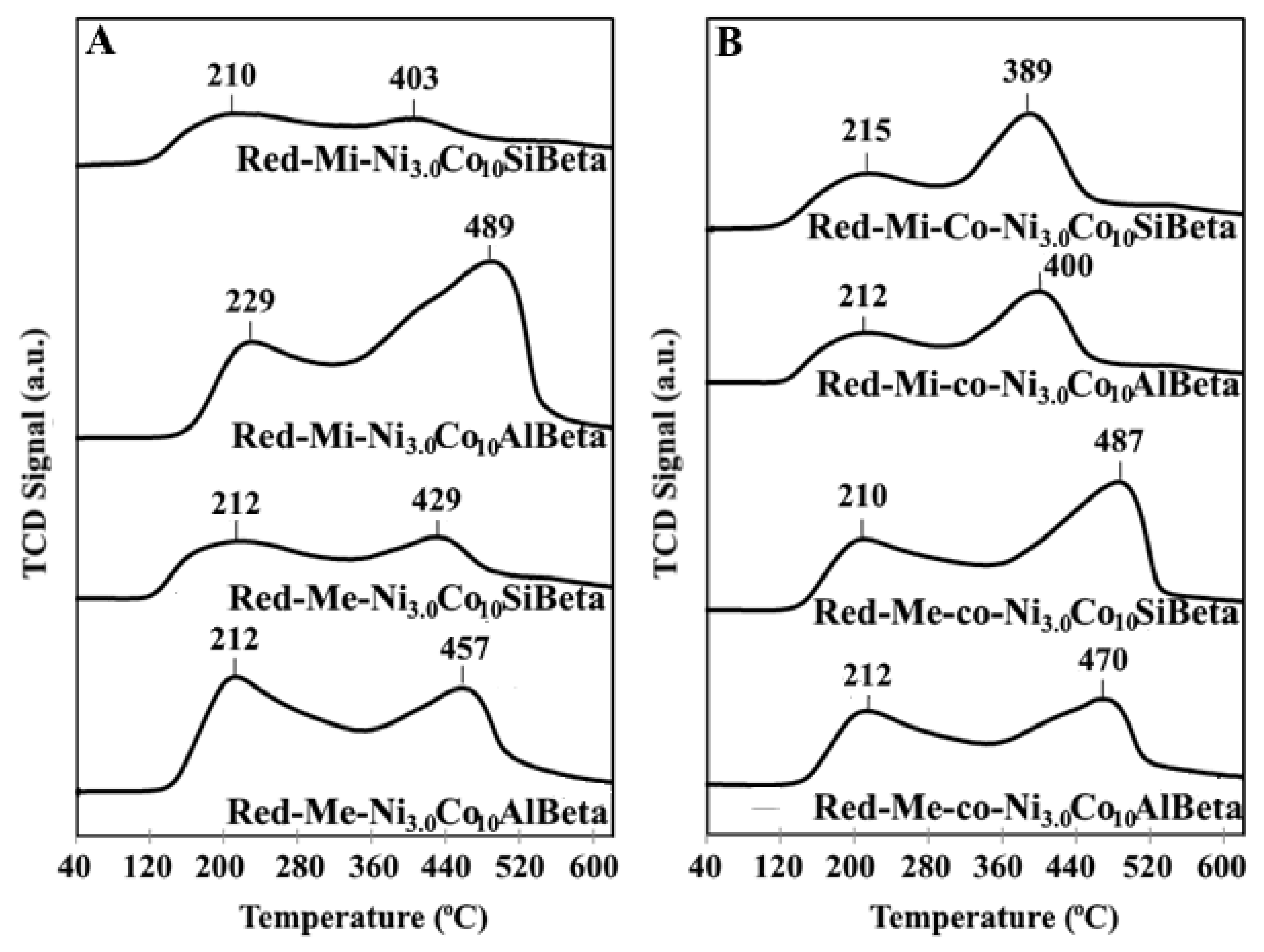

In case of reduced catalysts (Figure 5), peaks at ca. 210 and 440 °C were observed, which are related to Lewis and Brønsted acidic sites, respectively [59]. It should be noted that the reduction of co-NiCoBeta and NiCoBeta systems resulted in the enhancement of a high temperature peak intensity. The same phenomenon was observed by Stanton et al., who associated it with the formation of metal acid sites [60].
As shown in Table 2, the dealumination of nickel-cobalt based systems led to a decrease in their acidity. This is the result of the removal of aluminum from the framework of these materials [14]. A comparison of the NH3-TPD results for the previously tested CoBeta zeolite samples [14] with those presented in this paper Ni3.0Co10Beta systems allows to conclude that the addition of nickel to cobalt-based samples causes a change in their acidity. For Mi-co-Ni3.0Co10AlBeta and Me-Ni3.0Co10AlBeta, the introduction of this metal increases the amount of adsorbed NH3. This may be associated with the creation of additional adsorption centres. In other cases, the presence of the Ni decreased the acidity of the CoBeta systems, which is probably related to the blockage of acidic sites by nickel oxides [14]. However, the reduction of tested systems led to the increase of their acidity.

2.2.4. H2-TPR

Figure 6 shows H2-TPR profiles for all the tested samples, which exhibit peaks in the temperature range of 266–394 °C. The first peak with the maximum at 266–296 °C may be related to the reduction of Co3O4 and/or bulk NiO in the extra-framework positions to CoO and Ni0, respectively. Furthermore, one can observe the peaks with the maximum in the temperature range of 304–394 °C. Their presence is related to the reduction of CoO and/or octahedral Ni(II) species [14,28,61,62]. As compared to previous studies on cobalt-modified Beta zeolite, the small addition of nickel to zeolite cobalt systems leads to a decrease in the reduction temperature of cobalt oxides present outside of the zeolite network by about 50 °C. A similar influence of nickel on the reducibility of alumina supported cobalt systems was observed by Rytter et al. [24]. The authors claimed that the lowering of reduction temperature can be related to the spillover of the hydrogen from the metallic nickel particles to cobalt oxides. Moreover, it has also been suggested that the reduction profiles of the tested samples may be associated with the formation of solid solution between various oxide phases of Co, Ni and the support. As one can see, only for dealuminated samples, a peak above 700 °C is also seen. Its appearance can be attributed to the reduction of hardly reducible Co species (cobalt aluminate or/and cobalt silicates) and/or pseudo-tetrahedral ions of Co(II), which are located in the vacant T-atom sites created as a result of dealumination [14,32,63].

2.2.5. TEM EDX

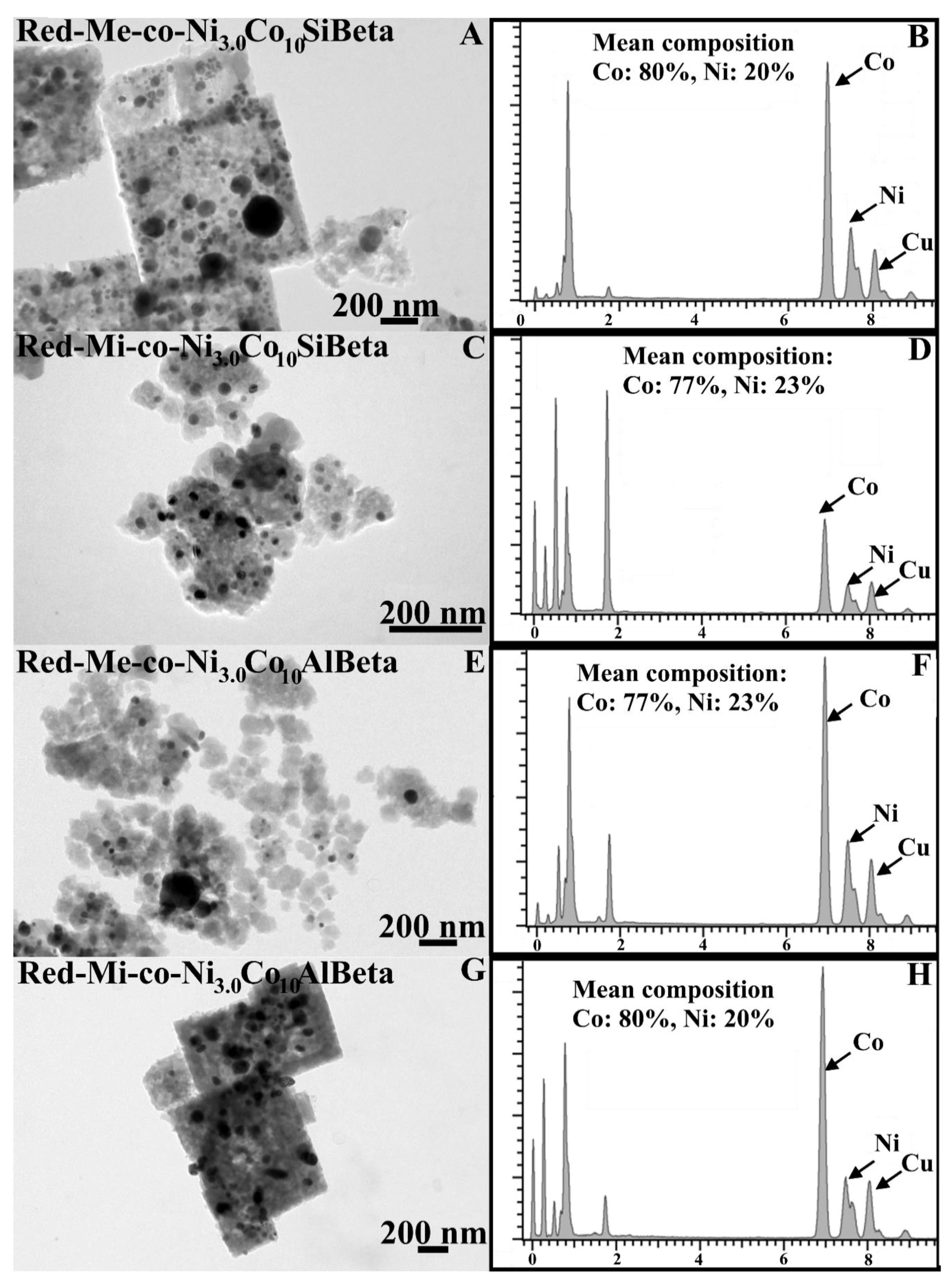

TEM observations and analysis were carried out for the reduced Ni3.0Co10Beta and co-Ni3.0Co10Beta samples. The bright field TEM micrographs reported in Figure 7A illustrate the dispersion of the nanoparticles on the supports with a large repartition of diameters: from a few nm to 100 nm.
X-ray Energy Dispersive Spectroscopy was carried out with 1 nm electron probe in order to analyze the chemical composition of nanoparticles. Twenty nanoparticles were analyzed for each sample. The representative EDS spectra are reported in Figure 7B for each sample. It should be noted that Cu peaks are present in all spectra because of the presence of this metal in the grids used in the experiment. Both peaks of Co and Ni were observed on all recorded spectra. The average Co and Ni content (atomic %) is 80 and 20 for all measured samples. Thus, the chemical composition of the nanoparticles is similar for all of the catalysts under study and close to the nominal Co/Ni ratio of 3.0.

2.3. Fischer–Tropsch Synthesis

The activity and selectivity to liquid products of FTS catalysts can be modified by the use of different secondary metals, e.g., transition or noble metals [1,2]. Thus, we focused our study on the correlation between the active phase (Co species) of the catalysts and the addition (Ni) and its impact on the process flow. The CO conversion and selectivity to C1-C4, CO2, and liquid products for Red-NiCoBeta and Red-co-NiCoBeta systems are summarized in Table 3 and in Figure 8 and Figure 9, respectively.

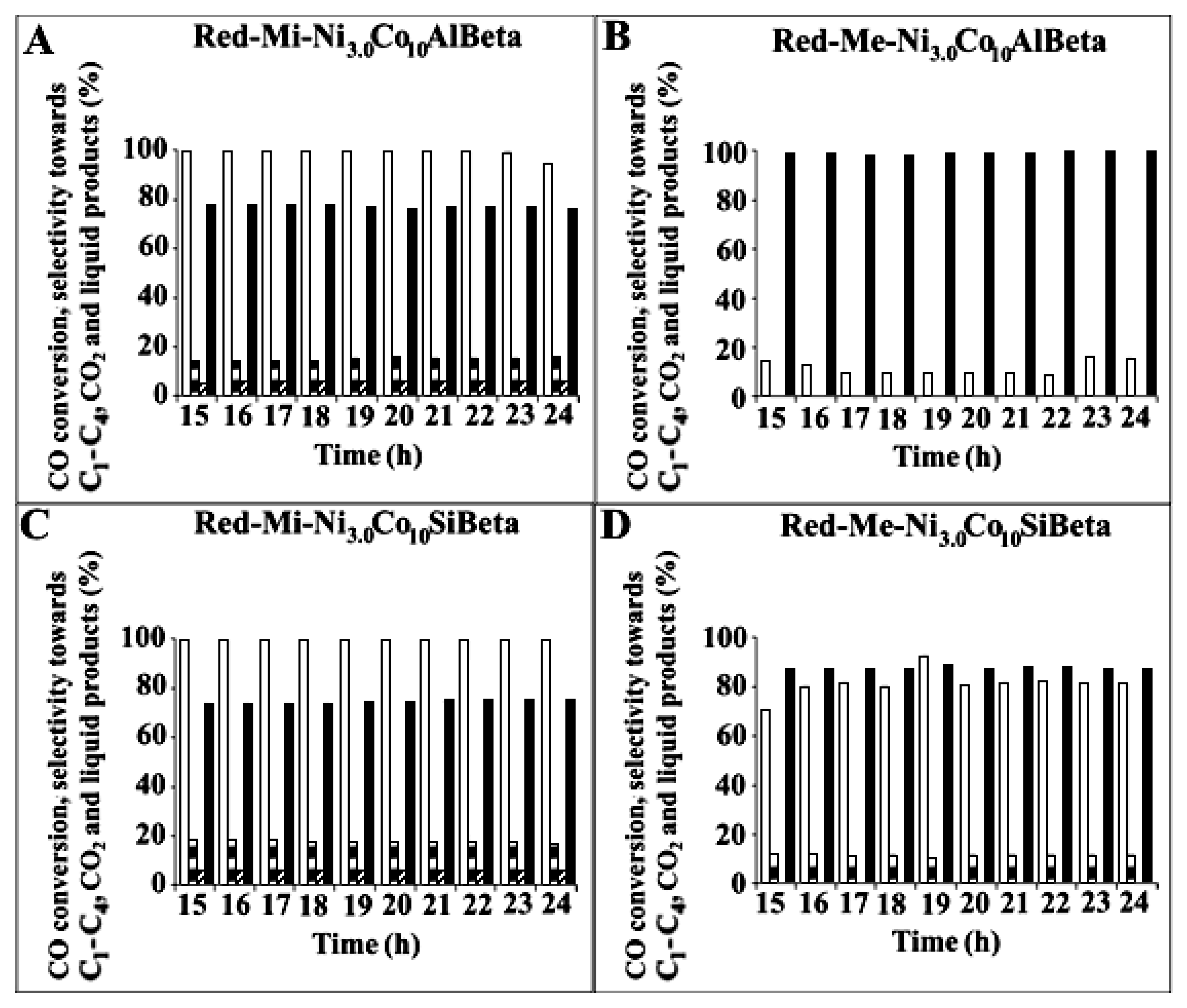

Among the reduced catalysts, the most active were the dealuminated ones. Red-Mi-Ni3.0Co10SiBeta and Red-Me-Ni3.0Co10SiBeta catalysts, prepared by sequential impregnation, exhibit not only high CO conversion (81–97%) but also better selectivity to liquid products of 88% and 75%, respectively. The catalytic behavior of Red-Mi-Ni3.0Co10AlBeta is very similar to that of Red-Mi-Ni3.0Co10SiBeta and shows the conversion of CO and liquid products selectivity equal to 95% and 77%, respectively. Catalytic properties of Red-Me-Ni3.0Co10AlBeta are quite unique because it exhibits much lower CO conversion (16%), but higher selectivity towards liquid products (100%).
Like in the case of samples obtained by sequential impregnation, the most active catalysts, prepared by co-impregnation are dealuminated systems (Red-Mi-co-Ni3.0Co10SiBeta and Red-Me-co-Ni3.0Co10SiBeta). They show very high CO conversion of about 98–100% and selectivity to liquid products of ca. 75–77%. Both Red-Mi-co-Ni3.0Co10AlBeta and Red-Me-co-Ni3.0Co10AlBeta exhibit a lower CO conversion (17%), but a higher liquid hydrocarbon selectivity (96–99%). It is worth mentioning that all samples, except Red-Me-Ni3.0Co10SiBeta, exhibit higher CO conversion than Co-based systems [25,64]. A similar conclusion was reported by Wang et al. for Ru, Ni promoted Co/HZSM-5 catalysts [2]. They related this phenomenon to the improvement of the CO hydrogenation by increasing the amount of available Co0 active sites. Furthermore, in case of Red-Mi-co-Ni3.0Co10SiBeta and Red-Me-co-Ni3.0Co10SiBeta, the selectivity towards carbon dioxide is quite stable during the time of synthesis and is about 6.5% for all these catalysts. The addition of nickel hinders the selectivity to liquid products, but increases the selectivity to C1-C4, which can be related to the good ability of this metal to break C-C bonds [2]. The same tendency was observed by Shimura et al. over Ru, Ni promoted Co/HZSM-5 catalysts [65]. Moreover, for microporous catalysts the selectivity to C1-C4 (4–18%) was higher than for corresponding mesoporous samples (0–17%). This is most likely due to CO diffusion limitation because of high H2 to CO ratio on the catalyst surface. Our results are consistent with earlier studies on Co-containing microporous and mesoporous Beta zeolite catalysts [25].

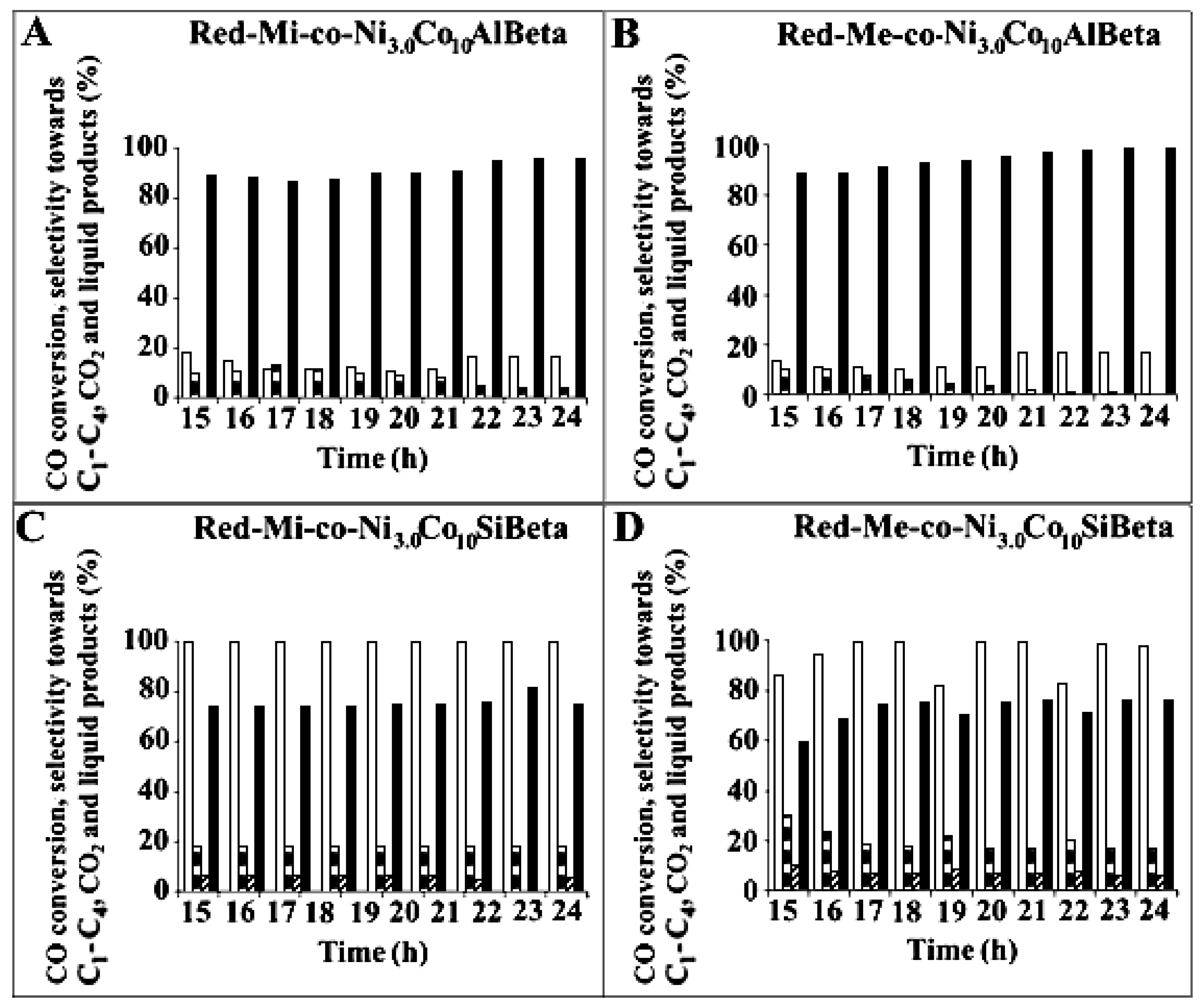

The catalytic activity of all tested NiCoBeta and co-NiCoBeta catalysts remained stable throughout the duration of the FTS. According to Ritter et al. [24], the high stability of nickel-cobalt based catalysts may be due to the hydrogen spillover from metallic nickel particles to cobalt oxides, which decreases re-oxidation of the active phase, sintering and the creation of the carbon deposition on the catalyst surface. Furthermore, the authors also pointed out that the presence of Ni on the surface of cobalt-based system could obstruct the formation of graphitic carbon, which can also delay the deactivation of the catalyst.
The gas chromatography with mass spectroscopy (GC-MS) analysis of liquid products formed in FTS is presented in Table 3 and Figure 10 and Figure 11. The research show that the presence of only micropores in the structure of Beta zeolite led to the production of C7-C21 iso- and n-alkanes. However, as it was demonstrated, the nickel-cobalt based catalysts supported on the zeolitic mesoporous materials exhibited the creation of C7-C21 isoalkanes and saturated hydrocarbons. The Red-Mi-Ni3.0Co10Beta catalyst exhibited a higher isoalkanes/n-alkanes ratio (≥1.18) than the corresponding Red-Me-Ni3.0Co10Beta catalyst (≥0.91). As compared to Red-Co-base catalysts [25], it can be seen that the addition of Ni resulted in the decrease of the selectivity towards isoalkanes, which is in the contrast to the results presented by Wang et al. [2], who observed the opposite trend. Furthermore, the correlation between the preparation method and the selectivity towards isoalkanes is hard to define. For Red-Mi-co-Ni3.0Co10AlBeta, Red-Me-Ni3.0Co10AlBeta and Red-Me-co-Ni3.0Co10AlBeta, the isoalkanes to n-alkanes ratio (2.62, 2.44 and 1.22, respectively) was higher than for corresponding dealuminated samples (1.18, 1.58 and 0.91, respectively). In case of Red-Mi-Ni3.0Co10AlBeta and Red-Mi-Ni3.0Co10SiBeta, the opposite tendency was observed. It should be noted that for all Ni and Co containing catalysts, the formation of unsaturated hydrocarbons was seen and the ratio of unsaturated to saturated hydrocarbons depends on the preparation method. The catalysts obtained by sequential impregnation exhibited higher unsaturated/n-alkanes ratio (≥0.21) than Red-co-NiCoBeta systems (≥0.15). Moreover, in the case of the Red-Me-Ni3.0Co10Beta, one can observe a more diverse distribution of the liquid products. For the dealuminated samples, except Red-Mi-co-Ni3.0Co10AlBeta, we observed a similar phenomenon as Martinez and Lopez over hybrid H-ZSM-5 catalysts [11], namely the higher formation of oxygenates by dealuminated systems. The main reason for the differences in the obtained liquid products in FTS is the presence of two kinds of acidic centers on the surface of the Red-Ni3.0Co10AlBeta (Red-co-Ni3.0Co10AlBeta) and Red-Ni3.0Co10SiBeta (Red-co-Ni3.0Co10SiBeta) systems.
In Table 4, the estimation of the total amount of all products per gram of catalysts is shown. These calculation are in line with results of CO conversion and products selectivity. The highest amount of products was noted for microporous cobalt Beta zeolites—Red-Mi-Ni3.0Co10SiBeta and Red-Mi-co-Ni3.0Co10SiBeta catalysts that also showed the highest activity in FTS process. It is also worth noting that in the case of Red-Mi-Ni3.0Co10AlBeta, the amount of all products after stabilization time of catalysts (15 h) is very small, but with the time reaction rising, the amount of formed product increases significantly. In the case of mesoporous cobalt silica Beta zeolites—Red-Me-Ni3.0Co10SiBeta and Red-Me-co-Ni3.0Co10SiBeta—despite of their high activity and similar CO conversion to microporous catalysts, the total amount of all products is smaller.
The chain growth probability (α) of FTS liquid products for all systems was determined through the use of the Anderson-Schultz-Flory distribution (Table 3). According to Cheng et al. [66], the high value of chain growth probability is connected with a small olefin to paraffin ratio. However, in our work, we did not observe such a tendency. The value of α for C5+ selectivity for co-NiCoBeta and NiCoBeta systems is in the range of 0.76–1.11. The microporous catalysts exhibit a higher chain growth probability value than mesoporous ones. A similar dependency was observed for Co zeolite catalysts in our earlier works [25,64]. The chain growth probability for the gaseous product of the FTS (α for C1-C4 selectivity) for all samples, except Red-Ni3.0Co10AlBeta and Red-Ni3.0Co10SiBeta, shows the opposite tendency than α for C5+ selectivity. In Table 4, the gaseous products carbon balance after 15 and 24 h of reaction is shown.
In order to support the formation of the products via hydrogenation process of CO, Fourier Transform Infrared Spectroscopy (FT-IR) measurements of the liquid products were performed and the results are given in Figure 12. FT-IR spectra recorded for all samples present characteristic IR band located at 3300 cm−1 assigned to the -OH groups forming hydrogen bonds or the -OH groups occurring in alcohols [67]. The characteristic bands visible in the range of 2850–2980 cm−1 are attributed to the stretching vibration of C-H in aliphatic hydrocarbons, respectively, while the IR bands at 1016, 1000 and 1086 cm−1 to the -C-C- stretching vibrations. The band located at 1376 cm−1 is connected with the deformation -OH band occurring in alcohols. In addition, in all investigated samples, the bands placed between 1600 and 1680 cm−1 are visible. They are the fingerprints of the stretching vibration bands of the C=C functional group. Furthermore, in the IR spectra located between 1667 and 2000 cm−1 one can distinguish additional bands assigned to the bending vibrations involved in the CH=CH2 group. The obtained FT-IR results agree well with the GC-MS analysis performed for the investigated systems. The IR spectra obtained for the liquid products characterized by high ratio of iso-/n-alkane do not show any stretching vibration bands of C-H in aliphatic hydrocarbons (e.g., Spent-Red-Mi-Ni3.0Co10SiBeta and Spent-Red-Mi-Ni3.0Co10AlBeta). Furthermore, the IR spectra of the liquid product which contains high ratio of unsaturated to saturated hydrocarbons obtained using Spent-Red-Mi-Ni3.0Co10SiBeta catalyst indicate high intensity of the specific bands related to the stretching vibrations in C=C functional group.

3. Materials and Methods

3.1. Materials Preparation

Ni3.0Co10AlBeta and Ni3.0Co10SiBeta zeolites were obtained by conventional wet impregnation and two-step postsynthesis method, respectively. In order to obtain these zeolites, micro- and mesoporous tetraethylammonium Beta (TEABeta) zeolites produced by RIPP (Beijing, China) divided on two fractions and prepared as described in Section 2.1.

3.2. Characterization Study

3.2.1. Chemical Analysis

The cobalt and nickel contents as well as Si/Al ratio of examined samples were determined at room temperature by X-ray Fluorescence (XRF) (SPECTRO X-LabPro apparatus, Kleve, Germany)

3.2.2. XRD

The XRD study was performed on a PANalytical X’Pert Pro diffractometer (Malvern Panalytical Ltd., Malvern, UK) using Cu Kα radiation (λ = 154.05 pm) in 2θ range of 5–90°.

3.2.3. XPS

The X-ray Photoelectron Spectroscopy (XPS) experiments were carried out with a hemispherical analyzer (SES R4000, GammadataScienta, (GammadataScienta, Uppsala, Sweden). The non-monochromatized Al Kα source (12 kV, 15 mA) was used to generate photoelectron excitations. The spectrometer was calibrated in accordance with ISO 15472:2001. The energy resolution of the system, measured as a full width at half maximum (FWHM) for Ag 3d5/2 excitation line, was 0.9 eV (pass energy 100 eV). During the measurements, the base pressure in the analysis chamber was ca. 2 × 10−9 mbar. The survey scans were obtained at pass energy of 200 eV (with 0.25 eV step), whereas high-resolution spectra were gathered at pass energy of 100 eV (with 25 meV step). The area of sample investigation was about 3 mm2. The experimental curves were fitted, after subtraction of the Shirley-type background, with a combination of Gaussian and Lorentzian lines of a constant proportion (70:30) with the use of CasaXPS 2.3.19 software. The Co 2p and Ni 2p lines were deconvoluted with a relative intensity ratio of 2p3/2 and 2p1/2 components fixed to 2:1. The BE values were charge-corrected to the carbon C 1s excitation which was set at 285.0 eV.

3.2.4. NH3-TPD

The number and strength of acidic sites of tested samples were investigated by temperature-programmed desorption of ammonia (NH3-TPD) in a quartz reactor. First, ca. 0.1 g of the sample was heated at 500 °C in argon flow for 1 h. Next, the gaseous ammonium was adsorbed on the sample at 100 °C for 15 min, and then physically adsorbed NH3 was removed from the CoBeta systems by argon flow for 15 min. The measurement was performed in the temperature range of 40–600 °C. In addition, to evaluate the effect of metal reduction on the sample acidity, bimetallic systems reduced at 400 °C for 1 h were examined by the adsorption of ammonia gas. The amount of adsorbed ammonia was detected using a thermal conductivity detector (Altamira Instruments, Pittsburgh, PA, USA).

3.2.5. TPR-H2

The TPR-H2 profiles of tested systems (0.1 g) were performed in an automatic TPR system. The flow of reducing mixture (5% H2–95% Ar) was 40 mL min−1 (Air Products Ltd., Warsaw, Poland). The quantitative consumption of the H2 was overseen by a thermal conductivity detector (TCD) (Altamira Instruments, Pittsburgh, PA, USA). The measurement was carried out in the temperature range of 25–900 °C (with 10 °C min−1 ramp rate).

3.2.6. TEM-EDS

A Transmission Electron Microscopy (TEM) study was realised on a JEOL JEM 2100 FEG microscope (Tokyo, Japan) operating at 200 kV with a spatial punctual resolution of 1.8 Å equipped with X-ray Energy Dispersive Spectroscopy (EDS) for chemical analysis. The samples were prepared by depositing a drop of the ultrasonically dispersed powder in ethanol on the carbon film of Cu grid.

3.3. Catalytic Activity

The Scheme 2 of the experimental set-up used for FT synthesis is presented below.
Before Fischer–Tropsch synthesis, in situ reduction of all catalysts was conducted in H2 flow (40 mL min−1) at an atmospheric pressure at 500 °C for 1 h, then the temperature was decreased to 260 °C in flow of H2. After that, the reaction conditions (T = 260 °C, p = 30 atm and CO:H2 ratio of 1:2 with H2 flow of 40 mL min−1 and CO2 flow of 20 mL min−1) were set and catalysts were stabilized by night in these conditions. The Fischer–Tropsch synthesis over Ni3.0Co10Beta and co-Ni3.0Co10Beta zeolite systems (0.5 g) was carried out at a stainless steel fix-bed flow reactor at 30 atm in 260 °C for 24 h. The flow reactor with a length of 50 cm and an internal diameter of 7 mm was located in a 35 cm length furnace. The catalyst bed bulk height was 5.8 cm and it was situated in the middle of the reactor.
The molar ratio of the reaction mixture (CO/H2) was 1:2. The total reactants flow during the reaction was 60 mL min−1. Obtained gaseous products were analyzed by a GC gas chromatograph (Shimadzu GC-14, Duisburg, Germany) supplied with two columns (measuring—Carbosphere 7A an comparative one—molecular sieves 7B) and two detectors—thermal conductivity (TCD) and flame ionization (FID). The chromatograph was operated with temperature of column −45 °C, detector −120 °C and injector −120 °C. Liquid products of Fischer–Tropsch synthesis were examined by the GC–MS coupled method (6890 N Network GC System with a ZB-1MS capillary column—a length of 30 m, an internal diameter of 0.25 mm linked with a 5973 Network Mass Selective Detector mass spectrometer with a 7683 Series Injector autosampler (AGILENT, Midland, ON, Canada). The chromatographic analysis was carried out in the temperature range of 70–250 °C (8 °C min−1). The initial and final temperatures of the analysis were held for 3 and 30 min, respectively. Based on the Anderson–Schultz–Floury (ASF) distribution of liquid products, the value of chain growth probability (α) was calculated. The ASF equation, in the case of non-dependence of α from the hydrocarbon chain length, can be represented as follows:
log(Wn/n) = nlogα + const.
where Wn is the mass fraction of the species with carbon number n.
The value of α was obtained from the slope of log (Wn/n) against n plot.
The activity and selectivity to C1-C4 (SCH4), CO2 (SCO2), and liquid products (SLP) were calculated by using the formulas provided below:
Kco = ((Scoin − SCOari)/SCOin) × 100%
SCH4 = ((XCH4 × 100%)/XCH4out)/F
XCH4out = (XCH4s × KCO)/100%
SCO2out = ((XCO2i × 100%)/XCO2out)/F
XCO2out = (XCO2s × KCO)/100%
F = SAr i/SAr s
SLP = 100 − (SCH4 + SCO2)
where: KCO—conversion of CO, SCOin—CO peak area before reaction, SCOari—CO peak area after reaction, SCH4—selectivity to CH4, SCO2—selectivity to CO2, XCH4i—peak area of obtained CH4, XCO2i—peak area of obtained CO2, XCH4out—theoretical CH4 peak area, when all CO is converted to CH4, XCO2out—theoretical CO2 peak area, when all CO is converted to CO2, XCH4s—standard CH4 area, when only CH4 is tested, XCO2s—standard CO2 area, when only CO2 is tested, F—contraction coefficient, SAri—Ar peak area during reaction, SArs—Ar peak area before reaction, SLP—selectivity to liquid products.
The analysis of liquid products formed during the hydrogenation of CO was carried out on the IRTracer-100 FTIR (Shimadzu, Duisburg, Germany) spectrometer equipped with a liquid nitrogen cooled MCT detector. To achieve a good signal to noise ratio, 128 scans with 4 cm−1 resolution were collected. The “Specac” reliable ATR accessory was applied in all the measurements.

4. Conclusions

The impact of Ni addition on the efficiency of cobalt based zeolite catalysts prepared with two types of Beta zeolite in FTS was determined in the present paper. The work shows that the presence of the Ni promoter led to a decrease in the temperature of the cobalt oxide reduction and an increase of the CO conversion.
Neither the dealumination of Beta zeolite nor the incorporation of Co and Ni affected its structure.
Among all tested catalysts, the highest activity in FTS were found for the Red-Mi-Ni3.0Co10SiBeta and Red-Mi-co-Ni3.0Co10SiBeta, for which a very high CO conversion near 100% and selectivity to liquid products of about 75% were achieved.
The nickel addition stabilizes a catalytic system during the whole time of synthesis (24 h).
In case of dealuminated samples, the presence of Ni promoter led to a decrease in the selectivity to liquid products.

Author Contributions

The experimental work was designed and supported by R.S., K.A.C., P.M., W.M., J.R., J.G., M.L.-R. and S.D. The manuscript was amended and supplemented by all authors. All authors have read and agreed to the published version of the manuscript.

Funding

There is no funding support for this work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wu, L.; Li, Z.; Han, D.; Wu, J.; Zhang, D. A preliminary evaluation of ZSM-5/SBA-15 composite supported Co catalysts for Fischer–Tropsch synthesis. Fuel Process. Technol. 2015, 134, 449–455. [Google Scholar] [CrossRef]
  2. Wang, S.; Yin, Q.; Guo, J.; Ru, B.; Zhu, L. Improved Fischer–Tropsch synthesis for gasoline over Ru, Ni promoted Co/HZSM-5 catalysts. Fuel 2013, 108, 597–603. [Google Scholar] [CrossRef]
  3. Moodley, D.J.; van de Loosdrecht, J.; Saib, A.M.; Overett, M.J.; Datye, A.K.; Niemantsverdriet, J.W. Carbon deposition as a deactivation mechanism of cobalt-based Fischer–Tropsch synthesis catalysts under realistic conditions. Appl. Catal. A Gen. 2009, 354, 102–110. [Google Scholar] [CrossRef]
  4. Sartipi, S.; Parashar, K.; Valero-Romero, M.J.; Santos, V.P.; van der Linden, B.; Makkee, M.; Kapteijn, F.; Gascon, J. Hierarchical H-ZSM-5-supported cobalt for the direct synthesis of gasoline-range hydrocarbons from syngas: Advantages, limitations, and mechanistic insight. J. Catal. 2013, 305, 179–190. [Google Scholar] [CrossRef]
  5. Concepción, P.; López, C.; Martínez, A.; Puntes, V.F. Characterization andatalytic properties of cobalt supported on delaminated ITQ-6 and ITQ-2 zeolites for the Fischer-Tropsch synthesis reaction. J. Catal. 2004, 228, 321–332. [Google Scholar] [CrossRef]
  6. Jung, J.-S.; Kim, S.W.; Moon, D.J. Fischer–Tropsch Synthesis over cobalt based catalyst supported on different mesoporous silica. Catal. Today 2012, 185, 168–174. [Google Scholar] [CrossRef]
  7. Najafabadi, A.T.; Khodadadi, A.A.; Parnian, M.J.; Mortazavi, Y. Atomic layer deposited Co/γ-Al2O3 catalyst with enhanced cobalt dispersion and Fischer–Tropsch synthesis activity and selectivity. Appl. Catal A Gen. 2016, 511, 31–46. [Google Scholar] [CrossRef]
  8. Hajjar, R.; Millot, Y.; Man, P.P.; Che, M.; Dzwigaj, S. Two Kinds of Framework Al Sites Studied in BEA Zeolite by X-ray Diffraction, Fourier Transform Infrared Spectroscopy, NMR Techniques, and V Probe. J. Phys. Chem. C 2008, 112, 20167–20175. [Google Scholar] [CrossRef]
  9. Baran, R.; Millot, Y.; Onfroy, T.; Krafft, J.M.; Dzwigaj, S. Influence of the nitric acid treatment on Al removal, framework composition and acidity of BEA zeolite investigated by XRD, FTIR and NMR. Microporous Mesoporous Mater. 2012, 163, 122–130. [Google Scholar] [CrossRef]
  10. Pour, A.N.; Zamani, Y.; Tavasoli, A.; Shahri, S.M.K.; Taheri, S.A. Study on products distribution of iron and iron–zeolite catalysts in Fischer–Tropsch synthesis. Fuel 2008, 87, 2004–2012. [Google Scholar] [CrossRef]
  11. Martinez, A.; Lopez, C. The influence of ZSM-5 zeolite composition and crystal size on the in situ conversion of Fischer–Tropsch products over hybrid catalysts. Appl. Catal. A Gen. 2005, 294, 251–259. [Google Scholar] [CrossRef]
  12. Tang, Q.; Wang, Y.; Zhang, Q.; Wan, H. Preparation of metallic cobalt inside NaY zeolite with high catalytic activity in Fischer–Tropsch synthesis. Catal. Commun. 2003, 4, 253–258. [Google Scholar] [CrossRef]
  13. Liu, Z.W.; Li, X.; Asami, K.; Fujimoto, K. Iso-paraffins synthesis from modified Fischer–Tropsch reaction—Insights into Pd/beta and Pt/beta catalysts. Catal. Today 2005, 104, 41–47. [Google Scholar] [CrossRef]
  14. Chalupka, K.A.; Casale, S.; Zurawicz, E.; Rynkowski, J.; Dzwigaj, S. The remarkable effect of the preparation procedure on the catalytic activity of CoBEA zeolites in the Fischer–Tropsch synthesis. Microporous Mesoporous Mater. 2015, 211, 9–18. [Google Scholar] [CrossRef]
  15. Chalupka, K.A.; Maniukiewicz, W.; Mierczynski, P.; Maniecki, T.; Rynkowski, J.; Dzwigaj, S. The catalytic activity of Fe-containing SiBEA zeolites in Fischer–Tropsch synthesis. Catal. Today 2015, 257, 117–121. [Google Scholar] [CrossRef]
  16. Park, J.-Y.; Lee, Y.-J.; Karandikar, P.R.; Jun, K.-W.; Ha, K.-S.; Park, H.-G. Fischer–Tropsch catalysts deposited with size-controlled Co3O4 nanocrystals: Effect of Co particle size on catalytic activity and stability. Appl. Catal. A Gen. 2012, 411, 15–23. [Google Scholar] [CrossRef]
  17. Xiong, H.; Zhang, Y.; Liew, K.; Li, J. Catalytic performance of zirconium-modified Co/Al2O3 for Fischer–Tropsch synthesis. J. Mol. Catal. A Chem. 2005, 231, 145–151. [Google Scholar] [CrossRef]
  18. Ali, S.; Chen, B.; Goodwin, J.G., Jr. Zr Promotion of Co/SiO2 for Fischer-Tropsch Synthesis. J. Catal. 1995, 157, 35–41. [Google Scholar] [CrossRef]
  19. Xu, D.; Li, W.; Duan, H.; Ge, Q.; Xu, H. Reaction performance and characterization of Co/Al2O3 Fischer–Tropsch catalysts promoted with Pt, Pd and Ru. Catal. Lett. 2005, 102, 229–235. [Google Scholar] [CrossRef]
  20. Vada, S.; Hoff, A.; Ådnanes, E.; Schanke, D.; Holmen, A. Fischer-Tropsch synthesis on supported cobalt catalysts promoted by platinum and rhenium. Top. Catal. 1995, 2, 155–162. [Google Scholar] [CrossRef]
  21. Das, T.K.; Jacobs, G.; Patterson, P.M.; Conner, W.A.; Li, J.; Davis, B.H. Fischer–Tropsch synthesis: Characterization and catalytic properties of rhenium promoted cobalt alumina catalysts. Fuel 2003, 82, 805–815. [Google Scholar] [CrossRef]
  22. Jacobs, G.; Chaney, J.A.; Patterson, P.M.; Das, T.K.; Davis, B.H. Fischer–Tropsch synthesis: Study of the promotion of Re on the reduction property of Co/Al2O3 catalysts by in situ EXAFS/XANES of Co K and Re LIII edges and XPS. Appl. Catal. A Gen. 2004, 264, 203–212. [Google Scholar] [CrossRef]
  23. Xiong, H.; Zhang, Y.; Liew, K.; Li, J. Ruthenium promotion of Co/SBA-15 catalysts with high cobalt loading for Fischer–Tropsch synthesis. Fuel Process. Technol. 2009, 90, 237–246. [Google Scholar] [CrossRef]
  24. Rytter, E.; Skagseth, T.H.; Eri, S.; Sjåstad, A.O. Cobalt Fischer−Tropsch Catalysts Using Nickel Promoter as a Rhenium Substitute to Suppress Deactivation. Ing. Eng. Chem. Res. 2010, 49, 4140–4148. [Google Scholar] [CrossRef]
  25. Sadek, R.; Chalupka, K.A.; Mierczynski, P.; Rynkowski, J.; Millot, Y.; Valentin, L.; Casale, S.; Dzwigaj, S. Fischer-Tropsch reaction on Co-containing microporous and mesoporous Beta zeolite catalysts: The effect of porous size and acidity. Catal. Today 2019. [Google Scholar] [CrossRef]
  26. Dzwigaj, S.; Che, M. Incorporation of Co(II) in Dealuminated BEA Zeolite at Lattice Tetrahedral Sites Evidenced by XRD, FTIR, Diffuse Reflectance UV−Vis, EPR, and TPR. J. Phys. Chem. B 2006, 110, 12490–12493. [Google Scholar] [CrossRef]
  27. Mintova, S.; Valtchev, V.; Onfroy, T.; Marichal, C.; Knözinger, H.; Bein, T. Variation of the Si/Al ratio in nanosized zeolite Beta crystals. Microporous Mesoporous Mater. 2006, 90, 237–245. [Google Scholar] [CrossRef]
  28. Chalupka, K.A.; Jozwiak, W.K.; Rynkowski, J.; Maniukiewicz, W.; Casale, S.; Dzwigaj, S. Partial oxidation of methane on NixAlBEA and NixSiBEA zeolite catalysts: Remarkable effect of preparation procedure and Ni content. Appl. Catal. B Environ. 2014, 146, 227–236. [Google Scholar] [CrossRef]
  29. Dzwigaj, S.; Janas, J.; Machej, T.; Che, M. Selective catalytic reduction of NO by alcohols on Co- and Fe-Siβ catalysts. Catal. Today 2007, 119, 133–136. [Google Scholar] [CrossRef]
  30. Fazlollahi, F.; Sarkari, M.; Zare, A.; Mirzaei, A.A.; Atashi, H. Development of a kinetic model for Fischer–Tropsch synthesis over Co/Ni/Al2O3 catalyst. J. Ind. Eng. Chem. 2012, 18, 1223–1232. [Google Scholar] [CrossRef]
  31. Erdogan, B.; Arbag, H.; Yasyerli, N. SBA-15 supported mesoporous Ni and Co catalysts with high coke resistance for dry reforming of methane. Int. J. Hydrogen Energy 2018, 43, 1396–1405. [Google Scholar] [CrossRef]
  32. Mosayebi, A.; Abedini, R. Detailed kinetic study of Fischer—Tropsch synthesis for gasoline production over Co-Ni/HZSM-5 nano-structure catalyst. Int. J. Hydrogen Energy 2017, 42, 27013–27023. [Google Scholar] [CrossRef]
  33. Rodriguez-Gomez, A.; Caballero, A. Bimetallic Ni-Co/SBA-15 catalysts for reforming of ethanol: How cobalt modifies the nickel metal phase and product distribution. Mol. Catal. 2018, 449, 122–130. [Google Scholar] [CrossRef]
  34. Arbag, H.; Yasyerli, S.; Yasyerli, N.; Dogu, G.; Dogu, T. Enhancement of catalytic performance of Ni based mesoporous alumina by Co incorporation in conversion of biogas to synthesis gas. Appl. Catal. B Environ. 2016, 198, 254–265. [Google Scholar] [CrossRef]
  35. Boroń, P.; Chmielarz, L.; Gurgul, J.; Łątka, K.; Shishido, T.; Krafft, J.-M.; Dzwigaj, S. BEA zeolite modified with iron as effective catalyst for N2O decomposition and selective reduction of NO with ammonia. Appl. Catal. B Environ. 2013, 138, 434–445. [Google Scholar] [CrossRef]
  36. Boroń, P.; Chmielarz, L.; Gurgul, J.; Łątka, K.; Gil, B.; Krafft, J.-M.; Dzwigaj, S. The influence of the preparation procedures on the catalytic activity of Fe-BEA zeolites in SCR of NO with ammonia and N2O decomposition. Catal. Today 2014, 235, 210–225. [Google Scholar] [CrossRef]
  37. Kocemba, I.; Rynkowski, J.; Gurgul, J.; Socha, R.P.; Łątka, K.; Krafft, J.-M.; Dzwigaj, S. Nature of the active sites in CO oxidation on FeSiBEA zeolites. Appl. Catal. A Gen. 2016, 519, 16–26. [Google Scholar] [CrossRef]
  38. Kumar, M.S.; Schwidder, M.; Grünert, W.; Bentrup, U.; Brückner, A. Selective reduction of NO with Fe-ZSM-5 catalysts of low Fe content: Part II. Assessing the function of different Fe sites by spectroscopic in situ studies. J. Catal. 2006, 239, 173–186. [Google Scholar]
  39. Arishtirova, K.; Kovacheva, P.; Predoeva, A. Activity and basicity of BaO modified zeolite and zeolite-type catalysts. Appl. Catal. A Gen. 2003, 243, 191–196. [Google Scholar] [CrossRef]
  40. Kovacheva, P.; Arishtirova, K.; Predoeva, A. Basic zeolite and zeolite-type catalysts for the oxidative methylation of toluene with methane. React. Kinet. Catal. Lett. 2003, 79, 149–155. [Google Scholar] [CrossRef]
  41. Oleksenko, L.P. Characteristics of Active Site Formation in Co-Containing Catalysts for CO Oxidation on Chemically Different Supports. Theor. Exp. Chem. 2004, 40, 331–336. [Google Scholar] [CrossRef]
  42. Grünert, W.; Schlögl, R. Photoelectron Spectroscopy of Zeolites. Mol. Sieves 2004, 4, 467–515. [Google Scholar]
  43. Janas, J.; Gurgul, J.; Socha, R.P.; Dzwigaj, S. Effect of Cu content on the catalytic activity of CuSiBEA zeolite in the SCR of NO by ethanol: Nature of the copper species. Appl. Catal. B Environ. 2009, 91, 217–224. [Google Scholar] [CrossRef]
  44. Gurgul, J.; Łątka, K.; Hnat, I.; Rynkowski, J.; Dzwigaj, S. Identification of iron species in FeSiBEA by DR UV-vis, XPS and Mössbauer spectroscopy: Influence of Fe content. Microporous Mesoporous Mater. 2013, 168, 1–6. [Google Scholar] [CrossRef]
  45. Boroń, P.; Chmielarz, L.; Gurgul, J.; Łątka, K.; Gil, B.; Marszałek, B.; Dzwigaj, S. Influence of iron state and acidity of zeolites on the catalytic activity of FeHBEA, FeHZSM-5 and FeHMOR in SCR of NO with NH3 and N2O decomposition. Microporous Mesoporous Mater. 2015, 203, 73–85. [Google Scholar] [CrossRef]
  46. Kim, J.-G.; Pugmire, D.L.; Battaglia, D.; Langell, M.A. Analysis of the NiCo2O4 spinel surface with Auger and X-ray photoelectron spectroscopy. Appl. Surf. Sci. 2000, 165, 70–84. [Google Scholar] [CrossRef]
  47. Rodríguez, J.L.; Valenzuela, M.A.; Poznyak, T.; Lartundo, L.; Chairez, I. Reactivity of NiO for 2,4-D degradation with ozone: XPS studies. J. Hazard. Mater. 2013, 262, 472–481. [Google Scholar] [CrossRef]
  48. NIST X-ray Photoelectron Spectroscopy Database. Available online: http://srdata.nist.gov/xps/ (accessed on 15 September 2012).
  49. Langell, M.A.; Anderson, M.D.; Carson, G.A.; Peng, L.; Smith, S. Valence-band electronic structure of Co3O4 epitaxy on CoO (100). Phys. Rev. B 1999, 59, 4791–4798. [Google Scholar] [CrossRef]
  50. Tan, B.J.; Klabunde, K.J.; Sherwood, P.M.A. XPS studies of solvated metal atom dispersed (SMAD) catalysts. Evidence for layered cobalt-manganese particles on alumina and silica. J. Am. Chem. Soc. 1991, 113, 855–861. [Google Scholar] [CrossRef]
  51. Zhou, Z.; Zhang, Y.; Wang, Z.; Wei, W.; Tang, W.; Shi, J.; Xiong, R. Electronic structure studies of the spinel CoFe2O4 by X-ray photoelectron spectroscopy. Appl. Surf. Sci. 2008, 254, 6972–6975. [Google Scholar] [CrossRef]
  52. Ivanova, T.; Naumkin, A.; Sidorov, A.; Eremenko, I.; Kiskin, M. X-ray photoelectron spectra and electron structure of polynuclear cobalt complexes. J. Electron. Spectrosc. Relat. Phenom. 2007, 156, 200–203. [Google Scholar] [CrossRef]
  53. Chen, H.-H.; Shen, S.-C.; Chen, X.; Kawi, S. Selective catalytic reduction of NO over Co/beta-zeolite: Effects of synthesis condition of beta-zeolites, Co precursor, Co loading method and reductant. Appl. Catal. B Environ. 2004, 50, 37–47. [Google Scholar] [CrossRef]
  54. Janas, J.; Machej, T.; Gurgul, J.; Socha, R.P.; Che, M.; Dzwigaj, S. Effect of Co content on the catalytic activity of CoSiBEA zeolite in the selective catalytic reduction of NO with ethanol: Nature of the cobalt species. Appl. Catal. B Environ. 2007, 75, 239–248. [Google Scholar] [CrossRef]
  55. Zsoldos, Z.; Vass, G.; Lu, G.; Guczi, L. XPS study on the effects of treatments on Pt2+ and Co2+ exchanged into NaY zeolite. Appl. Surf. Sci. 1994, 78, 467–475. [Google Scholar] [CrossRef]
  56. Da Cruz, R.S.; Mascarenhas, A.J.S.; Andrade, H.M.C. Co-ZSM-5 catalysts for N2O decomposition. Appl. Catal. B Environ. 1998, 18, 223–231. [Google Scholar] [CrossRef]
  57. Janas, J.; Gurgul, J.; Socha, R.P.; Kowalska, J.; Nowinska, K.; Shishido, T.; Che, M.; Dzwigaj, S. Influence of the Content and Environment of Chromium in CrSiBEA Zeolites on the Oxidative Dehydrogenation of Propane. J. Phys. Chem. C 2009, 113, 13273–13281. [Google Scholar] [CrossRef]
  58. Dzwigaj, S.; Janas, J.; Mizera, J.; Gurgul, J.; Socha, R.P.; Che, M. Incorporation of Copper in SiBEA Zeolite as Isolated Lattice Mononuclear Cu(II) Species and its Role in Selective Catalytic Reduction of NO by Ethanol. Catal. Lett. 2008, 126, 36–42. [Google Scholar] [CrossRef]
  59. Boroń, P.; Chmielarz, L.; Casal, S.; Calers, C.; Krafft, J.-M.; Dzwigaj, S. Effect of Co content on the catalytic activity of CoSiBEA zeolites in N2O decomposition and SCR of NO with ammonia. Catal. Today 2015, 258, 507–517. [Google Scholar] [CrossRef]
  60. Stanton, A.R.; Iisa, K.; Yung, M.M.; Magrini, K.A. Catalytic fast pyrolysis with metal-modified ZSM-5 catalysts in inert and hydrogen atmospheres. J. Anal. Appl. Pyrol. 2018, 135, 199–208. [Google Scholar] [CrossRef]
  61. Lim, T.H.; Cho, S.J.; Yang, H.S.; Engelhard, M.H.; Kim, D.H. Effect of Co/Ni ratios in cobalt nickel mixed oxide catalysts on methane combustion. Appl. Catal. A Gen. 2015, 505, 62–69. [Google Scholar] [CrossRef]
  62. Nieto-Márquez, A.; Lazo, J.C.; Romero, A.; Valverde, J.L. Growth of nitrogen-doped filamentous and spherical carbon over unsupported and Y zeolite supported nickel and cobalt catalysts. Chem. Eng. J. 2008, 144, 518–530. [Google Scholar] [CrossRef]
  63. Ochoa-Hernández, C.; Yang, Y.; Pizarro, P.; de la Peña O’Shea, V.A.; Coronado, J.M.; Serrano, D.P. Hydrocarbons production through hydrotreating of methyl esters over Ni and Co supported on SBA-15 and Al-SBA-15. Catal. Today 2013, 210, 81–88. [Google Scholar] [CrossRef]
  64. Sadek, R.; Chalupka, K.A.; Mierczynski, P.; Rynkowski, J.; Gurgul, J.; Dzwigaj, S. Cobalt Based Catalysts Supported on Two Kinds of Beta Zeolite for Application in Fischer-Tropsch Synthesis. Catalysts 2019, 9, 497. [Google Scholar] [CrossRef]
  65. Shimura, K.; Miyazawa, T.; Hanaoka, T.; Hirata, S. Fischer–Tropsch synthesis over alumina supported bimetallic Co–Ni catalyst: Effect of impregnation sequence and solution. J. Mol. Catal. A Chem. 2015, 407, 15–24. [Google Scholar] [CrossRef]
  66. Cheng, J.; Hu, P.; Ellis, P.; French, S.; Kelly, G.; Lok, C.M. A DFT study of the chain growth probability in Fischer–Tropsch synthesis. J. Catal. 2008, 257, 221–228. [Google Scholar] [CrossRef]
  67. Socrats, G. Infrared Characteristic Group Frequencies. In Tables and Charts, 2nd ed.; Wiley: Chichester, UK, 1994; pp. 1–249. [Google Scholar]
Scheme 1. Methods of preparation of mesoporous (marked as Me in Scheme 1) and microporous (marked as Mi in Scheme 1) NiCoBeta and co-NiCoBeta.
Scheme 1. Methods of preparation of mesoporous (marked as Me in Scheme 1) and microporous (marked as Mi in Scheme 1) NiCoBeta and co-NiCoBeta.
Catalysts 10 00112 sch001
Figure 1. XRD patterns of (A) Me-Ni3.0Co10AlBeta, Mi-Ni3.0Co10AlBeta, Me-Ni3.0Co10SiBeta, Mi-Ni3.0Co10SiBeta and (B) Me-co-Ni3.0Co10AlBeta, Mi-co-Ni3.0Co10AlBeta, Me-co-Ni3.0Co10SiBeta, Mi-co-Ni3.0Co10SiBeta recorded at room temperature and ambient atmosphere (▲—Co3O4, ■—NiO, ✖—NiCo2O4).
Figure 1. XRD patterns of (A) Me-Ni3.0Co10AlBeta, Mi-Ni3.0Co10AlBeta, Me-Ni3.0Co10SiBeta, Mi-Ni3.0Co10SiBeta and (B) Me-co-Ni3.0Co10AlBeta, Mi-co-Ni3.0Co10AlBeta, Me-co-Ni3.0Co10SiBeta, Mi-co-Ni3.0Co10SiBeta recorded at room temperature and ambient atmosphere (▲—Co3O4, ■—NiO, ✖—NiCo2O4).
Catalysts 10 00112 g001

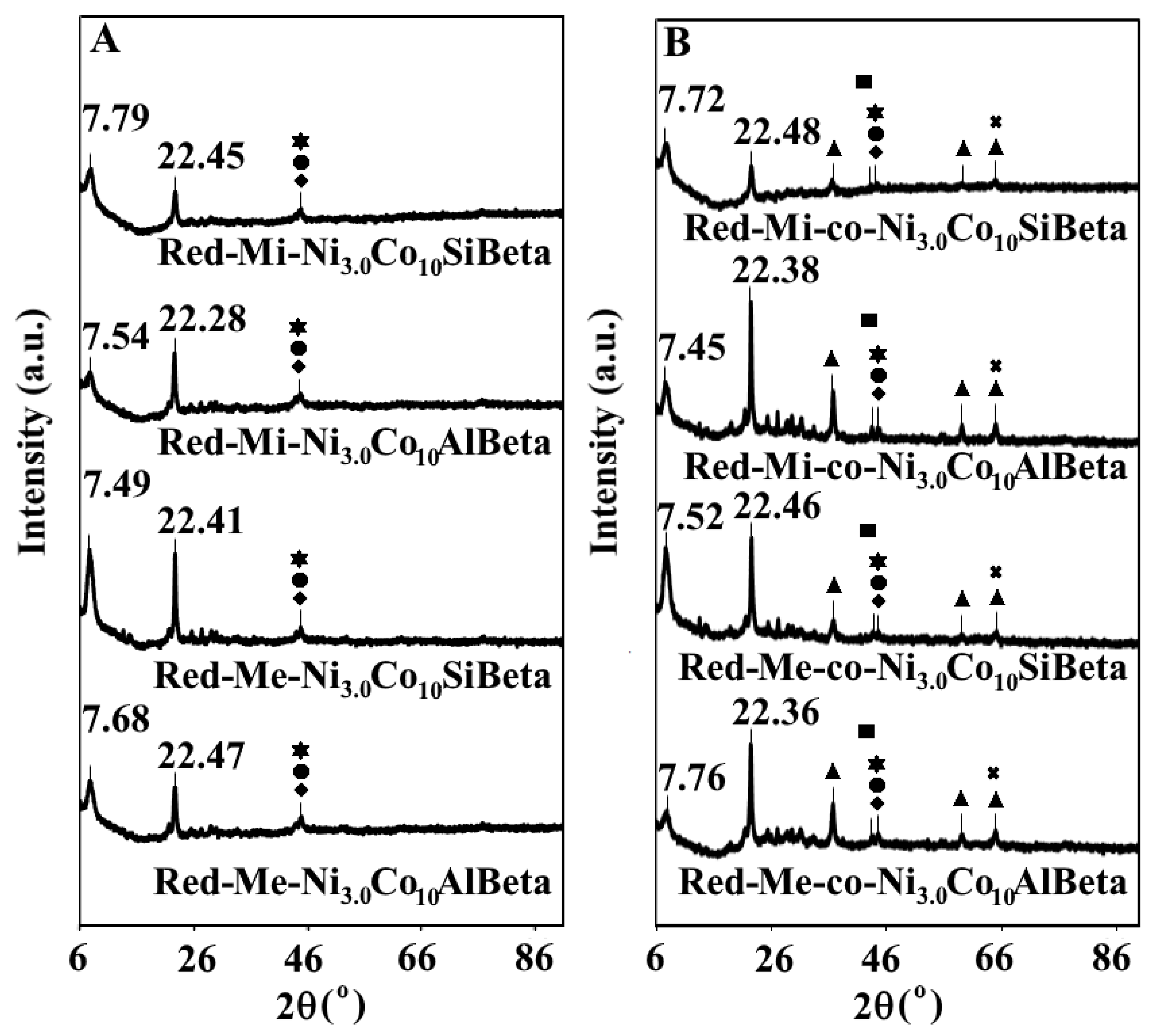

Figure 2. XRD patterns of (A) Red-Me-Ni3.0Co10AlBeta, Red-Mi-Ni3.0Co10AlBeta, Red-Me-Ni3.0Co10SiBeta, Red-Mi-Ni3.0Co10SiBeta and (B) Red-Me-co-Ni3.0Co10AlBeta, Red-Mi-co-Ni3.0Co10AlBeta, Red-Me-co-Ni3.0Co10SiBeta, Red-Mi-co-Ni3.0Co10SiBeta recorded at room temperature and ambient atmosphere (♦—Ni0, ●—Co0, 🟌—Ni-Co alloy, ▲—Co3O4, ■—NiO, ✖—NiCo2O4).
Figure 2. XRD patterns of (A) Red-Me-Ni3.0Co10AlBeta, Red-Mi-Ni3.0Co10AlBeta, Red-Me-Ni3.0Co10SiBeta, Red-Mi-Ni3.0Co10SiBeta and (B) Red-Me-co-Ni3.0Co10AlBeta, Red-Mi-co-Ni3.0Co10AlBeta, Red-Me-co-Ni3.0Co10SiBeta, Red-Mi-co-Ni3.0Co10SiBeta recorded at room temperature and ambient atmosphere (♦—Ni0, ●—Co0, 🟌—Ni-Co alloy, ▲—Co3O4, ■—NiO, ✖—NiCo2O4).
Catalysts 10 00112 g002

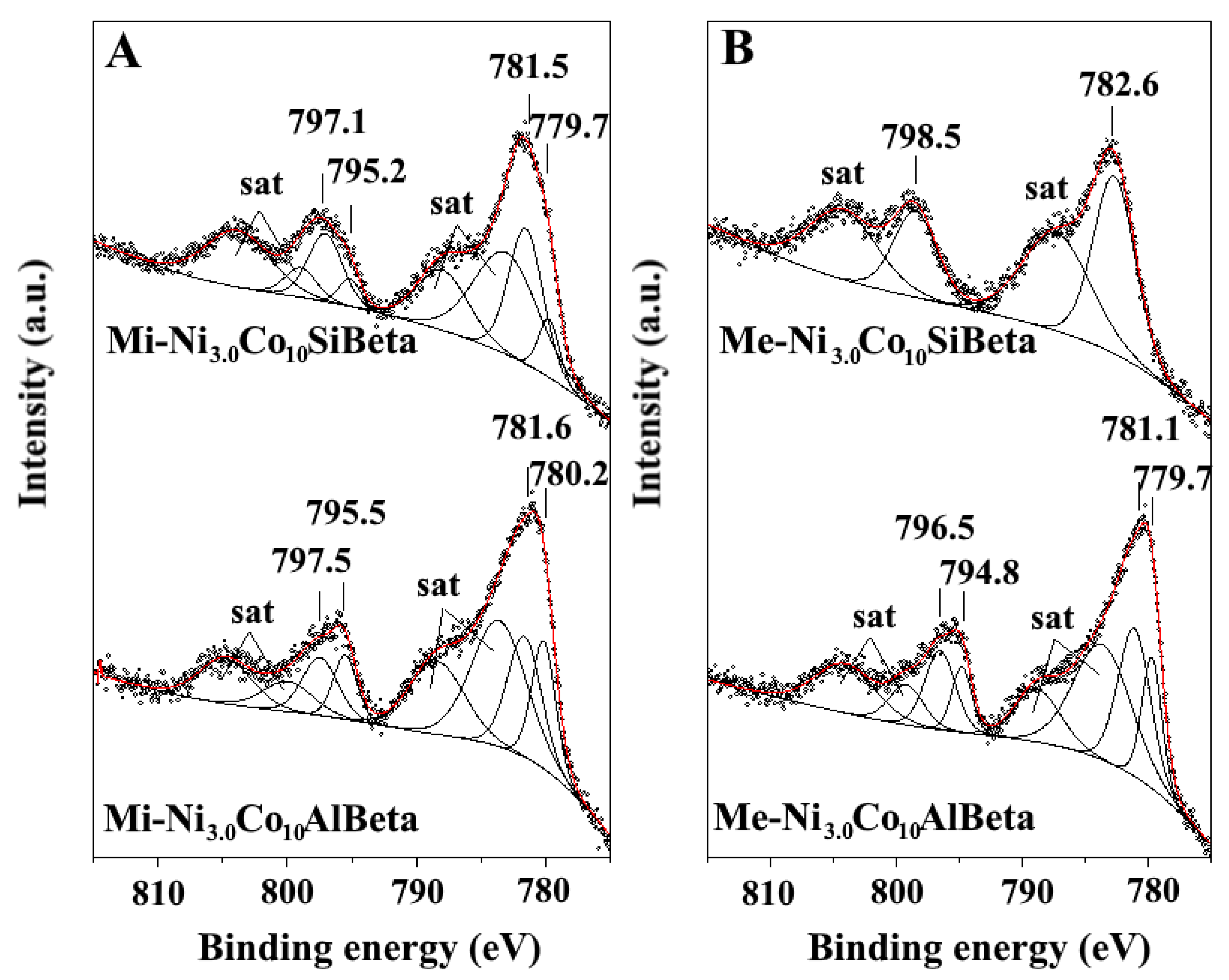

Figure 3. Co 2p XPS spectra of (A) Mi-Ni3.0Co10SiBeta and Mi-Ni3.0Co10AlBeta and (B) Me-Ni3.0Co10SiBeta and Me-Ni3.0Co10AlBeta.
Figure 3. Co 2p XPS spectra of (A) Mi-Ni3.0Co10SiBeta and Mi-Ni3.0Co10AlBeta and (B) Me-Ni3.0Co10SiBeta and Me-Ni3.0Co10AlBeta.
Catalysts 10 00112 g003
Figure 4. NH3-TPD profiles of (A) Me-Ni3.0Co10Beta, Mi-Ni3.0Co10Beta and (B) Me-co-Ni3.0Co10Beta, Mi-co-Ni3.0Co10Beta.
Figure 4. NH3-TPD profiles of (A) Me-Ni3.0Co10Beta, Mi-Ni3.0Co10Beta and (B) Me-co-Ni3.0Co10Beta, Mi-co-Ni3.0Co10Beta.
Catalysts 10 00112 g004
Figure 5. NH3-TPD profiles of (A) Red-Me-Ni3.0Co10Beta, Red-Mi-Ni3.0Co10Beta and (B) Red-Me-co-Ni3.0Co10Beta, Red-Mi-co-Ni3.0Co10Beta.
Figure 5. NH3-TPD profiles of (A) Red-Me-Ni3.0Co10Beta, Red-Mi-Ni3.0Co10Beta and (B) Red-Me-co-Ni3.0Co10Beta, Red-Mi-co-Ni3.0Co10Beta.
Catalysts 10 00112 g005
Figure 6. TPR-H2 profiles of (A) Me-Ni3.0Co10Beta, Mi-Ni3.0Co10Beta and (B) Me-co-Ni3.0Co10Beta, Mi-co-Ni3.0Co10Beta.
Figure 6. TPR-H2 profiles of (A) Me-Ni3.0Co10Beta, Mi-Ni3.0Co10Beta and (B) Me-co-Ni3.0Co10Beta, Mi-co-Ni3.0Co10Beta.
Catalysts 10 00112 g006
Figure 7. TEM bright field micrographs (A,C,E,G) with a representative EDS spectra (B,D,F,H) of Red-Me-co-Ni3.0Co10SiBeta, Red-Mi-co-Ni3.0Co10SiBeta, Red-Me-co-Ni3.0Co10AlBeta, Red-Mi-co-Ni3.0Co10AlBeta.
Figure 7. TEM bright field micrographs (A,C,E,G) with a representative EDS spectra (B,D,F,H) of Red-Me-co-Ni3.0Co10SiBeta, Red-Mi-co-Ni3.0Co10SiBeta, Red-Me-co-Ni3.0Co10AlBeta, Red-Mi-co-Ni3.0Co10AlBeta.
Catalysts 10 00112 g007
Figure 8. Conversion of CO ( Catalysts 10 00112 i001) and selectivity to C1-C4 ( Catalysts 10 00112 i002), CO2 ( Catalysts 10 00112 i003) and liquid products (■) after Fischer–Tropsch synthesis (T = 260 °C, p = 30 atm, t = 24 h) over (A) Red-Mi-Ni3.0Co10AlBeta, (B) Red-Me-Ni3.0Co10AlBeta, (C) Red-Mi-Ni3.0Co10SiBeta, (D) Red-Me-Ni3.0Co10SiBeta.
Figure 8. Conversion of CO ( Catalysts 10 00112 i001) and selectivity to C1-C4 ( Catalysts 10 00112 i002), CO2 ( Catalysts 10 00112 i003) and liquid products (■) after Fischer–Tropsch synthesis (T = 260 °C, p = 30 atm, t = 24 h) over (A) Red-Mi-Ni3.0Co10AlBeta, (B) Red-Me-Ni3.0Co10AlBeta, (C) Red-Mi-Ni3.0Co10SiBeta, (D) Red-Me-Ni3.0Co10SiBeta.
Catalysts 10 00112 g008
Figure 9. Conversion of CO ( Catalysts 10 00112 i001) and selectivity to C1-C4 ( Catalysts 10 00112 i002), CO2 ( Catalysts 10 00112 i003) and liquid products (■) after Fischer-Tropsch synthesis (T = 260 °C, p = 30 atm, t = 24 h) over (A) Red-Mi-co-Ni3.0Co10AlBeta, (B) Red-Me-co-Ni3.0Co10AlBeta, (C) Red-Mi-co-Ni3.0Co10SiBeta, (D) Red-Me-co-Ni3.0Co10SiBeta.
Figure 9. Conversion of CO ( Catalysts 10 00112 i001) and selectivity to C1-C4 ( Catalysts 10 00112 i002), CO2 ( Catalysts 10 00112 i003) and liquid products (■) after Fischer-Tropsch synthesis (T = 260 °C, p = 30 atm, t = 24 h) over (A) Red-Mi-co-Ni3.0Co10AlBeta, (B) Red-Me-co-Ni3.0Co10AlBeta, (C) Red-Mi-co-Ni3.0Co10SiBeta, (D) Red-Me-co-Ni3.0Co10SiBeta.
Catalysts 10 00112 g009
Figure 10. GC–MS analysis of liquid products achieved in FTS over (A) Red-Mi-Ni3.0Co10AlBeta, (B) Red-Me-Ni3.0Co10AlBeta, (C) Red-Mi-Ni3.0Co10SiBeta, (D) Red-Me-Ni3.0Co10SiBeta.
Figure 10. GC–MS analysis of liquid products achieved in FTS over (A) Red-Mi-Ni3.0Co10AlBeta, (B) Red-Me-Ni3.0Co10AlBeta, (C) Red-Mi-Ni3.0Co10SiBeta, (D) Red-Me-Ni3.0Co10SiBeta.
Catalysts 10 00112 g010

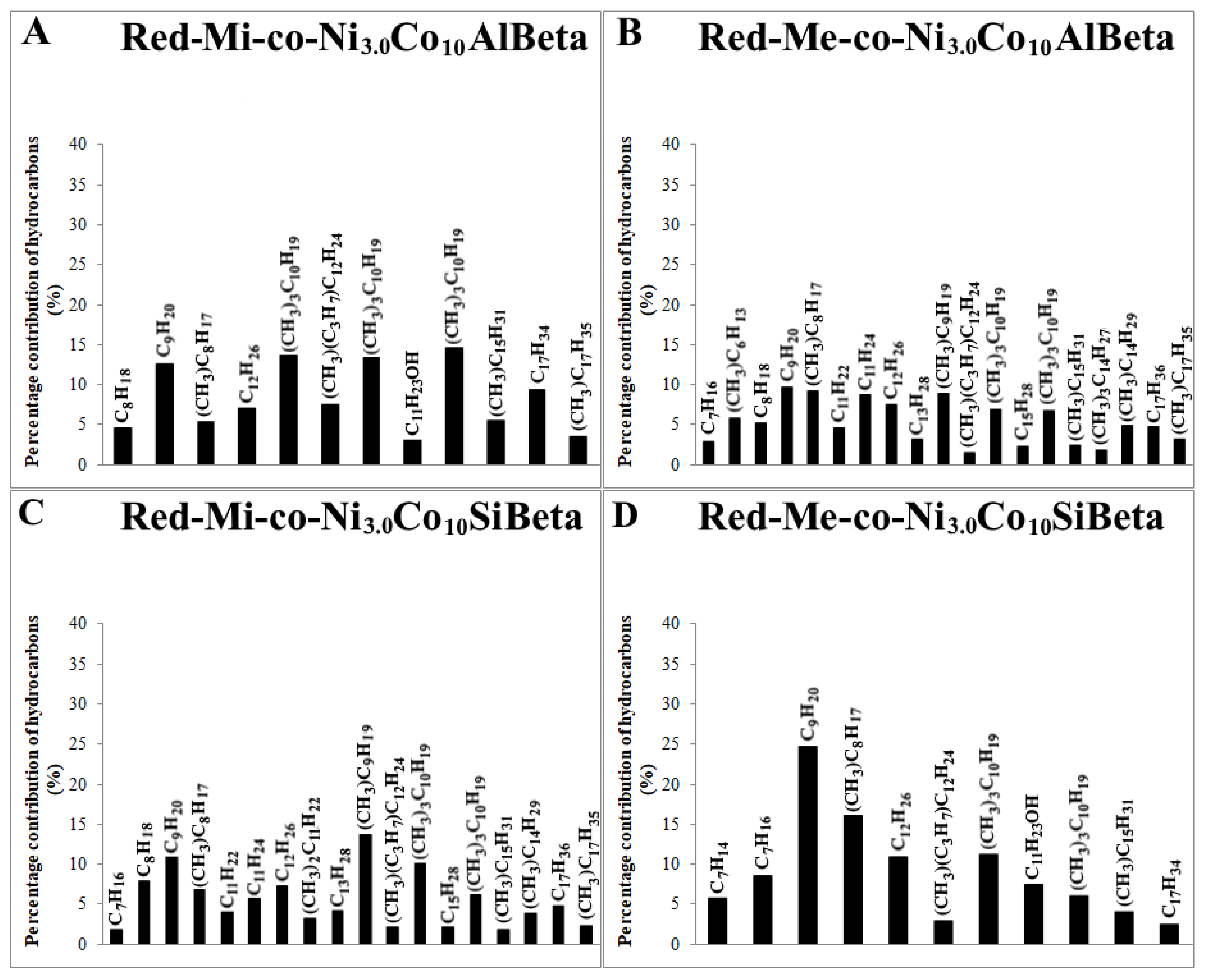

Figure 11. GC-MS analysis of liquid products achieved in FTS over (A) Red-Mi-co-Ni3.0Co10AlBeta, (B) Red-Me-co-Ni3.0Co10AlBeta, (C) Red-Mi-co-Ni3.0Co10SiBeta, (D) Red-Me-co-Ni3.0Co10SiBeta.
Figure 11. GC-MS analysis of liquid products achieved in FTS over (A) Red-Mi-co-Ni3.0Co10AlBeta, (B) Red-Me-co-Ni3.0Co10AlBeta, (C) Red-Mi-co-Ni3.0Co10SiBeta, (D) Red-Me-co-Ni3.0Co10SiBeta.
Catalysts 10 00112 g011

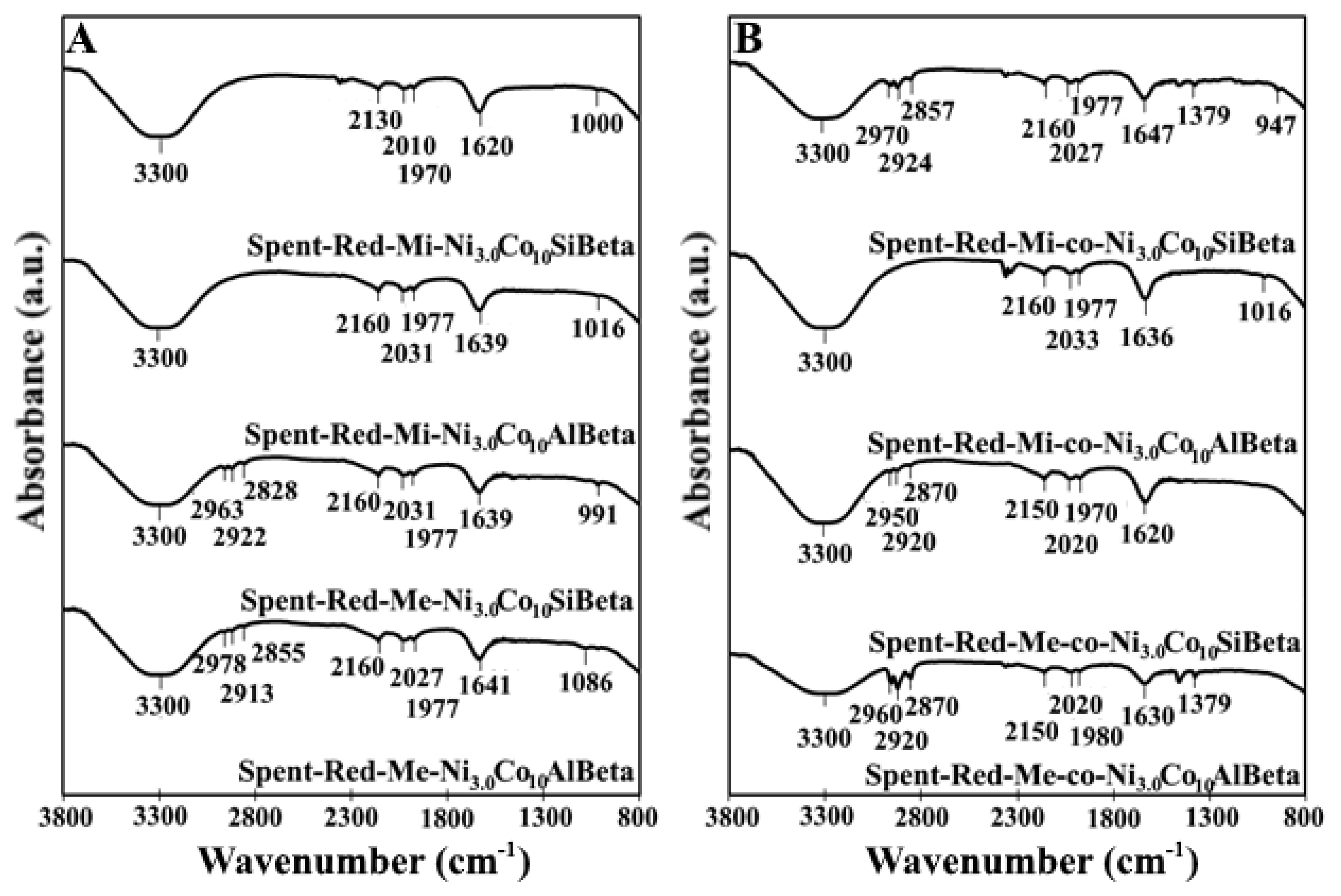

Figure 12. FT-IR spectra of obtained liquid products over (A) Spent-Red-Me-Ni3.0Co10AlBeta, Spent-Red-Mi-Ni3.0Co10AlBeta, Spent-Red-Me-Ni3.0Co10SiBeta, Spent-Red-Me-Ni3.0Co10SiBeta and (B) Spent-Red-Me-co-Ni3.0Co10AlBeta, Spent-Red-Mi-co-Ni3.0Co10AlBeta, Spent-Red-Me-co-Ni3.0Co10SiBeta, Spent-Red-Me-co-Ni3.0Co10SiBeta.
Figure 12. FT-IR spectra of obtained liquid products over (A) Spent-Red-Me-Ni3.0Co10AlBeta, Spent-Red-Mi-Ni3.0Co10AlBeta, Spent-Red-Me-Ni3.0Co10SiBeta, Spent-Red-Me-Ni3.0Co10SiBeta and (B) Spent-Red-Me-co-Ni3.0Co10AlBeta, Spent-Red-Mi-co-Ni3.0Co10AlBeta, Spent-Red-Me-co-Ni3.0Co10SiBeta, Spent-Red-Me-co-Ni3.0Co10SiBeta.
Catalysts 10 00112 g012
Scheme 2. The scheme of the experimental set-up used for FT synthesis.
Scheme 2. The scheme of the experimental set-up used for FT synthesis.
Catalysts 10 00112 sch002
Table 1. The binding energies (eV) and relative areas of components (%) of Co 2p3/2 lines obtained for meso- and microporous samples. The spin-orbit splitting ΔSO (eV) of each doublet is also listed.
Table 1. The binding energies (eV) and relative areas of components (%) of Co 2p3/2 lines obtained for meso- and microporous samples. The spin-orbit splitting ΔSO (eV) of each doublet is also listed.
SampleABΔSOSatellites
Mi-Ni3.0Co10AlBeta780.2781.615.4–15.8783.6–788.4
-(42.6)(57.4)--
Mi-Ni3.0Co10SiBeta779.7781.515.4–15.5783.1–788.0
-(20.5)(79.5)--
Me-Ni3.0Co10AlBeta779.7781.015.1–15.5783.6–788.7
-(35.3)(64.7)--
Me-Ni3.0Co10SiBeta-782.615.9787.3
--(100)--
Table 2. The quantitative data of NH3-TPD for reduced and non-reduced Ni3.0Co10Beta systems.
Table 2. The quantitative data of NH3-TPD for reduced and non-reduced Ni3.0Co10Beta systems.
SampleaNH3 (μmol g−1)Sample *aNH3 (μmol g−1) *
Mi-Ni3.0Co10AlBeta1006Mi-HAlBeta1459
Red-Mi-Ni3.0Co10AlBeta2914Mi-Co10AlBeta1404
Mi-co-Ni3.0Co10AlBeta1586Red-Mi-Co10AlBeta2555
Red-Mi-co-Ni3.0Co10AlBeta2604--
Mi-Ni3.0Co10SiBeta590Mi-SiBeta435
Red-Mi-Ni3.0Co10SiBeta1048Mi-Co10SiBeta1430
Mi-co-Ni3.0Co10SiBeta1265Red-Mi-Co10SiBeta1350
Red-Mi-co-Ni3.0Co10SiBeta1986--
Me-Ni3.0Co10AlBeta1598Me-HAlBeta1488
Red-Me-Ni3.0Co10AlBeta2179Me-Co10AlBeta1404
Me-co-Ni3.0Co10AlBeta1364Red-Me-Co10AlBeta2569
Red-Me-co-Ni3.0Co10AlBeta2103--
Me-Ni3.0Co10SiBeta947Me-SiBeta419
Red-Me-Ni3.0Co10SiBeta1389Me-Co10SiBeta1358
Me-co-Ni3.0Co10SiBeta1161Red-Me-Co10SiBeta1130
Red-Me-co-Ni3.0Co10SiBeta1710--
* The data from ref. [26].
Table 3. The catalytic activity and selectivity of tested samples in Fischer–Tropsch synthesis.
Table 3. The catalytic activity and selectivity of tested samples in Fischer–Tropsch synthesis.
SampleCO Conversion (%)Selectivity Towards (%)Iso/n-Alkane RatioAlcohols/Alkane RatioUnsaturated/Alkane Ratioα C1-C4
C1-C4CO2Liquid Products
Red-Mi-Ni3.0Co10AlBeta95.1916.586.7276.702.260.260.740.86
Red-Mi-co-Ni3.0Co10AlBeta17.024.080.0095.922.620.120.390.59
Red-Mi-Ni3.0Co10SiBeta99.6817.976.4775.563.120.002.980.32
Red-Mi-co-Ni3.0Co10SiBeta99.6618.196.5075.311.180.000.150.65
Red-Me-Ni3.0Co10AlBeta16.450.000.00100.002.440.290.210.53
Red-Me-co-Ni3.0Co10AlBeta17.291.050.0098.951.220.000.170.64
Red-Me-Ni3.0Co10SiBeta81.4612.380.0087.621.580.160.480.84
Red-Me-co-Ni3.0Co10SiBeta97.8616.946.4876.580.910.170.180.80
Table 4. The total amount of all products (millimole per gram of catalysts) calculated on the base of carbon balance data and CO conversion.
Table 4. The total amount of all products (millimole per gram of catalysts) calculated on the base of carbon balance data and CO conversion.
CatalystReaction Time (h)The Total Amount of All Products (Millimole/gcat.)
Red-Mi-Ni3.0Co10AlBeta150.002
241.564
Red-Mi-co-Ni3.0Co10AlBeta150.31
240.28
Red-Mi-Ni3.0Co10SiBeta151.638
241.636
Red-Mi-co-Ni3.0Co10SiBeta151.528
241.636
Red-Me-Ni3.0Co10AlBeta150.248
240.27
Red-Me-co-Ni3.0Co10AlBeta150.238
240.284
Red-Me-Ni3.0Co10SiBeta151.17
241.338
Red-Me-co-Ni3.0Co10SiBeta151.406
241.606
Back to TopTop
