Computers 2019, 8(1), 24; https://doi.org/10.3390/computers8010024

Article
An Evaluation Approach for a Physically-Based Sticky Lip Model
The Department of Computer Science, University of Sheffield, Regent Court, 211 Portobello, Sheffield S1 4DP, UK
*
Correspondence: [email protected]
This paper is an extended version of conference paper “Leach, M.; Maddock, S. Physically-based Sticky Lips. In Proceedings of the EG UK Computer Graphics and Visual Computing, EGUK, Swansea, Wales, 13–14 September 2018”.
These authors contributed equally to this work.
Received: 18 January 2019 / Accepted: 5 March 2019 / Published: 8 March 2019

Abstract

:
Physically-based mouth models operate on the principle that a better mouth animation will be produced by simulating physically accurate behaviour of the mouth. In the development of these models, it is useful to have an evaluation approach which can be used to judge the effectiveness of a model and draw comparisons against other models and real-life mouth behaviour. This article presents a set of metrics which can be used to describe the motion of the lips, as well as a process for measuring these from video of real or simulated mouths, implemented using Python and OpenCV. As an example, the process is used to evaluate a physically-based mouth model focusing on recreating the stickiness effect of saliva between the lips. The metrics highlight the changes in behaviour due to the addition of stickiness between the lips in the synthetic mouth model and show quantitatively improved behaviour in relation to real mouth movements. The article concludes that the presented metrics provide a useful approach for evaluation of mouth animation models that incorporate sticky lip effects.
Keywords:
evaluation; facial animation; physically-based; sticky lips

1. Introduction

The mouth is one of the key areas in producing a convincing animation of a face, such as in visual speech applications. Humans are acutely aware of its movement. The fine details of this are therefore important to capture. One contributing factor to these movements is the stickiness of the lips, which can vary with time and position on the lips. For example, a slow separation of the lips may produce multiple mouth openings as the lips separate, or produce asymmetric behaviour, and a plosive speech action may cause the mouth to appear to stick before bursting open. These effects are difficult to recreate with traditional facial animation approaches. A physically-based approach is required. Physically-based facial animation approaches seek to model the underlying physical behaviour of the materials involved to reproduce realistic behaviour.
In our previous work [1], we used a finite-element based approach to mimic the behaviour of the mouth. This work incorporates a model of saliva. The saliva between the lips acts as a glue as it dries out, bonding the two lips through adhesive forces sticking the saliva to the lips and internal cohesive forces sticking the saliva to itself. This physically-based recreation supports varying degrees of stickiness, dynamic effects as the cohesive layer breaks under tension, time varying behaviour and asymmetric effects. Such sticky effects are absent or must be heuristically added to blend shape approaches, which makes it difficult to accurately model the potentially infinite range of behaviours that sticky saliva can create on the lips.
These often subtle effects of saliva on the lips are difficult to evaluate using typical objective methods. Current model fitting approaches do not deal with multiple mouth openings, caused as parts of the lips stick together. Whilst subjective evaluation methods may be able to judge plausibility, it is nonetheless useful to have an objective measure of correctness. As such, we propose an evaluation process consisting of a set of metrics and an algorithm for extracting them from video using image processing, which provides information on the shape and number of mouth openings and the way they change over time. The process is used to evaluate the effectiveness of the inclusion of the sticky lip effect in a finite element model. The results show that the profiles of the graphs generated from these data compare well with real mouth sticky behaviour and also give insight into the way the mouth behaves. They suggest that the inclusion of the sticky lip effect is important for producing realistic mouth opening behaviour.
The remainder of the paper is organised as follows. Section 2 gives an overview of literature for production and evaluation of mouth animations. Section 3 describes the creation of the model used to generate the mouth animations which are evaluated in this paper. Section 4 details the evaluation process. Section 5 presents and discusses the results. Finally, Section 6 gives the conclusions.

2. Related Work

Much computer facial animation work has been concerned with animation of the face as a whole. Early work used simple transformations and interpolation between expressions [2]. Subsequent approaches used volume modelling [3,4] with some producing muscle simulations [5,6,7,8,9]. More recently, hybrid models have combined physically-based approaches with other techniques [10,11,12]. The current industry standard techniques are motion capture, markerless [13] or marker-based [14], and blendshape animation, based on extreme poses called blend targets, where each blend target typically encodes one action, such as raising an eyebrow, and multiple blend targets can be linearly combined.
Hybrid approaches build on the blend shapes idea. Blend forces [10] encode forces to drive a physically-based model, rather than encoding blendshape displacements directly. This allows more advanced physical interactions including better lip response due to collision. Cong et al. [11] combined a physically-based simulation with blendshapes to allow artist direction. Artists can influence the movement of particular muscles with blendshapes, whilst the remainder of the animation is completed using the physical model. Kozlov et al. [12] also used a hybrid approach, overlaying a physical simulation on blendshape based animations, in which secondary motions caused by dynamics can be reintroduced. Ichim et al. [15] used a physics-based model with a novel muscle activation model and detect contact between the lips using axis-aligned bounding box hierarchies. This improves lip behaviour, but still does not deal with stickiness during separation of the lips.
The “sticky lip problem” is a term describing the way the lips stick together due to moisture as they are drawn apart. Modelling this behaviour could improve visual realism when creating characters who are chewing, or for accurate plosive effects in visual speech, or could be used in cases where hyper-realism is required. In academia, the sticking of the lips is described as “difficult to attain with existing real-time facial animation techniques” [16]. Olszewski et al. approached this problem using a motion capture system which produces convincing results, but is not easy to edit for an artist. The system uses a trained convolutional neural network to learn parameters controlling a digital avatar. The Digital Emily project [17] states that the problem has been modelled in various facial rigs, including the character Gollum in The Lord of the Rings, further demonstrating the desire for a good solution.
There has been limited academic work on sticky lips. They were briefly demonstrated as an example of more general work on adhesion by Gascón et al. [18], but they did no consider accurately modelling the lips or the way they stick. Barrielle and Stoiber used spring based constraints to model sticky lips [19]. In contrast to Barrielle and Stoiber’s work, our finite element method approach produces more physically realistic sticky lip behaviours, such as the continuous “zippering” as the mouth opens. Our stickiness model improves on his probability based model, providing a deterministic behaviour grounded in physics.
Whichever mouth animation approach is chosen, evaluation must be done. The most common quantitative evaluation approach is to use a ground truth distance measured against marker-based motion capture or markers located in video. This approach is used in various papers using a variety of modelling techniques (e.g., [10,20]). Although this does provide an objective measure of how close the animation is to the original movements of the face, subtle effects which may be important to the plausibility of an animation may have little impact on the ground truth distance average.
Other analysis methods make use of active appearance or active shape models (AAM/ASM) [21,22,23,24]. These methods aim to statistically fit a shape or model to a new image based on trained data. This approach is used in the software Faceware Analyzer [25]. As these approaches rely on fitting a predefined shape (typically the inner and outer lip contours), they are not well suited to tracking the dynamic behaviours which appear as a result of the sticky lips, since this may involve multiple mouth openings as the lips stick together in different places.
The alternative to quantitative analysis is human perception studies, where participants make judgments about the quality of the results (e.g., [26,27]). These are commonly used, backed up by the reasoning that humans are the best judge of any animation results. Although such tests can be effective for evaluating plausibility, in establishing whether or not behaviour is physically correct, it is useful to have an objective measure. We present such an approach in this paper.

3. A Physically-Based Mouth Model

Our previous work implemented a physically-based mouth model using the TLED approach [1]. This section gives a summary of that work, since the results are used in the subsequent evaluation process, and it is important to understand what processes the model includes.
The face model was created using a combination of FaceGen [28] and Blender [29]. An initial model, based on photographs of the first author, was created in FaceGen. This model was exported to Blender, where the teeth, tongue, and large portions of the face were removed to leave the lower, front half of the face. This process does not produce a perfect recreation of the user’s face, for example there are some discrepancies between the lip shapes of the real person and the model. However, this does not impact on the work in this paper as we are interested in the overall behaviour of the mouth, particularly the timing of dynamic events such as lips parting, rather than accurately recreating a single person’s mouth. Different material regions—skin and a thin saliva layer between the lips—were then defined using Blender’s material feature, as shown in Figure 1. A bespoke program was then used to extrude the quads of the surface mesh into hexahedra, as under-integrated linear hexahedral elements are used in the finite element simulation. The final model consists of 3414 hexahedral elements.
As the focus of the work is on recreation of the stickiness of the lips, a simple muscle model is used for producing mouth motion. Linear virtual vector muscles are used to control the mesh around the mouth. Only the muscles providing the biggest effect on the movement of the mouth are modelled. Muscles are defined by an origin point, an insertion point, and a radius. Collectively, these variables define a cylinder. The forces generated by the muscle are applied to all points within the cylinder and act in a uniform direction along the length of the muscle.
The model is animated using the total Lagrangian explicit dynamics finite element method (TLED FEM) in an enhanced version of the NiftySim software package. The finite element method works by dividing a continuous domain into a connected set of small, discrete, simple elements, which the constitutive material equations can be combined with physical laws and solved relatively simply. A custom visualisation tool was used to display the simulated data. In addition, custom moisture and stickiness control was implemented. Work related to saliva is novel and is implemented as an extension to NiftySim.
For the animations including sticky saliva, the saliva is represented by a thin layer of finite elements between the lips. These elements are capable of stretching and breaking once they reach a certain stretch, based on the moisture level on the lips. Figure 2, Figure 3 and Figure 4 demonstrate some of the effects the model is capable of producing. Figure 2 shows the mouth opening over time, and how the zippering occurs from the centre. Figure 3 demonstrates the formation of multiple mouth openings due to a central sticky area on the lips. Figure 4 shows that the model can easily be texture mapped, although for clarity and more effective analysis, the majority of the images throughout the paper are untextured.
The simulation component of the animation was conducted using the software NiftySim [30], which is designed for soft tissue simulation. NiftySim uses the total Lagrangian explicit dynamics (TLED) formulation of the finite element method. This formulation presents various advantages for this work. A total formulation always computes timesteps relative to the initial state, allowing significant precomputation. In addition, this formulation is highly parallel as element forces can be computed in parallel—without this, the approach would be prohibitively computationally expensive on standard hardware. Many other formulations of the finite element method can not be solved in parallel in this way. The use of a dynamic formulation is essential as we are looking at producing an animation; static or quasi-static formulations aim to simulate the correct equilibrium behaviour, but do not accurately model the intermediate steps which are necessary for creating an animation rather than just a final pose.
A full analysis of the method and techniques used is available in [30]. The fundamentals are briefly presented here. In the total formulation, deformations are computed with respect to the initial configuration. We are also interested in large deformations. This makes the Green–Lagrange strain tensor and its work-conjugate, the second Piola–Kirchoff stress tensor, appropriate choices. From the principle of virtual work, the problem can be stated as:
0 V S δ E d V = 0 V δ u f ( B ) d 0 V + 0 S δ u f ( S ) d 0 S
where S is the second Piola–Kirchoff stress tensor, E is the Green–Lagrange strain tensor, f ( B ) is the external body force vector, f ( S ) is the external surface force vector and V and S are the respective volume and surface on which the forces are acting. For ease of notation, the following indications have been omitted from the above equation: all instances of the stress and strain tensors are at time t with respect to the initial configuration; the body and surface force vectors are those at time t; and δ u , the virtual displacements, are also considered at time t.
This continuous domain is approximated by a series of discrete elements. Variation of physical properties over the elements is represented through shape functions. A strain–displacement matrix is used to relate strains across an element with displacements of the nodes. Through application of the prior formulae to each degree of freedom, the principle of virtual work leads to the equation of motion:
M t u ¨ + C t u ˙ + k ( t u ) t u = t r
where, for an element t, u is the vector of displacements, M is the lumped (diagonal) mass matrix, C is the damping matrix, k ( t u ) is the element stiffness matrix, and t r is the external force vector. This is solved to obtain the forces for each element using the second Piola–Kirchoff tensor:
f ( e ) = 8 det ( J ) δ h S F T
where f ( e ) is the internal force for an element e, J is the element Jacobian matrix, δ h are the shape function derivatives, S is the second Piola–Kirchoff stress tensor, and F is the deformation gradient. Boundary conditions are imposed, and the simulation is advanced using the central difference integrator for time. A neo-Hookean material model is used. The moisture model includes evaporation and variable stickiness based on the moisture level. Full details can be found in the previous paper [1]. The parameter values used are listed in Table 1.

4. The Evaluation Process

Tracking sticky lips is complicated by a range of issues in an opening mouth. Features such as those seen in Figure 2 and Figure 3, gradual opening and multiple mouth openings, are difficult to track. Variable stickiness may mean different numbers of mouth openings opening at different rates or showing different behaviour. Quantitative solutions typically used for mouth tracking are ground truth difference in which subtle effects might be missed, or fitting a model consisting of inner and outer lip boundaries to the video, as illustrated in Figure 5 and Figure 6 for the commercial software Faceware Analyzer. It works well for single mouth openings, such as the three mouths forming the letter “m” in Figure 5 and the left and right images in Figure 6, but does not support multiple mouth openings, such as in the middle image in Figure 6.
Given the problems of detecting multiple mouth openings, as might be produced in a sticky lips model, a new evaluation approach is needed to analyse these effects. We propose four metrics to capture information about the openings of sticky lips:
  • Number of Mouth Openings: The number of individual mouth openings.
  • Mouth Opening Area: The mouth opening area is the area contained within a mouth opening contour.
  • Mouth Opening Width: The mouth opening width is computed as the difference between the greatest and least x coordinates of pixels that lie within a mouth opening.
  • Mouth Opening Height: The mouth opening height is computed as the difference between the greatest and least y coordinates of pixels that lie within a mouth opening.
The number of mouth openings is a metric designed to capture the subtle effects produced by sticky lips—effects we believe add to the realism of mouth movement. The width and height of mouth openings provides considerable information about the way the mouth is opening, particularly when examined over time. These give direct information about how the shape of the mouth opening is changing, while jumps in mouth width show exactly when two openings combine as stuck portions of the lips come unstuck.
The movement of the human mouth also takes place over a range of time scales. As such, each of the metrics considered are examined over time. This is particularly important for capturing potential dynamic effects. A model may reach the same equilibrium position or move through identical key frames as a real mouth, but might not capture the movements in between correctly. Additionally, plosives and other such highly dynamic movements take place very quickly. Whilst they are difficult to judge by eye, they cause dynamic effects in the lips which are important for realism. The metrics profiles over time, and their derivatives, can give useful information about whether or not a synthetic facial animation approach is similar to the behaviour of a real mouth.
To ensure consistency across face sizes, mouth widths, etc., the metrics are normalised against the natural mouth width. This has been defined as the distance in pixels between the corners of the mouth at rest. Each value recorded is divided by the natural mouth width. This allows comparison between different videos.
The implementation uses a thresholding approach to identify the regions of the mouth which are open. Various stages are required, which can be summarised as:
  • Convert to greyscale
  • Blur
  • Threshold
  • Contour detection
  • Sorting/Region identification
  • Metric extraction
Figure 7 shows the process for a single mouth opening. The source image is first converted to greyscale to simplify the thresholding process. This is done using the rec601 luma conversion [31].
Y = 0 . 299 r + 0 . 587 g + 0 . 114 b
where Y is the greyscale value, r is the red channel value, g is the green channel value and b is the blue channel value for a given pixel.
The greyscale image is blurred using a standard median blur to prevent small dark spots in the image from being falsely identified as mouth openings. The specific kernel width used varies depending on the width of the mouth in pixels, as the scale is important. A kernel width of 11 was found to provide a good balance between retaining detail and removing false positives for a mouth width of around 800 pixels, measured at rest from corner to corner horizontally.
The thresholding process aims to identify mouth opening regions. As the aim is classifying pixels as mouth opening or not mouth opening, a binary threshold is used. The final stage of mouth opening detection is to identify the contours which form the boundaries of each segmented region. The contour detection is implemented using OpenCV’s findContours, which uses the method described by Suzuki et al. [32].
The approach works well for synthetic mouths, as illustrated in Figure 8, which shows the boundary detection process for a synthetic mouth with multiple openings. The image contains no noise and is trivial to track, unlike a real mouth. For a real mouth, boundary detection can be less accurate due to reflections from the inside of the mouth or the teeth or tongue appearing a similar brightness to the lips.
The reflections from the tongue and teeth are sometimes picked up and falsely identified as the lip area when the mouth opens. To resolve this, rather than just using the contour detected, the convex hull of the contour is computed and can be used instead if there are reflection issues. While this does not provide a perfect representation of the lip contour, it is typically very close as the inner lip contour has very few concave features, forming smooth, rounded openings. The effect of using the convex hull rather than the contour can be seen in Figure 9.
Another issue is that small specular reflections inside the mouth can be falsely identified as openings. This is resolved by blurring the image to remove small highlights and noise, and then only keeping top level contours in the contour hierarchy. A further issue is that, in some lighting conditions and mouth positions, the teeth are sufficiently bright and visible to be detected as part of the lips. Only a partial solution to this problem has been developed. Figure 10a shows the mouth without the teeth detection enabled. To solve this, the image is further converted to the HSV colour space, in which white and black are easily distinguishable from other colours (Figure 10b). Further segmentation detects the teeth (Figure 10c). This mask is then subtracted from the original greyscale image to darken the teeth, leading them to be included in the mouth opening rather than the lip region (Figure 10d). This process is not always reliable and could present an interesting area for future work. Liévin et al.’s statistical approach to segment the mouth area, making use of red hue and motion, could be considered [33].
For each video that is analysed, the user is initially asked to draw a box around the mouth region in the video. The box should have its left and right edges aligned with the left and right corners of the mouth, respectively. This distance then functions as the normalisation width. All the measurements are divided by this to ensure consistency across video resolutions and mouth sizes. This box is also used to crop the video to the mouth area. (Figure 11). This is the only manual stage. Thereafter, the process is automatic. The analysis process is then carried out for each frame of the video with each metric being computed and the results stored. When all videos have been analysed, derivatives of the opening width and area are computed by taking the differences between each frame. Graphs are then generated using Matplotlib.

5. Results and Discussion

To evaluate the effect the stickiness has on the finite element model, two different cases of lip stickiness were examined. The first case was a single mouth opening with the lip “unzippering” from the centre. Here, a real mouth, a physically-based lip model without stickiness and a physically-based lip model with stickiness were compared. The second case was two mouth openings, with the saliva causing the lips to be stuck near to the centre of the mouth. Here, a real mouth, the physically-based lip model with uniform stickiness in which all saliva elements have the same moisture level, and the physically-based lip model with variable stickiness in which a central element has increased stickiness were compared. The aim was to show that our sticky lip model gave a closer match to the real lip behaviour, with the emphasis on the timing of events such as lip separation. The first case demonstrated the basic effect of including stickiness. The second case showed how the stickiness/moisture model can be used to reproduce more advanced effects.
The real mouth videos were recorded using a Nikon D3300 camera, set to record at 60 fps. The camera was mounted on a tripod to ensure a consistent location of the mouth within the footage by minimising shaking. The participant was seated in front of the tripod in a well lit room at a distance of roughly 1 m from the camera. The footage captured the lower half of the face, and featured the participant performing a range of mouth movements. Prior to and at certain points throughout the recording, the lips were licked, leading to varying levels of stickiness throughout the recordings. Videos of the simulated mouths were recorded using OBS Studio screen recording software [34].

5.1. Detecting Mouth Openings

Various mouth openings were used to test the detection algorithm. Figure 12 shows three different mouths (two male and one female) opening, making use of the convex hull solution to successfully solve some of the problems discussed in Section 4. Figure 13a shows a more widely opened mouth. In this case, although the tongue is very bright, it is contained within a darker contour. As we only kept top level contours, the tongue caused no issue here and the lip contour was successfully detected. Figure 13b shows the algorithm operating on an ideal frame, in which the mouth opening is very dark in comparison with the lip region. For images such as these, the contour detection is very accurate. Figure 13c shows an example which combines the use of the convex hull and the teeth detection to capture the inner lip contour well despite difficult lighting conditions and the presence of bright teeth next to the lip. Figure 13d shows how the mouth opening can be correctly detected even for situations where the tongue is protruding as when licking the lips. Traditional approaches would struggle to correctly determine the inner lip contour here.
Figure 14 shows the detection process for a single mouth opening, comparing the real and synthetic mouths. This shows the analysis for the frames in Figure 2. As the animation progresses, the real and synthetic sticky mouths both gradually open over time, zippering from the centre with a smoothly increasing mouth opening width. In the model without stickiness, the mouth immediately opens across almost its full width. It is important to note that the FEM model without stickiness could represent any current model that does not include stickiness, such as blendshape approaches. In addition, the model of the synthetic mouth is not an exact match to the real mouth (see Section 3 for discussion of this). It is the timing that is important, as discussed in the next section.
Figure 15 shows the detection process for two mouth openings. This shows the analysis for the frames in Figure 3. In these frames, the top row has a small single mouth opening. In the second row, a central portion of the lip with higher stickiness causes a second mouth opening to form in the case of the real mouth. The variable stickiness model (right hand column of Figure 15) recreates this effect, whilst with uniform stickiness (left hand column of Figure 15) only a single mouth opening forms. In the final row, the stuck saliva has broken and a single mouth opening is present.

5.2. Opening over Time

For the synthetic mouth, the detection was very strong and accurate. Despite minor issues for the real mouth due to the variable lighting of the inside of the mouth, the data collected were sufficient for time-based analysis. To perform the comparison between the different models, the metrics collected by the analysis tool were plotted over time. Figure 16 and Figure 17 demonstrate some of the metrics tracked for a range of mouth movements across three people. Figure 16 shows three people pronouncing the plosive letter “m” (as in the word “mum”). The graphs show similar profiles, but different opening speeds are apparent, showing the individuality of each speaker. Figure 17 shows the same three people saying the word “baby”. The two plosive pronunciations of “b” are clear, again showing the similarities as well as the individuality of each speaker.
Having demonstrated how the opening profiles are represented in the graphs for real mouth behaviours, we then used the graphs to evaluate the effectiveness of the inclusion of stickiness in the model. Figure 18, Figure 19 and Figure 20 show various metrics as tracked over a typical mouth opening action, in which only a single mouth opening forms (Figure 14). In these videos, the mouth was initially open and is then closed and reopened twice. Figure 18 shows how the inclusion of stickiness matches the opening width profile of the real mouth much better than a simulation without stickiness. The height and area profiles tell a similar story in Figure 19 and Figure 20. The gradual increase in opening width seen in the sticky and real mouths represents the zippering effect as the mouth opens from the centre towards the edges. The sudden rise in the opening width in the no stickiness graph demonstrates very clearly that the behaviour is incorrect, as the lips separate along their entire length at once. This would be difficult to spot with a ground truth difference measurement, as the displacement errors are very small, despite the behaviour being incorrect. Quantitative measures can also be used to compare the data in the graphs. For example, the L2 norm can be computed from the data used to generate the graphs. For area, this gives a distance of 30.4 between the no stickiness mouth and the real mouth, and a distance of 11.1 between the stickiness mouth and the real mouth. For the width profiles, the distance between the no stickiness mouth and the real mouth is 1.3 and the distance between the stickiness mouth and the real mouth is 0.5. These distances show a quantitative improvement in the behaviour of the model when stickiness is included.

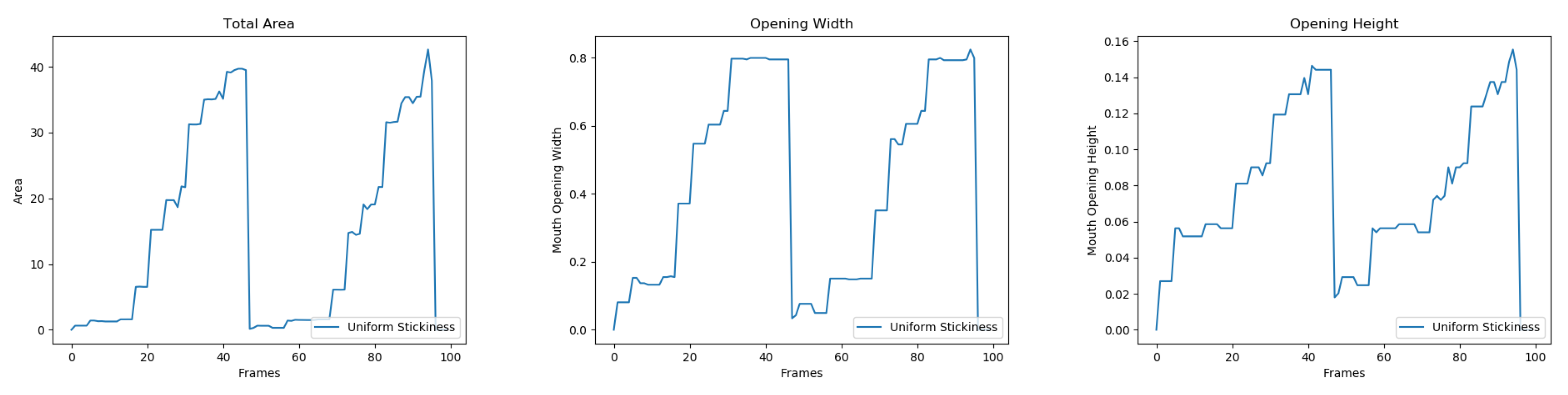

Figure 21 shows graphs for Barrielle and Stoiber’s model [19], where the mouth opens twice. The graph was generated from a portion of the video accompanying their paper [19]. These results show similarities to our work. However, the stochastic behaviour in their model is also shown, as the two profiles in each graph are not identical.
Figure 15 examines the metrics tracked over a mouth opening action in which multiple mouth openings form. Double mouth opening simulations use increased stickiness on one of the central elements. Figure 22, Figure 23 and Figure 24 show the graphs that are produced from the analysis. A particularly sticky section near the centre of the lip remains stuck momentarily as the lips are drawn apart. This causes two mouth openings to be present temporarily until the stuck section breaks at around frame 45. Following this, there is a single mouth opening present. The graphs track properties for the largest mouth opening, so when the saliva breaks, jumps in the value of particular metrics are often noticeable. This provides information about when the saliva is breaking apart and shows the effect of the split on the behaviour of the mouth.
In Figure 22, the sharp jump in opening width at the 45 frame mark in the real and sticky simulations is absent from the simulation without stickiness, as with no stickiness only a single mouth opening forms. Aside from this distinct feature, the sticky simulation also matches the profile of the real mouth more closely than the non-sticky simulation for the first portion of the videos. Both the real and sticky profiles feature a fairly sharp initial rise in mouth opening (Figure 23), which then tapers off until frame 45 when the saliva breaks. At this point, both the real and sticky profiles again feature a sharp rise. The non-sticky simulation’s opening width rises much more smoothly. In Figure 24, there is a sudden step up in the area when the saliva breaks in both the sticky and real simulations.

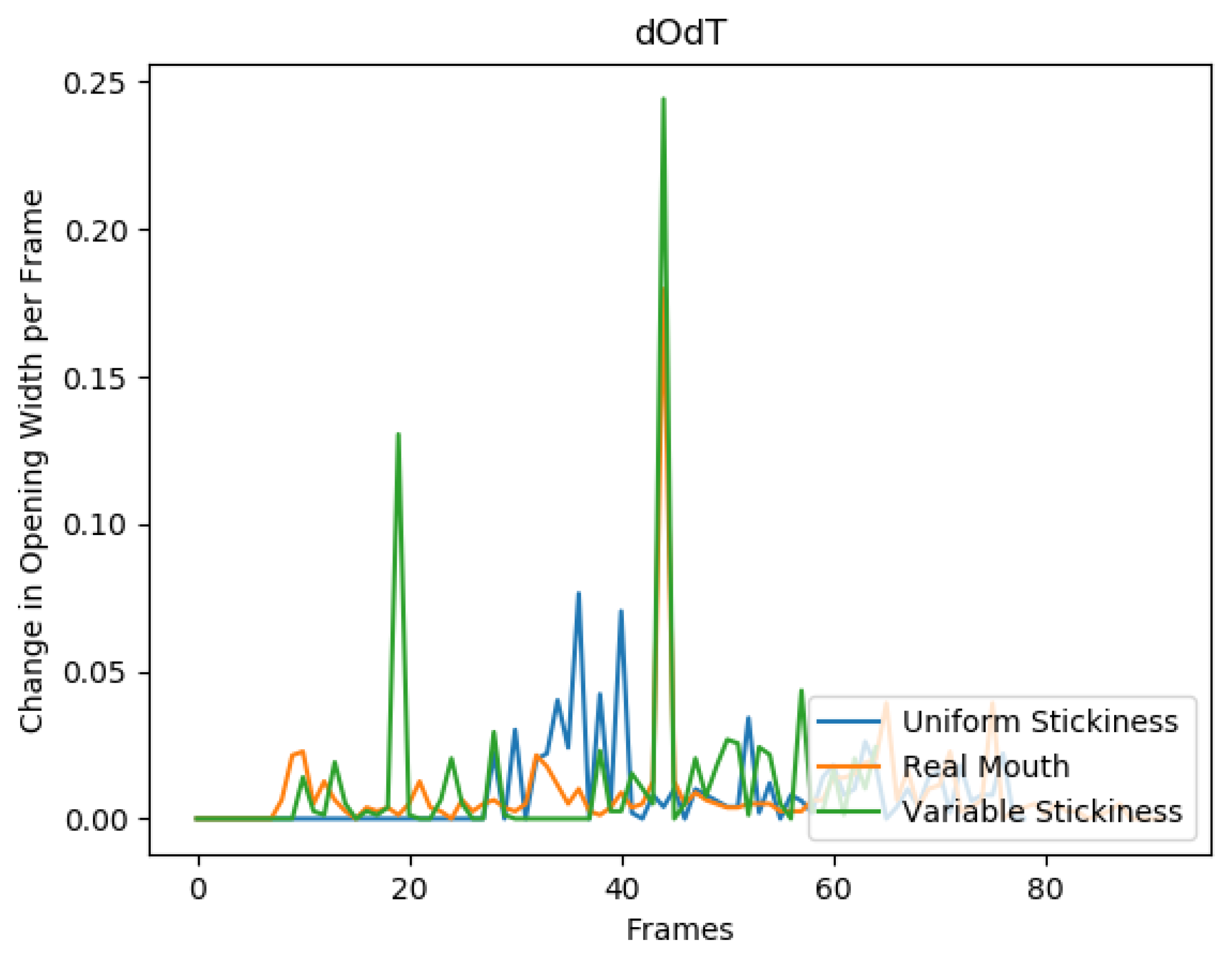

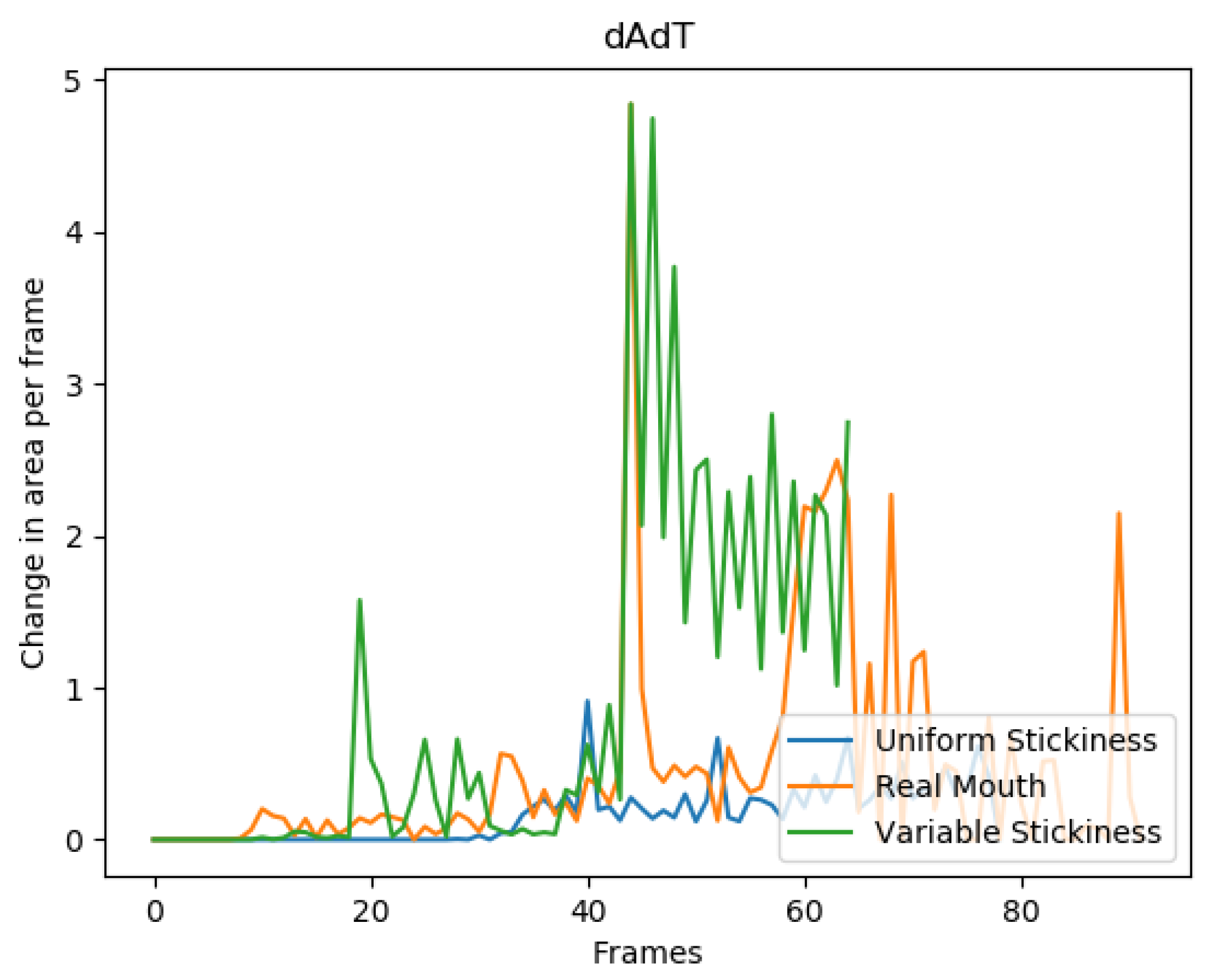

Figure 25 and Figure 26 show the area and opening width derivative graphs, respectively, for the multiple mouth opening example. These graphs strongly identify points at which mouth openings combine as the saliva breaks. Sharp spikes can be clearly seen in the real and sticky mouths around frame 45, while this spike is absent in the non-sticky mouth model.

5.3. Discussion

The lip stickiness model is capable of producing traditionally hard to achieve effects, such as alternating regions of the lips being stuck and unstuck, and realistic asymmetric mouth opening. The parameters available in the sticky lips model can be varied to reproduce a wide range of stickiness effects. The moisture model allows for natural changes of behaviour over longer periods of animation and a method for controlling the effects. However, the evaporation behaviour could still be improved.
The rate of evaporation of a fluid from a surface is given by the Herz–Knudsen equation:
1 A d N d t φ = α ( p l i q p e q ) 2 π m k B T l i q
where A is the surface area of the fluid, N is the number of gas molecules, φ is the flux of gas molecules, α is a sticking coefficient for the gas molecules onto the surface, p l i q is the pressure of the liquid during evaporation, p e q is the liquid pressure at which an equilibrium between evaporation and condensation is reached, m is the mass of a liquid particle, k B is the Boltzmann constant and T l i q is the temperature of the liquid.
Our model makes a series of assumptions surrounding these parameters, taking the pressures and temperatures as constant, as well as time-averaging the air speed over the lips. This gives a constant evaporation rate. For each element, an initial moisture level, 0 M , and a current moisture level at time t, t M , are used. A moisture level of 0 represents a completely dry lip with a higher value representing more moisture. Thus, it follows that the moisture level at time t is given by:
t M = 0 M t φ if 0 M > t φ 0 otherwise
Further work is required to investigate the validity of these assumptions, which could improve the moisture model and stickiness behaviour. The evaluation approach introduced in this paper could help with understanding this behaviour.
The current finite element approach can deal with simple collisions of the lips, as resistive forces are generated by compression of the saliva elements. However, a more rigorous model for collision between the lips could be developed. This would include shearing as the lips slide over each other. The teeth and tongue could then be added into the model and interactions with these could then be included.
The evaluation approach has demonstrated that it is useful for identifying the dynamic behaviour that accompanies the sticky lip effect. The graphs demonstrate the bursts of activity as multiple mouth openings merge, as well as show the gradual change in area as the mouth opens. However, there is room for improvement in the mouth opening detection process. As noted earlier, for a real mouth, reflections from the tongue and teeth are sometimes picked up and falsely identified as the lip area. This problem occurs when the mouth opens wider. Thus, it may be possible to use the more accurate detection process for small mouth openings to help predict the correct shape as the mouth opens further. Further work will also test the approach on a larger population of mouth motions.

6. Conclusions

The results of this paper show that the inclusion of a sticky-lip effect can improve the animation of the human mouth. This is demonstrated using various measurements of lip behaviour, comparing videos of a real mouth and computer generated animations created using the TLED FEM approach [1], both with and without the inclusion of stickiness between the lips. Graphs are presented showing the behaviours of real mouths and non-sticky and sticky synthetic mouths. The profiles of the graphs support the conclusion that the inclusion of stickiness due to saliva improves the realism of the animations and potentially gives insight that is not present when using traditional ground truth distance evaluation methods. Our future work will extend the lip animation work to include more mouth motion effects, as well as evaluating this behaviour on a larger population of mouth shapes using the metrics we have presented. This could potentially help to reveal the subtleties in mouth movement that are still missing in synthetic animated faces.

Author Contributions

Investigation, M.L.; Methodology, M.L.; Software, M.L.; Supervision, S.M.; Validation, M.L.; Writing—original draft, M.L.; and Writing—review and editing, S.M.

Funding

This research was funded by the EPSRC.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Abbreviations

The following abbreviations are used in this manuscript:
TLEDTotal Lagrangian Explicit Dynamics
FEMFinite Element Method
AAMActive Appearance Model
ASMActive Shape Model

References

  1. Leach, M.; Maddock, S. Physically-based Sticky Lips. In Proceedings of the EG UK Computer Graphics & Visual Computing, EGUK, Swansea, UK, 13–14 September 2018. [Google Scholar]
  2. Parke, F.I. A model for human faces that allows speech synchronized animation. Comput. Graph. 1975, 1, 3–4. [Google Scholar] [CrossRef]
  3. Waters, K. Physical model of facial tissue and muscle articulation derived from computer tomography data. In Proceedings of the Visualization in Biomedical Computing, International Society for Optics and Photonics, Chapel Hill, NC, USA, 13–16 October 1992; pp. 574–583. [Google Scholar]
  4. Lee, Y.; Terzopoulos, D.; Waters, K. Realistic modeling for facial animation. In Proceedings of the 22nd aNnual Conference on Computer Graphics and Interactive Techniques, Los Angeles, CA, USA, 6–11 August 1995; ACM: New York, NY, USA, 1995; pp. 55–62. [Google Scholar]
  5. Waters, K. A Muscle Model for Animation Three-dimensional Facial Expression. SIGGRAPH Comput. Graph. 1987, 21, 17–24. [Google Scholar] [CrossRef]
  6. Ekman, P.; Friesen, W.V. Manual for the Facial Action Coding System; Consulting Psychologists Press: Palo Alto, CA, USA, 1978. [Google Scholar]
  7. Chabanas, M.; Payan, Y. A 3D Finite Element Model of the Face for Simulation in Plastic and Maxillo-Facial Surgery. In Proceedings of the Medical Image Computing and Computer-Assisted Intervention, Pittsburgh, PA, USA, 11–14 October 2000; pp. 1068–1075. [Google Scholar]
  8. Kahler, K.; Haber, J.; Seidel, H.P. Geometry-based Muscle Modeling for Facial Animation. In Proceedings of the Graphics Interface, Ottawa, ON, Canada, 7–9 June 2001; pp. 37–46. [Google Scholar]
  9. Scheepers, F.; Parent, R.E.; Carlson, W.E.; May, S.F. Anatomy-Based Modeling of the Human Musculature. In Proceedings of the SIGGRAPH ’97, Los Angeles, CA, USA, 3–8 August 1997; ACM: New York, NY, USA, 1997. [Google Scholar]
  10. Barrielle, V.; Stoiber, N.; Cagniart, C. BlendForces: A Dynamic Framework for Facial Animation. Comput. Graph. Forum 2016, 35, 341–352. [Google Scholar] [CrossRef]
  11. Cong, M.; Bhat, K.S.; Fedkiw, R. Art-directed muscle simulation for high-end facial animation. In Proceedings of the Symposium on Computer Animation, Zurich, Switzerland, 11–13 July 2016; pp. 119–127. [Google Scholar]
  12. Kozlov, Y.; Bradley, D.; Bächer, M.; Thomaszewski, B.; Beeler, T.; Gross, M. Enriching Facial Blendshape Rigs with Physical Simulation. Comput. Graph. Forum 2017, 36, 75–84. [Google Scholar] [CrossRef]
  13. Beeler, T.; Hahn, F.; Bradley, D.; Bickel, B.; Beardsley, P.; Gotsman, C.; Sumner, R.W.; Gross, M. High-quality passive facial performance capture using anchor frames. ACM Trans. Graph. 2011, 30, 75. [Google Scholar] [CrossRef]
  14. Deng, Z.; Chiang, P.Y.; Fox, P.; Neumann, U. Animating blendshape faces by cross-mapping motion capture data. In Proceedings of the 2006 Symposium on Interactive 3D Graphics and Games, Redwood City, CA, USA, 14–17 March 2006; ACM: New York, NY, USA, 2006; pp. 43–48. [Google Scholar]
  15. Ichim, A.E.; Kadleček, P.; Kavan, L.; Pauly, M. Phace: Physics-based face modeling and animation. ACM Trans. Graph. 2017, 36, 153. [Google Scholar] [CrossRef]
  16. Olszewski, K.; Lim, J.J.; Saito, S.; Li, H. High-fidelity facial and speech animation for VR HMDs. ACM Trans. Graph. 2016, 35, 221. [Google Scholar] [CrossRef]
  17. Alexander, O.; Rogers, M.; Lambeth, W.; Chiang, M.; Debevec, P. The Digital Emily project: Photoreal facial modeling and animation. In Proceedings of the ACM SIGGRAPH 2009 Courses, Yokohama, Japan, 16–19 December 2009; ACM: New York, NY, USA, 2009; p. 12. [Google Scholar]
  18. Gascón, J.; Zurdo, J.S.; Otaduy, M.A. Constraint-based simulation of adhesive contact. In Proceedings of the 2010 ACM SIGGRAPH/Eurographics Symposium on Computer Animation, Madrid, Spain, 2–4 July 2010; Eurographics Association: Aire-la-Ville, Switzerland, 2010; pp. 39–44. [Google Scholar]
  19. Barrielle, V.; Stoiber, N. Realtime Performance-Driven Physical Simulation for Facial Animation. Comput. Graph. Forum Wiley Online Libr. 2018. [Google Scholar] [CrossRef]
  20. Cosker, D.; Marshall, D.; Rosin, P.L.; Hicks, Y. Speech driven facial animation using a hidden markov coarticulation model. In Proceedings of the Pattern Recognition, 17th International Conference on (ICPR’04), Cambridge, UK, 23–26 August 2010; IEEE: Washington, DC, USA, 2004; pp. 128–131. [Google Scholar]
  21. Hill, A.; Cootes, T.F.; Taylor, C.J. Active shape models and the shape approximation problem. Image Vis. Comput. 1996, 14, 601–607. [Google Scholar] [CrossRef]
  22. Edwards, G.J.; Lanitis, A.; Taylor, C.J.; Cootes, T.F. Statistical models of face images-improving specificity. Image Vis. Comput. 1998, 16, 203–212. [Google Scholar] [CrossRef]
  23. Edwards, G.J.; Cootes, T.F.; Taylor, C.J. Face recognition using active appearance models. In Proceedings of the European Conference on Computer Vision, Freiburg, Germany, 2–6 June 1998; Springer: Berlin/Heidelberg, Germany, 1998; pp. 581–595. [Google Scholar]
  24. Farnell, D.; Galloway, J.; Zhurov, A.; Richmond, S.; Marshall, D.; Rosin, P.; Al-Meyah, K.; Pirttiniemi, P.; Lähdesmäki, R. What’s in a Smile? Initial Analyses of Dynamic Changes in Facial Shape and Appearance. J. Imaging 2019, 5, 2. [Google Scholar] [CrossRef]
  25. Faceware. Faceware Analyzer; Faceware Technologies: Sherman Oaks, CA, USA, 2019. [Google Scholar]
  26. Walker, J.H.; Sproull, L.; Subramani, R. Using a human face in an interface. In Proceedings of the SIGCHI Conference on Human Factors in Computing Systems, Boston, MA, USA, 24–28 April 1994; ACM: New York, NY, USA, 1994; pp. 85–91. [Google Scholar]
  27. Hong, P.; Wen, Z.; Huang, T.S. Real-time speech-driven face animation with expressions using neural networks. IEEE Trans. Neural Netw. 2002, 13, 916–927. [Google Scholar] [CrossRef] [PubMed][Green Version]
  28. Singular Inversions. FaceGen; Singular Inversions: Vancouver, BC, Canada, 2017. [Google Scholar]
  29. Blender Online Community. Blender—A 3D Modelling and Rendering Package; Blender: Amsterdam, The Netherlands, 2019. [Google Scholar]
  30. Johnsen, S.F.; Taylor, Z.A.; Clarkson, M.J.; Hipwell, J.; Modat, M.; Eiben, B.; Han, L.; Hu, Y.; Mertzanidou, T.; Hawkes, D.J.; et al. NiftySim: A GPU-based nonlinear finite element package for simulation of soft tissue biomechanics. Int. J. Comput. Assist. Radiol. Surg. 2015, 10, 1077–1095. [Google Scholar] [CrossRef] [PubMed]
  31. Poynton, C. Frequently asked questions about color. Retrieved June 1997, 19, 2004. [Google Scholar]
  32. Suzuki, S.; Abe, K. Topological structural analysis of digitized binary images by border following. Comput. Vis. Graph. Image Process. 1985, 30, 32–46. [Google Scholar] [CrossRef]
  33. Liévin, M.; Delmas, P.; Coulon, P.Y.; Luthon, F.; Fristol, V. Automatic lip tracking: Bayesian segmentation and active contours in a cooperative scheme. In Proceedings of the IEEE International Conference on Multimedia Computing and Systems, Florence, Italy, 7–11 June 1999; IEEE: Washington, DC, USA, 1999; Volume 1, pp. 691–696. [Google Scholar]
  34. OBS Studio Contributors. Open Broadcaster Software. 2019. Available online: https://obsproject.com/ (accessed on 5 March 2019).
Figure 1. Material definitions in the modelling package Blender. Blue and red represent normal soft tissue and green represents the saliva layer.
Figure 1. Material definitions in the modelling package Blender. Blue and red represent normal soft tissue and green represents the saliva layer.
Computers 08 00024 g001
Figure 2. A comparison of an animation produced of a single mouth opening by: a finite element model without stickiness (left column); a real mouth (middle column); and a finite element model with stickiness for a single mouth opening (right column). The mouth “unzips” from the centre, with the side areas slowly becoming unstuck. The stickiness provides a much more realistic movement of the lips throughout the animation. Time progresses vertically down the page with a 0.12 s interval between each row.
Figure 2. A comparison of an animation produced of a single mouth opening by: a finite element model without stickiness (left column); a real mouth (middle column); and a finite element model with stickiness for a single mouth opening (right column). The mouth “unzips” from the centre, with the side areas slowly becoming unstuck. The stickiness provides a much more realistic movement of the lips throughout the animation. Time progresses vertically down the page with a 0.12 s interval between each row.
Computers 08 00024 g002
Figure 3. A comparison of an animation produced by: a finite element model without stickiness (left column); a real mouth (middle column); and a finite element model with stickiness, where a point near the centre of the mouth is stuck, producing multiple mouth openings (right column). The stickiness provides a much more realistic movement of the lips throughout the animation. Time progresses vertically down the page with a 0.12 s interval between each row.
Figure 3. A comparison of an animation produced by: a finite element model without stickiness (left column); a real mouth (middle column); and a finite element model with stickiness, where a point near the centre of the mouth is stuck, producing multiple mouth openings (right column). The stickiness provides a much more realistic movement of the lips throughout the animation. Time progresses vertically down the page with a 0.12 s interval between each row.
Computers 08 00024 g003
Figure 4. (Left) Real mouth; and (Right) texture mapped mouth with physically-based sticky lips.
Figure 4. (Left) Real mouth; and (Right) texture mapped mouth with physically-based sticky lips.
Computers 08 00024 g004

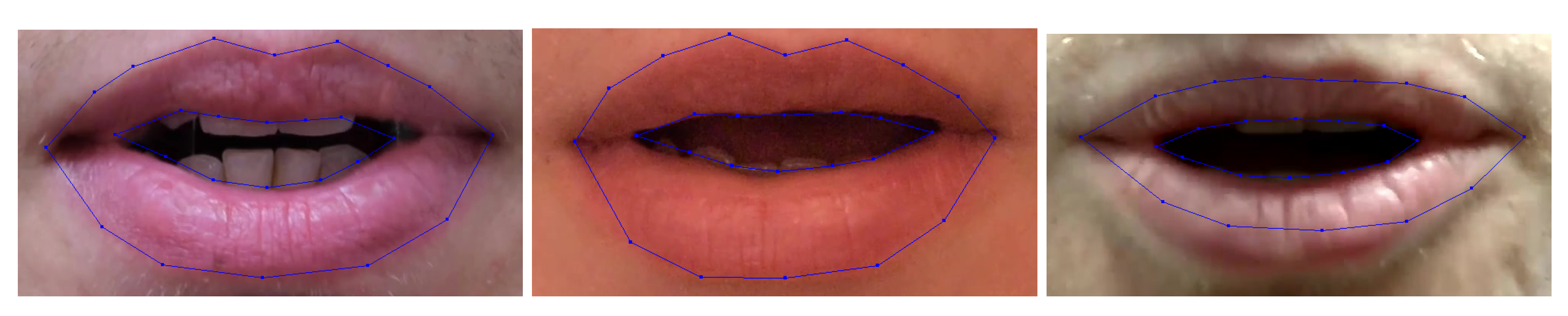

Figure 5. Three different mouths forming the letter m, tracked in Faceware Analyzer.
Figure 5. Three different mouths forming the letter m, tracked in Faceware Analyzer.
Computers 08 00024 g005

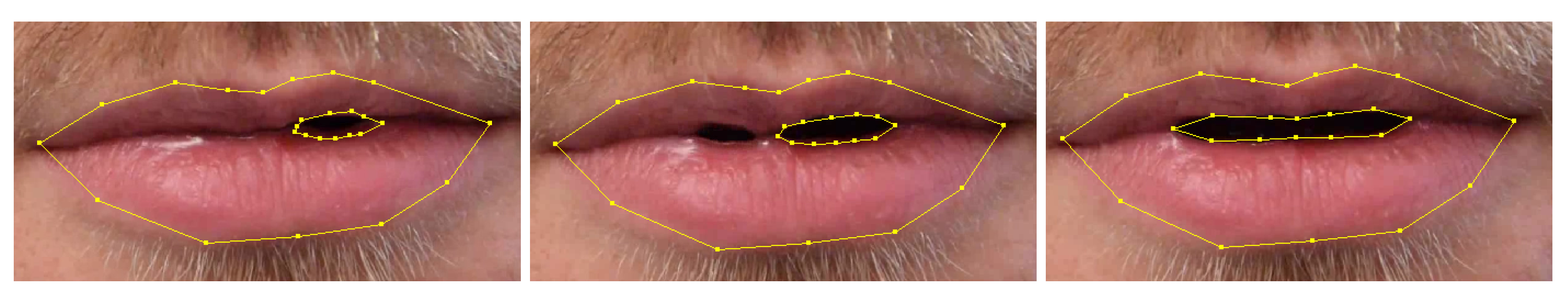

Figure 6. (Left) Faceware Analyzer correctly detects the outer lip contour and the inner lip contour for a single mouth opening; (Middle) Faceware Analyzer correctly detects the outer lip contour, but can only detect one of the two mouth openings present; and (Right) once the mouth openings merge, Faceware Analyzer correctly detects the outer and inner lip contours.
Figure 6. (Left) Faceware Analyzer correctly detects the outer lip contour and the inner lip contour for a single mouth opening; (Middle) Faceware Analyzer correctly detects the outer lip contour, but can only detect one of the two mouth openings present; and (Right) once the mouth openings merge, Faceware Analyzer correctly detects the outer and inner lip contours.
Computers 08 00024 g006

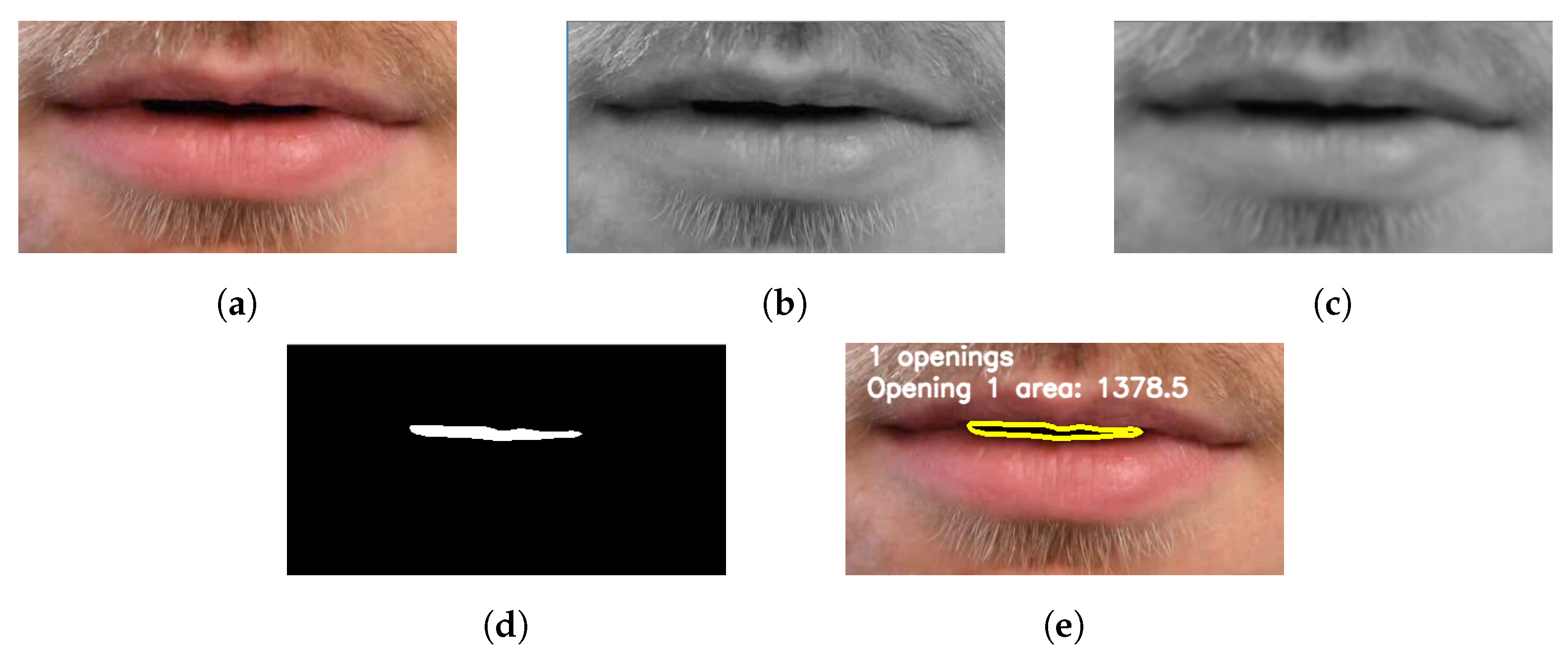

Figure 7. (a) Source frame; (b) greyscale version; (c) greyscale image blurred with 11 px median filter; (d) segmentation based on brightness threshold, where the mouth opening is identified by the white pixels; and (e) contour of edge of segmented mouth opening overlaid on original source image.
Figure 7. (a) Source frame; (b) greyscale version; (c) greyscale image blurred with 11 px median filter; (d) segmentation based on brightness threshold, where the mouth opening is identified by the white pixels; and (e) contour of edge of segmented mouth opening overlaid on original source image.
Computers 08 00024 g007

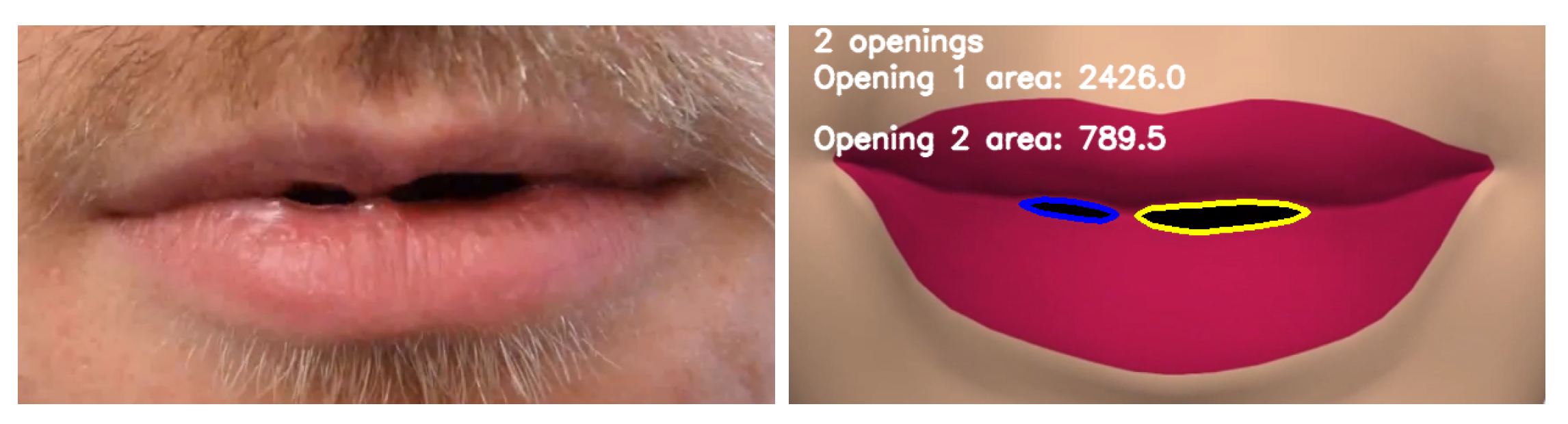

Figure 8. The lips can be seen separating in some places, but still stuck in places where the stickiness is higher. The analysis shows that two mouth openings are detected.
Figure 8. The lips can be seen separating in some places, but still stuck in places where the stickiness is higher. The analysis shows that two mouth openings are detected.
Computers 08 00024 g008

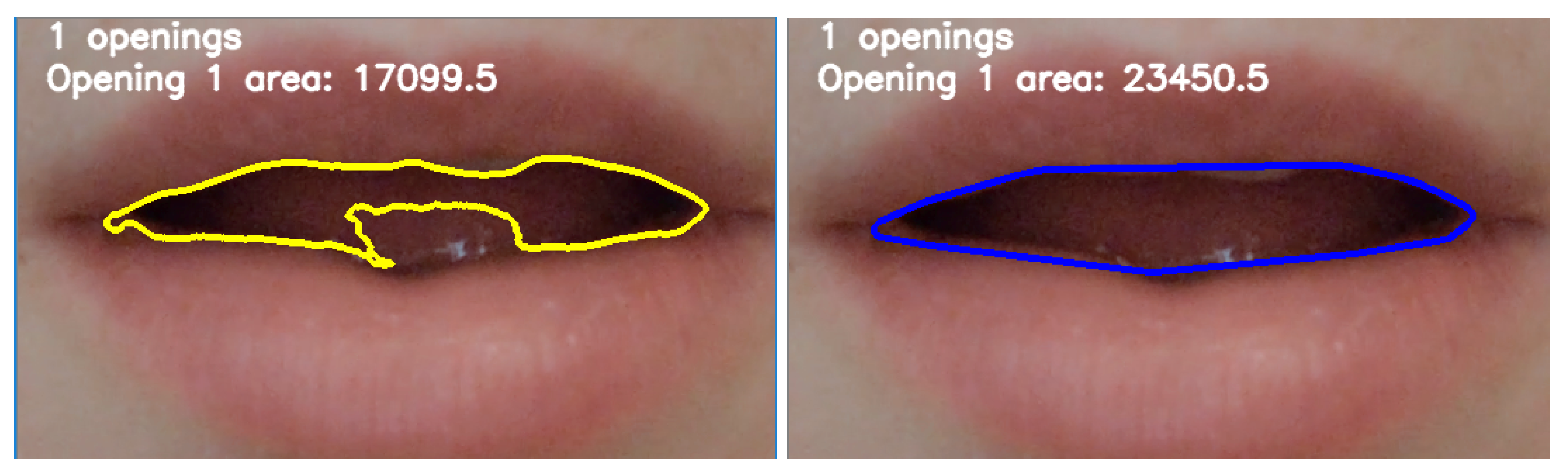

Figure 9. The convex hull of the contour provides a very good approximation of the correct lip contour.
Figure 9. The convex hull of the contour provides a very good approximation of the correct lip contour.
Computers 08 00024 g009

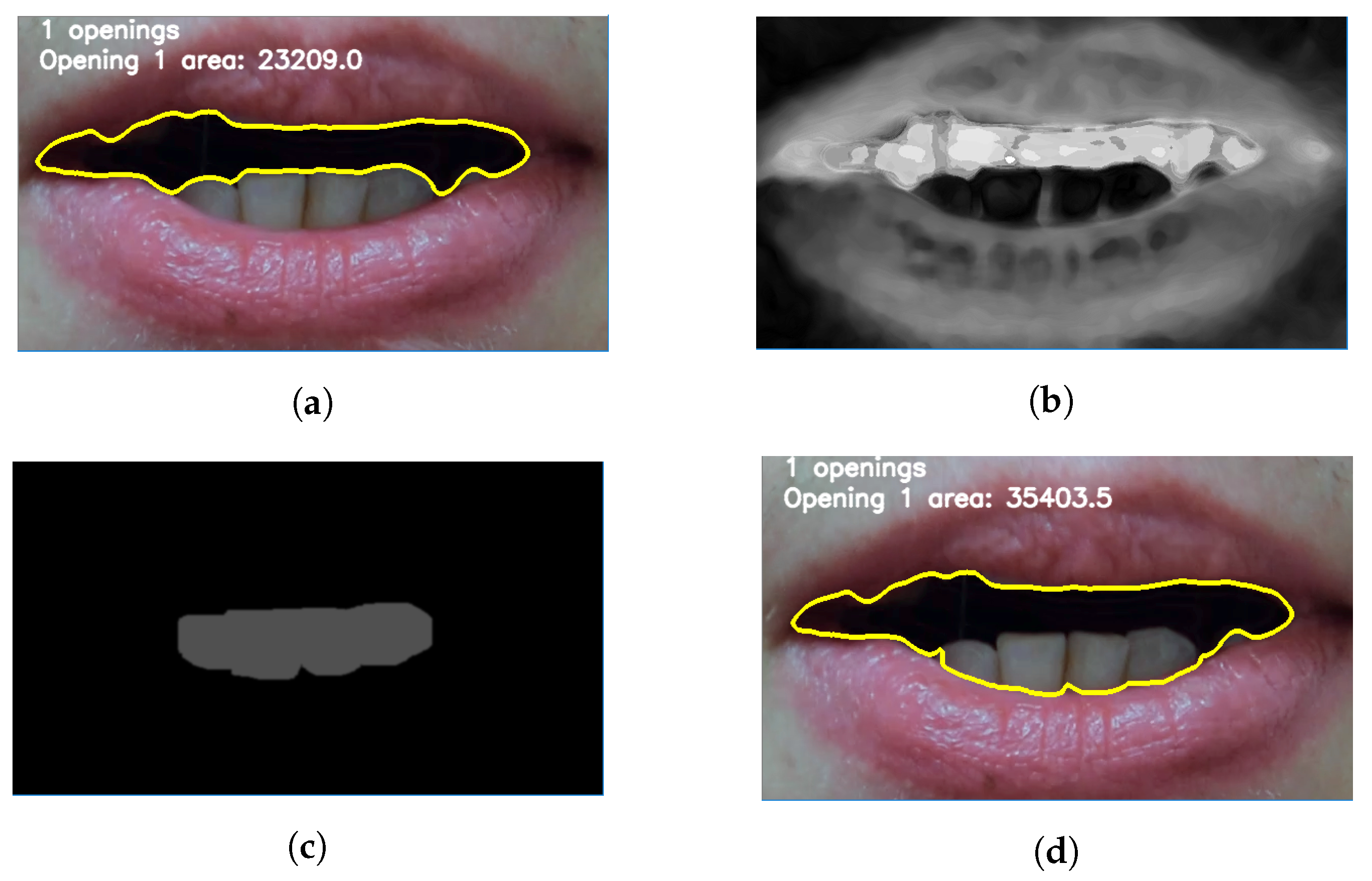

Figure 10. (a) Frame with no teeth detection; (b) source frame transformed to HSV colour space; (c) segmentation based on saturation channel; and (d) updated frame with teeth detection.
Figure 10. (a) Frame with no teeth detection; (b) source frame transformed to HSV colour space; (c) segmentation based on saturation channel; and (d) updated frame with teeth detection.
Computers 08 00024 g010
Figure 11. The mouth area selection box is aligned with the corners of the mouth. This selects the video region for analysis and the width of the box is used to normalise the collected data.
Figure 11. The mouth area selection box is aligned with the corners of the mouth. This selects the video region for analysis and the width of the box is used to normalise the collected data.
Computers 08 00024 g011

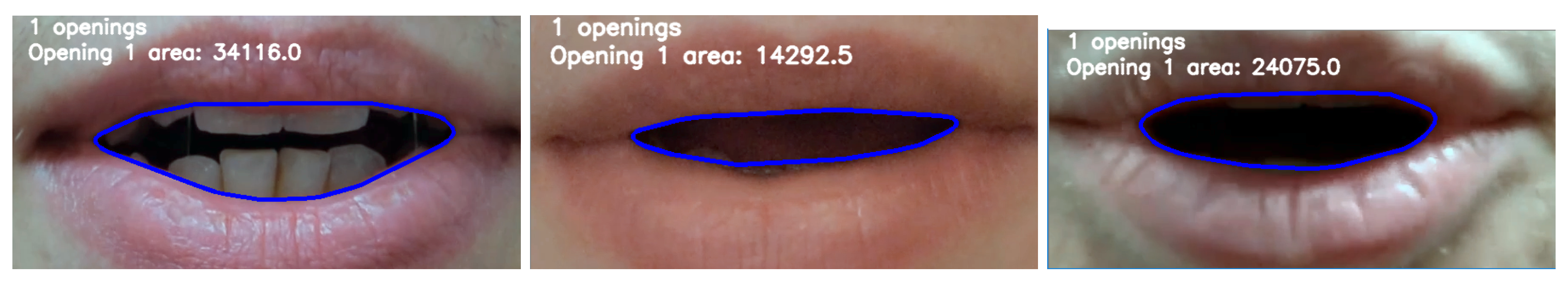

Figure 12. Three mouths forming the letter m, tracked in our analysis tool.
Figure 12. Three mouths forming the letter m, tracked in our analysis tool.
Computers 08 00024 g012

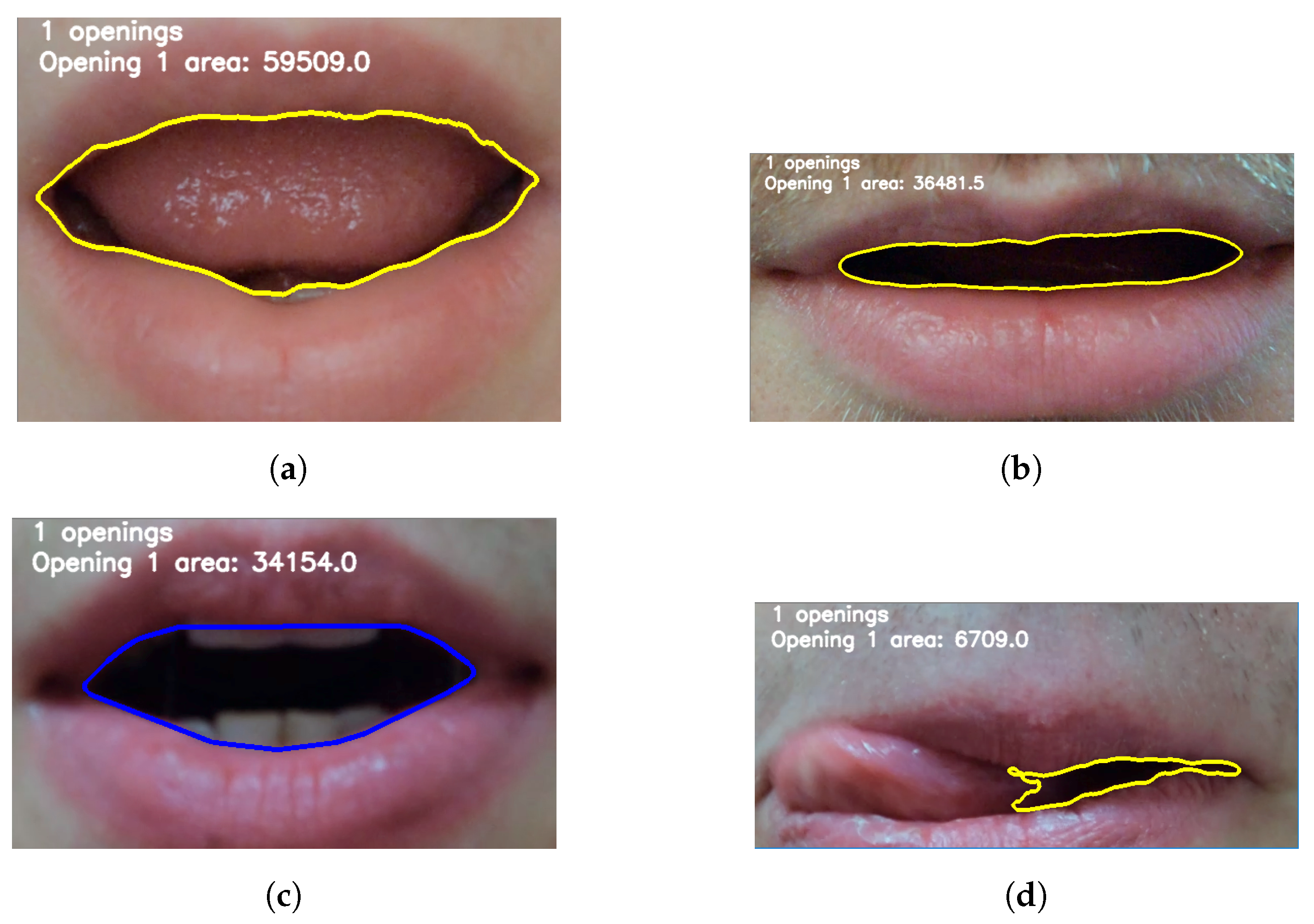

Figure 13. (a) Inner lip contour is accurately detected despite the bright tongue; (b) inner lip contour is very clearly defined as there is good contrast between the mouth opening and lips; (c) the tooth detection and convex hull approach provide a good estimate of the inner lip contour; and (d) even in traditionally challenging mouth positions such as the tongue protruding whilst licking the lips, mouth openings are detected.
Figure 13. (a) Inner lip contour is accurately detected despite the bright tongue; (b) inner lip contour is very clearly defined as there is good contrast between the mouth opening and lips; (c) the tooth detection and convex hull approach provide a good estimate of the inner lip contour; and (d) even in traditionally challenging mouth positions such as the tongue protruding whilst licking the lips, mouth openings are detected.
Computers 08 00024 g013

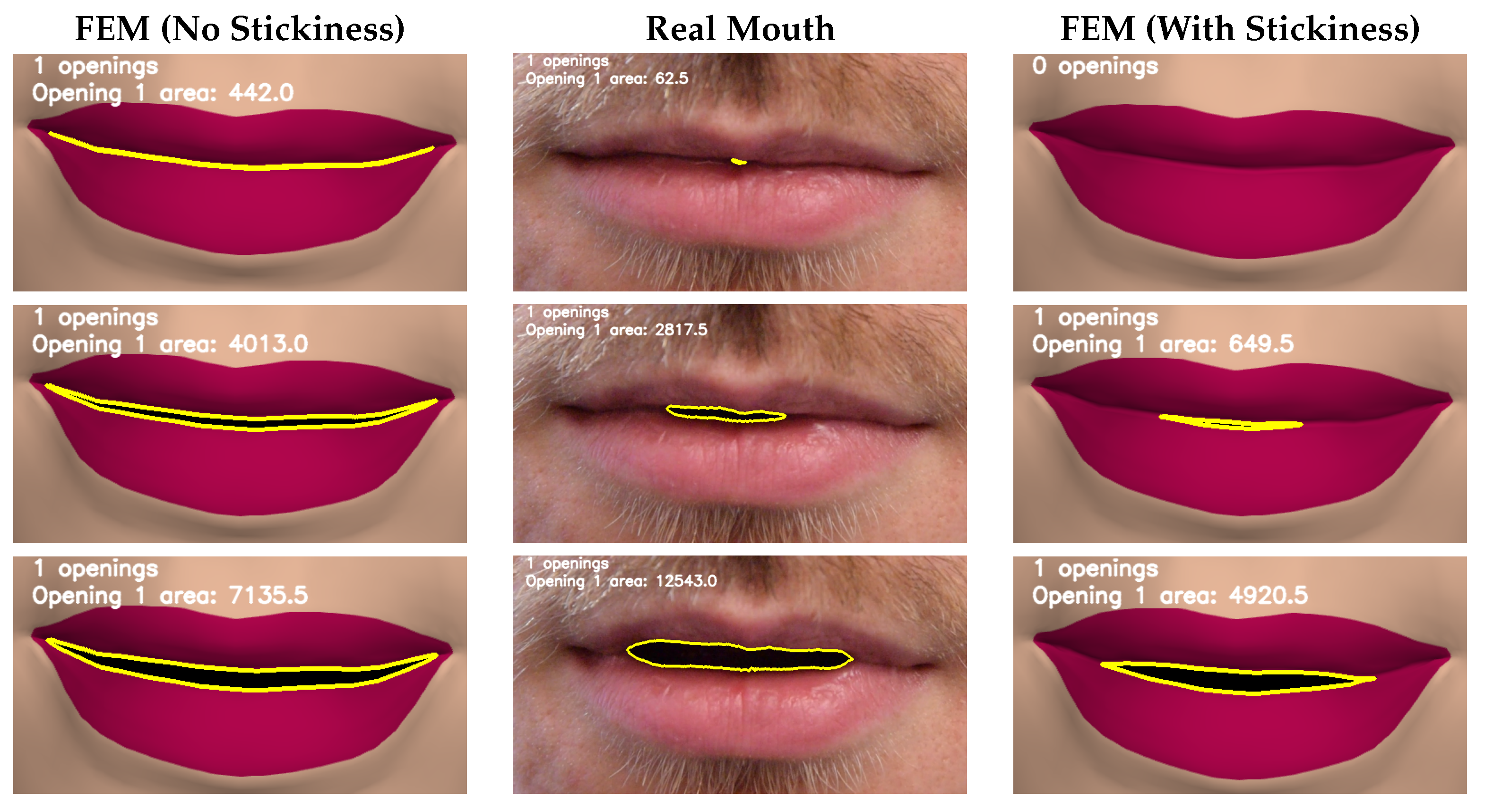

Figure 14. Analysis of an animation produced by: a finite element model without stickiness (left column); a real mouth (middle column); and a finite element model with stickiness (right column). Time progresses vertically down the page with a 0.12 s interval between each row.
Figure 14. Analysis of an animation produced by: a finite element model without stickiness (left column); a real mouth (middle column); and a finite element model with stickiness (right column). Time progresses vertically down the page with a 0.12 s interval between each row.
Computers 08 00024 g014

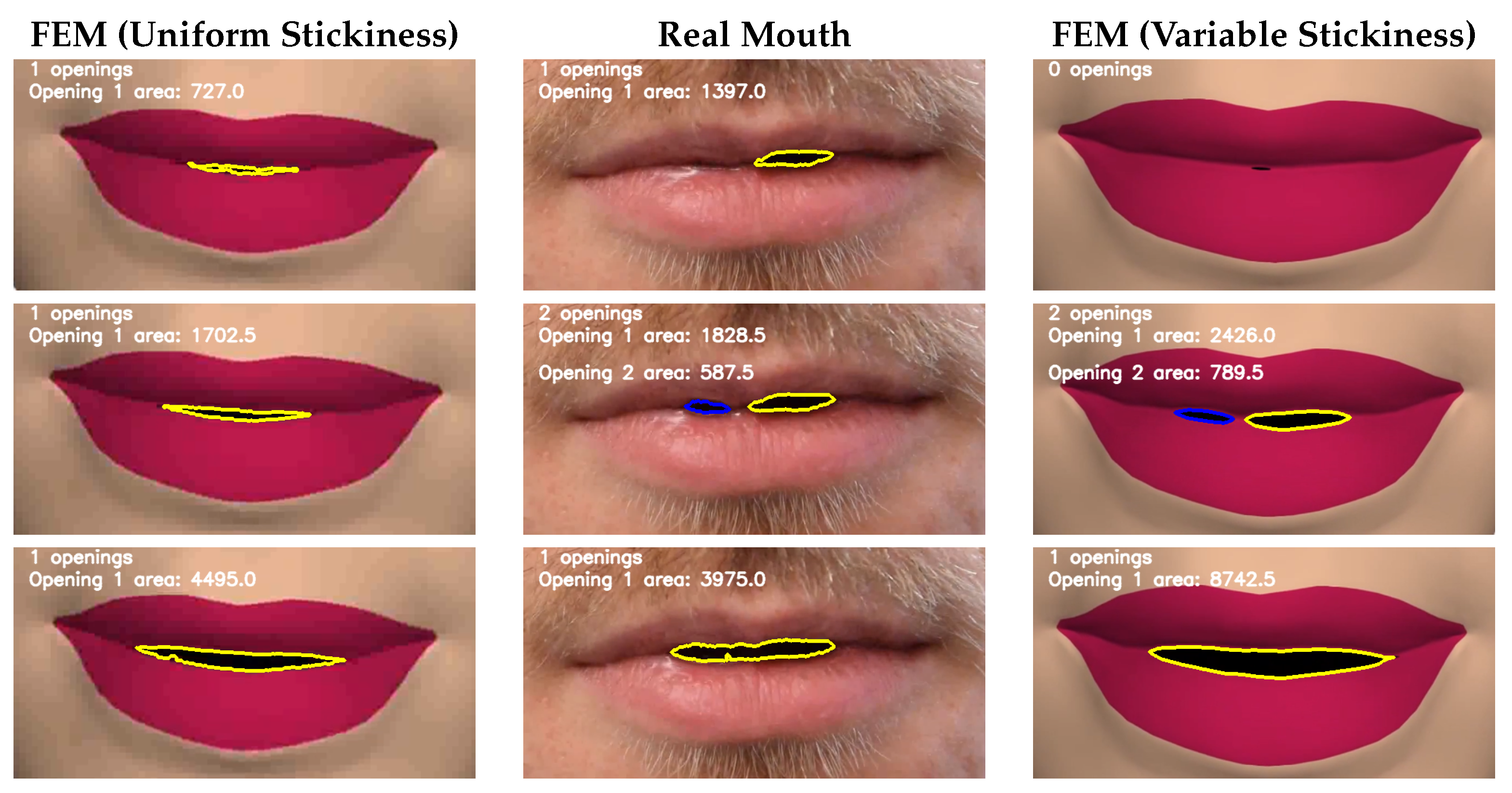

Figure 15. Analysis of an animation produced by: a finite element model without stickiness (left column); a real mouth (middle column); and a finite element model with stickiness (right column). This example shows two mouth openings. Time progresses vertically down the page with a 0.12 s interval between each row.
Figure 15. Analysis of an animation produced by: a finite element model without stickiness (left column); a real mouth (middle column); and a finite element model with stickiness (right column). This example shows two mouth openings. Time progresses vertically down the page with a 0.12 s interval between each row.
Computers 08 00024 g015

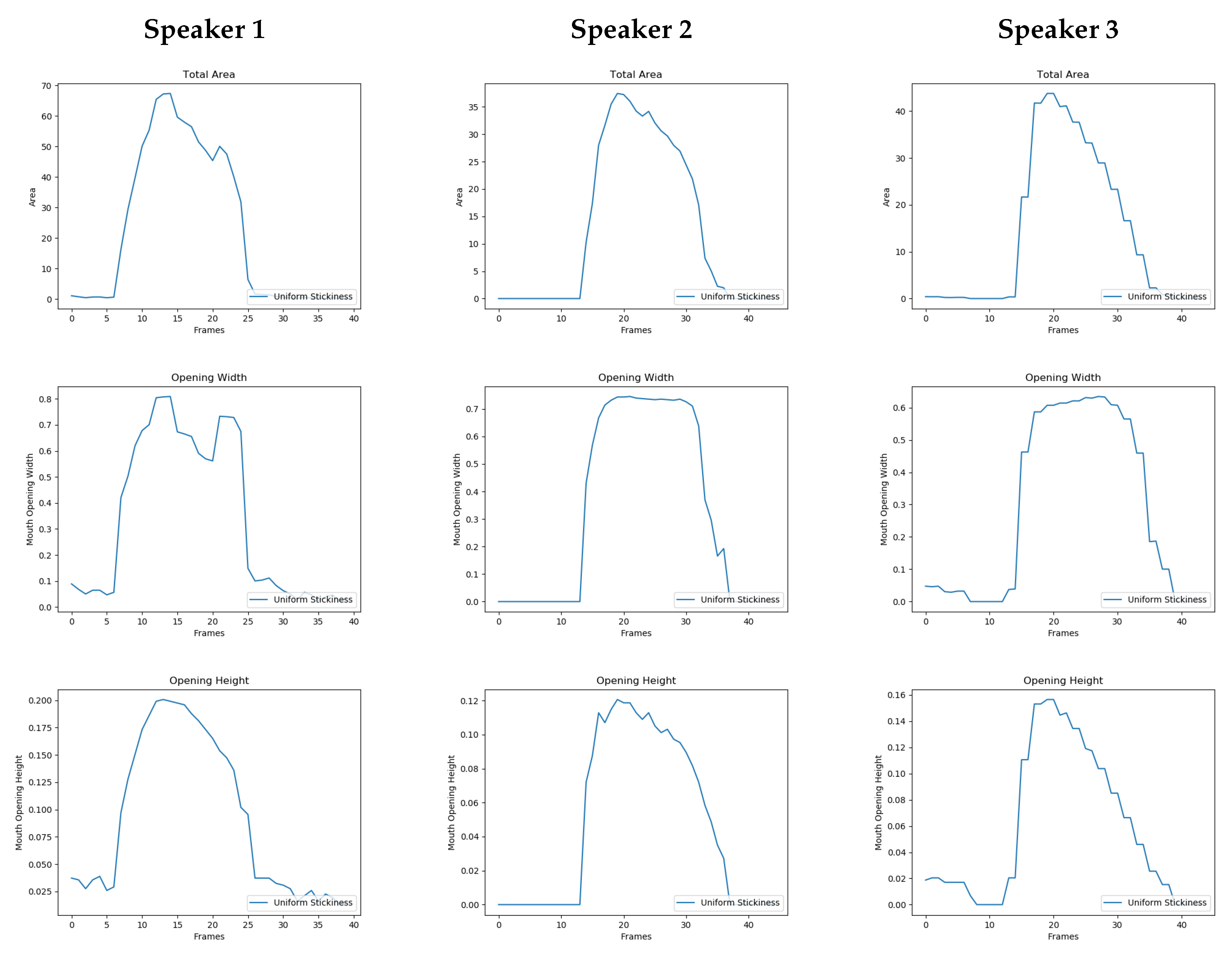

Figure 16. Graphs showing the opening profiles for three different speakers producing an “m” sound. The top row shows the area, the middle row shows opening width and the bottom row shows the opening height.
Figure 16. Graphs showing the opening profiles for three different speakers producing an “m” sound. The top row shows the area, the middle row shows opening width and the bottom row shows the opening height.
Computers 08 00024 g016
Figure 17. Graphs showing the opening profiles for three different speakers speaking the word “baby”. The top row shows the area, the middle row shows opening width and the bottom row shows the opening height.
Figure 17. Graphs showing the opening profiles for three different speakers speaking the word “baby”. The top row shows the area, the middle row shows opening width and the bottom row shows the opening height.
Computers 08 00024 g017

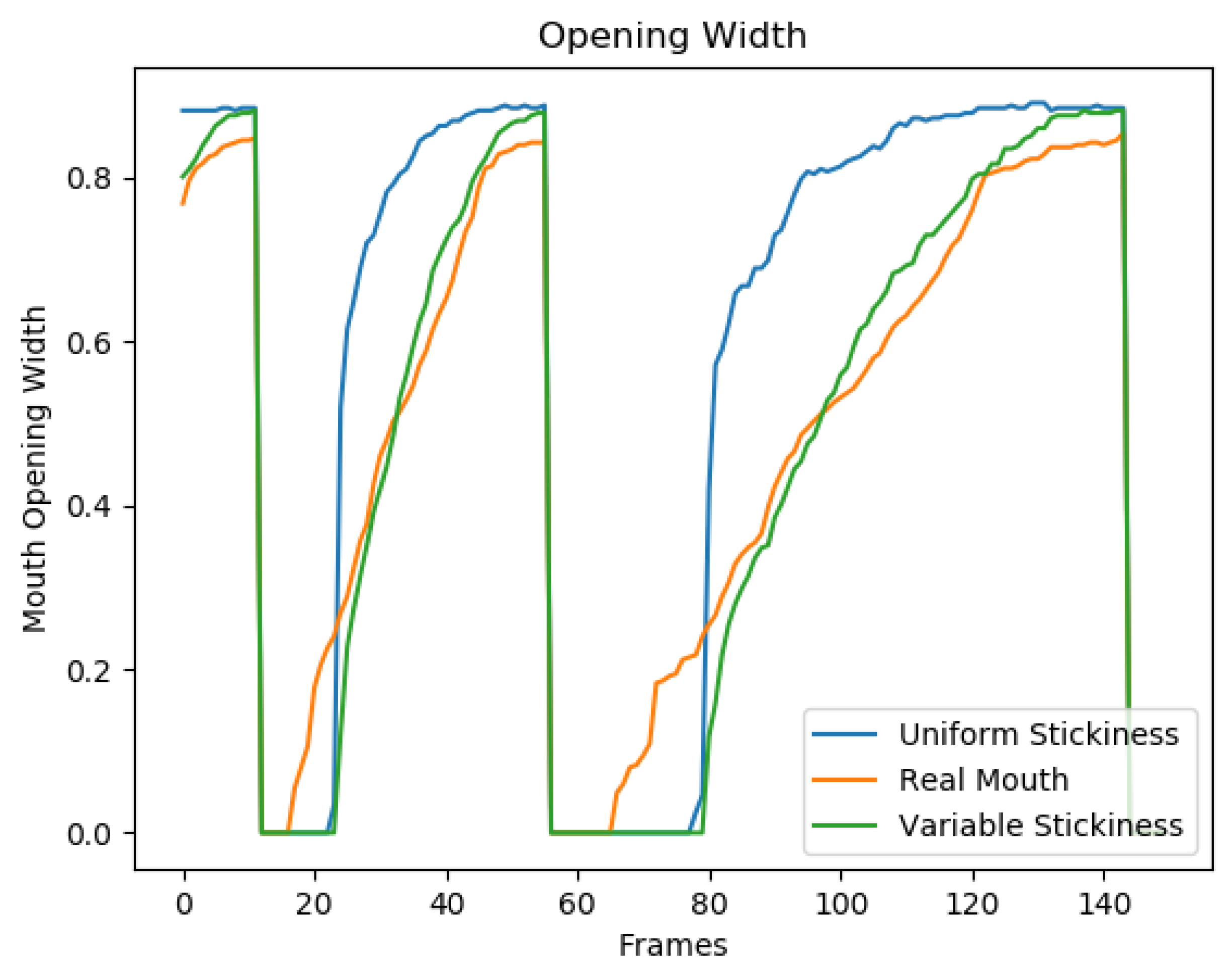

Figure 18. The model which includes stickiness matches the opening width profile of the real mouth much better than without stickiness.
Figure 18. The model which includes stickiness matches the opening width profile of the real mouth much better than without stickiness.
Computers 08 00024 g018
Figure 19. For a typical mouth opening action where only a single mouth opening forms, the inclusion of stickiness matches the opening height profile of the real mouth much better than without stickiness. The real mouth and sticky model both initially open slowly and then more quickly as time progresses. The non-sticky model opens quickly initially and then tapers off.
Figure 19. For a typical mouth opening action where only a single mouth opening forms, the inclusion of stickiness matches the opening height profile of the real mouth much better than without stickiness. The real mouth and sticky model both initially open slowly and then more quickly as time progresses. The non-sticky model opens quickly initially and then tapers off.
Computers 08 00024 g019

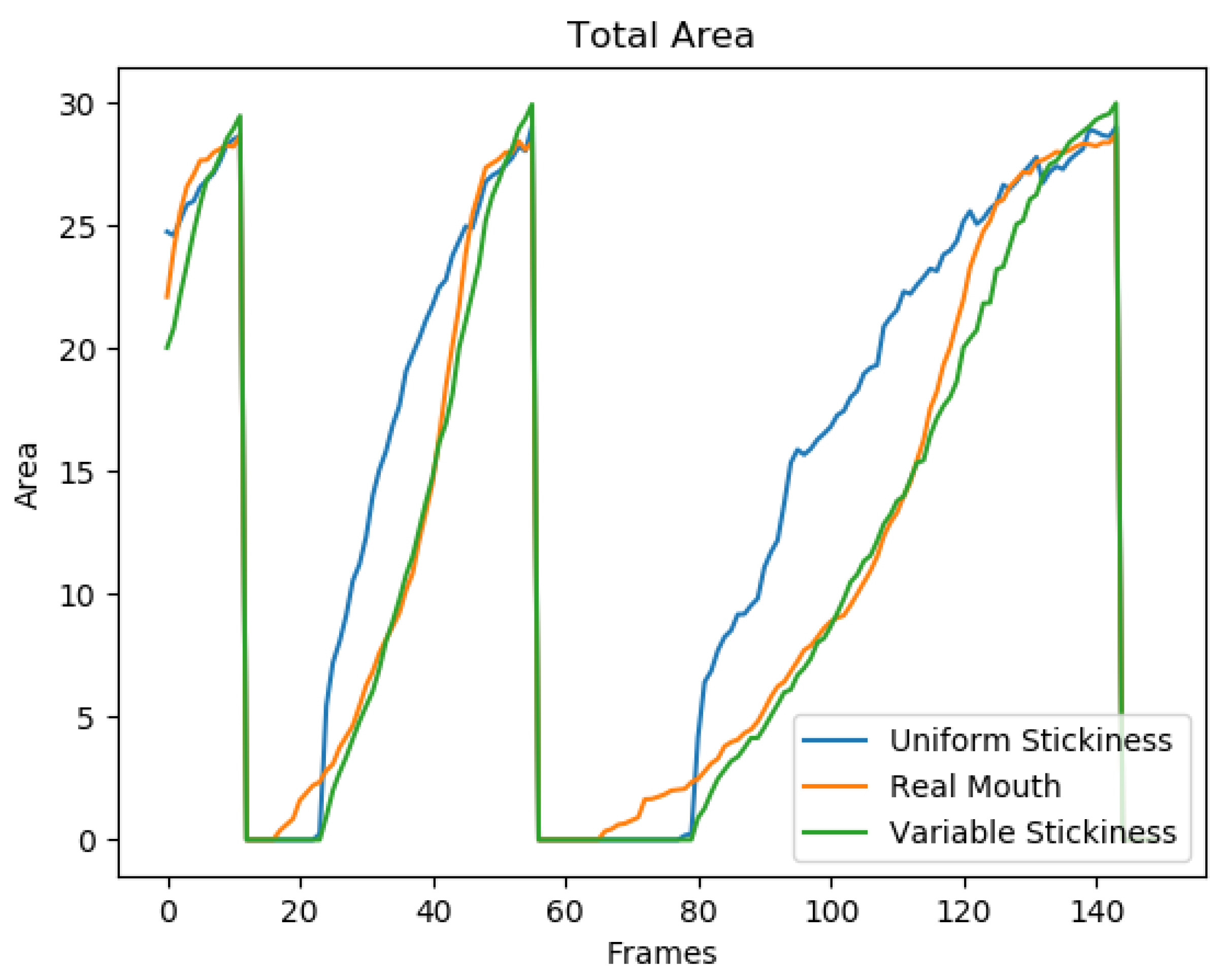

Figure 20. Without the inclusion of stickiness the area in the initial opening stage grows linearly, whereas with stickiness included the profile is curved, closely matching that of the real mouth.
Figure 20. Without the inclusion of stickiness the area in the initial opening stage grows linearly, whereas with stickiness included the profile is curved, closely matching that of the real mouth.
Computers 08 00024 g020
Figure 21. Graphs showing the effect of Barrielle and Stoiber’s sticky lip model [19] opening the mouth twice.
Figure 21. Graphs showing the effect of Barrielle and Stoiber’s sticky lip model [19] opening the mouth twice.
Computers 08 00024 g021
Figure 22. The sharp jump in opening width at the 45 frame mark in the real and sticky simulations is absent from the simulation without stickiness, as with no variable stickiness only a single mouth opening forms. Aside from this distinct feature, the sticky simulation also matches the profile of the real mouth more closely than the non-sticky simulation for the first portion of the videos.
Figure 22. The sharp jump in opening width at the 45 frame mark in the real and sticky simulations is absent from the simulation without stickiness, as with no variable stickiness only a single mouth opening forms. Aside from this distinct feature, the sticky simulation also matches the profile of the real mouth more closely than the non-sticky simulation for the first portion of the videos.
Computers 08 00024 g022

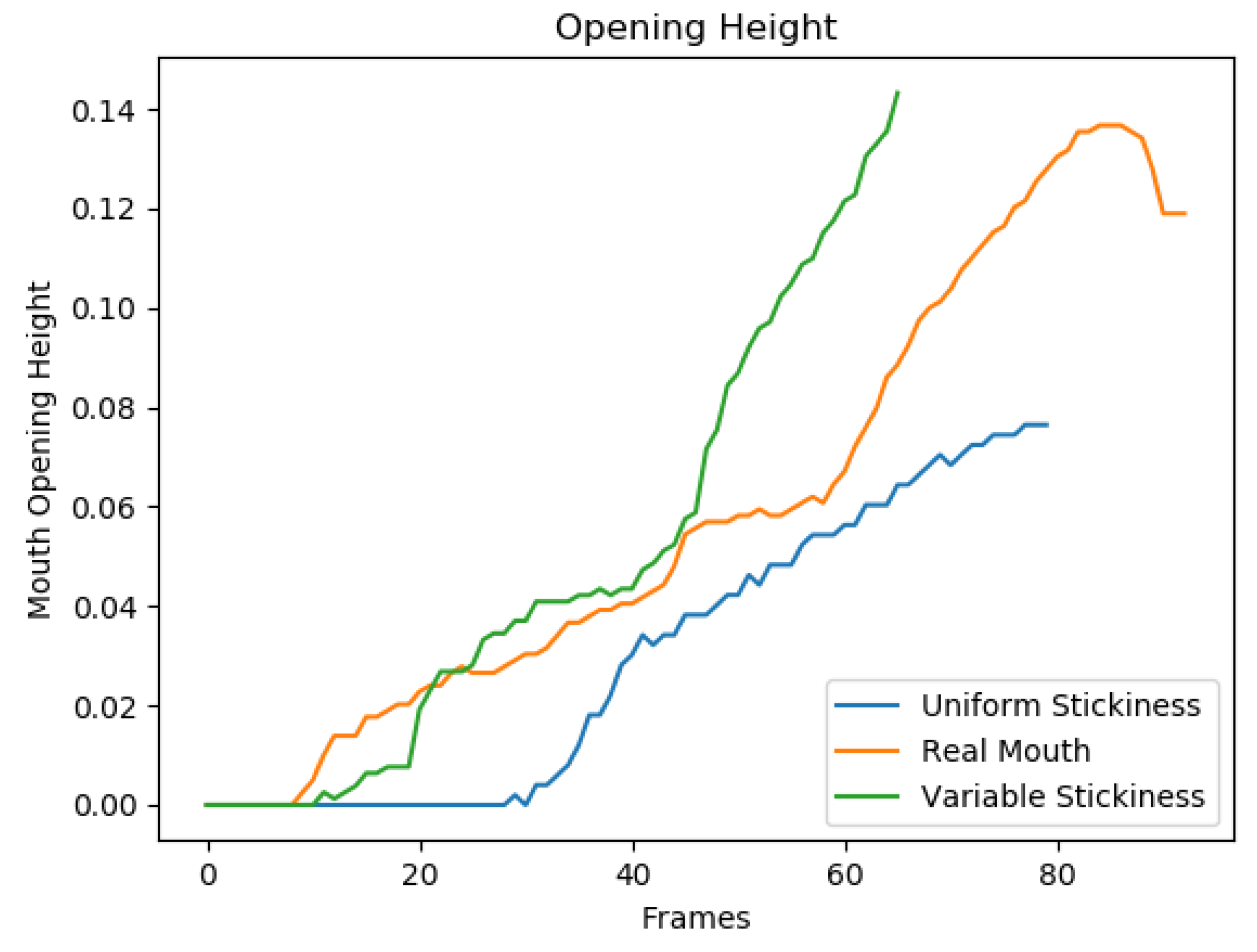

Figure 23. Both the real and sticky profiles feature a fairly sharp initial rise in mouth opening height, which then tapers off until frame 45 when the saliva breaks. At this point, both the real and sticky profiles again feature a sharp rise. The non-sticky simulation’s opening width rises much more smoothly.
Figure 23. Both the real and sticky profiles feature a fairly sharp initial rise in mouth opening height, which then tapers off until frame 45 when the saliva breaks. At this point, both the real and sticky profiles again feature a sharp rise. The non-sticky simulation’s opening width rises much more smoothly.
Computers 08 00024 g023

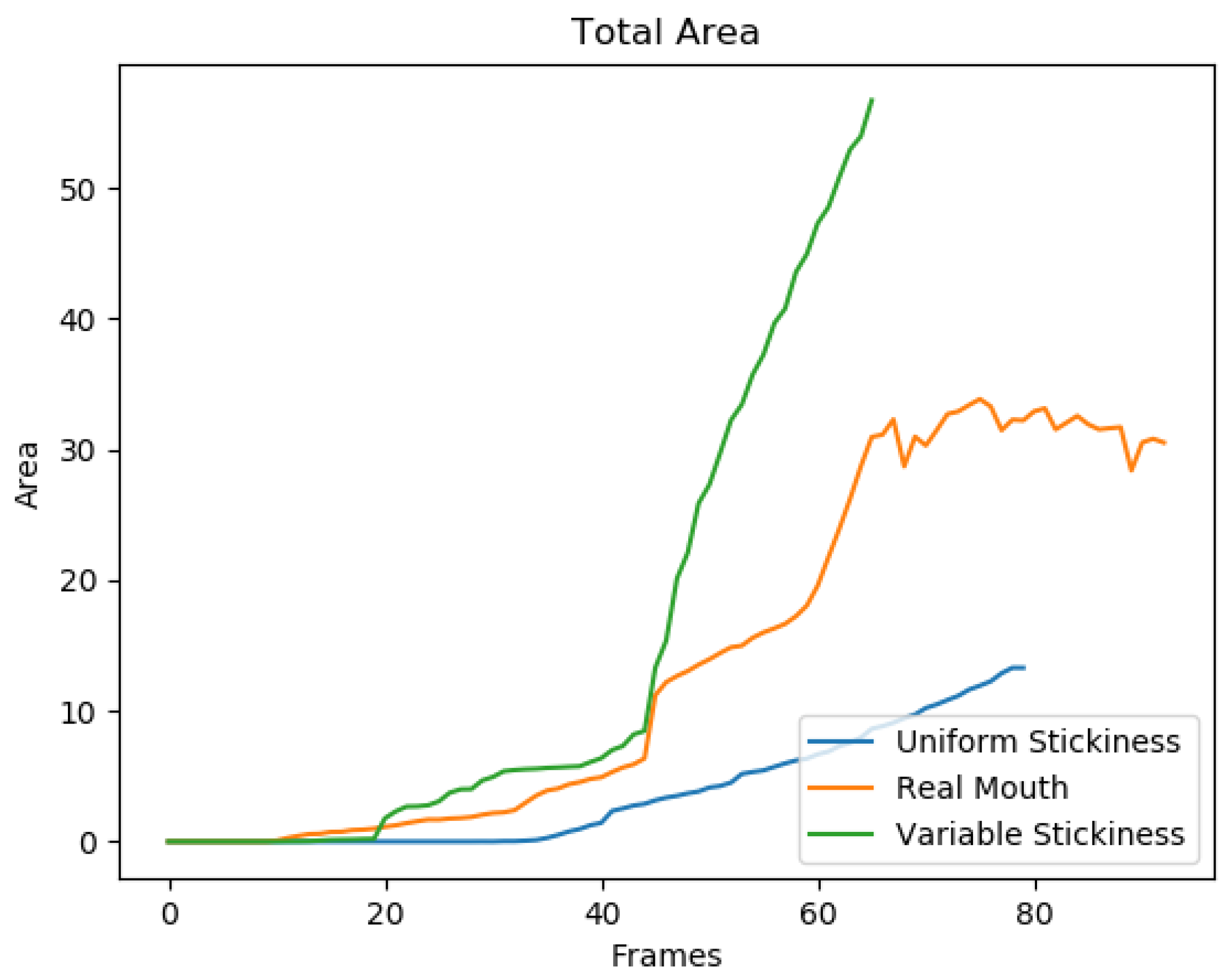

Figure 24. The area jumps when the saliva breaks in both the sticky and real simulations.
Figure 24. The area jumps when the saliva breaks in both the sticky and real simulations.
Computers 08 00024 g024
Figure 25. This graph shows the derivative of the area over time. The sharp spike in area can be very clearly seen here in the real and sticky mouths, but is absent in the non-sticky mouth model.
Figure 25. This graph shows the derivative of the area over time. The sharp spike in area can be very clearly seen here in the real and sticky mouths, but is absent in the non-sticky mouth model.
Computers 08 00024 g025
Figure 26. This graph shows the derivative of the opening width over time. There is a sharp spike in opening width at frame 45 for the real and sticky mouths (although the green line mostly obscures the orange line), but this is absent in the non-sticky mouth model.
Figure 26. This graph shows the derivative of the opening width over time. There is a sharp spike in opening width at frame 45 for the real and sticky mouths (although the green line mostly obscures the orange line), but this is absent in the non-sticky mouth model.
Computers 08 00024 g026
Table 1. The parameters used to generate the results shown in Figure 2 and Figure 3.
Table 1. The parameters used to generate the results shown in Figure 2 and Figure 3.
PropertyValue
Time Step0.00001 s
Hourglass Coefficient0.075
Damping Coefficient80
Soft Tissue Material ModelNeo-Hookean
Soft Tissue Shear Modulus800
Soft Tissue Bulk Modulus7000
Soft Tissue Density1050 kg/m−3
Saliva Material ModelNeo-Hookean Breaking
Saliva Shear Modulus7700
Saliva Bulk Modulus191,000
Saliva Density1050 kg/m−3
Initial Moisture Level100
Critical Moisture Level100
Evaporation Rate0
Single Opening/Uniform Glue Strength0.08
Double Opening Central Glue Strength0.18

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Computers EISSN 2073-431X Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
