Bound the Parameters of Neural Networks Using Particle Swarm Optimization

Abstract

Artificial neural networks are machine learning models widely used in many sciences as well as in practical applications. The basic element of these models is a vector of parameters; the values of these parameters should be estimated using some computational method, and this process is called training. For effective training of the network, computational methods from the field of global minimization are often used. However, for global minimization techniques to be effective, the bounds of the objective function should also be clearly defined. In this paper, a two-stage global optimization technique is presented for efficient training of artificial neural networks. In the first stage, the bounds for the neural network parameters are estimated using Particle Swarm Optimization and, in the following phase, the parameters of the network are optimized within the bounds of the first phase using global optimization techniques. The suggested method was used on a series of well-known problems in the literature and the experimental results were more than encouraging.

1. Introduction

Artificial neural networks (ANNs) are parametric machine learning models [1,2] which have been widely used during the last decades in a series of practical problems from scientific fields such as physics problems [3,4,5], chemistry problems [6,7,8], problems related to medicine [9,10], economic problems [11,12,13], etc. In addition, ANNs have recently been applied to models solving differential equations [14,15], agricultural problems [16,17], facial expression recognition [18], wind speed prediction [19], the gas consumption problem [20], intrusion detection [21], etc. Usually, neural networks are defined as a function $N(\overrightarrow{x},\overrightarrow{w})$, provided that the vector $\overrightarrow{x}$ is the input pattern to the network and the vector $\overrightarrow{w}$ stands for the weight vector. To estimate the weight vector, the so-called training error is minimized, which is defined as the sum:

$$E(\overrightarrow{w})=\sum _{i=1}^M{(N({\overrightarrow{x}}_i,\overrightarrow{w})-y_i)}^2$$

(1)

In Equation (1), the values t $(\overrightarrow{x_i},y_i),i=1,\dots ,M$ define the training set for the neural network. The values $y_i$ denote the expected output for the pattern $\overrightarrow{x_i}$.

To minimize the quantity in Equation (1), several techniques have been proposed in the relevant literature such as the Back Propagation method [22,23], the RPROP method [24,25,26], Quasi Newton methods [27,28], Simulated Annealing [29,30], genetic algorithms [31,32], Particle Swarm Optimization [33,34], Differential Optimization methods [35], Evolutionary Computation [36], the Whale optimization algorithm [37], the Butterfly optimization algorithm [38], etc. In addition, many researchers have focused their attention on techniques for initializing the parameters of artificial neural networks, such as the usage of decision trees to initialize neural networks [39], a method based on Cachy’s inequality [40], usage of genetic algorithms [41], initialization based on discriminant learning [42], etc. In addition, many researchers were also concerned with the construction of artificial neural network architectures, such as the usage of Cross Validation to propose the architecture of neural networks [43], incorporation of the Grammatical Evolution technique [44] to construct the architecture of neural networks as well as to estimate the values of the weights [45], evolution of neural networks using a method based on cellular automata [46], etc. In addition, since there has been a leap forward in the development of parallel architectures in recent years, a number of works have been presented that take advantage of such computational techniques [47,48].

However, in many cases, the training methods of artificial neural networks suffer from the problem of overfitting, i.e., although they succeed in significantly reducing the training error of Equation (1), they do not perform similarly on unknown data that were not present during training. These unknown datasets are commonly called test sets. The overfitting problem is usually handled using a a variety of methods, such as weight sharing [49,50], pruning of parameters, i.e., reducing the size of the network [51,52,53], the dropout technique [54,55], weight decaying [56,57], the Sarporp method [58], positive correlation methods [59], etc. The overfitting problem is thoroughly discussed in Geman et al. [60] and in the article by Hawkins [61].

A key reason why the problem of overtraining in artificial neural networks is present is that there is no well-defined interval of values in which the network parameters are initialized and trained by the optimization methods. This, in practice, means that the values of the parameters are changed indiscriminately in order to reduce the value of the Equation (1). In this work, it is proposed to use the Particle Swarm Optimization (PSO) technique [62] for the reliable calculation of the value interval of the parameters of an artificial neural network. The PSO method was chosen since it is a fairly fast global optimization method, easily adaptable to any optimization problem, and does not require many execution parameters to be defined by the user. The PSO method was applied with success to many difficult problems, such as problems that arise in physics [63,64], chemistry [65,66], medicine [67,68], economics [69], etc. In the proposed method, the PSO technique is used to minimize Equation (1), to which a penalty factor has been added, so as not to allow the parameters of artificial neural networks to vary uncontrollably. After the minimization of the modified function is done, the parameters of the neural network are initialized in an interval of values around the optimal value located by the PSO method. Then, the original form of Equation (1) is minimized without a penalty factor.

Other tasks in a similar direction include, for example, the work of Hwang and Ding [70], which suggests prediction intervals for the weights of neural networks; the work of Kasiviswanathan et al. [71], which constructs prediction intervals for neural networks applied on rainfall runoff models; the work of Sodhi and Chandra [72], which proposes an interval based method for weight initialization of neural networks, etc. In addition, a review for weight initialization strategies can be found in the paper of Narkhede et al. [73].

The following sections are organized as follows: in Section 2, the suggested technique is fully analyzed and discussed; in Section 3, the experimental datasets as well as the experimental results are described and discussed; and in Section 4, the conclusions from the application of current work are discussed.

2. The Proposed Method

2.1. Preliminaries

Suppose a neural network with a hidden processing layer is available that uses the so—called sigmoid function as activation function. The sigmoid function is defined as

$$\sigma \left(x\right)=\frac{1}{1+exp(-x)}$$

(2)

The equation for every hidden node of the neural network is defined as

$$o_i\left(x\right)=\sigma \left(p_i^{T}x+{\theta }_i\right),$$

(3)

The vector $p_i$ represents the weight vector and the value ${\theta }_i$ denotes the bias of node i. Hence, the total equation for a neural network with H hidden has as follows:

$$N\left(x\right)=\sum _{i=1}^H{v}_i{o}_i\left(x\right),$$

(4)

The value $v_i$ denotes the output weight for node i. Therefore, writing the overall equation by using one vector to hold both the weights $p_i,v_i$ and the biases ${\theta }_i$ of the networks and using the previous equations Equations (3) and (4) has as follows:

$$N(\overrightarrow{x},\overrightarrow{w})=\sum _{i=1}^H{w}_{(d+2)i-(d+1)}\sigma \left(\sum _{j=1}^d{x}_j{w}_{(d+2)i-(d+1)+j}+w_{(d+2)i}\right)$$

(5)

The value d stands for the dimension of the input vector $\overrightarrow{x}$. Observing Equation (5), it is obvious that in many cases, the sigmoid function is driven to 1 or 0 and as a consequence that the training error of the neural network can get trapped in local minima. In this case, the neural network will lose its generalization abilities. Therefore, a technique in which the values of the sigmoid will be restricted to some interval of values should be devised. In the present work, the limitation of the neural network parameters to a range of values is carried out using the Particle Swarm Optimization method.

2.2. The Bounding Algorithm

In the case of the sigmoid function of Equation (2), if the parameter x is large, the function will very quickly tend to 1. If it is very small, it will very quickly tend to 0. This means that the function will very quickly lose any generalizing abilities it has. Therefore, the parameter x should somehow be in some interval of values such that there are no generalization problems. For this reason, the quantity $B\left(L\right)$ is estimated, where L is a limit for the absolute value of the parameter x of the sigmoid function. The steps for this calculation are shown in Algorithm 1. This function will eventually return the average of the overruns made for the x parameter of the sigmoid function. The higher this average is, the more likely it is that the artificial neural network will not be able to generalize satisfactorily.

2.3. The PSO Algorithm

The Particle Swarm Optimization method is based on a swarm of vectors that are commonly called particles. These particles can also be considered potential values of the total minimum of the objective function. Each particle is associated with two vectors: the current position denoted as $\overrightarrow{p}$ and the corresponding speed $\overrightarrow{u}$ at which they are moving towards the global minimum. In addition, each particle maintains, in the vector $p_{i,b}$, the best position in which it has been so far. The total population, maintains in the vector $p_{best}$, the best position that any of the particles have found in the past. The purpose of the method is to move the total population toward the global minimum through a series of iterations. In each iteration, the velocity of each particle is calculated based on its current position, its best position in the past, and the best located position of the population.

Algorithm 1 A function in pseudocode to calculate the quantity $B\left(L\right)$ for a given parameter $L.$ The parameter M represents the number of patterns for the neural network $N(x,w).$

1.  Function$B\left(L\right)$

2.  Define $v=0$

3.  For $i=1\dots H$ Do

(a)   For $j=1\dots M$ Do

i.    If $\left|{\sum }_{k=1}^d\left(w_{(d+2)i-(d+i)+k}{x}_{jk}\right)+w_{(d+2)i}\right|>L$ then $v=v+1$

(b)   EndFor

4.  EndFor

5.  Return $\frac{v}{H\ast M}$

6.  End Function

In this work, the PSO technique is used to train artificial neural networks by minimizing the error function as defined in Equation (3), along with a penalty factor depending on the function $B\left(L\right)$ defined in Section 2.2. Hence, the PSO technique will minimize the equation:

$$E_T\left(N\left(x,w\right),L\right)=\sum _{i=1}^M{(N({\overrightarrow{x}}_i,\overrightarrow{w})-y_i)}^2\times \left(1+\alpha B\left(L\right)\right)$$

(6)

where $\alpha$ is a penalty factor with $\alpha >1$. Hence, the main steps of a PSO algorithm are shown in Algorithm 2.

Algorithm 2 The base PSO algorithm executed in one processing unit.

1.  Initialization Step.

(a)   Set $k=0$, as the iteration number.

(b)   Set H the hidden nodes for the neural network.

(c)   Set m as the total number of particles. Each particle corresponds to a randomly selected set of parameters for the neural network

(d)   Set $k_{max}$ as the maximum number of iterations allowed.

(e)   Initialize velocities $u_1,u_2,\dots ,u_m$ randomly.

(f)   For $i=1\dots m$ do $p_{i,b}=p_i$. The vector $p_{i,b}$ corresponds to the best located position of particle i.

(g)   Set $p_{best}=arg{min}_{i\in 1\dots m}f\left(p_i\right)$

2.  If $k\ge k_{max}$, then terminate.

3.  For $i=1\dots m$Do

(a)   Compute the velocity $u_i$ using the vectors $u_i,p_{i.b}$ and $p_{best}$

(b)   Set the new position $p_i=p_i+u_i$

(c)   Calculate the $f\left(p_i\right)$ for particle $p_i$ using the Equation (6) as $f\left(p_i\right)=E_T\left(N\left(x,p_i\right),L\right)$

(d)   If$f\left(p_i\right)\le f\left(p_{i,b}\right)$ then $p_{i,b}=x_i$

4.  End For

5.  Set $p_{best}=arg{min}_{i\in 1\dots m}f\left(p_i\right)$

6.  Set $k=k+1$.

7.  Goto Step 2

The velocity of every particle $p_i$ usually is calculated as

$$u_i=\omega u_i+r_1{c}_1\left(p_i-x_i\right)+r_2{c}_2\left(p_{best}-x_i\right)$$

(7)

where

• The variables $r_1,r_2$ are numbers defined randomly in $[0,1].$
• The constants $c_1,c_2$ are defined in $[1,2]$.
• The variable $\omega$ is called inertia, proposed in [74].

For the proposed algorithm, the inertia calculation used in [75,76,77] is used and is defined as

$${\omega }_k=\frac{k_{\mathrm{m}\mathrm{a}\mathrm{x}}-\mathrm{k}}{{\mathrm{k}}_{\mathrm{m}\mathrm{a}\mathrm{x}}}\left({\omega }_{\mathrm{m}\mathrm{a}\mathrm{x}}-{\omega }_{\mathrm{m}\mathrm{i}\mathrm{n}}\right)+{\omega }_{\mathrm{m}\mathrm{i}\mathrm{n}}$$

(8)

where ${\omega }_{\mathrm{m}\mathrm{i}\mathrm{n}}$ and ${\omega }_{\mathrm{m}\mathrm{a}\mathrm{x}}$ are the minimum and the maximum value for inertia respectively.

2.4. Application of Local Optimization

After the Particle Swarm Optimization is completed, the vector $p_{best}$ stores the optimal set of parameters for the artificial neural network. From this set, a local optimization method can be started in order to achieve an even lower value for the neural network error. In addition, the optimal set of weights can be used to calculate an interval for the parameters of the neural network. The error function of Equation (3) will be minimized inside this interval. The interval $\left[LW,RW\right]$ for the parameter vector w of the neural network is calculated through the next steps:

• For$i=1\dots n$do

  (a)

  Set$L{W}_i=-F\times \left|p_{best,i}\right|$

  (b)

  Set$R{W}_i=F\times \left|p_{best,i}\right|$

• EndFor

The value F will be called margin factor with $F>1$. In the proposed algorithm, a BFGS version of Powell [78] was used as the local search procedure; this is a version of the BFGS method [79] that utilizes bounds for the objective function.

3. Experiments

The efficiency of the suggested method was measured using a set of well-known problems from the relevant literature. The experimental results from the application of the proposed method was compared with other artificial neural network training techniques. In addition, experiments were carried out to show the dependence of the method on its basic parameters. The classification datasets incorporated in the relevant experiments can be found at

• UCI dataset repository, https://archive.ics.uci.edu/ml/index.php (accessed on 16 April 2023)
• Keel repository, https://sci2s.ugr.es/keel/datasets.php (accessed on 16 April 2023) [80].

The majority of regression datasets was found in the Statlib URL ftp://lib.stat.cmu.edu/datasets/index.html (accessed on 14 April 2023).

3.1. Experimental Datasets

The dataset used as classification problems are the following:

• Appendictis a medical dataset, found in [81].
• Australian dataset [82]. It is a dataset related to bank applications.
• Balance dataset [83], a cognitive dataset.
• Cleveland dataset, a medical datasets found in a variety of papers [84,85].
• Bands dataset, a dataset related to printing problems.
• Dermatology dataset [86], a medical dataset.
• Heart dataset [87], a dataset about heart diseases.
• Hayes roth dataset. [88].
• HouseVotes dataset [89].
• Ionosphere dataset, this dataset has been thoroughly studied in many papers [90,91].
• Liverdisorder dataset [92], a medical dataset.
• Mammographic dataset [93], a medical dataset.
• Page Blocks dataset [94], related to documents.
• Parkinsons dataset [95], a dataset related to Parkinson’s decease.
• Pima dataset [96], a medical dataset.
• Popfailures dataset [97], a dataset related to climate.
• Regions2 dataset, a medical dataset used in liver biopsy images of patients with hepatitis C [98].
• Saheart dataset [99], a medical dataset about heart disease.
• Segment dataset [100].
• Wdbc dataset [101], a dataset about breast tumors.
• Wine dataset, a dataset about chemical analysis for wines [102,103].
• Eeg datasets [17], medical datasets about EEG signals. The three distinct cases used here are named Z_F_S, ZO_NF_S and ZONF_S, respectively.
• Zoo dataset [104].

The regression datasets used in the conducted experiments were as follows:

• Abalone dataset, for the predictioon of age of abalone [105].
• Airfoil dataset, a dataset provided by NASA [106].
• Baseball dataset, a dataset used to calculate the salary of baseball players.
• BK dataset [107], used for prediction of points in a basketball game.
• BL dataset, used in machine problems.
• MB dataset [107].
• Concrete dataset [108], a civil engineering dataset.
• Dee dataset, used to estimate the price of the electricity.
• Diabetes dataset, a medical dataset.
• Housing dataset [109].
• FA dataset, used to fit body fat to other measurements.
• MORTGAGE dataset, holding economic data from USA.
• PY dataset, (Pyrimidines problem) [110].
• Quake dataset, used to approximate the strength of a earthquake.
• Treasure dataset, which contains economic data information of USA.
• Wankara dataset, a weather dataset.

3.2. Experimental Results

To make a reliable estimate of the efficiency of the method, the ten-fold validation method was used and 30 experiments were conducted. In every experiment, different random values were used. The neural network used in the experiments has 1 hidden layer with 10 neurons. The selected activation function was the sigmoid function. The average classification or regression error on the test set is reported in the experimental tables. The parameters used in the experiments are shown in

Table 1. This table presents the values of the parameters used during the execution of the experiments.

Parameter	Meaning	Value
m	Number of particles or chromosomes	200
$k_{\mathrm{m}\mathrm{a}\mathrm{x}}$	Maximum number of iterations	200
${\omega }_{\mathrm{m}\mathrm{i}\mathrm{n}}$	Minimum value for inertia	0.4
${\omega }_{\mathrm{m}\mathrm{a}\mathrm{x}}$	Maximum value for inertia	0.9
H	Number of weights	10
$\alpha$	Penalty factor	100.0
L	The limit for the function $B\left(L\right)$	10.0
F	The margin factor	5.0

. The proposed method is compared against some other methods from the relevant literature:

• A simple genetic algorithm using m chromosomes, denoted by GENETIC in the experimental tables. In addition, in order to achieve a better solution, the local optimization method BFGS is applied to the best chromosome of the population when the genetic algorithm terminates.
• The Radial Basis Function (RBF) neural network [111], where the number of weights was set to 10.
• The optimization method Adam [112] as provided by the OptimLib. This library can be downloaded freely from https://github.com/kthohr/optim (accessed on 4 April 2023).
• The Rprop method [24]. This method was found in the freely available FCNN programming package [113].
• The NEAT method (NeuroEvolution of Augmenting Topologies) [114]. The method is implemented in the EvolutionNet programming package downloaded from https://github.com/BiagioFesta/EvolutionNet (accessed on 4 April 2023).

The experimental parameters for the methods Adam, Rprop, and NEAT are proposed in the corresponding software. The experimental results for the classification data are shown in the

Table 2. Average classification error for the classification datasets for all mentioned methods.

Dataset	Nclass	Genetic	RBF	ADAM	RPROP	NEAT	Proposed
Appendicitis	2	18.10%	12.23%	16.50%	16.30%	17.20%	16.97%
Australian	2	32.21%	34.89%	35.65%	36.12%	31.98%	26.96%
Balance	3	8.97%	33.42%	7.87%	8.81%	23.14%	7.52%
Bands	2	35.75%	37.22%	36.25%	36.32%	34.30%	35.77%
Cleveland	5	51.60%	67.10%	67.55%	61.41%	53.44%	48.40%
Dermatology	6	30.58%	62.34%	26.14%	15.12%	32.43%	14.30%
Hayes Roth	3	56.18%	64.36%	59.70%	37.46%	50.15%	36.33%
Heart	2	28.34%	31.20%	38.53%	30.51%	39.27%	18.99%
HouseVotes	2	6.62%	6.13%	7.48%	6.04%	10.89%	7.10%
Ionosphere	2	15.14%	16.22%	16.64%	13.65%	19.67%	13.15%
Liverdisorder	2	31.11%	30.84%	41.53%	40.26%	30.67%	32.07%
Lymography	4	23.26%	25.31%	29.26%	24.67%	33.70%	27.05%
Mammographic	2	19.88%	21.38%	46.25%	18.46%	22.85%	17.37%
PageBlocks	5	8.06%	10.09%	7.93%	7.82%	10.22%	6.47%
Parkinsons	2	18.05%	17.42%	24.06%	22.28%	18.56%	14.60%
Pima	2	32.19%	25.78%	34.85%	34.27%	34.51%	26.34%
Popfailures	2	5.94%	7.04%	5.18%	4.81%	7.05%	5.27%
Regions2	5	29.39%	38.29%	29.85%	27.53%	33.23%	26.29%
Saheart	2	34.86%	32.19%	34.04%	34.90%	34.51%	32.49%
Segment	7	57.72%	59.68%	49.75%	52.14%	66.72%	18.99%
Wdbc	2	8.56%	7.27%	35.35%	21.57%	12.88%	6.01%
Wine	3	19.20%	31.41%	29.40%	30.73%	25.43%	10.92%
Z_F_S	3	10.73%	13.16%	47.81%	29.28%	38.41%	8.55%
ZO_NF_S	3	8.41%	9.02%	47.43%	6.43%	43.75%	7.11%
ZONF_S	2	2.60%	4.03%	11.99%	27.27%	5.44%	2.61%
ZOO	7	16.67%	21.93%	14.13%	15.47%	20.27%	5.80%
AVERAGE		23.47%	27.69%	30.81%	25.37%	28.87%	18.21%

and the corresponding results for the regression datasets are shown in

Table 3. Average regression error for all mentioned methods and regression datasets.

Dataset	Range	Genetic	RBF	ADAM	RPROP	NEAT	Proposed
ABALONE	19.0	7.17	7.37	4.30	4.55	9.88	4.34
AIRFOIL	0.41	0.003	0.27	0.005	0.002	0.067	0.002
BASEBALL	42.50	103.60	93.02	77.90	92.05	100.39	58.78
BK	0.32	0.027	0.02	0.03	1.599	0.15	0.03
BL	0.68	5.74	0.01	0.28	4.38	0.05	0.02
CONCRETE	0.77	0.0099	0.011	0.078	0.0086	0.081	0.003
DEE	4.12	1.013	0.17	0.63	0.608	1.512	0.23
DIABETES	0.90	19.86	0.49	3.03	1.11	4.25	0.65
HOUSING	43.0	43.26	57.68	80.20	74.38	56.49	21.85
FA	0.51	1.95	0.02	0.11	0.14	0.19	0.02
MB	0.10	3.39	2.16	0.06	0.055	0.061	0.051
MORTGAGE	12.74	2.41	1.45	9.24	9.19	14.11	0.31
PY	0.84	105.41	0.02	0.09	0.039	0.075	0.08
QUAKE	0.60	0.04	0.071	0.06	0.041	0.298	0.044
TREASURY	15.54	2.929	2.02	11.16	10.88	15.52	0.34
WANKARA	0.605	0.012	0.001	0.02	0.0003	0.005	0.0002
AVERAGE		18.55	10.30	11.70	12.44	12.70	5.42

. In both tables, the last row, denoted as AVERAGE, indicates the average classification or regression error for the associated datasets. All the experiments were conducted on AMD Epyc 7552 equipped with 32 GB of RAM. The operating system was the Ubuntu 20.04 operating system. For the conducted experiments, the Optimus programming library, available from https://github.com/itsoulos/OPTIMUS (accessed on 4 April 2023), was used. In Table 2, the column NCLASS denotes the number of classes for every dataset. In Table 3, the regression error is shown, with the column RANGE denoting the range of targets for every dataset.

The proposed two-phase technique is shown to outperform the others in both classification and regression problems in terms of accuracy on the test set. In many datasets, the difference in accuracy provided by the proposed technique can reach or even exceed 70%. This is more evident in regression dataset, where the average gain from the next best method is 54%. In the case of the classification data, the most effective method before the proposed one appears to be the genetic algorithm; the difference in accuracy between them is on the order of 23%. On the other hand, for the regression datasets, the radial basis network is the next most effective after the proposed technique; the average difference in accuracy between them is on the order of 47%. In addition, a comparison in terms of precision and recall between the proposed method and the genetic algorithm is shown in

Table 4. Comparison for precision and recall between the proposed method and the genetic algorithm for a series of classification datasets.

	Precision		Recall
Dataset	Genetic	Proposed	Genetic	Proposed
PARKINSONS	0.77	0.82	0.68	0.77
WINE	0.75	0.90	0.79	0.89
HEART	0.73	0.81	0.72	0.80

for a series of select classification datasets. In this table, the proposed technique shows higher accuracy than the genetic algorithm method.

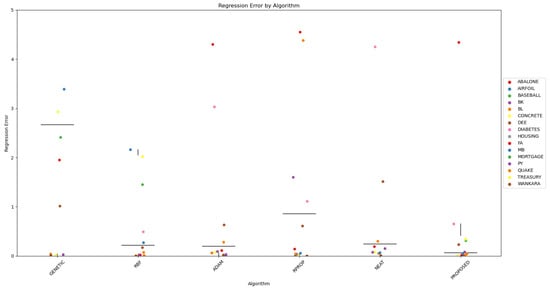

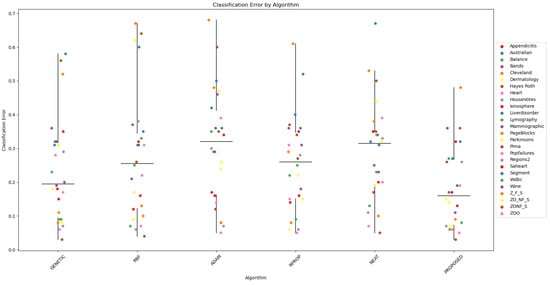

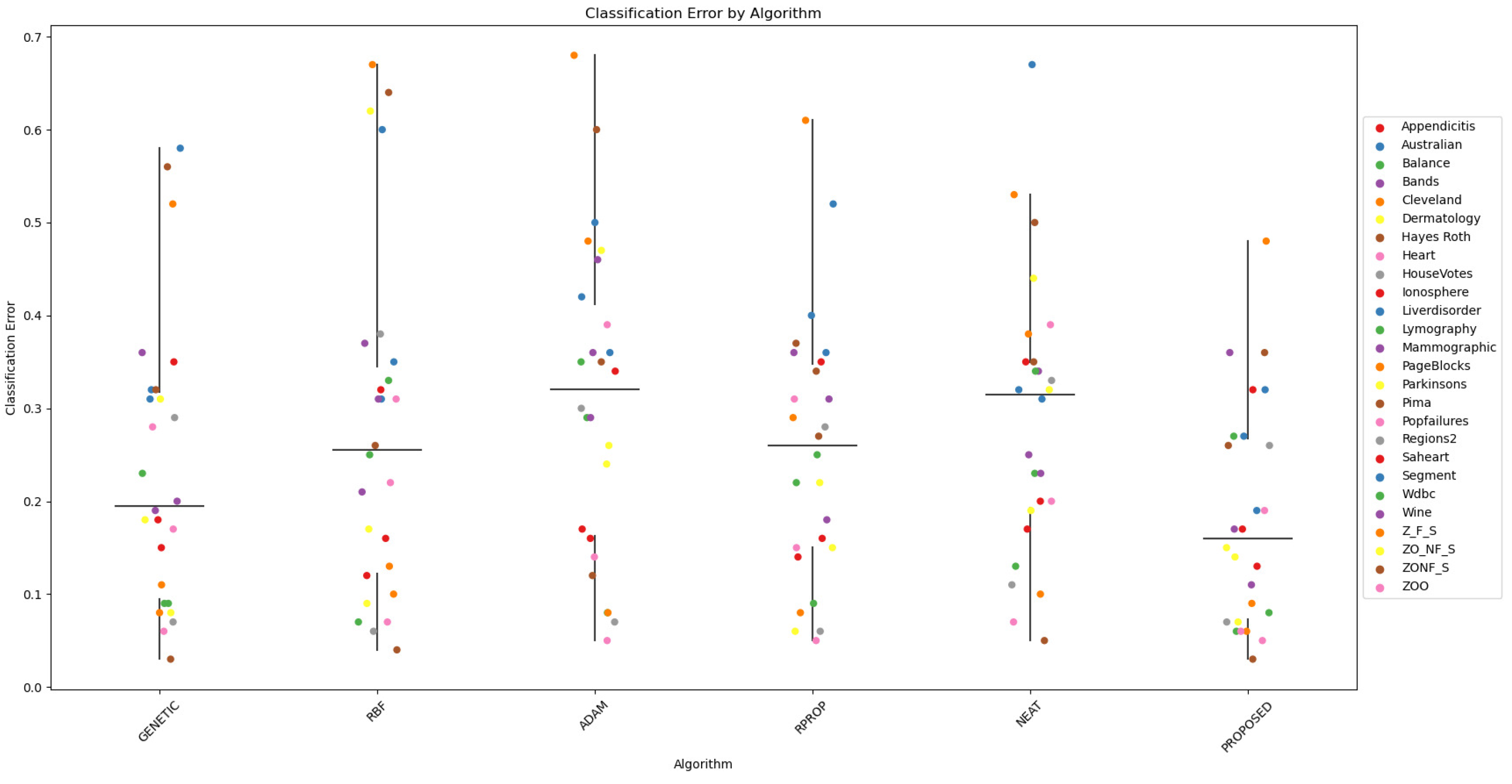

Furthermore, scatter plots that indicate the performance of all mentioned methods are shown in Figure 1 and Figure 2.

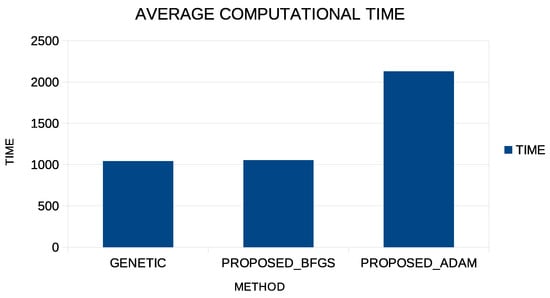

In addition, the effectiveness of the usage of the BFGS local search method is measured in an additional experiment, where the local search method for the proposed technique is replaced by the ADAM optimizer. The results for the classification datasets are shown in

Table 5. Experimental results for the classification datasets using the BFGS and the Adam local optimization methods during the second phase. The numbers in tables represent average classification error as measured in the test set for every dataset.

Dataset	ADAM	PROPOSED_BFGS	PROPOSED_ADAM
Appendicitis	16.50%	16.97%	16.03%
Australian	35.65%	26.96%	32.45%
Balance	7.87%	7.52%	7.59%
Bands	36.25%	35.77%	35.72%
Cleveland	67.55%	48.40%	47.62%
Dermatology	26.14%	14.30%	19.78%
Hayes Roth	59.70%	36.33%	36.87%
Heart	38.53%	18.99%	18.86%
HouseVotes	7.48%	7.10%	4.20%
Ionosphere	16.64%	13.15%	9.32%
Liverdisorder	41.53%	32.07%	32.24%
Lymography	29.26%	27.05%	27.64%
Mammographic	46.25%	17.37%	21.38%
PageBlocks	7.93%	6.47%	7.33%
Parkinsons	24.06%	14.60%	16.77%
Pima	34.85%	26.34%	30.19%
Popfailures	5.18%	5.27%	4.56%
Regions2	29.85%	26.29%	26.14%
Saheart	34.04%	32.49%	32.55%
Segment	49.75%	18.99%	37.51%
Wdbc	35.35%	6.01%	7.40%
Wine	29.40%	10.92%	12.80%
Z_F_S	47.81%	8.55%	9.76%
ZO_NF_S	47.43%	7.11%	8.87%
ZONF_S	11.99%	2.61%	2.68%
ZOO	14.13%	5.80%	6.47%
AVERAGE	30.81%	18.21%	19.72%

and the corresponding results for the regression datasets in

Table 6. Experimental results for the regression datasets using the BFGS and the Adam local optimization methods during the second phase. The numbers in tables represent average regression error as measured in the test set for every dataset.

Dataset	ADAM	PROPOSED_BFGS	PROPOSED_ADAM
ABALONE	4.30	4.34	4.49
AIRFOIL	0.005	0.002	0.003
BASEBALL	77.90	58.78	72.43
BK	0.03	0.03	0.02
BL	0.28	0.02	0.01
CONCRETE	0.078	0.003	0.004
DEE	0.63	0.23	0.25
DIABETES	3.03	0.65	0.44
HOUSING	80.20	21.85	34.22
FA	0.11	0.02	0.02
MB	0.06	0.051	0.047
MORTGAGE	9.24	0.31	1.83
PY	0.09	0.08	0.02
QUAKE	0.06	0.044	0.039
TREASURY	11.16	0.34	2.36
WANKARA	0.02	0.0002	0.0002
AVERAGE	11.70	5.42	7.26

. In both tables, the column PROPOSED_BFGS denotes the application of the proposed method using the BFGS local search as the procedure of the second phase, and the column PROPOSED_ADAM denotes the incorporation of the ADAM optimizer during the second phase instead of the BFGS.

The experimental results demonstrate that the proposed methodology can give excellent results in learning categories or in learning functions, even if the Adam method is used as a local minimization method. However, the Adam method requires a much longer execution time than the BFGS method, and this is shown graphically in Figure 3.

This graph shows the running time for the Abalone dataset, which is a time-consuming problem. The first column shows the execution time for the simple genetic algorithm; the second column shows the execution time for the proposed method using the BFGS local optimization method in the second phase; and the third column shows the execution time for the proposed method using the Adam method in the second stage. Although, as shown in the previous tables, the Adam method can have similar levels of success as the BFGS method, it nevertheless requires significant computing time for its completion.

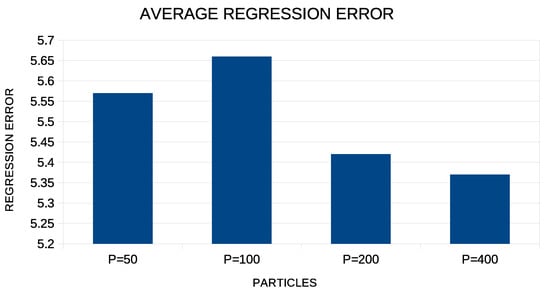

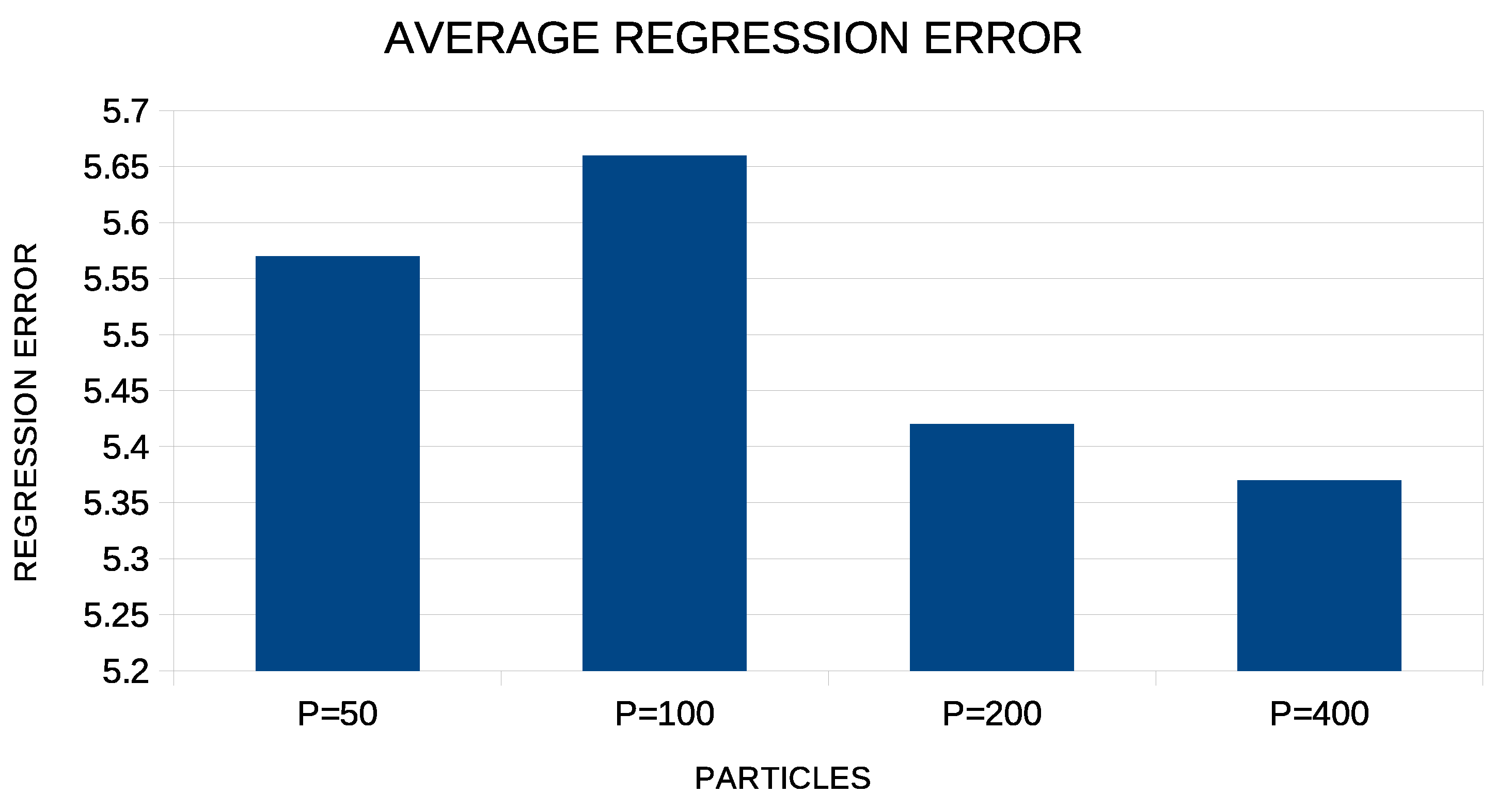

In addition, the average regression error for the proposed method when the number of particles increases from 50 to 400 is graphically outlined in Figure 4.

The proposed technique achieves the best results when the number of particles in the particle swarm optimization exceeds 100. However, the average error is about the same for 200 and 400 particles, and therefore, choosing 200 particles to run experiments appears to be more effective, since it will require less computing time.

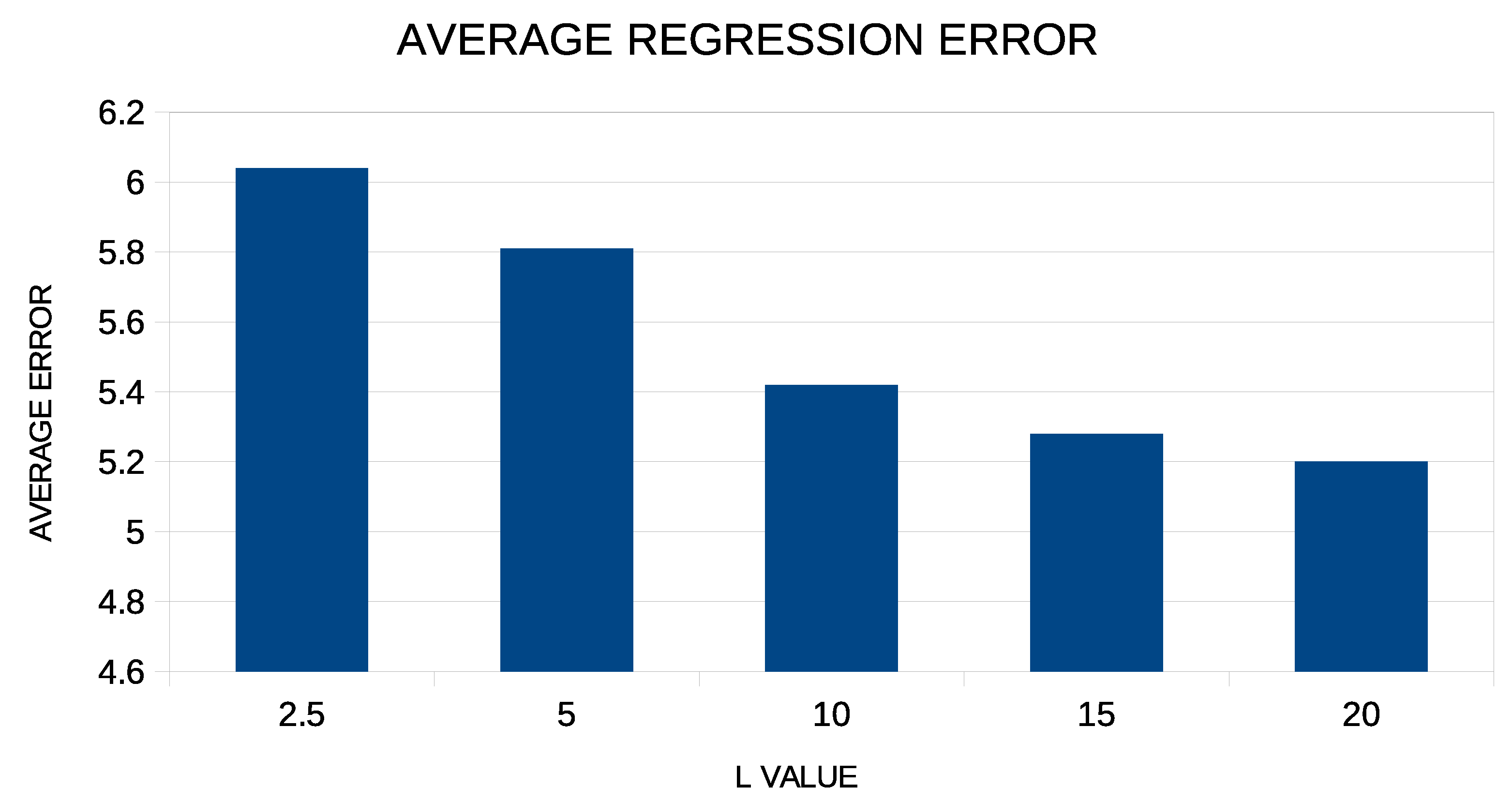

In addition, in order to see if there is a dependence of the results on the critical parameters L and F of the proposed method, a series of additional experiments were carried out in which these parameters were varied. In the first phase, the proposed technique was applied to the regression datasets for different values of the coefficient L varying from 2.5 to 20.0, and the average regression error is graphically shown in Figure 5.

From the experimental results, it is clear that the increase in the value of the coefficient $\lambda$ positively affects the performance of the method. However, after the value $\lambda =10$, this effect decreases drastically. For low values of this coefficient, the parameters of the artificial neural network are limited to low values, and therefore, a lag in the accuracy of the neural network is expected.

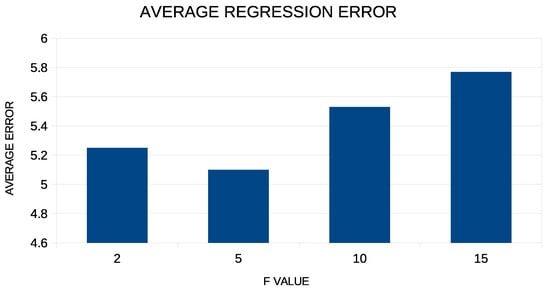

In addition, corresponding experiments were performed with the value of the coefficient F increasing from 2 to 15, and these are graphically illustrated in Figure 6.

For the experiments with the coefficient F, one can see that the gain from any variation of this coefficient is limited, although the lowest values of the average error are achieved when the coefficient has a value close to five.

4. Conclusions

In this paper, a two-stage technique for efficient training of artificial neural networks problems found in many scientific fields was presented. During the first phase, a widely used global optimization technique such as the Particle Swarm Optimization, to which a penalty factor had been added, was used to minimize the training error of the artificial neural network. This penalty factor is incorporated to maintain the effectiveness of the artificial neural network in generalizing to unknown data as well. The calculation of the penalty factor is based on the observation that the artificial neural network can lose its generalization abilities when the input values in the sigmoid activation function exceed some predetermined threshold. After the particle optimization technique is performed in the second phase, the best particle is used both as an initializer of a local optimization method and as a basis for calculating bounds on the parameters of the artificial neural network.

The suggested method was applied to a wide range of classification and regression problems found in the recent literature, and the experimental results were more than encouraging. In addition, when comparing the proposed technique with other widely used methods from the relevant literature, it seems that the proposed technique significantly outperforms them, especially in the case of regression problems. In relevant experiments carried out regarding the sensitivity of the proposed technique on its critical parameters, it was found to be quite robust without large error fluctuations.

Future extensions of the technique may include its application to other network cases such as Radial Basis Function artificial neural networks (RBFs), as well as the use of global optimization methods in the second stage of the proposed technique or even the creation of appropriate termination techniques.
