1. Introduction
Lung adenocarcinoma (LUAD), a tumour with genetic heterogeneity, constitutes 40% of all lung cancers and ranks among the primary causes of global mortality [
1,
2]. Consequently, it is essential to delve deeper into uncovering novel targets and medications to enhance the prognosis of LUAD patients.
Antioxidant 1 (ATOX1) Copper Chaperone contributes to maintaining copper homeostasis. It does this by binding to cytosolic copper and transporting it to ATPase proteins within the trans-Golgi network, which is crucial for the subsequent incorporation of copper into ceruloplasmin [
3]. In addition, this protein serves as an antioxidant, counteracting superoxide and hydrogen peroxide [
4]. As a result, it is likely to have a substantial impact on cancer development. Considering its cytogenetic location, this gene is regarded as a potential candidate gene associated with 5q syndrome [
5]. Studies have indicated that numerous copper chelators, including Tetrathiomolybdate (TTM), Trientine, and D-penicillamine, exhibit favourable anti-tumour activity in both animal models and clinical trials [
6]. Among these copper chelators, TTM has been the most comprehensively studied. When TTM is employed to lower copper levels, it can influence the activity of MEK1/2 kinase and the process of BRAF-driven tumorigenesis. As a consequence, the growth of xenograft BRAFV600E tumours is inhibited [
7]. TTM can further impede Cu chaperone proteins and obstruct the delivery of Cu to copper-containing enzymes like LOX [
8]. Moreover, in phase II clinical trials for malignant mesothelioma, TTM was discovered to possess anti-angiogenic properties. This means that it can slow down disease progression in mesothelioma patients in either phase I or phase II of the disease [
9].
ROCK1, a serine-/threonine-specific enzymatic protein, requires binding to Rho-GTP complexes for its activation [
10]. This signalling molecule principally regulates cytoskeletal reorganization through two distinct mechanisms: coordinating the assembly of focal adhesion complexes and actin stress fibres in mesenchymal cells, mediating cellular adhesion processes in both thrombocytes and immunocytes [
11,
12]. Such biological effects are achieved through Rho’s characteristic molecular switching mechanism, involving cyclical transitions between its dormant GDP-associated conformation and functional GTP-bound configuration [
13]. Rho plays essential roles in two critical biological processes: (a) mediating cytoplasmic division during cell cycle progression, and (b) facilitating gene expression regulation through interactions with serum-responsive transcriptional regulators [
14,
15]. Functioning as a primary Rho effector, ROCK1 exerts its biological influence through a phosphorylation cascade: initially activating LIM kinase through phosphate group transfer, which in turn modifies cofilin’s structural configuration [
16]. This post-translational modification effectively inhibits cofilin-mediated actin filament disassembly [
17]. Genomic analysis reveals a homologous pseudogene (sharing 85% sequence identity) located on chromosome 18 within the human genome [
18]. Fasudil serves as an inhibitor of Rho-associated protein kinases 1 and 2 (ROCK1/2). Currently, its clinical applications are mainly restricted to cardiocerebrovascular disorders [
19]. Recently, it has been reported that Fasudil has an inhibitory effect on SCLC and NSCLC. Moreover, the combination of Fasudil treatment and gefitinib can be utilized as a therapeutic approach for gefitinib-resistant non-small-cell lung cancer (NSCLC) cells [
20,
21].
Given the well-established roles of copper metabolism (mediated by chaperones such as ATOX1) and Rho/ROCK signalling in cancer pathogenesis, coupled with emerging evidence underscored by lung cancer models showing anti-tumour effects upon their inhibition, we aimed to comprehensively evaluate the expression profile, prognostic significance, and therapeutic potential of ATOX1 and ROCK1 in the context of LUAD.
2. Materials and Methods

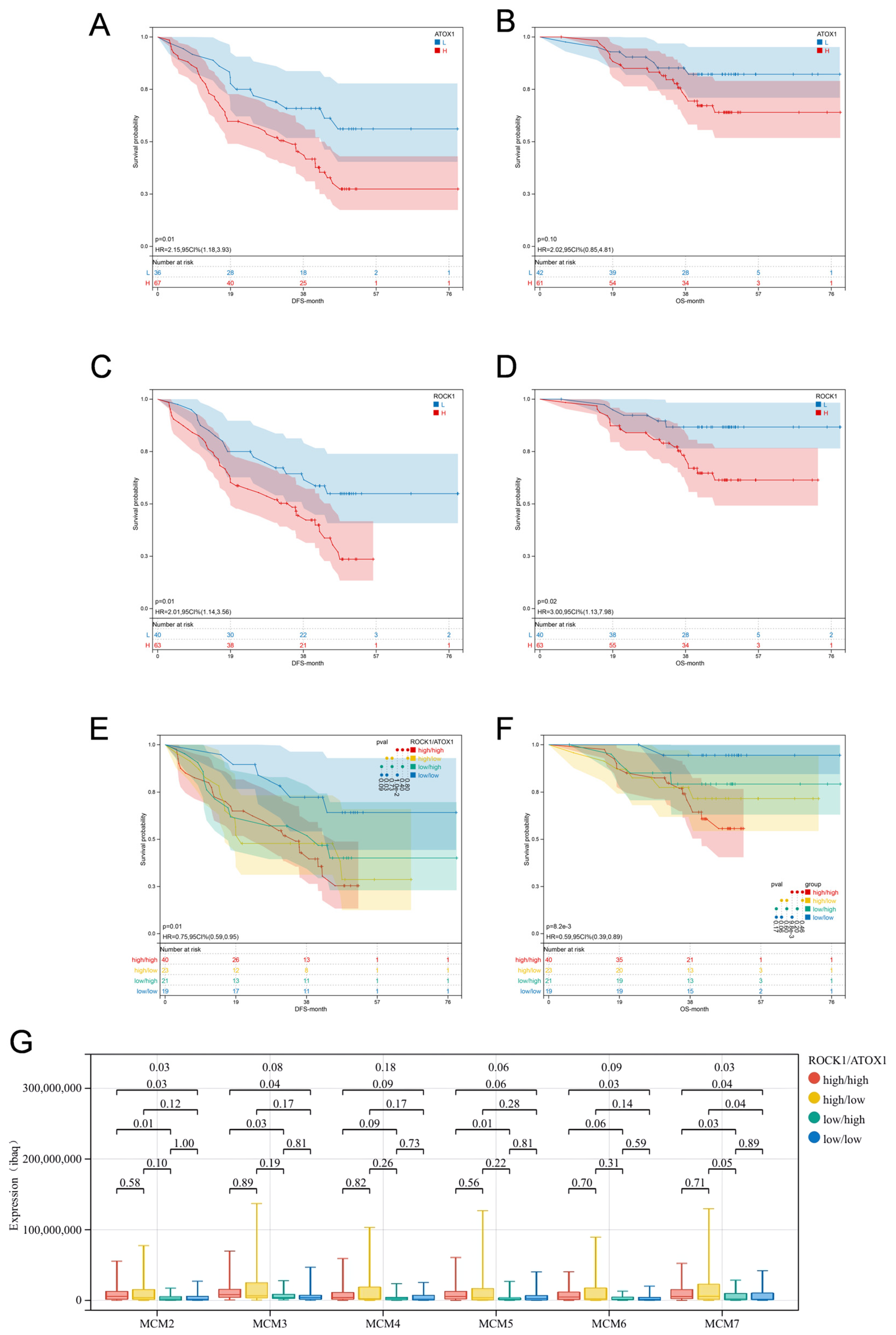

2.1. Bioinformatics and Survival Analysis
The proteomic data of Lung Adenocarcinoma (LUAD) was sourced from the Supplementary Data of the paper ‘Integrative Proteomic Characterization of Human Lung Adenocarcinoma’, which was published in 2019. The raw proteomics data is accessible at the iProx Consortium under the subproject ID IPX0001804000, with the link
https://www.iprox.cn//page/project.html?id=IPX0001804000, accessed on 24 October 2024. This dataset originated from our group’s earlier work on LUAD molecular profiling.
The optimal stratification threshold for RiskScore determination was established through maximally selected rank statistics analysis implemented in R (maxstat package v0.7-25), with predefined cohort size parameters constraining subgroup proportions between 25% and 75% of total samples. This computational approach generated a clinically relevant cutoff that effectively stratified patients into distinct prognostic categories (high risk vs. low risk). Subsequent survival probability comparisons were conducted using Kaplan–Meier methodology, with rigorous statistical validation using the Mantel-Haenszel log-rank test, systematically quantifying survival curve divergence between risk strata. The analytical workflow incorporated bootstrap validation (1000 permutations) to ensure threshold stability and minimize type I error in subgroup classification.
2.2. Regents
Antibodies mainly included Anti-ATOX1 antibody [EPR10352] (ab154179, Abcam, Cambridge, MA, USA), Mouse Monoclonal ATOX1 Antibody (3E1) (H00000475-M05, Novus Biologicals, Littleton, CO, USA), Anti-ROCK1 antibody [EPR638Y]—BSA and Azide free (ab230799, Abcam, Cambridge, MA, USA), Anti-MCM2 antibody [SP85] (ab95361, Abcam, Cambridge, MA, USA), and Anti-MCM7/PRL antibody [EP1974Y] (ab52489, Abcam, Cambridge, MA, USA). Other drugs included tetrathiomolybdate (HY-128530, MCE, Monmouth Junction, NJ, USA) and Fasudil Hydrochloride (HA-1077, MCE, Monmouth Junction, NJ, USA).
2.3. Immunohistochemistry (IHC)
Standardized immunohistochemical protocols were applied to 4 μm FFPE tissue sections through sequential processing stages. Following antigen retrieval via microwave irradiation in citrate buffer (pH 6.0) and endogenous peroxidase blockade, specimens underwent sequential incubation cycles: primary antibody exposure at 4 °C (16–18 h), followed by horseradish peroxidase-conjugated secondary antibody treatment (60 min, RT). Chromogenic visualization was performed using DAB substrate (ZLI-9017, Zhongshan Biotech, Beijing, China) with nuclear counterstaining by Mayer’s hematoxylin. Histopathological evaluation employed a semi-quantitative scoring system combining intensity parameters (0: negative; 1: mild; 2: moderate; 3: intense) with cellular distribution metrics (0: <1%; 1: 1–10%; 2: 11–50%; 3: >50%). The composite immunoreactivity score (range 0–9) was derived from the product of intensity and distribution values, with specimens stratified into dichotomous expression groups (high-expression: ≥6; low-expression: <6) for comparative analysis.
2.4. Cell Culture
The Lewis lung carcinoma (LLC) and CMT167 cell lines, originally acquired from the Shanghai Institute of Cell Biology (Chinese Academy of Sciences), were propagated in high-glucose DMEM medium (HyClone, SH30022.01, Logan, UT, USA) supplemented with 10% heat-inactivated FBS (Gibco, 10099-141) under standardized culture conditions (37 °C, 5% CO2, 95% humidity). Cellular viability was routinely monitored using phase-contrast microscopy, with subculturing performed at 80–90% confluence using 0.25% trypsin-EDTA solution (Thermo Fisher, 25200072, Waltham, MA, USA) to maintain exponential growth-phase characteristics.
2.5. Immunofluorescence
As described previously, the cell sample was prepared. Subsequently, a double-staining procedure was conducted. Mouse anti-ATOX1 antibody (3E1) (product number H00000475-M05, from Novus Biologicals, USA) and rabbit anti-ROCK1 antibody (product number ab230799, from the USA) were applied and incubated overnight at 4 °C. Following this, either Alexa—Fluor 488- or Alexa—Fluor 594-conjugated secondary antibodies were used for 1 h at room temperature. To visualize the cell nuclei, DAPI labelling was performed. Finally, images were captured using a Nikon fluorescence microscope.
2.6. RNA Interference and Transfection
Gene-silencing reagents including sequence-specific human siRNAs, and scrambled siRNA controls (siCtrl) were commercially commissioned from Thermo Fisher Scientific (NY, USA). Nucleic acid delivery was achieved using the L3000015 Lipofectamine 3000 transfection system following a reverse transfection protocol (1:2 siRNA:lipid ratio) according to manufacturer’s specifications. Post-transfection evaluation at 48 h included (1) knockdown efficiency verification via qRT-PCR (threshold cycle < 35), (2) cellular viability assessment through CCK-8 metabolic assays, and (3) confirmation of lipid–nucleic acid complex formation using zeta potential measurements (Malvern Zetasizer Nano ZS, Malvern Panalytical, Malvern, Worcestershire, UK). All experimental conditions incorporated negative controls with empty lipid vectors and mock transfection groups.
2.7. Cell Proliferation Assay
Cellular proliferation dynamics were assessed using standardized colorimetric protocols. Briefly, 5 × 103 exponentially growing cells/well were seeded in 96-well microplates (Corning 3599) and were allowed to adhere for 24 h under normoxic conditions. Following treatment regimens, cellular metabolic activity was quantified through 2 h exposure to CCK-8 solution (CK04-100, Dojindo Molecular Technologies, Kumamoto, Japan) containing water-soluble tetrazolium salts. Optical density measurements were conducted using a BioTek ELx800 microplate reader with dual-wavelength detection (test λ = 450 nm, reference λ = 650 nm; BioTek Instruments, Inc., Winooski, VT, USA), incorporating blank control subtraction for baseline correction. Three technical replicates per condition were maintained throughout the experimental series to ensure measurement reproducibility.

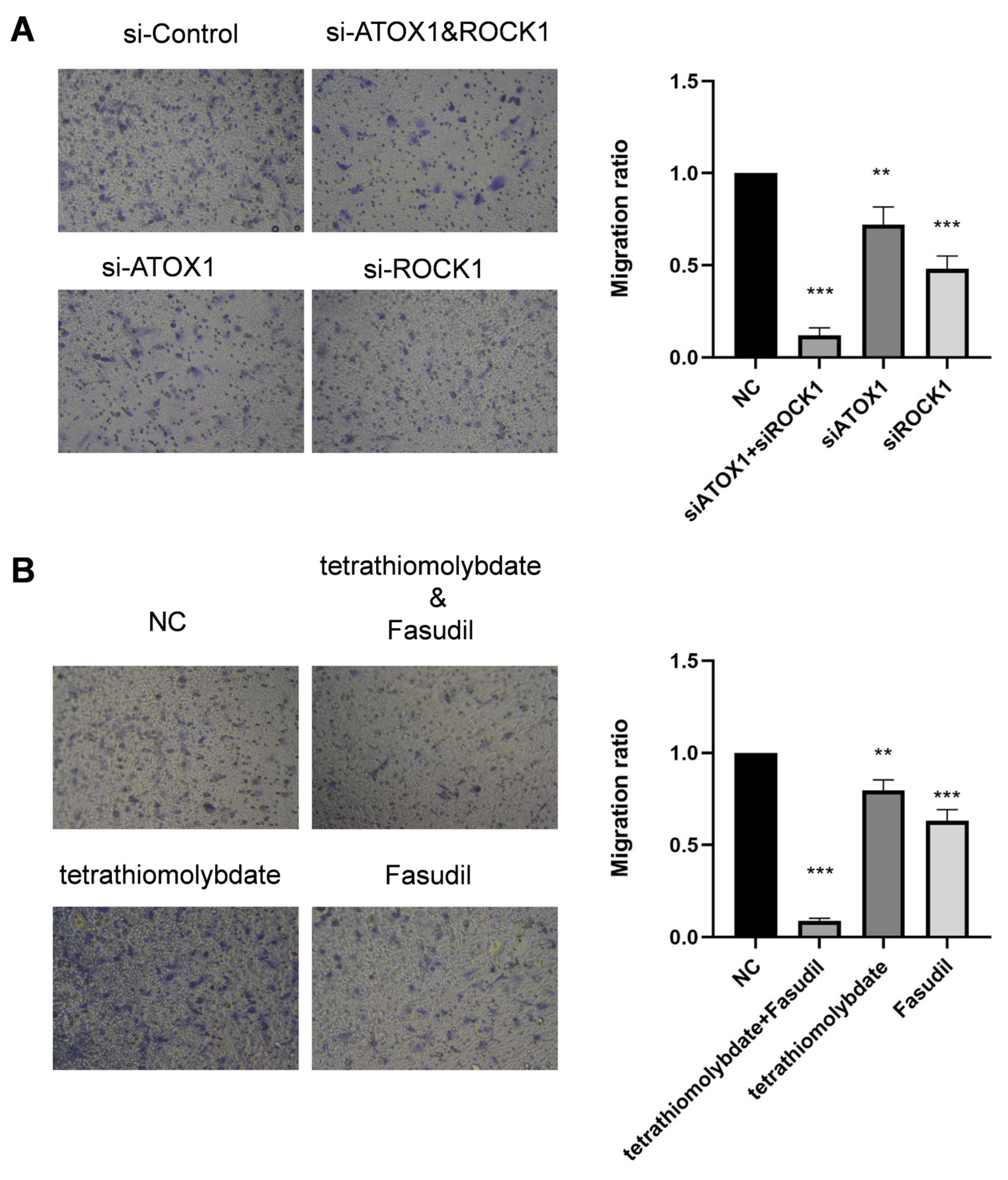

2.8. Transwell Assay
A Transwell migration assay was conducted using polycarbonate membrane inserts (8 μm pore, Corning 3422). Cell suspensions (5 × 104 cells/mL) in serum-deprived DMEM-HG (Gibco 11965092) were loaded into the upper compartment, while the lower chamber contained complete medium with 10% FBS (HyClone SH30088.03), establishing a chemotactic gradient. Following 24 h incubation at 37 °C/5% CO2, migrated cells underwent fixation with 4% paraformaldehyde (15 min, RT) and staining with 0.1% crystal violet (Sigma-Aldrich C0775) for quantitative analysis. Cell enumeration was performed using an Olympus IX73 inverted microscope equipped with cellSens imaging software (Version 2.3) (Olympus Corporation, Tokyo, Japan), with migration indices calculated as mean cell counts from five predetermined fields (200× magnification) normalized to control conditions. Three independent experimental replicates were included for statistical validation.
2.9. Western Blot
Cells were lysed in RIPA lysis buffer (R0278, Sigma-Aldrich, St. Louis, MO, USA) containing phosphatase inhibitor cocktail tablets (04906845001, Roche Diagnostics, Basel, Switzerland) and protease inhibitor cocktail tablets (04693132001, Roche Diagnostics, Basel, Switzerland). Proteins in equal amounts were separated on a 10% SDS—PAGE gel. Next, the proteins were transferred onto a nitrocellulose membrane. The membranes were blocked with 5% bovine serum albumin (BSA). After blocking, the membranes were incubated with primary antibodies and then with HRP-conjugated secondary antibodies. The immunoblots were visualized using the Super—Signal West Femto Maximum Sensitivity Substrate (34,095, Thermo Fisher Scientific, Waltham, MA, USA).

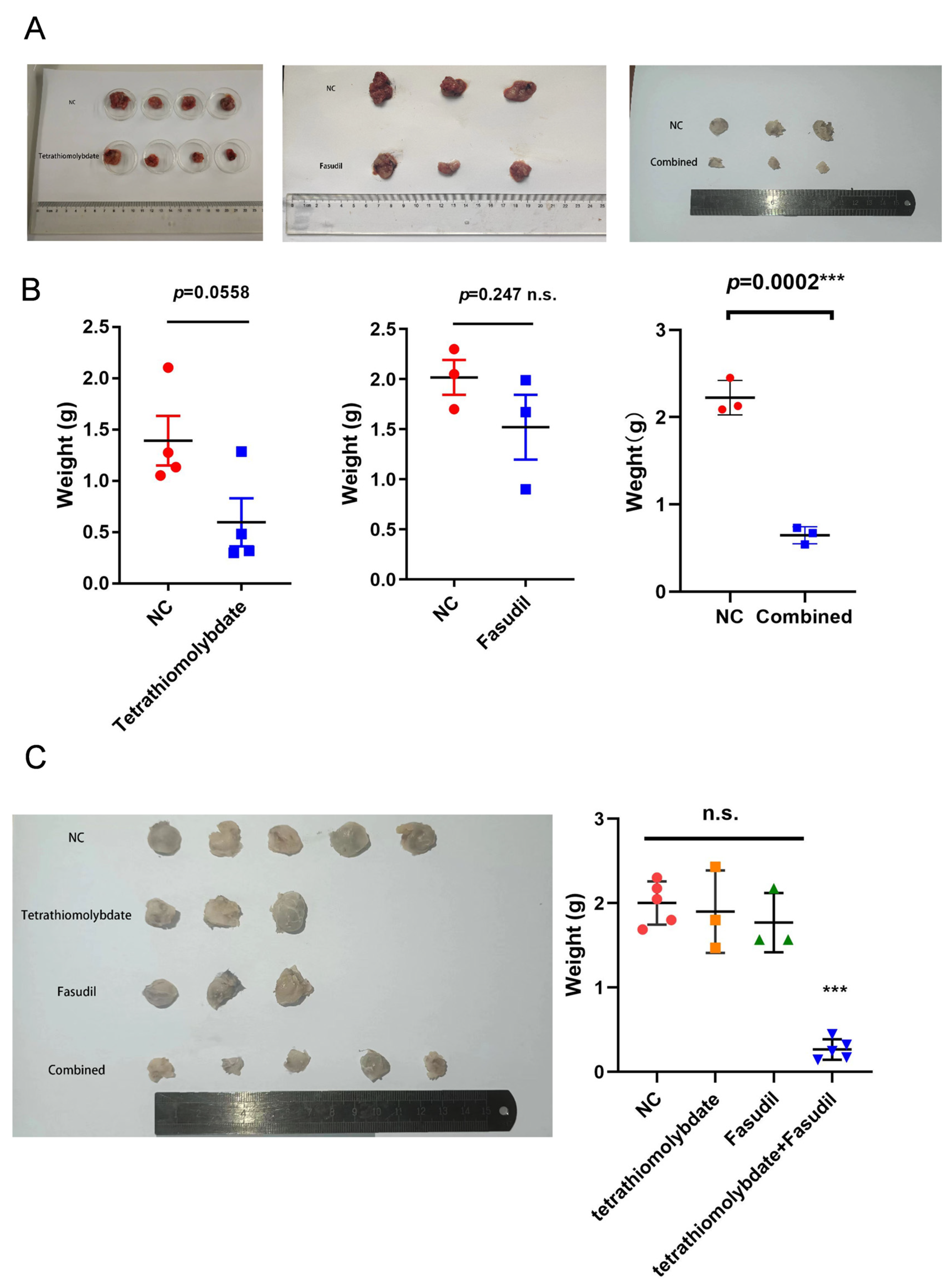

2.10. In Vivo Tumorigenesis
Around 5 × 106 LLCs were subcutaneously injected at the mid-point between the right elbow and the neck of C57 mice. After one week, once the tumour diameter was about 5 mm, the tumour-bearing mice were randomly divided into groups using computer-generated stratified randomization (balanced for tumour volume ±5% and body weight ±2 g), with all subsequent procedures (drug administration, tumour measurement, histological analysis) performed under blinded conditions. In the first experiment, these groups were treated via intraperitoneal injection daily for 10 days: one group received the vehicle (PBS), another received Fasudil (5 mg/kg), a third received tetrathiomolybdate (5 mg/kg), and a fourth received the combination of Fasudil and tetrathiomolybdate. At the end of the experiment, the tumours were surgically excised, weighed, and photographed. Subsequently, the experiment was repeated using Mnu-induced LUAD tumours in mice.
2.11. Statistical Analysis
Data are all presented as the mean ± standard error of the mean (SEM). Statistical analyses were conducted using GraphPad Prism 5 (GraphPad Software, La Jolla, CA, USA). First, one-way analysis of variance (ANOVA) was applied to analyze the data, and this was succeeded by Tukey’s Honestly Significant Difference test. A p-value below 0.05 was considered to signify statistical significance.
4. Discussion
In the current field of tumour therapy, LUAD, as a common tumour, has always been a major clinical challenge in the absence of effective treatments. Single-pathway inhibition is often difficult to improve patient prognosis, and combination therapeutic approaches have become an inevitable trend. The present study focused on the roles of ATOX1 and ROCK1 in LUAD and achieved a series of significant results.
ATOX1 is involved in regulating copper levels in tumour cells through binding and transport of copper ions. Copper is essential for cellular energy metabolism, signalling, antioxidant defence, etc. [
22]. Tumour cells, due to their rapid growth and proliferation, require much more copper than normal cells [
23], which makes it highly likely that ATOX1 will play a facilitating role in copper metabolism in tumour cells. Although the therapeutic strategies directly targeting ATOX1 are still immature, given the key position of copper metabolism in tumours, regulating ATOX1 is undoubtedly one of the feasible strategies to indirectly influence tumour progression. In particular, the recent discovery of the mechanism of ‘copper death’ (cuproptosis) has highlighted new opportunities for targeting copper homeostasis to induce cancer-specific death [
24], providing a more robust theoretical basis for targeting copper metabolism through ATOX1.
ROCK1 is an important effector molecule in the RET and Ezrin signalling pathways, as it promotes migration and chemotaxis of lung adenocarcinoma cells through interaction with Ezrin under the regulation of the RET signalling pathway [
25,
26], which involves cytoskeletal remodelling and enhancement of cell motility, thereby promoting tumour metastasis [
27]. However, there is a lack of previous animal and clinical studies on ROCK1, and the present study successfully fills this gap. ROCK1, as a key node regulating tumour invasion and metastasis, its inhibitors (such as Fasudil) have shown potential in inhibiting the metastasis of various solid tumours. The findings of this study further establish its position in the LUAD treatment target map.
The prognostic value of dual-low ATOX1/ROCK1 expression underscores its potential as a biomarker for stratifying high-risk LUAD patients. Importantly, our preclinical models validate the therapeutic superiority of co-targeting these proteins. While tetrathiomolybdate (a copper chelator) and Fasudil (a ROCK inhibitor) individually showed modest effects, their combination achieved significant tumour suppression in both LLCs and MNU-induced models (
p = 2.37 × 10
−5). This synergy is particularly compelling given the limited clinical success of copper-targeted therapies in solid tumours, suggesting that dual inhibition could circumvent resistance mechanisms linked to compensatory pathway activation. Furthermore, the correlation between ATOX1/ROCK1 and MCM2/7 expression implies that their inhibition may disrupt DNA replication machinery, adding another layer to their anti-proliferative effects. Given that the MCM complex is a key licencing factor for DNA replication initiation, and its overexpression in LUAD is often associated with poor prognosis and chemoresistance [
28,
29], this finding suggests the combination therapy might overcome resistance related to DNA replication processes.
While our study provides foundational insights, the limited cohort size (
n = 35) constitutes a key constraint: although sufficient to detect significant prognostic stratification (
p = 0.000), it fundamentally precludes reliable clinical prediction modelling due to inadequate statistical power for multivariable adjustments or predictive accuracy validation—specifically preventing meaningful subgroup analyses (e.g., stage-specific effects), adjustment for critical covariates (smoking status/molecular subtypes), and development of clinically applicable risk calculators, thereby necessitating validation in larger multi-centre datasets with expanded molecular subtype representation (e.g., EGFR-wildtype/KRAS-mutant) to establish predictive utility and precision stratification. Second, the exact molecular mediators of the ATOX1-ROCK1 feedback loop remain unclear; future studies should explore downstream effectors (e.g., MEK/ERK or LOX pathways) and epigenetic regulators [
30]. Further investigation is especially needed into the specific molecular bridges underlying the complex interplay between cellular copper homeostasis and cytoskeletal motility and potential post-transcriptional regulatory mechanisms (e.g., non-coding RNAs) [
31]. Third, the reliance on murine models may not fully recapitulate human tumour microenvironments. Translational efforts should prioritize humanized models or early-phase trials to assess safety and efficacy in patients. Patient-derived xenograft (PDX) models or murine models with humanized immune systems can be employed to better simulate the human immune microenvironment and therapeutic responses [
32]. Critically, the combination therapy holds immediate promise for the subset of LUAD patients exhibiting dual-high ATOX1/ROCK1 expression (≈35% of cases, IHC H-score >200), where it may overcome compensatory resistance. Next-step clinical implementation requires initiating biomarker-driven Phase Ib trials in this subpopulation and developing companion diagnostics quantifying ATOX1/ROCK1 protein ratios.
5. Conclusions
In this study, based on publicly available proteomic data of lung adenocarcinoma (LUAD), we used bioinformatics analysis, in vitro cellular experiments, and in vivo animal experiments to deeply investigate the functions and potential therapeutic strategies of ATOX1 and ROCK1 in LUAD. It was found that high expression of ATOX1 and ROCK1 was associated with shorter disease-free survival (DFS) and overall survival (OS), and patients with double-low expression had the best DFS and OS, suggesting that they could be used as potential indicators for prognostic assessment. In vitro, ATOX1 and ROCK1 were highly expressed and localized in the cytoplasm of Lewis lung cancer cells (LLCs), and they negatively feedback up-regulated each other; inhibition alone had no effect on LLC proliferation, while combined inhibition significantly inhibited proliferation, and the inhibitory effect of combined inhibition or dosing on cell migration was stronger. In vivo experiments showed that the use of tetrathiomolybdate or Fasudil alone did not significantly inhibit tumour growth, while the combined use was effective. In conclusion, ATOX1 and ROCK1 are crucial in the development of LUAD, and their expression patterns can be used for prognostic assessment. Combined inhibition and drug administration provide a new strategy for the treatment of LUAD, but the relevant molecular mechanisms and the specific details of the combination therapy still need to be studied in depth.
6. Declaration
We declare that the experimental design, data collection, and analyses in this thesis on the role of ATOX1 and ROCK1 in LUAD treatment were performed by us independently. The experimental data are true and reliable, and have not been tampered with or falsified in any way.
The sources of the open-access proteomics data used in the study are clear, and the sources have been labelled in detail in this paper. All animal experiments were conducted in strict compliance with the relevant animal ethics regulations and guidelines to ensure that the welfare of experimental animals was safeguarded.
We confirm that none of the authors have conflicts of interest with any organization or institution that may influence the impartiality of this study. In the course of conducting this study and writing the paper, no undue financial support or other inducements for benefits were accepted.
There are no disputes over intellectual property rights in this research, and all opinions and conclusions are the original content of our research team, based on scientific experiments. All legal liabilities arising from the inaccuracy of the contents of this statement shall be borne by all authors.
