Systematic Review

The Current Evidence of Intensity-Modulated Radiotherapy for Hepatocellular Carcinoma: A Systematic Review and Meta-Analysis

by
Won Il Jang
1,†,
Sunmi Jo
2,†,
Ji Eun Moon
3,
Sun Hyun Bae
4,* and
Hee Chul Park
5,*
1
Department of Radiation Oncology, Korea Institute of Radiological and Medical Sciences, 75, Nowon-ro, Nowon-gu, Seoul 01812, Republic of Korea
2
Department of Radiation Oncology, Haeundae Paik Hospital, Inje University School of Medicine, 875, Haeun-daero, Haeundae-gu, Busan 48108, Republic of Korea
3
Department of Biostatistics, Soonchunhyang University College of Medicine, Bucheon, 170 Jomaru-ro, Wongmi-gu, Bucheon-si 14584, Gyeonggi-do, Republic of Korea
4
Department of Radiation Oncology, Soonchunhyang University College of Medicine, Bucheon, 170 Jomaru-ro, Wongmi-gu, Bucheon-si 14584, Gyeonggi-do, Republic of Korea
5
Department of Radiation Oncology, Samsung Medical Center, Sungkyunkwan University School of Medicine, 81 Irwon-ro, Gangnam-gu, Seoul 06351, Republic of Korea
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Cancers 2023, 15(20), 4914; https://doi.org/10.3390/cancers15204914
Submission received: 22 August 2023 / Revised: 2 October 2023 / Accepted: 4 October 2023 / Published: 10 October 2023
(This article belongs to the Special Issue Basic Research of Hepatopancreatobillary Tumor)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

Intensity-modulated radiotherapy (IMRT) is used worldwide for all tumor sites, for both curing and palliation. While evidence exists for lower normal tissue toxicity, IMRT did not show a definitive survival benefit compared to non-modulated RT. This is the first systematic review and meta-analysis to evaluate the rationale of IMRT for HCC in the liver. Although most patients had advanced-stage HCC and combined treatment were commonly used, IMRT for HCC showed similar survival with existing RT modalities and relatively low severe toxicity.

Abstract

Intensity-modulated radiotherapy (IMRT), an advanced RT technique, is a considerable treatment option for hepatocellular carcinoma (HCC). However, the distinguishing features of IMRT for HCC have not yet been clearly defined. A systematic review was performed according to the guidelines of the Preferred Reporting Items for Systematic Reviews and Meta-Analyses. The PubMed/MedLine, Embase, Cochrane Library, Web of Science, and KoreaMed were used to screen eligible studies focusing on treatment outcomes after IMRT for HCC until 18 April 2023. A total of 1755 HCC patients receiving IMRT among 29 studies from 2009 to 2023 were selected for the meta-analysis. The median proportion of Barcelona Clinic Liver Cancer stage C was 100% (range: 38–100%). Nineteen studies used combined treatment. Pooled rates of response and 1-year local control were 58% (95% confidence interval [CI], 50–65%) and 84% (95% CI, 70–94%), respectively. The median overall survival (OS) was 13 months (range: 5–45 months), and pooled 1- and 3-year OS rates were 59% (95% CI, 52–66%), and 23% (95% CI, 14–33%), respectively. Pooled rates of classic radiation-induced liver disease (RILD), nonclassic RILD, and hepatic toxicity ≥ grade 3 were 2%, 4%, and 4%, respectively. Although most patients had advanced-stage HCC and combined treatment was commonly used, IMRT for HCC showed similar survival to existing RT modalities and relatively low severe toxicity.

1. Introduction

Hepatocellular carcinoma (HCC) is the most common primary liver cancer and the leading cause of cancer-related deaths worldwide [1]. A wide range of treatment options are available for HCC, including hepatic resection, liver transplantation, locoregional ablative therapies, transarterial chemo-embolization (TACE), external-beam radiation therapy (EBRT), and systemic therapies [2]. Historically, EBRT for HCC has been used restrictively because of the relative radiosensitivity of the normal liver and technological limitations in tumor delineation and RT delivery [3]. With the application of three-dimensional conformal radiotherapy (3DCRT), intensity-modulated radiotherapy (IMRT), stereotactic body radiotherapy (SBRT), and charged-particle therapy (CPT), however, RT for HCC has undergone a series of technical advances over the decades, and the indications of RT have been expended to cure [4,5,6].
IMRT was introduced in the early 1990s as a further refinement of the delivery of 3DCRT. This advanced RT technique is based on the use of optimized nonuniform radiation beam intensities with an inverse planning treatment system and can deliver a higher dose to the tumor while sparing normal organs [7]. IMRT is used worldwide as a standard tool for all tumor sites and has been systemically reviewed to support the rational use of IMRT for head and neck cancer, breast cancer, prostate cancer, lung cancer, and so on [8,9]. However, in case of HCC, it remains unclear whether IMRT can have clinically relevant advantages. One meta-analysis compared treatment outcomes for HCC according to RT modality [10]. The authors reported that CPT resulted in significantly higher survivals and lower toxicity than conventional RT, including 3DCRT and IMRT, whereas comparable efficacy and acute toxicity were observed between CPT and SBRT. Among the 10 studies included in the conventional RT group, however, only 1 study treated HCC patients with IMRT (14%) [11]. The conventional RT group mainly included patients with palliative intent who underwent RT for macrovascular invasion (MVI) or similar diseases [12].
Therefore, we conducted a systematic review and meta-analyses to investigate the evidence for the use, and to define distinguishing features, of IMRT for HCC.

2. Materials and Methods

This systematic review was conducted according to the Preferred Reporting Items for Systematic Reviews and Meta-analyses guideline [13]. Registration of systemic review is recommended for the following reasons: 1. to prospectively register a systemic review, and 2. to provide an oversight of all registered systemic reviews and reduce the unintended duplication of systemic reviews [14]. This systemic review was conducted on schedule without its registration in PROSPERO because there is no information on the overall processing time in PROSPERO and some have reported that it may take up to several months [15]. Consequently, the whole process from the data search to submission had been performed within 4 months. We published the review journal about IMRT for HCC in 2017 and firstly planed a systemic review using accumulated clinical studies [16].
A literature search was performed using the PubMed/MedLine, Embase, Cochrane Library, Web of Science, and KoreaMed databases. The keywords used in the patient/problem, intervention, comparison, and outcome (PICO) model are provided in the Supplementary Materials. The search strategy was developed and reviewed by the authors in collaboration with a professional librarian at Soonchunhyang University College of Medicine, Bucheon. Full-text articles on humans published in English between 1998 and April 2023 were identified to include modern IMRT techniques [7,17]. A total of 950 articles were identified and 2 authors (W.I. Jang and S. Jo) independently screened the article titles, abstracts, and full texts as necessary. Disagreements were resolved by a third author (S.H. Bae).
Studies which met the following inclusion criteria were considered for the meta-analysis: (1) prospective or retrospective studies to treat the tumors in the liver with IMRT; (2) the description of IMRT techniques using the inverse treatment planning process including step-and-shoot IMRT, sliding-window IMRT, volumetric modulated arc therapy, or helical tomotherapy for the liver lesion; (3) IMRT performed in ≥10 fractions; (4) inclusion of ≥10 HCC patients; and (5) reporting of at least local control (LC) and/or survivals. In the absence of numeric data, LC and survivals were indirectly assumed using descriptive plots. In treatment centers with multiple publications, the largest publication was selected. However, studies from a single center were independently categorized if they were reported in distinct period. In addition, the 2 treatment groups in one study were independently categorized if LC and survivals were reported separately. Studies were excluded if IMRT was (1) applied for neoadjuvant or adjuvant treatment for surgery; (2) originally designed as a bridge to liver transplantation; (3) conducted by Cybernife, Gammaknife, brachytherapy, or CPT; and (4) treated only for distant metastatic lesions.
Data extraction was performed to obtain the following: (1) basic information of the patients and tumor; (2) details of intervention measures; (3) treatment outcomes; and (4) hepatic and gastrointestinal (GI) toxicity rates. The best overall treatment response was evaluated using the Response Evaluation Criteria in Solid Tumors (RECIST), the modified RECIST (mRECIST), or the World Health Organization criteria. The objective response rate (ORR) was defined as the proportion of patients with a complete response (CR) and partial response (PR). Disease control rate (DCR) was defined as the sum rate of CR + PR + stable disease. Survival rates at 1 to 3 years were evaluated. Hepatic toxicity was assessed in accordance with the Common Terminology Criteria for Adverse Events (CTCAE) or the Radiation Therapy Oncology Group (RTOG), and/or radiation-induced liver disease (RILD), of which there are 2 types: classic RILD and nonclassic RILD, which was a little differently defined among included studies. Data on patients with severe gastrointestinal ulcer, bleeding, and/or perforation ≥ grade 3 were collected.
Because most studies were retrospective, the included study quality was assessed using the Newcastle–Ottawa Scale (NOS) [18]. Studies over 7 points were categorized as high-quality, and studies with a score of 4–6 were categorized as medium-quality.
The Higgins I2 statistic was used to assess heterogeneity in this meta-analysis [19]. An I2 value of ≥50% was thought to represent substantial heterogeneity. Because of the variability in IMRT indication, different study periods among studies, and different etiology according to country, the random-effects model derived from the DerSimonian and Laird method was adopted [20]. Funnel plots were used to evaluate publication bias and the symmetry of the funnel plots was quantitatively analyzed using Egger’s regression tests. If the funnel plot was symmetrical or the p value was >0.05 in Egger’s test, then the null hypothesis of no publication bias was accepted. For comparison between subgroups, a Q test based on the analysis of variance and a random-effects model was used. Statistical significance was set at p < 0.05. Rex Excel-based statistical analysis software, ver. 3.6.0 (RexSoft, Seoul, Republic of Korea; http://rexsoft.org, accessed on 23 June 2023) was used for statistical analyses.

3. Results

3.1. Studies’ Characteristics

Among the 950 initially included studies, 384 were excluded due to duplications between databases. The remaining 566 studies were screened by their title and abstract review, of which a full-text review was conducted in 89 studies. Finally, 1755 patients from 29 studies were eligible for this systematic review and meta-analysis, as shown in Figure 1 [21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49].
Among these, 4 studies separately reported the outcomes of patients treated with IMRT in two treatment groups, and each treatment group was categorized into a different cohort [29,30,32,37]. Therefore, a total of 33 cohorts were included in this study.
The characteristics of the 33 cohorts in the 29 studies are summarized in Table 1 and Table 2. A total of 6 were prospective studies, and 23 were retrospective studies. The quality of each study according to NOS is presented in Table 1.
All the studies, except one, were conducted in Asia. Patients with Child–Pugh (CP) class A was 39–100% (median: 79%). Most patients had advanced HCC, and the median proportion of Barcelona Clinic Liver Cancer (BCLC) stage C was 100% (range: 38–100%). The tumor size ranged from 2.3 cm to 11.4 cm (median: 7.4) and 0–80% of the patients (median: 38%) had multiple HCCs in the liver. MVI and distant metastases were presented in 0–100% (median: 100%) and 0–100% (median: 0%). The median proportion of patients with alpha-fetoprotein (AFP) levels above 400 ng/mL before IMRT was 43% (range: 24–67%). The median total IMRT dose was 51 Gy (range: 42–62 Gy). Nineteen studies used a combined treatment with TACE, systemic chemotherapy, targeted agents, and/or immunotherapy.

3.2. Response and Survivals

The median follow-up period was 13 months (range: 5–52 months). The ORR and DCR were 15–97% (median: 62%) and 74–97% (median: 92%). Using random-effects analysis, the pooled ORR and DCR were 58% (95% confidence interval [CI], 50–65%), and 90% (95% CI, 87–93%), respectively. The median 1- and 3-year LC rates were 83% (range: 45–100%) and 67% (range: 47–77%). The median 1- and 3-year progression-free survival (PFS) rates were 39% (range: 3–69%) and 13% (range:0–24%). The median overall survival (OS) was 13 months (range: 5–45 months), and the 1- and 3-year OS rates were 57% (range: 22–93%) and 22% (range: 0–69%). The pooled 1- and 3-year LC rates were 84% (95% CI, 70–94%) and 64% (95% CI, 45–81%), respectively. The pooled PFS and OS rates were 34% (95% CI, 25–42%) and 59% (95% CI, 52–66%) at 1 year and 9% (95% CI, 2–20%) and 23% (95% CI, 14–33%) at 3 years, respectively (Figure 2).
There was significant heterogeneity between the cohorts (Table 3), but no publication bias was detected, except for DCR (Supplementary Figure S1). In the subgroup comparison, a median tumor size ≤7 cm was the only statistically favorable parameter for 1-year OS (p < 0.05), as summarized in Table 3.

3.3. Toxicities

The incidence of RILD was variable among the included cohorts (classic RILD = 0–31%; nonclassic RILD = 0–46%). The pooled rates assessed using the random-effects model for classic RILD and nonclassic RILD were 2% (95% CI, 0–6%) and 4% (95% CI, 0–10%), respectively. Severe hepatic toxicity and GI toxicity ≥ grade 3 were 6% (range: 0–20%) and 1% (range: 0–12%). The pooled rates of hepatic toxicity and GI toxicity ≥ grade 3 were 4% (95% CI, 2–7%) and 2% (95% CI, 0–3%), respectively. The toxicity data are summarized in Figure 3 and Supplementary Table S2.

4. Discussion

To our knowledge, this is the first systematic review and meta-analysis to focus on the treatment outcomes of IMRT for liver HCC. The theoretical advantages of IMRT dose distributions over two-dimensional RT and 3DCRT are generally accepted, and IMRT has become routinely used for both curative and palliative RT throughout all tumor sites [50]. Although IMRT has changed the practice of RT, it is unclear whether the use of IMRT can obtain a clinically relevant advantage over non-modulated RT. Three systematic reviews were conducted to investigate the evidence supporting the routine use of IMRT at various disease sites [8,9,51]. Toxicity reduction has been corroborated in head and neck cancer and breast cancer IMRT by several randomized trials, favoring IMRT for other tumor sites. However, the benefits of IMRT for LC and survival remain inconclusive. No randomized or prospective studies have compared IMRT and 3DCRT in the treatment of HCC. Existing data on 3DCRT for HCC show a wide variation in treatment outcomes according to the stage: 1-year LC and OS rates are 71–94% and 58–81% for early-stage, and 28–61% and 36–84% for advanced-stage HCC [4,52]. Our systematic review and meta-analysis reported that the LC and OS rates after IMRT were 84% (95% CI, 70–94%) and 59% (95% CI, 52–66%) at 1 year and 64% (95% CI, 45–81%) and 23% (95% CI, 14–33%) at 3 years, respectively. Considering that the included studies involved an advanced stage (median proportion of BCLC C stage: 100%) and a large tumor size (median: 7.4 cm), the current evidence of survival with IMRT for HCC is similar to that of 3DCRT, which is similar to other cancers. To improve the efficacy of IMRT, appropriate clinical studies using advanced technologies, such as image-guided RT, gating RT, altered fractionation, and adaptive RT, are needed.
Since the early 1960s, the use of EBRT for HCC has been limited because the entire liver can be treated safely only with 30–35 Gy in conventional fractionation. In the 1990s, however, the introduction of 3DCRT allowed the delivery of a high dose to the focal liver and quantification of the potential risk of RILD [53]. RILD is classified into classic RILD and nonclassic RILD, and RILD, mainly classic RILD occurs in 0–20% after 3DCRT [54,55]. In contrast, nonclassic RILD mainly occurs after SBRT but its incidence is low. Considering the low incidence of RILD after SBRT, variations in the definition of RILD among studies, and the difference in dose distribution between 3DCRT and SBRT being related to different repair mechanisms, recent studies have additionally reported hepatic toxicity, based on CTCAE, to sustain consistent reporting and compare other treatment modalities [54,56]. A meta-analysis of EBRT for HCC reported that the pooled rates of hepatic toxicity ≥ grade 3 were 10% (95% CI, 6–16%) for 3DCRT and 5% (95% CI, 3–8%) for SBRT [10]. Another HCC SBRT meta-analysis showed a pooled rate of hepatic toxicity ≥ grade 3 of 4.7% (95% CI, 3–7%) [57]. Recent SBRT meta-analysis focusing on small HCC ≤6 cm reported that the pooled rates of hepatic toxicity ≥ grade 3 and RILD were 4% (95% CI, 0–16%) and 15% (95% CI, 7–25%) [58]. Our meta-analysis showed that the pooled rates of classic RILD, nonclassic RILD, and hepatic toxicity ≥ grade 3 after IMRT were 2% (95% CI, 0–6%), 4% (95% CI, 0–10%), and 4% (95% CI, 2–7%), respectively. Although most studies had MVI (median proportion: 100%) and two-thirds of the included studies were treated with combined modalities in this meta-analysis, the current evidence of hepatic toxicity after IMRT for HCC is lower than that after 3DCRT and comparable with that after SBRT. Considering the slightly different toxicity criteria used in this study, further clinical studies would be needed to strengthen the safety of IMRT for HCC.
Another important issue regarding RT-related toxicity in patients with HCC is the risk of GI toxicity. Because the majority of HC patients have underlying liver cirrhosis or portal hypertension, they have a higher risk of GI ulcers, as well as portal hypertensive congestive gastropathy [59]. The incidence of GI toxicity in HCC patients who were treated with 3DCRT and underwent endoscopy was 30–50%, and V25Gy or V35Gy of the gastroduodenum (GD) were significant dosimetric parameters affecting severe GI toxicities [60,61,62]. Several dosimetric studies comparing 3DCRT and IMRT have shown that IMRT can spare high-dose regions of the GD, as mentioned above, and would reduce the risk of GI toxicity [16]. The simultaneously integrated boost (SIB) technique, a unique IMRT technology that applies different doses to different targets simultaneously, is another method used to reduce GI toxicity when the tumor is located near the GI organ. Five studies of this meta-analysis applied the SIB technique [24,27,37,41,49], and only one study [49] reported a grade 3 GI toxicity rate of 2%.
With respect to SBRT, one phase 2 study for HCC reported severe GI toxicity ≥ grade 3 of 11% [63]. The authors conducted a subsequent analysis of patients who underwent SBRT for abdominopelvic malignancies and found that the maximal point dose of the GD and a history of ulcer before SBRT were the best predictors of GI toxicity [64]. A further phase 2 SBRT study for HCC using different constraints according to endoscopic findings before SBRT showed severe GI toxicity ≥ grade 3 of 2% [65]. Another possible risk factor of GI toxicity after SBRT is the targeted agent [66,67]. Sorafenib, a multi-tyrosine kinase inhibitor, has been recommend for BCLC stage C since 2007, and Princess Margaret Hospital conducted a phase 1 study of SBRT combined with sorafenib (400 mg/day) [68,69]. Among HCC patients with a high veff of 30–60%, two of the three evaluable patients experienced grade 3–4 GI toxicity. The authors decreased the sorafenib tolerance dose to 200 mg and suggested that concurrent SBRT with sorafenib is not recommended outside clinical trials. On the other hand, a phase 2 study using IMRT combined with sorafenib reported a grade 3 GI toxicity of 3%, although the median tumor size was 8 cm (range, 3–16 cm) [42]. Another possible agent is bevacizumab, which an anti-vascular endothelial growth factor. Meta-analysis for bevacizumab reported that patients treated with bevacizumab had a significantly increased risk of gastrointestinal perforation compared with patients treated with control medication, with a relative risk of 2.14 (95% CI 1.19–3.85; p = 0.011) [70]. Barney et al. [71] reported a 35% risk of severe GI toxicity ≥ grade 3 who received bevacizumab after SBRT for intra-abdominal lesions, including HCC. One strategy to minimize GI toxicity after RT in patients treated with bevacizumab is to increase fractionation compared to SBRT [66]. The BCLC 2022 guidelines recommend a combination therapy of immunotherapy and bevacizumab as the first regimen for BCLC stages B and C [72]. Our meta-analysis including the combined treatment with a targeted agent showed GI toxicity ≥ grade 3 of 2% (95% CI, 0–3%), respectively, and we suggest that IMRT using multifraction is considerable treatment option for patients with a tumor located close to or attached to a GI organ, or patients with large-sized HCC treated with a targeted agent.
There are some limitations in this meta-analysis. First, there was no randomized trial, and either prospective or retrospective studies were included. The meta-analysis of observational studies is controversial [73]. Uncontrolled confounders may have affected the pooled analysis. Second, IMRT has the possibility of an increased risk of secondary cancer than 3DCRT [74]. Until now, there were no clinical data about secondary cancer after RT for HCC. When IMRT is considered as the best treatment option to ablate the tumor and decrease toxicity, the benefit of tumor control and safety outweighs the risk of possible long-term consequences [75]. Further clinical studies should be needed to find the optimal delivery method of IMRT and minimize the potential risk of secondary cancer. Lastly, IMRT is a kind of advanced RT technique and is sometimes used in SBRT. In addition, the definition of SBRT with a small number of fractions is somewhat ambiguous, and various fractionation schemes have been used for HCC. No definite criteria exist for the classification of fractionated SBRT and IMRT. Therefore, we artificially categorized RT using ≥10 fractions as IMRT, considering that the hypofractionation of ≥10 fractions is generally accepted to be biologically different from SBRT. The widespread routine use of IMRT extends beyond its rational use for all tumor sites, and IMRT is now the de facto standard [9]. Therefore, there is a need to accumulate evidence to justify IMRT, and our meta-analysis focusing on IMRT for HCC is meaningful in a real clinical setting.

5. Conclusions

IMRT is used worldwide at all tumor sites for both curing and palliation. While evidence exists for lower normal tissue toxicity, IMRT did not show a definitive survival benefit compared to 3DCRT. This is the first systematic review and meta-analysis to evaluate the rationale for using IMRT for HCC of the liver. Although most patients had advanced-stage HCC and combined treatment was commonly used, IMRT for HCC showed similar survival rates to existing RT modalities and relatively low severe toxicity. Further clinical trials are needed to improve treatment efficacy and to select patients who can benefit from fractionated IMRT.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cancers15204914/s1, Figure S1: Publication biases of included studies using Egger’s test and the funnel plots; Table S1: Search strategy and results; Table S2: Treatment toxicities.

Author Contributions

Conceptualization, S.H.B. and H.C.P.; methodology, W.I.J. and S.J.; software, S.H.B. and J.E.M.; validation, W.I.J., S.J. and S.H.B.; formal analysis, J.E.M.; investigation, S.H.B.; resources, W.I.J. and S.J.; data curation, W.I.J., S.J. and S.H.B.; writing—original draft preparation, S.H.B. and H.C.P.; writing—review and editing, W.I.J., S.J., S.H.B. and H.C.P.; visualization, S.H.B. and J.E.M.; supervision, H.C.P.; project administration, S.H.B. and H.C.P.; funding acquisition, S.H.B. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Soonchunhyang University Research Fund. No funding bodies had any role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data generated or analyzed during this study are included in this published article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Siegel, R.L.; Miller, K.D.; Wagle, N.S.; Jemal, A. Cancer statistics, 2023. CA Cancer J. Clin. 2023, 73, 17–48. [Google Scholar] [CrossRef] [PubMed]
  2. Korean Liver Cancer Association; National Cancer Center (NCC) Korea. 2022 KLCA-NCC Korea practice guidelines for the management of hepatocellular carcinoma. J. Liver Cancer 2023, 23, 1–120. [Google Scholar] [CrossRef] [PubMed]
  3. Apisarnthanarax, S.; Barry, A.; Cao, M.; Czito, B.; DeMatteo, R.; Drinane, M.; Hallemeier, C.L.; Koay, E.J.; Lasley, F.; Meyer, J.; et al. External Beam Radiation Therapy for Primary Liver Cancers: An ASTRO Clinical Practice Guideline. Pract. Radiat. Oncol. 2022, 12, 28–51. [Google Scholar] [CrossRef] [PubMed]
  4. Chen, W.; Chiang, C.L.; Dawson, L.A. Efficacy and safety of radiotherapy for primary liver cancer. Chin. Clin. Oncol. 2021, 10, 9. [Google Scholar] [CrossRef]
  5. Kim, E.; Jang, W.I.; Yang, K.; Kim, M.S.; Yoo, H.J.; Paik, E.K.; Kim, H.; Yoon, J. Clinical utilization of radiation therapy in Korea between 2017 and 2019. Radiat. Oncol. J. 2022, 40, 251–259. [Google Scholar] [CrossRef]
  6. Kim, D.H. Combination of interventional oncology local therapies and immunotherapy for the treatment of hepatocellular carcinoma. J. Liver Cancer 2022, 22, 93–102. [Google Scholar] [CrossRef]
  7. Intensity Modulated Radiation Therapy Collaborative Working Group. Intensity-modulated radiotherapy: Current status and issues of interest. Int. J. Radiat. Oncol. Biol. Phys. 2001, 51, 880–914. [Google Scholar] [CrossRef]
  8. Veldeman, L.; Madani, I.; Hulstaert, F.; De Meerleer, G.; Mareel, M.; De Neve, W. Evidence behind use of intensity-modulated radiotherapy: A systematic review of comparative clinical studies. Lancet Oncol. 2008, 9, 367–375. [Google Scholar] [CrossRef]
  9. De Neve, W.; De Gersem, W.; Madani, I. Rational use of intensity-modulated radiation therapy: The importance of clinical outcome. Semin. Radiat. Oncol. 2012, 22, 40–49. [Google Scholar] [CrossRef]
  10. Qi, W.X.; Fu, S.; Zhang, Q.; Guo, X.M. Charged particle therapy versus photon therapy for patients with hepatocellular carcinoma: A systematic review and meta-analysis. Radiother. Oncol. 2015, 114, 289–295. [Google Scholar] [CrossRef]
  11. Huang, Y.J.; Hsu, H.C.; Wang, C.Y.; Wang, C.J.; Chen, H.C.; Huang, E.Y.; Fang, F.M.; Lu, S.N. The treatment responses in cases of radiation therapy to portal vein thrombosis in advanced hepatocellular carcinoma. Int. J. Radiat. Oncol. Biol. Phys. 2009, 73, 1155–1163. [Google Scholar] [CrossRef] [PubMed]
  12. Yamazaki, H.; Nakamura, S.; Suzuki, G.; Aibe, N.; Yoshida, K. Superiority of charged particle therapy in treatment of hepatocellular carcinoma (Regarding Qi W.X. et al. charged particle therapy versus photon therapy for patients with hepatocellular carcinoma: A systematic review and meta-analysis). Radiother. Oncol. 2016, 118, 420. [Google Scholar] [CrossRef] [PubMed]
  13. Page, M.J.; McKenzie, J.E.; Bossuyt, P.M.; Boutron, I.; Hoffmann, T.C.; Mulrow, C.D.; Shamseer, L.; Tetzlaff, J.M.; Akl, E.A.; Brennan, S.E.; et al. The PRISMA 2020 statement: An updated guideline for reporting systematic reviews. BMJ 2021, 372, n71. [Google Scholar] [CrossRef] [PubMed]
  14. Pieper, D.; Rombey, T. Where to prospectively register a systematic review. Syst. Rev. 2022, 11, 8. [Google Scholar] [CrossRef]
  15. Puljak, L. Delays in publishing systematic review registrations in PROSPERO are hindering transparency and may lead to research waste. BMJ Evid. Based Med. 2021, 26, e4. [Google Scholar] [CrossRef]
  16. Bae, S.H.; Jang, W.I.; Park, H.C. Intensity-modulated radiotherapy for hepatocellular carcinoma: Dosimetric and clinical results. Oncotarget 2017, 8, 59965–59976. [Google Scholar] [CrossRef]
  17. Hong, T.S.; Ritter, M.A.; Tome, W.A.; Harari, P.M. Intensity-modulated radiation therapy: Emerging cancer treatment technology. Br. J. Cancer 2005, 92, 1819–1824. [Google Scholar] [CrossRef]
  18. Wells, G.A.; Shea, B.; O’Connell, D.; Peterson, J.; Welch, V.; Losos, M.; Tugwell, P. The Newcastle-Ottawa Scale (NOS) for Assessing the Quality of Nonrandomised Studies in Meta-Analyses. Available online: http://www.ohri.ca/programs/clinical_epidemiology/oxford.asp (accessed on 22 November 2021).
  19. Higgins, J.P.; Thompson, S.G.; Deeks, J.J.; Altman, D.G. Measuring inconsistency in meta-analyses. BMJ 2003, 327, 557–560. [Google Scholar] [CrossRef]
  20. Raudenbush, S.W. Analyzing effect sizes: Random-effects models. In Handbook of Research Synthesis and Meta-Analysis, 2nd ed.; Russell Sage Foundation: New York, NY, USA, 2009; pp. 295–315. [Google Scholar]
  21. Wang, K.; Xiang, Y.J.; Yu, H.M.; Cheng, Y.Q.; Liu, Z.H.; Zhong, J.Y.; Feng, S.; Ni, Q.Z.; Zhu, H.F.; Pan, W.W.; et al. Intensity-modulated radiotherapy combined with systemic atezolizumab and bevacizumab in treatment of hepatocellular carcinoma with extrahepatic portal vein tumor thrombus: A preliminary multicenter single-arm prospective study. Front. Immunol. 2023, 14, 1107542. [Google Scholar] [CrossRef]
  22. Qiu, H.; Ke, S.; Cai, G.; Wu, Y.; Wang, J.; Shi, W.; Chen, J.; Peng, J.; Yu, B.; Chen, Y. An exploratory clinical trial of apatinib combined with intensity-modulated radiation therapy for patients with unresectable hepatocellular carcinoma. Cancer Med. 2023, 12, 213–222. [Google Scholar] [CrossRef]
  23. Su, K.; Guo, L.; Ma, W.; Wang, J.; Xie, Y.; Rao, M.; Zhang, J.; Li, X.; Wen, L.; Li, B.; et al. PD-1 inhibitors plus anti-angiogenic therapy with or without intensity-modulated radiotherapy for advanced hepatocellular carcinoma: A propensity score matching study. Front. Immunol. 2022, 13, 972503. [Google Scholar] [CrossRef]
  24. Liu, X.; Luo, J.; Zhang, L.; Yang, F.; Peng, D. SIB-IMRT combined with apatinib for unresectable hepatocellular carcinoma in patients with poor response to transarterial chemoembolization. Clin. Res. Hepatol. Gastroenterol. 2022, 46, 101897. [Google Scholar] [CrossRef]
  25. Li, L.Q.; Zhao, W.D.; Su, T.S.; Wang, Y.D.; Meng, W.W.; Liang, S.X. Effect of Body Composition on Outcomes in Patients with Hepatocellular Carcinoma Undergoing Radiotherapy: A Retrospective Study. Nutr. Cancer 2022, 74, 3302–3311. [Google Scholar] [CrossRef] [PubMed]
  26. Tsurugai, Y.; Takeda, A.; Eriguchi, T.; Sanuki, N.; Aoki, Y. Hypofractionated radiotherapy for hepatocellular carcinomas adjacent to the gastrointestinal tract. Hepatol. Res. 2021, 51, 294–302. [Google Scholar] [CrossRef] [PubMed]
  27. Shen, J.; Yan, J.; Zhu, S.; Kong, W.; Zou, Z.; Liu, J.; Li, S.; Liu, B. The Efficacy and Safety of Hypofractionated Radiation Therapy with Tomotherapy for Advanced or Recurrent Hepatocellular Carcinoma. Front. Oncol. 2021, 11, 559112. [Google Scholar] [CrossRef] [PubMed]
  28. Chen, Z.H.; Zhang, X.P.; Feng, S.; Feng, J.K.; Chai, Z.T.; Guo, W.X.; Shi, J.; Lau, W.Y.; Meng, Y.; Cheng, S.Q. Liver resection versus intensity-modulated radiation therapy for treatment of hepatocellular carcinoma with hepatic vein tumor thrombus: A propensity score matching analysis. Hepatobiliary Surg. Nutr. 2021, 10, 646–660. [Google Scholar] [CrossRef]
  29. Abulimiti, M.; Li, Z.; Wang, H.; Apiziaji, P.; Abulimiti, Y.; Tan, Y. Combination Intensity-Modulated Radiotherapy and Sorafenib Improves Outcomes in Hepatocellular Carcinoma with Portal Vein Tumor Thrombosis. J. Oncol. 2021, 2021, 9943683. [Google Scholar] [CrossRef]
  30. Zhao, Y.; Zhu, X.; Wang, H.; Dong, D.; Gao, S.; Zhu, X.; Wang, W. Safety and Efficacy of Transcatheter Arterial Chemoembolization Plus Radiotherapy Combined with Sorafenib in Hepatocellular Carcinoma Showing Macrovascular Invasion. Front. Oncol. 2019, 9, 1065. [Google Scholar] [CrossRef]
  31. Lo, Y.C.; Hsu, F.C.; Hung, S.K.; Tseng, K.C.; Hsieh, Y.H.; Lee, M.S.; Tseng, C.W.; Lin, H.Y.; Chen, L.C.; Chiou, W.Y. Prognosticators of hepatocellular carcinoma with intrahepatic vascular invasion. Ci Ji Yi Xue Za Zhi 2019, 31, 40–46. [Google Scholar] [CrossRef]
  32. Li, X.; Guo, W.; Guo, L.; Lau, W.Y.; Ge, N.; Wang, K.; Cheng, S. Should transarterial chemoembolization be given before or after intensity-modulated radiotherapy to treat patients with hepatocellular carcinoma with portal vein tumor thrombus? a propensity score matching study. Oncotarget 2018, 9, 24537–24547. [Google Scholar] [CrossRef]
  33. Jiang, T.; Zeng, Z.C.; Yang, P.; Hu, Y. Exploration of Superior Modality: Safety and Efficacy of Hypofractioned Image-Guided Intensity Modulated Radiation Therapy in Patients with Unresectable but Confined Intrahepatic Hepatocellular Carcinoma. Can. J. Gastroenterol. Hepatol. 2017, 2017, 6267981. [Google Scholar] [CrossRef] [PubMed]
  34. Zhang, T.; Zhao, Y.T.; Wang, Z.; Li, C.R.; Jin, J.; Jia, A.Y.; Wang, S.L.; Song, Y.W.; Liu, Y.P.; Ren, H.; et al. Efficacy and Safety of Intensity-Modulated Radiotherapy Following Transarterial Chemoembolization in Patients with Unresectable Hepatocellular Carcinoma. Medicine 2016, 95, e3789. [Google Scholar] [CrossRef] [PubMed]
  35. Hou, J.Z.; Zeng, Z.C.; Wang, B.L.; Yang, P.; Zhang, J.Y.; Mo, H.F. High dose radiotherapy with image-guided hypo-IMRT for hepatocellular carcinoma with portal vein and/or inferior vena cava tumor thrombi is more feasible and efficacious than conventional 3D-CRT. Jpn. J. Clin. Oncol. 2016, 46, 357–362. [Google Scholar] [CrossRef] [PubMed]
  36. Yeh, S.A.; Chen, Y.S.; Perng, D.S. The role of radiotherapy in the treatment of hepatocellular carcinoma with portal vein tumor thrombus. J. Radiat. Res. 2015, 56, 325–331. [Google Scholar] [CrossRef] [PubMed]
  37. Long, Z.; Wang, B.; Tao, D.; Liu, Y.; Zhang, J.; Tan, J.; Luo, J.; Shi, F.; Tao, Z. Clinical research on alternating hyperfraction radiotherapy for massive hepatocellular carcinoma. Oncol. Lett. 2015, 10, 523–527. [Google Scholar] [CrossRef]
  38. Huang, C.M.; Huang, M.Y.; Tang, J.Y.; Chen, S.C.; Wang, L.Y.; Lin, Z.Y.; Huang, C.J. Feasibility and efficacy of helical tomotherapy in cirrhotic patients with unresectable hepatocellular carcinoma. World J. Surg. Oncol. 2015, 13, 201. [Google Scholar] [CrossRef]
  39. Yoon, H.I.; Lee, I.J.; Han, K.H.; Seong, J. Improved oncologic outcomes with image-guided intensity-modulated radiation therapy using helical tomotherapy in locally advanced hepatocellular carcinoma. J. Cancer Res. Clin. Oncol. 2014, 140, 1595–1605. [Google Scholar] [CrossRef]
  40. Son, S.H.; Jang, H.S.; Jo, I.Y.; Choi, B.O.; Jang, J.W.; Yoon, S.K.; Kay, C.S. Significance of an increase in the Child-Pugh score after radiotherapy in patients with unresectable hepatocellular carcinoma. Radiat. Oncol. 2014, 9, 101. [Google Scholar] [CrossRef]
  41. Kim, T.H.; Park, J.W.; Kim, Y.J.; Kim, B.H.; Woo, S.M.; Moon, S.H.; Kim, S.S.; Lee, W.J.; Kim, D.Y.; Kim, C.M. Simultaneous integrated boost-intensity modulated radiation therapy for inoperable hepatocellular carcinoma. Strahlenther. Onkol. 2014, 190, 882–890. [Google Scholar] [CrossRef]
  42. Chen, S.W.; Lin, L.C.; Kuo, Y.C.; Liang, J.A.; Kuo, C.C.; Chiou, J.F. Phase 2 study of combined sorafenib and radiation therapy in patients with advanced hepatocellular carcinoma. Int. J. Radiat. Oncol. Biol. Phys. 2014, 88, 1041–1047. [Google Scholar] [CrossRef]
  43. Kong, M.; Hong, S.E.; Choi, W.S.; Choi, J.; Kim, Y. Treatment outcomes of helical intensity-modulated radiotherapy for unresectable hepatocellular carcinoma. Gut Liver 2013, 7, 343–351. [Google Scholar] [CrossRef] [PubMed]
  44. Kim, J.Y.; Yoo, E.J.; Jang, J.W.; Kwon, J.H.; Kim, K.J.; Kay, C.S. Hypofractionated radiotheapy using helical tomotherapy for advanced hepatocellular carcinoma with portal vein tumor thrombosis. Radiat. Oncol. 2013, 8, 15. [Google Scholar] [CrossRef] [PubMed]
  45. Wang, P.M.; Hsu, W.C.; Chung, N.N.; Chang, F.L.; Fogliata, A.; Cozzi, L. Radiation treatment with volumetric modulated arc therapy of hepatocellular carcinoma patients. Early clinical outcome and toxicity profile from a retrospective analysis of 138 patients. Radiat. Oncol. 2012, 7, 207. [Google Scholar] [CrossRef] [PubMed]
  46. Kang, M.K.; Kim, M.S.; Kim, S.K.; Ye, G.W.; Lee, H.J.; Kim, T.N.; Eun, J.R. High-dose radiotherapy with intensity-modulated radiation therapy for advanced hepatocellular carcinoma. Tumori 2011, 97, 724–731. [Google Scholar] [CrossRef] [PubMed]
  47. Chi, K.H.; Liao, C.S.; Chang, C.C.; Ko, H.L.; Tsang, Y.W.; Yang, K.C.; Mehta, M.P. Angiogenic blockade and radiotherapy in hepatocellular carcinoma. Int. J. Radiat. Oncol. Biol. Phys. 2010, 78, 188–193. [Google Scholar] [CrossRef] [PubMed]
  48. McIntosh, A.; Hagspiel, K.D.; Al-Osaimi, A.M.; Northup, P.; Caldwell, S.; Berg, C.; Angle, J.F.; Argo, C.; Weiss, G.; Rich, T.A. Accelerated treatment using intensity-modulated radiation therapy plus concurrent capecitabine for unresectable hepatocellular carcinoma. Cancer 2009, 115, 5117–5125. [Google Scholar] [CrossRef]
  49. Jang, J.W.; Kay, C.S.; You, C.R.; Kim, C.W.; Bae, S.H.; Choi, J.Y.; Yoon, S.K.; Han, C.W.; Jung, H.S.; Choi, I.B. Simultaneous multitarget irradiation using helical tomotherapy for advanced hepatocellular carcinoma with multiple extrahepatic metastases. Int. J. Radiat. Oncol. Biol. Phys. 2009, 74, 412–418. [Google Scholar] [CrossRef]
  50. Dennis, K.; Linden, K.; Gaudet, M. A shift from simple to sophisticated: Using intensity-modulated radiation therapy in conventional nonstereotactic palliative radiotherapy. Curr. Opin. Support. Palliat. Care 2023, 17, 70–76. [Google Scholar] [CrossRef]
  51. Staffurth, J.; Radiotherapy Development Board. A review of the clinical evidence for intensity-modulated radiotherapy. Clin. Oncol. 2010, 22, 643–657. [Google Scholar] [CrossRef]
  52. Feng, M.; Ben-Josef, E. Radiation therapy for hepatocellular carcinoma. Semin. Radiat. Oncol. 2011, 21, 271–277. [Google Scholar] [CrossRef]
  53. Lawrence, T.S.; Robertson, J.M.; Anscher, M.S.; Jirtle, R.L.; Ensminger, W.D.; Fajardo, L.F. Hepatic toxicity resulting from cancer treatment. Int. J. Radiat. Oncol. Biol. Phys. 1995, 31, 1237–1248. [Google Scholar] [CrossRef] [PubMed]
  54. Pan, C.C.; Kavanagh, B.D.; Dawson, L.A.; Li, X.A.; Das, S.K.; Miften, M.; Ten Haken, R.K. Radiation-associated liver injury. Int. J. Radiat. Oncol. Biol. Phys. 2010, 76, S94–S100. [Google Scholar] [CrossRef]
  55. Guha, C.; Kavanagh, B.D. Hepatic radiation toxicity: Avoidance and amelioration. Semin. Radiat. Oncol. 2011, 21, 256–263. [Google Scholar] [CrossRef] [PubMed]
  56. Bae, S.H.; Kim, M.S.; Jang, W.I.; Cho, C.K.; Yoo, H.J.; Kim, K.B.; Han, C.J.; Park, S.C.; Lee, D.H. Low Hepatic Toxicity in Primary and Metastatic Liver Cancers after Stereotactic Ablative Radiotherapy Using 3 Fractions. J. Korean Med. Sci. 2015, 30, 1055–1061. [Google Scholar] [CrossRef] [PubMed]
  57. Rim, C.H.; Kim, H.J.; Seong, J. Clinical feasibility and efficacy of stereotactic body radiotherapy for hepatocellular carcinoma: A systematic review and meta-analysis of observational studies. Radiother. Oncol. 2019, 131, 135–144. [Google Scholar] [CrossRef]
  58. Long, Y.; Liang, Y.; Li, S.; Guo, J.; Wang, Y.; Luo, Y.; Wu, Y. Therapeutic outcome and related predictors of stereotactic body radiotherapy for small liver-confined HCC: A systematic review and meta-analysis of observational studies. Radiat. Oncol. 2021, 16, 68. [Google Scholar] [CrossRef]
  59. Chen, L.S.; Lin, H.C.; Hwang, S.J.; Lee, F.Y.; Hou, M.C.; Lee, S.D. Prevalence of gastric ulcer in cirrhotic patients and its relation to portal hypertension. J. Gastroenterol. Hepatol. 1996, 11, 59–64. [Google Scholar] [CrossRef]
  60. Kim, H.; Lim, D.H.; Paik, S.W.; Yoo, B.C.; Koh, K.G.; Lee, J.H.; Choi, M.S.; Park, W.; Park, H.C.; Huh, S.J.; et al. Predictive factors of gastroduodenal toxicity in cirrhotic patients after three-dimensional conformal radiotherapy for hepatocellular carcinoma. Radiother. Oncol. 2009, 93, 302–306. [Google Scholar] [CrossRef]
  61. Chon, Y.E.; Seong, J.; Kim, B.K.; Cha, J.; Kim, S.U.; Park, J.Y.; Ahn, S.H.; Han, K.H.; Chon, C.Y.; Shin, S.K.; et al. Gastroduodenal complications after concurrent chemoradiation therapy in patients with hepatocellular carcinoma: Endoscopic findings and risk factors. Int. J. Radiat. Oncol. Biol. Phys. 2011, 81, 1343–1351. [Google Scholar] [CrossRef]
  62. Yoon, H.; Oh, D.; Park, H.C.; Kang, S.W.; Han, Y.; Lim, D.H.; Paik, S.W. Predictive factors for gastroduodenal toxicity based on endoscopy following radiotherapy in patients with hepatocellular carcinoma. Strahlenther. Onkol. 2013, 189, 541–546. [Google Scholar] [CrossRef]
  63. Kang, J.K.; Kim, M.S.; Cho, C.K.; Yang, K.M.; Yoo, H.J.; Kim, J.H.; Bae, S.H.; Jung, D.H.; Kim, K.B.; Lee, D.H.; et al. Stereotactic body radiation therapy for inoperable hepatocellular carcinoma as a local salvage treatment after incomplete transarterial chemoembolization. Cancer 2012, 118, 5424–5431. [Google Scholar] [CrossRef] [PubMed]
  64. Bae, S.H.; Kim, M.S.; Cho, C.K.; Kang, J.K.; Lee, S.Y.; Lee, K.N.; Lee, D.H.; Han, C.J.; Yang, K.Y.; Kim, S.B. Predictor of severe gastroduodenal toxicity after stereotactic body radiotherapy for abdominopelvic malignancies. Int. J. Radiat. Oncol. Biol. Phys. 2012, 84, e469–e474. [Google Scholar] [CrossRef]
  65. Jang, W.I.; Bae, S.H.; Kim, M.S.; Han, C.J.; Park, S.C.; Kim, S.B.; Cho, E.H.; Choi, C.W.; Kim, K.S.; Hwang, S.; et al. A phase 2 multicenter study of stereotactic body radiotherapy for hepatocellular carcinoma: Safety and efficacy. Cancer 2020, 126, 363–372. [Google Scholar] [CrossRef] [PubMed]
  66. Pollom, E.L.; Deng, L.; Pai, R.K.; Brown, J.M.; Giaccia, A.; Loo, B.W., Jr.; Shultz, D.B.; Le, Q.T.; Koong, A.C.; Chang, D.T. Gastrointestinal Toxicities with Combined Antiangiogenic and Stereotactic Body Radiation Therapy. Int. J. Radiat. Oncol. Biol. Phys. 2015, 92, 568–576. [Google Scholar] [CrossRef] [PubMed]
  67. Kroeze, S.G.; Fritz, C.; Hoyer, M.; Lo, S.S.; Ricardi, U.; Sahgal, A.; Stahel, R.; Stupp, R.; Guckenberger, M. Toxicity of concurrent stereotactic radiotherapy and targeted therapy or immunotherapy: A systematic review. Cancer Treat. Rev. 2017, 53, 25–37. [Google Scholar] [CrossRef] [PubMed]
  68. Forner, A.; Reig, M.; Bruix, J. Hepatocellular carcinoma. Lancet 2018, 391, 1301–1314. [Google Scholar] [CrossRef]
  69. Brade, A.M.; Ng, S.; Brierley, J.; Kim, J.; Dinniwell, R.; Ringash, J.; Wong, R.R.; Cho, C.; Knox, J.; Dawson, L.A. Phase 1 Trial of Sorafenib and Stereotactic Body Radiation Therapy for Hepatocellular Carcinoma. Int. J. Radiat. Oncol. Biol. Phys. 2016, 94, 580–587. [Google Scholar] [CrossRef]
  70. Hapani, S.; Chu, D.; Wu, S. Risk of gastrointestinal perforation in patients with cancer treated with bevacizumab: A meta-analysis. Lancet Oncol. 2009, 10, 559–568. [Google Scholar] [CrossRef]
  71. Barney, B.M.; Markovic, S.N.; Laack, N.N.; Miller, R.C.; Sarkaria, J.N.; Macdonald, O.K.; Bauer, H.J.; Olivier, K.R. Increased bowel toxicity in patients treated with a vascular endothelial growth factor inhibitor (VEGFI) after stereotactic body radiation therapy (SBRT). Int. J. Radiat. Oncol. Biol. Phys. 2013, 87, 73–80. [Google Scholar] [CrossRef]
  72. Reig, M.; Forner, A.; Rimola, J.; Ferrer-Fabrega, J.; Burrel, M.; Garcia-Criado, A.; Kelley, R.K.; Galle, P.R.; Mazzaferro, V.; Salem, R.; et al. BCLC strategy for prognosis prediction and treatment recommendation: The 2022 update. J. Hepatol. 2022, 76, 681–693. [Google Scholar] [CrossRef]
  73. Blettner, M.; Sauerbrei, W.; Schlehofer, B.; Scheuchenpflug, T.; Friedenreich, C. Traditional reviews, meta-analyses and pooled analyses in epidemiology. Int. J. Epidemiol. 1999, 28, 1–9. [Google Scholar] [CrossRef] [PubMed]
  74. Hall, E.J.; Wuu, C.S. Radiation-induced second cancers: The impact of 3D-CRT and IMRT. Int. J. Radiat. Oncol. Biol. Phys. 2003, 56, 83–88. [Google Scholar] [CrossRef] [PubMed]
  75. Marcu, L.G. Photons—Radiobiological issues related to the risk of second malignancies. Phys. Med. 2017, 42, 213–220. [Google Scholar] [CrossRef] [PubMed]
Cancers 15 04914 g001

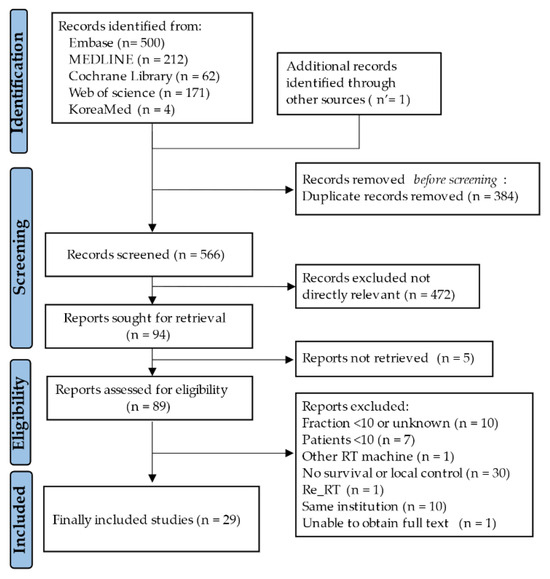

Figure 1. The process of study selection.
Figure 1. The process of study selection.
Cancers 15 04914 g001
Cancers 15 04914 g002aCancers 15 04914 g002bCancers 15 04914 g002c

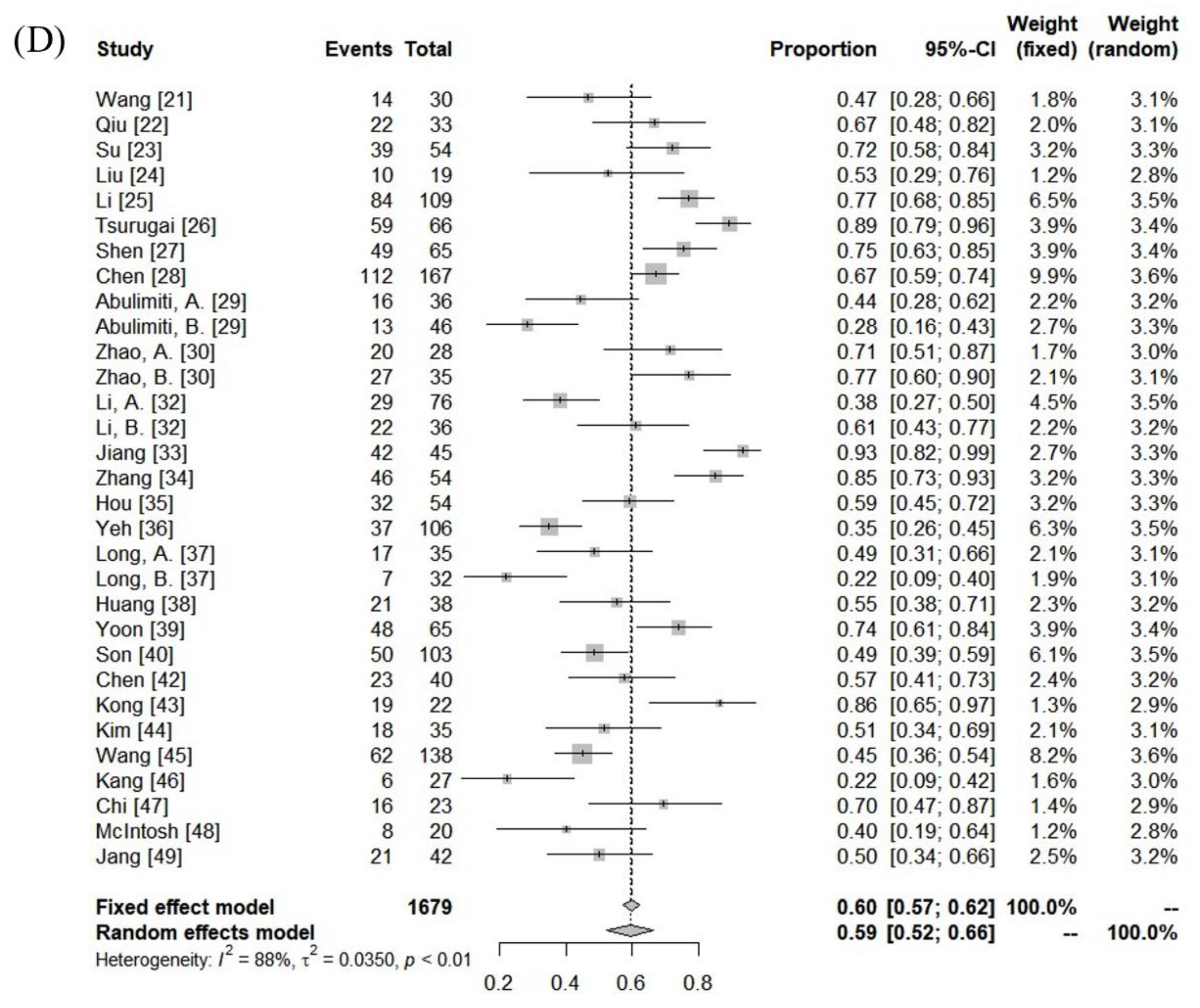

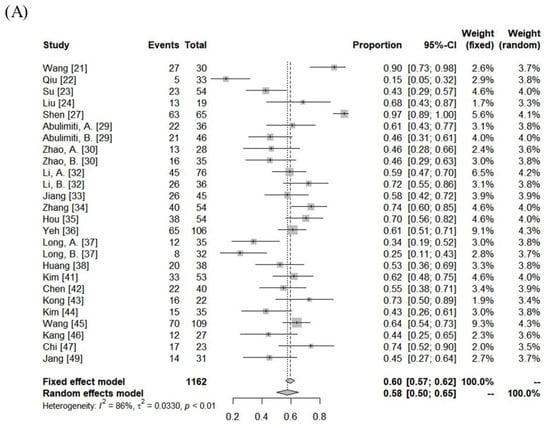

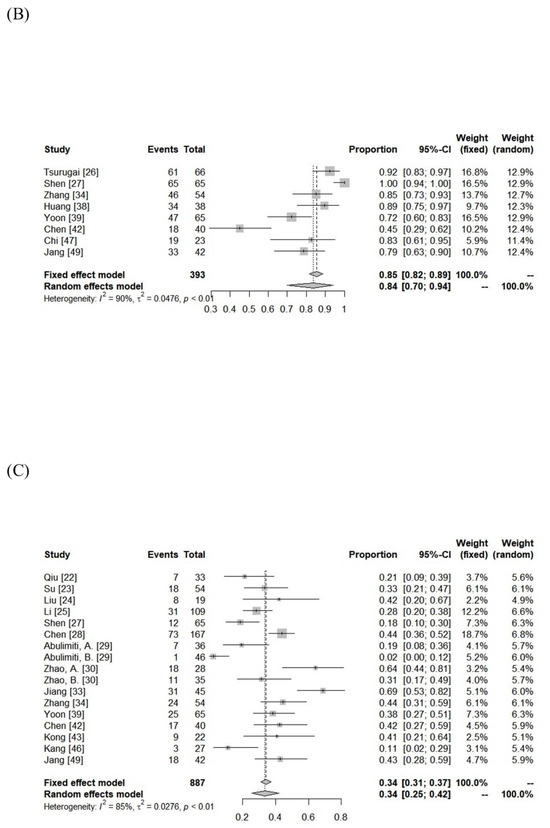

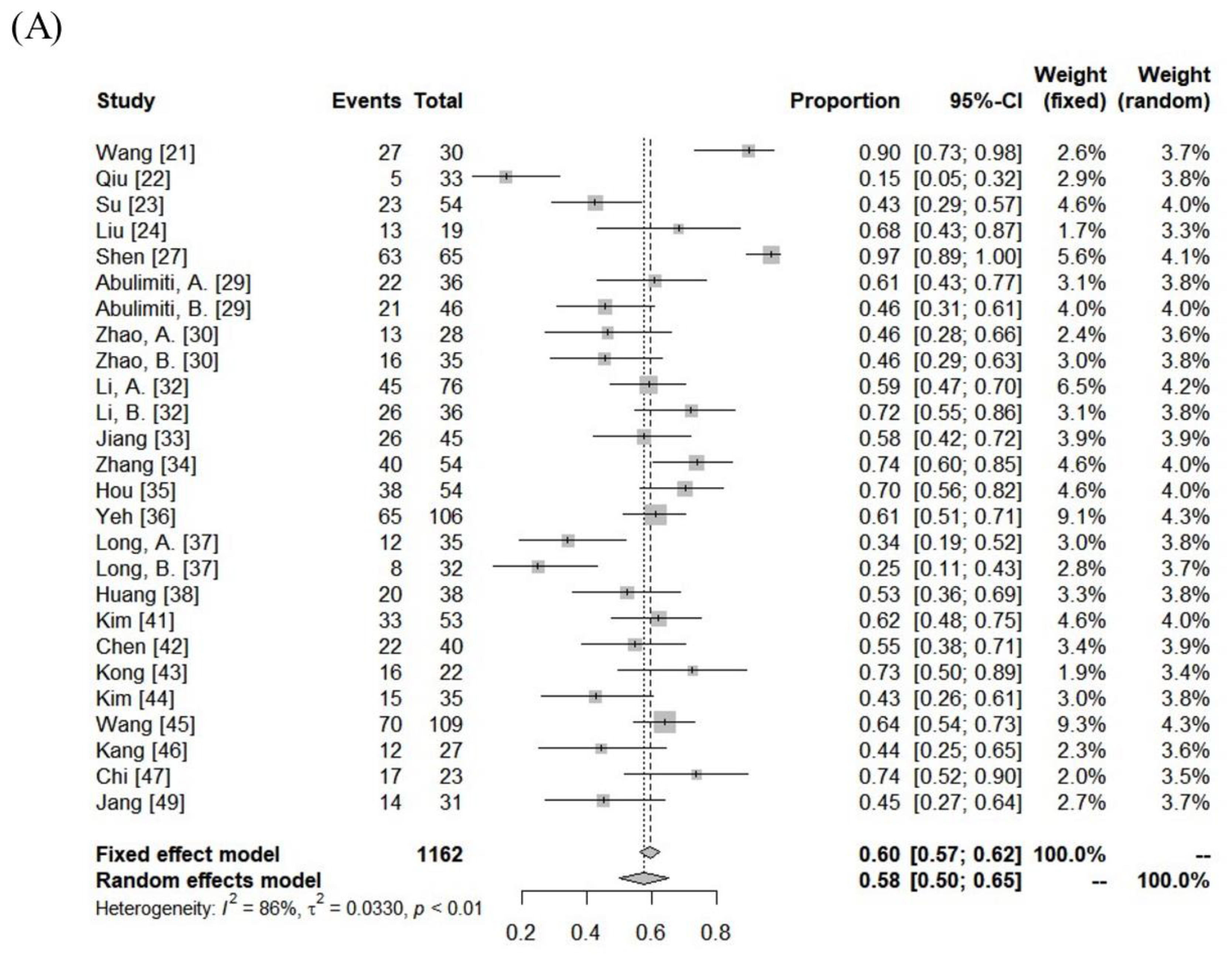

Figure 2. Forest plot of objective response rate (A) and local control rate (B), progression-free survival rate (C), and overall survival rate (D) at 1 year.
Figure 2. Forest plot of objective response rate (A) and local control rate (B), progression-free survival rate (C), and overall survival rate (D) at 1 year.
Cancers 15 04914 g002aCancers 15 04914 g002bCancers 15 04914 g002c
Cancers 15 04914 g003aCancers 15 04914 g003bCancers 15 04914 g003c

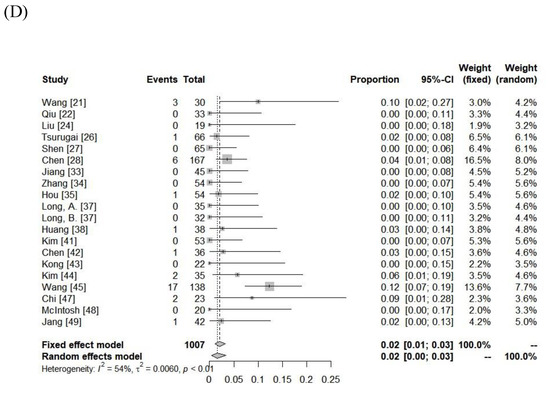

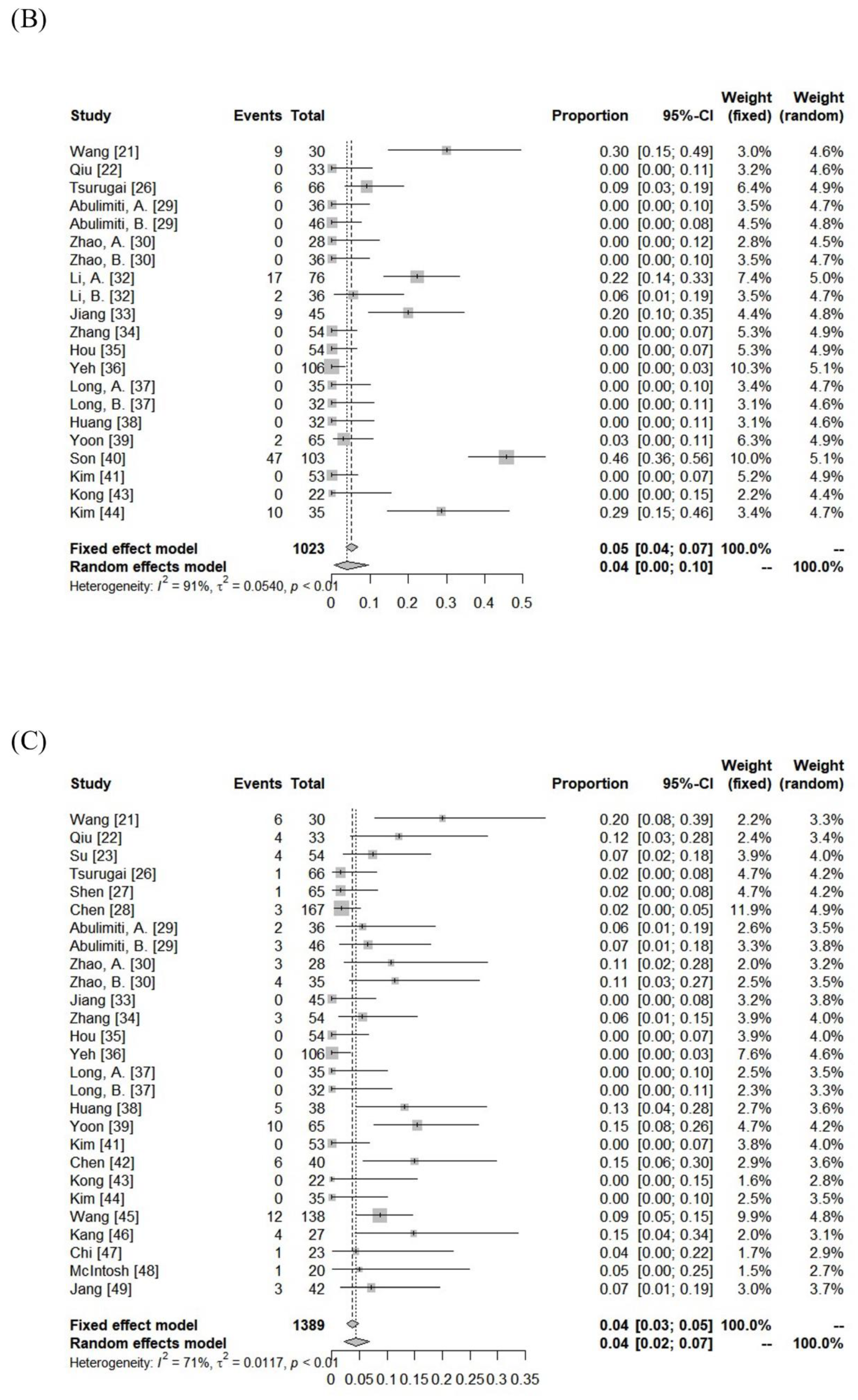

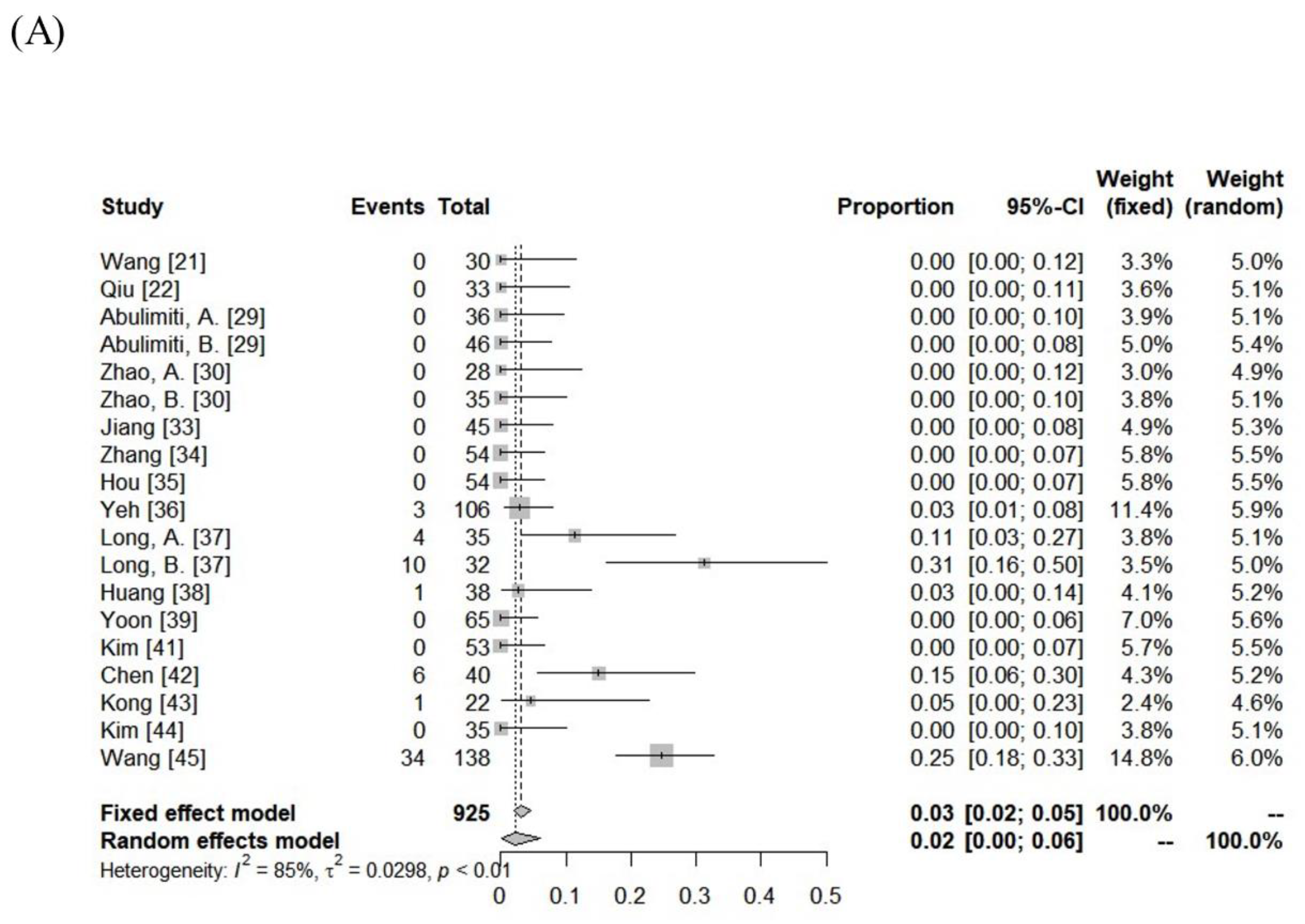

Figure 3. Forest plot of (A) classic radiation-induced liver disease (RILD), (B) nonclassic RILD, (C) acute hepatic toxicity ≥ grade 3, and (D) gastrointestinal toxicity ≥ grade 3.
Figure 3. Forest plot of (A) classic radiation-induced liver disease (RILD), (B) nonclassic RILD, (C) acute hepatic toxicity ≥ grade 3, and (D) gastrointestinal toxicity ≥ grade 3.
Cancers 15 04914 g003aCancers 15 04914 g003bCancers 15 04914 g003c
Table 1. Study details for hepatocellular carcinoma treated with intensity-modulated radiotherapy.
Table 1. Study details for hepatocellular carcinoma treated with intensity-modulated radiotherapy.
AuthorYearCountryStudy TypeNOSNCP Class
A/B/C (%)		BCLC Stage 0/A/B/C/D (%)Median Size (cm) (Range)MVI (%)DM (%)AFP ≥400 ng/mL (%)Median Total Dose (Gy) (Range)Dose per Fraction (Gy)Combined Treatment
Wang [21]2023ChinaP53077/23/00/0/0/100/0NR1005360NR
(52–56)		2Atezolizumab + bevacizumab (100%)
Qiu [22]2023ChinaP43376/18/60/3/55/42/08 (0.7–20.3)NR2136NR2–3.5Apatinib (100%)
Su [23]2022ChinaR65474/26/00/0/6/94/0NRNR2046483PD-1 inhibitors + anti-angiogenic (100%)
Liu [24]2022ChinaP51953/47/00/5/26/69/0NR47263262 (45–72)/45 (30–50) b3–4.5/2–2.5 bApatinib (100%)
Li [25]2022ChinaR4109NR0/30/13/57/05.8 a ± 3.5NRNRNR50
(40–66)		1.8–4No
Tsurugai [26]2021JapanR46692/8/032/23/6/38/12.3 a (1.5–3.3)NRNRNR423No
Shen [27]2021ChinaP56578/22/00/15/42/43/0NRNR40NR50/30 b5/3 bSorafenib (20%); Cytokines (63%)
Chen [28]2021ChinaR616793/7/00/0/0/100/0NR10005158
(50–67)		2–2.2TACE (39%); Sorafenib (11%)
Abulimiti, A. [29]2021ChinaR73692/3/00/0/0/100/0NR100053NR (40–62.5)2–2.5Sorafenib (100%)
Abulimiti, B. [29]2021ChinaR74696/4/00/0/0/100/0NR100048NR (40–62.5)2–2.5No
Zhao, A. [30]2019ChinaR628100/0/0 0/0/0/100/07.4 (1.9–14.9)100043NRNRTACE + sorafenib (100%)
Zhao, B. [30]2019ChinaR735100/0/00/0/0/100/06.6 (1.2–17)100043NRNRTACE (100%)
Lo [31]2019TaiwanR62339/52/90/0/0/96/4NR1000NRNR
(45–70)		3–4.5TACE (30%)
Li, A. [32]2018ChinaR67696/4/00/0/0/100/0NR10005758
(50–67)		2–2.2TACE (100%)
Li, B. [32]2018ChinaR63689/11/00/0/0/100/0NR10006758
(50–67)		2–2.2TACE (100%)
Jiang [33]2017ChinaR74589/11/0NRNR002454
(35–68)		2.2–5.5No
Zhang [34] 2016ChinaR554100/0/0NR6.3 (1.2–14)480NR50
(44–70)		1.8–2TACE (100%)
Hou [35]2016ChinaR85485/15/00/0/0/100/07.5 a ± 3.51000NR60
(40–66)		2.5–4No
Yeh [36]2015TaiwanR510678/22/00/0/0/100/0NR1000NR60 (NR)2No
Long, A. [37]2015ChinaP535NRNRNR
(10–20)		NR0NRNR (40–50/30–40) b2 bNo
Long, B. [37]2015ChinaP532NRNRNR
(10–20)		NR0NRNR (40–50/30–40) b2 bNo
Huang [38]2015TaiwanR53871/29/0NR4.6 (2.5–16.7)NR04054
(46–71.8)		1.8–2.4No
Yoon [39]2014Republic of KoreaR865100/0/0NR9.0 (2.2–18.8)NR0NR50
(47.5–60)		2.5–3.5IA_CTx (95%)
Son [40]2014Republic of KoreaR510388/12/0NR6.2 a ± 6.6NR03550
(40–60)		1.8–5No
Kim [41]2014Republic of KoreaR55394/6/0NR5.5 (1.6–16)660NR55 (55–66)/44 (44–55) b2.5–3/2–2.5 bSorafenib (9.4%)
Chen [42]2014TaiwanP640100/0/00/10/25/65/08.2 (3–15.5)NR0NR50
(40–60)		2–2.5Sorafenib (100%)
Kong [43]2013Republic of KoreaR52268/32/0NR4.4 (0.9–16.4)NR0NRNR
(30–60)		1.8–4No
Kim [44]2013Republic of KoreaR53580/20/00/0/0/100/0NR1000NR50
(45–60)		4.5–6Capecitabine (100%)
Wang [45]2012TaiwanR513870/30/00/6/21/73/010 (3.8–19.1)NR164360
(45–66)		1.8–2No
Kang [46]2011Republic of KoreaR42770/30/0NR11.4 (8.1–18.2)670NR50.4 (45–64.8)1.8TACE or IA_CTx (48%)
Chi [47]2010TaiwanR52365/35/0NRNR7422NR52.5 (NR)2.5–4.5Sunitinib (100%)
McIntosh [48]2009USAR52055/45/0NR9 a (1.3–17.4)NR0NR50
(50–60)		2.5Capecitabine (100%)
Jang [49]2009Republic of KoreaR54276/22/2NR9 a ± 3.2NR100NR51.03 (30–57.61) b3–5.7 bCapecitabine (100%)
NOS—the Newcastle–Ottawa Scale; N—number; CP—Child–Pugh; BCLC—Barcelona Clinic Liver Cancer; MVI—macrovascular invasion; DM—distant metastases (not including regional lymph node involvement); AFP—Alpha-fetoprotein; P—prospective; R—retrospective; NR—not reported; PD-1—programmed cell death protein 1; TACE—transarterial chemo-embolization; IA_CTx—intra-arterial chemotherapy. a Means’ mean value. b Applied simultaneous integrated boost technique.
Table 2. Treatment outcomes for hepatocellular carcinoma treated with intensity-modulated radiotherapy.
Table 2. Treatment outcomes for hepatocellular carcinoma treated with intensity-modulated radiotherapy.
AuthorMedian f/u
(mo)		Response CriteriaCR/PR/SD/PD
(%)		ORR (%)DCR (%)1-year LCR (%)Median OS (mo)1-year OS (%)2-year OS (%)3-year OS (%)
Wang [21]7.4mRECIST13/77/7/39097NR9.848NRNR
Qiu [22]11.4RECIST3/12/67/181582NRNR66.26060
Su [23]12mRECIST2/41/48/94391NR20.17228NR
Liu [24]9mRECIST31/37/21/116889NRnot reached54.6NRNR
Li [25]20.5NRNRNRNRNR25.77756NR
Tsurugai [26]24mRECISTNRNRNR92NR907560
Shen [27]24NR28/69/3 a97971001875.44336.2
Chen [28]NRNRNRNRNRNR16.566.829.910.6
Abulimiti, A. [29]11RECIST0/61/28/116189NR1144.83.8NR
Abulimiti, B. [29]9RECIST2/44/28/264674NR928.62.6NR
Zhao, A. [30]13mRECIST11/36/28/254775NR19724836
Zhao, B. [30]14.1mRECIST0/46/31/234677NR15.278160
Lo [31]NRNRNRNRNRNR8NRNRNR
Li, A. [32]11mRECIST13/46/33/85992NR9.638.218.49.2
Li, B. [32]14mRECIST19/53/22/67294NR13.461.127.816.7
Jiang [33]51.9RECIST9/49/38/45896NR44.793.373.350
Zhang [34]28.7mRECIST20/54/15/11748984.320.284.649.736.7
Hou [35]11.8RECIST6/65/9/207180NR15.4759.332.126.4
Yeh [36]10WHO10/52/33/56295NR734.711NR
Long, A. [37]NRmRECIST6/29/48/173583NR9.748.617.12.9
Long, B. [37]NRmRECIST3/22/56/192581NR6.521.900
Huang [38]17.2RECIST5/48/34/13538788.212.656.231.7NR
Yoon [39]21NRNRNRNR72.1207447.133.4
Son [40]11.6NRNRNRNRNR11.648.523.414.3
Kim [41]18.9mRECIST22/40/34/46296NR25.1NR54.7NR
Chen [42]23RECIST2/53/37/8559244.61456.732NR
Kong [43]14.4mRECIST18/55/23/47396NR14.486.469.169.1
Kim [44]12.9RECIST14/29/51/64394NR12.951.422.29.2
Wang [45]9RECIST11/53/29/76493NR10.34528NR
Kang [46]5RECIST4/41/33/224578NR522117.3
Chi [47]16RECIST9/65/22/47496821670NRNR
McIntosh [48]NRRECISTNR6688NR9.64030.6NR
Jang [49]9.4RECIST0/45/48/745937912.350.114.9NR
f/u—follow-up; CR—complete response; PR—partial response; SD—stable disease; PD—progressive disease; ORR–objective response rate (CR + PR); DCR—disease control rate (CR + PR + SD); LCR—local control rate; OS—overall survival; mRECIST—modified Response Evaluation Criteria in Solid Tumors; NR—not reported. a 2 patients (3%) showed unmeasurable tumor.
Table 3. Pooled rates of treatment outcomes.
Table 3. Pooled rates of treatment outcomes.
GroupCohorts
(N)		Patients (N)P, HeterogeneityI2Egger’s Test, PFixed Event Rate (95% CI)Random Event Rate (95% CI)P (between Groups)
All Patients
CR rate261162<0.000169.58%0.46700.09 (0.07–0.11)0.08 (0.05–0.12)
ORR261162<0.000185.52%0.21630.60 (0.57–0.62)0.58 (0.50–0.65)
DCR2611620.001451.31%0.04880.91 (0.89–0.92)0.90 (0.87–0.93)
1-year LCR8393<0.000190.31%0.36380.85 (0.82–0.89)0.84 (0.70–0.94)
2-year LCR8423<0.000192.94%0.20070.77 (0.73–0.81)0.75 (0.58–0.89)
3-year LCR3 1850.000985.64%0.95370.64 (0.57–0.71)0.64 (0.45–0.81)
1-year PFS17887<0.000184.96%0.74180.34 (0.31–0.37)0.34 (0.25–0.42)
2-year PFS16798<0.000178.78%0.33110.11 (0.09–0.14)0.10 (0.06–0.16)
3-year PFS6394<0.000187.57%0.13260.06 (0.04–0.09)0.09 (0.02–0.20)
1-year OS311679<0.000188.29%0.88940.60 (0.57–0.62)0.59 (0.52–0.66)
2-year OS291660<0.000191.25%0.84280.31 (0.29–0.34)0.31 (0.23–0.39)
3-year OS18978<0.000192.11%0.50750.22 (0.19–0.24)0.23 (0.14–0.33)
Subgroup
1-year OSmSize ≤7 cm7427<0.000188.14%0.53530.73 (0.69–0.77)0.75 (0.61–0.86)0.0180
mSize >7 cm9447<0.000177.16%0.87650.54 (0.50–0.59)0.55 (0.44–0.65)
mRT dose <51 Gy11638<0.000188.45%0.20420.68 (0.65–0.72)0.65 (0.53–0.76)0.3345
mRT dose ≥51 Gy11744<0.000187.94%0.52290.55 (0.51–0.59)0.57 (0.46–0.68)
Without TA/IT211184<0.000191.30%0.84360.57 (0.55–0.60)0.58 (0.48–0.67)0.3144
With TA/IT104950.036949.59%0.24490.65 (0.61–0.69)0.64 (0.57–0.70)
2-year OSmSize ≤7 cm8480< 0.000190.74%0.92230.46 (0.42–0.51)0.47 (0.32–0.62)0.1360
mSize >7 cm9447<0.000176.84%0.84250.32 (0.28–0.37)0.33 (0.23–0.43)
mRT dose <51 Gy11638<0.000188.20%0.28130.41 (0.37–0.45)0.38 (0.27–0.50)0.3426
mRT dose ≥51 Gy10755<0.000189.11%0.39270.28 (0.25–0.32)0.31 (0.21–0.42)
Without TA/IT211184<0.000192.48%0.69770.30 (0.28–0.33)0.29 (0.20–0.39)0.4302
With TA/IT8476<0.000186.32%0.72240.34 (0.30–0.39)0.35 (0.24–0.48)
3-year OSmSize ≤7 cm5280<0.000195.50%0.75770.29 (0.23–0.34)0.31 (0.08–0.60)0.9724
mSize >7 cm52070.000281.93%0.92020.32 (0.26–0.39)0.32 (0.17–0.48)
mRT dose <51 Gy7415<0.000190.19%0.66350.29 (0.25–0.33)0.27 (0.14–0.42)0.5148
mRT dose ≥51 Gy5378<0.000189.05%0.22290.17 (0.13–0.21)0.21 (0.09–0.35)
Without TA/IT14685<0.000192.30%0.64340.21 (0.18–0.24)0.20 (0.10–0.32)0.2961
With TA/IT4293<0.000193.55%0.09700.22 (0.18–0.28)0.34 (0.13–0.59)
N—number; CI—confidence interval; CR—complete response; ORR—objective response rate (CR + partial response); DCR—disease control rate (CR + partial response + stable disease); LCR—local control rate; PFS—progression-free survival; OS—overall survival; mSize—median size; mRT dose—median radiotherapy dose; TA—target agent; IT—immunotherapy.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Jang, W.I.; Jo, S.; Moon, J.E.; Bae, S.H.; Park, H.C. The Current Evidence of Intensity-Modulated Radiotherapy for Hepatocellular Carcinoma: A Systematic Review and Meta-Analysis. Cancers 2023, 15, 4914. https://doi.org/10.3390/cancers15204914

AMA Style

Jang WI, Jo S, Moon JE, Bae SH, Park HC. The Current Evidence of Intensity-Modulated Radiotherapy for Hepatocellular Carcinoma: A Systematic Review and Meta-Analysis. Cancers. 2023; 15(20):4914. https://doi.org/10.3390/cancers15204914

Chicago/Turabian Style

Jang, Won Il, Sunmi Jo, Ji Eun Moon, Sun Hyun Bae, and Hee Chul Park. 2023. "The Current Evidence of Intensity-Modulated Radiotherapy for Hepatocellular Carcinoma: A Systematic Review and Meta-Analysis" Cancers 15, no. 20: 4914. https://doi.org/10.3390/cancers15204914

APA Style

Jang, W. I., Jo, S., Moon, J. E., Bae, S. H., & Park, H. C. (2023). The Current Evidence of Intensity-Modulated Radiotherapy for Hepatocellular Carcinoma: A Systematic Review and Meta-Analysis. Cancers, 15(20), 4914. https://doi.org/10.3390/cancers15204914

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
