Advancing Understanding of Non-Small Cell Lung Cancer with Multiplexed Antibody-Based Spatial Imaging Technologies

by
Simon Gray
1,2 and
Christian H. Ottensmeier
1,2,*
1
Department of Molecular and Clinical Cancer Medicine, Faculty of Health and Life Sciences, University of Liverpool, Ashton St., Liverpool L69 3GB, UK
2
Department of Medical Oncology, The Clatterbridge Cancer Centre NHS Foundation Trust, Pembroke Pl., Liverpool L7 8YA, UK
*
Author to whom correspondence should be addressed.
Cancers 2023, 15(19), 4797; https://doi.org/10.3390/cancers15194797
Submission received: 21 August 2023 / Revised: 22 September 2023 / Accepted: 27 September 2023 / Published: 29 September 2023
(This article belongs to the Special Issue Precision Immuno-Oncology in NSCLC)
Browse Figure
Versions Notes

Abstract

:

Simple Summary

Non-small cell lung cancer is common and potentially lethal. Existing treatments that enable a person’s own immune system to attack their cancer significantly improve survival, but only for a minority of people. This difference between people likely depends on the types of cells, secreted molecules and other conditions present in and around the tumour. New technologies have recently allowed many cell types and molecules to be identified on the same tumour slide, whereas previously only a few cell markers could be used; this allows common and rare cell types to be reliably identified, and the relationships between different cells and cell types to be studied in far greater detail than before. These technologies may help to identify new cancer treatments to improve outcomes for patients. Here, we review studies which have used these new technologies in non-small cell lung cancer, and aim to summarise their findings.

Abstract

Non-small cell lung cancer (NSCLC) remains a cause of significant morbidity and mortality, despite significant advances made in its treatment using immune checkpoint inhibitors (ICIs) over the last decade; while a minority experience prolonged responses with ICIs, benefit is limited for most patients. The development of multiplexed antibody-based (MAB) spatial tissue imaging technologies has revolutionised analysis of the tumour microenvironment (TME), enabling identification of a wide range of cell types and subtypes, and analysis of the spatial relationships and interactions between them. Such study has the potential to translate into a greater understanding of treatment susceptibility and resistance, factors influencing prognosis and recurrence risk, and identification of novel therapeutic approaches and rational treatment combinations to improve patient outcomes in the clinic. Herein we review studies that have leveraged MAB technologies to deliver novel insights into the TME of NSCLC.

1. Introduction

Lung cancer caused 1.8 million deaths globally in 2020 [1], with non-small cell lung cancer (NSCLC) accounting for around 80–85% of cases [2]. In the United States, approximately half of NSCLC patients present with unresectable or metastatic advanced disease (aNSCLC) [3]. Historically, 30–55% of patients whose disease is resected with curative intent will experience relapse [4]; unresectable, recurrent or metastatic NSCLC without a targetable driver mutation typically carries a poor prognosis, with overall survival (OS) in the range of 15–24 months among patients fit to receive treatment [5,6]. More effective treatments are, thus, sorely needed. Study of the tumour microenvironment (TME) has the potential to deliver insights which may optimise existing treatments for NSCLC as well as aid in the development of novel treatments.
The TME represents an entire ecosystem in which cells of the tumour, stroma, immune system and vasculature co-exist and interact dynamically to affect the course of a putative cancer. The immune system applies competing mechanisms to balance the avoidance of autoimmunity with the ability to deliver robust responses to substances detected as foreign. Successful cancers acquire the ability to tilt the balance of the local immune milieu towards tolerance [7]. Accordingly, multiple immune and stromal cell types are observed to perform both pro- and anti-tumour roles in the TME. Tumours which grow to become clinically detectable are thought to be capable of reducing the activity of anti-tumour cells to support immune escape, tumour progression and metastasis [8,9,10,11]. This is achieved by both direct cell–cell interactions and the release of soluble factors into the TME. Effective antigen presentation (as displayed in Figure 1, according to the 3-signal model) may be compromised in a multitude of ways by the tumour and an immunosuppressive TME [12]. Three tiers of signal are required for full effector function: Signal 1 is engagement of major histocompatibility complex class 1 (MHC-I) on a tumour cell by a cytotoxic T-cell’s T-cell receptor; cancer-associated fibroblasts (CAFs) may produce copious extracellular matrix (ECM) to limit access of cluster of differentiation (CD) 8+ cytotoxic T-cells to tumour cells [13]; myeloid-derived suppressor cells (MDSCs) can release nitrogen species to prevent chemoattractants from recruiting antigen-specific T-cells from the circulation; and MHC-I may be downregulated by tumour cells [14]. Signal 2 is the engagement of co-inhibitory and co-stimulatory receptor/ligand pairs—co-inhibitory molecules include programmed death (/ligand) 1 (PD-[L]1), cytotoxic T lymphocyte antigen 4 (CTLA-4), T-cell immunoglobulin and mucin domain-containing protein 3 (TIM-3) [15]. These are known to be upregulated on tumour cells in response to pro-inflammatory cytokines such as interferon γ (IFN-γ) and tumour necrosis factor α (TNF-α), while co-stimulatory molecules including CD80 and CD86 are downregulated [16,17,18]. Signal 3 comprises the effects mediated by secreted cytokines such as IFN-γ or interleukin 12 (IL-12), and can set the balance between full activation and tolerance [19]. The secretion of immunosuppressive cytokines such as IL-6, IL-10 and transforming growth factor β (TGF-β) by tumour cells, tolerogenic T regulatory (Treg) cells, CAFs and tumour-associated macrophages (TAMs) can also influence Signal 3 [20]. Depending on these signals, the functional states of T-cells can range from hyperstimulation to tolerance, anergy and apoptosis [21]. Table 1 serves as a reference for cell surface markers and secreted molecules referred to in the text.
Methods for interrogating the cellular environment of tissue specimens including classical haematoxylin and eosin staining supplemented by immunohistochemistry (IHC), immunofluorescence (IF), imaging mass cytometry (IMC) and transcriptomics offer a spectrum of resolution with varying depth of tissue analysis and spatial information. For example, traditional IHC preserves 2-dimensional tissue architecture while allowing one or a few markers of interest to be stained per slide [22]. Meanwhile, single cell ribonucleic acid sequencing (RNAseq) can define cells’ transcriptional status in great depth to identify novel subsets and cell trajectory but with loss of information regarding spatial context and cell–cell interaction [23]. Spatial analysis of tumour tissue and the TME is not new, as reflected in the immune-hot/cold/excluded classification of tumours which began in colorectal cancer (CRC) and has shown utility in multiple cancer types [24]. This led to the introduction of the Immunoscore, which prognosticates patients with resected CRC more effectively than pathological tumour or nodal stage, microsatellite instability status, lymphovascular invasion and tumour differentiation despite measuring only two markers (CD3 and CD8) in two locations (tumour centre [TC] and invasive margin [IM]) [25,26]. Despite its remarkable ability to predict relapse status, the Immunoscore has not been adopted in clinical practice [27]. Spatial analyses of haematoxylin/eosin-stained or single-plex IHC-stained tissue continue to be performed using novel artificial intelligence tools [28,29]. In recent years, relevant cell subtypes in the TME have been described which require multiple markers to identify reliably; these include CAF subtypes, T resident memory cells and T follicular regulatory cells [30,31,32]. Obtaining spatial information regarding such subtypes would be extremely challenging with the above technologies. Multiplexed antibody-based (MAB) methods allow spatial analyses to be performed with far greater resolution of cell types and subtypes; such analyses can be performed on the same tissue section, for optimised tissue preservation and analyses of proximity and interaction between cell types. They also generate large volumes of data, which can be challenging to analyse, and a number of open source and commercial image analysis software packages have been developed to facilitate this [33,34].
Attempts to perform multiplexing of markers using brightfield IHC methods are limited by several factors including chromogenic overlap of simultaneously interpreted antibodies, while ‘strip-and-stain’ methods are labour intensive and result in progressive tissue degradation with serial staining rounds [22]. Current state-of-the-art methods for MAB imaging may be classified according to mode of antibody tagging (which may be with fluorophores, deoxyribonucleic acid [DNA] oligonucleotide barcodes or metal tags) and mode of detection (for example fluorescence, chromogen deposition or mass spectrometry). Briefly, MAB techniques feature a multistep process in which protein markers are labelled with fluorescent or tagged antibodies. For example, multiplex immunofluorescence (mIF) involves labelling all protein markers with DNA-barcoded antibodies and then multiple rounds of reaction with a smaller number of complementary fluorescent oligonucleotides, imaging and removal of the fluorescent component. Meanwhile, IMC involves tagging markers with heavy metal-bound antibodies, and application of a highly focused laser which ablates a minute portion of a sample at a given time, with quantification of the metal in the antibody tag using time-of-flight analysis. The details of these methods have been thoroughly reviewed elsewhere [35,36,37]. Typically, 10–60 markers are deployed, though 100-plex panels have been proven feasible using DNA barcode-based methods [38]. Digital spatial profiling (DSP) is notable among these methods as ROIs are selected and indexing oligonucleotides from a given ROI are analysed together [39]. It therefore allows differences between, but not within, ROIs to be analysed and does not preserve spatial information on the entire tissue section.
Immune checkpoint blockade (ICB), particularly with monoclonal antibodies (mAbs) targeting the co-inhibitory PD-(L)1 axis, represents a major breakthrough in the treatment of aNSCLC. Unlike chemotherapy, the historical comparator, ICB can provide long-term responses beyond cessation of treatment [6]. Anti-PD-(L)1 treatment has been FDA-approved for nearly a decade, and may be used as monotherapy or in combination with chemotherapy [40,41]. However, only around 20–30% of patients gain long-term benefit from anti-PD-(L)1 mAbs. These antibodies can further cause severe and long-term toxicity, which is especially relevant as these treatments move into the adjuvant and neoadjuvant settings [42,43,44]. Current tools utilised in clinical practice to predict response to anti-PD-(L)1 therapy include assessments of PD-L1 expression on tumour tissue and within the TME, and tumour mutational burden (TMB) [45,46]. A systematic review and meta-analysis of 8135 patients in 10 solid tumour types compared these methods, as well as gene expression profiling (GEP), with multiplex (m)IHC/mIF [47]. The highest predictive power for benefit from anti-PD-(L)1 therapy was with mIHC/mIF approaches (area under curve [AUC] 0.79) on plotting of summary receiver operating characteristic curves, compared with PD-L1 IHC (AUC 0.65 and p < 0.001), GEP (AUC 0.65 and p = 0.003) and TMB (AUC 0.69 and p = 0.049). This increase in predictive power was achieved using only relatively low-plex mIHC/mIF, with an average of 2–3 markers examined [47]. Study of the NSCLC microenvironment may help answer key clinical questions including identifying predictors of benefit from PD-(L)1 treatment and defining rational combination therapies; herein we present findings from a selection of studies primarily employing MAB methodologies to gain insights into the TME of NSCLC [48,49,50,51].

2. Literature Review

2.1. Prediction of Recurrence and Survival Following Curative-Intent Resection

Given the availability of tumour tissue following curative-intent resection, multiple studies have used MAB-based methodologies to identify signals associated with post-resection recurrence risk and OS. One relatively early study utilised a 6-plex tyramide signal amplification-based panel to assess 120 patients with resected NSCLC [52]. The cross-G function—a form of probabilistic nearest neighbour analysis—was used to demonstrate shorter OS for patients with CD4+ forkhead box P3-positive (FoxP3+) Treg cells and tumour cells in close proximity (hazard ratio (HR) 1.52, 95% confidence interval [95%CI] 1.11–2.07 and p = 0.009). Improved OS for patients with Treg cells and effector CD8+ T-cells (CD8+Ts) in close proximity (HR 0.96, 95%CI 0.92–0.99 and p = 0.042) was also demonstrated; the authors suggested this was related to the ability of CD8+Ts to somewhat overcome the tolerogenic effect of Treg cells in the TME [52].
A further paper utilised DSP with a 52-plex panel to study a tumour microarray (TMA) comprised of 92 cases with paired histologically normal adjacent tissue (NAT) [53]. Enrichment of T-cell markers (CD3, CD4), macrophage markers (CD68, CD168), immune checkpoints (CD27 and V-domain Ig suppressor of T-cell activation [VISTA]), CD44 and CD45 were seen in the stroma relative to the tumour. Meanwhile, NAT was enriched with markers of ECM (fibronectin), indoleamine 2,3-dioxigenase 1, exhausted T-cells (lymphocyte activation gene 3 [LAG-3]), TAMs/MDSCs (arginase 1 [ARG-1]), CD34 and the tumour suppressor phosphatase and tensin homolog when compared with the TME [54,55,56,57]. Univariate analysis suggested that expression of CD34, CD3 and inducible co-stimulatory (ICOS) were associated with favourable OS, though these signals did not persist in multivariable analysis with adjustment for age and disease stage [53].
Backman et al., studied 300 patients with resected NSCLC, and used mIF to demonstrate a positive prognostic effect for patients with high densities of tissue helper CD4+ T-cells (CD4+Ts) and CD8+Ts, M1 macrophages, B-cells, plasmacytoid dendritic cells (pDCs) and also both CD4+ and CD8+ Treg cells, including when adjusted for clinical parameters; these observations were stronger when analysing tumour and stromal compartments together [58]. Similar observations were seen between lung adenocarcinoma (LUAD) and lung squamous cell carcinoma (LUSC) samples. In the spatial analysis, helper CD4+Ts and CD8+Ts, M1 macrophages and pDCs were proximal to tumour cells; other immune cell types were more evenly distributed, while mature DCs were predominantly distant from tumour cells. Co-localisation of adaptive lymphocyte subsets together was associated with longer survival, but only the CD8+T/B-cell proximity effect remained significant after multivariate analysis. The positive prognostic impact of CD8+ Treg density was notably abrogated when distance to tumour cells and other immune cell types was accounted for, suggesting high CD8+ Treg density was a reflection of high total immune infiltrate. In assessing relationships between distance and density, multivariable Cox regression analysis showed independently favourable prognosis for high densities of M2-like macrophages, M1 macrophages, close proximity of both CD4+ and CD8+ Treg cells to B-cells, and co-localisation of effector CD8+Ts and tumour cells. Co-localisation of M2 and M1 macrophages conferred a worse prognosis [58]. This group took the commendable decision to make their entire spatial data set publicly available.
Another 2023 analysis by Sorin et al. examined 416 patients with predominantly early-stage LUAD tissue from resection or biopsy via imaging mass cytometry (IMC) of TMAs [59]. Histologically high-grade ‘solid’ tumours were enriched for myeloid cells including tumour-associated neutrophils (TANs), monocytes and CD163+ M2-like macrophages. M2-like macrophages in the ‘solid’ subtype were associated with Treg cells, whereas in other histological subtypes they were strongly correlated with effector CD8+Ts. B-cell frequency was associated with improved survival, independent of a range of potentially confounding clinico-pathologic variables. Spatial analysis of direct cell–cell interaction suggested largely homotypic interactions for tumour cells, endothelial cells and CD163- macrophages; however, tumour cells interacted more with TANs and endothelial cells in higher-grade versus lower-grade histological subtypes. This is consistent with the observed ability of TANs to facilitate haematogenic metastasis [60]. Lower-grade tumours featured greater interaction between tumour cells and both CD8+ and CD4+Ts; meanwhile, though M2-like macrophages and CD8+Ts coexist across tumour grades, their degree of interaction increases as tumour grade increases. Proliferating (Ki-67+) endothelial cells, presumably implicated in hypoxia and angiogenesis, were associated with poor OS and with TAN interactions in high-grade disease. Multiple TAN subsets were identified and hypoxia-inducible factor 1α-positive TANs were associated with worse OS, while total TAN frequency was not. High frequency of 3 cellular neighbourhoods, ‘B-cell-enriched’, ‘lymphoid enriched’ and ‘pan-immune hotspot 1’, were associated with improved OS across histological subtypes. Dissection of B-cell neighbourhoods suggested abrogation of survival advantage when B-cells were proximal to Treg cells, while proximity between B-cells and helper CD4+Ts without Treg enrichment maintained an association with improved survival, independent of the overall prevalence of B-cell and helper CD4+Ts and of histological subtype. Deep learning approaches were utilised and able, in a validation cohort, to predict progression with 94.2% accuracy using spatial analysis of IMC images with lineage markers, as compared with 74.2% with cell frequencies alone. A streamlined panel of 6 markers, together with spatial information to identify cellular neighbourhoods, produced a predictive accuracy of 93.3% for identifying progression [59].

2.2. Prediction of Benefit from Immunotherapy

As previously alluded to, another focus of MAB technologies has been the utilisation of both pre- and post-treatment tissue samples to identify novel biomarkers associated with response to treatment.
Several studies from the same research group utilising DSP to study NSCLC TMA tissue have reviewed multiple aspects of response to anti-PD-(L)1 therapy. One such study analysed tissue from 53 patients who received anti-PD-1 mAb monotherapy and had paired pre-treatment samples [61]. After adjustment for clinico-pathologic variables including the serum-based lung immune prognostic index (LIPI) [62], in multivariate analysis only high levels of CD4 and the natural killer cell marker CD56 measured in the immune (CD45+) compartment predicted clinical benefit (partial response or stable disease for ≥6 months), longer progression-free survival (PFS) and OS. High VISTA levels predicted lack of clinical benefit and shorter PFS [61].
A further study of 58 patients with aNSCLC and pre-anti-PD-(L)1 treatment samples studied 71 targets to determine mechanisms of treatment resistance [63]. Expression of the calcium-binding protein S100B was associated with improved OS in all four compartments. Immune stromal CD66b expression by tumour-associated neutrophils (TANs) predicted significantly shorter OS and PFS, as well as progressive disease at 12 and 24 months of therapy. A significant association between immune stromal CD66b expression and ICB resistance was seen in an ICB-treated validation cohort (HR 2.05 and p = 0.046) irrespective of pre-treatment serum neutrophil:lymphocyte ratio, but did not predict survival in a further non-ICB-treated cohort (HR 1.67 and p = 0.06) [63].
A third study focused on identifying markers of sensitivity to PD-(L)1 blockade, using pre-PD-(L)1 mAb tissue samples from a discovery cohort of 56 patients [64]. Expression of CD44, a positive regulator of PD-L1 in lung cancer, in the tumour compartment was associated with longer PFS in multivariate analysis. Intratumoural CD44 expression was significantly lower versus the immune compartment, and was higher both in patients with LUSC and without baseline liver metastasis [65]. Levels of CD44 determined using quantitative IF were associated, on multivariate analysis, with longer PFS (HR 0.31, 95%CI 0.11–0.87 and p = 0.022) and OS (HR 0.29, 95%CI 0.09–0.97 and p = 0.038), while stromal CD44 expression did not predict outcomes. In an ICB-treated validation cohort, CD44 levels in the tumour compartment predicted PFS upon multivariate analysis after adjusting for performance status, baseline liver metastasis and LIPI score (HR 0.62, 95%CI 0.40–0.96 and p = 0.035). This remained significant after adjusting for the tumour proportion score (TPS) at ≥1% and ≥50% cutoffs. A further ICB-untreated NSCLC cohort showed no prognostic association with CD44 expression. In CD44-high ROIs from both validation cohorts, upregulation of PD-L1, TIM-3, ICOS and CD40 was seen (false discovery rate (FDR)-adjusted p < 0.05), with other immune cell markers and co-inhibitory molecules upregulated to a lesser extent [64].
A further group studied pre-treatment tissue from 18 patients with aNSCLC and progression through first-line chemotherapy and were enrolled in a Phase 2 clinical trial of a bispecific PD-L1/CTLA-4 antibody [66]. Upon DSP, the stroma featured higher expression of immune cells markers (CD45, CD3, CD8, CD4 and CD11c) compared with tumour, consistent with parallel messenger RNA analysis. Co-clustering was observed between geographically and molecularly similar ROIs, for both tumour and stromal regions. The spatially resolved signature for stroma, versus tumour, was found to be more relevant for survival (AUC 0.838 vs. 0.786, respectively) and was associated with longer OS (p = 0.039) with stronger clinical relevance than PD-L1 TPS or TMB. This spatially resolved 18-protein stromal signature was validated in 65 NSCLC samples from patients who had received ICB, with an AUC of 0.776 and significant associations with OS and PFS, emphasizing the importance of the stromal compartment in affecting patient outcomes [66].

2.3. Study of CD8+ T-Cells in Early-Stage Resected NSCLC

Among the primary effectors of anticancer immunity are CD8+Ts, which are also potentiated using current ICB strategies [67]; they have, accordingly, been the focus of multiple studies employing MAB methods to study the TME.
One such study identified an exhausted CD8+ T-cell subset using IMC to study resected tumour and paired NAT from 25 early-stage NSCLC patients [68]. The ratio of lymphoid to non-lymphoid cells was significantly higher in tumour versus NAT; CD8+Ts in the tumour were substantially more proliferative versus those in NAT, while other lymphoid cell types were not. Hierarchical clustering divided tumour-associated CD8+Ts into predominantly effector (CD45RA+CD45RO-) and effector memory (CD45RA-CD45RO+) subtypes. The latter was further subdivided into a conventional memory phenotype, while the other expressed high levels of CD45RO, eomesodermin, FAS, CD27, CD28, PD-1, LAG-3 and TIM-3 as well as low T-bet and granzyme B (GZMB), suggestive of a burned-out effector (Ebo) subset. Such Ebo clusters were primarily tumour-associated, while CD8+Ts in NAT showed preserved effector functions. Subsequent CD8+T whole-transcriptome RNAseq confirmed enrichment of apoptotic and dysfunctional CD8+Ts among Ebo cells. Anti-PD-1 therapy of NSCLC-engrafted mice demonstrated a post-treatment reduction in the Ebo subset while preserving effector CD8+Ts. Subsequent IMC of a mixed-stage human NSCLC cohort showed a higher proportion of CD8+Ts were Ebo cells in patients with late-stage, versus early-stage, disease (p = 0.006), suggesting expansion with time and disease progression. Furthermore, Ebo predominance among CD8+Ts was associated with worse OS (HR 2.66, 95%CI 1.17–6.01 and p = 0.03) among patients who received anti-PD-1 therapy [68].
A further study of tissue from 13 treatment-naïve patients with resectable NSCLC used cytometry by time-of-flight and IMC to describe a population of CD8+PD-L1+ tumour-infiltrating T-cells with low levels of expression of PD-1, CD103, GZMB and IFN-γ [69]. Cellular neighbourhood analysis demonstrated close proximity of CD8+PD-L1+ cells to activated and exhausted CD8+Ts, suggesting a regulatory role for the former subset which was subsequently corroborated with demonstration of their capacity to suppress CD8+PD-L1- cells’ production of IFN-γ and TNF-α in vitro [69].
A larger study of 279 resected NSCLC cases was assessed using mIF of TMA sections, specifically seeking associations with lymph node metastasis (LNM) [70]. Density of CD8+Ts was significantly lower in both TC (p < 0.001) and IM (p < 0.001) for patients with LNM; upon CD8+T subtyping, the densities of pre-dysfunctional (odds ratio (OR) 0.51, 95%CI 0.29–0.88 and p = 0.015) and dysfunctional (OR 5.80, 95%CI 3.19–10.54 and p < 0.001) CD8+Ts were both associated with LNM, independent of a group of clinico-pathologic factors. Lower recurrence risk was predicted using total CD8+Ts in the IM (HR 0.57, 95%CI 0.35–0.92 and p = 0.021), pre-dysfunctional CD8+Ts in the TC (HR 0.55, 95%CI 0.34–0.89 and p = 0.014), while dysfunctional CD8+Ts in the IM predicted higher recurrence risk (HR 2.49, 95%CI 1.60–4.13 and p = 0.012). Among patients with LNM, mean nearest neighbour distance (mNND) of CD8+Ts was shorter to helper CD4+Ts, Treg cells, CAFs and cancer microvessels (CMVs)—these remained significant after multivariate analysis. Furthermore, shorter mNND was associated with recurrence for CD8+T/Treg in the IM (HR 1.72, 95%CI 1.26–2.92 and p = 0.024) and CD8+T/CAF in the IM (HR 1.57, 95%CI 1.11–2.43 and p = 0.024) after multivariate analysis. As T stage increased, mNND decreased between CD8+T/CD4+T subsets. Trafficking of CD8+Ts, but not CD4+Ts, into the IM appeared to be impeded by CMVs, as dysfunctional CD8+Ts in the IM were associated with CMVs. Tumour-proximal CD8+Ts were also negatively associated with CAFs, in both the TC and IM, suggesting a further CAF barrier preventing T-cells from accessing a tumour [70].
In comparison to previously considering all CD8+Ts together, studies such as those above clearly show the value of MAB spatial dissection of this cellular compartment in detecting subsets with divergent functions [71]. This is likely to enable prognostic and predictive tools to be refined, and may enable the development of more personalised anticancer agents. While CD8+Ts have historically been synonymous with ‘cytotoxic’ T-cells, their roles in the TME are shown to be far less straightforward.

2.4. Other Multiplexed Antibody-Based Studies

An IMC-based analysis of resection specimens from 12 patients with LUSC identified a novel population of CD3-CD4+FoxP3+CD25-CD127- cells in both tumour and adjacent regions of 10 patients, which were also TNF-α-positive and IFN-γ-negative. A pro-inflammatory function, divergent from that of Treg cells, was proposed in view of their TNF-α production, and negativity for CD127 also indicated they were distinct from innate lymphoid cells [72]. A CD3-CD4+CD127+ population was previously identified in autoimmune diseases such as rheumatoid arthritis and psoriasis; despite its T-cell lineage, this was activated by innate signals such as IL-7, which can downregulate CD127 expression in CD3-CD4+ cells [73,74].
A DSP-based study of a TMA formed from 33 patients’ surgically resected NSCLC tissue focused on leucocyte populations in the stroma, tumour or tertiary lymphoid structures (TLS) [75]. Versus stroma, intratumoural lymphocytes expressed higher levels of multiple molecules including PD-L2, CTLA-4 and FoxP3, indicating active immune suppression. In the stroma, fibroblast activation markers were observed, as well as significantly higher VISTA and CD27 expression versus within the tumour. Actively proliferating T- and B-cells were observed more frequently in the TLS versus stroma, with increased CD3, CD20, CD45, beta-2-microglobulin, CD11c, CD40, ICOS and Ki-67. Shorter distance from ROI to tumour was associated with increased expression of immunosuppressive molecules. Expression of co-stimulatory CD27 decreased with proximity to the tumour but was significantly expressed in stromal regions, and a CD27 agonist such as varlilumab was suggested by the authors as a potential means to exploit this. A strong correlation was observed between expression of ARG-1 and CD66b. Given prior observations of ARG-1 production by TANs and ARG-1 blockade reducing tumour growth in an animal model of NSCLC, the authors suggested that tumours with highly frequent granulocytes in either tumour or stroma could be targeted with ARG-1-blocking therapy [75,76,77].
A recent paper by Parra et al. employed 5 mIF panels in parallel, with 6–7 markers per panel, to evaluate TMA sections from 225 patients with resected stage I-III NSCLC [78]. Overall, LUSC samples contained a greater proportion of immune checkpoint-expressing cells than in LUAD, and higher densities of B7-H3 and B7-H4 were noted in LUSC versus LUAD (p < 0.001), whereas LUAD samples contained a higher density of IDO-1 (p = 0.015). Regarding CD3+ cellular densities, among LUAD higher figures for CD8+, CD45RO+, CD8+CD45RO+, IDO-1+ and TIM-3+ were noted. Higher densities of myeloid DCs and CD66b+ TANs were seen among LUSC samples. In the spatial analysis, tumour cells proximal to T-cells expressed more immune checkpoint molecules, while tumour cells closer to CD68+ macrophages and PD-L1+ macrophages were more likely to be PD-L1-. In LUAD, multiple T-cell subsets (CD8+, CD45RO+, CD8+CD45RO+ and CD4+FoxP3+) showed closer proximity to tumour cells than in LUSC, which exhibited closer distances from tumour cells to T-cells expressing LAG-3, OX40 and TIM-3, and B-cells expressing OX40 and LAG-3. Median distance from tumour cells was cross-referenced with the distribution of immune cell subsets within samples (heterogeneous or clustered). Tumours with heterogeneously distributed immune cells and long distance to tumour cells contained higher densities of both effector and regulatory cells and were considered immune-hot. Meanwhile, tumours featuring clustered immune cells with long distances to tumour cells featured lower immune cell densities and were aligned with an immune-cold/excluded phenotype. In addition to associating spatial features with a variety of clinico-pathological features, significant associations with OS were made. Specifically, after multivariate analysis longer OS was found for close proximity to tumour cells of CD3+, CD3+CD8+GZMB+, CD3+CD8+CD45RO+, CD3+TIM-3+, CD3+ICOS+, CD66b+CD11b+ and CD20+ cells; longer OS was also seen for longer distance to tumour cells of CD3+CD8-FoxP3+, CD3+CD45RO+FoxP3+, CD3+CD8+PD-L1+, CD3+OX40+, LAG-3+ and CD68+PD-L1+ cells [78].

3. Discussion

As demonstrated above, a number of potential biomarkers and signatures have been identified pertaining to prognosis, risk of recurrence and prediction of benefit from ICB. While single markers could conceivably be incorporated into existing pathology workflows, other signatures may require MAB equipment for clinical application similar to that used for discovery; this may be due to a large number of included markers, or the integration of spatial information into the signature. Slow sample processing times and high cost currently represent barriers to clinical application of MAB technologies, though the opportunities and challenges of clinically implementing mIF technology have been reviewed elsewhere [79]. Prospective clinical validation of such signatures, while challenging, is likely to be crucial in evidencing the clinical benefits of MAB technologies given the potential cost of such a transition. Artificial intelligence tools have the capacity to effectively leverage the large quantities of data produced using MAB technologies [59], and are likely to feature increasingly in studies thereof. The progressive expansion and validation of larger marker panels, and the expansion of functionality within commercially available image analysis software, are also likely to expand the utility and scope of MAB-based research with time [33,38].
As illustrated in Table 2, the studies presented herein describe a range of results with relatively little replication of key findings between studies. There are many sources of potential variation between studies. Patient and disease characteristics of the studied population may vary regarding histological type and subtype, treatment status and disease stage. Sources of potential variation related to data acquisition include selection of multiplexing method, protein marker panel and antibody clones. Some studies elect to utilise multiple smaller antibody panels while others use a single larger panel, influencing downstream analysis. Once images are acquired, the process of quality control (QC) and setting positivity thresholds for individual markers is not standardised, and multiplexing platforms show a degree of variation in staining between samples. As demonstrated herein, there is wide variation in the process of data analysis, and particularly in spatial analysis. The quantity of cell types and distances to be analysed makes adjustment for multiple comparisons challenging and there is variation in how this is addressed. While validation sets are valuable for confirming findings of apparent statistical significance, having both discovery and validation sets undergo the same QC process, which is distinct from other studies, may produce discordant results between studies.
An inherent limitation of MAB methods, especially utilising TMAs, is tumour heterogeneity and the possibility of non-representative sampling. Where this has been studied in NSCLC, the results have been largely reassuring; in one study, 60 patients who had two TMA cores taken per patient showed 91.7% agreement in predictive outputs between their respective cores [59]. Given many MAB technologies can require the prohibitive amounts of time and expense of analysing large numbers of full biopsy sections, use of TMAs seems a reasonable compromise to allow the study of large numbers of patients. Many MAB studies within NSCLC have focused on earlier-stage, single-site disease; as such, samples are likely to be more representative of the cancer as a whole, given overall tumour burden is lower and heterogeneity between metastases does not have to be contended with. While such issues are inherent in any analysis based on solid biopsy material, MAB technologies may be more limited in the study of metastatic disease for this reason, assuming only one site is sampled.
The authors also note that some recently developed methods of performing spatial analysis fall outside the scope of this review. Methods such as in situ RNAseq [80] and matrix-assisted laser desorption/ionization time-of-flight mass spectrometry [81] offer alternative means to gain spatial information regarding the TME, and indeed have been utilised in the study of NSCLC [82,83]. Spatial proteomics and transcriptomics can provide complementary information, with the latter enabling more accurate cell clustering and enhancing discovery potential, particularly in the case of in situ whole-trancriptome RNAseq where discovery is not limited to positivity with regard to markers from a pre-determined panel [84]. While some included studies have used complementary transcriptomic methods to validate or further investigate findings from MAB technologies, the integration of spatial proteomics and transcriptomics is likely to represent the next step in the molecular characterisation of cell types and states in the TME [71,84].

4. Conclusions

Multiplexed antibody-based spatial technologies continue to demonstrate their utility as a novel research tool. Moreover, techniques for analysing the data generated using these techniques continue to advance. Beyond tools for prognostication and prediction of benefit from existing standard-of-care treatments, MAB spatial technologies offer the possibility of identifying TME-based indications for additional therapeutics to overcome treatment resistance. Separation of bystander and driver events, and identifying redundancy, remain challenging but MAB technologies represent a powerful tool for deepening our understanding of the TME. In time, this may enable more rational stratification of patients into appropriate clinical trials, identifying therapies which may only benefit patients with a certain TME status.

Author Contributions

Study concepts and design, S.G. and C.H.O. Data acquisition, S.G. Data analysis and interpretation, S.G. and C.H.O. Manuscript preparation, S.G. Manuscript review, C.H.O. Manuscript editing, S.G. and C.H.O. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no dedicated external funding. S.G. is a recipient of a National Institute for Health Research-funded Academic Clinical Fellowship.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sung, H.; Ferlay, J.; Siegel, R.L.; Laversanne, M.; Soerjomataram, I.; Jemal, A.; Bray, F. Global Cancer Statistics 2020: GLOBOCAN Estimates of Incidence and Mortality Worldwide for 36 Cancers in 185 Countries. CA Cancer J. Clin. 2021, 71, 209–249. [Google Scholar] [CrossRef] [PubMed]
  2. Siegel, R.; Naishadham, D.; Jemal, A. Cancer Statistics, 2013. CA Cancer J. Clin. 2013, 63, 11–30. [Google Scholar] [CrossRef] [PubMed]
  3. Ganti, A.K.; Klein, A.B.; Cotarla, I.; Seal, B.; Chou, E. Update of Incidence, Prevalence, Survival, and Initial Treatment in Patients with Non-Small Cell Lung Cancer in the US. JAMA Oncol. 2021, 7, 1824–1832. [Google Scholar] [CrossRef] [PubMed]
  4. Uramoto, H.; Tanaka, F. Recurrence after Surgery in Patients with NSCLC. Transl. Lung Cancer Res. 2014, 3, 242–249. [Google Scholar] [CrossRef]
  5. Hansen, R.N.; Zhang, Y.; Seal, B.; Ryan, K.; Yong, C.; Darilay, A.; Ramsey, S.D. Long-Term Survival Trends in Patients with Unresectable Stage III Non-Small Cell Lung Cancer Receiving Chemotherapy and Radiation Therapy: A SEER Cancer Registry Analysis. BMC Cancer 2020, 20, 276. [Google Scholar] [CrossRef]
  6. Horinouchi, H.; Nogami, N.; Saka, H.; Nishio, M.; Tokito, T.; Takahashi, T.; Kasahara, K.; Hattori, Y.; Ichihara, E.; Adachi, N.; et al. Pembrolizumab plus Pemetrexed-Platinum for Metastatic Nonsquamous Non-Small-Cell Lung Cancer: KEYNOTE-189 Japan Study. Cancer Sci. 2021, 112, 3255–3265. [Google Scholar] [CrossRef]
  7. Sul, J.; Blumenthal, G.M.; Jiang, X.; He, K.; Keegan, P.; Pazdur, R. FDA Approval Summary: Pembrolizumab for the Treatment of Patients with Metastatic Non-Small Cell Lung Cancer Whose Tumors Express Programmed Death-Ligand 1. Oncologist 2016, 21, 643–650. [Google Scholar] [CrossRef]
  8. Gandhi, L.; Rodríguez-Abreu, D.; Gadgeel, S.; Esteban, E.; Felip, E.; De Angelis, F.; Domine, M.; Clingan, P.; Hochmair, M.J.; Powell, S.F.; et al. Pembrolizumab plus Chemotherapy in Metastatic Non-Small-Cell Lung Cancer. N. Engl. J. Med. 2018, 378, 2078–2092. [Google Scholar] [CrossRef]
  9. O’Brien, M.; Paz-Ares, L.; Marreaud, S.; Dafni, U.; Oselin, K.; Havel, L.; Esteban, E.; Isla, D.; Martinez-Marti, A.; Faehling, M.; et al. Pembrolizumab versus Placebo as Adjuvant Therapy for Completely Resected Stage IB-IIIA Non-Small-Cell Lung Cancer (PEARLS/KEYNOTE-091): An Interim Analysis of a Randomised, Triple-Blind, Phase 3 Trial. Lancet Oncol. 2022, 23, 1274–1286. [Google Scholar] [CrossRef]
  10. Akinboro, O.; Drezner, N.; Amatya, A.; Runyan, J.; Fourie-Zirkelbach, J.; Zhao, M.; Bi, Y.; Korsah, K.; Mixter, B.; Tang, S.; et al. US Food and Drug Administration Approval Summary: Nivolumab Plus Platinum-Doublet Chemotherapy for the Neoadjuvant Treatment of Patients with Resectable Non-Small-Cell Lung Cancer. J. Clin. Oncol. 2023, 41, 3249–3259. [Google Scholar] [CrossRef]
  11. Conroy, M.; Naidoo, J. Immune-Related Adverse Events and the Balancing Act of Immunotherapy. Nat. Commun. 2022, 13, 392. [Google Scholar] [CrossRef] [PubMed]
  12. Li, H.; van der Merwe, P.A.; Sivakumar, S. Biomarkers of Response to PD-1 Pathway Blockade. Br. J. Cancer 2022, 126, 1663–1675. [Google Scholar] [CrossRef] [PubMed]
  13. Hong, L.; Aminu, M.; Li, S.; Lu, X.; Petranovic, M.; Saad, M.B.; Chen, P.; Qin, K.; Varghese, S.; Rinsurongkawong, W.; et al. Efficacy and Clinicogenomic Correlates of Response to Immune Checkpoint Inhibitors Alone or with Chemotherapy in Non-Small Cell Lung Cancer. Nat. Commun. 2023, 14, 695. [Google Scholar] [CrossRef] [PubMed]
  14. Prelaj, A.; Tay, R.; Ferrara, R.; Chaput, N.; Besse, B.; Califano, R. Predictive Biomarkers of Response for Immune Checkpoint Inhibitors in Non-Small-Cell Lung Cancer. Eur. J. Cancer 2019, 106, 144–159. [Google Scholar] [CrossRef] [PubMed]
  15. Wang, L.; Zhang, H.; Pan, C.; Yi, J.; Cui, X.; Li, N.; Wang, J.; Gao, Z.; Wu, D.; Chen, J.; et al. Predicting Durable Responses to Immune Checkpoint Inhibitors in Non-Small-Cell Lung Cancer Using a Multi-Feature Model. Front. Immunol. 2022, 13, 829634. [Google Scholar] [CrossRef]
  16. Hanahan, D.; Weinberg, R.A. Hallmarks of Cancer: The next Generation. Cell 2011, 144, 646–674. [Google Scholar] [CrossRef]
  17. Chow, A.; Perica, K.; Klebanoff, C.A.; Wolchok, J.D. Clinical Implications of T Cell Exhaustion for Cancer Immunotherapy. Nat. Rev. Clin. Oncol. 2022, 19, 775–790. [Google Scholar] [CrossRef]
  18. Sahai, E.; Astsaturov, I.; Cukierman, E.; DeNardo, D.G.; Egeblad, M.; Evans, R.M.; Fearon, D.; Greten, F.R.; Hingorani, S.R.; Hunter, T.; et al. A Framework for Advancing Our Understanding of Cancer-Associated Fibroblasts. Nat. Rev. Cancer 2020, 20, 174–186. [Google Scholar] [CrossRef]
  19. Li, K.; Shi, H.; Zhang, B.; Ou, X.; Ma, Q.; Chen, Y.; Shu, P.; Li, D.; Wang, Y. Myeloid-Derived Suppressor Cells as Immunosuppressive Regulators and Therapeutic Targets in Cancer. Signal Transduct. Target. Ther. 2021, 6, 362. [Google Scholar] [CrossRef]
  20. Yang, M.; McKay, D.; Pollard, J.W.; Lewis, C.E. Diverse Functions of Macrophages in Different Tumor Microenvironments. Cancer Res. 2018, 78, 5492–5503. [Google Scholar] [CrossRef]
  21. Etxeberria, I.; Olivera, I.; Bolaños, E.; Cirella, A.; Teijeira, Á.; Berraondo, P.; Melero, I. Engineering Bionic T Cells: Signal 1, Signal 2, Signal 3, Reprogramming and the Removal of Inhibitory Mechanisms. Cell. Mol. Immunol. 2020, 17, 576–586. [Google Scholar] [CrossRef]
  22. Liu, T.; Zhou, L.; Li, D.; Andl, T.; Zhang, Y. Cancer-Associated Fibroblasts Build and Secure the Tumor Microenvironment. Front. Cell Dev. Biol. 2019, 7, 60. [Google Scholar] [CrossRef]
  23. Joyce, J.A.; Fearon, D.T. T Cell Exclusion, Immune Privilege, and the Tumor Microenvironment. Science 2015, 348, 74–80. [Google Scholar] [CrossRef] [PubMed]
  24. Wolf, Y.; Anderson, A.C.; Kuchroo, V.K. TIM3 Comes of Age as an Inhibitory Receptor. Nat. Rev. Immunol. 2019, 20, 173–185. [Google Scholar] [CrossRef] [PubMed]
  25. Vinay, D.S.; Ryan, E.P.; Pawelec, G.; Talib, W.H.; Stagg, J.; Elkord, E.; Lichtor, T.; Decker, W.K.; Whelan, R.L.; Kumara, H.M.C.S.; et al. Immune Evasion in Cancer: Mechanistic Basis and Therapeutic Strategies. Semin. Cancer Biol. 2015, 35, S185–S198. [Google Scholar] [CrossRef] [PubMed]
  26. Capece, D.; Verzella, D.; Fischietti, M.; Zazzeroni, F.; Alesse, E. Targeting Costimulatory Molecules to Improve Antitumor Immunity. J. Biomed. Biotechnol. 2012, 2012, 926321. [Google Scholar] [CrossRef] [PubMed]
  27. Gocher, A.M.; Workman, C.J.; Vignali, D.A.A. Interferon-γ: Teammate or Opponent in the Tumour Microenvironment? Nat. Rev. Immunol. 2022, 22, 158–172. [Google Scholar] [CrossRef]
  28. Curtsinger, J.M.; Lins, D.C.; Mescher, M.F. Signal 3 Determines Tolerance versus Full Activation of Naive CD8 T Cells: Dissociating Proliferation and Development of Effector Function. J. Exp. Med. 2003, 197, 1141–1151. [Google Scholar] [CrossRef]
  29. Chung, J.Y.-F.; Chan, M.K.-K.; Li, J.S.-F.; Chan, A.S.-W.; Tang, P.C.-T.; Leung, K.-T.; To, K.-F.; Lan, H.-Y.; Tang, P.M.-K. TGF-β Signaling: From Tissue Fibrosis to Tumor Microenvironment. Int. J. Mol. Sci. 2021, 22, 7575. [Google Scholar] [CrossRef]
  30. Crespo, J.; Sun, H.; Welling, T.H.; Tian, Z.; Zou, W. T Cell Anergy, Exhaustion, Senescence, and Stemness in the Tumor Microenvironment. Curr. Opin. Immunol. 2013, 25, 214–221. [Google Scholar] [CrossRef]
  31. Stack, E.C.; Wang, C.; Roman, K.A.; Hoyt, C.C. Multiplexed Immunohistochemistry, Imaging, and Quantitation: A Review, with an Assessment of Tyramide Signal Amplification, Multispectral Imaging and Multiplex Analysis. Methods 2014, 70, 46–58. [Google Scholar] [CrossRef] [PubMed]
  32. Haque, A.; Engel, J.; Teichmann, S.A.; Lönnberg, T. A Practical Guide to Single-Cell RNA-Sequencing for Biomedical Research and Clinical Applications. Genome Med. 2017, 9, 75. [Google Scholar] [CrossRef] [PubMed]
  33. Galon, J.; Bruni, D. Approaches to Treat Immune Hot, Altered and Cold Tumours with Combination Immunotherapies. Nat. Rev. Drug Discov. 2019, 18, 197–218. [Google Scholar] [CrossRef] [PubMed]
  34. Angell, H.; Galon, J. From the Immune Contexture to the Immunoscore: The Role of Prognostic and Predictive Immune Markers in Cancer. Curr. Opin. Immunol. 2013, 25, 261–267. [Google Scholar] [CrossRef] [PubMed]
  35. Mlecnik, B.; Tosolini, M.; Kirilovsky, A.; Berger, A.; Bindea, G.; Meatchi, T.; Bruneval, P.; Trajanoski, Z.; Frid-man, W.H.; Pagès, F.; et al. Histopathologic-Based Prognostic Factors of Colorectal Cancers Are Associated with the State of the Local Immune Reaction. J. Clin. Oncol. 2011, 29, 610–618. [Google Scholar] [CrossRef]
  36. Argilés, G.; Tabernero, J.; Labianca, R.; Hochhauser, D.; Salazar, R.; Iveson, T.; Laurent-Puig, P.; Quirke, P.; Yoshino, T.; Taieb, J.; et al. Localised Colon Cancer: ESMO Clinical Practice Guidelines for Diagnosis, Treatment and Follow-Up. Ann. Oncol. 2020, 31, 1291–1305. [Google Scholar] [CrossRef]
  37. Corredor, G.; Wang, X.; Zhou, Y.; Lu, C.; Fu, P.; Syrigos, K.; Rimm, D.L.; Yang, M.; Romero, E.; Schalper, K.A.; et al. Spatial Architecture and Arrangement of Tumor-Infiltrating Lymphocytes for Predicting Likelihood of Recurrence in Early-Stage Non–Small Cell Lung Cancer. Clin. Cancer Res. 2019, 25, 1526–1534. [Google Scholar] [CrossRef]
  38. Guo, H.; Diao, L.; Zhou, X.; Chen, J.-N.; Zhou, Y.; Fang, Q.; He, Y.; Dziadziuszko, R.; Zhou, C.; Hirsch, F.R. Artificial Intelligence-Based Analysis for Immunohistochemistry Staining of Immune Checkpoints to Predict Resected Non-Small Cell Lung Cancer Survival and Relapse. Transl. Lung Cancer Res. 2021, 10, 2452–2474. [Google Scholar] [CrossRef]
  39. Fonseca, V.R.; Ribeiro, F.; Graca, L. T Follicular Regulatory (Tfr) Cells: Dissecting the Complexity of Tfr-Cell Compartments. Immunol. Rev. 2019, 288, 112–127. [Google Scholar] [CrossRef]
  40. Czekay, R.-P.; Cheon, D.-J.; Samarakoon, R.; Kutz, S.M.; Higgins, P.J. Cancer-Associated Fibroblasts: Mechanisms of Tumor Progression and Novel Therapeutic Targets. Cancers 2022, 14, 1231. [Google Scholar] [CrossRef]
  41. Kok, L.; Masopust, D.; Schumacher, T.N. The Precursors of CD8+ Tissue Resident Memory T Cells: From Lymphoid Organs to Infected Tissues. Nat. Rev. Immunol. 2022, 22, 283–293. [Google Scholar] [CrossRef] [PubMed]
  42. Rojas, F.; Hernandez, S.; Lazcano, R.; Laberiano-Fernandez, C.; Parra, E.R. Multiplex Immunofluorescence and the Digital Image Analysis Workflow for Evaluation of the Tumor Immune Environment in Translational Research. Front. Oncol. 2022, 12, 889886. [Google Scholar] [CrossRef] [PubMed]
  43. Wilson, C.M.; Ospina, O.E.; Townsend, M.K.; Nguyen, J.; Moran Segura, C.; Schildkraut, J.M.; Tworoger, S.S.; Peres, L.C.; Fridley, B.L. Challenges and Opportunities in the Statistical Analysis of Multiplex Immunofluorescence Data. Cancers 2021, 13, 3031. [Google Scholar] [CrossRef]
  44. Hickey, J.W.; Neumann, E.K.; Radtke, A.J.; Camarillo, J.M.; Beuschel, R.T.; Albanese, A.; McDonough, E.; Hat-ler, J.; Wiblin, A.E.; Fisher, J.; et al. Spatial Mapping of Protein Composition and Tissue Organization: A Primer for Multiplexed Antibody-Based Imaging. Nat. Methods 2022, 19, 284–295. [Google Scholar] [CrossRef]
  45. Taube, J.M.; Akturk, G.; Angelo, M.; Engle, E.L.; Gnjatic, S.; Greenbaum, S.; Greenwald, N.F.; Hedvat, C.V.; Hollmann, T.J.; Juco, J.; et al. The Society for Immunotherapy of Cancer Statement on Best Practices for Multiplex Immunohistochemistry (IHC) and Immunofluorescence (IF) Staining and Validation. J. Immunother. Cancer 2020, 8, e000155. [Google Scholar] [CrossRef] [PubMed]
  46. Tan, W.C.C.; Nerurkar, S.N.; Cai, H.Y.; Ng, H.H.M.; Wu, D.; Wee, Y.T.F.; Lim, J.C.T.; Yeong, J.; Lim, T.K.H. Overview of Multiplex Immunohistochemistry/Immunofluorescence Techniques in the Era of Cancer Immunotherapy. Cancer Commun. 2020, 40, 135–153. [Google Scholar] [CrossRef]
  47. Jhaveri, N.; Nikulina, N.; Zong, H.; Ma, N.; Cheikh, B.B.; Pratapa, A.; Kassim, Y.; Anand, B.; Prater, M.; Basu, S.; et al. Abstract 3877: Deep Ultrahigh-Plex Spatial Phenotyping of Human Cancer Tissues. Cancer Res. 2022, 82, 3877. [Google Scholar] [CrossRef]
  48. Hernandez, S.; Lazcano, R.; Serrano, A.; Powell, S.; Kostousov, L.; Mehta, J.; Khan, K.; Lu, W.; Solis, L.M. Challenges and Opportunities for Immunoprofiling Using a Spatial High-Plex Technology: The NanoString GeoMx® Digital Spatial Profiler. Front. Oncol. 2022, 12, 890410. [Google Scholar] [CrossRef]
  49. Marcus, L.; Fashoyin-Aje, L.A.; Donoghue, M.; Yuan, M.; Rodriguez, L.; Gallagher, P.S.; Philip, R.; Ghosh, S.; Theoret, M.R.; Beaver, J.A.; et al. FDA Approval Summary: Pembrolizumab for the Treatment of Tumor Mutational Burden-High Solid Tumors. Clin. Cancer Res. 2021, 27, 4685–4689. [Google Scholar] [CrossRef]
  50. Twomey, J.D.; Zhang, B. Cancer Immunotherapy Update: FDA-Approved Checkpoint Inhibitors and Com-panion Diagnostics. AAPS J. 2021, 23, 39. [Google Scholar] [CrossRef]
  51. Lu, S.; Stein, J.E.; Rimm, D.L.; Wang, D.W.; Bell, J.M.; Johnson, D.B.; Sosman, J.A.; Schalper, K.A.; Anders, R.A.; Wang, H.; et al. Comparison of Biomarker Modalities for Predicting Response to PD-1/PD-L1 Checkpoint Blockade: A Systematic Review and Meta-Analysis. JAMA Oncol. 2019, 5, 1195–1204. [Google Scholar] [CrossRef]
  52. Barua, S.; Fang, P.; Sharma, A.; Fujimoto, J.; Wistuba, I.; Rao, A.U.K.; Lin, S.H. Spatial Interaction of Tumor Cells and Regulatory T Cells Correlates with Survival in Non-Small Cell Lung Cancer. Lung Cancer 2018, 117, 73–79. [Google Scholar] [CrossRef]
  53. Monkman, J.; Taheri, T.; Ebrahimi Warkiani, M.; O’Leary, C.; Ladwa, R.; Richard, D.; O’Byrne, K.; Kulasinghe, A. High-Plex and High-Throughput Digital Spatial Profiling of Non-Small-Cell Lung Cancer (NSCLC). Cancers 2020, 12, 3551. [Google Scholar] [CrossRef]
  54. Lin, T.C.; Yang, C.H.; Cheng, L.H.; Chang, W.T.; Lin, Y.R.; Cheng, H.C. Fibronectin in Cancer: Friend or Foe. Cells 2019, 9, 27. [Google Scholar] [CrossRef]
  55. Lee, Y.R.; Chen, M.; Pandolfi, P.P. The Functions and Regulation of the PTEN Tumour Suppressor: New Modes and Prospects. Nat. Rev. Mol. Cell Biol. 2018, 19, 547–562. [Google Scholar] [CrossRef]
  56. Kumar, V.; Patel, S.; Tcyganov, E.; Gabrilovich, D.I. The Nature of Myeloid-Derived Suppressor Cells in the Tumor Microenvironment. Trends Immunol. 2016, 37, 208–220. [Google Scholar] [CrossRef]
  57. Keane, C.; Law, S.C.; Gould, C.; Birch, S.; Sabdia, M.B.; de Long, L.M.; Thillaiyampalam, G.; Abro, E.; Tobin, J.W.; Tan, X.; et al. LAG3: A Novel Immune Checkpoint Expressed by Multiple Lymphocyte Subsets in Diffuse Large B-Cell Lymphoma. Blood Adv. 2020, 4, 1367–1377. [Google Scholar] [CrossRef] [PubMed]
  58. Backman, M.; Strell, C.; Lindberg, A.; Mattsson, J.S.M.; Elfving, H.; Brunnström, H.; O’Reilly, A.; Bosic, M.; Gulyas, M.; Isaksson, J.; et al. Spatial Immunophenotyping of the Tumour Microenvironment in Non-Small Cell Lung Cancer. Eur. J. Cancer 2023, 185, 40–52. [Google Scholar] [CrossRef] [PubMed]
  59. Sorin, M.; Rezanejad, M.; Karimi, E.; Fiset, B.; Desharnais, L.; Perus, L.J.M.; Milette, S.; Yu, M.W.; Maritan, S.M.; Doré, S.; et al. Single-Cell Spatial Landscapes of the Lung Tumour Immune Microenvironment. Nature 2023, 614, 548–554. [Google Scholar] [CrossRef] [PubMed]
  60. Saini, M.; Szczerba, B.M.; Aceto, N. Circulating Tumor Cell-Neutrophil Tango along the Metastatic Process. Cancer Res. 2019, 79, 6067–6073. [Google Scholar] [CrossRef] [PubMed]
  61. Zugazagoitia, J.; Gupta, S.; Liu, Y.; Fuhrman, K.; Gettinger, S.; Herbst, R.S.; Schalper, K.A.; Rimm, D.L. Biomarkers Associated with Beneficial PD-1 Checkpoint Blockade in Non-Small Cell Lung Cancer (NSCLC) Identified Using High-Plex Digital Spatial Profiling. Clin. Cancer Res. 2020, 26, 4360–4368. [Google Scholar] [CrossRef] [PubMed]
  62. Aldea, M.; Benitez, J.C.; Mezquita, L. The Lung Immune Prognostic Index (LIPI) Stratifies Prognostic Groups in Advanced Non-Small Cell Lung Cancer (NSCLC) Patients. Transl. Lung Cancer Res. 2020, 9, 967–970. [Google Scholar] [CrossRef] [PubMed]
  63. Moutafi, M.; Martinez-Morilla, S.; Divakar, P.; Vathiotis, I.; Gavrielatou, N.; Aung, T.N.; Yaghoobi, V.; Fernandez, A.I.; Zugazaoitia, J.; Herbst, R.S.; et al. Discovery of Biomarkers of Resistance to Immune Check-point Blockade in NSCLC Using High-Plex Digital Spatial Profiling. J. Thorac. Oncol. 2022, 17, 991–1001. [Google Scholar] [CrossRef] [PubMed]
  64. Moutafi, M.K.; Molero, M.; Martinez Morilla, S.; Baena, J.; Vathiotis, I.A.; Gavrielatou, N.; Castro-Labrador, L.; De Garibay, G.R.; Adradas, V.; Orive, D.; et al. Spatially Resolved Proteomic Profiling Identifies Tumor Cell CD44 as a Biomarker Associated with Sensitivity to PD-1 Axis Blockade in Advanced Non-Small-Cell Lung Cancer. J. Immunother. Cancer 2022, 10, e004757. [Google Scholar] [CrossRef]
  65. Kong, T.; Ahn, R.; Yang, K.; Zhu, X.; Fu, Z.; Morin, G.; Bramley, R.; Cliffe, N.C.; Xue, Y.; Kuasne, H.; et al. CD44 Promotes PD-L1 Expression and Its Tumor-Intrinsic Function in Breast and Lung Cancers. Cancer Res. 2020, 80, 444–457. [Google Scholar] [CrossRef]
  66. Song, X.; Xiong, A.; Wu, F.; Li, X.; Wang, J.; Jiang, T.; Chen, P.; Zhang, X.; Zhao, Z.; Liu, H.; et al. Spatial Multi-Omics Revealed the Impact of Tumor Ecosystem Heterogeneity on Immunotherapy Efficacy in Patients with Advanced Non-Small Cell Lung Cancer Treated with Bispecific Antibody. J. Immunother. Cancer 2023, 11, e006234. [Google Scholar] [CrossRef]
  67. Sandström Gerdtsson, A.; Knulst, M.; Botling, J.; Mezheyeuski, A.; Micke, P.; Ek, S. Phenotypic Characterization of Spatial Immune Infiltration Niches in Non-Small Cell Lung Cancer. Oncoimmunology 2023, 12, 2206725. [Google Scholar] [CrossRef]
  68. Rotondo, R.; Barisione, G.; Mastracci, L.; Grossi, F.; Orengo, A.M.; Costa, R.; Truini, M.; Fabbi, M.; Ferrini, S.; Barbieri, O. IL-8 Induces Exocytosis of Arginase 1 by Neutrophil Polymorphonuclears in Nonsmall Cell Lung Cancer. Int. J. Cancer 2009, 125, 887–893. [Google Scholar] [CrossRef]
  69. Miret, J.J.; Kirschmeier, P.; Koyama, S.; Zhu, M.; Li, Y.Y.; Naito, Y.; Wu, M.; Malladi, V.S.; Huang, W.; Walker, W.; et al. Suppression of Myeloid Cell Arginase Activity Leads to Therapeutic Response in a NSCLC Mouse Model by Activating Anti-Tumor Immunity. J. Immunother. Cancer 2019, 7, 32. [Google Scholar] [CrossRef]
  70. Raskov, H.; Orhan, A.; Christensen, J.P.; Gögenur, I. Cytotoxic CD8+ T Cells in Cancer and Cancer Immuno-therapy. Br. J. Cancer 2021, 124, 359–367. [Google Scholar] [CrossRef]
  71. Sanmamed, M.F.; Nie, X.; Desai, S.S.; Villaroel-Espindola, F.; Badri, T.; Zhao, D.; Kim, A.W.; Ji, L.; Zhang, T.; Quinlan, E.; et al. A Burned-Out CD8+ T-Cell Subset Expands in the Tumor Microenvironment and Curbs Cancer Immunotherapy. Cancer Discov. 2021, 11, 1700–1715. [Google Scholar] [CrossRef] [PubMed]
  72. Zheng, Y.; Han, L.; Chen, Z.; Li, Y.; Zhou, B.; Hu, R.; Chen, S.; Xiao, H.; Ma, Y.; Xie, G.; et al. PD-L1+CD8+ T Cells Enrichment in Lung Cancer Exerted Regulatory Function and Tumor-Promoting Tolerance. iScience 2022, 25, 103785. [Google Scholar] [CrossRef] [PubMed]
  73. Yang, G.; Cai, S.; Hu, M.; Li, C.; Yang, L.; Zhang, W.; Sun, J.; Sun, F.; Xing, L.; Sun, X. Functional Status and Spatial Architecture of Tumor-Infiltrating CD8+ T Cells Are Associated with Lymph Node Metastases in Non-Small Cell Lung Cancer. J. Transl. Med. 2023, 21, 320. [Google Scholar] [CrossRef] [PubMed]
  74. Chen, B.; Li, H.; Liu, C.; Xiang, X.; Wang, S.; Wu, A.; Shen, Y.; Li, G. Prognostic Value of the Common Tumour-Infiltrating Lymphocyte Subtypes for Patients with Non-Small Cell Lung Cancer: A Meta-Analysis. PLoS ONE 2020, 15, e0242173. [Google Scholar] [CrossRef] [PubMed]
  75. Li, R.; Lin, Y.; Wang, Y.; Wang, S.; Yang, Y.; Mu, X.; Chen, Y.; Gao, Z. Characterization of the Tumor Immune Microenvironment in Lung Squamous Cell Carcinoma Using Imaging Mass Cytometry. Front. Oncol. 2021, 11, 620989. [Google Scholar] [CrossRef] [PubMed]
  76. Bekiaris, V.; Šedý, J.R.; Rossetti, M.; Spreafico, R.; Sharma, S.; Rhode-Kurnow, A.; Ware, B.C.; Huang, N.; Macauley, M.G.; Norris, P.S.; et al. Human CD4+CD3- Innate-like T Cells Provide a Source of TNF and Lympho-toxin-Aβ and Are Elevated in Rheumatoid Arthritis. J. Immunol. 2013, 191, 4611–4618. [Google Scholar] [CrossRef] [PubMed]
  77. Guo, R.; Zhang, T.; Meng, X.; Lin, Z.; Lin, J.; Gong, Y.; Liu, X.; Yu, Y.; Zhao, G.; Ding, X.; et al. Lymphocyte Mass Cytometry Identifies a CD3-CD4+ Cell Subset with a Potential Role in Psoriasis. JCI Insight 2019, 4, e125306. [Google Scholar] [CrossRef]
  78. Parra, E.R.; Zhang, J.; Jiang, M.; Tamegnon, A.; Pandurengan, R.K.; Behrens, C.; Solis, L.; Haymaker, C.; Hey-mach, J.V.; Moran, C.; et al. Immune Cellular Patterns of Distribution Affect Outcomes of Patients with Non-Small Cell Lung Cancer. Nat. Commun. 2023, 14, 2364. [Google Scholar] [CrossRef]
  79. Wharton, K.A.; Wood, D.; Manesse, M.; Maclean, K.H.; Leiss, F.; Zuraw, A. Tissue Multiplex Analyte Detection in Anatomic Pathology—Pathways to Clinical Implementation. Front. Mol. Biosci. 2021, 8, 6725311. [Google Scholar] [CrossRef]
  80. Lee, H.; Marco Salas, S.; Gyllborg, D.; Nilsson, M. Direct RNA Targeted in Situ Sequencing for Transcriptomic Profiling in Tissue. Sci. Rep. 2022, 12, 7976. [Google Scholar] [CrossRef]
  81. Merlos Rodrigo, M.A.; Zitka, O.; Krizkova, S.; Moulick, A.; Adam, V.; Kizek, R. MALDI-TOF MS as Evolving Cancer Diagnostic Tool: A Review. J. Pharm. Biomed. Anal. 2014, 95, 245–255. [Google Scholar] [CrossRef] [PubMed]
  82. Zhang, Q.; Abdo, R.; Iosef, C.; Kaneko, T.; Cecchini, M.; Han, V.K.; Li, S.S.C. The Spatial Transcriptomic Landscape of Non-Small Cell Lung Cancer Brain Metastasis. Nat. Commun. 2022, 13, 5983. [Google Scholar] [CrossRef] [PubMed]
  83. Neumann, J.M.; Freitag, H.; Hartmann, J.S.; Niehaus, K.; Galanis, M.; Griesshammer, M.; Kellner, U.; Bednarz, H. Subtyping Non-Small Cell Lung Cancer by Histology-Guided Spatial Metabolomics. J. Cancer Res. Clin. Oncol. 2022, 148, 351–360. [Google Scholar] [CrossRef] [PubMed]
  84. Ben-Chetrit, N.; Niu, X.; Swett, A.D.; Sotelo, J.; Jiao, M.S.; Stewart, C.M.; Potenski, C.; Mielinis, P.; Roelli, P.; Stoeckius, M.; et al. Integration of whole transcriptome spatial profiling with protein markers. Nat. Biotechnol. 2023, 41, 788–793. [Google Scholar] [CrossRef]
Cancers 15 04797 g001

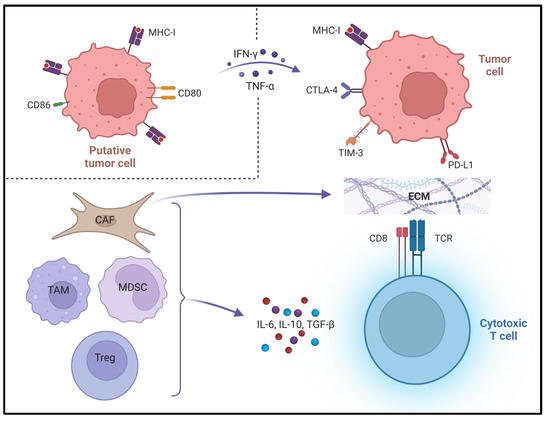

Figure 1. Compromised antigen presentation in the tumour microenvironment. Co-inhibitory and co-stimulatory molecules on cytotoxic T-cell not shown. Figure created with Biorender.com. MHC = major histocompatibility complex. CD = cluster of differentiation. IFN-γ = interferon gamma. TNF-α = tumour necrosis factor alpha. CTLA = cytotoxic T lymphocyte antigen. TIM = T-cell immunoglobulin and mucin domain-containing protein. PD-L1 = programmed death ligand 1. CAF = cancer-associated fibroblast. ECM = extracellular matrix. MDSC = myeloid-derived suppressor cell. TCR = T-cell receptor. IL = interleukin. TGF-β = transforming growth factor beta.
Figure 1. Compromised antigen presentation in the tumour microenvironment. Co-inhibitory and co-stimulatory molecules on cytotoxic T-cell not shown. Figure created with Biorender.com. MHC = major histocompatibility complex. CD = cluster of differentiation. IFN-γ = interferon gamma. TNF-α = tumour necrosis factor alpha. CTLA = cytotoxic T lymphocyte antigen. TIM = T-cell immunoglobulin and mucin domain-containing protein. PD-L1 = programmed death ligand 1. CAF = cancer-associated fibroblast. ECM = extracellular matrix. MDSC = myeloid-derived suppressor cell. TCR = T-cell receptor. IL = interleukin. TGF-β = transforming growth factor beta.
Cancers 15 04797 g001
Table 1. Expression patterns of included cell surface markers and functional classification of included secreted molecules.
Table 1. Expression patterns of included cell surface markers and functional classification of included secreted molecules.
Widely Expressed Cell Surface Markers
FASMHC-I
T-cell markers
CD3CD4CD8CD45RACD45RO
CD103CD127FoxP3LAG-3
Co-inhibitory molecules
B7-H3B7-H4CTLA-4IDO-1PD-1
PD-L1PD-L2TIM-3VISTA
Co-stimulatory molecules
CD27CD28CD40CD80CD86
ICOSOX40
M2-like macrophage markers
CD163CD168
Secreted pro-inflammatory molecules
IFN-γTNF-αGZMB
Secreted tolerance-promoting molecules
IL-6IL-10TGF-βARG-1
Other immune cell markers
CD11b (myeloid cells; NK cells)CD11c (DCs; NK cells; activated T- or B-cells)
CD25 (DCs)CD45 (pan-leucocyte)CD56 (NK cells)
CD66b (TANs)CD68 (pan-macrophage)
Other cell surface markers
CD34 (CAFs; endothelial cells)CD44 (CSCs; CAFs)
Cytokeratins (tumour cells)Ki-67 (proliferating cells)
MHC = major histocompatibility complex. CD = cluster of differentiation. FoxP3 = forkhead box P3. CTLA = cytotoxic T-lymphocyte antigen. IDO = indoleamine 2,3-dioxigenase. PD-(L)1 = programmed death (ligand) 1. TIM = T-cell immunoglobulin and mucin domain-containing protein. VISTA = V-domain Ig suppressor of T-cell activation. ICOS = Inducible co-stimulator. TAN = tumour-associated neutrophil. DC = dendritic cell. NK = natural killer. CAF = cancer-associated fibroblast. CSC = cancer stem cells. LAG = lymphocyte activation gene. IFN-γ = interferon gamma. TNF-α = tumour necrosis factor alpha. GZMB = granzyme B. TGF-β = transforming growth factor beta. ARG = arginase.
Table 2. Summary of selected clinically relevant findings from included studies.
Table 2. Summary of selected clinically relevant findings from included studies.
Reference; Multiplexing MethodSettingFindingOutcome PredictedReported Measure of Predictive Value
Barua et al. [52];
TSA		Post curative-intent resectionTumour cell/T-reg interactionsInferior OSGreater AUC of cross-G function:
HR 1.52; 95%CI 1.11–2.07, p = 0.009
CD8+T/T-reg interactionsSuperior OSGreater AUC of cross-G function:
HR 0.96; 95%CI 0.92–0.99, p = 0.042
Backman et al. [58];
mIF		Post curative-intent resectionGreater CD8+ effector/
tumour cell proximity		Superior OSStepwise Cox regression: HR 0.29, p <0.05
Greater M2 macrophage/
M1 macrophage proximity		Inferior OSStepwise Cox regression: HR 2.33, p <0.05
Greater B-cell/
CD4+ T-reg proximity		Superior OSStepwise Cox regression: HR 0.59, p <0.05
Greater CD8+ T-reg/
B-cell proximity		Superior OSStepwise Cox regression: HR 0.46, p <0.01
Sorin et al. [59];
IMC		Adenocarcinoma (mixed-stage)Frequent ‘B-cell-enriched’ CNsSuperior OSLog-rank test: p = 0.001
Frequent ‘lymphoid
enriched’ CNs		Superior OSLog-rank test: p = 0.039
Frequent ‘pan-immune
hotspot 1’ CNs		Superior OSLog-rank test: p = 0.026
Frequent ‘undefined’ CNsInferior OSLog-rank test: p = 0.006
Adenocarcinoma (stage I)Deep learning signature
lineage marker model		RecurrencePrediction score: 95.9% (vs 80.55% with clinical variables), p = 0.0343.
Validation cohort: Accuracy 94.2% (vs 75% baseline prediction score).
Zugazagoitia et al. [61];
DSP		ICI-treated
(stage III-IV)		Frequent CD56+ cells
in the leucocyte compartment		Superior PFSLog-rank test: HR 0.24, p = 0.006
Superior OSLog-rank test: HR 0.26, p = 0.014
Frequent CD4+ cells
in the leucocyte compartment		Superior PFSLog-rank test: HR 0.31, p = 0.006
Superior OSLog-rank test: HR 0.23, p = 0.0.007
Moutafi et al. [63];
DSP		ICI-treated
(advanced-stage)		Frequent CD66b+ cells
in the leucocyte compartment		Inferior OSLog-rank test: HR 1.31, p = 0.016
Moutafi et al. [64];
DSP		ICI-treated
(advanced-stage)		Frequent CD44+ cells
in the tumour compartment		Superior PFSDiscovery cohort: log-rank test HR 0.68,
p = 0.043
Validation cohort: log-rank test: HR 0.62,
p = 0.03
Song et al. [66];
DSP		ICI bispecific
Ab-treated
(advanced-stage);
validation set was ICI mAb-treated		Stromal signatureTreatment
response		Training set: AUROC 0.838
Validation set: AUROC 0.776
Superior PFSLog-rank test: HR 2.90,
p = 0.013 in validation set
Superior OSValidation set: log-rank test HR 3.44, p = 0.04
Tumour signatureTreatment responseTraining set: AUROC 0.786
Gerdtsson et al. [67];
DSP		Post curative-intent resectionHigh B7-H3 expressionSuperior OSLog-rank test: HR 0.60, p = 0.008
Sanmamed et al. [71];
IMC, mIF		Post curative-intent resectionLow proportion of
CD8+ T-cells with
‘Ebo’ phenotype		Durable clinical benefitStudent’s t-test: p < 0.001
ICI-treated
(advanced-stage)		Low proportion of
CD8+ T-cells with
‘Ebo’ phenotype		Superior OSLog-rank test: HR 2.66, 95%CI 1.17–6.01, p = 0.03
Yang et al. [73];
mIF		Post curative-intent resectionLow density of ‘pre-dysfunctional’ CD8+ T-cells
in tumour centre		Superior RFSLog-rank test: HR 0.55, 95%CI 0.34–0.89; p = 0.014
High density of
‘dysfunctional’ CD8+ T-cells
in invasive margin		Inferior RFSLog-rank test: HR 2.49, 95%CI 1.60–4.13; p = 0.012
Shorter mNND between CD8+ T-cells and T-regs
in invasive margin		Inferior RFSLog-rank test: HR 1.72, 95%CI 1.26–2.92; p = 0.024
Shorter mNND between CD8+ T-cells and CAFs
in invasive margin		Inferior RFSLog-rank test: HR 1.57, 95%CI 1.11–2.43; p = 0.024
Parra et al. [78];
mIF		Adenocarcinoma post curative-intent resectionGreater CD66b+ cell/
tumour cell proximity		Superior RFSLog-rank test: p = 0.028
Greater CD3+CD8+ cell/
tumour cell proximity		Superior RFSLog-rank test: p = 0.041
Greater CD68+ cell/
tumour cell proximity		Superior RFSLog-rank test: p = 0.021
Greater CD3+B7-H3+ cell/
tumour cell proximity		Inferior RFSLog-rank test: p = 0.022
Squamous cell
carcinoma post
curative-intent
resection		Greater CD3+PD-L1+ cell/
tumour cell proximity		Inferior RFSLog-rank test: p = 0.012
Greater CD3+ICOS+ T-cell/
tumour cell proximity		Superior RFSLog-rank test: p = 0.009
All patients in the ‘post curative-intent resection’ setting did not receive neoadjuvant therapy. Univariate associations which did not persist in multivariate analysis are not included. ‘Advanced-stage‘ refers to unresectable, recurrent or metastatic non-small cell lung cancer. TSA = tyramide signal amplification. OS = overall survival. AUC = area under curve. CD = cluster of differentiation. HR = hazard ratio. mIF = multiplex immunofluorescence. IMC = imaging mass cytometry. CN = cellular neighbourhood. DSP = digital spatial profiling. ICI = immune checkpoint inhibitor. PFS = progression-free survival. mAb = monoclonal antibody. AUROC = area under receiver operating curve. Ebo = burned out effector. RFS = recurrence-free survival. mNND = mean nearest neighbour distance. PD-L1 = programmed death ligand 1. ICOS = inducible co-stimulator.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Gray, S.; Ottensmeier, C.H. Advancing Understanding of Non-Small Cell Lung Cancer with Multiplexed Antibody-Based Spatial Imaging Technologies. Cancers 2023, 15, 4797. https://doi.org/10.3390/cancers15194797

AMA Style

Gray S, Ottensmeier CH. Advancing Understanding of Non-Small Cell Lung Cancer with Multiplexed Antibody-Based Spatial Imaging Technologies. Cancers. 2023; 15(19):4797. https://doi.org/10.3390/cancers15194797

Chicago/Turabian Style

Gray, Simon, and Christian H. Ottensmeier. 2023. "Advancing Understanding of Non-Small Cell Lung Cancer with Multiplexed Antibody-Based Spatial Imaging Technologies" Cancers 15, no. 19: 4797. https://doi.org/10.3390/cancers15194797

APA Style

Gray, S., & Ottensmeier, C. H. (2023). Advancing Understanding of Non-Small Cell Lung Cancer with Multiplexed Antibody-Based Spatial Imaging Technologies. Cancers, 15(19), 4797. https://doi.org/10.3390/cancers15194797

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
