Roles of Protein Disulfide Isomerase in Breast Cancer

Division of Cancer Research and Training, Department of Medicine, Charles R. Drew University of Medicine and Science, Los Angeles, CA 90059, USA
School of Pharmacy, American University of Health Sciences, Signal Hill, CA 90755, USA
Post Baccalaureate Pre-Medical Program, Charles R. Drew University of Medicine and Science, Los Angeles, CA 90059, USA
Urban Health Institute, Charles R. Drew University of Medicine and Science, Los Angeles, CA 90059, USA
Jonsson Comprehensive Cancer Center, David Geffen School of Medicine, The University of California at Los Angeles, Los Angeles, CA 90059, USA
Authors to whom correspondence should be addressed.
Cancers 2022, 14(3), 745;
Received: 7 December 2021 / Revised: 28 January 2022 / Accepted: 29 January 2022 / Published: 31 January 2022



Simple Summary

Triple-negative breast cancer (TNBC) is the most aggressive subtype of breast cancer and has a poor prognosis and higher recurrence rate due to ineffective therapy. Even with newly approved therapeutics, only limited TNBC patients could have benefited from the regimens. Protein disulfide isomerase (PDI) has been of great interest as a potential therapeutic target for cancers due to its impacts on tumor progression, metastasis, and clinical outcomes. Here, we discuss the roles of PDI members in breast cancers such as TNBC and the PDI inhibitors studied in breast cancer research.


Protein disulfide isomerase (PDI) is the endoplasmic reticulum (ER)’s most abundant and essential enzyme and serves as the primary catalyst for protein folding. Due to its apparent role in supporting the rapid proliferation of cancer cells, the selective blockade of PDI results in apoptosis through sustained activation of UPR pathways. The functions of PDI, especially in cancers, have been extensively studied over a decade, and recent research has explored the use of PDI inhibitors in the treatment of cancers but with focus areas of other cancers, such as brain or ovarian cancer. In this review, we discuss the roles of PDI members in breast cancer and PDI inhibitors used in breast cancer research. Additionally, a few PDI members may be suggested as potential molecular targets for highly metastatic breast cancers, such as TNBC, that require more attention in future research.

1. Introduction

Breast cancer is the most common malignant tumor and the second leading cause of cancer-related death in women. In the United States, it is estimated that about 30% of newly diagnosed cancers in women will be breast cancer, and about one in eight women (13%) will develop invasive breast cancer over their lifetime [1]. Breast cancer is genetically and epigenetically not just one disease, but a diverse group of disorders with various clinical features [2]. Most breast cancer (about 81%) is invasive cancer. It can be further classified into four subtypes: Luminal A, Luminal B, HER2-enriched, and Basal-like, depending on the presence of hormone receptors and human epidermal growth factor receptor 2 (HER2) [3]. Basal-like breast cancer is commonly known as triple-negative breast cancer (TNBC). The term “triple-negative” in TNBC comes from its unique composition of lacking three receptors; the majority of TNBC patients lack expression of the estrogen receptor (ER) and the progesterone receptor (PR) and overexpression or amplification of HER2 [4]. TNBC is a more aggressive type of breast tumor because it grows rapidly and is more likely to spread, resulting in high metastatic potential [5,6]. TNBC also has higher recurrence rates even after being treated with chemotherapy, which is the mainstay for TNBC treatment [6,7,8,9]. These features make TNBC represent over 50% of mortality in breast cancer, whereas it accounts for 15–20% of all cases [10]. In addition, health disparities have been highlighted in breast cancers, most probably due to TNBC. In detail, the aggressive TNBC subtype of breast cancer is identified more frequently in African-American women in advanced stages than Caucasian-American women [11,12,13], and African-American women exhibit the lowest survival rate of any race or ethnic group in the same cancer stage [13].

2. Recent Therapeutic Options and Molecular Targets in TNBC

TNBC is an aggressive disease with fewer specific targets due to the lack of any receptor expression. TNBCs tend to occur in younger women and have a higher potential to metastasize to distant organs or for regional relapse. In a study involving 2534 breast cancer patients, 35% of patients developed metastasis after 6 years: 15% to the brain and 14% to the lung [14]. Recently, research has expanded the targetable vulnerabilities in TNBC (Figure 1 and discussed below). Clinical efforts targeting multiple pathways, including DNA damage response, Epithelial-mesenchymal transition, (Wingless/Int-1) Wnt Signaling, Phosphatidylinositol-4,5-Bisphosphate 3-Kinase Catalytic Subunit Alpha (PIK3CA), and Androgen signaling, are currently ongoing, some of which are discussed below [15].
The standard of treatment for TNBC is neoadjuvant chemotherapy, which yields better pathologic complete response (pCR) [16]. Particularly, platinum-based chemotherapy with cisplatin or carboplatin alone or in combination has achieved pCR in a large number of patients [17]. More recently, targeted delivery with an antibody-drug conjugate has shown promising results. One such drug, Sacituzumab Govitecan, has been approved by the U.S. Food and Drug Administration (FDA) for the treatment of metastatic TNBC [18]. The drug combined cell surface human trophoblast cell-surface antigen 2 (Trop 2) antibody with a topoisomerase I inhibitor. However, TNBCs relapse at a higher rate compared to other types of breast cancer, as shown by lower Disease-Free Survival (DFS), which is associated with neoadjuvant chemotherapy and residual disease [19].
The early breakthrough treatment option is the use of Poly-ADP Ribose Polymerase (PARP) inhibitors after discovering its pathways in DNA repair. Incidentally, TNBCs have higher BRCA1 loss-of-function mutations or BRCAness, a clinical signature similar to sporadic BRCA1 or BRCA2 mutation [20,21]. Loss of BRCA or BRCAness is associated with a defective DNA damage response, since BRCA1 is involved in double-stranded DNA breaks. Thus, in the context of BRCA loss, PARP inhibition leads to the accumulation of single-strand breaks, ultimately causing cancer cell death. This is attributed to the synthetic lethality of PARP inhibition with BRCA1 loss-of-function mutations. With this rationale, the targeted groups of PARP inhibitors are the BRCA1 negative TNBC patients [22]. PARP inhibitors such as Olaparib, Niraparib, and Rucaparib are currently approved by the FDA for ovarian cancers, endometrial cancers, and castration-resistant prostate cancer. Currently, the only approved PARP inhibitor for TNBC is Talazoparib (Talzenna, Pfizer) [23]. It is approved as a single-agent therapy for the treatment of HER2-negative breast cancer with a germline BRCA1 mutation, and it shows significant improvement in progression-free survival compared to standard chemotherapy. Clinical trials of other PARP inhibitors, such as Olaparib, in combination with radiation or a monoclonal antibody Durvalumab for TNBC are underway (NCT03109080 and NCT03801369, respectively).
Besides the single target, the most recent efforts for TNBC treatment focus on the utilization of combination therapy. These include standard platinum-based therapeutics as a neoadjuvant or with mechanistically different chemotherapeutics. For example, two clinical trials have used this strategy when BRCA1/2 germline or somatic mutations are present. These trials have utilized Carboplatin with Docetaxel [24] or Doxorubicin with cyclophosphamide as opposed to neoadjuvant cisplatin (INFORM trial) [25]. Carboplatin has also been combined with an anti-microtubule agent such as Ixabepilone with a good prognosis in metastatic TNBC [26].
Other treatment efforts are on the way with different antibodies targeting mitogens such as Vascular Endothelial Growth Factor A (VEGF-A) (Bevacizumab) and small molecule inhibitors targeting kinases such as Epidermal Growth Factor Receptor (EGFR) (Erlotinib and Gefitinib) in TNBC [27,28]. More preclinical studies have shown that EGFR-targeted Chimeric Antigen Receptor (CAR) T cells could potentially be a treatment for TNBC, as these T-cells cause TNBC cell lysis [29]. TNBC has a high tumor mutation burden and thus is immunogenic. Along with that, the high levels of Program-cell Death-Ligand 1 (PD-L1) expression make TNBC a prime candidate for immune checkpoint inhibition therapy [30]. PD-L1 can cause T-Cell anergy (inactivation of T-cells as an immune tolerance mechanism), thus enabling TNBCs to evade immune detection. Therefore, checkpoint inhibitors such as Atezolizumab, an anti-PD-L1 monoclonal antibody, and a PD-1 receptor targeting humanized monoclonal antibody, such as Pembrolizumab, have been tested with neoadjuvant chemotherapy [31,32]. These combinations have shown significant improvement in overall survival. Additionally, PARP inhibitors such as Talazoparib have been tried in combination with Nab-Paclitaxel and anti-PD-L1 in BRCA mutated TNBC [33]. Additionally, the combination of PARP inhibitor Niraparib with Pembrolizumab, a Programmed death 1 (PD1) immune checkpoint inhibitor, has shown promising results in a preliminary trial with advanced and metastatic TNBC patients [34]. Other potential avenues are using inhibitors for Protein kinase B (AKT) (Ipatasertib), Aurora, and kinase inhibitor ENMD-2076, which have shown promising results [35,36]. In addition, Androgen Receptor (AR) antagonists Enzalutamide and Bicalutamide are in clinical trials in AR-positive TNBC patients. In the studies, the combinations of Enzalutamide with Paclitaxel (NCT02689427) or Bicalutamide with cyclin D1/CDK4 and CDK6 inhibitor Ribociclib (NCT03090165) are being used. AR inhibition has also been tried with a combination of PI3K inhibitor Taselisib, resulting in an overall increase in progression-free survival [37].
Multiple preclinical studies are exploring other avenues to target TNBCs to yield better outcomes. For example, the simultaneous targeting of EGFR, HER2, and HER3 with an antibody cocktail has shown tumor regression in patient-derived xenograft models and the downregulation of AKT and ERK pathways [38]. In vitro studies with Fingolimod, an inhibitor of sphingosine-1-phosphate, reduced TNBC cell growth in xenograft models [39]. Interestingly, intratumoral Toll-like receptor (TLR) 7/8 agonist 3M-052 has shown improvement in activating a tumor-immune microenvironment to protect against metastasis [40]. Other receptor tyrosine kinases, such as Insulin-like Growth Factor 1 Receptor (IGF-1R) targeting antibodies (Cixutumumab), are currently showing potential in the treatment of TNBC in pre-clinical studies with xenograft [41].
Together with the multiple preclinical studies, improved and promising outcomes from the currently approved therapeutics have also been reported. However, only limited TNBC patients could have benefited from the new therapeutic regimens. Thus, it still requires continuous effort to identify clinically relevant molecular targets for TNBC. Among the promising therapeutic targets for TNBC, PDI has emerged as an interesting molecular target for cancer research due to its critical role in the unfolded protein response (UPR) pathways. Thus, in this review, we provide an overview of PDIs in ER stress and UPR pathways, the roles of PDI family members in breast cancer, and the PDI inhibitors studied in breast cancer research.

3. Protein Disulfide Isomerase (PDI) Family

Disulfide (s-s) bonds are important for maintaining natural structures of proteins for their normal biological functions. The disulfide bond formation occurs between cysteine residues through the oxidation of thiol groups and is then rearranged to achieve the correct conformation [42,43]. The most abundant and essential enzyme in the ER is PDI. PDI functions as a dithiol-disulfide oxidoreductase and molecular chaperone which participates in the oxidation (formation), reduction (breakage), and rearrangement (isomerization) of disulfide bonds. PDI also assists in protein folding by preventing the aggregation of misfolded proteins [44].

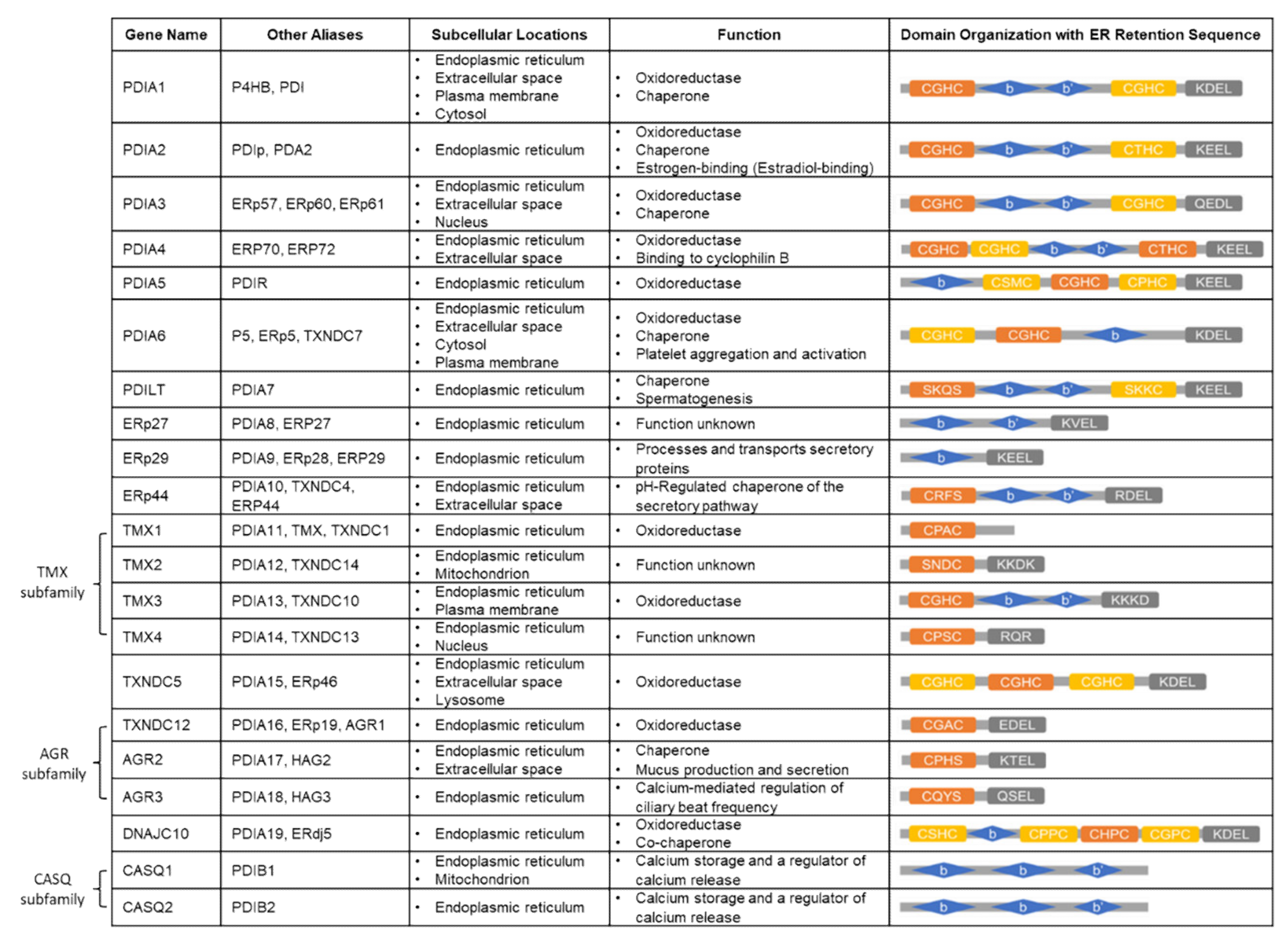

The PDI family has at least 21 members that are resident in various cellular compartments, primarily within the ER and other cellular locations such as the nucleus, cytoplasm, or the plasma membrane. Although belonging to the same family, they show different lengths, different domain arrangements, and varied substrate specificity (Figure 2). The common domain that is present in all PDIs is the thioredoxin-like domain that can be further divided into two types (a and b) depending on the presence of a catalytic motif (Cys-X-X-Cys) [45,46]. The a-type catalytic domain, including a and a’, contains cysteines in the active sites that are thiol-reactive, and they are responsible for oxidoreductase activity [47]. The most conserved motif of CXXC is the CGHC (Cys-Gly-His-Cys) [48]. Catalytically inactive b-type domains (b and b’) that lack cysteines do not mediate disulfide bond formation. Instead, primarily, the b’ domain plays a role in recruiting substrates by constituting the principal substrate-binding site via hydrophobic interaction [49,50]. The archetype PDI protein, PDIA1, has a multidomain (a, b. b’, a’), a linker x, and the acidic C-terminal extension in which the ER retention signal resides. Other PDI members have a similar modular composition of thioredoxin-like domains in various arrangements, but there are some atypical members that only possess one type of domain. Depending on structural similarity, the PDI family can be divided into several subgroups, such as the PDIA, TMX, AGR, or CASQ subfamilies [45,51]. The typical PDIs (PDIA 1-6), PDILT, and DNAJC10 contain at least two active a-type domains (a and a’ domains) and two inactive b-type domains (b and b’ domains), except for PDIA5, PDIA6, and DNAJC10, which have one b domain instead of two b-type domains. The TMX (TMX1-4) and AGR (TXNDC12, AGR2-3) subfamilies carry only a-type domains, except TMX3, which contains b-type domains. TXNDC5 contains only a-type domains without the presence of a b-type domain. ERp27 and ERp29 have only b-type domains, whereas ERp44 contains a-type domains as well. The CASQ subfamily (CASQ1-2) possesses b-type domains and is the only PDI member without an ER retention sequence [45].

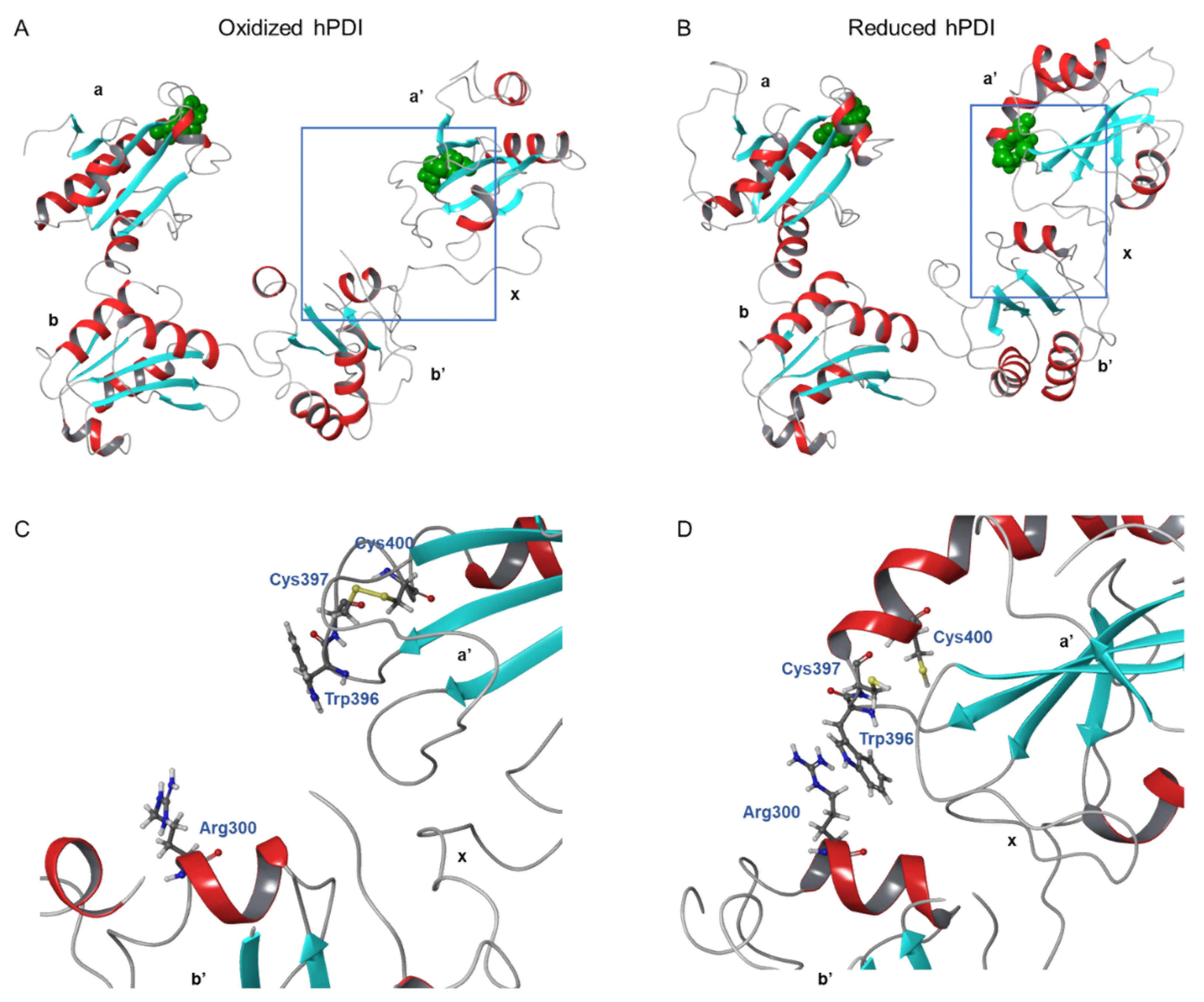

Each domain of the human PDI is arranged in a horseshoe shape with two CXXC active sites, with the a and a’ domains facing each other at the two ends [52]. In reduced PDI, a, b, and b’ domains are arranged on the same plane, and only the a’ domain twists outward by 45°. By contrast, all four domains are placed on the same plane in the oxidized state. The distance between the two redox-active sites in the a and a’ domains of the oxidized form increases to 40.3 Å compared to 27.6 Å of the reduced form, resulting in a more open hydrophobic inner space (14,400 Å3, two times larger than the area of reduced form, 6800 Å3) that is required for substrate binding (Figure 3) [52]. While almost no interaction is observed between the a and b domains, the redox-driven interdomain rotation occurs in the b’xa’ region [52]. An extensive cation-π interaction between the guanidium group of Arg300 in the b’ domain and the indole ring of Trp396 in a’ domain leads to a closed conformation in the reduced human PDI. However, in the oxidized state, oxidation of the CGHC motif of the a’ domain occurs. In other words, disulfide bond formation between cysteine residues (Cys397 and Cys400) in the a’ domain disrupts the cation-π interaction between Arg300 and Trp396 of the b’ and a’ domain, resulting in an open conformation. It allows PDI to capture unfolded and partially folded substrates, because oxidized PDI exists in an open state and assembles to form a face-to-face dimer. The resultant central hydrophobic cavity accommodates the substrate and efficiently introduces disulfide bonds into it [53]. Ultimately, correctly folded proteins with native disulfide bonds and hydrophilic surfaces are released from PDI. The oxidative folding in the oxidized state leads to higher chaperone activity than the reduced state [54]. The importance of the substrate binding on the proper oxidative folding of proteins has been demonstrated by using an inhibitor of PDI, bisphenol A (BPA), that binds to the substrate-binding site of PDI b’ domain. BPA causes significant spatial rearrangement and results in a more compact overall structure of PDI. This conformation switch leads to the subsequent closure of the substrate-binding pocket in the b’ domain, preventing PDI from binding to other proteins [55].

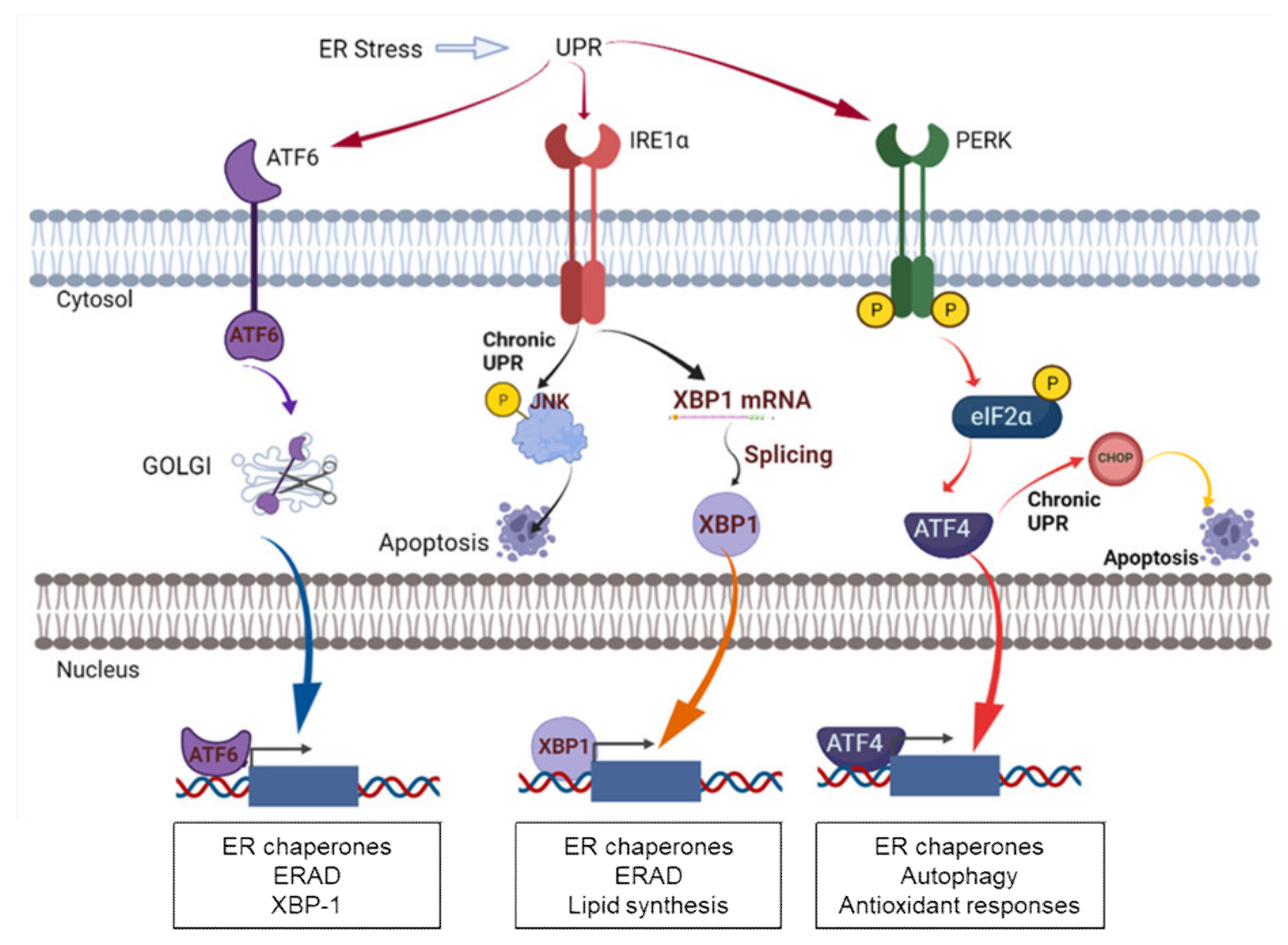

4. PDI in ER Stress and UPR Signaling

PDI works as a folding enzyme and a chaperone for disulfide bond formation, cleavage, and rearrangement in unfolded or misfolded proteins, so it is important for endoplasmic reticulum (ER) proteostasis. In other words, the dysregulation of PDI functions can disrupt protein folding efficiency in the ER lumen, leading to the accumulation of unfolded and misfolded proteins. This condition is known as ER stress, which further activates a cellular stress response called UPR (Figure 4). The UPR is carried out through ER stress sensors, inositol-requiring protein 1 (IRE1), activating transcription factor 6 (ATF6), and protein kinase RNA-like endoplasmic reticulum kinase (PERK) [56]. In the situation of ER stress, the process is initiated by the dissociation of glucose-regulated protein 78kDa (GRP78), known as binding immunoglobulin protein (BiP). Its dissociation allows ER stress receptors to be activated through the dimerization and phosphorylation of PERK and IRE1 or the cleavage of ATF6. Downstream signaling of these receptors induces chaperones that either facilitate protein folding to reduce the unfolded protein burden or remove the inappropriately folded proteins to further relieve ER stress [44]. In addition, PDI mediates regulation of the ER stress receptors upon activating the UPR pathway in response to ER stress [44,57,58]. For example, PDIA1 in its oxidized state is essential to activating PERK, whereas PDIA3 forms a complex with PDIA1 to let PDIA1 in its reduced state, which prevents PERK activation [59,60]. PDIA6 also prevents the activation of IRE1 by forming a covalent disulfide bond with the Cys148 of IRE1 [57,61]. On the other hand, PDIA5 regulates the ATF6 export from the ER and the activation of its target genes through disulfide bond rearrangement in ATF6 [62,63].
The early-stage UPR functions to alleviate ER stress and maintain cellular homeostasis. However, longer exposure to ER stress and prolonged UPR promotes cell death. Under chronic ER stress, PERK leads to the upregulation of proapoptotic C/EBP homologous protein (CHOP) expression [64]. Similarly, IRE1 also promotes the activation of the JNK pathway that interacts with the proapoptotic Bcl-2 members such as BAX and BAK [65].
Cancer cells are exposed to various stressors which increase the level of unfolded and misfolded proteins in the ER, triggering the activation of the UPR. The cancer cells, in turn, are in high demand for PDI in order to sustain rapid cell growth. The significance of PDI in supporting cancer cell survival is demonstrated by its upregulation in various cancers, including kidney, lung, brain, ovarian, melanoma, and prostate tumors. Interestingly, PDI overexpression is frequently correlated with tumor metastasis and invasiveness [66,67], chemoresistance [68,69], and lower survival rates in cancer patients [70].

5. The Functions/Roles of Specific PDIs in Breast Cancer

5.1. Overexpression of PDIs and the Role of PDI in Breast Cancer Proliferation

In breast cancer, PDI gene transcription is frequently upregulated. More specifically, out of 21 members, PDIA1, PDIA3, PDIA4, and PDIA6 are identified to exhibit an increased mRNA level in breast cancer, according to the Gene Expression Atlas dataset [51]. Protein analysis has revealed PDIA1 to be one of the most frequently upregulated proteins in breast tumor tissue, interstitial fluid, and, importantly, in the blood. The presence of high-level PDIA1 in the blood of breast cancer patients serves as a potential non-invasive serological marker for early detection [71]. Its high expression is observed in infiltrating ductal carcinomas of the breast in either sex [72,73] and in axillary lymph node metastatic breast tumors [74]. In breast cancer mammospheres, the protein levels of PDIA1, PDIA3 (ERp57), and ERp44 are elevated [75]. Another proteome analysis indicates that PDIA3 and PDIA6 show higher expression levels in invasive ductal carcinomas than in lobular carcinomas, and the high expression of PDIA3 and PDIA6 genes correlates with the aggressiveness of primary ductal breast cancer [76]. In addition, it is not surprising that AGR2 (PDIA17) is highly expressed in ER-positive breast cancer, as it mediates estrogenic actions [77]. It is evident in cell lines that AGR2 is present in MCF-7 (Luminal A) at a relatively high level but is low in MDA-MB-231 (TNBC) [67]. However, it is also involved in lobuloalveolar development due to its ability to stimulate cell proliferation [77]. In the recent proteomic study reported by Stojak et al., PDIA1 is identified as a major isoform of PDIs present in human breast cancer cells (MDA-MB-231 and MCF-7) [78]. PDIA3 (ERp57) is found to be the second most abundant isoform in both cell lines. PDIA4 (ERp72), PDIA6, and PDIA9 levels are high, but lower than PDIA1 and PDIA3. PDIs also show somewhat cell-type-specific expression. For example, PDIA1 and PDIA6 are highly expressed in breast cancer cells (MDA-MB-231, MDA-MB-468, and T47D), whereas PDIA4 (ERp72) expression is high in those two TNBC cells but moderate in T47D cells, indicating a complex transcriptional regulation mechanism [67]. Consistent with the findings, the mRNA levels of PDIA1, PDIA3, PDIA4, and PDIA6 are typically overexpressed in HER2-enriched and Basal-like breast cancer subtypes as evidenced by gene expression data attained from the Gene Expression Atlas datasets [79].
The overexpression of PDI is closely associated with breast cancer cell proliferation. Consequently, silencing PDI induces significant cytotoxicity in breast cancer cells such as MCF-7 [80]. PDI inhibitors such as PACMAs are known to interrupt the cell cycle progression in breast cancer cells [81]. PDI also affects the different mechanisms involved in breast carcinogenesis, including the estrogen receptor (ERα) or Wnt signaling pathways. PDI interacts with ERα, which mediates the proliferative effect of estrogens in breast cancer cells, but not with ERβ, which appears to be antiproliferative and negatively regulates the transactivation of ERα [82]. So, the knockdown of PDI in MCF-7 cells results in a significant increase in the ERβ/ERα ratio, possibly providing the beneficial effect of cancer prevention. Recently, PDI has been found to be vital for Wnt3a secretion and for the regulation of Wnt signaling, which is mainly involved in the processes of breast cancer proliferation and metastasis [83,84].

5.2. Role of PDI in Breast Cancer Invasion and Metastasis

Outside their roles in cell proliferation, PDI proteins are also involved in cancer cell adhesion and migration, affecting breast cancer metastasis. The transendothelial migration of cancer cells is initiated through the adhesion of the cells to endothelium. This process is regulated by cell adhesion receptors such as integrins. Integrins are composed of two subunits, α and β, and mediate the interaction between cell and extracellular matrix (ECM) proteins [85]. In patients with invasive breast cancer, the significant involvement of β1 and β3 integrins are observed. For instance, integrin α2β1 is upregulated in highly metastatic breast cancer cells like MDA-MB-231, compared to non-invasive breast cancer cells like MCF-7 [86]. A disintegrin and metalloproteinases (ADAMs) are a family of multifunctional proteins implicated in proteolysis and cell adhesion. The members, such as ADAM8, ADAM10, and ADAM17, are involved in breast cancer invasion and metastasis [87,88,89].
PDIs that are located at the cell surface interact with integrins and metalloproteases and regulate their functions. PDI facilitates the activation of integrins by catalyzing thiol-disulfide exchange on the cysteine-rich integrin extracellular domains. A similar mechanism by extracellular PDI is crucial for the activation of matrix metalloproteinases (MMPs) that are overexpressed in higher grades of breast cancer tumors and contribute to breast cancer metastasis [45,90]. On the other hand, when PDI interacts with ADAMs by catalyzing the thiol-disulfide exchange, it leads to a dramatic structural change. This change turns an open conformation of ADAMs in an active state into a closed conformation in an inactive state [91].
Multiple lines of evidence corroborate the involvement of specific PDIs in the process of breast cancer invasion and metastasis. Extracellular PDIA1 enhances the adhesion and migration of breast cancer cells (MCF-7 and MDA-MB-231) by potentially activating β integrins through thiol switches [78]. Also, PDIA1 increases cancer cell adhesion to the endothelial monolayer and collagen type I rather than PDIA3 [78]. The function of AGR2 to promote metastasis is demonstrated in a rat model of overexpressing AGR2 by enhancing the adhesive property of the cells [92]. Similarly, the extracellular AGR3 is found to increase the migratory properties of ER-positive breast cancer cells MCF-7 and T-47D [93]. Its regulation of breast cancer cell migration and adhesion is executed by inducing the phosphorylation of tyrosine kinases such as Src as proved by the experiment that treatment with Dasatinib, a protein kinase inhibitor, remarkably reduces AGR3-dependent migration. In addition, PDIA3 promotes pro-migratory phenotypes in either luminal (MCF-7) or basal breast tumor subtypes (MDA-MB-231 and HCC1937), and PDI inhibition led by 16F16 efficiently decreases initial cell spreading [94]. Similar to 16F16, another PDI inhibitor, PACMA31, could block the transendothelial migration of MDA-MB-231 cells and the contraction of collagen that affect the exposition of free thiols on integrin molecules [86]. 3,4-Methylenedioxy-β-nitrostyrene (MNS), whose potential target is cell surface PDI, profoundly inhibits the adhesion of TNBC cells to different ECM components via the suppression of β1 integrin activation and focal adhesion signaling [95].

5.3. Role of PDI in Breast Cancer Chemoresistance and Clinical Outcomes

In addition, the supporting role of PDIs in developing drug resistance has been introduced in cancers. For example, PDIA4 and PDIA6 are overexpressed in cisplatin-resistant lung cancer cells, suggesting that their overexpression is associated with developing resistance [68]. Additionally, it is found that PDI-associated ATF6 signaling correlates with tumor cell resistance to imatinib treatment in leukemia cells [62]. Similarly, an increased PDI expression is observed in the multidrug-resistant breast cancer cells MCF-7/AdVp3000 [96] or mitoxantrone-resistant MCF7/MX cells [97].
The expression of one of the PDI isoforms, ERp29, is reported to help increase the resistance to doxorubicin and, expectedly, decrease the doxorubicin-induced cell apoptosis in MDA-MB-231 cells [98]. The same effect is observed in MCF-7 cells, as its knockdown increases the doxorubicin cytotoxicity. The ERp29-mediated resistance to doxorubicin could be explained by the up-regulation of Hsp27. However, interestingly, similar resistance by ERp29 is not obtained in response to cisplatin and paclitaxel [98]. AGR2 is a direct target of ERα with direct binding as evidenced by chromatin immunoprecipitations. However, counterintuitively, AGR2 expression is increased in tamoxifen-treated ER-positive breast cancer rather than inhibited by tamoxifen [99]. This could be explained by the agonistic role of tamoxifen on AGR2; the resultant overexpression of AGR2 potentially contributes to tamoxifen resistance and decreased overall survival [77].
Hypoxia in the tumor microenvironment is an indicator of aggressive disease and decreased overall survival in various solid tumors. The underlying mechanism of this observation is the upregulation of genes associated with metastasis, which is, unsurprisingly, associated with poor prognosis in breast cancer. Hypoxia is a transcriptional activator of PDIs, which concurrently also upregulates the expression of human endoplasmic reticulum oxidoreduction 1-α (ERO1-α). The upregulation of ERO1-α causes significantly shorter disease-free and overall survival compared to ERO1-α negative patients. Thus, the findings strongly suggest ERO1-α as a new predictor for poor breast cancer prognosis [100]. In addition, hypoxia-inducible factor (HIF-1) is associated with poor outcomes in breast cancer [101,102]. Recently, PDI has been identified as a novel regulator of HIF-1α by directly oxidizing HIF-1α and decreasing its expression level [103]. Associated with regulating these gene signatures, PDI expression is also suggested as a predictor of poor prognosis in breast cancer. From the data obtained from Oncomine, lower PDI expression is significantly associated with a higher overall survival rate of patients with breast cancer [70]. For example, AGR2 is described as an overexpressed gene in ER-positive breast cancer, and a high level of AGR2 is associated with poor prognosis in the same type of breast cancer [77].

5.4. Role of PDI as Transcriptional Cofactors

The roles of PDIs have been reported as transcriptional cofactors such as ERα, nuclear factor kappa B (NF-kB), Signal Transducer and Activator of Transcription 3 (STAT3), HIF-1α, and nuclear factor (erythroid-derived 2)-like 2 (Nrf2). PDIA1 directly interacts with ERα and regulates its transcriptional activity [82,104]. Overexpression of PDI suppresses NF-kB-dependent transcriptional activity, working as a negative regulator of NF-kB [105]. PDIs such as PDIA3 (ERp57) are known to localize to the nuclear matrix and interact with STAT3 and calreticulin [106,107]. Other transcription factors are also found to be associated with PDIs, such as HIF-1α [108] and Nrf2 [109].
Interestingly, PDIA1 (P4HB) is known to affect the cell surface levels of the non-classical human leukocyte antigen (HLA-G) in breast cancer cell lines (MDA-MB-231 and MCF-7) [110]. ERO1-α, in collaboration with PDIs, suppresses antitumor immunity by regulating CXCL1, CXCL2, and MHC class I [111,112,113]. Thus, it is likely that PDIs play a role in antigen presentation in the tumor microenvironment and tumor immunorecognition.

6. PDI Inhibitors

6.1. PDI Inhibitors Categorized Depending on Binding Sites

There is emerging evidence of a potential therapeutic role for the use of PDI inhibitors in treating various cancers. In general, PDI inhibitors work either by binding catalytic active sites selectively or non-selectively or by binding allosteric substrate binding site. Depending on the site of PDI where binding occurs, PDI inhibitors are categorized into five different groups (Figure 5). The detailed information about selectivity towards PDI isoforms, modes of action, cell-based and pre-clinical studies, and clinical trials of the PDI inhibitors are summarized in Table 1.
Most PDI inhibitors are known to or likely to bind to catalytic sites of the a or a’ domain of PDI: they include PACMA31 [114], P1 [115], 16F16 [116], AS15 [117], CCF642 [118], S-CW3554 [119], Origamicin [120], (±)-dMtcyDTDO [121], Ga-1 [122], 35G8 [123], Copper (II) complex 1 [124], and SK053 [125]. PACMA31 belongs to the class of propynoic acid carbamoyl methyl amides (PACMAs), and it covalently binds to the Cys400 of the active site of PDI, and it shows cytotoxicity on a broad range of human cancer cells [81]. PACMA31 has in vitro and in vivo cytotoxicity in ovarian cancer cells [114] and enhances the efficacy of sorafenib in hepatocellular carcinoma models [126]. P1 is a phenyl vinyl sulfonate compound identified as an irreversible PDI inhibitor by reacting with active site cysteines via the vinyl-sulfone electrophile [115]. P1 is 10-fold more potent than PACMA31 in inhibiting in vitro PDI activities, as demonstrated by the insulin aggregation assay. The antiproliferative effects of P1 are demonstrated in various cancer cells (UACC-257, HeLa, HepG2) in the low micromolar range. 16F16 is another small-molecule irreversible PDI inhibitor that binds to the cysteines in the active site via a chloroacetamide electrophile, and it suppresses apoptosis in cell and brain slice models of Huntington disease [116]. AS15 was recently identified as a covalent nanomolar PDI inhibitor that shows synergistic growth inhibition of glioblastoma cells when treated with the glutathione synthesis inhibitor buthionine sulfoximine (BSO) [117]. CCF642, S-CW3554, and Origamicin are also irreversible PDI inhibitors, showing cytotoxicity in multiple myeloma cells (CCF642 and S-CW3554) [118,119] and in neuroblastoma cells (Origamicin) [120].
Disulfide bond disrupting agents (DDAs) are a new class of irreversible PDI inhibitors, and dimethoxy-tcyDTDO and (±)-dMtcyDTDO are confirmed to bind to the active site cysteines of AGR2/3 and ERp44 [121]. It seems to interact with PDIA1, but its binding site on PDIA1 has not yet been determined. A Gallium (III) complex, Ga-1, is a metal-based PDI inhibitor and most likely interacts with active site His55 of PDIA3 with the cyanic group [122]. In addition to PDIA3, three other isoforms such as PDIA1, PDIA4, and PDIA6 are determined for Ga-1 to bind. Ga-1 exhibits stronger anticancer activities than cisplatin in various cancer cells (HeLa, HepG2, A549, HUVEC).
35G8, Copper (II) complex 1, and SK053 are PDI inhibitors that likely bind to active sites, but their exact binding sites are not yet determined. 35G8 inhibits proliferation in glioblastoma cells by leading to autophagy-mediated ferroptosis [123]. Copper (II) complex 1 is a metal-based PDI inhibitor and exhibits antitumor activity in various cancer cells in vitro (2008, BxPC3, PSN1, HCT-15, BCPAP, and A375) and in vivo (LLC) [124]. SK053 induces differentiation and cell death in acute myeloid leukemia cells [125].
Table 1. The characteristics of PDI inhibitors.
Table 1. The characteristics of PDI inhibitors.
PDI InhibitorSpecificity
toward PDIs
Mode of ActionCell-Based and Pre-Clinical StudiesRefs
  • Binds to active site
  • Irreversible
  • Exhibits cytotoxicity in ovarian cancer cells (in vitro and in vivo)
  • Enhances efficacy of sorafenib in hepatocellular carcinoma model (in vivo)
  • Inhibits proliferation of breast cancer cells (MCF-7, MDA-MB-231) and reduces breast cancer adhesion and migration (MDA-MB-231)
  • Binds to active site
  • Irreversible
  • Inhibits proliferation in low-micromolar range against six cancer cells (UACC-257, HeLa, HepG2, MCF-7, MDA-MB-231, T47D)
  • Binds to active site
  • Irreversible
  • Suppresses apoptosis in cell and brain slice models of Huntington disease
  • Reduces cell adhesion/migration of breast cancer cells (MCF-7, MDA-MB-231, HCC1937)
  • Binds to active site
  • Irreversible
  • Synergistic growth inhibition of glioblastoma cells when treated with glutathione synthesis inhibitor buthionine sulfoximine (BSO)
  • Binds to active site
  • Irreversible
  • Exhibits potent effects against multiple myeloma activity (in vitro and in vivo)
  • Binds to active site
  • Irreversible
  • Reduces cell viability of multiple myeloma cell lines (MM 1.S and KMS11)
  • Binds to active site
  • Irreversible
  • Impairs viability of neuroblastoma cells (SH-SY5Y)
(±)-dMtcyDTDOPDIA1, AGR2, AGR3, ERp44
  • Binds to active site of AGR2/3 and ERp44
  • Irreversible
  • Induces cell death in breast cancer cells in vitro (MDA-MB-468) and in vivo (mice xenograft model of BT474)
  • Binds to active site of PDIA3
  • Enhances cytotoxicity in various cancer cells (HeLa, HepG2, MCF-7, A549 and HUVEC cells)
  • Shows more effective tumor suppression than cisplatin in HeLa tumor-bearing mice
  • Likely binds to active site
  • Inhibits proliferation of glioblastoma cells
  • Leads to autophagy-mediated ferroptosis in glioblastoma
Copper (II) complex 1PDIA1
  • Likely binds to active site
  • Exhibits antitumor activity in various cancers in vitro (2008, BxPC3, PSN1, HCT-15, BCPAP, A375) and in vivo (LLC)
  • Likely binds to active site (a’ domain)
  • Induces differentiation and cell death of acute myeloid leukemia cells
  • Binds adjacent to active site
  • Reversible
  • Sensitizes various cancer cells to etoposide treatment (Jurkat, MDA-MB-231)
  • Binds adjacent to active site
  • Reversible
  • Exhibits neuroprotective effects in corticostriatal brain slice cultures
  • Attenuates mutant huntingtin toxicity
  • Binds adjacent to the active site
  • Irreversible
  • Exhibits neuroprotective effects in PC12 mHTT-Q103 cells
  • Selective PDIA1 inhibitor
  • Likely binds to active site (a’ domain)
  • Induces apoptosis in myeloma cells but not in normal bone marrow cells
  • Orally bioavailable and effective against multiple myeloma in vivo
  • Selective PDIA1 inhibitor
  • Binds to active site of a domain
  • Irreversible
  • Inhibits proliferation of HeLa cells in micromolar range
  • Selective PDIA1 inhibitor
  • Binds to active site of a domain
  • Irreversible
  • Decreases secretion of a destabilized, amyloidogenic antibody light chain at non-toxic concentrations
  • Binds to b’ domain
  • Enhances melanoma cell death
  • Inhibits migration and invasion of malignant glioma cells
  • Binds to b’ domain
  • Reduces tumor growth in glioblastoma (in vitro and in vivo)
  • Inhibits migration of glioblastoma cells in dose-dependent manner
Bepristat 1aPDIA1
  • Binds to b’ domain
  • Reversible
  • Blocks platelet activation in-vitro and impair platelet accumulation at vascular injury site in an in-vivo model of thrombus formation
  • Binds to b’ domain
  • Reversible
  • Inhibits platelet aggregation (in vitro) and thrombus formation (in vivo)
  • Binds to b’ domain
  • Reversible
  • Inhibit platelet thrombus formation and fibrin generation in a mouse model of thrombosis
  • Clinical trials (NCT02195232, NCT04514510)
  • Likely binds to b’ domain
  • Reversible
  • Inhibits platelet aggregation
  • No cytotoxicity in cancer cells (HeLa, HEK293, HepG2)
  • Pan-style inhibitor
  • Exhibits anti-MM (multiple myeloma) effect (in vitro and in vivo)
MNSCell surface PDI
  • Unknown
  • Inhibits platelet aggregation
  • Inhibits proliferation and reduces cell adhesion and migration in MDA-MB-231 cells
  • Unknown
  • Inhibits replication of influenza A and B virus in cells
  • Inhibits reduction of HIV-1 gp120
The typical mode of action for the PDI inhibitors in the first category, with a few exceptions, is to attack the highly susceptible cysteine residues of the active site of PDI through their electrophilic moieties such as chloroacetamide or vinyl sulfones. This covalent bond formation could disrupt the CXXC motif of the PDI domain, ultimately losing the function of PDI. The non-specific and irreversible binding characteristics of the PDI inhibitors render them lacking in selectivity towards PDI members, especially those which share the CXXC motif in the active site. For example, PACMA31 irreversibly inhibits PDIA1 but also interacts with other members such as PDIA2, PDIA3, PDIA4, PDIA6, and TXNDC5 [127]. Similarly, CCF642 is also known to bind to PDIA1, PDIA3, and PDIA4 [118].
The next group includes PDI inhibitors that bind adjacent to the active site: T8 [128], LOC14 [129], and Securinine [131]. T8 binds deeply into the two binding groves adjacent to each catalytic site by hydrophobic interaction with its diethylphenyl group [128]. T8 impairs substrate-binding without disruption of the catalytic cysteines of the active site, thus being a reversible PDI inhibitor. Likewise, LOC14 is a reversible and non-covalent PDI inhibitor. LOC14 interacts with the region adjacent to the active site, inducing the protein to adopt an oxidized conformation and inhibiting its reductase activity [129]. LOC14 shows neuroprotective effects in corticostriatal brain slice cultures [129] and attenuates mutant Huntingtin toxicity [130]. Securinine likely binds adjacent to the active site similar to T8 and LOC14, but it is an irreversible PDI inhibitor [131]. Securinine interacts with H38 and R103 of PDI, which are important to stabilize the negatively charged cysteine thiolate transition state of PDI. So, its interaction leads to the destabilization of active site C36 residue, thus inhibiting PDI irreversibly. Securinine has neuroprotective effects in a cell model of Huntington disease [131].
Different from the first two groups, which may have several PDI isoforms, including PDIA1, to target, there are specific inhibitors targeting PDIA1 only. As expected, they selectively interact with the active site of either the a domain or the a’ domain of PDIA1. CCF642-34 is an optimized analog of CCF642 and likely binds to the active site of the a’ domain of PDIA1 [132]. It improves the selectivity of CCF642 on PDIA1; thus, it is a selective PDIA1 inhibitor. CCF642-34 is an orally bioavailable and effective agent against multiple myeloma [132]. RB-11-ca and KSC-34, the optimized analog of RB-11-ca, are a-domain selective PDIA1 inhibitors, as they covalently bind to C53 of the N-terminal cysteine in a domain of PDIA1 [134]. RB-11-ca inhibits the proliferation of HeLa cells in the micromolar range [133]. KSC-34 demonstrates its ability to reduce the extracellular pathogenic load of the amyloidogenic antibody light-chain [134].
Instead of binding to catalytic domains of PDI, there are PDI inhibitors that bind to the allosteric b’ domain, such as Bacitracin [135], BAP2 [66,127], Bepristat 1a [139], Quercetin-3-rutinoside (Q3Rut) and Isoquercetin [140,141], and ML359 [143]. The inhibitors in this category are reversible PDI inhibitors due to their interactions with the allosteric b’ domain of PDI. Bacitracin is a peptide antibiotic and is widely used as a PDI inhibitor in research. It inhibits PDI by binding to the b’ domain. However, bacitracin is not a specific PDI inhibitor, so it exhibits many off-target effects due to lack of selectivity on PDI [135,136]. Bacitracin enhances melanoma cell death [137] and inhibits the migration and invasion of malignant glioma cells [138]. BAP2 is a PDI inhibitor containing a chalcone scaffold [66]. BAP2 reduces tumor growth in glioblastoma and inhibits the migration of glioblastoma cells in a dose-dependent manner [66,127]. Another allosteric PDI inhibitor, Bepristat 1a, blocks platelet activation and impairs platelet accumulation at vascular injury sites in a model of thrombus formation [139]. Q3Rut and isoquercetin both inhibit platelet aggregation and thrombus formation [140,141]. A flavonoid, isoquercetin, is the only PDI inhibitor that is currently undergoing clinical trials. The oral isoquercetin in phase II/III improves markers of coagulation in advanced cancer patients (NCT02195232) [142]. A similar hypothesis being tested in clinical trials in patients with sickle cell disease is that isoquercetin would diminish thrombo-inflammatory venous thromboembolism (VTE) biomarkers and attenuate the associated hypercoagulable state (NCT04514510). ML359 is a reversible PDI inhibitor that likely binds to the b’ domain, and it inhibits platelet aggregation without cytotoxicity in cancer cells (HeLa, HEK293, HepG2) [143].
The last group includes PDI inhibitors whose binding site of PDI is not yet identified. E64FC26 is pan-style PDI inhibitor affecting several PDI members, including PDIA1, PDIA3, PDIA4, PDIA6, and TXNDC5, but its binding site is not reported [144]. E64FC26 induces apoptosis and cytotoxicity in multiple myeloma cells [144]. MNS is a small-molecule synthetic PDI inhibitor that works by potentially targeting the cell surface of PDI [95,145]. MNS inhibits platelet aggregation by preventing the activation of integrin αIIbβ3 [145]. Juniferdin is a natural compound that inhibits PDIA1, although the clear mode of action is not yet determined [147]. It inhibits the replication of influenza A and B virus in cells [147] and inhibits the reduction of HIV-1 gp120 [148].

6.2. PDI Inhibitors in Breast Cancer

Increased numbers of PDI inhibitors have been developed for various diseases, including cancers, neurodegenerative diseases, cardiovascular diseases, and infectious diseases. Among the inhibitors, only a few PDI inhibitors have been used for breast cancer, including PACMA31, P1, 16F16, DDA, Ga-1, T8, and MNS. The findings of using PDI inhibitors in breast cancer research and the proposed mechanism of action of PDI inhibition are summarized in Table 2.
PACMA31, P1, 16F16, and DDA (±)-dMtcyDTDO are irreversible PDI inhibitors. PACMA31 is one of the popular PDI inhibitors explored for breast cancer. In particular, PACMA31 displays its inhibition effect on the cell proliferation of breast cancer cells MCF-7 and MDA-MB-231, but, more significantly, in MDA-MB-231 when the concentration exceeds 10 μM [86]. MCF-7, which lacks integrin β1 and β3 expression, has a non-invasive character, whereas MDA-MB-231, with highly expressed β1 and β3, adheres more effectively to ECM proteins as well as endothelial cells. PACMA31 significantly reduces the adhesion and migration of invasive MDA-MB-231 cells compared to 16F16 and Q3Rut [86]. It blocks the transendothelial migration of the cells by inhibiting thiol-disulfide exchanges of integrin molecules β1 and β3, thus suggesting the involvement of integrins in breast cancer progression and metastasis.
The antiproliferative activity of P1 is confirmed in breast cancer cells such as MCF-7, MDA-MB-231, and T47D with a GI50 of 3~4 μM [115]. It is found to have PDI isoforms (PDIA4 and PDIA6) to interact besides PDIA1, so P1 could inhibit not only endogenous PDI, but also PDIA4 and PDIA6 localized in the nucleus.
16F16 is an irreversible PDI inhibitor that impairs cell adhesion and the migration of breast cancer cells MCF-7, MDA-MB-231, and HCC1937 [94]. The spreading and attachment of breast cancer cells are strongly reduced by 16F16 treatment, and the effect of 16F16 is stronger than PACMA31. 16F16 reduces the initial rates of closure and overall scratch closure for all cell lines. Also, a reduction in pro-migratory F-actin structures, including lamellipodia, is observed in the three cell lines in treatment with 16F16 [94]. Their different phenotypic responses between PACMA31 and 16F16 in the breast cancer cells are potentially due to the difference in their primary target in PDIs. PACMA31 binds to PDIA1 more strongly than PDIA3, but 16F16 could bind to both PDIA1 and PDIA3 [116].
The anticancer efficacy of DDAs is apparent in cancers overexpressing EGFR and HER2 [121]. In particular, (±)-dMtcyDTDO shows efficient cytotoxic effects on TNBC MDA-MB-468 cells that highly express EGFR and on luminal B BT474 cells that express HER2. Their cytotoxic functions could be explained as DDAs downregulating EGFR, HER2, and HER3 and activating Death Receptors 4 and 5 (DR4/5). The oligomerization of DR4 and DR5 leads to cell death via a caspase-dependent mechanism by activating caspase 8 and 3 sequentially. This might also be due to the targeting of PDI members such as PDIA1, AGR2, and ERp44 by DDAs.
Ga-1 is a gallium (III) based compound that shows stronger anticancer activity compared to cisplatin in breast cancer cells (MCF-7) with an IC50 of 0.42 μM [122]. Previously, the antitumor effects of Ga (III)-based compounds were considered to be iron-dependent, disrupting cellular iron homeostasis and metabolism [149]. However, Ga-1 is proved to induce ER stress, mitochondria dysfunction, and subsequent cell death in cancer cells. Treatment with Ga-1 increases the ratio of phosphorylated eIF2α to the total eIF2α, up-regulates ATF4 and CHOP, activates the mitogen-activated protein kinases (MAPK) signaling pathway, and upregulates Bax and downregulates Bcl-2 [122]. Also, Ga-1 induced mitochondria dysfunction, including disruption of mitochondria membrane permeability, could be explained by the observation that Ga-1 increases the reactive oxygen species (ROS) level, induces morphological changes of mitochondria, and decreases mitochondria membrane potential (MMP) [122].
A reversible PDI inhibitor, T8, specifically sensitizes cancer cells to the effect of the anticancer drug etoposide at a subtoxic concentration (500 nM) [128]. Therefore, the treatment of T8 in combination with an etoposide dose dependently increases the cell death rate in TNBC MDA-MB-231 cells. The apoptotic effects of T8 in combination with etoposide could result from increased PARP cleavage and increased activity of caspase 9 and caspase 3 [128].
A synthetic PDI inhibitor, MNS, inhibits not only the proliferation of human breast cancer MDA-MB-231 cells (IC50 of 14 μM) but also the adhesion, migration, and invasion of the cells [95,146]. MNS works potentially by blocking cell surface PDI to inhibit β1 integrin activation, thus affecting cell adhesion and migration. Additionally, the formation of focal adhesion complex and actin stress fiber networks are disrupted in the treatment of MNS as MNS inhibits the phosphorylation of focal adhesion kinase (FAK) and paxillin [95,146].

7. Concluding Remarks and Future Perspectives

PDIs play a critical role in ER proteostasis by assisting protein folding as an essential catalyst for disulfide bonds and as a chaperone. PDI members are upregulated alongside other UPR proteins in cancers, highlighting the importance of PDI in regulating cancer cell survival. Due to the protective role of PDIs in cancer cells, the prolonged inhibition of PDIs has emerged as a promising approach to induce excessive ER stress in cancer cells, leading to apoptosis in cancers.
PDI proteins are mainly localized in the endoplasmic reticulum, but are also found on cell surfaces, in the nucleus, in the extracellular space, or in mitochondria. Although the exact functions of PDIs at different subcellular localizations are not yet fully demonstrated, it seems to be apparent that PDIs at different localizations have different functions in cancers. PDIs localized in the endoplasmic reticulum are involved in UPR pathways that determine cell survival or cell death through redox regulation of UPR stress receptors such as IRE1 [57], PERK [57], or ATF6 [62], and regulation of ERAD and autophagy. PDIs located at the cell surface are involved in cell adhesion and migration as evidenced in breast cancer [78,93,95] or glioblastoma [138,150]. Inhibition of extracellular PDIs could impair cell adhesion and migration by inhibiting the activation of metalloproteases and integrins. PDIs at mitochondria are suggested to regulate endoplasmic reticulum and mitochondrial calcium dynamics [151].
In this review, several PDI members, including PDIA1 (P4HB), might be suggested as interesting molecular targets for TNBC as evidenced by the overexpression in the TNBC subtype compared to other breast cancer subtypes and the superior inhibition effects on the adhesion and migration of TNBC cells than other subtypes. Their functions as transcription cofactors such as ERα, NF-kB, or Nrf2 are interesting because they seem to be involved in antigen presentation in the tumor microenvironment and tumor immunorecognition.
Many PDI inhibitors are irreversible inhibitors that likely bind to cysteine residues in catalytic domains or affect the cysteine residues in the active site of PDI. Due to this binding characteristic, these PDI inhibitors are able to interact with other PDI isoforms or proteins that share cysteine residues in the active site, leading to a non-selective character. The non-selective PDI inhibitors might result in off-target effects. Recently, more reversible PDI inhibitors or PDIA1-specific inhibitors have been developed. These inhibitors might not have selectivity issues related to off-target effects. However, further research is needed to clearly elucidate the effects of irreversible, non-selective PDI inhibitors and reversible PDI inhibitors in cancers in terms of off-target activities, potency, toxicity, etc.
There were few studies exploring PDIs in breast cancers previously, but now an increased number of reports suggest the involvement of PDIs in tumorigenesis, metastasis, drug resistance, and poor prognosis in breast cancer, including TNBC. However, there is no clear evidence of which specific PDIs are impacting each process nor of their exact mechanisms of action. In order to develop PDI inhibitors targeting specific breast cancer subtypes such as TNBC, continuous efforts are required to identify the exact roles and mechanisms of specific PDI isoforms involved in tumorigenesis, metastasis, drug resistance, and antigen presentation in TNBC.

Author Contributions

Literature review—S.Y., C.J. and E.K.; writing—original draft preparation and revisions, S.Y., C.J., E.K., P.D. and Y.W. (Yong Wu); figure generation, S.Y. and P.D.; writing—review and editing, S.Y., D.K., Y.W. (Yanyuan Wu), J.S. and J.V.V. All authors have read and agreed to the published version of the manuscript.


This work was supported in part by the NIH-NIMHD U54MD007598, U54CA143931, NIH/NCI1U54CA14393, U56 CA101599-01; the Department of Defense Breast Cancer Research Program grant BC043180, NIH/NCATS CTSI UL1TR000124 to J.V.V.; Accelerating Excellence in Translational Science Pilot Grants G0812D05, NIH/NCI SC1CA200517, and 9 SC1 GM135050-05 to Y.W.; and Accelerating Excellence in Translational Science Pilot Grant G0814C03 to S.Y.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Breastcancer. U.S. Breast Cancer Statistics. Available online: (accessed on 10 November 2021).
  2. Riaz, M.; van Jaarsveld, M.T.; Hollestelle, A.; Prager-van der Smissen, W.J.; Heine, A.A.; Boersma, A.W.; Liu, J.; Helmijr, J.; Ozturk, B.; Smid, M.; et al. miRNA expression profiling of 51 human breast cancer cell lines reveals subtype and driver mutation-specific miRNAs. Breast Cancer Res. 2013, 15, R33. [Google Scholar] [CrossRef] [PubMed][Green Version]
  3. Goldhirsch, A.; Wood, W.C.; Coates, A.S.; Gelber, R.D.; Thurlimann, B.; Senn, H.J.; Panel, M. Strategies for subtypes-dealing with the diversity of breast cancer: Highlights of the St. Gallen International Expert Consensus on the Primary Therapy of Early Breast Cancer 2011. Ann. Oncol. 2011, 22, 1736–1747. [Google Scholar] [CrossRef]
  4. Prat, A.; Adamo, B.; Cheang, M.C.; Anders, C.K.; Carey, L.A.; Perou, C.M. Molecular characterization of basal-like and non-basal-like triple-negative breast cancer. Oncologist 2013, 18, 123–133. [Google Scholar] [CrossRef] [PubMed][Green Version]
  5. Lin, N.U.; Claus, E.; Sohl, J.; Razzak, A.R.; Arnaout, A.; Winer, E.P. Sites of distant recurrence and clinical outcomes in patients with metastatic triple-negative breast cancer: High incidence of central nervous system metastases. Cancer 2008, 113, 2638–2645. [Google Scholar] [CrossRef] [PubMed][Green Version]
  6. Gluz, O.; Liedtke, C.; Gottschalk, N.; Pusztai, L.; Nitz, U.; Harbeck, N. Triple-negative breast cancer-current status and future directions. Ann. Oncol. 2009, 20, 1913–1927. [Google Scholar] [CrossRef]
  7. Lehmann, B.D.; Pietenpol, J.A.; Tan, A.R. Triple-negative breast cancer: Molecular subtypes and new targets for therapy. Am. Soc. Clin. Oncol. Educ. Book 2015, 35, e31–e39. [Google Scholar] [CrossRef][Green Version]
  8. Lehmann, B.D.; Bauer, J.A.; Chen, X.; Sanders, M.E.; Chakravarthy, A.B.; Shyr, Y.; Pietenpol, J.A. Identification of human triple-negative breast cancer subtypes and preclinical models for selection of targeted therapies. J. Clin. Investig. 2011, 121, 2750–2767. [Google Scholar] [CrossRef][Green Version]
  9. Haffty, B.G.; Yang, Q.; Reiss, M.; Kearney, T.; Higgins, S.A.; Weidhaas, J.; Harris, L.; Hait, W.; Toppmeyer, D. Locoregional relapse and distant metastasis in conservatively managed triple negative early-stage breast cancer. J. Clin. Oncol. 2006, 24, 5652–5657. [Google Scholar] [CrossRef]
  10. Foulkes, W.D.; Smith, I.E.; Reis-Filho, J.S. Triple-negative breast cancer. N. Engl. J. Med. 2010, 363, 1938–1948. [Google Scholar] [CrossRef][Green Version]
  11. Carey, L.A.; Perou, C.M.; Livasy, C.A.; Dressler, L.G.; Cowan, D.; Conway, K.; Karaca, G.; Troester, M.A.; Tse, C.K.; Edmiston, S.; et al. Race, breast cancer subtypes, and survival in the Carolina Breast Cancer Study. JAMA 2006, 295, 2492–2502. [Google Scholar] [CrossRef][Green Version]
  12. Morris, G.J.; Naidu, S.; Topham, A.K.; Guiles, F.; Xu, Y.; McCue, P.; Schwartz, G.F.; Park, P.K.; Rosenberg, A.L.; Brill, K.; et al. Differences in breast carcinoma characteristics in newly diagnosed African-American and Caucasian patients: A single-institution compilation compared with the National Cancer Institute’s Surveillance, Epidemiology, and End Results database. Cancer 2007, 110, 876–884. [Google Scholar] [CrossRef]
  13. Prakash, O.; Hossain, F.; Danos, D.; Lassak, A.; Scribner, R.; Miele, L. Racial Disparities in Triple Negative Breast Cancer: A Review of the Role of Biologic and Non-biologic Factors. Front. Public Health 2020, 8, 576964. [Google Scholar] [CrossRef] [PubMed]
  14. Pogoda, K.; Niwińska, A.; Murawska, M.; Pieńkowski, T. Analysis of pattern, time and risk factors influencing recurrence in triple-negative breast cancer patients. Med. Oncol. 2013, 30, 388. [Google Scholar] [CrossRef] [PubMed][Green Version]
  15. Bianchini, G.; De Angelis, C.; Licata, L.; Gianni, L. Treatment landscape of triple-negative breast cancer—Expanded options, evolving needs. Nat. Rev. Clin. Oncol. 2021, 19, 91–113. [Google Scholar] [CrossRef] [PubMed]
  16. Huang, M.; O’Shaughnessy, J.; Zhao, J.; Haiderali, A.; Cortés, J.; Ramsey, S.D.; Briggs, A.; Hu, P.; Karantza, V.; Aktan, G.; et al. Association of Pathologic Complete Response with Long-Term Survival Outcomes in Triple-Negative Breast Cancer: A Meta-Analysis. Cancer Res. 2020, 80, 5427–5434. [Google Scholar] [CrossRef]
  17. Anders, C.K.; Abramson, V.; Tan, T.; Dent, R. The Evolution of Triple-Negative Breast Cancer: From Biology to Novel Therapeutics. Am. Soc. Clin. Oncol. Educ. Book 2016, 36, 34–42. [Google Scholar] [CrossRef]
  18. Bardia, A.; Hurvitz, S.A.; Tolaney, S.M.; Loirat, D.; Punie, K.; Oliveira, M.; Brufsky, A.; Sardesai, S.D.; Kalinsky, K.; Zelnak, A.B.; et al. Sacituzumab Govitecan in Metastatic Triple-Negative Breast Cancer. N. Engl. J. Med. 2021, 384, 1529–1541. [Google Scholar] [CrossRef]
  19. Carey, L.A.; Dees, E.C.; Sawyer, L.; Gatti, L.; Moore, D.T.; Collichio, F.; Ollila, D.W.; Sartor, C.I.; Graham, M.L.; Perou, C.M. The triple negative paradox: Primary tumor chemosensitivity of breast cancer subtypes. Clin. Cancer Res. 2007, 13, 2329–2334. [Google Scholar] [CrossRef][Green Version]
  20. Chen, H.; Wu, J.; Zhang, Z.; Tang, Y.; Li, X.; Liu, S.; Cao, S.; Li, X. Association Between BRCA Status and Triple-Negative Breast Cancer: A Meta-Analysis. Front. Pharmacol. 2018, 9, 909. [Google Scholar] [CrossRef]
  21. Lips, E.H.; Mulder, L.; Oonk, A.; van der Kolk, L.E.; Hogervorst, F.B.; Imholz, A.L.; Wesseling, J.; Rodenhuis, S.; Nederlof, P.M. Triple-negative breast cancer: BRCAness and concordance of clinical features with BRCA1-mutation carriers. Br. J. Cancer 2013, 108, 2172–2177. [Google Scholar] [CrossRef]
  22. Keung, M.Y.T.; Wu, Y.; Vadgama, J.V. PARP Inhibitors as a Therapeutic Agent for Homologous Recombination Deficiency in Breast Cancers. J. Clin. Med. 2019, 8, 435. [Google Scholar] [CrossRef][Green Version]
  23. Litton, J.K.; Rugo, H.S.; Ettl, J.; Hurvitz, S.A.; Gonçalves, A.; Lee, K.-H.; Fehrenbacher, L.; Yerushalmi, R.; Mina, L.A.; Martin, M.; et al. Talazoparib in Patients with Advanced Breast Cancer and a Germline BRCA Mutation. N. Engl. J. Med. 2018, 379, 753–763. [Google Scholar] [CrossRef] [PubMed]
  24. Tutt, A.; Tovey, H.; Cheang, M.C.U.; Kernaghan, S.; Kilburn, L.; Gazinska, P.; Owen, J.; Abraham, J.; Barrett, S.; Barrett-Lee, P.; et al. Carboplatin in BRCA1/2-mutated and triple-negative breast cancer BRCAness subgroups: The TNT Trial. Nat. Med. 2018, 24, 628–637. [Google Scholar] [CrossRef] [PubMed][Green Version]
  25. Tung, N.; Arun, B.; Hacker, M.R.; Hofstatter, E.; Toppmeyer, D.L.; Isakoff, S.J.; Borges, V.; Legare, R.D.; Isaacs, C.; Wolff, A.C.; et al. TBCRC 031: Randomized Phase II Study of Neoadjuvant Cisplatin Versus Doxorubicin-Cyclophosphamide in Germline BRCA Carriers with HER2-Negative Breast Cancer (the INFORM trial). J. Clin. Oncol. 2020, 38, 1539–1548. [Google Scholar] [CrossRef]
  26. Osborne, C.; Challagalla, J.D.; Eisenbeis, C.F.; Holmes, F.A.; Neubauer, M.A.; Koutrelakos, N.W.; Taboada, C.A.; Vukelja, S.J.; Wilks, S.T.; Allison, M.A.; et al. Ixabepilone and Carboplatin for Hormone Receptor Positive/HER2-neu Negative and Triple Negative Metastatic Breast Cancer. Clin. Breast Cancer 2018, 18, e89–e95. [Google Scholar] [CrossRef] [PubMed][Green Version]
  27. Thomssen, C.; Pierga, J.Y.; Pritchard, K.I.; Biganzoli, L.; Cortes-Funes, H.; Petráková, K.; Kaufman, B.; Duenne, A.; Smith, I. First-line bevacizumab-containing therapy for triple-negative breast cancer: Analysis of 585 patients treated in the ATHENA study. Oncology 2012, 82, 218–227. [Google Scholar] [CrossRef]
  28. Nakai, K.; Hung, M.C.; Yamaguchi, H. A perspective on anti-EGFR therapies targeting triple-negative breast cancer. Am. J. Cancer Res. 2016, 6, 1609–1623. [Google Scholar]
  29. Liu, Y.; Zhou, Y.; Huang, K.H.; Li, Y.; Fang, X.; An, L.; Wang, F.; Chen, Q.; Zhang, Y.; Shi, A.; et al. EGFR-specific CAR-T cells trigger cell lysis in EGFR-positive TNBC. Aging 2019, 11, 11054–11072. [Google Scholar] [CrossRef] [PubMed]
  30. Kwapisz, D. Pembrolizumab and atezolizumab in triple-negative breast cancer. Cancer Immunol. Immunother. 2021, 70, 607–617. [Google Scholar] [CrossRef] [PubMed]
  31. Schmid, P.; Salgado, R.; Park, Y.H.; Muñoz-Couselo, E.; Kim, S.B.; Sohn, J.; Im, S.A.; Foukakis, T.; Kuemmel, S.; Dent, R.; et al. Pembrolizumab plus chemotherapy as neoadjuvant treatment of high-risk, early-stage triple-negative breast cancer: Results from the phase 1b open-label, multicohort KEYNOTE-173 study. Ann. Oncol. 2020, 31, 569–581. [Google Scholar] [CrossRef]
  32. Schmid, P.; Rugo, H.S.; Adams, S.; Schneeweiss, A.; Barrios, C.H.; Iwata, H.; Diéras, V.; Henschel, V.; Molinero, L.; Chui, S.Y.; et al. Atezolizumab plus nab-paclitaxel as first-line treatment for unresectable, locally advanced or metastatic triple-negative breast cancer (IMpassion130): Updated efficacy results from a randomised, double-blind, placebo-controlled, phase 3 trial. Lancet. Oncol. 2020, 21, 44–59. [Google Scholar] [CrossRef]
  33. Lyons, T.G. Targeted Therapies for Triple-Negative Breast Cancer. Curr. Treat. Options Oncol. 2019, 20, 82. [Google Scholar] [CrossRef] [PubMed]
  34. Vinayak, S.; Tolaney, S.M.; Schwartzberg, L.; Mita, M.; McCann, G.; Tan, A.R.; Wahner-Hendrickson, A.E.; Forero, A.; Anders, C.; Wulf, G.M.; et al. Open-label Clinical Trial of Niraparib Combined with Pembrolizumab for Treatment of Advanced or Metastatic Triple-Negative Breast Cancer. JAMA Oncol. 2019, 5, 1132–1140. [Google Scholar] [CrossRef][Green Version]
  35. Diamond, J.R.; Eckhardt, S.G.; Pitts, T.M.; van Bokhoven, A.; Aisner, D.; Gustafson, D.L.; Capasso, A.; Sams, S.; Kabos, P.; Zolman, K.; et al. A phase II clinical trial of the Aurora and angiogenic kinase inhibitor ENMD-2076 for previously treated, advanced, or metastatic triple-negative breast cancer. Breast Cancer Res. 2018, 20, 82. [Google Scholar] [CrossRef] [PubMed][Green Version]
  36. Kim, S.B.; Dent, R.; Im, S.A.; Espie, M.; Blau, S.; Tan, A.R.; Isakoff, S.J.; Oliveira, M.; Saura, C.; Wongchenko, M.J.; et al. Ipatasertib plus paclitaxel versus placebo plus paclitaxel as first-line therapy for metastatic triple-negative breast cancer (LOTUS): A multicentre, randomised, double-blind, placebo-controlled, phase 2 trial. Lancet Oncol. 2017, 18, 1360–1372. [Google Scholar] [CrossRef]
  37. Lehmann, B.D.; Abramson, V.G.; Sanders, M.E.; Mayer, E.L.; Haddad, T.C.; Nanda, R.; Van Poznak, C.; Storniolo, A.M.; Nangia, J.R.; Gonzalez-Ericsson, P.I.; et al. TBCRC 032 IB/II Multicenter Study: Molecular Insights to AR Antagonist and PI3K Inhibitor Efficacy in Patients with AR(+) Metastatic Triple-Negative Breast Cancer. Clin. Cancer Res. 2020, 26, 2111–2123. [Google Scholar] [CrossRef] [PubMed]
  38. Reddy, T.P.; Choi, D.S.; Anselme, A.C.; Qian, W.; Chen, W.; Lantto, J.; Horak, I.D.; Kragh, M.; Chang, J.C.; Rosato, R.R. Simultaneous targeting of HER family pro-survival signaling with Pan-HER antibody mixture is highly effective in TNBC: A preclinical trial with PDXs. Breast Cancer Res. 2020, 22, 48. [Google Scholar] [CrossRef]
  39. Rupp, T.; Pelouin, O.; Genest, L.; Legrand, C.; Froget, G.; Castagné, V. Therapeutic potential of Fingolimod in triple negative breast cancer preclinical models. Transl. Oncol. 2021, 14, 100926. [Google Scholar] [CrossRef]
  40. Zanker, D.J.; Spurling, A.J.; Brockwell, N.K.; Owen, K.L.; Zakhour, J.M.; Robinson, T.; Duivenvoorden, H.M.; Hertzog, P.J.; Mullins, S.R.; Wilkinson, R.W.; et al. Intratumoral administration of the Toll-like receptor 7/8 agonist 3M-052 enhances interferon-driven tumor immunogenicity and suppresses metastatic spread in preclinical triple-negative breast cancer. Clin. Transl. Immunol. 2020, 9, e1177. [Google Scholar] [CrossRef]
  41. Solomon, V.R.; Alizadeh, E.; Bernhard, W.; Hartimath, S.V.; Hill, W.; Chekol, R.; Barreto, K.M.; Geyer, C.R.; Fonge, H. 111In- and 225Ac-Labeled Cixutumumab for Imaging and α-Particle Radiotherapy of IGF-1R Positive Triple-Negative Breast Cancer. Mol. Pharm. 2019, 16, 4807–4816. [Google Scholar] [CrossRef]
  42. Galligan, J.J.; Petersen, D.R. The human protein disulfide isomerase gene family. Hum. Genom. 2012, 6, 6. [Google Scholar] [CrossRef] [PubMed][Green Version]
  43. Depuydt, M.; Messens, J.; Collet, J.F. How proteins form disulfide bonds. Antioxid. Redox Signal. 2011, 15, 49–66. [Google Scholar] [CrossRef] [PubMed]
  44. Perri, E.R.; Thomas, C.J.; Parakh, S.; Spencer, D.M.; Atkin, J.D. The Unfolded Protein Response and the Role of Protein Disulfide Isomerase in Neurodegeneration. Front. Cell Dev. Biol. 2015, 3, 80. [Google Scholar] [CrossRef] [PubMed][Green Version]
  45. Lee, E.; Lee, D.H. Emerging roles of protein disulfide isomerase in cancer. BMB Rep. 2017, 50, 401–410. [Google Scholar] [CrossRef][Green Version]
  46. Ali Khan, H.; Mutus, B. Protein disulfide isomerase a multifunctional protein with multiple physiological roles. Front. Chem. 2014, 2, 70. [Google Scholar] [CrossRef][Green Version]
  47. Kanemura, S.; Matsusaki, M.; Inaba, K.; Okumura, M. PDI Family Members as Guides for Client Folding and Assembly. Int. J. Mol. Sci. 2020, 21, 9351. [Google Scholar] [CrossRef]
  48. Hatahet, F.; Ruddock, L.W. Protein disulfide isomerase: A critical evaluation of its function in disulfide bond formation. Antioxid. Redox Signal. 2009, 11, 2807–2850. [Google Scholar] [CrossRef]
  49. Kozlov, G.; Maattanen, P.; Thomas, D.Y.; Gehring, K. A structural overview of the PDI family of proteins. FEBS J. 2010, 277, 3924–3936. [Google Scholar] [CrossRef]
  50. Klappa, P.; Ruddock, L.W.; Darby, N.J.; Freedman, R.B. The b’ domain provides the principal peptide-binding site of protein disulfide isomerase but all domains contribute to binding of misfolded proteins. EMBO J. 1998, 17, 927–935. [Google Scholar] [CrossRef][Green Version]
  51. Powell, L.E.; Foster, P.A. Protein disulphide isomerase inhibition as a potential cancer therapeutic strategy. Cancer Med. 2021, 10, 2812–2825. [Google Scholar] [CrossRef]
  52. Wang, C.; Li, W.; Ren, J.; Fang, J.; Ke, H.; Gong, W.; Feng, W.; Wang, C.C. Structural insights into the redox-regulated dynamic conformations of human protein disulfide isomerase. Antioxid. Redox Signal. 2013, 19, 36–45. [Google Scholar] [CrossRef] [PubMed][Green Version]
  53. Okumura, M.; Noi, K.; Kanemura, S.; Kinoshita, M.; Saio, T.; Inoue, Y.; Hikima, T.; Akiyama, S.; Ogura, T.; Inaba, K. Dynamic assembly of protein disulfide isomerase in catalysis of oxidative folding. Nat. Chem. Biol. 2019, 15, 499–509. [Google Scholar] [CrossRef]
  54. Wang, C.; Yu, J.; Huo, L.; Wang, L.; Feng, W.; Wang, C.C. Human protein-disulfide isomerase is a redox-regulated chaperone activated by oxidation of domain a’. J. Biol. Chem. 2012, 287, 1139–1149. [Google Scholar] [CrossRef] [PubMed][Green Version]
  55. Okumura, M.; Kadokura, H.; Hashimoto, S.; Yutani, K.; Kanemura, S.; Hikima, T.; Hidaka, Y.; Ito, L.; Shiba, K.; Masui, S.; et al. Inhibition of the functional interplay between endoplasmic reticulum (ER) oxidoreduclin-1alpha (Ero1alpha) and protein-disulfide isomerase (PDI) by the endocrine disruptor bisphenol A. J. Biol. Chem. 2014, 289, 27004–27018. [Google Scholar] [CrossRef][Green Version]
  56. Bettigole, S.E.; Glimcher, L.H. Endoplasmic reticulum stress in immunity. Annu. Rev. Immunol. 2015, 33, 107–138. [Google Scholar] [CrossRef]
  57. Eletto, D.; Eletto, D.; Dersh, D.; Gidalevitz, T.; Argon, Y. Protein disulfide isomerase A6 controls the decay of IRE1alpha signaling via disulfide-dependent association. Mol. Cell 2014, 53, 562–576. [Google Scholar] [CrossRef] [PubMed][Green Version]
  58. Yu, J.; Li, T.; Liu, Y.; Wang, X.; Zhang, J.; Wang, X.; Shi, G.; Lou, J.; Wang, L.; Wang, C.C.; et al. Phosphorylation switches protein disulfide isomerase activity to maintain proteostasis and attenuate ER stress. EMBO J. 2020, 39, e103841. [Google Scholar] [CrossRef] [PubMed]
  59. Appenzeller-Herzog, C.; Ellgaard, L. The human PDI family: Versatility packed into a single fold. Biochim. Biophys. Acta 2008, 1783, 535–548. [Google Scholar] [CrossRef][Green Version]
  60. Kranz, P.; Neumann, F.; Wolf, A.; Classen, F.; Pompsch, M.; Ocklenburg, T.; Baumann, J.; Janke, K.; Baumann, M.; Goepelt, K.; et al. PDI is an essential redox-sensitive activator of PERK during the unfolded protein response (UPR). Cell Death Dis. 2017, 8, e2986. [Google Scholar] [CrossRef][Green Version]
  61. Eletto, D.; Eletto, D.; Boyle, S.; Argon, Y. PDIA6 regulates insulin secretion by selectively inhibiting the RIDD activity of IRE1. FASEB J. 2016, 30, 653–665. [Google Scholar] [CrossRef] [PubMed][Green Version]
  62. Higa, A.; Taouji, S.; Lhomond, S.; Jensen, D.; Fernandez-Zapico, M.E.; Simpson, J.C.; Pasquet, J.M.; Schekman, R.; Chevet, E. Endoplasmic reticulum stress-activated transcription factor ATF6alpha requires the disulfide isomerase PDIA5 to modulate chemoresistance. Mol. Cell. Biol. 2014, 34, 1839–1849. [Google Scholar] [CrossRef] [PubMed][Green Version]
  63. Nadanaka, S.; Okada, T.; Yoshida, H.; Mori, K. Role of disulfide bridges formed in the luminal domain of ATF6 in sensing endoplasmic reticulum stress. Mol. Cell. Biol. 2007, 27, 1027–1043. [Google Scholar] [CrossRef] [PubMed][Green Version]
  64. Wang, M.; Kaufman, R.J. Protein misfolding in the endoplasmic reticulum as a conduit to human disease. Nature 2016, 529, 326–335. [Google Scholar] [CrossRef]
  65. Hetz, C.; Bernasconi, P.; Fisher, J.; Lee, A.H.; Bassik, M.C.; Antonsson, B.; Brandt, G.S.; Iwakoshi, N.N.; Schinzel, A.; Glimcher, L.H.; et al. Proapoptotic BAX and BAK modulate the unfolded protein response by a direct interaction with IRE1alpha. Science 2006, 312, 572–576. [Google Scholar] [CrossRef][Green Version]
  66. Yang, S.; Shergalis, A.; Lu, D.; Kyani, A.; Liu, Z.; Ljungman, M.; Neamati, N. Design, Synthesis, and Biological Evaluation of Novel Allosteric Protein Disulfide Isomerase Inhibitors. J. Med. Chem. 2019, 62, 3447–3474. [Google Scholar] [CrossRef]
  67. Samanta, S.; Tamura, S.; Dubeau, L.; Mhawech-Fauceglia, P.; Miyagi, Y.; Kato, H.; Lieberman, R.; Buckanovich, R.J.; Lin, Y.G.; Neamati, N. Expression of protein disulfide isomerase family members correlates with tumor progression and patient survival in ovarian cancer. Oncotarget 2017, 8, 103543–103556. [Google Scholar] [CrossRef] [PubMed]
  68. Tufo, G.; Jones, A.W.; Wang, Z.; Hamelin, J.; Tajeddine, N.; Esposti, D.D.; Martel, C.; Boursier, C.; Gallerne, C.; Migdal, C.; et al. The protein disulfide isomerases PDIA4 and PDIA6 mediate resistance to cisplatin-induced cell death in lung adenocarcinoma. Cell Death Differ. 2014, 21, 685–695. [Google Scholar] [CrossRef] [PubMed]
  69. Sun, S.; Lee, D.; Ho, A.S.; Pu, J.K.; Zhang, X.Q.; Lee, N.P.; Day, P.J.; Lui, W.M.; Fung, C.F.; Leung, G.K. Inhibition of prolyl 4-hydroxylase, beta polypeptide (P4HB) attenuates temozolomide resistance in malignant glioma via the endoplasmic reticulum stress response (ERSR) pathways. Neuro Oncol. 2013, 15, 562–577. [Google Scholar] [CrossRef]
  70. Xu, S.; Sankar, S.; Neamati, N. Protein disulfide isomerase: A promising target for cancer therapy. Drug Discov. Today 2014, 19, 222–240. [Google Scholar] [CrossRef]
  71. Gromov, P.; Gromova, I.; Bunkenborg, J.; Cabezon, T.; Moreira, J.M.; Timmermans-Wielenga, V.; Roepstorff, P.; Rank, F.; Celis, J.E. Up-regulated proteins in the fluid bathing the tumour cell microenvironment as potential serological markers for early detection of cancer of the breast. Mol. Oncol. 2010, 4, 65–89. [Google Scholar] [CrossRef][Green Version]
  72. Chahed, K.; Kabbage, M.; Hamrita, B.; Guillier, C.L.; Trimeche, M.; Remadi, S.; Ehret-Sabatier, L.; Chouchane, L. Detection of protein alterations in male breast cancer using two dimensional gel electrophoresis and mass spectrometry: The involvement of several pathways in tumorigenesis. Clin. Chim. Acta 2008, 388, 106–114. [Google Scholar] [CrossRef] [PubMed]
  73. Chahed, K.; Kabbage, M.; Ehret-Sabatier, L.; Lemaitre-Guillier, C.; Remadi, S.; Hoebeke, J.; Chouchane, L. Expression of fibrinogen E-fragment and fibrin E-fragment is inhibited in the human infiltrating ductal carcinoma of the breast: The two-dimensional electrophoresis and MALDI-TOF-mass spectrometry analyses. Int. J. Oncol. 2005, 27, 1425–1431. [Google Scholar] [CrossRef] [PubMed]
  74. Thongwatchara, P.; Promwikorn, W.; Srisomsap, C.; Chokchaichamnankit, D.; Boonyaphiphat, P.; Thongsuksai, P. Differential protein expression in primary breast cancer and matched axillary node metastasis. Oncol. Rep. 2011, 26, 185–191. [Google Scholar] [CrossRef]
  75. Wise, R.; Duhachek-Muggy, S.; Qi, Y.; Zolkiewski, M.; Zolkiewska, A. Protein disulfide isomerases in the endoplasmic reticulum promote anchorage-independent growth of breast cancer cells. Breast Cancer Res. Treat. 2016, 157, 241–252. [Google Scholar] [CrossRef]
  76. Ramos, F.S.; Serino, L.T.; Carvalho, C.M.; Lima, R.S.; Urban, C.A.; Cavalli, I.J.; Ribeiro, E.M. PDIA3 and PDIA6 gene expression as an aggressiveness marker in primary ductal breast cancer. Genet. Mol. Res. 2015, 14, 6960–6967. [Google Scholar] [CrossRef]
  77. Salmans, M.L.; Zhao, F.; Andersen, B. The estrogen-regulated anterior gradient 2 (AGR2) protein in breast cancer: A potential drug target and biomarker. Breast Cancer Res. 2013, 15, 204. [Google Scholar] [CrossRef] [PubMed][Green Version]
  78. Stojak, M.; Milczarek, M.; Kurpinska, A.; Suraj-Prazmowska, J.; Kaczara, P.; Wojnar-Lason, K.; Banach, J.; Stachowicz-Suhs, M.; Rossowska, J.; Kalvins, I.; et al. Protein Disulphide Isomerase A1 Is Involved in the Regulation of Breast Cancer Cell Adhesion and Transmigration via Lung Microvascular Endothelial Cells. Cancers 2020, 12, 2850. [Google Scholar] [CrossRef]
  79. Yang, S.; (Charles R. Drew University of Medicine and Science, Los Angeles, CA 90059, USA); Dutta, P.; (Charles R. Drew University of Medicine and Science, Los Angeles, CA 90059, USA); Wu, Y.; (Charles R. Drew University of Medicine and Science, Los Angeles, CA 90059, USA); Wu, Y.; (Charles R. Drew University of Medicine and Science, Los Angeles, CA 90059, USA); Vadgama, J.V.; (Charles R. Drew University of Medicine and Science, Los Angeles, CA 90059, USA). Unpublished work, 2022.
  80. Hashida, T.; Kotake, Y.; Ohta, S. Protein disulfide isomerase knockdown-induced cell death is cell-line-dependent and involves apoptosis in MCF-7 cells. J. Toxicol. Sci. 2011, 36, 1–7. [Google Scholar] [CrossRef][Green Version]
  81. Yamada, R.; Cao, X.; Butkevich, A.N.; Millard, M.; Odde, S.; Mordwinkin, N.; Gundla, R.; Zandi, E.; Louie, S.G.; Petasis, N.A.; et al. Discovery and preclinical evaluation of a novel class of cytotoxic propynoic acid carbamoyl methyl amides (PACMAs). J. Med. Chem. 2011, 54, 2902–2914. [Google Scholar] [CrossRef]
  82. Fu, X.; Wang, P.; Zhu, B.T. Protein disulfide isomerase is a multifunctional regulator of estrogenic status in target cells. J. Steroid Biochem. Mol. Biol. 2008, 112, 127–137. [Google Scholar] [CrossRef]
  83. Torpe, N.; Gopal, S.; Baltaci, O.; Rella, L.; Handley, A.; Korswagen, H.C.; Pocock, R. A Protein Disulfide Isomerase Controls Neuronal Migration through Regulation of Wnt Secretion. Cell Rep. 2019, 26, 3183–3190.e5. [Google Scholar] [CrossRef] [PubMed][Green Version]
  84. Xu, X.; Zhang, M.; Xu, F.; Jiang, S. Wnt signaling in breast cancer: Biological mechanisms, challenges and opportunities. Mol. Cancer 2020, 19, 165. [Google Scholar] [CrossRef] [PubMed]
  85. Zheng, Y.; Leftheris, K. Insights into Protein-Ligand Interactions in Integrin Complexes: Advances in Structure Determinations. J. Med. Chem. 2020, 63, 5675–5696. [Google Scholar] [CrossRef] [PubMed]
  86. Popielarski, M.; Ponamarczuk, H.; Stasiak, M.; Watala, C.; Swiatkowska, M. Modifications of disulfide bonds in breast cancer cell migration and invasiveness. Am. J. Cancer Res. 2019, 9, 1554–1582. [Google Scholar] [PubMed]
  87. Romagnoli, M.; Mineva, N.D.; Polmear, M.; Conrad, C.; Srinivasan, S.; Loussouarn, D.; Barille-Nion, S.; Georgakoudi, I.; Dagg, A.; McDermott, E.W.; et al. ADAM8 expression in invasive breast cancer promotes tumor dissemination and metastasis. EMBO Mol. Med. 2014, 6, 278–294. [Google Scholar] [CrossRef]
  88. Willems, S.H.; Tape, C.J.; Stanley, P.L.; Taylor, N.A.; Mills, I.G.; Neal, D.E.; McCafferty, J.; Murphy, G. Thiol isomerases negatively regulate the cellular shedding activity of ADAM17. Biochem. J. 2010, 428, 439–450. [Google Scholar] [CrossRef][Green Version]
  89. Mullooly, M.; McGowan, P.M.; Kennedy, S.A.; Madden, S.F.; Crown, J.; O’Donovan, N.; Duffy, M.J. ADAM10: A new player in breast cancer progression? Br. J. Cancer 2015, 113, 945–951. [Google Scholar] [CrossRef][Green Version]
  90. Chabottaux, V.; Sounni, N.E.; Pennington, C.J.; English, W.R.; van den Brule, F.; Blacher, S.; Gilles, C.; Munaut, C.; Maquoi, E.; Lopez-Otin, C.; et al. Membrane-type 4 matrix metalloproteinase promotes breast cancer growth and metastases. Cancer Res. 2006, 66, 5165–5172. [Google Scholar] [CrossRef][Green Version]
  91. Lorenzen, I.; Eble, J.A.; Hanschmann, E.M. Thiol switches in membrane proteins—Extracellular redox regulation in cell biology. Biol. Chem. 2021, 402, 253–269. [Google Scholar] [CrossRef]
  92. Liu, D.; Rudland, P.S.; Sibson, D.R.; Platt-Higgins, A.; Barraclough, R. Human homologue of cement gland protein, a novel metastasis inducer associated with breast carcinomas. Cancer Res. 2005, 65, 3796–3805. [Google Scholar] [CrossRef][Green Version]
  93. Obacz, J.; Sommerova, L.; Sicari, D.; Durech, M.; Avril, T.; Iuliano, F.; Pastorekova, S.; Hrstka, R.; Chevet, E.; Delom, F.; et al. Extracellular AGR3 regulates breast cancer cells migration via Src signaling. Oncol. Lett. 2019, 18, 4449–4456. [Google Scholar] [CrossRef] [PubMed]
  94. Young, H.S.; McGowan, L.M.; Jepson, K.A.; Adams, J.C. Impairment of cell adhesion and migration by inhibition of protein disulphide isomerases in three breast cancer cell lines. Biosci. Rep. 2020, 40, BSR20193271. [Google Scholar] [CrossRef]
  95. Chen, I.H.; Chang, F.R.; Wu, Y.C.; Kung, P.H.; Wu, C.C. 3,4-Methylenedioxy-beta-nitrostyrene inhibits adhesion and migration of human triple-negative breast cancer cells by suppressing beta1 integrin function and surface protein disulfide isomerase. Biochimie 2015, 110, 81–92. [Google Scholar] [CrossRef] [PubMed]
  96. Liu, Y.; Liu, H.; Han, B.; Zhang, J.T. Identification of 14-3-3sigma as a contributor to drug resistance in human breast cancer cells using functional proteomic analysis. Cancer Res. 2006, 66, 3248–3255. [Google Scholar] [CrossRef] [PubMed][Green Version]
  97. Ito, M.; Kajino, K.; Abe, M.; Fujimura, T.; Mineki, R.; Ikegami, T.; Ishikawa, T.; Hino, O. NP-1250, an ABCG2 inhibitor, induces apoptotic cell death in mitoxantrone-resistant breast carcinoma MCF7 cells via a caspase-independent pathway. Oncol. Rep. 2013, 29, 1492–1500. [Google Scholar] [CrossRef] [PubMed]
  98. Zhang, D.; Putti, T.C. Over-expression of ERp29 attenuates doxorubicin-induced cell apoptosis through up-regulation of Hsp27 in breast cancer cells. Exp. Cell Res. 2010, 316, 3522–3531. [Google Scholar] [CrossRef]
  99. Hrstka, R.; Nenutil, R.; Fourtouna, A.; Maslon, M.M.; Naughton, C.; Langdon, S.; Murray, E.; Larionov, A.; Petrakova, K.; Muller, P.; et al. The pro-metastatic protein anterior gradient-2 predicts poor prognosis in tamoxifen-treated breast cancers. Oncogene 2010, 29, 4838–4847. [Google Scholar] [CrossRef]
  100. Kutomi, G.; Tamura, Y.; Tanaka, T.; Kajiwara, T.; Kukita, K.; Ohmura, T.; Shima, H.; Takamaru, T.; Satomi, F.; Suzuki, Y.; et al. Human endoplasmic reticulum oxidoreductin 1-alpha is a novel predictor for poor prognosis of breast cancer. Cancer Sci. 2013, 104, 1091–1096. [Google Scholar] [CrossRef]
  101. Schindl, M.; Schoppmann, S.F.; Samonigg, H.; Hausmaninger, H.; Kwasny, W.; Gnant, M.; Jakesz, R.; Kubista, E.; Birner, P.; Oberhuber, G.; et al. Overexpression of hypoxia-inducible factor 1alpha is associated with an unfavorable prognosis in lymph node-positive breast cancer. Clin. Cancer Res. 2002, 8, 1831–1837. [Google Scholar]
  102. Jarman, E.J.; Ward, C.; Turnbull, A.K.; Martinez-Perez, C.; Meehan, J.; Xintaropoulou, C.; Sims, A.H.; Langdon, S.P. HER2 regulates HIF-2alpha and drives an increased hypoxic response in breast cancer. Breast Cancer Res. 2019, 21, 10. [Google Scholar] [CrossRef]
  103. Kobayashi, Y.; Oguro, A.; Hirata, Y.; Imaoka, S. The regulation of Hypoxia-Inducible Factor-1 (HIF-1alpha) expression by Protein Disulfide Isomerase (PDI). PLoS ONE 2021, 16, e0246531. [Google Scholar] [CrossRef] [PubMed]
  104. Schultz-Norton, J.R.; McDonald, W.H.; Yates, J.R.; Nardulli, A.M. Protein disulfide isomerase serves as a molecular chaperone to maintain estrogen receptor alpha structure and function. Mol. Endocrinol. 2006, 20, 1982–1995. [Google Scholar] [CrossRef] [PubMed]
  105. Higuchi, T.; Watanabe, Y.; Waga, I. Protein disulfide isomerase suppresses the transcriptional activity of NF-kappaB. Biochem. Biophys. Res. Commun. 2004, 318, 46–52. [Google Scholar] [CrossRef]
  106. Coppari, S.; Altieri, F.; Ferraro, A.; Chichiarelli, S.; Eufemi, M.; Turano, C. Nuclear localization and DNA interaction of protein disulfide isomerase ERp57 in mammalian cells. J. Cell. Biochem. 2002, 85, 325–333. [Google Scholar] [CrossRef]
  107. Gaucci, E.; Altieri, F.; Turano, C.; Chichiarelli, S. The protein ERp57 contributes to EGF receptor signaling and internalization in MDA-MB-468 breast cancer cells. J. Cell. Biochem. 2013, 114, 2461–2470. [Google Scholar] [CrossRef] [PubMed]
  108. Bakker, E.Y.; Fujii, M.; Krstic-Demonacos, M.; Demonacos, C.; Alhammad, R. Protein disulfide isomerase A1associated pathways in the development of stratified breast cancer therapies. Int. J. Oncol. 2022, 60, 1–19. [Google Scholar] [CrossRef] [PubMed]
  109. Pokkunuri, I.D.; Lokhandwala, M.F.; Banday, A.A. Protein disulfide isomerase inhibition impairs Keap1/Nrf2 signaling and mitochondrial function and induces apoptosis in renal proximal tubular cells. Am. J. Physiol. Ren. Physiol. 2020, 319, F686–F696. [Google Scholar] [CrossRef] [PubMed]
  110. Alhammad, R.; Khunchai, S.; Tongmuang, N.; Limjindaporn, T.; Yenchitsomanus, P.T.; Mutti, L.; Krstic-Demonacos, M.; Demonacos, C. Protein disulfide isomerase A1 regulates breast cancer cell immunorecognition in a manner dependent on redox state. Oncol. Rep. 2020, 44, 2406–2418. [Google Scholar] [CrossRef]
  111. Tanaka, T.; Kutomi, G.; Kajiwara, T.; Kukita, K.; Kochin, V.; Kanaseki, T.; Tsukahara, T.; Hirohashi, Y.; Torigoe, T.; Okamoto, Y.; et al. Cancer-associated oxidoreductase ERO1-alpha promotes immune escape through up-regulation of PD-L1 in human breast cancer. Oncotarget 2017, 8, 24706–24718. [Google Scholar] [CrossRef][Green Version]
  112. Tanaka, T.; Kajiwara, T.; Torigoe, T.; Okamoto, Y.; Sato, N.; Tamura, Y. Cancer-associated oxidoreductase ERO1-alpha drives the production of tumor-promoting myeloid-derived suppressor cells via oxidative protein folding. J. Immunol. 2015, 194, 2004–2010. [Google Scholar] [CrossRef][Green Version]
  113. Park, B.; Lee, S.; Kim, E.; Cho, K.; Riddell, S.R.; Cho, S.; Ahn, K. Redox regulation facilitates optimal peptide selection by MHC class I during antigen processing. Cell 2006, 127, 369–382. [Google Scholar] [CrossRef] [PubMed][Green Version]
  114. Xu, S.; Butkevich, A.N.; Yamada, R.; Zhou, Y.; Debnath, B.; Duncan, R.; Zandi, E.; Petasis, N.A.; Neamati, N. Discovery of an orally active small-molecule irreversible inhibitor of protein disulfide isomerase for ovarian cancer treatment. Proc. Natl. Acad. Sci. USA 2012, 109, 16348–16353. [Google Scholar] [CrossRef][Green Version]
  115. Ge, J.; Zhang, C.J.; Li, L.; Chong, L.M.; Wu, X.; Hao, P.; Sze, S.K.; Yao, S.Q. Small molecule probe suitable for in situ profiling and inhibition of protein disulfide isomerase. ACS Chem. Biol. 2013, 8, 2577–2585. [Google Scholar] [CrossRef] [PubMed]
  116. Hoffstrom, B.G.; Kaplan, A.; Letso, R.; Schmid, R.S.; Turmel, G.J.; Lo, D.C.; Stockwell, B.R. Inhibitors of protein disulfide isomerase suppress apoptosis induced by misfolded proteins. Nat. Chem. Biol. 2010, 6, 900–906. [Google Scholar] [CrossRef] [PubMed][Green Version]
  117. Shergalis, A.; Xue, D.; Gharbia, F.Z.; Driks, H.; Shrestha, B.; Tanweer, A.; Cromer, K.; Ljungman, M.; Neamati, N. Characterization of Aminobenzylphenols as Protein Disulfide Isomerase Inhibitors in Glioblastoma Cell Lines. J. Med. Chem. 2020, 63, 10263–10286. [Google Scholar] [CrossRef]
  118. Vatolin, S.; Phillips, J.G.; Jha, B.K.; Govindgari, S.; Hu, J.; Grabowski, D.; Parker, Y.; Lindner, D.J.; Zhong, F.; Distelhorst, C.W.; et al. Novel Protein Disulfide Isomerase Inhibitor with Anticancer Activity in Multiple Myeloma. Cancer Res. 2016, 76, 3340–3350. [Google Scholar] [CrossRef][Green Version]
  119. Allimuthu, D.; Adams, D.J. 2-Chloropropionamide as a Low-Reactivity Electrophile for Irreversible Small-Molecule Probe Identification. ACS Chem. Biol. 2017, 12, 2124–2131. [Google Scholar] [CrossRef]
  120. Ozcelik, D.; Pezacki, J.P. Small Molecule Inhibition of Protein Disulfide Isomerase in Neuroblastoma Cells Induces an Oxidative Stress Response and Apoptosis Pathways. ACS Chem. Neurosci. 2019, 10, 4068–4075. [Google Scholar] [CrossRef]
  121. Law, M.E.; Yaaghubi, E.; Ghilardi, A.F.; Davis, B.J.; Ferreira, R.B.; Koh, J.; Chen, S.; DePeter, S.F.; Schilson, C.M.; Chiang, C.-W.; et al. Inhibitors of ERp44, PDIA1, and AGR2 induce disulfide-mediated oligomerization of Death Receptors 4 and 5 and cancer cell death. bioRxiv 2021. [Google Scholar] [CrossRef]
  122. Yin, H.Y.; Gao, J.J.; Chen, X.; Ma, B.; Yang, Z.S.; Tang, J.; Wang, B.W.; Chen, T.; Wang, C.; Gao, S.; et al. A Gallium(III) Complex that Engages Protein Disulfide Isomerase A3 (PDIA3) as an Anticancer Target. Angew. Chem. Int. Ed. Engl. 2020, 59, 20147–20153. [Google Scholar] [CrossRef]
  123. Kyani, A.; Tamura, S.; Yang, S.; Shergalis, A.; Samanta, S.; Kuang, Y.; Ljungman, M.; Neamati, N. Discovery and Mechanistic Elucidation of a Class of Protein Disulfide Isomerase Inhibitors for the Treatment of Glioblastoma. ChemMedChem 2018, 13, 164–177. [Google Scholar] [CrossRef]
  124. Carcelli, M.; Tegoni, M.; Bartoli, J.; Marzano, C.; Pelosi, G.; Salvalaio, M.; Rogolino, D.; Gandin, V. In vitro and in vivo anticancer activity of tridentate thiosemicarbazone copper complexes: Unravelling an unexplored pharmacological target. Eur. J. Med. Chem. 2020, 194, 112266. [Google Scholar] [CrossRef] [PubMed]
  125. Chlebowska-Tuz, J.; Sokolowska, O.; Gaj, P.; Lazniewski, M.; Firczuk, M.; Borowiec, K.; Sas-Nowosielska, H.; Bajor, M.; Malinowska, A.; Muchowicz, A.; et al. Inhibition of protein disulfide isomerase induces differentiation of acute myeloid leukemia cells. Haematologica 2018, 103, 1843–1852. [Google Scholar] [CrossRef] [PubMed]
  126. Won, J.K.; Yu, S.J.; Hwang, C.Y.; Cho, S.H.; Park, S.M.; Kim, K.; Choi, W.M.; Cho, H.; Cho, E.J.; Lee, J.H.; et al. Protein disulfide isomerase inhibition synergistically enhances the efficacy of sorafenib for hepatocellular carcinoma. Hepatology 2017, 66, 855–868. [Google Scholar] [CrossRef][Green Version]
  127. Xu, S.; Liu, Y.; Yang, K.; Wang, H.; Shergalis, A.; Kyani, A.; Bankhead, A., III; Tamura, S.; Yang, S.; Wang, X.; et al. Inhibition of protein disulfide isomerase in glioblastoma causes marked downregulation of DNA repair and DNA damage response genes. Theranostics 2019, 9, 2282–2298. [Google Scholar] [CrossRef] [PubMed]
  128. Eirich, J.; Braig, S.; Schyschka, L.; Servatius, P.; Hoffmann, J.; Hecht, S.; Fulda, S.; Zahler, S.; Antes, I.; Kazmaier, U.; et al. A small molecule inhibits protein disulfide isomerase and triggers the chemosensitization of cancer cells. Angew. Chem. Int. Ed. Engl. 2014, 53, 12960–12965. [Google Scholar] [CrossRef]
  129. Kaplan, A.; Gaschler, M.M.; Dunn, D.E.; Colligan, R.; Brown, L.M.; Palmer, A.G., III; Lo, D.C.; Stockwell, B.R. Small molecule-induced oxidation of protein disulfide isomerase is neuroprotective. Proc. Natl. Acad. Sci. USA 2015, 112, E2245–E2252. [Google Scholar] [CrossRef][Green Version]
  130. Zhou, X.; Li, G.; Kaplan, A.; Gaschler, M.M.; Zhang, X.; Hou, Z.; Jiang, M.; Zott, R.; Cremers, S.; Stockwell, B.R.; et al. Small molecule modulator of protein disulfide isomerase attenuates mutant huntingtin toxicity and inhibits endoplasmic reticulum stress in a mouse model of Huntington’s disease. Hum. Mol. Genet. 2018, 27, 1545–1555. [Google Scholar] [CrossRef] [PubMed][Green Version]
  131. Kaplan, A.; Stockwell, B.R. Structural Elucidation of a Small Molecule Inhibitor of Protein Disulfide Isomerase. ACS Med. Chem. Lett. 2015, 6, 966–971. [Google Scholar] [CrossRef] [PubMed][Green Version]
  132. Hasipek, M.; Grabowski, D.; Guan, Y.; Alugubelli, R.R.; Tiwari, A.D.; Gu, X.; DeAvila, G.A.; Silva, A.S.; Meads, M.B.; Parker, Y.; et al. Therapeutic Targeting of Protein Disulfide Isomerase PDIA1 in Multiple Myeloma. Cancers 2021, 13, 2649. [Google Scholar] [CrossRef] [PubMed]
  133. Banerjee, R.; Pace, N.J.; Brown, D.R.; Weerapana, E. 1,3,5-Triazine as a modular scaffold for covalent inhibitors with streamlined target identification. J. Am. Chem. Soc. 2013, 135, 2497–2500. [Google Scholar] [CrossRef] [PubMed]
  134. Cole, K.S.; Grandjean, J.M.D.; Chen, K.; Witt, C.H.; O’Day, J.; Shoulders, M.D.; Wiseman, R.L.; Weerapana, E. Characterization of an A-Site Selective Protein Disulfide Isomerase A1 Inhibitor. Biochemistry 2018, 57, 2035–2043. [Google Scholar] [CrossRef] [PubMed]
  135. Dickerhof, N.; Kleffmann, T.; Jack, R.; McCormick, S. Bacitracin inhibits the reductive activity of protein disulfide isomerase by disulfide bond formation with free cysteines in the substrate-binding domain. FEBS J. 2011, 278, 2034–2043. [Google Scholar] [CrossRef]
  136. Karala, A.R.; Ruddock, L.W. Bacitracin is not a specific inhibitor of protein disulfide isomerase. FEBS J. 2010, 277, 2454–2462. [Google Scholar] [CrossRef]
  137. Lovat, P.E.; Corazzari, M.; Armstrong, J.L.; Martin, S.; Pagliarini, V.; Hill, D.; Brown, A.M.; Piacentini, M.; Birch-Machin, M.A.; Redfern, C.P. Increasing melanoma cell death using inhibitors of protein disulfide isomerases to abrogate survival responses to endoplasmic reticulum stress. Cancer Res. 2008, 68, 5363–5369. [Google Scholar] [CrossRef] [PubMed][Green Version]
  138. Goplen, D.; Wang, J.; Enger, P.O.; Tysnes, B.B.; Terzis, A.J.; Laerum, O.D.; Bjerkvig, R. Protein disulfide isomerase expression is related to the invasive properties of malignant glioma. Cancer Res. 2006, 66, 9895–9902. [Google Scholar] [CrossRef] [PubMed][Green Version]
  139. Bekendam, R.H.; Bendapudi, P.K.; Lin, L.; Nag, P.P.; Pu, J.; Kennedy, D.R.; Feldenzer, A.; Chiu, J.; Cook, K.M.; Furie, B.; et al. A substrate-driven allosteric switch that enhances PDI catalytic activity. Nat. Commun. 2016, 7, 12579. [Google Scholar] [CrossRef] [PubMed]
  140. Jasuja, R.; Passam, F.H.; Kennedy, D.R.; Kim, S.H.; van Hessem, L.; Lin, L.; Bowley, S.R.; Joshi, S.S.; Dilks, J.R.; Furie, B.; et al. Protein disulfide isomerase inhibitors constitute a new class of antithrombotic agents. J. Clin. Investig. 2012, 122, 2104–2113. [Google Scholar] [CrossRef]
  141. Lin, L.; Gopal, S.; Sharda, A.; Passam, F.; Bowley, S.R.; Stopa, J.; Xue, G.; Yuan, C.; Furie, B.C.; Flaumenhaft, R.; et al. Quercetin-3-rutinoside Inhibits Protein Disulfide Isomerase by Binding to Its b’x Domain. J. Biol. Chem. 2015, 290, 23543–23552. [Google Scholar] [CrossRef][Green Version]
  142. Zwicker, J.I.; Schlechter, B.L.; Stopa, J.D.; Liebman, H.A.; Aggarwal, A.; Puligandla, M.; Caughey, T.; Bauer, K.A.; Kuemmerle, N.; Wong, E.; et al. Targeting protein disulfide isomerase with the flavonoid isoquercetin to improve hypercoagulability in advanced cancer. JCI Insight 2019, 4, e125851. [Google Scholar] [CrossRef][Green Version]
  143. Khodier, C.; VerPlank, L.; Nag, P.P.; Pu, J.; Wurst, J.; Pilyugina, T.; Dockendorff, C.; Galinski, C.N.; Scalise, A.A.; Passam, F.; et al. Identification of ML359 as a Small Molecule Inhibitor of Protein Disulfide Isomerase. In Probe Reports from the NIH Molecular Libraries Program; National Center for Biotechnology Information (US): Bethesda, MD, USA, 2010. [Google Scholar]
  144. Robinson, R.M.; Reyes, L.; Duncan, R.M.; Bian, H.; Reitz, A.B.; Manevich, Y.; McClure, J.J.; Champion, M.M.; Chou, C.J.; Sharik, M.E.; et al. Inhibitors of the protein disulfide isomerase family for the treatment of multiple myeloma. Leukemia 2019, 33, 1011–1022. [Google Scholar] [CrossRef] [PubMed]
  145. Wang, W.Y.; Wu, Y.C.; Wu, C.C. Prevention of platelet glycoprotein IIb/IIIa activation by 3,4-methylenedioxy-beta-nitrostyrene, a novel tyrosine kinase inhibitor. Mol. Pharmacol. 2006, 70, 1380–1389. [Google Scholar] [CrossRef] [PubMed]
  146. Hsieh, P.W.; Chang, Y.T.; Chuang, W.Y.; Shih, H.C.; Chiang, S.Z.; Wu, C.C. The synthesis and biologic evaluation of anti-platelet and cytotoxic beta-nitrostyrenes. Bioorganic Med. Chem. 2010, 18, 7621–7627. [Google Scholar] [CrossRef] [PubMed]
  147. Kim, Y.; Chang, K.O. Protein disulfide isomerases as potential therapeutic targets for influenza A and B viruses. Virus Res. 2018, 247, 26–33. [Google Scholar] [CrossRef] [PubMed]
  148. Khan, M.M.; Simizu, S.; Lai, N.S.; Kawatani, M.; Shimizu, T.; Osada, H. Discovery of a small molecule PDI inhibitor that inhibits reduction of HIV-1 envelope glycoprotein gp120. ACS Chem. Biol. 2011, 6, 245–251. [Google Scholar] [CrossRef]
  149. Chitambar, C.R.; Al-Gizawiy, M.M.; Alhajala, H.S.; Pechman, K.R.; Wereley, J.P.; Wujek, R.; Clark, P.A.; Kuo, J.S.; Antholine, W.E.; Schmainda, K.M. Gallium Maltolate Disrupts Tumor Iron Metabolism and Retards the Growth of Glioblastoma by Inhibiting Mitochondrial Function and Ribonucleotide Reductase. Mol. Cancer Ther. 2018, 17, 1240–1250. [Google Scholar] [CrossRef][Green Version]
  150. Kim, T.W.; Ryu, H.H.; Li, S.Y.; Li, C.H.; Lim, S.H.; Jang, W.Y.; Jung, S. PDIA6 regulation of ADAM17 shedding activity and EGFR-mediated migration and invasion of glioblastoma cells. J. Neurosurg. 2017, 126, 1829–1838. [Google Scholar] [CrossRef][Green Version]
  151. Kaufman, R.J.; Malhotra, J.D. Calcium trafficking integrates endoplasmic reticulum function with mitochondrial bioenergetics. Biochim. Biophys. Acta 2014, 1843, 2233–2239. [Google Scholar] [CrossRef][Green Version]
Figure 1. Molecular targets in TNBC. Inhibitors of pathways discussed in the text are shown with inhibitors or antibodies. These include inhibitors targeting EGFR, VEGFR, and AR. Checkpoint inhibitors such as anti-PD-1 and PD-L1 are used to inhibit cancer cell and T cell interactions. Neoadjuvant chemotherapy and PAPR inhibitors are used to abrogate DNA Damage Response. (*) indicates U.S. Food and Drug Administration (FDA) approved drugs for treating TNBC.
Figure 1. Molecular targets in TNBC. Inhibitors of pathways discussed in the text are shown with inhibitors or antibodies. These include inhibitors targeting EGFR, VEGFR, and AR. Checkpoint inhibitors such as anti-PD-1 and PD-L1 are used to inhibit cancer cell and T cell interactions. Neoadjuvant chemotherapy and PAPR inhibitors are used to abrogate DNA Damage Response. (*) indicates U.S. Food and Drug Administration (FDA) approved drugs for treating TNBC.
Cancers 14 00745 g001
Figure 2. The human PDI gene family. Each gene is described with other aliases, subcellular locations, known functions, and domain organization. For the domain organization, the catalytically active a domains are represented in orange with active sites noted, active a’ domains are represented in yellow, b and b’ domains are represented in blue, and COOH-terminal ER retention sequences are represented in gray with their amino acid composition denoted. The figure was adapted and modified from Powell and Foster, Cancer Medicine 2021 [51].
Figure 2. The human PDI gene family. Each gene is described with other aliases, subcellular locations, known functions, and domain organization. For the domain organization, the catalytically active a domains are represented in orange with active sites noted, active a’ domains are represented in yellow, b and b’ domains are represented in blue, and COOH-terminal ER retention sequences are represented in gray with their amino acid composition denoted. The figure was adapted and modified from Powell and Foster, Cancer Medicine 2021 [51].
Cancers 14 00745 g002
Figure 3. The overall structures of oxidized and reduced hPDI: (A,B) the crystal structure of oxidized human PDI (hPDI) (PDB #: 4EL1) (A) and reduced hPDI (PDB #: 4EKZ). Redox-active sites are represented as space-filling models in green; (C,D) the interaction between b’ and a’ domain of hPDI at different redox states. The Arg300 (b’ domain) and Trp396, Cys397, and Cys400 (a’ domain) are shown in ball and stick presentation. There is no observed interaction between Arg300 and Trp396 in the oxidized state (C), whereas the cation-π interaction between the guanidium of Arg300 and the indole ring of Trp396 is observed due to disulfide bond formation in Cys397 and Cys400 in the a’ domain (D). The a and a’ domains are catalytic domains, b and b’ domain are non-catalytic domains, and x is a linker. The figures were generated by using the Schrodinger program.
Figure 3. The overall structures of oxidized and reduced hPDI: (A,B) the crystal structure of oxidized human PDI (hPDI) (PDB #: 4EL1) (A) and reduced hPDI (PDB #: 4EKZ). Redox-active sites are represented as space-filling models in green; (C,D) the interaction between b’ and a’ domain of hPDI at different redox states. The Arg300 (b’ domain) and Trp396, Cys397, and Cys400 (a’ domain) are shown in ball and stick presentation. There is no observed interaction between Arg300 and Trp396 in the oxidized state (C), whereas the cation-π interaction between the guanidium of Arg300 and the indole ring of Trp396 is observed due to disulfide bond formation in Cys397 and Cys400 in the a’ domain (D). The a and a’ domains are catalytic domains, b and b’ domain are non-catalytic domains, and x is a linker. The figures were generated by using the Schrodinger program.
Cancers 14 00745 g003
Figure 4. ER stress and the UPR pathway. The figure was adapted and modified from Powell and Foster, Cancer Medicine 2021 [51]. The figure was created with
Figure 4. ER stress and the UPR pathway. The figure was adapted and modified from Powell and Foster, Cancer Medicine 2021 [51]. The figure was created with
Cancers 14 00745 g004
Figure 5. The chemical structures of small-molecule PDI inhibitors: (A) PDI inhibitors that likely bind to the catalytic sites of the a and a’ domains of PDI; (B) PDI inhibitors that bind adjacent to active sites; (C) selective PDIA1 inhibitors; (D) PDI inhibitors that likely bind to the allosteric b’ domain of PDI; and (E) PDI inhibitors that the binding site of PDI is not yet identified.
Figure 5. The chemical structures of small-molecule PDI inhibitors: (A) PDI inhibitors that likely bind to the catalytic sites of the a and a’ domains of PDI; (B) PDI inhibitors that bind adjacent to active sites; (C) selective PDIA1 inhibitors; (D) PDI inhibitors that likely bind to the allosteric b’ domain of PDI; and (E) PDI inhibitors that the binding site of PDI is not yet identified.
Cancers 14 00745 g005
Table 2. The PDI Inhibitors Used in Breast Cancer Research.
Table 2. The PDI Inhibitors Used in Breast Cancer Research.
PDI InhibitorFindings in Breast Cancer Research
(Cell-Based and Pre-Clinical Studies)
Mechanism of Action of PDI Inhibitors
(Proposed Pathways)
  • Inhibits proliferation of breast cancer cells (MCF-7, MDA-MB-231).
  • Highly metastatic MDA-MB-231 breast cancer cell lines adhere to endothelial cells are more effective than non-invasive MCF-10A and MCF-7 cell lines.
  • The attachment of MDA-MB-231 to the endothelium can be attenuated by PDI inhibitors.
  • The transendothelial migration of MDA-MB-231 cells can be blocked by PDI inhibitors that inhibit thiol-disulfide exchange of integrin molecules β1 and β3.
  • Inhibits cell proliferation of breast cancer cells (MCF-7, MDA-MB-231, T47D) in low micromolar range of GI50.
  • Affects cell viability by inhibiting endogenous PDIA1, PDIA4, and PDIA6 localized in nucleus.
  • Reduces cell adhesion/migration of breast cancer cells (MCF-7, MDA-MB-231, HCC1937).
  • The spreading and attachment of breast cancer cells are strongly reduced by 16F16 treatment, and the effect of 16F16 is stronger than PACMA31.
  • 16F16 reduces initial rates of closure and overall scratch closure for all cell lines.
  • Impairs cell adhesion and migration of breast cancer cells by affecting pro-migratory F-actin structures including lamellipodia.
  • The anticancer efficacy of DDAs is apparent in cancers overexpressing EGFR and HER2.
  • Induces cell death in breast cancer cells in vitro (MDA-MB-468) and in vivo (mice xenograft model of BT474).
  • DDAs triggers DR4 and DR5-mediated activation of caspase 8 and 3 to cause apoptosis.
  • Inhibits cell proliferation of MCF-7 with nanomolar range of IC50.
  • Ga-1 induces ER stress, mitochondria dysfunction and subsequent cell death.
  • Ga-1 induced apoptosis is evidenced by upregulation of ATF4 and CHOP, subsequent activation of MAPK signaling pathway, and up-regulation of Bax as well as down-regulation of Bcl-2.
  • Ga-1 induced mitochondria dysfunction is evidenced by increased ROS level, induced morphological changes of mitochondria, and decreased MMP.
  • Combination with etoposide dose-dependently increases cell death rate in MDA-MB-231 cells.
  • Apoptosis is evidenced by increased PARP cleavage, caspase 9 and caspase 3 activity.
  • Inhibits proliferation in MDA-MB-231 cells with IC50 of 14 μM.
  • Inhibits adhesion of TNBC cell lines (MDA-MB-231) to different ECM components.
  • MNS works potentially by blocking cell surface PDI to inhibit β1 integrin activation, affecting on cell adhesion and migration.
  • Also, MNS inhibits phosphorylation of FAK and paxillin to disrupt the formation of focal adhesion complex and actin stress fiber networks.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Yang, S.; Jackson, C.; Karapetyan, E.; Dutta, P.; Kermah, D.; Wu, Y.; Wu, Y.; Schloss, J.; Vadgama, J.V. Roles of Protein Disulfide Isomerase in Breast Cancer. Cancers 2022, 14, 745.

AMA Style

Yang S, Jackson C, Karapetyan E, Dutta P, Kermah D, Wu Y, Wu Y, Schloss J, Vadgama JV. Roles of Protein Disulfide Isomerase in Breast Cancer. Cancers. 2022; 14(3):745.

Chicago/Turabian Style

Yang, Suhui, Chanel Jackson, Eduard Karapetyan, Pranabananda Dutta, Dulcie Kermah, Yong Wu, Yanyuan Wu, John Schloss, and Jaydutt V. Vadgama. 2022. "Roles of Protein Disulfide Isomerase in Breast Cancer" Cancers 14, no. 3: 745.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
