Interventional Radiology Image-Guided Locoregional Therapies (LRTs) and Immunotherapy for the Treatment of HCC

Pierpaolo Biondetti
Lorenzo Saggiante
Anna Maria Ierardi
Massimo Iavarone
Angelo Sangiovanni
Filippo Pesapane
Enrico Maria Fumarola
Pietro Lampertico
3 and
Gianpaolo Carrafiello
Diagnostic and Interventional Radiology Department, IRCCS Cà Granda Fondazione Ospedale Maggiore Policlinico, Università degli Studi di Milano, 20122 Milan, Italy
Postgraduate School in Radiodiagnostics, Università degli Studi di Milano, 20122 Milan, Italy
Gastroenterology Department, IRCCS Cà Granda Fondazione Ospedale Maggiore Policlinico, Università degli Studi di Milano, 20122 Milan, Italy
Radiology Department, IEO European Institute of Oncology IRCCS, 20122 Milan, Italy
Diagnostic and Interventional Radiology Department, ASST Santi Paolo e Carlo, 20122 Milan, Italy
Author to whom correspondence should be addressed.
Cancers 2021, 13(22), 5797;
Submission received: 8 October 2021 / Revised: 16 November 2021 / Accepted: 16 November 2021 / Published: 18 November 2021
(This article belongs to the Collection Treatment of Hepatocellular Carcinoma and Cholangiocarcinoma)



Simple Summary

Interventional radiology image-guided locoregional therapies for the treatment of HCC have demonstrated to be characterized by immunomodulatory effects on the tumoral microenvironment, and, possibly, systemic. Immunotherapy has gained an important role in the treatment of HCC over the last several years. Currently, there is great interest in combining locoregional therapies with immunotherapy, as this could open a new chapter in the history of HCC treatment. In this review, after describing the immune system changes caused by the tumor, we describe, for each locoregional therapy, technique and immunomodulatory effects. Then, we describe the current status of immunotherapy in HCC and report the ongoing clinical studies testing the combination treatment.


Image-guided locoregional therapies (LRTs) are a crucial asset in the treatment of hepatocellular carcinoma (HCC), which has proven to be characterized by an impaired antitumor immune status. LRTs not only directly destroy tumor cells but also have an immunomodulating role, altering the tumor microenvironment with potential systemic effects. Nevertheless, the immune activation against HCC induced by LRTs is not strong enough on its own to generate a systemic significant antitumor response, and it is incapable of preventing tumor recurrence. Currently, there is great interest in the possibility of combining LRTs with immunotherapy for HCC, as this combination may result in a mutually beneficial and synergistic relationship. On the one hand, immunotherapy could amplify and prolong the antitumoral immune response of LRTs, reducing recurrence cases and improving outcome. On the other hand, LTRs counteract the typical immunosuppressive HCC microenvironment and status and could therefore enhance the efficacy of immunotherapy. Here, after reviewing the current therapeutic options for HCC, we focus on LRTs, describing for each of them the technique and data on its effect on the immune system. Then, we describe the current status of immunotherapy and finally report the recently published and ongoing clinical studies testing this combination.

1. Hepatocellular Carcinoma and Its Current Therapeutic Options

Liver cancer is the sixth most commonly diagnosed cancer and the third leading cause of cancer death worldwide, after lung and colorectal cancer. In 2020, an estimated age-standardized incidence rate of 905,677 new liver cancers were reported, accounting for 830,180 deaths per year [1]. Hepatocellular carcinoma (HCC) represents approximately 75–85% of primary liver cancers [2]. The worldwide incidence of HCC is heterogeneous, depending on the distribution of risk factors, above all hepatitis B, hepatitis C, alcohol and metabolic syndrome [3]. Whatever the etiology, cirrhosis is the main risk factor for liver cancer development; HCC is associated with cirrhosis in more than 80% of cases, and it has been estimated that one-third of cirrhotic patients will develop liver cancer during their lifetime [4,5] with a 1–8% annual incidence reported in long-term follow-up studies.
The choice of treatment modality for HCC depends on several variables such as the extent of liver cancer, severity of the underlying chronic liver disease, presence of comorbidities, and performance status. Therapy must be tailored after a careful evaluation of patients, which can only be achieved by a multidisciplinary team, including a hepatologist, an oncologist, a transplant-hepatobiliary surgeon, a radiologist, an interventional radiologist, and a pathologist, following recommendations provided by the International Scientific Societies. Although there are discrepancies among the International Scientific Societies’ recommendations, there is a consensus that radical treatments, namely, liver transplantation, surgical resection, and locoregional treatments (LRTs) (i.e., radiofrequency ablation (RFA) and microwave ablation (MWA)) are indicated for early-stage HCC, which includes monofocal HCC and multifocal HCC with no more than three nodules, no larger than 3 cm each; trans-arterial chemoembolization (TACE) for intermediate-stage HCC; systemic therapy for advanced HCC. In detail, according to EASL-EORTC guidelines [6], the recommended first-line treatments are RFA or MWA for early monofocal HCC up to 2 cm in size and for multifocal HCC with up to three nodules, no larger than 3 cm, while surgery is recommended for monofocal tumors exceeding 2 cm. Liver transplantation is recommended for de novo multifocal tumor or recurrent HCC within “Milan criteria” (i.e., single nodules less than 5 cm in diameter or up to 3 nodules less than 3 cm each). For larger HCCs, classified in the intermediate stage, TACE is the treatment of choice, while systemic therapy is dispensed to patients with advanced stage, which includes patients with macrovascular invasion or metastatic HCC. Additional treatment options are under investigation such as cryoablation for early HCC and trans-arterial radioembolization (TARE) for advanced HCC with neoplastic portal invasion and no extrahepatic metastases.
Much more complex and less defined are further lines of treatment for patients showing no complete response to first-line therapies. Many studies have tested the ability to improve survival combining the abovementioned treatments as well as neoadjuvant or adjuvant therapies. Unfortunately, all these approaches have failed to improve overall survival (OS), so that none of them are recommended by the Scientific Societies.
In recent years, a significant improvement in OS has been obtained with systemic treatments. Many targeted therapies tested in randomized controlled trials obtained a survival improvement and have received FDA and EMA approval including tyrosine kinase inhibitors (TKIs) and anti-vascular endothelial growth factor (anti-VEGFR), such as sorafenib and lenvatinib as first-line treatments and regorafenib, ramucirumab, and cabozantinib as second-line treatments. Sorafenib is approved for patients with Child–Pugh (CP) A, while few prospective data are available for CP B patients, with the use of sorafenib being reserved in practice for patients with advanced HCC with compensated CP B [7]. As for lenvatinib, also approved for HCC patients with CP A liver function, it has been suggested that it may be continued in patients whose liver function deteriorates to CP B [8]. Few data are available on regorafenib in CP B patients, although a recent study advises against its use in this population, given the high frequency of adverse events and the poor clinical outcomes [9]; similar results were found regarding ramucirumab [10]. In the phase III CELESTIAL study (NCT01908426), cabozantinib, compared to the placebo, showed a manageable safety profile and clinical benefit.
More recently, immune checkpoint inhibitor (ICI) molecules, such as nivolumab and pembrolizumab, emerged as potential treatment options for HCC. Finally, the combination of two different targeted therapies emerged as a successful strategy, as the combination of the programmed cell-death 1 ligand 1 (PD-L1) inhibitor atezolizumab together with the anti-VEGF bevacizumab turned out to have significantly better outcomes compared to sorafenib as first-line treatments [11]. Thus, the combination of atezolizumab with bevacizumab is now the standard of care for the first-line treatment of advanced HCC.
The impressive benefit provided by immunotherapy leads to the question if there is a rationale to support the combination of surgery or LRTs for early or intermediate HCC with immunotherapy, given the established effect of this therapy and its modest side effects, with the possibility of shifting immunotherapy from an advanced treatment setting to an adjuvant setting, considering that it does not require hepatic metabolism and that HCC is regarded as an immunogenic cancer [12]. Several aspects of the mechanism of action of ICIs together with the tumoral cell death induced by LRTs (such as ablation or endovascular procedures) make the association of these different treatments intriguing as potentially being able to increase their mutual effectiveness on HCC.
Here, we review the rationale supporting the combination of immunotherapy with LRTs and summarize the recently published and ongoing clinical studies testing this combination.

2. Immune System Changes in HCC Patients

HCC develops in an altered and complex microenvironment, at the same time immune activating and immune suppressive, which can lead either to tumor eradication or to tumor progression [13]. On the one hand, HCC has been reported to be frequently recognized by the immune system [14] with various spontaneous immune responses, both humoral and T-cell mediated, to tumor-associated antigens (TAAs) [15,16]. On the other hand, there is a strong evidence that HCC is associated with an impaired antitumor immune status, both in tumor local tissue and in peripheral blood, leading to a high immune evasion [17]. Tumor regions were found to have an increased infiltration of regulatory T cells (Tregs) by 87% [18] and a reduced infiltration of CD8+ T cells, which also showed a lower expression of granzyme A (GrA), granzyme B (GrB), and perforin [19]. High Treg counts and low CD8+ T-cell counts in HCC tissues were correlated with an increase in tumor size [20,21] and with a poor prognosis [22,23,24]. Circulating Tregs were also found to increase by 66% in HCC patients [25], with an existing correlation between Treg percentage and HCC stage [26,27,28]. Furthermore, HCC patients showed a decrease in proinflammatory cytokines, such as tumor necrosis factor-α (TNF-α), interferon-γ (IFN-γ), interleukin (IL)-1, and an increase in immunosuppressive cytokines (IL-4, IL-5, IL-8, and IL-10) in the tumor microenvironment, resulting in a poor prognosis [29,30]. In addition, a high neutrophil/lymphocyte ratio was validated as a poor prognostic indicator after treatment of HCC, suggesting how HCC recurrence after liver transplant may be influenced by the inflammatory microenvironment [31].
The promising role of immunotherapy derives precisely from its potential of tipping this precarious balance between immune-stimulating and immune-suppressive status towards the former, eliciting an antitumor response. At the same time, the immune suppressive microenvironment of HCC represents a strong obstacle to the efficacy of immunotherapy. Therefore, approaches that counteract this unfavorable tumor microenvironment are needed in combination with immunotherapy. The key element in this impaired antitumor immune microenvironment is the low expression and availability of tumor antigens on cancer cells, resulting in lower T-cell activation and tumor infiltration; LRTs may play a pivotal role in overcoming this problem.
HCC is not the only tumor in which immunotherapy has proven to be beneficial; in fact, the efficacy of immunotherapy has also been demonstrated in melanoma, renal cell carcinoma, hematological malignancies, and non-small cell lung cancer, and new evidence is emerging suggesting its potential in treating other types of malignancies [32].

3. LRT and Immunomodulation

LRTs have the potential of shaping tumor immunity by altering the composition of the HCC microenvironment; in particular, they lead to the release from dying tumor cells of cryptic TAAs and tumor neoantigens that become accessible to the immune system, acting as novel targets for antigen-presenting cells (APCs), mainly dendritic cells (DCs).
The innate immune system, including neutrophils, macrophages, and natural killer (NK) cells, is the first to respond, followed by the more strong and sustained acquired response [33,34], characterized by significant intratumoral immune infiltrates [35,36,37,38,39,40]. In order to stimulate the acquired immune system, cancer cells must die thorough immunogenic cell death (ICD), which happens with necrosis and is characterized by the release from dying cells, along with antigens and preserved intracellular organelles, of damage-associated molecular patterns (DAMPs), such as DNA, RNA, heat shock proteins (HSPs), adenosine triphosphate (ATP), protein high-mobility group box 1 (HMGB1), calreticulin, and uric acid, which allow recruitment and activation of DCs (through the NF-κβ pathway activation). Activated DCs, after reaching regional lymph nodes, present antigens along with costimulatory signals to T cells that are therefore stimulated [41,42,43]. On the contrary, in non-ICD, which occurs with apoptosis, the dying tumor cells do not release DAMPs; without phagocytizing DAMPs, DCs cannot be activated and therefore do not present costimulatory signals to T cells [43,44], with the subsequent T-cell anergy and deletion leading to immune tolerance [45,46,47]. The antitumor response triggered by ICD takes place both locally and distantly from the primary tumor; this phenomenon, whereby a locally applied therapy elicits a distant antitumor response, is known as the abscopal effect [48].
It is not yet clear which ablative technique has the highest potential for releasing cryptic tumor antigens and creating the best immunostimulatory microenvironment.

4. Pro-Oncogenic Effects of LRTs

All locoregional and surgical approaches might also have a stimulatory effect of oncogenesis, as described by several studies, by means of tumor cell spreading, microenvironmental changes, and both angiogenetic and proliferative triggers.
In fact, LRTs, both thermal and non-thermal, applied to the liver as well as to other organs, have been correlated to a more aggressive tumor subtype, tumor growth [49,50,51], and to a higher incidence of tumor progression [52,53]. This can be attributed to local and systemic inflammation (via an increase in IL-6, IL-8, and HSP) and to the upregulation of pro-oncogenic growth factors such as hypoxia-inducible factor-1α (HIF-1α), VEGF, hepatocyte growth factor (HGF), hepatocyte growth factor receptor (HGF-R), matrix metalloproteinases (MMPs), cluster of differentiation 147 (CD147), and mammalian target of rapamycin (mTOR) [49,54,55,56,57,58,59,60]. Moreover, local hepatic thermal ablation has been linked, in some cases, to a higher rate of distant intrahepatic tumor development and to overall worse outcomes [50,53,60,61]. This may be particularly true for sublethal–incomplete treatments [62,63,64].

5. LRTs: Classification

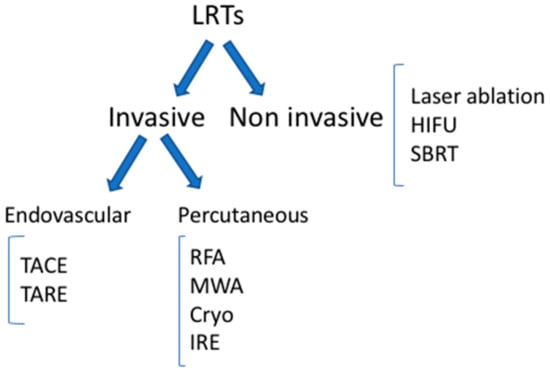

The main types of LRTs available today are reported in Figure 1.
In the following section, we briefly describe the technical properties and methods of functioning for each LRT, together with the existing evidence regarding its effect on the immune system. In Table 1, we summarize the effect of each LRT on the immune system.

6. Invasive Percutaneous LRTs

6.1. Radiofrequency Ablation (RFA)

6.1.1. Technique

RFA is the most validated and widely used technique in the early stages of HCC, and it is still considered the main ablative therapy for HCC tumors smaller than 5 cm in diameter [65,66,67]. Nevertheless, when used alone, RFA is associated with a high risk of progression and tumor recurrence, in particular for >3 cm nodules [66]. Radiofrequency waves are generated by an electrode located in a probe inserted through the skin at the tumor site under imaging guidance, typically ultrasound or CT. The electrical circuit is completed through one or more grounding pads attached to the thighs or back of the patient. A high-frequency oscillating electrical current generates heat through the frictional movement of ions, achieving temperatures between 60 and 100 °C within the central zone, which leads to coagulative necrosis of tumor cells around the electrode [45,68]. In addition, heat conduction allows sublethal temperatures to be reached in more peripheral areas, where cell death occurs by apoptosis, obtaining a larger final ablation zone. Above 100 °C, boiling and charring of tissues occur, which, by increasing impedance and decreasing electrical conduction, limit the effectiveness of RFA.

6.1.2. Immunomodulation

Immune responses induced by RFA have been well documented, both local and systemic,. Following RFA of HCC, as well as of other tumors, a release of DAMPs, including RNA, DNA, HSPs, and HMGB1 [69,70], and an increase in inflammatory cytokines, such as IL-1β, IL-6, IL-8, TNF-α, and IFN-γ [34,52,71,72,73], in tumor specific antibodies, CD4+ T cells, CD8+ T cells, tumor-specific T cells [34,37,74], central memory lymphocytes (CD45RA-/CCR7+) [74,75], and in infiltrating CD45RO+ memory T cells have been demonstrated [34]. A higher count of tumor specific CD8+ T cells has been correlated with increased survival in patients with HCC [76,77] and the enhanced infiltration of CD45RO+ T cells is considered a marker of improved clinical outcome in all types of solid tumors [78]. Following RFA, a decrease in TGF-β, which acts as a pro-oncogenic cytokine, in IL-10, which normally stimulates tumor progression and inhibits cytotoxic T cells and NK cells [34], and in Tregs levels [34,73,79], has been reported.
The resultant increased CD8+ T/Treg ratio implies a shift in the immune system toward antitumor immunity. Conversely, an increased distant tumor growth following hepatic RFA has been observed, a pro-oncogenic response that may be explained by the activation of hepatocyte regeneration pathways by the injured liver parenchyma [49,50,60,80,81]. However, these data, although consistent, are based on preclinical models and do not correlate with a worse survival of RFA-treated patients compared to untreated patients [80].
A role is played by the HIF-1a/VEGF signaling pathway, which drives angiogenesis and has been shown to be upregulated in selected viable cells after exposition to heat, similar to what could happen at the margins of an incomplete ablation zone [82]. A study investigating the prognostic value of VEGF levels after RFA found that patients with higher levels of serum VEGF had a worse prognosis than patients with lower levels of serum VEGF [83].

6.2. Cryoablation

6.2.1. Technique

Imaging-guided ablation with cryotherapy, which consists of cellular destruction by freezing, causes cellular damages through direct and vascular-mediated pathways [84]. Percutaneous cryoablation of hepatic tumor uses liquefied gases (e.g. nitrogen or argon) under high pressure, which cool down when they rapidly expand via the Joule–Thomson effect, achieving temperatures from −80 °C to just under −150 °C [85], causing mechanical stress on the cellular membranes from intracellular ice crystal formation and consequent hypotonic cell disruption [86]. Cytotoxic cell destruction is achieved at temperatures below −40 °C. Tissue ischemia also occurs due to the fact of microvascular thrombosis, which can lead to a reduction in bleeding despite the lack of cauterization that is present with RFA or MWA [87]. Depending on the tumor size, cryoablation involves the positioning of one to several probes under imaging guidance. To ensure complete ablation of the tumor, a circumferential margin of 1 cm is needed [85].
During cryoablation, the target area is imaged at 2–5 min intervals in order to monitor the area of thermal injury, given that the ice-ball is detectable with both CT and MRI, and this helps avoid damage to adjacent organs [86]. Cryoablation causes less periprocedural pain than RFA, requiring a lower dose of sedatives during the procedure [88]. A limitation of cryoablation is the increased risk of hemorrhage caused by the inability to coagulate tissue during probe withdrawal, which instead can be done with RFA or MWA [77].

6.2.2. Immunomodulation

Cryoablation, leaving the ablated cancer tissue in situ, makes tumor antigens available to the host’s immune system, triggering the activation of innate and adaptive immunity against tumor antigens [89]. The immunostimulatory response following cryoablation has been described as the most potent among ablative therapies as evidenced by significantly higher post-ablative levels of serum IL-1, IL-6, NF-κβ, and TNF-α [90]. Peripheral to the site of cryoablation, sublethal temperatures induce apoptotic cell death [90]. As explained before, apoptosis may lead to T-cell anergy or clonal deletion with a consequent immunosuppressive effect [46]. Accordingly, cryoablation can induce both an immunostimulatory and an immunosuppressive effect, depending on whether there is more necrosis or apoptosis, and the proportion of these may vary over time [91].
In a murine model, TNF-α, IFN-γ, IL-1, and IL-10 were demonstrated to increase significantly after a cycle of cryoablation of tumor tissue in an experimental setting [92].
Cryoablation caused regression of untreated tumors and of lung metastases in a mouse model of prostate cancer and was associated with a systemic increase in CD4+ T cells, CD8+ T cells, and NK cells. On the contrary, cytotoxic T cells did not increase after cryoablation as opposed to heat-based ablative therapies [93,94]. Moreover, in HBV-positive HCC patients, the presence of elevated programmed cell death protein 1 (PD-1) on T cells and its relative ligand (PDL-1) on tumor cells was correlated to a poor overall survival post cryoablation [95]. However, the cryoablation-induced immune resistance with upregulation of PD-L1 on tumor cells could be overcome by combining cryoablation with a PD-1 inhibitor, such as nivolumab or pembrolizumab, which result in an effective antitumor T-cell response and in more effective disease control [96]. Finally, two clinical studies reported an increased OS when cryoablation was combined with immunotherapy, which consisted of infusion of allogenic NK cells and DC cytokine-induced killer (DC-CIK) cells [97,98]. These preliminary data show an excellent synergy between cryoablation and immunotherapies [89].
In a mice model of lung adenocarcinoma, tumor neoangiogenesis significantly increased in residual tumors with an overexpression of VEGF [99].

6.3. Microwave Ablation (MWA)

6.3.1. Technique

MWA uses an oscillating electromagnetic energy in the microwave range (with frequencies of at least 900 MHz) to cause agitation of water molecules in the targeted tissue, resulting in frictional heat that damages cells via hyperthermic injury [100,101], leading to cell death by coagulative necrosis [102]. Microwaves are generated by an antenna which is placed directly into the target zone under imaging guidance [103]. The advantages of MWA, compared to RFA, include higher intra-tumoral temperatures, shorter application times, larger ablation areas, and possibly decreased periprocedural pain [102,104,105,106,107]; MWA is currently mainly applied for the treatment of HCC [108]. An example of percutaneous image-guided microwave ablation of an HCC nodule is represented in Figure 2.

6.3.2. Immunomodulation

Compared to cryoablation and RFA, the immune response induced by MWA is relatively weak as evidenced by a significantly lower increase in IL-1, IL-6, and HSP-70 [71]. This may be the reason why the combination between MWA and immunotherapy has not been investigated in animal models as extensively as the other ablative methods [70]. One of the few studies on the matter, focused on breast cancer in mice [33], showed how combination therapy significantly prolonged survival and decreased the volume of tumors developing in animals after re-challenge. Combination therapy, compared to ablation monotherapy, also significantly increased the infiltration of CD8+ T cells into tumors, but not of CD4+ T cells. In HCC patients, immunohistochemistry analysis of biopsies taken before and after MWA [109] showed an increased infiltration of lymphocytes (mainly CD3+ T cells and CD56+ NK cells but not B cells) inside the ablated lesion, in the surrounding normal liver, and in distant untreated lesions. An inverse correlation was found between the density of infiltrates (of lymphocytes, macrophages, and CD56+ cells) into the ablated area and the risk of local recurrence. A phase I clinical trial in a small cohort of HCC patients with chronic HBV treated with a combination of MWA and immunotherapy reported an increase in CD8+ T cells one month after treatment and a reduction in HBV load [110]. Recently, a significant increase in circulating IL-12 (Th1 cytokine) and a decrease in IL-4 and IL-10 (Th2 cytokines) after MWA has been demonstrated, resulting in a positive antitumor response [111]. Therefore, although the antitumor immunity induced by MWA is weak and not sufficient alone to have a significant antitumor effect, the combination with immunotherapy to obtain a potential synergistic effect deserves further study.
A retrospective study on HCC patients showed no significant differences in VEGF and HGF receptors between patients treated with MWA and those treated with resection; on the other hand, in NSCLC, VEGF levels were found to be significantly increase after MWA [112,113].

7. Invasive Endovascular LRTs

7.1. Trans-Arterial Chemoembolization (TACE)

7.1.1. Technique

TACE is the current standard of care for patients with intermediate-stage multinodular HCC [114]. Furthermore, in clinical practice, many patients in the earlier stage (i.e., single nodule or up to three nodules under 3 cm) carrying contraindications to curative approaches might be treated with TACE. The rationale for TACE is that the intra-arterial injection of a chemotherapeutic drug, such as doxorubicin, followed by embolization of the blood vessel, will result in a strong cytotoxic effect enhanced by ischemia. For large single tumors, a combination of ablation and embolization is used as illustrated in Figure 3.

7.1.2. Immunomodulation

TACE and drug-eluting bead TACE (DEB-TACE) cause local cell death and induce a tumor-specific immune response [115]. For example, in a study by Kohles et al. [116], circulating GPC3-specific cytotoxic T lymphocytes (CTL) were shown to increase in 55% of patients with HCC after RFA and in 44% of patients after TACE.
Moreover, Treg count was reported to significantly decrease after TACE compared to baseline, and patients with a low post-TACE Treg count exhibited a significantly higher median time to progression (11.6 months) than patients with a high post-TACE Treg count (3.8 months) [117]. TACE causes changes in the levels of various cytokines: early increases in IL-6 after TACE indicate an acute-phase response and are correlated with post-treatment hepatitis, while late-phase increases in Th2 cytokine levels reflect immune suppression [118]. Moreover, Huang M et al. [119] reported that after treatment, CD4+ cells, CD4+/CD8+ ratio, and NK cells increased in HCC patients; in contrast, CD8+ cells were significantly reduced, offering a strong indication that TACE may improve patients’ immune system.
Conversely, after TACE, surviving cancer cells may increase the expression of HIF-1 α and VEGF, which can lead to tumor progression [120,121].

7.2. Trans-Arterial Radioembolization (TARE)

7.2.1. Technique

Yttrium-90 (90Y) microsphere radioembolization (TARE) is a promising modality that has emerged for the treatment of patients with advanced liver cancer in which resin or glass microspheres containing 90Y are administered directly into the hepatic arterial branches that supply the hepatic tumor [122]. TARE takes advantage of both radiation and embolization, although its effects are primarily mediated by radiation injury. 90Y microspheres, entrapped in the microvasculature of the liver, emit β-radiation mostly during the first 11 days following treatment, after which it decays into stable zirconium, resulting in tumor necrosis as a consequence of free oxygen radical generation and subsequent irreparable DNA damage, similar in principle to brachytherapy. Because of their small size (30–70 μm), radioactive microspheres are able to penetrate into the tumor vasculature with minimal embolic and hypoxic effects [123], being a valid option in patients with portal vein thrombosis. There is a high interest in the clinical use of TARE in locally advanced HCC because of the paucity of effective therapies in this group of patients [122]. This is the reason why, despite unsuccessful randomized control trials, this technique is widely applied. Patients who have failed TACE in early or intermediate stages of HCC, patients with multiple monolobular disease (>4 tumors), and patients with large tumors (>5 cm) and limited vascular invasion have been proposed as potential candidates for TARE [124].

7.2.2. Immunomodulation

From the analysis of the immune profile of surgically resected HCC that had been downstaged by TARE, various signs of immune activation have been described, including higher intratumoral expression of GrB and infiltration of CD8+ T cells, CD56+ NK cells and CD8+ CD56+ NKT cells [125]. An increase in TNF-α in both CD8+ and CD4+ T cells was also observed after TARE as well as an increase in APCs, implying a systemic immune activation. A high percentage of PD-1/tim-3+CD8+ T cells co-expressing the homing receptors CCR5 and CXCR6 denoted TARE responders. A study on 25 patients with inoperable hepatic malignancies treated with TARE demonstrated that treated patients had a profound lymphopenia directly after therapy, whereas granulocytes and monocytes increased rapidly, leading to an overall increase in the total number of leukocytes; lymphopenia affected all subpopulations: CD3+, CD4+, CD8+ T cells, CD4+ CD8+ T cells, CD19+ B cells, and NK cells [126]. Finally, the intense immune activation following TARE was further confirmed by Fernandez-Ros N et al. [127], who demonstrated an increase in pro-inflammatory (IL-6 and IL-8) and oxidative stress (malondyaldehide) markers, an induction of endothelial injury markers (vW factor and PAI-1), an activation of the coagulation cascade (factor VIII, PAI-1, D-Dimer), and a significant increase in factors related to liver regeneration (FGF-19 and HGF). A significant increase in IL-1 and IL-6 levels after TARE was also described by Seidensticker et al. [128].
Compared to TACE, evidence suggests that the increase in HIF-1 α and VEGF obtained with TARE is significantly lower [129].

8. Ablation Techniques under Evaluation

8.1. High-Intensity Focused Ultrasound (HIFU)

HIFU is a non-invasive hyperthermic ablative modality by a multi-element ultrasound transducer, positioned outside the body or in a cavity that targets a focal area with high-intensity ultrasound beams. The convergence of these beams causes an increase in temperatures to approximately 60–85 °C, inducing tumor cells coagulative necrosis together with cellular apoptosis in the surrounding tissues [130,131]. HIFU has been used only in the last years for the treatment tumors [132]. Regarding HCC, Ji et al. reported CR and ORR rates of 66% and 83%, respectively, and a one-year survival rate of 81% by the analysis of several studies on HIFU in the treatment of HCC [133].
Regarding the potential immunomodulation effects of HIFU, in clinical settings, an increased expression of HSP-27, HSP-72, and HSP-73 was registered in prostate treatment, especially at the border of HIFU action [134]. In patients with solid tumors, including HCC, treated with HIFU, an increase in CD4+ lymphocytes and in the CD4+/CD8+ ratio was also reported [135], while serum immunosuppressive cytokines, in particular VEGF, TGF-β1, and TGF-β2, decreased [136]. More recently, an increased level of NK, CD3+, CD4+, CD8+, and CD4+/CD8+ was registered in patients with primary liver cancer at 3 months after HIFU when compared with the baseline; moreover, the levels of IFN-γ and IL-2 significantly increased, while the levels of IL-4 and IL-10 decreased, reflecting a change in the Th1–Th2 ratio [137].
A new HIFU application is named histotripsy in which extremely high pressure, very short (micro- or millisecond) acoustic pulses cause changes in gaseous tissue components, with bursting of bubbles, leading to mechanical fragmentation and transformation of tissue into a liquefied homogenate that can be reabsorbed by the body [138,139]. Pulses are separated by cooling intervals to avoid heat generation. By avoiding heat, histotripsy is not limited by the heat-sink effect, an advantage in highly vascularized organs like the liver, and leaves large vessels intact, as they have higher mechanical resistance to fractionation when compared to surrounding soft tissues [138,140]. For histotripsy, evidence of local and systemic inflammatory response has been reported in melanoma tumors in mice, with increased levels of intratumoral NK, DC, neutrophil, B and T cells, and increased levels of circulating NK cells; moreover, histotripsy led to inhibition of metastatic growth, and significantly higher levels of CD8+ T-cell infiltration into distant tumor sites were recorded after contralateral histotripsy ablation [141]. At a cellular level, release of DAMPs and an increased circulating level of HMGB1 were observed after histotripsy [141].

8.2. Laser Ablation

Laser ablation is a non-invasive technique in which laser optical fibers are focused into a target lesion, leading to temperatures of over 60 °C and causing coagulative necrosis. When applied in a minimally invasive modality to reach deep tissues, it is called laser interstitial thermotherapy (LITT) [142,143]. This technique is performed delivering light for 1–10 min, causing a photochemical damage on biological tissues with radical formation and inflammation and a thermal damage with denaturation of proteins.
In immune-modulating LITT (imILT), a temperature gradient is created in the tumor, with non-coagulating temperatures reached at the tumor border, which are kept for a longer time (30 min) in order to achieve ICD [144] with the release of DAMPs and antigens from the tumor margin [45]. As far as the available data on outcomes in HCC, a CR of 82–97% and cumulative three-year survival rates up to 73% have been reported in patients within Milan Criteria [145,146]. Another study reported a complete tumor ablation of laser-treated HCCs in 88% of cases, with complete ablation in 91.7% of nodules up to 5.0 cm [147].
For HCC lesions up to 5 cm in high-risk locations, a median survival of 3.5 years was registered [148]. When compared with RFA, no significant differences were found in terms of local control, OS, and safety by two randomized trials [149,150].
When considering the potential immunological effect of laser ablation, in mice models of liver cancer, LITT was followed by eradication of a subsequent challenging tumor and absence of tumor spread, and it was associated with an increased number of macrophages and CD8 T cells; expression of HSP70, HSP90, and HSP27; serum levels of IL-6 and TNF receptor [151,152,153]. In rat models with multiple implanted liver adenocarcinomas, the treatment for one tumor with laser ablation led to an increased expression of CD8, B7-2 (CD86), MHCII, LFA1 (CD11a), and ICAM1 (CD54) at the invasion front of another untreated tumor [154]. Conversely, another study showed that moderate (45 °C) heat stress of HCC and hepatocytes stimulated growth of non-heat-stressed HCC cells [155].

8.3. Stereotactic Body Radiation Therapy (SBRT)

SBRT involves the delivery of high doses of ablative radiation to limited (tumoral) liver volumes, with low risk of damage to surrounding tissues, by highly conformal hypo-fractionated external beam radiation in relatively fewer fractions compared to conventional radiotherapy [156,157].
In a meta-analysis including several studies, with a total of 7928 HCC patients, SBRT was well tolerated, had an OS equivalent to RFA, and was superior in terms of local control, especially for a diameter > 2 cm [158].
Regarding immunogenicity, SBRT causes cellular death and release of TAAs and DAMPs, such as HMGB1 [159], leading to an increased expression of MHC I molecules in a dose-dependent manner [160]. In radiation, cancer cell death occurs after DNA damage, favoring the release of double-stranded DNA that activates the cyclic GMP–AMP synthase/stimulator of interferon genes (cGAS/STING) signaling pathway, with the production of IFN-α and IFN-β, innate immunity stimulation, and lymphocyte infiltration in tumor tissue [161]. Pro-inflammatory cytokines are released with APC activation and migration to lymph-nodes, where specific CD8 T cells are activated [162,163].
Exposure to radiation in vivo promotes cell-surface expression of calreticulin in carcinoma cells, resulting in enhanced T-cell killing [164]. SBRT has been shown to have an effect on both peripheral NK and CD3+CD56+NKT-like cells, and higher percentages of the latter cell population was recently associated with increased OS in HCC patients [165]. However, at the same time, radiation therapy also has immunosuppressive effects. Interferon I receptor activity, which is enhanced by RT, has been associated to intratumor infiltration of Treg and myeloid cells and acquired resistance to anti-PD-1 monoclonal antibody [166]. The DNA damage response includes an increased expression of CTLA-4 and PD-L1 on the tumor cell membrane; PD-L1 causes exhaustion of T cells, which contributes to tumoral immune escape [167]. Moreover, Treg cells are more resistant to radiation than other lymphocytes, resulting in their preferential increase [168].

8.4. Irreversible Electroporation (IRE)

Irreversible electroporation is a percutaneous non-thermal ablation technique that delivers multiple short high-voltage electrical pulses, generating an electrical field that alters the electrochemical potential of the cell membrane and leads to the irreversible formation of nanopores in the lipid bilayer, causing necrosis and apoptosis [169,170]. As its main effects do not rely on high temperatures, IRE has the advantage over thermal ablative techniques of avoiding the heat-sink effect [171,172]. Moreover, by selectively destroying lipid bilayers, IRE preserves blood vessels and bile ducts due to their higher content of collagen and fibrous tissue [173,174]. On the other hand, IRE is technically demanding, costly, and more time-consuming than heat-based thermal ablation [175]. Furthermore, treatment requires general anesthesia, paralysis, and cardiac synchronization [176]; high-frequency IRE (HFIRE), the next generation of IRE that does not require cardiac synchronization and paralytic agents, could minimize these difficulties in the near future [177]. IRE has been generally used in HCC cases where thermal ablation was considered unsuitable or at high risk of complications including the setting of bridge to transplantation [178,179,180]. Regarding efficacy, a recent review of nine major studies focused on IRE in the treatment of liver cancers (the majority being HCC) reported a primary efficacy rate of 66–100%, a local recurrence rate of 5–34%, and general and major complication rates of 11–42% and 3–11%, respectively [181].
There is a growing interest in the immunomodulatory effect of IRE, which, unlike thermal ablative techniques, has the theoretical advantage of leaving intact tumor antigens within the ablated tissue and of preserving blood vessels and lymphatics, thus facilitating immune cells infiltration. Comparing the effects of IRE and RFA performed on mice with noncancerous liver, neutrophil and macrophage infiltration was higher after IRE within the ablation zone, along with intact microvessels; moreover, IRE led to greater cytokine expression, local inflammatory effects, and distant systemic effects [182]. A study on HCC in animals demonstrated that IRE ablation promotes infiltration of inflammatory cells adjacent to the ablation volume and release of several cytokines, reverting the abnormal Th2 status promoted by HCC (characterized by a decreased antitumor efficacy) back to a normal Th1 dominant status (which increases antitumoral activity) [183]. In HCC patients, the macrophage migration inhibitory factor (MIF), an immunomodulatory cytokine which maintains the inflammatory response, was increased more after IRE than after RFA; the same was observed for macrophage inflammatory protein-1b (MIP-1b)/chemokine ligand 4 (CCL4), TNF-α, and IL-17 [184].

9. Immunotherapy

9.1. Immune Checkpoint Inhibitors

PD1 and PDL1 inhibitors, such as nivolumab and pembrolizumab, have proven to be effective (ORR 15–20% with a 1–5% of complete responses, and prolonged survival) as both first and second line (after sorafenib) treatments of HCC in phase I/II studies, even though the data were not confirmed in terms of OS and PFS combined end-points in phase III studies [185,186,187]. Despite these inconclusive results, these drugs received accelerated approval by FDA as second-line treatments. To overcome these results, several strategies can be applied, such as the combination between CTLA-4 and PD1/PDL1, which increased response rates by 30%. In a phase II study, for example, the combination of ipilimumab and nivolumab obtained a median OS of 22.8 months [188] and was therefore approved to treat HCC patients after sorafenib by the FDA. Similar results were observed with the combination of the CTLA-4 inhibitor tremelimumab and the PDL1 inhibitor durvalumab in a phase I/II study [189].
The combination of pembrolizumab and lenvatinib has been tested in a phase Ib study, doubling the response rate compared to pembrolizumab alone, leading to a 20 months median overall survival, but at the cost of increased toxicity [190]. Another option is the association of PD1/PDL1 inhibitors with a TKI/anti-VEGF drug such as the association between atezolizumab with bevacizumab. This association proved to be superior to sorafenib at the primary analysis of the phase III study IMbrave150, with a median OS of 19.2 vs the 13.2 months of sorafenib; the HR was 0.58 (95% CI 0.42–0.79) (p < 0.001); median PFS (95% CI) per RECIST v1.1 by Independent Review Facility was 4.3 (4.0–5.6) months with sorafenib and 6.8 (5.7–8.3) months with atezolizumab + bevacizumab (HR 0.59, 95% CI 0.47–0.76; p < 0.001), and the overall response rates (per IRF RECIST v1.1) were 12% and 27%, respectively (p < 0.001). AE rates were similar in the two treatment groups (grade 3 or 4, 55% versus 57%; grade 5, 6% versus 5%, respectively) [191]. Given the efficacy and safety outcomes of the IMbrave150 trial, the combination of atezolizumab and bevacizumab was first approved by FDA on May 2020 and by the European Medicines Agency (EMA) on November 2020 for the first-line treatment of unresectable HCC.

9.2. Other Immunotherapies

A approach to modify the immune response to tumor microenvironment is represented by adoptive cell therapy (ACT), in which lymphocytes are isolated from the patients’ blood, expanded, and/or genetically engineered and then reinfused into the patient [192]. The most commonly used cells in HCC are lymphokine-activated killer (LAK) cells, cytokine-induced killer (CIK) cells, NK cells, TILs, and redirected peripheral blood T cells. Before the ACT treatment, cyclophosphamide and fludarabine are administered in order to obtain lymphodepletion and to support in vivo expansion of adoptively transferred cells.
Another potential approach are tumor vaccines, which are agents that are able to generate tumor-specific immune responses; however, data are still preliminary and inconclusive.

10. Combination of Immunotherapy-LRT

The immune activation against tumor induced by LRTs is not strong enough on its own to generate a clinically significant antitumor response and it is incapable of preventing tumor recurrence. From this derives the potential of combining LRTs with immunotherapy, in order to amplify and prolong the antitumor immune response instigated by the LRT, thereby reducing recurrence following ablation and improving outcomes.
The relationship between LRT and immunotherapy is therefore mutually beneficial and synergistic; on the one hand, LRT counteracts a key aspect of the tumor immunosuppressive status, namely, the immunosuppressive microenvironment and the lack of available tumor antigens, which undermines the efficacy of immunotherapy; on the other hand, immunotherapy enhances the immune stimulating effects obtained with LRT.
In fact, the immunological response after locoregional therapies seems to be magnified by checkpoint blockade and even more intensified by the add on of MKIs/anti-VEGF agents, both able of further remodeling the composition of the HCC microenvironment in favor of an antitumoral effect inducing the transformation of a non-immunogenic “cold” into an inflamed “hot” tumor [40,41,42].
When exploring the combination of ICIs with intravascular treatments, such as TACE or TARE, the target population should be the BCLC B stage with well-preserved liver function, and the control arm should be TACE alone. There are some aspects that should be considered that can potentially limit the results of these trials, mainly the controversial definition of primary endpoints and the heterogeneity of both BCLC B population and TACE procedures. Because of this background noise, stratification in terms of tumor burden, endovascular techniques applied, and AFP levels are of paramount importance in the interpretation of results. After the negative results with sorafenib in combination with TACE, several phase II trials are underway, but the available data is still not strong enough to be considered as reliable; at this time point, they suggest that combining systemic therapies and locoregional therapies with ICIs may represent a future useful strategy to enhance the results of locoregional therapies in the intermediate stage population [45]. Regarding curative treatments, the most important point to remark remains the fact that 70% of patients develop hepatic recurrence at 5 years, negatively impacting the overall prognosis. Many adjuvant strategies, including sorafenib, have failed to improve relapse-free survival (RFS) or OS, but following the positive results on RFS in the adjuvant setting for several other tumoral conditions and the knowledge we are building on immunotherapy and HCC, we are now testing the rationale of its application in this setting.
The mechanism behind the combination of ablative procedures with immunotherapy is somehow different; ablation not only induces the release of tumor antigens, but it also increases the release of inflammatory cytokines, stimulating an antitumor systemic immune response, even more enhanced if it is followed by an adjuvant immunotherapy.
The concept that BCLC stage 0/A patients with well-preserved liver function should be the population target of trials testing immunotherapy in the adjuvant and neoadjuvant setting is widely shared, and so it is the belief that the primary endpoint should be represented by RFS/time to recurrence. As a result of this, stratification criteria should be taken into consideration, such as size and number of lesions, region of origin of patients and other risk factors of recurrence (i.e., microvascular invasion at histology or AFP levels before locoregional treatment/surgery).
Another potential combination of LRT and immunotherapy is in advanced HCC, where thermal ablation has not its typical curative aim, but its role would be to increase the effectiveness of immunotherapy by transforming a “cold” tumor into a “hot” one. Duffy et al., the first to report this approach, combined tremelimumab with either TACE (BCLC B stage) or subtotal ablation (BCLC C stage) in a cohort of patients who had progression or were intolerant to sorafenib, and achieved a partial response rate of 26.3% (n = 5/19 patients) when measured on lesions outside the ablation or chemoembolization zone, a median time to progression of 7.4 months and a median OS of 12.3 months; moreover, the majority of patients with HCV showed a significant reduction in viral load [193].
Currently, several studies are underway evaluating the combination of nivolumab with SIRT (NCT03380130, NCT03033446, and NCT02837029), pembrolizumab with SIRT (NCT03099564), nivolumab with TACE (NCT03143270 and NCT03572582), pembrolizumab with TACE (NCT03397654); ongoing trials are presented in Table 2.
In a recent study focused on the combination of RFA and cellular therapy in HCC, mononuclear cells were harvested and induced into NK cells, γδT cells, and CIK cells, which were infused back into the RFA-treated patients. The combination between these immune cells and RFA improved progression-free survival and reduced HCC recurrence compared to RFA alone [194].
Regarding the safety of LRTs combined with immunotherapy, the available data seem to point towards an acceptable safety profile; for example, TARE plus nivolumab showed a similar safety profile when compared to TARE alone [195], tremelimumab in combination with ablation proved to be safe for the treatment of advanced HCC [193], no significant adverse reaction was found when combining RFA with cellular immunotherapy in HCC patients [194].

11. Conclusions

Interventional radiology image-guided LRTs have an established role in the treatment of patients with HCC. Immunotherapy has become an important part of the current available therapeutic options for HCC in the last years. HCC is now known to be characterized by changes in the immune system, including immunosuppression and immune evasion. The different types of LRTs not only cause destruction of tumor cells, but also have immunomodulatory effects, which have been demonstrated both in preclinical and clinical studies. The combination of immunotherapy and LRTs could lead to mutually beneficial effects. On one hand, immunotherapy could enhance the immunostimulatory effects of LRTs, thus reducing recurrence rates after their application; On the other hand, the use of LRTs, also in advanced stages of disease, by altering the original tumoral immune statu, could increase the efficacy of immunotherapy and, potentially, the number of patient treatable with systemic immunotherapy. The importance of this new approach to the disease is demonstrated by the number of ongoing clinical studies focused on this combination, which could open a new chapter in the treatment of HCC.

Author Contributions

Conceptualization, P.B., L.S., A.M.I., M.I., A.S., F.P., E.M.F., P.L. and G.C.; methodology, P.B., L.S., A.M.I., M.I., A.S., F.P., E.M.F., P.L. and G.C.; resources, P.B., L.S., A.M.I., M.I., A.S., F.P., E.M.F., P.L. and G.C.; writing—original draft preparation, P.B., L.S., A.M.I., M.I., A.S., F.P., E.M.F., P.L. and G.C.; writing—review and editing, P.B., L.S., A.M.I., M.I., A.S., F.P., E.M.F., P.L. and G.C. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Available online: http://Globocan.Iarc.Fr (accessed on 20 September 2021).
  2. Sung, H.; Ferlay, J.; Siegel, R.L.; Laversanne, M.; Soerjomataram, I.; Jemal, A.; Bray, F. Global Cancer Statistics 2020: GLOBOCAN Estimates of Incidence and Mortality Worldwide for 36 Cancers in 185 Countries. CA Cancer J. Clin. 2021, 71, 209–249. [Google Scholar] [CrossRef]
  3. Wild, C.P.; Weiderpass, E.; Stewart, B.W. World Cancer Report: Cancer Research for Cancer Prevention; IARC Press: Lyon, France, 2020. [Google Scholar]
  4. Akinyemiju, T.; Abera, S.; Ahmed, M.; Alam, N.; Alemayohu, M.A.; Allen, C.; Al-Raddadi, R.; Alvis-Guzman, N.; Amoako, Y.; Artaman, A.; et al. The Burden of Primary Liver Cancer and Underlying Etiologies From 1990 to 2015 at the Global, Regional, and National Level. JAMA Oncol. 2017, 3, 1683. [Google Scholar] [CrossRef] [PubMed]
  5. Ioannou, G.N.; Splan, M.F.; Weiss, N.S.; McDonald, G.B.; Beretta, L.; Lee, S.P. Incidence and Predictors of Hepatocellular Carcinoma in Patients With Cirrhosis. Clin. Gastroenterol. Hepatol. 2007, 5, 938–945.e4. [Google Scholar] [CrossRef] [PubMed]
  6. Lampertico, P.; Agarwal, K.; Berg, T.; Buti, M.; Janssen, H.L.A.; Papatheodoridis, G.; Zoulim, F.; Tacke, F. EASL 2017 Clinical Practice Guidelines on the Management of Hepatitis B Virus Infection. J. Hepatol. 2017, 67, 370–398. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. McNamara, M.G.; Slagter, A.E.; Nuttall, C.; Frizziero, M.; Pihlak, R.; Lamarca, A.; Tariq, N.; Valle, J.W.; Hubner, R.A.; Knox, J.J.; et al. Sorafenib as First-Line Therapy in Patients with Advanced Child-Pugh B Hepatocellular Carcinoma—A Meta-Analysis. Eur. J. Cancer 2018, 105, 1–9. [Google Scholar] [CrossRef]
  8. Huynh, J.; Cho, M.; Kim, E.; Ren, M.; Amaya-Chanaga, C.; Vogel, A. P-78 Post Hoc Analysis in Patients with Unresectable Hepatocellular Carcinoma Who Progressed to Child-Pugh B Liver Function in the Phase 3 REFLECT Study of Lenvatinib vs Sorafenib. Ann. Oncol. 2021, 32, S123–S124. [Google Scholar] [CrossRef]
  9. Kim, H.; Bang, Y.; Lee, M.A.; Kim, J.W.; Kim, J.H.; Chon, H.J.; Kang, B.; Kang, M.J.; Kim, I.; Cheon, J.; et al. Regorafenib in Patients with Advanced Child-Pugh B Hepatocellular Carcinoma: A Multicentre Retrospective Study. Liver Int. 2020, 40, 2544–2552. [Google Scholar] [CrossRef]
  10. Zhu, A.X.; Baron, A.D.; Malfertheiner, P.; Kudo, M.; Kawazoe, S.; Pezet, D.; Weissinger, F.; Brandi, G.; Barone, C.A.; Okusaka, T.; et al. Ramucirumab as Second-Line Treatment in Patients With Advanced Hepatocellular Carcinoma. JAMA Oncol. 2017, 3, 235. [Google Scholar] [CrossRef]
  11. Eatrides, J.; Wang, E.; Kothari, N.; Kim, R. Role of Systemic Therapy and Future Directions for Hepatocellular Carcinoma. Cancer Control 2017, 24, 107327481772924. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Pardee, A.D.; Butterfield, L.H. Immunotherapy of Hepatocellular Carcinoma. Oncoimmunology 2012, 1, 48–55. [Google Scholar] [CrossRef] [Green Version]
  13. Kapanadze, T.; Gamrekelashvili, J.; Ma, C.; Chan, C.; Zhao, F.; Hewitt, S.; Zender, L.; Kapoor, V.; Felsher, D.W.; Manns, M.P.; et al. Regulation of Accumulation and Function of Myeloid Derived Suppressor Cells in Different Murine Models of Hepatocellular Carcinoma. J. Hepatol. 2013, 59, 1007–1013. [Google Scholar] [CrossRef] [Green Version]
  14. Makarova-Rusher, O.V.; Medina-Echeverz, J.; Duffy, A.G.; Greten, T.F. The Yin and Yang of Evasion and Immune Activation in HCC. J. Hepatol. 2015, 62, 1420–1429. [Google Scholar] [CrossRef] [Green Version]
  15. Korangy, F.; Ormandy, L.A.; Bleck, J.S.; Klempnauer, J.; Wilkens, L.; Manns, M.P.; Greten, T.F. Spontaneous Tumor-Specific Humoral and Cellular Immune Responses to NY-ESO-1 in Hepatocellular Carcinoma. Clin. Cancer Res. 2004, 10, 4332–4341. [Google Scholar] [CrossRef] [Green Version]
  16. Mizukoshi, E.; Nakamoto, Y.; Arai, K.; Yamashita, T.; Sakai, A.; Sakai, Y.; Kagaya, T.; Yamashita, T.; Honda, M.; Kaneko, S. Comparative Analysis of Various Tumor-Associated Antigen-Specific t-Cell Responses in Patients with Hepatocellular Carcinoma. Hepatology 2011, 53, 1206–1216. [Google Scholar] [CrossRef]
  17. Cassim, S.; Pouyssegur, J. Tumor Microenvironment: A Metabolic Player That Shapes the Immune Response. Int. J. Mol. Sci. 2019, 21, 157. [Google Scholar] [CrossRef] [Green Version]
  18. Zhao, H.-Q. Roles of Tregs in Development of Hepatocellular Carcinoma: A Meta-Analysis. World J. Gastroenterol. 2014, 20, 7971. [Google Scholar] [CrossRef] [PubMed]
  19. Fu, J.; Xu, D.; Liu, Z.; Shi, M.; Zhao, P.; Fu, B.; Zhang, Z.; Yang, H.; Zhang, H.; Zhou, C.; et al. Increased Regulatory T Cells Correlate with CD8 T-Cell Impairment and Poor Survival in Hepatocellular Carcinoma Patients. Gastroenterology 2007, 132, 2328–2339. [Google Scholar] [CrossRef]
  20. Brace, C.L. Radiofrequency and Microwave Ablation of the Liver, Lung, Kidney, and Bone: What Are the Differences? Curr. Probl. Diagn. Radiol. 2009, 38, 135–143. [Google Scholar] [CrossRef] [Green Version]
  21. Lee, W.-C.; Wu, T.-J.; Chou, H.-S.; Yu, M.-C.; Hsu, P.-Y.; Hsu, H.-Y.; Wang, C.-C. The Impact of CD4+CD25+ T Cells in the Tumor Microenvironment of Hepatocellular Carcinoma. Surgery 2012, 151, 213–222. [Google Scholar] [CrossRef]
  22. Wang, F.; Jing, X.; Li, G.; Wang, T.; Yang, B.; Zhu, Z.; Gao, Y.; Zhang, Q.; Yang, Y.; Wang, Y.; et al. Foxp3+ Regulatory T Cells Are Associated with the Natural History of Chronic Hepatitis B and Poor Prognosis of Hepatocellular Carcinoma. Liver Int. 2012, 32, 644–655. [Google Scholar] [CrossRef]
  23. Chen, K.; Zhou, L.; Xie, H.; Ahmed, T.-E.; Feng, X.; Zheng, S. Intratumoral Regulatory T Cells Alone or in Combination with Cytotoxic T Cells Predict Prognosis of Hepatocellular Carcinoma after Resection. Med. Oncol. 2012, 29, 1817–1826. [Google Scholar] [CrossRef]
  24. Mathai, A.M.; Kapadia, M.J.; Alexander, J.; Kernochan, L.E.; Swanson, P.E.; Yeh, M.M. Role of Foxp3-Positive Tumor-Infiltrating Lymphocytes in the Histologic Features and Clinical Outcomes of Hepatocellular Carcinoma. Am. J. Surg. Pathol. 2012, 36, 980–986. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, Y.; Deng, B.; Tang, W.; Liu, T.; Shen, X. TGF-Β1 Secreted by Hepatocellular Carcinoma Induces the Expression of the Foxp3 Gene and Suppresses Antitumor Immunity in the Tumor Microenvironment. Dig. Dis. Sci. 2013, 58, 1644–1652. [Google Scholar] [CrossRef]
  26. Cao, M.; Cabrera, R.; Xu, Y.; Firpi, R.; Zhu, H.; Liu, C.; Nelson, D.R. Hepatocellular Carcinoma Cell Supernatants Increase Expansion and Function of CD4+CD25+ Regulatory T Cells. Lab. Investig. 2007, 87, 582–590. [Google Scholar] [CrossRef]
  27. Yang, Z.-Q.; Yang, Z.-Y.; Zhang, L.-D.; Ping-Bie; Wang, S.-G.; Ma, K.-S.; Li, X.-W.; Dong, J.-H. Increased Liver-Infiltrating CD8+FoxP3+ Regulatory T Cells Are Associated with Tumor Stage in Hepatocellular Carcinoma Patients. Hum. Immunol. 2010, 71, 1180–1186. [Google Scholar] [CrossRef]
  28. Shen, X.; Li, N.; Li, H.; Zhang, T.; Wang, F.; Li, Q. Increased Prevalence of Regulatory T Cells in the Tumor Microenvironment and Its Correlation with TNM Stage of Hepatocellular Carcinoma. J. Cancer Res. Clin. Oncol. 2010, 136, 1745–1754. [Google Scholar] [CrossRef]
  29. Budhu, A.; Forgues, M.; Ye, Q.-H.; Jia, H.-L.; He, P.; Zanetti, K.A.; Kammula, U.S.; Chen, Y.; Qin, L.-X.; Tang, Z.-Y.; et al. Prediction of Venous Metastases, Recurrence, and Prognosis in Hepatocellular Carcinoma Based on a Unique Immune Response Signature of the Liver Microenvironment. Cancer Cell 2006, 10, 99–111. [Google Scholar] [CrossRef] [Green Version]
  30. Nishida, N.; Kudo, M. Immunological Microenvironment of Hepatocellular Carcinoma and Its Clinical Implication. Oncology 2017, 92, 40–49. [Google Scholar] [CrossRef]
  31. Motomura, T.; Shirabe, K.; Mano, Y.; Muto, J.; Toshima, T.; Umemoto, Y.; Fukuhara, T.; Uchiyama, H.; Ikegami, T.; Yoshizumi, T.; et al. Neutrophil–Lymphocyte Ratio Reflects Hepatocellular Carcinoma Recurrence after Liver Transplantation via Inflammatory Microenvironment. J. Hepatol. 2013, 58, 58–64. [Google Scholar] [CrossRef]
  32. Ventola, C.L. Cancer Immunotherapy, Part 2: Efficacy, Safety, and Other Clinical Considerations. Pharm. Ther. 2017, 42, 452–463. [Google Scholar] [PubMed]
  33. Li, L.; Wang, W.; Pan, H.; Ma, G.; Shi, X.; Xie, H.; Liu, X.; Ding, Q.; Zhou, W.; Wang, S. Microwave Ablation Combined with OK-432 Induces Th1-Type Response and Specific Antitumor Immunity in a Murine Model of Breast Cancer. J. Transl. Med. 2017, 15, 23. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Huang, K.W.; Jayant, K.; Lee, P.-H.; Yang, P.; Hsiao, C.-Y.; Habib, N.; Sodergren, M.H. Positive Immuno-Modulation Following Radiofrequency Assisted Liver Resection in Hepatocellular Carcinoma. J. Clin. Med. 2019, 8, 385. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Nikfarjam, M.; Muralidharan, V.; Christophi, C. Mechanisms of Focal Heat Destruction of Liver Tumors. J. Surg. Res. 2005, 127, 208–223. [Google Scholar] [CrossRef]
  36. Haen, S.P.; Pereira, P.L.; Salih, H.R.; Rammensee, H.-G.; Gouttefangeas, C. More Than Just Tumor Destruction: Immunomodulation by Thermal Ablation of Cancer. Clin. Dev. Immunol. 2011, 2011, 1–19. [Google Scholar] [CrossRef]
  37. Dromi, S.A.; Walsh, M.P.; Herby, S.; Traughber, B.; Xie, J.; Sharma, K.V.; Sekhar, K.P.; Luk, A.; Liewehr, D.J.; Dreher, M.R.; et al. Radiofrequency Ablation Induces Antigen-Presenting Cell Infiltration and Amplification of Weak Tumor-Induced Immunity. Radiology 2009, 251, 58–66. [Google Scholar] [CrossRef] [Green Version]
  38. Zerbini, A.; Pilli, M.; Laccabue, D.; Pelosi, G.; Molinari, A.; Negri, E.; Cerioni, S.; Fagnoni, F.; Soliani, P.; Ferrari, C.; et al. Radiofrequency Thermal Ablation for Hepatocellular Carcinoma Stimulates Autologous NK-Cell Response. Gastroenterology 2010, 138, 1931–1942. [Google Scholar] [CrossRef]
  39. Dong, B.; Zhang, J.; Liang, P.; Yu, X.; Su, L.; Yu, D.; Ji, X.; Yu, G.; Yin, Z. Influencing Factors of Local Immunocyte Infiltration in Hepatocellular Carcinoma Tissues Pre- and Post-Percutaneous Microwave Coagulation Therapy. Zhonghua Yi Xue Za Zhi 2002, 82, 393–397. [Google Scholar]
  40. Kuang, M.; Liu, S.Q.; Saijo, K.; Uchimura, E.; Huang, L.; Leong, K.W.; Lu, M.D.; Huang, J.F.; Ohno, T. Microwave Tumour Coagulation plus in Situ Treatment with Cytokine-Microparticles: Induction of Potent Anti-Residual Tumour Immunity. Int. J. Hyperth. 2005, 21, 247–257. [Google Scholar] [CrossRef] [PubMed]
  41. Kroemer, G.; Galluzzi, L.; Kepp, O.; Zitvogel, L. Immunogenic Cell Death in Cancer Therapy. Annu. Rev. Immunol. 2013, 31, 51–72. [Google Scholar] [CrossRef]
  42. Sabel, M.S. Cryo-Immunology: A Review of the Literature and Proposed Mechanisms for Stimulatory versus Suppressive Immune Responses. Cryobiology 2009, 58, 1–11. [Google Scholar] [CrossRef]
  43. Basu, S.; Binder, R.J.; Suto, R.; Anderson, K.M.; Srivastava, P.K. Necrotic but Not Apoptotic Cell Death Releases Heat Shock Proteins, Which Deliver a Partial Maturation Signal to Dendritic Cells and Activate the NF-ΚB Pathway. Int. Immunol. 2000, 12, 1539–1546. [Google Scholar] [CrossRef] [PubMed]
  44. Bottero, V.; Withoff, S.; Verma, I.M. NF-ΚB and the Regulation of Hematopoiesis. Cell Death Differ. 2006, 13, 785–797. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Chu, K.F.; Dupuy, D.E. Thermal Ablation of Tumours: Biological Mechanisms and Advances in Therapy. Nat. Rev. Cancer 2014, 14, 199–208. [Google Scholar] [CrossRef]
  46. den Brok, M.H.M.G.M.; Sutmuller, R.P.M.; Nierkens, S.; Bennink, E.J.; Frielink, C.; Toonen, L.W.J.; Boerman, O.C.; Figdor, C.G.; Ruers, T.J.M.; Adema, G.J. Efficient Loading of Dendritic Cells Following Cryo and Radiofrequency Ablation in Combination with Immune Modulation Induces Anti-Tumour Immunity. Br. J. Cancer 2006, 95, 896–905. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Ferguson, T.A.; Choi, J.; Green, D.R. Armed Response: How Dying Cells Influence T-Cell Functions. Immunol. Rev. 2011, 241, 77–88. [Google Scholar] [CrossRef] [PubMed]
  48. Ng, J.; Dai, T. Radiation Therapy and the Abscopal Effect: A Concept Comes of Age. Ann. Transl. Med. 2016, 4, 118. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Ahmed, M.; Kumar, G.; Moussa, M.; Wang, Y.; Rozenblum, N.; Galun, E.; Goldberg, S.N. Hepatic Radiofrequency Ablation–Induced Stimulation of Distant Tumor Growth Is Suppressed by c-Met Inhibition. Radiology 2016, 279, 103–117. [Google Scholar] [CrossRef] [Green Version]
  50. Rozenblum, N.; Zeira, E.; Scaiewicz, V.; Bulvik, B.; Gourevitch, S.; Yotvat, H.; Galun, E.; Goldberg, S.N. Oncogenesis: An “Off-Target” Effect of Radiofrequency Ablation. Radiology 2015, 276, 426–432. [Google Scholar] [CrossRef] [PubMed]
  51. Tanis, E.; Nordlinger, B.; Mauer, M.; Sorbye, H.; van Coevorden, F.; Gruenberger, T.; Schlag, P.M.; Punt, C.J.A.; Ledermann, J.; Ruers, T.J.M. Local Recurrence Rates after Radiofrequency Ablation or Resection of Colorectal Liver Metastases. Analysis of the European Organisation for Research and Treatment of Cancer #40004 and #40983. Eur. J. Cancer 2014, 50, 912–919. [Google Scholar] [CrossRef]
  52. Erinjeri, J.P.; Thomas, C.T.; Samoilia, A.; Fleisher, M.; Gonen, M.; Sofocleous, C.T.; Thornton, R.H.; Siegelbaum, R.H.; Covey, A.M.; Brody, L.A.; et al. Image-Guided Thermal Ablation of Tumors Increases the Plasma Level of Interleukin-6 and Interleukin-10. J. Vasc. Interv. Radiol. 2013, 24, 1105–1112. [Google Scholar] [CrossRef] [Green Version]
  53. Hinz, S.; Tepel, J.; Röder, C.; Kalthoff, H.; Becker, T. Profile of Serum Factors and Disseminated Tumor Cells before and after Radiofrequency Ablation Compared to Resection of Colorectal Liver Metastases—A Pilot Study. Anticancer Res. 2015, 35, 2961–2967. [Google Scholar] [PubMed]
  54. Gou, X.; Tang, X.; Kong, D.K.; He, X.; Gao, X.; Guo, N.; Hu, Z.; Zhao, Z.; Chen, Y. CD147 Is Increased in HCC Cells under Starvation and Reduces Cell Death through Upregulating P-MTOR in Vitro. Apoptosis 2016, 21, 110–119. [Google Scholar] [CrossRef] [PubMed]
  55. Chao, Y.; Wu, C.-Y.; Kuo, C.-Y.; Wang, J.P.; Luo, J.-C.; Kao, C.-H.; Lee, R.-C.; Lee, W.-P.; Li, C.-P. Cytokines Are Associated with Postembolization Fever and Survival in Hepatocellular Carcinoma Patients Receiving Transcatheter Arterial Chemoembolization. Hepatol. Int. 2013, 7, 883–892. [Google Scholar] [CrossRef]
  56. He, X.; Guo, X.; Zhang, H.; Kong, X.; Yang, F.; Zheng, C. Mechanism of Action and Efficacy of LY2109761, a TGF-β Receptor Inhibitor, Targeting Tumor Microenvironment in Liver Cancer after TACE. Oncotarget 2018, 9, 1130–1142. [Google Scholar] [CrossRef]
  57. Zhao, Z.-W.; Fan, X.-X.; Song, J.-J.; Xu, M.; Chen, M.-J.; Tu, J.-F.; Wu, F.-Z.; Zhang, D.-K.; Liu, L.; Chen, L.; et al. ShRNA Knock-down of CXCR7 Inhibits Tumour Invasion and Metastasis in Hepatocellular Carcinoma after Transcatheter Arterial Chemoembolization. J. Cell. Mol. Med. 2017, 21, 1989–1999. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Ahmed, M.; Kumar, G.; Navarro, G.; Wang, Y.; Gourevitch, S.; Moussa, M.H.; Rozenblum, N.; Levchenko, T.; Galun, E.; Torchilin, V.P.; et al. Systemic SiRNA Nanoparticle-Based Drugs Combined with Radiofrequency Ablation for Cancer Therapy. PLoS ONE 2015, 10, e0128910. [Google Scholar] [CrossRef]
  59. Nikfarjam, M.; Muralidharan, V.; Christophi, C. Altered Growth Patterns of Colorectal Liver Metastases after Thermal Ablation. Surgery 2006, 139, 73–81. [Google Scholar] [CrossRef]
  60. Nijkamp, M.W.; van der Bilt, J.D.W.; de Bruijn, M.T.; Molenaar, I.Q.; Voest, E.E.; van Diest, P.J.; Kranenburg, O.; Borel Rinkes, I.H.M. Accelerated Perinecrotic Outgrowth of Colorectal Liver Metastases Following Radiofrequency Ablation Is a Hypoxia-Driven Phenomenon. Ann. Surg. 2009, 249, 814–823. [Google Scholar] [CrossRef]
  61. Kang, T.W.; Kim, J.M.; Rhim, H.; Lee, M.W.; Kim, Y.; Lim, H.K.; Choi, D.; Song, K.D.; Kwon, C.H.D.; Joh, J.-W.; et al. Small Hepatocellular Carcinoma: Radiofrequency Ablation versus Nonanatomic Resection—Propensity Score Analyses of Long-Term Outcomes. Radiology 2015, 275, 908–919. [Google Scholar] [CrossRef] [PubMed]
  62. Shi, L.; Wang, J.; Ding, N.; Zhang, Y.; Zhu, Y.; Dong, S.; Wang, X.; Peng, C.; Zhou, C.; Zhou, L.; et al. Inflammation Induced by Incomplete Radiofrequency Ablation Accelerates Tumor Progression and Hinders PD-1 Immunotherapy. Nat. Commun. 2019, 10, 5421. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Ruzzenente, A.; de Manzoni, G.; Molfetta, M.; Pachera, S.; Genco, B.; Donataccio, M.; Guglielmi, A. Rapid Progression of Hepatocellular Carcinoma after Radiofrequency Ablation. World J. Gastroenterol. 2004, 10, 1137. [Google Scholar] [CrossRef] [PubMed]
  64. Zhao, Z.; Wu, J.; Liu, X.; Liang, M.; Zhou, X.; Ouyang, S.; Yao, J.; Wang, J.; Luo, B. Insufficient Radiofrequency Ablation Promotes Proliferation of Residual Hepatocellular Carcinoma via Autophagy. Cancer Lett. 2018, 421, 73–81. [Google Scholar] [CrossRef] [PubMed]
  65. Forner, A.; Reig, M.; Bruix, J. Hepatocellular Carcinoma. Lancet 2018, 391, 1301–1314. [Google Scholar] [CrossRef]
  66. Chen, L.; Sun, J.; Yang, X. Radiofrequency Ablation-Combined Multimodel Therapies for Hepatocellular Carcinoma: Current Status. Cancer Lett. 2016, 370, 78–84. [Google Scholar] [CrossRef] [Green Version]
  67. Yan, K.; Chen, M.H.; Yang, W.; Wang, Y.B.; Gao, W.; Hao, C.Y.; Xing, B.C.; Huang, X.F. Radiofrequency Ablation of Hepatocellular Carcinoma: Long-Term Outcome and Prognostic Factors. Eur. J. Radiol. 2008, 67, 336–347. [Google Scholar] [CrossRef]
  68. Izzo, F.; Granata, V.; Grassi, R.; Fusco, R.; Palaia, R.; Delrio, P.; Carrafiello, G.; Azoulay, D.; Petrillo, A.; Curley, S.A. Radiofrequency Ablation and Microwave Ablation in Liver Tumors: An Update. Oncologist 2019, 24, e990–e1005. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  69. Haen, S.P.; Gouttefangeas, C.; Schmidt, D.; Boss, A.; Clasen, S.; von Herbay, A.; Kosan, B.; Aebert, H.; Pereira, P.L.; Rammensee, H.-G. Elevated Serum Levels of Heat Shock Protein 70 Can Be Detected after Radiofrequency Ablation. Cell Stress Chaperones 2011, 16, 495–504. [Google Scholar] [CrossRef] [Green Version]
  70. Slovak, R.; Ludwig, J.M.; Gettinger, S.N.; Herbst, R.S.; Kim, H.S. Immuno-Thermal Ablations—Boosting the Anticancer Immune Response. J. Immunother. Cancer 2017, 5, 78. [Google Scholar] [CrossRef] [Green Version]
  71. Ahmad, F.; Gravante, G.; Bhardwaj, N.; Strickland, A.; Basit, R.; West, K.; Sorge, R.; Dennison, A.R.; Lloyd, D.M. Changes in Interleukin-1β and 6 after Hepatic Microwave Tissue Ablation Compared with Radiofrequency, Cryotherapy and Surgical Resections. Am. J. Surg. 2010, 200, 500–506. [Google Scholar] [CrossRef]
  72. Ali, M.Y.; Grimm, C.F.; Ritter, M.; Mohr, L.; Allgaier, H.-P.; Weth, R.; Bocher, W.O.; Endrulat, K.; Blum, H.E.; Geissler, M. Activation of Dendritic Cells by Local Ablation of Hepatocellular Carcinoma. J. Hepatol. 2005, 43, 817–822. [Google Scholar] [CrossRef]
  73. Fietta, A.M.; Morosini, M.; Passadore, I.; Cascina, A.; Draghi, P.; Dore, R.; Rossi, S.; Pozzi, E.; Meloni, F. Systemic Inflammatory Response and Downmodulation of Peripheral CD25+Foxp3+ T-Regulatory Cells in Patients Undergoing Radiofrequency Thermal Ablation for Lung Cancer. Hum. Immunol. 2009, 70, 477–486. [Google Scholar] [CrossRef]
  74. Mizukoshi, E.; Yamashita, T.; Arai, K.; Sunagozaka, H.; Ueda, T.; Arihara, F.; Kagaya, T.; Yamashita, T.; Fushimi, K.; Kaneko, S. Enhancement of Tumor-Associated Antigen-Specific T Cell Responses by Radiofrequency Ablation of Hepatocellular Carcinoma. Hepatology 2013, 57, 1448–1457. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Rochigneux, P.; Nault, J.-C.; Mallet, F.; Chretien, A.-S.; Barget, N.; Garcia, A.J.; Del Pozo, L.; Bourcier, V.; Blaise, L.; Grando-Lemaire, V.; et al. Dynamic of Systemic Immunity and Its Impact on Tumor Recurrence after Radiofrequency Ablation of Hepatocellular Carcinoma. Oncoimmunology 2019, 8, 1615818. [Google Scholar] [CrossRef] [Green Version]
  76. Hiroishi, K.; Eguchi, J.; Baba, T.; Shimazaki, T.; Ishii, S.; Hiraide, A.; Sakaki, M.; Doi, H.; Uozumi, S.; Omori, R.; et al. Strong CD8+ T-Cell Responses against Tumor-Associated Antigens Prolong the Recurrence-Free Interval after Tumor Treatment in Patients with Hepatocellular Carcinoma. J. Gastroenterol. 2010, 45, 451–458. [Google Scholar] [CrossRef]
  77. Wissniowski, T.T.; Hänsler, J.; Neureiter, D.; Frieser, M.; Schaber, S.; Esslinger, B.; Voll, R.; Strobel, D.; Hahn, E.G.; Schuppan, D.; et al. Activation of Tumor-Specific T Lymphocytes by Radio-Frequency Ablation of the VX2 Hepatoma in Rabbits. Cancer Res. 2003, 63, 6496–6500. [Google Scholar] [PubMed]
  78. Hu, G.; Wang, S. Tumor-Infiltrating CD45RO+ Memory T Lymphocytes Predict Favorable Clinical Outcome in Solid Tumors. Sci. Rep. 2017, 7, 10376. [Google Scholar] [CrossRef] [Green Version]
  79. Widenmeyer, M.; Shebzukhov, Y.; Haen, S.P.; Schmidt, D.; Clasen, S.; Boss, A.; Kuprash, D.V.; Nedospasov, S.A.; Stenzl, A.; Aebert, H.; et al. Analysis of Tumor Antigen-Specific T Cells and Antibodies in Cancer Patients Treated with Radiofrequency Ablation. Int. J. Cancer 2011, 128, 2653–2662. [Google Scholar] [CrossRef]
  80. Lencioni, R.; Cioni, D.; Crocetti, L.; Franchini, C.; Pina, C.D.; Lera, J.; Bartolozzi, C. Early-Stage Hepatocellular Carcinoma in Patients with Cirrhosis: Long-Term Results of Percutaneous Image-Guided Radiofrequency Ablation. Radiology 2005, 234, 961–967. [Google Scholar] [CrossRef]
  81. Nijkamp, M.W.; Borren, A.; Govaert, K.M.; Hoogwater, F.J.H.; Molenaar, I.Q.; van Diest, P.J.; Kranenburg, O.; Rinkes, I.H.M.B. Radiofrequency Ablation of Colorectal Liver Metastases Induces an Inflammatory Response in Distant Hepatic Metastases but Not in Local Accelerated Outgrowth. J. Surg. Oncol. 2010, 101, 551–556. [Google Scholar] [CrossRef]
  82. Kong, J.; Kong, J.; Pan, B.; Ke, S.; Dong, S.; Li, X.; Zhou, A.; Zheng, L.; Sun, W. Insufficient Radiofrequency Ablation Promotes Angiogenesis of Residual Hepatocellular Carcinoma via HIF-1α/VEGFA. PLoS ONE 2012, 7, e37266. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  83. Guan, Q.; Gu, J.; Zhang, H.; Ren, W.; Ji, W.; Fan, Y. Correlation between Vascular Endothelial Growth Factor Levels and Prognosis of Hepatocellular Carcinoma Patients Receiving Radiofrequency Ablation. Biotechnol. Biotechnol. Equip. 2015, 29, 119–123. [Google Scholar] [CrossRef]
  84. Cazzato, R.L.; Garnon, J.; Ramamurthy, N.; Koch, G.; Tsoumakidou, G.; Caudrelier, J.; Arrigoni, F.; Zugaro, L.; Barile, A.; Masciocchi, C.; et al. Percutaneous Image-Guided Cryoablation: Current Applications and Results in the Oncologic Field. Med. Oncol. 2016, 33, 140. [Google Scholar] [CrossRef] [PubMed]
  85. Baust, J.G.; Gage, A.A. Progress toward Optimization of Cryosurgery. Technol. Cancer Res. Treat. 2004, 3, 95–101. [Google Scholar] [CrossRef] [Green Version]
  86. Yamakado, K. Image-Guided Ablation of Adrenal Lesions. Semin. Intervent. Radiol. 2014, 31, 149–156. [Google Scholar] [CrossRef] [Green Version]
  87. Weber, S.M.; Lee, F.T. Expanded Treatment of Hepatic Tumors with Radiofrequency Ablation and Cryoablation. Oncology (Williston Park) 2005, 19 (Suppl. 4), 27–32. [Google Scholar]
  88. Allaf, M.E.; Varkarakis, I.M.; Bhayani, S.B.; Inagaki, T.; Kavoussi, L.R.; Solomon, S.B. Pain Control Requirements for Percutaneous Ablation of Renal Tumors: Cryoablation versus Radiofrequency Ablation—Initial Observations. Radiology 2005, 237, 366–370. [Google Scholar] [CrossRef] [PubMed]
  89. Yakkala, C.; Denys, A.; Kandalaft, L.; Duran, R. Cryoablation and Immunotherapy of Cancer. Curr. Opin. Biotechnol. 2020, 65, 60–64. [Google Scholar] [CrossRef]
  90. Mehta, A.; Oklu, R.; Sheth, R.A. Thermal Ablative Therapies and Immune Checkpoint Modulation: Can Locoregional Approaches Effect a Systemic Response? Gastroenterol. Res. Pract. 2016, 2016, 1–11. [Google Scholar] [CrossRef] [Green Version]
  91. Sabel, M.S.; Su, G.; Griffith, K.A.; Chang, A.E. Rate of Freeze Alters the Immunologic Response After Cryoablation of Breast Cancer. Ann. Surg. Oncol. 2010, 17, 1187–1193. [Google Scholar] [CrossRef] [PubMed]
  92. Urano, M.; Tanaka, C.; Sugiyama, Y.; Miya, K.; Saji, S. Antitumor Effects of Residual Tumor after Cryoablation: The Combined Effect of Residual Tumor and a Protein-Bound Polysaccharide on Multiple Liver Metastases in a Murine Model. Cryobiology 2003, 46, 238–245. [Google Scholar] [CrossRef]
  93. Takaki, H.; Imai, N.; Thomas, C.T.; Yamakado, K.; Yarmohammadi, H.; Ziv, E.; Srimathveeravalli, G.; Sofocleous, C.T.; Solomon, S.B.; Erinjeri, J.P. Changes in Peripheral Blood T-Cell Balance after Percutaneous Tumor Ablation. Minim. Invasive Ther. Allied Technol. 2017, 26, 331–337. [Google Scholar] [CrossRef] [PubMed]
  94. Petrillo, M.; Patella, F.; Pesapane, F.; Suter, M.B.; Ierardi, A.M.; Angileri, S.A.; Floridi, C.; de Filippo, M.; Carrafiello, G. Hypoxia and Tumor Angiogenesis in the Era of Hepatocellular Carcinoma Transarterial Loco-Regional Treatments. Futur. Oncol. 2018, 14, 2957–2967. [Google Scholar] [CrossRef]
  95. Zeng, Z.; Shi, F.; Zhou, L.; Zhang, M.-N.; Chen, Y.; Chang, X.-J.; Lu, Y.-Y.; Bai, W.-L.; Qu, J.-H.; Wang, C.-P.; et al. Upregulation of Circulating PD-L1/PD-1 Is Associated with Poor Post-Cryoablation Prognosis in Patients with HBV-Related Hepatocellular Carcinoma. PLoS ONE 2011, 6, e23621. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  96. Waitz, R.; Solomon, S.B.; Petre, E.N.; Trumble, A.E.; Fassò, M.; Norton, L.; Allison, J.P. Potent Induction of Tumor Immunity by Combining Tumor Cryoablation with Anti–CTLA-4 Therapy. Cancer Res. 2012, 72, 430–439. [Google Scholar] [CrossRef] [Green Version]
  97. Niu, L.-Z. Combination Treatment with Comprehensive Cryoablation and Immunotherapy in Metastatic Hepatocellular Cancer. World J. Gastroenterol. 2013, 19, 3473. [Google Scholar] [CrossRef] [PubMed]
  98. Lin, M.; Liang, S.; Wang, X.; Liang, Y.; Zhang, M.; Chen, J.; Niu, L.; Xu, K. Cryoablation Combined with Allogenic Natural Killer Cell Immunotherapy Improves the Curative Effect in Patients with Advanced Hepatocellular Cancer. Oncotarget 2017, 8, 81967–81977. [Google Scholar] [CrossRef] [Green Version]
  99. Ma, C.-H.; Jiang, R.; Li, J.-D.; Wang, B.; Sun, L.-W.; Lv, Y. Experimental Study on Residual Tumor Angiogenesis after Cryoablation. Asian Pac. J. Cancer Prev. 2014, 15, 2491–2494. [Google Scholar] [CrossRef] [Green Version]
  100. Biondetti, P.; Fumarola, E.M.; Ierardi, A.M.; Coppola, A.; Gorga, G.; Maggi, L.; Valconi, E.; Angileri, S.A.; Carrafiello, G. Percutaneous US-Guided MWA of Small Liver HCC: Predictors of Outcome and Risk Factors for Complications from a Single Center Experience. Med. Oncol. 2020, 37, 39. [Google Scholar] [CrossRef] [PubMed]
  101. Simon, C.J.; Dupuy, D.E.; Mayo-Smith, W.W. Microwave Ablation: Principles and Applications. RadioGraphics 2005, 25 (Suppl. 1), S69–S83. [Google Scholar] [CrossRef]
  102. Ethier, M.D.; Beland, M.D.; Mayo-Smith, W. Image-Guided Ablation of Adrenal Tumors. Tech. Vasc. Interv. Radiol. 2013, 16, 262–268. [Google Scholar] [CrossRef] [PubMed]
  103. Venkatesan, A.M.; Locklin, J.; Dupuy, D.E.; Wood, B.J. Percutaneous Ablation of Adrenal Tumors. Tech. Vasc. Interv. Radiol. 2010, 13, 89–99. [Google Scholar] [CrossRef] [Green Version]
  104. Skinner, M.G.; Iizuka, M.N.; Kolios, M.C.; Sherar, M.D. A Theoretical Comparison of Energy Sources—Microwave, Ultrasound and Laser—For Interstitial Thermal Therapy. Phys. Med. Biol. 1998, 43, 3535–3547. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  105. Stauffer, P.R.; Rossetto, F.; Prakash, M.; Neuman, D.G.; Lee, T. Phantom and Animal Tissues for Modelling the Electrical Properties of Human Liver. Int. J. Hyperth. 2003, 19, 89–101. [Google Scholar] [CrossRef] [PubMed]
  106. Wright, A.S.; Lee, F.T.; Mahvi, D.M. Hepatic Microwave Ablation With Multiple Antennae Results in Synergistically Larger Zones of Coagulation Necrosis. Ann. Surg. Oncol. 2003, 10, 275–283. [Google Scholar] [CrossRef] [PubMed]
  107. Shock, S.A.; Meredith, K.; Warner, T.F.; Sampson, L.A.; Wright, A.S.; Winter, T.C.; Mahvi, D.M.; Fine, J.P.; Lee, F.T. Microwave Ablation with Loop Antenna: In Vivo Porcine Liver Model. Radiology 2004, 231, 143–149. [Google Scholar] [CrossRef]
  108. Patella, F.; Pesapane, F.; Fumarola, E.; Zannoni, S.; Brambillasca, P.; Emili, I.; Costa, G.; Anderson, V.; Levy, E.B.; Carrafiello, G.; et al. Assessment of the Response of Hepatocellular Carcinoma to Interventional Radiology Treatments. Futur. Oncol. 2019, 15, 1791–1804. [Google Scholar] [CrossRef] [PubMed]
  109. Dong, B.W.; Zhang, J.; Liang, P.; Yu, X.L.; Su, L.; Yu, D.J.; Ji, X.L.; Yu, G. Sequential Pathological and Immunologic Analysis of Percutaneous Microwave Coagulation Therapy of Hepatocellular Carcinoma. Int. J. Hyperth. 2003, 19, 119–133. [Google Scholar] [CrossRef]
  110. Zhou, P.; Liang, P.; Dong, B.; Yu, X.; Han, Z.; Xu, Y. Phase I Clinical Study of Combination Therapy with Microwave Ablation and Cellular Immunotherapy in Hepatocellular Carcinoma. Cancer Biol. Ther. 2011, 11, 450–456. [Google Scholar] [CrossRef] [Green Version]
  111. Zhang, H.; Hou, X.; Cai, H.; Zhuang, X. Effects of Microwave Ablation on T-Cell Subsets and Cytokines of Patients with Hepatocellular Carcinoma. Minim. Invasive Ther. Allied Technol. 2017, 26, 207–211. [Google Scholar] [CrossRef]
  112. Ni, Y.; Ye, X.; Wan, C.; Ni, Q.; Yang, X.; Huang, G.; Li, W.; Wang, J.; Han, X.; Wei, Z.; et al. Percutaneous Microwave Ablation (MWA) Increased the Serum Levels of VEGF and MMP-9 in Stage I Non-Small Cell Lung Cancer (NSCLC). Int. J. Hyperth. 2017, 33, 435–439. [Google Scholar] [CrossRef]
  113. Sun, Y.H.; Song, P.Y.; Guo, Y.; Pang, M.; He, W.-N.; Zhang, W.H.; Sheng, L.J. Effects of Microwave Ablation or Its Combination with Whole-Body Chemotherapy on Serum Vascular Endothelial Growth Factor Levels in Patients with Stage IIIB/IV NSCLC. Genet. Mol. Res. 2015, 14, 10015–10025. [Google Scholar] [CrossRef] [PubMed]
  114. Facciorusso, A. Transarterial Chemoembolization: Evidences from the Literature and Applications in Hepatocellular Carcinoma Patients. World J. Hepatol. 2015, 7, 2009. [Google Scholar] [CrossRef] [PubMed]
  115. Greten, T.F.; Mauda-Havakuk, M.; Heinrich, B.; Korangy, F.; Wood, B.J. Combined Locoregional-Immunotherapy for Liver Cancer. J. Hepatol. 2019, 70, 999–1007. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  116. Kohles, N.; Nagel, D.; Jüngst, D.; Stieber, P.; Holdenrieder, S. Predictive Value of Immunogenic Cell Death Biomarkers HMGB1, SRAGE, and DNase in Liver Cancer Patients Receiving Transarterial Chemoembolization Therapy. Tumor Biol. 2012, 33, 2401–2409. [Google Scholar] [CrossRef] [PubMed]
  117. Park, H.; Jung, J.H.; Jung, M.K.; Shin, E.-C.; Ro, S.W.; Park, J.H.; Kim, D.Y.; Park, J.Y.; Han, K.-H. Effects of Transarterial Chemoembolization on Regulatory T Cell and Its Subpopulations in Patients with Hepatocellular Carcinoma. Hepatol. Int. 2020, 14, 249–258. [Google Scholar] [CrossRef] [PubMed]
  118. Kim, M.J.; Jang, J.W.; Oh, B.S.; Kwon, J.H.; Chung, K.W.; Jung, H.S.; Jekarl, D.W.; Lee, S. Change in Inflammatory Cytokine Profiles after Transarterial Chemotherapy in Patients with Hepatocellular Carcinoma. Cytokine 2013, 64, 516–522. [Google Scholar] [CrossRef]
  119. Huang, M.; Wang, X.; Bin, H. Effect of Transcatheter Arterial Chemoembolization Combined with Argon–Helium Cryosurgery System on the Changes of NK Cells and T Cell Subsets in Peripheral Blood of Hepatocellular Carcinoma Patients. Cell Biochem. Biophys. 2015, 73, 787–792. [Google Scholar] [CrossRef]
  120. Kimura, H.; Braun, R.D.; Ong, E.T.; Hsu, R.; Secomb, T.W.; Papahadjopoulos, D.; Hong, K.; Dewhirst, M.W. Fluctuations in Red Cell Flux in Tumor Microvessels Can Lead to Transient Hypoxia and Reoxygenation in Tumor Parenchyma. Cancer Res. 1996, 56, 5522–5528. [Google Scholar]
  121. Namur, J.; Pascale, F.; Maeda, N.; Sterba, M.; Ghegediban, S.H.; Verret, V.; Paci, A.; Seck, A.; Osuga, K.; Wassef, M.; et al. Safety and Efficacy Compared between Irinotecan-Loaded Microspheres HepaSphere and DC Bead in a Model of VX2 Liver Metastases in the Rabbit. J. Vasc. Interv. Radiol. 2015, 26, 1067–1075. [Google Scholar] [CrossRef]
  122. Tong, A.K.T.; Kao, Y.H.; Too, C.W.; Chin, K.F.W.; Ng, D.C.E.; Chow, P.K.H. Yttrium-90 Hepatic Radioembolization: Clinical Review and Current Techniques in Interventional Radiology and Personalized Dosimetry. Br. J. Radiol. 2016, 89, 20150943. [Google Scholar] [CrossRef] [PubMed]
  123. Cardarelli-Leite, L.; Hadjivassiliou, A.; Klass, D.; Chung, J.; Ho, S.G.F.; Lim, H.J.; Kim, P.T.W.; Mujoomdar, A.; Liu, D.M. Current Locoregional Therapies and Treatment Strategies in Hepatocellular Carcinoma. Curr. Oncol. 2020, 27, 144–151. [Google Scholar] [CrossRef] [PubMed]
  124. Lee, E.J.; Chung, H.W.; Jo, J.-H.; So, Y. Radioembolization for the Treatment of Primary and Metastatic Liver Cancers. Nucl. Med. Mol. Imaging (2010) 2019, 53, 367–373. [Google Scholar] [CrossRef]
  125. Chew, V.; Lee, Y.H.; Pan, L.; Nasir, N.J.M.; Lim, C.J.; Chua, C.; Lai, L.; Hazirah, S.N.; Lim, T.K.H.; Goh, B.K.P.; et al. Immune Activation Underlies a Sustained Clinical Response to Yttrium-90 Radioembolisation in Hepatocellular Carcinoma. Gut 2019, 68, 335–346. [Google Scholar] [CrossRef] [PubMed]
  126. Domouchtsidou, A.; Barsegian, V.; Mueller, S.P.; Best, J.; Ertle, J.; Bedreli, S.; Horn, P.A.; Bockisch, A.; Lindemann, M. Impaired Lymphocyte Function in Patients with Hepatic Malignancies after Selective Internal Radiotherapy. Cancer Immunol. Immunother. 2018, 67, 843–853. [Google Scholar] [CrossRef] [PubMed]
  127. Fernandez-Ros, N.; Iñarrairaegui, M.; Paramo, J.A.; Berasain, C.; Avila, M.A.; Chopitea, A.; Varo, N.; Sarobe, P.; Bilbao, J.I.; Dominguez, I.; et al. Radioembolization of Hepatocellular Carcinoma Activates Liver Regeneration, Induces Inflammation and Endothelial Stress and Activates Coagulation. Liver Int. 2015, 35, 1590–1596. [Google Scholar] [CrossRef] [PubMed]
  128. Seidensticker, M.; Powerski, M.; Seidensticker, R.; Damm, R.; Mohnike, K.; Garlipp, B.; Klopffleisch, M.; Amthauer, H.; Ricke, J.; Pech, M. Cytokines and 90Y-Radioembolization: Relation to Liver Function and Overall Survival. Cardiovasc. Intervent. Radiol. 2017, 40, 1185–1195. [Google Scholar] [CrossRef]
  129. Zhang, Y.; Li, Y.; Ji, H.; Zhao, X.; Lu, H. Transarterial Y90 Radioembolization versus Chemoembolization for Patients with Hepatocellular Carcinoma: A Meta-Analysis. Biosci. Trends 2015, 9, 289–298. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  130. Shen, H.-P.; Gong, J.-P.; Zuo, G.-Q. Role of High-Intensity Focused Ultrasound in Treatment of Hepatocellular Carcinoma. Am. Surg. 2011, 77, 1496–1501. [Google Scholar] [CrossRef]
  131. Hoogenboom, M.; Eikelenboom, D.; den Brok, M.H.; Veltien, A.; Wassink, M.; Wesseling, P.; Dumont, E.; Fütterer, J.J.; Adema, G.J.; Heerschap, A. In Vivo MR Guided Boiling Histotripsy in a Mouse Tumor Model Evaluated by MRI and Histopathology. NMR Biomed. 2016, 29, 721–731. [Google Scholar] [CrossRef] [PubMed]
  132. She, W.; Cheung, T.; Jenkins, C.R.; Irwin, M.G. Clinical Applications of High-Intensity Focused Ultrasound. Hong Kong Med. J. 2016, 22, 382–392. [Google Scholar] [CrossRef] [Green Version]
  133. Ji, Y.; Zhu, J.; Zhu, L.; Zhu, Y.; Zhao, H. High-Intensity Focused Ultrasound Ablation for Unresectable Primary and Metastatic Liver Cancer: Real-World Research in a Chinese Tertiary Center with 275 Cases. Front. Oncol. 2020, 10, 519164. [Google Scholar] [CrossRef] [PubMed]
  134. Kramer, G.; Steiner, G.E.; Gröbl, M.; Hrachowitz, K.; Reithmayr, F.; Paucz, L.; Newman, M.; Madersbacher, S.; Gruber, D.; Susani, M.; et al. Response to Sublethal Heat Treatment of Prostatic Tumor Cells and of Prostatic Tumor Infiltrating T-Cells. Prostate 2004, 58, 109–120. [Google Scholar] [CrossRef]
  135. Wu, F.; Wang, Z.-B.; Lu, P.; Xu, Z.-L.; Chen, W.-Z.; Zhu, H.; Jin, C.-B. Activated Anti-Tumor Immunity in Cancer Patients after High Intensity Focused Ultrasound Ablation. Ultrasound Med. Biol. 2004, 30, 1217–1222. [Google Scholar] [CrossRef] [PubMed]
  136. Zhou, Q.; Zhu, X.-Q.; Zhang, J.; Xu, Z.-L.; Lu, P.; Wu, F. Changes in Circulating Immunosuppressive Cytokine Levels of Cancer Patients After High Intensity Focused Ultrasound Treatment. Ultrasound Med. Biol. 2008, 34, 81–87. [Google Scholar] [CrossRef]
  137. Ma, B.; Liu, X.; Yu, Z. The Effect of High Intensity Focused Ultrasound on the Treatment of Liver Cancer and Patients’ Immunity. Cancer Biomarkers 2019, 24, 85–90. [Google Scholar] [CrossRef] [PubMed]
  138. Vlaisavljevich, E.; Greve, J.; Cheng, X.; Ives, K.; Shi, J.; Jin, L.; Arvidson, A.; Hall, T.; Welling, T.H.; Owens, G.; et al. Non-Invasive Ultrasound Liver Ablation Using Histotripsy: Chronic Study in an In Vivo Rodent Model. Ultrasound Med. Biol. 2016, 42, 1890–1902. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  139. Maxwell, A.D.; Wang, T.-Y.; Cain, C.A.; Fowlkes, J.B.; Sapozhnikov, O.A.; Bailey, M.R.; Xu, Z. Cavitation Clouds Created by Shock Scattering from Bubbles during Histotripsy. J. Acoust. Soc. Am. 2011, 130, 1888–1898. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  140. Zhao, G.; Cui, J.; Qin, Q.; Zhang, J.; Liu, L.; Deng, S.; Wu, C.; Yang, M.; Li, S.; Wang, C. Mechanical Stiffness of Liver Tissues in Relation to Integrin Β1 Expression May Influence the Development of Hepatic Cirrhosis and Hepatocellular Carcinoma. J. Surg. Oncol. 2010, 102, 482–489. [Google Scholar] [CrossRef] [PubMed]
  141. Qu, S.; Worlikar, T.; Felsted, A.E.; Ganguly, A.; Beems, M.V.; Hubbard, R.; Pepple, A.L.; Kevelin, A.A.; Garavaglia, H.; Dib, J.; et al. Non-Thermal Histotripsy Tumor Ablation Promotes Abscopal Immune Responses That Enhance Cancer Immunotherapy. J. Immunother. Cancer 2020, 8, e000200. [Google Scholar] [CrossRef] [Green Version]
  142. Di Costanzo, G.G.; Francica, G.; Pacella, C.M. Laser Ablation for Small Hepatocellular Carcinoma: State of the Art and Future Perspectives. World J. Hepatol. 2014, 6, 704. [Google Scholar] [CrossRef]
  143. Sartori, S.; Tombesi, P.; Di Vece, F. Radiofrequency, Microwave, and Laser Ablation of Liver Tumors: Time to Move toward a Tailored Ablation Technique? Hepatoma Res. 2015, 1, 52. [Google Scholar] [CrossRef] [Green Version]
  144. Cook, A.M.; Lesterhuis, W.J.; Nowak, A.K.; Lake, R.A. Chemotherapy and Immunotherapy: Mapping the Road Ahead. Curr. Opin. Immunol. 2016, 39, 23–29. [Google Scholar] [CrossRef] [PubMed]
  145. Pacella, C.M.; Bizzarri, G.; Magnolfi, F.; Cecconi, P.; Caspani, B.; Anelli, V.; Bianchini, A.; Valle, D.; Pacella, S.; Manenti, G.; et al. Laser Thermal Ablation in the Treatment of Small Hepatocellular Carcinoma: Results in 74 Patients. Radiology 2001, 221, 712–720. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  146. Pacella, C.M.; Francica, G.; Di Lascio, F.M.L.; Arienti, V.; Antico, E.; Caspani, B.; Magnolfi, F.; Megna, A.S.; Pretolani, S.; Regine, R.; et al. Long-Term Outcome of Cirrhotic Patients With Early Hepatocellular Carcinoma Treated With Ultrasound-Guided Percutaneous Laser Ablation: A Retrospective Analysis. J. Clin. Oncol. 2009, 27, 2615–2621. [Google Scholar] [CrossRef]
  147. Di Costanzo, G.G.; D’Adamo, G.; Tortora, R.; Zanfardino, F.; Mattera, S.; Francica, G.; Pacella, C.M. A Novel Needle Guide System to Perform Percutaneous Laser Ablation of Liver Tumors Using the Multifiber Technique. Acta Radiol. 2013, 54, 876–881. [Google Scholar] [CrossRef] [PubMed]
  148. Eichler, K.; Zangos, S.; Gruber-Rouh, T.; Vogl, T.J.; Mack, M.G. Magnetic Resonance-Guided Laser-Induced Thermotherapy in Patients with Oligonodular Hepatocellular Carcinoma. J. Clin. Gastroenterol. 2012, 46, 796–801. [Google Scholar] [CrossRef]
  149. Ferrari, F.S.; Megliola, A.; Scorzelli, A.; Stella, A.; Vigni, F.; Drudi, F.M.; Venezia, D. Treatment of Small HCC through Radiofrequency Ablation and Laser Ablation. Comparison of Techniques and Long-Term Results. Radiol. Med. 2007, 112, 377–393. [Google Scholar] [CrossRef]
  150. Di Costanzo, G.G.; Tortora, R.; D’Adamo, G.; De Luca, M.; Lampasi, F.; Addario, L.; Galeota Lanza, A.; Picciotto, F.P.; Tartaglione, M.T.; Cordone, G.; et al. Radiofrequency Ablation versus Laser Ablation for the Treatment of Small Hepatocellular Carcinoma in Cirrhosis: A Randomized Trial. J. Gastroenterol. Hepatol. 2015, 30, 559–565. [Google Scholar] [CrossRef]
  151. Ivarsson, K.; Myllymäki, L.; Jansner, K.; Stenram, U.; Tranberg, K.-G. Resistance to Tumour Challenge after Tumour Laser Thermotherapy Is Associated with a Cellular Immune Response. Br. J. Cancer 2005, 93, 435–440. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  152. Nikfarjam, M.; Muralidharan, V.; Su, K.; Malcontenti-Wilson, C.; Christophi, C. Patterns of Heat Shock Protein (HSP70) Expression and Kupffer Cell Activity Following Thermal Ablation of Liver and Colorectal Liver Metastases. Int. J. Hyperth. 2005, 21, 319–332. [Google Scholar] [CrossRef]
  153. Chen, F.; Bao, H.; Xie, H.; Tian, G.; Jiang, T. Heat Shock Protein Expression and Autophagy after Incomplete Thermal Ablation and Their Correlation. Int. J. Hyperth. 2019, 36, 95–103. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  154. Isbert, C.; Ritz, J.-P.; Roggan, A.; Schuppan, D.; Rühl, M.; Buhr, H.J.; Germer, C.-T. Enhancement of the Immune Response to Residual Intrahepatic Tumor Tissue by Laser-Induced Thermotherapy (LITT) Compared to Hepatic Resection. Lasers Surg. Med. 2004, 35, 284–292. [Google Scholar] [CrossRef] [PubMed]
  155. Jondal, D.E.; Thompson, S.M.; Butters, K.A.; Knudsen, B.E.; Anderson, J.L.; Carter, R.E.; Roberts, L.R.; Callstrom, M.R.; Woodrum, D.A. Heat Stress and Hepatic Laser Thermal Ablation Induce Hepatocellular Carcinoma Growth: Role of PI3K/MTOR/AKT Signaling. Radiology 2018, 288, 730–738. [Google Scholar] [CrossRef] [Green Version]
  156. Ben-Josef, E.; Normolle, D.; Ensminger, W.D.; Walker, S.; Tatro, D.; Ten Haken, R.K.; Knol, J.; Dawson, L.A.; Pan, C.; Lawrence, T.S. Phase II Trial of High-Dose Conformal Radiation Therapy With Concurrent Hepatic Artery Floxuridine for Unresectable Intrahepatic Malignancies. J. Clin. Oncol. 2005, 23, 8739–8747. [Google Scholar] [CrossRef] [PubMed]
  157. Vogel, A.; Cervantes, A.; Chau, I.; Daniele, B.; Llovet, J.M.; Meyer, T.; Nault, J.-C.; Neumann, U.; Ricke, J.; Sangro, B.; et al. Hepatocellular Carcinoma: ESMO Clinical Practice Guidelines for Diagnosis, Treatment and Follow-Up. Ann. Oncol. 2018, 29, iv238–iv255. [Google Scholar] [CrossRef]
  158. Wang, L.; Ke, Q.; Huang, Q.; Shao, L.; Chen, J.; Wu, J. Stereotactic Body Radiotherapy versus Radiofrequency Ablation for Hepatocellular Carcinoma: A Systematic Review and Meta-Analysis. Int. J. Hyperth. 2020, 37, 1313–1321. [Google Scholar] [CrossRef] [PubMed]
  159. Apetoh, L.; Ghiringhelli, F.; Tesniere, A.; Obeid, M.; Ortiz, C.; Criollo, A.; Mignot, G.; Maiuri, M.C.; Ullrich, E.; Saulnier, P.; et al. Toll-like Receptor 4–Dependent Contribution of the Immune System to Anticancer Chemotherapy and Radiotherapy. Nat. Med. 2007, 13, 1050–1059. [Google Scholar] [CrossRef]
  160. Reits, E.A.; Hodge, J.W.; Herberts, C.A.; Groothuis, T.A.; Chakraborty, M.; Wansley, E.K.; Camphausen, K.; Luiten, R.M.; de Ru, A.H.; Neijssen, J.; et al. Radiation Modulates the Peptide Repertoire, Enhances MHC Class I Expression, and Induces Successful Antitumor Immunotherapy. J. Exp. Med. 2006, 203, 1259–1271. [Google Scholar] [CrossRef] [PubMed]
  161. Deng, L.; Liang, H.; Xu, M.; Yang, X.; Burnette, B.; Arina, A.; Li, X.-D.; Mauceri, H.; Beckett, M.; Darga, T.; et al. STING-Dependent Cytosolic DNA Sensing Promotes Radiation-Induced Type I Interferon-Dependent Antitumor Immunity in Immunogenic Tumors. Immunity 2014, 41, 843–852. [Google Scholar] [CrossRef] [Green Version]
  162. Ko, E.C.; Formenti, S.C. Radiation Therapy to Enhance Tumor Immunotherapy: A Novel Application for an Established Modality. Int. J. Radiat. Biol. 2019, 95, 936–939. [Google Scholar] [CrossRef] [PubMed]
  163. Gameiro, S.R.; Malamas, A.S.; Bernstein, M.B.; Tsang, K.Y.; Vassantachart, A.; Sahoo, N.; Tailor, R.; Pidikiti, R.; Guha, C.P.; Hahn, S.M.; et al. Tumor Cells Surviving Exposure to Proton or Photon Radiation Share a Common Immunogenic Modulation Signature, Rendering Them More Sensitive to T Cell–Mediated Killing. Int. J. Radiat. Oncol. 2016, 95, 120–130. [Google Scholar] [CrossRef] [Green Version]
  164. Gameiro, S.R.; Jammeh, M.L.; Wattenberg, M.M.; Tsang, K.Y.; Ferrone, S.; Hodge, J.W. Radiation-Induced Immunogenic Modulation of Tumor Enhances Antigen Processing and Calreticulin Exposure, Resulting in Enhanced T-Cell Killing. Oncotarget 2014, 5, 403–416. [Google Scholar] [CrossRef] [Green Version]
  165. Li, T.-T.; Sun, J.; Wang, Q.; Li, W.-G.; He, W.-P.; Yang, R.-C.; Duan, X.-Z. The Effects of Stereotactic Body Radiotherapy on Peripheral Natural Killer and CD3+CD56+ NKT-like Cells in Patients with Hepatocellular Carcinoma. Hepatobiliary Pancreat. Dis. Int. 2021, 20, 240–250. [Google Scholar] [CrossRef] [PubMed]
  166. Jacquelot, N.; Yamazaki, T.; Roberti, M.P.; Duong, C.P.M.; Andrews, M.C.; Verlingue, L.; Ferrere, G.; Becharef, S.; Vétizou, M.; Daillère, R.; et al. Sustained Type I Interferon Signaling as a Mechanism of Resistance to PD-1 Blockade. Cell Res. 2019, 29, 846–861. [Google Scholar] [CrossRef] [PubMed]
  167. Dovedi, S.J.; Adlard, A.L.; Lipowska-Bhalla, G.; McKenna, C.; Jones, S.; Cheadle, E.J.; Stratford, I.J.; Poon, E.; Morrow, M.; Stewart, R.; et al. Acquired Resistance to Fractionated Radiotherapy Can Be Overcome by Concurrent PD-L1 Blockade. Cancer Res. 2014, 74, 5458–5468. [Google Scholar] [CrossRef] [Green Version]
  168. Kachikwu, E.L.; Iwamoto, K.S.; Liao, Y.-P.; DeMarco, J.J.; Agazaryan, N.; Economou, J.S.; McBride, W.H.; Schaue, D. Radiation Enhances Regulatory T Cell Representation. Int. J. Radiat. Oncol. 2011, 81, 1128–1135. [Google Scholar] [CrossRef] [Green Version]
  169. Scheffer, H.J.; Nielsen, K.; de Jong, M.C.; van Tilborg, A.A.J.M.; Vieveen, J.M.; Bouwman, A.R.A.; Meijer, S.; van Kuijk, C.; van den Tol, P.M.P.; Meijerink, M.R. Irreversible Electroporation for Nonthermal Tumor Ablation in the Clinical Setting: A Systematic Review of Safety and Efficacy. J. Vasc. Interv. Radiol. 2014, 25, 997–1011. [Google Scholar] [CrossRef] [PubMed]
  170. Savic, L.; Chapiro, J.; Hamm, B.; Gebauer, B.; Collettini, F. Irreversible Electroporation in Interventional Oncology: Where We Stand and Where We Go. RöFo Fortschr. Geb. Röntgenstrahlen Bildgeb. Verfahr. 2016, 188, 735–745. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  171. Faroja, M.; Ahmed, M.; Appelbaum, L.; Ben-David, E.; Moussa, M.; Sosna, J.; Nissenbaum, I.; Goldberg, S.N. Irreversible Electroporation Ablation: Is All the Damage Nonthermal? Radiology 2013, 266, 462–470. [Google Scholar] [CrossRef] [PubMed]
  172. Niessen, C.; Igl, J.; Pregler, B.; Beyer, L.; Noeva, E.; Dollinger, M.; Schreyer, A.G.; Jung, E.M.; Stroszczynski, C.; Wiggermann, P. Factors Associated with Short-Term Local Recurrence of Liver Cancer after Percutaneous Ablation Using Irreversible Electroporation: A Prospective Single-Center Study. J. Vasc. Interv. Radiol. 2015, 26, 694–702. [Google Scholar] [CrossRef] [PubMed]
  173. Silk, M.T.; Wimmer, T.; Lee, K.S.; Srimathveeravalli, G.; Brown, K.T.; Kingham, P.T.; Fong, Y.; Durack, J.C.; Sofocleous, C.T.; Solomon, S.B. Percutaneous Ablation of Peribiliary Tumors with Irreversible Electroporation. J. Vasc. Interv. Radiol. 2014, 25, 112–118. [Google Scholar] [CrossRef] [PubMed]
  174. Cannon, R.; Ellis, S.; Hayes, D.; Narayanan, G.; Martin, R.C.G. Safety and Early Efficacy of Irreversible Electroporation for Hepatic Tumors in Proximity to Vital Structures. J. Surg. Oncol. 2013, 107, 544–549. [Google Scholar] [CrossRef] [PubMed]
  175. Charpentier, K.P.; Wolf, F.; Noble, L.; Winn, B.; Resnick, M.; Dupuy, D.E. Irreversible Electroporation of the Pancreas in Swine: A Pilot Study. HPB 2010, 12, 348–351. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  176. Nielsen, K.; Scheffer, H.J.; Vieveen, J.M.; van Tilborg, A.A.J.M.; Meijer, S.; van Kuijk, C.; van den Tol, M.P.; Meijerink, M.R.; Bouwman, R.A. Anaesthetic Management during Open and Percutaneous Irreversible Electroporation. Br. J. Anaesth. 2014, 113, 985–992. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  177. Partridge, B.R.; O’Brien, T.J.; Lorenzo, M.F.; Coutermarsh-Ott, S.L.; Barry, S.L.; Stadler, K.; Muro, N.; Meyerhoeffer, M.; Allen, I.C.; Davalos, R.V.; et al. High-Frequency Irreversible Electroporation for Treatment of Primary Liver Cancer: A Proof-of-Principle Study in Canine Hepatocellular Carcinoma. J. Vasc. Interv. Radiol. 2020, 31, 482–491.e4. [Google Scholar] [CrossRef] [PubMed]
  178. Zimmerman, A.; Grand, D.; Charpentier, K. Irreversible Electroporation of Hepatocellular Carcinoma: Patient Selection and Perspectives. J. Hepatocell. Carcinoma 2017, 4, 49–58. [Google Scholar] [CrossRef] [Green Version]
  179. Sutter, O.; Calvo, J.; N’Kontchou, G.; Nault, J.-C.; Ourabia, R.; Nahon, P.; Ganne-Carrié, N.; Bourcier, V.; Zentar, N.; Bouhafs, F.; et al. Safety and Efficacy of Irreversible Electroporation for the Treatment of Hepatocellular Carcinoma Not Amenable to Thermal Ablation Techniques: A Retrospective Single-Center Case Series. Radiology 2017, 284, 877–886. [Google Scholar] [CrossRef]
  180. Cannon, R.M.; Bolus, D.N.; White, J.A. Irreversible Electroporation as a Bridge to Liver Transplantation. Am. Surg. 2019, 85, 103–110. [Google Scholar] [CrossRef] [PubMed]
  181. Liu, Z.-G.; Chen, X.-H.; Yu, Z.-J.; Lv, J.; Ren, Z.-G. Recent Progress in Pulsed Electric Field Ablation for Liver Cancer. World J. Gastroenterol. 2020, 26, 3421–3431. [Google Scholar] [CrossRef]
  182. Bulvik, B.E.; Rozenblum, N.; Gourevich, S.; Ahmed, M.; Andriyanov, A.V.; Galun, E.; Goldberg, S.N. Irreversible Electroporation versus Radiofrequency Ablation: A Comparison of Local and Systemic Effects in a Small-Animal Model. Radiology 2016, 280, 413–424. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  183. Chen, X.; Ren, Z.; Yin, S.; Xu, Y.; Guo, D.; Xie, H.; Zhou, L.; Wu, L.; Jiang, J.; Li, H.; et al. The Local Liver Ablation with Pulsed Electric Field Stimulate Systemic Immune Reaction against Hepatocellular Carcinoma (HCC) with Time-Dependent Cytokine Profile. Cytokine 2017, 93, 44–50. [Google Scholar] [CrossRef] [PubMed]
  184. Sugimoto, K.; Kakimi, K.; Takeuchi, H.; Fujieda, N.; Saito, K.; Sato, E.; Sakamaki, K.; Moriyasu, F.; Itoi, T. Irreversible Electroporation versus Radiofrequency Ablation: Comparison of Systemic Immune Responses in Patients with Hepatocellular Carcinoma. J. Vasc. Interv. Radiol. 2019, 30, 845–853.e6. [Google Scholar] [CrossRef]
  185. El-Khoueiry, A.B.; Sangro, B.; Yau, T.; Crocenzi, T.S.; Kudo, M.; Hsu, C.; Kim, T.-Y.; Choo, S.-P.; Trojan, J.; Welling, T.H.; et al. Nivolumab in Patients with Advanced Hepatocellular Carcinoma (CheckMate 040): An Open-Label, Non-Comparative, Phase 1/2 Dose Escalation and Expansion Trial. Lancet 2017, 389, 2492–2502. [Google Scholar] [CrossRef]
  186. Zhu, A.X.; Finn, R.S.; Edeline, J.; Cattan, S.; Ogasawara, S.; Palmer, D.; Verslype, C.; Zagonel, V.; Fartoux, L.; Vogel, A.; et al. Pembrolizumab in Patients with Advanced Hepatocellular Carcinoma Previously Treated with Sorafenib (KEYNOTE-224): A Non-Randomised, Open-Label Phase 2 Trial. Lancet Oncol. 2018, 19, 940–952. [Google Scholar] [CrossRef]
  187. Finn, R.S.; Ryoo, B.-Y.; Merle, P.; Kudo, M.; Bouattour, M.; Lim, H.Y.; Breder, V.; Edeline, J.; Chao, Y.; Ogasawara, S.; et al. Pembrolizumab As Second-Line Therapy in Patients With Advanced Hepatocellular Carcinoma in KEYNOTE-240: A Randomized, Double-Blind, Phase III Trial. J. Clin. Oncol. 2020, 38, 193–202. [Google Scholar] [CrossRef]
  188. El-Khoueiry, A.B.; Yau, T.; Kang, Y.-K.; Kim, T.-Y.; Santoro, A.; Sangro, B.; Melero, I.; Kudo, M.; Hou, M.-M.; Matilla, A.; et al. Nivolumab (NIVO) plus Ipilimumab (IPI) Combination Therapy in Patients (Pts) with Advanced Hepatocellular Carcinoma (AHCC): Long-Term Results from CheckMate 040. J. Clin. Oncol. 2021, 39 (Suppl. 3), 269. [Google Scholar] [CrossRef]
  189. Kelley, R.K.; Sangro, B.; Harris, W.P.; Ikeda, M.; Okusaka, T.; Kang, Y.-K.; Qin, S.; Tai, W.M.D.; Lim, H.Y.; Yau, T.; et al. Efficacy, Tolerability, and Biologic Activity of a Novel Regimen of Tremelimumab (T) in Combination with Durvalumab (D) for Patients (Pts) with Advanced Hepatocellular Carcinoma (AHCC). J. Clin. Oncol. 2020, 38 (Suppl. 15), 4508. [Google Scholar] [CrossRef]
  190. Zhu, A.X.; Finn, R.S.; Ikeda, M.; Sung, M.W.; Baron, A.D.; Kudo, M.; Okusaka, T.; Kobayashi, M.; Kumada, H.; Kaneko, S.; et al. A Phase Ib Study of Lenvatinib (LEN) plus Pembrolizumab (PEMBRO) in Unresectable Hepatocellular Carcinoma (UHCC). J. Clin. Oncol. 2020, 38 (Suppl. 15), 4519. [Google Scholar] [CrossRef]
  191. Finn, R.S.; Qin, S.; Ikeda, M.; Galle, P.R.; Ducreux, M.; Kim, T.-Y.; Kudo, M.; Breder, V.; Merle, P.; Kaseb, A.O.; et al. Atezolizumab plus Bevacizumab in Unresectable Hepatocellular Carcinoma. N. Engl. J. Med. 2020, 382, 1894–1905. [Google Scholar] [CrossRef] [PubMed]
  192. Rosenberg, S.A.; Restifo, N.P. Adoptive Cell Transfer as Personalized Immunotherapy for Human Cancer. Science 2015, 348, 62–68. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  193. Duffy, A.G.; Ulahannan, S.V.; Makorova-Rusher, O.; Rahma, O.; Wedemeyer, H.; Pratt, D.; Davis, J.L.; Hughes, M.S.; Heller, T.; ElGindi, M.; et al. Tremelimumab in Combination with Ablation in Patients with Advanced Hepatocellular Carcinoma. J. Hepatol. 2017, 66, 545–551. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  194. Cui, J.; Wang, N.; Zhao, H.; Jin, H.; Wang, G.; Niu, C.; Terunuma, H.; He, H.; Li, W. Combination of Radiofrequency Ablation and Sequential Cellular Immunotherapy Improves Progression-Free Survival for Patients with Hepatocellular Carcinoma. Int. J. Cancer 2014, 134, 342–351. [Google Scholar] [CrossRef] [PubMed]
  195. Marinelli, B.; Cedillo, M.; Pasik, S.D.; Charles, D.; Murthy, S.; Patel, R.S.; Fischman, A.; Ranade, M.; Bishay, V.; Nowakowski, S.; et al. Safety and Efficacy of Locoregional Treatment during Immunotherapy with Nivolumab for Hepatocellular Carcinoma: A Retrospective Study of 41 Interventions in 29 Patients. J. Vasc. Interv. Radiol. 2020, 31, 1729–1738.e1. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Locoregional therapies. TACE: trans-arterial chemoembolization; TARE: trans-arterial radioembolization; RFA: radiofrequency ablation; MWA: microwave ablation; IRE: irreversible electroporation; HIFU: high-intensity focal ultrasound; SBRT: stereotactic body radiation therapy.
Figure 1. Locoregional therapies. TACE: trans-arterial chemoembolization; TARE: trans-arterial radioembolization; RFA: radiofrequency ablation; MWA: microwave ablation; IRE: irreversible electroporation; HIFU: high-intensity focal ultrasound; SBRT: stereotactic body radiation therapy.
Cancers 13 05797 g001

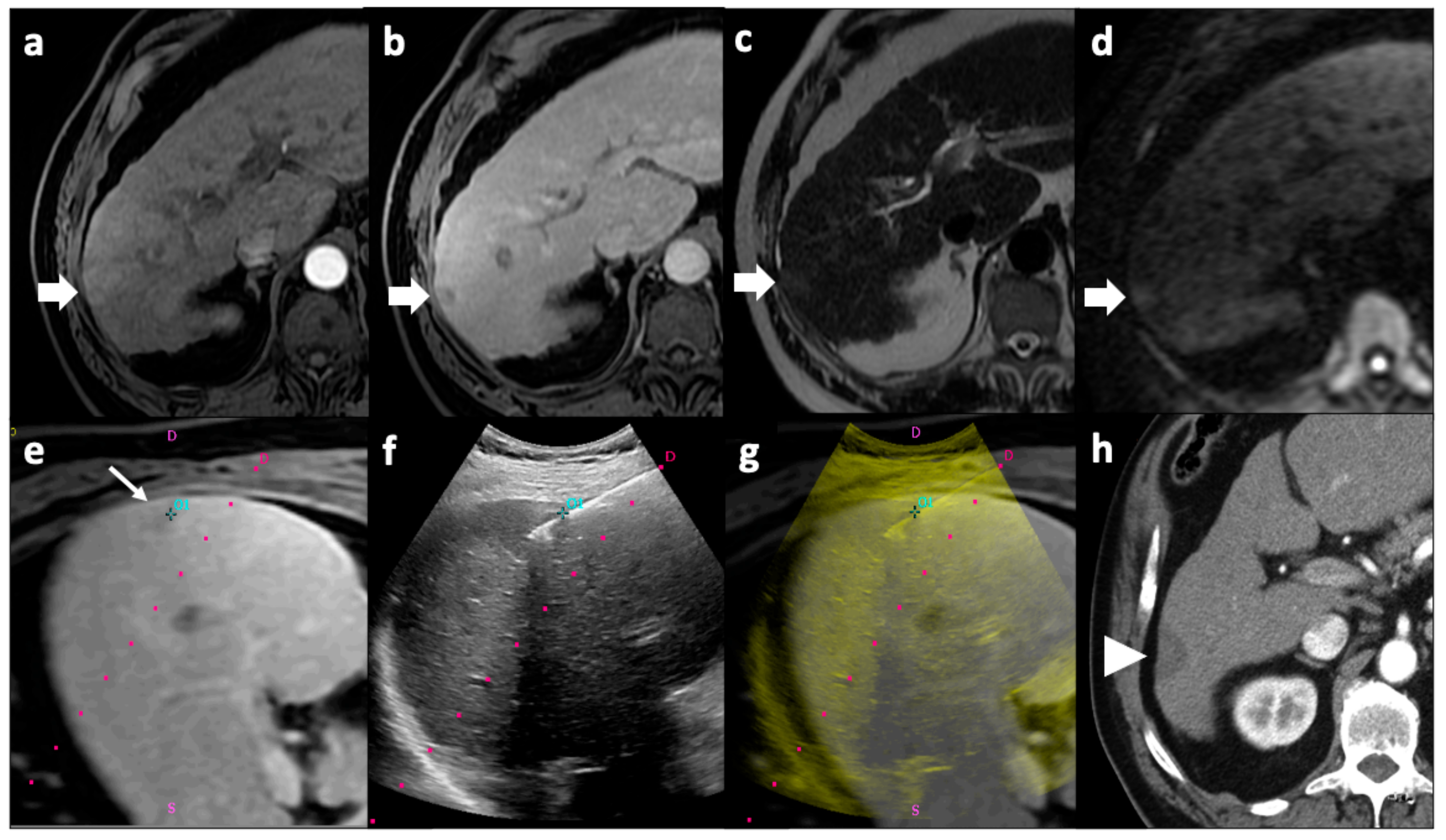

Figure 2. Microwave ablation of an HCC nodule. Pre-procedural MRI axial images demonstrated a focal right liver lesion with arterial wash-in (arrow, a), venous wash-out (arrow, b), hyperintensity on T2-weighted images (arrow, c), and diffusion restriction (arrow, d). The tumor was not clearly visible on US examination; thus, pre-procedural MR images in which the tumor was clearly detectable (thin arrow, e) were fused with real-time US images in which the microwave antenna could be monitored (f) during procedure; 01 corresponds to the point where the target lesion was selected on pre-procedural images. A fused MR–US image was produced showing the antenna correctly positioned inside the nodule (g). The red dot line in images (eg) indicate the predicted path of the antenna when a needle guidance system is used, but in this case guidance was used only to enter liver parenchyma, not for precisely inserting the antenna inside the nodule. Follow-up axial CT imaging performed 1 month after the procedure showed a hypodense image consisting with the ablation zone (arrowhead, h) with no enhancement in the arterial phase, consistent with the absence of residual disease. CT: computed tomography; HCC: hepatocellular carcinoma; MRI: magnetic resonance; US: ultrasound.
Figure 2. Microwave ablation of an HCC nodule. Pre-procedural MRI axial images demonstrated a focal right liver lesion with arterial wash-in (arrow, a), venous wash-out (arrow, b), hyperintensity on T2-weighted images (arrow, c), and diffusion restriction (arrow, d). The tumor was not clearly visible on US examination; thus, pre-procedural MR images in which the tumor was clearly detectable (thin arrow, e) were fused with real-time US images in which the microwave antenna could be monitored (f) during procedure; 01 corresponds to the point where the target lesion was selected on pre-procedural images. A fused MR–US image was produced showing the antenna correctly positioned inside the nodule (g). The red dot line in images (eg) indicate the predicted path of the antenna when a needle guidance system is used, but in this case guidance was used only to enter liver parenchyma, not for precisely inserting the antenna inside the nodule. Follow-up axial CT imaging performed 1 month after the procedure showed a hypodense image consisting with the ablation zone (arrowhead, h) with no enhancement in the arterial phase, consistent with the absence of residual disease. CT: computed tomography; HCC: hepatocellular carcinoma; MRI: magnetic resonance; US: ultrasound.
Cancers 13 05797 g002

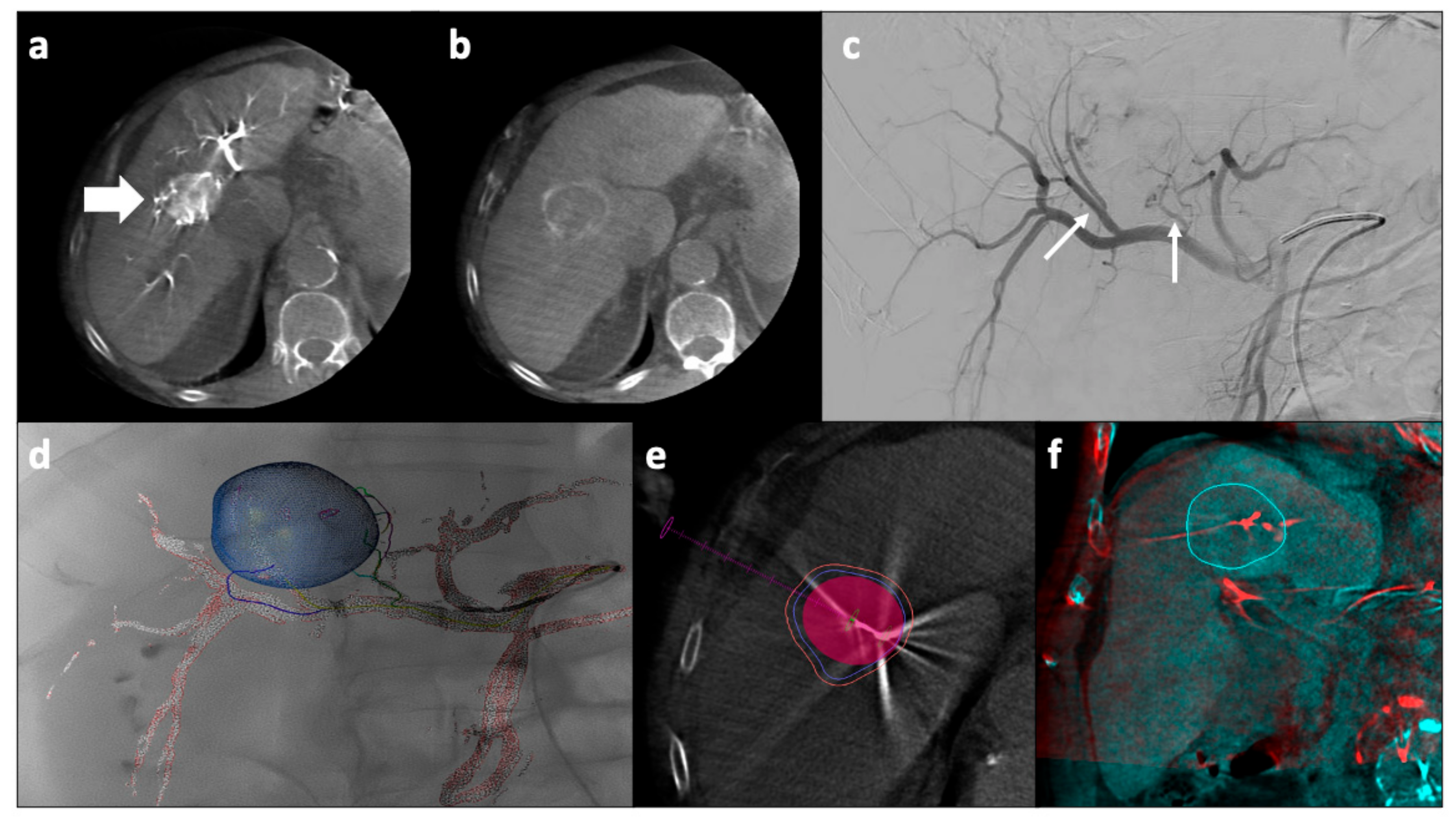

Figure 3. Percutaneous microwave ablation and trans-arterial chemoembolization for a large HCC nodule. For treating large single HCC nodules, a combination of ablation and embolization may be used. After arterial femoral access and catheterization of the celiac trunk and hepatic artery, a CBCT is performed that confirms the presence of a large nodule with arterial wash-in (a, arrow) and venous wash-out (b), consistent with HCC. The angiographic study demonstrated the presence of two main arterial feeders (thin arrows, c). Dedicated software can be used to delineate the target vessels and to plan the endovascular procedure (d). A dedicated software is also available to predict the ablation volume which is virtually created on a CBCT performed after having positioned the antenna inside the tumor, before starting the ablation (e,f). CBCT: cone-beam computed tomography; HCC: hepatocellular carcinoma.
Figure 3. Percutaneous microwave ablation and trans-arterial chemoembolization for a large HCC nodule. For treating large single HCC nodules, a combination of ablation and embolization may be used. After arterial femoral access and catheterization of the celiac trunk and hepatic artery, a CBCT is performed that confirms the presence of a large nodule with arterial wash-in (a, arrow) and venous wash-out (b), consistent with HCC. The angiographic study demonstrated the presence of two main arterial feeders (thin arrows, c). Dedicated software can be used to delineate the target vessels and to plan the endovascular procedure (d). A dedicated software is also available to predict the ablation volume which is virtually created on a CBCT performed after having positioned the antenna inside the tumor, before starting the ablation (e,f). CBCT: cone-beam computed tomography; HCC: hepatocellular carcinoma.
Cancers 13 05797 g003
Table 1. Summarized immunological effect of LRTs.
Table 1. Summarized immunological effect of LRTs.
IncreasedDAMPs (RNA, DNA, HSPs, HMGB1)
Inflammatory cytokines (IL-1β, IL-6, IL-8, TNF-α, IFN- γ)
Tumor specific antibodies
CD4+ T, CD8+ T, tumor-specific T, cytotoxic T, central memory lymphocytes, infiltrating CD45RO+
Inflammatory cytokines (IL-1, IL-6, TNF-α)
NF-κβCD4+ T, CD8+ T, NK cells
DAMPs (HSP-70)
Inflammatory cytokines (IL-1, IL-6, IL-12)
CD3+ T, CD56+ NK, CD8+ T cells)
Circulating GPC3-specific cytotoxic T lymphocytes (CTL)
CD4+ cells
CD4+/CD8+ ratio
NK cells
Inflammatory cytokines (TNF-α, IL-1, IL-6, IL-8)
CD8+ T cells
CD56+ NK, CD8+ CD56+ NKT, CD4+ T cells
oxidative stress markers (malondyaldehide)
endothelial injury markers (vW factor, PAI-1)
liver regeneration factors (FGF-19, HGF)
Inflammatory cytokines (IFN-γ, IL-2)
CD4+, CD8+, CD3+, NK cells, B cells
CD4+/CD8+ ratio
Inflammatory cytokines (IL-6)
CD8 T cells
DAMPs (HMGB1)MHC I molecules
Inflammatory cytokines
IFN-α, IFN-β
Lymphocyte infiltration in tumor tissue
Specific CD8 T activation
Peripheral NK, and CD3+CD56+NKT-like cells
Neutrophil and macrophage infiltration
Inflammatory cytokines
Macrophage inflammatory protein-1b (MIP-1b)/chemokine ligand 4 (CCL4), TNF-α, and IL-17
DecreasedTGF-ß, IL-10
IL-4, IL-10Treg
CD8+ cells
Immunosuppressive cytokines (VEGF, TGF-β1, TGF-β2 IL-4, and IL-10)
DAMPs: danger-associated molecular patterns; HSPs: heat shock proteins; HMGB: high-mobility group box; GPC3: glypican-3; APCs: antigen--presenting cells; vW: von Willebrand; PAI-1: plasminogen activator inhibitor-1; FGF-19: fibroblast growth factor-19; HGF: hepatocyte growth factor; DCs: dendritic cells; MIF: macrophage migration inhibitory factor; MIP-1b: macrophage inflammatory protein-1b; MHC: major histocompatibility complex.
Table 2. Trials on LRT and immunotherapy combinations.
Table 2. Trials on LRT and immunotherapy combinations. IDLRTImmunotherapyPhaseLine of IOStudy DesignDisease Stage
02568748TACECIKIIIAdjuvantOpen labelBCLC B
03592706TACEImmune killer cellsII/IIISequentialRandomizedBCLC B, C
03638141DEB-TACECTLA-4/PD-L1 (Durvalumab and Tremelimumab)IISequentialOpen labelBCLC B
03572582DEB-TACENivolumabIICombinationOpen labelBCLC B
03937830DEB-TACEDurvalumab, TremelimumabIICombinationOpen labelBCLC B, C
03575806TACEAutologous Tcm immunotherapyII (completed)SequentialOpen labelChild–Pugh A
02487017TACEDC-CIKIICombinationOpen labelChild–Pugh A, B
02856815TACECIKIIAdjuvantOpen labelBCLC B
03397654TACEPembrolizumabIBSequentialOpen labelChild–Pugh A
03143270DEB-TACENivolumabICombinationOpen labelBCLC B
03817736TACE and SBRTICIIISequentialOpen labelChild–Pugh A, B
03124498TACE, RFA, PEITCIKI/IIAdjuvantOpen labelChild–Pugh A, B
02821754TACE, RFA, cryoICI (Durvalumab, Tremelimumab)IICombinationOpen labelBCLC B, C
01853618TACE, RFATremelimumabI/II (completed)CombinationOpen labelBCLC B, C
03383458AblationNivolumabIIIAdjuvantRandomizedChild–Pugh A
03380130TARENivolumabII (completed)SequentialOpen labelChild–Pugh A
02837029TARENivolumabICombinationOpen labelChild–Pugh A, B
03033446TARENivolumabIICombinationOpen labelChild–Pugh A
03099564TAREPembrolizumabICombinationOpen labelChild–Pugh A, B
03259867TATENivolumab or PembrolizumabIIaCombinationOpen labelBCLC C
Abbreviations: CIK: cytokine-induced killer cell; DC: dendritic cell; DEB-TACE: drug-eluting bead-trans-arterial chemoembolization; PEIT: percutaneous ethanol injection therapy; RFA: radiofrequency ablation; SBRT: stereotactic body radiation therapy; TATE: trans-arterial tirapazamine embolization.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Biondetti, P.; Saggiante, L.; Ierardi, A.M.; Iavarone, M.; Sangiovanni, A.; Pesapane, F.; Fumarola, E.M.; Lampertico, P.; Carrafiello, G. Interventional Radiology Image-Guided Locoregional Therapies (LRTs) and Immunotherapy for the Treatment of HCC. Cancers 2021, 13, 5797.

AMA Style

Biondetti P, Saggiante L, Ierardi AM, Iavarone M, Sangiovanni A, Pesapane F, Fumarola EM, Lampertico P, Carrafiello G. Interventional Radiology Image-Guided Locoregional Therapies (LRTs) and Immunotherapy for the Treatment of HCC. Cancers. 2021; 13(22):5797.

Chicago/Turabian Style

Biondetti, Pierpaolo, Lorenzo Saggiante, Anna Maria Ierardi, Massimo Iavarone, Angelo Sangiovanni, Filippo Pesapane, Enrico Maria Fumarola, Pietro Lampertico, and Gianpaolo Carrafiello. 2021. "Interventional Radiology Image-Guided Locoregional Therapies (LRTs) and Immunotherapy for the Treatment of HCC" Cancers 13, no. 22: 5797.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
