Prognostic Significance of Estrogen Receptor Alpha in Oral Squamous Cell Carcinoma
by
, , , , , ,
Christian Doll
1,*
,
Carolin Bestendonk
1,
Kilian Kreutzer
1,
Konrad Neumann
2,
Anne Pohrt
2
,
Irena Trzpis
1,
Steffen Koerdt
1,
Steffen Dommerich
3,
Max Heiland
1
,
Jan-Dirk Raguse
4,† and
Korinna Jöhrens
5,† 1
Department of Oral and Maxillofacial Surgery, Charité—Universitatsmedizin Berlin, Corporate Member of Freie Universitat Berlin and Humboldt-Universitat zu Berlin, Augustenburger Platz 1, 13353 Berlin, Germany
2
Institute of Biometry and Clinical Epidemiology, Charité—Universitatsmedizin Berlin, Corporate Member of Freie Universitat Berlin and Humboldt-Universitat zu Berlin, Charitéplatz 1, 10117 Berlin, Germany
3
Department of Otorhinolaryngology, Charité—Universitätsmedizin Berlin, Corporate Member of Freie Universitat Berlin and Humboldt-Universitat zu Berlin, Charitéplatz 1, 10117 Berlin, Germany
4
Department of Oral and Maxillofacial Surgery, Fachklinik Hornheide, 48157 Münster, Germany
5
Institute of Pathology, Technische Universität Dresden, 01307 Dresden, Germany
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work (co-last authorship).
Cancers 2021, 13(22), 5763; https://doi.org/10.3390/cancers13225763
Submission received: 30 September 2021
/
Revised: 2 November 2021
/
Accepted: 11 November 2021
/
Published: 17 November 2021
(This article belongs to the Special Issue Advances in Oral Cancer: From Pathology to Treatment)
Abstract
:Simple Summary
Although the survival rate has improved over the past decades, the prognosis of oral squamous cell carcinoma (OSCC) is still poor, and new treatment strategies are required. The aim of this study was to evaluate estrogen receptor alpha (ERα) expression in OSCC in a large patient cohort as a potential prognostic marker and therapeutic target. The findings indicated a rare expression of ERα that, however, was associated with a dramatic decrease of overall survival in male patients. In ERα-positive OSCC patients, an ER-based therapeutic (adjuvant) approach in the future might be conceivable based on the findings of this study.
Abstract
Introduction: Several studies suggest an estrogen receptor alpha (ERα)-mediated influence on the pathogenesis of oral squamous cell carcinoma (OSCC), as described for other malignancies that are not considered to be primarily hormone-dependent. Recently, an association between ERα expression and improved survival in oropharyngeal squamous cell carcinoma (OPSCC) has been found. However, the prognostic relevance of ERα in OSCC has not been proven to date. Therefore, the aim of this study was to evaluate ERα expression in OSCC in a large patient cohort and analyze its influence on survival and recurrence. Material and Methods: A total of 316 patients with primary OSCC who received initial surgical therapy were included in this analysis. The expression of ERα was evaluated on tissue microarrays by immunohistochemistry in the primary tumor and/or primary lymph node metastases. The expression level was quantified by light microscopy using the immunoreactive score (IRS) for estrogen receptor detection. An IRS equal to or greater than 2 was considered positive. The 5-year overall survival (OS) and relapse-free survival (RFS) were examined by the Kaplan–Meier method and log-rank test. Results: A total of 316 patients (111 females; 205 males) with a mean age of 61.3 years (range 27–96 years) were included in this study. In 16 patients (5.1%; 6 females and 10 males), positive ERα expression was found in the primary tumor (n = 11; 11/302) or lymph node metastases (n = 5; 5/52). Patients with positive ERα expression in primary tumors/primary lymph node metastases had a significantly lower OS and RFS (p = 0.012; p = 0.0053) compared to ERα-negative patients. Sub-group analysis in relation to gender revealed a highly significant influence of ERα expression on OS and RFS in males but not in females, both for the ERα-positive primary tumor cohort (males: p = 0.0013; p < 0.0001; females: p = 0.56; p = 0.89) and the ERα-positive primary tumor/primary lymph node metastasis cohort (males: p < 0.0001; p < 0.0001; females: p = 0.95; p = 0.96). In multivariate cox regression analysis, the ERα IRS of primary tumors (dichotomized; ERα+ vs. ERα−) was an independent risk factor for OS (HR = 4.230; 95%CI 1.616–11.076; p = 0.003) and RFS (HR = 12.390; 95%CI 4.073–37.693; p < 0.001) in the male cohort. There was a significant difference (p = 0.006) of ERα positivity with regard to the localization of the primary tumor. ERα positivity in the primary tumor was significantly associated (p = 0.026) with UICC stage, with most of the cases being diagnosed in stage IV. Furthermore, there was a significantly (p = 0.049) higher rate of bone infiltration in ERα-positive patients. Conclusion: Expression of ERα is rare in OSCC; however, it is associated with a dramatic decrease in OS in male patients. Further studies are necessary to confirm our results and to evaluate the exact mechanism underlying this observation. Hence, ERα-positive OSCC patients might benefit from an ER-based therapeutic (adjuvant) approach in the future.
1. Introduction
Oral squamous cell carcinoma (OSCC) is the most frequent malignancy affecting the oral cavity, with an annual incidence of more than 300,000 new cases worldwide [1]. The successful treatment of OSCC often requires a multimodal approach, and surgery is the therapeutic basis for most patients. Although survival has improved over the past decades [2], prognosis is still poor, and new treatment strategies are required.
Regular smoking and alcohol abuse are known to be typical risk factors for OSCC, also in young patients [3]. Despite these well-documented risk factors, the human papilloma virus (HPV) has been discussed as a potential cause, although it appears to play a minor role compared to that it performs in oropharyngeal squamous cell carcinoma (OPSCC) [4], which is another entity of the heterogenous group of head and neck squamous cell carcinoma. However, patients may develop OSCC without exposure to those common risk factors, which led to the conclusion that there is a pathological impact of other factors, which are not yet understood.
Estrogen receptors (ER) are involved in the regulation of many complex physiological processes in humans. Pathological ER signaling leads to the development of a variety of diseases, such as metabolic and cardiovascular disease, neurodegeneration, inflammation, osteoporosis, and cancer [5]. There are two different sub-types of estrogen receptors, which are widely distributed in different tissues, i.e., ER alpha (ERα) and ER beta (ERβ). Perturbation of the expression of these receptors has been found in many different cancers and provides a possible therapeutic target [6]. This has been successfully established in breast carcinoma [7]. However, ER-mediated treatment strategies are being investigated in many different tissues which are not all considered to be primarily hormone-dependent [5,8,9,10].
Various clinical observations suggest a hormone-dependent influence in the pathogenesis of OSCC. The highest incidence among female patients is seen after menopause. This might lead to the conclusion that a decrease of the estrogen level could play a role in cancer initiation [11,12]. Further observations such as an increasing incidence of OSCC in young non-smoking women within the last decades [13,14,15,16] or an increasing incidence of women with OSCC after hysterectomy also suggest that there is a hormonal influence on carcinogenesis [12]. Since the exposure to tobacco and/or alcohol can modify the level of testosterone and estrogen, a co-dependent hormonal impact on OSCC pathogenesis might be possible [11].
Several studies have discussed the influence of estrogen receptor (ER) on the pathogenesis of OSCC [17,18,19,20,21,22,23,24]. In OPSCC, which is another entity of the heterogenous group of head and neck cancers, an association between ERα expression and improved survival has recently been found [25]. A study published by Egloff et al. revealed an ERα-positivity of 95% in 56 evaluated head and neck tumors (including 23 OSCC); however, a concrete allocation only for OSCC was not mentioned [20]. This study shows a significantly reduced progression-free survival in patients with high (nuclear) ERα (and EGFR) tumor levels. However, a prognostic relevance of ER expression for OSCC alone has not been proven to date.
In general, information about the immunohistochemical expression of ERα in OSCC primary tissues is rare and remains controversial. The prevalence of ERα when evaluating (paraffin-embedded) OSCC tissue ranges from 0 to 13% [19,21,24,26,27,28].
To date, only small patient cohorts have been analyzed for ERα expression in OSCC, and no prognostic relevance has been found. Therefore, the aim of this study was to evaluate ERα expression in OSCC in a large patient cohort and analyze its influence on survival and recurrence.
2. Material and Methods
2.1. Ethics Statement
The Ethics Committee of the Faculty of Medicine Charité Berlin approved this study (EA2/028/15).
2.2. Patients
In this study, 316 patients with primary OSCC treated at Charité–Universitätsmedizin Berlin between 2005 and 2011 were included. Tumor staging was performed using the 7th edition of the American Joint Committee on Cancer (AJCC) Staging Manual [29], and treatment as well as follow-up were performed according to the current national guidelines at the time of presentation. Only patients who received initial surgical therapy were included in this study. The medical records of all patients were reviewed retrospectively.
Follow-up time for overall survival (OS) was defined as the time from the date of the first diagnosis until death. Patients without an event were censored at last contact or at the end of the observation period if the patient was still alive. In cases in which a date of primary diagnosis was not available (e.g., external diagnosis), the date of the first diagnosis was set to the date of the surgical therapy. Recurrence-free survival (RFS) was defined as the time from primary treatment to recurrence (within 5 years) or the date of death. The follow-up time for RFS was the time until diagnosis of relapse or until death or last contact in the respective treating departments. Patients were not considered for the recurrence analysis and classified as residual tumors when diagnosis was made within 6 months after primary surgery (± adjuvant therapy) with R1/Rx resection margins.
2.3. Immunohistochemistry
The detection of ERα expression was performed using immunohistochemistry (IHC) on tissue microarrays (TMA). In preparation, formalin-fixed paraffin-embedded (FFPE) tissue and the corresponding slides from patients with primary OSCC were collected from the archive of the Institute of Pathology, Charité–Universitätsmedizin Berlin, Germany. The tumor diagnoses were reviewed based on the current criteria of the WHO (WHO classification of head and neck tumors Lyon 2017). Hematoxylin–Eosin (HE) staining of all tumor blocks was performed, and representative areas were marked on these slides and the corresponding 2 µm-thick FFPE sections for IHC. New blocks were designed with one (or more) punches of the tumor, with a diameter of 1.0 mm.
The immunohistological staining was performed with the anti-ERα-antibody (clone SP1) from Ventana Medical Systems (Tucson, AZ, USA) as a ready-to-use antibody. The expression of ERα was quantified by light microscopy using the semiquantitative immunoreactive score (IRS) for estrogen receptor detection described by Remmele and Stegner [30]. However, in contrast to the original description, an IRS equal to or greater than 2 was considered positive, as described by other authors [31,32]. In the case of more than one stained tumor tissue per patient, arithmetic means were calculated.
2.4. Statistical Analysis
The data were collected in Microsoft Excel (Microsoft Corporation, WA, USA). Statistical analysis was performed using R Version 4.0.3 [33] and IBM SPSS Statistics Version 27 (IBM Corporation, NY, USA). Variables are shown as a frequency and percentage or mean value with standard deviation (SD). The 5-year OS and RFS were examined by the Kaplan–Meier method and log-rank test. Chi-square test was used to assess differences in categorical variables between ERα-positive and ERα-negative patients. To identify prognostic factors for OS and RFS, multiple cox regression with stepwise backward elimination was used. The initial model contained the variables ERα+ vs. ERα−, gender, age, pT stage, UICC stage, tumor localization, pN0 vs. pN1/pN2, G stage, and bony infiltration. At each step, the variable with the largest p-value was eliminated until all p-values were smaller than 0.1. The IRS of ERα remained in the model at all steps. The final model contained age, pT stage, and UICC stage, beside ERα+ vs. ERα− as independent variables. Hazard ratios for OS and RFS of ERα+ vs. ERα− are therefore adjusted with respect to age, pT stage, and UICC stage. All p-values are exploratory and are reported without adjustment for multiple testing. The level of statistical significance was set to p < 0.05.
3. Results
A total of 316 patients (111 females; 205 males) with a mean age of 61.3 years (range 27–96 years) diagnosed with primary OSCC were included in this study. Of these, 302 primary tumors and 52 primary lymph node metastases were analyzed for the expression of ERα. The cumulative 5-year overall survival (OS) was 61.9%, and recurrence-free survival (RFS) was 52.8%. The mean follow-up for survival was 63.0 months (SD ± 38.6). A total of 90 patients received adjuvant radio(chemo)therapy.
The mean immunoreactive score for ERα expression was 0.12 for all primary tumors (range 0–6) and 0.52 for all primary lymph node metastases (range 0–10). In 16 patients (5.1%; 6 females; 10 males), positive ERα expression (with an ERα equal to or greater than two) was found in the primary tumor (n = 11;11/302; 3.6%) or lymph node metastases (n = 5;5/52; 9.6%). Typical pictures of ERα IHC staining of primary tumors are shown in Figure 1.
The clinicopathological characteristics of the cohort are summarized in Table 1.
There was a significant difference (p = 0.006) in ERα positivity with regard to the localization of the primary tumor. The most frequent single localization was the lower jaw. ERα positivity in the primary tumor was significantly associated (p = 0.026) with UICC stage, with most of the cases being diagnosed in stage IV. Furthermore, there was a significantly (p = 0.049) higher rate of bone infiltration in ERα-positive patients in contrast to ERα-negative patients.
Table 2 summarizes the clinicopathological characteristics of all patients with an ERα-positive primary tumor.
Only for one of the patients with an ERα-positive primary tumor, the corresponding primary lymph node metastasis could be evaluated for ERα expression (patient no. 9; ERα IRS: 0.5).
Regarding the whole cohort, patients with ERα-positive primary tumors had a significant lower RFS (p = 0.011) compared to ERα-negative patients (Figure 2). For OS, a tendency was seen (p = 0.071).
In multivariate cox regression analysis, the ERα IRS of the primary tumors (dichotomized; ERα+ vs. ERα−) was not an independent risk factor for OS (HR = 1.039; 95%CI 0.455–2.371; p = 0.928) or RFS (HR = 1.352; 95%CI 0.617–2.962; p = 0.452). However, it was an independent risk factor for OS (HR = 4.230; 95%CI 1.616–11.076; p = 0.003) and RFS (HR = 12.390; 95%CI 4.073–37.693; p < 0.001) in the male cohort.
Table 3 summarizes the clinicopathological characteristics of all patients with an Erα-positive primary lymph node metastasis. ERα expression in four corresponding primary tumors was available. These were all negative.
When combining patients with an ERα-positive lymph node metastasis and/or primary tumor, we found significant lower OS (p = 0.012) and RFS (p = 0.0053) in the case of ERα positivity compared to ERα-negative patients (Figure 3).
Sub-group analysis in relation to gender revealed a highly significant influence on OS and RFS in males but not in females, for both the ERα-positive primary tumor cohort (males: p = 0.0013; p < 0.0001; females: p = 0.56; p = 0.89) and the ERα-positive primary tumor/primary lymph node metastasis cohort (males: p < 0.0001; p < 0.0001; females: p = 0.95; p = 0.96) (Figure 4).
Figure 5 shows the OS of male and female patients with an ERα-positive primary tumor compared to patients with ERα-negative tumors. Within the limitations due to the small number of positive female patients, a significant difference (p = 0.013) was observed.
4. Discussion
The present study shows a prognostic significance of ERα in OSCC for a surgical cohort. Although the expression of ERα is rare, it is associated with a worse prognosis in comparison to ERα-negative patients. This effect was mainly observed in the male cohort, in whom a dramatic decrease in OS was observed. As successfully established in breast cancer, ERα-positive OSCC (male) patients might benefit from an ER-based therapeutic (adjuvant) approach in the future.
The estrogen receptors α and β are widely distributed in different cells and tissues of the human body [34]. In normal oral mucosa, immunohistochemical analyses showed ERβ but not ERα expression in males and females [26,35,36,37]. However, the nuclear expression of estrogen has been described in precursor lesions in the oral cavity [26]. Steroid receptor activation depends on the hormone binding to its cognate receptor, leading to dimerization and nuclear translocation. In the next step, this complex can interact with specific DNA sequences. Nevertheless, membrane ERα can also mediate some estrogen effects, like endothelial/vascular effects [38]. The cases investigated in the present study showed a nuclear expression pattern with variable intensity. Membrane staining could not be observed.
Information about the immunohistochemical expression of ERα and ERβ in OSCC primary tissue is rare and remains controversial. In most studies, including a study from our study group, ERβ was found to be the predominant sub-type in OSCC primary tissues [19,21,24,28].
The prevalence for ERα when evaluating (paraffin-embedded) OSCC tissue ranges from 0 to 13% [19,21,24,26,27,28]. A study published by Egloff et al. revealed an ERα positivity of 95% in 56 head and neck tumors that were evaluated (including 23 OSCC); however, detailed information only for the OSCC cohort was not reported [20]; therefore, a direct comparison is not possible. In the present study, the prevalence of ERα positivity in the primary tumor was 3.6%, which is comparably low than the findings of other studies. In this publication, we used a cut-off ≥2 for IRS, as described by other authors [31,32]. However, authors evaluating ERα in OSCC used different cut-off scores, which makes comparison difficult. Egloff et al. defined positivity as the (at least) weak expression of more than 10% of cells [20]. Marrocchio et al. considered neoplastic cells to be positive “when they showed nuclear reactivity” [24]. Positivity was defined as nuclear staining in ≥1% of tumor cells in a study published by Grimm et al. [26]. Kwon et al. established ERα positivity if more than 1% of the cancer cells showed nuclear staining [25]. Other studies lack any definition of positivity.
The estrogen receptors are involved in the regulation of many complex physiological processes in humans.
As mentioned, there are two different sub-types of estrogen receptors, which are widely distributed in different tissues. Perturbation of the expression of these receptors has been found in many different cancers and provides a possible target approach [6], as successfully established in breast carcinoma [7]. However, ER-mediated treatment strategies are being investigated in many different tissues that are not all considered to be primarily hormone-dependent [5,8,9,10]. Recently, an association between ERα expression and improved survival in OPSCC, which is another entity of the heterogenous group of head and neck cancers, has been found [25]. Kwon et al. analyzed the expression of ERα in 113 OPSCC patients. The authors observed that the expression of ERα was associated with better overall survival in both HPV+ (p16+/HPV+ OPSCC) and p16+ (p16+ OPSCC irrespective of HPV status) models.
To the best of our knowledge, Egloff et al. are the only group who demonstrated a prognostic influence of ERα in OSCC [20]. This study showed a significantly reduced progression-free survival in patients with high (nuclear) ERα (and EGFR) tumor levels. However, the study evaluated 56 head and neck tumors, with only 23 of these being OSCC. Due to the fact that distinct information only for OSCC has not been reported, it remains unclear whether ERα has a prognostic influence on OSCC. The present study showed a prognostic significance of ERα in OSCC. So far, the pathomechanism for the decrease in OS of ERα-positive patients remains unknown. The production of estrogens by inflammatory cells during chronic infection as a response to carcinogens might be an important hormonal source, as shown by Siegfried et. al. within lung cancer tissues [39].
The results of the present study clearly show that there is a significant association between ERα expression and prognosis in OSCC, especially in the male cohort. This might lead to the conclusion that ERα-positive OSCC patients might benefit from an ER-based therapeutic (adjuvant) approach. Various studies exist that prove the influence of ER agonists and antagonists on OSCC cell lines. Chang et al. observed a stimulated cell growth by incubation with estradiol, in contrast to tamoxifen or knockdown of ERα expression, which led to a reduced cell growth [17]. Ishida et al. showed that the treatment with tamoxifen, but not estradiol, caused apoptotic death in OSCC cell lines [21]. This was also observed by Nelson et al., whereas tamoxifen induced a significant growth inhibition in OSCC cell lines [22,23].
In contrast to other studies [19,21,24,26,27,28], one strength of this study is the analysis of ERα in a comparatively high number of patients in a homogenous cohort of OSCC. The main points of criticism are the retrospective data collection and the evaluation of ERα on tissue microarrays. The latter might lead to a problem whereby the evaluated tumor tissue does not reflect the expression of ERα within the entire tumor. Although the results of our exploratory study are very promising, the power of our statistical analyses is limited due to the low number of ERα-positive cases, especially in the female cohort. Further studies are necessary to confirm our results. An ER-based therapeutic (neo)adjuvant approach could be evaluated in a patient-derived xenograft mouse model.
5. Conclusions
The expression of ERα is rare in OSCC; however, it was associated with a dramatic decrease in OS in OSCC male patients. ERα expression was associated with an advanced tumor stage at initial diagnosis in our cohort. Further studies are necessary to confirm our results and evaluate the exact mechanism leading to this association. Hence, ERα-positive OSCC patients might benefit from an ER-based therapeutic (adjuvant) approach in the future.
Author Contributions
Conceptualization, J.-D.R. and K.J.; Formal analysis, C.D., K.N. and A.P.; Investigation, C.D., C.B., I.T., S.K. and K.J.; Project administration, J.-D.R. and K.J.; Resources, M.H., J.-D.R. and K.J.; Supervision, M.H., J.-D.R. and K.J.; Writing—original draft, C.D.; Writing—review & editing, C.B., K.K. and S.D. All authors have read and agreed to the published version of the manuscript.
Funding
No funding was provided in regard with this study.
Institutional Review Board Statement
The study was conducted according to the guidelines of the Declaration of Helsinki and approved by the Ethics Committee of the Faculty of Medicine, Charité Berlin (EA2/028/15).
Informed Consent Statement
Informed consent was waived due to the retrospective design of this study.
Data Availability Statement
The data presented in this study are available on request from the corresponding author.
Acknowledgments
This study is part of the doctoral thesis of I.T. We thank Birgit Milluks for the great support.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Bray, F.; Ferlay, J.; Soerjomataram, I.; Siegel, R.L.; Torre, L.A.; Jemal, A. Global cancer statistics 2018: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA Cancer J. Clin. 2018, 68, 394–424. [Google Scholar] [CrossRef] [Green Version]
- Amit, M.; Yen, T.C.; Liao, C.T.; Chaturvedi, P.; Agarwal, J.P.; Kowalski, L.P.; Ebrahimi, A.; Clark, J.R.; Kreppel, M.; Zöller, J.; et al. Improvement in survival of patients with oral cavity squamous cell carcinoma: An international collaborative study. Cancer 2013, 119, 4242–4248. [Google Scholar] [CrossRef]
- Neckel, N.; Michael, M.; Troeltzsch, D.; Wüster, J.; Koerdt, S.; Doll, C.; Jöhrens, K.; Neumann, K.; Heiland, M.; Raguse, J.-D. Rediscussing the Role of Traditional Risk Factors in Young Adults With Oral Squamous Cell Carcinoma. Anticancer Res. 2020, 40, 6987–6995. [Google Scholar] [CrossRef]
- Gotz, C.; Drecoll, E.; Straub, M.; Bissinger, O.; Wolff, K.D.; Kolk, A. Impact of HPV infection on oral squamous cell carcinoma. Oncotarget 2016, 7, 76704–76712. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Jia, M.; Dahlman-Wright, K.; Gustafsson, J.A. Estrogen receptor alpha and beta in health and disease. Best Pract. Res. Clin. Endocrinol. Metab. 2015, 29, 557–568. [Google Scholar] [CrossRef] [PubMed]
- Thomas, C.; Gustafsson, J.A. The different roles of ER subtypes in cancer biology and therapy. Nat. Rev. Cancer 2011, 11, 597–608. [Google Scholar] [CrossRef] [PubMed]
- Lumachi, F.; Brunello, A.; Maruzzo, M.; Basso, U.; Basso, S.M. Treatment of estrogen receptor-positive breast cancer. Curr. Med. Chem. 2013, 20, 596–604. [Google Scholar] [CrossRef]
- Hsu, L.H.; Chu, N.M.; Kao, S.H. Estrogen, Estrogen Receptor and Lung Cancer. Int. J. Mol. Sci. 2017, 18, 1713. [Google Scholar] [CrossRef]
- Caiazza, F.; Ryan, E.J.; Doherty, G.; Winter, D.C.; Sheahan, K. Estrogen receptors and their implications in colorectal carcinogenesis. Front. Oncol. 2015, 5, 19. [Google Scholar] [CrossRef]
- Lan, Y.L.; Zou, S.; Wang, X.; Lou, J.C.; Xing, J.S.; Yu, M.; Zhang, B. Update on the therapeutic significance of estrogen receptor beta in malignant gliomas. Oncotarget 2017, 8, 81686–81696. [Google Scholar] [CrossRef] [Green Version]
- Vucicevic Boras, V.; Fucic, A.; Virag, M.; Gabric, D.; Blivajs, I.; Tomasovic-Loncaric, C.; Rakusic, Z.; Bisof, V.; Novere, N.L.; Velimir Vrdoljak, D. Significance of stroma in biology of oral squamous cell carcinoma. Tumori 2018, 104, 9–14. [Google Scholar] [CrossRef] [PubMed]
- Suba, Z. Gender-related hormonal risk factors for oral cancer. Pathol. Oncol. Res. 2007, 13, 195–202. [Google Scholar] [CrossRef]
- Satgunaseelan, L.; Allanson, B.M.; Asher, R.; Reddy, R.; Low, H.T.H.; Veness, M.; Gopal Iyer, N.; Smee, R.I.; Palme, C.E.; Gupta, R.; et al. The incidence of squamous cell carcinoma of the oral tongue is rising in young non-smoking women: An international multi-institutional analysis. Oral. Oncol. 2020, 110, 104875. [Google Scholar] [CrossRef] [PubMed]
- Howell, R.E.; Wright, B.A.; Dewar, R. Trends in the incidence of oral cancer in Nova Scotia from 1983 to 1997. Oral Surg. Oral Med. Oral Pathol. Oral Radiol. Endod. 2003, 95, 205–212. [Google Scholar] [CrossRef]
- Ng, J.H.; Iyer, N.G.; Tan, M.H.; Edgren, G. Changing epidemiology of oral squamous cell carcinoma of the tongue: A global study. Head Neck 2017, 39, 297–304. [Google Scholar] [CrossRef] [PubMed]
- Muscat, J.E.; Richie, J.P., Jr.; Thompson, S.; Wynder, E.L. Gender differences in smoking and risk for oral cancer. Cancer Res. 1996, 56, 5192–5197. [Google Scholar]
- Chang, Y.L.; Hsu, Y.K.; Wu, T.F.; Huang, C.M.; Liou, L.Y.; Chiu, Y.W.; Hsiao, Y.H.; Luo, F.J.; Yuan, T.C. Regulation of estrogen receptor alpha function in oral squamous cell carcinoma cells by FAK signaling. Endocr. Relat. Cancer 2014, 21, 555–565. [Google Scholar] [CrossRef]
- Colella, G.; Izzo, G.; Carinci, F.; Campisi, G.; Lo Muzio, L.; D’Amato, S.; Mazzotta, M.; Cannavale, R.; Ferrara, D.; Minucci, S. Expression of sexual hormones receptors in oral squamous cell carcinoma. Int. J. Immunopathol. Pharm. 2011, 24, 129–132. [Google Scholar] [CrossRef] [Green Version]
- Doll, C.; Arsenic, R.; Lage, H.; Johrens, K.; Hartwig, S.; Nelson, K.; Raguse, J.D. Expression of Estrogen Receptors in OSCC in Relation to Histopathological Grade. Anticancer. Res. 2015, 35, 5867–5872. [Google Scholar]
- Egloff, A.M.; Rothstein, M.E.; Seethala, R.; Siegfried, J.M.; Grandis, J.R.; Stabile, L.P. Cross-talk between estrogen receptor and epidermal growth factor receptor in head and neck squamous cell carcinoma. Clin. Cancer Res. Off. J. Am. Assoc. Cancer Res. 2009, 15, 6529–6540. [Google Scholar] [CrossRef] [Green Version]
- Ishida, H.; Wada, K.; Masuda, T.; Okura, M.; Kohama, K.; Sano, Y.; Nakajima, A.; Kogo, M.; Kamisaki, Y. Critical role of estrogen receptor on anoikis and invasion of squamous cell carcinoma. Cancer Sci. 2007, 98, 636–643. [Google Scholar] [CrossRef] [Green Version]
- Nelson, K.; Helmstaedter, V.; Lage, H. The influence of tamoxifen on growth behavior and cell-cell adhesion in OSCC in vitro. Oral Oncol. 2007, 43, 720–727. [Google Scholar] [CrossRef]
- Nelson, K.; Helmstaedter, V.; Moreau, C.; Lage, H. Estradiol, tamoxifen and ICI 182,780 alter alpha3 and beta1 integrin expression and laminin-1 adhesion in oral squamous cell carcinoma cell cultures. Oral Oncol. 2008, 44, 94–99. [Google Scholar] [CrossRef]
- Marocchio, L.S.; Giudice, F.; Correa, L.; Pinto Junior Ddos, S.; de Sousa, S.O. Oestrogens and androgen receptors in oral squamous cell carcinoma. Acta Odontol. Scand. 2013, 71, 1513–1519. [Google Scholar] [CrossRef]
- Kwon, S.; Ahn, S.H.; Jeong, W.J.; Jung, Y.H.; Bae, Y.J.; Paik, J.H.; Chung, J.H.; Kim, H. Estrogen receptor alpha as a predictive biomarker for survival in human papillomavirus-positive oropharyngeal squamous cell carcinoma. J. Transl. Med. 2020, 18, 240. [Google Scholar] [CrossRef]
- Grimm, M.; Biegner, T.; Teriete, P.; Hoefert, S.; Krimmel, M.; Munz, A.; Reinert, S. Estrogen and Progesterone hormone receptor expression in oral cavity cancer. Med. Oral Patol. Oral Y Cir. Bucal. 2016, 21, e554–e558. [Google Scholar] [CrossRef] [Green Version]
- Lukits, J.; Remenar, E.; Raso, E.; Ladanyi, A.; Kasler, M.; Timar, J. Molecular identification, expression and prognostic role of estrogen- and progesterone receptors in head and neck cancer. Int. J. Oncol. 2007, 30, 155–160. [Google Scholar] [CrossRef] [Green Version]
- Akyu, R.; Tomihara, K.; Yamazaki, M.; Moniruzzaman, R.; Heshiki, W.; Sekido, K.; Tachinami, H.; Sakurai, K.; Yonesi, A.; Imaue, S.; et al. Protumor role of estrogen receptor expression in oral squamous cell carcinoma cells. Oral Surg. Oral Med. Oral Pathol. Oral Radiol. 2021, 132, 549–565. [Google Scholar] [CrossRef] [PubMed]
- Edge, S.B. AJCC Cancer Staging Manual, 7th ed.; Stephen, B.E., Ed.; Springer: New York, NY, USA; London, UK, 2010. [Google Scholar]
- Remmele, W.; Stegner, H.E. Recommendation for uniform definition of an immunoreactive score (IRS) for immunohistochemical estrogen receptor detection (ER-ICA) in breast cancer tissue. Der. Pathol. 1987, 8, 138–140. [Google Scholar]
- Kaemmerer, D.; Peter, L.; Lupp, A.; Schulz, S.; Sanger, J.; Baum, R.P.; Prasad, V.; Hommann, M. Comparing of IRS and Her2 as immunohistochemical scoring schemes in gastroenteropancreatic neuroendocrine tumors. Int. J. Clin. Exp. Pathol. 2012, 5, 187–194. [Google Scholar] [PubMed]
- Naipal, K.A.; Raams, A.; Bruens, S.T.; Brandsma, I.; Verkaik, N.S.; Jaspers, N.G.; Hoeijmakers, J.H.; van Leenders, G.J.; Pothof, J.; Kanaar, R.; et al. Attenuated XPC expression is not associated with impaired DNA repair in bladder cancer. PLoS ONE 2015, 10, e0126029. [Google Scholar] [CrossRef] [Green Version]
- R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2020; Available online: https://www.R-project.org/ (accessed on 13 April 2021).
- Paterni, I.; Granchi, C.; Katzenellenbogen, J.A.; Minutolo, F. Estrogen receptors alpha (ERalpha) and beta (ERbeta): Subtype-selective ligands and clinical potential. Steroids 2014, 90, 13–29. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Leimola-Virtanen, R.; Salo, T.; Toikkanen, S.; Pulkkinen, J.; Syrjanen, S. Expression of estrogen receptor (ER) in oral mucosa and salivary glands. Maturitas 2000, 36, 131–137. [Google Scholar] [CrossRef]
- Valimaa, H.; Savolainen, S.; Soukka, T.; Silvoniemi, P.; Makela, S.; Kujari, H.; Gustafsson, J.A.; Laine, M. Estrogen receptor-beta is the predominant estrogen receptor subtype in human oral epithelium and salivary glands. J. Endocrinol. 2004, 180, 55–62. [Google Scholar] [CrossRef] [Green Version]
- Nebel, D.; Bratthall, G.; Ekblad, E.; Norderyd, O.; Nilsson, B.O. Estrogen regulates DNA synthesis in human gingival epithelial cells displaying strong estrogen receptor beta immunoreactivity. J. Periodontal Res. 2011, 46, 622–628. [Google Scholar] [CrossRef]
- Gourdy, P.; Guillaume, M.; Fontaine, C.; Adlanmerini, M.; Montagner, A.; Laurell, H.; Lenfant, F.; Arnal, J.F. Estrogen receptor subcellular localization and cardiometabolism. Mol. Metab. 2018, 15, 56–69. [Google Scholar] [CrossRef] [PubMed]
- Siegfried, J.M.; Stabile, L.P. Estrongenic steroid hormones in lung cancer. Semin. Oncol. 2014, 41, 5–16. [Google Scholar] [CrossRef] [Green Version]
Figure 1.
Immunohistochemical staining images of ERα in OSCC. (A) (40×): ERα-positive nuclear staining with weak intensity (Table 2; patient no. 3); (B) (20×): ERα-positive case with different intensities of nuclear staining (Table 2; patient no. 6; one out of three stained tumor tissue of this patient).
Figure 1.
Immunohistochemical staining images of ERα in OSCC. (A) (40×): ERα-positive nuclear staining with weak intensity (Table 2; patient no. 3); (B) (20×): ERα-positive case with different intensities of nuclear staining (Table 2; patient no. 6; one out of three stained tumor tissue of this patient).

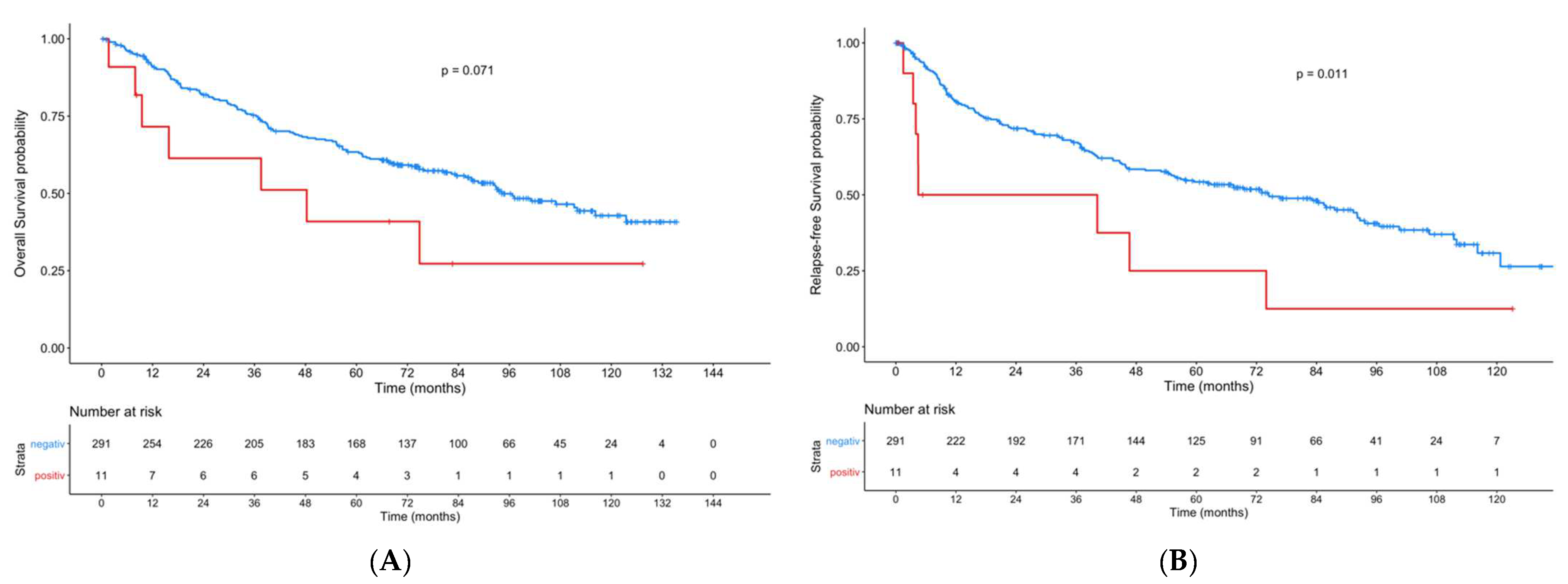

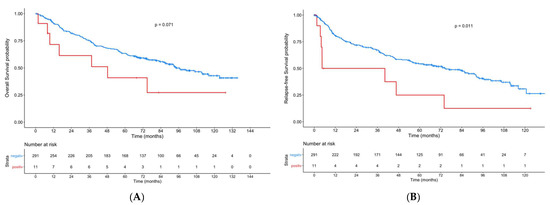

Figure 2.
Kaplan–Meier curves showing overall survival (A) and recurrence-free-survival (B) for patients with ERα-positive primary tumors compared to patients with ERα-negative tumors.
Figure 2.
Kaplan–Meier curves showing overall survival (A) and recurrence-free-survival (B) for patients with ERα-positive primary tumors compared to patients with ERα-negative tumors.

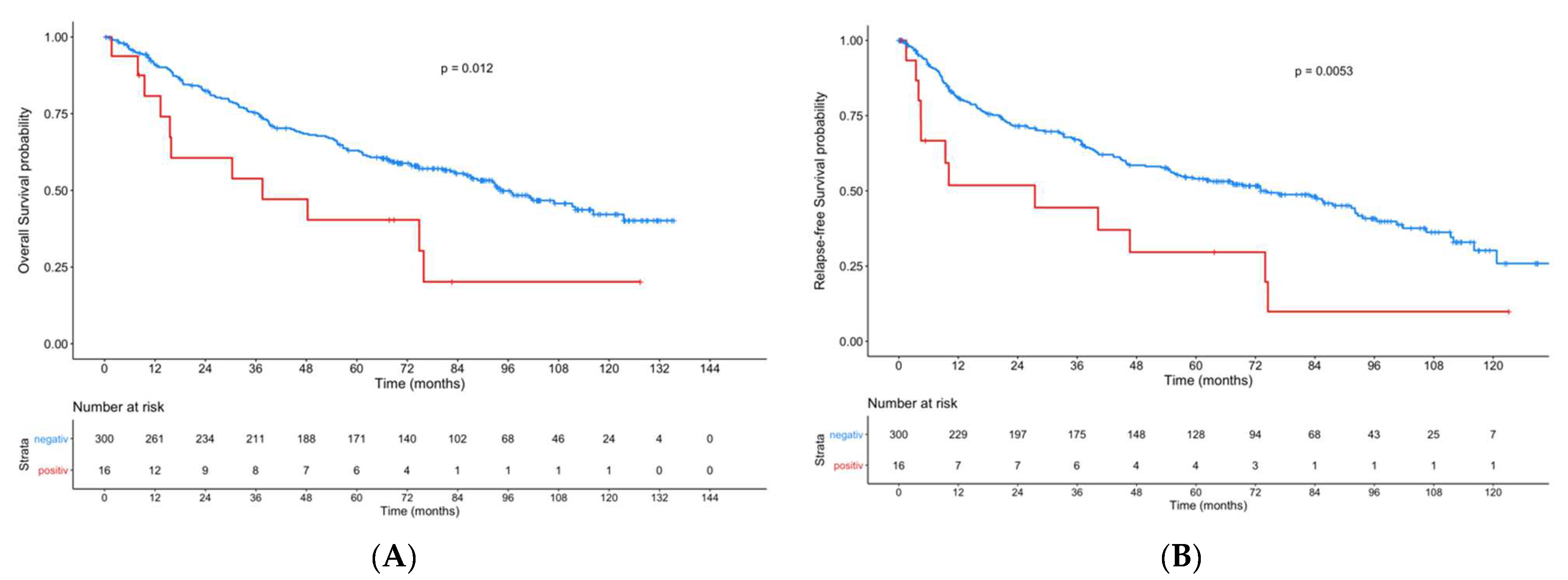

Figure 3.
Kaplan–Meier curves showing overall survival (A) and recurrence-free-survival (B) in patients with an ERα-positive lymph node metastasis and/or primary tumor compared to patients with ERα-negative tumors.
Figure 3.
Kaplan–Meier curves showing overall survival (A) and recurrence-free-survival (B) in patients with an ERα-positive lymph node metastasis and/or primary tumor compared to patients with ERα-negative tumors.

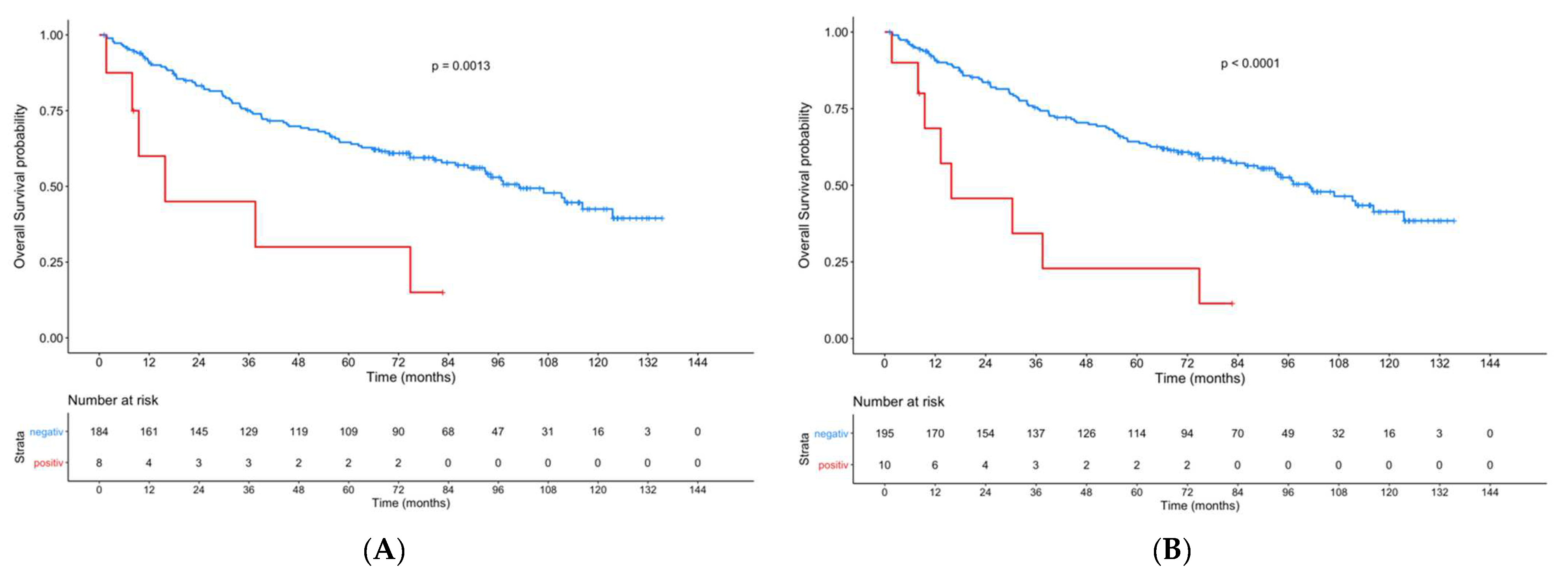

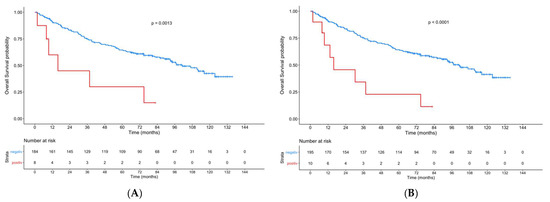

Figure 4.
Kaplan–Meier curves showing the OS of male patients with an ERα-positive primary tumor (A) and the OS of male patients with ERα-positive lymph node metastasis and/or primary tumor (B) compared to patients with ERα-negative tumors.
Figure 4.
Kaplan–Meier curves showing the OS of male patients with an ERα-positive primary tumor (A) and the OS of male patients with ERα-positive lymph node metastasis and/or primary tumor (B) compared to patients with ERα-negative tumors.

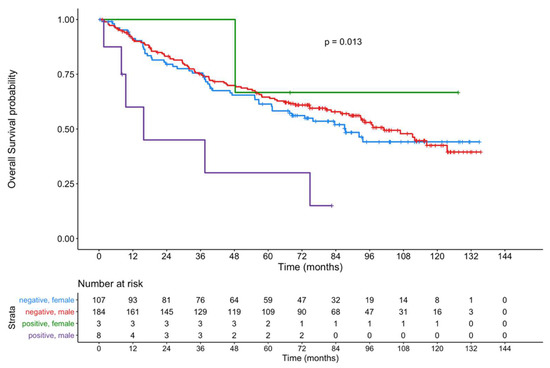

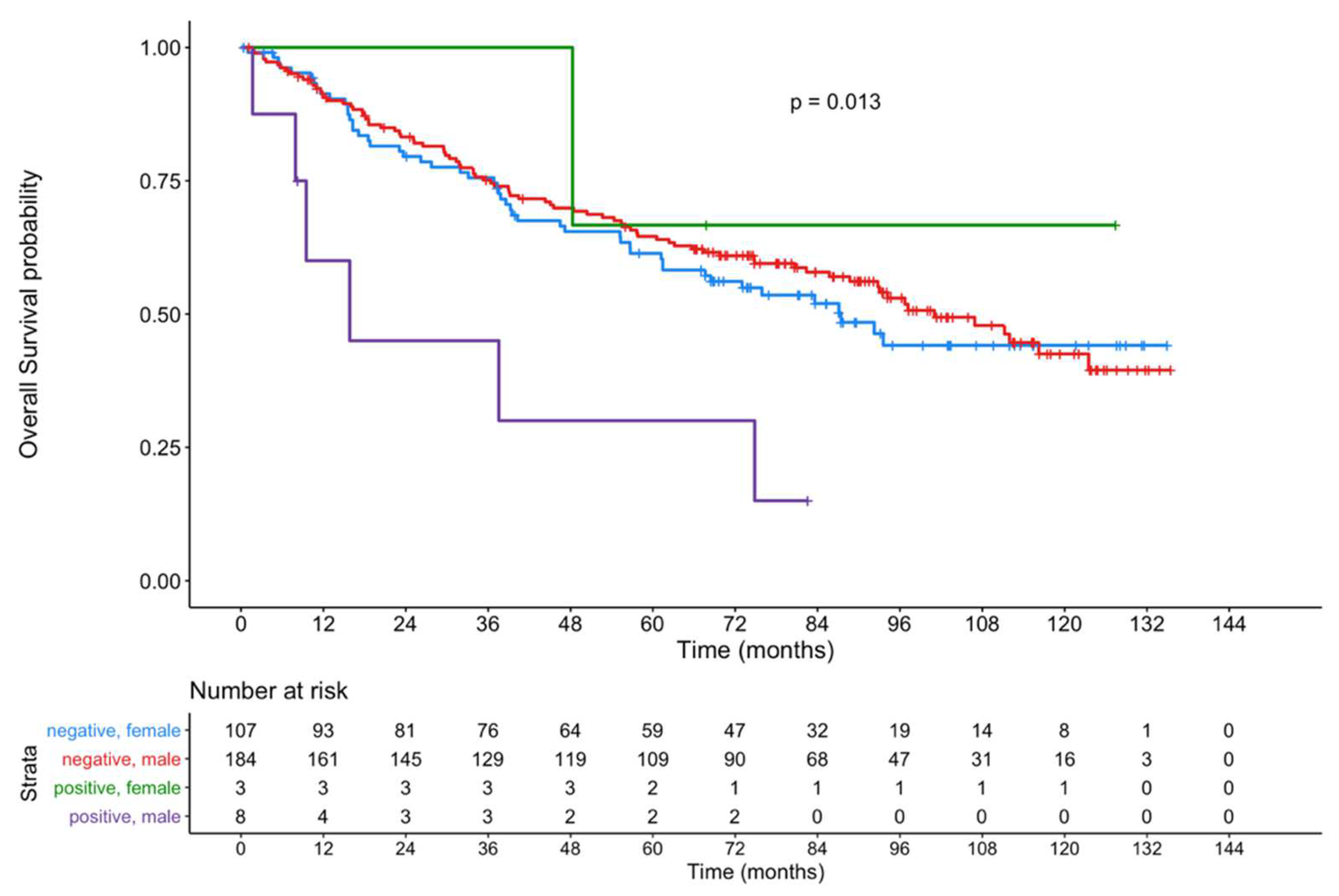

Figure 5.
Kaplan–Meier curves showing the OS of male and female patients with an ERα-positive primary tumor compared to patients with ERα-negative tumors.
Figure 5.
Kaplan–Meier curves showing the OS of male and female patients with an ERα-positive primary tumor compared to patients with ERα-negative tumors.
Table 1.
Clinicopathological characteristics of the patient cohort in relation to the analysis of ERα expression in the primary tumor and lymph node metastases.
Table 1.
Clinicopathological characteristics of the patient cohort in relation to the analysis of ERα expression in the primary tumor and lymph node metastases.
| Variable | Primary Tumor (n = 302) | Primary Lymph Node Metastasis (n = 52) | ||||
|---|---|---|---|---|---|---|
| ERα− (n = 291) | ERα+ (n = 11) | p | ERα− (n = 47) | ERα+ (n = 5) | p | |
| Sex | ||||||
| Female | 107 (97.3%) | 3 (2.7%) | 0.521 | 10 (76.9%) | 3 (23.1%) | 0.057 |
| Male | 184 (95.8%) | 8 (4.2%) | 37 (94.9%) | 2 (5.1%) | ||
| Age group | 0.504 | 0.121 | ||||
| ≤49 | 45 (93.8%) | 3 (6.3%) | 10 (100%) | 0 (0%) | ||
| 50–59 | 79 (98.8%) | 1 (1.3%) | 13 (81.3%) | 3 (18.8%) | ||
| 60–69 | 100 (96.2%) | 4 (3.8%) | 18 (94.7%) | 1 (5.3%) | ||
| 70–79 | 52 (94.5%) | 3 (5.5%) | 5 (100%) | 0 (0%) | ||
| 80+ | 15 (100%) | 0 (0%) | 1 (50%) | 1 (50%) | ||
| Tumor localization | 0.006 | 0.336 | ||||
| Floor of mouth | 65 (98.5%) | 1 (1.5%) | 14 (82.4%) | 3 (17.6%) | ||
| Maxilla | 13 (100%) | 0 (0%) | - | - | ||
| Mandible | 27 (84.4%) | 5 (15.6%) | 4 (80%) | 1 (20%) | ||
| Cheek | 13 (100%) | 0 (0%) | - | - | ||
| Tongue | 80 (98.8%) | 1 (1.2%) | 8 (100%) | 0 (0%) | ||
| Multiple localizations | 93 (95.9%) | 4 (4.1%) | 21 (95.5%) | 1 (4.5%) | ||
| History of Smoking | 0.216 | 0.459 | ||||
| Yes | 195 (95.1%) | 10 (4.9%) | 39 (90.7%) | 4 (9.3%) | ||
| No | 67 (98.5%) | 1 (1.5%) | 4 (80.0%) | 1 (20.0%) | ||
| History of Alcohol | 0.681 | 0.851 | ||||
| Yes | 202 (96.2%) | 8 (3.8%) | 35 (89.7%) | 4 (10.3%) | ||
| No | 57 (95.0%) | 3 (5.0%) | 7 (87.5%) | 1 (12.5%) | ||
| G-Stage | 0.950 | 0.891 | ||||
| 1 | 19 (95.0%) | 1 (5.0%) | 2 (100%) | 0 (0%) | ||
| 2 | 215 (96.4%) | 8 (3.6%) | 28 (90.3%) | 3 (9.7%) | ||
| 3 | 53 (96.4%) | 2 (3.6%) | 17 (89.5%) | 2 (10.5%) | ||
| pT | 0.619 | 0.362 | ||||
| 1 | 124 (97.6%) | 3 (2.4%) | 12 (80.0%) | 3 (20.0%) | ||
| 2 | 109 (95.6%) | 5 (4.4%) | 16 (94.1%) | 1 (5.9%) | ||
| 3 | 33 (97.1%) | 1 (2.9%) | 10 (100%) | 0 (0%) | ||
| 4a | 21 (91.3%) | 2 (8.7%) | 9 (90%) | 1 (10%) | ||
| x | 4 (100%) | 0 (0%) | ||||
| pN | 0.092 | - | ||||
| N0 | 187 (97.4%) | 5 (2.6%) | - | - | ||
| N1/N2 | 82 (93.2%) | 6 (6.8%) | 47 (90.4%) | 5 (9.6%) | ||
| UICC | 0.026 | 0.198 | ||||
| I | 97 (100%) | 0 (0%) | - | - | ||
| II | 75 (96.2%) | 3 (3.8%) | - | - | ||
| III | 49 (96.1%) | 2 (3.9%) | 12 (100%) | 0 (0%) | ||
| IV | 58 (90.6%) | 6 (9.4%) | 35 (87.5%) | 5 (12.5%) | ||
| Extracapsular spread (ECS) | 0.204 | 0.704 | ||||
| N− | 187 (97.4%) | 5 (2.6%) | - | - | ||
| N+ ECS− | 47 (92.2%) | 4 (7.8%) | 23 (92.0%) | 2 (8.0%) | ||
| N+ ECS+ | 35 (94.6%) | 2 (5.4%) | 24 (88.9%) | 3 (11.1%) | ||
| Bony infiltration | 0.049 | 0.913 | ||||
| no | 231 (97.5%) | 6 (2.5%) | 27 (90.0%) | 3 (10.0%) | ||
| yes | 60 (92.3%) | 5 (7.7%) | 20 (90.9%) | 2 (9.1%) | ||
Table 2.
Clinicopathological characteristics of all patients with an ERα-positive primary tumor.
| No | Gender | Age | Localization | TNM | Grading | R-Status | ERα IRS | Smoking | Alcohol | Adjuvant Therapy | Survival (Months) | Time to Recurrence (Months) | Comment |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | male | 66 | Lower jaw | pT1pN1 cM0 | G2 | R0 | 2.00 | + | + | − | 75 | None | |
| 2 | male | 64 | Floor of mouth | pT2pN1 cM0 | G2 | R0 cm * | 2.00 | + | − | + | 8 (alive) | None | Lost to follow-up after 8 months. |
| 3 | male | 49 | Floor of mouth, tongue | pT2pN0 cM0 | G2 | R0 | 2.00 | + | + | − | 83 (alive) | Patient lost to clinical follow-up | Micrometastasis in one lymph node. The patient did not show up for regular clinical follow-up. However, the patient was still alive after 83 months. |
| 4 | male | 39 | Lower jaw | pT1pN2b cM0 | G3 | R0 * | 6.00 | + | + | (+) | 8 | 3 | Patient initially refused recommendation for adj. therapy. It was carried out 3 months after surgical therapy due to recurrence. |
| 5 | male | 42 | Tongue, floor of mouth | pT2pN2b cM0 | G2 | R0 | 2.00 | + | + | + | 9 | 4 | |
| 6 | female | 63 | Lower jaw | pT4apN0 cM0 | G2 | R0; cm (3 mm) | 3.33 | − | − | + | 68 (alive) | 40 | |
| 7 | male | 57 | Tongue | pT2pN0 cM0 | G2 | R0 | 2.00 | + | − | − | 16 | 4 | |
| 8 | male | 75 | Lower jaw | pT1pN2b cM0 | G2 | R0 * | 3.00 | + | + | (+) | 38 | 4 | Adjuvant therapy was carried out after nodal recurrence about 4 months after surgical therapy. Initially, it could not be performed due to a strongly reduced general condition. |
| 9 | female | 67 | Lower jaw, floor of mouth | pT3pN2c cM0 | G2 | R0; cm * | 3.00 | + | + | + | 127 (alive) | None | ERα IRS of corresponding lymph node metastasis: 0.5 |
| 10 | female | 71 | Lower jaw | pT2pN0 cM0 | G1 | R0 * | 2.00 | + | + | − | 48 | 47 | |
| 11 | male | 70 | Lower jaw, floor of mouth | pT4apN0 cM1 | G3 | R0; cm (4 mm) | 2.00 | + | + | − | 2 | None | Patient died within the inpatient stay after surgical therapy 2 months after first diagnosis. |
* no information on exact safety margin; cm: close margin.
Table 3.
Clinicopathological characteristics of all patients with an ERα-positive lymph node metastasis.
Table 3.
Clinicopathological characteristics of all patients with an ERα-positive lymph node metastasis.
| No | Gender | Age | ERα IRS | Localization | Grading | R-Status | pTNM | Smoking | Alcohol | Adjuvant Therapy | Survival (Months) | Time to Recurrence (Months) | Comment | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lymph Node Metastasis | Primary Tumor | |||||||||||||
| 1 | female | 53 | 5.00 | 1.00 | Floor of mouth | G2 | R0; cm (4 mm) | pT1 pN2b cM0 | + | + | + | 69 (alive) | none | |
| 2 | male | 51 | 3.00 | 0 | Floor of mouth | G2 | R0; cm** | pT1 pN2c cM0 | + | + | + | 30 | none | |
| 3 | male | 51 | 3.75 | * | Lower jaw | G3 | R0 ** | pT2 pN2b cM0 | + | + | + | 13 | none | Adj. therapy was delayed due to a strongly reduced general condition. It was carried out 2.5 months after surgical approach. |
| 4 | female | 62 | 10.00 | 1.33 | Floor of mouth, lower jaw, tongue | G2 | R1 | pT4a pN2c cM0 | + | + | + | 16 | 10 | |
| 5 | female | 80 | 5.00 | 0 | Floor of mouth | G3 | R0; cm (4 mm) | pT1 pN2b cM0 | − | − | − | 76 | Patient lost to clinical follow-up | Patient refused recommendation for adj. therapy. The patient did not show up for regular clinical follow-up. However, the patient died 76 months after first diagnosis. |
* Not available; ** no information on exact safety margin; cm: close margin.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Doll, C.; Bestendonk, C.; Kreutzer, K.; Neumann, K.; Pohrt, A.; Trzpis, I.; Koerdt, S.; Dommerich, S.; Heiland, M.; Raguse, J.-D.; et al. Prognostic Significance of Estrogen Receptor Alpha in Oral Squamous Cell Carcinoma. Cancers 2021, 13, 5763. https://doi.org/10.3390/cancers13225763
AMA Style
Doll C, Bestendonk C, Kreutzer K, Neumann K, Pohrt A, Trzpis I, Koerdt S, Dommerich S, Heiland M, Raguse J-D, et al. Prognostic Significance of Estrogen Receptor Alpha in Oral Squamous Cell Carcinoma. Cancers. 2021; 13(22):5763. https://doi.org/10.3390/cancers13225763
Chicago/Turabian StyleDoll, Christian, Carolin Bestendonk, Kilian Kreutzer, Konrad Neumann, Anne Pohrt, Irena Trzpis, Steffen Koerdt, Steffen Dommerich, Max Heiland, Jan-Dirk Raguse, and et al. 2021. "Prognostic Significance of Estrogen Receptor Alpha in Oral Squamous Cell Carcinoma" Cancers 13, no. 22: 5763. https://doi.org/10.3390/cancers13225763
APA StyleDoll, C., Bestendonk, C., Kreutzer, K., Neumann, K., Pohrt, A., Trzpis, I., Koerdt, S., Dommerich, S., Heiland, M., Raguse, J.-D., & Jöhrens, K. (2021). Prognostic Significance of Estrogen Receptor Alpha in Oral Squamous Cell Carcinoma. Cancers, 13(22), 5763. https://doi.org/10.3390/cancers13225763
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
