The term hypoxia is used to describe biological situations where insufficient levels of oxygen exist. Hypoxia and hypoxic states can occur in a range of diseases including in cancer. Researchers have understood for numerous years that the hypoxia found in tumors leads to more aggressive and harder to treat disease and ultimately, poor patient outcome. While much research is, and has been, carried out to investigate the effects of hypoxia, this is usually done using experimental models which employ stable levels of hypoxia. However, we know that tumor hypoxia is not static but instead is rapidly changing through complex processes involving both rapid and slower fluctuations in oxygen concentrations. These dynamic changes in oxygen, known as cyclic hypoxia, are challenging to model experimentally and therefore our understanding of these processes has been limited. This review seeks to outline the known causes of cyclic hypoxia and the best ways to measure it both experimentally and clinically. How cancer cells respond to cyclic hypoxic compared to stable levels will also be discussed.

Abstract

Regions of hypoxia occur in most if not all solid cancers. Although the presence of tumor hypoxia is a common occurrence, the levels of hypoxia and proportion of the tumor that are hypoxic vary significantly. Importantly, even within tumors, oxygen levels fluctuate due to changes in red blood cell flux, vascular remodeling and thermoregulation. Together, this leads to cyclic or intermittent hypoxia. Tumor hypoxia predicts for poor patient outcome, in part due to increased resistance to all standard therapies. However, it is less clear how cyclic hypoxia impacts therapy response. Here, we discuss the causes of cyclic hypoxia and, importantly, which imaging modalities are best suited to detecting cyclic vs. chronic hypoxia. In addition, we provide a comparison of the biological response to chronic and cyclic hypoxia, including how the levels of reactive oxygen species and HIF-1 are likely impacted. Together, we highlight the importance of remembering that tumor hypoxia is not a static condition and that the fluctuations in oxygen levels have significant biological consequences.
Keywords: hypoxia; cyclic; intermittent; transient hypoxia; cyclic; intermittent; transient

1. Introduction

Hypoxia is a well-established physiological feature of many solid cancers. Hypoxia occurs when tumor sub-regions have insufficient oxygen concentration to support aerobic metabolic functions. The radioresistance associated with tumour hypoxia is a result of the need for oxygen to be present during irradiation or exposure to certain cytotoxic drugs which create stable treatment-induced DNA adducts that are difficult to repair [1]. Furthermore, certain forms of DNA repair mechanisms are inhibited under hypoxic conditions [1]. Hypoxia also impedes the immune responses to tumors, via multiple mechanisms [2]. Importantly, the tumor microenvironment includes variable and fluctuating oxygen concentrations, which result in dynamic tumor oxygenation referred to as cyclic or intermittent hypoxia. Changes in signal transduction and metabolism as well as radiosensitivity occur when pO2 drops below 10 mmHg, so this is a convenient threshold to use to define hypoxia [3]. Hypoxia occurs in two forms: (1) when cells are experiencing hypoxia at quasi-steady state, it is referred to as “chronic”. (2) Temporal variation of pO2 that fluctuates above and below the 10 mmHg threshold, is known as intermittent, acute, transient, or cyclic hypoxia [4]. The objective of this review is to focus on the subject of cyclic hypoxia in human cancer, as its causes, characteristics and consequences are less defined than chronic hypoxia. The review has two parts: physiologic characterization, potential mechanisms that cause cyclic hypoxia and cellular consequences.

2. Physiological Characterization

Key features of cyclic hypoxia. The pathophysiology underlying cyclic hypoxia has been reviewed previously [4,5,6,7]. Here, we provide an historical overview of key features of cyclic hypoxia. The idea that cyclic hypoxia might exist was first described in a classic paper by Yamaura [8]. They found that tumor regrowth occurred toward the edge of window chamber tumors after irradiation. They had assumed that the tumor edge would not be hypoxic, but instead observed unstable blood flow and episodes of transient vascular stasis in the periphery. They suggested that the periphery might therefore be experiencing transient hypoxia leading to temporary radioresistance. In addition, Martin Brown demonstrated that transient radiobiologically significant hypoxia could occur, using the EMT6 tumor model [9]. This model is unique in that cells extracted from irradiated tumors are grown in vitro to generate survival curves. The terminal slope of the in vivo derived survival curve was parallel to that of in vitro hypoxia demonstrating that a proportion of cells were hypoxic in vivo. When all the hypoxic cells in tumors were killed with a hypoxic cytotoxin and tumors irradiated 24 h later, they still observed a radioresistant subfraction. This shows that tumor cells that were aerobic when drug was administered were hypoxic 24 h later when tumors were irradiated. In summary, the work of Yamaura suggested that cyclic hypoxia could occur over periods of a few minutes, whereas the work of Brown showed that this could also occur on a timescale of several hours to a day; both were likely correct.
Chaplin and Durand administered the DNA binding dye, Hoechst-33342, intravenously, to tumor-bearing mice and then isolated tumor cells and subjected them to flow cytometric analysis and assessment of clonogenic survival [10]. The more brightly Hoechst-33342 stained cells were closer to microvessels. When dye was administered intravenously during irradiation, brightly stained cells were more radiosensitive than dimly stained cells, suggesting that brightly stained cells were more aerobic. However, when dye was administered 20 min before radiation, there was no difference in radiosensitivity between dimly and brightly stained cells. The conclusion was that the cycle time for transient hypoxia was around 20 min. They theorized that temporary vascular stasis was responsible for cyclic hypoxia. However, other data does not completely support this theory, as outlined below.
Characterization of rapid (a few cycles per hour) vs. slow cycles (cycles over hours to days). Invasive probes or imaging methods have been used to measure parameters related to cyclic hypoxia (Table 1) [11,12,13,14,15,16,17,18,19,20]. When observation periods are between 1 and 2 h, the dominant rapid fluctuation frequencies have been 2–3 cycles per hour as assessed by Fourier transform analysis [21]. This is the same 20 min timeframe reported by Chaplin and Durand [10]. However, studies conducted in skin fold window chambers revealed that the incidence of total vascular stasis was low (<5%) [22]. Kimura et al. performed simultaneous measurements of red cell flux and perivascular oxygen concentration within individual microvessels of window chamber tumors [23]. Fluctuations in red cell flux and perivascular pO2 were coordinated at a frequency of 2–3 cycles per hour. A later study showed that pO2 several cell layers away (approaching the diffusion distance of oxygen-150 μm) from surrounding microvessels coordinated with fluctuations in red cell flux [24]. The link between variations in vascular pO2 and tissue pO2 in skin-fold window chamber tumors has also been reported using optical methods [25]. In summary, current evidence supports the theory that variations in red cell flux or hemoglobin saturation are mainly responsible for cyclic hypoxia. One cannot rule out that vascular stasis occasionally occurs, but it is not dominant.
The methods described in Table 1 that are amenable to clinical use are designated by a “*” next to the name. We have discussed the advantages and disadvantages of these methods to measure hypoxia in other reviews [26,27]. Here we focus on relative ease of use to measure cyclic hypoxia. Recessed tip polarographic microelectrodes are not commercially available. Nevertheless, studies performed with these electrodes represent the most detailed early accounting of cyclic hypoxia. The Oxylite Optical probe was used pre-clinically, including canine cancers [28,29], but its use in the clinic is challenging. Placement of this probe into human tumors would require imaging and either a physician or nurse to avoid traversing critical normal tissues and verify intra-tumoral placement [30]. These challenges, along with the limitations of requiring direct access to the tumor for placement played an important role in the cessation of the commercial Eppendorf pO2 electrode. Phosphorescence lifetime imaging has not been used clinically to our knowledge. Optical spectroscopy has been used in women with breast cancer [31]. This method yields real time data on two parameters related to oxygen transport—namely, total hemoglobin and hemoglobin saturation. Optical spectroscopy has not been used to measure cyclic hypoxia in human patients, but it has been used in a pre-clinical model for this purpose [32]. Optical spectroscopy is non-invasive and easy to implement. Preclinical devices are commercially available (http://www.zenalux.com/). Depth of light penetration limits utility of optical spectroscopy in human tumors. However, photoacoustic imaging enhances depth of detection by measuring emitted acoustic signals when tissue exposed to light. Photoacoustic imaging was used to monitor changes in oxygenation after radiotherapy (RT) in head and neck PDX models [33]. PET imaging of hypoxia marker drugs, such as 18-F Misonidazole, has been used in many human clinical trials to measure tumor hypoxia. One paper examined the spatial stability of PET uptake in head and neck cancers, by comparing spatial patterns over a 72 h window. A subset of patients showed instability in size or location of marker avid zones [14]. BOLD-MRI has been used extensively in pre-clinical and clinical studies, and is described in more detail below. EPRI has been used to measure cyclic hypoxia in pre-clinical models [34], but this method is not yet clinically available. However, EPRI is in early stages of commercial development for pre-clinical imaging (https://www.o2map.com/about). EPR has been used to measure kinetics of reoxygenation in pre-clinical models, but it has not been used to measure cyclic hypoxia. The technology is not widely available.
The skin-fold window chamber model has been used to examine slower cycle times [13]. Hemoglobin saturation and redox ratio, the ratio in inherent fluorescence intensities between flavin adenine nucleotide (FAD) and nicotinamide adenine dinucleotide (NADH) were measured every 6 h for 36 h. FAD is the main electron acceptor and NADH is the electron donor in oxidative phosphorylation—FAD/NADH correlates with oxygen demand. Coordinated fluctuations of FAD/NADH and hemoglobin saturation, were observed around networks of microvessels, suggesting that cycling was occurring in networks of blood vessels (Figure 1).
The hypoxic fraction of cervix cancer cells (SiHa) was studied as a function of time after the hypoxia marker drug, pimonidazole, was added to the drinking water of mice bearing these tumors [20]. The pimonidazole-labeled fraction, measured by flow cytometry of cells removed from tumors, increased over 96 h. They administered a second hypoxia marker drug 3 h before tumor removal. The fraction of cells labeled with the second drug was much lower than that seen for pimonidazole after 96 h exposure. These results strongly suggest that cyclic hypoxia is occurring throughout much of a tumor, but at different spatiotemporal locations.
In summary, the kinetics of cyclic hypoxia are complex. Slow fluctuations occur over hours to days, and rapid fluctuations occur in the range of 2–5 cycles per hour [21,35]. We theorize that both are happening simultaneously. We previously used an analogy of tides and waves in the ocean to explain this complex kinetics [4] (Figure 2).
Spatiotemporal distribution of cyclic hypoxia. If cyclic hypoxia were occurring in isolation in individual microvessels, as might occur if there were temporary vascular stasis, then one would see very small regions of temporary hypoxia that are not spatially coordinated. However, this does not appear to be the case. Evidence that networks of blood vessels are coordinated in cycles of hypoxia come from two different sources of data: (1) skin fold window chambers and (2) MR/EPR imaging [18].
Spatiotemporal fluctuations of pO2 were studied in three different skin fold window chamber tumor models, using an oxygen sensitive Pd-porphyrin dendrimer that measures pO2 based on phosphorescence lifetime [12]. The dominant frequencies were between 10–40 min per cycle. All tumor types showed spatial autocorrelation of cycling, as assessed by watershed segmentation. However, regions showing autocorrelation moved over time. A similar spatiotemporal pattern of pO2 fluctuations in the window chamber was observed, using an oxygen sensitive nanoparticle (Supplemental Video S1) [25].
Baudelet observed fluctuations in serial MR measurements of R2* in mice with flank tumors [36]. R2* is sensitive to concentration of deoxyhemoglobin. The fluctuation patterns tended to be either random (likely machine noise) or they showed large, coordinated fluctuations amongst neighboring voxels. These results support that cyclic hypoxia occurs in networks of microvessels. Similar results were obtained by others [15,18,34].

3. Does Cyclic Hypoxia Occur in Canine and Human Tumors?

Rapid cyclic hypoxia. Fluctuation in perfusion [37] and pO2 have been seen in human and canine tumors [29], respectively, with cycle times similar to that seen in rodent tumors. A recent study in a limited series of patients with head and neck cancer showed fluctuations in BOLD MRI R2* in tumor sub-regions, particularly in involved lymph nodes [38]. The incidence ranged from 2–15% of lesion volume. Additional studies can establish the prevalence and clinical relevance in other human tumors.
Cycles over days. Temporal variation in intratumoral distribution of hypoxia as assessed with the 18-F labeled PET hypoxia marker drug, misonidazole, occurred over 72 h in head and neck cancer [39].
Immunohistochemical methods. Varying extents of mismatch between hypoxia-dependent proteins HIF-1α, CA-IX, and the well-established hypoxia marker drug, pimonidazole, have been reported in human cervical cancer xenografts and human patients with cervix cancer [40,41,42]. Ellingson et al. reported no correlation between HIF-1α and CA-IX, or uptake of pimonidazole [40]. These authors concluded that these endogenous hypoxia marker proteins would not be useful for assessment of hypoxia. In two other papers, CA-IX expression correlated significantly with pimonidazole uptake in preclinical models and a clinical series [41,42]. However, HIF-1α expression remained poorly correlated with pimonidazole uptake. One explanation for mismatch between different markers may be cyclic hypoxia. The kinetics of induction and degradation of HIF-1α are dynamic, because of the efficient post-translational degradation of the protein in the presence of oxygen [41,42]. Once HIF-1α stimulates translation of target proteins, it takes many hours to days for the proteins to reach maximal expression [41,43]. If one observes expression of a HIF-1α target, such as CA-IX, in the absence of HIF-1α itself, one conclusion is that the region must have been hypoxic sometime prior to the discernable upregulation of CA-IX, but was not hypoxic at the time of biopsy. The exception to this conclusion may reside in perinecrotic areas, where decreased HIF-1α expression is associated with nutrient depletion [41]. Cyclic hypoxia has been associated with hyper- expression of HIF-1 dependent proteins such as CA-IX [44]. This may occur because cyclic hypoxia is associated with increased oxidative stress [45]. Oxidative stress can increase HIF-1α expression, even in normoxia [46] by inhibiting degradation of HIF-1α by prolyl hydroxylases [47].
Mismatch between distribution of bioreductive hypoxia marker drugs has also been used to quantify hypoxia dynamics or cyclic hypoxia in pre-clinical model tumors [20,48]. Some of these drugs are approved for human use, thereby justifying feasibility of use in humans. One has to be cognizant of the limitations of biopsy-based methods, however. They represent very small samples of a tissue that contains distinct heterogeneity in both chronic and cyclic hypoxia. Random samples may not reflect the character of the whole tumor.

4. Mechanisms Underlying Cyclic Hypoxia

Rapid cyclic hypoxia. The fact that the dominant periodicity is around 2–5 cycles per hour, across multiple tumor types (including canine and human cancers) and methods of measurement [12,15,18,19,21,25,29,32,34,35,36,37,38,49], suggests that cyclic hypoxia results from an underlying physiologic process. Adding to this argument is the observation that normal muscle shows the same 2–3 cycle per hour of arteriolar diameter fluctuation, perfusion and pO2 [21,22]. The question that arises then, is what physiologic process can affect perfusion and pO2 in normal tissue with cycle times of 2–5 cycles per hour? Both heart and respiratory rates occur at much higher frequencies than oscillations seen with cyclic hypoxia [50]. Arteriolar vasomotion in the range of 30–60 cpm occurs in microcirculatory networks in vivo [51,52]. This frequency is much too fast to be consistent with cyclic hypoxia. It has been speculated that sleep apnea could contribute to cyclic hypoxia, but this does not occur in awake subjects or in dogs who have been intubated for measurements [6]. Yet, cyclic hypoxia occurs in tumors of both species.
We theorize that thermoregulation may be the physiologic factor that drives cyclic hypoxia. The body is equipped with sophisticated means to transport heat, via circulation from body core to periphery, where active heat exchange occurs across the skin surface [53]. Transient receptor potential (TRP) receptors signal the brain to control vascular response to changes in temperature [54,55,56]. TRP receptors are located throughout the body [54,57,58]. Receptors associated with sensing temperature and thermal regulation from elevated temperature include TRPV1, TRPV2, TRPV3, and TRPV4 [59]. Knockout of TRPV1 in mice compromises their ability to thermoregulate [54]. The brain responds to changes in systemic temperature and TRPV signaling by increasing neuronal activation in the preoptic region of the hypothalamus [56]. The time course for these responses is in the range of 20 min. However, these responses can be seen with local change in temperature as well. The kinetics of tissue response to local thermal stress were previously examined in canine muscle [60]. To elicit a thermoregulatory response, a microwave applicator was used to apply power to muscle. They observed oscillations in muscle temperature, with a frequency in the range of 2–3 cycles per hour. Goncalves et al., performed serial R2* measurements in tumors of mice, while simultaneously measuring muscle arteriolar pO2, using a pulse oximeter [15]. The kinetics of muscle pO2 fluctuations (2–3 cycles per hour) mirrored that of the R2* oscillations in tumors in the same animals. They presumed that pulse oximeter measurements were reflective of oscillations in systemic pO2. However, arteriolar pO2 of muscle is much lower than the blood gas pO2, the result of longitudinal gradients [61]. It is more likely that fluctuations in muscle pO2 were due to perfusion cycles caused by thermoregulation. Consistent with thermoregulation theory, we have observed a slower arteriolar vasomotion kinetic, consistent with a cycle time of 20–30 min in window chambers [22]. However, additional studies are required to prove whether thermoregulation is an underlying cause for cyclic hypoxia. Although TRP receptor expression is ubiquitous throughout the body, we do not know whether these receptors are involved in thermoregulation in deep-seated tissues. There is no question, however, that TRP receptors are very important for thermoregulation in skin and muscle. Since the vast majority of preclinical cyclic hypoxia studies involved tumors growing in peripheral tissues, existing data may overestimate the importance of this phenomenon in deep-seated tumors. New studies of deep-seated tumors are essential for understanding this important question.
Slow cycles occurring over hours to days. The mechanism underlying slower kinetics of cyclic hypoxia remain undefined. It is speculated that this may be the result of vascular remodeling within the tumor [5]. To fully understand mechanisms for this slower kinetic behavior, further research is required.
Differences in fluctuation magnitude. There are large differences in fluctuation magnitude between different tumor types and sites of tumor growth [35,62]. Others have observed that the fluctuation magnitudes are associated with the presence of vascular smooth muscle in tumors, which presumably would be more vasoactive [63]. More work is needed to uncover mechanisms associated with such variations.

5. Cellular Consequences

As previously discussed, there are significant challenges in accurately measuring the parameters associated with cyclic hypoxia. As a consequence, although it is clear that the biological response to cyclic conditions differs to chronic hypoxia, the breadth of conditions and models used makes comparing studies difficult. In particular, few studies use cycling conditions between physiologically relevant levels of oxygen while most incorporate periods of reoxygenation to 21% oxygen (air) (Table 2). However, despite this, many common findings have emerged and will be discussed.
The contribution of reactive oxygen species (ROS). ROS is a broad term used to describe reactive chemical species containing oxygen, typically generated during cellular metabolism. Two key mechanisms for ROS generation are enzymes that produce ROS as a by-product, and electrons that “leak” from the electron transport chain (ETC) and subsequently interact with oxygen to form ROS [110,111]. As reactive molecules can perturb normal cellular function, it is imperative that mechanisms exist to tightly regulate ROS levels. These mechanisms include the ability to quench reactivity through antioxidants such as glutathione and enzymes including superoxide dismutase (SOD). Failure to restrict ROS levels causes oxidative stress. Oxidative stress is defined as conditions where potentially lethal damage to proteins, lipids, and DNA occurs in a ROS-dependent manner [112,113]. However, ROS also play essential roles and have been implicated in cellular signaling pathways critical to proliferation, host cell defense, autophagy, and stem cell differentiation [45,112,114,115,116,117]. Somewhat paradoxically, despite an insufficient supply of oxygen, ROS have been shown to increase in chronic hypoxia. Specifically, hypoxia-induced ROS have been attributed to mitochondrial disfunction, resulting in more electrons being released from the ETC [118,119,120]. In addition, the expression of enzymes including NADPH oxidase 4 (NOX4), which produce ROS as a by-product of their activity, are induced in hypoxic conditions and contribute to ROS levels [111,121]. Less surprisingly, single reoxygenation events (usually to 21% O2) have been well-documented to induce ROS through NOX, nitric oxide synthase (NOS), and xanthine oxidase (XO) signaling, in addition to further damage to the ETC [111,122]. Importantly, cyclic hypoxia both in vitro and in vivo has been shown to increase ROS levels [65,66,70,72,73,74,75,76,99]. An increase in the mRNA and protein expression of NOX and NOS has been demonstrated in conditions of cyclic hypoxia [69,70,73,74,75]. Most importantly, when compared directly, ROS have been shown to increase in cyclic hypoxia to a greater extent than in chronic hypoxia [72,73,74,76]. To support this observation, levels of NOX4 mRNA and protein were measured in cyclic and chronic hypoxia in glioblastoma cell lines in vitro and found to increase to a greater extent in cyclic hypoxia [73,74]. Furthermore, knockdown of specific NOX proteins both in vitro and in vivo reduced ROS levels in cyclic hypoxia [70,73,74].
As mentioned previously, oxidative stress results from elevated cellular ROS levels and can lead to a loss of viability [112,113]. In vitro and in vivo models of cyclic hypoxia have shown increases in a variety of oxidative stress markers, including increased expression of p22phox and NRF2 [99,100], and the presence of DNA damage [64,67,100,101]. DNA damage induced as a result of oxidative stress includes the accumulation of aberrant DNA bases such as 8-oxoguanine. An increase in 8-oxoguanine in cyclic hypoxia has been observed in vivo, although this appears to be dependent on the mouse model used [100,101,102]. Furthermore, in vitro models of cyclic hypoxia have detected a significant increase in DNA damage by comet assay compared to normoxia [64,67]. The transcription factor, NFκB, plays a key pro-survival role in response to oxidative stress [112,123]. Multiple studies have observed increased activation of NFκB in cyclic hypoxia determined by phosphorylation status and increased expression of NFκB-target genes [90,95,99]. However, despite the activity of NFκB, colony survival assays conducted in cyclic hypoxia in colorectal, breast, and glioblastoma cell lines demonstrated a loss in viability that is ROS-dependent [65,66]. The mechanism of cell death in cyclic hypoxia is unclear and likely multi-factorial. Interestingly, it has been shown that the decrease in cell viability in cyclic hypoxia can be exacerbated through treatment with chloroquine, an inhibitor of autophagy. Autophagy is thought to protect cells in cyclic hypoxia through the promotion of mitophagy which would decrease ROS produced through the ETC [66].
The HIF-1 response to cyclic hypoxia. The hypoxia inducible factor 1 (HIF-1) transcription factor is formed from the binding of a HIF-1α and HIF-1β subunit. In normoxic conditions the HIF-1α subunit is hydroxylated by members of the prolyl hydroxylase domain (PHD) family. Hydroxylation targets HIF-1α for proteasomal degradation mediated by the E3 ligase, von Hippel Lindau (VHL). In the absence of VHL-mediated degradation, HIF-1α binds to HIF-1β and regulates the transcription of a variety of effector genes with diverse functions including metabolism, angiogenesis, growth, and apoptosis [124,125]. Importantly, HIF-1α accumulates in a wide variety of oxygen concentrations ranging from <0.1 to 3% O2 [126,127,128]. More recently, the alternative α subunits HIF-2α and HIF-3α have been identified and shown to bind HIF-1β [129,130]. A number of in vitro studies have demonstrated that HIF-1α levels are higher in cyclic hypoxia compared to chronic exposure and that the increased levels of HIF-1α correlate with transcriptional activity and expression of downstream HIF-1 target genes [69,70,72,76,79,87,89,97]. An in vivo study also demonstrated that cyclic hypoxia induces the expression of a variety of HIF-1 target genes in orthotopically grown cervical tumors in mice [44]. Interestingly, though the stabilization of HIF-2α increases in chronic hypoxia, stabilization in response to cyclic hypoxia was shown to decrease in vitro and in vivo [97,107,108,127].
The role of ROS in mediating HIF-1α stability through inhibition of the PHDs has been well-described (reviewed in [131,132,133]). These data support the hypothesis that increased ROS levels in cyclic hypoxia contribute to HIF-1α stabilization [118,134,135]. However, it should be noted that these studies all used cyclic conditions which included periods of 21% O2, which are non-physiological, and also likely to induce significant ROS (Table 2). In contrast, a single study has investigated HIF-1α stabilization in cycling conditions which featured physiologically relevant levels of oxygen. In this case, oxygen tensions were rapidly cycled every 5 min between <0.1–7.76% O2 and found that while HIF-1α expression increased in cyclic hypoxia, it accumulated to a lesser extent in cyclic compared to chronic hypoxia [87]. It is clear that in the studies demonstrating increased HIF-1α in cyclic hypoxia this was ROS-dependent as the use of scavengers reduced HIF-1α accumulation [72,73,75,99]. However, it remains unclear whether cycling between physiologically relevant levels of hypoxia leads to an increase in ROS and whether this, in turn, contributes to increased HIF-1α stabilization. Another, non-mutually exclusive explanation for the increased HIF-1 mediated activity observed in cyclic hypoxia, is the contribution of a non-nuclear HIF-1 response. In response to cellular stress, including hypoxia, the cell packages key mRNA transcripts associated with the stress response into cytoplasmic compartments known as stress granules [136]. It has been shown that, upon reoxygenation (21% O2), these stress granules disaggregate and their contents are released to amplify HIF-1 downstream signaling [46].
Due to the biological complexity of HIF stabilization and signaling, mathematical modeling has emerged as a useful way to increase our understanding of HIF biology. Though HIF dynamics in response to cyclic hypoxia have not been explicitly modeled, this strategy represents a promising way to decipher biological responses to complex variables such as oxygen concentration and cycling frequency without the need to test every condition experimentally. By reducing the complex system that controls HIF-1 regulation to a simpler “core” system, existing biological knowledge of the interplay of the components within the core system can be used to inform the model to make predictions on situations that have not been experimentally tested [137]. For example, oxygen tensions in different regions of a spheroid were measured with intracellular probes that were subsequently used to inform the parameters of a mathematical model. A spheroid was then subjected to an in silico decrease in oxygen concentration from both 8 to 3% O2 and from 21 to 1% O2 and HIF-1 activity was modeled over time. The model predicted that cells on the periphery of the spheroid would have the highest level of HIF-1 signaling once exposed to hypoxia even though the core of the spheroid was initially the most hypoxic region. This somewhat counterintuitive finding was hypothesized to occur due to the relative speed of the change in oxygen concentration at the periphery of the spheroid relative to the hypoxic core, where the faster change results in a larger initial accumulation of HIF-1 [138].
In addition to investigating the HIF response, mathematical models have been used to predict cellular characteristics in the face of a dynamic oxygen environment. For example, a mathematical model was created that included a population of cells with a continuous gradient of metabolic potentials ranging from fully oxidative to fully glycolytic to mimic the metabolic variation present in tumors. The values of these variables were used to inform the model as to the distribution of oxygen across the tumor and where regions of cyclic hypoxia would arise. Analysis was then carried out to determine how the subpopulations interacted with one another under the given oxygen conditions. One of the key findings from this approach was that, in conditions where the oxygen level tended to fluctuate, a higher phenotypic variation became a competitive advantage in terms of managing oxygen consumption in a changing environment [139]. These studies all further the notion that distinct biological signaling occurs depending on the oxygen dynamics present in the tumor and that mathematical modeling is a useful tool to dissect the complex contribution of the dynamic oxygen environment.
Radiotherapy. The increased radioresistance of hypoxic tumors/cells has been well-characterized and is known to contribute to patient prognosis. The oxygen enhancement ratio (OER) describes the relative radiosensitivity of cells in hypoxic versus normoxic conditions and demonstrates that hypoxic cells can be 2.5–3 times more radioresistant than their oxygenated neighbors [140,141,142]. The requirement for oxygen at the time of irradiation in order to induce maximum levels of DNA damage has been reviewed recently [143]. Particularly relevant here are the multiple studies that demonstrate that exposure to different chronic and cyclic hypoxic treatment schedules prior to irradiation impact radiosensitivity. Clonogenic assays show that cells pre-treated with cyclic hypoxia are more radioresistant when compared to cells pre-treated with chronic hypoxic [71,72,74,77,91,92,93]. This has also been confirmed in vivo where glioblastoma tumors irradiated in mice exposed to cyclic hypoxia were more radioresistant than the chronic hypoxia controls [72]. These data demonstrate that the OER can be affected by a biological component, distinct from the oxygen concentration at the moment of irradiation, and suggest that this biological component could be influenced by the nature of prior hypoxia exposure. Notably again, the majority of these studies were conducted in cycling conditions that included periods of reoxygenation to 21% O2 and, therefore, oxidative stress-induced DNA damage. It is, therefore, surprising that the pretreatment with these cyclic conditions did not increase radiosensitivity, suggesting a selection pressure to increase cell viability.
The contribution of HIF-1 to the radiosensitivity of cells in hypoxia has been investigated and broadly demonstrates that inhibition or loss of HIF-1 increases radiosensitivity and is likely attributable to the impact on tumor vasculature, metabolism and cell cycle control [46,72,144,145,146,147]. However, it is not surprising, given the diverse and numerous targets of HIF-1, that a context dependent balance between HIF-1-mediated radiosensitivity and radioresistance is likely [148,149]. As previously mentioned, some studies have suggested that HIF-1 is more active in cyclic conditions compared to chronic hypoxia and, therefore, the impact on radiosensitivity could also be more significant. In support of this hypothesis, in vitro and in vivo experiments determined that radioresistance was increased in cyclic hypoxia and that this was dependent on HIF-1 signaling [71,72,77].
The eukaryotic translation initiation factor 2α (eIF2α) has been identified as a factor that influences the OER in hypoxia including cyclic conditions [65]. eIF2α is typically associated with the unfolded protein response (UPR) though it also plays a role in regulating the expression of enzymes involved in the synthesis of key antioxidants such as glutathione and cysteine [150]. Inhibition of eIF2α was shown to increase radiosensitivity in vivo and, although not directly measured or induced, the presence of cyclic hypoxia was inferred from analysis of pimonidazole positive and negative regions [65]. Interestingly, radiosensitization only occurred when eIF2α was inhibited prior to radiation and was attributed to an eIF2α-dependent role in mediating the cellular response to ROS. Inhibition of eIF2α prior to irradiation renders the cell incapable of managing the increased ROS generated by irradiation-induced reoxygenation. Supportive in vitro experiments demonstrated that cell death caused by cyclic hypoxia increased further when eIF2α was inhibited, and that this was ROS-dependent. Furthermore, enzymes involved in the creation of glutathione and cysteine were shown to increase in cyclic hypoxia in an eIF2α-dependent manner [65]. Similarly, SLC25A10, SLC25A1, and GOT1 which have roles in mitigating oxidative stress, are induced in response to cyclic hypoxia and contribute to radioresistance [91,92,94]. Interestingly, a recent report describes the use of Angiotensin II type 1 receptor blockers as a means of improving radiation response through the inhibition of transient hypoxia [151].
Chemotherapy. Hypoxic tumors demonstrate increased chemoresistance due to a variety of factors including: large diffusion distances from blood vessels, decreased cellular drug uptake, decreased apoptosis, altered pH, and decreased proliferation [1,152]. Many of these chemoresistant features are mediated by HIF-1 signaling [152,153]. Recently, increased drug efflux and apoptotic resistance have been studied in the context of cyclic hypoxia and found that chemoresistance exceeded that of cells treated in chronic hypoxia [76,83].
In cyclic hypoxia, a HIF-1 dependent mechanism results in the upregulation of the cell membrane efflux pump, ATP Binding Cassette Subfamily B Member 1 (ABCB1). Cells in cyclic hypoxia demonstrated an increased capacity to efflux the chemotherapeutic drug Rh123 compared to cells in chronic hypoxia in an ABCB1-dependent manner. This ability to efflux chemotherapy drugs in cyclic hypoxia translated into increased resistance of glioblastoma cells to doxorubicin and carmustine (BCNU) in vitro [83]. Cells in cyclic hypoxia also demonstrate an increased ability to resist apoptosis in response to chemotherapeutics. The anti-apoptotic gene, B-cell lymphoma extra-large (Bcl-xL), was shown to be upregulated to a greater extent in cyclic hypoxia compared to chronic hypoxia in a HIF-1 dependent manner in glioblastoma and medulloblastoma cell lines [76,85]. Treating cells in cyclic hypoxia with temozolomide (TMZ) combined with Bcl-xL inhibition resulted in increased cell kill compared to TMZ alone. Interestingly, Bcl-xL upregulation was also found to occur in a ROS-dependent manner in cyclic hypoxia. Consequently, in vivo ROS scavenging with Tempol increased the effectiveness of TMZ treatment [76]. Furthermore, exposure to a course of cyclic hypoxia spanning 50 days led to selection for loss of the p53 tumor suppressor gene. Loss of p53 translated into increased survival of sub clones from the cells treated in cyclic hypoxia compared to normoxia when treated with the chemotherapeutic etoposide [96].
Metastasis. Understanding the processes of metastasis is essential to improving cancer therapy, as the vast majority of cancer-related deaths occur as a result of tumor spread/metastasis [154]. In order to metastasize, cancer cells undergo a series of rate-limiting steps including: the epithelial to mesenchymal transition (EMT), invasion and migration through the basement layer, survival in blood circulation, and proliferation at the second site [155,156,157]. The tumor microenvironment has been shown to contribute to multiple steps in the progression of metastasis [158]. Hypoxia in particular aids cancer cells in completing these steps primarily through HIF-1 signaling [156,157]. Utilizing regulated gas supplies to modulate the oxygen level in the environment of mice with xenograft tumors, it was demonstrated that mice treated with cyclic hypoxia develop more metastasis than mice exposed to normal oxygen conditions [86,89,99,103,105,106,159]. In addition, studies that have compared the ability of tumors to form metastasis in xenograft mice treated with cyclic and chronic hypoxia show that tumors from mice treated with cyclic hypoxia have more metastasis [86,89,103,159]. The effect of cyclic hypoxia on the cellular abilities required to successfully metastasize are summarized in Figure 3.
Metabolism. Cellular metabolism is known to be altered in cancers and is a hallmark of cancer. A major factor that influences the metabolic shift in tumors is the stabilization of HIF-1α in response to hypoxia. HIF-1 targets include genes such as GLUT1 and PDK1, which can increase glycolysis and downregulate oxidative phosphorylation, respectively. These metabolic changes allow cells to generate sufficient energy in environments devoid of oxygen [161,162]. Currently, little is known about cellular metabolism in response to cyclic hypoxia in cancer, although a wealth of literature studying cyclic hypoxia associated with obstructive sleep apnea has identified a variety of metabolic effects, including alternations in lipid and glucose metabolism (reviewed in [163,164,165]). Interestingly, one study showed that increased levels of serum triglycerides induced by cyclic hypoxia occurred in a HIF-1 dependent manner in a heterozygous HIF-1 knockout mouse model compared to the wild-type [109]. Another study measuring the expression of a panel of 30 genes involved in glucose metabolism in vitro, observed a significant increase in the expression of 15 genes contained within the panel in cyclic hypoxia [98]. Furthermore, culturing of cells in cyclic hypoxia over long time periods caused a metabolic shift that persisted in normoxia. Increases in HIF-1α and GLUT1 expression were seen in normoxia along with a significant increase in oxygen consumption [96]. Interestingly, an emerging clinical strategy to sensitize tumors to radiotherapy is through the modulation of the oxygen consumption rate of tumors prior to irradiation [166,167,168]. It is possible that these agents may lead to conditions similar to cyclic hypoxia. Further study is needed to assess the effects of cyclic hypoxia on metabolism as well as how these effects compare to those seen in chronic hypoxia.

6. Future Directions

It is clear, and has been for some time, that regions of hypoxia in tumors are not static; instead, oxygen levels fluctuate and cycle. Research into this phenomenon and delineating impact on tumor progression and therapy response has been limited by our ability to measure physiological meaningful parameters and then model these in vitro. Consequently, physiologically relevant signaling caused by cyclic hypoxia that could potentially inform clinical practice is poorly understood. More physiologically relevant in vitro models of cyclic hypoxia, utilizing experimental systems more capable of mimicking the complex oxygen environments found in tumors, will be instrumental in understanding the clinically relevant consequences of cyclic hypoxia. Advances in imaging and mathematical modeling present exciting methods to inform physiologically relevant oxygen conditions. Mathematical modeling in particular presents an opportunity to lessen dependence on individual in vitro models that generally lack comparability between labs, and study complex oxygen dynamics that cannot be experimentally tested. Notably, these developments are likely to significantly impact our understanding of developing therapeutic strategies, which aim to manipulate oxygen consumption within tumors as a means of reducing hypoxia and increasing radiosensitivity [166,167,168]. It is plausible that agents which inhibit oxygen consumption/mitochondrial metabolism may lead to biological consequences similar to those described in the response to cyclic hypoxia.

Supplementary Materials

The following are available online at https://www.mdpi.com/2072-6694/13/1/23/s1, Video S1: Dynamics of cycling hypoxia in a window chamber containing a 4T1 tumor. An oxygen sensitive nanoparticle was used to directly measure pO2 by measuring phosphorescence lifetime. Hemoglobin saturation was measured optically. Measurements were taken every 7.5 min for 60 min. The X-Y plane represents the surface of the tumor; the Z-plane depicts pO2. Microvessel hemoglobin saturation is superimposed on the pO2 images. The spatiotemporal dynamics clearly illustrate that the changes are occurring simultaneously in many vessels. But one can see increases in some regions with decreases in other areas. This illustrates the complex hemodynamics that can occur, especially in tumor vascular networks. Data are from Palmer et al. [25].

Author Contributions

All authors contributed to the planning, writing and editing of the review. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

Thank you to Charlotte Simpson for proof reading. Our apologies to the authors we were unable to cite due to space restrictions. In particular, we have not been able to consider the extensive literature describing the physiological response to changes in altitude and ischemia/reperfusion damage.

Conflicts of Interest

Mark W. Dewhirst is a consultant for The Zenalux Corporation. Other authors declare no conflict of interest.

References

  1. Bristow, R.G.; Hill, R.P. Hypoxia and metabolism. Hypoxia, DNA repair and genetic instability. Nat. Rev. Cancer 2008, 8, 180–192. [Google Scholar] [CrossRef] [PubMed]
  2. Zhang, X.; Ashcraft, K.A.; Betof Warner, A.; Nair, S.K.; Dewhirst, M.W. Can Exercise-Induced Modulation of the Tumor Physiologic Microenvironment Improve Antitumor Immunity? Cancer Res. 2019, 79, 2447–2456. [Google Scholar] [CrossRef] [PubMed][Green Version]
  3. Dewhirst, M.W.; Cao, Y.; Moeller, B. Cycling hypoxia and free radicals regulate angiogenesis and radiotherapy response. Nat. Rev. Cancer 2008, 8, 425–437. [Google Scholar] [CrossRef][Green Version]
  4. Dewhirst, M.W. Relationships between Cycling Hypoxia, HIF-1, Angiogenesis and Oxidative Stress. Radiat. Res. 2009, 172, 653–665. [Google Scholar] [CrossRef][Green Version]
  5. Bayer, C.; Vaupel, P. Acute versus chronic hypoxia in tumors. Controversial data concerning time frames and biological consequences. Strahlenther. Onkol. 2012, 188, 616–627. [Google Scholar] [CrossRef]
  6. Kukwa, W.; Migacz, E.; Druc, K.; Grzesiuk, E.; Czarnecka, A.M. Obstructive sleep apnea and cancer: Effects of intermittent hypoxia? Future Oncol. 2015, 11, 3285–3298. [Google Scholar] [CrossRef]
  7. Michiels, C.; Tellier, C.; Feron, O. Cycling hypoxia: A key feature of the tumor microenvironment. Biochim. Biophys. Acta Rev. Cancer 2016, 1866, 76–86. [Google Scholar] [CrossRef]
  8. Yamaura, H.; Matsuzawa, T. Tumor regrowth after irradiation—Experimental approach. Int. J. Radiat. Biol. 1979, 35, 201–219. [Google Scholar] [CrossRef]
  9. Brown, J.M. Evidence for acutely hypoxic cells in mouse-tumors, and a possible mechanism of re-oxygenation. Br. J. Radiol. 1979, 52, 650–656. [Google Scholar] [CrossRef]
  10. Chaplin, D.J.; Olive, P.L.; Durand, R.E. Intermittent blood-flow in a murine tumor—Radiobiological effects. Cancer Res. 1987, 47, 597–601. [Google Scholar]
  11. Braun, R.D.; Lanzen, J.L.; Snyder, S.A.; Dewhirst, M.W. Comparison of tumor and normal tissue oxygen tension measurements using OxyLite or microelectrodes in rodents. Am. J. Physiol. Heart Circ. Physiol. 2001, 280, H2533–H2544. [Google Scholar] [CrossRef] [PubMed]
  12. Cardenas-Navia, L.I.; Mace, D.; Richardson, R.A.; Wilson, D.F.; Shan, S.; Dewhirst, M.W. The pervasive presence of fluctuating oxygenation in tumors. Cancer Res. 2008, 68, 5812–5819. [Google Scholar] [CrossRef] [PubMed][Green Version]
  13. Skala, M.C.; Fontanella, A.; Lan, L.; Izatt, J.A.; Dewhirst, M.W. Longitudinal optical imaging of tumor metabolism and hemodynamics. J. Biomed. Opt. 2010, 15, 011112. [Google Scholar] [CrossRef][Green Version]
  14. Nehmeh, S.A.; Lee, N.Y.; Schroder, H.; Squire, O.; Zanzonico, P.B.; Erdi, Y.E.; Greco, C.; Mageras, G.; Pham, H.S.; Larson, S.M.; et al. Reproducibility of intratumor distribution of (18)F-fluoromisonidazole in head and neck cancer. Int. J. Radiat. Oncol. Biol. Phys. 2008, 70, 235–242. [Google Scholar] [CrossRef] [PubMed][Green Version]
  15. Goncalves, M.R.; Johnson, S.P.; Ramasawmy, R.; Pedley, R.B.; Lythgoe, M.F.; Walker-Samuel, S. Decomposition of spontaneous fluctuations in tumour oxygenation using BOLD MRI and independent component analysis. Br. J. Cancer 2015, 113, 1168–1177. [Google Scholar] [CrossRef]
  16. O’Connor, J.P.; Boult, J.K.; Jamin, Y.; Babur, M.; Finegan, K.G.; Williams, K.J.; Little, R.A.; Jackson, A.; Parker, G.J.; Reynolds, A.R.; et al. Oxygen-Enhanced MRI Accurately Identifies, Quantifies, and Maps Tumor Hypoxia in Preclinical Cancer Models. Cancer Res. 2016, 76, 787–795. [Google Scholar] [CrossRef][Green Version]
  17. Khan, N.; Mupparaju, S.; Hou, H.; Williams, B.B.; Swartz, H. Repeated assessment of orthotopic glioma pO(2) by multi-site EPR oximetry: A technique with the potential to guide therapeutic optimization by repeated measurements of oxygen. J. Neurosci. Methods 2012, 204, 111–117. [Google Scholar] [CrossRef][Green Version]
  18. Matsumoto, S.; Yasui, H.; Mitchell, J.B.; Krishna, M.C. Imaging cycling tumor hypoxia. Cancer Res. 2010, 70, 10019–10023. [Google Scholar] [CrossRef][Green Version]
  19. Magat, J.; Jordan, B.F.; Cron, G.O.; Gallez, B. Noninvasive mapping of spontaneous fluctuations in tumor oxygenation using 19F MRI. Med. Phys. 2010, 37, 5434–5441. [Google Scholar] [CrossRef]
  20. Bennewith, K.L.; Raleigh, J.A.; Durand, R.E. Orally administered pimonidazole to label hypoxic tumor cells. Cancer Res. 2002, 62, 6827–6830. [Google Scholar]
  21. Braun, R.D.; Lanzen, J.L.; Dewhirst, M.W. Fourier analysis of fluctuations of oxygen tension and blood flow in R3230Ac tumors and muscle in rats. Am. J. Physiol. Heart Circ. Physiol. 1999, 277, H551–H568. [Google Scholar] [CrossRef] [PubMed]
  22. Dewhirst, M.W.; Kimura, H.; Rehmus, S.W.E.; Braun, R.D.; Papahadjopoulos, D.; Hong, K.; Secomb, T.W. Microvascular studies on the origins of perfusion-limited hypoxia. Br. J. Cancer 1996, 74, S247–S251. [Google Scholar]
  23. Kimura, H.; Braun, R.D.; Ong, E.T.; Hsu, R.; Secomb, T.W.; Papahadjopoulos, D.; Hong, K.L.; Dewhirst, M.W. Fluctuations in red cell flux in tumor microvessels can lead to transient hypoxia and reoxygenation in tumor parenchyma. Cancer Res. 1996, 56, 5522–5528. [Google Scholar] [PubMed]
  24. Lanzen, J.; Braun, R.D.; Klitzman, B.; Brizel, D.; Secomb, T.W.; Dewhirst, M.W. Direct demonstration of instabilities in oxygen concentrations within the extravascular compartment of an experimental tumor. Cancer Res. 2006, 66, 2219–2223. [Google Scholar] [CrossRef] [PubMed][Green Version]
  25. Palmer, G.M.; Fontanella, A.N.; Zhang, G.Q.; Hanna, G.; Fraser, C.L.; Dewhirst, M.W. Optical imaging of tumor hypoxia dynamics. J. Biomed. Opt. 2010, 15. [Google Scholar] [CrossRef] [PubMed]
  26. Lee, C.T.; Boss, M.K.; Dewhirst, M.W. Imaging tumor hypoxia to advance radiation oncology. Antioxid. Redox Signal. 2014, 21, 313–337. [Google Scholar] [CrossRef][Green Version]
  27. Rickard, A.G.; Palmer, G.M.; Dewhirst, M.W. Clinical and Pre-clinical Methods for Quantifying Tumor Hypoxia. Adv. Exp. Med. Biol. 2019, 1136, 19–41. [Google Scholar] [CrossRef]
  28. Thrall, D.E.; Maccarini, P.; Stauffer, P.; Macfall, J.; Hauck, M.; Snyder, S.; Case, B.; Linder, K.; Lan, L.; McCall, L.; et al. Thermal dose fractionation affects tumour physiological response. Int. J. Hyperth. 2012, 28, 431–440. [Google Scholar] [CrossRef][Green Version]
  29. Brurberg, K.G.; Skogmo, H.K.; Graff, B.A.; Olsen, D.R.; Rofstad, E.K. Fluctuations in pO2 in poorly and well-oxygenated spontaneous canine tumors before and during fractionated radiation therapy. Radiother. Oncol. 2005, 77, 220–226. [Google Scholar] [CrossRef]
  30. Brizel, D.M.; Rosner, G.L.; Prosnitz, L.R.; Dewhirst, M.W. Patterns and variability of tumor oxygenation in human soft tissue sarcomas, cervical carcinomas, and lymph node metastases. Int. J. Radiat. Oncol. Biol. Phys. 1995, 32, 1121–1125. [Google Scholar] [CrossRef]
  31. Shah, N.; Cerussi, A.; Eker, C.; Espinoza, J.; Butler, J.; Fishkin, J.; Hornung, R.; Tromberg, B. Noninvasive functional optical spectroscopy of human breast tissue. Proc. Natl. Acad. Sci. USA 2001, 98, 4420–4425. [Google Scholar] [CrossRef] [PubMed][Green Version]
  32. Yu, B.; Shah, A.; Wang, B.; Rajaram, N.; Wang, Q.; Ramanujam, N.; Palmer, G.M.; Dewhirst, M.W. Measuring tumor cycling hypoxia and angiogenesis using a side-firing fiber optic probe. J. Biophotonics 2014, 7, 552–564. [Google Scholar] [CrossRef] [PubMed]
  33. Rich, L.J.; Miller, A.; Singh, A.K.; Seshadri, M. Photoacoustic Imaging as an Early Biomarker of Radio Therapeutic Efficacy in Head and Neck Cancer. Theranostics 2018, 8, 2064–2078. [Google Scholar] [CrossRef] [PubMed]
  34. Redler, G.; Epel, B.; Halpern, H.J. Principal component analysis enhances SNR for dynamic electron paramagnetic resonance oxygen imaging of cycling hypoxia in vivo. Magn. Reson. Med. 2014, 71, 440–450. [Google Scholar] [CrossRef] [PubMed][Green Version]
  35. Ellingsen, C.; Ovrebo, K.M.; Galappathi, K.; Mathiesen, B.; Rofstad, E.K. pO(2) Fluctuation Pattern and Cycling Hypoxia in Human Cervical Carcinoma and Melanoma Xenografts. Int. J. Radiat. Oncol. Biol. Phys. 2012, 83, 1317–1323. [Google Scholar] [CrossRef][Green Version]
  36. Baudelet, C.; Ansiaux, R.; Jordan, B.F.; Havaux, X.; Macq, B.; Gallez, B. Physiological noise in murine solid tumours using T2*-weighted gradient-echo imaging: A marker of tumour acute hypoxia? Phys. Med. Biol. 2004, 49, 3389–3411. [Google Scholar] [CrossRef]
  37. Pigott, K.H.; Hill, S.A.; Chaplin, D.J.; Saunders, M.I. Microregional fluctuations in perfusion within human tumours detected using laser Doppler flowmetry. Radiother. Oncol. 1996, 40, 45–50. [Google Scholar] [CrossRef]
  38. Panek, R.; Welsh, L.; Baker, L.C.J.; Schmidt, M.A.; Wong, K.H.; Riddell, A.M.; Koh, D.M.; Dunlop, A.; McQuaid, D.; d’Arcy, J.A.; et al. Noninvasive Imaging of Cycling Hypoxia in Head and Neck Cancer Using Intrinsic Susceptibility MRI. Clin. Cancer Res. 2017, 23, 4233–4241. [Google Scholar] [CrossRef][Green Version]
  39. Wang, K.L.; Yorke, E.; Nehmeh, S.A.; Humm, J.L.; Ling, C.C. Modeling acute and chronic hypoxia using serial images of F-18-FMISO PET. Med. Phys. 2009, 36, 4400–4408. [Google Scholar] [CrossRef][Green Version]
  40. Ellingsen, C.; Andersen, L.M.; Galappathi, K.; Rofstad, E.K. Hypoxia biomarkers in squamous cell carcinoma of the uterine cervix. BMC Cancer 2015, 15, 805. [Google Scholar] [CrossRef][Green Version]
  41. Sobhanifar, S.; Aquino-Parsons, C.; Stanbridge, E.J.; Olive, P. Reduced expression of hypoxia-inducible factor-1alpha in perinecrotic regions of solid tumors. Cancer Res. 2005, 65, 7259–7266. [Google Scholar] [CrossRef] [PubMed][Green Version]
  42. Jankovic, B.; Aquino-Parsons, C.; Raleigh, J.A.; Stanbridge, E.J.; Durand, R.E.; Banath, J.P.; MacPhail, S.H.; Olive, P.L. Comparison between pimonidazole binding, oxygen electrode measurements, and expression of endogenous hypoxia markers in cancer of the uterine cervix. Cytom. B Clin. Cytom. 2006, 70, 45–55. [Google Scholar] [CrossRef] [PubMed]
  43. Moon, E.J.; Sonveaux, P.; Porporato, P.E.; Danhier, P.; Gallez, B.; Batinic-Haberle, I.; Nien, Y.C.; Schroeder, T.; Dewhirst, M.W. NADPH oxidase-mediated reactive oxygen species production activates hypoxia-inducible factor-1 (HIF-1) via the ERK pathway after hyperthermia treatment. Proc. Natl. Acad. Sci. USA 2010, 107, 20477–20482. [Google Scholar] [CrossRef] [PubMed][Green Version]
  44. Chaudary, N.; Hill, R.P. Increased expression of metastasis-related genes in hypoxic cells sorted from cervical and lymph nodal xenograft tumors. Lab. Investig. 2009, 89, 587–596. [Google Scholar] [CrossRef][Green Version]
  45. Koritzinsky, M.; Wouters, B.G. The roles of reactive oxygen species and autophagy in mediating the tolerance of tumor cells to cycling hypoxia. Semin. Radiat. Oncol. 2013, 23, 252–261. [Google Scholar] [CrossRef]
  46. Moeller, B.J.; Cao, Y.; Li, C.Y.; Dewhirst, M.W. Radiation activates HIF-1 to regulate vascular radiosensitivity in tumors: Role of reoxygenation, free radicals, and stress granules. Cancer Cell 2004, 5, 429–441. [Google Scholar] [CrossRef][Green Version]
  47. Lee, G.; Won, H.S.; Lee, Y.M.; Choi, J.W.; Oh, T.I.; Jang, J.H.; Choi, D.K.; Lim, B.O.; Kim, Y.J.; Park, J.W.; et al. Oxidative Dimerization of PHD2 is Responsible for its Inactivation and Contributes to Metabolic Reprogramming via HIF-1alpha Activation. Sci. Rep. 2016, 6, 18928. [Google Scholar] [CrossRef][Green Version]
  48. Ljungkvist, A.S.; Bussink, J.; Kaanders, J.H.; van der Kogel, A.J. Dynamics of tumor hypoxia measured with bioreductive hypoxic cell markers. Radiat. Res. 2007, 167, 127–145. [Google Scholar] [CrossRef][Green Version]
  49. Yasui, H.; Matsumoto, S.; Devasahayam, N.; Munasinghe, J.P.; Choudhuri, R.; Saito, K.; Subramanian, S.; Mitchell, J.B.; Krishna, M.C. Low-Field Magnetic Resonance Imaging to Visualize Chronic and Cycling Hypoxia in Tumor-Bearing Mice. Cancer Res. 2010, 70, 6427–6436. [Google Scholar] [CrossRef][Green Version]
  50. Podtaev, S.; Morozov, M.; Frick, P. Wavelet-based correlations of skin temperature and blood flow oscillations. Cardiovasc. Eng. 2008, 8, 185–189. [Google Scholar] [CrossRef]
  51. Arciero, J.C.; Secomb, T.W. Spontaneous oscillations in a model for active control of microvessel diameters. Math. Med. Biol. J. IMA 2012, 29, 163–180. [Google Scholar] [CrossRef] [PubMed]
  52. Forouzan, O.; Yang, X.X.; Sosa, J.M.; Burns, J.M.; Shevkoplyas, S.S. Spontaneous oscillations of capillary blood flow in artificial microvascular networks. Microvasc. Res. 2012, 84, 123–132. [Google Scholar] [CrossRef] [PubMed]
  53. Lemons, D.E.; Chien, S.; Crawshaw, L.I.; Weinbaum, S.; Jiji, L.M. Significance of vessel size and type in vascular heat-transfer. Am. J. Physiol. 1987, 253, R128–R135. [Google Scholar] [CrossRef] [PubMed]
  54. Wetsel, W.C. Sensing hot and cold with TRP channels. Int. J. Hyperth. 2011, 27, 388–398. [Google Scholar] [CrossRef]
  55. Huang, Y.H.; Fliegert, R.; Guse, A.H.; Lu, W.; Du, J. A structural overview of the ion channels of the TRPM family. Cell Calcium 2020, 85. [Google Scholar] [CrossRef]
  56. Tan, C.L.; Cooke, E.K.; Leib, D.E.; Lin, Y.C.; Daly, G.E.; Zimmerman, C.A.; Knight, Z.A. Warm-Sensitive Neurons that Control Body Temperature. Cell 2016, 167, 47–59. [Google Scholar] [CrossRef][Green Version]
  57. Liu, X.B.; Ong, H.L.; Ambudkar, I. TRP Channel Involvement in Salivary Glands-Some Good, Some Bad. Cells 2018, 7, 74. [Google Scholar] [CrossRef][Green Version]
  58. Mergler, S.; Valtink, M.; Coulson-Thomas, V.J.; Lindemann, D.; Reinach, P.S.; Engelmann, K.; Pleyer, U. TRPV channels mediate temperature-sensing in human corneal endothelial cells. Exp. Eye Res. 2010, 90, 758–770. [Google Scholar] [CrossRef]
  59. Caterina, M.J. Transient receptor potential ion channels as participants in thermosensation and thermoregulation. Am. J. Physiol. Regul. Integr. Comp. Physiol. 2007, 292, R64–R76. [Google Scholar] [CrossRef]
  60. Roemer, R.B.; Oleson, J.R.; Cetas, T.C. Oscillatory temperature response to constant power applied to canine muscle. Am. J. Physiol. 1985, 249, R153–R158. [Google Scholar] [CrossRef]
  61. Dewhirst, M.W.; Ong, E.T.; Braun, R.D.; Smith, B.; Klitzman, B.; Evans, S.M.; Wilson, D. Quantification of longitudinal tissue pO(2) gradients in window chamber tumours: Impact on tumour hypoxia. Br. J. Cancer 1999, 79, 1717–1722. [Google Scholar] [CrossRef] [PubMed][Green Version]
  62. Cardenas-Navia, L.I.; Yu, D.H.; Braun, R.D.; Brizel, D.M.; Secomb, T.W.; Dewhirst, M.W. Tumor-dependent kinetics of partial pressure of oxygen fluctuations during air and oxygen breathing. Cancer Res. 2004, 64, 6010–6017. [Google Scholar] [CrossRef] [PubMed][Green Version]
  63. Baudelet, C.; Cron, G.O.; Ansiaux, R.; Crokart, N.; DeWever, J.; Feron, O.; Gallez, B. The role of vessel maturation and vessel functionality in spontaneous fluctuations of T-2*-weighted GRE signal within tumors. NMR Biomed. 2006, 19, 69–76. [Google Scholar] [CrossRef] [PubMed]
  64. Liu, S.; Wang, Z.; Xu, B.; Chen, K.; Sun, J.; Ren, L. Intermittent hypoxia reduces microglia proliferation and induces DNA damage in vitro. Iran. J. Basic Med. Sci. 2016, 19, 497–502. [Google Scholar] [CrossRef][Green Version]
  65. Rouschop, K.M.; Dubois, L.J.; Keulers, T.G.; van den Beucken, T.; Lambin, P.; Bussink, J.; van der Kogel, A.J.; Koritzinsky, M.; Wouters, B.G. PERK/eIF2alpha signaling protects therapy resistant hypoxic cells through induction of glutathione synthesis and protection against ROS. Proc. Natl. Acad. Sci. USA 2013, 110, 4622–4627. [Google Scholar] [CrossRef][Green Version]
  66. Rouschop, K.M.; Ramaekers, C.H.; Schaaf, M.B.; Keulers, T.G.; Savelkouls, K.G.; Lambin, P.; Koritzinsky, M.; Wouters, B.G. Autophagy is required during cycling hypoxia to lower production of reactive oxygen species. Radiother. Oncol. 2009, 92, 411–416. [Google Scholar] [CrossRef]
  67. Hammond, E.M.; Dorie, M.J.; Giaccia, A.J. ATR/ATM targets are phosphorylated by ATR in response to hypoxia and ATM in response to reoxygenation. J. Biol. Chem. 2003, 278, 12207–12213. [Google Scholar] [CrossRef][Green Version]
  68. Toffoli, S.; Roegiers, A.; Feron, O.; Van Steenbrugge, M.; Ninane, N.; Raes, M.; Michiels, C. Intermittent hypoxia is an angiogenic inducer for endothelial cells: Role of HIF-1. Angiogenesis 2009, 12, 47–67. [Google Scholar] [CrossRef]
  69. Martinive, P.; Defresne, F.; Quaghebeur, E.; Daneau, G.; Crokart, N.; Gregoire, V.; Gallez, B.; Dessy, C.; Feron, O. Impact of cyclic hypoxia on HIF-1alpha regulation in endothelial cells-new insights for anti-tumor treatments. FEBS J. 2009, 276, 509–518. [Google Scholar] [CrossRef][Green Version]
  70. Malec, V.; Gottschald, O.R.; Li, S.; Rose, F.; Seeger, W.; Hanze, J. HIF-1 alpha signaling is augmented during intermittent hypoxia by induction of the Nrf2 pathway in NOX1-expressing adenocarcinoma A549 cells. Free Radic. Biol. Med. 2010, 48, 1626–1635. [Google Scholar] [CrossRef]
  71. Martinive, P.; Defresne, F.; Bouzin, C.; Saliez, J.; Lair, F.; Gregoire, V.; Michiels, C.; Dessy, C.; Feron, O. Preconditioning of the tumor vasculature and tumor cells by intermittent hypoxia: Implications for anticancer therapies. Cancer Res. 2006, 66, 11736–11744. [Google Scholar] [CrossRef][Green Version]
  72. Hsieh, C.H.; Lee, C.H.; Liang, J.A.; Yu, C.Y.; Shyu, W.C. Cycling hypoxia increases U87 glioma cell radioresistance via ROS induced higher and long-term HIF-1 signal transduction activity. Oncol. Rep. 2010, 24, 1629–1636. [Google Scholar] [CrossRef] [PubMed][Green Version]
  73. Hsieh, C.H.; Shyu, W.C.; Chiang, C.Y.; Kuo, J.W.; Shen, W.C.; Liu, R.S. NADPH oxidase subunit 4-mediated reactive oxygen species contribute to cycling hypoxia-promoted tumor progression in glioblastoma multiforme. PLoS ONE 2011, 6, e23945. [Google Scholar] [CrossRef] [PubMed]
  74. Hsieh, C.H.; Wu, C.P.; Lee, H.T.; Liang, J.A.; Yu, C.Y.; Lin, Y.J. NADPH oxidase subunit 4 mediates cycling hypoxia-promoted radiation resistance in glioblastoma multiforme. Free Radic. Biol. Med. 2012, 53, 649–658. [Google Scholar] [CrossRef] [PubMed]
  75. Yuan, G.; Nanduri, J.; Khan, S.; Semenza, G.L.; Prabhakar, N.R. Induction of HIF-1alpha expression by intermittent hypoxia: Involvement of NADPH oxidase, Ca2+ signaling, prolyl hydroxylases, and mTOR. J. Cell Physiol. 2008, 217, 674–685. [Google Scholar] [CrossRef][Green Version]
  76. Chen, W.L.; Wang, C.C.; Lin, Y.J.; Wu, C.P.; Hsieh, C.H. Cycling hypoxia induces chemoresistance through the activation of reactive oxygen species-mediated B-cell lymphoma extra-long pathway in glioblastoma multiforme. J. Transl. Med. 2015, 13, 389. [Google Scholar] [CrossRef] [PubMed][Green Version]
  77. Liu, Y.; Song, X.; Wang, X.; Wei, L.; Liu, X.; Yuan, S.; Lv, L. Effect of chronic intermittent hypoxia on biological behavior and hypoxia-associated gene expression in lung cancer cells. J. Cell. Biochem. 2010, 111, 554–563. [Google Scholar] [CrossRef] [PubMed]
  78. Schlaepfer, I.R.; Nambiar, D.K.; Ramteke, A.; Kumar, R.; Dhar, D.; Agarwal, C.; Bergman, B.; Graner, M.; Maroni, P.; Singh, R.P.; et al. Hypoxia induces triglycerides accumulation in prostate cancer cells and extracellular vesicles supporting growth and invasiveness following reoxygenation. Oncotarget 2015, 6, 22836–22856. [Google Scholar] [CrossRef]
  79. Bhaskara, V.K.; Mohanam, I.; Rao, J.S.; Mohanam, S. Intermittent hypoxia regulates stem-like characteristics and differentiation of neuroblastoma cells. PLoS ONE 2012, 7, e30905. [Google Scholar] [CrossRef][Green Version]
  80. Miao, Z.F.; Zhao, T.T.; Wang, Z.N.; Xu, Y.Y.; Mao, X.Y.; Wu, J.H.; Liu, X.Y.; Xu, H.; You, Y.; Xu, H.M. Influence of different hypoxia models on metastatic potential of SGC-7901 gastric cancer cells. Tumor Biol. 2014, 35, 6801–6808. [Google Scholar] [CrossRef]
  81. Zhu, H.; Wang, D.; Zhang, L.; Xie, X.; Wu, Y.; Liu, Y.; Shao, G.; Su, Z. Upregulation of autophagy by hypoxia-inducible factor-1alpha promotes EMT and metastatic ability of CD133+ pancreatic cancer stem-like cells during intermittent hypoxia. Oncol. Rep. 2014, 32, 935–942. [Google Scholar] [CrossRef] [PubMed][Green Version]
  82. Liu, L.; Liu, W.; Wang, L.; Zhu, T.; Zhong, J.; Xie, N. Hypoxia-inducible factor 1 mediates intermittent hypoxia-induced migration of human breast cancer MDA-MB-231 cells. Oncol. Lett. 2017, 14, 7715–7722. [Google Scholar] [CrossRef] [PubMed][Green Version]
  83. Chou, C.W.; Wang, C.C.; Wu, C.P.; Lin, Y.J.; Lee, Y.C.; Cheng, Y.W.; Hsieh, C.H. Tumor cycling hypoxia induces chemoresistance in glioblastoma multiforme by upregulating the expression and function of ABCB1. Neuro Oncol. 2012, 14, 1227–1238. [Google Scholar] [CrossRef] [PubMed][Green Version]
  84. Alhawarat, F.M.; Hammad, H.M.; Hijjawi, M.S.; Sharab, A.S.; Abuarqoub, D.A.; Al Shhab, M.A.; Zihlif, M.A. The effect of cycling hypoxia on MCF-7 cancer stem cells and the impact of their microenvironment on angiogenesis using human umbilical vein endothelial cells (HUVECs) as a model. PeerJ 2019, 7, e5990. [Google Scholar] [CrossRef] [PubMed]
  85. Gupta, R.; Chetty, C.; Bhoopathi, P.; Lakka, S.; Mohanam, S.; Rao, J.S.; Dinh, D.E. Downregulation of uPA/uPAR inhibits intermittent hypoxia-induced epithelial-mesenchymal transition (EMT) in DAOY and D283 medulloblastoma cells. Int. J. Oncol. 2011, 38, 733–744. [Google Scholar] [CrossRef] [PubMed][Green Version]
  86. Chen, A.; Sceneay, J.; Godde, N.; Kinwel, T.; Ham, S.; Thompson, E.W.; Humbert, P.O.; Moller, A. Intermittent hypoxia induces a metastatic phenotype in breast cancer. Oncogene 2018, 37, 4214–4225. [Google Scholar] [CrossRef] [PubMed]
  87. Martinez, C.A.; Kerr, B.; Jin, C.; Cistulli, P.A.; Cook, K.M. Obstructive Sleep Apnea Activates HIF-1 in a Hypoxia Dose-Dependent Manner in HCT116 Colorectal Carcinoma Cells. Int. J. Mol. Sci. 2019, 20, 445. [Google Scholar] [CrossRef][Green Version]
  88. Louie, E.; Nik, S.; Chen, J.S.; Schmidt, M.; Song, B.; Pacson, C.; Chen, X.F.; Park, S.; Ju, J.; Chen, E.I. Identification of a stem-like cell population by exposing metastatic breast cancer cell lines to repetitive cycles of hypoxia and reoxygenation. Breast Cancer Res. 2010, 12, R94. [Google Scholar] [CrossRef][Green Version]
  89. Daneau, G.; Boidot, R.; Martinive, P.; Feron, O. Identification of cyclooxygenase-2 as a major actor of the transcriptomic adaptation of endothelial and tumor cells to cyclic hypoxia: Effect on angiogenesis and metastases. Clin. Cancer Res. 2010, 16, 410–419. [Google Scholar] [CrossRef][Green Version]
  90. Delprat, V.; Tellier, C.; Demazy, C.; Raes, M.; Feron, O.; Michiels, C. Cycling hypoxia promotes a pro-inflammatory phenotype in macrophages via JNK/p65 signaling pathway. Sci. Rep. 2020, 10, 882. [Google Scholar] [CrossRef]
  91. Hlouschek, J.; Ritter, V.; Wirsdorfer, F.; Klein, D.; Jendrossek, V.; Matschke, J. Targeting SLC25A10 alleviates improved antioxidant capacity and associated radioresistance of cancer cells induced by chronic-cycling hypoxia. Cancer Lett. 2018, 439, 24–38. [Google Scholar] [CrossRef] [PubMed]
  92. Hlouschek, J.; Hansel, C.; Jendrossek, V.; Matschke, J. The Mitochondrial Citrate Carrier (SLC25A1) Sustains Redox Homeostasis and Mitochondrial Metabolism Supporting Radioresistance of Cancer Cells With Tolerance to Cycling Severe Hypoxia. Front. Oncol. 2018, 8, 170. [Google Scholar] [CrossRef] [PubMed]
  93. Kumareswaran, R.; Chaudary, N.; Jaluba, K.; Meng, A.; Sykes, J.; Borhan, A.; Hill, R.P.; Bristow, R.G. Cyclic hypoxia does not alter RAD51 expression or PARP inhibitor cell kill in tumor cells. Radiother. Oncol. 2015, 116, 388–391. [Google Scholar] [CrossRef] [PubMed]
  94. Matschke, J.; Riffkin, H.; Klein, D.; Handrick, R.; Ludemann, L.; Metzen, E.; Shlomi, T.; Stuschke, M.; Jendrossek, V. Targeted Inhibition of Glutamine-Dependent Glutathione Metabolism Overcomes Death Resistance Induced by Chronic Cycling Hypoxia. Antioxid. Redox Signal. 2016, 25, 89–107. [Google Scholar] [CrossRef] [PubMed]
  95. Tellier, C.; Desmet, D.; Petit, L.; Finet, L.; Graux, C.; Raes, M.; Feron, O.; Michiels, C. Cycling hypoxia induces a specific amplified inflammatory phenotype in endothelial cells and enhances tumor-promoting inflammation in vivo. Neoplasia 2015, 17, 66–78. [Google Scholar] [CrossRef][Green Version]
  96. Verduzco, D.; Lloyd, M.; Xu, L.; Ibrahim-Hashim, A.; Balagurunathan, Y.; Gatenby, R.A.; Gillies, R.J. Intermittent hypoxia selects for genotypes and phenotypes that increase survival, invasion, and therapy resistance. PLoS ONE 2015, 10, e0120958. [Google Scholar] [CrossRef]
  97. Nanduri, J.; Wang, N.; Yuan, G.; Khan, S.A.; Souvannakitti, D.; Peng, Y.J.; Kumar, G.K.; Garcia, J.A.; Prabhakar, N.R. Intermittent hypoxia degrades HIF-2alpha via calpains resulting in oxidative stress: Implications for recurrent apnea-induced morbidities. Proc. Natl. Acad. Sci. USA 2009, 106, 1199–1204. [Google Scholar] [CrossRef] [PubMed][Green Version]
  98. Jarrar, Y.; Zihlif, M.; Al Bawab, A.Q.; Sharab, A. Effects of Intermittent Hypoxia on Expression of Glucose Metabolism Genes in MCF7 Breast Cancer Cell Line. Curr. Cancer Drug Targets 2020, 20, 216–222. [Google Scholar] [CrossRef]
  99. Li, L.; Ren, F.; Qi, C.; Xu, L.; Fang, Y.; Liang, M.; Feng, J.; Chen, B.; Ning, W.; Cao, J. Intermittent hypoxia promotes melanoma lung metastasis via oxidative stress and inflammation responses in a mouse model of obstructive sleep apnea. Respir. Res. 2018, 19, 28. [Google Scholar] [CrossRef][Green Version]
  100. Snyder, B.; Shell, B.; Cunningham, J.T.; Cunningham, R.L. Chronic intermittent hypoxia induces oxidative stress and inflammation in brain regions associated with early-stage neurodegeneration. Physiol. Rep. 2017, 5. [Google Scholar] [CrossRef]
  101. Kalliomaki, T.M.; McCallum, G.; Lunt, S.J.; Wells, P.G.; Hill, R.P. Analysis of the effects of exposure to acute hypoxia on oxidative lesions and tumour progression in a transgenic mouse breast cancer model. BMC Cancer 2008, 8, 151. [Google Scholar] [CrossRef] [PubMed][Green Version]
  102. Kalliomaki, T.M.; McCallum, G.; Wells, P.G.; Hill, R.P. Progression and metastasis in a transgenic mouse breast cancer model: Effects of exposure to in vivo hypoxia. Cancer Lett. 2009, 282, 98–108. [Google Scholar] [CrossRef]
  103. Cairns, R.A.; Kalliomaki, T.; Hill, R.P. Acute (cyclic) hypoxia enhances spontaneous metastasis of KHT murine tumors. Cancer Res. 2001, 61, 8903–8908. [Google Scholar] [PubMed]
  104. Cairns, R.A.; Hill, R.P. Acute hypoxia enhances spontaneous lymph node metastasis in an orthotopic murine model of human cervical carcinoma. Cancer Res. 2004, 64, 2054–2061. [Google Scholar] [CrossRef] [PubMed][Green Version]
  105. Zhang, J.; Cao, J.; Ma, S.; Dong, R.; Meng, W.; Ying, M.; Weng, Q.; Chen, Z.; Ma, J.; Fang, Q.; et al. Tumor hypoxia enhances Non-Small Cell Lung Cancer metastasis by selectively promoting macrophage M2 polarization through the activation of ERK signaling. Oncotarget 2014, 5, 9664–9677. [Google Scholar] [CrossRef] [PubMed][Green Version]
  106. Rofstad, E.K.; Gaustad, J.V.; Egeland, T.A.; Mathiesen, B.; Galappathi, K. Tumors exposed to acute cyclic hypoxic stress show enhanced angiogenesis, perfusion and metastatic dissemination. Int. J. Cancer 2010, 127, 1535–1546. [Google Scholar] [CrossRef]
  107. Nanduri, J.; Vaddi, D.R.; Khan, S.A.; Wang, N.; Makerenko, V.; Prabhakar, N.R. Xanthine oxidase mediates hypoxia-inducible factor-2alpha degradation by intermittent hypoxia. PLoS ONE 2013, 8, e75838. [Google Scholar] [CrossRef]
  108. Peng, Y.J.; Yuan, G.; Khan, S.; Nanduri, J.; Makarenko, V.V.; Reddy, V.D.; Vasavda, C.; Kumar, G.K.; Semenza, G.L.; Prabhakar, N.R. Regulation of hypoxia-inducible factor-alpha isoforms and redox state by carotid body neural activity in rats. J. Physiol. 2014, 592, 3841–3858. [Google Scholar] [CrossRef]
  109. Li, J.; Bosch-Marce, M.; Nanayakkara, A.; Savransky, V.; Fried, S.K.; Semenza, G.L.; Polotsky, V.Y. Altered metabolic responses to intermittent hypoxia in mice with partial deficiency of hypoxia-inducible factor-1alpha. Physiol. Genom. 2006, 25, 450–457. [Google Scholar] [CrossRef]
  110. Galanis, A.; Pappa, A.; Giannakakis, A.; Lanitis, E.; Dangaj, D.; Sandaltzopoulos, R. Reactive oxygen species and HIF-1 signalling in cancer. Cancer Lett. 2008, 266, 12–20. [Google Scholar] [CrossRef]
  111. Raedschelders, K.; Ansley, D.M.; Chen, D.D. The cellular and molecular origin of reactive oxygen species generation during myocardial ischemia and reperfusion. Pharmacol. Ther. 2012, 133, 230–255. [Google Scholar] [CrossRef]
  112. Finkel, T.; Holbrook, N.J. Oxidants, oxidative stress and the biology of ageing. Nature 2000, 408, 239–247. [Google Scholar] [CrossRef]
  113. Nathan, C.; Cunningham-Bussel, A. Beyond oxidative stress: An immunologist’s guide to reactive oxygen species. Nat. Rev. Immunol. 2013, 13, 349–361. [Google Scholar] [CrossRef] [PubMed][Green Version]
  114. Sena, L.A.; Chandel, N.S. Physiological roles of mitochondrial reactive oxygen species. Mol. Cell 2012, 48, 158–167. [Google Scholar] [CrossRef] [PubMed][Green Version]
  115. Reczek, C.R.; Chandel, N.S. ROS-dependent signal transduction. Curr. Opin. Cell Biol. 2015, 33, 8–13. [Google Scholar] [CrossRef] [PubMed][Green Version]
  116. Martinez-Reyes, I.; Cardona, L.R.; Kong, H.; Vasan, K.; McElroy, G.S.; Werner, M.; Kihshen, H.; Reczek, C.R.; Weinberg, S.E.; Gao, P.; et al. Mitochondrial ubiquinol oxidation is necessary for tumour growth. Nature 2020. [Google Scholar] [CrossRef]
  117. Lee, S.R.; Yang, K.S.; Kwon, J.; Lee, C.; Jeong, W.; Rhee, S.G. Reversible inactivation of the tumor suppressor PTEN by H2O2. J. Biol. Chem. 2002, 277, 20336–20342. [Google Scholar] [CrossRef][Green Version]
  118. Chandel, N.S.; Maltepe, E.; Goldwasser, E.; Mathieu, C.E.; Simon, M.C.; Schumacker, P.T. Mitochondrial reactive oxygen species trigger hypoxia-induced transcription. Proc. Natl. Acad. Sci. USA 1998, 95, 11715–11720. [Google Scholar] [CrossRef] [PubMed][Green Version]
  119. Bell, E.L.; Klimova, T.A.; Eisenbart, J.; Moraes, C.T.; Murphy, M.P.; Budinger, G.R.; Chandel, N.S. The Qo site of the mitochondrial complex III is required for the transduction of hypoxic signaling via reactive oxygen species production. J. Cell Biol. 2007, 177, 1029–1036. [Google Scholar] [CrossRef] [PubMed][Green Version]
  120. Guzy, R.D.; Hoyos, B.; Robin, E.; Chen, H.; Liu, L.; Mansfield, K.D.; Simon, M.C.; Hammerling, U.; Schumacker, P.T. Mitochondrial complex III is required for hypoxia-induced ROS production and cellular oxygen sensing. Cell Metab. 2005, 1, 401–408. [Google Scholar] [CrossRef] [PubMed][Green Version]
  121. Li, S.; Tabar, S.S.; Malec, V.; Eul, B.G.; Klepetko, W.; Weissmann, N.; Grimminger, F.; Seeger, W.; Rose, F.; Hanze, J. NOX4 regulates ROS levels under normoxic and hypoxic conditions, triggers proliferation, and inhibits apoptosis in pulmonary artery adventitial fibroblasts. Antioxid. Redox Signal. 2008, 10, 1687–1698. [Google Scholar] [CrossRef] [PubMed]
  122. Granger, D.N.; Kvietys, P.R. Reperfusion injury and reactive oxygen species: The evolution of a concept. Redox Biol. 2015, 6, 524–551. [Google Scholar] [CrossRef] [PubMed][Green Version]
  123. Morgan, M.J.; Liu, Z.G. Crosstalk of reactive oxygen species and NF-kappaB signaling. Cell Res. 2011, 21, 103–115. [Google Scholar] [CrossRef] [PubMed][Green Version]
  124. Keith, B.; Johnson, R.S.; Simon, M.C. HIF1alpha and HIF2alpha: Sibling rivalry in hypoxic tumour growth and progression. Nat. Rev. Cancer 2011, 12, 9–22. [Google Scholar] [CrossRef] [PubMed][Green Version]
  125. Brahimi-Horn, M.C.; Pouyssegur, J. HIF at a glance. J. Cell Sci. 2009, 122, 1055–1057. [Google Scholar] [CrossRef] [PubMed][Green Version]
  126. Dobrynin, G.; McAllister, T.E.; Leszczynska, K.B.; Ramachandran, S.; Krieg, A.J.; Kawamura, A.; Hammond, E.M. KDM4A regulates HIF-1 levels through H3K9me3. Sci. Rep. 2017, 7, 11094. [Google Scholar] [CrossRef]
  127. Schofield, C.J.; Ratcliffe, P.J. Oxygen sensing by HIF hydroxylases. Nat. Rev. Mol. Cell Biol. 2004, 5, 343–354. [Google Scholar] [CrossRef]
  128. Koumenis, C.; Wouters, B.G. “Translating” tumor hypoxia: Unfolded protein response (UPR)-dependent and UPR-independent pathways. Mol. Cancer Res. 2006, 4, 423–436. [Google Scholar] [CrossRef][Green Version]
  129. Poon, E.; Harris, A.L.; Ashcroft, M. Targeting the hypoxia-inducible factor (HIF) pathway in cancer. Expert Rev. Mol. Med. 2009, 11, e26. [Google Scholar] [CrossRef][Green Version]
  130. Duan, C. Hypoxia-inducible factor 3 biology: Complexities and emerging themes. Am. J. Physiol. Cell Physiol. 2016, 310, C260–C269. [Google Scholar] [CrossRef][Green Version]
  131. Hagen, T. Oxygen versus Reactive Oxygen in the Regulation of HIF-1alpha: The Balance Tips. Biochem. Res. Int. 2012, 2012, 436981. [Google Scholar] [CrossRef] [PubMed][Green Version]
  132. Chen, R.; Lai, U.H.; Zhu, L.; Singh, A.; Ahmed, M.; Forsyth, N.R. Reactive Oxygen Species Formation in the Brain at Different Oxygen Levels: The Role of Hypoxia Inducible Factors. Front. Cell Dev. Biol. 2018, 6, 132. [Google Scholar] [CrossRef] [PubMed][Green Version]
  133. Thomas, L.W.; Ashcroft, M. Exploring the molecular interface between hypoxia-inducible factor signalling and mitochondria. Cell. Mol. Life Sci. 2019, 76, 1759–1777. [Google Scholar] [CrossRef] [PubMed][Green Version]
  134. Niecknig, H.; Tug, S.; Reyes, B.D.; Kirsch, M.; Fandrey, J.; Berchner-Pfannschmidt, U. Role of reactive oxygen species in the regulation of HIF-1 by prolyl hydroxylase 2 under mild hypoxia. Free Radic. Res. 2012, 46, 705–717. [Google Scholar] [CrossRef] [PubMed]
  135. Mansfield, K.D.; Guzy, R.D.; Pan, Y.; Young, R.M.; Cash, T.P.; Schumacker, P.T.; Simon, M.C. Mitochondrial dysfunction resulting from loss of cytochrome c impairs cellular oxygen sensing and hypoxic HIF-alpha activation. Cell Metab. 2005, 1, 393–399. [Google Scholar] [CrossRef] [PubMed][Green Version]
  136. Buchan, J.R.; Parker, R. Eukaryotic stress granules: The ins and outs of translation. Mol. Cell 2009, 36, 932–941. [Google Scholar] [CrossRef][Green Version]
  137. Cavadas, M.A.; Nguyen, L.K.; Cheong, A. Hypoxia-inducible factor (HIF) network: Insights from mathematical models. Cell Commun. Signal. 2013, 11, 42. [Google Scholar] [CrossRef][Green Version]
  138. Leedale, J.; Herrmann, A.; Bagnall, J.; Fercher, A.; Papkovsky, D.; See, V.; Bearon, R.N. Modeling the dynamics of hypoxia inducible factor-1alpha (HIF-1alpha) within single cells and 3D cell culture systems. Math. Biosci. 2014, 258, 33–43. [Google Scholar] [CrossRef]
  139. Ardaseva, A.; Gatenby, R.A.; Anderson, A.R.A.; Byrne, H.M.; Maini, P.K.; Lorenzi, T. A Mathematical Dissection of the Adaptation of Cell Populations to Fluctuating Oxygen Levels. Bull. Math. Biol. 2020, 82, 81. [Google Scholar] [CrossRef]
  140. Palcic, B.; Brosing, J.W.; Skarsgard, L.D. Survival measurements at low doses: Oxygen enhancement ratio. Br. J. Cancer 1982, 46, 980–984. [Google Scholar] [CrossRef][Green Version]
  141. Hammond, E.M.; Asselin, M.C.; Forster, D.; O’Connor, J.P.; Senra, J.M.; Williams, K.J. The meaning, measurement and modification of hypoxia in the laboratory and the clinic. Clin. Oncol. 2014, 26, 277–288. [Google Scholar] [CrossRef] [PubMed]
  142. Horsman, M.R.; Mortensen, L.S.; Petersen, J.B.; Busk, M.; Overgaard, J. Imaging hypoxia to improve radiotherapy outcome. Nat. Rev. Clin. Oncol. 2012, 9, 674–687. [Google Scholar] [CrossRef]
  143. Skwarski, M.; Bowler, E.; Wilson, J.D.; Higgins, G.S.; Hammond, E.M. Targeting Tumor Hypoxia. In Molecular Targeted Radiosensitizers: Opportunities and Challenges; Willers, H., Eke, I., Eds.; Springer International Publishing: Cham, Switzerland, 2020; pp. 265–299. [Google Scholar]
  144. Garcia-Barros, M.; Paris, F.; Cordon-Cardo, C.; Lyden, D.; Rafii, S.; Haimovitz-Friedman, A.; Fuks, Z.; Kolesnick, R. Tumor response to radiotherapy regulated by endothelial cell apoptosis. Science 2003, 300, 1155–1159. [Google Scholar] [CrossRef] [PubMed][Green Version]
  145. Liu, J.; Zhang, J.; Wang, X.; Li, Y.; Chen, Y.; Li, K.; Zhang, J.; Yao, L.; Guo, G. HIF-1 and NDRG2 contribute to hypoxia-induced radioresistance of cervical cancer Hela cells. Exp. Cell Res. 2010, 316, 1985–1993. [Google Scholar] [CrossRef] [PubMed]
  146. Harada, H. Hypoxia-inducible factor 1-mediated characteristic features of cancer cells for tumor radioresistance. J. Radiat. Res. 2016, 57 (Suppl. S1), i99–i105. [Google Scholar] [CrossRef] [PubMed][Green Version]
  147. Barker, H.E.; Paget, J.T.; Khan, A.A.; Harrington, K.J. The tumour microenvironment after radiotherapy: Mechanisms of resistance and recurrence. Nat. Rev. Cancer 2015, 15, 409–425. [Google Scholar] [CrossRef]
  148. Moeller, B.J.; Dreher, M.R.; Rabbani, Z.N.; Schroeder, T.; Cao, Y.; Li, C.Y.; Dewhirst, M.W. Pleiotropic effects of HIF-1 blockade on tumor radiosensitivity. Cancer Cell 2005, 8, 99–110. [Google Scholar] [CrossRef][Green Version]
  149. Moeller, B.J.; Dewhirst, M.W. HIF-1 and tumour radiosensitivity. Br. J. Cancer 2006, 95, 1–5. [Google Scholar] [CrossRef]
  150. Harding, H.P.; Zhang, Y.; Zeng, H.; Novoa, I.; Lu, P.D.; Calfon, M.; Sadri, N.; Yun, C.; Popko, B.; Paules, R.; et al. An integrated stress response regulates amino acid metabolism and resistance to oxidative stress. Mol. Cell 2003, 11, 619–633. [Google Scholar] [CrossRef]
  151. Wadsworth, B.J.; Cederberg, R.A.; Lee, C.M.; Firmino, N.S.; Franks, S.E.; Pan, J.; Colpo, N.; Lin, K.S.; Benard, F.; Bennewith, K.L. Angiotensin II type 1 receptor blocker telmisartan inhibits the development of transient hypoxia and improves tumour response to radiation. Cancer Lett. 2020, 493, 31–40. [Google Scholar] [CrossRef]
  152. Cosse, J.P.; Michiels, C. Tumour hypoxia affects the responsiveness of cancer cells to chemotherapy and promotes cancer progression. Anticancer Agents Med. Chem. 2008, 8, 790–797. [Google Scholar] [CrossRef] [PubMed]
  153. Monti, E.; Gariboldi, M.B. HIF-1 as a target for cancer chemotherapy, chemosensitization and chemoprevention. Curr. Mol. Pharmacol. 2011, 4, 62–77. [Google Scholar] [CrossRef] [PubMed]
  154. Steeg, P.S. Targeting metastasis. Nat. Rev. Cancer 2016, 16, 201–218. [Google Scholar] [CrossRef] [PubMed]
  155. Chambers, A.F.; Groom, A.C.; MacDonald, I.C. Dissemination and growth of cancer cells in metastatic sites. Nat. Rev. Cancer 2002, 2, 563–572. [Google Scholar] [CrossRef]
  156. Rankin, E.B.; Giaccia, A.J. Hypoxic control of metastasis. Science 2016, 352, 175–180. [Google Scholar] [CrossRef][Green Version]
  157. Lu, X.; Kang, Y. Hypoxia and hypoxia-inducible factors: Master regulators of metastasis. Clin. Cancer Res. 2010, 16, 5928–5935. [Google Scholar] [CrossRef][Green Version]
  158. Joyce, J.A.; Pollard, J.W. Microenvironmental regulation of metastasis. Nat. Rev. Cancer 2009, 9, 239–252. [Google Scholar] [CrossRef]
  159. Rofstad, E.K.; Galappathi, K.; Mathiesen, B.; Ruud, E.B. Fluctuating and diffusion-limited hypoxia in hypoxia-induced metastasis. Clin. Cancer Res. 2007, 13, 1971–1978. [Google Scholar] [CrossRef][Green Version]
  160. Gutsche, K.; Randi, E.B.; Blank, V.; Fink, D.; Wenger, R.H.; Leo, C.; Scholz, C.C. Intermittent hypoxia confers pro-metastatic gene expression selectively through NF-kappaB in inflammatory breast cancer cells. Free Radic. Biol. Med. 2016, 101, 129–142. [Google Scholar] [CrossRef][Green Version]
  161. Denko, N.C. Hypoxia, HIF1 and glucose metabolism in the solid tumour. Nat. Rev. Cancer 2008, 8, 705–713. [Google Scholar] [CrossRef]
  162. Zeng, W.; Liu, P.; Pan, W.; Singh, S.R.; Wei, Y. Hypoxia and hypoxia inducible factors in tumor metabolism. Cancer Lett. 2015, 356, 263–267. [Google Scholar] [CrossRef] [PubMed]
  163. Drager, L.F.; Jun, J.C.; Polotsky, V.Y. Metabolic consequences of intermittent hypoxia: Relevance to obstructive sleep apnea. Best Pract. Res. Clin. Endocrinol. Metab. 2010, 24, 843–851. [Google Scholar] [CrossRef] [PubMed][Green Version]
  164. Chiang, A.A. Obstructive sleep apnea and chronic intermittent hypoxia: A review. Chin. J. Physiol. 2006, 49, 234–243. [Google Scholar] [PubMed]
  165. Ryan, S. Adipose tissue inflammation by intermittent hypoxia: Mechanistic link between obstructive sleep apnoea and metabolic dysfunction. J. Physiol. 2017, 595, 2423–2430. [Google Scholar] [CrossRef] [PubMed][Green Version]
  166. Zannella, V.E.; Dal Pra, A.; Muaddi, H.; McKee, T.D.; Stapleton, S.; Sykes, J.; Glicksman, R.; Chaib, S.; Zamiara, P.; Milosevic, M.; et al. Reprogramming metabolism with metformin improves tumor oxygenation and radiotherapy response. Clin. Cancer Res. 2013, 19, 6741–6750. [Google Scholar] [CrossRef] [PubMed][Green Version]
  167. Ashton, T.M.; Fokas, E.; Kunz-Schughart, L.A.; Folkes, L.K.; Anbalagan, S.; Huether, M.; Kelly, C.J.; Pirovano, G.; Buffa, F.M.; Hammond, E.M.; et al. The anti-malarial atovaquone increases radiosensitivity by alleviating tumour hypoxia. Nat. Commun. 2016, 7, 12308. [Google Scholar] [CrossRef][Green Version]
  168. Benej, M.; Hong, X.; Vibhute, S.; Scott, S.; Wu, J.; Graves, E.; Le, Q.T.; Koong, A.C.; Giaccia, A.J.; Yu, B.; et al. Papaverine and its derivatives radiosensitize solid tumors by inhibiting mitochondrial metabolism. Proc. Natl. Acad. Sci. USA 2018, 115, 10756–10761. [Google Scholar] [CrossRef][Green Version]

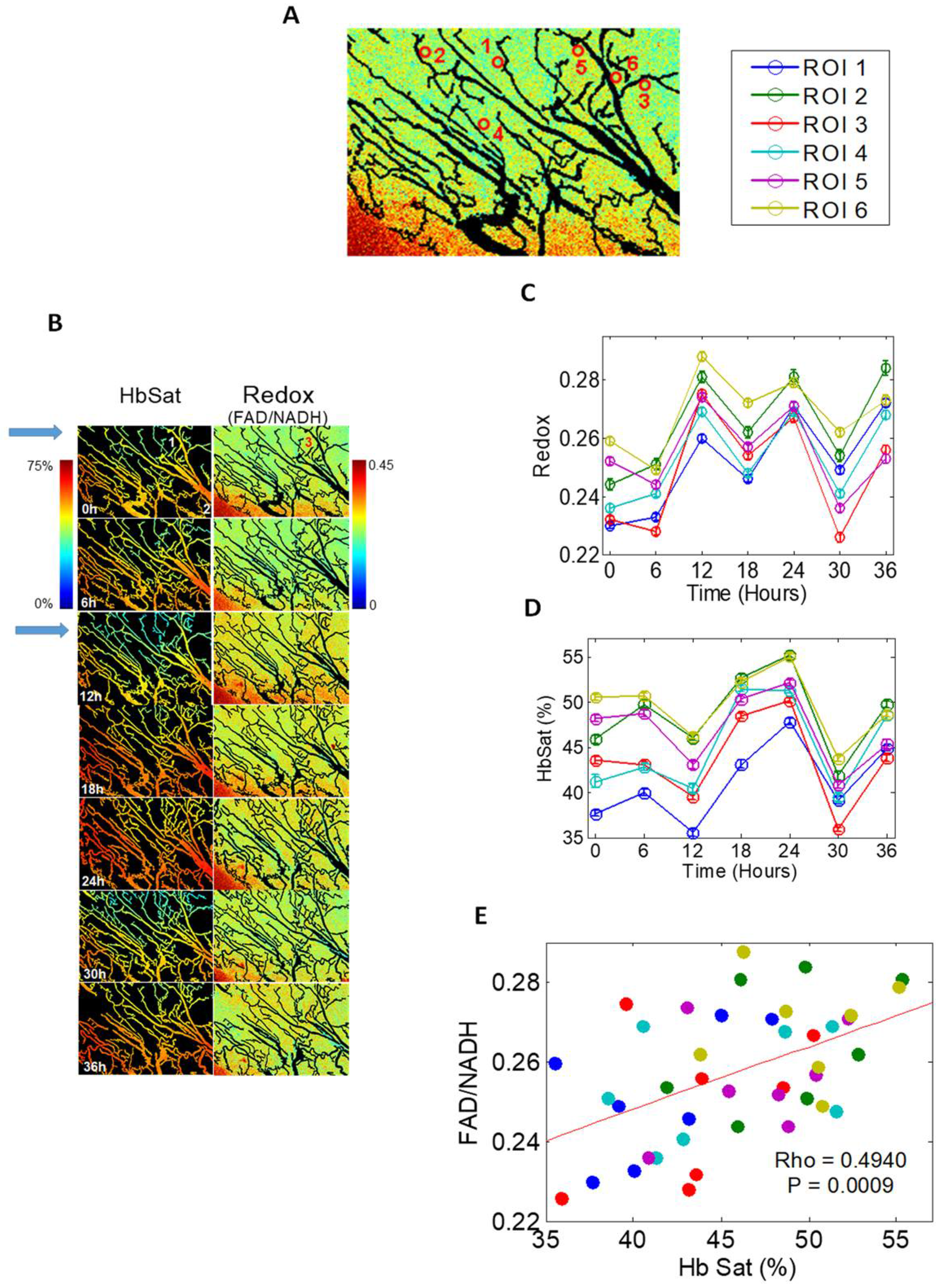

Figure 1. Window chamber data illustrating relatively slow fluctuations in tumor oxygenation and redox ratio. In this study, nude mice with window chambers were transplanted with FaDu head and neck cancer cells. After several days of growth, hemoglobin saturation Hbsat and redox ratio (ratio of fluorescence intensities of FAD and NADH) were measured every 6 h for 36 h. (A) Regions of interest selected for analysis. (B) Paired Hbsat and Redox ratios from one tumor. Note particularly the region indicated by the blue arrow at 0 and 12h. This region shows fluctuation in both parameters around a small network of microvessels. (C,D). Time course of changes in Redox ratio and Hbsat. (E) Over all tumors studied, there was a linear relationship between these two parameters, illustrating that there is a link between oxygen delivery and demand. In the analogy to tides and waves in Figure 2, these slow fluctuations are the tides. Panels A–D are from Skala et al. [13]. (DOI: 10.1117/1.3285584) CC-BY. Panel E is derived from the data for Panels A–D, but has not been previously published.
Figure 1. Window chamber data illustrating relatively slow fluctuations in tumor oxygenation and redox ratio. In this study, nude mice with window chambers were transplanted with FaDu head and neck cancer cells. After several days of growth, hemoglobin saturation Hbsat and redox ratio (ratio of fluorescence intensities of FAD and NADH) were measured every 6 h for 36 h. (A) Regions of interest selected for analysis. (B) Paired Hbsat and Redox ratios from one tumor. Note particularly the region indicated by the blue arrow at 0 and 12h. This region shows fluctuation in both parameters around a small network of microvessels. (C,D). Time course of changes in Redox ratio and Hbsat. (E) Over all tumors studied, there was a linear relationship between these two parameters, illustrating that there is a link between oxygen delivery and demand. In the analogy to tides and waves in Figure 2, these slow fluctuations are the tides. Panels A–D are from Skala et al. [13]. (DOI: 10.1117/1.3285584) CC-BY. Panel E is derived from the data for Panels A–D, but has not been previously published.
Cancers 13 00023 g001

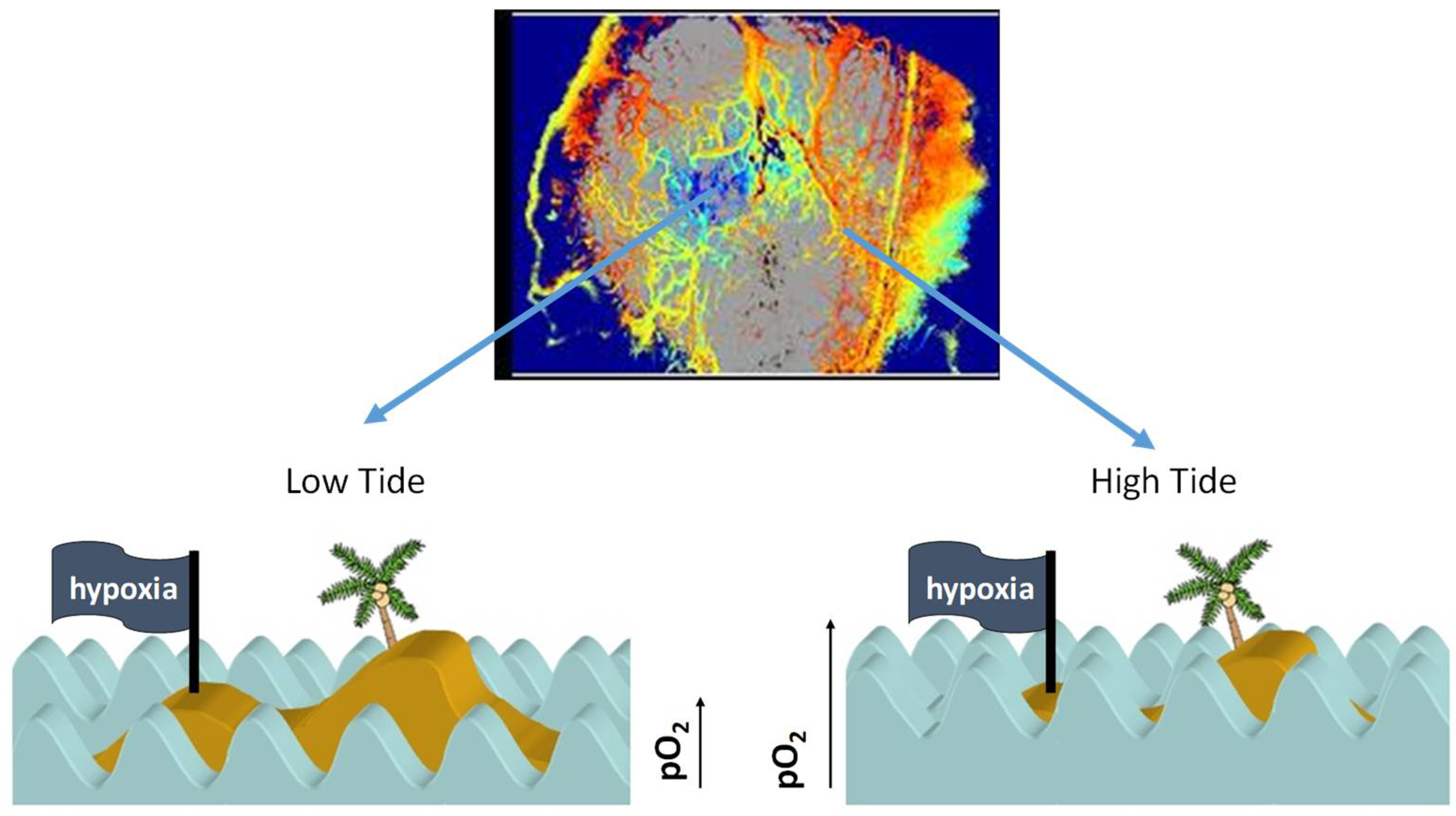

Figure 2. Tides and waves provide an analogy to the kinetics of cycling hypoxia. As depicted in Figure 1, the slow (quasi-steady state) fluctuations in tissue pO2, that occur over hours are analogous to tides. (Upper panel). Map of hemoglobin saturation across a tumor growing in a window chamber (blue = low saturation, orange to red = high saturation). The faster cycles, occurring 2–5 times per hour are analogous to waves. (Lower Left) In a region where the steady state pO2 (tide) is low, the higher frequency fluctuations (waves) in oxygen delivery will lead to fluctuations in the extent of tissue hypoxia, depicted by the island of hypoxia. (Lower Right) When the overall oxygen field is high, the waves have less of an influence on the extent of cycling hypoxia. Reproduced from Dewhirst [4], with permission from the publisher @ 2021 Radiation Research Society.
Figure 2. Tides and waves provide an analogy to the kinetics of cycling hypoxia. As depicted in Figure 1, the slow (quasi-steady state) fluctuations in tissue pO2, that occur over hours are analogous to tides. (Upper panel). Map of hemoglobin saturation across a tumor growing in a window chamber (blue = low saturation, orange to red = high saturation). The faster cycles, occurring 2–5 times per hour are analogous to waves. (Lower Left) In a region where the steady state pO2 (tide) is low, the higher frequency fluctuations (waves) in oxygen delivery will lead to fluctuations in the extent of tissue hypoxia, depicted by the island of hypoxia. (Lower Right) When the overall oxygen field is high, the waves have less of an influence on the extent of cycling hypoxia. Reproduced from Dewhirst [4], with permission from the publisher @ 2021 Radiation Research Society.
Cancers 13 00023 g002

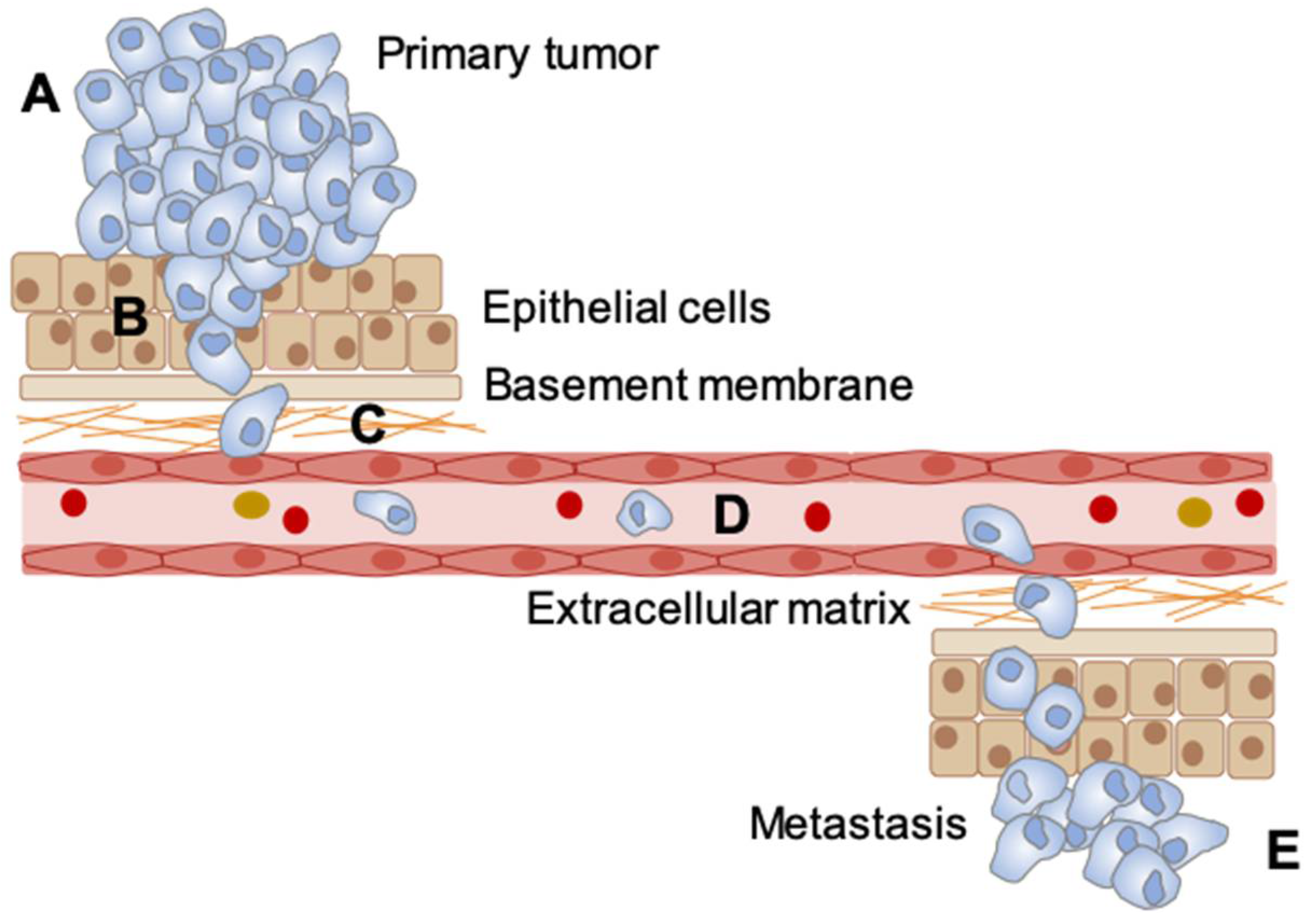

Figure 3. The effect of cyclic hypoxia on different stages in metastasis. (A) number of studies have demonstrated that exposure to cyclic hypoxia drives metastasis and importantly, that this occurs at all the key stages of the process. A. EMT/stemness [79,80,81,85,86,88]. (B) Invasion/migration [78,80,81,82,84]. (C) Modulation of the extracellular matrix (ECM) [160]. (D) Survival in blood circulation [89]. (E) Proliferation in target organ [86,89,99,103,104,105,106,159].
Figure 3. The effect of cyclic hypoxia on different stages in metastasis. (A) number of studies have demonstrated that exposure to cyclic hypoxia drives metastasis and importantly, that this occurs at all the key stages of the process. A. EMT/stemness [79,80,81,85,86,88]. (B) Invasion/migration [78,80,81,82,84]. (C) Modulation of the extracellular matrix (ECM) [160]. (D) Survival in blood circulation [89]. (E) Proliferation in target organ [86,89,99,103,104,105,106,159].
Cancers 13 00023 g003
Table 1. Summary of the cyclic hypoxia measurement techniques. PET = positron emission tomography; SPECT = single-photon emission computed tomography; BOLD MRI = blood oxygen level dependent MRI, measured by R2 *, OE-MRI measures R1, which is sensitive to [O2] in tissue; EPR = electron paramagnetic resonance; EPRI = electron paramagnetic resonance imaging; * = methods that have been used to measure hypoxia in human tumors and are amenable to measuring cyclic hypoxia. Rapid cycles = cycles occurring over 1–2 h observation. Slow cycles = cycles occurring over many hours to days.
Table 1. Summary of the cyclic hypoxia measurement techniques. PET = positron emission tomography; SPECT = single-photon emission computed tomography; BOLD MRI = blood oxygen level dependent MRI, measured by R2 *, OE-MRI measures R1, which is sensitive to [O2] in tissue; EPR = electron paramagnetic resonance; EPRI = electron paramagnetic resonance imaging; * = methods that have been used to measure hypoxia in human tumors and are amenable to measuring cyclic hypoxia. Rapid cycles = cycles occurring over 1–2 h observation. Slow cycles = cycles occurring over many hours to days.
Measurement TechniquesRequires Chemical ProbeDirect pO2 MeasurementFrequency of DetectionSpatial ResolutionRef.
Polographic O₂ microelectrodesNoYes<<1 s
Suitable for rapid cycles
20–30 μm[11]
Oxylite optical probeNoYes<<1 s
Suitable for rapid cycles
250 μm[11]
Phosphorescence lifetime imagingPd-porphyrin dendrimer, IVYes2–2.5 min
Suitable for rapid cycles
<mm-cm[12]
Optical Spectroscopy *NoNo30 s
Suitable for rapid and slow cycles
mm-cm[13]
PET/SPECT *YesNo>24 h
Suitable for slow cycles
Several mm[14]
BOLD MRI *NoNo4 s
Suitable for rapid cycles
Sub mm-mm[15]
OE-MRI *NoNo2.5 min
Suitable for rapid cycles
0.24 mm[16]
EPRImplantable O2 sensitive spin probe with resonatorYes10–60 s
Suitable for rapid and slow cycles
mm-> cm[17]
EPRIO2 sensitive spin probe, IVYes2–3 min
Suitable for rapid and slow cycles
1.6–1.8 mm[18]
F-19 MRIIntratumoral injection of hexafluorobenzeneYes1.5 min
Suitable for rapid and slow cycles
2 mm[19]
Dual hypoxia marker drugs *2 hypoxia marker drugs given at various intervals from each otherNoThese probes average extent of hypoxia over 60–90 minμm[20]
Table 2. Summary of published studies describing cyclic hypoxia. Studies highlight in grey are in vitro studies which include reoxygenation to 21% O2. Studies in blue are those that include reoxygenation to 21% O2 but do not include multiple cycles i.e., a single reoxygenation event. Those in green are in vitro cyclic hypoxia studies that include cycling between two physiologically relevant oxygen concentrations. Finally, those in orange are in vivo studies and indicate the concentration of oxygen in the air the mice were given to breathe and for how long.
Table 2. Summary of published studies describing cyclic hypoxia. Studies highlight in grey are in vitro studies which include reoxygenation to 21% O2. Studies in blue are those that include reoxygenation to 21% O2 but do not include multiple cycles i.e., a single reoxygenation event. Those in green are in vitro cyclic hypoxia studies that include cycling between two physiologically relevant oxygen concentrations. Finally, those in orange are in vivo studies and indicate the concentration of oxygen in the air the mice were given to breathe and for how long.
Cycling Conditions (% O2 and Length of Exposure)Number of CyclesRef.
1% O2 (6.67 min)—21% O2 (6.67 min)72[64]
<0.02% O2 (1 h)—21% O2 (1 h)2–5[65]
<0.02% O2 (1 h)—21% O2 (1 h)2–5[66]
<0.02% O2 (16 h)—21% O2 (1 h)1[67]
1% O2 (1 h)—21% O2 (30 min)4[68]
<1% O2 (1 h)—21% O2 (30 min)3[69]
1% O2 (2 h)—21% O2 (2 h)1–3[70]
0.5–1% O2 (1 h)—21% O2 (30 min)3[71]
0.5–1% O2 (1 h)—21% O2 (30 min)3[72]
0.5–1% O2 (10 min)—21% O2 (10 min)12[73]
0.5–1% O2 (10 min)—21% O2 (10 min)12[74]
1.5% O2 (30 s)—21% O2 (5 min)60[75]
0.5–1% O2 (1 h)—21% O2 (30 min)3[76]
0.1% O2 (24 h)—21% O2 (72 h)20[77]
1% O2 (48 h)—21% O2 (24, 48, 72 h)1[78]
1% O2 (24 h)—21% O2 (24 h)1, 5, 10[79]
1% O2 (12 h)—21% O2 (12 h)7[80]
1% O2 (12 h)—21% O2 (12 h)5[81]
1% O2 (12 h)—21% O2 (12 h)5, 10, 15, 20[82]
0.5–1% O2 (1 h)—21% O2 (30 min)3[83]
<1% O2 (‘shots’ for 8, 72 h)—21% O2 (n/a)1,3/week[84]
1% O2 (48 h)—21% O2 (48 h)18–20[85]
1% O2 (24 h)—21% O2 (24 h)5[86]
<0.1% O2 (5 min)—7.76% O2 (5 min)36 or 108[87]
1% O2 + nutrient deprivation (7 days)—21% O2 (1–3 weeks)1–3[88]
0.5% O2 (1 h)—21% O2 (30 min)3[89]
1% O2 (1 h)—21% O2 (30 min)4[90]
<1% O2 (48 h)—21% O2 (120 h)16 or 25[91]
<1% O2 (48 h)—21% O2 (120 h)16 or 25[92]
<0.1% O2 (30 min or 3 h)—7% O2 (30 min)21 or 72[93]
<0.1% O2 (48 h)—21% O2 (120 h)16 or 25[94]
1% O2 (1 h)—21% O2 (30 min)4[95]
0.2 or 1% O2 (8, 16, 24 h)—21% O2 (8, 16, 24 h)3, 6, 50[96]
1.5% O2 (30 s)—21% O2 (5 min)15, 30, 60[97]
<1% O2 (8, 72 h)—21% O2 (undefined)30, 60[98]
7% O2 (1 h)—21% O2 (30 min)3[72]
5% O2 (30 s)—21% O2 (1 min)180/day (21 days)[99]
7% O2 (10 min)—21% O2 (10 min)12[73]
10% O2 (~3 min)—21% O2 (~3 min)80/day (7 days)[100]
7% O2 (10 min)—21% O2 (10 min)12/day (5/week for 6 weeks)[101]
7% O2 (10 min)—21% O2 (10 min)6 or 12/day (5/week for 6 weeks)[102]
7% O2 (1 h)—21% O2 (30 min)3[71]
5–7% O2 (10 min)—21% O2 (10 min)12/day[103]
7% O2 (10 min)—21% O2 (10 min)12/day (21 days)[104]
7% O2 (10 min)—21% O2 (10 min)12[76]
8% O2 (10 min)—21% O2 (10 min)12/day (35 days)[105]
8% O2 (10 min)—21% O2 (10 min)12/day[106]
7% O2 (1 h)—21% O2 (30 min)3/day (1 day)[95]
7% O2 (10 min)—21% O2 (10 min)12/day (21 days)[44]
5% O2 (15 s)—21% O2 (5 min)9/day (10 days)[97]
5% O2 (15 s)—21% O2 (5 min)9/day (10 days)[107]
5% O2 (15 s)—21% O2 (5 min)9/day (10 days)[108]
5% O2 (30 s)—21% O2 (30 s)5 days[109]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Back to TopTop
