Review

Liquid Biopsy in Colorectal Carcinoma: Clinical Applications and Challenges

by
Drahomír Kolenčík
1,
Stephanie N. Shishido
2,
Pavel Pitule
1,
Jeremy Mason
2,3,
James Hicks
2 and
Peter Kuhn
2,*
1
Biomedical Centre, Faculty of Medicine in Pilsen, Charles University, 32300 Pilsen, Czech Republic
2
Convergent Science Institute in Cancer, Michelson Center for Convergent Bioscience, Dornsife College of Letters, Arts and Sciences, University of Southern California, Los Angeles, CA 90089, USA
3
USC Institute of Urology, Catherine & Joseph Aresty Department of Urology, Keck School of Medicine, University of Southern California, Los Angeles, CA 90033, USA
*
Author to whom correspondence should be addressed.
Cancers 2020, 12(6), 1376; https://doi.org/10.3390/cancers12061376
Submission received: 12 April 2020 / Revised: 16 May 2020 / Accepted: 25 May 2020 / Published: 27 May 2020
(This article belongs to the Special Issue Circulating Tumor Cells' Heterogeneity and Precision Oncology)
Browse Figure
Review Reports Versions Notes

Abstract

:
Colorectal carcinoma (CRC) is characterized by wide intratumor heterogeneity with general genomic instability and there is a need for improved diagnostic, prognostic, and therapeutic tools. The liquid biopsy provides a noninvasive route of sample collection for analysis of circulating tumor cells (CTCs) and genomic material, including cell-free DNA (cfDNA), as a complementary biopsy to the solid tumor tissue. The solid biopsy is critical for molecular characterization and diagnosis at the time of collection. The liquid biopsy has the advantage of longitudinal molecular characterization of the disease, which is crucial for precision medicine and patient-oriented treatment. In this review, we provide an overview of CRC and the different methodologies for the detection of CTCs and cfDNA, followed by a discussion on the potential clinical utility of the liquid biopsy in CRC patient care, and lastly, current challenges in the field.

1. Introduction

Colorectal carcinoma (CRC) is one of the most diagnosed cancers in the world and the second leading cause of cancer related deaths [1]. In high-income countries, or in countries with accessible health care, there are observable stabilizing trends in the incidence and mortality rates of CRC, but overall rates are still one of the highest [2]. Interestingly, adults below 50 years of age are the exception, where the incidence of CRC has increased. In many low-income and middle-income countries, there are distinguishing patterns indicating a rising incidence and mortality rate of CRC [3]. Interestingly, in a projection of global trends in CRC to the year 2035, colon cancer and rectal cancer mortality rates were predicted to decline. However, ongoing demographic changes (population growth and ageing) may lead to a rise in the number of deaths in many countries, with a doubling of the number of predicted deaths by 2035 in some regions [4]. Furthermore, CRC causes a financial strain to a significant number of patients (~40%), which results in a lower quality of life [5]. Overall, CRC can be defined as one of the greatest challenges to public and global health in the present and most likely in the future.
Colorectal carcinoma (CRC) is often diagnosed in late stage due to nonspecific symptoms, such as a change in bowel movement, weight loss, abdominal pain, iron deficiency, anemia, or rectal bleeding [6]. The gold standard for detection of CRC is currently colonoscopy [7]. Furthermore, CRC is clinically categorized by anatomical location as right CRC (RCC) or left CRC (LCC). RCC is defined as the proximal two-thirds of the transverse colon, ascending colon, and caecum [8]. LCC includes the distal third of the transverse colon, splenic flexure, descending colon, sigmoid colon, and rectum. In general, there is a higher incidence of RCC among older patients (Figure 1) [9,10]. Studies comparing screening with and without colonoscopy found a statistically insignificant difference between LCC and RCC [11]. The main concern with RCC is that the right colon has a wider lumen and more frequently flat tumor growths which lead to a longer period without clinical symptoms. Subsequently, this results in a greater time to disease detection and start of treatment [12]. The incidence of stage IV cancer with less differentiated cells is also higher in RCC than LCC [9]. With respect to molecular pathways, the same frequency of the oncogenes Kirsten rat sarcoma viral oncogene homolog (KRAS)and neuroblastoma rat sarcoma viral oncogene homolog (NRAS)are seen in LCC and RCC, but the rate of v-Raf murine sarcoma viral oncogene homolog B (BRAF) mutation has been shown to be significantly higher in RCC [9]. Taken together, RCC is associated with a higher risk of poor prognosis than LCC, despite being classified as the same primary cancer.
Colorectal carcinoma (CRC) is characteristic for wide intratumor heterogeneity and general genomic instability, which impacts the treatment and quality of life of the patient [13]. Accumulation of somatic mutations, which is associated with CRC tumor progression, can be explained with molecular changes that add to genomic instability. Specifically, there are three major molecular pathways in CRC that produce these mutations: chromosomal instability (CIN) [14], microsatellite instability (MSI) [15], and CpG island methylator phenotype (CIMP) [16,17,18]. CIN, as a consequence of improper mitosis and spindle checkpoint activity, promotes tumor progression by increasing the rate of genetic aberrations [19] and it is observed in the majority of sporadic CRC (85%) [20]. MSI is caused by the inactivity of the DNA mismatch repair (MMR) [21] and can be detected in approximately 15% of CRCs [22] and gives the disease distinctive pathological features. Tumors that are positive for MSI tend to be focal, poorly differentiated [23], right-side located, and are associated with production of extracellular mucin [24,25]. CIN and MSI are not mutually exclusive and MSI tumors can show evidence of CIN [26]. MSI is also associated with hereditary non-polyposis colon cancer (HNPCC), the common form of hereditary CRC. The majority of HNPCC-associated mutations affect two crucial genes for MMR, which are MSH2 and MLH1 [27]. Lastly, CIMP positive tumors are defined by transcriptional inactivation by DNA methylation at promoter CpG islands of tumor suppressor genes. CpG islands are regions of the DNA sequence, typically associated with transcriptional promoters, containing a high density of the dinucleotide sequence cytosine followed by guanine in the 5′ to 3′ direction. These tumors have a strong positive correlation to BRAF mutation [18,28]. However, regardless of MSI or BRAF status, CIMP tumors are associated with a significantly lower mortality rate. The relation between CIMP positivity and lower mortality is consistent across all stages of CRC [29]. Specific clones of CpG islands are methylated exclusively in CRC, which has not been observed in normal colon tissue [30]. Undoubtedly, CRC is a well-researched disease from a genomic point of view. Coupled with information about key driver genes, the information creates an ideal background for further research and subsequently utilization of the liquid biopsy in clinical settings.
There are six key driver genes in CRC [31], being APC, TP53, KRAS, BRAF, PIK3CA, and SMAD4, with the TP53 alteration being selectively enriched in the metastatic setting [32]. There are also several signaling cascades which can be affected. The most common is the WNT pathway occurring with most mutated APC genes [33,34]. Overall, WNT pathway alteration occurs in 93% of MSI positive and 85% of MSI negative CRC [32]. The combination of mutations in the WNT pathway and in the signaling pathway associated with KRAS mutation are crucial for tumor progression in CRC [35,36]. A KRAS mutation (and BRAF mutation) drives tumorigenesis through constitutive activation of the MAPK pathway [37] and can induce hyperproliferation in colonic epithelium, but only in combination with a mutation from the WNT pathway [38]. KRAS mutations are also associated with the PI3K pathway [39], which plays a fundamental role in the tumor–host interaction, enhancing tumor-induced angiogenesis and facilitating the establishment of metastatic colonies [40]. BRAF mutations are present in 5–13% [41,42,43] of sporadic CRC (geographical variation may account for differences in the occurrence [43]) and are significantly associated with a higher metastatic rate and worse overall survival (OS) [44]. Subsequently, BRAF mutation can be used as a prognostic factor and in clinical decision-making regarding targeted therapy [41,42]. Additionally, since BRAF is a downstream molecule of KRAS [43], concomitant KRAS and BRAF mutations are rare and could be considered mutually exclusive [45]. Correspondingly, combined mutation of PIK3CA and TP53 is correlated with a shorter OS of stage II/III CRC patients receiving 5-fluorouracil-based therapy [46].
Colorectal carcinoma (CRC) is a malignant disease with severe impact on the general population. Genomic information of CRC implies the challenge of intratumor heterogeneity and related poor outcomes during treatment. Extensive information presented in this review will demonstrate the promising opportunity for the liquid biopsy to improve prognosis and patients’ quality of life.

2. Liquid Biopsy for CRC

The liquid biopsy is generally referred to as the analysis of tumor-derived material from peripheral blood. However, in the general sense, this can also include sampling from other bodily fluids such as urine [47], stool [48], cerebrospinal fluid [49], saliva [50], pleural fluid [51], and ascites [52]. In this review, circulating tumor cells (CTCs) and cell-free DNA (cfDNA) derived from peripheral blood will be the focus of this discussion.

2.1. Circulating Tumor Cells

Circulating tumor cells (CTCs) may be detectable in the cellular fraction of patient peripheral blood. CTCs are defined as tumor cells in circulation coming from the primary tumor or from a metastatic site [53]. On average, CTCs measure between 15 and 25 µm, which is generally larger [54,55] than white blood cells (6–10 µm) [56], and have a distinct morphological shape of the nucleus [57]. Although CTCs were discovered 150 years ago [58], it was not until the development of novel detection methods that they became the focus of new prognostic and diagnostic approaches. Individual CTCs can be characterized by their morphology [59], phenotype, and genotype [60]. Genomic information from CTCs may be used to better understand cancer cell biology, provide confidence around diagnostic [61] or treatment decisions [62], and to track treatment response [63]. Genomic information also allows for the assessment of clonality and the characterization of different cell populations [64,65]. CTCs can be detected in the peripheral blood as single cells or as cell clusters [66]. Steeg hypothesized that tumor cells invade the tissue surrounding the primary tumor, enter the lymphatics or the bloodstream, circulate in the body, then extravasate into a tissue, and form a secondary tumor at the new location [67]. During this metastatic process, CTCs can interact with immune cells [68]. For example, CTCs that express programmed death-ligand 1 (PD-L1) [69] may interact with circulating immune cells and have been associated with an increased two-year mortality risk [70].

2.2. Cell-Free DNA

The discovery of free DNA in blood dates back to 1948 by Mandel and Metais [71]. Typically, cfDNA in healthy individuals derives from the normal turnover of cells through apoptosis [72] or necrosis [72], or active release from lymphocytes [73,74,75] and can be increased by such events as infection or inflammation [76]. In cancer patients, the level of cfDNA can be increased through the turnover of tumor cells. This component can be distinguished from normal cfDNA by the presence of tumor-associated mutations and is often categorized separately as circulating tumor DNA or ctDNA. Although cfDNA can be found as fragments from 150 to 10,000 bp, the vast majority is found at a peak of 166 bp, corresponding to the size a single nucleosome, as is typically released during apoptosis [77,78]. Peripheral blood of a healthy individual contains only limited amount of cfDNA (up to 100 ng/mL) [79]. In contrast, the patients with metastatic CRC have been shown to have significantly higher levels of cfDNA in blood (up to 209 ng/mL) [79]. Recently, the same relationship was shown again in which patients with primary CRC had significantly higher levels of cfDNA than patients with intestinal polyps and healthy controls [80]. Analysis of cfDNA in CRC can be used for testing KRAS and BRAF mutations. In the case of KRAS mutation, cfDNA analysis may identify patients with a worse prognosis who may benefit from a more aggressive chemotherapy regimen [81]. Additionally, analysis of the BRAF mutation can be used as a negative prognostic biomarker for OS [82]. Likewise, the detection of BRAF mutation in cfDNA may have a role in treatment selection for patients [83].

3. Liquid Biopsy Platforms

3.1. Detection of Circulating Tumor Cells

The platforms used for detection and collection of CTCs vary widely in their technology and methodology. They can be separated into four different categories based on their technique of enrichment: immunocapture, physical characteristics (i.e., size and density), non-enrichment based, or a combination. To embrace all of the possibilities of how CTCs can be utilized in clinical routine, it is necessary to understand the advantages and potential biases of those different technologies. Immunocapturing is one of the most common used techniques of detection and is based on targeting specific antigen(s) on the surface of cells. A positive enrichment immunocapturing approach, often based on the epithelial cell adhesion molecule (EpCAM) antigen, targets the cells of interest. On the other hand, negative enrichment, typically based on the CD45 antigen, targets the removal of other cell populations, typically lymphocytes, and thereby enriches the cells of interest. In either case, only cells displaying these antigens are detected and consequently either collected or discarded. Techniques based on physical properties of the cells are utilizing the size and or density difference between CTCs and other non-rare cells. As with immunocapturing, only cells with certain physical properties are collected. For this reason, both techniques carry inseparable bias. Non-enrichment techniques do not exclude cells from a sample. This approach presents the possibility of avoiding potential bias during the identification process linked to the physical or biological properties of cells. Consequently, non-enrichment techniques can be more labor-intensive than the other methods. Further discussion about possible limitations of the liquid biopsy can be found in Section 5, Challenges.
A list of some current platforms is provided in Table 1. However, the field of liquid biopsy is rapidly developing and therefore it is not our intention to provide an exhaustive list of all platforms. In addition, brief details of three different approaches to detect CTCs can be found below. The specific platforms which are discussed were selected as an example of each enrichment technique to illustrate their practical use.

3.1.1. CellSearch®

The CellSearch® platform (https://www.cellsearchctc.com/) is based on immunomagnetic enrichment of cells expressing EpCAM from peripheral blood samples. The circulating epithelial cells are selected for using immunomagnetic beads targeting EpCAM. The enriched sample is then stained with 4′,6-diamidino-2-phenylindole (DAPI) and immunofluorescently labeled with a monoclonal antibody for CD45 to identify leukocytes, and with antibodies against cytokeratins (CK) 8, 18, 19 to identify epithelial cells. CTCs are then defined as CD45 negative and CK positive [84,85,86]. CellSearch® was the first approved CTC detection and capture platform by the U.S. Food and Drug Administration (FDA) for prognostics in cancer treatment and has been allowed for clinical use in breast [87], colorectal [85,88], and prostate cancer [86,89]. A prospective study using CellSearch® analyzed the dynamic change of CTCs between pre- and post-surgery 7.5 mL blood samples collected in a cohort of 44 metastatic CRC patients (43 pre-surgery and 38 post-surgery samples). Results showed that all patients with pre-surgery positive samples (two or more CTCs per sample) relapsed. In contrast, 65% of patients with pre-surgery negative samples relapsed. Similarly, 68% and 85% of patients with post-surgery negative and positive samples, respectively relapsed. The study also showed significant difference in median OS between patients with positive and negative pre-surgery samples with 17 and 69 months, respectively [90].

3.1.2. Epic Sciences/High-Definition Single-Cell Assay

The high-definition single-cell assay (HD-SCA) workflow is a non-enrichment method developed for high-resolution characterization of CTCs, which provides intact cells enabling downstream single cell molecular characterization [57,91,92,93]. Biospecimens are processed within 24 to 48 h after collection, which involves erythrocyte lysis and centrifugation. The HD-SCA workflow is a “no cell left behind”™ approach in which all nucleated cells from the blood sample are plated on custom glass slides, approximately 3 million nucleated cells per slide. Slides are subsequently stained with DAPI to identify the nuclei and antibodies against pan CK and CD45. There is the possibility of adding a 4th channel for further characterization of the cellular populations. This approach allows for the functional profiling of all nucleated cells from a patient’s blood without enrichment bias [92,94] based on their morphological features, biomarker expression, and nuclear integrity [95]. A study using this platform, with a primary goal of establishing concordance among morphology of liquid and solid biopsy cells, gave substantial evidence by analyzing more than 1000 single cells. Out of 43 metastatic CRC patients, 15 patients had more than 4 HD-CTC per mL (CK positive, CD45 negative, morphologically distinct cells with a nuclear size larger than surrounding white blood cells) (35% positivity) in their pre-surgery blood. Additionally, higher concentration of HD-CTC was observed by patients with necrotic hepatic tumors. The level of HD-CTCs also decreases in post-surgery blood of patients. The results demonstrated that liquid biopsy cells are associated with solid tumor cells in metastatic CRC and the relationship can be potentially used for diagnostics or monitoring disease burden over time [92].

3.1.3. The Isolation by Size of Epithelial Tumor Cells®

The isolation by size of epithelial tumor cells (ISET®, https://www.isetbyrarecells.com/iset-story/) platform is based on size enrichment, which operates on the presumption that tumor cells derived from carcinomas have a significantly larger size compared to peripheral blood leukocytes [96]. Blood samples are filtered through a module with up to 12 wells, where each well contains a 0.6 cm diameter membrane [96] with 8 μm diameter cylindrical pores [97]. Each well can then be further analyzed with immunohistochemical characterization of cells isolated by ISET® [59], fluorescence in situ hybridization, or genomic sequencing [98]. A study was conducted to establish correlation between ISET® CTC count and both progression-free survival (PFS) and OS in patients with metastatic CRC. Three serial collections were analyzed via ISET® and the CTC number varied from 0 to 46 cells per sample. Based on the variation in number of CTCs found between the collections, it suggests possible risk stratification [99].

3.2. cfDNA Analysis

Measurement of cfDNA, and subsequently ctDNA (circulating tumor DNA) detection, can be challenging due to low concentration, especially in early stages of cancer [128]. Generally, ctDNA can be analyzed with a focus on tumor-specific mutations [129], genome wide analysis for copy number alterations (CNAs) [130,131], point mutations by whole-genome sequencing (WGS), or whole exome sequencing (WES) [132]. In addition, CNAs are theoretically easier to detect than point mutations or epigenetic changes in cfDNA [133], because CNA analysis requires only sparse sequence coverage [131]. cfDNA-based CNAs show clinical validity as promising biomarkers for cancer diagnosis and prognosis, especially for late-stage cancers [134].
An important aspect in cfDNA targeted mutational analysis is mutant allele fraction (MAF). MAF is defined as a ratio between mutant alleles and all targeted alleles in a sample. Thus, sensitivity of MAF is a significant characteristic for platforms detecting ctDNA. In a case of cfDNA analysis, targeted methods are more suitable and applicable in the clinical setting. Classical quantitative PCR (qPCR) methods have sensitivity of between 10–20%. Advanced targeted methods for detecting MAF in cfDNA are digital PCR (dPCR), which include droplet digital PCR (ddPCR) [135,136] and BEAMing (beads, emulsions, amplification, and magnetics) [137]. Studies that used BEAMing were able to detect MAF of 0.1% [138,139]. Detection sensitivity of ddPCR assays is 0.04% [140]. Furthermore, ddPCR is not solely used for point mutation detection, but is able to reveal indels and frequently observed cancer-related CNA [141]. Through PCR enrichment, with suitably short amplicons, amplicon-based sequencing can achieve sensitivity comparable to ddPCR [142]. Tagged-amplicon deep sequencing (TAm-Seq) technology and its enhanced version could detect MAF of 0.14% and 0.02%, respectively [142,143]. Another targeted sequencing method able to detect cfDNA in small amounts is duplex sequencing with unique molecular identifiers, which can distinguish MAF of 0.1%. The duplex method exploits the knowledge of complementarity of both DNA strands. Adapters tag duplex DNA, and afterwards, it is possible to compare the strand with its counterpart. Mutation originating from the tumor must be present in both strands [144]. Another targeted sequencing method is cancer personalized profiling by deep sequencing (CAPP-Seq) [145] or safe-sequencing system (Safe-SeqS) [146]. CAPP-Seq combines identifying recurrent mutated regions in given cancer type via bioinformatic methods and sequencing with the objective to improve sensitivity and approximate patient-orientated approach [147]. CAPP and its enhanced methods are able to detect MAF of 0.2% and 0.04%, respectively [148]. Safe-SeqS is similar to duplex sequencing by assigning an unique molecular identifier. In contrast to duplex sequencing, these identifiers tag each template molecule. Safe-SeqS is able to detect MAF of 0.01% [149].
On the other hand, non-targeted methods for cfDNA analysis may harbor some advantages. They do not depend upon specific knowledge about the primary tumor, neither genetic nor epigenetic. However, genome-wide sequencing methods, like whole-genome sequencing or whole-exome sequencing, require a relatively high fraction of ctDNA/cfDNA for detection (5–10% MAF) [150]. For this reason, these methods are better suited for research than clinical routine.
There are some commercial cfDNA assays which can be used for clinical applications in CRC. In 2016, the FDA granted premarket approval for the first cfDNA-based liquid biopsy for cancer screening, Epigenomics’ Epi proColon® assay, using qPCR. This assay is based on the presence of aberrantly methylated SEPT9 DNA in the plasma and has shown promising results [151]. Out of 50 untreated CRC patients prior to surgery, the assay was able to detect positive 45 patients (90% sensitivity) for presence of methylated SEPT9 DNA. More interestingly, the assay was able to detect 33 out of 38 (87% sensitivity) patients with early stage disease (stages I and II) [152]. Since then, another cfDNA assay, Signatera™, received breakthrough device designation by the FDA.
Another commercial platform focused on CRC is the Idylla™, also using qPCR assays for KRAS, [153], NRAS, and BRAF mutations [153] or characterization of MSI [154]. The platform OncoBeam™, using BEAMing (beads, emulsification, amplification, and magnetics), offers panels for the detection of various CRC specific mutations, including KRAS, NRAS, BRAF, and PIK3CA [155]. Another interesting approach was taken by Wan et al. from Freenome, which relied on a machine learning approach using cfDNA from 546 CRC patients, the majority of which were in stage I and II (81%), to develop a computational approach to identify relation between the cfDNA profile and CRC stage. Blood samples were collected at unspecified timepoints. A mean sensitivity of 85% was achieved, showing promising preliminary performance for detection of CRC in early stages. [156].

4. Clinical Applications

Liquid biopsies can be utilized in patient-orientated treatment and precision oncology, which can be especially important when spatial and temporal intratumor heterogeneity is connected to the rise of distinct resistance mechanisms in different metastases. That may subsequently lead to lesion-specific responses of targeted therapy [157]. Furthermore, minimal residual disease (MRD) represents potential risk for every patient in curative treatment since the presence of cancer cannot be found by standard clinical means. The assessment of MRD is vital for adequate early treatment planning [158]. Liquid biopsies have the potential to predict disease recurrence even when clinically undetectable. In clinical practice, there are already a few methods which utilize similar approaches to the liquid biopsy. Protein-based circulating biomarkers, such as carcinoembryonic antigen (CEA), are currently clinically measured and used to assist in diagnostic [159] and prognostic decisions [160]. High postoperative CEA levels increase the chance of relapse and decrease OS [161]. Correspondingly, the ratio of CEA pre and post-surgery levels has been found to be a reliable prognostic factor in stage IV CRC [162]. As mentioned briefly above, stool samples from CRC patients can be used for further analysis. KRAS mutations have been detected in DNA purified from the stool samples [48]. The platform Cologuard® (https://www.cologuardtest.com/meet-cologuard) received premarket approval by FDA in 2014 and was developed for screening early CRC, targeting mainly β-actin, KRAS mutations, and aberrantly methylated BMP3 and NDRG4 [163].
This shows that the liquid biopsy is already in use and current research is aiming to increase their clinical utility. Here, we will discuss the potential clinical applications and challenges for either CTCs or cfDNA in the context of CRC.

4.1. Diagnostics

An accurate diagnosis is crucial for making clinical decisions regarding the best course of treatment. The liquid biopsy can serve as a first step in the screening program for CRC, triggering follow-up examinations aimed at the early detection of invasive cancers [164,165]. The importance of the liquid biopsy may provide critical clinical insight into molecular subtypes of the tumor, especially when the discordance in KRAS mutations between primary and recurrent tumors after resection can be as high as 20% [166]. The intratumor heterogeneity and its relevance in CRC was further discussed in additional studies. Fabbri et al. first demonstrated the feasibility of analyzing pure CTCs at the molecular level and avoiding lymphocyte contamination using the DEPArray, a dielectrophoresis-based platform, as well as a KRAS discordance between CTCs and primary tissue cancer after 100% pure cell recovery and sequencing. In a cohort of 40 metastatic CRC patients, there were 21 patients with more than three CTCs in a sample of 7.5 mL of blood. Additional KRAS analysis of 16 patients showed only 50% concordance between primary tumor tissue and CTCs [167]. Another study of Russo et al. in CRC cell culture discussed the possibility of induced heterogeneity by targeted therapy. Results showed that cells, which survive targeted therapy based on EGFR and/or BRAF inhibition, tend to show more DNA damage, down-regulate DNA proteins for mismatch repair, homologous recombination protein, and temporarily increase the chance of mutation [168]. Additionally, in another study, molecular events connected to resistance to certain targeted treatment were described, especially regarding KRAS and BRAF [169].
Analysis of cfDNA offers the potential to provide molecular information and confidence around early diagnosis. In a recent study, there was an investigation of a novel potential use of ctDNA methylation markers. Plasma samples were collected from 801 CRC patients of various stages. Consequently, they analyzed 544 methylation markers, created diagnostic scoring and compared it to the pathological diagnosis. Sensitivity and specificity of the diagnostic scoring was 87.5% and 89.9%, respectively [170]. Despite this promising correlation between pathological diagnosis and cfDNA, cfDNA in CRC must prove clinical utility before it can be used for early screening or detection [171,172].
The clinical significance of CTCs has not been as extensively explored as cfDNA. There are few studies which analyze agreement of CTC enumeration and morphology with TNM staging (staging based on tumor size (T), spread of cancer to nearby lymph nodes (N) and metastasis (M)). Eliasova et al. using the MetaCell® platform (http://metacell.cz/about/) utilizing a size-based separation method [173], showed high concordance of the TNM stage with the number of CTCs in each patient sample [174]. In this cohort of 98 CRC patients, 88.89% of patients with colon cancer had CTCs in their blood samples while 77.36% patients with rectosigmoid cancer had detectable CTCs. This study also showed a positive correlation between the number of CTCs in patients’ blood and the size of the primary tumor [174]. In another study using the CanPatrol™ platform (SurExam, Guangzhou, China), the presence of CTCs in the peripheral blood was correlated with disease stage. Blood samples of 1203 patients were collected at baseline, i.e., prior to surgery in the case of curative operation, before treatment in the case of palliative resection, or during chemotherapy treatment intervals in the case of advanced stages. CTCs were divided into three groups based on epithelial (EpCAM, CK 8, 18, and 19) and mesenchymal markers (VIM, TWIST1, AKT2, SNAI1). Both detection rate and the mean number of mesenchymal cells or cells with combined epithelial and mesenchymal markers showed concordance with stages of CRC. As an example, 481 patients had one or more CTCs of the epithelial phenotype (per 5 mL blood), 684 patients had one or more CTCs of the mesenchymal phenotype, and finally, 924 patients had one or more CTCs displaying both epithelial and mesenchymal phenotypes. Interestingly, most segregated distribution and positive correlation regarding metastatic status was demonstrated by CTCs of the mesenchymal phenotype [103]. Another interesting approach was taken to analyze morphological concordance of liquid to solid biopsy. A study using the HD-SCA workflow displayed the relationship between the liquid and solid biopsy by cellular morphology in metastatic CRC patients. In a cohort of 43 metastatic CRC patients, a total of 1058 CRC cells from either pre-surgery blood sample or solid biopsy of hepatic metastasectomy were examined. The results displayed an overall similar intra-patient morphology assessed using hierarchical clustering of certain features (i.e., object size, shape, or biomarker distribution) normalized within each patient [92].

4.2. Treatment Selection

The liquid biopsy can have an important practical impact for the treatment of patients. Precise and ongoing molecular characterization of CRC is crucial for correct use of molecular targeted therapies. KRAS and NRAS mutations in general vary widely between sporadic CRC lesions, and the status for those mutations in metastases is unpredictable [175]. A liquid biopsy can be used to detect KRAS mutations in cfDNA in the absence of detection from a primary tumor biopsy. This can be important in treatment selection since KRAS mutated cancer cells are resistant to treatment with anti-EGFR monoclonal antibodies treatment [176]. A study using the OncoBeam™ (https://www.oncobeam.com/healthcare-providers/colorectal-cancer) RAS CRC assay showed that the overall agreement between solid and liquid biopsy was 96.4%. Out of 55 patients positive for the RAS mutation in the tumor tissue, 53 patients had the RAS mutation in cfDNA as well [177]. With the same assay, an additional study, with a cohort of 236 metastatic CRC patients, shows an 89% correlation of the RAS mutation between the solid biopsy and cfDNA [155]. Another study assessing the clinical utility of cfDNA, with a cohort of 140 metastatic CRC patients, showed slightly different results. Only moderate concordance (72–87% accuracy) between plasma samples and tumor tissue was observed, potentially due to the higher frequency of the KRAS mutation in the plasma samples [178].
A prospective phase II study found that approximately 50% of the metastatic CRC patients on trial that were identified without KRAS mutations after the tumor biopsy were shown to actually contain RAS aberrations and did not benefit from anti-EGFR monoclonal antibody treatment [179]. Additionally, Klein-Scory et al. observed the emergence of RAS mutated subclones during therapy with the anti-EGFR monoclonal antibodies in three mCRC patients who were initially determined to be RAS wild-type [180]. In a separate study, overall concordance was 78.8% between the KRAS genotype in the primary tumor and cfDNA sample in a cohort of 52 patients with histologically confirmed CRC and undergoing surgical treatment resection [181]. In a similar study by Bettegowda et al. [182], the sensitivity of ctDNA for testing KRAS was 87.2% in a cohort of 206 patients with metastatic CRC, where in addition to 69 patients with circulating KRAS mutation, 10 cases had detectable mutation in the primary tumor but not in the plasma. This information helped to understand the otherwise inexplicable outcome when patients without RAS mutations detected in the tissue biopsy do not respond to targeted therapy [182].
Temporal and spatial intratumor heterogeneity of CRC represents a great challenge for current treatment decision-making and it can only currently be conveyed through an invasive solid biopsy. The liquid biopsy offers a feasible, non-invasive, and patient-orientated approach to addressing intratumor heterogeneity and may provide valuable information that could increase efficacy of targeted therapies and quality of life of patients.

4.3. Prognostics

Another potential clinical use of the liquid biopsy is for prognostication. Its utility has been shown in various studies and meta-analyses [183,184,185,186]. Molecular profiling of the liquid biopsy may produce critical information to provide confidence around assessing patient prognosis. The level of cfDNA is significantly higher in patients with a poor treatment response and a significantly shorter PFS and OS compared to patients with low levels of cfDNA [187]. Patients with KRAS mutations detected in the plasma correlate with shorter PFS and OS. Combining the information around total cfDNA load and KRAS mutation status from the liquid biopsy provides additional prognostic effect [187]. The prognostic potential of cfDNA, specifically ctDNA, was further demonstrated in another study with cohort of 130 CRC patients in various stages. Out of 456 postoperative samples of patients without relapse, 455 samples were ctDNA negative. In comparison, 14 out of 16 patients with disease relapse had detectable ctDNA. Furthermore, 30% of patients who responded to chemotherapy, had no detectable cDNA and remained cDNA negative, stayed disease free [188].
As mentioned above, the first FDA approved CTC assay for colon cancer was CellSearch® (https://www.cellsearchctc.com/). This assay is able to stratify metastatic CRC patients into favorable (less than three CTCs/sample) and unfavorable (three or more CTCs/sample) prognostic groups based on CTC levels [189,190]. A recent study from 2019 showed that CellSearch® detected at least one CTC per 7.5 mL in 25 patients from a cohort of 80 CRC patients in various stages (31.3% positivity). In all patients, blood was collected before surgery together with routine clinical samples. Subsequent survival analysis showed that the presence of three or more CTCs was significantly associated with poor OS. Analogously, in the subgroup of 29 patients with nonmetastatic disease, detection of one or more CTCs correlated significantly with a worse OS in the univariate analysis [191]. In contrast, it has been shown that in a cohort of 344 patients with non-malignant diseases or healthy subjects, there was only one sample with more than one CTC [84]. Despite the proven prognostic value, it is rarely used in routine clinical care [92]. Furthermore, a meta-analysis based on 15 studies (including detection methods such as CellSearch®, RT-PCR, flow cytometry, membrane array, and quantitative immunofluorescence) confirmed prognostic value in the presence of CTCs, correlating with worse PFS and OS [186]. However, additional studies into the clinical utility of CTCs in CRC prognostication are still warranted.

5. Challenges

Utilizing ctDNA and CTCs can offer new methods of diagnosis, prognosis, following treatment response, and most importantly, the liquid biopsy platforms aim to provide necessary information to improve patients’ outcome. Nevertheless, challenges like pre-analytical variables, rarity of CTCs and ctDNA in samples, analytical validity, clinical validation, cost effectiveness, and regulatory approval need to be addressed prior to clinical utilization. With respect to pre-analytical variables, using liquid biopsy in day-to-day routine requires verified sample collection protocol—how to collect, store, transfer and process samples [192]. cfDNA can be sensitive to improper handling, thus compromising the quality of extractable DNA and integrity of the downstream mutational analyses [181]. CTC detection is significantly impacted by pre-analytical variables, such as type of blood collection tube, time-to-assay [93], and the optimal sampling time of peripheral blood [186]. Recently, efforts have been made to standardize pre-analytical workflows for liquid biopsy in context of the European Union’s Horizon 2020 SPIDIA4P consortium project, which suggests existing demand for a validated workflow [193]. Regarding rarity, liquid biopsy is problematic from the technological point of view. For example, the small size and distribution of ctDNA fragments makes it difficult to detect certain important chromosomal aberrations such as gene fusions [194]. In the case of CTCs, very low numbers of these cells in the peripheral blood makes detection similarly challenging [92,195]. The relative rarity of these elements needs to be to be taken into account during development of detection platforms and assays and consequently during their clinical validation. Pre-analytic limitation could be also represented by volume of the sample. In the study of Dizdar et al., the CellCollector® device was evaluated in comparison to CellSearch®. This device aimed to bypass the limitation of the low sample volume by inserting a wire covered with EpCAM antibodies through a placed 20-G venous catheter into the cubital vein of the patients to capture CTCs directly from the peripheral blood. In contrast, CellSearch® requires collection of 7.5 mL blood for analysis. Nevertheless, the rate of CTC detection was similar by both platforms with at least one CTC detected by CellCollector® (https://gilupi.com/our-products/?lang=en) in 33 patients from a cohort of 80 CRC patients (41.3% positivity) [191].
Many methods which are based on the positive capture of CTCs, especially those relying on EpCAM, are intrinsically biased and potentially underestimate the true number of CTCs. These methods can also miss potentially important relationships between and within cells that do not express EpCAM [196]. Additionally, the efficiency of positive enrichment methods that rely on certain biological properties, such as surface marker expression or size, can be reduced by dynamic cellular changes, such as epithelial-to-mesenchymal transition [197].
A main concern for analytic validity of the liquid biopsy is accuracy and reproducibility. One recent study raised the question of the reliability of commercially available single-nucleotide variant (SNV) panels for ctDNA analysis. Two panels, PlasmaSELECT™ and Guardant360™, were examined to determine the reliability and potential utility of ctDNA in the clinical world. The study showed very low congruence for the same patient-paired samples in these two commercially available tests [198]. Similarly, the results of another study demonstrated different levels of detection of the KRAS mutation in the same plasma samples between two platforms, OncoBEAM™ RAS CRC and Idylla™ ctKRAS Mutation Test. This shows that not all platforms of the liquid biopsy are equivalent, and highlights the need for standardization [199]. Consequently, the liquid biopsy holds great promise, but still faces issues with standardization and validation [193].
Rapidly developing new technical solutions and standardization efforts are ongoing with the goal of implementing a meaningful liquid biopsy analysis into routine use for CRC patient care. Prior to market adoption and clinical implementation, a platform needs to provide proof of clinical utility by showing that its application can improve patient outcomes. For that, analysis needs to be validated, analytically and clinically. Analytic validation lies mainly in reproducibility and consistency of the analysis. For clinical validation, a platform must be optimized for a specific context of use (i.e., cancer type, stage, treatment), with data driven clinical utility for a proposed analyte. Besides cost of the liquid biopsy, clinical utility is the most significant deciding factor which affects reimbursement, and consequently, actual application [200]. Moreover, specific analytes such as CTCs and cfDNA will most likely require separate validation for clinical utility in different disease settings. The challenge is identifying a meaningful context of use for the specific analyte to be applied to predict patient outcomes. To do this requires full analytical validation that the assay is fit for the purpose indicated. This is followed by clinical validation to generate the evidence needed to prove the assay output is associated with clinical outcomes [95,201,202].
Furthermore, cost effectiveness is a major consideration. Since one of the theoretical advantages of the liquid biopsy is the ability to follow temporal intratumor heterogeneity and evolution, it raises the question of the number of necessary follow-up analyses and the related costs [203]. Currently, most technologies are labor-intensive, from library construction to bioinformatics evaluation [204,205]. In an ideal scenario, CTCs and ctDNA would be analyzed in one comprehensible cost-effective way to ensure accurate, reproducible, and truly meaningful results to impact the clinical world. There is also a need for a comprehensive liquid biopsy strategy that would run regularly in larger patient cohorts. Utilization of the complete liquid biopsy would allow us to exploit CTC and cfDNA information at the same time. Functional profiling of CTCs provides an overview of morphological features, biomarker expression, nuclear integrity, and genomic heterogeneity. On the other hand, cfDNA offers valuable data on the bulk genomic profile and point at the most common genomic profile. The combination of both compartments would provide unique impactful results and further develop a patient-oriented approach and precision medicine.

6. Conclusions

Incidence, mortality, age of diagnosis, nonspecific symptoms, and intratumor heterogeneity in CRC demonstrates that there is still room for improvement in clinical management and patient outcomes. The liquid biopsy could be the tool that will add a new perspective for clinal routine and confidence around clinical decision-making. The standard tissue biopsy is critical for the pathological evaluation of the tumor at the time of solid biopsy collection and displays current pathological status of the specific lesion. The liquid biopsy is ideal for longitudinal monitoring of advanced disease by molecular characterization, with the additional opportunity of understand the spatial and temporal heterogeneity of CRC [206]. The liquid biopsy could improve diagnostics, prognostics, and treatment response by providing valuable information about the patient-specific disease to assist in clinical decision-making.

Author Contributions

Conceptualization, D.K., S.N.S., P.P., J.M., J.H., P.K.; methodology, D.K., S.N.S., P.P., J.M., J.H., P.K.; investigation, D.K., S.N.S., P.P., J.M., J.H., P.K.; resources, P.K.; data curation, D.K., S.N.S., P.P., J.M., J.H., P.K.; writing—original draft preparation, D.K., S.N.S., J.M.; writing—review and editing, D.K., S.N.S., P.P., J.M., J.H., P.K.; supervision, P.K.; project administration, P.K.; funding acquisition, P.K. All authors have read and agreed to the published version of the manuscript.

Funding

This review was made possible in part through support provided by a Fulbright Grant to D.K.

Acknowledgments

Authors would like to thank Heinz-Josef Lenz and Jorge Nieva for providing feedback and guidance.

Conflicts of Interest

James Hicks, Clinical Advisory Board, Epic Sciences, Inc. P. Kuhn received stock and dividends, Epic Sciences, Inc. Epic Sciences is evaluating the feasibility of translating the circulating tumor cell (CTC) assay into a commercial format.

References

  1. Bray, F.; Ferlay, J.; Soerjomataram, I.; Siegel, R.L.; Torre, L.A.; Jemal, A. Global cancer statistics 2018: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA A Cancer J. Clin. 2018, 68, 394–424. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Arnold, M.; Sierra, M.S.; Laversanne, M.; Soerjomataram, I.; Jemal, A.; Bray, F. Global patterns and trends in colorectal cancer incidence and mortality. Gut 2016, 66, 683–691. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Siegel, R.L.; Miller, K.D.; Jemal, A. Cancer statistics, 2019. CA A Cancer J. Clin. 2019, 69, 7–34. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Araghi, M.; Soerjomataram, I.; Jenkins, M.A.; Brierley, J.; Morris, E.; Bray, F.; Arnold, M. Global trends in colorectal cancer mortality: Projections to the year 2035. Int. J. Cancer 2019, 144, 2992–3000. [Google Scholar] [CrossRef] [Green Version]
  5. Sharp, L.; O’Leary, E.; O’Ceilleachair, A.; Skally, M.; Hanly, P. Financial Impact of Colorectal Cancer and Its Consequences. Dis. Colon Rectum 2018, 61, 27–35. [Google Scholar] [CrossRef]
  6. John, S.K.P.; George, S.; Primrose, J.N.; Fozard, J.B.J. Symptoms and signs in patients with colorectal cancer. Color. Dis. 2010, 13, 17–25. [Google Scholar] [CrossRef]
  7. Uraoka, T.; Hosoe, N.; Yahagi, N. Colonoscopy: Is it as effective as an advanced diagnostic tool for colorectal cancer screening? Expert Rev. Gastroenterol. Hepatol. 2014, 9, 129–132. [Google Scholar] [CrossRef] [Green Version]
  8. Baek, S.K. Laterality: Right-Sided and Left-Sided Colon Cancer. Ann. Coloproctol. 2017, 33, 205–206. [Google Scholar] [CrossRef] [Green Version]
  9. Helvaci, K.; Eraslan, E.; Yildiz, F.; Tufan, G.; Demirci, U.; Berna Oksuzoglu, O.; Yalcintas Arslan, U. Comparison of clinicopathological and survival features of right and left colon cancers. J. BUON Off. J. Balk. Union Oncol. 2019, 24, 1845–1851. [Google Scholar]
  10. Mik, M.; Dziki, Ł.; Trzciński, R. Risk factors of 30-day mortality following surgery for colorectal cancer. Pol. J. Surg. 2016, 88, 26–31. [Google Scholar] [CrossRef] [Green Version]
  11. Doubeni, C.A.; Corley, D.A.; Quinn, V.P.; Jensen, C.D.; Zauber, A.G.; Goodman, M.; Johnson, J.R.; Mehta, S.J.; Becerra, T.A.; Zhao, W.K.; et al. Effectiveness of screening colonoscopy in reducing the risk of death from right and left colon cancer: A large community-based study. Gut 2016, 67, 291–298. [Google Scholar] [CrossRef] [PubMed]
  12. Nawa, T.; Kato, J.; Kawamoto, H.; Okada, H.; Yamamoto, H.; Kohno, H.; Endo, H.; Shiratori, Y. Differences between right- and left-sided colon cancer in patient characteristics, cancer morphology and histology. J. Gastroenterol. Hepatol. 2008, 23, 418–423. [Google Scholar] [CrossRef] [PubMed]
  13. Richman, S.D.; Chambers, P.; Seymour, M.T.; Daly, C.; Grant, S.; Hemmings, G.; Quirke, P. Intra-tumoral Heterogeneity of KRAS and BRAF Mutation Status in Patients with Advanced Colorectal Cancer (aCRC) and Cost-Effectiveness of Multiple Sample Testing. Anal. Cell. Pathol. 2011, 34, 61–66. [Google Scholar] [CrossRef]
  14. Smith, G.; Carey, F.A.; Beattie, J.; Wilkie, M.J.V.; Lightfoot, T.J.; Coxhead, J.; Garner, R.C.; Steele, R.J.; Wolf, C.R. Mutations in APC, Kirsten-ras, and p53—Alternative genetic pathways to colorectal cancer. Proc. Natl. Acad. Sci. USA 2002, 99, 9433–9438. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Ionov, Y.; Peinado, M.A.; Malkhosyan, S.; Shibata, D.; Perucho, M. Ubiquitous somatic mutations in simple repeated sequences reveal a new mechanism for colonic carcinogenesis. Nature 1993, 363, 558–561. [Google Scholar] [CrossRef] [PubMed]
  16. Samowitz, W.S. Poor Survival Associated with the BRAF V600E Mutation in Microsatellite-Stable Colon Cancers. Cancer Res. 2005, 65, 6063–6069. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Shen, L.; Catalano, P.J.; Benson, A.B.; O’Dwyer, P.; Hamilton, S.R.; Issa, J.-P. Association between DNA methylation and shortened survival in patients with advanced colorectal cancer treated with 5-fluorouracil based chemotherapy. Clin. Cancer Res. 2007, 13, 6093–6098. [Google Scholar] [CrossRef] [Green Version]
  18. Weisenberger, D.J.; Siegmund, K.D.; Campan, M.; Young, J.; Long, T.I.; Faasse, M.; Kang, G.; Widschwendter, M.; Weener, D.; Buchanan, D.; et al. CpG island methylator phenotype underlies sporadic microsatellite instability and is tightly associated with BRAF mutation in colorectal cancer. Nat. Genet. 2006, 38, 787–793. [Google Scholar] [CrossRef]
  19. Hadjihannas, M.V.; Brückner, M.; Jerchow, B.; Birchmeier, W.; Dietmaier, W.; Behrens, J. Aberrant Wnt/beta-catenin signaling can induce chromosomal instability in colon cancer. Proc. Natl. Acad. Sci. USA 2006, 103, 10747–10752. [Google Scholar] [CrossRef] [Green Version]
  20. Cisyk, A.; Penner-Goeke, S.; Lichtensztejn, Z.; Nugent, Z.; Wightman, R.; Singh, H.; McManus, K.J. Characterizing the prevalence of chromosome instability in interval colorectal cancer. Neoplasia 2015, 17, 306–316. [Google Scholar] [CrossRef] [Green Version]
  21. Thomas, D.C.; Umar, A.; Kunkel, T. Microsatellite instability and mismatch repair defects in cancer cells. Mutat. Res. Mol. Mech. Mutagen. 1996, 350, 201–205. [Google Scholar] [CrossRef]
  22. Boland, C.R.; Thibodeau, S.N.; Hamilton, S.R.; Sidransky, D.; Eshleman, J.R.; Burt, R.W.; Meltzer, S.J.; Rodriguez-Bigas, M.A.; Fodde, R.; Ranzani, G.N.; et al. A National Cancer Institute Workshop on Microsatellite Instability for cancer detection and familial predisposition: Development of international criteria for the determination of microsatellite instability in colorectal cancer. Cancer Res. 1998, 58, 5248–5257. [Google Scholar] [PubMed]
  23. Alexander, J.; Watanabe, T.; Wu, T.-T.; Rashid, A.; Li, S.; Hamilton, S.R. Histopathological Identification of Colon Cancer with Microsatellite Instability. Am. J. Pathol. 2001, 158, 527–535. [Google Scholar] [CrossRef] [Green Version]
  24. Lanza, G.; Gafà, R.; Maestri, I.; Santini, A.; Matteuzzi, M.; Cavazzini, L. Immunohistochemical Pattern of MLH1/MSH2 Expression Is Related to Clinical and Pathological Features in Colorectal Adenocarcinomas with Microsatellite Instability. Mod. Pathol. 2002, 15, 741–749. [Google Scholar] [CrossRef] [Green Version]
  25. Ricciardiello, L.; Ceccarelli, C.; Angiolini, G.; Pariali, M.; Chieco, P.; Paterini, P.; Biasco, G.; Martinelli, G.N.; Roda, E.; Bazzoli, F. High Thymidylate Synthase Expression in Colorectal Cancer with Microsatellite Instability: Implications for Chemotherapeutic Strategies. Clin. Cancer Res. 2005, 11, 4234–4240. [Google Scholar] [CrossRef] [Green Version]
  26. Trautmann, K.; Terdiman, J.P.; French, A.J.; Roydasgupta, R.; Sein, N.; Kakar, S.; Fridlyand, J.; Snijders, A.M.; Albertson, N.G.; Thibodeau, S.N.; et al. Chromosomal Instability in Microsatellite-Unstable and Stable Colon Cancer. Clin. Cancer Res. 2006, 12, 6379–6385. [Google Scholar] [CrossRef] [Green Version]
  27. Peltomaki, P. Deficient DNA mismatch repair: A common etiologic factor for colon cancer. Hum. Mol. Genet. 2001, 10, 735–740. [Google Scholar] [CrossRef] [Green Version]
  28. Hinoue, T.; Weisenberger, D.J.; Lange, C.P.; Shen, H.; Byun, H.-M.; Berg, D.V.D.; Malik, S.; Pan, F.; Noushmehr, H.; Van Dijk, C.M.; et al. Genome-scale analysis of aberrant DNA methylation in colorectal cancer. Genome Res. 2011, 22, 271–282. [Google Scholar] [CrossRef] [Green Version]
  29. Ogino, S.; Nosho, K.; Kirkner, G.J.; Kawasaki, T.; Meyerhardt, J.A.; Loda, M.; Giovannucci, E.L.; Fuchs, C.S. CpG island methylator phenotype, microsatellite instability, BRAF mutation and clinical outcome in colon cancer. Gut 2008, 58, 90–96. [Google Scholar] [CrossRef] [Green Version]
  30. Toyota, M.; Ahuja, N.; Ohe-Toyota, M.; Herman, J.G.; Baylin, S.B.; Issa, J.-P. CpG island methylator phenotype in colorectal cancer. Proc. Natl. Acad. Sci. USA 1999, 96, 8681–8686. [Google Scholar] [CrossRef] [Green Version]
  31. Huang, D.; Sun, W.; Zhou, Y.; Li, P.; Chen, F.; Chen, H.; Xia, D.; Xu, E.; Lai, M.; Wu, Y.; et al. Mutations of key driver genes in colorectal cancer progression and metastasis. Cancer Metastasis Rev. 2018, 37, 173–187. [Google Scholar] [CrossRef] [PubMed]
  32. Yaeger, R.; Chatila, W.K.; Lipsyc, M.D.; Hechtman, J.; Cercek, A.; Sanchez-Vega, F.; Jayakumaran, G.; Middha, S.; Zehir, A.; Donoghue, M.T.; et al. Clinical Sequencing Defines the Genomic Landscape of Metastatic Colorectal Cancer. Cancer Cell 2018, 33, 125–136.e3. [Google Scholar] [CrossRef] [PubMed]
  33. Horst, D. Plastizität der WNT-Signalwegaktivität im Kolonkarzinom. Der Pathol. 2012, 33, 194–197. [Google Scholar] [CrossRef] [PubMed]
  34. Kongkanuntn, R.; Bubb, V.J.; Sansom, O.J.; Wyllie, A.H.; Harrison, D.J.; Clarke, A. Dysregulated expression of β-catenin marks early neoplastic change in Apc mutant mice, but not all lesions arising in Msh2 deficient mice. Oncogene 1999, 18, 7219–7225. [Google Scholar] [CrossRef] [Green Version]
  35. Jeong, W.-J.; Yoon, J.-B.; Park, J.-C.; Lee, S.-H.; Kaduwal, S.; Kim, H.; Choi, K.-Y. Ras Stabilization Through Aberrant Activation of Wnt/ -Catenin Signaling Promotes Intestinal Tumorigenesis. Sci. Signal. 2012, 5, ra30. [Google Scholar] [CrossRef] [PubMed]
  36. Lemieux, E.; Cagnol, S.; Beaudry, K.; Carrier, J.; Rivard, N. Oncogenic KRAS signalling promotes the Wnt/β-catenin pathway through LRP6 in colorectal cancer. Oncogene 2014, 34, 4914–4927. [Google Scholar] [CrossRef] [PubMed]
  37. Hatzivassiliou, G.; Haling, J.R.; Chen, H.; Song, K.; Price, S.; Heald, R.; Hewitt, J.F.M.; Zak, M.; Peck, A.; Orr, C.; et al. Mechanism of MEK inhibition determines efficacy in mutant KRAS- versus BRAF-driven cancers. Nature 2013, 501, 232–236. [Google Scholar] [CrossRef] [PubMed]
  38. Haigis, K.M.; Kendall, K.R.; Wang, Y.; Cheung, A.; Haigis, M.C.; Glickman, J.N.; Niwa-Kawakita, M.; Sweet-Cordero, A.; Sebolt-Leopold, J.; Shannon, K.M.; et al. Differential effects of oncogenic K-Ras and N-Ras on proliferation, differentiation and tumor progression in the colon. Nat. Genet. 2008, 40, 600–608. [Google Scholar] [CrossRef] [Green Version]
  39. Pacold, M.E.; Suire, S.; Perisic, O.; Lara-González, S.; Davis, C.T.; Walker, E.H.; Hawkins, P.; Stephens, L.R.; Eccleston, J.F.; Williams, R.L. Crystal Structure and Functional Analysis of Ras Binding to Its Effector Phosphoinositide 3-Kinase γ. Cell 2000, 103, 931–944. [Google Scholar] [CrossRef] [Green Version]
  40. Murillo, M.M.; Zelenay, S.; Nye, E.; Castellano, E.; Lassailly, F.; Stamp, G.; Downward, J. RAS interaction with PI3K p110α is required for tumor-induced angiogenesis. J. Clin. Investig. 2014, 124, 3601–3611. [Google Scholar] [CrossRef] [Green Version]
  41. Di Nicolantonio, F.; Martini, M.; Molinari, F.; Sartore-Bianchi, A.; Arena, S.; Saletti, P.; De Dosso, S.; Mazzucchelli, L.; Frattini, M.; Siena, S.; et al. Wild-Type BRAF Is Required for Response to Panitumumab or Cetuximab in Metastatic Colorectal Cancer. J. Clin. Oncol. 2008, 26, 5705–5712. [Google Scholar] [CrossRef]
  42. Souglakos, J.; Philips, J.; Wang, R.; Marwah, S.; Silver, M.; Tzardi, M.; Silver, J.; Ogino, S.; Hooshmand, S.; Kwak, E.; et al. Prognostic and predictive value of common mutations for treatment response and survival in patients with metastatic colorectal cancer. Br. J. Cancer 2009, 101, 465–472. [Google Scholar] [CrossRef]
  43. Yokota, T.; Ura, T.; Shibata, N.; Takahari, D.; Shitara, K.; Nomura, M.; Kondo, C.; Mizota, A.; Utsunomiya, S.; Muro, K.; et al. BRAF mutation is a powerful prognostic factor in advanced and recurrent colorectal cancer. Br. J. Cancer 2011, 104, 856–862. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Chen, J.; Guo, F.; Shi, X.; Zhang, L.; Zhang, A.; Jin, H.; He, Y. BRAF V600E mutation and KRAS codon 13 mutations predict poor survival in Chinese colorectal cancer patients. BMC Cancer 2014, 14, 802. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Sahin, I.H.; Kazmi, S.M.; Yorio, J.T.; Bhadkamkar, N.A.; Kee, B.K.; Garrett, C.R. Rare Though Not Mutually Exclusive: A Report of Three Cases of Concomitant KRAS and BRAF Mutation and a Review of the Literature. J. Cancer 2013, 4, 320–322. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Li, A.-J.; Li, H.-G.; Tang, E.-J.; Wu, W.; Chen, Y.; Jiang, H.-H.; Lin, M.-B.; Yin, L. PIK3CA and TP53 mutations predict overall survival of stage II/III colorectal cancer patients. World J. Gastroenterol. 2018, 24, 631–640. [Google Scholar] [CrossRef]
  47. Lu, T.; Li, J. Clinical applications of urinary cell-free DNA in cancer: Current insights and promising future. Am. J. Cancer Res. 2017, 7, 2318–2332. [Google Scholar]
  48. Sidransky, D.; Tokino, T.; Hamilton, S.R.; Kinzler, K.; Levin, B.; Frost, P.; Vogelstein, B. Identification of ras oncogene mutations in the stool of patients with curable colorectal tumors. Science 1992, 256, 102–105. [Google Scholar] [CrossRef]
  49. De Mattos-Arruda, L.; Mayor, R.; Ng, C.K.Y.; Weigelt, B.; Martinez-Ricarte, F.; Torrejon, D.; Oliveira, M.; Arias, A.; Raventós, C.; Tang, J.; et al. Cerebrospinal fluid-derived circulating tumour DNA better represents the genomic alterations of brain tumours than plasma. Nat. Commun. 2015, 6, 8839. [Google Scholar] [CrossRef] [Green Version]
  50. Stefancu, A.; Badarinza, M.; Moisoiu, V.; Iancu, S.D.; Serban, O.; Leopold, N.; Fodor, D. SERS-based liquid biopsy of saliva and serum from patients with Sjögren’s syndrome. Anal. Bioanal. Chem. 2019, 411, 5877–5883. [Google Scholar] [CrossRef]
  51. Song, Z.; Cai, Z.; Yan, J.; Shao, Y.W.; Zhang, Y. Liquid biopsies using pleural effusion-derived exosomal DNA in advanced lung adenocarcinoma. Transl. Lung Cancer Res. 2019, 8, 392–400. [Google Scholar] [CrossRef] [PubMed]
  52. Peterson, V.M.; Castro, C.M.; Chung, J.; Miller, N.C.; Ullal, A.V.; Castano, M.D.; Penson, R.T.; Lee, H.; Birrer, M.J.; Weissleder, R. Ascites analysis by a microfluidic chip allows tumor-cell profiling. Proc. Natl. Acad. Sci. USA 2013, 110, E4978–E4986. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Kim, M.-Y.; Oskarsson, T.; Acharyya, S.; Nguyen, N.X.; Zhang, X.H.-F.; Norton, L.; Massagué, J. Tumor Self-Seeding by Circulating Cancer Cells. Cell 2009, 139, 1315–1326. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Ruiz, C.; Li, J.; Luttgen, M.S.; Kolatkar, A.; Kendall, J.T.; Flores, E.; Topp, Z.; Samlowski, W.E.; McClay, E.; Bethel, K.; et al. Limited genomic heterogeneity of circulating melanoma cells in advanced stage patients. Phys. Biol. 2015, 12, 016008. [Google Scholar] [CrossRef] [Green Version]
  55. Che, J.; Yu, V.; Garon, E.B.; Goldman, J.W.; Di Carlo, D. Biophysical isolation and identification of circulating tumor cells. Lab Chip 2017, 17, 1452–1461. [Google Scholar] [CrossRef] [Green Version]
  56. Harouaka, R.; Nisic, M.; Zheng, S.-Y. Circulating tumor cell enrichment based on physical properties. J. Lab. Autom. 2013, 18, 455–468. [Google Scholar] [CrossRef] [Green Version]
  57. Marrinucci, D.; Bethel, K.; Kolatkar, A.; Luttgen, M.S.; Malchiodi, M.; Baehring, F.; Voigt, K.; Lazar, D.; Nieva, J.J.; Bazhenova, L.; et al. Fluid biopsy in patients with metastatic prostate, pancreatic and breast cancers. Phys. Biol. 2012, 9, 016003. [Google Scholar] [CrossRef] [Green Version]
  58. Ashworth, T.R. A case of cancer in which cells similar to those in the tumours were seen in the blood after death. Aust. Med. J. 1869, 14, 146. [Google Scholar]
  59. Hofman, V.; Ilie, M.; Long, E.; Selva, E.; Bonnetaud, C.; Molina, T.; Venissac, N.; Mouroux, J.; Vielh, P.; Hofman, P. Detection of circulating tumor cells as a prognostic factor in patients undergoing radical surgery for non-small-cell lung carcinoma: Comparison of the efficacy of the CellSearch Assay™ and the isolation by size of epithelial tumor cell method. Int. J. Cancer 2011, 129, 1651–1660. [Google Scholar] [CrossRef] [PubMed]
  60. Müller, V.; Stahmann, N.; Riethdorf, S.; Rau, T.; Zabel, T.; Goetz, A.; Jänicke, F.; Pantel, K. Circulating Tumor Cells in Breast Cancer: Correlation to Bone Marrow Micrometastases, Heterogeneous Response to Systemic Therapy and Low Proliferative Activity. Clin. Cancer Res. 2005, 11, 3678–3685. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Onidani, K.; Shoji, H.; Kakizaki, T.; Yoshimoto, S.; Okaya, S.; Miura, N.; Sekikawa, S.; Furuta, K.; Lim, C.T.; Shibahara, T.; et al. Monitoring of cancer patients via next-generation sequencing of patient-derived circulating tumor cells and tumor DNA. Cancer Sci. 2019, 110, 2590–2599. [Google Scholar] [CrossRef] [Green Version]
  62. Scher, H.I.; Lu, D.; Schreiber, N.A.; Louw, J.; Graf, R.P.; Vargas, H.A.; Johnson, A.; Jendrisak, A.; Bambury, R.; Danila, D.; et al. Association of AR-V7 on Circulating Tumor Cells as a Treatment-Specific Biomarker With Outcomes and Survival in Castration-Resistant Prostate Cancer. JAMA Oncol. 2016, 2, 1441–1449. [Google Scholar] [CrossRef] [PubMed]
  63. Gasch, C.; Bauernhofer, T.; Pichler, M.; Langer-Freitag, S.; Reeh, M.; Seifert, A.M.; Mauermann, O.; Izbicki, J.; Pantel, K.; Riethdorf, S. Heterogeneity of Epidermal Growth Factor Receptor Status and Mutations of KRAS/PIK3CA in Circulating Tumor Cells of Patients with Colorectal Cancer. Clin. Chem. 2013, 59, 252–260. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Malihi, P.D.; Morikado, M.; Welter, L.; Liu, S.T.; Miller, E.T.; Cadaneanu, R.M.; Knudsen, B.S.; Lewis, M.S.; Carlsson, A.; Velasco, C.R.; et al. Clonal diversity revealed by morphoproteomic and copy number profiles of single prostate cancer cells at diagnosis. Converg. Sci. Phys. Oncol. 2018, 4, 015003. [Google Scholar] [CrossRef]
  65. Thiele, J.-A.; Pitule, P.; Hicks, J.; Kuhn, P. Single-Cell Analysis of Circulating Tumor Cells. Adv. Struct. Saf. Stud. 2019, 1908, 243–264. [Google Scholar] [CrossRef]
  66. Carlsson, A.; Nair, V.S.; Luttgen, M.S.; Keu, K.V.; Horng, G.; Vasanawala, M.; Kolatkar, A.; Jamali, M.; Iagaru, A.H.; Kuschner, W.; et al. Circulating tumor microemboli diagnostics for patients with non-small-cell lung cancer. J. Thorac. Oncol. 2014, 9, 1111–1119. [Google Scholar] [CrossRef] [Green Version]
  67. Steeg, P.S. Tumor metastasis: Mechanistic insights and clinical challenges. Nat. Med. 2006, 12, 895–904. [Google Scholar] [CrossRef]
  68. Szczerba, B.M.; Castro-Giner, F.; Vetter, M.; Krol, I.; Gkountela, S.; Landin, J.; Scheidmann, M.C.; Donato, C.; Scherrer, R.; Singer, J.; et al. Neutrophils escort circulating tumour cells to enable cell cycle progression. Nature 2019, 566, 553–557. [Google Scholar] [CrossRef]
  69. Guibert, N.; Delaunay, M.; Lusque, A.; Boubekeur, N.; Rouquette, I.; Clermont, E.; Gouin, S.; Dormoy, I.; Favre, G.; Mazieres, J.; et al. PD-L1 expression in circulating tumor cells of advanced non-small cell lung cancer patients treated with nivolumab. Lung Cancer 2018, 120, 108–112. [Google Scholar] [CrossRef]
  70. Boffa, D.J.; Graf, R.P.; Salazar, M.C.; Hoag, J.; Lu, D.; Krupa, R.; Louw, J.; Dugan, L.; Wang, Y.; Landers, M.; et al. Cellular Expression of PD-L1 in the Peripheral Blood of Lung Cancer Patients is Associated with Worse Survival. Cancer Epidemiol. Biomark. Prev. 2017, 26, 1139–1145. [Google Scholar] [CrossRef] [Green Version]
  71. Mandel, P.; Metais, P. Les acides nucleiques du plasma sanguine chez l’homme. Comptes Rendus Seances Soc. Biol. Fil. 1948, 142, 241–243. [Google Scholar]
  72. Jahr, S.; Hentze, H.; Englisch, S.; Hardt, D.; Fackelmayer, F.O.; Hesch, R.D.; Knippers, R. DNA fragments in the blood plasma of cancer patients: Quantitations and evidence for their origin from apoptotic and necrotic cells. Cancer Res. 2001, 61, 1659–1665. [Google Scholar] [PubMed]
  73. Anker, P.; Stroun, M.; Maurice, P.A. Spontaneous release of DNA by human blood lymphocytes as shown in an in vitro system. Cancer Res. 1975, 35, 2375–2382. [Google Scholar]
  74. Wang, W.; Kong, P.; Ma, G.; Li, L.; Zhu, J.; Xia, T.; Xie, H.; Zhou, W.; Wang, S. Characterization of the release and biological significance of cell-free DNA from breast cancer cell lines. Oncotarget 2017, 8, 43180–43191. [Google Scholar] [CrossRef] [Green Version]
  75. Stroun, M.; Lyautey, J.; Lederrey, C.; Olson-Sand, A.; Anker, P. About the possible origin and mechanism of circulating DNA apoptosis and active DNA release. Clin. Chim. Acta 2001, 313, 139–142. [Google Scholar] [CrossRef]
  76. Mouliere, F.; Thierry, A. The importance of examining the proportion of circulating DNA originating from tumor, microenvironment and normal cells in colorectal cancer patients. Expert Opin. Biol. Ther. 2012, 12, 209–215. [Google Scholar] [CrossRef] [PubMed]
  77. Lo, Y.M.D.; Chan, K.C.A.; Sun, H.; Chen, E.Z.; Jiang, P.; Lun, F.M.F.; Zheng, Y.W.; Leung, T.Y.; Lau, T.K.; Cantor, C.; et al. Maternal Plasma DNA Sequencing Reveals the Genome-Wide Genetic and Mutational Profile of the Fetus. Sci. Transl. Med. 2010, 2, 61ra91. [Google Scholar] [CrossRef]
  78. Fan, H.C.; Blumenfeld, Y.J.; Chitkara, U.; Hudgins, L.; Quake, S.R. Analysis of the Size Distributions of Fetal and Maternal Cell-Free DNA by Paired-End Sequencing. Clin. Chem. 2010, 56, 1279–1286. [Google Scholar] [CrossRef] [Green Version]
  79. Leon, S.A.; Shapiro, B.; Sklaroff, D.M.; Yaros, M.J. Free DNA in the serum of cancer patients and the effect of therapy. Cancer Res. 1977, 37, 646–650. [Google Scholar]
  80. Hao, T.B.; Shi, W.; Shen, X.J.; Qi, J.; Wu, X.H.; Wu, Y.; Tang, Y.Y.; Ju, S.Q. Circulating cell-free DNA in serum as a biomarker for diagnosis and prognostic prediction of colorectal cancer. Br. J. Cancer 2014, 111, 1482–1489. [Google Scholar] [CrossRef] [Green Version]
  81. Mohan, S.; Ayub, M.; Rothwell, D.G.; Gulati, S.; Kilerci, B.; Hollebecque, A.; Leong, H.S.; Smith, N.K.; Sahoo, S.; Descamps, T.; et al. Analysis of circulating cell-free DNA identifies KRAS copy number gain and mutation as a novel prognostic marker in Pancreatic cancer. Sci. Rep. 2019, 9, 11610–11616. [Google Scholar] [CrossRef] [PubMed]
  82. Janku, F.; Huang, H.J.; Claes, B.; Falchook, G.S.; Fu, S.; Hong, D.; Ramzanali, N.M.; Nitti, G.; Cabrilo, G.; Tsimberidou, A.M.; et al. BRAF Mutation Testing in Cell-Free DNA from the Plasma of Patients with Advanced Cancers Using a Rapid, Automated Molecular Diagnostics System. Mol. Cancer Ther. 2016, 15, 1397–1404. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  83. Hong, D.S.; Morris, V.K.; El Osta, B.; Sorokin, A.V.; Janku, F.; Fu, S.; Overman, M.J.; Piha-Paul, S.A.; Subbiah, V.; Kee, B.; et al. Phase IB Study of Vemurafenib in Combination with Irinotecan and Cetuximab in Patients with Metastatic Colorectal Cancer with BRAFV600E Mutation. Cancer Discov. 2016, 6, 1352–1365. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  84. Allard, W.J. Tumor Cells Circulate in the Peripheral Blood of All Major Carcinomas but not in Healthy Subjects or Patients With Nonmalignant Diseases. Clin. Cancer Res. 2004, 10, 6897–6904. [Google Scholar] [CrossRef] [Green Version]
  85. Cohen, S.J.; Terstappen, L.W.; Punt, C.J.; Mitchell, E.P.; Fynan, T.M.; Li, T.; Matera, J.; Doyle, G.V.; Meropol, N.J. Circulating endothelial cells (CEC) and circulating tumor cells (CTC) in patients (pts) with metastatic colorectal cancer (mCRC). J. Clin. Oncol. 2006, 24, 3531. [Google Scholar] [CrossRef]
  86. De Bono, J.; Scher, H.I.; Montgomery, R.B.; Parker, C.; Miller, M.C.; Tissing, H.; Doyle, G.; Terstappen, L.W.; Pienta, K.J.; Raghavan, D. Circulating Tumor Cells Predict Survival Benefit from Treatment in Metastatic Castration-Resistant Prostate Cancer. Clin. Cancer Res. 2008, 14, 6302–6309. [Google Scholar] [CrossRef] [Green Version]
  87. Cristofanilli, M.; Budd, G.T.; Ellis, M.J.; Stopeck, A.; Matera, J.; Miller, M.C.; Reuben, J.M.; Doyle, G.V.; Allard, W.J.; Terstappen, L.W.M.M.; et al. Circulating Tumor Cells, Disease Progression, and Survival in Metastatic Breast Cancer. N. Engl. J. Med. 2004, 351, 781–791. [Google Scholar] [CrossRef] [Green Version]
  88. Negin, B.P.; Cohen, S.J. Circulating Tumor Cells in Colorectal Cancer: Past, Present, and Future Challenges. Curr. Treat. Options Oncol. 2010, 11, 1–13. [Google Scholar] [CrossRef]
  89. Folkersma, L.R.; Gómez, C.O.; Manso, L.S.J.; De Castro, S.V.; Romo, I.G.; Lázaro, M.V.; De La Orden, G.V.; Fernández, M.A.; Rubio, E.D.; Moyano, A.S.; et al. Immunomagnetic quantification of circulating tumoral cells in patients with prostate cancer: Clinical and pathological correlation. Arch. Espanoles de Urol. 2010, 63, 23–31. [Google Scholar]
  90. Arrazubi, V.; Mata, E.; Antelo, M.L.; Tarifa, A.; Herrera, J.; Zazpe, C.; Teijeira, L.; Viudez, A.; Suárez, J.; Hernández, I.; et al. Circulating Tumor Cells in Patients Undergoing Resection of Colorectal Cancer Liver Metastases. Clinical Utility for Long-Term Outcome: A Prospective Trial. Ann. Surg. Oncol. 2019, 26, 2805–2811. [Google Scholar] [CrossRef]
  91. Keomanee-Dizon, K.; Shishido, S.N.; Kuhn, P. Circulating Tumor Cells: High-Throughput Imaging of CTCs and Bioinformatic Analysis. In Methods in Molecular Biology; Springer Science and Business Media LLC: Cham, Switzerland, 2020; Volume 215, pp. 89–104. [Google Scholar]
  92. Gerdtsson, A.S.; Thiele, J.-A.; Shishido, S.N.; Zheng, S.; Schaffer, R.; Bethel, K.; Curley, S.; Lenz, H.-J.; Hanna, D.L.; Nieva, J.; et al. Single cell correlation analysis of liquid and solid biopsies in metastatic colorectal cancer. Oncotarget 2019, 10, 7016–7030. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  93. Rodriguez-Lee, M.; Kolatkar, A.; McCormick, M.; Dago, A.D.; Kendall, J.; Carlsson, N.A.; Bethel, K.; Greenspan, E.J.; Hwang, S.E.; Waitman, K.R.; et al. Effect of Blood Collection Tube Type and Time to Processing on the Enumeration and High-Content Characterization of Circulating Tumor Cells Using the High-Definition Single-Cell Assay. Arch. Pathol. Lab. Med. 2018, 142, 198–207. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  94. Thiele, J.-A.; Bethel, K.; Kralickova, M.; Kuhn, P. Circulating Tumor Cells: Fluid Surrogates of Solid Tumors. Annu. Rev. Pathol. Mech. Dis. 2017, 12, 419–447. [Google Scholar] [CrossRef] [PubMed]
  95. Scher, H.I.; Graf, R.P.; Schreiber, N.A.; Jayaram, A.; Winquist, E.; McLaughlin, B.; Lu, D.; Fleisher, M.; Orr, S.; Lowes, L.; et al. Assessment of the Validity of Nuclear-Localized Androgen Receptor Splice Variant 7 in Circulating Tumor Cells as a Predictive Biomarker for Castration-Resistant Prostate Cancer. JAMA Oncol. 2018, 4, 1179–1186. [Google Scholar] [CrossRef]
  96. Vona, G.; Sabile, A.; Louha, M.; Sitruk, V.; Romana, S.P.; Schütze, K.; Capron, F.; Franco, M.; Pazzagli, M.; Vekemans, M.; et al. Isolation by Size of Epithelial Tumor Cells. Am. J. Pathol. 2000, 156, 57–63. [Google Scholar] [CrossRef]
  97. Chinen, L.; De Carvalho, F.M.; Rocha, B.M.M.; Aguiar, C.M.; Abdallah, E.A.; Campanha, D.; Mingues, N.B.; De Oliveira, T.B.; Maciel, M.S.; Cervantes, G.M.; et al. Cytokeratin-based CTC counting unrelated to clinical follow up. J. Thorac. Dis. 2013, 5, 593–599. [Google Scholar]
  98. Vona, G.; Beroud, C.; Benachi, A.; Quenette, A.; Bonnefont, J.; Romana, S.P.; Dumez, Y.; Lacour, B.; Paterlini-Bréchot, P. Enrichment, Immunomorphological, and Genetic Characterization of Fetal Cells Circulating in Maternal Blood. Am. J. Pathol. 2002, 160, 51–58. [Google Scholar] [CrossRef] [Green Version]
  99. e Silva, V.S.; Chinen, L.; Abdallah, E.A.; Damascena, A.; Paludo, J.; Chojniak, R.; Dettino, A.; De Mello, C.A.L.; Alves, V.S.; Fanelli, M.F. Early detection of poor outcome in patients with metastatic colorectal cancer: Tumor kinetics evaluated by circulating tumor cells. OncoTargets Ther. 2016, 9, 7503–7513. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  100. Danila, D.C.; Samoila, A.; Patel, C.; Schreiber, N.; Herkal, A.; Anand, A.; Bastos, D.; Heller, G.; Fleisher, M.; Scher, H.I. Clinical Validity of Detecting Circulating Tumor Cells by AdnaTest Assay Compared With Direct Detection of Tumor mRNA in Stabilized Whole Blood, as a Biomarker Predicting Overall Survival for Metastatic Castration-Resistant Prostate Cancer Patients. Cancer J. 2016, 22, 315–320. [Google Scholar] [CrossRef] [Green Version]
  101. Todenhöfer, T.; Hennenlotter, J.; Feyerabend, S.; Aufderklamm, S.; Mischinger, J.; Kühs, U.; Gerber, V.; Fetisch, J.; Schilling, D.; Hauch, S.; et al. Preliminary experience on the use of the Adnatest® system for detection of circulating tumor cells in prostate cancer patients. Anticancer Res. 2012, 32, 3507–3513. [Google Scholar]
  102. Wu, S.; Liu, S.; Liu, Z.; Huang, J.; Pu, X.; Li, J.; Yang, D.; Deng, H.; Yang, N.; Xu, J. Classification of Circulating Tumor Cells by Epithelial-Mesenchymal Transition Markers. PLoS ONE 2015, 10, e0123976. [Google Scholar] [CrossRef]
  103. Zhao, R.; Cai, Z.; Li, S.; Cheng, Y.; Gao, H.; Liu, F.; Wu, S.; Liu, S.; Dong, Y.; Zheng, L.; et al. Expression and clinical relevance of epithelial and mesenchymal markers in circulating tumor cells from colorectal cancer. Oncotarget 2016, 8, 9293–9302. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  104. Gasiorowski, L.; Dyszkiewicz, W.; Zielinski, P. In-vivo isolation of circulating tumor cells in non-small cell lung cancer patients by CellCollector. Neoplasma 2017, 64, 938–944. [Google Scholar] [CrossRef]
  105. He, Y.; Shi, J.; Shi, G.; Xu, X.; Liu, Q.; Liu, C.; Gao, Z.; Bai, J.; Shan, B. Using the New CellCollector to Capture Circulating Tumor Cells from Blood in Different Groups of Pulmonary Disease: A Cohort Study. Sci. Rep. 2017, 7, 9542. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  106. Tsai, W.-S.; You, J.-F.; Hung, H.-Y.; Hsieh, P.-S.; Hsieh, B.; Lenz, H.-J.; Idos, G.; Friedland, S.; Pan, J.Y.-J.; Shao, H.-J.; et al. Novel Circulating Tumor Cell Assay for Detection of Colorectal Adenomas and Cancer. Clin. Transl. Gastroenterol. 2019, 10, e00088. [Google Scholar] [CrossRef]
  107. Gupta, P.; Gulzar, Z.; Hsieh, B.; Lim, A.; Watson, D.; Mei, R. Analytical validation of the CellMax platform for early detection of cancer by enumeration of rare circulating tumor cells. J. Circ. Biomark. 2019, 8, 1849454419899214. [Google Scholar] [CrossRef]
  108. Jaeger, B.A.S.; Jueckstock, J.; Andergassen, U.; Salmen, J.; Schochter, F.; Fink, V.; Alunni-Fabbroni, M.; Rezai, M.; Beck, T.; Beckmann, M.W.; et al. Evaluation of Two Different Analytical Methods for Circulating Tumor Cell Detection in Peripheral Blood of Patients with Primary Breast Cancer. BioMed Res. Int. 2014, 2014, 491459. [Google Scholar] [CrossRef]
  109. Wang, L.; Balasubramanian, P.; Chen, A.P.; Kummar, S.; Evrard, Y.A.; Kinders, R.J. Promise and limits of the CellSearch platform for evaluating pharmacodynamics in circulating tumor cells. Semin. Oncol. 2016, 43, 464–475. [Google Scholar] [CrossRef] [Green Version]
  110. Bin Lim, S.; Yeo, T.; Di Lee, W.; Bhagat, A.A.S.; Tan, S.J.; Tan, D.S.W.; Lim, W.-T.; Lim, C.T. Addressing cellular heterogeneity in tumor and circulation for refined prognostication. Proc. Natl. Acad. Sci. USA 2019, 116, 17957–17962. [Google Scholar] [CrossRef] [Green Version]
  111. Lee, Y.; Guan, G.; Bhagat, A.A. ClearCell® FX, a label-free microfluidics technology for enrichment of viable circulating tumor cells. Cytom. Part A 2018, 93, 1251–1254. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  112. Wu, W.; Zhang, Z.; Gao, X.H.; Shen, Z.; Jing, Y.; Lu, H.; Li, H.; Yang, X.; Cui, X.; Li, Y.; et al. Clinical significance of detecting circulating tumor cells in colorectal cancer using subtraction enrichment and immunostaining-fluorescence in situ hybridization (SE-iFISH). Oncotarget 2017, 8, 21639–21649. [Google Scholar] [CrossRef] [PubMed]
  113. Xu, L.; Jia, S.; Li, H.; Yu, Y.; Liu, G.; Wu, Y.; Liu, X.; Liu, C.; Zhou, Y.; Zhang, Z.; et al. Characterization of circulating tumor cells in newly diagnosed breast cancer. Oncol. Lett. 2017, 15, 2522–2528. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  114. D’Oronzo, S.; Lovero, D.; Palmirotta, R.; Stucci, L.S.; Tucci, M.; Felici, C.; Cascardi, E.; Giardina, C.; Cafforio, P.; Silvestris, F. Dissection of major cancer gene variants in subsets of circulating tumor cells in advanced breast cancer. Sci. Rep. 2019, 9, 1–13. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  115. Kondo, Y.; Hayashi, K.; Kawakami, K.; Miwa, Y.; Hayashi, H.; Yamamoto, M. KRAS mutation analysis of single circulating tumor cells from patients with metastatic colorectal cancer. BMC Cancer 2017, 17, 311. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  116. Liu, Z.; Fusi, A.; Klopocki, E.; Schmittel, A.; Tinhofer, I.; Nonnemacher, A.; Keilholz, U. Negative enrichment by immunomagnetic nanobeads for unbiased characterization of circulating tumor cells from peripheral blood of cancer patients. J. Transl. Med. 2011, 9, 70. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  117. Awasthi, N.P.; Kumari, S.; Neyaz, A.; Gupta, S.; Agarwal, A.; Singhal, A.; Husain, N. EpCAM-based Flow Cytometric Detection of Circulating Tumor Cells in Gallbladder Carcinoma Cases. Asian Pac. J. Cancer Prev. 2017, 18, 3429–3437. [Google Scholar] [PubMed]
  118. Stott, S.L.; Hsu, C.-H.; Tsukrov, D.I.; Yu, M.; Miyamoto, D.T.; Waltman, B.A.; Rothenberg, S.M.; Shah, A.M.; Smas, M.E.; Korir, G.K.; et al. Isolation of circulating tumor cells using a microvortex-generating herringbone-chip. Proc. Natl. Acad. Sci. USA 2010, 107, 18392–18397. [Google Scholar] [CrossRef] [Green Version]
  119. Xue, P.; Ye, K.; Gao, J.; Wu, Y.; Guo, J.; Hui, K.M.; Kang, Y. Isolation and elution of Hep3B circulating tumor cells using a dual-functional herringbone chip. Microfluid. Nanofluid. 2013, 16, 605–612. [Google Scholar] [CrossRef]
  120. Castle, J.; Morris, K.; Pritchard, S.; Kirwan, C.C. Challenges in enumeration of CTCs in breast cancer using techniques independent of cytokeratin expression. PLoS ONE 2017, 12, e0175647. [Google Scholar] [CrossRef]
  121. Farace, F.; Massard, C.; Vimond, N.; Drusch, F.; Jacques, N.; Billiot, F.; Laplanche, A.; Chauchereau, A.; Lacroix, L.; Planchard, D.; et al. A direct comparison of CellSearch and ISET for circulating tumour-cell detection in patients with metastatic carcinomas. Br. J. Cancer 2011, 105, 847–853. [Google Scholar] [CrossRef] [Green Version]
  122. Cann, G.M.; Gulzar, Z.G.; Cooper, S.; Li, R.; Luo, S.; Tat, M.; Stuart, S.; Schroth, G.; Srinivas, S.; Ronaghi, M.; et al. mRNA-Seq of Single Prostate Cancer Circulating Tumor Cells Reveals Recapitulation of Gene Expression and Pathways Found in Prostate Cancer. PLoS ONE 2012, 7, e49144. [Google Scholar] [CrossRef] [PubMed]
  123. Deng, G.; Krishnakumar, S.; Powell, A.A.; Zhang, H.; Mindrinos, M.; Telli, M.L.; Davis, R.W.; Jeffrey, S.S. Single cell mutational analysis of PIK3CA in circulating tumor cells and metastases in breast cancer reveals heterogeneity, discordance, and mutation persistence in cultured disseminated tumor cells from bone marrow. BMC Cancer 2014, 14, 456. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  124. Bobek, V.; Matkowski, R.; Gürlich, R.; Grabowski, K.; Szelachowska, J.; Lischke, R.; Schutzner, J.; Harustiak, T.; Pazdro, A.; Rzechonek, A.; et al. Cultivation of circulating tumor cells in esophageal cancer. Folia Histochem. Cytobiol. 2014, 52, 171–177. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  125. Kolostova, K.; Matkowski, R.; Jędryka, M.; Soter, K.; Cegan, M.; Pinkas, M.; Jakabova, A.; Pavlasek, J.; Spicka, J.; Bobek, V. The added value of circulating tumor cells examination in ovarian cancer staging. Am. J. Cancer Res. 2015, 5, 3363–3375. [Google Scholar] [PubMed]
  126. Gertler, R.; Rosenberg, R.; Fuehrer, K.; Dahm, M.; Nekarda, H.; Siewert, J.R. Detection of circulating tumor cells in blood using an optimized density gradient centrifugation. Methods Mol. Biol. 2003, 162, 149–155. [Google Scholar] [CrossRef]
  127. Kaifi, J.T.; Kunkel, M.; Das, A.; Harouaka, R.; Dicker, D.T.; Li, G.; Zhu, J.; Clawson, G.A.; Yang, Z.; Reed, M.F.; et al. Circulating tumor cell isolation during resection of colorectal cancer lung and liver metastases: A prospective trial with different detection techniques. Cancer Biol. Ther. 2015, 16, 699–708. [Google Scholar] [CrossRef] [Green Version]
  128. Schwarzenbach, H.; Stoehlmacher, J.; Pantel, K.; Goekkurt, E. Detection and Monitoring of Cell-Free DNA in Blood of Patients with Colorectal Cancer. Ann. N. Y. Acad. Sci. 2008, 1137, 190–196. [Google Scholar] [CrossRef]
  129. Czeiger, D.; Shaked, G.; Eini, H.; Vered, I.; Belochitski, O.; Avriel, A.; Ariad, S.; Douvdevani, A. Measurement of Circulating Cell-Free DNA Levels by a New Simple Fluorescent Test in Patients With Primary Colorectal Cancer. Am. J. Clin. Pathol. 2011, 135, 264–270. [Google Scholar] [CrossRef]
  130. Beaver, J.A.; Jelovac, D.; Balukrishna, S.; Cochran, R.L.; Croessmann, S.; Zabransky, D.J.; Wong, H.Y.; Toro, P.V.; Cidado, J.; Blair, B.G.; et al. Detection of cancer DNA in plasma of patients with early-stage breast cancer. Clin. Cancer Res. 2014, 20, 2643–2650. [Google Scholar] [CrossRef] [Green Version]
  131. Baslan, T.; Kendall, J.; Ward, B.; Cox, H.; Leotta, A.; Rodgers, L.; Riggs, M.; D’Italia, S.; Sun, G.; Yong, M.; et al. Optimizing sparse sequencing of single cells for highly multiplex copy number profiling. Genome Res. 2015, 25, 714–724. [Google Scholar] [CrossRef] [Green Version]
  132. Glenn, T.C. Field guide to next?generation DNA sequencers. Mol. Ecol. Resour. 2011, 11, 759–769. [Google Scholar] [CrossRef] [PubMed]
  133. Molparia, B.; Oliveira, G.; Wagner, J.L.; Spencer, E.G.; Torkamani, A. A feasibility study of colorectal cancer diagnosis via circulating tumor DNA derived CNV detection. PLoS ONE 2018, 13, e0196826. [Google Scholar] [CrossRef] [PubMed]
  134. Li, J.; Dittmar, R.; Xia, S.; Zhang, H.; Du, M.; Huang, C.; Druliner, B.R.; Boardman, L.; Wang, L. Cell-free DNA copy number variations in plasma from colorectal cancer patients. Mol. Oncol. 2017, 11, 1099–1111. [Google Scholar] [CrossRef] [PubMed]
  135. Birkenkamp-Demtröder, K.; Nordentoft, I.K.; Christensen, E.; Høyer, S.; Reinert, T.; Vang, S.; Borre, M.; Agerbæk, M.; Jensen, J.B.; Ørntoft, T.F.; et al. Genomic Alterations in Liquid Biopsies from Patients with Bladder Cancer. Eur. Urol. 2016, 70, 75–82. [Google Scholar] [CrossRef]
  136. Zonta, E.; Garlan, F.; Pécuchet, N.; Perez-Toralla, K.; Caen, O.; Milbury, C.; Didelot, A.; Fabre, E.; Blons, H.; Laurent-Puig, P.; et al. Multiplex Detection of Rare Mutations by Picoliter Droplet Based Digital PCR: Sensitivity and Specificity Considerations. PLoS ONE 2016, 11, e0159094. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  137. Dressman, D.; Yan, H.; Traverso, G.; Kinzler, K.W.; Vogelstein, B. Transforming single DNA molecules into fluorescent magnetic particles for detection and enumeration of genetic variations. Proc. Natl. Acad. Sci. USA 2003, 100, 8817–8822. [Google Scholar] [CrossRef] [Green Version]
  138. Schmiegel, W.H.; Scott, R.J.; Dooley, S.; Lewis, W.; Meldrum, C.J.; Pockney, P.G.; Draganic, B.; Smith, S.; Hewitt, C.; Philimore, H.; et al. Blood-based detection ofRASmutations to guide anti-EGFR therapy in colorectal cancer patients: Concordance of results from circulating tumor DNA and tissue-basedRAStesting. Mol. Oncol. 2017, 11, 208–219. [Google Scholar] [CrossRef] [Green Version]
  139. Taly, V.; Pekin, D.; Benhaim, L.; Kotsopoulos, S.K.; Le Corre, D.; Li, X.; Atochin, I.; Link, D.R.; Griffiths, A.D.; Pallier, K.; et al. Multiplex Picodroplet Digital PCR to Detect KRAS Mutations in Circulating DNA from the Plasma of Colorectal Cancer Patients. Clin. Chem. 2013, 59, 1722–1731. [Google Scholar] [CrossRef]
  140. Zhu, G.; Ye, X.; Dong, Z.; Lu, Y.C.; Sun, Y.; Liu, Y.; McCormack, R.; Gu, Y.; Liu, X. Highly Sensitive Droplet Digital PCR Method for Detection of EGFR-Activating Mutations in Plasma Cell–Free DNA from Patients with Advanced Non–Small Cell Lung Cancer. J. Mol. Diagn. 2015, 17, 265–272. [Google Scholar] [CrossRef]
  141. Hughesman, C.B.; Lu, X.J.D.; Liu, K.Y.P.; Zhu, Y.; Towle, R.M.; Haynes, C.; Poh, C.F. Detection of clinically relevant copy number alterations in oral cancer progression using multiplexed droplet digital PCR. Sci. Rep. 2017, 7, 11855. [Google Scholar] [CrossRef]
  142. Gale, D.; Lawson, A.R.J.; Howarth, K.; Madi, M.; Durham, B.; Smalley, S.; Calaway, J.; Blais, S.; Jones, G.; Clark, J.; et al. Development of a highly sensitive liquid biopsy platform to detect clinically-relevant cancer mutations at low allele fractions in cell-free DNA. PLoS ONE 2018, 13, e0194630. [Google Scholar] [CrossRef] [PubMed]
  143. Forshew, T.; Murtaza, M.; Parkinson, C.; Gale, D.; Tsui, D.W.Y.; Kaper, F.; Dawson, S.-J.; Piskorz, A.M.; Jimenez-Linan, M.; Bentley, D.; et al. Noninvasive Identification and Monitoring of Cancer Mutations by Targeted Deep Sequencing of Plasma DNA. Sci. Transl. Med. 2012, 4, 136ra68. [Google Scholar] [CrossRef] [PubMed]
  144. Kennedy, S.R.; Schmitt, M.W.; Fox, E.; Kohrn, B.F.; Salk, J.J.; Ahn, E.H.; Prindle, M.J.; Kuong, K.J.; Shen, J.-C.; Risques, R.-A.; et al. Detecting ultralow-frequency mutations by Duplex Sequencing. Nat. Protoc. 2014, 9, 2586–2606. [Google Scholar] [CrossRef] [Green Version]
  145. Iwahashi, N.; Sakai, K.; Noguchi, T.; Yahata, T.; Matsukawa, H.; Toujima, S.; Nishio, K.; Ino, K. Liquid biopsy-based comprehensive gene mutation profiling for gynecological cancer using CAncer Personalized Profiling by deep Sequencing. Sci. Rep. 2019, 9, 10426. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  146. Kinde, I.; Wu, J.; Papadopoulos, N.; Kinzler, K.W.; Vogelstein, B. Detection and quantification of rare mutations with massively parallel sequencing. Proc. Natl. Acad. Sci. USA 2011, 108, 9530–9535. [Google Scholar] [CrossRef] [Green Version]
  147. Newman, A.M.; Bratman, S.V.; To, J.; Wynne, J.F.; Eclov, N.C.W.; Modlin, L.A.; Liu, C.L.; Neal, J.W.; Wakelee, H.A.; Merritt, R.E.; et al. An ultrasensitive method for quantitating circulating tumor DNA with broad patient coverage. Nat. Med. 2014, 20, 548–554. [Google Scholar] [CrossRef]
  148. Newman, A.M.; Lovejoy, A.F.; Klass, D.M.; Kurtz, D.M.; Chabon, J.J.; Scherer, F.; Stehr, H.; Liu, C.L.; Bratman, S.V.; Say, C.; et al. Integrated digital error suppression for improved detection of circulating tumor DNA. Nat. Biotechnol. 2016, 34, 547–555. [Google Scholar] [CrossRef]
  149. Fredebohm, J.; Mehnert, D.H.; Löber, A.-K.; Holtrup, F.; Van Rahden, V.; Angenendt, P.; Diehl, F. Detection and Quantification of KIT Mutations in ctDNA by Plasma Safe-SeqS; Springer Science and Business Media LLC: Cham, Switzerland, 2016; Volume 924, pp. 187–189. [Google Scholar]
  150. Zheng, H.; Ladouceur, M.; Greenwood, C.M.T.; Richards, J.B. Effect of Genome-Wide Genotyping and Reference Panels on Rare Variants Imputation. J. Genet. Genome 2012, 39, 545–550. [Google Scholar] [CrossRef]
  151. Devos, T.; Tetzner, R.; Model, F.; Weiss, G.; Schuster, M.; Distler, J.; Steiger, K.V.; Grützmann, R.; Pilarsky, C.; Habermann, J.K.; et al. Circulating Methylated SEPT9 DNA in Plasma Is a Biomarker for Colorectal Cancer. Clin. Chem. 2009, 55, 1337–1346. [Google Scholar] [CrossRef] [Green Version]
  152. Warren, J.D.; Xiong, W.; Bunker, A.M.; Vaughn, C.P.; Furtado, L.V.; Owen, W.E.; Fang, J.; Samowitz, W.S.; Heichman, K.A. Septin 9 methylated DNA is a sensitive and specific blood test for colorectal cancer. BMC Med. 2011, 9, 133. [Google Scholar] [CrossRef] [Green Version]
  153. Solassol, J.; Vendrell, J.; Märkl, B.; Haas, C.; Bellosillo, B.; Montagut, C.; Smith, M.; O’Sullivan, B.; D’Haene, N.; Le Mercier, M.; et al. Multi-Center Evaluation of the Fully Automated PCR-Based Idylla™ KRAS Mutation Assay for Rapid KRAS Mutation Status Determination on Formalin-Fixed Paraffin-Embedded Tissue of Human Colorectal Cancer. PLoS ONE 2016, 11, e0163444. [Google Scholar] [CrossRef]
  154. Zwaenepoel, K.; Duelund, J.H.; De Winne, K.; Maes, V.; Weyn, C.; Lambin, S.; Dendooven, R.; Broeckx, G.; Steiniche, T.; Pauwels, P. Clinical Performance of the Idylla MSI Test for a Rapid Assessment of the DNA Microsatellite Status in Human Colorectal Cancer. J. Mol. Diagn. 2020, 22, 386–395. [Google Scholar] [CrossRef]
  155. García-Foncillas, J.; Tabernero, J.; Élez, E.; Aranda, E.; Benavides, M.; Camps, C.; Jantus-Lewintre, E.; López, R.; Muinelo-Romay, L.; Montagut, C.; et al. Prospective multicenter real-world RAS mutation comparison between OncoBEAM-based liquid biopsy and tissue analysis in metastatic colorectal cancer. Br. J. Cancer 2018, 119, 1464–1470. [Google Scholar] [CrossRef]
  156. Wan, N.; Weinberg, D.; Liu, T.-Y.; Niehaus, K.; Delubac, D.; Kannan, A.; White, B.; Ariazi, E.A.; Bailey, M.; Bertin, M.; et al. Su1658–Machine Learning Enables Detection of Early-Stage Colorectal Cancer by Whole-Genome Sequencing of Plasma Cell-Free Dna. Gastroenterology 2019, 156, 832. [Google Scholar] [CrossRef]
  157. Russo, M.; Siravegna, G.; Blaszkowsky, L.S.; Corti, G.; Crisafulli, G.; Ahronian, L.G.; Mussolin, B.; Kwak, E.L.; Buscarino, M.; Lazzari, L.; et al. Abstract 878: Tumor heterogeneity and lesion-specific response to targeted therapy in colorectal cancer. Exp. Mol. Ther. 2016, 76, 878. [Google Scholar] [CrossRef]
  158. Diehl, F.; Schmidt, K.; Choti, M.A.; Romans, K.; Goodman, S.; Li, M.; Thornton, K.; Agrawal, N.; Sokoll, L.; Szabo, S.A.; et al. Circulating mutant DNA to assess tumor dynamics. Nat. Med. 2007, 14, 985–990. [Google Scholar] [CrossRef]
  159. Iwanicki-Caron, I.; Di Fiore, F.; Roque, I.; Astruc, E.; Stetiu, M.; Duclos, A.; Tougeron, D.; Saillard, S.; Thureau, S.; Benichou, J.; et al. Usefulness of the Serum Carcinoembryonic Antigen Kinetic for Chemotherapy Monitoring in Patients With Unresectable Metastasis of Colorectal Cancer. J. Clin. Oncol. 2008, 26, 3681–3686. [Google Scholar] [CrossRef]
  160. Li, M.; Li, J.-Y.; Zhao, A.-L.; He, J.-S.; Zhou, L.-X.; Li, Y.-A.; Gu, J. Comparison of carcinoembryonic antigen prognostic value in serum and tumour tissue of patients with colorectal cancer. Color. Dis. 2009, 11, 276–281. [Google Scholar] [CrossRef] [Green Version]
  161. Yang, K.M.; Park, I.J.; Kim, C.W.; Roh, S.A.; Cho, D.-H.; Kim, J.C. The prognostic significance and treatment modality for elevated pre- and postoperative serum CEA in colorectal cancer patients. Ann. Surg. Treat. Res. 2016, 91, 165–171. [Google Scholar] [CrossRef] [Green Version]
  162. Sun, Z.; Wang, F.; Zhou, Q.; Yang, S.; Sun, X.; Wang, G.; Li, Z.; Zhang, Z.; Song, J.; Liu, J.; et al. Pre-operative to post-operative serum carcinoembryonic antigen ratio is a prognostic indicator in colorectal cancer. Oncotarget 2017, 8, 54672–54682. [Google Scholar] [CrossRef] [Green Version]
  163. Imperiale, T.F.; Ransohoff, D.F.; Itzkowitz, S.H.; Brenner, H.; Werner, S.; Chen, H.; Senore, C.; Segnan, N.; Lee, J.K.; Terdiman, J.P.; et al. Multitarget stool DNA testing for colorectal-cancer screening. N. Engl. J. Med. 2014, 371, 187–188. [Google Scholar] [CrossRef] [Green Version]
  164. Song, L.; Jia, J.; Peng, X.; Xiao, W.; Li, Y. The performance of the SEPT9 gene methylation assay and a comparison with other CRC screening tests: A meta-analysis. Sci. Rep. 2017, 7, 3032. [Google Scholar] [CrossRef] [Green Version]
  165. Church, T.R.; Wandell, M.; Lofton-Day, C.; Mongin, S.J.; Burger, M.; Payne, S.R.; Castanos-Velez, E.; Blumenstein, B.A.; Rösch, T.; Osborn, N.; et al. Prospective evaluation of methylated SEPT9 in plasma for detection of asymptomatic colorectal cancer. Gut 2013, 63, 317–325. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  166. Lee, K.H.; Kim, J.S.; Lee, C.S.; Kim, J.-Y. KRAS discordance between primary and recurrent tumors after radical resection of colorectal cancers. J. Surg. Oncol. 2015, 111, 1059–1064. [Google Scholar] [CrossRef] [PubMed]
  167. Fabbri, F.; Carloni, S.; Zoli, W.; Ulivi, P.; Gallerani, G.; Fici, P.; Chiadini, E.; Passardi, A.; Frassineti, G.L.; Ragazzini, A.; et al. Detection and recovery of circulating colon cancer cells using a dielectrophoresis-based device: KRAS mutation status in pure CTCs. Cancer Lett. 2013, 335, 225–231. [Google Scholar] [CrossRef] [PubMed]
  168. Russo, M.; Crisafulli, G.; Sogari, A.; Reilly, N.M.; Arena, S.; Lamba, S.; Bartolini, A.; Amodio, V.; Magrì, A.; Novara, L.; et al. Adaptive mutability of colorectal cancers in response to targeted therapies. Science 2019, 366, 1473–1480. [Google Scholar] [CrossRef]
  169. Bardelli, A.; Siena, S. Molecular Mechanisms of Resistance to Cetuximab and Panitumumab in Colorectal Cancer. J. Clin. Oncol. 2010, 28, 1254–1261. [Google Scholar] [CrossRef]
  170. Luo, H.; Zhao, Q.; Wei, W.; Zheng, L.; Yi, S.; Li, G.; Wang, W.; Sheng, H.; Pu, H.; Mo, H.; et al. Circulating tumor DNA methylation profiles enable early diagnosis, prognosis prediction, and screening for colorectal cancer. Sci. Transl. Med. 2020, 12, eaax7533. [Google Scholar] [CrossRef]
  171. Aravanis, A.M.; Lee, M.; Klausner, R.D. Next-Generation Sequencing of Circulating Tumor DNA for Early Cancer Detection. Cell 2017, 168, 571–574. [Google Scholar] [CrossRef] [Green Version]
  172. Cohen, J.D.; Li, L.; Wang, Y.; Thoburn, C.; Afsari, B.; Danilova, L.V.; Douville, C.; Javed, A.A.; Wong, F.; Mattox, A.; et al. Detection and localization of surgically resectable cancers with a multi-analyte blood test. Science 2018, 359, 926–930. [Google Scholar] [CrossRef] [Green Version]
  173. Kolostova, K.; Matkowski, R.; Gürlich, R.; Grabowski, K.; Soter, K.; Lischke, R.; Schutzner, J.; Bobek, V. Detection and cultivation of circulating tumor cells in gastric cancer. Cytotechnology 2015, 68, 1095–1102. [Google Scholar] [CrossRef] [Green Version]
  174. Eliášová, P.; Pinkas, M.; Kolostova, K.; Gürlich, R.; Bobek, V. Circulating tumor cells in different stages of colorectal cancer. Folia Histochem. Cytobiol. 2017, 55, 1–5. [Google Scholar] [CrossRef]
  175. De Macedo, M.P.; De Melo, F.M.; Ribeiro, J.D.S.S.; De Mello, C.A.L.; Begnami, M.D.F.D.S.; Soares, F.A.; Carraro, D.M.; Cunha, I.W. RAS mutations vary between lesions in synchronous primary Colorectal Cancer: Testing only one lesion is not sufficient to guide anti-EGFR treatment decisions. Oncoscience 2015, 2, 125. [Google Scholar] [CrossRef]
  176. Morelli, M.P.; Overman, M.J.; Dasari, A.; Kazmi, S.M.A.; Mazard, T.; Vilar, E.; Morris, V.K.; Lee, M.S.; Herron, D.; Eng, C.; et al. Characterizing the patterns of clonal selection in circulating tumor DNA from patients with colorectal cancer refractory to anti-EGFR treatment. Ann. Oncol. 2015, 26, 731–736. [Google Scholar] [CrossRef]
  177. Vidal, J.; Muinelo, L.; Dalmases, A.; Jones, F.; Edelstein, D.; Iglesias, M.; Orrillo, M.; Abalo, A.; Rodríguez, C.; Brozos, E.; et al. Plasma ctDNA RAS mutation analysis for the diagnosis and treatment monitoring of metastatic colorectal cancer patients. Ann. Oncol. 2017, 28, 1325–1332. [Google Scholar] [CrossRef]
  178. Thierry, A.; Pastor, B.; Jiang, Z.-Q.; Katsiampoura, A.D.; Parseghian, C.; Loree, J.; Overman, M.J.; Sanchez, C.; El Messaoudi, S.; Ychou, M.; et al. Circulating DNA Demonstrates Convergent Evolution and Common Resistance Mechanisms during Treatment of Colorectal Cancer. Clin. Cancer Res. 2017, 23, 4578–4591. [Google Scholar] [CrossRef] [Green Version]
  179. Khan, K.; Cunningham, D.; Werner, B.; Vlachogiannis, G.; Spiteri, I.; Heide, T.; Mateos, J.F.; Vatsiou, A.; Lampis, A.; Damavandi, M.D.; et al. Longitudinal Liquid Biopsy and Mathematical Modeling of Clonal Evolution Forecast Time to Treatment Failure in the PROSPECT-C Phase II Colorectal Cancer Clinical Trial. Cancer Discov. 2018, 8, 1270–1285. [Google Scholar] [CrossRef] [Green Version]
  180. Klein-Scory, S.; Maslova, M.; Pohl, M.; Eilert-Micus, C.; Schroers, R.; Schmiegel, W.; Baraniskin, A. Significance of Liquid Biopsy for Monitoring and Therapy Decision of Colorectal Cancer. Transl. Oncol. 2018, 11, 213–220. [Google Scholar] [CrossRef]
  181. Bin Kuo, Y.; Chen, J.-S.; Fan, C.-W.; Li, Y.-S.; Chan, E.-C. Comparison of KRAS mutation analysis of primary tumors and matched circulating cell-free DNA in plasmas of patients with colorectal cancer. Clin. Chim. Acta 2014, 433, 284–289. [Google Scholar] [CrossRef]
  182. Bettegowda, C.; Sausen, M.; Leary, R.J.; Kinde, I.; Wang, Y.; Agrawal, N.; Bartlett, B.R.; Wang, H.; Luber, B.; Alani, R.M.; et al. Detection of Circulating Tumor DNA in Early- and Late-Stage Human Malignancies. Sci. Transl. Med. 2014, 6, 224ra24. [Google Scholar] [CrossRef] [Green Version]
  183. Iwai, T.; Yamada, T.; Takahashi, G.; Takeda, K.; Koizumi, M.; Shinji, S.; Matsuda, A.; Yokoyama, Y.; Hara, K.; Ueda, K.; et al. Circulating cell-free long DNA fragments predict post-hepatectomy recurrence of colorectal liver metastases. Eur. J. Surg. Oncol. (EJSO) 2020, 46, 108–114. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  184. Rahbari, N.N.; Aigner, M.; Thorlund, K.; Mollberg, N.; Motschall, E.; Jensen, K.; Diener, M.K.; Büchler, M.W.; Koch, M.; Weitz, J. Meta-analysis Shows That Detection of Circulating Tumor Cells Indicates Poor Prognosis in Patients With Colorectal Cancer. Gastroenterology 2010, 138, 1714–1726.e13. [Google Scholar] [CrossRef] [PubMed]
  185. Spindler, K.-L.G.; Appelt, A.L.; Pallisgaard, N.; Andersen, R.F.; Brandslund, I.; Jakobsen, A. Cell-free DNA in healthy individuals, noncancerous disease and strong prognostic value in colorectal cancer. Int. J. Cancer 2014, 135, 2984–2991. [Google Scholar] [CrossRef]
  186. Tan, Y.; Wu, H. The significant prognostic value of circulating tumor cells in colorectal cancer: A systematic review and meta-analysis. Curr. Probl. Cancer 2018, 42, 95–106. [Google Scholar] [CrossRef]
  187. Spindler, K.-L.G.; Pallisgaard, N.; Andersen, R.F.; Brandslund, I.; Jakobsen, A. Circulating Free DNA as Biomarker and Source for Mutation Detection in Metastatic Colorectal Cancer. PLoS ONE 2015, 10, e0108247. [Google Scholar] [CrossRef]
  188. Reinert, T.; Henriksen, T.V.; Christensen, E.; Sharma, S.; Salari, R.; Sethi, H.; Knudsen, M.; Nordentoft, I.K.; Wu, H.-T.; Tin, A.S.; et al. Analysis of Plasma Cell-Free DNA by Ultradeep Sequencing in Patients With Stages I to III Colorectal Cancer. JAMA Oncol. 2019, 5, 1124. [Google Scholar] [CrossRef] [Green Version]
  189. Cohen, S.J.; Punt, C.J.; Iannotti, N.; Saidman, B.H.; Sabbath, K.D.; Gabrail, N.Y.; Picus, J.; Morse, M.; Mitchell, E.; Miller, M.C.; et al. Relationship of Circulating Tumor Cells to Tumor Response, Progression-Free Survival, and Overall Survival in Patients With Metastatic Colorectal Cancer. J. Clin. Oncol. 2008, 26, 3213–3221. [Google Scholar] [CrossRef]
  190. Connor, A.A.; McNamara, K.; Al-Sukhni, E.; Diskin, J.; Chan, D.; Ash, C.; Lowes, L.E.; Allan, A.; Zogopoulos, G.; Moulton, C.-A.; et al. Central, But Not Peripheral, Circulating Tumor Cells are Prognostic in Patients Undergoing Resection of Colorectal Cancer Liver Metastases. Ann. Surg. Oncol. 2015, 23, 2168–2175. [Google Scholar] [CrossRef]
  191. Dizdar, L.; Flügen, G.; Van Dalum, G.; Honisch, E.; Neves, R.P.; Niederacher, D.; Neubauer, H.; Fehm, T.; Rehders, A.; Krieg, A.; et al. Detection of circulating tumor cells in colorectal cancer patients using the GILUPI CellCollector: Results from a prospective, single-center study. Mol. Oncol. 2019, 13, 1548–1558. [Google Scholar] [CrossRef] [Green Version]
  192. Wong, D.; Moturi, S.; Angkachatchai, V.; Mueller, R.; DeSantis, G.; Boom, D.V.D.; Ehrich, M. Optimizing blood collection, transport and storage conditions for cell free DNA increases access to prenatal testing. Clin. Biochem. 2013, 46, 1099–1104. [Google Scholar] [CrossRef] [Green Version]
  193. Grölz, D.; Hauch, S.; Schlumpberger, M.; Guenther, K.; Voss, T.; Sprenger-Haussels, M.; Oelmüller, U. Liquid Biopsy Preservation Solutions for Standardized Pre-Analytical Workflows—Venous Whole Blood and Plasma. Curr. Pathobiol. Rep. 2018, 6, 275–286. [Google Scholar] [CrossRef] [Green Version]
  194. Neumann, M.H.; Bender, S.; Krahn, T.; Schlange, T. ctDNA and CTCs in Liquid Biopsy – Current Status and Where We Need to Progress. Comput. Struct. Biotechnol. J. 2018, 16, 190–195. [Google Scholar] [CrossRef]
  195. Witzig, T.E.; Bossy, B.; Kimlinger, T.; Roche, P.C.; Ingle, J.N.; Grant, C.; Donohue, J.; Suman, V.J.; Harrington, D.; Torre-Bueno, J.; et al. Detection of circulating cytokeratin-positive cells in the blood of breast cancer patients using immunomagnetic enrichment and digital microscopy. Clin. Cancer Res. 2002, 8, 1085–1091. [Google Scholar]
  196. Hardingham, J.; Grover, P.; Winter, M.; Hewett, P.J.; Price, T.J.; Thierry, B. Detection and Clinical Significance of Circulating Tumor Cells in Colorectal Cancer—20 Years of Progress. Mol. Med. 2015, 21, S25–S31. [Google Scholar] [CrossRef]
  197. Yang, J.; Mani, S.A.; Donaher, J.L.; Ramaswamy, S.; Itzykson, R.A.; Come, C.; Savagner, P.; Gitelman, I.; Richardson, A.; Weinberg, R.A. Twist, a Master Regulator of Morphogenesis, Plays an Essential Role in Tumor Metastasis. Cell 2004, 117, 927–939. [Google Scholar] [CrossRef] [Green Version]
  198. Torga, G.; Pienta, K.J. Patient-Paired Sample Congruence between 2 Commercial Liquid Biopsy Tests. JAMA Oncol. 2018, 4, 868–870. [Google Scholar] [CrossRef]
  199. Vivancos, A.; Aranda, E.; Benavides, M.; Élez, E.; Gómez-España, M.A.; Toledano, M.; Alvarez, M.; Parrado, M.R.C.; García-Barberán, V.; Diaz-Rubio, E. Comparison of the Clinical Sensitivity of the Idylla Platform and the OncoBEAM RAS CRC Assay for KRAS Mutation Detection in Liquid Biopsy Samples. Sci. Rep. 2019, 9, 8976. [Google Scholar] [CrossRef] [Green Version]
  200. Scher, H.I.; Morris, M.J.; Larson, S.; Heller, G. Validation and clinical utility of prostate cancer biomarkers. Nat. Rev. Clin. Oncol. 2013, 10, 225–234. [Google Scholar] [CrossRef] [Green Version]
  201. Pantel, K.; Hille, C.; Scher, H.I. Circulating Tumor Cells in Prostate Cancer: From Discovery to Clinical Utility. Clin. Chem. 2019, 65, 87–99. [Google Scholar] [CrossRef] [Green Version]
  202. Parkinson, D.R.; McCormack, R.T.; Keating, S.M.; Gutman, S.I.; Hamilton, S.R.; Mansfield, E.A.; Piper, M.A.; Deverka, P.; Frueh, F.W.; Jessup, J.M.; et al. Evidence of Clinical Utility: An Unmet Need in Molecular Diagnostics for Patients with Cancer. Clin. Cancer Res. 2014, 20, 1428–1444. [Google Scholar] [CrossRef] [Green Version]
  203. Toledo, R.A.; Cubillo, A.; Vega, E.; Garralda, E.; Alvarez, R.; De La Varga, L.U.; Rodriguez-Pascual, J.; Sanchez, G.; Sarno, F.; Prieto, S.H.; et al. Clinical validation of prospective liquid biopsy monitoring in patients with wild-type RAS metastatic colorectal cancer treated with FOLFIRI-cetuximab. Oncotarget 2016, 8, 35289–35300. [Google Scholar] [CrossRef] [Green Version]
  204. Palmirotta, R.; Lovero, D.; Silvestris, E.; Felici, C.; Quaresmini, D.; Cafforio, P.; Silvestris, F. Next-generation Sequencing (NGS) Analysis on Single Circulating Tumor Cells (CTCs) with No Need of Whole-genome Amplification (WGA). Cancer Genom.-Proteom. 2017, 14, 173–179. [Google Scholar] [CrossRef] [Green Version]
  205. Ulz, P.; Heitzer, E.; Geigl, J.B.; Speicher, M.R. Patient monitoring through liquid biopsies using circulating tumor DNA. Int. J. Cancer 2017, 141, 887–896. [Google Scholar] [CrossRef] [Green Version]
  206. Misale, S.; Di Nicolantonio, F.; Sartore-Bianchi, A.; Siena, S.; Bardelli, A. Resistance to Anti-EGFR Therapy in Colorectal Cancer: From Heterogeneity to Convergent Evolution. Cancer Discov. 2014, 4, 1269–1280. [Google Scholar] [CrossRef] [Green Version]
Cancers 12 01376 g001 550

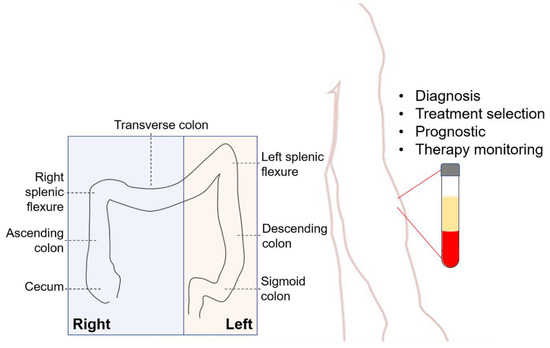

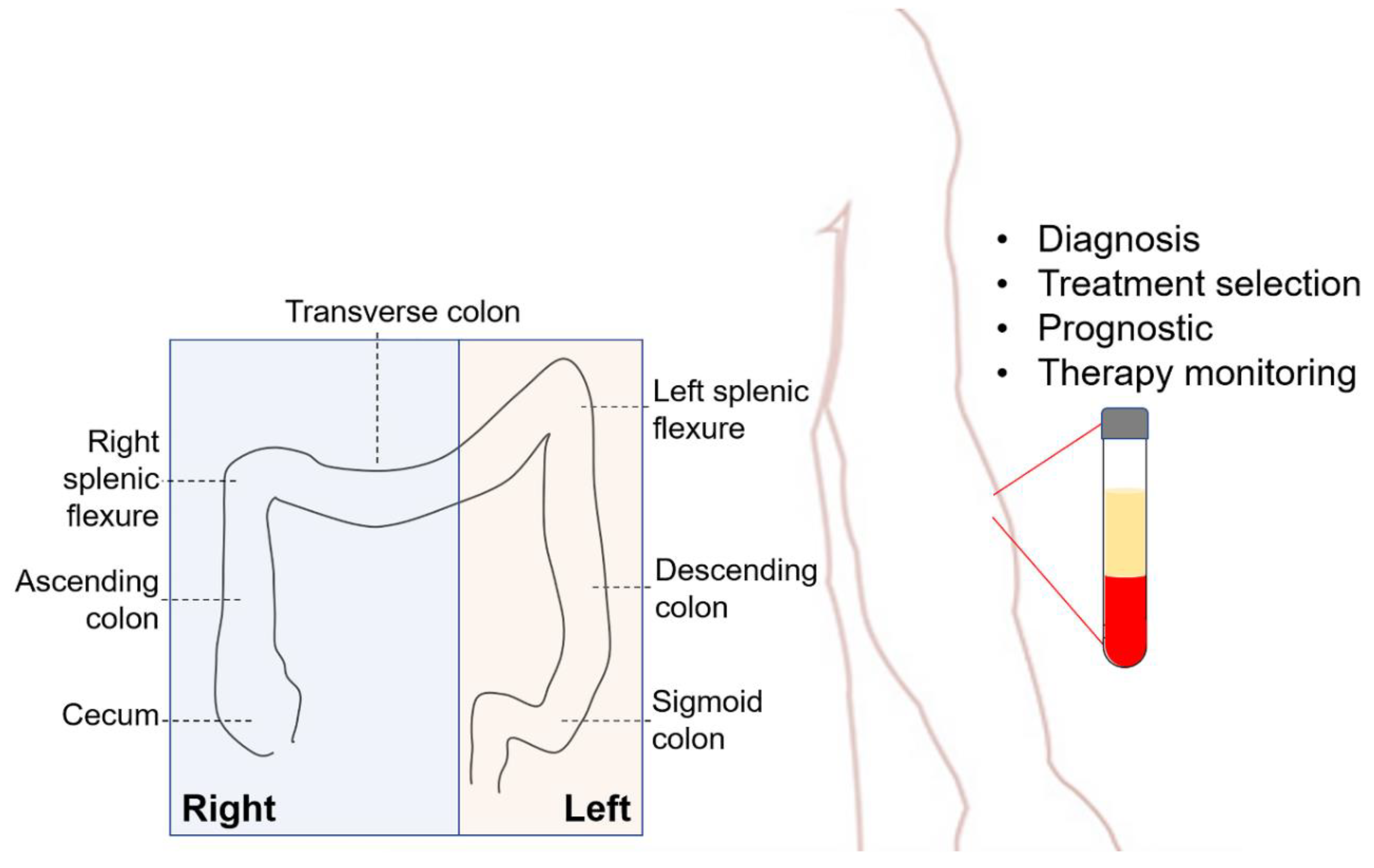

Figure 1. Colorectal carcinoma (CRC) is categorized based on its anatomic location. Right CRC (RCC) is localized in caecum, ascending colon or two proximal thirds of transverse colon. Left CRC (LCC) is defined as CRC in distal third of transverse colon, descending colon, sigmoid colon, or rectum. Clinical applications of the liquid biopsy in CRC include diagnosis, treatment selection, prognostic, and therapy monitoring.
Figure 1. Colorectal carcinoma (CRC) is categorized based on its anatomic location. Right CRC (RCC) is localized in caecum, ascending colon or two proximal thirds of transverse colon. Left CRC (LCC) is defined as CRC in distal third of transverse colon, descending colon, sigmoid colon, or rectum. Clinical applications of the liquid biopsy in CRC include diagnosis, treatment selection, prognostic, and therapy monitoring.
Cancers 12 01376 g001
Table
Table 1. Platforms used for the detection of circulating tumor cells (CTCs) in the peripheral blood. Three discussed platforms in text are marked with * EpCAM, epithelial cellular adhesion molecule; CD45, cluster of differentiation.
Table 1. Platforms used for the detection of circulating tumor cells (CTCs) in the peripheral blood. Three discussed platforms in text are marked with * EpCAM, epithelial cellular adhesion molecule; CD45, cluster of differentiation.
PlatformCompany/Institution DetailsDescriptionReferences
AdnaTestQiagen GmbH, Hilden, GermanyAntibody targeting EpCAM conjugated to magnetic beads for labeling tumor cells in sample[100,101]
CanPatrol™ CTCSurExam, Guangzhou, ChinaFiltration (and CD45+ depletion) 1[102,103]
CellCollector®Gilupi GmbH, Postdam, GermanyNano guidewire inserted into patient cubital vein collecting cell expressing EpCAM[104,105]
CellMax CMx CellMax Life Inc., Sunnyvale, CA, USABlood passing through antibody-coated microfluidic chip targeting EpCAM[106,107]
CellSearch® *Menarini Silicon Biosystems Spa, Castel Maggiore, Italy Antibody targeting EpCAM conjugated to magnetic beads for labeling tumor cells in sample[108,109]
ClearCell® FXGenomax Technologies, Bangkok, ThailandBlood passing through microfluidic biochip with larger cells along the inner wall[110,111]
Cytelligen®Cytelligen Inc., San Diego, CA, USAAntibody targeting CD45 conjugated to magnetic beads for labeling tumor cells in the blood sample[112,113]
DEPArray™Menarini Silicon Biosystems Spa, Castel Maggiore, ItalyCell suspension loaded into microchip-based sorter using dielectrophoresis to trap cells [114,115]
Easysep™Stemcell Technologies Inc., Vancouver, BC, CanadaAntibody targeting EpCAM or CD45 conjugated to magnetic beads for labeling tumor cells in the blood sample[116,117]
Epic Sciences/HDSCA *Epic Sciences Inc., San Diego, CA, USAAfter processing, cells are plated on the slide and subsequently characterized based on surface markers[57,92]
Herringbone ChipMassachusetts General Hospital, Boston, MA, USABlood processed through antibody-coated microfluidic chip targeting EpCAM[118,119]
ISET® *Rarecells Diagnostics SAS, Paris, FranceFiltration on pressure-controlled system[120,121]
MagSweeper™Stanford University, Stanford, CA, USAAntibody targeting EpCAM or CD133 conjugated to magnetic beads for labeling tumor cells in blood[122,123]
MetaCell®MetaCell s.r.o., Ostrava, Czech RepublicCapillary-action driven size-based separation[124,125]
Oncoquick®Greiner Bio-One International GmbH, Kremsmünster, AustriaThe denser blood compartment migrates through the porous barrier of the polypropylene centrifugation tube[126,127]
1 Negative immunocapturing step was left out in some studies.

Share and Cite

MDPI and ACS Style

Kolenčík, D.; Shishido, S.N.; Pitule, P.; Mason, J.; Hicks, J.; Kuhn, P. Liquid Biopsy in Colorectal Carcinoma: Clinical Applications and Challenges. Cancers 2020, 12, 1376. https://doi.org/10.3390/cancers12061376

AMA Style

Kolenčík D, Shishido SN, Pitule P, Mason J, Hicks J, Kuhn P. Liquid Biopsy in Colorectal Carcinoma: Clinical Applications and Challenges. Cancers. 2020; 12(6):1376. https://doi.org/10.3390/cancers12061376

Chicago/Turabian Style

Kolenčík, Drahomír, Stephanie N. Shishido, Pavel Pitule, Jeremy Mason, James Hicks, and Peter Kuhn. 2020. "Liquid Biopsy in Colorectal Carcinoma: Clinical Applications and Challenges" Cancers 12, no. 6: 1376. https://doi.org/10.3390/cancers12061376

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
