Review

Prospects for Using Expression Patterns of Paramyxovirus Receptors as Biomarkers for Oncolytic Virotherapy

by
Olga V. Matveeva
1,* and
Svetlana A. Shabalina
2,*
1
Sendai Viralytics LLC, 23 Nylander Way, Acton, MA 01720, USA
2
National Center for Biotechnology Information, National Library of Medicine, National Institutes of Health, Bethesda, MD 20894, USA
*
Authors to whom correspondence should be addressed.
Cancers 2020, 12(12), 3659; https://doi.org/10.3390/cancers12123659
Submission received: 27 October 2020 / Revised: 28 November 2020 / Accepted: 1 December 2020 / Published: 5 December 2020
(This article belongs to the Special Issue Oncolytic Virus Therapy Against Cancer)
Browse Figures
Review Reports Versions Notes

Abstract

:

Simple Summary

Some non-pathogenic viruses that do not cause serious illness in humans can efficiently target and kill cancer cells and may be considered candidates for cancer treatment with virotherapy. However, many cancer cells are protected from viruses. An important goal of personalized cancer treatment is to identify viruses that can kill a certain type of cancer cells. To this end, researchers investigate expression patterns of cell entry receptors, which viruses use to bind to and enter host cells. We summarized and analyzed the receptor expression patterns of two paramyxoviruses: The non-pathogenic measles and the Sendai viruses. The receptors for these viruses are different and can be proteins or lipids with attached carbohydrates. This review discusses the prospects for using these paramyxovirus receptors as biomarkers for successful personalized virotherapy for certain types of cancer.

Abstract

The effectiveness of oncolytic virotherapy in cancer treatment depends on several factors, including successful virus delivery to the tumor, ability of the virus to enter the target malignant cell, virus replication, and the release of progeny virions from infected cells. The multi-stage process is influenced by the efficiency with which the virus enters host cells via specific receptors. This review describes natural and artificial receptors for two oncolytic paramyxoviruses, nonpathogenic measles, and Sendai viruses. Cell entry receptors are proteins for measles virus (MV) and sialylated glycans (sialylated glycoproteins or glycolipids/gangliosides) for Sendai virus (SeV). Accumulated published data reviewed here show different levels of expression of cell surface receptors for both viruses in different malignancies. Patients whose tumor cells have low or no expression of receptors for a specific oncolytic virus cannot be successfully treated with the virus. Recent published studies have revealed that an expression signature for immune genes is another important factor that determines the vulnerability of tumor cells to viral infection. In the future, a combination of expression signatures of immune and receptor genes could be used to find a set of oncolytic viruses that are more effective for specific malignancies.

1. Introduction

Oncolytic viruses are promising new agents for cancer treatment. They can kill cancer cells directly through infection or indirectly through activation of the immune system [1,2]. For the most effective virotherapy, elimination of malignant cells with a combination of both direct and indirect destruction is desirable. Like all viruses, oncolytic viruses use specific receptors to bind to and enter host cells. This review describes the tendency of tumor cells to overexpress certain viral receptors, but it also shows that, to varying degrees, these receptors are also expressed in many normal cells. However, regardless of whether cells are normal or malignant, absence of receptors for a particular virus makes the cells resistant to this virus infection. So, for better identification of individual patients who are most likely to benefit from virotherapy, their tumor cells should be screened for the presence of virus receptors. For many oncolytic viruses, such receptors are well characterized. Thus, simple tests that evaluate protein or RNA levels in tumor tissue could provide information about expression levels of a virus receptor.
Receptor mediated virus entry into a cell is only the first step in viral infection. Next, the virus must break through the cellular antiviral defense system, which usually effectively protects normal cells from any virus infection. Key players in such protection are interferons (IFNs); they help cells detect the presence of a virus and, in response, restrict proliferation, slow down metabolic processes, and trigger apoptosis [3,4]. However, malignant cells frequently have dysfunctional IFN pathways. Such dysfunction helps them to evade the immune system and survive, thus promoting tumor growth. The same IFN defects that help cancer cells escape immune surveillance make them vulnerable to virus infection [5]. Nevertheless, not all malignant cells have dysfunctional IFN pathways. Some of them can produce and/or respond to IFN signals and protect themselves from a virus infection. So, theoretically, even if a cancer cell had receptors for a particular oncolytic virus it still could be resistant to infection by the virus.
Some viruses require cells to express processing enzymes that modify or cleave the viral proteins necessary for the formation of mature infectious virions. Thus, fusion protein in paramyxoviruses is synthesized as an inactive precursor and is activated through proteolytic cleavage by the cellular protease. Without such cleavage the virus is unable to sustain infection. For MV, this activating protease is furin [6] and for SeV it can be a number of serine proteases (TPSB2 [7,8,9], PRSS1 [10], PLG [11], F10 [12], and TMPRSS2 [13]). Some of these proteases are overexpressed in cancer cells [14,15,16]. In addition to those listed, the expression levels of other host genes influence vulnerability of cancer cells to a virus infection. Figure 1 illustrates factors necessary for a cell to become vulnerable to paramyxovirus infection.
To predict if a patient is likely to respond to oncolytic virotherapy, testing for the presence of virus receptors in tumor tissue is not sufficient. Additional tests are also needed to reveal the presence of impaired IFN signaling in the patient’s cancer cells, and the expression of virus processing enzymes and yet to be identified other proteins that accommodate virus infection. Currently, such tests are commercially unavailable and need to be developed to optimize patient selection protocols for future clinical trials.
Oncolytic paramyxoviruses might become powerful anticancer agents [17,18,19]. Figure 2 shows the life cycle of the viruses, which can trigger syncytium (a polykarion) formation that protects virions from host neutralizing antibodies during intratumor virus replication and spreading.
So, two related processes can occur: Efficient intratumor virus spread and the resulting mass death of malignant cells. In general, oncolytic paramyxoviruses stimulate strong innate and adaptive anticancer immune responses by generating multiple danger signals. They are potent inducers of IFN and other immuno-stimulating cytokines, and they efficiently induce anticancer activity of natural killer cells, dendritic cells, and cytotoxic T lymphocytes [18]. Finally, the viruses require proteolytic cleavage of their fusion proteins by cellular serine proteases, which are sometimes overexpressed in cancer cells [14,15,16], and could add an additional level of specificity to viral oncolytic activity. Moreover, the gene that encodes a fusion protein in the paramyxovirus genome can be replaced with a constructed fusion protein that could be processed by tumor-associated matrix metalloproteases.
The purpose of this review is to summarize and analyze information related to expression patterns of receptors for oncolytic paramyxoviruses (both natural and artificially retargeted). In current literature and existing databases, receptor expression patterns are evaluated by quantitative and semi-quantitative measurements of RNA or protein. Analysis of the collected information may ultimately aid in the development of tests to identify oncolytic viruses that are more effective against specific malignancies. To compare expression levels in normal and cancerous tissues for each studied virus receptor, we analyzed a Human Protein Atlas (HPA) database [15,16,22]. HPA accumulates protein expression information from experiments performed by HPA project participants along with RNA-Seq information from The Cancer Genome Atlas (TCGA), Genotype-Tissue Expression (GTEx) and Functional Annotation of the Mammalian Genomes (FANTOM5) project databases [16]. We also analyzed relevant literature and gene expression patterns in the PubMed database.
Several paramyxovirus representatives have oncolytic properties. Among them are attenuated measles and mumps viruses, Newcastle disease virus, and SeV [17,18]. In this review, information related to MV and SeV receptors is compiled and analyzed.

2. Measles Virus as an Oncolytic Agent

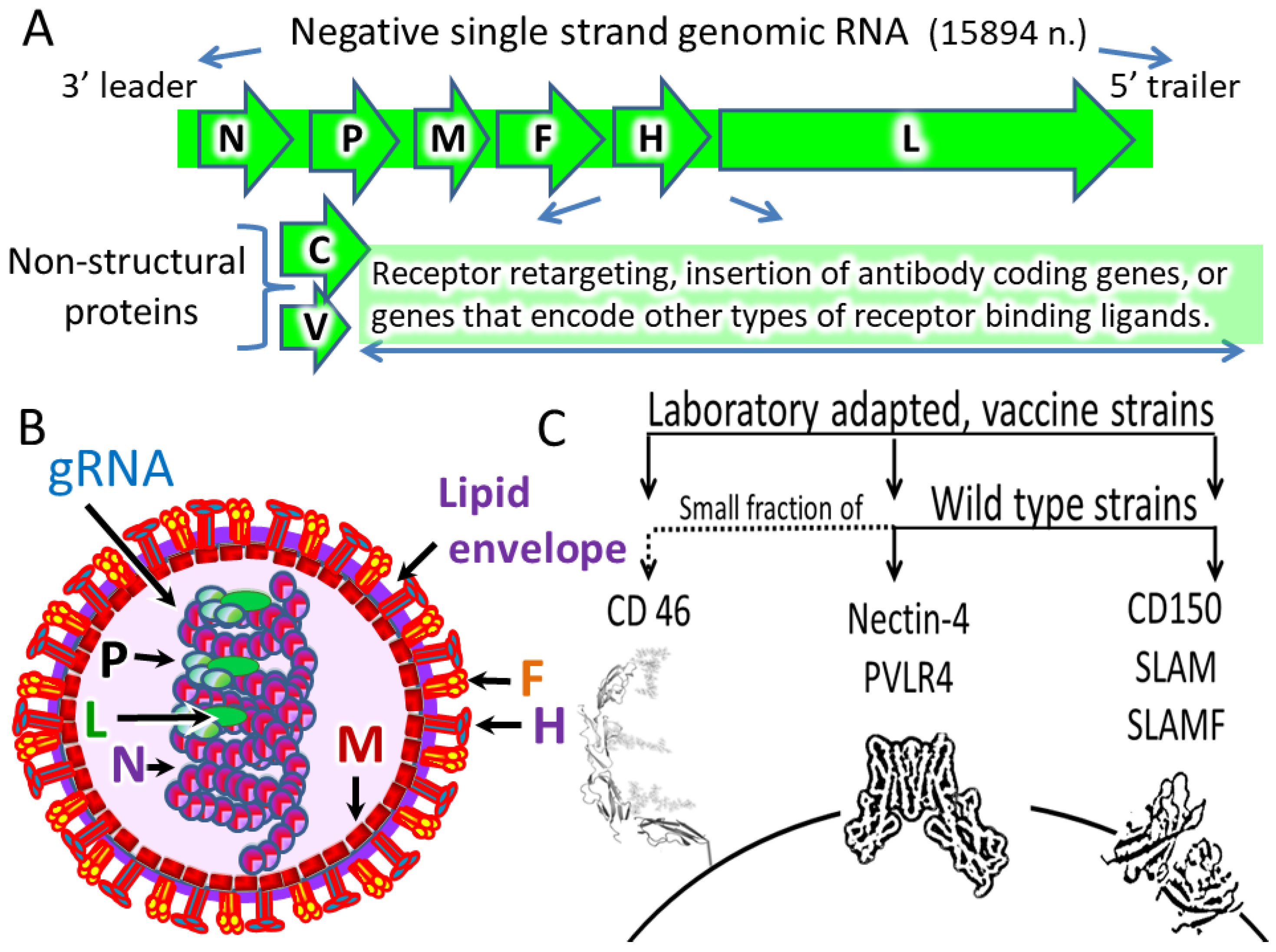

MV (Box 1, Figure 3) causes a highly contagious disease transmitted by respiratory aerosols that can trigger severe immunosuppression and even immune amnesia.
Box 1. Measles Virus (MV).
  • Taxonomy: The virus belongs to the genus Morbillivirus within the family Paramyxoviridae [23,24].
  • Host: Human
  • Origin: Most likely MV originated from a virus of non-human species.
  • Genome: MV has a single-stranded, negative-sense, non-segmented RNA genome that is ~16K nucleotides long.
  • Virion: MV is an enveloped virus with a lipid membrane.
  • Proteins: Nucleoprotein (N), phosphoprotein (P), matrix protein (M), fusion protein (F), hemagglutinin (H), large protein (L), and two nonstructural proteins C and V. Protein C is translated from the same mRNA as the P protein but using an alternative start codon in an overlapping ORF. Protein V is translated from an edited P mRNA.
Significant efforts by virologists in the second half of the 20th century were focused on finding a safe and effective vaccine against MV. In 1954, one MV isolated strain, when passaged in cell culture, gradually lost its pathogenicity, and became attenuated. From this attenuated variant of the virus, one of the first vaccine strain (Edmonston, denoted in the following text as MV-Edm) was obtained. Further passages of MV-Edm generated the more attenuated Schwarz and Moraten strains, which are still in use for vaccination against measles [24,25].
During the 20th century clinicians reported on isolated cases where measles disease relieved or caused remission of certain malignancies. Reports include descriptions of the regression of a number of hematological malignancies that took place after MV infection (reviewed in [26]). At the end of the century, virologists and oncologists started to investigate oncolytic properties of attenuated MV strains that are incapable of causing serious infection.
MV-Edm and its derivatives were the primary strains tested as oncolytic agents [27,28]. These strains can infect and kill a wide variety of cancer cells in vitro and in vivo. They are currently being investigated preclinically and in clinical trials for treatment of a large spectrum of malignancies, including ovarian, breast, head and neck cancers, as well as glioblastoma, multiple myeloma, mesothelioma, and T-cell lymphoma [27,28]. A virus with oncolytic properties can be delivered not only locally intratumorally, but also systemically, including by intraperitoneal and intravenous injection routes. In some trials patients survival compared favorably with that of historical controls and the side effects of the virotherapy were mainly mild [27,28].

3. Natural MV Receptors

For wild type and vaccine MV strains, the proteins CD150 (SLAM or SLAMF1) [29,30] and/or nectin-4 (also called poliovirus-receptor-like 4 (PVRL4)) [31,32,33] function mainly as cell entry receptors. A small fraction of wild type MV strains and all modern vaccine strains derived from the Edmonston strain also use CD46 receptors (Table 1, Figure 3C) [34,35].
RNA and protein expression patterns of MV receptors are estimated by several different approaches, including array technology, quantitative RT-PCR and RNA-Seq for RNAs, as well as immunohistochemical tissue staining, flow cytometry and western blotting for proteins. Table 1 and Table 2 respectively summarize expression patterns of natural MV receptors described in normal and malignant cells.
CD150 (also called signaling lymphocytic activation molecule 1 (SLAM or SLAMF1)) is a transmembrane glycoprotein member of the signaling lymphocytic activation molecule family. It modulates the activation and differentiation of a wide variety of immune cells and is involved in the regulation of both innate and adaptive immune responses [36,58,59,60]. CD150 is expressed on the surface of hematopoietic stem and progenitor cells including natural killer cells, dendritic cells, and memory B and T cells [36,37,38] (Table 1). Therefore, wild-type MV can infect various cells that are involved in the host’s immune response, resulting in strong immunosuppressive effects and erasure of immune memory from previous pathogen infections, causing immune amnesia [61,62].
In Japan, a set of MV-based oncolytic constructs was produced by removing MV’s ability to interact with CD150 [63,64,65]. The removal of interaction ability between a virus and its receptor is called “blinding”. It has been demonstrated that “blinding” results in the pathogenicity loss of the constructs, effectively making the MV strains non-infective to monkeys [66]. However, the constructs maintain the ability to kill malignant cells, including tumors, in model animals [63,64,65]. Three types of human malignancies were tested as murine xenografts, including breast, pancreatic, and lung carcinomas. The animals treated with intratumoral injections of the experimental constructs survived longer (Table 3).
Nevertheless, some malignancies do overexpress CD150. Many cell lines generated from Hodgkin’s and Burkitt’s lymphomas are characterized by very high levels of CD150 mRNA and proteins [51]. Both types of lymphomas can sometimes regress after natural infection with wild-type MV (reviewed in [26]). It is likely that these malignancies could be successfully targeted by an oncolytic virus that interacts with CD150 as a cell entry receptor. This hypothesis is supported by observations that MV-Edm can infect metastases and primary tumors in mantle cell lymphoma murine xenografts [67]. Perhaps other cancers that express high levels of CD150 could also be successfully targeted by attenuated MV with the ability to interact with CD150.
CD46 (complement regulatory protein or membrane cofactor protein) is a membrane glycoprotein that serves as a regulator of the complement system. By inhibiting complement activation in host cells, this protein protects cells from complement associated damage [68]. CD46 is also involved in other processes: It interacts with at least seven human pathogens and regulates the adaptive immune response by inducing differentiation of T cells into regulatory T cells [69,70].
According to HPA, CD46 protein is expressed at comparatively high levels in glandular cells of the breast, stomach, and colon as well as in several other cell types. At low levels it is expressed in almost all human cells and tissues [14,15,16]. CD46 expression protects a cell from complement-dependent cytotoxicity, so expression in a cancer cell promotes escape from immune surveillance and provides the cancer cell with a strong survival advantage [71]. Therefore, advanced cancers are frequently characterized by high levels of CD46 (Table 2). Two studies demonstrate that efficiency of cellular virus entry into and killing of tumor cells correlates with CD46 cell surface protein expression [52,72]. The cell vulnerability to virus infection and syncytia formation has been shown to correlate with the level of CD46 expression. Thus, at a low expression level of CD46, which is typical of normal cells, infection occurs, but intercellular fusion is negligible. However, tumor cells with a higher CD46 expression are much more vulnerable to virus infection along with the formation of syncytia [72].
Based on these observations, CD46 could be included in a list of biomarkers to predict potential tumor response to virotherapy by attenuated MV.
Nectin-4 (also called PVRL4—Poliovirus-Receptor-Like 4) is a transmembrane protein that belongs to a family of Ca2+-independent immunoglobulin-like cell adhesion molecules. It contributes to cell to cell adhesion and intercellular communication [73,74] and serves as a receptor for MV (Table 1, Figure 3A). According to HPA, the nectin-4 protein is expressed at high or medium levels in glandular cells of breast, colon, gall bladder, and stomach as well as in some other cells and tissues [14,15,16].
Nectin-4 gene expression promotes malignant cells’ evasion of growth constraints related to matrix detachment. This gene has been frequently found to be amplified and overexpressed in some solid tumors [75,76]. A summary of malignancies in which nectin-4 has high expression levels is presented in Table 2. Most likely, this protein helps MV-Edm to enter a malignant cell. The observation that nectin-4 was specifically used for MV entry into nectin-4 positive cancerous breast and colon cells supports this hypothesis [45]. Therefore, nectin-4 is another candidate to be included in a list of sensitivity biomarkers for oncolytic attenuated MV.

4. MV Retargeting for Binding New Cancer-Associated Proteins

Cellular entry of MV-Edm requires the interaction between viral H protein and cell surface receptors. In many types of normal cells, expression of CD150, CD46, or nectin-4 is detected. To make the oncolytic virus safer by targeting cancer cells more specifically, it would be beneficial to modify the virus preference for host cell entry. By changing viral H protein, which is responsible for the virus–receptor interaction, MV-Edm can be retargeted to infect different cells.
The affinity of the receptor for the virus is an important determinant of infectivity and, consequently, infection-induced cell fusion. In this context, affinity is a measure of the strength with which a virus binds to a cellular receptor. The fusion of infected cells with each other depends on this affinity and on the density of receptors on the cell surface, which is a measure of the concentration of receptors in the cell membrane. This density depends on the levels of intracellular expression of the receptor that can be measured. There is a threshold for receptor expression below which cell fusion is ineffective. There is also another threshold for receptor expression, above which there is no further increase in membrane fusion in cell culture [77,78]. Because of this non-linear relationship between viral infection-induced cell fusion and the level of expression of the receptor in vivo, it is very important to test any retargeting strategy.
Retargeting can be achieved by inserting genes that encode single-chain fragments of antibodies or other receptor-binding ligands into the viral genome (Figure 3A). This genetic engineering procedure allows for the creation of MV constructs that target a wide range of cancer associated proteins. Several studies describe such virus retargeting modifications (Table 4). The retargeting is a result of genomic changes that enable MV to use different cancer cell associated proteins as cell entry receptors (Table 4).
A proof of the possibility of redirection of MV cell targeting was obtained with engineered MV-Edm based constructs targeting three cancer associated proteins: EGF, IGF1 [79], and carcinoembryonic antigen (CEA) [80]. In cell cultures, MV-Edm constructs can successfully target, infect, and destroy corresponding malignant cells that overexpress one of these three proteins.
The retargeting genetic engineering approach was further used for creation of viral constructs with ability to recognize two other membrane associated proteins. One was phosphoprotein CD20 [81], which is expressed in normal hematopoietic cells and overexpressed in B-cell lymphomas, leukemias and some other malignancies (Table 5). Another was glycoprotein CD38 [82], expression of which characterizes immune cells and overexpression characterizes NK/T-cell lymphomas, lymphocytic leukemias, multiple myelomas and other malignancies (Table 5). Antitumor effects of both constructs were tested in animal xenografts. Implanted CD20-positive fibrosarcomas demonstrated delayed growth after IP construct delivery, while CD38-positive multiple myeloma cells became less tumorigenic after premixing with the corresponding viral construct.
An alternative approach for MV-Edm retargeting to cell surface antigens of choice was developed by using cystine knot proteins instead of single chain antibodies [83,111]. These short proteins are capable of binding integrins, which are frequently overexpressed by a tumor’s vascular endothelium. The retargeted virus was able to infect and kill cancer cells that expressed the integrins, including glioblastoma, medulloblastoma, melanoma and others [111]. Most importantly, when injected intravenously into animals carrying glioblastoma, the construct reached the tumor and caused cytopathic effects [111].
The introduction of the ability to bind new viral receptors may be accompanied by blinding to the natural receptors CD150 and CD46. This blinding reduces the potential infection of CD150- and CD46-positive normal cells because CD150 is expressed on the surface of normal hematopoietic stem and progenitor cells [36,37,38], while high CD46 expression characterizes glandular cells of many organs [14,15,16]. Blinding increases the safety of viral construct application because MV infection is usually detrimental to host healthy cells.
Blinding to specific receptors became possible after identification of residues in H protein that are necessary for CD150 or CD46 binding [112]. Multiple retargeting strategies have been used to modify the MV-Edm genome. These include the genomic introduction of genes encoding single-chain antibody fragments (scFv), cystine knot proteins, and designed ankyrin repeat proteins (DARPins). The antibody fragment strategy allowed the targeting of various cancer associated proteins such as CD38, epidermal growth factor receptor 1 [113,114], folate receptor 1 [109], prostate specific membrane antigen [110], human epidermal growth factor receptor 2 (HER2/neu) [77], prominin or CD133 [115,116], and plasminogen activator urokinase receptor [117,118]. The cystine knot strategy targeted integrins, which are highly expressed in glioblastomas, medulloblastomas and melanomas [111]. Finally, the DARPin strategy targeted ovarian carcinomas that express HER2/neu or/and epithelial cell adhesion molecule (EpCAM) [119,120], along with EGFR-expressing glioblastomas [121]. To reduce bystander killing of receptor-expressing normal cells, a gene that encodes an engineered viral fusion protein and that can be processed by tumor-associated matrix metalloproteases was added to the virus genome. This introduction made the targeting of the virus to tumor cells very specific [121]. All of these new constructs were tested in cell lines and some in xenograft models of human malignancies, and demonstrated strong or moderate antitumor effects (Table 6).

5. SeV as an Oncolytic Agent

SeV causes respiratory infections in mice and other rodents (Box 2). However, it is not associated with any human disease and can be a safe oncolytic agent. Safety of SeV for humans, including small children, has been confirmed experimentally. The virus in the form of nasal drops has been tested as a vaccine against human parainfluenza virus type 1 (HPIV-1), which causes respiratory symptoms in humans. Testing in adults and children demonstrated that experimental administration of wild type SeV triggered production of neutralizing antibodies towards HPIV-1 and was well tolerated [123,124]. Replication competent SeV vector showed an excellent safety profile in a stage 1 clinical trial [125] and is considered highly suitable as an antigen delivery tool [126,127]. Pre-existing anti-vector immunity didn’t affect the immunogenicity of SeV-delivered antigens [126].
Box 2. Sendai Virus (SeV).
  • Taxonomy: The virus belongs to the genus Respirovirus within the family Paramyxoviridae [23].
  • Host: The virus causes respiratory infections in mice, hamsters, guinea pigs, rats, and other rodents [128].
  • Genome: SeV has single-stranded, negative-sense, non-segmented RNA genome that is ~15K nucleotides long [129].
  • Virion: SeV is an enveloped virus with a lipid membrane.
  • Proteins: Nucleoprotein (N), phosphoprotein (P), matrix protein (M), fusion protein (F), hemagglutinin-neuraminidase (HN), large protein (L), and nonstructural proteins collectively referred as C-proteins (C’, C, Y1, Y2, V, W) that are translated from an alternative RNA transcript of the P gene [129].
Wild-type SeV can replicate and productively infect a large spectrum of malignant cells ex vivo (Table 7). A pilot study demonstrated that some canine mastocytomas can be eradicated with the help of SeV injections [130]. However, the virus is infectious and immunosuppressive for laboratory rodents. Therefore, for studying SeV oncolytic properties in a rodent model, a set of viral constructs that are nonpathogenic for experimental mice was created. These constructs were tested in animals bearing a variety of human xenograft tumors including sarcoma, melanoma, pancreas, colon, hepatocellular and prostate carcinomas. The SeV constructs promoted growth suppression or even complete tumor eradication of these malignancies [131,132,133,134], and elimination of established brain tumors [135].
In addition, UV- inactivated SeV virions have immune-stimulating properties: In syngeneic mice they promote immunomodulated tumor regression of colon [136,137], bladder [138], and kidney [139] cancers. In murine xenografts these virions contribute to the eradication of human prostate cancer [140].
So far, SeV has not been widely tested in clinical settings. An attempt to treat one case of human leukemia with a set of viruses, including SeV, was undertaken in 1964 at the Clinical Research Center of University Hospitals of Cleveland. Short-term remission in one patient affected by acute leukemia was observed after IV virus injection [153]. A few patients affected by various malignancies were treated with intradermally or intratumorally injected SeV in Moscow (Russia) in the 1990s. In a small fraction of patients treated with the virus, primary tumors and metastases disappeared, even when virotherapy was a monotherapy. These patients experienced a pronounced long-term remission that sometimes lasted more than 5–10 years [154].

6. SeV receptors

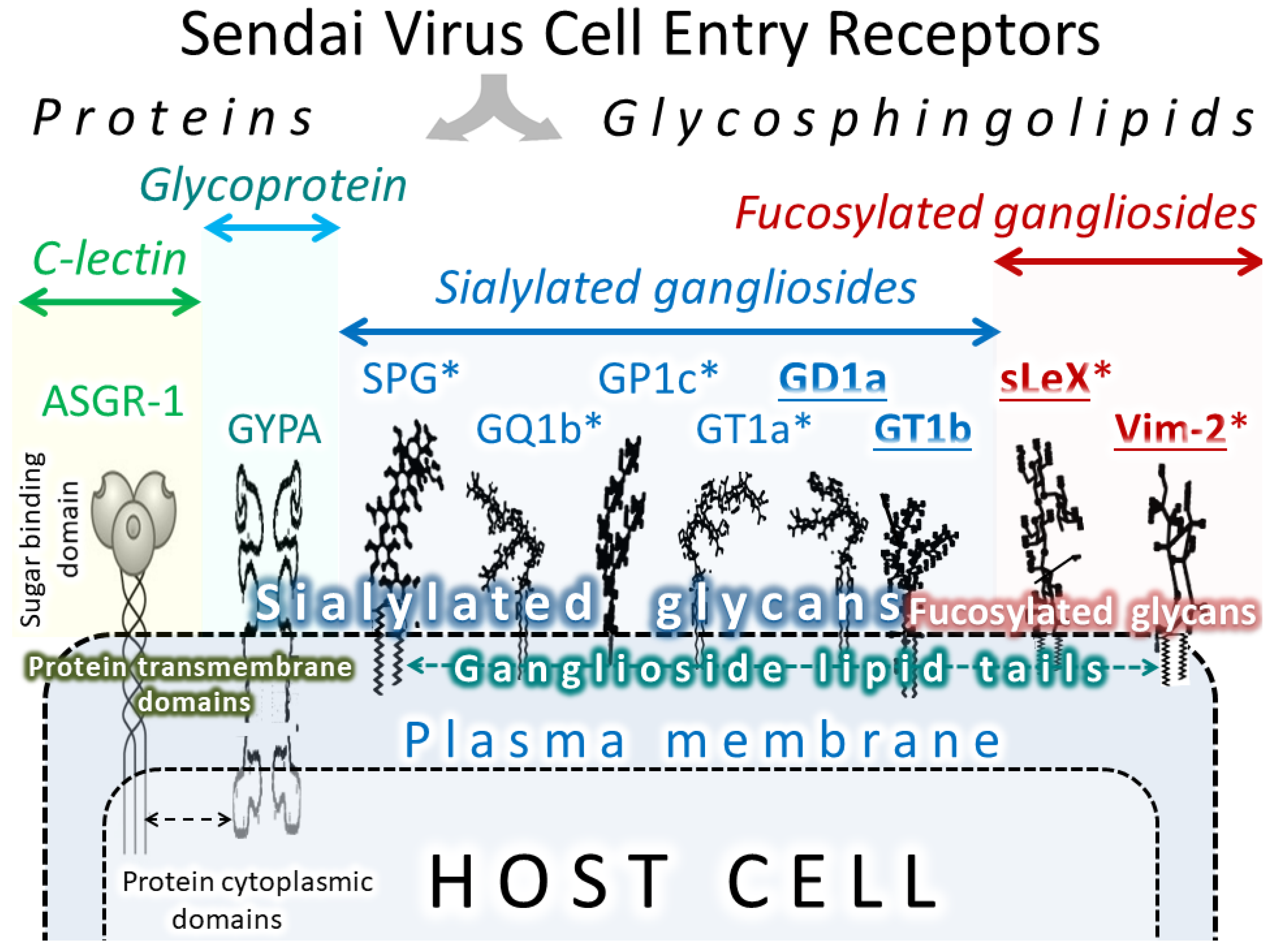

SeV, as a representative of respiratory viruses, uses mainly molecules containing sialic acid residues (sialylated proteins as well as lipids) as cell entry receptors. Thus, bovine sialoglycoprotein (GP2) [155], human asialoglycoprotein receptor (ASGR1) [145,156], and sialoglycoprotein (glycophorin A (GYPA)) [157] bind SeV with high affinity and could act as virus receptors. Glycans (polysaccharides) attached to lipids could also bind SeV and serve as entry receptors. For example, two carbohydrates, sialyl Lewis-x and VIM-2, when attached to lipids, are capable of binding to SeV with high affinity [158]. Other SeV receptors are represented by gangliosides (Table 8, Figure 4).
Sialyl-Lewis X antigen (sLeX), also called stage-specific embryonic antigen 1 or cluster of differentiation 15 (CD15s), is one of the most important blood group antigens. It is a tetrasaccharide and may be attached to a lipid or a protein [92,93,94]. SLeX demonstrated high binding affinity to SeV when attached to sphingolipid [158]. However, whether sLeX can bind with a virus when attached to a protein is unknown. Expression of sLeX correlates significantly with malignant cell invasion, tumor recurrence and overall patient survival for an extremely broad range of cancers (Table 9) (reviewed in [167]). It is likely that sLeX positive cancer cells use the leukocyte adhesion pathway for extravasation, which facilitates tumor invasion and spread. Tumors with high expression of this antigen can bind SeV and are potential candidates for SeV therapy.
VIM-2 antigen, (also called cluster of differentiation 65 sialylated [CD65s]), is a carbohydrate that can be attached to a sphingolipid and has high binding affinity to SeV [158]. VIM-2 is expressed on surfaces of granulocytes, normal myeloid cells, and cells of acute myeloblastic leukemias [160,184]. Its expression is critically important for extravascular infiltration of acute myeloid leukemia cells [185]. Perhaps myeloblastic leukemias that are resistant to modern therapies could be treated with SeV.
Gangliosides are sialic acid-containing glycosphingolipids that are capable of binding SeV. It has been demonstrated that these molecules can serve as SeV cell entry receptors (Table 7). There is substantial evidence that at least three of them, SPG, GD1a, and GT1b, are highly involved in carcinogenesis and metastasis (Table 8). High expression of SPG characterizes lymphoid leukemia cells [189,190] and GD1a characterizes breast cancer stem cells [186]. High expression of both SPG and GD1a was found in castration-resistant prostate cancer cells [187]. High expression of GT1b is universally associated with brain metastases that originate from an extremely broad spectrum of cancers [188].
GM3, GD1a, and GT1b expression in a cell might be less predictive of SeV infectability than the expression of other molecules (104). Therefore, sLeX, VIM-2 and SPG are potential biomarkers for identification of cancers that could be efficiently infected by the virus. However, it is likely that new receptors for the SeV virus will be identified in the future.
Cellular expression of gangliosides is currently evaluated using glycan-specific antibody-based methods. These methods are not always suitable for large-scale screenings. Moreover, anti-ganglioside monoclonal antibodies are not always commercially available [170]. Therefore, indirect measurement of ganglioside expression through expression levels of fucosyltransferases and glycosyltransferases, which are enzymes that finalize ganglioside synthesis, represents an alternative. Expression of these enzymes and production of gangliosides are highly correlated [187]. At least five representatives of the fucosyltransferase family and six representatives of the glycosyltransferase family are responsible for synthesis of gangliosides that could serve as SeV receptors (Table S1). All these proteins are frequently overexpressed in various tumors and their expression levels correlate with tumor metastatic status and duration of patient survival (Table S2). These enzymes deserve to be studied as potential biomarkers of the oncolytic infectivity of SeV.

7. Potential Problems of Virus Delivery and Retargeting

7.1. Preexisting Immunity

One potential problem of MV and SeV applications as oncolytic agents is pre-existing antiviral immunity, which might affect systemic tumor-targeted viral delivery and intratumoral infection spread. For MV, this immunity is a result of childhood vaccination or measles disease. For SeV, previous infection with human parainfluenza virus type 1 (HPIV1) causes this immunity to the extent that the two viruses share some antigenic determinants [123,124]. It has been shown for SeV [191] and for MV [192] that prevalence of specific neutralizing antibodies against these viruses in adult human population is extremely variable. It is still largely unknown to what degree preexisting immunity may decrease the effect of oncolytic virotherapy. However, some virus delivery approaches discussed in the next section might help minimize this problem.

7.2. Virus Transportation and Tumor Delivery

Oncolytic virus constructs can be preloaded to specific cell carriers ex vivo and subsequently, after intravenous injection, transported to tumor sites in vivo [193,194]. Hypothetically, dendritic cells (DCs) could serve as oncolytic virus transportation vehicles. These cells can be infected by both vaccine and wild type strains of MV [195] via the CD150 cell receptor [196]. MV-infected DCs have higher motility toward the epithelial cell layer compared to uninfected ones. Therefore, MV infection enables rapid trafficking of the virus toward epithelial cells [197] and, perhaps, to other tissues including malignant tumors and metastases. Blinding of MV constructs to CD150 increases virus safety but might decrease efficiency of virus tumor delivery through its natural cell carriers such as DCs. SeV can also infect DCs [198] and can transform them into activated mature cells that efficiently contribute to tumor clearance and animal survival [199]. It is not known if MV-Edm or SeV-loaded DCs could ensure viral antibody protection and efficient tumor delivery; however, it is likely. Researchers should not ignore this hypothetical natural route of virus delivery to the tumor. For example, reovirus-loaded DCs protect the virus from neutralizing antibodies and facilitate viral infection of transplanted melanoma cells in model animals [200,201]. The ability of DCs to migrate after viral infection may facilitate viral tumor delivery without detection by host pre-existing immunity. Consequently, this ability might be a great asset for oncolytic virotherapy.

8. Additional Factors Determining Cell Sensitivity to Viruses

The presence of viral receptors is a necessary but not sufficient condition for a cell to be vulnerable to viral infection. Despite the presence of the receptors, a malignant cell can be resistant to the virus when the functioning of the IFN pathway is not impaired [202]. If the pathway is active in the cancer cell and the IFN signal is transduced from the cell surface to its nucleus, the cell can be protected from viral infection.
The cells’ ability to activate constitutively expressed genes of the IFN response pathway (ISGs) was the main prognostic factor for detection of carcinomas resistant to MV-Edm. Virus resistance of ovarian carcinomas and gliomas was linked to characteristic expression patterns of 22 ISGs [28]. Similar results were obtained for other malignancies; the sensitivity of melanoma cells to attenuated MV was associated with their response to type I IFN, even though MV receptor levels were the same among the tested cells [203].
The absence of certain proteases is another reason for the inability of the host cell to produce infectious virus. Expression of type II transmembrane serine proteases (TTSPs) by a cell is critical for the proteolytic activation of paramyxovirus F-proteins. Furin serves as an F-protein activating protease for MV [6] while other proteases such as PSB2 [7,8,9], PRSS1 [10], PLG [11], F10 [12], and TMPRSS2 [13]) serve a similar function for SeV. A host cell that does not express high enough levels of TTSPs can produce only noninfectious virions, rather than infectious virus particles. Expression patterns of TTSPs are variable among malignant cells and some cancers’ progression has been shown to relate to alteration of these patterns [204]. Therefore, in some cancer cells that express paramyxovirus F-protein activating TTSPs, the virus can undergo multiple rounds of infection, whereas in other cells which do not express these proteases, the virus can undergo only one, if any, rounds of infection.
In addition to those listed above, there are probably many more genes and proteins that affect the vulnerability of cancer cells to viral infection. Therefore, more research is needed to determine the target tumor cell pathways responsible for productive viral replication, post-replication processing, assembly, and budding of virions.

9. Conclusions

The cell entry receptors of oncolytic paramyxoviruses are represented by different types of molecules such as proteins and glycans. The molecules that serve as viral receptors for attenuated MV and SeV have extremely variable expression patterns in malignancies. A reliable predictive model for categorization of tumor cells according to their susceptibility to oncolytic virus infection requires many input parameters, which include but are not limited to expression patterns of viral receptors. Most likely, gene signatures of several immune-related genes such as IRGs and certain type II transmembrane serine proteases may serve as useful input parameters for predictive models. The creation and verification of a multi-parameter predictive model should have measurable therapeutic benefits for oncolytic virotherapy.

Supplementary Materials

The following are available online at https://www.mdpi.com/2072-6694/12/12/3659/s1, Table S1: Processing transferases for Sendai virus receptors; Table S2: Overexpression of processing transferases for Sendai virus receptors in malignancies.

Funding

This work was supported by the Intramural Research Programs of the National Library of Medicine (S.A.S.).

Acknowledgments

We thank Peter Chumakov for suggesting the topic for this review and Judith Miller and Timofey Spiridonov for careful reading of this manuscript and numerous constructive suggestions.

Conflicts of Interest

The authors declare no conflict of interest. Olga V. Matveeva belong to a company (Sendai Viralytics LLC). The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Abbreviations

CEACarcinoembryonic antigen
EGFEpidermal growth factor
EGFREpidermal growth factor receptor
FOLR1Folate receptor 1
HER2/neuTyrosine-protein kinase erbB-2 (human epidermal growth factor receptor 2)
IFNInterferon
IPIntraperitoneal delivery
ITIntratumoral delivery
IVIntravenous delivery
MVMeasles virus
PVRL4Poliovirus-receptor-like 4, molecule (nectin-4)
SeVSendai virus
SLAM/SLAMF1/CD150Signaling lymphocytic activation molecule 1
SPGSialosylparagloboside
