Micromachines 2018, 9(9), 466; https://doi.org/10.3390/mi9090466

A Plantar Pressure Sensing System with Balancing Sensitivity Based on Tailored MWCNTs/PDMS Composites

1
Shaanxi Key Laboratory of Nano Materials and Technology, Xi’an University of Architecture and Technology, Xi’an 710055, Shaanxi, China
2
School of Mechanical and Electrical Engineering, Xi’an University of Architecture and Technology, Xi′an 710055, Shaanxi, China
*
Author to whom correspondence should be addressed.
Received: 1 August 2018 / Revised: 11 September 2018 / Accepted: 12 September 2018 / Published: 13 September 2018
(This article belongs to the Section Micro-/Nano-system and Technology)
Full-Text   |   PDF [4054 KB, uploaded 13 September 2018]   |

Abstract

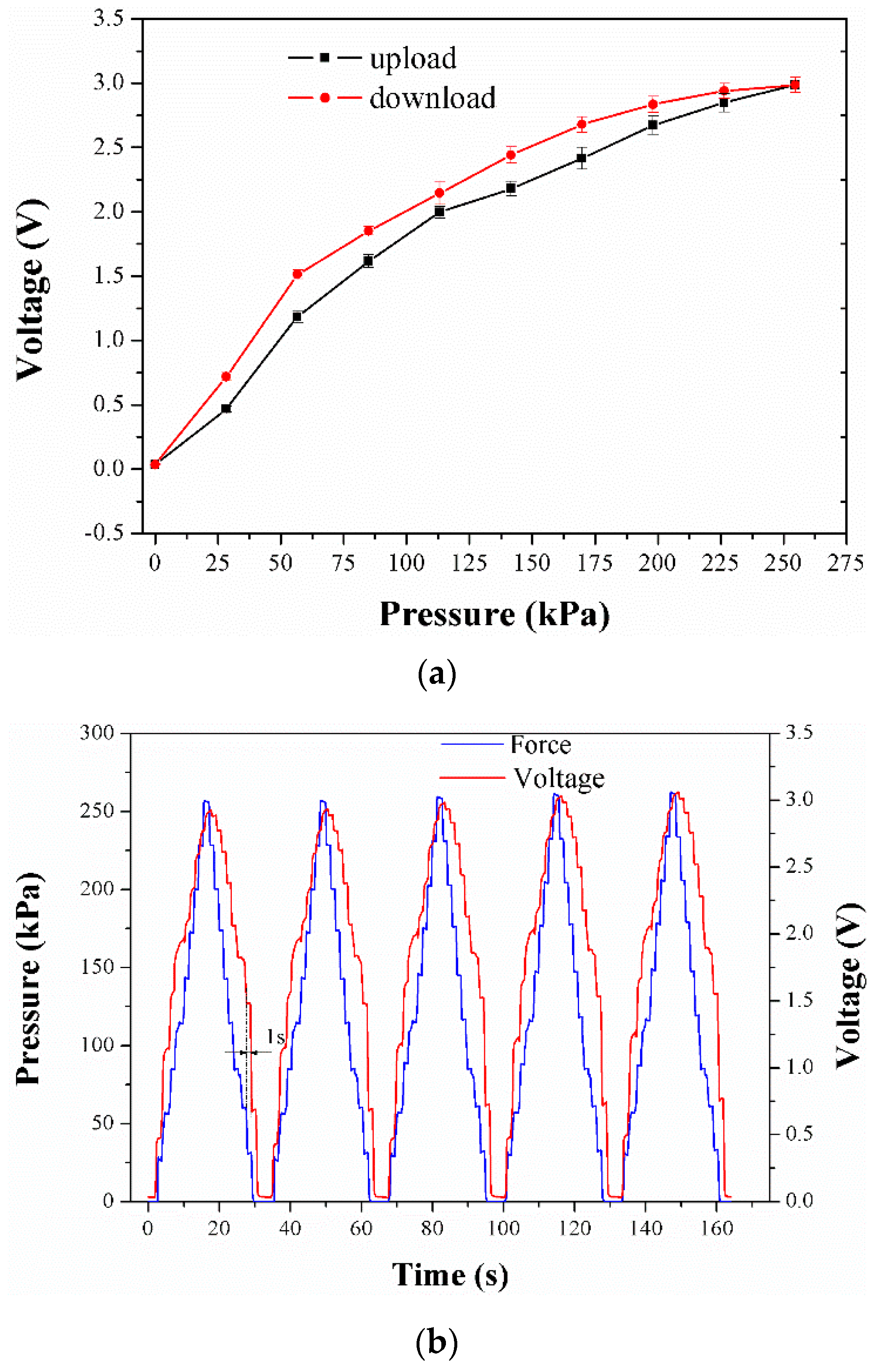

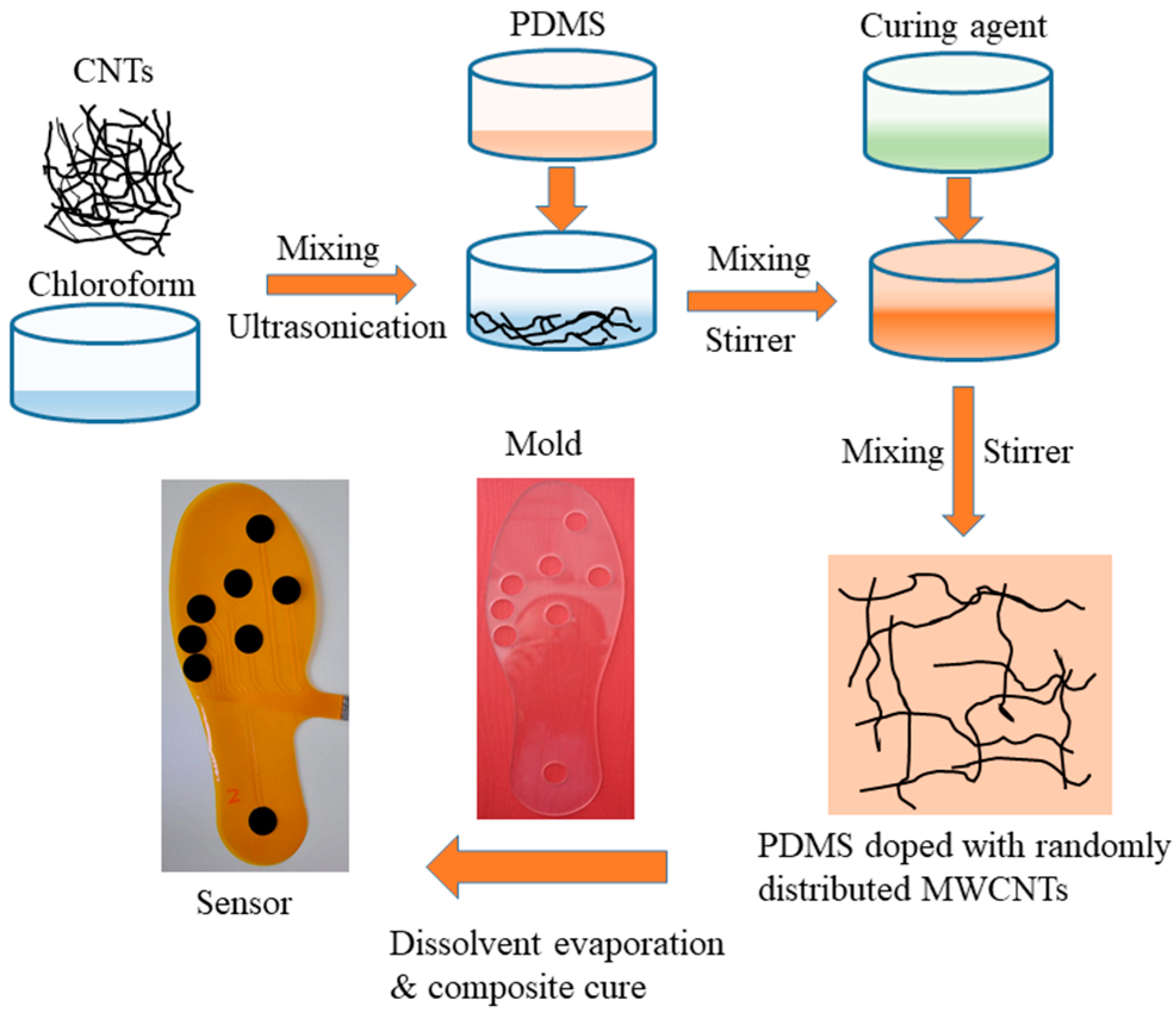

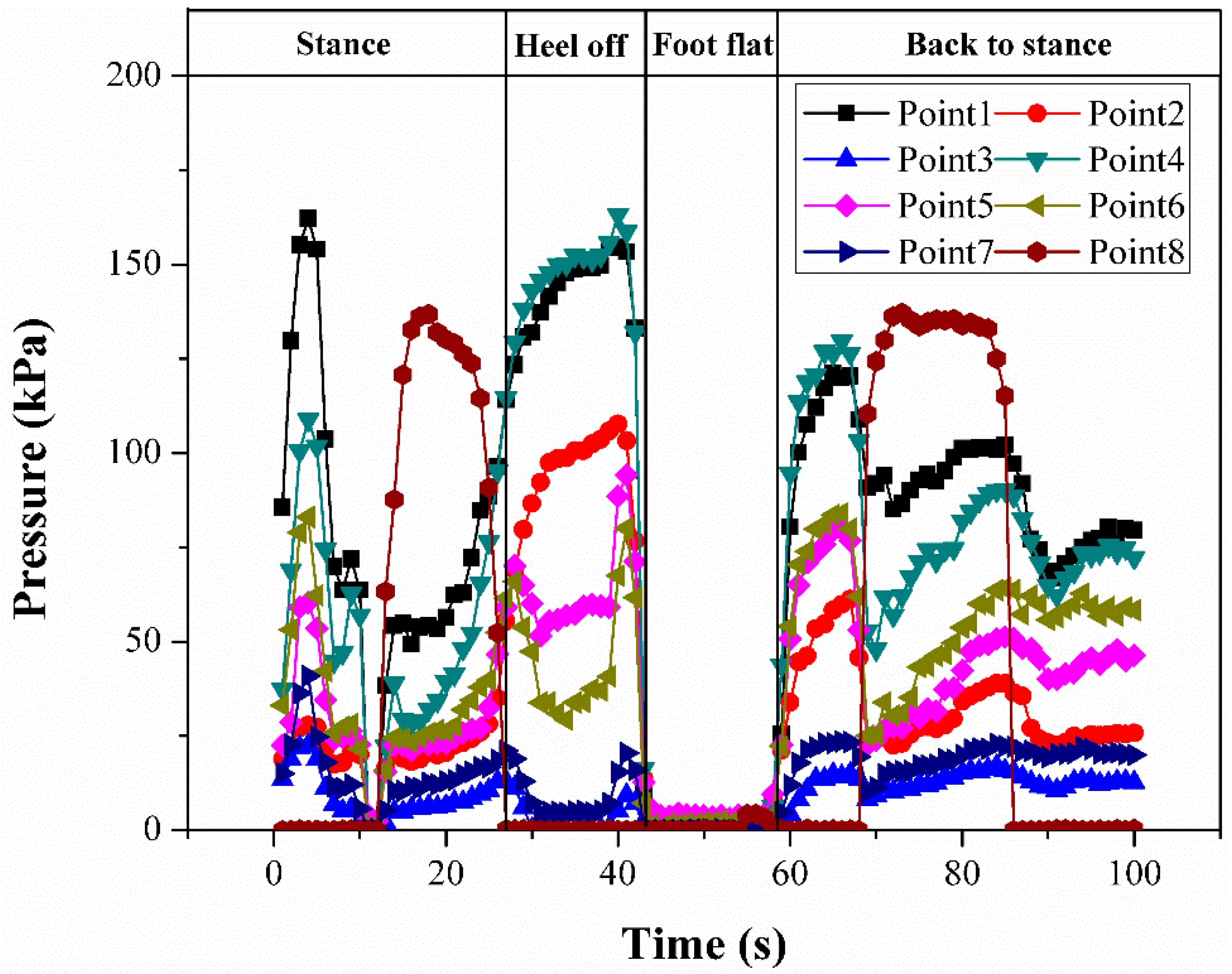

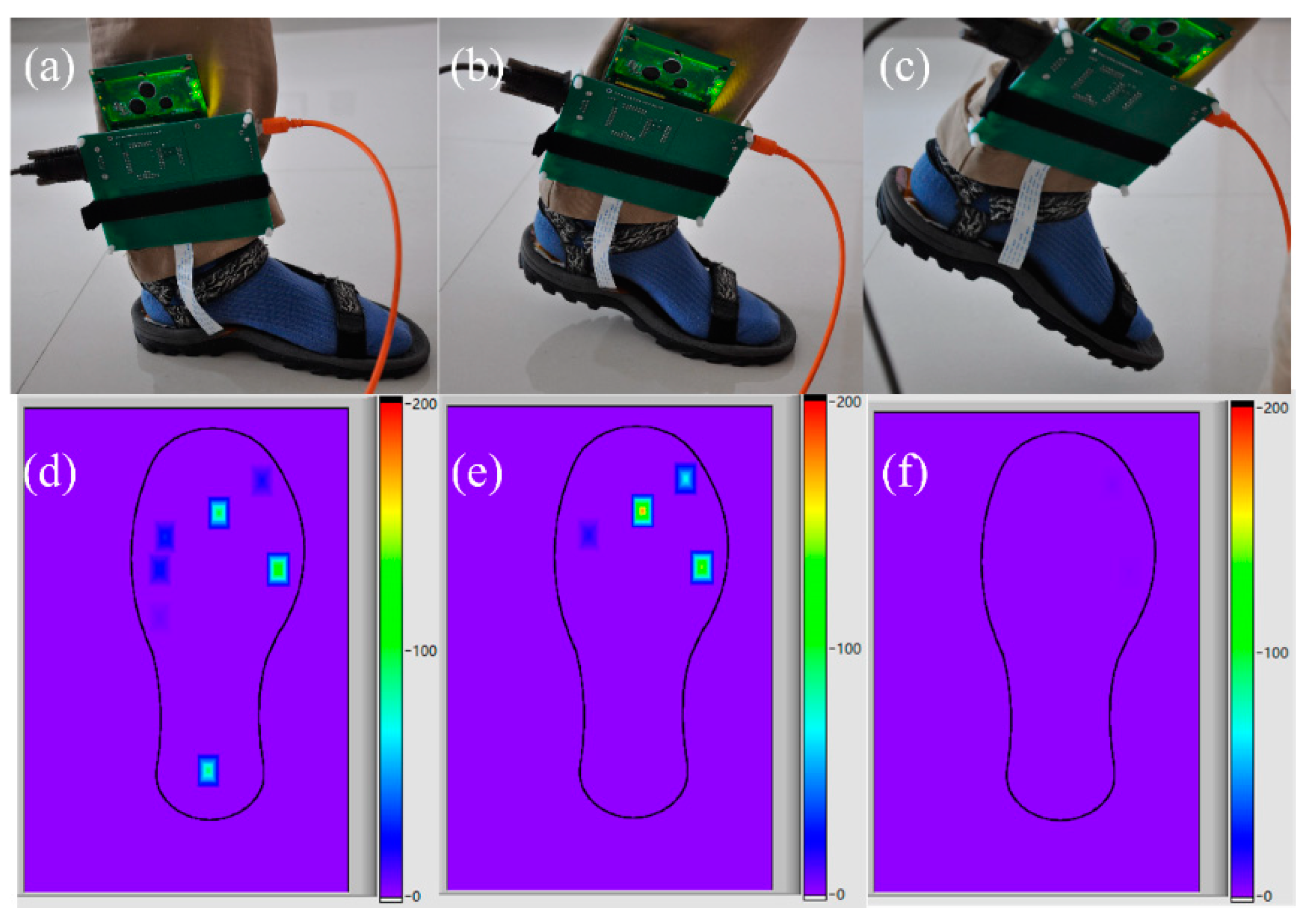

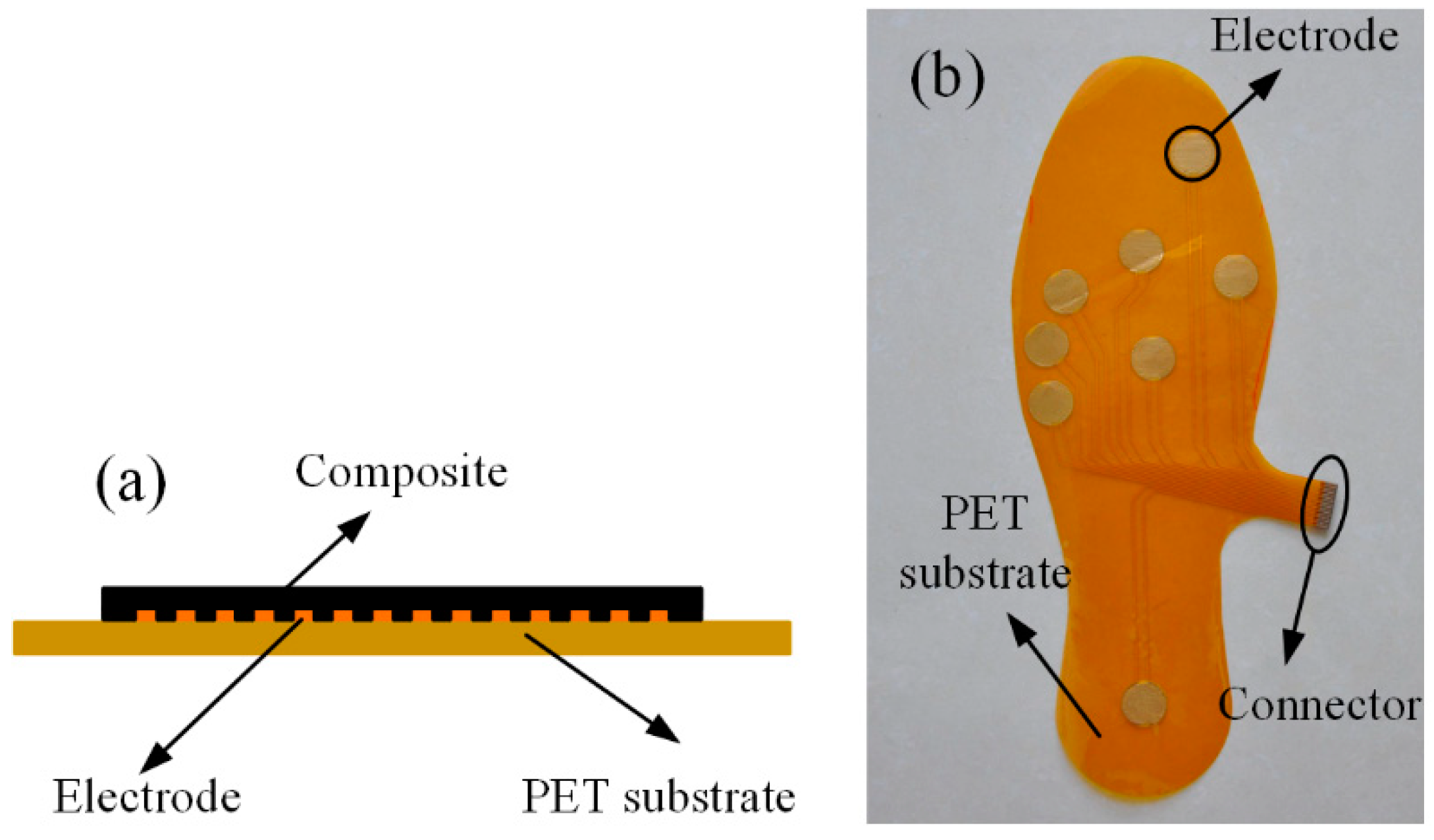

This paper presents a flexible plantar pressure sensor with a simple structure and easy accessibility, suitable for everyday use. In this study, the design, fabrication, and characteristics of both the composite and the sensor were involved. By using the solution method, the piezoresistive composite was fabricated by uniform dispersion of multiwall carbon nanotubes (MWCNTs) into the polydimethylsiloxane (PDMS) matrix. The proposed sensor consists of eight sensing elements with a laminated structure. The upper layer is a sensing layer made of the piezoresistive composite, and the lower layer is a flexible printed circuit-board working as electrodes. A particular design of sensing elements was carried out by using different doping concentrations according to arrangement positions under the feet to obtain balancing sensitivity. A signal processing system to convert the variable resistance signal into voltages by the current-to-voltage method was designed. Experimental results prove that the designed sensor shows a repeatable response with a sensitivity of 11.5 mV/kPa within the range of 265 kPa. Also, an actual application verifies that the designed plantar pressure sensor can measure the pressure under the foot and can be used for gait detection and disease diagnosis purposes. View Full-Text
Keywords: plantar pressure sensor; composites; multi-walled carbon nanotubes (MWCNTs); piezoresistive plantar pressure sensor; composites; multi-walled carbon nanotubes (MWCNTs); piezoresistive
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Zhang, X.; Chai, R.; Wang, H.; Ye, X. A Plantar Pressure Sensing System with Balancing Sensitivity Based on Tailored MWCNTs/PDMS Composites. Micromachines 2018, 9, 466.
