Micromachines 2018, 9(6), 281; https://doi.org/10.3390/mi9060281

Silicon-Vacancy Centers in Ultra-Thin Nanocrystalline Diamond Films

1
Institute of Physics ASCR, Cukrovarnická 10, Prague 16200, Czech Republic
2
Faculty of Electrical Engineering, Czech Technical University in Prague, Technická 2, Prague 16627, Czech Republic
3
Department of Physics, University of Basel, Klingelbergstrasse 82, 4056 Basel, Switzerland
*
Author to whom correspondence should be addressed.
Received: 30 April 2018 / Revised: 25 May 2018 / Accepted: 30 May 2018 / Published: 2 June 2018
(This article belongs to the Special Issue Color Centers in Diamond: Fabrication, Devices and Applications)
Full-Text   |   PDF [2546 KB, uploaded 2 June 2018]   |

Abstract

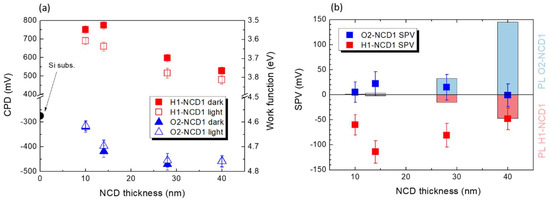

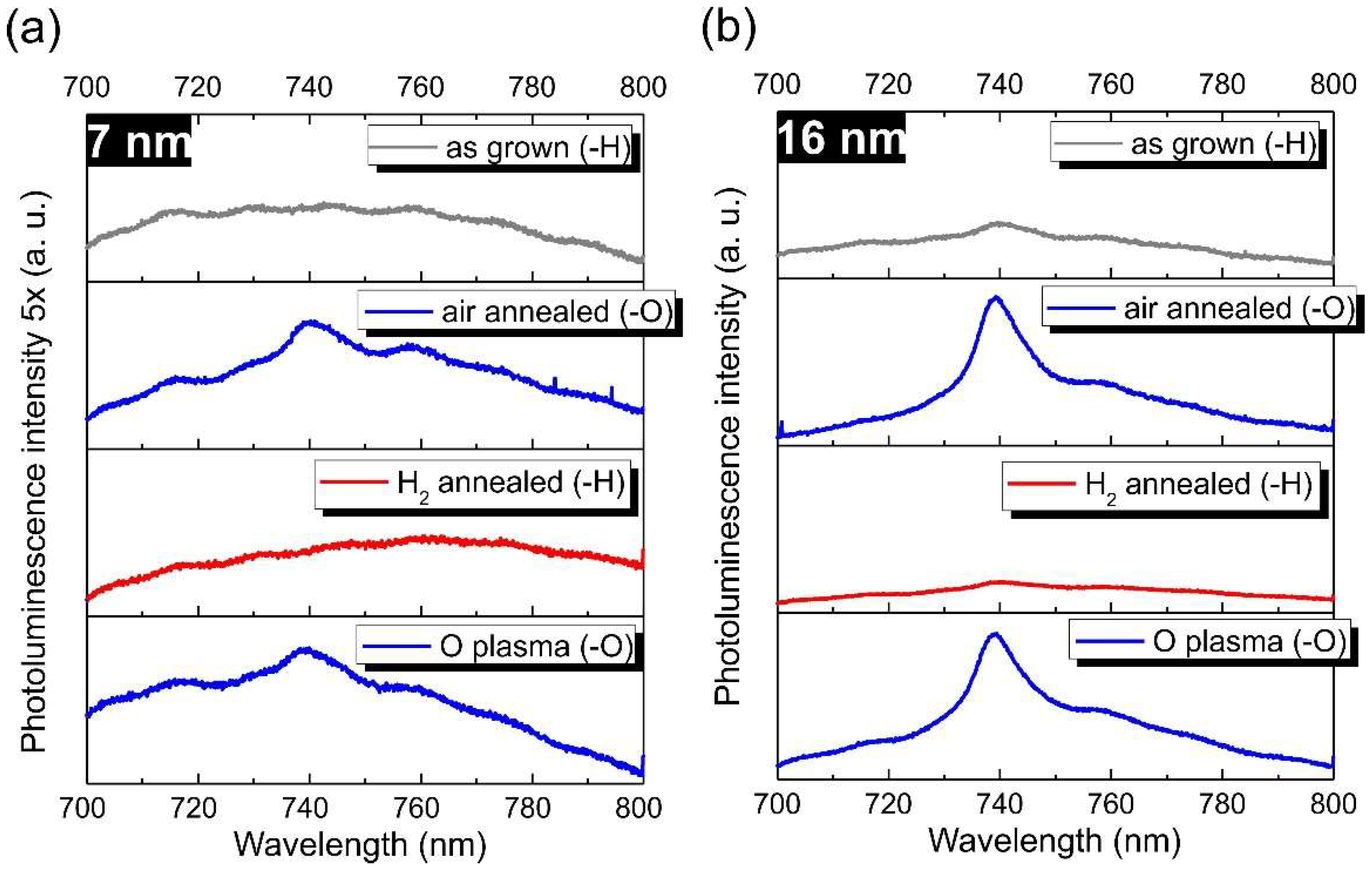

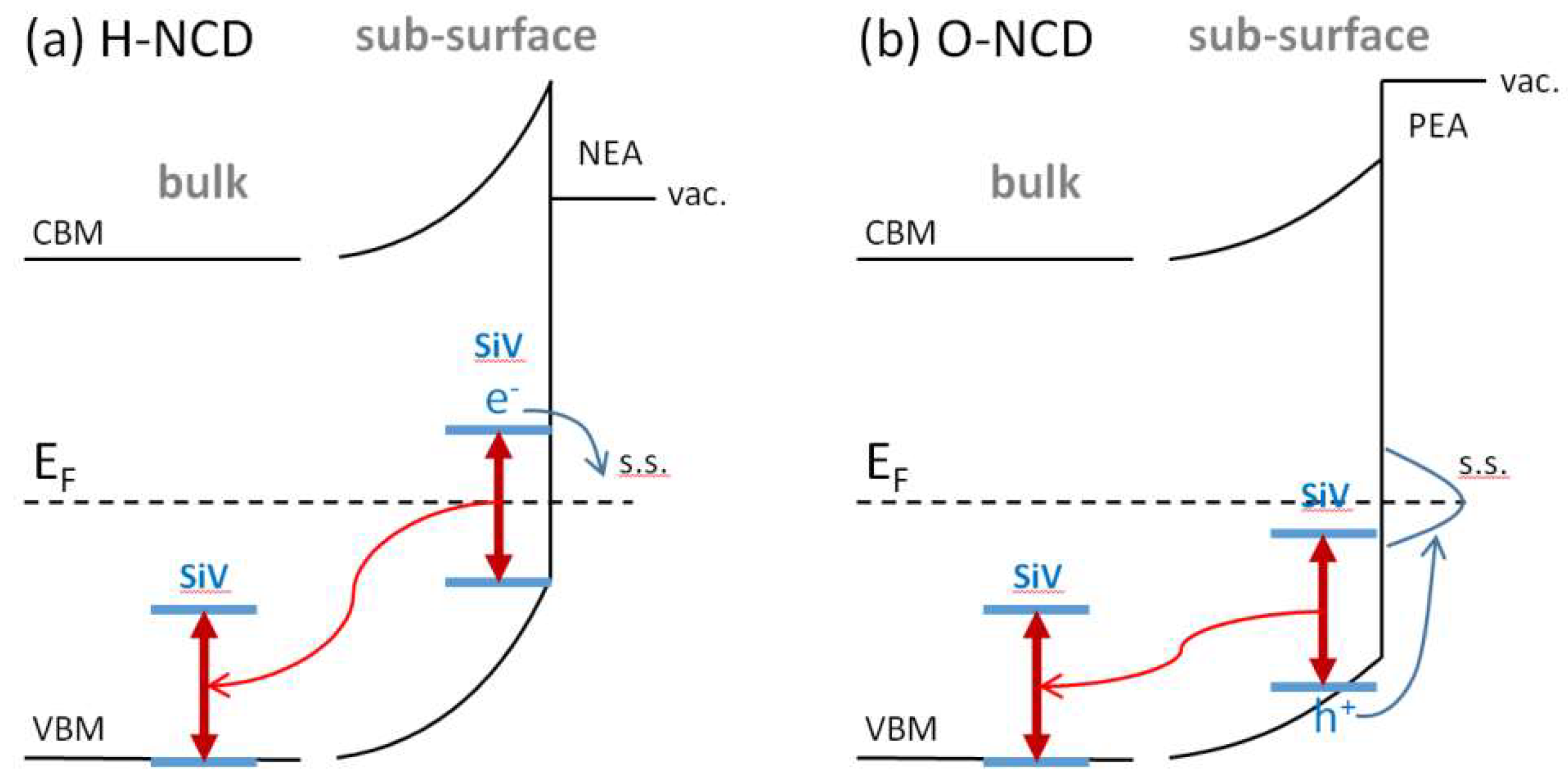

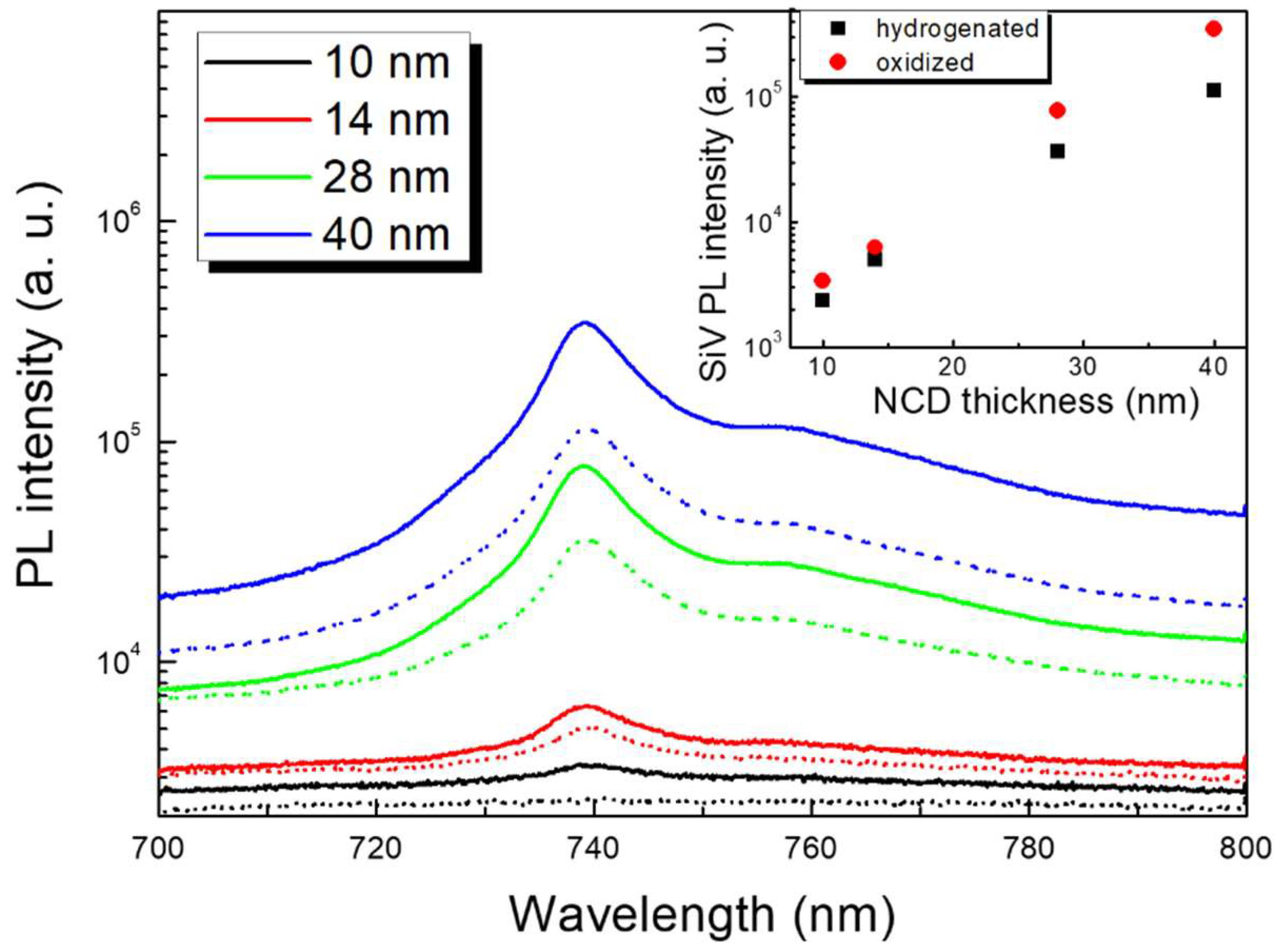

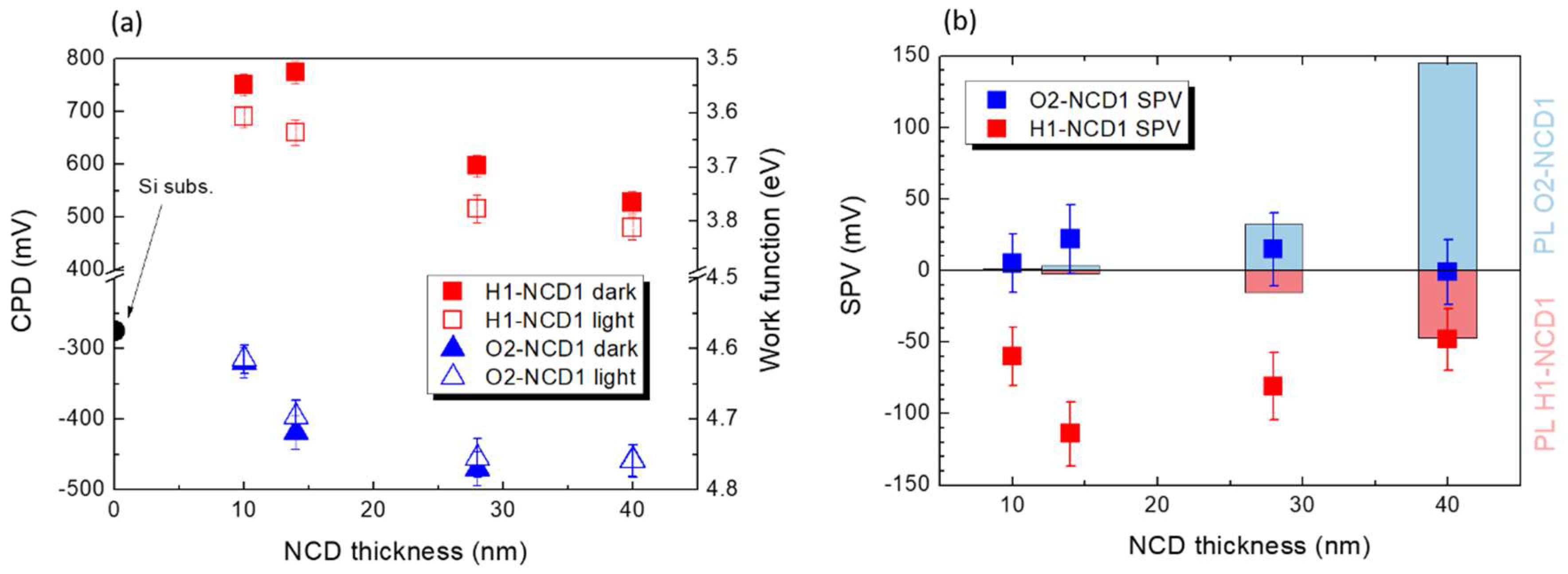

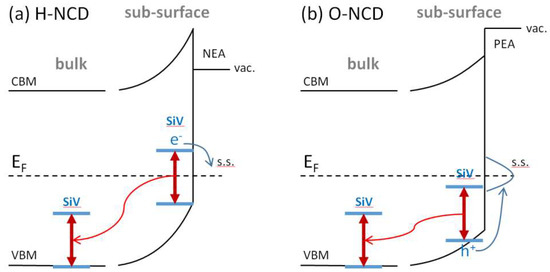

Color centers in diamond have shown excellent potential for applications in quantum information processing, photonics, and biology. Here we report the optoelectronic investigation of shallow silicon vacancy (SiV) color centers in ultra-thin (7–40 nm) nanocrystalline diamond (NCD) films with variable surface chemistry. We show that hydrogenated ultra-thin NCD films exhibit no or lowered SiV photoluminescence (PL) and relatively high negative surface photovoltage (SPV) which is ascribed to non-radiative electron transitions from SiV to surface-related traps. Higher SiV PL and low positive SPV of oxidized ultra-thin NCD films indicate an efficient excitation—emission PL process without significant electron escape, yet with some hole trapping in diamond surface states. Decreasing SPV magnitude and increasing SiV PL intensity with thickness, in both cases, is attributed to resonant energy transfer between shallow and bulk SiV. We also demonstrate that thermal treatments (annealing in air or in hydrogen gas), commonly applied to modify the surface chemistry of nanodiamonds, are also applicable to ultra-thin NCD films in terms of tuning their SiV PL and surface chemistry. View Full-Text
Keywords: diamond; color center; nanocrystalline diamond; silicon-vacancy center; Kelvin probe force microscopy; surface photovoltage diamond; color center; nanocrystalline diamond; silicon-vacancy center; Kelvin probe force microscopy; surface photovoltage
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Stehlik, S.; Ondic, L.; Varga, M.; Fait, J.; Artemenko, A.; Glatzel, T.; Kromka, A.; Rezek, B. Silicon-Vacancy Centers in Ultra-Thin Nanocrystalline Diamond Films. Micromachines 2018, 9, 281.
