Surface Modification of Electroosmotic Silicon Microchannel Using Thermal Dry Oxidation

1
Institute of Microengineering and Nanoelectronics (IMEN), Universiti Kebangsaan Malaysia (UKM), 43600 UKM Bangi, Selangor, Malaysia
2
Department of Electronics Engineering, Faculty of Engineering, Universiti Teknologi MARA, 40450 Shah Alam, Selangor, Malaysia
*
Author to whom correspondence should be addressed.
Micromachines 2018, 9(5), 222; https://doi.org/10.3390/mi9050222
Received: 30 March 2018 / Revised: 2 May 2018 / Accepted: 4 May 2018 / Published: 7 May 2018

Abstract

:
A simple fabrication method for the surface modification of an electroosmotic silicon microchannel using thermal dry oxidation is presented. The surface modification is done by coating the silicon surface with a silicon dioxide (SiO2) layer using a thermal oxidation process. The process aims not only to improve the surface quality of the channel to be suitable for electroosmotic fluid transport but also to reduce the channel width using a simple technique. Initially, the parallel microchannel array with dimensions of 0.5 mm length and a width ranging from 1.8 µm to 2 µm are created using plasma etching on the 2 cm × 2 cm silicon substrate <100>. The oxidation of the silicon channel in a thermal chamber is then conducted to create the SiO2 layer. The layer properties and the quality of the surface are analyzed using scanning electron microscopy (SEM) and a surface profiler, respectively. The results show that the maximum oxidation growth rate occurs in the first 4 h of oxidation time and the rate decreases over time as the oxide layer becomes thicker. It is also found that the surface roughness is reduced with the increase of the process temperature and the oxide thickness. The scallop effect on the vertical wall due to the plasma etching process also improved with the presence of the oxide layer. After oxidation, the channel width is reduced by ~40%. The demonstrated method is suggested for the fabrication of a uniform channel cross section with high aspect ratio in sub-micro and nanometer scale that will be useful for the electroosmotic (EO) ion manipulation of the biomedical fluid sample.

1. Introduction

The past decade has seen the rapid advancement of microfluidic chip development. The main reason is because of the fluid flow characteristics in the micrometer structure that allows for an extremely slow fluid movement, less sample volume consumption and precision in fluid control. In microfluidic systems, the electroosmotic device (EO) becomes one of the most important parts in which the fluid can be manipulated by the electric potential between inlet and outlet. EO flow mechanism in a microchannel has been used for numerous microfluidic applications, including for fluids transport and manipulation [1], charge separation and ion transport [2] and fluids pumps [3]. As an example, the EO flow mechanism has been applied to transport fluids as in electroosmotic pump (EOP) [4]. The system was capable of generating a maximum flow rate of 15 µL/min, a significant amount of flow rate per device volume for a microfluidic system. The microchannel width in the fabricated pump is much greater than the height, to ease the fabrication process. Such designs suffer from clogging due to structure collapsing after bonding process for microsystem integration. Therefore, a microchannel structure for EO device requires a sufficient high channel aspect ratio (H/W >> 1) to create a uniform electric field distribution along the channel that induces a stable electroosmotic flow. For ion separation purposes, a small channel cross section is necessary due to stronger ion interaction between the charged system (ionic solution and charged channel surface) [5].
Microfluidic channels are typically fabricated in glass, silicon and polymeric substrate. The fabrication procedures of polymeric material like Polydimethylsiloxane (PDMS) and Poly (methyl methacrylate) (PMMA) offer a significantly lower cost and ease fabrication procedures [6,7]. Despite this, the polymeric based materials have a lower wall zeta potential and heat dissipation rates as compared to glass because glass has superior chemical properties for surface electrostatics reactions. Furthermore, a few methods to modify the PDMS and PMMA based microchannel surface have been previously reported. For instance, the plasma-based technique to tune the wettability of the surface has been demonstrated [8,9], indicating that a surface modification is preferable for improving the quality of the channel surface.
Glass also has an excellent dielectric property that is important for electroosmotic flow [10]. However, the glass fabricating technique is a major drawback due to its low etching rate, which must be considered when designing a glass based EO microfluidic device.
On the other hand, silicon material has been, for many years, established as the material to employ for a wide range of microelectronics devices and applications. A silicon microchannel has similar electrical properties to a glass substrate and it can be fabricated using the well-established integrated circuit (IC) fabrication technology [11]. Reactive ion etching using SF6 plasma is widely used to create uniform micro-channels with a vertical wall for microfluidic devices but the wall quality is poor due to the scallop effect, resulting from the repetitive alternating phase of passivation gas (C4F8) deposition and the etching gas (SF6) on the targeted wall. Some work on reducing the scallop effects by optimizing the deep reactive ion etching (DRIE) parameter has been reported. However, this complicated studies, due to the additional gas composition [12], an optimum etch and passivation cycle time [13] as well as the controlled flow rates of the etching/passivation ratio [14].
In this paper, we report the implementation of the dry oxidation process to grow an oxide layer on a prefabricated silicon based microfluidic channel in order to improve its surface quality [15] and at the same time to increase the channel aspect ratio by reducing the channel dimension down to the nanoscale for ion transport purposes. This method is also preferable because it is simple, compatible with the complementary metal-oxide-semiconductor (CMOS) process and eliminates the complex nanolithography process.

2. Microchannel Electroosmotic System Design

The principle of electroosmotic ion transport is based on the spontaneous reaction of a solid surface in contact with an ionic solution. For a negative surface charge, an accumulation of positive charge forms a stern layer in an electrical double layer (EDL) on the capillary wall. Therefore, the EO flow mechanism is produced by way of the induction principle of cations in the diffuse layer in the electric double layer (EDL), which move with the presence of the electric field. The cations migration will drag the bulk fluid in the capillary towards the negative potential in the flat flow profile.
The microfluidic EO system consists of several surface–modified microfluidic channels in parallel array with an SiO2 coating with a length of 500 µm that is fabricated on a 390 µm thick silicon wafer <100>. The channel shape is rectangular with a width smaller than 1 µm and a depth of about 2 µm. A microchannel input (Inlet A—Outlet 1), having a channel geometry of 200 µm width and 20 mm length are integrated with the SiO2 coated silicon microchannel array. On the other end of the surface modified channel, the outlet channel (outlet 2 with similar dimensions to the inlet channel is integrated. The inlet port contains buffer and ionic solution that will be transported through the microchannel array towards the outlet reservoir by electroosmotic flow. For that purpose, a voltage potential V is applied across the microchannel array to create an electric field as shown in Figure 1.
In this work, the SiO2 coated silicon microchannel reduces not only the channel cross-section dimension but also improves the surface quality. To create micron size rectangular microchannels, we utilized standard photolithography and the reactive ion etching technique. The thermal oxidation was performed under atmospheric pressure with a constant O2 stream flow of 2000 mL/min at various process temperatures. Through the conducted procedures, a uniform oxide growth on both vertical and horizontal surfaces and SiO2 rectangular channels of a uniform size and shape in parallel array are produced.
As shown in Figure 2, the oxidation process should produce an approximately uniform oxide growth rate on both the horizontal and vertical silicon walls. Hence, accurate control of the depth to width ratio (H/W) of the microchannels can be achieved after the oxidation process. The final dimension width of the electroosmotic channel is in the range below 1 µm with a higher aspect ratio.

3. Fabrication Process of Electroosmotic Device (EO) Channel System

3.1. Fabrication of Silicon Microchannel Using Plasma Etching Procedure

Figure 3 shows the process flow to create the Si-microchannel. Initially, a set of electroosmotic microchannel arrays was fabricated using the standard photolithography and deep reactive ion etching (DRIE) on the silicon wafer <100>. The parallel microchannels were designed to have a length of 0.5 mm and a variation of widths from 1.8 µm to 2 µm. The microchannel was formed in a straight line and the distance between each channel was set to 5 µm.
The microchannel design was transferred onto a cleaned silicon surface by exposing the substrate coated with a positive photoresist under UV-light exposure. To pattern a vertical microchannel on the silicon substrate, we employed the high-density reactive ion SF6 etching, with passivation gas C4H8 and O2 at cryogenic temperature with an approximate etch rate of 1 µm per minute. After the DRIE process, the mask resist was removed and the geometries of the microchannels array were observed using a scanning electron microscope (SEM).

3.2. Surface Modification of Fabricated Silicon Microchannel Using Thermal Oxidation

The surface modification of the prefabricated silicon microchannel was done using an oxidation process in a high thermal ambience. Basically, the oxide was grown on the heated silicon surface at a very high temperature between 800–1200 °C with the presence of oxygen gas flow or water vapor, referring to dry and wet oxidation respectively. In this work, we created the SiO2 microchannel based on the oxidation of silicon in dry flowing oxygen at atmospheric pressure in three different process temperatures, 990 °C, 1020 °C and 1040 °C. The formation of silicon dioxide layer on silicon channels was described by the chemical reaction below:
Si + O2 = SiO2
In dry thermal oxidation, O2 molecules diffuse through the surface oxide layer and react with the silicon atom at the Si-SiO2 interface. The resulting SiO2 surface layer is not coplanar with the original silicon surface, which means 0.44d of silicon is consumed for a thickness of d oxide layer growth in the thermal dry oxidation process.
Before starting the oxidation procedure, the etched sample was cleaned in acetone and a methanol ultrasonic bath for five minutes each followed by rinsing the substrate in DI water for 1 min. The sample was then soaked in 10% HF solution for 60 s to eliminate the undesired native oxide layer before it was rinsed again in DI water and dried with nitrogen.
Then, the samples were placed in the ceramic boat and were put at the mouth of the oxidation glass tube furnace that had previously been filled up with nitrogen (N2) gas at a 2000 mL/min stream rate. The resistance heater on the tube furnace was then heated up according to the targeted process temperature. After the furnace temperature reached the required temperature, the sample boat was pushed to the heated zone, which is at the center of the furnace tube. The oxidation process began after we stopped the supplied N2 gas and started to flow the dried oxygen gas into the tube furnace under a constant flow rate of 2000 mL/min. The oxidation process was maintained under a constant oxygen flow rate at atmospheric pressure from 4 to 12 h. Figure 4 shows the oxidation furnace apparatus for thermal dry oxidation. A uniform color scheme with no surface abnormality appeared on the oxidized sample’s surface at all experiment conditions. The morphology of SiO2 growth surface on the sample was scanned using F50 Thin Film Metrics at 20 different points while the cross-section of the SiO2 microchannel was verified using the scanning electron microscope.

4. Results and Discussion

4.1. SiO2 Layer Thickness and Oxidation Growth Rate

The average thickness of the oxide layer on the silicon microchannel was highly controlled by the process temperature and the oxidation time. A plot of average oxide thickness against time at various process temperatures is shown in Figure 5. In the time range of 4 to 12 h for all oxidation temperatures, the oxidation layer thickness was found to increase with the oxidation time. In addition, the higher the process temperature, the thicker the oxide layer will be grown. This relationship of temperature and time for the oxide thickness was well agreed with the finding reported in Reference [16]. From the plot, we perceived the maximum thickness of 520 nm oxide grown at 1040 °C for 12 h of oxidation time.
The oxide thickness was measured at intervals after 4, 6, 8, 10 and 12 h of the oxidation process. The highest growth rate was observed for the first 4 h of oxidation time for all process temperatures. The growth rate at all conducted process temperatures is presented in Figure 6. It is shown that for the first 4 h of oxidation, the maximum growth rate was up to 72 nm/h at 1040 °C. As the oxidation time increased, we observed a consistent decrease of growth rate. The same trend was observed for other process temperatures of 1020 °C and 990 °C. The decreasing growth rate by time can be explained due to a lower supply of oxygen atoms at the silicon interface as the thickness of the oxide layer increases. We also found that the maximum oxide growth rate was 33% higher with an increase of 50 °C in the process temperature for 12 h of oxidation time. This finding proved the strong relation between the temperature and the oxide growth rate as the oxidant diffusivity increased with the increasing temperature [11,16,17].

4.2. Surface Uniformity

The thickness of the oxide layer on the sample surface at all oxidation durations was found to be uniform across a 2 cm × 2 cm sample area. The thickness measurements were characterized using F50 Filmetrics at 20 random scanned points across the samples. The measurement principle was based on the light scattering effect of the incident light normal to the thin film surface.
Figure 7 shows the surface roughness, indicating the uniformity of the oxide layer thickness that is calculated as the difference between the maximum and minimum thickness of the grown oxide layer divided by the average thickness at every oxidation temperature. In general, the oxide thickness measurement showed that the oxide layer was grown with the lowest roughness as the oxidation temperature increased. The surface roughness of 2.03% was observed for the oxidation temperature of 1040 °C. The oxide surface roughness also improved when we prolong the oxidation time to 12 h. The longer oxidation time allows for a thicker oxide layer growth with better uniformity of the microchannel surface.
Figure 8 shows the SEM observations on the EO channel before and after oxidation process. The scallop effect becomes a major challenge for high aspect ratio microchannel fabrication using DRIE [18]. The scallop roughness, as shown in Figure 8a, was not desirable especially for an electroosmotic microfluidic system because it can create unnecessary flow characteristics and induce unwanted pressure inside the microchannel. On top of that, the surface roughness can change the EDL properties near the surface wall, hence reduce the electroosmotic flow inside the microchannel [19,20]. Figure 8b shows the effect of oxidation on the side wall smoothness. It can be seen that the scallop roughness on the vertical wall of the microchannel resulted from the plasma etching process was improved by the oxide layer growth on the silicon vertical wall after 12 h of oxidation.

4.3. Microchannel Structure Improvement after Thermal Oxidation

A high aspect ratio SiO2 microchannel was successfully created by using dry thermal oxidation that is suitable for an electroosmotic flow application. The shape and cross section of the microchannel was uniform, as demonstrated by Figure 9a,b. The width of the microchannel was reduced to 42% with an oxide layer of 520 nm on the channel wall. The color scheme on the top surface of the substrate was seen consistently without any abnormal spots.

5. Conclusions

In conclusion, we presented a simple technique for fabricating a silicon electroosmotic (EO) channel with surface modification. The microchannel arrays were initially realized by reactive ion etching coupled with post processed thermal dry oxidation to produce high aspect ratio microchannels with an improved cross section and surface morphology. The strong relation between oxide thickness and the temperature was presented by performing the thermal dry oxidation at 990 °C, 1020 °C and 1040 °C. The oxide growth rate was found to increase at higher process temperatures. By using this method, the microchannel width was reduced by ~40% with the minimum aspect ratio (H/W) of 2. The surface quality was also improved as the scallop effect from the plasma etching process was reduced by adding an adequate amount of oxide layer. A uniform cross section with a good quality of surface roughness was essential for demonstrating a steady electroosmotic flow inside the microchannel. The final structure of the SiO2 microchannels array will be integrated with a PDMS structure to work as a complete electroosmotic microfluidic device. This process was foreseen to be able to produce a high aspect ratio sub-microchannel and nanochannels without implementing the nanolithography procedure that will be beneficiary for ion transport purposes.

Author Contributions

J.Y., T.N.T.Y. and B.Y.M. conceived and designed the experiments; J.Y., and T.N.T.Y. performed the experiments and analyzed the data; A.A.H. and M.F.M.R.W. contributed reagents/materials, T.N.T.Y., J.Y. and R.L. wrote the paper.

Acknowledgments

This work is supported by Ministry of Higher Education under LRGS Project Grant No. LRGS/2015/UKM-UKM/NANOMITE/04/01 and FRGS Project Grant No. FRGS/1/2016/TK05/UKM/02/2 and partly supported by the French RENATECH Network and its FEMTO-ST Technology facilities.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pennathur, S.; Santiago, J.G. Electrokinetic transport in nanochannels. 2. Experiments. Anal. Chem. 2005, 77, 6782–6789. [Google Scholar] [CrossRef] [PubMed]
  2. Buyong, M.R.; Larki, F.; Faiz, M.S.; Hamzah, A.A.; Yunas, J.; Majlis, B.Y. A tapered aluminium microelectrode array for improvement of dielectrophoresis-based particle manipulation. Sensors 2015, 15, 10973–10990. [Google Scholar] [CrossRef] [PubMed]
  3. Zeng, S.; Chen, C.H.; Mikkelsen, J.C.; Santiago, J.G. Fabrication and characterization of electroosmotic micropumps. Sens. Actuators B Chem. 2001, 79, 107–114. [Google Scholar] [CrossRef]
  4. Chen, C.H.; Santiago, J.G. A planar electroosmotic micropump. J. Microelectromech. Syst. 2002, 11, 672–683. [Google Scholar] [CrossRef]
  5. Garcia, A.L.; Ista, L.K.; Petsev, D.N.; O’Brien, M.J.; Bisong, P.; Mammoli, A.A.; Brueck, S.R.J.; López, G.P. Electrokinetic molecular separation in nanoscale fluidic channels. Lab Chip 2005, 5, 1271–1276. [Google Scholar] [CrossRef] [PubMed]
  6. Rodríguez-Ruiz, I.; Babenko, V.; Martínez-Rodríguez, S.; Gavira, J.A. Protein separation under a microfluidic regime. Analyst 2018, 143, 606–619. [Google Scholar] [CrossRef] [PubMed]
  7. Masrie, M.; Majlis, B.Y.; Yunas, J. Fabrication of multilayer-PDMS based microfluidic device for bio-particles concentration detection. Bio-Med. Mater. Eng. 2014, 24, 1951–1958. [Google Scholar]
  8. Vourdas, N.; Tserepi, A.; Boudouvis, A.G.; Gogolides, E. Plasma processing for polymeric microfluidics fabrication and surface modification: Effect of super-hydrophobic walls on electroosmotic flow. Microelectron. Eng. 2008, 85, 1124–1127. [Google Scholar] [CrossRef]
  9. Thorslund, S.; Nikolajeff, S. Instant oxidation of closed microchannels. J. Micromech. Microeng. 2007, 17, 4. [Google Scholar] [CrossRef]
  10. Kirby, B.J.; Hasselbrink, E.F. Zeta potential of microfluidic substrates: 2. Data for polymers. Electrophoresis 2004, 25, 203–213. [Google Scholar] [CrossRef] [PubMed]
  11. Madou, M.J. Fundamentals of Microfabrication, 2nd ed.; CRC Press, Taylor & Francis Group: Boca Raton, FL, USA, 2002. [Google Scholar]
  12. Abdolvand, R.; Ayazi, F. An advanced reactive ion etching process for very high aspect-ratio sub-micron wide trenches in silicon. Sens. Actuators A Phys. 2008, 144, 109–116. [Google Scholar] [CrossRef]
  13. Miller, K.; Li, M.; Walsh, K.M.; Fu, X.A. The effects of DRIE operational parameters on vertically aligned micropillar arrays. J. Micromech. Microeng. 2013, 23, 035039. [Google Scholar] [CrossRef]
  14. Chang, C.; Wang, Y.F.; Kanamori, Y.; Shih, J.J.; Kawai, Y.; Lee, C.K.; Wu, K.C.; Esashi, M. Etching submicrometer trenches by using the Bosch process and its application to the fabrication of antireflection structures. J. Micromech. Microeng. 2005, 15, 580–585. [Google Scholar] [CrossRef]
  15. Barillaro, G.; Merlo, S.; Strambini, L.M. Bandgap tuning of silicon micromachined 1-D photonic crystals by thermal oxidation. IEEE J. Sel. Top. Quantum Electron. 2008, 14, 1074–1081. [Google Scholar] [CrossRef]
  16. Deal, B.E.; Grove, A.S. General relationship for the thermal oxidation of silicon. J. Appl. Phys. 1965, 36, 3770–3778. [Google Scholar] [CrossRef]
  17. Razeghi, M. Technology of Quantum Devices; Springer: Heidelberg, Germany, 2010; pp. 42–52. [Google Scholar]
  18. Gao, F.; Ylinen, S.; Kainlauri, M.; Kapulainen, M. Smooth silicon sidewall etching for waveguide structures using a modified Bosch process. J. Micro/Nanolithogr. MEMS MOEMS 2014, 13, 13010. [Google Scholar] [CrossRef]
  19. Qiao, R. Effects of molecular level surface roughness on electroosmotic flow. Microfluid. Nanofluid. 2007, 3, 33–38. [Google Scholar] [CrossRef]
  20. Masilamani, K.; Ganguly, S.; Feichtinger, C.; Bartuschat, D.; Rüde, U. Effects of surface roughness and electrokinetic heterogeneity on electroosmotic flow in microchannel. Fluid Dyn. Res. 2015, 47, 35505. [Google Scholar] [CrossRef]

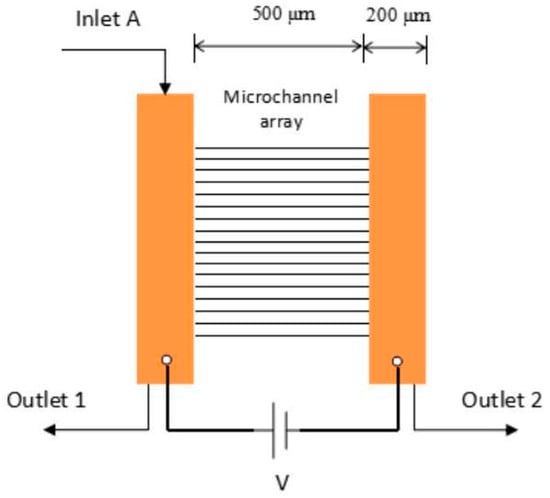

Figure 1. The microchannel electroosmotic system.
Figure 1. The microchannel electroosmotic system.
Micromachines 09 00222 g001

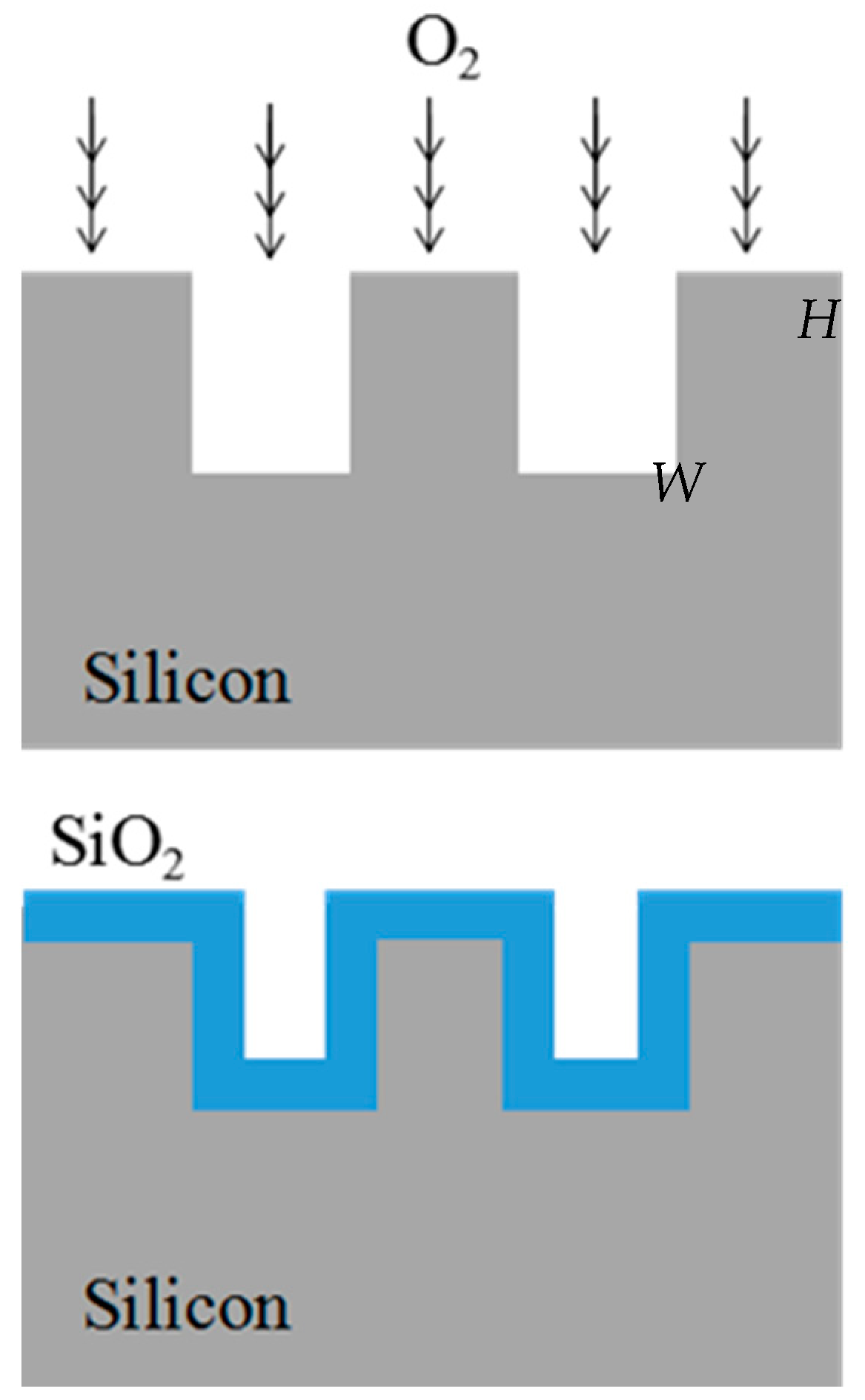

Figure 2. Mechanism of dry oxidation on silicon microchannel.
Figure 2. Mechanism of dry oxidation on silicon microchannel.
Micromachines 09 00222 g002

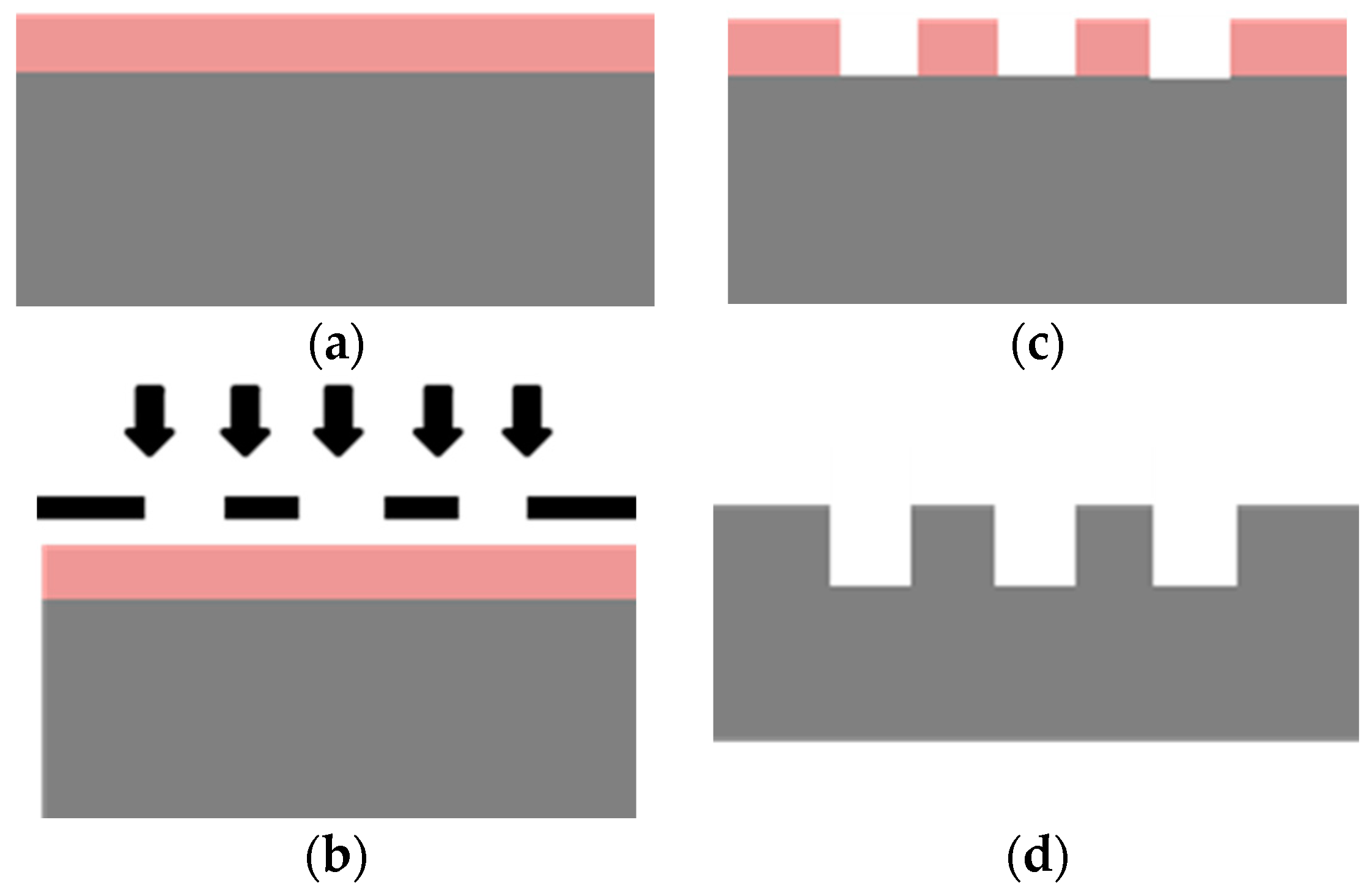

Figure 3. The diagram of silicon microchannel fabrication process (a) Photoresist as etching mask coating; (b) Transfer pattern using photolithography; (c) Pattern development using resist developer; (d) Si DRIE along the unprotected microchannel lines & photoresist removal.
Figure 3. The diagram of silicon microchannel fabrication process (a) Photoresist as etching mask coating; (b) Transfer pattern using photolithography; (c) Pattern development using resist developer; (d) Si DRIE along the unprotected microchannel lines & photoresist removal.
Micromachines 09 00222 g003

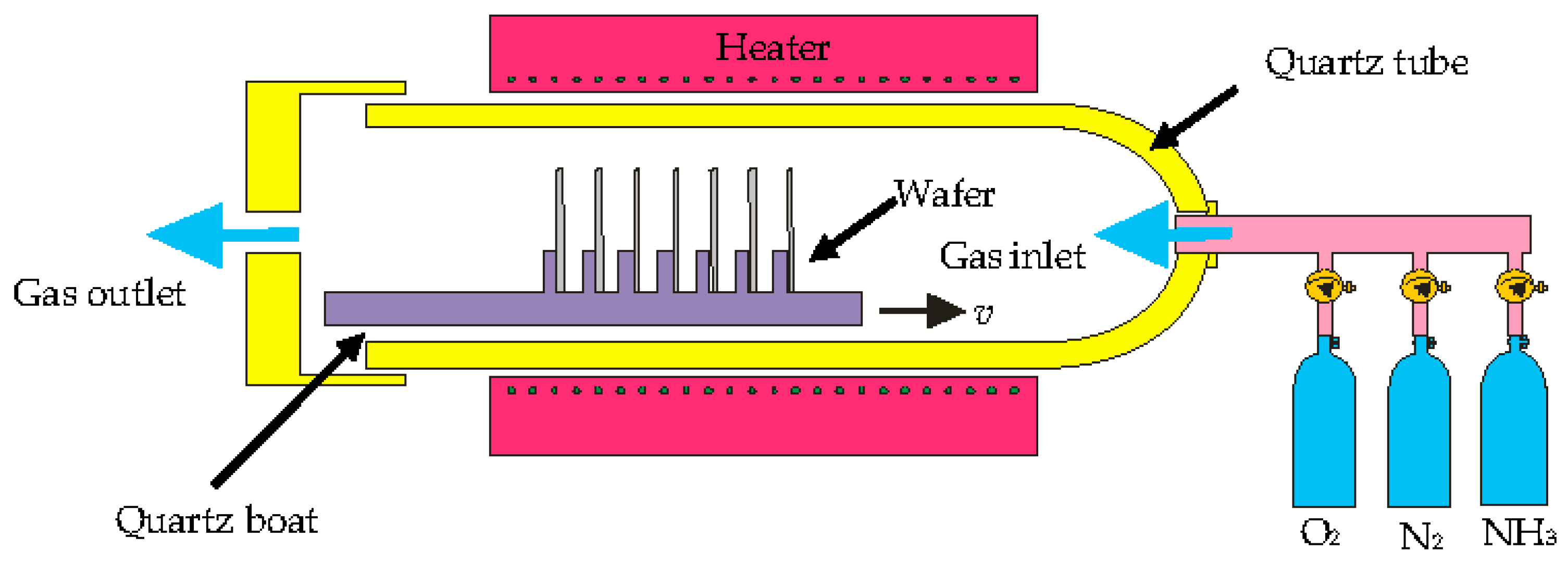

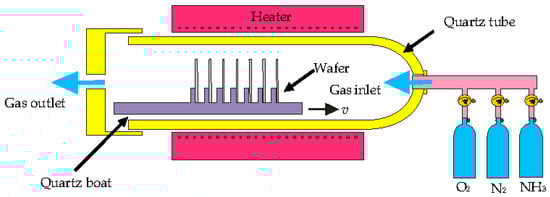

Figure 4. Schematic diagram of oxidation furnace.
Figure 4. Schematic diagram of oxidation furnace.
Micromachines 09 00222 g004

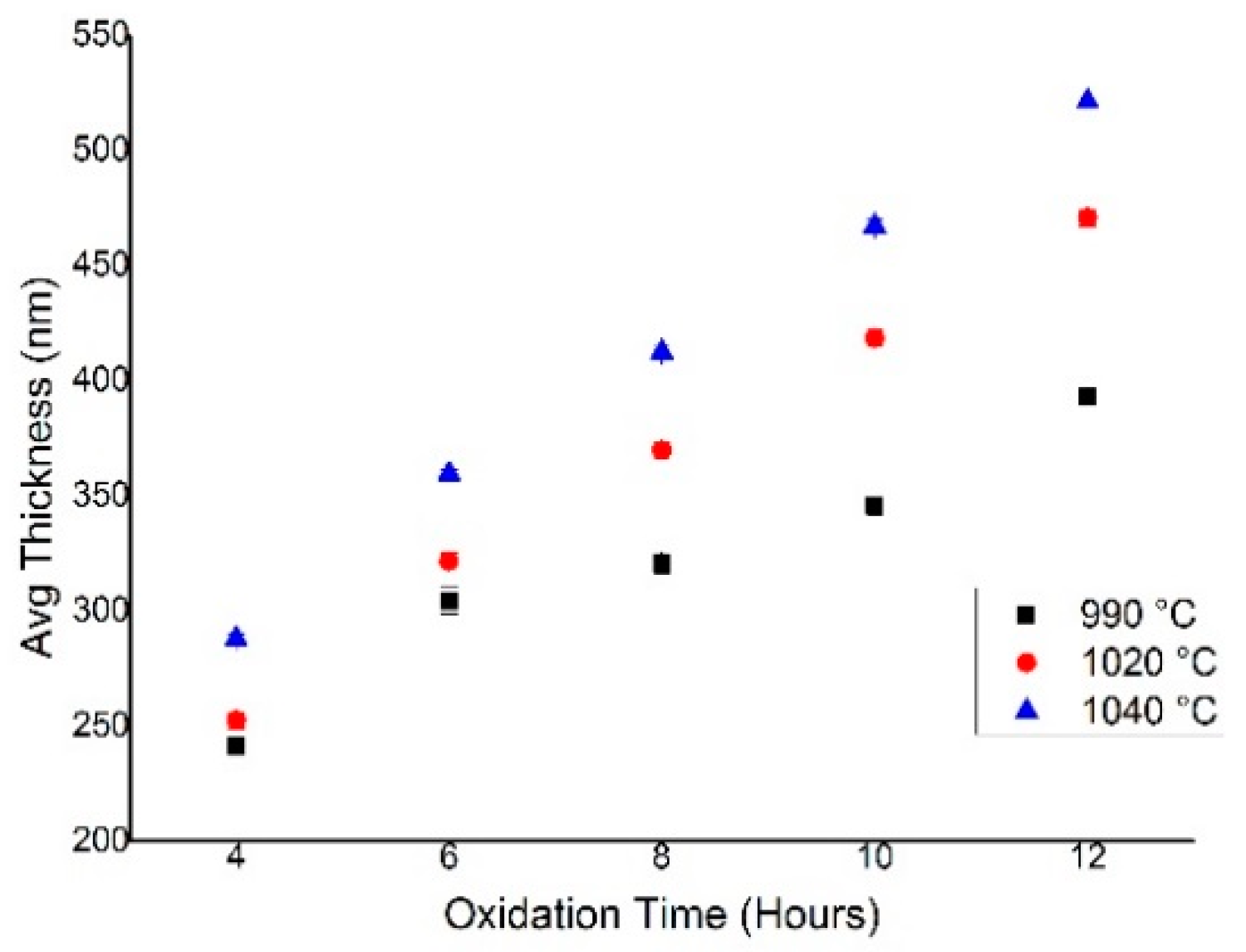

Figure 5. Oxide thickness against oxidation time of thermal dry oxidation for silicon <100>.
Figure 5. Oxide thickness against oxidation time of thermal dry oxidation for silicon <100>.
Micromachines 09 00222 g005

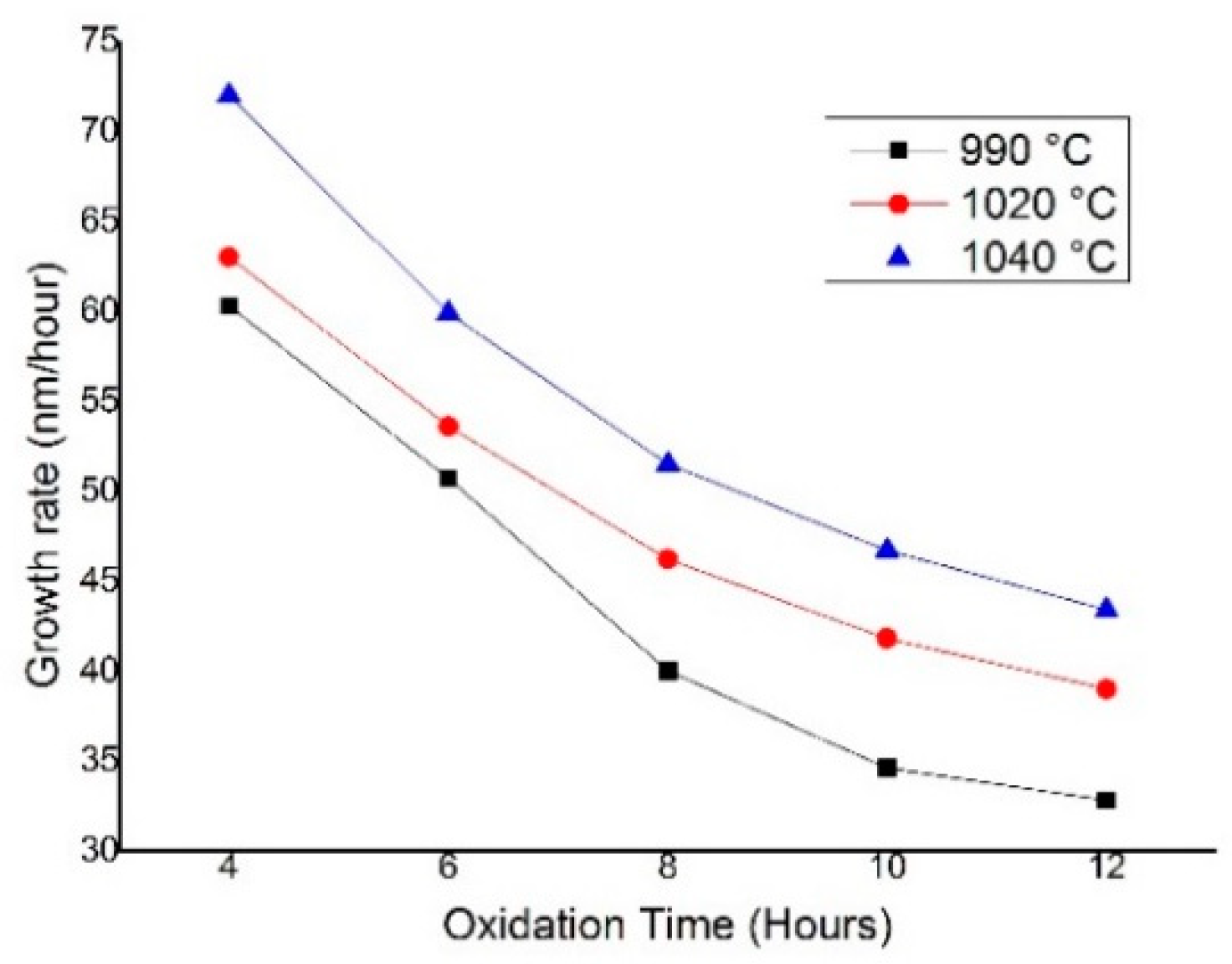

Figure 6. Oxide growth rate of thermal dry oxidation for silicon <100>.
Figure 6. Oxide growth rate of thermal dry oxidation for silicon <100>.
Micromachines 09 00222 g006

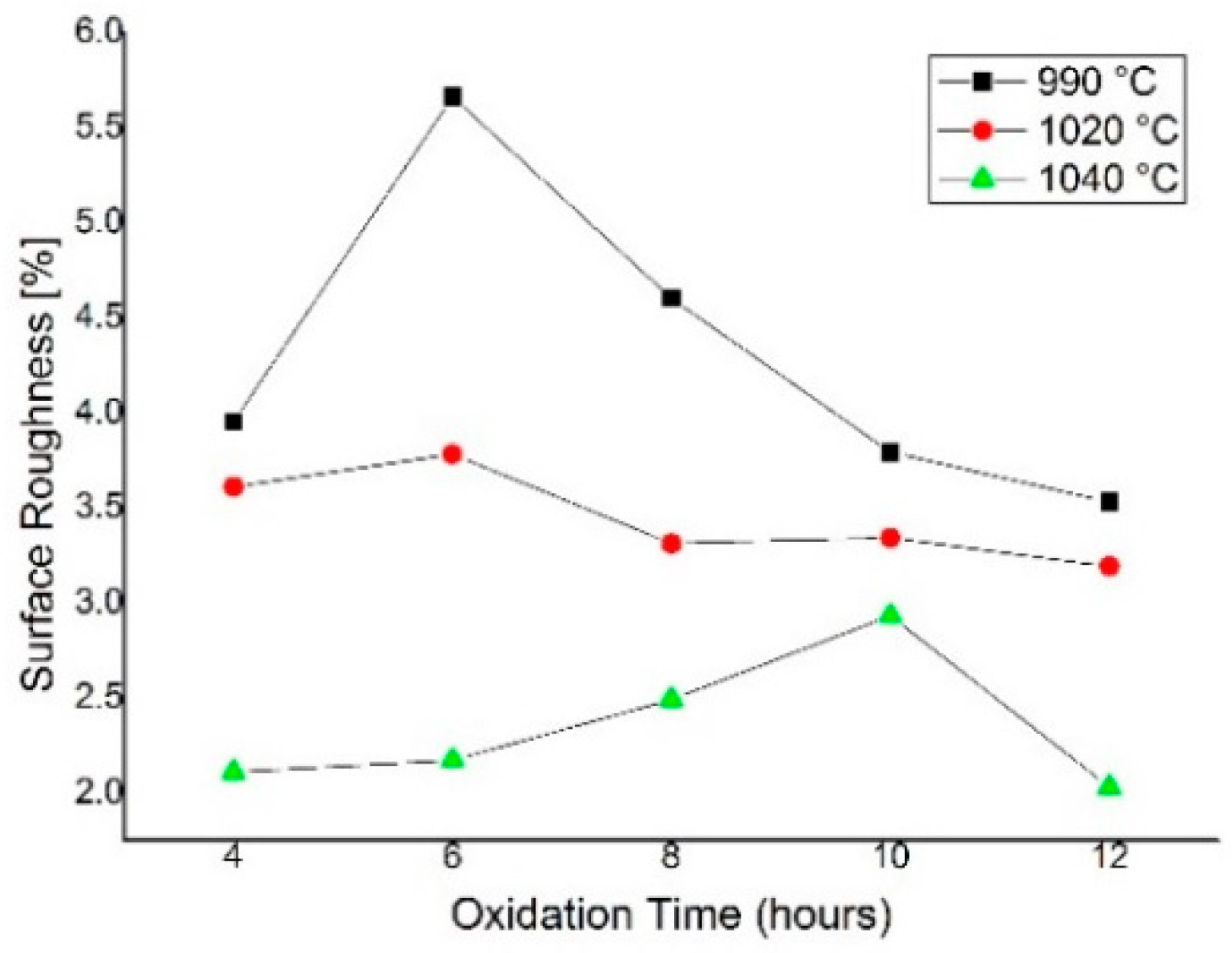

Figure 7. Surface roughness of oxide layer for various process temperature.
Figure 7. Surface roughness of oxide layer for various process temperature.
Micromachines 09 00222 g007

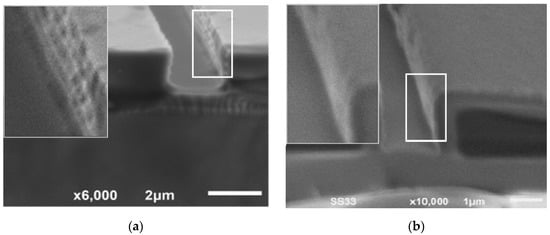

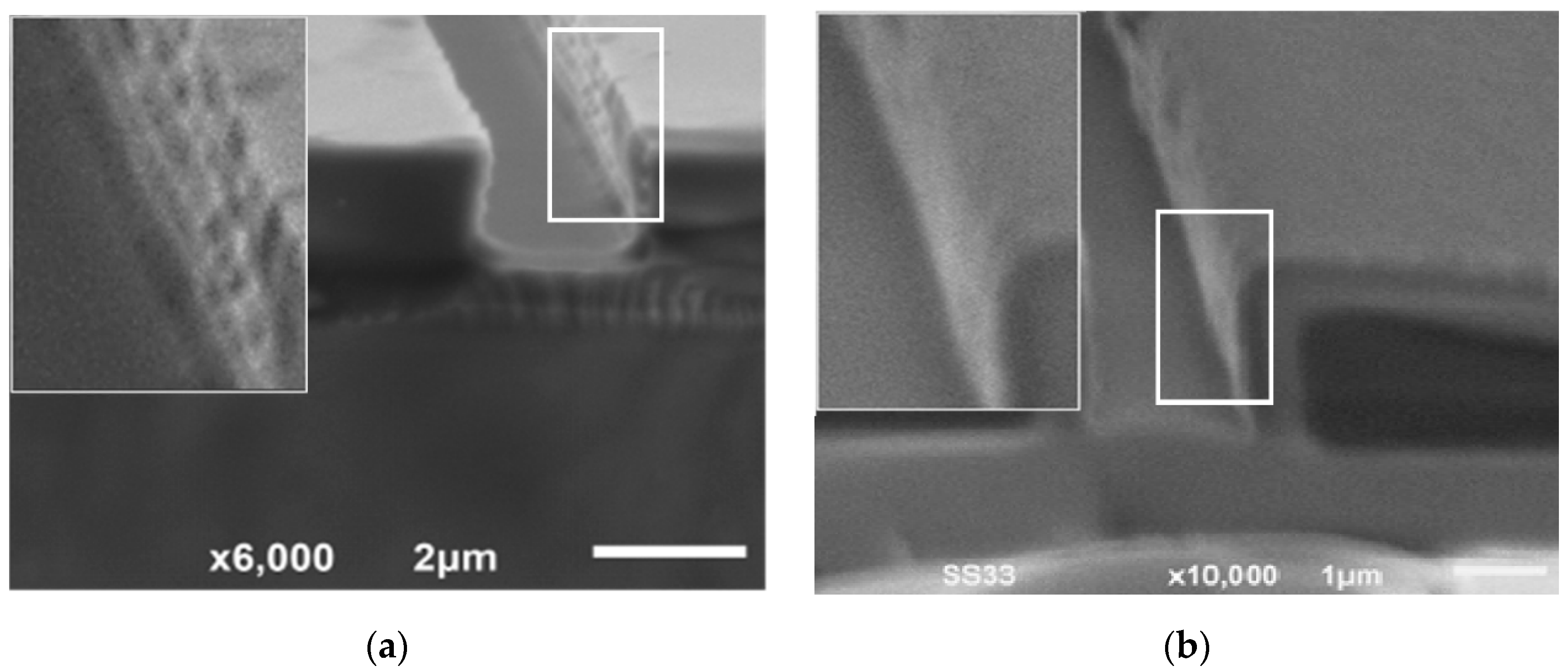

Figure 8. Scallop effect on the silicon vertical wall (a) before and (b) after oxidation.
Figure 8. Scallop effect on the silicon vertical wall (a) before and (b) after oxidation.
Micromachines 09 00222 g008

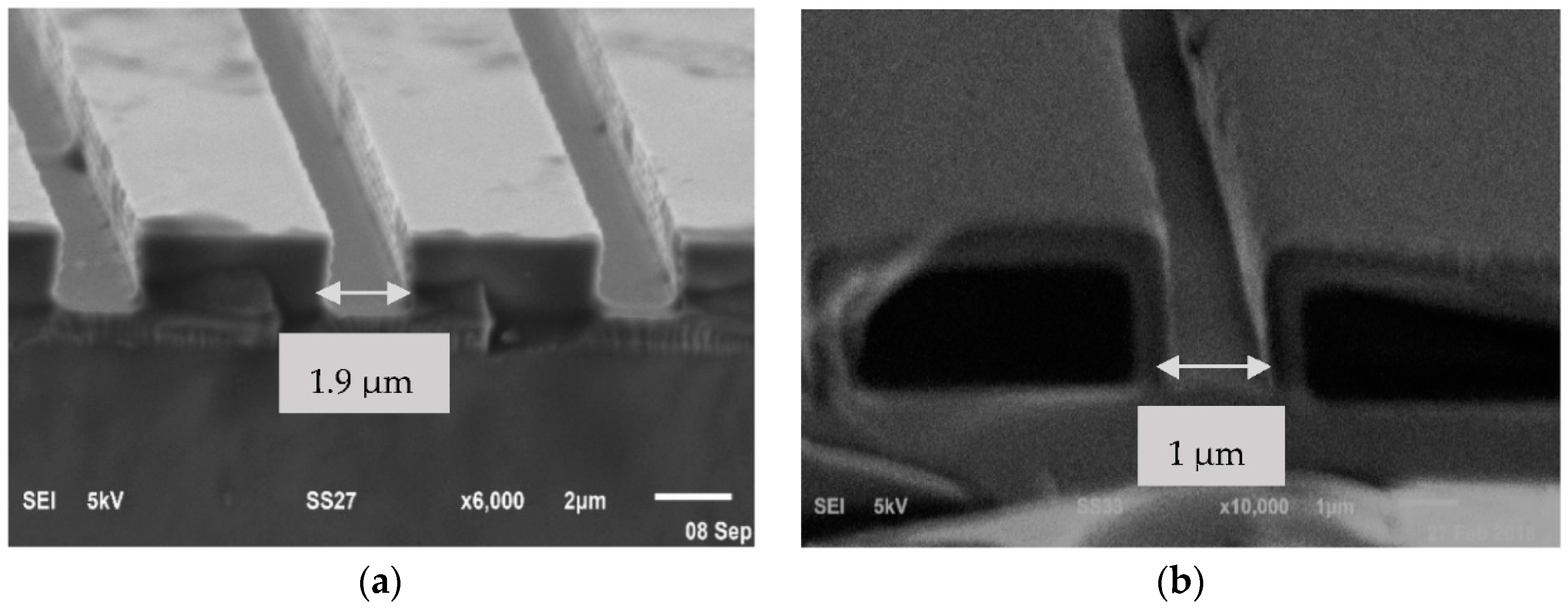

Figure 9. (a) Silicon microchannel before oxidation process; (b) SiO2 microchannel after 12 h thermal dry oxidation at 1040 °C.
Figure 9. (a) Silicon microchannel before oxidation process; (b) SiO2 microchannel after 12 h thermal dry oxidation at 1040 °C.
Micromachines 09 00222 g009
