Investigation of Micro Square Structure Fabrication by Applying Textured Cutting Tool in WEDM

Engineering Research Center of Extreme Precision Optics, State Key Laboratory of Applied Optics, Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Science, Changchun 130033, China
Author to whom correspondence should be addressed.
Academic Editor: Miko Elwenspoek
Received: 7 August 2015 / Revised: 29 August 2015 / Accepted: 17 September 2015 / Published: 25 September 2015
Full-Text   |   PDF [2851 KB, uploaded 25 September 2015]   |


This paper studies micro structure fabrication by means of a textured tool cutting edge, which is manufactured by applying the wire cut electrical discharge machining (WEDM). Machining performance of the square structure fabrication on the tool cutting edge is investigated in the WEDM process, and the machining accuracy is explored in experimental analyses. In this proposed method, undesired overcut comes from the discharge between the processing debris and the side wall of the target structure. Furthermore, by applying the textured cutting tool, the target square structure is directly fabricated on the alumina workpiece with just a simple turning process, which verifies the feasibility of the proposed tool cutting edge textured method by applying the WEDM. This technology is expected to become a potential method for the mass production of micro structure surfaces in the future. View Full-Text
Keywords: textured tool cutting edge; WEDM; micro structure; turning textured tool cutting edge; WEDM; micro structure; turning

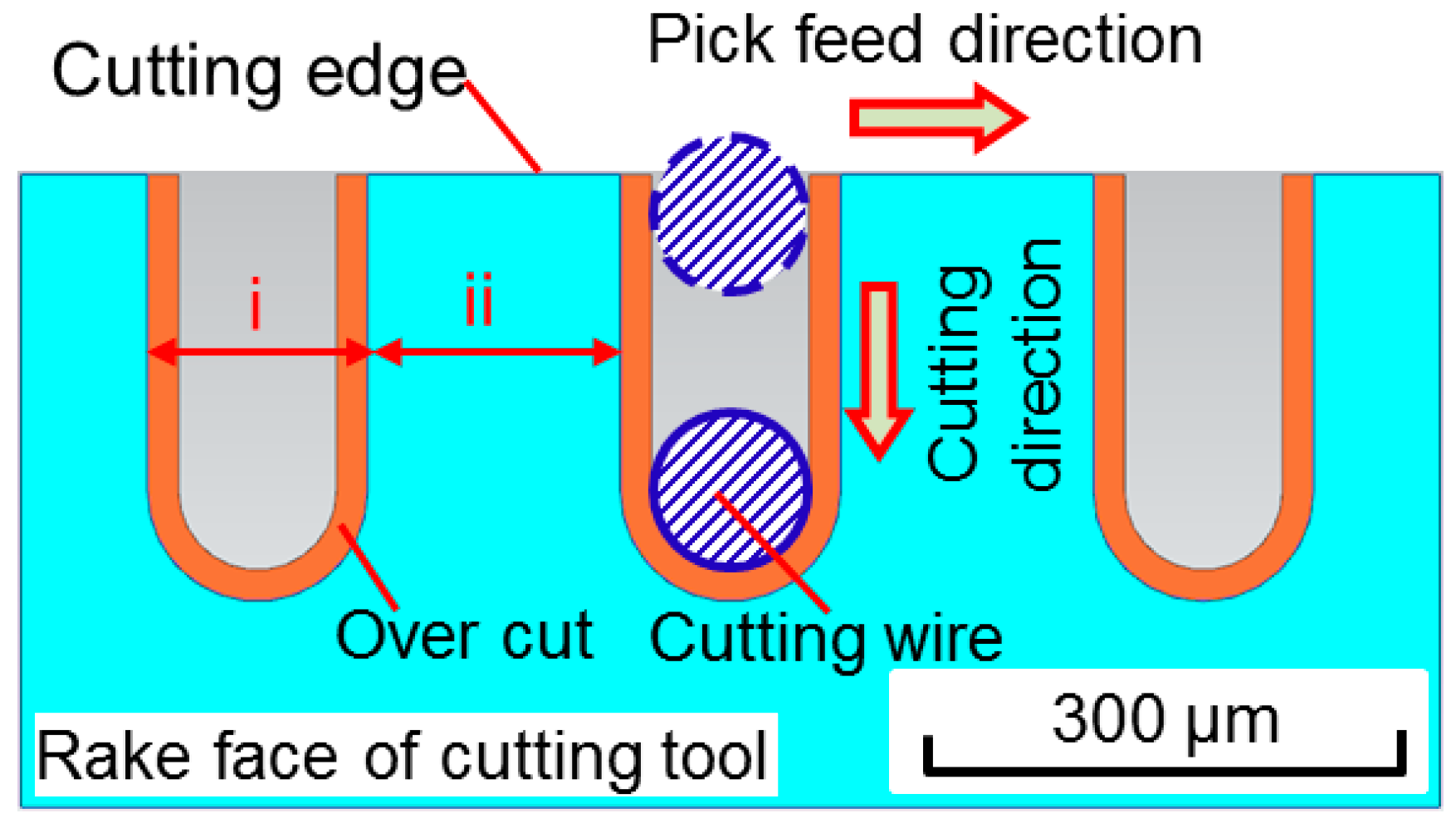

Figure 1
