Article

High-Performance Asymmetric Supercapacitors Assembled from La-Doped ZnCo2O4/MnCo-LDH Nanoflower Positive Electrodes and Ti-Supported Sb-Doped SnO2 Negative Electrodes

by
Wei Xu
,
Changxu Qu
,
Mingzhao Xing
,
Jing Wang
* and
Yanzhi Sun
School of Light Industry, Harbin University of Commerce, Harbin 150028, China
*
Author to whom correspondence should be addressed.
Micromachines 2026, 17(6), 692; https://doi.org/10.3390/mi17060692
Submission received: 15 May 2026 / Revised: 30 May 2026 / Accepted: 2 June 2026 / Published: 3 June 2026
(This article belongs to the Special Issue Advancing Energy Storage Techniques: Chemistry, Materials and Devices)
Browse Figures
Versions Notes

Abstract

Transition-metal oxide/layered double hydroxide (LDH) electrodes often suffer from insufficient utilization of active sites, sluggish electron/ion transport, and limited cycling stability at high rates. Here, La-doped ZnCo2O4/MnCo-LDH nanoflowers serve as the positive electrode and Ti-supported Sb-doped SnO2 (Ti/Sb-SnO2) serves as the negative electrode for constructing an asymmetric supercapacitor. A stepwise hydrothermal route, La-doping regulation, and ethylenediamine-assisted morphology control transform stacked nanosheets into open porous nanoflowers with a specific surface area of 382.5 m2 g−1, thereby exposing more electroactive sites and shortening OH− diffusion pathways. La3+-induced lattice distortion and defect-related oxygen species further tune the electronic structure and improve interfacial charge-transfer kinetics. The optimized La-ZnCo2O4/MnCo-LDH electrode delivers 2130 F g−1 at 1 A g−1 and retains 1993 F g−1 after 10,000 cycles at 3 A g−1. The Ti/Sb-SnO2 negative electrode provides 673 F g−1 at 1 A g−1 and 302 F g−1 at 15 A g−1. The assembled device operates stably from 0 to 1.8 V in 2 M KOH and achieves 69 Wh kg−1 and 13,500 W kg−1.

1. Introduction

With the rapid development of renewable-energy integration, portable electronics, and electric transportation, electrochemical energy-storage devices that combine high power density, long cycle life, and competitive energy density have attracted sustained attention [1,2,3,4,5,6,7]. Supercapacitors offer fast charge–discharge behavior and high-power output; however, traditional electrical double-layer capacitors are limited by low energy density, while single pseudocapacitive materials are frequently constrained by poor conductivity, slow ion diffusion, and structural degradation during repeated cycling. Therefore, the synergistic design of multicomponent composites, defect regulation, and three-dimensional open architectures is an effective strategy for improving electrode reaction kinetics and device-level performance.
Transition-metal oxides and layered double hydroxides (LDHs) are widely investigated as pseudocapacitive electrodes because of their tunable valence states, abundant redox activity, and high theoretical capacitance. ZnCo2O4 provides favorable structural stability and multivalent redox activity, whereas MnCo-LDH supplies layered ion-transport channels and rich surface-active sites. Their integration is expected to build a coupled electron/ion transport network [8,9,10,11,12,13]. Nevertheless, nanosheet-based materials tend to restack, which reduces the effective surface area and the number of accessible active sites. Rare-earth La, with a distinctive 4f electronic configuration, can induce lattice distortion, tune electronic structure, and promote the formation of defect-related oxygen species when introduced at an appropriate level, thus improving charge transfer and redox activity [14,15,16,17]. In addition, ethylenediamine can regulate crystal growth and induce the evolution of nanosheets into a more open flower-like porous architecture, which enhances electrolyte wetting and ion-diffusion efficiency.
For asymmetric supercapacitors, the potential window, capacity, and cycling stability of the negative electrode directly affect the output voltage and energy density [18,19,20,21,22,23,24]. SnO2 is attractive because of its abundance, chemical stability, and high theoretical capacity, but its intrinsic conductivity and reaction kinetics require improvement. Sb doping can enhance electron transport by lattice substitution, carrier-concentration modulation, and defect regulation, whereas a Ti sheet can function as both a conductive support and a current collector to improve interfacial contact and mechanical robustness [25,26,27,28,29,30]. Based on the available characterization results, the negative electrode is described in this work as Ti-supported Sb-doped SnO2 (Ti/Sb-SnO2); the Ti signal is not directly assigned to Ti incorporation into the SnO2 lattice.
Although ZnCo2O4/LDH composites have been widely explored as promising pseudocapacitive electrodes, their practical electrochemical performance is still restricted by nanosheet aggregation, insufficient exposure of active sites, limited electronic conductivity, and sluggish ion diffusion during high-rate charge–discharge processes. Therefore, developing a rationally engineered ZnCo2O4/LDH-based heterostructure with simultaneously optimized electronic structure, defect chemistry, and open ion-transport pathways is highly important for achieving high-performance asymmetric supercapacitors. In this regard, the La-ZnCo2O4/MnCo-LDH system proposed in this work provides a distinctive design strategy. The ZnCo2O4/MnCo-LDH heterointerface can couple multivalent redox activity with layered ion-transport channels, while La3+ introduction induces local lattice distortion and defect-related oxygen species to regulate the electronic structure and enhance charge-transfer kinetics. Meanwhile, ethylenediamine-assisted morphology control promotes the transformation of stacked nanosheets into an open porous nanoflower architecture, which exposes more electroactive sites and shortens OH− diffusion pathways. Thus, the importance and novelty of this system arise from the synergistic integration of heterostructure engineering, rare-earth-induced defect regulation, and three-dimensional porous morphology design.
Herein, La-ZnCo2O4/MnCo-LDH nanoflowers and Ti/Sb-SnO2 were prepared as positive and negative electrodes, respectively. Their morphology, crystal structure, surface chemical state, pore structure, and electrochemical performance were systematically investigated. A La-ZnCo2O4/MnCo-LDH//Ti/Sb-SnO2 asymmetric supercapacitor was further assembled to clarify the synergistic effects of heterostructure construction, La-induced defect regulation, ethylenediamine-assisted nanoflower morphology, and positive/negative electrode charge matching on energy-storage performance [31,32,33,34,35,36,37].

2. Materials and Methods

2.1. Preparation of La-ZnCo2O4/MnCo-LDH Positive Electrode Materials

La-ZnCo2O4/MnCo-LDH composites were synthesized through a stepwise hydrothermal process combined with doping regulation, as illustrated in Figure 1a. ZnCo2O4 nanosheets were first prepared by dissolving 1.5 mmol Co(NO3)2·6H2O, 0.75 mmol Zn(NO3)2·6H2O, 7.5 mmol urea, and 4.5 mmol NH4F in 60 mL deionized water. After stirring to obtain a homogeneous solution, the mixture was transferred into a Teflon-lined autoclave and heated at 120 °C for 6 h. The product was washed with deionized water and absolute ethanol and then annealed at 350 °C for 2 h to obtain ZnCo2O4 nanosheets with an active-material loading of approximately 1 mg cm−2.
MnCo-LDH nanosheets were prepared through a similar hydrothermal route. Briefly, 1.0 mmol Mn(NO3)2·4H2O, 2.0 mmol Co(NO3)2·6H2O, 6.0 mmol urea, and 3.0 mmol NH4F were dissolved in 60 mL deionized water and stirred for 30 min. The solution was then sealed in an autoclave and maintained at 120 °C for 12 h. After cooling, the product was alternately washed with deionized water and absolute ethanol, dried under vacuum at 60 °C for 12 h, and annealed at 200 °C for 3 h under Ar to obtain MnCo-LDH nanosheets with a loading of approximately 1.2 mg cm−2.
For the La-doped composite, La(NO3)3 solution was added to the ZnCo2O4 and MnCo-LDH precursor dispersion, followed by the introduction of ethylenediamine (C2H8N2) as a morphology-directing agent. The mixture was stirred for 3 h and then transferred to an autoclave for reaction at 130 °C for 8 h. The resulting product was collected by centrifugation, alternately washed with deionized water and ethanol, and dried under vacuum at 80 °C to obtain porous La-ZnCo2O4/MnCo-LDH nanoflower composites.

2.2. Preparation of Ti/Sb-SnO2 Negative Electrode Materials

Ti/Sb-SnO2 negative electrodes were prepared by a hydrothermal-annealing method, as shown in Figure 1b. SnCl4 and SbCl3 were dissolved in 60 mL deionized water, with the amount of SnCl4 set to 0.1 mol and the Sb/Sn molar ratio set to 0.05. After stirring for 30 min, NH3·H2O was added dropwise to adjust the pH to approximately 8–9 and promote metal-ion hydrolysis. The pretreated Ti sheet was polished with abrasive paper, ultrasonically cleaned in acetone, immersed in dilute hydrochloric acid to remove the surface oxide layer, and then completely immersed in the precursor solution. The system was transferred into an autoclave and maintained at 140 °C for 8 h to grow the Sb-doped SnO2 precursor in situ on the Ti sheet. After the reaction, the Ti sheet was washed with deionized water and absolute ethanol and finally annealed in air at 550 °C for 4 h to obtain the Ti-supported Sb-doped SnO2 negative electrode.

2.3. Device Assembly and Electrochemical Calculations

The asymmetric supercapacitor was assembled using La-ZnCo2O4/MnCo-LDH as the positive electrode, Ti/Sb-SnO2 as the negative electrode, and 2 M KOH as the electrolyte. To ensure charge balance between the two electrodes, the active-material masses were matched according to q+ = q−. The specific capacitance, stored charge, mass ratio, energy density, and power density were calculated using Equations (1)–(5) according to previously reported methods [38]:
Cs = IΔt/(mΔV)
q = Cs × m × ΔV
m+/m− = (Cs− × ΔV−)/(Cs+ × ΔV+)
E = C_device(ΔV)2/7.2
P = 3600E/Δt
where Cs (F g−1) is the specific capacitance, I (A) is the discharge current [39], Δt (s) is the discharge time, m (g) is the mass of active material, ΔV (V) is the potential window after subtracting the IR drop, q (C) is the stored charge, and E (Wh kg−1) and P (W kg−1) are the energy and power densities, respectively. In the three-electrode calculations, m refers to the active-material mass of a single electrode. For the two-electrode device, C_device was calculated based on the total active mass of the positive and negative electrodes.

2.4. Characterization and Electrochemical Measurements

The morphology and microstructure of the materials were characterized by scanning electron microscopy (SEM; SU8010, Hitachi High-Technologies Corp., Tokyo, Japan), transmission electron microscopy (TEM; JEM-2100F, JEOL Ltd., Tokyo, Japan), and high-resolution TEM (HRTEM; JEM-2100F, JEOL Ltd., Tokyo, Japan). Elemental composition and distribution were analyzed by energy-dispersive X-ray spectroscopy (EDS; X-Max 80, Oxford Instruments, Abingdon, UK). Crystal structure, pore structure, and surface chemical states were examined by X-ray diffraction (XRD; D8 Advance, Bruker AXS GmbH, Karlsruhe, Germany), N2 adsorption–desorption analysis (ASAP 2460, Micromeritics Instrument Corp., Norcross, GA, USA), and X-ray photoelectron spectroscopy (XPS; ESCALAB 250Xi, Thermo Fisher Scientific, Waltham, MA, USA), respectively. XRD patterns were analyzed using Jade software (version 6.5, Materials Data, Inc., Livermore, CA, USA). XPS spectra were calibrated with reference to the C 1s peak at 284.8 eV and fitted using XPSPEAK software (version 4.1). Three-electrode measurements were conducted using Hg/HgO as the reference electrode, a Pt plate as the counter electrode, and the prepared electrode materials as the working electrodes. Electrochemical performance was evaluated by cyclic voltammetry (CV), galvanostatic charge–discharge (GCD), and electrochemical impedance spectroscopy (EIS) using a CHI 660E electrochemical workstation (Shanghai Chenhua Instrument Co., Ltd., Shanghai, China) [40,41]. EIS spectra were fitted using ZView software (version 3.5, Scribner Associates Inc., Southern Pines, NC, USA), and all electrochemical data and figures were processed using OriginPro 2021 software (version 9.8, OriginLab Corp., Northampton, MA, USA).

3. Results and Discussion

3.1. Morphology and Structure of the La-ZnCo2O4/MnCo-LDH Positive Electrode

Figure 2 presents the morphology evolution of ZnCo2O4, MnCo-LDH, ZnCo2O4/MnCo-LDH, and La-ZnCo2O4/MnCo-LDH. Both ZnCo2O4 and MnCo-LDH exhibit nanosheet structures, and the composite shows interlaced nanosheets. After the introduction of La(NO3)3 and ethylenediamine, the sheet-like precursors gradually transform into a flower-like porous architecture assembled from ultrathin nanosheets. This structure greatly increases the electrode–electrolyte contact area and provides more accessible active sites for OH− diffusion and pseudocapacitive reactions [42].
TEM and HRTEM observations further confirm the open nanoflower structure of La-ZnCo2O4/MnCo-LDH (Figure 3). The low-magnification TEM image reveals a petal-like framework assembled from thin nanosheets. Lattice spacings of 0.286 and 0.274 nm observed in the HRTEM image can be assigned to ZnCo2O4-related planes and planes in the LDH/oxide composite system, respectively. The selected-area electron diffraction pattern indicates a polycrystalline feature. EDS and elemental mapping results show homogeneous distributions of Zn, Co, Mn, La, and O, confirming that La was successfully introduced into the ZnCo2O4/MnCo-LDH composite. The uniform La distribution indicates homogeneous La introduction in the nanoflower architecture rather than macroscopic La-rich aggregation; however, EDS mapping alone is not used as sole evidence for substitutional doping.
The pore and crystal structures are summarized in Figure 4. The N2 adsorption–desorption isotherms of all samples show typical mesoporous characteristics. The specific surface area of La-ZnCo2O4/MnCo-LDH reaches 382.5 m2 g−1, which is considerably higher than those of ZnCo2O4/MnCo-LDH (251.7 m2 g−1), ZnCo2O4 (181 m2 g−1), and MnCo-LDH (83 m2 g−1). The enlarged surface area and mesoporous channels facilitate electrolyte wetting, shorten ion-diffusion distances, and improve utilization of electroactive sites. XRD patterns show no obvious impurity peaks, and the ZnCo2O4-related peaks match JCPDS No. 23-1390, while the LDH-related features are consistent with JCPDS No. 14-0191. After compositing and La introduction, some diffraction peaks slightly shift, suggesting that heterocomponent coupling and La introduction may induce local lattice distortion.
FTIR spectra were further collected to support the structural analysis of the synthesized materials. As shown in Figure 4c, the broad absorption bands at approximately 3425–3448 cm−1 are attributed to the stretching vibration of O–H groups from surface hydroxyls and adsorbed/interlayer water, while the bands at approximately 1623–1636 cm−1 correspond to the bending vibration of H–O–H. The absorption bands around 1375–1385 cm−1 can be related to residual interlayer anions or surface carbonate/nitrate species. In the low-wavenumber region, the bands at approximately 781–783, 662–665, 556–558, and 473 cm−1 are assigned to metal–oxygen related vibrations, indicating the presence of Zn–O, Co–O, and Mn–O bonding environments in the oxide/LDH composite. After La introduction, these characteristic bands are retained with slight shifts, suggesting that La doping and heterostructure construction do not destroy the main ZnCo2O4/MnCo-LDH framework but may modify the local bonding environment.
For the negative-electrode materials, the FTIR spectra in Figure 4d show broad O–H stretching bands at approximately 3430–3435 cm−1 and H–O–H bending bands at approximately 1630–1633 cm−1. The absorption bands located at approximately 663–667, 615–620, and 538–542 cm−1 are associated with Sn–O/Sb–O related lattice vibrations. The similar characteristic bands observed for SnO2, Sb-SnO2, and Ti/Sb-SnO2 indicate that the SnO2-based oxide framework is maintained after Sb doping and Ti-substrate-supported growth. These FTIR results further support the successful synthesis of La-ZnCo2O4/MnCo-LDH and Ti/Sb-SnO2, and they are consistent with the XRD and XPS results.
XPS analysis was conducted to clarify the surface chemical states of La-ZnCo2O4/MnCo-LDH (Figure 5). The survey spectrum in Figure 5a shows clear La, Zn, Co, Mn, O, and C signals, confirming the coexistence of the main constituent elements in the La-ZnCo2O4/MnCo-LDH composite. The C signal is mainly attributed to surface adventitious carbon used for charge correction. The high-resolution La 3d spectrum in Figure 5b indicates the presence of La-related bonding environments, suggesting that La is successfully introduced into the composite and participates in local La–O coordination.
As shown in Figure 5c, the Co 2p spectrum reveals the coexistence of Co2+ and Co3+ species, accompanied by satellite peaks, indicating the mixed-valence nature of cobalt in the composite. The Co2+/Co3+ redox couple is beneficial for reversible Faradaic reactions and contributes to the enhanced pseudocapacitive behavior. The Zn 2p3/2 and Zn 2p1/2 peaks located at approximately 1021.8 and 1044.9 eV are consistent with the characteristic signals of Zn2+, confirming the presence of ZnCo2O4-related components. The Mn 2p spectrum further verifies the existence of Mn-containing LDH/oxide species, which can provide additional redox-active sites and layered ion-transport channels.
The O 1s spectrum can be deconvoluted into lattice oxygen, defect/hydroxyl oxygen, and adsorbed water components. Among them, lattice oxygen corresponds to metal–oxygen bonds in the oxide/LDH framework, while the defect/hydroxyl oxygen component is closely related to oxygen vacancies, surface hydroxyl groups, and defect-related oxygen species. The presence of these oxygen-related species indicates that La introduction and heterostructure construction can regulate the local electronic structure and generate more electrochemically active sites. These defect/hydroxyl oxygen species are favorable for improving electrolyte wettability, promoting OH− adsorption/diffusion, and accelerating interfacial charge-transfer kinetics. Therefore, the detailed XPS analysis further supports that La-induced defect regulation plays an important role in enhancing the charge-storage performance of the La-ZnCo2O4/MnCo-LDH electrode.

3.2. Electrochemical Performance of the La-ZnCo2O4/MnCo-LDH Positive Electrode

The three-electrode testing configuration is shown in Figure 6. Compared with ZnCo2O4, MnCo-LDH, and the undoped composite, La-ZnCo2O4/MnCo-LDH exhibits the largest CV-enclosed area and the longest GCD discharge time (Figure 7), indicating markedly enhanced charge-storage capability. At 3 A g−1, the 0.5% La-ZnCo2O4/MnCo-LDH electrode delivers a specific capacitance of 2025 F g−1, far exceeding MnCo-LDH (525 F g−1), ZnCo2O4 (900 F g−1), and ZnCo2O4/MnCo-LDH (1275 F g−1). The smaller semicircle diameter and more vertical low-frequency line in the EIS spectra demonstrate lower charge-transfer resistance and faster ion-diffusion kinetics for the La-doped composite electrode. The Nyquist plots were fitted using the equivalent circuit shown in the inset of Figure 7d. The circuit consists of Rs, Rct, CPE, and Zw, where Rs represents the solution/internal resistance, Rct corresponds to the charge-transfer resistance at the electrode/electrolyte interface, CPE describes the non-ideal capacitive behavior caused by the porous and rough electrode surface, and Zw represents the Warburg diffusion impedance associated with electrolyte ion diffusion. This equivalent circuit is suitable for the present EIS spectra because the high-frequency intercept, semicircle region, and low-frequency inclined line correspond to internal resistance, interfacial charge-transfer behavior, and ion-diffusion processes, respectively. The good agreement between the fitted curves and the experimental Nyquist plots confirms the validity of the selected equivalent circuit.
Rate-cycling results (Figure 8) show that La-ZnCo2O4/MnCo-LDH maintains good capacitance recovery under continuously varied current densities. When the current density returns to 10 A g−1, the specific capacitance recovers from approximately 1080 to 1063 F g−1, confirming that the porous nanoflower architecture preserves a stable electron/ion transport network after high-current operation.
To optimize the La-introduction level, the electrochemical behaviors of 0.3%, 0.5%, and 0.7% La-ZnCo2O4/MnCo-LDH samples were compared (Figure 9). These three nominal La-introduction levels were selected as low, moderate, and relatively high precursor-addition levels to screen the influence of La-related defect regulation on morphology evolution and electrochemical performance. Because quantitative ICP analysis was not performed and trace La quantification by EDS is semi-quantitative, these percentages are reported as nominal La-introduction levels rather than exact measured atomic concentrations; EDS mapping and XPS are used to confirm homogeneous La introduction and La-related bonding. The 0.5% La-doped sample shows higher peak current, longer discharge time, and higher specific capacitance. It delivers 2130 F g−1 at 1 A g−1, retains 2025 F g−1 at 3 A g−1, and maintains 750 F g−1 even at 20 A g−1. These results indicate that an appropriate La-introduction content optimizes defect concentration and charge-transport channels, while excessive introduction may hinder structural and interfacial transport.
Charge-storage kinetics and cycling stability were further evaluated, as shown in Figure 10. To further distinguish the capacitive-controlled and diffusion-controlled charge-storage behaviors, the b-value was calculated according to the relationship i = avb, where i represents the peak current, v is the scan rate, a is an adjustable parameter, and b reflects the charge-storage kinetics. By taking the logarithm of both sides, the equation can be expressed as log(i) = b log(v) + log(a), and the b-value was obtained from the slope of the log(i) versus log(v) plot. Generally, b = 0.5 indicates a diffusion-controlled process, whereas b = 1.0 corresponds to a capacitive-controlled process. The calculated b-values for the anodic and cathodic peaks are 0.48 and 0.49, respectively, suggesting that the electrochemical reaction of the La-ZnCo2O4/MnCo-LDH electrode is mainly governed by diffusion-controlled Faradaic processes with partial capacitive-controlled contributions. As the scan rate increases from 10 to 120 mV s−1, the diffusion-controlled contribution decreases, whereas the capacitive contribution increases from 34% to 87%, indicating that fast surface/near-surface reactions dominate at high scan rates. The cycling test shows that the specific capacitance decreases only from 2025 to 1993 F g−1 after 10,000 cycles at 3 A g−1. The small change in the EIS spectra before and after cycling further verifies the robust structure and stable interfacial transport behavior of La-ZnCo2O4/MnCo-LDH.
Based on the morphology, structure, and electrochemical results, the performance enhancement of La-ZnCo2O4/MnCo-LDH can be attributed to the following synergistic effects (Figure 11): (i) the ZnCo2O4/MnCo-LDH heterostructure balances electron transport and ion diffusion; (ii) La3+ introduction induces local lattice distortion and defect-related oxygen species, increasing active sites and improving the electronic structure; (iii) ethylenediamine promotes the transformation of nanosheets into flower-like porous structures, significantly improving surface area and electrolyte accessibility; and (iv) the open pores shorten OH− transport pathways and promote fast, reversible Faradaic reactions.

3.3. Structure and Electrochemical Performance of the Ti/Sb-SnO2 Negative Electrode

The microstructure of the Ti/Sb-SnO2 negative electrode is shown in Figure 12. SEM and TEM images indicate that the Sb-doped SnO2 active layer forms a porous nanostructure on the Ti substrate, providing a large electrolyte-contact area and short ion-transport pathways. The lattice spacing of 0.33 nm observed in the HRTEM image corresponds to the (110) plane of SnO2. EDS and elemental mapping reveal Sn, Sb, O, and Ti elements; Sn, Sb, and O confirm the formation of the Sb-SnO2 active layer, while the Ti signal mainly originates from the Ti sheet support and the interfacial region.
XRD and XPS results further reveal the phase structure and surface chemistry of Ti/Sb-SnO2 (Figure 13). SnO2, Sb-SnO2, and Ti/Sb-SnO2 all show SnO2-related diffraction peaks, and the experimental patterns are compared with standard reference cards for SnO2 (cassiterite, PDF# 41-1445), Sb2SnO4 (PDF# 72-1690), and rutile TiO2 (PDF# 21-1276), indicating that Sb doping does not destroy the host SnO2 phase. The XPS survey spectrum contains Sb 3d, Sn 3d, O 1s, Ti 2p, and C 1s signals. O 1s can be divided into lattice oxygen, defect/hydroxyl oxygen, and adsorbed oxygen components. Sn 3d5/2 and Sn 3d3/2 peaks at approximately 486.4 and 494.8 eV correspond to Sn4+. Sb-related peaks indicate that Sb participates in Sb-O/Sn-O bonding in an oxidized state and may induce defect formation. The Ti 2p signal is mainly associated with the Ti substrate or the interfacial oxide layer; without depth-profile XPS, ICP analysis, or lattice-parameter evidence that excludes substrate effects, it should not be used as direct evidence for Ti incorporation into the SnO2 lattice.
The electrochemical performance of the negative electrode is presented in Figure 14 and Figure 15. Compared with SnO2 and Sb-SnO2, Ti/Sb-SnO2 exhibits a larger CV-enclosed area and longer GCD discharge time, demonstrating that Sb doping, the Ti-supported current-collector configuration, and improved interfacial contact enhance the charge-storage capability of SnO2. Ti/Sb-SnO2 delivers a specific capacitance of 673 F g−1 at 1 A g−1, higher than SnO2 (498 F g−1) and Sb-SnO2 (576 F g−1), and retains 302 F g−1 when the current density increases to 15 A g−1, indicating good rate capability.
Kinetic analysis shows that when the scan rate increases from 10 to 120 mV s−1, the capacitive contribution of Ti/Sb-SnO2 increases from 32% to 83%, revealing that fast surface reactions dominate at high scan rates. During rate cycling, the electrode maintains approximately 373 F g−1 during the first 100 cycles at 10 A g−1 and recovers to approximately 365 F g−1 at 10 A g−1 after 700 rate cycles. EIS results demonstrate that Sb doping, defect regulation, and the Ti-supported current-collector/interfacial-contact configuration jointly reduce charge-transfer resistance and optimize ion-diffusion pathways, thereby improving the rate capability and structural stability of the negative electrode.

3.4. Performance of the La-ZnCo2O4/MnCo-LDH//Ti/Sb-SnO2 Asymmetric Supercapacitor

Based on positive/negative electrode charge matching, an asymmetric supercapacitor was assembled using La-ZnCo2O4/MnCo-LDH as the positive electrode and Ti/Sb-SnO2 as the negative electrode. Figure 16a shows that the working potential windows of the two electrodes in 2 M KOH are complementary, which is favorable for widening the device voltage window and improving energy density. Voltage-window tests demonstrate that the device maintains stable CV responses within 0–1.8 V without obvious polarization, confirming the feasibility of this operating voltage.
The CV curves of the device at different scan rates show synchronous increases in peak current with increasing scan rate, indicating rapid charge response. The nearly symmetric GCD profiles indicate good charge–discharge reversibility. Based on the total active mass of both electrodes, the device delivers approximately 153 F g−1 at 1 A g−1, retains approximately 60 F g−1 at 15 A g−1, and maintains approximately 51 F g−1 at 20 A g−1, demonstrating strong rate capability. According to E = C_device(ΔV)2/7.2 and P = 3600E/Δt, the device achieves a maximum energy density of approximately 69 Wh kg−1; at 15 A g−1, it still maintains approximately 27 Wh kg−1 with a corresponding power density of approximately 13,500 W kg−1, showing a favorable energy–power output balance compared with recently reported related asymmetric supercapacitor systems [10,43,44,45,46,47,48].

4. Conclusions

La-ZnCo2O4/MnCo-LDH nanoflowers were prepared through La introduction/doping regulation, heterocomponent coupling, and ethylenediamine-assisted morphology regulation, while Ti-supported Sb-doped SnO2 was constructed as the negative electrode to assemble a La-ZnCo2O4/MnCo-LDH//Ti/Sb-SnO2 asymmetric supercapacitor. La introduction and ethylenediamine regulation transformed ZnCo2O4/MnCo-LDH from a stacked nanosheet structure into a porous nanoflower architecture, increasing the specific surface area to 382.5 m2 g−1 and improving electronic structure and charge-transfer kinetics through defect-related oxygen species. In the Ti/Sb-SnO2 negative electrode, Sb doping, defect regulation, and the Ti-supported current-collector/interfacial-contact configuration jointly enhanced electron transport, ion diffusion, and structural stability. Electrochemical measurements showed that the La-ZnCo2O4/MnCo-LDH positive electrode delivered 2130 F g−1 at 1 A g−1 and retained 1993 F g−1 after 10,000 cycles at 3 A g−1. The Ti/Sb-SnO2 negative electrode delivered 673 F g−1 at 1 A g−1 and retained 302 F g−1 at 15 A g−1. The assembled device operated stably from 0 to 1.8 V, achieved a maximum energy density of approximately 69 Wh kg−1, and maintained approximately 27 Wh kg−1 at 15 A g−1 with a power output of approximately 13,500 W kg−1. These results demonstrate that the synergistic engineering of rare-earth introduction, defect regulation, three-dimensional porous architecture, and positive/negative electrode charge matching is an effective route for improving transition-metal oxide/LDH-based asymmetric supercapacitors.

Author Contributions

Conceptualization, W.X.; methodology, C.Q.; investigation, C.Q.; data curation, M.X.; writing—original draft preparation, W.X.; writing—review and editing, Y.S.; supervision, J.W.; project administration, J.W. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (No. 52002099), the Youth Scientific Research Item of Harbin Commercial University (18XN034), the Research Foundation of Education Bureau of Heilongjiang Province of China (Grant No. 145309113), the Foundation of State Key Laboratory of High-efficiency Utilization of Coal and Green Chemical Engineering (Grant No. 2022-K74), the College Student Innovation and Entrepreneurship Project Fund of Qiqihar University (Grant No. X202410232032), the Heilongjiang Province Higher Education Research Project (23GJYBJ121), the Natural Science Foundation of Heilongjiang Province Project: Research on Signal Amplification Strategy of Electrochemical Biosensor for Simultaneous Detection of Multiple Tumor Markers (PL2024H195), and the Qiqihar University Educational Science Research Project (GJQTYB202315).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
ASCAsymmetric supercapacitor
CVCyclic voltammetry
EDSEnergy-dispersive X-ray spectroscopy
EISElectrochemical impedance spectroscopy
GCDGalvanostatic charge–discharge
HRTEMHigh-resolution transmission electron microscopy
LDHLayered double hydroxide
SEMScanning electron microscopy
TEMTransmission electron microscopy
XPSX-ray photoelectron spectroscopy
XRDX-ray diffraction

References

  1. Olabi, A.G.; Abdelkareem, M.A. Renewable energy and climate change. Renew. Sustain. Energy Rev. 2022, 158, 112111. [Google Scholar] [CrossRef]
  2. Owusu, P.A.; Asumadu-Sarkodie, S. A review of renewable energy sources, sustainability issues and climate change mitigation. Cogent Eng. 2016, 3, 1167990. [Google Scholar] [CrossRef]
  3. Choudhary, N.; Li, C.; Moore, J.; Nagaiah, N.; Zhai, L.; Jung, Y.; Thomas, J. Asymmetric supercapacitor electrodes and devices. Adv. Mater. 2017, 29, 1605336. [Google Scholar] [CrossRef]
  4. Li, X.; Huang, Z.; Shuck, C.E.; Liang, G.; Gogotsi, Y.; Zhi, C. MXene chemistry, electrochemistry and energy storage applications. Nat. Rev. Chem. 2022, 6, 389–404. [Google Scholar] [CrossRef] [PubMed]
  5. Su, D.S.; Schlögl, R. Nanostructured carbon and carbon nanocomposites for electrochemical energy storage applications. ChemSusChem 2010, 3, 136–168. [Google Scholar] [CrossRef] [PubMed]
  6. Gregory, T.D.; Hoffman, R.J.; Winterton, R.C. Nonaqueous electrochemistry of magnesium: Applications to energy storage. J. Electrochem. Soc. 1990, 137, 775. [Google Scholar] [CrossRef]
  7. Yang, Z.; Zhang, J.; Kintner-Meyer, M.C.W.; Lu, X.; Choi, D.; Lemmon, J.P.; Liu, J. Electrochemical energy storage for green grid. Chem. Rev. 2011, 111, 3577–3613. [Google Scholar] [CrossRef]
  8. Kumar, Y.A.; Kumar, K.D.; Kim, H.J. Reagents assisted ZnCo2O4 nanomaterial for supercapacitor application. Electrochim. Acta 2020, 330, 135261. [Google Scholar] [CrossRef]
  9. Mary, A.J.C.; Bose, A.C. Surfactant assisted ZnCo2O4 nanomaterial for supercapacitor application. Appl. Surf. Sci. 2018, 449, 105–112. [Google Scholar] [CrossRef]
  10. Xuan, H.; Guan, Y.; Han, X.; Liang, X.; Xie, Z.; Han, P.; Wu, Y. Hierarchical MnCo-LDH/rGO@NiCo2S4 heterostructures on Ni foam with enhanced electrochemical properties for battery-supercapacitors. Electrochim. Acta 2020, 335, 135691. [Google Scholar] [CrossRef]
  11. Li, B.; Dai, L.; Su, G.L.; Xia, Z.; Ye, Y.; Li, Z. Construction of defective MnCo-LDH nanoflowers with high activity for overall water splitting. Fuel 2024, 364, 130961. [Google Scholar] [CrossRef]
  12. Lou, X.W.; Li, C.M.; Archer, L.A. Designed synthesis of coaxial SnO2@carbon hollow nanospheres for highly reversible lithium storage. Adv. Mater. 2009, 21, 2536–2539. [Google Scholar] [CrossRef]
  13. Zhou, Y.; He, Z.; Wei, Q.; Sun, A.; Wu, Z.; Huang, D.; Zhang, S.; Yu, W.W. A chain-entanglement gelled SnO2 electron transport layer for enhanced perovskite solar cell performance and effective lead capture. Adv. Mater. 2025, 37, 2416932. [Google Scholar] [CrossRef]
  14. Quan, L.; Liu, M.; Wang, Z.; Li, M.; Lu, Y.; Liang, J.; Liu, H.; Xia, Y. Rare earth element La doping of Na2FePO4F to improve sodium ions storage electrochemical performance. Chem. Eng. Sci. 2024, 299, 120522. [Google Scholar] [CrossRef]
  15. Malavekar, D.B.; Magdum, V.V.; Khot, S.D.; Kim, J.; Lokhande, C. Doping of rare earth elements: Towards enhancing the electrochemical performance of pseudocapacitive materials. J. Alloys Compd. 2023, 960, 170601. [Google Scholar] [CrossRef]
  16. Surendar, T.; Kumar, S.; Shanker, V. Influence of La-doping on phase transformation and photocatalytic properties of ZnTiO3 nanoparticles synthesized via modified sol-gel method. Phys. Chem. Chem. Phys. 2014, 16, 728–735. [Google Scholar] [CrossRef] [PubMed]
  17. Swain, N.; Saravanakumar, B.; Kundu, M.; Schmidt-Mende, L.; Ramadoss, A. Recent trends in template assisted 3D porous materials for electrochemical supercapacitors. J. Mater. Chem. A 2021, 9, 25286–25324. [Google Scholar] [CrossRef]
  18. Bogdanović, B.; Felderhoff, M.; Kaskel, S.; Pommerin, A.; Schlichte, K.; Schüth, F. Improved hydrogen storage properties of Ti-doped sodium alanate using titanium nanoparticles as doping agents. Adv. Mater. 2003, 15, 1012–1015. [Google Scholar] [CrossRef]
  19. Chan, I.H.; Sun, C.T.; Houng, M.P.; Chu, S.-Y. Sb doping effects on the piezoelectric and ferroelectric characteristics of lead-free Na0.5K0.5Nb1−xSbxO3 piezoelectric ceramics. Ceram. Int. 2011, 37, 2061–2068. [Google Scholar] [CrossRef]
  20. Xing, T.; Ouyang, Y.; Chen, Y.; Zheng, L.; Wu, C.; Wang, X. P-doped ternary transition metal oxide as electrode material of asymmetric supercapacitor. J. Energy Storage 2020, 28, 101248. [Google Scholar] [CrossRef]
  21. Salehirozveh, M.; Dehghani, P.; Mijakovic, I. Synthesis, functionalization, and biomedical applications of iron oxide nanoparticles (IONPs). J. Funct. Biomater. 2024, 15, 340. [Google Scholar] [CrossRef]
  22. Roy, D.B.; Das, S. Advanced nanostructured materials for energy storage devices. In Design, Fabrication, and Significance of Advanced Nanostructured Materials; IGI Global: Hershey, PA, USA, 2024; pp. 187–206. [Google Scholar]
  23. He, Y.; Zhou, W.; Xu, J. Rare earth-based nanomaterials for supercapacitors: Preparation, structure engineering and application. ChemSusChem 2022, 15, e202200469. [Google Scholar] [CrossRef]
  24. Wei, X.; Chen, C.; Fu, X.Z.; Wang, S. Oxygen vacancies-rich metal oxide for electrocatalytic nitrogen cycle. Adv. Energy Mater. 2024, 14, 2303027. [Google Scholar] [CrossRef]
  25. Cao, S.H.; Qu, J.R.; Zhao, Y.Q.; Sun, Y.; Gao, W.; Han, B.; Lu, Y. Visible-light-driven photocatalysis degradation of antibiotic pollutants by La-doped CeO2 nanorods: Synergy of La doping and oxygen vacancy. Rare Met. 2024, 43, 3134–3145. [Google Scholar] [CrossRef]
  26. Kim, Y.M.; He, J.; Biegalski, M.D.; Ambaye, H.; Lauter, V.; Christen, H.M.; Pantelides, S.T.; Pennycook, S.J.; Kalinin, S.V.; Borisevich, A.Y. Probing oxygen vacancy concentration and homogeneity in solid-oxide fuel-cell cathode materials on the subunit-cell level. Nat. Mater. 2012, 11, 888–894. [Google Scholar] [CrossRef]
  27. Huang, W.; Li, X.; Yang, X.; Zhang, H.-B.; Wang, F.; Zhang, J. Highly efficient electrocatalysts for overall water splitting: Mesoporous CoS/MoS2 with hetero-interfaces. Chem. Commun. 2021, 57, 4847–4850. [Google Scholar] [CrossRef]
  28. V S, M.M.; Jose, S.; Varghese, A. Harnessing transition metal oxide-carbon heterostructures: Pioneering electrocatalysts for energy systems and other applications. J. Energy Storage 2024, 99, 113171. [Google Scholar]
  29. Ramulu, B.; Shaik, J.A.; Mule, A.R.; Yu, J.S. Improved rate capability and energy density of high-mass hybrid supercapacitor realized through long-term cycling stability testing and selective electrode design. Mater. Sci. Eng. R Rep. 2024, 160, 100820. [Google Scholar] [CrossRef]
  30. Perdana, M.Y.; Johan, B.A.; Abdallah, M.; Hossain, E.; Aziz, A.; Baroud, T.N.; Drmosh, Q.A. Understanding the behavior of supercapacitor materials via electrochemical impedance spectroscopy: A review. Chem. Rec. 2024, 24, e202400007. [Google Scholar] [CrossRef] [PubMed]
  31. Kim, S.; Xu, J.; Shang, W.; Xu, Z.; Lee, E.; Luo, T. A review on machine learning-guided design of energy materials. Prog. Energy 2024, 6, 042005. [Google Scholar] [CrossRef]
  32. Wu, C.; Wang, X.; Zhu, Y.; Dong, L.; Xu, J. S,N-doping TiO2@MXene heterostructure in-situ derived from MXene frameworks as high-rate anodes for lithium/sodium-ion batteries. J. Electroanal. Chem. 2025, 977, 118833. [Google Scholar] [CrossRef]
  33. Ganesan, M.; Alagar, S.; Bagchi, V.; Piraman, S. Surface oxygen engineered ZnCo2O4 planar hybrid supercapacitor electrode for high energy applications. J. Energy Storage 2024, 98, 112954. [Google Scholar] [CrossRef]
  34. Moniruzzaman, M.; Maity, C.K.; De, S.; Kim, M.J.; Kim, J. SnO2 nanosphere/carbon dot-embedded Ti3C2Tx MXene nanocomposites for high-performance binder-free asymmetric supercapacitor electrodes. ACS Appl. Nano Mater. 2024, 7, 6636–6649. [Google Scholar] [CrossRef]
  35. Ma, Z.; Zheng, R.; Liu, Y.; Ying, Y.; Shi, W. Carbon nanotubes interpenetrating MOFs-derived Co-Ni-S composite spheres with interconnected architecture for high performance hybrid supercapacitor. J. Colloid Interface Sci. 2021, 602, 627–635. [Google Scholar] [CrossRef] [PubMed]
  36. Gong, K.; Lee, H.; Choi, Y.; Jung, G.; Keum, K.; Kim, J.W.; Ha, J.S. A flexible supercapacitor with high energy density and wide range of temperature tolerance using a high-concentration aqueous gel electrolyte. Electrochim. Acta 2024, 475, 143585. [Google Scholar] [CrossRef]
  37. Xue, W.D.; Yin, H.; Wang, W.J.; Zhao, R. Design and fabrication of petal-like NiCo2O4@NiMoO4 core/shell nanosheet arrays electrode for asymmetric supercapacitors. J. Electrochem. Soc. 2017, 164, A482. [Google Scholar] [CrossRef]
  38. Wang, J.; Wang, S.; Tian, Y.; Jin, X.; Dong, J. 3D heterogeneous ZnCo2O4@NiMoO4 nanoarrays grown on Ni foam as a binder-free electrode for high-performance energy storage. J. Energy Storage 2020, 32, 101899. [Google Scholar] [CrossRef]
  39. Wang, X.; Xu, L.; Song, K.; Yang, R.; Jia, L.; Guo, X.; Jing, X.; Wang, J. Synthesis of MnCo2O4@MnCo2S4 core/shell micro-nanostructures on Ni foam for high performance asymmetric supercapacitors. Colloids Surf. A Physicochem. Eng. Asp. 2019, 570, 73–80. [Google Scholar] [CrossRef]
  40. Meng, Y.; Yu, D.; Teng, Y.; Liu, X.; Liu, X. A high-performance electrode based on the ZnCo2O4@CoMoO4 core-shell nanosheet arrays on nickel foam and their application in battery-supercapacitor hybrid device. Electrochim. Acta 2020, 347, 136278. [Google Scholar] [CrossRef]
  41. Babu, C.R.; Avani, A.V.; Xavier, T.S.; Tomy, M.; Shaji, S.; Anila, E. Symmetric supercapacitor based on Co3O4 nanoparticles with an improved specific capacitance and energy density. J. Energy Storage 2024, 80, 110382. [Google Scholar] [CrossRef]
  42. Liu, Y.; Chen, X.; Lin, H.; Zhou, P.; Ying, Y. A self-supporting P-doped CNT@MnCo2O4/Co3O4 electrode with ion and electron-conductive hierarchical structure for high performance supercapacitor. J. Alloys Compd. 2023, 958, 170453. [Google Scholar] [CrossRef]
  43. Tang, X.; Lui, Y.H.; Zhang, B.; Hu, S. Venus flytrap-like hierarchical NiCoMn-O@NiMoO4@C nanosheet arrays as free-standing core-shell electrode material for hybrid supercapacitor with high electrochemical performance. J. Power Sources 2020, 477, 228977. [Google Scholar] [CrossRef]
  44. Zhi, M.; Xiang, C.; Li, J.; Li, M.; Wu, N. Nanostructured carbon-metal oxide composite electrodes for supercapacitors: A review. Nanoscale 2013, 5, 72–88. [Google Scholar] [CrossRef] [PubMed]
  45. Jothilakshmi, T.; Deepika, S.; Sivakumar, N. Enhanced energy density of porous ZnCo2O4 layer-coated ZnMoO4 sheets as positive electrodes for asymmetric supercapacitors. Ceram. Int. 2025, 51, 10215–10223. [Google Scholar] [CrossRef]
  46. Wang, S.; Wang, H.; Pei, D.; Wang, Z.; Fan, Z.; Yu, M.; Li, K.; Lu, H. Co3O4 nanowire modified with carbon nanotubes to be used as improved asymmetric supercapacitor electrode. Surf. Interfaces 2024, 46, 104049. [Google Scholar]
  47. Fei, F.; Wang, S.; He, L.; Wen, P. Three-dimensional porous Gd-POM/RGO composites for high-performance supercapacitor electrodes. New J. Chem. 2025, 49, 10215–10223. [Google Scholar] [CrossRef]
  48. Karamanova, B.; Mladenova, E.; Thomas, M.; Rey-Raap, N.; Arenillas, A.; Lufrano, F.; Stoyanova, A. Electrochemical performance of symmetric solid-state supercapacitors based on carbon xerogel electrodes and solid polymer electrolytes. Gels 2023, 9, 983. [Google Scholar] [CrossRef]
Micromachines 17 00692 g001
Figure 1. Schematic illustration of the preparation processes for (a) the La-ZnCo2O4/MnCo-LDH nanoflower composite and (b) the Ti-supported Sb-doped SnO2 (Ti/Sb-SnO2) negative electrode.
Figure 1. Schematic illustration of the preparation processes for (a) the La-ZnCo2O4/MnCo-LDH nanoflower composite and (b) the Ti-supported Sb-doped SnO2 (Ti/Sb-SnO2) negative electrode.
Micromachines 17 00692 g001
Micromachines 17 00692 g002
Figure 2. SEM images of (a) ZnCo2O4 nanosheets, (b) MnCo-LDH nanosheets, (c) ZnCo2O4/MnCo-LDH composite nanosheets, and (d–f) La-ZnCo2O4/MnCo-LDH nanoflower materials.
Figure 2. SEM images of (a) ZnCo2O4 nanosheets, (b) MnCo-LDH nanosheets, (c) ZnCo2O4/MnCo-LDH composite nanosheets, and (d–f) La-ZnCo2O4/MnCo-LDH nanoflower materials.
Micromachines 17 00692 g002
Micromachines 17 00692 g003
Figure 3. (a,b) TEM/HRTEM images, (c) EDS spectrum, and (d) elemental mapping images of Zn, Co, Mn, La, and O for the La-ZnCo2O4/MnCo-LDH nanoflower composite.
Figure 3. (a,b) TEM/HRTEM images, (c) EDS spectrum, and (d) elemental mapping images of Zn, Co, Mn, La, and O for the La-ZnCo2O4/MnCo-LDH nanoflower composite.
Micromachines 17 00692 g003
Micromachines 17 00692 g004
Figure 4. (a) N2 adsorption–desorption isotherms and pore-size distributions, (b) XRD patterns, and FTIR spectra of (c) ZnCo2O4, MnCo-LDH, ZnCo2O4/MnCo-LDH, and La-ZnCo2O4/MnCo-LDH positive-electrode materials and (d) SnO2, Sb-SnO2, and Ti/Sb-SnO2 negative-electrode materials.
Figure 4. (a) N2 adsorption–desorption isotherms and pore-size distributions, (b) XRD patterns, and FTIR spectra of (c) ZnCo2O4, MnCo-LDH, ZnCo2O4/MnCo-LDH, and La-ZnCo2O4/MnCo-LDH positive-electrode materials and (d) SnO2, Sb-SnO2, and Ti/Sb-SnO2 negative-electrode materials.
Micromachines 17 00692 g004
Micromachines 17 00692 g005
Figure 5. (a) XPS survey spectrum and (b–f) high-resolution La 3d, Co 2p, Zn 2p, Mn 2p, and O 1s XPS spectra of La-ZnCo2O4/MnCo-LDH.
Figure 5. (a) XPS survey spectrum and (b–f) high-resolution La 3d, Co 2p, Zn 2p, Mn 2p, and O 1s XPS spectra of La-ZnCo2O4/MnCo-LDH.
Micromachines 17 00692 g005
Micromachines 17 00692 g006
Figure 6. Schematic diagram of the three-electrode measurement system.
Figure 6. Schematic diagram of the three-electrode measurement system.
Micromachines 17 00692 g006
Micromachines 17 00692 g007
Figure 7. (a) CV curves, (b) GCD curves, (c) specific-capacitance comparison, and (d) EIS spectra of La-ZnCo2O4/MnCo-LDH and comparison samples.
Figure 7. (a) CV curves, (b) GCD curves, (c) specific-capacitance comparison, and (d) EIS spectra of La-ZnCo2O4/MnCo-LDH and comparison samples.
Micromachines 17 00692 g007
Micromachines 17 00692 g008

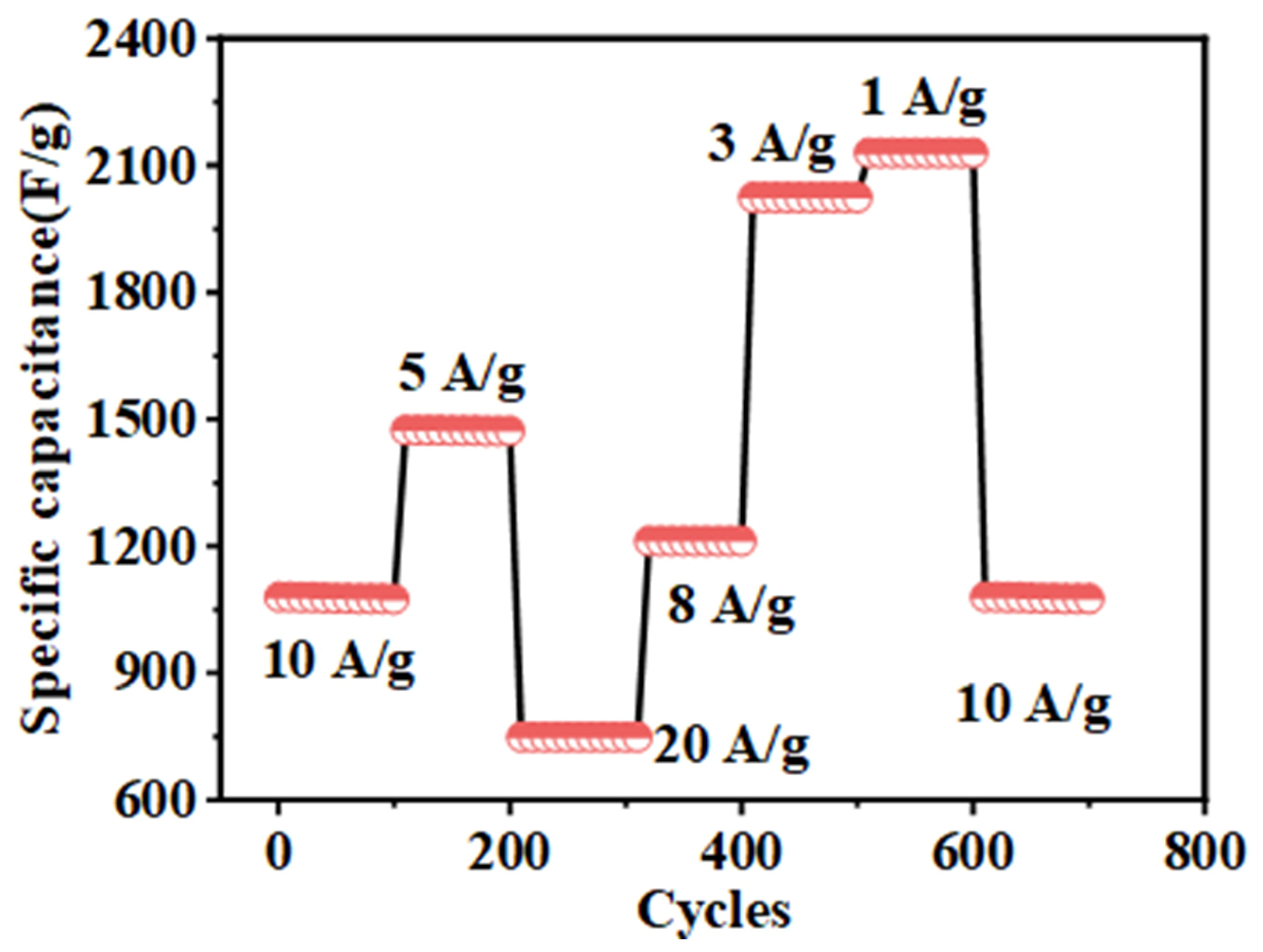

Figure 8. Rate performance of the La-ZnCo2O4/MnCo-LDH electrode at different current densities.
Figure 8. Rate performance of the La-ZnCo2O4/MnCo-LDH electrode at different current densities.
Micromachines 17 00692 g008
Micromachines 17 00692 g009
Figure 9. Electrochemical performance of La–ZnCo2O4/MnCo-LDH electrodes with different La-doping levels: (a) CV curves at a scan rate of 5 mV s−1; (b) GCD curves at a current density of 3 A g−1; (c) specific capacitances of electrodes with different La-doping levels at 3 A g−1; (d) CV curves of the optimized 0.5% La–ZnCo2O4/MnCo-LDH electrode at different scan rates; (e) GCD curves of the optimized 0.5% La–ZnCo2O4/MnCo-LDH electrode at different current densities; and (f) rate performance of the optimized 0.5% La–ZnCo2O4/MnCo-LDH electrode.
Figure 9. Electrochemical performance of La–ZnCo2O4/MnCo-LDH electrodes with different La-doping levels: (a) CV curves at a scan rate of 5 mV s−1; (b) GCD curves at a current density of 3 A g−1; (c) specific capacitances of electrodes with different La-doping levels at 3 A g−1; (d) CV curves of the optimized 0.5% La–ZnCo2O4/MnCo-LDH electrode at different scan rates; (e) GCD curves of the optimized 0.5% La–ZnCo2O4/MnCo-LDH electrode at different current densities; and (f) rate performance of the optimized 0.5% La–ZnCo2O4/MnCo-LDH electrode.
Micromachines 17 00692 g009
Micromachines 17 00692 g010
Figure 10. Electrochemical performance and charge-storage analysis of the La-ZnCo2O4/MnCo-LDH electrode: (a) capacitive and diffusion-controlled contribution ratios at different scan rates; (b) cycling stability at 3 A/g for10,000 cycles; (c) EIS comparison before and affer 10,000 cycles; and (d) capacitive contribution analysis at 10 mV/s.
Figure 10. Electrochemical performance and charge-storage analysis of the La-ZnCo2O4/MnCo-LDH electrode: (a) capacitive and diffusion-controlled contribution ratios at different scan rates; (b) cycling stability at 3 A/g for10,000 cycles; (c) EIS comparison before and affer 10,000 cycles; and (d) capacitive contribution analysis at 10 mV/s.
Micromachines 17 00692 g010
Micromachines 17 00692 g011

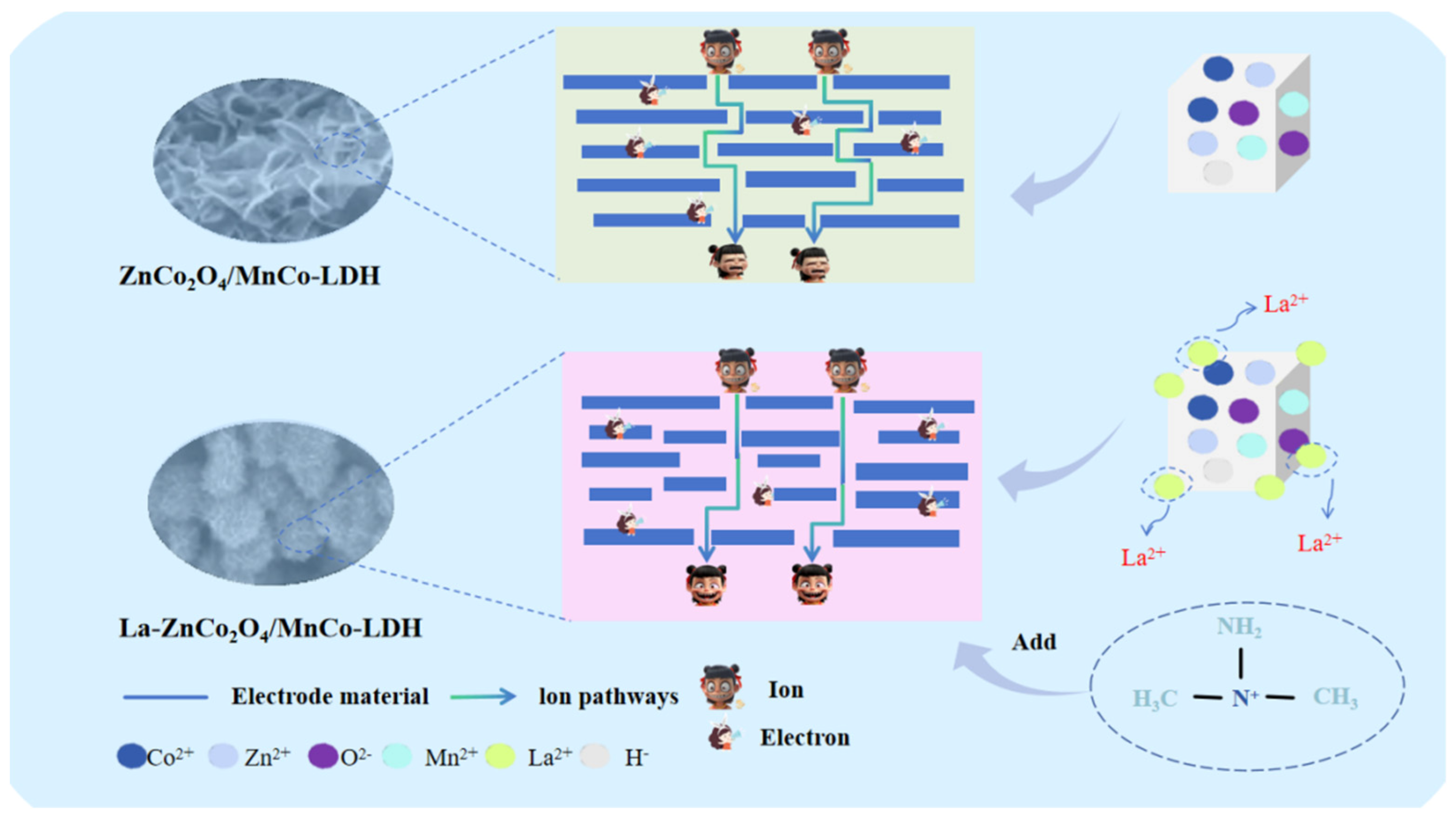

Figure 11. Schematic diagram of the structural evolution and energy-storage mechanism of ZnCo2O4/MnCo-LDH and La-ZnCo2O4/MnCo-LDH.
Figure 11. Schematic diagram of the structural evolution and energy-storage mechanism of ZnCo2O4/MnCo-LDH and La-ZnCo2O4/MnCo-LDH.
Micromachines 17 00692 g011
Micromachines 17 00692 g012
Figure 12. (a,b) SEM images, (c–e) TEM images, (f) HRTEM image, and (g,h) elemental mapping and EDS spectrum of Ti/Sb-SnO2.
Figure 12. (a,b) SEM images, (c–e) TEM images, (f) HRTEM image, and (g,h) elemental mapping and EDS spectrum of Ti/Sb-SnO2.
Micromachines 17 00692 g012
Micromachines 17 00692 g013

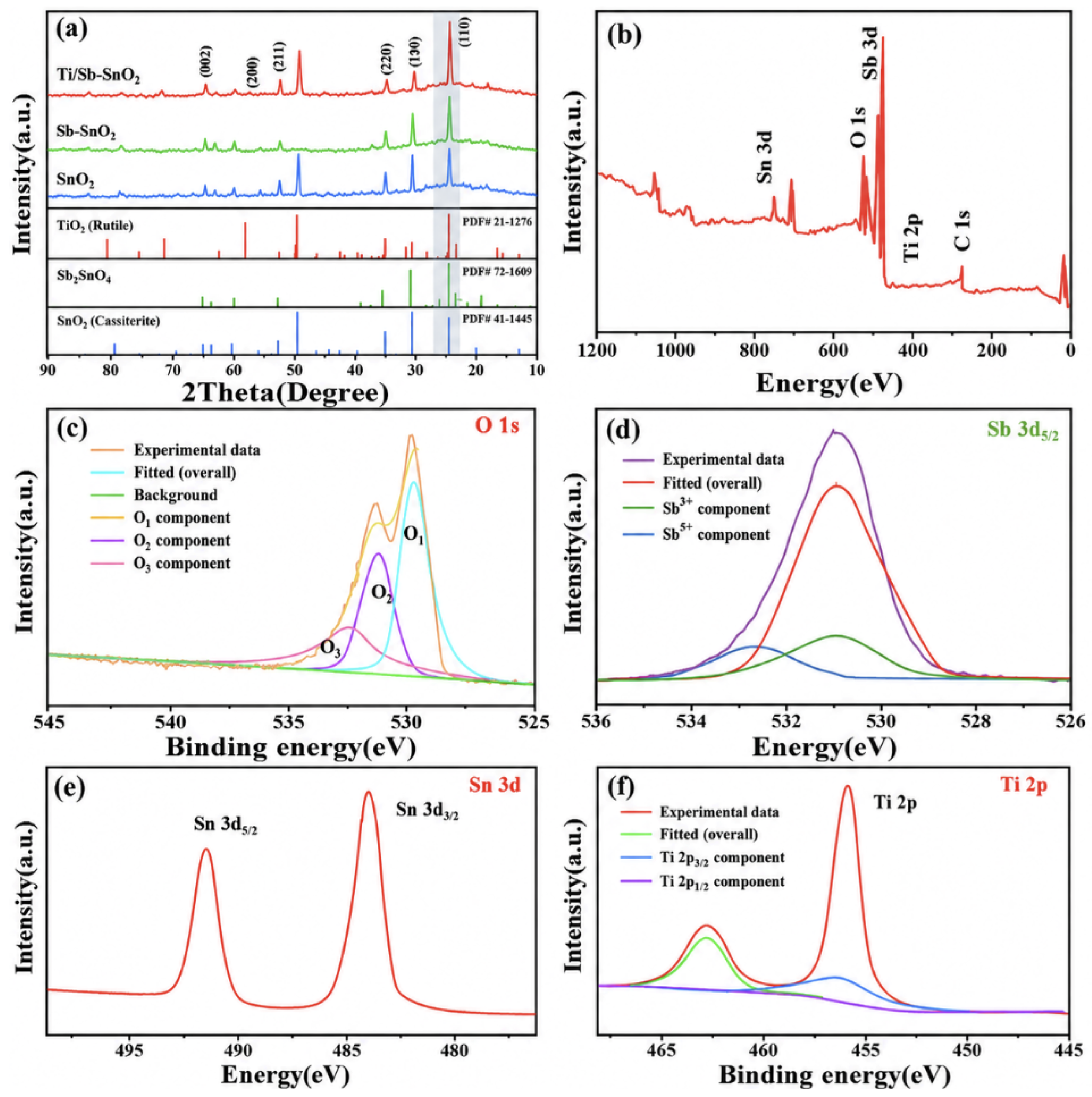

Figure 13. (a) XRD patterns, (b) XPS survey spectrum, and (c–f) high-resolution O 1s, Sb 3d, Sn 3d, and Ti 2p XPS spectra of SnO2, Sb-SnO2, and Ti/Sb-SnO2.
Figure 13. (a) XRD patterns, (b) XPS survey spectrum, and (c–f) high-resolution O 1s, Sb 3d, Sn 3d, and Ti 2p XPS spectra of SnO2, Sb-SnO2, and Ti/Sb-SnO2.
Micromachines 17 00692 g013
Micromachines 17 00692 g014
Figure 14. Electrochemical performance of SnO2, Sb-SnO2, and Ti/Sb-SnO2 negative electrode materials: (a) CV curves of SnO2, Sb-SnO2, and Ti/Sb-SnO2; (b) GCD curves at 1 A/g; (c) specific capacitances at 1 A/g; (d) CV curves of Ti/Sb-SnO2 at different scan rates; (e) GCD curves of Ti/Sb-SnO2 at different current densities; and (f) rate performance of Ti/Sb-SnO2.
Figure 14. Electrochemical performance of SnO2, Sb-SnO2, and Ti/Sb-SnO2 negative electrode materials: (a) CV curves of SnO2, Sb-SnO2, and Ti/Sb-SnO2; (b) GCD curves at 1 A/g; (c) specific capacitances at 1 A/g; (d) CV curves of Ti/Sb-SnO2 at different scan rates; (e) GCD curves of Ti/Sb-SnO2 at different current densities; and (f) rate performance of Ti/Sb-SnO2.
Micromachines 17 00692 g014
Micromachines 17 00692 g015

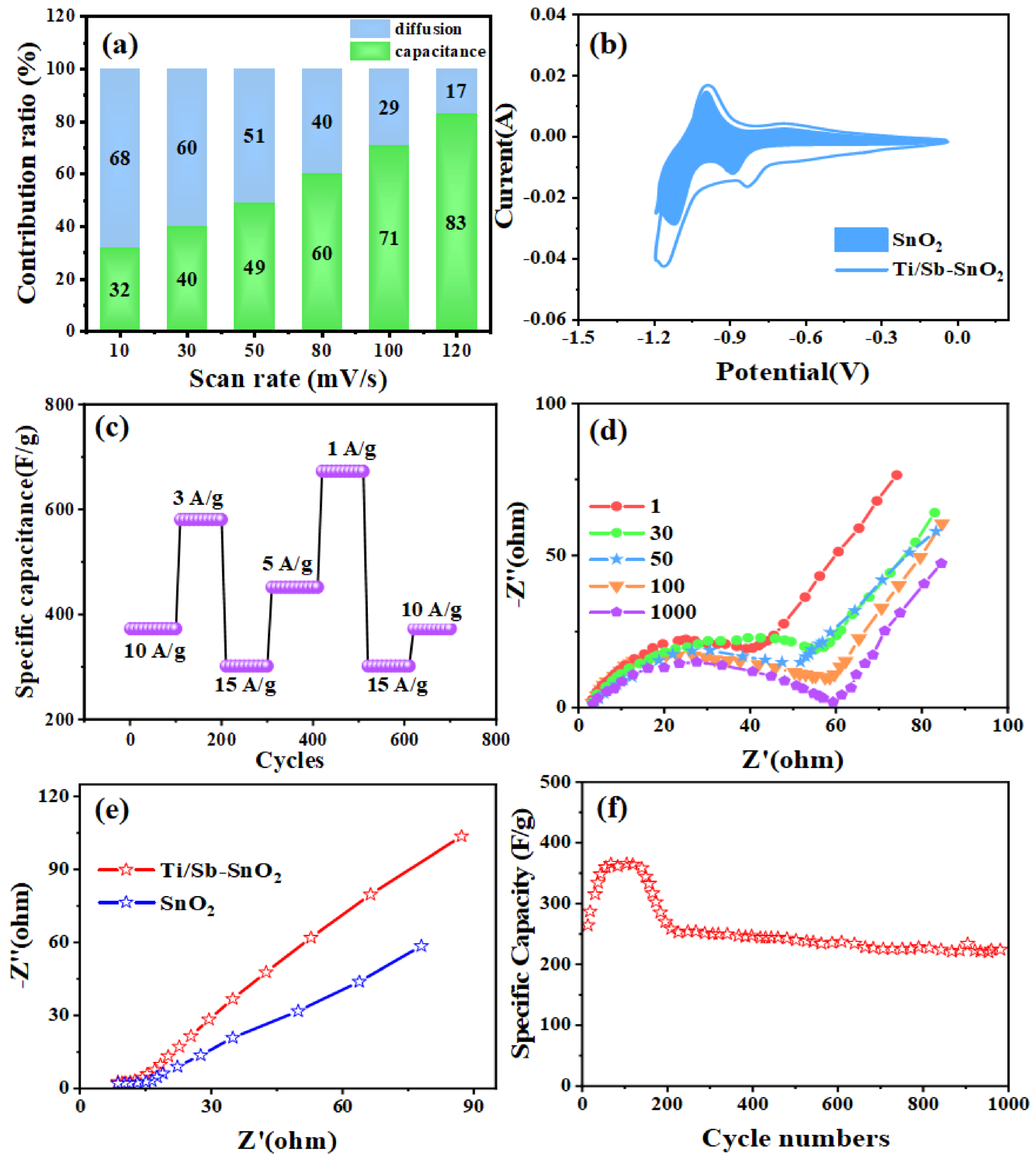

Figure 15. Electrochemical performance of the Ti/Sb-SnO2 negative electrode: (a) charge-storage contribution ratios at different scan rates; (b) CV comparison of SnO2 and Ti/Sb-SnO2; (c) rate performance at different current densities; (d) EIS spectra after different cycles; (e) EIS comparison of SnO2 and Ti/Sb-SnO2; and (f) cycling stability of the Ti/Sb-SnO2 electrode.
Figure 15. Electrochemical performance of the Ti/Sb-SnO2 negative electrode: (a) charge-storage contribution ratios at different scan rates; (b) CV comparison of SnO2 and Ti/Sb-SnO2; (c) rate performance at different current densities; (d) EIS spectra after different cycles; (e) EIS comparison of SnO2 and Ti/Sb-SnO2; and (f) cycling stability of the Ti/Sb-SnO2 electrode.
Micromachines 17 00692 g015
Micromachines 17 00692 g016

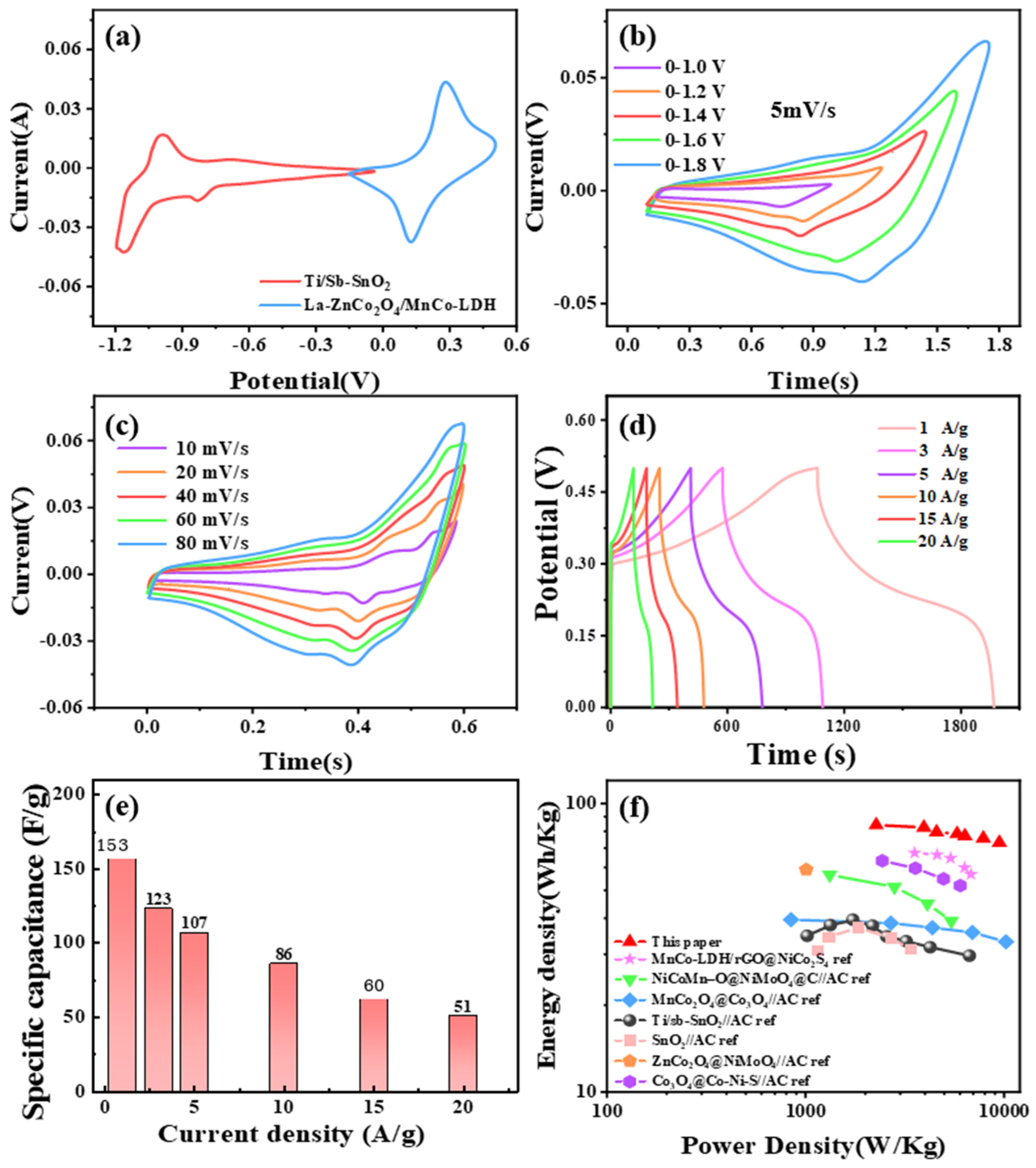

Figure 16. Electrochemical performance of the La-ZnCo2O4/MnCo-LDH//Ti/Sb-SnO2 asymmetric supercapacitor: (a) CV curves of the positive and negative electrodes; (b) CV curves of the device at different voltage windows; (c) CV curves of the device at different scan rates; (d) GCD curves at different current densities; (e) specific capacitances at different current densities; and (f) Ragone plot of the device.
Figure 16. Electrochemical performance of the La-ZnCo2O4/MnCo-LDH//Ti/Sb-SnO2 asymmetric supercapacitor: (a) CV curves of the positive and negative electrodes; (b) CV curves of the device at different voltage windows; (c) CV curves of the device at different scan rates; (d) GCD curves at different current densities; (e) specific capacitances at different current densities; and (f) Ragone plot of the device.
Micromachines 17 00692 g016
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Xu, W.; Qu, C.; Xing, M.; Wang, J.; Sun, Y. High-Performance Asymmetric Supercapacitors Assembled from La-Doped ZnCo2O4/MnCo-LDH Nanoflower Positive Electrodes and Ti-Supported Sb-Doped SnO2 Negative Electrodes. Micromachines 2026, 17, 692. https://doi.org/10.3390/mi17060692

AMA Style

Xu W, Qu C, Xing M, Wang J, Sun Y. High-Performance Asymmetric Supercapacitors Assembled from La-Doped ZnCo2O4/MnCo-LDH Nanoflower Positive Electrodes and Ti-Supported Sb-Doped SnO2 Negative Electrodes. Micromachines. 2026; 17(6):692. https://doi.org/10.3390/mi17060692

Chicago/Turabian Style

Xu, Wei, Changxu Qu, Mingzhao Xing, Jing Wang, and Yanzhi Sun. 2026. "High-Performance Asymmetric Supercapacitors Assembled from La-Doped ZnCo2O4/MnCo-LDH Nanoflower Positive Electrodes and Ti-Supported Sb-Doped SnO2 Negative Electrodes" Micromachines 17, no. 6: 692. https://doi.org/10.3390/mi17060692

APA Style

Xu, W., Qu, C., Xing, M., Wang, J., & Sun, Y. (2026). High-Performance Asymmetric Supercapacitors Assembled from La-Doped ZnCo2O4/MnCo-LDH Nanoflower Positive Electrodes and Ti-Supported Sb-Doped SnO2 Negative Electrodes. Micromachines, 17(6), 692. https://doi.org/10.3390/mi17060692

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
