Integrated CoNi2S4 Nanosheets/3D Conductive Scaffold as an Efficient Bifunctional Electrode for High-Performance Supercapacitors and Sensors

by
Yaqiang Ji
1,
Junfeng Huang
1,*,
Weibin Yin
1,
Junrui Xiang
1,
Yongquan Liu
1,
Yongjun Huang
1,
Jingsheng Hong
1 and
Long Li
2,*
1
School of Mechanical Engineering, Dongguan University of Technology, Dongguan 523808, China
2
School of Microelectronics, Shenzhen University of Information Technology, Shenzhen 518172, China
*
Authors to whom correspondence should be addressed.
Micromachines 2026, 17(4), 408; https://doi.org/10.3390/mi17040408 (registering DOI)
Submission received: 12 February 2026 / Revised: 23 March 2026 / Accepted: 25 March 2026 / Published: 26 March 2026
Browse Figures
Versions Notes

Abstract

Bifunctional materials present a promising route to develop advanced devices, yet the dual performance of CoNi2S4 nanosheets anchored on a porous scaffold is seldom reported. Herein, we propose a rational fabrication strategy to construct a three-dimensional hierarchical electrode via the in-situ growth of densely aligned CoNi2S4 nanosheets on a conductive fabric scaffold. This integrated porous architecture concurrently offers an ultrahigh specific surface area, efficient mass transport, and rapid electron conduction. As a supercapacitor, the electrode achieves a high areal capacitance of 3198 mF cm−2 at 4 mA cm−2 and retains 98.1% of its initial capacitance after 1000 cycles at 20 mA cm−2. As a non-enzymatic glucose sensor, it exhibits outstanding selectivity (<4.1% interference), high sensitivity (1049 μA mM−1 cm−2), a wide linear range (1–8 mM), and a low detection limit (1 μM). These results highlight the significant potential of this binder-free, scaffold-supported nanosheet design for advancing integrated energy storage and biosensing systems.

1. Introduction

The rapid growth of integrated and multifunctional electronics, including wearable health monitors [1] and self-powered biosensors [2,3], has intensified the demand for electrode materials that can simultaneously enable electrochemical energy storage and electrochemical sensing within a unified platform [4,5,6]. In addition, the development of such bifunctional systems is driven by the growing need for more intelligent, miniaturized, and highly integrated wearable and implantable medical electronics. Contemporary wearable health-monitoring platforms generally require not only sensing components but also additional modules for signal processing, wireless communication, battery supply, and energy management, which highlights the importance of compact system integration [7]. From this perspective, integrating energy storage and sensing into a single electrochemical platform represents an attractive strategy for reducing device footprint and improving functional compatibility between power supply and signal transduction. Recent proof-of-concept studies have shown that micro-supercapacitors can be integrated with flexible sweat-sensing systems on the same substrate [8], while self-powered biosensor concepts further demonstrate the possibility of using bioelectrochemical energy conversion to simplify sensing architectures and move toward energy-autonomous operation [2]. More broadly, recent advances in wearable and implantable biosensors for closed-loop therapeutic systems, as well as fully integrated microneedle-based platforms for diabetes monitoring and treatment, suggest that combining physiological monitoring with functional intervention in compact bioelectronic systems may open new opportunities for intelligent health management [9,10]. Although these two functions target distinct outputs, both fundamentally rely on efficient interfacial charge transfer and effective species transport at the electrode/electrolyte interface [11,12,13]. Accordingly, the challenge is not simply to identify an active material, but to rationally design an electrode architecture that reconciles three tightly coupled requirements, namely long-term stability in aqueous electrolytes, high electrical conductivity, and abundant electrochemically accessible active sites.
Spinel-type cobalt–nickel sulfide (CoNi2S4) has been extensively explored as a promising candidate owing to its rich redox chemistry associated with multiple oxidation states of Ni and Co, which is beneficial for pseudocapacitive charge storage and electrocatalytic reactions [14,15,16]. In particular, constructing CoNi2S4 into ultrathin nanosheet arrays can expose more active sites and shorten ion-diffusion pathways, thereby improving reaction kinetics [17]. However, conventional slurry-cast electrodes suffer from inactive binders and imperfect interparticle contacts, which block active surfaces, increase charge-transfer resistance, and often lead to structural degradation during long-term cycling [18,19,20]. Binder-free integrated electrodes based on in-situ growth on conductive scaffolds have thus been pursued to enhance electrical wiring and active-site utilization [21,22,23].
Despite these advances, developing a robust and high-performance bifunctional electrode in alkaline electrolytes remains nontrivial when Cu is used as the current collector [24,25,26]. Cu offers attractive conductivity, mechanical flexibility, and cost advantages, yet it is susceptible to corrosion and interfacial deterioration under alkaline conditions, which compromises both electrochemical stability and signal reliability [27,28,29]. A direct coating of active sulfides on Cu cannot fully address this issue, because the stability of the entire electrode is governed by the vulnerable Cu/electrolyte interface, while thick protective layers may sacrifice conductivity or mass transport [30,31,32,33]. Consequently, a spatially resolved architecture that can isolate Cu from corrosive environments while maintaining continuous electron pathways and open transport channels is highly desirable but remains insufficiently developed [34,35].
Herein, we report a rationally engineered three-layer architecture consisting of a flexible Cu core, a porous Ni interlayer, and an outer CoNi2S4 nanosheet network. The porous Ni layer serves as a multifunctional interphase that passivates the Cu substrate against alkaline corrosion and simultaneously provides a high-surface-area conductive scaffold for subsequent CoNi2S4 growth. Meanwhile, the conformal CoNi2S4 nanosheets offer abundant redox-active sites and maintain efficient electrolyte penetration, enabling high active-material utilization without compromising mass transport. Benefiting from this decoupled yet synergistic design, the integrated electrode exhibits high areal capacitance with robust cycling durability, and it also delivers sensitive and selective non-enzymatic glucose detection. This work thus provides a practical interface-engineering strategy to stabilize Cu-based multifunctional electrodes and to unify energy-storage and sensing functions in alkaline systems.

2. Materials and Methods

2.1. Materials

All chemical reagents were of analytical grade and used as received without further purification. Copper sulfate pentahydrate, sodium hydroxide, ethylenediaminetetraacetic acid disodium salt, potassium ferrocyanide, potassium sodium tartrate, formaldehyde solution, copper acetate, nickel chloride, cobalt chloride, ammonium chloride, thiourea, glucose, and polyvinyl alcohol were purchased from Aladdin Chemical Reagent Co., Ltd. (Shanghai, China). Xylose, Fructose, ascorbic acid, maltose, and sodium chloride were obtained from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). The fabric substrate was purchased by Taobao Co., Ltd. (Hangzhou, China). Deionized (DI) water from a Milli-Q system (Merck KGaA, Darmstadt, Germany) with a resistivity of 18.2 MΩ cm was used to prepare solutions and wash samples.

2.2. Fabrication of 3D Cu@porous Ni Fabric Electrodes with CoNi2S4 Nanosheets

2.2.1. Preparation of 3D Cu@porous Ni Fabric Substrates

The 3D Cu@porous Ni fabric electrodes were fabricated using a femtosecond laser-activated metal deposition method, which combines low-cost ELD and laser processing, as reported in our previous work [36,37]. Initially, a fabric film was impregnated with several drops of 1 M copper acetate (CuAc2) aqueous solution and dried. A Yb: KGW femtosecond laser (Pharos-10 W, Light Conversion, Vilnius, Lithuania) with a tunable repetition rate and a center wavelength of 515 nm (second-harmonic generation) was used as the laser source for all laser-activated processes. In this work, the laser fluence, scanning speed, and repetition rate were set to 22 mJ cm−2, 10 mm s−1, and 10 kHz, respectively, unless otherwise specified. A tic-tac-toe scanning pattern with a line interval of 15 µm was employed to define the electrode structure. Subsequently, a Cu layer was deposited onto the laser-patterned fabric film via ELD. The ELD was conducted by immersing the sample in a plating bath (maintained at 50 °C for 20 min) consisting of a 1:1 mixture of solution A and solution B. Solution A was an aqueous solution containing copper sulfate pentahydrate (14 g L−1), sodium hydroxide (NaOH, 14 g L−1), potassium sodium tartrate (14 g L−1), ethylenediaminetetraacetic acid disodium salt (20 g L−1), and potassium ferrocyanide (10 mg L−1). Solution B was a formaldehyde aqueous solution (12 mL L−1). Following the Cu deposition, a porous Ni layer was electrodeposited onto the Cu-coated fabric substrate using a dynamic hydrogen bubble template method [38,39]. In this process, the Cu substrate served as the cathode, and a Pt plate served as the anode. The porous Ni interlayer was deposited galvanostatically at 2.5 A cm−2 for 60 s using a regulated DC power supply. The electrolyte consisted of 0.1 M nickel chloride and 2 M ammonium chloride in deionized water. The mass loading of porous Ni interlayer was determined to be approximately 15 mg cm−2.

2.2.2. Electrodeposition of CoNi2S4 Nanosheets

The CoNi2S4 nanosheets were grown onto the as-prepared 3D Cu@porous Ni fabric electrodes via electrochemical deposition. The deposition bath (100 mL) contained 7.5 mM nickel chloride, 5 mM cobalt chloride, and 0.75 M thiourea. The electrochemical deposition was carried out in a three-electrode cell using a Cu@porous Ni fabric electrode as the working electrode, a platinum plate as the counter electrode, and Ag/AgCl as the reference electrode. Cyclic voltammetry was performed at a scan rate of 5 mV s−1 for 5 cycles with a potential range of −1.2 to 0.2 V vs. Ag/AgCl at room temperature. After deposition, the samples were thoroughly rinsed with ethanol and deionized water, and then dried under vacuum at 50 °C for 12 h. The mass loading of CoNi2S4 nanosheets was determined to be approximately 0.8 mg cm−2.

2.3. Assembly of Flexible Solid-State Supercapacitors

A polyvinyl alcohol/potassium hydroxide (PVA/KOH) gel electrolyte was prepared by dissolving 5 g of PVA and 3 g of KOH in 50 mL of deionized water at 90 °C under continuous stirring until a transparent solution was obtained. The fabricated electrodes were immersed in the gel electrolyte for 5 min and then allowed to solidify at room temperature. Finally, a symmetric flexible solid-state supercapacitor was assembled by sandwiching the gel electrolyte between two identical electrodes, followed by encapsulation with polydimethylsiloxane (PDMS).

2.4. Characterization

The morphology and microstructure of the synthesized electrodes were characterized by field-emission scanning electron microscopy (FE-SEM, Nova Nano SEM 450, FEI, Hillsboro, OR, USA) operated at 5 kV. Further structural characterization was carried out using high-resolution transmission electron microscopy (HRTEM, Tecnai G2 F20, FEI, Hillsboro, OR, USA), and the corresponding elemental distributions were analyzed by TEM-EDS at an accelerating voltage of 200 kV. The crystal structure was examined by X-ray diffraction (XRD, Rigaku D/Max 2500, Rigaku, Akishima-shi, Tokyo, Japan) using Cu Kα radiation (λ = 1.5418 Å). The surface elemental composition and chemical states were analyzed by X-ray photoelectron spectroscopy (XPS, PHI-1800, ULVAC-PHI, Chigasaki, Kanagawa, Japan) with monochromatic Al Kα radiation, and all binding energies were calibrated using the C 1 s peak at 284.8 eV.

2.5. Electrochemical Measurements

All electrochemical measurements were carried out at room temperature using a standard three-electrode system connected to an electrochemical workstation (CHI 660E, Shanghai Chenhua Instrument Co., Ltd., Shanghai, China). In the system, the prepared samples served as the working electrode, a platinum-plate electrode as the counter electrode, and a mercuric/mercuric oxide electrode as the reference electrode. Cyclic voltammetry, galvanostatic charge–discharge, electrochemical impedance spectroscopy, and chronoamperometry tests were performed to evaluate the electrochemical performance.

3. Results and Discussion

3.1. Morphology and Composition of the 3D Cu@porous Ni/CoNi2S4 Electrode

Copper-based substrates present a promising platform for flexible energy storage devices due to their inherent conductivity and structural adaptability [40,41,42,43]. However, their susceptibility to corrosion in alkaline electrolytes constitutes a critical limitation for electrochemical applications [44,45,46]. To address this challenge, we developed a stepwise electrodeposition strategy to construct a hierarchical multifunctional electrode architecture. Initially, a porous nickel interlayer was engineered onto the Cu fabric through galvanostatic deposition at 2.5 A cm−2 for 60 s. The deposition was performed in an electrolyte containing 0.1 M nickel chloride and 2 M ammonium chloride, where ammonium chloride served dual functions as both a pH buffer and a morphology-directing agent [47]. Under such high-current deposition conditions, porous Ni formation is generally associated with the dynamic hydrogen bubble template mechanism, in which Ni deposition proceeds concurrently with vigorous H2 evolution, and the transiently generated hydrogen bubbles act as dynamic templates for pore initiation and growth [48,49]. As a result, the formation of the porous Ni scaffold in the present system can be attributed to the coupled effect of rapid Ni electrodeposition and simultaneous gas evolution, which together promote the development of an open and roughened interlayer morphology. As revealed by SEM (Figure 1a,b), the deposited porous Ni formed a continuous yet highly textured coating composed of densely packed nanoparticles. This transformation converted the originally smooth Cu fibers into a mechanically robust Cu@porous Ni core–shell framework, with the precisely designed interlayer fulfilling dual functions. It simultaneously acted as an effective corrosion barrier to protect the underlying Cu current collector while amplifying the electroactive surface area, thereby creating an optimal three-dimensional conductive scaffold for subsequent active material integration. It should be noted that the apparent gap locally visible in Figure 1b is mainly caused by sample preparation during SEM observation of the rough flexible substrate, rather than actual large-area interfacial delamination.
Building upon this optimized substrate, pseudocapacitive CoNi2S4 nanosheets were uniformly grown via electrochemical deposition. The resulting composite structure (Figure 1c,d) exhibited remarkable preservation of the intrinsic porous network of the Cu@ porous Ni scaffold while achieving conformal wrapping of its surface with interconnected CoNi2S4 nanosheets. The outer CoNi2S4 component is more accurately described as an interconnected nanosheet coating grown on the porous Ni scaffold, rather than as an independently established porous layer. This structural configuration maintained hierarchical ion and electron transport pathways while introducing abundant redox-active sites. The material adopts a core–shell configuration where a flexible Cu core ensures current collection, a porous Ni middle layer offers corrosion resistance and surface enhancement, and a CoNi2S4 nanosheet outer layer is responsible for charge storage. This spatially resolved design represents a synergistic approach that effectively decouples the traditionally competing requirements of stability, conductivity, and electrochemical activity. The protective Ni interlayer not only passivates the Cu substrate but also actively contributes to the conductive network, while the conformal CoNi2S4 coating ensures high active material utilization without compromising mass transport efficiency. To further clarify the formation process of the CoNi2S4 coating, the corresponding cyclic electrodeposition curves are provided in Figure S1. In the thiourea-containing electrolyte, sulfur-containing species generated during cathodic polarization can react with Ni2+ and Co2+ near the electrode surface, thereby promoting the nucleation of mixed nickel-cobalt sulfide deposits [50,51]. With repeated potential cycling, these nuclei progressively grow and interconnect, leading to the formation of the nanosheet-like CoNi2S4 network observed on the Cu@porous Ni scaffold.
The morphology, crystallinity, and elemental distribution of the synthesized CoNi2S4 nanosheets were investigated using transmission electron microscopy (TEM). As shown in Figure 2a, the low-magnification TEM image clearly reveals a well-defined sheet-like morphology. Further analysis by high-resolution TEM (HRTEM) in Figure 2b confirms the high crystallinity of the nanosheets. The measured interplanar spacing of 0.28 nm corresponds to the (311) plane of cubic CoNi2S4. The corresponding fast Fourier transform (FFT) pattern, presented as an inset, exhibits sharp diffraction spots, which further corroborate the single-crystalline nature and excellent crystallographic quality of the product. Moreover, energy-dispersive X-ray (EDX) elemental mapping performed on the nanosheet in Figure 2c–e demonstrates the homogeneous spatial distribution of Co, Ni, and S elements throughout the nanosheet architecture. This uniform elemental dispersion, combined with the observed crystalline structure, is indicative of a phase-pure and homogeneous CoNi2S4 material, which is crucial for its subsequent electrochemical applications. In addition, semi-quantitative EDS analysis gave elemental contents of Co, Ni, and S of 14 wt.%, 29 wt.%, and 54 wt.%, respectively, which are close to the expected stoichiometric ratio of Co:Ni:S = 1:2:4.
The composition and chemical states of the hierarchically structured Cu@porous Ni/CoNi2S4 electrode were systematically examined using X-ray diffraction (XRD) and X-ray photoelectron spectroscopy (XPS). As shown in Figure 3a, the XRD pattern exhibits distinct diffraction peaks corresponding to metallic Cu and Ni, confirming the preservation of the conductive Cu@porous Ni scaffold after the sequential deposition processes. Notably, no distinct diffraction peaks of CoNi2S4 are observed. This is mainly ascribed to the ultrathin nanosheet nature and/or low loading of the electro-deposited CoNi2S4, whose weak diffraction signals are readily masked by the intense reflections from the highly crystalline Cu@porous Ni scaffold. Such substrate-dominated XRD patterns are commonly reported for thin, conformal sulfide/oxide coatings on metallic current collectors [52], and the successful formation of CoNi2S4 is therefore further corroborated by the TEM lattice fringes and XPS results.
To gain deeper insight into the surface chemistry and oxidation states of the constituent elements, the surface-deposited CoNi2S4 nanosheets were gently scraped from the sample and collected for high-resolution XPS analysis. The Co 2p spectrum (Figure 3b) displays two spin–orbit doublets: the peaks located at binding energies of 782.1 eV and 798.0 eV are assigned to Co2+, while those at 779.6 eV and 794.7 eV correspond to Co3+, indicating the coexistence of multiple cobalt oxidation states in the deposited sulfide [53]. Similarly, the Ni 2p spectrum (Figure 3c) reveals the presence of both Ni2+ (peaks at 855.1 eV and 873.1 eV) and Ni3+ (peaks at 856.3 eV and 874.1 eV), suggesting that nickel also exists in mixed valence states, which is beneficial for enhancing redox activity in supercapacitor applications [54]. Furthermore, the S 2p spectrum (Figure 3d) exhibits a peak at 162.8 eV characteristic of metal-sulfur bonds (Co-S and Ni-S), confirming the formation of the sulfide phase. An additional peak at 161.3 eV is attributed to low-coordination S2− species, which often contribute to improved electrochemical reactivity [55]. Collectively, the XPS results corroborate the successful integration of Cu@porous Ni/CoNi2S4 with a mixed-valence cation environment, while the XRD data reflect the structural dominance of the conductive Cu@porous Ni framework, a configuration that supports both efficient charge transport and rich surface redox chemistry.

3.2. Electrochemical Performance of Cu@porous Ni/CoNi2S4 Electrode for Supercapacitors

Benefiting from the hierarchically integrated Cu@porous Ni/CoNi2S4 nanoarchitecture discussed above, which provides efficient electron/ion transport pathways and abundant electroactive sites, the electrode is expected to deliver high specific capacitance, excellent rate capability, and robust cycling stability. Therefore, its electrochemical energy-storage performance was systematically evaluated in a three-electrode configuration using 1 M KOH electrolyte. Cyclic voltammetry (CV) curves at 10 mV s−1 (Figure 4a) revealed distinct redox peaks for both the Cu@porous Ni/CoNi2S4 and Cu@porous Ni electrodes, indicative of Faradaic pseudocapacitance, whereas the pure Cu electrode showed a featureless curve, confirming its negligible contribution [56,57]. Notably, the significantly larger integrated area under the CV curve for the Cu@porous Ni/CoNi2S4 composite compared to the Cu@porous Ni substrate unequivocally demonstrates a substantial enhancement in charge storage capacity, directly attributable to the introduction of the highly active CoNi2S4 nanosheets. This conclusion is corroborated by galvanostatic charge–discharge (GCD) tests. At a current density of 4 mA cm−2 (Figure 4b), the Cu@porous Ni/CoNi2S4 electrode exhibited a markedly prolonged discharge duration over its Cu@porous Ni counterpart, with the Cu electrode showing minimal discharge, confirming the hierarchy in capacitive performance (Cu@porous Ni/CoNi2S4 >> Cu@porous Ni > Cu).
The GCD profiles of the composite electrode across a range of current densities (4 to 50 mA cm−2, Figure 4c) displayed well-defined plateaus and high symmetry. The corresponding areal specific capacitances were calculated as 3198, 2982, 2729, 2528, and 2163 mF cm−2, respectively. While the capacitance decreases with increasing current density, which was commonly attributed to diffusion limitations and incomplete redox utilization at high rates, the electrode retained a respectable 68% of its initial capacitance (from 4 to 50 mA cm−2), underscoring its good rate capability [58,59]. Most impressively, the Cu@porous Ni/CoNi2S4 electrode demonstrated exceptional cycling stability, retaining 98.1% of its initial capacitance after 1000 consecutive GCD cycles at 20 mA cm−2 (Figure 4d). This outstanding retention, combined with the high specific capacitance and satisfactory rate performance, positions the Cu@porous Ni/CoNi2S4 architecture as a highly promising electrode material for durable and efficient energy storage devices.
To evaluate the practical viability of the Cu@porous Ni/CoNi2S4 electrode, a flexible solid-state supercapacitor device was fabricated by sandwiching a PVA/KOH gel electrolyte between two identical electrodes. The electrochemical performance and mechanical robustness of the assembled solid-state supercapacitor were systematically investigated. CV tests conducted at scan rates ranging from 10 to 100 mV s−1 (Figure 5a) revealed that the CV curves maintained their shape without significant distortion as the scan rate increased, indicating efficient charge transfer and good rate capability.
The solid-state supercapacitor also showed excellent mechanical flexibility, with nearly identical CV profiles under flat, bent 90°, and bent 180° conditions (Figure 5b), indicating its potential for wearable electronics. GCD measurements at various current densities (2–10 mA cm−2, Figure 5c) showed highly symmetric curves, confirming good electrochemical reversibility. The areal specific capacitance calculated from these curves was 83.3, 69.6, 63.3, and 62.5 mF cm−2 at 2, 4, 8, and 10 mA cm−2, respectively (Figure 5d). The gradual capacitance decrease with increasing current density is attributed to kinetic limitations, where ion diffusion in the electrolyte becomes the rate-limiting step at higher rates. The cycling stability test at 20 mA cm−2 (Figure 5e) showed a capacitance retention of 80.1% after 1000 cycles. To gain further insight into the performance degradation, electrochemical impedance spectroscopy (EIS) was performed before and after cycling (Figure 5f). The initial low internal resistance (2.2 Ω) and steep low-frequency slope indicated efficient ion transport at the electrode–electrolyte interface. After cycling, the internal resistance increased to 4.8 Ω, accompanied by a reduced low-frequency slope, suggesting hindered ion diffusion. This increase in resistance, likely caused by gradual dehydration of the unencapsulated gel electrolyte during prolonged operation, is identified as the primary factor for the observed capacitance fade. Overall, the device demonstrates promising flexibility and decent electrochemical performance, while also highlighting that encapsulation to prevent electrolyte dehydration is a critical future step for enhancing long-term stability.

3.3. Electrochemical Performance of Cu@porous Ni/CoNi2S4 Electrode for Glucose Sensors

The glucose-sensing performance of the hierarchical Cu@porous Ni/CoNi2S4 electrode was evaluated by chronoamperometry in 1 M NaOH. As shown in Figure 6a, the anodic current increased in a rapid and stepwise manner upon successive additions of glucose. This fast response can be attributed to the open porous scaffold [60] and the ultrathin sulfide nanosheet architecture [61], which together facilitate rapid analyte diffusion and efficient charge transport to the electroactive interface. In NaOH solution, the CoNi2S4 is oxidized to CoS2xO and NiS2−xOH [52]. When glucose is added to the solution, Co3+ and Ni4+ undergo redox reactions with glucose. Co3+ is converted to Co2+, Ni4+ is converted to Ni3+, and glucose is oxidized to gluconolactone [62]. The above electrochemical reactions can be explained in the following reaction formula.
When the electrolyte does not contain glucose, the electrochemical reactions are as follows:
CoNi2S4 + 2OH− ↔ CoS2xOH + 2NiS2−xOH + 2e−
CoS2xOH + OH− ↔ CoS2xO + H2O + e−
After adding glucose, the redox reactions are as follows:
Ni4+ + glucose ↔ Ni3+ + gluconolactone
Co3+ + glucose ↔ Co2+ + gluconolactone
The corresponding calibration curve (Figure 6b) exhibited an excellent linear response (R2 > 0.990) across a broad glucose concentration range (1–8 mM), from which an ultrahigh sensitivity of 1049 μA mM−1 cm−2 was determined. A comparison with previously reported non-enzymatic glucose sensors based on transition metal sulfides (Table 1) reveals that the Cu@porous Ni/CoNi2S4 composite not only offers a wider detection range but also achieves superior sensitivity, underscoring its outstanding performance. Furthermore, a remarkably low limit of detection of ~1 μM was calculated based on a signal-to-noise ratio of 3 (S/N = 3). This exceptional sensitivity and low limit of detection are directly attributable to the synergistic interplay within the Cu@porous Ni/CoNi2S4 composite: the highly conductive CoNi2S4 nanosheets provide a robust charge-transfer network, while the surface-anchored Cu@porous Ni nanoparticles offer abundant, highly active sites for the direct electro-oxidation of glucose.
Selectivity is a paramount requirement for reliable sensing in complex biological fluids. The anti-interference properties of the Cu@porous Ni/CoNi2S4 electrode were systematically investigated by introducing common interferents at physiological concentrations (0.1 mM), including xylose (Xyl), fructose (Fru), ascorbic acid (AA), maltose (Mal), and sodium chloride (NaCl). As depicted in the real-time amperometric response curve (Figure 6c), a sharp and substantial current response was observed upon the first injection of glucose. In contrast, subsequent injections of interfering species induced negligible current variations. Most notably, a second injection of 0.1 mM glucose elicited a pronounced current signal nearly identical to the initial response. This result confirms not only minimal cross-reactivity but also the excellent anti-fouling property and catalytic robustness of the electrode, ensuring that the active sites remain accessible and unpoisoned in a multi-component environment. For quantitative comparison, the responses were normalized to the first glucose signal (Figure 6d). All tested interferents show response levels ≤ 4.1% of glucose, and the electrode retains 90.4% of its original glucose response after the interference sequence, demonstrating robust operational stability and reliable molecular discrimination.

4. Conclusions

This work demonstrates the rational design and multifunctional integration of a hierarchical Cu@porous Ni/CoNi2S4 heterostructure, achieving exceptional performance in both supercapacitor and non-enzymatic glucose sensing applications. The tailored nanoarchitecture, consisting of an electrically conductive Cu@porous Ni scaffold conformally coated with interconnected CoNi2S4 nanosheets, provides abundant electroactive sites, a large accessible surface area, and efficient pathways for charge and ion transport. For the supercapacitor, the single electrode achieves a high areal capacitance of 3198 mF cm−2 at 4 mA cm−2 and retains 98.1% of its initial capacitance after 1000 cycles at 20 mA cm−2. Furthermore, the assembled flexible solid-state device delivers a specific capacitance of 83.3 mF cm−2 and exhibits 80.1% capacitance retention. For glucose sensing, the electrode exhibits an ultrahigh sensitivity of 1049 μA mM−1 cm−2, a nanomolar detection limit of about 1 μM, and outstanding selectivity with interferent responses below 4.1%. This dual-mode excellence originates from a synergistic design that simultaneously enhances electrical conductivity, promotes rapid mass diffusion, and stabilizes the electrode/electrolyte interface. The work not only establishes a high-performance multifunctional platform but also offers a scalable and versatile blueprint for developing integrated electrochemical systems that bridge advanced sensing and efficient energy storage.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/mi17040408/s1. Figure S1: The electrodeposition curve of CoNi2S4 nanosheets.

Author Contributions

Conceptualization: Y.J.; methodology: Y.J., L.L. and W.Y.; software: J.H. (Junfeng Huang) and W.Y.; validation: Y.J. and J.X.; formal analysis: W.Y., J.X. and Y.L.; investigation: Y.J. and Y.L.; resources: J.H. (Junfeng Huang); data curation: Y.L., Y.H. and J.H. (Jingsheng Hong); writing—original draft preparation: Y.J.; writing—review and editing: J.H. (Junfeng Huang) and L.L.; visualization: Y.H. and J.H. (Jingsheng Hong); supervision: J.H. (Junfeng Huang) and L.L.; funding acquisition: Y.J. and L.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Guangdong Association for Science and Technology Young Scientific and Technological Talents Training Program (SKXRC2025077) and the University Consistent Support Program of Shenzhen Natural Science Foundation (20231127154937002).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding authors.

Acknowledgments

The authors gratefully acknowledge the technical support provided by the Analytical and Testing Center of Dongguan University of Technology for material characterization services.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have influenced the work described in the present paper.

References

  1. Tang, W.; Sun, Q.; Wang, Z.L. Self-powered sensing in wearable electronics—A paradigm shift technology. Chem. Rev. 2023, 123, 12105–12134. [Google Scholar] [CrossRef]
  2. Grattieri, M.; Minteer, S.D. Self-powered biosensors. ACS Sens. 2018, 3, 44–53. [Google Scholar] [CrossRef]
  3. Reid, R.C.; Mahbub, I. Wearable self-powered biosensors. Curr. Opin. Electrochem. 2020, 19, 55–62. [Google Scholar] [CrossRef]
  4. Vaghasiya, J.V.; Mayorga-Martinez, C.C.; Pumera, M. Telemedicine platform for health assessment remotely by an integrated nanoarchitectonics FePS3/rGO and Ti3C2-based wearable device. npj Flex. Electron. 2022, 6, 73. [Google Scholar] [CrossRef]
  5. Duan, H.; Peng, S.; He, S.; Tang, S.Y.; Goda, K.; Wang, C.H.; Li, M. Wearable electrochemical biosensors for advanced healthcare monitoring. Adv. Sci. 2025, 12, 2411433. [Google Scholar] [CrossRef]
  6. Zhang, S.; Luo, S.; Xie, A. High-capacity binder-free supercapacitor electrodes obtained from copper foam loaded with large layer spacing NiMn-LDH. J. Energy Storage 2025, 133, 118025. [Google Scholar] [CrossRef]
  7. Yokus, M.A.; Daniele, M.A. Integrated non-invasive biochemical and biophysical sensing systems for health and performance monitoring: A systems perspective. Biosens. Bioelectron. 2021, 184, 113249. [Google Scholar] [CrossRef] [PubMed]
  8. Lu, Y.; Jiang, K.; Chen, D.; Shen, G. Wearable sweat monitoring system with integrated micro-supercapacitors. Nano Energy 2019, 58, 624–632. [Google Scholar] [CrossRef]
  9. Zheng, Z.; Zhu, R.; Peng, I.; Xu, Z.; Jiang, Y. Wearable and implantable biosensors: Mechanisms and applications in closed-loop therapeutic systems. J. Mater. Chem. B 2024, 12, 8577–8604. [Google Scholar] [CrossRef]
  10. Li, X.; Huang, X.; Mo, J.; Wang, H.; Huang, Q.; Yang, C.; Zhang, T.; Chen, H.-J.; Hang, T.; Liu, F.; et al. A Fully Integrated Closed-Loop System Based on Mesoporous Microneedles-Iontophoresis for Diabetes Treatment. Adv. Sci. 2021, 8, 2100827. [Google Scholar] [CrossRef] [PubMed]
  11. Naikoo, G.A.; Salim, H.; Hassan, I.U.; Awan, T.; Arshad, F.; Pedram, M.Z.; Ahmed, W.; Qurashi, A. Recent advances in non-enzymatic glucose sensors based on metal and metal oxide nanostructures for diabetes management—A review. Front. Chem. 2021, 9, 748957. [Google Scholar] [CrossRef] [PubMed]
  12. Rong, H.; Chen, T.; Shi, R.; Zhang, Y.; Wang, Z. Hierarchical NiCo2O4@NiCo2S4 nanocomposite on Ni foam as an electrode for hybrid supercapacitors. ACS Omega 2018, 3, 5634–5642. [Google Scholar] [CrossRef]
  13. Nadar, N.R.; Akkinepally, B.; Harisha, B.S.; Ibrahim, E.H.; Rao, H.J.; Dash, T.; Sharma, S.; Hussain, I.; Shim, J. Nature-inspired materials as sustainable electrodes for energy storage devices: Recent trends and future aspects. J. Energy Storage 2025, 106, 114779. [Google Scholar] [CrossRef]
  14. Liu, L.; Zuo, S.; Wang, H. Review of NiCo2S4-based electrode nanomaterials for supercapacitors. ACS Appl. Nano Mater. 2024, 7, 15903–15922. [Google Scholar] [CrossRef]
  15. Philip, A.; Kumar, A.R. Development of a symmetric supercapacitor using a novel NiCo2S4/CNT composite electrode with ultrahigh energy density. Sci. Rep. 2025, 15, 43643. [Google Scholar] [CrossRef]
  16. Li, D.; Gong, Y.; Pan, C. Facile synthesis of hybrid CNTs/NiCo2S4 composite for high performance supercapacitors. Sci. Rep. 2016, 6, 29788. [Google Scholar] [CrossRef]
  17. Lang, X.; Chu, D.; Wang, Y.; Ge, D.; Chen, X. Defect surface engineering of hollow NiCo2S4 nanoprisms towards performance-enhanced non-enzymatic glucose oxidation. Biosensors 2022, 12, 823. [Google Scholar] [CrossRef]
  18. Zhang, Y.; Zhang, Y.; Zhang, Y.; Si, H.; Sun, L. Bimetallic NiCo2S4 nanoneedles anchored on mesocarbon microbeads as advanced electrodes for asymmetric supercapacitors. Nano-Micro Lett. 2019, 11, 35. [Google Scholar] [CrossRef]
  19. Sahoo, S.; Naik, K.K.; Rout, C.S. Controlled Electrochemical Growth of Spinel NiCo2S4 Nanosheets on Nickel Foam for High Performance Supercapacitor Applications. Mater. Today Proc. 2018, 5, 23083–23088. [Google Scholar] [CrossRef]
  20. Cheng, S.; Wang, X.; Du, K.; Mao, Y.; Han, Y.; Li, L.; Liu, X.; Wen, G. Hierarchical lotus-seedpod-derived porous activated carbon encapsulated with NiCo2S4 for a high-performance all-solid-state asymmetric supercapacitor. Molecules 2023, 28, 5020. [Google Scholar] [CrossRef] [PubMed]
  21. Ouyang, Y.; Zhang, B.; Wang, C.; Xia, X.; Lei, W.; Hao, Q. Bimetallic metal-organic framework derived porous NiCo2S4 nanosheets arrays as binder-free electrode for hybrid supercapacitor. Appl. Surf. Sci. 2021, 542, 148621. [Google Scholar] [CrossRef]
  22. Pathak, M.; Polaki, S.; Rout, C.S. High performance asymmetric supercapacitors based on Ti3C2Tx MXene and electrodeposited spinel NiCo2S4 nanostructures. RSC Adv. 2022, 12, 10788–10799. [Google Scholar] [CrossRef]
  23. Zhang, N.; Wang, M.; Quan, Y.; Li, X.; Hu, X.; Yan, J.; Wang, Y.; Sun, M.; Li, S. A review of binder-free electrodes for advanced supercapacitors. J. Ind. Eng. Chem. 2025, 141, 1–31. [Google Scholar] [CrossRef]
  24. Wang, X.; Xia, X.; Beka, L.G.; Liu, W.; Li, X. In situ growth of urchin-like NiCo2S4 hexagonal pyramid microstructures on 3D graphene nickel foam for enhanced performance of supercapacitors. RSC Adv. 2016, 6, 9446–9452. [Google Scholar] [CrossRef]
  25. Ismail, M.M.; Hong, Z.-Y.; Arivanandhan, M.; Yang, T.C.-K.; Pan, G.-T.; Huang, C.-M. In situ binder-free and hydrothermal growth of nanostructured NiCo2S4/Ni electrodes for solid-state hybrid supercapacitors. Energies 2021, 14, 7114. [Google Scholar] [CrossRef]
  26. Chen, H.; Jiang, J.; Zhang, L.; Xia, D.; Zhao, Y.; Guo, D.; Qi, T.; Wan, H. In situ growth of NiCo2S4 nanotube arrays on Ni foam for supercapacitors: Maximizing utilization efficiency at high mass loading to achieve ultrahigh areal pseudocapacitance. J. Power Sources 2014, 254, 249–257. [Google Scholar] [CrossRef]
  27. Niu, L.; Wang, Y.; Ruan, F.; Shen, C.; Shan, S.; Xu, M.; Sun, Z.; Li, C.; Liu, X.; Gong, Y. In situ growth of NiCo2S4@Ni3V2O8 on Ni foam as a binder-free electrode for asymmetric supercapacitors. J. Mater. Chem. A 2016, 4, 5669–5677. [Google Scholar] [CrossRef]
  28. Zhang, L.; Chen, W.; Zhao, Y.; Shen, L.; Cai, J.; Lu, Z.; Xiao, L.; Hou, L. Construction of 3D interconnected NiCo2S4/bio-carbon coated Ni foam as binder-free electrode for high-performance supercapacitor. Colloids Surf. A Physicochem. Eng. Asp. 2023, 673, 131803. [Google Scholar] [CrossRef]
  29. Rafique, N.; Asif, A.H.; Hirani, R.A.K.; Wu, H.; Shi, L.; Zhang, S.; Sun, H. Binder free 3D core-shell NiFe layered double hydroxide (LDH) nanosheets (NSs) supported on Cu foam as a highly efficient non-enzymatic glucose sensor. J. Colloid Interface Sci. 2022, 615, 865–875. [Google Scholar] [CrossRef] [PubMed]
  30. Kim, D.-Y.; Ghodake, G.; Maile, N.; Kadam, A.; Sung Lee, D.; Fulari, V.; Shinde, S. Chemical synthesis of hierarchical NiCo2S4 nanosheets like nanostructure on flexible foil for a high performance supercapacitor. Sci. Rep. 2017, 7, 9764. [Google Scholar] [CrossRef]
  31. Van Hoa, N.; Dat, P.A.; Van Chi, N.; Quan, L.H. A hierarchical porous aerogel nanocomposite of graphene/NiCo2S4 as an active electrode material for supercapacitors. J. Sci. Adv. Mater. Devices 2021, 6, 569–577. [Google Scholar]
  32. Lin, Y.; Huang, C.; Huang, C.; Deng, Y.; Zou, X.; Ma, W.; Fang, G.; Ragauskas, A.J. Cellulose regulated lignin/cellulose-based carbon materials with hierarchical porous structure for energy storage. Adv. Compos. Hybrid Mater. 2024, 7, 51. [Google Scholar] [CrossRef]
  33. Qi, J.; Wang, D.; Zhang, Z.; Hu, R.; Sui, Y.; He, Y.; Meng, Q.; Wei, F. Enhanced performance of mesoporous NiCo2S4 nanosheets fibre-shaped electrode for supercapacitor. Micro Nano Lett. 2021, 16, 263–267. [Google Scholar] [CrossRef]
  34. Tian, Y.; Yang, F.; Qiu, Z.; Jing, J.; He, J.; Xu, H. Hierarchical N-Ti3C2TX@ NiCo2S4 core-shell nanosheets assembled into 3D porous hydrogel as free-standing electrodes for high-performance supercapacitors. J. Energy Storage 2023, 63, 107086. [Google Scholar] [CrossRef]
  35. Zhang, S.; Zhang, Q.; Ma, R.; Feng, X.; Chen, F.; Wang, D.; Zhang, B.; Wang, Y.; Guo, N.; Xu, M.; et al. Boosting the capacitive performance by constructing O, N co-doped hierarchical porous structure in carbon for supercapacitor. J. Energy Storage 2024, 82, 110569. [Google Scholar] [CrossRef]
  36. Ji, Y.; Zhang, Y.; Zhu, J.; Geng, P.; Halpert, J.E.; Guo, L. Splashing-assisted femtosecond laser-activated metal deposition for mold-and mask-free fabrication of robust microstructured electrodes for flexible pressure sensors. Small 2023, 19, 2207362. [Google Scholar] [CrossRef]
  37. Ji, Y.; Liao, Y.; Li, H.; Cai, Y.; Fan, D.; Liu, Q.; Huang, S.; Zhu, R.; Wang, S.; Wang, H. Flexible metal electrodes by femtosecond laser-activated deposition for human-Machine interfaces. ACS Appl. Mater. Interfaces 2022, 14, 11971–11980. [Google Scholar] [CrossRef]
  38. Ji, Y.; Xie, J.; Wu, J.; Yang, Y.; Fu, X.-Z.; Sun, R.; Wong, C.-P. Hierarchical nanothorns MnCo2O4 grown on porous/dense Ni bi-layers coated Cu wire current collectors for high performance flexible solid-state fiber supercapacitors. J. Power Sources 2018, 393, 54–61. [Google Scholar] [CrossRef]
  39. Ji, Y.; Xie, J.; Yang, Y.; Fu, X.; Sun, R.; Wong, C. NiCoP 1D nanothorns grown on 3D hierarchically porous Ni films for high performance hydrogen evolution reaction. Chin. Chem. Lett. 2020, 31, 855–858. [Google Scholar] [CrossRef]
  40. Liu, W.; Zhai, P.; Li, A.; Wei, B.; Si, K.; Wei, Y.; Wang, X.; Zhu, G.; Chen, Q.; Gu, X.; et al. Electrochemical CO2 reduction to ethylene by ultrathin CuO nanoplate arrays. Nat. Commun. 2022, 13, 1877. [Google Scholar] [CrossRef]
  41. Pullanchiyodan, A.; Manjakkal, L.; Dahiya, R. Metal coated fabric based asymmetric supercapacitor for wearable applications. IEEE Sens. J. 2021, 21, 26208–26214. [Google Scholar] [CrossRef]
  42. El Halimi, M.S.; Zanelli, A.; Soavi, F.; Chafik, T. Building towards supercapacitors with safer electrolytes and carbon electrodes from natural resources. World 2023, 4, 431–449. [Google Scholar] [CrossRef]
  43. Fan, P.; Wang, J.; Ding, W.; Xu, L. Core-shell structured carbon nanofiber-based electrodes for high-performance supercapacitors. Molecules 2023, 28, 4571. [Google Scholar] [CrossRef]
  44. Nakayama, S.; Notoya, T.; Osakai, T. A mechanism for the atmospheric corrosion of copper determined by voltammetry with a strongly alkaline electrolyte. J. Electrochem. Soc. 2010, 157, C289. [Google Scholar] [CrossRef]
  45. Chen, X.; Wu, Y.; Holze, R. Ag(e)ing and degradation of supercapacitors: Causes, mechanisms, models and countermeasures. Molecules 2023, 28, 5028. [Google Scholar] [CrossRef] [PubMed]
  46. Liu, S.; Li, Y.; Wang, D.; Xi, S.; Xu, H.; Wang, Y.; Li, X.; Zang, W.; Liu, W.; Su, M.; et al. Alkali cation-induced cathodic corrosion in Cu electrocatalysts. Nat. Commun. 2024, 15, 5080. [Google Scholar] [CrossRef]
  47. Vainoris, M.; Tsyntsaru, N.; Cesiulis, H. Modified electrodeposited cobalt foam coatings as sensors for detection of free chlorine in water. Coatings 2019, 9, 306. [Google Scholar] [CrossRef]
  48. Borges, G.G.; Medina, M.; Dos Santos, R.M.; Dourado, A.H.; Beluomini, M.A.; França, V.V.; Brito, J.F.D. Tailoring Nickel Porous Structure via Dynamic Hydrogen Bubble Template for Efficient Alkaline Hydrogen Evolution. ACS Omega 2026, 11, 13865–13875. [Google Scholar] [CrossRef]
  49. Sengupta, S.; Patra, A.; Jena, S.; Das, K.; Das, S. A Study on the Effect of Electrodeposition Parameters on the Morphology of Porous Nickel Electrodeposits. Metall. Mater. Trans. A 2018, 49, 920–937. [Google Scholar] [CrossRef]
  50. Irshad, A.; Munichandraiah, N. Electrodeposited Nickel–Cobalt–Sulfide Catalyst for the Hydrogen Evolution Reaction. ACS Appl. Mater. Interfaces 2017, 9, 19746–19755. [Google Scholar] [CrossRef]
  51. Xu, S.; Su, C.; Wang, T.; Ma, Y.; Hu, J.; Hu, J.; Hu, N.; Su, Y.; Zhang, Y.; Yang, Z. One-step electrodeposition of nickel cobalt sulfide nanosheets on Ni nanowire film for hybrid supercapacitor. Electrochim. Acta 2018, 259, 617–625. [Google Scholar] [CrossRef]
  52. Wang, T.; Zhao, B.; Jiang, H.; Yang, H.-P.; Zhang, K.; Yuen, M.M.; Fu, X.-Z.; Sun, R.; Wong, C.-P. Electro-deposition of CoNi2S4 flower-like nanosheets on 3D hierarchically porous nickel skeletons with high electrochemical capacitive performance. J. Mater. Chem. A 2015, 3, 23035–23041. [Google Scholar] [CrossRef]
  53. Sivanantham, A.; Ganesan, P.; Shanmugam, S. Hierarchical NiCo2S4 nanowire arrays supported on Ni foam: An efficient and durable bifunctional electrocatalyst for oxygen and hydrogen evolution reactions. Adv. Funct. Mater. 2016, 26, 4661–4672. [Google Scholar] [CrossRef]
  54. Chen, W.; Xia, C.; Alshareef, H.N. One-step electrodeposited nickel cobalt sulfide nanosheet arrays for high-performance asymmetric supercapacitors. ACS Nano 2014, 8, 9531–9541. [Google Scholar] [CrossRef]
  55. Chang, P.; Mei, H.; Tan, Y.; Zhao, Y.; Huang, W.; Cheng, L. A 3D-printed stretchable structural supercapacitor with active stretchability/flexibility and remarkable volumetric capacitance. J. Mater. Chem. A 2020, 8, 13646–13658. [Google Scholar] [CrossRef]
  56. Shinde, S.; Ramesh, S.; Bathula, C.; Ghodake, G.; Kim, D.-Y.; Jagadale, A.; Kadam, A.; Waghmode, D.; Sreekanth, T.; Kim, H.S.; et al. Novel approach to synthesize NiCo2S4 composite for high-performance supercapacitor application with different molar ratio of Ni and Co. Sci. Rep. 2019, 9, 13717. [Google Scholar] [CrossRef]
  57. Wang, J.; Hu, L.; Zhou, X.; Zhang, S.; Qiao, Q.; Xu, L.; Tang, S. Three-dimensional porous network electrodes with Cu(OH)2 nanosheet/Ni3S2 nanowire 2D/1D heterostructures for remarkably cycle-stable supercapacitors. ACS Omega 2021, 6, 34276–34285. [Google Scholar] [CrossRef] [PubMed]
  58. Han, Y.; Sun, S.; Cui, W.; Deng, J. Multidimensional structure of CoNi2S4 materials: Structural regulation promoted electrochemical performance in a supercapacitor. RSC Adv. 2020, 10, 7541–7550. [Google Scholar] [CrossRef] [PubMed]
  59. Zhou, L.; He, Y.; Jia, C.; Pavlinek, V.; Saha, P.; Cheng, Q. Construction of hierarchical CuO/Cu2O@NiCo2S4 nanowire arrays on copper foam for high performance supercapacitor electrodes. Nanomaterials 2017, 7, 273. [Google Scholar] [CrossRef]
  60. Chen, Z.; Zhao, M.; Lv, X.; Zhou, K.; Jiang, X.; Ren, X.; Mei, X. Fast ion transport through ultrathin shells of metal sulfide hollow nanocolloids used for high-performance energy storage. Sci. Rep. 2018, 8, 30. [Google Scholar] [CrossRef] [PubMed]
  61. Tian, Y.; Ma, Y.; Sun, R.; Zhang, W.; Liu, H.; Liu, H.; Liao, L. Enhanced electrochemical performance of metallic CoS-based supercapacitor by cathodic exfoliation. Nanomaterials 2023, 13, 1411. [Google Scholar] [CrossRef] [PubMed]
  62. Dong, M.; Hu, H.; Ding, S.; Wang, C.; Li, L. Flexible non-enzymatic glucose biosensor based on CoNi2S4 nanosheets grown on nitrogen-doped carbon foam substrate. J. Alloys Compd. 2021, 883, 160830. [Google Scholar] [CrossRef]
  63. Dhandapani, P.; Subbiah Petchimuthuraju, A.K.; Prasad Rajendra, S.; AlSalhi, M.S.; Angaiah, S. Construction of hierarchical NiCo2S4/2D-Carbyne nanohybrid onto nickel foam for high performance supercapacitor and non-enzymatic electrochemical glucose sensor applications. ChemPhysChem 2024, 25, e202300658. [Google Scholar] [CrossRef]
  64. Chu, T.; Zhang, C.; Huang, R.; Zhang, W.; Deng, D.; Yan, X.; Zhang, Q.; Luo, L. NiCo2S4 nanosheets supported on Cu7S4 microcubes for the electrochemical detection of glucose in human serum. ACS Appl. Nano Mater. 2024, 7, 20905–20912. [Google Scholar] [CrossRef]
  65. Chen, D.; Wang, H.; Yang, M. A novel ball-in-ball hollow NiCo2S4 sphere based sensitive and selective nonenzymatic glucose sensor. Anal. Methods 2017, 9, 4718–4725. [Google Scholar] [CrossRef]
  66. Meng, A.; Yuan, X.; Li, Z.; Zhao, K.; Sheng, L.; Li, Q. Direct growth of 3D porous (Ni-Co)3S4 nanosheets arrays on rGO-PEDOT hybrid film for high performance non-enzymatic glucose sensing. Sens. Actuators B-Chem. 2019, 291, 9–16. [Google Scholar] [CrossRef]
Micromachines 17 00408 g001
Figure 1. SEM images of (a,b) the Cu@porous Ni substrate and (c,d) the Cu@porous Ni/CoNi2S4 electrode.
Figure 1. SEM images of (a,b) the Cu@porous Ni substrate and (c,d) the Cu@porous Ni/CoNi2S4 electrode.
Micromachines 17 00408 g001
Micromachines 17 00408 g002
Figure 2. (a) TEM images, (b) HRTEM, and (c–e) EDX mapping of CoNi2S4 nanosheets.
Figure 2. (a) TEM images, (b) HRTEM, and (c–e) EDX mapping of CoNi2S4 nanosheets.
Micromachines 17 00408 g002
Micromachines 17 00408 g003

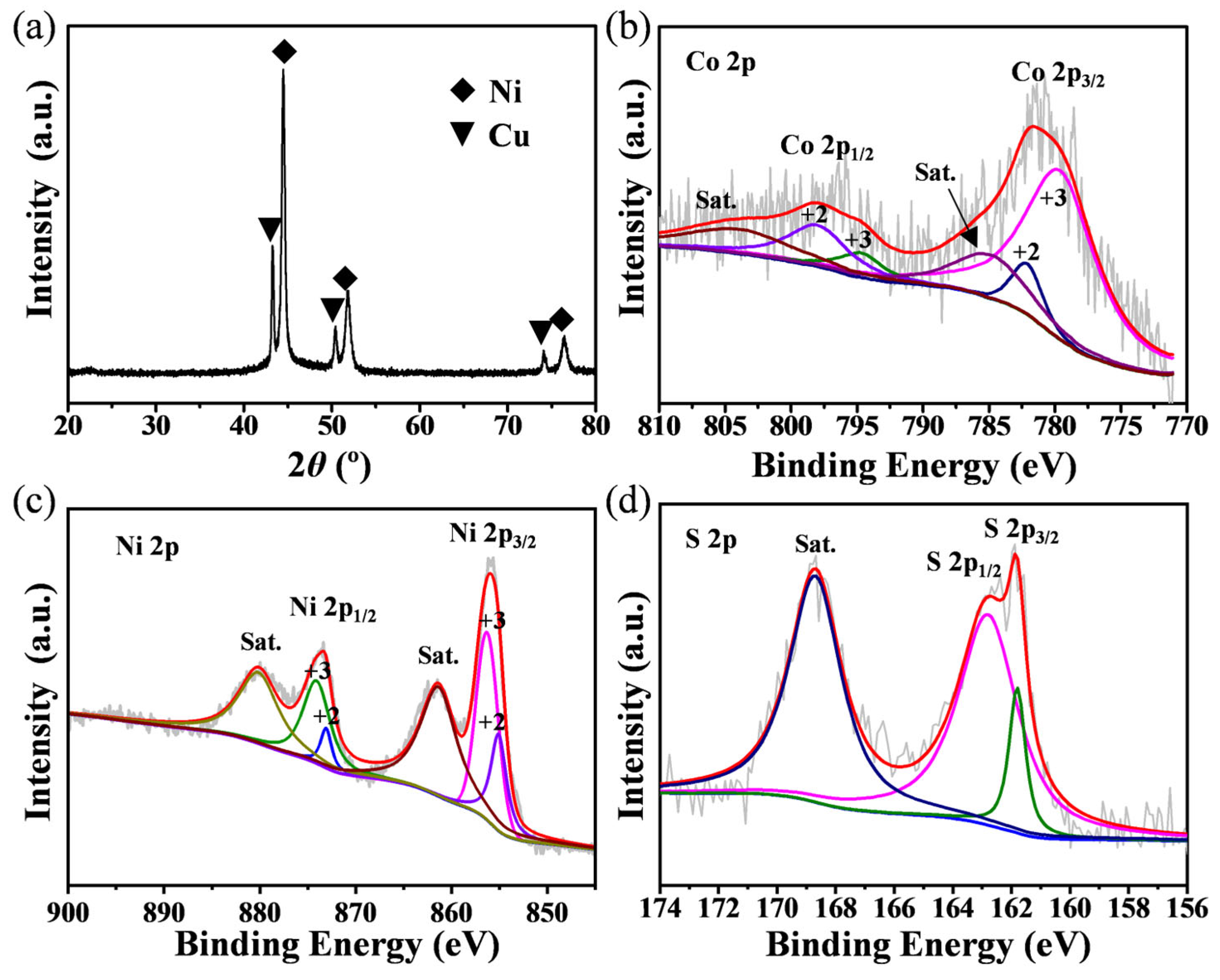

Figure 3. (a) XRD spectrum of the Cu@porous Ni/CoNi2S4 electrode. XPS spectra of (b) Co 2p, (c) Ni 2p, and (d) S 2p.
Figure 3. (a) XRD spectrum of the Cu@porous Ni/CoNi2S4 electrode. XPS spectra of (b) Co 2p, (c) Ni 2p, and (d) S 2p.
Micromachines 17 00408 g003
Micromachines 17 00408 g004

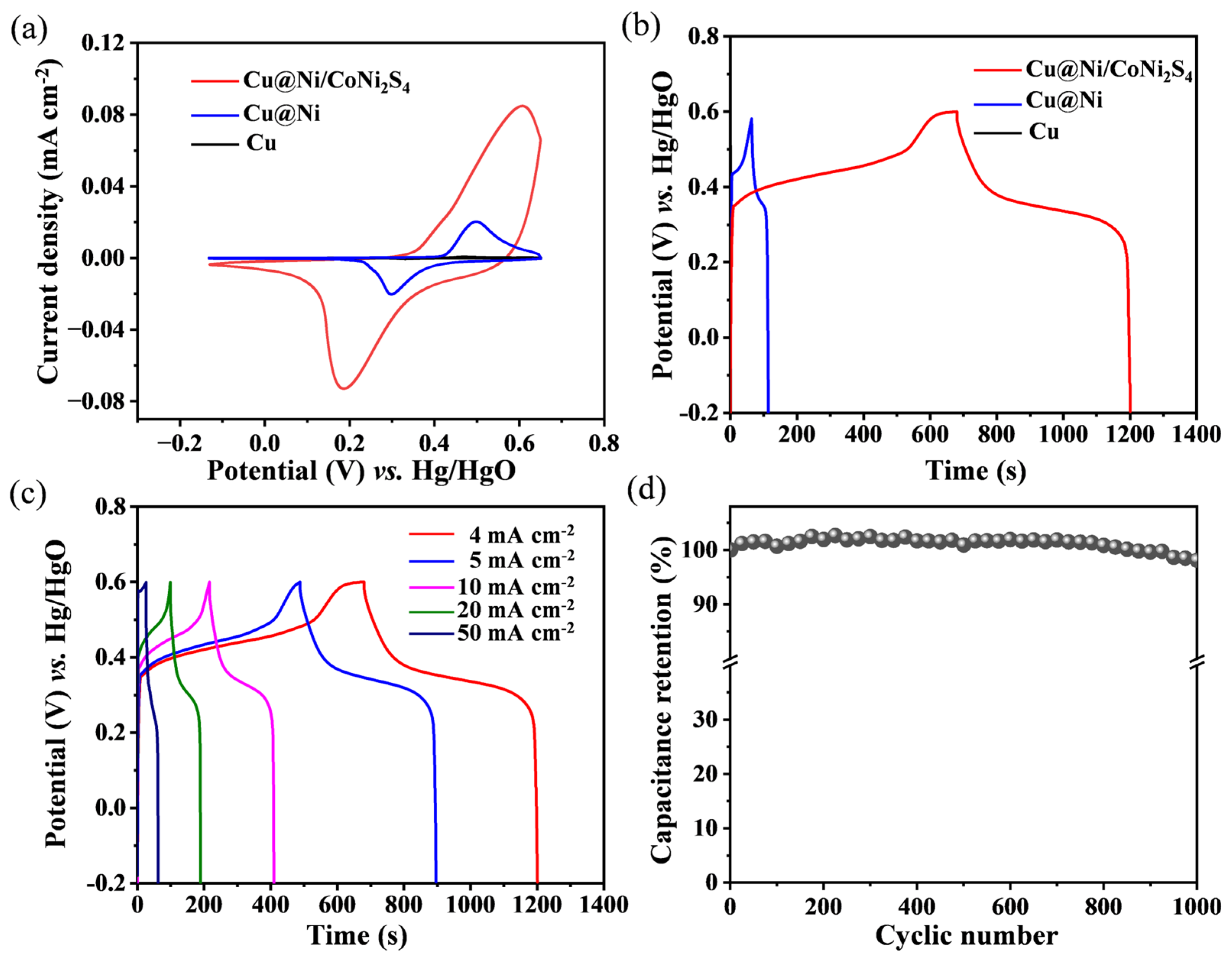

Figure 4. (a) CV curves of Cu@porous Ni/CoNi2S4 electrode, Cu@porous Ni electrode, and Cu electrode. (b) GCD curves at 4 mA cm−2 current density. (c) GCD curves of Cu@porous Ni/CoNi2S4 electrode at different current densities. (d) Cyclic stability test of Cu@porous Ni/CoNi2S4 electrode at 20 mA cm−2 current density.
Figure 4. (a) CV curves of Cu@porous Ni/CoNi2S4 electrode, Cu@porous Ni electrode, and Cu electrode. (b) GCD curves at 4 mA cm−2 current density. (c) GCD curves of Cu@porous Ni/CoNi2S4 electrode at different current densities. (d) Cyclic stability test of Cu@porous Ni/CoNi2S4 electrode at 20 mA cm−2 current density.
Micromachines 17 00408 g004
Micromachines 17 00408 g005

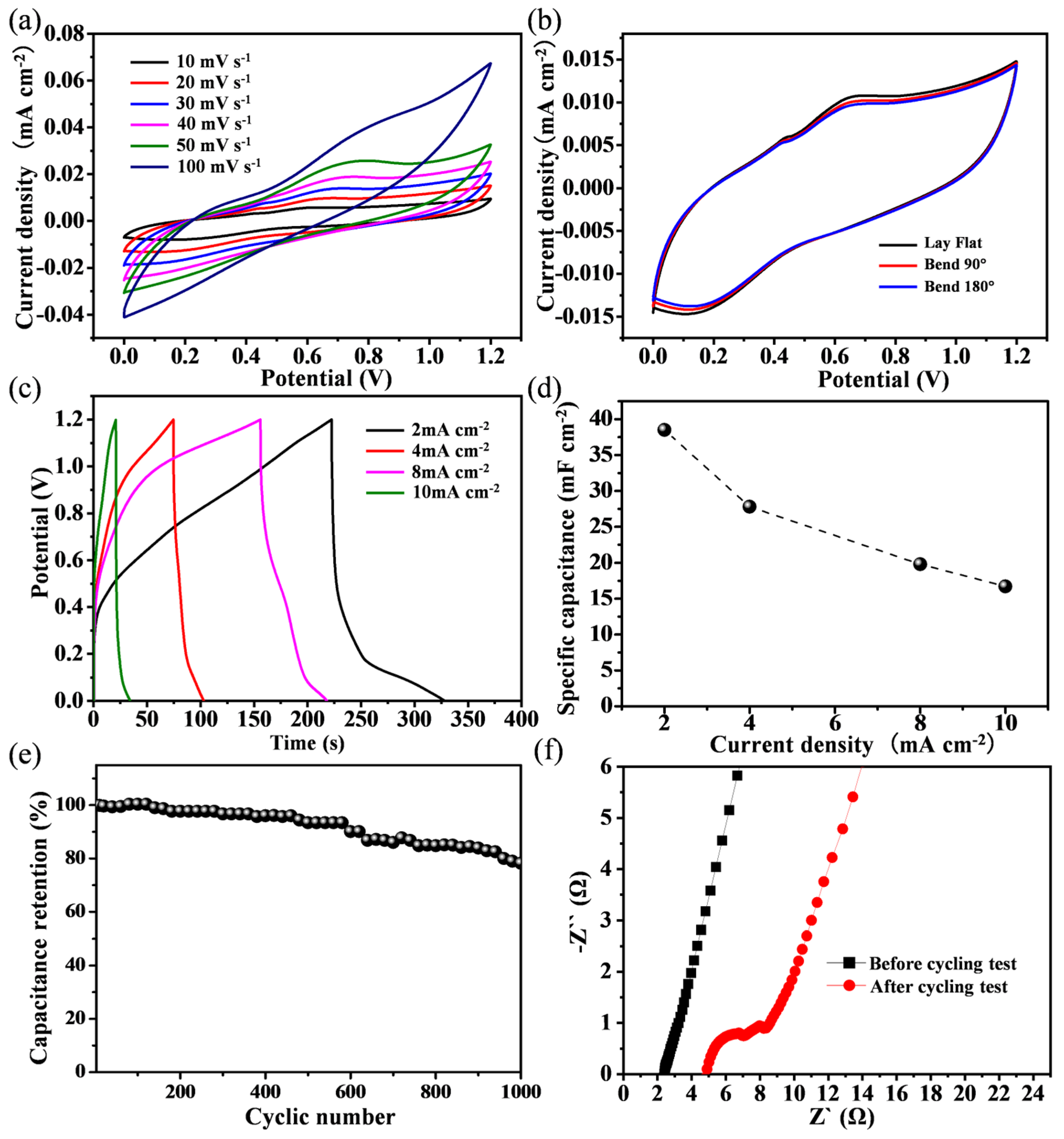

Figure 5. The electrochemical performance of the solid-state supercapacitor. (a) CV curves. (b) Mechanical stability test. (c) GCD curves at different current densities. (d) Calculation results of area-specific capacitance. (e) Cyclic stability test at 20 mA cm−2 current density. (f) EIS of the solid-state supercapacitor.
Figure 5. The electrochemical performance of the solid-state supercapacitor. (a) CV curves. (b) Mechanical stability test. (c) GCD curves at different current densities. (d) Calculation results of area-specific capacitance. (e) Cyclic stability test at 20 mA cm−2 current density. (f) EIS of the solid-state supercapacitor.
Micromachines 17 00408 g005
Micromachines 17 00408 g006

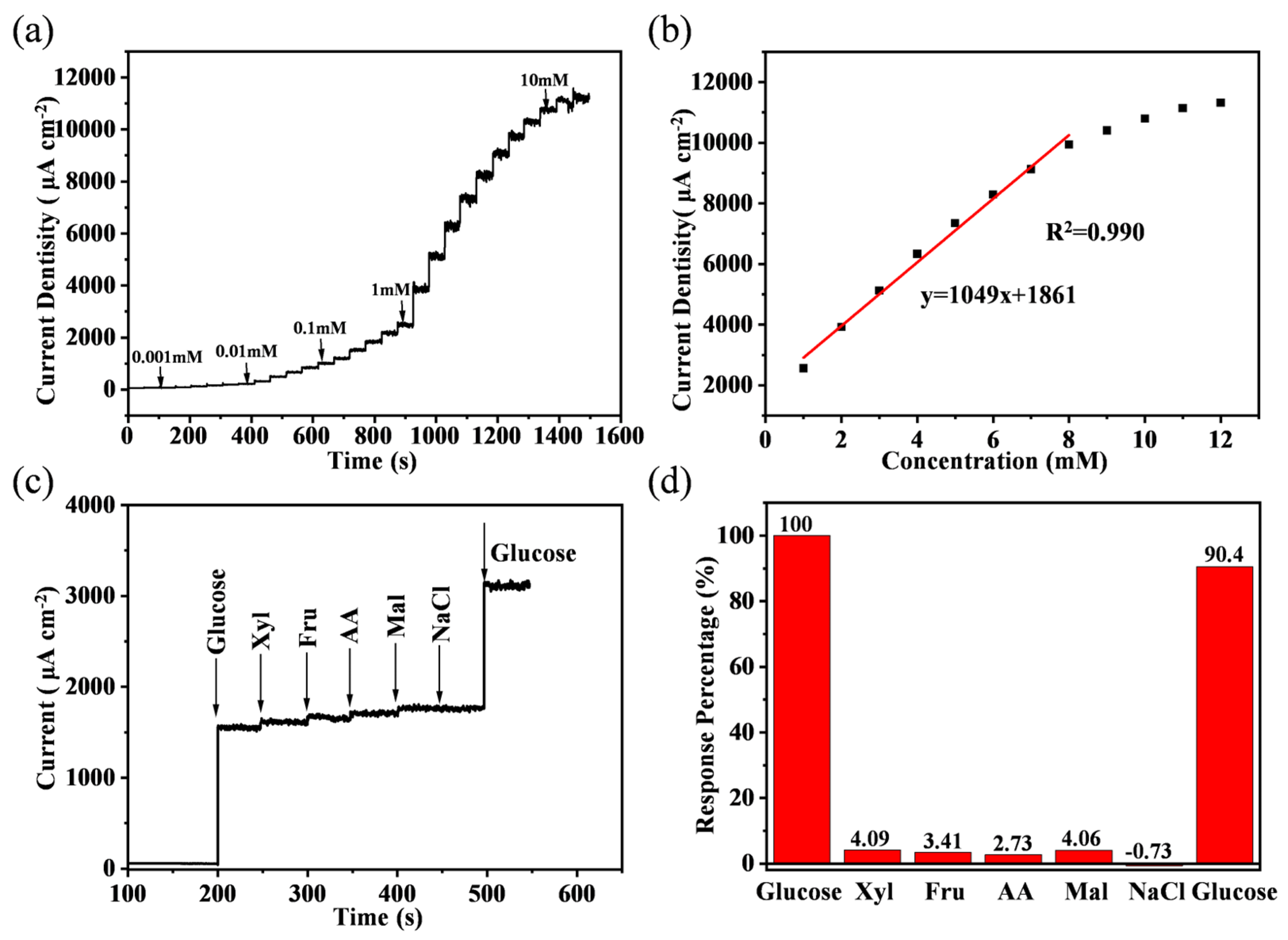

Figure 6. (a) Amperometric response curve of the Cu@porous Ni/CoNi2S4 electrode to successive additions of glucose. (b) Corresponding calibration curve and linear fitting. (c) Selectivity test. (d) The corresponding response percentage.
Figure 6. (a) Amperometric response curve of the Cu@porous Ni/CoNi2S4 electrode to successive additions of glucose. (b) Corresponding calibration curve and linear fitting. (c) Selectivity test. (d) The corresponding response percentage.
Micromachines 17 00408 g006
Table 1. Comparison of the performances with various non-enzyme glucose sensors.
Table 1. Comparison of the performances with various non-enzyme glucose sensors.
ElectrodeSensitivity
(μA mM−1 cm−2)		Linear Range
(mM)		Limit of Detection (μM)Ref.
CoNi2S4@NCF6.6750.5–12.5—[62]
NiCo2S4/2D-Carbyne135<134.5[63]
Cu7S4-NiCo2S44300.002–0.30.4[64]
NiCoS4/GCE858.570.005–0.11.5[65]
(Ni-Co)3S4/GCE938.40.001–50.503[66]
Cu@porous Ni/CoNi2S410491–81This work
Note: GCE stands for glassy carbon electrode. NCF stands for nitrogen-doped carbon foam.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ji, Y.; Huang, J.; Yin, W.; Xiang, J.; Liu, Y.; Huang, Y.; Hong, J.; Li, L. Integrated CoNi2S4 Nanosheets/3D Conductive Scaffold as an Efficient Bifunctional Electrode for High-Performance Supercapacitors and Sensors. Micromachines 2026, 17, 408. https://doi.org/10.3390/mi17040408

AMA Style

Ji Y, Huang J, Yin W, Xiang J, Liu Y, Huang Y, Hong J, Li L. Integrated CoNi2S4 Nanosheets/3D Conductive Scaffold as an Efficient Bifunctional Electrode for High-Performance Supercapacitors and Sensors. Micromachines. 2026; 17(4):408. https://doi.org/10.3390/mi17040408

Chicago/Turabian Style

Ji, Yaqiang, Junfeng Huang, Weibin Yin, Junrui Xiang, Yongquan Liu, Yongjun Huang, Jingsheng Hong, and Long Li. 2026. "Integrated CoNi2S4 Nanosheets/3D Conductive Scaffold as an Efficient Bifunctional Electrode for High-Performance Supercapacitors and Sensors" Micromachines 17, no. 4: 408. https://doi.org/10.3390/mi17040408

APA Style

Ji, Y., Huang, J., Yin, W., Xiang, J., Liu, Y., Huang, Y., Hong, J., & Li, L. (2026). Integrated CoNi2S4 Nanosheets/3D Conductive Scaffold as an Efficient Bifunctional Electrode for High-Performance Supercapacitors and Sensors. Micromachines, 17(4), 408. https://doi.org/10.3390/mi17040408

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Article metric data becomes available approximately 24 hours after publication online.
Back to TopTop
