Microfluidic Chip for Quantitatively Assessing Hemorheological Parameters

Abstract

The biomechanical properties of blood are regarded as promising biomarkers for monitoring early-stage abnormalities and disease progression. To detect any changes in blood, it is necessary to measure as many rheological properties as possible. Herein, a novel method is proposed for measuring multiple rheological properties of blood using a microfluidic chip. The syringe pump turns off for 5 min to induce RBC (red blood cell) sedimentation in the driving syringe. RBC aggregation is determined by analyzing the time-lapse blood image intensity at stasis: I(t) = I₁ exp (−k₁ t) + I₂ exp (−k₂ t). RBC-rich blood and RBC-depleted blood are sequentially infused into the microfluidic chip. Based on blood pressure estimated with time-lapse blood velocity, blood viscosity is acquired with the Hagen–Poiseuille law. RBC sedimentation is quantified as RBC sedimentation distance (X_esr) and erythrocyte sedimentation rate (ESR). The proposed method provides a consistent viscosity compared with previous methods. Two of the four variables (I₁, I₂) exhibited a strong correlation with the conventional RBC aggregation index (AI). The indices X_esr and ESR showed consistent trends with respect to the blood medium and hematocrit. In conclusion, the proposed method is then regarded as effective for monitoring multiple rheological properties.

1. Introduction

The biomechanical properties of blood, including its viscosity and elasticity, are regarded as promising biomarkers for detecting early-stage abnormalities and monitoring disease progression [1,2,3,4,5,6,7]. They have a substantial influence on vascular resistance [8,9], oxygen delivery [10,11], and tissue perfusion [12,13]. According to clinical studies, several diseases, such as, hypertension [14], diabetes [15,16], and atherosclerosis [17], contribute to increased blood viscosity, red blood cell (RBC) aggregation, and high blood pressure. According to previous studies [15,18,19], the rheological properties of blood can be determined from plasma proteins and RBCs (i.e., hematocrit (Hct) and membrane viscoelasticity). Therefore, to detect any changes in the blood (i.e., plasma proteins or RBCs), it is necessary to measure as many rheological properties as possible using the same device.

Since the introduction of microfluidic chips in blood rheological studies, several methods have been devised for effective quantification of blood rheological properties [20]. As a fundamental property of blood, its viscosity (i.e., plasma, whole blood, or suspended blood) has been obtained by measuring the droplet length [21], color index in the droplet [22], microflow compartment [23], reversal flow in the bridge circuit [6], coflowing streams [24], blood-flow time [25,26], blood filling time [27,28], micropillar deflection [29], acoustic oscillation [30], light scattering [31], frequency shift under fluid mass [32], and capillary pressure in the microfluidic channel [33,34,35,36,37]. However, it is extremely difficult to induce RBC aggregation at higher flow rates when blood flows in the microfluidic channel. To investigate the contribution of the blood medium or RBC viscoelasticity to RBC aggregation, blood flow is stopped to induce RBC aggregation at low shear rates [18,38]. The RBC aggregation index (AI) is then acquired by analyzing syllectogram (light transmission or reflection) [39,40,41], microscopic image intensity [42], electric impedance [43,44,45], optical tweezer [46], and photoacoustic ultrasound [47]. After the blood is loaded into a vertically installed tube, RBCs begin to aggregate and form an interface layer between the plasma and RBCs. The interface tends to move downward over time along the gravitational direction. The conventional RBC sedimentation method requires a large amount of blood (mL) and a long waiting time (h). Most importantly, it is difficult to acquire a time-lapse interface because the interface in the tube is not clearly visible. To resolve the issues associated with conventional methods, several methods have been proposed for quantifying RBC sedimentation using microfluidic device [48,49,50,51,52]. Most of the current methods are suitable for extracting only a single blood parameter. Furthermore, it is difficult to directly investigate the effects of RBC aggregation and sedimentation on blood viscosity because Hct changes continuously over time. Previously, by maintaining the blood flow rate using two syringe pumps, blood viscosity has been determined by monitoring the interface between fluids under varying Hct conditions [53]. Additionally, under pulsatile flow rate controlled by the syringe pump, three rheological properties (i.e., viscoelasticity, RBC aggregation, and blood pressure) have been acquired with a microfluidic chip [54]. However, the previous study does not obtain quantitative information on blood viscosity by measuring blood pressure. Its mathematical representation is still insufficient for explaining RBC aggregation and sedimentation [55].

In this study, a novel method is proposed for measuring the contribution of RBC sedimentation in a driving syringe to blood microrheology using a microfluidic chip. A syringe pump was used to load blood into the microfluidic channel at a constant blood flow rate. The syringe pump was turned off to induce RBC sedimentation in the driving syringe. RBC aggregation was determined by analyzing time-lapse image intensity at stasis. Based on a simple kinetic model of RBC aggregation, four variables (I₁, I₂, k₁, k₂) for representing RBC aggregation were acquired by the best fitting time-lapse intensity as I(t) = I₁ exp (−k₁t) + I₂ exp (−k₂t). After a certain elapse of time, RBC sedimentation contributed to the formation of RBC-depleted and RBC-rich blood in the driving syringe. By turning on the syringe pump, the RBC-rich and RBC-depleted blood samples were sequentially loaded into the microfluidic chip. Blood pressure was then determined by analyzing the blood flow within the air damper. Time-lapse blood viscosity was calculated using the Hagen–Poiseuille law (pressure drop = fluidic resistance × flow rate). When RBC-depleted blood is loaded into a microfluidic channel, the blood viscosity or image intensity exhibits substantial changes over time. Thus, time-lapse blood velocity and image intensity were analyzed to obtain two parameters (i.e., X_esr: RBC-free height in the driving syringe, ESR = X_esr/overall blood delivery time) of RBC sedimentation in the driving syringe

Unlike previous methods, the proposed method can sequentially measure at least three vital parameters of blood (RBC aggregation, blood viscosity, and RBC sedimentation) in the same microfluidic chip. After RBC sedimentation occurs in the driving syringe, RBC-rich blood and RBC-depleted blood are sequentially loaded into the microfluidic device. By inspecting the time-lapse image intensity of the blood, it is possible to quantify RBC aggregation (at stasis) and RBC sedimentation in the driving syringe (blood flow). New variables are introduced: (I₁, I₂, k₁, k₂) for RBC aggregation and (X_esr, ESR) for RBC sedimentation. The blood velocity in the compliance channel connected to an air damper is used to measure the pressure of the blood flow. Considering that the blood flow rate remains unchanged over time with the syringe pump, the blood velocity in the guiding channel of the air damper is calibrated with the blood velocity delivered by the syringe pump. Therefore, instead of using two syringe pumps, the blood viscosity can be obtained from the time-lapse blood pressure by supplying blood with a single syringe pump. Furthermore, because blood is loaded into a microfluidic channel after RBC sedimentation, RBC sedimentation (or RBC aggregation) can contribute to blood viscosity.

2. Materials and Methods

2.1. Experimental Setup for Micro Hemorheology with Microfluidic Chip

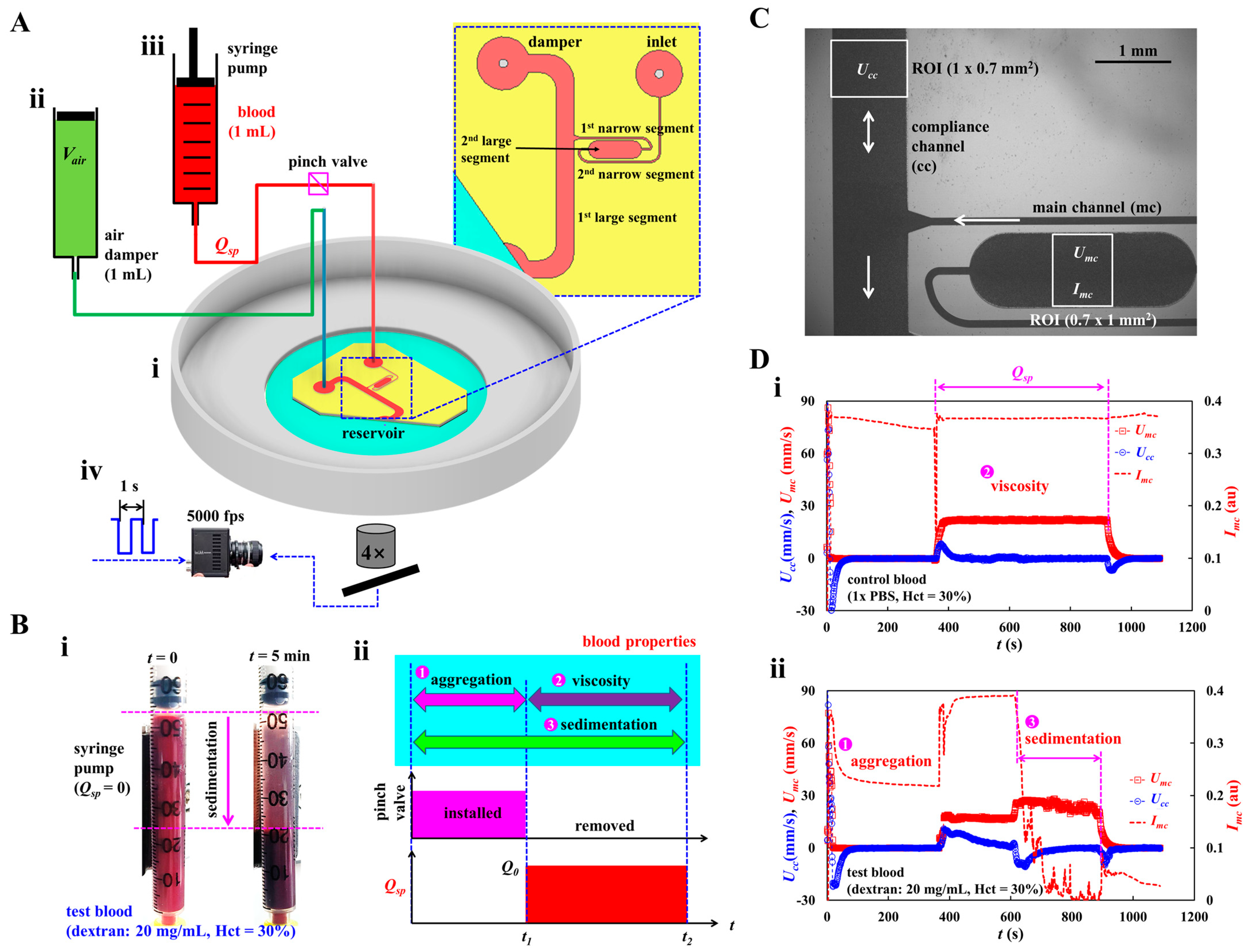

To investigate multiple hemorheological properties, as shown in Figure 1A, the experimental setup consisted of a microfluidic chip, a single syringe pump for loading blood, an air damper for sensing pressure, and a microscopic image acquisition system.

Figure 1(Ai) illustrates a microfluidic chip composed of an inlet port, main channel (mc), compliance channel (cc), air-damper port, and reservoir. The main channel consisted of four segments connected in series: the first large segment (width [w] = 1000 μm, length [l] = 8685 μm) connected to the reservoir, the first narrow segment (width = 100 μm, length = 4929 μm), the second large segment (width = 1000 μm, length = 2995 μm), and the second narrow segment (width = 100 μm, length = 8916 μm) connected to the inlet port. Herein, blood viscosity was acquired in the first large channel. Additionally, RBC aggregation, and RBC sedimentation were measured in the second large channel.

A compliance channel (width = 1000 μm, length = 5795 μm) was connected to the end junction of the first large segment of the main channel. The channel depth was set to h = 50 μm. A four-inch silicon master mold was fabricated using photolithography and deep reactive-ion etching. A polydimethylsiloxane (PDMS; Sylgard 184, Dow Corning, Midland, MI, USA) block was replicated using soft lithography. The inlet and air-damper ports were created using a biopsy punch (outer diameter = 0.75 mm). The outlet port was cut partially with a razor blade and exposed to the reservoir without being connected to the tubing. An oxygen plasma system was used to bond the PDMS block to a glass-bottom dish of well size = 30 mm (Cellvis, Mountain View, CA, USA). One Tygon tubing (inner diameter = 250 μm, length = 300 mm) was connected to the inlet port. The other Tygon tubing (inner diameter = 700 μm, and length = 200 mm) was connected to the air-damper port. To avoid the nonspecific bonding of plasma proteins to the inner surface of the microfluidic channels, bovine serum albumin (BSA, 50 mg/mL) was loaded into the microfluidic channels through the inlet port. After 10 min, 1× phosphate-buffered saline (PBS) was loaded into the microfluidic channels by discharging BSA.

As shown in Figure 1(Aii), to secure the air cavity inside the disposable syringe (V_air = 1 mL), an air damper was prepared by moving and fixing the plunger with a steel pin. The air damper measured the blood pressure in the microfluidic channel. The outlet of the air damper was connected to the other end of Tygon tubing fitted to the air-damper port. As shown in Figure 1(Aiii), the driving syringe was filled with blood (approximately 1 mL). The syringe outlet was connected to the other end of the Tygon tubing fitted to the inlet port. To discharge the air bubbles in the fluidic paths (i.e., syringe needle, Tygon tubing, and inlet port), blood was supplied to the microfluidic channels by pushing the plunger manually. It is necessary to ensure that no air bubbles are present in the microfluidic channels. The syringe was installed in a syringe pump (neMESYS, Cetoni GmbH, Korbußen, Germany) aligned along the direction of gravity. Before turning on the syringe pump, to stop the blood flow in the microfluidic channel, a pinch valve was installed to obstruct the blood flow in the Tygon tubing (i.e., blood flow stoppage). After removing the pinch valve, the flow rate of the syringe pump was set to a constant value (Q = Q_sp).

To image blood flow in the microfluidic channels (i.e., main and compliance channels), as shown in Figure 1(Aiv), the microscopic image acquisition system comprised an inverted microscope (IX81, Olympus, Tokyo, Japan) and a high-speed camera (FASTCAM MINI, Photron, Tokyo, Japan). The microfluidic chip was placed on the moving stage of the microscope. The objective lens was set to 4× (NA = 0.1). The high-speed camera was set to 5000 frames per second (fps). To capture two sequential images at intervals of 1 s, a functional generator generated triggering signals for the camera (i.e., saw-wave profile, period = 1 s). All experiments were conducted at room temperature (25 °C).

2.2. Suggested Protocols for Quantifying Multiple Hemorheological Properties

As shown in Figure 1B, novel protocols were suggested to effectively measure the contribution of RBC sedimentation in the driving syringe to the hemorheological properties in the microfluidic channel. The rheological properties of blood were acquired in sequential order (i.e., RBC aggregation, blood viscosity, and RBC sedimentation) by analyzing the time-lapse image intensity and blood velocity.

The two snapshots in Figure 1(Bi) show RBC sedimentation in the driving syringe when the syringe pump is turned off. To briefly explain the proposed protocols, the test blood (Hct = 30%) was prepared by adding normal RBCs to a dextran solution (20 mg/mL). Test blood was loaded into a disposable syringe. A driving syringe was installed in a syringe pump. The syringe pump was stopped to induce RBC sedimentation in the driving syringe. After 5 min, RBC sedimentation divided the test blood into RBC-depleted and RBC-rich blood. When the flow rate of the syringe pump was set to Q = Q_sp, the RBC-rich and RBC-depleted blood were sequentially loaded into the microfluidic chip. The viscosity of the RBC-rich blood reflects the effect of RBC sedimentation in the driving syringe (i.e., Hct variation). As shown in Figure 1(Bii), the novel protocols allowed us to obtain three types of blood properties, namely, RBC sedimentation, RBC aggregation, blood viscosity, in sequential order. First, to induce RBC sedimentation in the driving syringe, the syringe pump was turned off for a specific duration (t₁ = 5 min). Herein, the microfluidic channels were already filled with the test blood. Although the syringe pump is turned off, the gravitational force continuously generates a small amount of blood flow in the driving syringe. Continuous blood flow makes it difficult to obtain consistency in RBC aggregation. Therefore, it is necessary to completely stop the blood flow. To stop the blood flow, the Tygon tubing connected to the inlet port was obstructed by installing a pinch valve. RBC aggregation in the test blood was acquired by analyzing the time-lapse image intensity. Second, the pinch valve was removed to load the test blood into the microfluidic channels. The flow rate was set to Q = Q_sp from t = t₁ to t = t₂. The flow rate and blood pressure were calculated over time by probing the blood velocities in the main and compliance channels. Blood viscosity was obtained by substituting both the flow rate and blood pressure into the Hagen–Poiseuille equation. At last, RBC sedimentation also occurred continuously during blood loading period (i.e., t₂-t₁ = V_blood/Q_sp). That is, RBC sedimentation was monitored during overall period of t₂ (i.e., turn-off syringe pump: t₁, and turn-on syringe pump: t₂-t₁). When RBC-depleted blood began to flow in the main channel, it was possible to calculate RBC sedimentation in the driving syringe. The blood velocity and blood image intensity were then adopted to measure RBC sedimentation in the driving syringe.

2.3. Blood Velocity and Blood Image Intensity in Microfluidic Chip

To determine the blood flow rates in the main and compliance channels, the blood velocity was measured in both channels. In addition, to measure RBC aggregation and sedimentation, the blood image intensity was measured in the main channel.

As shown in Figure 1C, to obtain the average blood velocity, a specific ROI (0.7 mm²) was selected within the main channel (mc) and compliance channel (cc). Blood velocity fields were acquired using an open-source micro-PIV program [56]. The corresponding average velocity of each channel was calculated and denoted as U_mc (main channel) and U_cc (compliance channel). The flow rate of the syringe pump set to a constant value (Q = Q_sp) and the same blood was flowed into both channels. The flow rate in the compliance channel was estimated as Q_cc = (U_cc/<U_mc>) × Q_sp, where <U_mc> is the overall average velocity of U_mc during blood delivery.

To obtain time-lapse image intensity of blood in the main channel, a specific ROI (0.7 mm²) was selected within the second large segment of the main channel. The image intensity within the specific ROI was acquired using MATLAB 2024 (MathWorks; Natick, MA, USA). The right-side panel of Figure A1 (Appendix A) showed image intensity calculation. To obtain contribution of RBCs within the specific ROI, it was necessary to subtract image intensity of each image obtained at a specific time (t = t_s) from one of background image. That is, based on the specific ROI, averaged image intensity of each image was obtained as I_b (background image) and I (microscopic image at t = t_s), respectively. Image intensity was then calculated as I_mc (t_s) = I_b − I(t_s) at a specific time.

Figure 1D shows the temporal variations in U_mc, U_cc, and I_mc for the control and test blood. Blood samples (Hct = 30%) were prepared by adding normal RBCs to 1× PBS (control blood) and dextran solution (20 mg/mL) (test blood). Figure 1(Di,ii) show the temporal variations in U_mc, U_cc, and I_mc for the control and test blood, respectively. When the syringe pump was turned off (Q = 0), RBC aggregation significantly decreased the image intensity over time. When the syringe pump was turned on (Q = Q_sp), U_mc reached the target value and remained unchanged until the pump was turned off. U_cc increased substantially within a short period, then it gradually decreased and stopped changing. After confirming that U_cc stopped and U_mc remained unchanged, the blood viscosity was obtained using the Hagen–Poiseuille equation [57]. In addition, when the RBC-depleted blood entered the microfluidic channel, U_mc increased substantially because Hct decreased significantly. U_cc flowed downstream (i.e., negative sign). Furthermore, I_mc decreased substantially over time. Both the RBC-rich and RBC-depleted blood exhibited substantial differences in the velocity profile and image intensity over time, as evident from the time-lapse measurements.

2.4. Previous Protocols for Acquiring Blood Viscosity and RBC Aggregation

A previously developed method (i.e., the coflowing method [24]) was used to compare the blood viscosity obtained using the method suggested in this study. In addition, the conventional RBC aggregation index (AI) [39] was used to compare the four parameters obtained using the proposed protocols.

The coflowing-stream method was employed to measure the fluid viscosity in the microfluidic channel. The microfluidic channel proposed in this study was reused to detect the interface between the two streams. In this study, the damper port was designated as the inlet port for the reference fluid. Two syringe pumps were used to load the reference and test fluids into the microfluidic channel. As shown in Figure A2A (Appendix A), a fluidic circuit model was constructed in terms of fluidic resistance (R_r, R_t) and flow rate (Q_r, Q_t). 1× PBS and glycerin (20%) were used as the test and reference fluids, respectively. Interface between two streams was defined as β = stream width of test fluid/channel width. For convenience, the flow rate of the test fluid was maintained constant (Q_t = 5 mL/h). Because both parallel streams had the same pressure drop (i.e., ΔP_t = ΔP_r), the viscosity formula of test fluid was derived as ${\mu }_t={\mu }_r\left({\displaystyle \frac{\beta }{1-\beta }}\right)\left({\displaystyle \frac{Q_r}{Q_t}}\right)C_{\mu }$, where C_μ is the correction factor to compensate for the modeling error induced owing to model simplicity for real parallel streams. Using viscosities μ_r = 2 cP (reference fluid) and μ_t = 1 cP (test fluid), C_μ was estimated with respect to interface β as $C_{\mu }=\left({\displaystyle \frac{{\mu }_t}{{\mu }_r}}\right)\left({\displaystyle \frac{1-\beta }{\beta }}\right)\left({\displaystyle \frac{Q_t}{Q_r}}\right)$. As shown in Figure A2B (Appendix A), variations in β were measured with respect to flow rate Q_r of the reference fluid: β = 0.850 (Q_r = 0.5 mL/h), β = 0.731 (Q_r = 1 mL/h), β = 0.572 (Q_r = 2 mL/h), β = 0.404 (Q_r = 4 mL/h), β = 0.316 (Q_r = 6 mL/h), β = 0.266 (Q_r = 8 mL/h), β = 0.229 (Q_r = 10 mL/h), β = 0.145 (Q_r = 20 mL/h), and β = 0.105 (Q_r = 40 mL/h). Figure A2C (Appendix A) shows the variations in C_μ with respect to β. Using linear regression analysis, the correction factor was obtained as C_μ = −12.038 β⁴ + 26.171 β³ − 20.770 β² + 77.156 β + 0.014 (R² = 0.970). The test fluid viscosity was then measured using the interface and flow rate of the reference fluid with the viscosity formula.

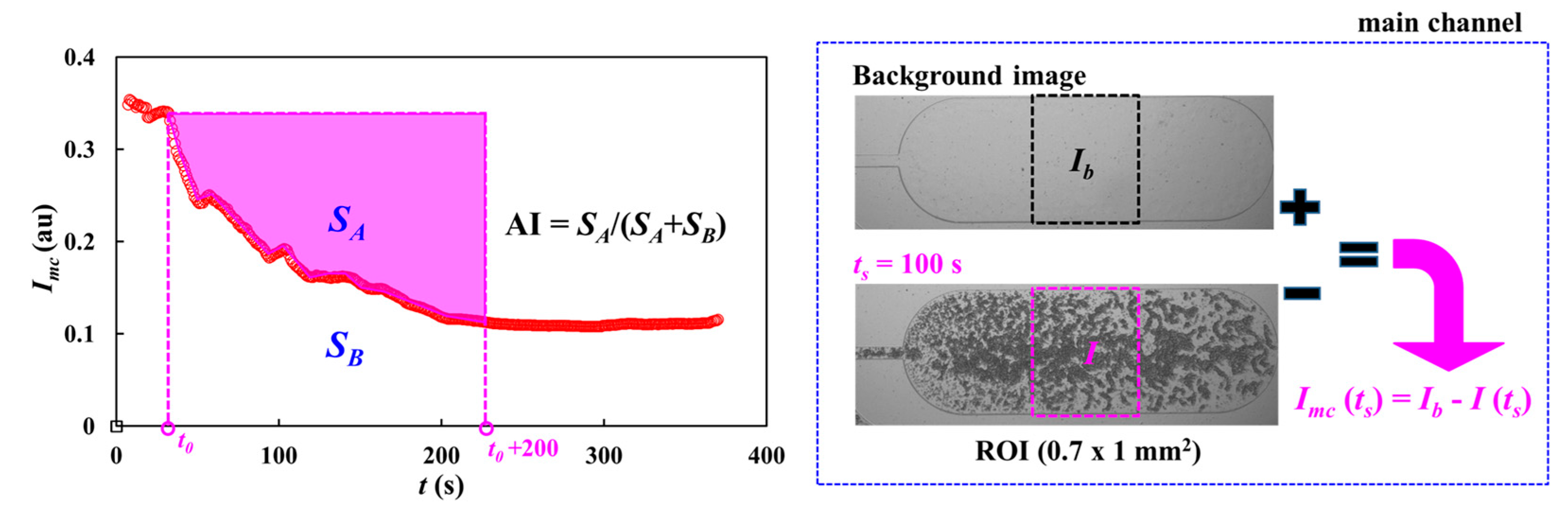

To quantify RBC aggregation in the test blood, the conventional RBC aggregation index (AI) was acquired by analyzing the time-lapse image intensity. As shown in the left-side panel of Figure A1 (Appendix A), after turning off the syringe pump, time-lapse blood image intensity (I_mc) was acquired over time. Here, integration time set to 200 s from the specific time when the I_mc (t) began to decrease (i.e., from t₀ to t₀ + 200 s). Two parameters (S_A and S_B) [33] were then obtained by analyzing the syllectogram. S_A denoted the contribution of RBC aggregation, and tended to increase depending on the degree of RBC aggregation. The RBC aggregation index (AI) was expressed as a dimensionless parameter using AI = S_A/(S_A + S_B).

2.5. Test-Blood Preparation for Performance Evaluation

The study was conducted in accordance with the principles of the Declaration of Helsinki. The Chosun University Ethics Committee approved this study (reference code: 2-1041055-AB-N-01-2021-80). Concentrated normal RBCs were purchased from the Gwangju–Chonnam Blood Bank (Gwangju, Republic of Korea) and stored in a refrigerator before conducting the experiments. For the washing protocol, concentrated normal RBCs were diluted 50% with 1× PBS (i.e., volume of RBCs: volume of 1× PBS = 1:1). The suspended blood was dropped on the cell strainer (mesh size = 50 μm) and filtered using gravity. The filtered blood was collected in a centrifuge tube. After centrifugation (4000 rpm for 10 min), pure normal RBCs were collected by removing the liquid and buffer layers. This procedure was repeated twice.

Control blood was prepared by adding normal RBCs to the medium (1× PBS, dextran solution). The Hct of the control blood was adjusted between 20 and 60%. Dextran solution was used as the blood medium to stimulate RBC aggregation in the test blood. The specific concentration of the dextran solution, C_dex, was adjusted between 5 and 20 mg/mL by diluting dextran powder (Leuconostoc spp., M.W. = 450–650 kDa, Sigma-Aldrich, Saint Lousis, MO, USA) in 1× PBS. The test blood was prepared by adding normal RBCs to the dextran solution. To adjust the deformability of normal RBCs, three concentrations of diluted glutaraldehyde solution (C_ga = 1, 2, and 4 μL/mL) were prepared by adding glutaraldehyde solution (Grade II, 25% in H₂O, Sigma-Aldrich, USA) to 1× PBS. Normal RBCs were then added to the three diluted glutaraldehyde solutions. The suspended blood was then stirred for 30 min. The hardened RBCs were collected by removing the fluid after centrifugation. The test blood was prepared by adding the hardened RBCs to a dextran solution (20 mg/mL).

3. Results and Discussion

3.1. Quantification Procedures of RBC Aggregation, RBC Sedimentation, and Viscosity

Herein, overall quantification procedures were explained. That is, three types of blood rheological properties (RBC aggregation, RBC sedimentation, and blood viscosity) were obtained sequentially by analyzing time-lapse blood velocity and image intensity. First, by stopping the blood flow in the microfluidic channel, RBC aggregation was acquired by analyzing the time-lapse image intensity of blood in the microfluidic chip. Second, by loading blood into a microfluidic chip at a constant flow rate, the blood viscosity was obtained by analyzing the blood velocity in the compliance channel. The volume of RBC-depleted blood was evaluated by analyzing the time-lapse blood velocity and image intensity. The RBC sedimentation rate (ESR) was estimated from the volume of RBC-depleted blood during the entire blood delivery period.

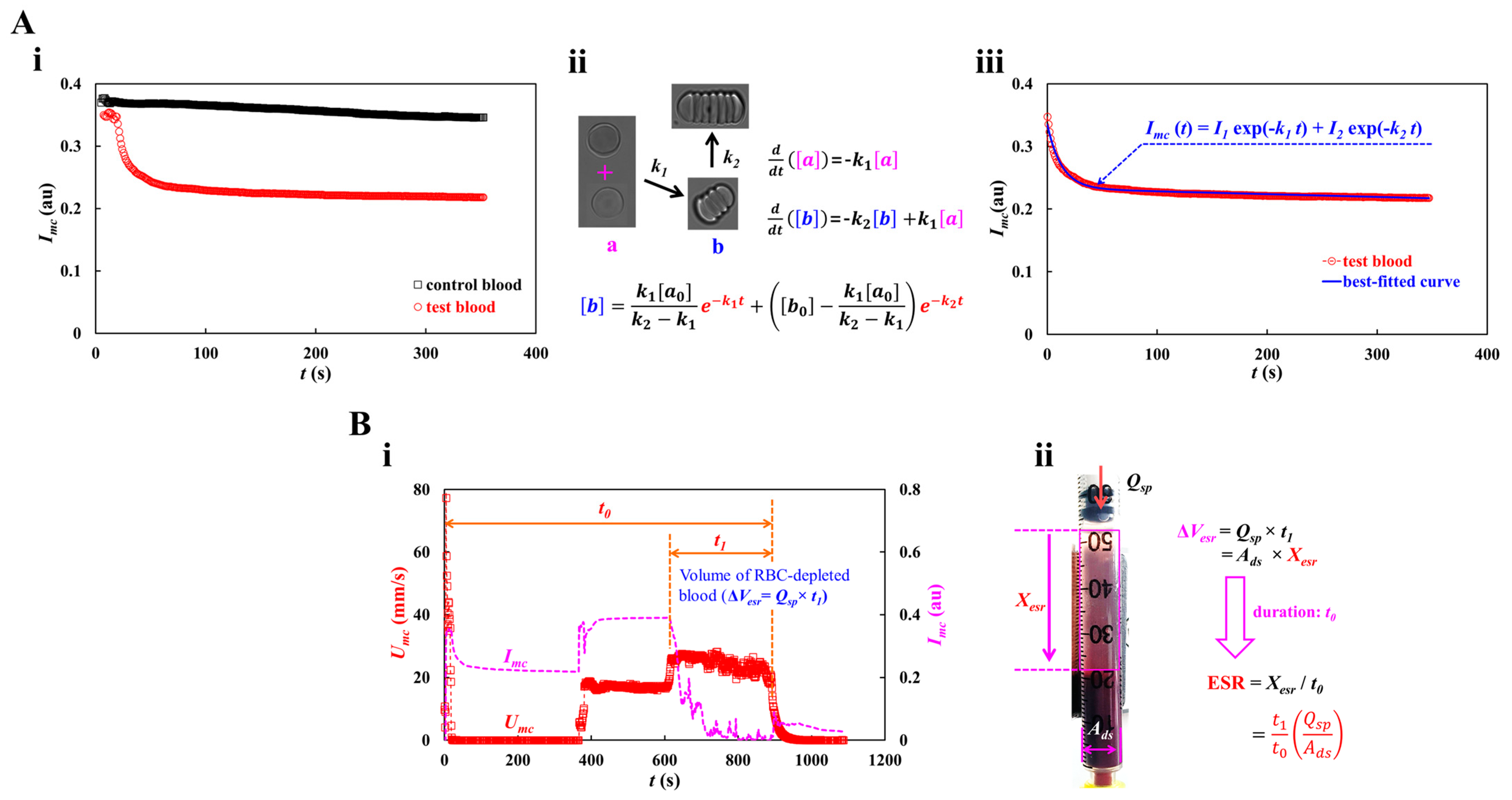

The blood image intensity (I_mc) was measured as a function of time (Figure 1D) after turning off the syringe pump and obstructing the Tygon tubing with the pinch valve. Figure 2(Ai) shows the temporal variations in I_mc for the control and test blood. According to a previous study, the maximum concentration is less than 20 mg/mL, considering human physiological and pathological conditions [40]. A dextran solution (20 mg/mL) was selected as the medium for the test blood. The dextran solution contributed substantially to the decrease in image intensity. According to previous studies [39,58], the RBC aggregation process is represented by the summation of two exponential functions. The first and second functions denote the fast and slow aggregation processes, respectively. Recently, a first-order kinetic model was adopted to explain RBC aggregation [41,59]. RBC aggregation using the two exponential functions has not been explained clearly in the literature. Figure 2(Aii) shows the process of RBC aggregation using first-order kinetics). Here, [a] and [b] represent the concentrations of isolated and aggregated RBCs, respectively. k₁ is the kinetic constant from the isolated RBCs to the aggregated RBCs, and k₂ is the kinetic constant between the two aggregated RBCs. Based on the first-order kinetics of RBC aggregation, two first-order differential equations can be derived as ${\displaystyle \frac{d}{dt}}([a])=-k_1[a]$and ${\displaystyle \frac{d}{dt}}([b])=-k_2[b]+k_1[a]$. The analytical solution of [b] is derived as $[b]={\displaystyle \frac{k_1[a_0]}{k_2-k_1}}{e}^{-k_{1}t}+([b_0]-{\displaystyle \frac{k_1[a_0]}{k_2-k_1}})e^{-k_{2}t}$, where [a₀] and [b₀] are the initial concentrations of the isolated and aggregated RBCs, respectively. As shown in Figure 2(Ai), RBC aggregation resulted in a decrease in I_mc. Here, it is assumed that [b] is proportional to I_mc (i.e., [b]~I_mc). The process of RBC aggregation can be represented as $I_{mc}=I_1{e}^{-k_{1}t}+I_2{e}^{-k_{2}t}$. The first-order kinetic model of RBC aggregation is thus expressed as the summation of two exponential functions. Figure 2(Aiii) show the temporal variations in I_mc best fitted with two exponential functions. Nonlinear regression analysis was used to determine the four unknown constants of the regression formula: I₁ = 0.1015 (au), I₂ = 0.2328 (au), k₁ = 0.0767 (1/s), and k₂ = 0.0002 (1/s).

As shown in Figure 2(Bi), the volume of RBC-depleted blood can be estimated using time-lapse U_mc or I_mc. As shown in Figure 1(Bi), the test blood was segregated into two regions: RBC-depleted blood (upper region) and RBC-rich blood (lower region). When the RBC-rich blood flowed into the microfluidic channel, U_mc and I_mc remained unchanged over time. However, when the RBC-depleted blood was loaded into the microfluidic channel, the blood velocity increased substantially. In addition, I_mc decreased significantly and remained near zero over time. Thus, it was possible to detect the volume of RBC-depleted blood from the specific time when U_mc or I_mc changed substantially. Two types of time variables (t₀ and t₁), which denote the overall blood delivery time and specific period of RBC-free blood, respectively, were estimated by inspecting the time-lapse U_mc and I_mc. As test blood was loaded at a constant flow rate (Q_sp), volume of RBC-depleted blood was calculated as ΔV_esr = Q_sp × t₁. As shown in Figure 2(Bii), the RBC sedimentation distance (X_esr) and RBC sedimentation rate (ESR) were estimated in terms of the geometric dimensions of the driving syringe (cross-sectional area: A_ds), two types of time variables (t₀ and t₁), and the flow rate of the syringe pump (Q_sp). The volume of RBC-depleted blood was calculated as ΔV_esr = A_ds × X_esr = Q_sp × t₁. The RBC sedimentation distance was expressed as $X_{esr}=t_1\left({\displaystyle \frac{Q_{sp}}{A_{ds}}}\right)$. Considering that the sedimentation distance X_esr corresponds to the overall blood delivery time t₀, the RBC sedimentation rate was computed as ESR = $\left({\displaystyle \frac{t_1}{t_0}}\right)\left({\displaystyle \frac{Q_{sp}}{A_{ds}}}\right)$ by dividing X_esr by t₀.

Table 1. Numerical value of each variable for calculating X_esr and ESR.

Variables	Value	Unit
t0	881	s
t1	265	s
Qsp	5.0	mL/h
Ads	17.9 × 10−6	m2
Xesr	20.51	mm
ESR	83.81	mm/h

shows all the variables. For the test blood, the X_esr and ESR were estimated to be 20.51 mm and 83.81 mm/h, respectively.

The blood pressure in the first segment of the main channel was determined by analyzing the blood velocity in the compliance channel (U_cc). Based on blood pressure and the Hagen–Poiseuille law, the blood viscosity can be estimated over time. As the syringe pump was set to a constant value (Q_sp), U_mc remained unchanged over time after the transient blood flow elapsed. To derive the blood pressure at the junction (x) between the compliance channel and the main channel, as shown in Figure 3A, a simple fluidic circuit model of the suggested microfluidic channel was constructed with constant sources (flow rate of the syringe pump Q_sp, atmospheric pressure P₀, and fluidic resistance R_f). Q_cc and Q_r are the flow rates in the compliance and main channels, respectively. GND (‘▼’) denotes the zero value of pressure. The blood volume in the air damper through the compliance channel was estimated as ${\int }_0^t{Q}_{cc}dt$. The air volume within the air damper decreased from V_x = V₀ to V_x = V₀ − ${\int }_0^t{Q}_{cc}dt$, where V₀ is the initial air cavity inside the air damper. For convenience, it was assumed that pressure drop resulting from blood flow through the compliance channel was negligible. At junction (x), the blood pressure is denoted as P_x. Based on the ideal gas law (i.e., pressure × volume = constant), the junction pressure was calculated as $P_x={\displaystyle \frac{P_0\times V_0}{V_x}}$. The pressure-drop between junction point and reservoir (ΔP_x = P_x − P₀) and Q_r (Q_r = Q_sp − Q_cc) were specified through the first segment of the main channel. Using the Hagen–Poiseuille law, the formula of fluidic resistance was derived as R_f = ΔP_x/Q_r. For a rectangular channel with low aspect ratio (width (w) >> depth (h)), R_f was approximated as $R_f={\displaystyle \frac{12 \mu l}{w h^3}}$, where l is the length of the first segment of the main channel. With w, h, and l specified, the fluid viscosity (or blood viscosity) was estimated from the $R_f$ expression.

The flow rate of the syringe pump was set to Q_sp = 5 mL/h. As shown in Figure 1(Di), the average velocity of the control blood was estimated to be <U_mc> = 21.8295 mm/s. Considering the test blood, RBC-rich and RBC-depleted blood were loaded into a microfluidic device sequentially. Because RBC-rich blood plays the role of a fluid tracer, blood velocity can be obtained by conducting time-resolved micro-PIV techniques. The average velocity of the test blood was obtained by averaging U_mc from t = 450 s to t = 550 s. Considering that Hct contributes to reducing the blood velocity obtained by micro-PIV techniques, we inferred that the Hct of RBC-rich blood increased during RBC sedimentation in the driving syringe. U_cc was converted into Q_cc using the formula Q_cc = (U_cc/<U_mc>) × Q_sp. Figure 3(Bi) shows the temporal variations in Q_cc for the control and test blood. The Q_cc of the test blood was higher than that of the control blood, and it gradually decreased and was retained for a longer period. When the RBC-depleted blood was loaded into the main channel, the flow direction reversed and the flow velocity increased significantly. Thereafter, it gradually decreased. Figure 3(Bii) shows the temporal variations in pressure drop (ΔP_x) for the control and test blood. For the control blood, ΔP_x remained unchanged except during the transient periods. By contrast, ΔP_x of test blood increased continuously after the syringe pump was turned on. It decreased significantly when RBC-depleted blood flowed into the main channel. Figure 3(Biii) shows the temporal variations in Q_r for the control and test blood. Q_r was obtained over the specific period when U_mc remained unchanged. The Q_r value of the control blood remained unchanged. By contrast, the Q_r value of the test blood increased gradually until the RBC-rich blood flowed into the main channel. Q_r increased suddenly when the RBC-depleted blood flowed into the main channel; thereafter, it decreased gradually and then remained unchanged over time. Figure 3(Biv) shows the temporal variations in μ for the control and test blood. The blood viscosity profiles were similar to those of ΔP_x. RBC sedimentation in the driving syringe for 5 min, contributed to an increase in blood viscosity when compared with the control blood. Blood viscosity had a direct effect on RBC sedimentation in the driving syringe.

3.2. Measuring Fluid Viscosity of Glycerin Solution

To validate the accuracy of fluid viscosity measurement method suggested in this study, a pure glycerin solution was selected as the test fluid. To visualize fluid flow in the main channel, 2% RBC was added as fluid tracer to the glycerin solution. The results were quantitatively compared with those obtained by a previous method (i.e., the coflowing method). The viscosities of various concentrations of glycerin solution were measured at a constant flow rate (Q_sp = 5 mL/h). Based on the shear rate formula of the rectangular channel with low aspect ratio ($\dot{\gamma }={\displaystyle \frac{6 Q_{sp}}{w h^2}}$) [57], the shear rate of the flow was estimated to be $\dot{\gamma }=$3333.3 s⁻¹. Figure A3 (Appendix A) shows the average velocity for various concentrations of glycerin solution. The results indicate that the average velocity obtained using the micro-PIV technique decreased at higher concentrations of the glycerin solution. Based on the average velocity of each glycerin solution, as shown in Figure 4(Ai), the temporal variations in Q_mc and Q_cc were obtained at C_gly = 10, 30, and 50%.

The maximum value of Q_cc increased with C_gly. The transient period of Q_cc increased with C_gly. Figure 4(Aii) shows the temporal variations in ΔV_air at C_gly = 10, 30, and 50%. Three parameters (i.e., ΔV_air,s, ΔP_x,s, and μ_gly) were measured during the specific duration when ΔV_air and ΔP_x remained unchanged. Figure 4(Bi) shows the variations in ΔV_air,s and ΔP_{x, s} with respect to C_gly. Both tended to increase with C_gly. Figure 4(Bii) shows the temporal variations in μ_gly with respect to C_gly. The corresponding viscosity of each concentration was obtained as μ_gly = 1.395 ± 0.017 cP (n = 484, C_gly = 10%), μ_gly = 1.948 ± 0.016 cP (n = 250, C_gly = 20%), μ_gly = 3.391 ± 0.035 cP (n = 256, C_gly = 30%), μ_gly = 5.652 ± 0.067 cP (n = 336, C_gly = 40%), and μ_gly = 8.534 ± 0.102 cP (n = 264, C_gly = 50%). Herein, all data of blood rheological data were represented as mean ± standard deviation. For quantitative comparison, as shown in Figure A4 (Appendix A), the coflowing method was adopted to obtain temporal variations in μ_gly with respect to C_gly. For reference, experimental data on the temporal variations in μ_gly with respect to C_gly was obtained [60]. As shown in Figure 4C, the variations in glycerin viscosity obtained using the three approaches (i.e., reference experimental data, coflowing method, and proposed method) overlapped. The viscosity readings were consistent between the proposed method and reference experimental data, whereas the coflowing method underestimated the viscosity of glycerin for C_gly > 40%.

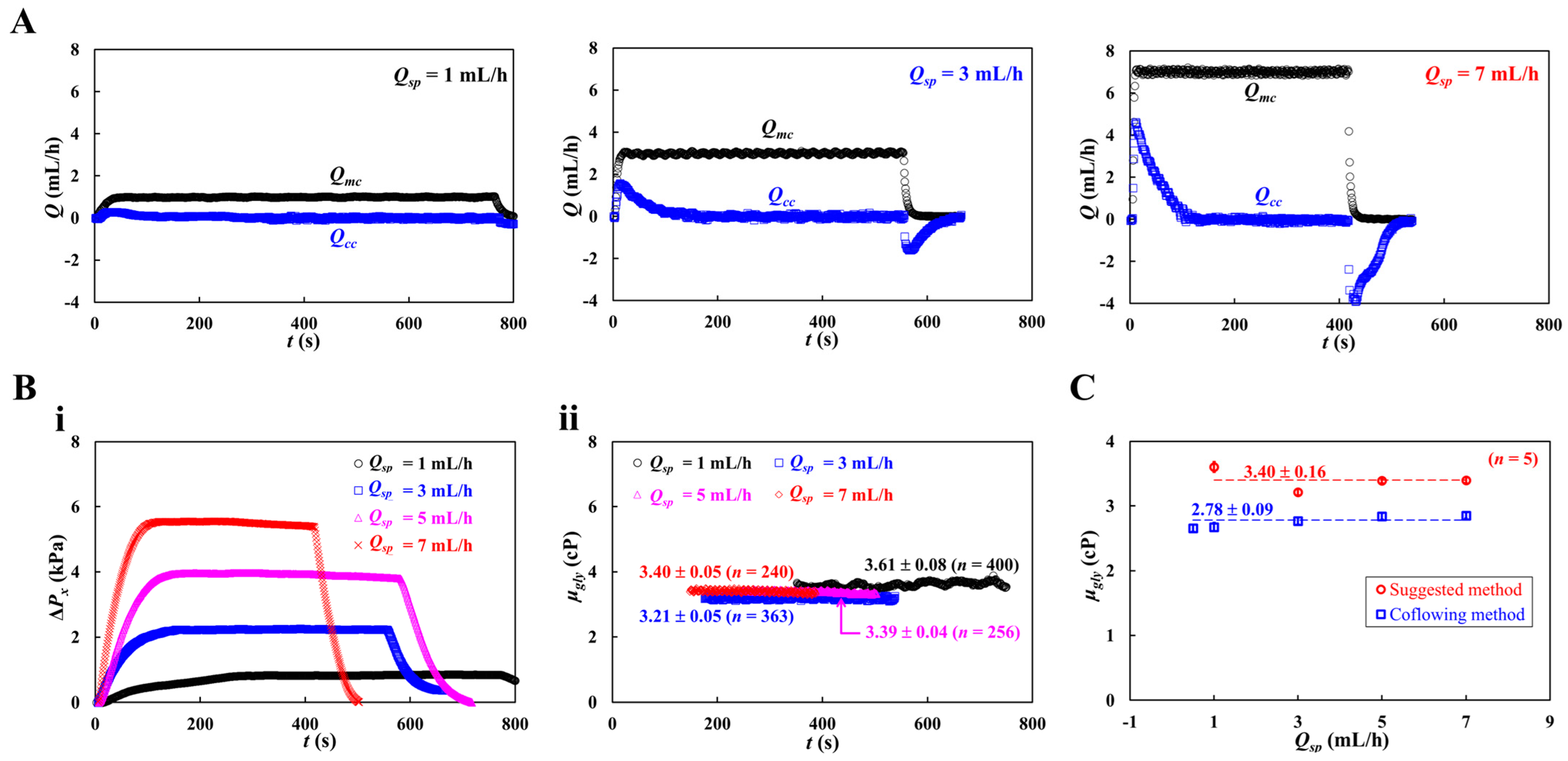

The viscosity of the glycerin solution (C_gly = 30%), which had a similar value to blood viscosity, was measured with respect to the flow rate of the syringe pump (Q_sp). The flow rate of the syringe pump was set to Q_sp = 1, 3, 5, and 7 mL/h. The shear rate was varied from $\dot{\gamma }=666.6$ s⁻¹ to $\dot{\gamma }=4666.6$ s⁻¹. Figure 5A shows the temporal variations in Q_mc and Q_cc with respect to the flow rate (Q_sp = 1, 3, and 7 mL/h). When Q_sp increased, the maximum value of Q_cc increased. Q_cc decreased slowly over time after reaching its peak value.

Based on time-lapse Q_cc, variations in ΔP_x and μ_gly were obtained with respect to Q_sp. Figure 5(Bi) shows the temporal variations in ΔP_x with respect to Q_sp. As expected, Q_sp contributed to an increase in ΔP_x substantially. Figure 5(Bii) shows the temporal variations in μ_gly with respect to Q_sp. The viscosity of the glycerin solution remained constant with respect to the flow rate. Figure 5C shows a quantitative comparison of glycerin viscosity obtained by the two methods (i.e., suggested method, and coflowing method). Both methods gave constant values of glycerin viscosity with respect to the flowrate (suggested method: μ_gly = 3.40 ± 0.16 cP, and coflowing method: μ_gly = 2.78 ± 0.09 cP). The proposed method overestimated the viscosity by approximately 17.8% compared with the coflowing method and by 13.3% compared with the reference experimental data [60].

3.3. Measuring Fluid Viscosity of Control Blood with Respect to Hematocrit

After the viscosity measurement of the pure liquid (glycerin solution), suspended blood was used as a complex fluid to validate the performance of the proposed method. To exclude RBC aggregation and sedimentation, 1× PBS was used as the blood medium. To determine the effect of RBC volume (or Hct) on blood viscosity, test blood was prepared by adding normal RBCs to 1× PBS. Hct was adjusted between 20 and 60%. The flow rate of the syringe pump was set to Q_sp = 5 mL/h.

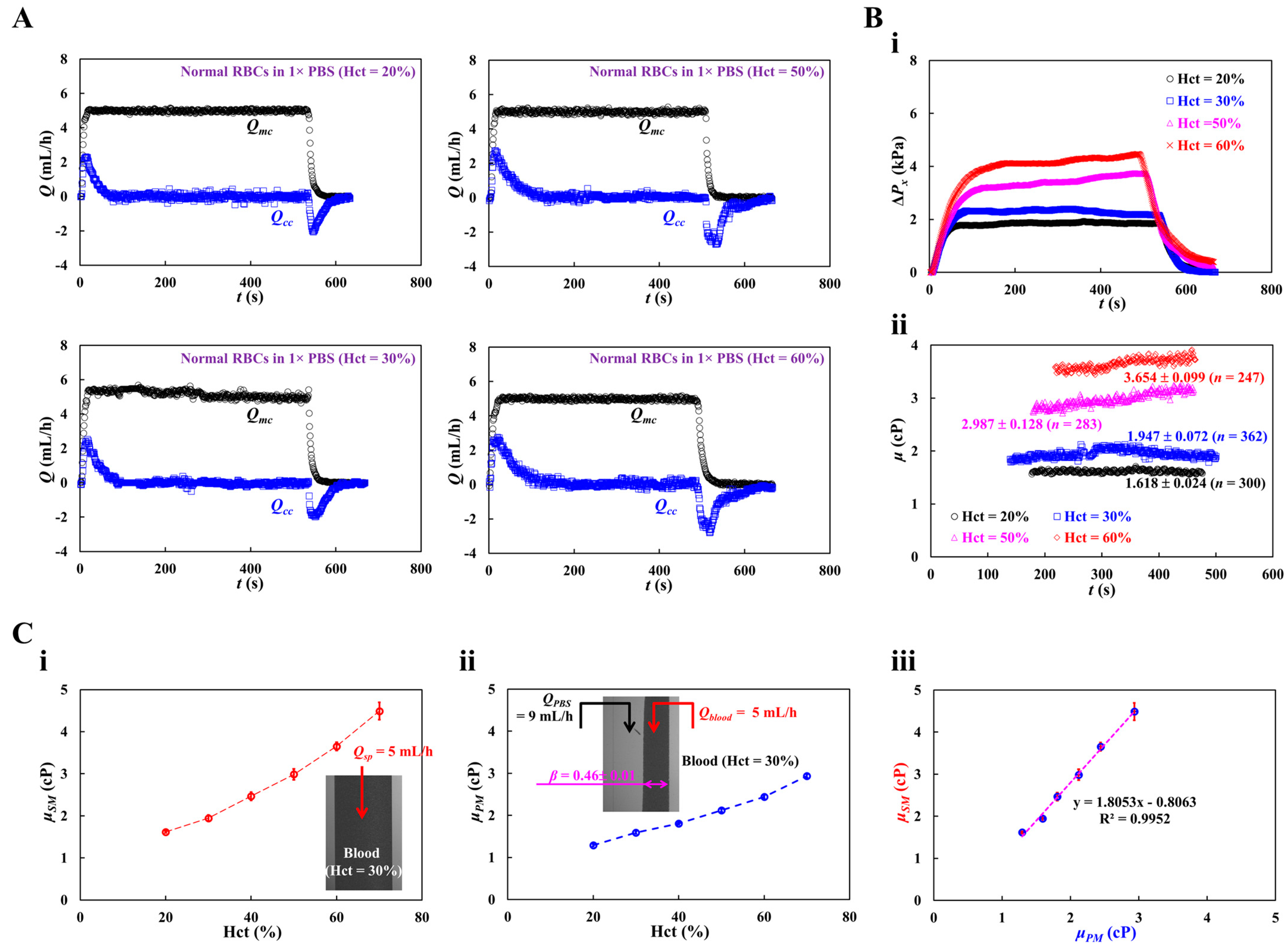

Figure 6A shows the temporal variations in Q_mc and Q_cc with respect to Hct = 20, 30, 50, and 60%. Although Q_mc remained constant within steady time intervals, Q_cc varied substantially during the initial transient interval. Based on time-lapse Q_cc, ΔP_x, and μ were obtained with respect to Hct. Figure 6(Bi) shows the temporal variations in ΔP_x with respect to Hct = 20, 30, 50, and 60%. The maximum value of ΔP_x increased with Hct percentage. Hct contributed substantially to an increase in the pressure drop. Figure 6(Bii) shows the temporal variations in μ with respect to Hct = 20, 30, 50, and 60%. Figure 6(Ci,ii) show the variations in blood viscosity obtained using the proposed method (μ_SM) and previous method (μ_PM) with respect to Hct. The proposed method overestimated the viscosity of the control blood compared with the previous method (i.e., the coflowing method). As shown in the inset of Figure 6(Cii), with regard to the coflowing method, the corresponding flow rates of the test blood (Hct = 30%) and 1× PBS were adjusted to Q_blood = 5 mL/h and Q_PBS = 9 mL/h, respectively. The coflowing channel was partially filled with blood (volume fraction = 46%) and 1× PBS (volume fraction = 54%). However, the main channel was filled with blood (volume fraction = 100%) at a flow rate of Q_sp = 5 mL/h. We inferred that blood volume might influence blood viscosity measurement (i.e., Fåhraeus–Lindqvist effect) [61,62,63]. That is, the difference in the blood filling volume substantially contributed to the change in blood viscosity. Next, we measured the correlation of blood viscosity obtained by the two methods. Figure 6 (Ciii) shows the blood viscosity obtained using the previous method (μ_PM) on the X-axis and the blood viscosity obtained using the suggested method (μ_SM) on the Y-axis. Linear regression analysis was performed to obtain a linear relationship: μ_SM = 1.8053 μ_PM – 0.8063, R² = 0.9952. The high value of R² confirmed that the proposed method can be used to measure blood viscosity with consistency when compared with the coflowing method.

3.4. Measuring Multiple Rheological Properties of Dextran-Induced Blood

To determine the effect of RBC sedimentation in the driving syringe on blood viscosity measurement in a microfluidic device, dextran solution (C_dex = 5, 10, 15, and 20 mg/mL), which accelerates RBC sedimentation in the driving syringe, was selected as the blood medium [64,65,66,67]. Furthermore, to stimulate RBC sedimentation in the driving syringe, the Hct of the test blood was set to 30% [53,65]. The test blood was prepared by adding normal RBCs to each dextran solution concentration.

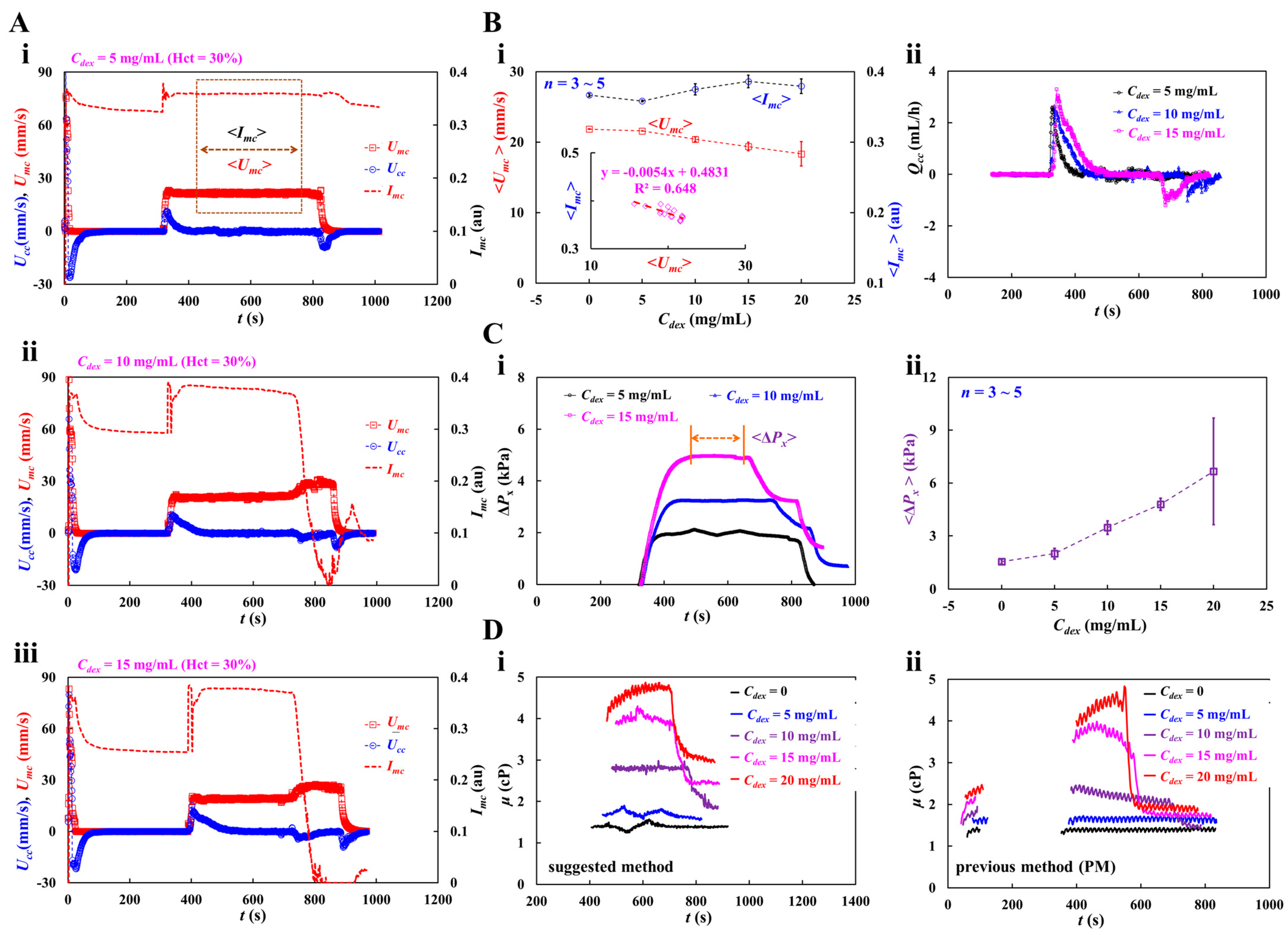

Figure 7A shows the temporal variations in U_mc, U_cc, and I_mc with respect to the concentration of the dextran solution (C_dex = 5, 10, and 15 mg/mL). The average values of blood velocity and image intensity (<U_mc> and <I_mc>) in the main channel were calculated by averaging U_mc and I_mc over the specific duration when they both remained unchanged. When the blood flow was stopped in the main channel, I_mc decreased substantially with respect to C_dex. The RBC aggregation resulting from the dextran solution contributed to a decrease in I_mc. When the test blood was loaded into the main channel, I_mc and U_mc remained constant for a certain duration. However, when the RBC-depleted blood flowed into the main channel, U_mc increased and I_mc decreased significantly. The experimental investigation revealed that the dextran solution increased RBC sedimentation in the driving syringe, and consequently, the delivery time of the RBC-depleted blood was longer at higher C_dex.

Under steady blood flow in the main channel, as shown in Figure 7(Bi), the variations in <U_mc> and <I_mc> were measured with respect to C_dex = 0, 5, 10, 15, and 20 mg/mL. Even though the blood flow rate remained constant, <U_mc> decreased gradually with increasing C_dex. However, I_mc did not exhibit any specific trend with respect to C_dex. The inset of Figure 7(Bi) shows the linear regression equation: <I_mc> = −0.0054 <U_mc> + 0.4831 (R² = 0.648). Figure 7(Bii) shows the temporal variations in Q_cc with respect to C_dex. A higher concentration of the dextran solution contributed to increasing variations in Q_cc at the transient flow. In addition, the dextran solution shortened the time when the flow is reversed in the compliance channel (i.e., Q_cc < 0).

Figure 7(Ci) shows the variations in ΔP_x with respect to C_dex = 5, 10, and 15 mg/mL. The dextran solution increased ΔP_x significantly. When the RBC-depleted blood entered the main channel, ΔP_x decreased over time substantially. <ΔP_x> was calculated by averaging ΔP_x over the specific duration when it remained unchanged. Figure 7(Cii) shoes the variations in <ΔP_x> with respect to C_dex = 0, 5, 10, 15, 20 mg/mL. <ΔP_x> increased significantly at higher C_dex. At C_dex = 20 mg/mL, <ΔP_x> exhibited relatively large fluctuations.

Figure 7(Di) shows the temporal variations in μ obtained using the suggested method with respect to C_dex. When the concentration of the dextran solution was less than 10 mg/mL, μ remained constant over time. At C_dex = 10 mg/mL, RBC-depleted blood showed a substantial reduction in blood viscosity. However, when the concentration of the dextran solution was > 15 mg/mL, μ exhibited some fluctuations. The viscosity of RBC-depleted blood decreased substantially compared with that of RBC-rich blood. The blood viscosity results obtained using the proposed method were compared with those using a previous method (i.e., coflowing method). For the coflowing method, two syringe pumps were employed; all other conditions were identical to those for the proposed method. Figure 7(Dii) shows the temporal variations in μ obtained using the coflowing method with respect to C_dex. The results were similar to those obtained using the proposed method. The coflowing method underestimated the blood viscosity in compared to the proposed method. After RBC sedimentation for 5 min, blood viscosity increased significantly in comparison to the blood viscosity during the initial period. The experimental results showed that RBC sedimentation in the driving syringe contributed to a significant change in blood viscosity. In the proposed method, RBC aggregation occurred when the blood flow from the compliance channel to the air damper was stopped. The Hct of the RBC-rich blood was not uniformly distributed in the compliance channel. When the RBC-depleted blood entered the main channel, blood flow reversed in the compliance channel (i.e., from ‘+’ sign to ‘-’ sign). The blood Hct in the compliance channel was substantially different from that in the RBC-rich blood. The micro-PIV technique did not provide an accurate blood flow rate in the compliance channel because its accuracy was substantially influenced by blood hematocrit. For this reason, the proposed method significantly overestimated the viscosity of RBC-depleted blood compared with the coflowing method. The coflowing method yielded consistent results without Hct variations, wherein the flow rates of both fluids were maintained at a constant rate.

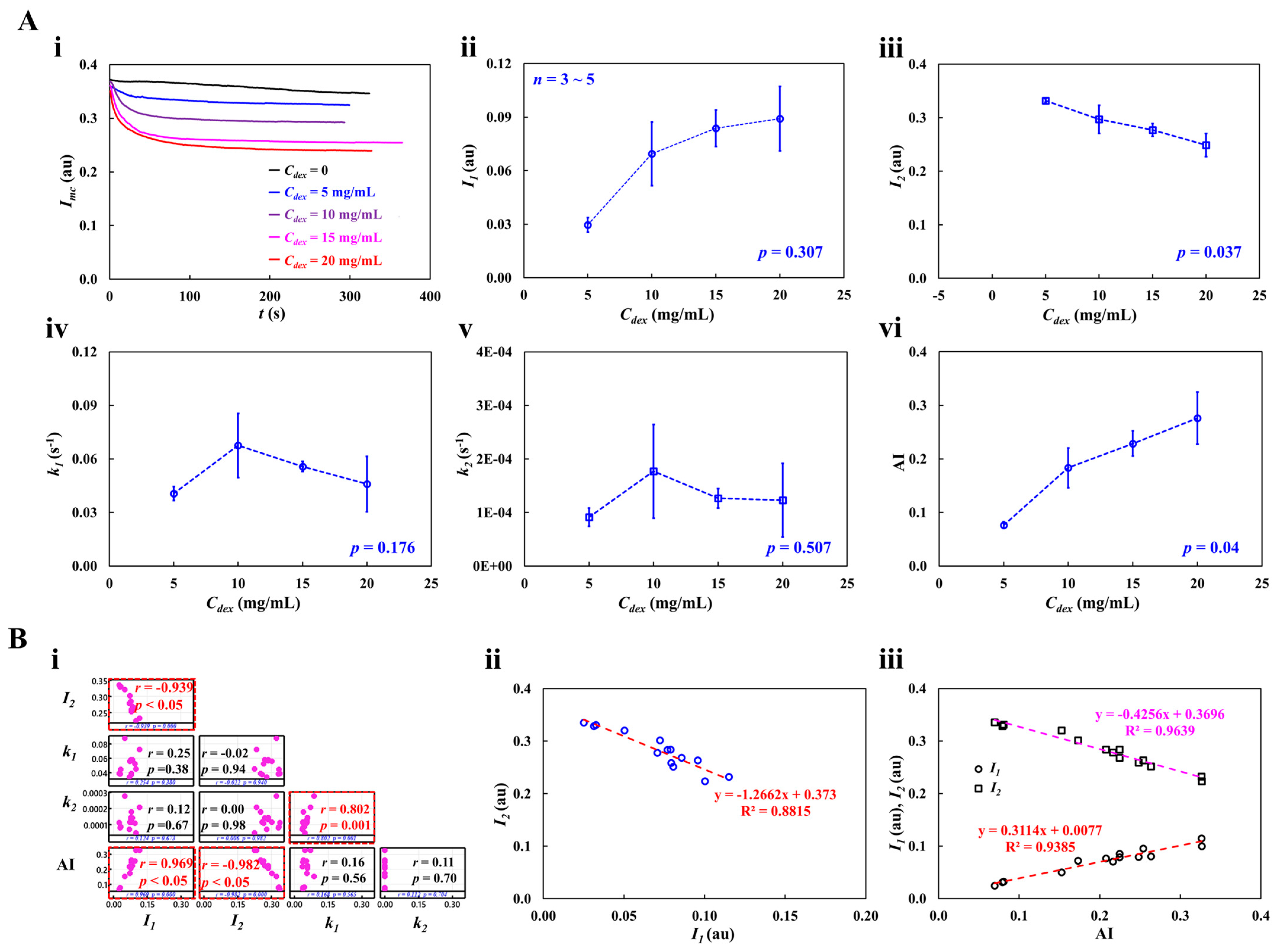

As shown in Figure 8(Ai), at the stoppage of blood flow in the main channel, the time-lapse I_mc, which was used to quantify RBC aggregation, was redrawn with C_dex = 0, 5, 10, 15, and 20 mg/mL. The results indicated that I_mc variations were larger at higher concentrations of the dextran solution. To quantify RBC aggregation as a function of dextran solution concentration, the time-lapse I_mc was best fitted as $I_{mc}=I_1{e}^{-k_{1}t}+I_2{e}^{-k_{2}t}$. The four constants of the regression formula were estimated through nonlinear regression analysis using EXCEL^TM (Office 365, Microsoft, Redmond, Washington, DC, USA). Figure 8(Aii) shows the variation in I₁ with respect to C_dex. I₁ increased gradually with respect to C_dex. The statistical software (Minitab ver. 21, State College, PA, USA) and statistical significance was determined through the one-way ANOVA test. The I₁ variations with respect to C_dex were not statistically significant (p = 0.307).

Figure 8(Aiii) shows the variation in I₂ with respect to C_dex. The I₂ variations with respect to C_dex were statistically significant (p = 0.037). Figure 8 (Aiv,v) show plots of k₁ and k₂ with respect to C_dex. k₁ and k₂ did not exhibit significant differences with respect to C_dex (p = 0.176 for k₁, p = 0.507 for k₂). To compare the four parameters obtained using the proposed method, as shown in Figure 8(Avi), variations in AI were measured with respect to C_dex. AI increased gradually with C_dex. According to the statistical test, the dextran solution contributed substantially to the increase in the AI (p = 0.04). To determine the correlations between I₁, I₂, k₁, k₂, and AI, a correlation map was drawn as a lower triangular matrix: Figure 8(Bi). The four variables (I₁, k₁, k₂, and AI) are positioned in the vertical column. The four variables (I₁, I₂, k₁, and k₂) are positioned in the horizontal row. The correlation between two variables (one variable in the vertical column and the other in the horizontal row) is expressed as r (correlation coefficient) and p. I₁ and I₂ were significantly correlated (p < 0.05). AI was significantly correlated with I₁ and I₂ (p < 0.05). AI was not significantly correlated with k₁ and k₂ (p > 0.05). Figure 8(Bii) shows the linear regression formula between I₁ and I₂: I₂ = −1.2662 I₁ + 0.373 (R² = 0.8815). Figure 8(Biii) shows the linear regression formulae between AI and I₁ and between AI and I₂: I₁ = 0.3114 AI + 0.0077 (R² = 0.9383) and I₂ = −0.4256 AI + 0.3696 (R² = 0.9639). Based on these results, AI was linearly proportional to I₁ and I₂. Both I₁ and I₂ showed a consistent trend of RBC aggregation when compared to AI.

Figure 9(Ai) shows the RBC sedimentation in the driving syringe obtained by analyzing the time-lapse U_mc with respect to C_dex. U_mc remained constant in steady blood flow for C_dex = 0 and 5 mg/mL. However, at C_dex > 10 mg/mL, U_mc increased abruptly when the RBC-depleted blood entered the main channel. Figure 9(Aii) shows the variations in X_esr with respect to C_dex. X_esr tended to increase gradually with C_dex = 10, 15, and 20 mg/mL. X_esr was not statistically correlated with C_dex (p = 0.376). Interestingly, X_esr showed large fluctuations at C_dex = 20 mg/mL. Below C_dex = 20 mg/mL, X_esr varied substantially with C_dex (p = 0.035).

Figure 9(Aiii) shows the variations in ESR with respect to C_dex. ESR increased gradually up to C_dex = 15 mg/mL (p = 0.056). ESR saturated between C_dex = 15 mg/mL and 20 mg/mL. These results were consistent with those of a previous study [65]. Four variables (RBC aggregation: I₁, I₂, and AI; and RBC sedimentation: ESR) were selected to investigate the correlation between RBC aggregation and sedimentation; Figure 9(Bi) shows the correlation map. The three variables (I₁, AI, and ESR) are positioned in the vertical column. The three variables (I₁, I₂, and AI) are positioned in the horizontal row. Statistical analysis showed that ESR was statistically correlated with I₁ (p = 0.014) and AI (p = 0.069). Figure 9(Bii) shows the linear relationship between I₂ and ESR; the linear regression formula was calculated as I₂ = 0.0008 ESR + 0.051 (R² = 0.51). Figure 9(Biii) shows the linear relationship between AI and ESR: AI = 0.0019 ESR + 0.1577 (R² = 0.3221). The low value of the coefficient of linear regression (R²) indicated that RBC aggregation may not be linearly proportional to RBC sedimentation (ESR). By contrast, RBC sedimentation (ESR) strongly correlated with RBC aggregation (I₁ and AI).

3.5. Impact of Hematocrit in Dextran-Induced Blood on Blood Rheological Properties

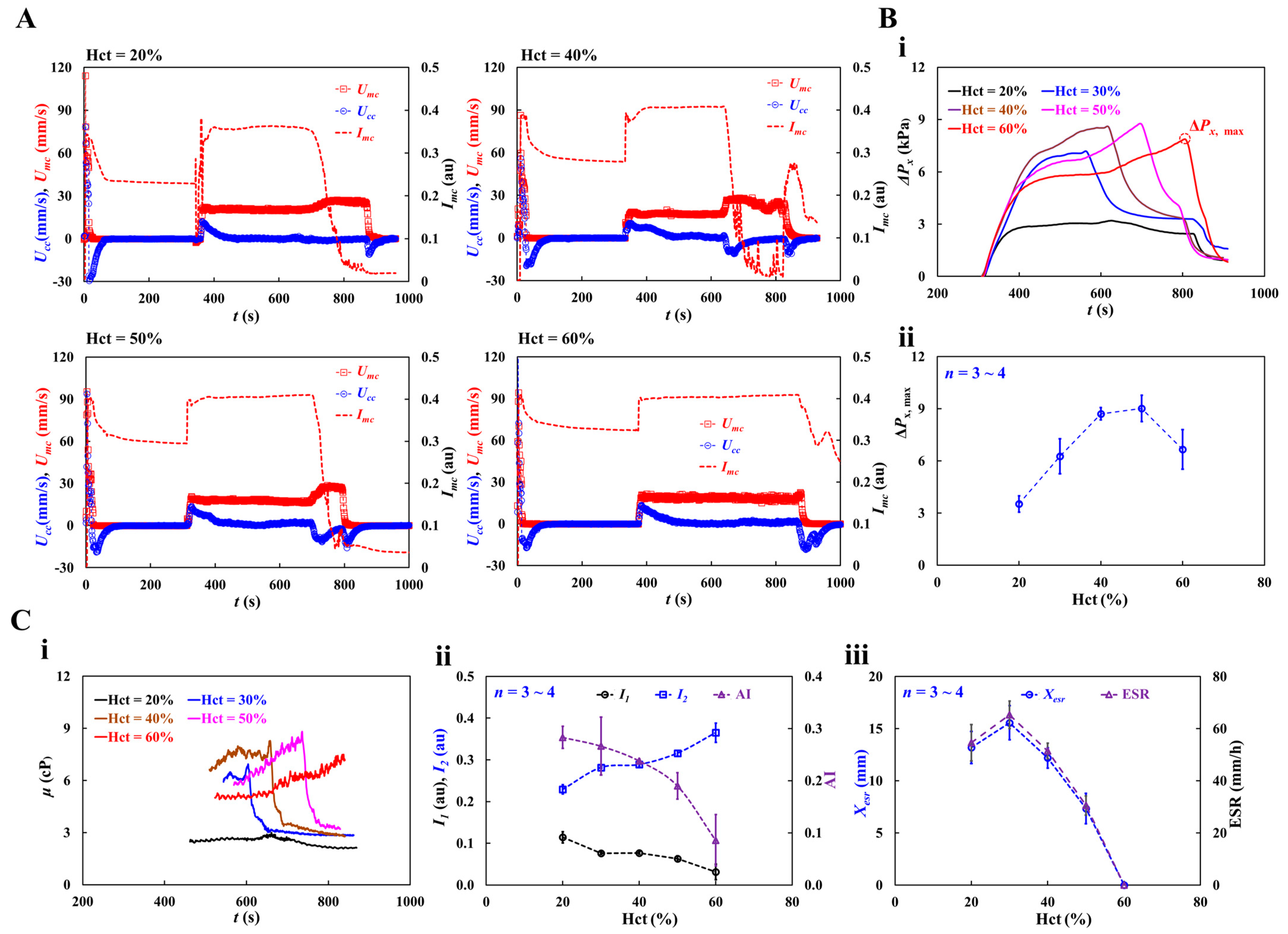

With respect to dextran-containing blood, Hct might influence the multiple rheological properties of blood. The effect of Hct on blood properties was evaluated by adjusting Hct to the same concentration as that of the dextran solution. To significantly accelerate RBC sedimentation in the driving syringe, a dextran solution (20 mg/mL) was used as the blood medium. The Hct of the test blood was adjusted to 20, 30, 40, 50, and 60% by adding normal RBCs to the blood medium.

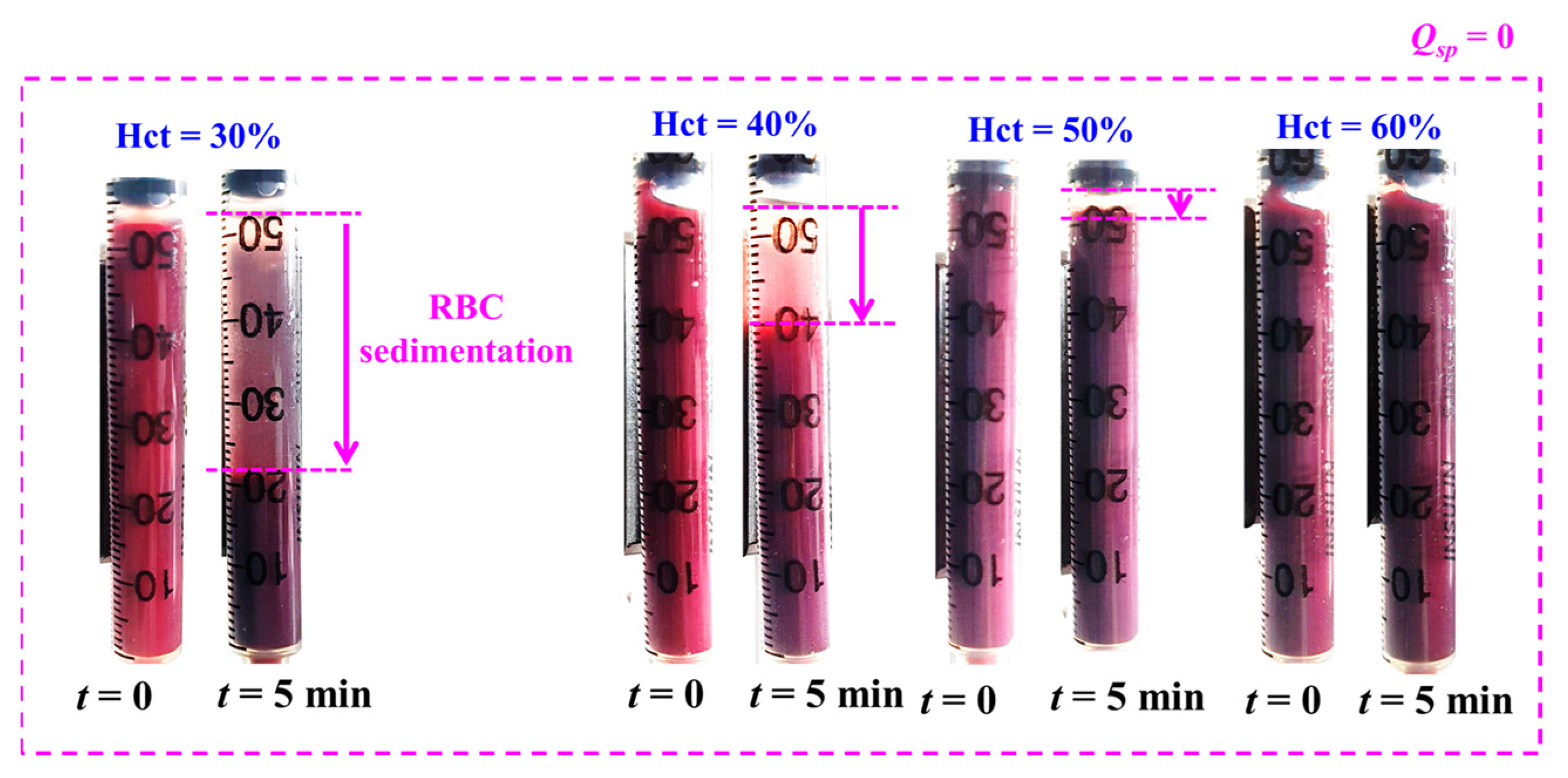

As shown in Figure A5 (Appendix A), RBC sedimentation in the driving syringe was detected with respect to the Hct. At the stoppage of blood flow (Q_sp = 0), after 5 min, RBC sedimentation contributed to the moving interface between the liquid and RBCs in the direction of gravity. The results show that the interface movement decreased from Hct = 30% to Hct = 50%. However, this was not clearly detected for Hct = 60%. Figure 10A shows the temporal variations in U_mc, U_cc, and I_mc with Hct = 20, 40, 50, and 60%. At the stoppage of the blood flow, the variations in I_mc decreased substantially. Variations in I_mc were evident even at Hct = 60%.

Based on the time-lapse U_cc, the contribution of Hct to blood pressure was obtained. Figure 10(Bi) shows the temporal variations in ΔP_x with respect to Hct. ΔP_{x, max} denotes the maximum value of ΔP_x. The results indicated that ΔP_x increased with Hct. ΔP_x took longer to reach its maximum at higher concentrations of Hct. Except at Hct = 60%, ΔP_x decreased abruptly when the RBC-depleted blood entered the main channel. Figure 10(Bii) shows the variations in ΔP_x,max with respect to Hct. ΔP_{x, max} increased up to Hct = 50%. At Hct = 60%, ΔP_{x, max} decreased substantially. As shown in Figure A5 (Appendix A), the blood (Hct = 60%) did not exhibit RBC sedimentation in the driving syringe. The RBC-depleted blood did not enter the main channel which did not contribute to an increase in the hematocrit. Based on time-lapse ΔP_x, Figure 10(Ci) shows the temporal variations in μ with respect to Hct. The blood viscosity increased over time. When the RBC-depleted blood flowed in the main channel, the μ decreased substantially and remained constant over time. Because RBC sedimentation in the driving syringe contributed to an increase in the Hct, the maximum viscosity of blood with Hct = 40% or 50% was higher than that of blood with Hct = 60%. In other words, RBC sedimentation substantially increases blood viscosity over time. As the RBC-depleted blood flowed into the main channel, blood viscosity decreased substantially and remained constant for a certain duration. Figure 10(Cii) shows the variations in I₁, I₂, and AI with respect to Hct. I₁ and I₂ exhibited substantial variations with Hct. AI decreased gradually with increasing Hct concentration. These results show that I₁, I₂, and AI can be used to effectively detect RBC aggregation. Figure 10(Ciii) shows the variations in X_esr and ESR with respect to Hct. X_esr and ESR decreased substantially with increasing Hct concentration. At Hct = 60%, no RBC sedimentation occurred (X_esr = 0, ESR = 0). Thus, RBC sedimentation was significantly influenced by Hct concentration.

3.6. Detection of Hardened RBCs with Multiple Rheological Properties

The proposed method was used to quantify the contribution of RBC deformability to multiple rheological properties of blood. For blood sample preparation, normal RBCs were hardened by exposure to glutaraldehyde solution. To adjust RBC deformability appropriately, normal RBCs were exposed to four concentrations of glutaraldehyde solution (C_ga = 0, 1, 2, and 4 μL/mL). To induce the maximum levels of RBC aggregation (or RBC sedimentation), the hematocrit and blood media were selected as Hct = 30% and dextran solution (20 mg/mL), respectively. The test blood (Hct = 30%) was prepared by adding the hardened RBCs to the specific blood medium.

Figure 11(Ai) shows the temporal variations in blood pressure (ΔP_x) with respect to C_ga. The dynamic variations in ΔP_x did not show any consistent trends with respect to the concentration of glutaraldehyde solution. The maximum value of ΔP_x was not significantly different for C_ga = 0, 1, and 2 μL/mL. The largest ΔP_x was observed for the blood sample with hardened RBCs (C_ga = 4 μL/mL). The specific time (t_Δp,max) when ΔP_x reached its maximum was longer at higher concentrations of the glutaraldehyde solution. That is, the RBC-depleted blood entered the main channel later at higher concentrations of the glutaraldehyde solution. These results indicated that RBC sedimentation decreased at higher concentrations of the glutaraldehyde solution. Figure 11(Aii) shows the variations in ΔP_x,max and t_Δp,max with respect to C_ga. According to the one-way ANOVA test, ΔP_x,max remained unchanged with respect to C_ga (p = 0.903). t_Δp,max increased from C_ga = 1 μm/mL to C_ga = 4 μm/mL (p = 0.47).

Figure 11(Bi) shows the temporal variations in μ with respect to C_ga. Compared with normal blood (C_ga = 0), the viscosity of hardened blood decreased with increasing C_ga. At C_ga = 1 or 2 μL/mL, the blood viscosity increased gradually over time until the RBC-depleted blood entered the main channel. At C_ga = 4 μL/mL, the blood viscosity remained constant over time. Because RBC sedimentation in the driving syringe did not occur, Hct of the test blood (C_ga = 4 μL/mL) stayed unchanged during the blood-loading period. Figure 11(Bii) shows the variations in maximum viscosity (μ_max) with respect to C_ga. μ_max decreased with increasing C_ga. Owing to the large fluctuations, the one-way ANOVA test did not show a substantial difference with respect to C_ga (p = 0.401).

To quantify RBC aggregation, Figure 11C shows the variations in I₁, I₂, and AI with respect to C_ga. I₁ and AI gradually decreased from C_ga = 1 μL/mL to C_ga = 4 μL/mL. I₂ increased from C_ga = 1 μL/mL to C_ga = 4 μL/mL. From statistical results, the corresponding p of each variable was obtained as p = 0.132 (I₁), p = 0.1 (I₂), and p = 0.14 (AI). The variations in RBC aggregation with respect to C_ga were not statistically significant (p = 0.132 for I₁, p = 0.1 for I₂, and p = 0.14 for AI).

To assess the contribution of gradually hardened RBCs to RBC sedimentation, Figure 11D shows the variations in X_esr and ESR with respect to C_ga. X_esr and ESR decreased with increasing C_ga. That is, the lower the RBC deformability, the less RBC sedimentation. The p-values were: p = 0.133 (X_esr) and p = 0.131 (ESR). The experimental results indicate that hardened RBCs potentially contribute to varying rheological properties. Interestingly, most of the rheological properties showed large fluctuations due to the unstable blood flow in the microfluidic channel.

The experimental results showed that the three rheological properties (RBC aggregation, blood viscosity, and RBC sedimentation) can be successfully measured using the proposed method. Furthermore, the proposed method can detect the contribution of RBC sedimentation to blood pressure and viscosity. Future studies should aim to improve the accuracy of measuring the blood flow rate in the compliance channel when the blood is changed from RBC-rich to RBC-depleted in the main channel. However, the performance of the suggested method was validated using suspended blood by changing the hematocrit or blood medium, which were supplied by a blood bank. To impact the present method on the clinical relevance and potential diagnostic applications, the performance of the proposed method should be reevaluated using patient blood supplied from clinics. Furthermore, several blood properties had been measured in room temperature. It was expected that working fluid temperature in the microfluidic chip might exhibit fluctuations over time. Thus, the temperature fluctuation contributes to deteriorate reproducibility and reliability of blood rheological properties. For the reason, to resolve the issue, in a future work, fluid temperature control unit will be integrated into a microfluidic chip.

4. Conclusions

In this study, a novel method is proposed and demonstrated to investigate the contribution of RBC sedimentation in a driving syringe to blood microrheology using a microfluidic chip. A single syringe pump was used to infuse the test blood into the microfluidic channel at a constant blood flow rate (Q_sp). The syringe pump was turned off for 5 min to induce RBC sedimentation in the driving syringe. During this period, RBC aggregation was determined by analyzing the time-lapse blood image intensity at stasis in the microfluidic channel. Using a first-order kinetic model, the concentration of aggregated RBC was analytically derived as $[b]={\displaystyle \frac{k_1[a_0]}{k_2-k_1}}{e}^{-k_{1}t}+([b_0]-{\displaystyle \frac{k_1[a_0]}{k_2-k_1}})e^{-k_{2}t}$. The four variables (I₁, I₂, k₁, k₂) for representing RBC aggregation were then estimated by best fitting the time-lapse intensity as I(t) = I₁ exp (−k₁t) + I₂ exp (−k₂t). After 5 min, RBC sedimentation contributed to the separation of test blood into RBC-depleted and RBC-rich blood. RBC-rich and RBC-depleted blood were sequentially infused into the microfluidic chip. With regard to the blood flow rate in the compliance channel (Q_cc), considering that the same blood entered the compliance channel from the main channel and the velocity of the main channel remained constant over time (<U_mc>~Q_sp), the blood velocity in the compliance channel (U_cc) was compensated into the blood flow rate in the compliance channel (Q_cc = U_cc/<U_mc> × Q_sp). Based on the ideal gas law (air pressure × air cavity = constant), the blood pressure was estimated by analyzing the time-lapse blood flow rate in the compliance channel connected to the air damper component. Blood viscosity was obtained using the Hagen–Poiseuille law. When the RBC-depleted blood was loaded into the microfluidic channel, the blood viscosity or image intensity exhibited substantial changes over time. Either the time-lapse blood velocity or image intensity was used to detect RBC sedimentation in the driving syringe. The RBC sedimentation distance (X_esr) and RBC sedimentation rate (ESR) were calculated as $X_{esr}=t_1\left({\displaystyle \frac{Q_{sp}}{A_{ds}}}\right)$ and ESR = $\left({\displaystyle \frac{t_1}{t_0}}\right)\left({\displaystyle \frac{Q_{sp}}{A_{ds}}}\right)$, respectively. The performance of the proposed protocols was validated through several experiments using glycerin solution and suspended blood. The viscosities of pure liquid (glycerin) and control blood (Hct = 20–60%, medium: 1× PBS) were measured and compared with the coflowing and the proposed methods. The viscosity obtained using the proposed method was substantially overestimated compared to that obtained using the coflowing method. However, the viscosities obtained using the two methods exhibited a sufficient correlation. Using dextran-containing test blood (dextran concentration: 0~20 mg/mL, Hct = 20~60%), the proposed method was employed to quantify three rheological properties (blood viscosity, RBC aggregation, and RBC sedimentation). Owing to RBC sedimentation in the driving syringe, RBC-rich and RBC-depleted blood were infused sequentially from the driving syringe. The blood viscosity increased substantially over time. It decreased abruptly when the RBC-depleted blood began to flow into the main channel. The time-lapse blood viscosity obtained using the proposed method showed consistent trends when compared with the coflowing method. Regarding RBC aggregation, two of the four variables (I₁, I₂) were strongly correlated with AI. I₁ and I₂ exhibited substantial variations with respect to dextran concentration and Hct. Both indices (X_esr, ESR) representing RBC sedimentation also showed consistent trends with respect to dextran concentration and Hct. The several properties suggested in this study were used to detect partially hardened RBCs. The results indicate that hardened RBCs potentially contribute to variations in the rheological properties of blood. Most of the rheological properties showed large fluctuations owing to the unstable blood flow in the microfluidic channel. In conclusion, the suggested parameters related to the multiple rheological properties of blood (RBC aggregation, blood viscosity, and RBC sedimentation) are effective for monitoring the contribution of RBC sedimentation to multiple rheological properties. A distinctive advantage of the proposed method is that it can measure multiple blood rheological properties simultaneously using a single syringe pump. In addition, it can detect RBC sedimentation in the driving syringe by analyzing the blood flow in the microfluidic channel. The proposed method can detect the contribution of RBC sedimentation to blood pressure and viscosity. Thus, it can be used to determine whether the blood hematocrit remains constant in the channel during blood delivery with a syringe pump.
