How Practical Are Fiber Supercapacitors for Wearable Energy Storage Applications?
Abstract
:1. Introduction

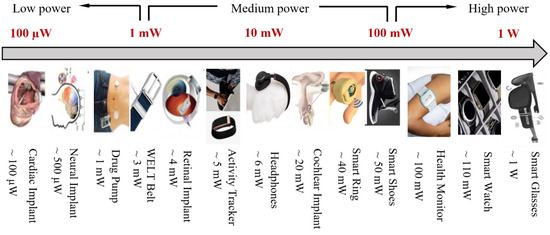

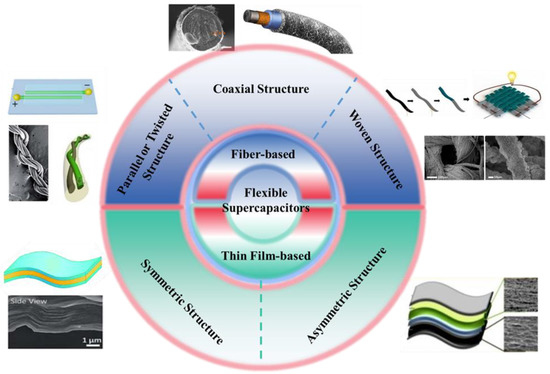

2. Why Fiber Supercapacitor?

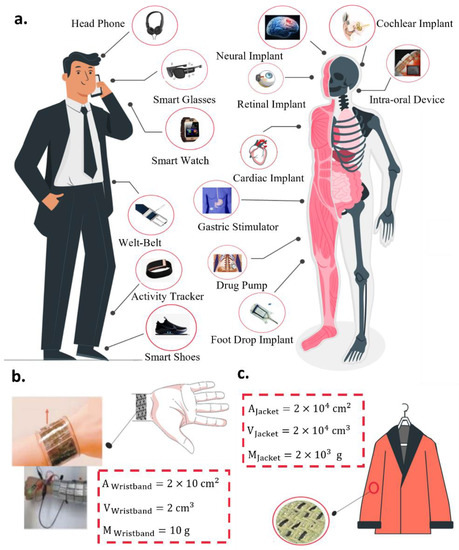

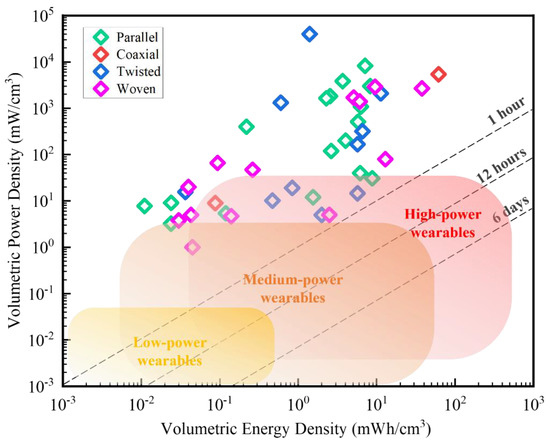

3. Electrochemical Performance
Device Architecture | Volumetric Energy Density (mWh cm−3) | Volumetric Power Density (mW cm−3) | % Capacitance Retention after Bending | % Capacitance Retention after Cycle (Cycle Life) | Refs. |
---|---|---|---|---|---|
Parallel | 8.3 | 3 × 103 | 89.9% (1 K Bendings) | 71.4% (10 K Cycle) | [33] |
Parallel | 7.13 | 8249 | ~97% (200 Bendings) | 95% (10 K Cycle) | [72] |
Parallel | 24 × 10−3 | 3.25 | 99% (100 Bendings) | 69% (10 K Cycle) | [53] |
Parallel | 8.8 | 30.77 | - | 86% (17 K Cycle) | [52] |
Parallel | 1.55 | 12 | 95% (20 Bendings) | - | [73] |
Parallel | 6.6 | 320 | - | 89% (5 K Cycle) | [74] |
Parallel | 2.63 | 120 | - | 88.1% (15 K Cycle) | [75] |
Parallel | 0.12 | 5.4 | 92% (3 K Bendings) | 90.7% (5 K Cycle) | [76] |
Parallel | 4.02 | 200 | - | 90% (3 K Cycle) | [77] |
Parallel | 0.011 | 7.8 | - | 100% (1.4 K Cycle) | [56] |
Parallel | 24 × 10−3 | 9.07 | - | 100% (15 K Cycle) | [55] |
Parallel | 3.7 | 3840 | - | 98.5% (10 K Cycle) | [78] |
Parallel | 0.22 | 400 | - | 84% (10 K Cycle) | [79] |
Parallel | 6.16 | 40 | - | 86.7% (1 K Cycle) | [80] |
Parallel | 6.3 | 1085 | ~97% (1 K Bendings) | 93% (10 K Cycle) | [81] |
Parallel | 2.55 | 1.82 × 103 | 98% (1 K Bendings) | 99% (1.6 K Cycle) | [82] |
Parallel | 2.29 | 1.64 × 103 | ~100% (5 K Bendings) | 71.9% (3 K Cycle) | [83] |
Parallel | 5.8 | 0.51 × 103 | - | - | [84] |
Coaxial | 0.088 | 9 | 96.8% (5 K Bendings) | 88.4% (6 K Cycle) | [85] |
Coaxial | 84.2 | 73.8 | 99% (1 K Bendings) | 82% (10 K Cycle) | [60] |
Coaxial | 11.8 | 0.1 × 103 | 90% (1 K Bendings) | 80% (1 K Cycle) | [61] |
Coaxial | 61.6 | 5.4 × 103 | - | 85% (10 K Cycle) | [86] |
Coaxial | 3.84 | 0.018 × 103 | 98% (200 Bendings) | ~90% (2 K Cycle) | [87] |
Twisted | 0.47 | 10.18 | 80% (1 K Bendings) | - | [88] |
Twisted | 2 | 5 | - | 84% (5 K Cycle) | [89] |
Twisted | 11.3 | 2100 | ~100% (5 K Bendings) | 85% (10 K Cycle) | [90] |
Twisted | 1.4 | 40 × 103 | 98% (2 K Bendings) | 94% (10 K Cycle) | [91] |
Twisted | 0.17 × 10−3 | 0.1 | - | 92% (500 Cycle) | [92] |
Twisted | 0.601 | 1320 | - | - | [93] |
Twisted | 0.84 | 19.1 | 80% (1 K Bendings) | 100% (1 K Cycle) | [54] |
Twisted | 3 | 0.55 × 103 | 95% (1 K Bendings) | 92% (10 K Cycle) | [94] |
Twisted | 36.4 × 10−3 | 15.6 | - | 90% (800 Cycle) | [95] |
Twisted | 0.22 × 10−3 | 1.32 × 103 | - | - | [96] |
Twisted | 6.6 | 320 | ~100% (2 K Bendings) | 93% (5 K Cycle) | [34] |
Twisted | 5.7 | 14.5 | ~100% (5 K Bendings) | 96.2% (5 K Cycle) | [97] |
Twisted | 5.7 | 167.7 | - | ~97% (5 K Cycle) | [97] |
Woven | 9.56 | 2.91 × 103 | ~100% (1 K Bendings) | ~100% (10 K Cycle) | [98] |
Woven | 0.263 | 47 | - | 85% (1 K Cycle) | [99] |
Woven | 0.14 | 4.68 | ~100% (1 K Bendings) | 82% (1 K Cycle) | [62] |
Woven | 5.1 | 1700 | - | ~100% (20 K Cycle) | [100] |
Woven | 43 × 10−3 | 5 | - | 76% (3 K Cycle) | [101] |
Woven | 30 × 10−3 | 3.8 | - | - | [101] |
Woven | 0.094 | 66.2 | - | ~105% (15 K Cycle) | [102] |
Woven | 3.6 | - | ~100% (1 K Bendings) | 80% (10 K Cycle) | [32] |
Woven | 0.04 | 20 | - | ~97% (30 K Cycle) | [35] |
Woven | 37.8 | 2678 | - | ~98% (5 K Cycle) | [63] |
Woven | 0.045 | 1 | 95% (20 K Bendings) | 97% (20 K Cycle) | [103] |
Woven | 2.5 | 5 | 96.8% (1 K Bendings) | 90.4% (10 K Cycle) | [104] |
Woven | 12.9 | 80 | 97.1% (1 K Bendings) | - | [105] |

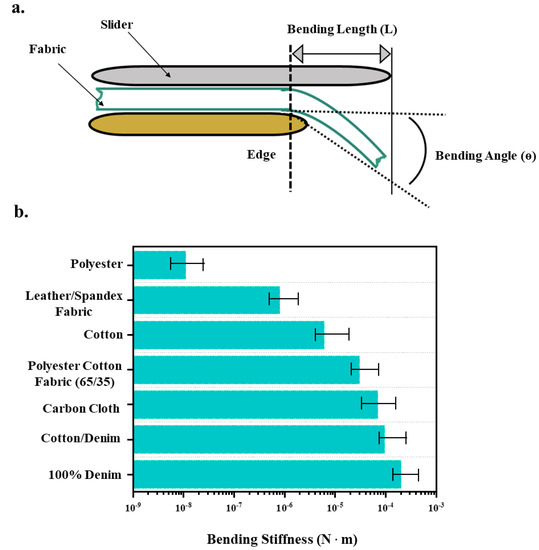

4. Mechanical Performance
5. Summary and Outlook
- Scalable Manufacturing: Ensuring scalability and cost-effectiveness in manufacturing processes is challenging. Current methods are often intricate and time-consuming, hindering scalability. Identifying efficient techniques that can be seamlessly incorporated into large-scale production is vital for commercial viability.
- Integration and Connectivity: The integration and connectivity of individual fibers within the supercapacitor structure pose critical challenges. Arranging and interconnecting the fibers to maximize electrode area and minimize electrical resistance is imperative. Maintaining consistent and reliable electrical connections between fibers is vital for sustained device performance.
- Long-Term Stability: Ensuring the long-term stability and reliability of flexible fiber supercapacitors in diverse environmental conditions is another challenge. Temperature, humidity, and chemical exposure can impact device performance and lifespan. Developing protective coatings or encapsulation strategies is necessary to enhance environmental stability.
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
