Structural and Dimensional Analysis by Computed Tomography of a Multi Geometric Template Manufactured by Fused Deposition Modeling

by
Julian I. Aguilar-Duque
1,
Sinue Ontiveros
2,
Yolanda Baez-Lopez
1,*,
Victor Manuel Juárez-Luna
1,
Agustín Brau-Avila
3 and
Diego Tlapa
1
1
Facultad de Ingeniería, Arquitectura y Diseño, Universidad Autónoma de Baja California, Carretera Transpeninsular Ensenada-Tijuana 3917, Ensenada 22860, Mexico
2
Facultad de Ciencias de la Ingeniería, Administración y Sociales, Universidad Autónoma de Baja California, Tecate 21460, Mexico
3
Department of Industrial Engineering, University of Sonora, Blvd. Luis Encinas y Rosales S/N, Col. Centro, Hermosillo 83067, Mexico
*
Author to whom correspondence should be addressed.
Micromachines 2023, 14(10), 1934; https://doi.org/10.3390/mi14101934
Submission received: 20 September 2023 / Revised: 11 October 2023 / Accepted: 12 October 2023 / Published: 15 October 2023
(This article belongs to the Section D3: 3D Printing and Additive Manufacturing)
Browse Figures
Versions Notes

Abstract

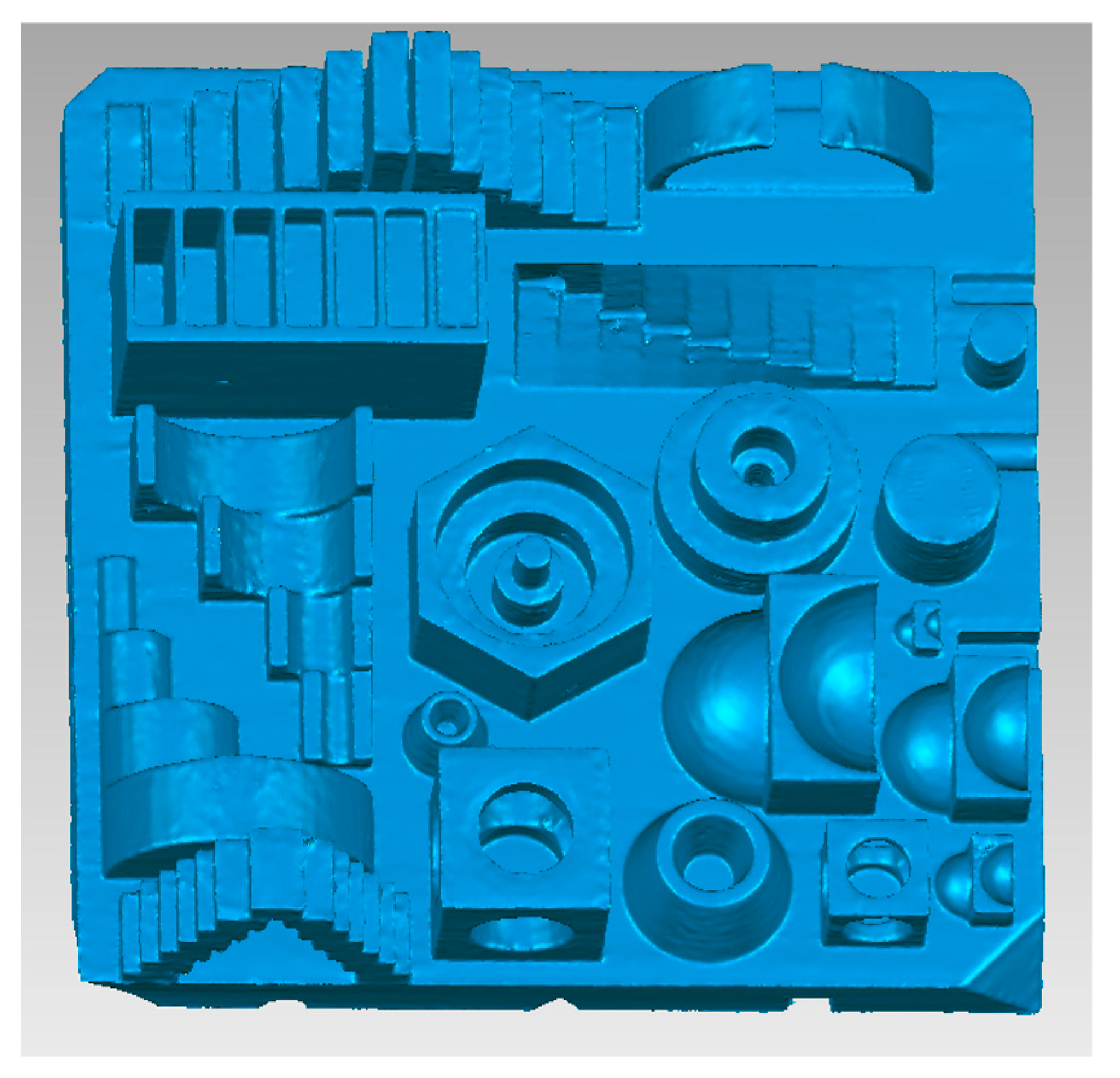

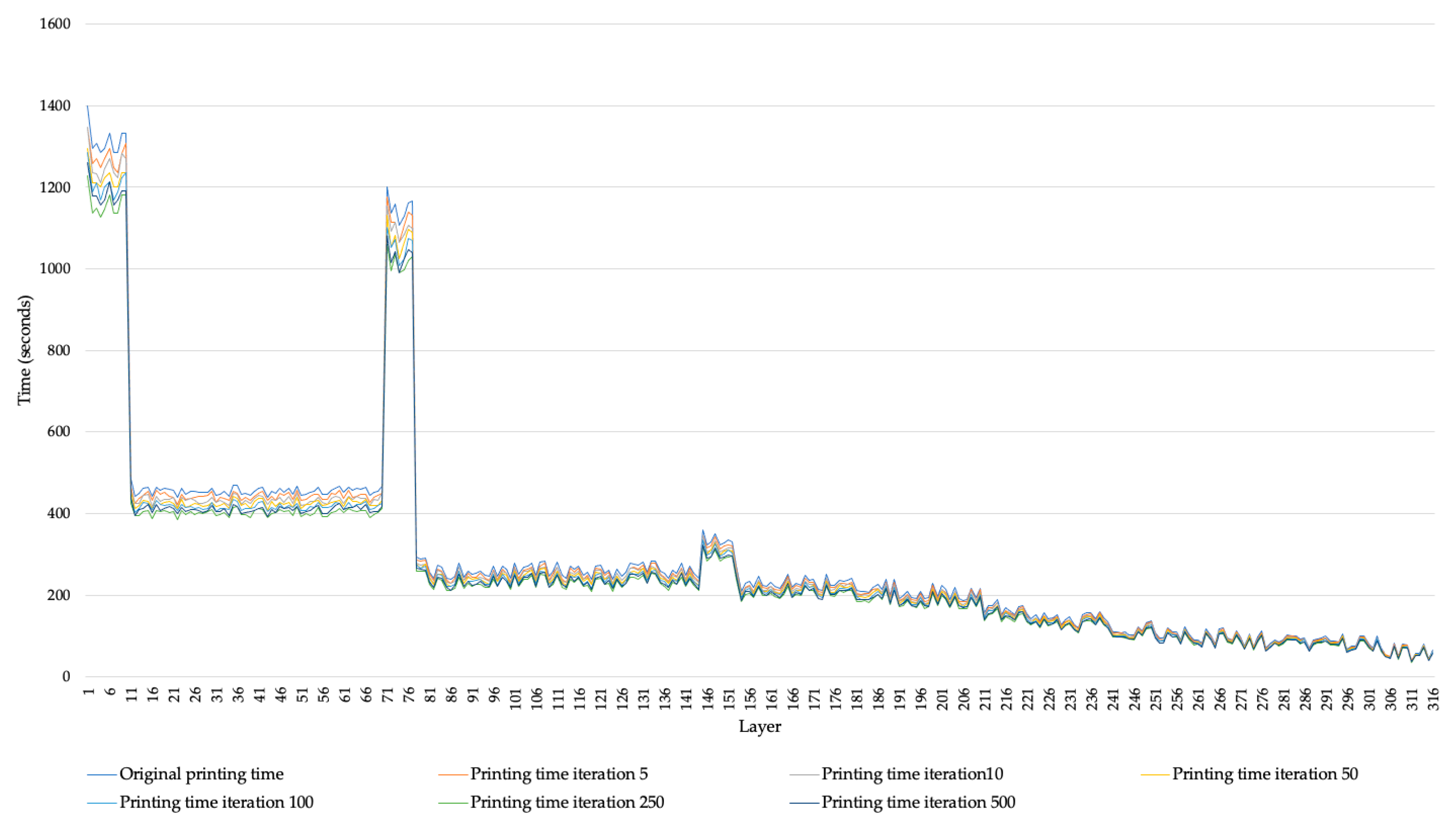

As a consequence of the development of AM, strategies have been developed to optimize the printing process, which focuses on reducing manufacturing time, such as using genetic algorithms (GAs), among others. The effect caused by the modification of path patterns is an effect of interest in two aspects: dimensional assurance focused on the compliance of the dimensions of the components in comparison with the digital design of the components, and the structural composition and resistance that the printing process itself can generate. This paper aims to present the effect of optimizing the path of fused filament fabrication (FFF) equipment on the dimensional finish and structural quality of a multi-geometric component using computed tomography. For this purpose, a template composed of 23 geometric elements, printed using FFF technology and PLA as the base material, is used. The results show an 11% reduction in the total process time required to print the component. The effect on the dimensional precision of different geometric elements was identified. In addition, it was possible to ensure that the structural quality of the multi-geometric component was not affected by the modification of the path required by the printing process.
Keywords: fused filament fabrication; computed tomography; dimensional analysis; roughness analysis fused filament fabrication; computed tomography; dimensional analysis; roughness analysis
