# Study on Wavelet Packet Energy Characteristics on Friction Signal of Lapping with the Fixed Abrasive Pad

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

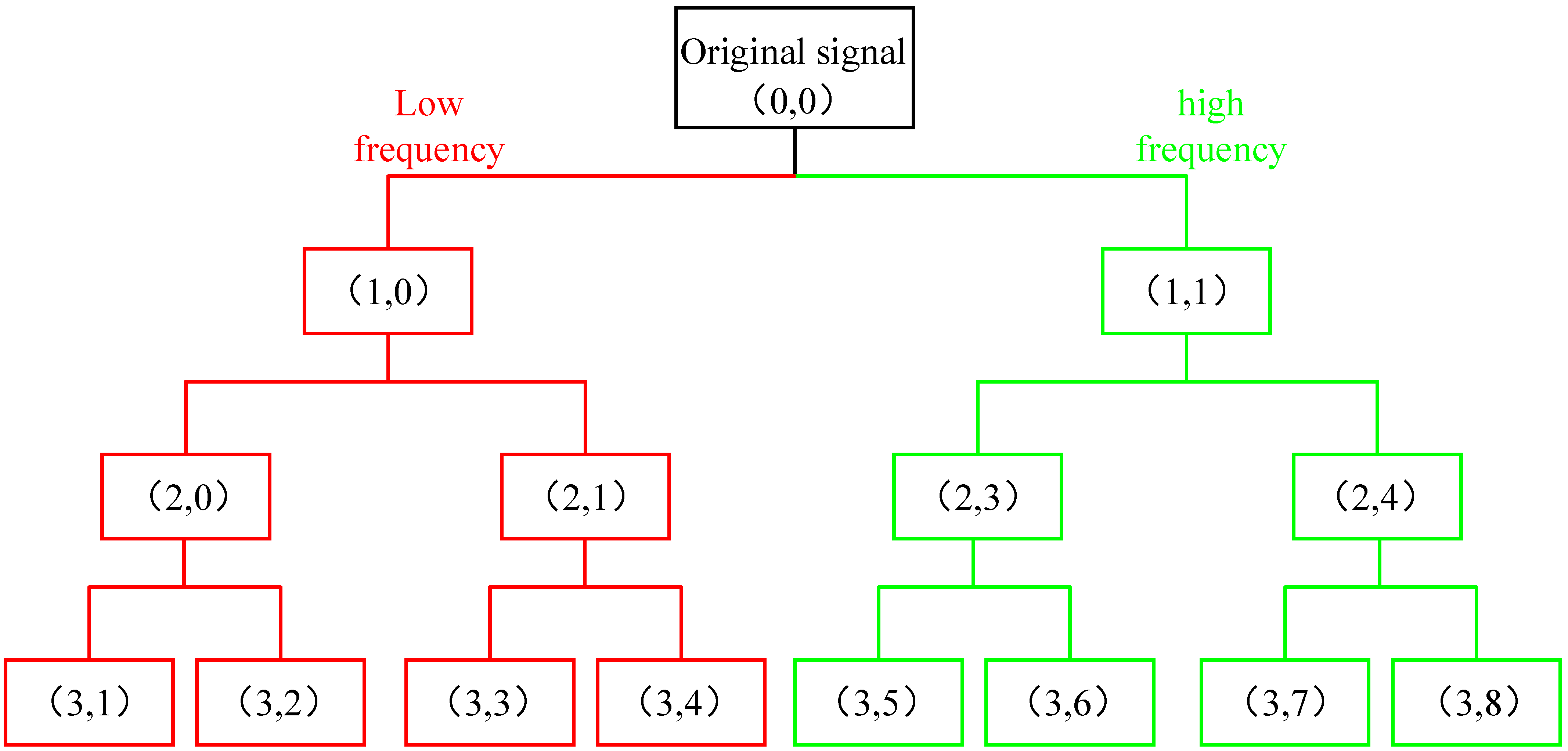

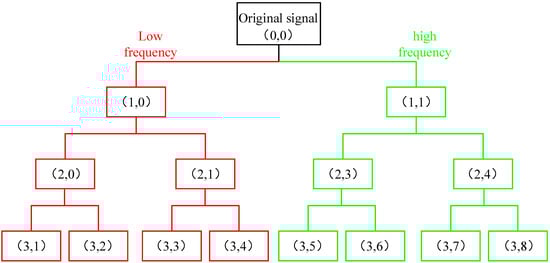

## 2. Basic Principles

## 3. Experimental Part

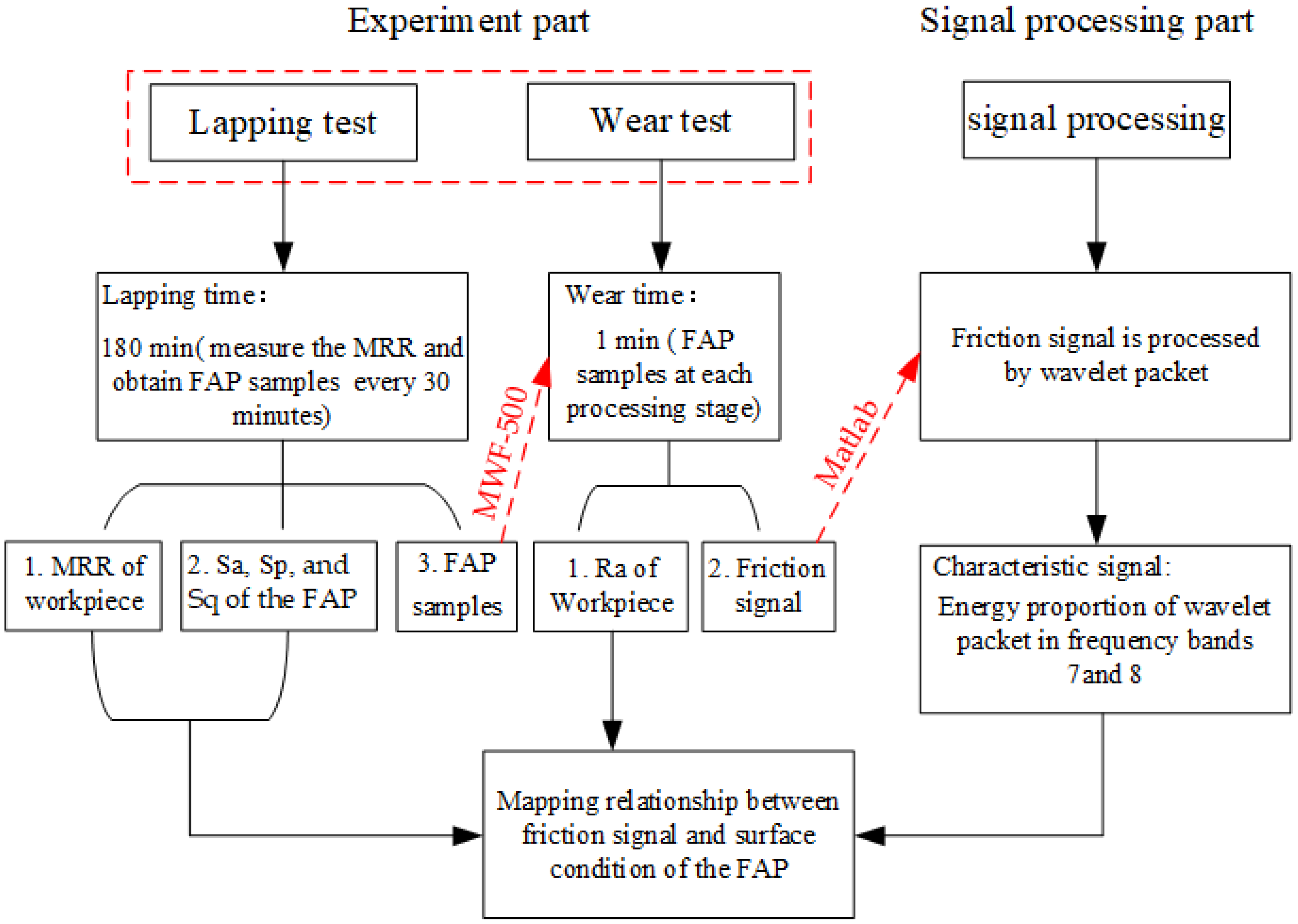

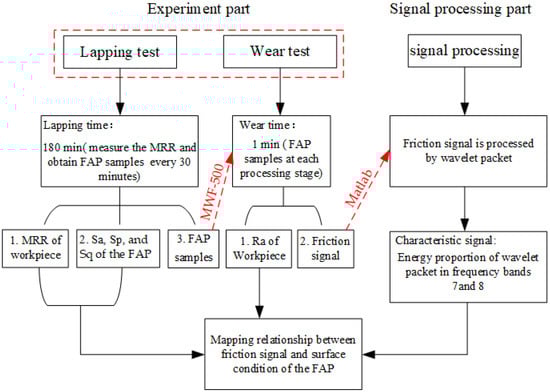

#### 3.1. Experimental Design

#### 3.2. Measurement and Characterization

#### 3.2.1. Material Removal Rate

^{3}; s is the workpiece area, cm

^{2}; and t is the processing time, min.

#### 3.2.2. Observation of Surface Roughness and Three-Dimensional Morphology

## 4. Results and Discussion

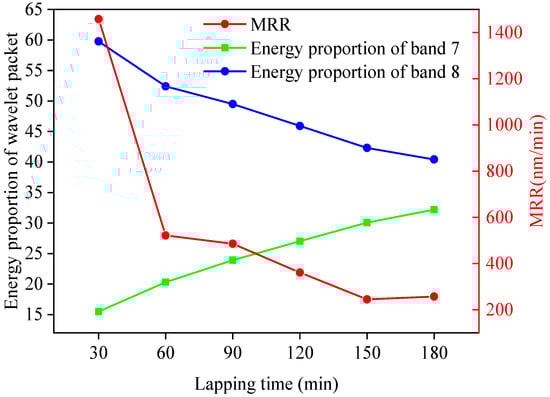

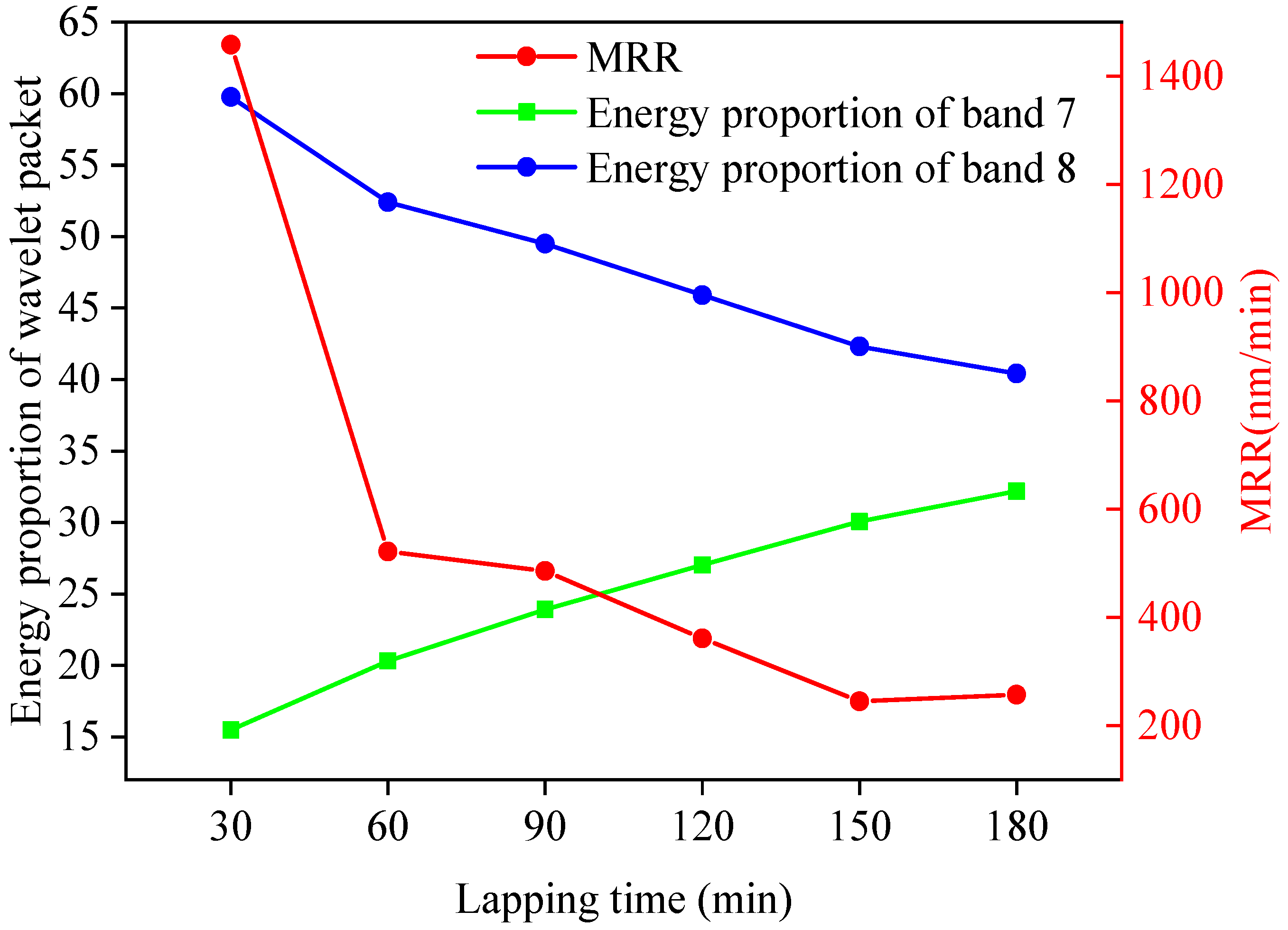

#### 4.1. Relationship between the MRR and Energy Proportion of Wavelet Packet

#### 4.2. Relationship between Surface Roughness of the FAP and Energy Proportion of Wavelet Packet

#### 4.3. Relationship between Surface Roughness of Workpiece after Wear and the Energy Proportion of Wavelet Packet

#### 4.4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Fang, T.; Chen, P.C.; Lee, M.H. A New Permanganate-Free Slurry for GaN-SiC CMP Applications. Mater. Sci. Forum
**2020**, 1004, 199–205. [Google Scholar] - Jiang, W.; Zhou, H.; Ji, J.; Ren, X.; Zhu, Z. Semi-Consolidated Grinding Process of Easily Cleaved Gallium Oxide Wafer. Surf. Technol.
**2022**, 51, 178–185. [Google Scholar] - Niu, F.; Wang, K.; Sun, T.; Zhou, P.; Hu, W.; Zhu, Y. Lapping performance of mixed-size agglomerated diamond abrasives in fixed abrasives pads. Diam. Relat. Mater.
**2021**, 118, 108499. [Google Scholar] [CrossRef] - Wang, J.B.; Zhu, Y.W.; Xie, C.X.; Xu, J.; Ju, Z.L. Role of slurry in single crystal sapphire lapping with fixed abrasive pad. Opt. Precis. Eng.
**2014**, 22, 3004–3011. [Google Scholar] [CrossRef] - Gagliardi, J.J.; Kim, D.; Sokol, J.J.; Zazzera, L.A.; Romero, V.D.; Atkinson, M.R.; Nabulsi, F.; Zhang, H. A case for 2-body material removal in prime LED sapphire substrate lapping and polishing. J. Manuf. Process.
**2013**, 15, 348–354. [Google Scholar] [CrossRef] - Wang, Z.; Yang, Y.; Pang, M.; Li, Y.; Ma, L.; Yao, J.; Zhu, Y.; Su, J. Response surface model of processing parameters for lapping quartz glass with a fixed abrasive pad. Surf. Technol.
**2021**, 50, 376–385. [Google Scholar] - Luo, X.; Yang, W.; Qian, Y. Fixed abrasive polishing: The effect of particle size on the workpiece roughness and sub-surface damage. Int. J. Adv. Manuf. Technol.
**2021**, 115, 3021–3035. [Google Scholar] [CrossRef] - Lin, Z.; Yan, Z.; Xiao, M.; Zhu, X.; Cheng, D. Analysis of reciprocating friction signal based on Hilbert-Huang Transform. Lubr. Eng.
**2015**, 40, 92–96. [Google Scholar] - Chen, Z.; Hu, Y.; Tian, S.; Lu, M.; Xu, L. Non-stationary signal combined analysis based fault diagnosis method. J. Commun.
**2020**, 41, 187–195. [Google Scholar] - Zhang, H.; Yin, Y.; Yin, K. Non-Stationary Signals Analysis and Processing Based on Wavelet Transform. J. Nanjing Norm. Univ.
**2014**, 14, 63–69. [Google Scholar] - Tang, F.; Liu, S. Research on fault feature extraction method of nonlinear non-stationary signal based on generalized local frequency. J. Mech. Eng.
**2015**, 51, 176. [Google Scholar] - Xiong, S.; Zhou, H.; He, S.; Zhang, L.; Shi, T. Fault diagnosis of a rolling bearing based on the wavelet packet transform and a deep residual network with lightweight multi-branch structure. Meas. Sci. Technol.
**2021**, 32, 085106. [Google Scholar] [CrossRef] - Habbouche, H.; Benkedjouh, T.; Zerhouni, N. Intelligent prognostics of bearings based on bidirectional long short-term memory and wavelet packet decomposition. Int. J. Adv. Manuf. Technol.
**2021**, 114, 145–157. [Google Scholar] [CrossRef] - Han, J.; Zheng, P.; Wang, H. Structural modal parameter identification and damage diagnosis based on Hilbert-Huang transform. Earthq. Eng. Eng. Vib.
**2014**, 13, 101–111. [Google Scholar] [CrossRef] - Lan, Z.; Zhao, Y.; Guo, J.; Zhou, Z.; Xing, J.; Bai, G.; Lu, H.; Li, H. The measurement and analysis of ice induced vibration of JZ9-3WHPB oil platform in Bohai Sea. Strateg. Study CAE
**2011**, 13, 79–87. [Google Scholar] - Liu, Q.; Cao, X.; Xu, S. Research on fault diagnosis of rolling bearings based on wavelet packet transform and ELM. J. Saf. Environ.
**2021**, 21, 2466–2472. [Google Scholar] - Xu, L. Study on Fault Detection of Rolling Element Bearing Based on Translation-Invariant Denoising and Hilbert-Huang Transform. J. Comput.
**2012**, 7, 1155–1162. [Google Scholar] [CrossRef] - Li, G.B.; Ren, Z.Y.; Wang, H.Z.; Wei, H.J. Characteristics Extraction of Friction Vibration Signal Using Harmonic Wavelet Packet Transforms. J. Saf. Environ.
**2011**, 31, 452–456. [Google Scholar] - Rabi, J.; Balusamy, T.; Jawahar, R.R. Analysis of vibration signal responses on pre induced tunnel defects in friction stir welding using wavelet transform and empirical mode decomposition. Def. Technol.
**2019**, 15, 885–896. [Google Scholar] [CrossRef] - Guo, J.; Hang, D.; Zhu, X. Prediction of Crack Propagation in U-Rib Components Based on the Markov Chain. J. Bridge Eng.
**2020**, 25, 04020089. [Google Scholar] [CrossRef] - Yang, Y.; Fu, P. Rolling-Element Bearing Fault Data Automatic Clustering Based on Wavelet and Deep Neural Network. Shock Vib.
**2018**, 2018, 3047830. [Google Scholar] [CrossRef] - Guo, J.; Zhong, H. Vibration Analysis and Wavelet Packet Energy Ratio of Stay Cable Based on Measured Date. Bridge Constr.
**2021**, 51, 25–31. [Google Scholar] - He, C.; Wu, T.; Gu, R.; Qu, H. Bearing fault diagnosis based on wavelet packet energy spectrum and SVM. J. Phys. Conf. Ser.
**2020**, 1684, 012135. [Google Scholar] [CrossRef] - Zhang, Z.; Yao, P.; Zhang, Z.; Xue, D.; Wang, C.; Huang, C.; Zhu, H. A novel technique for dressing metal-bonded diamond grinding wheel with abrasive wateret and touch truing. Int. J. Adv. Manuf.
**2017**, 93, 3063–3073. [Google Scholar] [CrossRef]

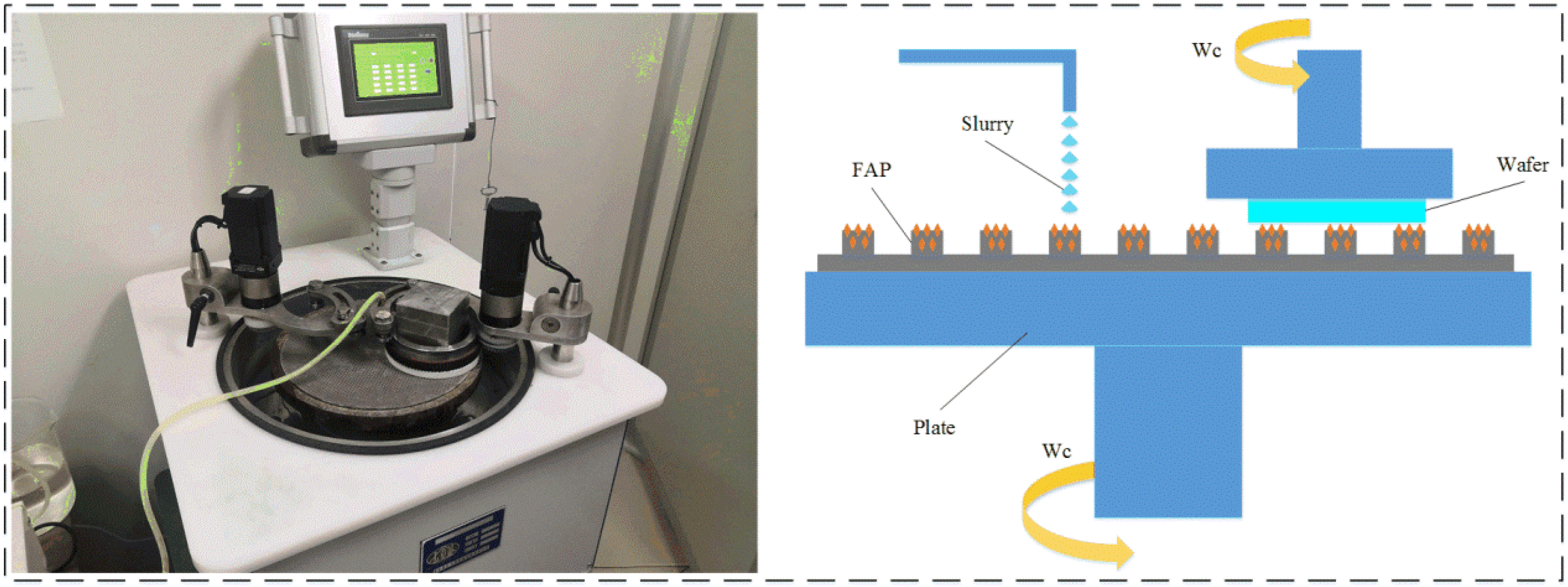

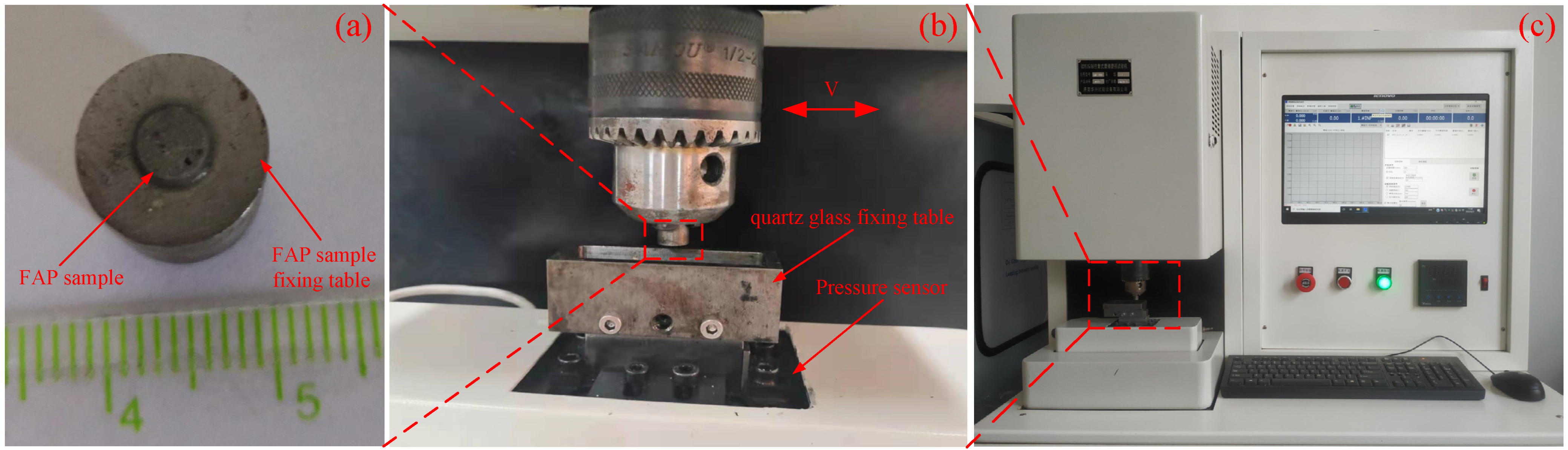

**Figure 3.**The experimental equipment and partial enlarged view. Note: (

**a**) FAP sample; (

**b**) local amplification; (

**c**) experimental equipment.

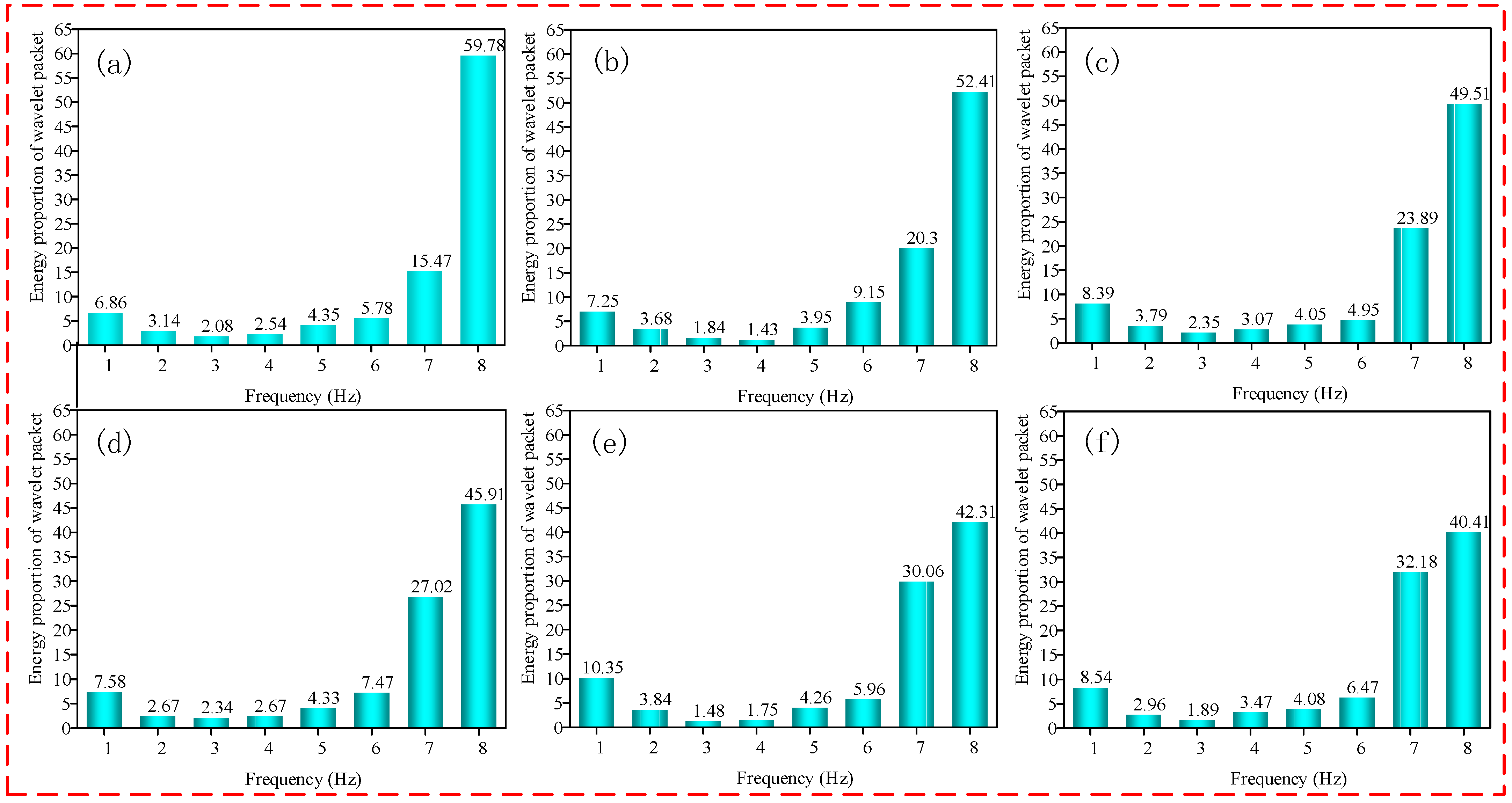

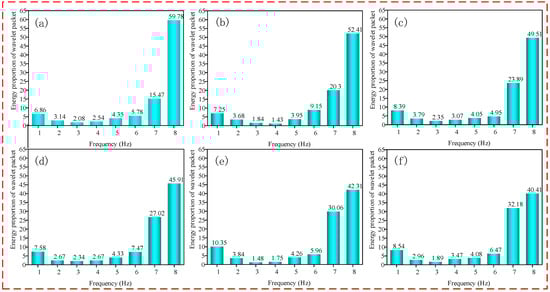

**Figure 5.**Proportion of wavelet packet energy in each processing stage of the FAP. Note: (

**a**) Lapping time 0–30 min; (

**b**) lapping time 30–60 min; (

**c**) lapping time 60–90 min; (

**d**) lapping time 90–120 min; (

**e**) lapping time 120–150 min; (

**f**) lapping time 150–180 min.

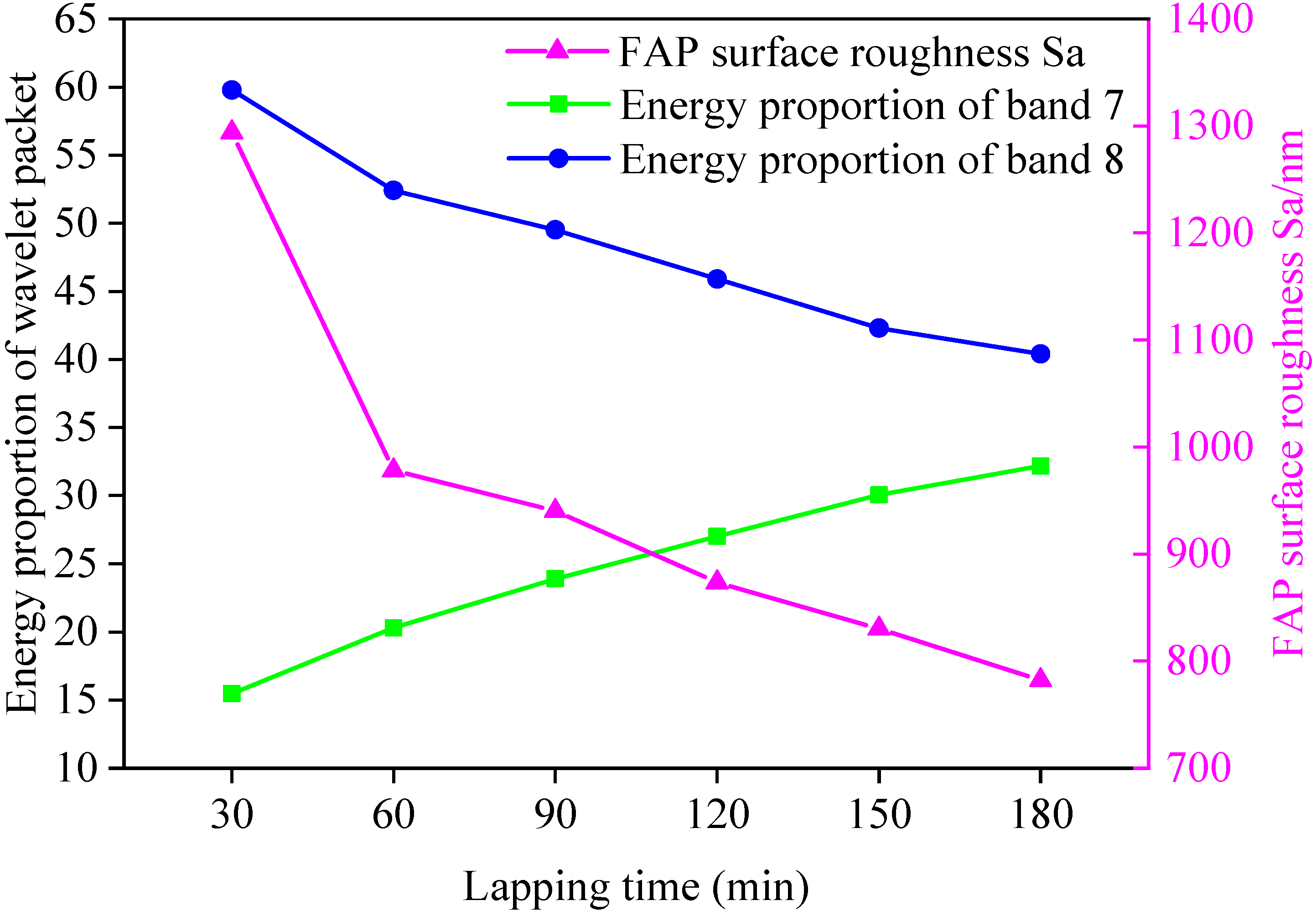

**Figure 8.**Relationship between surface roughness of the FAP and energy proportion of frequency bands 7 and 8.

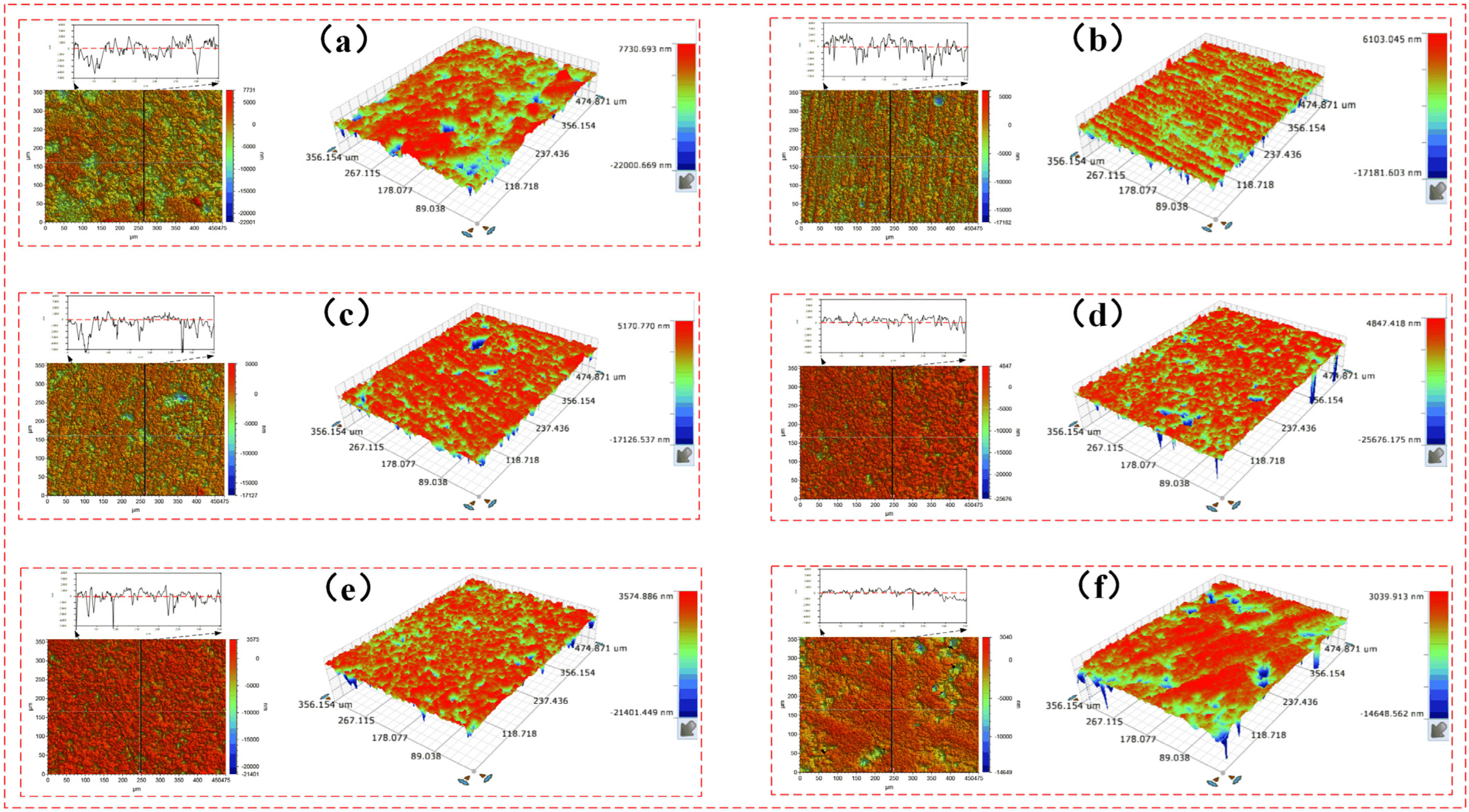

**Figure 9.**Three-dimensional surface morphology of the FAP in different processing stages. Note: (

**a**) Lapping time 0–30 min; (

**b**) lapping time 30–60 min; (

**c**) lapping time 60–90 min; (

**d**) lapping time 90–120 min; (

**e**) lapping time 120–150 min; (

**f**) lapping time 150–180 min.

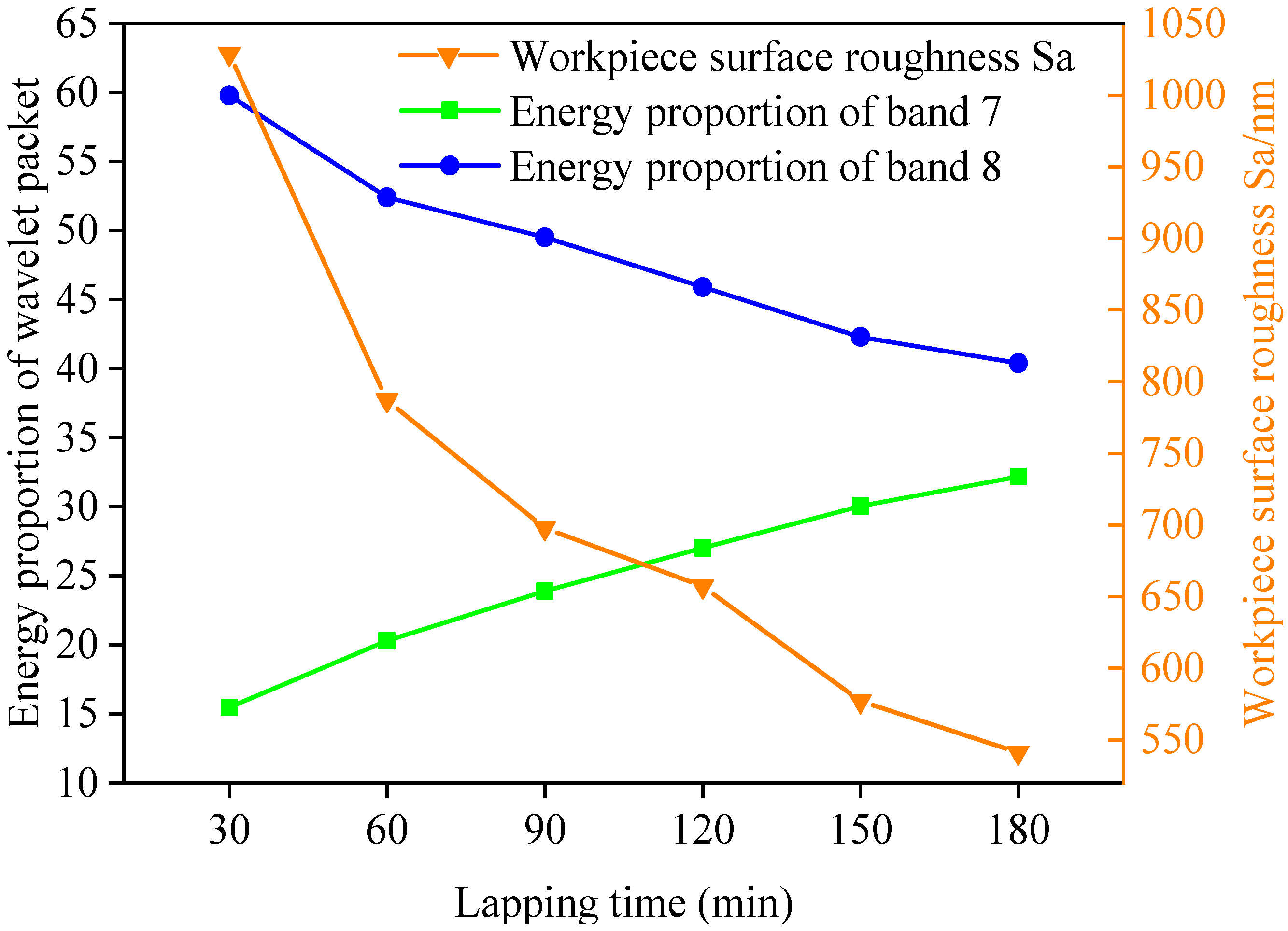

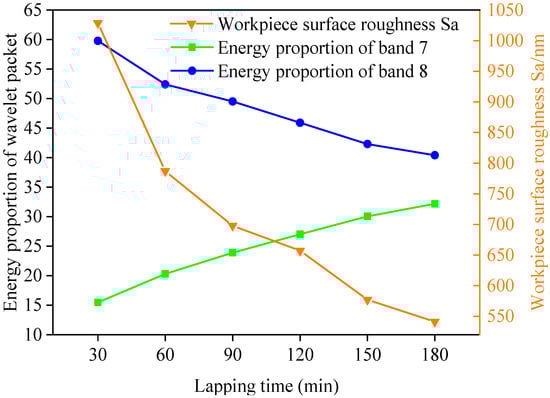

**Figure 10.**Relationship between workpiece surface roughness and energy proportion of frequency bands 7 and 8.

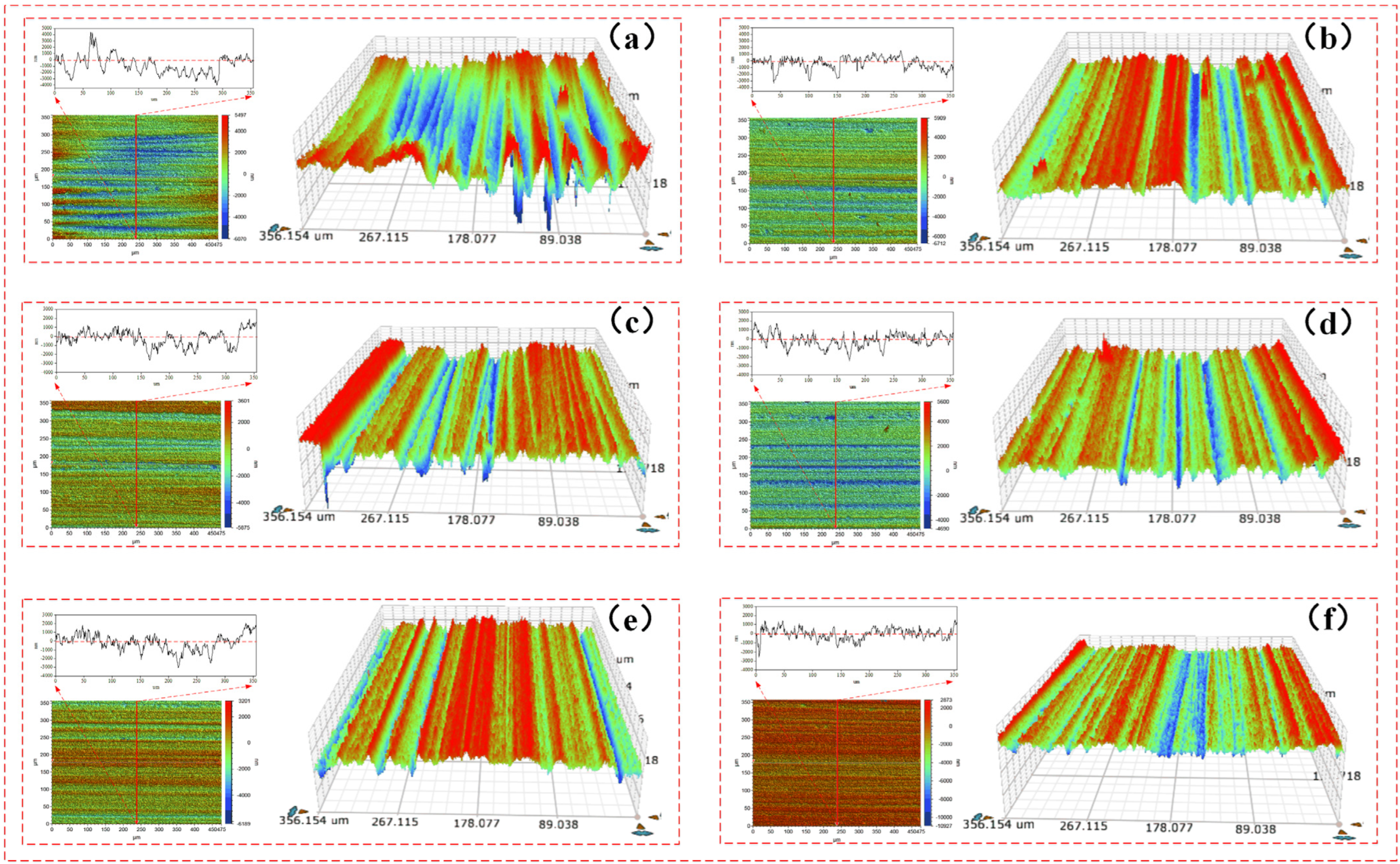

**Figure 11.**The three-dimensional morphology of quartz glass workpiece lapping by FAP samples at different processing stages. Note: (

**a**) The FAP samples (0–30 min) lapping quartz glass workpiece; (

**b**)the FAP samples (30–60 min) lapping quartz glass workpiece; (

**c**) the FAP samples (60–90 min) lapping quartz glass workpiece; (

**d**) the FAP samples (90–120 min) lapping quartz glass workpiece; (

**e**) the FAP samples (120–150 min) lapping quartz glass workpiece; (

**f**) the FAP samples (150–180 min) lapping quartz glass workpiece.

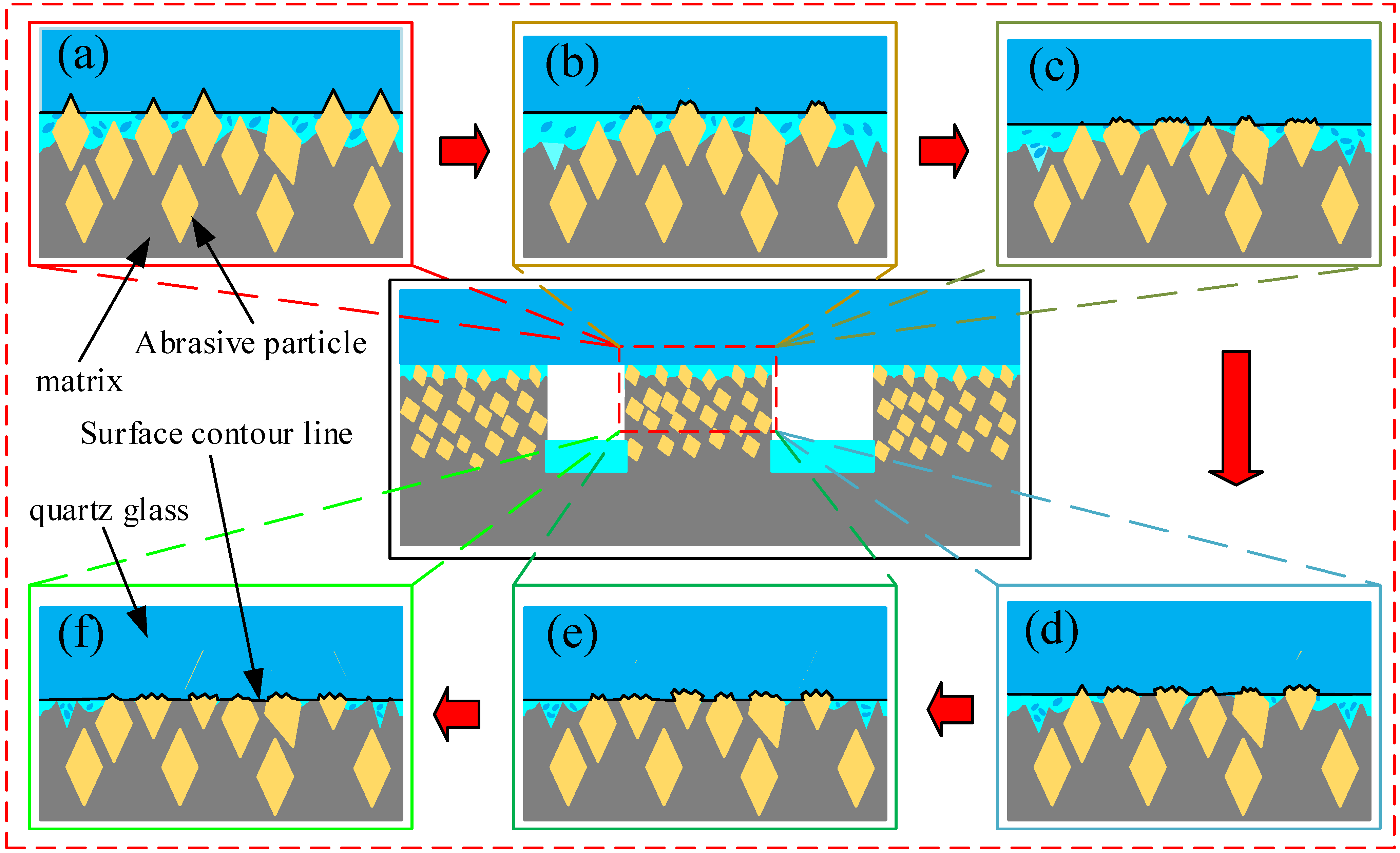

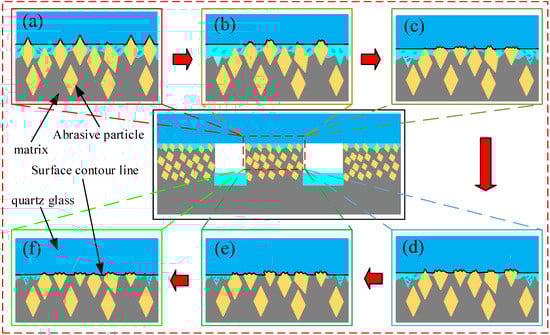

**Figure 12.**Machining wear principle of the FAP. Note: (

**a**) Lapping time 0–30 min; (

**b**) lapping time 30–60 min; (

**c**) lapping time 60–90 min; (

**d**) lapping time 90–120 min; (

**e**) lapping time 120–150 min; (

**f**) lapping time 150–180 min.

Parameter | Condition |
---|---|

Lapping fluid | Deionized water |

Lapping pressure | 26.7 kPa |

Slurry flow rate Speed | 50 mL/min 100 rpm |

Parameter | Condition |
---|---|

Spindle speed | 150 r/min (100 rpm) |

Pressure | 26.7 kPa |

Wear time | 1 min |

Serial Number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
---|---|---|---|---|---|---|---|---|

Node | (3,1) | (3,2) | (3,3) | (3,4) | (3,5) | (3,6) | (3,7) | (3,8) |

Frequency band (Hz) | 0–0.625 | 0.625–1.25 | 1.25–1.875 | 1.875–2.5 | 2.5–3.125 | 3.125–3.75 | 3.75–4.375 | 4.375–5 |

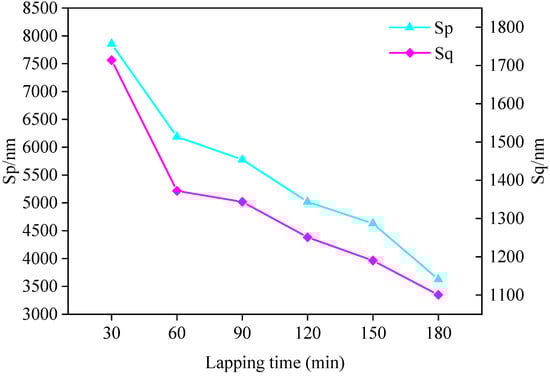

**Table 4.**Surface roughness and three-dimensional surface parameters of the FAP in each processing stage.

Lapping Time | Sa/nm | Sp/nm | Sq/nm |
---|---|---|---|

30 min | 1294.08 | 7855.92 | 1713.72 |

60 min | 966.01 | 6186.56 | 1372.41 |

90 min | 940.32 | 5778.66 | 1343.55 |

120 min | 873.51 | 5018.38 | 1251.19 |

150 min | 830.26 | 4629.98 | 1190.13 |

180 min | 782.09 | 3626.41 | 1100.47 |

Lapping Time | Sa/nm |
---|---|

30 min | 1028.838 |

60 min | 787.058 |

90 min | 697.936 |

120 min | 657.071 |

150 min | 577.03 |

180 min | 541.184 |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Wang, Z.; Zhang, Z.; Wang, S.; Pang, M.; Ma, L.; Su, J.
Study on Wavelet Packet Energy Characteristics on Friction Signal of Lapping with the Fixed Abrasive Pad. *Micromachines* **2022**, *13*, 981.
https://doi.org/10.3390/mi13070981

**AMA Style**

Wang Z, Zhang Z, Wang S, Pang M, Ma L, Su J.
Study on Wavelet Packet Energy Characteristics on Friction Signal of Lapping with the Fixed Abrasive Pad. *Micromachines*. 2022; 13(7):981.
https://doi.org/10.3390/mi13070981

**Chicago/Turabian Style**

Wang, Zhankui, Zhao Zhang, Shiwei Wang, Minghua Pang, Lijie Ma, and Jianxiu Su.
2022. "Study on Wavelet Packet Energy Characteristics on Friction Signal of Lapping with the Fixed Abrasive Pad" *Micromachines* 13, no. 7: 981.
https://doi.org/10.3390/mi13070981
