Electrical Modeling and Characterization of Graphene-Based On-Chip Spiral Inductors

,
,
and
1
Zhejiang Provincial Key Lab of Large-Scale Integrated Circuit Design, School of Electronics and Information, Hangzhou Dianzi University, Hangzhou 310018, China
2
Science and Technology on Monolithic Integrated Circuits and Modules Laboratory, Nanjing 210016, China
*
Authors to whom correspondence should be addressed.
This article belongs to the Special Issue Advanced Interconnect and Packaging

Abstract

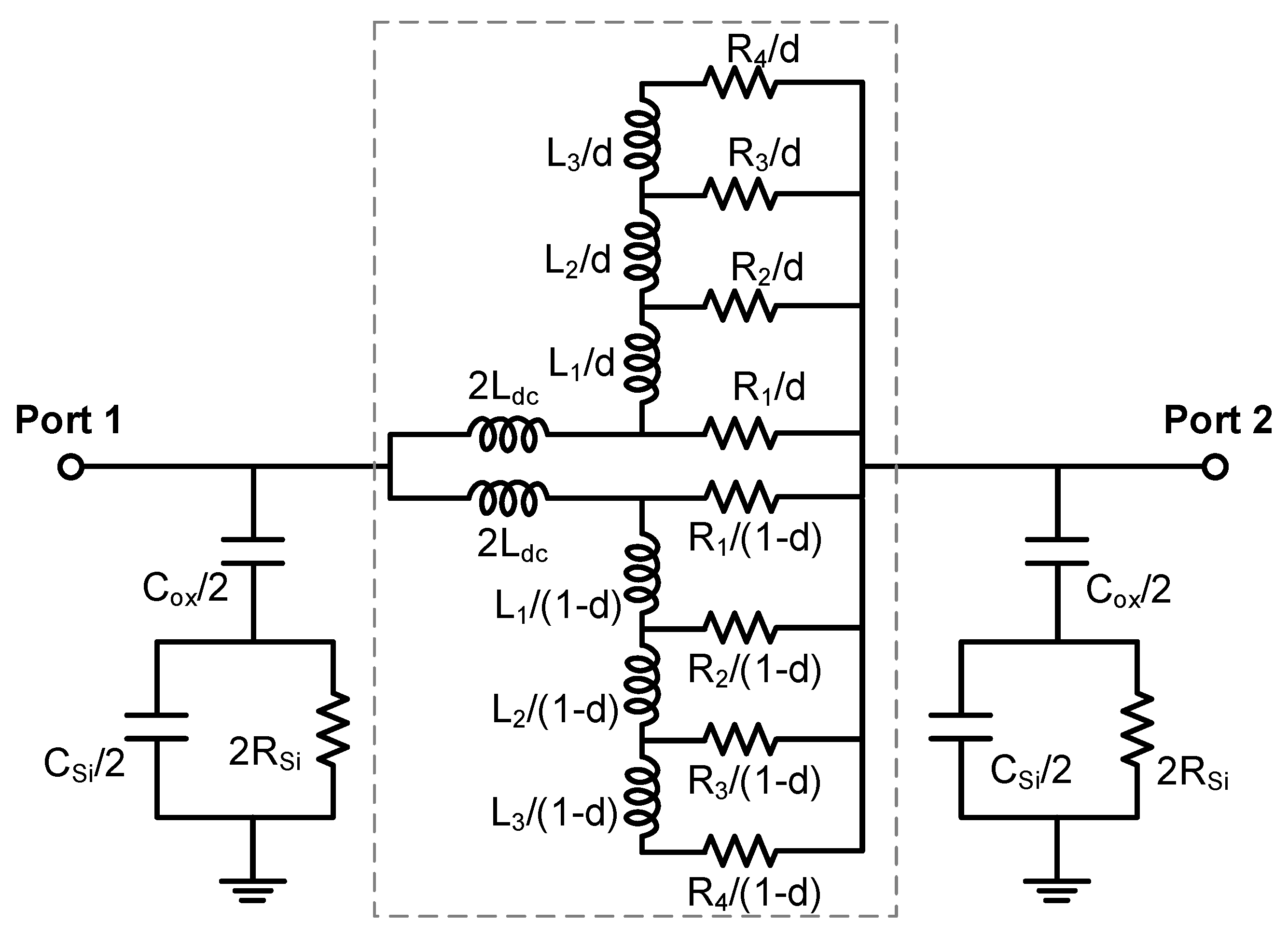

This paper investigates the electrical performance of graphene-based on-chip spiral inductors by virtue of a physics-based equivalent circuit model. The skin and proximity effects, as well as the substrate loss effect, are considered and treated appropriately. The graphene resistance and inductance are combined into the circuit model. It is demonstrated that the electrical characteristics of the on-chip square spiral inductor can be improved by replacing copper with graphene. Moreover, graphene exhibits more effectiveness in improving the inductance in tapered inductors than uniform ones.
