Effect of Plasma-Enhanced Atomic Layer Deposition on Oxygen Overabundance and Its Influence on the Morphological, Optical, Structural, and Mechanical Properties of Al-Doped TiO2 Coating

by
William Chiappim
1,2,*,
Giorgio Testoni
1,
Felipe Miranda
1,
Mariana Fraga
3,*,
Humber Furlan
4,
David Ardiles Saravia
5,
Argemiro da Silva Sobrinho
1,
Gilberto Petraconi
1,
Homero Maciel
1,6 and
Rodrigo Pessoa
1,*
1
Laboratório de Plasmas e Processos, Instituto Tecnológico de Aeronáutica, Praça Marechal Eduardo Gomes 50, São José dos Campos 12228-900, Brazil
2
i3N, Departamento de Física, Universidade de Aveiro, Campus Universitário de Santiago, 3810-193 Aveiro, Portugal
3
Instituto de Ciência e Tecnologia, Universidade Federal de São Paulo, Rua Talim 330, São José dos Campos 12231-280, Brazil
4
Centro Estadual de Educação Tecnológica Paula Souza, Programa de Pós-Graduação em Gestão e Tecnologia em Sistemas Produtivos, São Paulo 01124-010, Brazil
5
Laboratoire TIMA, Université Grenoble Alpes, 38000 Grenoble, France
6
Instituto Científico e Tecnológico, Universidade Brasil, São Paulo 08230-030, Brazil
*
Authors to whom correspondence should be addressed.
Micromachines 2021, 12(6), 588; https://doi.org/10.3390/mi12060588
Submission received: 4 May 2021 / Accepted: 19 May 2021 / Published: 21 May 2021
(This article belongs to the Section D：Materials and Processing)
Browse Figures
Review Reports Versions Notes

Abstract

:
The chemical, structural, morphological, and optical properties of Al-doped TiO2 thin films, called TiO2/Al2O3 nanolaminates, grown by plasma-enhanced atomic layer deposition (PEALD) on p-type Si <100> and commercial SLG glass were discussed. High-quality PEALD TiO2/Al2O3 nanolaminates were produced in the amorphous and crystalline phases. All crystalline nanolaminates have an overabundance of oxygen, while amorphous ones lack oxygen. The superabundance of oxygen on the crystalline film surface was illustrated by a schematic representation that described this phenomenon observed for PEALD TiO2/Al2O3 nanolaminates. The transition from crystalline to amorphous phase increased the surface hardness and the optical gap and decreased the refractive index. Therefore, the doping effect of TiO2 by the insertion of Al2O3 monolayers showed that it is possible to adjust different parameters of the thin-film material and to control, for example, the mobility of the hole-electron pair in the metal-insulator-devices semiconductors, corrosion protection, and optical properties, which are crucial for application in a wide range of technological areas, such as those used to manufacture fluorescence biosensors, photodetectors, and solar cells, among other devices.

1. Introduction

Artificial intelligence, robotics, the cloud, and the internet of things, terms that were unknown a few years ago, are now part of everyday life for all of us. These are technologies that are part of an established concept in the industrial sector: Industry 4.0, also called the 4th Industrial Revolution. This phenomenon is changing, on a large scale, automation and data exchange, production steps, and business models through machines and computers. Innovation, efficiency, and customization are the keywords to define the concept of Industry 4.0. However, to advance, the evolution of a whole chain of technologies is necessary. For example, it is essential to improve nanochips that integrate the entire computer automation system that controls and manages this industry. It is required to enhance the bio and nanosensors to control industries, businesses, and people. It is also necessary to improve the anti-corrosion coatings used to protect all devices that are part of this novel industry.
In this sense, the development of devices applied to industrial processes [1], home security [2], monitoring of air quality [3] and explosives [4], and the detection of pollutants [5] and toxic compounds [6] are essential, in addition to wearable devices used as accessories and implants [7]. The manufacturing process of devices can involve a broad range of deposition techniques, such as sol-gel process [8,9,10,11,12], sputtering [13,14], chemical vapor deposition (CVD) [15], plasma spray [16,17], microwave-assisted synthesis [18,19], and the disruptive technique atomic layer deposition (ALD) [20,21,22]. Among them, ALD stands out for its unique capabilities, which include the complex shapes coverage embedded in high conformal 3D areas [23], the growth of stacked monolayers of different nanomaterials [24], and the growth of thin films precisely defined by self-limited surface reactions [25,26,27,28,29]. The ALD’s versatility allows its application in a broad range of fields, such as micro and nanoelectronics [30,31], biomedical engineering [32], on food packaging against corrosion [33,34], fuel cells [35], solar cells [36], anti-tarnish coatings on jewels surfaces [37], smart textiles [38], membranes, and optoelectronics [39,40,41]. Despite the wide range of applications of the ALD technique, fundamental studies are needed to understand essential aspects of the chemical, morphological, mechanical, and optical properties of the thin films that influence devices’ properties and their applications.
For example, roughness, which is a morphological property, can be used to control the mobility of pair hole-electron in metal-insulator-semiconductor (MIS) devices [42], which is essential control to enhance the power-conversion efficiency (PCE) on MIS solar cells devices [43]. A mechanical property considered fundamental in all devices and sensors is the protection against corrosion, which increases the lifetime of the devices [44]. On the other hand, sensors based on optical parameters can be fabricated through control of refractive index, which is an optical property that can be used to produce a high-quality resonant waveguide grating (RWG) that is used to fabricate fluorescence biosensors, and photodetectors, beyond other devices [45]. Therefore, it is essential to understand the fundamental properties of thin films.
In this contribution, the impact of the insertion of the Al2O3 monolayers onto the TiO2 thin films grown by PEALD (in order to form a TiO2/Al2O3 nanolaminate structure) was studied in detail. TiO2 and Al2O3 were chosen since they have been the most widely studied ALD materials [46,47,48,49,50,51,52]. Moreover, the PEALD technique was selected because it is widely used for deposition layers in a wide range of sensing devices [53,54,55]. It is worth mentioning that ALD TiO2 [56,57], ALD Al2O3 [58,59], as well as ALD TiO2 doped by Al [60,61,62] have been extensively studied in the past. However, novel contributions appear with each new modification added to the structure of the films, which justifies the present study. Therefore, to infer the effects of the PEALD nanolaminates, several structural, chemical, morphological, mechanical, and optical characterization techniques were used, namely, Rutherford backscattering spectroscopy (RBS), Raman spectroscopy, atomic force microscopy (AFM), nanoindentation, and spectroscopic ellipsometry.
It is worth mentioning that all the present work results are compared with our previous work [24], where thermal ALD was used (that is, the H2O vapor was used as an oxidizer). Nevertheless, due to the difficult to compare different structures grown by a broad range of teams, reactors, types of stacks of TiO2/Al2O3, and parameters. In Section 3.4, we compare our results with previous studies by other research teams in order to better discuss the differences between the Al-doped TiO2 films reported in the literature.

2. Materials and Methods

2.1. Synthesis of Al-Doped TiO2 (TiO2/Al2O3 Nanolaminates)

A TFS-200 ALD system from Beneq (Beneq Oy, Espoo, Finland) used in plasma mode was employed to deposit TiO2/Al2O3 nanolaminates films. The schematic representation of the plasma enhanced ALD (PEALD) reactor is presented in Figure 1.
The system was operated with a capacitively coupled plasma (CCP) reactor at a pressure lower than 1.0 Pa and gas pressure of 1.0 hPa through the insertion of 300 sccm of N2 [24,29] with the substrate holder grounded. The plasma was generated by capacitive coupling in the upper plate on the plasma generation zone with an RF power supply of 13.56 MHz (Cesar, Advanced Energy Inc., Fort Collins, CO, USA) with the bottom grid electrode and radial reactor walls grounded. TiO2/Al2O3 nanolaminate films were grown on three-inch p-type <100> Si wafers (University Wafer Inc., South Boston, MA, USA) and commercial SLG glass (Sigma-Aldrich, São Paulo, Brazil) at a process temperature of 250 °C. All substrates were cleaned into an ultrasonic bath with a solution of deionized water and acetone (99.55%, Sigma-Aldrich, São Paulo, Brazil) for 5 min and, subsequently, dried through nitrogen (N2) gas (99.9%, White Martins, Jacareí, Brazil). The design of the TiO2/Al2O3 nanolaminates followed the recipe of alternating cycle(s) of Al2O3 and TiO2 in supercycle, according to [24]. It worth mentioning that O2 gas (99.99%, White Martins, Jacareí, Brazil) was used to generate the oxidant precursor (O2 plasma), differently from our previous work [24] that used H2O vapor and grown the films on a low-volume crossflow type reactor operating in thermal mode (Figure 2). Both works used titanium tetra-isopropoxide (TTIP) (≥97%, Sigma-Aldrich, São Paulo, Brazil) at 70 °C and trimethylaluminum (TMA) (97%, Sigma-Aldrich, São Paulo, Brazil) as metallic precursors of TiO2 and Al2O3, respectively.
Table 1 summarizes the supercycle and the corresponding pulse ratio utilized in this work. TiO2/Al2O3 nanolaminate films were grown under the following conditions of pulse ratio ([Al]/[Al + Ti]): 0 (sample 0% Al(P) (TiO2)); 0.004 (sample 0.4% Al(P)); 0.012 (sample 1.2% Al(P)); 0.016 (sample 1.6% Al(P)); 0.032 (sample 3.2% Al(P)); and 1 (Al2O3 (P) sample). From our previous work using thermal ALD [24], the samples that were grown using the same pulse ratio condition were labeled as 0% Al(T); 0.4% Al(T); 1.2% Al(T); sample 1.6% Al(T); 3.2% Al(T); and Al2O3 (T), respectively. The (P) represents samples grown on plasma mode, and (T) represents samples grown on thermal mode.

2.2. TiO2/Al2O3 Nanolaminate Films Characterizations

Rutherford backscattering spectroscopy (RBS) was used to check the nanolaminate film thickness (indirectly) and elemental film composition (in at. %) (directly) on p-type <100> Si. The experiment was carried out in a Pelletron accelerator (2.2 MeV 4He + beam) with the particle detector positioned at an angle of 170° to the incident beam. The detection sensibility of the measurement to Ti, O, Al, and Si is about 5% [30]. The thickness of the films was calculated indirectly with the help of MultiSIMNRA software [63], converting the RBS density values (1015 atoms.cm−2) into the thickness (nm) of the layer. The indentation hardness, indentation modulus, and Young’s modulus are fundamental mechanical properties of the TiO2/Al2O3 nanolaminates grown on p-type <100> Si that was measured by microhardness tester FM-700 (Future Tech, Kawasaki, Japan). Nanoindentation was carried out at a depth of up to 30% of the film thickness, across the area of around 25 µm2. All samples were characterized eight-fold in a 2D array at different points. Load and unload profiles were evaluated through the Oliver–Pharr method [64,65]. Raman scattering was used to identify the Raman-active modes for the TiO2/Al2O3 nanolaminates crystallinity on p-type <100> Si. The Raman spectra were acquired at 25 °C, using a Raman micro spectrometer model Horiba-evolution (Horiba, Kyoto, Japan) supplied with a multichannel charge-coupled device detector thermoelectrically cooled. The excitation wavelength was 532 nm with the incident laser beam power <10 mW. Between the range from 100 to 900 cm−1, the spectral resolution was better than 1 cm−1, and the Voigt profile was used to analyze the phonons modes by fitting Raman peaks. An atomic force microscope (AFM) model SPM9500 J3 (Shimadzu, Tokyo, Japan) was used for morphological characterization of TiO2/Al2O3 nanolaminates on p-type <100> Si. AFM characterization was performed in air using Si cantilevers with a tip radius ≤ 10 nm in a surface area of 1 × 1 µm2 and 5 × 5 µm2, and the images were treated by Gwyddion data analysis software [66]. Optical transmittance T(λ) and reflectance R(λ) were performed through UV–Visible–NIR spectrophotometer model V-570 (Jasco, Easton, MD, USA) equipped with an integrating sphere. T(λ) and R(λ) spectra of TiO2/Al2O3 nanolaminates on commercial SLG glass were measured over the wavelength range from 220 to 2000 nm. Spectroscopy ellipsometry was performed with the model Uvisel Jobin-Yvon (Horiba, Kyoto, Japan). The data set acquired from ellipsometry was used to calculate the bandgap of the TiO2/Al2O3 nanolaminates grown on commercial SLG glass, and these data were treated by the Tauc plot method [25].

3. Results and Discussion

3.1. Chemical Composition, Thickness, and Growth per Cycle

RBS analyses were used to study the elemental chemical composition (ECC), thickness, and growth per cycle (GPC (nm/cycle)) of TiO2/Al2O3 nanolaminates grown on p-type <100> Si (as tabulated in Table 2).
As shown in [25,29], the ECC, thickness, and GPC are approximately equal on both substrates, p-type <100> Si and SLG. Therefore, the RBS was performed only on p-type <100> without affecting the research. 0.4% Al(P) and 1.2% Al(P) samples show a small percentage of Al2O3. Thus, the TiOx/Al2O3 films present an overabundance of oxygen on the surface, i.e., x values of 2.28 ± 0.01 and 2.06 ± 0.01, respectively, for 0.4% Al(P) and 1.2% Al(P) samples. These results differ from those described for thermal ALD in our previous work [24] and are presented in Table 1. For the same deposition parameters, i.e., 0.4% Al(T) and 1.2% Al(T) samples were obtained x values of 1.50 ± 0.01 and 1.78 ± 0.01, respectively. On the other hand, when O2 plasma is used as an oxidant source, the superstoichiometry appears. Recently, Wei et al. [67], Raztsch et al. [68], Bousoulas et al. [69] and Chiappim et al. [27,29,30] using different parameters such as temperature, pressure, power source, reactors, ALD pulse time, and substrates showed an excess of oxygen in their TiOx films.

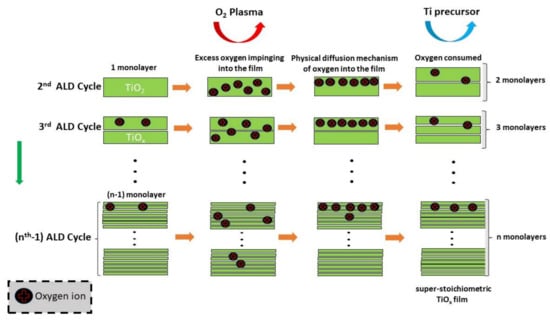

Figure 3 presents a schematic representation that describes the mechanism responsible for an overabundance of oxygen on the surface of the films. Firstly, the oxygen ions from O2 plasma imping distinct depth into the film [70] and through the physical diffusion mechanism [71,72] the oxygen reach the surface of the film being the oxygen consumed partially by Ti precursor. Finally, a new ALD cycle starts with the oxygen stored on the subsurface of the nanolaminates. As can be seen, the oxygen in excess can be partially removed when exposed to the Ti precursor. This observation suggests that the superstoichiometry oxygen present in TiO2 film is in a reactive state that corroborates with the capability of the oxygen being consumed by reaction with the Ti precursor. On the other hand, due to the short duration of the ALD cycle, a portion of the oxygen is confined to the film in each period. This mechanism creates continuous superstoichiometry in each cycle, generating a higher saturated growth per cycle (GPC), and, consequently, a higher thickness than the nanolaminates grown in thermal mode (as shown in Table 2).
According to Schneider et al. [73], the film surface acting as a reservoir of oxygen corroborates with the rise of the growth of more than a monolayer in each cycle. They postulated that a diffuse physical mechanism of oxygen uptake and consumption into and out of the film is responsible for increases the growth due to vacancy oxygen and the reaction of diffusion that can advance continuously even after a monolayer is deposited. On the other hand, increasing the amount of Al2O3 in the films reduced the x values of 1.89 ± 0.01 and 1.50 ± 0.01 in 1.6% Al(P) and 3.2% Al(P) samples, respectively. This suggests a total oxygen consumption for a higher doping of TiO2 with Al2O3. Therefore, the PEALD modified the nanolaminates’ structure, and this behavior is evident when compared to nanolaminates grown by thermal ALD (as showed in Table 2). It worth highlighting that all characterizations of the nanolaminates were performed in different positions of the samples showing that the oxygen excess is not localized.

3.2. Structural, Morphological, and Mechanical Properties

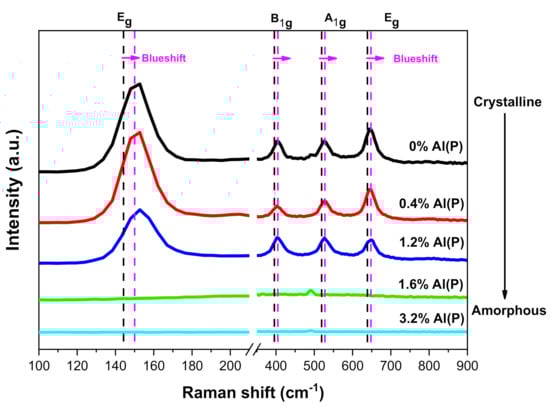

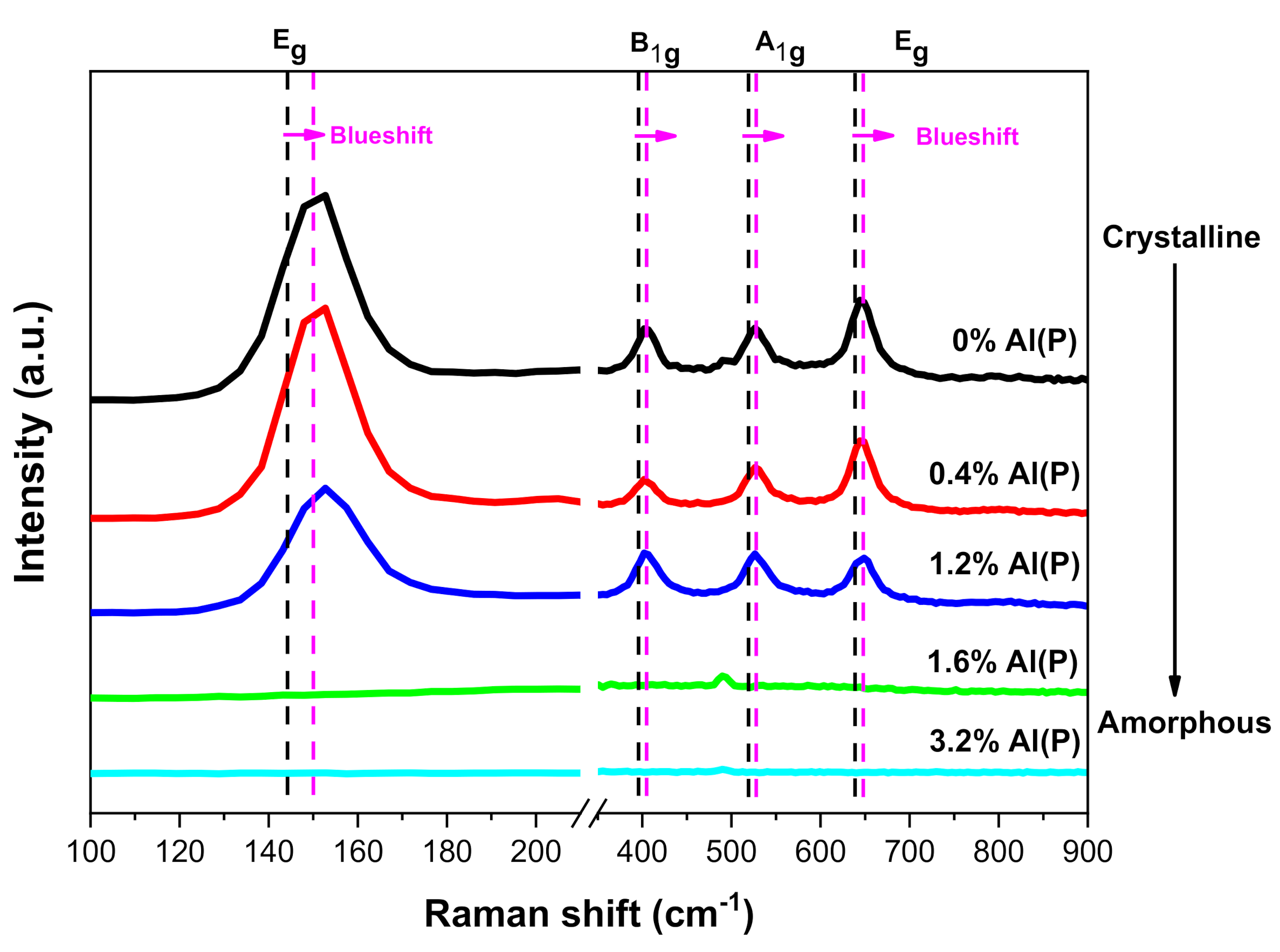

Figure 4 shown the Raman spectra of TiO2/Al2O3 nanolaminate films grown on p-type <100> Si, and as a benchmark, it was added a Raman spectrum of 0% Al(P). On 0% Al(P), 0.4% Al(P), and 1.2% Al(P) were observed four Raman-active modes associated with anatase structure, namely, A1g (519 cm−1), B1g (397 cm−1), and Eg (144 and 636 cm−1). All Raman spectra presented a strong peak at 144 cm−1 [74]. These Raman-active modes evidenced a crystalline structure in the anatase phase [25] for 0% Al(P), 0.4% Al(P), and 1.2% Al(P) samples showing that a lower amount of Al2O3 doping the TiO2 films preserved the characteristics of TiO2 films. On the other hand, a slight increase in the amount of Al2O3 changed the crystalline phase to amorphous, i.e., an increase of pulse ratio from 0.012 to 0.016 was sufficient to shift the crystallinity drastically.
Table 3 summarizes the full width at half maximum (FWHM), the integrated area, and Raman peak position of 0% Al(P), 0.4% Al(P), and 1.2% Al(P) samples. The full width at half maximum (FWHM) no suffers change. Therefore, according to Bassi et al. [75], the crystal size of anatase TiO2 stays approximately constant. The integrated area decreases with the increase of Al2O3 amount and disappears at a pulse ratio of 0.012. Peak position presents a blue shift (Raman peak position shift to the higher wavelength side) in 0% Al(P), 0.4% Al(P), and 1.2% Al(P) samples for all Raman-active modes. Parker et al. [76] related the bandwidth shift to non-stoichiometry, and Ratzsch et al. [68] showed the shift of position peak for the Eg peak at 144 cm−1 and associated a slight excess in oxygen (O/Ti > 2) in high-density TiO2 with large crystallites embedded in the amorphous matrix layer. Therefore, the Raman-active modes blueshift observed in Figure 4 for 0% Al(P), 0.4% Al(P), and 1.2% Al(P) samples can be attributed to the overabundance of oxygen on the surface of the films, corroborating with RBS results (Table 2). It worth noting from our previous work [30] that a redshift in Eg (144 cm−1) Raman-active mode of TiO2 films (superstoichiometric) grown by PEALD was observed. This change in the present work can be related to the crystalline growth of the TiO2/Al2O3 nanolaminate proposed in [24]. This behavior indicates that the crystalline growth embedded into the amorphous phase can be controlled by the doping effect of TiO2 by insertion of Al2O3 monolayers, which may have interesting industrial applications due to the control from redshift to blueshift, through the change of Al2O3 concentration in TiO2/Al2O3 nanolaminates.

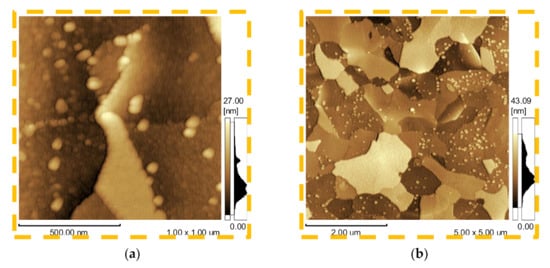

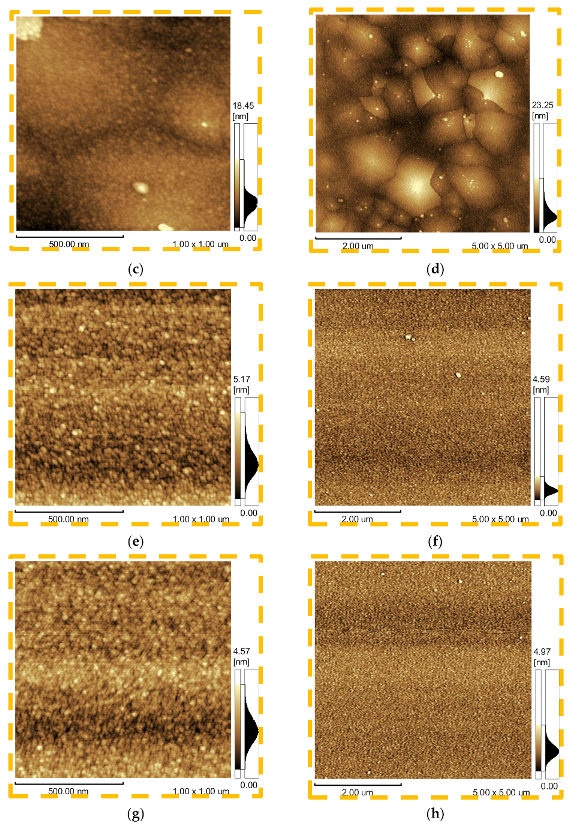

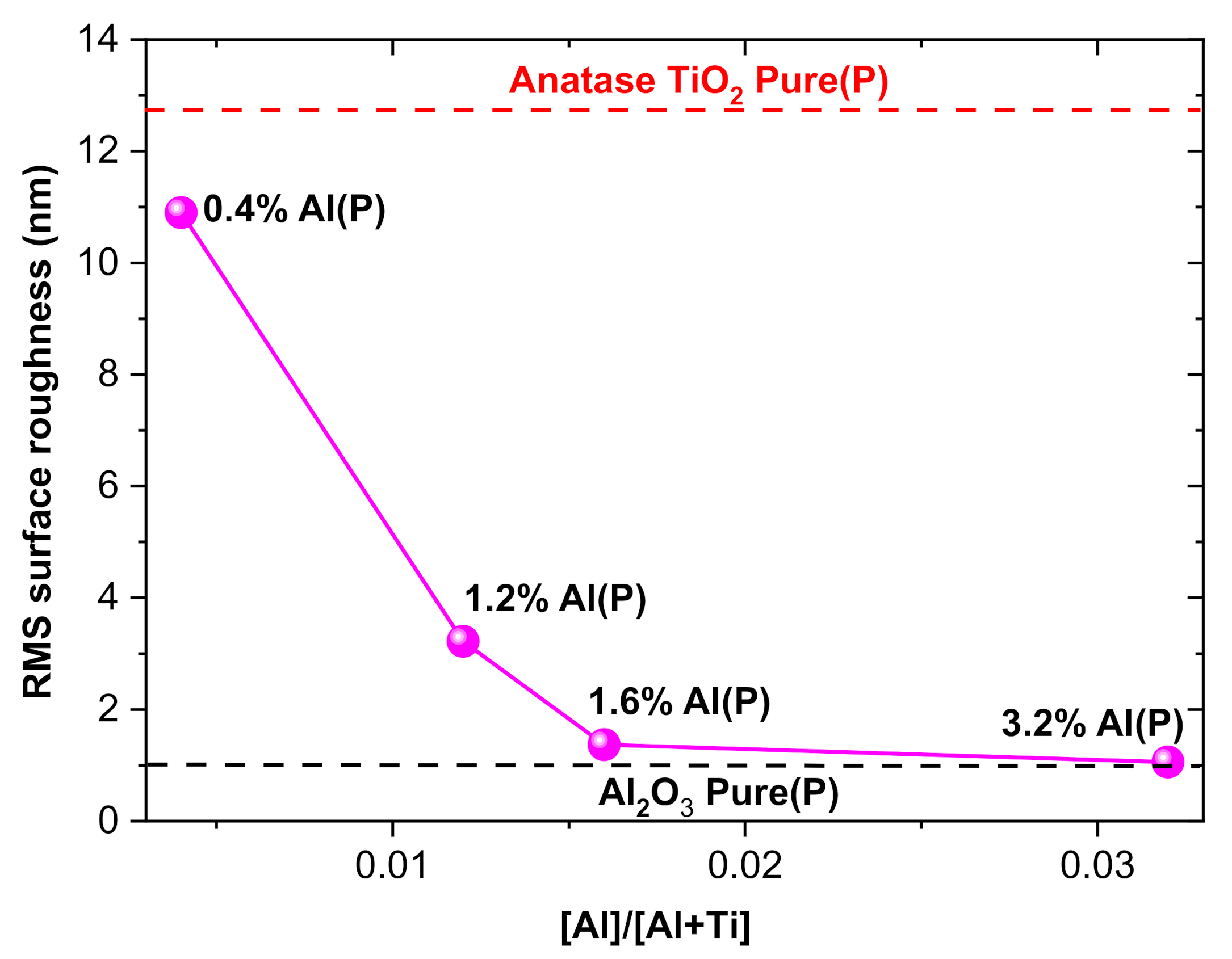

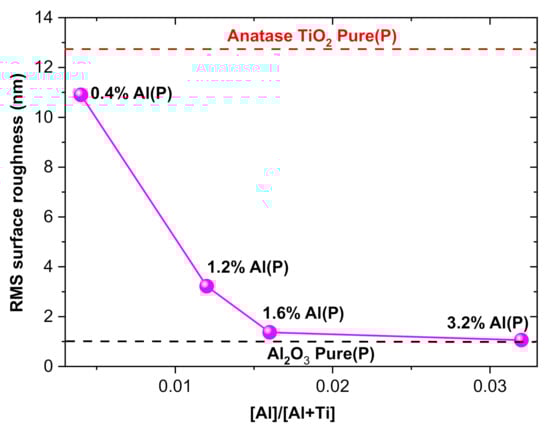

Figure 5 and Figure 6 present AFM images and RMS roughness of the TiO2/Al2O3 nanolaminate surface grown on p-type <100> Si, respectively. As can be seen, in the case of 0.4% Al(P) and 1.2% Al(P) samples (Figure 5a–d) various sizes of the crystallites can be observed [24]. Figure 5e–h shows the inhibition of crystallization using as doping of a monolayer of Al2O3 in every 60 monolayers of TiO2 ([Al]/[Al + Ti] = 0.016).
Hence, besides ALD process parameters, such as substrate temperature, oxygen gas flow rate, and plasma power [68,77], incorporating thin Al2O3 layers into the TiO2 film suppress the crystallinity of TiO2 films without decrease the quality of the films [78]. Figure 6 shows that with the decrease in crystallinity, the surface roughness of TiO2/Al2O3 nanolaminates undergoes a considerable reduction, which was observed in previous works carried out in thermal ALD [24]. Due to the superstoichiometry of 0.4% Al(P) and 1.2% Al(P) samples, the surface roughness is more significant than the surface roughness of 0.4% Al(T) and 1.2% Al(T) samples that were grown in thermal ALD [24]. Thus, the AFM characterization corroborates with the Raman spectra (Figure 4), showing that the doping effect in the proposed PEALD TiO2/Al2O3 nanolaminate can adjust the morphological parameters.

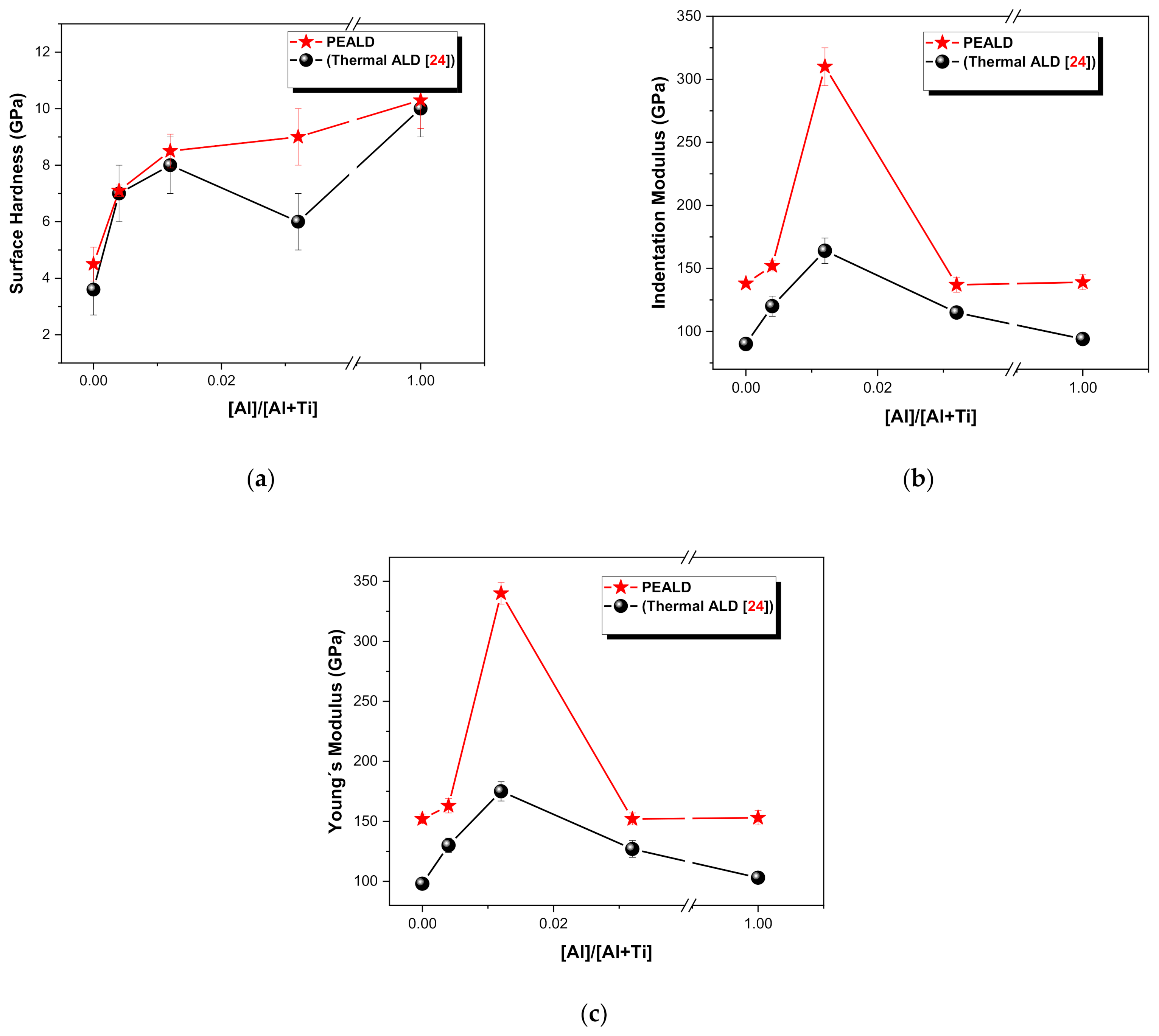

Figure 7 compares the surface hardness, the indentation modulus, and Young’s modulus of the TiO2/Al2O3 nanolaminates on p-type <100> Si measured in an indentation load of 0.1–0.4 mN. PEALD results were compared to thermal ALD [24]. Figure 7a shows that the 0% Al(P) sample (TiO2) presents softer mechanical properties (4.5 GPa). According to Mohammed et al. [79], this behavior occurs in anatase TiO2 films. On the other hand, the Al2O3 (P) sample presents more hardened mechanical properties (10.3 GPa), as shown by Tripp et al. [80] that found a hardness of ALD Al2O3 films of 12.3 GPa. As shown in Figure 7a, the surface hardness reaches the more hardened mechanical properties when increasing the amount of Al2O3 into the TiO2 films. Hence, we can suggest that when the TiO2/Al2O3 nanolaminate becomes amorphous, its mechanical properties become harder. This is in accordance with Coy et al. [81]. In all samples grown by PEALD, the surface hardness is higher than the films produced under the same conditions by thermal ALD [24].
The enhancement of the mechanical properties through controlled doping of TiO2 by insertion of Al2O3 monolayers improved the physical properties towards practical applications. From the technological perspective, the TiO2/Al2O3 nanolaminates should be resilient to damage due to impact or mechanical stress and wear. Therefore, the control and proper assessment of mechanical properties would define the future applicability and the potential implementation in Industry 4.0. Figure 7b,c show the same behavior of the indentation and Young’s modulus. In the case of thermal ALD [24], the values agree with the experimental values reported in the literature for anatase TiO2 thin films [82]. On the other hand, in the present work, the 0.4% Al(P) and 1.2% Al(P) samples showed values (152 and 310 GPa, respectively) above the anatase TiO2 values reported in the literature (151 GPa) [82].
Therefore, it can be suggested that the surface hardness (Figure 7a) is dependent on the increase of the amount of Al in the nanolaminates. On the other hand, it can be suggested that the indentation and Young’s modulus are dependent on the superstoichiometry, as can be seen in 0.4% Al(P) and 1.2% Al(P) samples (Figure 7b,c), where occurs a sudden increase.

3.3. Optical Properties

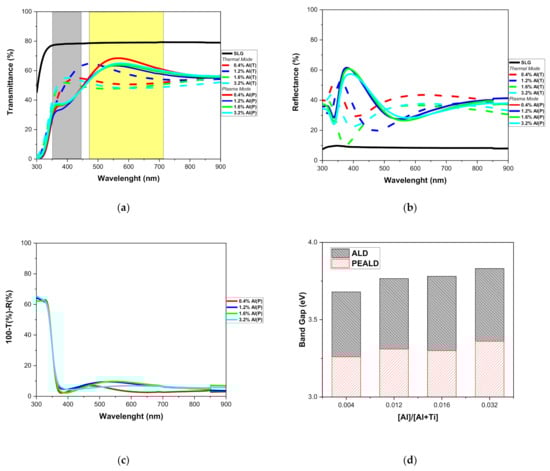

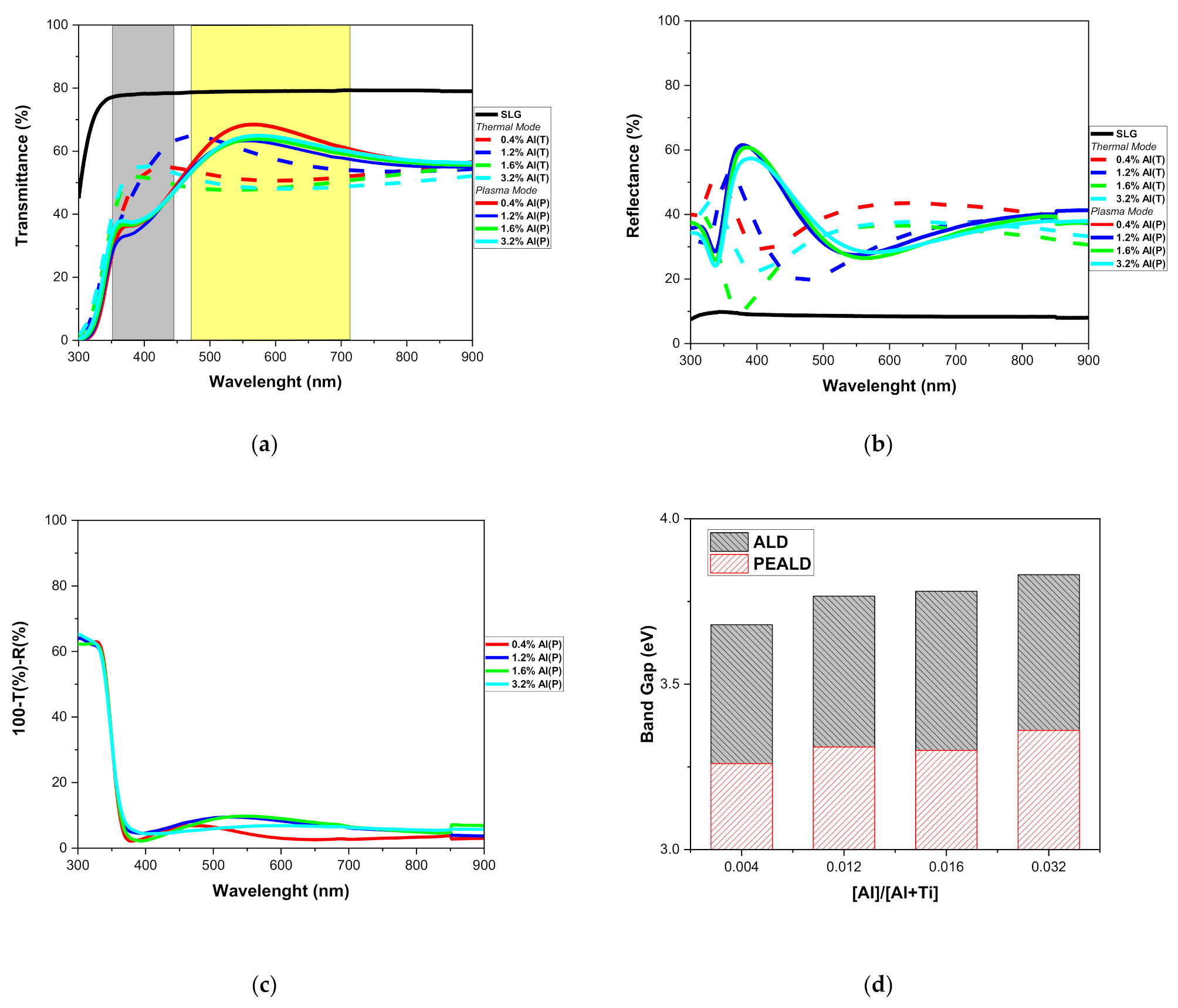

Figure 8 shows the optical properties carried out by UV–Vis spectrophotometry and spectroscopic ellipsometry of the TiO2/Al2O3 nanolaminates grown on SLG glass. As shown in Figure 8a, the average transmittance is 60–70% is more significant than the average of the TiO2/Al2O3 nanolaminates (50–60%) grown by thermal ALD [24]. Another observation is related to the shift in the maximum transmittance on a range of 350–450 nm wavelengths for thermal ALD, which it shifted to 460–750 nm wavelengths to PEALD. According to Sreemany and Sen [83], the increase of thickness can be responsible for a shift; however, the 1.2% Al(T) sample (thermal mode) with 83 nm of thickness showed an average transmittance near the 0.4% Al(P), 1.2% Al(P), 1.6% Al(P) and 3.2% Al(P) samples (~160 nm). Hence, we can suggest that this behavior occurs due to the stoichiometry of the 1.2% Al(T) ALD sample, which is equivalent to the PEALD samples with Al(%) of up to 0.6% in bulk. These behaviors mentioned above are fundamental for applications in optical sensors, as the controlled doping of PEALD TiO2 by the insertion of Al2O3 monolayer changes this optical parameter [84]. Figure 8b shows the reflectance spectra as a complementary study of transmittance spectra and shows a concordance between the results.
Figure 8c shows the optical losses, an essential parameter to design thin-film optical sensors that should have as small losses as possible. Optical losses are calculated from 100%-transmittance-reflectance (100%-T-R) [78]. Absorption and scattering reduce the intensity of transmitted light, causing these losses, and the spectrophotometry results showed the homogeneity of the nanolaminates and low optical losses (<10%). The refractive index of PEALD nanolaminates varied from 2.98 to 2.65 (plot not shown). The decrease of refractive index on TiO2/Al2O3 nanolaminates is due to the lower value of the refractive index of Al2O3 (1.62). Therefore, these results show that it is possible to adjust the refractive index by incorporating amorphous Al2O3 to TiO2 with low optical losses (similar results were showed by Ghazaryan et al. [78]).
The indirect optical band gap was calculated according to [24], and the results are shown in Figure 8d. A slight increase in the indirect band gap was observed when the amount of Al2O3 increased from 0.004 to 0.032 (pulse ratio). According to Scanlon et al. [85], the transition from anatase TiO2 to amorphous TiO2 increases the band gap. Comparing the thermal ALD [24] and PEALD results, it was observed that PEALD nanolaminates have an indirect band gap below 3.5 in all samples (0.4% Al(P), 1.2% Al(P), 1.6% Al(P), and 3.2% Al(P)) and in the case of thermal ALD nanolaminates it has an indirect band gap above 3.5. This behavior shows that in addition to controlling the optical parameters through the doping of TiO2 films, the PEALD process is crucial to change this optical parameter.

3.4. Results Comparison with Previous Studies by Other Research Teams

This section summarizes the main works related to fundamental studies with Al-doped TiO2 and stacks of TiO2/Al2O3 films, both called nanolaminates. The real challenge was to find works from other teams that could be compared to our current work. Our first challenge is related to the fact that each type of TiO2/Al2O3 stacking and all types of Al doping form unique films with specific properties, structures and growth forms. Another difficulty faced is due to the large number of articles that study the application of these materials (more than 100 works were found), ranging from microelectronics [54,61,62,84] to application in tunable color coating [38], which makes it difficult to compare with the present work. Finally, we found about 11 works that can be compared. These works vary between the years of 2004 and 2021 and are summarized in Table 4 [49,86,87,88,89,90,91,92,93,94]. Among these works, only one work that used O2 plasma can be compared with our characterizations [60], that is, there is a lack of works with TiO2/Al2O3 nanolaminates that study fundamental properties and that use O2 plasma as a ligand precursor. Therefore, further studies of PEALD are necessary for the growth of nanolaminates.

4. Conclusions

Oxygen plasma used as oxidant precursor, and the controlled doping of TiO2 by the insertion of Al2O3 monolayers induced chemical, structural, morphological, and optical modifications in the PEALD TiO2/Al2O3 nanolaminates. The morphological modification is essential to control the mobility of the pair hole-electron in metal-insulator-semiconductor devices, being crucial to enhance the power-conversion efficiency in MIS solar cells. The property called protection against corrosion is essential to increases the device’s lifetime. The optical property improvement can be used to produce a high-quality resonant waveguide grating used to fabricate fluorescence biosensors and photodetectors beyond other devices. The 0.4% Al(P) and 1.2% Al(P) samples show an overabundance of oxygen on the surface of the films, and a schematic representation was included that describes this mechanism based on O2 plasma action. A slight increase in the amount of Al2O3 caused a lack of oxygen in the 1.6% Al(P) and 3.2% Al(P) samples, which suggests a total consumption of oxygen for greater doping of TiO2 by Al2O3. Raman spectra and AFM images show that the samples with an overabundance of oxygen (0.4% Al(P) and 1.2% Al(P)) are crystalline with four Raman-active modes associated with anatase structure, namely, A1g (519 cm−1), B1g (397 cm−1), and Eg (144 and 636 cm−1). 1.6% Al(P) and 3.2% Al(P) samples with a lack of oxygen are amorphous. This shown that a slight increase in the amount of Al2O3 changed the crystalline phase to amorphous, i.e., an increase of pulse ratio from 0.012 to 0.016 was sufficient to shift the crystallinity drastically. The controlled doping of metal oxide thin films by ALD method could have interesting industrial applications due to the control from redshift to blueshift in Raman-active modes, for the case of this work, through the change of Al2O3 concentration in TiO2/Al2O3 nanolaminates. The transition from the crystalline to the amorphous phase increases the surface hardness of the PEALD TiO2/Al2O3 films and becomes more resilient to damage due to impact or mechanical stress and wear. The optical properties results showed that it is possible to tune the refractive index by incorporating amorphous Al2O3 into TiO2 with low optical losses with the transition from anatase to amorphous TiO2 and increasing the band gap. Therefore, this study is a promising proof-of-principle that the controlled doping of TiO2 by Al2O3 could be used to pave the way for the fabrication of specific wavelength optoelectronic devices operating in the visible range, alongside other devices.

Author Contributions

Conceptualization, W.C., G.T., M.F., H.M. and R.P.; methodology, W.C., G.T., F.M. and R.P.; software, W.C., G.T., F.M. and R.P.; formal analysis, G.T. and W.C.; investigation, G.T., W.C., M.F. and R.P.; resources, M.F., A.d.S.S., G.P., H.M. and R.P.; writing—original draft preparation, W.C., G.T. and R.P.; writing—review and editing, W.C., F.M., H.F., D.A.S., A.d.S.S., G.P., H.M. and R.P.; supervision, R.P. and H.M.; project administration, R.P.; funding acquisition, M.F., H.F., D.A.S., A.d.S.S., H.M. and R.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Brazilian agency program FAPESP (grant number 18/01265-1), CNPq (grant number 446545/2014-7 and 437921/2018-2) and the Brazilian Space Agency (AEB/Uniespaço) is also gratefully acknowledged. W. Chiappim thanks the individual grant financed by FAPESP, grant number 20/10450-7.

Data Availability Statement

The data that support the findings of this study are available from the corresponding author upon reasonable request.

Acknowledgments

The authors are grateful to Tiago Fiorini da Silva from LAMFI-USP, Brazil, for RBS measurements, Igor Yamamoto Abe from LME-USP, Brazil, for Raman spectroscopy measurements, Rodrigo Soares Morais from UNIP, Brazil, for spectroscopic ellipsometry measurements, and Getúlio Vasconcelos from IEAv-DCTA, Brazil, for nanoindentation measurements.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Listewnik, P.; Bechelany, M.; Jasinski, J.B.; Szczerska, M. ZnO ALD-coated microsphere-based sensors for temperature measurements. Sensors 2020, 20, 4689. [Google Scholar] [CrossRef] [PubMed]
  2. Viter, R.; Chaaya, A.A.; Iatsunskyi, I.; Nowaczyk, G.; Kovalevskis, K.; Erts, D.; Miele, P.; Smyntyna, V.; Bechelany, M. Tuning of ZnO 1D nanostructures by atomic layer deposition and electrospinning for optical gas sensor applications. Nanotechnology 2015, 26, 105501. [Google Scholar] [CrossRef] [PubMed]
  3. Ng, S.; Prasek, J.; Zazpe, R.; Pytlicek, Z.; Spotz, Z.; Pereira, J.R.; Michalicka, J.; Prikryl, J.; Krbal, M.; Sopha, H.; et al. Atomic layer deposition of SnO2-coated anodic one-dimensional TiO2 nanotube layers for low concentration NO2 sensing. ACS Appl. Mater. Interfaces 2020, 12, 33386–33396. [Google Scholar] [CrossRef] [PubMed]
  4. Lu, Y.; Hsieh, C.; Su, G. The role of ALD-ZnO seed layers in the growth of ZnO nanorods for hydrogen sensing. Micromachines 2019, 10, 491. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Wang, X.; Jin, B.; He, X.; White, T.A.; Liang, X. Highly active and stable Fe/SiO2 catalyst synthesized by atomic layer deposition for CO oxidation. Catal. Lett. 2020, 150, 3296–3303. [Google Scholar] [CrossRef]
  6. Lou, C.; Yang, C.; Zheng, W.; Liu, X.; Zhang, J. Atomic layer deposition of ZnO on SnO2 nanospheres for enhanced formaldehyde detection. Sens. Actuators B Chem 2021, 329, 129218. [Google Scholar] [CrossRef]
  7. Zhang, L.; Xiao, W.; Wu, W.; Liu, B. Research progress on flexible oxide-based thin film transistors. Appl. Sci. 2019, 9, 773. [Google Scholar] [CrossRef] [Green Version]
  8. Vollet, D.R.; Donatti, D.A.; Awano, C.M.; Chiappim, W., Jr.; Vicelli, M.R.; Ruiz, A.I. Structure and aggregation kinetics of vinyl triethoxysilane-derived organic/silica hybrids. J. Appl. Crystallogr. 2010, 43, 1005–1011. [Google Scholar] [CrossRef]
  9. Vollet, D.R.; Donatti, D.A.; Awano, C.M.; Chiappim, W., Jr.; de Vicente, F.S. Dynamic scaling and growth kinetics of 3-glycidoxypropyltrimethoxysilane-derived organic/silica hybrids. Macromolecules 2011, 44, 6849–6855. [Google Scholar] [CrossRef]
  10. Chiappim, W., Jr.; Awano, C.M.; Donatti, D.A.; de Vicente, F.S.; Vollet, D.R. Structure of hydrophobic ambient-pressure-dried aerogels prepared by sonohydrolysis of tetraethoxysilane with additions of N,N-dimethylformamide. Langmuir 2014, 30, 1151–1159. [Google Scholar] [CrossRef]
  11. Gaspera, E.D.; Martucci, A. Sol-Gel thin Films for plasmonic gas sensors. Sensors 2015, 15, 16910–16928. [Google Scholar] [CrossRef] [Green Version]
  12. Nguyen, C.M.; Rao, S.; Yang, X.; Dubey, S.; Mays, J.; Cao, H.; Chiao, J.-C. Sol-Gel deposition of iridium oxide for biomedical micro-devices. Sensors 2015, 15, 4212–4228. [Google Scholar] [CrossRef] [Green Version]
  13. Maurya, D.K.; Saradarinejad, A.; Alameh, K. Recent developments in R.F. magnetron sputtered thin films for pH sensing applications—An overview. Coatings 2014, 4, 756–771. [Google Scholar] [CrossRef]
  14. Cunha, C.L.A.; Pimenta, T.C.; Fraga, M.A. Growth and properties of sputtered highly (100)-oriented oxygenated AlN thin films for SAW sensing applications. Microsyst. Technol. 2021. [Google Scholar] [CrossRef]
  15. Fraga, M.; Pessoa, R. Progresses in synthesis and application of SiC films: From CVD to ALD and from MEMS to NEMS. Micromachines 2020, 11, 799. [Google Scholar] [CrossRef]
  16. Ambardekar, V.; Bandyopadhyay, P.P.; Majumber, S.B. Plasma sprayed copper oxide sensor for selective sensing of carbon monoxide. Mater. Chem. Phys. 2021, 258, 123966. [Google Scholar] [CrossRef]
  17. Miranda, F.S.; Caliari, F.R.; Campos, T.M.; Leite, D.M.G.; Pessoa, R.S.; Essiptchouk, A.M.; Petraconi, G. High-velocity plasma spray process using hybrid SiO2 + ZrO2 precursor for deposition of environmental barrier coatings. Surf. Coat. Technol. 2020, 404, 126447. [Google Scholar] [CrossRef]
  18. Kim, H.W.; Na, H.G.; Kwon, Y.J.; Kang, S.Y.; Choi, M.S.; Bang, J.H.; Kim, S.S. Microwave-assisted synthesis of graphene–SnO2 nanocomposites and their applications in gas sensors. ACS Appl. Mater. Interfaces 2017, 9, 31667–31682. [Google Scholar] [CrossRef]
  19. Sousa, D.M.; Chiappim, W.; Leitão, J.P.; Lima, J.C.; Ferreira, I. Microwave synthesis of silver sulfide and silver nanoparticles: Light and time influence. ACS Omega 2020, 5, 12877–12881. [Google Scholar] [CrossRef]
  20. Hirsch, M.; Majchrowicz, D.; Wierzba, P.; Weber, M.; Bechelany, M.; Jedrzejewska-Szczerska, M. Low-coherence interferometric fiber-optic sensors with potential applications as biosensors. Sensors 2017, 17, 261. [Google Scholar] [CrossRef] [Green Version]
  21. Listewnik, P.; Hirsch, M.; Struk, P.; Weber, M.; Bechelany, M.; Jedrzejewska-Szczerska, M. Preparation and characterization of microsphere ZnO ALD coating dedicated for the fiber-optic refractive index sensor. Nanomaterials 2019, 9, 306. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Weber, M.; Graniel, O.; Balme, S.; Miele, P.; Bechelany, M. On the use of MOFs and ALD layers as nanomembranes for the enhancement of gas sensors selectivity. Nanomaterials 2019, 9, 1552. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Ahn, J.; Ahn, C.; Jeon, S.; Park, J. Atomic layer deposition of inorganic thin films on 3D polymer nanonetworks. Appl. Sci. 2019, 9, 1990. [Google Scholar] [CrossRef] [Green Version]
  24. Testoni, G.E.; Chiappim, W.; Pessoa, R.S.; Fraga, M.A.; Miyakawa, W.; Sakane, K.K.; Galvão, N.K.A.M.; Vieira, L.; Maciel, H.S. Influence of the Al2O3 partial-monolayer number on the crystallization mechanism of TiO2 in ALD TiO2/Al2O3 nanolaminates and its impact on the material properties. J. Phys. D Appl. Phys. 2016, 49, 375301. [Google Scholar] [CrossRef]
  25. Chiappim, W.; Testoni, G.E.; Moraes, R.S.; Pessoa, R.S.; Sagás, J.C.; Origo, F.D.; Vieira, L.; Maciel, H.S. Structural, morphological, and optical properties of TiO2 thin films grown by atomic layer deposition on fluorine doped tin oxide conductive glass. Vacuum 2016, 123, 91–102. [Google Scholar] [CrossRef]
  26. Chiappim, W.; Testoni, G.E.; de Lima, J.S.B.; Medeiros, H.S.; Pessoa, R.S.; Grigorov, K.G.; Vieira, L.; Maciel, H.S. Effect of process temperature and reaction cycle number on atomic layer deposition of TiO2 thin films using TiCl4 and H2O precursors: Correlation between material properties and process environment. Braz. J. Phys. 2016, 46, 56–69. [Google Scholar] [CrossRef]
  27. Chiappim, W.; Testoni, G.E.; Doria, A.C.O.C.; Pessoa, R.S.; Fraga, M.A.; Galvão, N.K.A.M.; Grigorov, K.G.; Vieira, L.; Maciel, H.S. Relationships among growth mechanism, structure and morphology of PEALD TiO2 films: The influence of O2 plasma power, precursor chemistry and plasma exposure mode. Nanotechnology 2016, 27, 305701. [Google Scholar] [CrossRef] [PubMed]
  28. Pessoa, R.S.; Pereira, F.P.; Testoni, G.E.; Chiappim, W.; Maciel, H.S.; Santos, L.V. Effect of substrate type on structure of TiO2 thin film deposited by atomic layer deposition technique. JICS 2015, 10, 38–42. [Google Scholar] [CrossRef]
  29. Chiappim, W.; Fraga, M.A.; Maciel, H.S.; Pessoa, R.S. An experimental and theoretical study of the impact of the precursor pulse time on the growth per cycle and crystallinity quality of TiO2 thin films grown by ALD and PEALD technique. Front. Mech. Eng. 2020, 6, 551085. [Google Scholar] [CrossRef]
  30. Chiappim, W.; Watanabe, M.; Dias, V.; Testoni, G.; Rangel, R.; Fraga, M.; Maciel, H.; dos Santos Filho, S.; Pessoa, R. MOS capacitance measurements for PEALD TiO2 dielectric films grown under different conditions and the impact of Al2O3 partial-monolayer insertion. Nanomaterials 2020, 10, 338. [Google Scholar] [CrossRef] [Green Version]
  31. Fredj, Z.; Baraket, A.; Ali, M.B.; Zine, N.; Zabala, M.; Bausells, J.; Elaissari, A.; Benson, N.U.; Jaffrezic-Renault, N.; Errachid, A. Capacitance electrochemical pH sensor based on different hafnium dioxide (HfO2) thicknesses. Chemosensors 2021, 9, 13. [Google Scholar] [CrossRef]
  32. Pessoa, R.S.; dos Santos, V.P.; Cardoso, S.B.; Doria, A.C.O.C.; Figueira, F.R.; Rodrigues, B.V.M.; Testoni, G.E.; Fraga, M.A.; Marciano, F.R.; Lobo, A.O.; et al. TiO2 coatings via atomic layer deposition on polyurethane and polydimethylsiloxane substrates: Properties and effects on C. albicans growth and inactivation process. Appl. Surf. Sci. 2017, 422, 73–84. [Google Scholar] [CrossRef]
  33. Dias, V.M.; Chiappim, W.; Fraga, M.A.; Maciel, H.S.; Marciano, F.R.; Pessoa, R.S. Atomic layer deposition of TiO2 and Al2O3 thin films for the electrochemical study of corrosion protection in aluminum alloy cans used in beverage. Mater. Res. Express 2020, 7, 076408. [Google Scholar] [CrossRef]
  34. Dias, V.; Maciel, H.; Fraga, M.; Lobo, A.O.; Pessoa, R.; Marciano, F.R. Atomic layer deposited TiO2 and Al2O3 thin films as coatings for aluminum food packaging application. Materials 2019, 12, 682. [Google Scholar] [CrossRef] [Green Version]
  35. Pessoa, R.S.; Fraga, M.A.; Chiappim, W.; Maciel, H.S. Exploring the properties and fule cell applications of ultrathin atomic layer deposited metal oxide films. In Emerging Materials for Energy Conversion and Storage, 1st ed.; Cheong, K.Y., Impellizzeri, G., Fraga, M.A., Eds.; Elsevier: Amsterdam, The Netherlands, 2018; Volume 1, pp. 83–114. [Google Scholar]
  36. Curado, M.A.; Teixeira, J.P.; Monteiro, M.; Ribeiro, E.F.M.; Vilão, R.C.; Alberto, H.V.; Cunha, J.M.V.; Lopes, T.S.; Oliveira, K.; Donzel-Gargand, O.; et al. Front passivation of Cu(In,Ga)Se2 solar cells using Al2O3: Culprits and benefits. Appl. Mater. Today 2020, 21, 100867. [Google Scholar] [CrossRef]
  37. Paussa, L.; Guzman, L.; Marin, E.; Isomaki, N.; Fedrizzi, L. Protection of silver surfaces against tarnishing by means of alumina/titania-nanolayers. Surf. Coat. Technol. 2011, 206, 976–980. [Google Scholar] [CrossRef]
  38. Khan, M.R.; Kim, H.G.; Park, J.S.; Shin, J.W.; Nguyen, C.T.; Lee, H.-B.-R. Tunable color coating of e-textiles by atomic layer deposition of multilayer TiO2/Al2O3 films. Langmuir 2020, 36, 2794–2801. [Google Scholar] [CrossRef]
  39. Weber, M.; Julbe, A.; Kim, S.S.; Bechelany, M. Atomic layer deposition (ALD) on inorganic or polymeric membranes. J. Appl. Phys. 2019, 126, 041101. [Google Scholar] [CrossRef]
  40. Weber, M.; Julbe, A.; Ayral, A.; Miele, P.; Bechelany, M. Atomic layer deposition for membranes: Basics, challenges, and opportunities. Chem. Mater. 2018, 30, 7368–7390. [Google Scholar] [CrossRef]
  41. Mattinen, M.; Popov, G.; Vehkamäki, M.; King, P.J.; Mizohata, K.; Jalkanen, P.; Räisänen, J.; Leskelä, M.; Ritala, M. Atomic layer deposition of emerging 2D semiconductors, HfS2 and ZrS2, for optoelectronics. Chem. Mater. 2019, 31, 5713–5724. [Google Scholar] [CrossRef] [Green Version]
  42. Donetti, L.; Gámiz, F.; Rodriguez, N.; Godoy, A.; Sampedro, C. The Effect of surface roughness scattering on hole mobility in double gate silicon-on-insulator devices. J. Appl. Phys. 2009, 106, 023705. [Google Scholar] [CrossRef]
  43. Jehl, Z.; Bouttemy, M.; Lincot, D.; Guillemoles, J.F.; Gerard, I.; Etcheberry, A.; Voorwinden, G.; Powalla, M.; Naghavi, N. Insights on the influence of surface roughness on photovoltaic properties of state of the art copper indium gallium diselenide thin films solar cells. J. Appl. Phys. 2012, 111, 114509. [Google Scholar] [CrossRef]
  44. Basiaga, M.; Staszuk, M.; Walke, W.; Opilski, Z. Mechanical properties of atomic layer deposition (ALD) TiO2 layers on stailess steel substrates. Mat. Wiss. U. Werkstofftech. 2016, 47, 512–520. [Google Scholar] [CrossRef]
  45. Alasaarela, T.; Saastamoinen, T.; Hiltunen, J.; Säynätjoki, A.; Tervenon, A.; Stenberg, P.; Kuittinen, M.; Honkanen, S. Atomic layer deposited titanium dioxide and its application in resonant waveguide grating. Appl. Opt. 2010, 49, 4321. [Google Scholar] [CrossRef]
  46. Puurunen, R.L. Formation of metal oxide particles in atomic layer deposition during the chemisorption of metal chlorides: A review. Chem. Vap. Depos. 2005, 11, 79–90. [Google Scholar] [CrossRef]
  47. Pore, V.; Kivelä, T.; Ritala, M.; Leskelä, M. Atomic layer deposition of photocatalytic TiO2 thin films from TiF4 and H2O. Dalton Trans. 2008, 45, 6467–6474. [Google Scholar] [CrossRef]
  48. Gebhard, M.; Mitschker, F.; Wiesing, M.; Giner, I.; Torun, B.; de los Arcos, T.; Awakowicz, P.; Grundmeier, D.A. An efficient PE-ALD process for TiO2 thin films employing a new Ti-precursor. J. Mater. Chem. C 2016, 4, 1057–1065. [Google Scholar] [CrossRef] [Green Version]
  49. Ylivaara, O.M.E.; Kilpi, L. Aluminum oxide/titanium dioxide nanolaminates grown by atomic layer deposition: Growth and mechanical properties. J. Vac. Sci. Technol. A 2016, 35, 01B105. [Google Scholar] [CrossRef]
  50. Ali, S.; Juntunen, T.; Sintonen, S.; Ylivaara, O.M.E.; Puurunnen, R.L.; Lipsanen, H.; Tittonen, I.; Hannula, S.-P. Thermal conductivity of amorphous Al2O3/TiO2 nanolaminates deposited by atomic layer deposition. Nanotechnology 2016, 27, 445704. [Google Scholar] [CrossRef]
  51. Niemelä, J.-P.; Marin, G.; Karppinen, M. Titanium dioxide thin films by atomic layer deposition: A review. Semicond. Sci. Technol. 2017, 32, 093005. [Google Scholar] [CrossRef]
  52. Arts, K.; Utriainen, M.; Puurunen, R.L.; Kessels, W.M.M.; Knoops, H.C.M. Film conformality and extracted recombination probabilities of O atoms during plasma-assisted atomic layer deposition of SiO2, TiO2, Al2O3, and HfO2. J. Phys. Chem. C 2019, 123, 27030–27035. [Google Scholar] [CrossRef] [Green Version]
  53. Fu, R.; Pattinson, J. Advanced thin conformal Al2O3 films for high aspect ratio mercury cadmium telluride sensors. Opt. Eng. 2012, 51, 104003. [Google Scholar] [CrossRef]
  54. Kim, H.L.; Kim, K.; Park, S.; Jeong, Y.J.; Kim, H.; Chung, D.S.; Kim, S.H.; Park, C.E. Al2O3/TiO2 nanolaminate thin film encapsulation for organic thin film transistors via plasma-enhanced atomic layer deposition. ACS Appl. Mater. Interfaces 2014, 6, 6731–6738. [Google Scholar] [CrossRef]
  55. Mai, L.; Mitschker, F.; Bock, C.; Niesen, A.; Ciftyurek, E.; Rogalla, D.; Mickler, J.; Erig, M.; Li, Z.; Awakowicz, P.; et al. From precursor chemistry to gas sensors: Plasma-enhanced atomic layer deposition process engineering for zinc oxide layers from a nonpyrophoric zinc precursor for gas barrier and sensor applications. Small 2020, 16, 1907506. [Google Scholar] [CrossRef] [PubMed]
  56. Pore, V.; Rahtu, A.; Leskelä, M.; Ritala, M.; Sajavaara, T.; Keinonen, J. Atomic layer deposition of photocatalytic TiO2 thin films from titanium tetramethoxide and water. Chem. Vap. Depos. 2004, 10, 143–148. [Google Scholar] [CrossRef]
  57. Aarik, J.; Aidla, A.; Uustare, T.; Sammelselg, V. Morphology and structure of TiO2 thin films grown by atomic layer deposition. J. Crys. Growth 1995, 148, 268–275. [Google Scholar] [CrossRef]
  58. Puurunen, R.K. Surface chemistry of atomic layer deposition: A case study for the trimethylaluminum/water process. J. Appl. Phys. 2005, 97, 121301. [Google Scholar] [CrossRef]
  59. Jakschik, S.; Schroeder, U.; Hecht, T.; Gutsche, M.; Seidl, H.; Bartha, J.W. Crystallization behavior of thin ALD-Al2O3 films. Thin Solid Films 2003, 425, 216–220. [Google Scholar] [CrossRef]
  60. Choi, G.-J.; Kim, S.K.; Won, S.-J.; Kim, H.J.; Hwang, C.S. Plasma-enhanced atomic layer deposition of TiO2 and Al-doped TiO2 films using N2O and O2 Reactants. J. Electrochem. Soc. 2009, 156, G138. [Google Scholar] [CrossRef]
  61. Kim, S.K.; Choi, G.-J.; Lee, S.Y.; Seo, M.; Lee, S.W.; Han, J.H.; Ahn, H.-S.; Han, S.; Hwang, C.S. Al-doped TiO2 films with ultralow leakage currents for next generation DRAM capacitors. Adv. Mater. 2008, 20, 1429–1435. [Google Scholar] [CrossRef]
  62. Kim, S.K.; Han, S.; Jeon, W.; Yoon, J.H.; Han, J.H.; Lee, W.; Hwang, C.S. Impact of bimetal electrodes on dielectric properties of TiO2 and Al-doped TiO2 films. ACS Appl. Mater. Interfaces 2012, 4, 4726–4730. [Google Scholar] [CrossRef] [PubMed]
  63. LAMFI. Available online: http://deuterio.if.usp.br/multisimnra/ (accessed on 26 February 2021).
  64. Pharr, G.M. Measurement of mechanical properties by ultra-low load indentation. Mater. Sci. Eng. A 1998, 253, 151–159. [Google Scholar] [CrossRef]
  65. Galanov, B.A.; Dub, S.N. Critical comments to the Oliver–Pharr measurement technique of hardness and elastic modulus by instrumented indentations and refinement of its basic relations. J. Superhard Mater. 2017, 39, 373–389. [Google Scholar] [CrossRef]
  66. Necas, D.; Klapetek, P. Gwyddion: An open-source software for SPM data analysis. Cent. Eur. J. Phys. 2012, 10, 181–188. [Google Scholar]
  67. Wei, D.; Hossain, T.; Garces, N.Y.; Nepal, N.; Meyer, H.M., III; Kirkham, M.J.; Eddy, C.R., Jr.; Edgar, J.H. Influence of atomic layer deposition temperatures on TiO2/n-Si MOS capacitor. ECS J. Solid State Sci. Technol. 2013, 2, N110–N114. [Google Scholar] [CrossRef] [Green Version]
  68. Ratzsch, S.; Kley, E.-B.; Tünnermann, A.; Szeghalmi, A. Influence of the oxygen plasma parameters on the atomic layer deposition of titanium dioxide. Nanotechnology 2015, 26, 024003. [Google Scholar] [CrossRef]
  69. Bousoulas, P.; Michelakaki, I.; Tsoukalas, D. Influence of oxygen content of room temperature TiO2−x deposited films for enhanced resistive switching memory performance. J. Appl. Phys. 2014, 115, 034516. [Google Scholar] [CrossRef]
  70. Faraz, T.; Arts, K.; Karwal, S.; Knoops, H.C.M.; Kessels, W.M.M. Energetic ions during plasma-enhanced atomic layer deposition and their role in tailoring material properties. Plasma Sources Sci. Technol. 2019, 28, 024002. [Google Scholar] [CrossRef]
  71. Herman, G.S.; Zehr, R.T.; Henderson, M.A. Characterization of oxygen and titanium diffusion at anatase TiO2 (001) surface. Surf. Sci. Lett. 2013, 612, L5–L8. [Google Scholar] [CrossRef]
  72. Paris, A.; Taioli, S. Multiscale investigation of oxygen vacancies in TiO2 anatase and their role in memristor’s behavior. J. Phys. Chem. C 2016, 120, 22045–22053. [Google Scholar] [CrossRef]
  73. Schneider, J.R.; Baker, J.G.; Bent, S.F. The influence of ozone: Superstoichiometric oxygen in atomic layer deposition of Fe2O3 using tert-Butylferrocene and O3. Adv. Mater. Interfaces 2020, 7, 2000318. [Google Scholar] [CrossRef]
  74. Xu, C.Y.; Zhang, P.X.; Yan, L. Blue shift of Raman peak from TiO2 nanoparticles. J. Raman Spectrosc. 2001, 32, 862–865. [Google Scholar] [CrossRef]
  75. Bassi, A.L.; Cattaneo, D.; Russo, V.; Bottani, C.E.; Barborini, E.; Mazza, T.; Piseri, P.; Miliani, P.; Ernst, F.O.; Wegner, K.; et al. Raman spectroscopy characterization of titania nanoparticles produced by flame pyrolysis: The influence of size and stoichiometry. J. Appl. Phys. 2005, 98, 074305. [Google Scholar] [CrossRef]
  76. Parker, J.C.; Siegel, R.W. Calibration of the Raman spectrum to the oxygen stoichiometry of nanophase TiO2. Appl. Phys. Lett. 1990, 57, 943. [Google Scholar] [CrossRef]
  77. Lee, W.-J.; Hon, M.-H. Space-limited crystal growth mechanism of TiO2 films by atomic layer deposition. J. Phys. Chem. C 2010, 114, 6917–6921. [Google Scholar] [CrossRef]
  78. Ghazaryan, L.; Handa, S.; Schmitt, P.; Beladiya, V.; Roddatis, V.; Tünnermann, A.; Szeghalmi, A. Structural, optical, and mechanical properties of TiO2 nanolaminates. Nanotechnology 2021, 32, 095709. [Google Scholar] [CrossRef]
  79. Mohammed, Y.S.; Zhang, K.; Lin, P.; Baumgart, H.; Elmustafa, A.A. Investigation of the nanomechanical properties of crystalline anatase titanium dioxide films synthesized using atomic layer deposition. JOM 2021, 73, 534–540. [Google Scholar] [CrossRef]
  80. Tripp, M.K.; Stamper, C.; Miller, D.C.; Helbling, T.; Herrmann, C.F.; Hierold, C.; George, S.M.; Bright, V.M. The mechanical properties of atomic layer deposited alumina for use in micro- and nano- electromechanical systems. Sens. Actuators A 2006, 130–131, 419–429. [Google Scholar] [CrossRef]
  81. Coy, E.; Yate, L.; Kabacinska, Z.; Jancelewicz, M.; Jurga, S.; Iatsunskui, I. Topographic reconstruction and mechanical analysis of atomic layer deposited Al2O3/TiO2 nanolaminates by nanoindentation. Mater. Des. 2016, 111, 584–591. [Google Scholar] [CrossRef]
  82. Borgese, L.; Gelfi, M.; Bontempi, E.; Goudeau, P.; Geandier, G.; Thiaudière, D.; Depero, L.E. Young modulus and Poisson ratio measurements of TiO2 thin films deposited with atomic layer deposition. Surf. Coat. Technol. 2011, 206, 2459–2463. [Google Scholar] [CrossRef]
  83. Sreemany, M.; Sen, S. A simple spectrophotometric method for determination of thr optical constants and band gap energy of multiple layer TiO2 thin films. Mater. Chem. Phys. 2004, 83, 169–177. [Google Scholar] [CrossRef]
  84. Weng, Y.; Chen, G.; Zhou, X.; Yan, Q.; Guo, T.; Zhang, Y. Design and fabrication of bi-functional TiO2/Al2O3 nanolaminates with selected light extraction and reliable moisture vapor barrier performance. Nanotechnology 2018, 30, 085702. [Google Scholar] [CrossRef]
  85. Scalon, D.O.; Dunnill, C.W.; Buckeridge, J.; Shevlin, S.A.; Logsdail, A.J.; Woodley, S.M.; Catlow, C.R.A.; Powell, M.J.; Palgrave, R.G.; Parkin, I.P.; et al. Band alignment of rutile and anatase TiO2. Nat. Mater. 2013, 12, 798–801. [Google Scholar] [CrossRef] [PubMed]
  86. Triani, G.; Evans, P.J.; Mitchell, D.R.G.; Attard, D.J.; Finnie, K.S.; James, M.; Hanley, T.; Latella, B.; Prince, K.E.; Barlett, J. Atomic layer deposition of TiO2/Al2O3 for optical applications. Proc. SPIE 2005, 5870, 587009. [Google Scholar]
  87. Kim, Y.S.; Yun, S.J. Nanolaminated Al2O3-TiO2 thin films grown by atomic layer deposition. J. Crys. Growth 2005, 274, 585–593. [Google Scholar] [CrossRef]
  88. Jõgi, I.; Kukli, K.; Kemell, M.; Ritala, M.; Leskelä, M. Electrical characterization of AlxTiyOz mixtures and Al2O3-TiO2-Al2O3 nanolaminates. J. Appl. Phys. 2007, 102, 114114. [Google Scholar] [CrossRef]
  89. Kim, S.K.; Lee, S.W.; Seo, M.; Han, J.H.; Lee, S.Y.; Hwang, C.S. Dielectric and electrode thin films for stack-cell structured DRAM capacitors with sub 50-nm design rules. ECS Trans. 2007, 6, 137–150. [Google Scholar] [CrossRef]
  90. Kim, S.K.; Choi, G.-J.; Hwang, C.S. Controlling the composition of doped materials by ALD: A case study for Al-doped TiO2 films. Electrochem. Solid State Lett. 2008, 11, G27–G29. [Google Scholar] [CrossRef]
  91. Kim, S.K.; Choi, G.J.; Kim, J.H.; Hwang, C.S. Growth behavior of Al-doped TiO2 thin films by atomic layer deposition. Chem. Mater. 2008, 20, 3723–3727. [Google Scholar] [CrossRef]
  92. Alasaarela, T.; Karvonen, L.; Jussila, H.; Säynätjoki, A.; Mehravar, S.; Norwood, R.A.; Peyghambarian, N.; Kieu, K.; Tittonen, I.; Lipsanen, H. High-quality crystallinity controlled ALD TiO2 for waveguiding applications. Opt. Lett. 2013, 38, 3980–3983. [Google Scholar] [CrossRef]
  93. Aarik, L.; Arroval, T.; Rammula, R.; Mändar, H.; Sammelselg, V.; Hudec, B.; Huseková, K.; Fröhlich, K.; Aarik, J. Atomic layer deposition of high-quality Al2O3 and Al-doped TiO2 thin films from hydrogen-free precursors. Thin Solid Films 2014, 565, 19–24. [Google Scholar] [CrossRef]
  94. Iatsunskyi, I.; Coy, E.; Viter, R.; Nowaczyk, G.; Jancelewicz, M.; Baleviciute, I.; Zaleski, K.; Jurga, S. Study on structural, mechanical, and optical properties of Al2O3-TiO2 nanolaminates prepared by atomic layer deposition. J. Phys. Chem. C 2015, 119, 20591–20599. [Google Scholar] [CrossRef]
Micromachines 12 00588 g001 550

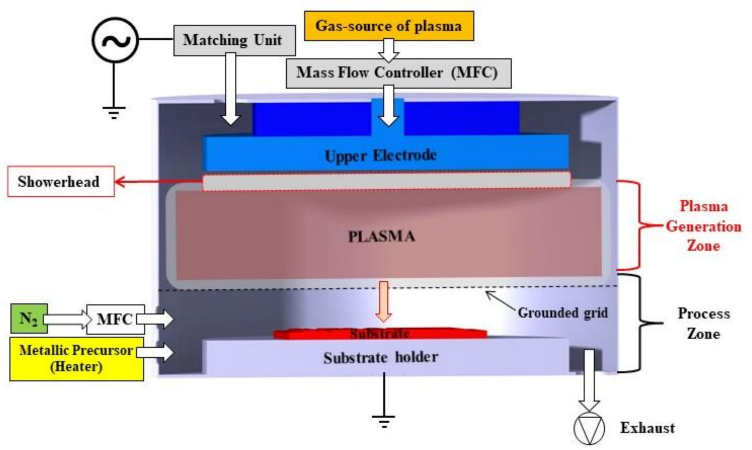

Figure 1. Schematic representation of the capacitively coupled plasma reactor used for plasma-enhanced atomic layer deposition (ALD) processes used to grown TiO2/Al2O3 nanolaminates films.
Figure 1. Schematic representation of the capacitively coupled plasma reactor used for plasma-enhanced atomic layer deposition (ALD) processes used to grown TiO2/Al2O3 nanolaminates films.
Micromachines 12 00588 g001
Micromachines 12 00588 g002 550

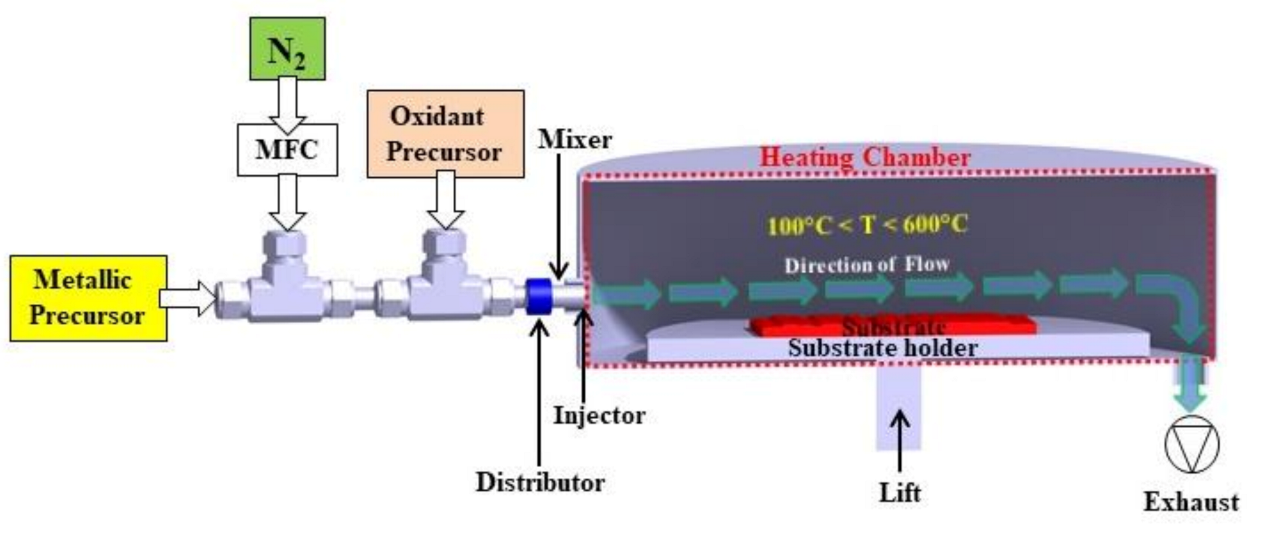

Figure 2. Schematic representation of low-volume crossflow atomic layer deposition (ALD) reactor operating in thermal mode used to grown TiO2/Al2O3 nanolaminates films in our previous work [24].
Figure 2. Schematic representation of low-volume crossflow atomic layer deposition (ALD) reactor operating in thermal mode used to grown TiO2/Al2O3 nanolaminates films in our previous work [24].
Micromachines 12 00588 g002
Micromachines 12 00588 g003 550
Figure 3. The proposed mechanism of TiO2 superstoichiometric film growth during each PEALD cycle for both TTIP and TMA precursors.
Figure 3. The proposed mechanism of TiO2 superstoichiometric film growth during each PEALD cycle for both TTIP and TMA precursors.
Micromachines 12 00588 g003
Micromachines 12 00588 g004 550
Figure 4. Raman spectra for TiO2 film and TiO2/Al2O3 nanolaminates deposited under the pulse ratio from 0.000 to 0.032 grown on p-type <100> Si.
Figure 4. Raman spectra for TiO2 film and TiO2/Al2O3 nanolaminates deposited under the pulse ratio from 0.000 to 0.032 grown on p-type <100> Si.
Micromachines 12 00588 g004
Micromachines 12 00588 g005a 550Micromachines 12 00588 g005b 550
Figure 5. AFM images of the TiO2/Al2O3 nanolaminates for pulse ratio from 0.004 to 0.032 with magnification of 1 × 1 μm2 (Figures (a,c,e,g)) and 5 × 5 μm2 (Figures (b,d,f,h)). (a,b) 0.4% Al(P) samples with pulse ratio and supercycle of 0.004 and 270/1, respectively; (c,d) 1.2% Al(P) samples with 0.012 and 90/1; (e,f) 1.6% Al(P) samples with 0.016 and 60/1; and (g,h) 3.2% Al(P) samples with 0.032 and 30/1.
Figure 5. AFM images of the TiO2/Al2O3 nanolaminates for pulse ratio from 0.004 to 0.032 with magnification of 1 × 1 μm2 (Figures (a,c,e,g)) and 5 × 5 μm2 (Figures (b,d,f,h)). (a,b) 0.4% Al(P) samples with pulse ratio and supercycle of 0.004 and 270/1, respectively; (c,d) 1.2% Al(P) samples with 0.012 and 90/1; (e,f) 1.6% Al(P) samples with 0.016 and 60/1; and (g,h) 3.2% Al(P) samples with 0.032 and 30/1.
Micromachines 12 00588 g005aMicromachines 12 00588 g005b
Micromachines 12 00588 g006 550
Figure 6. RMS surface roughness of the TiO2/Al2O3 nanolaminates grown on p-type <100> Si under pulse ratio ranging from 0.004 to 0.032.
Figure 6. RMS surface roughness of the TiO2/Al2O3 nanolaminates grown on p-type <100> Si under pulse ratio ranging from 0.004 to 0.032.
Micromachines 12 00588 g006
Micromachines 12 00588 g007 550
Figure 7. Mechanical properties of the TiO2, Al2O3, and TiO2/Al2O3 nanolaminate thin films measured by nanoindentation technique as a function of pulse ratio ([Al]/[Al + Ti]). (a) Surface hardness; (b) Indentation modulus; (c) Young´s modulus.
Figure 7. Mechanical properties of the TiO2, Al2O3, and TiO2/Al2O3 nanolaminate thin films measured by nanoindentation technique as a function of pulse ratio ([Al]/[Al + Ti]). (a) Surface hardness; (b) Indentation modulus; (c) Young´s modulus.
Micromachines 12 00588 g007
Micromachines 12 00588 g008 550
Figure 8. Optical properties: (a) Transmittance spectra; (b) Reflectance spectra; (c) Optical losses spectra; (d) Band gap as function of pulse ratio.
Figure 8. Optical properties: (a) Transmittance spectra; (b) Reflectance spectra; (c) Optical losses spectra; (d) Band gap as function of pulse ratio.
Micromachines 12 00588 g008
Table
Table 1. Process parameters for the growth of TiO2, Al2O3, and TiO2/Al2O3 nanolaminates. All thin films were grown at 250 °C for thermal ALD and PEALD.
Table 1. Process parameters for the growth of TiO2, Al2O3, and TiO2/Al2O3 nanolaminates. All thin films were grown at 250 °C for thermal ALD and PEALD.
ALD 1 and PEALD SamplesPulse Ratio
[Al]/[Al + Ti]		Supercycle
[ALD TiO2 Cycles]/[ALD Al2O3 Cycles]
0% Al(T) and 0% Al(P)0TiO2
0.4% Al(T) and 0.4% Al(P)0.004270/1
1.2% Al(T) and 1.2% Al(P)0.01290/1
1.6% Al(T) and 1.6% Al(P)0.01660/1
3.2% Al(T) and 3.2% Al(P)0.03230/1
Al2O3 (T) and Al2O3 (P)1Al2O3
1 Samples related with the previous work [24] grown on thermal mode.
Table
Table 2. Elemental composition, film thickness, and growth per cycle (GPC) of TiO2/Al2O3 nanolaminates grown on p-type <100> Si obtained through RBS spectra by MultiSIMNRA software. The table shows the results of our previous work [24] for comparison.
Table 2. Elemental composition, film thickness, and growth per cycle (GPC) of TiO2/Al2O3 nanolaminates grown on p-type <100> Si obtained through RBS spectra by MultiSIMNRA software. The table shows the results of our previous work [24] for comparison.
SampleTi (%)O (%)Al (%)Thickness (nm)GPC (nm/Cycle)
0.4% Al(P)30 ± 170 ± 11 ± 1130 ± 10.048 ± 0.005
1.2% Al(P)31 ± 167 ± 12 ± 1130 ± 10.048 ± 0.005
1.6% Al(P)32 ± 165 ± 13 ± 1143 ± 10.052 ± 0.005
3.2% Al(P)34 ± 160 ± 16 ± 1160 ± 10.057 ± 0.005
0.4% Al(T)37 ± 160 ± 13 ± 188 ± 10.032 ± 0.005
1.2% Al(T)31 ± 163 ± 16 ± 183 ± 10.030 ± 0.005
1.6% Al(T)27 ± 164 ± 19 ± 176 ± 10.028 ± 0.005
3.2% Al(T)25 ± 164 ± 111 ± 183 ± 10.030 ± 0.005
Table
Table 3. Peak position, full width at half maximum (FWHM), and integrated area of the Raman-active modes of crystalline samples. It was used the Lorentzian equations to fit the Raman spectra and calculated the peak position, FWHM, and integrated area.
Table 3. Peak position, full width at half maximum (FWHM), and integrated area of the Raman-active modes of crystalline samples. It was used the Lorentzian equations to fit the Raman spectra and calculated the peak position, FWHM, and integrated area.
Crystalline SamplesRaman-Active
Modes 1 (cm−1)		Peak Position
(cm−1)		FWHM
(cm−1)		Integrated Area (a.u.)
0% Al(P)Eg151 ± 119 ± 144.200
B1g404 ± 126 ± 111.900
A1g527 ± 126 ± 110.700
Eg647 ± 131 ± 123.900
0.4% Al(P)Eg152 ± 119 ± 145.600
B1g403 ± 126 ± 26.800
A1g527 ± 126 ± 19.500
Eg647 ± 130 ± 121.250
1.2% Al(P)Eg153 ± 121 ± 129.500
B1g405 ± 131 ± 114.000
A1g528 ± 129 ± 111.700
Eg648 ± 130 ± 112.700
1 Raman-active modes associated to anatase structure: A1g (519 cm−1), B1g (397 cm−1), and Eg (144 and 636 cm−1).
Table
Table 4. Summary of the principal works that explore the fundamental characterizations of TiO2/Al2O3 nanolaminates.
Table 4. Summary of the principal works that explore the fundamental characterizations of TiO2/Al2O3 nanolaminates.
Main Results and Comparison with Present Work(Precursors)
(ALD Window)
(Substrate Type)		Reference
(i) Amorphous nanolaminates were grown in a bilayer stack (~40 nm of thickness) and a 5 tier multilayer stack (~55 nm of thickness).
(ii) The surface hardness of the bilayer was found to be 6 GPa. This result is in agreement with our results that varied from 7 to 9 GPa.
(iii) Surface roughness was maintained below 1 nm. These results show that for higher concentrations of Al, the roughness is lower, which is in agreement with our results.		(TiCl4/TMA/H2O)
(100–200 °C)
(Silicon; SLG; Polycarbonate)		[86]
(i) It has been shown that nanolaminates are endowed with polycrystalline TiO2 properties in the case of TiO2 layer thickness more significant than some limit value (20 cycles Al2O3 and 600 cycles TiO2) and become amorphous when the intermediate layers of Al2O3 (100 cycles Al2O3 and 450 cycle TiO2) increase its thickness. These results show that for higher concentrations of Al, the nanolaminates’ crystallinity becomes amorphous, following our results. It is worth mentioning that we used a different configuration of doping TiO2 with Al and obtained the same behavior.(TTIP/TMA/H2O)
(250 °C)
(Silicon; ITO on Glass)		[87]
(i) Leakage currents for nanolaminates and mixtures have the lowest leakage for all equivalent oxide thickness values.
(ii) Currents in the films became strongly affected by chemical and structural defects induced by the deposition process of Al-doped.		(TiCl4/TMA/H2O)
(300–400 °C)
(n-Si (100) precovered with 0.6 nm thick SiNx; p-Si (100) with 1.1 nm thick SiO2)		[88]
(i) The dielectric constants of the Al-doped TiO2 films are lower than that of the un-doped TiO2 films and decreased with the increase of Al concentration.
(ii) Current density of Al-doped TiO2 films increased at high applied voltage when the Al concentration in the films was lower.		(TTIP/TMA/O3)
(200–230 °C)
(Silicon; Sputtered Ru and Pt)		[89]
(i) The adsorption of the Ti precursor on the growth surface became less active after the incorporation of Al. This behavior decreased the growth rate of TiO2 films doped with Al. It is noteworthy that this behavior is opposite to that achieved in our work, probably due to the O2 plasma used as an oxidizing precursor that activates a more significant number of sites on the surface and increases the growth rate of nanolaminates.(TTIP/TMA/O3)
(250 °C)
(Ru(30 nm)/Ta2O5(8 nm)/SiO2(100 nm)/Si)		[90,91]
(i) The refractive index decreases with the increase of Al2O3 within the TiO2/Al2O3 nanolaminates, which is in line with our results.(TiCl4/TMA/O3)
(250 °C)
(Corning glass slides and silicon (100) pieces
with thin native oxide)		[92]
(i) It was showed that in the supercycle 60/1, the nanolaminates grown on Si are crystallines in the anatase phase and become amorphous at the supercycle 15/1. This result is in line with our work(TiCl4/TMA/O3)
(350 °C)
(Si and RuO2)		[93]
(i) nanolaminates are essentially composed by amorphous Al2O3 and small TiO2 crystalline regions for 2, 5, 10, and 20 bilayers composition;
(ii) the average transmittance is between 70–95%. It was observed a shift in the maximum transmittance on a range of 375–450 nm wavelengths. In our work, it shifted to 460–750 nm wavelengths with the average transmittance between 60–70%;
(iii) the band gap had results similar to our work;
(iv) The surface hardness maintained approximately 9 GPa for 2, 5, 10, and 20 bilayers composition. This result is in line with our results;
(v) the Young´s and indentation modulus maintained approximately 150 GPa for 2, 5, 10, and 20 bilayers composition. This result is in line with our results;		(TiCl4/TMA/H2O)
(200 °C)
(p-doped Si (100) and glass substrates)		[94]
(i) Four sets of different samples were manufactured, one parameter is varied at a time: (a) the growth temperature, (b) the titanium dioxide fraction from 0% to 100%, (c) the bilayer thickness of 0.1 at 100 nm, and (d) the thickness of the nanolaminate from 20 to 300 nm. In all cases the surface hardness, Young´s and indentation modulus maintained approximately 8, 150, and 150 GPa, respectively.(TiCl4/TMA/H2O)
(110–300 °C)
(p-type (100) silicon wafers)		[49]
(i) It was showed that the GPC of Al doped TiO2 films increased by ~10% compared to the growth of pure TiO2 film by the O2 plasma process. This is in line with our results; however, it is in contrast to the lower GPC shown in previous works by the same authors when using the O3-based process [91,92]. (TTIP/TMA/O2 or N2O plasma)
(250 °C)
(Ru(30 nm)/Ta2O5(8 nm)/SiO2(100 nm)/Si)		[60]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Chiappim, W.; Testoni, G.; Miranda, F.; Fraga, M.; Furlan, H.; Saravia, D.A.; Sobrinho, A.d.S.; Petraconi, G.; Maciel, H.; Pessoa, R. Effect of Plasma-Enhanced Atomic Layer Deposition on Oxygen Overabundance and Its Influence on the Morphological, Optical, Structural, and Mechanical Properties of Al-Doped TiO2 Coating. Micromachines 2021, 12, 588. https://doi.org/10.3390/mi12060588

AMA Style

Chiappim W, Testoni G, Miranda F, Fraga M, Furlan H, Saravia DA, Sobrinho AdS, Petraconi G, Maciel H, Pessoa R. Effect of Plasma-Enhanced Atomic Layer Deposition on Oxygen Overabundance and Its Influence on the Morphological, Optical, Structural, and Mechanical Properties of Al-Doped TiO2 Coating. Micromachines. 2021; 12(6):588. https://doi.org/10.3390/mi12060588

Chicago/Turabian Style

Chiappim, William, Giorgio Testoni, Felipe Miranda, Mariana Fraga, Humber Furlan, David Ardiles Saravia, Argemiro da Silva Sobrinho, Gilberto Petraconi, Homero Maciel, and Rodrigo Pessoa. 2021. "Effect of Plasma-Enhanced Atomic Layer Deposition on Oxygen Overabundance and Its Influence on the Morphological, Optical, Structural, and Mechanical Properties of Al-Doped TiO2 Coating" Micromachines 12, no. 6: 588. https://doi.org/10.3390/mi12060588

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
