A New Electrochemical Platform for Dasatinib Anticancer Drug Sensing Using Fe3O4-SWCNTs/Ionic Liquid Paste Sensor

by
Ali Moghaddam
1,
Hassan Ali Zamani
1,* and
Hassan Karimi-Maleh
2,*
1
Department of Applied Chemistry, Mashhad Branch, Islamic Azad University, Mashhad 9187147578, Iran
2
Laboratory of Nanotechnology, Department of Chemical Engineering and Energy, Quchan University of Technology, Quchan 9477177870, Iran
*
Authors to whom correspondence should be addressed.
Micromachines 2021, 12(4), 437; https://doi.org/10.3390/mi12040437
Submission received: 3 March 2021 / Revised: 6 April 2021 / Accepted: 12 April 2021 / Published: 14 April 2021
(This article belongs to the Special Issue Nanomaterials Modified Electrochemical Sensors)
Browse Figures
Versions Notes

Abstract

:
A new electrochemical platform was suggested for the sensing of the dasatinib (DA) anticancer drug based on paste electrode modification (PE) amplified with Fe3O4-SWCNTs nanocomposite and 1-hexyl-3-methylimidazolium tetrafluoroborate (mim-BF4−). The new platform showed a linear dynamic range from 0.001–220 µM with a detection limit of 0.7 nM to determine DA at optimal condition. Electrochemical investigation showed that the redox reaction of DA is relative to changing the pH of solution. Moreover, Fe3O4-SWCNTs/mim-BF4−/PE has improved the oxidation current of DA about 5.58 times which reduced its oxidation potential by about 120 mV at optimal condition. In the final step, Fe3O4-SWCNTs/mim-BF4−/PE was used as an analytical platform to determine the DA in tablets and a dextrose saline spike sample, and the results showed recovery data 99.58–103.6% which confirm the powerful ability of the sensor as an analytical tool to determine the DA in real samples.

1. Introduction

Cancer is a major global problem and the cause of many deaths. Breast cancer is one of the most common and deadly cancers in women, and due to statistics, one in eight American women will develop this cancer during their lifetime [1]. Furthermore, use of anticancer drugs has significantly grown, and various anticancer drugs are used for chemotherapy [2,3,4,5]. With the brand name Sprycel, dasatinib (DA) is usually used to treat prostate and breast cancers [6,7]. Taking too much DA can cause many side effects, such as bleeding, rash, and diarrhea in patients. Due to the high risk of using this drug, such as the increased risk of an infection that is relative to a drop in white blood cells, controlling the patient while taking this drug by a doctor or nurse is very important and necessary; however, using the appropriate judgment requires surveying its effect on the patient’s body which is impossible without using analytical methods [8,9]. Moreover, analytical methods were accepted as an integral part of medical and patient treatment in most treatment systems in different countries [10,11,12]. Many analytical methods were suggested to determine anticancer drugs such as DA in biological and pharmaceutical samples such as high-performance liquid chromatography (HPLC) [13,14,15,16], spectroscopic strategies [17], liquid chromatography mass spectrometry (LC-MS) [18] and electrochemical sensors [19,20,21]. Although chromatographic methods have long been used for this purpose, their use was hampered by the disadvantages such as the use of toxic solvents, the need for a skilled operator, and the inability to convert portable kits [22]. Furthermore, research has ensued to provide a fast, inexpensive, high-performance method to measure the important biological compounds [23,24,25,26,27,28,29].
Electrochemical methods are a sensitive and powerful approach to determine a wide range of biological and pharmaceutical compounds, especially anticancer drugs in biological conditions [30,31,32,33,34,35,36]. The wide range of the applications of electrochemical sensors is relative to easy modification of electrochemical sensors [37,38,39,40,41,42]. In this regard, and due to the purpose of measurement, various modifications can be made to electrochemical sensors, increasing the sensitivity and selectivity of measurement [43,44,45,46,47].
Nanomaterials are a very important and useful group of materials which have created a dramatic change in the world of science [48,49,50,51,52,53,54,55,56]. Nanomaterials have created unique properties and dramatically changed various analytical treatment techniques [57,58,59,60]. One of the unique features of nanomaterials is their high electrical conductivity which has created favorable conditions for the design of sensitive electrochemical sensors [61,62,63]. Among these, high electrical conductivity carbon/metal nanocomposites were proposed in recent years to manufacture various electrochemical sensors [64]. In the literature, Fe3O4 nanoparticle and carbon nanotubes showed good catalytic activity to fabricate electrochemical sensors. For example, Fang et al. reported a gold electrode amplified with Fe3O4 nanoparticle as an electrochemical sensor to determine the dopamine. Reported results showed good catalytic activity of Fe3O4 nanoparticles and confirmed that they are suitable for the fabrication of modified sensors [65]. On the other hand, many research and review papers confirmed the powerful ability of carbon nanotubes (SWCNTs or MWCNTs) as electrocatalysts for the fabrication of electrochemical sensors [66,67,68]. Based on this, it was predicted that iron oxide/carbon nanotube nanocomposite would show a more synergistic effect to prepare the electrochemical sensors. For example, Abbasghorbani reported the application of Fe3O4-SWCNTs nanocomposite as a conductive mediator to modify the epirubicin anticancer sensor with a detection limit of 7.0 nM [69]. Based on the presented materials, it seems that the design and construction of an analytical sensor with the ability to measure small amounts of DA can be useful to evaluate the effectiveness of this anticancer drug. For this purpose, Fe3O4-SWCNTs/1-hexyl-3-methylimidazolium tetrafluoroborate (mim-BF4−)/based on paste electrode modification (PE) is made with high sensitivity and a suitable detection limit for measuring DA, and the results obtained confirm its high capability in measuring real samples. Two-fold amplification of paste electrode with Fe3O4-SWCNTs and mim-BF4− created a highly conductive sensor which could be detected dasatnib in nanomolar level (0.7 nM). This value of detection limit is comparable and better than the previous detection limit reported by electrochemical sensors for the determination of dasatinib (Table 1).

2. Materials and Methods

2.1. Materials and Synthesis Procedure

Dasatinib, SWCNTs-COOH, 1-hexyl-3-methylimidazolium tetrafluoroborate, graphite powder, ferric chloride, sodium hydroxide, phosphoric acid, iron (I) sulfate were purchased in analytical grade from Merck and Sigma-Aldrich Companies. The stock solution of dasatinib (0.01 M) was prepared by dissolving 0.244 g dasatinib into 50 mL ethanol/water (1:1) solution and ultrasonication for 30 min at room temperature. The chemical precipitation strategy described by Abbasghorbani was used for the synthesis of Fe3O4-SWCNTs nanocomposite [69]. For this goal, iron (II) sulfate and iron trichloride solutions with ration 2:1 were prepared into a graduated beaker containing 150 mL distilled water and stirred for 30 min. In continuous, 1.0 g SWCNTs-COOH + sodium hydroxide 3.0 M were added to the graduated beaker under nitrogen gas. The solid sample was filtered and then dried at a temperature of 150 °C for 16 h.
Fe3O4-SWCNTs/mim-BF4−/PE was organized using a mixing composition containing 60 mg Fe3O4-SWCNTs nanocomposite + 940 mg graphite powder in the presence of 10 drops of paraffin oil and 2 drops of mim-BF4− for 3 h using a mortar and pestle. The prepared paste was added to the end of a glass tube with a diameter of 3 mm.

2.2. Apparatus

A potentiostat/galvanostat (Ivium-Vertex Company, Eindhoven, Netherlands), a machine connected with an electrochemical cell (Azar electrode) was designed for current-voltage (I-V) investigation in this research work. Pt wire (Azar Electrode Company, Urmia, Iran), Fe3O4-SWCNTs/mim-BF4−/PE, and Ag/AgCl/KClsat (reference electrode) Azar Electrode Company were used for the recording of I-V signals. A transmission electron microscope (TEM) image was recorded by a Zeiss-EM10C-100 KV (Germany) for morphological investigation.

2.3. Real Sample

The dasatinib tablet (80.0 mg dose of the drug per tablet) and dextrose saline were selected as real samples. Five tablets were powdered in mortar and pestle. Then, powdered tablets were dissolved in ethanol/water (1:1) solution and ultrasonication for 30 min at room temperature. After filtration, 5 mL of solution was diluted with 5 mL phosphate buffer solution pH = 6.0 and used for real sample analysis using the standard addition method. On the other hand, dextrose saline was spiked with different DA concentrations and directly used for real sample analysis of the anticancer drugs. I-V signals were recorded for cyclic voltammetric investigation in the potential range 0.3–0.9 V. I–V signals were recorded for square wave voltammetric investigation in the potential range 0.35–0.85 V with a frequency 10 Hz.

3. Results and Discussion

3.1. Electrochemical Behaviour of Dasatinib

TEM and field-emission scanning electron microscopy (FESEM) images of Fe3O4-SWCNTs are shown in Figure 1A,B and the results clearly confirm the presence of Fe3O4 nanoparticles with spherical shape and good distribution at the surface of single-wall carbon nanotubes. Besides, EDS analysis showed the presence of Fe (29.53% w/w), O (33.77% w/w), and C (36.7 % w/w) elements that confirm good purity of Fe3O4-SWCNTs nanocomposite.
Cyclic voltammograms of DA were recorded at surface of Fe3O4-SWCNTs/mim-BF4−/PE in the different pH range (4.0 < pH < 8.0) (Figure 2 inset). The negative change in the oxidation potential of dasatinib with moving pH = 4.0 to pH = 8.0 confirms proton presence in redox reaction of DA. The linear relation between the oxidation potential of dasatinib anticancer drug vs. pH with Equation E = 0.057 pH + 0.976 (R2 = 0.999); suggests the presence of equal value of electron and proton in redox reaction of DA (Scheme 1). Moreover, maximum sensitivity for the DA signal was observed at pH = 6.0, and this pH was used for future investigation.
In the next step, and for investigating Fe3O4-SWCNTs nanocomposite and mim-BF4− in the fabrication of electrodes, the cyclic voltammograms of 500 µM DA were recorded at the surface of the carbon paste electrode (Figure 3 curve a), Fe3O4-SWCNTs/PE (Figure 3 curve b), mim-BF4−/PE (Figure 3 curve c) and Fe3O4-SWCNTs/mim-BF4−/PE (Figure 3 curve d), respectively. Due to the cyclic voltammograms, oxidation currents 20.47 µA, 56.128 µA, 54.32 µA, and 93.7 µA and oxidation potentials 740, 700, 630, and 620 mV were detected for the oxidation of DA at the surface of the carbon paste electrode, Fe3O4-SWCNTs/PE, mim-BF4−/PE and Fe3O4-SWCNTs/mim-BF4−/PE, respectively.
By comparing the results obtained, it can be understood that the presence of Fe3O4-SWCNTs nanocomposite and mim-BF4− alone can improve the oxidation signal of DA. In addition, by two-fold amplification of the paste electrode with Fe3O4-SWCNTs nanocomposite and mim-BF4−, the oxidation current of dasatinib anticancer drug was improved about 5.58 times and oxidation potential of drug was decreased about 120 mV compare to unmodified electrode. These points confirms high conductivity of the suggested sensor for sensing of dasatinib in this work. For more investigation, the active surface area of electrodes was determined by the standard method ([Fe(CN)6]3−/4− + 0.1 M KCl) and Randles–Sevcik Equation (1):
I = 2.69 × 10 5   n 3 / 2 A   D 1 / 2   v 1 / 2   C
Using recorded signals and the Randles–Sevcik equation, the active surface area of carbon paste electrode, Fe3O4-SWCNTs/PE, mim-BF4−/PE and Fe3O4-SWCNTs/mim-BF4−/PE were determined about 0.274 cm2, 0.295 cm2, 0.305 cm2 and 0.319 cm2, respectively. In addition, current density curves are shown in Figure 3 inset. Based on recorded curves, it concluded that the presence of Fe3O4-SWCNTs nanocomposite and mim-BF4− could be increased the conductivity of paste electrode and creating a good condition for sensing the dasatinib anticancer drug.
The cyclic voltammogram of DA was recorded at the surface of Fe3O4-SWCNTs/mim-BF4−/PE in the different scan rates for the investigation of moving mechanism of dasatinib anticancer drug into electrode surface (Figure 4 inset). The oxidation current of DA showed a linear relation with ν1/2 (equation I = 9.3244 ν1/2−6.9391 (R2 = 0.9971)) that confirmed a diffusion process [72,73,74] for moving of dasatinib anticancer drug from solution to the electrode surface for redox reaction process.
After confirmation of the diffusion process for electro-oxidation of the drug, the diffusion coefficient (D) was obtained by chronoamperometric studies with an applied potential of 750 mV in the presence of 300 μM, 400 μM, and 500 μM of DA (Figure 5). Using recorded Cottrell’s plots and related slopes, the value of the diffusion coefficient was calculated to be about 3.57 × 10−6 cm2/s (Figure 5 inset).
Stability is one of the main factors of a new sensor to determine the biological compounds for long duration analysis. Therefore, the stability of Fe3O4-SWCNTs/mim-BF4−/PE for the determination of 20.0 µM DA was investigated in this step. For this investigation, a cyclic voltammogram of 20.0 µM DA was recorded at a period time 60 days. The oxidation current of 20.0 µM DA decreased by about 92% of the initial signal after 60 days, and the drug’s oxidation potential remained constant. This point confirms that Fe3O4-SWCNTs/mim-BF4−/PE has good stability for the sensing of DA for two months.
Analytical parameters such as the limit of detection and linear dynamic range of a sensor for the determination of DA were calculated using square wave voltammetric (SWV) methods as highly sensitive electrochemical strategies. The SW voltammogram of DA at the surface of Fe3O4-SWCNTs/mim-BF4−/PE showed two linear dynamic ranges related to its concentration in the range from 0.001–10.0 µM with the Equation I = 1.6017 C + 1.4884 (R2 = 0.9903) and in the range from 10.0–220 µM with the Equation I = 0.2077 C + 15.9390 (R2 = 0.9947) (Figure 6). The Fe3O4-SWCNTs/mim-BF4−/PE showed a detection limit (YLOD = 3 Sb/m; where Sb is the standard deviation of blank and m is the slope of linear dynamic range investigation) of 0.7 nM for the sensing of DA.
The selectivity of Fe3O4-SWCNTs/mim-BF4−/PE as a new sensor to determine 10.0 µM DA was checked by an acceptable error of 5% in oxidation current of the drug by the SWV method. Reported results in Table 2 confirm that Fe3O4-SWCNTs/mim-BF4−/PE could be determined DA without any important interference in real samples.

3.2. Real Sample Analysis of Dasatinib Anticancer Drug

In the final step and after the optimization of the sensor and investigation of kinetic and thermodynamic parameters, the ability of Fe3O4-SWCNTs/mim-BF4−/PE was checked to determine the dasatinib anticancer drug in real samples by the SWV method. For this purpose, dasatinib tablets and dextrose saline were selected. The standard addition method was used to analyze the DA in these samples. The results recorded in Table 3 and recovery data from 99.58% to 103.6% confirm the high-performance ability of Fe3O4-SWCNTs/mim-BF4−/PE as a new sensor to determine the DA in real samples.

4. Conclusions

The present study focused on designing and fabricating a two-fold amplified electrochemical sensor for trace-level analysis of dasatinib (an anticancer drug). For this purpose, Fe3O4-SWCNTs/mim-BF4−/PE was synthesized by a chemical precipitation strategy and introduced as an analytical tool. Fe3O4-SWCNTs/mim-BF4−/PE showed good catalytic activity of the oxidation signal of the dasatinib anticancer drug and improved its signal about 5.58 times. The suggested senor showed a high sensitivity to determine the dasatinib anticancer drug in the concentration range from 0.001–220 µM with a detection limit of 0.7 nM. In the final step, the recovery range from 99.58% to 103.6% was used to measure DA in real samples using Fe3O4-SWCNTs/mim-BF4−/PE as the sensor.

Author Contributions

Formal analysis and investigation, A.M.; writing—original draft preparation, H.K.-M.; writing—review and editing, H.A.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ji, P.; Gong, Y.; Jiang, C.; Hu, X.; Di, G.; Shao, Z. Association between socioeconomic factors at diagnosis and survival in breast cancer: A population-based study. Cancer Med. 2020, 9, 1922–1936. [Google Scholar] [CrossRef] [Green Version]
  2. Shien, T.; Iwata, H.; Aogi, K.; Fukutomi, T.; Inoue, K.; Kinoshita, T.; Takahashi, M.; Matsui, A.; Shibata, T.; Fukuda, H. Tamoxifen versus tamoxifen plus doxorubicin and cyclophosphamide as adjuvant therapy for node-positive postmenopausal breast cancer: Results of a Japan Clinical Oncology Group Study (JCOG9401). Int. J. Clin. Oncol. 2014, 19, 982–988. [Google Scholar] [CrossRef]
  3. Moseley, A.; Carati, C.; Piller, N. A systematic review of common conservative therapies for arm lymphoedema secondary to breast cancer treatment. Ann. Oncol. 2006, 18, 639–646. [Google Scholar] [CrossRef]
  4. Delaney, G.; Jacob, S.; Featherstone, C.; Barton, M. The role of radiotherapy in cancer treatment: Estimating optimal utilization from a review of evidence-based clinical guidelines. Cancer Interdiscip. Int. J. Am. Cancer Soc. 2005, 104, 1129–1137. [Google Scholar] [CrossRef]
  5. Skovsgaard, T. Mechanisms of resistance to daunorubicin in Ehrlich ascites tumor cells. Cancer Res. 1978, 38, 1785–1791. [Google Scholar]
  6. Yu, E.Y.; Wilding, G.; Posadas, E.; Gross, M.; Culine, S.; Massard, C.; Morris, M.J.; Hudes, G.; Calabrò, F.; Cheng, S.; et al. Phase II Study of Dasatinib in Patients with Metastatic Castration-Resistant Prostate Cancer. Clin. Cancer Res. 2009, 15, 7421–7428. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Finn, R.S.; Bengala, C.; Ibrahim, N.; Roché, H.; Sparano, J.; Strauss, L.C.; Fairchild, J.; Sy, O.; Goldstein, L.J. Dasatinib as a Single Agent in Triple-Negative Breast Cancer: Results of an Open-Label Phase 2 Study. Clin. Cancer Res. 2011, 17, 6905–6913. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Forouzanfar, S.; Alam, F.; Pala, N.; Wang, C. Review—A Review of Electrochemical Aptasensors for Label-Free Cancer Diagnosis. J. Electrochem. Soc. 2020, 167, 067511. [Google Scholar] [CrossRef]
  9. Sheydaei, O.; Khajehsharifi, H.; Rajabi, H.R. Rapid and selective diagnose of Sarcosine in urine samples as prostate cancer biomarker by mesoporous imprinted polymeric nanobeads modified electrode. Sens. Actuators B Chem. 2020, 309, 127559. [Google Scholar] [CrossRef]
  10. Moudgil, P.; Bedi, J.S.; Aulakh, R.S.; Gill, J.P.S.; Kumar, A. Validation of HPLC Multi-residue Method for Determination of Fluoroquinolones, Tetracycline, Sulphonamides and Chloramphenicol Residues in Bovine Milk. Food Anal. Methods 2019, 12, 338–346. [Google Scholar] [CrossRef]
  11. Jiang, C.-Q.; Gao, M.-X.; Meng, X.-Z. Study of the interaction between daunorubicin and human serum albumin, and the determination of daunorubicin in blood serum samples. Spectrochim. Acta Part. A Mol. Biomol. Spectrosc. 2003, 59, 1605–1610. [Google Scholar] [CrossRef]
  12. Karimi-Maleh, H.; Shojaei, A.F.; Tabatabaeian, K.; Karimi, F.; Shakeri, S.; Moradi, R. Simultaneous determination of 6-mercaptopruine, 6-thioguanine and dasatinib as three important anticancer drugs using nanostructure voltammetric sensor employing Pt/MWCNTs and 1-butyl-3-methylimidazolium hexafluoro phosphate. Biosens. Bioelectron. 2016, 86, 879–884. [Google Scholar] [CrossRef]
  13. Sabourian, R.; Mirjalili, S.Z.; Namini, N.; Chavoshy, F.; Hajimahmoodi, M.; Safavi, M. HPLC methods for quantifying anticancer drugs in human samples: A systematic review. Anal. Biochem. 2020, 610, 113891. [Google Scholar] [CrossRef] [PubMed]
  14. Chang, Y.-Y.; Wu, H.-L.; Fang, H.; Wang, T.; Ouyang, Y.-Z.; Sun, X.-D.; Tong, G.-Y.; Ding, Y.-J.; Yu, R.-Q. Comparison of three chemometric methods for processing HPLC-DAD data with time shifts: Simultaneous determination of ten molecular targeted anti-tumor drugs in different biological samples. Talanta 2021, 224, 121798. [Google Scholar] [CrossRef] [PubMed]
  15. Gos, N.A. HPLC-ICP-MS Method Optimization for Separation and Determination of the Gold Nanocarrier‒Anticancer Drug System Constituents. Available online: https://repo.pw.edu.pl/info/bachelor/WUT3a23016723984568a44bb160af5e0247/ (accessed on 13 April 2021).
  16. Alarjah, M.A.; Shahin, M.H.; Al-Azzah, F.; Alarjah, A.A.; Omran, Z.H. Concomitant analysis of dasatinib and curcuminoids in a pluronic-based nanoparticle formulation using a novel HPLC method. Chromatographia 2020, 83, 1355–1370. [Google Scholar] [CrossRef]
  17. Wani, T.A.; Bakheit, A.H.; Abounassif, M.A.; Zargar, S. Study of Interactions of an Anticancer Drug Neratinib With Bovine Serum Albumin: Spectroscopic and Molecular Docking Approach. Front. Chem. 2018, 6, 47. [Google Scholar] [CrossRef] [Green Version]
  18. Wen, C.; Zhang, Q.; He, Y.; Deng, M.; Wang, X.; Ma, J. Gradient elution LC-MS determination of dasatinib in rat plasma and its pharmacokinetic study. Acta Chromatographia 2015, 27, 81–91. [Google Scholar] [CrossRef] [Green Version]
  19. Mirmomtaz, E.; Asghar Ensafi, A.; Karimi-Maleh, H. Electrocatalytic Determination of 6-Tioguanine at ap-Aminophenol Modified Carbon Paste Electrode. Electroanal. Int. J. Devoted Fundam. Pract. Asp. Electroanal. 2008, 20, 1973–1979. [Google Scholar] [CrossRef]
  20. Mahmoudi-Moghaddam, H.; Tajik, S.; Beitollahi, H. A new electrochemical DNA biosensor based on modified carbon paste electrode using graphene quantum dots and ionic liquid for determination of topotecan. Microchem. J. 2019, 150, 104085. [Google Scholar] [CrossRef]
  21. Tahernejad-Javazmi, F.; Shabani-Nooshabadi, M.; Karimi-Maleh, H. Gold nanoparticles and reduced graphene oxide-amplified label-free DNA biosensor for dasatinib detection. New J. Chem. 2018, 42, 16378–16383. [Google Scholar] [CrossRef]
  22. Münstedt, T.; Rademacher, E.; Petz, M. HPLC, Charm II and ELISA: Advantages and disadvantages for the analysis of tetracyclines in honey. Apiacta 2005, 40, 5–9. [Google Scholar]
  23. Tajik, S.; Beitollahi, H.; Nejad, F.G.; Kirlikovali, K.O.; Van Le, Q.; Jang, H.W.; Varma, R.S.; Farha, O.K.; Shokouhimehr, M. Recent Electrochemical Applications of Metal–Organic Framework-Based Materials. Cryst. Growth Des. 2020, 20, 7034–7064. [Google Scholar] [CrossRef]
  24. Tajik, S.; Mahmoudi-Moghaddam, H.; Beitollahi, H. Screen-Printed Electrode Modified with La3+-Doped Co3O4 Nanocubes for Electrochemical Determination of Hydroxylamine. J. Electrochem. Soc. 2019, 166, B402–B406. [Google Scholar] [CrossRef]
  25. Beitollahi, H.; Moghaddam, H.M.; Tajik, S. Voltammetric Determination of Bisphenol A in Water and Juice Using a Lanthanum (III)-Doped Cobalt (II,III) Nanocube Modified Carbon Screen-Printed Electrode. Anal. Lett. 2019, 52, 1432–1444. [Google Scholar] [CrossRef]
  26. Asrami, P.N.; Azar, P.A.; Tehrani, M.S.; Mozaffari, S.A. Glucose Oxidase/Nano-ZnO/Thin Film Deposit FTO as an Innovative Clinical Transducer: A Sensitive Glucose Biosensor. Front. Chem. 2020, 8, 503. [Google Scholar] [CrossRef] [PubMed]
  27. Asrami, P.N.; Mozaffari, S.A.; Tehrani, M.S.; Azar, P.A. A novel impedimetric glucose biosensor based on immobilized glucose oxidase on a CuO-Chitosan nanobiocomposite modified FTO electrode. Int. J. Biol. Macromol. 2018, 118, 649–660. [Google Scholar] [CrossRef]
  28. Karimi-Maleh, H.; Alizadeh, M.; Orooji, Y.; Karimi, F.; Baghayeri, M.; Rouhi, J.; Tajik, S.; Beitollahi, H.; Agarwal, S.; Gupta, V.K.; et al. Guanine-Based DNA Biosensor Amplified with Pt/SWCNTs Nanocomposite as Analytical Tool for Nanomolar Determination of Daunorubicin as an Anticancer Drug: A Docking/Experimental Investigation. Ind. Eng. Chem. Res. 2021, 60, 816–823. [Google Scholar] [CrossRef]
  29. Bayraktepe, D.E. A voltammetric study on drug-DNA interactions: Kinetic and thermodynamic aspects of the relations between the anticancer agent dasatinib and ds-DNA using a pencil lead graphite electrode. Microchem. J. 2020, 157, 104946. [Google Scholar] [CrossRef]
  30. Beitollahi, H.; Safaei, M.; Tajik, S. Different electrochemical sensors for determination of dopamine as neurotransmitter in mixed and clinical samples: A review. Anal. Bioanal. Chem. Res. 2019, 6, 81–96. [Google Scholar]
  31. Sanati, A.L.; Faridbod, F. Electrochemical determination of methyldopa by graphene quantum dot/1-butyl-3-methylimidazolium hexafluoro phosphate nanocomposite electrode. Int. J. Electrochem. Sci 2017, 12, 7997–8005. [Google Scholar] [CrossRef]
  32. Faridbod, F.; Sanati, A.L. Graphene Quantum Dots in Electrochemical Sensors/Biosensors. Curr. Anal. Chem. 2019, 15, 103–123. [Google Scholar] [CrossRef]
  33. Sanati, A.L.; Faridbod, F.; Ganjali, M.R. Synergic effect of graphene quantum dots and room temperature ionic liquid for the fabrication of highly sensitive voltammetric sensor for levodopa determination in the presence of serotonin. J. Mol. Liq. 2017, 241, 316–320. [Google Scholar] [CrossRef]
  34. Shojaei, A.F.; Tabatabaeian, K.; Shakeri, S.; Karimi, F. A novel 5-fluorouracile anticancer drug sensor based on ZnFe2O4 magnetic nanoparticles ionic liquids carbon paste electrode. Sens. Actuators B Chem. 2016, 230, 607–614. [Google Scholar] [CrossRef]
  35. Ahmadi, F.; Raoof, J.B.; Ojani, R.; Baghayeri, M.; Lakouraj, M.M.; Tashakkorian, H. Synthesis of Ag nanoparticles for the electrochemical detection of anticancer drug flutamide. Chin. J. Catal. 2015, 36, 439–445. [Google Scholar] [CrossRef]
  36. Svancara, I.; Vytras, K.; Kalcher, K.; Walcarius, A.; Wang, J. Carbon Paste Electrodes in Facts, Numbers, and Notes: A Review on the Occasion of the 50-Years Jubilee of Carbon Paste in Electrochemistry and Electroanalysis. Electroanalysis 2009, 21, 7–28. [Google Scholar] [CrossRef]
  37. Ghanei-Motlagh, M.; Baghayeri, M. Determination of Trace Tl(I) by Differential Pulse Anodic Stripping Voltammetry Using a Novel Modified Carbon Paste Electrode. J. Electrochem. Soc. 2020, 167, 066508. [Google Scholar] [CrossRef]
  38. Karimi-Maleh, H.; Keyvanfard, M.; Alizad, K.; Fouladgar, M.; Beitollahi, H.; Mokhtari, A.; Gholami-Orimi, F. Voltammetric determination of N-actylcysteine using modified multiwall carbon nanotubes paste electrode. Int. J. Electrochem. Sci 2011, 6, 6141–6150. [Google Scholar]
  39. Ensafi, A.A.; Karimi-Maleh, H.; Mallakpour, S. N-(3, 4-Dihydroxyphenethyl)-3, 5-dinitrobenzamide-Modified Multiwall Carbon Nanotubes Paste Electrode as a Novel Sensor for Simultaneous Determination of Penicillamine, Uric acid, and Tryptophan. Electroanalysis 2011, 23, 1478–1487. [Google Scholar] [CrossRef]
  40. Ensafi, A.A.; Karimi-Maleh, H. A Voltammetric Sensor Based on Modified Multiwall Carbon Nanotubes for Cysteamine Determination in the Presence of Tryptophan Using p-Aminophenol as a Mediator. Electroanalysis 2010, 22, 2558–2568. [Google Scholar] [CrossRef]
  41. Karimi-Maleh, H.; Yola, M.L.; Atar, N.; Orooji, Y.; Karimi, F.; Kumar, P.S.; Rouhi, J.; Baghayeri, M. A novel detection method for organophosphorus insecticide fenamiphos: Molecularly imprinted electrochemical sensor based on core-shell Co3O4@MOF-74 nanocomposite. J. Colloid Interface Sci. 2021, 592, 174–185. [Google Scholar] [CrossRef]
  42. Bayraktepe, D.E.; Polat, K.; Yazan, Z. Electrochemical oxidation pathway of the anti-cancer agent dasatinib using disposable pencil graphite electrode and its adsorptive stripping voltammetric determination in biological samples. J. Turk. Chem. Soc. Sect. A Chem. 2018, 5, 381–392. [Google Scholar] [CrossRef]
  43. Ganjali, M.R.; Salimi, H.; Tajik, S.; Beitollahi, H.; Rezapour, M.; Larijani, B. Application of Fe3O4@ SiO2/MWCNT film on glassy carbon electrode for the sensitive electroanalysis of levodopa. Int. J. Electrochem. Sci. 2017, 12, 5243–5253. [Google Scholar] [CrossRef]
  44. Tajik, S.; Beitollahi, H.; Biparva, P. Methyldopa electrochemical sensor based on a glassy carbon electrode modified with Cu/TiO2 nanocomposite. J. Serb. Chem. Soc. 2018, 83, 863–874. [Google Scholar] [CrossRef] [Green Version]
  45. Baghayeri, M. Pt nanoparticles/reduced graphene oxide nanosheets as a sensing platform: Application to determination of droxidopa in presence of phenobarbital. Sens. Actuators B Chem. 2017, 240, 255–263. [Google Scholar] [CrossRef]
  46. Raoof, J.B.; Ojani, R.; Baghayeri, M.; Amiri-Aref, M. Application of a glassy carbon electrode modified with functionalized multi-walled carbon nanotubes as a sensor device for simultaneous determination of acetaminophen and tyramine. Anal. Methods 2012, 4, 1579. [Google Scholar] [CrossRef]
  47. Ensafi, A.A.; Khoddami, E.; Rezaei, B.; Karimi-Maleh, H. p-Aminophenol–multiwall carbon nanotubes–TiO2 electrode as a sensor for simultaneous determination of penicillamine and uric acid. Colloids Surf. B Biointerfaces 2010, 81, 42–49. [Google Scholar] [CrossRef]
  48. Kumar, P.S.; Varjani, S.J.; Suganya, S. Treatment of dye wastewater using an ultrasonic aided nanoparticle stacked activated carbon: Kinetic and isotherm modelling. Bioresour. Technol. 2018, 250, 716–722. [Google Scholar] [CrossRef] [PubMed]
  49. Kumar, P.S.; Vincent, C.; Kirthika, K.; Kumar, K.S. Kinetics and equilibrium studies of Pb2+ in removal from aqueous solutions by use of nano-silversol-coated activated carbon. Braz. J. Chem. Eng. 2010, 27, 339–346. [Google Scholar] [CrossRef] [Green Version]
  50. Nithya, K.; Sathish, A.; Kumar, P.S.; Ramachandran, T. Fast kinetics and high adsorption capacity of green extract capped superparamagnetic iron oxide nanoparticles for the adsorption of Ni(II) ions. J. Ind. Eng. Chem. 2018, 59, 230–241. [Google Scholar] [CrossRef]
  51. Suganya, S.; Kumar, P.S.; Saravanan, A. Construction of active bio-nanocomposite by inseminated metal nanoparticles onto activated carbon: Probing to antimicrobial activity. Iet Nanobiotechnol. 2017, 11, 746–753. [Google Scholar] [CrossRef]
  52. Kumar, P.S.; Nair, A.S.; Ramaswamy, A.; Saravanan, A. Nano-zero valent iron impregnated cashew nut shell: A solution to heavy metal contaminated water/wastewater. Iet Nanobiotechnol. 2018, 12, 591–599. [Google Scholar] [CrossRef] [PubMed]
  53. Gholami, P.; Dinpazhoh, L.; Khataee, A.; Orooji, Y. Sonocatalytic activity of biochar-supported ZnO nanorods in degradation of gemifloxacin: Synergy study, effect of parameters and phytotoxicity evaluation. Ultrason. Sonochemistry 2019, 55, 44–56. [Google Scholar] [CrossRef]
  54. Arzaghi, H.; Rahimi, B.; Adel, B.; Rahimi, G.; Taherian, Z.; Sanati, A.L.; Dezfuli, A.S. Nanomaterials modulating stem cell behavior towards cardiovascular cell lineage. Mater. Adv. 2021. [Google Scholar] [CrossRef]
  55. Hojjati-Najafabadi, A.; Ghasemi, A.; Mozaffarinia, R. Magneto-electric features of BaFe9.5Al1.5CrO19-CaCu3Ti4O12 nanocomposites. Ceram. Int. 2017, 43, 244–249. [Google Scholar] [CrossRef]
  56. Rahimi, H.; Mozafarinia, R.; Razavi, R.S.; Paimozd, E.; Najafabadi, A.H. Processing and Properties of GPTMS-TEOS Hybrid Coatings on 5083 Aluminium Alloy. Adv. Mater. Res. 2011, 239–242, 736–742. [Google Scholar] [CrossRef]
  57. Karimi-Maleh, H.; Ranjbari, S.; Tanhaei, B.; Ayati, A.; Orooji, Y.; Alizadeh, M.; Karimi, F.; Salmanpour, S.; Rouhi, J.; Sillanpää, M. Novel 1-butyl-3-methylimidazolium bromide impregnated chitosan hydrogel beads nanostructure as an efficient nanobio-adsorbent for cationic dye removal: Kinetic study. Environ. Res. 2021, 195, 110809. [Google Scholar] [CrossRef] [PubMed]
  58. Arefi-Oskoui, S.; Khataee, A.; Safarpour, M.; Orooji, Y.; Vatanpour, V. A review on the applications of ultrasonic technology in membrane bioreactors. Ultrason. Sonochemistry 2019, 58, 104633. [Google Scholar] [CrossRef]
  59. Ghasemi, M.; Khataee, A.; Gholami, P.; Soltani, R.D.C.; Hassani, A.; Orooji, Y. In-situ electro-generation and activation of hydrogen peroxide using a CuFeNLDH-CNTs modified graphite cathode for degradation of cefazolin. J. Environ. Manag. 2020, 267, 110629. [Google Scholar] [CrossRef]
  60. Karimi-Maleh, H.; Orooji, Y.; Ayati, A.; Qanbari, S.; Tanhaei, B.; Karimi, F.; Alizadeh, M.; Rouhi, J.; Fu, L.; Sillanpää, M. Recent advances in removal techniques of Cr (VI) toxic ion from aqueous solution: A comprehensive review. J. Mol. Liq. 2021, 329, 115062. [Google Scholar] [CrossRef]
  61. Fouladgar, M. CuO-CNT Nanocomposite/Ionic Liquid Modified Sensor as New Breast Anticancer Approach for Determination of Doxorubicin and 5-Fluorouracil Drugs. J. Electrochem. Soc. 2018, 165, B559–B564. [Google Scholar] [CrossRef]
  62. Baghizadeh, A.; Karimi-Maleh, H.; Khoshnama, Z.; Hassankhani, A.; Abbasghorbani, M. A Voltammetric Sensor for Simultaneous Determination of Vitamin C and Vitamin B6 in Food Samples Using ZrO2 Nanoparticle/Ionic Liquids Carbon Paste Electrode. Food Anal. Methods 2015, 8, 549–557. [Google Scholar] [CrossRef]
  63. Jamali, T.; Karimi-Maleh, H.; Khalilzadeh, M.A. A novel nanosensor based on Pt:Co nanoalloy ionic liquid carbon paste electrode for voltammetric determination of vitamin B9 in food samples. LWT- Food Sci. Technol. 2014, 57, 679–685. [Google Scholar] [CrossRef]
  64. Bijad, M.; Karimi-Maleh, H.; Khalilzadeh, M.A. Application of ZnO/CNTs Nanocomposite Ionic Liquid Paste Electrode as a Sensitive Voltammetric Sensor for Determination of Ascorbic Acid in Food Samples. Food Anal. Methods 2013, 6, 1639–1647. [Google Scholar] [CrossRef]
  65. Fang, B.; Wang, G.; Zhang, W.; Li, M.; Kan, X. Fabrication of Fe3O4 Nanoparticles Modified Electrode and Its Application for Voltammetric Sensing of Dopamine. Electroanalysis 2005, 17, 744–748. [Google Scholar] [CrossRef]
  66. Ahammad, A.J.S.; Lee, J.-J.; Rahman, A. Electrochemical Sensors Based on Carbon Nanotubes. Sensors 2009, 9, 2289–2319. [Google Scholar] [CrossRef]
  67. Karimi, F.; Zakariae, N.; Esmaeili, R.; Alizadeh, M.; Tamadon, A.-M. Carbon Nanotubes for Amplification of Electrochemical Signal in Drug and Food Analysis; A Mini Review. Curr. Biochem. Eng. 2020, 6, 114–119. [Google Scholar] [CrossRef]
  68. Zargar, B.; Parham, H.; Hatamie, A. Electrochemical investigation and stripping voltammetric determination of captopril at CuO nanoparticles/multi-wall carbon nanotube nanocomposite electrode in tablet and urine samples. Anal. Methods 2014, 7, 1026–1035. [Google Scholar] [CrossRef]
  69. Abbasghorbani, M. Fe3O4 loaded single wall carbon nanotubes and 1-methyl-3-octylimidazlium chloride as two amplifiers for fabrication of highly sensitive voltammetric sensor for epirubicin anticancer drug analysis. J. Mol. Liq. 2018, 266, 176–180. [Google Scholar] [CrossRef]
  70. Jesus, C.S.; Diculescu, V.C. Redox mechanism, spectrophotometrical characterisation and voltammetric determination in serum samples of kinases inhibitor and anticancer drug dasatinib. J. Electroanal. Chem. 2015, 752, 47–53. [Google Scholar] [CrossRef]
  71. Alavi-Tabari, S.A.; Khalilzadeh, M.A.; Karimi-Maleh, H. Simultaneous determination of doxorubicin and dasatinib as two breast anticancer drugs uses an amplified sensor with ionic liquid and ZnO nanoparticle. J. Electroanal. Chem. 2018, 811, 84–88. [Google Scholar] [CrossRef]
  72. Tajik, S.; Beitollahi, H. A sensitive chlorpromazine voltammetric sensor based on graphene oxide modified glassy carbon electrode. Anal. Bioanal. Chem. Res. 2019, 6, 171–182. [Google Scholar]
  73. Foroughi, M.M.; Beitollahi, H.; Tajik, S.; Akbari, A.; Hosseinzadeh, R. Electrochemical determination of N-acetylcysteine and folic acid in pharmaceutical and biological samples using a modified carbon nanotube paste electrode. Int. J. Electrochem 2014, 9, 8407. [Google Scholar]
  74. Baghbamidi, S.E.; Beitollahi, H.; Tajik, S.; Hosseinzadeh, R. Voltammetric sensor based on 1-benzyl-4-ferrocenyl-1H-[1,2,3]-triazole/carbon nanotube modified glassy carbon electrode; detection of hydrochlorothiazide in the presence of propranolol. Int. J. Electrochem. Sci. 2016, 11, 10874–10883. [Google Scholar] [CrossRef]
Micromachines 12 00437 g001 550
Figure 1. (A) Transmission electron microscope (TEM) and (B) field-emission scanning electron microscope (FESEM) images of Fe3O4-SWCNTs nanocomposite.
Figure 1. (A) Transmission electron microscope (TEM) and (B) field-emission scanning electron microscope (FESEM) images of Fe3O4-SWCNTs nanocomposite.
Micromachines 12 00437 g001
Micromachines 12 00437 g002 550

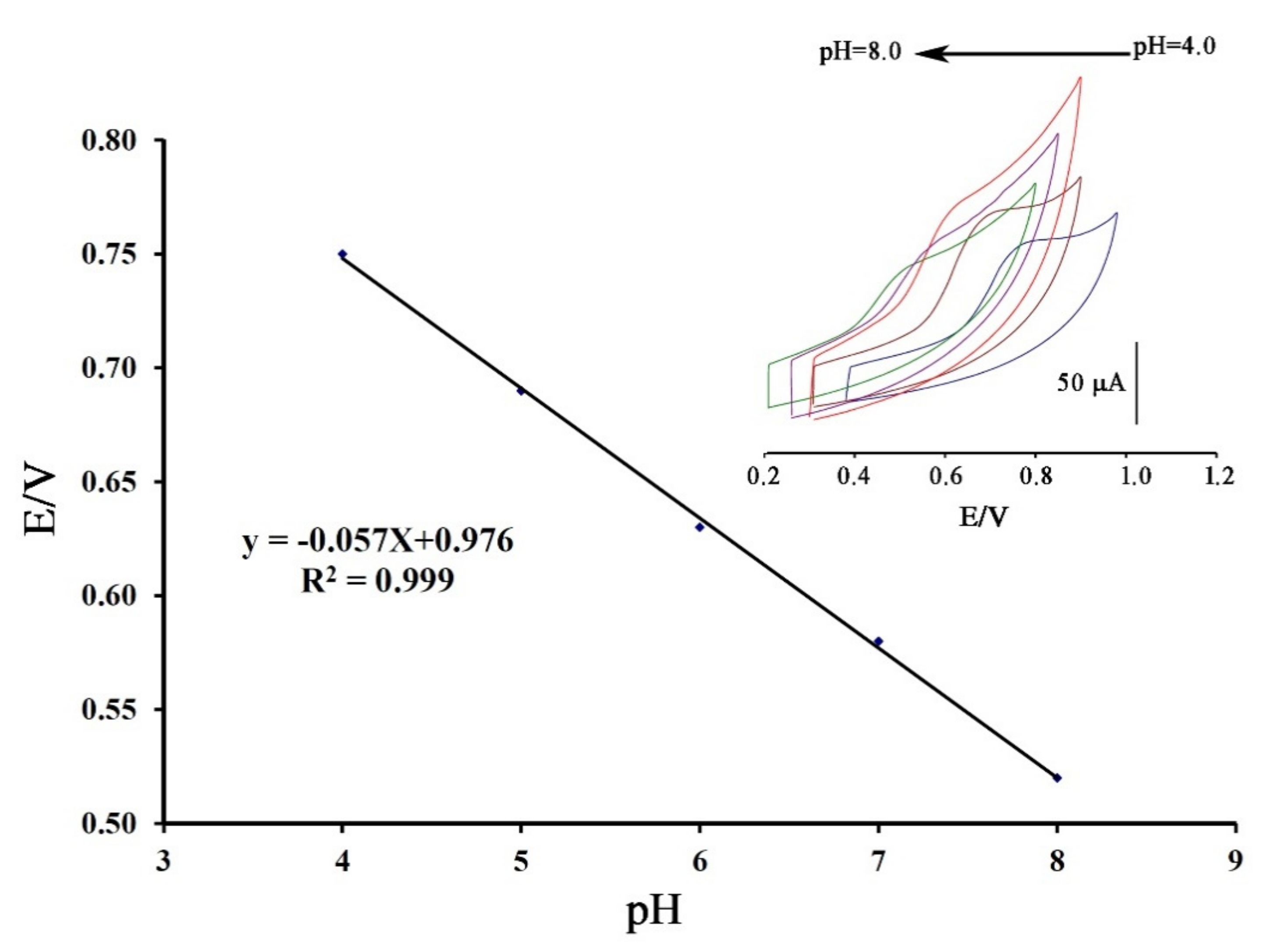

Figure 2. E-pH plot relative to electrooxidation of dasatinib (DA) at the surface of Fe3O4-SWCNTs/mim-BF4−/PE in different pH range. Inset: cyclic voltammograms of DA at the surface of Fe3O4-SWCNTs/mim-BF4−/PE in the different pH ranges with scan rate 100 mV/s.
Figure 2. E-pH plot relative to electrooxidation of dasatinib (DA) at the surface of Fe3O4-SWCNTs/mim-BF4−/PE in different pH range. Inset: cyclic voltammograms of DA at the surface of Fe3O4-SWCNTs/mim-BF4−/PE in the different pH ranges with scan rate 100 mV/s.
Micromachines 12 00437 g002
Micromachines 12 00437 sch001 550

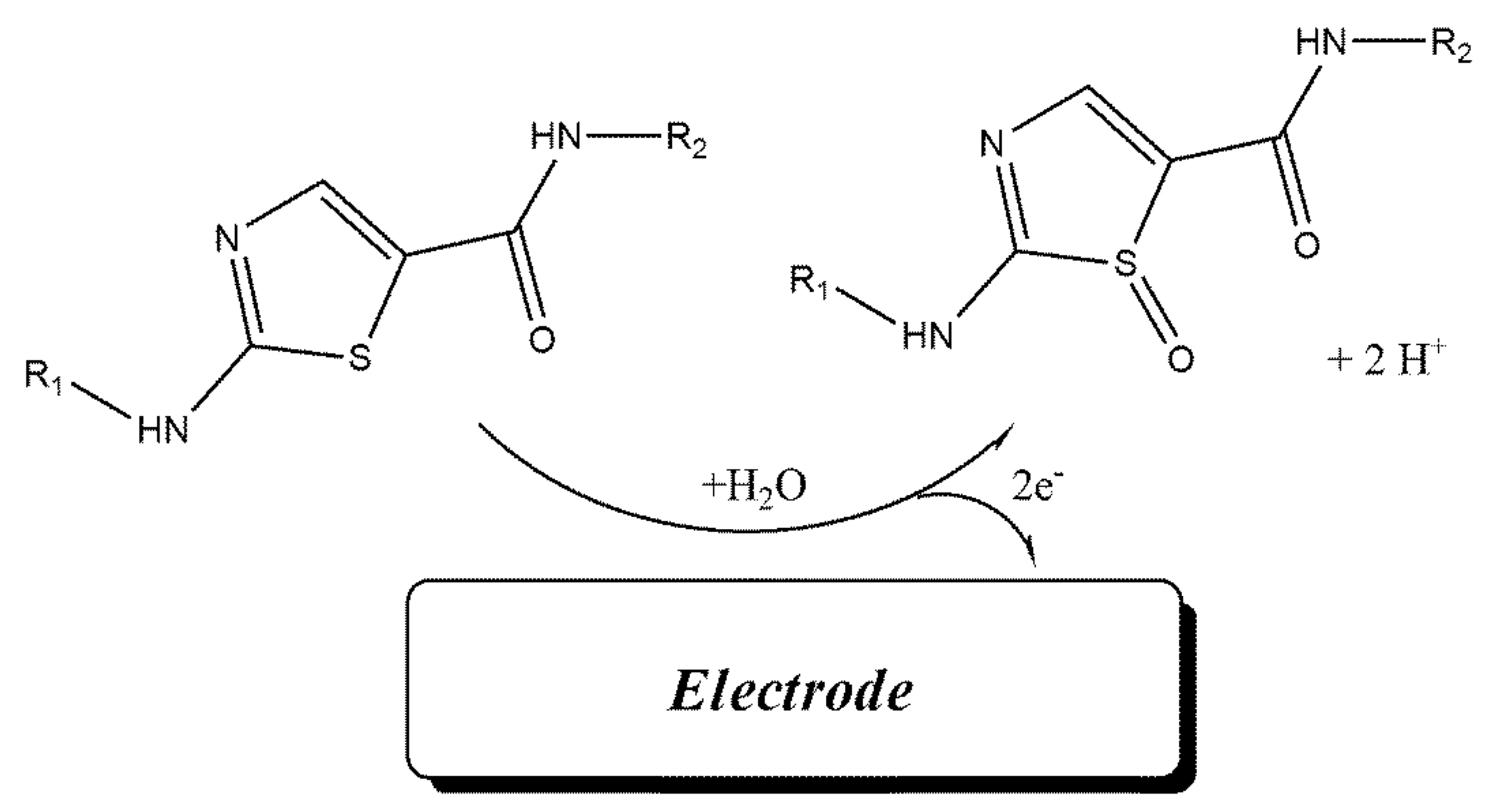

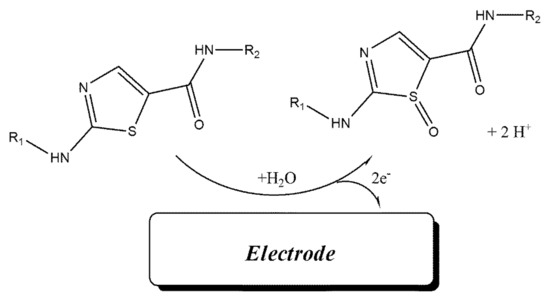

Scheme 1. Electro-oxidation mechanism of dasatinib.
Scheme 1. Electro-oxidation mechanism of dasatinib.
Micromachines 12 00437 sch001
Micromachines 12 00437 g003 550

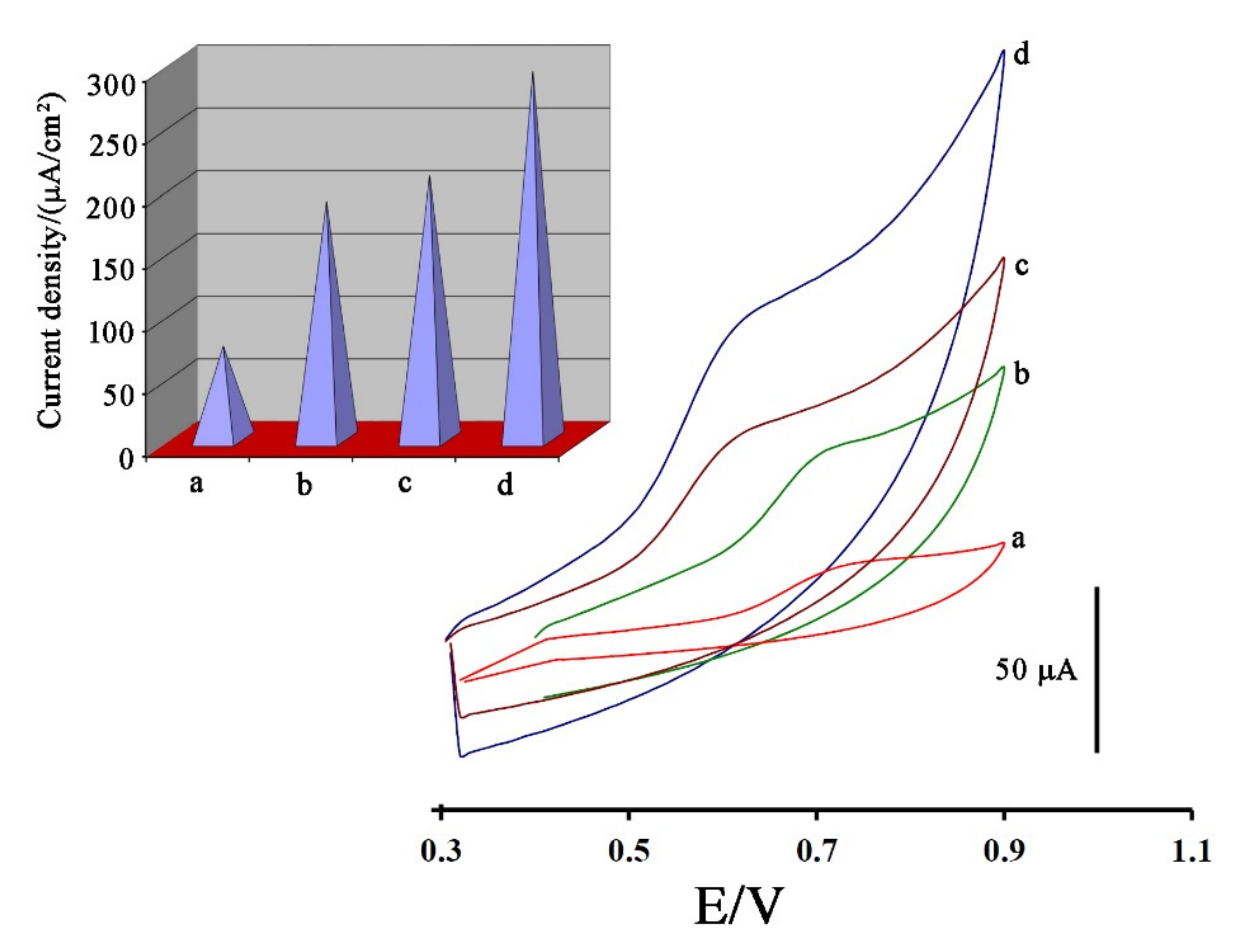

Figure 3. Cyclic voltammograms of 500 µM dasatinib anticancer drug at the surface of (a) carbon paste electrode, (b) Fe3O4-SWCNTs/PE, (c) mim-BF4−/PE and (d) Fe3O4-SWCNTs/mim-BF4−/PE. Inset: current density data relative to different electrodes. Conditions, pH = 6.0 and scan rate 100 mV/s.
Figure 3. Cyclic voltammograms of 500 µM dasatinib anticancer drug at the surface of (a) carbon paste electrode, (b) Fe3O4-SWCNTs/PE, (c) mim-BF4−/PE and (d) Fe3O4-SWCNTs/mim-BF4−/PE. Inset: current density data relative to different electrodes. Conditions, pH = 6.0 and scan rate 100 mV/s.
Micromachines 12 00437 g003
Micromachines 12 00437 g004 550

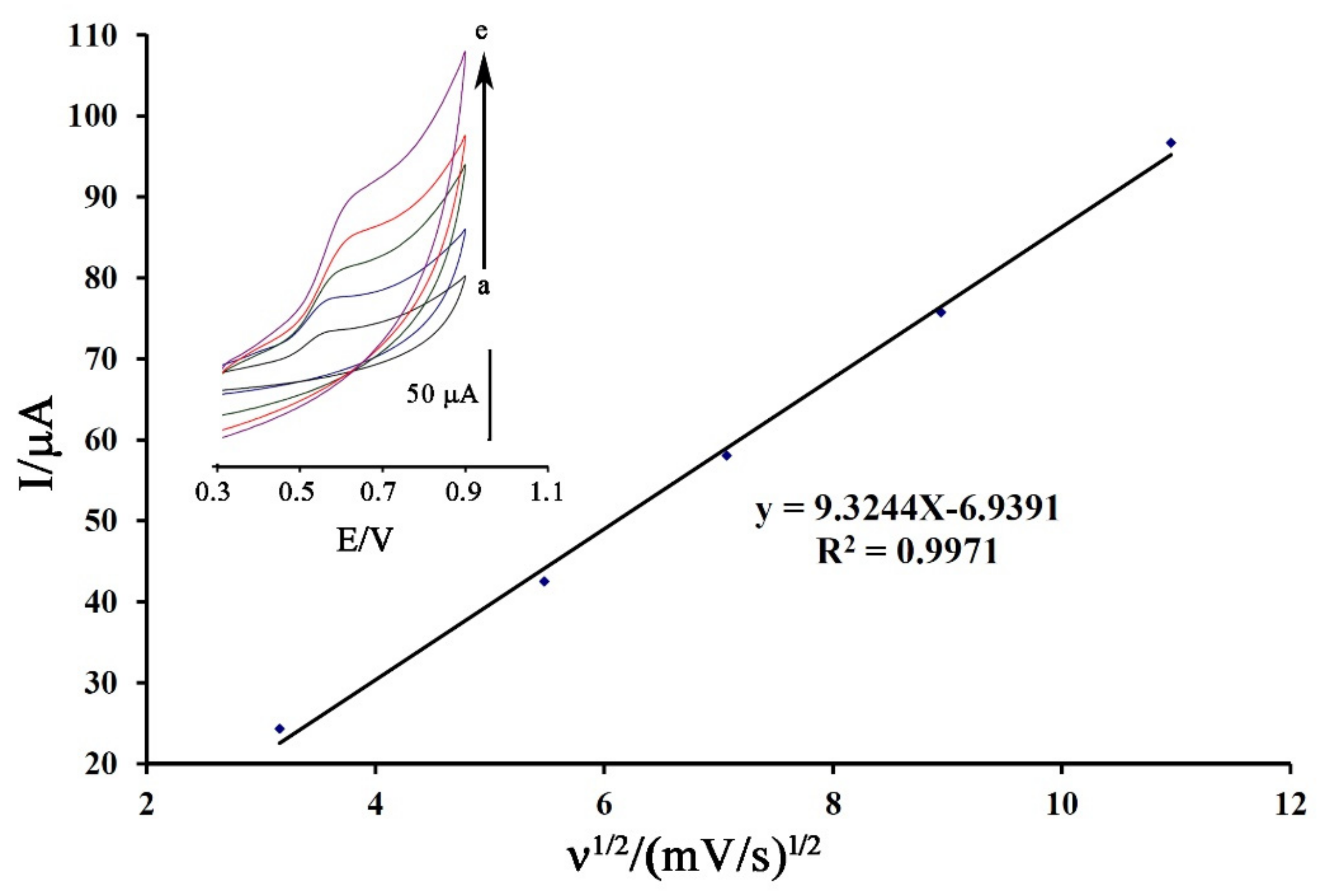

Figure 4. Plot of I-ν1/2 for electro-oxidation of DA at surface of Fe3O4-SWCNTs/mim-BF4−/PE using scan rates (a) 10; (b) 30; (c) 50; (d) 80 and (e) 120 mV/s. Condition, pH = 6.0.
Figure 4. Plot of I-ν1/2 for electro-oxidation of DA at surface of Fe3O4-SWCNTs/mim-BF4−/PE using scan rates (a) 10; (b) 30; (c) 50; (d) 80 and (e) 120 mV/s. Condition, pH = 6.0.
Micromachines 12 00437 g004
Micromachines 12 00437 g005 550

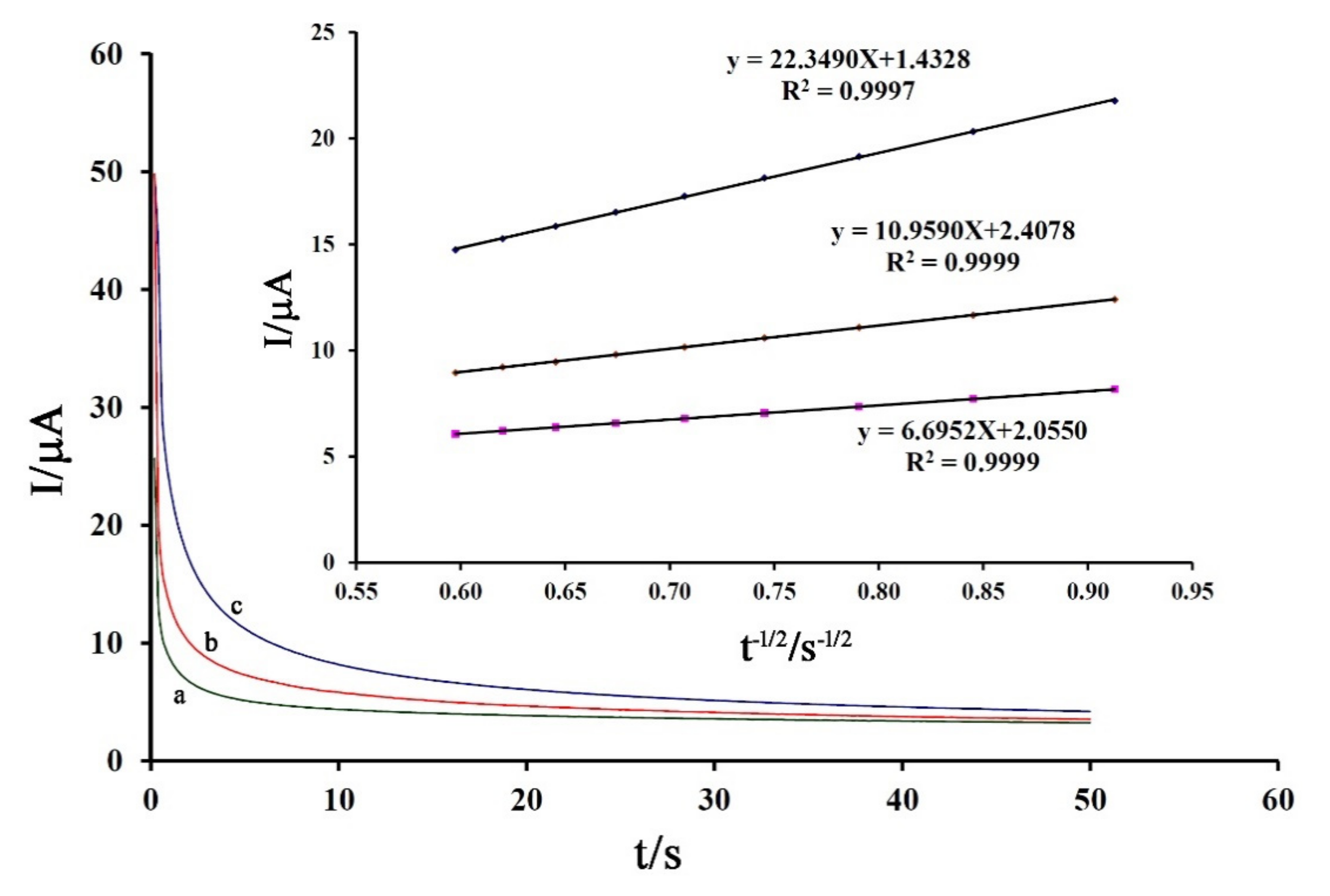

Figure 5. Chronoamperograms obtained at Fe3O4-SWCNTs/mim-BF4−/PE in the presence of (a) 300 µM, (b) 400 µM, and (c) 500 µM DA. (Inset) Dependence of I on the t−1/2 derived from DA signals. Condition, pH = 6.0 and applied potential of 750 mV.
Figure 5. Chronoamperograms obtained at Fe3O4-SWCNTs/mim-BF4−/PE in the presence of (a) 300 µM, (b) 400 µM, and (c) 500 µM DA. (Inset) Dependence of I on the t−1/2 derived from DA signals. Condition, pH = 6.0 and applied potential of 750 mV.
Micromachines 12 00437 g005
Micromachines 12 00437 g006 550

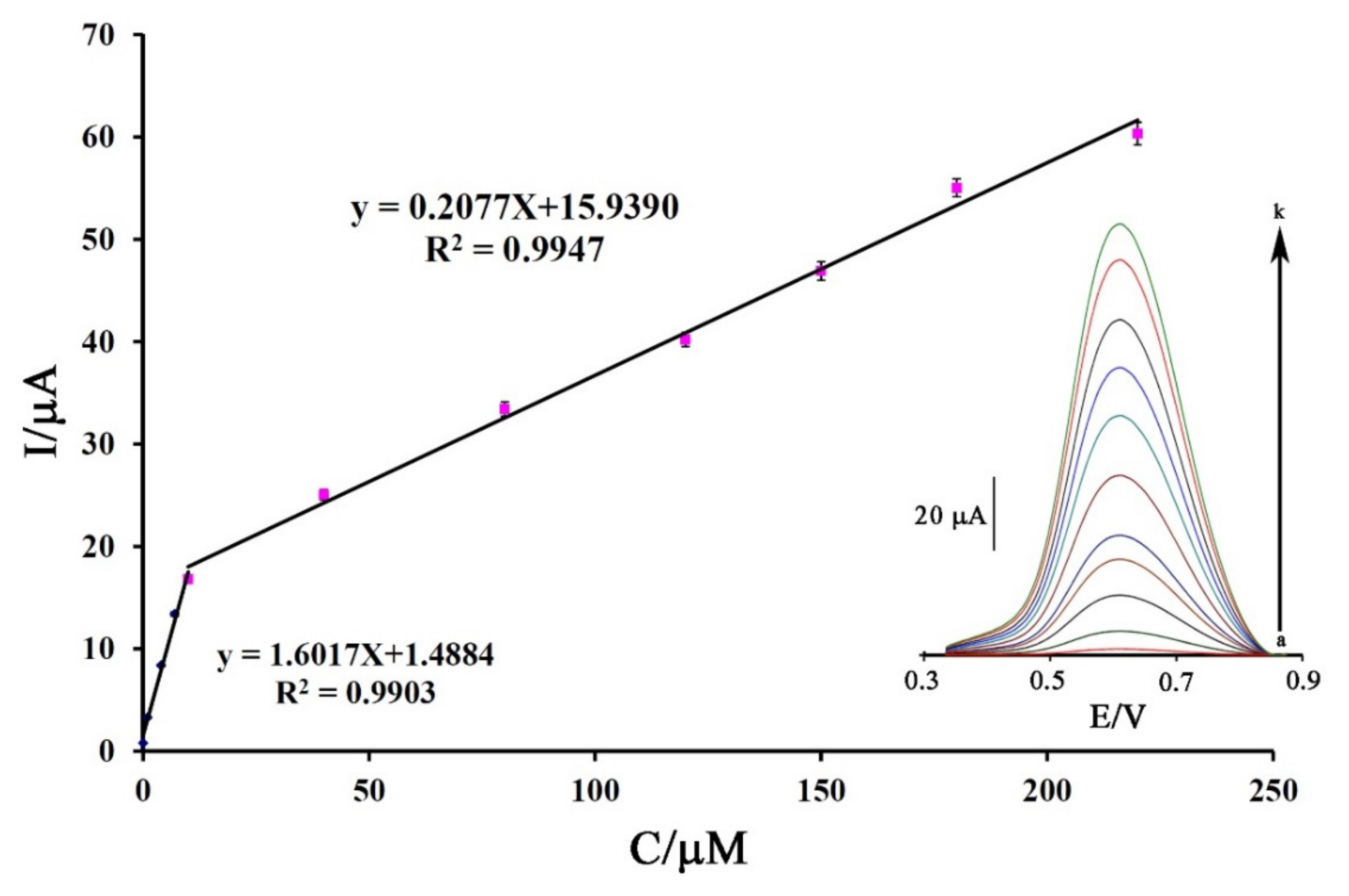

Figure 6. Plot of Current-concentration for electro-oxidation of DA at the surface of Fe3O4-SWCNTs/mim-BF4−/PE. (Inset) SW voltammograms of DA at the surface of Fe3O4-SWCNTs/mim-BF4−/PE in the concentration range 0.001–220 µM. Condition, pH = 6.0 and n = 3.
Figure 6. Plot of Current-concentration for electro-oxidation of DA at the surface of Fe3O4-SWCNTs/mim-BF4−/PE. (Inset) SW voltammograms of DA at the surface of Fe3O4-SWCNTs/mim-BF4−/PE in the concentration range 0.001–220 µM. Condition, pH = 6.0 and n = 3.
Micromachines 12 00437 g006
Table
Table 1. Comparison of the efficiency of Fe3O4-SWCNTs/1-hexyl-3-methylimidazolium tetrafluoroborate (mim-BF4−)/based on paste electrode modification (PE) with some published electrochemical sensors in the determination of dasatinib.
Table 1. Comparison of the efficiency of Fe3O4-SWCNTs/1-hexyl-3-methylimidazolium tetrafluoroborate (mim-BF4−)/based on paste electrode modification (PE) with some published electrochemical sensors in the determination of dasatinib.
ElectrodeMediatorLinear Dynamic Range (µM)Limit of Detection (µM)Ref.
Glassy carbon---0.2–2.00.13[70]
Pencil graphite ---0.0092–1.0 0.0028 [42]
Carbon paste Pt/MWCNTs and 1-butyl-3-methylimidazolium hexafluoro phosphate5.0–5001.0[12]
Glassy carbon ds-DNA + reduced graphene oxide and gold nanoparticles 0.03–5.5 0.009[21]
Carbon pasteZnO nanoparticle and 1-butyl-3-methylimidazolium tetrafluoroborate1.0–1200 0.5[71]
Carbon pasteFe3O4-SWCNTs and mim-BF4−0.001–2200.0007This work
Table
Table 2. Interference study results for sensing of 10 µM dasatinib at surface of Fe3O4-SWCNTs/mim-BF4−/PE and pH = 6.0.
Table 2. Interference study results for sensing of 10 µM dasatinib at surface of Fe3O4-SWCNTs/mim-BF4−/PE and pH = 6.0.
SpeciesTolerance Limits (Weight-Substance/Weight Dasatinib)
Na+, Li+, Br−, CO32-1000
Methionine, Glycine, alanine 750
Glucose and Sucrose650
Vitamin C, Vitamin B2,400
Table
Table 3. Determination of dasatinib using Fe3O4-SWCNTs/mim-BF4−/PE in real samples (n = 3).
Table 3. Determination of dasatinib using Fe3O4-SWCNTs/mim-BF4−/PE in real samples (n = 3).
Sample Added (µM) Expected (µM)Founded (µM)Recovery%
Tablet -2.002.002.05 ± 0.07102.5
10.0012.0011.95 ± 0.2199.58
dextrose saline------<LOD---
15.0015.0015.54 ± 0.76103.6
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Moghaddam, A.; Zamani, H.A.; Karimi-Maleh, H. A New Electrochemical Platform for Dasatinib Anticancer Drug Sensing Using Fe3O4-SWCNTs/Ionic Liquid Paste Sensor. Micromachines 2021, 12, 437. https://doi.org/10.3390/mi12040437

AMA Style

Moghaddam A, Zamani HA, Karimi-Maleh H. A New Electrochemical Platform for Dasatinib Anticancer Drug Sensing Using Fe3O4-SWCNTs/Ionic Liquid Paste Sensor. Micromachines. 2021; 12(4):437. https://doi.org/10.3390/mi12040437

Chicago/Turabian Style

Moghaddam, Ali, Hassan Ali Zamani, and Hassan Karimi-Maleh. 2021. "A New Electrochemical Platform for Dasatinib Anticancer Drug Sensing Using Fe3O4-SWCNTs/Ionic Liquid Paste Sensor" Micromachines 12, no. 4: 437. https://doi.org/10.3390/mi12040437

APA Style

Moghaddam, A., Zamani, H. A., & Karimi-Maleh, H. (2021). A New Electrochemical Platform for Dasatinib Anticancer Drug Sensing Using Fe3O4-SWCNTs/Ionic Liquid Paste Sensor. Micromachines, 12(4), 437. https://doi.org/10.3390/mi12040437

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
