Progress in Piezoelectric Nanogenerators Based on PVDF Composite Films

by
Yuan Wang
1,
Laipan Zhu
2,* and
Cuifeng Du
1,*
1
School of Civil and Resources Engineering, University of Science and Technology Beijing, Beijing 100083, China
2
Beijing Institute of Nanoenergy and Nanosystems, Chinese Academy of Sciences, Beijing 101400, China
*
Authors to whom correspondence should be addressed.
Micromachines 2021, 12(11), 1278; https://doi.org/10.3390/mi12111278
Submission received: 17 September 2021 / Revised: 14 October 2021 / Accepted: 16 October 2021 / Published: 20 October 2021
(This article belongs to the Special Issue Self-Powered Smart Systems)
Browse Figures
Versions Notes

Abstract

:
In recent years, great progress has been made in the field of energy harvesting to satisfy increasing needs for portable, sustainable, and renewable energy. Among piezoelectric materials, poly(vinylidene fluoride) (PVDF) and its copolymers are the most promising materials for piezoelectric nanogenerators (PENGs) due to their unique electroactivity, high flexibility, good machinability, and long–term stability. So far, PVDF–based PENGs have made remarkable progress. In this paper, the effects of the existence of various nanofillers, including organic–inorganic lead halide perovskites, inorganic lead halide perovskites, perovskite–type oxides, semiconductor piezoelectric materials, two–dimensional layered materials, and ions, in PVDF and its copolymer structure on their piezoelectric response and energy–harvesting properties are reviewed. This review will enable researchers to understand the piezoelectric mechanisms of the PVDF–based composite–film PENGs, so as to effectively convert environmental mechanical stimulus into electrical energy, and finally realize self–powered sensors or high–performance power sources for electronic devices.

1. Introduction

The increased consumption of fossil fuels and the ensuing environmental problems call for the development of renewable and clean energy. Over the last few decades, as a kind of active material, piezoelectric materials have attracted more and more attention in applications of self–powered sensors, actuators, and energy–harvesting devices [1,2,3,4,5,6,7]. In 2006, Wang et al. implemented a nanodevice to realize the conversion of mechanical energy into electrical energy by sweeping the metal tip of an atomic force microscope across a vertically grown ZnO nanowire (NW), which was firstly called piezoelectric nanogenerator (PENG) [8,9,10]. Since then, PENGs have become a research hotspot due to their excellent performance of converting tiny and irregular mechanical energy such as vibration, water flow, and body movements into electricity [10,11,12,13,14,15].
Normally, although ceramic piezoelectric materials, such as PbTiO3 and BaTiO3, possess huge piezoelectric coefficients and show excellent mechanical energy–harvesting properties, they are restricted by their rigidity and brittleness [16,17,18,19]. In contrast, piezoelectric polymers possess outstanding characteristics such as good flexibility, light weight, no toxicity, and easy processing [20,21,22,23]. Among them, poly(vinylidene fluoride) (PVDF) is a very promising piezoelectric polymer with long–term stability under a high electric field [24,25,26,27]. PVDF is a kind of semi–crystalline polymer, which mainly crystallizes into five different phases, i.e., α, β, γ, δ, and ε [28,29]. As shown in Figure 1, the α phase is a non–electroactive phase, which results in its nonpolarity, and the γ phase is moderately polarized. The β phase has all–trans (TTTT) conformation, so it behaves as a polar phase, where the C–H and C–F bonds of the PVDF chain in the β phase are distributed at both the ends of the C–C chain separately, leading to an enhanced dipole moment [30]. Therefore, to make PVDF–based PENGs achieve good properties, increasing the content of the β or γ phase is an effective way, which usually uses methods of high–voltage polarization and thermal annealing. However, the piezoelectric coefficient of the PENG is still much lower compared to those of inorganic ceramic materials. Polymer composite piezoelectric materials have fused multiple advantages of the high piezoelectric coefficients of inorganic piezoelectric materials and the flexibility of organic polymers. By adding nanofillers (NFs) into the organic polymer matrix, one can prepare piezoelectric nanocomposites with high piezoelectric properties, good flexibility, and long service life [2,31,32,33,34].
In recent years, nanocomposite films composed of piezoelectric nanoparticles (NPs) and flexible polymers have been intensively studied, which not only improve the piezoelectric properties of polymers but also maintain the flexibility of polymer films. In this paper, the effects of the introduction of various NFs, including organic–inorganic hybrid lead halide perovskites, inorganic lead halide perovskites, perovskite–type oxides, semiconductor piezoelectric materials, two–dimensional (2D) layered materials, and ions, into PVDF and its copolymer structure on their piezoelectric response and energy–harvesting properties are reviewed. The generated electricity is sufficient to drive low–power portable electronic devices and reveal great prospects in self–powered sensors. On the basis of the literature, we retrospect the latest development of flexible PENGs based on PVDF films mixed with different nanocomposites.

2. Embedding with Metal Halide Perovskites

2.1. Organic–Inorganic Lead Halide Perovskites

Recently, a new organic–inorganic lead halide perovskite material (ABX3, A = CH3NH3 (MA) or CH(NH2)2 (FA), B = Pb, X = Cl, Br, or I) has attracted wide attention from optoelectronic devices, such as photodetectors, light–emitting diodes (LEDs) and laser diodes, due to their high photoelectric conversion efficiencies, high photoluminescence quantum efficiencies, excellent electrical properties, adjustable emission wavelengths, and high color purity. Researchers have devoted great enthusiasm to the studies of organic–inorganic lead halide perovskite solar cells, and such a kind of cells can realize an energy conversion efficiency of 25.6% (a record high) in a very short time [35,36,37]. Nevertheless, fundamental studies on the piezoelectric properties and applications of organic–inorganic lead halide perovskite materials are still in their infancy. The traditional synthesis process of inorganic piezoelectric materials is complicated and often requires high–temperature calcination and sintering. In contrast, these organic–inorganic lead halide perovskite materials can be prepared by simple low–temperature approaches, such as vapor deposition and solution chemistry [38]. Ding et al. combined FAPbBr3 NPs with PVDF polymers to prepare thin films by solution casting and polarize them at an electric field of 50 kV cm−1 [39]. The piezoelectric output properties of the composite PENG were significantly improved. Under a pressure of 0.5 MPa, the maximum output voltage and current density of the optimized composite film are about 30 V and 6.2 μA m−2, respectively. The proposed PENG can be used to recharge capacitors and light up a red LED through a bridge rectifier.
After that, Jella et al. prepared MAPbI3–PVDF composite films by spin coating and tape casting simultaneously [40]. Polarized at an electric field of 80 kV cm−1, the open–circuit voltage (Voc) and the short-circuit current density (Jsc) of the PENG prepared by spin coating are 17.8 V and 2.1 µA cm−2, respectively, while the Voc and the Jsc generated by tape casting are up to 45.6 V and 4.7 µA cm−2, respectively. The main reason for the difference in output properties was that the thicknesses of the films prepared by spin coating and tape casting are 6 and 97.7 µm, respectively, which indicates that the film thickness is a key factor affecting PENGs. Meanwhile, the schematic of the power generation mechanism of MAPbI3–PVDF composite PENG was illustrated. As shown in Figure 2, no charges are accumulated on the surface of the PENG electrode in the initial stage. When a force is applied to the PENG, the piezoelectric potential produced in the crystalline PVDF causes the filled MAPbI3 to form macroscopic dipoles, making charges with the opposite polarity accumulated at the interface and surface of the MAPbI3/PVDF composite. Owing to the applied force, the top and bottom electrodes with a reduced charge density allow charges to flow from the bottom electrode to the top electrode, thereby producing a positive signal. In the release process, the relaxation of MAPbI3–PVDF matrix aggrandizes the charge density on the two electrodes, making charges flow from the top electrode to the bottom electrode and producing a negative signal. At the same time, Sultana et al. also prepared a MAPbI3–PVDF composite film by solution casting and elaborated on the reason for the formation of a stable electroactive phase, i.e., β phase, induced by the addition of a proper amount of MAPbI3 to PVDF, as shown in Figure 3 [41]. In the organic–inorganic hybrid lead iodide perovskite compound, the single cationic charge on CH3NH3+ is located on three ammonium hydrogen atoms. This is because in the cage composed of an inorganic PbI3− frame, nitrogen atoms have greater electronegativity, as displayed in Figure 3a. The iodine atoms in the PbI3− frame are electronegative, which makes the charge density negative, and the negative charge density in turn has an electrostatic interaction with an –CH2 dipole and facilitates the nucleation of the electroactive phase, as shown in Figure 3b. A piezoelectric test was conducted on the composite film that was prepared, and a simple finger touch can generate an open–circuit voltage and a short–circuit current of 1.8 V and 37.5 nA, respectively. The devices prepared by MAPbI3/PVDF composite films cannot only be used to harvest mechanical energy, but also serve as photodetectors and photosensitive piezoelectric energy harvesters.
PENGs prepared by tape casting or spin coating generally need to be polarized by an external electric field, so as to render piezoelectric properties to the films, while electrospinning can effectively convert mechanical energy into electrical energy without the need of an additional polarization. Sultana et al. synthesized MAPbBr3 and introduced it into PVDF nanofibers, which were made by electrospinning process [42]. With repeated finger taps, it is displayed that the open–circuit voltage is 5 V and the short–circuit current is 60 nA. Due to the excellent piezoelectric properties, the nanofibers can also harvest energy from acoustic vibration. Figure 3c,d shows the schematic of the variation mechanism of the β crystalline phase in the electrospinning process of the pure PVDF and the composite film. As shown in Figure 3c, under an applied electric field, PVDF chain can be partially crystallized into the β phase. When MAPbBr3 is added into PVDF nanofibers, the charges are induced on the surface of the semiconductor MAPbBr3, making electrospinning and in situ polarization generate a greater Coulomb force. This attracts PVDF chains to crystallize on the surface of MAPbBr3 in the form of β crystal (Figure 3d) and fulfill the function of a nucleating agent, so that the local amorphous region can be converted into the β crystalline phase. As a result, compared with the pure PVDF, the number of the β crystalline phase in the composite film is increased, and hence, the performances of the PENGs are further improved.
All of the perovskite materials used above are lead–containing materials. They have good properties but are not eco-friendly. Subsequently, Ippili et al. successfully synthesized lead–free MASnI3 perovskite under ambient air conditions with a simple anti–solvent–assisted collision technology [43]. The piezoelectric output properties of the polarized MASnI3 PENG showed that when a pressure of 0.5 MPa is applied, the open–circuit voltage is about 3.8 V and the short–circuit current density is 0.35 μA cm−2. To further enhance the piezoelectric output properties of the MASnI3–based PENGs, the authors used an eco–friendly PVDF polymer with a porous structure to synthesize MASnI3 films. Polarized at 60 kV cm−1, the PENGs based on the PVDF–MASnI3 composite material has a maximum output voltage of ~12 V and a current density of ~4.0 μA cm−2. Under a pressure/frequency of 0.5 MPa/frequency, the output power of the PVDF–MASnI3–based PENGs can drive green LEDs. The output properties of the composite PENGs can remain stable for up to 90 days.

2.2. Organic–Inorganic Lead Halide Perovskites

Predecessors have also reported extensively on PVDF–enabled PENGs based on all–inorganic perovskite. Mondal et al. illustrated the preparation of all–inorganic perovskite CsPbBr3 and PVDF PENGs by using a novel composite material based on a simple solution [44]. The electroactive phase content, crystallinity, piezoelectric coefficient, and optical and energy–harvesting characteristics of the samples were studied. The enhancement of the polar phase of the PVDF matrix was observed by doping CsPbBr3. As shown in Figure 4, the piezoelectric responses of all nanogenerators were analyzed by repeatedly hammering in the vertical direction with a pressure of 100 MPa. Among all of the PENGs, the optimal PENG has a maximum output voltage of 120 V and an output current of 35 μA. The excellent properties are attributed to the fact that it contains the most electroactive phases. Figure 4a,b shows the schematic mechanism of the optimized PVDF β–phase chain and the orthorhombic CsPbBr3 perovskite structure. As shown in Figure 4c, the PVDF chain bonds to the surface of CsPbBr3 via physical absorption. The Pb atoms in the CsPbBr3 perovskite are bonded to F atoms in the PVDF chain. In this way, most of the F atoms are located on the same side of the carbon chain, similar to Figure 4a, which results in an improved β phase. Recently, we reported a poly(vinylidene fluoride–trifluoroethylene) (P(VDF–TrFE)) PENG doped with inorgarnic CsPbBr3 quantum dots, and a remarkable improvement in piezoelectric output performance was revealed due to the increased β crystalline phase of the P(VDF–TrFE) [45]. Based on a one–step electrospinning method of solutions including CsPbBr3 precursors and PVDF, we also fabricated CsPbBr3@PVDF composite nanofibers using an in situ growth technology, and the composite PENG displays better thermal/water/acid–base stabilities [46]. The properties of the PVDF halide–based perovskite PENGs are shown in Table 1 below, where RL represents corresponding resistive load when measuring the power output.

3. Embedding with Perovskite–Type Oxides

3.1. Lead Zirconia Titanate (PZT)

Wankhade et al. made an energy–harvesting device that is easy to manufacture, durable, cheap and efficient, by using a PVDF and PZT nanohybrid system [47]. A self–powered piezoelectric sensor (PES) based on a PZT/PVDF composite was reported for a high–quality individual training guidance on table tennis [48]. As shown in Figure 5a, the intelligent table tennis racket is composed of three parts: a PZT/PVDF composite material, a signal processor, and a wireless transmission module. Among them, the sensor array made of the PZT/PVDF composite material is evenly distributed on the racket, and the signal processor and the wireless transmission module are fastened on the handle of the racket (Figure 5b). In this device, the layered structure can help release stress and respond quickly to external forces. In addition, the potential accumulation of different layered crystals makes them more sensitive to pressure. Thus, in order to obtain a piezoelectric material with this structure, they adopted a simple two–step nonsolvent-induced phase separation combined with a hot press process (Figure 5c). A sensor array is integrated on the racket to detect table tennis signals, as shown in Figure 5d, and quantitatively obtain the hitting position and the contact force. More importantly, the sensor has a series of excellent characteristics, such as a sensitivity of up to 6.38 mV N−1, a response time shorter than 21 ms, and a good stability.
PZT–based PENGs have a high power generation capacity owing to their high piezoelectric coefficient, but they are faced with global limitations due to the harm of lead toxicity to human health, biocompatibility, and environmental pollution. For this concern, the embedding of eco–friendly and biocompatible PENG materials based on lead–free piezoelectric ceramics such as barium titanate (shorted as BT or BTO) or potassium sodium niobate (KNN) has attracted more and more attention for replacing PZT.

3.2. Barium Titanate (BaTiO3, also abbreviated as BT or BTO)

In 2014, Zhao et al. reported a high–performance flexible composite PENG based on BaTiO3 NPs and a PVDF composite film (BaTiO3 NPs@PVDF) by a solvent evaporation method [49]. The BaTiO3 NPs are evenly dispersed in the fibrous PVDF matrix and form a directional structure without aggregation. Compared with the pure PVDF, the BaTiO3 NPs not only raise the piezoelectric potential of the PVDF, but also increase the local stress of PVDF, giving a greater deformation to the polymer. Figure 6a shows the schematic of the composite PENG and the pure PVDF PENG under a vertical stress. For the composite film, PVDF fibers are divided into many segments by the BaTiO3 NPs. When the film is subjected to a compressive stress, NPs can be used as a concentration point of stress. For this reason, the local deformation of PVDF segments increases significantly and generates a great piezoelectric potential, while the deformation of the pure PVDF PENG does not increase. Therefore, the piezoelectric output generated by the composite PENG would be greater than that of the pure PVDF PENG. Under a pressure of 10 MPa, the maximum open–circuit voltage and the short–circuit current obtained are 150 V and 1500 nA, respectively.
Alluri et al. replaced the Ti4+ position of BT nanocubes with different doping ratios of Zr4+, to promote the properties of the PENG [52]. By using the molten–salt growth method and replacing the Ti4+ (0.605 Å) site with a Zr4+ atom (0.72 Å), they modified high–purity BaTiO3 nanocubes (without changing the quadrilateral structure). The piezoelectric coefficient can grow from 100 pC N−1 (BaTiO3) to 174–236 pC N−1 (BaTi(1 − x)ZrxO3), and it also holds a better electromechanical conversion efficiency for energy harvesting. Moreover, the use of the BaTi0.9Zr0.1O3/PVDF–based PENG as an active sensor was also demonstrated. The electrical output of this PENG can estimate its input flow velocity (inertial force) through the outlet pipeline. Shin et al. reported a flexible composite film PENG composed of hemispherically polymerized BaTiO3 nanosheets (NSs) and poly(vinylidene fluoride–hexafluoropropylene) (P(VDF–HFP)) [53]. A solvent evaporation method introduced here is simple, economical and suitable for large–scale manufacturing of high–performing flexible PENGs. Afterwards, Chen et al. put forward a PENG based on piezoelectric P(VDF–TrFE)/BaTiO3–reinforced nanocomposite microcolumn arrays, which are made by a reliable and scalable nanoimprint lithography process [34]. At a press of 50 N, the output was 7.3 times larger than that of the original P(VDF–TrFE) film. The weak interface and the poor dispersion of fillers seriously restrict further enhancement of their electromechanical properties. Therefore, Shi et al. adopted a hydrothermal method to fabricate BaTiO3 NWs as piezoelectric reinforcing fillers, grafted a layer of high–modulus poly(methyl methacrylate) (PMMA) onto the surface of the NWs by surface–initiated polymerization and used electrospinning to prepare PMMA@BaTiO3/P(VDF–TrFE) fiber PENGs [17]. The PMMA is grafted onto the BaTiO3 matrix, so that the NWs can be evenly dispersed into the P(VDF–TrFE) matrix, thereby strengthening the stress transfer at the interface between the piezoelectric NWs and the P(VDF–TrFE) matrix and significantly promoting the output properties of the PENGs. Later on, someone studied the strategy of realizing a synergistic effect by preparing different composite layers and fabricated a double–layer (DL) PVDF–based nanocomposite composed of a semi–high–content BTO NP layer, which performs well over those made with single–layered (SL) films [50]. The stress distribution is shown in Figure 6b. In a homogeneous SL film, the opposite stress states applied to the two halves of the film can generate opposite induced charges and lower the overall apparent piezoelectric response. In a nonuniform DL film, due to the different polarization modes and dipole orientations of the BTO/PVDF layer and the neat PVDF layer, the offset effect is weak, and a great net pressure response can be realized. The charges accumulated on the interlayer between the BTO/PVDF layer and the PVDF layer contribute greatly to the improvement of the output. The DL film containing 20 vol% BTO NPs has an excellent output voltage of 6.7 V, an output current of 2.4 μA, and a stability within 3% over 1000 circles.
With the development of wearable electronic devices, stretchable energy harvesters hold great appeal due to their ability to minimize the need to recharge wearables frequently. Zhou et al. investigated the preparation of a telescopic kirigami PENG based on BaTiO3 NPs, a P(VDF–TrFE) matrix, and a silver film–based electrode, by using an all three–dimensional (3D) printing process [51]. Such a kind of PENGs can be stretched to a strain of more than 300%, and the device can be installed on socks and other wearable textiles in order to form energy harvesters, collect treading energy from feet and serve as a self–powered gait sensor (Figure 6c). Subsequently, many researchers employed modified BTO, such as graphene NSs, polydopamine, and silver NPs, to improve the properties of PVDF–based PENGs [16,54,55].

3.3. Potassium Sodium Niobate (KNN)

PZT has a high piezoelectric coefficient (d33: ~200–750 pC N−1) and a high Curie temperature (TC: ~180–230 °C). Nonetheless, the lead content of PZT is more than 60%, and it is not eco–friendly. To solve this problem, in recent years, people have been studying KNN. KNN has a higher dielectric constant, a higher coupling coefficient, a higher Curie temperature, and a higher piezoelectric coefficient (d33: ~700 pC N−1) [56]. What is more, it is a completely lead–free material, so it does not have environmental problems as PZT. However, it possesses a very high rigidity and a low breakdown strength, which limits its applications in many piezoelectric fields. Many researchers combined it with the piezoelectric material PVDF and its copolymer. In doing so, not only the piezoelectric properties can be promoted, but also the flexibility can be enhanced. Teka et al. tried using a nanocomposite flexible fiber mesh based on the nanostructure of the PVDF/KNN composite to manufacture a simple and unique lightweight energy harvester, which is polarized in situ by an electrospinning technology [57]. There are also some similar reports. For example, a nanogenerator composed of lead–free KNN nanorods (with a length–diameter ratio of 8.5) and PVDF outputs an open–circuit voltage of 17.5 V and a short–circuit current of 0.522 μA [58]. After that, someone investigated a fiber–mesh PENG, which is electrospun by silane–modified KNN doped with PVDF [59]. It was found that the surface–modified KNN (SM–KNN) of the PVDF–doped nanofiber mesh can improve piezoelectric properties, because it can cause the depolymerization of NFs and further induce better interactions between KNN nanorods and PVDF polymer chains. Vivekananthan et al. developed a kind of lead–free piezoelectric NPs (1− x)K0.5Na0.5NbO3–xBaTiO3 by substituting BTO NPs into the KNN lattice [60]. When x ≈ 0.02, the piezoelectric properties of the KNN lattice can be enhanced without changing the orthorhombic phase of the KNN lattice, and the lattice is impregnated in the PVDF matrix. At a low mechanical force of ~0.4 N, the maximum open–circuit voltage generated by the composite film nanogenerator (x ≈ 0.02) is 160 V, and the instantaneous area power density is ~14 mW m−2. A performance comparison of the PVDF–based metallic oxide perovskite PENGs is shown in Table 2.

4. Semiconductor Piezoelectric Materials

Bhavanasi et al. reported the enhanced piezoelectric energy–harvesting properties of the DL film of polarized P(VDF–TrFE) and graphene oxide (GO) [61]. The increased voltage and power output in the presence of GO films are ascribed to the electrostatic contribution of GO, residual tensile stress, the improved Young’s modulus of the DL film, and the existence of the interfacial space charges between the P(VDF–TrFE) and the GO film. Some researchers reported a kind of flexible, self–powered and multifunctional electronic skin, which can power the whole system by integrating three types of sensors to monitor environmental signals and four micro supercapacitors [62]. All of the sensors and micro supercapacitors are made of the reduced GO (rGO)–on–PVDF nanofibers. The pressure sensing part can monitor wearers’ biological signals, such as their neck pulses, saliva swallowing, voices, and body movements.
Choi et al. reported an analysis of the power enhancement of hybrid piezoelectric structures composed of zinc oxide (ZnO) NWs and PVDF polymers, conducted a test on its mechanical properties by an atomic force microscope and simulated it by the finite element method [63]. The electrical properties of the hybrid nanogenerator were observed with an electrostatic force microscope and through direct I–V measurements. Based on this analysis, the internal strain of ZnO NWs was transferred to PVDF in the hybrid structure, thereby enhancing the power output of the hybrid nanogenerator. These results provided a new approach to optimizing the design of the hybrid piezoelectric structure and the spatial arrangement of nanostructures. Many researchers have realized applications related to ZnO/PVDF composite films. By taking the ZnO nanoneedle/PVDF composite film as the material, Shin et al. successfully prepared a highly sensitive, wearable and wireless pressure sensor. The addition of ZnO nanoneedles as the nucleating agent improves the crystallinity, dielectric constant, and elastic modulus of PVDF–based composite films. Moreover, highly conductive rGO is used as electrodes for pressure sensors and Bluetooth antennas via screen printing [64]. The wireless signals of heart rates are monitored sensitively without any distortion and delay. Compared with pressure sensors made of wires, they have a similar oscillation. These characteristics suggested that such a kind of ZnO nanoneedle/PVDF film is a suitable candidate for commercial and continuous wireless pressure sensors and can be used for the purpose of health monitoring and intensive care. Other researchers synthesized flexible ZnO NPs–impregnated PVDF films with excellent piezoelectric, dielectric, and optical properties in situ [65]. Two simple prototype energy–harvesting units based on ZnO–PVDF thin films are fabricated. One is a PENG and touch sensor, which was named ZPENG, and the other is a self–charging pro power battery (PPB) pack. ZPENG can collect electricity from our living system and nature by virtue of superior properties. What is more, the self–charging PPB made also shows a higher efficiency than other hybrid optical supercapacitors (e.g., other photovoltaic cells with storage functions that have been reported so far). Later on, someone put forward a flexible self–powered ZnO/PVDF/fabric electronic skin, which has many functions such as tactility, atmosphere detection, and self–cleaning [66]. The piezoelectric PVDF and tetrapod ZnO (T–ZnO) nanostructures are hybridized on the flexible fabric substrate. The piezoelectric, air–sensitive, and photocatalytic properties of T–ZnO nanostructures are banded together. The piezoelectric effect of the T–ZnO/PVDF composite gives rise to motion–driven tactile behaviors. The structure of this new material system can facilitate the development of the flexible self–powered multifunctional electronic skin. The interactive human–machine interface (iHMI) is a bridge between men and robots, which has important demands for changes in perceived pressure and bending angle [67]. Deng et al. designed a flexible self–powered PES based on PVDF/ZnO nanofibers and used it for remote gesture control in iHMI [68]. The designed PES could work in both bending and compacting modes, and the sensitivity of the PES can be adjusted with the ratio of ZnO to PVDF. Within the range of 44°–122°, an optimal bending sensitivity of 4.4 mV deg−1 and a fast response time of 76 m can be obtained. On this basis, the as–prepared flexible PES is installed on a spring collet and a book, to detect the clamping force and the bending angle in the opening and closing stages.
By taking a mesoporous PVDF–LiPF6 film as the piezoelectric electrolyte, He et al. prepared a new all–solid–state self–charging power cell (SCPC) [69]. The solid piezoelectric electrolyte can serve as both an electrolyte and a piezoelectric diaphragm. As shown in Figure 7a, the all–solid–state flexible SCPC can be effectively charged by means of mechanical deformation, to directly obtain/store the kinetic energy of the body. The SCPC sealed in a stainless steel battery can be charged by compressive deformation (30 N, 1 Hz), and the storage capacity within 240 s is 0.118 μA h, which is about 5 times that of the traditional nonintegrated system. The SCPC sealed in a flexible shell can be charged by bending deformation. Such a kind of all–solid–state flexible SCPCs can power most wearable electronic devices, including sports bracelets, smart watches, and LED lamps, as shown in Figure 7b. This study provides an innovative way to develop self–sustainable batteries and self–powered wearable electronic devices.
Studies on PENGs based on boron nitride nanotubes (BNNTs) are still blank. Ye et al. reported the development of a PENG with excellent output properties and outstanding neutron radiation shielding ability by using microstructured BNNTs–doped P(VDF–TrFE) nanocomposites [31]. This PENG achieves a good flexibility, a high performance, and an excellent radiation resistance under harsh conditions. Compared with films without BNNTs, the doped PENG has a neutron radiation shielding effect of 9%, and the neutron cross–section grows by 260%. After 2 h of neutron irradiation, it still maintains a high output. Meanwhile, at a pressure of 0.4 MPa, the output voltage of the nanocomposite PENG is 22 V, and the sensitivity is 55 V/MPa, which is 11 times that of the original P(VDF–TrFE) film. This remarkable property enhancement can be ascribed to the synergic contribution of strong piezoelectric BNNTs and the strain constraint effect of nanocomposite microstructures. Simultaneously, PENGs based on P(VDF–TrFE) doped with GeSe NSs were also studied [70]. When the mass fraction of GeSe NSs is only 4 wt % at a pressure of 50 N cm−2, the maximum open–circuit voltage density is 17.58 V cm−2, the short–circuit current density is 1.14 µA cm−2, and the power density is 9.76 µW cm−2. Furthermore, a new multifunctional nanocomposite film was developed by integrating piezoelectric molybdenum disulfide (MoS2) and PVDF polymers [71]. Wasted mechanical energy can be used to effectively generate power and purify water. The embedded MoS2 NPs have long–term activity, recyclability, and ability to treat a large amount of water, without the spillage of NPs. Under dark conditions, the prepared film exhibits an efficient, rapid and stable pressure–sensitive degradation effect on all of the four toxic and carcinogenic dyes (>90% within 20 min). It can be reused (at least 10 times) without any loss of catalytic activity. Recently, we also demonstrated that a micropillar structure and solvent treatment can greatly enhance the output of NSs–doped PENGs [72,73]. A performance comparison of the PVDF–based PENGs doped with semiconductor piezoelectric materials is summarized in Table 3.

5. Rare Earth Ions

This section may be divided by subheadings. It should provide the concise and precise descriptions of experimental results, their interpretation, as well as experimental conclusions that can be drawn. Ghosh et al. added rare earth ytterbium (Yb) salt with hygroscopicity to PVDF, implemented a porous composite film with a locally oriented –CH2/–CF2 dipole and avoided the traditional polarization process [74]. The piezoelectric output of the PENG is achieved by the synergy of the self–polarized –CH2/–CF2 dipole with an electret–like porous structure in the composite films. In the PVDF–DMAc solution doped with Yb3+ salt, DMAc solvates PVDF and forms a resonant structure with Yb3+. Meanwhile, due to its polar aprotic and hydrophilic properties, it gradually absorbs moisture in the atmosphere. Therefore, water molecules encircle the F ion of PVDF. In addition, there is a strong hydrogen bond interaction between the water molecules and the F iron in PVDF, which makes the –CH2/–CF2 dipole in PVDF unidirectional, as shown in Figure 8a. As a result, the output as a mechanical energy harvester is greatly enhanced.
Similar to the above experiment, a new infrared–sensitive Er3+–modified PVDF film can convert mechanical energy and thermal energy into useful electrical energy [72]. The addition of hygroscopic erbium salt Er3+ to PVDF can form a self–polarized piezoelectric β phase, as well as an electret–like porous structure, so as to improve the piezoelectric properties. As shown in Figure 8b, after long–term stirring, Er3+ salt doped in a PVDF–DMF solution gradually absorbs moisture in the atmosphere, because of its polar aprotic and hydrophilic properties. Accordingly, the water molecules from moisture and the coordinated water in Er3+ salt (ErCl3, 6H2O) interact and encircle the F− ion in PVDF. Therefore, the F− strong hydrogen bond interaction (O–H––F–C) between water molecules and F− in PVDF powers the –CH2/–CF2 dipoles and arranges them in an all–trans (TTTT) conformation (i.e., β phase). What is more, it was also proved that due to its excellent infrared absorption properties, Er3+ enhances the heat transfer to the Er3+/PVDF film, causes rapid temperature fluctuations and improves the conversion of heat release energy. The superior mechanical sensitivity (~3.4 V Pa−1) of the PENG enables it to design a wearable self–powered health monitoring system through man–machine integration.

6. Other NFs

Karan et al. reported a PVDF–based multifunctional advanced energy material assisted by a bioinspired vitamin B2 (VB2). By fusing VB2 and PVDF, they designed a PENG entirely based on organic and biological compatibility [76]. This PENG can collect multiple energies (mechanical/acoustic/wind) simultaneously. As an effective β phase (~93%) PVDF stabilizer, VB2 is introduced into the field of energy harvesting. The existence of the polar β phase can be related to the interaction between –CH2−/–CF2− dipoles in PVDF and delocalized π electrons in carbonyl and amino groups in VB2. It is also possible that the F/H atoms of PVDF are attracted by the functional groups (–OH, carbonyl, etc.) in VB2 through the H bond/electrostatic force interaction (Figure 9). Through the surface charge–induced polarization, the polar surface with opposite charges on VB2 interacts with different PVDF dipoles (–CF2−/–CH2−). Consequently, negative and positive charge densities can be obtained on the surface of the composite material, which is helpful build a piezoelectric–sensitive polarized β phase.
A metal foil electrode or a metal electrode coated with film is taken as the charge harvester. Due to huge mismatches of Young’s modulus and Poisson’s ratio between the electrode and the active piezoelectric material, the service life of the device under extended cyclic stress is diminished. For this reason, Ghosh et al. designed an all–fiber wearable high–performance PENG, in which platinum (Pt) NPs and one–dimensional PVDF NF arrays (Pt–PVDF NFs) with highly aligned interfaces are sandwiched between flexible conductive fabrics composed of arrays of interlocking microfibers [77].

7. Self–Poled PVDF-Based PENGs with Long–Term Stability

PVDF–based PENGs with embedded NFs own enhanced energy harvesting properties; however, they usually require a poling process to promote the piezoelectric properties and suffer from the long–term stability of the electrical outputs [78]. Therefore, self–poled PVDF–based PENGs with long–term stability are much desired. Recently, Thakur et al. made a self–poled PENG based on a ZnO/PVDF thin film with a long–term stability of at least 8 weeks [65]. Pusty et al. reported a flexible self–poled PENG based on a reduced graphene oxide–silver (rGO–Ag) NP /PVDF film [79]. The PENG exhibits an open–circuit voltage of 18 V and a short–circuit current of 1.05 μA, with a maximum power density of 28 W m−3 across a load resistor of 1 MΩ. The PENG has a long–term stability under a consecutive piezoelectric test for three hours. Later, Yadav et al. fabricated a flexible self–poled PENG using hexagonal boron nitride (hBN) nanoflakes embedded in PVDF with an open–circuit voltage, a short–circuit current, and a peak power density of 68 V, 0.1 µA, and 53.2 µW cm−2, respectively [80]. In addition, this PENG could perform robustly even after 45 days and 1500 bending periods. As mentioned above, Bagchi et al. reported a reusable self–poled PENG based on a MoS2/PVDF film, and the piezoelectric film exhibits a stable piezocatalytic dye degradation efficiency and could be used repeatedly at least 10 times [71].

8. Perspective

The low energy conversion efficiency of pure polymer materials has limited their application in energy harvesting. For this concern, it is a very promising design strategy for piezoelectric materials to synthesize composite materials with NFs. Under this circumstance, PVDF and its copolymers have high piezoelectric strain constants and are suitable materials for matrices. What is more important, the addition of NFs can improve piezoelectric properties without affecting their flexibility. In this paper, the recent research progress in the enhancement of piezoelectric properties of PVDF–based PENGs is reviewed, with a focus on composites of functional materials. The underlying mechanisms behind property enhancements are explained in detail. With respect to the conversion ability from mechanical energy to electrical energy, the piezoelectric coefficient is improved by adding piezoelectric materials as nucleating agents, which makes the composite material generate more β phase. It is foreseeable that with the improvement of properties of flexible PVDF piezoelectric materials and the progress of device–manufacturing technology, flexible PVDF piezoelectric materials will be widely used. Despite the considerable progress in the development and design of various PVDF functional devices, there are still many prominent problems to solve, and more work needs to be performed in the following aspects:
(1)
The piezoelectric effect in PVDF is improved after other functional materials are added, generally because of the increase of the content of the β phase. It is necessary to gain a deeper understanding into the mechanism of how different NFs induce the compounds to form a β phase.
(2)
Although at present there are many studies, the comparison of properties has not achieved the true uniformity of parameters, such as thickness, area, density, mass and operation method, and there is a lack of a unified standard which allows us to truly understand the property enhancement.
(3)
In addition to incorporating NFs into the PVDF matrix, we should also pay attention to the innovative designs of the device structure. A novel structural design can not only promote the sensitivity of nanogenerators, but also satisfy other needs, such as wearable electronics in the field of textiles.
In summary, this review can help people engaged in the research field of PVDF–based PENGs to gain a comprehensive understanding into the latest progress and explore future research directions. It is foreseeable that these flexible and efficient PENGs will be applied to our daily life in the near future and offers a far–reaching impact on portable devices, wearable electronic devices, and biomedicine.

Author Contributions

Y.W., conceptualization, formal analysis, and writing of the original draft; L.Z., supervision, review, and editing; C.D., supervision, review, and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Natural Science Foundation of China (grant No. 11704032) and the Fundamental Research Funds for the Central Universities (No. FRF-TP-19-039A1).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yan, J.; Liu, M.; Jeong, Y.G.; Kang, W.; Li, L.; Zhao, Y.; Deng, N.; Cheng, B.; Yang, G. Performance enhancements in poly(vinylidene fluoride)-based piezoelectric nanogenerators for efficient energy harvesting. Nano Energy 2019, 56, 662–692. [Google Scholar] [CrossRef]
  2. Hu, Y.; Wang, Z.L. Recent progress in piezoelectric nanogenerators as a sustainable power source in self-powered systems and active sensors. Nano Energy 2015, 14, 3–14. [Google Scholar] [CrossRef] [Green Version]
  3. Gu, L.; Liu, J.; Cui, N.; Xu, Q.; Du, T.; Zhang, L.; Wang, Z.; Long, C.; Qin, Y. Enhancing the current density of a piezoelectric nanogenerator using a three-dimensional intercalation electrode. Nat. Commun. 2020, 11, 1030. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Ali, F.; Raza, W.; Li, X.; Gul, H.; Kim, K.-H. Piezoelectric energy harvesters for biomedical applications. Nano Energy 2019, 57, 879–902. [Google Scholar] [CrossRef]
  5. Cao, X.; Xiong, Y.; Sun, J.; Zhu, X.; Sun, Q.; Wang, Z.L. Piezoelectric Nanogenerators Derived Self-Powered Sensors for Multifunctional Applications and Artificial Intelligence. Adv. Funct. Mater. 2021, 31, 2102983. [Google Scholar] [CrossRef]
  6. Yang, F.; Li, J.; Long, Y.; Zhang, Z.; Wang, L.; Sui, J.; Dong, Y.; Wang, Y.; Taylor, R.; Ni, D.; et al. Wafer-scale heterostructured piezoelectric bio-organic thin films. Science 2021, 373, 337–342. [Google Scholar] [CrossRef]
  7. Purusothaman, Y.; Alluri, N.R.; Chandrasekhar, A.; Venkateswaran, V.; Kim, S.-J. Piezophototronic gated optofluidic logic computations empowering intrinsic reconfigurable switches. Nat. Commun. 2019, 10, 4831. [Google Scholar] [CrossRef] [Green Version]
  8. Wang, Z.L.; Song, J. Piezoelectric Nanogenerators Based on Zinc Oxide Nanowire Arrays. Science 2006, 312, 242–246. [Google Scholar] [CrossRef]
  9. Gao, Y.; Wang, Z.L. Electrostatic Potential in a Bent Piezoelectric Nanowire. The Fundamental Theory of Nanogenerator and Nanopiezotronics. Nano Lett. 2007, 7, 2499–2505. [Google Scholar] [CrossRef]
  10. Wang, Z.L. Towards Self-Powered Nanosystems: From Nanogenerators to Nanopiezotronics. Adv. Funct. Mater. 2008, 18, 3553–3567. [Google Scholar] [CrossRef]
  11. Wang, Z.L.; Wu, W. Nanotechnology-Enabled Energy Harvesting for Self-Powered Micro-/Nanosystems. Angew. Chem. Int. Ed. 2012, 51, 11700–11721. [Google Scholar] [CrossRef]
  12. Kumar, B.; Kim, S.-W. Energy harvesting based on semiconducting piezoelectric ZnO nanostructures. Nano Energy 2012, 1, 342–355. [Google Scholar] [CrossRef]
  13. Surmenev, R.A.; Orlova, T.N.; Chernozem, R.V.; Ivanova, A.A.; Bartasyte, A.; Mathur, S.; Surmeneva, M.A. Hybrid Lead-Free Polymer-Based Scaffolds with Improved Piezoelectric Response for Biomedical Energy-Harvesting Applications: A Review. Nano Energy 2019, 62, 475–506. [Google Scholar] [CrossRef] [Green Version]
  14. Vivekananthan, V.; Raj, N.P.M.J.; Alluri, N.R.; Purusothaman, Y.; Chandrasekhar, A.; Kim, S.-J. Substantial improvement on electrical energy harvesting by chemically modified/sandpaper-based surface modification in micro-scale for hybrid nanogenerators. Appl. Surf. Sci. 2020, 514, 145904. [Google Scholar] [CrossRef]
  15. Abisegapriyan, K.S.; Joseph Raj, N.P.M.; Alluri, N.R.; Chandrasekhar, A.; Kim, S.-J. All in One Transitional Flow-Based Integrated Self-Powered Catechol Sensor Using BiFeO3 Nanoparticles. Sensor. Actuat. B—Chem. 2020, 320, 128417. [Google Scholar]
  16. Shi, K.; Sun, B.; Huang, X.; Jiang, P. Synergistic effect of graphene nanosheet and BaTiO3 nanoparticles on performance enhancement of electrospun PVDF nanofiber mat for flexible piezoelectric nanogenerators. Nano Energy 2018, 52, 153–162. [Google Scholar] [CrossRef]
  17. Shi, K.; Chai, B.; Zou, H.; Shen, P.; Sun, B.; Jiang, P.; Shi, Z.; Huang, X. Interface Induced Performance Enhancement in Flexible BaTiO3/PVDF-TrFE Based Piezoelectric Nanogenerators. Nano Energy 2021, 80, 105515. [Google Scholar] [CrossRef]
  18. Park, K.-I.; Son, J.H.; Hwang, G.-T.; Jeong, C.K.; Ryu, J.; Koo, M.; Choi, I.; Lee, S.H.; Byun, M.; Wang, Z.L.; et al. Highly-Efficient, Flexible Piezoelectric PZT Thin Film Nanogenerator on Plastic Substrates. Adv. Mater. 2014, 26, 2514–2520. [Google Scholar] [CrossRef]
  19. Hu, Y.; Xu, C.; Zhang, Y.; Lin, L.; Snyder, R.L.; Wang, Z.L. A Nanogenerator for Energy Harvesting from a Rotating Tire and its Application as a Self-Powered Pressure/Speed Sensor. Adv. Mater. 2011, 23, 4068–4071. [Google Scholar] [CrossRef]
  20. Jella, V.; Ippili, S.; Eom, J.-H.; Pammi, S.; Jung, J.-S.; Tran, V.-D.; Nguyen, V.H.; Kirakosyan, A.; Yun, S.; Kim, D.; et al. A comprehensive review of flexible piezoelectric generators based on organic-inorganic metal halide perovskites. Nano Energy 2019, 57, 74–93. [Google Scholar] [CrossRef]
  21. Dagdeviren, C.; Joe, P.; Tuzman, O.L.; Park, K.-I.; Lee, K.J.; Shi, Y.; Huang, Y.; Rogers, J.A. Recent progress in flexible and stretchable piezoelectric devices for mechanical energy harvesting, sensing and actuation. Extrem. Mech. Lett. 2016, 9, 269–281. [Google Scholar] [CrossRef] [Green Version]
  22. Yuan, H.; Lei, T.; Qin, Y.; Yang, R. Flexible electronic skins based on piezoelectric nanogenerators and piezotronics. Nano Energy 2019, 59, 84–90. [Google Scholar] [CrossRef]
  23. Wang, W.; Zheng, Y.; Jin, X.; Sun, Y.; Lu, B.; Wang, H.; Fang, J.; Shao, H.; Lin, T. Unexpectedly high piezoelectricity of electrospun polyacrylonitrile nanofiber membranes. Nano Energy 2019, 56, 588–594. [Google Scholar] [CrossRef]
  24. Egusa, S.; Wang, Z.; Chocat, N.; Ruff, Z.; Stolyarov, A.M.; Shemuly, D.; Sorin, F.; Rakich, P.T.; Joannopoulos, J.D.; Fink, Y. Multimaterial piezoelectric fibres. Nat. Mater. 2010, 9, 643–648. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Sun, H.; Tian, H.; Yang, Y.; Xie, D.; Zhang, Y.-C.; Liu, X.; Ma, S.; Zhao, H.-M.; Ren, T.-L. A novel flexible nanogenerator made of ZnO nanoparticles and multiwall carbon nanotube. Nanoscale 2013, 5, 6117–6123. [Google Scholar] [CrossRef] [PubMed]
  26. Liu, X.; Shang, Y.; Zhang, J.; Zhang, C. Ionic Liquid-Assisted 3D Printing of Self-Polarized β-PVDF for Flexible Piezoelectric Energy Harvesting. ACS Appl. Mater. Interfaces 2021, 13, 14334–14341. [Google Scholar] [CrossRef]
  27. Soleymani, H.; Noormohammadi, M.; Kashi, M.A.; Amiri, M.H.; Michels, J.J.; Asadi, K.; Abolhasani, M.M. Self-Poled Sausage-Like PVDF Nanowires Produced by Confined Phase Inversion as Novel Piezoelectric Nanogenerators. Adv. Mater. Interfaces 2021, 8, 2001734. [Google Scholar] [CrossRef]
  28. Lu, L.; Ding, W.; Liu, J.; Yang, B. Flexible PVDF based piezoelectric nanogenerators. Nano Energy 2020, 78, 105251. [Google Scholar] [CrossRef]
  29. Gaur, A.; Kumar, C.; Shukla, R.; Maiti, P. Induced Piezoelectricity in Poly(vinylidene fluoride) Hybrid as Efficient Energy Harvester. Chemistryselect 2017, 2, 8278–8287. [Google Scholar] [CrossRef]
  30. Kabir, E.; Khatun, M.; Nasrin, L.; Raihan, M.J.; Rahman, M. Pure β-Phase Formation in Polyvinylidene Fluoride (PVDF)-Carbon Nanotube Composites. J. Phys. D Appl. Phys. 2017, 50, 163002. [Google Scholar] [CrossRef]
  31. Ye, S.; Cheng, C.; Chen, X.; Chen, X.; Shao, J.; Zhang, J.; Hu, H.; Tian, H.; Li, X.; Ma, L.; et al. High-Performance Piezoelectric Nanogenerator Based on Microstructured P(VDF-TrFE)/BNNTs Composite for Energy Harvesting and Radiation Protection in Space. Nano Energy 2019, 60, 701–714. [Google Scholar] [CrossRef]
  32. Singh, H.H.; Khare, N. Flexible ZnO-PVDF/PTFE Based Piezo-Tribo Hybrid Nanogenerator. Nano Energy 2018, 51, 216–222. [Google Scholar] [CrossRef]
  33. Fu, J.; Hou, Y.; Gao, X.; Zheng, M.; Zhu, M. Highly durable piezoelectric energy harvester based on a PVDF flexible nanocomposite filled with oriented BaTi2O5 nanorods with high power density. Nano Energy 2018, 52, 391–401. [Google Scholar] [CrossRef]
  34. Chen, X.; Li, X.; Shao, J.; An, N.; Tian, H.; Wang, C.; Han, T.; Wang, L.; Lu, B. High-Performance Piezoelectric Nanogenerators with Imprinted P(VDF-TrFE)/BaTiO3 Nanocomposite Micropillars for Self-Powered Flexible Sensors. Small 2017, 13, 1604245. [Google Scholar] [CrossRef]
  35. Im, J.-H.; Jang, I.-H.; Pellet, N.; Grätzel, M.; Park, N.-G. Growth of CH3NH3PbI3 cuboids with controlled size for high-efficiency perovskite solar cells. Nat. Nanotechnol. 2014, 9, 927–932. [Google Scholar] [CrossRef]
  36. Yang, W.S.; Noh, J.H.; Jeon, N.J.; Kim, Y.C.; Ryu, S.; Seo, J.; Seok, S.I. High-performance photovoltaic perovskite layers fabricated through intramolecular exchange. Science 2015, 348, 1234–1237. [Google Scholar] [CrossRef]
  37. Jeong, J.; Kim, M.; Seo, J.; Lu, H.; Ahlawat, P.; Mishra, A.; Yang, Y.; Hope, M.A.; Eickemeyer, F.T.; Kim, M.; et al. Pseudo-Halide Anion Engineering for α-FaPbI3 Perovskite Solar Cells. Nature 2021, 592, 381–385. [Google Scholar] [CrossRef]
  38. Zhao, Y.; Zhu, K. Organic–inorganic hybrid lead halide perovskites for optoelectronic and electronic applications. Chem. Soc. Rev. 2016, 45, 655–689. [Google Scholar] [CrossRef]
  39. Ding, R.; Zhang, X.; Chen, G.; Wang, H.; Kishor, R.; Xiao, J.; Gao, F.; Zeng, K.; Chen, X.; Sun, X.W.; et al. High-performance piezoelectric nanogenerators composed of formamidinium lead halide perovskite nanoparticles and poly(vinylidene fluoride). Nano Energy 2017, 37, 126–135. [Google Scholar] [CrossRef]
  40. Jella, V.; Ippili, S.; Eom, J.-H.; Choi, J.; Yoon, S.-G. Enhanced output performance of a flexible piezoelectric energy harvester based on stable MAPbI3-PVDF composite films. Nano Energy 2018, 53, 46–56. [Google Scholar] [CrossRef]
  41. Sultana, A.; Sadhukhan, P.; Alam, M.; Das, S.; Middya, T.R.; Mandal, D. Organo-Lead Halide Perovskite Induced Electroactive β-Phase in Porous PVDF Films: An Excellent Material for Photoactive Piezoelectric Energy Harvester and Photodetector. ACS Appl. Mater. Interfaces 2018, 10, 4121–4130. [Google Scholar] [CrossRef]
  42. Sultana, A.; Alam, M.; Sadhukhan, P.; Ghorai, U.K.; Das, S.; Middya, T.R.; Mandal, D. Organo-lead halide perovskite regulated green light emitting poly(vinylidene fluoride) electrospun nanofiber mat and its potential utility for ambient mechanical energy harvesting application. Nano Energy 2018, 49, 380–392. [Google Scholar] [CrossRef]
  43. Ippili, S.; Jella, V.; Eom, J.-H.; Kim, J.; Hong, S.; Choi, J.-S.; Tran, V.-D.; Van Hieu, N.; Kim, Y.-J.; Kim, H.-J.; et al. An eco-friendly flexible piezoelectric energy harvester that delivers high output performance is based on lead-free MASnI3 films and MASnI3-PVDF composite films. Nano Energy 2019, 57, 911–923. [Google Scholar] [CrossRef]
  44. Mondal, S.; Paul, T.; Maiti, S.; Das, B.K.; Chattopadhyay, K.K. Human motion interactive mechanical energy harvester based on all inorganic perovskite-PVDF. Nano Energy 2020, 74, 104870. [Google Scholar] [CrossRef]
  45. Nie, J.; Zhu, L.; Zhai, W.; Berbille, A.; Li, L.; Wang, Z.L. Flexible Piezoelectric Nanogenerators Based on P(VDF-Trfe)/CsPbBr3 Quantum Dot Composite Films. ACS Appl. Electron. Mater. 2021, 3, 2136–2144. [Google Scholar] [CrossRef]
  46. Chen, H.; Zhou, L.; Fang, Z.; Wang, S.; Yang, T.; Zhu, L.; Hou, X.; Wang, H.; Wang, Z.L. Piezoelectric Nanogenerator Based on In Situ Growth All-Inorganic CsPbBr3 Perovskite Nanocrystals in PVDF Fibers with Long-Term Stability. Adv. Funct. Mater. 2021, 31, 2011073. [Google Scholar] [CrossRef]
  47. Wankhade, S.H.; Tiwari, S.; Gaur, A.; Maiti, P. PVDF–PZT nanohybrid based nanogenerator for energy harvesting applications. Energy Rep. 2020, 6, 358–364. [Google Scholar] [CrossRef]
  48. Tian, G.; Deng, W.; Gao, Y.; Xiong, D.; Yan, C.; He, X.; Yang, T.; Jin, L.; Chu, X.; Zhang, H.; et al. Rich lamellar crystal baklava-structured PZT/PVDF piezoelectric sensor toward individual table tennis training. Nano Energy 2019, 59, 574–581. [Google Scholar] [CrossRef]
  49. Zhao, Y.; Liao, Q.; Zhang, G.; Zhang, Z.; Liang, Q.; Liao, X.; Zhang, Y. High output piezoelectric nanocomposite generators composed of oriented BaTiO3 NPs@PVDF. Nano Energy 2015, 11, 719–727. [Google Scholar] [CrossRef]
  50. Hu, P.; Yan, L.; Zhao, C.; Zhang, Y.; Niu, J. Double-layer structured PVDF nanocomposite film designed for flexible nanogenerator exhibiting enhanced piezoelectric output and mechanical property. Compos. Sci. Technol. 2018, 168, 327–335. [Google Scholar] [CrossRef]
  51. Zhou, X.; Parida, K.; Halevi, O.; Liu, Y.; Xiong, J.; Magdassi, S.; Lee, P.S. All 3D-printed stretchable piezoelectric nanogenerator with non-protruding kirigami structure. Nano Energy 2020, 72, 104676. [Google Scholar] [CrossRef]
  52. Alluri, N.R.; Saravanakumar, B.; Kim, S.-J. Flexible, Hybrid Piezoelectric Film (BaTi(1–X)ZrxO3)/PVDF Nanogenerator as a Self-Powered Fluid Velocity Sensor. ACS Appl. Mater. Inter. 2015, 7, 9831–9840. [Google Scholar] [CrossRef]
  53. Shin, S.-H.; Kim, Y.-H.; Lee, M.H.; Jung, J.-Y.; Nah, J. Hemispherically Aggregated BaTiO3 Nanoparticle Composite Thin Film for High-Performance Flexible Piezoelectric Nanogenerator. ACS Nano 2014, 8, 2766–2773. [Google Scholar] [CrossRef]
  54. Guan, X.; Xu, B.; Gong, J. Hierarchically Architected Polydopamine Modified BaTiO3@P(VDF-TrFE) Nanocomposite Fiber Mats for Flexible Piezoelectric Nanogenerators and Self-Powered Sensors. Nano Energy 2020, 70, 104516. [Google Scholar] [CrossRef]
  55. Shuai, C.; Liu, G.; Yang, Y.; Qi, F.; Peng, S.; Yang, W.; He, C.; Wang, G.; Qian, G. A strawberry-like Ag-decorated barium titanate enhances piezoelectric and antibacterial activities of polymer scaffold. Nano Energy 2020, 74, 104825. [Google Scholar] [CrossRef]
  56. Xu, K.; Li, J.; Lv, X.; Wu, J.; Zhang, X.; Xiao, D.; Zhu, J. Superior Piezoelectric Properties in Potassium-Sodium Niobate Lead-Free Ceramics. Adv. Mater. 2016, 28, 8519–8523. [Google Scholar] [CrossRef]
  57. Teka, A.; Bairagi, S.; Shahadat, M.; Joshi, M.; Ahammad, S.Z.; Ali, S.W. Poly(vinylidene fluoride) (PVDF)/potassium sodium niobate (KNN)-based nanofibrous web: A unique nanogenerator for renewable energy harvesting and investigating the role of KNN nanostructures. Polym. Adv. Technol. 2018, 29, 2537–2544. [Google Scholar] [CrossRef]
  58. Bairagi, S.; Ali, S.W. Influence of High Aspect Ratio Lead-Free Piezoelectric Fillers in Designing Flexible Fibrous Nanogenerators: Demonstration of Significant High Output Voltage. Energy Technol. 2019, 7, 1900538. [Google Scholar] [CrossRef]
  59. Bairagi, S.; Ali, S.W. Flexible lead-free PVDF/SM-KNN electrospun nanocomposite based piezoelectric materials: Significant enhancement of energy harvesting efficiency of the nanogenerator. Energy 2020, 198, 117385. [Google Scholar] [CrossRef]
  60. Vivekananthan, V.; Alluri, N.R.; Purusothaman, Y.; Chandrasekhar, A.; Kim, S.-J. A flexible, planar energy harvesting device for scavenging road side waste mechanical energy via the synergistic piezoelectric response of K0.5Na0.5NbO3-BaTiO3/PVDF composite films. Nanoscale 2017, 9, 15122–15130. [Google Scholar] [CrossRef] [PubMed]
  61. Bhavanasi, V.; Kumar, V.; Parida, K.; Wang, J.; Lee, P.S. Enhanced Piezoelectric Energy Harvesting Performance of Flexible PVDF-TrFE Bilayer Films with Graphene Oxide. ACS Appl. Mater. Inter. 2016, 8, 521–529. [Google Scholar] [CrossRef]
  62. Ai, Y.; Lou, Z.; Chen, S.; Chen, D.; Wang, Z.M.; Jiang, K.; Shen, G. All RGO-on-PVDF-Nanofibers Based Self-Powered Electronic Skins. Nano Energy 2017, 35, 121–127. [Google Scholar] [CrossRef]
  63. Choi, M.; Murillo, G.; Hwang, S.; Kim, J.W.; Jung, J.H.; Chen, C.-Y.; Lee, M. Mechanical and Electrical Characterization of PVDF-ZnO Hybrid Structure for Application to Nanogenerator. Nano Energy 2017, 33, 462–468. [Google Scholar] [CrossRef] [Green Version]
  64. Shin, K.-Y.; Lee, J.S.; Jang, J. Highly sensitive, wearable and wireless pressure sensor using free-standing ZnO nanoneedle/PVDF hybrid thin film for heart rate monitoring. Nano Energy 2016, 22, 95–104. [Google Scholar] [CrossRef]
  65. Thakur, P.; Kool, A.; Hoque, N.A.; Bagchi, B.; Khatun, F.; Biswas, P.; Brahma, D.; Roy, S.; Banerjee, S.; Das, S. Superior performances of in situ synthesized ZnO/PVDF thin film based self-poled piezoelectric nanogenerator and self-charged photo-power bank with high durability. Nano Energy 2018, 44, 456–467. [Google Scholar] [CrossRef]
  66. He, H.; Fu, Y.; Zang, W.; Wang, Q.; Xing, L.; Zhang, Y.; Xue, X. A Flexible Self-Powered T-ZnO/PVDF/Fabric Electronic-Skin with Multi-Functions of Tactile-Perception, Atmosphere-Detection and Self-Clean. Nano Energy 2017, 31, 37–48. [Google Scholar] [CrossRef]
  67. Wang, J.; Lin, M.-F.; Park, S.; Lee, P.S. Deformable conductors for human–machine interface. Mater. Today 2018, 21, 508–526. [Google Scholar] [CrossRef]
  68. Deng, W.; Yang, T.; Jin, L.; Yan, C.; Huang, H.; Chu, X.; Wang, Z.; Xiong, D.; Tian, G.; Gao, Y.; et al. Cowpea-structured PVDF/ZnO nanofibers based flexible self-powered piezoelectric bending motion sensor towards remote control of gestures. Nano Energy 2019, 55, 516–525. [Google Scholar] [CrossRef]
  69. He, H.; Fu, Y.; Zhao, T.; Gao, X.; Xing, L.; Zhang, Y.; Xue, X. All-solid-state flexible self-charging power cell basing on piezo-electrolyte for harvesting/storing body-motion energy and powering wearable electronics. Nano Energy 2017, 39, 590–600. [Google Scholar] [CrossRef]
  70. Zhai, W.; Lai, Q.; Chen, L.; Zhu, L.; Wang, Z.L. Flexible Piezoelectric Nanogenerators Based on P(VDF–TrFE)/GeSe Nanocomposite Films. ACS Appl. Electron. Mater. 2020, 2, 2369–2374. [Google Scholar] [CrossRef]
  71. Bagchi, B.; Hoque, N.A.; Janowicz, N.; Das, S.; Tiwari, M.K. Re-usable self-poled piezoelectric/piezocatalytic films with exceptional energy harvesting and water remediation capability. Nano Energy 2020, 78, 105339. [Google Scholar] [CrossRef]
  72. Zhai, W.; Zhu, L.; Berbille, A.; Wang, Z.L. Flexible and wearable piezoelectric nanogenerators based on P(VDF-TrFE)/SnS nanocomposite micropillar array. J. Appl. Phys. 2021, 129, 095501. [Google Scholar] [CrossRef]
  73. Zhai, W.; Nie, J.; Zhu, L. Enhanced Flexible Poly(vinylidene fluoride-trifluorethylene) Piezoelectric Nanogenerators by SnSe Nanosheet Doping and Solvent Treatment. ACS Appl. Mater. Interfaces 2021, 13, 32278–32285. [Google Scholar] [CrossRef] [PubMed]
  74. Ghosh, S.K.; Biswas, A.; Sen, S.; Das, C.; Henkel, K.; Schmeisser, D.; Mandal, D. Yb3+ assisted self-polarized PVDF based ferroelectretic nanogenerator: A facile strategy of highly efficient mechanical energy harvester fabrication. Nano Energy 2016, 30, 621–629. [Google Scholar] [CrossRef]
  75. Ghosh, S.K.; Xie, M.; Bowen, C.R.; Davies, P.R.; Morgan, D.J.; Mandal, D. A hybrid strain and thermal energy harvester based on an infra-red sensitive Er3+ modified poly(vinylidene fluoride) ferroelectret structure. Sci. Rep. 2017, 7, 16703. [Google Scholar] [CrossRef] [Green Version]
  76. Karan, S.K.; Maiti, S.; Agrawal, A.K.; Das, A.K.; Maitra, A.; Paria, S.; Bera, A.; Bera, R.; Halder, L.; Mishra, A.K.; et al. Designing high energy conversion efficient bio-inspired vitamin assisted single-structured based self-powered piezoelectric/wind/acoustic multi-energy harvester with remarkable power density. Nano Energy 2019, 59, 169–183. [Google Scholar] [CrossRef]
  77. Ghosh, S.K.; Mandal, D. Synergistically enhanced piezoelectric output in highly aligned 1D polymer nanofibers integrated all-fiber nanogenerator for wearable nano-tactile sensor. Nano Energy 2018, 53, 245–257. [Google Scholar] [CrossRef]
  78. Hanani, Z.; Izanzar, I.; Amjoud, M.; Mezzane, D.; Lahcini, M.; Uršič, H.; Prah, U.; Saadoune, I.; El Marssi, M.; Luk’Yanchuk, I.A.; et al. Lead-free nanocomposite piezoelectric nanogenerator film for biomechanical energy harvesting. Nano Energy 2021, 81, 105661. [Google Scholar] [CrossRef]
  79. Pusty, M.; Sinha, L.; Shirage, P.M. A flexible self-poled piezoelectric nanogenerator based on a rGO–Ag/PVDF nanocomposite. New J. Chem. 2019, 43, 284–294. [Google Scholar] [CrossRef]
  80. Yadav, P.; Raju, T.; Badhulika, S. Self-Poled hBN-PVDF Nanofiber Mat-Based Low-Cost, Ultrahigh-Performance Piezoelectric Nanogenerator for Biomechanical Energy Harvesting. ACS Appl. Electron. Mater. 2020, 2, 1970–1980. [Google Scholar] [CrossRef]
Micromachines 12 01278 g001 550

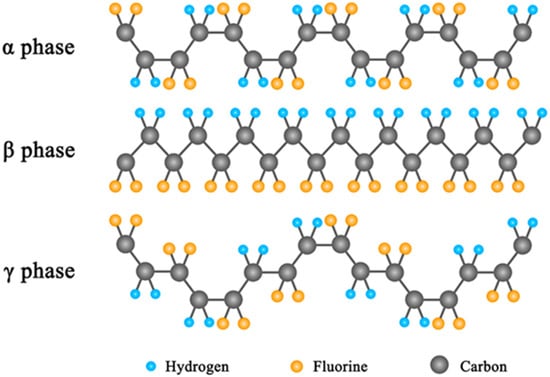

Figure 1. The semi-crystalline α, β, and γ conformations of poly(vinylidene fluoride) (PVDF) [28]. Reproduced with the permission from reference [28].
Figure 1. The semi-crystalline α, β, and γ conformations of poly(vinylidene fluoride) (PVDF) [28]. Reproduced with the permission from reference [28].
Micromachines 12 01278 g001
Micromachines 12 01278 g002 550

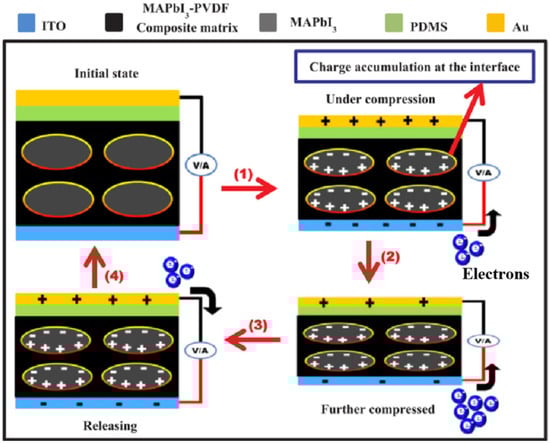

Figure 2. Schematic of the working mechanism of MAPbI3–PVDF composite piezoelectric nanogenerators (PENGs) [40]. Reproduced with the permission from reference [40].
Figure 2. Schematic of the working mechanism of MAPbI3–PVDF composite piezoelectric nanogenerators (PENGs) [40]. Reproduced with the permission from reference [40].
Micromachines 12 01278 g002
Micromachines 12 01278 g003 550

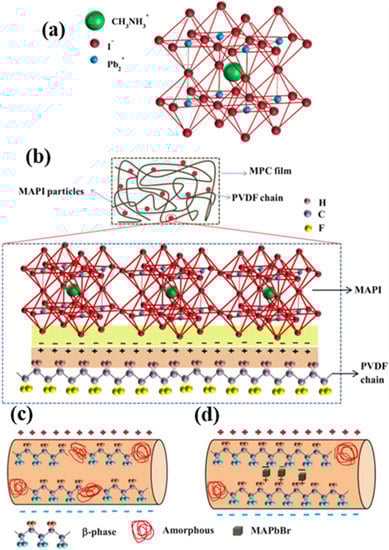

Figure 3. (a) The crystal structure of the MAPI perovskite [41]. (b) Schematic of the formation mechanism of the electroactive phase in the MAPbI3/PVDF composite film [41]. (c,d) Schematics of the polarization process of the pure PVDF and the MAPbBr3/PVDF composite [42]. Reproduced with the permission from references. [41,42].
Figure 3. (a) The crystal structure of the MAPI perovskite [41]. (b) Schematic of the formation mechanism of the electroactive phase in the MAPbI3/PVDF composite film [41]. (c,d) Schematics of the polarization process of the pure PVDF and the MAPbBr3/PVDF composite [42]. Reproduced with the permission from references. [41,42].
Micromachines 12 01278 g003
Micromachines 12 01278 g004 550

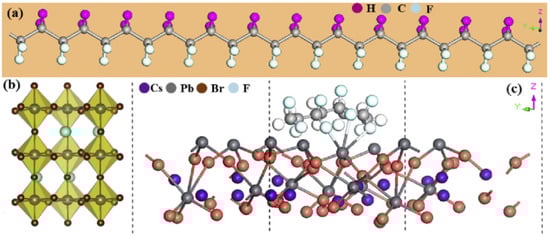

Figure 4. Side views of the PVDF chain (a) and the rhombic CsPbBr3 (b). (c) Top view of the CsPbBr3–PVDF composite [44]. Reproduced with the permission from reference [44].
Figure 4. Side views of the PVDF chain (a) and the rhombic CsPbBr3 (b). (c) Top view of the CsPbBr3–PVDF composite [44]. Reproduced with the permission from reference [44].
Micromachines 12 01278 g004
Micromachines 12 01278 g005 550

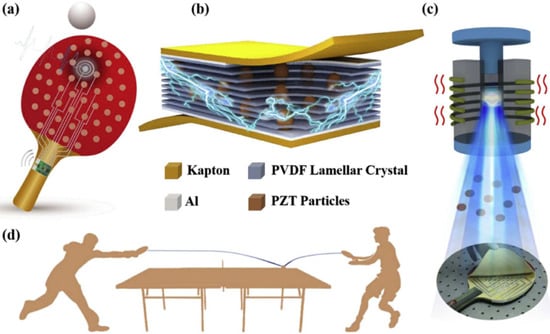

Figure 5. Schematic of the intelligent training system [48]. (a) Schematic of the intelligent rackets for table tennis monitoring. (b) The overall diagram and the detailed structure of the sensor. (c) The piezoelectric composite material of the intelligent racket and the production process of optical photos. (d) The application of the intelligent table tennis racket. Reproduced with the permission from reference [48].
Figure 5. Schematic of the intelligent training system [48]. (a) Schematic of the intelligent rackets for table tennis monitoring. (b) The overall diagram and the detailed structure of the sensor. (c) The piezoelectric composite material of the intelligent racket and the production process of optical photos. (d) The application of the intelligent table tennis racket. Reproduced with the permission from reference [48].
Micromachines 12 01278 g005
Micromachines 12 01278 g006 550

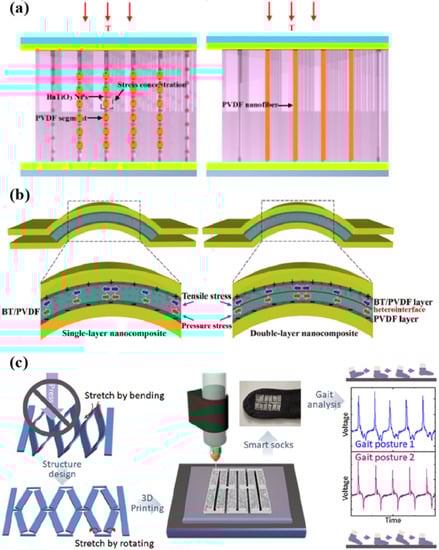

Figure 6. (a) Schematic of a vertical stress applied to composite nanogenerator (NG) and pure PVDF PENG [49]. (b) Schematic of distributions of stress and related induced charges in the single–layer and double–layer BaTiO3 (BT)/PVDF nanocomposite films [50]. (c) Schematics, image, and gait analysis of the fully printed PENG installed on socks [51]. Reproduced with the permission from references [49,50,51].
Figure 6. (a) Schematic of a vertical stress applied to composite nanogenerator (NG) and pure PVDF PENG [49]. (b) Schematic of distributions of stress and related induced charges in the single–layer and double–layer BaTiO3 (BT)/PVDF nanocomposite films [50]. (c) Schematics, image, and gait analysis of the fully printed PENG installed on socks [51]. Reproduced with the permission from references [49,50,51].
Micromachines 12 01278 g006
Micromachines 12 01278 g007 550

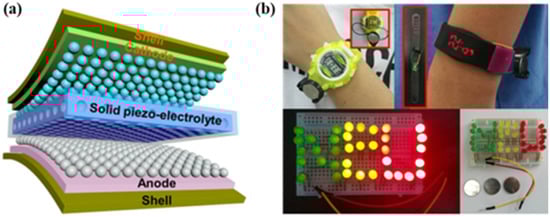

Figure 7. (a) The design principle of the all–solid–state self–charging power cell (SCPC). (b) Application of all–solid–state SCPCs, such as powering smart watches, sports bracelets, and LEDs. Reproduced with the permission from reference [69].
Figure 7. (a) The design principle of the all–solid–state self–charging power cell (SCPC). (b) Application of all–solid–state SCPCs, such as powering smart watches, sports bracelets, and LEDs. Reproduced with the permission from reference [69].
Micromachines 12 01278 g007
Micromachines 12 01278 g008 550

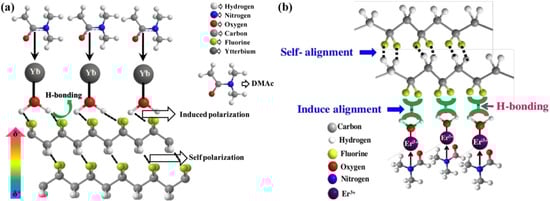

Figure 8. (a) The self–polarization process induced by the hydrogen bond interaction between Yb3+–PVDF film molecules and the dipolar interaction between Yb3+ salt and the PVDF chain [74]. (b) Schematic of the β phase nucleation process in the Er3+/PVDF film [75]. Reproduced with the permission from references [74,75].
Figure 8. (a) The self–polarization process induced by the hydrogen bond interaction between Yb3+–PVDF film molecules and the dipolar interaction between Yb3+ salt and the PVDF chain [74]. (b) Schematic of the β phase nucleation process in the Er3+/PVDF film [75]. Reproduced with the permission from references [74,75].
Micromachines 12 01278 g008
Micromachines 12 01278 g009 550

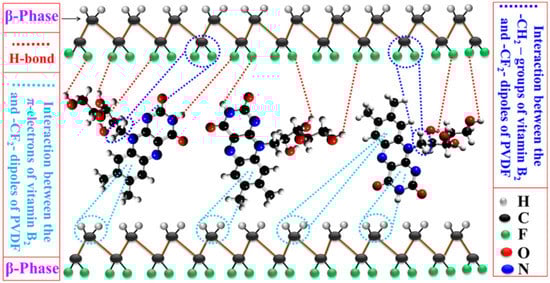

Figure 9. Schematic of various interactions between the PVDF dipole and vitamin B2 (VB2) [76]. Reproduced with the permission from reference [76].
Figure 9. Schematic of various interactions between the PVDF dipole and vitamin B2 (VB2) [76]. Reproduced with the permission from reference [76].
Micromachines 12 01278 g009
Table
Table 1. Performance of several poly(vinylidene fluoride) (PVDF)–based metal halide perovskite piezoelectric nanogenerators (PENGs).
Table 1. Performance of several poly(vinylidene fluoride) (PVDF)–based metal halide perovskite piezoelectric nanogenerators (PENGs).
MaterialsPreparation MethodsSample Size PolingForce or Pressure VocISC/JSCPower@ Resistive Load (RL)Refernece
FAPbBr3NPs/PVDFSolution casting1.2 × 1.4 cm250 kV cm−10.5 MPa30 V 6.2 μA cm−2-[39]
MAPbI3/PVDFSpin coating1 × 1 cm280 kV cm−150 N9.43 V0.76 µA cm−2-[40,41]
MAPbI3/PVDFSolution casting-Not supplied2 kPa 1.8 V37.5 nA2.5 µW cm−2@0.6 MΩ[41]
MAPbBr3/PVDFElectrospinning2.4 × 1.5 cm2 Not supplied9.8 kPa5 V60 nA0.28 µW cm−2@0.7 MΩ[42]
MASnI3/PVDFSpin coating1 × 1 cm260 kV cm−10.5 MPa12.0 V4.0 μA cm−222 µW cm−2@3 MΩ[43]
CsPbBr3/PVDFSolution casting-Not supplied100 MPa120 V35 μA30 µW@3 MΩ[44]
CsPbBr3@PVDF fibersElectrospinning method and in situ growth0.80 cm25 kV-103 V170 µA cm−2-[46]
Table
Table 2. Performances of the PVDF-based metallic oxide perovskite PENGs.
Table 2. Performances of the PVDF-based metallic oxide perovskite PENGs.
MaterialsPreparation MethodsSample Size PolingForce or Pressure VocISC/JSCPower@RLRef.
PZT/PVDF Solution casting2 × 0.9 cm2Not needed8.5 kPa55 V-35 µW cm−2@10 MΩ[47]
PZT/PVDF Hot pressing-Not needed85.6 kPa2.51 V78.43 nA-[48]
BaTiO3 NPs/PVDFSolution casting1 × 1 cm22 kV 10 MPa150 V1500 nA-[49]
BaTiO3 NPs/P(VDF-HFP)Spin coating4 cm2100 kV cm−10.23 MPa75 V15 μA-[53]
BaTiO3 NPs/P(VDF-TrFE)Spin coating-Not needed50 N13.2 V0.33 μA cm−212.5 µW cm−2@4 MΩ[34]
BaTiO3 NPs/PVDFSolution casting1.5 × 2 cm2Not needed1 N6.7 V2.4 μA-[50]
BaTiO3 NPs/P(VDF-TrFE)3D printing-50 V µm−160 N6 V2 μA cm−22 µW cm−2@10 MΩ[51]
PMMA@BaTiO3 NW/P(VDF-TrFE)Electrospinning2.5 × 2.5 cm2Not supplied-12.6 V1.30 μA4.25 μ[email protected] MΩ[17]
BaTi2O5/PVDFHot pressing4 × 2 cm2Not needed-26 V-4.1 μW@22 MΩ[33]
graphene/BaTiO3/PVDFElectrospinning2.5 × 2.5 cm212 kV-11 V-4 μW @ 8 MΩ[16]
polydopamine/BaTiO3/P(VDF-TrFE)Electrospinning2.5 × 2.5 cm225 kV700 N6 V1.5 μA0.85 µW cm−2@4 MΩ[54]
Ag/polydopamine/BaTiO3/PVDFSelective laser sintering 0.9 × 1 cm2Not supplied-10 V142 nA-[55]
BaTi0.9Zr0.1O3/PVDFSolution casting2.5 × 2.5 cm28 kV 11 N11.9 V1.35 μA0.15 µW cm−2@10 MΩ[52]
KNN nanorods/PVDFElectrospinning2 × 2 cm220 kV1 kPa17.5 V0.522 μA-[58]
silane/KNN nanorods/PVDFElectrospinning22 cm220 kV1.1 kPa21 V22 μA-[59]
(1 − x)K0.5Na0.5NbO3–xBaTiO3/PVDFSolution casting3 × 3 cm210 kV0.4 N100 V225 nA1.4 µW cm−2@100 MΩ[60]
Table
Table 3. Performances of the PVDF-based PENGs doped with semiconductor piezoelectric materials.
Table 3. Performances of the PVDF-based PENGs doped with semiconductor piezoelectric materials.
MaterialsPreparation MethodsSample Size PolingForce or Pressure VOCISC/JSCPower@RLReference
GO/P(VDF-TrFE)Solution casting-30 MV m−10.32 MPa4 V1.88 μA4.4 µW cm−2@1 MΩ[61]
rGO/PVDFElectrospinning-Not supplied20 kPa-0.5 μA-[62]
ZnO/PVDFSolution casting8 × 8 mm2Not needed28 N24.5 V1.7 μA32 mW cm−3 [65]
BNNTs/P(VDF-TrFE)Solution casting1 × 1 cm210 MV m−10.4 MPa22 V600 nA11.3 μW cm−2@6 MΩ[31]
GeSe NSs/P(VDF-TrFE)Solution casting1 × 1 cm270 MV m−150 N 17.58 V1.14 μA9.5 μW cm−2@4 MΩ[70]
MoS2/PVDFSolution casting1 × 1 cm2Not needed27.5 N 84 V3.05 μA47 mW cm−3@30 MΩ[71]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wang, Y.; Zhu, L.; Du, C. Progress in Piezoelectric Nanogenerators Based on PVDF Composite Films. Micromachines 2021, 12, 1278. https://doi.org/10.3390/mi12111278

AMA Style

Wang Y, Zhu L, Du C. Progress in Piezoelectric Nanogenerators Based on PVDF Composite Films. Micromachines. 2021; 12(11):1278. https://doi.org/10.3390/mi12111278

Chicago/Turabian Style

Wang, Yuan, Laipan Zhu, and Cuifeng Du. 2021. "Progress in Piezoelectric Nanogenerators Based on PVDF Composite Films" Micromachines 12, no. 11: 1278. https://doi.org/10.3390/mi12111278

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
