# Experimental and Numerical Investigations on the Flow Characteristics within Hydrodynamic Entrance Regions in Microchannels

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Experimental Description

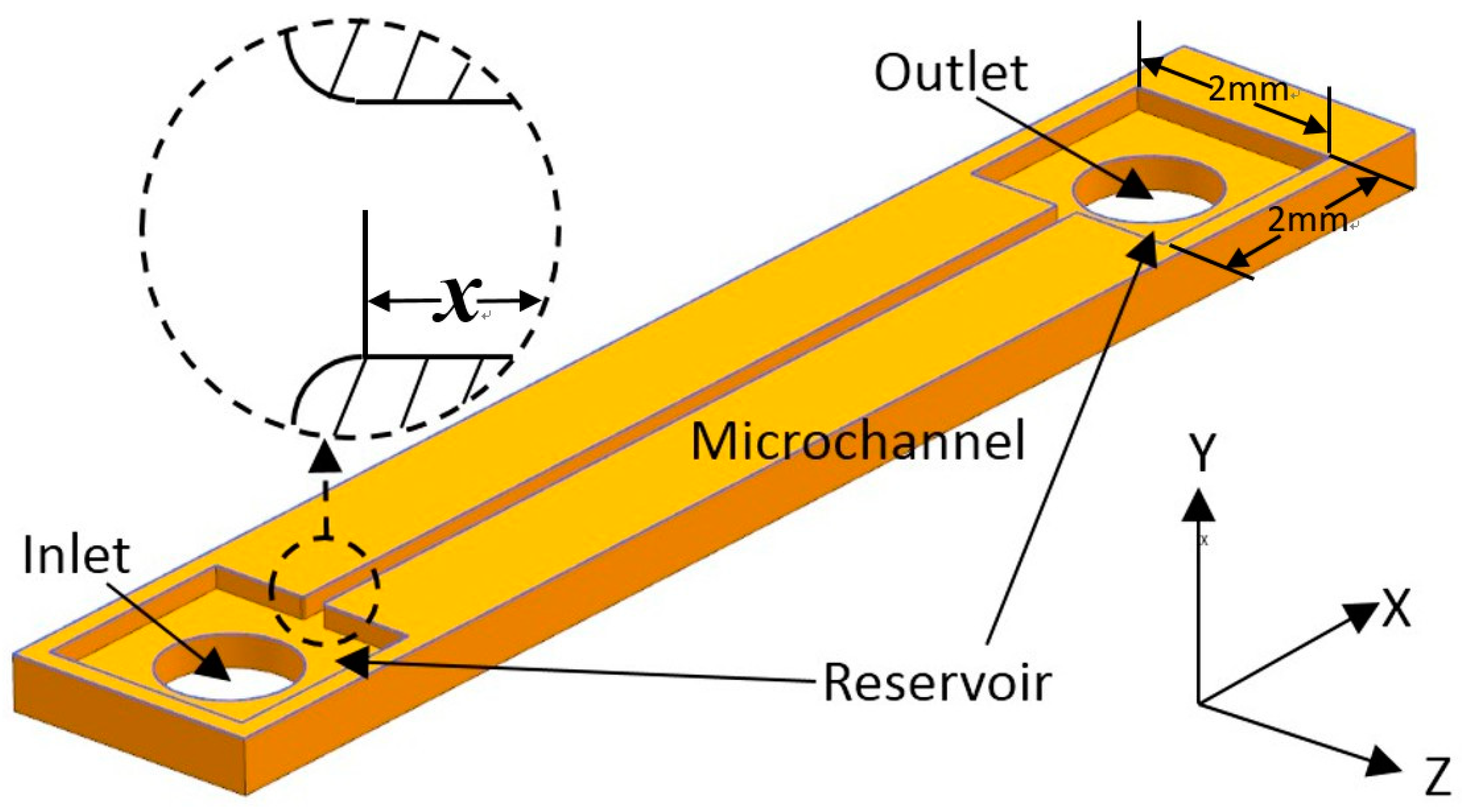

#### 2.1. Microchannel Fabrication

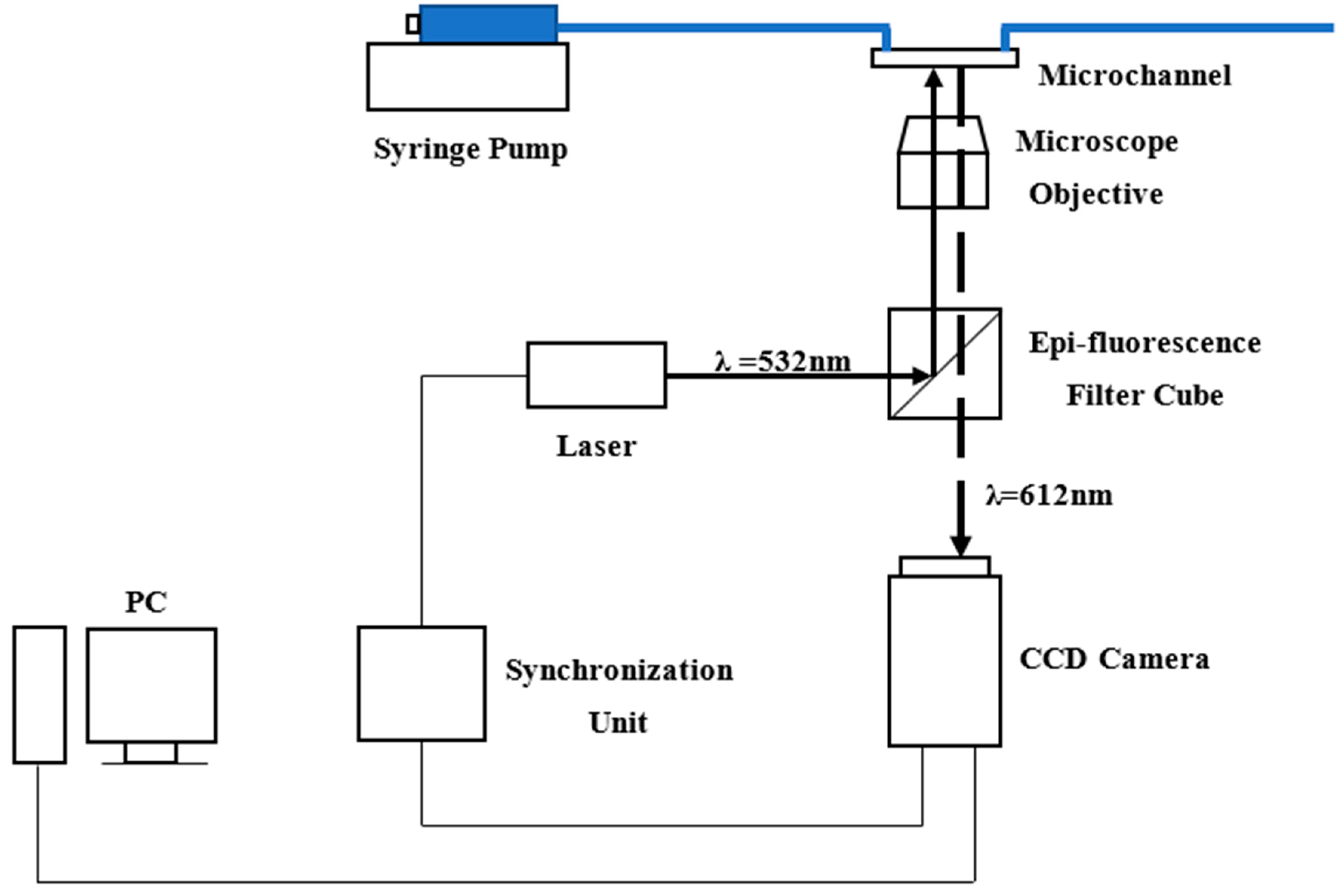

#### 2.2. Experimental Setup

#### 2.3. Experimental Uncertainty

^{th}of a seed particle image. The image diameter for a particle in the object plane can be estimated by

## 3. Experimental Results and Discussion

#### 3.1. Developing Velocity Profiles

#### 3.2. Velocity Development Along Centerline

#### 3.3. Correlations of Hydraulic Entrance Length

## 4. Numerical Simulation

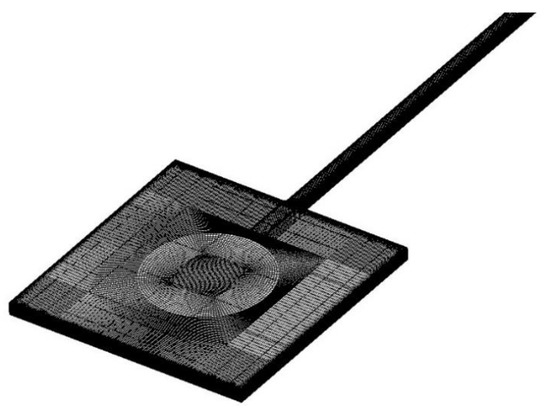

#### 4.1. Investigation Method

#### 4.2. Results and Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Tuckerman, D.; Pease, R. High-performance heat sinking for VLSI. IEEE Electron Device Lett.
**1981**, 2, 126–129. [Google Scholar] [CrossRef] - Mishan, Y.; Mosyak, A.; Pogrebnyak, E.; Hetsroni, G. Effect of developing flow and thermal regime on momentum and heat transfer in micro-scale heat sink. Int. J. Heat Mass Transf.
**2007**, 50, 3100–3114. [Google Scholar] [CrossRef] - Muwanga, R.; Hassan, I.; Macdonald, R. Characteristics of Flow Boiling Oscillations in Silicon Microchannel Heat Sinks. J. Heat Transf.
**2007**, 129, 1341–1351. [Google Scholar] [CrossRef] - Mario Di Capua, H.; Escobar, R.; Díaz, A.; Guzmán, A. Enhancement of the cooling capability of a high concentration photovoltaic system using microchannels with forward triangular ribs on sidewalls. Appl. Energy
**2018**, 226, 160–180. [Google Scholar] [CrossRef] - Liu, Z.; Qin, S.; Chen, X.; Chen, D.; Wang, F. PDMS-PDMS Micro Channels Filled with Phase-Change Material for Chip Cooling. Micromachines
**2018**, 9, 165. [Google Scholar] [CrossRef] - Ling, W.; Zhou, W.; Yu, W.; Zhou, F.; Chen, J.; Hui, K.S. Experimental investigation on thermal and hydraulic performance of microchannels with interlaced configuration. Energy Convers. Manag.
**2019**, 174, 439–452. [Google Scholar] [CrossRef] - Nguyen, N.-T.; Wu, Z. Micromixers—A Review. J. Micromech. Microeng.
**2005**, 15, R1–R16. [Google Scholar] [CrossRef] - Demello, A.J. Control and detection of chemical reactions in microfluidic systems. Nature
**2006**, 442, 394–402. [Google Scholar] [CrossRef] [PubMed] - Chang, C.-C.; Yang, R.-J. Electrokinetic mixing in microfluidic systems. Microfluid. Nanofluid.
**2007**, 3, 501–525. [Google Scholar] [CrossRef] [Green Version] - Chen, X.; Li, T.; Zeng, H.; Hu, Z.; Fu, B. Numerical and experimental investigation on micromixers with serpentine microchannels. Int. J. Heat Mass Transf.
**2016**, 98, 131–140. [Google Scholar] [CrossRef] - Clark, J.; Kaufman, M.; Fodor, P.S. Mixing Enhancement in Serpentine Micromixers with a Non-Rectangular Cross-Section. Micromachines
**2018**, 9, 107. [Google Scholar] [CrossRef] [PubMed] - Vatankhah, P.; Shamloo, A. Parametric study on mixing process in an in-plane spiral micromixer utilizing chaotic advection. Anal. Chim. Acta
**2018**, 1022, 96–105. [Google Scholar] [CrossRef] [PubMed] - Shah, R.K.; London, A.L. Laminar Flow Forced Convection in Ducts; Advances in Heat Transfer—Supplement 1; Academic Press: New York, NY, USA, 1978. [Google Scholar]
- Yun, H.; Chen, B.; Chen, B. Numerical Simulation of Geometrical Effects on the Liquid Flow and Heat Transfer in Smooth Rectangular Microchannels. In Proceedings of the ASME 2009 Second International Conference on Micro/Nanoscale Heat and Mass Transfer, Shanghai, China, 18–21 December 2009; Volume 3, pp. 271–277. [Google Scholar]
- Rohsenow, W.M.; Hartnett, J.P. Handbook of Heat Transfer; McGraw-Hill: New York, NY, USA, 1973. [Google Scholar]
- Beavers, G.; Sparrow, E.; Magnuson, R. Experiments on hydrodynamically developing flow in rectangular ducts of arbitrary aspect ratio. Int. J. Heat Mass Transf.
**1970**, 13, 689–701. [Google Scholar] [CrossRef] - Sparrow, E.M.; Hixon, C.W.; Shavit, G. Experiments on Laminar Flow Development in Rectangular Ducts. J. Basic Eng.
**1967**, 89, 116–123. [Google Scholar] [CrossRef] - Goldstein, R.J.; Kreid, D.K. Measurement of Laminar Flow Development in a Square Duct Using a Laser-Doppler Flowmeter. J. Appl. Mech.
**1967**, 34, 813–818. [Google Scholar] [CrossRef] - Atkinson, B.; Brocklebank, M.P.; Card, C.C.H.; Smith, J.M. Low Reynolds Number Developing Flows. AIChE J.
**1969**, 15, 548–553. [Google Scholar] [CrossRef] - Chen, R.-Y. Flow in the Entrance Region at Low Reynolds Numbers. J. Fluids Eng.
**1973**, 95, 153–158. [Google Scholar] [CrossRef] - Wu, H.; Cheng, P. An experimental study of convective heat transfer in silicon microchannels with different surface conditions. Int. J. Heat Mass Transf.
**2003**, 46, 2547–2556. [Google Scholar] [CrossRef] - Guo, Z.-Y.; Li, Z.-X. Size effect on microscale single-phase flow and heat transfer. Int. J. Heat Mass Transf.
**2003**, 46, 149–159. [Google Scholar] [CrossRef] - Bocquet, L.; Barrat, J.-L. Flow boundary conditions from nano- to micro-scales. Soft Matter
**2007**, 3, 685–693. [Google Scholar] [CrossRef] - Vasu, N.; De, S. Electroviscous effects in purely pressure driven flow and stationary plane analysis in electroosmotic flow of power-law fluids in a slit microchannel. Int. J. Eng. Sci.
**2010**, 48, 1641–1658. [Google Scholar] [CrossRef] - Hsieh, S.-S.; Lin, C.-Y. Convective heat transfer in liquid microchannels with hydrophobic and hydrophilic surfaces. Int. J. Heat Mass Transf.
**2009**, 52, 260–270. [Google Scholar] [CrossRef] - Mujumdar, A.S.; Wang, X.-Q.; Yap, C. Effects of Two-Dimensional Roughness in Flow in Microchannels. J. Electron. Packag.
**2005**, 127, 357–361. [Google Scholar] - Zhang, X.; He, F.; Hao, P.; Gao, Y.; Sun, L.; Wang, X.; Jin, X. Characteristics of Liquid Flow in Microchannels at very Low Reynolds Numbers. Chem. Eng. Technol.
**2016**, 39, 1425–1430. [Google Scholar] [CrossRef] - Lee, S.-Y.; Wereley, S.T.; Gui, L.; Qu, W.; Mudawar, I. Microchannel Flow Measurement Using Micro Particle Image Velocimetry. In Proceedings of the ASME International Mechanical Engineering Congress and Exposition (IMECE2002), ASME, New Orleans, LA, USA, 17–22 November 2002; Volume 258, pp. 493–500. [Google Scholar]
- Lee, S.-J.; Kim, G.-B. Analysis of Flow Resistance Inside Microchannels With Different Inlet Configurations Using Micro-PIV System. In Proceedings of the ASME 2003 1st International Conference on Microchannels and Minichannels, Rochester, NY, USA, 24–25 April 2003. ASME Paper No. ICMM2003-1108. [Google Scholar]
- Hao, P.-F.; He, F.; Zhu, K.-Q. Flow characteristics in a trapezoidal silicon microchannel. J. Micromech. Microeng.
**2005**, 15, 1362–1368. [Google Scholar] [CrossRef] - Ahmad, T.; Hassan, I. Experimental Analysis of Microchannel Entrance Length Characteristics Using Microparticle Image Velocimetry. J. Fluids Eng.
**2010**, 132, 041102. [Google Scholar] [CrossRef] - Santiago, J.G.; Wereley, S.T.; Meinhart, C.D.; Beebe, D.J.; Adrian, R.J. A particle image velocimetry system for microfluidics. Exp. Fluids
**1998**, 25, 316–319. [Google Scholar] [CrossRef] [Green Version] - White, F.M. Viscous Fluid Flow, 3rd ed.; McGraw-Hill: New York, NY, USA, 2006. [Google Scholar]
- Celata, G.P.; Morini, G.L.; Marconi, V.; McPhail, S.J.; Zummo, G. Using Viscous Heating to Determine the Friction Factor in Microchannels: An Experimental Validation. Exp. Therm. Fluid Sci.
**2006**, 30, 725–731. [Google Scholar] [CrossRef] - Morini, G.L. Viscous heating in liquid flows in micro-channels. Int. J. Heat Mass Transf.
**2005**, 48, 3637–3647. [Google Scholar] [CrossRef] - Koo, J.; Kleinstreuer, C. Viscous dissipation effects in microtubes and microchannels. Int. J. Heat Mass Transf.
**2004**, 47, 3159–3169. [Google Scholar] [CrossRef] - Galvis, E.; Yarusevych, S.; Culham, J.R. Incompressible Laminar Developing Flow in Microchannels. ASME J. Fluids Eng.
**2012**, 134, 014503. [Google Scholar] [CrossRef] - Roache, P.J. A Method for Uniform Reporting of Grid Refinement Studies. ASME J. Fluids Eng.
**1994**, 116, 405–413. [Google Scholar] [CrossRef]

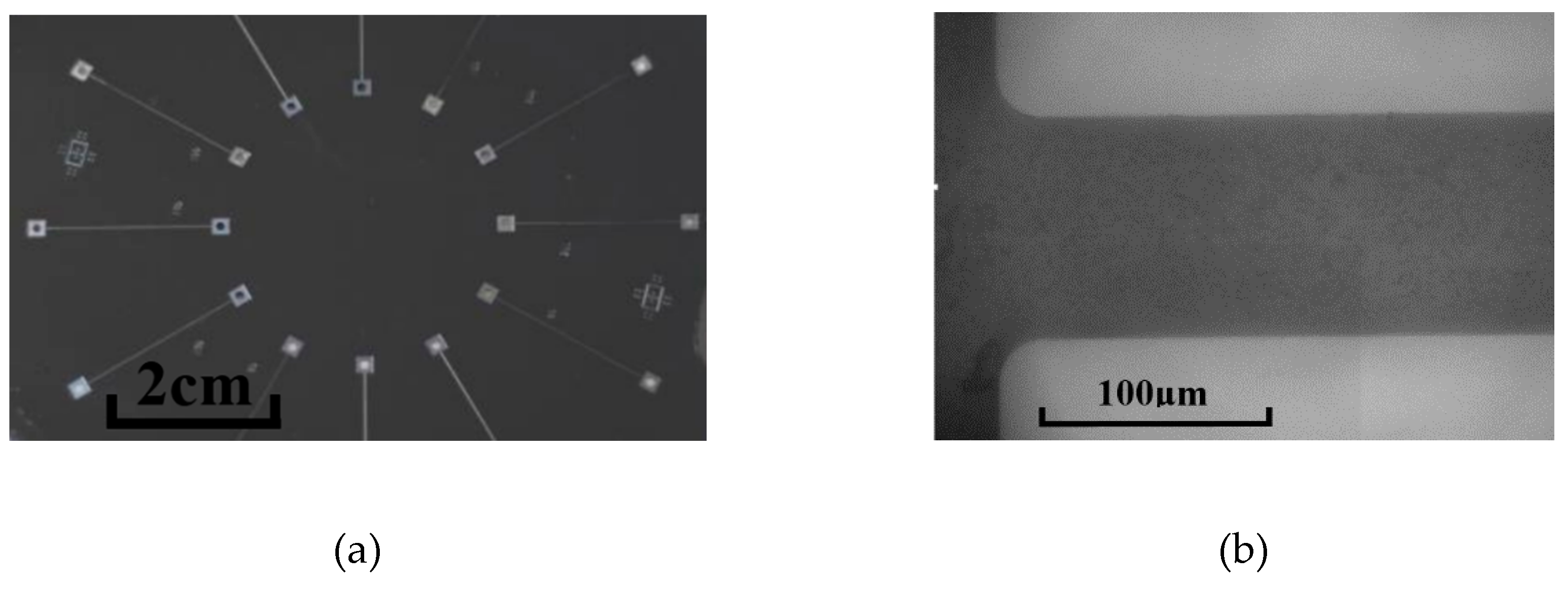

**Figure 2.**Images of actual microchannels. (

**a**) Microchannels etched on silicon wafer. (

**b**) Microscope view of one of the microchannels (D

_{h}= 100 μm).

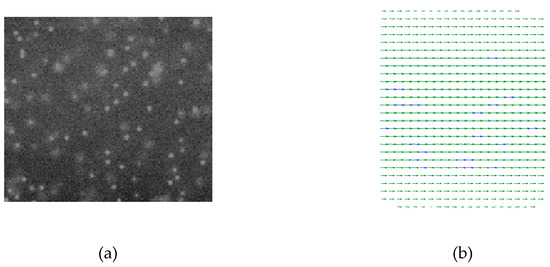

**Figure 4.**Image of particles and velocity vectors. (

**a**) Particles illuminated by laser. (

**b**) Velocity vectors in microchannel.

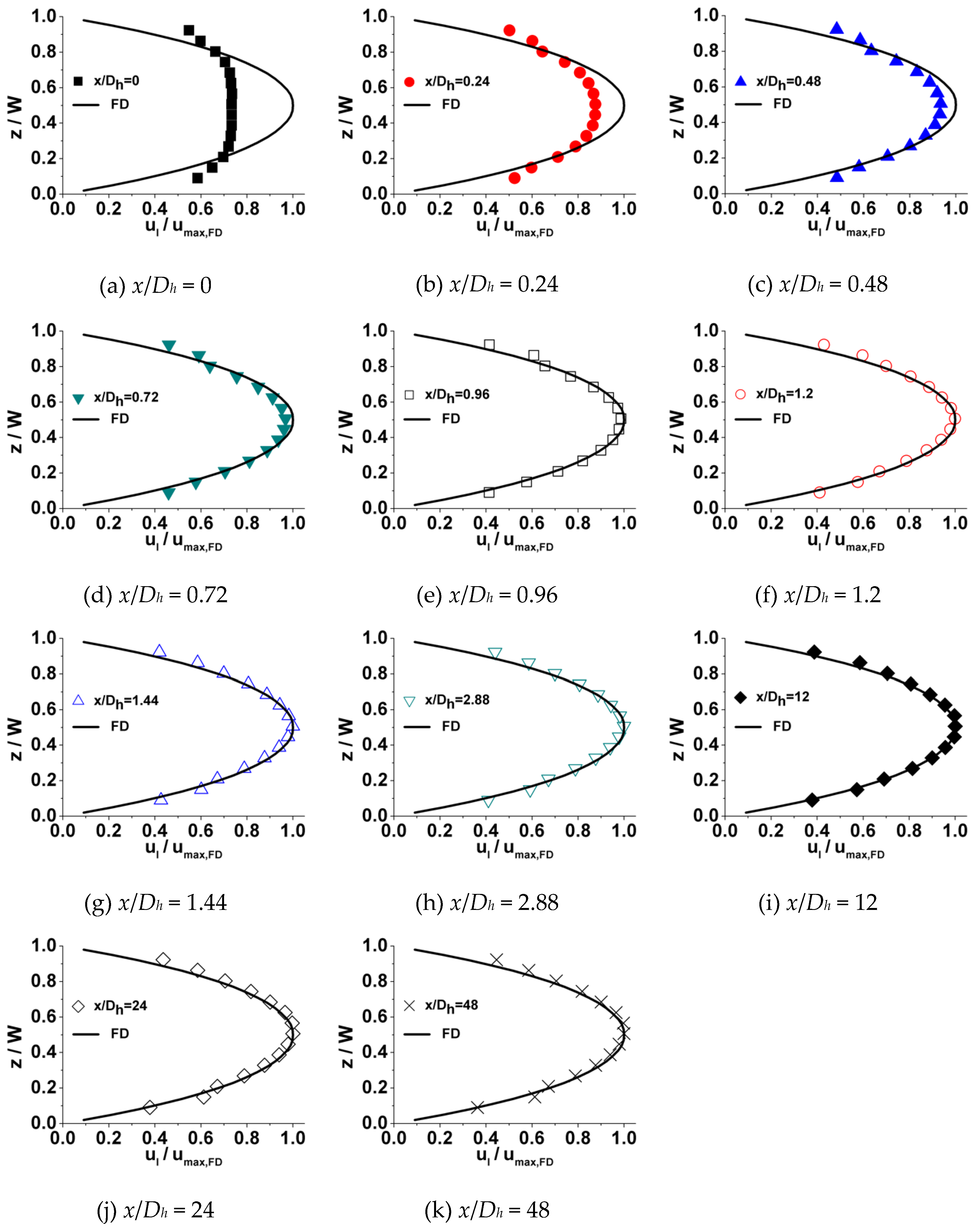

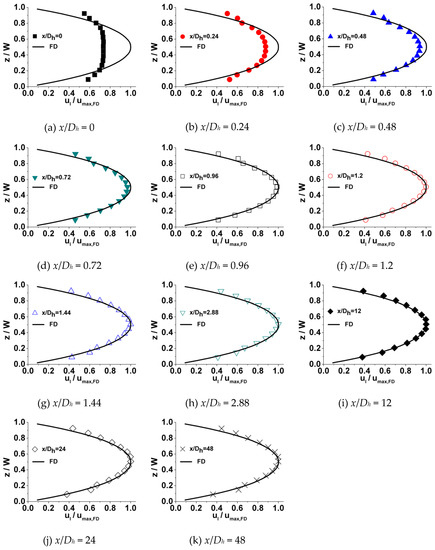

**Figure 5.**Profiles at different locations along the microchannel length in a 200 μm microchannel (Re = 20). (x/D

_{h}is the dimensionless distance away from the inlet).

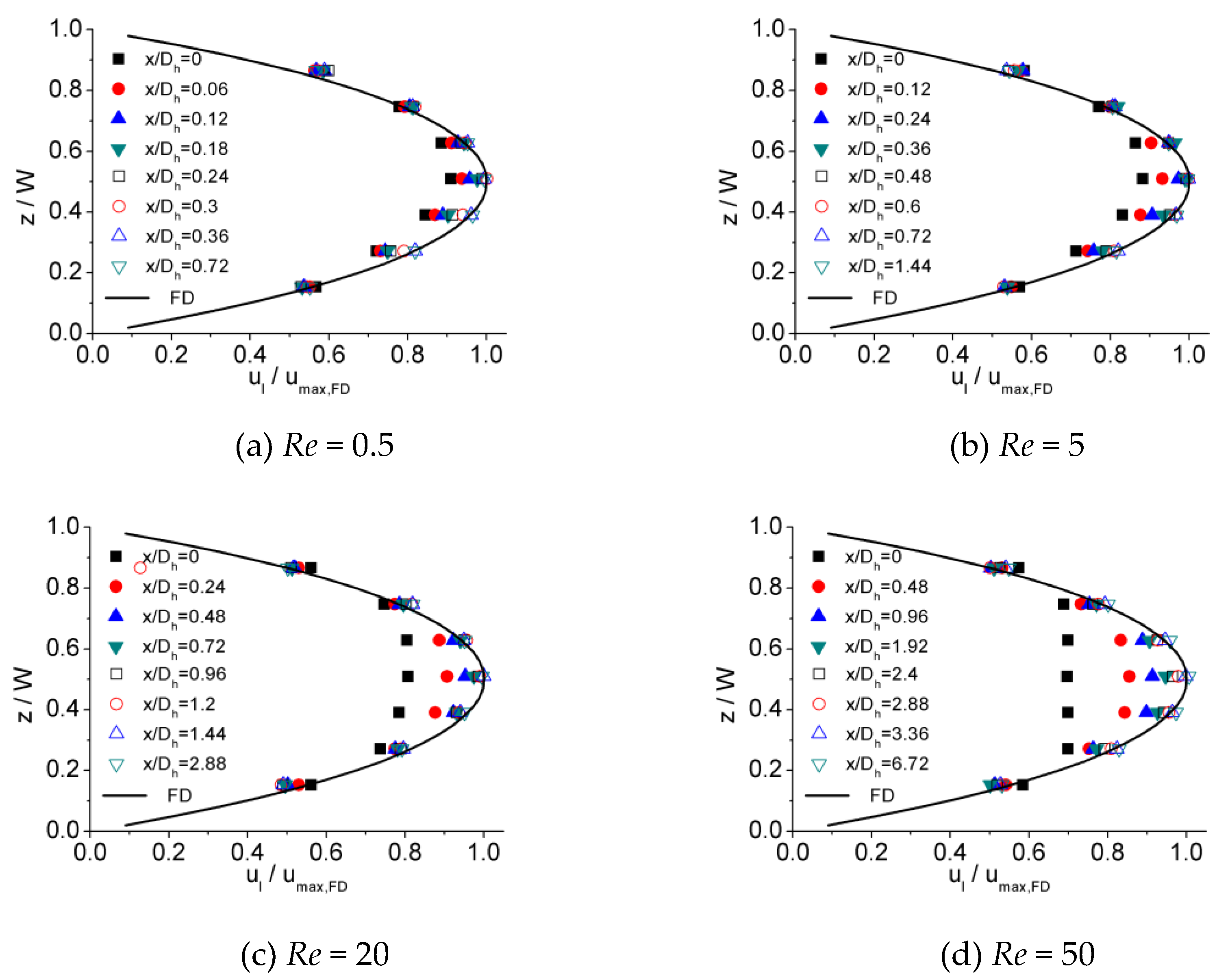

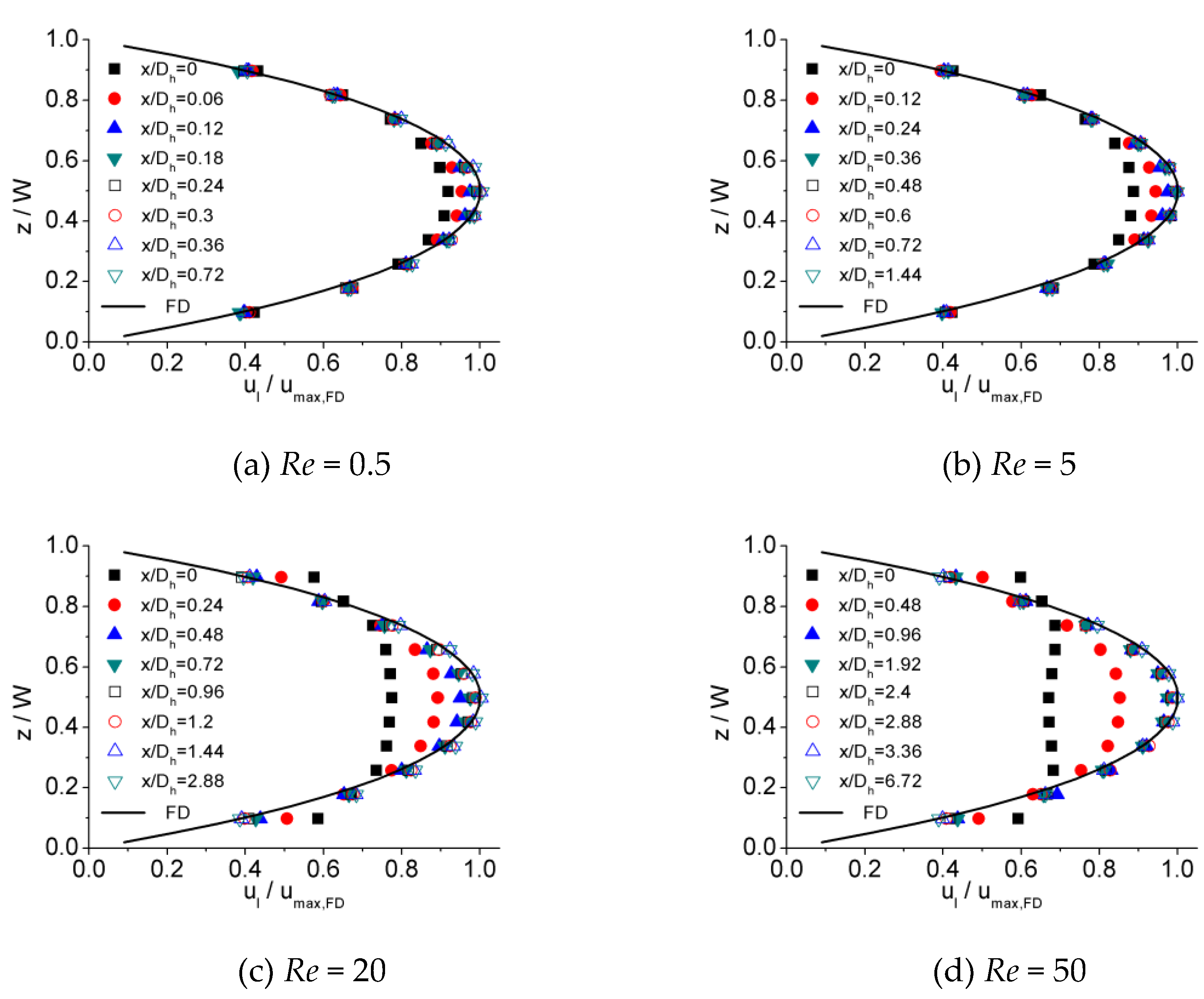

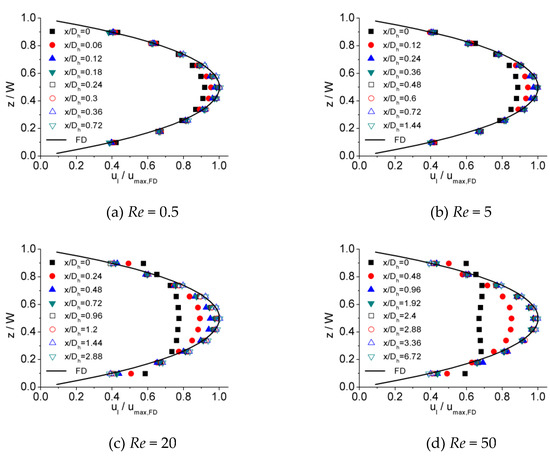

**Figure 6.**Developing velocity profiles for the 100 μm channel at Re of (

**a**) 0.5, (

**b**) 5, (

**c**) 20, and (

**d**) 50.

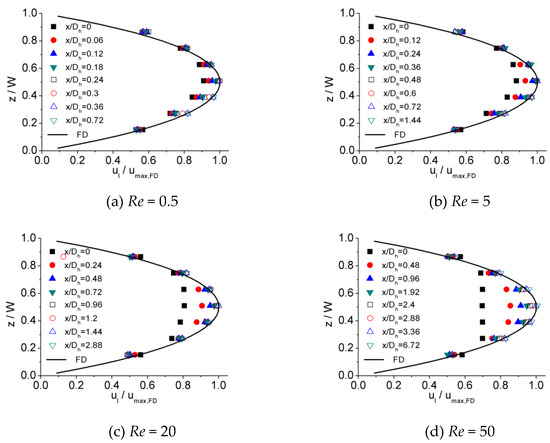

**Figure 7.**Developing velocity profiles for the 150 μm channel at Re of (

**a**) 0.5, (

**b**) 5, (

**c**) 20, and (

**d**) 50.

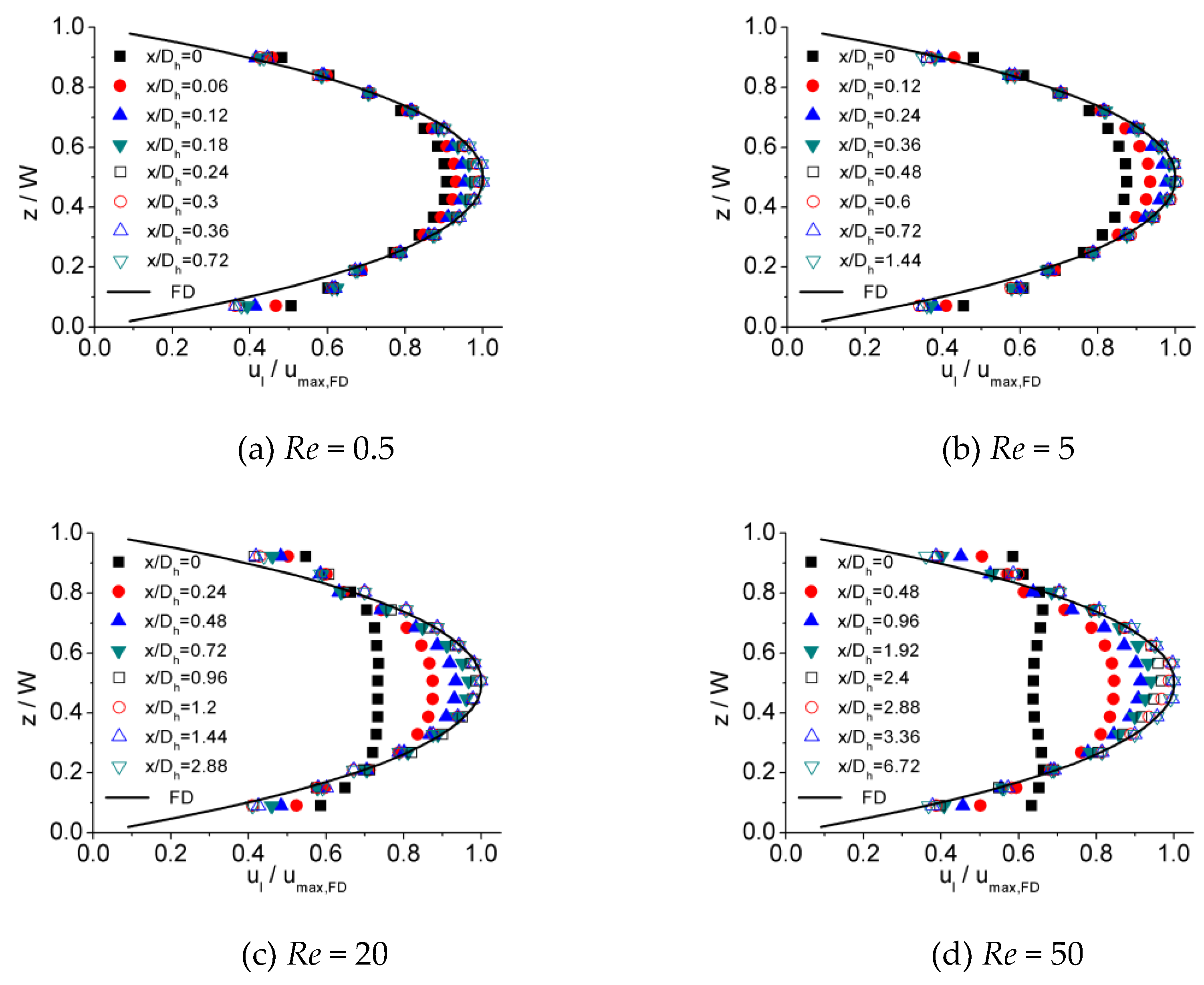

**Figure 8.**Developing velocity profiles for the 200 μm channel at Re of (

**a**) 0.5, (

**b**) 5, (

**c**) 20, and (

**d**) 50.

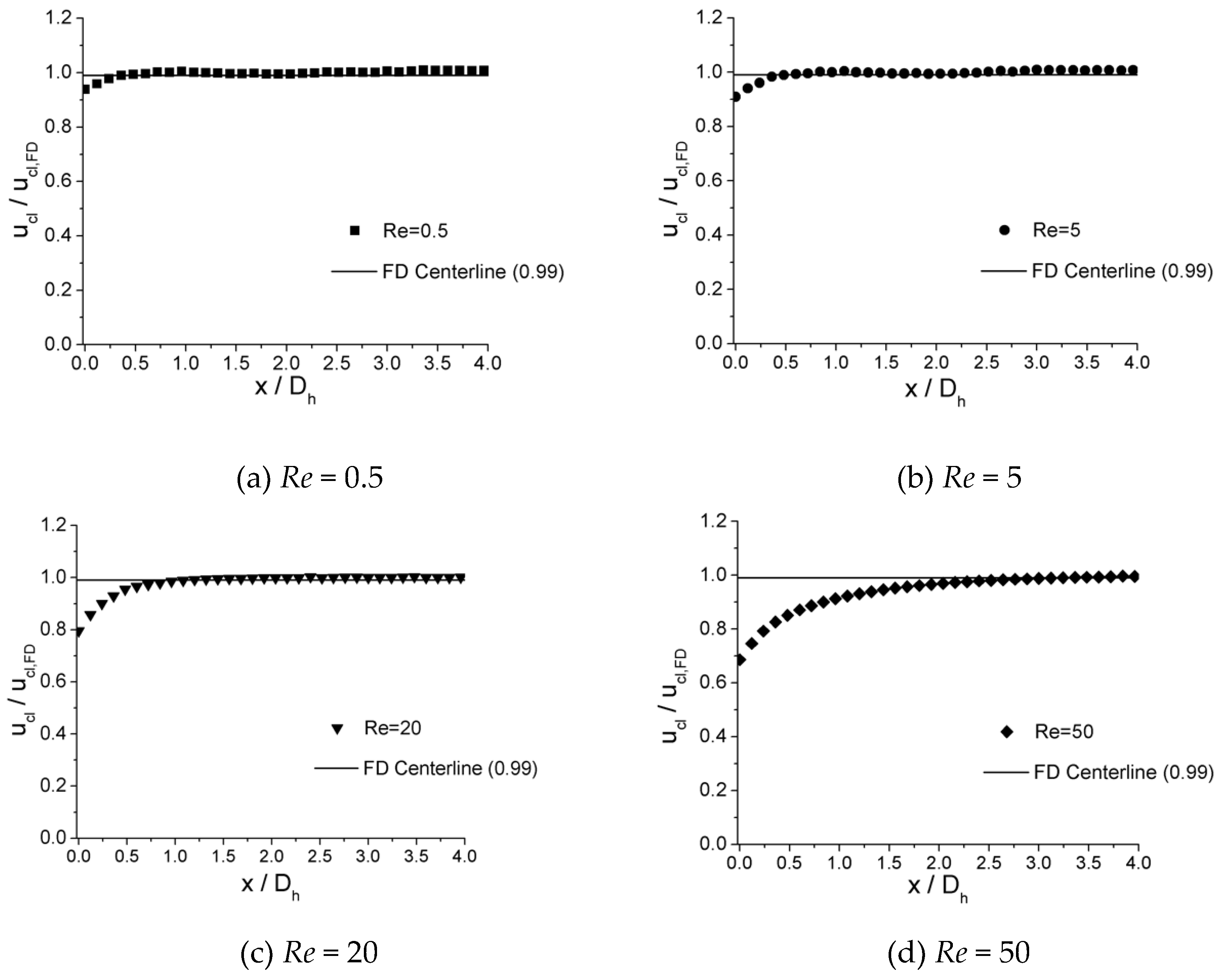

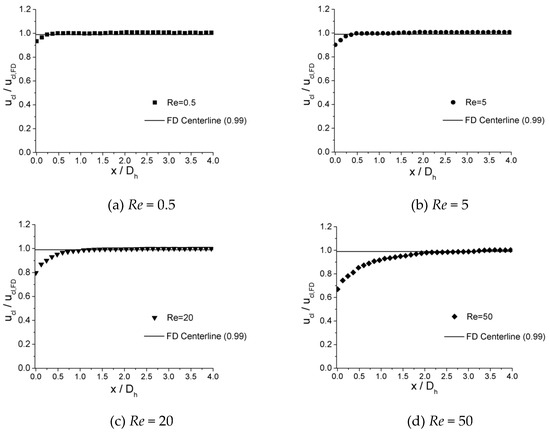

**Figure 9.**Centerline velocity development for the 100 μm channel at Re of (

**a**) 0.5, (

**b**) 5, (

**c**) 20, and (

**d**) 50.

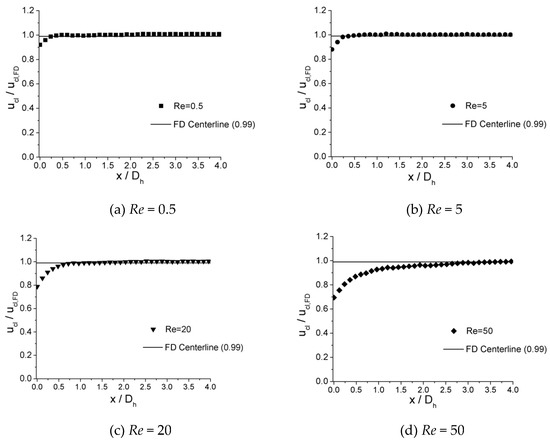

**Figure 10.**Centerline velocity development for the 150 μm channel at Re of (

**a**) 0.5, (

**b**) 5, (

**c**) 20, and (

**d**) 50.

**Figure 11.**Centerline velocity development for the 200 μm channel at Re of (

**a**) 0.5, (

**b**) 5, (

**c**) 20, and (

**d**) 50.

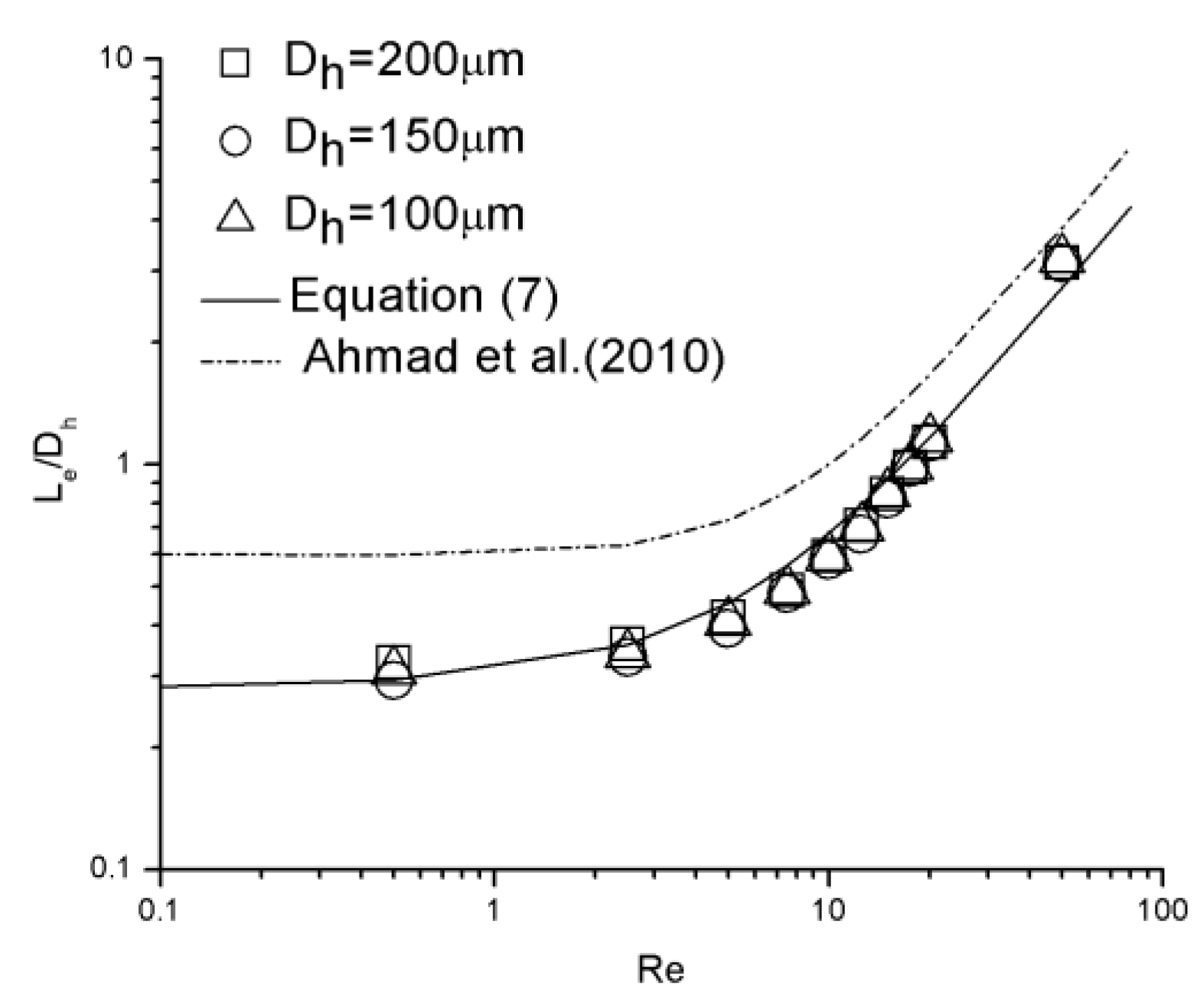

**Figure 12.**Dimensionless hydraulic entrance length comparison between experimental data and proposed correlations.

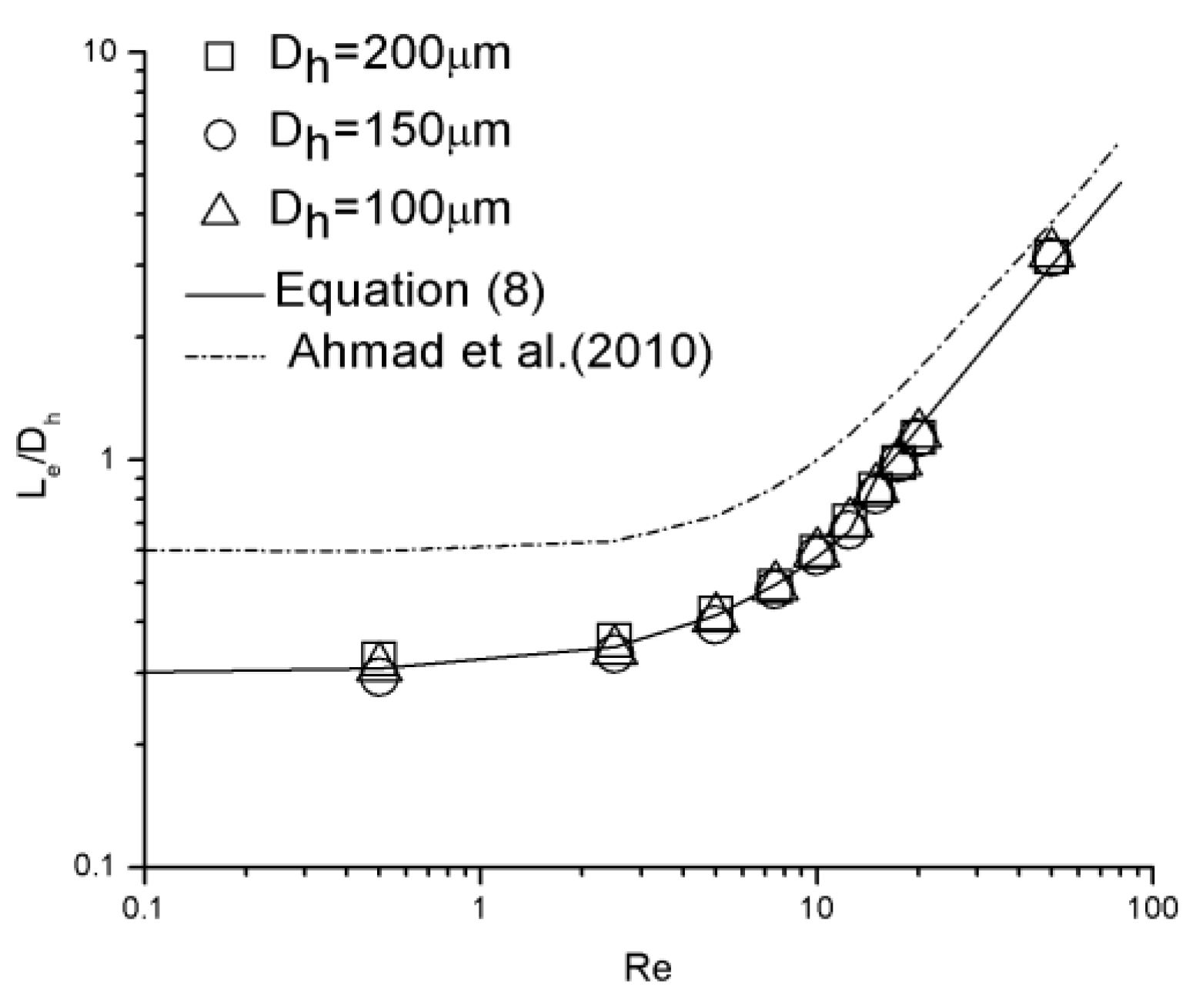

**Figure 13.**Dimensionless hydraulic entrance length comparison between experimental data and modified correlations.

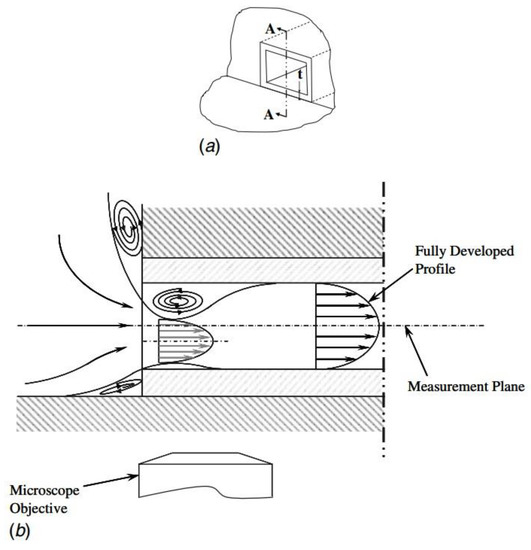

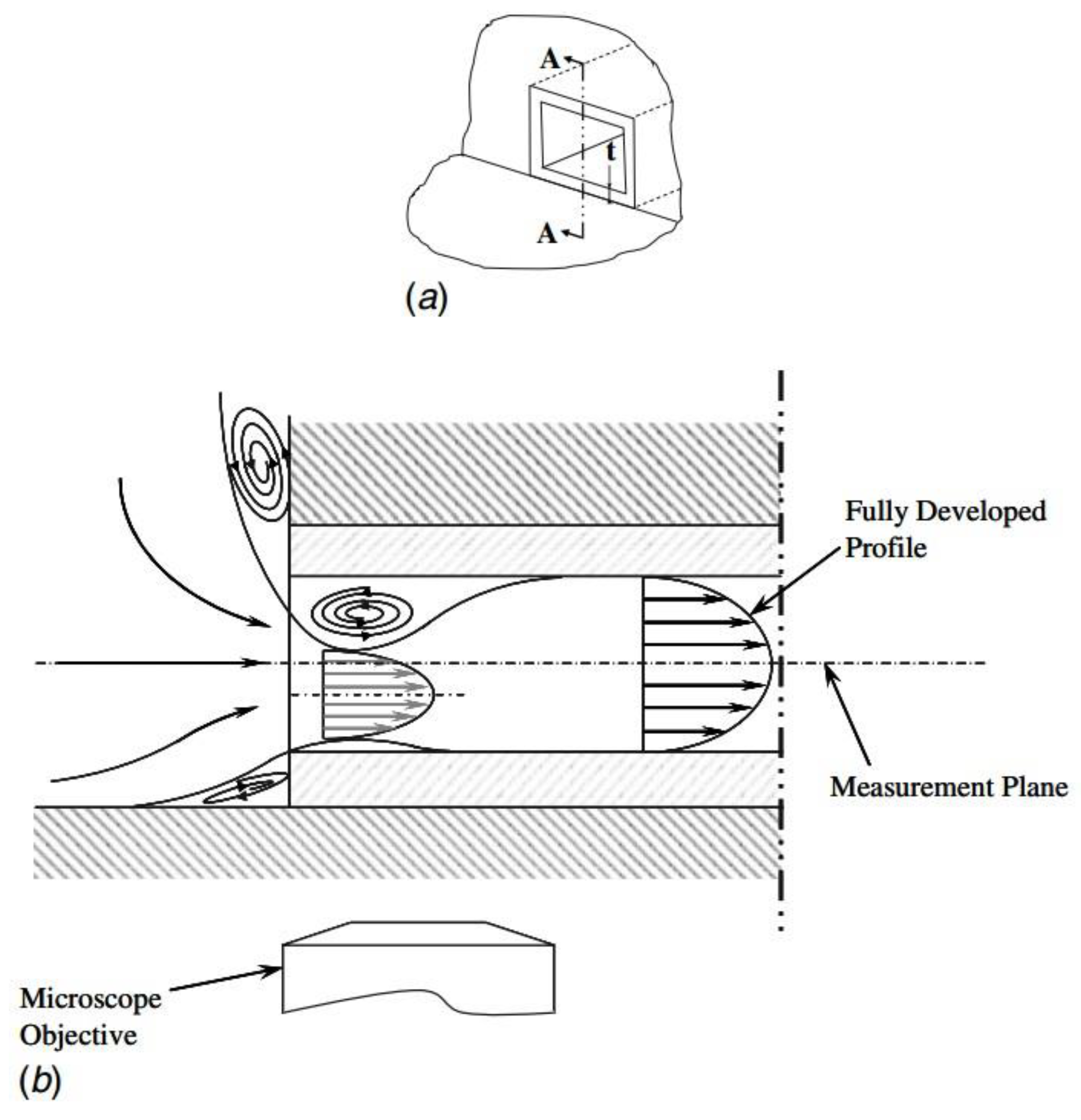

**Figure 14.**Test-section microchannel inlet configuration of Ahmad et al. [31]: (

**a**) Isometric view of the microchannel entrance with the reservoir walls and (

**b**) separation zone at section A-A for the microchannel entrance due to the asymmetric vena contracta effect.

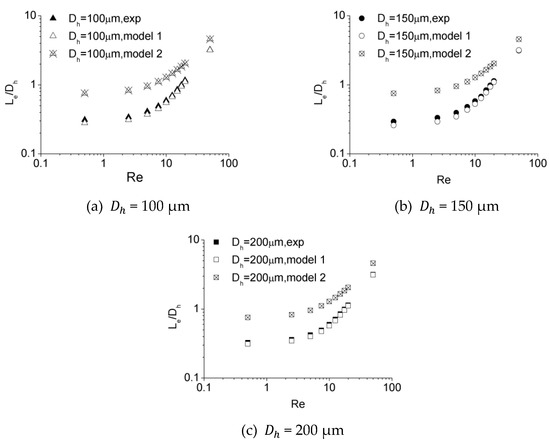

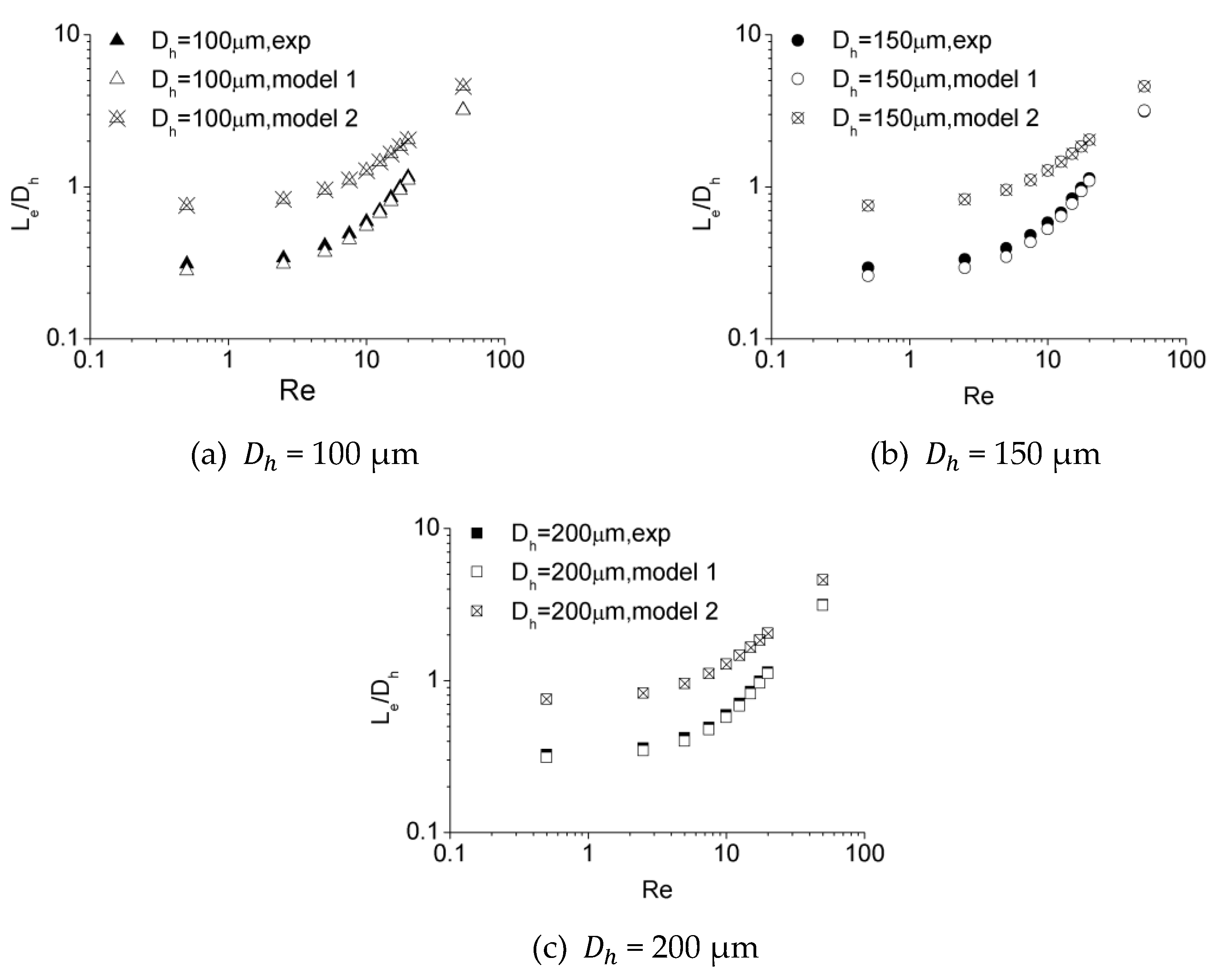

**Figure 16.**Comparison of entrance length from experiments and simulations for (

**a**) 100 μm, (

**b**) 150 μm, and (

**c**) 200 μm.

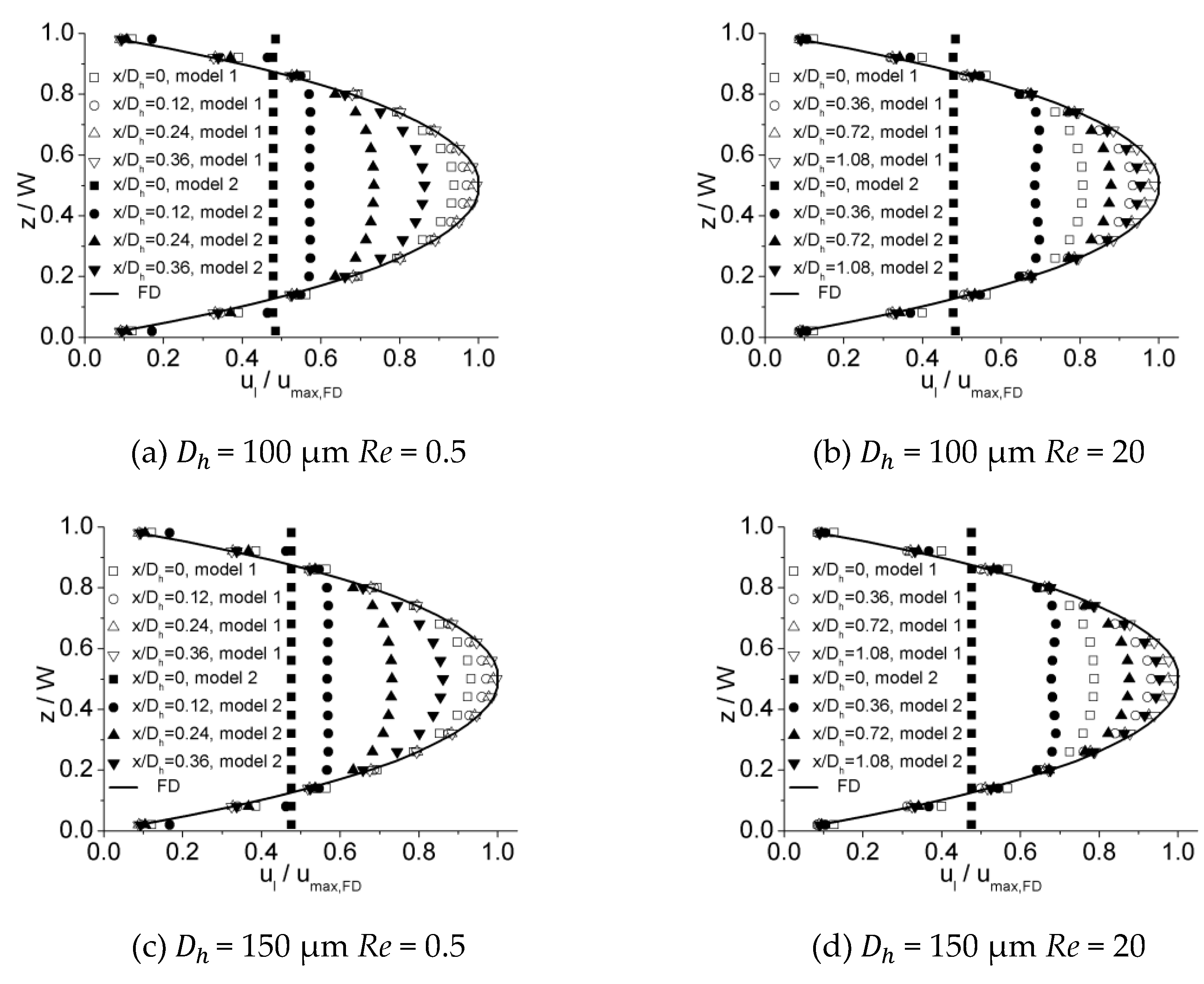

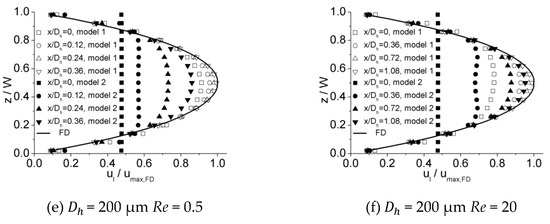

**Figure 17.**Comparison of developing velocity profiles near and downstream of the inlet for Model 1 and Model 2. (

**a**) Re = 0.5 for 100 μm, (

**b**) Re = 20 for 100 μm, (

**c**) Re = 0.5 for 150 μm, (

**d**) Re = 20 for 150 μm, (

**e**) Re = 0.5 for 200 μm, and (

**f**) Re = 20 for 200 μm.

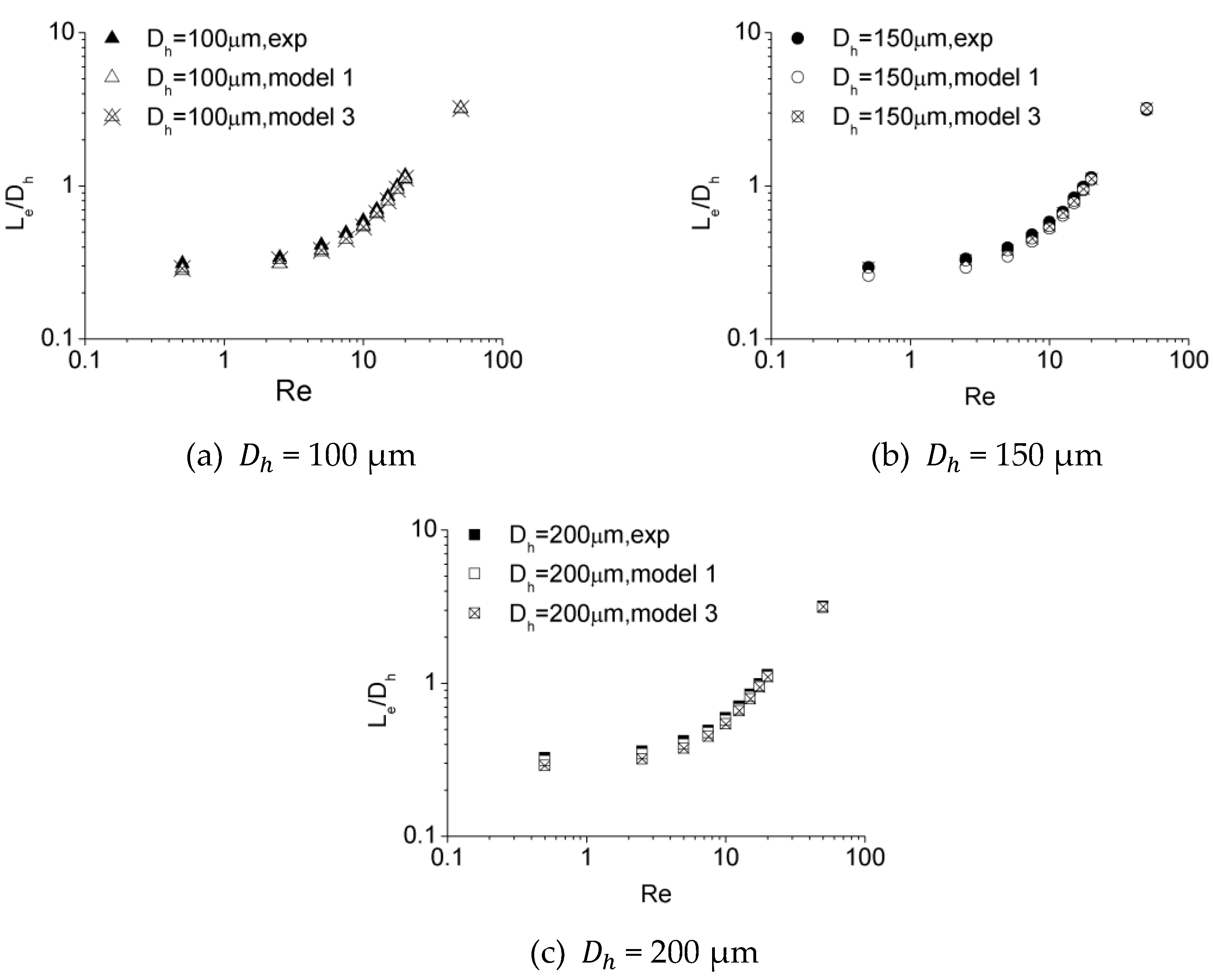

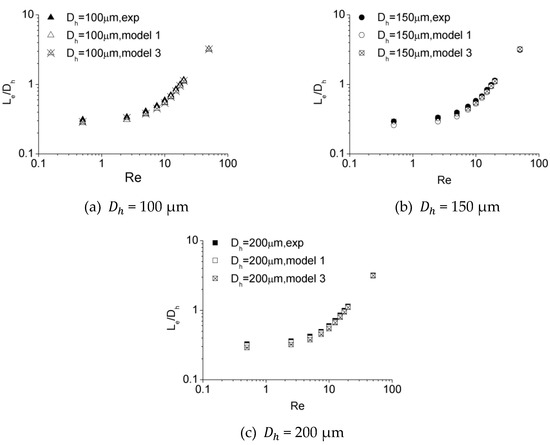

**Figure 18.**Comparison of entrance length from experiments and simulations for (

**a**) 100 μm, (

**b**) 150 μm, and (

**c**) 200 μm.

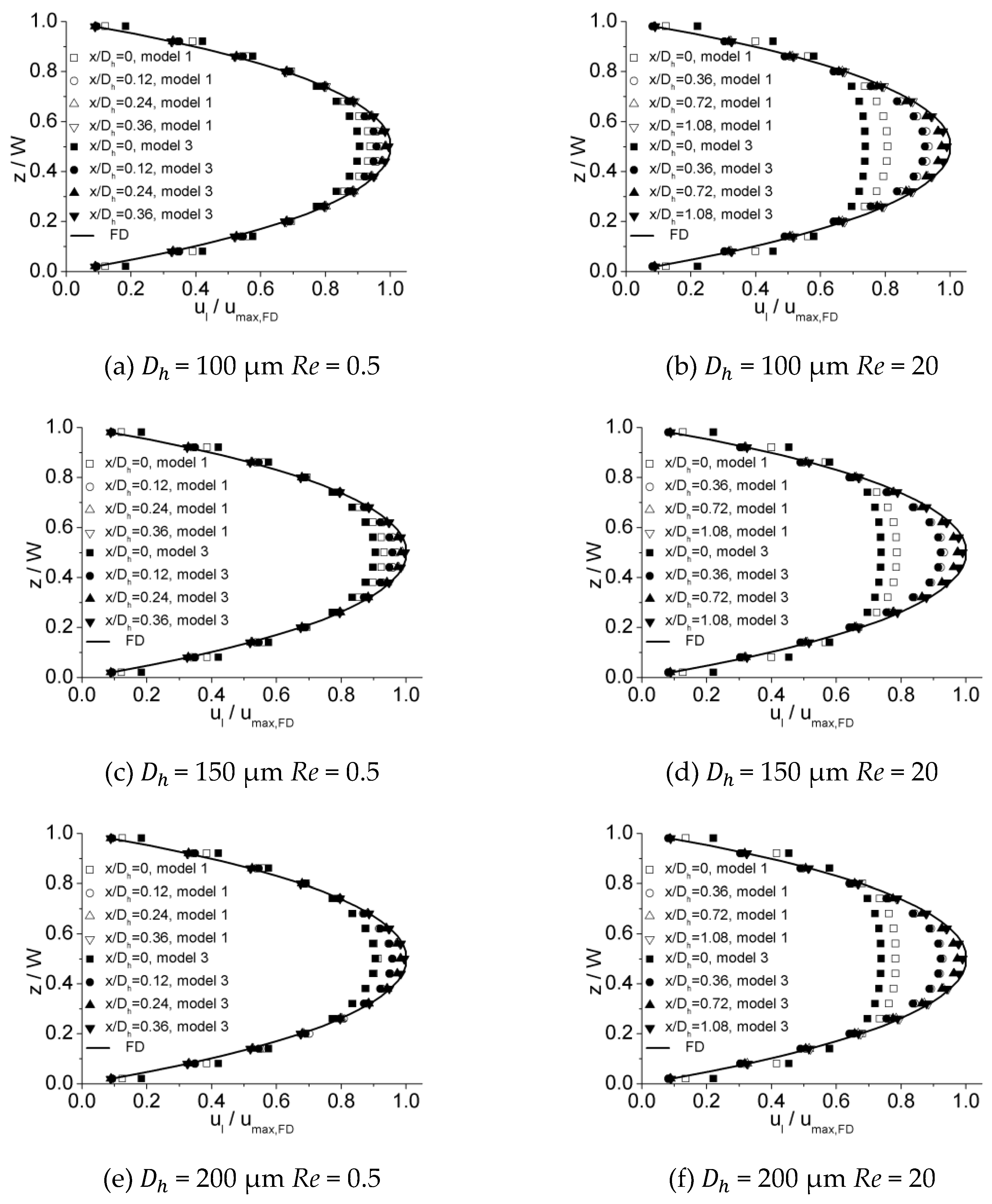

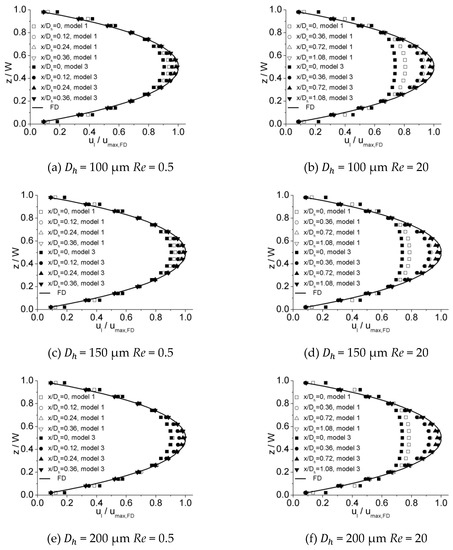

**Figure 19.**Comparison of developing velocity profiles near and downstream the inlet for Model 1 and Model 3. (

**a**) Re = 0.5 for 100 μm, (

**b**) Re = 20 for 100 μm, (

**c**) Re = 0.5 for 150 μm, (

**d**) Re = 20 for 150 μm, (

**e**) Re = 0.5 for 200 μm, and (

**f**) Re = 20 for 200 μm.

Correlations | A | B | C |
---|---|---|---|

Atkinson et al. [19] | |||

Tube | 0.590 | 0.056 | – |

Parallel plates | 0.625 | 0.044 | – |

Chen [20] | |||

Tube | 0.600 | 0.035 | 0.056 |

Parallel plates | 0.630 | 0.035 | 0.044 |

**Table 2.**Conclusions of some previous experimental research on entrance region in microchannels with microscopic particle image velocimetry (micro-PIV).

Reference | Size of Microchannel | Range of Re Number | Conclusions |
---|---|---|---|

Zhang et al. [27] | 50–254 μm in diameter | $~{10}^{-5}\u2013{10}^{-2}$ | Velocity distribution measured by micro-PIV was in strong agreement with the value calculated by the Navier–Stokes equation. |

Lee et al. [28] | 690 μm in height 260 μm in width | $~$250–2100 | Fluid had been pre-developed in pipe before entering the microchannel, causing a shorter entrance length. |

Lee and Kim [29] | 58 μm in depth 100 μm in width | 1 | Entrance length for microchannels is much smaller compared with conventional channels. |

Hao et al. [30] | 237 μm in hydraulic diameter | $~$50–1200 | $\frac{{L}_{e}}{{D}_{h}}=0.08\u20130.09Re$ |

Ahmad and Hassan [31] | 100, 200, and 500 μm in hydraulic diameter | $~$0.5–200 | $\frac{{L}_{e}}{{D}_{h}}=\frac{0.6}{0.14Re+1}+0.0752Re$ |

Mesh No. | Nodes | Elements | $\Delta \mathit{p},\text{}\mathbf{Pa}$ | r | ε |
---|---|---|---|---|---|

1 | 1147384 | 1066770 | 2270.29 | - | - |

2 | 1582848 | 1485551 | 2269.04 | 1.39 | −0.059% |

3 | 2025528 | 1918673 | 2267.84 | 1.29 | −0.079% |

4 | 2518888 | 2401230 | 2266.97 | 1.25 | −0.068% |

5 | 3242004 | 3126872 | 2266.28 | 1.30 | −0.043% |
