Design, Fabrication and Mass-spectrometric Studies of a Micro Ion Source for High-Field Asymmetric Waveform Ion Mobility Spectrometry

School of Life and Environmental Sciences, GuiLin University of Electronic Technology, Guilin 541004, China
*
Authors to whom correspondence should be addressed.
Micromachines 2019, 10(5), 286; https://doi.org/10.3390/mi10050286
Received: 20 February 2019 / Revised: 14 April 2019 / Accepted: 25 April 2019 / Published: 27 April 2019
(This article belongs to the Special Issue 10th Anniversary of Micromachines)
  |
PDF [3788 KB, uploaded 13 May 2019]
  |

Abstract

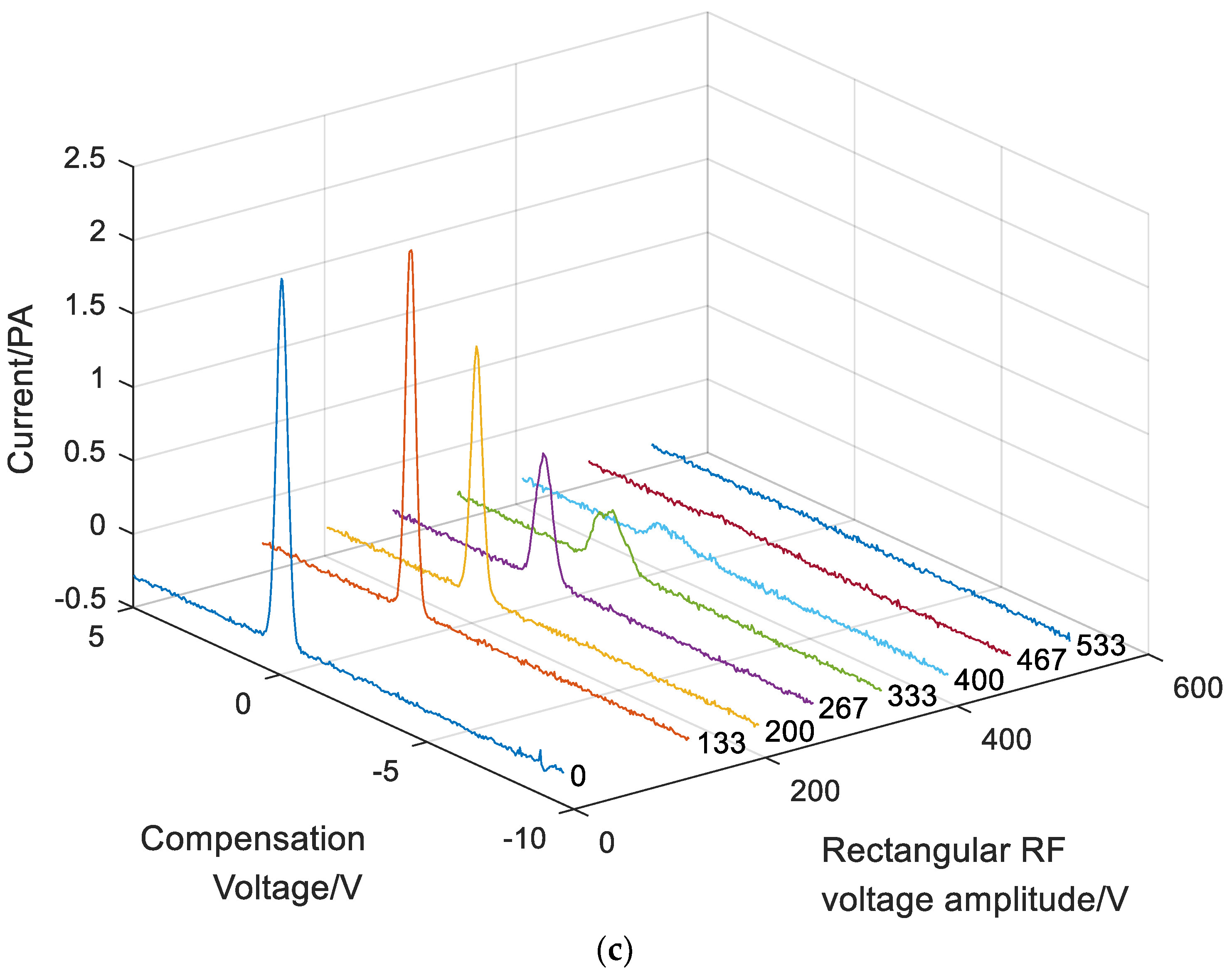

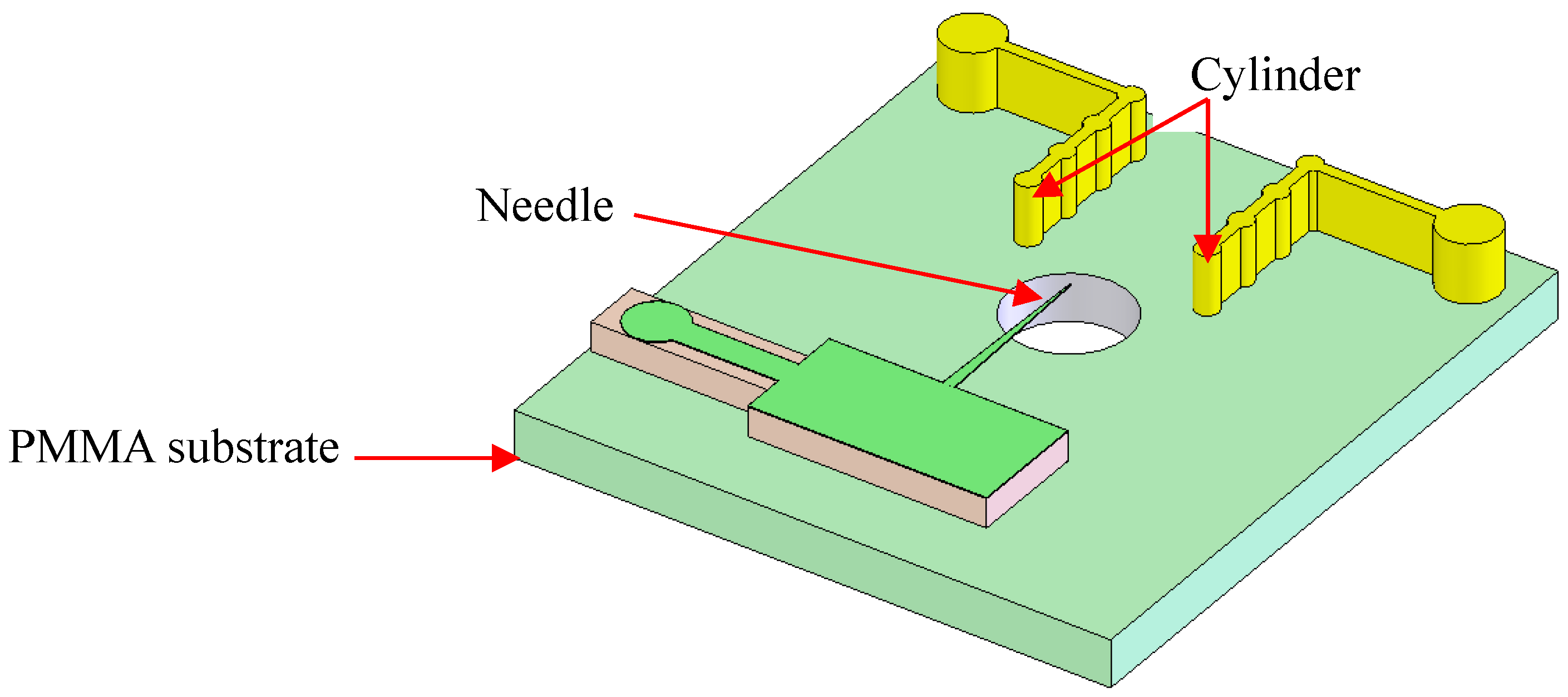

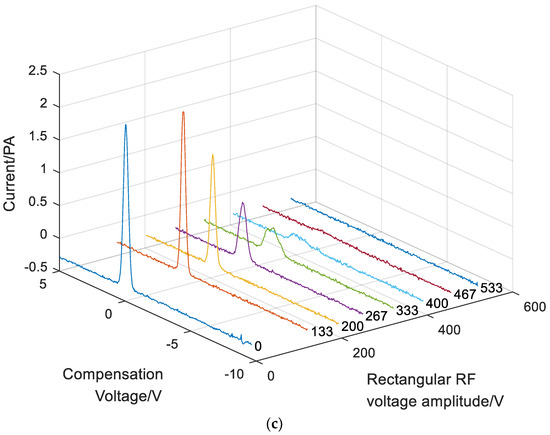

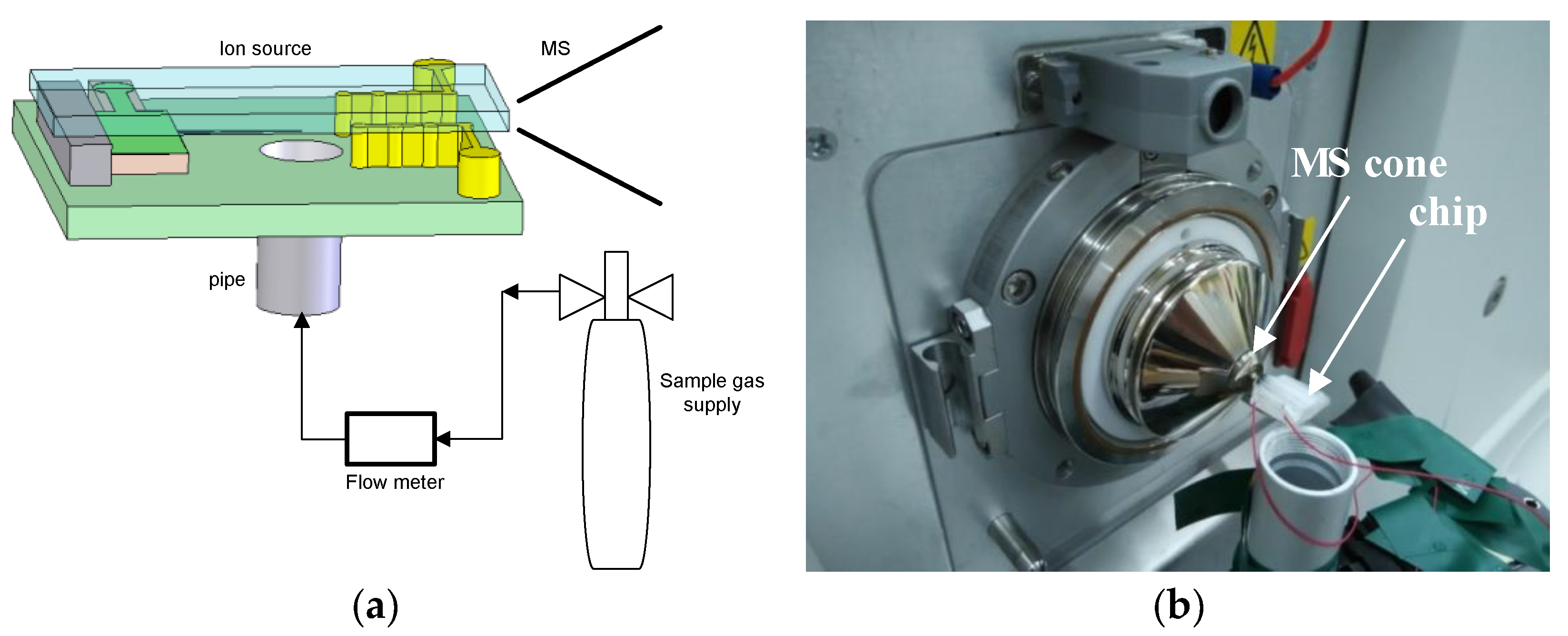

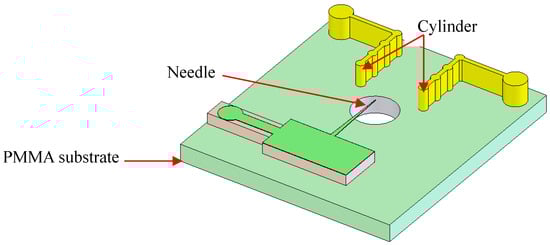

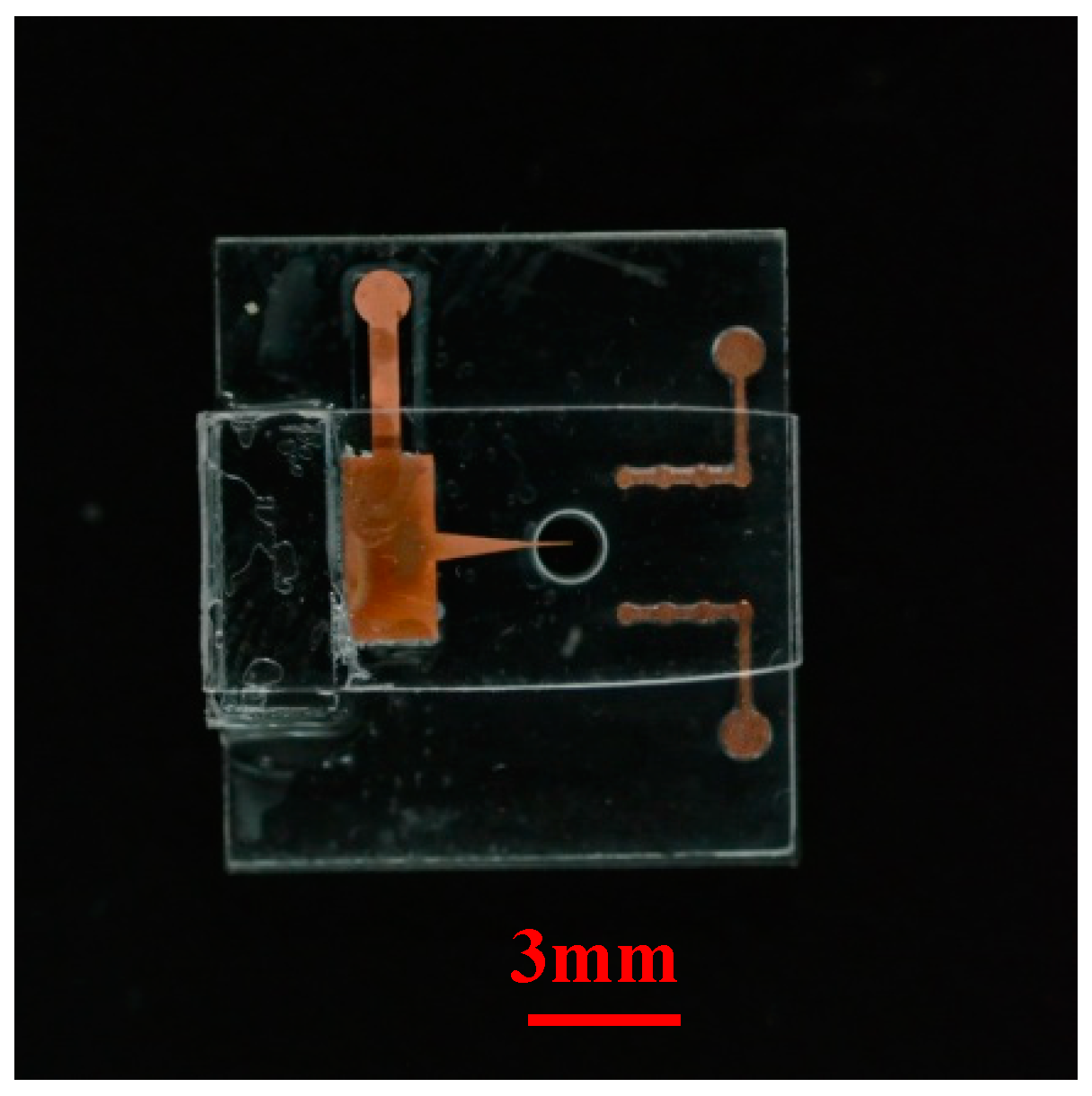

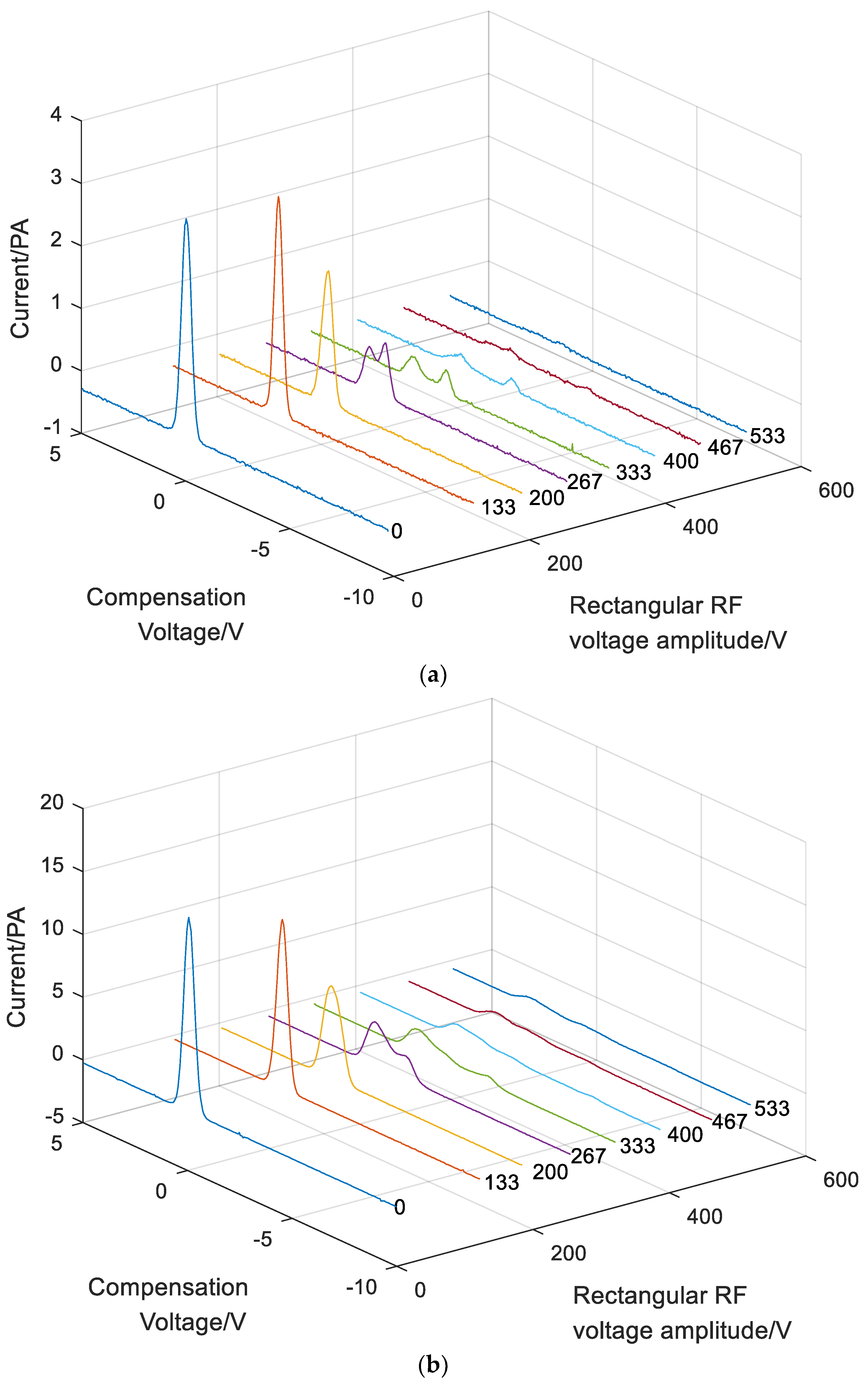

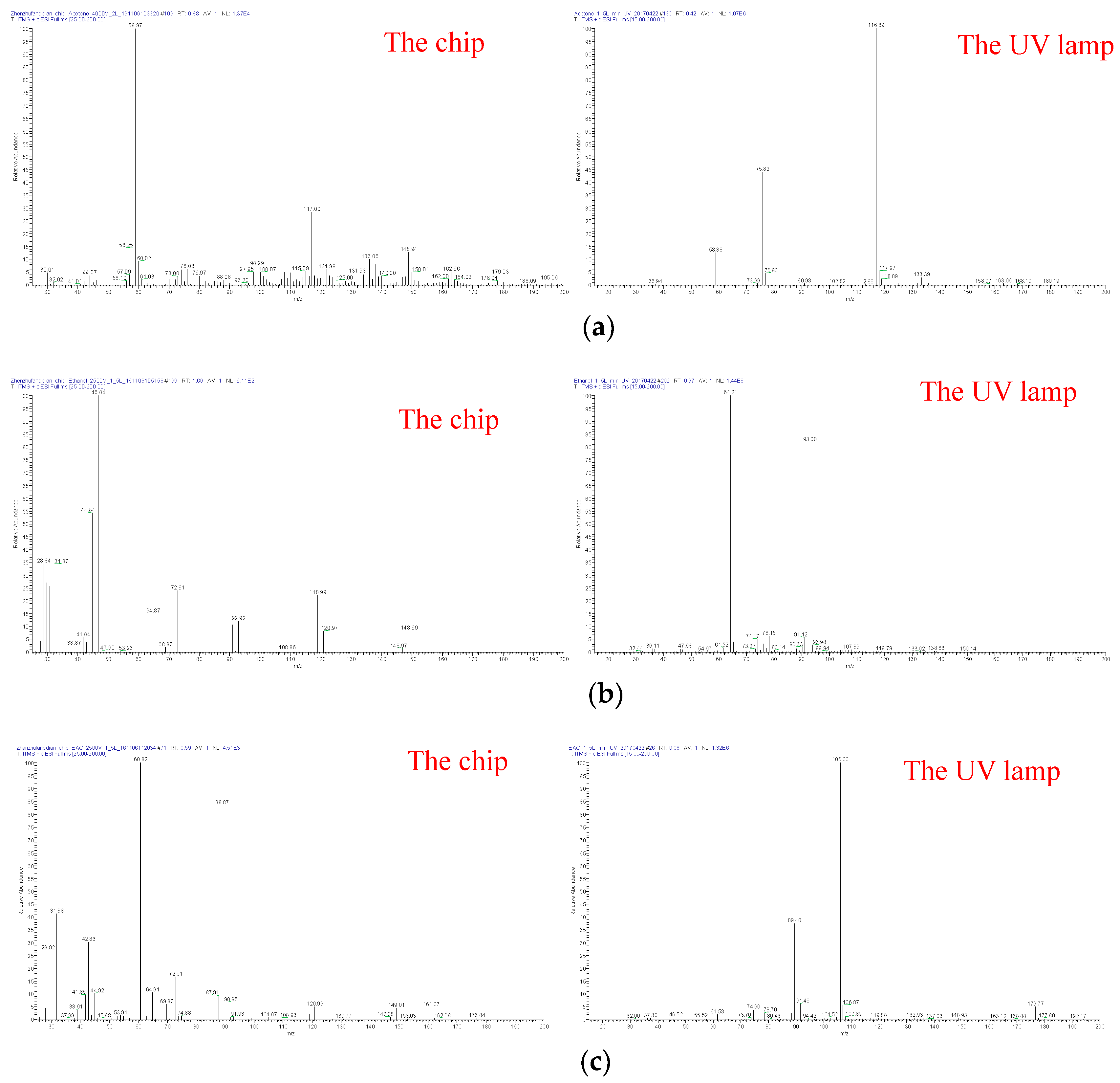

A needle-to-cylinder electrode, adopted as an ion source for high-field asymmetric ion mobility spectrometry (FAIMS), is designed and fabricated by lithographie, galvanoformung and abformung (LIGA) technology. The needle, with a tip diameter of 20 μm and thickness of 20 μm, and a cylinder, with a diameter of 400 μm, were connected to the negative high voltage and ground, respectively. A negative corona and glow discharge were realized. For acetone with a density of 99.7 ppm, ethanol with a density of 300 ppm, and acetic ether with a density of 99.3 ppm, the sample gas was ionized by the needle-to-cylinder chip and the ions were detected by an LTQ XL™ (Thermo Scientific Corp.) mass spectrometer. The mass spectra show that the ions are mainly the protonated monomer, the proton bound dimer, and an ion-H2O molecule cluster. In tandem with a FAIMS system, the FAIMS spectra show that the resolving power increases with an increase in the RF voltage. The obtained experimental results showed that the micro needle-to-cylinder chip may serve as a miniature, low cost and non-radioactive ion source for FAIMS. View Full-Text
Keywords: needle-to-cylinder; lithographie, galvanoformung and abformung (LIGA); ion source; high-field asymmetric ion mobility spectrometry (FAIMS) needle-to-cylinder; lithographie, galvanoformung and abformung (LIGA); ion source; high-field asymmetric ion mobility spectrometry (FAIMS)
Figures

Figure 1
